Intel UHD Graphics 620

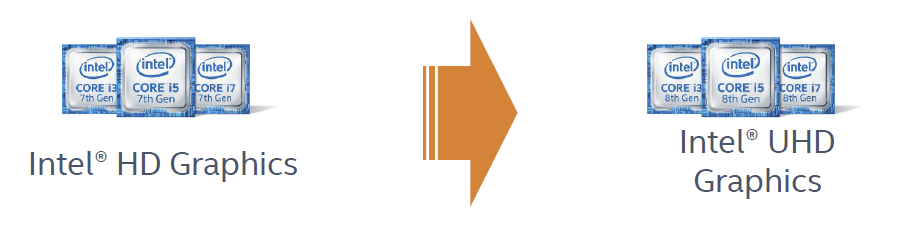

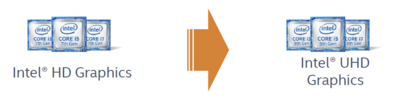

Intel UHD Graphics 620 (GT2) är en integrerad grafikenhet som återfinns i ett flertal ULV-processorer (Ultra Low Voltage) i Kaby Lake Refresh-generationen. (8:e generationens Core). Jämfört med den liknande namngivna Intel HD Graphics 620 från 2016 års Kaby Lake-CPU:er så har bara namnet ändrats från HD till UHD. Den är klockad i upp tll 1.150 Mhz och således 100 Mhz högre än den äldre HD Graphics 620 (max. 1.050 Mhz) och erbjuder liknande prestanda. Tack vare dess avsaknad av dedikerat grafikminne eller eDRAM-cache så måste HD 620 ha åtkomst till huvudminnet (2x 64 bit DDR3/DDR4).
Den exakta prestandan hos UHD Graphics 620 beror på ett flertal faktorer såsom L3 cache-storlek, minneskonfiguration (DDR3/DDR4) och den maximala klockfrekvensen hos den specifika modellen, i likhet med Intel HD Graphics 620 och Intel HD Graphics 630. Jämfört med en genomsnittlig HD Graphics 620 så drar UHD en viss fördel från den fyrkärniga CPU:n i våra spelprestandatester. Den borde därför ligga mellan Nvidias dedikerade grafikkort GeForce 910M och 920M. Drivrutinerna för spel är dock inte lika snabbt uppdaterade och testade som för GeForce-grafikkorten. I våra tester så är UHD 620 bäst lämpad för casual-spel såsom Team Fortress 2, Rocket League eller Farming Simulator 17. Se nedan för en lista över moderna spel testade med olika modeller.
Den uppdaterade videomotorn stödjer nu H.265/HEVC Main10-profiler direkt i hårdvaran med 10 bits färger. Vidare så kan Googles VP9-codec avkodas av hårdvaran. Dom första modellerna stödjer inte HDCP 2.2 och därför inte Netflix 4K. Detta kom med dom nya modellerna under 2017 och från och med Maj 2017 skeppas även äldre CPU-modeller såsom i3-7100U med den nya S-Spec koden som stödjer HDCP 2.2. HDMI 2.0 stöds fortfarande endast med ett externt konverteringschip. (LSPCon).
UHD Graphics 620 återfinns i mobila processorer specificerade på 15 W TDP och är därför lämpad för kompakta laptops och ultrabook-modeller. Energiförbrukningen vid spelande av The Witcher 3 (med en extern monitor) var jämförbar med en Intel HD Graphics 620-baserad laptop och är därmed på den lägsta änden av alla våra mätningar. Dedikerade GPU:er, såsom GeForce 940MX, behöver en hel del mer energi.
Tillverkare | Intel |
Gen. 9.5 Serie | Iris Plus Graphics 655 | 48 @ 0.3 - 1.2 GHz | | Iris Plus Graphics 650 | 48 @ 0.3 - 1.1 GHz | 64/128 Bit | Iris Plus Graphics 645 | 48 @ 0.3 - 1.15 GHz | | Iris Plus Graphics 640 | 48 @ 0.3 - 1.05 GHz | 64/128 Bit | UHD Graphics 630 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | UHD Graphics P630 | 24 @ 0.3 - 1.2 GHz | 64/128 Bit | HD Graphics 630 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | HD Graphics P630 | 24 | 64/128 Bit | UHD Graphics 620 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | HD Graphics 620 | 24 @ 0.3 - 1.05 GHz | 64/128 Bit | UHD Graphics 617 | 24 @ 0.3 - 1.15 GHz | 64/128 Bit | UHD Graphics 615 | 24 @ 0.3 - 1 GHz | 64/128 Bit | HD Graphics 615 | 24 @ 0.3 - 1.05 GHz | 64/128 Bit |
|
Kodnamn | Kaby-Lake-Refresh GT2 |
Arkitektur | Gen. 9.5 |
Pipelines | 24 - unified |
Kärnhastighet | 300? - 1150 (Boost) MHz |
Minnesbuss | 64/128 Bit |
Minnestyp | DDR3/DDR4 |
Delat minne | ja |
DirectX | DirectX 12_1 |
Teknologi | 14 nm |
Funktioner | QuickSync |
Lanseringsdatum | 01.09.2017 |
CPU in UHD Graphics 620 | GPU Base Speed | GPU Boost / Turbo |
---|
Intel Core i7-10810U | 6 x 1100 MHz, 15 W | 300 MHz | ? MHz | Intel Core i7-10710U | 6 x 1100 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i7-10610U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | » show 15 more | Intel Core i7-10510U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-10310U | 4 x 1700 MHz, 15 W | 300 MHz | ? MHz | Intel Core i7-8665U | 4 x 1900 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i7-8650U | 4 x 1900 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-10210U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i7-8565U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-8365U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i5-8265U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i7-8550U | 4 x 1800 MHz, 15 W | 300 MHz | 1150 MHz | Intel Core i5-8350U | 4 x 1700 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i5-8250U | 4 x 1600 MHz, 15 W | 300 MHz | 1100 MHz | Intel Core i3-10110U | 2 x 2100 MHz, 15 W | 300 MHz | 1000 MHz | Intel Core i3-8145U | 2 x 2100 MHz, 15 W | 300 MHz | 1000 MHz | Intel Core i3-8130U | 2 x 2200 MHz, 15 W | 300 MHz | 1000 MHz | Intel Celeron 5205U | 2 x 1900 MHz, 15 W | 300 MHz | 900 MHz | min. - max. | | 300 MHz | 900 - 1150 MHz |
|
Prestandatester
Performance Rating - 3DMark 11 + Fire Strike + Time Spy
6.7 pt (7%)
...
AMD Radeon HD 8650G + HD 8670M Dual Graphics -7%
NVIDIA GeForce 940MX -6%
AMD Radeon HD 8650G + HD 8570M Dual Graphics -6%
NVIDIA Quadro K1100M -4%
Intel UHD Graphics G1 (Ice Lake 32 EU) 1%
AMD Radeon HD 8550G + HD 8750M Dual Graphics 2%
Intel UHD Graphics 630 3%
...
AMD Radeon RX 6800 XT 1323%
3DMark - 3DMark Time Spy Score
min: 343 avg: 434 median: 434.5 (2%) max: 512 Points
Intel UHD Graphics 600 -72%
...
Intel HD Graphics 620 -16%
AMD Radeon R7 (Bristol Ridge) -16%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -10%
Intel HD Graphics P630 -8%
Intel HD Graphics 630 -2%
AMD Radeon R7 M440 0%
AMD Radeon R7 M360 7%
Intel UHD Graphics 630 8%
NVIDIA GeForce 920MX 9%
Intel UHD Graphics G1 (Ice Lake 32 EU) 10%
Intel Iris Plus Graphics 640 15%
AMD Radeon R7 M445 22%
...
AMD Radeon RX 6900 XT 3944%
3DMark - 3DMark Time Spy Graphics
min: 299 avg: 378 median: 378 (2%) max: 443 Points
Intel UHD Graphics 600 -71%
...
Intel UHD Graphics 617 -22%
Intel HD Graphics 620 -15%
AMD Radeon R7 (Bristol Ridge) -9%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -8%
Intel HD Graphics 630 -3%
AMD Radeon R7 M440 1%
Intel UHD Graphics 630 7%
AMD Radeon R7 M360 8%
Intel UHD Graphics G1 (Ice Lake 32 EU) 10%
NVIDIA GeForce 920MX 10%
Intel Iris Plus Graphics 640 17%
...
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 65949 avg: 89052 median: 88807 (14%) max: 115515 Points
...
AMD Radeon R7 M360 -7%
AMD Radeon R7 M275DX -3%
AMD Radeon R7 M440 -2%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) -1%
AMD Radeon R7 384 Cores (Kaveri Desktop) 1%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 6%
Intel HD Graphics 630 7%
ARM Mali-G78 MP14 8%
AMD Radeon RX 460 (Laptop) 8%
Intel UHD Graphics 630 9%
...
NVIDIA GeForce RTX 2080 Ti (Desktop) 485%
3DMark - 3DMark Ice Storm Extreme Graphics
min: 29002 avg: 43200 median: 42660 (6%) max: 59483 Points
Vivante GC1000+ Dual-Core -97%
...
Intel HD Graphics 620 -4%
AMD Radeon R7 M440 -3%
Intel UHD Graphics Xe G4 48EUs -3%
AMD Radeon HD 8550G -3%
NVIDIA Quadro M1200 -2%
AMD Radeon R7 M360 -2%
AMD Radeon R7 M445 1%
AMD Radeon HD 8570D 2%
NVIDIA GeForce 940MX 2%
Intel UHD Graphics G1 (Ice Lake 32 EU) 3%
AMD Radeon R7 M340 4%
...
AMD Radeon RX 6800 XT 877%
3DMark - 3DMark Cloud Gate Score
min: 5821 avg: 8157 median: 8135 (11%) max: 10960 Points
Intel Graphics Media Accelerator (GMA) 4500MHD -98%
...
NVIDIA GeForce GT 710 -6%
NVIDIA Quadro K1100M -3%
NVIDIA GeForce 940MX -3%
Intel Iris Plus Graphics 640 -2%
Intel HD Graphics P630 2%
Intel HD Graphics 630 5%
AMD FirePro W4100 9%
Intel UHD Graphics G1 (Ice Lake 32 EU) 9%
AMD Radeon R9 M385X 10%
Intel UHD Graphics 630 12%
Intel Iris Plus Graphics 650 12%
Intel UHD Graphics Xe G4 48EUs 13%
...
AMD Radeon RX 6800 XT 779%
3DMark - 3DMark Cloud Gate Graphics
min: 6910 avg: 9222 median: 9312 (5%) max: 11436 Points
Intel Graphics Media Accelerator (GMA) 4500MHD -98%
...
NVIDIA Quadro K1100M -4%
NVIDIA GeForce 930MX -3%
AMD Radeon R6 M340DX -3%
AMD Radeon R7 M260X -2%
NVIDIA Quadro K620M -1%
NVIDIA GeForce 920MX -1%
Intel UHD Graphics 630 1%
Intel HD Graphics 630 1%
AMD Radeon R7 M445 4%
AMD Radeon R7 384 Cores (Kaveri Desktop) 5%
AMD Radeon HD 6620G + HD 7670M Dual Graphics 5%
AMD Radeon HD 8550G + HD 8750M Dual Graphics 12%
...
3DMark - 3DMark Fire Strike Standard Score
min: 538 avg: 1055 median: 1071 (3%) max: 1298 Points
...
Intel HD Graphics P630 -1%
AMD Radeon R5 (Bristol Ridge) 0%
AMD Radeon HD 8670D 2%
AMD Radeon R7 M440 2%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 5%
Intel UHD Graphics 630 7%
AMD Radeon R7 M340 10%
...
AMD Radeon RX 6900 XT 3602%
3DMark - 3DMark Fire Strike Standard Graphics
min: 557 avg: 1152 median: 1164 (2%) max: 1420 Points
...
AMD Radeon R5 M255 -6%
AMD Radeon R7 (Bristol Ridge) -6%
AMD FirePro W2100 -6%
AMD Radeon R7 (Carrizo) -4%
AMD Radeon R6 M255DX -3%
AMD Radeon R7 M360 -1%
AMD Radeon HD 8670D 0%
AMD Radeon R7 M440 4%
Intel UHD Graphics 630 5%
Intel UHD Graphics G7 (Lakefield GT2 64 EU) 6%
...
AMD Radeon RX 6900 XT 4291%
3DMark - 3DMark Ice Storm Graphics
min: 13790 avg: 68374 median: 67512 (9%) max: 102010 Points
...
Intel UHD Graphics 630 -6%
Intel HD Graphics 620 -3%
NVIDIA GeForce RTX 2070 Super Max-Q -2%
AMD Radeon HD 8570D -1%
NVIDIA GeForce GTX 1650 Max-Q -1%
NVIDIA GeForce 930MX 1%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU) 4%
AMD Radeon R9 M470 4%
NVIDIA Quadro P520 5%
...
AMD Radeon RX 6800 XT 564%
3DMark 11 - 3DM11 Performance Score
min: 1175 avg: 1927 median: 1935 (5%) max: 2283 Points
...
AMD Radeon R7 (Bristol Ridge) -4%
AMD Radeon HD 8550G + HD 8670M Dual Graphics -3%
AMD Radeon R5 M335 -2%
AMD FirePro M4100 0%
Intel HD Graphics 630 0%
Intel UHD Graphics 630 1%
AMD Radeon R5 M255 1%
AMD Radeon R7 M260 2%
AMD Radeon HD 8650G + HD 8570M Dual Graphics 2%
AMD Radeon R7 (Carrizo) 3%
AMD Radeon R6 M255DX 3%
...
AMD Radeon RX 6900 XT 2101%
3DMark 11 - 3DM11 Performance GPU
min: 1235 avg: 1743 median: 1744 (3%) max: 2006 Points
...
Intel UHD Graphics 630 -2%
AMD Radeon R5 (Bristol Ridge) -2%
AMD Radeon R5 (Carrizo) -2%
AMD FirePro M4100 -1%
AMD Radeon R5 M335 2%
AMD Radeon R7 (Carrizo) 3%
NVIDIA Quadro K1100M 4%
NVIDIA GeForce 920MX 5%
AMD Radeon R5 M255 5%
...
AMD Radeon RX 6900 XT 3292%
3DMark Vantage
3DM Vant. Perf. total +3DMark Vantage - 3DM Vant. Perf. total
7761 Points (8%)
...
NVIDIA GeForce 920MX -5%
AMD Radeon HD 8650G + HD 8670M Dual Graphics -4%
AMD Radeon R7 M260X -2%
Intel HD Graphics 630 -1%
Intel UHD Graphics 630 -1%
NVIDIA Quadro K620M 2%
NVIDIA GeForce 930MX 4%
AMD Radeon RX Vega 6 (Ryzen 2000/3000) 6%
...
AMD Radeon RX 6800 XT 1144%
3DM Vant. Perf. GPU no PhysX +3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
6341 Points (6%)
...
AMD Radeon R7 M265 -6%
AMD Radeon R7 M445 -5%
AMD Radeon R7 M270 -5%
Intel UHD Graphics 630 -4%
Intel HD Graphics 630 -2%
NVIDIA GeForce 920MX 5%
AMD Radeon R7 384 Cores (Kaveri Desktop) 6%
...
3DMark 2001SE - 3DMark 2001 - Standard
34467 Points (36%)
Honor Magicbook | i5-8250U | 8192 MB | 1468 / MHz | | 34467 |
...
...
NVIDIA GeForce GTX 1050 (Desktop) 179%
3DMark 06 3DMark 06 - Standard 1280x1024 +min: 7653 avg: 10759 median: 10622 (20%) max: 14158 Points
