Test: Intel Frost Canyon NUC har 6 kärnor och 12 trådar (Sammanfattning)

Sebastian Bade, Andrea Grüblinger (översatt av Daniel Eriksson), 02/16/2020

Mer än bara en kontorsdator! Nya Intel Performance Kit NUC10i7FNHAA har två lagringsenheter, 16 GB minne och en modern sexkärnig SoC i ett litet hölje. Här har vi summerat hur väl Intel NUC 10 presterade i vårt test.

Intel NUC10i7FNH
Processor
Intel Core i7-10710U
Grafikkort
Intel UHD Graphics 620, 26.20.100.7262 DCH

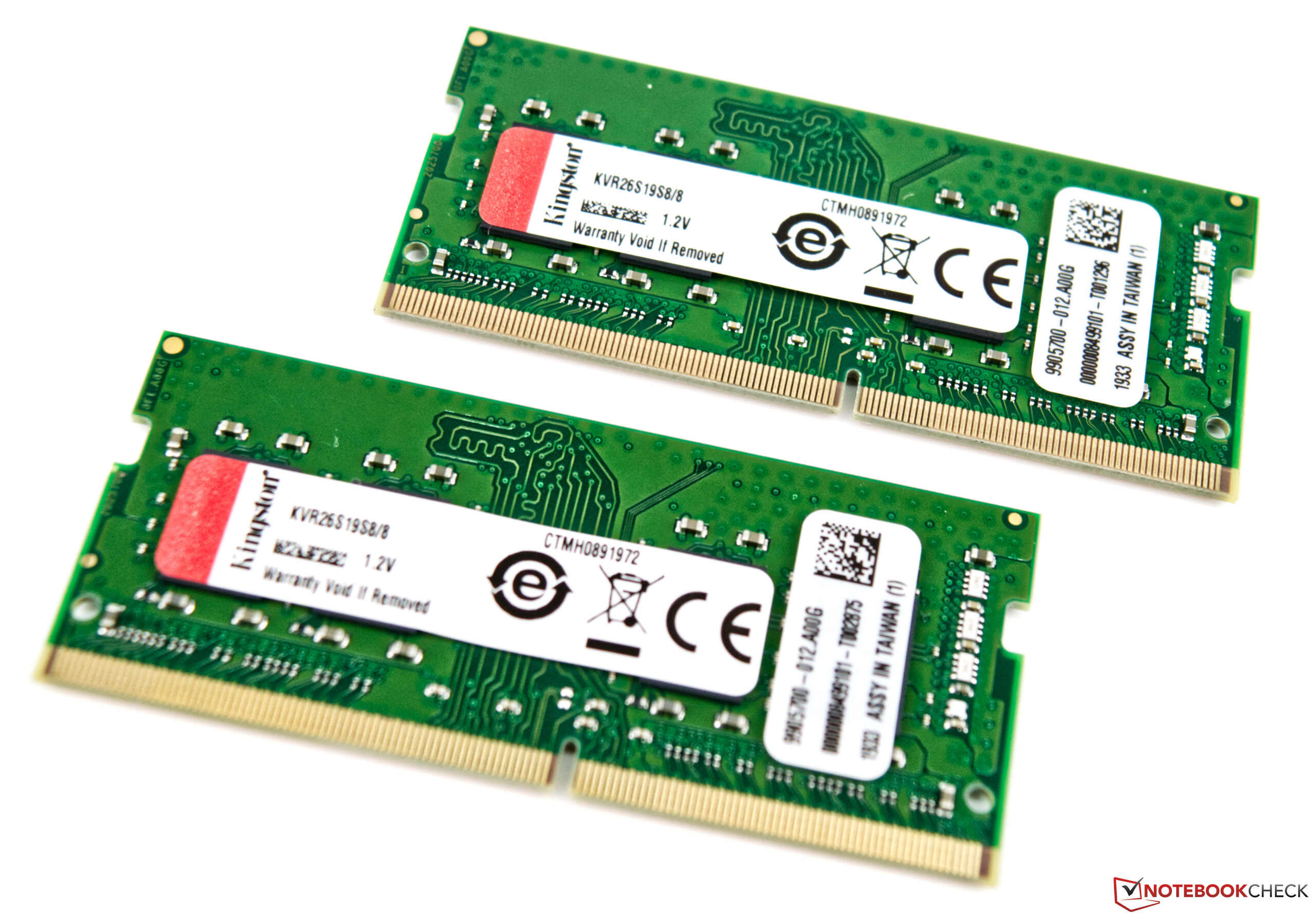

Minne
16384 MB
, DDR4 2666, Dubbla kanaler, 2 av 2 installerade, Max. 64 GB
Moderkort
Intel Comet Lake-U PCH-LP Premium

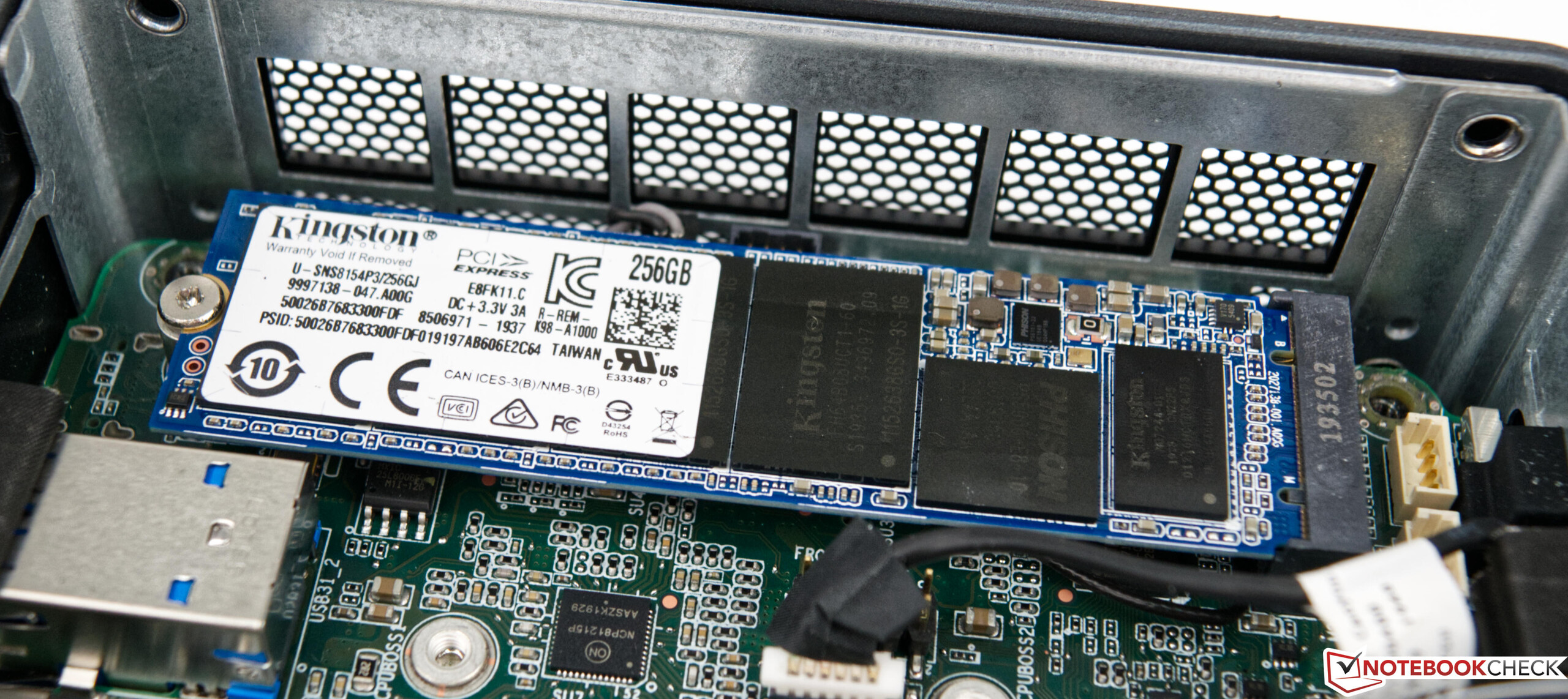

Hårddisk

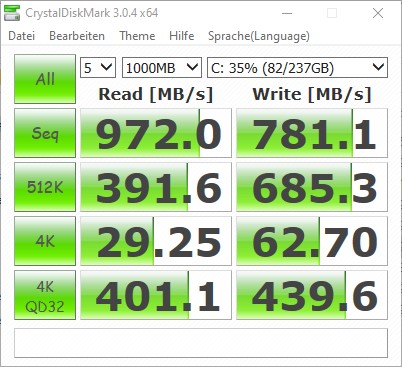

Kingston RBUSNS8154P3256GJ1, 256 GB

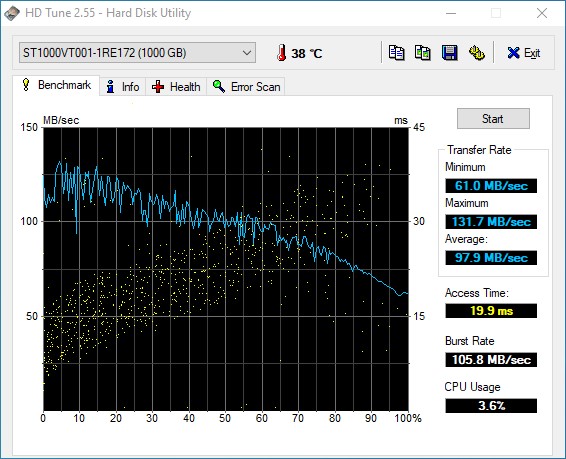

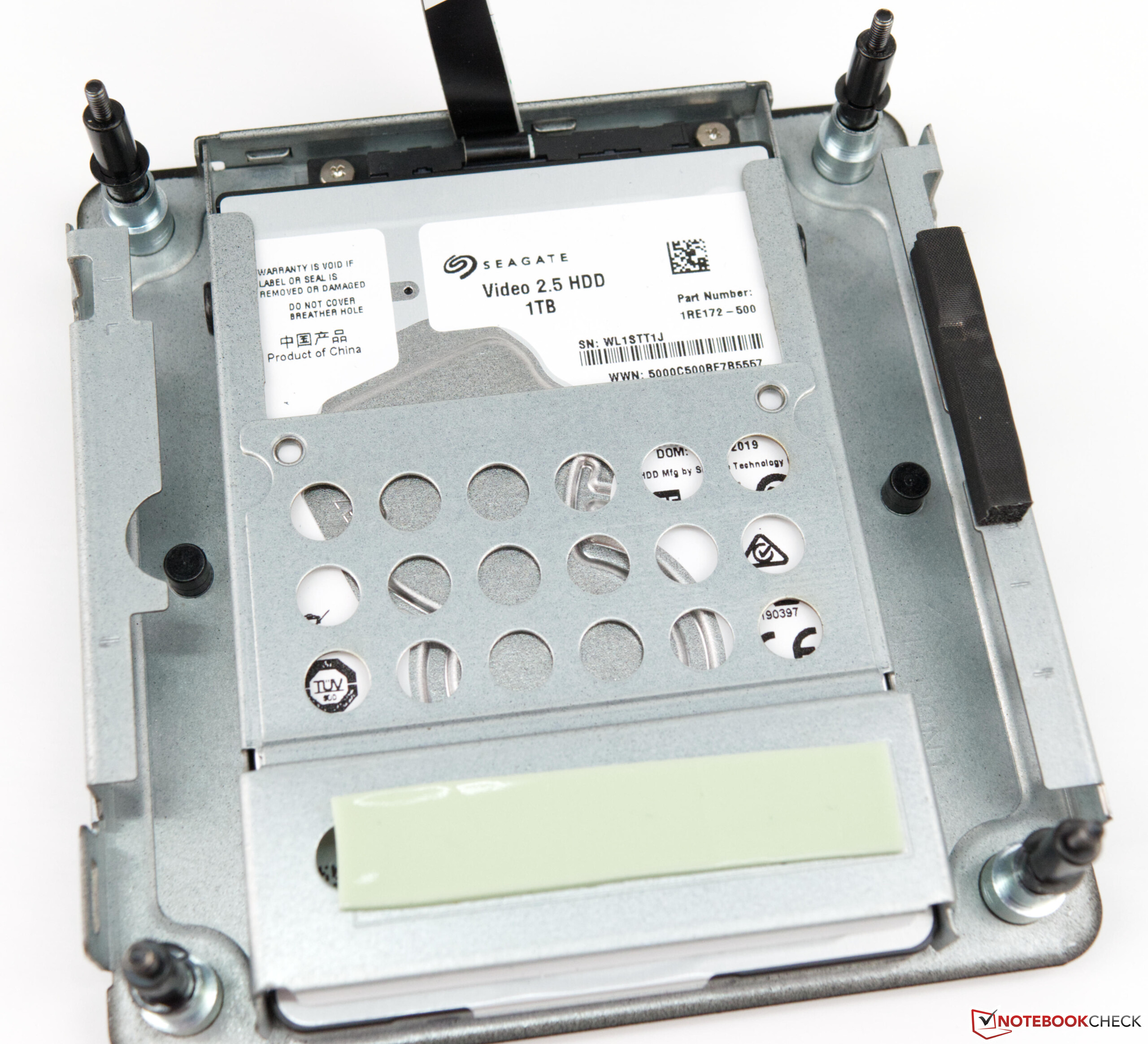

, 1 TB HDD (Seagate ST1000VT001-RE172), 1200 GB ledigt
Ljudkort
Realtek Audio
Anslutningar
4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm ljudanslutning, Kortläsare: SD
Nätverk
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Storlek
höjd x bredd x djup (i mm) 51 x 117 x 112
Operativsystem
Microsoft Windows 10 Home 64 Bit
Övrigt
36 Månader Garanti
Vikt

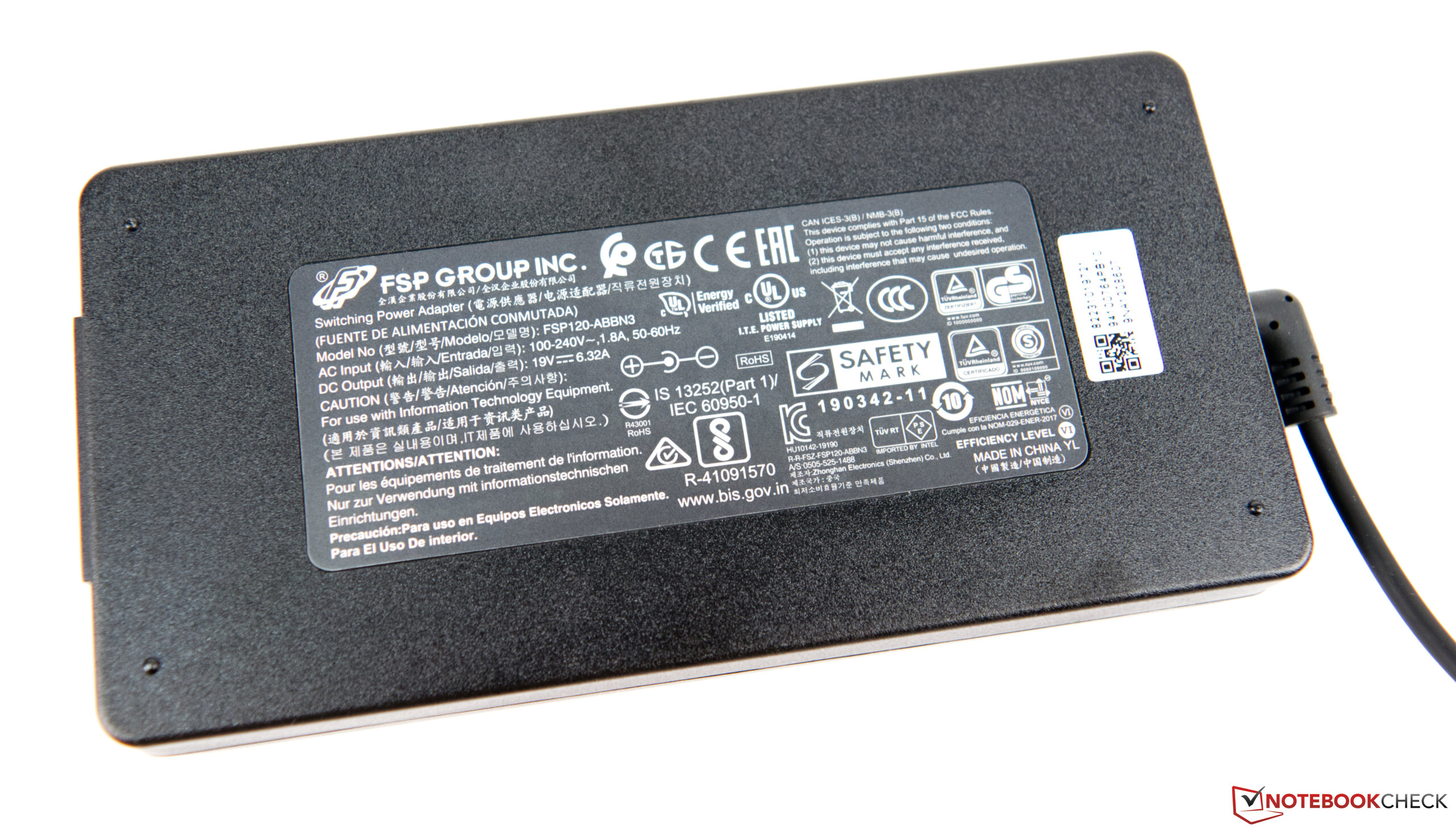

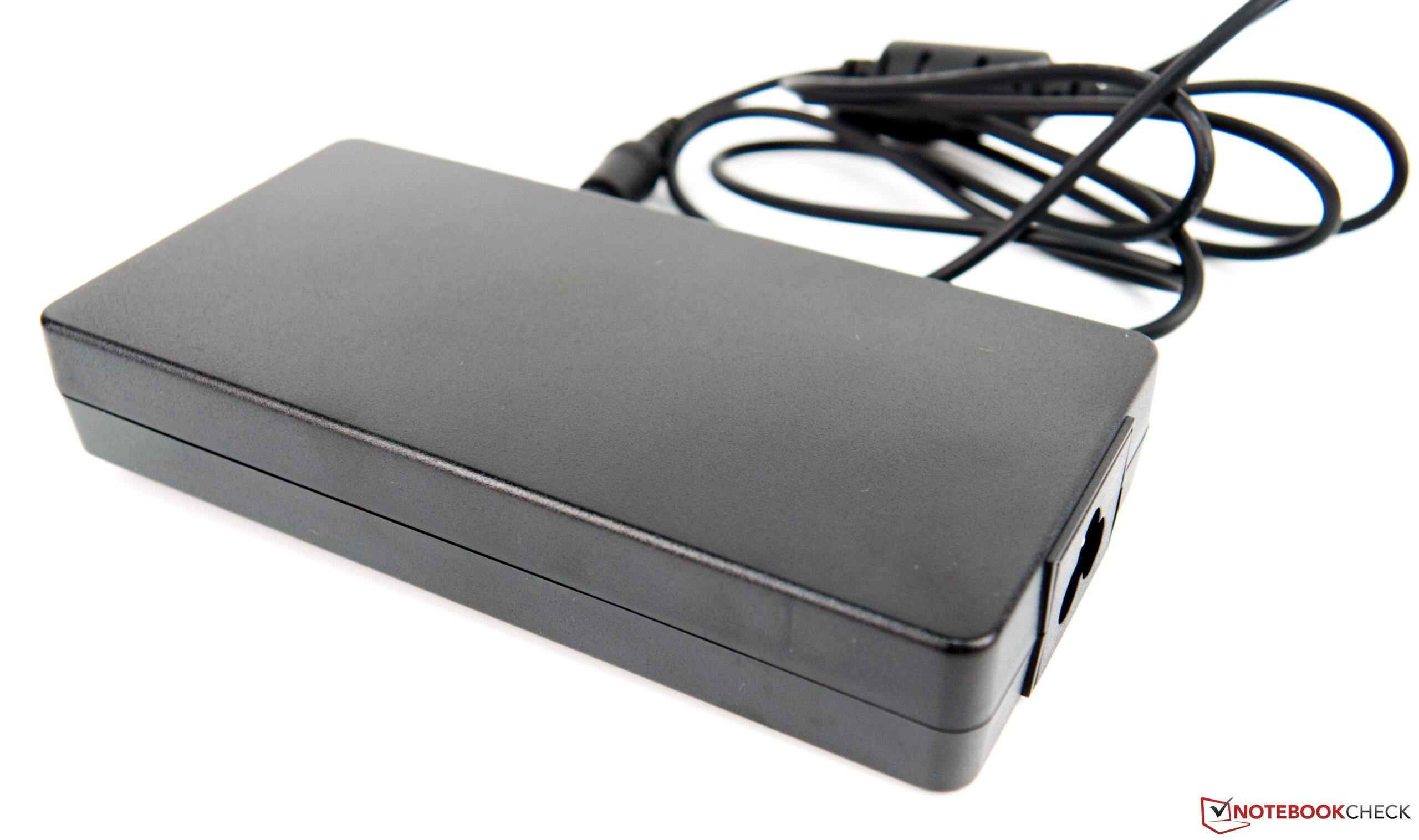

697 g, Strömförsörjning: 372 g
Pris
935 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

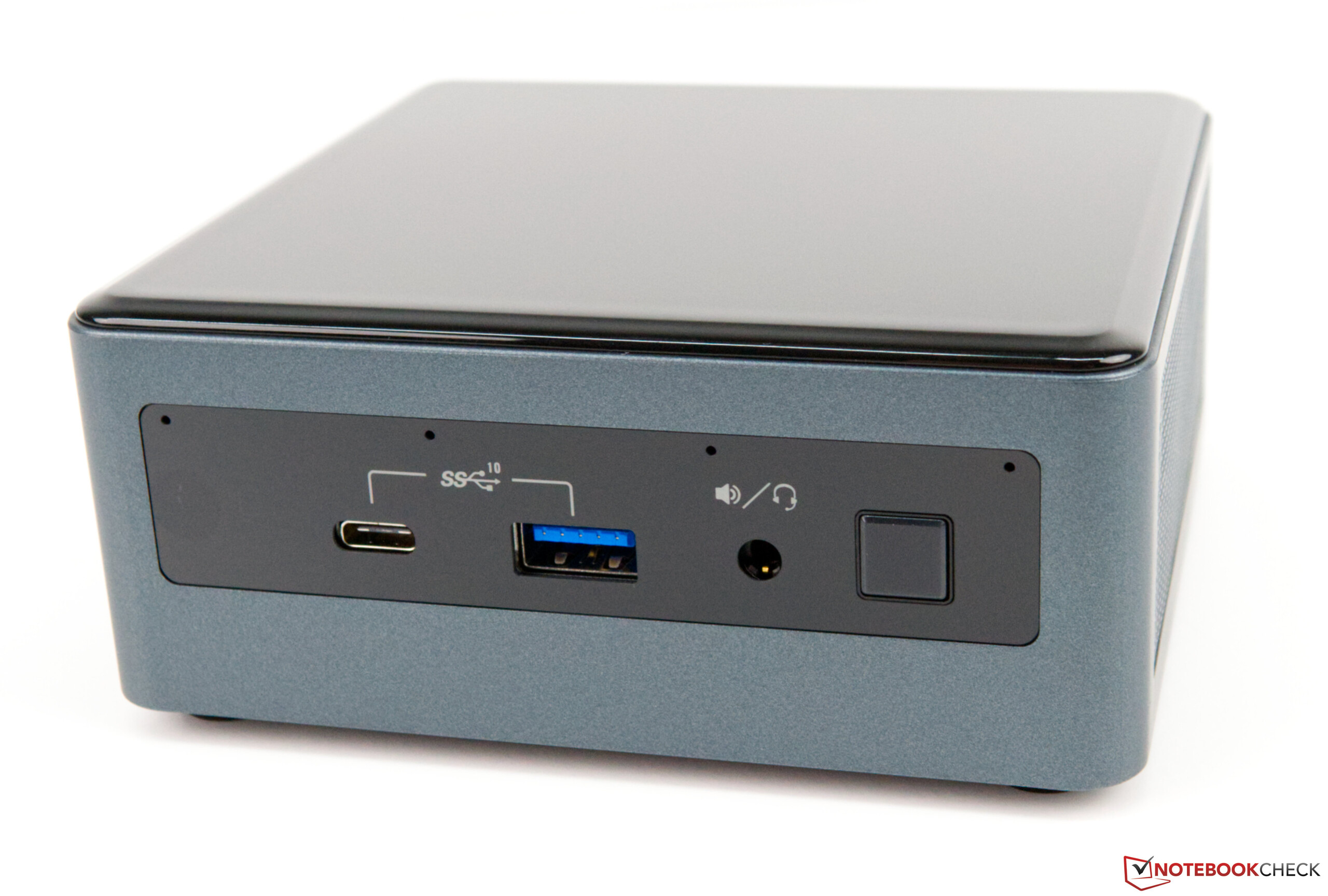

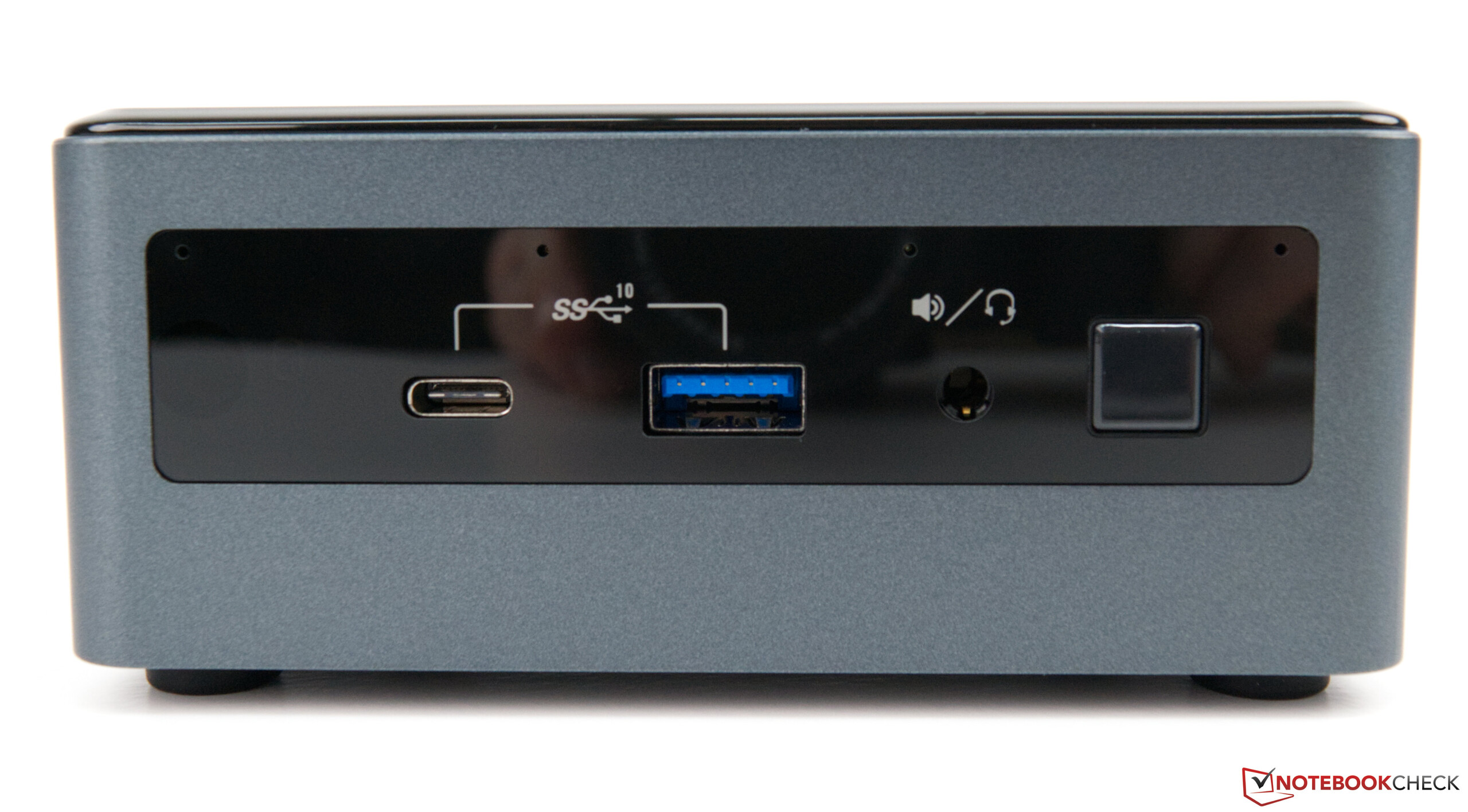

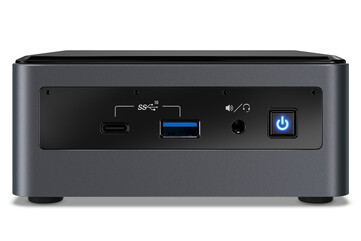

Intel NUC (NUC10i7FNHAA) Framsidan (Källa: Intel)
Framsidan (Källa: Intel)

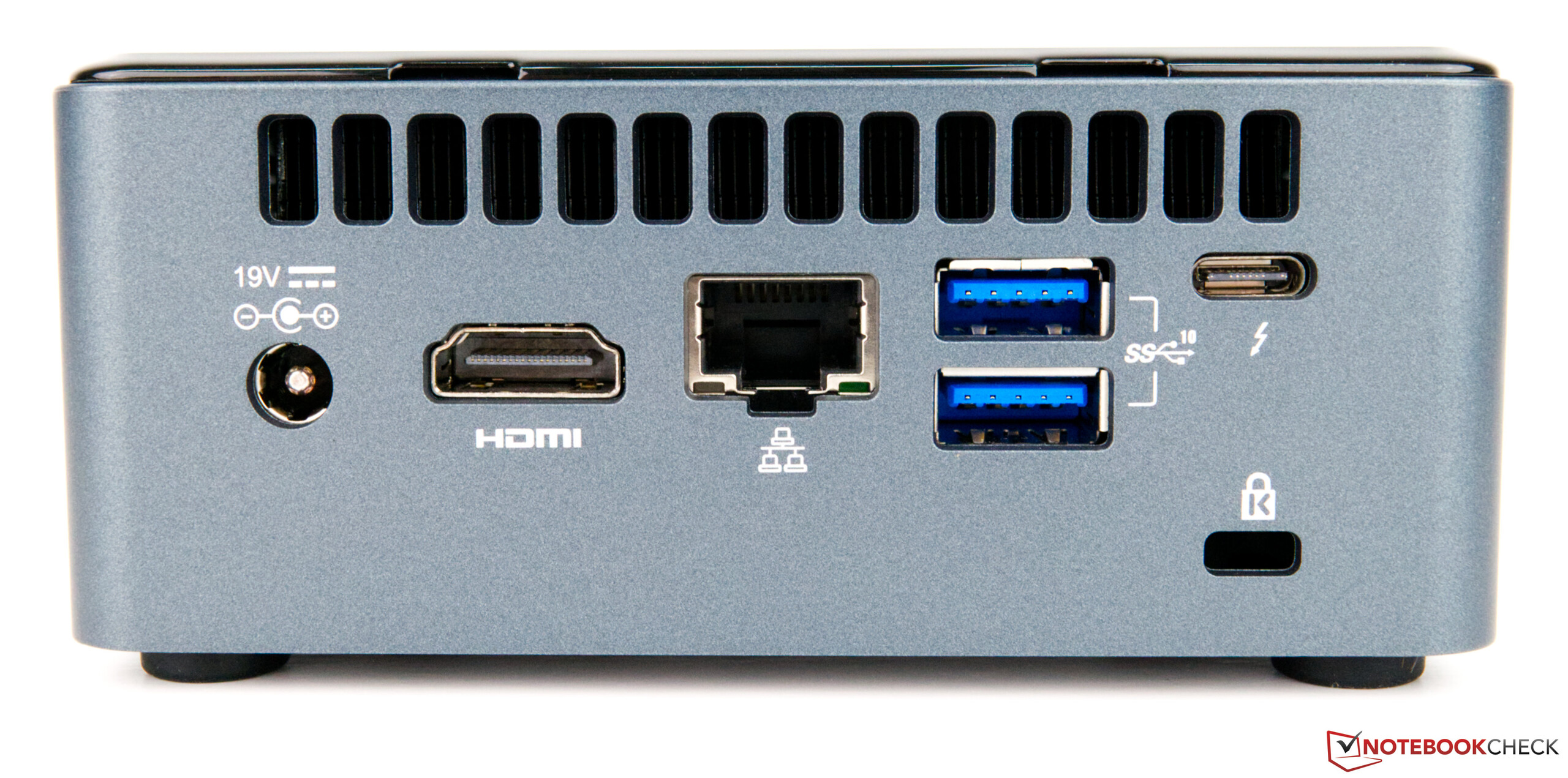

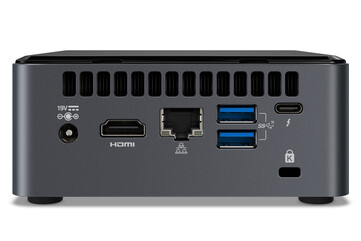

Intel NUC (NUC10i7FNHAA) Baksidan (Källa: Intel)
Baksidan (Källa: Intel)
Intel NUC (NUC10i7FNHAA) (Källa: Intel)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)
Intel NUC (NUC10i7FNHAA)

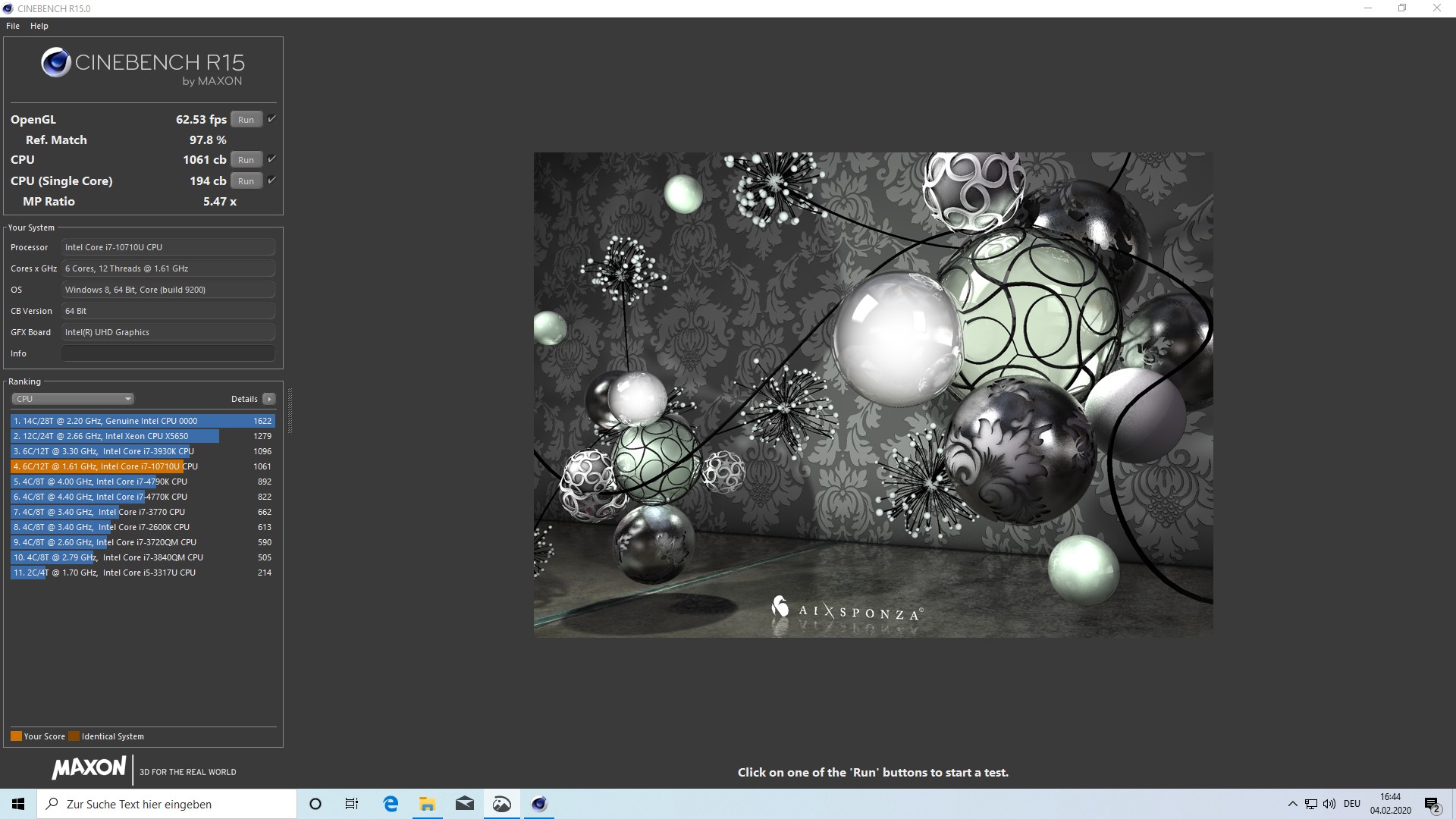

Cinebench R15
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
194 Points ∼100%
Average Intel Core i7-10710U
  (138 - 194, n=7)
175 Points ∼90% -10%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
168 Points ∼87% -13%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
165 Points ∼85% -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
117 Points ∼60% -40%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
108 Points ∼56% -44%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
84 Points ∼43% -57%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1067 Points ∼100%
Average Intel Core i7-10710U
  (513 - 1113, n=7)
999 Points ∼94% -6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
783 Points ∼73% -27%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
687 Points ∼64% -36%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
298 Points ∼28% -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
261 Points ∼24% -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
220 Points ∼21% -79%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
211 (min: 209.9, max: 211.39) Points ∼20% -80%

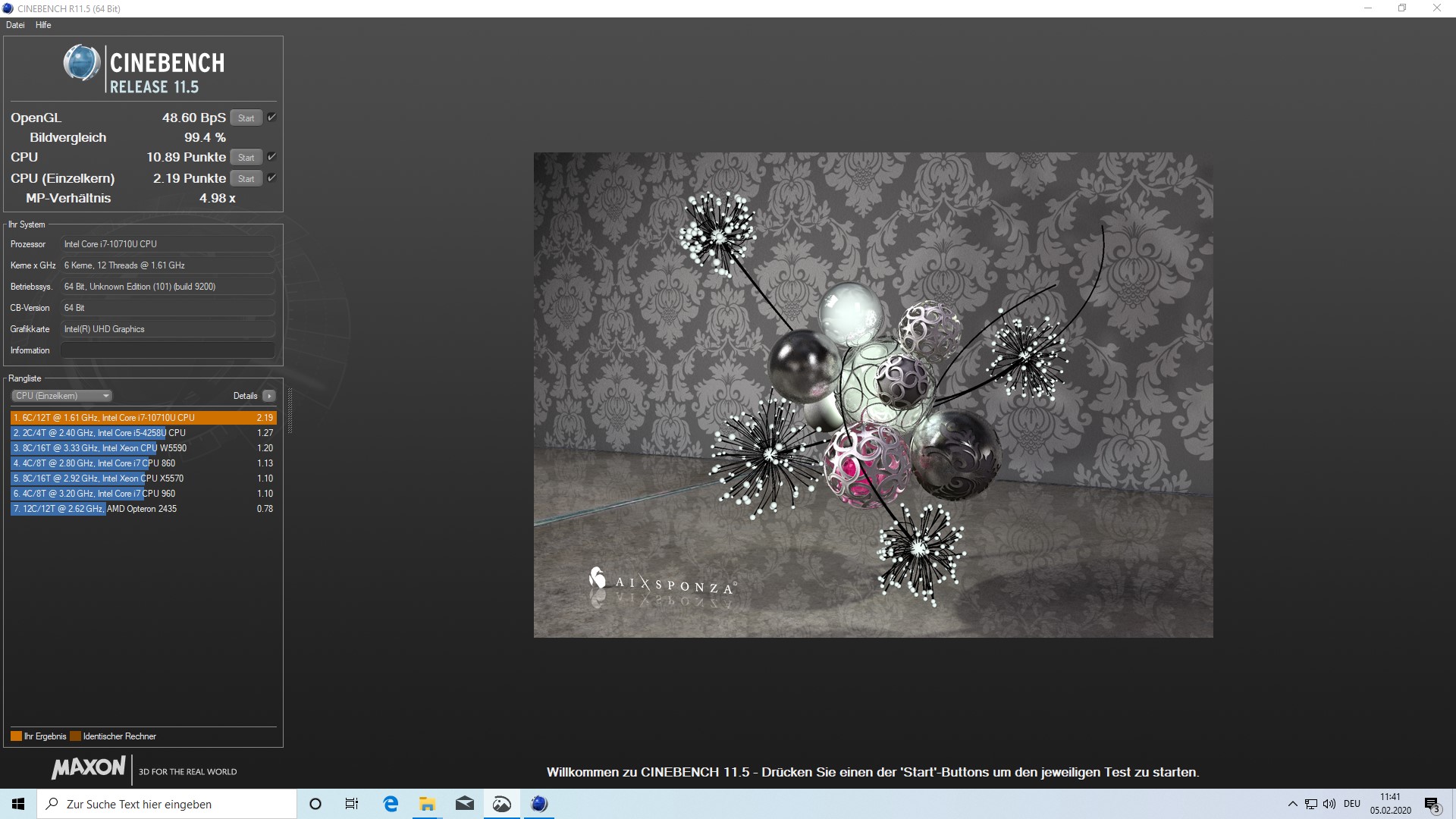

Cinebench R11.5
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2.19 Points ∼100%
Average Intel Core i7-10710U
  (2.07 - 2.19, n=3)
2.15 Points ∼98% -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.91 Points ∼87% -13%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.88 Points ∼86% -14%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.33 Points ∼61% -39%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.28 Points ∼58% -42%
CPU Multi 64Bit
Average Intel Core i7-10710U
  (10.9 - 12.3, n=3)
11.7 Points ∼100% +7%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
10.89 Points ∼93%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
8.66 Points ∼74% -20%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
7.55 Points ∼65% -31%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3.26 Points ∼28% -70%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
2.86 Points ∼24% -74%
Blender 2.79 - BMW27 CPU
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
676.2 Seconds * ∼100% -44%
Average Intel Core i7-10710U
  (468 - 892, n=3)
648 Seconds * ∼96% -38%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
584.9 Seconds * ∼86% -25%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
468.3 Seconds * ∼69%
wPrime 2.0x
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
731.5 s * ∼100% -312%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
620 s * ∼85% -250%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
558 s * ∼76% -215%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
217.837 s * ∼30% -23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
177.37 s * ∼24%
Average Intel Core i7-10710U
  (171 - 177, n=2)
174 s * ∼24% +2%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
23.1 s * ∼100% -353%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
19.5 s * ∼84% -282%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
18 s * ∼78% -253%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.78 s * ∼29% -33%
Average Intel Core i7-10710U
  (5.1 - 5.38, n=2)
5.24 s * ∼23% -3%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5.103 s * ∼22%
X264 HD Benchmark 4.0
Pass 2
Average Intel Core i7-10710U
  (58.9 - 63, n=3)
60.8 fps ∼100% 0%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
60.55 (min: 60.4, max: 73.5) fps ∼100%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
49.35 (min: 49.1, max: 51.6) fps ∼81% -18%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
19.3 fps ∼32% -68%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
16.46 fps ∼27% -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
13.75 fps ∼23% -77%
Pass 1
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
206 (min: 204, max: 208) fps ∼100%
Average Intel Core i7-10710U
  (196 - 206, n=3)
202 fps ∼98% -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
184.5 (min: 184, max: 186) fps ∼90% -10%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
105 fps ∼51% -49%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
88.46 fps ∼43% -57%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
74 fps ∼36% -64%
TrueCrypt
Serpent Mean 100MB
Average Intel Core i7-10710U
  (0.57 - 0.731, n=3)
0.67 GB/s ∼100% +18%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
0.57 GB/s ∼85%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.48 GB/s ∼72% -16%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.166 GB/s ∼25% -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.142 GB/s ∼21% -75%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.133 GB/s ∼20% -77%
Twofish Mean 100MB
Average Intel Core i7-10710U
  (1 - 1.2, n=3)
1.133 GB/s ∼100% +13%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1 GB/s ∼88%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.79 GB/s ∼70% -21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.283 GB/s ∼25% -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.245 GB/s ∼22% -75%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.199 GB/s ∼18% -80%
AES Mean 100MB
Average Intel Core i7-10710U
  (4.6 - 7.1, n=3)
6.03 GB/s ∼100% +31%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4.7 GB/s ∼78% +2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4.6 GB/s ∼76%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.7 GB/s ∼28% -63%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.5 GB/s ∼25% -67%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1.3 GB/s ∼22% -72%
Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
22969 Points ∼100%
Average Intel Core i7-10710U
  (11871 - 22969, n=2)
17420 Points ∼76% -24%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
16172 Points ∼70% -30%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
13949 Points ∼61% -39%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
5066 Points ∼22% -78%
64 Bit Single-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5271 Points ∼100%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4871 Points ∼92% -8%
Average Intel Core i7-10710U
  (3959 - 5271, n=2)
4615 Points ∼88% -12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3680 Points ∼70% -30%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2613 Points ∼50% -50%

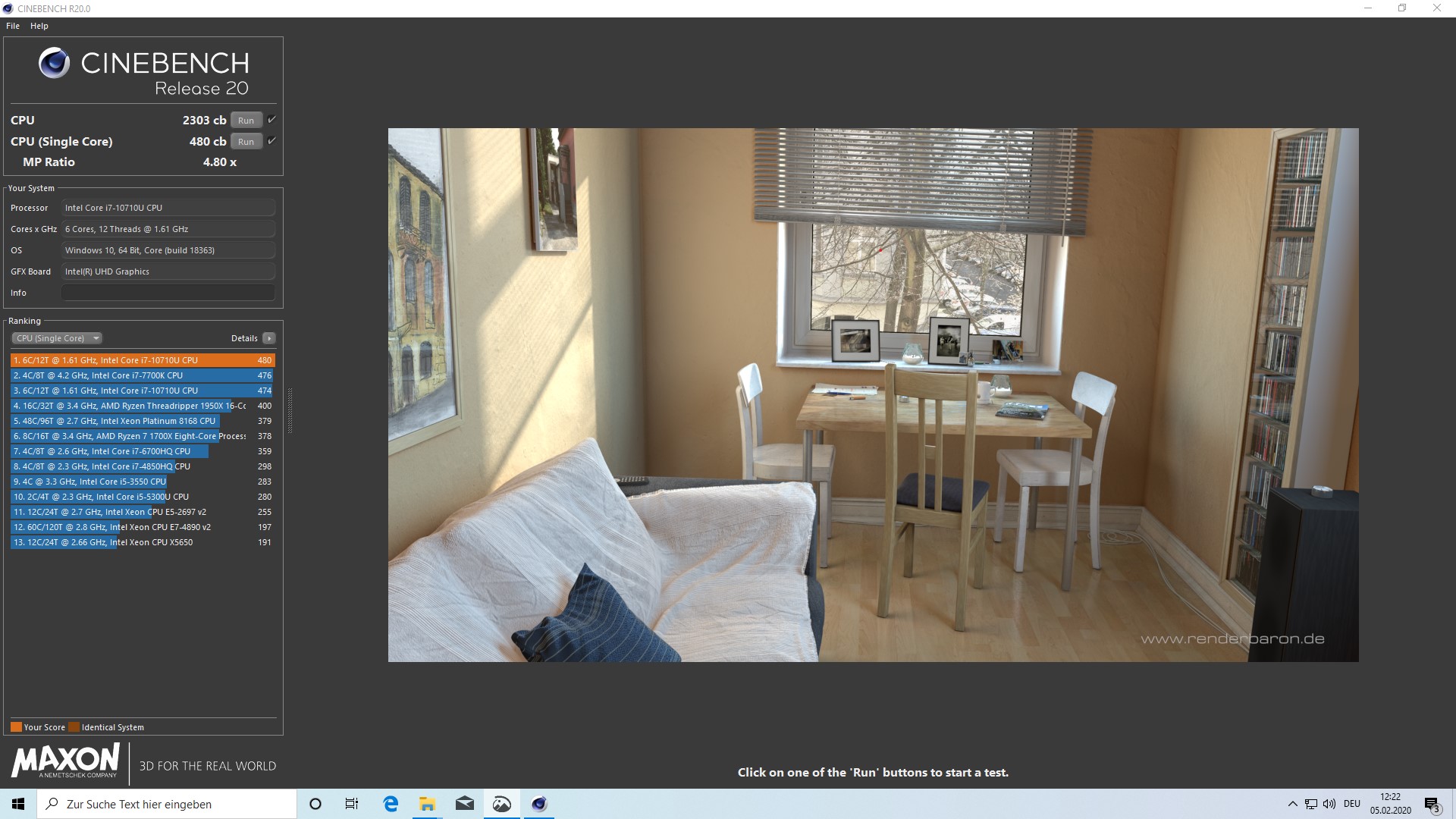

Cinebench R20
CPU (Single Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
480 Points ∼100%
Average Intel Core i7-10710U
  (460 - 480, n=3)
467 Points ∼97% -3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
428 Points ∼89% -11%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
418 Points ∼87% -13%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
200 Points ∼42% -58%
CPU (Multi Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2303 Points ∼100%
Average Intel Core i7-10710U
  (1181 - 2598, n=4)
2123 Points ∼92% -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1820 Points ∼79% -21%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1581 Points ∼69% -31%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
491 Points ∼21% -79%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
7.95 fps ∼100%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.28 fps ∼79% -21%
Average Intel Core i7-10710U
  (4.2 - 7.95, n=3)
6.06 fps ∼76% -24%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5.16 fps ∼65% -35%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0 fps ∼0% -100%

* ... smaller is better

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070Tooltip
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
PCMark 10
Productivity
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
6876 Points ∼100%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
6874 Points ∼100% 0%
Average Intel Core i5-10210U
  (6099 - 7217, n=14)
6748 Points ∼98% -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6494 Points ∼94% -6%
Average Intel Core i5-8265U
  (2941 - 6755, n=33)
6105 Points ∼89% -11%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
4084 Points ∼59% -41%
Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4418 Points ∼100%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4248 Points ∼96% -4%
Average Intel Core i5-10210U
  (3752 - 4497, n=14)
4084 Points ∼92% -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4019 Points ∼91% -9%
Average Intel Core i5-8265U
  (2247 - 4192, n=33)
3743 Points ∼85% -15%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2391 Points ∼54% -46%
PCMark 8
Storage Score v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5088 Points ∼100% +8%
Average Intel Core i5-8265U
  (4832 - 4999, n=4)
4923 Points ∼97% +4%
Average Intel Core i5-10210U
  (4233 - 5088, n=4)
4809 Points ∼95% +2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4729 Points ∼93%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4233 Points ∼83% -10%
Work Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5102 Points ∼100% +10%
Average Intel Core i5-10210U
  (4286 - 5102, n=11)
4886 Points ∼96% +6%
Average Intel Core i5-8265U
  (3132 - 5223, n=28)
4728 Points ∼93% +2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4631 Points ∼91%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4588 Points ∼90% -1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4286 Points ∼84% -7%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
4046 Points ∼79% -13%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
3732 Points ∼73% -19%
Creative Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5312 Points ∼100% +9%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
5005 Points ∼94% +3%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4853 Points ∼91%
Average Intel Core i5-10210U
  (3462 - 5440, n=6)
4627 Points ∼87% -5%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4395 Points ∼83% -9%
Average Intel Core i5-8265U
  (3473 - 5959, n=12)
4373 Points ∼82% -10%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3594 Points ∼68% -26%
Home Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4227 Points ∼100% +7%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
3938 Points ∼93%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3667 Points ∼87% -7%
Average Intel Core i5-10210U
  (3182 - 4284, n=11)
3626 Points ∼86% -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3526 Points ∼83% -10%
Average Intel Core i5-8265U
  (2747 - 4244, n=29)
3512 Points ∼83% -11%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3062 Points ∼72% -22%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2901 Points ∼69% -26%

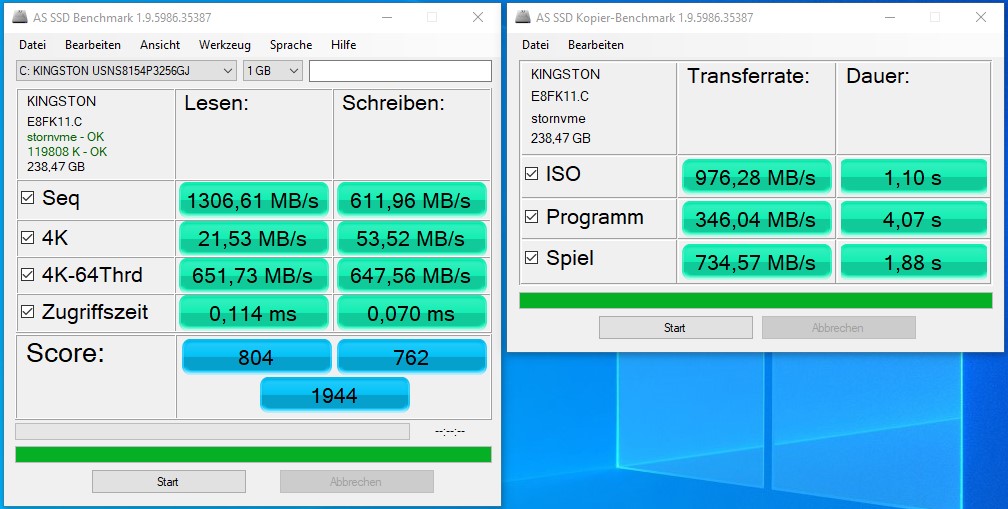

AS SSD
AS SSD
CrystalDiskMark 3
CrystalDiskMark 3

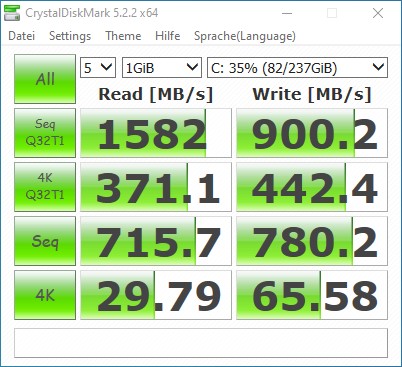

CrystalDiskMark 5
CrystalDiskMark 5

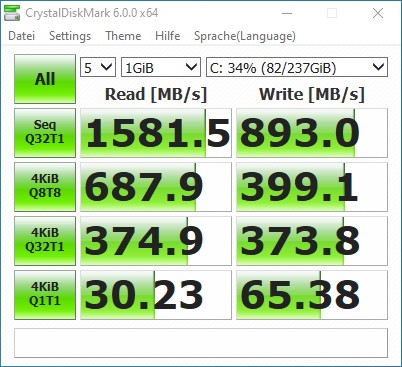

CrystalDiskMark 6
CrystalDiskMark 6
HD Tune
HD Tune
Kingston RBUSNS8154P3256GJ1
Överföringshastighet min.: 61 MB/s
Överföringshastighet max.: 131.7 MB/s
Överföringshastighet med.: 97.9 MB/s
Accesstid: 19.9 ms
Burst rate: 10.58 MB/s
CPU-användning: 3.6 %
3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
2322 Points ∼100% +17%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1983 Points ∼85%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1914 Points ∼82% -3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1853 Points ∼80% -7%
Average Intel UHD Graphics 620
  (1235 - 2006, n=191)
1725 Points ∼74% -13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1458 Points ∼63% -26%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1175 Points ∼51% -41%
3DMark
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1479 Points ∼100% +4%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1418 Points ∼96%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1309 Points ∼89% -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1202 Points ∼81% -15%
Average Intel UHD Graphics 620
  (557 - 1418, n=161)
1136 Points ∼77% -20%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1033 Points ∼70% -27%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
770 Points ∼52% -46%
1920x1080 Ice Storm Extreme Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
48446 Points ∼100%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
47803 Points ∼99% -1%
Average Intel UHD Graphics 620
  (29002 - 59483, n=52)
43398 Points ∼90% -10%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
40670 Points ∼84% -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
40532 Points ∼84% -16%
1280x720 Ice Storm Standard Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
79747 Points ∼100%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
76488 Points ∼96% -4%
Average Intel UHD Graphics 620
  (43091 - 102010, n=51)
69744 Points ∼87% -13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
61979 Points ∼78% -22%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
58199 Points ∼73% -27%
3DMark 11 Performance
2283 poäng
3DMark Ice Storm Standard Score
73725 poäng
3DMark Cloud Gate Standard Score
10923 poäng
3DMark Fire Strike Score
1298 poäng
3DMark Fire Strike Extreme Score
614 poäng
3DMark Time Spy Score
512 poäng
Hjälp
låg med. hög ultra4K
Dota 2 Reborn (2015) 81.3 52.5 22.4 19.9 7.3 fps
X-Plane 11.11 (2018) 11.6 13.5 11 6.61 fps
Ghost Recon Breakpoint (2019) 13 7 fps
Star Wars Jedi Fallen Order (2019) 8.68 fps

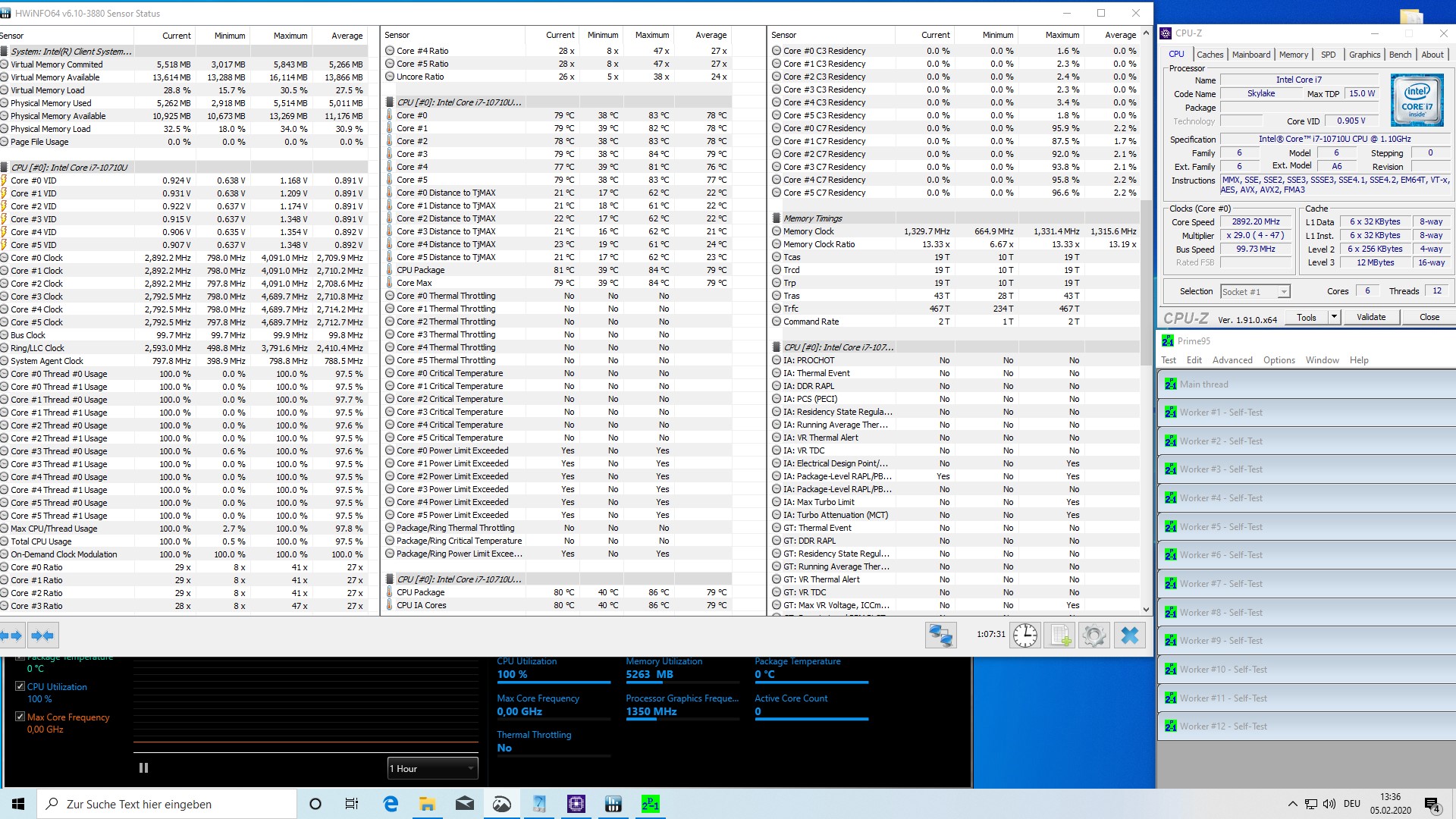

Stress-test: Endast Prime95
Stress-test: Endast Prime95

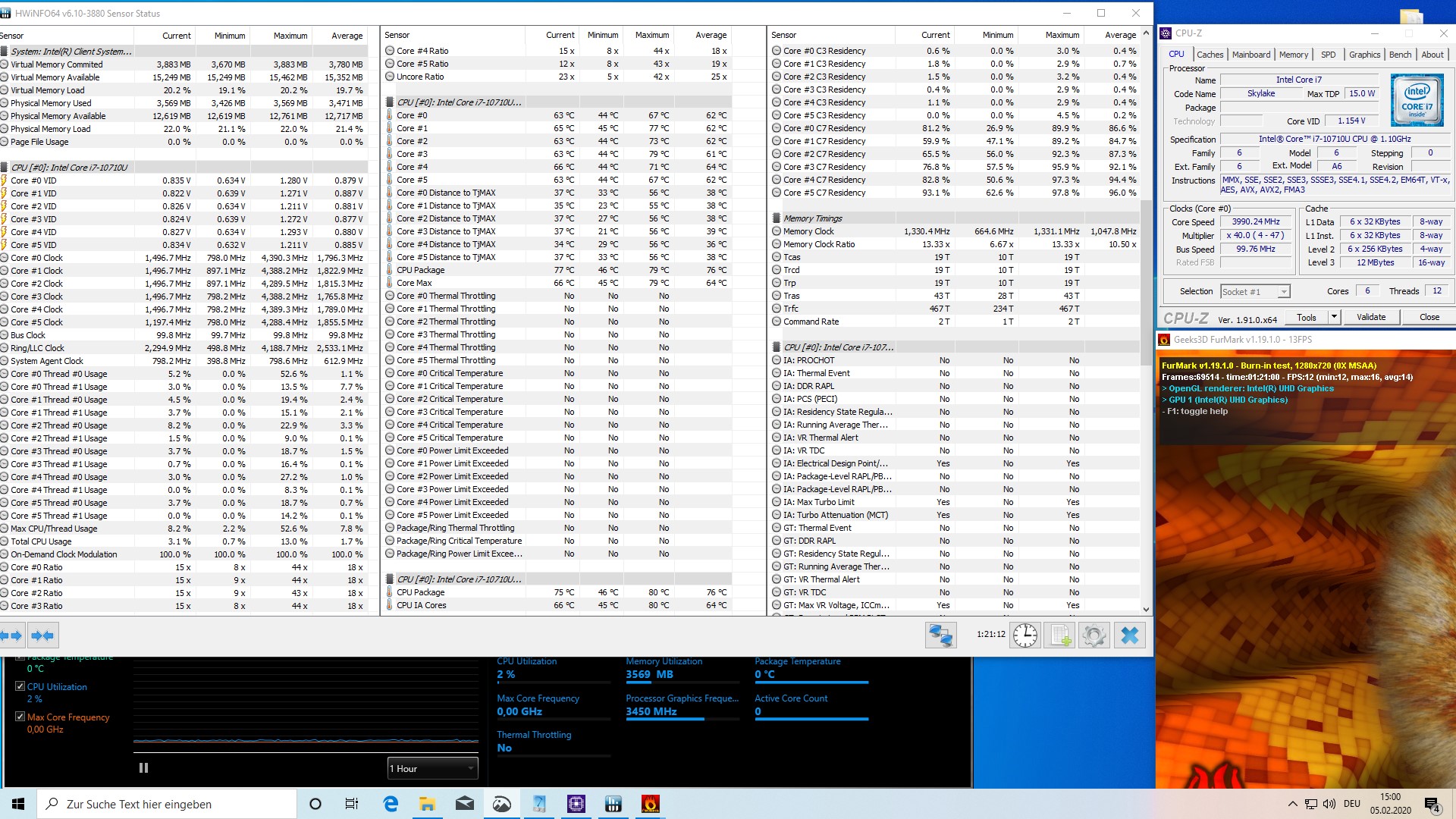

Stress-test: Endast FurMark
Stress-test: Endast FurMark

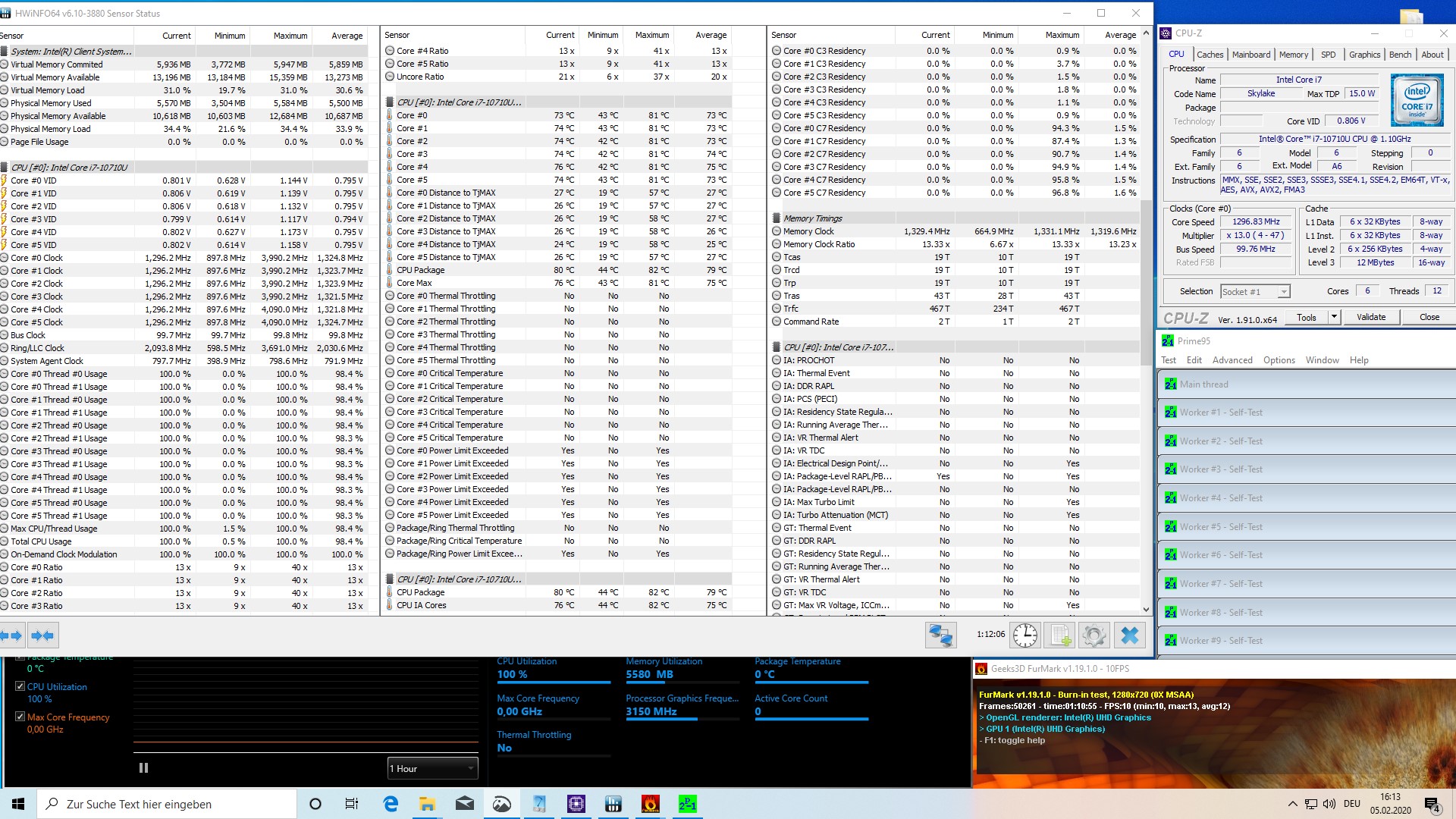

Stress-test: FurMark+Prime95
Stress-test: FurMark+Prime95

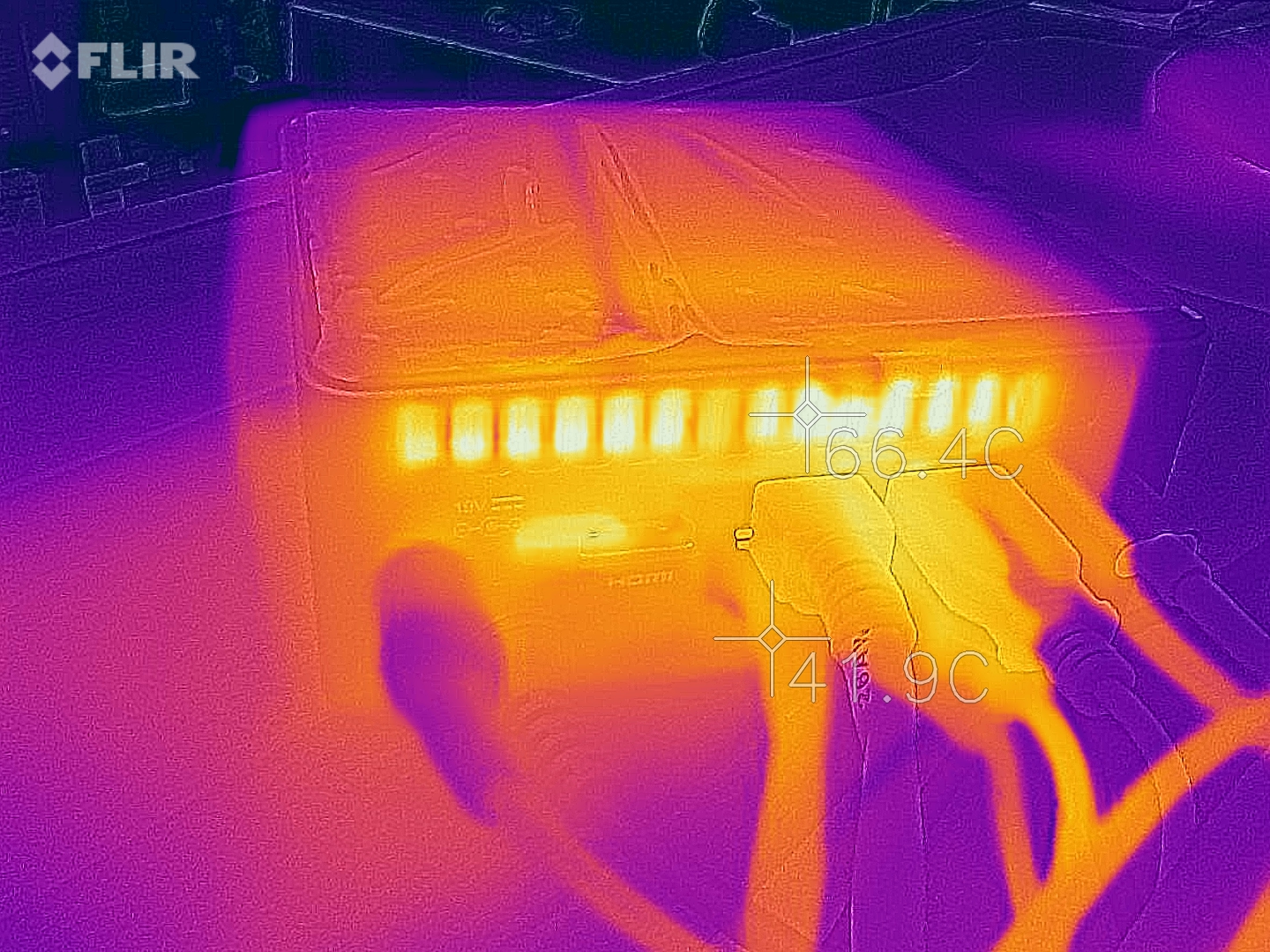

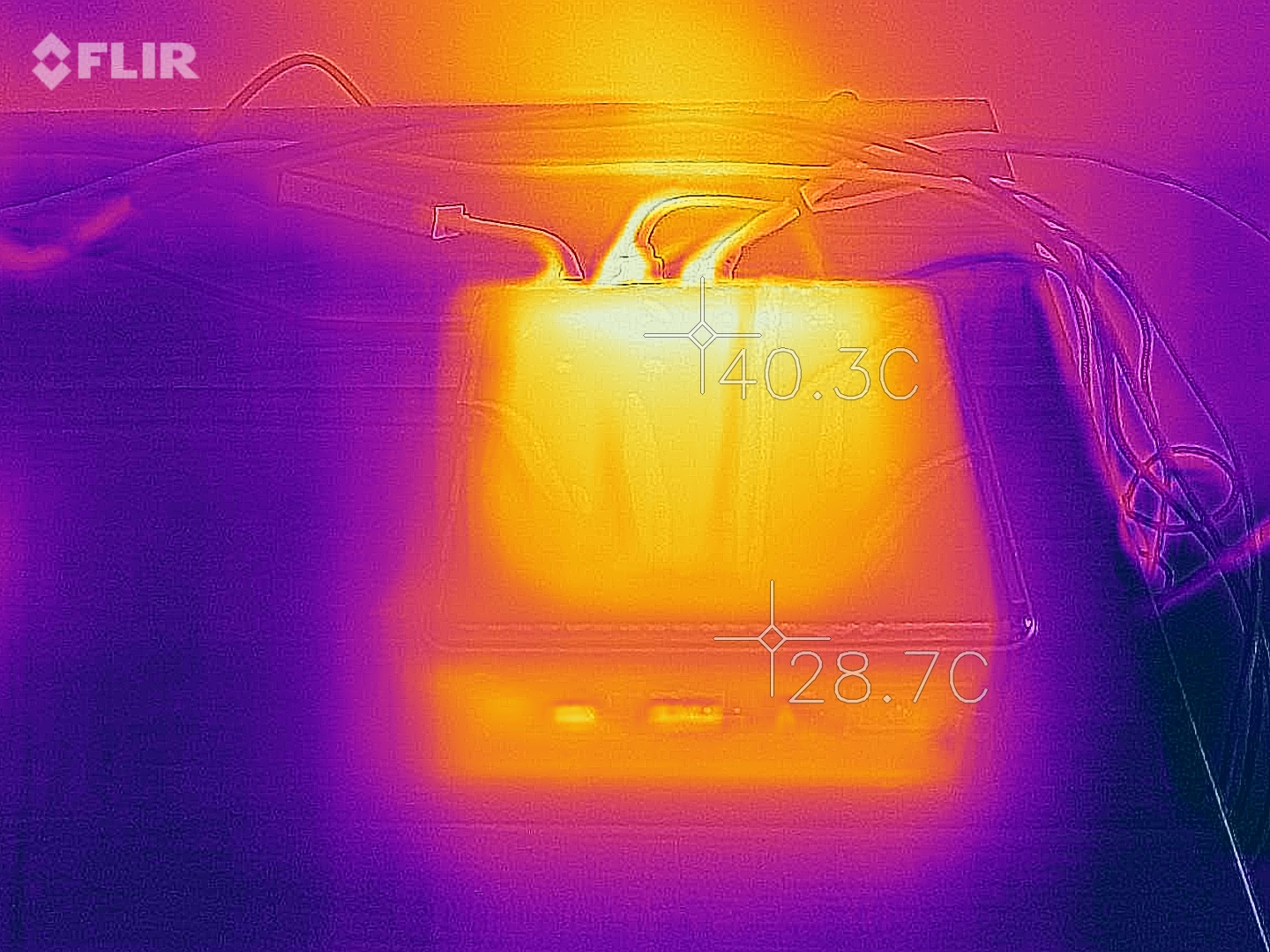

Värmeutveckling - Ovansidan (Belastning)
Värmeutveckling - Ovansidan (Belastning)
Värmeutveckling - Baksidan (Belastning)
Värmeutveckling - Baksidan (Belastning)
Strömförbrukning
Av/Standbydarklight 0.8 / Watt
Låg belastningdarkmidlight / 8.4 / Watt
Hög belastning midlight / 86 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy

För

+ Stabilt hölje
+ Väldigt platsbesparande
+ Låga energikrav
+ Riktigt bra systemprestanda
+ WiFi 6 och Bluetooth 5
+ USB Typ C med Thunderbolt 3
+ 36 månaders garanti
+ SD-kortläsare

Emot

- Irriterande fläktljud
- Vår testkonfiguration var relativt dyr
Intel NUC NUC10i7FNH, recensionsex från Intel Germany
Intel NUC NUC10i7FNH, recensionsex från Intel Germany

Läs den fullständiga versionen av den här recensionen på engelska här.

Intel NUC NUC10i7FNH är en kraftfull mini-PC. En ny Comet Lake SoC ger 6 kärnor och 12 trådar, vilket gör den väldigt intressant för multitrådade applikationer. Om du väljer en sexkärnig NUC får du utöver en Core i7-10710U också 16 GB minne, en SSD med 256 GB lagringsutrymme och en HDD på 1 TB. En licens för Windows 10 ingår också. Om du vill utrusta enheten själv går det också att köpa NUC utan lagring och RAM. Men i så fall behöver Windows-licensen köpas separat. Minst 5.700 kronor krävs för en "tom" NUC.

Sex kärnor i en Mini PC – Intel kombinerar dessa i sin NUC 10 NUC10i7FNH. På så sätt kan multitrådade uppgifter klaras av på nolltid.

Intel har valt avancerade komponenter: med både WiFi 6 och en Intel Core i7-10710U är man väl förberedd för framtiden. Dessutom har den lilla datorn ett riktigt modernt portutbud. Faktum att den här NUC-modellen bara har en HDMI-port är inget problem eftersom Thunderbolt 3-porten är betydligt mer produktiv och mångsidig. Den har också en SD-kortläsare med stöd för UHS II.

Tyvärr har inte mycket hänt med det visuella, för det är svårt att skilja den här NUC-modellen från sina föregångare. Men finsmakare kommer snabbt känna igen den nya version på vilka portar den har. Minidatorn har en estetik som utgår från att saker inte behöver lagas om de inte är trasiga. På så sätt övertygar hantverket, även om vi hade önskat ett aningen robustare alternativ för ovansidan. Vi får också ge kylsystemet kritik, för det högfrekventa ljudet är tröttsamt i längden.

Men vilken NUC är bäst? I slutändan är det upp till varje användare att avgöra vad man vill prioritera. Att ha ett såpass litet system med 6 kärnor och 12 trådar är ganska speciellt. Men detta kommer också med ett visst pris. Den aningen billigare modellen med Core i5-10210U är inte märkbart långsammare vid vardagsbruk. Ska man använda enkla kontorsprogram räcker den mindre modellen. Men NUC 10 NUC10i7FNH passar också bra till mer processor-intensiva program som bildredigering eller enkel videoredigering. Den mer avancerade NUC-modellen passar dessutom bra som en liten arbetsstation för virtuella maskiner.

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Intel Frost Canyon NUC har 6 kärnor och 12 trådar (Sammanfattning)
Sebastian Bade, 2020-02-16 (Update: 2020-02-17)
