Test: Intel Frost Canyon NUC med Comet Lake i5 SoC (Sammanfattning)

Pyttig kontors-PC! Intels senaste NUC-serie är liten men kraftfull. Den lägger ny och kraftig hårdvara i ett välkänt hölje. I vår recension får du reda på vilka konsekvenser denna uppgradering får och vad mer Comet Lake-chippet har att erbjuda.

Sebastian Bade, ✓ Andrea Grüblinger (översatt av Daniel Eriksson), Published 02/16/2020 🇺🇸 🇩🇪 ...

Intel NUC - Frost Canyon (NUC10i5FNK)

Processor

Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U

Grafikkort

Intel UHD Graphics 620, 26.20.100.7262 DCH

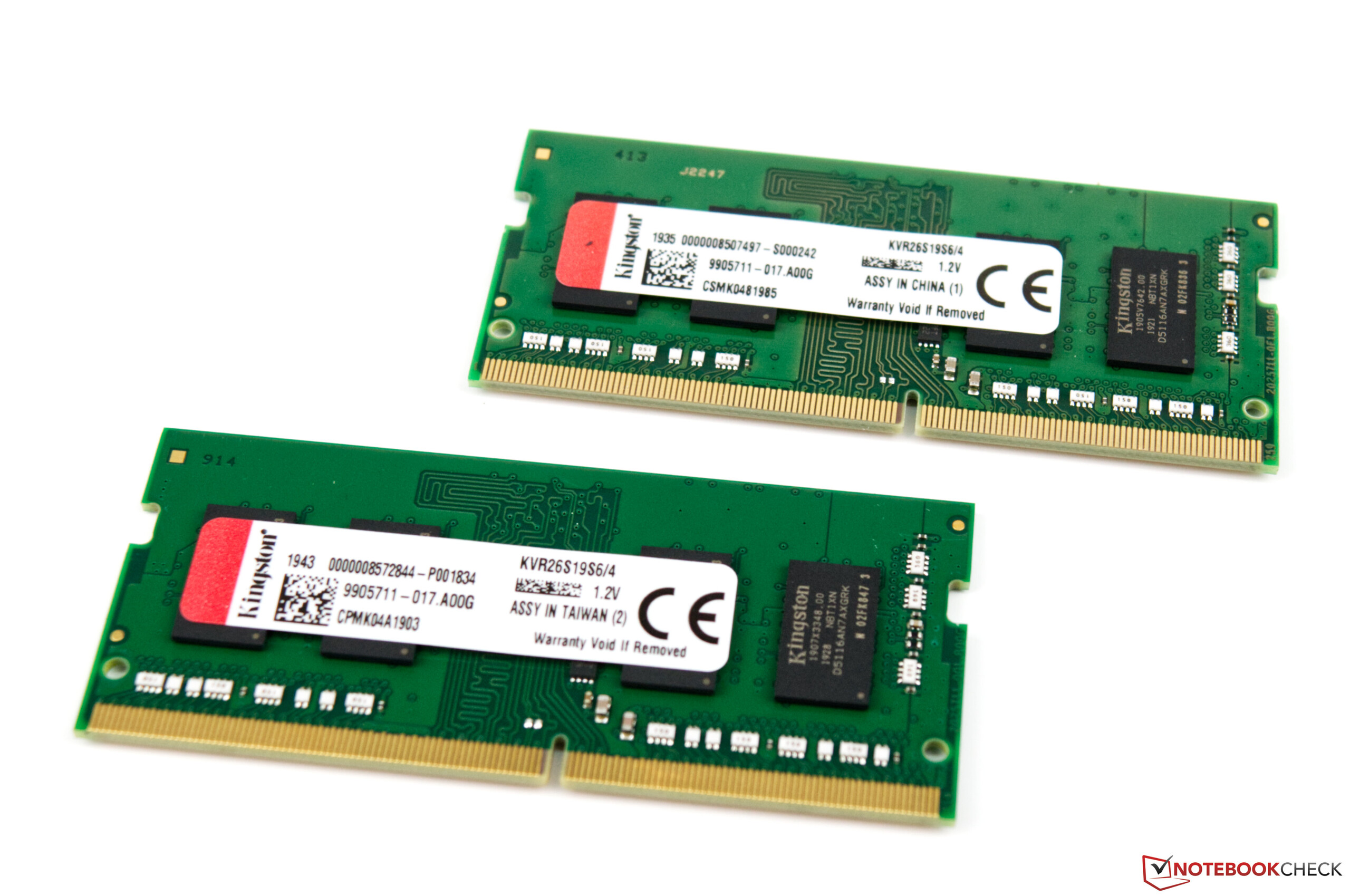

Minne

8 GB

, DDR4-2666, Dubbla kanaler, 2 av 2 upptagna, max. 64 GB

Moderkort

Intel Comet Lake-U PCH-LP Premium

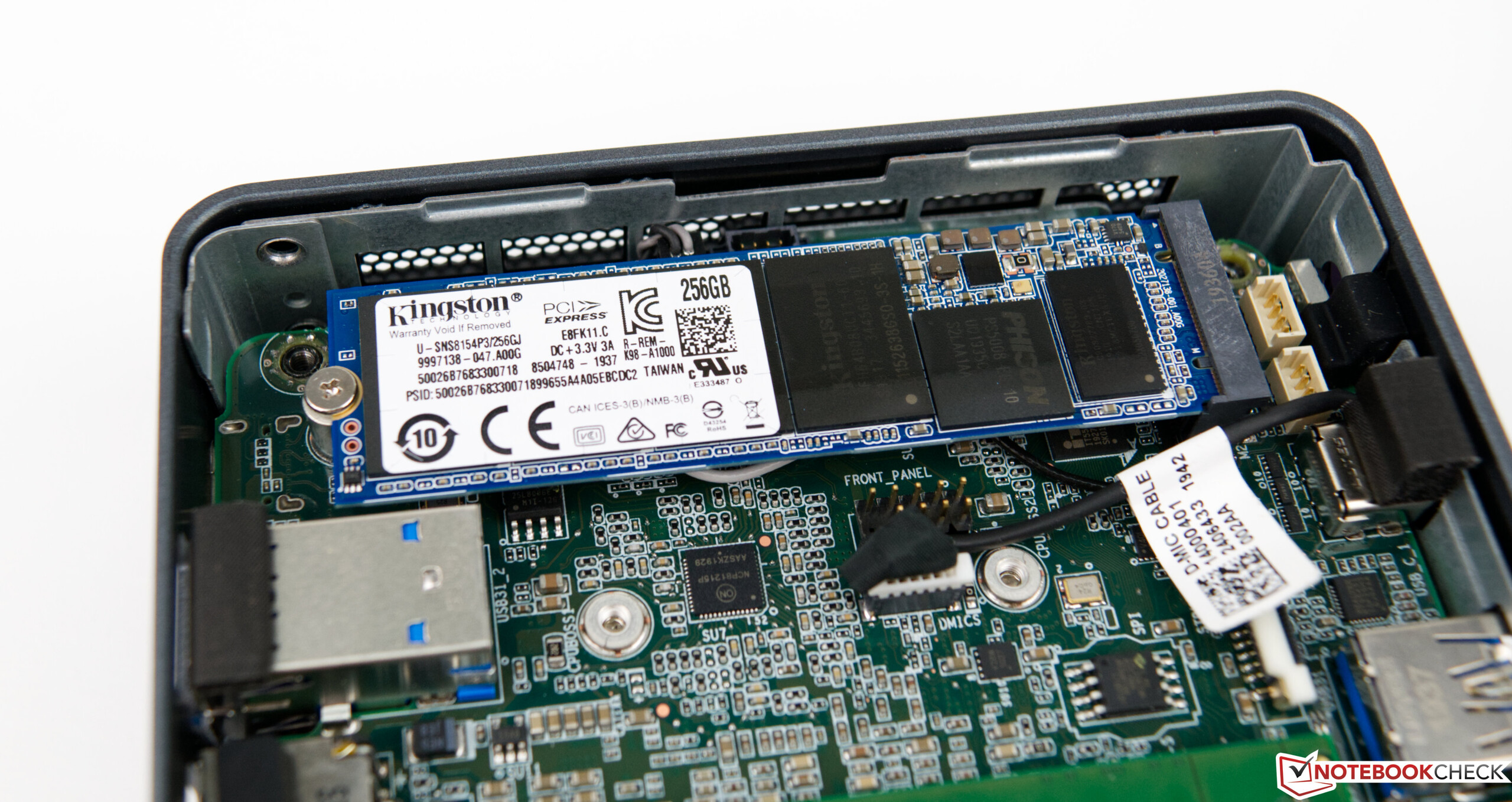

Hårddisk

Kingston RBUSNS8154P3256GJ1, 256 GB

, 200 GB ledigt

Ljudkort

Realtek Audio

Anslutningar

4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm hörlursanslutning, Kortläsare: SD

Nätverk

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Storlek

höjd x bredd x djup (i mm) 36 x 117 x 112

Operativsystem

Microsoft Windows 10 Home 64 Bit

Övrigt

36 Månader Garanti

Vikt

493 g, Strömförsörjning: 315 g

Pris

749 EUR

Länkar

Intel hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

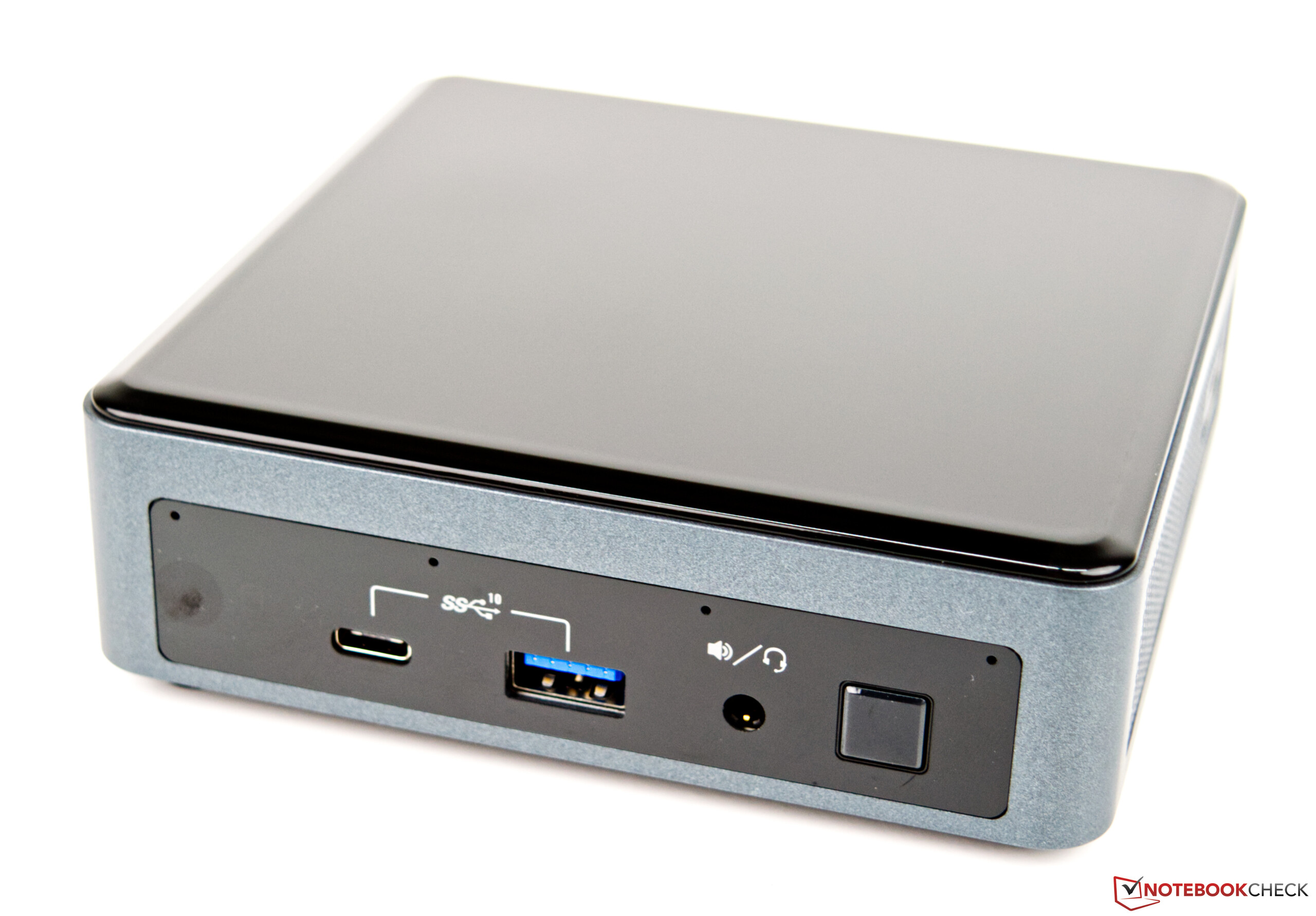

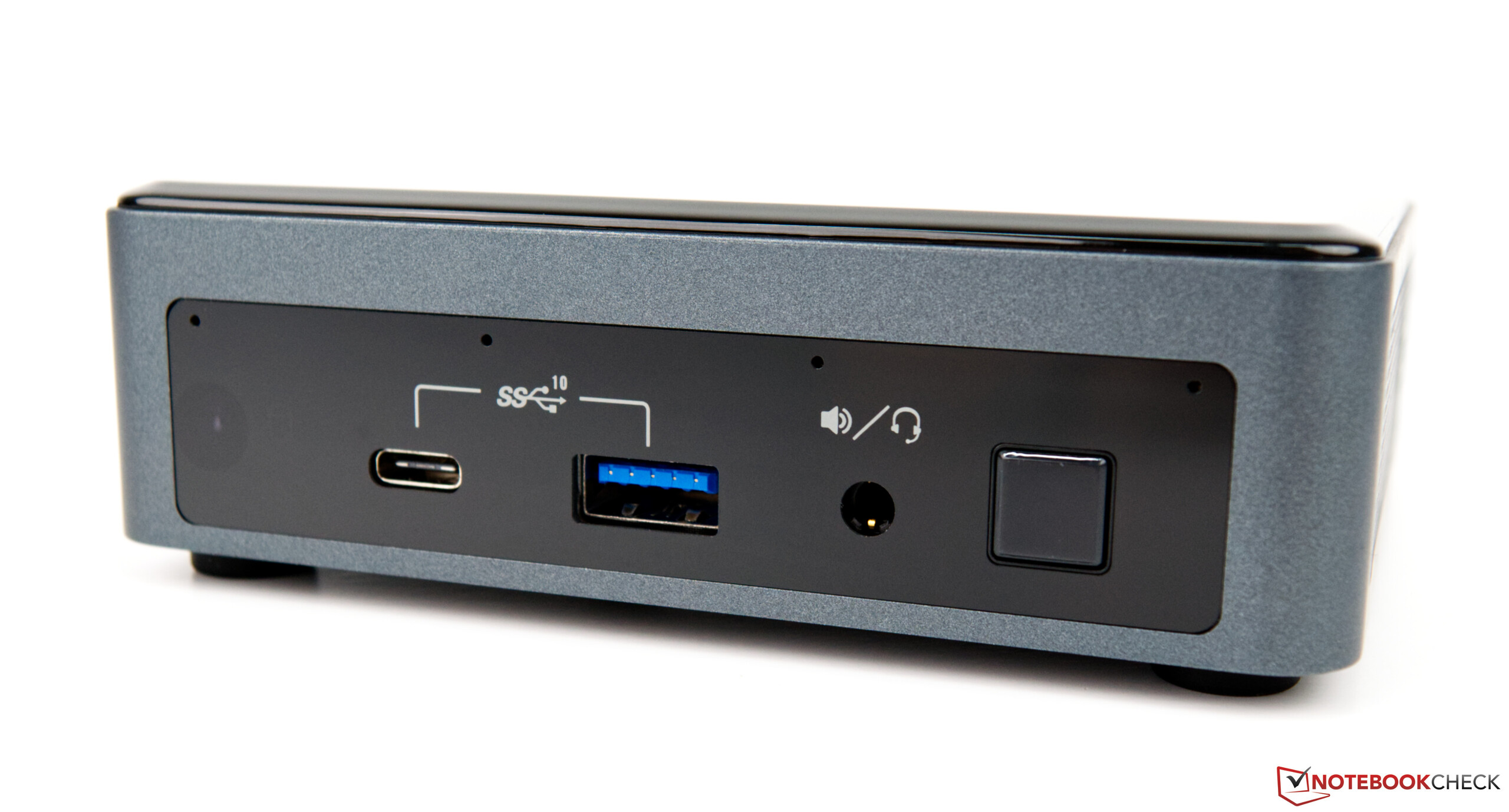

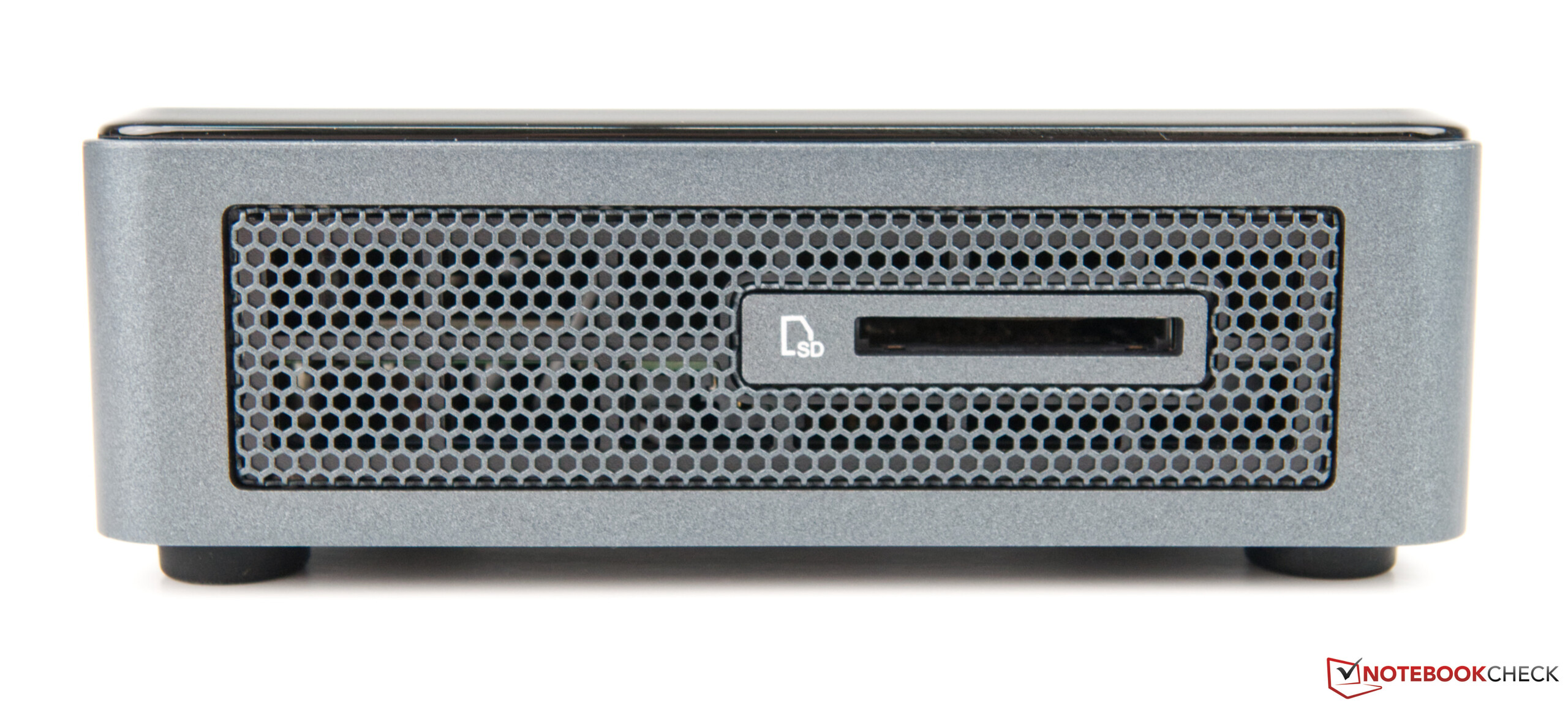

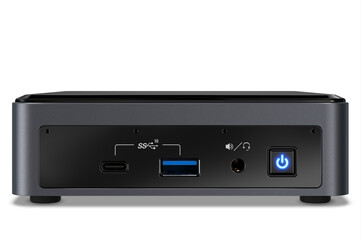

Intel NUC (NUC10i5FNKPA) framsidan (Källa: Intel) — Framsidan (Källa: Intel)

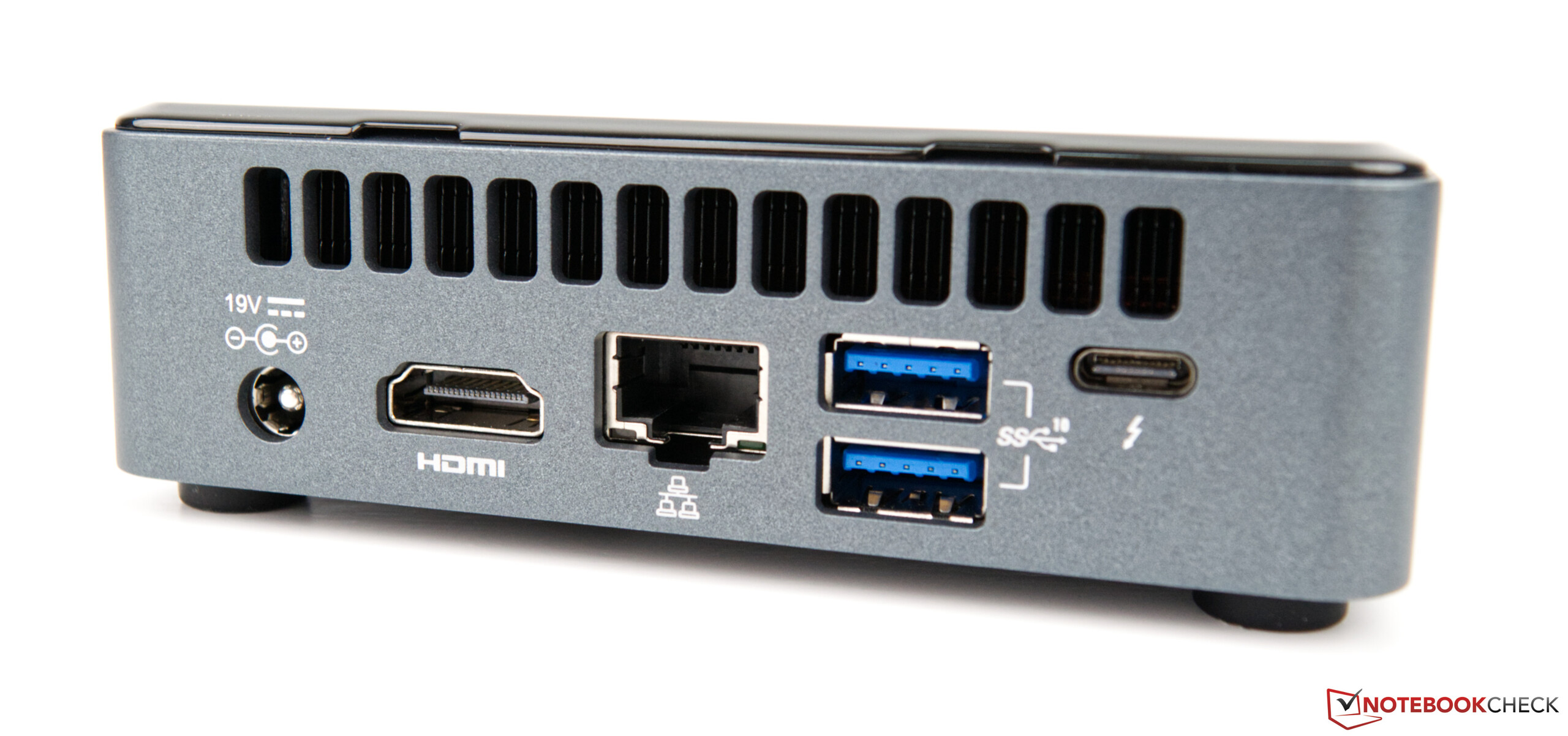

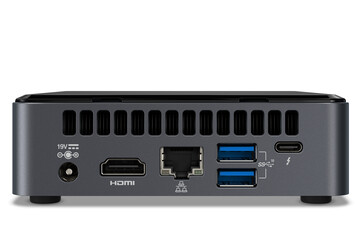

Intel NUC (NUC10i5FNKPA) baksidan (Källa: Intel) — Baksidan (Källa: Intel)

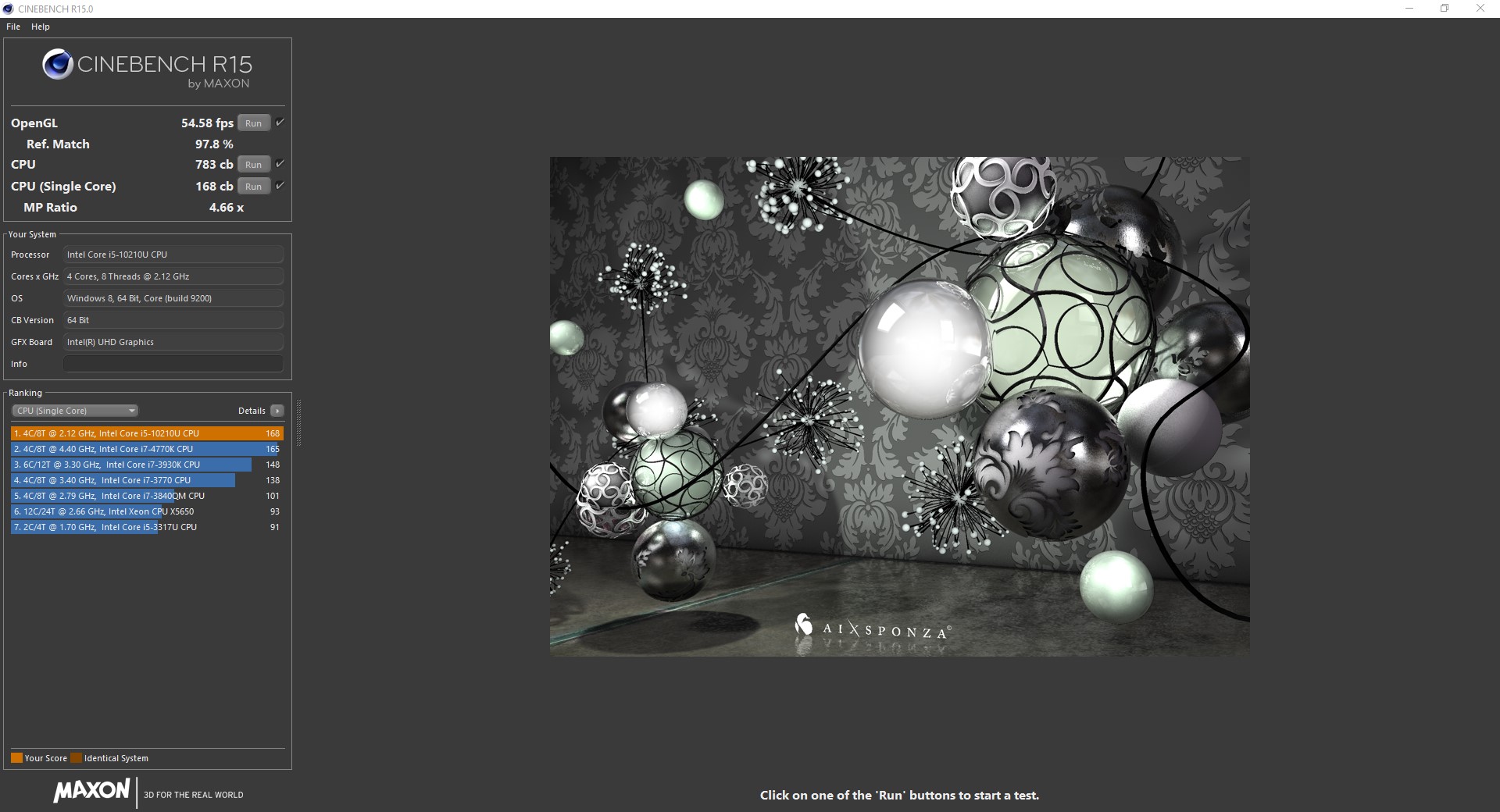

Cinebench R15
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	194 Points +15%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points
Average Intel Core i5-10210U (134 - 174, n=35)	165.6 Points -1%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	165 Points -2%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -30%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -36%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -50%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1067 Points +35%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	687 Points -13%
Average Intel Core i5-10210U (320 - 790, n=35)	609 Points -23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -62%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -67%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -73%

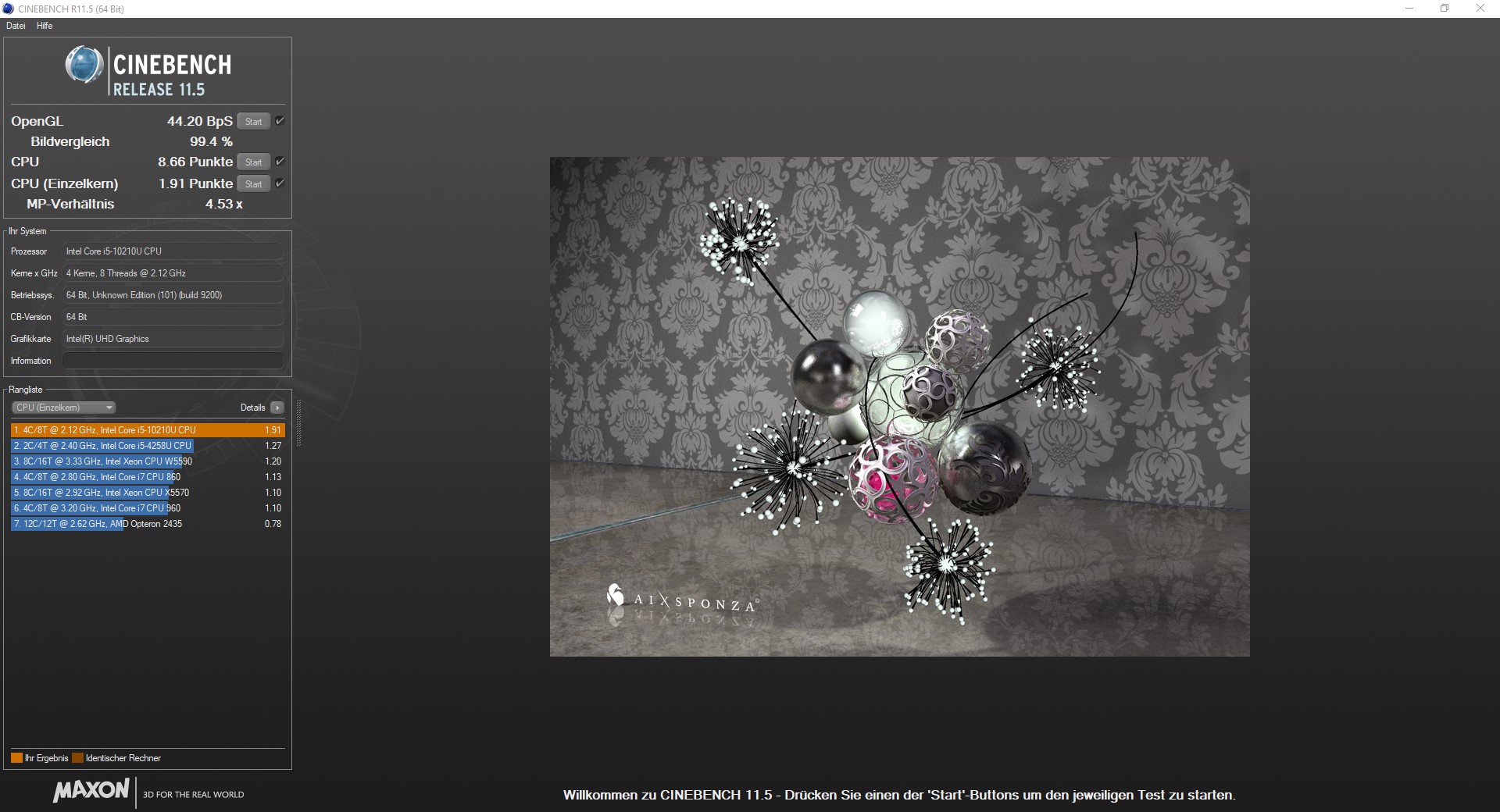

Cinebench R11.5
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.19 Points +15%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.88 Points -2%
Average Intel Core i5-10210U (1.71 - 1.91, n=4)	1.85 Points -3%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -30%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -33%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	10.89 Points +26%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	7.55 Points -13%
Average Intel Core i5-10210U (5.69 - 8.66, n=4)	7.34 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -62%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -67%

Blender - v2.79 BMW27 CPU
Average Intel Core i5-10210U (585 - 1339, n=24)	859 Seconds * -47%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	676 Seconds * -16%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	468.3 Seconds * +20%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -236%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -185%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * -156%
Average Intel Core i5-10210U ()	218 s * -0%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	177.4 s * +19%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -241%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -188%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -165%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s *
Average Intel Core i5-10210U ()	6.78 s * -0%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.103 s * +25%

X264 HD Benchmark 4.0
Pass 2
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	60.5 (60.4^min - 73.5^max) fps +23%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps
Average Intel Core i5-10210U (33.4 - 49.4, n=3)	42.2 fps -14%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps -61%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps -67%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps -72%
Pass 1
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	206 (204^min - 208^max) fps +12%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps
Average Intel Core i5-10210U (149.1 - 184.5, n=3)	167.7 fps -9%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps -43%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps -52%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps -60%

TrueCrypt
Serpent Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.57 GB/s +19%
Average Intel Core i5-10210U (0.48 - 0.491, n=2)	0.4855 GB/s +1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -65%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -72%
Twofish Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1 GB/s +27%
Average Intel Core i5-10210U (0.79 - 0.802, n=2)	0.796 GB/s +1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -64%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -69%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -75%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s
Average Intel Core i5-10210U (4.6 - 4.7, n=2)	4.65 GB/s -1%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4.6 GB/s -2%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -64%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -68%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -72%

Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22969 Points +65%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	16172 Points +16%
Average Intel Core i5-10210U (12471 - 16818, n=10)	14619 Points +5%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -64%
64 Bit Single-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5271 Points +43%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4871 Points +32%
Average Intel Core i5-10210U (3680 - 5077, n=10)	4615 Points +25%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points -29%

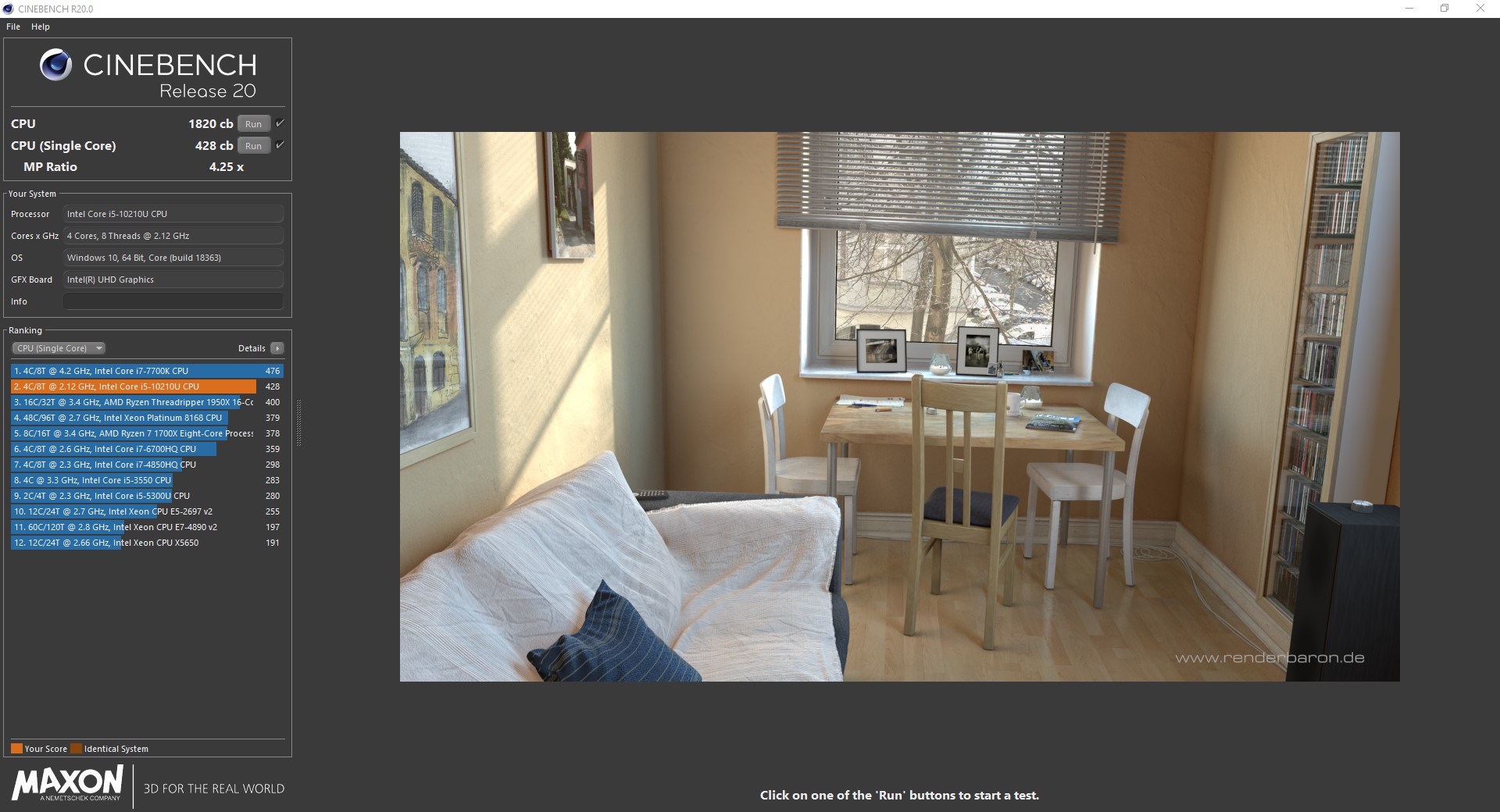

Cinebench R20
CPU (Single Core)
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	480 Points +12%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	418 Points -2%
Average Intel Core i5-10210U (322 - 428, n=30)	407 Points -5%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -53%
CPU (Multi Core)
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2303 Points +27%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1581 Points -13%
Average Intel Core i5-10210U (722 - 1820, n=30)	1279 Points -30%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -73%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	7.95 fps +27%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	5.16 fps -18%
Average Intel Core i5-10210U (2.36 - 6.28, n=24)	4.31 fps -31%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

* ... smaller is better

Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)

Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)

PCMark 10 | PCMark 8

PCMark 10
Score
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4418 Points +10%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4248 Points +6%
Average Intel Core i5-10210U (3448 - 4742, n=33)	4046 Points +1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points
Average Intel Core i5-8265U (2247 - 4192, n=36)	3744 Points -7%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -41%
Productivity
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	6876 Points +6%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6874 Points +6%
Average Intel Core i5-10210U (5980 - 7332, n=33)	6717 Points +3%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points
Average Intel Core i5-8265U (2941 - 6755, n=36)	6114 Points -6%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points -37%

PCMark 8
Work Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	5102 Points +19%
Average Intel Core i5-10210U (4286 - 5114, n=24)	4878 Points +14%
Average Intel Core i5-8265U (3132 - 5223, n=29)	4723 Points +10%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4631 Points +8%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4588 Points +7%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4286 Points
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	4046 Points -6%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3732 Points -13%
Home Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4227 Points +20%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	3938 Points +12%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3667 Points +4%
Average Intel Core i5-10210U (3182 - 4284, n=24)	3601 Points +2%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3526 Points
Average Intel Core i5-8265U (2747 - 4244, n=30)	3505 Points -1%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3062 Points -13%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2901 Points -18%
Creative Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	5312 Points +6%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	5005 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4853 Points -3%
Average Intel Core i5-10210U (3454 - 5440, n=11)	4497 Points -10%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4395 Points -12%
Average Intel Core i5-8265U (3473 - 5959, n=12)	4373 Points -13%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3594 Points -28%
Storage Score v2
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	5088 Points +20%
Average Intel Core i5-8265U (4832 - 4999, n=4)	4923 Points +16%
Average Intel Core i5-10210U (4233 - 5088, n=5)	4865 Points +15%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4729 Points +12%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4233 Points

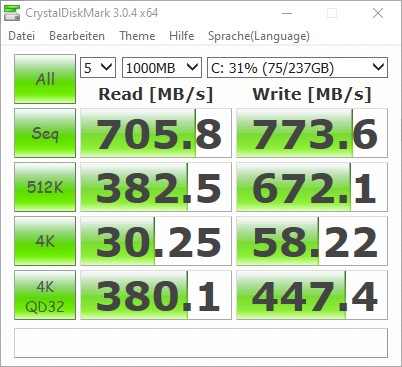

CrystalDiskMark 3.0

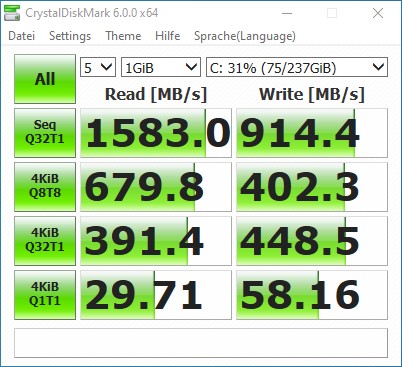

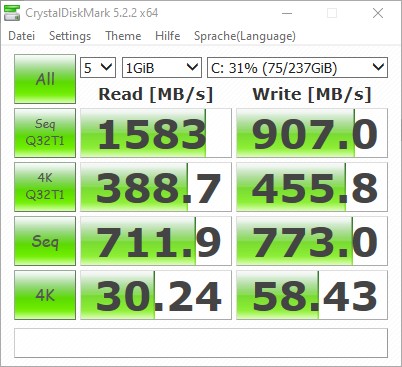

CrystalDiskMark 5.2 / 6

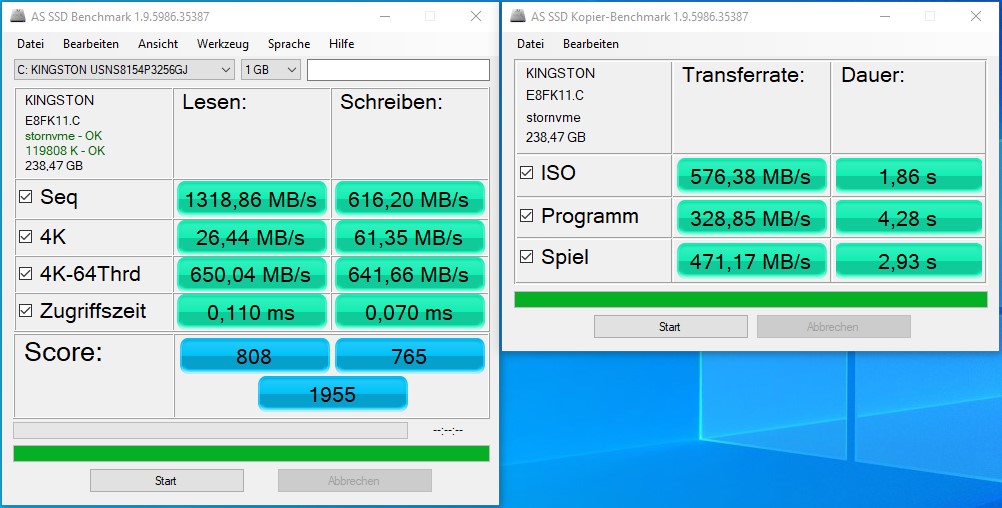

AS SSD

DiskSpd

Kingston RBUSNS8154P3256GJ1

Sequential Read: 706 MB/s

Sequential Write: 774 MB/s

512K Read: 382.5 MB/s

512K Write: 672 MB/s

4K Read: 30.25 MB/s

4K Write: 58.2 MB/s

4K QD32 Read: 380.1 MB/s

4K QD32 Write: 447.4 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +25%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1983 Points +7%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1914 Points +3%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1853 Points
Average Intel UHD Graphics 620 (1144 - 3432, n=244)	1749 Points -6%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -37%

3DMark
1280x720 Ice Storm Standard Graphics
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	79747 Points +37%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	76488 Points +31%
Average Intel UHD Graphics 620 (13790 - 102010, n=66)	67871 Points +17%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +6%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	58199 Points
1920x1080 Ice Storm Extreme Graphics
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	48446 Points +20%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	47803 Points +18%
Average Intel UHD Graphics 620 (26409 - 59483, n=71)	42924 Points +6%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points 0%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	40532 Points
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points +23%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1418 Points +18%
Lenovo ThinkBook 15 , Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1309 Points +9%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1202 Points
Average Intel UHD Graphics 620 (557 - 2608, n=213)	1161 Points -3%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points -14%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -36%

3DMark 11 Performance		2064 poäng
3DMark Ice Storm Standard Score		56938 poäng
3DMark Cloud Gate Standard Score		8987 poäng
3DMark Fire Strike Score		1113 poäng
3DMark Fire Strike Extreme Score		526 poäng
3DMark Time Spy Score		456 poäng
Hjälp

... jämför

	låg	med.	hög	ultra	4K
Dota 2 Reborn (2015)	78.8	48.9	20.4	18.1	6.6
X-Plane 11.11 (2018)	10.7	8.95	8.77		6.03
Ghost Recon Breakpoint (2019)	11	5
Star Wars Jedi Fallen Order (2019)		6.55

Strömförbrukning

Av/Standby	0.69 / Watt
Låg belastning	/ 15.7 / Watt
Hög belastning	/ 58.6 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

För

+ Robust hölje

+ Platsbesparande design

+ Låg energiförbrukning

+ Skaplig systemprestanda

+ WiFi 6 och Bluetooth 5

+ USB Typ C med Thunderbolt 3

+ 36 månaders garanti

+ SD-kortläsare

Emot

- Irriterande fläktljud

- Konfigurationen vi recenserat var jämförelsevis dyr

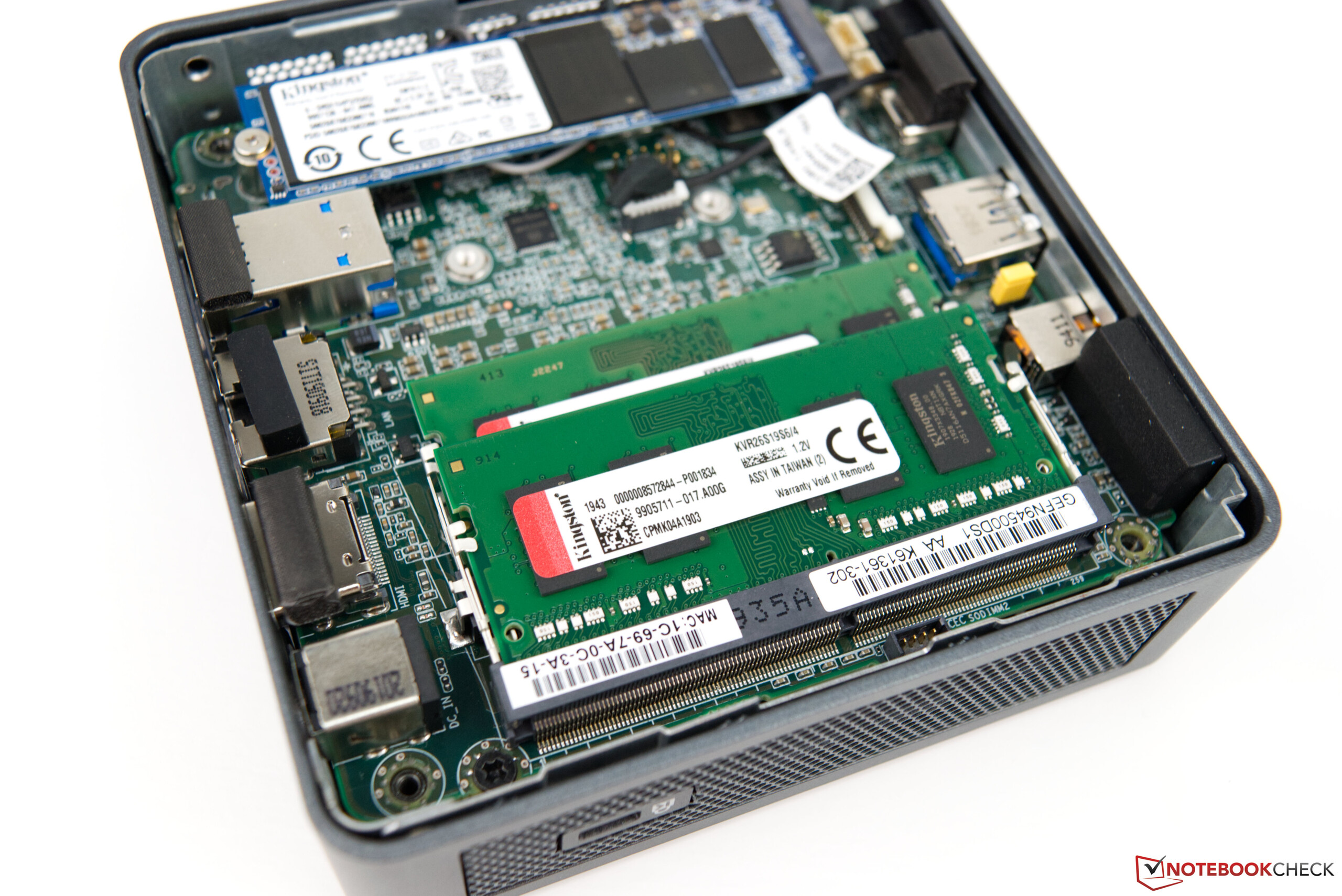

- Endast en masslagringsplats tillgänglig

Intel NUC NUC10i5FNK. Recensionsex från Intel Germany

Läs den fullständiga versionen av den här recensionen på engelska här.

Intels Comet Lake-baserade NUC är en väldigt liten och kanske ännu viktigare riktigt energisnål mini-PC med rikligt av oomph. Vår recensionsenhet NUC10i5FNK kostar för tillfället straxt över 8.000 kronor och har en Intel Core i5-10210U, 8 GB RAM, en SSD-enhet på 256 GB samt en fullständig Windows 10-licens. Med den utrustningen är du i princip redo att köra och den lilla kontorsdatorn är igång på nolltid. Men om du föredrar att installera dina egna komponenter går det att beställa NUC utan SSD, RAM och Windows-licens. Då kostar den istället runt 5.000 kronor.

Om du letar efter en liten mini-PC är Intels NUC NUC10i5FNK inte ett dåligt val. Ett modernt innehåll och rikligt med oomph gör den riktigt tilltalande, även i ett långsiktigt perspektiv.

När det kommer till prestandan är den kompakta datorn utrustad med ett modernt innehåll som inkluderar den senaste WiFi-tekniken och Intels Comet Lake SoC (Intel Core i5-10210U). Totalt fyra mikrofoner och en infraröd mottagare gör den särskilt intressant för videoströmning. Det finns gott om externa portar trots att den andra HDMI-porten fick offras för att ge rum åt en Thunderbolt 3-port. Den sistnämnda är modernare och mer mångsidig. Det finns fortfarande en SD-kortläsare och den stödjer till och med UHS-II.

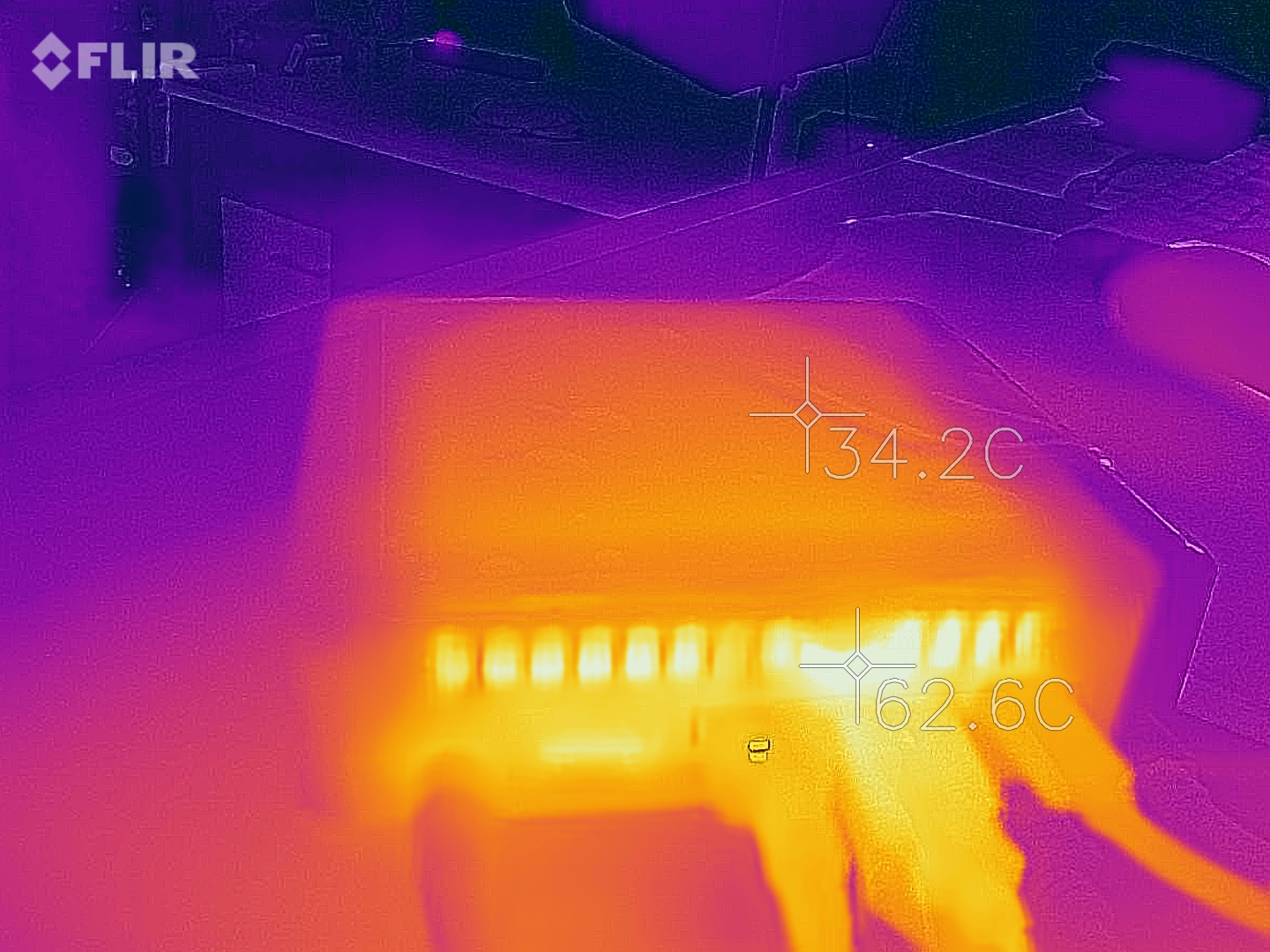

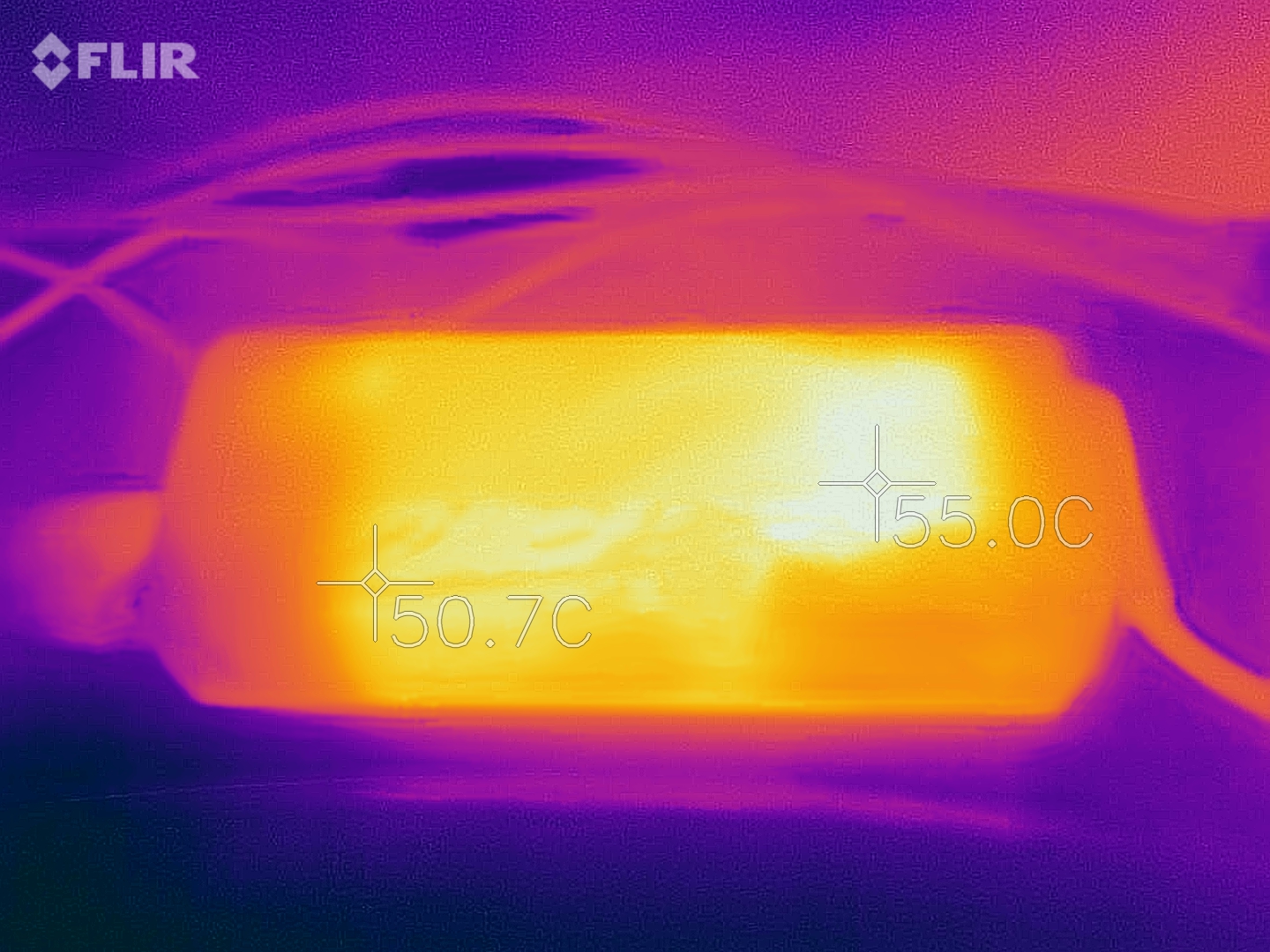

Utseendet, känslan och konstruktionskvaliteten är på toppnivå. Men med det sagt hade vi föredragit en matt yta överst. Den blanka svarta baksidan ser onekligen bra ut, men det kommer troligen inte vara så särskilt länge. Kylsystemet kärvade också lite. Å ena sidan fungerade det riktigt bra vid belastning och höll alltid processorn sval. Å andra sidan är ljudutvecklingen inte direkt ett säljargument med tanke på att fläkten är aktiv även vid låg belastning. Som tur är blir den irriterande först vid fullständig belastning.

Test: Intel Frost Canyon NUC med Comet Lake i5 SoC (Sammanfattning)

För

Emot

More articles related to this device
