Test: Lenovo ThinkPad X390 (i5-8265U, FHD) Laptop (Sammanfattning)

Benjamin Herzig, 👁 Andreas Osthoff (översatt av Daniel Eriksson), 05/07/2019

Slutet för X200. I en tid av allt tunnare infattning runt allt större skärmar kan inte ens företagssektorn stå still. Lenovo har därför ökat storleken på sin minsta ThinkPad från 12.5 tum till 13.3 tum. Är nya Lenovo ThinkPad X390 en värdig efterföljare till ThinkPad X200-serien?

Lenovo ThinkPad X390-20Q1S02M00 (ThinkPad X390 Serie)
Processor
Intel Core i5-8265U
Minne
16384 MB
, DDR4-2400, Fastlött på moderkortet
Skärm
13.3 tum 16:9, 1920 x 1080 pixlar 166 PPI, LP133WF7-SPB1, IPS LED, glansig: nej
Moderkort
Intel Cannon Lake-U PCH-LP Premium
Hårddisk
Intel SSD Pro 7600p SSDPEKKF512G8L, 512 GB
, M.2 2280, PCIe NVMe, 476 GB ledigt
Ljudkort
Realtek ALC3287
Anslutningar
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: Kombinerad ljudanslutning, Kortläsare: microSD, 1 SmartCard, 1 Fingeravtrycksläsare, NFC
Nätverk
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Storlek
höjd x bredd x djup (i mm) 16.9 x 311.9 x 217.2
Batteri
48 Wh Litiumjon
Camera
Webbkamera: HD
Övrigt
Högtalare: Stereo, 2x 1 Watt, Tangentbord: Chiclet med 6 rader, Tangentbordsbelysning: ja, 65W USB C-laddare, 36 Månader Garanti
Vikt
1.282 kg, Strömförsörjning: 345 g
Pris
1159 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Storlek och vikt

329 mm 225.8 mm 16.1 mm 1.3 kg323.5 mm 217.1 mm 15.95 mm 1.1 kg311.9 mm 217.2 mm 16.9 mm 1.3 kg310 mm 229 mm 17.7 mm 1.3 kg307.7 mm 209.8 mm 17.4 mm 1.1 kg305 mm 208 mm 16.5 mm 1.3 kg

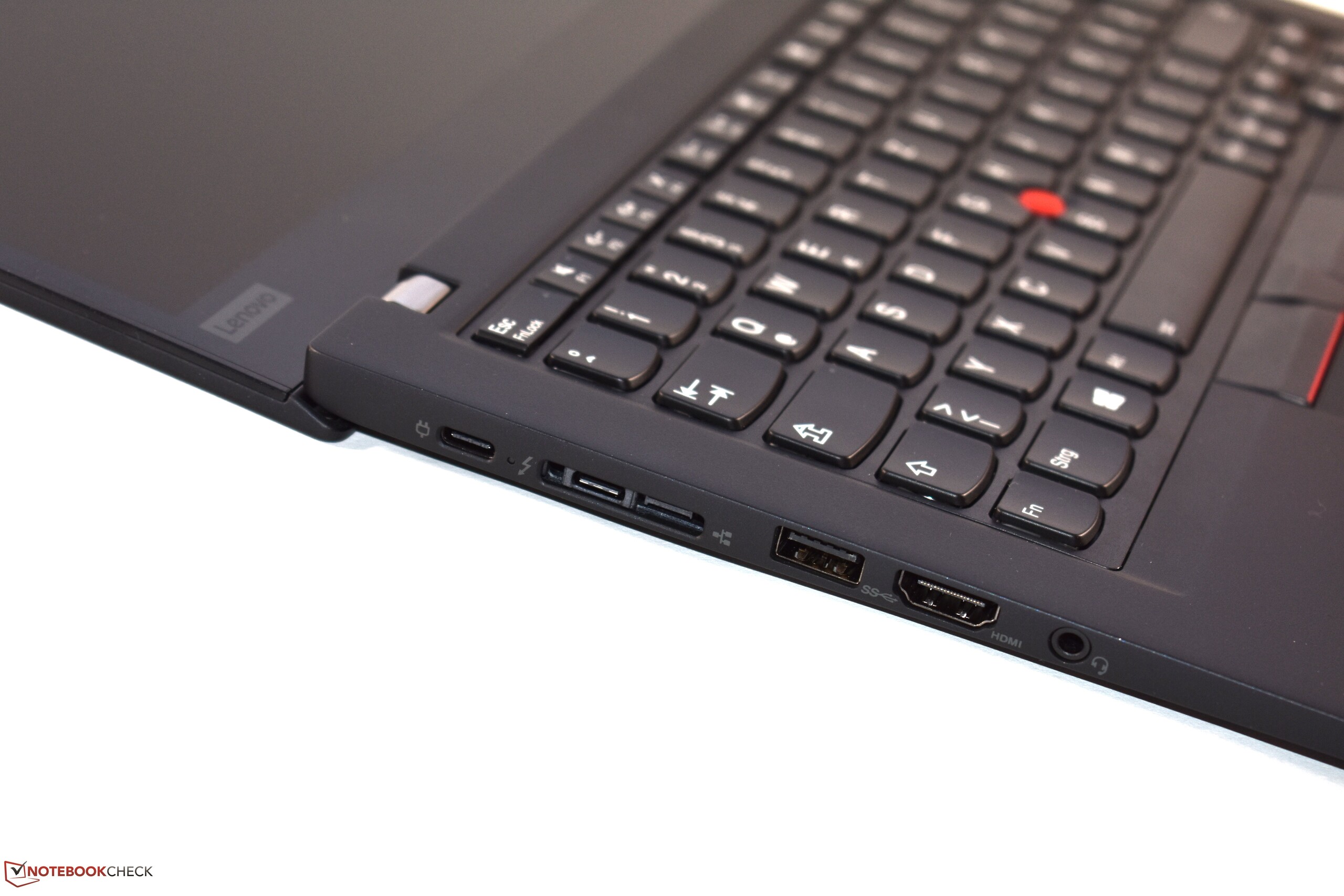

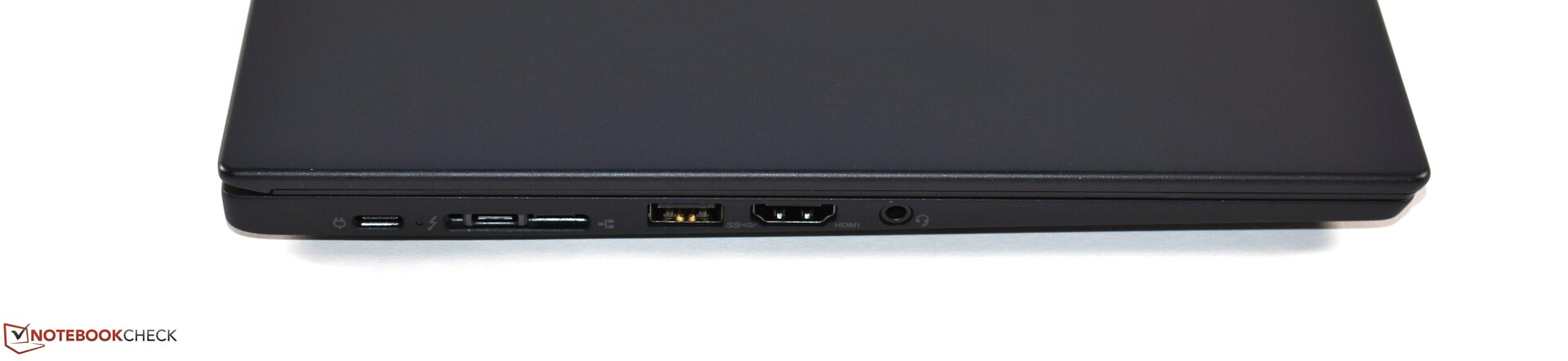

Vänster: USB 3.1 Gen 1 Typ C, Thunderbolt 3, miniEthernet, USB 3.0 Typ A, HDMI, Kombinerad ljudanslutning
Vänster: USB 3.1 Gen 1 Typ C, Thunderbolt 3, miniEthernet, USB 3.0 Typ A, HDMI, Kombinerad ljudanslutning

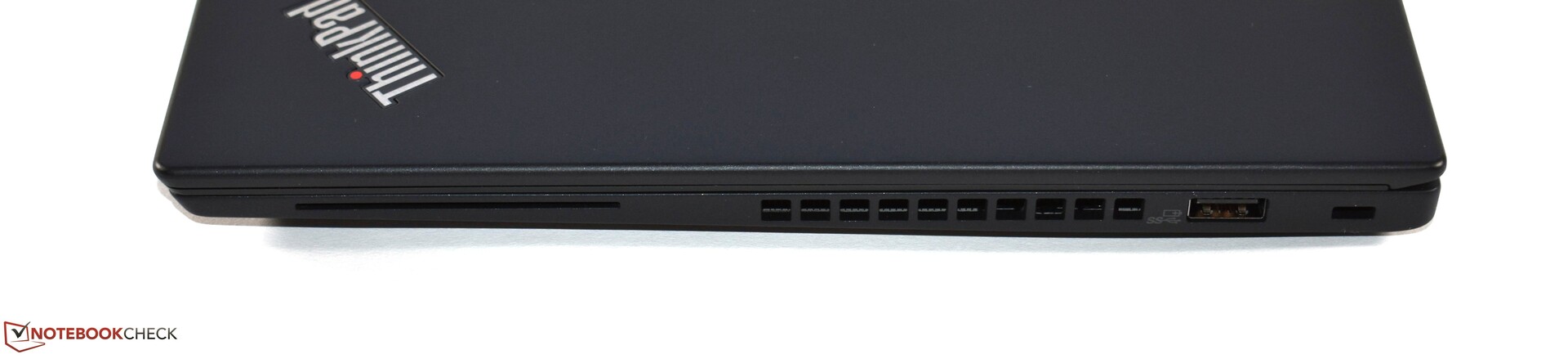

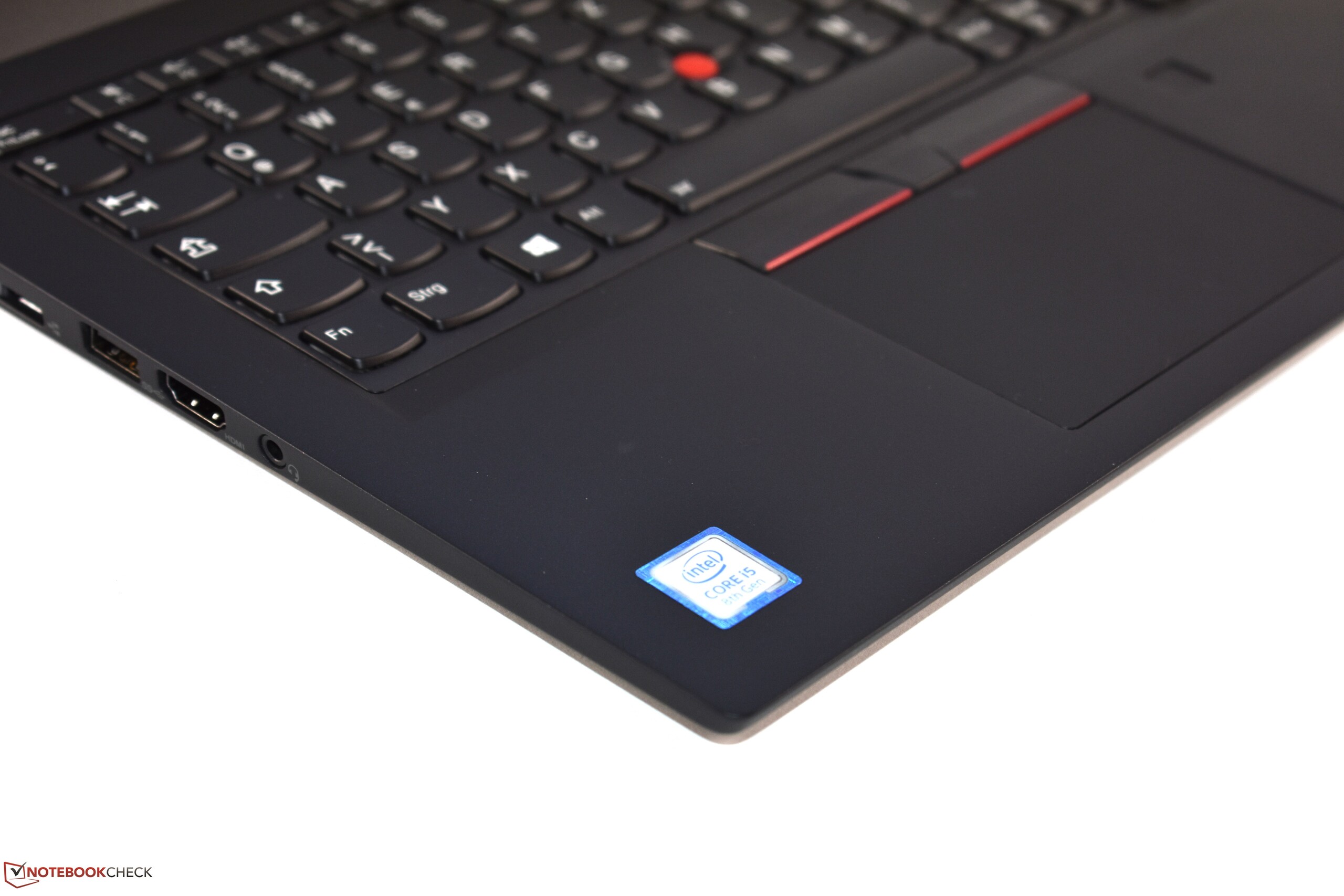

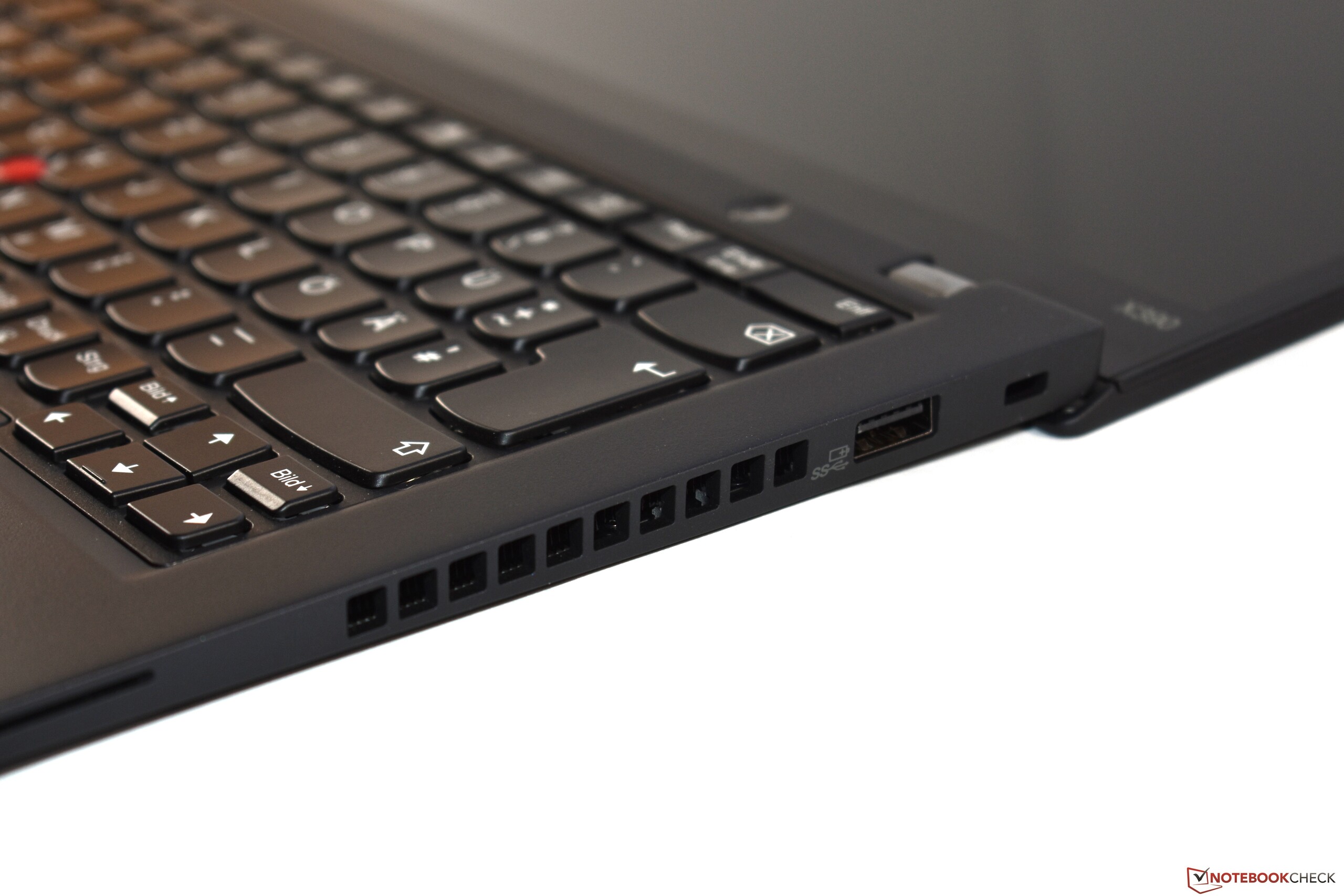

Höger: Smartcard-läsare, USB 3.0 Typ A, Kensington-lås
Höger: Smartcard-läsare, USB 3.0 Typ A, Kensington-lås
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
  (Toshiba Exceria Pro M501)
191.2 MB/s ∼100% +142%
Dell Latitude 7390
  (Toshiba Exceria Pro M501)
166 MB/s ∼87% +110%
Lenovo ThinkPad X390-20Q1S02M00
  (Toshiba Exceria Pro M501)
79.1 MB/s ∼41%
Lenovo ThinkPad X280-20KES01S00
  (Toshiba Excerie Pro M501)
76.8 MB/s ∼40% -3%
Lenovo ThinkPad T490s-20NYS02A00
  (Toshiba Exceria Pro M501)
68.3 MB/s ∼36% -14%
Average of class Subnotebook
  (8 - 186, n=111)
61.1 MB/s ∼32% -23%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
  (Toshiba Exceria Pro M501)
223.9 MB/s ∼100% +159%
Dell Latitude 7390
  (Toshiba Exceria Pro M501)
201.1 MB/s ∼90% +132%
Lenovo ThinkPad T490s-20NYS02A00
  (Toshiba Exceria Pro M501)
87.8 MB/s ∼39% +2%
Lenovo ThinkPad X390-20Q1S02M00
  (Toshiba Exceria Pro M501)
86.5 MB/s ∼39%
Lenovo ThinkPad X280-20KES01S00
  (Toshiba Excerie Pro M501)
86.1 MB/s ∼38% 0%
Average of class Subnotebook
  (17.7 - 251, n=113)
78.7 MB/s ∼35% -9%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X390-20Q1S02M00
Intel Wireless-AC 9560
646 MBit/s ∼100%
HP EliteBook 830 G5-3JX74EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼99% -1%
Lenovo ThinkPad X280-20KES01S00
Intel Dual Band Wireless-AC 8265
634 MBit/s ∼98% -2%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Dual Band Wireless-AC 8265
633 MBit/s ∼98% -2%
Dell Latitude 7390
Intel Dual Band Wireless-AC 8265
611 MBit/s ∼95% -5%
Average of class Subnotebook
  (30.9 - 950, n=113)
532 MBit/s ∼82% -18%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad X390-20Q1S02M00
Intel Wireless-AC 9560
681 MBit/s ∼100%
Lenovo ThinkPad X280-20KES01S00
Intel Dual Band Wireless-AC 8265
525 MBit/s ∼77% -23%
Average of class Subnotebook
  (36 - 949, n=113)
523 MBit/s ∼77% -23%
HP EliteBook 830 G5-3JX74EA
Intel Dual Band Wireless-AC 8265
512 MBit/s ∼75% -25%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼75% -25%
Dell Latitude 7390
Intel Dual Band Wireless-AC 8265
507 MBit/s ∼74% -26%
314
cd/m²
331
cd/m²
320
cd/m²
347
cd/m²
356
cd/m²
340
cd/m²
341
cd/m²
342
cd/m²
332
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 356 cd/m² Medel: 335.9 cd/m² Minimum: 4.7 cd/m²
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 355 cd/m²
Kontrast: 2225:1 (Svärta: 0.16 cd/m²)
ΔE Color 3.6 | 0.6-29.43 Ø6.1, calibrated: 1.1
ΔE Greyscale 4.7 | 0.64-98 Ø6.3
95.7% sRGB (Argyll 3D) 61.3% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.48
Lenovo ThinkPad X390-20Q1S02M00
LP133WF7-SPB1, , 1920x1080, 13.3
Lenovo ThinkPad X280-20KES01S00
B125HAN02.2, , 1920x1080, 12.5
Lenovo ThinkPad T490s-20NYS02A00
B140HAN05.7, , 1920x1080, 14
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Lenovo LEN40A9 / AUO B140HAK02.3, , 1920x1080, 14
HP EliteBook 830 G5-3JX74EA
IVO M133NVF3-R0, , 1920x1080, 13.3
Dell Latitude 7390
AU Optronics AUO462D / B133HAN [DELL P/N:F7VDJ], , 1920x1080, 13.3
Response Times
22%
-11%
29%
32%
6%
Response Time Grey 50% / Grey 80% *
57.6 (28.4, 29.2)
40 (22, 18)
31%
61.6 (30.8, 30.8)
-7%
40 (18, 22)
31%
36 (18.8, 17.2)
37%
48.8 (24.8, 24)
15%
Response Time Black / White *
34 (18.4, 15.6)
29.6 (16.4, 13.2)
13%
38.8 (21.2, 17.6)
-14%
25 (14, 11)
26%
24.8 (14, 10.8)
27%
35.2 (21.2, 14)
-4%
PWM Frequency
1020 (99)
Screen
-41%
-0%
-2%
-36%
-25%
Brightness middle
356
344
-3%
391
10%
298
-16%
316
-11%
329
-8%
Brightness
336
313
-7%
389
16%
287
-15%
326
-3%
316
-6%
Brightness Distribution
88
82
-7%
87
-1%
91
3%
85
-3%
92
5%
Black Level *
0.16
0.25
-56%
0.23
-44%
0.2
-25%
0.19
-19%
0.25
-56%
Contrast
2225
1376
-38%
1700
-24%
1490
-33%
1663
-25%
1316
-41%
Colorchecker DeltaE2000 *
3.6
4.7
-31%
3.4
6%
2.19
39%
4.5
-25%
4.3
-19%
Colorchecker DeltaE2000 max. *
5.5
19.4
-253%
4.7
15%
4.39
20%
12.1
-120%
7.8
-42%
Colorchecker DeltaE2000 calibrated *
1.1
1.1
-0%
1.67
-52%
2.9
-164%
2.5
-127%
Greyscale DeltaE2000 *
4.7
2.2
53%
4
15%
1.97
58%
5
-6%
3.6
23%
Gamma
2.48 89%
2.16 102%
2.49 88%
2.43 91%
2.22 99%
2.43 91%
CCT
6374 102%
6252 104%
6809 95%
6571 99%
6018 108%
6928 94%
Color Space (Percent of AdobeRGB 1998)
61.3
41.2
-33%
62.4
2%
62
1%
57.9
-6%
59.1
-4%
Color Space (Percent of sRGB)
95.7
64.1
-33%
97.4
2%
95
-1%
87.3
-9%
90.6
-5%
Total Average (Program / Settings)
-10% / -30%
-6% / -2%
14% / 3%
-2% / -25%
-10% / -21%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

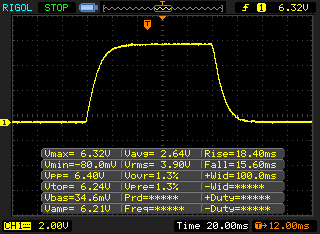

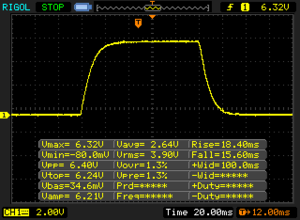

       Response Time Black to White
34 ms ... rise ↗ and fall ↘ combined↗ 18.4 ms rise
↘ 15.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 88 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (25.2 ms).

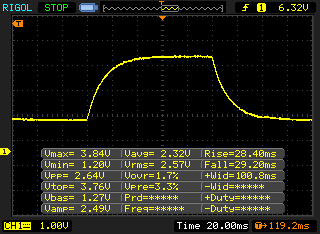

       Response Time 50% Grey to 80% Grey
57.6 ms ... rise ↗ and fall ↘ combined↗ 28.4 ms rise
↘ 29.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 93 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (40.2 ms).

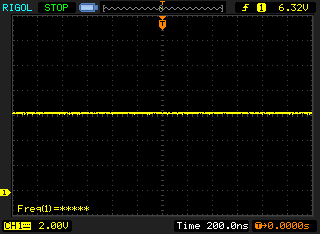

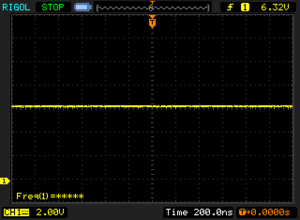

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9447 (minimum: 43 - maximum: 142900) Hz was measured.

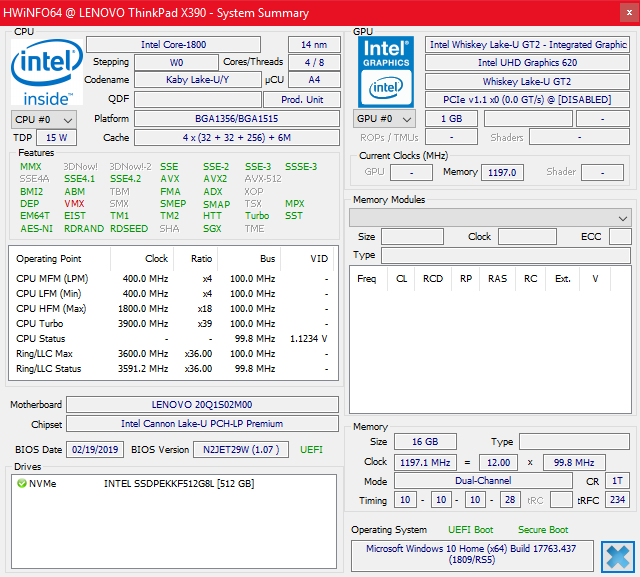

HWiNFO
HWiNFO

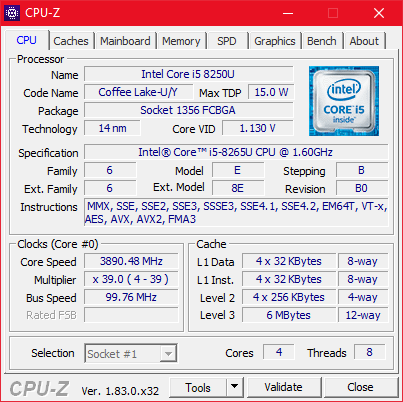

CPU-Z
CPU-Z

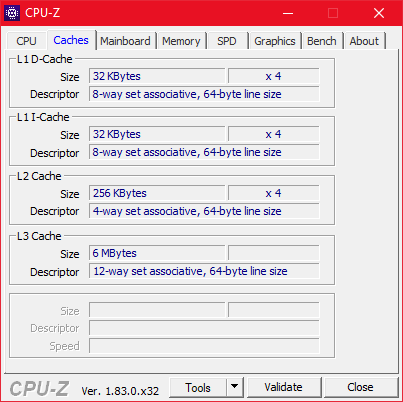

CPU-Z Cache
CPU-Z Cache

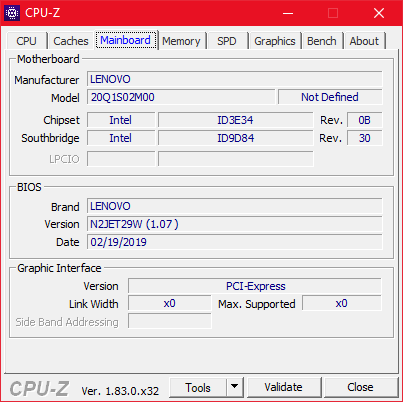

CPU-Z Moderkort
CPU-Z Moderkort

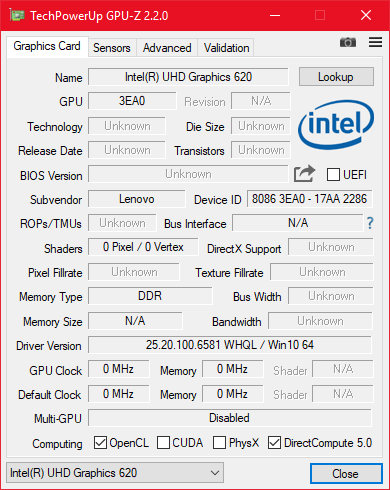

GPU-Z
GPU-Z

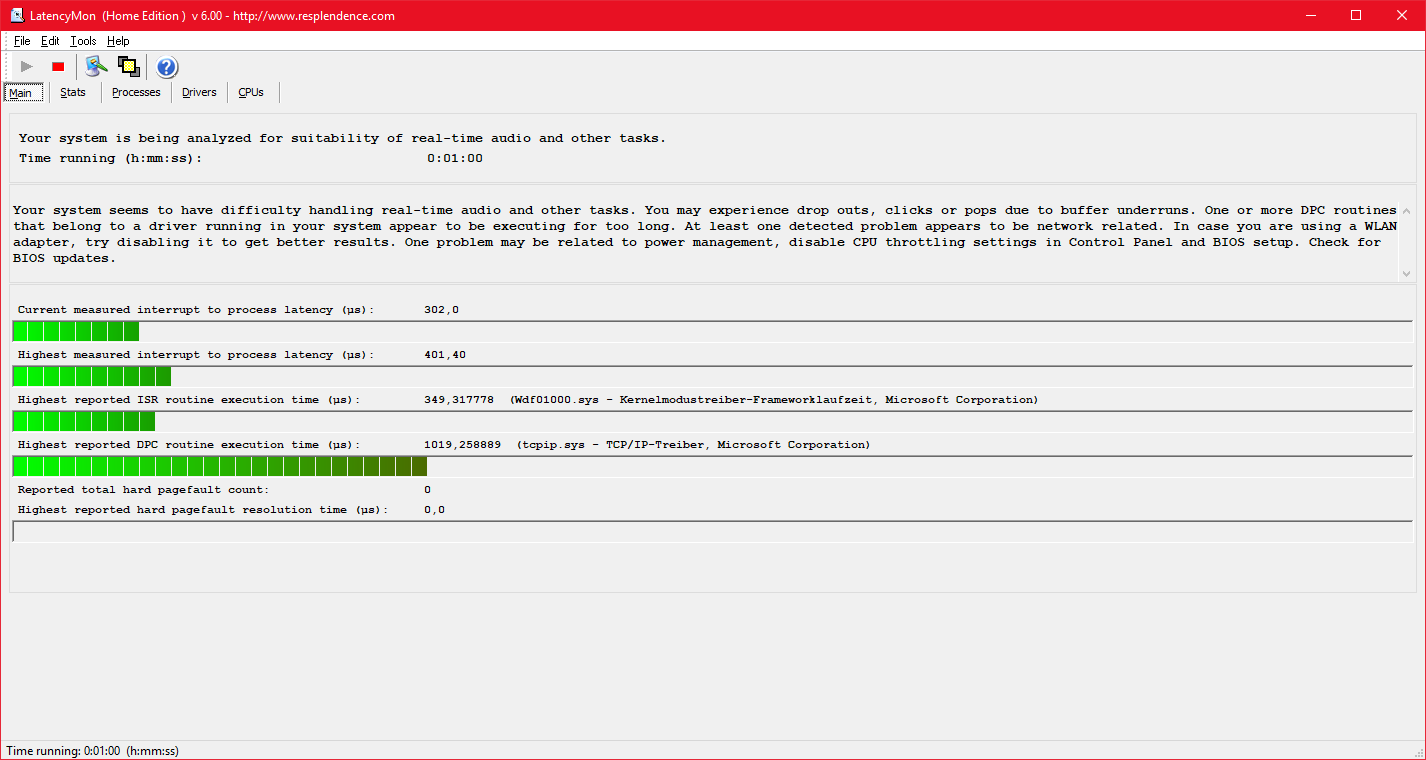

LatencyMon
LatencyMon


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700Tooltip
Lenovo ThinkPad X390-20Q1S02M00 Intel Core i5-8265U, Intel Core i5-8265U: Ø569 (552-686)
Lenovo ThinkPad X280-20KES01S00 Intel Core i5-8250U, Intel Core i5-8250U: Ø538 (523.46-671.14)
HP EliteBook 830 G5-3JX74EA Intel Core i7-8550U, Intel Core i7-8550U: Ø530 (526-566)
Dell Latitude 7390 Intel Core i5-8350U, Intel Core i5-8350U: Ø577 (546.02-625.09)
Lenovo ThinkPad X1 Carbon 2018-20KGS03900 Intel Core i7-8550U, Intel Core i7-8550U; undervolted: Ø657 (651.36-692.5)
Lenovo ThinkPad X1 Carbon 2018-20KGS03900 Intel Core i7-8550U, Intel Core i7-8550U: Ø606 (601.59-638.02)
Cinebench R15
CPU Single 64Bit
HP EliteBook 830 G5-3JX74EA
Intel Core i7-8550U
169 Points ∼100% +7%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
168 Points ∼99% +6%
Lenovo ThinkPad T490s-20NYS02A00
Intel Core i5-8265U
162 Points ∼96% +3%
Lenovo ThinkPad X390-20Q1S02M00
Intel Core i5-8265U
158 Points ∼93%
Average Intel Core i5-8265U
  (111 - 163, n=22)
154 Points ∼91% -3%
Dell Latitude 7390
Intel Core i5-8350U
152 Points ∼90% -4%
Lenovo ThinkPad X280-20KES01S00
Intel Core i5-8250U
145 Points ∼86% -8%
Average of class Subnotebook
  (20 - 184, n=264)
115 Points ∼68% -27%
CPU Multi 64Bit
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
708 Points ∼100% +4%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel Core i7-8550U
648 Points ∼92% -5%
Lenovo ThinkPad T490s-20NYS02A00
Intel Core i5-8265U
686 (min: 566.02, max: 686.12) Points ∼97% 0%
Lenovo ThinkPad X280-20KES01S00
Intel Core i5-8250U
684 Points ∼97% 0%
Lenovo ThinkPad X390-20Q1S02M00
Intel Core i5-8265U
683 Points ∼96%
Dell Latitude 7390
Intel Core i5-8350U
625 Points ∼88% -8%
Average Intel Core i5-8265U
  (483 - 750, n=24)
603 Points ∼85% -12%
HP EliteBook 830 G5-3JX74EA
Intel Core i7-8550U
577 Points ∼81% -16%
Average of class Subnotebook
  (32 - 721, n=274)
333 Points ∼47% -51%
Cinebench R15 OpenGL 64Bit
53.27 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Multi 64Bit
683 Points
Cinebench R15 CPU Single 64Bit
158 Points
Hjälp
PCMark 10
Digital Content Creation
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3210 Points ∼100% +5%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3062 Points ∼95% 0%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3050 Points ∼95%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3048 Points ∼95% 0%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (2620 - 3210, n=18)
2977 Points ∼93% -2%
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
2945 Points ∼92% -3%
Average of class Subnotebook
  (534 - 3704, n=80)
2417 Points ∼75% -21%
Productivity
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6727 Points ∼100% +7%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
6529 Points ∼97% +4%
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
6441 Points ∼96% +3%
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
6393 Points ∼95% +2%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
6273 Points ∼93%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (5836 - 6556, n=18)
6220 Points ∼92% -1%
Average of class Subnotebook
  (1014 - 7281, n=80)
5197 Points ∼77% -17%
Essentials
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
8361 Points ∼100% +5%
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
8015 Points ∼96% 0%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
7982 Points ∼95%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (7278 - 8689, n=18)
7903 Points ∼95% -1%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
7849 Points ∼94% -2%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
7845 Points ∼94% -2%
Average of class Subnotebook
  (2062 - 8549, n=80)
6728 Points ∼80% -16%
Score
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3985 Points ∼100% +4%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3905 Points ∼98% +2%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3860 Points ∼97% +1%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3832 Points ∼96%
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3816 Points ∼96% 0%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (3573 - 3985, n=18)
3775 Points ∼95% -1%
Dell Latitude 7390
UHD Graphics 620, 8350U, SK hynix SC311 M.2
3577 Points ∼90% -7%
Average of class Subnotebook
  (743 - 4344, n=83)
3111 Points ∼78% -19%
PCMark 8
Work Score Accelerated v2
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
5116 Points ∼100% +4%
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
4927 Points ∼96% +1%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
4896 Points ∼96%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
4868 Points ∼95% -1%
Dell Latitude 7390
UHD Graphics 620, 8350U, SK hynix SC311 M.2
4768 Points ∼93% -3%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (4302 - 4927, n=16)
4743 Points ∼93% -3%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4664 Points ∼91% -5%
Average of class Subnotebook
  (1283 - 5363, n=205)
4032 Points ∼79% -18%
Home Score Accelerated v2
Lenovo ThinkPad T490s-20NYS02A00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
4244 Points ∼100% +17%
HP EliteBook 830 G5-3JX74EA
UHD Graphics 620, 8550U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3948 Points ∼93% +9%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3752 Points ∼88% +3%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3629 Points ∼86%
Dell Latitude 7390
UHD Graphics 620, 8350U, SK hynix SC311 M.2
3600 Points ∼85% -1%
Lenovo ThinkPad X280-20KES01S00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3574 Points ∼84% -2%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (3150 - 4244, n=17)
3517 Points ∼83% -3%
Average of class Subnotebook
  (1027 - 4182, n=233)
3028 Points ∼71% -17%
PCMark 8 Home Score Accelerated v2
3629 poäng
PCMark 8 Work Score Accelerated v2
4896 poäng
Hjälp
Lenovo ThinkPad X390-20Q1S02M00
Intel SSD Pro 7600p SSDPEKKF512G8L
Lenovo ThinkPad X280-20KES01S00
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Samsung SSD PM981 MZVLB512HAJQ
HP EliteBook 830 G5-3JX74EA
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Dell Latitude 7390
Samsung PM961 MZVLW256HEHP
Average Intel SSD Pro 7600p SSDPEKKF512G8L

CrystalDiskMark 5.2 / 6
11%
9%
-1%
13%
3%
Write 4K
120.7
125.3
4%
131.86
9%
108.5
-10%
139.4
15%
129 (121 - 144, n=3)
7%
Read 4K
58.52
43.5
-26%
44.6
-24%
40.53
-31%
43.18
-26%
55.9 (45.6 - 63.5, n=3)
-4%
Write Seq
1491
112
-92%
1824.25
22%
1026
-31%
1075
-28%
1495 (1491 - 1497, n=3)
0%
Read Seq
2760
2273
-18%
2162.98
-22%
2080
-25%
1639
-41%
2607 (2385 - 2760, n=3)
-6%
Write 4K Q32T1
237.5
640.8
170%
338.15
42%
451
90%
662
179%
279 (238 - 357, n=3)
17%
Read 4K Q32T1
336.1
392
17%
351.85
5%
269.7
-20%
413.9
23%
385 (336 - 482, n=3)
15%
Write Seq Q32T1
1512
1903
26%
1972.1
30%
1770
17%
1195
-21%
1533 (1512 - 1558, n=3)
1%
Read Seq Q32T1
3154
3398
8%
3387.2
7%
3214
2%
3116
-1%
3030 (2915 - 3154, n=3)
-4%
Intel SSD Pro 7600p SSDPEKKF512G8L
Sequential Read: 2825 MB/s
Sequential Write: 1489 MB/s
512K Read: 1168 MB/s
512K Write: 1044 MB/s
4K Read: 70.46 MB/s
4K Write: 187 MB/s
4K QD32 Read: 594.8 MB/s
4K QD32 Write: 478.5 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, Intel Core i7-8550U
1901 Points ∼100% +3%
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
1841 Points ∼97%
Lenovo ThinkPad X280-20KES01S00
Intel UHD Graphics 620, Intel Core i5-8250U
1821 Points ∼96% -1%
HP EliteBook 830 G5-3JX74EA
Intel UHD Graphics 620, Intel Core i7-8550U
1728 Points ∼91% -6%
Average Intel UHD Graphics 620
  (1235 - 1979, n=154)
1706 Points ∼90% -7%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
1606 Points ∼84% -13%
Average of class Subnotebook
  (230 - 4905, n=353)
1260 Points ∼66% -32%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, Intel Core i7-8550U
1283 Points ∼100% +1%
HP EliteBook 830 G5-3JX74EA
Intel UHD Graphics 620, Intel Core i7-8550U
1280 Points ∼100% +1%
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
1266 Points ∼99%
Lenovo ThinkPad X280-20KES01S00
Intel UHD Graphics 620, Intel Core i5-8250U
1197 Points ∼93% -5%
Average Intel UHD Graphics 620
  (557 - 1401, n=123)
1117 Points ∼87% -12%
Average of class Subnotebook
  (222 - 3726, n=233)
1036 Points ∼81% -18%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
959 Points ∼75% -24%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
10126 Points ∼100%
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
Intel UHD Graphics 620, Intel Core i7-8550U
10123 Points ∼100% 0%
Lenovo ThinkPad X280-20KES01S00
Intel UHD Graphics 620, Intel Core i5-8250U
9711 Points ∼96% -4%
HP EliteBook 830 G5-3JX74EA
Intel UHD Graphics 620, Intel Core i7-8550U
9470 Points ∼94% -6%
Average Intel UHD Graphics 620
  (6910 - 11436, n=141)
9107 Points ∼90% -10%
Dell Latitude 7390
Intel UHD Graphics 620, Intel Core i5-8350U
8104 Points ∼80% -20%
Average of class Subnotebook
  (1484 - 22615, n=261)
7544 Points ∼75% -25%
3DMark 11 Performance
2062 poäng
3DMark Cloud Gate Standard Score
8361 poäng
3DMark Fire Strike Score
1115 poäng
Hjälp
låg med. hög ultra
BioShock Infinite (2013) 79.337.431.310.3fps
The Witcher 3 (2015) 16.9fps
Rise of the Tomb Raider (2016) 25.714.9fps
Civilization VI (2016) 54.420.3fps
F1 2018 (2018) 3315fps

Ljudnivå

Låg belastning
29.2 / 29.2 / 29.2 dB(A)
Hög belastning
34.8 / 34.8 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 29.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.424.830.729.42523.323.526.425.73125.628.527.730.34024.924.925.6265023.52624.124.36321.822.323.923.58023.82223.423.910022.420.82223.312522.321.321.722.316021.822.522.72220021.421.922.721.825022.122.121.821.431521.220.520.620.940021.220.520.320.850021.120.519.520.963020.619.919.420.580020.219.718.920.3100021.219.918.221125021.519.617.421.4160022.219.91722.1200022.219.516.422.2250025.321.916.125.1315023.619.715.524400024.820.715.524.5500023.620.215.723.3630024.518.215.423.680002017.115.619.71000018.116.715.417.41250016.716.115.3161600016.616.315.115.3SPL34.831.929.234.6N2.11.61.22.1median 21.5median 19.9median 17.4median 21.4Delta1.20.72.51.234.536.436.733.834.130.330.830.930.43333.336.433.733.835.530.632.730.930.634.328.129.128.428.729.828.727.527.327.929.526.427.124.725.827.427.12525.427.627.825.228.824.327.226.925.524.625.326.427.624.52323.423.725.92322.92323.324.722.321.821.521.523.622.62119.719.524.821.921.31919.224.823.120.417.918.826.52320.717.517.826.425.72117.217.626.724.721.816.316.528.32521.115.61629.424.823.315.815.930.224.120.216.115.829.421.718.215.916.129.520.517.716.516.327.321.918.617.316.728.22017.817.816.927.419.217.81917.2241817.618.817.520.817.517.518.117.418.717.417.618.817.318.335.132.429.629.539.92.21.71.31.33.3median 23median 21median 18.1median 17.5median 26.71.82.32.52.51.8hearing rangehide median Fan NoiseLenovo ThinkPad X390-20Q1S02M00Dell Latitude 7390
Hög belastning
 30.6 °C37.5 °C44.6 °C
 30.5 °C34.2 °C44.3 °C
 28.7 °C32.1 °C32.8 °C
Max: 44.6 °C
Medel: 35 °C
38.8 °C41.1 °C33.5 °C
40.5 °C38.2 °C32.1 °C
30.5 °C30.1 °C28.6 °C
Max: 41.1 °C
Medel: 34.8 °C
Strömförsörjning (max.)  33.5 °C | Rumstemperatur 19.8 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35 °C / 95 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 44.6 °C / 112 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 41.1 °C / 106 F, compared to the average of 40.1 °C / 104 F
(+) In idle usage, the average temperature for the upper side is 22.8 °C / 73 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.8 °C / 91 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.6 °C / 83.5 F (-4.2 °C / -7.5 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.731.12526.428.73127.728.44025.625.55024.123.36323.923.88023.421.4100222212521.722.816022.729.820022.743.225021.852.231520.654.840020.356.650019.558.263019.460.880018.964.5100018.262.2125017.459.216001758.6200016.460.9250016.156.4315015.558.3400015.563.3500015.762.5630015.461.2800015.6601000015.457.11250015.357.51600015.151.2SPL29.272.6N1.231.4median 17.4median 58.2Delta2.5630.633.229.131.628.837.22832.727.630.72628.625.430.427.135.424.83423.441.722.353.421.556.520.361.119.164.219.26717.769.916.966.916.667.816.571.716.27116.469.316.268.216.372.216.772.516.975.217.372.117.565.217.666.517.562.417.553.229.382.71.256median 17.5median 66.92.47.9hearing rangehide median Pink NoiseLenovo ThinkPad X390-20Q1S02M00HP EliteBook 830 G5-3JX74EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X390-20Q1S02M00 audio analysis

(±) | speaker loudness is average but good (72.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.8% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.9% difference to median)
Compared to same class
» 45% of all tested devices in this class were better, 10% similar, 45% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 29% of all tested devices were better, 7% similar, 64% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook 830 G5-3JX74EA audio analysis

(+) | speakers can play relatively loud (82.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.9% lower than median
(±) | linearity of bass is average (11.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 5% similar, 60% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 20% of all tested devices were better, 4% similar, 76% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Strömförbrukning
Av/Standbydarklight 0.27 / 0.59 Watt
Låg belastningdarkmidlight 3.4 / 5.6 / 8.7 Watt
Hög belastning midlight 43.6 / 65 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X390-20Q1S02M00
8265U, UHD Graphics 620, Intel SSD Pro 7600p SSDPEKKF512G8L, IPS LED, 1920x1080, 13.3
Lenovo ThinkPad X280-20KES01S00
8250U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 1920x1080, 12.5
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
8550U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 2560x1440, 14
HP EliteBook 830 G5-3JX74EA
8550U, UHD Graphics 620, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS LED, 1920x1080, 13.3
Dell Latitude 7390
8350U, UHD Graphics 620, SK hynix SC311 M.2, IPS, 1920x1080, 13.3
Average Intel UHD Graphics 620

Average of class Subnotebook

Power Consumption
9%
-20%
-7%
11%
1%
-31%
Idle Minimum *
3.4
3.11
9%
3.8
-12%
4.5
-32%
2.34
31%
3.9 (1 - 12.4, n=162)
-15%
6.69 (1 - 36, n=589)
-97%
Idle Average *
5.6
5.01
11%
8.9
-59%
6.4
-14%
5.6
-0%
7.14 (4.3 - 15.5, n=162)
-28%
9.9 (2.06 - 39, n=589)
-77%
Idle Maximum *
8.7
8.11
7%
11.9
-37%
9.2
-6%
6.5
25%
9 (5.2 - 16.6, n=162)
-3%
12.2 (3.9 - 55, n=589)
-40%
Load Average *
43.6
44.6
-2%
47.5
-9%
35.7
18%
43
1%
35.4 (12.9 - 51.6, n=162)
19%
33.5 (6.3 - 75, n=579)
23%
Load Maximum *
65
51.7
20%
52.5
19%
65.4
-1%
67.4
-4%
43.7 (22 - 79, n=162)
33%
40.6 (7.6 - 111, n=582)
38%

* ... smaller is better

Batteritid
NBC WiFi Websurfing Battery Test 1.3 (Edge)
8tim 19min
Big Buck Bunny H.264 1080p
12tim 44min
Hög belastning (maximal ljusstyrka)
1tim 34min
Lenovo ThinkPad X390-20Q1S02M00
8265U, UHD Graphics 620, 48 Wh
Lenovo ThinkPad X280-20KES01S00
8250U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad X1 Carbon 2018-20KGS03900
8550U, UHD Graphics 620, 57 Wh
Lenovo ThinkPad T490s-20NYS02A00
8265U, UHD Graphics 620, 57 Wh
HP EliteBook 830 G5-3JX74EA
8550U, UHD Graphics 620, 49 Wh
Dell Latitude 7390
8350U, UHD Graphics 620, 60 Wh
Average of class Subnotebook

Battery Runtime
3%
-3%
12%
-1%
-2%
-6%
Reader / Idle
1212
1328
766
1660
616 (87 - 2557, n=547)
H.264
764
572
-25%
566
-26%
834
9%
481
-37%
749
-2%
463 (182 - 950, n=110)
-39%
WiFi v1.3
499
531
6%
519
4%
607
22%
424
-15%
466 (206 - 805, n=206)
-7%
Load
94
119
27%
106
13%
99
5%
140
49%
92
-2%
121 (40 - 347, n=554)
29%

För

+ bra konstruktionskvalitet och design
+ riktigt bra inmatningsenheter
+ bra mängd portar
+ generös garanti
+ många funktioner för kommunikation och säkerhet
+ tangentbord som är lätt att byta ut
+ ljusstark och matt skärm med god färgprecision
+ bra CPU-prestanda
+ nästan alltid tyst och sval

Emot

- microSD-kortläsaren: problematisk placering
- CPU-prestandan stryps vid batteridrift
- mindre tangentbord än andra ThinkPad-modeller
- RAM som inte går att uppgradera
- LCD-panel med dåliga responstider
- Thunderbolt 3 med bara två PCIe-banor
- går inte att välja en skärm med högre upplösning än FHD
Recenseras: Lenovo ThinkPad X390. Recensionsex från
Recenseras: Lenovo ThinkPad X390. Recensionsex från

Läs den fullständiga versionen av den här recensionen på engelska här.

När Lenovo ThinkPad X280 släpptes förra året undrade vi huruvida en sådan klassisk subnotebook på 12.5 tum var utdaterad. Frågan har nu besvarats med ThinkPad X390 – tydligen föredrar kunderna större skärmar i dessa dagar. Men det finns fortfarande några frågetecken kring hur gångbar ThinkPad X390 egentligen är.

Men en sak i taget: Lenovo ThinkPad X390 har många styrkor, vilket är ett bevis på Lenovos skicklighet. ThinkPad X390 har ett robust och tunt hölje av hög kvalitet som innehåller utmärkta inmatningsenheter och ett bra antal portar. Den har många företagsfunktioner och det finns rikligt med kommunikationsmöjligheter. Dessutom kommer den med ett generöst garantipaket med tre års premium-support. ThinkPad X390 gör det lätt för användaren att byta ut tangentbordet, till skillnad från många andra kompakta bärbara datorer. Skärmen är matt, ljusstark och har ett bra färgomfång. Detta löser ett av de största problemen vi såg hos X280. CPU-prestandan är hög, ThinkPad X390 blir inte särskilt varm och den håller sig i princip helt tyst.

Med en så lång lista över positiva aspekter, finns det ens plats för något negativt? Inte mycket, för Lenovo begår inte särskilt många fel med den här företagsdatorn. En tråkig detalj är microSD-kortläsaren, som är svår att komma åt. CPU-prestandan begränsas när enheten körs på batteri och tangentbordet är inte lika brett som på andra ThinkPad-modeller. X390 kunde också haft bättre uppgraderingsmöjligheter, vi störde oss särskilt på att den hade fastlött RAM – vi hade åtminstone önskat oss en enkel RAM-plats. Skärmen har dåliga responstider och Thunderbolt-porten är bara ansluten genom två PCIe-banor. Det är dessutom synd att Lenovo inte erbjuder en mer högupplöst skärm.

Ett komplett paket: Lenovo gör fler saker rätt än de gör fel med ThinkPad X390 – men det finns starka konkurrenter från samma tillverkare.

Alla dessa är rimliga klagomål, men det rör sig främst om detaljer – den finns inga stora problem med den här ThinkPad-modellen. Således får den förstås en rekommendation från oss. Men trots det positiva omdömet får vi ställa oss själva frågan om huruvida ThinkPad T490s är ett bättre val. Den är en aning större, lite dyrare och saknar det löstagbara tangentbordet, men den har ett större batteri, en större skärm, ett bredare tangentbord samt möjligheten att välja till en skärm med högre upplösning. Utöver detta är de båda ThinkPad-modellerna nästan identiska. I slutändan är huruvida man väljer den större eller den mindre modellen en fråga om smak. Lenovo kanske borde överväga att slå ihop de båda serierna eftersom T490s och X390 helt enkelt är för lika varandra.

Lenovo ThinkPad X390-20Q1S02M00 - 04/25/2019 v6
Benjamin Herzig

Design
92 /  98 → 94%
Tangentbord
89%
Mus
92%
Anslutningar
70 / 80 → 87%
Vikt
72 / 35-78 → 85%
Batteri
92%
Skärm
90%
Spelprestanda
60 / 68 → 88%
Programprestanda
88 / 87 → 100%
Temperatur
92 / 91 → 100%
Ljudnivå
97%
Audio
64 / 91 → 70%
Camera
41 / 85 → 48%
Medel
80%
90%
Subnotebook - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad X390 (i5-8265U, FHD) Laptop (Sammanfattning)
Benjamin Herzig, 2019-05- 7 (Update: 2019-05- 7)
