Test: Fujitsu Lifebook U9310X - Omvandlingsbar kontorsmaskin med LTE på 1 kg (Sammanfattning)

Matt tryckkänslig skärm och många portar. Fujitsu Lifebook U9310X är en extremt lätt omvandlingsbar för kontoret som trots sina kompakta mått har ett flertal olika portar. Tack vare ett inbyggt LTE-modem är du alltid ansluten till internet när du är i farten.
Andreas Osthoff, 👁 Andreas Osthoff (översatt av Daniel Eriksson), 🇺🇸 🇩🇪 ...

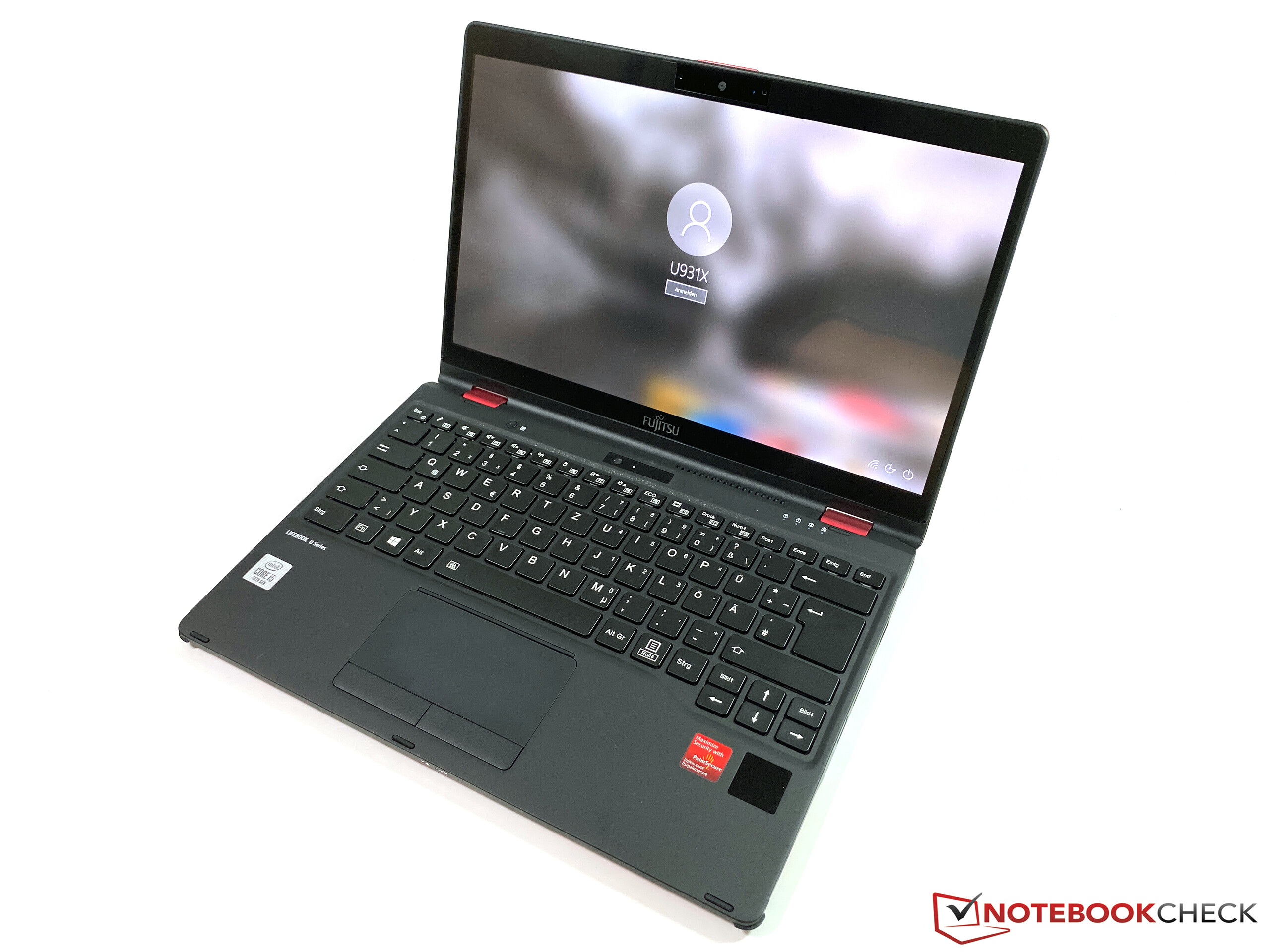

Fujitsu LifeBook U9310X
Processor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Minne
16384 MB
, Dubbla kanaler, DDR3-2133
Skärm
13.30 tum 16:9, 1920 x 1080 pixlar 166 PPI, Kapacitiv, LQ133M1JW48, IPS, glansig: nej, 60 Hz
Moderkort
Intel Comet Lake-U PCH-LP Premium
Hårddisk
Toshiba KBG40ZNS512G NVMe, 512 GB
, 420 GB ledigt
Ljudkort
Intel Comet Lake PCH-LP - cAVS
Anslutningar
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: Stereo, Kortläsare: SDXC, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor
Nätverk
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1, Sierra Wireless EM7421 (Cat. 7) (Hastighet nerladdning 300 Mbps, Hastighet uppladdning 150 Mbps), LTE
Storlek
höjd x bredd x djup (i mm) 17 x 309 x 215
Batteri
50 Wh, 3490 mAh Litiumjon
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Primary Camera: 5 MPix
Secondary Camera: 2 MPix
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 65W PSU, 24 Månader Garanti
Vikt
1.024 kg, Strömförsörjning: 354 g
Pris
1800 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Testgrupp

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86 %
01/2021
Fujitsu LifeBook U9310X
i5-10210U, UHD Graphics 620
1 kg17 mm13.30"1920x1080
90 %
04/2020
HP Elite Dragonfly-8MK79EA
i5-8265U, UHD Graphics 620
1.1 kg16.1 mm13.30"1920x1080
88 %
Lenovo ThinkPad X13 Yoga 20SX0004GE
i7-10510U, UHD Graphics 620
1.3 kg15.95 mm13.30"1920x1080
86 %
10/2019
Dell XPS 13 7390 2-in-1 Core i7
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU)
1.3 kg13 mm13.40"1920x1200
85 %
07/2020
Fujitsu Lifebook U939X
i5-8265U, UHD Graphics 620
1 kg17 mm13.30"1920x1080

Storleksjämförelse

310.4 mm 219 mm 15.95 mm 1.3 kg309 mm 215 mm 17 mm 1 kg309 mm 215 mm 17 mm 1 kg304.3 mm 197.5 mm 16.1 mm 1.1 kg296 mm 207 mm 13 mm 1.3 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Fujitsu Lifebook U939X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
154 MB/s ∼100% +87%
Dell XPS 13 7390 2-in-1 Core i7
  (Toshiba Exceria Pro M501 64 GB UHS-II)
144.6 MB/s ∼94% +75%
Fujitsu LifeBook U9310X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
82.4 MB/s ∼54%
Lenovo ThinkPad X13 Yoga 20SX0004GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
82.3 MB/s ∼53% 0%
Average of class Convertible
  (7.5 - 197, n=165)
66.1 MB/s ∼43% -20%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 7390 2-in-1 Core i7
  (Toshiba Exceria Pro M501 64 GB UHS-II)
187.5 MB/s ∼100% +112%
Fujitsu Lifebook U939X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
183.7 MB/s ∼98% +108%
Fujitsu LifeBook U9310X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.3 MB/s ∼47%
Lenovo ThinkPad X13 Yoga 20SX0004GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
88.1 MB/s ∼47% 0%
Average of class Convertible
  (19.2 - 246, n=159)
81.5 MB/s ∼43% -8%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Elite Dragonfly-8MK79EA
Intel Wi-Fi 6 AX200
1454 (1393min - 1484max) MBit/s ∼100% +56%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=149)
1224 MBit/s ∼84% +32%
Fujitsu LifeBook U9310X
Intel Wi-Fi 6 AX201
930 (467min - 944max) MBit/s ∼64%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Wi-Fi 6 AX201
896 (466min - 945max) MBit/s ∼62% -4%
Fujitsu Lifebook U939X
Intel Wireless-AC 9560
649 (586min - 678max) MBit/s ∼45% -30%
Dell XPS 13 7390 2-in-1 Core i7
Intel Killer Wi-Fi 6 AX1650s
640 MBit/s ∼44% -31%
iperf3 Client (transmit) TCP 1 m 4M x10
HP Elite Dragonfly-8MK79EA
Intel Wi-Fi 6 AX200
1411 (1311min - 1563max) MBit/s ∼100% +118%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=149)
1097 MBit/s ∼78% +70%
Fujitsu LifeBook U9310X
Intel Wi-Fi 6 AX201
647 (617min - 677max) MBit/s ∼46%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Wi-Fi 6 AX201
646 (313min - 659max) MBit/s ∼46% 0%
Fujitsu Lifebook U939X
Intel Wireless-AC 9560
630 (329min - 668max) MBit/s ∼45% -3%
Dell XPS 13 7390 2-in-1 Core i7
Intel Killer Wi-Fi 6 AX1650s
356 MBit/s ∼25% -45%
01002003004005006007008009001000Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø914 (467-944)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø648 (617-677)
ColorChecker
22.1 ∆E
29.7 ∆E
27.9 ∆E
21.2 ∆E
25.2 ∆E
17.5 ∆E
18.1 ∆E
28 ∆E
20.4 ∆E
12.1 ∆E
14.9 ∆E
12.9 ∆E
14.5 ∆E
13 ∆E
17.3 ∆E
9.1 ∆E
12.5 ∆E
6.6 ∆E
2.3 ∆E
11.7 ∆E
8.7 ∆E
7.7 ∆E
8.1 ∆E
9.4 ∆E
ColorChecker Fujitsu LifeBook U9310X: 15.46 ∆E min: 2.33 - max: 29.69 ∆E
321
cd/m²
330
cd/m²
307
cd/m²
326
cd/m²
345
cd/m²
310
cd/m²
295
cd/m²
318
cd/m²
302
cd/m²
Distribution av ljusstyrkan
LQ133M1JW48
X-Rite i1Pro 2
Max: 345 cd/m² Medel: 317.1 cd/m² Minimum: 28.2 cd/m²
Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 344 cd/m²
Kontrast: 1438:1 (Svärta: 0.24 cd/m²)
ΔE Color 2.7 | 0.6-29.43 Ø5.7, calibrated: 1
ΔE Greyscale 3.3 | 0.64-98 Ø5.9
96.9% sRGB (Argyll 3D) 62.4% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.31
Fujitsu LifeBook U9310X
LQ133M1JW48, IPS, 1920x1080, 13.30
HP Elite Dragonfly-8MK79EA
AUO5E2D, IPS, 1920x1080, 13.30
Lenovo ThinkPad X13 Yoga 20SX0004GE
N133HCG-GR3, IPS, 1920x1080, 13.30
Dell XPS 13 7390 2-in-1 Core i7
Sharp LQ134N1, IPS, 1920x1200, 13.40
Fujitsu Lifebook U939X
Sharp SHP14B0, IPS, 1920x1080, 13.30
Response Times
3%
15%
373%
9%
Response Time Grey 50% / Grey 80% *
62.4 (25.6, 26.8)
60.8 (30.8, 30)
3%
56 (26.8, 29.2)
10%
47.6 (23.2, 24.4)
24%
54.4 (26.8, 27.6)
13%
Response Time Black / White *
34.4 (18, 16.4)
33.8 (17.2, 16.6)
2%
28 (11.2, 16.8)
19%
29.2 (16, 13.2)
15%
32.8 (16.4, 16.4)
5%
PWM Frequency
211.9 (30)
2500 (25)
1080%
Screen
13%
15%
8%
-14%
Brightness middle
345
411
19%
401
16%
549.8
59%
325
-6%
Brightness
317
388
22%
383
21%
520
64%
310
-2%
Brightness Distribution
86
87
1%
91
6%
86
0%
89
3%
Black Level *
0.24
0.22
8%
0.16
33%
0.39
-63%
0.29
-21%
Contrast
1438
1868
30%
2506
74%
1410
-2%
1121
-22%
Colorchecker DeltaE2000 *
2.7
1.8
33%
2.6
4%
2.12
21%
3.2
-19%
Colorchecker DeltaE2000 max. *
4.2
4.1
2%
4.2
-0%
3.66
13%
6.2
-48%
Colorchecker DeltaE2000 calibrated *
1
1
-0%
0.9
10%
1.37
-37%
1.1
-10%
Greyscale DeltaE2000 *
3.3
2.5
24%
3.3
-0%
2.6
21%
4.4
-33%
Gamma
2.31 95%
2.26 97%
2.01 109%
2.3 96%
2.21 100%
CCT
7188 90%
6448 101%
6076 107%
6884 94%
7430 87%
Color Space (Percent of AdobeRGB 1998)
62.4
64.7
4%
62.7
0%
65.4
5%
62.9
1%
Color Space (Percent of sRGB)
96.9
99.3
2%
98.1
1%
99.7
3%
96.6
0%
Total Average (Program / Settings)
8% / 12%
15% / 15%
191% / 86%
-3% / -11%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

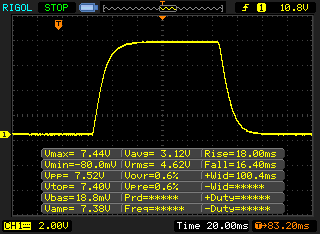

       Response Time Black to White
34.4 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 16.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 89 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.4 ms).

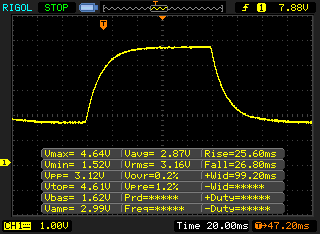

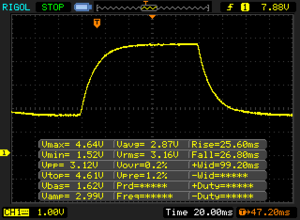

       Response Time 50% Grey to 80% Grey
62.4 ms ... rise ↗ and fall ↘ combined↗ 25.6 ms rise
↘ 26.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 96 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.7 ms).

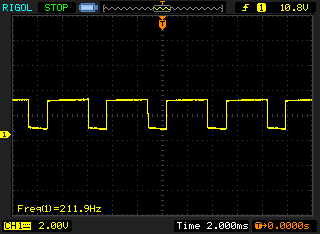

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 211.9 Hz ≤ 30 % brightness setting

The display backlight flickers at 211.9 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 211.9 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9725 (minimum: 5 - maximum: 142900) Hz was measured.

Cinebench R15 Loop

050100150200250300350400450500550600650700750800850900Tooltip
Fujitsu LifeBook U9310X Intel Core i5-10210U: Ø512 (503.02-609)
HP Elite Dragonfly-8MK79EA Intel Core i5-8265U: Ø413 (406.64-496.34)
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U: Ø528 (524.76-529.32)
Dell XPS 13 7390 2-in-1 Core i7 Intel Core i7-1065G7: Ø672 (632.81-836.68)
Fujitsu Lifebook U939X Intel Core i5-8265U: Ø492 (486.03-559.89)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
465 Points ∼100% +11%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
419 Points ∼90%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
415 Points ∼89% -1%
Average Intel Core i5-10210U
  (322 - 428, n=27)
409 Points ∼88% -2%
Fujitsu Lifebook U939X
Intel Core i5-8265U
397 Points ∼85% -5%
Average of class Convertible
  (78 - 584, n=62)
384 Points ∼83% -8%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
370 Points ∼80% -12%
Cinebench R20 / CPU (Multi Core)
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
2024 Points ∼100% +51%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
1337 Points ∼66%
Average of class Convertible
  (200 - 2829, n=62)
1308 Points ∼65% -2%
Average Intel Core i5-10210U
  (771 - 1820, n=27)
1282 Points ∼63% -4%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
1239 Points ∼61% -7%
Fujitsu Lifebook U939X
Intel Core i5-8265U
1148 Points ∼57% -14%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
1038 Points ∼51% -22%
Cinebench R15 / CPU Single 64Bit
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
174 Points ∼100% +5%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
171 Points ∼98% +4%
Average Intel Core i5-10210U
  (154 - 174, n=32)
167 Points ∼96% +1%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
165 Points ∼95%
Fujitsu Lifebook U939X
Intel Core i5-8265U
159 Points ∼91% -4%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
146 Points ∼84% -12%
Average of class Convertible
  (19 - 213, n=350)
113 Points ∼65% -32%
Cinebench R15 / CPU Multi 64Bit
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
830 Points ∼100% +36%
Average Intel Core i5-10210U
  (478 - 790, n=32)
611 Points ∼74% 0%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
609 (503.02min - 508.74max) Points ∼73%
Fujitsu Lifebook U939X
Intel Core i5-8265U
559 (487.52min - 492.16max) Points ∼67% -8%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
529 (524.76min - 529.32max) Points ∼64% -13%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
496 (406.64min - 496.34max) Points ∼60% -19%
Average of class Convertible
  (33 - 1049, n=362)
351 Points ∼42% -42%
Blender 2.79 / BMW27 CPU
Average of class Convertible
  (447 - 5811, n=54)
1286 Seconds * ∼100% -49%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
1039 Seconds * ∼81% -21%
Fujitsu Lifebook U939X
Intel Core i5-8265U
918 Seconds * ∼71% -6%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
862 Seconds * ∼67%
Average Intel Core i5-10210U
  (585 - 1339, n=21)
854 Seconds * ∼66% +1%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
838 Seconds * ∼65% +3%
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
679 Seconds * ∼53% +21%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
4542 MIPS ∼100% +10%
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
4434 MIPS ∼98% +7%
Average Intel Core i5-10210U
  (3504 - 4467, n=21)
4204 MIPS ∼93% +2%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
4130 MIPS ∼91%
Average of class Convertible
  (1307 - 5350, n=53)
4070 MIPS ∼90% -1%
Fujitsu Lifebook U939X
Intel Core i5-8265U
3962 MIPS ∼87% -4%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
3885 MIPS ∼86% -6%
7-Zip 18.03 / 7z b 4
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
22898 MIPS ∼100% +42%
Average Intel Core i5-10210U
  (10950 - 21679, n=21)
16740 MIPS ∼73% +4%
Average of class Convertible
  (3541 - 31114, n=54)
16356 MIPS ∼71% +2%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
16330 MIPS ∼71% +1%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
16102 MIPS ∼70%
Fujitsu Lifebook U939X
Intel Core i5-8265U
15564 MIPS ∼68% -3%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
13812 MIPS ∼60% -14%
Geekbench 5.3 / 64 Bit Single-Core Score
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
1209 Points ∼100% +13%
Average Intel Core i5-10210U
  (1014 - 1133, n=22)
1079 Points ∼89% +1%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
1072 Points ∼89%
Average of class Convertible
  (233 - 1566, n=40)
1063 Points ∼88% -1%
Fujitsu Lifebook U939X
Intel Core i5-8265U
1040 Points ∼86% -3%
Geekbench 5.3 / 64 Bit Multi-Core Score
Fujitsu LifeBook U9310X
Intel Core i5-10210U
3855 Points ∼100%
Fujitsu Lifebook U939X
Intel Core i5-8265U
3681 Points ∼95% -5%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
3637 Points ∼94% -6%
Average of class Convertible
  (770 - 5443, n=40)
3600 Points ∼93% -7%
Average Intel Core i5-10210U
  (2079 - 4256, n=22)
3570 Points ∼93% -7%
HWBOT x265 Benchmark v2.2 / 4k Preset
Dell XPS 13 7390 2-in-1 Core i7
Intel Core i7-1065G7
6.38 fps ∼100% +50%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
4.37 fps ∼68% +3%
Average Intel Core i5-10210U
  (2.66 - 6.28, n=21)
4.28 fps ∼67% +1%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
4.24 fps ∼66%
Average of class Convertible
  (0.58 - 8.81, n=54)
4.16 fps ∼65% -2%
Fujitsu Lifebook U939X
Intel Core i5-8265U
4.01 fps ∼63% -5%
HP Elite Dragonfly-8MK79EA
Intel Core i5-8265U
3.51 fps ∼55% -17%
LibreOffice / 20 Documents To PDF
Average of class Convertible
  (46.9 - 238, n=34)
83.2 s * ∼100% -52%
Average Intel Core i5-10210U
  (49.6 - 80.3, n=15)
60.3 s * ∼72% -10%
Fujitsu Lifebook U939X
Intel Core i5-8265U
59.4 s * ∼71% -8%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
55 s * ∼66% -0%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
54.9 s * ∼66%
R Benchmark 2.5 / Overall mean
Average of class Convertible
  (0.559 - 2.74, n=35)
0.913 sec * ∼100% -28%
Fujitsu Lifebook U939X
Intel Core i5-8265U
0.736 sec * ∼81% -3%
Average Intel Core i5-10210U
  (0.658 - 0.901, n=21)
0.729 sec * ∼80% -2%
Fujitsu LifeBook U9310X
Intel Core i5-10210U
0.715 sec * ∼78%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel Core i7-10510U
0.679 sec * ∼74% +5%

* ... smaller is better

PCMark 10 - Score
Dell XPS 13 7390 2-in-1 Core i7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba BG4 KBG40ZPZ512G
4677 Points ∼53% +13%
Lenovo ThinkPad X13 Yoga 20SX0004GE
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4276 Points ∼49% +3%
Fujitsu LifeBook U9310X
UHD Graphics 620, i5-10210U, Toshiba KBG40ZNS512G NVMe
4133 Points ∼47%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (3686 - 4353, n=27)
4008 Points ∼46% -3%
Fujitsu Lifebook U939X
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
3805 Points ∼43% -8%
HP Elite Dragonfly-8MK79EA
UHD Graphics 620, i5-8265U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
3636 Points ∼41% -12%
Average of class Convertible
  (872 - 5214, n=147)
3425 Points ∼39% -17%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Fujitsu LifeBook U9310X
UHD Graphics 620, i5-10210U, Toshiba KBG40ZNS512G NVMe
2472.9 μs * ∼100%
Lenovo ThinkPad X13 Yoga 20SX0004GE
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
936.8 μs * ∼38% +62%
Fujitsu Lifebook U939X
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
560.7 μs * ∼23% +77%

* ... smaller is better

Fujitsu LifeBook U9310X
Toshiba KBG40ZNS512G NVMe
HP Elite Dragonfly-8MK79EA
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Lenovo ThinkPad X13 Yoga 20SX0004GE
Samsung SSD PM981a MZVLB512HBJQ
Dell XPS 13 7390 2-in-1 Core i7
Toshiba BG4 KBG40ZPZ512G
Fujitsu Lifebook U939X
Samsung SSD PM981 MZVLB512HAJQ
Average Toshiba KBG40ZNS512G NVMe

Average of class Convertible

CrystalDiskMark 5.2 / 6
-2%
10%
1%
17%
-2%
-21%
Write 4K
134.21
88.04
-34%
134.5
0%
106.7
-20%
158.5
18%
121 (89.3 - 160, n=5)
-10%
103 (1.168 - 236, n=139)
-23%
Read 4K
53.44
132.15
147%
61.19
15%
49.94
-7%
47.62
-11%
49.3 (41.4 - 53.5, n=5)
-8%
40.3 (0.536 - 191, n=138)
-25%
Write Seq
1215.96
502.98
-59%
930.5
-23%
1223
1%
1573
29%
1247 (1174 - 1368, n=5)
3%
914 (27.9 - 2577, n=134)
-25%
Read Seq
1291.35
1306.33
1%
2534
96%
1801
39%
1411
9%
1564 (1291 - 1696, n=5)
21%
1206 (74.7 - 2677, n=133)
-7%
Write 4K Q32T1
401.55
237.3
-41%
375.9
-6%
325.3
-19%
366.1
-9%
348 (283 - 421, n=5)
-13%
303 (1.212 - 747, n=139)
-25%
Read 4K Q32T1
491.37
287.35
-42%
343.7
-30%
550.5
12%
451.9
-8%
433 (353 - 564, n=5)
-12%
311 (1.189 - 701, n=139)
-37%
Write Seq Q32T1
1223.5
1242.4
2%
933.6
-24%
1224
0%
1985
62%
1264 (1220 - 1418, n=5)
3%
1140 (18.4 - 3019, n=139)
-7%
Read Seq Q32T1
2314.3
2480.4
7%
3548
53%
2350
2%
3451
49%
2318 (2274 - 2359, n=5)
0%
1944 (68.9 - 3565, n=139)
-16%
3DMark - 1920x1080 Fire Strike Graphics
Dell XPS 13 7390 2-in-1 Core i7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3144 Points ∼100% +160%
Average of class Convertible
  (132 - 13158, n=283)
1286 Points ∼41% +6%
HP Elite Dragonfly-8MK79EA
Intel UHD Graphics 620, Intel Core i5-8265U
1216 Points ∼39% 0%
Lenovo ThinkPad X13 Yoga 20SX0004GE
Intel UHD Graphics 620, Intel Core i7-10510U
1216 Points ∼39% 0%
Fujitsu LifeBook U9310X
Intel UHD Graphics 620, Intel Core i5-10210U
1210 Points ∼38%
Average Intel UHD Graphics 620
  (557 - 1420, n=202)
1152 Points ∼37% -5%
låg med. hög ultra
The Witcher 3 (2015) 17 fps
Dota 2 Reborn (2015) 77.1 48.1 21 17.6 fps
X-Plane 11.11 (2018) 12.3 11.1 11.6 fps

Ljudnivå

Låg belastning
29.4 / 29.4 / 30.7 dB(A)
Hög belastning
32.6 / 33.7 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM-1, Arta (15 cm avstånd)   environment noise: 29.4 dB(A)
Fujitsu LifeBook U9310X
UHD Graphics 620, i5-10210U, Toshiba KBG40ZNS512G NVMe
HP Elite Dragonfly-8MK79EA
UHD Graphics 620, i5-8265U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Lenovo ThinkPad X13 Yoga 20SX0004GE
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
Dell XPS 13 7390 2-in-1 Core i7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Toshiba BG4 KBG40ZPZ512G
Fujitsu Lifebook U939X
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
Noise
1%
-1%
-1%
-2%
off / environment *
29.4
29.5
-0%
29.3
-0%
28.1
4%
29.8
-1%
Idle Minimum *
29.4
29.5
-0%
29.3
-0%
28.1
4%
29.8
-1%
Idle Average *
29.4
30
-2%
29.3
-0%
28.1
4%
29.8
-1%
Idle Maximum *
30.7
30.3
1%
31.4
-2%
28.1
8%
29.8
3%
Load Average *
32.6
31.6
3%
33
-1%
31.7
3%
33.5
-3%
Load Maximum *
33.7
31.6
6%
34.9
-4%
43.4
-29%
36.3
-8%
Witcher 3 ultra *
43.4

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.130.935.433.633.9253030.928.228.531.53132.336.531.433.236.94030.834.434.432.334.75027.129.131.630.9356324.926.425.424.426.48024.326.525.323.727.610024.324.92425.824.612523.124.923.622.823.316024.124.523.423.823.720022.923.223.122.822.525023.523.123.723.722.531521.721.721.52120.840020.521.120.420.520.150021.121.419.620.419.363021.721.219.419.218.880021.320.319.218.318.2100020.720.318.51818.1125021.820.518.217.217.5160023.422.219.11718.4200024.523.222.416.420.7250025.623.718.41616.9315020.919.516.715.916400020.118.916.315.916.2500017.416.715.915.91663001716.515.915.815.9800016.21615.815.715.81000015.715.715.615.715.61250015.415.615.515.415.61600015.215.215.315.215.4SPL33.732.730.729.429.9N1.81.71.41.31.3median 21.3median 21.1median 19.1median 17.2median 18.2Delta2.43.23.13.13hearing rangehide median Fan NoiseFujitsu LifeBook U9310X
Hög belastning
 39.8 °C42.6 °C39.4 °C
 33.1 °C39.4 °C29.4 °C
 27.5 °C28 °C26.5 °C
Max: 42.6 °C
Medel: 34 °C
44.2 °C45.7 °C39.3 °C
29.7 °C37.9 °C33.7 °C
26.2 °C27.2 °C27 °C
Max: 45.7 °C
Medel: 34.5 °C
Strömförsörjning (max.)  35.5 °C | Rumstemperatur 22.2 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34 °C / 93 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.7 °C / 114 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+0.8 °C / 1.4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.631.92528.528.43133.232.44032.333.65030.9286324.428.38023.728.210025.827.112522.825.116023.82720022.832.425023.741.33152144.240020.54750020.448.263019.253.680018.360.910001863.8125017.266.716001769200016.462.825001662315015.962.1400015.961.6500015.955.1630015.849.6800015.743.81000015.740.91250015.440.51600015.236SPL29.474.6N1.328.3median 17.2median 48.2Delta3.112.631.532.328.628.626.830.326.928.627.429.724.331.223.527.224.727.722.6252334.622.544.822.353.921.158.42062.919.864.119.264.418.267.817.568.617.467.217.267.516.566.716.465.216.261.51660.615.95415.850.115.850.215.64515.341.515.235.629.376.41.235.4median 17.4median 58.42.110.4hearing rangehide median Pink NoiseFujitsu LifeBook U9310XLenovo ThinkPad X13 Yoga 20SX0004GE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Fujitsu LifeBook U9310X audio analysis

(±) | speaker loudness is average but good (74.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.4% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 11.1% higher than median
(±) | linearity of mids is average (12.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.7% higher than median
(±) | linearity of highs is average (10.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (36.7% difference to median)
Compared to same class
» 94% of all tested devices in this class were better, 2% similar, 4% worse
» The best had a delta of 9%, average was 21%, worst was 53%
Compared to all devices tested
» 97% of all tested devices were better, 1% similar, 2% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Lenovo ThinkPad X13 Yoga 20SX0004GE audio analysis

(±) | speaker loudness is average but good (76.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (14.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 6.6% lower than median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.9% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 4% similar, 11% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 81% of all tested devices were better, 5% similar, 14% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Strömförbrukning
Av/Standbydarklight 0.14 / 0.52 Watt
Låg belastningdarkmidlight 2.9 / 5.8 / 9.6 Watt
Hög belastning midlight 34.6 / 50.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Fujitsu LifeBook U9310X
i5-10210U, UHD Graphics 620, 50 Wh
694 min ∼26%
Fujitsu Lifebook U939X
i5-8265U, UHD Graphics 620, 50 Wh
627 min ∼24% -10%
HP Elite Dragonfly-8MK79EA
i5-8265U, UHD Graphics 620, 56.2 Wh
605 min ∼23% -13%
Dell XPS 13 7390 2-in-1 Core i7
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 51 Wh
537 min ∼20% -23%
Lenovo ThinkPad X13 Yoga 20SX0004GE
i7-10510U, UHD Graphics 620, 50 Wh
491 min ∼19% -29%
Average of class Convertible
  (153 - 1141, n=300)
474 min ∼18% -32%
Batteritid
NBC WiFi Websurfing Battery Test 1.3
11tim 34min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
8tim 08min
Hög belastning (maximal ljusstyrka)
3tim 05min

För

+ Lätt magnesiumhölje
+ Matt och tryckkänslig skärm med god färgprecision
+ Många portar
+ Lång batteritid
+ Hög systemprestanda
+ LTE ingår

Emot

- Arbetsminnet går inte att utöka
- PWM med låg frekvens
- Styrplattan klapprar en aning

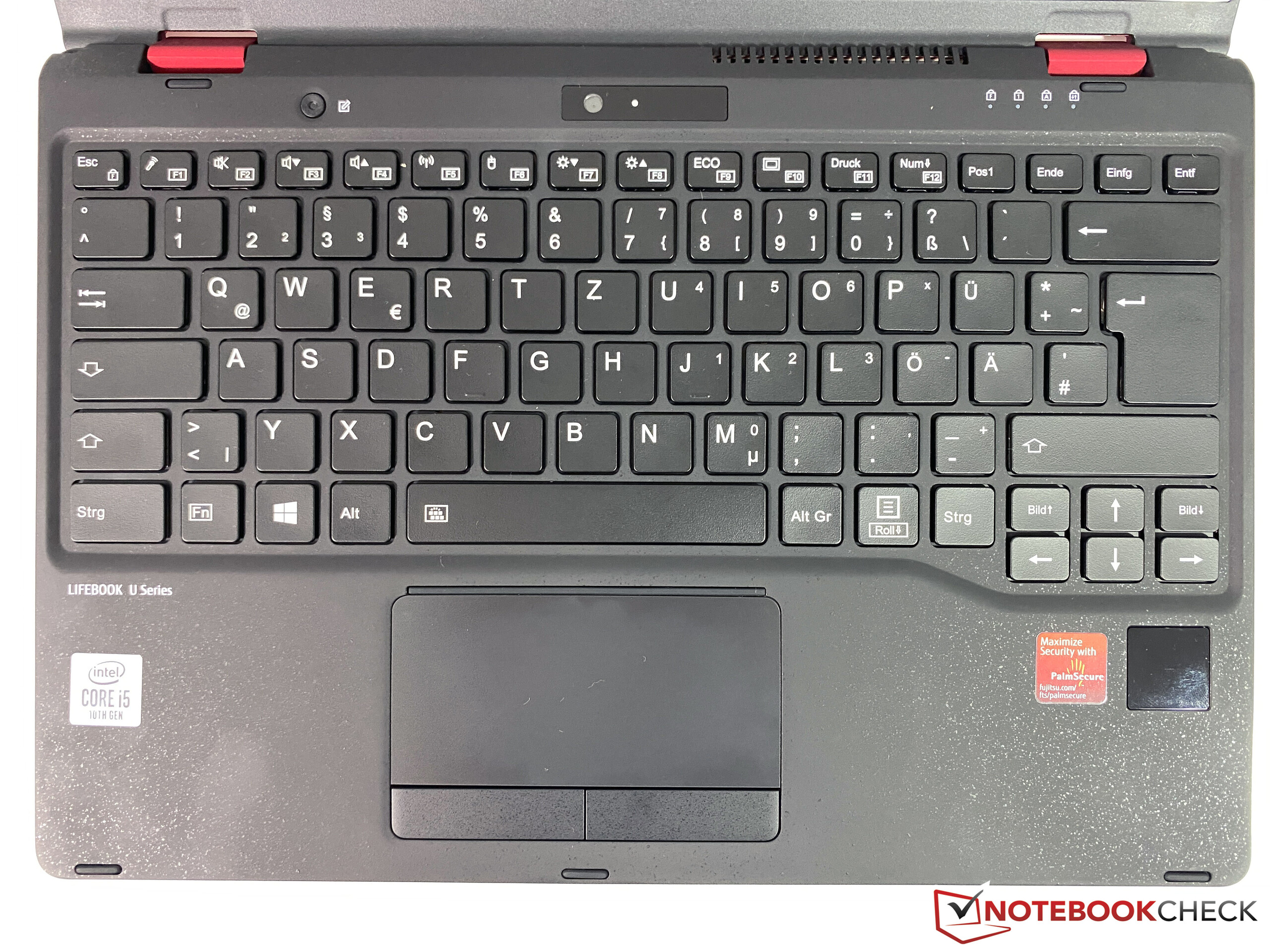

- Mediokert tangentbord
- Reducerad CPU- och GPU-prestanda vid batteridrift

Omdöme - Lifebook U9310X är fortfarande en extremt mobil omvandlingsbar med många portar

Recension av Fujitsu Lifebook U9310X. Recensionsex från Fujitsu Germany.
Recension av Fujitsu Lifebook U9310X. Recensionsex från Fujitsu Germany.

Läs den fullständiga versionen av den här recensionen på engelska här.

Fujitsu uppgraderar bara sin omvandlingsbara kontorslaptop Lifebook UX9310X lite grann, för bortsett från WiFi 6-modulen och Comet Lake-processorn är det inget som har ändrats. Dess största styrka är fortfarande det robusta och lätta magnesiumhöljet samt de många portarna och säkerhetsfunktionerna. Du behöver inte förlita dig på adaptrar här inte. Dessutom är den med sin matta tryckkänsliga skärm mångsidig i egenskap av omvandlingsbar och tack vare inbyggt stöd för LTE är du alltid ansluten till internet. Batteritiden är också bra.

Den är inte överväldigande kraftfull men är fullt tillräcklig för många vanliga kontorsprogram. Prestandan sänks dock betydligt vid batteridrift (i synnerhet för dess iGPU). Temperaturen och ljudnivån håller sig däremot inom gränserna.

Fujitsu Lifebook U9310X övertygar med sin mobilitet och har utförliga anslutningsmöjligheter samt inbyggt stöd för LTE. Men till nästa uppdatering ser vi gärna bättre inmatningsenheter och en 16:10-skärm.

Inmatningsenheterna är fortfarande en svag punkt. De är inte dåliga, men andra omvandlingsbara kontorsmodeller har en tydlig fördel. Fujitsu bör definitivt behålla den matta tryckkänsliga skärmen, men vi hade gärna sett ett byte till en 16:10-panel. Vi räknar också med att nästa modell byter till Intels Tiger Lake-processorer eller kanske till och med AMD:s Ryzen, även om AMD just nu knappt återfinns i kategorin för omvandlingsbara kontorsmodeller alls (vilket gäller nästan alla tillverkare).

Fujitsu LifeBook U9310X - 01/09/2021 v7
Andreas Osthoff

Design
80 / 98 → 81%
Tangentbord
72%
Mus
82%
Anslutningar
79 / 75 → 100%
Vikt
75 / 20-75 → 99%
Batteri
89%
Skärm
87%
Spelprestanda
51 / 78 → 65%
Programprestanda
85 / 85 → 100%
Temperatur
92%
Ljudnivå
96%
Audio
51 / 91 → 56%
Camera
37 / 85 → 44%
Medel
75%
86%
Convertible - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Fujitsu Lifebook U9310X - Omvandlingsbar kontorsmaskin med LTE på 1 kg (Sammanfattning)
Andreas Osthoff, 2021-01-12 (Update: 2021-01-12)
