AMD Radeon RX Vega M GL / 870

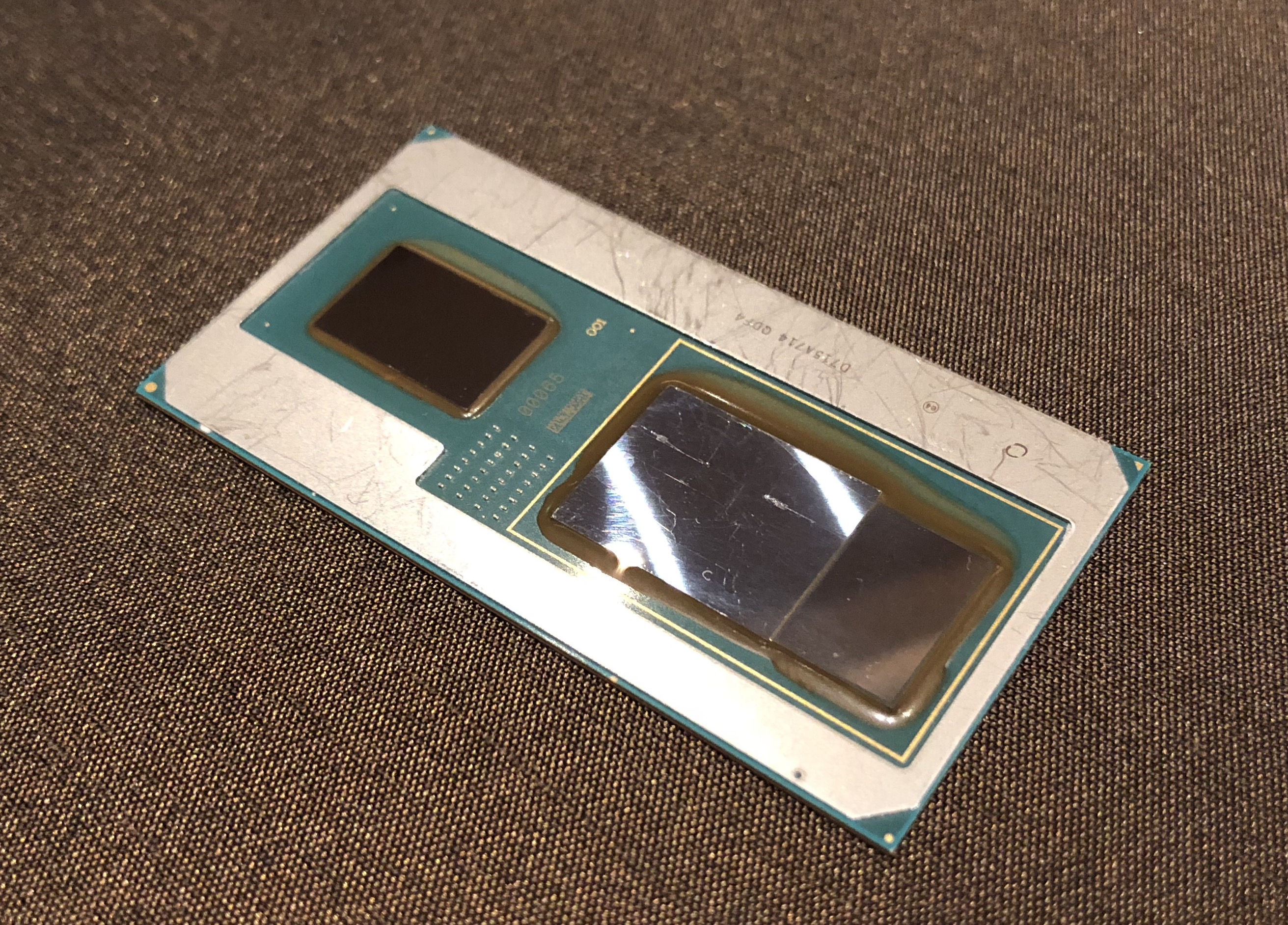

AMD Radeon RX Vega M GL eller Radeon RX Vega 870 (enligt Dell) är en integrerad GPU som används i de långsammare Kaby Lake G-chippen från Intel. Den kombinerar en Kaby Lake-procecssor, ett Vega-grafikkort och 4 GB HBM2-minne i samma paket. Grafikkortet har 20 CU:s (1280 shaders) och en klockfrekvens på 931 - 1011 MHz.
För tillfället ser det ut som att denna GPU är en kombination av Polaris (Shaders?) och Vega (åtminstone HBM-minnescontrollern). Som exempel kallas kortet Polaris 22 internt. Detaljerad information om Vega-arkitekturen finns i vår dedikerade artikel om Raven Ridge-arkitekturen.
Vega M GL bör prestera mellan Nvidia GeForce GTX 1050 och 1050 Ti enligt prestandatester från Intel. Det bör därför vara väl lämpat för spel i 1080p eller högre upplösning.
Energiförbrukningen bör vara ganska lik den dedikerade grafikprocessorn Vega Mobile, men på grund av den mindre formfaktorn går det att konstruera mindre laptops med en Kaby Lake-G SoC. Hela paketet har ett TDP-värde specificerat till 65 Watt, inklusive GPU, CPU och HBM2-minne.
AMD Radeon RX Vega Serie
| ||||||||||||||||||||||
| Kodnamn | Vega Kaby Lake-G | |||||||||||||||||||||
| Arkitektur | Vega | |||||||||||||||||||||
| Pipelines | 1280 - unified | |||||||||||||||||||||
| Kärnhastighet | 931 - 1011 (Boost) MHz | |||||||||||||||||||||
| Minnestyp | HBM2 | |||||||||||||||||||||
| Max. minne | 4 GB | |||||||||||||||||||||
| Delat minne | nej | |||||||||||||||||||||
| API | DirectX 12_1 | |||||||||||||||||||||
| Strömförbrukning | 65 Watt | |||||||||||||||||||||
| Teknologi | 14 nm | |||||||||||||||||||||
| Funktioner | Tiled Rasterization, Shared Memory (up to Dual-Channel DDR4-2400) | |||||||||||||||||||||
| Laptopstorlek | medelstor | |||||||||||||||||||||
| Lanseringsdatum | 07.01.2018 | |||||||||||||||||||||
| ||||||||||||||||||||
Prestandatester
specvp12 sw-03 +
Cinebench R15 OpenGL 64 Bit +
GFXBench T-Rex HD Offscreen C24Z16 +
* Mindre antal betyder högre prestanda
Speltester
Följande tester/benchmarks kommer från våra laptoprecensioner. Prestandan beror på typen av grafikminne, klockfrekvens, processor, systeminställningar och operativsystem. Resultaten är därför inte nödvändigtvis representativa för alla bärbara datorer med denna GPU. För detaljerad information om resultaten, klicka på fps-värdet.

Gears Tactics
2020
Doom Eternal
2020
Hunt Showdown
2020
Escape from Tarkov
2020
Need for Speed Heat
2019
GRID 2019
2019
FIFA 20
2019
Borderlands 3
2019
Control
2019
F1 2019
2019
Rage 2
2019
Anno 1800
2019
The Division 2
2019
Dirt Rally 2.0
2019
Anthem
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Apex Legends
2019
Battlefield V
2018
Farming Simulator 19
2018
Far Cry 5
2018
X-Plane 11.11
2018
Fortnite
2018
F1 2017
2017
Dirt 4
2017
Rocket League
2017
Prey
2017
Mafia 3
2016
Overwatch
2016
Rainbow Six Siege
2015
Fallout 4
2015
Metal Gear Solid V
2015
The Witcher 3
2015
GTA V
2015
Thief
2014
Metro: Last Light
2013
BioShock Infinite
2013| låg | med. | hög | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| Gears Tactics | 172.7 | 57.7 | 39.4 | 27.4 | 18.4 | 8.8 |
| Doom Eternal | 83.4 | 46.7 | 27 | |||
| Hunt Showdown | 90.6 | 35.3 | 29.5 | 18.9 | ||
| Escape from Tarkov | 97.9 | 45.2 | 34.3 | 29.8 | 20.8 | 9.5 |
| Red Dead Redemption 2 | 69.1 | 34.9 | 20.6 | 12.1 | ||
| Star Wars Jedi Fallen Order | 47.7 | 39.3 | 32 | 20.8 | 9.9 | |
| Need for Speed Heat | 64.9 | 43.7 | 36.7 | 30.5 | 22.1 | 11.5 |
| Call of Duty Modern Warfare 2019 | 72.1 | 44.4 | 37.8 | 33.5 | 21.1 | 11.8 |
| GRID 2019 | 120.5 | 50.5 | 42 | 26.8 | 14.7 | 9.2 |
| Ghost Recon Breakpoint | 55 | 33 | 30 | 20 | 12 | 4 |
| FIFA 20 | 98.9 | 76.9 | 49.7 | |||
| Borderlands 3 | 87.5 | 39.3 | 24.2 | 18.5 | 12.6 | 5.4 |
| Control | 87.6 | 27.5 | 19.8 | 12.6 | 5.9 | |
| F1 2019 | 105 | 65 | 56 | 38 | 16 | |
| Total War: Three Kingdoms | 122.5 | 37.8 | 23.7 | 16.7 | 9.5 | 3.6 |
| Rage 2 | 52.8 | 27.7 | 4.4 | |||
| Anno 1800 | 84 | 41.3 | 23.7 | 12.1 | 8 | 4.2 |
| The Division 2 | 88 | 46 | 34 | 24 | 15 | 7 |
| Dirt Rally 2.0 | 179.6 | 70.7 | 54.4 | 30.1 | 21.2 | 11.3 |
| Anthem | 55.6 | 40.6 | 37.4 | 26.4 | 19.8 | 9.9 |
| Far Cry New Dawn | 74 | 44 | 41 | 38 | 27 | 13 |
| Metro Exodus | 72.7 | 32.8 | 21.6 | 18 | 13.9 | |
| Apex Legends | 124.2 | 53 | 41.4 | 39.7 | 26.8 | 14.8 |
| Battlefield V | 118.2 | 61.6 | 51.6 | 47.7 | 34.2 | 16.4 |
| Farming Simulator 19 | 160.3 | 115.9 | 68.4 | 37.1 | 25.5 | 12.2 |
| Assassin´s Creed Odyssey | 60 | 47 | 39 | 23 | 17 | 11 |
| Shadow of the Tomb Raider | 72 | 41 | 36 | 30 | 19 | 9 |
| Far Cry 5 | 78 | 42 | 39 | 36 | 24 | 12 |
| World of Tanks enCore | 318.5 | 130.6 | 50.8 | 32.2 | 15.4 | |
| X-Plane 11.11 | 50.4 | 42.2 | 36.9 | 23.6 | ||
| Final Fantasy XV Benchmark | 33 | 31.3 | 20.7 | 8.2 | ||
| Fortnite | 126.9 | 86.2 | 55.7 | 37.9 | 24.2 | 8.8 |
| F1 2017 | 80 | 65 | 39 | |||
| Dirt 4 | 40.9 | 16.3 | 9.7 | |||
| Rocket League | 248.2 | 159.8 | 99.1 | 61.6 | 29.6 | |
| Prey | 135 | 86.6 | 69.1 | 61 | ||
| Mafia 3 | 45 | 34 | 24 | |||
| Overwatch | 184.3 | 108.2 | 50 | |||
| Ashes of the Singularity | 56 | 37 | 33 | |||
| Rise of the Tomb Raider | 132 | 80 | 39 | 30 | 13 | |
| Rainbow Six Siege | 180.9 | 149.4 | 97 | 80.5 | 30.8 | |
| Fallout 4 | 86.1 | 45.2 | 36 | |||
| Metal Gear Solid V | 60 | 60 | 60 | 54 | ||
| Batman: Arkham Knight | 112 | 100 | 54 | 16 | ||
| The Witcher 3 | 116.6 | 78 | 42 | 23 | 14 | |
| GTA V | 138.7 | 130.8 | 58.1 | 24 | 28.8 | |
| Thief | 78.8 | 72.6 | 41.1 | |||
| Metro: Last Light | 105.8 | 80.9 | 40.8 | |||
| BioShock Infinite | 215 | 177 | 157 | 55 | ||
| låg | med. | hög | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 8 20 14 | 3 25 14 6 | 12 25 9 1 | 14 21 3 | 23 2 2 | 31 2 |
För att se fler spel som kan vara spelbara och se en lista med alla spel och grafikkort, besök vår spellista
