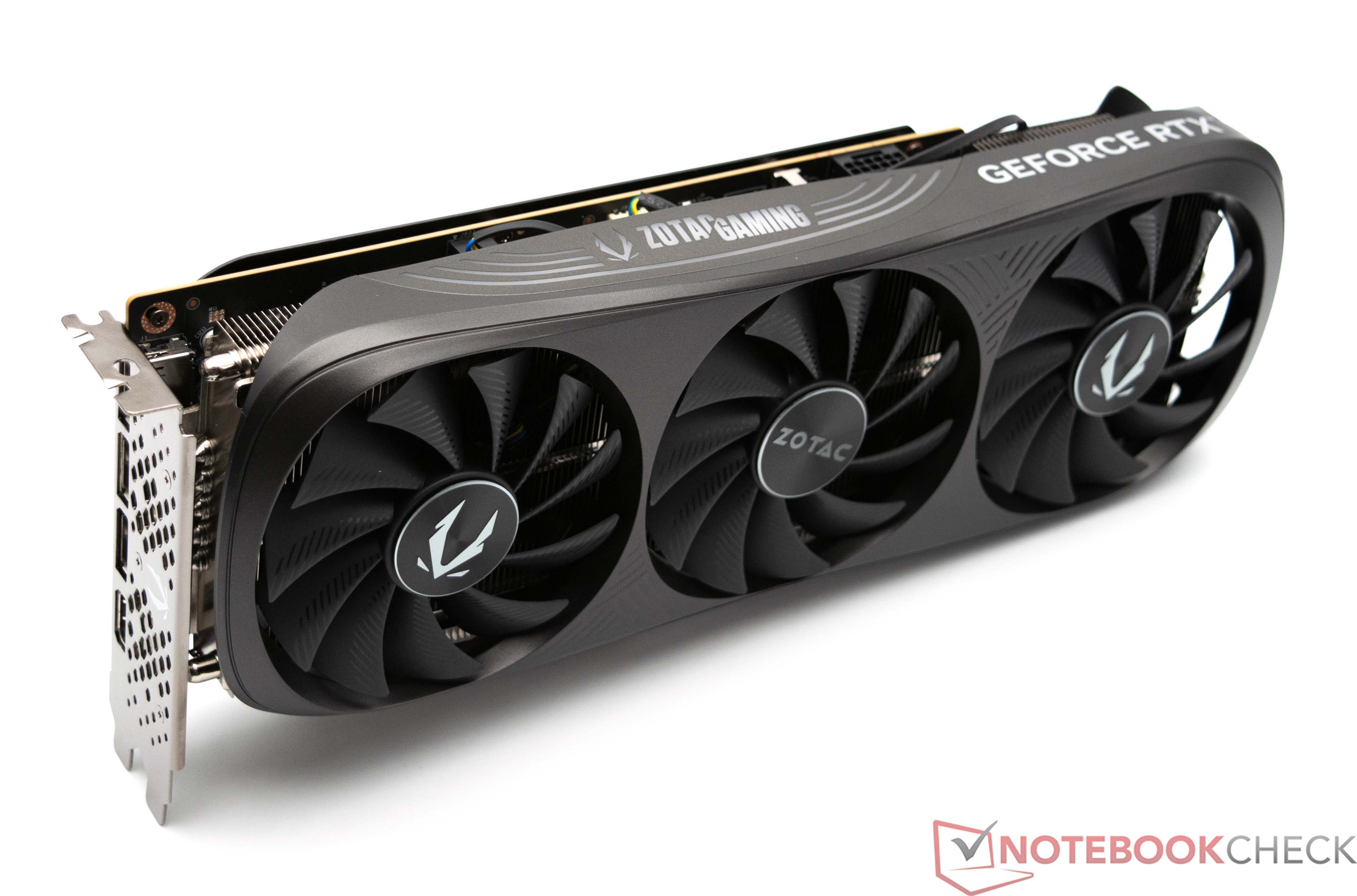

NVIDIA GeForce RTX 4080 Super

Nvidia GeForce RTX 4080 Super är ett avancerat stationärt grafikkort baserat på Ada Lovelace-arkitekturen. Det använder AD103-chippet i full konfiguration med 10 240 kärnor och 16 GB GDDR6X-grafikminne (256-bitars buss med 23 Gbits).
Raytracing-prestandan är enastående tack vare 76 dedikerade kärnor och de 320 Tensor-kärnorna kan användas för DLSS 3.
Spelprestandan utan DLSS är idealisk för 4k med ca 60 fps och 2k med högre bildfrekvenser i krävande spel utan ray tracing-effekter (t.ex. F1 22 eller Cyberpunk 2077). Med ray tracing rekommenderas användning av DLSS. Jämfört med konkurrenterna är prestandan utan DLSS och strålspårning något bättre än den betydligt billigare AMD Radeon RX 7900 XT.
De för närvarande tillgängliga RTX 4080-korten är mycket stora (2,5 eller 3 platser) och använder den nya 12VHPWR-kontakten (vilket har orsakat vissa problem med adaptrar).
AD103-chipet tillverkas hos TSMC i 5 nm (4N med EUV) och specificeras med en TGP (Total Graphics Power) på 320 watt (Nvidia rekommenderar minst en 750 watt strömförsörjning).
GeForce RTX 4000 Serie
| |||||||||||||||||||||||||||||||
| Kodnamn | AD103-400-A1 | ||||||||||||||||||||||||||||||
| Arkitektur | Ada Lovelace | ||||||||||||||||||||||||||||||
| Pipelines | 10240 - unified | ||||||||||||||||||||||||||||||
| TMUs | 320 | ||||||||||||||||||||||||||||||
| ROPs | 112 | ||||||||||||||||||||||||||||||
| Raytracing Cores | 80 | ||||||||||||||||||||||||||||||
| Tensor / AI Cores | 320 | ||||||||||||||||||||||||||||||
| Kärnhastighet | 2295 - 2550 (Boost) MHz | ||||||||||||||||||||||||||||||
| Theoretical Performance | 52.22 TFLOPS FP16, 52.22 TFLOPS FP32, 816 TFLOPS FP64 | ||||||||||||||||||||||||||||||
| AI GPU | 836 TOPS INT8 | ||||||||||||||||||||||||||||||
| Cache | L2: 64 MB | ||||||||||||||||||||||||||||||
| Minneshastighet | 23000 effective = 1438 MHz | ||||||||||||||||||||||||||||||
| Minnesbuss | 256 Bit | ||||||||||||||||||||||||||||||
| Minnestyp | GDDR6X | ||||||||||||||||||||||||||||||
| Max. minne | 16 GB | ||||||||||||||||||||||||||||||
| Delat minne | nej | ||||||||||||||||||||||||||||||
| Memory Bandwidth | 736.3 GB/s | ||||||||||||||||||||||||||||||
| API | DirectX 12 Ultimate (12_2), Shader 6.7, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3 | ||||||||||||||||||||||||||||||
| Strömförbrukning | 320 Watt | ||||||||||||||||||||||||||||||
| Antal transistorer | 45.900 Miljon | ||||||||||||||||||||||||||||||
| Dies storlek | 379 mm² | ||||||||||||||||||||||||||||||
| Teknologi | 5 nm | ||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 x16 | ||||||||||||||||||||||||||||||
| Displays | 4 Displays (max.), HDMI 2.1, DisplayPort 1.4a | ||||||||||||||||||||||||||||||
| Lanseringsdatum | 31.01.2024 | ||||||||||||||||||||||||||||||
Prestandatester
3DM Vant. Perf. total +
specvp12 sw-03 +
* Mindre antal betyder högre prestanda
Speltester
Följande tester/benchmarks kommer från våra laptoprecensioner. Prestandan beror på typen av grafikminne, klockfrekvens, processor, systeminställningar och operativsystem. Resultaten är därför inte nödvändigtvis representativa för alla bärbara datorer med denna GPU. För detaljerad information om resultaten, klicka på fps-värdet.

Skull & Bones
2024
Helldivers 2
2024
Enshrouded
2024
Palworld
2024
Ready or Not
2023
The Finals
2023
EA Sports WRC
2023
Alan Wake 2
2023
Lords of the Fallen
2023
Total War Pharaoh
2023
Counter-Strike 2
2023
Cyberpunk 2077
2023
Baldur's Gate 3
2023
Lies of P
2023
Starfield
2023
Armored Core 6
2023
Immortals of Aveum
2023
Atlas Fallen
2023
F1 23
2023
Diablo 4
2023
Dead Island 2
2023
The Last of Us
2023
Company of Heroes 3
2023
Sons of the Forest
2023
Atomic Heart
2023
Returnal
2023
Hogwarts Legacy
2023
Dead Space Remake
2023
The Witcher 3 v4
2023
High On Life
2023
The Quarry
2022
F1 22
2022
Ghostwire Tokyo
2022
Cyberpunk 2077 1.6
2022
GRID Legends
2022
Dying Light 2
2022
God of War
2022
Forza Horizon 5
2021
Far Cry 6
2021
F1 2021
2021
Dirt 5
2020
Watch Dogs Legion
2020
Horizon Zero Dawn
2020
Death Stranding
2020
F1 2020
2020
Borderlands 3
2019
Control
2019
Anno 1800
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Forza Horizon 4
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015| låg | med. | hög | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| Skull & Bones | 205 | 172 | 137 | 114 | 78 | |
| Helldivers 2 | 214 | 202 | 199.1 | 196.7 | 165.8 | 99.4 |
| Enshrouded | 181 | 162 | 140 | 121 | 97 | 61 |
| Palworld | 240 | 238 | 226 | 224 | 181 | 104 |
| Prince of Persia The Lost Crown | 359 | 359 | 359 | 359 | 358 | |
| Ready or Not | 451 | 394 | 372 | 329 | 216 | 98 |
| The Finals | 426 | 387 | 384 | 321 | 213 | 103 |
| Avatar Frontiers of Pandora | 213 | 196 | 167 | 134 | 92 | 49 |
| Call of Duty Modern Warfare 3 2023 | 367 | 325 | 269 | 252 | 195 | 133 |
| EA Sports WRC | 300 | 205 | 191 | 185 | 158 | 91 |
| Alan Wake 2 | 165 | 150 | 140 | 101 | 57 | |
| Lords of the Fallen | 203 | 173 | 136 | 103 | 74 | 40 |
| Total War Pharaoh | 636 | 411 | 286 | 232 | 213 | 120 |
| Assassin's Creed Mirage | 279 | 259 | 245 | 198 | 162 | 102 |
| Counter-Strike 2 | 351 | 344 | 341 | 336 | 274 | 152.4 |
| Cyberpunk 2077 | 231 | 227 | 205 | 185 | 125 | 58 |
| Baldur's Gate 3 | 276 | 254 | 243 | 239 | 187 | 101 |
| Lies of P | 406 | 376 | 336 | 310 | 234 | 122 |
| Starfield | 161 | 155 | 132 | 122 | 103 | 68 |
| Armored Core 6 | 119.7 | 119.9 | 119.8 | 119.9 | 114.1 | 110.2 |
| Immortals of Aveum | 148 | 133 | 121 | 91 | 54 | |
| Atlas Fallen | 200 | 200 | 200 | 200 | 199 | 122 |
| Ratchet & Clank Rift Apart | 231 | 229 | 194 | 170 | 144 | 92 |
| F1 23 | 462 | 495 | 428 | 169 | 110 | 55 |
| Diablo 4 | 400 | 400 | 399 | 394 | 295 | 151 |
| Star Wars Jedi Survivor | 189 | 184 | 174 | 170 | 117 | 58 |
| Dead Island 2 | 368 | 353 | 314 | 279 | 229 | 123 |
| The Last of Us | 229 | 204 | 190 | 172 | 121 | 61 |
| Resident Evil 4 Remake | 347 | 292 | 277 | 195 | 154 | 89 |
| Company of Heroes 3 | 379 | 343 | 291 | 290 | 238 | 150 |
| Sons of the Forest | 145 | 141 | 137 | 135 | 132 | 103 |
| Atomic Heart | 300 | 280 | 217 | 177 | 138 | 82 |
| Returnal | 227 | 224 | 205 | 180 | 141 | 87 |
| Hogwarts Legacy | 205 | 185 | 166 | 154 | 111 | 68 |
| Dead Space Remake | 235 | 227 | 199 | 198 | 138 | 68 |
| The Witcher 3 v4 | 363 | 314 | 280 | 265 | 231 | 118 |
| High On Life | 466 | 405 | 325 | 279 | 179 | 76 |
| The Callisto Protocol | 292 | 270 | 261 | 207 | 168 | 111 |
| Need for Speed Unbound | 283 | 273 | 245 | 232 | 179 | 102 |
| Spider-Man Miles Morales | 218 | 210 | 190 | 191 | 185 | 117 |
| Uncharted Legacy of Thieves Collection | 161 | 159 | 156 | 156 | 132 | 81 |
| A Plague Tale Requiem | 249 | 214 | 169 | 135 | 101 | 58 |
| The Quarry | 384 | 294 | 254 | 209 | 149 | 83 |
| F1 22 | 456 | 461 | 396 | 173 | 117 | 60 |
| Ghostwire Tokyo | 318 | 313 | 307 | 303 | 267 | 126 |
| Tiny Tina's Wonderlands | 489 | 412 | 305 | 242 | 172 | 92 |
| Cyberpunk 2077 1.6 | 236 | 233 | 225 | 202 | 128 | 62 |
| GRID Legends | 278 | 250 | 232 | 222 | 209 | 164 |
| Dying Light 2 | 217 | 165.9 | 123.7 | 65 | ||
| God of War | 278 | 274 | 234 | 166 | 139 | 101 |
| Forza Horizon 5 | 404 | 308 | 285 | 195 | 175 | 131 |
| Guardians of the Galaxy | 250 | 250 | 249 | 241 | 239 | 147 |
| Far Cry 6 | 258 | 225 | 202 | 182 | 178 | 109 |
| F1 2021 | 731 | 689 | 584 | 304 | 253 | 147 |
| Assassin´s Creed Valhalla | 347 | 281 | 237 | 209 | 165 | 99 |
| Dirt 5 | 279 | 221 | 169 | 150 | 149 | 144 |
| Watch Dogs Legion | 149 | 144.5 | 127 | 80.5 | ||
| Mafia Definitive Edition | 248 | 232 | 202 | 111.4 | ||
| Horizon Zero Dawn | 307 | 277 | 259 | 245 | 212 | 120 |
| Death Stranding | 240 | 240 | 240 | 240 | 239 | 154 |
| F1 2020 | 610 | 503 | 499 | 425 | 345 | 206 |
| Borderlands 3 | 260 | 230 | 203 | 194 | 168 | 98 |
| Control | 238 | 232 | 226 | 160 | 82 | |
| Anno 1800 | 202 | 192.9 | 160.2 | 86.7 | 82.7 | 64.3 |
| Far Cry New Dawn | 228 | 198 | 191 | 172 | 171 | 142 |
| Metro Exodus | 278 | 272 | 219 | 182 | 157 | 103 |
| Assassin´s Creed Odyssey | 241 | 235 | 212 | 158 | 135 | 96 |
| Forza Horizon 4 | 369 | 344 | 342 | 322 | 306 | 305 |
| Shadow of the Tomb Raider | 328 | 311 | 297 | 287 | 242 | 133 |
| Strange Brigade | 716 | 583 | 546 | 512 | 396 | 200 |
| Far Cry 5 | 274 | 240 | 222 | 216 | 206 | 142 |
| X-Plane 11.11 | 246 | 215 | 161 | 137 | ||
| Final Fantasy XV Benchmark | 235 | 234 | 228 | 200 | 120 | |
| Assassin´s Creed Origins | 263 | 246 | 234 | 208 | 174 | 118 |
| Dota 2 Reborn | 289 | 261 | 251 | 233 | 227 | |
| The Witcher 3 | 791 | 731 | 522 | 258 | 213 | 199 |
| GTA V | 188 | 188 | 187 | 170 | 168 | 179 |
| låg | med. | hög | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 71 | 1 74 | 1 76 | 3 68 | 14 61 | 8 41 28 |
För att se fler spel som kan vara spelbara och se en lista med alla spel och grafikkort, besök vår spellista
