Intel Core i7-3820QM

Intel 3820QM

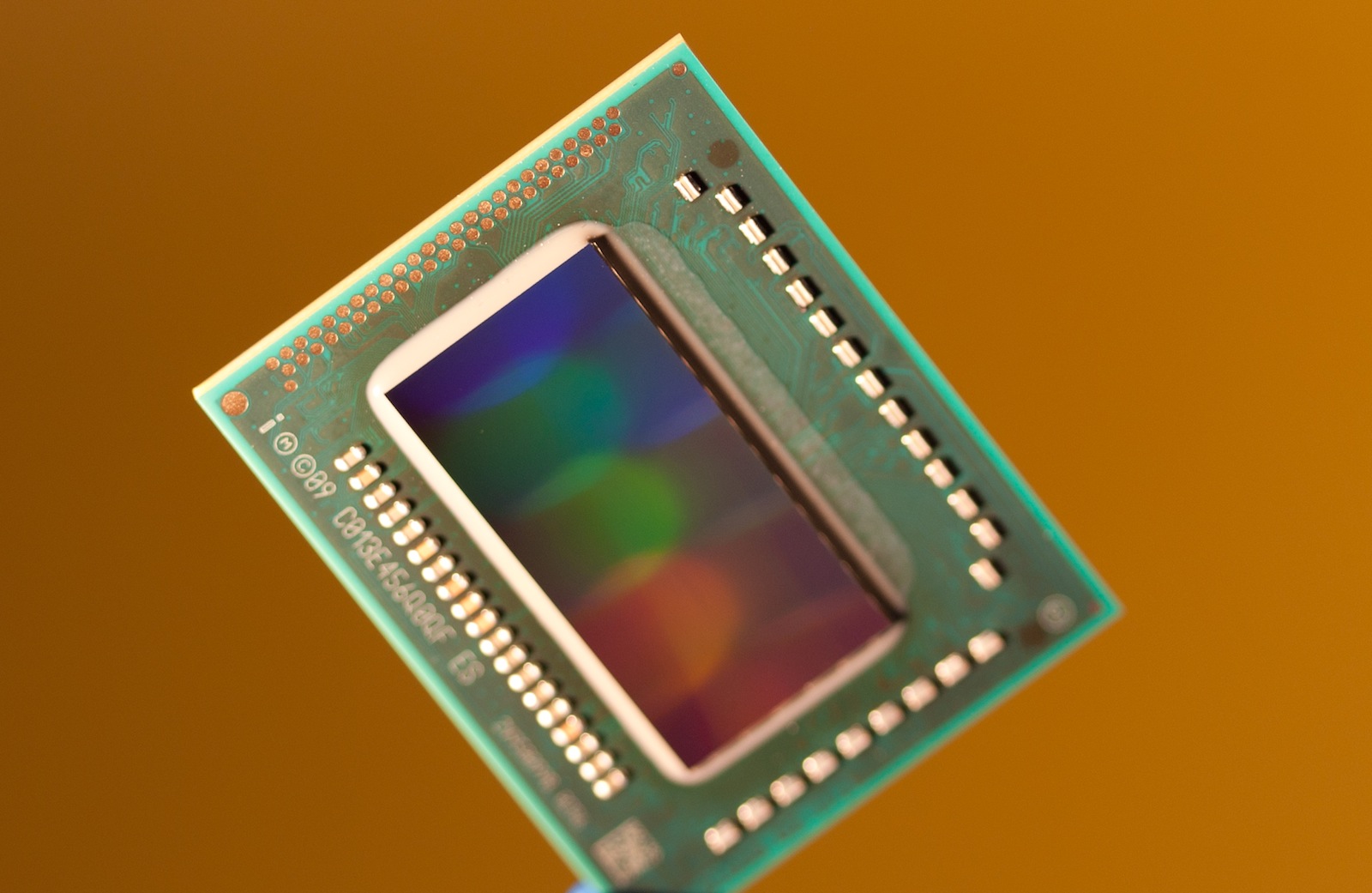

Intel Core i7-3820QM är en snabb fyrkärnig processor i Intels Ivy Bridge-familj från 2012 för bärbara datorer. Tack vare Hyperthreading kan emellertid de fyra kärnorna hantera upp till åtta trådar parallellt. Varje kärna har en bashastighet på 2,7 GHz men processorn kan själv dynamiskt öka klockfrekvensen (med funktionen Turbo Boost) upp till 3,5 GHz med 4 aktiva kärnor, 3,6 GHz med2 aktiva kärnor och 3,7 GHz med 1 aktiv kärna – 100 MHz högre klockfrekvens per steg jämfört med Core i7-3720QM.

Ivy Bridge är en förminskad och optimerad version av föregångaren Sandy Bridge och tillverkas i 22nm istället för 32nm. Både GPU- och CPU-prestanda har förbättrats. Processorerna är först med ”tri-gate”, 3D-transistorer och är mer effektiva än Sandy Bridge-processorer med samma klockfrekvens. Andra nya funktioner är stöd för PCI Express 3.0 och DDR3 (L) 1600.

Prestandan med Core i7-3820QM är bättre än en Sandy Bridge-processor med samma klockfrekvens.  Resultatet är betydligt bättre prestanda än den tidigare toppmodellen Core i7-2920XM.

Den integrerade grafikkretsen Intel HD Graphics 4000 har 16 Execution Units (EUs) med en klockfrekvens på mellan 650 MHz upp till 1250 MHz med Turbo Boost. HD Graphics 4000 var den snabbaste integrerade grafikkretsen vid lanseringen 2012.

Som de andra fyrkärniga Ivy Bridge-processorerna (förutom 3612QM) har Core i7-3820QM en TDP på 45 Watt. Det gör CPU:n bäst lämpad för större bärbara datorer (från 15 tum och uppåt).

SerieIntel Core i7
KodnamnIvy Bridge

Serie: Core i7 Ivy Bridge

Intel Core i7-3940XM3 - 3.9 GHz4 / 8 cores8 MB L3
Intel Core i7-3920XM2.9 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3840QM2.8 - 3.8 GHz4 / 8 cores8 MB L3
Intel Core i7-3820QM « 2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-3740QM2.7 - 3.7 GHz4 / 8 cores6 MB L3
Intel Core i7-3720QM2.6 - 3.6 GHz4 / 8 cores6 MB L3
Intel Core i7-3635QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3630QM2.4 - 3.4 GHz4 / 8 cores6 MB L3
Intel Core i7-3615QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3610QM2.3 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-3632QM2.2 - 3.2 GHz4 / 8 cores6 MB L3
Intel Core i7-3612QM2.1 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-3540M3 - 3.7 GHz2 / 4 cores4 MB L3
Intel Core i7-3520M2.9 - 3.6 GHz2 / 4 cores4 MB L3
Intel Core i7-3687U2.1 - 3.3 GHz2 / 4 cores4 MB L3
Intel Core i7-3667U2 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-3537U2 - 3.1 GHz2 / 4 cores4 MB L3
Intel Core i7-3517U1.9 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-3689Y1.5 - 2.6 GHz2 / 4 cores4 MB L3
Klockfrekvens2700 - 3700 MHz
Level 1-cache256 KB
Level 2-cache1 MB
Level 3-cache8 MB
Antal kärnor / trådar4 / 8
Strömförbrukning (TDP = Thermal Design Power)45 Watt
Antal transistorer1400 Miljon
Tillverkningsprocess22 nm
Kretsstorlek160 mm2
Max. temperatur105 °C
FunktionerHD Graphics 4000, DDR3(L)-1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 4000 (650 - 1250 MHz)
64-bit64-bitsstöd
Architecturex86
Lanseringsdatum04/23/2012
Produktlänkark.intel.com

Prestandatester

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 6.68     avg: 6.8     median: 6.8 (9%)     max: 6.94 Points
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
1.5 Points (38%)
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4910     avg: 4986     median: 5008 (30%)     max: 5039 poäng
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 19326     avg: 19491     median: 19364 (14%)     max: 19782 poäng
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 23605     avg: 24083     median: 24069 (17%)     max: 24448 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 6187     avg: 6245     median: 6214 (8%)     max: 6398 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 223.9     avg: 236.3     median: 236.3 (3%)     max: 248.6 s
wPrime 2.10 - wPrime 2.0 32m *
min: 7.314     avg: 7.5     median: 7.5 (2%)     max: 7.612 s
WinRAR - WinRAR 4.0
min: 4530     avg: 4575     median: 4575 (7%)     max: 4620 poäng
X264 HD Benchmark 4.0 - x264 Pass 2
min: 37.1     avg: 37.2     median: 37.2 (13%)     max: 37.24 fps
X264 HD Benchmark 4.0 - x264 Pass 1
min: 147.9     avg: 150.4     median: 150.4 (35%)     max: 152.9 fps
TrueCrypt - TrueCrypt Serpent
0.4 GB/s (11%)
TrueCrypt - TrueCrypt Twofish
0.6 GB/s (11%)
TrueCrypt - TrueCrypt AES
3.5 GB/s (9%)
3DMark 06 - CPU - 3DMark 06 - CPU
min: 6720     avg: 6832     median: 6849 (15%)     max: 6910 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 10     avg: 10.1     median: 10 (2%)     max: 10.39 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 22     avg: 22.6     median: 22 (1%)     max: 23.7 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 550     avg: 555     median: 554.5 (2%)     max: 559 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 134350     avg: 136990     median: 136990 (65%)     max: 139630 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 84860     avg: 85585     median: 85585 (66%)     max: 86310 MFLOPS
Windows 7 Experience Index - Win7 CPU
min: 7.5     avg: 7.6     median: 7.6 (97%)     max: 7.7 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 23042     avg: 23979     median: 24158 (21%)     max: 24792 Points
3DMark 11 - 3DM11 Performance Physics
min: 8825     avg: 9006     median: 9040 (24%)     max: 9118 Points
- Bredd på benchmark-värden för det här grafikkortet
- Genomsnittliga benchmark-värden för det här grafikkortet
* Smaller numbers mean a higher performance
