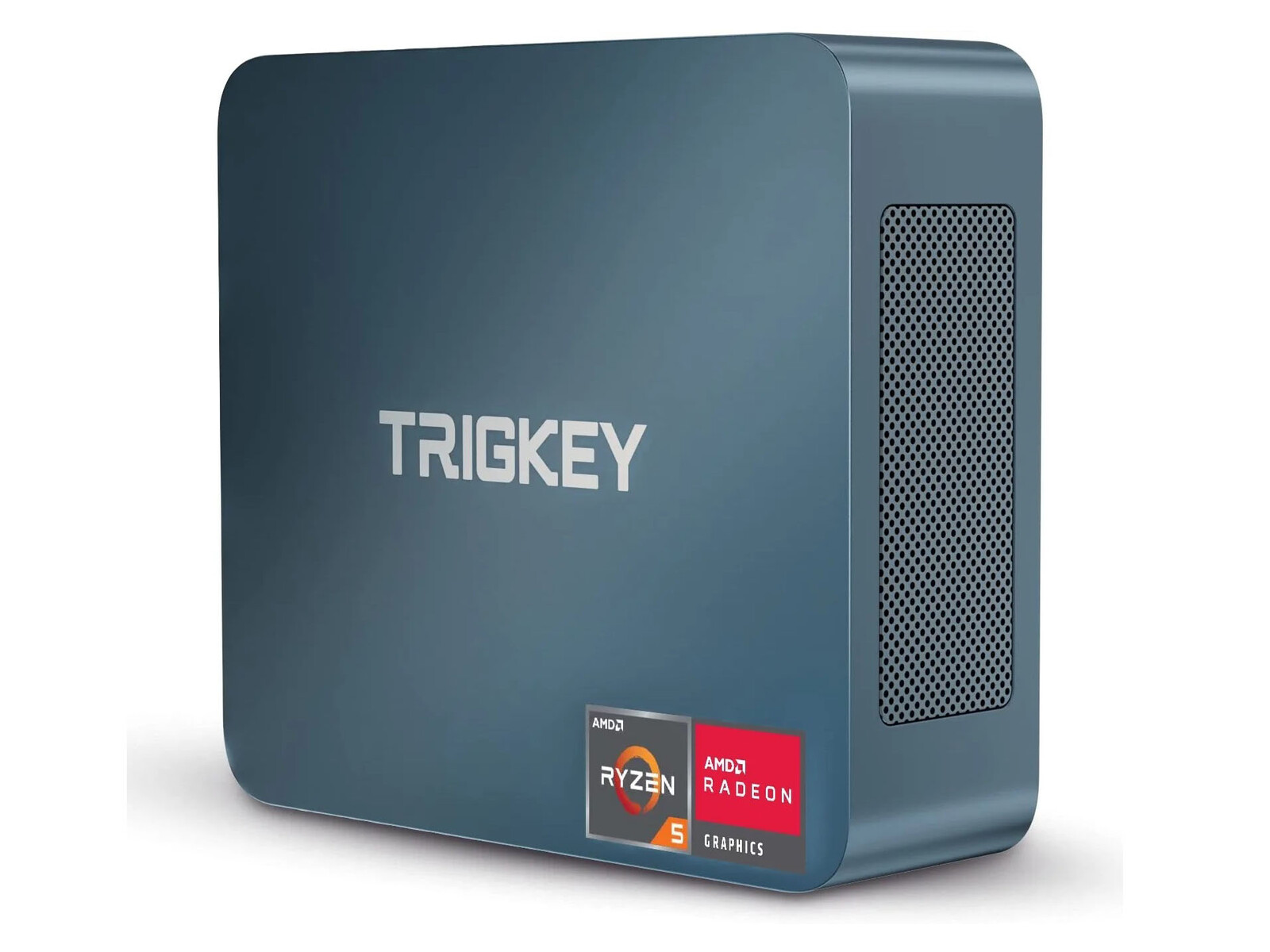

Trigkey S3 minidator recension: Core i3-liknande prestanda till priset av en Celeron eller Atom

Trigkey specialiserar sig på billiga minidatorer med äldre processorer för att hålla priserna låga. S3 är en sådan modell som körs på den tre år gamla Ryzen 5 3550H och säljs för cirka 280 dollar

Bland konkurrenterna på detta område finns andra billiga minidatorer som t.ex BMax B5 Pro, Beelink U59eller Chuwi LarkBox.

Gradering	Datum	Modell	Vikt	Höjd	Upplösning
v ^(old)	01/2023	Trigkey S3 R5 3550H, Vega 8	419 g	40.7 mm	x
v ^(old)	11/2022	Intel NUC Pro Chassis_i7_1265U i7-1265U, Iris Xe G7 96EUs		35 mm	x
v ^(old)		Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x
v ^(old)	12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
v ^(old)	09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
v ^(old)	10/2022	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7	498 g	42 mm	x

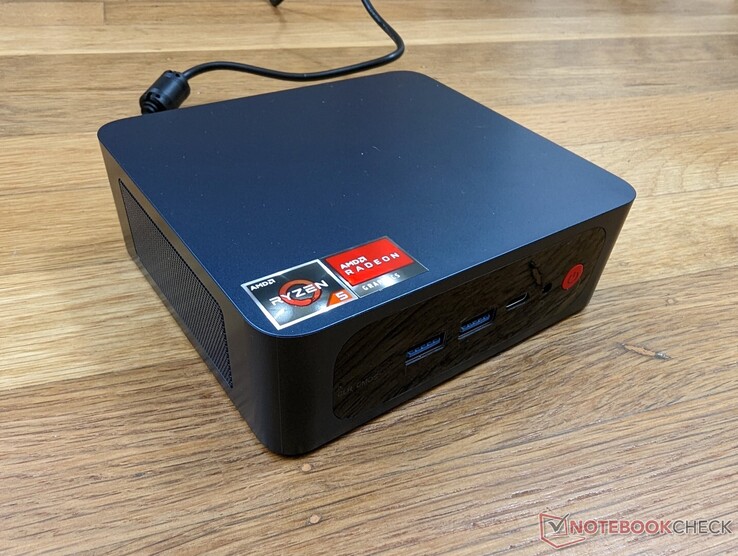

Fall

Plastchassit har en liknande form som Beelink SEi8 men med flera ytliga skillnader. Toppen är till exempel nu helt matt och ligger i nivå med sidornas kanter för ett renare utseende. Portalternativ och service är annars nästan identiska.

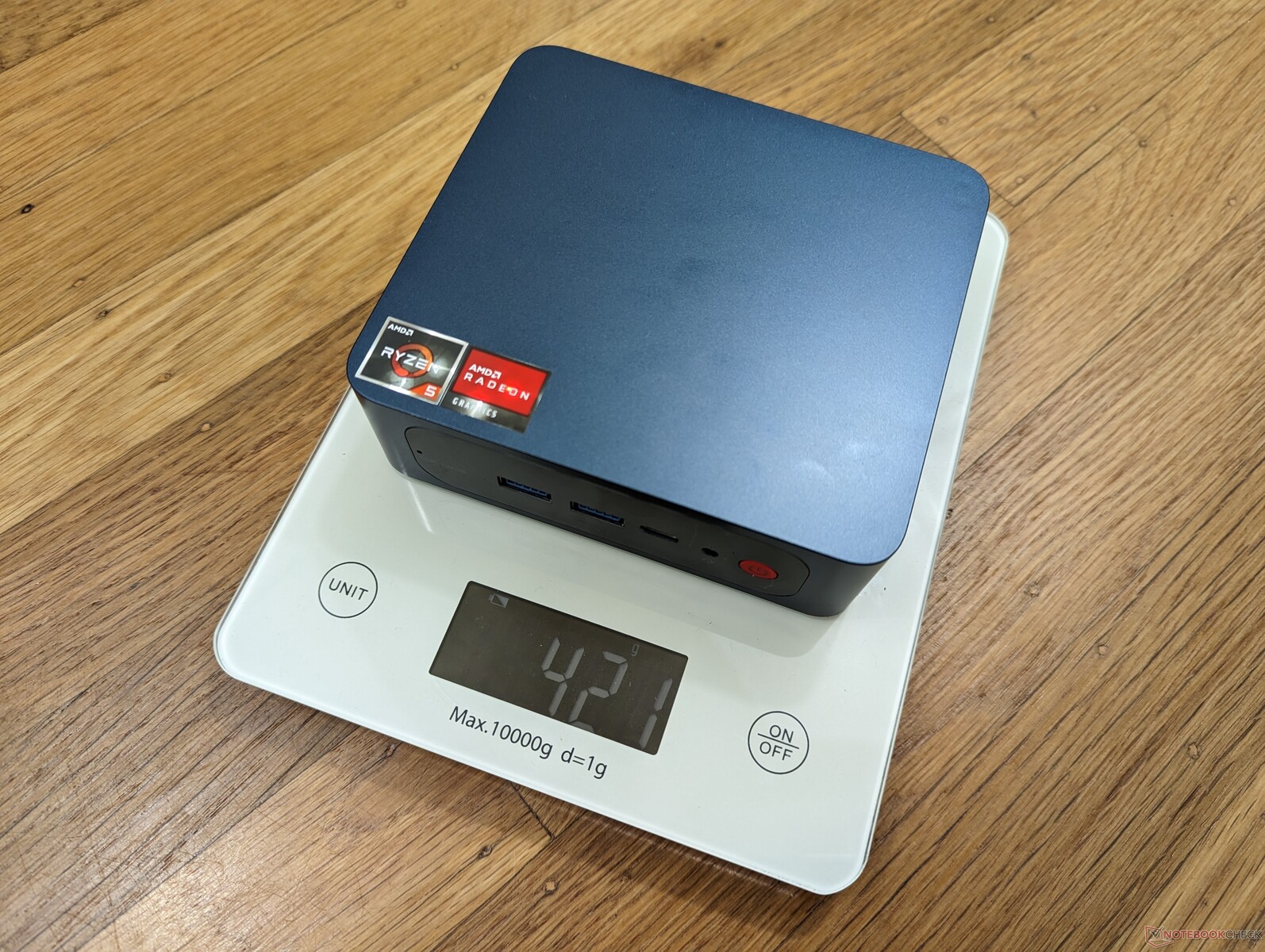

Med 421 g med RAM och SSD är Trigkey S3 lättare än många andra minidatorer

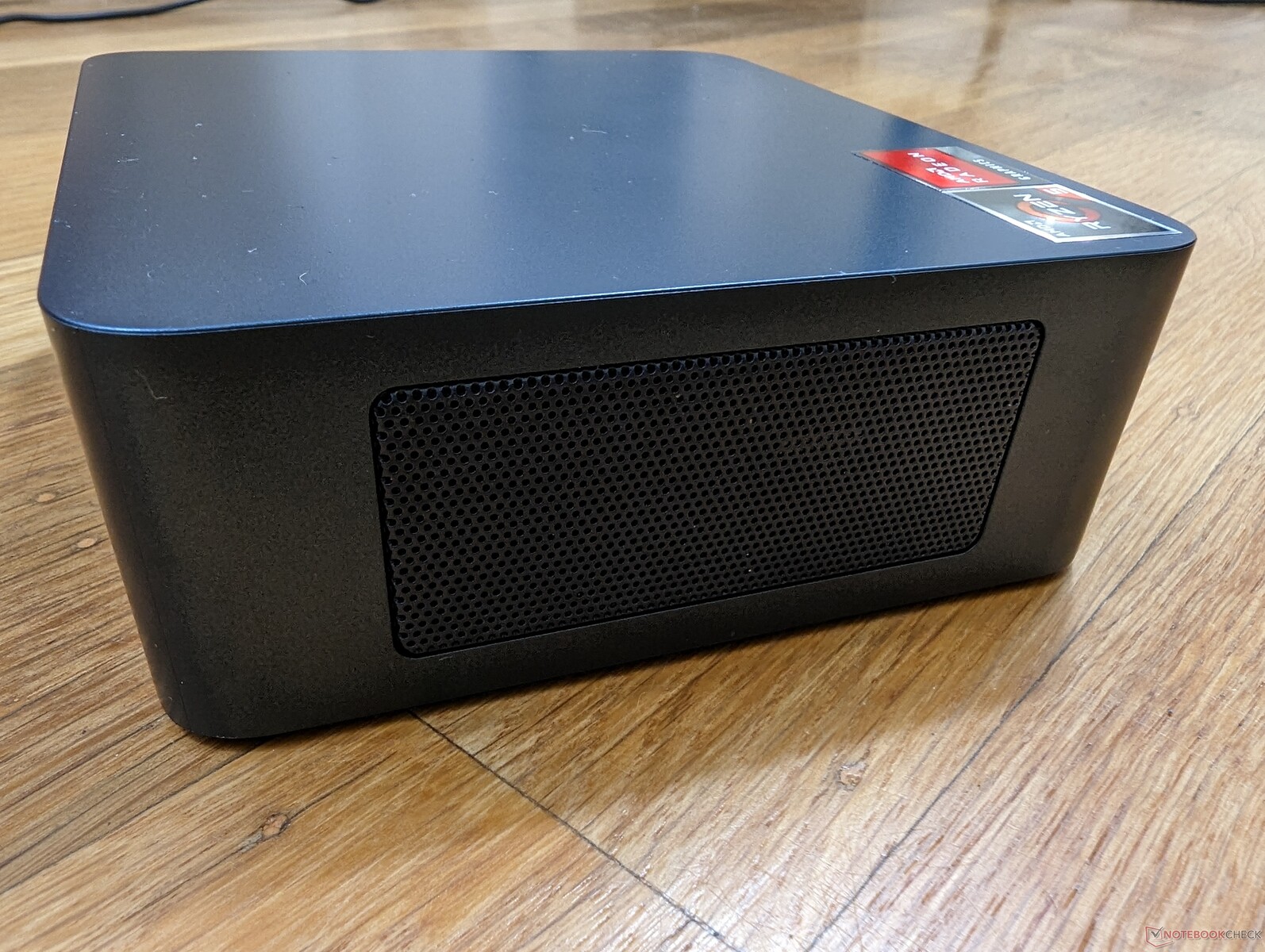

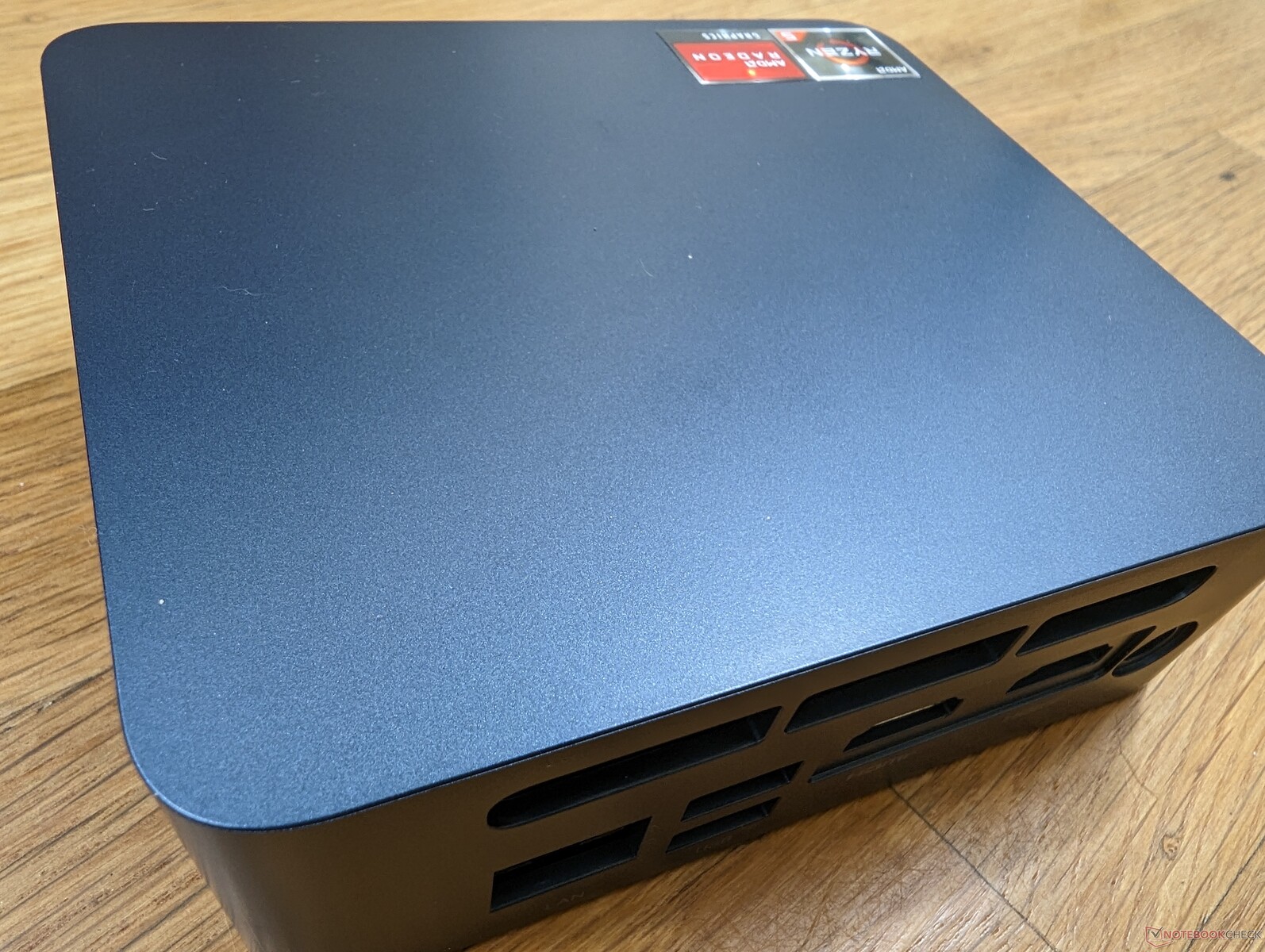

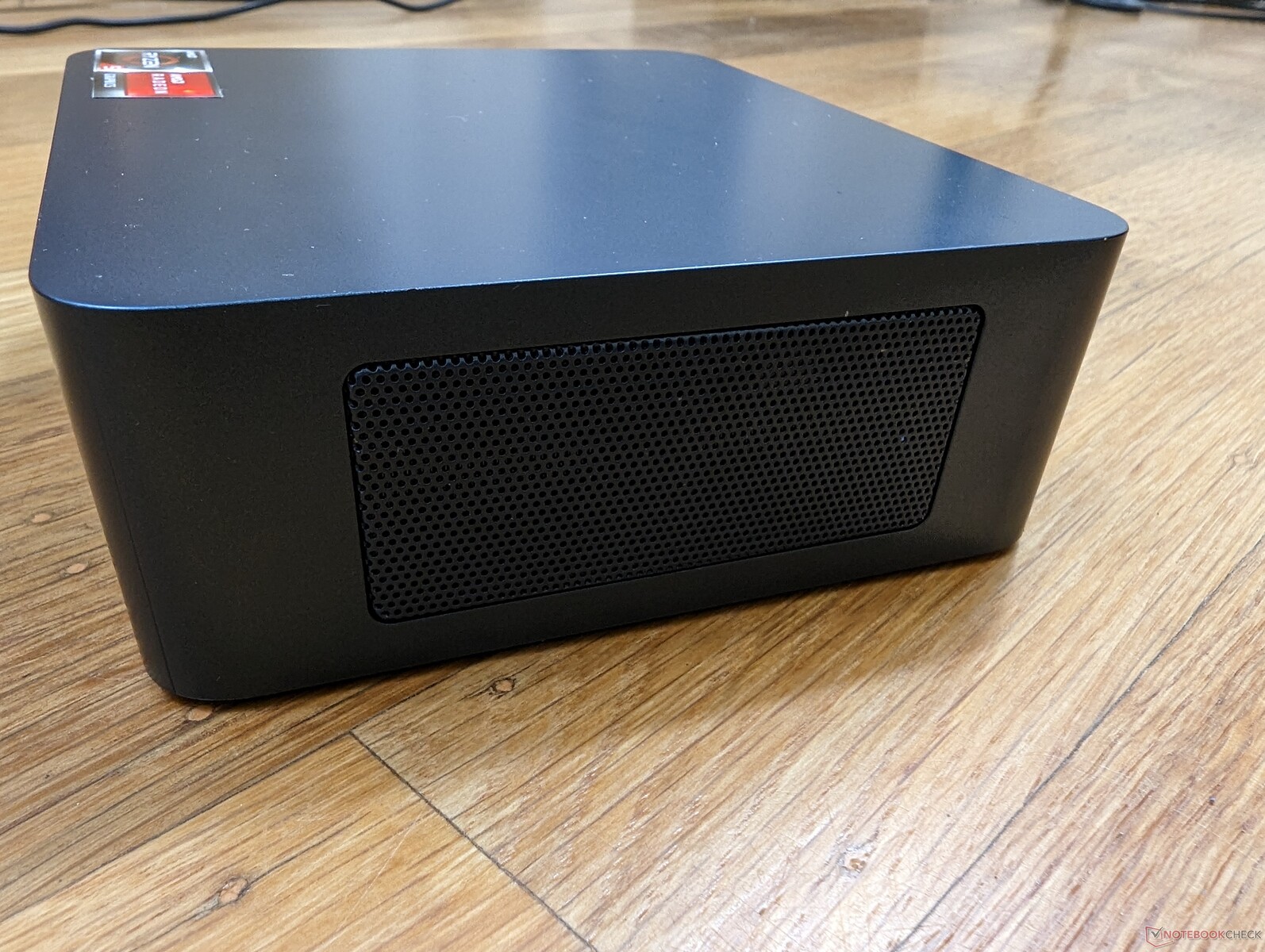

Slät matt plast på ovansidan och sidorna medan ventilationsgallren är av metall

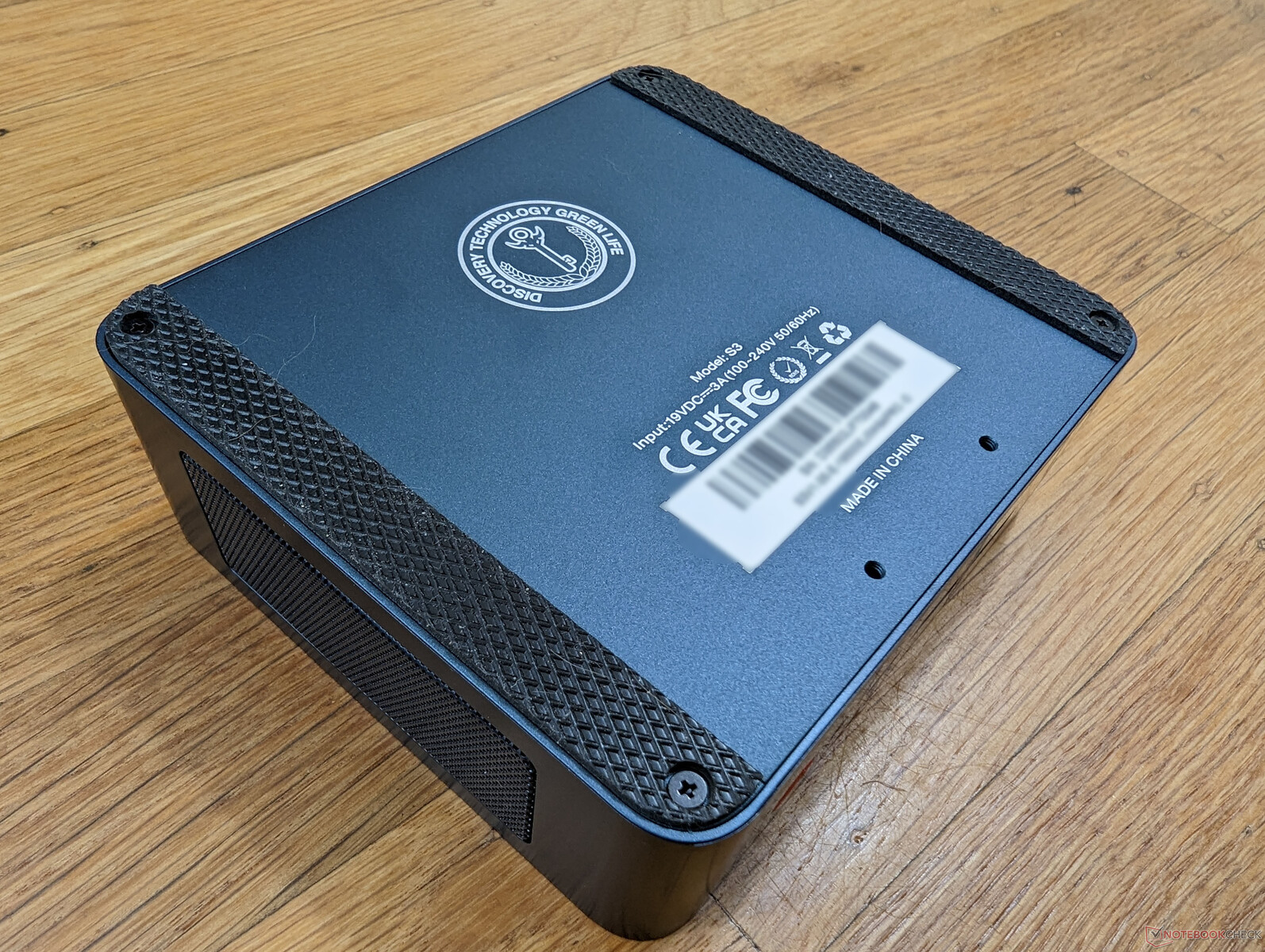

Gummifötter på undersidan med skruvuttag för avtagbar VESA-montering

Storleksjämförelse

Beelink SEi12 Core i5-1235U Beelink SER Pro Ryzen 5 5600H Trigkey S3 Beelink SEi11 Pro Intel NUC 12 Pro Kit NUC12WSKi7 Intel NUC11TNKi5 DIN A5 ❌

Anslutningsmöjligheter

Det finns gott om portalternativ, men den enda USB-C-porten verkar endast vara avsedd för data eller för laddning av externa enheter. Vår externa USB-C-skärm fungerade inte med Trigkey.

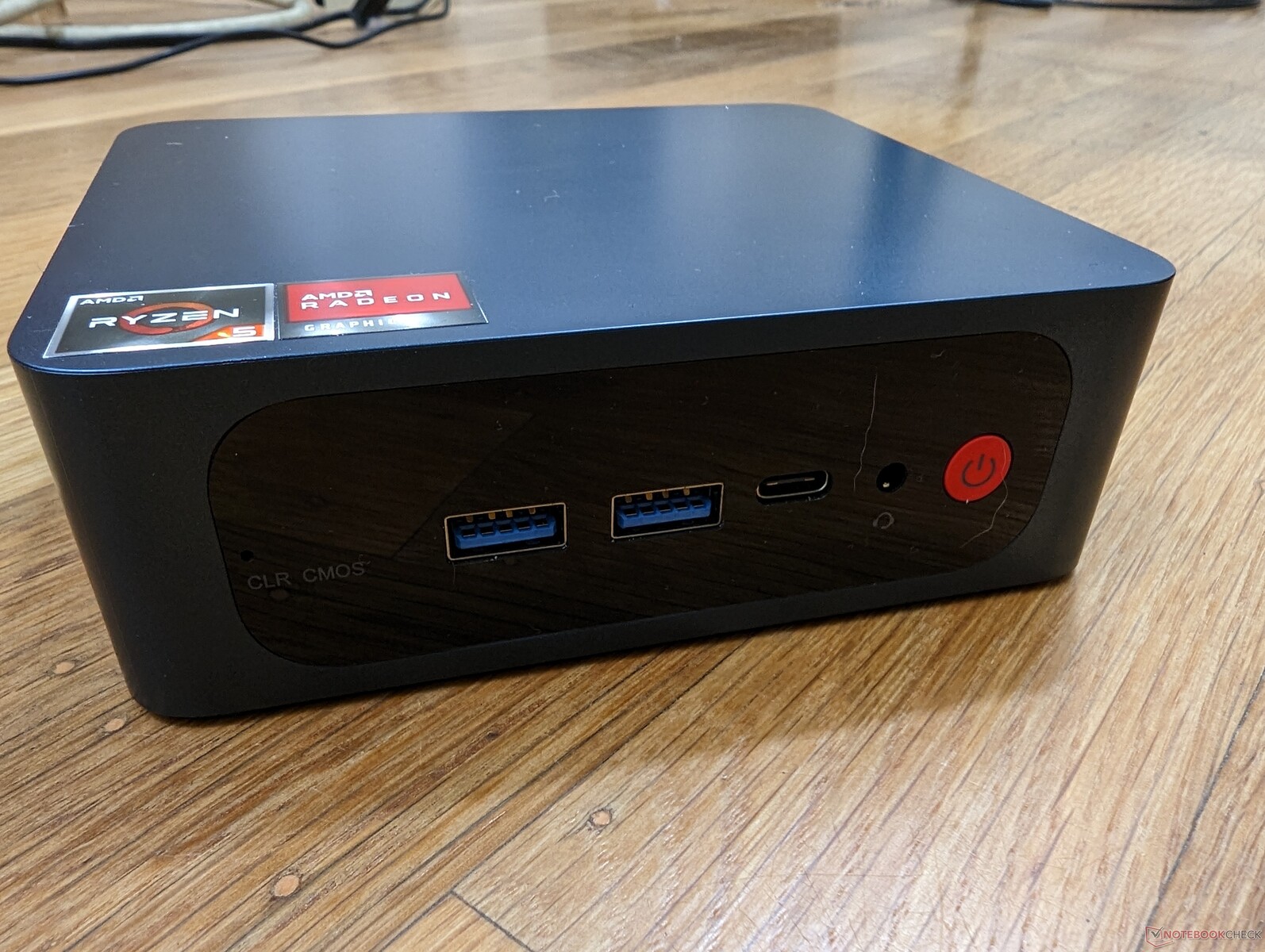

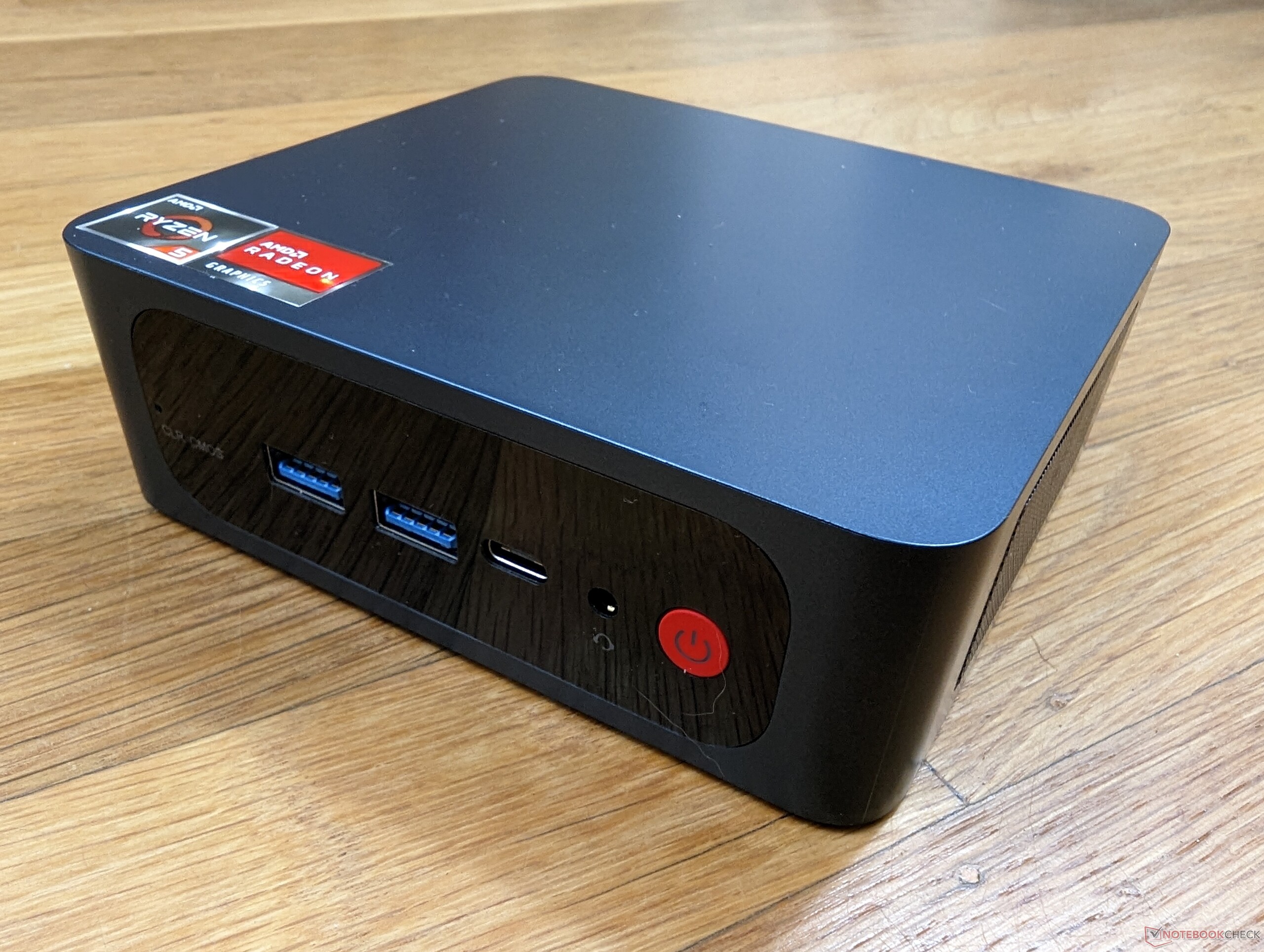

Framsida: USB-A 3.0, USB-C, 3,5 mm headset, strömknapp

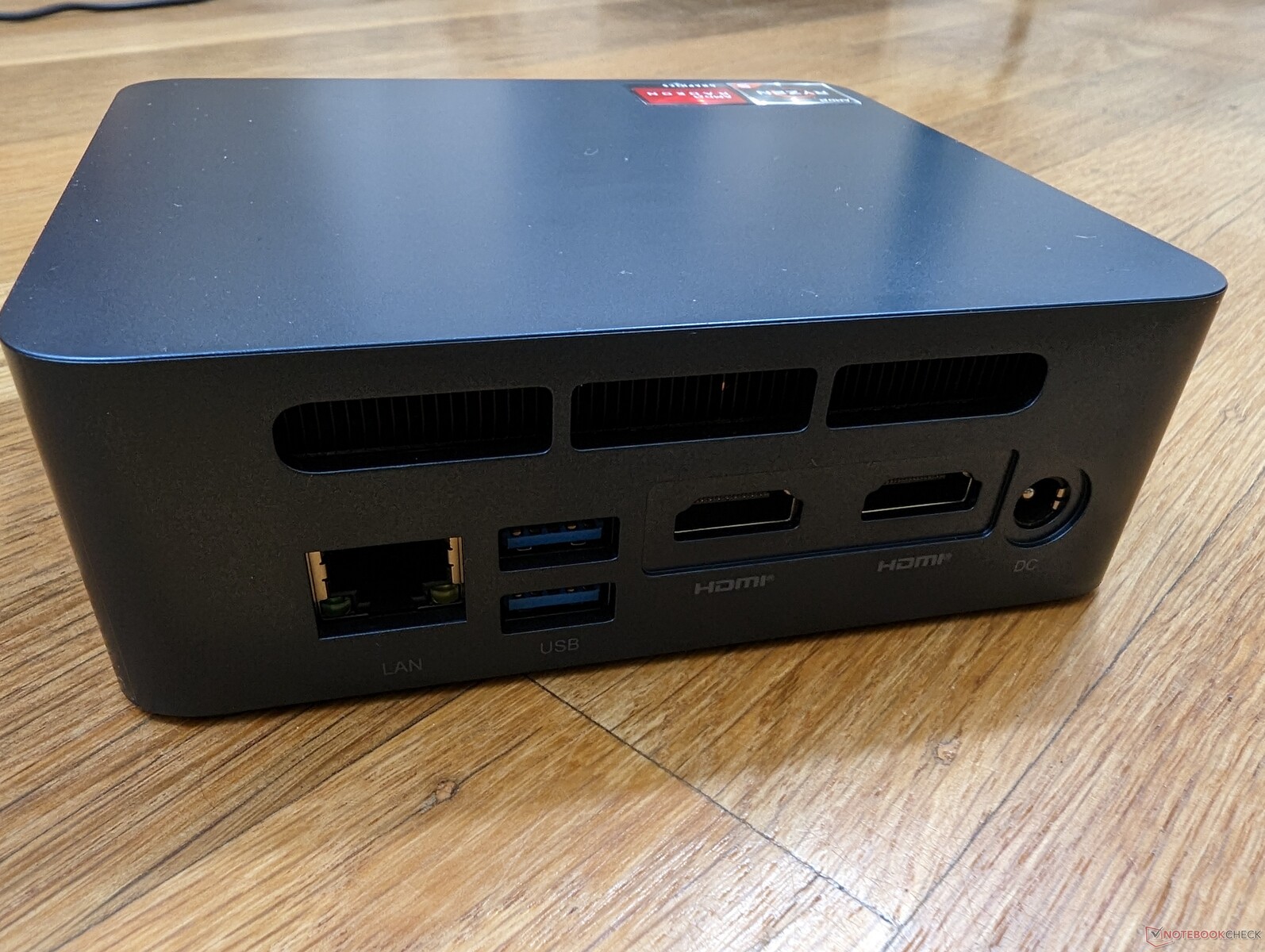

Bakåt: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), AC-adapter

Kommunikation

Systemet levereras med den äldre 1x1 Intel Dual Band Wireless-AC 3165 för överföringshastigheter som bara är en bråkdel av vad moderna Wi-Fi 6 och 6E-moduler klarar av. Trots detta är prestandan stabil och tillräcklig för 1080p-streaming och surfning.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	850 (802^min - 876^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +333%
Trigkey S3 Intel Dual Band Wireless-AC 3165	320 (269^min - 345^max) MBit/s
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +469%
Trigkey S3 Intel Dual Band Wireless-AC 3165	262 (233^min - 292^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	750 (374^min - 799^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s

Trigkey S3; iperf3 receive AXE11000; iperf 3.1.3: Ø319 (269-345)

Trigkey S3; iperf3 transmit AXE11000; iperf 3.1.3: Ø262 (233-292)

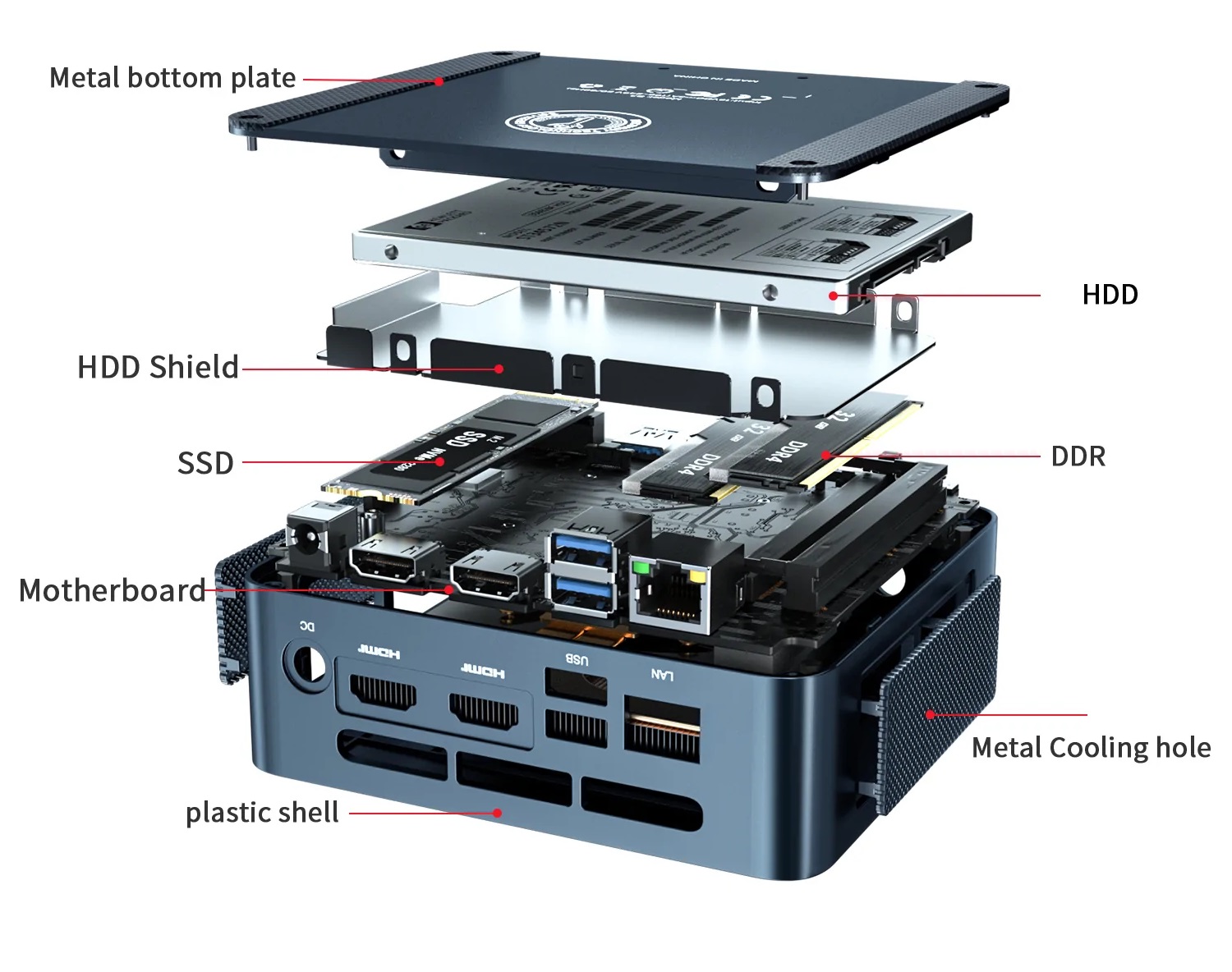

Underhåll

Bottenpanelen är tänkt att lätt kunna tas av, men skruvarna är mjuka och kan lätt lossna jämfört med de flesta andra minidatorer. Detta inträffade tyvärr på vår enhet och vi rekommenderar därför att ägarna är mycket försiktiga när de servar enheten. Som jämförelse har Intel NUC tumskruvar för snabbare verktygslös service.

Tillbehör och garanti

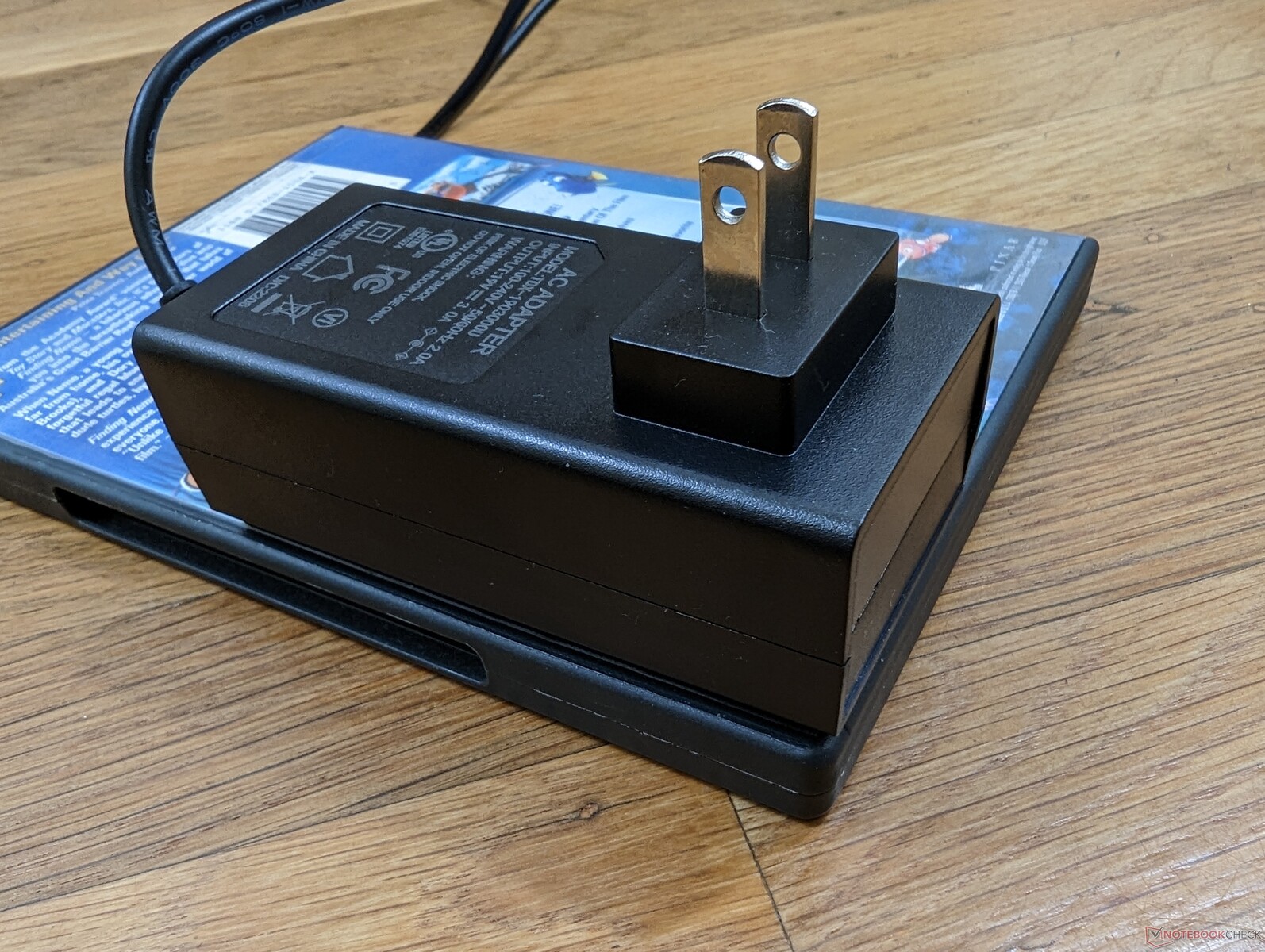

I förpackningen ingår ett väggmonterat fäste, en växelströmsadapter, en bruksanvisning och två HDMI-kablar. Den vanliga ettåriga begränsade tillverkargarantin gäller.

Prestanda

Provningsförhållanden

Vi ställde in Windows i prestandaläge innan vi körde alla benchmarks nedan. Systemet levereras inte med några förinstallerade program av typen "kontrollcenter" för att justera strömprofiler.

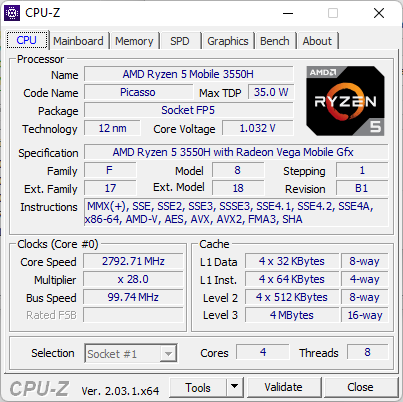

Processor

Den totala CPU-prestandan är mycket långsammare än någon 11:e eller 12:e generationens Intel Core i5 eller i7 CPU i U-serien, men fortfarande märkbart snabbare än någon Celeron- eller Atom-lösning som finns på marknaden för närvarande. Därför är Ryzen 5 3550H i vår Trigkey är mer jämförbar med en Intel Core i3-baserad dator eller den mycket äldre Core i5-8260U. Det är synd att tillverkaren inte valde den Ryzen 7 4800U i stället eftersom Zen 2-processorn är en massiv uppgradering jämfört med Zen+ H-serien.

Cinebench R15 Multi Loop

Trigkey S3 AMD Ryzen 5 3550H: Ø637 (633.41-642.56)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Beelink GTR6 AMD Ryzen 9 6900HX	91.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	90.8 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	78.7 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	75.9 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	72.2 pt
Beelink SEi11 Pro Intel Core i5-11320H	63.8 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	63.2 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	61.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	50.3 pt
Beelink SER3 ^-2! AMD Ryzen 7 3750H	44.2 pt
Genomsnitt AMD Ryzen 5 3550H	43.5 pt
Trigkey S3 AMD Ryzen 5 3550H	42.8 pt
MSI Cubi 5 10M ^-8! Intel Core i3-10110U	37.5 pt
Beelink SEi8 Intel Core i3-8109U	35.4 pt
BMAX B5 Pro G7H8 Intel Core i5-8260U	35.3 pt
Beelink U59 N5105 Intel Celeron N5105	27.6 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095	27.4 pt
Chuwi LapBook Plus ^-6! Intel Atom x7-E3950	10 pt
Chuwi Hi10 Air ^-12! Intel Atom x5-Z8350	8.2 pt

Cinebench R20 / CPU (Multi Core)
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	4578 Points +222%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points +119%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points +116%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points +55%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	2051 Points +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points +43%
Genomsnitt AMD Ryzen 5 3550H (1421 - 1728, n=8)	1596 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points +5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points +5%
Trigkey S3 AMD Ryzen 5 3550H	1421 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095	828 Points -42%
Beelink U59 N5105 Intel Celeron N5105	826 Points -42%
Beelink SEi8 Intel Core i3-8109U	772 Points -46%
MSI Cubi 5 10M Intel Core i3-10110U	743 Points -48%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points -81%

Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	698 Points +96%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +83%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +77%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	568 Points +59%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points +57%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points +16%
MSI Cubi 5 10M Intel Core i3-10110U	401 Points +12%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	377 Points +6%
Trigkey S3 AMD Ryzen 5 3550H	357 Points
Genomsnitt AMD Ryzen 5 3550H (331 - 370, n=8)	354 Points -1%
Beelink SEi8 Intel Core i3-8109U	351 Points -2%
Beelink U59 N5105 Intel Celeron N5105	235 Points -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	234 Points -34%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points -74%

Cinebench R23 / Multi Core
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	11815 Points +224%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points +123%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points +118%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points +57%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5240 Points +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points +43%
Genomsnitt AMD Ryzen 5 3550H (3646 - 4213, n=2)	3930 Points +8%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points +6%
Trigkey S3 AMD Ryzen 5 3550H	3646 (3617.23^min - 3645.96^max) Points
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -17%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points -40%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2164 Points -41%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -45%
MSI Cubi 5 10M Intel Core i3-10110U	1910 Points -48%

Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1812 Points +97%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +86%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points +75%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1487 Points +61%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points +17%
MSI Cubi 5 10M Intel Core i3-10110U	1031 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	971 Points +5%
Trigkey S3 AMD Ryzen 5 3550H	922 Points
Beelink SEi8 Intel Core i3-8109U	906 Points -2%
Genomsnitt AMD Ryzen 5 3550H (850 - 922, n=2)	886 Points -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -32%
Beelink U59 N5105 Intel Celeron N5105	618 Points -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	611 Points -34%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points +206%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1879 Points +192%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points +119%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points +105%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points +105%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points +33%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	832 Points +29%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points +23%
Genomsnitt AMD Ryzen 5 3550H (635 - 769, n=11)	717 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points +6%
Trigkey S3 AMD Ryzen 5 3550H	643 (633.41^min - 642.56^max) Points
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	369 Points -43%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points -43%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -50%
MSI Cubi 5 10M Intel Core i3-10110U	316 Points -51%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points -81%
Chuwi Hi10 Air Intel Atom x5-Z8350	97 Points -85%

Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	260 Points +83%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +83%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points +73%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points +63%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	221 Points +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points +56%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points +52%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points +51%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points +20%
MSI Cubi 5 10M Intel Core i3-10110U	162 Points +14%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points +11%
Beelink SER3 AMD Ryzen 7 3750H	146 Points +3%
Trigkey S3 AMD Ryzen 5 3550H	141.8 Points
Genomsnitt AMD Ryzen 5 3550H (77 - 146, n=11)	137.9 Points -3%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -12%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points -24%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	106 Points -25%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points -71%
Chuwi Hi10 Air Intel Atom x5-Z8350	30 Points -79%

Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * -530%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds * -117%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1550 Seconds * -114%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -83%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	759 Seconds * -5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -0%
Trigkey S3 AMD Ryzen 5 3550H	724 Seconds *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * +4%
Genomsnitt AMD Ryzen 5 3550H (612 - 759, n=6)	675 Seconds * +7%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * +7%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * +19%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * +25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * +47%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	280 Seconds * +61%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +65%

7-Zip 18.03 / 7z b 4
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS +230%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	47064 MIPS +171%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS +109%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS +105%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS +43%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	24006 MIPS +38%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS +16%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS +9%
Genomsnitt AMD Ryzen 5 3550H (16683 - 19409, n=6)	17967 MIPS +3%
Trigkey S3 AMD Ryzen 5 3550H	17375 MIPS
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS -2%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS -36%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	10994 MIPS -37%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -45%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS -74%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	5738 MIPS +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS +47%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5255 MIPS +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS +43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +42%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS +27%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS +11%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS +3%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS +3%
Trigkey S3 AMD Ryzen 5 3550H	3652 MIPS
Genomsnitt AMD Ryzen 5 3550H (3472 - 3652, n=6)	3554 MIPS -3%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	3098 MIPS -15%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS -60%

Geekbench 5.5 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	9935 Points +203%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points +185%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points +167%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points +86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points +77%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points +51%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4851 Points +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points +20%
Genomsnitt AMD Ryzen 5 3550H (3162 - 3486, n=5)	3316 Points +1%
Trigkey S3 AMD Ryzen 5 3550H	3281 Points
Beelink U59 N5105 Intel Celeron N5105	2080 Points -37%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2020 Points -38%
Beelink SEi8 Intel Core i3-8109U	1880 Points -43%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -45%

Geekbench 5.5 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1715 Points +89%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +89%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +82%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points +80%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1543 Points +70%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points +67%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points +66%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points +34%
Trigkey S3 AMD Ryzen 5 3550H	907 Points
Genomsnitt AMD Ryzen 5 3550H (880 - 907, n=5)	896 Points -1%
Beelink SEi8 Intel Core i3-8109U	888 Points -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	657 Points -28%
Beelink U59 N5105 Intel Celeron N5105	653 Points -28%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -30%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +281%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	13.2 fps +227%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps +160%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps +140%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps +133%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps +80%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps +62%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps +29%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4.74 fps +17%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps +2%
Genomsnitt AMD Ryzen 5 3550H (3.7 - 4.43, n=5)	4.05 fps 0%
Trigkey S3 AMD Ryzen 5 3550H	4.04 fps
Beelink SEi8 Intel Core i3-8109U	2.85 fps -29%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2.02 fps -50%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps -50%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -55%
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps -76%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	103.2 s * -18%
Beelink U59 N5105 Intel Celeron N5105	101 s * -15%
Trigkey S3 AMD Ryzen 5 3550H	87.8 s *
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * +1%
Genomsnitt AMD Ryzen 5 3550H (73.3 - 92.7, n=4)	82.2 s * +6%
Beelink SEi8 Intel Core i3-8109U	79 s * +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * +22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * +41%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	51.8 s * +41%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * +44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * +45%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * +47%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	45 s * +49%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -72%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1.166 sec * -59%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec * -59%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -18%
Genomsnitt AMD Ryzen 5 3550H (0.732 - 0.752, n=4)	0.739 sec * -1%
Trigkey S3 AMD Ryzen 5 3550H	0.732 sec *
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * +4%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	0.609 sec * +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * +18%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * +21%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +34%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	0.4787 sec * +35%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +37%

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... mindre är bättre

Blender
v3.3 Classroom HIP/AMD
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	926 Seconds *
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	926 Seconds * -0%
v3.3 Classroom CPU
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	1297 Seconds *
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	1297 Seconds * -0%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * +23%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * +45%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * +49%

* ... mindre är bättre

Performance Rating
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	92.6 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	76.7 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	74.9 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	69.6 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	64.6 pt
Genomsnitt AMD Ryzen 5 3550H	44.2 pt
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	41.1 pt

AIDA64 / FP32 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	9181 KRay/s +206%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s +131%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s +126%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s +124%
Genomsnitt AMD Ryzen 5 3550H (2996 - 3607, n=5)	3309 KRay/s +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	2996 KRay/s

AIDA64 / FPU Julia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	58039 Points +255%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points +84%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points +71%
Genomsnitt AMD Ryzen 5 3550H (16278 - 18781, n=5)	17574 Points +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16331 Points

AIDA64 / CPU SHA3
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	2006 MB/s +137%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s +126%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s +122%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s +119%
Genomsnitt AMD Ryzen 5 3550H (847 - 983, n=4)	933 MB/s +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	847 MB/s

AIDA64 / CPU Queen
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	66699 Points +57%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points +54%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points +41%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points +14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points +10%
Genomsnitt AMD Ryzen 5 3550H (42017 - 48622, n=5)	45217 Points +6%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	42470 Points

AIDA64 / FPU SinJulia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	8340 Points +55%
Genomsnitt AMD Ryzen 5 3550H (5386 - 6316, n=5)	5909 Points +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	5386 Points
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points -11%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -17%

AIDA64 / FPU Mandel
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	31962 Points +276%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points +111%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points +99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points +93%
Genomsnitt AMD Ryzen 5 3550H (8460 - 9767, n=5)	9148 Points +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	8511 Points

AIDA64 / CPU AES
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	79183 MB/s +185%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s +147%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s +142%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s +140%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s +38%
Genomsnitt AMD Ryzen 5 3550H (27486 - 32316, n=5)	29977 MB/s +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	27755 MB/s

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s +110%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s +91%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	507 MB/s +68%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +24%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s +22%
Genomsnitt AMD Ryzen 5 3550H (299 - 352, n=5)	323 MB/s +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	302 MB/s

AIDA64 / FP64 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	4811 KRay/s +204%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s +148%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s +141%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s +123%
Genomsnitt AMD Ryzen 5 3550H (1584 - 1914, n=5)	1753 KRay/s +11%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	1584 KRay/s

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s +164%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s +76%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	20237 MPixel/s +21%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s +1%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16736 MPixel/s
Genomsnitt AMD Ryzen 5 3550H (14325 - 17838, n=5)	16132 MPixel/s -4%

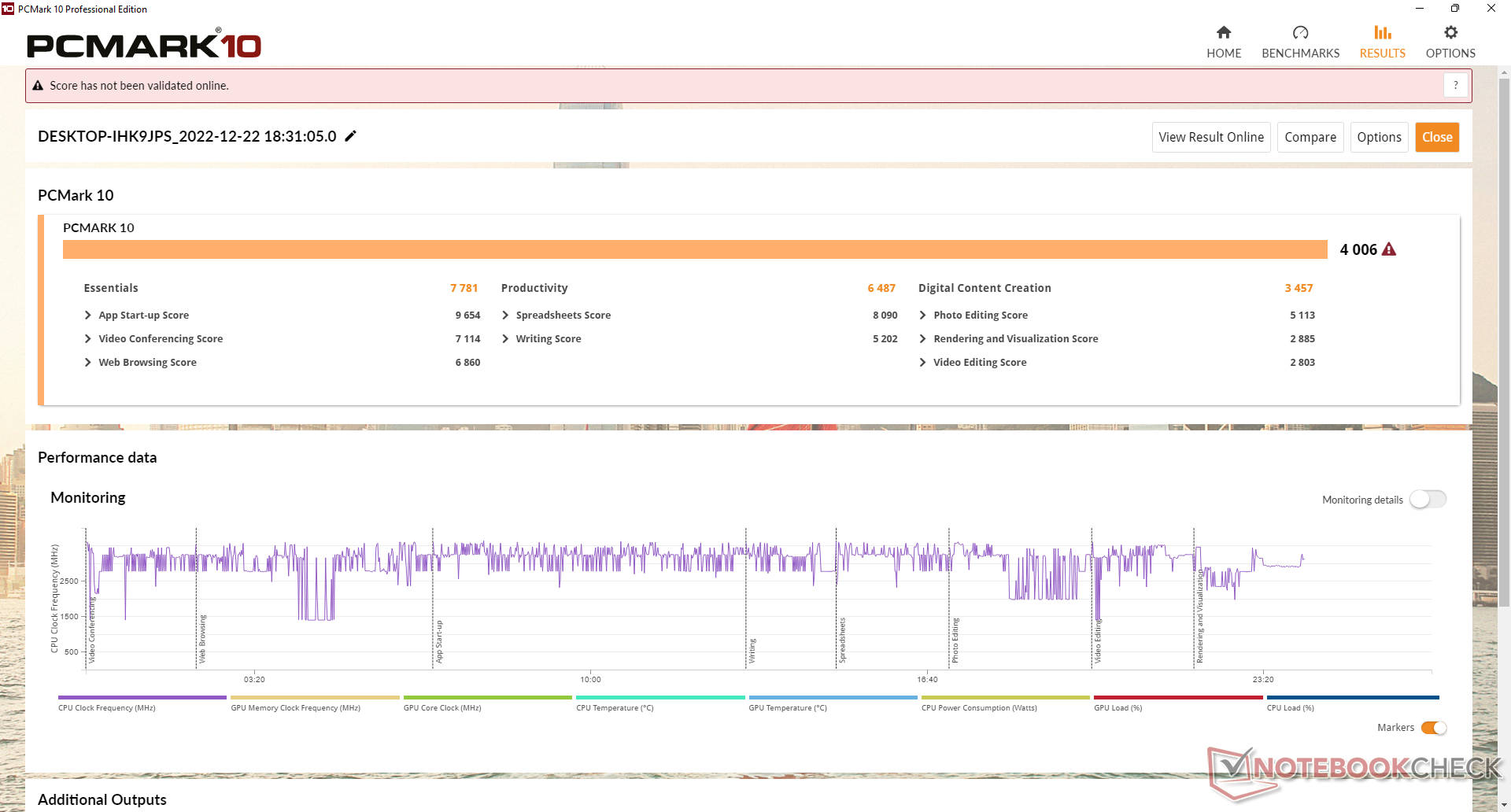

Systemets prestanda

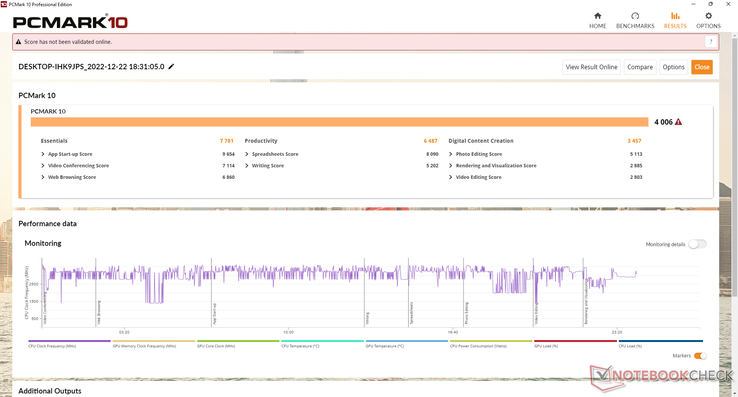

Som väntat ligger PCMark-resultaten mellan långsammare minidatorer som drivs av Celeron- eller Atom-CPU:er och snabbare minidatorer som drivs av modernare 11:e eller 12:e generationens Intel-CPU:er.

PCMark 10 / Score
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points +47%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points +38%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	5510 Points +38%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points +27%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points +13%
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4006 - 4307, n=4)	4153 Points +4%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	4006 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points -33%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1144 Points -71%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +39%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points +33%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points +32%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	10186 Points +31%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points +16%
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7781 - 8579, n=4)	8202 Points +5%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	7781 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points -19%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	2891 Points -63%

PCMark 10 / Productivity
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points +43%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points +13%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	7041 Points +9%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points +7%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	6487 Points
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (5995 - 6487, n=4)	6327 Points -2%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -5%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points -42%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1407 Points -78%

PCMark 10 / Digital Content Creation
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	6330 Points +83%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points +68%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points +68%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points +46%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points +29%
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (3457 - 3947, n=4)	3751 Points +9%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3457 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points -37%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1001 Points -71%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +98%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1559 Points +87%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points +60%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1311 Points +58%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	832 Points
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	832 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	531 Points -36%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +88%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1528 Points +72%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1355 Points +52%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	890 Points
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	890 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	590 Points -34%

CrossMark / Creativity
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1679 Points +116%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points +99%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1315 Points +69%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points +62%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	777 Points
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	777 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	471 Points -39%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +123%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points +60%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1327 Points +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1177 Points +41%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	836 Points
Genomsnitt AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	836 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	554 Points -34%

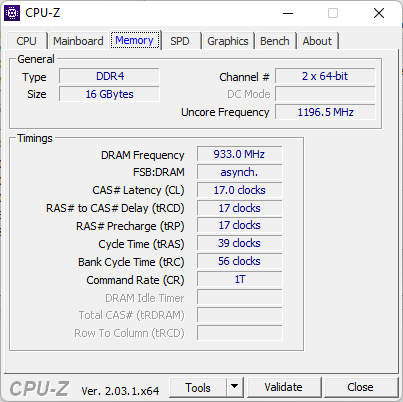

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s +117%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s +34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42001 MB/s +30%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s +28%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	32188 MB/s
Genomsnitt AMD Ryzen 5 3550H (28887 - 32188, n=5)	30294 MB/s -6%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -29%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s +85%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	47363 MB/s +35%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s +33%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s +32%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35172 MB/s
Genomsnitt AMD Ryzen 5 3550H (31862 - 35172, n=5)	33574 MB/s -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -29%

AIDA64 / Memory Write
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s +77%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s +30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42347 MB/s +18%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35845 MB/s
Genomsnitt AMD Ryzen 5 3550H (32493 - 35847, n=5)	34148 MB/s -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -35%

AIDA64 / Memory Latency
Genomsnitt AMD Ryzen 5 3550H (95 - 120, n=5)	113.8 ns * -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * -5%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	95 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * +15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	80.3 ns * +15%

* ... mindre är bättre

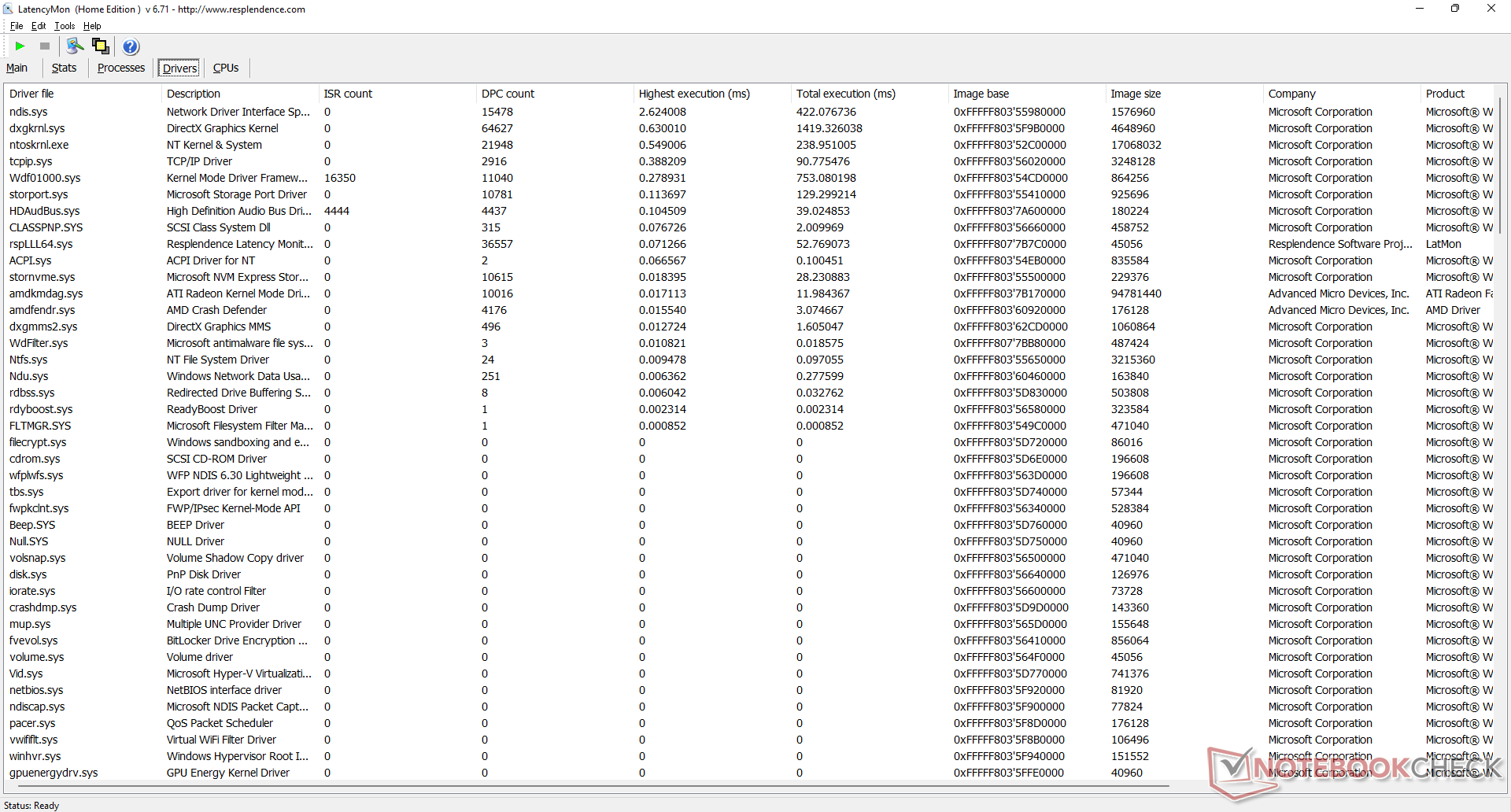

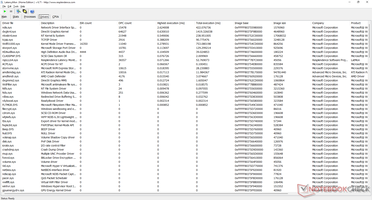

DPC-latenstid

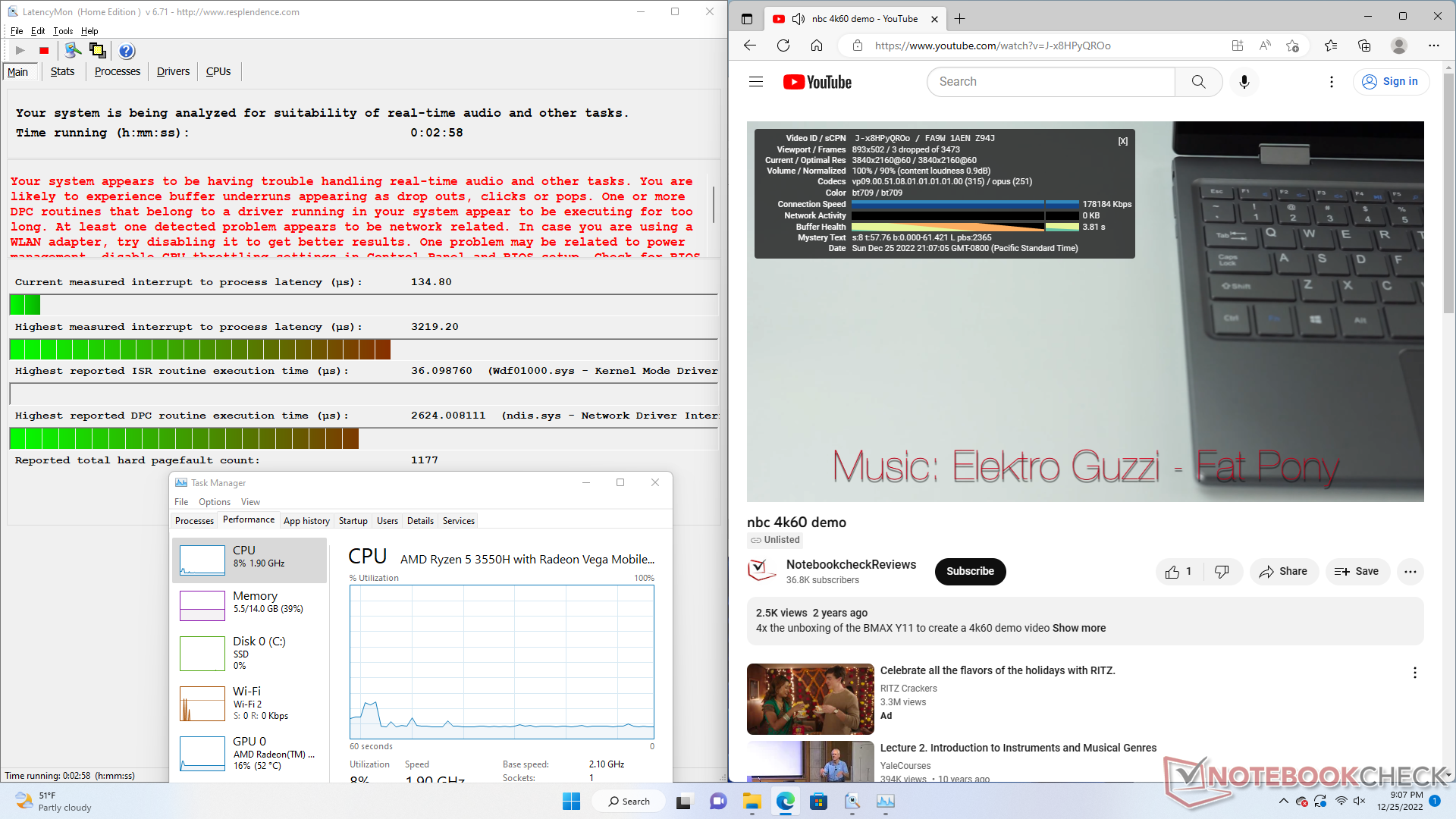

LatencyMon avslöjar DPC-problem när du öppnar flera webbläsarflikar på vår hemsida. uppspelning av 4K-video vid 60 FPS är mestadels smidig med endast 3 tappade bilder under vår minutlånga testvideo.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3219.2 μs *
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * +64%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +74%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	562 μs * +83%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +84%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +95%

* ... mindre är bättre

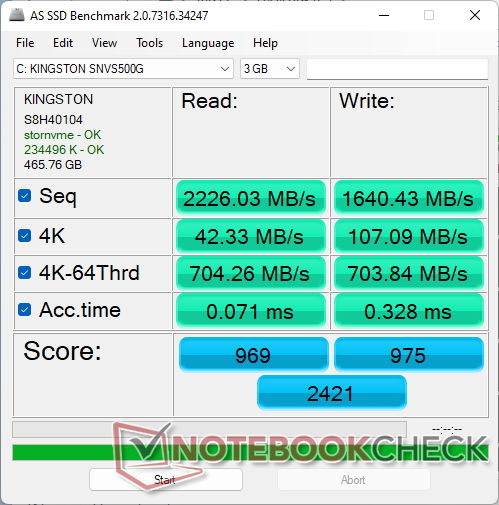

Lagringsenheter

Trigkey använder sammaKingston NV1 SNVS/500GCN M.2 2280 NVMe SSD som finns i många Beelink minidatorer som t.ex SEi11 Pro eller SER Pro. Detta är en budget PCIe3 x4-enhet med en maximal överföringshastighet på cirka 2 500 MB/s. Användare kan installera en M.2 SSD och en 2,5-tums SATA III-enhet om de kan öppna bottenpanelen.

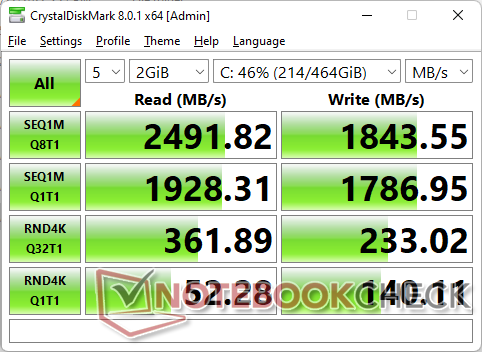

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2517 MB/s

CDM 5/6 Write Seq Q32T1: 1837 MB/s

CDM 5/6 Read 4K Q32T1: 364 MB/s

CDM 5/6 Write 4K Q32T1: 232.6 MB/s

CDM 5 Read Seq: 1963 MB/s

CDM 5 Write Seq: 1784 MB/s

CDM 5/6 Read 4K: 51.91 MB/s

CDM 5/6 Write 4K: 138.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	92.8 pt
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	70.5 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	55.7 pt
Beelink SER Pro Ryzen 5 5600H ^-11! Kingston NV1 SNVS/500GCN	55.1 pt
Trigkey S3 Kingston NV1 SNVS/500GCN	52.2 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	17.7 pt

DiskSpd
seq read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s +31%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s +16%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1976 (1950.06^min - 1975.69^max) MB/s +3%
Trigkey S3 Kingston NV1 SNVS/500GCN	1924 (1916.02^min - 1924^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -15%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -74%
seq write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s +62%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s +25%
Trigkey S3 Kingston NV1 SNVS/500GCN	1758 (745.14^min - 1757.99^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1746 (580.39^min - 1746.23^max) MB/s -1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -73%
seq q8 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s +39%
Trigkey S3 Kingston NV1 SNVS/500GCN	2518 (2250.15^min - 2517.63^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	2456 (2261.06^min - 2456.06^max) MB/s -2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -78%
seq q8 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s +57%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s +42%
Trigkey S3 Kingston NV1 SNVS/500GCN	1809 (1103.1^min - 1809.06^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1763 (714.42^min - 1763.25^max) MB/s -3%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -21%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -72%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s +79%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s +14%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	44.4 (42.57^min - 44.42^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	44.3 (43.84^min - 44.26^max) MB/s 0%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -51%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +189%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s +28%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	147.9 (117.82^min - 147.87^max) MB/s +9%
Trigkey S3 Kingston NV1 SNVS/500GCN	135.1 (104.83^min - 135.1^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -66%
4k q32 t16 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s +161%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	747 (745.51^min - 747.02^max) MB/s 0%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	745 (742.5^min - 744.62^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s -14%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -62%
4k q32 t16 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s +180%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	860 (472.56^min - 860.33^max) MB/s +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	793 (785.74^min - 792.64^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -8%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -58%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s -59%

AS SSD
Score Total
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points +91%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points +46%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points +13%
Trigkey S3 Kingston NV1 SNVS/500GCN	2421 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -65%
Score Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points +69%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points +8%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	969 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -69%
Score Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points +134%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points +105%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points +31%
Trigkey S3 Kingston NV1 SNVS/500GCN	975 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -62%
Seq Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s +29%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	2226.03 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -76%
Seq Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s +19%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	1640.43 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -72%
4K Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s +41%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s +7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s +4%
Trigkey S3 Kingston NV1 SNVS/500GCN	42.33 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -52%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +162%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s +80%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s +71%
Trigkey S3 Kingston NV1 SNVS/500GCN	107.09 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -60%
4K-64 Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s +78%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s +1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	704.26 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -67%
4K-64 Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +177%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s +130%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s +30%
Trigkey S3 Kingston NV1 SNVS/500GCN	703.84 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -59%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -75%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.071 ms *
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * +25%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * +25%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +31%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -4%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.328 ms *
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * +18%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +79%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * +93%

* ... mindre är bättre

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Trigkey S3: Ø2442 (2098.62-2474.72)

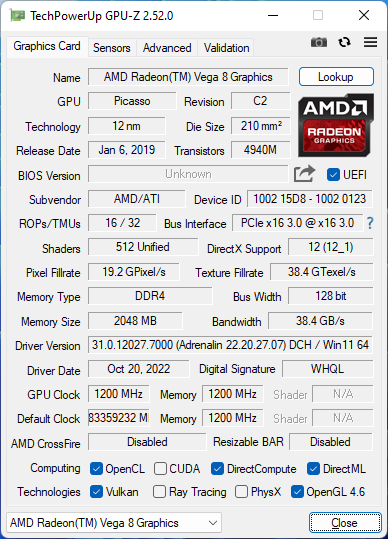

GPU-prestanda

Den råa grafikprestandan är ungefär dubbelt så hög som den för UHD Graphics 620 som vanligen finns på Intel CPU:er av 10:e generationen eller äldre. Det är inte tillräckligt för att driva de flesta spel, men varje liten bit hjälper när du streamar eller kör på skärmar med högre upplösning.

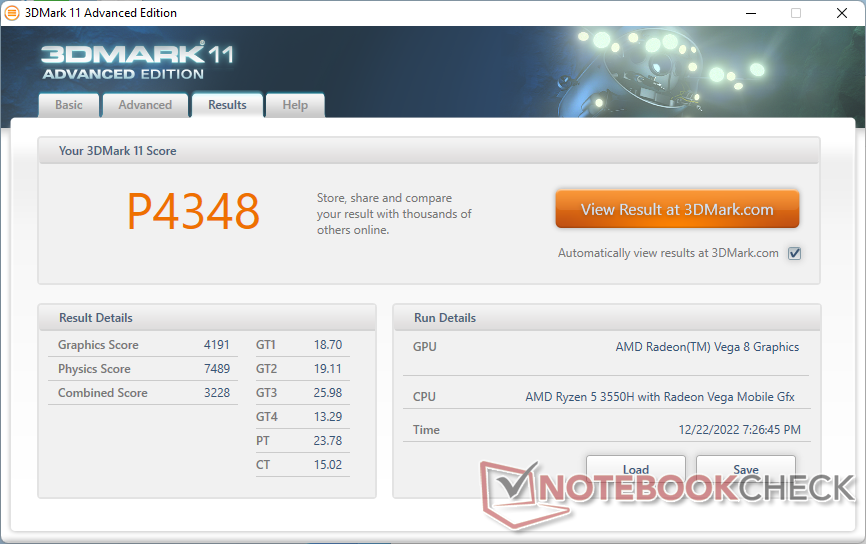

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	64 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	62.3 pt
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	61.2 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	60.4 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	59.3 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	56 pt
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	52.6 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	50.4 pt
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	36.8 pt
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000)	31.6 pt
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	28.9 pt
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	18.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	16.1 pt
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	15.3 pt
Geekom MiniAir 11 Special Edition ^-1! Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	9.4 pt
Chuwi LapBook Plus ^-1! Intel HD Graphics 505, Intel Atom x7-E3950	7.3 pt
Chuwi Hi10 Air ^-3! Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	2.6 pt

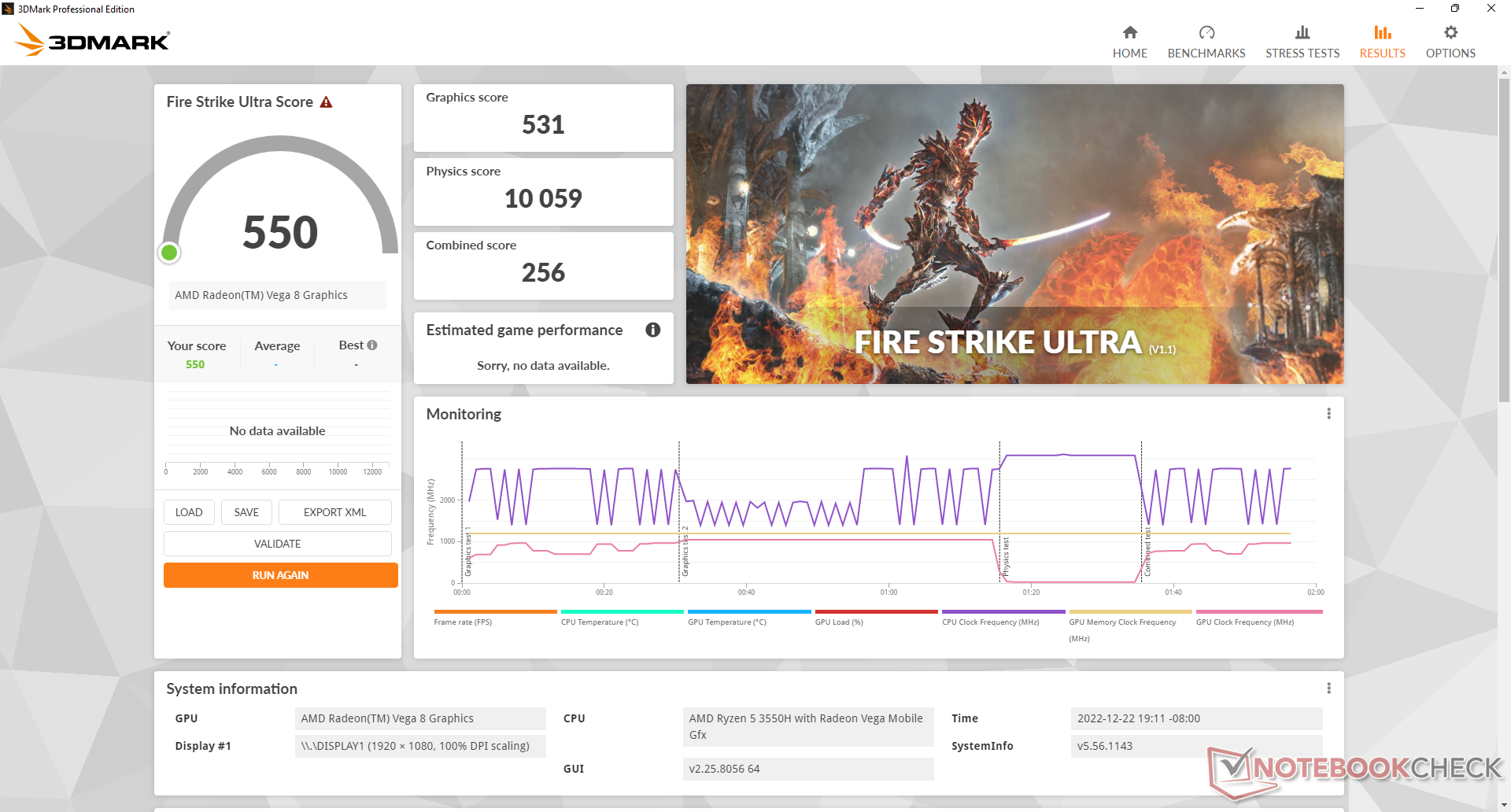

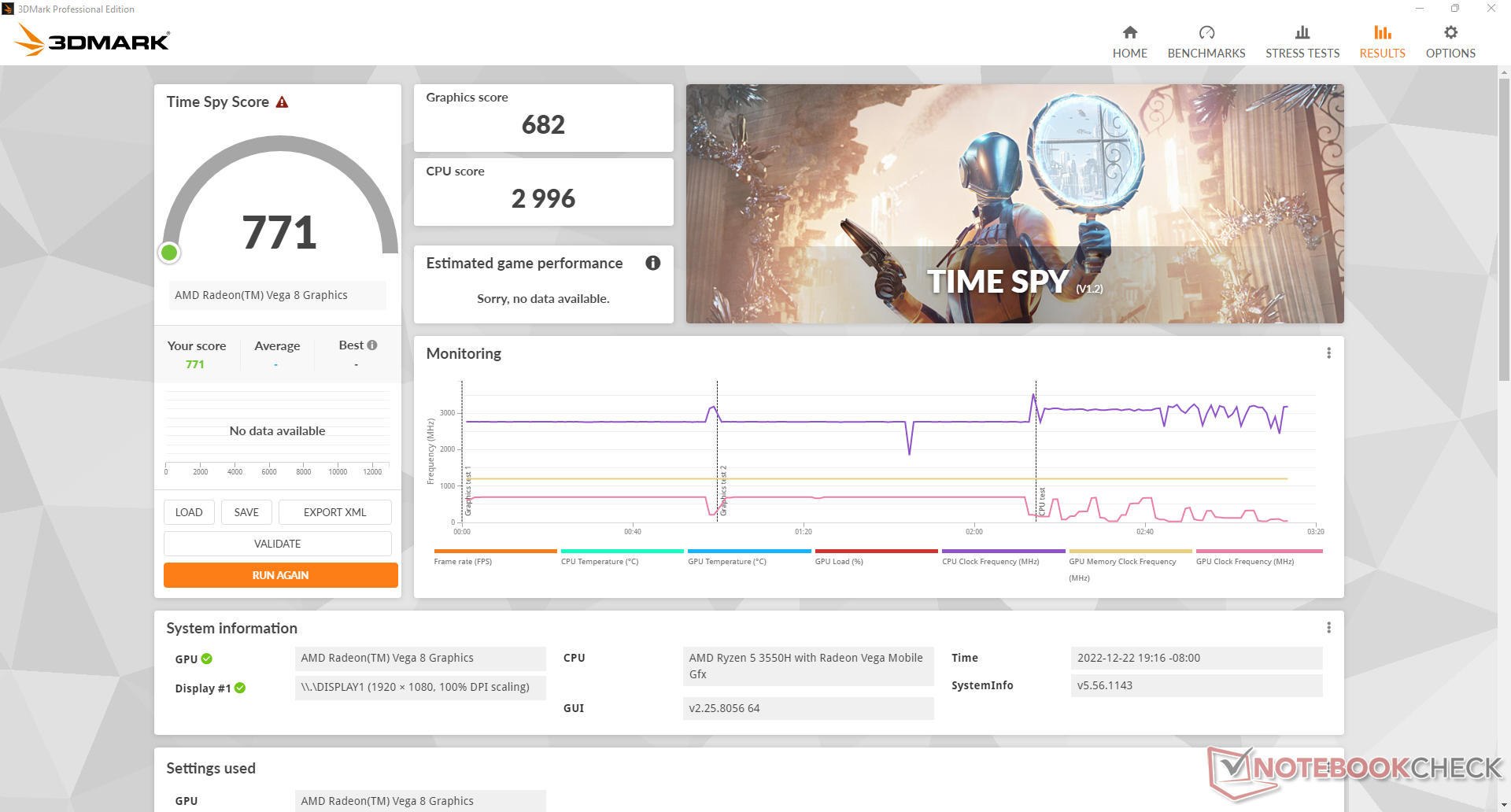

3DMark

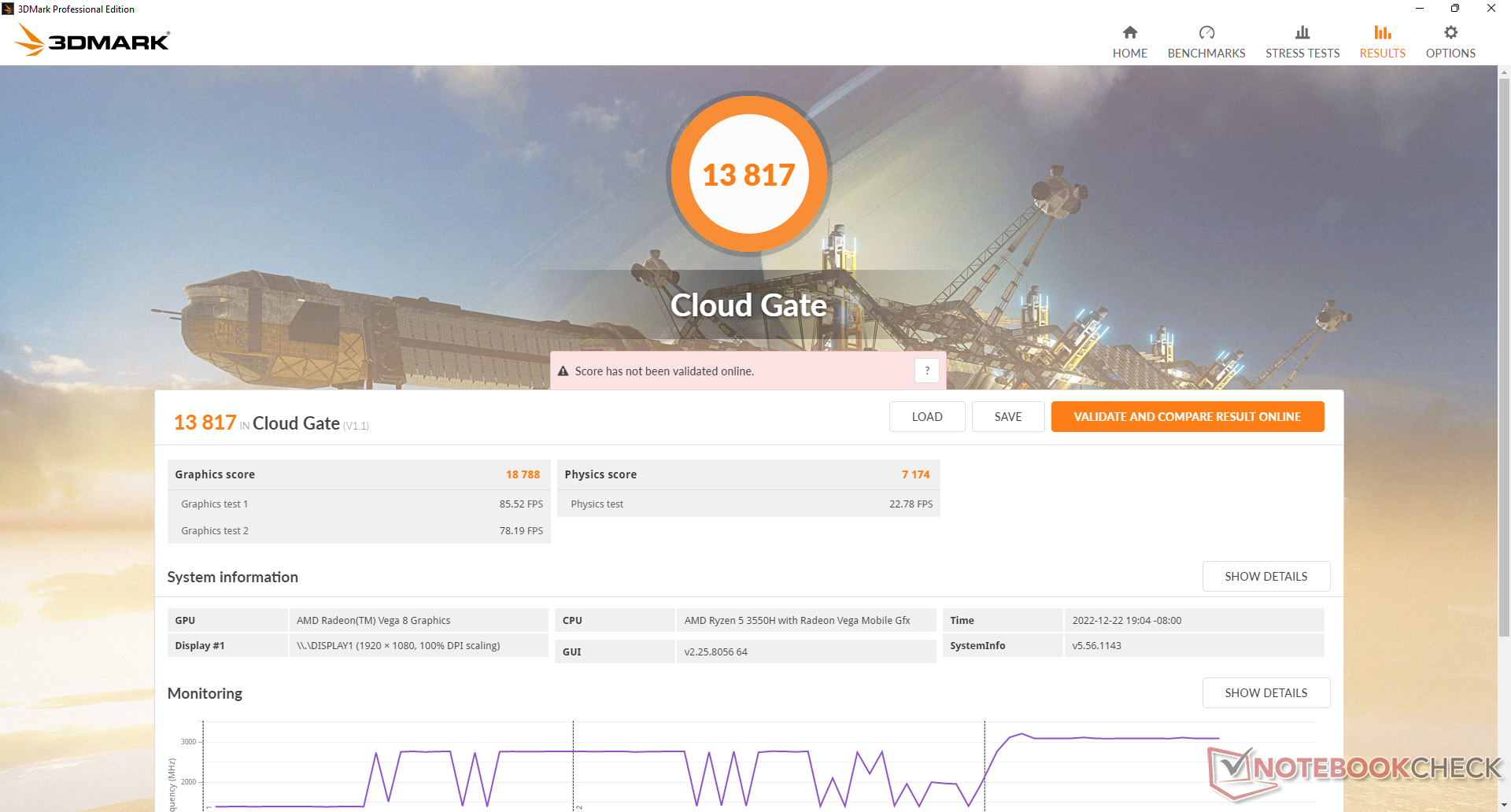

1280x720 Cloud Gate Standard Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	44579 Points +137%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	31437 Points +67%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	26093 Points +39%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points +36%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points +21%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points +15%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points +12%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	18788 Points
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7309 - 19399, n=37)	15327 Points -18%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	13791 Points -27%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	9921 Points -47%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	8388 Points -55%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -57%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -74%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	3997 Points -79%

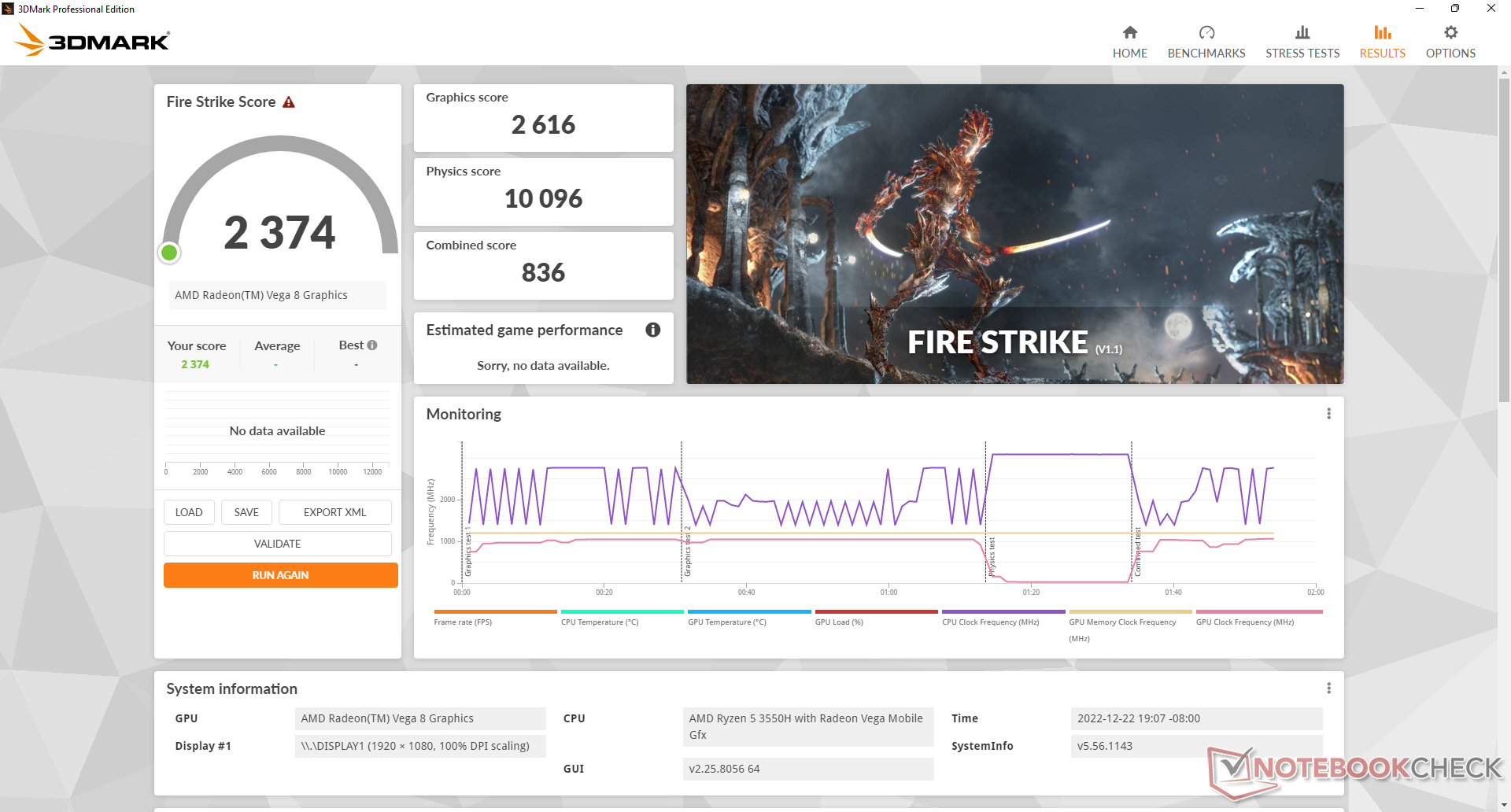

1920x1080 Fire Strike Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points +166%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +90%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +87%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points +73%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points +67%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points +62%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points +54%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points +51%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2616 Points
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1095 - 2901, n=41)	2224 Points -15%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points -23%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -51%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -59%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -76%
2560x1440 Time Spy Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points +257%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +139%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +130%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +128%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points +112%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points +89%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +83%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points +81%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points +68%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	682 Points
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (523 - 790, n=23)	673 Points -1%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points -11%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -38%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -46%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points -54%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	142 Points -79%

3DMark 11 - 1280x720 Performance GPU
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points +152%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +63%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points +59%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points +57%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points +48%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points +45%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +45%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points +28%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points +21%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	4191 Points
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1668 - 4317, n=44)	3447 Points -18%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points -23%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -60%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1458 Points -65%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -80%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	765 Points -82%
Chuwi Hi10 Air Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	278 Points -93%

3DMark Performance Rating | 3DMark | 3DMark 11

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +175%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +79%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps +77%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +76%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +74%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps +61%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps +56%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps +53%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	50.7 (41^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (22 - 50.7, n=18)	34.7 fps -32%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -53%
1366x768 Medium Graphics & Postprocessing
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +149%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +77%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +71%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps +59%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	52.3 (22.4^min, 24.9^P0.1, 29.9^P1) fps +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps +44%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	33.8 (31^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (16.3 - 33.8, n=10)	23.6 fps -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -60%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +151%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +83%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +75%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27.7 (12.8^min, 13.7^P0.1, 15.4^P1) fps +51%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps +42%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps +37%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	18.3 (16^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -17%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (6.7 - 18.3, n=14)	12.5 fps -32%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -60%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +168%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps +56%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +37%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps +21%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.1 (8^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4.44 - 10.1, n=7)	7.66 fps -24%

GTA V
1024x768 Lowest Settings possible
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps +88%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps +64%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps +34%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps +26%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps +20%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps +16%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	81.2 (24.5^min, 50^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (41 - 81.2, n=6)	61 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -58%
1920x1080 Lowest Settings possible
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps +117%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +71%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	87.4 (18^min, 62.5^P1) fps +69%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps +57%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +56%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	75.1 (18.8^min, 52.6^P1) fps +46%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps +30%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps +28%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.6 (14.7^min, 38.5^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (21.7 - 51.6, n=3)	35.4 fps -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.7 (10.2^min, 12.8^P1) fps -64%
1366x768 Normal/Off AF:4x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps +91%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps +63%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps +32%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps +30%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps +24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps +21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps +7%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	72.3 (16.7^min, 47.6^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (29.9 - 72.3, n=5)	54 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -61%
1920x1080 Normal/Off AF:4x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps +114%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps +60%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	76.7 (2.83^min, 50^P1) fps +50%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	66.5 (20.6^min, 43.5^P1) fps +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps +26%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.2 (12.1^min, 38.5^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (21.6 - 51.2, n=3)	35 fps -32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.2 (9.02^min, 12.3^P1) fps -64%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps +48%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +35%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +11%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps +6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	22.1 (11^min, 16.7^P1) fps +1%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (7.98^min, 15.6^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	19.4 (8.25^min, 15.2^P1) fps -11%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (9.09 - 25.3, n=6)	17.7 fps -19%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	6.56 (3.2^min, 4.55^P1) fps -70%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps +130%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps +41%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.3 (1.411^min, 6.71^P1) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	9.51 (4.28^min, 5.71^P1) fps -8%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4.95 - 12.3, n=4)	8.63 fps -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	8.27 (3.9^min, 4.85^P1) fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	2.67 (1.309^min, 1.961^P1) fps -74%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps +94%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps +88%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps +64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	116.4 (93.7^min) fps +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +58%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	110.4 (89.3^min) fps +51%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps +49%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps +28%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	73 (59.4^min) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps 0%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (56.2 - 97.2, n=29)	70.4 fps -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -42%
1366x768 med (1/3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps +75%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +64%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps +60%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89 (72.1^min) fps +38%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	87.9 (69.9^min) fps +36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps +33%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	64.4 (52.7^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (39.9 - 76.3, n=29)	58.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -87%
1920x1080 high (2/3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps +99%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +68%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +66%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	63.1 (57.2^min) fps +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps +46%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps +24%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	49.8 (46.3^min) fps +22%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	40.7 (36.4^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (20.4 - 47.8, n=29)	35.8 fps -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.4 (17^min) fps -55%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -86%
1920x1080 ultra (3/3) best looking
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps +89%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +64%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +58%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.9 (52^min) fps +53%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps +49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps +25%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	45.7 (42.8^min) fps +21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	37.8 (34.2^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (18.8 - 44.8, n=29)	33 fps -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	16 (14.9^min) fps -58%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -85%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +152%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +75%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.8 fps +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps +51%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	40.6 fps +49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps +42%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps +31%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	27.2 fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (13.4 - 27.8, n=11)	22.2 fps -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.8 fps -60%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -79%
1920x1080 Standard Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +153%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +81%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +80%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps +67%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	21.7 fps +57%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps +47%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps +47%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps +40%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	13.8 fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (6.22 - 14, n=10)	11.4 fps -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5.08 fps -63%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +158%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps +153%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	16.4 fps +69%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.2 fps +57%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps +54%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps +48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps +39%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.68 fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (3.7 - 9.68, n=8)	7.04 fps -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	3.75 fps -61%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps +463%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.3 fps +442%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps +406%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps +364%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +321%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +321%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps +287%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps +230%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (11.5 - 39.9, n=26)	25.5 fps +122%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	20.2 fps +76%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	11.5 fps
1920x1080 med (fps_test=2)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +401%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	46.2 fps +340%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps +292%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps +284%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +241%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +232%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	33.3 fps +217%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps +212%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (10.5 - 31, n=26)	19.5 fps +86%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	13.1 fps +25%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.5 fps
1920x1080 high (fps_test=3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps +336%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	40.4 fps +322%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +289%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps +273%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +243%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +217%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.9 fps +212%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps +208%
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (9.58 - 27.3, n=25)	17.4 fps +82%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	12 fps +25%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.58 fps

Strange Brigade
1280x720 lowest AF:1
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps +117%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps +38%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps +21%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (9.6^min, 21.1^P1) fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps +1%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	65.5 (26.1^min, 55.9^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (34.2 - 65.5, n=4)	54.3 fps -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -61%
1920x1080 medium AA:medium AF:4
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +163%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps +81%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +76%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +75%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps +65%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps +56%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (9.5^min, 16^P1) fps +36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (18.4^min, 18.9^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (14 - 24.1, n=4)	20.4 fps -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -55%
1920x1080 high AA:high AF:8
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +177%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.5 (8.7^min, 17^P1) fps +86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +74%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps +72%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +70%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps +58%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	23.5 (5.8^min, 8.9^P1) fps +34%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	17.5 (13.4^min, 13.6^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (11.1 - 20, n=4)	15.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.1 (5^min, 5^P1) fps -42%
1920x1080 ultra AA:ultra AF:16
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps +185%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.6^min, 9.63^P1) fps +79%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps +75%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +68%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +62%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18.8 (5^min, 5^P1) fps +29%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps +20%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	14.6 (10.1^min, 11.6^P1) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (8.3 - 16.7, n=4)	13.2 fps -10%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +298%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps +94%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps +72%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps +24%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.8 (7.4^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7.7 - 10.8, n=2)	9.25 fps -14%
1920x1080 Medium Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +284%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps +88%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps +33%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	8.6 (5.5^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	8.6 fps 0%
1920x1080 High Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +254%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps +86%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps +43%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	6.3 (4.5^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	6.3 fps 0%
1920x1080 Ultra Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps +250%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps +96%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps +48%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	5 (3.2^min) fps
Genomsnitt AMD Radeon RX Vega 8 (Ryzen 2000/3000) (n=1)	5 fps 0%

Tomgångskörning på Witcher 3 visar att bildfrekvensen periodvis sjunker till så lågt som 30 FPS under korta perioder innan den återhämtar sig. Detta beteende tyder på dålig optimering eller avbrytande bakgrundsaktivitet som kan leda till förlorade bilder när du streamar annat innehåll.

Witcher 3 FPS Chart

Trigkey S3: Ø50 (29-56)

	låg	med.	hög	ultra
GTA V (2015)	81.2	72.3	21.8	10.3
The Witcher 3 (2015)	50.7	33.8	18.3	10.1
Dota 2 Reborn (2015)	73	64.4	40.7	37.8
Final Fantasy XV Benchmark (2018)	27.2	13.8	9.68
X-Plane 11.11 (2018)	11.5	10.5	9.58
Strange Brigade (2018)	65.5	21.8	17.5	14.6
Cyberpunk 2077 1.6 (2022)	10.8	8.6	6.3	5

Utsläpp

Systembrus

Fläktljudet är förvånansvärt tyst för att vara en stark höjdpunkt hos S3. Vi kan bara nå ett maximum på drygt 31 dB(A) när vi kör krävande belastningar jämfört med 40 dB(A) eller högre på snabbare minidatorer som Beelink SEi12 eller Beelink SER Pro.

Profil för fläktljud (vit: Bakgrund, röd: Systemet vilar, Blå: 3DMark 06, Orange: Witcher 3, Grön: Prime95+FurMark stress)

Ljudnivå

Låg belastning		24.5 / 24.5 / 24.5 dB(A)
Hög belastning		27.1 / 31.3 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) omgivningsljud: 23.2 dB(A)

Temperatur

AC-adaptern kan nå 40 C när du kör krävande belastningar

Yttemperaturerna är varmast bakåt, där varm luft kan flyga ut. Kall luft kommer in från sidorna och inte uppifrån till skillnad från Beelink SEi12, vilket innebär att det är säkert att placera föremål som papper ovanpå minidatorn utan att hindra luftflödet.

Stresstest

När Prime95 kördes för att stressa CPU:n ökade CPU-klockfrekvensen och kortets strömförbrukning till 3 GHz respektive 13 W, för att sedan sjunka några sekunder senare och stabiliseras på 2,7 GHz, 11 W och 74 C. Kärnans temperatur stabiliserades på 70 C när Witcher 3 vilket är jämförbart med Beelink SEi12 under liknande testförhållanden, men fortfarande varmare än påIntel NUC11TNKi5 Pro.

Energiförvaltning

Effektförbrukning

Förbrukningen steg till 45 W när Prime95 startades, innan den sjönk och stabiliserades på 40 W bara några sekunder senare

Strömförbrukningen vid tomgång är relativt hög med upp till 22 W jämfört med hälften så hög som för minidatorer som drivs av U-serien, t.ex. Intel NUC11 eller Beelink SEi12, vilket inte är oväntat med tanke på att S3 drivs av en äldre H-serie-processor. Situationen är omvänd när man kör högre belastningar som spel trots den integrerade Radeon Vega 8:s långsammare grafikprestanda. Den totalt sett magra prestandan per watt är inte förvånande med tanke på att Zen+-serien är några år gammal.

Strömförbrukning

Av/Standby	0.8 / 1.2 Watt
Låg belastning	11.3 / 21.8 / 22.2 Watt
Hög belastning	39.7 / 48.9 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Trigkey S3 R5 3550H, Vega 8, Kingston NV1 SNVS/500GCN, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7, Kingston NV1 SNVS/500GCN, , x,
Power Consumption		32%	2%	-35%	3%	21%
Idle Minimum *	11.3	6.1 46%	11.5 -2%	15.8 -40%	9.8 13%	5.4 52%
Idle Average *	21.8	6.8 69%	12.4 43%	16.8 23%	10.3 53%	8.2 62%
Idle Maximum *	22.2	7.3 67%	12.9 42%	17 23%	10.5 53%	8.3 63%
Load Average *	39.7	46.3 -17%	40.7 -3%	54.4 -37%	54.2 -37%	49.3 -24%
Witcher 3 ultra *	37.5		43.9 -17%	50.7 -35%	53.1 -42%	46.1 -23%
Load Maximum *	48.9	50.7 -4%	73.5 -50%	119.1 -144%	59 -21%	50.2 -3%

* ... mindre är bättre

Power Consumption Witcher 3 / Stresstest

Trigkey S3; Witcher 3 ultra: Ø37.5 (36.7-41.8)

Trigkey S3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.7 (43.1-48.8)

Power Consumption external Monitor

Trigkey S3; Prime95 V2810 Stress (external Monitor): Ø39.9 (39.2-45.4)

Trigkey S3; Cinebench R15 Multi (external Monitor): Ø35.2 (33.6-39.9)

Trigkey S3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.3 (42.4-44.5)

Trigkey S3; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37.5 (36.7-41.8)

Trigkey S3; Idle 1min (external Monitor): Ø11.2 (11-14.5)

Bedömning - Snabbare än alternativ till Celeron eller Atom

I granskning: Trigkey S3. Test-enhet tillhandahållen av Trigkey

När man tittar på minidatorer i spannet under 300 USD är det vanligt att man nöjer sig med Intel Celeron eller Atom-drivna lösningar eftersom sådana processorer är långsammare och billigare än de vanliga Core-alternativen. Snabba CPU:er är egentligen inte nödvändiga för de flesta grundläggande HTPC-ändamål, men Celeron- och Atom-CPU:er är ökända för att vara för långsamma för även minimala multitaskinginsatser. Det är här Trigkey S3 kommer in i bilden eftersom dess Ryzen 5 3550H CPU kan ge den extra prestandakraften utan att behöva höja priserna.

Trigkey S3 erbjuder Core i3-liknande prestanda till priset av en Atom- eller Celeron-minidator.

Den största nackdelen är att Ryzen 5 3550H är en äldre CPU och att den därför kräver lite mer kraft för att fungera i många situationer än de senaste alternativen i U-serien. Trots detta är fläktljudet tack och lov inte högre trots det högre strömförbrukningsvärdet.

Pris och tillgänglighet

Trigkey S3 levereras nu på Amazon för 280 USD.

3DMark 11 Performance		4348 poäng
3DMark Cloud Gate Standard Score		13817 poäng
3DMark Fire Strike Score		2374 poäng
3DMark Time Spy Score		771 poäng
Hjälp

Trigkey S3 minidator recension: Core i3-liknande prestanda till priset av en Celeron eller Atom

Ryzen 5 3550H år 2023.

Potentiella konkurrenter i jämförelse

Fall

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Underhåll

Tillbehör och garanti

Prestanda

Provningsförhållanden

Processor

Cinebench R15 Multi Loop

Systemets prestanda

DPC-latenstid

Lagringsenheter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestanda

Witcher 3 FPS Chart

Utsläpp

Systembrus

Temperatur

Stresstest

Energiförvaltning

Effektförbrukning

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

För

Emot

Bedömning - Snabbare än alternativ till Celeron eller Atom

Pris och tillgänglighet

Fler artiklar relaterade till den här enheten

Price comparison

	Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
Noise		-36%	-36%	-13%	-9%	-10%
av / miljö *	23.2	30.5 -31%	24.8 -7%	23.3 -0%	22.8 2%	22.8 2%
Idle Minimum *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	24.7 -1%	26.1 -7%
Idle Average *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	24.7 -1%	26.1 -7%
Idle Maximum *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	25.3 -3%	28.7 -17%
Load Average *	27.1	43.8 -62%	36.2 -34%	32 -18%	33.2 -23%	32.3 -19%
Witcher 3 ultra *	30.6		38 -24%	34.1 -11%	34.5 -13%	32.8 -7%
Load Maximum *	31.3	44 -41%	47.6 -52%	39.2 -25%	37.8 -21%	36.4 -16%

	CPU-klocka (GHz)	GPU-klocka (MHz)	Genomsnittlig CPU-temperatur (°C)
Systemets tomgång	--	--	42
Prime95 Stress	2.7	--	74
Prime95 + FurMark Stress	2.2	523	75
Witcher 3 Stress	2.0	688	70
