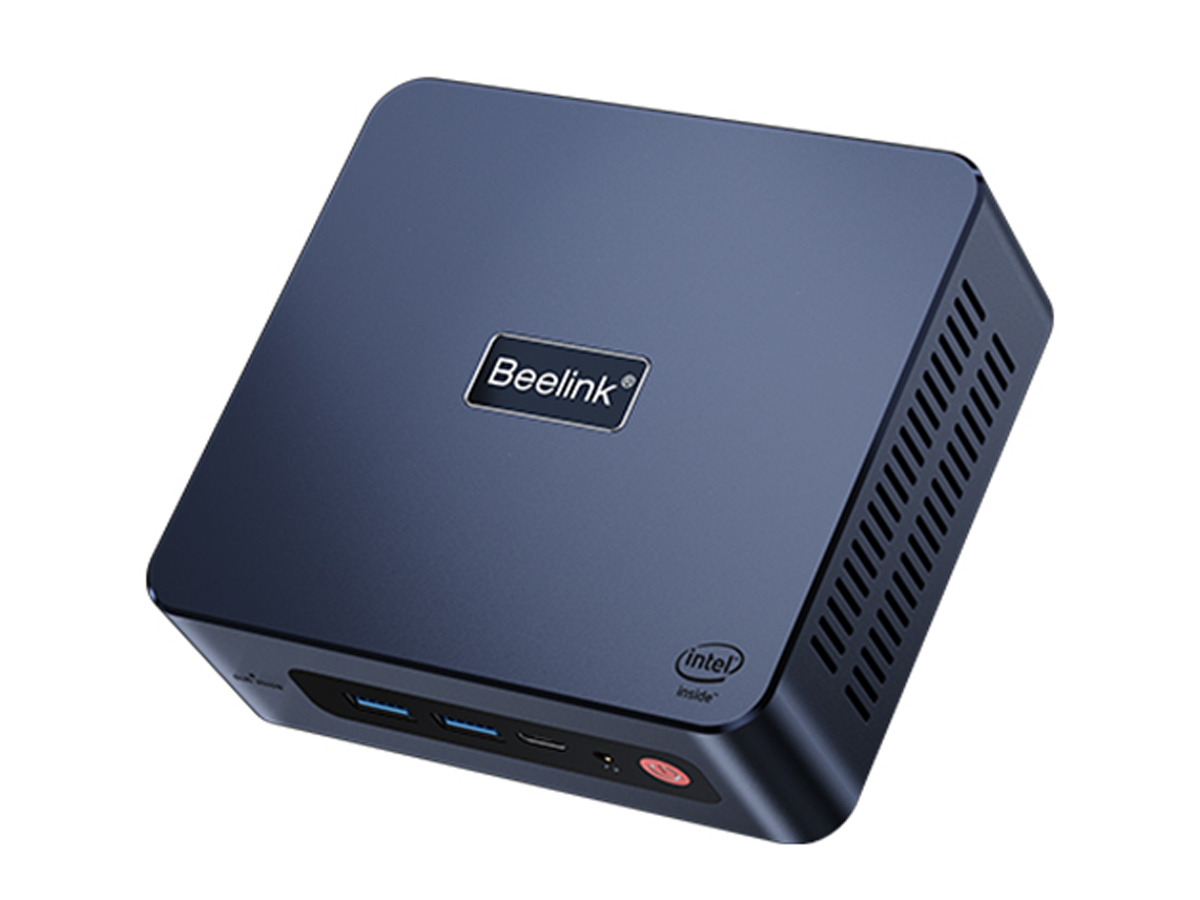

Debut för Celeron N5105 Jasper Lake - Recension av mini PC:n Beelink U59

Minidatorn för 2 000 kronor. Beelink har uppdaterat sin billiga minidator U59 med mer RAM-minne och en ny Intel Celeron-processor utan att behöva höja priset. Hur mycket prestandaökning kan användarna egentligen förvänta sig?

Beelink har uppdaterat en av sina billigaste minidatorer med en snabbare Jasper Lake Intel Celeron N5105 CPU som ersätter Celeron N5095 i den tidigare U59-modellen. Även om chassit är nästan detsamma som tidigare finns det några viktiga skillnader som vi kommer att notera i recensionen nedan

Beelink U59 konkurrerar med andra billiga minidatorer som t.ex Zotac Nano-serien, GMK NucBox-serien, eller den Chuwi GBox

Fler recensioner av Beelink:

Beelink U59 N5105
Processor
Intel Celeron N5105 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake
Minne
16 GB

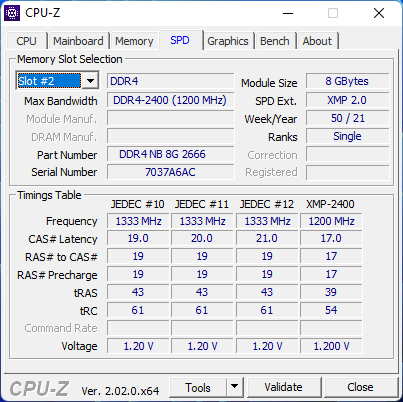

, DDR4-2666, PC4-21300, Dual-Channel, 19-19-19-43
Hårddisk
Silicon Motion AZW 512G NV428, 512 GB
Ljudkort
Intel Jasper Lake PCH - cAVS Controller
Anslutningar
5 USB 3.0, 2 HDMI, 1 DisplayPort, Ljudanslutningar: 3.5 mm combo
Nätverk
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4
Storlek
höjd x bredd x djup (i mm) 42 x 124 x 113
Operativsystem
Microsoft Windows 11 Pro
Övrigt
2x HDMI, AC adapter, 12 Månader Garanti
Vikt
320 g, Strömförsörjning: 160 g
Pris
200 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potentiella konkurrenter i jämförelse

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
09/2022
Beelink U59 N5105
Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
320 g42 mmx
06/2022
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
279 g41 mmx
04/2022
Beelink SER4
R7 4800U, Vega 8
494 g40 mmx
11/2021
Beelink SER3
R7 3750H, Vega 10
492 g40 mmx
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
07/2022
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
293 g20.7 mmx

Hölje

Beelink erbjuder på ett irriterande sätt tre olika U59 med lite olika portalternativ, utformning och interna funktioner. Deras dimensioner och vikt är annars nästan lika mellan dem. För vår granskningsmodell här har chassit större ventilationsgaller och en helt matt överdel och logotyp jämfört med tidigare modellers mindre galler och blanka överdelar.

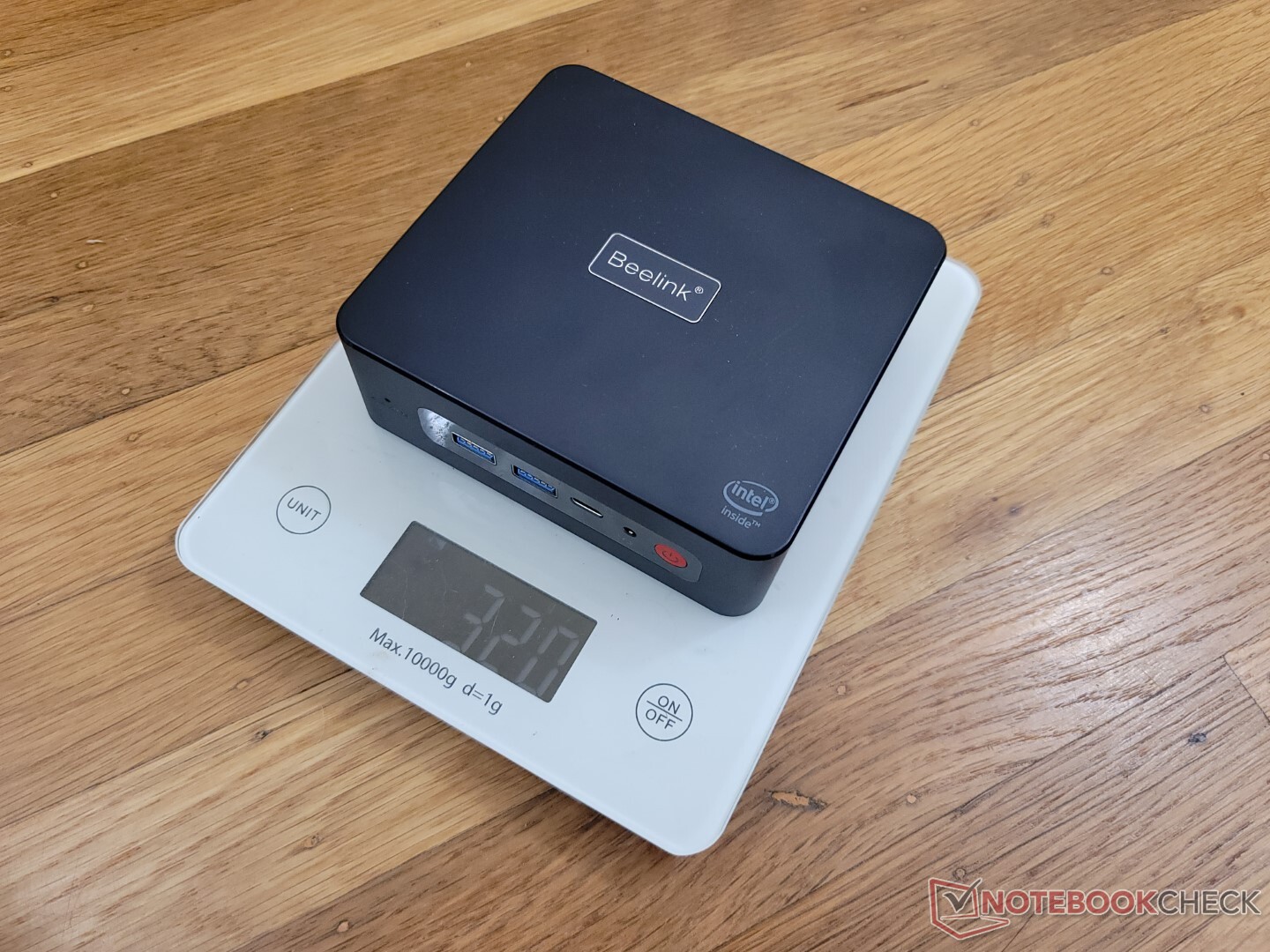

Mycket lätt med bara 320 g
Mycket lätt med bara 320 g

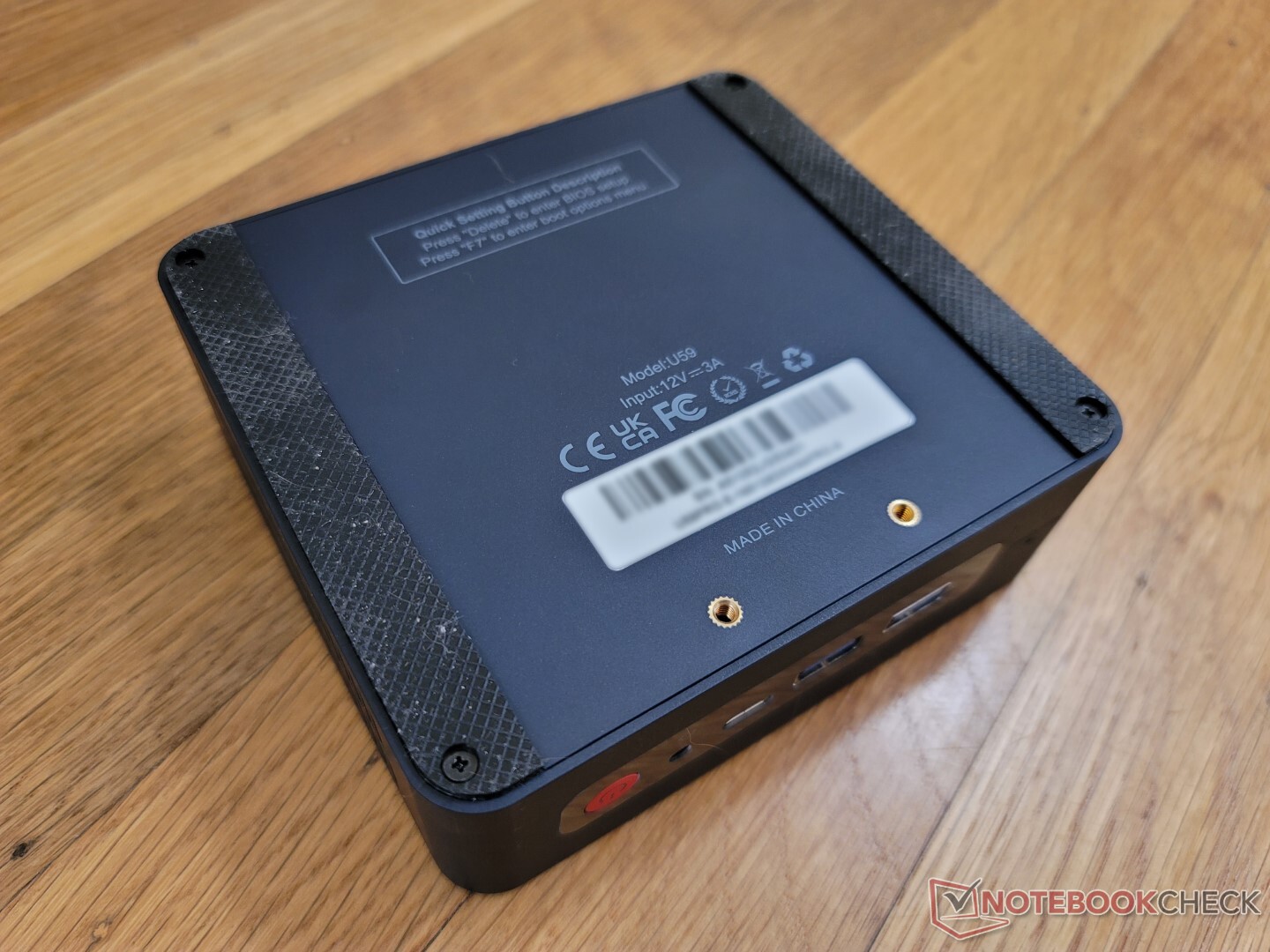

Gummifötter och adapterskruvar för VESA-montering på undersidan
Gummifötter och adapterskruvar för VESA-montering på undersidan

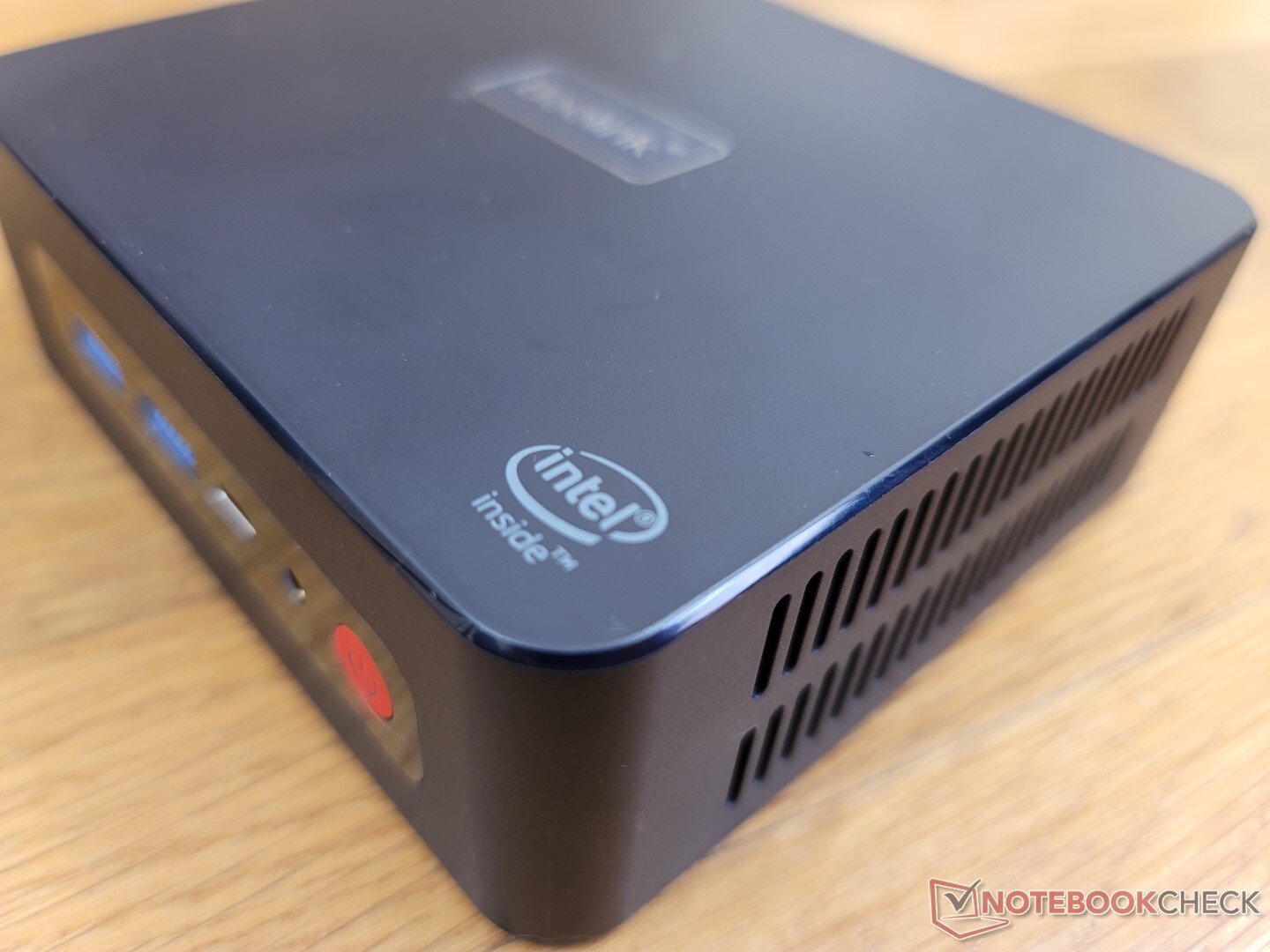

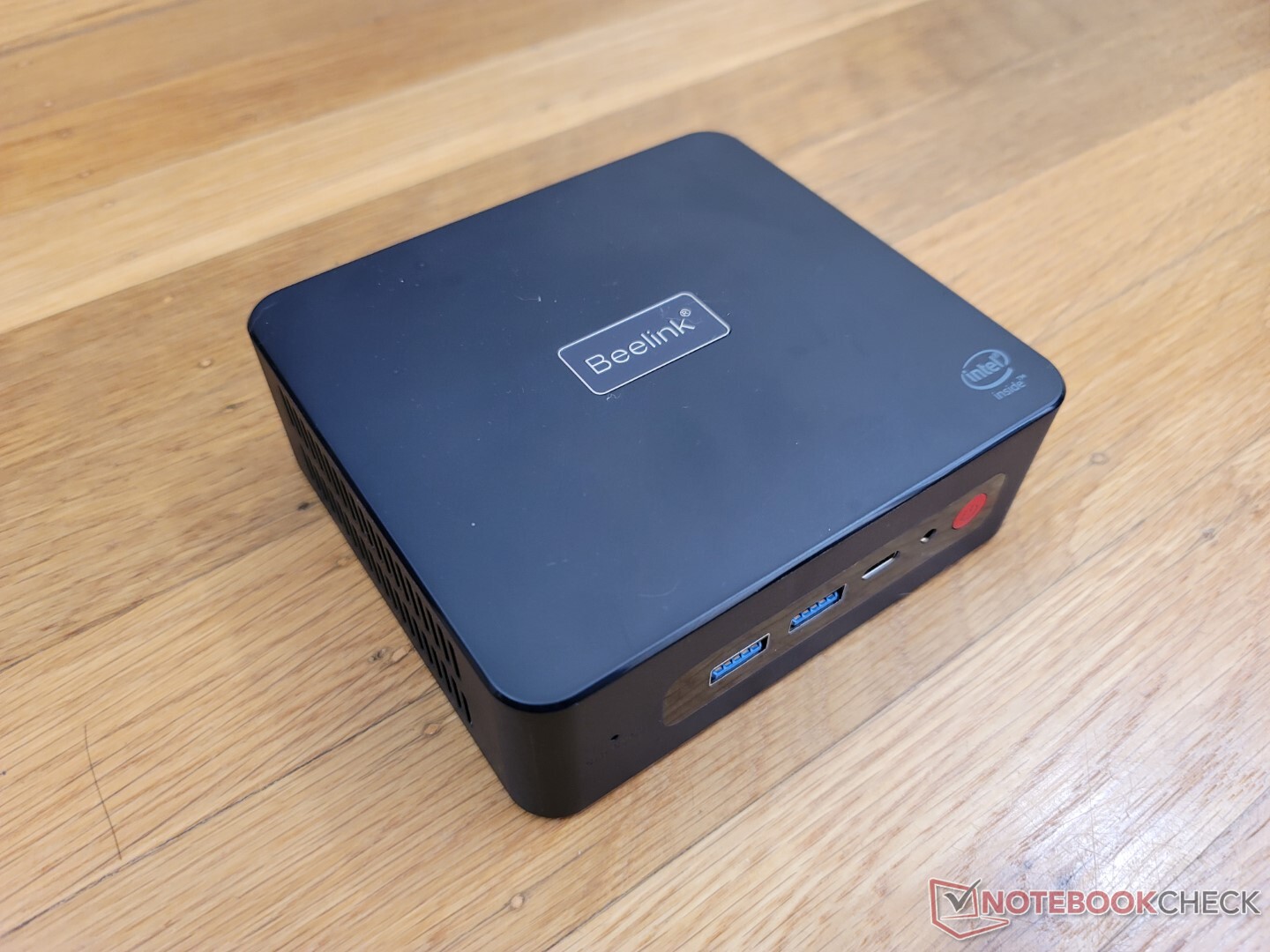

Glansiga kanter och hörn omger den matta toppen
Glansiga kanter och hörn omger den matta toppen

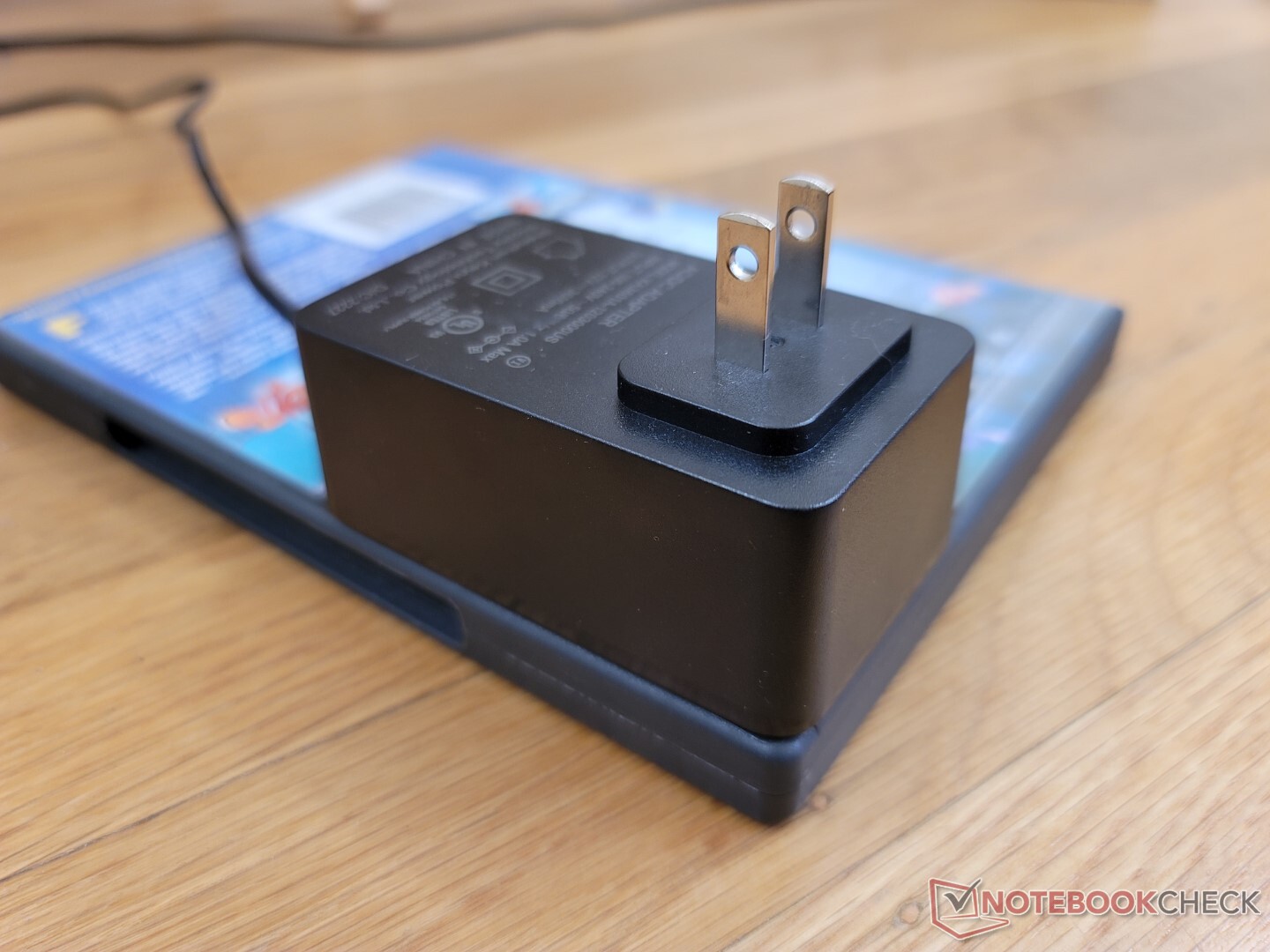

Barrel AC-adapter
Barrel AC-adapter

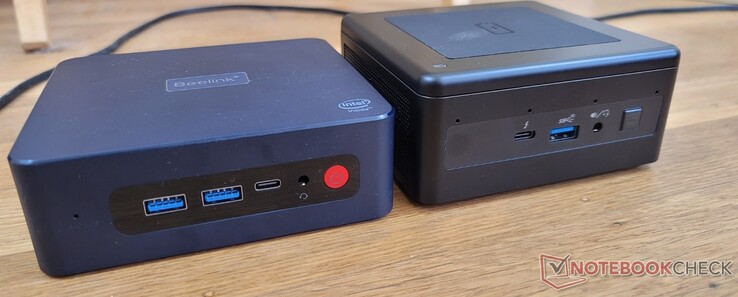

Storleksjämförelse

124 mm 113 mm 42 mm 320 g126 mm 113 mm 40 mm 494 g126 mm 113 mm 40 mm 492 g124 mm 113 mm 41 mm 279 g117 mm 112 mm 37 mm 504 g115 mm 76 mm 20.7 mm 293 g

Anslutningsmöjligheter

Portalternativen är mestadels identiska med den ursprungliga U59, inklusive USB-C-porten och avsaknaden av ett Kensington-lås. För den här nyare modellen har tillverkaren dock integrerat en andra RJ-45-port för totalt två. Observera att USB-C-porten här stöder DisplayPort men inte Power Delivery och att systemet därför är beroende av sin proprietära AC-adapter för strömförsörjning.

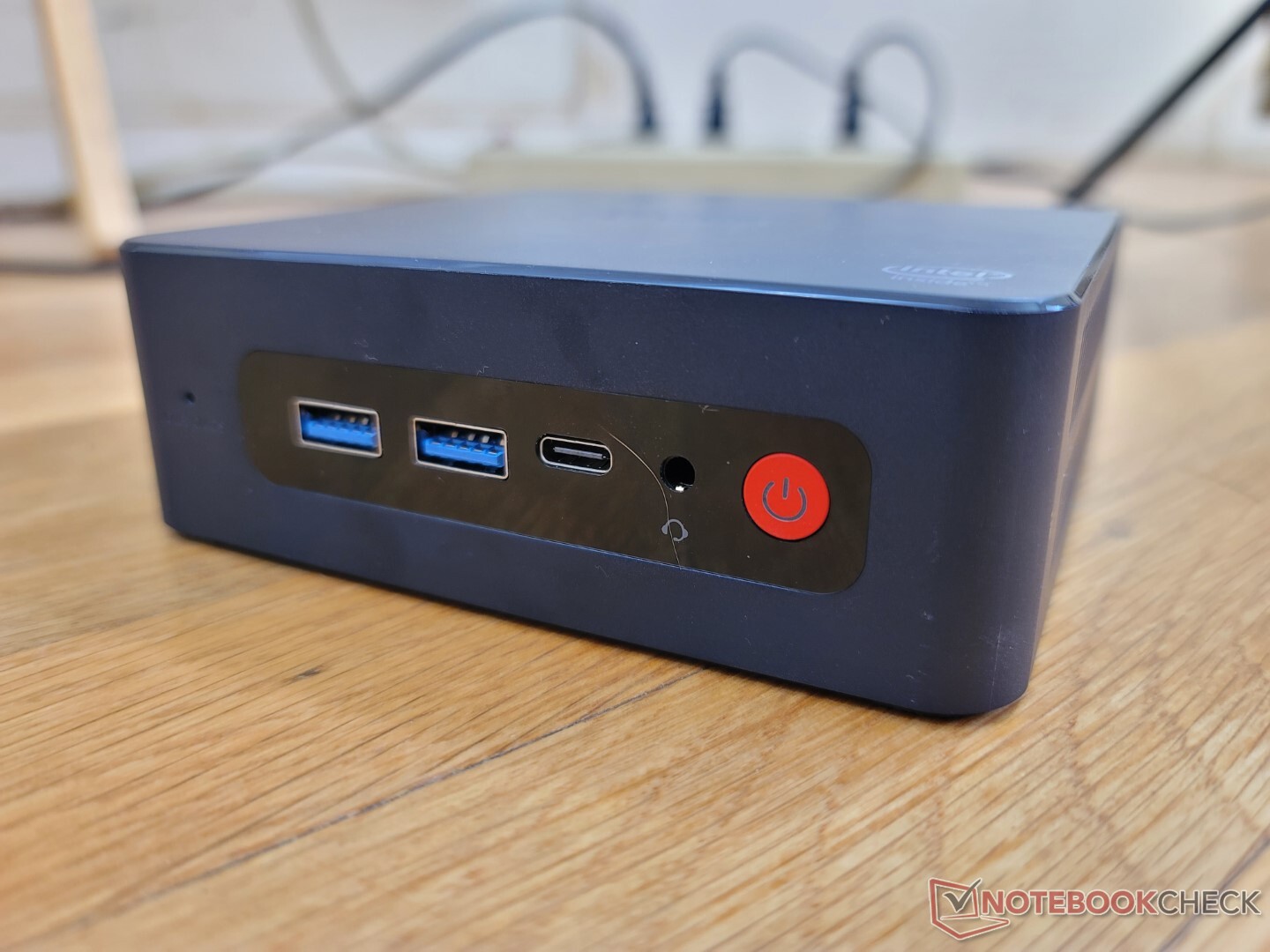

Framsida: 2x USB-A 3.0, USB-C med DisplayPort, 3,5 mm ljuduttag, strömknapp
Framsida: 2x USB-A 3.0, USB-C med DisplayPort, 3,5 mm ljuduttag, strömknapp

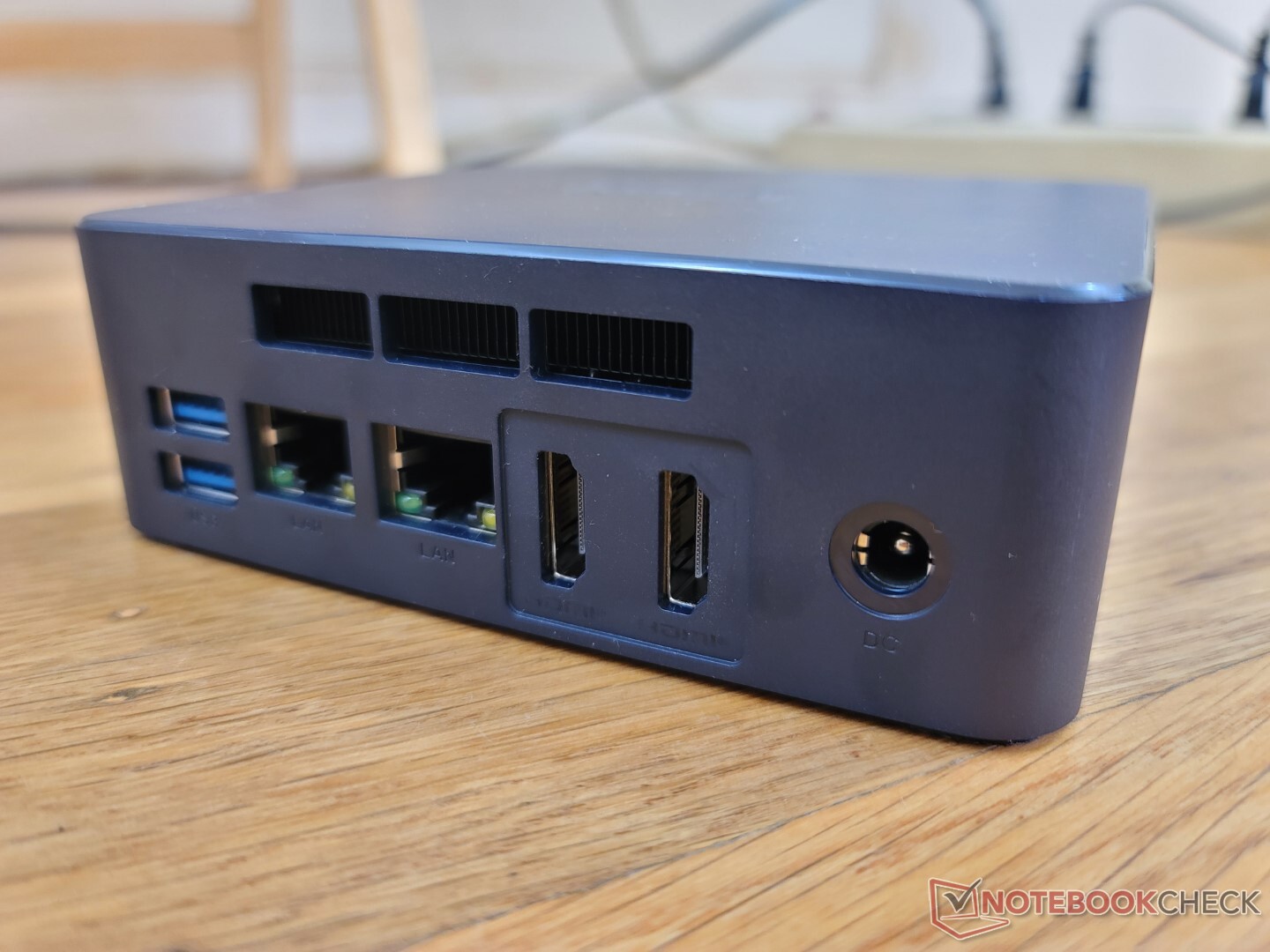

Baksida: 2x USB-A 3.0, 2x Gigabit RJ-45, 2x HDMI 2.0, AC-adapter
Baksida: 2x USB-A 3.0, 2x Gigabit RJ-45, 2x HDMI 2.0, AC-adapter

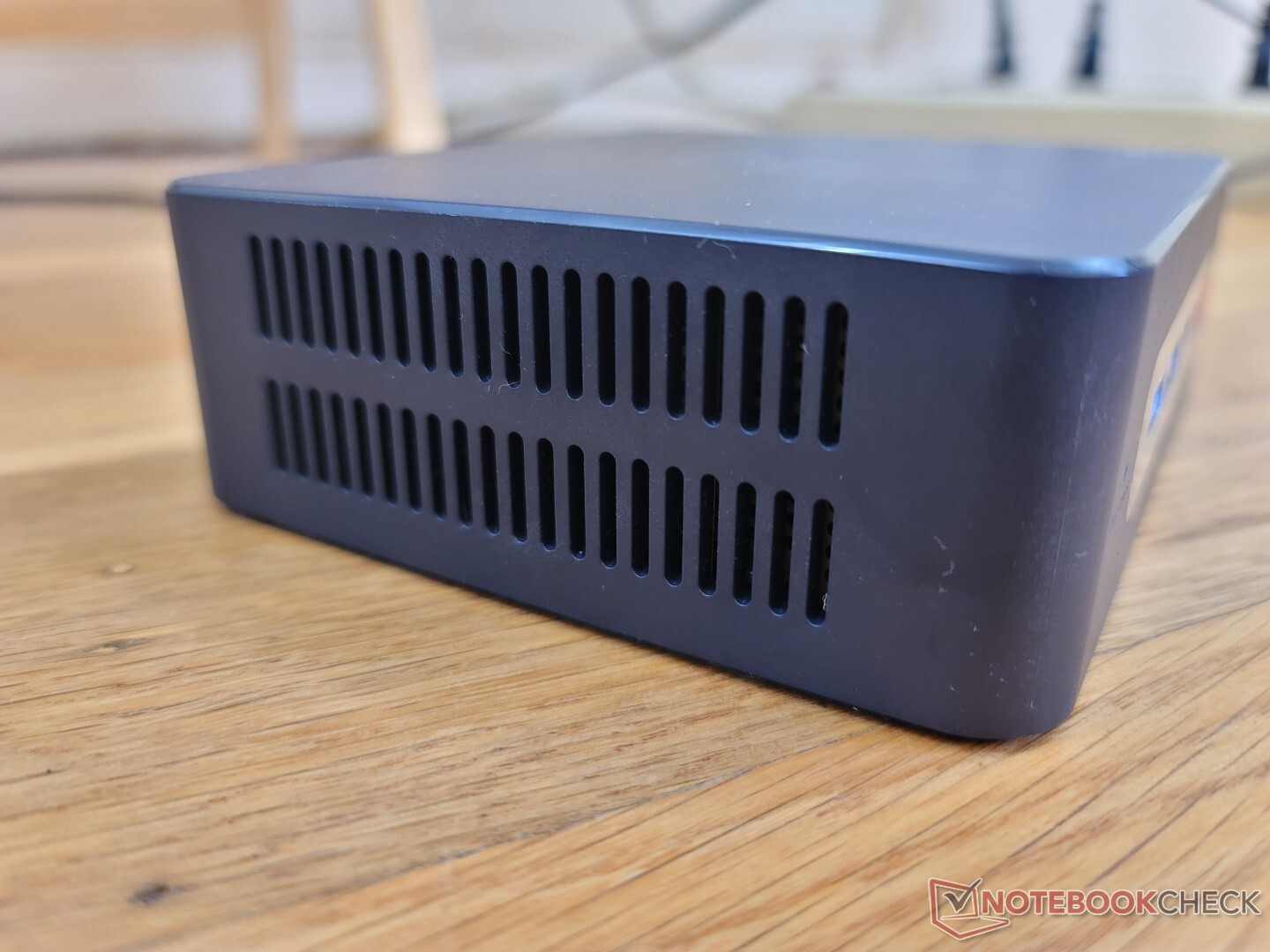

Vänster: Inga portar
Vänster: Inga portar
Höger: Inga portar
Höger: Inga portar

Kommunikation

Intel 3165 WLAN-modulen är avtagbar till skillnad från U59 Mini-S-versionen. Även om den är långsam upplevde vi inga anslutningsproblem när vi strömmade 4K-innehåll.

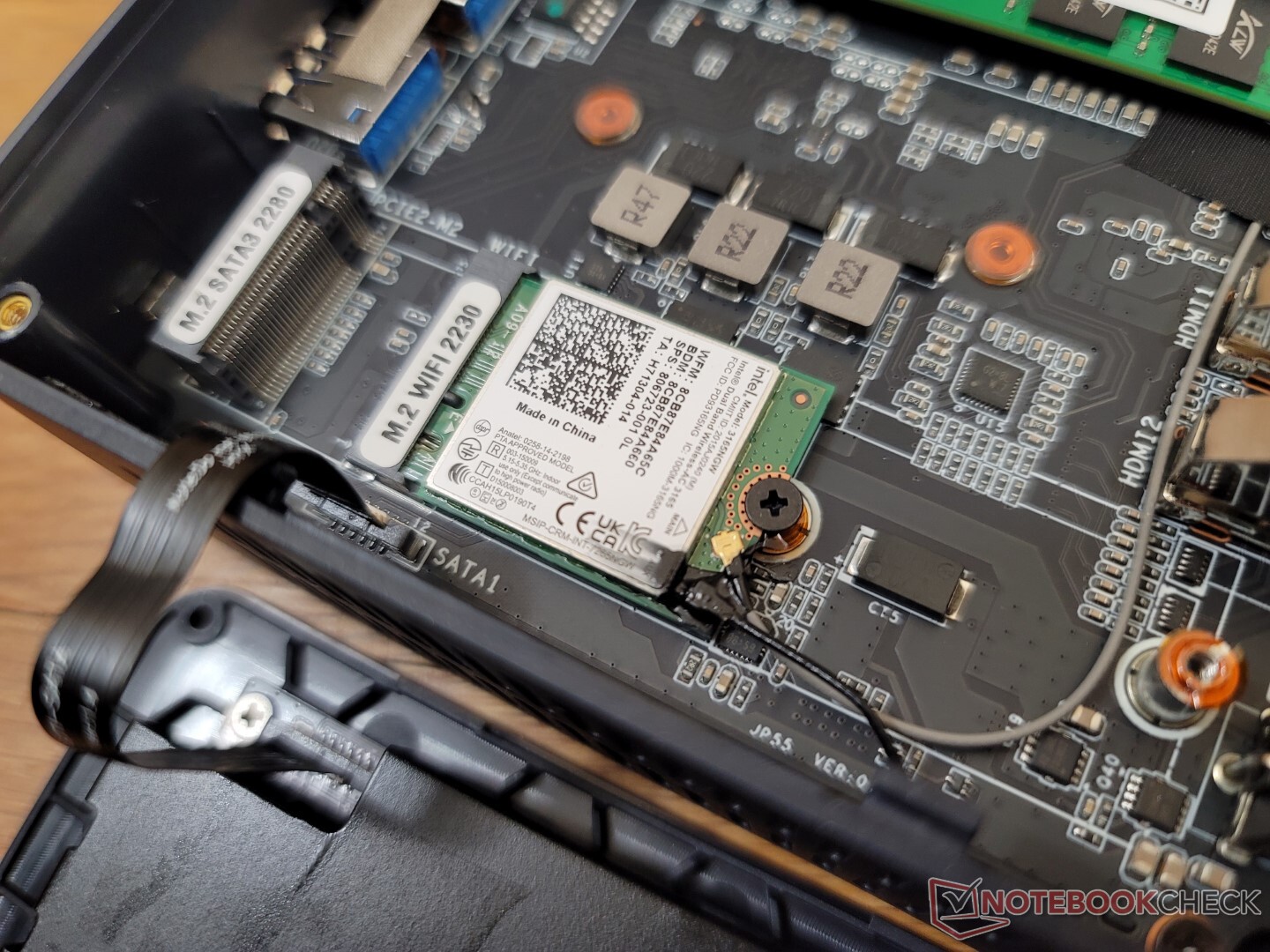

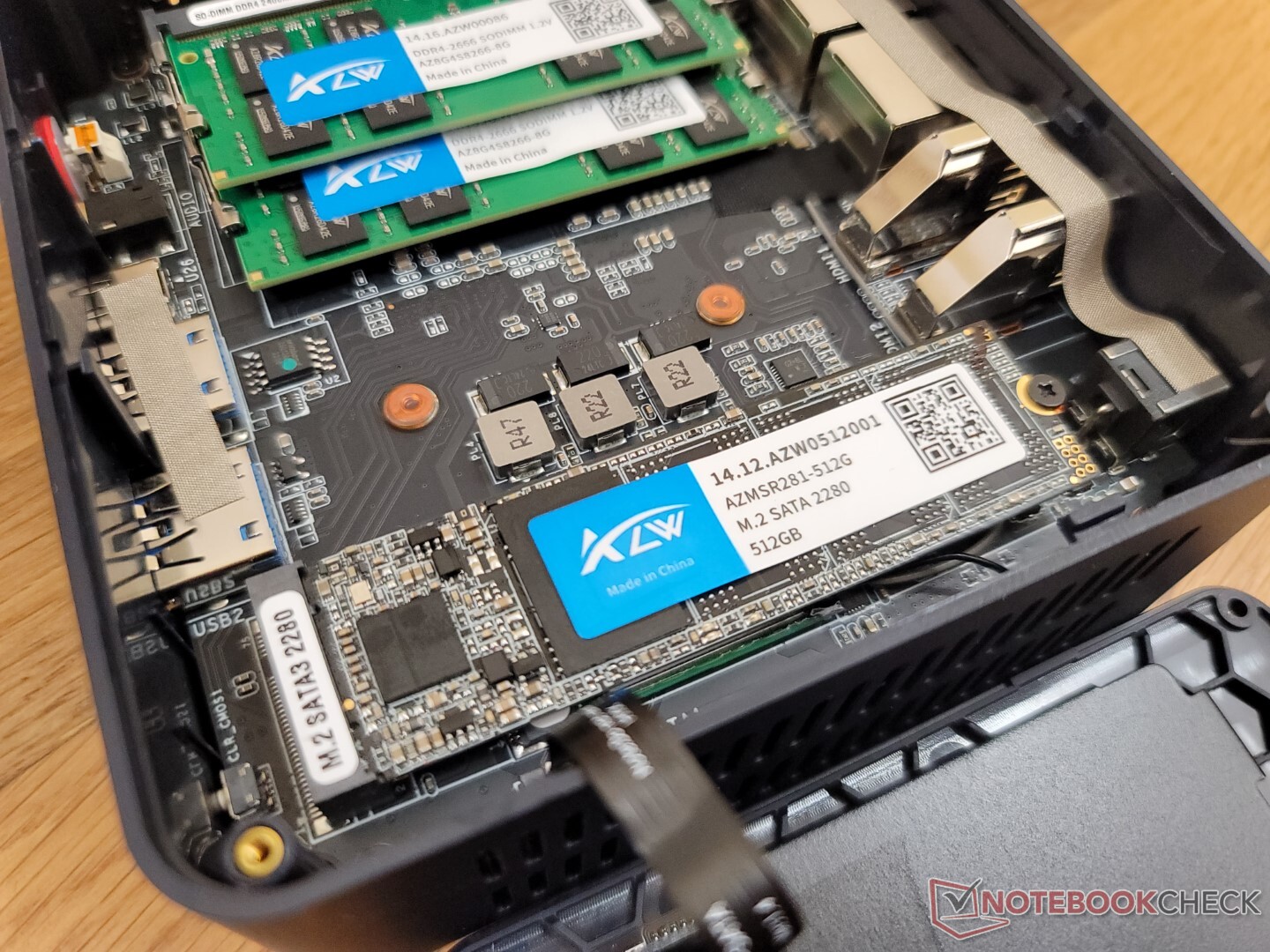

Uttagbar WLAN-modul sitter under M.2 SSD-enheten
Uttagbar WLAN-modul sitter under M.2 SSD-enheten
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100%
Beelink SER4
MediaTek RZ608
821 (758min - 891max) MBit/s ∼50%
Beelink SER3
Intel Dual Band Wireless-AC 7265
359 (321min - 383max) MBit/s ∼22%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100%
Beelink SER4
MediaTek RZ608
880 (842min - 900max) MBit/s ∼58%
Beelink SER3
Intel Dual Band Wireless-AC 7265
641 (594min - 665max) MBit/s ∼42%
iperf3 receive AXE11000
Beelink U59 N5105
Intel Dual Band Wireless-AC 3165
339 (328min - 345max) MBit/s ∼100%
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
322 (295min - 337max) MBit/s ∼95% -5%
iperf3 transmit AXE11000
Beelink U59 N5105
Intel Dual Band Wireless-AC 3165
206 (191min - 224max) MBit/s ∼100%
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
188.4 (153min - 228max) MBit/s ∼91% -9%
050100150200250300Tooltip
; iperf3 transmit AXE11000; iperf 3.1.3: Ø206 (191-224)
; iperf3 receive AXE11000; iperf 3.1.3: Ø338 (328-345)

Underhåll

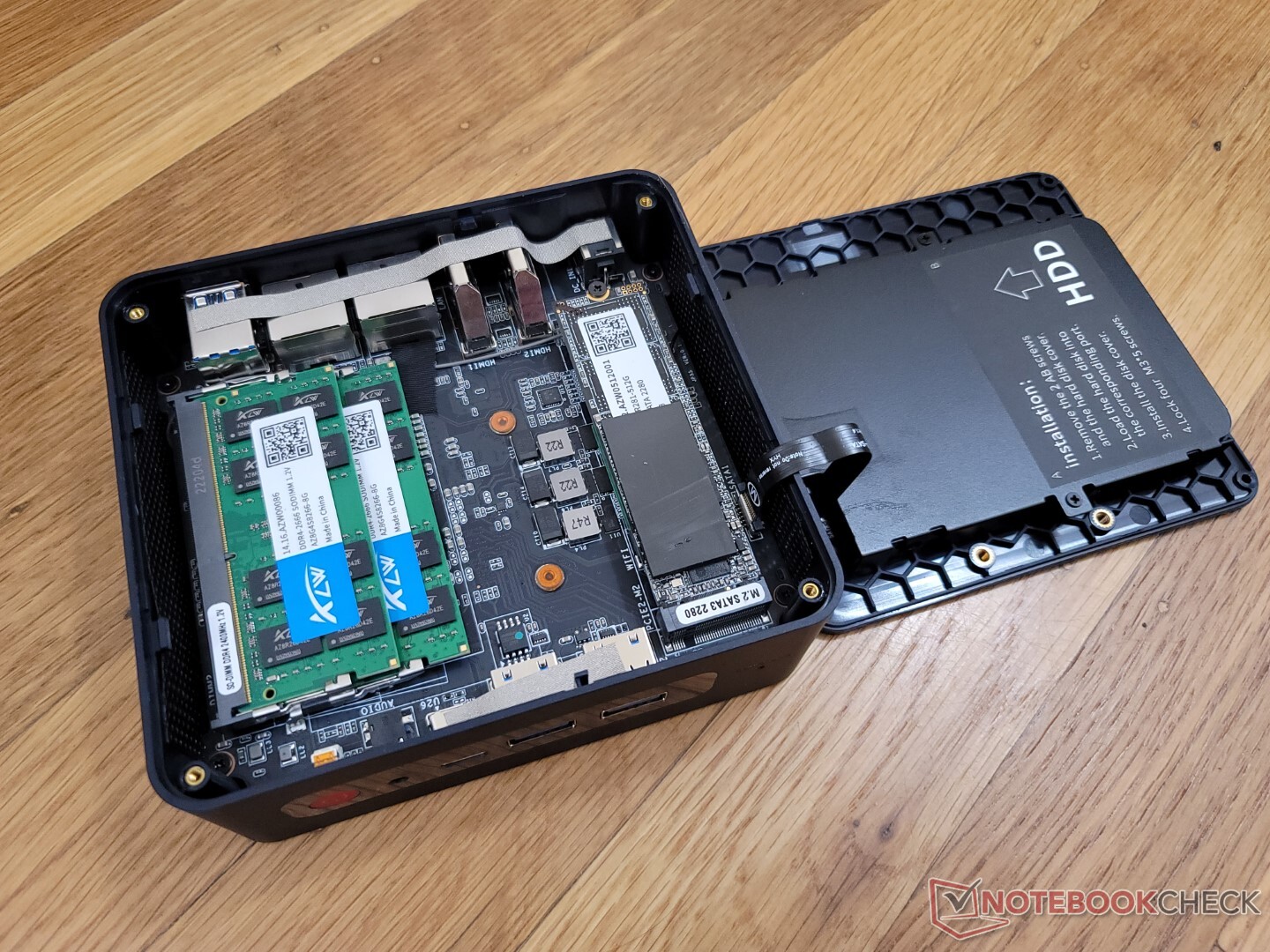

Bottenpanelen kan tas bort med en Philips-skruvmejsel för att avslöja två lagringsutrymmen (M.2 SATA 2280 + 2,5-tums SATA III), två SODIMM-platser och den avtagbara M.2 WLAN-modulen. Som jämförelse är U59 Mini-S begränsad till enkanaligt minne med sin enda SODIMM-plats.

Tillbehör och garanti

I lådan ingår två HDMI-kablar, en växelströmsadapter, pappersarbete och ett adapterfäste för VESA-montering.

Den vanliga ettåriga begränsade garantin gäller om den köps från USA.

Prestanda




Provningsförhållanden

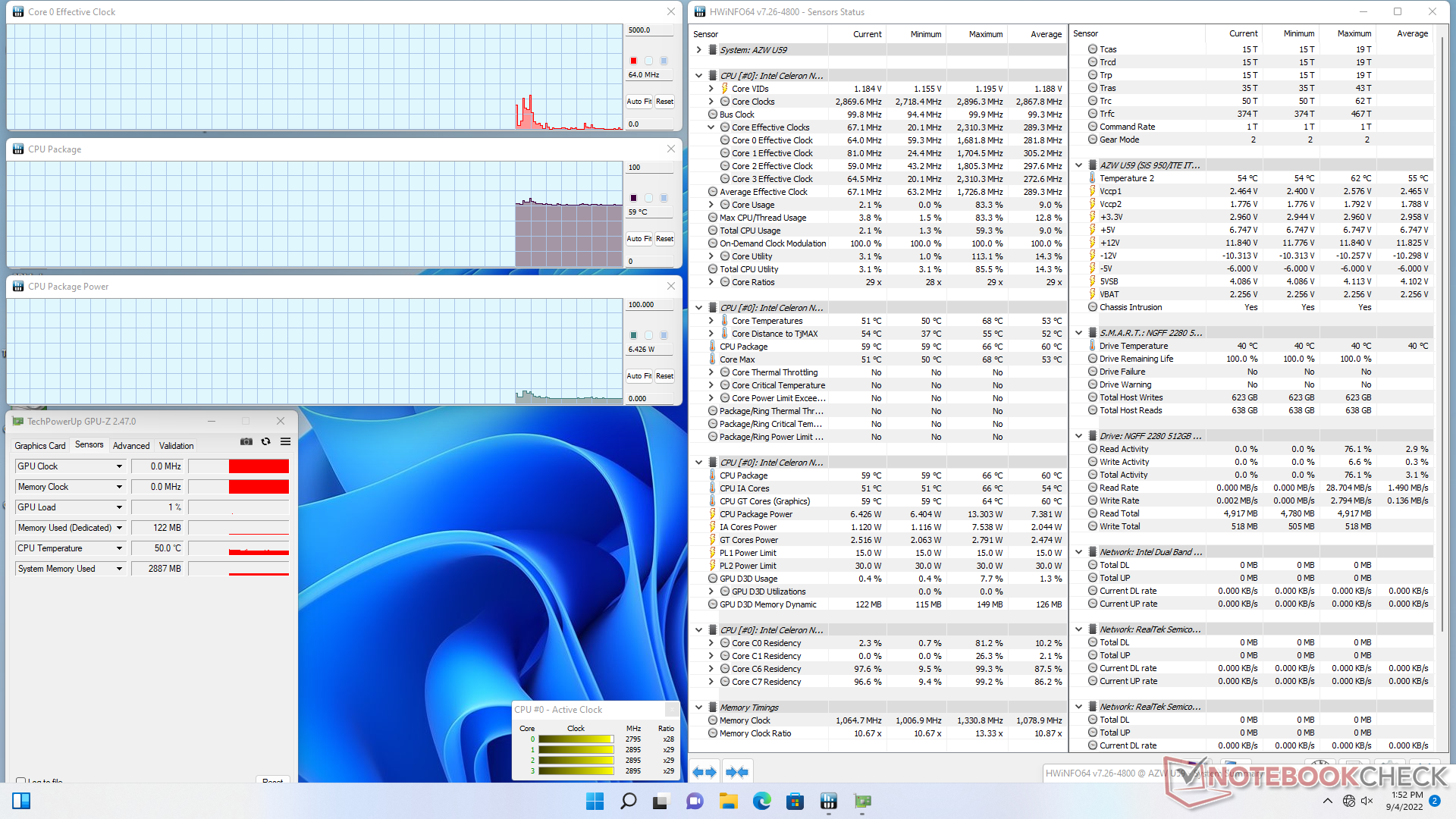

Vi ställde in vår testenhet till prestandaläge via Windows innan vi körde alla benchmarks nedan. Det finns inga tillverkarspecifika program eller BIOS-funktioner som är relaterade till minidatorns prestanda.

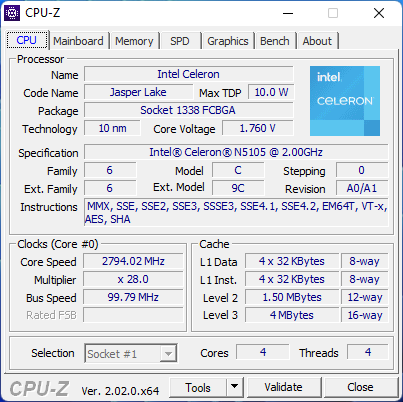

Processor

Den råa CPU-prestandan är bara en hårsmån snabbare än N5095 i både enkel- och flertrådiga operationer. Prestandaskillnaden är så liten att de två kan lika gärna vara samma processor.

Cinebench R15 Multi Loop

020406080100120140160180200220240260280300320340360Tooltip
Beelink U59 N5105 Intel Celeron N5105: Ø362 (359.79-368.43)
Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Blackview AceBook 1 Intel Celeron N4120: Ø228 (225.47-233.66)
Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125.2 (117.75-170.9)
AC6-M Mini-PC Intel Celeron J4125: Ø247 (245.01-250.05)
Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Beelink SER4
AMD Ryzen 7 4800U
3248 Points ∼100% +293%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points ∼61% +139%
Beelink SER3
AMD Ryzen 7 3750H
1514 Points ∼47% +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1071 Points ∼33% +30%
Beelink U59 N5105
Intel Celeron N5105
826 Points ∼25%
Average Intel Celeron N5105

826 Points ∼25% 0%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
820 Points ∼25% -1%
Beelink U59 Mini-S
Intel Celeron N5095
804 Points ∼25% -3%
Beelink SEi8
Intel Core i3-8109U
772 Points ∼24% -7%
HP 17-by2437ng
Intel Core i3-10110U
753 Points ∼23% -9%
Zotac ZBOX PI336 pico
Intel Celeron N6211
285 Points ∼9% -65%
Cinebench R20 / CPU (Single Core)
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
505 Points ∼100% +115%
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points ∼100% +114%
Beelink SER4
AMD Ryzen 7 4800U
488 Points ∼97% +108%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
402 Points ∼80% +71%
HP 17-by2437ng
Intel Core i3-10110U
400 Points ∼79% +70%
Beelink SER3
AMD Ryzen 7 3750H
377 Points ∼75% +60%
Beelink SEi8
Intel Core i3-8109U
351 Points ∼70% +49%
Beelink U59 N5105
Intel Celeron N5105
235 Points ∼47%
Average Intel Celeron N5105

235 Points ∼47% 0%
Beelink U59 Mini-S
Intel Celeron N5095
228 Points ∼45% -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211
174 Points ∼34% -26%
Cinebench R23 / Multi Core
Beelink SER4
AMD Ryzen 7 4800U
8376 (8310.1min - 8376.05max) Points ∼100% +285%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points ∼61% +134%
Beelink SER3
AMD Ryzen 7 3750H
3897 (3854.8min - 3897.37max) Points ∼47% +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
2771 Points ∼33% +27%
Beelink U59 N5105
Intel Celeron N5105
2175 (2157.23min - 2174.57max) Points ∼26%
Average Intel Celeron N5105

2175 Points ∼26% 0%
Beelink U59 Mini-S
Intel Celeron N5095
2159 (2113.79min - 2158.74max) Points ∼26% -1%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
2135 Points ∼25% -2%
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points ∼24% -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211
735 Points ∼9% -66%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points ∼100% +122%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1319 Points ∼96% +113%
Beelink SER4
AMD Ryzen 7 4800U
1240 Points ∼91% +101%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
1046 Points ∼76% +69%
Beelink SER3
AMD Ryzen 7 3750H
971 Points ∼71% +57%
Beelink SEi8
Intel Core i3-8109U
906 Points ∼66% +47%
Beelink U59 N5105
Intel Celeron N5105
618 Points ∼45%
Average Intel Celeron N5105

618 Points ∼45% 0%
Beelink U59 Mini-S
Intel Celeron N5095
615 Points ∼45% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211
439 Points ∼32% -29%
Cinebench R15 / CPU Multi 64Bit
Beelink SER4
AMD Ryzen 7 4800U
1411 (1390.29min - 1411.03max) Points ∼100% +283%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points ∼56% +116%
Beelink SER3
AMD Ryzen 7 3750H
680 (670.93min - 679.66max) Points ∼48% +85%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
417 Points ∼30% +13%
Beelink U59 N5105
Intel Celeron N5105
368 (359.79min - 368.43max) Points ∼26%
Average Intel Celeron N5105

368 Points ∼26% 0%
Beelink U59 Mini-S
Intel Celeron N5095
358 (350.25min - 357.53max) Points ∼25% -3%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
346 (334.54min - 346.03max) Points ∼25% -6%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points ∼23% -12%
HP 17-by2437ng
Intel Core i3-10110U
321 Points ∼23% -13%
Zotac ZBOX PI336 pico
Intel Celeron N6211
128 Points ∼9% -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points ∼100% +86%
Beelink SER4
AMD Ryzen 7 4800U
187 Points ∼93% +73%
HP 17-by2437ng
Intel Core i3-10110U
160 Points ∼80% +48%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
155 Points ∼77% +43%
Beelink SER3
AMD Ryzen 7 3750H
146 Points ∼73% +35%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
137 Points ∼68% +27%
Beelink SEi8
Intel Core i3-8109U
124.3 Points ∼62% +15%
Beelink U59 N5105
Intel Celeron N5105
108.1 Points ∼54%
Average Intel Celeron N5105

108.1 Points ∼54% 0%
Beelink U59 Mini-S
Intel Celeron N5095
95.4 Points ∼47% -12%
Zotac ZBOX PI336 pico
Intel Celeron N6211
76 Points ∼38% -30%
Blender / v2.79 BMW27 CPU
Zotac ZBOX PI336 pico
Intel Celeron N6211
3767 Seconds * ∼100% -139%
Beelink U59 Mini-S
Intel Celeron N5095
1624 Seconds * ∼43% -3%
Beelink U59 N5105
Intel Celeron N5105
1573 Seconds * ∼42%
Average Intel Celeron N5105

1573 Seconds * ∼42% -0%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
1388 Seconds * ∼37% +12%
HP 17-by2437ng
Intel Core i3-10110U
1385 Seconds * ∼37% +12%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * ∼35% +16%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1087 Seconds * ∼29% +31%
Beelink SER3
AMD Ryzen 7 3750H
672 Seconds * ∼18% +57%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * ∼16% +62%
Beelink SER4
AMD Ryzen 7 4800U
340 Seconds * ∼9% +78%
7-Zip 18.03 / 7z b 4
Beelink SER4
AMD Ryzen 7 4800U
40117 MIPS ∼100% +260%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS ∼58% +109%
Beelink SER3
AMD Ryzen 7 3750H
17077 MIPS ∼43% +53%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
12793 MIPS ∼32% +15%
Beelink U59 N5105
Intel Celeron N5105
11153 MIPS ∼28%
Average Intel Celeron N5105

11153 MIPS ∼28% 0%
Beelink U59 Mini-S
Intel Celeron N5095
11013 MIPS ∼27% -1%
HP 17-by2437ng
Intel Core i3-10110U
9858 MIPS ∼25% -12%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
9731 MIPS ∼24% -13%
Beelink SEi8
Intel Core i3-8109U
9489 MIPS ∼24% -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211
3974 MIPS ∼10% -64%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS ∼100% +52%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
4674 MIPS ∼99% +50%
Beelink SER4
AMD Ryzen 7 4800U
4603 MIPS ∼97% +48%
HP 17-by2437ng
Intel Core i3-10110U
4269 MIPS ∼90% +37%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
3862 MIPS ∼82% +24%
Beelink SER3
AMD Ryzen 7 3750H
3752 MIPS ∼79% +21%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS ∼79% +21%
Beelink U59 Mini-S
Intel Celeron N5095
3124 MIPS ∼66% +1%
Beelink U59 N5105
Intel Celeron N5105
3108 MIPS ∼66%
Average Intel Celeron N5105

3108 MIPS ∼66% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211
2593 MIPS ∼55% -17%
Geekbench 5.4 / Multi-Core
Beelink SER4
AMD Ryzen 7 4800U
6375 Points ∼100% +206%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points ∼72% +121%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
2802 Points ∼44% +35%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
2591 Points ∼41% +25%
Beelink U59 N5105
Intel Celeron N5105
2080 Points ∼33%
Average Intel Celeron N5105

2080 Points ∼33% 0%
HP 17-by2437ng
Intel Core i3-10110U
2017 Points ∼32% -3%
Beelink U59 Mini-S
Intel Celeron N5095
1933 Points ∼30% -7%
Beelink SEi8
Intel Core i3-8109U
1880 Points ∼29% -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211
844 Points ∼13% -59%
Geekbench 5.4 / Single-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points ∼100% +114%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1345 Points ∼96% +106%
Beelink SER4
AMD Ryzen 7 4800U
1192 Points ∼85% +83%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
1158 Points ∼83% +77%
HP 17-by2437ng
Intel Core i3-10110U
1017 Points ∼73% +56%
Beelink SEi8
Intel Core i3-8109U
888 Points ∼64% +36%
Beelink U59 N5105
Intel Celeron N5105
653 Points ∼47%
Average Intel Celeron N5105

653 Points ∼47% 0%
Beelink U59 Mini-S
Intel Celeron N5095
644 Points ∼46% -1%
Zotac ZBOX PI336 pico
Intel Celeron N6211
556 Points ∼40% -15%
HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4
AMD Ryzen 7 4800U
10.4 fps ∼100% +417%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps ∼64% +230%
Beelink SER3
AMD Ryzen 7 3750H
4.14 fps ∼40% +106%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
3.6 fps ∼35% +79%
Beelink SEi8
Intel Core i3-8109U
2.85 fps ∼27% +42%
HP 17-by2437ng
Intel Core i3-10110U
2.72 fps ∼26% +35%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
2.42 fps ∼23% +20%
Beelink U59 N5105
Intel Celeron N5105
2.01 fps ∼19%
Average Intel Celeron N5105

2.01 fps ∼19% 0%
Beelink U59 Mini-S
Intel Celeron N5095
2 fps ∼19% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211
0.88 fps ∼8% -56%
LibreOffice / 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211
144.7 s * ∼100% -43%
Beelink U59 Mini-S
Intel Celeron N5095
106.5 s * ∼74% -5%
Beelink U59 N5105
Intel Celeron N5105
101 s * ∼70%
Average Intel Celeron N5105

101 s * ∼70% -0%
Beelink SER3
AMD Ryzen 7 3750H
86.5 s * ∼60% +14%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
81.7 s * ∼56% +19%
Beelink SEi8
Intel Core i3-8109U
79 s * ∼55% +22%
HP 17-by2437ng
Intel Core i3-10110U
65.4 s * ∼45% +35%
Beelink SER4
AMD Ryzen 7 4800U
62.6 s * ∼43% +38%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * ∼35% +49%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
42.8 s * ∼30% +58%
R Benchmark 2.5 / Overall mean
Zotac ZBOX PI336 pico
Intel Celeron N6211
1.371 sec * ∼100% -18%
Beelink U59 Mini-S
Intel Celeron N5095
1.178 sec * ∼86% -1%
Beelink U59 N5105
Intel Celeron N5105
1.162 sec * ∼85%
Average Intel Celeron N5105

1.162 sec * ∼85% -0%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * ∼63% +26%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1
0.762 sec * ∼56% +34%
HP 17-by2437ng
Intel Core i3-10110U
0.74 sec * ∼54% +36%
Beelink SER3
AMD Ryzen 7 3750H
0.723 sec * ∼53% +38%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
0.643 sec * ∼47% +45%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * ∼45% +46%
Beelink SER4
AMD Ryzen 7 4800U
0.576 sec * ∼42% +50%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
368 Points
Cinebench R15 OpenGL 64Bit
36.9 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
108.1 Points
Hjälp
Performance Rating
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
98.1 pt ∼98%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
67 pt ∼67%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
41.6 pt ∼42%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
22 pt ∼22%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
20.5 pt ∼21%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
9.1 pt ∼9%
AIDA64 / FP32 Ray-Trace
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
10046 KRay/s ∼100% +711%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼67% +441%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
3338 KRay/s ∼33% +169%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s ∼12% 0%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
1239 KRay/s ∼12%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s ∼5% -60%
AIDA64 / FPU Julia
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
56388 Points ∼100% +658%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼49% +274%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
16912 Points ∼30% +127%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
7441 Points ∼13%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points ∼13% -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points ∼5% -61%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼100% +262%
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
1840 MB/s ∼99% +259%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
897 MB/s ∼48% +75%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
513 MB/s ∼28%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s ∼27% -1%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s ∼11% -61%
AIDA64 / CPU Queen
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
78511 Points ∼100% +254%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼59% +110%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
43632 Points ∼56% +97%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
22167 Points ∼28%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points ∼28% -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points ∼11% -60%
AIDA64 / FPU SinJulia
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
11799 Points ∼100% +1080%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
5639 Points ∼48% +464%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼38% +344%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points ∼8% 0%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
1000 Points ∼8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points ∼3% -60%
AIDA64 / FPU Mandel
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
28667 Points ∼100% +637%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼59% +336%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
8846 Points ∼31% +127%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
3889 Points ∼14%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points ∼13% -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points ∼5% -60%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼100% +245%
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
54686 MB/s ∼82% +182%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
28977 MB/s ∼43% +50%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
19362 MB/s ∼29%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s ∼29% -1%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s ∼11% -60%
AIDA64 / CPU ZLib
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
593 MB/s ∼100% +216%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼63% +99%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
313 MB/s ∼53% +67%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
187.8 MB/s ∼32%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s ∼32% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s ∼13% -60%
AIDA64 / FP64 Ray-Trace
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
5555 KRay/s ∼100% +723%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼65% +437%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
1758 KRay/s ∼32% +160%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
675 KRay/s ∼12%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s ∼12% 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s ∼5% -60%
AIDA64 / CPU PhotoWorxx
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
24254 MPixel/s ∼100% +127%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼70% +58%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
10671 MPixel/s ∼44%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
10338 MPixel/s ∼43% -3%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s ∼30% -31%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s ∼21% -52%

Systemets prestanda

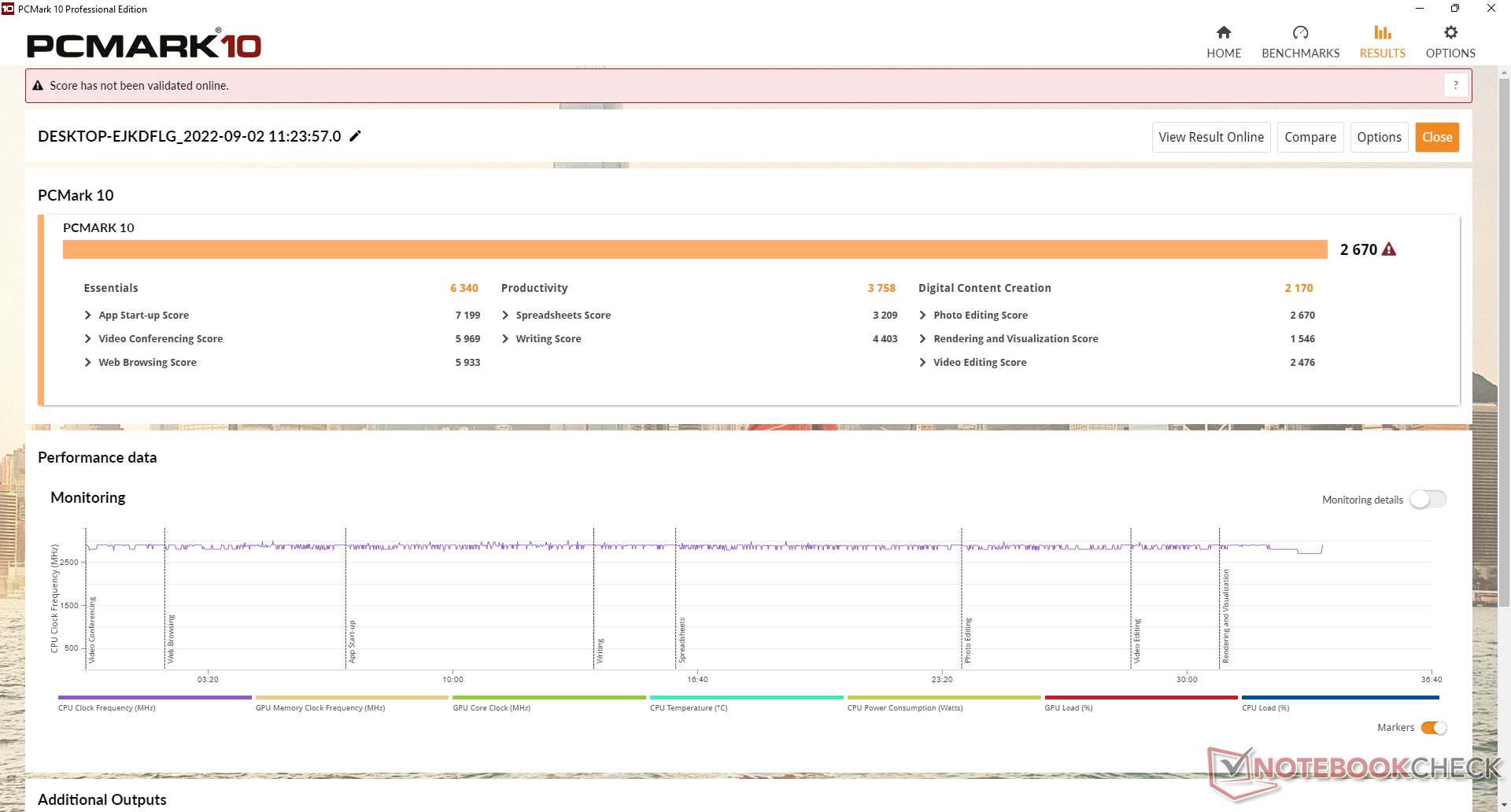

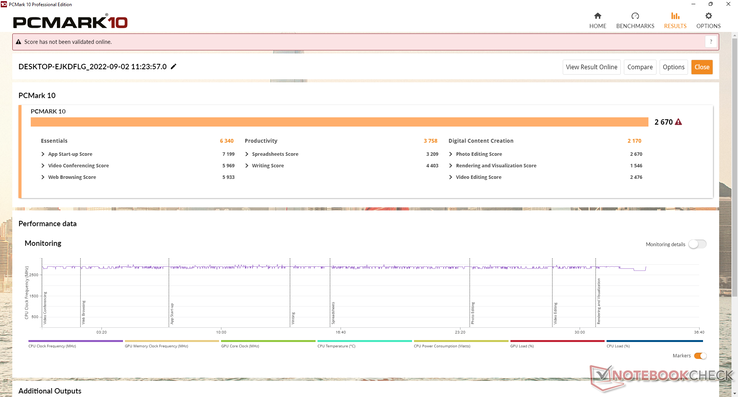

PCMark 10-resultaten är konsekvent högre än för förra årets U59 N5095 även om marginalerna är små
PCMark 10-resultaten är konsekvent högre än för förra årets U59 N5095 även om marginalerna är små
PCMark 10 / Score
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
5257 Points ∼100% +97%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼86% +69%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
3818 Points ∼73% +43%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2670 Points ∼51%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

2670 Points ∼51% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points ∼45% -11%
PCMark 10 / Essentials
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
9188 Points ∼100% +45%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼98% +42%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
7408 Points ∼81% +17%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
6340 Points ∼69%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

6340 Points ∼69% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points ∼63% -9%
PCMark 10 / Productivity
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
7916 Points ∼100% +111%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼78% +65%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
6066 Points ∼77% +61%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
3758 Points ∼47%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

3758 Points ∼47% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points ∼45% -4%
PCMark 10 / Digital Content Creation
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
5422 Points ∼100% +150%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼83% +106%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
3363 Points ∼62% +55%
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
2170 Points ∼40%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

2170 Points ∼40% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1779 Points ∼33% -18%
CrossMark / Overall
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
531 Points ∼100%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

531 Points ∼100% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points ∼92% -8%
CrossMark / Productivity
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
590 Points ∼100%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

590 Points ∼100% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points ∼95% -5%
CrossMark / Creativity
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
471 Points ∼100%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

471 Points ∼100% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points ∼92% -8%
CrossMark / Responsiveness
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
554 Points ∼100%
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)

554 Points ∼100% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points ∼85% -15%
PCMark 10 Score
2670 poäng
Hjälp
AIDA64 / Memory Copy
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
37086 MB/s ∼100% +49%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
24807 MB/s ∼67%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼62% -8%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16968 MB/s ∼46% -32%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
16249 MB/s ∼44% -34%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s ∼42% -37%
AIDA64 / Memory Read
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
44706 MB/s ∼100% +155%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼56% +42%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
18268 MB/s ∼41% +4%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
17511 MB/s ∼39%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16942 MB/s ∼38% -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s ∼23% -41%
AIDA64 / Memory Write
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
43768 MB/s ∼100% +45%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
30205 MB/s ∼69%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼54% -22%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19340 MB/s ∼44% -36%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
18455 MB/s ∼42% -39%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s ∼39% -44%
AIDA64 / Memory Latency
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
95.8 ns * ∼100% -61%
Beelink SER4
AMD Ryzen 7 4800U, Vega 8
94.7 ns * ∼99% -59%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼91% -46%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * ∼80% -28%
Beelink U59 N5105
Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)
59.6 ns * ∼62%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
58 ns * ∼61% +3%

* ... smaller is better

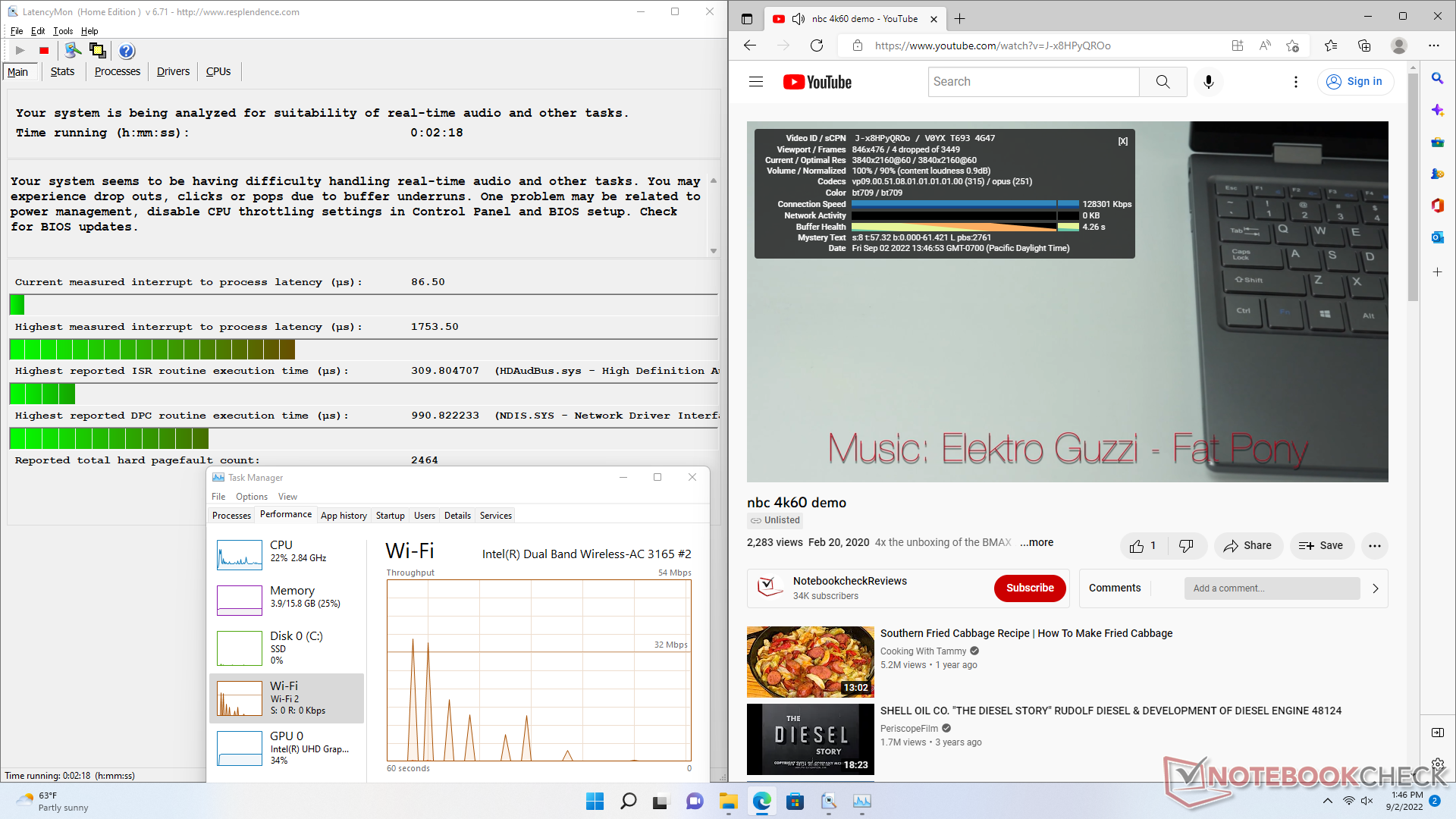

DPC-latenstid

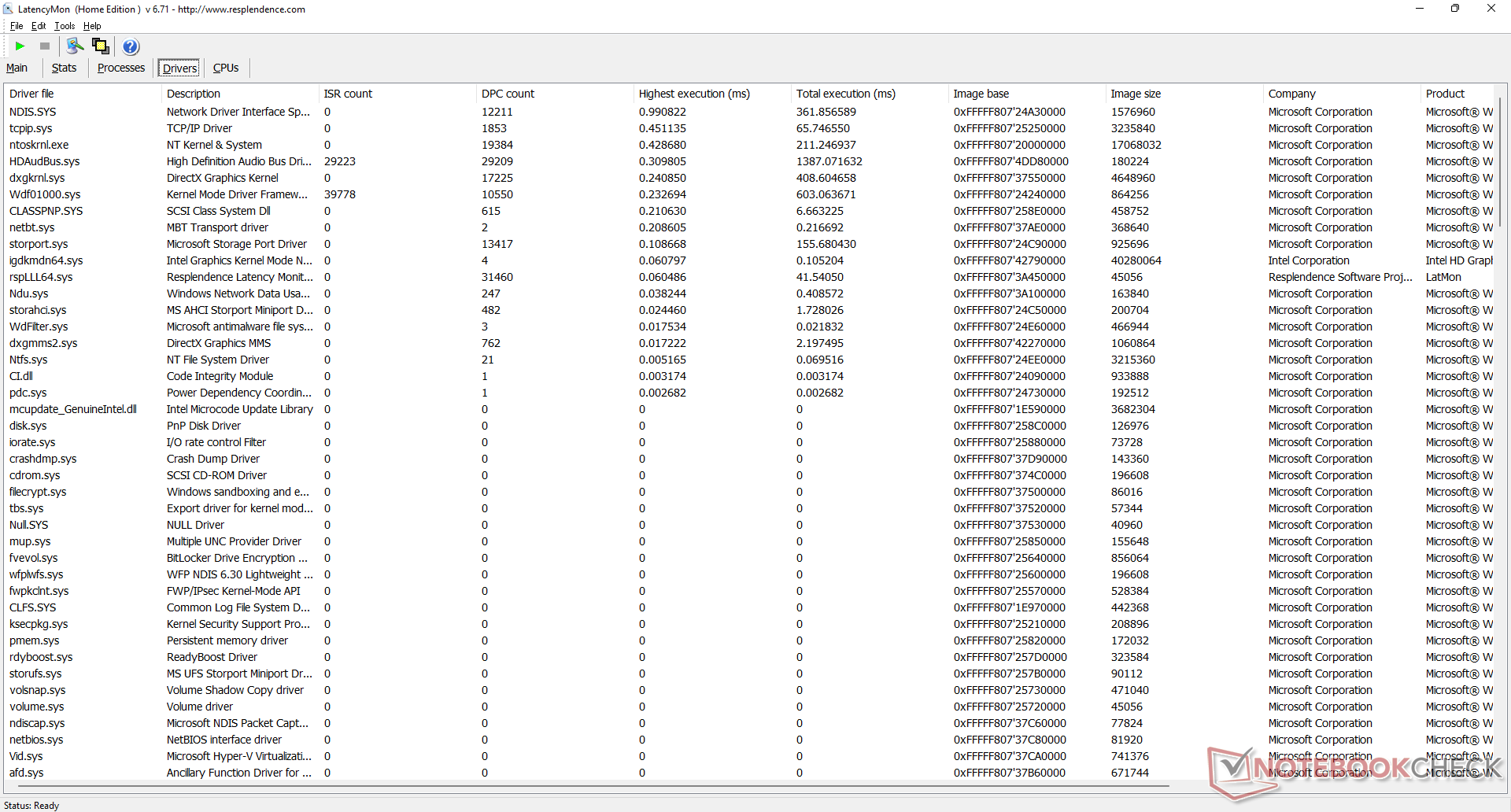

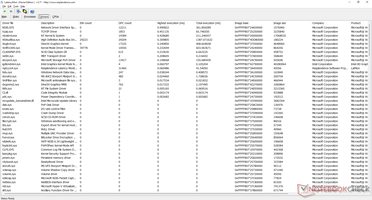

LatencyMon avslöjar DPC-problem när du öppnar flera webbläsarflikar på vår hemsida. uppspelning av 4K-video vid 60 FPS är nästan perfekt med endast 4 tappade bilder under vår minutlånga testvideo.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink U59 N5105
UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428
1753.5 μs * ∼100%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * ∼99% +1%
Zotac ZBOX PI336 pico
UHD Graphics (Elkhart Lake 16 EU), Celeron N6211, SanDisk DF4128
1476.3 μs * ∼84% +16%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
697 μs * ∼40% +60%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼30% +70%
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
336 μs * ∼19% +81%

* ... smaller is better

Lagringsenheter

Modellen levereras med en M.2 SATA III-enhet i stället för NVMe för att spara pengar. Med tanke på processorn är dock en SATA III-enhet acceptabel. Silicon Motion AZW enheten i vår testenhet skulle ge bra sekventiell läs- och skrivhastighet på över 400 MB/s vardera

En liten värmekudde för SSD-enheten ingår, vilket är förvånande att se på en budgetminidator som U59. Kudden sitter mellan SSD-enheten och det 2,5-tums SATA III-kapsling i metall som är fäst vid den övre bottenpanelen.

Användare kan installera upp till två enheter. PCIe-enheter stöds inte
Användare kan installera upp till två enheter. PCIe-enheter stöds inte

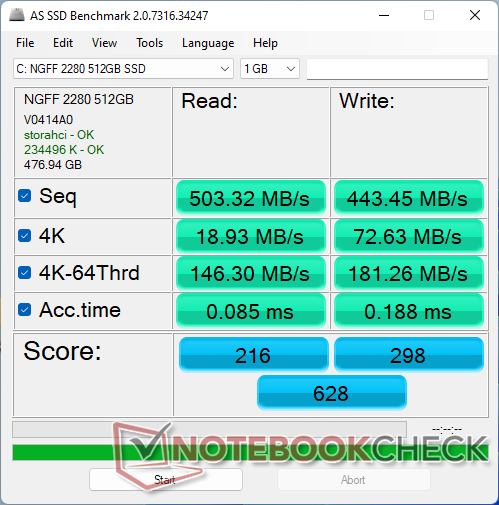

AS SSD
AS SSD

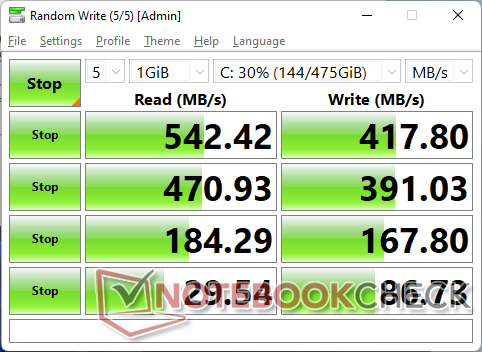

CDM 8
CDM 8
Silicon Motion AZW 512G NV428
CDM 5/6 Read Seq Q32T1: 528.3 MB/s
CDM 5/6 Write Seq Q32T1: 359.5 MB/s
CDM 5/6 Read 4K Q32T1: 146.6 MB/s
CDM 5/6 Write 4K Q32T1: 165.1 MB/s
CDM 5 Read Seq: 477.6 MB/s
CDM 5 Write Seq: 379.8 MB/s
CDM 5/6 Read 4K: 25.9 MB/s
CDM 5/6 Write 4K: 86.45 MB/s
Drive Performance Rating - Percent
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
83.9 pt ∼84%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
81.9 pt ∼82%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
36.7 pt ∼37%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
34.9 pt ∼35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
30 pt ∼30%
Zotac ZBOX PI336 pico
SanDisk DF4128
8.3 pt ∼8%
DiskSpd
seq read
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
1370 (1352.45min - 1370.49max) MB/s ∼100% +181%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1349 (1345.08min - 1349.49max) MB/s ∼98% +176%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼37% +4%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
488 (400.14min - 488.01max) MB/s ∼36%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s ∼34% -4%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s ∼18% -49%
seq write
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1366 (1342.35min - 1366.3max) MB/s ∼100% +196%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
971 (941.83min - 970.77max) MB/s ∼71% +111%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼34% +1%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
461 (274.52min - 460.74max) MB/s ∼34%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s ∼32% -6%
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s ∼8% -77%
seq q8 t1 read
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1958 (1343.44min - 1957.62max) MB/s ∼100% +290%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
1562 (1435.86min - 1562.38max) MB/s ∼80% +211%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s ∼29% +12%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
502 (458.44min - 501.64max) MB/s ∼26%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s ∼25% -2%
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s ∼13% -49%
seq q8 t1 write
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1371 (1348.89min - 1371.13max) MB/s ∼100% +197%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
970 (945.19min - 970.14max) MB/s ∼71% +110%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s ∼37% +9%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s ∼36% +6%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
462 (179.1min - 462max) MB/s ∼34%
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s ∼7% -78%
4k q1 t1 read
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
62.4 (61.64min - 62.4max) MB/s ∼100% +168%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
40.2 (38.82min - 40.17max) MB/s ∼64% +73%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
23.3 (21.43min - 23.34max) MB/s ∼37%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s ∼35% -7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s ∼26% -31%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s ∼22% -41%
4k q1 t1 write
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
200 (197.44min - 200.13max) MB/s ∼100% +167%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
116 (112.64min - 116.46max) MB/s ∼58% +55%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
74.8 (70.07min - 74.78max) MB/s ∼37%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s ∼23% -37%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s ∼23% -38%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s ∼7% -82%
4k q32 t16 read
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
826 (823.98min - 826.07max) MB/s ∼100% +364%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
345 (343.07min - 345.33max) MB/s ∼42% +94%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s ∼35% +60%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
178.1 (150.41min - 178.11max) MB/s ∼22%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s ∼20% -8%
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s ∼3% -85%
4k q32 t16 write
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
826 (804.5min - 825.5max) MB/s ∼100% +275%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
400 (389.86min - 399.66max) MB/s ∼48% +82%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s ∼40% +50%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
220 (6.81min - 220.26max) MB/s ∼27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s ∼25% -5%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s ∼2% -94%
AS SSD
Score Total
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
2346 Points ∼100% +274%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
1833 Points ∼78% +192%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points ∼36% +34%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
628 Points ∼27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points ∼25% -8%
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points ∼6% -78%
Score Read
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
974 Points ∼100% +351%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
544 Points ∼56% +152%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points ∼31% +41%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
216 Points ∼22%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points ∼17% -23%
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points ∼7% -70%
Score Write
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
1028 Points ∼100% +245%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
866 Points ∼84% +191%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points ∼36% +26%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points ∼32% +9%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
298 Points ∼29%
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points ∼4% -87%
Seq Read
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
1653 MB/s ∼100% +228%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1432 MB/s ∼87% +185%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s ∼32% +5%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
503.32 MB/s ∼30%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s ∼28% -9%
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s ∼16% -47%
Seq Write
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1433 MB/s ∼100% +223%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
869 MB/s ∼61% +96%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s ∼33% +6%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
443.45 MB/s ∼31%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s ∼31% -1%
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s ∼8% -74%
4K Read
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
56.4 MB/s ∼100% +198%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
36.38 MB/s ∼65% +92%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s ∼36% +8%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
18.93 MB/s ∼34%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s ∼25% -27%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s ∼23% -30%
4K Write
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
163.7 MB/s ∼100% +125%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
118.5 MB/s ∼72% +63%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
72.63 MB/s ∼44%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s ∼30% -32%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s ∼26% -41%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s ∼8% -81%
4K-64 Read
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
795 MB/s ∼100% +443%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
321.8 MB/s ∼40% +120%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s ∼29% +58%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
146.3 MB/s ∼18%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s ∼13% -27%
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s ∼3% -82%
4K-64 Write
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
778 MB/s ∼100% +329%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
604 MB/s ∼78% +233%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s ∼37% +57%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s ∼30% +27%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
181.26 MB/s ∼23%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s ∼2% -92%
Access Time Read
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms * ∼100% -266%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * ∼62% -127%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * ∼40% -46%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
0.085 ms * ∼27% -0%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
0.085 ms * ∼27%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
0.07 ms * ∼23% +18%
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms * ∼100% -401%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
0.36 ms * ∼38% -91%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * ∼29% -43%
Beelink U59 N5105
Silicon Motion AZW 512G NV428
0.188 ms * ∼20%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * ∼19% +4%
Beelink SER4
Intel SSD 660p SSDPEKNW512G8
0.137 ms * ∼15% +27%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450475Tooltip
: Ø490 (445.59-491.99)

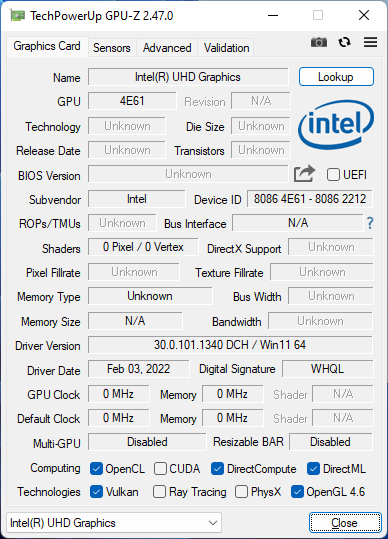

GPU-prestanda

Den integrerade GPU:n får en uppgradering från Jasper Lake 16 EUs på förra årets Celeron N5095 till den Jasper Lake 24 EUs på årets U59 N5105. 3DMark-resultaten är 80 procent snabbare på den nyare GPU:n jämfört med fjolårets U59 för att representera en betydande ökning från år till år. Det är dock viktigt att notera att vår U59 N5095 levererades med 8 GB enkelkanals RAM-minne jämfört med 16 GB dubbelkanals RAM-minne i vår U59 N5105. RAM-minnet med dubbla kanaler står sannolikt ensamt för 30-50 procent av denna prestandaskillnad. Trots detta är detta fortfarande en av de långsammare integrerade GPU-lösningarna som finns och därför är den olämplig för de flesta spel, nya eller gamla.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Fire Strike
Fire Strike
Time Spy
Time Spy
3DMark

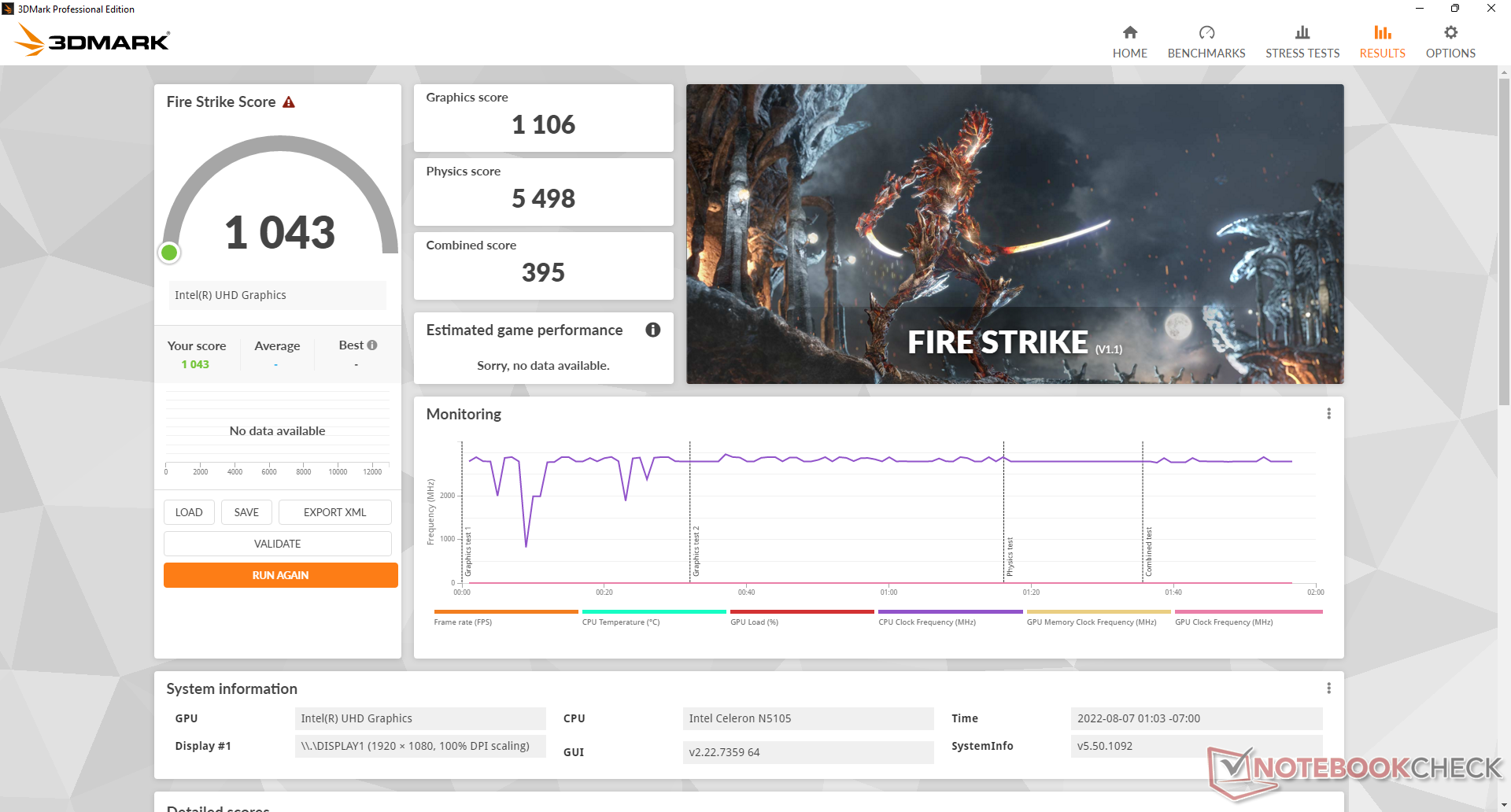

1920x1080 Fire Strike Graphics
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
3927 Points ∼100% +255%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points ∼80% +185%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
2427 Points ∼62% +119%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
2027 Points ∼52% +83%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
1715 Points ∼44% +55%
Teclast TBOLT F15 Pro
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
1530 Points ∼39% +38%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1106 Points ∼28%
Average Intel UHD Graphics (Jasper Lake 24 EU)

1106 Points ∼28% 0%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
967 Points ∼25% -13%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points ∼15% -45%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
523 Points ∼13% -53%
2560x1440 Time Spy Graphics
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
1241 Points ∼100% +298%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points ∼83% +230%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
798 Points ∼64% +156%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
609 Points ∼49% +95%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
569 Points ∼46% +82%
Teclast TBOLT F15 Pro
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
419 Points ∼34% +34%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
317 Points ∼26% +2%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
312 Points ∼25%
Average Intel UHD Graphics (Jasper Lake 24 EU)

312 Points ∼25% 0%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
173 Points ∼14% -45%

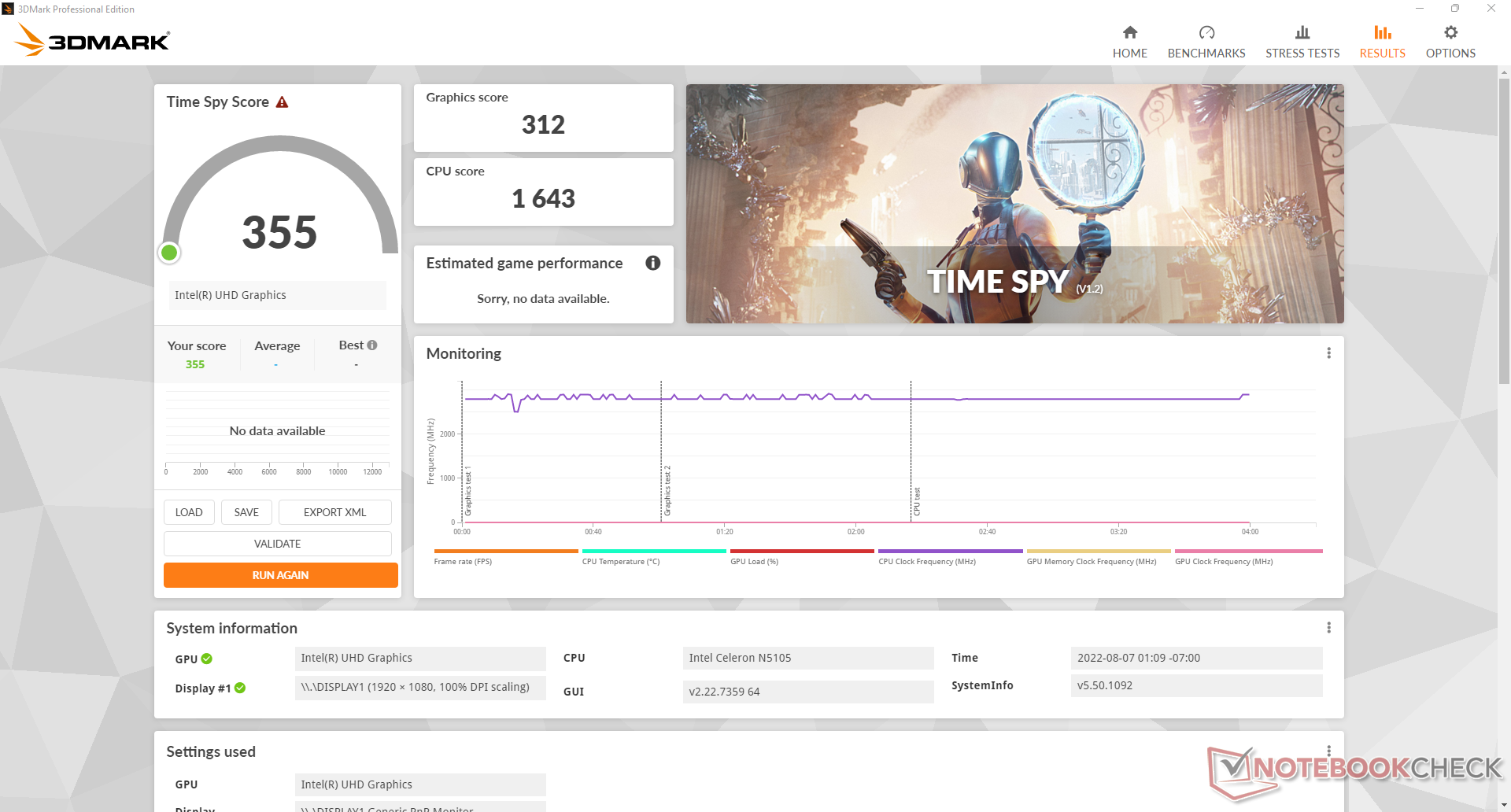

2560x1440 Time Spy Score
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
1412 Points ∼100% +298%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points ∼82% +227%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
888 Points ∼63% +150%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
690 Points ∼49% +94%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
636 Points ∼45% +79%
Teclast TBOLT F15 Pro
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
476 Points ∼34% +34%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
361 Points ∼26% +2%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
355 Points ∼25%
Average Intel UHD Graphics (Jasper Lake 24 EU)

355 Points ∼25% 0%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
199 Points ∼14% -44%
3DMark 11 - 1280x720 Performance GPU
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
6036 Points ∼100% +314%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points ∼86% +258%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
3636 Points ∼60% +149%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
3245 Points ∼54% +123%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
2801 Points ∼46% +92%
Teclast TBOLT F15 Pro
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
2065 Points ∼34% +42%
HP 17-by2437ng
Intel UHD Graphics 620, Intel Core i3-10110U
1501 Points ∼25% +3%
Beelink U59 N5105
Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105
1458 Points ∼24%
Average Intel UHD Graphics (Jasper Lake 24 EU)

1458 Points ∼24% 0%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points ∼14% -41%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
650 Points ∼11% -55%

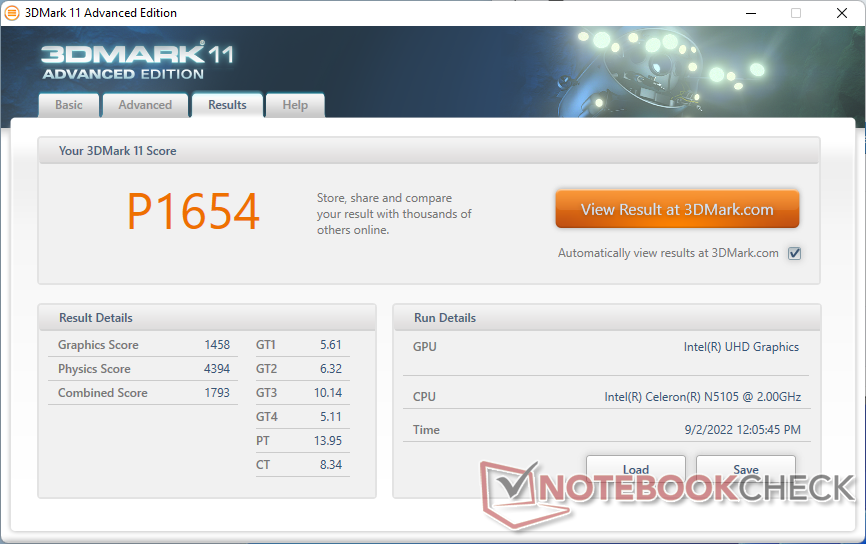

3DMark 11 Performance
1654 poäng

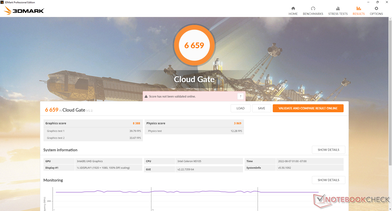

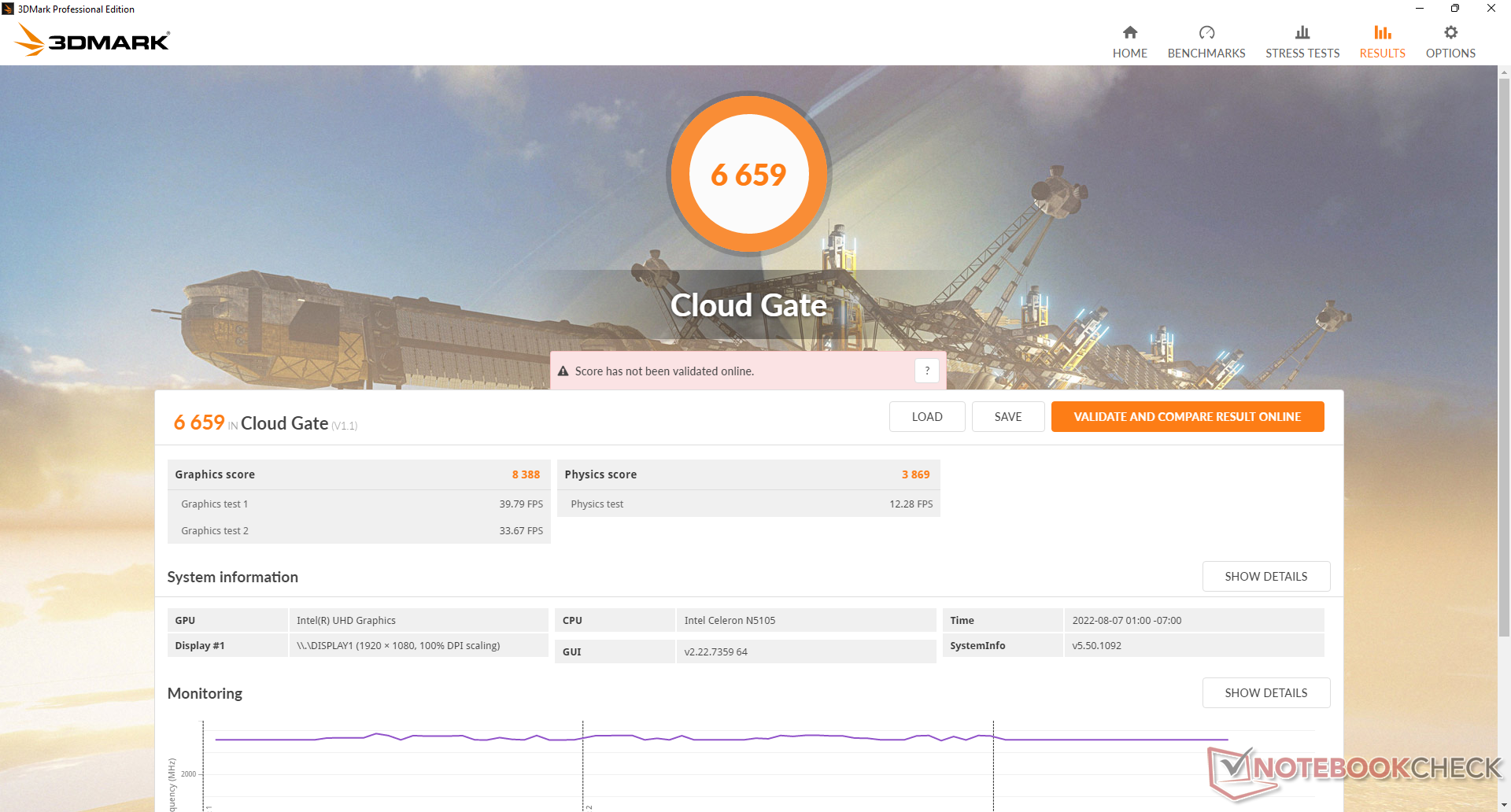

3DMark Cloud Gate Standard Score
6659 poäng
3DMark Fire Strike Score
1043 poäng
3DMark Time Spy Score
355 poäng
Hjälp
The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.2 (51min) fps ∼100% +197%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.8 (53min) fps ∼93% +177%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
43.8 (1.672min, 3.35P0.1, 20.7P1) fps ∼68% +103%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
35.7 (28min) fps ∼56% +65%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
30.2 fps ∼47% +40%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
21.6 fps ∼34%
Average Intel UHD Graphics (Jasper Lake 24 EU)

21.6 fps ∼34% 0%
1366x768 Medium Graphics & Postprocessing
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
45.2 (41min) fps ∼100% +214%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
30.1 (13.3min, 14.7P0.1, 17.3P1) fps ∼67% +109%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
22.9 (21min) fps ∼51% +59%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
19.6 fps ∼43% +36%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
14.4 (11min) fps ∼32%
Average Intel UHD Graphics (Jasper Lake 24 EU)

14.4 fps ∼32% 0%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.6 (21min) fps ∼100% +190%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
15 (7.55min, 7.88P0.1, 9.45P1) fps ∼66% +92%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
12.2 (11min) fps ∼54% +56%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
10.3 fps ∼46% +32%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
7.8 (5min) fps ∼35%
Average Intel UHD Graphics (Jasper Lake 24 EU)

7.8 fps ∼35% 0%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.3 (13min) fps ∼100% +267%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
8.26 (4.29min, 4.37P0.1, 5.33P1) fps ∼58% +112%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
8 (7min) fps ∼56% +105%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
3.9 (2min) fps ∼27%
Average Intel UHD Graphics (Jasper Lake 24 EU)

3.9 fps ∼27% 0%
X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.1 fps ∼100% +98%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
39.4 fps ∼96% +89%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.1 fps ∼90% +78%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
28.1 fps ∼68% +35%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
23.8 fps ∼58% +14%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
22.4 fps ∼55% +8%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
20.8 fps ∼51%
Average Intel UHD Graphics (Jasper Lake 24 EU)

20.8 fps ∼51% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
13.3 fps ∼32% -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
7.76 fps ∼19% -63%
1920x1080 med (fps_test=2)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33.2 fps ∼100% +150%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.3 fps ∼82% +105%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
25.1 fps ∼76% +89%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
18.5 fps ∼56% +39%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
15 fps ∼45% +13%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
13.7 fps ∼41% +3%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
13.3 fps ∼40%
Average Intel UHD Graphics (Jasper Lake 24 EU)

13.3 fps ∼40% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
7.54 fps ∼23% -43%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
4.97 fps ∼15% -63%
1920x1080 high (fps_test=3)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.5 fps ∼100% +140%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
29.1 fps ∼99% +137%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
23.2 fps ∼79% +89%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
16.7 fps ∼57% +36%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
12.9 fps ∼44% +5%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
12.3 fps ∼42% 0%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
12.3 fps ∼42%
Average Intel UHD Graphics (Jasper Lake 24 EU)

12.3 fps ∼42% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
7.07 fps ∼24% -43%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
4.64 fps ∼16% -62%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.3 fps ∼100% +172%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26.8 fps ∼72% +96%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
24.4 fps ∼65% +78%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
19 fps ∼51% +39%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
16.6 fps ∼45% +21%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
15.4 fps ∼41% +12%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
13.7 fps ∼37%
Average Intel UHD Graphics (Jasper Lake 24 EU)

13.7 fps ∼37% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
6.86 fps ∼18% -50%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
3.45 fps ∼9% -75%
Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
103 (88.1min) fps ∼100% +40%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
94.4 (75.6min) fps ∼92% +28%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
83.7 (73.3min) fps ∼81% +13%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
76.7 (66.8min) fps ∼74% +4%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
73.8 (47.9min) fps ∼72% 0%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
73.8 (65.8min) fps ∼72%
Average Intel UHD Graphics (Jasper Lake 24 EU)

73.8 fps ∼72% 0%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
67.4 (57.5min) fps ∼65% -9%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
58.3 (51.4min) fps ∼57% -21%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
24.3 (20.6min) fps ∼24% -67%
1366x768 med (1/3)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
83.3 (67.5min) fps ∼100% +246%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56 (40.8min) fps ∼67% +132%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
52 (42.4min) fps ∼62% +116%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
36.6 (27.6min) fps ∼44% +52%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
34.6 (29.8min) fps ∼42% +44%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
31.9 (24.8min) fps ∼38% +32%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
24.1 (17.1min) fps ∼29%
Average Intel UHD Graphics (Jasper Lake 24 EU)

24.1 fps ∼29% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
20.7 (13.8min) fps ∼25% -14%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
10.9 (8.1min) fps ∼13% -55%
1920x1080 high (2/3)
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.1 (44.7min) fps ∼100% +216%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.2 (20min) fps ∼64% +104%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
30.1 (27.5min) fps ∼57% +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
25.7 (18.5min) fps ∼48% +53%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
25.3 (19.3min) fps ∼48% +51%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
20.9 (16.9min) fps ∼39% +24%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
16.8 (12.2min) fps ∼32%
Average Intel UHD Graphics (Jasper Lake 24 EU)

16.8 fps ∼32% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
11.6 (9.6min) fps ∼22% -31%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
5.8 (2.3min) fps ∼11% -65%
1920x1080 ultra (3/3) best looking
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
51.1 (44.6min) fps ∼100% +230%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.4 (18.2min) fps ∼61% +103%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
28.3 (25.9min) fps ∼55% +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
24.5 (21.5min) fps ∼48% +58%
Beelink SEi8
Intel Core i3-8109U, Intel Iris Plus Graphics 655
22.7 (18.8min) fps ∼44% +46%
Teclast TBOLT F15 Pro
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
19.4 (16.2min) fps ∼38% +25%
Beelink U59 N5105
Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)
15.5 (10.8min) fps ∼30%
Average Intel UHD Graphics (Jasper Lake 24 EU)

15.5 fps ∼30% 0%
Beelink U59 Mini-S
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
10.8 (8.7min) fps ∼21% -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
5.2 (2.4min) fps ∼10% -66%
låg med. hög ultra
The Witcher 3 (2015) 21.6 14.4 7.8 3.9
Dota 2 Reborn (2015) 73.8 24.1 16.8 15.5
Final Fantasy XV Benchmark (2018) 13.7
X-Plane 11.11 (2018) 20.8 13.3 12.3

Utsläpp

Systembrus

Fläktljudet är tyst oavsett belastning, även när det är inställt på prestandaläge. Vi kan bara registrera ett maximum på knappt 27 dB(A) mot en tyst bakgrund på 21,5 dB(A) jämfört med 34 dB(A) på förra årets U59. Detta är en av de tystaste minidatorerna utan att man väljer fläktlösa modeller som Zotac ZBOX PI336.

Vår testenhet skulle uppvisa mindre elektroniskt brus eller spolningsvisslan vilket bidrar till att förklara vårt tomgångsljud på 22,1 dB(A).

Profil för fläktljud (vit: Bakgrund, röd: Systemet vilar, Blå: 3DMark 06, Orange: Witcher 3, Grön: Prime95 stress)
Profil för fläktljud (vit: Bakgrund, röd: Systemet vilar, Blå: 3DMark 06, Orange: Witcher 3, Grön: Prime95 stress)

Ljudnivå

Låg belastning
22.1 / 22.1 / 22.1 dB(A)
Hög belastning
