Test: Dell Precision 5540 - Arbetsstation som också fungerar som handvärmare (Sammanfattning)

Mike Wobker, 👁 Andreas Osthoff (översatt av Daniel Eriksson), 11/27/2019

OLED och 4K. Efterföljaren till Precision 5530 som har samma konstruktion som Dell XPS 15. Den har en kraftfull CPU och mittenskiktsgrafik från Nvidia. Även om konstruktionens kvalitet som vanligt är fenomenal behöver komponenterna också klara av våra tester.

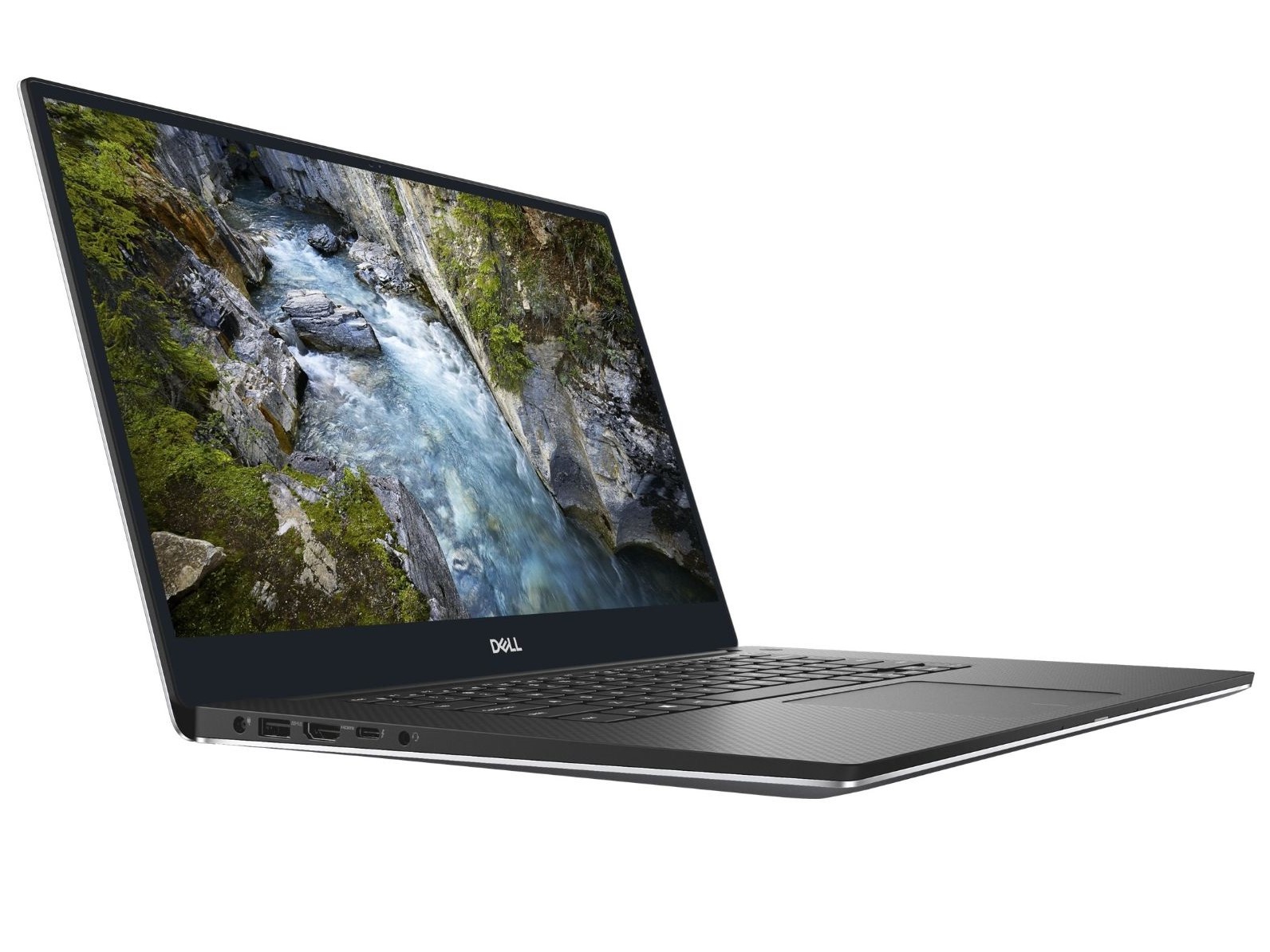

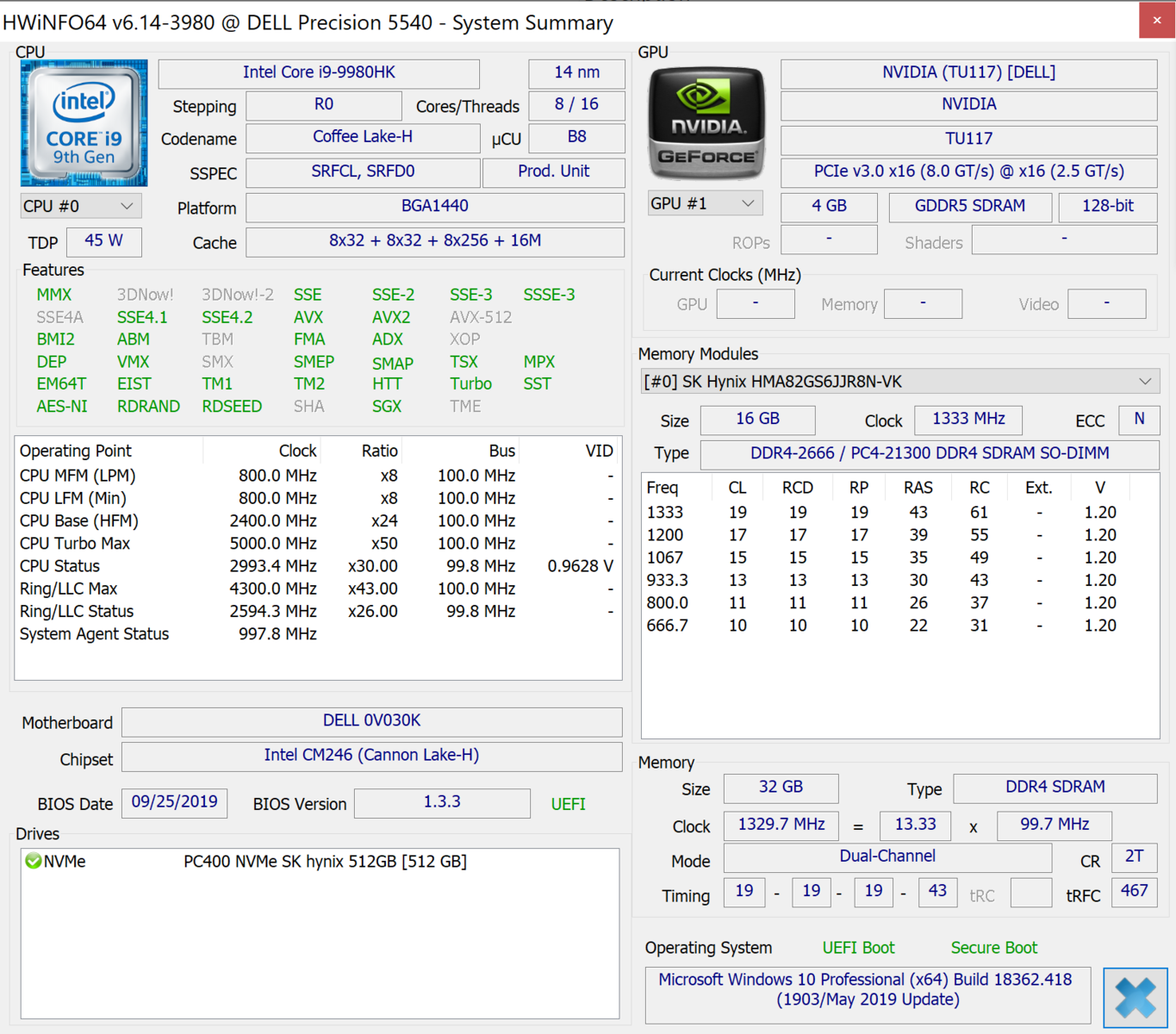

Dell Precision 5540

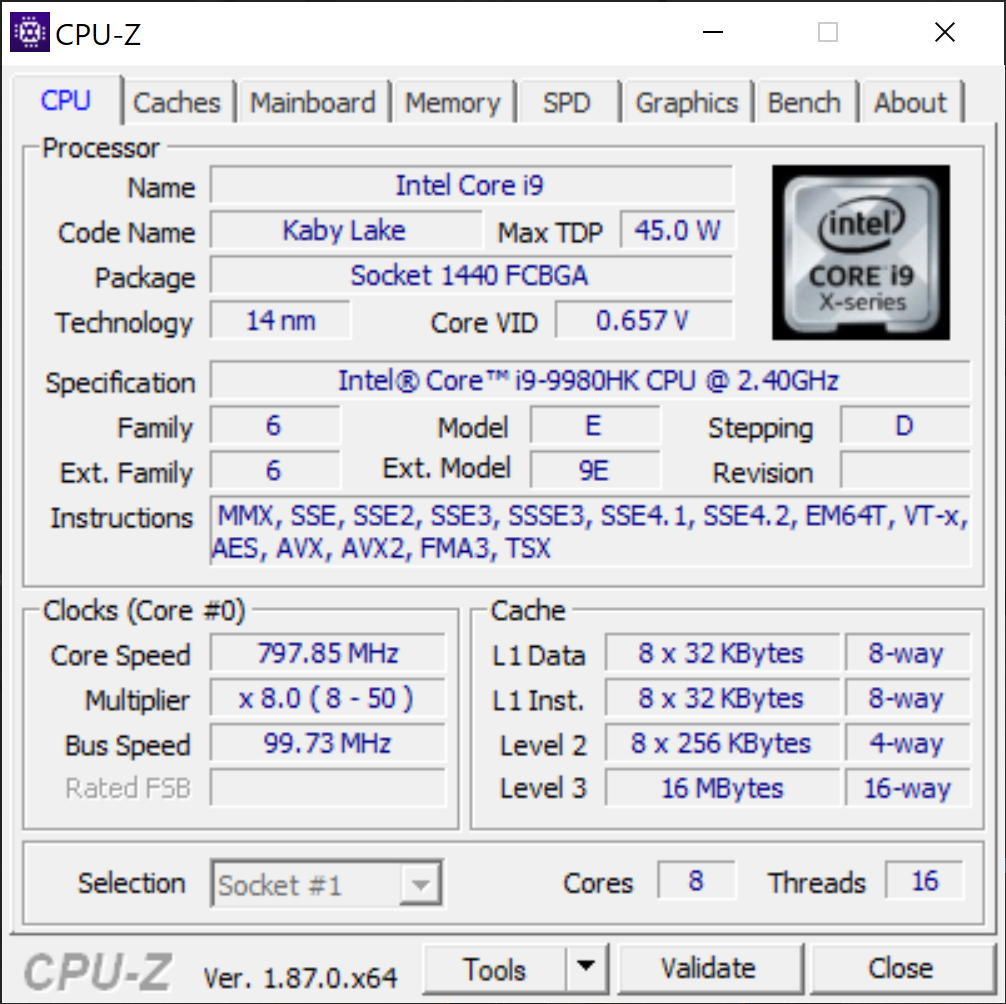

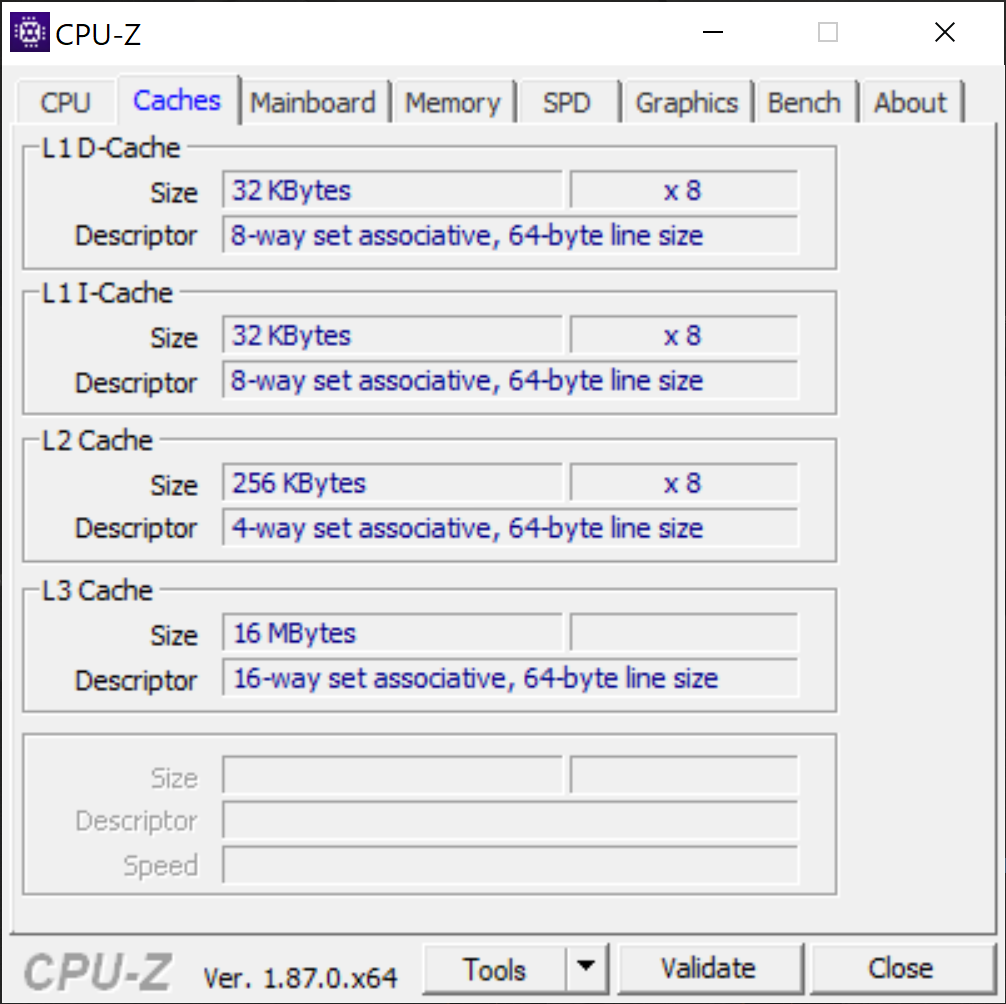

Processor
Intel Core i9-9980HK

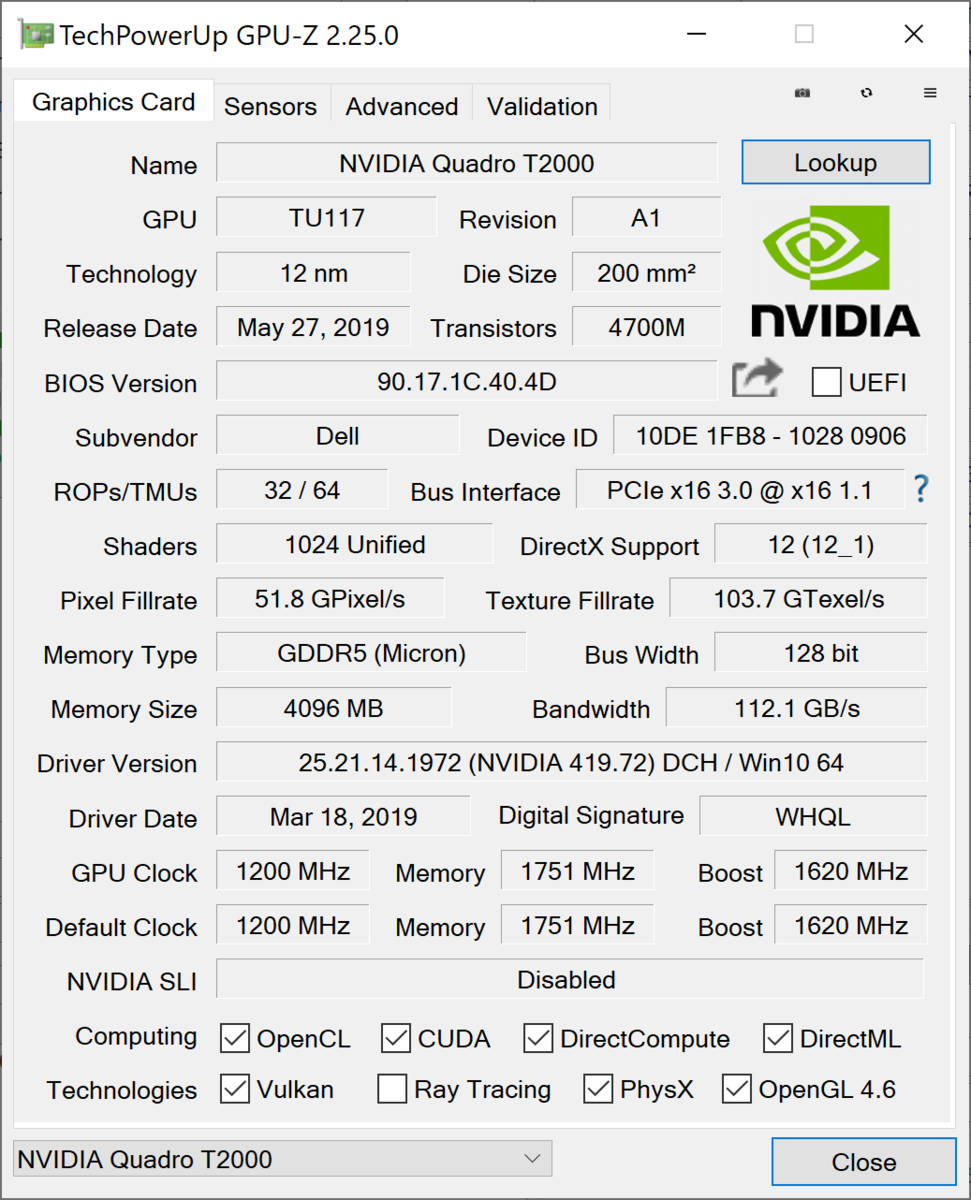

Grafikkort
NVIDIA Quadro T2000 Max-Q - 4096 MB, Kärna: 1200 MHz, Minne: 1751 MHz, NVIDIA 419.72, Intel UHD Graphics 630

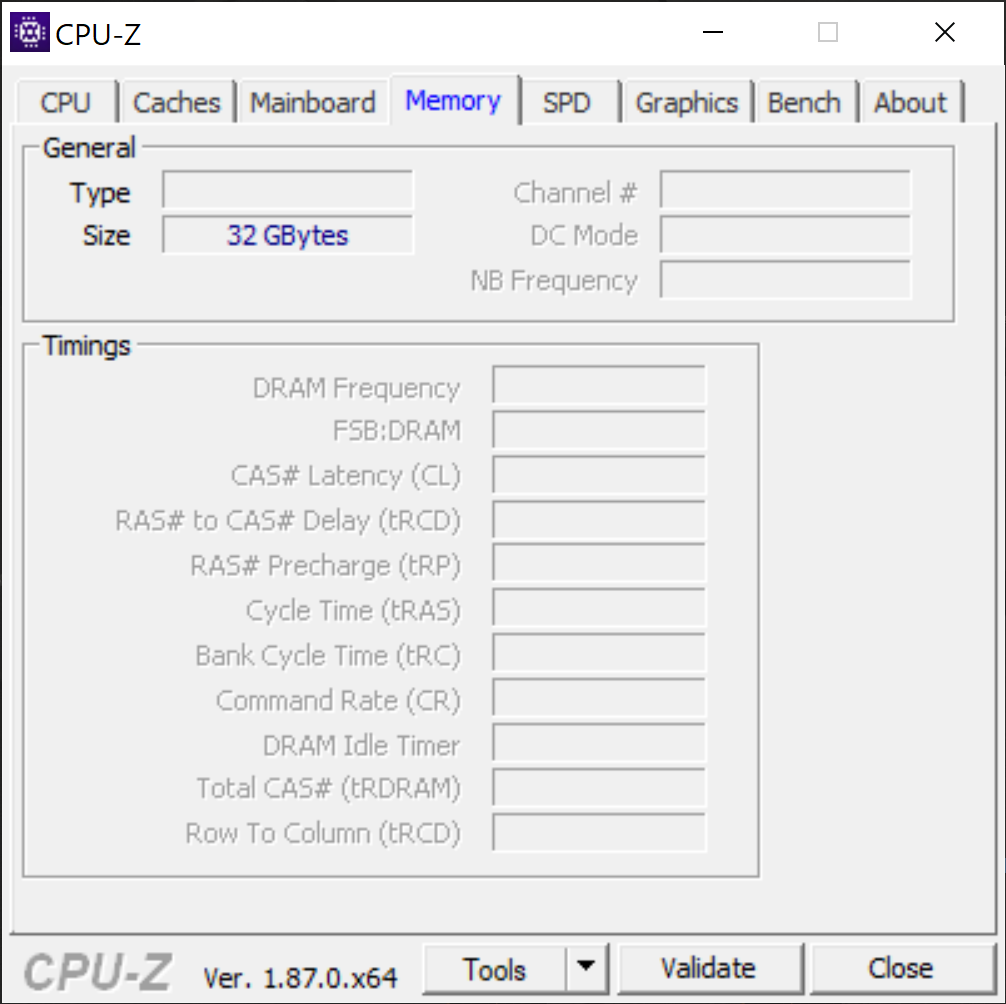

Minne
32768 MB
, Dubbla kanaler
Skärm
15.6 tum 16:9, 3840 x 2160 pixlar 282 PPI, SDCA029, OLED, glansig: ja

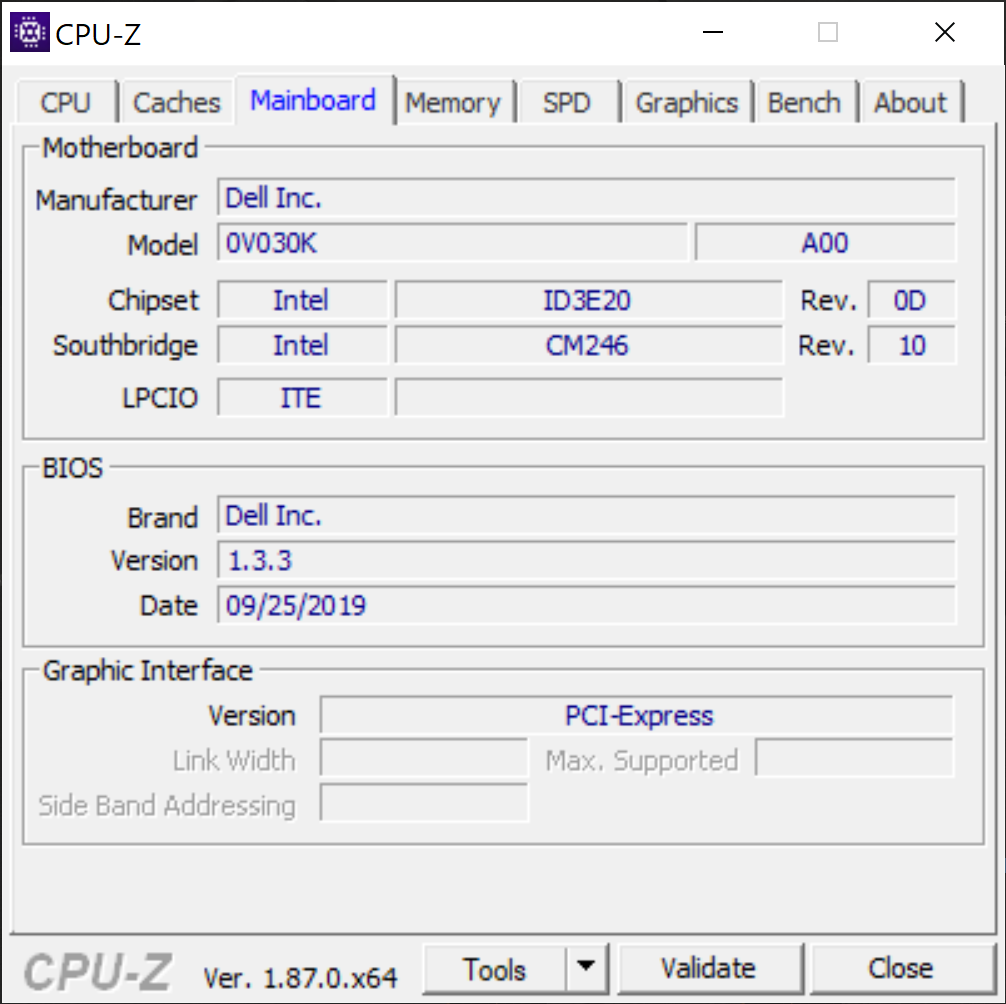

Moderkort
Intel CM246
Hårddisk
SK hynix PC400 512 GB, , 420 GB ledigt
Ljudkort
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Anslutningar
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm, Kortläsare: SD, 1 Fingeravtrycksläsare
Nätverk
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Storlek
höjd x bredd x djup (i mm) 17 x 357 x 236
Batteri
97 Wh Litiumjon
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 0.9 MP, 16:9 (1280x720)
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 36 Månader Garanti
Vikt
2 kg, Strömförsörjning: 440 g
Pris
3000 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



RatingDateModelWeightHeightSizeResolutionBest Price
87%11/2019Dell Precision 5540
9980HK, Quadro T2000 Max-Q
2 kg17 mm15.6"3840x2160
86%10/2019Dell XPS 15 7590 i5 iGPU FHD
9300H, UHD Graphics 630
1.9 kg17 mm15.6"1920x1080
85%06/2019MSI P65 Creator 9SF-657
9880H, GeForce RTX 2070 Max-Q
1.9 kg18 mm15.6"3840x2160
88%08/2019Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop)
1.7 kg18.4 mm15.6"1920x1080
87%12/2018HP ZBook Studio G5-4QH10EA
8750H, Quadro P1000
2.1 kg18.9 mm15.6"3840x2160
Dell Precision 5540
Dell Precision 5540
Dell Precision 5540
Dell Precision 5540
Dell Precision 5540
Dell Precision 5540

Storleksjämförelse

361.8 mm 245.7 mm 18.4 mm 1.7 kg360 mm 254 mm 18.9 mm 2.1 kg357 mm 247 mm 18 mm 1.9 kg357 mm 236 mm 17 mm 2 kg357 mm 235 mm 17 mm 1.9 kg

Anslutbarhet - Dells arbetsstation med Thunderbolt

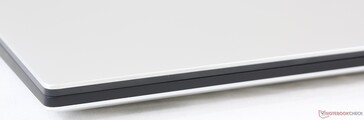

Framsidan: Inga portar
Framsidan: Inga portar

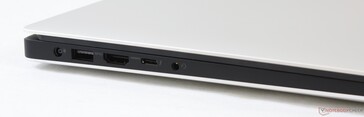

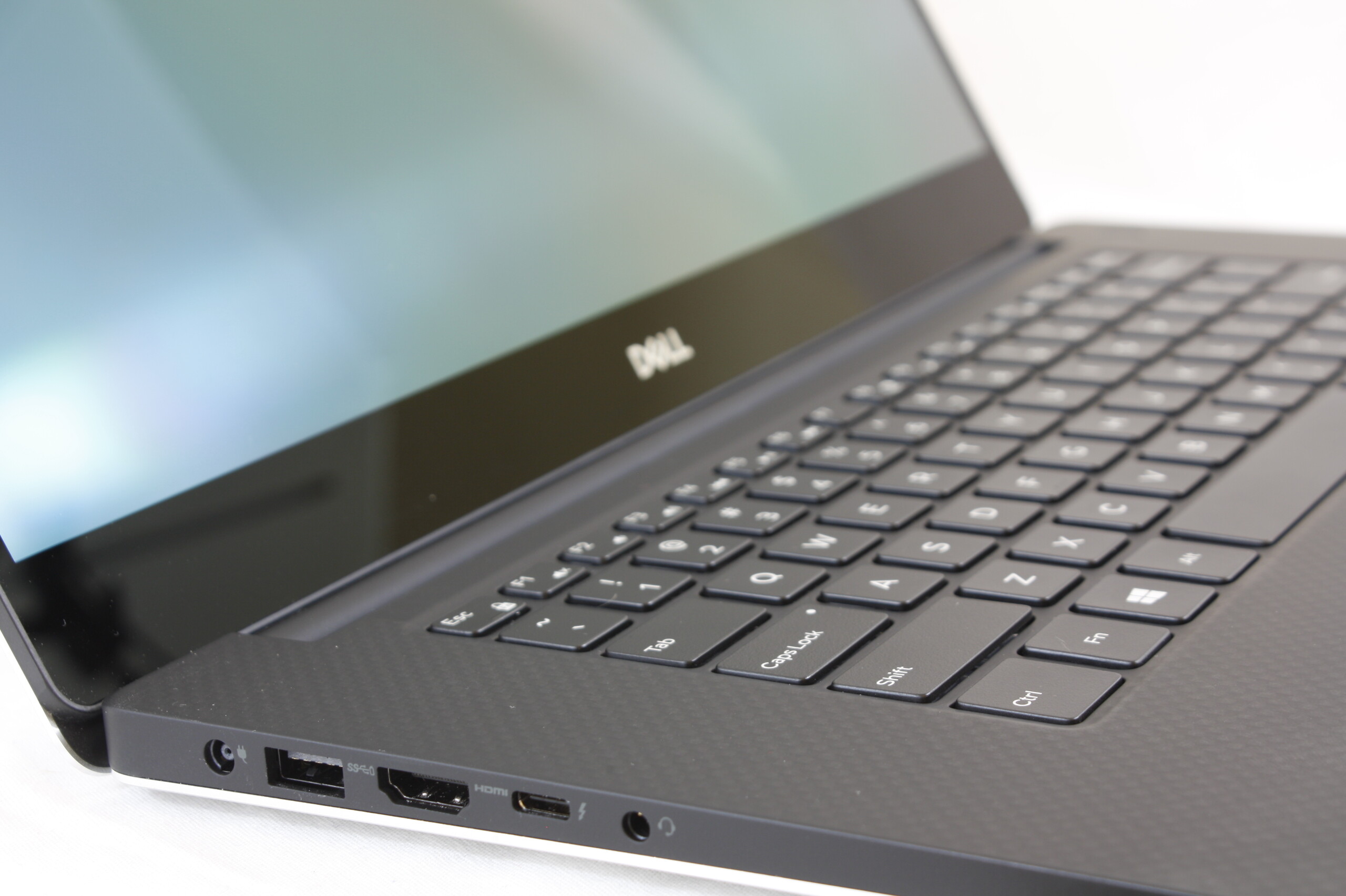

Vänster: AC-adapter, USB 3.1 Gen 1, HDMI 2.0, Thunderbolt 3, kombinerad 3.5 mm ljudanslutning
Vänster: AC-adapter, USB 3.1 Gen 1, HDMI 2.0, Thunderbolt 3, kombinerad 3.5 mm ljudanslutning

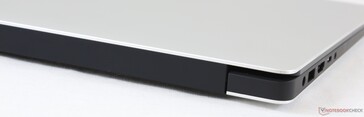

Baksidan: Inga portar
Baksidan: Inga portar

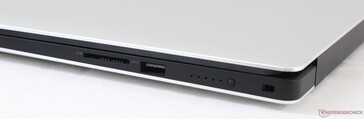

Höger: SD-kortläsare, USB 3.1 Gen 1, batteri-indikator, Noble-lås
Höger: SD-kortläsare, USB 3.1 Gen 1, batteri-indikator, Noble-lås
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad P1 2019-20QT000RGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
181 MB/s ∼100% +5%
Dell XPS 15 7590 i5 iGPU FHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
178 MB/s ∼98% +3%
HP ZBook Studio G5-4QH10EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
174 MB/s ∼96% +1%
Dell Precision 5540
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
173 MB/s ∼96%
Average of class Workstation
  (17.2 - 213, n=65)
137 MB/s ∼76% -21%
maximum AS SSD Seq Read Test (1GB)
HP ZBook Studio G5-4QH10EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
211.6 MB/s ∼100% +12%
Lenovo ThinkPad P1 2019-20QT000RGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
198.2 MB/s ∼94% +5%
Dell Precision 5540
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
188.7 MB/s ∼89%
Dell XPS 15 7590 i5 iGPU FHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
188 MB/s ∼89% 0%
Average of class Workstation
  (18.4 - 255, n=64)
171 MB/s ∼81% -9%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
666 (min: 328, max: 700) MBit/s ∼100% +6%
Average of class Workstation
  (292 - 1557, n=53)
659 MBit/s ∼99% +5%
Dell XPS 15 7590 i5 iGPU FHD
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
630 MBit/s ∼95% 0%
Dell Precision 5540
Intel Wi-Fi 6 AX200
628 MBit/s ∼94%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
625 MBit/s ∼94% 0%
MSI P65 Creator 9SF-657
Intel Cannon Lake-H/S CNVi: WiFi
490 (min: 376, max: 596) MBit/s ∼74% -22%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell XPS 15 7590 i5 iGPU FHD
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
755 MBit/s ∼100% +28%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
706 MBit/s ∼94% +19%
MSI P65 Creator 9SF-657
Intel Cannon Lake-H/S CNVi: WiFi
650 (min: 629, max: 713) MBit/s ∼86% +10%
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
633 (min: 606, max: 660) MBit/s ∼84% +7%
Average of class Workstation
  (83 - 1642, n=53)
600 MBit/s ∼79% +1%
Dell Precision 5540
Intel Wi-Fi 6 AX200
592 MBit/s ∼78%
411
cd/m²
433
cd/m²
420
cd/m²
406
cd/m²
427
cd/m²
403
cd/m²
403
cd/m²
410
cd/m²
387
cd/m²
Distribution av ljusstyrkan
SDCA029
X-Rite i1Pro 2
Max: 433 cd/m² Medel: 411.1 cd/m² Minimum: 4.9 cd/m²
Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 427 cd/m²
Kontrast: ∞:1 (Svärta: 0 cd/m²)
ΔE Color 3.2 | 0.6-29.43 Ø6, calibrated: 2.8
ΔE Greyscale 1.8 | 0.64-98 Ø6.2
100% sRGB (Argyll 3D) 86.8% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.15
Dell Precision 5540
SDCA029, OLED, 3840x2160, 15.6
Dell XPS 15 7590 i5 iGPU FHD
LQ156M1, IPS, 1920x1080, 15.6
MSI P65 Creator 9SF-657
AU Optronics AUO41EB, IPS, 3840x2160, 15.6
Lenovo ThinkPad P1 2019-20QT000RGE
N156HCE-GN1, IPS LED, 1920x1080, 15.6
HP ZBook Studio G5-4QH10EA
AUO30EB, IPS LED, 3840x2160, 15.6
Response Times
-788%
-1295%
3081%
-1498%
Response Time Grey 50% / Grey 80% *
2.8 (1.2, 1.6)
52.8 (25.6, 27.2)
-1786%
51 (24, 27)
-1721%
34.4 (17.2, 17.2)
-1129%
60.8 (30, 30.8)
-2071%
Response Time Black / White *
3.2 (1.2, 2)
32 (16.4, 15.6)
-900%
31 (18, 13)
-869%
14 (4.4, 9.6)
-338%
32.8 (16.4, 16.4)
-925%
PWM Frequency
240.9 (50)
1020 (25)
323%
26040 (70)
10709%
Screen
2%
-23%
-12%
-22%
Brightness middle
427
588
38%
445
4%
542
27%
417
-2%
Brightness
411
555
35%
462
12%
528
28%
412
0%
Brightness Distribution
89
89
0%
83
-7%
84
-6%
85
-4%
Black Level *
0.4
0.5
0.41
0.29
Colorchecker DeltaE2000 *
3.2
2.5
22%
4.75
-48%
3.5
-9%
4.4
-38%
Colorchecker DeltaE2000 max. *
8.4
6.3
25%
7.79
7%
7.8
7%
6.7
20%
Colorchecker DeltaE2000 calibrated *
2.8
0.6
79%
1.3
54%
1.9
32%
Greyscale DeltaE2000 *
1.8
4.5
-150%
4.49
-149%
4.8
-167%
5
-178%
Gamma
2.15 102%
2.2 100%
2.49 88%
2.33 94%
2.28 96%
CCT
6176 105%
6836 95%
7374 88%
7690 85%
7575 86%
Color Space (Percent of AdobeRGB 1998)
86.8
63.2
-27%
87
0%
58.8
-32%
62.3
-28%
Color Space (Percent of sRGB)
100
98
-2%
100
0%
91.1
-9%
96
-4%
Contrast
1470
890
1322
1438
Total Average (Program / Settings)
-393% / -195%
-659% / -277%
1535% / 761%
-760% / -291%

* ... smaller is better

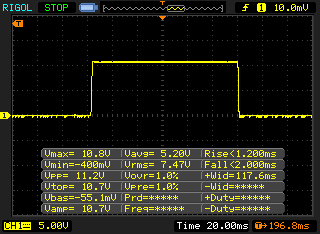

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

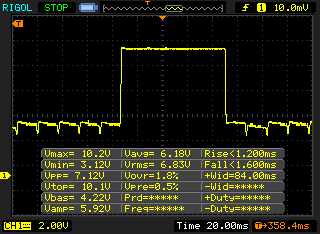

       Response Time Black to White
3.2 ms ... rise ↗ and fall ↘ combined↗ 1.2 ms rise
↘ 2 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 1 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (24.8 ms).
       Response Time 50% Grey to 80% Grey
2.8 ms ... rise ↗ and fall ↘ combined↗ 1.2 ms rise
↘ 1.6 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 0 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (39.4 ms).

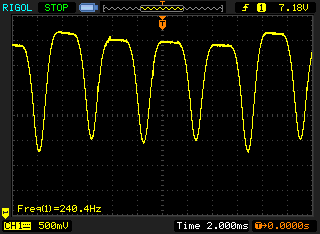

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 240.9 Hz ≤ 50 % brightness setting

The display backlight flickers at 240.9 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 240.9 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9364 (minimum: 43 - maximum: 142900) Hz was measured.


010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370138013901400141014201430144014501460147014801490150015101520153015401550Tooltip
Dell Precision 5540 Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1288 (1207.8-1407.71)
Dell XPS 15 7590 i5 iGPU FHD Intel Core i5-9300H, Intel Core i5-9300H: Ø788 (771.02-810.57)
MSI P65 Creator 9SF-657 Intel Core i9-9880H, Intel Core i9-9880H: Ø1439 (1417.84-1545.36)
Lenovo ThinkPad P1 2019-20QT000RGE Intel Core i7-9850H, Intel Core i7-9850H: Ø961 (896-1114)
HP ZBook Studio G5-4QH10EA Intel Core i7-8750H, Intel Core i7-8750H: Ø1018 (1008.9-1100.84)
Cinebench R15
CPU Single 64Bit
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
201 Points ∼100% +4%
Average Intel Core i9-9980HK
  (181 - 205, n=8)
197 Points ∼98% +2%
MSI P65 Creator 9SF-657
Intel Core i9-9880H
196 Points ∼98% +2%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
193 Points ∼96% 0%
Dell Precision 5540
Intel Core i9-9980HK
193 Points ∼96%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
175 Points ∼87% -9%
Dell XPS 15 7590 i5 iGPU FHD
Intel Core i5-9300H
175 Points ∼87% -9%
Average of class Workstation
  (117 - 214, n=100)
160 Points ∼80% -17%
CPU Multi 64Bit
Average Intel Core i9-9980HK
  (1305 - 1930, n=9)
1584 Points ∼100% +13%
MSI P65 Creator 9SF-657
Intel Core i9-9880H
1545 Points ∼98% +10%
Dell Precision 5540
Intel Core i9-9980HK
1407 (min: 1126.13, max: 1407) Points ∼89%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
1305 (min: 1090.6, max: 1369.3, 99th percentile: 1367.66) Points ∼82% -7%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
1127 Points ∼71% -20%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
961 (min: 896, max: 1114) Points ∼61% -32%
Dell XPS 15 7590 i5 iGPU FHD
Intel Core i5-9300H
787 (min: 771.02, max: 810.57) Points ∼50% -44%
Average of class Workstation
  (260 - 1623, n=102)
766 Points ∼48% -46%
Cinebench R10 Shading 32Bit
5840
Cinebench R10 Rendering Multiple CPUs 32Bit
50439
Cinebench R10 Rendering Single 32Bit
9734
Cinebench R11.5 OpenGL 64Bit
141.17 fps
Cinebench R11.5 CPU Multi 64Bit
4.81 Points
Cinebench R11.5 CPU Single 64Bit
2.25 Points
Cinebench R15 CPU Single 64Bit
193 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
216 fps
Cinebench R15 CPU Multi 64Bit
1407 Points
Hjälp
PCMark 10
Digital Content Creation
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
7161 Points ∼100% +20%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
6110 Points ∼85% +3%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
5960 Points ∼83%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

5960 Points ∼83% 0%
Average of class Workstation
  (2329 - 8528, n=44)
5180 Points ∼72% -13%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5033 Points ∼70% -16%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4741 Points ∼66% -20%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
3096 Points ∼43% -48%
Productivity
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
7494 Points ∼100% +6%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
7243 Points ∼97% +3%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
7060 Points ∼94%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

7060 Points ∼94% 0%
Average of class Workstation
  (3998 - 8307, n=44)
7056 Points ∼94% 0%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
6771 Points ∼90% -4%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6573 Points ∼88% -7%
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
5986 Points ∼80% -15%
Essentials
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
9701 Points ∼100% +1%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
9580 Points ∼99%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

9580 Points ∼99% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
9566 Points ∼99% 0%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
9000 Points ∼93% -6%
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
8961 Points ∼92% -6%
Average of class Workstation
  (5223 - 9917, n=44)
8575 Points ∼88% -10%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
7739 Points ∼80% -19%
Score
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
5469 Points ∼100% +3%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
5296 Points ∼97%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

5296 Points ∼97% 0%
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
5211 Points ∼95% -2%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5046 Points ∼92% -5%
Average of class Workstation
  (2817 - 6255, n=45)
4825 Points ∼88% -9%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4462 Points ∼82% -16%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
4105 Points ∼75% -22%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5332 Points ∼100% +17%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
5070 Points ∼95% +11%
Average of class Workstation
  (3311 - 5655, n=81)
4829 Points ∼91% +6%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
4762 Points ∼89% +4%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
4558 Points ∼85%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

4558 Points ∼85% 0%
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
4482 Points ∼84% -2%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4453 Points ∼84% -2%
Home Score Accelerated v2
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
4175 Points ∼100% +13%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
3986 Points ∼95% +8%
Average of class Workstation
  (2320 - 5505, n=82)
3975 Points ∼95% +8%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
3799 Points ∼91% +3%
Dell Precision 5540
Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB
3684 Points ∼88%
Average Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q

3684 Points ∼88% 0%
MSI P65 Creator 9SF-657
GeForce RTX 2070 Max-Q, 9880H, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
3505 Points ∼84% -5%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3433 Points ∼82% -7%
PCMark 8 Home Score Accelerated v2
3684 poäng
PCMark 8 Work Score Accelerated v2
4558 poäng
Hjälp
Dell Precision 5540
SK hynix PC400 512 GB
Dell XPS 15 7590 i5 iGPU FHD
Toshiba XG6 KXG60ZNV512G
MSI P65 Creator 9SF-657
2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0)
Lenovo ThinkPad P1 2019-20QT000RGE
WDC PC SN720 SDAQNTW-512G
HP ZBook Studio G5-4QH10EA
Samsung SSD PM981 MZVLB512HAJQ
Average SK hynix PC400 512 GB

CrystalDiskMark 5.2 / 6
23%
65%
43%
5%
5%
Write 4K
98
93.61
-4%
105.6
8%
162.2
66%
102.7
5%
103 (97.8 - 114, n=3)
5%
Read 4K
41.25
41.87
2%
46.32
12%
43.71
6%
38.32
-7%
41.2 (41.2 - 41.3, n=3)
0%
Write Seq
1295
1697.86
31%
2910
125%
2441
88%
1417
9%
1341 (1295 - 1417, n=3)
4%
Read Seq
1441
1978.04
37%
2820
96%
1753
22%
1289
-11%
1668 (1441 - 1896, n=3)
16%
Write 4K Q32T1
429.2
383.06
-11%
545
27%
397.6
-7%
278.9
-35%
411 (355 - 450, n=3)
-4%
Read 4K Q32T1
400.1
326.86
-18%
632.2
58%
519.7
30%
348.8
-13%
377 (327 - 404, n=3)
-6%
Write Seq Q32T1
1366
2778.1
103%
3349
145%
2519
84%
1895
39%
1387 (1366 - 1411, n=3)
2%
Read Seq Q32T1
2201
3119
42%
3333
51%
3448
57%
3352
52%
2748 (2201 - 3095, n=3)
25%
Write 4K Q8T8
1381.4
1574.5
Read 4K Q8T8
1371.1
1607.3
AS SSD
28%
56%
58%
48%
4%
Copy Game MB/s
1320.4
1449.2
1121.26
1050
Copy Program MB/s
565.2
597.27
456.95
346
Copy ISO MB/s
2145.1
2014.86
1988.91
1701
Score Total
2781
3640
31%
4411
59%
4300
55%
4217
52%
2905 (2781 - 3013, n=3)
4%
Score Write
1048
1726
65%
1762
68%
1871
79%
2013
92%
1102 (1048 - 1138, n=3)
5%
Score Read
1170
1299
11%
1759
50%
1634
40%
1472
26%
1228 (1170 - 1288, n=3)
5%
Access Time Write *
0.053
0.039
26%
0.037
30%
0.024
55%
0.034
36%
0.053 (0.053 - 0.053, n=3)
-0%
Access Time Read *
0.074
0.07
5%
0.049
34%
0.064
14%
0.057
23%
0.082 (0.073 - 0.099, n=3)
-11%
4K-64 Write
862.73
1502.49
74%
1401.42
62%
1506.25
75%
1725.08
100%
899 (863 - 926, n=3)
4%
4K-64 Read
956.22
1020.22
7%
1428.27
49%
1290.93
35%
1183.52
24%
974 (956 - 994, n=3)
2%
4K Write
92.08
99.71
8%
100.19
9%
155.44
69%
109.46
19%
95.9 (92.1 - 103, n=3)
4%
4K Read
39.1
43.29
11%
45.15
15%
45.05
15%
50.97
30%
34.5 (26 - 39.1, n=3)
-12%
Seq Write
929.99
1235
33%
2603.96
180%
2093.83
125%
1780.33
91%
1075 (930 - 1272, n=3)
16%
Seq Read
1742.71
2357
35%
2859.65
64%
2980.03
71%
2379.29
37%
2198 (1743 - 2682, n=3)
26%
Total Average (Program / Settings)
26% / 26%
61% / 60%
51% / 52%
27% / 30%
5% / 4%

* ... smaller is better

SK hynix PC400 512 GB
Sequential Read: 1568 MB/s
Sequential Write: 1301 MB/s
512K Read: 1223 MB/s
512K Write: 1122 MB/s
4K Read: 40.93 MB/s
4K Write: 97.71 MB/s
4K QD32 Read: 395.9 MB/s
4K QD32 Write: 440.8 MB/s
3DMark 11 - 1280x720 Performance GPU
MSI P65 Creator 9SF-657
NVIDIA GeForce RTX 2070 Max-Q, Intel Core i9-9880H
20837 Points ∼100% +82%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
12388 Points ∼59% +8%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
11468 Points ∼55%
Average NVIDIA Quadro T2000 Max-Q

11468 Points ∼55% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
10407 Points ∼50% -9%
Average of class Workstation
  (841 - 26465, n=113)
6760 Points ∼32% -41%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
5982 Points ∼29% -48%
Dell XPS 15 7590 i5 iGPU FHD
Intel UHD Graphics 630, Intel Core i5-9300H
1750 Points ∼8% -85%
3DMark
2560x1440 Time Spy Graphics
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
3353 Points ∼100% +9%
Average of class Workstation
  (566 - 7734, n=34)
3317 Points ∼99% +8%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
3066 Points ∼91%
Average NVIDIA Quadro T2000 Max-Q

3066 Points ∼91% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
2834 Points ∼85% -8%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
1395 Points ∼42% -55%
Dell XPS 15 7590 i5 iGPU FHD
Intel UHD Graphics 630, Intel Core i5-9300H
382 Points ∼11% -88%
1920x1080 Fire Strike Graphics
MSI P65 Creator 9SF-657
NVIDIA GeForce RTX 2070 Max-Q, Intel Core i9-9880H
16100 Points ∼100% +99%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
8532 Points ∼53% +5%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
8107 Points ∼50%
Average NVIDIA Quadro T2000 Max-Q

8107 Points ∼50% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
7558 Points ∼47% -7%
Average of class Workstation
  (752 - 20913, n=106)
5585 Points ∼35% -31%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
4756 Points ∼30% -41%
Dell XPS 15 7590 i5 iGPU FHD
Intel UHD Graphics 630, Intel Core i5-9300H
1178 Points ∼7% -85%
1280x720 Cloud Gate Standard Graphics
MSI P65 Creator 9SF-657
NVIDIA GeForce RTX 2070 Max-Q, Intel Core i9-9880H
65859 Points ∼100% +55%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
48965 Points ∼74% +15%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
45246 Points ∼69% +7%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
42409 Points ∼64%
Average NVIDIA Quadro T2000 Max-Q

42409 Points ∼64% 0%
Average of class Workstation
  (5836 - 119052, n=106)
34431 Points ∼52% -19%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
21391 Points ∼32% -50%
Dell XPS 15 7590 i5 iGPU FHD
Intel UHD Graphics 630, Intel Core i5-9300H
9765 Points ∼15% -77%
SPECviewperf 13
Solidworks (sw-04)
Average of class Workstation
  (37.3 - 189, n=25)
99.6 fps ∼100% +2%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
97.2 fps ∼98%
Average NVIDIA Quadro T2000 Max-Q

97.2 fps ∼98% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
89.18 fps ∼90% -8%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
76.64 fps ∼77% -21%
Siemens NX (snx-03)
Average of class Workstation
  (36.4 - 396, n=25)
174 fps ∼100% +21%
Average NVIDIA Quadro T2000 Max-Q

144 fps ∼83% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
143.82 fps ∼83%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
127.83 fps ∼73% -11%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
102.58 fps ∼59% -29%
Showcase (showcase-02)
Average of class Workstation
  (12.6 - 97.3, n=25)
49.3 fps ∼100% +31%
Average NVIDIA Quadro T2000 Max-Q

37.6 fps ∼76% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
37.56 fps ∼76%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
35.27 fps ∼72% -6%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
27.23 fps ∼55% -28%
Medical (medical-02)
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
41.71 fps ∼100%
Average NVIDIA Quadro T2000 Max-Q

41.7 fps ∼100% 0%
Average of class Workstation
  (6.8 - 81.3, n=25)
35.7 fps ∼86% -14%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
33.45 fps ∼80% -20%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
13.58 fps ∼33% -67%
Maya (maya-05)
Average of class Workstation
  (29.4 - 255, n=25)
126 fps ∼100% +19%
Average NVIDIA Quadro T2000 Max-Q

106 fps ∼84% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
105.69 fps ∼84%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
101.04 fps ∼80% -4%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
70.99 fps ∼56% -33%
Energy (energy-02)
Average NVIDIA Quadro T2000 Max-Q

14.9 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
14.87 fps ∼100%
Average of class Workstation
  (0.72 - 38, n=25)
14.1 fps ∼95% -5%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
12 fps ∼81% -19%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.28 fps ∼22% -78%
Creo (creo-02)
Average of class Workstation
  (27.8 - 248, n=25)
126 fps ∼100% +15%
Average NVIDIA Quadro T2000 Max-Q

110 fps ∼87% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
109.55 fps ∼87%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
99.93 fps ∼79% -9%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
66.94 fps ∼53% -39%
Catia (catia-05)
Average of class Workstation
  (27.7 - 302, n=25)
141 fps ∼100% +5%
Average NVIDIA Quadro T2000 Max-Q

135 fps ∼96% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
134.64 fps ∼95%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
121.33 fps ∼86% -10%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
78.13 fps ∼55% -42%
3ds Max (3dsmax-06)
Average of class Workstation
  (20 - 182, n=25)
96.1 fps ∼100% +3%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
93.32 fps ∼97%
Average NVIDIA Quadro T2000 Max-Q

93.3 fps ∼97% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
83.89 fps ∼87% -10%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
50.71 fps ∼53% -46%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Average NVIDIA Quadro T2000 Max-Q

101 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
100.76 fps ∼100%
Average of class Workstation
  (15.6 - 212, n=89)
77.9 fps ∼77% -23%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
75.2 fps ∼74% -25%
1900x1060 Siemens NX (snx-02)
Average NVIDIA Quadro T2000 Max-Q

74.6 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
74.58 fps ∼100%
Average of class Workstation
  (4.87 - 218, n=89)
62.4 fps ∼84% -16%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
55.74 fps ∼75% -25%
1900x1060 Showcase (showcase-01)
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
37.81 fps ∼100%
Average NVIDIA Quadro T2000 Max-Q

37.8 fps ∼100% 0%
Average of class Workstation
  (3.93 - 98.1, n=87)
33.7 fps ∼89% -11%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
27.42 fps ∼73% -27%
1900x1060 Medical (medical-01)
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
35.53 fps ∼100%
Average NVIDIA Quadro T2000 Max-Q

35.5 fps ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
24.99 fps ∼70% -30%
Average of class Workstation
  (0.99 - 79.4, n=89)
23.7 fps ∼67% -33%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
14.89 fps ∼42% -58%
1900x1060 Maya (maya-04)
Average NVIDIA Quadro T2000 Max-Q

51 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
50.99 fps ∼100%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
47.5 fps ∼93% -7%
Average of class Workstation
  (5.4 - 148, n=90)
46.9 fps ∼92% -8%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
36.99 fps ∼73% -27%
1900x1060 Energy (energy-01)
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
7.79 fps ∼100%
Average NVIDIA Quadro T2000 Max-Q

7.79 fps ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
5.79 fps ∼74% -26%
Average of class Workstation
  (0.06 - 16.9, n=90)
4.88 fps ∼63% -37%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.66 fps ∼47% -53%
1900x1060 Creo (creo-01)
Average NVIDIA Quadro T2000 Max-Q

88.3 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
88.28 fps ∼100%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
74.99 fps ∼85% -15%
Average of class Workstation
  (14 - 160, n=90)
58.2 fps ∼66% -34%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
51.22 fps ∼58% -42%
1900x1060 Catia (catia-04)
Average NVIDIA Quadro T2000 Max-Q

88.9 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
88.87 fps ∼100%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
82.39 fps ∼93% -7%
Average of class Workstation
  (13.4 - 197, n=90)
63.9 fps ∼72% -28%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
54.04 fps ∼61% -39%
1900x1060 3ds Max (3dsmax-05)
Average NVIDIA Quadro T2000 Max-Q

93.7 fps ∼100% 0%
Dell Precision 5540
NVIDIA Quadro T2000 Max-Q, Intel Core i9-9980HK
93.67 fps ∼100%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
85.53 fps ∼91% -9%
Average of class Workstation
  (11.4 - 184, n=22)
68.8 fps ∼73% -27%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
50.84 fps ∼54% -46%
3DMark 06 Standard
36376 poäng
3DMark Vantage P Result
39269 poäng
3DMark 11 Performance
11695 poäng
3DMark Cloud Gate Standard Score
28401 poäng
3DMark Fire Strike Score
7320 poäng
3DMark Time Spy Score
3356 poäng
Hjälp
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI P65 Creator 9SF-657
Intel Core i9-9880H, NVIDIA GeForce RTX 2070 Max-Q
80.84 fps ∼100% +150%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK, NVIDIA GeForce GTX 1650 (Laptop)
36 fps ∼45% +11%
Dell Precision 5540
Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q
32.4 (min: 30, max: 34, 99th percentile: 31) fps ∼40%
Average NVIDIA Quadro T2000 Max-Q

32.4 fps ∼40% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
30.9 (min: 28, max: 32, 99th percentile: 28) fps ∼38% -5%
Average of class Workstation
  (5.7 - 88.5, n=63)
27.8 fps ∼34% -14%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H, NVIDIA Quadro P1000
16.1 fps ∼20% -50%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
MSI P65 Creator 9SF-657
Intel Core i9-9880H, NVIDIA GeForce RTX 2070 Max-Q
148.78 fps ∼100% +87%
Dell Precision 5540
Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q
79.5 fps ∼53%
Average NVIDIA Quadro T2000 Max-Q

79.5 fps ∼53% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
72.92 fps ∼49% -8%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK, NVIDIA GeForce GTX 1650 (Laptop)
68.5 fps ∼46% -14%
Average of class Workstation
  (6 - 167, n=73)
52.1 fps ∼35% -34%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H, NVIDIA Quadro P1000
51 fps ∼34% -36%
Dell XPS 15 7590 i5 iGPU FHD
Intel Core i5-9300H, Intel UHD Graphics 630
9.8 fps ∼7% -88%
Anno 1800
1920x1080 High Graphics Quality (DX11)
Average of class Workstation
  (9.8 - 77.5, n=6)
47.1 fps ∼100% +381%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
37.2 fps ∼79% +280%
Dell Precision 5540
Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q
9.8 fps ∼21%
Average NVIDIA Quadro T2000 Max-Q

9.8 fps ∼21% 0%
1920x1080 Medium Graphics Quality (DX11)
Average of class Workstation
  (12.9 - 98, n=6)
62.8 fps ∼100% +387%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
52.8 fps ∼84% +309%
Dell Precision 5540
Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q
12.9 fps ∼21%
Average NVIDIA Quadro T2000 Max-Q

12.9 fps ∼21% 0%
1280x720 Low Graphics Quality (DX11)
Average of class Workstation
  (27.9 - 95.8, n=5)
70.1 fps ∼100% +152%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
69.6 fps ∼99% +150%
Average NVIDIA Quadro T2000 Max-Q

27.9 fps ∼40% 0%
Dell Precision 5540
Intel Core i9-9980HK, NVIDIA Quadro T2000 Max-Q
27.86 fps ∼40%
0510152025303540Tooltip
Dell Precision 5540 Quadro T2000 Max-Q, 9980HK, SK hynix PC400 512 GB; The Witcher 3: Ø32.4 (30-34)
låg med. hög ultra4K
BioShock Infinite (2013) 79.5 fps
The Witcher 3 (2015) 32.4 fps
Dota 2 Reborn (2015) 145 132 118 108 43.4 fps
Final Fantasy XV Benchmark (2018) 41.7 28.8 12.3 fps
X-Plane 11.11 (2018) 101 87 73 fps
Anno 1800 (2019) 27.86 12.9 9.8 fps

Ljudnivå

Låg belastning
28.6 / 28.6 / 28.6 dB(A)
Hög belastning
33.3 / 38 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 28.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203531.831.931.831.735252728.231.32627.7273130.735.632.92728.930.74026.632.330.325.925.226.65025.631.831.831.930.925.66325.325.825.125.424.825.38026.225.123.722.922.726.210023.225.126.425.525.623.21252322.622.422.7232316023.623.822.122.823.223.620023.123.121.722.322.223.125022.5222222.521.422.531522.422.521.321.12022.440023.622.121.821.319.223.650023.721.72120.71923.763023.922.121.219.918.123.980024.823.221.319.517.324.8100025.222.921.519.81725.2125027.524.122.72116.527.5160029.225.924.42216.129.2200029.926.324.221.715.729.9250028.524.823.220.215.628.5315027.422.119.817.515.627.4400021.61817.51715.321.6500020.117.417.217.215.420.1630018.616.716.616.615.418.6800017.316.31717.715.417.31000016.115.916.917.115.316.11250015.515.515.916.115.115.51600015.315.115.215.314.915.3SPL3834.733.331.728.638N2.621.81.61.12.6median 23.2median 22.1median 21.3median 20.2median 16.5median 23.2Delta2.231.72.32.62.2hearing rangehide median Fan NoiseDell Precision 5540
 42.5 °C46.2 °C42.5 °C
 35.4 °C41.5 °C36.2 °C
 26.3 °C26.9 °C27.4 °C
Max: 46.2 °C
Medel: 36.1 °C
41.5 °C45.7 °C40.7 °C
34.1 °C40.3 °C35.5 °C
29.9 °C31.9 °C31.2 °C
Max: 45.7 °C
Medel: 36.8 °C
Strömförsörjning (max.)  36.9 °C | Rumstemperatur 20.9 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.1 °C / 97 F, compared to the average of 31.3 °C / 88 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 46.2 °C / 115 F, compared to the average of 37.2 °C / 99 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 45.7 °C / 114 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 38.2 °C / 101 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.8 °C / -6.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.734.12527.726.63128.933.54025.233.25030.932.36324.825.48022.732.910025.641.41252344.916023.250.420022.253.225021.452.63152053.140019.257.7500195763018.166.880017.369.210001765.9125016.565.9160016.169.5200015.771.3250015.670.4315015.666.5400015.363.4500015.469.8630015.470800015.472.71000015.366.81250015.164.31600014.955.2SPL28.680.7N1.149median 16.5median 65.9Delta2.67.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseDell Precision 5540Apple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Precision 5540 audio analysis

(±) | speaker loudness is average but good (80.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.6% lower than median
(±) | linearity of bass is average (7.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (6.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.6% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 12% similar, 76% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 13% of all tested devices were better, 4% similar, 83% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Strömförbrukning
Av/Standbydarklight 0.55 / 0.93 Watt
Låg belastningdarkmidlight 7.4 / 12.1 / 12.7 Watt
Hög belastning midlight 98 / 135.1 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Dell Precision 5540
9980HK, Quadro T2000 Max-Q, SK hynix PC400 512 GB, OLED, 3840x2160, 15.6
Dell XPS 15 7590 i5 iGPU FHD
9300H, UHD Graphics 630, Toshiba XG6 KXG60ZNV512G, IPS, 1920x1080, 15.6
MSI P65 Creator 9SF-657
9880H, GeForce RTX 2070 Max-Q, 2x Samsung SSD PM981 MZVLB512HAJQ (RAID 0), IPS, 3840x2160, 15.6
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), WDC PC SN720 SDAQNTW-512G, IPS LED, 1920x1080, 15.6
HP ZBook Studio G5-4QH10EA
8750H, Quadro P1000, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 3840x2160, 15.6
Dell XPS 15 7590 9980HK GTX 1650
9980HK, GeForce GTX 1650 (Laptop), Toshiba XG6 KXG60ZNV1T02, OLED, 3840x2160, 15.6
Average NVIDIA Quadro T2000 Max-Q

Average of class Workstation

Power Consumption
35%
-38%
-33%
10%
-6%
0%
-40%
Idle Minimum *
7.4
3.79
49%
9.4
-27%
13.7
-85%
6.8
8%
6.2
16%
7.4
-0%
13.2 (2.4 - 65.2, n=136)
-78%
Idle Average *
12.1
6.9
43%
17.4
-44%
17.5
-45%
11.3
7%
9.6
21%
12.1
-0%
19.1 (4.94 - 69, n=135)
-58%
Idle Maximum *
12.7
9.2
28%
19.6
-54%
20.9
-65%
14.3
-13%
21.2
-67%
12.7
-0%
22.4 (7.1 - 73.1, n=136)
-76%
Load Average *
98
62
37%
103
-5%
77.2
21%
78
20%
104.3
-6%
98
-0%
88 (34.4 - 185, n=134)
10%
Load Maximum *
135.1
108
20%
216
-60%
123.7
8%
126
7%
135.3
-0%
135
-0%
133 (43.5 - 336, n=134)
2%
Witcher 3 ultra *
89.9
64
29%
91.7
-2%

* ... smaller is better

Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
14tim 57min
NBC WiFi Websurfing Battery Test 1.3
7tim 41min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
5tim 01min
Big Buck Bunny H.264 1080p
10tim 34min
Hög belastning (maximal ljusstyrka)
1tim 42min
Dell Precision 5540
9980HK, Quadro T2000 Max-Q, 97 Wh
Dell XPS 15 7590 i5 iGPU FHD
9300H, UHD Graphics 630, 97 Wh
MSI P65 Creator 9SF-657
9880H, GeForce RTX 2070 Max-Q, 82 Wh
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), 80 Wh
HP ZBook Studio G5-4QH10EA
8750H, Quadro P1000, 97 Wh
Dell XPS 15 7590 9980HK GTX 1650
9980HK, GeForce GTX 1650 (Laptop), 97 Wh
Average of class Workstation

Battery Runtime
49%
-32%
-7%
14%
32%
-21%
Reader / Idle
897
577
-36%
1036
15%
910
1%
620 (63 - 2360, n=124)
-31%
H.264
634
1053
66%
560
-12%
544
-14%
418 (123 - 1131, n=65)
-34%
WiFi v1.3
461
844
83%
357
-23%
532
15%
582
26%
467
1%
417 (106 - 974, n=76)
-10%
Load
102
100
-2%
65
-36%
79
-23%
131
28%
199
95%
91.4 (22 - 323, n=123)
-10%

För

+ kraftigare Max-Q modell av Quadro T2000
+ högkvalitativt chassi

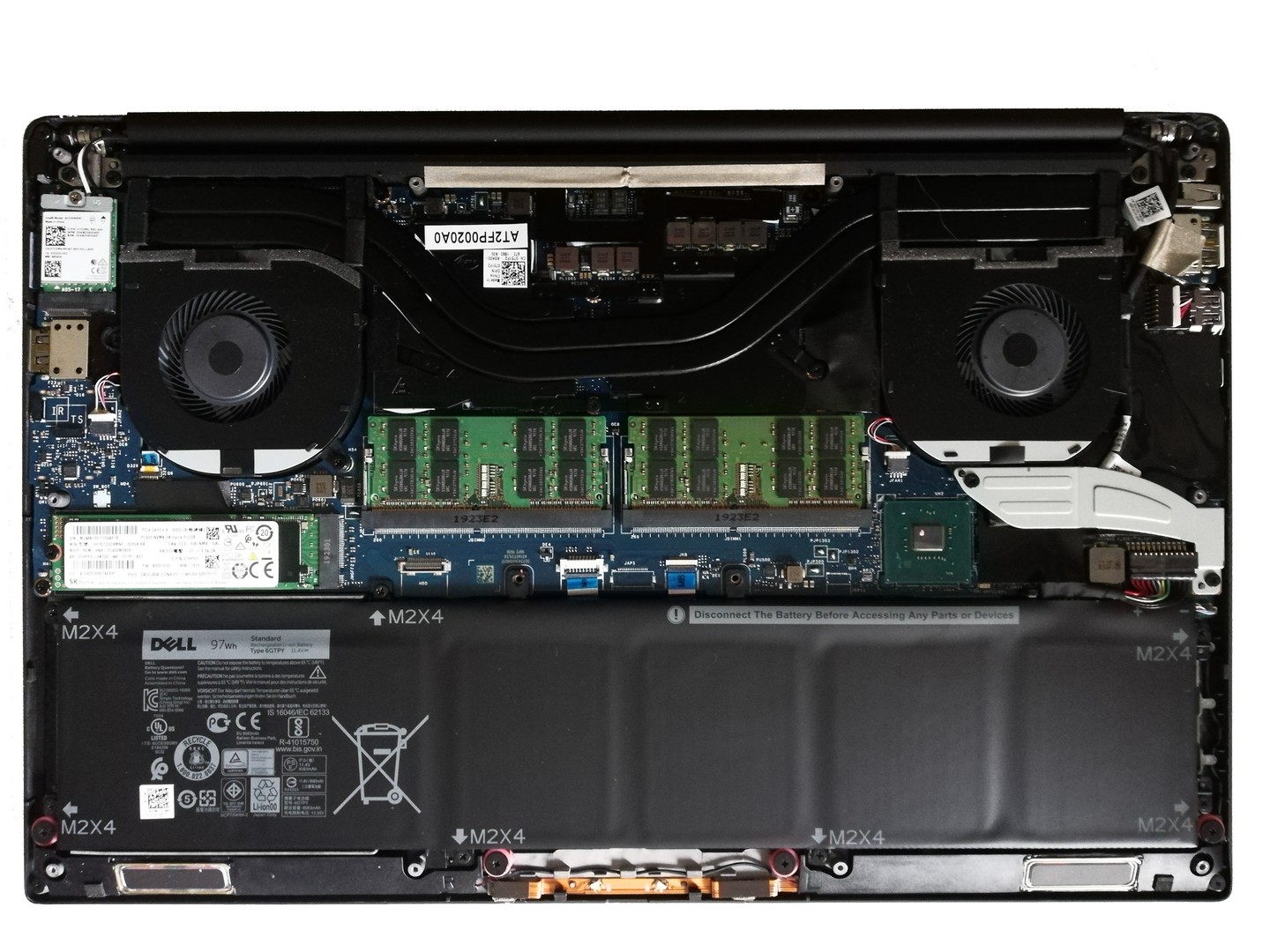

+ bra servicemöjligheter
+ levande OLED-skärm med 4K-upplösning

Emot

- chassit når höga temperaturer
- processorn kunde haft bättre prestanda
- magert portutbud
Recension av Dell Latitude 5540. Recensionsex från Dell Germany
Recension av Dell Latitude 5540. Recensionsex från Dell Germany

Läs den fullständiga versionen av den här recensionen på engelska här.

Dell Precision 5540 visar sig i vår recension vara en kapabel arbetsstation. Även om chassit är baserat på samma design som XPS 15 och således har samma höga kvalitet innebär det också att även den här enheten har ett magert portutbud. Men med det sagt ger Thunderbolt 3 ganska mycket flexibilitet och kan med rätt adapter kompensera för de saknade portarna.

Dell Precision 5540 är ett bra val för den som letar efter en enhet med mittenskiktsprestanda och en högupplöst skärm. Som vanligt är chassit gediget och batteritiden bra.

Tyvärr presterar processorn inte så bra som vi hade hoppats. Även om Nvidias Quadro T2000 når den förväntade prestandanivån hänger processorn inte med. I vår testloop tenderar den att långsamt falla ner till att prestera runt 15% långsammare än startvärdet. Även om OLED-skärmen med 4K-upplösning ser fantastisk ut kommer den på bekostnad av mycket kortare batteritid.

Dell Precision 5540 - 11/21/2019 v7
Mike Wobker

Design
94 / 98 → 96%
Tangentbord
85%
Mus
94%
Anslutningar
66 / 80 → 82%
Vikt
63 / 10-66 → 95%
Batteri
82 / 95 → 87%
Skärm
88%
Spelprestanda
79%
Programprestanda
86%
Temperatur
87 / 95 → 91%
Ljudnivå
97 / 90 → 100%
Audio
80%
Camera
43 / 85 → 50%
Medel
80%
87%
Workstation - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Dell Precision 5540 - Arbetsstation som också fungerar som handvärmare (Sammanfattning)
Mike Wobker, 2019-11-27 (Update: 2019-11-28)
