Minisforum Venus Series UM560 XT Desktop PC recenserad: En minidator med en AMD Cezanne SoC till ett överkomligt pris!

Slöseri med prestanda! Minisforums Venus-serie erbjuder mycket kraft på minsta möjliga yta. Vi har redan testat toppmodellen, även kallad UM690, på sina håll. Nu vänder vi oss till UM560 XT som är utrustad med Ryzen 5 5600H. Vår recension avslöjar hur bra systemet klarar sig. En sak är dock redan klar: När det gäller pris och prestanda leder Minisforum Venus Series UM560 XT.

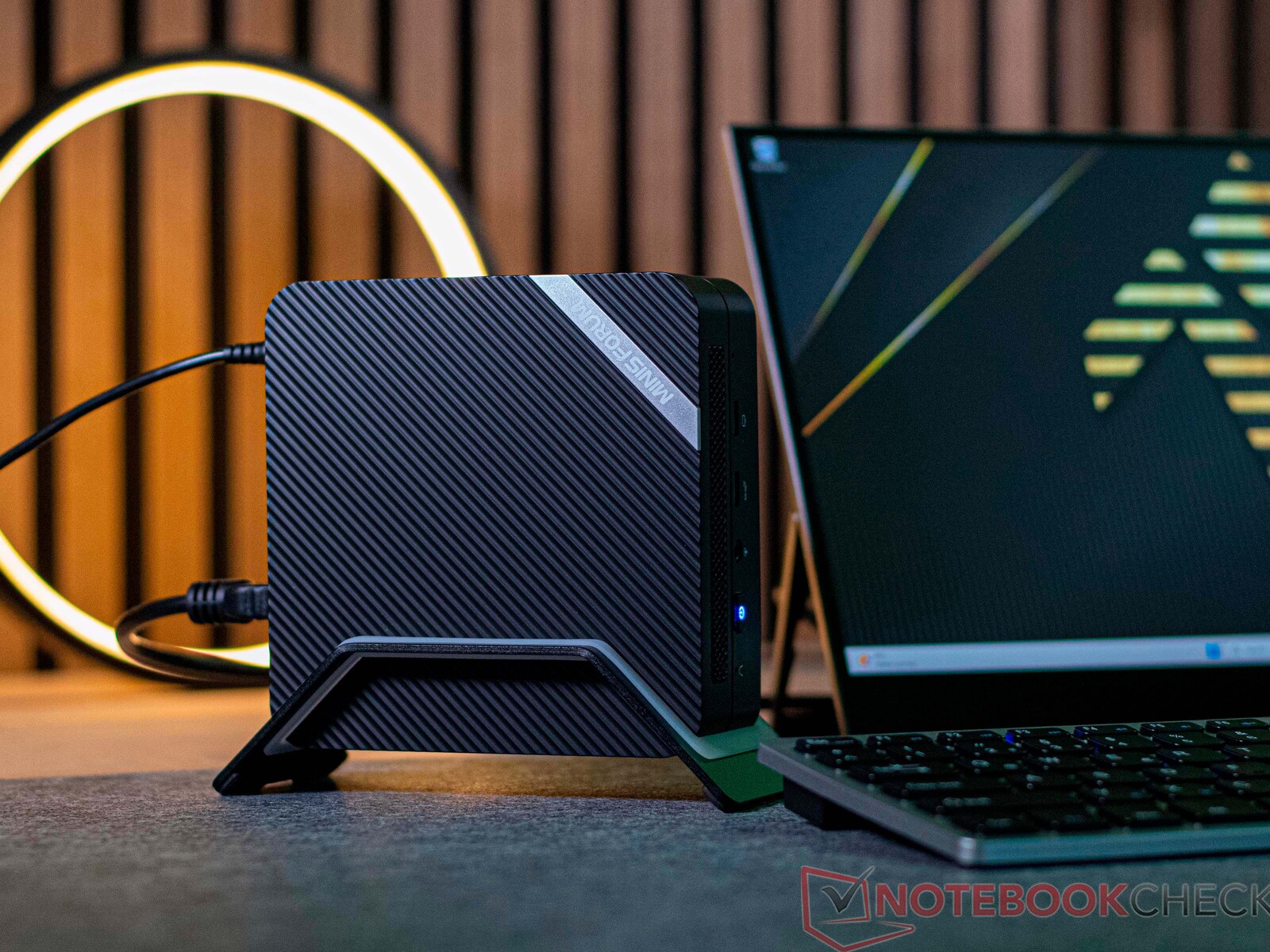

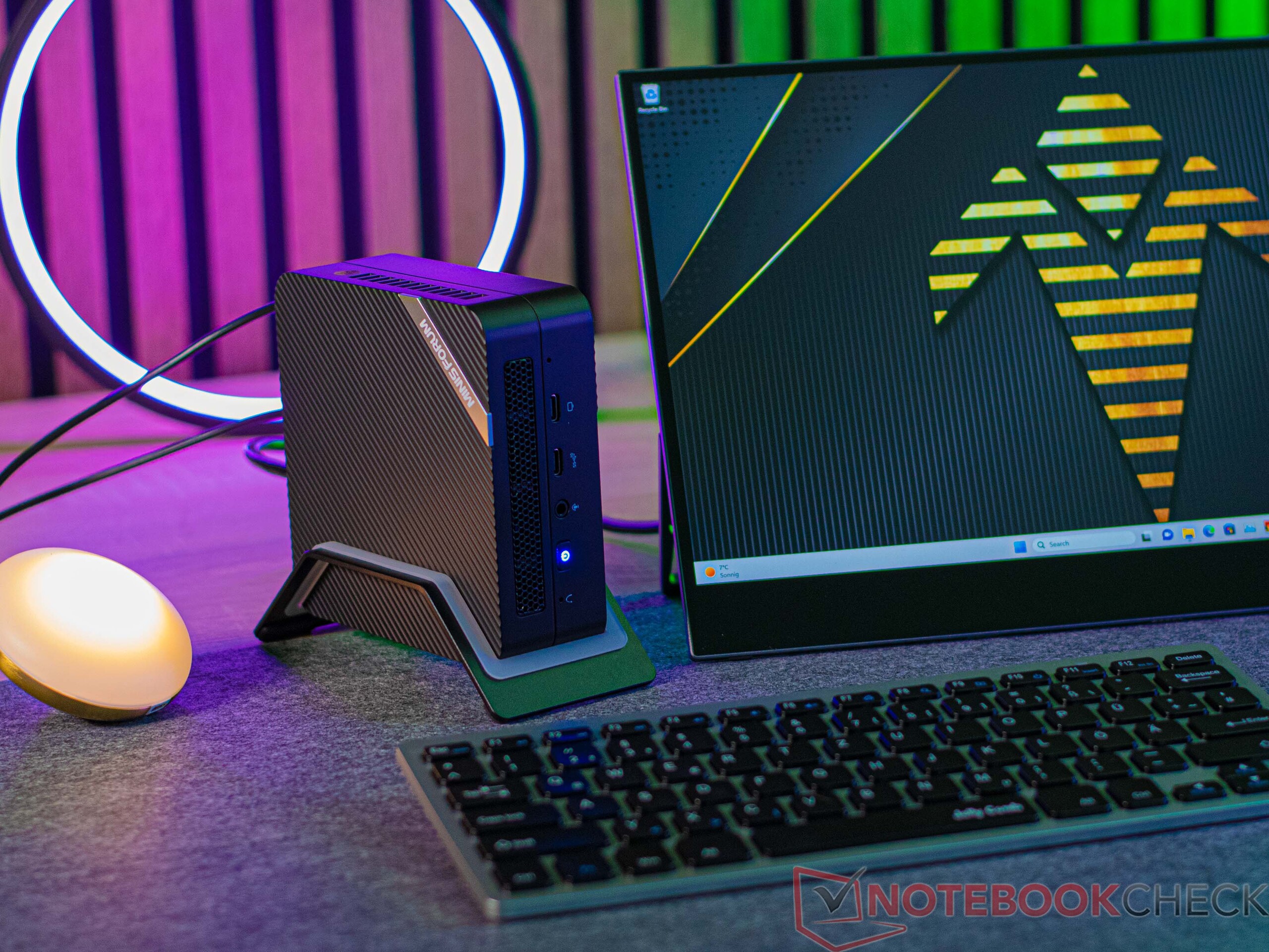

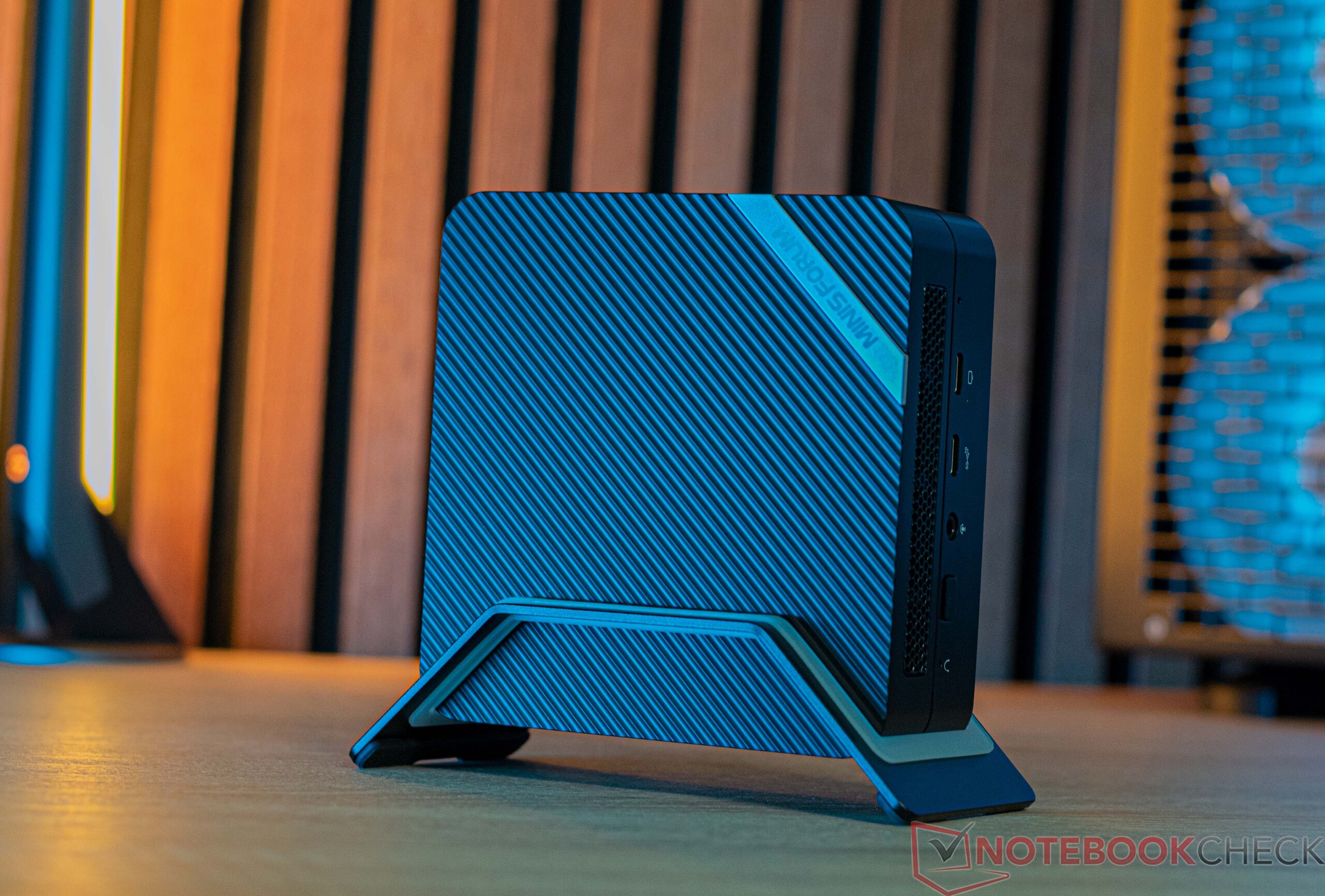

Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT

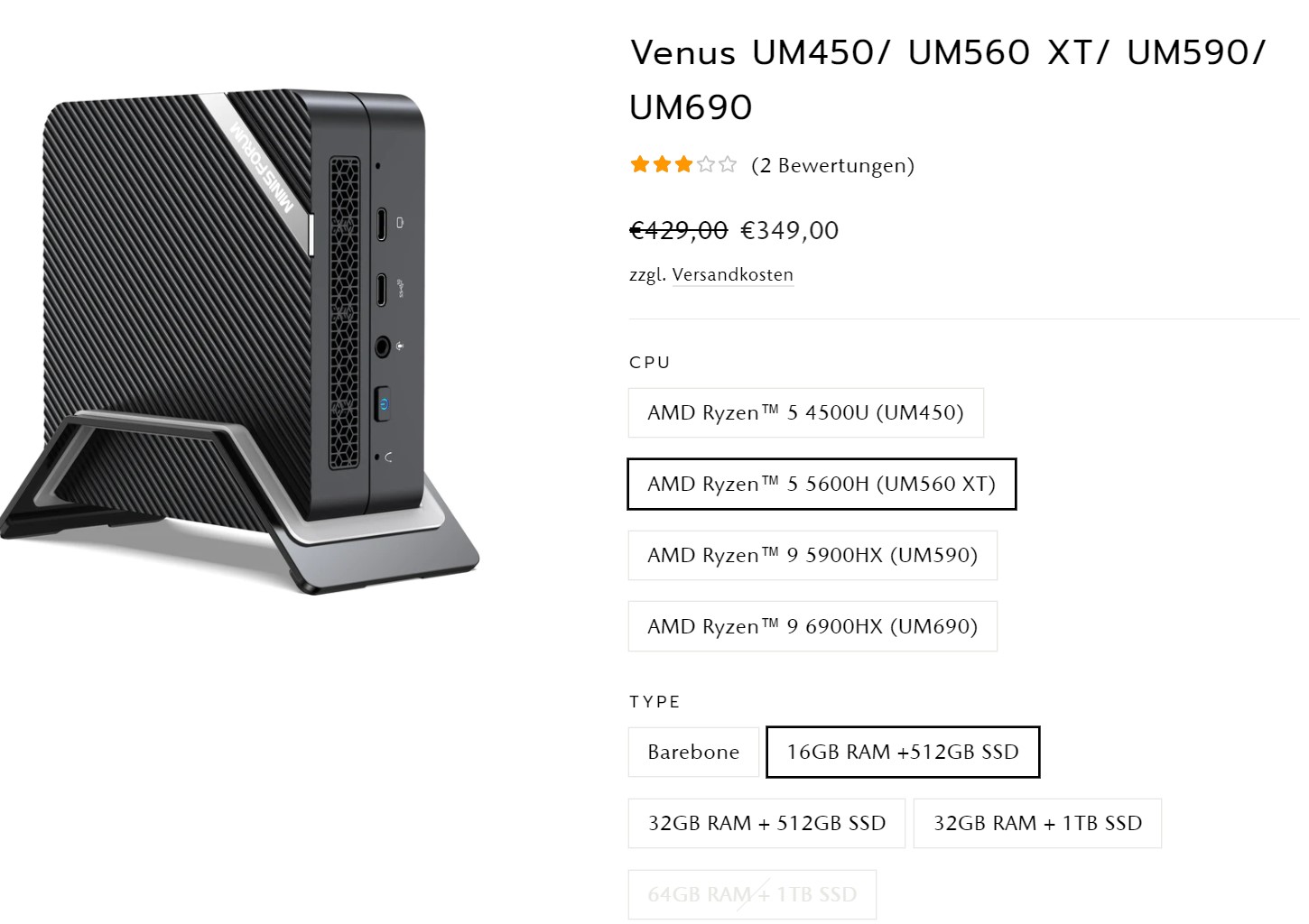

Minisforum Venus Series UM560 XT-konfigurationer (källa: Minisforum)
Minisforum Venus Series UM560 XT-konfigurationer (källa: Minisforum)

Tidigare i år tog vi en titt på Minisforum Venus Series UM690. Förutom toppmodellen som är baserad på AMD Ryzen 9 6900HX erbjuder den kinesiska minidatortillverkaren ytterligare konfigurationer. UM560 XT är baserad på AMD Ryzen 5 5600H och finns i samma hölje och till ett betydligt lägre pris. Det är naturligtvis inte rättvist att jämföra prestandan hos den ursprungliga sexkärniga maskinen med toppmodellen, men för 419 dollar med 16 GB RAM och en 512 GB SSD är det ett intressant förslag. I barebones-versionen är det möjligt att spara ytterligare 90 dollar. Det är dock upp till användaren att ta hand om RAM och SSD.

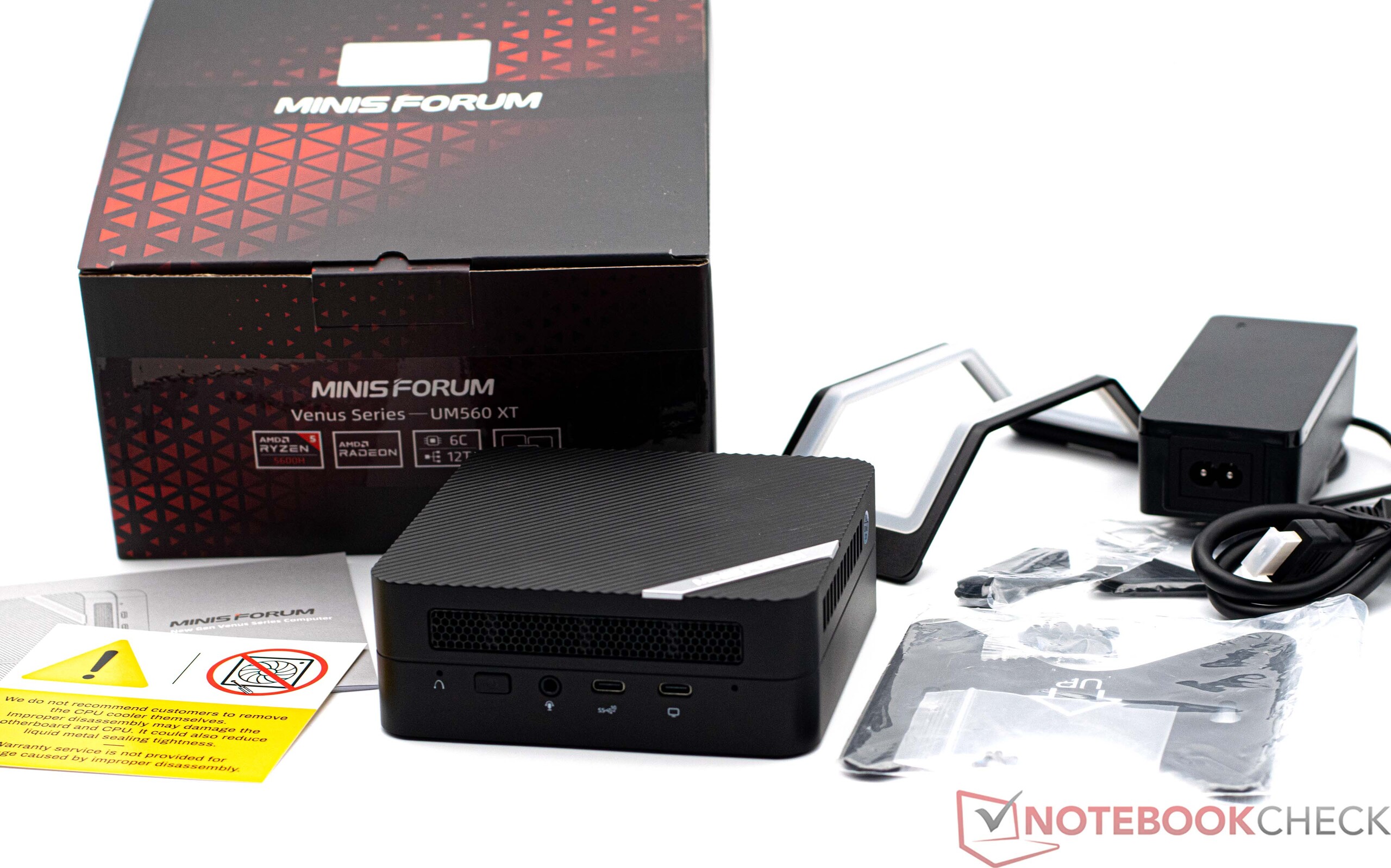

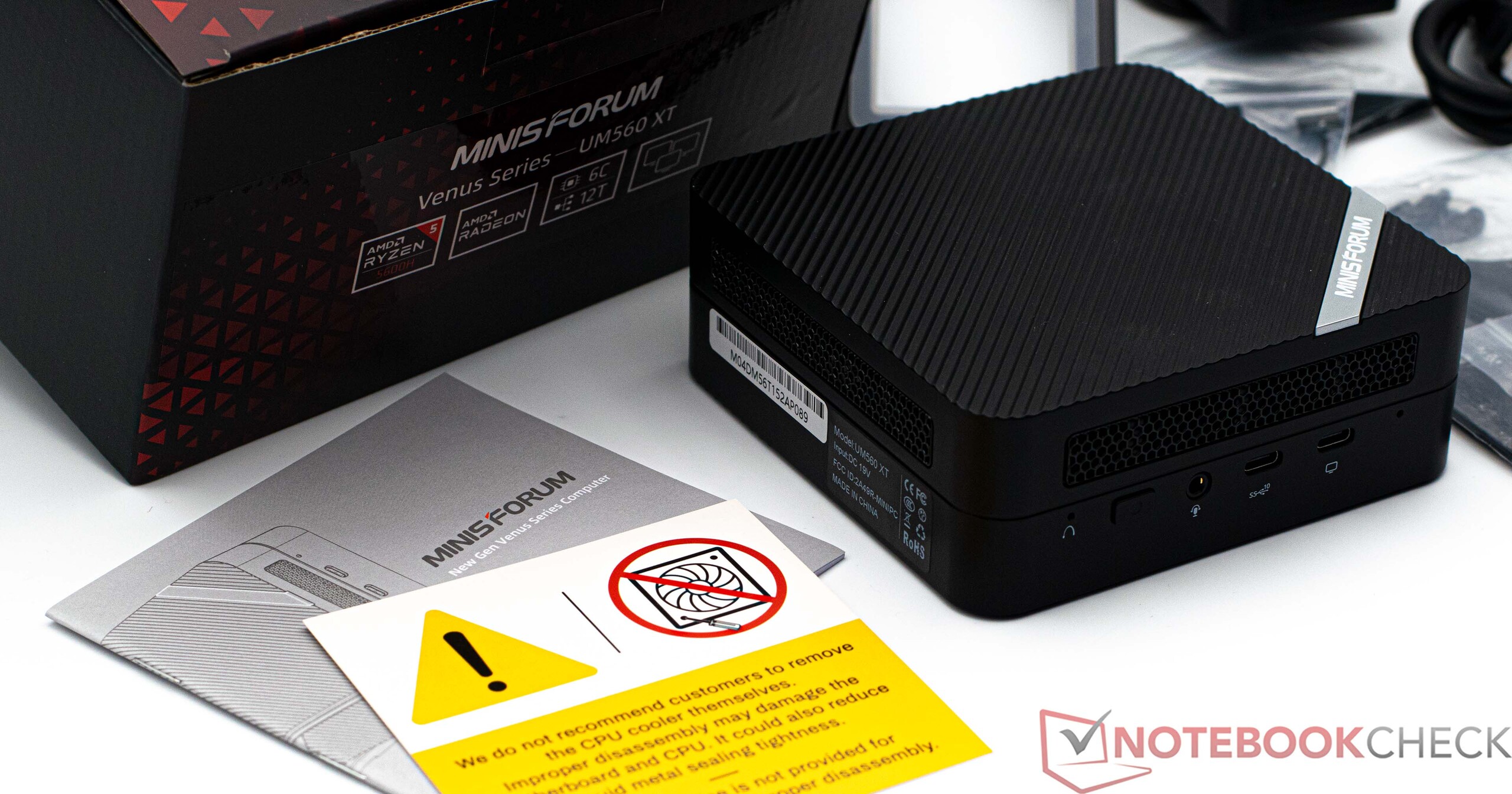

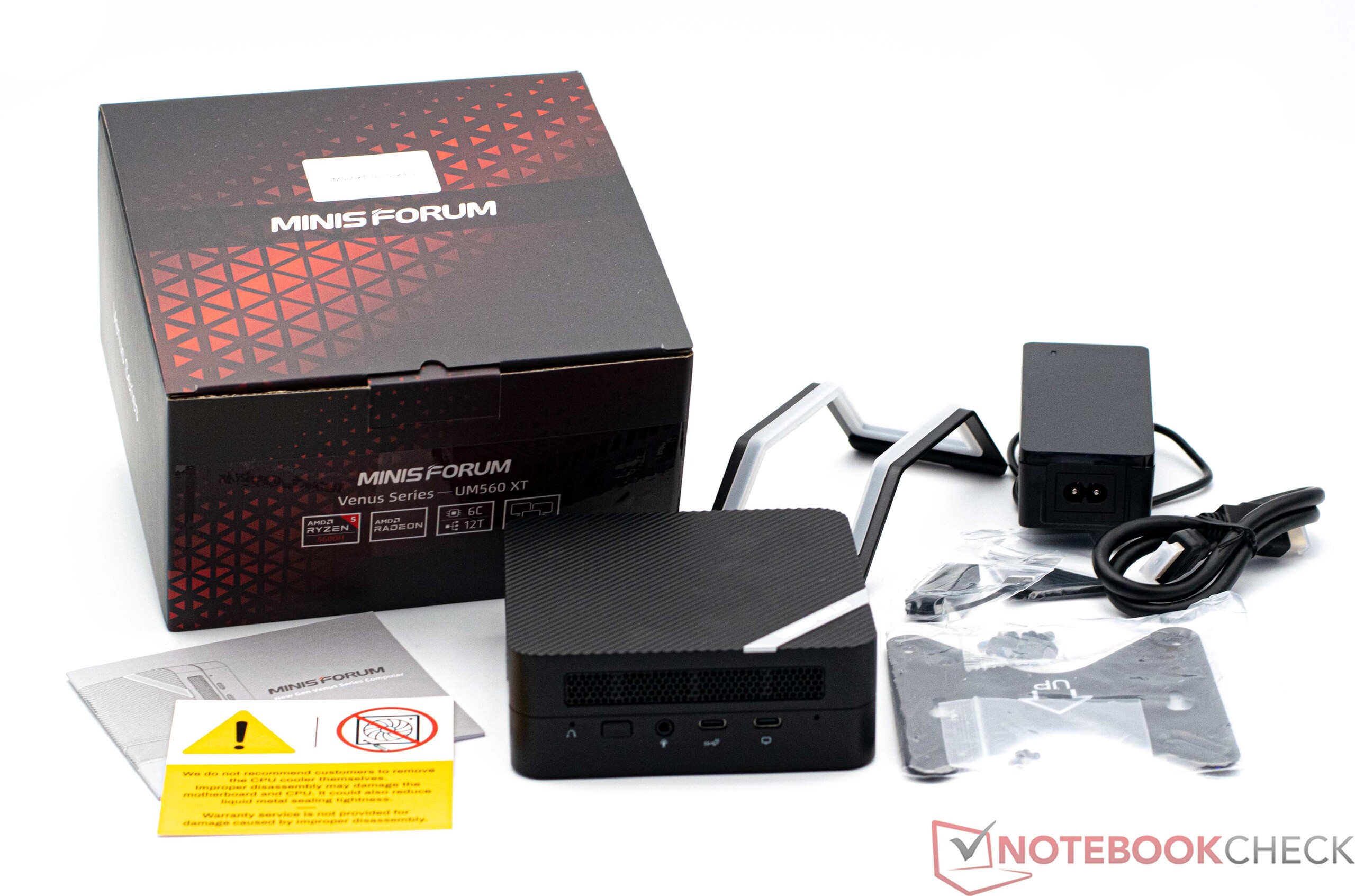

Minisforum Venus Series UM560 XT levereras välutrustad. Alla nödvändiga artiklar ingår för att få enheten i drift. Enheten levereras också med en platta som gör det möjligt att fästa enheten på en bildskärm (Vesa-fäste). I den här recensionen tar vi en närmare titt på hur recensionsmodellen jämför sig med toppmodellen, prestandamässigt, en enhet som kostar nästan 400 dollar mer. Är denna prisskillnad motiverad eller är instegsmodellen tillräcklig? Och vilka är förändringarna i detalj? Dessutom måste Minisforum Venus Series UM560 XT inte bara konkurrera med sina egna interna utmanare utan även med stark konkurrens från Geekom, Morefine och Intel i den här prisklassen. En lista över dessa finns i följande tabell.

Minisforum Venus Series UM560 XT
Processor
AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 40 W PL1 / Sustained, Cezanne-H (Zen 3)
Grafikkort
AMD Radeon RX Vega 7, Adrenalin 22.20.27.09
Minne
16 GB
, DDR4-3200, 2 of 2 occupied, max. 32 GB
Moderkort
AMD Promontory/Bixby FCH

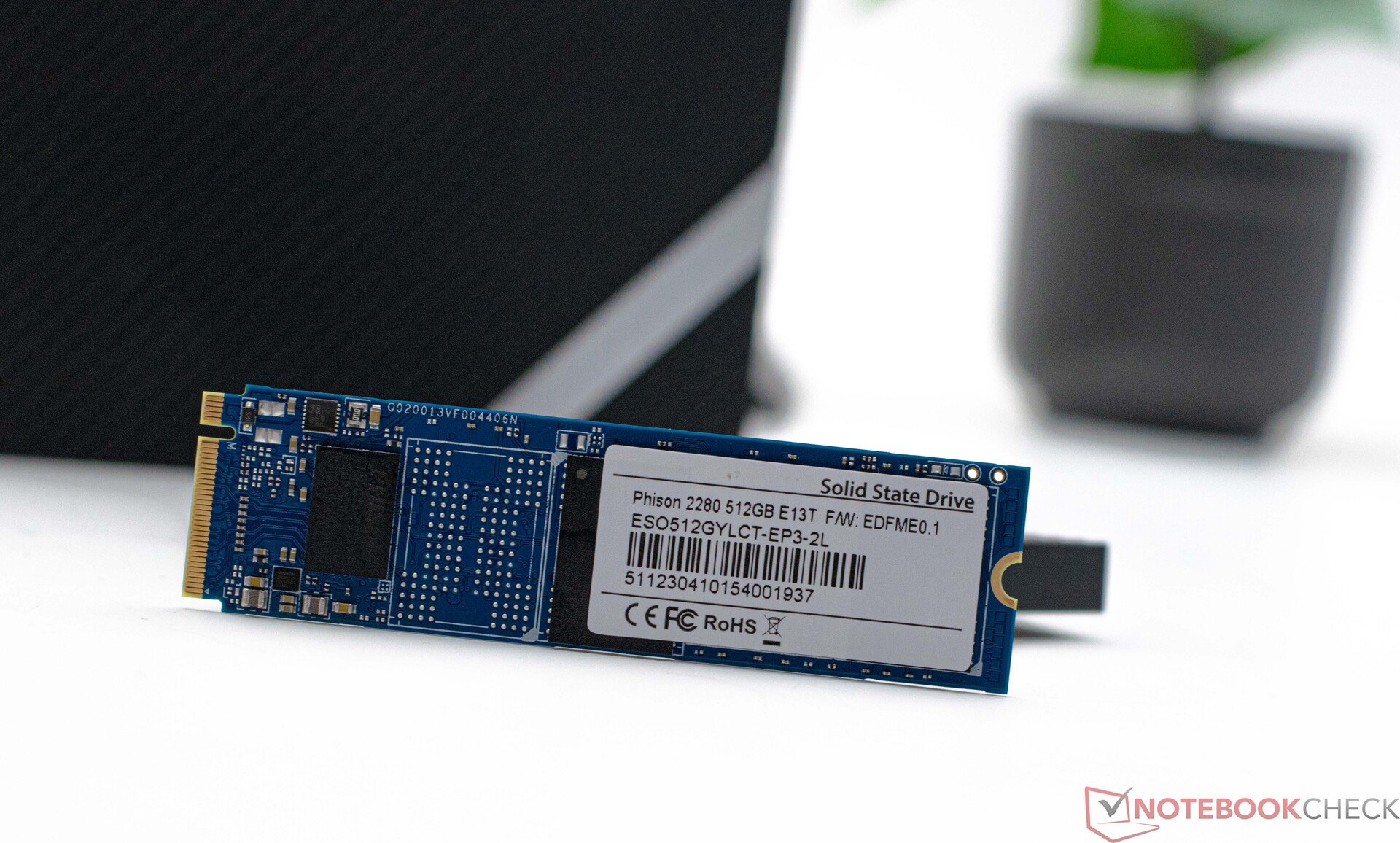

Hårddisk
ESO512GYLCT, 512 GB
, M.2 2280, NVMe, 450 GB ledigt
Ljudkort
AMD Zen - Audio Processor - HD Audio Controller
Anslutningar
2 USB 2.0, 4 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensingtonlås
Nätverk
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Storlek
höjd x bredd x djup (i mm) 48 x 129 x 126
Operativsystem
Microsoft Windows 11 Pro
Övrigt

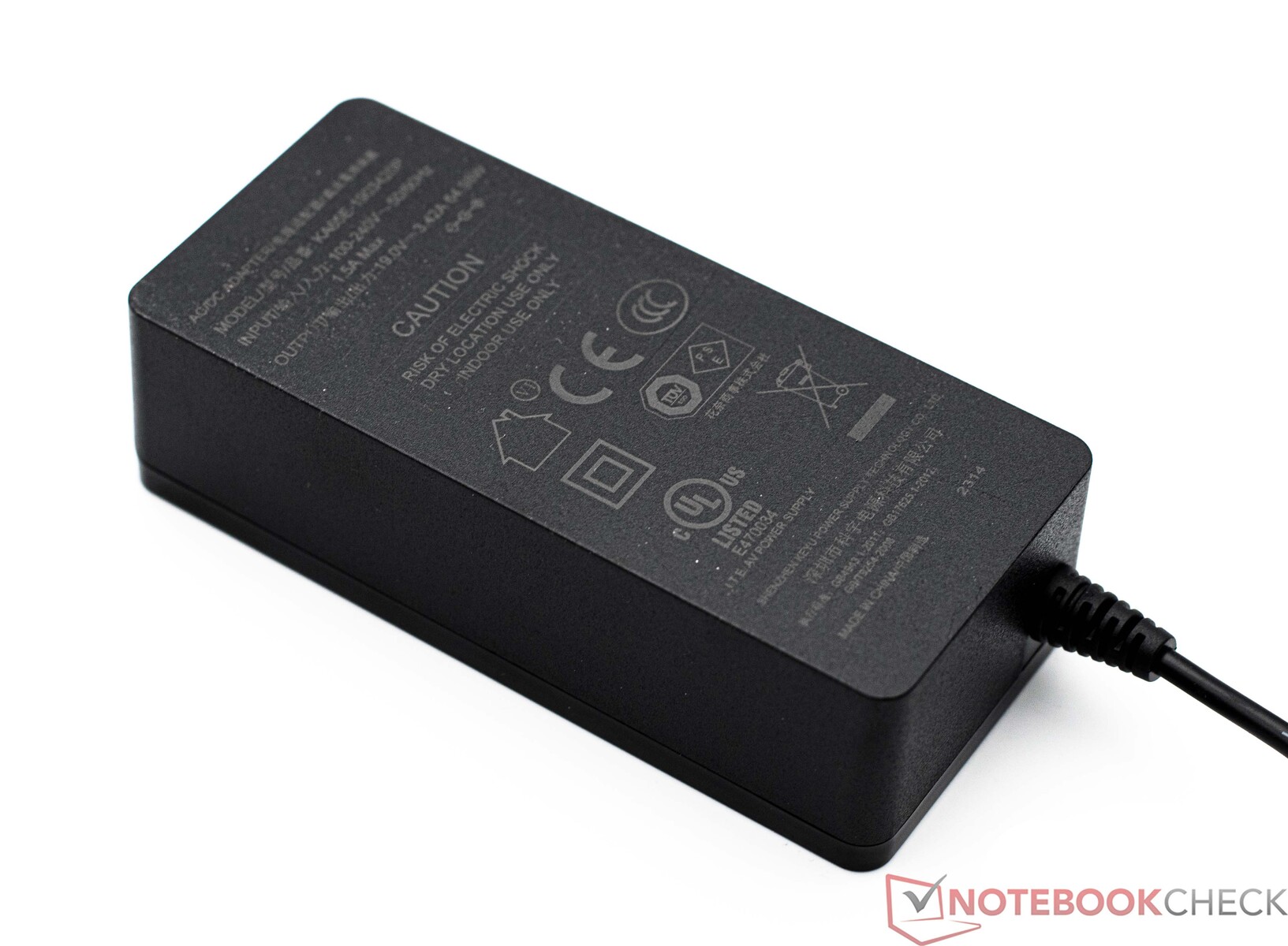

PSU with cable, HDMI cable, computer stand, Vesa mount assembly kit, user manual, 24 Månader Garanti
Vikt
652 g, Strömförsörjning: 228 g
Pris
429 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potentiella konkurrenter i jämförelse

Rating
Date
Model
Weight
Height
Best Price
81.7 %
05/2023
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
652 g48 mm
09/2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm
79.5 %
02/2023
Minisforum Mars Series MC560
R5 5600U, Vega 7
562 g66 mm
81.9 %
05/2023
Minisforum Venus Series NAB6
i7-12650H, UHD Graphics 64EUs
616 g55 mm
85.5 %
03/2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g40.6 mm
86.1 %
02/2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 g48 mm
82.3 %
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 g45.6 mm
85.1 %
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
83.7 %
05/2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 g40.6 mm

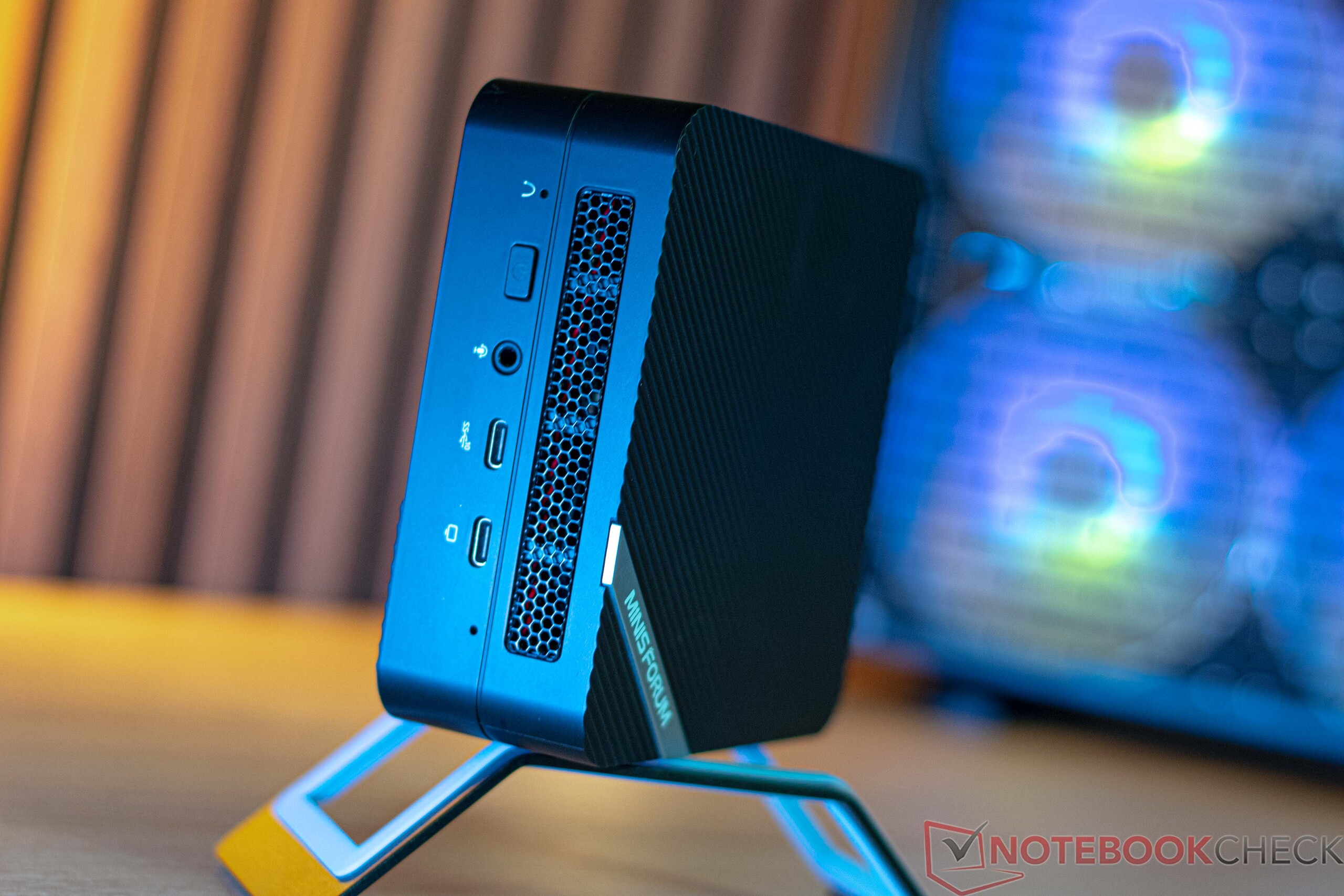

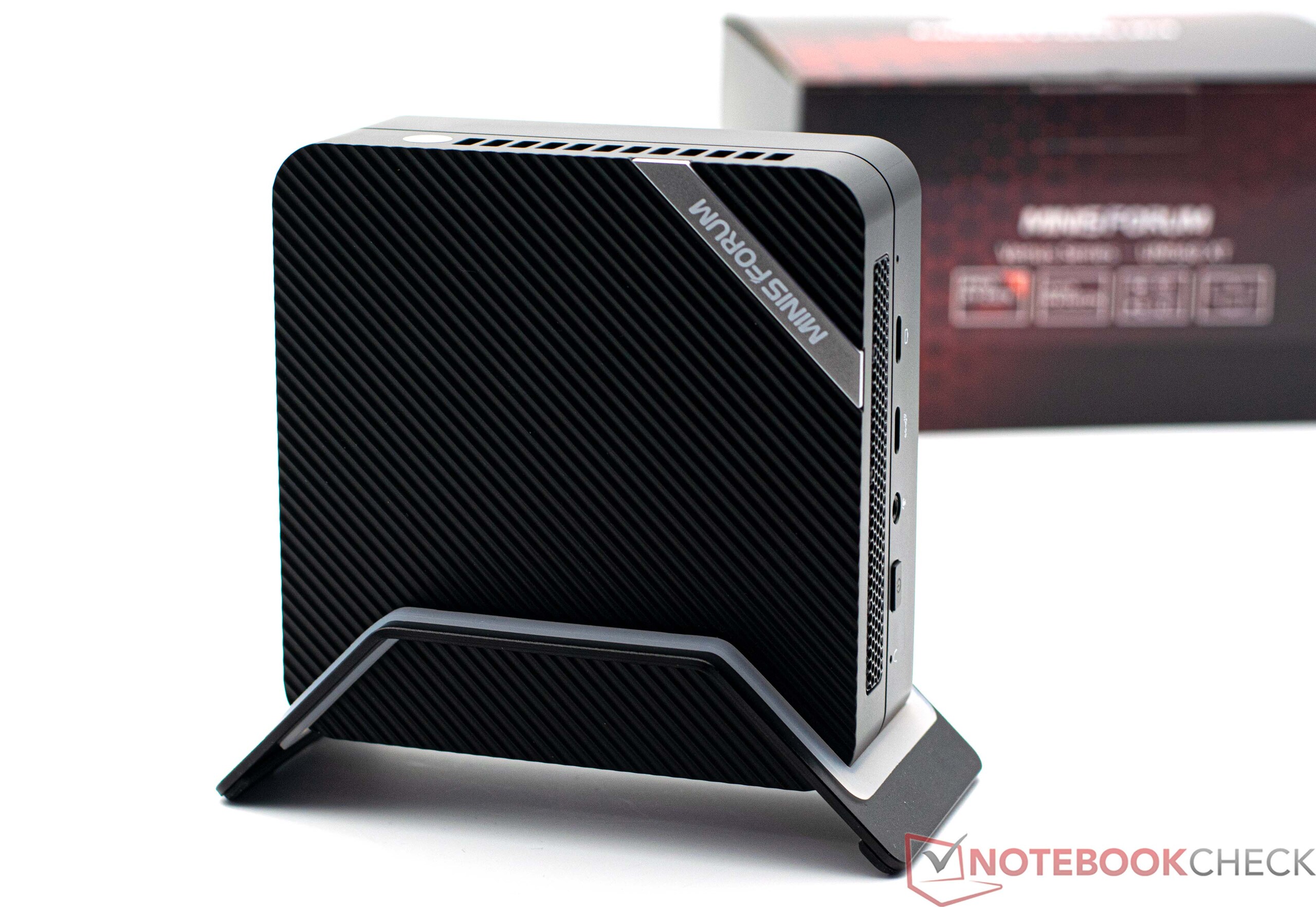

Minisforum Venus Series UM560 XT i detalj

Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT
Minisforum Venus Series UM560 XT

Fall

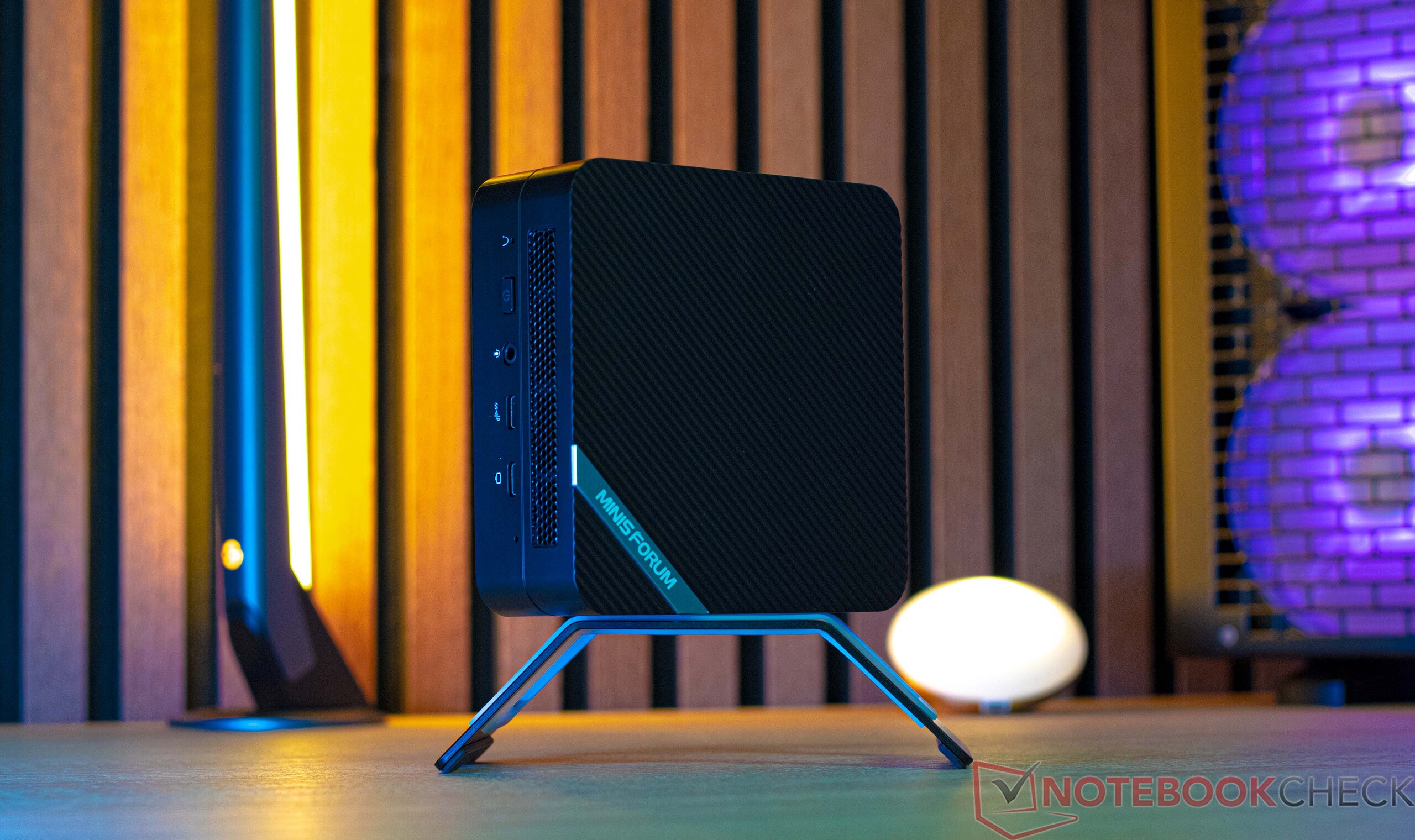

Minisforum UM560 XT har samma konstruktion som Minisforum UM690 med en AMD Ryzen 9 6900HX. Ytterligare detaljer om fallet finns här i vår granskning av toppmodellen.

Storleksjämförelse

208 mm 180 mm 66 mm 1.2 kg155 mm 130 mm 72 mm 628 g147.3 mm 144.7 mm 40.6 mm 779 g147.3 mm 144.7 mm 40.6 mm 768 g127 mm 127 mm 55 mm 616 g129 mm 126 mm 48 mm 652 g129 mm 126 mm 48 mm 621 g104 mm 153 mm 66 mm 562 g117 mm 112 mm 45.6 mm 572 g297 mm 210 mm 1 mm 5.7 g

Funktioner

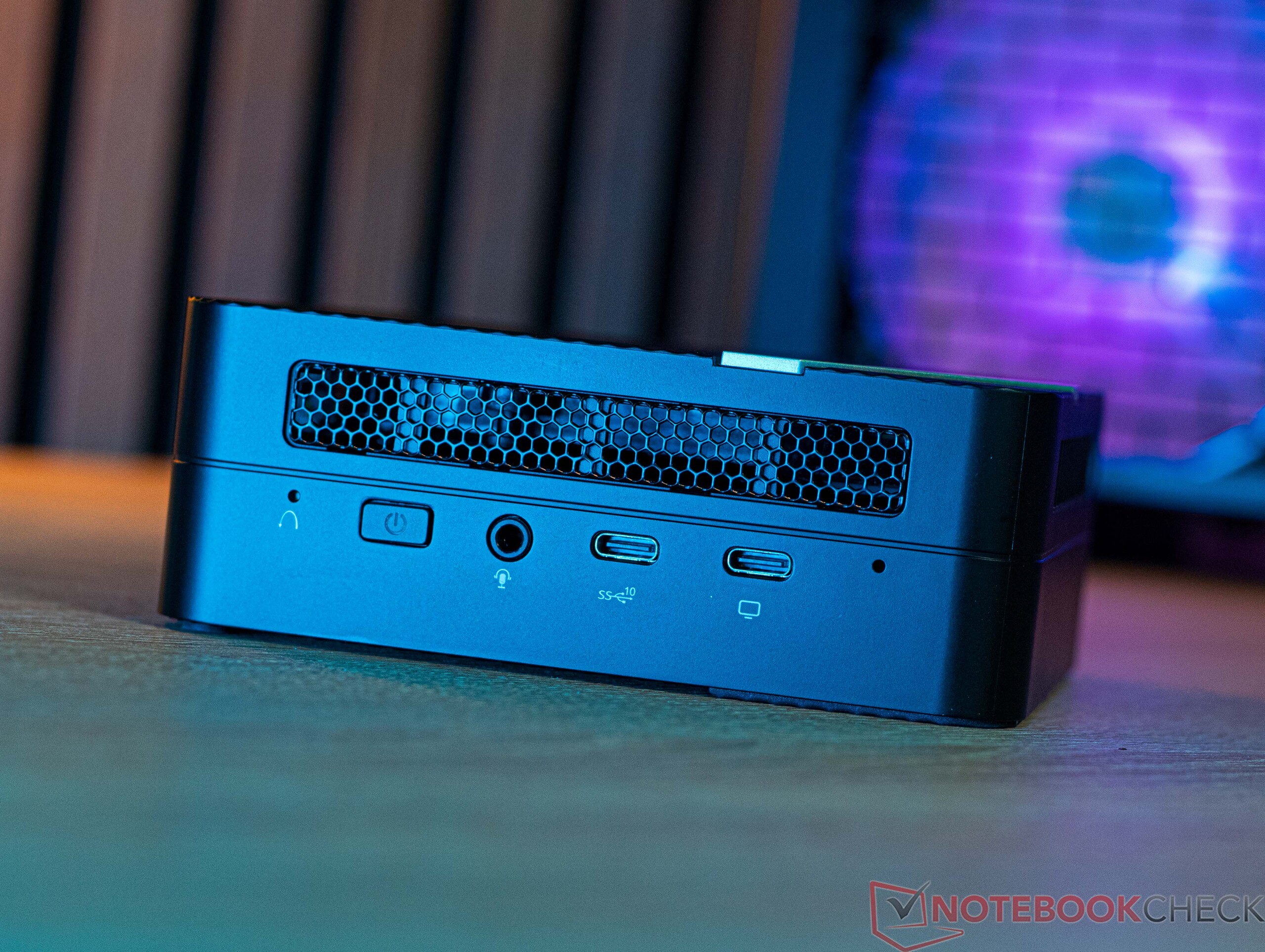

Vid en första anblick har Minisforum Venus Series UM560 XT samma funktioner som Minisforum Venus Series UM560 XT UM690-modellen. USB4-stöd finns dock inte ombord. Detta innebär att den typ av expansioner som skulle vara möjliga via Thunderbolt inte är möjliga här. Trots detta finns tack och lov sex USB-portar till hands. Dessutom kan tre bildskärmar användas samtidigt om USB-C-porten på enhetens framsida också används.

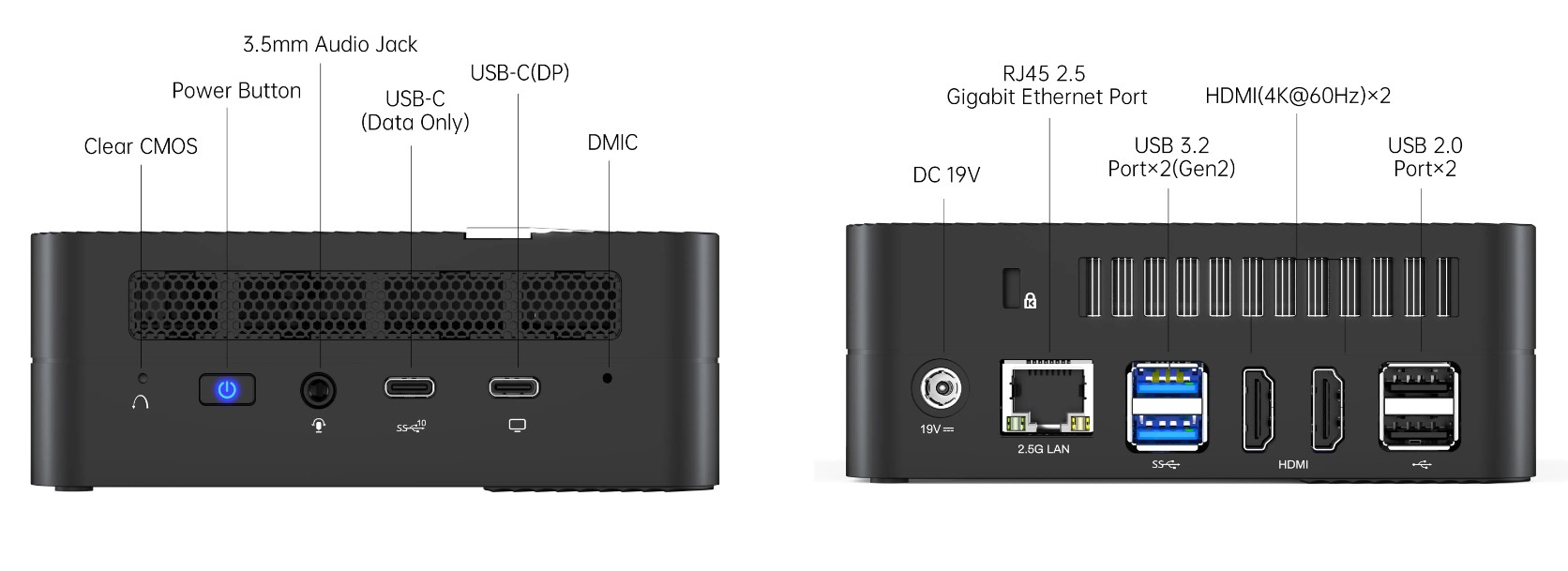

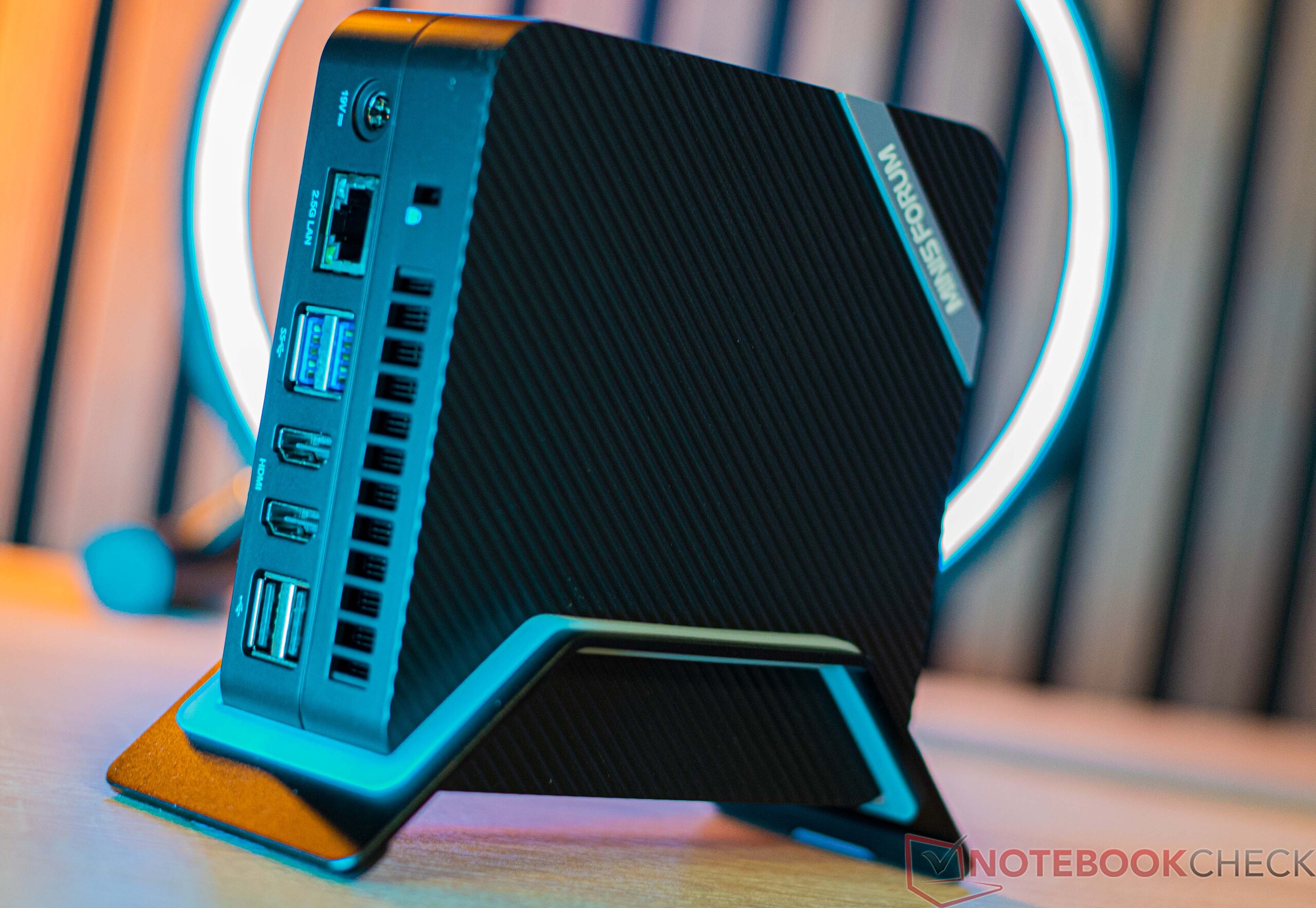

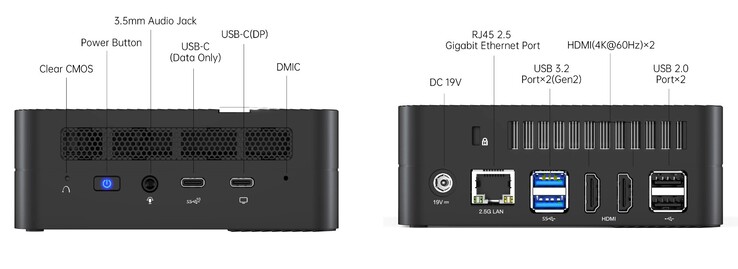

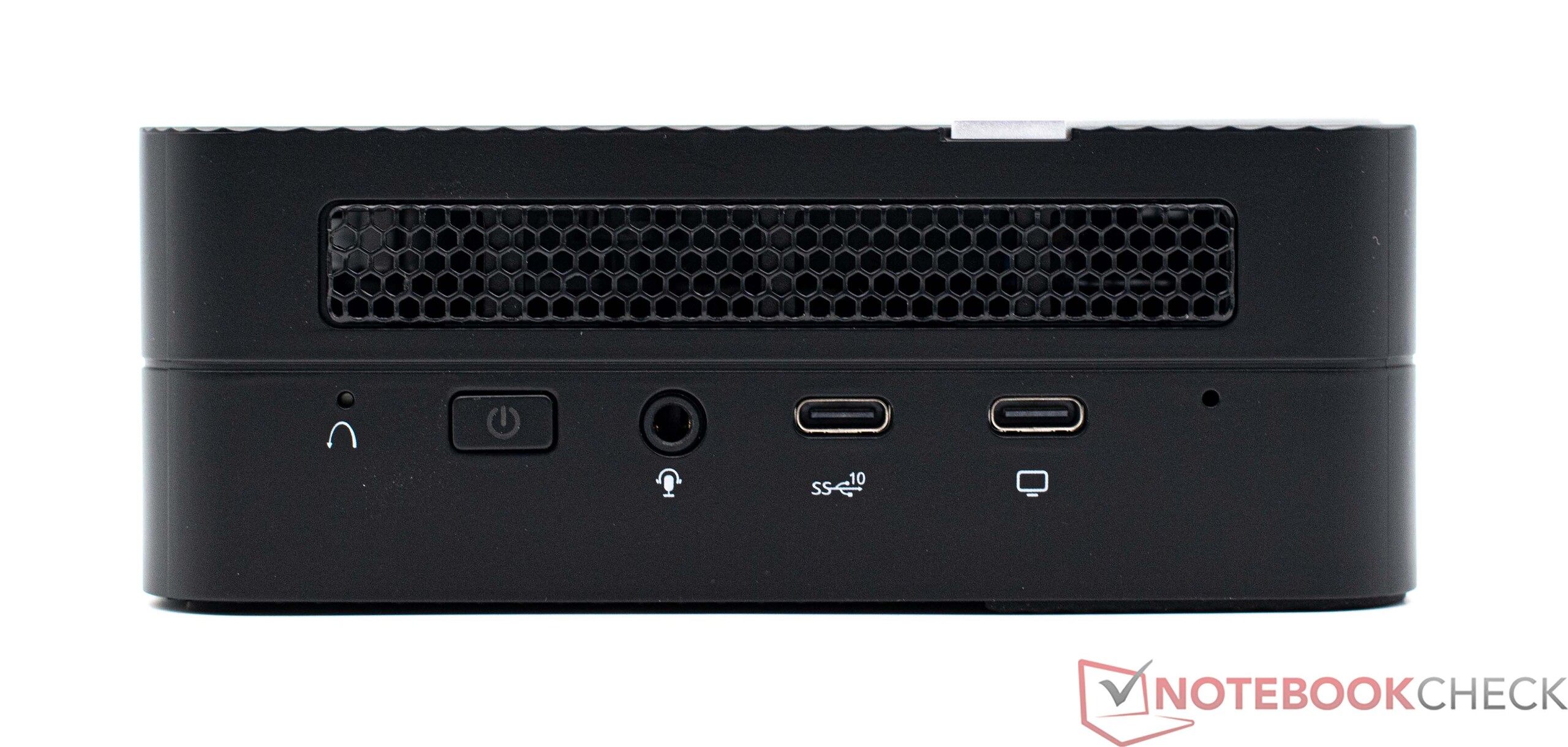

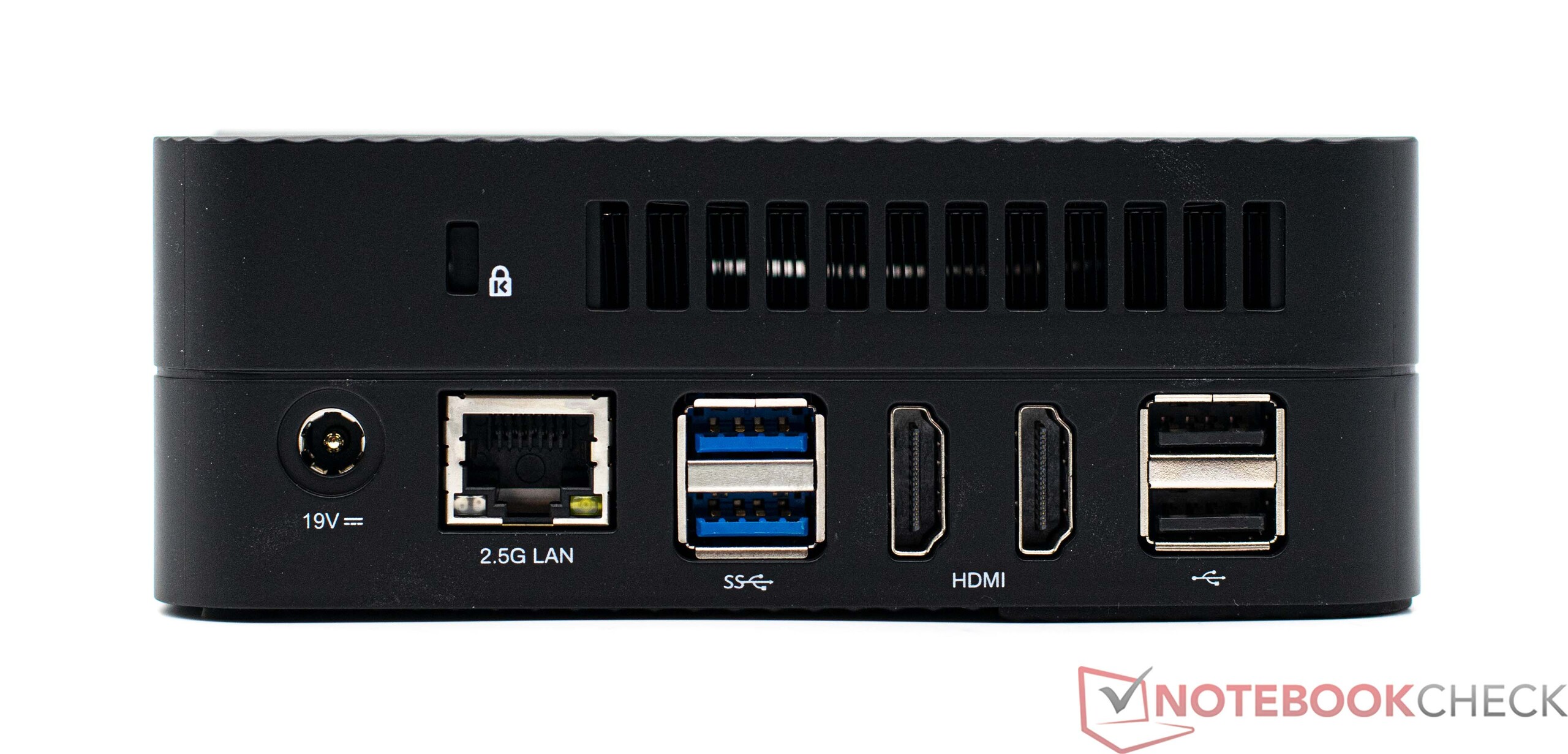

Externa portar på Minisforum Venus Series UM560 XT (källa: Minisforum)
Externa portar på Minisforum Venus Series UM560 XT (källa: Minisforum)

Kommunikation

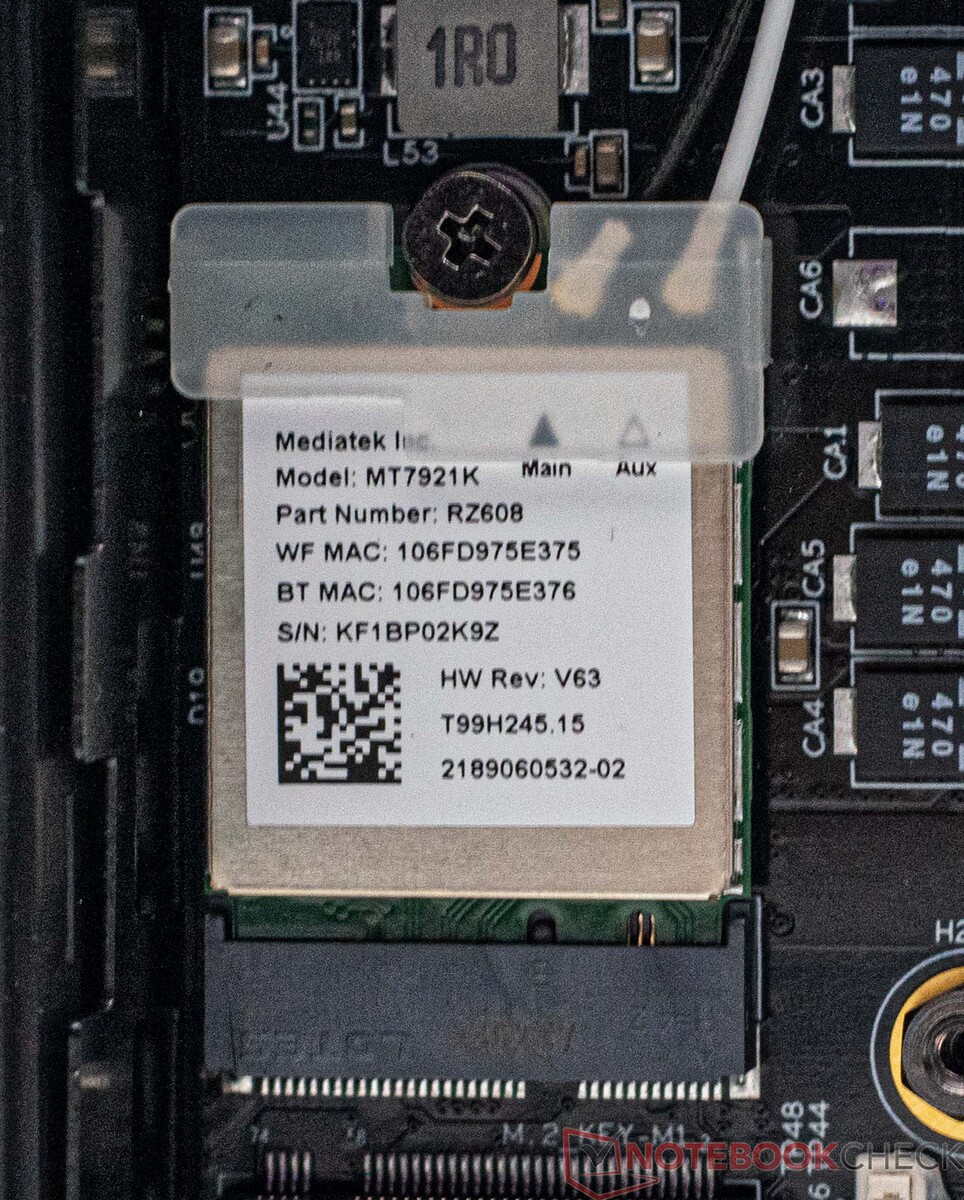

Minisforum Venus Series UM560 XT Wi-Fi-modul
Minisforum Venus Series UM560 XT Wi-Fi-modul

Minisforum har utrustat UM560 XT med samma Wi-Fi 6E-modul som den som finns i UM690. I praktiska tester har Mediatek-modulen fungerat bra. För teständamål använde vi Asus ROG Rapture GT-AXE11000. Alternativt kan LAN-porten användas för snabbare dataanslutningar, vilket möjliggör dataöverföringar på upp till maximalt 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +48%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s +7%
Minisforum Mars Series MC560
MediaTek RZ608
949 (924min - 954max) MBit/s +7%
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s +7%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s +6%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s +4%
Average of class Mini PC
  (192.9 - 1796, n=96, last 2 years)
915 MBit/s +3%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +1%
Minisforum Venus Series UM560 XT
MediaTek RZ608
890 (851min - 908max) MBit/s
Average MediaTek RZ608
  (430 - 975, n=20)
886 MBit/s 0%
Minisforum Venus Series NAB6
MediaTek RZ608
787 (752min - 801max) MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +59%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +17%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s +16%
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s +14%
Minisforum Mars Series MC560
MediaTek RZ608
936 (873min - 988max) MBit/s +13%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s +11%
Average MediaTek RZ608
  (572 - 979, n=20)
860 MBit/s +4%
Average of class Mini PC
  (184.1 - 1776, n=96, last 2 years)
846 MBit/s +2%
Minisforum Venus Series UM560 XT
MediaTek RZ608
829 (775min - 889max) MBit/s
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s -5%
Minisforum Venus Series NAB6
MediaTek RZ608
626 (301min - 689max) MBit/s -24%
050100150200250300350400450500550600650700750800850900Tooltip
Minisforum Venus Series UM560 XT; iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)
Minisforum Venus Series UM560 XT; iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Performance - AMD baserad på Cezanne-generationen

I Minisforum Venus Series UM560 XT, en AMD Ryzen 5 5600H med sex kärnor och tolv trådar gör sitt jobb och hjälper enheten att vara väl rustad för vardagliga, arbetsbaserade uppgifter. Kontor, multimedia och streaming är huvudfokus för den här minidatorn. Med AMD Radeon RX Vega 7 har vi en bra iGPU som skickligt stöder SoC:n.

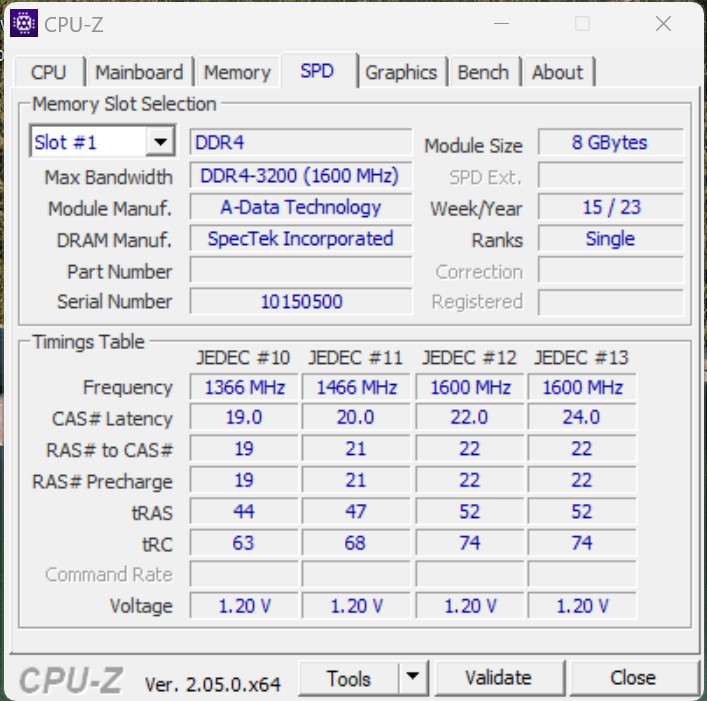

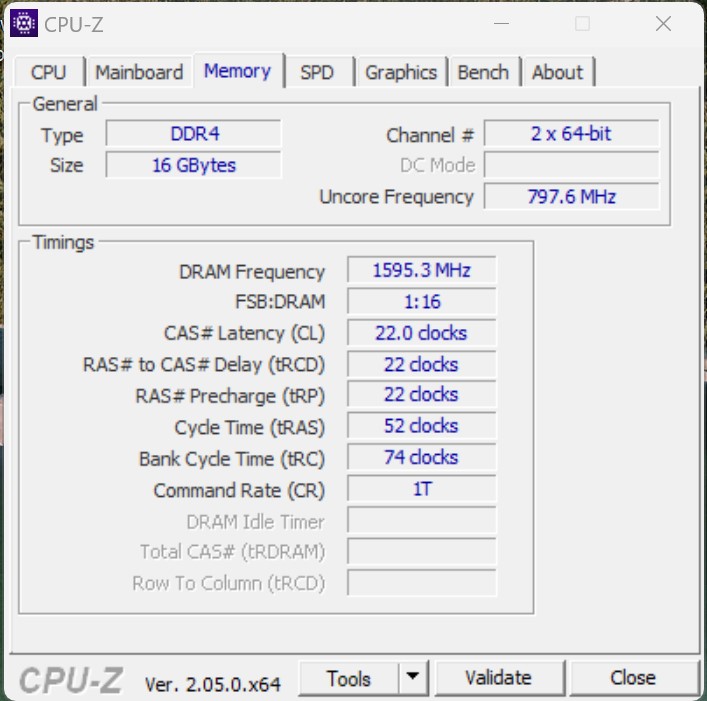

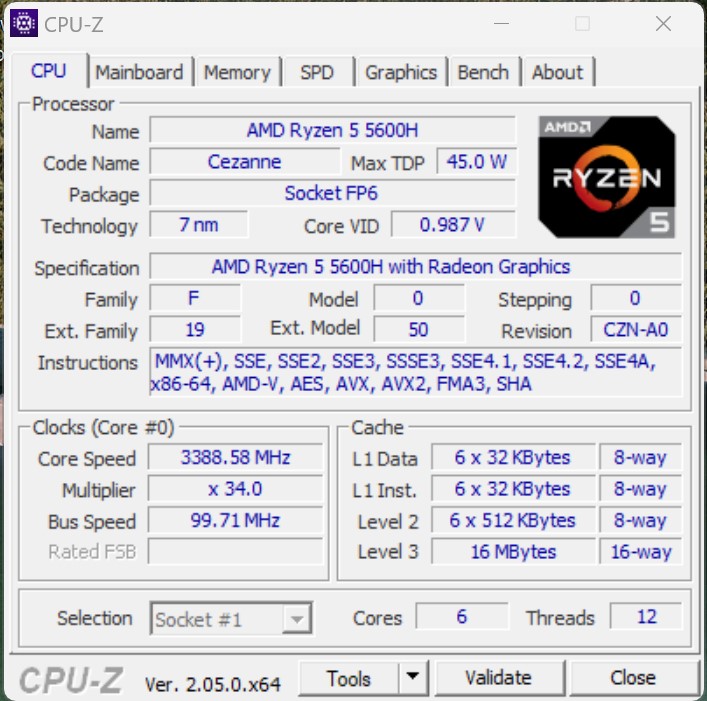

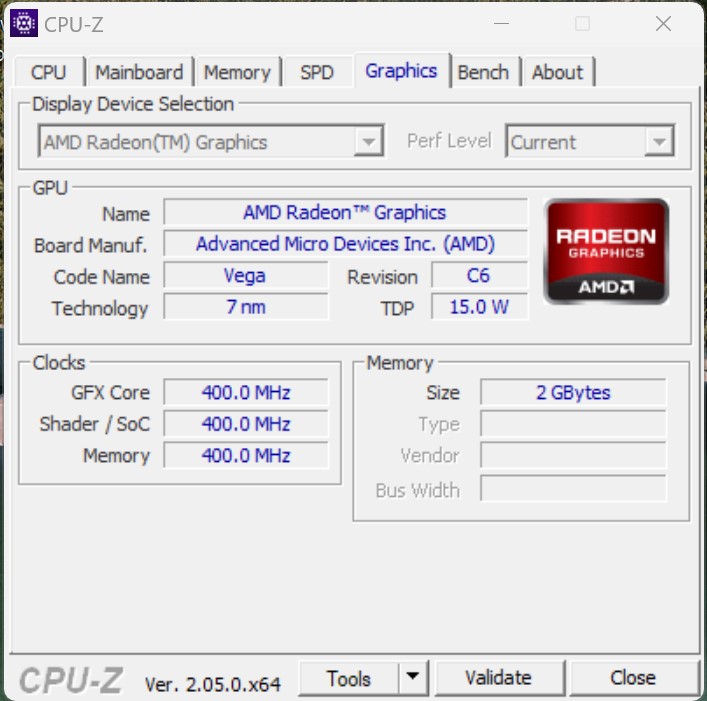

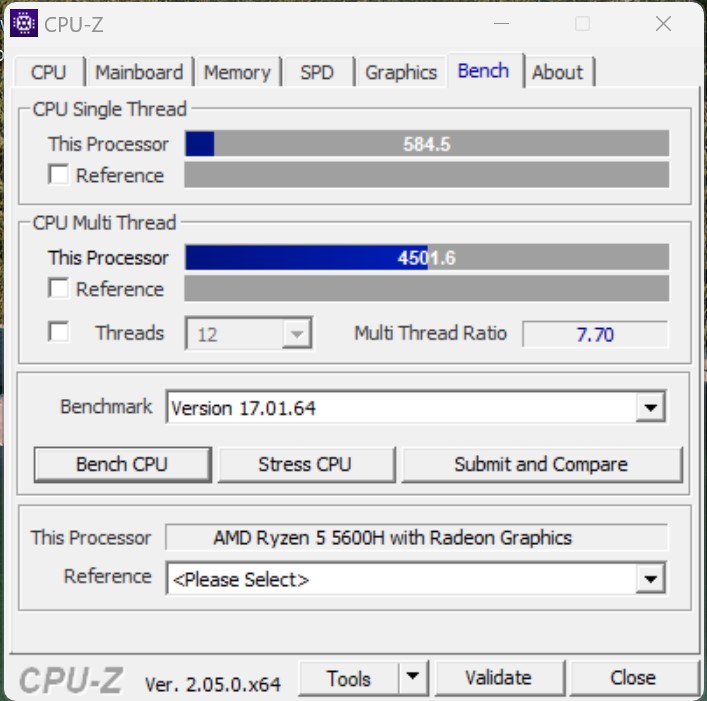

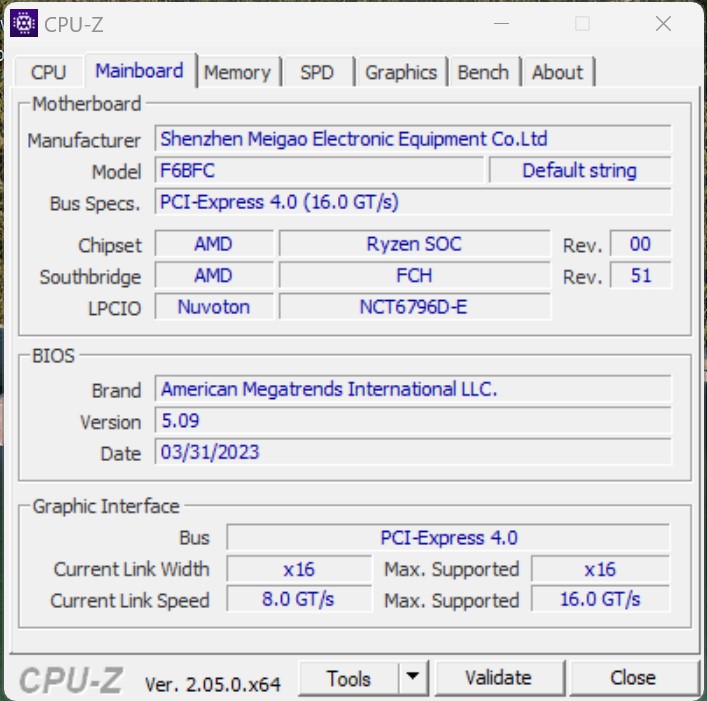

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

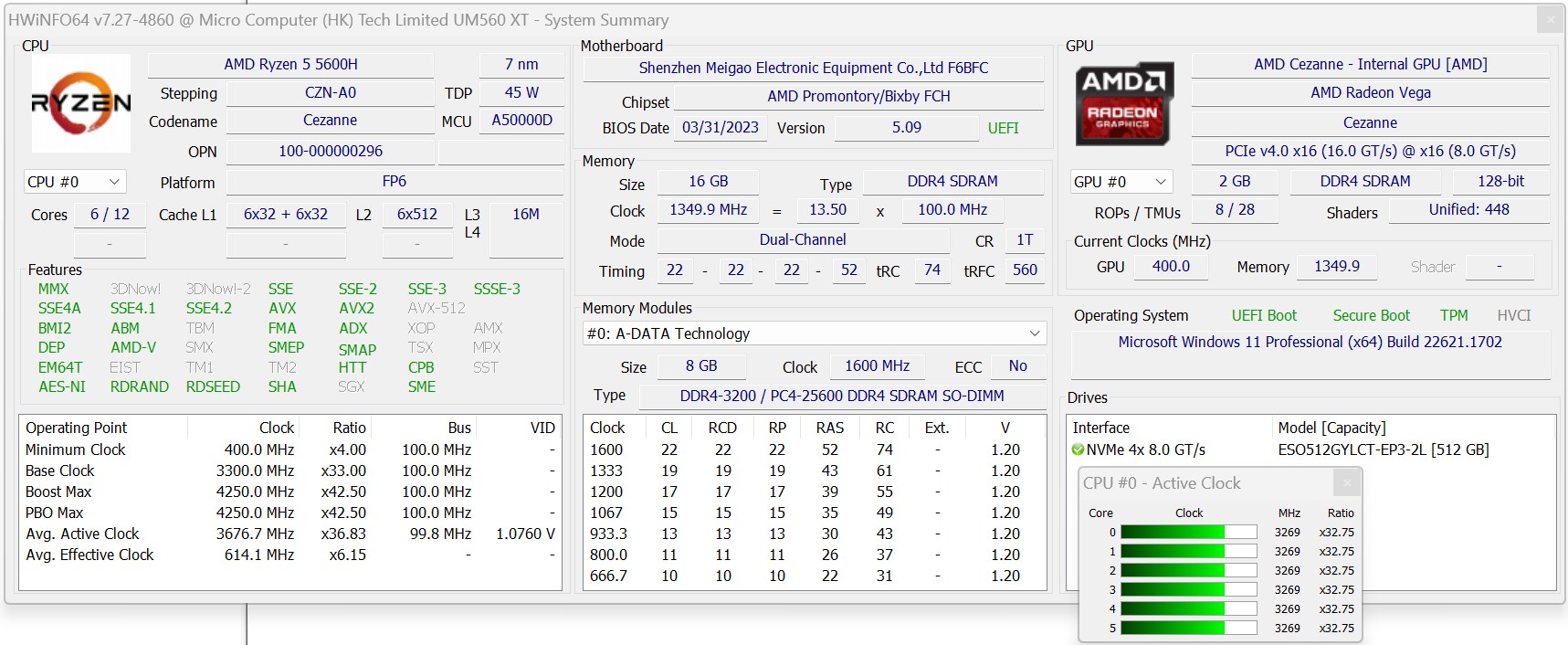

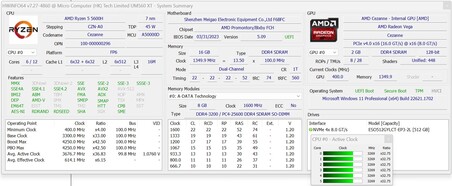

HWiNFO

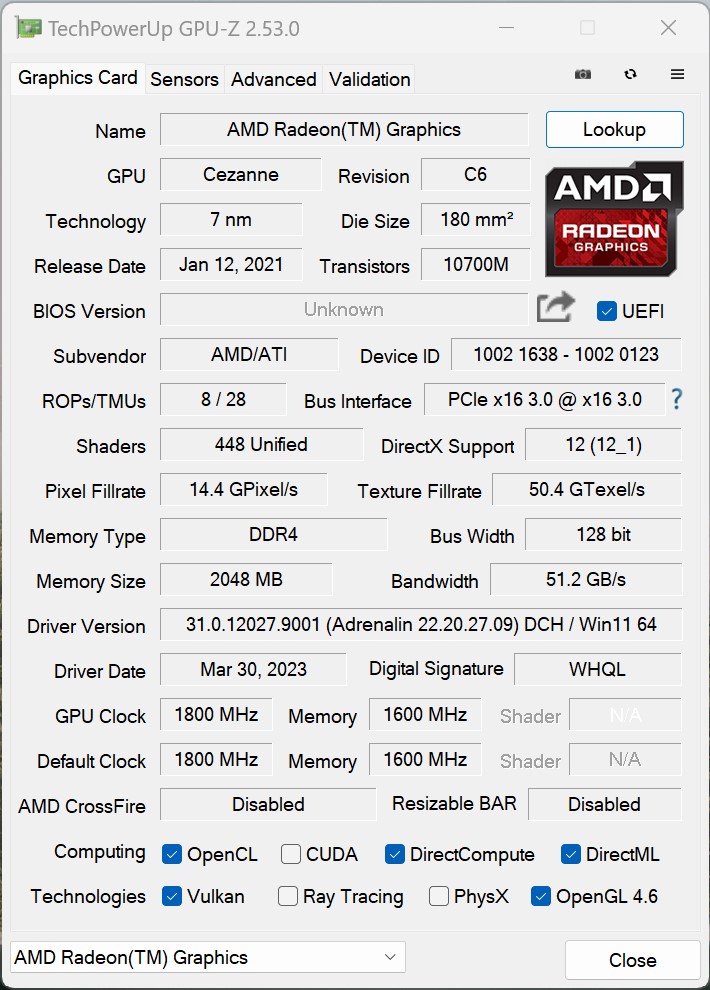

GPU-Z
GPU-Z

Provningsvillkor

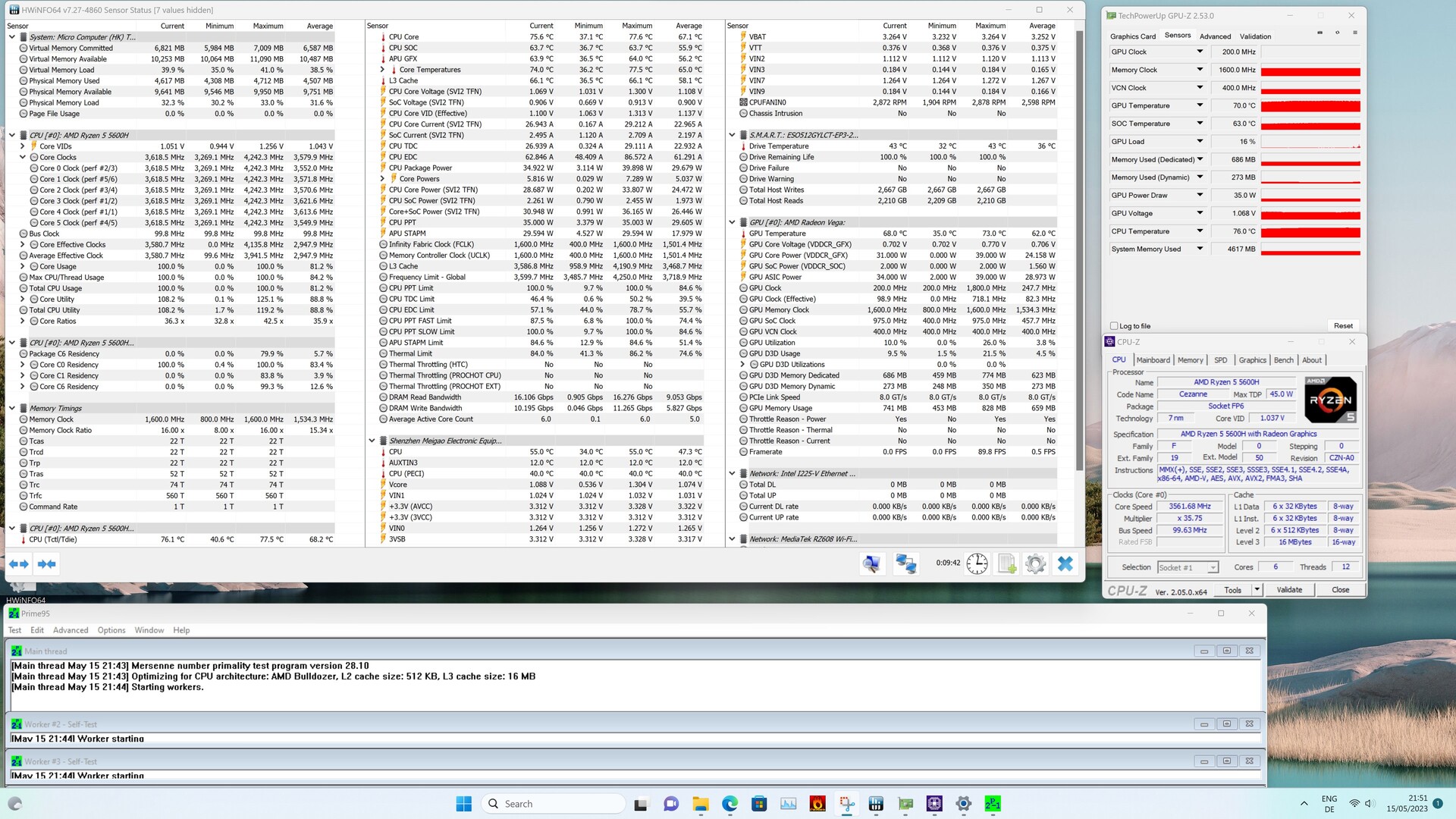

När vi utförde alla prestandatester valde vi energiprofilen High Performance. Avvikelser från detta gjordes endast i fråga om energi- och volymmätningar, i enlighet med våra testkriterier. CPU:ns prestanda ändrades inte i BIOS och vi företog inte heller några ändringar i fläktkurvan när det gäller kylningen.

Processor

AMD Ryzen 5 5600H
AMD Ryzen 5 5600H

AMD Ryzen 5 5600H tillhör AMD:s Cezanne-serie och har sex kärnor med totalt tolv trådar. Jämfört med toppmodellen med en AMD Ryzen 9 6900HX förlorar Minisforum Venus Series UM560 XT 13 procent i vår prestandabedömning med detta ligger runt medelvärdet av alla CPU-benchmarks i den här jämförelsen. I jämförelse med konkurrenterna håller dock vårt recensionsexemplar sig underbart bra. I grund och botten erbjuder Minisforum Venus Series UM560 XT liknande prestanda som den som finns i Geekom Mini IT12 med en Intel Core i7-1260P. Dessutom hålls Morefine M600 6600U i schack. Trots detta levererade vår recensionsenhet endast marginellt bättre prestanda, vilket egentligen bara kan upptäckas här, under testförhållanden.

Ytterligare processorjämförelser kan hittashär.

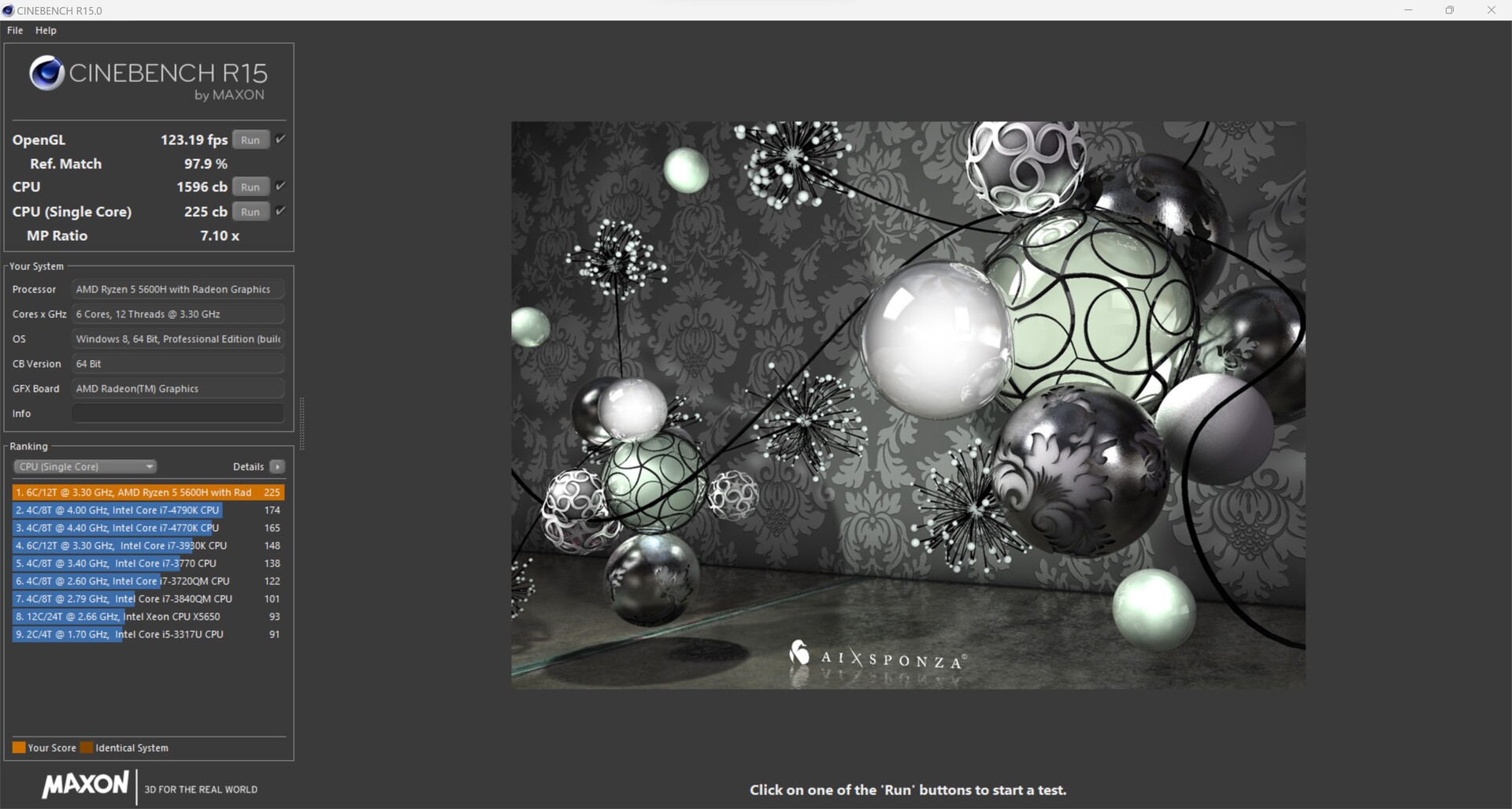

Cinebench R15
Cinebench R15

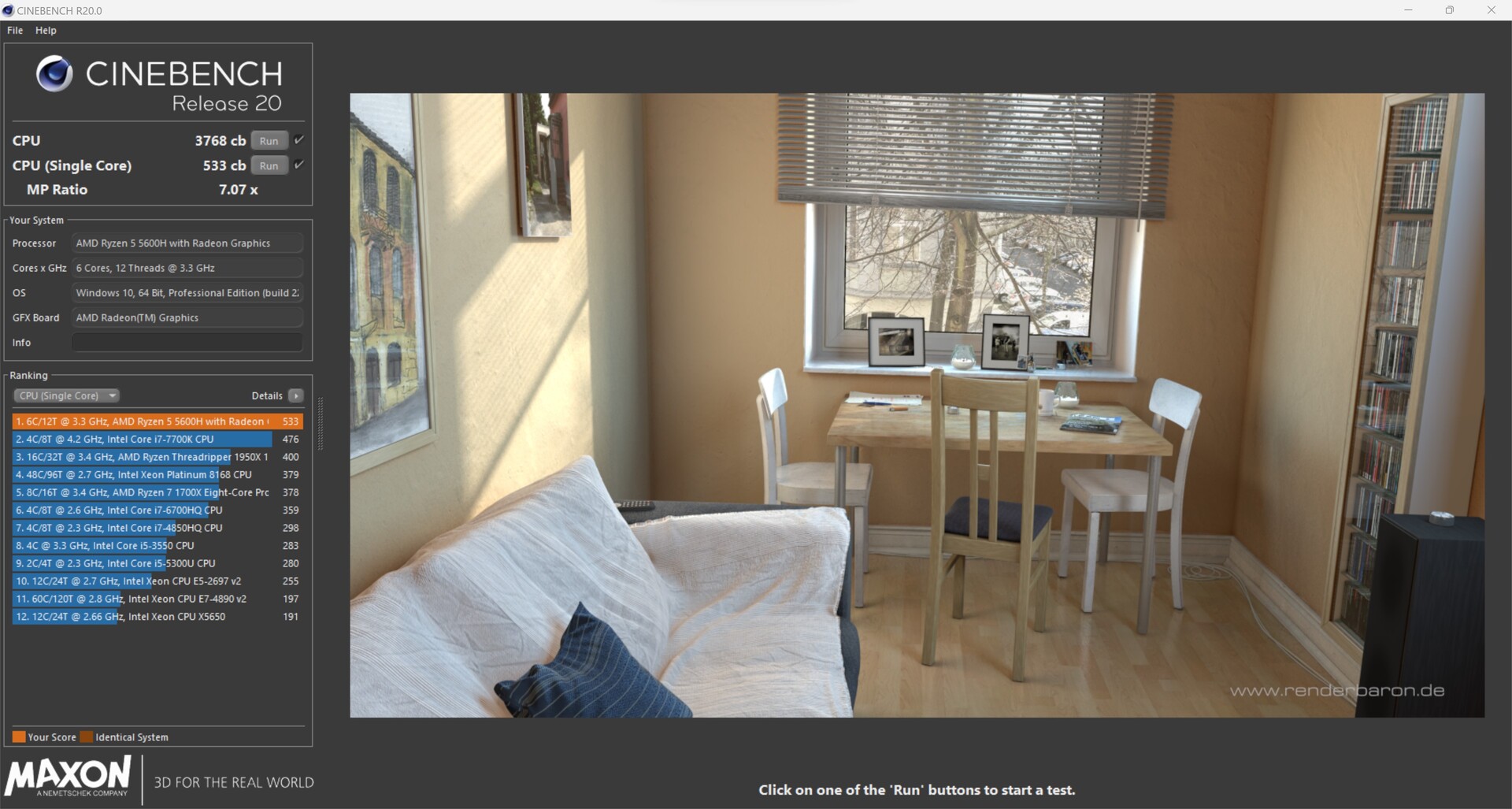

Cinebench R20
Cinebench R20

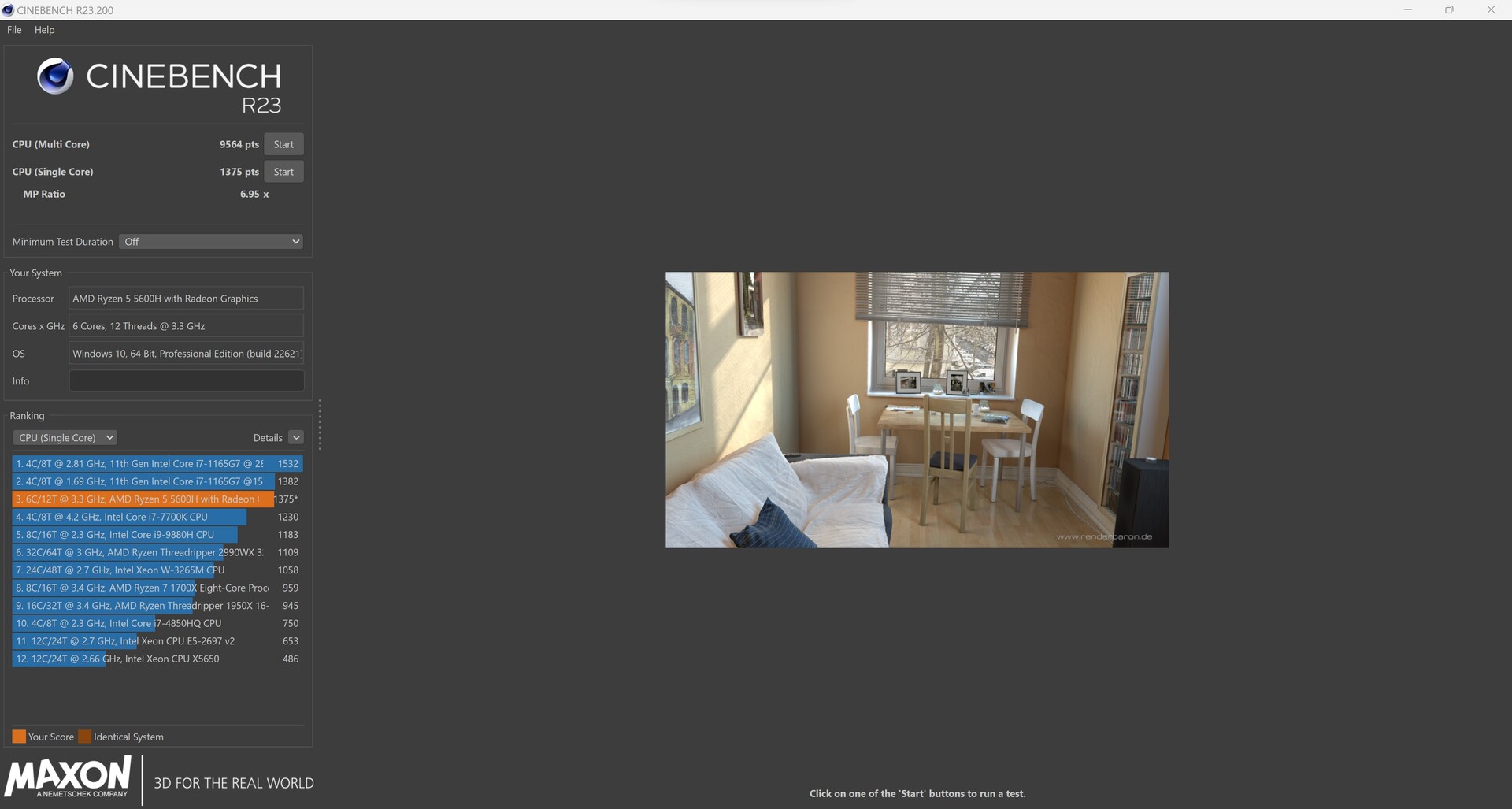

Cinebench R23
Cinebench R23
Performance Rating - Percent
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
49.8 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
49.3 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
49.2 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.7 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
45 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
44 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
43.5 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
41.8 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
41.5 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
261 Points +16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
260 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points +8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
227 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
225 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
223 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
2231 Points +40%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +30%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1893 Points +19%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1596 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1361 Points -15%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1356 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points -21%
Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
696 Points +31%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points +28%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points +22%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
629 Points +18%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points +13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
558 Points +5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
535 Points 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
533 Points
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
5328 Points +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +31%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
4781 Points +27%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
3768 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points -9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
3419 Points -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
3189 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points -21%
Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.14 Points +19%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.07 Points +17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
2.73 Points +4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
2.63 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
2.61 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
26.35 Points +41%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +39%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22.08 Points +18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
18.68 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
17.15 Points -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
15.96 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points -21%
Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
14533 Points +30%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points +21%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
12943 Points +16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points +15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11685 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
11201 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
11132 Points -1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +30%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
76758 Points +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points +17%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
68516 Points +15%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
59479 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
54792 Points -8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
50831 Points -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points -24%
Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
426 Seconds * -34%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
415 Seconds * -30%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * -25%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
319 Seconds *
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
285 Seconds * +11%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds * +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
234 Seconds * +27%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * +28%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * -18%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
4.848 s * -7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
4.688 s * -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
4.552 s *
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s * +1%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
3.705 s * +19%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
3.461 s * +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +25%
1024m
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
410.289 s * -218%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s * -84%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * -46%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * -21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
147.807 s * -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
146.553 s * -13%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
129.204 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
93.19 s * +28%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
311.5 (311min - 312max) fps +24%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
262.5 (262min - 266max) fps +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
251.21 fps
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
236 (235min - 246max) fps -6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps -7%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
212 (206min - 224max) fps -16%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
127.8 (127.3min - 129.1max) fps +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps +20%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
111.1 (96.7min - 111.7max) fps +17%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
95.18 fps
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
80.95 (76.3min - 82.4max) fps -15%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
71.45 (70.2min - 76.6max) fps -25%
WinRAR - Result
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9090 KB/s +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7497 KB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6937 KB/s -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6882 KB/s -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s -8%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6858 KB/s -9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s -13%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
13.4 GB/s +43%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s +11%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
10.1 GB/s +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
9.4 GB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
9.3 GB/s -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -9%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
8.3 GB/s -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s +54%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.8 GB/s +38%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.8 GB/s +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1.3 GB/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1.3 GB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1.2 GB/s -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s -15%
Serpent Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1.2 GB/s +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s +28%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1.1 GB/s +28%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s +17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s +14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.857 GB/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
0.857 GB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.796 GB/s -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s -18%
Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points +34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +34%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9363 Points +29%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points +26%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points +23%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
7658 Points +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7253 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6523 Points -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points -15%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +29%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points +23%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1767 Points +22%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points +7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1504 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1443 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1427 Points -1%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points +44%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points +44%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
10249 Points +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points +36%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points +35%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9099 Points +28%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
7128 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
6479 Points -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points -14%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +32%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
1736 Points +25%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points +12%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1557 Points +12%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
1393 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points -1%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
1371 Points -2%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +31%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
7705 Points +26%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points +9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6698 Points +9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
6117 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5918 Points -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points +37%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points +37%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
39852 Points +37%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points +33%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
34909 Points +20%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
28997 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
25738 Points -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points -16%
3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points +27%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
18363 Points +27%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
18277 Points +26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points +9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
14496 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
13130 Points -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11630 Points -20%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
61401 MIPS +32%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS +22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
47893 MIPS +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
46562 MIPS
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
44320 MIPS -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
40318 MIPS -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
6116 MIPS +14%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6067 MIPS +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +12%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS +4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS +4%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5486 MIPS +2%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
5369 MIPS
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5161 MIPS -4%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
17.1 fps +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
13.6 fps +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
12.4 fps
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
11.7 fps -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
10.2 fps -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps -19%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps -19%
R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
0.548 sec * -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * -2%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
0.526 sec *
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
0.511 sec * +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
0.4757 sec * +10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec * +10%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * +12%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
0.462 sec * +12%
LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
57.5 s * -1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
56.7 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
53 s * +7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
48.8 s * +14%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s * +15%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
39.6 s * +30%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +33%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +15%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
309 Points +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points +8%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
287 Points +6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
274 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
270 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
263 Points -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points -6%
Mozilla Kraken 1.1 - Total
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
659 ms * -1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
651 ms *
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * +1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
619 ms * +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * +7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * +11%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
571 ms * +12%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms * +17%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
519 ms * +20%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25456 Points +21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
21110 Points
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
21001 Points -1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
18599 Points -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points -17%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
16412 Points -22%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
25915 Points +23%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points +7%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
22346 Points +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points +6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
21025 Points
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points -14%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
17499 Points -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points -21%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
15934 Points -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +56%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9354 Points +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, 1700 MHz
9168 Points +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points +27%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, 3300 MHz
6767 Points
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points -4%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
5114 Points -24%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, 2300 MHz
5077 Points -25%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.3 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.9 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
71.2 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
69.4 pt
Average of class Mini PC

66.2 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
62.8 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
62.3 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
60.2 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
57 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +33%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s +21%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
11347 KRay/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -3%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
10839 KRay/s -4%
Average of class Mini PC
  (561 - 27538, n=108, last 2 years)
10544 KRay/s -7%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s -16%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
9406 KRay/s -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s -20%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s -30%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points +24%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
70782 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
60111 Points -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points -19%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -22%
Average of class Mini PC
  (3604 - 116903, n=108, last 2 years)
54846 Points -23%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
54435 Points -23%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points -43%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s +24%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s +8%
Average of class Mini PC
  (225 - 5096, n=108, last 2 years)
2401 MB/s +2%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
2360 MB/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
2357 MB/s 0%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
2065 MB/s -12%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s -16%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +37%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +32%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points +13%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
82454 Points +9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75724 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points -3%
Average of class Mini PC
  (8172 - 119802, n=108, last 2 years)
71531 Points -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
70563 Points -7%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points -11%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +46%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points +38%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
8952 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
8507 Points -5%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points -7%
Average of class Mini PC
  (408 - 15525, n=108, last 2 years)
7598 Points -15%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -16%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
7444 Points -17%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points -38%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +35%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points +14%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
38989 Points
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
33084 Points -15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points -19%
Average of class Mini PC
  (1958 - 62378, n=108, last 2 years)
28957 Points -26%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -28%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
26735 Points -31%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points -49%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +44%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +5%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
95057 MB/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
92530 MB/s -3%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
82315 MB/s -13%
Average of class Mini PC
  (3691 - 177158, n=108, last 2 years)
78994 MB/s -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s -18%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s -21%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s -41%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s -58%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +41%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s +21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +19%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
674 MB/s +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
614 MB/s
Average of class Mini PC
  (74.8 - 1233, n=108, last 2 years)
609 MB/s -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
531 MB/s -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s -14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s -18%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +38%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s +26%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
5777 KRay/s
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
5771 KRay/s 0%
Average of class Mini PC
  (308 - 14722, n=108, last 2 years)
5633 KRay/s -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s -12%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
5024 KRay/s -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s -20%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s -28%
AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s +46%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s +38%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
28010 MPixel/s +37%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s +36%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s +35%
Average of class Mini PC
  (4408 - 45560, n=108, last 2 years)
25597 MPixel/s +25%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s +19%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
20410 MPixel/s
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -5%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
17803 MPixel/s -13%

Minisforum Venus Series UM560 XT i Cinebench R15 multiloop-testet

I den kontinuerliga Cinebench R15-slingan är det möjligt att få ett bra intryck av hur väl systemet fungerar under belastning. Minisforum Venus Series UM560 XT klarade testet på ett fantastiskt sätt. AMD Ryzen 5 5600H:s resultat i var och en av de 50 körningarna var mycket stabila och det förekom nästan ingen signifikant nedgång i prestanda. I detta jämförelseområde kommer inget annat system i närheten.

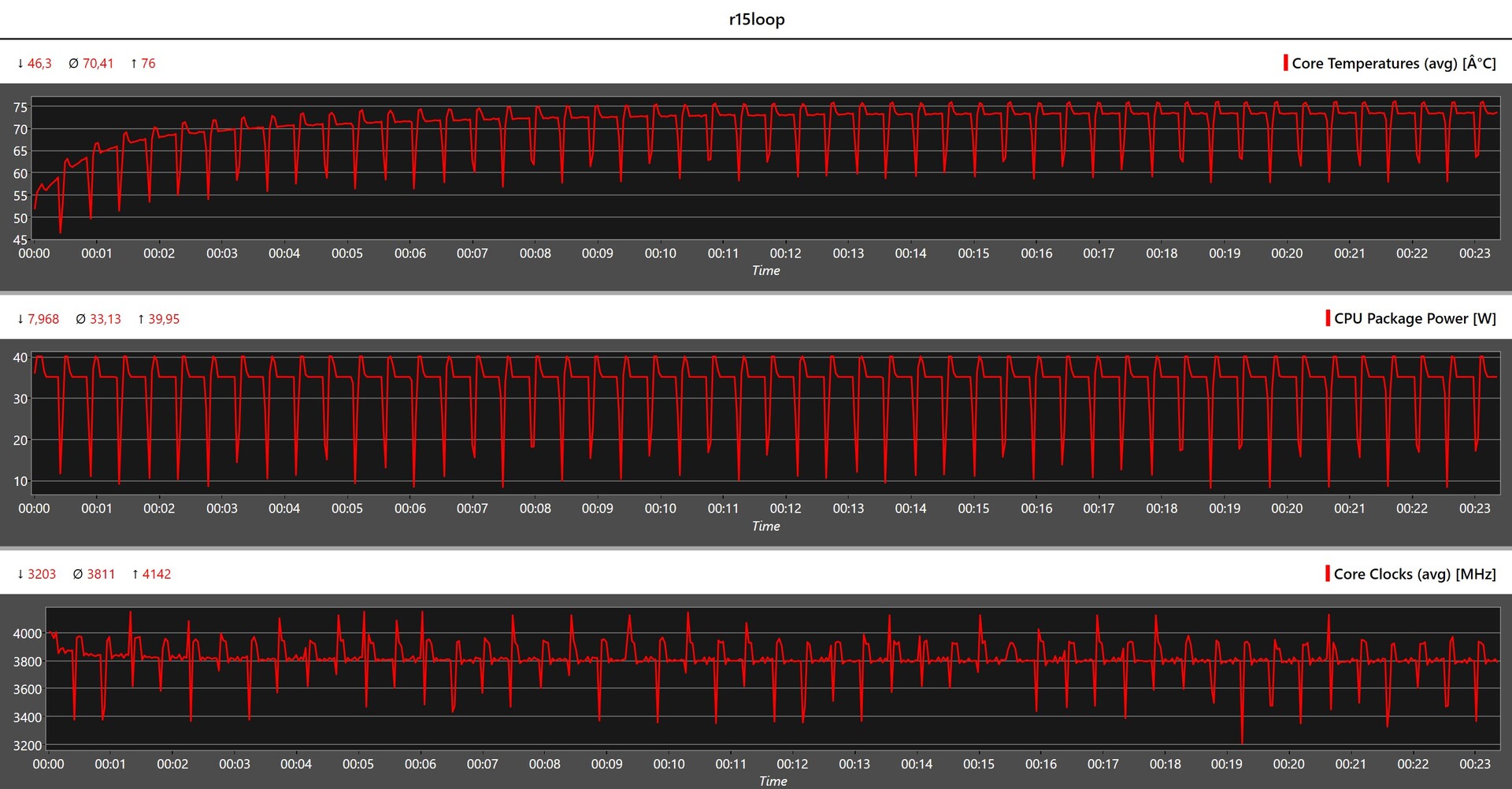

CPU-mätvärden under Cinebench R15-slingan
CPU-mätvärden under Cinebench R15-slingan
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)
Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Systemprestanda

När det gäller systemjämförelser klarade sig Minisforum Venus Series UM560 XT mycket bra och kom på tredje plats i PCMark 10-jämförelsen. Det ser dock något annorlunda ut i Crossmark-jämförelsen. Det är dock på detta område som alla AMD-utrustade enheter måste ge vika för Intel-enheter. Att inneha DDR4 RAM-minne innebär att Minisforum Venus Series UM560 XT endast kan konkurrera med ganska trubbiga vapen. De tre första platserna går här till enheter med snabbare DDR5 RAM. Trots detta är prestandan i vårt testprov hyfsad och kan jämföras med en UM560 XT. Detta återspeglas subjektivt i form av prestanda.

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points +8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
6189 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points 0%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
6057 Points -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
5862 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points -7%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -9%
PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
10503 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
10484 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points -1%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points -7%
PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT
9642 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT
9545 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points -6%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
8164 Points -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points -23%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +41%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1875 Points +39%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1346 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1300 Points -3%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +40%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1876 Points +37%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points +27%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1368 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1335 Points -2%
CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +31%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points +27%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1377 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1325 Points -4%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +77%
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
2077 Points +74%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points +45%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1197 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1133 Points -5%
AIDA64 / Memory Copy
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s +15%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s +14%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
46936 MB/s +12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s +10%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
41732 MB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
38102 MB/s -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s -16%
AIDA64 / Memory Read
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s +9%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
50120 MB/s +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s +6%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
46963 MB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s -2%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40126 MB/s -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s -18%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s +23%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s +22%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s +10%
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
47383 MB/s +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s +4%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
44872 MB/s
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
40633 MB/s -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s -16%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -32%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
96.2 ns * -27%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * -25%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * -22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * -21%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * -10%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * -6%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75.5 ns *
Minisforum Venus Series NAB6
Intel Core i7-12650H, UHD Graphics 64EUs
71.6 ns * +5%

* ... smaller is better

DPC-fördröjningar

Vi stötte inte på några problematiska fördröjningar med Minisforum Venus Series UM560 XT. Vår recensionsenhet hanterade både öppnandet av flera flikar i Edge och uppspelningen av en 4K-testvideo perfekt. Med hjälp av Prime95 kunde vi inte upptäcka någon ökad latens.

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latenstid efter tio sekunders Prime95
Maximal latenstid efter tio sekunders Prime95
Förare ordnade efter den längsta varaktigheten av prestationen
Förare ordnade efter den längsta varaktigheten av prestationen
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs * -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, ESO512GYLCT
1359.1 μs * -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1317 μs * -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * -8%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
985.8 μs * -5%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
940.27 μs *
Minisforum Venus Series NAB6, Intel Core i7-12650H
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0
795 μs * +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
765 μs * +19%

* ... smaller is better

Masslagring

512 GB NVMe SSD
512 GB NVMe SSD

Minisforum utrustade vår testmodell Venus Series UM560 XT med en 512 GB stor SSD-enhet, utan att ange några detaljer. Den installerade modellens överföringshastigheter återspeglar dess PCIe 3.0-gränssnitt. Konkurrenten, med snabbare PCIe 4.0 SSD-diskar, har ett oåtkomligt försprång. Under kontinuerlig belastning hade Minisforum Venus Series UM560 XT inga problem med att bibehålla sin SSD-prestanda. Det är på det här området som det lönade sig att ha försett SSD:n med en relativt stor kylfläns. Enheten kan hysa totalt två masslagringsenheter. Förutom M.2-gränssnittet finns det även en SATA-kontakt för ett 2,5-tums lagringsmedium. Enheten levereras komplett med lämpliga anslutningskablar.

Ytterligare jämförelser och riktmärken finns i vår jämförelsetabell.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1626 MB/s
Sequential Write: 1855 MB/s
512K Read: 1274 MB/s
512K Write: 1763 MB/s
4K Read: 43 MB/s
4K Write: 164.9 MB/s
4K QD32 Read: 528.2 MB/s
4K QD32 Write: 431.9 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
85.3 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
81.3 pt
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
69.9 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.2 pt
Average of class Mini PC

47.1 pt
Minisforum Venus Series UM560 XT
ESO512GYLCT
47 pt
Minisforum Mars Series MC560
ESO512GYLCT
41.1 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
40.4 pt
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
36.8 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
36.4 pt
DiskSpd
seq read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +94%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +71%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
2689 (2681.42min - 2688.76max) MB/s +63%
Average of class Mini PC
  (233 - 4357, n=107, last 2 years)
2109 MB/s +28%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s +27%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1720 (1344.24min - 1720.17max) MB/s +5%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1645 (1636.91min - 1645.01max) MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s -12%
Minisforum Mars Series MC560
ESO512GYLCT
1310 (1296.67min - 1309.67max) MB/s -20%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s -29%
seq write
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
3544 (3538.94min - 3544.19max) MB/s +89%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s +89%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +81%
Average of class Mini PC
  (222 - 5595, n=107, last 2 years)
2195 MB/s +17%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1877 (1870.87min - 1877.35max) MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s -5%
Minisforum Mars Series MC560
ESO512GYLCT
1735 (1689.26min - 1735.49max) MB/s -8%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s -18%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s -36%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1075 (545.51min - 1075.26max) MB/s -43%
seq q8 t1 read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s +104%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +103%
Minisforum Venus Series NAB6
Kingston OM8PGP4512Q-A0
4797 (4271.21min - 4796.87max) MB/s +103%
Average of class Mini PC
  (236 - 8430, n=107, last 2 years)
3302 MB/s +40%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
