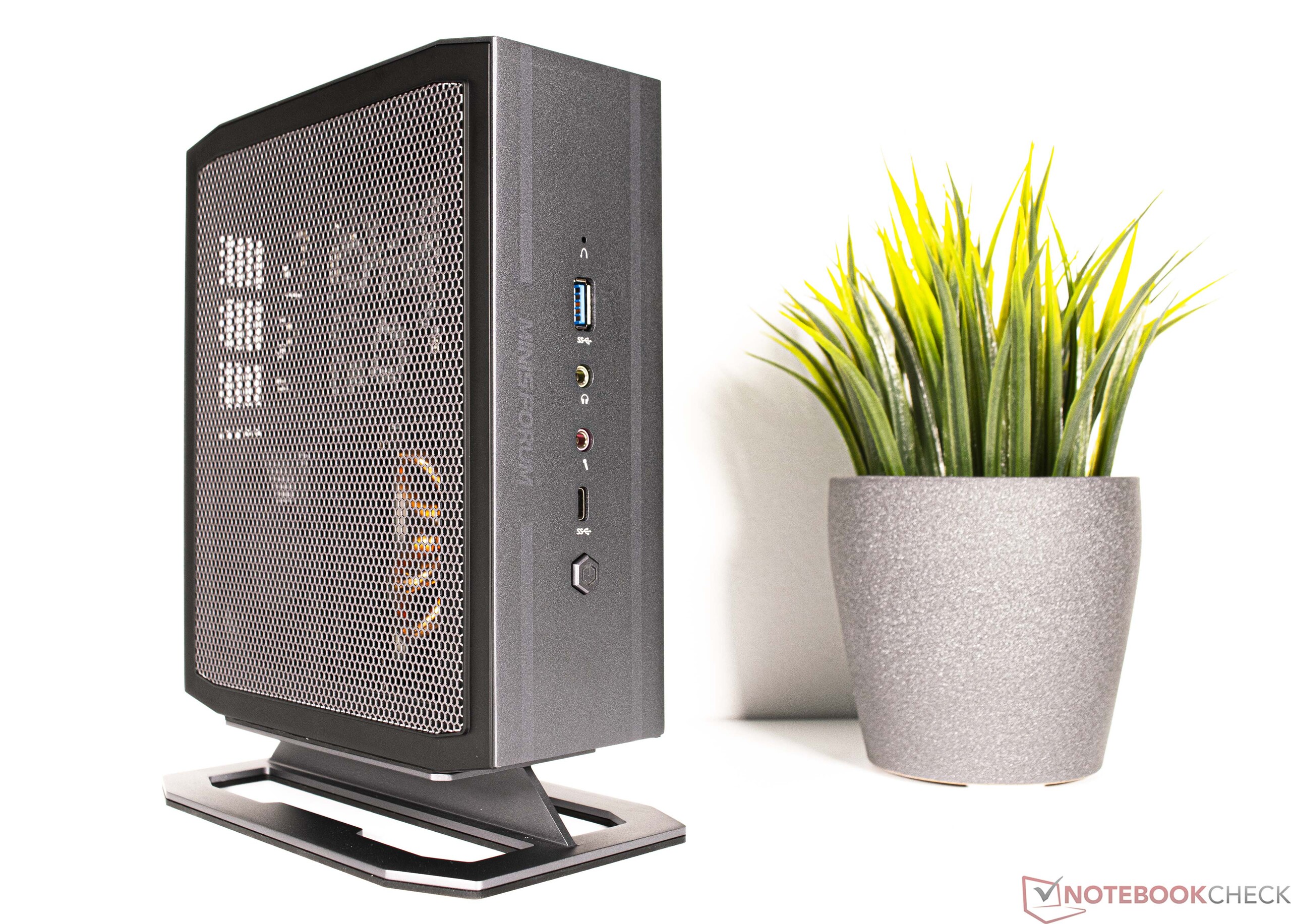

Minisforum Neptune Series NAD9 desktop PC recension: Kompakt kraftpaket med Intel Core i9-12900H

Minisforum Neptune Series NAD9-konfigurationer (källa: Minisforum)

Minisforum har uppdaterat sitt produktsortiment med Neptune Series NAD9, en kompakt kontorsdator med hög prestanda. NAD9 riktar sig främst till kontorsanvändare som behöver mycket kraft och lyckas uppnå detta tack vare sin moderna Intel Core i9-12900Hprocessor med 14 kärnor och 20 trådar. Ett dedikerat grafikkort finns tyvärr inte med ombord. Med det sagt är Intel Iris Xe ett acceptabelt alternativ som är absolut tillräckligt bra för systemets avsedda ändamål.

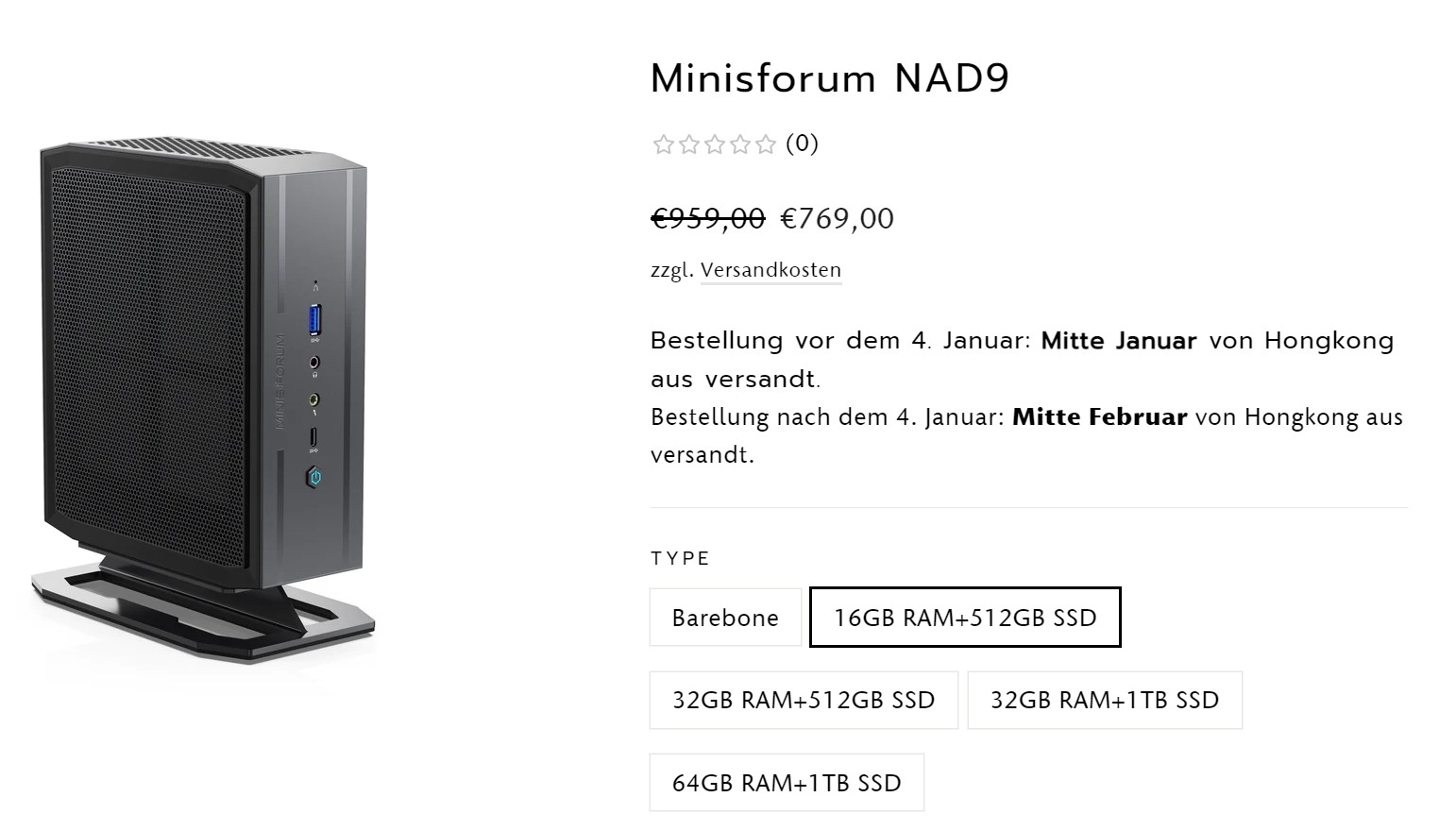

Som vanligt kan Minisforum NAD9 beställas från företagets webbshop. Det finns ett antal konfigurationer tillgängliga. Det billigaste alternativet är barebones-versionen (för närvarande 639 euro, eller 569 dollar) utan RAM-minne och SSD. Du måste också köpa en Windows 11 Professional-licens separat. Den högsta konfigurationen kostar 989 euro (1 019 USD) och levereras med 64 GB RAM och en 1 TB SSD. Vår recensionsenhet har 16 GB RAM och en 512 GB SSD och kostar dig 769 euro (719 USD) just nu.

I den här recensionen kommer vi att jämföra NAD9 med andra kompakta stationära datorer. Du hittar en översikt över dessa enheter i tabellen nedan.

Gradering	Datum	Modell	Vikt	Höjd
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v ^(old)	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v7 ^(old)	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

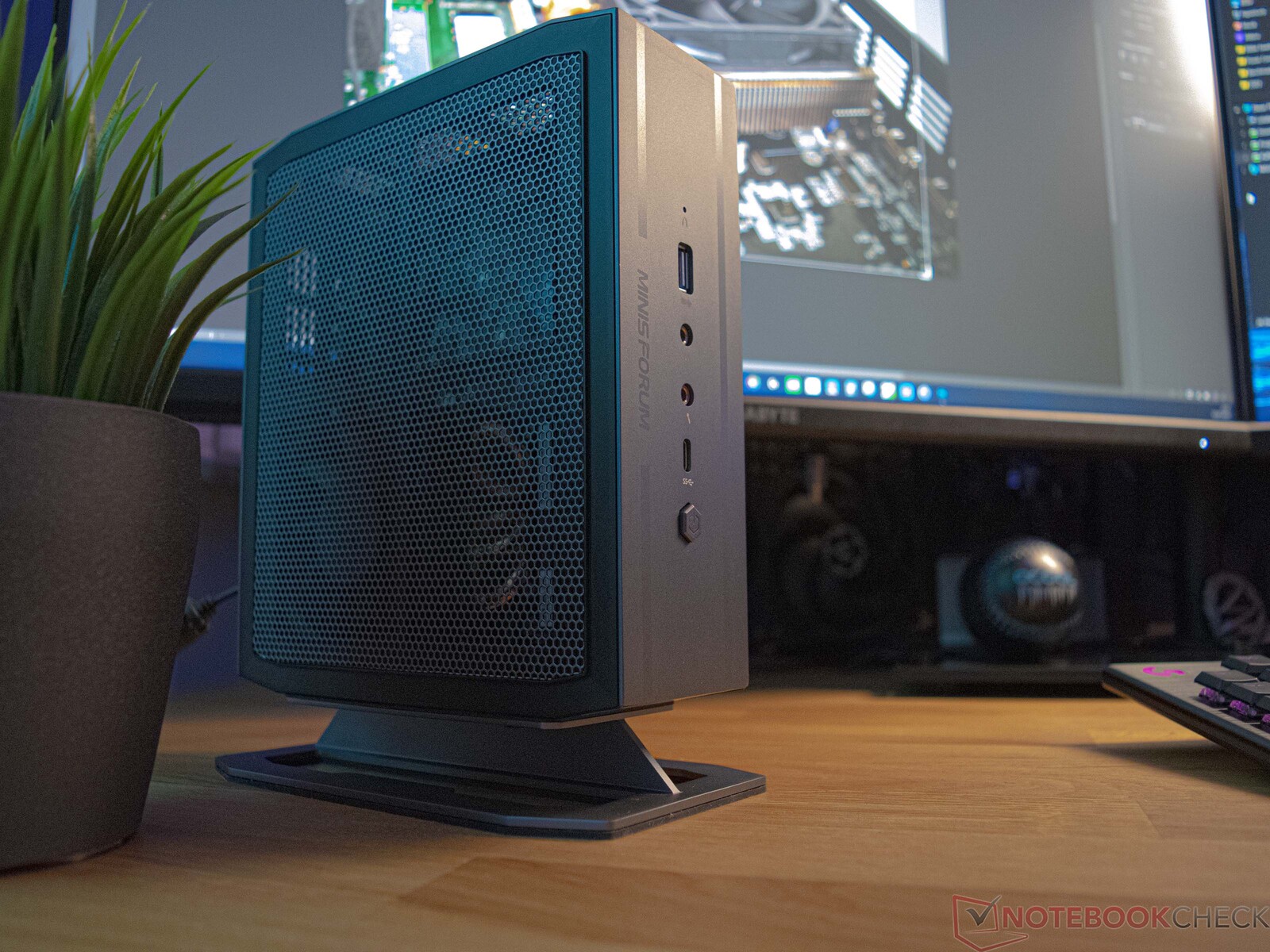

Detaljerad titt på Minisforum Neptune Series NAD9

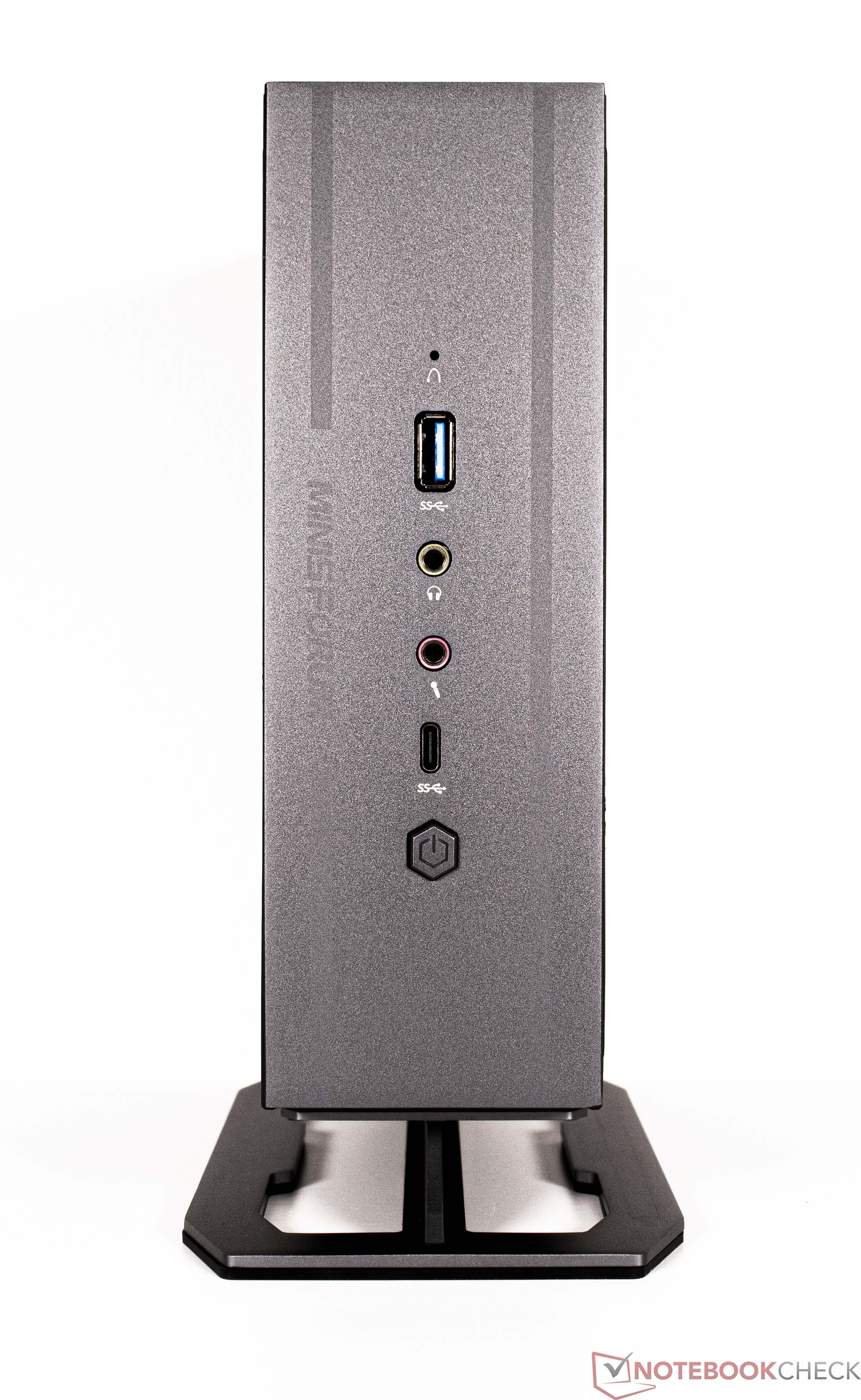

Fall

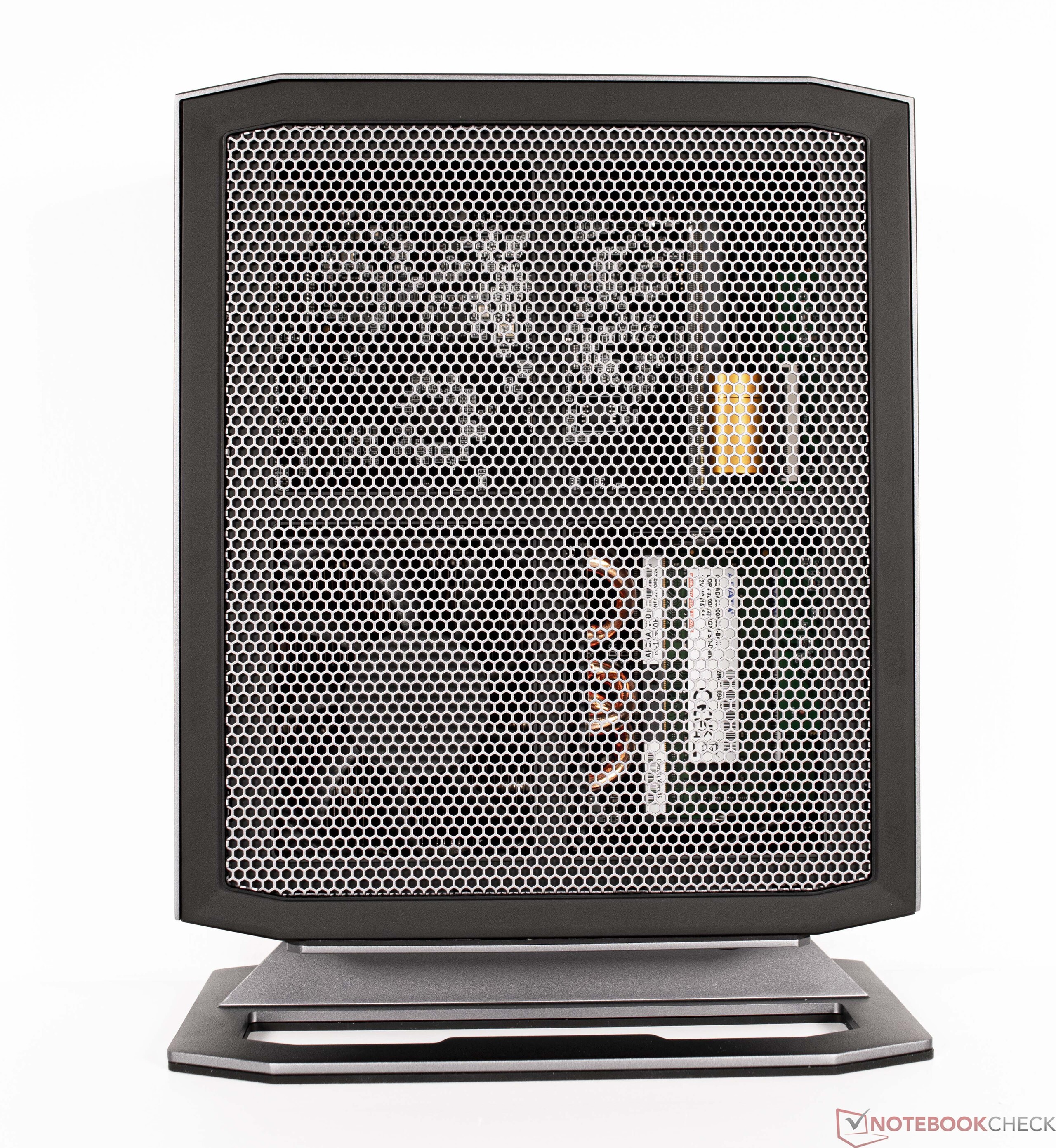

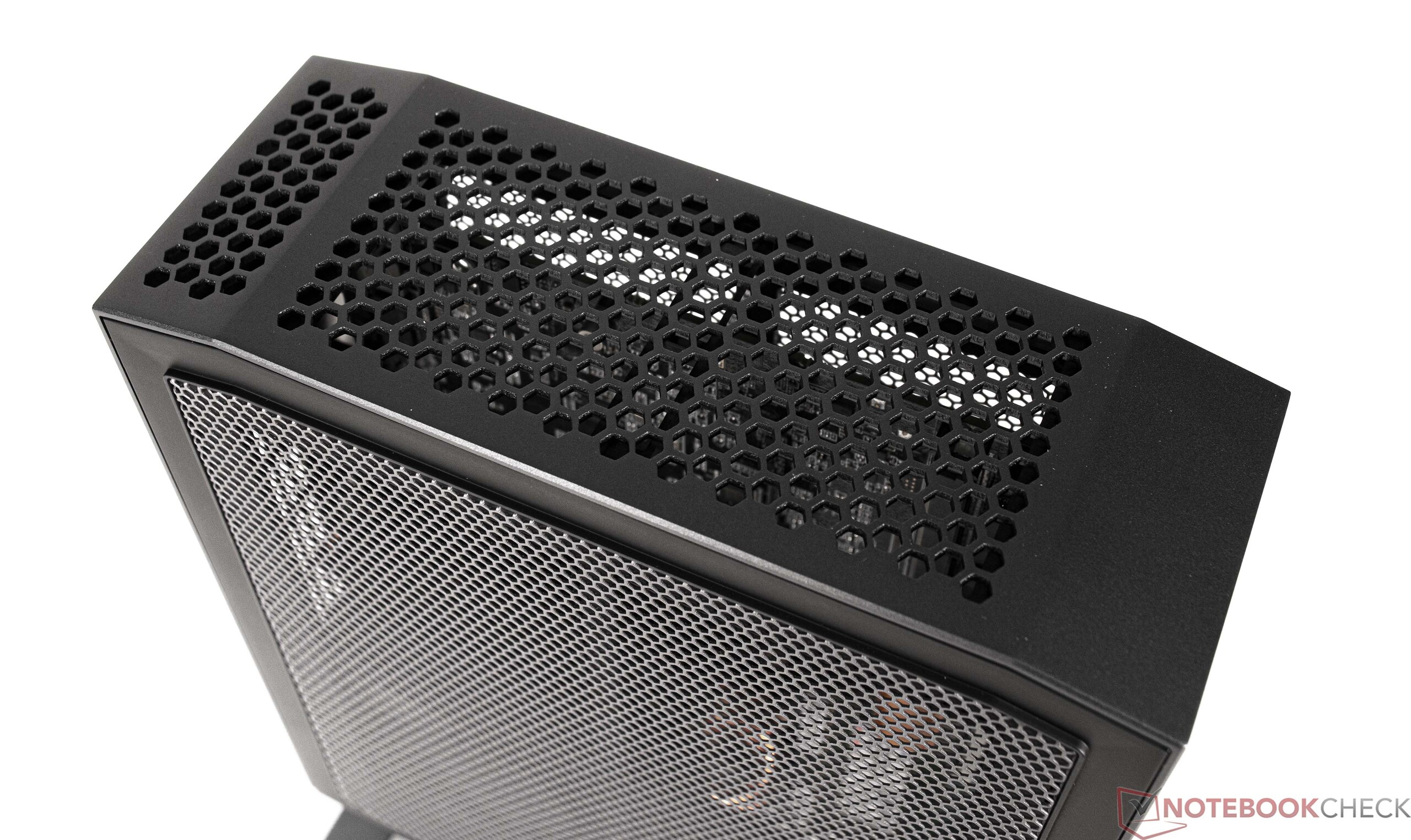

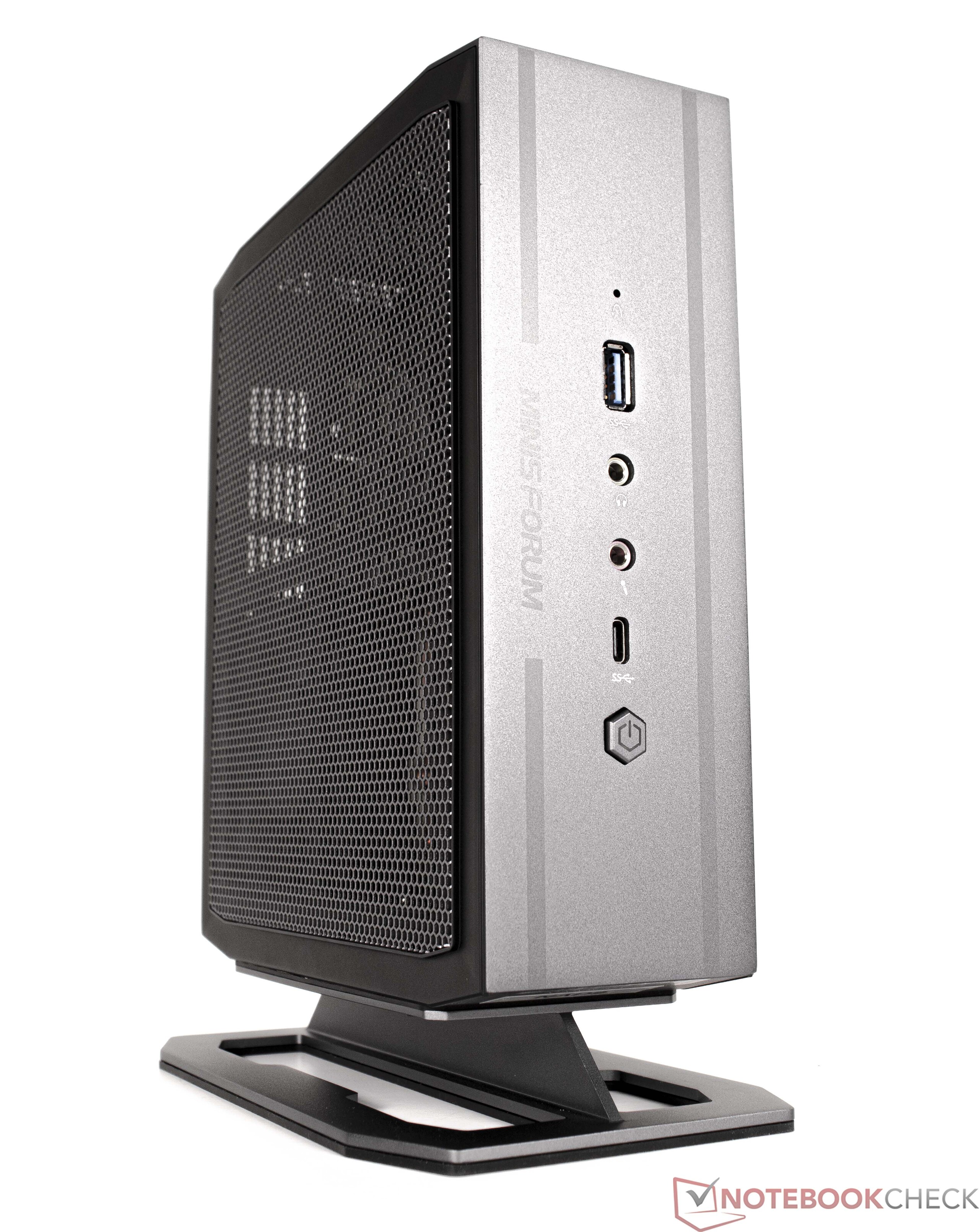

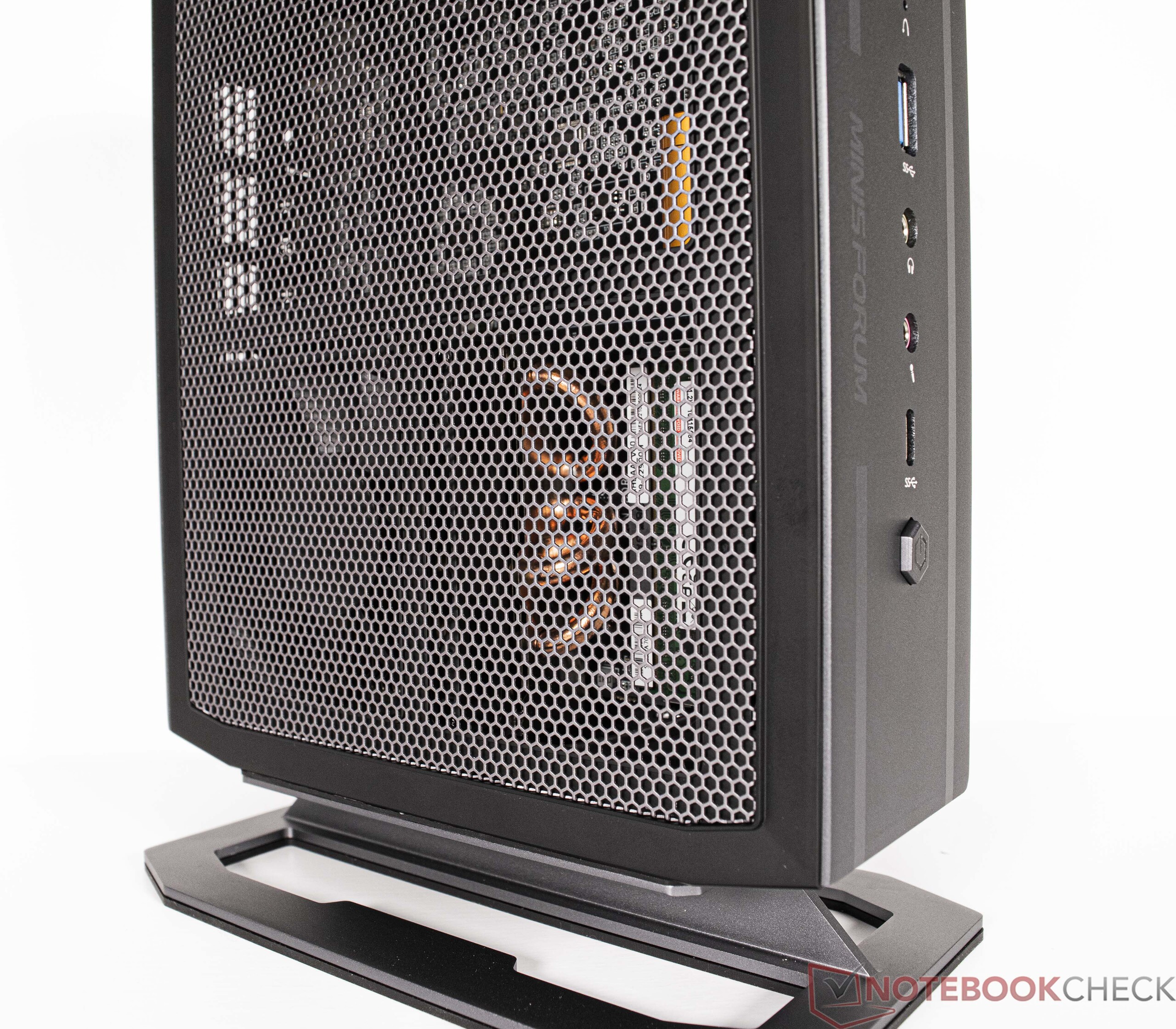

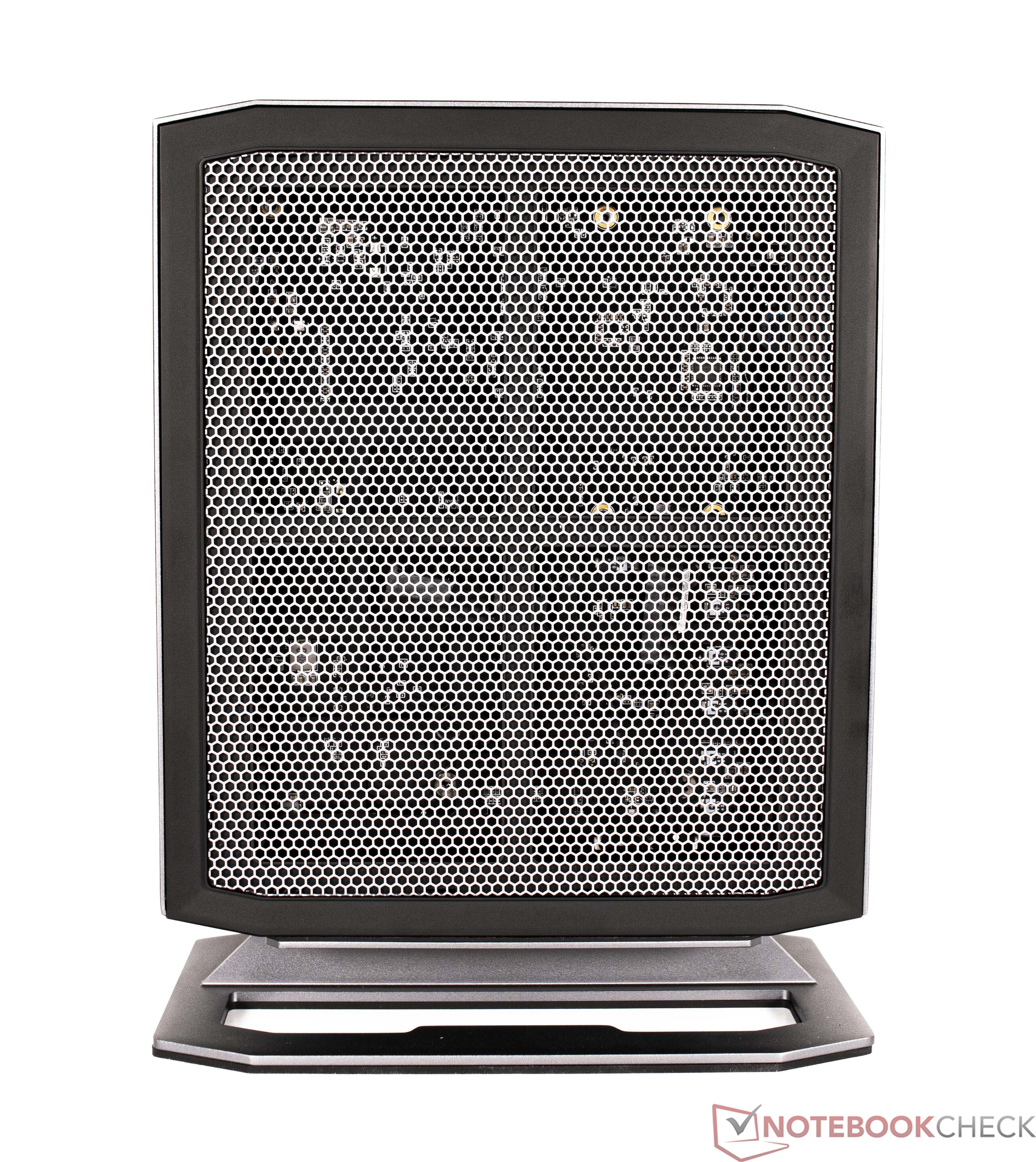

Minisforum Neptune Series NAD9 är mestadels tillverkad av aluminium och känns därför exceptionellt högklassig. De två sidopanelerna är en blandning av aluminium och plast och har ett mycket fint utförande. Den honeycomb-struktur som täcker en stor del av sidopanelerna är utformad så att tillräckligt med frisk luft kan komma in i chassit. Det ungefär 2,4-liters chassit ser också mycket välbyggt ut, och den mörkgrå färgsättningen passar perfekt till den övergripande designen. Det medföljande stativet är likaså tillverkat av metall och ger en enorm stabilitet.

Med endast 1,1 kg inklusive stativet är Minisforum NAD9 extremt lätt. Den externa nätadaptern bidrar med ytterligare 450 g till totalvikten.

Storleksjämförelse

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Morefine S500+ DIN A4 ❌

Specifikationer

Vid första anblicken erbjuder Minisforum Neptune Series NAD9 ett enastående urval av externa gränssnitt. Den har fler USB-portar (totalt åtta) än konkurrenterna. Även om tre av dem är USB-C-portar finns det fortfarande fem typ A-portar tillgängliga. USB-C-anslutningarna på baksidan har även möjlighet att ge ut video till externa skärmar. Detta innebär att NAD9, tillsammans med de två HDMI-portarna, kan driva upp till fyra skärmar samtidigt. Det är ändå värt att nämna att 4K@60Hz är den maxupplösning och uppdateringsfrekvens som stöds av enheten. Gränssnitten på NAD9 är fördelade på fram- och baksidan och är lättillgängliga. Synd att den inte har stöd för Thunderbolt.

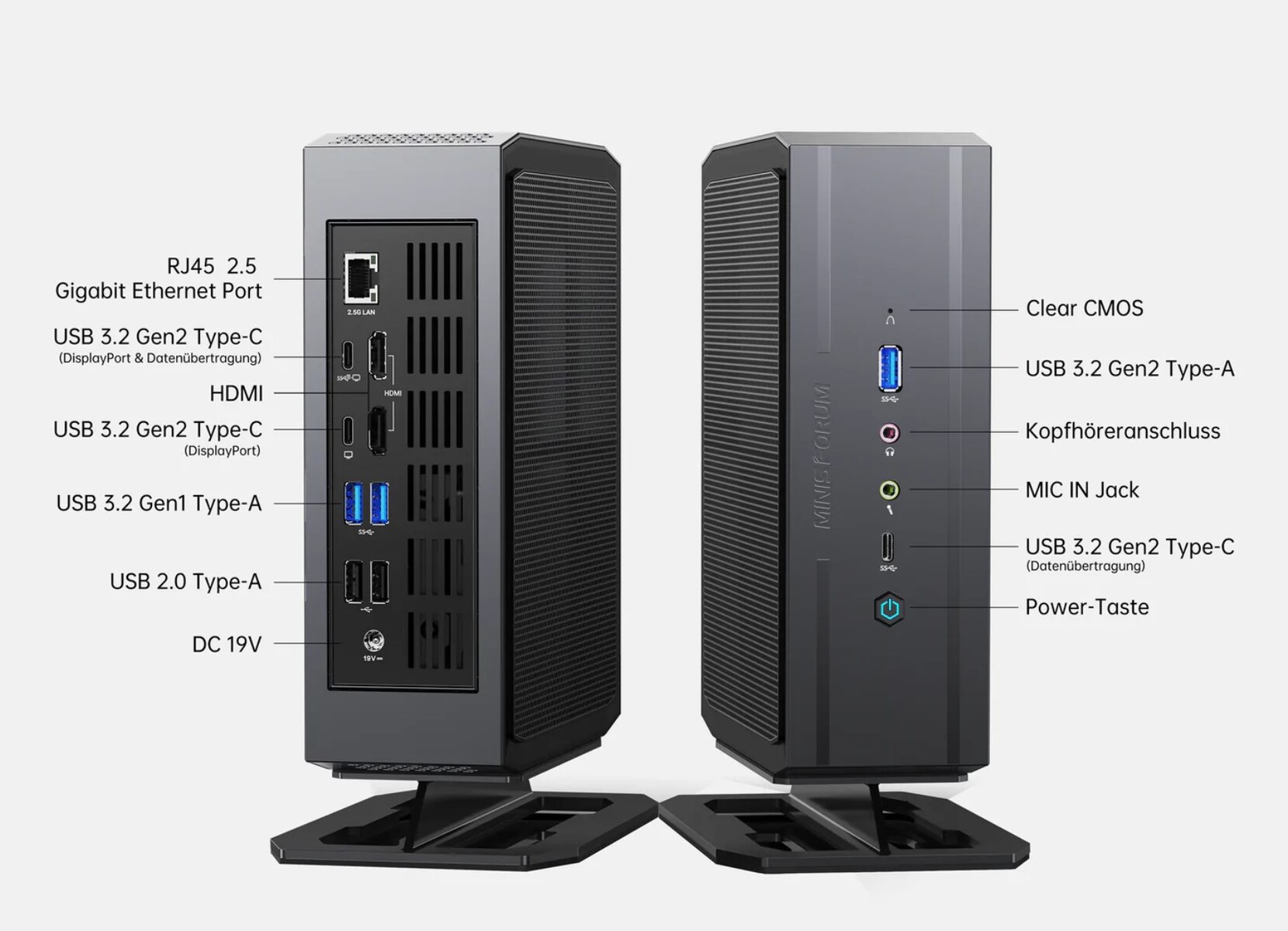

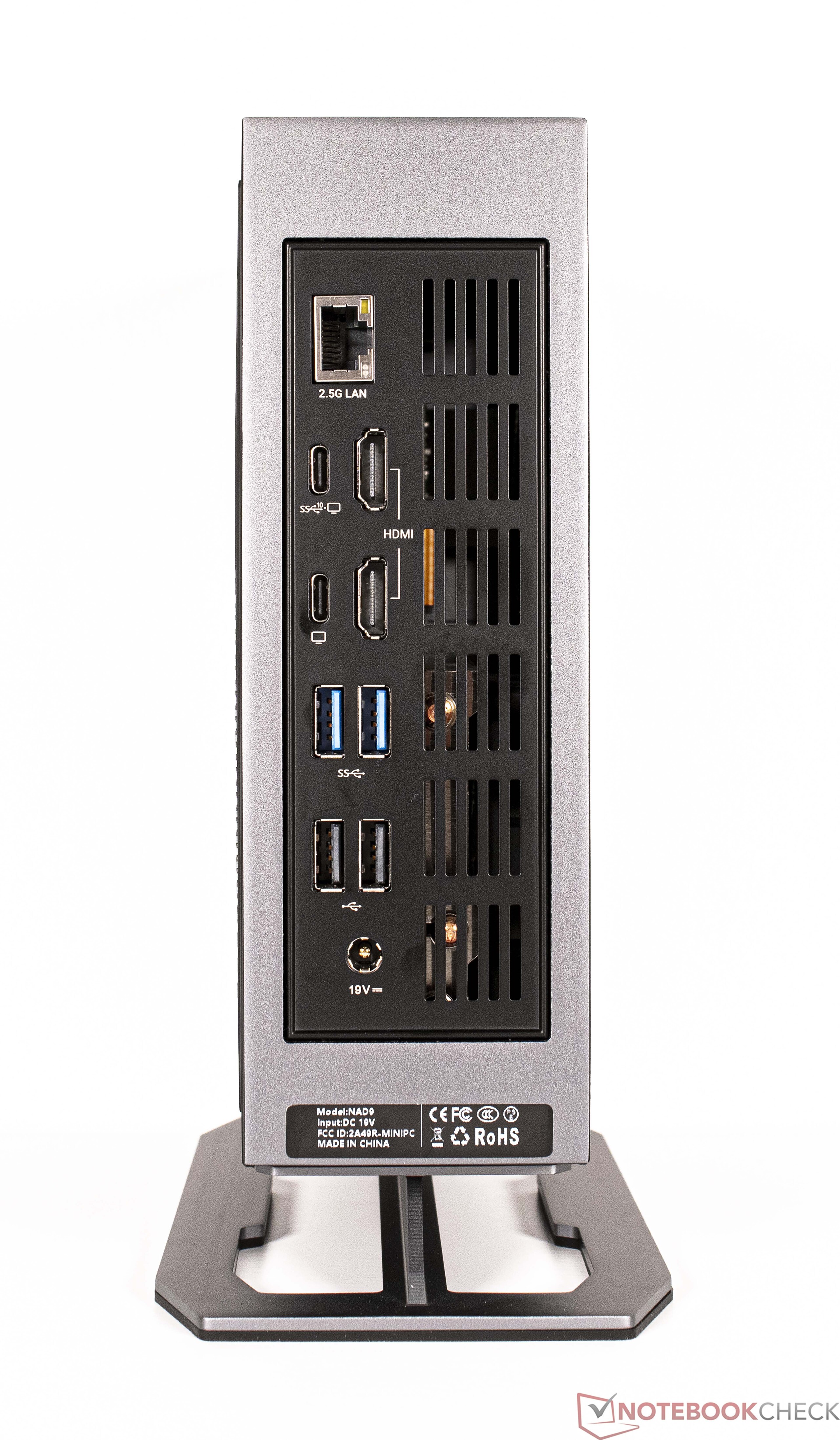

Externa gränssnitt på Minisforum Neptune Series NAD9 (källa: Minisforum)

Anslutningsmöjligheter

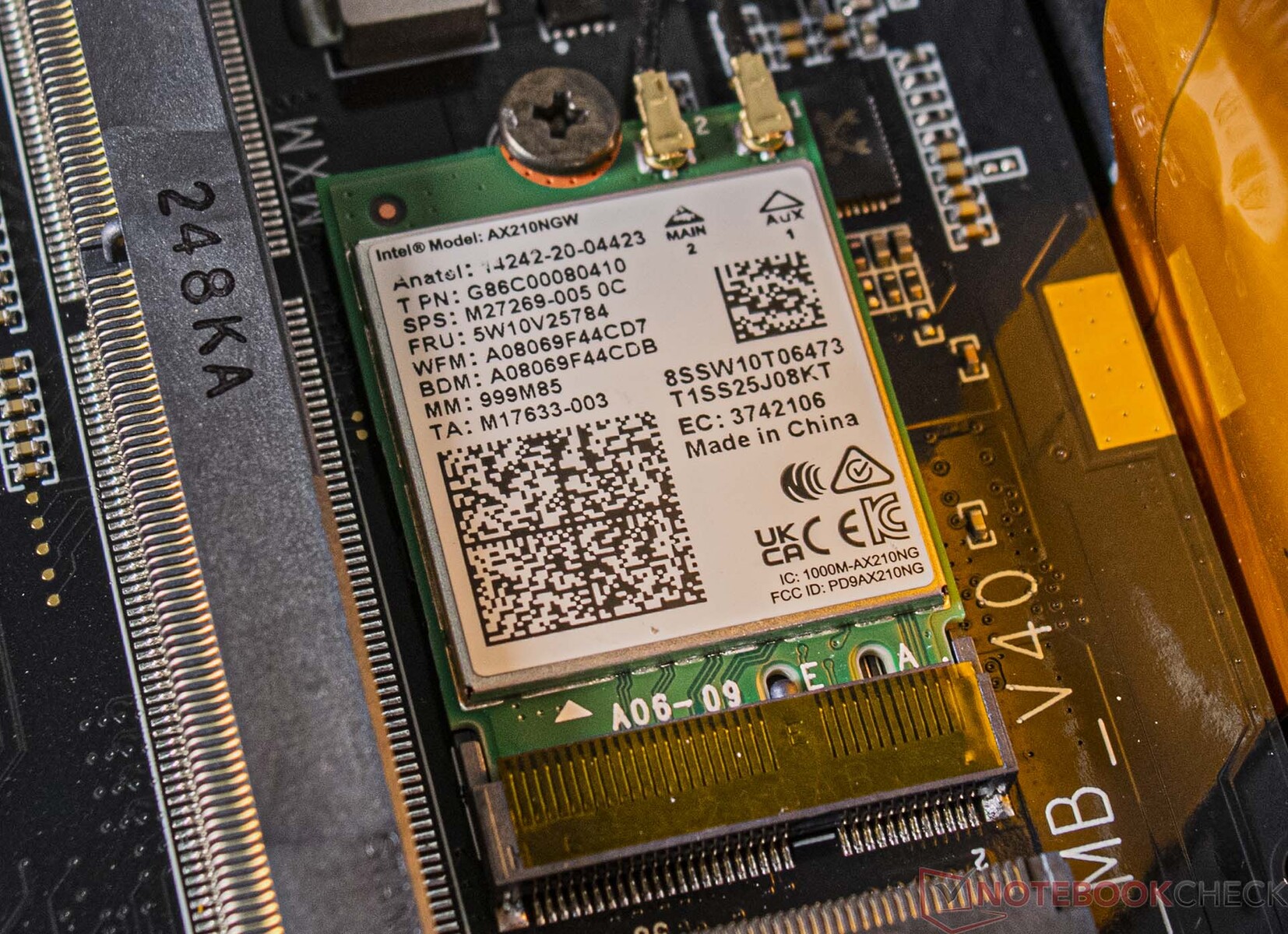

Wi-Fi-modul i Minisforum Neptune-serien NAD9

Minisforum har packat in en Intel Wi-Fi 6E-modul i NAD9. Minisforum NAD9 uppnådde utmärkta överföringshastigheter när vi testade den med vår referensrouter (Asus ROG Rapture GT-AXE11000). Vår recensionsenhet lyckades överträffa sina konkurrenter i både överförings- och mottagningshastigheter. Även om Wi-Fi-modulen stöder den senaste Wi-Fi-standarden kunde den inte upprätta en anslutning till ett 6 GHz-nätverk. Den integrerade LAN-porten erbjuder ett bra alternativ för anslutning till ett nätverk och stöder hastigheter på upp till 2,5 Gbit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s
Genomsnitt Intel Wi-Fi 6E AX210 (715 - 1715, n=26)	1222 MBit/s -7%
Genomsnitt av klass Mini PC (349 - 1796, n=111, senaste 2 åren)	953 MBit/s -28%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s -41%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -67%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -70%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s
Genomsnitt Intel Wi-Fi 6E AX210 (565 - 1687, n=26)	1110 MBit/s -16%
Genomsnitt av klass Mini PC (269 - 1776, n=111, senaste 2 åren)	883 MBit/s -33%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s -34%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -44%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -57%

Minisforum Neptune Series NAD9; iperf3 receive AXE11000; iperf 3.1.3: Ø1296 (663-1363)

Minisforum Neptune Series NAD9; iperf3 transmit AXE11000; iperf 3.1.3: Ø1320 (1165-1353)

Tillbehör

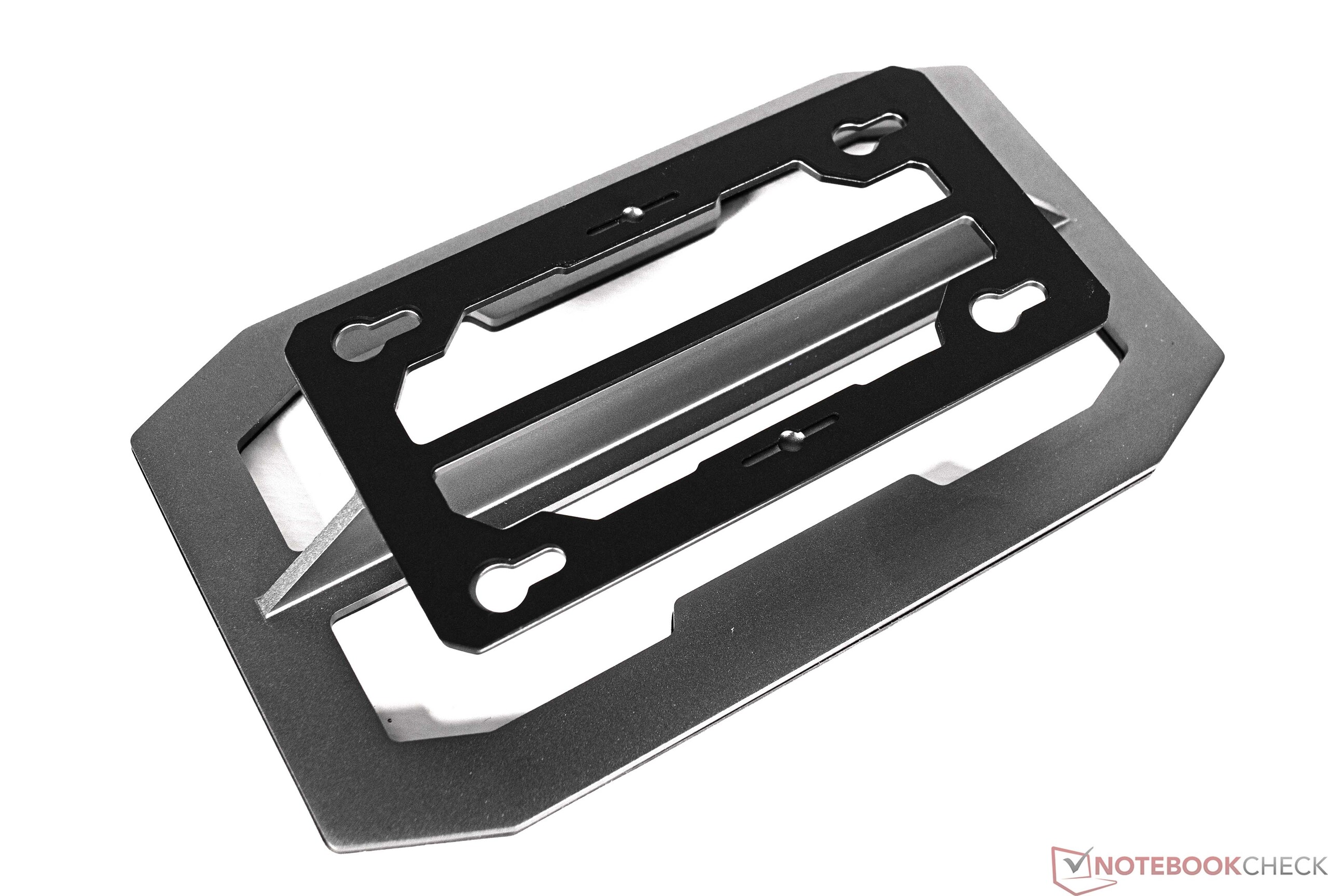

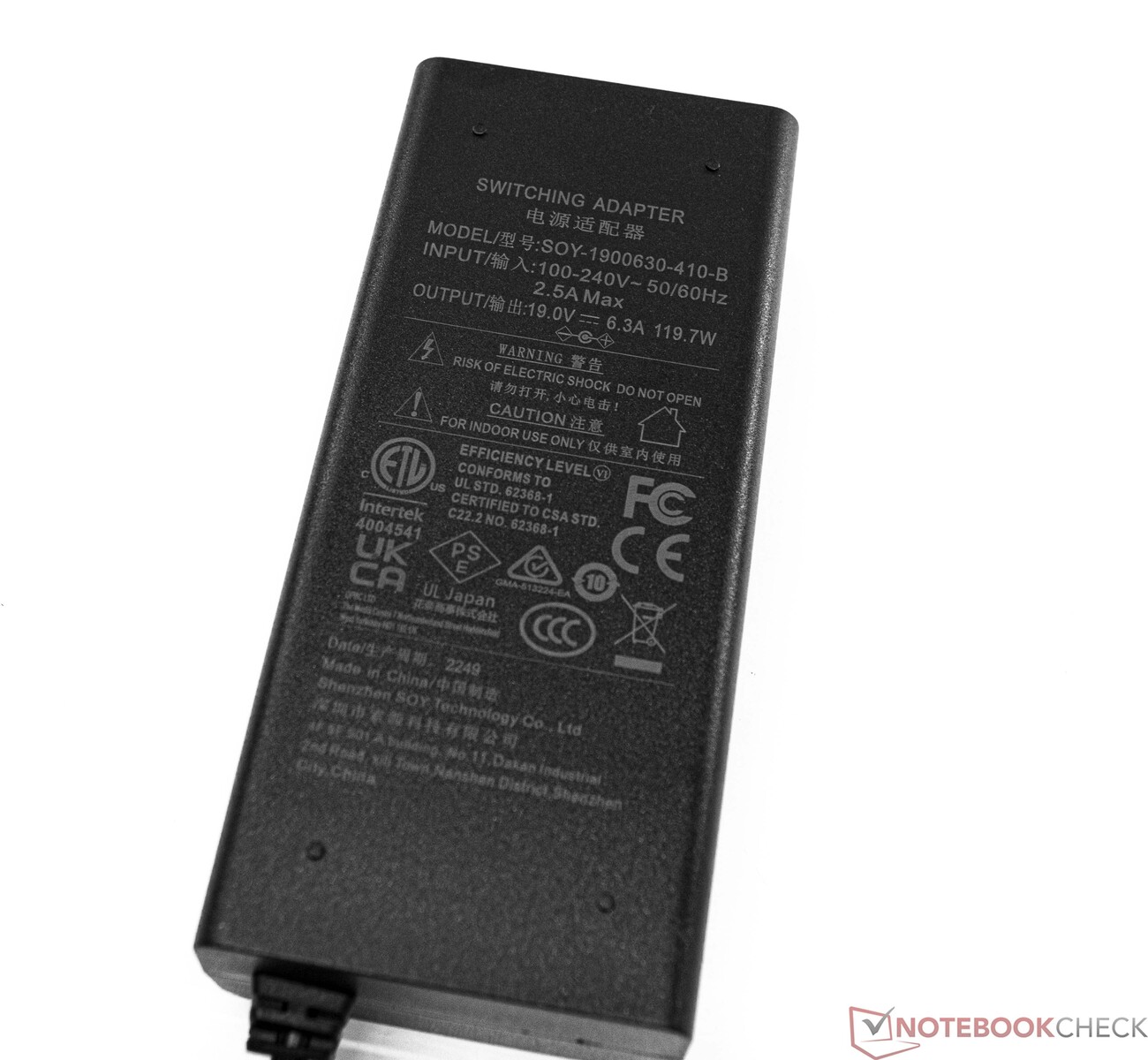

Förutom själva enheten hittar du ett robust stativ (inklusive fästskruvar), ett 120-watts nätaggregat och en HDMI-kabel i lådan.

Underhåll

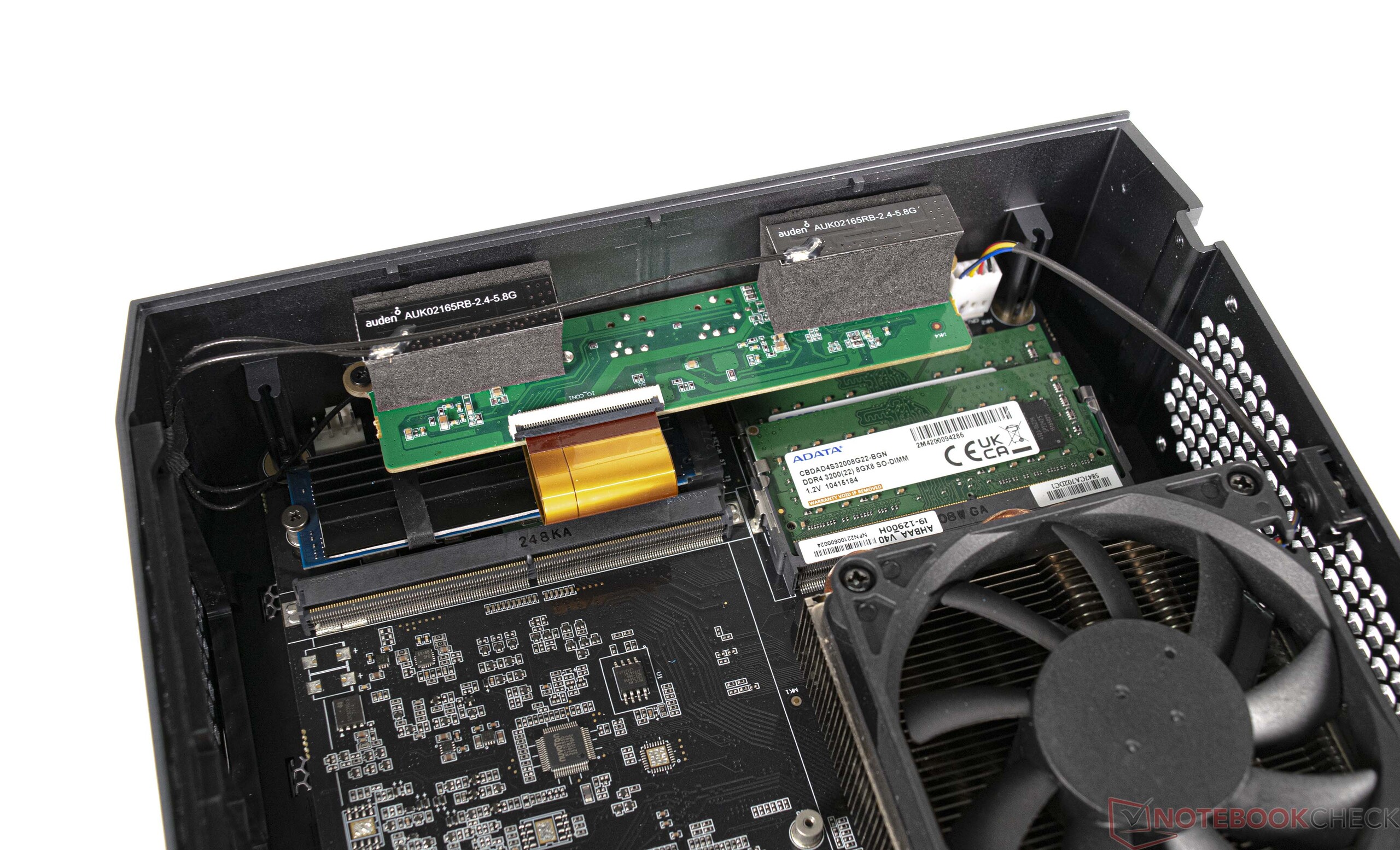

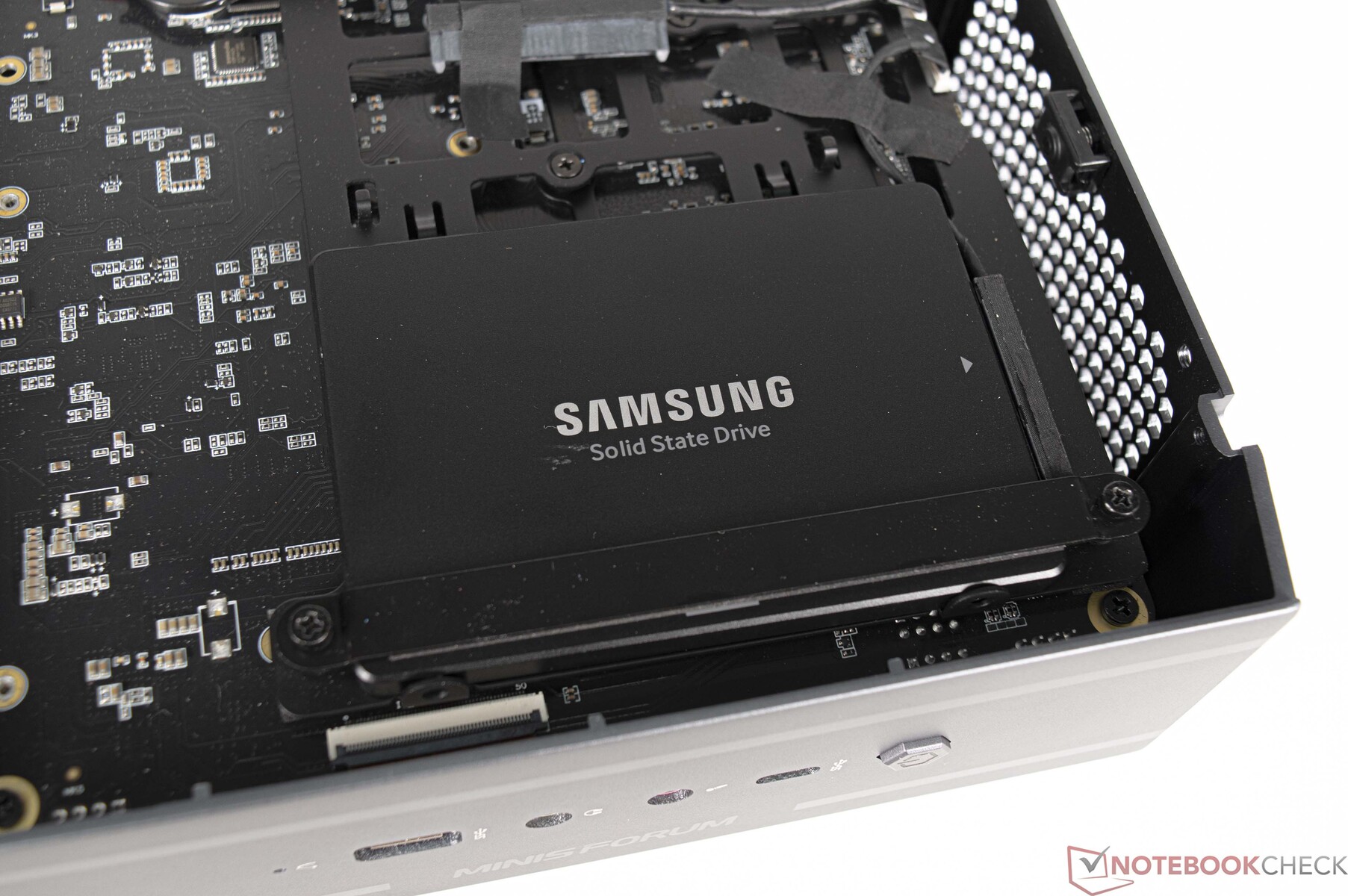

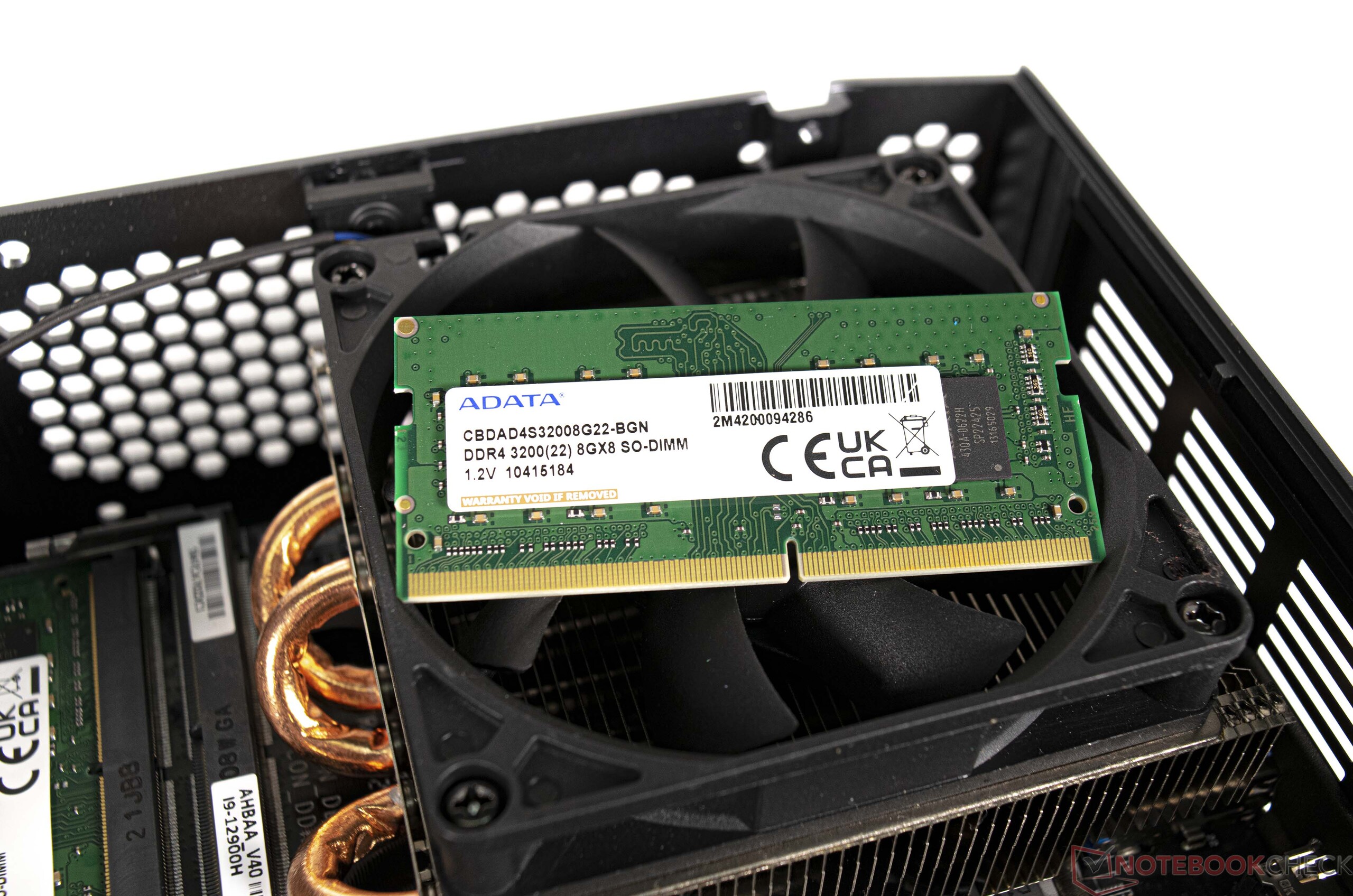

Sidopanelerna på Minisforum Neptune Series NAD9 kan tas bort mycket enkelt. Alla skruvar är lättillgängliga och inte dolda under några gummifötter för att absorbera vibrationer. Enheten är mycket snygg invändigt. Men det blir snabbt uppenbart att det fortfarande finns mycket utrymme inuti. Du hittar också en MXM-plats som potentiellt kan rymma ett dedikerat grafikkort. Vår gissning är att NAD9 och den kommande NAG6 delar samma plattform. För att komma åt M.2 SSD:n krävs lite mer skruvande, men det är inte så farligt. På det hela taget har NAD9 ett lättskött chassi, och CPU-fläkten är också okomplicerad och snabb att rengöra.

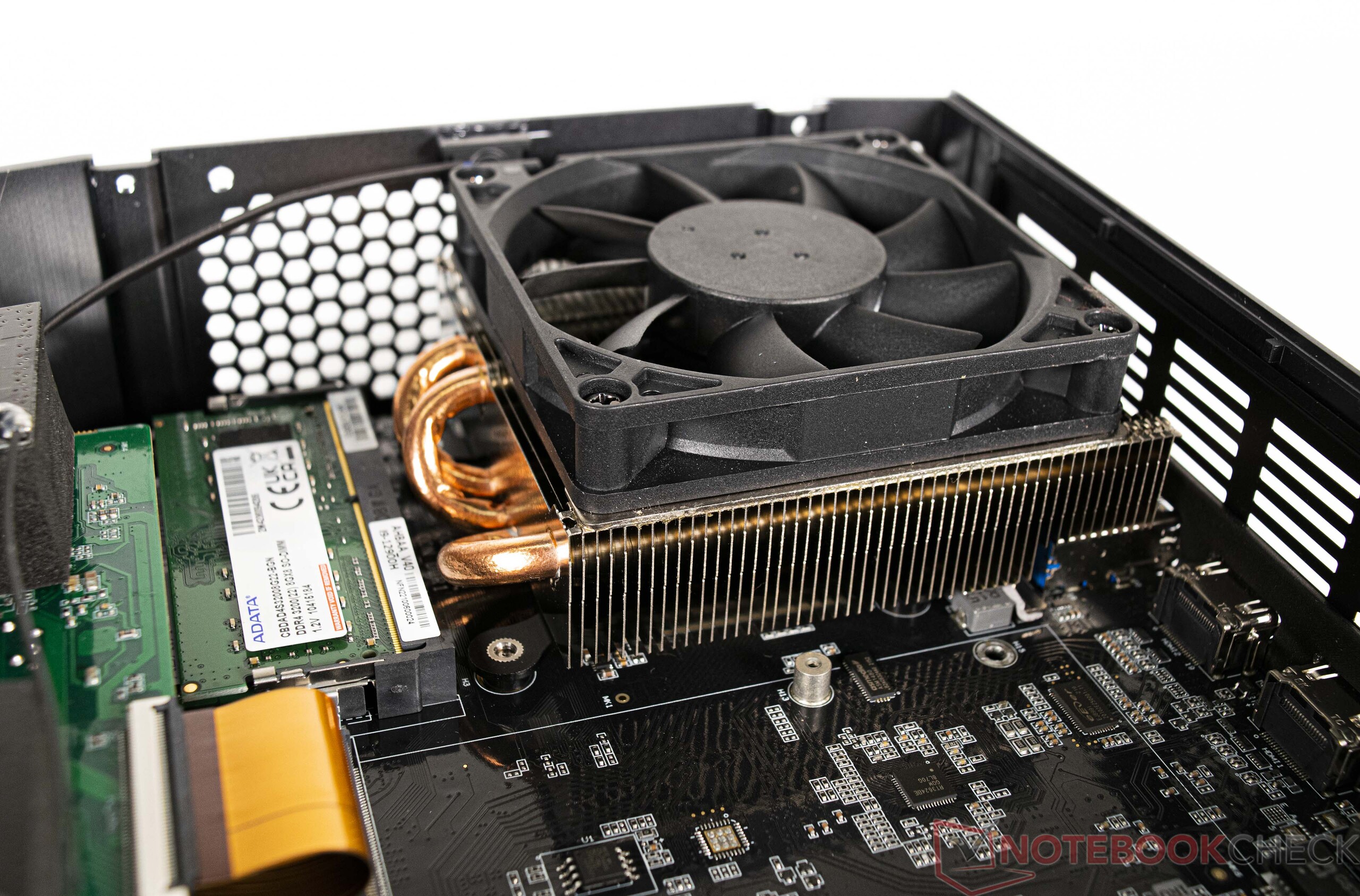

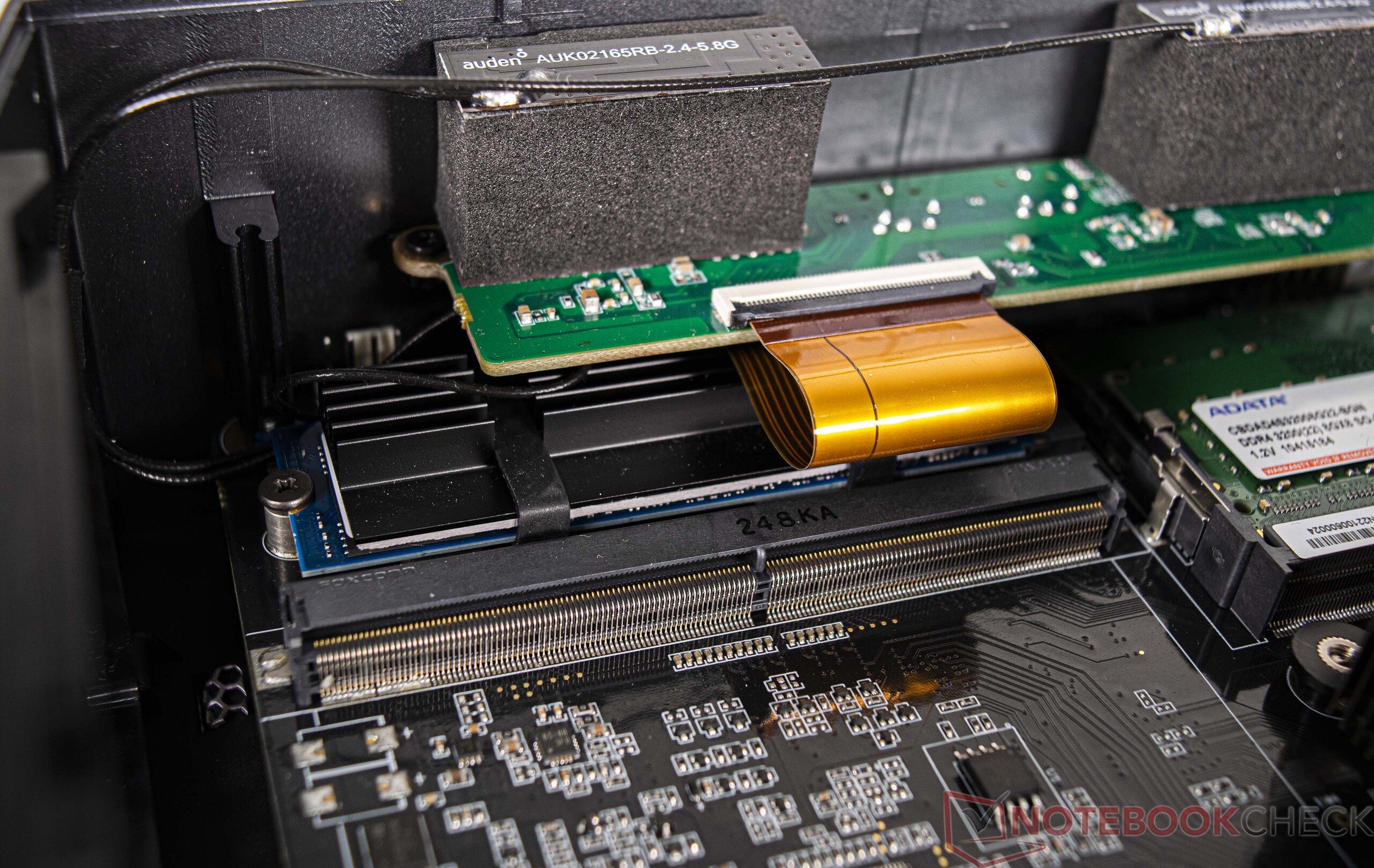

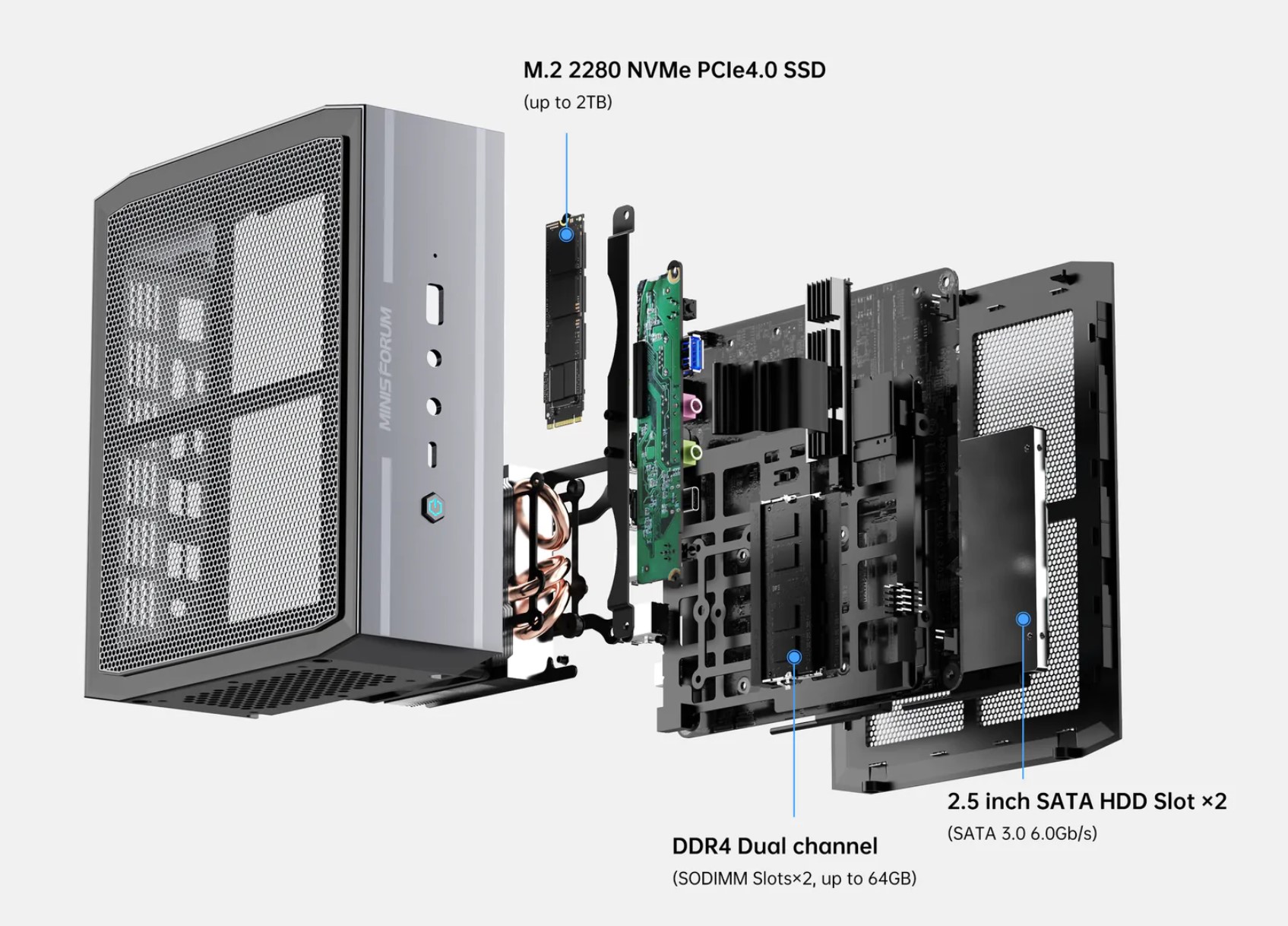

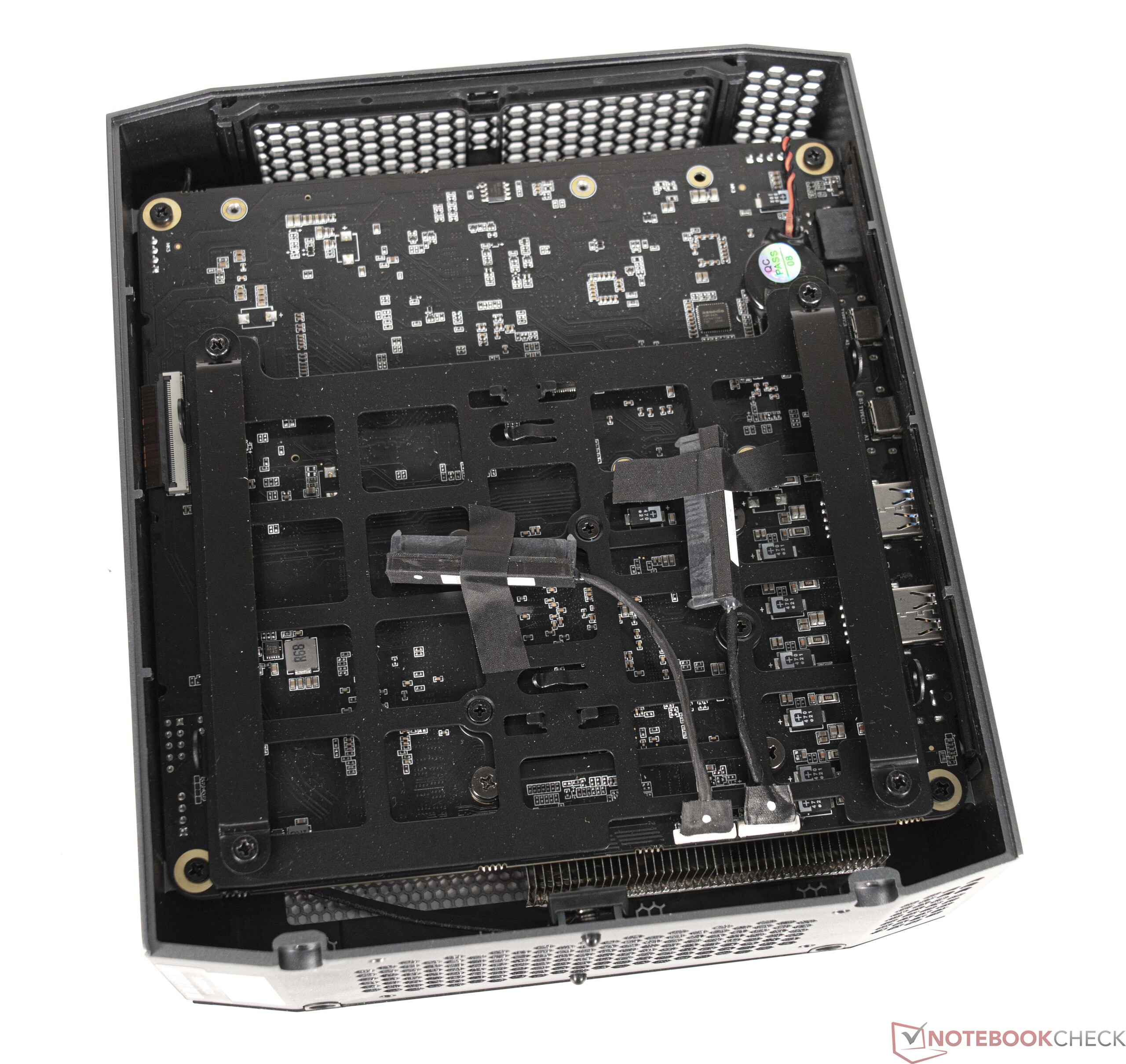

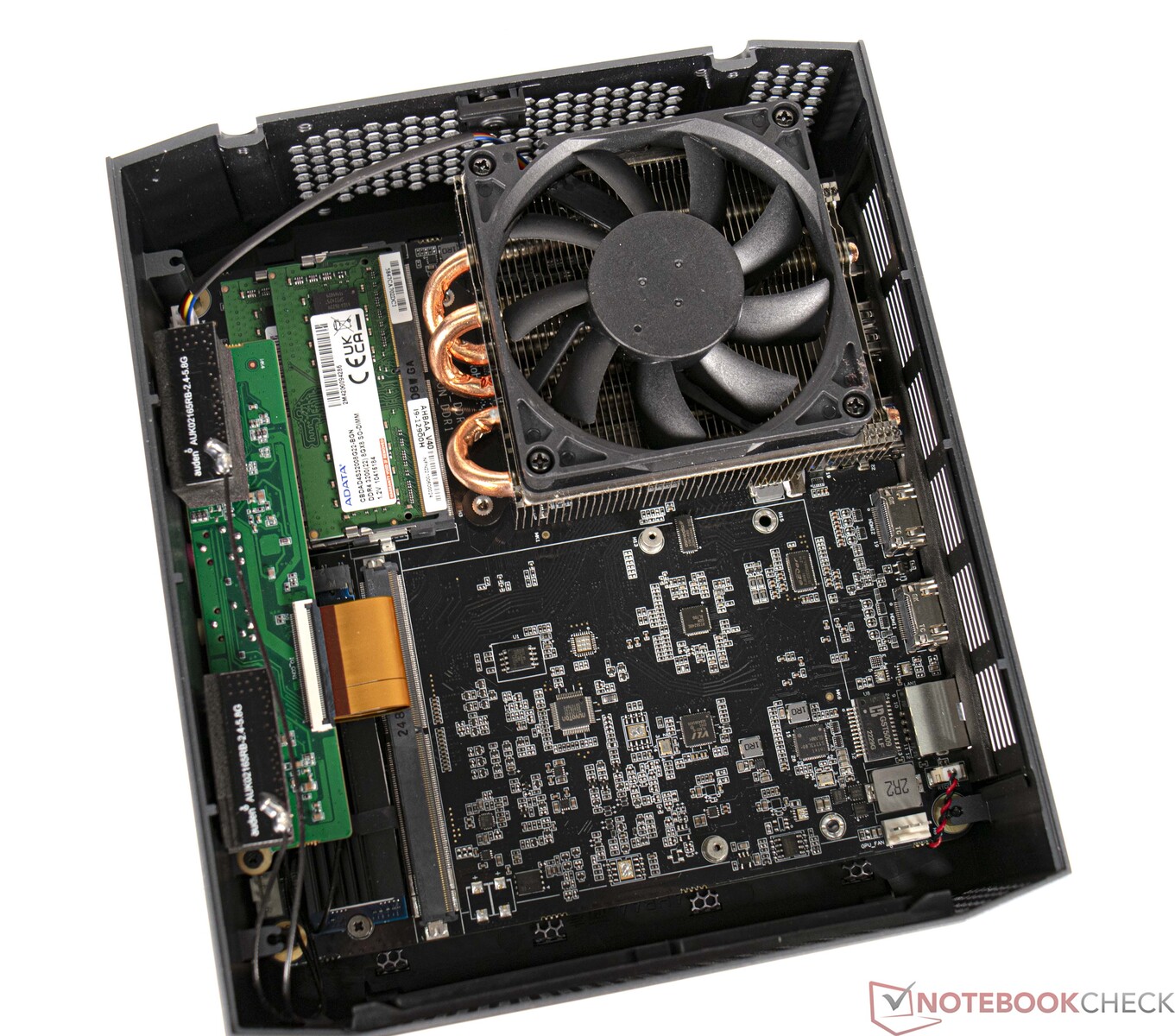

De inre delarna av Minisforum Neptune Series NAD9

Prestanda - framtidssäkrad med 14 kärnor och 20 trådar

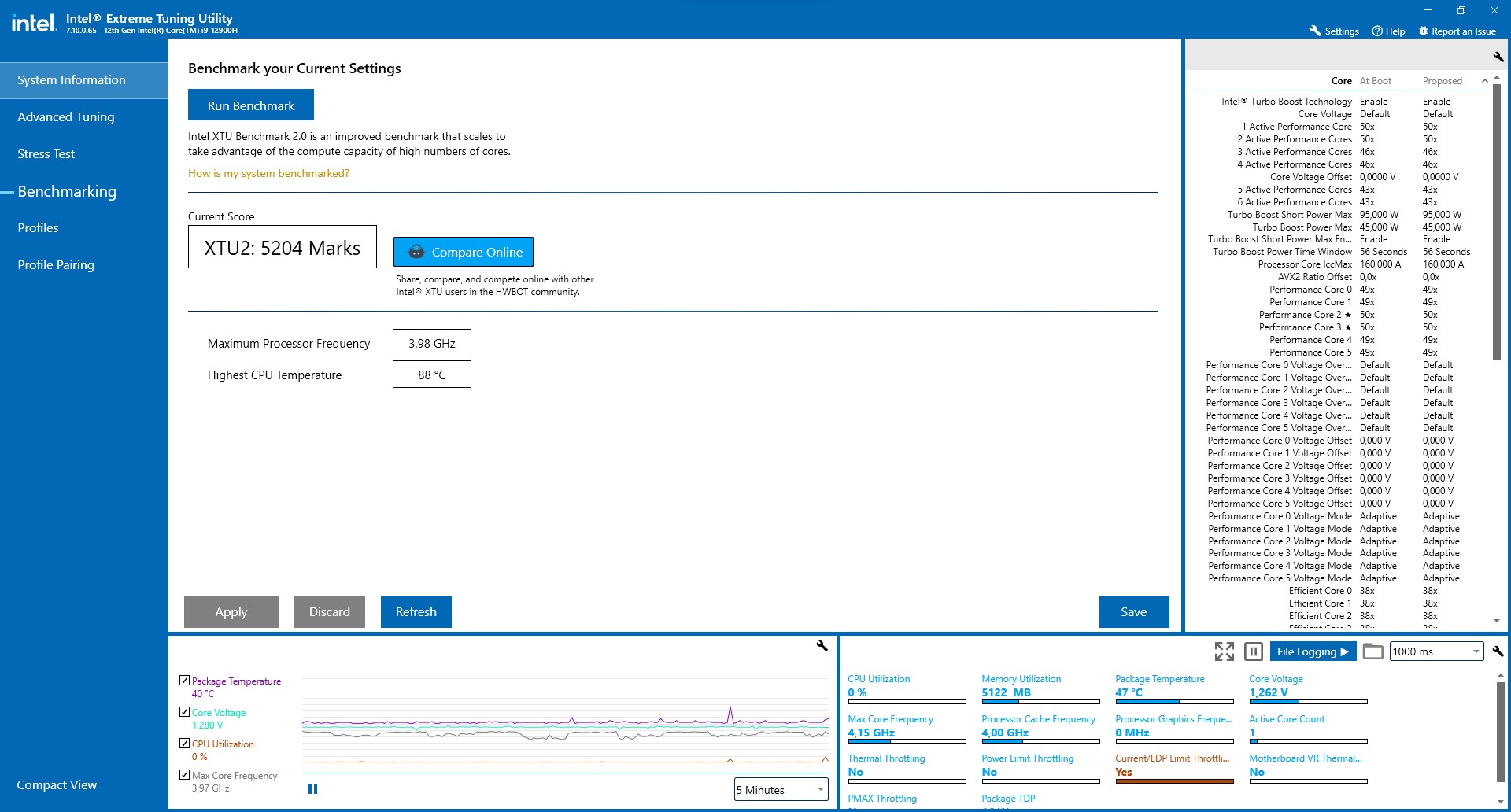

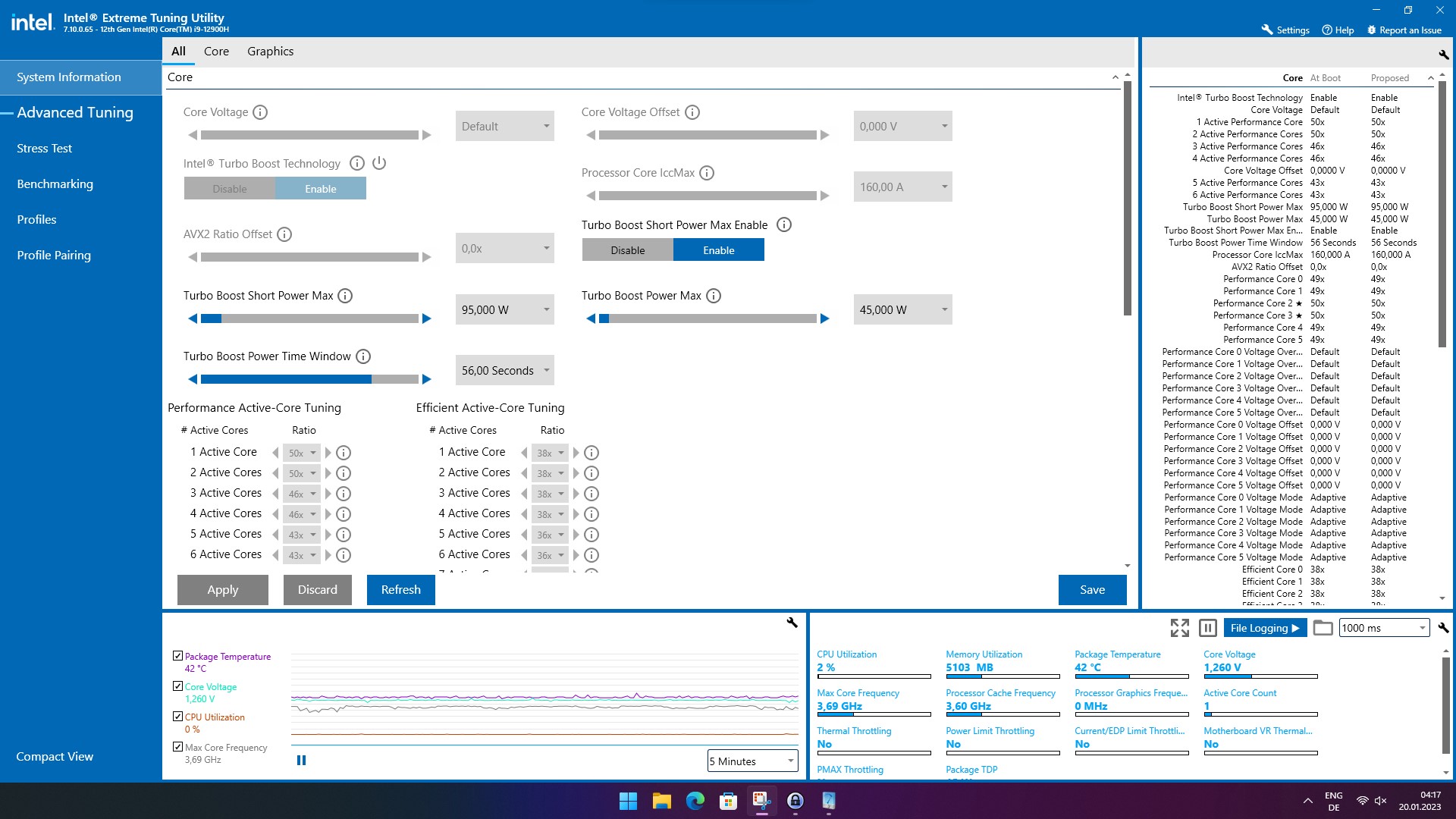

Intel Extreme Tuning Utility (Benchmark)

Provningsvillkor

Alla prestandatester utfördes med effektprofilen inställd på "High Performance" på Minisforum Neptune Series NAD9. Vi använde endast en annan strömprofil när vi mätte strömförbrukning och buller, i enlighet med våra testkriterier. CPU power och kylning lämnades oförändrade i BIOS.

Processor

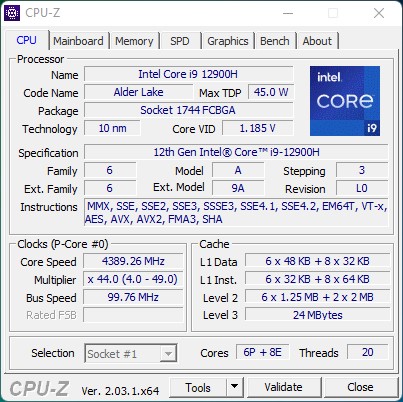

Intel Core i9-12900H (källa: Minisforum)

Intel Core i9-12900H är en högklassig mobil SoC baserad på Alder Lake-arkitekturen. Hybridarkitekturen kombinerar prestanda och effektivitetskärnor och kan köra upp till 20 trådar samtidigt. Under testningen kunde vår recensionsenhet säkra en utmärkt plats i vår jämförelse tack vare den snabba processorn. Processorn överträffar till och med Core i9-12900HK som används i Morefine S600 Apex Engineer. Anledningen är att NAD9 har ett något större termiskt utrymme som möjliggör en aning mer prestanda på kort sikt. Med det sagt kan Minisforum Neptune Series NAD9 inte få ut det mesta av Intel Core i9-12900H. Vi såg en maximal strömförbrukning på 85 watt under belastning, men PL2 har ett tak på 95 watt utanför lådan.

Klicka på här för att se fler processorjämförelser.

Performance Rating - Percent
Morefine S600-Apex Engineer ^-6! Intel Core i9-12900HK, 1800 MHz	51.9 pt
Genomsnitt Intel Core i9-12900H	51.2 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.2 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.2 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

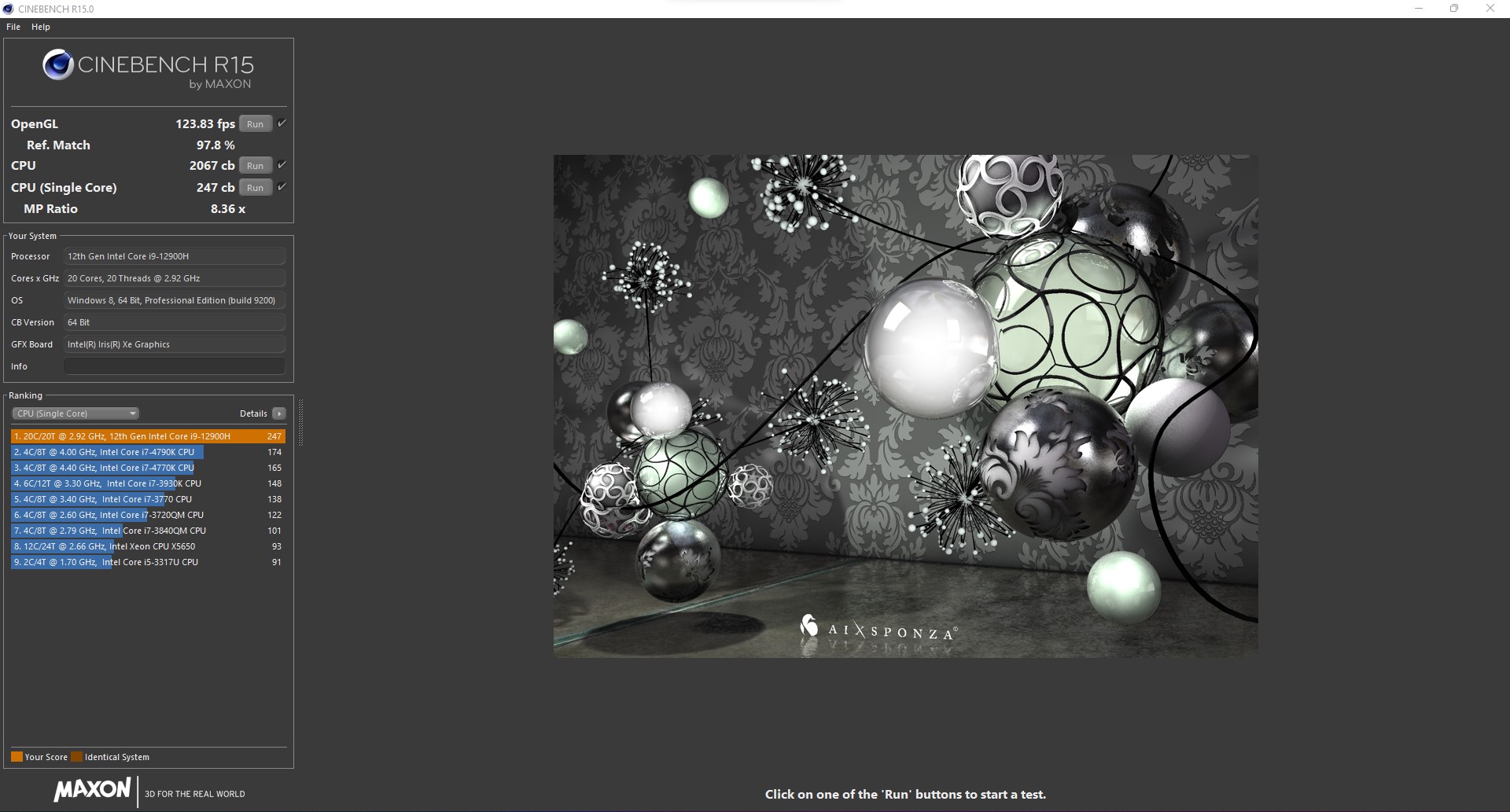

Cinebench R15
CPU Single 64Bit
Genomsnitt Intel Core i9-12900H (235 - 277, n=29)	262 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -20%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points -21%
CPU Multi 64Bit
Genomsnitt Intel Core i9-12900H (1395 - 3077, n=28)	2454 Points +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points -4%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -73%

Cinebench R20
CPU (Single Core)
Genomsnitt Intel Core i9-12900H (624 - 738, n=28)	706 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points -26%
CPU (Multi Core)
Genomsnitt Intel Core i9-12900H (2681 - 7471, n=28)	5717 Points +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points -6%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -53%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -71%

Cinebench R11.5
CPU Single 64Bit
Genomsnitt Intel Core i9-12900H (2.83 - 3.3, n=7)	3 Points +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points 0%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points -22%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points -1%
Genomsnitt Intel Core i9-12900H (12.1 - 32.8, n=7)	23.6 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -10%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points -12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points -15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -75%

Cinebench R10
Rendering Single CPUs 64Bit
Genomsnitt Intel Core i9-12900H (12846 - 14567, n=6)	13385 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points -21%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -6%
Genomsnitt Intel Core i9-12900H (48178 - 77409, n=6)	66910 Points -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -175%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -89%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +8%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +15%
Genomsnitt Intel Core i9-12900H (160 - 451, n=28)	231 Seconds * +15%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +16%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -72%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * -29%
Genomsnitt Intel Core i9-12900H (3.42 - 5.06, n=6)	4.08 s * -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +7%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -52%
Genomsnitt Intel Core i9-12900H (187.2 - 265, n=6)	207 s * -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +56%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +13%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +11%
Genomsnitt Intel Core i9-12900H (225 - 317, n=6)	267 fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -32%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps -9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps -11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps -11%
Genomsnitt Intel Core i9-12900H (67.5 - 126.7, n=6)	105.8 fps -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -71%

WinRAR - Result
Genomsnitt Intel Core i9-12900H (7620 - 9328, n=7)	8202 KB/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -31%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -47%

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +64%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +26%
Genomsnitt Intel Core i9-12900H (8.6 - 12.8, n=7)	10.5 GB/s +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -12%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -38%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s 0%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s
Genomsnitt Intel Core i9-12900H (1.5 - 2.1, n=7)	1.843 GB/s -8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s -20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -62%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +33%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +13%
Genomsnitt Intel Core i9-12900H (0.864 - 1.4, n=7)	1.077 GB/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -54%

Geekbench 5.5
Multi-Core
Genomsnitt Intel Core i9-12900H (8519 - 14376, n=31)	11913 Points +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -49%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points
Genomsnitt Intel Core i9-12900H (1631 - 1897, n=31)	1800 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -34%

Geekbench 5.0
5.0 Multi-Core
Genomsnitt Intel Core i9-12900H (8374 - 12717, n=11)	10525 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points
Genomsnitt Intel Core i9-12900H (1553 - 1838, n=11)	1695 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points
Genomsnitt Intel Core i9-12900H (7191 - 8015, n=8)	7533 Points -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -26%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -34%
64 Bit Multi-Core Score
Genomsnitt Intel Core i9-12900H (30682 - 41134, n=8)	36787 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -47%

3DMark 11 - 1280x720 Performance Physics
Genomsnitt Intel Core i9-12900H (10552 - 26126, n=33)	21276 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points -22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points -34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -58%

7-Zip 18.03
7z b 4
Genomsnitt Intel Core i9-12900H (34684 - 76677, n=28)	60849 MIPS +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -66%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS -2%
Genomsnitt Intel Core i9-12900H (5302 - 6289, n=28)	5843 MIPS -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS -5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -20%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS -21%

HWBOT x265 Benchmark v2.2 - 4k Preset
Genomsnitt Intel Core i9-12900H (8.05 - 22.5, n=28)	17.1 fps +21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +13%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -63%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -38%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -34%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * -23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * -7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec *
Genomsnitt Intel Core i9-12900H (0.4218 - 0.506, n=28)	0.454 sec * +2%

LibreOffice - 20 Documents To PDF
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * -74%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * -33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * -33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -30%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * -28%
Genomsnitt Intel Core i9-12900H (36.8 - 59.8, n=28)	42.4 s * -12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s *

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points
Genomsnitt Intel Core i9-12900H (263 - 332, n=25)	297 Points -5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points -27%

Mozilla Kraken 1.1 - Total
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms *
Genomsnitt Intel Core i9-12900H (490 - 608, n=27)	520 ms * +10%

3DMark
3840x2160 Fire Strike Ultra Physics
Genomsnitt Intel Core i9-12900H (19179 - 31787, n=19)	26136 Points +22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -55%
1920x1080 Fire Strike Physics
Genomsnitt Intel Core i9-12900H (9703 - 31176, n=32)	25492 Points +15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -58%
2560x1440 Time Spy CPU
Genomsnitt Intel Core i9-12900H (5062 - 14424, n=32)	11544 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points -22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points -33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -34%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points -38%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -73%

* ... mindre är bättre

Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4

Geekbench 5.5
Multi-Core
Genomsnitt Intel Core i9-12900H (8519 - 14376, n=31)	11913 Points +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -49%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points
Genomsnitt Intel Core i9-12900H (1631 - 1897, n=31)	1800 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -34%

Geekbench 5.0
5.0 Multi-Core
Genomsnitt Intel Core i9-12900H (8374 - 12717, n=11)	10525 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points
Genomsnitt Intel Core i9-12900H (1553 - 1838, n=11)	1695 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points
Genomsnitt Intel Core i9-12900H (7191 - 8015, n=8)	7533 Points -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -26%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -34%
64 Bit Multi-Core Score
Genomsnitt Intel Core i9-12900H (30682 - 41134, n=8)	36787 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -47%

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Genomsnitt av klass Mini PC	75.2 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	74.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	68.8 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +44%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +24%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +23%
Genomsnitt av klass Mini PC (646 - 51004, n=118, senaste 2 åren)	12899 KRay/s +18%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -49%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +82%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +54%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +45%
Genomsnitt av klass Mini PC (3857 - 214250, n=118, senaste 2 åren)	64853 Points +17%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -56%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +15%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +14%
Genomsnitt av klass Mini PC (260 - 9399, n=118, senaste 2 åren)	2863 MB/s +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +11%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points
Genomsnitt av klass Mini PC (8172 - 184747, n=118, senaste 2 åren)	80064 Points -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -45%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +69%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +62%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +58%
Genomsnitt av klass Mini PC (408 - 29064, n=118, senaste 2 åren)	8760 Points +16%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -47%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +97%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +69%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +67%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +50%
Genomsnitt av klass Mini PC (1987 - 113499, n=118, senaste 2 åren)	33799 Points +20%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -47%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +20%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s
Genomsnitt av klass Mini PC (3691 - 325960, n=118, senaste 2 åren)	88023 MB/s -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s -24%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -41%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +19%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +16%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +2%
Genomsnitt av klass Mini PC (74.9 - 2039, n=118, senaste 2 åren)	741 MB/s +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -64%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +46%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +24%
Genomsnitt av klass Mini PC (350 - 26952, n=118, senaste 2 åren)	6891 KRay/s +19%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -48%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +26%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +24%
Genomsnitt av klass Mini PC (4408 - 50500, n=118, senaste 2 åren)	28353 MPixel/s +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -18%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -39%

Minisforum Neptune Series NAD9 som kör Cinebench R15 Multi-loop

Vi fick en bra titt på effektiviteten hos den medföljande kylningslösningen under Cinebench R15-slingtestet. Efter de första körningarna sjönk systemets prestanda drastiskt och SoC:n kördes endast på PL1 (45 watt). I slutet av 50 körningar fick NAD9 en genomsnittlig poäng på 1 703.

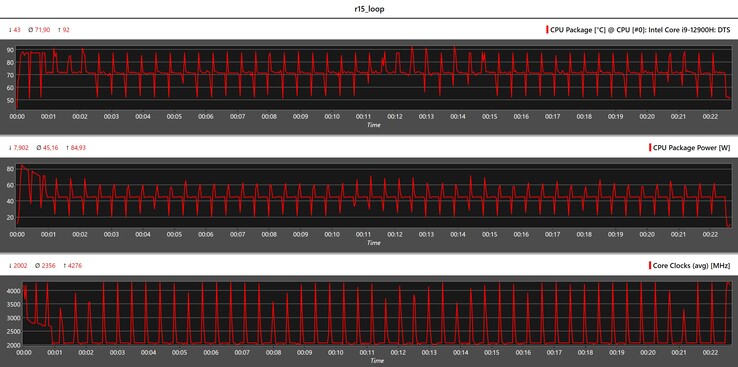

CPU-mätvärden under Cinebench R15-slingan

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Systemprestanda

I systemjämförelserna kunde Minisforum Neptune Series NAD9 definitivt bygga vidare på den fantastiska prestandan i CPU-jämförelserna. Resultaten motsvarar vår subjektiva upplevelse av enheten under vår granskning. Systemet är snabbt och låter dig inte vänta länge. Det medföljande minnet erbjuder inte den bästa latenstiden, men detta är knappast märkbart vid daglig användning. I vår testning var överföringshastigheterna ändå bra och oftast bättre än vad konkurrerande enheter klarar av.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	97.3 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	94.5 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	94.4 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	90.1 pt
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	83.8 pt
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	82.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	77 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	70.4 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +5%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points 0%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -27%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -15%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points -20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -21%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +30%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -11%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -25%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -31%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -34%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points -9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -32%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -20%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -31%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -34%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points -14%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points -40%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points -40%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -42%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Genomsnitt Intel Core i9-12900H (34438 - 74264, n=28)	58945 MB/s +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +6%
Genomsnitt av klass Mini PC (6481 - 89287, n=118, senaste 2 åren)	48312 MB/s +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s -2%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s -31%

AIDA64 / Memory Read
Genomsnitt Intel Core i9-12900H (36365 - 74642, n=28)	61718 MB/s +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s
Genomsnitt av klass Mini PC (6914 - 99171, n=118, senaste 2 åren)	49202 MB/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -19%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s -23%

AIDA64 / Memory Write
Genomsnitt Intel Core i9-12900H (32276 - 67858, n=28)	59318 MB/s +27%
Genomsnitt av klass Mini PC (6862 - 98583, n=118, senaste 2 åren)	52727 MB/s +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -24%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s -25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -25%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns *
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * +4%
Genomsnitt av klass Mini PC (44.9 - 184.8, n=118, senaste 2 åren)	91.6 ns * +8%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * +9%
Genomsnitt Intel Core i9-12900H (74.7 - 118.1, n=27)	85.7 ns * +14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +26%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +31%

* ... mindre är bättre

DPC-fördröjning

Med hjälp av verktyget LatencyMon upptäckte vi ingen ökning av latenstiden, inte ens när vi hade flera flikar öppna i Microsoft Edge och spelade upp vår 4K-testvideo. IGPU-användningen var cirka 20 procent under uppspelningen av 4K-video. Latensen ökade endast något när vi började med Prime95.

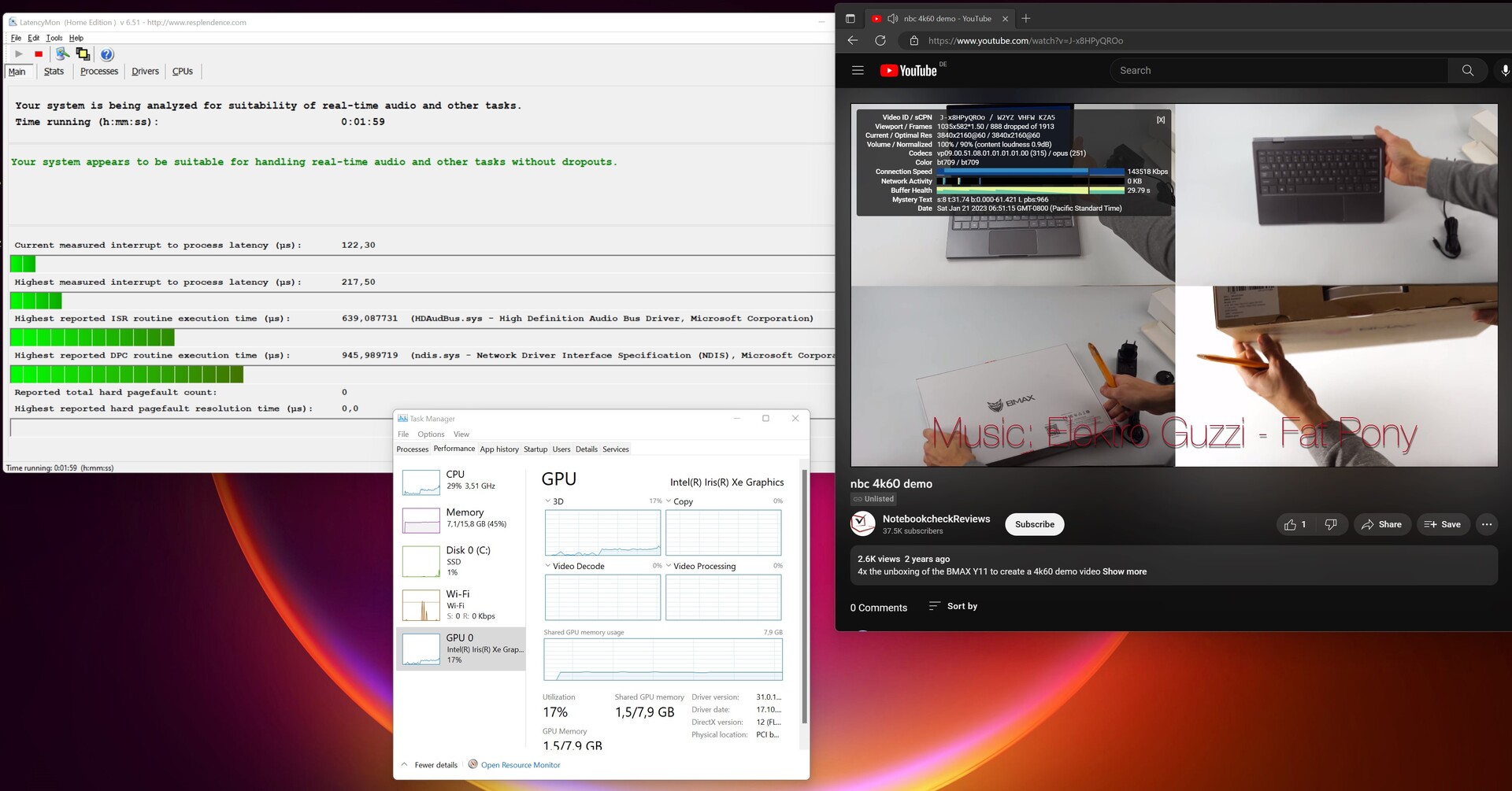

Maximal latens med flera öppna webbläsarflikar och under uppspelning av 4K-video

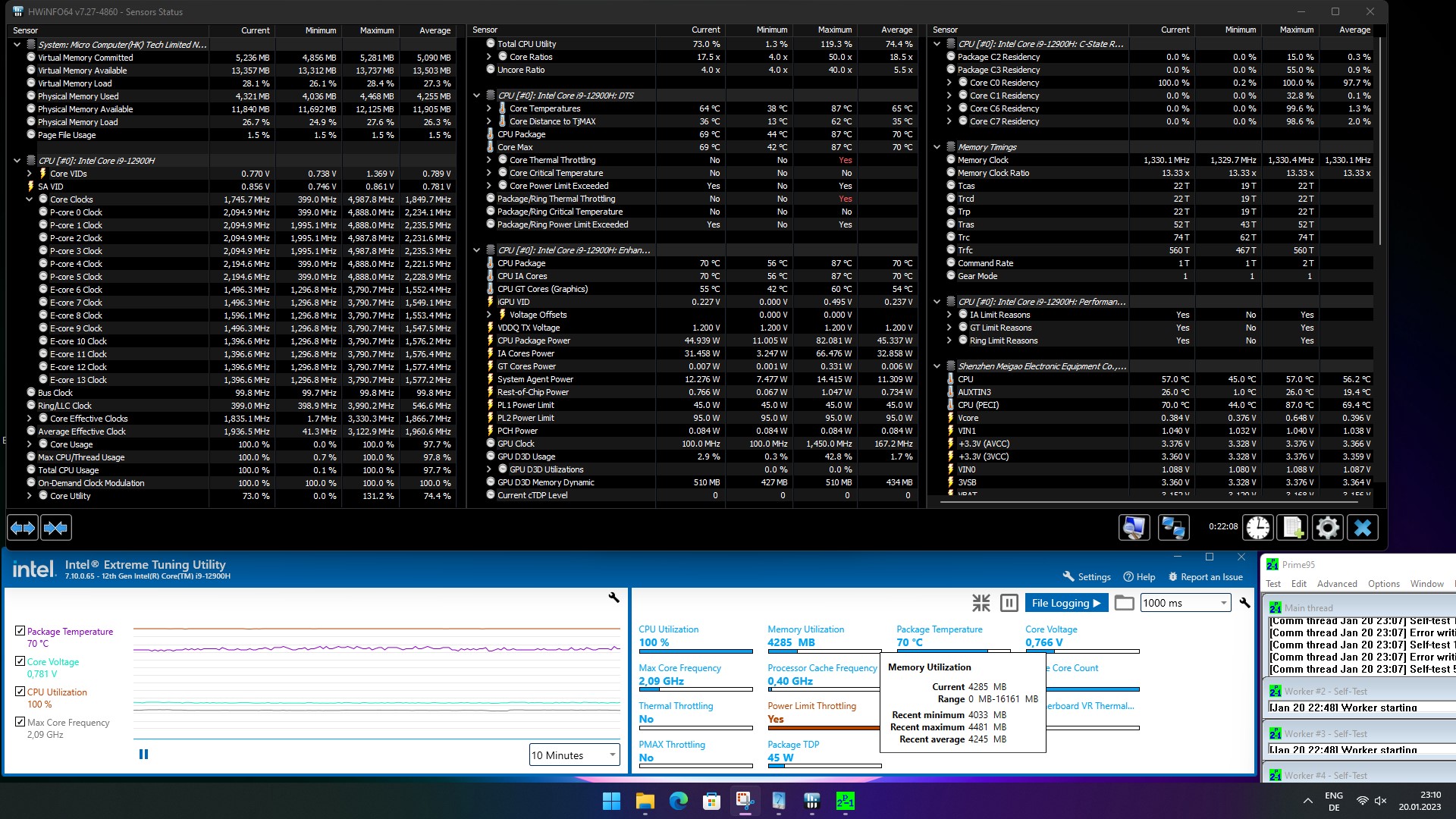

Maximal latenstid efter att ha kört Prime95 i tio sekunder

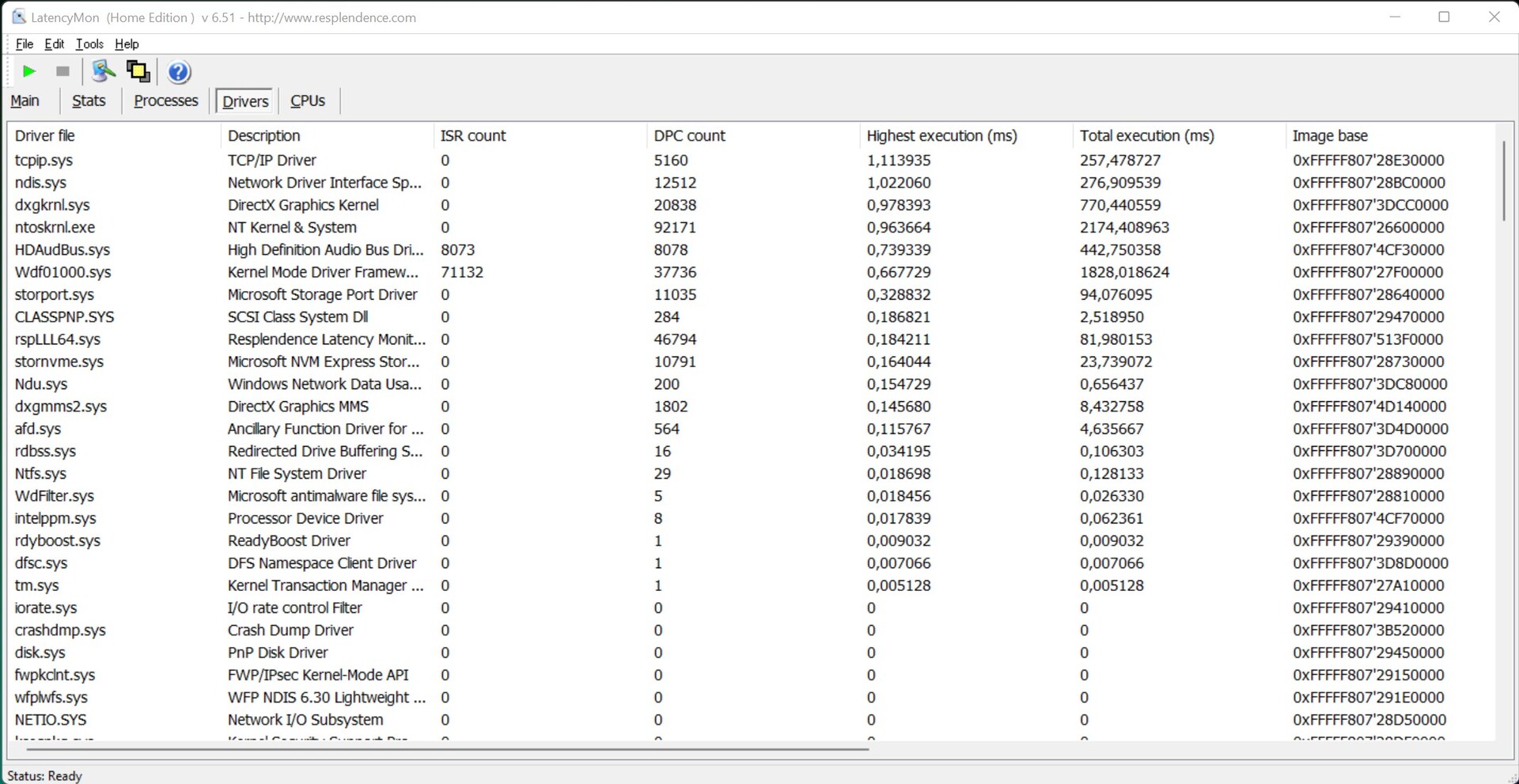

Drivrutiner sorterade efter utföringstid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -46%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs *
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +1%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	961.5 μs * +14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +41%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +69%

* ... mindre är bättre

Masslagring

Två 2,5-tums lagringsenheter kan installeras på baksidan

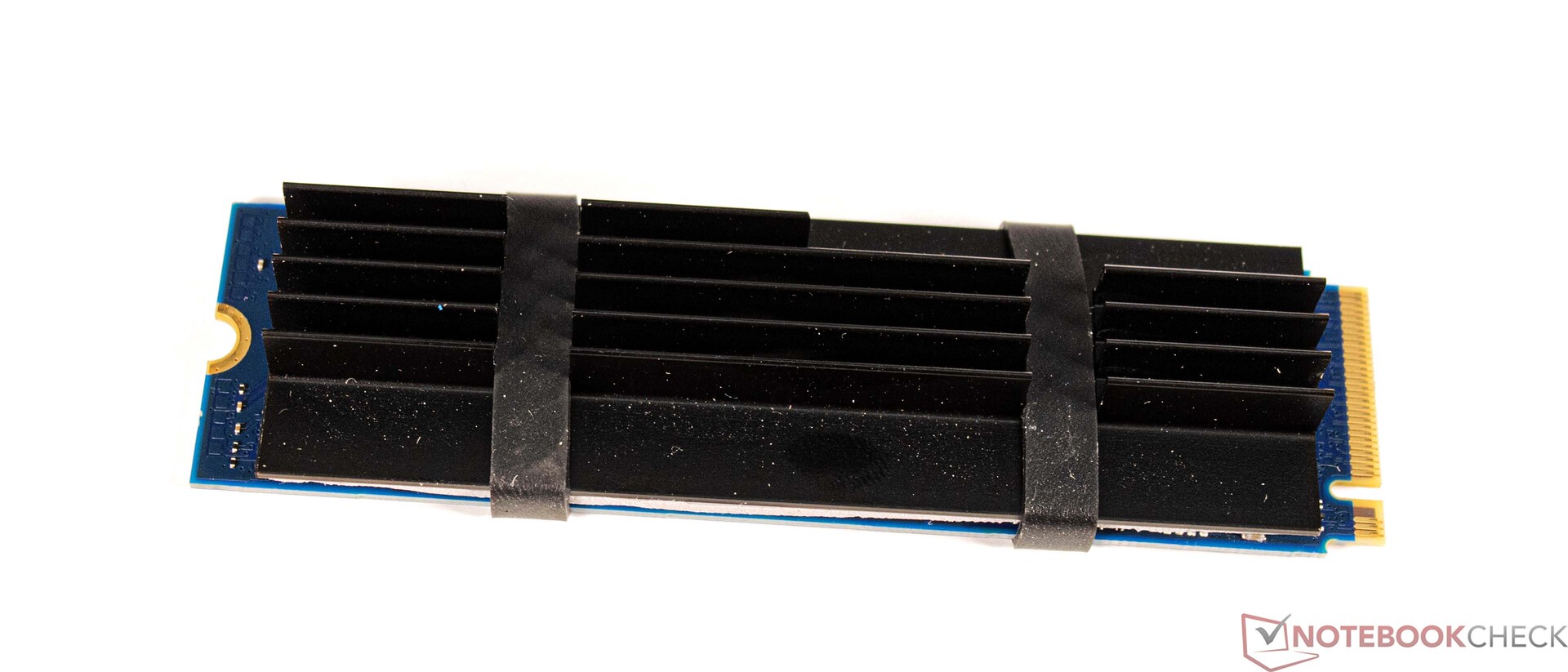

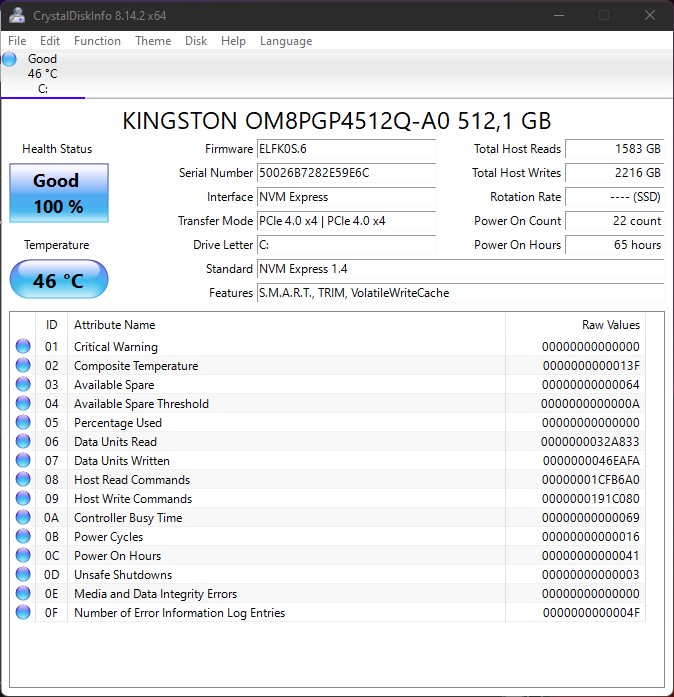

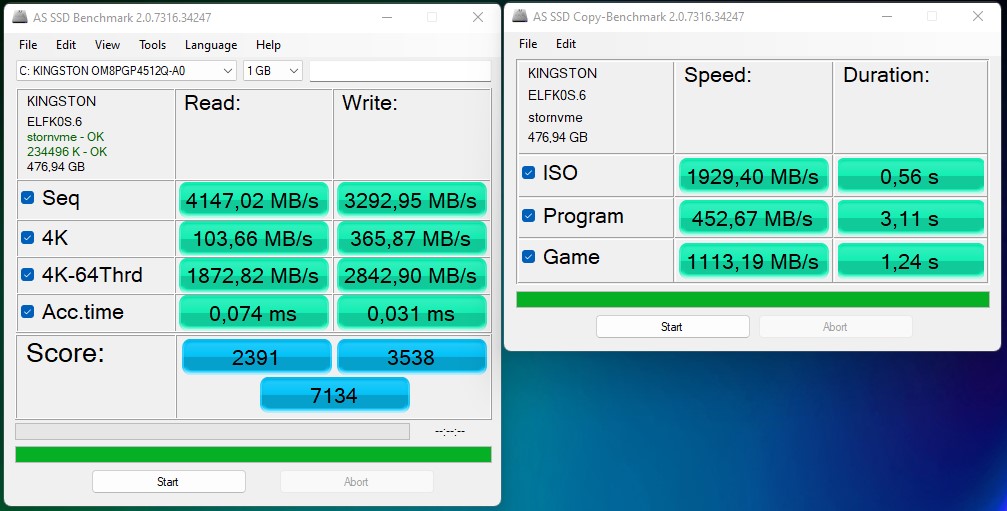

Vår testkonfiguration av Minisforum NAD9 levereras med en M.2 2280 Kingston SSD med 512 GB lagringsutrymme. Under granskningen levererade SSD:n mycket höga överföringshastigheter. Läshastigheten för 4K-läsning är extremt hög med över 100 MB/s. Vi noterade endast mindre problem med SSD:ns uthålliga läsprestanda. NAD9 kan utrustas med upp till tre lagringsenheter. På baksidan av moderkortet finns ett fäste för montering av två 2,5-tums enheter. De nödvändiga anslutningskablarna finns redan i enheten.

Se vår jämförelsetabell för lagringsenheter för mer information och riktmärken.

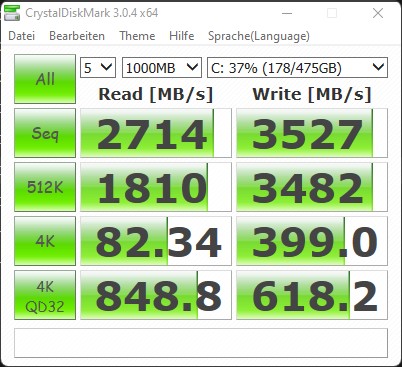

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2714 MB/s

Sequential Write: 3527 MB/s

512K Read: 1810 MB/s

512K Write: 3482 MB/s

4K Read: 82.34 MB/s

4K Write: 399 MB/s

4K QD32 Read: 848.8 MB/s

4K QD32 Write: 618.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	96 pt
Genomsnitt av klass Mini PC	60.3 pt
Morefine S600-Apex Engineer ^-8! Crucial P1 SSD CT1000P1SSD8	54.8 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	46.3 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.1 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	38.8 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	35 pt

DiskSpd
seq read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s
Genomsnitt av klass Mini PC (277 - 4357, n=118, senaste 2 åren)	2326 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s -22%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -28%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -39%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -53%
seq write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s
Genomsnitt av klass Mini PC (229 - 5595, n=118, senaste 2 åren)	2507 MB/s -26%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -47%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -62%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -71%
seq q8 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s
Genomsnitt av klass Mini PC (236 - 8430, n=118, senaste 2 åren)	3797 MB/s -21%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -47%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -50%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -55%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -59%
seq q8 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s
Genomsnitt av klass Mini PC (239 - 6669, n=118, senaste 2 åren)	2813 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -47%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -61%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -71%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s
Genomsnitt av klass Mini PC (6.85 - 86.6, n=118, senaste 2 åren)	55.3 MB/s -33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -42%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -45%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -46%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -64%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -54%
Genomsnitt av klass Mini PC (30.4 - 435, n=118, senaste 2 åren)	196.1 MB/s -54%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -61%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -68%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s
Genomsnitt av klass Mini PC (26.1 - 4158, n=118, senaste 2 åren)	1407 MB/s -28%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s -45%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s -48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -59%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -84%
4k q32 t16 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s
Genomsnitt av klass Mini PC (32.6 - 4288, n=118, senaste 2 åren)	1325 MB/s -45%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s -57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s -59%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s -63%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s -68%

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points
Genomsnitt av klass Mini PC (211 - 10021, n=116, senaste 2 åren)	4241 Points -41%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	4023 Points -44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -60%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -68%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -69%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points
Genomsnitt av klass Mini PC (76 - 3741, n=116, senaste 2 åren)	1575 Points -34%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1365 Points -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -58%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -64%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -71%
Score Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1959 Points -45%
Genomsnitt av klass Mini PC (88 - 4371, n=116, senaste 2 åren)	1904 Points -46%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points -65%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -67%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points -67%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -72%
Seq Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s
Genomsnitt av klass Mini PC (291 - 6620, n=116, senaste 2 åren)	3235 MB/s -22%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -47%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	2133 MB/s -49%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -51%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -57%
Seq Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s
Genomsnitt av klass Mini PC (242 - 5783, n=116, senaste 2 åren)	2290 MB/s -30%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1699 MB/s -48%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -51%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -62%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -72%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	77.46 MB/s -25%
Genomsnitt av klass Mini PC (18.2 - 104.3, n=116, senaste 2 åren)	59.7 MB/s -42%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s -44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -73%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	247.2 MB/s -32%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -49%
Genomsnitt av klass Mini PC (30.9 - 366, n=116, senaste 2 åren)	177.3 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -58%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -61%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -67%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s
Genomsnitt av klass Mini PC (23.4 - 3220, n=116, senaste 2 åren)	1192 MB/s -36%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1073.73 MB/s -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -62%

Minisforum Neptune Series NAD9 desktop PC recension: Kompakt kraftpaket med Intel Core i9-12900H

Den perfekta kontorsdatorn?

Potentiella konkurrenter i jämförelse

Detaljerad titt på Minisforum Neptune Series NAD9

Fall

Storleksjämförelse

Specifikationer

Anslutningsmöjligheter

Tillbehör

Underhåll

Prestanda - framtidssäkrad med 14 kärnor och 20 trådar

Provningsvillkor

Processor

Minisforum Neptune Series NAD9 som kör Cinebench R15 Multi-loop

Systemprestanda

DPC-fördröjning

Masslagring
