Recension av Ace Magician AMR5: Snygg minidator med Ryzen 5 5600U och diskret RGB-belysning

Minipc-unionenär ett kinesiskt företag som specialiserar sig på minidatorer och allt-i-ett-system. För närvarande erbjuder Minipc Union olika produkter, bland annat. Dessa inkluderar Kamrui, Ouvislite, Nipogi, Snunmu och Ace Magician, som även inkluderar AMR5 som vi kommer att undersöka i denna recension

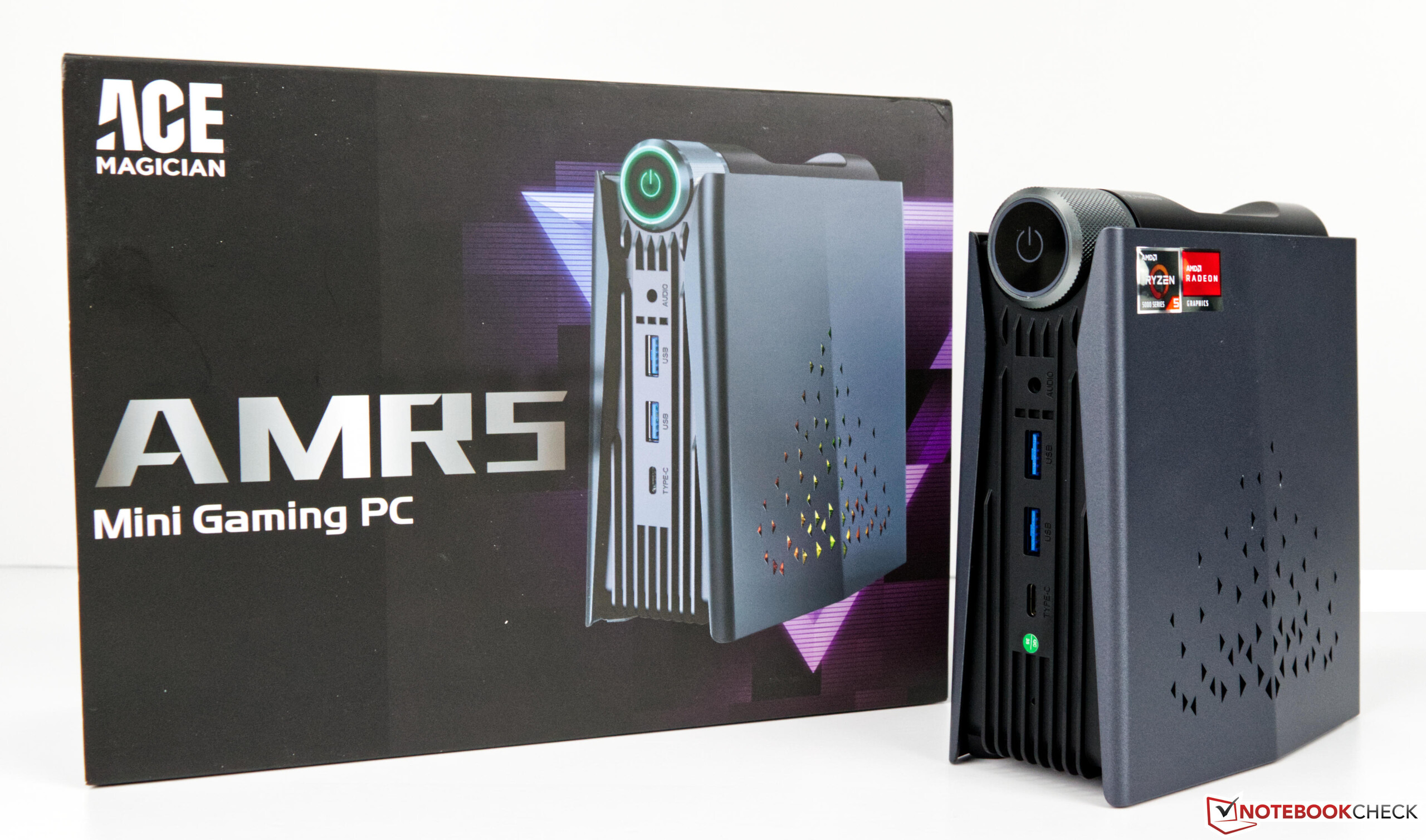

Ace Magician AMR5 är en mycket kompakt minidator som är baserad på en AMD Ryzen 5 5600U. Samma modell fanns också tillgänglig med enAMD Ryzen 5 4500U tidigare. AMD Radeon RX Vega 7, som vi ofta har stött på i olika bärbara datorer, är enbart ansvarig för 3D-beräkningar. Detsamma gäller för Ryzen 5 5600U. Den hittade sin väg in i den här kompakta datorn på grund av dess låga utsläpp. Det finns 16 GB RAM-minne och en 512 GB SSD som masslagringsenhet. Dessutom är Windows 11 Pro förinstallerat och aktiverat

Ace Magician AMR5 kan köpas för 590 euro (~599 dollar) i den version som vi granskade. Å andra sidan är modellen baserad på AMD Ryzen 5 4500U tillgänglig för 560 euro (~569 dollar).

Date	Model	Weight	Height	Resolution
09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm	x
01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm	x
06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x

Minipc Union Ace Magician AMR5 i detalj

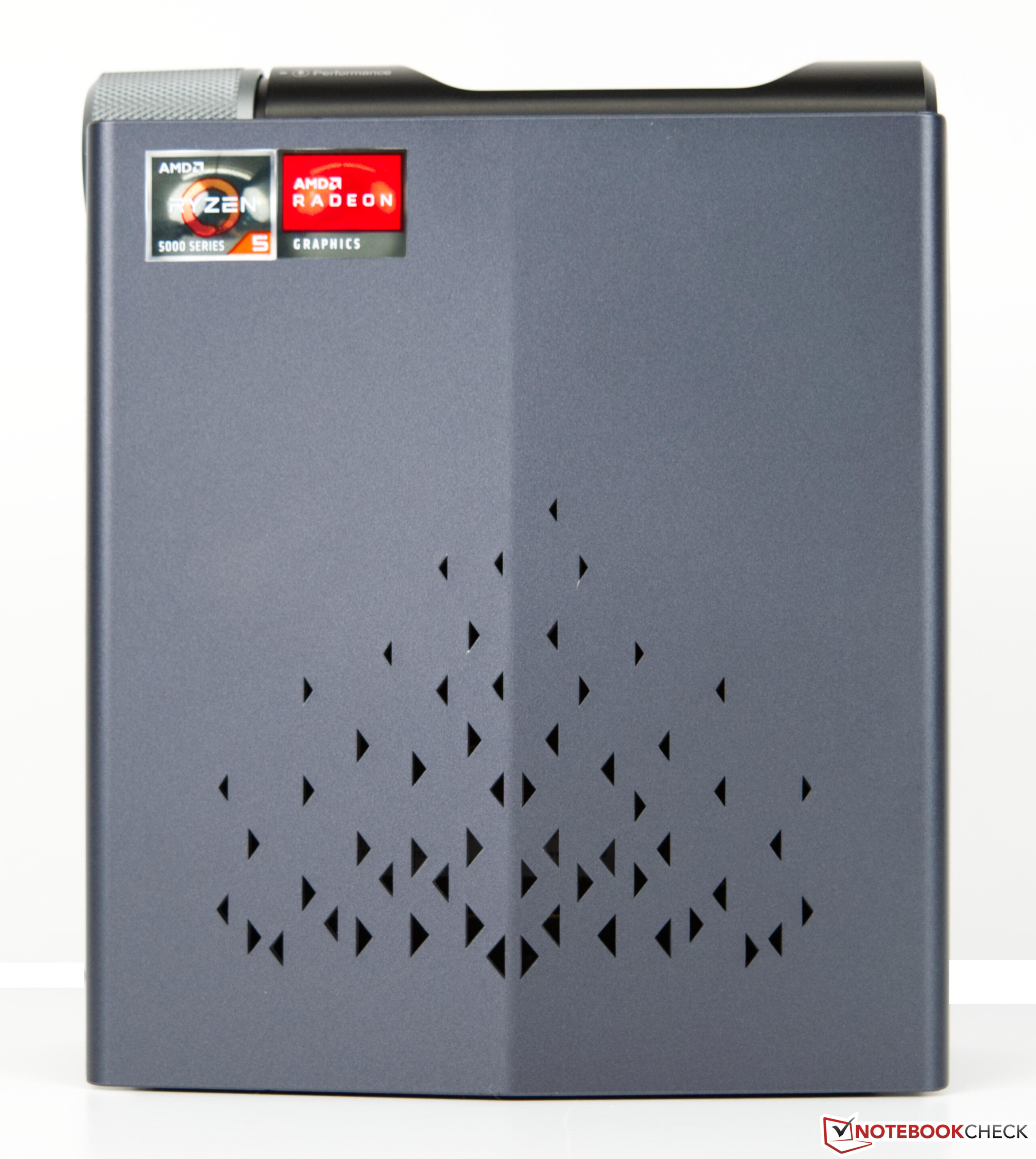

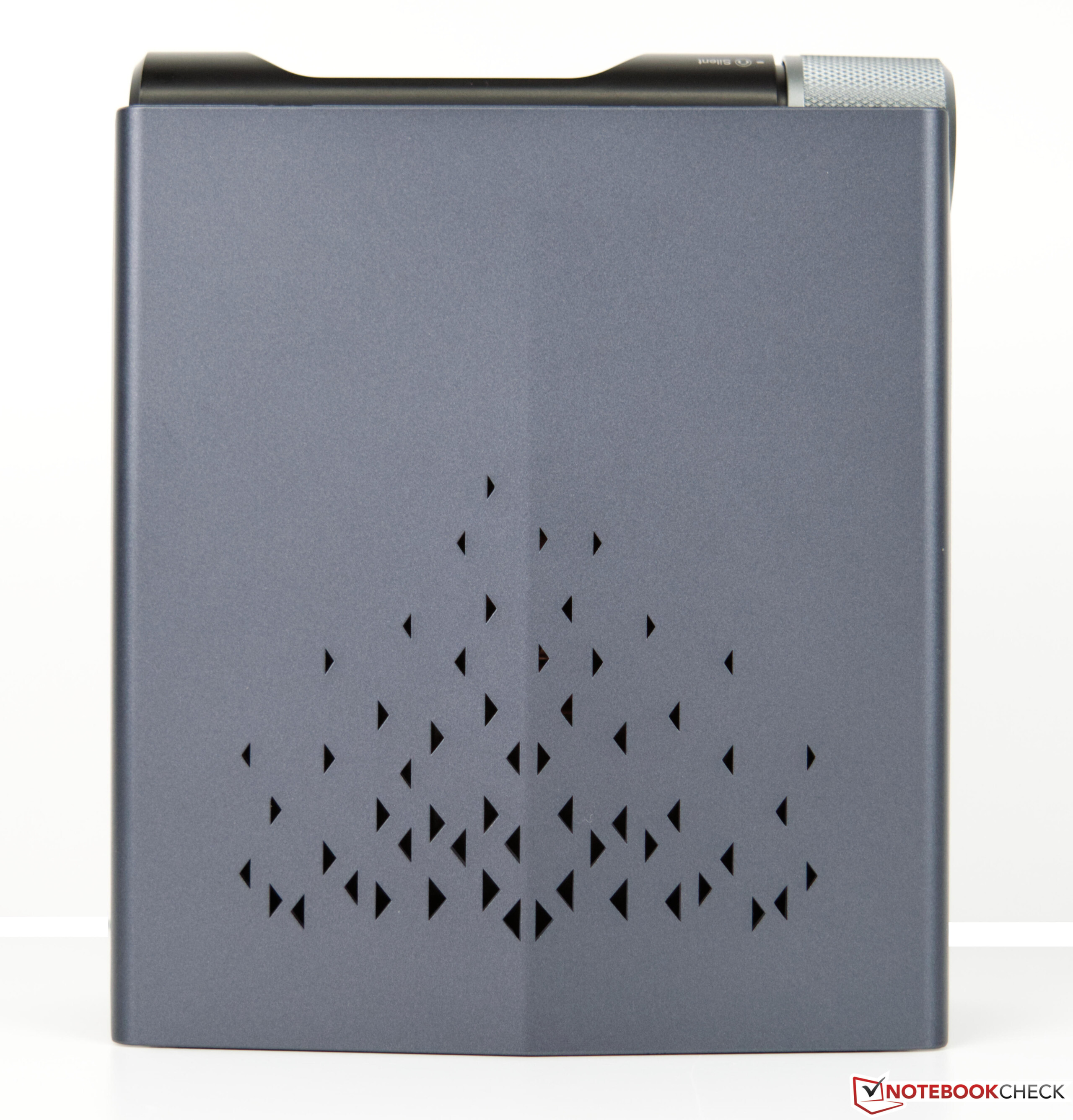

Hölje

Om du tänker på en minidator tänker du förmodligen alltid på en kompakt fyrkantig låda. Här tar Ace Magician AMR5 ett helt annat grepp som är orienterad mot en torn-PC när det gäller utseendet. Som en nedskalad version är den kompakta datorn endast 16 centimeter hög. När det gäller material finns det bara plast, men designen förstärks av två färgaccenter. Den högra sidan av höljet, sett framifrån, hålls fast magnetiskt och kan tas bort ganska enkelt. Bakom den gömmer sig RAM-minnet och SSD:n, och de kan utökas vid behov. Det finns inget att klaga på när det gäller robusthet, trots att aluminium inte har använts. Med en vikt på 581 gram är den lilla datorn mycket lätt, vilket gör att den passar på vilket skrivbord som helst. Dessutom kan systemet förbättras visuellt med några RGB-effekter

Anslutningsmöjligheter

Ace Magician AMR5 har ett stort antal externa gränssnitt. Dessa är fördelade på fram- och baksidan. Användarna kommer att njuta av totalt fem USB-portar, varav en är en Typ-C-port som även stöder videoutgång. Detta innebär att den lilla datorn kan användas med tre skärmar samtidigt. En SD-kortläsare ingår dock inte

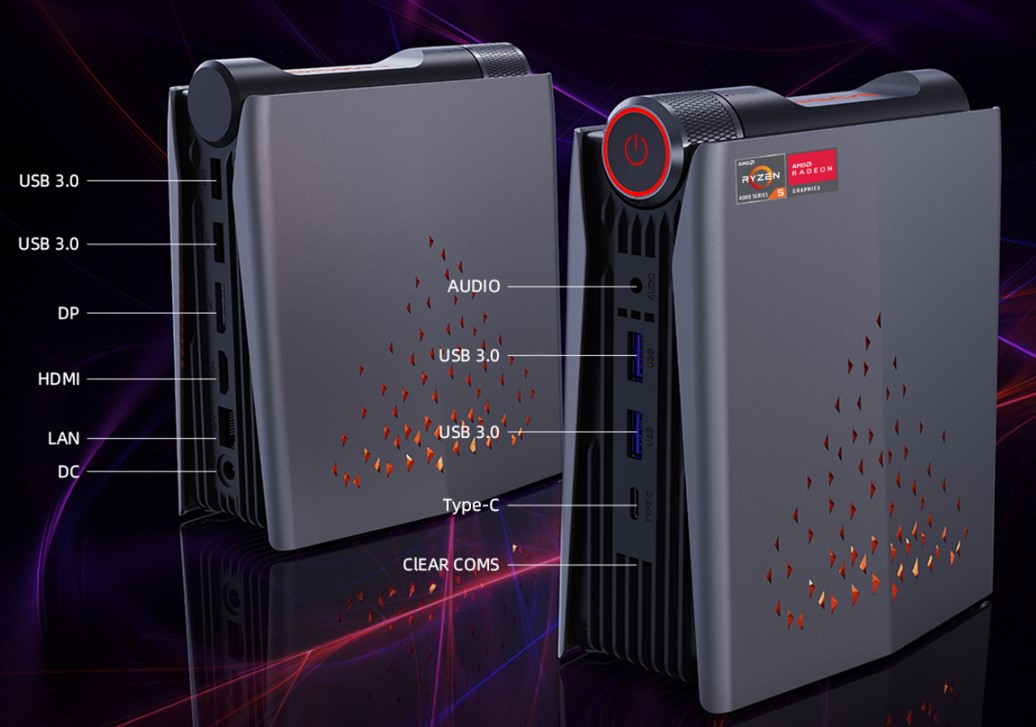

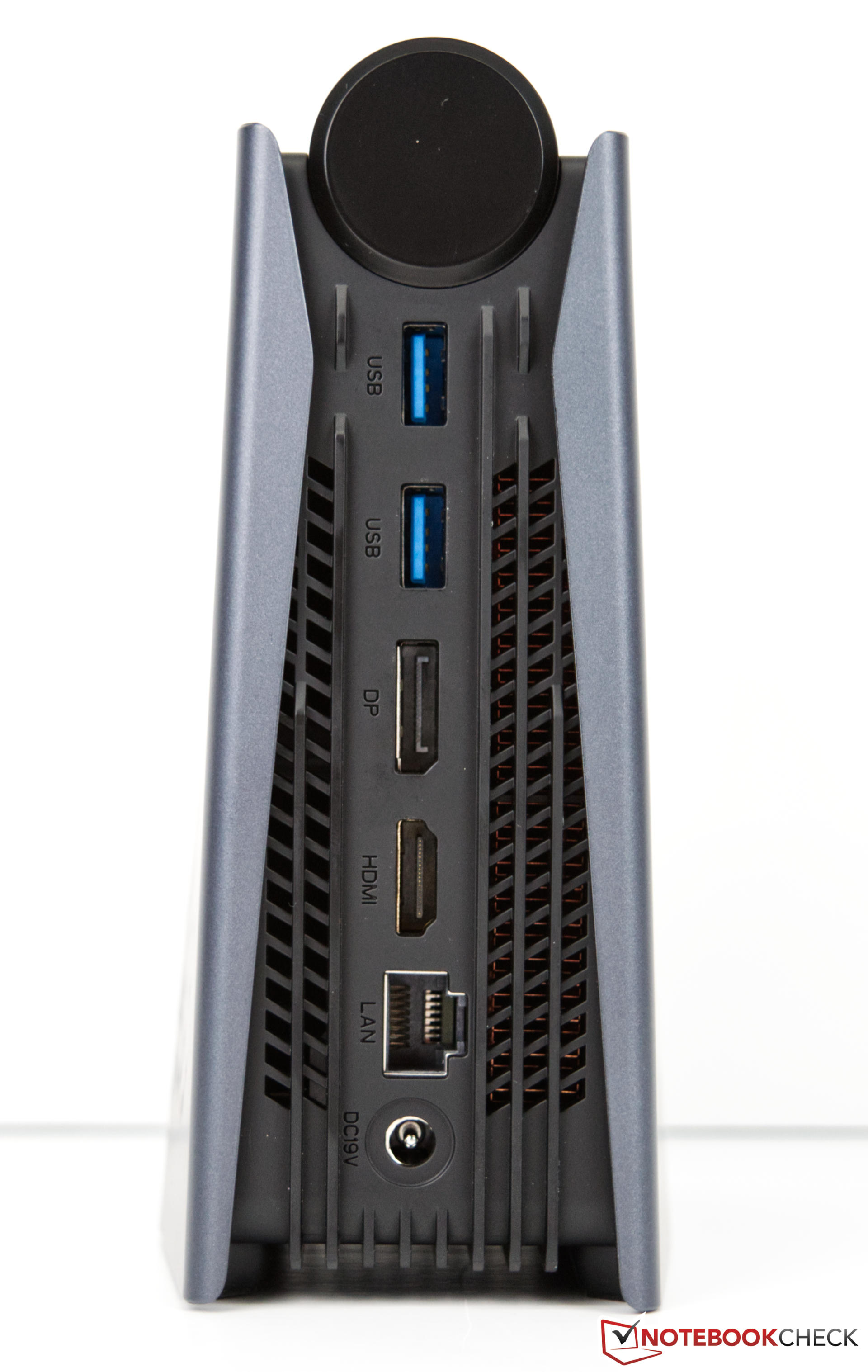

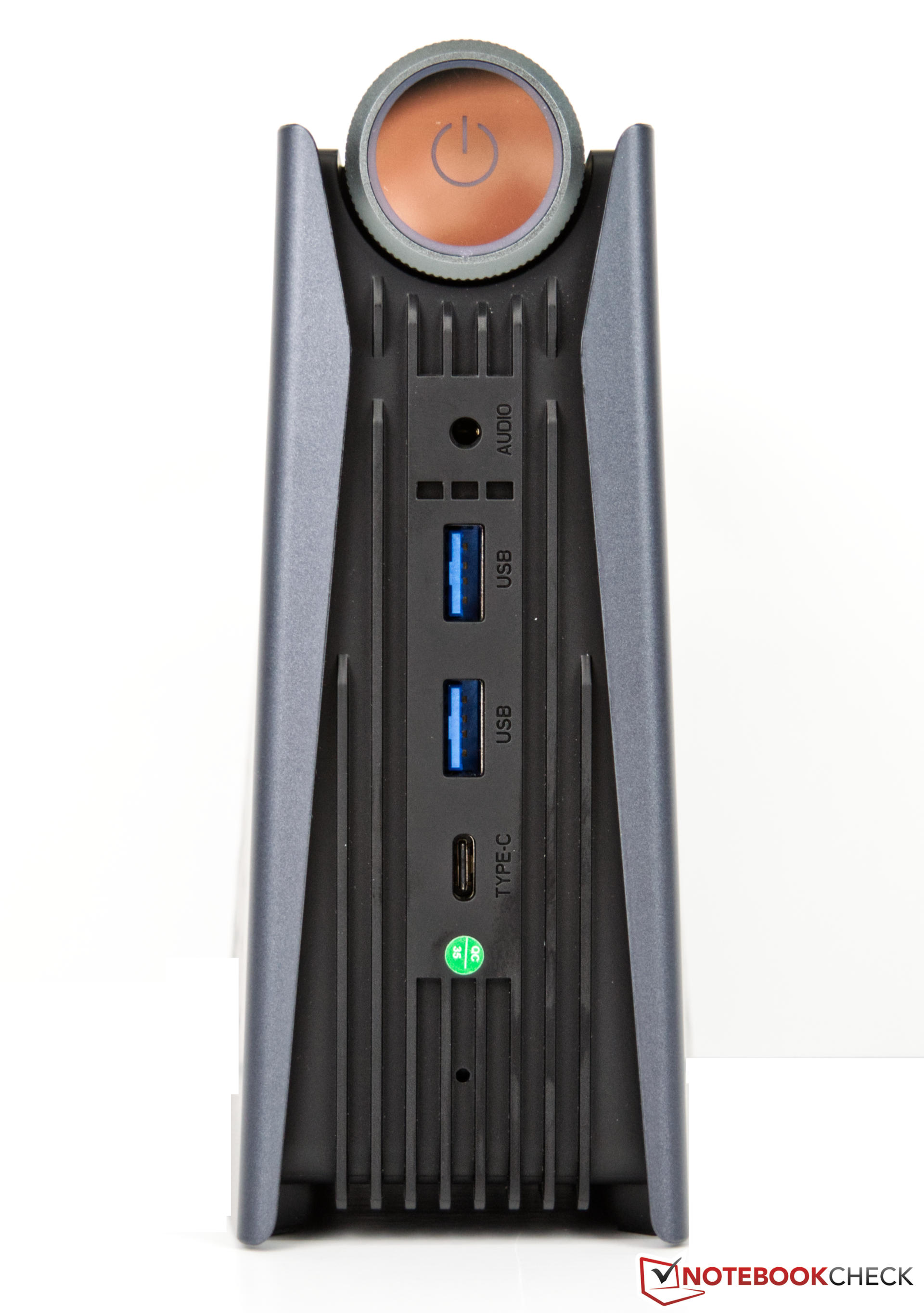

Externa portar på Ace Magician AMR5 (källa: Minipc Union)

Kommunikation

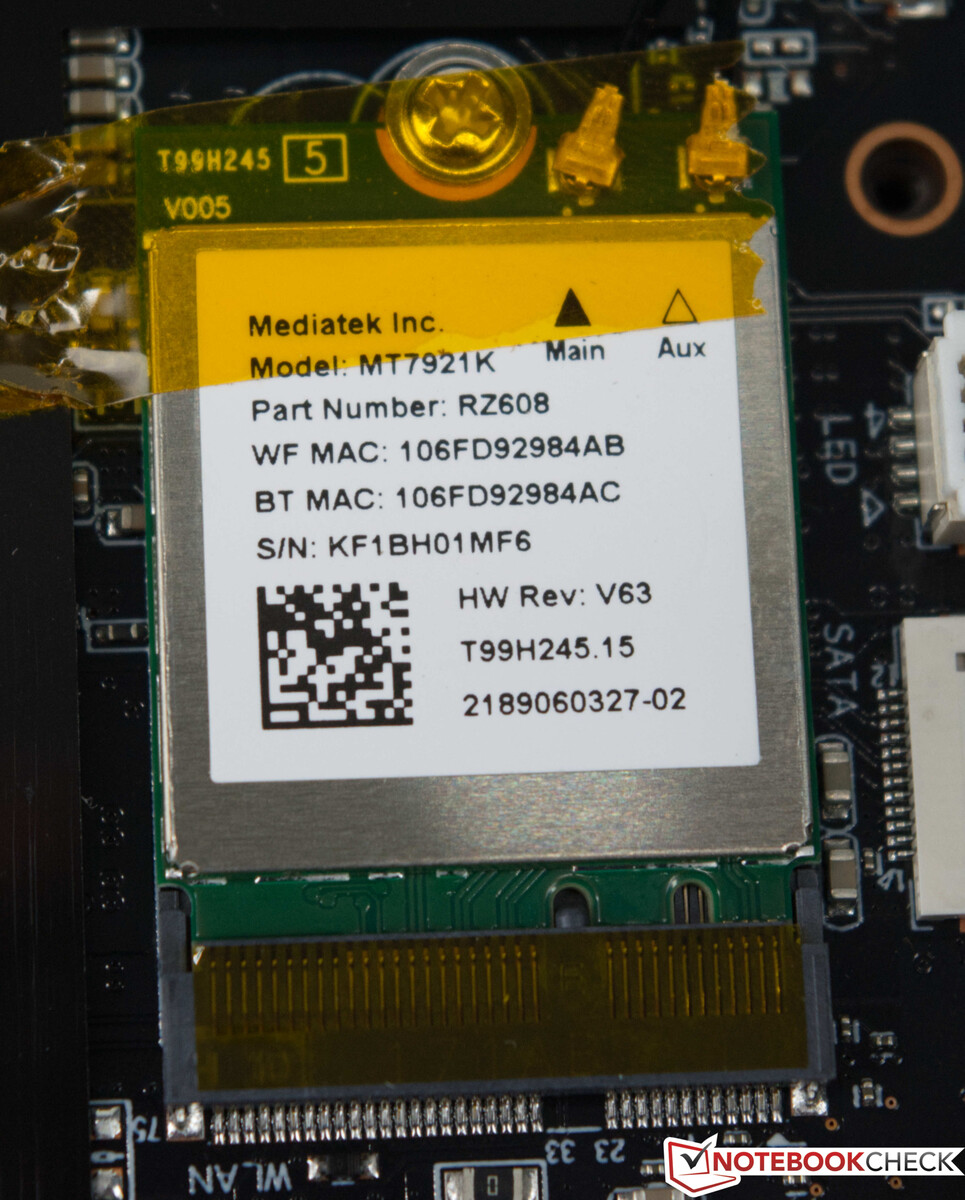

Minipc Union använder en MediaTek RZ608 WLAN-modul i sin Ace Magician AMR5. Vi är redan bekanta med den, eftersom samma modell också användes i Minisforum EliteMini B550. De överföringshastigheter som fastställts med Ace Magician AMR5 ser dock mycket mer lovande ut. Vårt granskningsexemplar levererade snabba och stabila överföringshastigheter i vår testmiljö. Vi använde vår Asus ROG Rapture GT-AXE11000 för det här testet. RJ45-porten ger ett annat alternativ för trådlös nätverkskommunikation. Det är dock inte möjligt att få mer än 1 Gb/s här

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1771, n=39, last 2 years)	1196 MBit/s +32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -9%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -52%
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (432 - 1764, n=40, last 2 years)	1162 MBit/s +20%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s -10%
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -15%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -41%

Minipc Union Ace Magician AMR5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø951 (486-993)

Minipc Union Ace Magician AMR5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø888 (450-913)

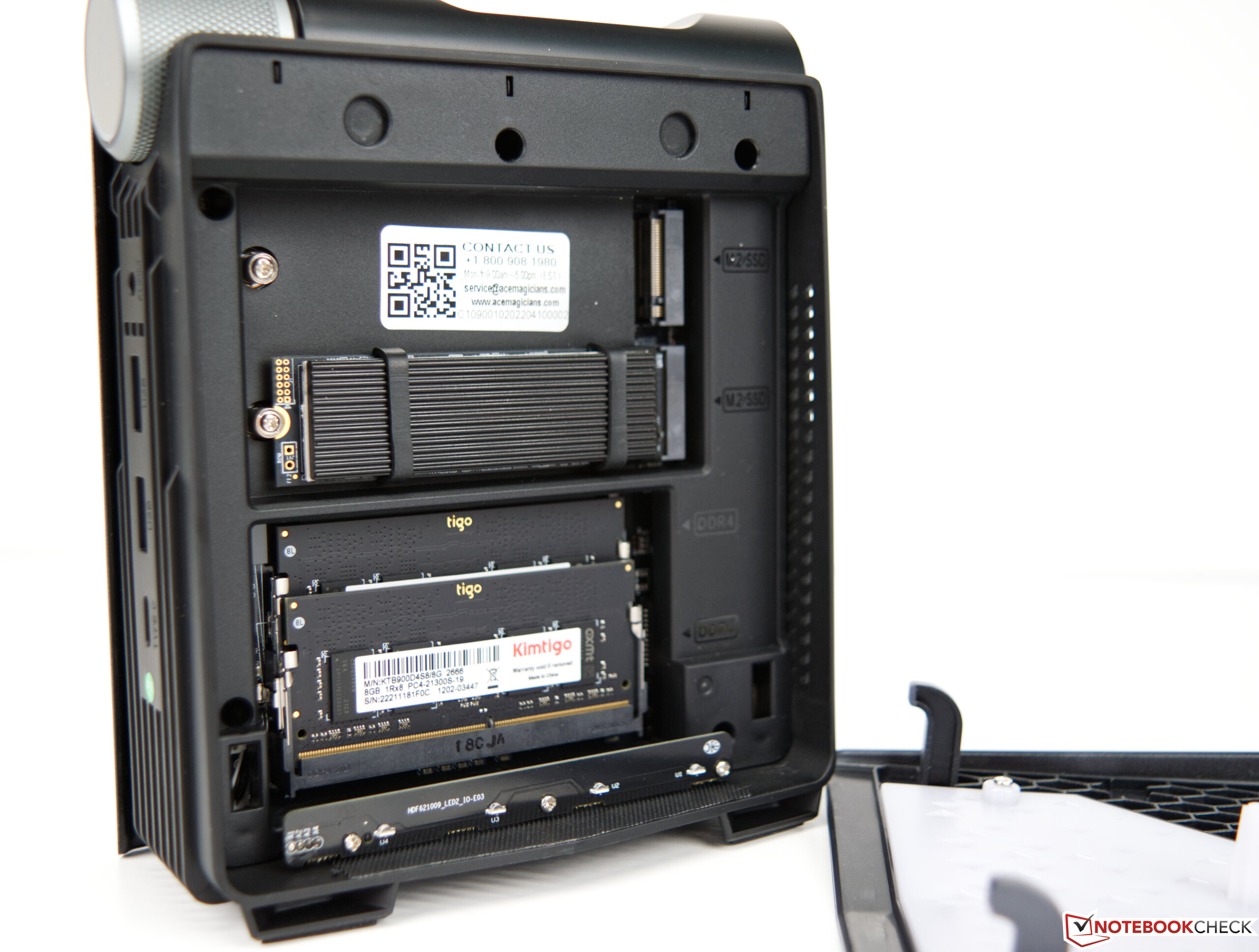

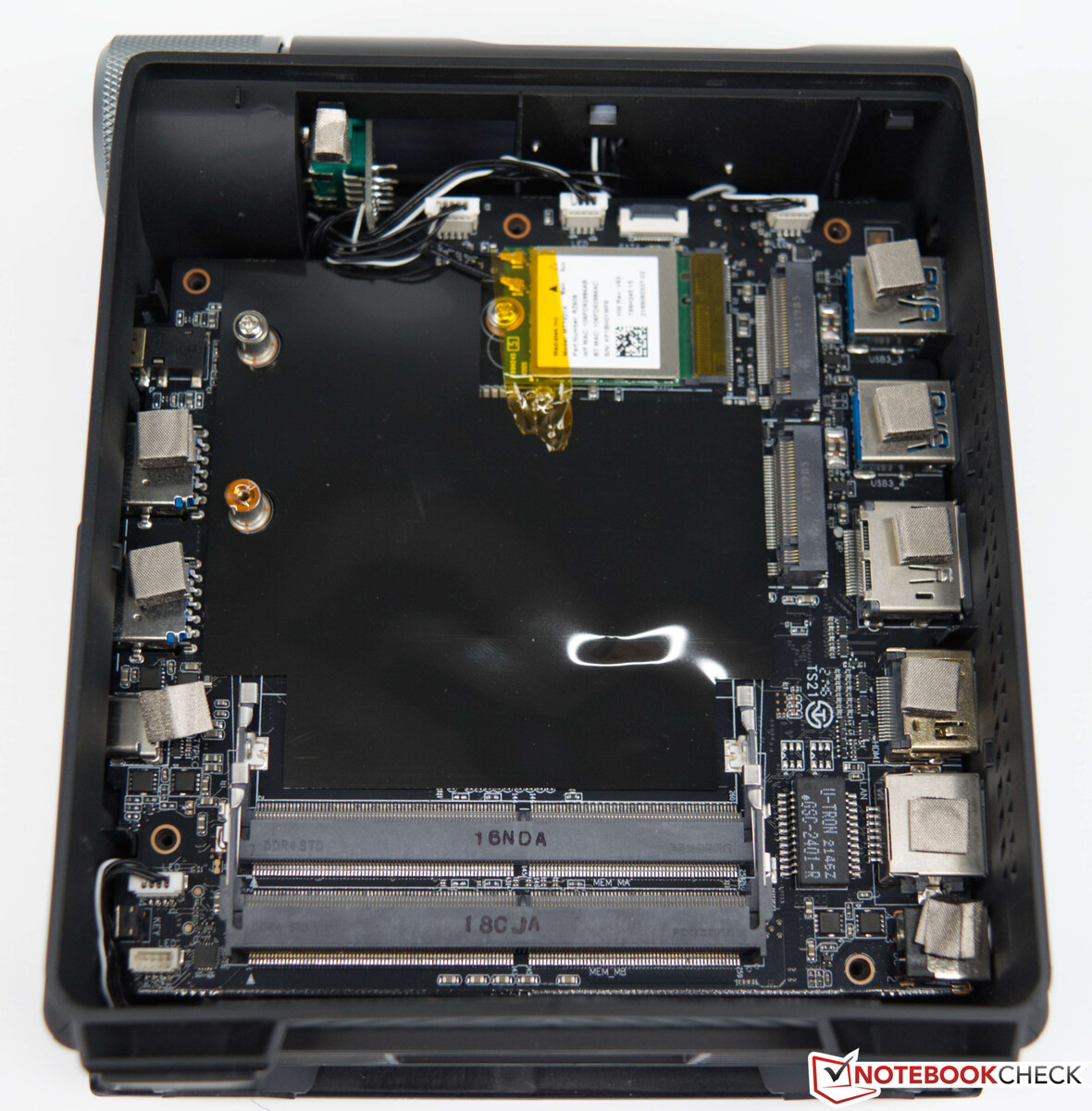

Underhåll

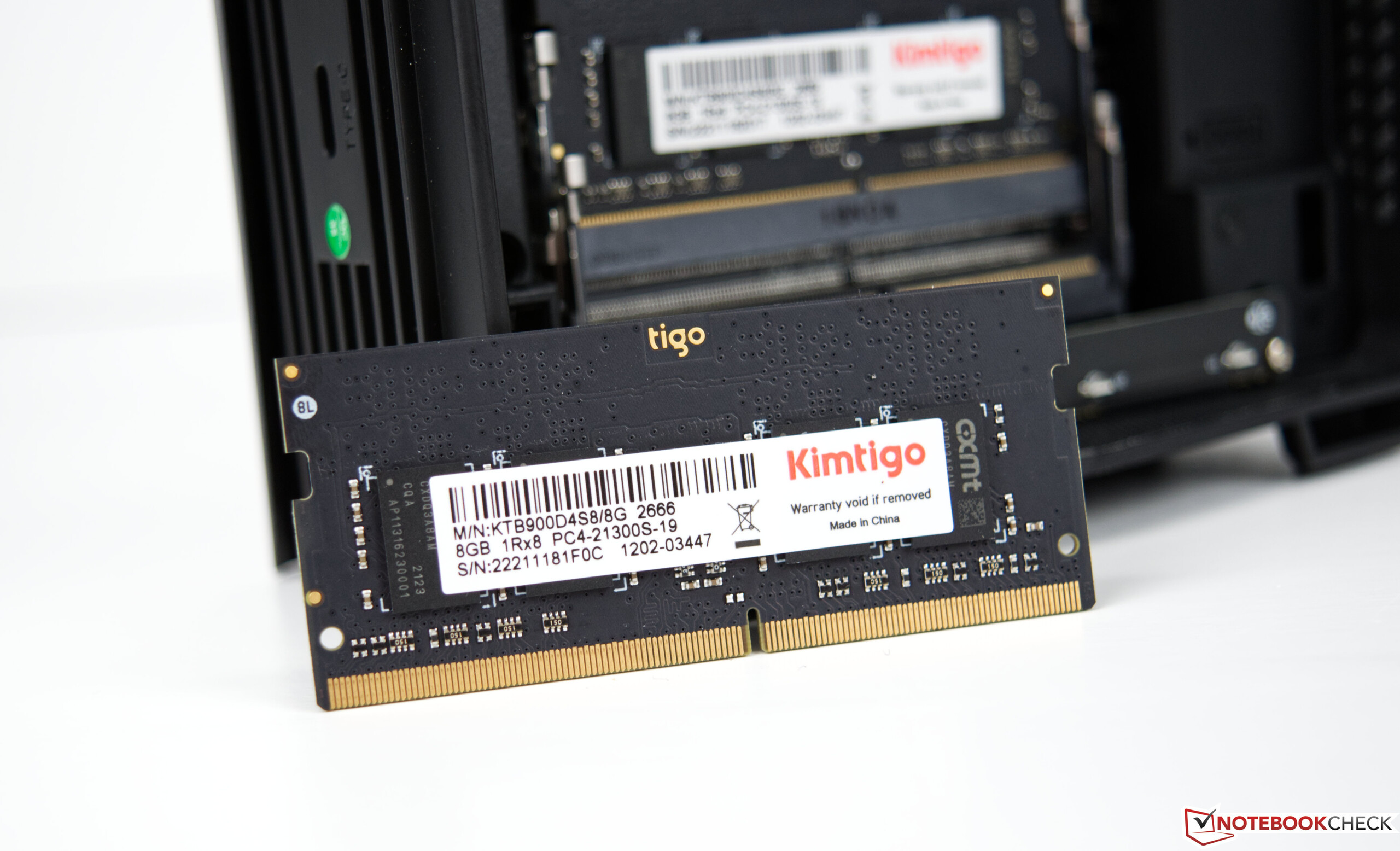

Det är ganska svårt att utföra underhållsarbete när det gäller att komma åt CPU-fläkten. Användare som vill utöka eller byta ut RAM-minnet eller SSD:n kan dock lätt komma åt dessa komponenter. Sidokåpan kan tas bort utan att lossa några skruvar, och den är dessutom utrustad med en magnetisk stängning. Vi hade gärna sett detta alternativ på den andra sidan också, för att snabbare komma åt SoC:s aktiva kylenhet. Detta utelämnades förmodligen eftersom det inte finns några uppgraderingsalternativ på den sidan. Om du vill komma åt fler komponenter måste du därför fortsätta demontera enheten från den sida som redan är öppen

Prestanda

AMD Ryzen 5 5600U SoC ger en solid grund för flertrådiga applikationer. Med 16 GB inbyggt DDR4 RAM-minne är du väl rustad för de flesta program, utan att ständigt arbeta på gränsen. Å andra sidan kan den 512 GB stora SSD:n kritiseras lite mer, eftersom Minipc Union anser att Ace Magician AMR5 är en kompakt speldator. Men eftersom spel alltmer tar upp mer och mer lagringsutrymme hade en 1 TB SSD varit ett bättre val, enligt vår mening

Provningsvillkor

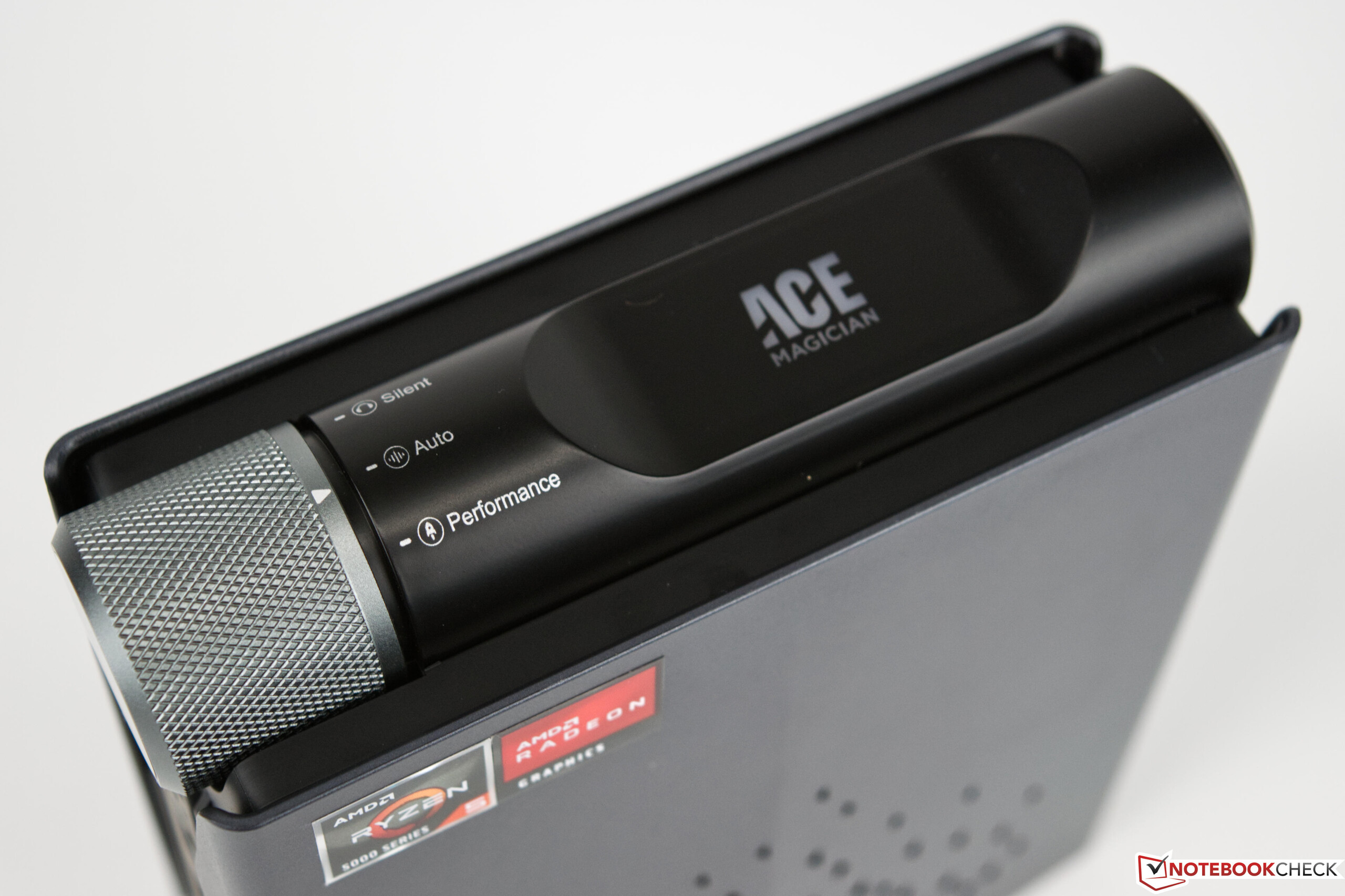

Ace Magician AMR5 ger användaren möjlighet att använda apparaten i tre olika inställningar. Inställningarna kan ändras via en vridbar omkopplare, som också är strömknappen. Som ett resultat av detta kan SoC:n permanent drivas på 12, 18 eller 25 watt (Silent, Auto, Performance). Vi valde uteslutande profilen Performance för den här granskningen för att få bästa möjliga resultat

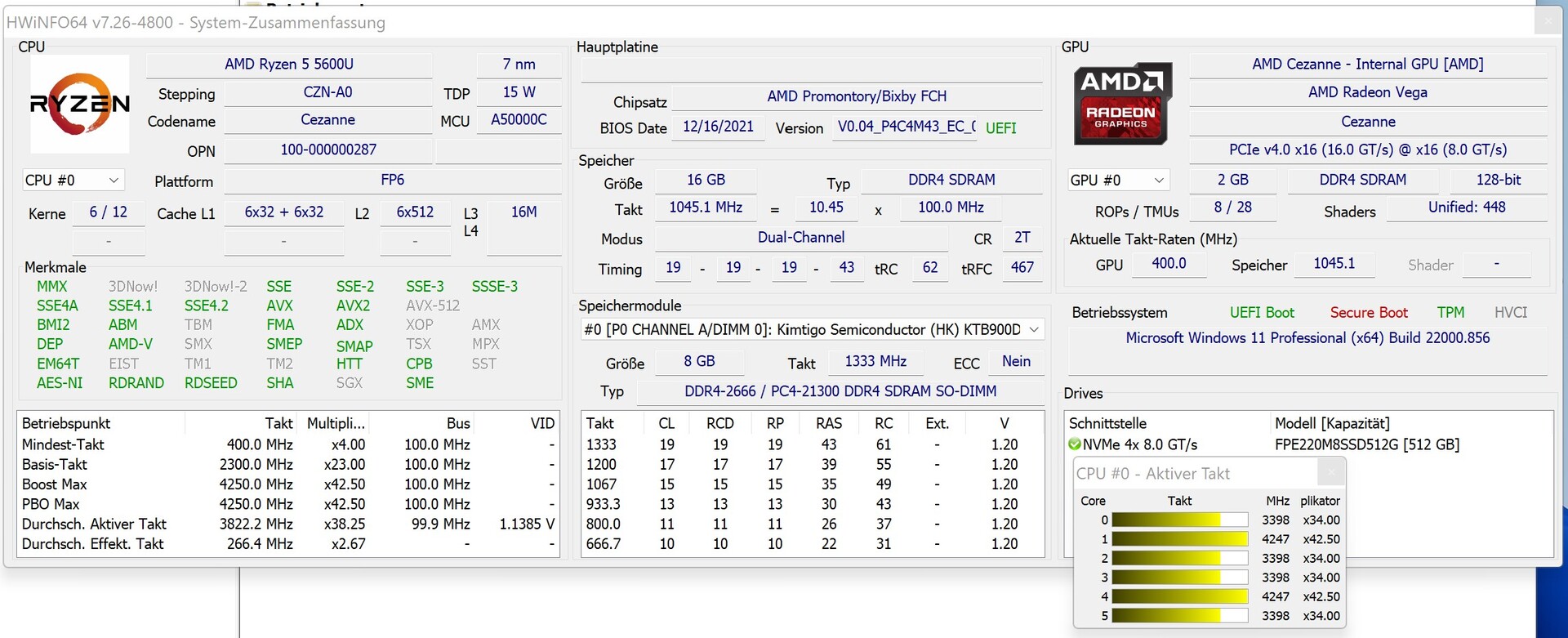

Processor

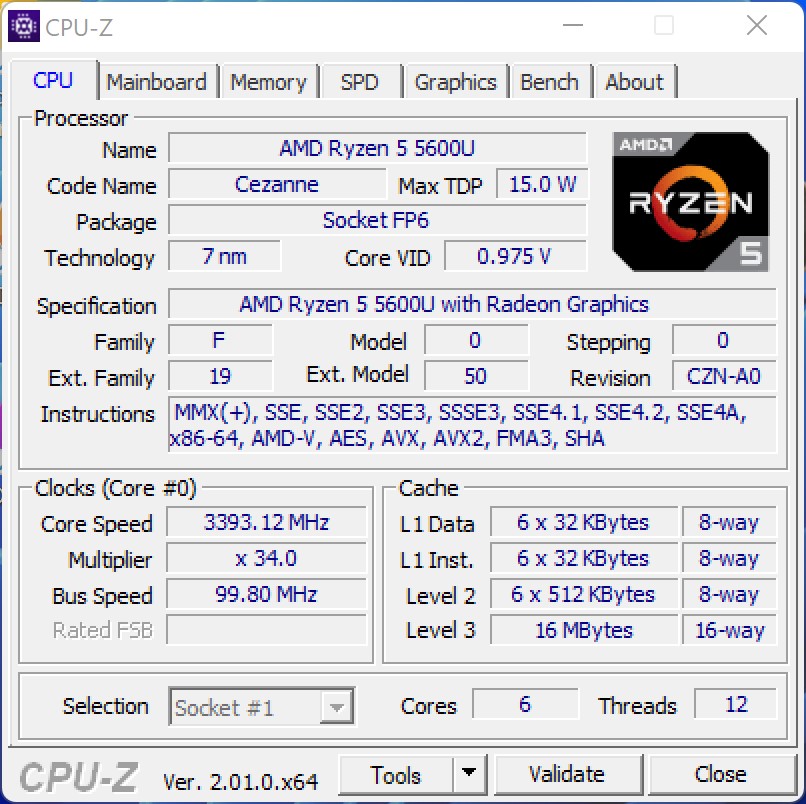

Den inbyggda AMD Ryzen 5 5600UaPU har 6 Zen 3-kärnor med SMT och kommer från den mobila sektorn. APU:n, som annars finns i bärbara datorer, är sparsam, något som gynnar den kompakta designen eftersom den inte kräver komplicerad kylning. SoC:n kan drivas i tre olika lägen. Maximalt 28 watt är tillgängligt i Performance-läget, även om 25 watt är vad som kan upprätthållas i längden. SoC:n kan strypas till 18 respektive 12 watt i de andra lägena. Naturligtvis påverkar detta också systemets prestanda. För att illustrera detta körde vi Cinebench R15 en gång i vart och ett av de tre lägena, vilket skärmdumparna nedan visar

I en direkt jämförelse med konkurrenterna presterar Ace Magician AMR5 ganska bra, även om den inhemska oktakärniga CPU:n erbjuder bättre flertrådsprestanda. Den totala prestandan hos AMD Ryzen 5 5600U är dock något bättre än den genomsnittliga prestandan som vi hittills har kunnat nå med denna SoC. Du kan ändå få ut mer prestanda genom att använda något snabbare RAM-minne, eftersom det inbyggda RAM-minnet endast klockas med 2 666 MHz.

Fler benchmarks på processorerna finns att hitta här.

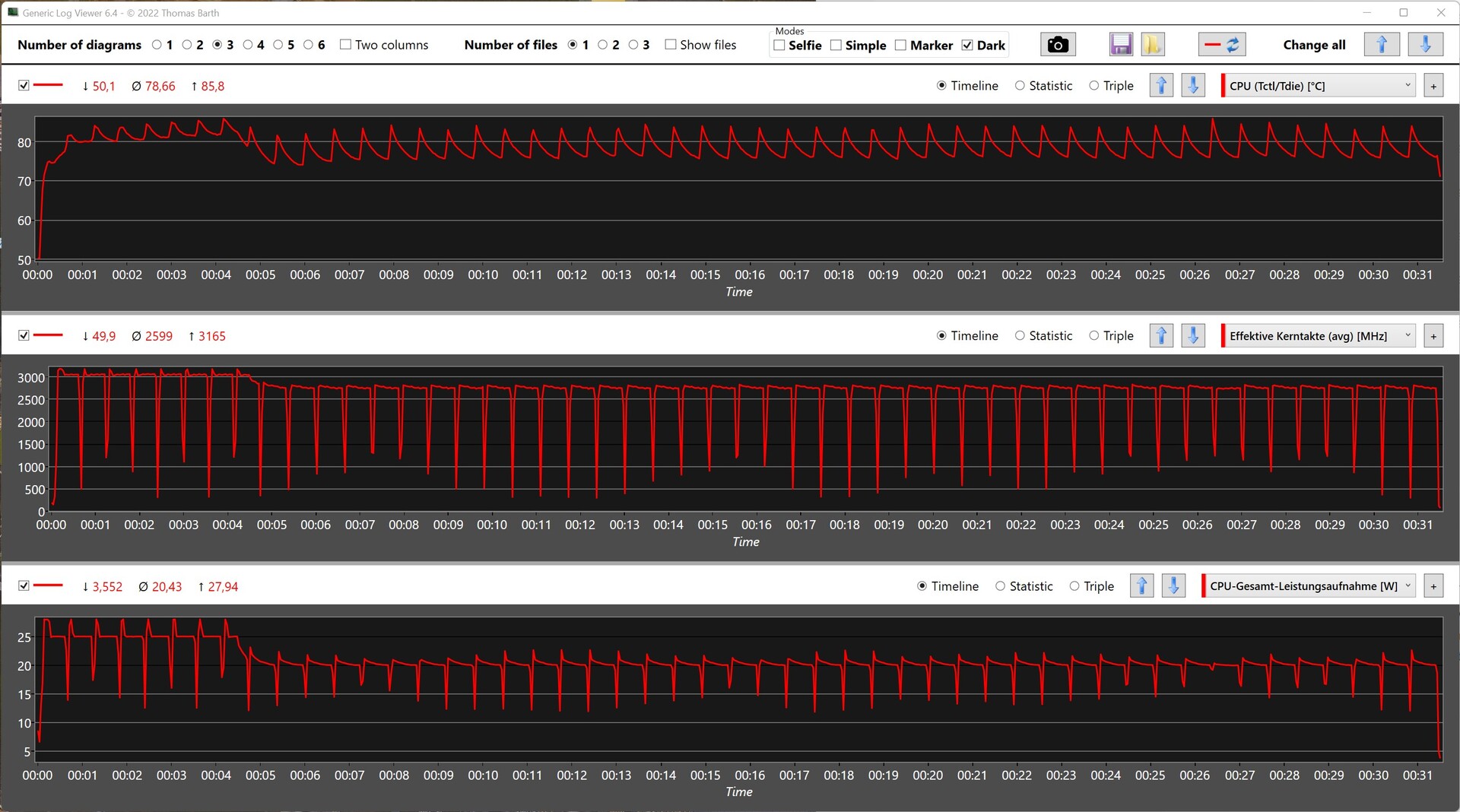

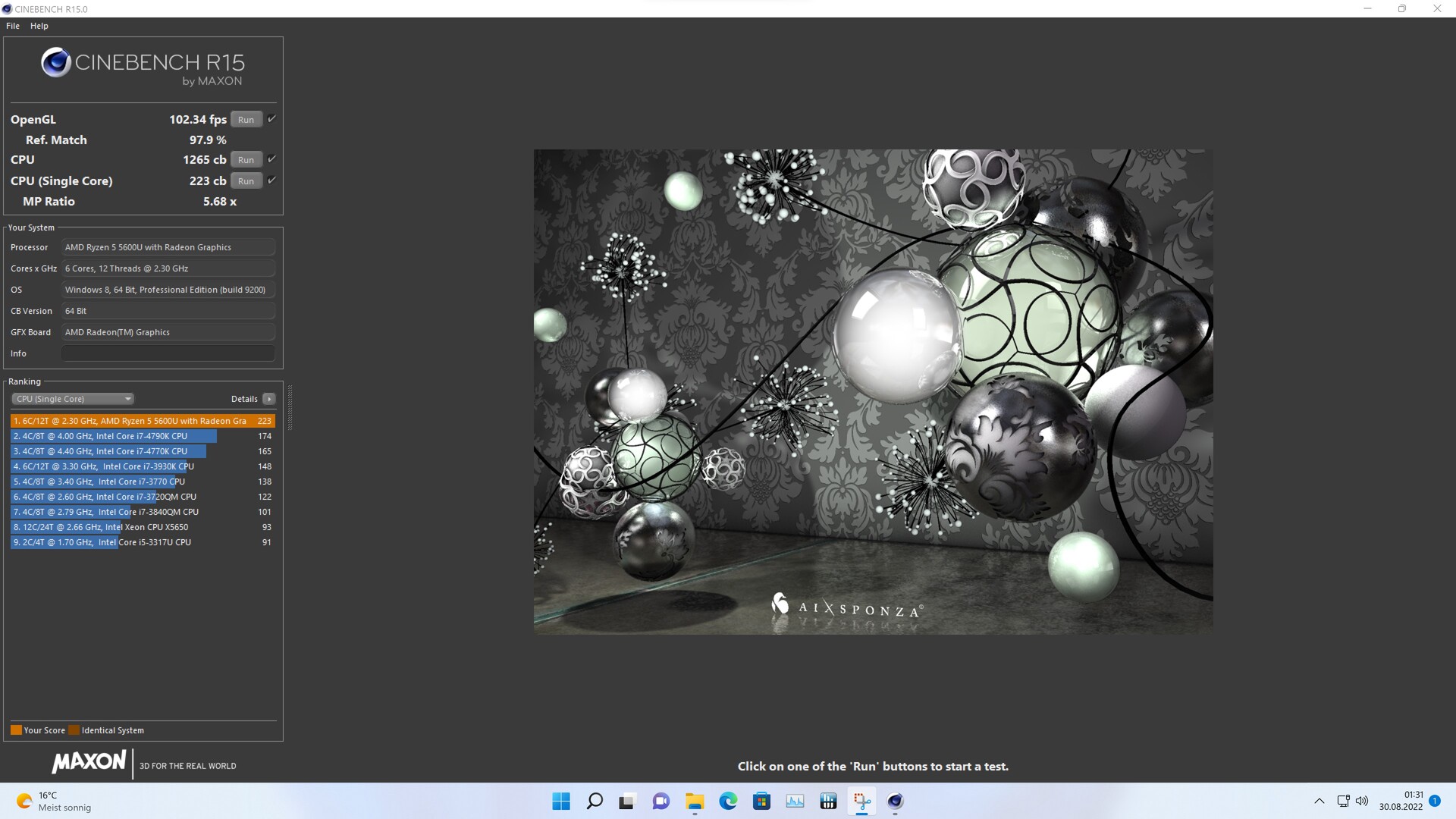

Cinebench R15 - Prestandaläge (används för alla tester)

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	45.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Average AMD Ryzen 5 5600U	41.1 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points
Average AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points -16%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +76%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +52%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points +12%
Average AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -25%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points
Average AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points -9%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +51%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points +9%
Average AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -22%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points
Average AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -5%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +49%
Average AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +3%
Average AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +42%
Average AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -7%

Blender - v2.79 BMW27 CPU
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -29%
Average AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds *
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +34%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +43%

wPrime 2.10
32m
Average AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +38%
1024m
Average AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * -24%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +41%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +13%
Average AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +47%
Average AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s
Average AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -38%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -4%
Average AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -21%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +36%
Average AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -16%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +71%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +57%
Average AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -25%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +27%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -8%
Average AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points -9%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points
Average AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points
Average AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -8%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points
Average AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points -1%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points
Average AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points -1%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points
Average AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -10%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -8%
Average AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points -13%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +46%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +40%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS
Average AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -31%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS
Average AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -6%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +44%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps
Average AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -22%

R Benchmark 2.5 - Overall mean
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -16%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * -7%
Average AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +8%

LibreOffice - 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * -23%
Average AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +5%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points
Average AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points -14%

Mozilla Kraken 1.1 - Total
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -4%
Average AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +7%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +32%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +31%
Average AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -22%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points -1%
Average AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -24%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +28%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -4%
Average AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points -9%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt
Average of class Mini PC	62.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt
Average AMD Ryzen 5 5600U	57.9 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +11%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +10%
Average AMD Ryzen 5 5600U (7902 - 10892, n=6)	9154 KRay/s +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -18%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +49%
Average AMD Ryzen 5 5600U (55397 - 69193, n=6)	59694 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points -2%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -45%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +48%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +6%
Average AMD Ryzen 5 5600U (1906 - 2359, n=6)	2032 MB/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -7%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +17%
Average AMD Ryzen 5 5600U (67224 - 77176, n=6)	70668 Points +5%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -22%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +54%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +44%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +42%
Average AMD Ryzen 5 5600U (7897 - 9215, n=6)	8412 Points +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -40%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +52%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +50%
Average AMD Ryzen 5 5600U (30542 - 38158, n=6)	32514 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points -9%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -40%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -2%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s -4%
Average AMD Ryzen 5 5600U (34865 - 92244, n=6)	67096 MB/s -14%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -30%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +17%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +15%
Average AMD Ryzen 5 5600U (493 - 597, n=6)	527 MB/s +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -19%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +82%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +55%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +55%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +20%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +15%
Average AMD Ryzen 5 5600U (4104 - 5644, n=6)	4749 KRay/s +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -13%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +58%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +27%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -24%
Average AMD Ryzen 5 5600U (7147 - 19395, n=6)	13587 MPixel/s -30%

Ace Magician AMR5 i Cinebench R15 Multi loop

En titt på det inbyggda kylsystemets effektivitet ges av Cinebench R15 continuous loop. Efter den sjunde körningen sjunker prestandan med cirka 10 %. Med ett genomsnitt på 1 158 poäng kan Ace Magician AMR5 ändå slutföra det här testet med ett ganska bra resultat.

Mätningar av processorn under körning av Cinebench R15-slingan

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Systemprestanda

Återigen kan Ace Magician AMR5 hålla jämna steg med benchmarks när det gäller systemprestanda. Gapet till de snabbare oktakärnorna håller sig inom ramarna och är inte riktigt märkbart under dagliga uppgifter.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82.3 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points -9%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -11%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -8%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points -12%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -28%

Performance Rating - Percent
Morefine S500+, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	93.4 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	81.1 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	78.5 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	76.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	75.3 pt

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	52 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.3 fps -28%
1900x1060 Siemens NX (snx-02)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.7 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.44 fps -89%
1900x1060 Showcase (showcase-01)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +8%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	17 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps -19%
1900x1060 Medical (medical-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps +35%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	11.1 fps +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	11 fps
1900x1060 Maya (maya-04)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.2 fps +25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	31.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps -4%
1900x1060 Energy (energy-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps +68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1.3 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps -59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps -60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	0.43 fps -67%
1900x1060 Creo (creo-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps +61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps +55%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	23.1 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	8.37 fps -64%
1900x1060 Catia (catia-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.1 fps +13%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.9 fps
1900x1060 3ds Max (3dsmax-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps +10%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.9 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.8 fps -3%

SPECviewperf 13
Solidworks (sw-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	60.2 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	49.7 fps -17%
Siemens NX (snx-03)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	59.1 fps
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6.19 fps -90%
Showcase (showcase-02)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	16.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps -18%
Medical (medical-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps +45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps +32%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	14.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	13.1 fps -10%
Maya (maya-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	44.6 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.3 fps -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps -13%
Energy (energy-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5.92 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.64 fps -39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps -85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps -85%
Creo (creo-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	42 fps
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps 0%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	34.2 fps -19%
Catia (catia-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps +26%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	52.9 fps +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	47 fps
3ds Max (3dsmax-06)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.8 fps
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.5 fps -3%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points +29%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3414 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	3225 Points
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	306 Points +37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	224 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	292 Points +38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points +28%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	212 Points
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points +30%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	982 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	763 Points -22%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points +23%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	906 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	853 Points -6%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1200 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	900 Points

LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	2320 Samples/s +134%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s +30%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	993 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s -5%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	693 Samples/s +54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	450 Samples/s
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s -13%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +39%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s
Average AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s -19%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +22%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +14%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s
Average AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s -18%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +34%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s +24%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +17%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -6%
Average AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s -20%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -4%
Average AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns *
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +19%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +19%

* ... smaller is better

DPC-fördröjningar

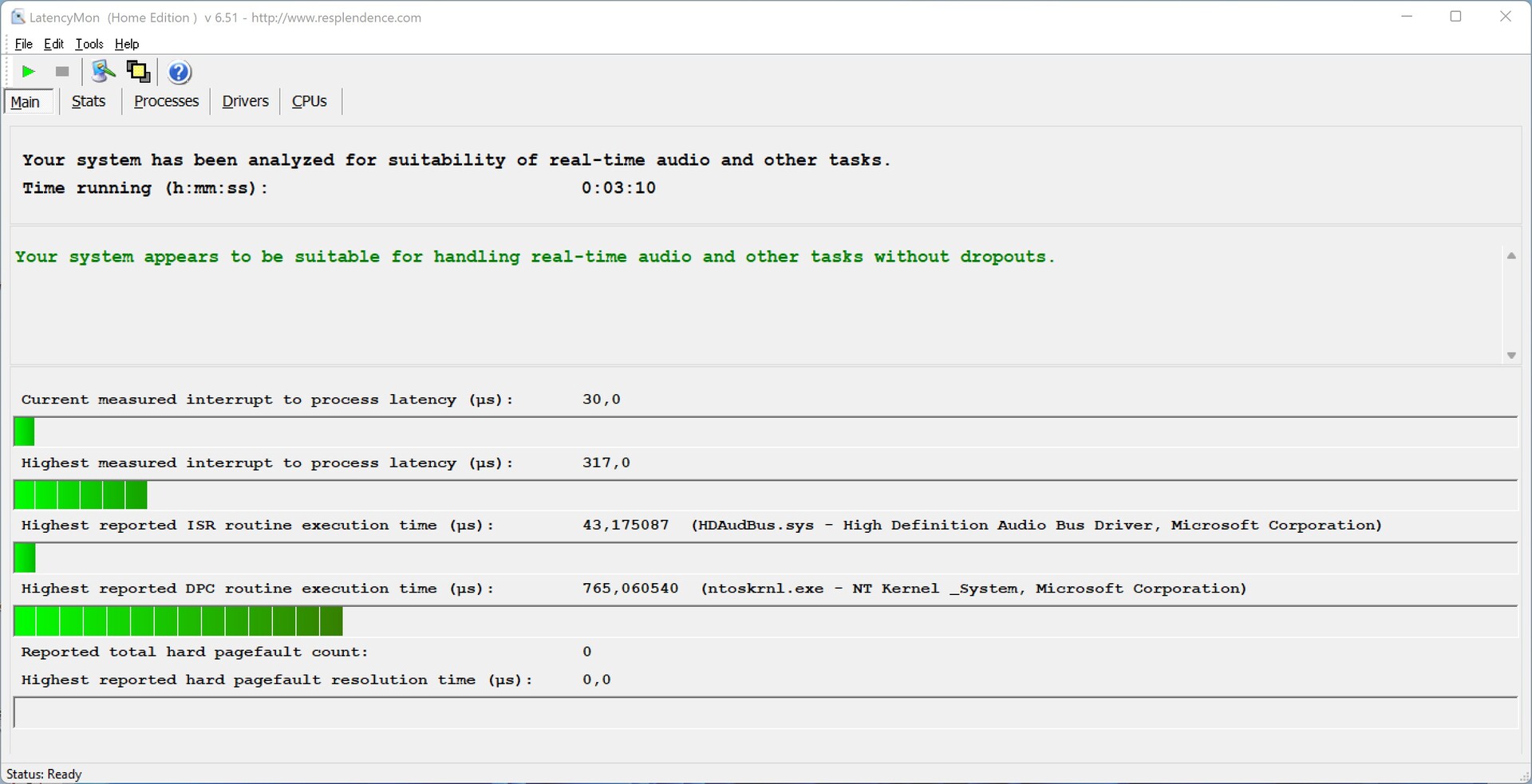

LatencyMon visar inga problem med latenstiden i Ace Magician AMR5. Det finns inga problem när man spelar upp 4K YouTube-videon, surfar på Internet eller under belastning med Prime95. Belastningen på AMD Ryzen 5 5600U:s iGPU är cirka 20 % när vi spelar upp vår 4K-testvideo

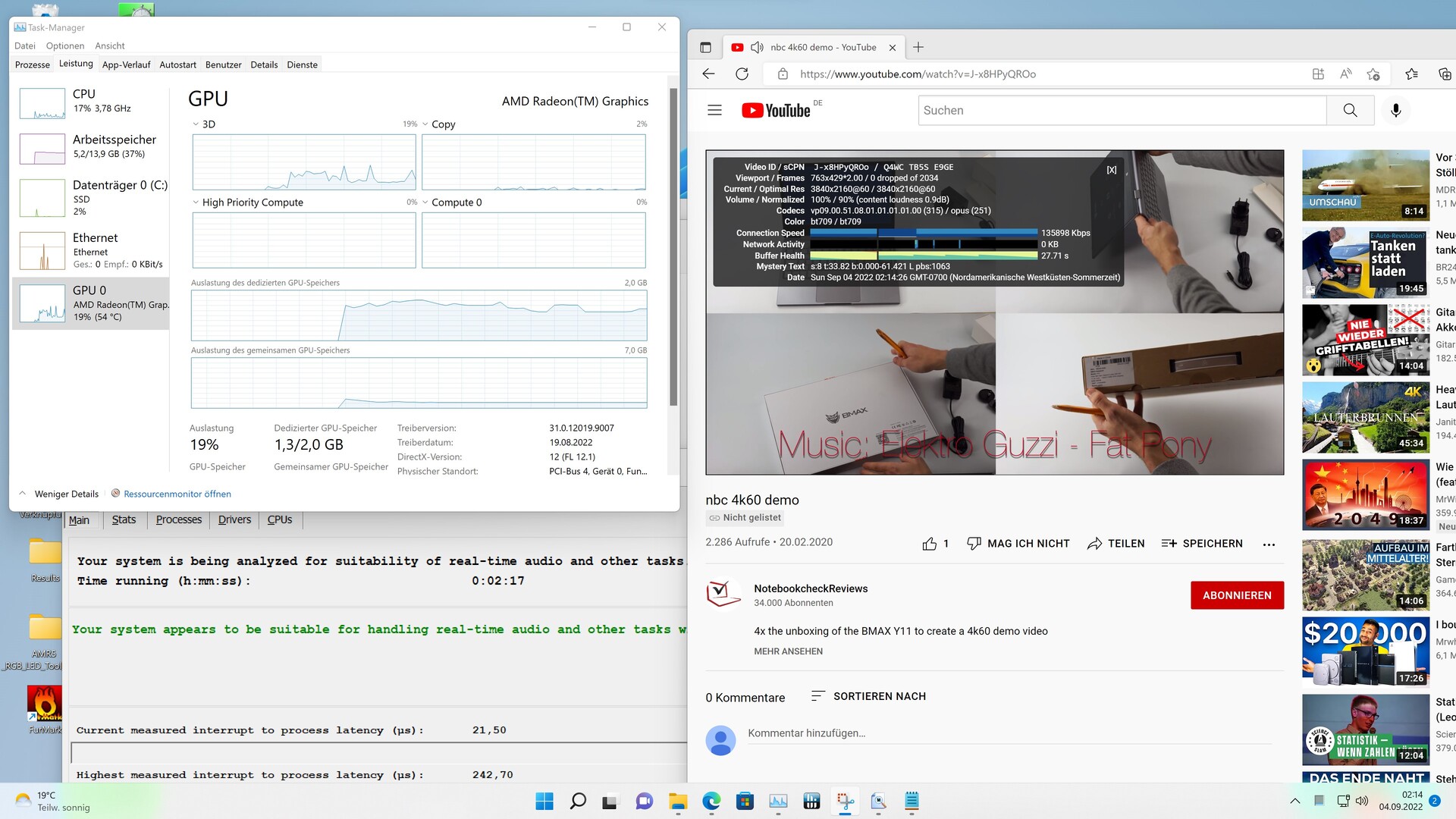

Maximal latens när du öppnar flera webbläsarflikar och spelar upp 4K-videoinnehåll.

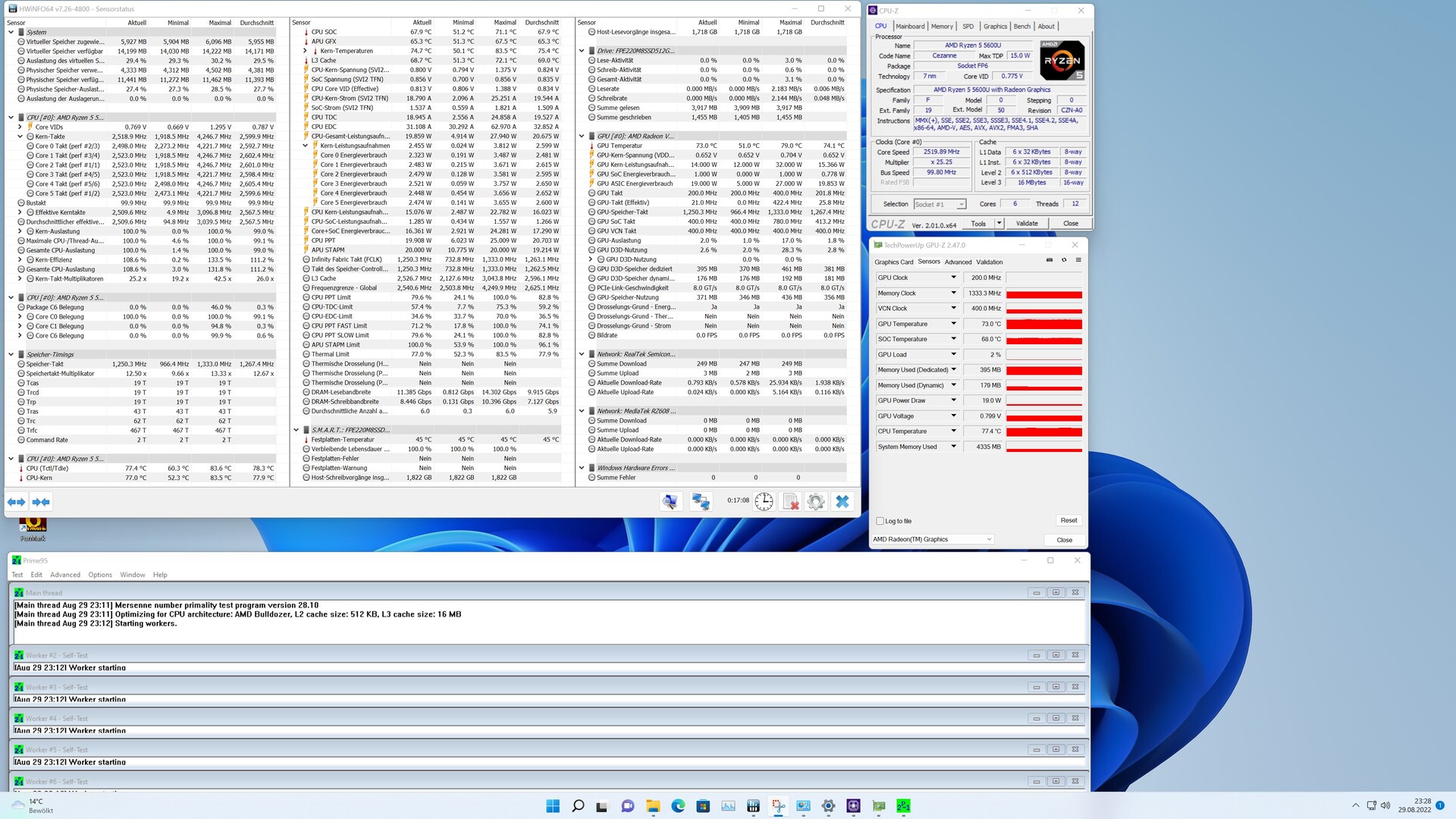

Maximal latenstid efter 10 sekunder av Prime95

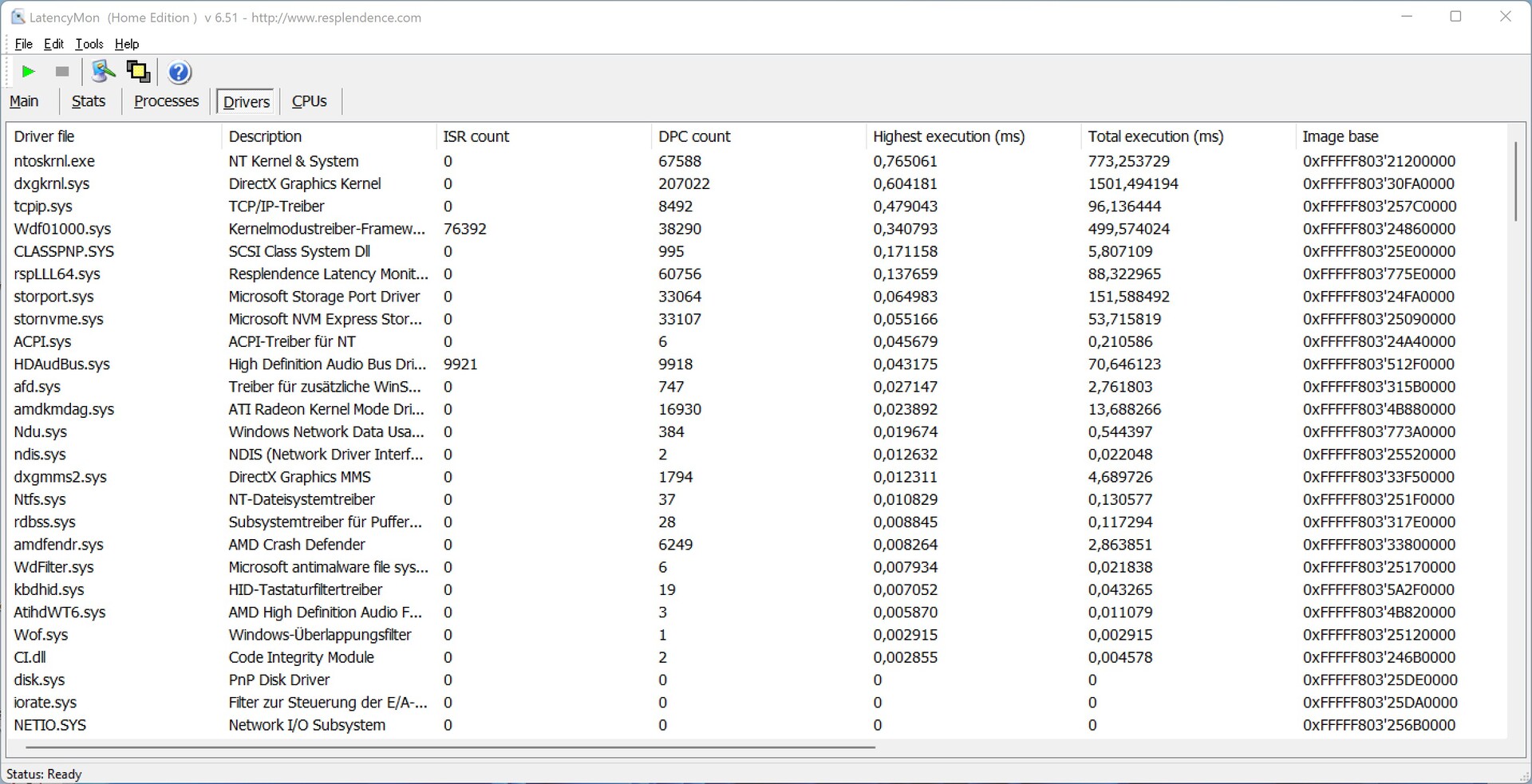

Drivrutiner rangordnade efter längsta exekveringstid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -144%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -112%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -45%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +54%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * +56%

* ... smaller is better

Lagring

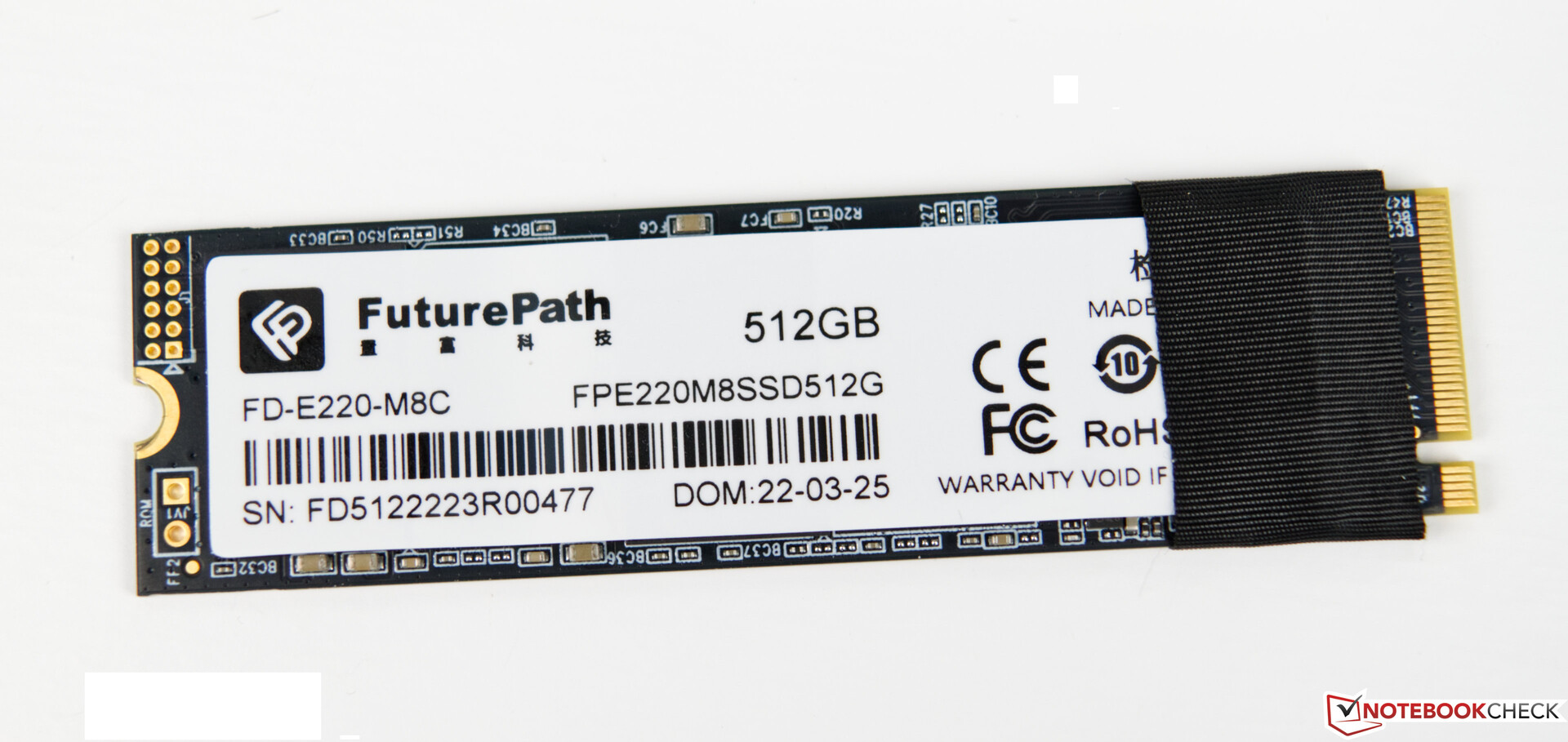

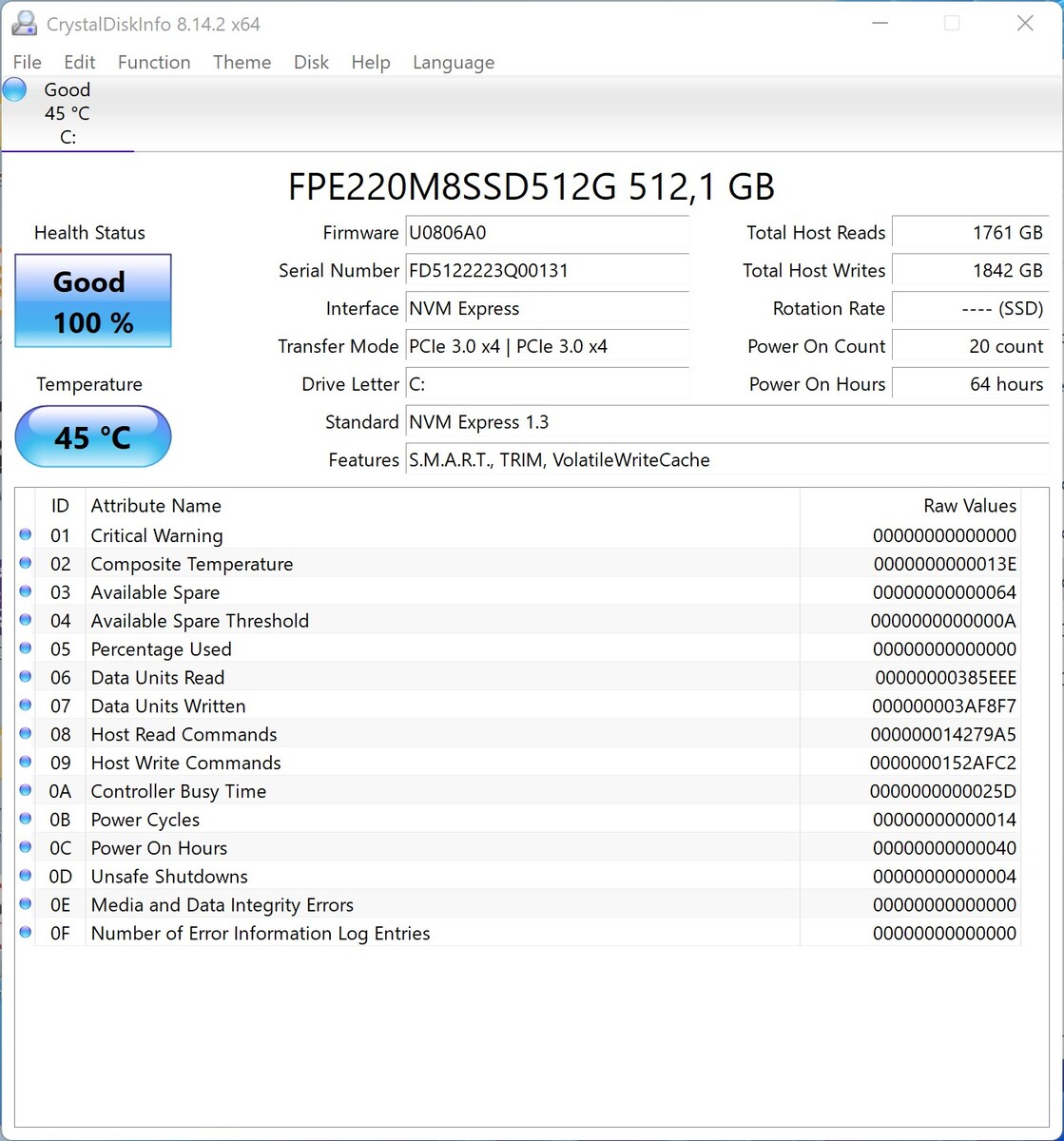

Minipc Union utrustar Ace Magician AMR5 med en 512 GB SSD. Modellen från Future Path använder sig av PCIe-gränssnittet och kan ta ledningen i testet med en bra prestanda. Den goda 4K-läshastigheten gör det möjligt att ladda många små filer snabbt, vilket är en fördel vid systemstart. Stresstestet visar dock att denna prestanda inte helt kan bibehållas under en längre tid. Trots den passiva kylflänsen verkar temperaturen under belastning leda till att prestandan måste strypas då och då. Tyvärr finns det ingen aktiv kylning för masslagringsenheten. Med 512 GB kan modellen tyvärr bara rekommenderas i begränsad omfattning med tanke på att den marknadsförs som ett spelsystem. En andra SSD kan dock enkelt installeras.

För fler jämförelser och riktmärken hänvisar vi till vår HDD/SSD Benchmarks artikel.

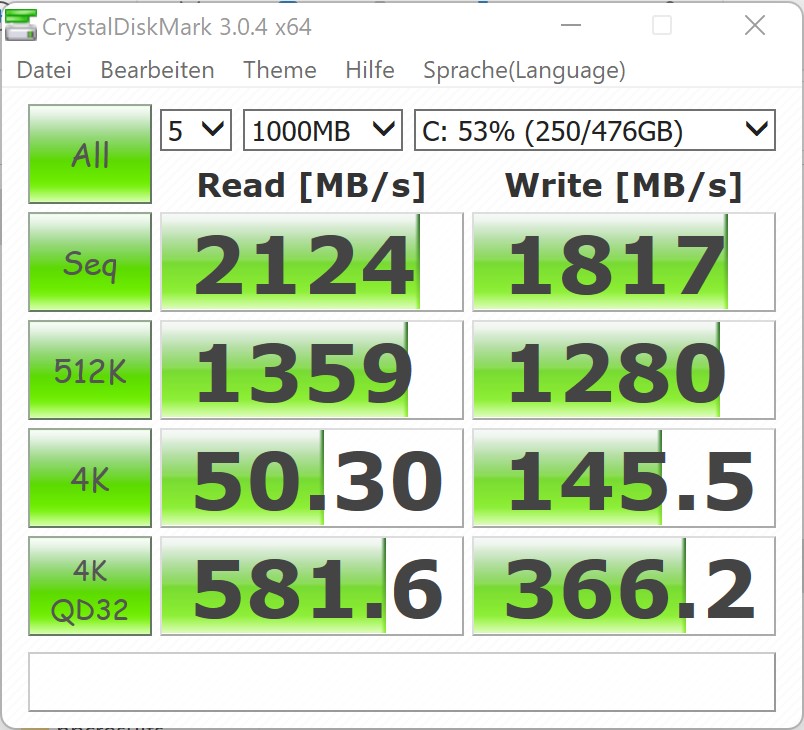

CrystalDiskMark 3.0

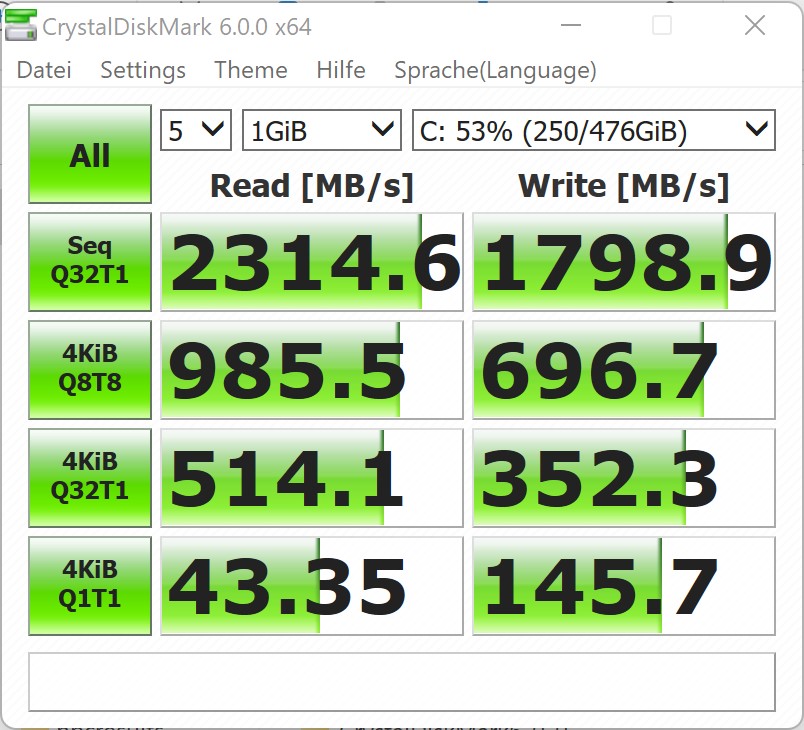

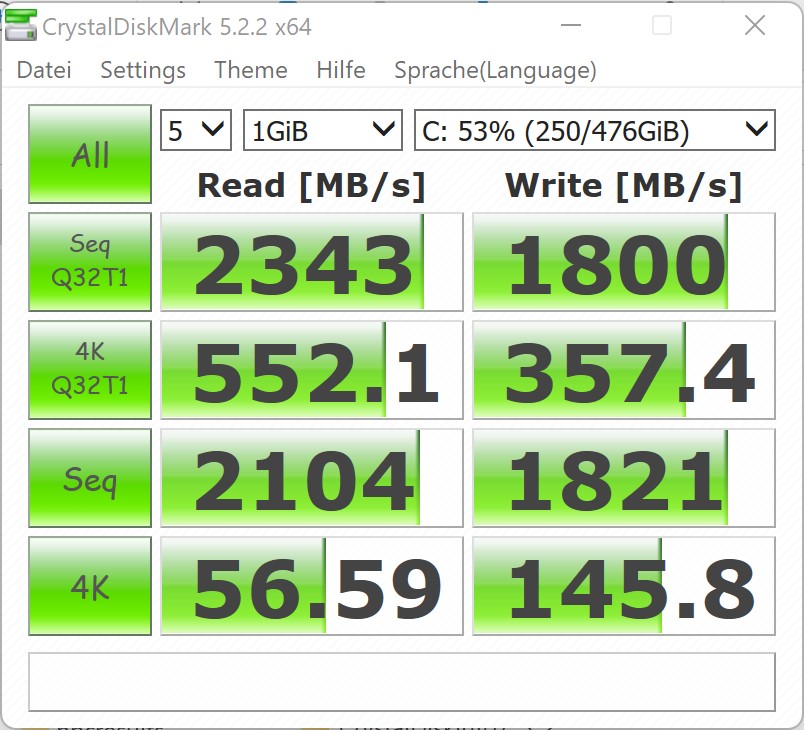

CrystalDiskMark 5.2 / 6

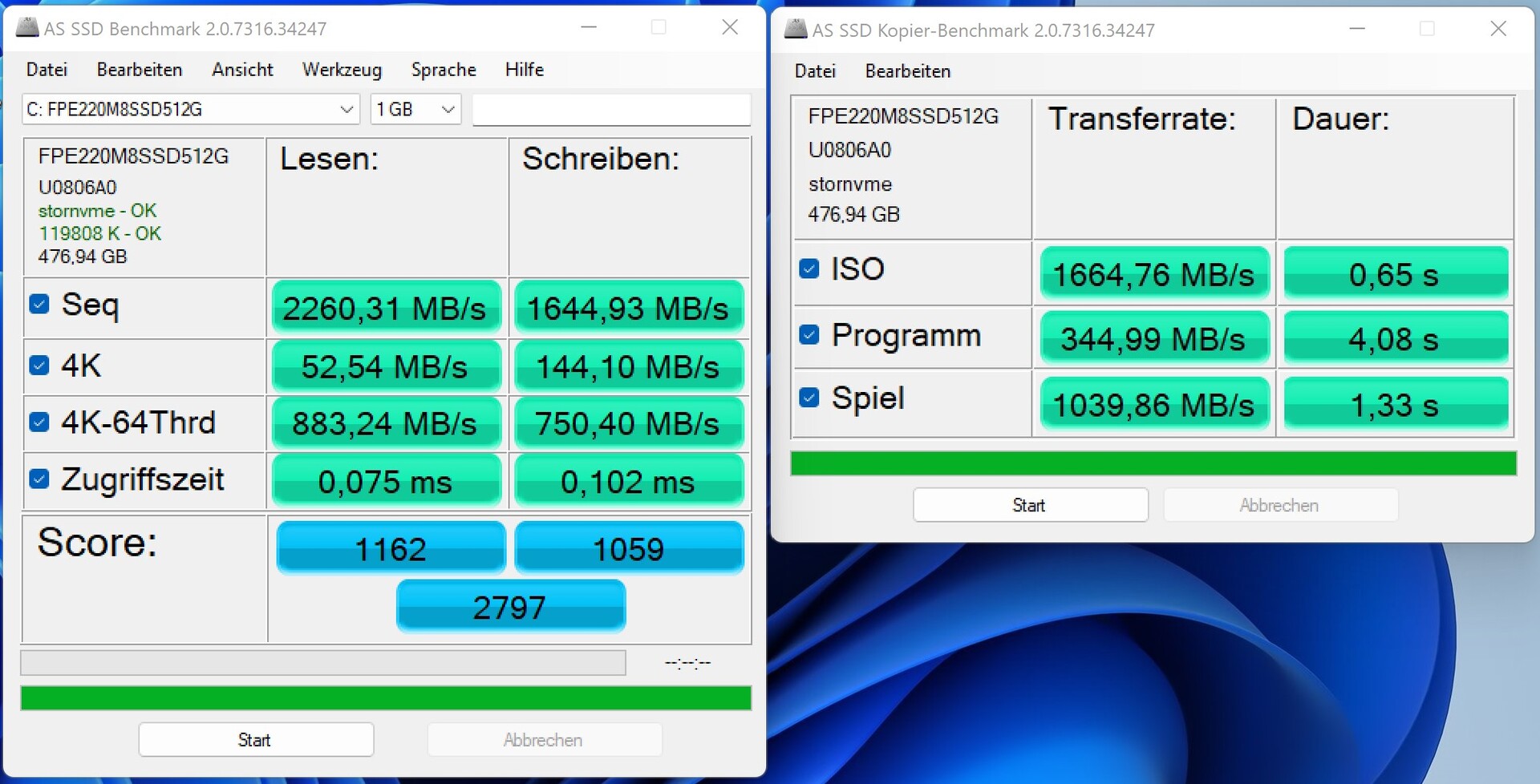

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2124 MB/s

Sequential Write: 1817 MB/s

512K Read: 1359 MB/s

512K Write: 1280 MB/s

4K Read: 50.3 MB/s

4K Write: 145.5 MB/s

4K QD32 Read: 581.6 MB/s

4K QD32 Write: 366.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	89.4 pt
Average Future Path FPE220M8SSD512G	77.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	77.2 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	73.9 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	64 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	61.6 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	58.8 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	57.9 pt

DiskSpd
seq read
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -2%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -18%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -27%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -37%
seq write
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +15%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -46%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +30%
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -3%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -11%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -19%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -36%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +26%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -32%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +29%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +7%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -2%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -8%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -21%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -39%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -5%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s -5%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s -12%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -20%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -24%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -34%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +7%
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -19%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -32%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -68%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +65%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +48%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +25%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -20%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +27%
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -22%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -34%
Score Read
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +17%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -40%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -53%
Score Write
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +18%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +9%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -3%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -6%
Seq Read
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +25%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -27%
Seq Write
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +20%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -43%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -47%
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +10%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +7%
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s -12%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -47%
4K Write
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +17%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s +14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +14%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +6%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -1%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -16%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +15%
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s 0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -19%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -47%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -64%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +60%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +31%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +22%
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s +5%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -1%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -105%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -40%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * -37%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -13%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms *
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * +10%
Access Time Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -34%
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * -27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -1%
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +76%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Beelink SER4 Intel SSD 660p SSDPEKNW512G8: Ø1407 (1225.09-1439.28)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

Grafikkort

AMD Ryzen 5 5600U levereras med enAMD Radeon RX Vega 7 iGPU, som är ensam ansvarig för 3D-prestandan. Detta är en stor börda, med tanke på att Minipc Union annonserar Ace Magician AMR5 som en kompakt spelenhet. Baserat på vår erfarenhet av att granska många bärbara datorer är det tydligt för oss vad som ungefär kan förväntas här.

Trots detta kan AMD Radeon RX Vega 7 leverera en bra prestanda som ligger över våra genomsnittliga priser. I jämförelse konkurrerar dock vår modell alltmer med denMinisforum EliteMini TH50 här. Eftersom iGPU-prestandan beror på mängden RAM-minne bör det vara möjligt att öka prestandan med en eller två procentenheter genom att använda snabbare moduler.

För ytterligare jämförelser och benchmarks hänvisar vi till vår GPU Benchmarks artikel.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.8 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.3 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	83.3 pt
Beelink SER4 ^-2! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	82.2 pt
Minisforum EliteMini B550 ^-1! AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	72.9 pt
Average AMD Radeon RX Vega 7	71 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +27%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +16%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +12%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +3%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points
Average AMD Radeon RX Vega 7 (3353 - 6249, n=58)	5054 Points -10%

3DMark
1280x720 Sky Diver Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	14274 Points +70%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	13595 Points +62%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	12457 Points +49%
Average AMD Radeon RX Vega 7 (8008 - 12857, n=8)	10587 Points +26%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	8374 Points
1920x1080 Ice Storm Extreme Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	121736 Points +33%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	102227 Points +12%
Average AMD Radeon RX Vega 7 (76256 - 130476, n=13)	97550 Points +7%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	96874 Points +6%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	91576 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	50500 Points -45%
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +25%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +10%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	27339 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points 0%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -10%
Average AMD Radeon RX Vega 7 (13713 - 31437, n=43)	23324 Points -11%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +32%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +22%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +10%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +5%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -6%
Average AMD Radeon RX Vega 7 (1772 - 4037, n=62)	3189 Points -11%
2560x1440 Time Spy Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +44%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points +28%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points +13%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points
Average AMD Radeon RX Vega 7 (496 - 1249, n=57)	991 Points -10%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	96.2 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	91.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	76.7 pt
Average AMD Radeon RX Vega 7	76.2 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	73.3 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	70.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +31%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +11%
Average AMD Radeon RX Vega 7 (14.2 - 20.9, n=4)	17.9 fps +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -8%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -16%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +5%
Average AMD Radeon RX Vega 7 (15.9 - 19.8, n=4)	17.8 fps +4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -2%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +3%
Average AMD Radeon RX Vega 7 (9.6 - 13.2, n=4)	11.6 fps +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -6%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +38%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Average AMD Radeon RX Vega 7 (8.5 - 13.5, n=4)	11.4 fps -1%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -7%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -20%

Unigine Superposition
1280x720 720p Low
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +45%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +15%
Average AMD Radeon RX Vega 7 (5347 - 7180, n=4)	6142 Points +15%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points
1920x1080 1080p High
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +37%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +32%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +17%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +8%
Average AMD Radeon RX Vega 7 (1274 - 1664, n=4)	1495 Points +2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points

Spelprestanda

Det är uppenbart att användarna kommer att få finna sig i begränsningar när det gäller spelprestanda, eftersomAMD Radeon RX Vega 7 snabbt når sina gränser i moderna spel. De som gillar äldre och mindre krävande titlar kan dock definitivt förvänta sig spelbara bildfrekvenser. I 720p och med låga detaljer klarar Ace Magician AMR5 även moderna spel som F1 22. Du bör dock vara medveten om att AMD Radeon RX Vega 7:s prestanda inte kan hålla jämna steg med ett modernt dedikerat grafikkort

För fler jämförelser och riktmärken hänvisar vi till vår GPU-spel artikel.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.5 pt
Minisforum EliteMini HX90 ^-1! AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	78.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	76.2 pt
Average AMD Radeon RX Vega 7	68.4 pt

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps -13%
Average AMD Radeon RX Vega 7 (43.1 - 140.7, n=35)	89.5 fps -22%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps -10%
Average AMD Radeon RX Vega 7 (38 - 123, n=33)	78.7 fps -17%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps
Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50)	58.1 fps -6%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +43%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps
Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37)	34.1 fps -13%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +41%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps
Average AMD Radeon RX Vega 7 (27 - 57, n=24)	40.5 fps -8%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +38%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps
Average AMD Radeon RX Vega 7 (13 - 27, n=23)	19.1 fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps
Average AMD Radeon RX Vega 7 (24 - 52, n=4)	39.8 fps 0%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +45%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps
Average AMD Radeon RX Vega 7 (13 - 26, n=4)	20 fps 0%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps -1%
Average AMD Radeon RX Vega 7 (56.1 - 102.7, n=8)	82.3 fps -9%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps 0%
Average AMD Radeon RX Vega 7 (27 - 45.3, n=7)	38.9 fps -6%

F1 2021
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122 (97^min, 96^P1) fps +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	105 (81^min, 78^P1) fps +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.1 (72^min, 71^P1) fps -4%
Average AMD Radeon RX Vega 7 (71 - 107.9, n=13)	83.6 fps -12%
1920x1080 Medium Preset AA:T AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52 (42^min, 42^P1) fps +30%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.3 (40^min, 40^P1) fps +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 (32^min, 32^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Average AMD Radeon RX Vega 7 (29 - 45.8, n=12)	35.8 fps -10%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps
Average AMD Radeon RX Vega 7 (32.9 - 137.7, n=58)	99 fps -11%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps 0%
Average AMD Radeon RX Vega 7 (32.7 - 107.8, n=58)	76.7 fps -15%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps
Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41)	70.4 fps -12%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps
Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41)	27.1 fps -10%

	låg	med.	hög	ultra
GTA V (2015)	114.3	94.3	27.2	12
The Witcher 3 (2015)	61.8	39.4	19.6	13
Dota 2 Reborn (2015)	111	90.3	50.5	47.3
Rise of the Tomb Raider (2016)	43.3	30.4	18.1	14.6
Final Fantasy XV Benchmark (2018)	34.6	17.3	12.6
Far Cry 5 (2018)	44	21	20	18
Strange Brigade (2018)	80.1	30.2	25.5	21.7
Shadow of the Tomb Raider (2018)	50.3	18.8	17.1	14.7
Forza Horizon 4 (2018)	79	37	35	27
Far Cry New Dawn (2019)	40	20	19	18
Metro Exodus (2019)	37.9	15.9	11.9	10.2
Borderlands 3 (2019)	53.4	21.2	13.3	10.3
F1 2020 (2020)	90.4	41.2	30.8	22
F1 2021 (2021)	94.7	39.9	31.1	21
Far Cry 6 (2021)	40.3	18.9	15.8
Forza Horizon 5 (2021)	66	41
Farming Simulator 22 (2021)	98.9	41.8	30	23.9
Tiny Tina's Wonderlands (2022)	27	20.7	13.2	9.58
F1 22 (2022)	36.6	32.7	23.8	20.6

Utsläpp - Sparsam, men hörbar

Bullerutsläpp

Ace Magician AMR5 är behagligt tyst vid låg belastning och ibland till och med helt tyst. Den blir dock mycket hörbar vid belastning och når toppar på upp till 50,9 dB(A). Apparaterna i den här jämförelsen gör dock ett mycket bättre jobb här. Den maximala ljudnivån sjunker till 35,9 dB(A) i Silent-läget, vilket är ett bra resultat. Detta sker dock på bekostnad av minskad prestanda

Ljudnivå

Låg belastning		31.5 / 32.6 / 33.8 dB(A)
Hårddisk		0 dB(A)
Hög belastning		49.3 / 50.9 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Arta (15 cm avstånd) environment noise: 30.5 dB(A)

Temperatur

Ace Magician AMR5:s hölje värms inte upp för mycket, vilket beror på materialvalet. Dessutom ser fläkten till att spillvärme avges direkt ut ur höljet på baksidan, så att ingen överdriven värmeuppbyggnad utvecklas. När SoC:n är på sin maximala effekt på 28 watt når den cirka 84 °C (~183 °F) under en kort tid vid toppbelastning. Temperaturen stabiliserar sig på cirka 75-78 °C (~167-172 °F) med tiden.

Ace Magician AMR5 i stresstestet — Ace Magician AMR5

Energiförbrukning

Ace Magician AMR5 är relativt sparsam när det gäller energiförbrukning, men Beelink visar att detta kan göras ännu bättre med SER4. Icke desto mindre är genomsnittet på 46,4 watt en bra takt som en konventionell stationär dator inte kan komma i närheten av. Den externa nätadaptern levererar maximalt 65 watt och har tillräcklig kapacitet. Detta lämnar tillräckligt med utrymme för en andra SSD

Strömförbrukning

Av/Standby	0.85 / 2.5 Watt
Låg belastning	8.4 / 8.7 / 9.3 Watt
Hög belastning	46.4 / 52 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Average AMD Radeon RX Vega 7	Average AMD Ryzen 5 5600U	Average of class Mini PC
Power Consumption		-50%	40%	16%	17%	-37%
Idle Minimum *	8.4	8.9 -6%	4.1 51%	4.66 ?(2.6 - 8.4, n=52) 45%	5.03 ?(3.6 - 8.4, n=6) 40%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -16%
Idle Average *	8.7	9.6 -10%	4.1 53%	7.56 ?(4.8 - 10.7, n=52) 13%	7.4 ?(6.3 - 8.7, n=6) 15%	11.7 ?(1.9 - 63, n=91, last 2 years) -34%
Idle Maximum *	9.3	11.8 -27%	4.6 51%	8.95 ?(5.6 - 13.8, n=52) 4%	8.57 ?(7.5 - 9.3, n=6) 8%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -58%
Load Average *	46.4	98.9 -113%	35.6 23%	38.7 ?(21.6 - 54.9, n=53) 17%	36 ?(27 - 46.4, n=6) 22%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -12%
Load Maximum *	52	101.8 -96%	39.9 23%	51.9 ?(31 - 73.4, n=52) -0%	51.1 ?(44 - 68.4, n=6) 2%	86 ?(18.1 - 271, n=92, last 2 years) -65%
Witcher 3 ultra *			35.6

* ... smaller is better

Bedömning - Moderna anslutningsmöjligheter i ett snyggt fodral

Ace Magician AMR5 i recension, tillhandahållen av Minipc Union

Minipc Union erbjuder inte en konventionell färdig mini-pc med Ace Magician AMR5, eftersom den här modellen sticker ut från mängden på grund av sin något annorlunda design. Den kompakta PC:n fångar ögat genom att den liknar konventionella stationära PC:er och ger en subtil belysning. Samtidigt är modellen mycket kompakt, lätt och erbjuder en modern SoC i form av den AMD Ryzen 5 5600U. Den sexkärniga processorn är sparsam, och dess solida prestanda garanterar snabba arbetshastigheter. Samtidigt är hastigheten på det inbyggda RAM-minnet något som kan kritiseras. Värdefull potential slösas bort här; användningen av snabbare RAM hade kunnat minska klyftan till konkurrenterna en aning.

Tack vare sin storlek passar den kompakta Ace Magician AMR5 på vilket skrivbord som helst. Med sin fantastiska RGB-belysning fångar den kompakta datorn ögat utan att se skräpig ut.

När det gäller kompakta speldatorer ser vi bara Ace Magician AMR5 som en instegsdator för att spela enkla eller äldre titlar. Tyvärr ärAMD Radeon RX Vega 7 saknar den nödvändiga prestandan för att rendera moderna spel smidigt i 1080p. När det gäller portvalet finns det många saker som tillverkaren har gjort rätt. Från placeringen av portarna till antalet finns det inte mycket vi kan kritisera här. I slutändan kan upp till tre skärmar användas samtidigt.

Små men trevliga funktioner, som till exempel möjligheten att låta systemet köra i olika prestandalägen on-the-fly, fungerar bra och syns sällan. Om du inte behöver hexa-kärnans fulla prestanda kan du tryggt använda Silent-läget här. Detta sparar energi och säkerställer låga ljudnivåer. Vi hade dock gärna sett några fler alternativ i inställningarna för RGB-belysningen. Ace Magician AMR5 är för närvarande tillgänglig för 590 euro (~598 dollar). Ett rättvist pris, eftersom konkurrenterna inte nödvändigtvis finns till lägre priser just nu.

Pris och tillgänglighet

I skrivande stund kan du hitta Ace Magician AMR5 på Amazon för 499 dollar.

Recension av Ace Magician AMR5: Snygg minidator med Ryzen 5 5600U och diskret RGB-belysning

Potentiella konkurrenter i jämförelse

Minipc Union Ace Magician AMR5 i detalj

Hölje

Anslutningsmöjligheter

Kommunikation

Underhåll

Prestanda

Provningsvillkor

Processor

Ace Magician AMR5 i Cinebench R15 Multi loop

Systemprestanda

DPC-fördröjningar

Lagring

Continuous load read: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Spelprestanda

Utsläpp - Sparsam, men hörbar

Bullerutsläpp

Temperatur

Energiförbrukning

Energy consumption with an external monitor

För

Emot

Bedömning - Moderna anslutningsmöjligheter i ett snyggt fodral

Pris och tillgänglighet

More articles related to this device

3DMark 05 Standard		36912 poäng
3DMark 06 Standard Score		22493 poäng
3DMark Vantage P Result		17714 poäng
3DMark 11 Performance		5920 poäng
3DMark Ice Storm Standard Score		113920 poäng
3DMark Cloud Gate Standard Score		20395 poäng
3DMark Fire Strike Score		3229 poäng
3DMark Fire Strike Extreme Score		1456 poäng
3DMark Time Spy Score		1251 poäng
Hjälp

	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Beelink SER4 R7 4800U, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs
Noise		12%	6%	15%	10%	10%
off / environment *	30.5	30.8 -1%	30.1 1%	30.2 1%	23.4 23%	30.2 1%
Idle Minimum *	31.5			30.5 3%	33.2 -5%	30.8 2%
Idle Average *	32.6	31.6 3%	33.15 -2%	30.5 6%	33.2 -2%	32.1 2%
Idle Maximum *	33.8			30.5 10%	33.2 2%	32.9 3%
Load Average *	49.3			31.2 37%	38.6 22%	33.9 31%
Load Maximum *	50.9	33.4 34%	41.63 18%	35.1 31%	40.8 20%	41.4 19%
Witcher 3 ultra *					39.2
