Test: Intel NUC Kit NUC8i7BEH (i7-8559U) Mini PC (Sammanfattning)

Nu med Coffee Lake-U och Thunderbolt 3. Intel har fräschat upp sin NUC-serie av minidatorer i form av den splitter nya Bean Canyon-plattformen som innehåller Iris Plus-grafik och en Coffee Lake-U CPU. Resultatet är som förväntat, med en CPU-prestanda som är väldigt lik i7-8550U men med kraftigt förbättrad GPU-prestanda jämfört med UHD Graphics 620.
Intel NUC8i7BE
Processor
Intel Core i7-8559U 4 x 2.7 - 4.5 GHz, Coffee Lake-U
Grafikkort
Intel Iris Plus Graphics 655, Kärna: 300 MHz, Minne: 1200 MHz, DDR4, 24.20.100.6286
Minne
32768 MB
, DDR4 PC4-21300, Dubbla kanaler
Moderkort
Intel Cannon Lake-U PCH-LP Premium
Ljudkort
Realtek ALC255 @ Intel Cannon Point-LP PCH - cAVS (Audio, Video, Speech)
Anslutningar
5 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 Infraröd, 1 Kensingtonlås, Ljudanslutningar: kombinerad 3.5 mm, Kortläsare: MicroSD
Nätverk
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Storlek
höjd x bredd x djup (i mm) 51 x 115 x 111
Operativsystem
Microsoft Windows 10 Home 64 Bit
Övrigt
36 Månader Garanti
Vikt
683 g, Strömförsörjning: 386 g
Pris
480 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



210 mm 203 mm 62.2 mm 1.7 kg204 mm 129 mm 68 mm 1.1 kg221 mm 142 mm 39 mm 1.3 kg115 mm 111 mm 51 mm 683 g115 mm 111 mm 51 mm 577 g115 mm 111 mm 48 mm 640 g

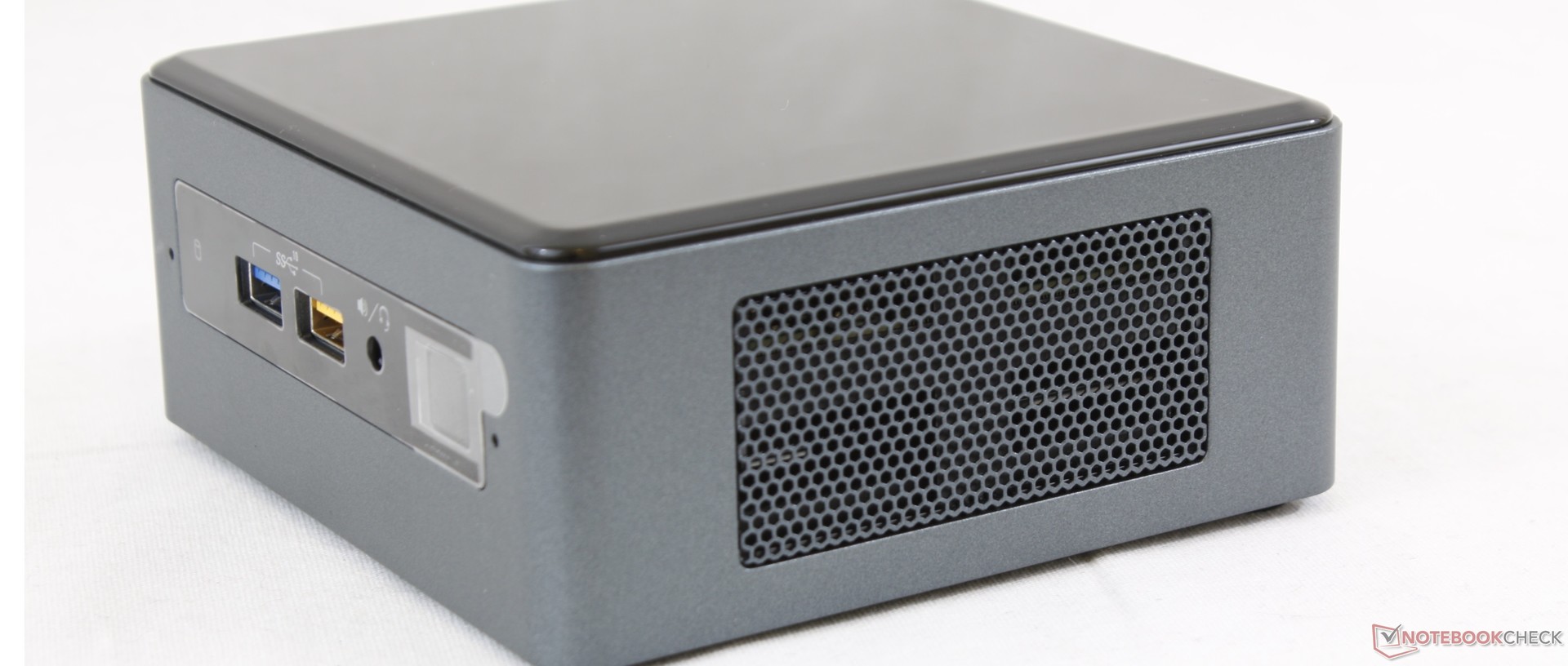

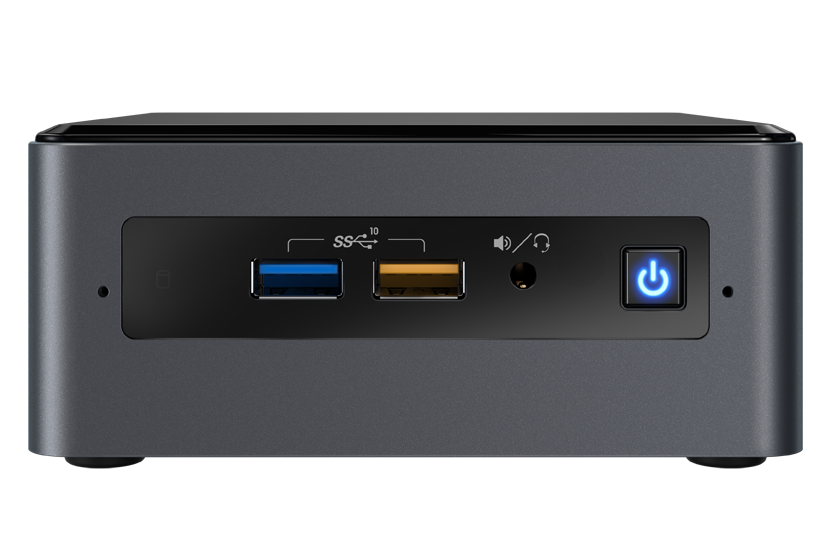

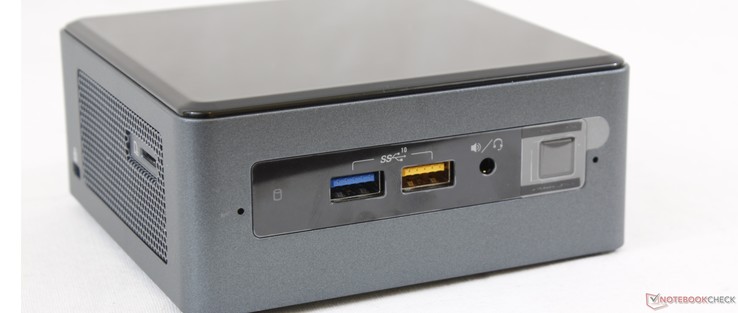

Framsidan: DMIC, 2x USB 3.1 Gen. 2, 3.5 mm kombinerad ljudanslutning, CIR, Strömbrytare
Framsidan: DMIC, 2x USB 3.1 Gen. 2, 3.5 mm kombinerad ljudanslutning, CIR, Strömbrytare
Höger: Inga portar
Höger: Inga portar

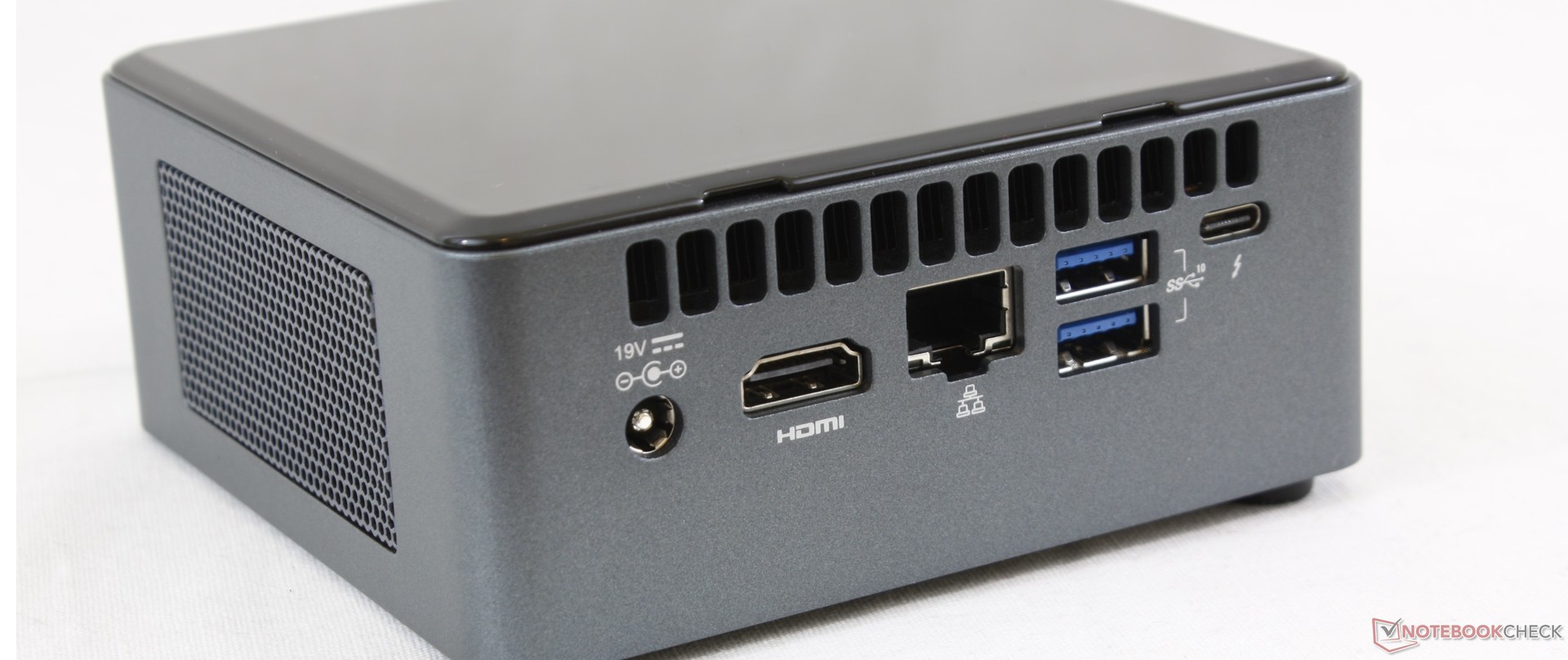

Baksidan: AC-adapter, HDMI 2.0, Gigabit RJ-45, 2x USB 3.1 Gen. 2, Thunderbolt 3
Baksidan: AC-adapter, HDMI 2.0, Gigabit RJ-45, 2x USB 3.1 Gen. 2, Thunderbolt 3

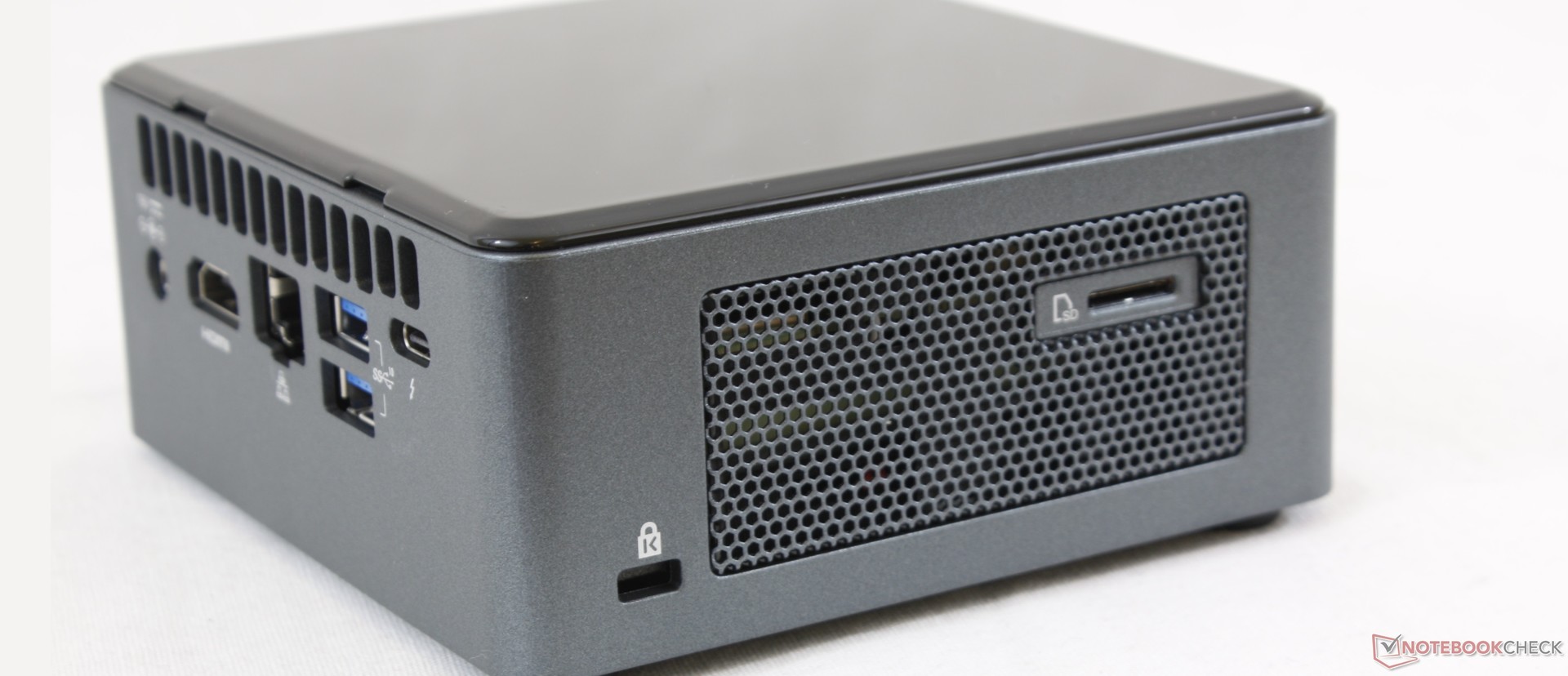

Vänster: Kensington-lås, MicroSD-kortläsare
Vänster: Kensington-lås, MicroSD-kortläsare
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s ∼100% +17%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
69 MB/s ∼85%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.52 MB/s ∼44% -49%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35 MB/s ∼43% -49%
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.3 MB/s ∼100% +4%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
85 MB/s ∼96%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
42.73 MB/s ∼48% -50%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.73 MB/s ∼43% -56%
Networking
iperf3 transmit AX12
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s ∼68% -32%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
243 MBit/s ∼44% -56%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
218 MBit/s ∼39% -61%
iperf3 receive AX12
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼100%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s ∼98% -2%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
301 MBit/s ∼50% -50%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
292 MBit/s ∼49% -51%
04590135180225270315360405450495540585630675720765810855Tooltip
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U; CPU Multi 64Bit: Ø681 (671.37-798.44)
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA; CPU Multi 64Bit: Ø857 (853.53-862.44)
Lenovo Yoga C930-13IKB 81C4 UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG; CPU Multi 64Bit: Ø588 (570.26-651.27)
Cinebench R15
CPU Single 64Bit
Intel NUC8i7BE
Intel Core i7-8559U
188 Points ∼64%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼61% -5%
Dell Latitude 5591
Intel Core i7-8850H
178 Points ∼61% -5%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
161 Points ∼55% -14%
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
156 Points ∼53% -17%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
155 Points ∼53% -18%
Dell XPS 13 9360 FHD i7 Iris
Intel Core i7-7560U
153 Points ∼52% -19%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
145 Points ∼50% -23%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
141 Points ∼48% -25%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points ∼48% -26%
HP Pavilion 15-cw0003ng
AMD Ryzen 5 2500U
124 Points ∼42% -34%
Intel NUC6i5SYH
Intel Core i5-6260U
117 Points ∼40% -38%
Intel NUC7CJYH
Intel Celeron J4005
77 Points ∼26% -59%
CPU Multi 64Bit
Dell Latitude 5591
Intel Core i7-8850H
1090 Points ∼11% +37%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼9% +8%
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points ∼8%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
738 Points ∼8% -8%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
714 Points ∼7% -11%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points ∼7% -11%
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
702 Points ∼7% -12%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
613 Points ∼6% -23%
HP Pavilion 15-cw0003ng
AMD Ryzen 5 2500U
606 (417.88min - 605.96max) Points ∼6% -24%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
383 (377min - 385max) Points ∼4% -52%
Dell XPS 13 9360 FHD i7 Iris
Intel Core i7-7560U
336 Points ∼3% -58%
Intel NUC6i5SYH
Intel Core i5-6260U
298 Points ∼3% -63%
Intel NUC7CJYH
Intel Celeron J4005
144 Points ∼1% -82%
Cinebench R11.5
CPU Single 64Bit
Intel NUC8i7BE
Intel Core i7-8559U
2.17 Points ∼62%
Dell Latitude 5591
Intel Core i7-8850H
2 Points ∼57% -8%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
1.99 Points ∼57% -8%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
1.84 Points ∼53% -15%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
1.75 Points ∼50% -19%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
1.66 Points ∼47% -24%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
1.64 Points ∼47% -24%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
1.54 Points ∼44% -29%
Intel NUC6i5SYH
Intel Core i5-6260U
1.33 Points ∼38% -39%
Intel NUC7CJYH
Intel Celeron J4005
0.85 Points ∼24% -61%
CPU Multi 64Bit
Dell Latitude 5591
Intel Core i7-8850H
10.95 Points ∼20% +50%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
9.41 Points ∼17% +29%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
8.13 Points ∼15% +11%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
7.76 Points ∼14% +6%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
7.58 Points ∼14% +4%
Intel NUC8i7BE
Intel Core i7-8559U
7.32 Points ∼13%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
6.05 Points ∼11% -17%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
4.09 Points ∼8% -44%
Intel NUC6i5SYH
Intel Core i5-6260U
3.26 Points ∼6% -55%
Intel NUC7CJYH
Intel Celeron J4005
1.39 Points ∼3% -81%
Cinebench R10
Rendering Multiple CPUs 32Bit
Dell Latitude 5591
Intel Core i7-8850H
31284 Points ∼43% +35%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
25809 Points ∼35% +11%
Intel NUC8i7BE
Intel Core i7-8559U
23215 Points ∼32%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
21943 Points ∼30% -5%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
21587 Points ∼29% -7%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
21075 Points ∼29% -9%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
18579 Points ∼25% -20%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
11403 Points ∼16% -51%
Intel NUC6i5SYH
Intel Core i5-6260U
9949 Points ∼14% -57%
Intel NUC7CJYH
Intel Celeron J4005
3500 Points ∼5% -85%
Rendering Single 32Bit
Intel NUC8i7BE
Intel Core i7-8559U
7249 Points ∼65%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
6824 Points ∼61% -6%
Dell Latitude 5591
Intel Core i7-8850H
6693 Points ∼60% -8%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
6668 Points ∼60% -8%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
5940 Points ∼53% -18%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
5641 Points ∼50% -22%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
5536 Points ∼49% -24%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
5010 Points ∼45% -31%
Intel NUC6i5SYH
Intel Core i5-6260U
4481 Points ∼40% -38%
Intel NUC7CJYH
Intel Celeron J4005
2085 Points ∼19% -71%
wPrime 2.10 - 1024m
Intel NUC7CJYH
Intel Celeron J4005
1042 s * ∼12% -344%
Intel NUC6i5SYH
Intel Core i5-6260U
558 s * ∼7% -138%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Core i5-7267U
492 s * ∼6% -110%
Intel NUC8i7BE
Intel Core i7-8559U
234.6 s * ∼3%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
234.2 s * ∼3% -0%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
225.7 s * ∼3% +4%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
224.4 s * ∼3% +4%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
186.7 s * ∼2% +20%

* ... smaller is better

Cinebench R10 Shading 32Bit
7836
Cinebench R10 Rendering Multiple CPUs 32Bit
23215
Cinebench R10 Rendering Single 32Bit
7249
Cinebench R11.5 CPU Single 64Bit
2.17 Points
Cinebench R11.5 CPU Multi 64Bit
7.32 Points
Cinebench R11.5 OpenGL 64Bit
52.2 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
85 fps
Cinebench R15 CPU Multi 64Bit
798 Points
Cinebench R15 CPU Single 64Bit
188 Points
Hjälp
PCMark 10
Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points ∼60% +16%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points ∼51%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3837 Points ∼43% -16%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
1136 Points ∼13% -75%
Essentials
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
9125 Points ∼78% +1%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points ∼77%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
8051 Points ∼69% -10%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
4188 Points ∼36% -53%
Productivity
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
7915 Points ∼71% +9%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points ∼65%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
6481 Points ∼58% -10%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
3289 Points ∼29% -55%
Digital Content Creation
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5598 Points ∼36% +40%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points ∼26%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
2939 Points ∼19% -27%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
990 Points ∼6% -75%
PCMark 8
Home Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points ∼73% +3%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4674 Points ∼70%
Intel NUC6i5SYH
Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL
3667 Points ∼55% -22%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3594 Points ∼54% -23%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
2084 Points ∼31% -55%
Work Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5454 Points ∼77%
Intel NUC6i5SYH
Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL
4588 Points ∼65%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
3188 Points ∼45%
Creative Score Accelerated v2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
6457 Points ∼55%
Intel NUC6i5SYH
Iris Graphics 540, 6260U, Samsung SSD XP941 MZHPU256HCGL
4395 Points ∼38%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
2212 Points ∼19%
PCMark 8 Home Score Accelerated v2
4674 poäng
PCMark 10 Score
4580 poäng
Hjälp
3DMark 11
1280x720 Performance GPU
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
14483 Points ∼21% +370%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
14302 Points ∼21% +364%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, i5-8550U
4686 Points ∼7% +52%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points ∼5% +5%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
3081 Points ∼4%
Dell Latitude 5591
NVIDIA GeForce MX130, i7-8850H
3044 Points ∼4% -1%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, i5-7267U
2762 (2743min - 2780max) Points ∼4% -10%
Average Intel Iris Plus Graphics 655
  (1365 - 3081, n=7)
2681 Points ∼4% -13%
Asus VivoBook S410UQ-NH74
NVIDIA GeForce 940MX, i5-8550U
2613 Points ∼4% -15%
HP Pavilion 15-cw0003ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
2381 Points ∼3% -23%
Intel NUC6i5SYH
Intel Iris Graphics 540, 6260U
2322 Points ∼3% -25%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
2124 Points ∼3% -31%
Zotac ZBOX-CI660 Nano
Intel UHD Graphics 620, i5-8550U
1769 Points ∼3% -43%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
579 Points ∼1% -81%
1280x720 Performance Combined
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10391 Points ∼38% +302%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
8076 Points ∼29% +213%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, i5-8550U
4354 Points ∼16% +69%
Dell Latitude 5591
NVIDIA GeForce MX130, i7-8850H
2934 Points ∼11% +14%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points ∼10% +8%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2583 Points ∼9%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, i5-7267U
2517 (2509min - 2525max) Points ∼9% -3%
Asus VivoBook S410UQ-NH74
NVIDIA GeForce 940MX, i5-8550U
2395 Points ∼9% -7%
Average Intel Iris Plus Graphics 655
  (1245 - 2683, n=7)
2301 Points ∼8% -11%
Intel NUC6i5SYH
Intel Iris Graphics 540, 6260U
2198 Points ∼8% -15%
HP Pavilion 15-cw0003ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
2155 Points ∼8% -17%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
1838 Points ∼7% -29%
Zotac ZBOX-CI660 Nano
Intel UHD Graphics 620, i5-8550U
1410 Points ∼5% -45%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
593 Points ∼2% -77%
3DMark
1280x720 Cloud Gate Standard Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
59162 Points ∼24% +254%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, i5-8550U
21586 Points ∼9% +29%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
16698 Points ∼7%
Dell Latitude 5591
NVIDIA GeForce MX130, i7-8850H
14809 Points ∼6% -11%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
14594 Points ∼6% -13%
Average Intel Iris Plus Graphics 655
  (6498 - 16698, n=8)
13736 Points ∼6% -18%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, i5-7267U
13153 Points ∼5% -21%
Intel NUC6i5SYH
Intel Iris Graphics 540, 6260U
11893 Points ∼5% -29%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
11232 Points ∼5% -33%
HP Pavilion 15-cw0003ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
11226 Points ∼5% -33%
Asus VivoBook S410UQ-NH74
NVIDIA GeForce 940MX, i5-8550U
10816 Points ∼4% -35%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
3513 Points ∼1% -79%
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
10248 Points ∼19% +353%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, i5-8550U
3712 Points ∼7% +64%
Dell Latitude 5591
NVIDIA GeForce MX130, i7-8850H
2430 Points ∼5% +8%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2260 Points ∼4%
Asus VivoBook S410UQ-NH74
NVIDIA GeForce 940MX, i5-8550U
2069 Points ∼4% -8%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points ∼4% -16%
Average Intel Iris Plus Graphics 655
  (920 - 2260, n=8)
1817 Points ∼3% -20%
HP Pavilion 15-cw0003ng
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
1715 Points ∼3% -24%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, i5-7267U
1698 Points ∼3% -25%
Intel NUC6i5SYH
Intel Iris Graphics 540, 6260U
1479 Points ∼3% -35%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
1369 Points ∼3% -39%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
448 Points ∼1% -80%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
282345 Points ∼39%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
98218 Points ∼13%
Average Intel Iris Plus Graphics 655
  (71073 - 89859, n=2)
80466 Points ∼11%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
16594 Points ∼2%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, i7-8809G
2908 Points ∼13% +359%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
633 Points ∼3%
Average Intel Iris Plus Graphics 655
  (301 - 633, n=9)
563 Points ∼3% -11%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, i5-7267U
555 Points ∼3% -12%
Dell XPS 13 9360 FHD i7 Iris
Intel Iris Plus Graphics 640, i7-7560U
413 Points ∼2% -35%
3DMark Vantage P Result
12093 poäng
3DMark 11 Performance
3349 poäng
3DMark Ice Storm Standard Score
87906 poäng
3DMark Cloud Gate Standard Score
13037 poäng
3DMark Fire Strike Score
2040 poäng
3DMark Fire Strike Extreme Score
1011 poäng
3DMark Time Spy Score
722 poäng
Hjälp
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Desktop
  (11.3 - 681, n=26, last 2 years)
171 fps ∼100% +524%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
27.4 (21min - 35max) fps ∼16%
Average Intel Iris Plus Graphics 655
  (23.2 - 27.4, n=3)
25.1 fps ∼15% -8%
låg med. hög ultraQHD4K
Counter-Strike: GO (2012) 93.7 49.6 12.4
BioShock Infinite (2013) 116.6 64.8 55 17
GTA V (2015) 68 62.1 15.8 6.22 4.17
The Witcher 3 (2015) 27.4
Dota 2 Reborn (2015) 95 68 34.7 30.4 12.2
Rainbow Six Siege (2015) 75.8 0
Rise of the Tomb Raider (2016) 39.2 22.3 10.8 8.9
Ashes of the Singularity (2016) 19.4 11.3 10.5
Deus Ex Mankind Divided (2016) 28.7 21.1
For Honor (2017) 41.3 16.1
Ghost Recon Wildlands (2017) 22.7
Rocket League (2017) 133.3 59.1 38.8
Final Fantasy XV Benchmark (2018) 16.9
X-Plane 11.11 (2018) 32.6 23.3 19.8
World of Tanks enCore (2018) 15.7 40.3
Far Cry 5 (2018) 23 11
Shadow of the Tomb Raider (2018) 22
FIFA 19 (2018) 82 45.8 40.3 36.7
Assassin´s Creed Odyssey (2018) 18
Battlefield V (2018) 19.9
Far Cry New Dawn (2019) 22 11
Metro Exodus (2019) 18.3
Anthem (2019) 16.6
Dirt Rally 2.0 (2019) 64 22.8
The Division 2 (2019) 35
Anno 1800 (2019) 30.2
Rage 2 (2019) 24.5
Total War: Three Kingdoms (2019) 56.7 18.5 10.5
F1 2019 (2019) 51.2 21.9 19.3
Control (2019) 25 severe graphical problems
Borderlands 3 (2019) 23.5 10.2 6.4
FIFA 20 (2019) 92 55.9 46.3 34.9 26.5 13.6
Ghost Recon Breakpoint (2019) 0 game wont start
GRID 2019 (2019) 36 severe graphical problems 20 severe graphical problems
Call of Duty Modern Warfare 2019 (2019) 0 game wont start
Red Dead Redemption 2 (2019) 15.8
Hearthstone (2020) 59.8 27.2
Escape from Tarkov (2020) 29.1 16.2 14.1 6.59
Doom Eternal (2020) 0 game wont start
Gears Tactics (2020) 54.8 17.3 11.6
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Lenovo Yoga C930-13IKB 81C4
UHD Graphics 620, i5-8550U, SK hynix PC401 HFS256GD9TNG
Apple MacBook Pro 13 2018 Touchbar i5
Iris Plus Graphics 655, i5-8259U
Noise
-1%
-7%
7%
1%
off / environment *
28.7
28.7
-0%
29.5
-3%
27.9
3%
29.6
-3%
Idle Minimum *
28.7
29
-1%
31.6
-10%
27.9
3%
29.6
-3%
Idle Average *
29.3
29
1%
32.2
-10%
27.9
5%
29.6
-1%
Idle Maximum *
31.8
29
9%
32.3
-2%
29.3
8%
29.6
7%
Load Average *
39
36
8%
43
-10%
32
18%
36.7
6%
Witcher 3 ultra *
39
42
-8%
32.5
17%
Load Maximum *
41.4
49.4
-19%
43.2
-4%
39.3
5%
46.7
-13%

* ... smaller is better

Ljudnivå

Låg belastning
28.7 / 29.3 / 31.8 dB(A)
Hög belastning
39 / 41.4 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 28.7 dB(A)
Strömförbrukning
Av/Standbydarklight 0.73 / 0.88 Watt
Låg belastningdarkmidlight 2.7 / 3.1 / 6.3 Watt
Hög belastning midlight 59.7 / 78 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Intel NUC6i5SYH
6260U, Iris Graphics 540, Samsung SSD XP941 MZHPU256HCGL, , x, 0.00
Zotac ZBOX-CI660 Nano
i5-8550U, UHD Graphics 620, OCZ Vertex OCZSSD2-1VTX120G, , x,
Lenovo Yoga C930-13IKB
i5-8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 13.90
Lenovo Ideapad 720S-13ARR
R7 2700U, Vega 10, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 13.30
Power Consumption
-230%
-64%
-106%
-27%
-59%
Idle Minimum *
2.7
15.5
-474%
8.7
-222%
9.7
-259%
3.3
-22%
5.4
-100%
Idle Average *
3.1
16.2
-423%
8.7
-181%
9.8
-216%
6.8
-119%
9.8
-216%
Idle Maximum *
6.3
16.5
-162%
8.7
-38%
11.8
-87%
9.5
-51%
11.3
-79%
Load Average *
59.7
83.4
-40%
18.2
70%
51.6
14%
40.8
32%
29.3
51%
Witcher 3 ultra *
47.2
121.7
-158%
Load Maximum *
78
173.5
-122%
36.6
53%
63.2
19%
57
27%
38.5
51%

* ... smaller is better

För

+ RAM och lagring som är lätt att komma åt (NVMe PCIe x4)
+ kraftig initial Turbo Boost
+ 3 års begränsad garanti som standard
+ 1.73 Gbps WLAN som standard
+ Thunderbolt 3 (40 Gbps)
+ kompakt design
+ MicroSD-kortläsare
+ IR-mottagare

Emot

- processorn har endast små prestandafördelar jämfört med i7-8550U

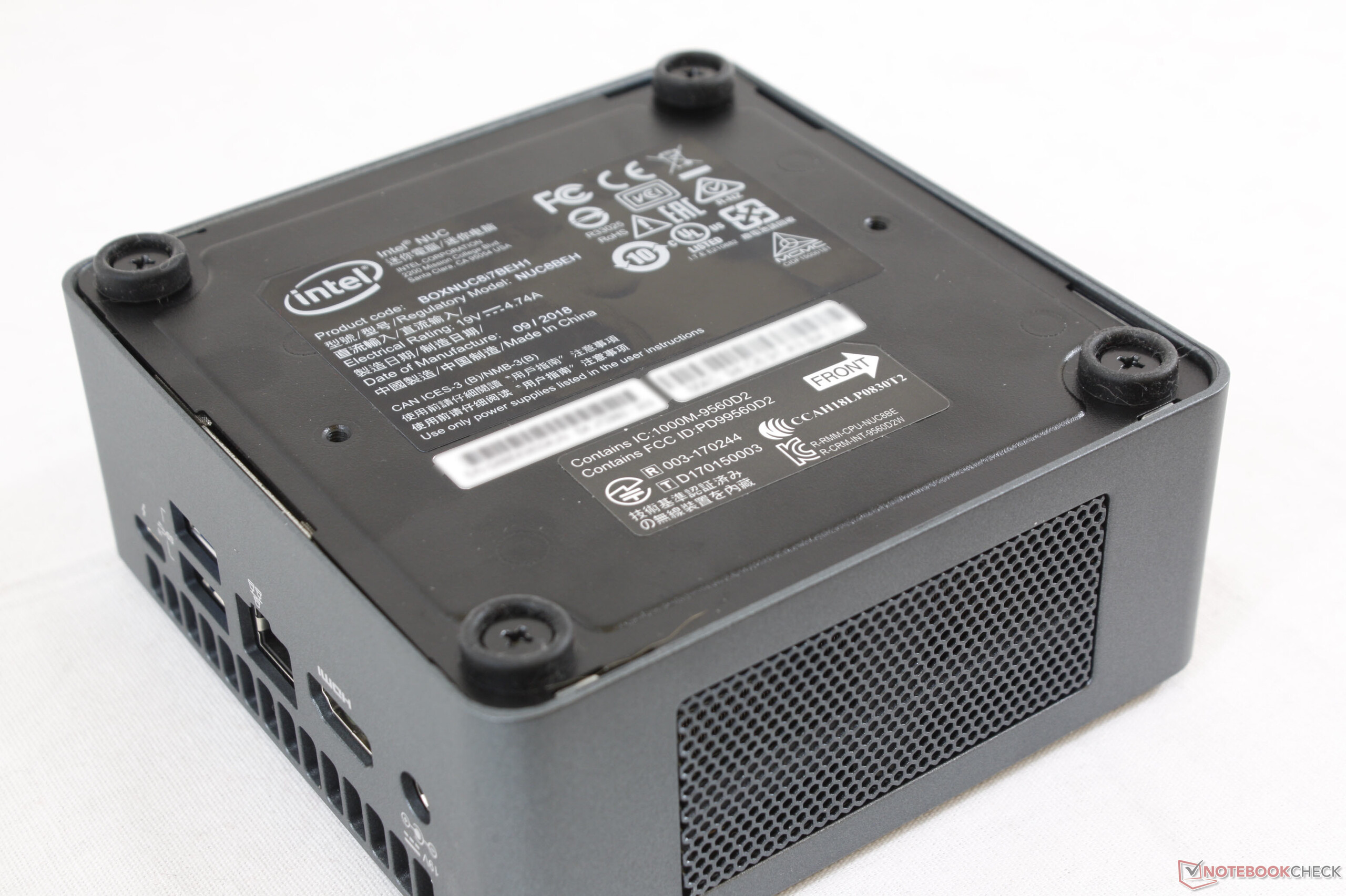

- kan inte stå upp vertikalt utan att ventilationen blockeras
- behöver fortfarande en extern nätadapter
- kortlivad Turbo Boost
- ingen fullstor SD-kortläsare
Recenseras: Intel NUC Kit NUC8i7BEH. Recensionsex från Intel
Recenseras: Intel NUC Kit NUC8i7BEH. Recensionsex från Intel

Läs den fullständiga versionen av den här recensionen på engelska här.

Man kan förvänta sig en allmän prestandanivå som ligger väldigt nära förra generationens Skull Canyon-NUC samtidigt som den är tystare, svalare och har ett lägre utgångspris. Tillägget av Thunderbolt 3 innebär att det går att kombinera systemet med en extern grafikdocka för spel eller andra krävande uppgifter, vilket ytterligare ökar systemets mångsidighet.

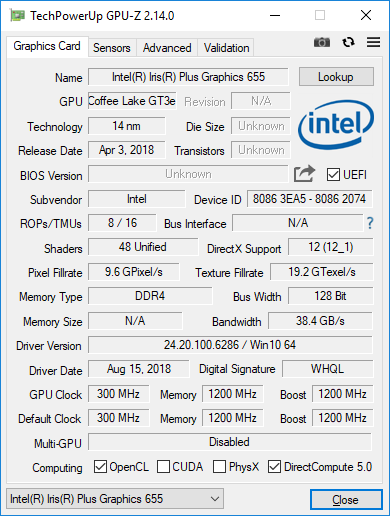

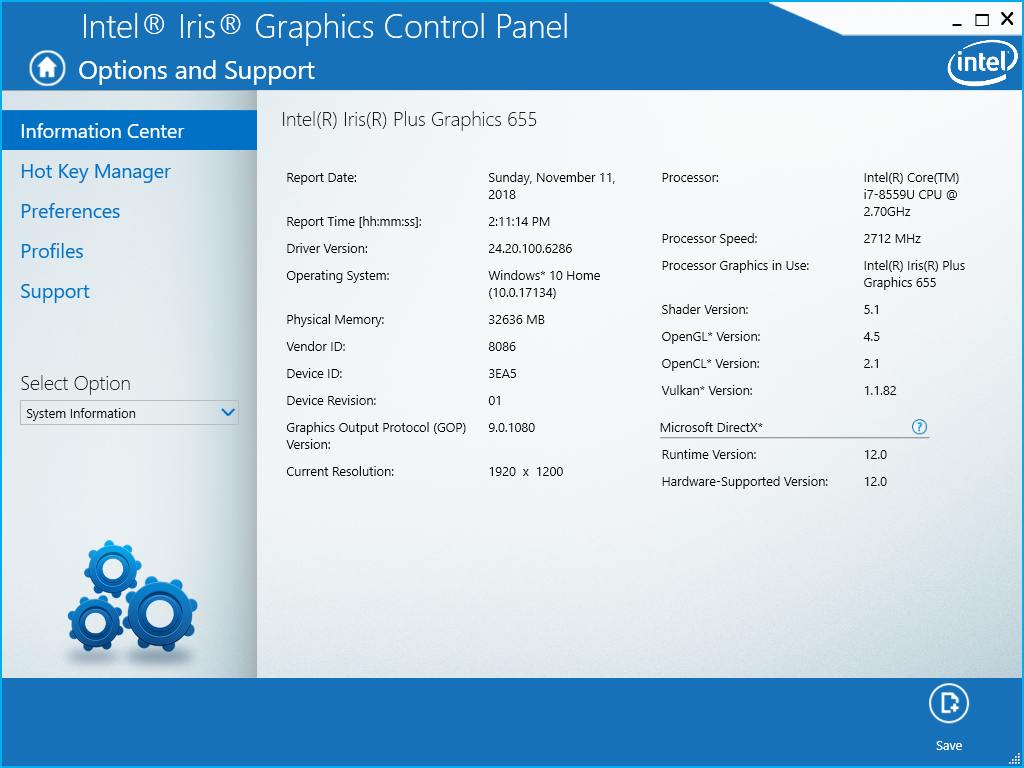

NUC8-serien står särskilt ut på grund av alternativet för en Coffee Lake-U CPU och i det fallet skiljer sig resultaten åt lite mer. Iris Plus Graphics 655 är 5 till 30 procent snabbare än AMD Vega 10 förutsatt att du utrustar NUC med dubbelkanals-RAM, men CPU-prestandan är inte särskilt mycket bättre än för den billigare i7-8550U. Dess högre TDP-värde är i huvudsak för att driva Iris-GPU:n och således utnyttjar processorn inte det högre TDP-taket nämnvärt bortsett från en initial och kortlivad explosion av Turbo Boost-hastighet.

För 4K-ströming och HTPC-syften är de billigare minidatorerna ZBox eller NUC7 med i5-8250U respektive i7-8550U tillräckligt. NUC8 är bäst för den som vill utnyttja Thunderbolt 3-porten och pressa Iris Plus-grafiken till sin fulla potential.

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Intel NUC Kit NUC8i7BEH (i7-8559U) Mini PC (Sammanfattning)
Allen Ngo, 2018-11-20 (Update: 2018-11-20)
