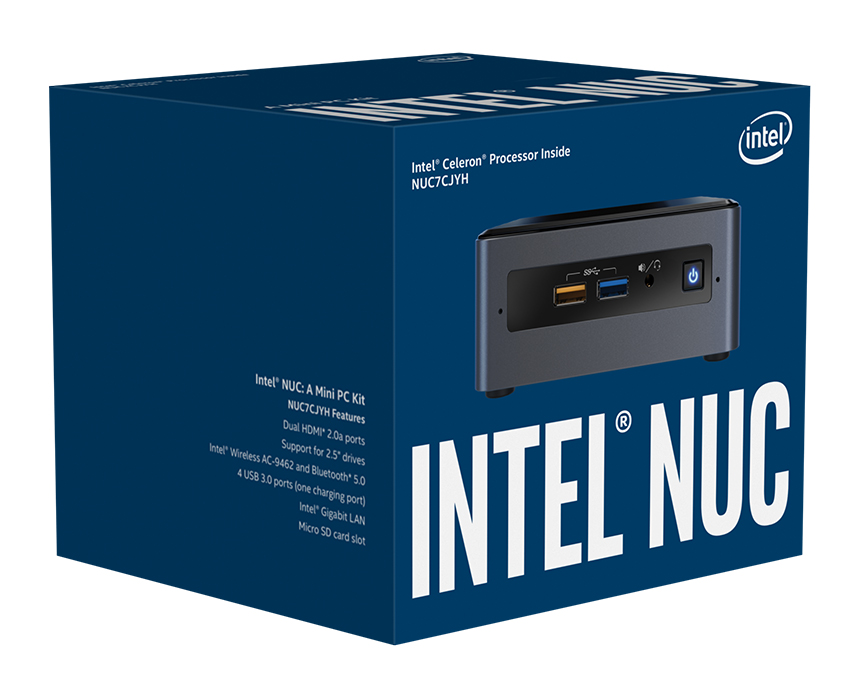

Test: Intel NUC Kit NUC7CJYH (Celeron J4005, UHD 600) Mini-PC (Sammanfattning)

Liten och ekonomisk.Intels NUC Mini-datorer är kända för sin kompakta design. Den nya NUC-generationen bibehåller detta koncept och Intel har dessutom utrustat den med en ny uppsättning processorer. I den här recensionen kommer vi att undersöka NUC Kit NUC7CJYH, en NUC Mini-PC på instegsnivå utrustad med en Intel Celeron J4005-processor. I den här recensionen får du reda på huruvida denna Gemini Lake-processor är tillräcklig för ett NUC-kit på instegsnivå.

Sebastian Bade, 👁 Klaus Hinum, ✓ Stefanie Voigt (översatt av Daniel Eriksson), Published 06/14/2018 🇺🇸 🇩🇪 ...

Desktop Windows

Intel NUC7CJYH

Processor

Intel Celeron J4005 2 x 2 - 2.7 GHz, Gemini Lake

Grafikkort

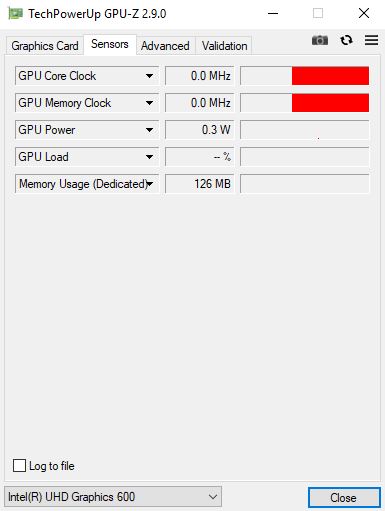

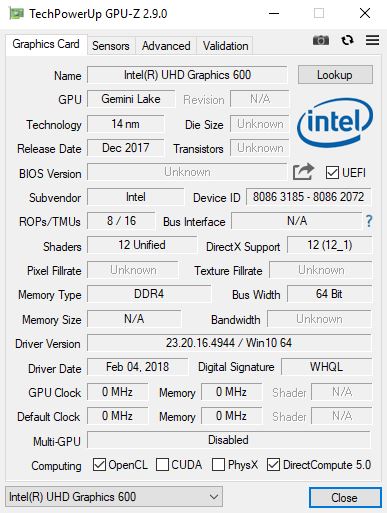

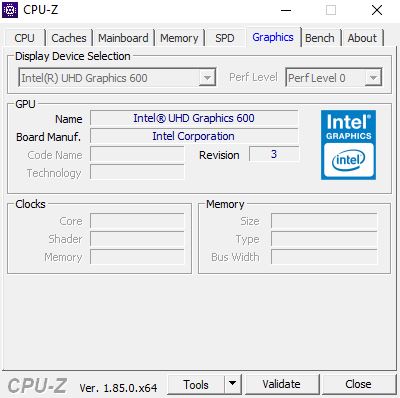

Intel UHD Graphics 600, Kärna: 700 MHz, 23.20.16.4944

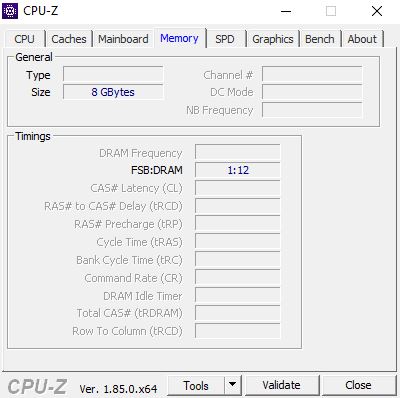

Minne

8 GB

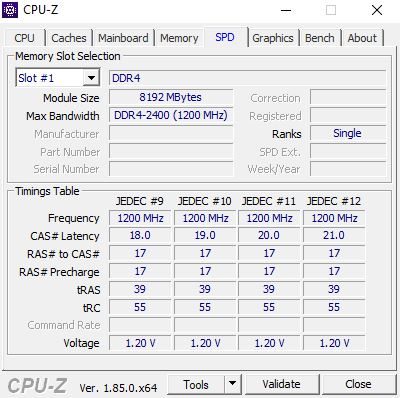

, DDR4-2400 1.2V SO-DIMM. Maximalt 32 GB RAM (två DIMM).

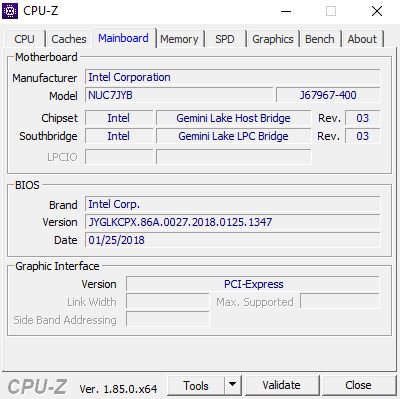

Moderkort

Gemini Lake

Hårddisk

SanDisk Ultra II, 240 GB

, 2.5 tums hårddiskplats

Anslutningar

4 USB 3.0, 2 HDMI, 1 Kensingtonlås

Nätverk

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 51 x 115 x 111

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Övrigt

Power Supply, 36 Månader Garanti, 36 månaders garanti, Operativsystem, SSD eller RAM ingår inte

Vikt

577 g, Strömförsörjning: 330 g

Pris

0 EUR

Länkar

Intel hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

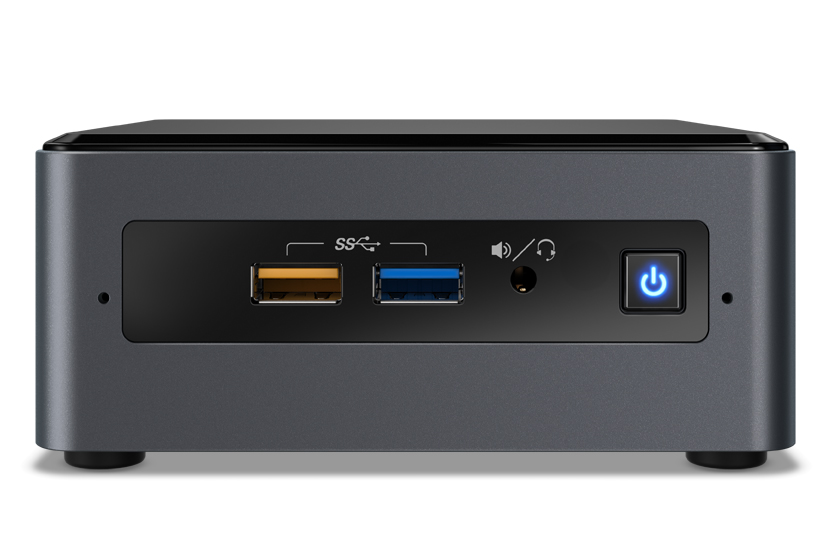

Framsida: USB 3.0 Typ A-port x2, 3.5 mm anslutning för hörlurar & mikrofon, strömbrytare.

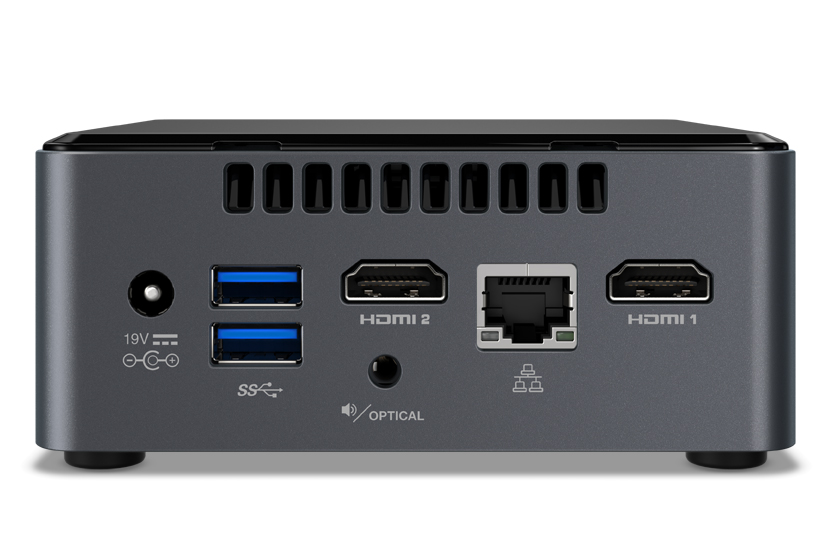

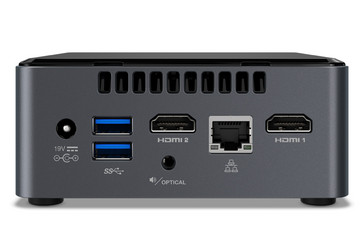

Baksida: Nätanslutning, USB 3.0 Typ A-port x2, HDMI-port x2, optisk ljudanslutning, RJ45 Ethernet-port.

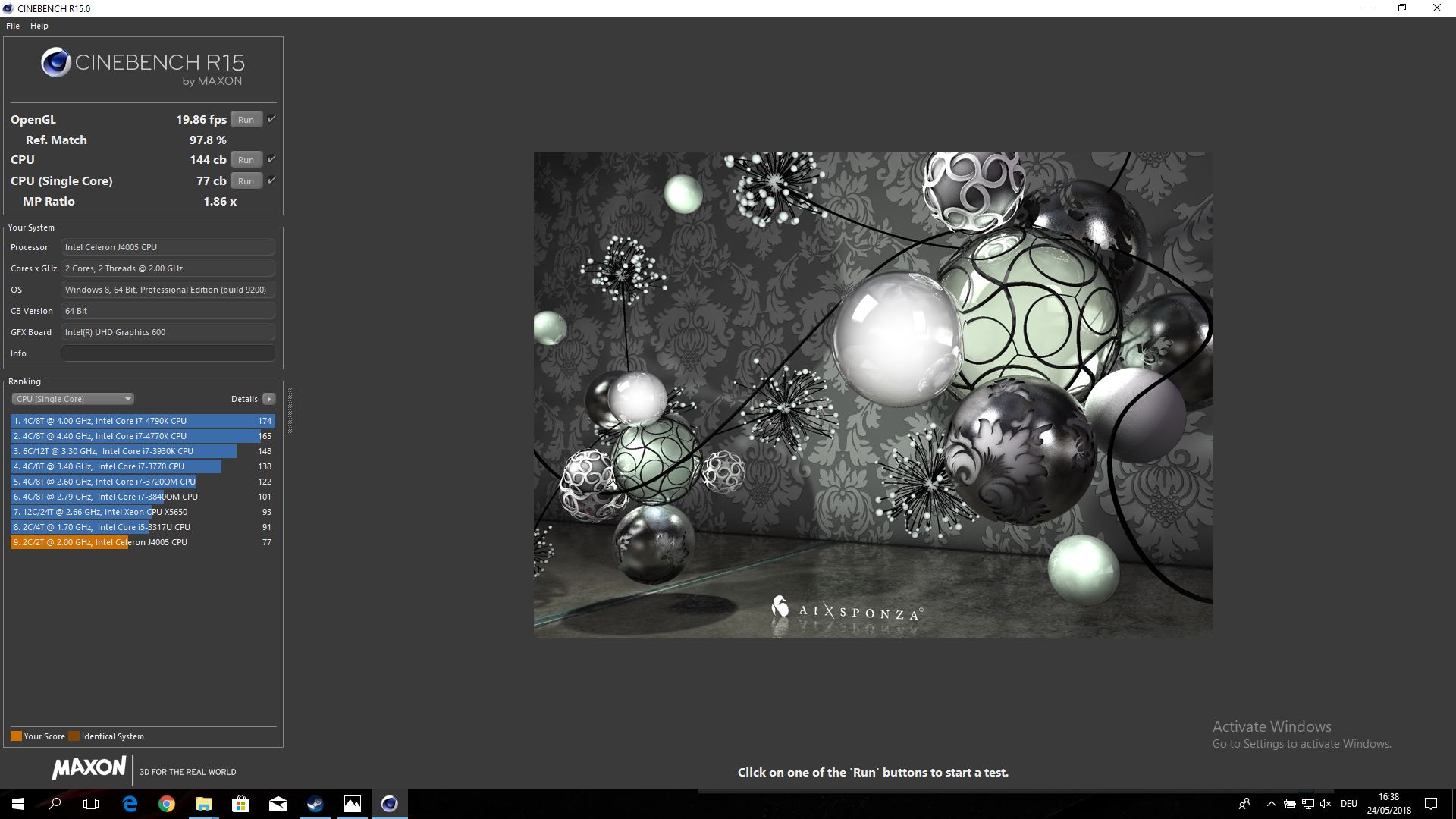

Cinebench R15
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	127 Points +65%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points +52%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points +40%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points +9%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	77 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	53 Points -31%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	48 Points -38%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	327 Points +127%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points +107%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points +81%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points +53%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points +47%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	165 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	144 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	135 Points -6%

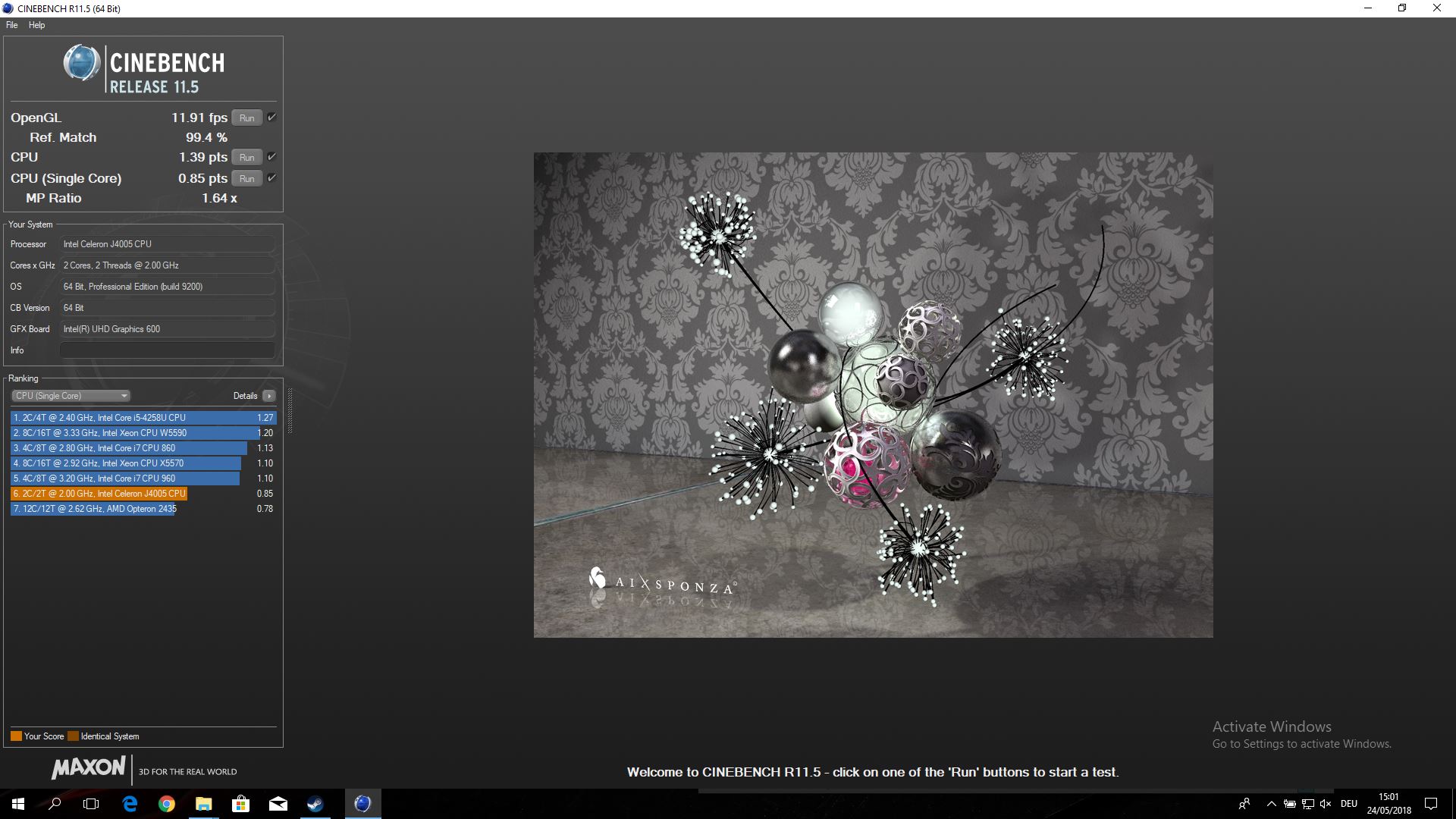

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.46 Points +72%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points +56%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points +51%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.85 Points
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.66 Points -22%
CPU Multi 64Bit
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3.65 Points +163%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points +135%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points +106%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2.09 Points +50%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1.39 Points

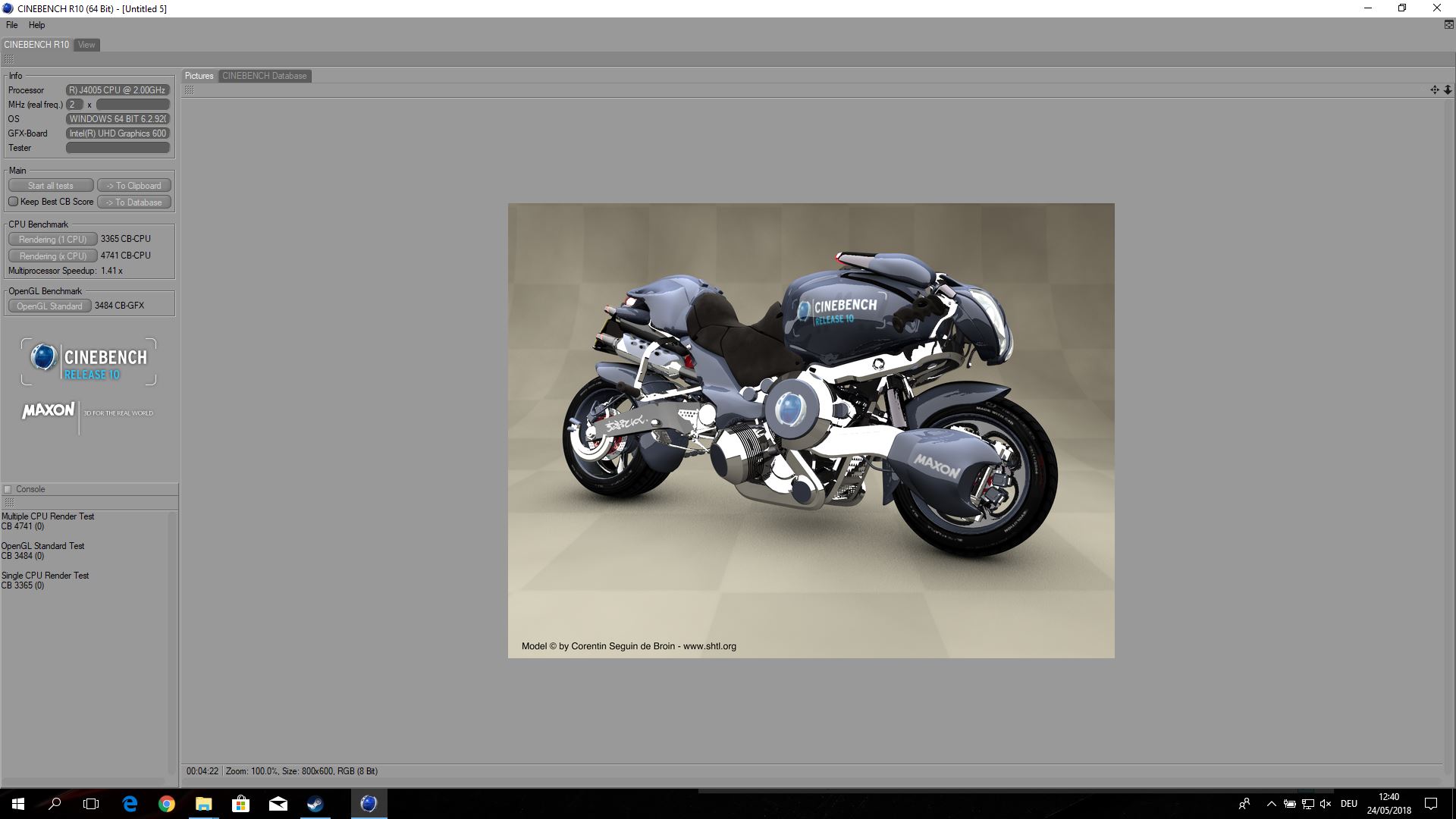

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5521 Points +64%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3365 Points
Rendering Multiple CPUs 64Bit
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11202 Points +136%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4741 Points

Blender - v2.79 BMW27 CPU
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4124 Seconds *

wPrime 2.10
1024m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1042 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	724 s * +31%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * +40%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	469 s * +55%
32m
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	33.07 s *
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * +30%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	20.13 s * +39%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * +41%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * +46%
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	14.88 s * +55%

X264 HD Benchmark 4.0
Pass 2
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps +94%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps +65%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps +38%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	12.02 fps +21%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	9.955 (9.95^min - 9.98^max) fps
Pass 1
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +110%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps +48%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	60 fps +20%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	49.92 (49.69^min - 50.04^max) fps

WinRAR - Result
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2461 KB/s +208%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2457 KB/s +208%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2111 KB/s +165%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	944 KB/s +18%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	798 KB/s

TrueCrypt
Serpent Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.189 GB/s +102%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.171 GB/s +83%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s +78%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s +52%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s +42%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.0935 GB/s
Twofish Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	0.322 GB/s +140%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s +111%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s +83%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	0.237 GB/s +77%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s +49%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.134 GB/s
AES Mean 100MB
Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1.9 GB/s +97%
Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s +77%
Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s +56%
Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1.4 GB/s +45%
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s +35%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	0.963 GB/s

Geekbench 4.4
64 Bit Multi-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points +45%
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	4001 Points +15%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3491 Points
64 Bit Single-Core Score
Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points +31%
Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1997 Points
Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1399 Points -30%

* ... smaller is better

Intel Celeron J4005 Cinebench R15 CPU Multi 64 Bit

PCMark 10 | PCMark 8 | PCMark 7

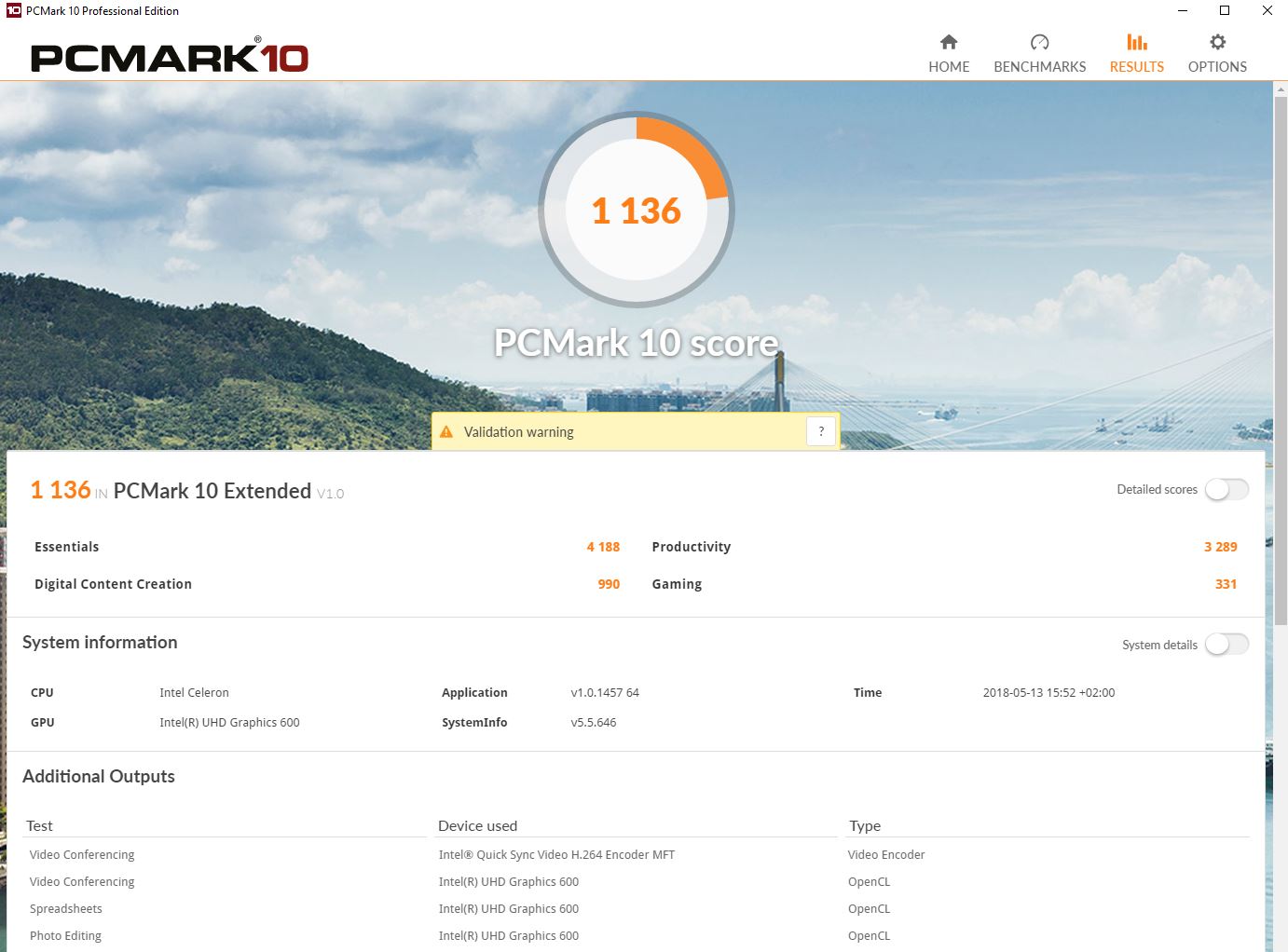

PCMark 10
Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points +110%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1181 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	1136 Points
Productivity
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +24%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3289 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1926 Points -41%

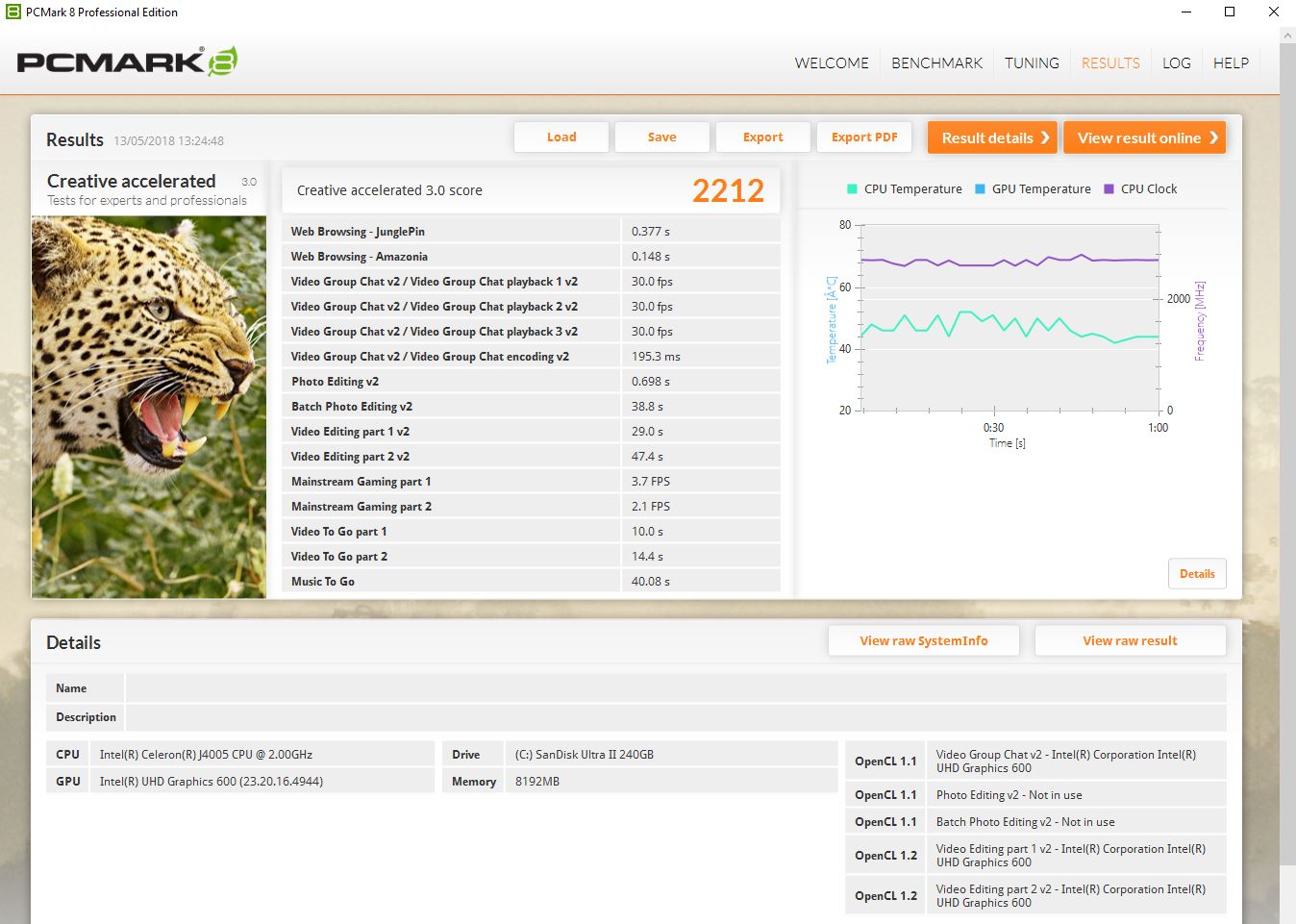

PCMark 8

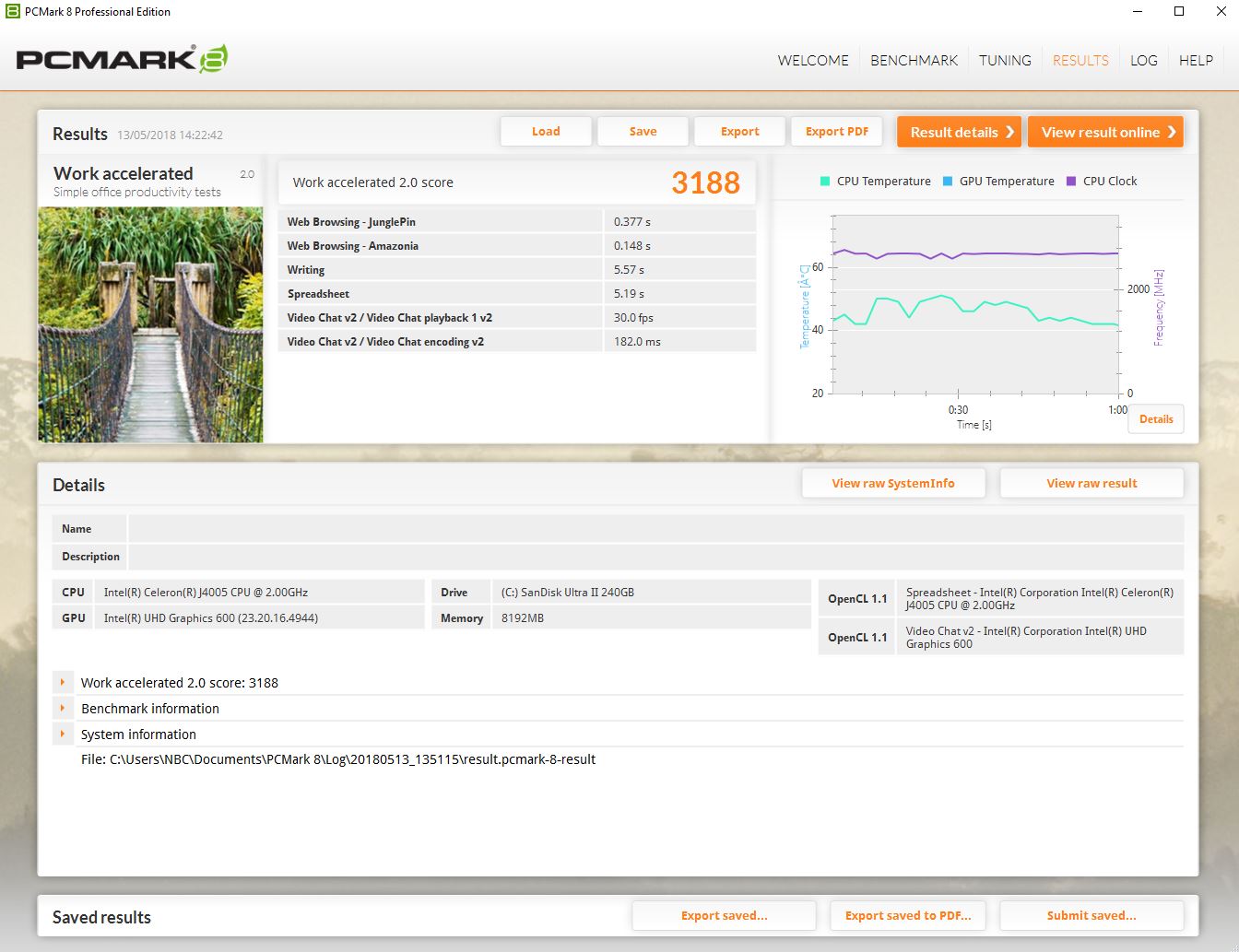

Work Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4588 Points +44%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	4390 Points +38%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	4046 Points +27%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3732 Points +17%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	3188 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2801 Points -12%

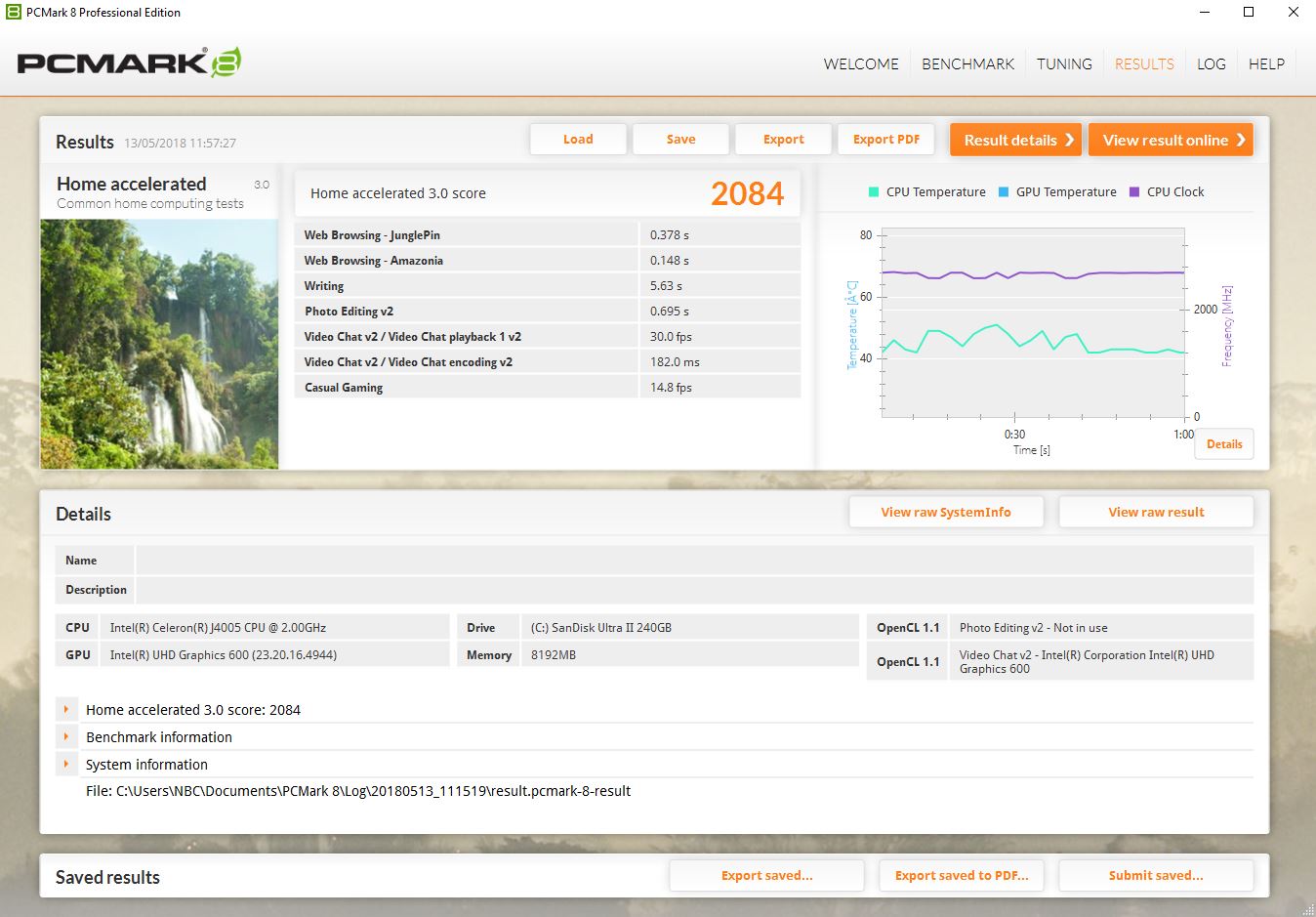

Home Score Accelerated v2
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3667 Points +76%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	3345 Points +61%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3062 Points +47%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2901 Points +39%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	2084 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2073 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	1530 Points -27%

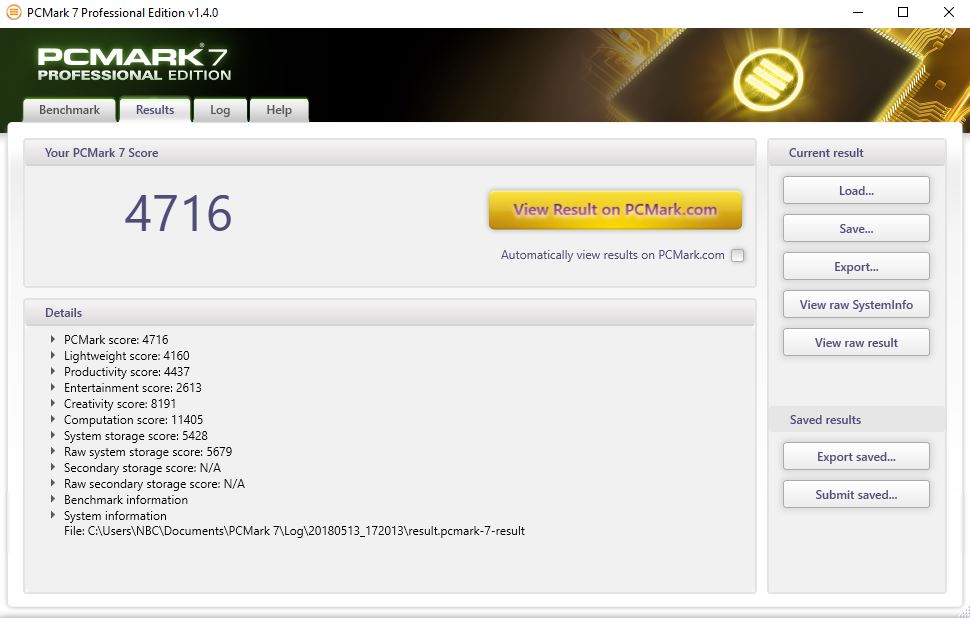

PCMark 7
Score
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4716 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	2441 Points -48%
Productivity
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	4437 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	1414 Points -68%

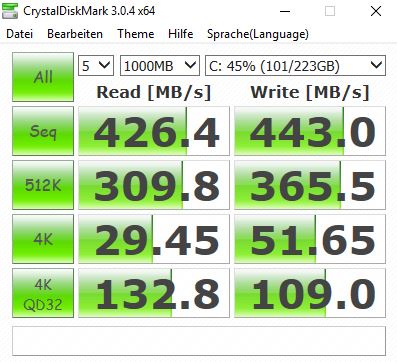

CrystalDiskMark 3.0

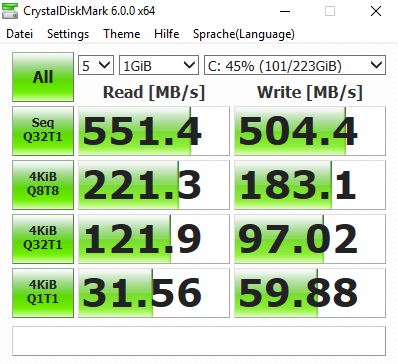

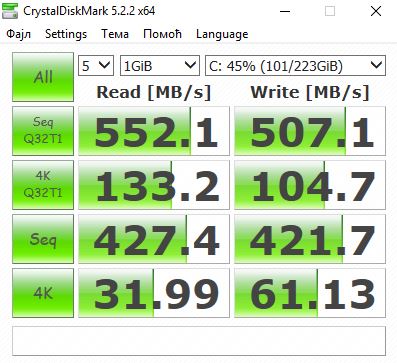

CrystalDiskMark 5.2 / 6

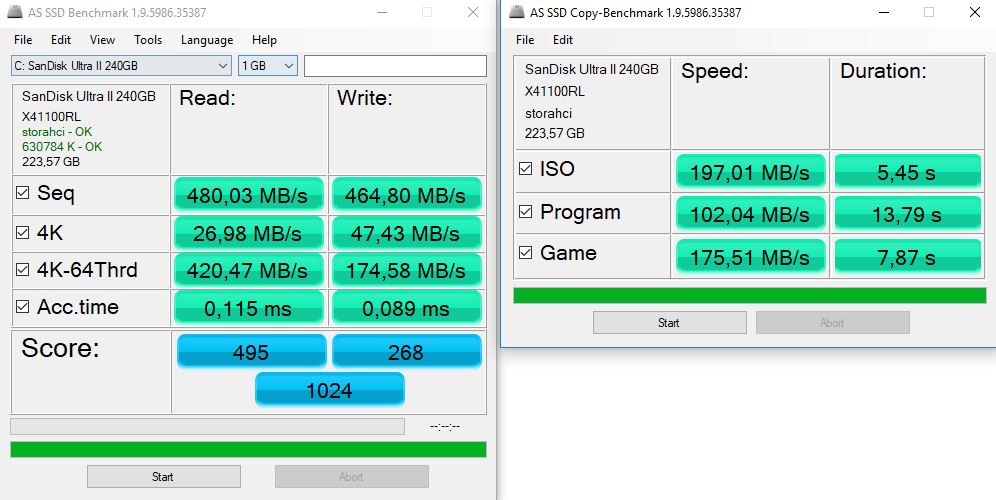

AS SSD

SanDisk Ultra II

Sequential Read: 426.4 MB/s

Sequential Write: 443 MB/s

512K Read: 309.8 MB/s

512K Write: 365.5 MB/s

4K Read: 29.45 MB/s

4K Write: 51.7 MB/s

4K QD32 Read: 132.8 MB/s

4K QD32 Write: 109 MB/s

3DMark 11 | 3DMark

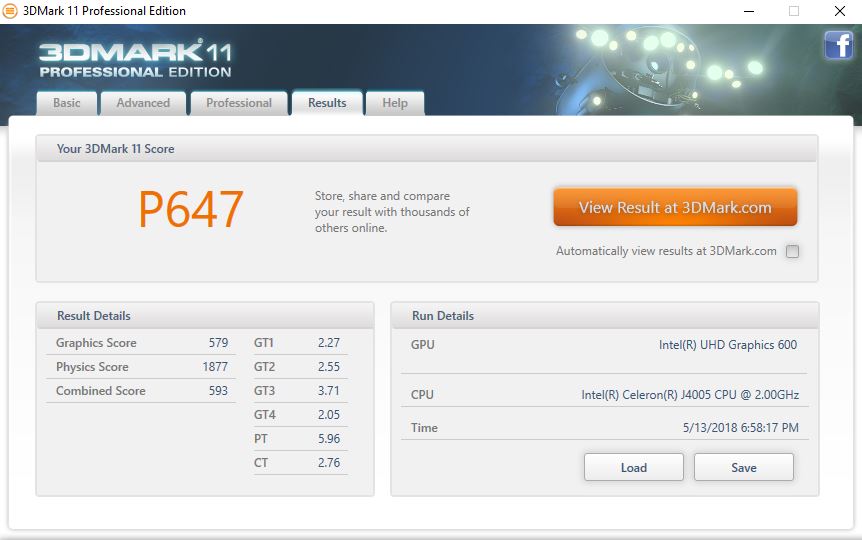

3DMark 11
1280x720 Performance
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2484 Points +284%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1568 Points +142%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1354 Points +109%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1298 Points +101%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	647 Points
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	642 Points -1%
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	414 Points -36%
1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +301%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points +152%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	1281 Points +121%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points +103%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	583 Points +1%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	579 Points
Acer Spin 1 SP111-31-C79E, Intel Celeron N3450 1100 MHz, Intel HD Graphics 500	368 Points -36%

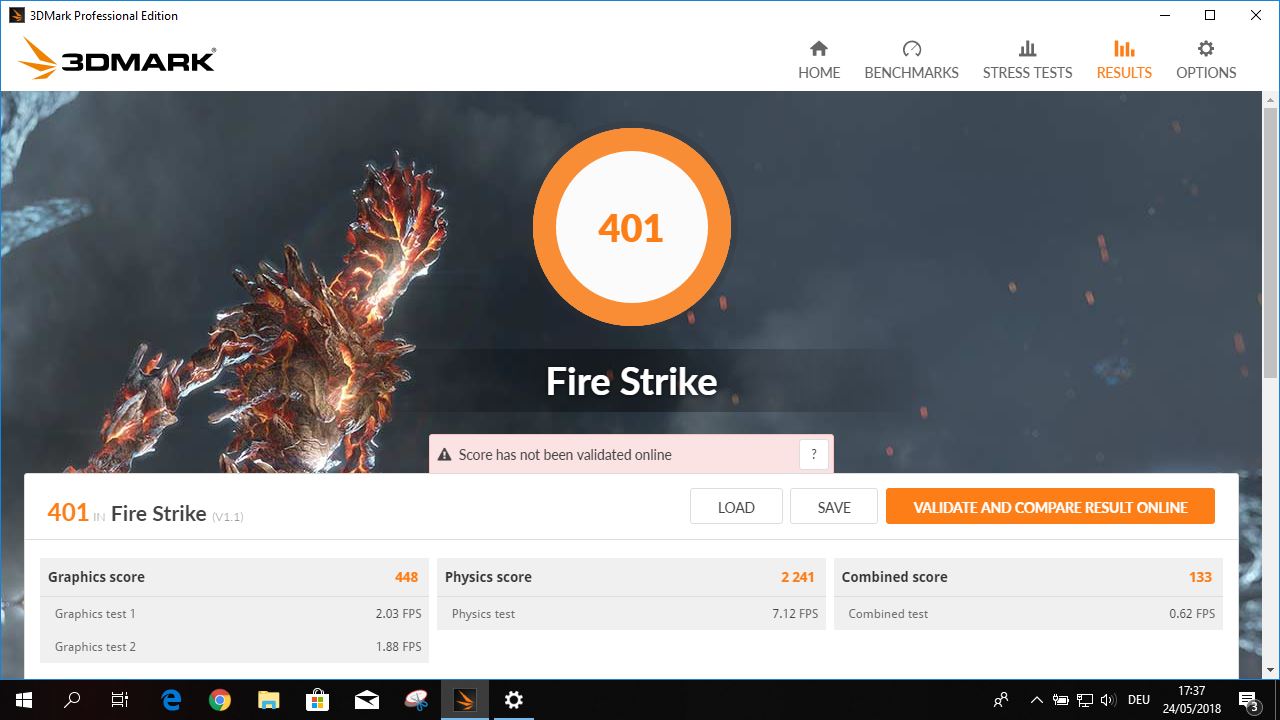

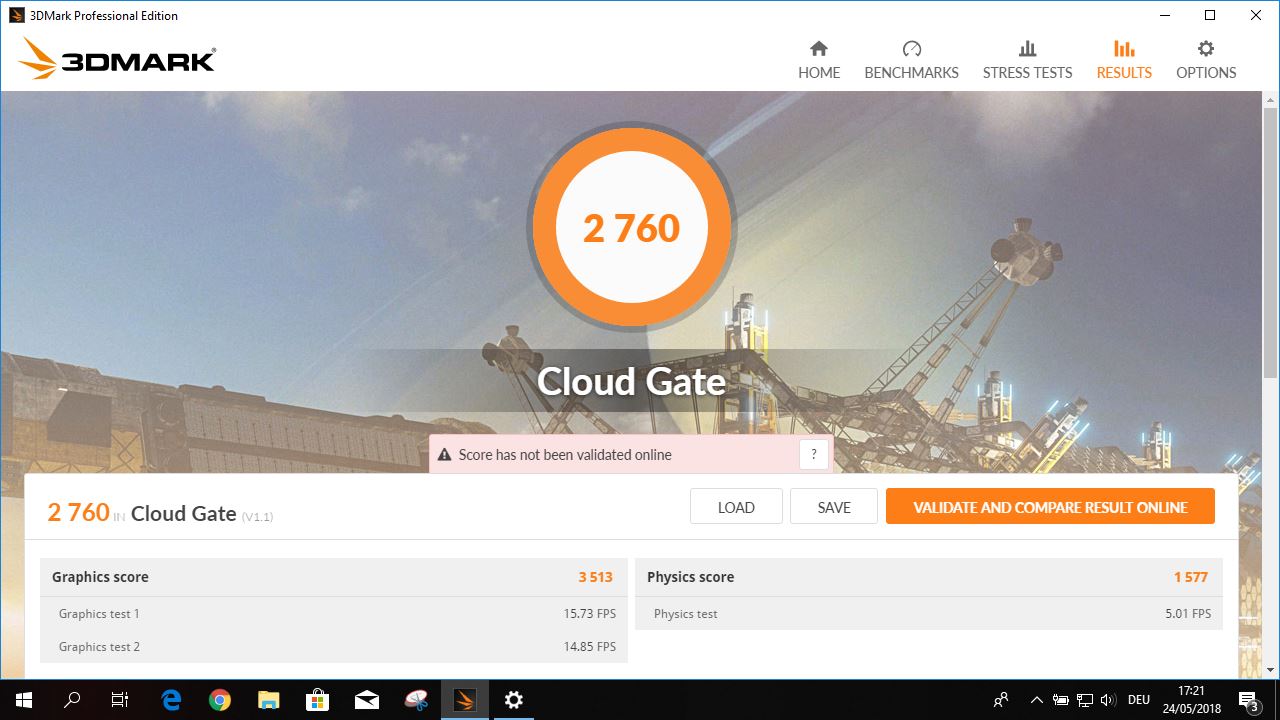

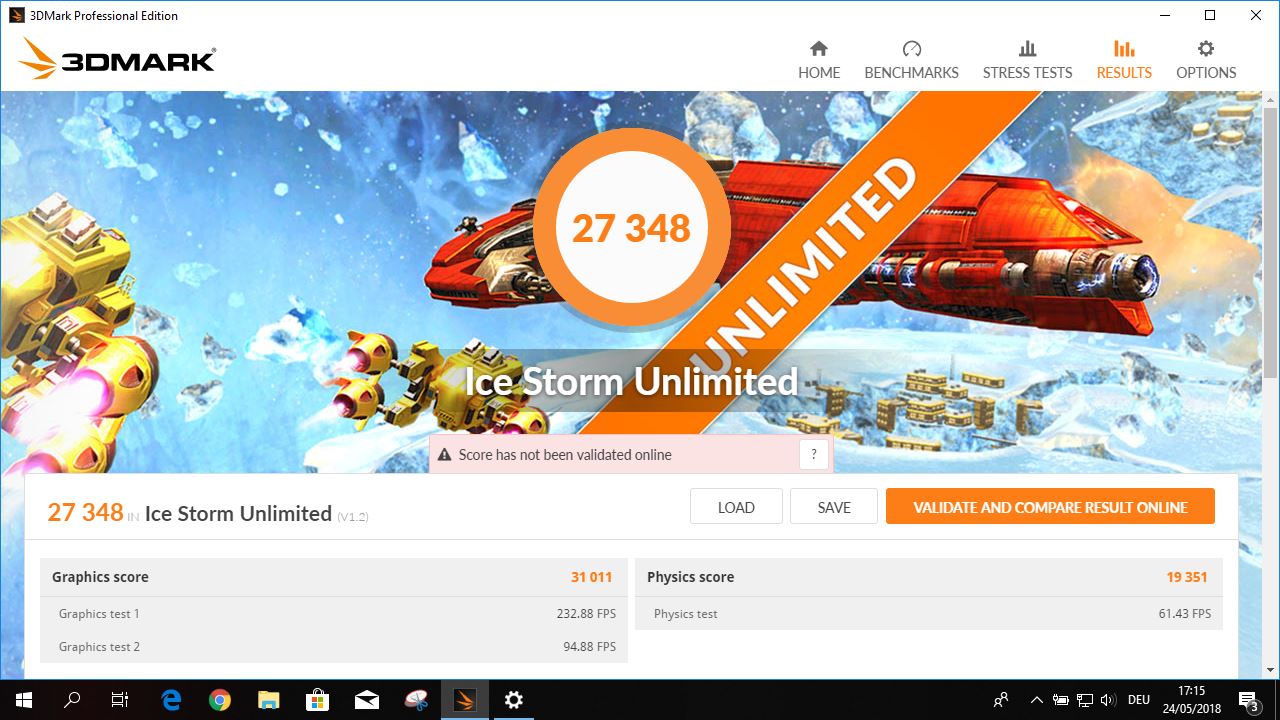

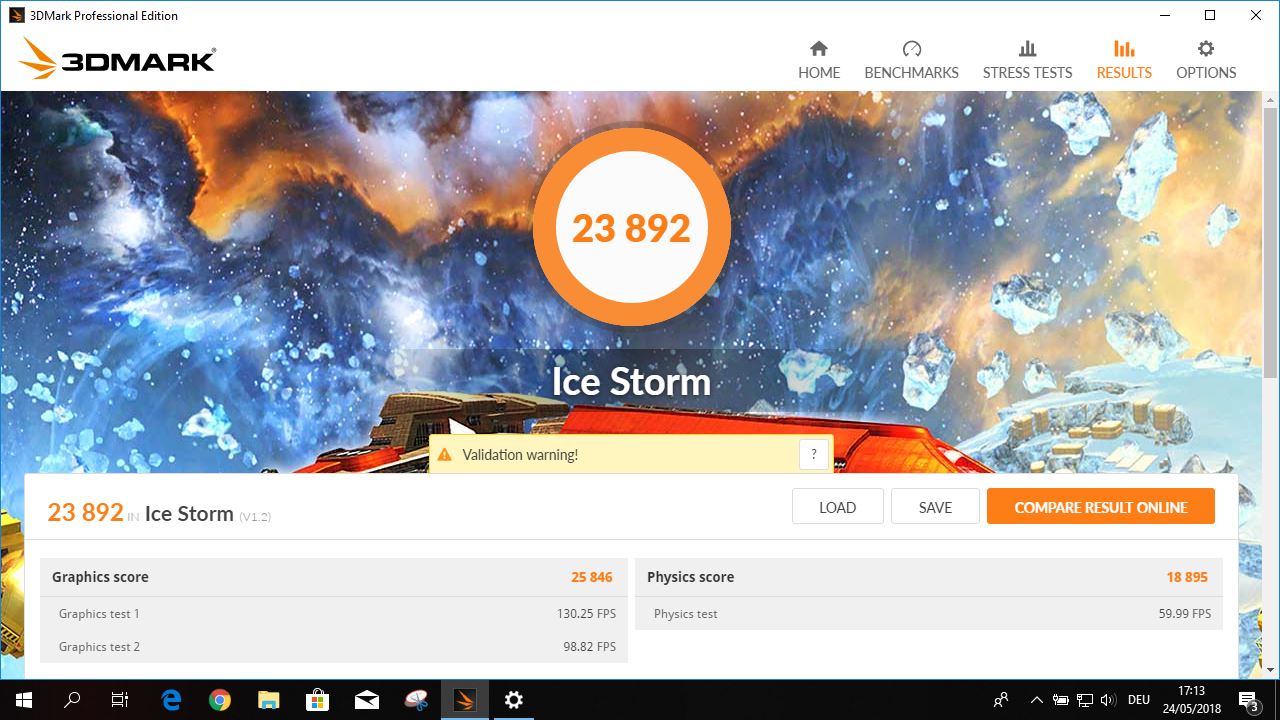

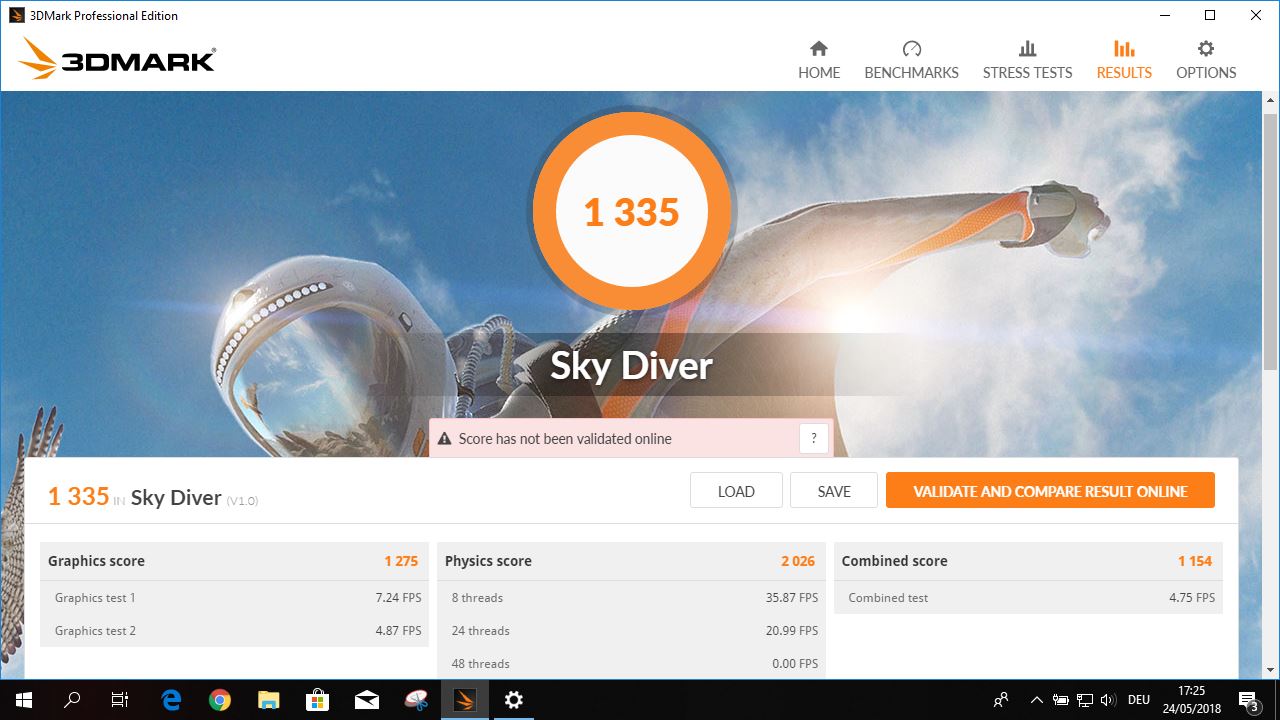

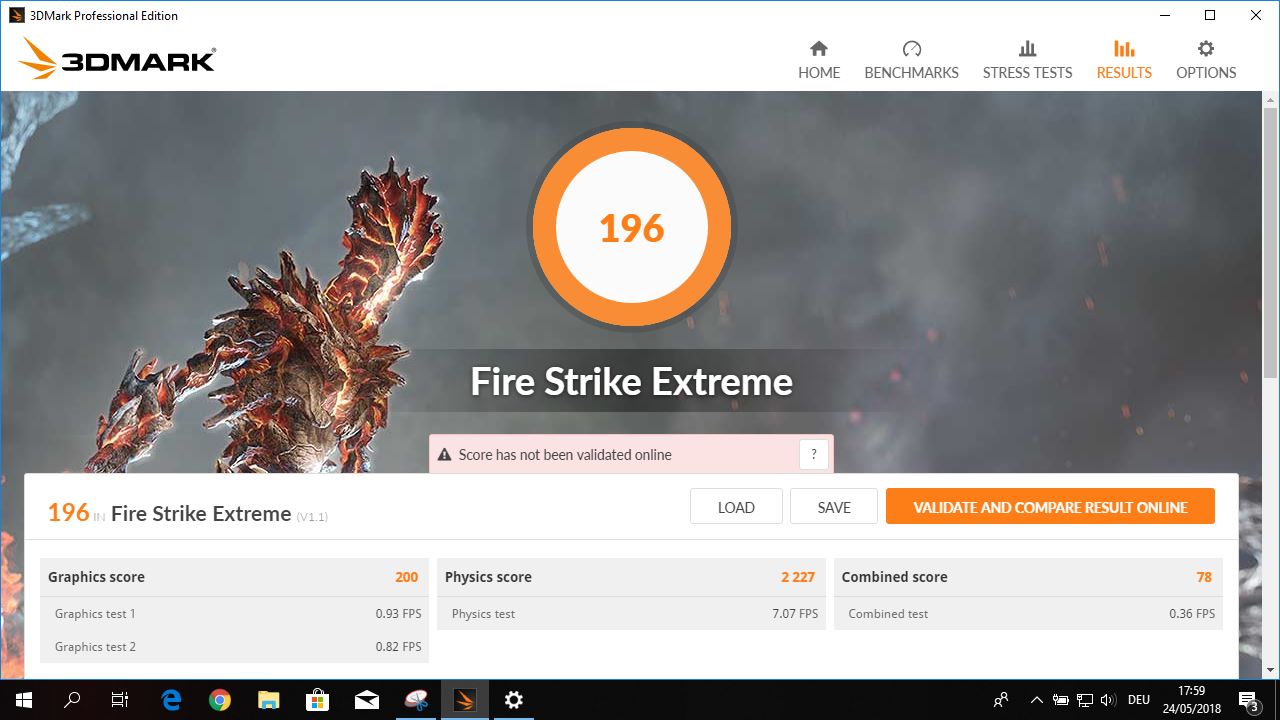

3DMark
1280x720 Ice Storm Standard Score
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	53073 Points +122%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	47545 Points +99%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	24851 Points +4%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	23892 Points
1280x720 Ice Storm Standard Graphics
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +140%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	51216 Points +98%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	29561 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	25846 Points

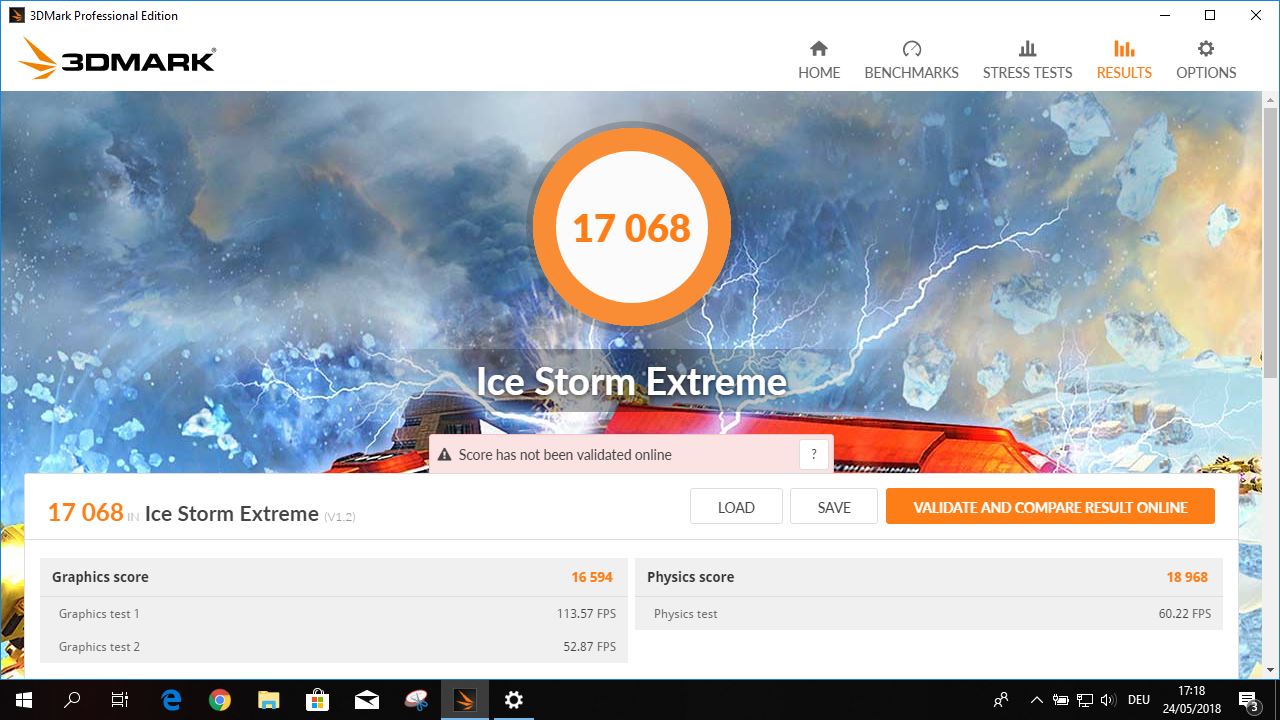

1920x1080 Ice Storm Extreme Score
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	37240 Points +118%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	34211 Points +100%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18052 Points +6%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	17068 Points
1920x1080 Ice Storm Extreme Graphics
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +145%
Dell Latitude 5580, Intel Core i5-7200U 2500 MHz, Intel HD Graphics 620	33478 Points +102%
Acer Aspire ES1-332-P91H, Intel Pentium N4200 1100 MHz, Intel HD Graphics 505	18860 Points +14%
Intel NUC7CJYH, Intel Celeron J4005 2000 MHz, Intel UHD Graphics 600	16594 Points

	låg	med.	hög	ultra
BioShock Infinite (2013)	20.1	10

Strömförbrukning

Av/Standby	0.8 / Watt
Låg belastning	3.9 / 4.5 / 8.4 Watt
Hög belastning	12.3 / 21.4 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

För

+ stabilt hölje

+ väldigt kompakt

+ tyst drift

+ bra systemprestanda

+ låg energiförbrukning

+ billig

Emot

- ingen USB Typ C

- ömtåliga, kraftigt reflekterande ytor

- grundläggande enhet utan RAM, Intern Lagring eller OS installerat

Intel NUC Kit NUC7CJYH recenseras. Testenhet från Intel Germany.

Läs den fullständiga versionen av den här recensionen på engelska här.

Intel NUC7CJYH är en kompakt och ekonomisk Mini-PC som är ett attraktivt alternativ för kontorsarbete tack vare sitt låga pris. NUC7CJYH är utrustad med en enkel tvåkärnig Intel Celeron J4005-processor och en integrerad Intel UHD Graphics 600 GPU. Det är viktigt att ha enhetens syfte i tankarna.

Det låga priset är lockande, men det kommer på bekostnad av OS, RAM och intern lagring. Dessa kommer vara nödvändiga extra kostnader som behöver tas i beaktande när man överväger NUC7CJYH.

Prestandan är bara lämplig för enkla kontorsapplikationer och internetsurfande. NUC7CJYH kan även avkoda och koda video i 2160p tack vare dess Intel UHD Graphics 600. NUC7CJYH är inte rätt val om du vill spela spel eller utföra grafik-intensiva uppgifter.

Totalt sett har NUC Kit NUC7CJYH imponerande systemprestanda med tanke på dess energiförbrukning och kompakta design.

Editor of the original article: Alex Alderson - Senior Tech Writer - 9882 articles published on Notebookcheck since 2018

contact me via: @aldersonaj

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Intel NUC Kit NUC7CJYH (Celeron J4005, UHD 600) Mini-PC (Sammanfattning)

Sebastian Bade, 2018-06-14 (Update: 2018-06-14)
