Test: Beelink SEi10 Mini PC - En billigare Intel NUC (Sammanfattning)

Thunderbolt 3 PC för under 4.000 kronor. Om du vill ha en Intel NUC men tycker den är för dyr kan Beelinks nya mini-PC vara ett bra alternativ utan att du behöver ge upp några grundfunktioner.

Allen Ngo, 👁 Allen Ngo (översatt av Daniel Eriksson), Published 12/28/2020 🇺🇸 🇩🇪 ...

Beelink SEi10

Processor

Intel Core i3-1005G1 2 x 1.2 - 3.4 GHz, Ice Lake-U

Grafikkort

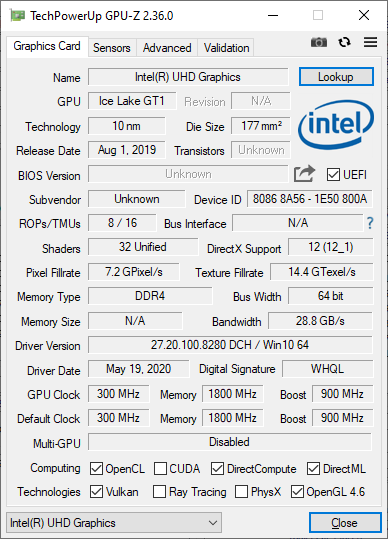

Intel UHD Graphics G1 (Ice Lake 32 EU), 27.20.100.8280

Minne

8 GB

, DDR4-2666, 15-15-15-35, Enkel kanal (2x SODIMM)

Moderkort

Intel 495 (Ice Lake-U PCH-LP Premium)

Hårddisk

Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, 256 GB

Ljudkort

Intel Ice Lake-U/Y PCH-LP cAVS

Anslutningar

5 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, Ljudanslutningar: Kombinerad 3.5 mm, Kortläsare: MicroSD

Nätverk

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Storlek

höjd x bredd x djup (i mm) 41 x 124 x 113

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Övrigt

2x HDMI-kablar, VESA-hållare för montering, 2.5-tums SATA III-adapter, Skruvar, Manualer, 12 Månader Garanti

Vikt

350 g, Strömförsörjning: 221 g

Pris

400 USD

Länkar

Beelink hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Testgrupp

Date	Model	Weight	Height	Size	Resolution
12/2020	Beelink SEi10 i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)	350 g	41 mm		x
	Beelink GTR35 II-G-16512D00W64PRO-1T R5 3550H, Vega 8	843 g	39 mm		x
	Zotac ZBox MI643 i5-10210U, UHD Graphics 620	550 g	28.5 mm		x
02/2020	Intel NUC10i5FNK i5-10210U, UHD Graphics 620	493 g	36 mm	0.00"	0x0
	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620	499 g	22 mm	0.00"	x

Beelink GTR35 II-G-16512D00W64PRO-1T Lenovo ThinkCentre M90n-1 Nano Zotac ZBox MI643 Intel NUC8i3CYSM Beelink SEi10 Intel NUC10i5FNK DIN A5 ❌

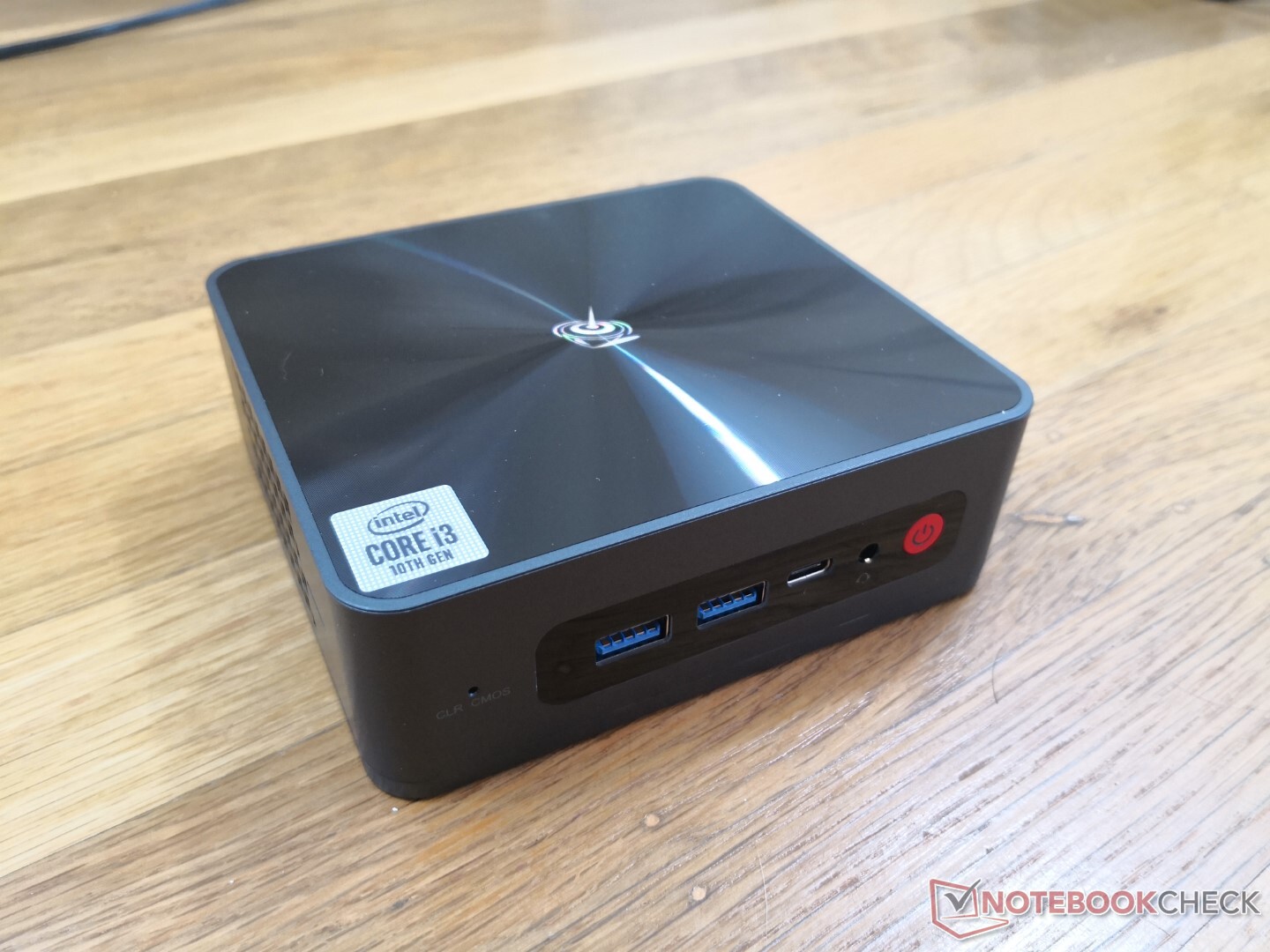

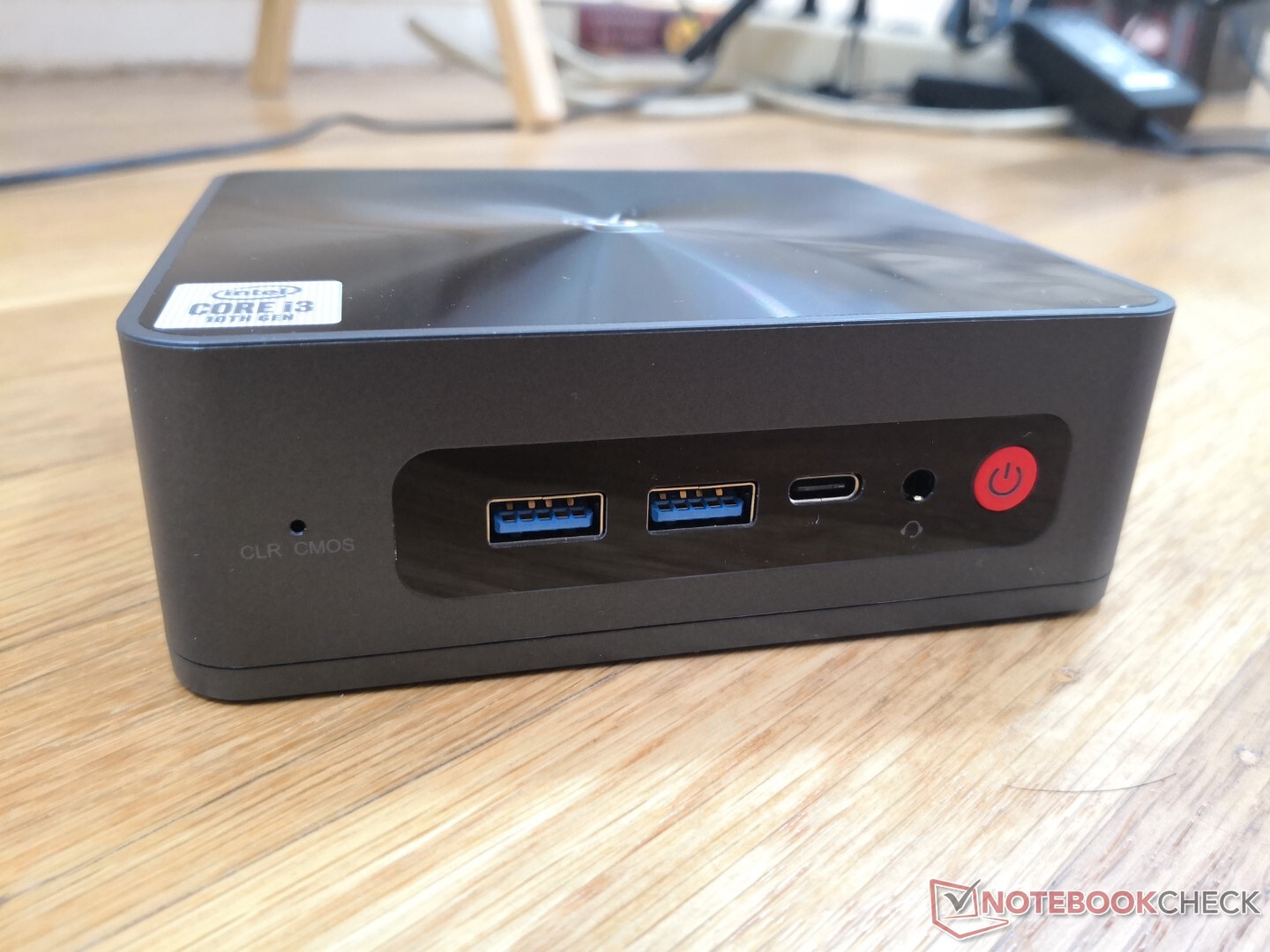

Framsidan: CMOS-resetknapp, 2x USB-A, USB-C med Thunderbolt 3 och DisplayPort, 3.5 mm kombinerad ljudanslutning, Startknapp

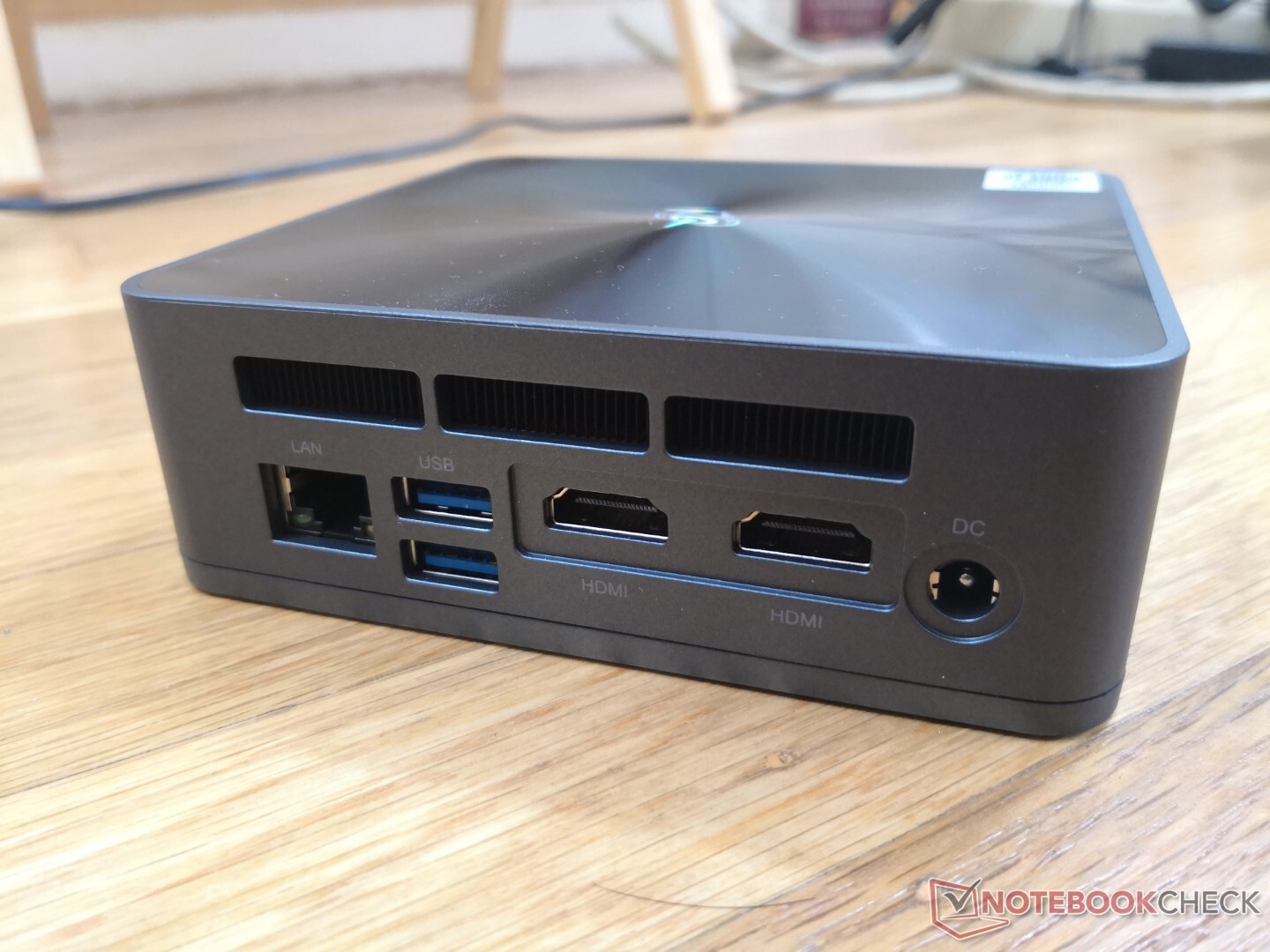

Baksidan: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), AC-adapter

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Zotac ZBox MI643 (Toshiba Exceria Pro M501 UHS-II)	34.2 MB/s +49%
Beelink SEi10 (Toshiba Exceria Pro M501 UHS-II)	22.93 MB/s
maximum AS SSD Seq Read Test (1GB)
Zotac ZBox MI643 (Toshiba Exceria Pro M501 UHS-II)	38 MB/s +30%
Beelink SEi10 (Toshiba Exceria Pro M501 UHS-II)	29.29 MB/s

Networking
iperf3 transmit AX12
Beelink GTR35 II-G-16512D00W64PRO-1T Intel Wi-Fi 6 AX200	1165 (807^min - 1317^max) MBit/s +57%
Beelink SEi10 Intel Wi-Fi 6 AX201	742 (470^min - 902^max) MBit/s
Lenovo ThinkCentre M90n-1 Nano Intel Wireless-AC 9560	604 MBit/s -19%
Zotac ZBox MI643 Wireless AC-9461	345 (257^min - 397^max) MBit/s -54%
iperf3 receive AX12
Beelink GTR35 II-G-16512D00W64PRO-1T Intel Wi-Fi 6 AX200	1317 (1204^min - 1380^max) MBit/s +9%
Beelink SEi10 Intel Wi-Fi 6 AX201	1212 (1060^min - 1309^max) MBit/s
Lenovo ThinkCentre M90n-1 Nano Intel Wireless-AC 9560	643 MBit/s -47%
Zotac ZBox MI643 Wireless AC-9461	360 (180^min - 365^max) MBit/s -70%

Beelink SEi10; iperf3 receive AX12; iperf 3.1.3: Ø1211 (1060-1309)

Beelink SEi10; iperf3 transmit AX12; iperf 3.1.3: Ø742 (470-902)

Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D; CPU Multi 64Bit: Ø405 (402.55-406.84)

Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB; CPU Multi 64Bit: Ø521 (518.69-524.21)

Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ; CPU Multi 64Bit: Ø513 (491.14-523.79)

Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001; CPU Multi 64Bit: Ø316 (304.79-319.39)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points +136%
Intel NUC10i5FNK Intel Core i5-10210U	1820 Points +115%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	1583 Points +87%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	1432 Points +69%
Zotac ZBox MI643 Intel Core i5-10210U	1191 Points +40%
Average Intel Core i3-1005G1 (820 - 1015, n=7)	892 Points +5%
Beelink SEi10 Intel Core i3-1005G1	848 Points
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	587 Points -31%
HP ProBook x360 11 G4 Intel Core m3-8100Y	413 Points -51%

Cinebench R20 / CPU (Single Core)
Intel NUC10i5FNK Intel Core i5-10210U	428 Points +6%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	427 Points +6%
Zotac ZBox MI643 Intel Core i5-10210U	413 Points +2%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points 0%
Beelink SEi10 Intel Core i3-1005G1	403 Points
Average Intel Core i3-1005G1 (338 - 407, n=7)	395 Points -2%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	348 Points -14%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	347 Points -14%
HP ProBook x360 11 G4 Intel Core m3-8100Y	232 Points -42%

Cinebench R15 / CPU Multi 64Bit
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points +112%
Intel NUC10i5FNK Intel Core i5-10210U	790 Points +94%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	672 (494.25^min - 672.07^max) Points +65%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	580 Points +43%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	524 Points +29%
Zotac ZBox MI643 Intel Core i5-10210U	524 (518.69^min - 524.21^max) Points +29%
Beelink SEi10 Intel Core i3-1005G1	406.8 (402.55^min - 406.84^max) Points
Average Intel Core i3-1005G1 (346 - 407, n=6)	391 Points -4%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	333 (293^min - 333^max) Points -18%
Intel NUC8i3CYSM Intel Core i3-8121U	317.6 (304.79^min - 319.39^max) Points -22%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	218 Points -46%
HP ProBook x360 11 G4 Intel Core m3-8100Y	197 Points -52%

Cinebench R15 / CPU Single 64Bit
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points +13%
Zotac ZBox MI643 Intel Core i5-10210U	173 Points +9%
Intel NUC10i5FNK Intel Core i5-10210U	168 Points +6%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	165 Points +4%
Beelink SEi10 Intel Core i3-1005G1	158 Points
Average Intel Core i3-1005G1 (148 - 160, n=6)	155.8 Points -1%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	148 Points -6%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	146 Points -8%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	141 Points -11%
Intel NUC8i3CYSM Intel Core i3-8121U	133 Points -16%
HP ProBook x360 11 G4 Intel Core m3-8100Y	97 Points -39%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	91 Points -42%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	90 Points -43%

Blender / v2.79 BMW27 CPU
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1814 Seconds * -61%
Average Intel Core i3-1005G1 (1123 - 1388, n=7)	1234 Seconds * -10%
Beelink SEi10 Intel Core i3-1005G1	1126 Seconds *
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	907 Seconds * +19%
Zotac ZBox MI643 Intel Core i5-10210U	884 Seconds * +21%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	670 Seconds * +40%
Intel NUC10i5FNK Intel Core i5-10210U	585 Seconds * +48%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * +52%

7-Zip 18.03 / 7z b 4 -mmt1
Zotac ZBox MI643 Intel Core i5-10210U	4467 MIPS +11%
Intel NUC10i5FNK Intel Core i5-10210U	4253 MIPS +5%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS +1%
Beelink SEi10 Intel Core i3-1005G1	4041 MIPS
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	4014 MIPS -1%
Average Intel Core i3-1005G1 (3851 - 4057, n=7)	3975 MIPS -2%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3543 MIPS -12%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	3438 MIPS -15%

7-Zip 18.03 / 7z b 4
Intel NUC10i5FNK Intel Core i5-10210U	21679 MIPS +106%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS +84%
Zotac ZBox MI643 Intel Core i5-10210U	16799 MIPS +59%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	16683 MIPS +58%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	15043 MIPS +43%
Average Intel Core i3-1005G1 (9731 - 11135, n=7)	10731 MIPS +2%
Beelink SEi10 Intel Core i3-1005G1	10536 MIPS
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	7921 MIPS -25%

Geekbench 5.5 / Single-Core
Average Intel Core i3-1005G1 (1118 - 1194, n=6)	1156 Points +3%
Zotac ZBox MI643 Intel Core i5-10210U	1133 Points +1%
Beelink SEi10 Intel Core i3-1005G1	1118 Points
Intel NUC10i5FNK Intel Core i5-10210U	1099 Points -2%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1096 Points -2%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	1027 Points -8%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	903 Points -19%

Geekbench 5.5 / Multi-Core
Zotac ZBox MI643 Intel Core i5-10210U	3975 Points +85%
Intel NUC10i5FNK Intel Core i5-10210U	3939 Points +83%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	3330 Points +55%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3203 Points +49%
Average Intel Core i3-1005G1 (2153 - 2595, n=6)	2420 Points +12%
Beelink SEi10 Intel Core i3-1005G1	2153 Points
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2028 Points -6%

HWBOT x265 Benchmark v2.2 / 4k Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps +104%
Intel NUC10i5FNK Intel Core i5-10210U	6.28 fps +80%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	4.37 fps +26%
Zotac ZBox MI643 Intel Core i5-10210U	4.23 fps +22%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	4.1 fps +18%
Beelink SEi10 Intel Core i3-1005G1	3.48 fps
Average Intel Core i3-1005G1 (2.42 - 3.59, n=7)	3.18 fps -9%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2.23 fps -36%

LibreOffice / 20 Documents To PDF
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	97.8 s * -75%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	74.9 s * -34%
Average Intel Core i3-1005G1 (55.8 - 81.7, n=6)	63.1 s * -13%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	62.2 s * -11%
Zotac ZBox MI643 Intel Core i5-10210U	57 s * -2%
Beelink SEi10 Intel Core i3-1005G1	55.8 s *

R Benchmark 2.5 / Overall mean
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	0.918 sec * -20%
Beelink SEi10 Intel Core i3-1005G1	0.763 sec *
Average Intel Core i3-1005G1 (0.746 - 0.763, n=6)	0.754 sec * +1%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	0.737 sec * +3%
Intel NUC10i5FNK Intel Core i5-10210U	0.72 sec * +6%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	0.686 sec * +10%
Zotac ZBox MI643 Intel Core i5-10210U	0.658 sec * +14%

* ... smaller is better

Cinebench R15 CPU Single 64Bit

158 Points

Cinebench R15 CPU Multi 64Bit

406.8 Points

Cinebench R15 OpenGL 64Bit

35.1 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Hjälp

... jämför

PCMark 10 | PCMark 8

PCMark 10
Score
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	4269 Points +25%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	4244 Points +24%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4019 Points +18%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	3876 Points +13%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (3386 - 3562, n=6)	3448 Points +1%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	3420 Points
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	3161 Points -8%
Essentials
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	9510 Points +22%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	8575 Points +10%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	8551 Points +10%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	8235 Points +6%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (7666 - 8088, n=6)	7861 Points +1%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	7766 Points
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	5576 Points -28%
Productivity
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	6975 Points +30%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	6494 Points +21%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	6420 Points +20%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	6337 Points +18%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (5252 - 5822, n=6)	5432 Points +1%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	5353 Points
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	5302 Points -1%
Digital Content Creation
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	3835 Points +47%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3296 Points +26%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	3128 Points +20%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	2917 Points +12%
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	2902 Points +11%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	2614 Points
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (2492 - 2692, n=6)	2607 Points 0%

PCMark 8
Home Score Accelerated v2
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	3755 Points +29%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	3567 Points +23%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3526 Points +22%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (2900 - 3240, n=4)	3140 Points +8%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	2900 Points
Work Score Accelerated v2
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	4827 Points +87%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	4816 Points +87%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4286 Points +66%
Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (2575 - 4519, n=4)	3081 Points +20%
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	2575 Points

PCMark 8 Home Score Accelerated v2		2900 poäng
PCMark 8 Work Score Accelerated v2		2575 poäng
PCMark 10 Score		3420 poäng
Hjälp

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	1231 μs *
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	800 μs * +35%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	766 μs * +38%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	745 μs * +39%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	692 μs * +44%

* ... smaller is better

	Beelink SEi10 Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	Beelink GTR35 II-G-16512D00W64PRO-1T Silicon Motion AZW 512G NV428	Intel NUC10i5FNK Kingston RBUSNS8154P3256GJ1	Lenovo ThinkCentre M90n-1 Nano Samsung SSD PM981 MZVLB512HAJQ
AS SSD		126%	72%	176%
Seq Read	1111	1382 24%	1318 19%	1668 50%
Seq Write	323.5	1413 337%	616 90%	1150 255%
4K Read	33.1	35.27 7%	26.44 -20%	48.46 46%
4K Write	66.2	98.6 49%	61.3 -7%	116.5 76%
4K-64 Read	357.3	696 95%	650 82%	726 103%
4K-64 Write	154.8	814 426%	642 315%	1074 594%
Access Time Read *	0.066	0.063 5%	0.11 -67%	0.039 41%
Access Time Write *	0.616	0.114 81%	0.07 89%	0.032 95%
Score Read	501	869 73%	808 61%	942 88%
Score Write	253	1054 317%	765 202%	1305 416%
Score Total	983	2377 142%	1955 99%	2716 176%
Copy ISO MB/s	1160	1228 6%	576 -50%
Copy Program MB/s	121.1	261.7 116%	328.9 172%
Copy Game MB/s	364.4	658 81%	471.2 29%
CrystalDiskMark 5.2 / 6		-7%	-31%	27%
Write 4K	203	161.9 -20%	58.4 -71%	130 -36%
Read 4K	63.2	52.8 -16%	30.24 -52%	45.61 -28%
Write Seq	1114		773 -31%
Read Seq	1765		712 -60%
Write 4K Q32T1	423.9	285 -33%	448.5 6%	365.3 -14%
Read 4K Q32T1	389.2	324 -17%	391.4 1%	350.2 -10%
Write Seq Q32T1	1104	1579 43%	914 -17%	2986 170%
Read Seq Q32T1	1990	2018 1%	1583 -20%	3565 79%
Write 4K Q8T8		530	402.3	368.7
Read 4K Q8T8		738	680	790
Total Average (Program / Settings)		60% / 86%	21% / 35%	102% / 124%

* ... smaller is better

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Silicon Motion AZW 256G M.228 NVMe 4X 200725 D

CDM 5/6 Read Seq Q32T1: 1990 MB/s

CDM 5/6 Write Seq Q32T1: 1104 MB/s

CDM 5/6 Read 4K Q32T1: 389.2 MB/s

CDM 5/6 Write 4K Q32T1: 423.9 MB/s

CDM 5 Read Seq: 1765 MB/s

CDM 5 Write Seq: 1114 MB/s

CDM 5/6 Read 4K: 63.2 MB/s

CDM 5/6 Write 4K: 203 MB/s

DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark | 3DMark 11

3DMark
1280x720 Cloud Gate Standard Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	59162 Points +694%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	18901 Points +154%
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	18704 Points +151%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, R3 4300U	18282 Points +145%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (7448 - 12698, n=14)	10795 Points +45%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	10077 Points +35%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, i5-8265U	9590 Points +29%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	9113 Points +22%
Beelink SEi10 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	7448 Points
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	6078 Points -18%
HP ProBook x360 11 G4 Intel UHD Graphics 615, m3-8100Y	5543 Points -26%
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10248 Points +968%
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	3242 Points +238%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	2737 Points +185%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, R3 4300U	2438 Points +154%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (960 - 1755, n=15)	1480 Points +54%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1283 Points +34%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1202 Points +25%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, i5-8265U	1183 Points +23%
Beelink SEi10 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	960 Points
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	922 Points -4%
HP ProBook x360 11 G4 Intel UHD Graphics 615, m3-8100Y	742 Points -23%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	735 Points -23%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	2908 Points +809%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, R3 4300U	733 Points +129%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (320 - 476, n=10)	420 Points +31%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	403 Points +26%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	396 Points +24%
Beelink SEi10 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	320 Points
HP ProBook x360 11 G4 Intel UHD Graphics 615, m3-8100Y	210 Points -34%

3DMark 11
1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	14302 Points +749%
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	4458 Points +165%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	4040 Points +140%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, R3 4300U	3535 Points +110%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (1684 - 2578, n=15)	2171 Points +29%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1941 Points +15%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1858 Points +10%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1853 Points +10%
Beelink SEi10 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	1684 Points
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	1186 Points -30%
HP ProBook x360 11 G4 Intel UHD Graphics 615, m3-8100Y	1111 Points -34%
1280x720 Performance Combined
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10391 Points +730%
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	4334 Points +246%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, R3 4300U	3288 Points +163%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	2997 Points +139%
Average Intel UHD Graphics G1 (Ice Lake 32 EU) (1252 - 2662, n=15)	2131 Points +70%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1829 Points +46%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1665 Points +33%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1352 Points +8%
Beelink SEi10 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	1252 Points
HP ProBook x360 11 G4 Intel UHD Graphics 615, m3-8100Y	1015 Points -19%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	1014 Points -19%

3DMark 11 Performance		1791 poäng
3DMark Cloud Gate Standard Score		6363 poäng
3DMark Fire Strike Score		871 poäng
3DMark Time Spy Score		367 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Dota 2 Reborn (2015)	61.2	25	15.3	14.2

	Beelink SEi10 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D	Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
Noise		1%	16%	6%	3%
off / environment *	27.5	25.4 8%	26.1 5%	28.7 -4%	26 5%
Idle Minimum *	30.9	31.5 -2%	27.5 11%	29 6%	26 16%
Idle Average *	33.5	31.5 6%	27.5 18%	29 13%	26 22%
Idle Maximum *	33.5	31.5 6%	27.5 18%	29 13%	43.3 -29%
Load Average *	38.5	43.9 -14%	28.9 25%	36 6%	43.3 -12%
Load Maximum *	51.6	52 -1%	42 19%	49.4 4%	43.5 16%
Witcher 3 ultra *		51.9		42

* ... smaller is better

Ljudnivå

Låg belastning		30.9 / 33.5 / 33.5 dB(A)
Hög belastning		38.5 / 51.6 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 27.5 dB(A)

Strömförbrukning

Av/Standby	1.07 / 0.43 Watt
Låg belastning	6.3 / 6.6 / 6.7 Watt
Hög belastning	25.9 / 46.7 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Beelink SEi10 i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, , x,	Beelink GTR35 II-G-16512D00W64PRO-1T R5 3550H, Vega 8, Silicon Motion AZW 512G NV428, , x,	Intel NUC10i5FNK i5-10210U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, , 0x0, 0.00	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, , x, 0.00	Intel NUC10i7FNH i7-10710U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, , 0x0, 0.00
Power Consumption		-55%	-82%	16%	-56%
Idle Minimum *	6.3	8.8 -40%		4.4 30%
Idle Average *	6.6	9.1 -38%	15.7 -138%	4.4 33%	8.4 -27%
Idle Maximum *	6.7	9.6 -43%		4.7 30%
Load Average *	25.9	55.3 -114%		27.7 -7%
Load Maximum *	46.7	65.6 -40%	58.6 -25%	49.9 -7%	86 -84%
Witcher 3 ultra *		50.3

* ... smaller is better

För

+ Utökningsbar M.2 PCIe SSD och 2.5-tums SATA III

+ Smidig videouppspelning i 4K60

+ Stöd för Thunderbolt 3

+ Rimligt pris

+ Möjlighet till VESA-montering

+ MicroSD-läsare

+ 2x SODIMM

+ Lätt

Emot

- Ej stöd för USB-C nätadapter

- Väldigt höga kärntemperaturer vid hög belastning

- Saknar fingeravtrycksläsare och Kensington-lås

- Fläkten låter mycket vid hög belastning

- Relativt stor AC-adapter

- Ingen intern högtalare

- Ingen IR-mottagare

Recension av Beelink SEi10 i3-1005G1. Recensionsex från Beelink

Läs den fullständiga versionen av den här recensionen på engelska här.

Beelink SEi10 lyckas med att erbjuda många moderna funktioner i förhållande till priset. Man får M.2 NVMe-lagring, sekundär SATA III-lagring, utökningsbart RAM, en 10:e generationens Intel Core i3 CPU och till och med stöd för Thunderbolt 3. Mini PC:n är värd om du kan använda dessa funktioner och dra nytta av möjligheterna.

I framtiden skulle vi gärna se alternativ för AMD Ryzen processorer, då dessa har visat sig vara betydligt snabbare än Intels Ice Lake vid samma energinivå och pris. En tätare och effektivare kyllösning hade hjälpt för att sänka de höga kärntemperaturerna och den höga ljudnivån vid hög processorbelastning. 2.5-tums SATA-adaptern är dessutom ganska inelegant och det hade varit bättre om den var inbyggd som på en Intel NUC. Slutligen hade det varit praktiskt med strömförsörjning genom USB C ifall man tappar bort den propretiära nätadaptern eller hellre använder en egen strömkälla.

En välgjord, välbalanserad och väl prissatt mini-PC med en bra uppsättning funktioner. Mer avancerade användare får leva med en högljudd fläkt och höga temperaturer.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5191 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Beelink SEi10 Mini PC - En billigare Intel NUC (Sammanfattning)

Allen Ngo, 2020-12-28 (Update: 2020-12-28)

Test: Beelink SEi10 Mini PC - En billigare Intel NUC (Sammanfattning)

Testgrupp

DiskSpd Read Loop, Queue Depth 8

För

Emot

More articles related to this device

Pricecompare
