GMK NucBox K2 Ryzen 7 7735HS mini PC recension: Optimerad för hög prestanda per dollar

Mycket för pengarna. NucBox K2 hoppar över att vara flashig och "innovativ" för billigare startpriser samtidigt som den bibehåller så mycket prestanda som möjligt. Den tillgängliga NucBox K2 bör vara ett toppval för de flesta hem- och HTPC-användare med en budget.

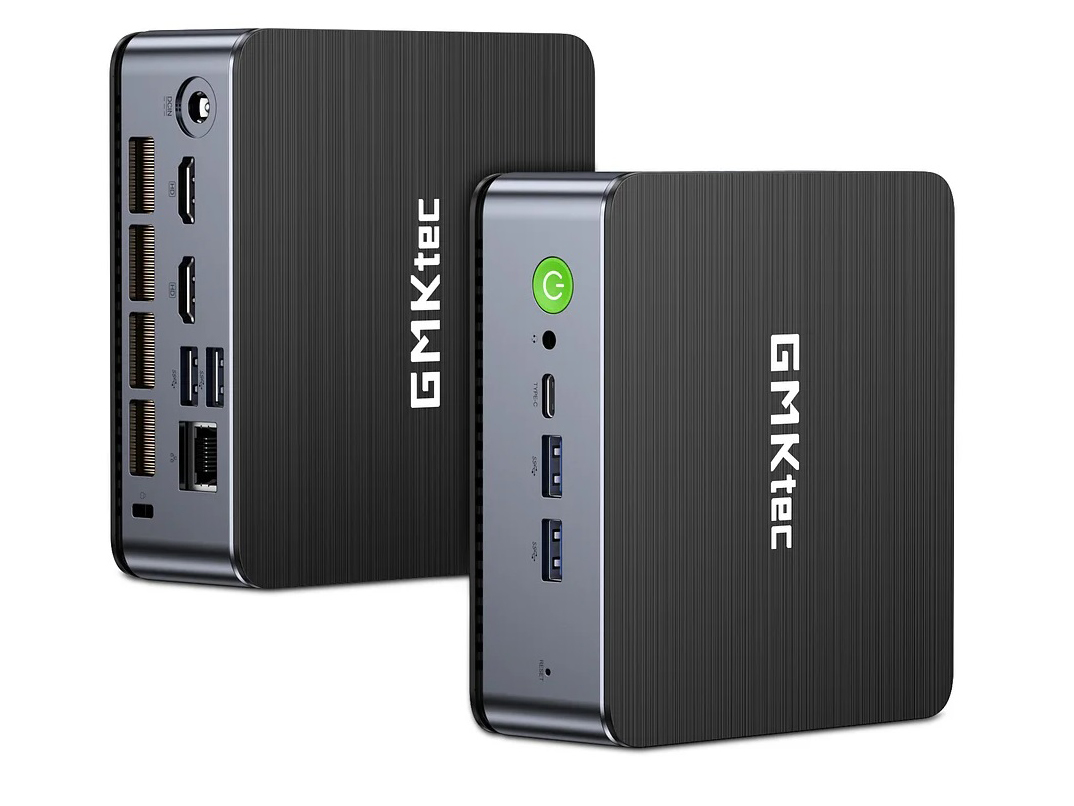

2023 GMKtec NucBox K2
2023 GMKtec NucBox K2

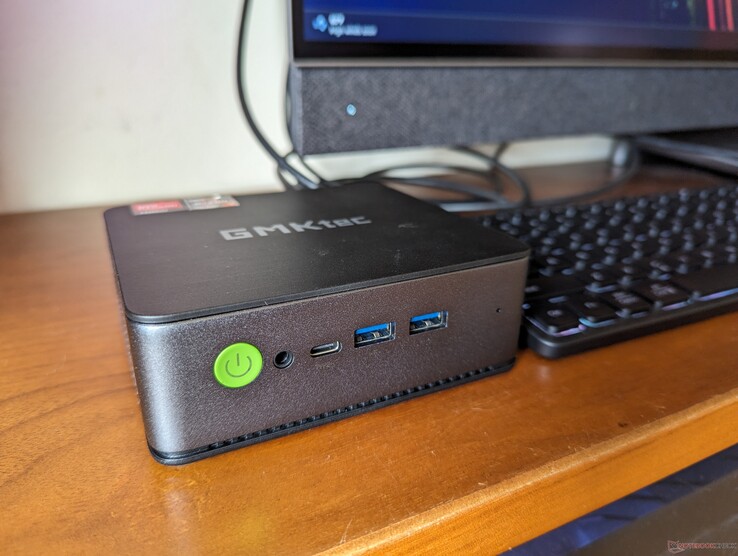

NucBox K2 är den senaste minidatorn från GMKtec för hem- och kontorsmiljöer. Även om dess namn kan antyda att den direkt ersätter NucBox K1är NucBox K2 i sin egen kategori eftersom K1 riktar sig till en annan undergrupp av minidatoranvändare.

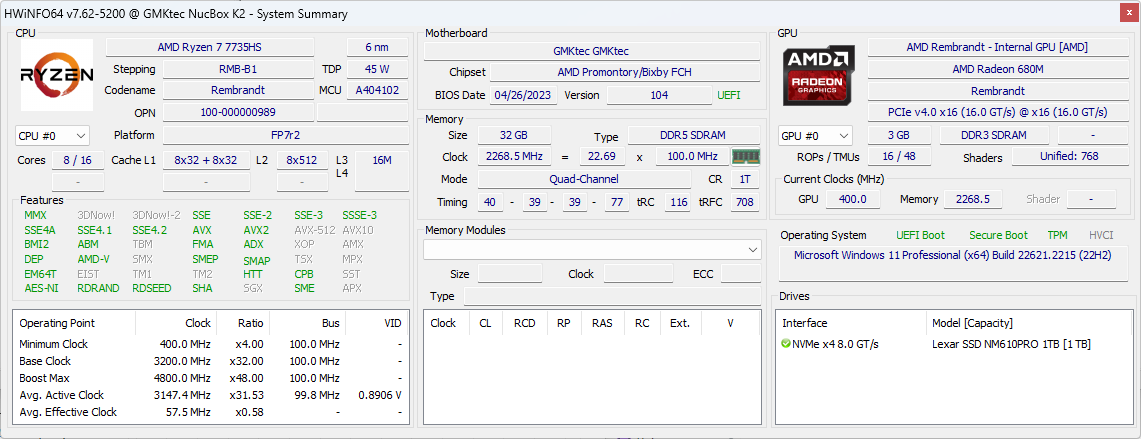

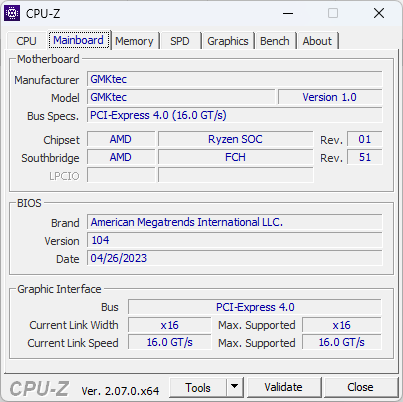

Vår testenhet är konfigurerad med Zen 3+ AMD Ryzen 7 7735HS CPU, integrerad Radeon 680M GPU, 1 TB PCIe3 SSD och 32 GB RAM för cirka 580 USD eller bara 480 USD när den är på rea. SKU:er med hälften så mycket RAM och lagringsutrymme finns också tillgängliga och det finns även en med den snabbare Zen 4 Ryzen 9 7940HS för strax under 800 USD. Det finns för närvarande inga barebone-alternativ.

Alternativ till NucBox 2 inkluderar andra mini-datorer som körs på integrerad grafik som Lenovo IdeaCentre Mini, Geekom Mini iT13, Trigkey Speed Seller Intel NUC 13 Pro.

Fler GMK recensioner:

GMK NucBox K2
Processor
AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 45 W PL2 / Short Burst, 38 W PL1 / Sustained, Rembrandt-HS Refresh
Grafikkort
AMD Radeon 680M - 3 GB VRAM, Kärna: 2400 MHz, DDR5, 23.9.1
Minne
32 GB
, Crucial DDR5, 2400 MHz, Dual-Channel, 40-39-39-77
Moderkort
AMD Promontory/Bixby FCH
Hårddisk
Lexar NM610 Pro NM610P001T-HNNNG, 1024 GB
Ljudkort
AMD Zen - Audio Processor - HD Audio Controller
Anslutningar
1 USB 2.0, 3 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 2 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm headset
Nätverk
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Storlek
höjd x bredd x djup (i mm) 43.2 x 123 x 112
Operativsystem
Microsoft Windows 11 Pro
Övrigt
12 Månader Garanti
Vikt
440 g, Strömförsörjning: 507 g
Pris
720 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potentiella konkurrenter i jämförelse

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
83 %
09/2023
GMK NucBox K2
R7 7735HS, Radeon 680M
440 g43.2 mmx
86.6 %
09/2023
Beelink SER7
R7 7840HS, Radeon 780M
640 g49 mmx
73.5 %
09/2023
Blackview MP80
N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
214 g37 mmx
82.5 %
08/2023
Intel NUC 13 Pro Desk Edition Kit
i7-1360P, Iris Xe G7 96EUs
558 g37 mmx
80.6 %
07/2023
Geekom Mini IT11, i7-11390H
i7-11390H, Iris Xe G7 96EUs
536 g48 mmx
03/2023
Trigkey Speed S
i5-11320H, Iris Xe G7 96EUs
415 g40.7 mmx

Case - Att hålla det enkelt

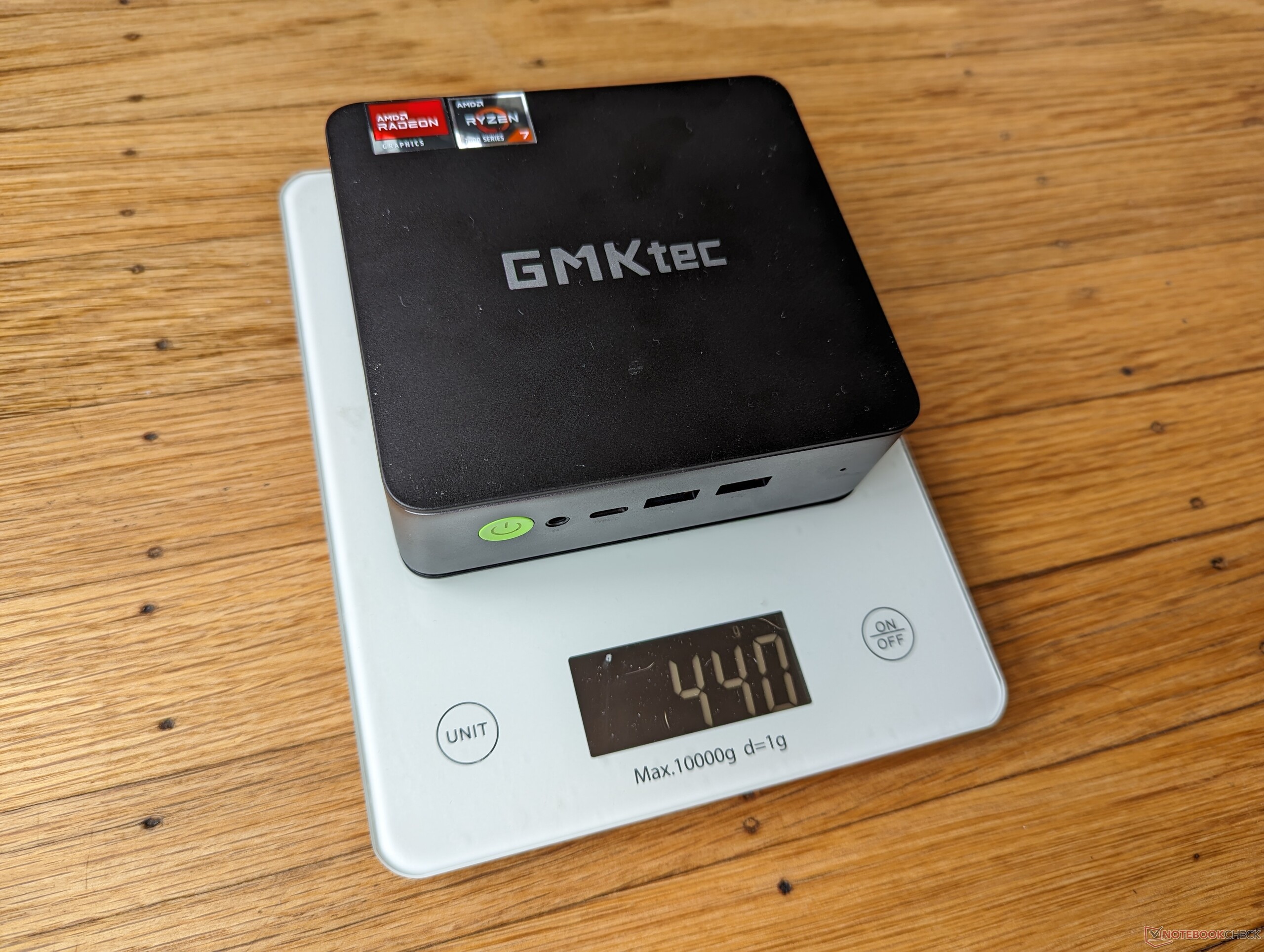

NucBox K2 är märkbart lättare än många andra minidatorer av liknande storlek, inklusive Intel NUC 13 Pro och Geekom Mini IT11. Nackdelen är dock att K2 har mer plast på ovansidan och undersidan medan endast sidorna och kanterna är av metall. Dess helt matta design är definitivt mer subtil än mini-datorer som Beelink SER7 där dess glänsande kromskurna utseende är tänkt att dra ögonen. Chassiets styvhet är fortfarande mycket bra ändå och utan några problem med byggkvaliteten på vår specifika enhet.

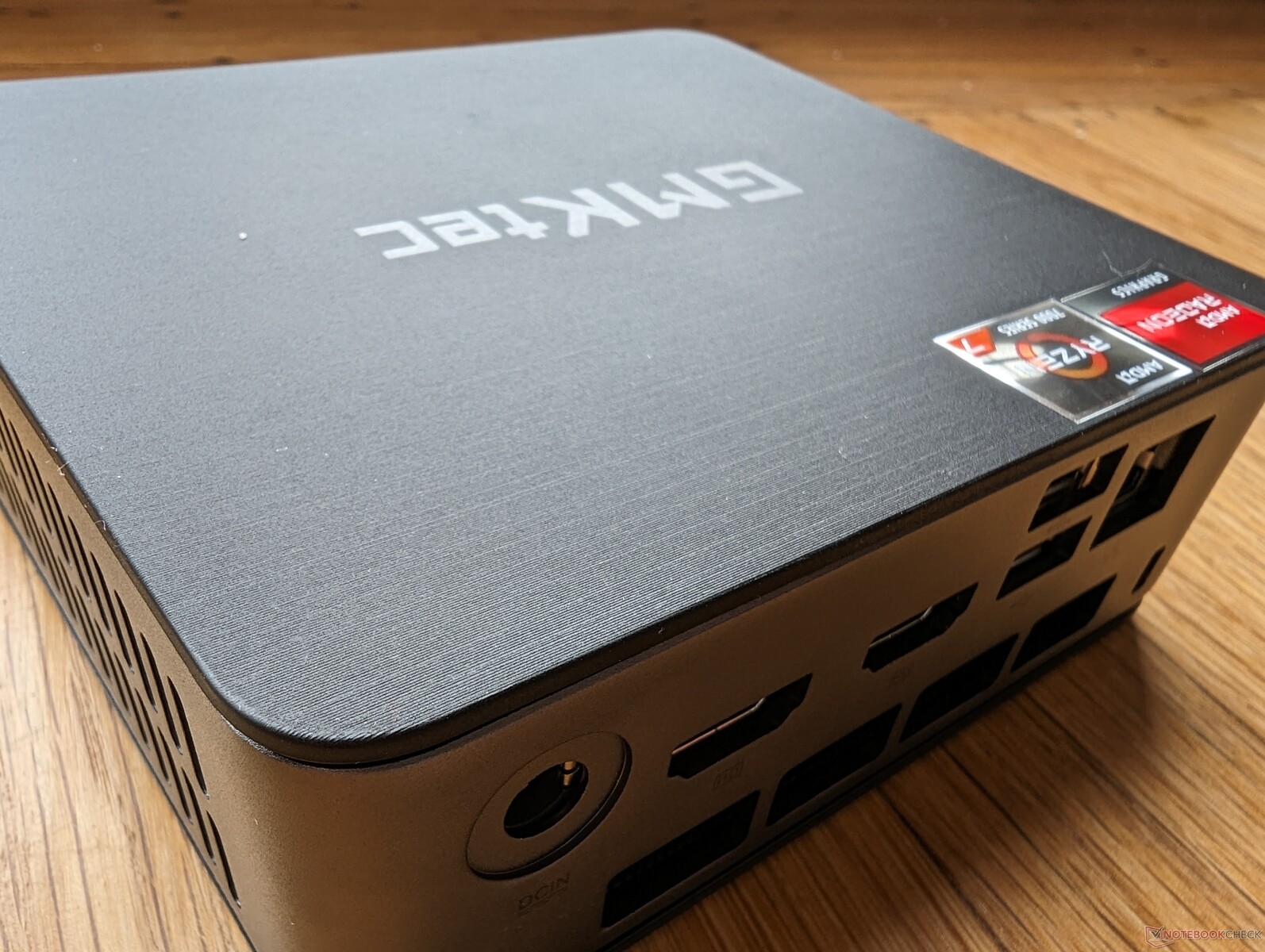

Topplock i matt plast utan dekorativa metalldetaljer
Topplock i matt plast utan dekorativa metalldetaljer

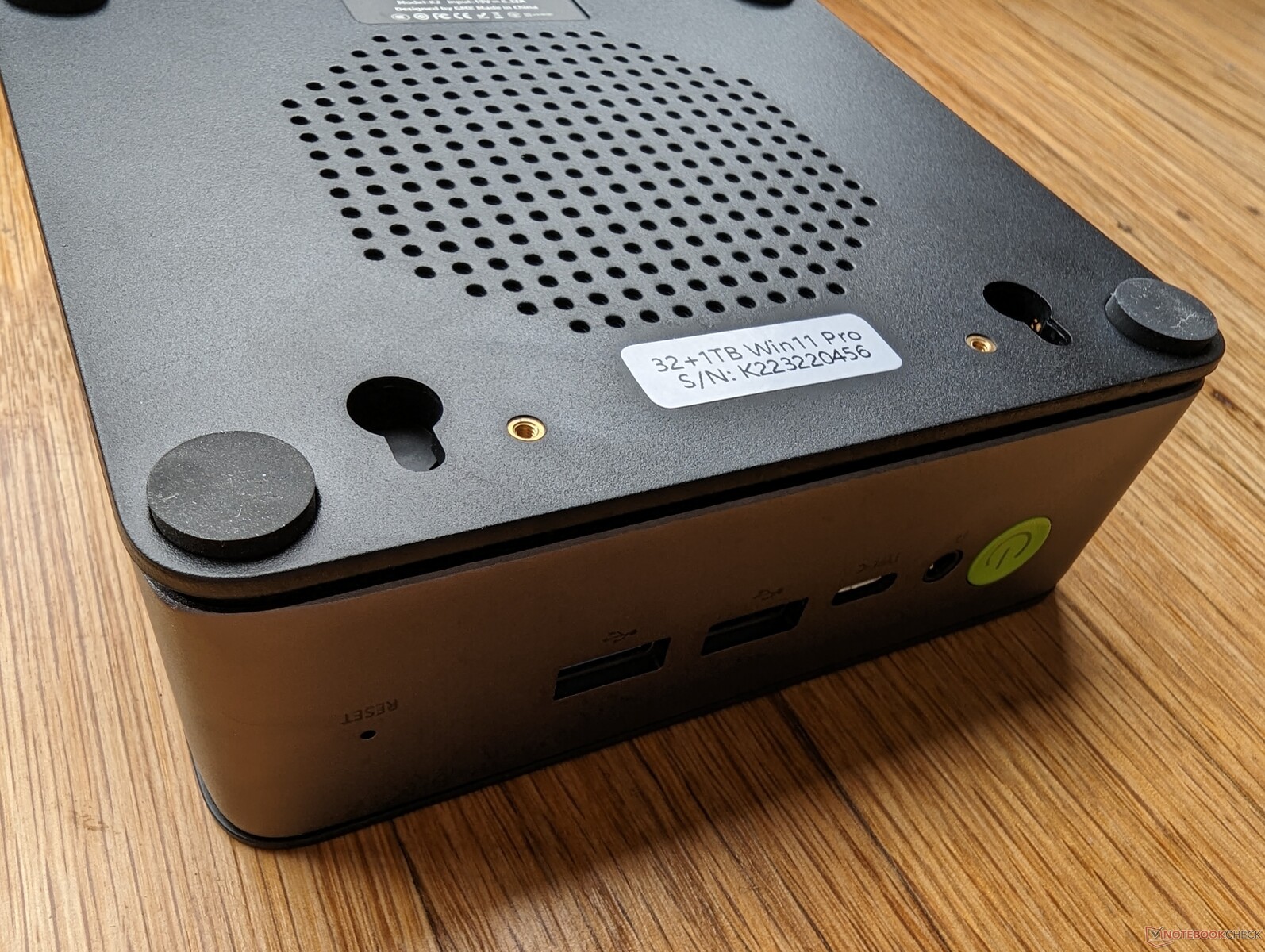

Hål på enhetens undersida för VESA-montering eller vanliga väggskruvar
Hål på enhetens undersida för VESA-montering eller vanliga väggskruvar

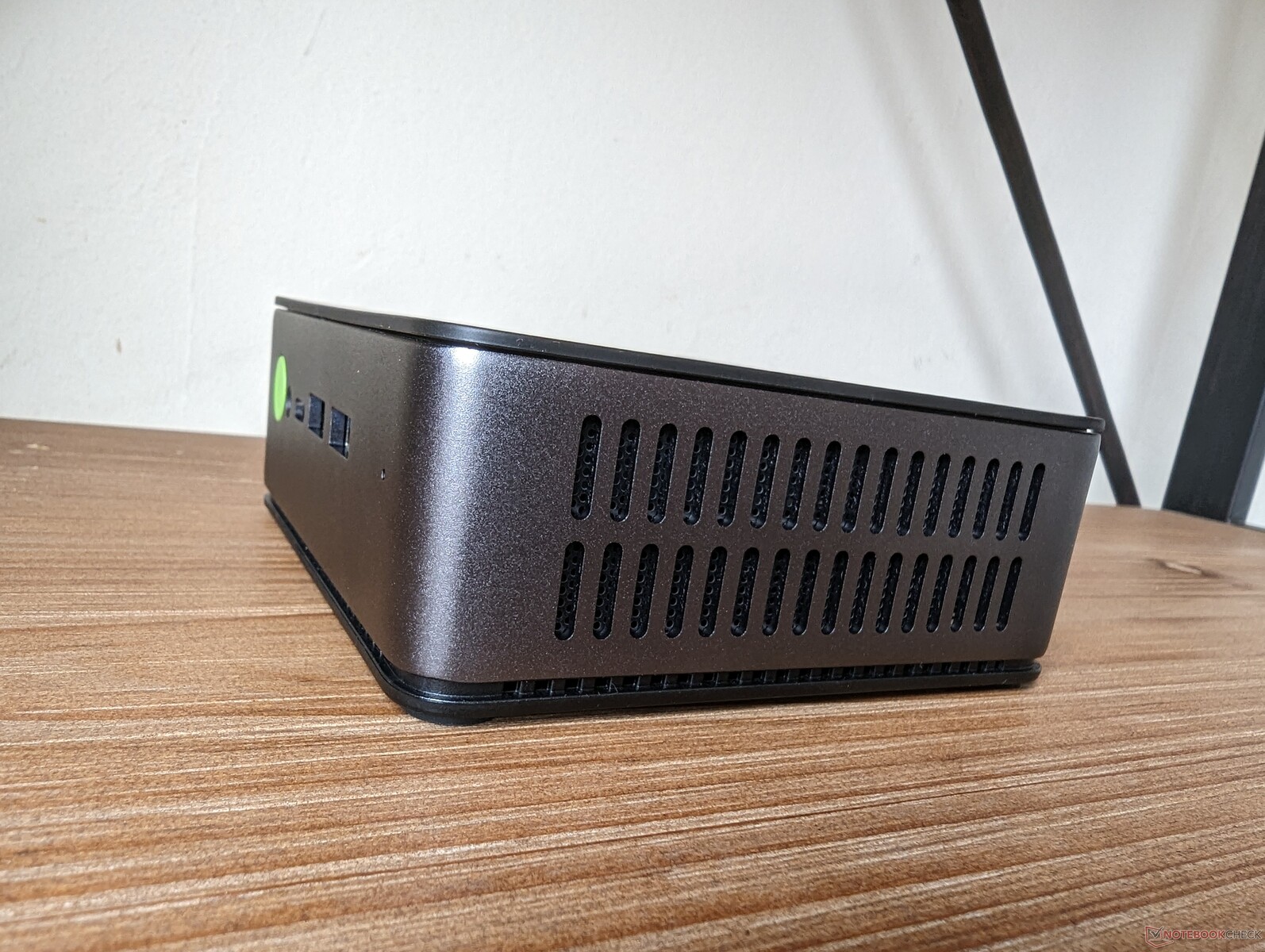

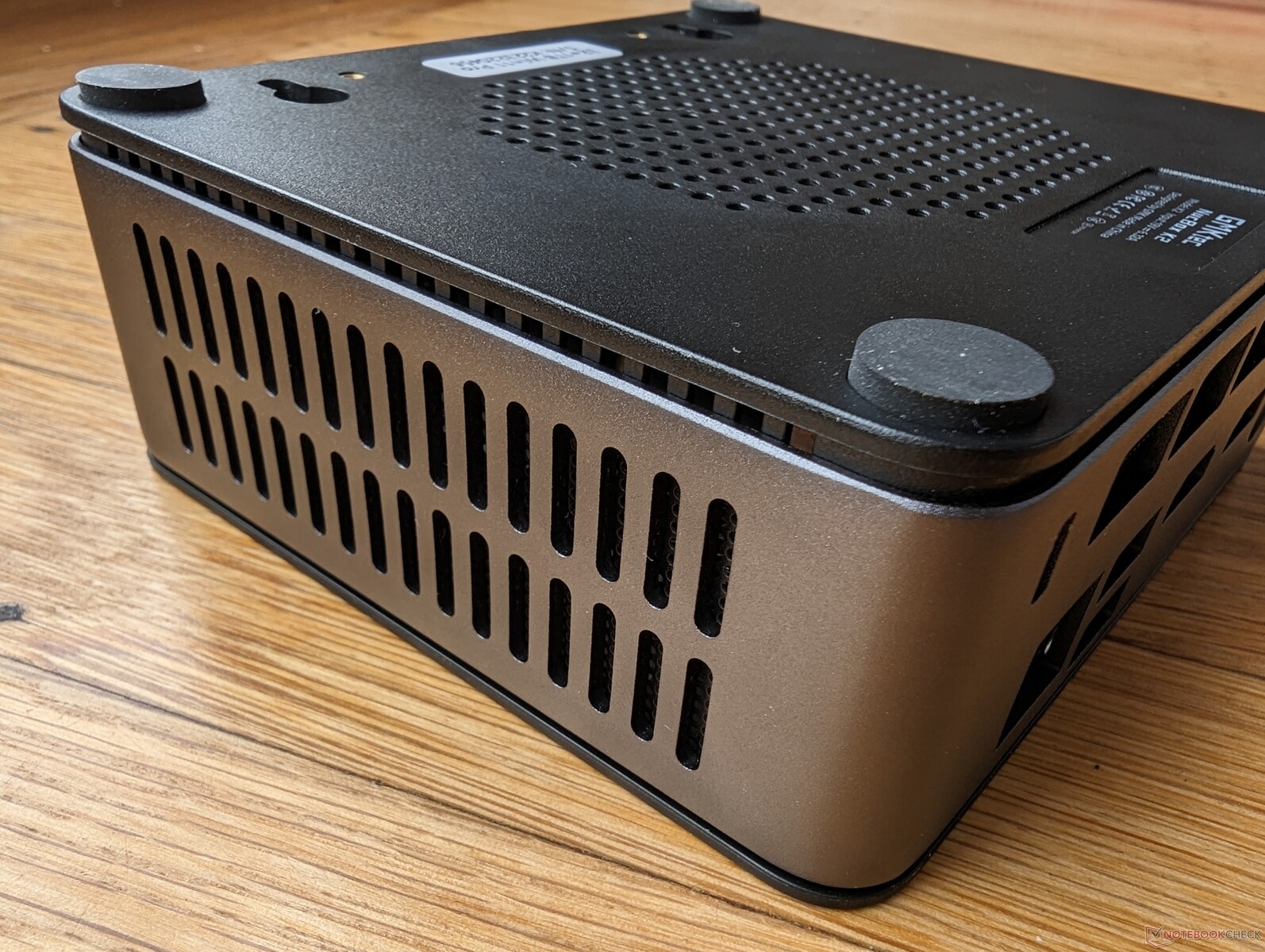

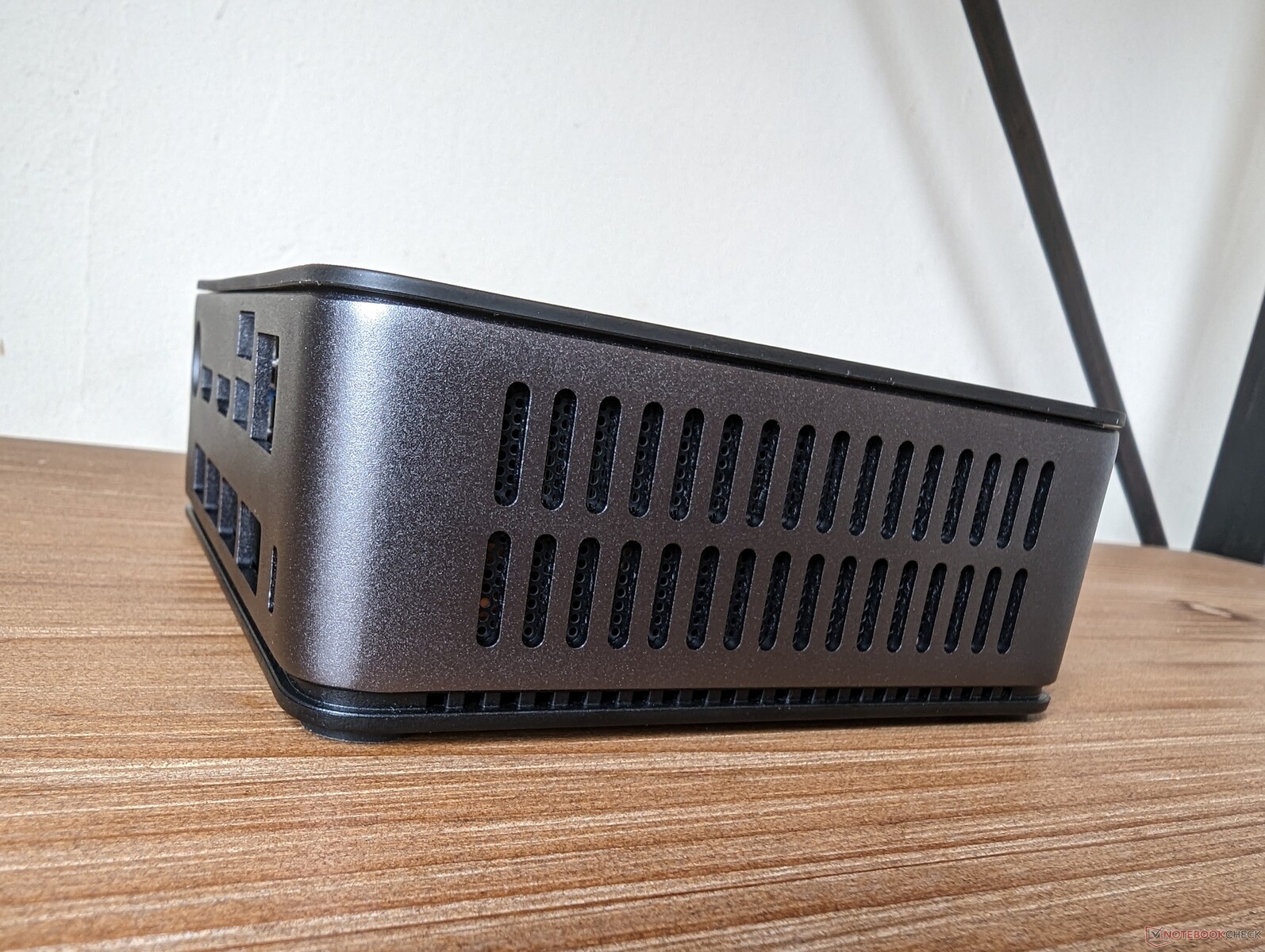

Ventilationsgaller på sidorna och även runt bottenplattan
Ventilationsgaller på sidorna och även runt bottenplattan

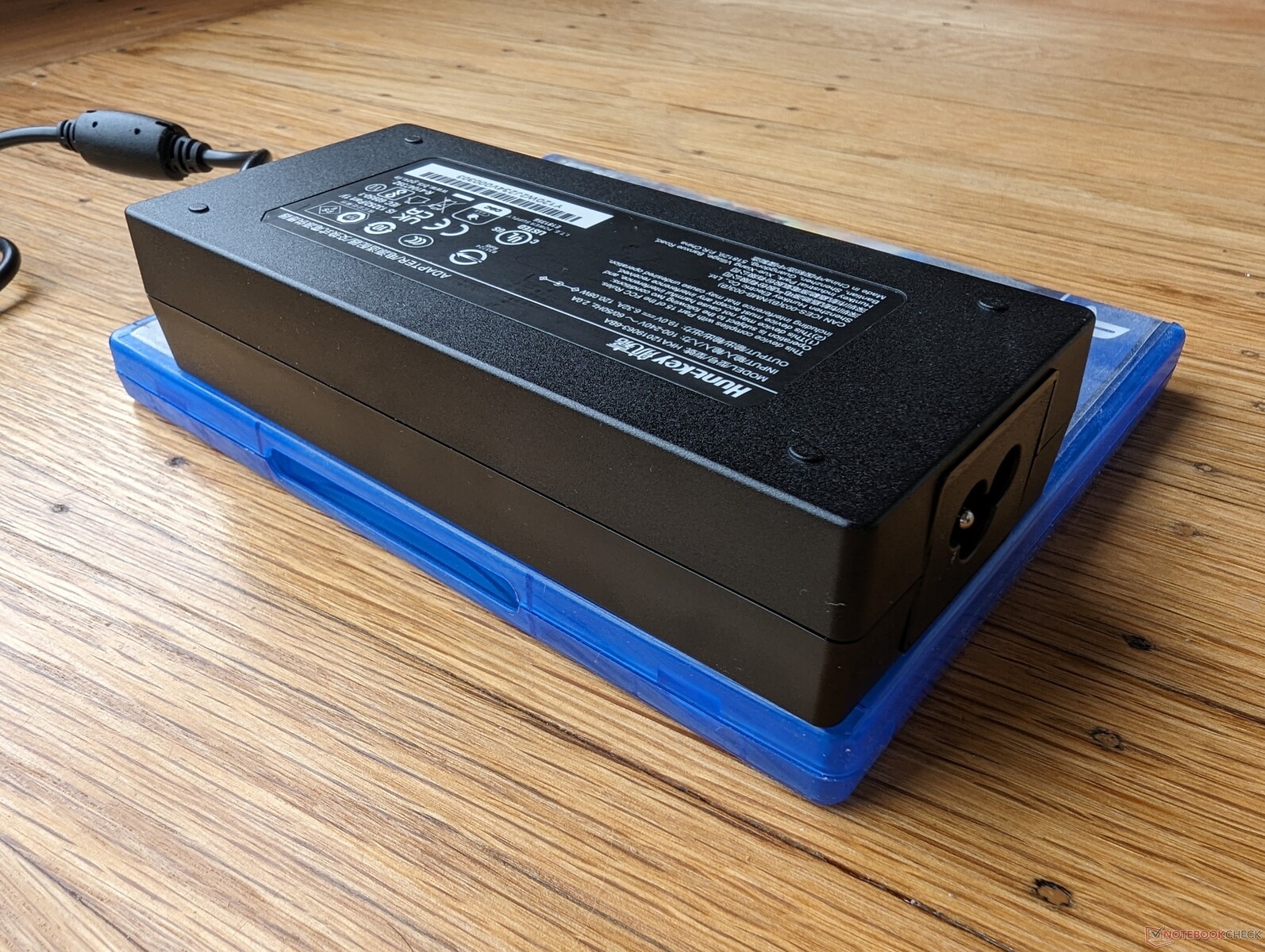

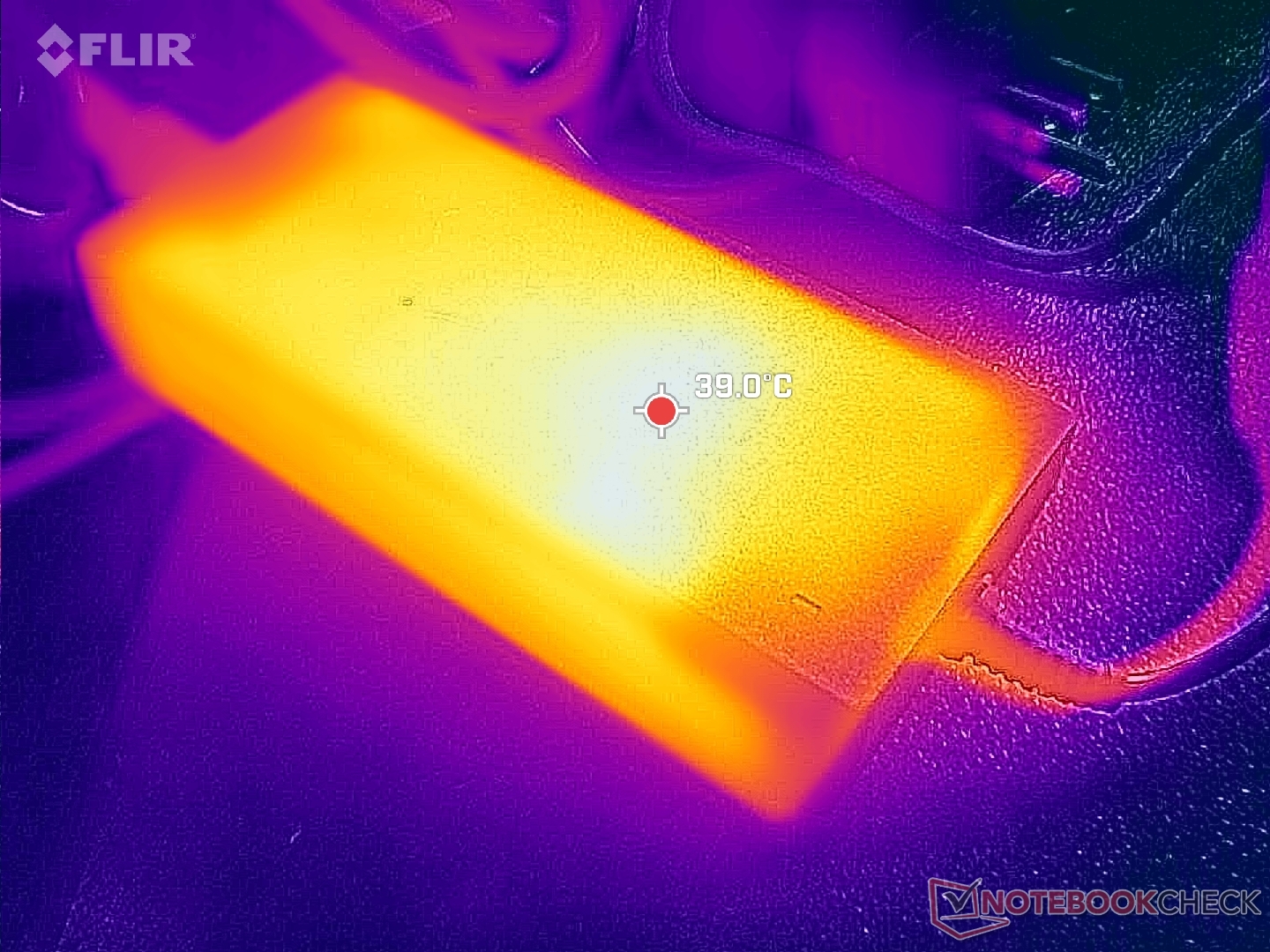

Medelstor (~14,5 x 6,4 x 3 cm) 120 W externt nätaggregat
Medelstor (~14,5 x 6,4 x 3 cm) 120 W externt nätaggregat

Storleksjämförelse

125 mm 110 mm 50 mm 430 g126 mm 113 mm 49 mm 640 g126 mm 112.7 mm 40.7 mm 415 g123 mm 112 mm 43.2 mm 440 g117 mm 112 mm 48 mm 536 g117 mm 112 mm 37 mm 558 g210 mm 148 mm 1 mm 2.9 g

Anslutningsmöjligheter

Den mest anmärkningsvärda porten på NucBox 2 är utan tvekan USB 4-porten. Denna mångsidiga port kan användas för externa GPU:er, externa skärmar, dockningsstationer och till och med AC-adaptrar från tredje part om du någonsin skulle förlora den proprietära power brick som levereras med lådan. Tyvärr finns det bara en USB-C-port till skillnad från Beelink SER7 som integrerar tre USB-C-portar.

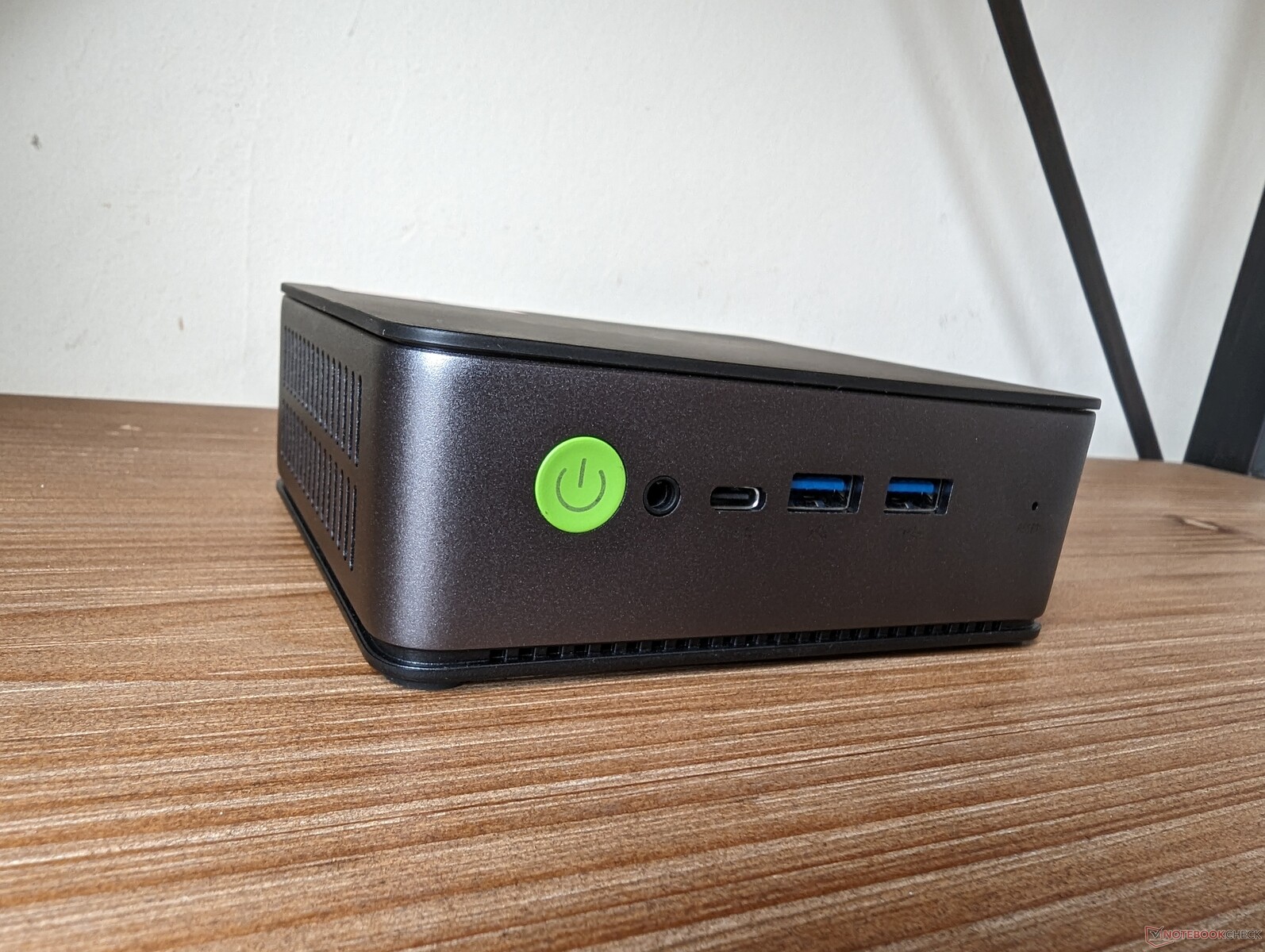

Framsida: Strömförsörjning, 3,5 mm headset, USB-C 4.0 med strömförsörjning + DisplayPort, 2x USB-A 3.2 Gen. 2
Framsida: Strömförsörjning, 3,5 mm headset, USB-C 4.0 med strömförsörjning + DisplayPort, 2x USB-A 3.2 Gen. 2
Rätt: Inga portar
Rätt: Inga portar

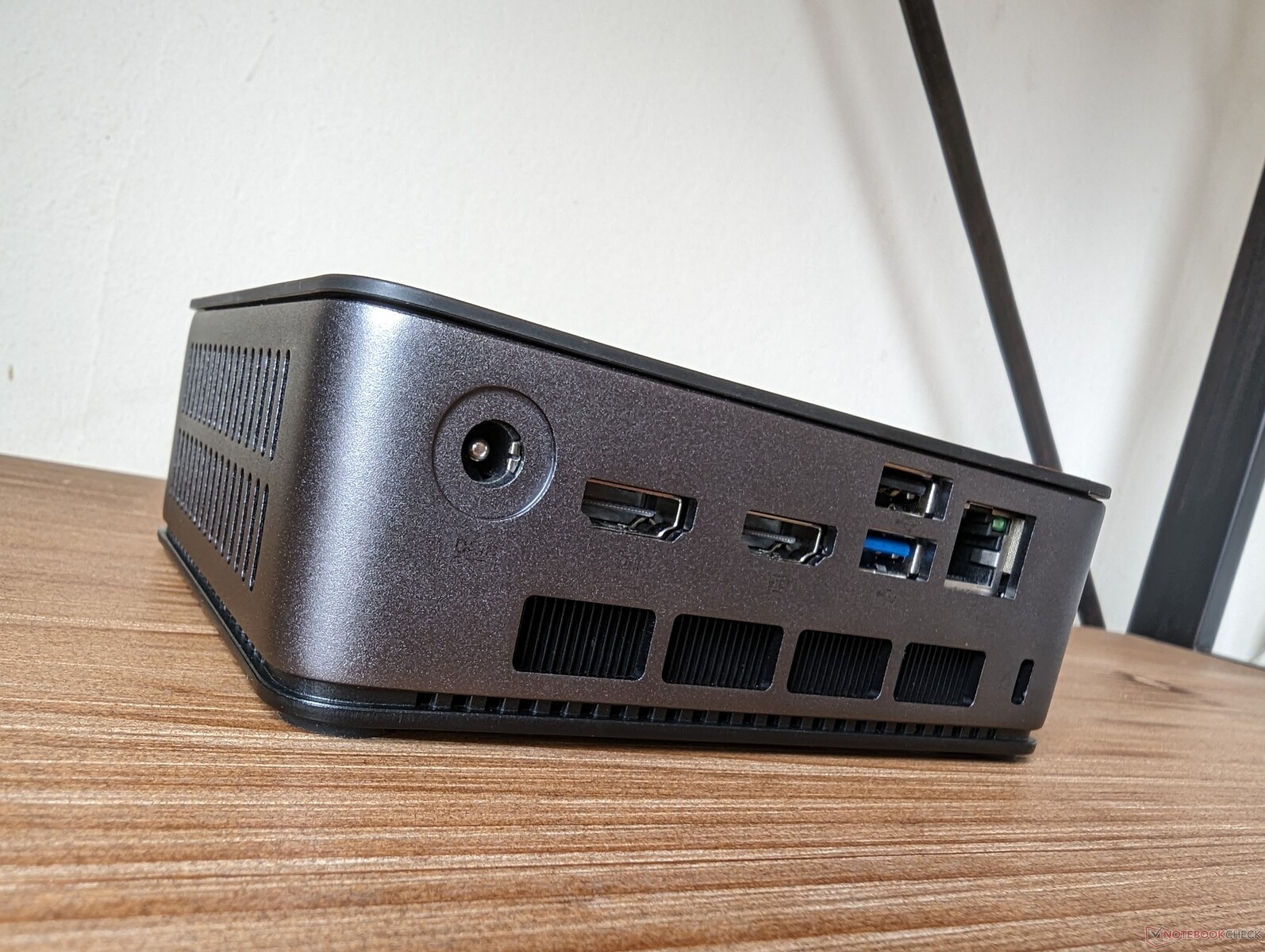

På baksidan: Nätadapter, 2x HDMI 2.1, USB-A 2.0, USB-A 3.2 Gen. 2, 2,5 Gbps RJ-45, plats för Kensingtonlås
På baksidan: Nätadapter, 2x HDMI 2.1, USB-A 2.0, USB-A 3.2 Gen. 2, 2,5 Gbps RJ-45, plats för Kensingtonlås
Vänster: Inga portar
Vänster: Inga portar

Kommunikation

En MediaTek RZ608 är standard för stöd för Wi-Fi 6 och Wi-Fi 6E. Även om anslutningen är pålitlig är prestandan långsammare än förväntat när den kopplas till vårt 6 GHz-nätverk, vilket visas nedan. Detta tyder på att de trådlösa antennerna kan vara på den svaga sidan.

Bluetooth är också problematiskt. Vår Bluetooth-mus kunde inte återanslutas varje gång, trots att det fungerade perfekt på andra enheter.

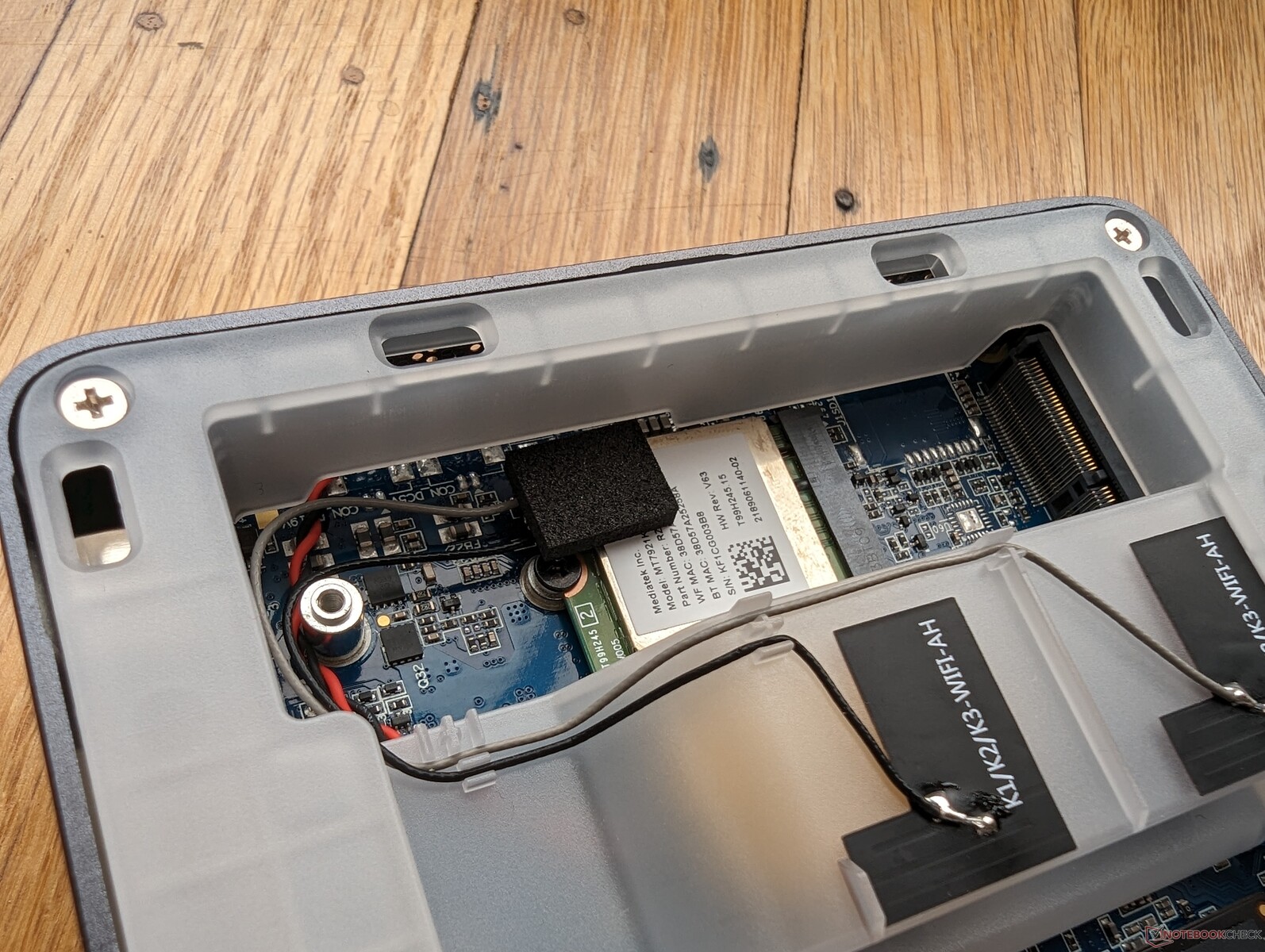

Avtagbar WLAN-modul sitter under den primära M.2 SSD
Avtagbar WLAN-modul sitter under den primära M.2 SSD
Networking
iperf3 transmit AX12
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
385 (299min - 426max) MBit/s ∼100%
iperf3 receive AX12
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
625 (346min - 678max) MBit/s ∼100%
iperf3 transmit AXE11000
Beelink SER7
Intel Wi-Fi 6 AX200
1324 (665min - 1408max) MBit/s ∼100% +53%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1301 (514min - 1422max) MBit/s ∼98% +51%
Trigkey Speed S
Intel Wi-Fi 6 AX201
1068 (610min - 1322max) MBit/s ∼81% +24%
GMK NucBox K2
MediaTek RZ608
864 (682min - 951max) MBit/s ∼65%
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
845 (818min - 879max) MBit/s ∼64% -2%
iperf3 receive AXE11000
Beelink SER7
Intel Wi-Fi 6 AX200
1193 (588min - 1333max) MBit/s ∼100% +38%
Trigkey Speed S
Intel Wi-Fi 6 AX201
1163 (815min - 1422max) MBit/s ∼97% +34%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1117 (884min - 1368max) MBit/s ∼94% +29%
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
958 (941min - 967max) MBit/s ∼80% +11%
GMK NucBox K2
MediaTek RZ608
865 (443min - 893max) MBit/s ∼73%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1511 (1451min - 1552max) MBit/s ∼100% +98%
GMK NucBox K2
MediaTek RZ608
764 (524min - 875max) MBit/s ∼51%
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1448 (1357min - 1490max) MBit/s ∼100% +96%
GMK NucBox K2
MediaTek RZ608
739 (709min - 762max) MBit/s ∼51%
050100150200250300350400450500550600650700750800850Tooltip
GMK NucBox K2; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø764 (524-875)
GMK NucBox K2; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø738 (709-762)

Underhåll

NucBox K2 är en av de enklaste minidatorerna att serva, särskilt efter att precis ha granskat Beelink SER7. Den övre plastpanelen öppnas på några sekunder utan verktyg för direkt åtkomst till 2x SODIMM-kortplatser, 1x M.2 SSD och WLAN-modul. Även systemfläkten är lättåtkomlig genom att man vänder enheten upp och ner, tar bort de fyra gummifötterna och skruvar loss de fyra skruvarna.

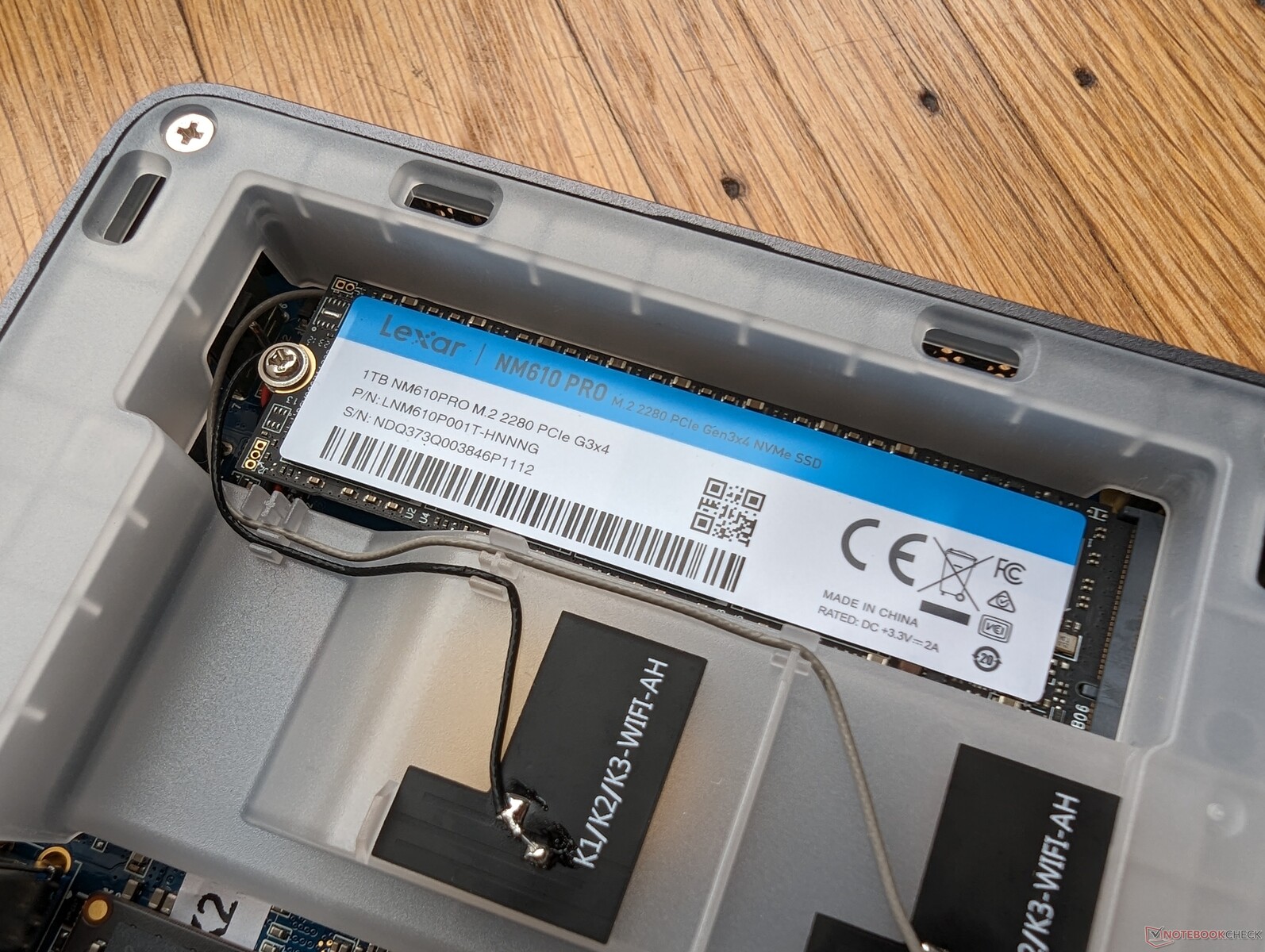

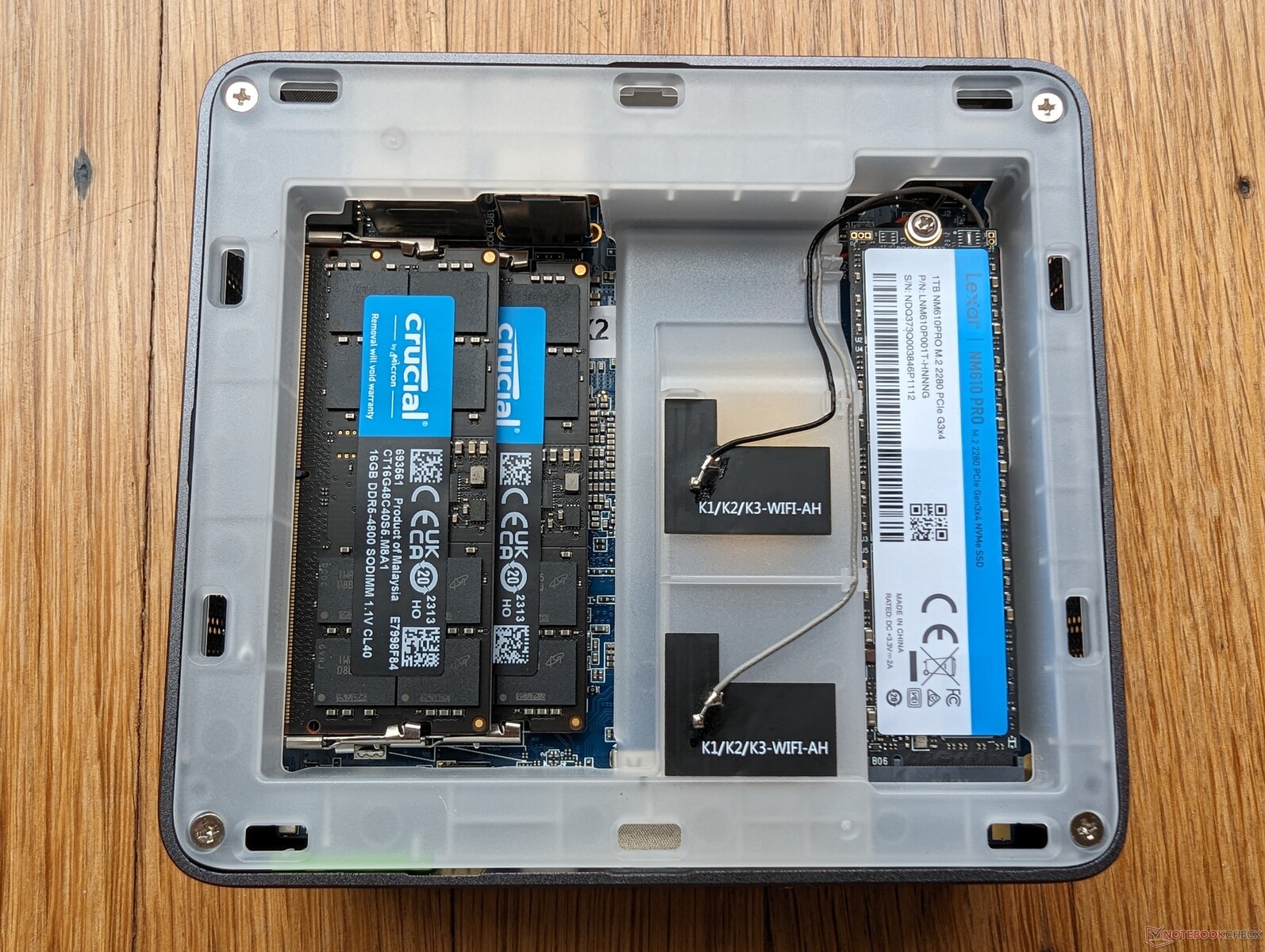

Genom att ta bort toppanelen visas alla uppgraderingsbara komponenter
Genom att ta bort toppanelen visas alla uppgraderingsbara komponenter

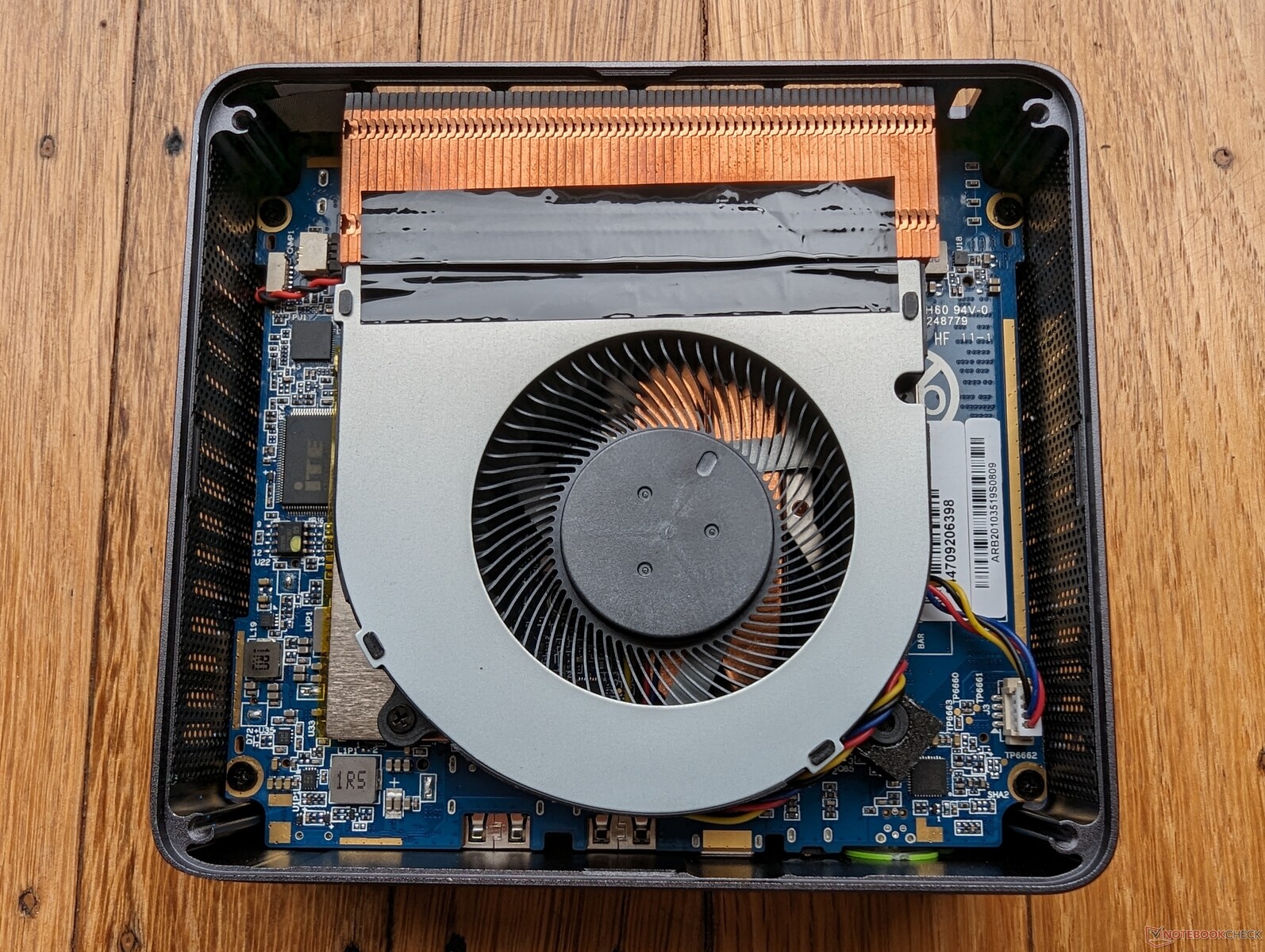

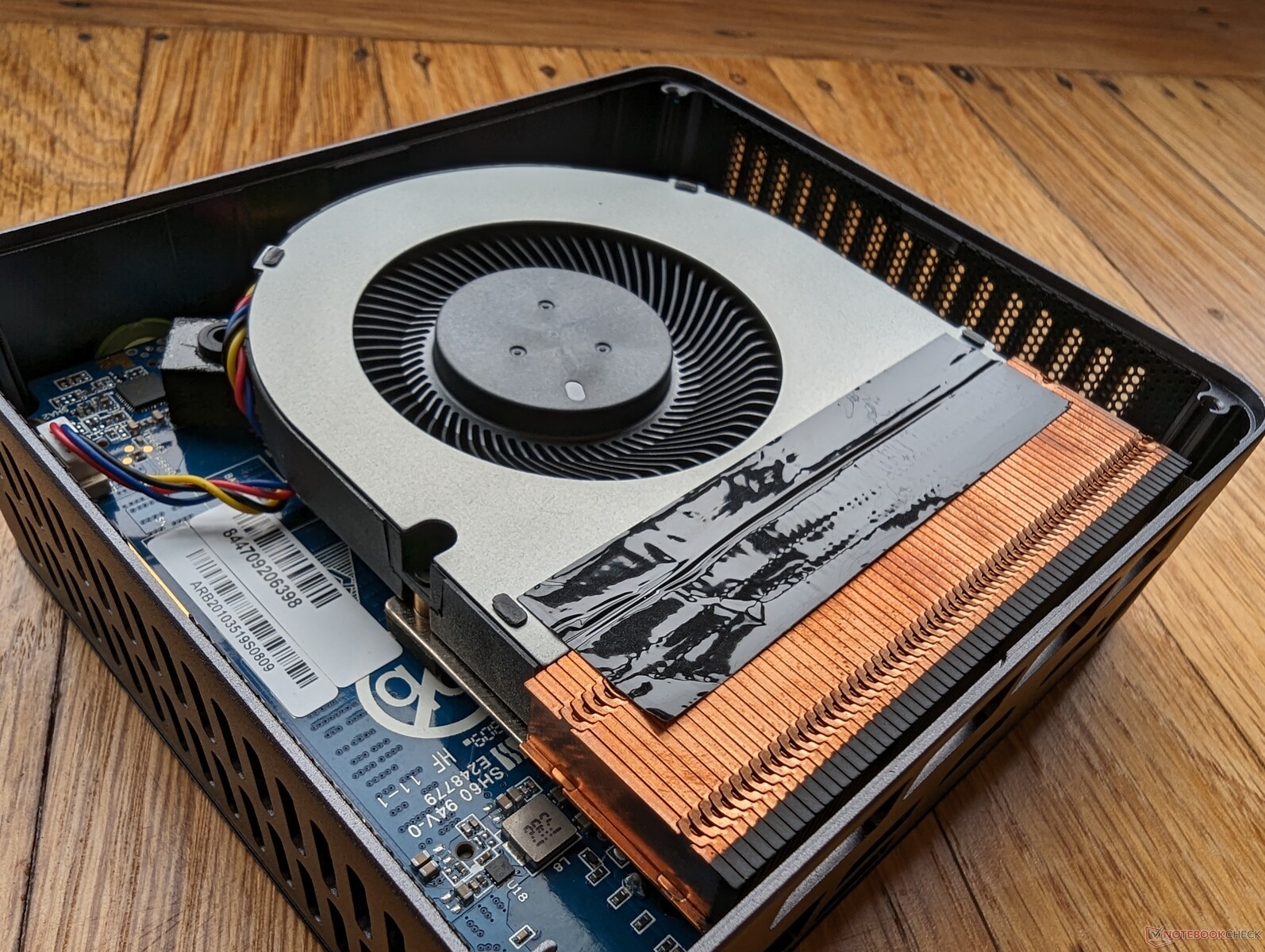

Avlägsnande av bottenpanelen gör det enkelt att rengöra systemfläkten
Avlägsnande av bottenpanelen gör det enkelt att rengöra systemfläkten

Tillbehör och garanti

Förpackningen innehåller bruksanvisning, nätadapter, HDMI-kabel och löstagbart VESA-monteringsfäste. Den ettåriga begränsade standardgarantin från tillverkaren gäller vid köp i USA.

Prestanda - Zen 3+ är fortfarande kraftfull




Villkor för testning

Vi ställde in Windows på prestandaläge innan vi körde riktmärkena nedan. GMK innehåller inga förinstallerade kontrollcenterapplikationer eller bloatware.

Processor

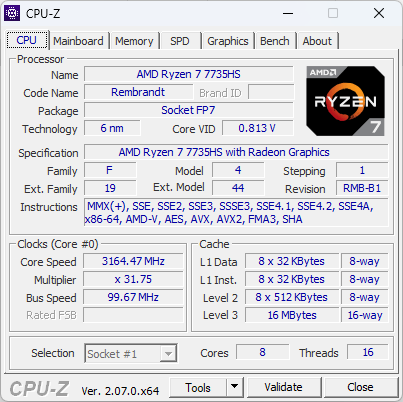

Ryzen 7 77HSRyzen 7 7735HS är i huvudsak en rebrandad sista generationens Ryzen 7 6800H särskilt eftersom de båda är baserade på Zen 3+-arkitekturen. Detta betyder inte att processorn är långsam, men användare som vill ha den senaste Zen 4-tekniken kommer att behöva titta på den högre konfigurationen istället med Ryzen 9 7940HS som kan erbjuda upp till 45 till 50 procent snabbare multi-thread-prestanda jämfört med vår Ryzen 7-enhet.

Den övergripande prestandan är cirka 30 procent långsammare än 12:e generationens Core i7-12700H som vanligtvis finns i högpresterande bärbara speldatorer och minidatorer som Intel NUC 12 Serpent Canyon.

Cinebench R15 Multi Loop

0130260390520650780910104011701300143015601690182019502080221023402470Tooltip
GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)
GMK NucBox 2 Intel Core i5-8259U: Ø612 (608.07-614.94)
Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)
Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.2 - 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
88.8 pt ∼89%
Beelink SER7
AMD Ryzen 7 7840HS
87.8 pt ∼88%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
82.9 pt ∼83%
Minisforum Venus Series NPB5
Intel Core i5-13500H
76.9 pt ∼77%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
75.2 pt ∼75%
Beelink GTR6
AMD Ryzen 9 6900HX
73 pt ∼73%
Average AMD Ryzen 7 7735HS

72.3 pt ∼72%
GMK NucBox K2
AMD Ryzen 7 7735HS
70.8 pt ∼71%
Beelink SER6 Pro
AMD Ryzen 7 6800H
69.6 pt ∼70%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
65.3 pt ∼65%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
55.7 pt ∼56%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
52.6 pt ∼53%
Trigkey Speed S
Intel Core i5-11320H
48.6 pt ∼49%
GMK NucBox 2
Intel Core i5-8259U
29.6 pt ∼30%
Cinebench R23 / Multi Core
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
16985 Points ∼100% +47%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
16674 Points ∼98% +44%
Beelink SER7
AMD Ryzen 7 7840HS
16105 (15785.6min - 16105.2max) Points ∼95% +39%
Minisforum Venus Series NPB5
Intel Core i5-13500H
13542 Points ∼80% +17%
Average AMD Ryzen 7 7735HS
  (11584 - 14131, n=8)
13194 Points ∼78% +14%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
12155 Points ∼72% +5%
Beelink GTR6
AMD Ryzen 9 6900HX
11862 (11361.7min - 11862.4max) Points ∼70% +2%
GMK NucBox K2
AMD Ryzen 7 7735HS
11584 (11082.5min - 11584.2max) Points ∼68%
Beelink SER6 Pro
AMD Ryzen 7 6800H
11481 (10813.7min - 11481.3max) Points ∼68% -1%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
11171 Points ∼66% -4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
7945 (7877.51min - 7944.53max) Points ∼47% -31%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5917 Points ∼35% -49%
Trigkey Speed S
Intel Core i5-11320H
5724 (5641.98min - 5723.64max) Points ∼34% -51%
GMK NucBox 2
Intel Core i5-8259U
3728 (3687.99min - 3727.55max) Points ∼22% -68%
Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1878 Points ∼100% +25%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
1813 Points ∼97% +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
1801 Points ∼96% +20%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1775 Points ∼95% +18%
Beelink SER7
AMD Ryzen 7 7840HS
1774 Points ∼94% +18%
Beelink GTR6
AMD Ryzen 9 6900HX
1608 Points ∼86% +7%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1602 Points ∼85% +7%
Average AMD Ryzen 7 7735HS
  (1288 - 1569, n=8)
1513 Points ∼81% +1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
1506 Points ∼80% 0%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
1506 Points ∼80% 0%
GMK NucBox K2
AMD Ryzen 7 7735HS
1499 Points ∼80%
Trigkey Speed S
Intel Core i5-11320H
1465 Points ∼78% -2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1367 Points ∼73% -9%
GMK NucBox 2
Intel Core i5-8259U
973 Points ∼52% -35%
Cinebench R20 / CPU (Multi Core)
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
6640 Points ∼100% +46%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
6459 Points ∼97% +42%
Beelink SER7
AMD Ryzen 7 7840HS
6344 Points ∼96% +40%
Average AMD Ryzen 7 7735HS
  (4524 - 5502, n=8)
5122 Points ∼77% +13%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5108 Points ∼77% +13%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
4687 Points ∼71% +3%
Beelink GTR6
AMD Ryzen 9 6900HX
4619 Points ∼70% +2%
GMK NucBox K2
AMD Ryzen 7 7735HS
4533 Points ∼68%
Beelink SER6 Pro
AMD Ryzen 7 6800H
4460 Points ∼67% -2%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
4386 Points ∼66% -3%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
3074 Points ∼46% -32%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
2284 Points ∼34% -50%
Trigkey Speed S
Intel Core i5-11320H
2216 Points ∼33% -51%
GMK NucBox 2
Intel Core i5-8259U
1432 Points ∼22% -68%
Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
723 Points ∼100% +22%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
711 Points ∼98% +20%
Beelink SER7
AMD Ryzen 7 7840HS
698 Points ∼97% +18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
692 Points ∼96% +17%
Minisforum Venus Series NPB5
Intel Core i5-13500H
687 Points ∼95% +16%
Beelink GTR6
AMD Ryzen 9 6900HX
631 Points ∼87% +7%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
620 Points ∼86% +5%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
592 Points ∼82% 0%
GMK NucBox K2
AMD Ryzen 7 7735HS
591 Points ∼82%
Average AMD Ryzen 7 7735HS
  (502 - 612, n=8)
591 Points ∼82% 0%
Beelink SER6 Pro
AMD Ryzen 7 6800H
584 Points ∼81% -1%
Trigkey Speed S
Intel Core i5-11320H
567 Points ∼78% -4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
531 Points ∼73% -10%
GMK NucBox 2
Intel Core i5-8259U
382 Points ∼53% -35%
Cinebench R15 / CPU Multi 64Bit
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
2663 Points ∼100% +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
2632 Points ∼99% +33%
Beelink SER7
AMD Ryzen 7 7840HS
2565 (2511.62min - 2564.76max) Points ∼96% +30%
Minisforum Venus Series NPB5
Intel Core i5-13500H
2304 Points ∼87% +17%
Average AMD Ryzen 7 7735HS
  (1953 - 2355, n=10)
2191 Points ∼82% +11%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1990 Points ∼75% +1%
GMK NucBox K2
AMD Ryzen 7 7735HS
1972 (1875.64min - 1972max) Points ∼74%
Beelink GTR6
AMD Ryzen 9 6900HX
1969 (1894.3min - 1968.5max) Points ∼74% 0%
Beelink SER6 Pro
AMD Ryzen 7 6800H
1931 (1821.83min - 1930.5max) Points ∼73% -2%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
1837 Points ∼69% -7%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1319 (1286.46min - 1319.48max) Points ∼50% -33%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
953 Points ∼36% -52%
Trigkey Speed S
Intel Core i5-11320H
861 (839.91min - 860.88max) Points ∼32% -56%
GMK NucBox 2
Intel Core i5-8259U
615 (608.07min - 614.94max) Points ∼23% -69%
Cinebench R15 / CPU Single 64Bit
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
284 Points ∼100% +16%
Beelink SER7
AMD Ryzen 7 7840HS
283 Points ∼100% +16%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
267 Points ∼94% +9%
Beelink GTR6
AMD Ryzen 9 6900HX
260 Points ∼92% +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
259 Points ∼91% +6%
Minisforum Venus Series NPB5
Intel Core i5-13500H
255 Points ∼90% +5%
GMK NucBox K2
AMD Ryzen 7 7735HS
244 Points ∼86%
Average AMD Ryzen 7 7735HS
  (206 - 252, n=9)
244 Points ∼86% 0%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
243 Points ∼86% 0%
Beelink SER6 Pro
AMD Ryzen 7 6800H
242 Points ∼85% -1%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
232 Points ∼82% -5%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
221 Points ∼78% -9%
Trigkey Speed S
Intel Core i5-11320H
215 Points ∼76% -12%
GMK NucBox 2
Intel Core i5-8259U
151 Points ∼53% -38%
Blender / v2.79 BMW27 CPU
GMK NucBox 2
Intel Core i5-8259U
755 Seconds * ∼100% -192%
Trigkey Speed S
Intel Core i5-11320H
543 Seconds * ∼72% -110%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
513 Seconds * ∼68% -98%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
384 Seconds * ∼51% -48%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
282 Seconds * ∼37% -9%
Beelink SER6 Pro
AMD Ryzen 7 6800H
268 Seconds * ∼35% -3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
268 Seconds * ∼35% -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H
260 Seconds * ∼34% -0%
GMK NucBox K2
AMD Ryzen 7 7735HS
259 Seconds * ∼34%
Beelink GTR6
AMD Ryzen 9 6900HX
257 Seconds * ∼34% +1%
Average AMD Ryzen 7 7735HS
  (219 - 263, n=8)
235 Seconds * ∼31% +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
198 Seconds * ∼26% +24%
Beelink SER7
AMD Ryzen 7 7840HS
196 Seconds * ∼26% +24%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
188 Seconds * ∼25% +27%
7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
70019 MIPS ∼100% +21%
Beelink SER7
AMD Ryzen 7 7840HS
69882 MIPS ∼100% +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
64403 MIPS ∼92% +11%
Average AMD Ryzen 7 7735HS
  (55502 - 61495, n=8)
59297 MIPS ∼85% +3%
GMK NucBox K2
AMD Ryzen 7 7735HS
57785 MIPS ∼83%
Beelink GTR6
AMD Ryzen 9 6900HX
57261 MIPS ∼82% -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
55963 MIPS ∼80% -3%
Minisforum Venus Series NPB5
Intel Core i5-13500H
52630 MIPS ∼75% -9%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
52046 MIPS ∼74% -10%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
51340 MIPS ∼73% -11%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
39897 MIPS ∼57% -31%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
25876 MIPS ∼37% -55%
Trigkey Speed S
Intel Core i5-11320H
24718 MIPS ∼35% -57%
GMK NucBox 2
Intel Core i5-8259U
18802 MIPS ∼27% -67%
7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7
AMD Ryzen 7 7840HS
6734 MIPS ∼100% +16%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
6683 MIPS ∼99% +15%
Beelink GTR6
AMD Ryzen 9 6900HX
6005 MIPS ∼89% +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
5972 MIPS ∼89% +3%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5895 MIPS ∼88% +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
5840 MIPS ∼87% +1%
GMK NucBox K2
AMD Ryzen 7 7735HS
5790 MIPS ∼86%
Beelink SER6 Pro
AMD Ryzen 7 6800H
5768 MIPS ∼86% 0%
Minisforum Venus Series NPB5
Intel Core i5-13500H
5695 MIPS ∼85% -2%
Average AMD Ryzen 7 7735HS
  (4779 - 5809, n=8)
5608 MIPS ∼83% -3%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
5433 MIPS ∼81% -6%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
5400 MIPS ∼80% -7%
Trigkey Speed S
Intel Core i5-11320H
5119 MIPS ∼76% -12%
GMK NucBox 2
Intel Core i5-8259U
3951 MIPS ∼59% -32%
Geekbench 5.2 - 5.5 / Multi-Core
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
11564 Points ∼100% +23%
Minisforum Venus Series NPB5
Intel Core i5-13500H
11465 Points ∼99% +22%
Beelink SER7
AMD Ryzen 7 7840HS
11423 Points ∼99% +21%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
10269 Points ∼89% +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
10126 Points ∼88% +7%
Average AMD Ryzen 7 7735HS
  (9021 - 9836, n=8)
9452 Points ∼82% 0%
GMK NucBox K2
AMD Ryzen 7 7735HS
9436 Points ∼82%
Beelink GTR6
AMD Ryzen 9 6900HX
9350 Points ∼81% -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
9218 Points ∼80% -2%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
7986 Points ∼69% -15%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
6103 Points ∼53% -35%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5091 Points ∼44% -46%
Trigkey Speed S
Intel Core i5-11320H
4927 Points ∼43% -48%
GMK NucBox 2
Intel Core i5-8259U
3359 Points ∼29% -64%
Geekbench 5.2 - 5.5 / Single-Core
Beelink SER7
AMD Ryzen 7 7840HS
1983 Points ∼100% +27%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
1975 Points ∼100% +26%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1832 Points ∼92% +17%
Minisforum Venus Series NPB5
Intel Core i5-13500H
1762 Points ∼89% +13%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1669 Points ∼84% +7%
Beelink GTR6
AMD Ryzen 9 6900HX
1652 Points ∼83% +6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
1590 Points ∼80% +2%
GMK NucBox K2
AMD Ryzen 7 7735HS
1564 Points ∼79%
Beelink SER6 Pro
AMD Ryzen 7 6800H
1554 Points ∼78% -1%
Trigkey Speed S
Intel Core i5-11320H
1523 Points ∼77% -3%
Average AMD Ryzen 7 7735HS
  (1327 - 1580, n=8)
1523 Points ∼77% -3%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
1499 Points ∼76% -4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1436 Points ∼72% -8%
GMK NucBox 2
Intel Core i5-8259U
984 Points ∼50% -37%
HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
20.7 fps ∼100% +37%
Beelink SER7
AMD Ryzen 7 7840HS
20.4 fps ∼99% +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
18.7 fps ∼90% +24%
Average AMD Ryzen 7 7735HS
  (15.1 - 17.5, n=8)
16.5 fps ∼80% +9%
Beelink GTR6
AMD Ryzen 9 6900HX
15.4 fps ∼74% +2%
GMK NucBox K2
AMD Ryzen 7 7735HS
15.1 fps ∼73%
Beelink SER6 Pro
AMD Ryzen 7 6800H
15 fps ∼72% -1%
Minisforum Venus Series NPB5
Intel Core i5-13500H
14.6 fps ∼71% -3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
13.9 fps ∼67% -8%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
13.3 fps ∼64% -12%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
10.5 fps ∼51% -30%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
7.61 fps ∼37% -50%
Trigkey Speed S
Intel Core i5-11320H
7.25 fps ∼35% -52%
GMK NucBox 2
Intel Core i5-8259U
5.37 fps ∼26% -64%
LibreOffice / 20 Documents To PDF
GMK NucBox 2
Intel Core i5-8259U
63.6 s * ∼100% -38%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
60.2 s * ∼95% -31%
Average AMD Ryzen 7 7735HS
  (44.3 - 63.8, n=8)
53.5 s * ∼84% -16%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
52.2 s * ∼82% -13%
Beelink SER6 Pro
AMD Ryzen 7 6800H
48.8 s * ∼77% -6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
47.2 s * ∼74% -3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
46.9 s * ∼74% -2%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
46.3 s * ∼73% -1%
Beelink GTR6
AMD Ryzen 9 6900HX
46 s * ∼72% -0%
GMK NucBox K2
AMD Ryzen 7 7735HS
46 s * ∼72%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
44.9 s * ∼71% +2%
Trigkey Speed S
Intel Core i5-11320H
44 s * ∼69% +4%
Minisforum Venus Series NPB5
Intel Core i5-13500H
44 s * ∼69% +4%
Beelink SER7
AMD Ryzen 7 7840HS
39.7 s * ∼62% +14%
R Benchmark 2.5 / Overall mean
GMK NucBox 2
Intel Core i5-8259U
0.786 sec * ∼100% -60%
Trigkey Speed S
Intel Core i5-11320H
0.591 sec * ∼75% -20%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.543 sec * ∼69% -10%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
0.53 sec * ∼67% -8%
Minisforum Mercury Series EM680
AMD Ryzen 7 6800U
0.525 sec * ∼67% -7%
Average AMD Ryzen 7 7735HS
  (0.4911 - 0.585, n=8)
0.509 sec * ∼65% -3%
Beelink SER6 Pro
AMD Ryzen 7 6800H
0.4989 sec * ∼63% -1%
GMK NucBox K2
AMD Ryzen 7 7735HS
0.4924 sec * ∼63%
Minisforum Venus Series NPB5
Intel Core i5-13500H
0.473 sec * ∼60% +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
0.4643 sec * ∼59% +6%
Beelink GTR6
AMD Ryzen 9 6900HX
0.4627 sec * ∼59% +6%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
0.45 sec * ∼57% +9%
Beelink SER7
AMD Ryzen 7 7840HS
0.4446 sec * ∼57% +10%
Minisforum Venus Series UM790 Pro
AMD Ryzen 9 7940HS
0.4192 sec * ∼53% +15%
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.2 - 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1972 Points
Cinebench R15 OpenGL 64Bit
163 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
244 Points
Hjälp
Performance Rating
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
100 pt ∼100%
Average AMD Ryzen 7 7735HS

73.4 pt ∼73%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
71.8 pt ∼72%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
55.5 pt ∼56%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
37.4 pt ∼37%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
35.6 pt ∼36%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
5.9 pt ∼6%
AIDA64 / FP32 Ray-Trace
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
25685 KRay/s ∼100% +93%
Average AMD Ryzen 7 7735HS
  (13148 - 17161, n=8)
15536 KRay/s ∼60% +16%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
13337 KRay/s ∼52%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
11188 KRay/s ∼44% -16%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
6976 KRay/s ∼27% -48%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
6633 KRay/s ∼26% -50%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
769 KRay/s ∼3% -94%
AIDA64 / FPU Julia
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
109853 Points ∼100% +29%
Average AMD Ryzen 7 7735HS
  (83889 - 105483, n=8)
96708 Points ∼88% +14%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
84934 Points ∼77%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
56942 Points ∼52% -33%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
30000 Points ∼27% -65%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
27788 Points ∼25% -67%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
4140 Points ∼4% -95%
AIDA64 / CPU SHA3
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
4783 MB/s ∼100% +61%
Average AMD Ryzen 7 7735HS
  (2885 - 3494, n=8)
3257 MB/s ∼68% +10%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
2969 MB/s ∼62%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
2669 MB/s ∼56% -10%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
1979 MB/s ∼41% -33%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
1841 MB/s ∼38% -38%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
290 MB/s ∼6% -90%
AIDA64 / CPU Queen
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
111969 Points ∼100% +18%
Average AMD Ryzen 7 7735HS
  (91524 - 108729, n=8)
101180 Points ∼90% +6%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
95223 Points ∼85%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
86881 Points ∼78% -9%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
49399 Points ∼44% -48%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
48734 Points ∼44% -49%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
8186 Points ∼7% -91%
AIDA64 / FPU SinJulia
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
14705 Points ∼100% +20%
Average AMD Ryzen 7 7735HS
  (11441 - 13097, n=8)
12470 Points ∼85% +2%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
12254 Points ∼83%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
7246 Points ∼49% -41%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
4826 Points ∼33% -61%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
4529 Points ∼31% -63%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
408 Points ∼3% -97%
AIDA64 / FPU Mandel
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
58699 Points ∼100% +26%
Average AMD Ryzen 7 7735HS
  (45982 - 58232, n=8)
53002 Points ∼90% +14%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
46670 Points ∼80%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
28019 Points ∼48% -40%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
17951 Points ∼31% -62%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
16652 Points ∼28% -64%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
2088 Points ∼4% -96%
AIDA64 / CPU AES
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
161216 MB/s ∼100% +34%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
120363 MB/s ∼75%
Average AMD Ryzen 7 7735HS
  (49927 - 120363, n=8)
72993 MB/s ∼45% -39%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
68595 MB/s ∼43% -43%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
57644 MB/s ∼36% -52%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
53328 MB/s ∼33% -56%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
7961 MB/s ∼5% -93%
AIDA64 / CPU ZLib
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
949 MB/s ∼100% +26%
Average AMD Ryzen 7 7735HS
  (651 - 906, n=8)
807 MB/s ∼85% +7%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
775 MB/s ∼82% +3%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
751 MB/s ∼79%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
372 MB/s ∼39% -50%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
362 MB/s ∼38% -52%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
77.4 MB/s ∼8% -90%
AIDA64 / FP64 Ray-Trace
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
13904 KRay/s ∼100% +95%
Average AMD Ryzen 7 7735HS
  (1459 - 9094, n=8)
7357 KRay/s ∼53% +3%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
7123 KRay/s ∼51%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
5957 KRay/s ∼43% -16%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
3761 KRay/s ∼27% -47%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
3668 KRay/s ∼26% -49%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
432 KRay/s ∼3% -94%
AIDA64 / CPU PhotoWorxx
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
41088 MPixel/s ∼100% +36%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
30200 MPixel/s ∼74%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
29263 MPixel/s ∼71% -3%
Average AMD Ryzen 7 7735HS
  (27099 - 30542, n=8)
28321 MPixel/s ∼69% -6%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
25970 MPixel/s ∼63% -14%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
25453 MPixel/s ∼62% -16%
Blackview MP80
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
6599 MPixel/s ∼16% -78%

Systemets prestanda

PCMark-resultaten är utmärkta med resultat som är snabbare än de flesta andra minidatorer som drivs av 12:e generationens eller äldre Intel-processorer. Poängen för Digital Content Creation är särskilt anmärkningsvärd eftersom Radeon 680M kan springa varv runt Iris Xe-serien.

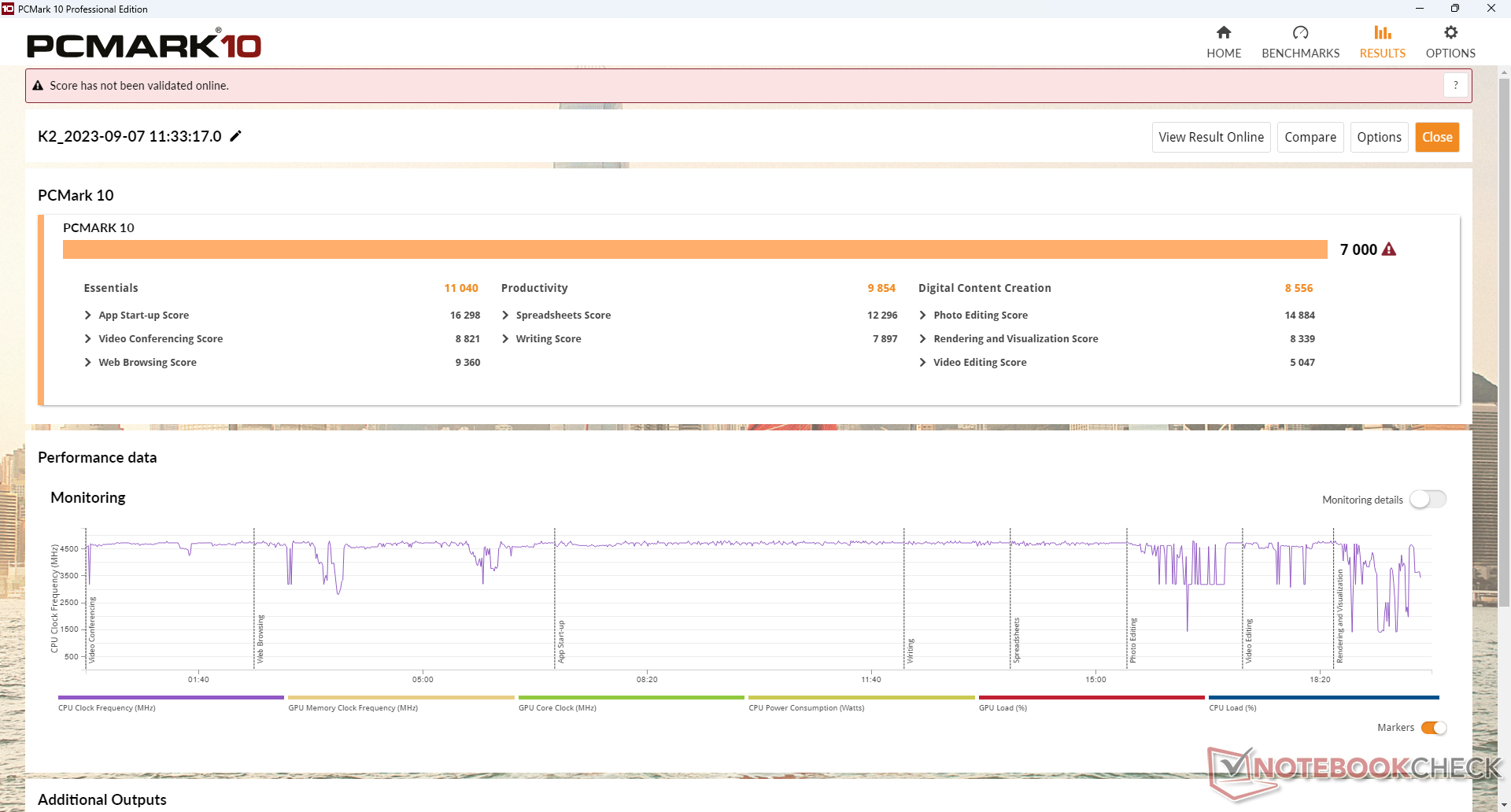

PCMark 10 Standard
PCMark 10 Standard
PCMark 10 / Score
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
7225 Points ∼100% +3%
Average AMD Ryzen 7 7735HS
  (6437 - 7332, n=8)
7020 Points ∼97% 0%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
7000 Points ∼97%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
5882 Points ∼81% -16%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
5302 Points ∼73% -24%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
4914 Points ∼68% -30%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
4132 Points ∼57% -41%
PCMark 10 / Essentials
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
11040 Points ∼100%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
11035 Points ∼100% 0%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10819 Points ∼98% -2%
Average AMD Ryzen 7 7735HS
  (9943 - 11124, n=8)
10662 Points ∼97% -3%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
10558 Points ∼96% -4%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
9649 Points ∼87% -13%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
8351 Points ∼76% -24%
PCMark 10 / Productivity
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10452 Points ∼100% +6%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
9854 Points ∼94%
Average AMD Ryzen 7 7735HS
  (8077 - 9862, n=8)
9218 Points ∼88% -6%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
6963 Points ∼67% -29%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
6788 Points ∼65% -31%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
6576 Points ∼63% -33%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
6348 Points ∼61% -36%
PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 7735HS
  (8306 - 10834, n=8)
9607 Points ∼100% +12%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
9052 Points ∼94% +6%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
8556 Points ∼89%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
7612 Points ∼79% -11%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
5502 Points ∼57% -36%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
4916 Points ∼51% -43%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
3613 Points ∼38% -58%
CrossMark / Overall
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1700 Points ∼100% +3%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1655 Points ∼97%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1596 Points ∼94% -4%
Average AMD Ryzen 7 7735HS
  (1361 - 1736, n=6)
1559 Points ∼92% -6%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
1438 Points ∼85% -13%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
1371 Points ∼81% -17%
CrossMark / Productivity
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1641 Points ∼100%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1621 Points ∼99% -1%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1537 Points ∼94% -6%
Average AMD Ryzen 7 7735HS
  (1308 - 1721, n=6)
1533 Points ∼93% -7%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
1523 Points ∼93% -7%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
1456 Points ∼89% -11%
CrossMark / Creativity
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1953 Points ∼100% +14%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1769 Points ∼91% +3%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1720 Points ∼88%
Average AMD Ryzen 7 7735HS
  (1516 - 1785, n=6)
1666 Points ∼85% -3%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
1359 Points ∼70% -21%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
1255 Points ∼64% -27%
CrossMark / Responsiveness
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1515 Points ∼100%
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
1494 Points ∼99% -1%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
1434 Points ∼95% -5%
Average AMD Ryzen 7 7735HS
  (1108 - 1640, n=6)
1346 Points ∼89% -11%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1311 Points ∼87% -13%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1293 Points ∼85% -15%
PCMark 10 Score
7000 poäng
Hjälp
AIDA64 / Memory Copy
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
69325 MB/s ∼100% +35%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
51223 MB/s ∼74%
Average AMD Ryzen 7 7735HS
  (47903 - 52012, n=8)
49968 MB/s ∼72% -2%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
48099 MB/s ∼69% -6%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44299 MB/s ∼64% -14%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
41953 MB/s ∼61% -18%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
41310 MB/s ∼60% -19%
AIDA64 / Memory Read
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
61911 MB/s ∼100% +20%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
51734 MB/s ∼84%
Average AMD Ryzen 7 7735HS
  (44837 - 51856, n=8)
49244 MB/s ∼80% -5%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
47290 MB/s ∼76% -9%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
46709 MB/s ∼75% -10%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44751 MB/s ∼72% -13%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
38017 MB/s ∼61% -27%
AIDA64 / Memory Write
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
87358 MB/s ∼100% +58%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
55242 MB/s ∼63%
Average AMD Ryzen 7 7735HS
  (51089 - 55284, n=8)
54081 MB/s ∼62% -2%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
51980 MB/s ∼60% -6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
46860 MB/s ∼54% -15%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
46778 MB/s ∼54% -15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
45887 MB/s ∼53% -17%
AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
96.2 ns * ∼100% -17%
Average AMD Ryzen 7 7735HS
  (82.1 - 109.7, n=8)
90.7 ns * ∼94% -10%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
85.1 ns * ∼88% -4%
GMK NucBox K2
AMD Ryzen 7 7735HS, Radeon 680M
82.1 ns * ∼85%
Trigkey Speed S
Intel Core i5-11320H, Iris Xe G7 96EUs
77.6 ns * ∼81% +5%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
66.3 ns * ∼69% +19%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
55.6 ns * ∼58% +32%

* ... smaller is better

DPC-fördröjning

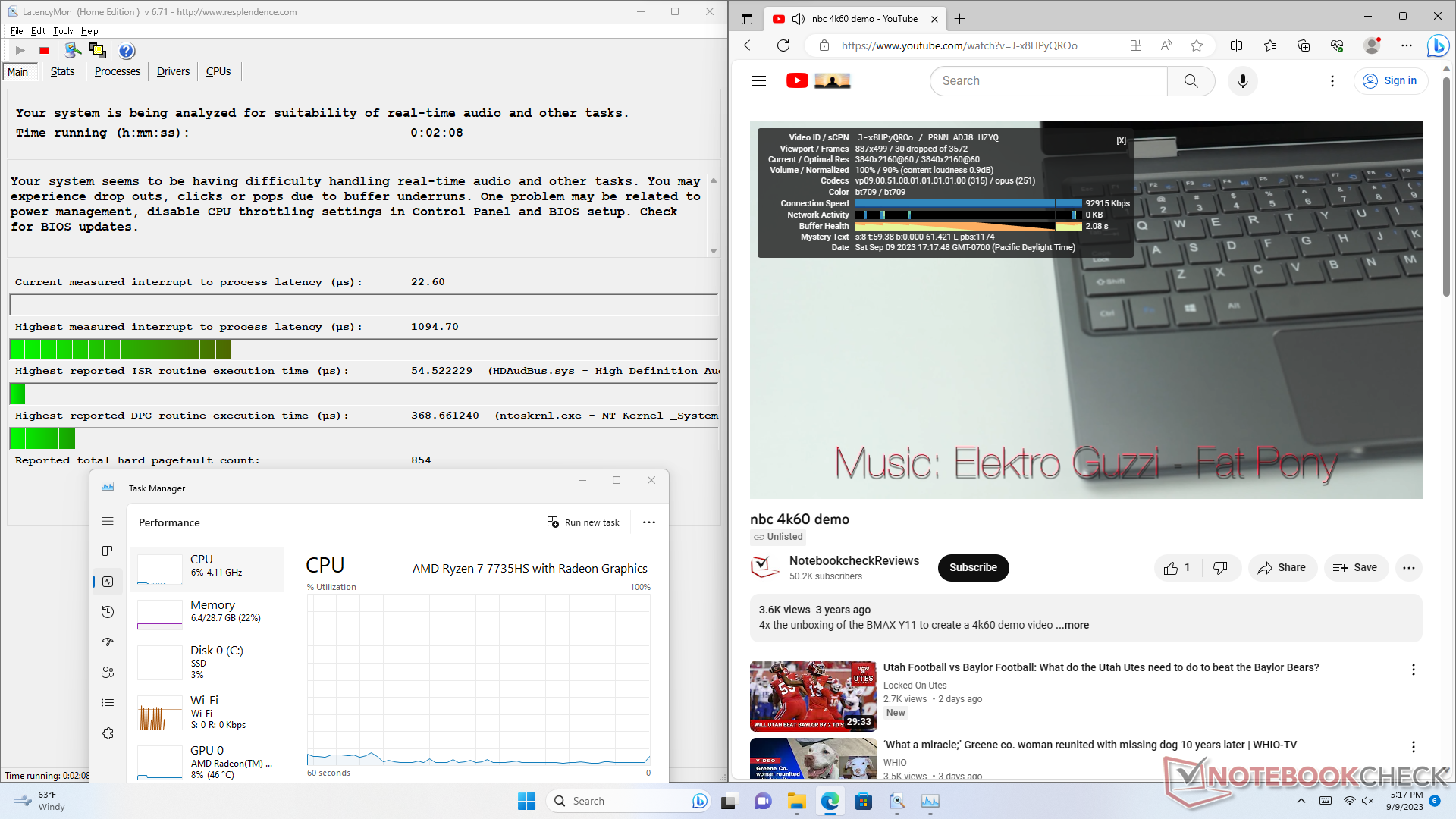

LatencyMon avslöjar mindre DPC-problem när vi öppnar flera webbläsarflikar på vår hemsida. uppspelning av 4K-video vid 60 FPS uppvisar problem eftersom vi kan registrera 30 tappade bildrutor inom en tidsram på en minut. De hackiga bilderna tyder på ett potentiellt AMD-drivrutinproblem som bör åtgärdas.

LatencyMon
LatencyMon

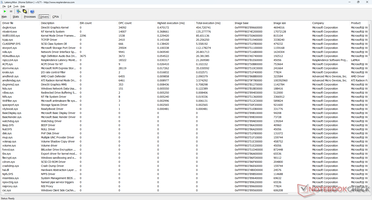

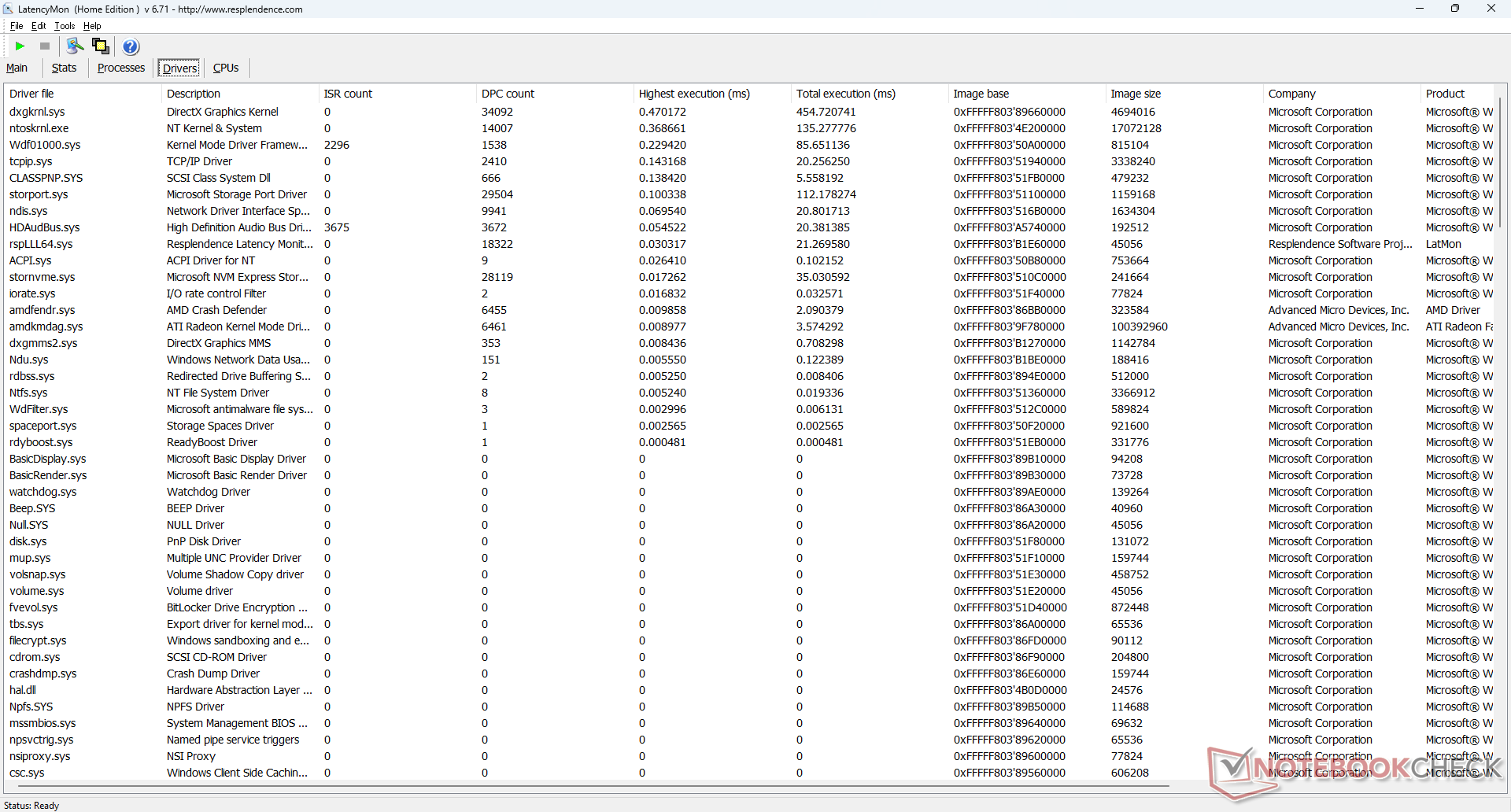

Lista över förare
Lista över förare
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey Speed S
Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
1455.4 μs * ∼100% -33%
GMK NucBox K2
Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG
1094.7 μs * ∼75%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1068.7 μs * ∼73% +2%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
786 μs * ∼54% +28%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
647.9 μs * ∼45% +41%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
466 μs * ∼32% +57%

* ... smaller is better

Lagringsenheter

Modellen levereras med en mellanklass PCIe3 x4 Lexar NM610 Pro som erbjuder högre maximal överföringshastighet än den vanliga NM610 non-Pro-versionen (3300 MB/s vs. 2100 MB/s). Dyrare PCIe4-modeller som Samsung PM9A1 stöds för upp till 2x prestanda, men strypning kan vara ett problem eftersom det inte finns någon extra kylning för enheten.

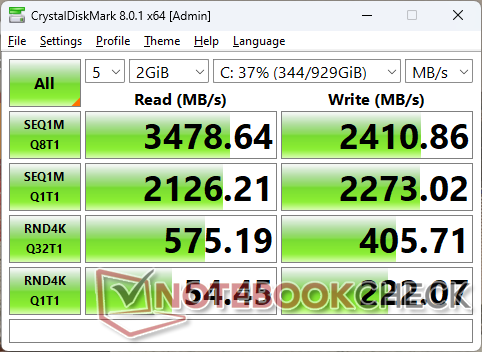

CDM 8
CDM 8

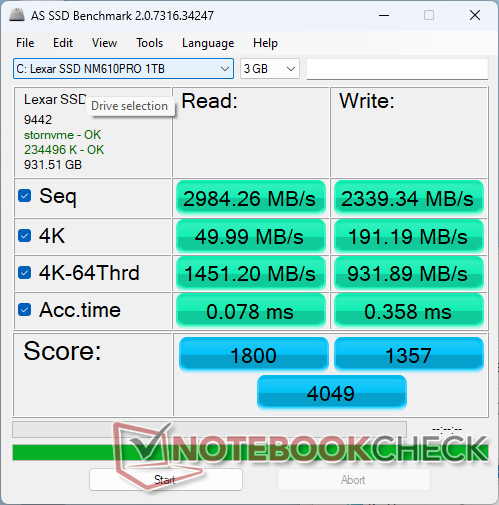

AS SSD
AS SSD
Endast en M.2 2280-kortplats utan sekundära alternativ
Endast en M.2 2280-kortplats utan sekundära alternativ
Lexar NM610 Pro NM610P001T-HNNNG
CDM 5/6 Read Seq Q32T1: 3483 MB/s
CDM 5/6 Write Seq Q32T1: 2362 MB/s
CDM 5/6 Read 4K Q32T1: 569.9 MB/s
CDM 5/6 Write 4K Q32T1: 410.1 MB/s
CDM 5 Read Seq: 2029 MB/s
CDM 5 Write Seq: 2288 MB/s
CDM 5/6 Read 4K: 53.97 MB/s
CDM 5/6 Write 4K: 218.2 MB/s
Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
80.6 pt ∼81%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
62.7 pt ∼63%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
61.1 pt ∼61%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
58.6 pt ∼59%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
53.9 pt ∼54%
GMK NucBox 2
Netac S930E8/256GPN
35.1 pt ∼35%
DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3337 (3301.03min - 3337.16max) MB/s ∼100% +57%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2718 (2645.56min - 2717.91max) MB/s ∼81% +28%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
2433 (2411.3min - 2433.16max) MB/s ∼73% +14%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2129 (2045.25min - 2129.3max) MB/s ∼64%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1684 (1646.89min - 1684.01max) MB/s ∼50% -21%
GMK NucBox 2
Netac S930E8/256GPN
1566 (1557.38min - 1565.96max) MB/s ∼47% -26%
seq write
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3404 (38.3min - 3403.58max) MB/s ∼100% +56%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3356 (3181.73min - 3356.49max) MB/s ∼99% +54%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2298 (1081.92min - 2298.06max) MB/s ∼68% +5%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2180 (2126.36min - 2180.16max) MB/s ∼64%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1625 (1475.57min - 1625.19max) MB/s ∼48% -25%
GMK NucBox 2
Netac S930E8/256GPN
1213 (454.38min - 1213.29max) MB/s ∼36% -44%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
5438 (4937.74min - 5438.31max) MB/s ∼100% +59%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
4893 (3920.33min - 4893.08max) MB/s ∼90% +43%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
3411 (3096.44min - 3410.5max) MB/s ∼63%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
2909 (2628.77min - 2908.96max) MB/s ∼53% -15%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2223 (1765.77min - 2223.4max) MB/s ∼41% -35%
GMK NucBox 2
Netac S930E8/256GPN
2121 (1959.37min - 2121.01max) MB/s ∼39% -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
4955 (4929.56min - 4955.41max) MB/s ∼100% +108%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2494 (2222.35min - 2493.51max) MB/s ∼50% +5%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2378 (2283.33min - 2377.68max) MB/s ∼48%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1621 (1610.27min - 1621.2max) MB/s ∼33% -32%
GMK NucBox 2
Netac S930E8/256GPN
1248 (414.41min - 1248.45max) MB/s ∼25% -48%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
739 (52.85min - 739.46max) MB/s ∼15% -69%
4k q1 t1 read
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
86.1 (85.71min - 86.12max) MB/s ∼100% +66%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
84.5 (83.02min - 84.54max) MB/s ∼98% +63%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
51.8 (50.1min - 51.75max) MB/s ∼60%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
44.2 (41.58min - 44.2max) MB/s ∼51% -15%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
38.1 (35.61min - 38.07max) MB/s ∼44% -26%
GMK NucBox 2
Netac S930E8/256GPN
29.4 (21.8min - 29.38max) MB/s ∼34% -43%
4k q1 t1 write
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
260 (257.62min - 260.21max) MB/s ∼100% +23%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
212 (203.51min - 212.25max) MB/s ∼82%
GMK NucBox 2
Netac S930E8/256GPN
156 (133.05min - 156.14max) MB/s ∼60% -26%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
144.6 (143.6min - 144.57max) MB/s ∼56% -32%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
139.4 (137.92min - 139.38max) MB/s ∼54% -34%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
120 (112.79min - 120.03max) MB/s ∼46% -43%
4k q32 t16 read
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2810 (2697.36min - 2809.61max) MB/s ∼100% +84%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1530 (1528.13min - 1529.56max) MB/s ∼54%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
808 (792.58min - 807.51max) MB/s ∼29% -47%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
639 (421.15min - 639.47max) MB/s ∼23% -58%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
474 (472.39min - 473.68max) MB/s ∼17% -69%
GMK NucBox 2
Netac S930E8/256GPN
331 (329.92min - 330.85max) MB/s ∼12% -78%
4k q32 t16 write
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1258 (1245.8min - 1257.91max) MB/s ∼100% +50%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
1066 (54.15min - 1066.13max) MB/s ∼85% +28%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
836 (794.23min - 835.97max) MB/s ∼66%
GMK NucBox 2
Netac S930E8/256GPN
739 (122.91min - 738.54max) MB/s ∼59% -12%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
454 (443.2min - 453.53max) MB/s ∼36% -46%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
176.1 (168.14min - 176.06max) MB/s ∼14% -79%
AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
5249 Points ∼100% +30%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
4049 Points ∼77%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
3887 Points ∼74% -4%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2617 Points ∼50% -35%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
2595 Points ∼49% -36%
GMK NucBox 2
Netac S930E8/256GPN
1497 Points ∼29% -63%
Score Read
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1800 Points ∼100%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1513 Points ∼84% -16%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
1320 Points ∼73% -27%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
1215 Points ∼68% -32%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
792 Points ∼44% -56%
GMK NucBox 2
Netac S930E8/256GPN
615 Points ∼34% -66%
Score Write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
3326 Points ∼100% +145%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1632 Points ∼49% +20%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1442 Points ∼43% +6%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1357 Points ∼41%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
800 Points ∼24% -41%
GMK NucBox 2
Netac S930E8/256GPN
598 Points ∼18% -56%
Seq Read
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
4536 MB/s ∼100% +52%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3900.61 MB/s ∼86% +31%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2984.26 MB/s ∼66%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
2714.84 MB/s ∼60% -9%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2268 MB/s ∼50% -24%
GMK NucBox 2
Netac S930E8/256GPN
2069 MB/s ∼46% -31%
Seq Write
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3390.67 MB/s ∼100% +45%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
2698 MB/s ∼80% +15%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
2339.34 MB/s ∼69%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1318 MB/s ∼39% -44%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1287.68 MB/s ∼38% -45%
GMK NucBox 2
Netac S930E8/256GPN
1203 MB/s ∼35% -49%
4K Read
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
73.17 MB/s ∼100% +46%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
72 MB/s ∼98% +44%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
63.4 MB/s ∼87% +27%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
49.99 MB/s ∼68%
GMK NucBox 2
Netac S930E8/256GPN
41.66 MB/s ∼57% -17%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
37.69 MB/s ∼52% -25%
4K Write
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
225 MB/s ∼100% +18%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
219.46 MB/s ∼98% +15%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
191.19 MB/s ∼85%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
166.8 MB/s ∼74% -13%
GMK NucBox 2
Netac S930E8/256GPN
136.9 MB/s ∼61% -28%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
129.29 MB/s ∼57% -32%
4K-64 Read
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
1451.2 MB/s ∼100%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1223 MB/s ∼84% -16%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
794 MB/s ∼55% -45%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
787.73 MB/s ∼54% -46%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
447.15 MB/s ∼31% -69%
GMK NucBox 2
Netac S930E8/256GPN
366.3 MB/s ∼25% -75%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
2889 MB/s ∼100% +210%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1276 MB/s ∼44% +37%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
1094.27 MB/s ∼38% +17%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
931.89 MB/s ∼32%
GMK NucBox 2
Netac S930E8/256GPN
340.5 MB/s ∼12% -63%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
331.93 MB/s ∼11% -64%
Access Time Read
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
0.1 ms * ∼100% -28%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
0.083 ms * ∼83% -6%
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
0.078 ms * ∼78%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
0.066 ms * ∼66% +15%
GMK NucBox 2
Netac S930E8/256GPN
0.064 ms * ∼64% +18%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
0.06 ms * ∼60% +23%
Access Time Write
GMK NucBox K2
Lexar NM610 Pro NM610P001T-HNNNG
0.358 ms * ∼100%
GMK NucBox 2
Netac S930E8/256GPN
0.347 ms * ∼97% +3%
Trigkey Speed S
Intel SSD 670p SSDPEKNU512GZ
0.102 ms * ∼28% +72%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
0.087 ms * ∼24% +76%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
0.076 ms * ∼21% +79%
Intel NUC 13 Pro Desk Edition Kit
Samsung PM9A1 MZVL2512HCJQ
0.024 ms * ∼7% +93%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

017034051068085010201190136015301700187020402210238025502720289030603230Tooltip
GMK NucBox K2: Ø3162 (1744.33-3330.86)

GPU-prestanda

Radeon 680M Radeon 680M är fortfarande en av de snabbaste integrerade GPU:erna på marknaden även om den börjar närma sig ett par år. GPU:n är tillräckligt kraftfull för att spela moderna 3D-titlar i native 1080p så länge inställningarna är lägre. Vi rekommenderar att du ansluter till en FreeSync-kompatibel skärm om du kommer att spela på NucBox K2 ofta eftersom Radeon 680M tenderar att sväva mellan 45 och 60 FPS-intervallet.

Uppgradering till Ryzen 9 7940HS-konfigurationen med Radeon 780M förväntas öka grafikprestandan med cirka 10 till 20 procent baserat på vår tid med Beelink SER7.

3DMark 11
3DMark 11
Fire Strike
Fire Strike
Time Spy
Time Spy
Hastighet sätt
Hastighet sätt
3DMark Performance Rating - Percent
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
100 pt ∼100%
Minisforum Venus Series UM790 Pro
AMD Radeon 780M, AMD Ryzen 9 7940HS
92.2 pt ∼92%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
85.8 pt ∼86%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
85.1 pt ∼85%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
84.2 pt ∼84%
Average AMD Radeon 680M

79.1 pt ∼79%
Minisforum Mercury Series EM680
AMD Radeon 680M, AMD Ryzen 7 6800U
64.2 pt ∼64%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
60.7 pt ∼61%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
55.4 pt ∼55%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
52.6 pt ∼53%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
45.9 pt ∼46%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
45.5 pt ∼46%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
22 pt ∼22%
3DMark 11 - 1280x720 Performance GPU
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
12845 Points ∼100% +23%
Minisforum Venus Series UM790 Pro
AMD Radeon 780M, AMD Ryzen 9 7940HS
12384 Points ∼96% +19%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
10807 Points ∼84% +4%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
10566 Points ∼82% +1%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
10439 Points ∼81%
Average AMD Radeon 680M
  (6969 - 11605, n=30)
10079 Points ∼78% -3%
Minisforum Mercury Series EM680
AMD Radeon 680M, AMD Ryzen 7 6800U
7718 Points ∼60% -26%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7321 Points ∼57% -30%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
6477 Points ∼50% -38%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
6423 Points ∼50% -38%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points ∼47% -42%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
5413 Points ∼42% -48%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
2947 Points ∼23% -72%
3DMark
1920x1080 Fire Strike Graphics
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
8001 Points ∼100% +6%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
7570 Points ∼95%
Minisforum Venus Series UM790 Pro
AMD Radeon 780M, AMD Ryzen 9 7940HS
7284 Points ∼91% -4%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
7026 Points ∼88% -7%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
6962 Points ∼87% -8%
Average AMD Radeon 680M
  (3791 - 7593, n=31)
6719 Points ∼84% -11%
Minisforum Mercury Series EM680
AMD Radeon 680M, AMD Ryzen 7 6800U
5660 Points ∼71% -25%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5616 Points ∼70% -26%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
5305 Points ∼66% -30%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
4568 Points ∼57% -40%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
4041 Points ∼51% -47%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
4037 Points ∼50% -47%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
1914 Points ∼24% -75%
2560x1440 Time Spy Graphics
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
2908 Points ∼100% +19%
Minisforum Venus Series UM790 Pro
AMD Radeon 780M, AMD Ryzen 9 7940HS
2632 Points ∼91% +8%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2452 Points ∼84% +1%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2437 Points ∼84% 0%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
2436 Points ∼84%
Average AMD Radeon 680M
  (1359 - 2607, n=31)
2245 Points ∼77% -8%
Minisforum Mercury Series EM680
AMD Radeon 680M, AMD Ryzen 7 6800U
1838 Points ∼63% -25%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1672 Points ∼57% -31%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1508 Points ∼52% -38%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1508 Points ∼52% -38%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1300 Points ∼45% -47%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points ∼43% -49%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
594 Points ∼20% -76%
2560x1440 Time Spy Score
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
3270 Points ∼100% +19%
Minisforum Venus Series UM790 Pro
AMD Radeon 780M, AMD Ryzen 9 7940HS
2966 Points ∼91% +8%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2751 Points ∼84% 0%
GMK NucBox K2
AMD Radeon 680M, AMD Ryzen 7 7735HS
2738 Points ∼84%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2735 Points ∼84% 0%
Average AMD Radeon 680M
  (1546 - 2914, n=31)
2513 Points ∼77% -8%
Minisforum Mercury Series EM680
AMD Radeon 680M, AMD Ryzen 7 6800U
2057 Points ∼63% -25%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1903 Points ∼58% -30%
Minisforum Venus Series NPB5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H
1731 Points ∼53% -37%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1680 Points ∼51% -39%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1456 Points ∼45% -47%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1405 Points ∼43% -49%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
676 Points ∼21% -75%
