MagyarTest: Razer Blade 2017 (GTX 1060, 7700HQ, Full-HD) (sammanfattning)

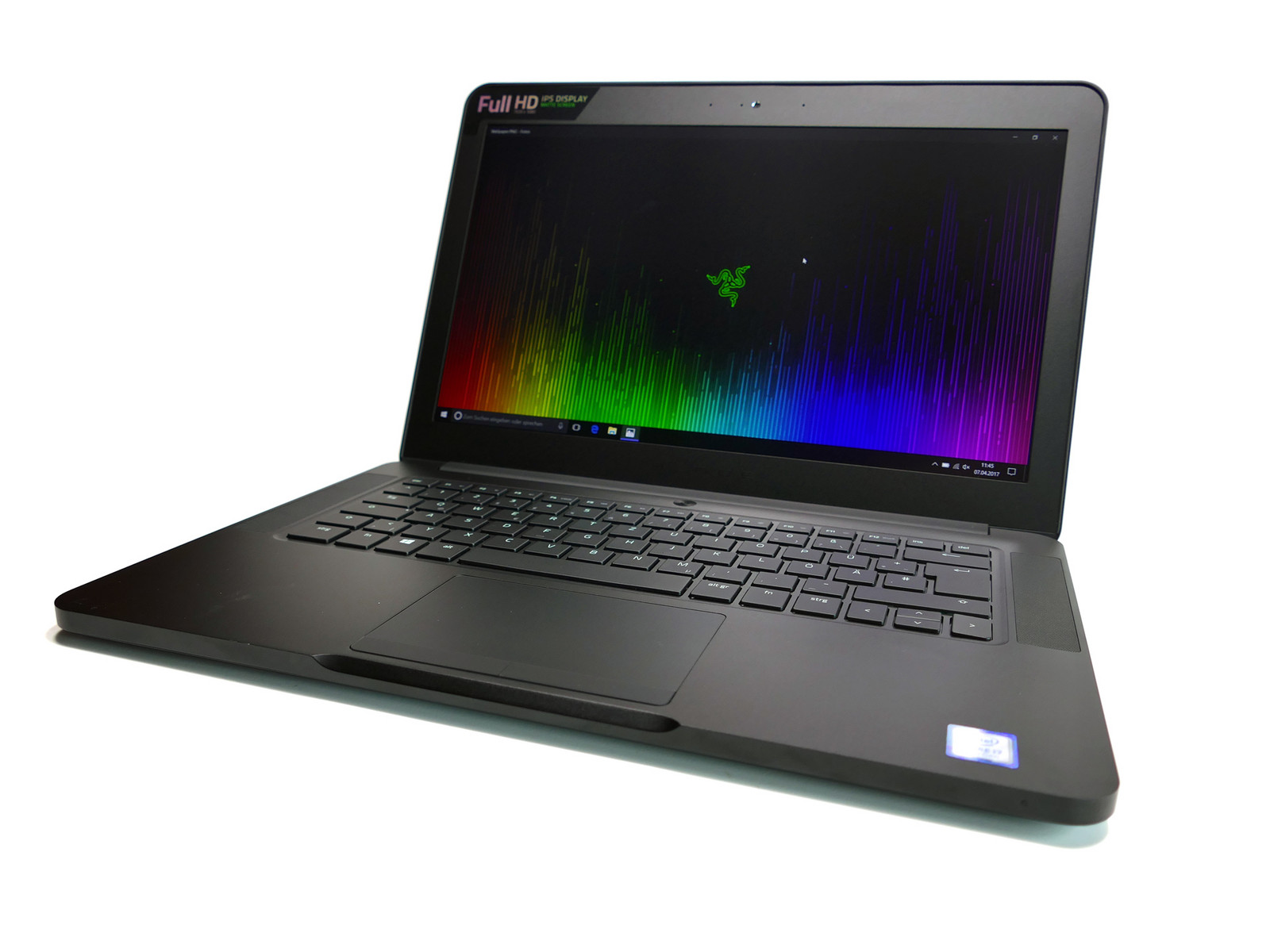

Razer Blade (2017) (Blade Serie)
Processor

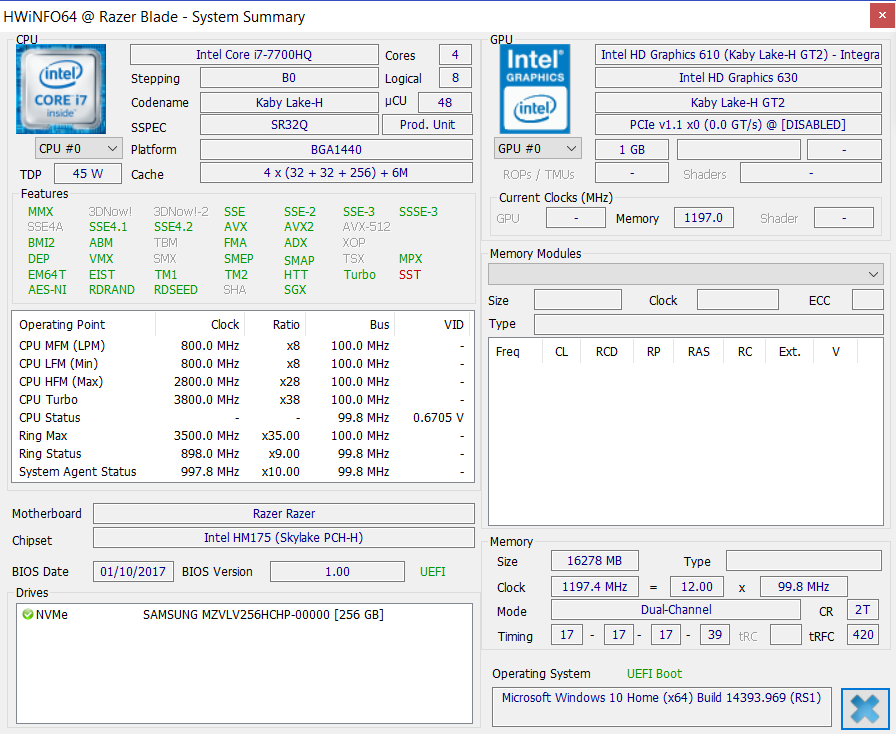

Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Grafikkort

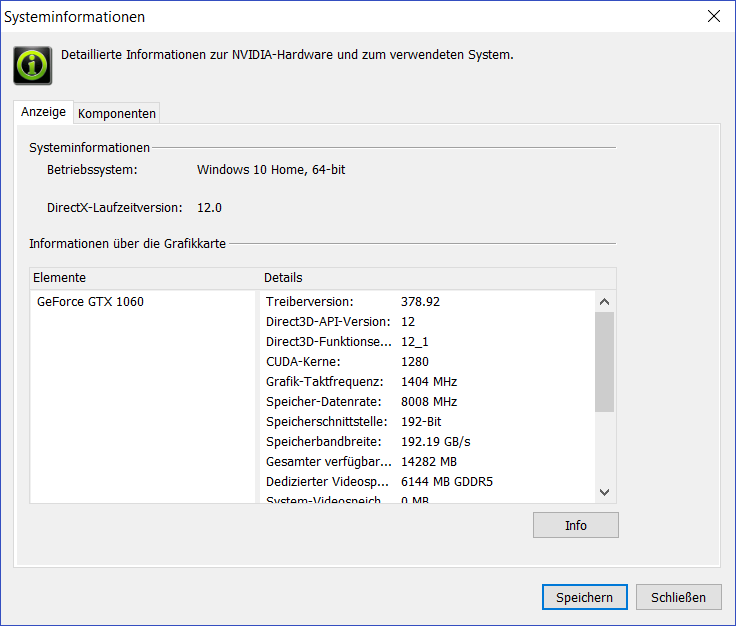

NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Kärna: 1404 MHz, Minne: 8008 MHz, GDDR5, 378.92, Optimus
Minne
15.9 GB
, DDR4 Dual-Channel
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, LP140WF3-SPD1, IPS, glansig: nej
Moderkort
Intel HM175
Hårddisk
Samsung PM951 NVMe MZVLV256, 256 GB
Vikt
1.84 kg, Strömförsörjning: 520 g
Pris
2149 Kr
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LG Philips LP140WF3-SPD1 (LGD046D) tested with X-Rite i1Pro 2
Max: 296 cd/m² (Nits) Medel: 277.1 cd/m² Minimum: 30 cd/m²Distribution av ljusstyrkan: 84 %
Mitt på batteriet: 272 cd/m²
Kontrast: 1046:1 (Svärta: 0.26 cd/m²)
ΔE Color 4.59 | 0.5-29.43 Ø5
ΔE Greyscale 4.28 | 0.57-98 Ø5.3
83% sRGB (Argyll 1.6.3 3D)
55% AdobeRGB 1998 (Argyll 1.6.3 3D)
60.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
83.4% sRGB (Argyll 2.2.0 3D)
65.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
| Razer Blade (2017) LP140WF3-SPD1, , 1920x1080, 14.00 | Gigabyte Aero 14 LG Philips LP140QH1-SPF1 (LGD049A), , 2560x1440, 14.00 | Alienware 13 R3 JJT6C_133KL05 (SDCA029), , 2560x1440, 13.30 | Apple MacBook Pro 13 2016 (2.9 GHz) APPA033, , 2560x1600, 13.30 | |
|---|---|---|---|---|
| Display | ||||
| Display P3 Coverage | 64.4 | 99.2 | ||
| sRGB Coverage | 91.8 | 99.9 | ||
| AdobeRGB 1998 Coverage | 65.5 | 87.6 | ||
| Response Times | -32% | -5% | -101% | |
| Response Time Grey 50% / Grey 80% * | 25.2 ? | 41 ? -63% | 47.2 ? -87% | |
| Response Time Black / White * | 24.8 ? | 25 ? -1% | 2.8 ? 89% | 53 ? -114% |
| PWM Frequency | 21370 | 240 ? -99% | ||
| Screen | -1% | 32% | 35% | |
| Brightness middle | 272 | 290 7% | 313 15% | 569 109% |
| Brightness | 277 | 257 -7% | 310 12% | 542 96% |
| Brightness Distribution | 84 | 79 -6% | 87 4% | 90 7% |
| Black Level * | 0.26 | 0.3 -15% | 0.56 -115% | |
| Contrast | 1046 | 967 -8% | 1016 -3% | |
| Colorchecker dE 2000 * | 4.59 | 4.59 -0% | 2.54 45% | 1.4 69% |
| Colorchecker dE 2000 max. * | 8.49 | 8.68 -2% | 3.94 54% | 2.9 66% |
| Greyscale dE 2000 * | 4.28 | 4.32 -1% | 1.43 67% | 1.8 58% |
| Gamma | 2.23 99% | 2.25 98% | 2.3 96% | 2.16 102% |
| CCT | 6848 95% | 7320 89% | 6337 103% | 6877 95% |
| Color Space (Percent of AdobeRGB 1998) | 55 | 59 7% | 78 42% | 78.4 43% |
| Color Space (Percent of sRGB) | 83 | 92 11% | 97 17% | 99.3 20% |
| Total Average (Program / Settings) | -17% /
-7% | 14% /
25% | -33% /
12% |
* ... smaller is better
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 21370 Hz |  | |

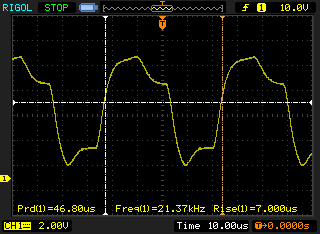

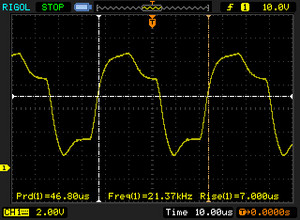

The display backlight flickers at 21370 Hz (worst case, e.g., utilizing PWM) . The frequency of 21370 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured. | |||
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

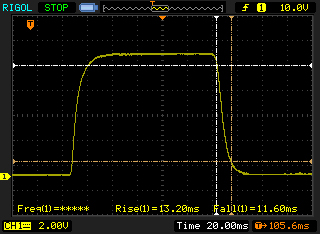

| 24.8 ms ... rise ↗ and fall ↘ combined | ↗ 13.2 ms rise |  |
| ↘ 11.6 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 52 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

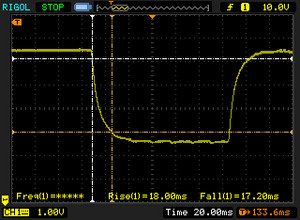

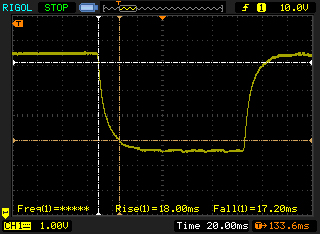

| ↔ Response Time 50% Grey to 80% Grey | ||
| 25.2 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 17.2 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms). | ||
Cinebench R15 CPU Multi 64 Bit
| Cinebench R15 | |
| CPU Single 64Bit | |
| MSI GS63VR 7RF-228US | |
| Alienware 13 R3 | |
| Gigabyte Aero 14 | |
| Asus Strix GL502VM-DS74 | |
| Gigabyte P55W v7 | |
| Razer Blade (2017) | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Razer Blade (2016) FHD | |
| Asus FX502VM-AS73 | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| CPU Multi 64Bit | |
| Asus Strix GL502VM-DS74 | |
| MSI GS63VR 7RF-228US | |
| Alienware 13 R3 | |
| Gigabyte P55W v7 | |
| Gigabyte Aero 14 | |
| Razer Blade (2017) | |
| Asus FX502VM-AS73 | |
| Razer Blade (2016) FHD | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Asus FX502VM-AS73 | |
| MSI GS63VR 7RF-228US | |
| Gigabyte P55W v7 | |
| Razer Blade (2016) FHD | |
| Razer Blade (2017) | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| Gigabyte Aero 14 | |
| Work Score Accelerated v2 | |
| Gigabyte P55W v7 | |
| MSI GS63VR 7RF-228US | |
| Razer Blade (2017) | |
| Razer Blade (2016) FHD | |
| Gigabyte Aero 14 | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| Asus FX502VM-AS73 | |
| PCMark 8 Home Score Accelerated v2 | 3958 poäng | |
| PCMark 8 Work Score Accelerated v2 | 5008 poäng | |
Hjälp | ||
| Razer Blade (2017) Samsung PM951 NVMe MZVLV256 | Razer Blade (2016) Samsung PM951 NVMe MZVLV512 | Razer Blade (2016) FHD | Gigabyte Aero 14 LiteOn CX2-8B256 | Alienware 13 R3 Toshiba NVMe THNSN5256GPUK | Apple MacBook Pro 13 2016 (2.9 GHz) Apple SSD AP0256 | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | 35% | 113% | 60% | 35% | 93% | |
| Read Seq | 1122 | 1296 16% | 1977 76% | 1584 41% | 1373 22% | 1662 48% |
| Write Seq | 311 | 603 94% | 1668 436% | 795 156% | 789 154% | 1336 330% |
| Read 512 | 682 | 655 -4% | 800 17% | 985 44% | 1070 57% | 1183 73% |
| Write 512 | 310 | 604 95% | 1030 232% | 814 163% | 405.6 31% | 1481 378% |
| Read 4k | 34.8 | 42.22 21% | 58.1 67% | 44.93 29% | 37.65 8% | 16.1 -54% |
| Write 4k | 134.3 | 139.6 4% | 145.6 8% | 131.2 -2% | 140.2 4% | 23.5 -83% |
| Read 4k QD32 | 565 | 573 1% | 592 5% | 602 7% | 593 5% | 657 16% |
| Write 4k QD32 | 308 | 480 56% | 508 65% | 441 43% | 311.2 1% | 419 36% |
Samsung PM951 NVMe MZVLV256
Sequential Read:
1122 MB/s
Sequential Write:
311 MB/s
512K Read:
682 MB/s
512K Write:
310 MB/s
4K Read:
34.8 MB/s
4K Write:
134.3 MB/s
4K QD32 Read:
565 MB/s
4K QD32 Write:
308 MB/s
| 3DMark 11 - 1280x720 Performance GPU | |
| Gigabyte Aero 14 | |
| Gigabyte P55W v7 | |
| MSI GS63VR 7RF-228US | |
| Asus Strix GL502VM-DS74 | |
| Alienware 13 R3 | |
| Razer Blade (2017) | |
| Razer Blade 14 2015 | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| 3DMark - 1920x1080 Fire Strike Graphics | |
| Gigabyte Aero 14 | |
| Gigabyte P55W v7 | |
| Alienware 13 R3 | |
| MSI GS63VR 7RF-228US | |
| Asus Strix GL502VM-DS74 | |
| Razer Blade (2017) | |
| Razer Blade 14 2015 | |
| Apple MacBook Pro 13 2016 (2.9 GHz) | |
| 3DMark 11 Performance | 12114 poäng | |
| 3DMark Fire Strike Score | 9313 poäng | |
| 3DMark Fire Strike Extreme Score | 4948 poäng | |
Hjälp | ||
The Witcher 3 ultra
Deus Ex Mankind Divided | Rise of the Tomb Raider | Mass Effect Andromeda | The Witcher 3 | For Honor
| Deus Ex Mankind Divided | |
| 1920x1080 High Preset AF:4x | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Razer Blade (2017) | |
| Razer Blade (2016) FHD | |
| 1920x1080 Ultra Preset AA:2xMS AF:8x | |
| Razer Blade (2017) | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Razer Blade (2016) FHD | |
| Rise of the Tomb Raider | |
| 1920x1080 High Preset AA:FX AF:4x | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Gigabyte P55W v7 | |
| Razer Blade (2017) | |
| 1920x1080 Very High Preset AA:FX AF:16x | |
| MSI GS63VR 7RF-228US | |
| Gigabyte P55W v7 | |
| Asus FX502VM-AS73 | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Asus Strix GL502VM-DS74 | |
| Razer Blade (2017) | |
| Mass Effect Andromeda | |
| 1920x1080 High Preset (Resolution Scale Mode off) AA:T | |
| Razer Blade (2017) | |
| 1920x1080 Ultra Preset (Resolution Scale Mode off) AA:T | |
| Razer Blade (2017) | |
| The Witcher 3 | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| MSI GS63VR 7RF-228US | |
| Gigabyte P55W v7 | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Razer Blade (2017) | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| MSI GS63VR 7RF-228US | |
| Gigabyte P55W v7 | |
| Gigabyte Aero 14 | |
| Acer Aspire VN7-593G-73HP V15 Nitro BE | |
| Razer Blade (2017) | |
| For Honor | |
| 1920x1080 High Preset AA:T AF:8x | |
| Razer Blade (2017) | |
| Gigabyte Aero 14 | |
| 1920x1080 Extreme Preset AA:T AF:16x | |
| Razer Blade (2017) | |
| Gigabyte Aero 14 | |
| låg | med. | hög | ultra | |
| The Witcher 3 (2015) | 183 | 68 | 37 | |
| Rise of the Tomb Raider (2016) | 158 | 71 | 57 | |
| Deus Ex Mankind Divided (2016) | 103 | 55 | 30 | |
| For Honor (2017) | 145 | 94 | 71 | |
| Mass Effect Andromeda (2017) | 122 | 50 | 43 |
(-) Playing The Witcher 3, the average temperature for the upper side is 39.2 °C / 103 F, compared to the device average of 31.2 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.1 °C / 97 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7.3 °C / -13.2 F).
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.1 °C / 97 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7.3 °C / -13.2 F).
Strömförbrukning
| Av/Standby |   0.65 / 1.03 Watt |
| Låg belastning |  7.5 / 12.1 / 14.3 Watt |
| Hög belastning |
73.5 / 110.2 Watt |

| |
| Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile, Samsung PM951 NVMe MZVLV256, IPS, 1920x1080, 14.00 | Razer Blade (2016) FHD 6700HQ, GeForce GTX 1060 Mobile, , IPS, 1920x1080, 14.00 | Razer Blade (2016) 6700HQ, GeForce GTX 1060 Mobile, Samsung PM951 NVMe MZVLV512, IGZO, 3200x1800, 14.00 | Gigabyte Aero 14 i7-7700HQ, GeForce GTX 1060 Mobile, LiteOn CX2-8B256, IPS, 2560x1440, 14.00 | Alienware 13 R3 i7-7700HQ, GeForce GTX 1060 Mobile, Toshiba NVMe THNSN5256GPUK, OLED, 2560x1440, 13.30 | Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550, Apple SSD AP0256, , 2560x1600, 13.30 | |
|---|---|---|---|---|---|---|
| Power Consumption | -42% | -20% | -16% | -13% | 44% | |
| Idle Minimum * | 7.5 | 14 -87% | 9 -20% | 8 -7% | 7 7% | 2.1 72% |
| Idle Average * | 12.1 | 18 -49% | 14 -16% | 13 -7% | 12 1% | 7.6 37% |
| Idle Maximum * | 14.3 | 21 -47% | 22 -54% | 20 -40% | 18 -26% | 8.2 43% |
| Load Average * | 73.5 | 70 5% | 72 2% | 78 -6% | 76 -3% | 56.4 23% |
| Witcher 3 ultra * | 108 | 110 -2% | ||||
| Load Maximum * | 110.2 | 146 -32% | 124 -13% | 146 -32% | 161 -46% | 59.8 46% |
* ... smaller is better
| Razer Blade (2017) i7-7700HQ, GeForce GTX 1060 Mobile, 70 Wh | Razer Blade (2016) FHD 6700HQ, GeForce GTX 1060 Mobile, 70 Wh | Razer Blade (2016) 6700HQ, GeForce GTX 1060 Mobile, 70 Wh | Gigabyte Aero 14 i7-7700HQ, GeForce GTX 1060 Mobile, 94 Wh | Alienware 13 R3 i7-7700HQ, GeForce GTX 1060 Mobile, 76 Wh | Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550, 49.2 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -22% | -55% | -4% | -41% | 4% | |
| WiFi v1.3 | 545 | 427 -22% | 243 -55% | 524 -4% | 320 -41% | 566 4% |
| Reader / Idle | 760 | 909 | 524 | |||
| H.264 | 312 | 358 | 483 | |||
| Load | 59 | 129 | 90 | 66 |
För
+ stabilt, högkvalitativt aluminiumchassi
+ tunn med elegant design
+ Chroma-tangentbord med många alternativ
+ bra WiFi-prestanda
+ matt IPS-skärm
+ Thunderbolt 3 + HDMI 2.0
+ mycket bra batteritid
Emot
- mottaglig för fingeravtryck
- mycket högljudd under belastning
- ingen SD-kortläsare
Läs originaltestet på engelska här.
Det verkar som att Razer har fortsatt jobba på Blade sedan vårt första test och att de eliminerat olika svagheter längs vägen. Det som förblir oförändrat är det enastående chassit, vilket – vad gäller byggkvalitet och finish – skulle kunna fungera som referens i Windows-världen. Endast fingeravtryck (som hopas snabbt) förblir ett problem.
Tangentbordet är ganska bra och vi råkar verkligen gilla pekplattan, som svarar snabbt och låter fingrarna glida lätt. Pekdonet har också två dedikerade musknappar, vilket är sällsynt numera. Med tanke på de kompakta dimensionerna kan Blade erbjuda alla de anslutningsmöjligheter vi begär. Däremot är avsaknaden av en SD-kortläsare något av en besvikelse.
Full HD-skärmen kompletterar resten av hårdvaran, särskilt eftersom GeForce GTX 1060-kortet kan hantera de flesta aktuella spel med maxupplösning och höga inställningar. Användare med mer kreativa sysselsättningar kanske vill överväga den valfria skärmen med upplösningen QHD+, som inte bara har fler pixlar utan också bättre färgrymd samtidigt som den är enklare att kalibrera.
Vad gäller prestandan är kombinationen av en fyrkärning Intel-CPU och GeForce GTX 1060 utan tvekan mycket kraftfull. Även om den här kompakta datorn halkar efter andra, liknande maskiner något håller det ändå en mycket hög nivå även under långa perioder av hög belastning.
Detta leder oss till en av de få men allvarliga nackdelarna: Razer Blade kan vara helt tyst i viloläge eller under webbsurf, men när du startar ett spel kan systemet bli ytterst högljutt. Vi rekommenderar definitivt hörlurar när du spelar spel.
Sist men inte minst är batteritiden också bra: Blade höll sig vid liv i 9 timmar under vårt WLAN-test, så datorn erövrar även titeln som den ”mest långlivade bärbara speldatorn”. Det finns både snabbare och billigare alternativ, men ingen spelmaskin lyckas se lika sexig ut som Razer Blade.
Razer Blade (2017)
-
04/07/2017 v6(old)
J. Simon Leitner
Multimedia - Vägt medel
