Test: Lenovo ThinkPad P70 Workstation (sammanfattning)

Andreas Osthoff, Tanja Hinum, 02/06/2016

17-tummarens återkomst. För första gången på fem år erbjuder Lenovo nu en 17-tums bärbar dator riktad mot professionella användare med höga krav. Har den varit värd att vänta på?

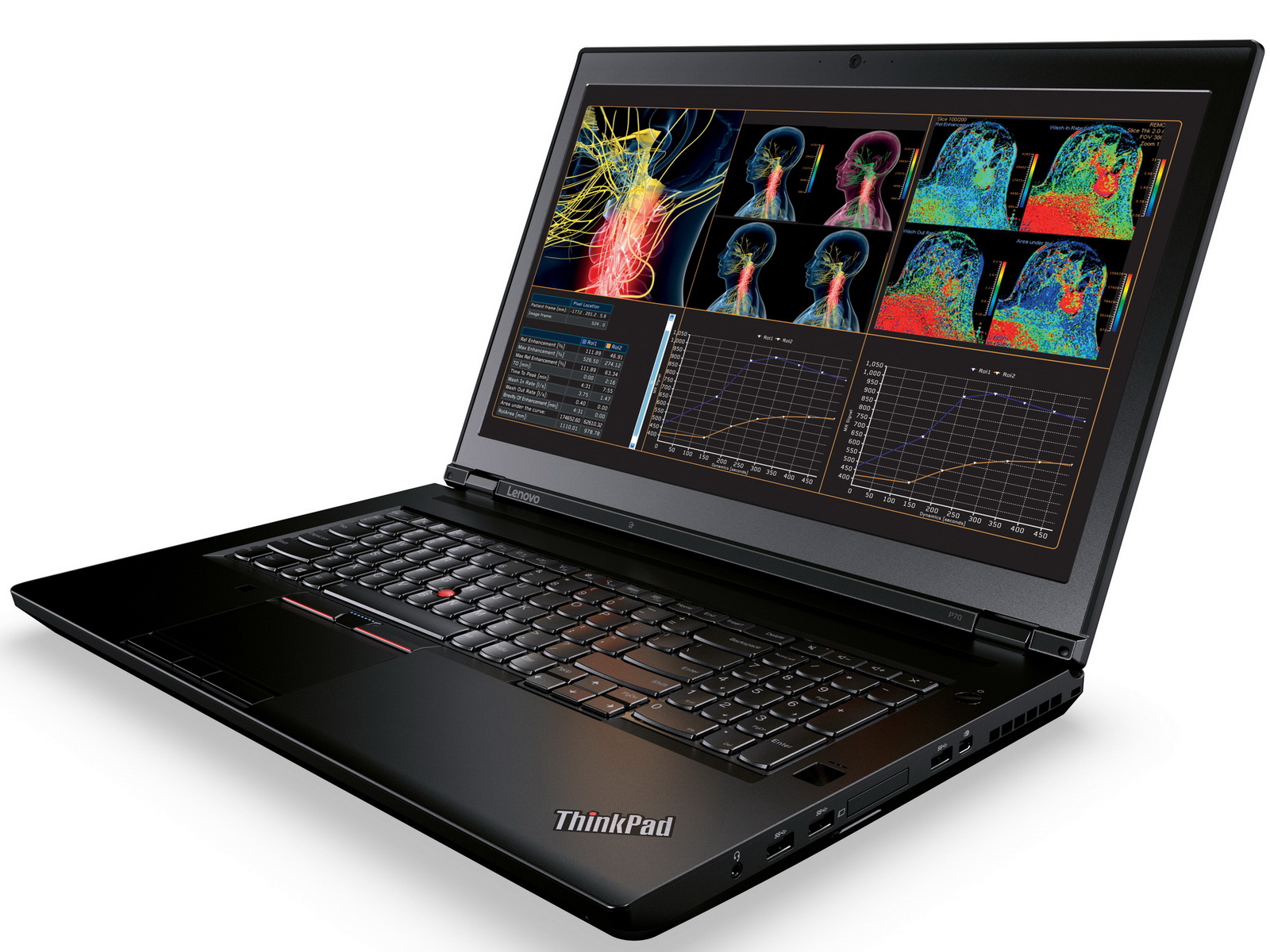

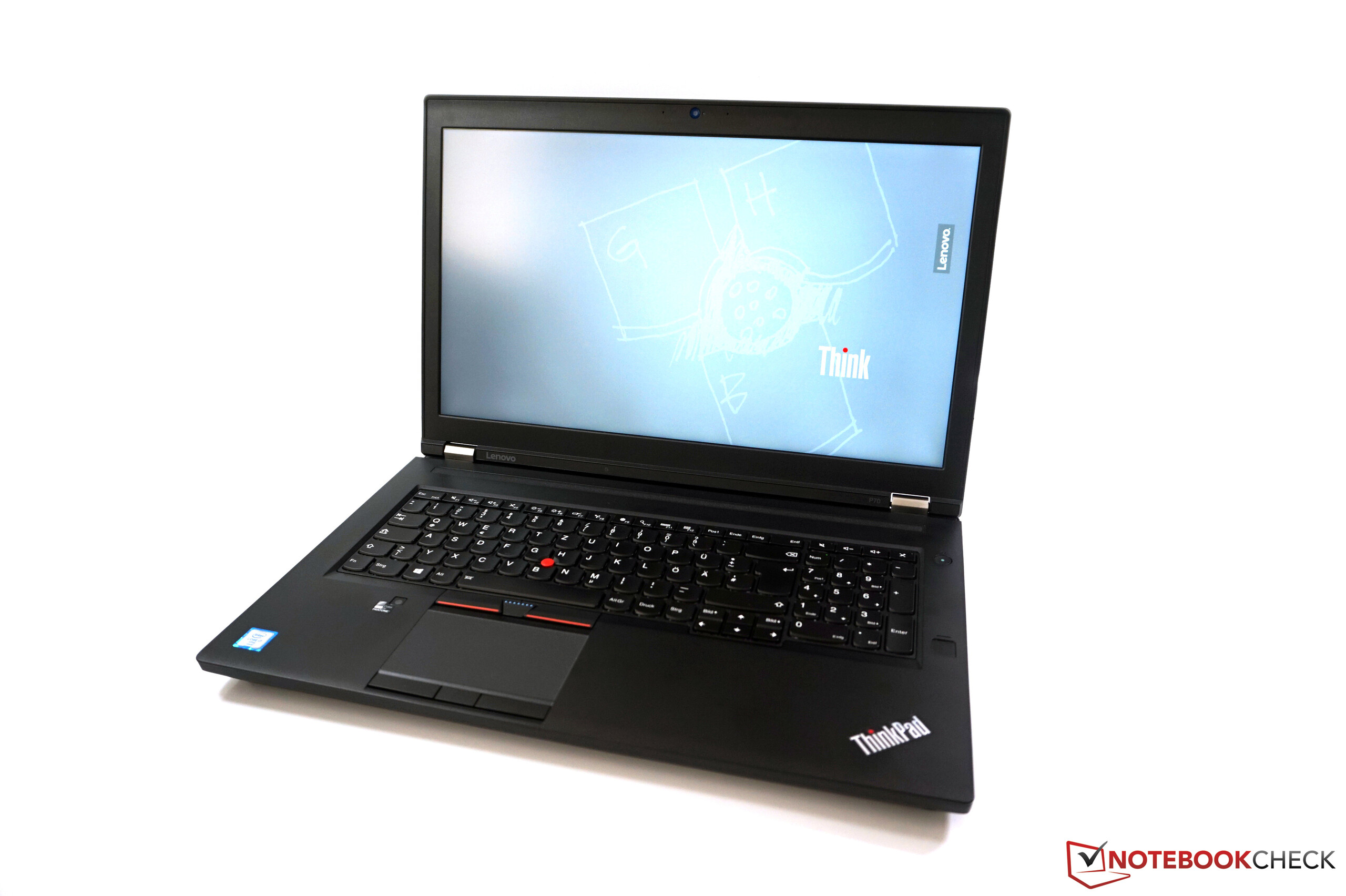

Lenovo ThinkPad P70 (ThinkPad P1 Serie)
Grafikkort

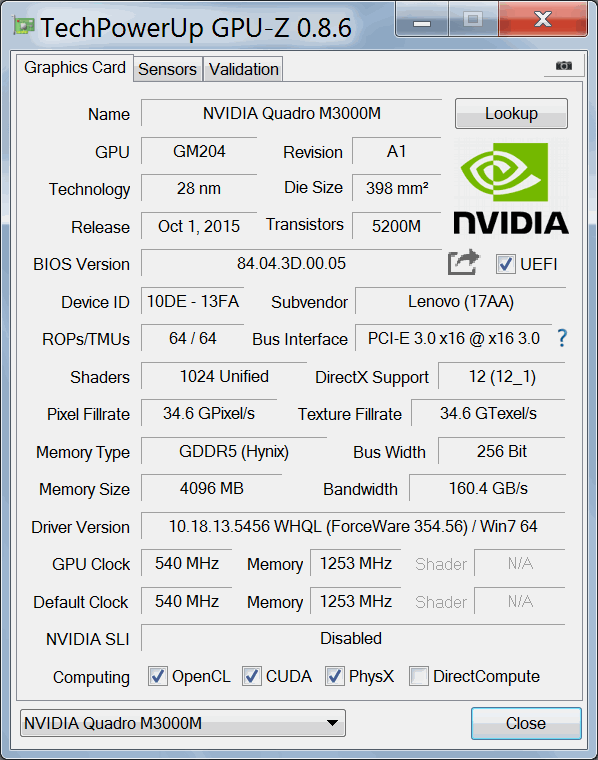

NVIDIA Quadro M3000M - 4096 MB, Kärna: 1050 MHz, Minne: 1253 MHz, GDDR5, ForceWare 354.25, Optimus

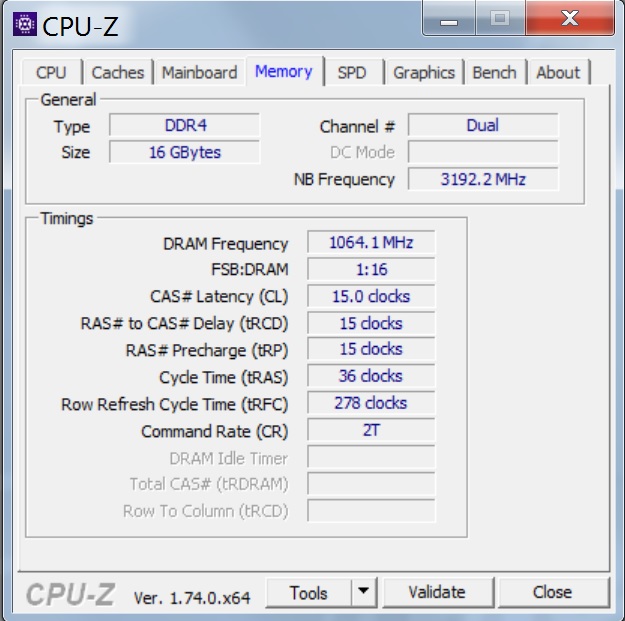

Minne
16384 MB
, DDR4-2133, 2x8 GB, max 64 GB
Skärm
17.3 tum 16:9, 3840 x 2160 pixlar, No, LEN4123, IPS, glansig: nej
Moderkort
Intel CM236 (Skylake PCH-H)
Hårddisk

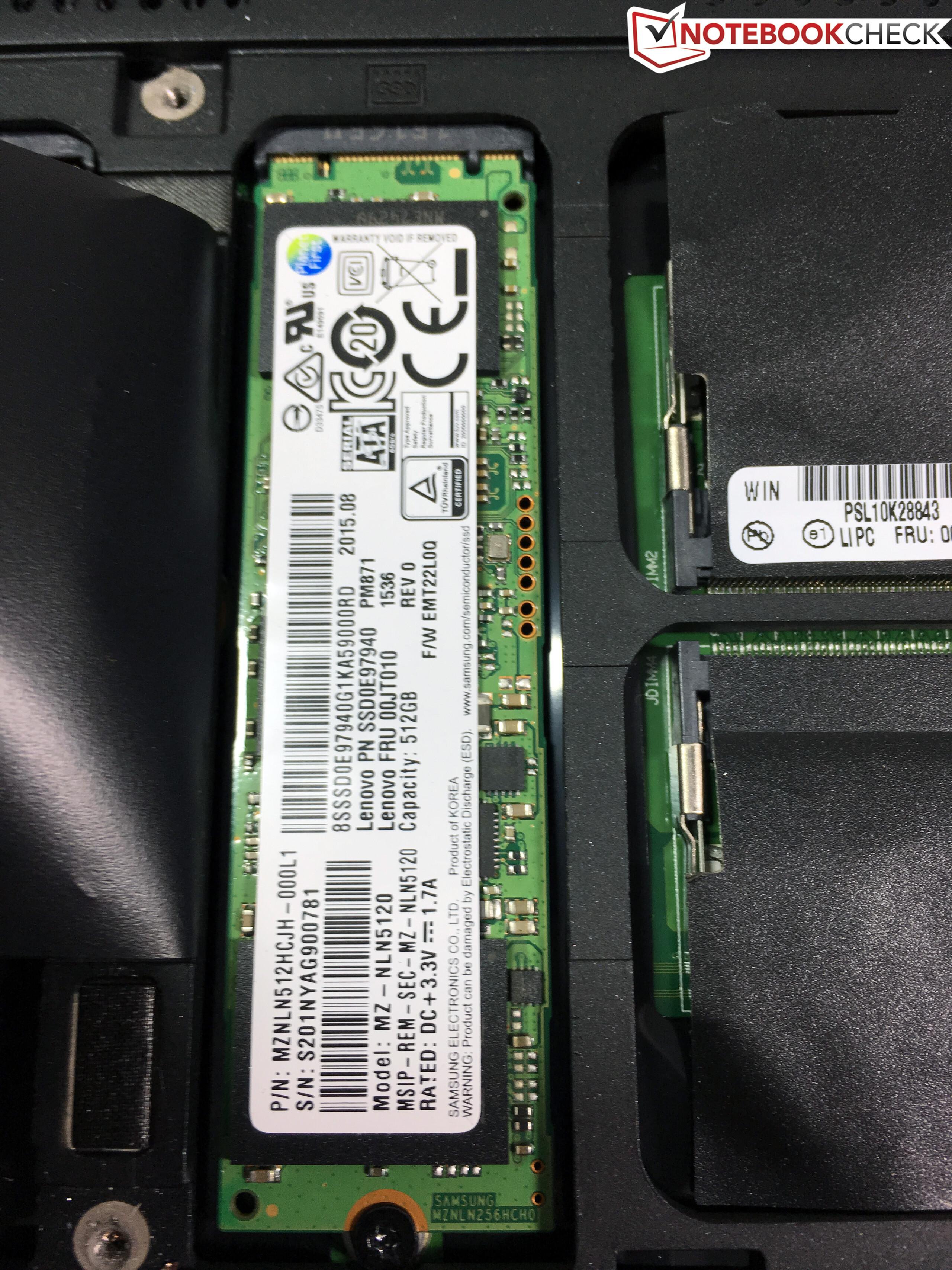

Samsung SSD PM871 MZNLN512HCJH, 512 GB
, 400 GB ledigt
Ljudkort
Intel Skylake PCH-H High Definition Audio Controller
Anslutningar
1 Express Card 34mm, 4 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3,5 mm, Kortläsare: 4-in-1 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Fingeravtrycksläsare, TPM 1.2
Nätverk
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2 + LE
Optisk enhet
HL-DT-ST DVDRAM GUB0N
Storlek
höjd x bredd x djup (i mm) 34.2 x 416 x 275.5
Batteri

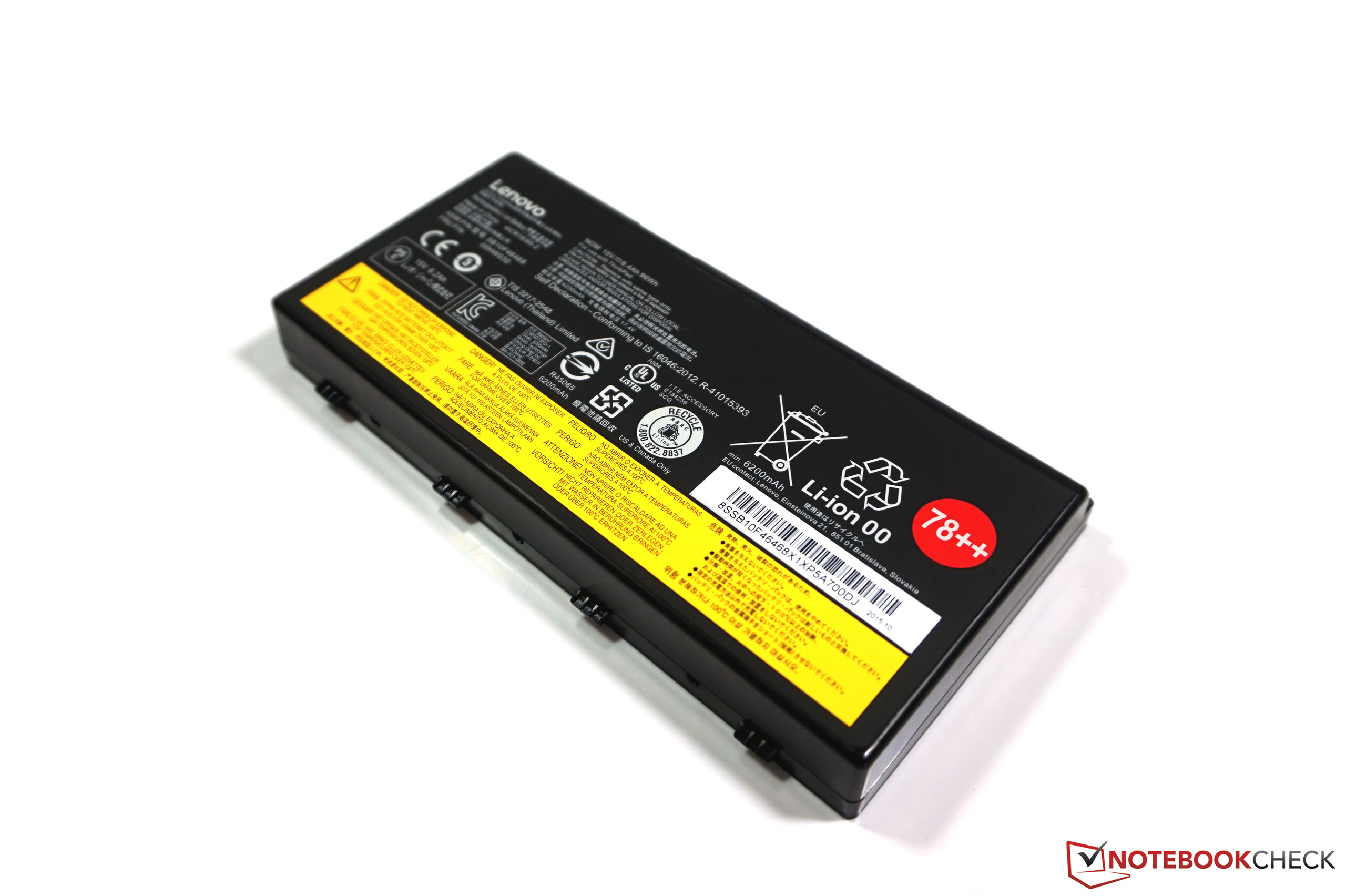

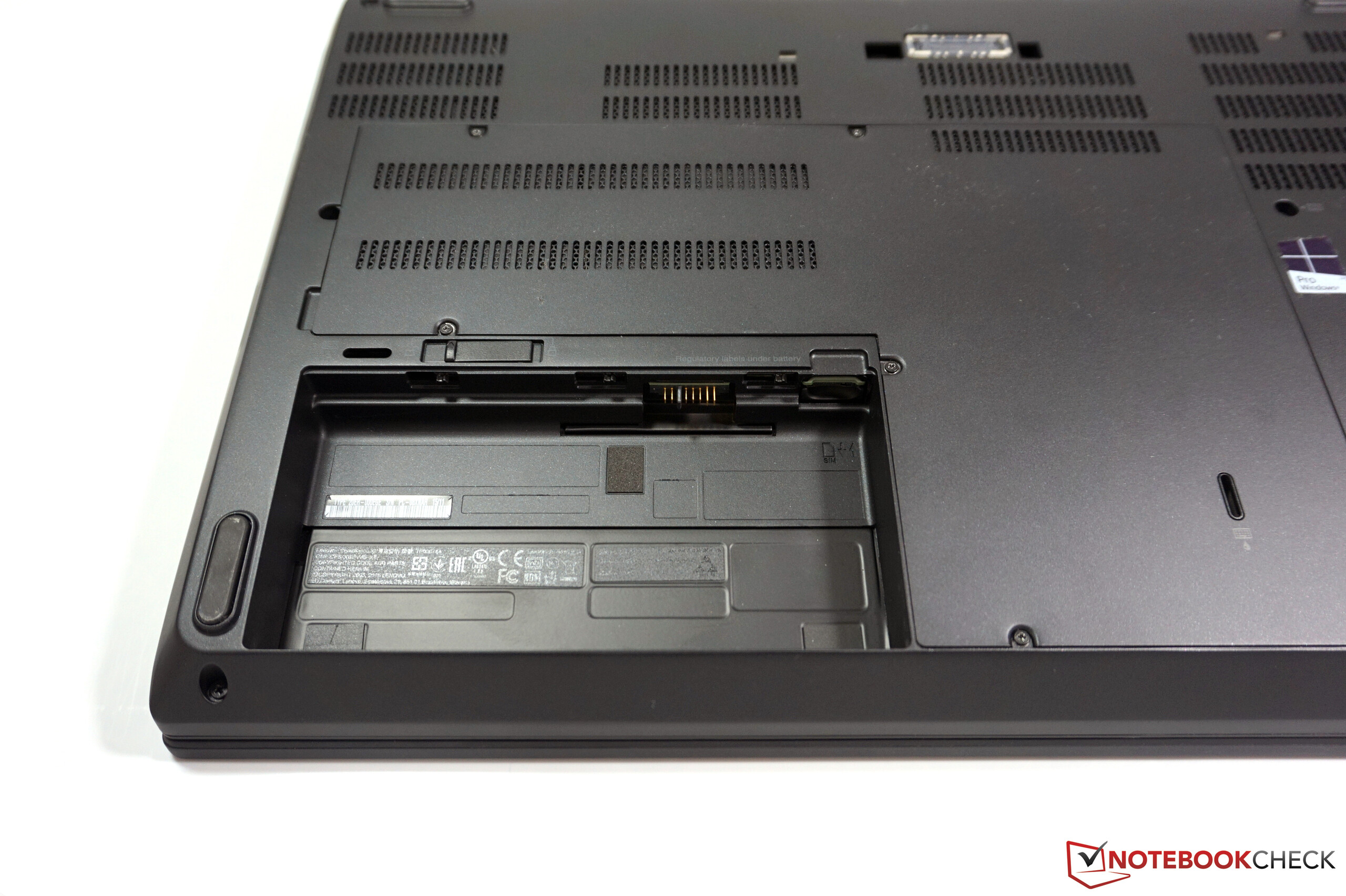

96 Wh Litiumjon, removeable, 8 celler, Batteritid (enligt tillverkaren): 10.8 tim
Operativsystem
Microsoft Windows 7 Professional 64 Bit
Camera
Webbkamera: 720p
Övrigt

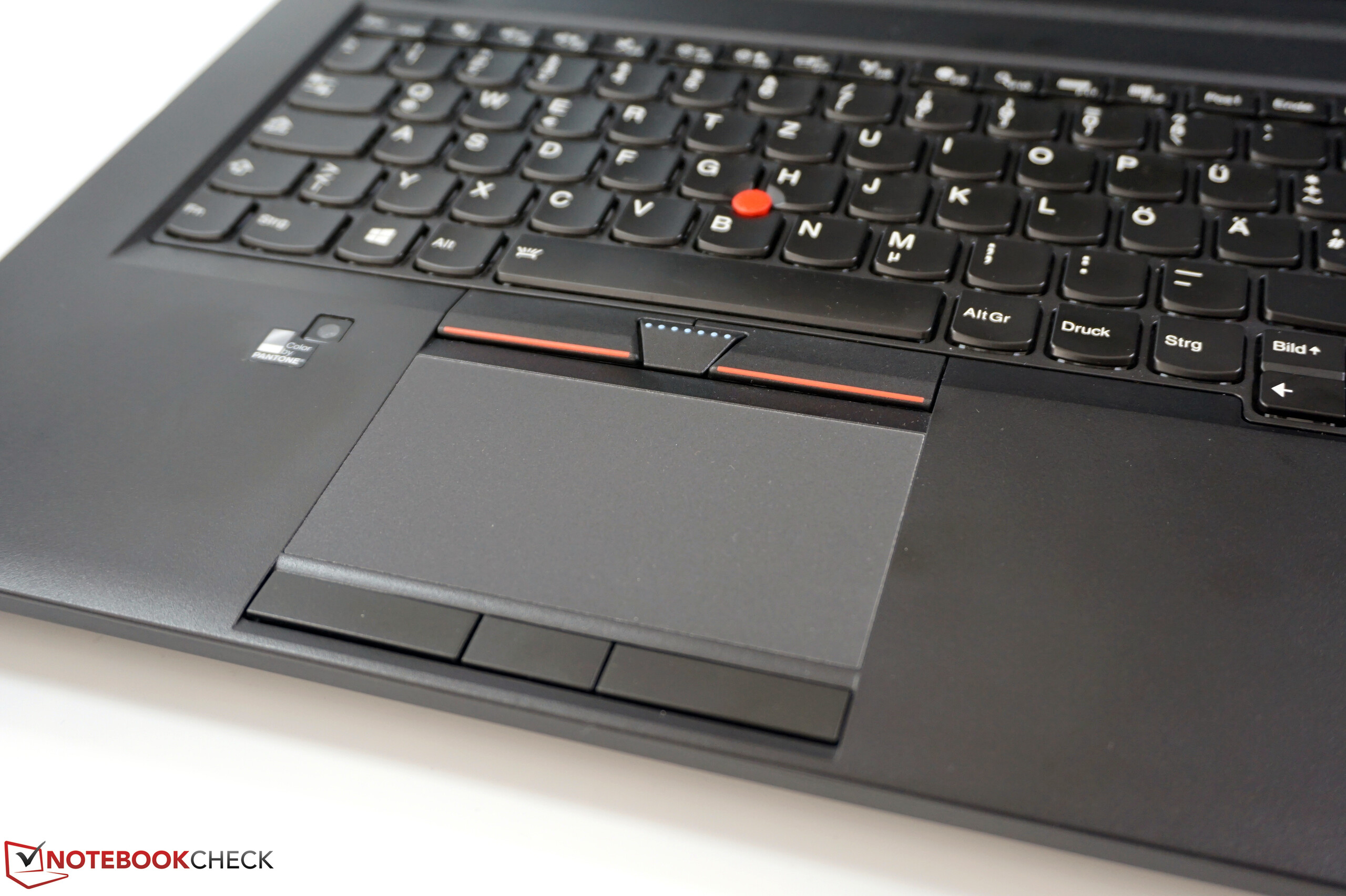

Högtalare: Stereo (2x2 Watt), Tangentbord: Chiclet, Tangentbordsbelysning: ja, 230-Watts adapter, Windows 10 Pro (nedgradering till Windows 7 Professional), Lenovoverktyg, McAffee LiveSafe (test), Microsoft Office (test), Adobe Reader, 36 Månader Garanti

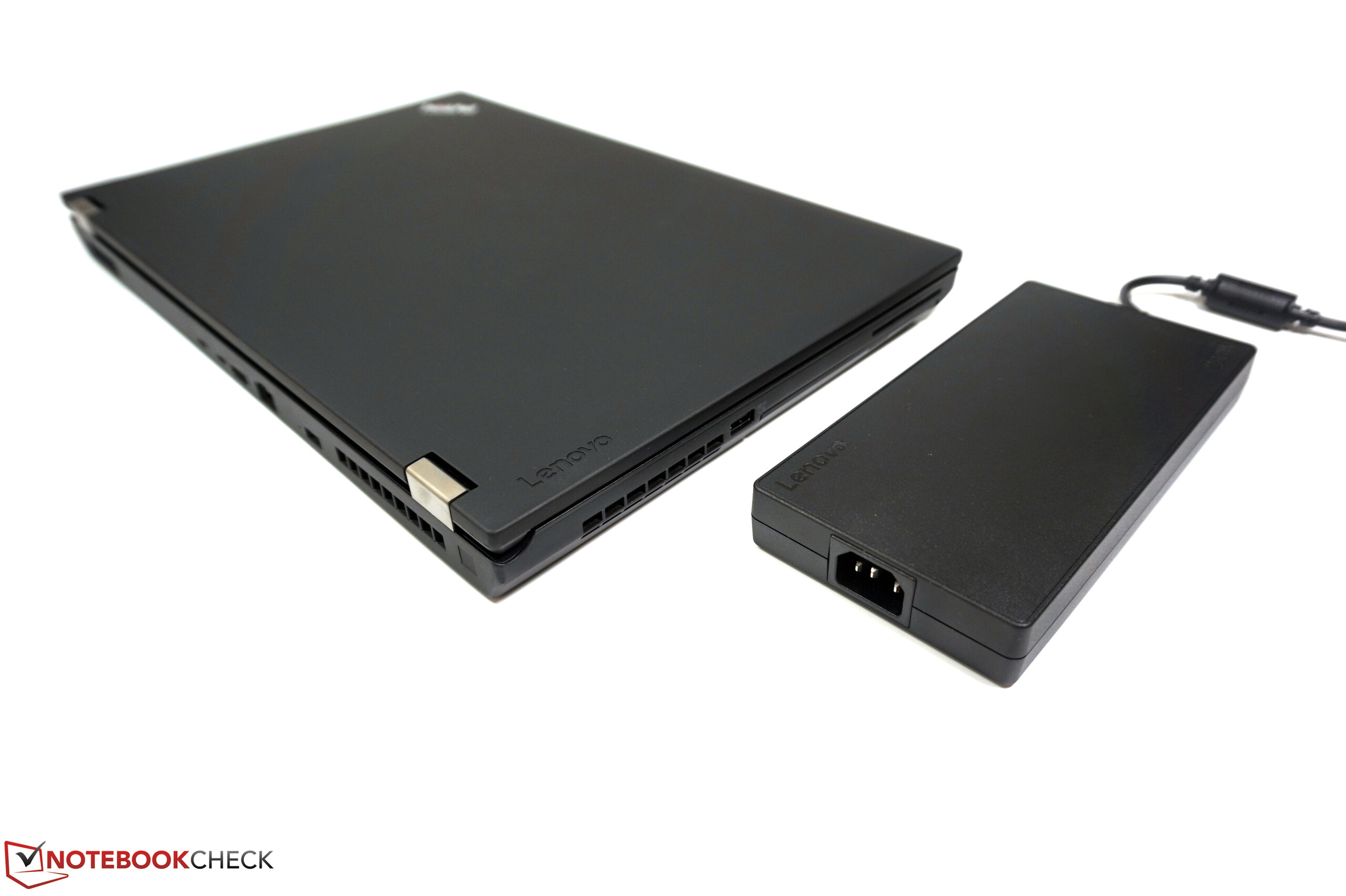

Vikt

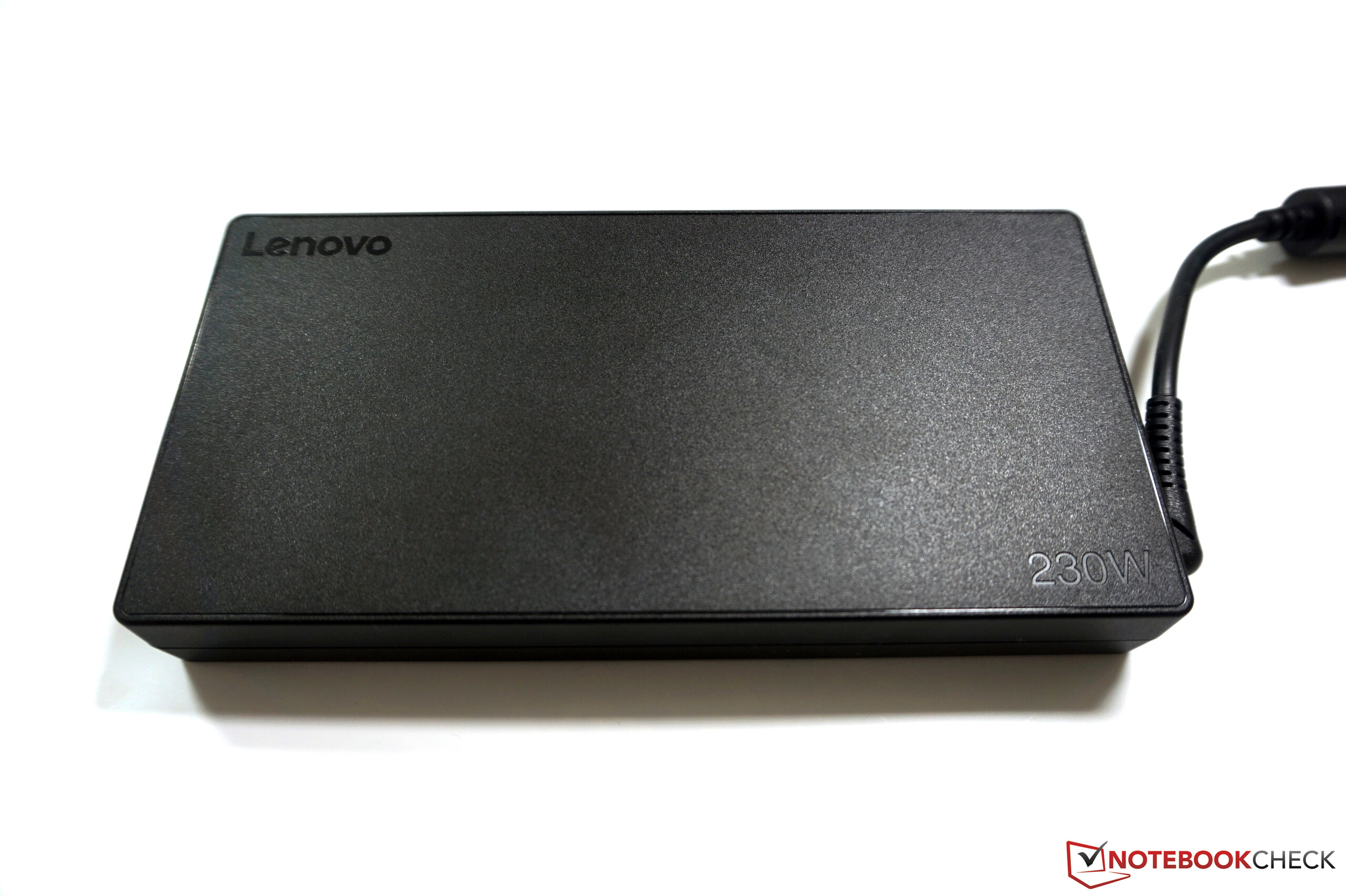

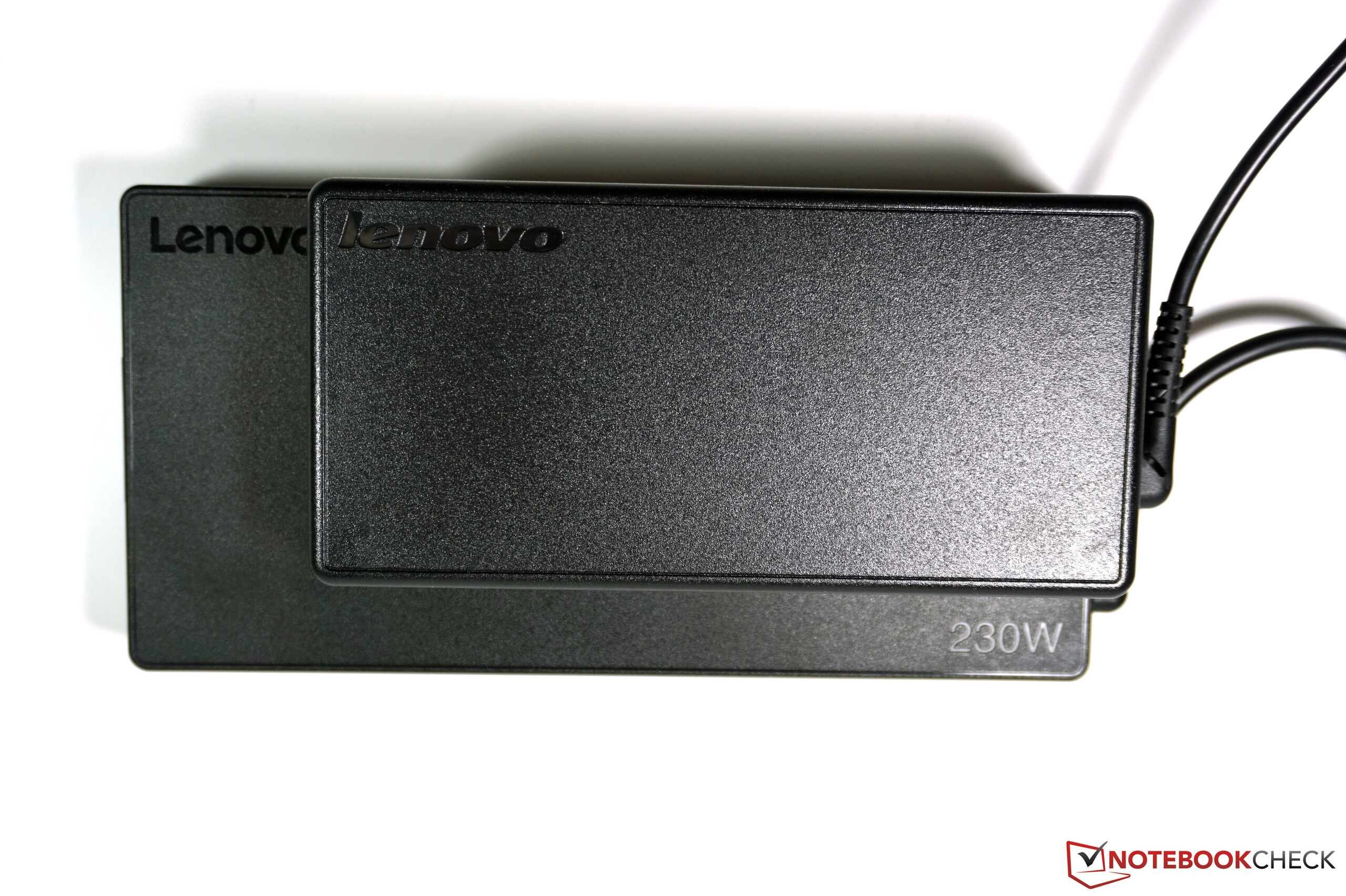

3.6 kg, Strömförsörjning: 916 g
Pris
3400 Euros
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

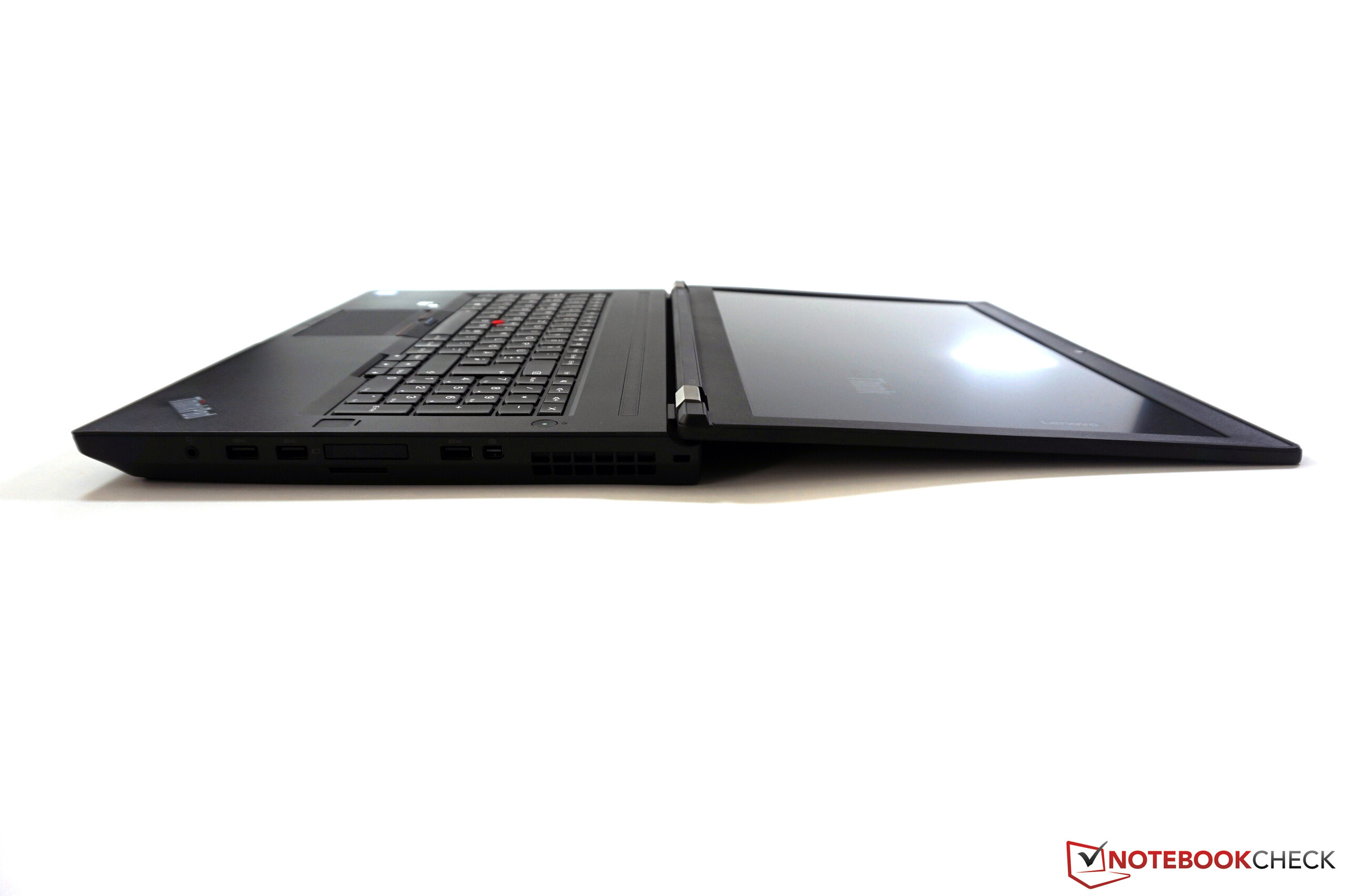

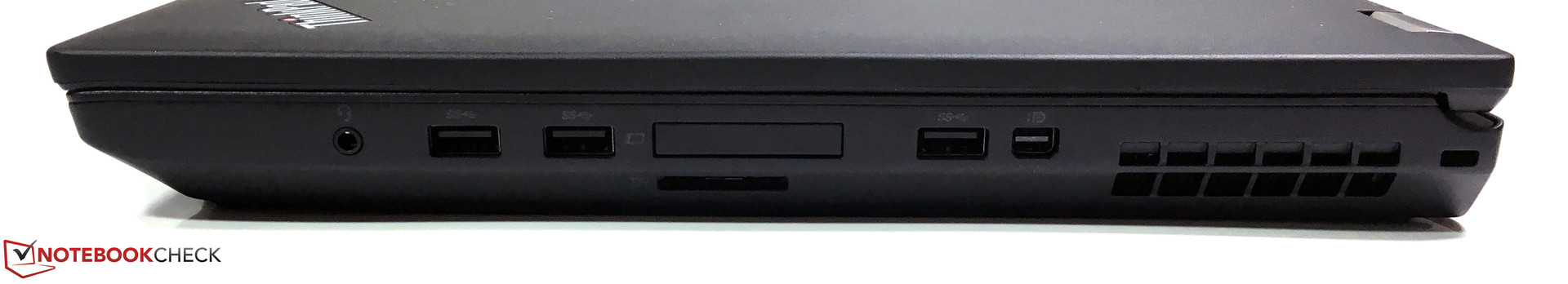

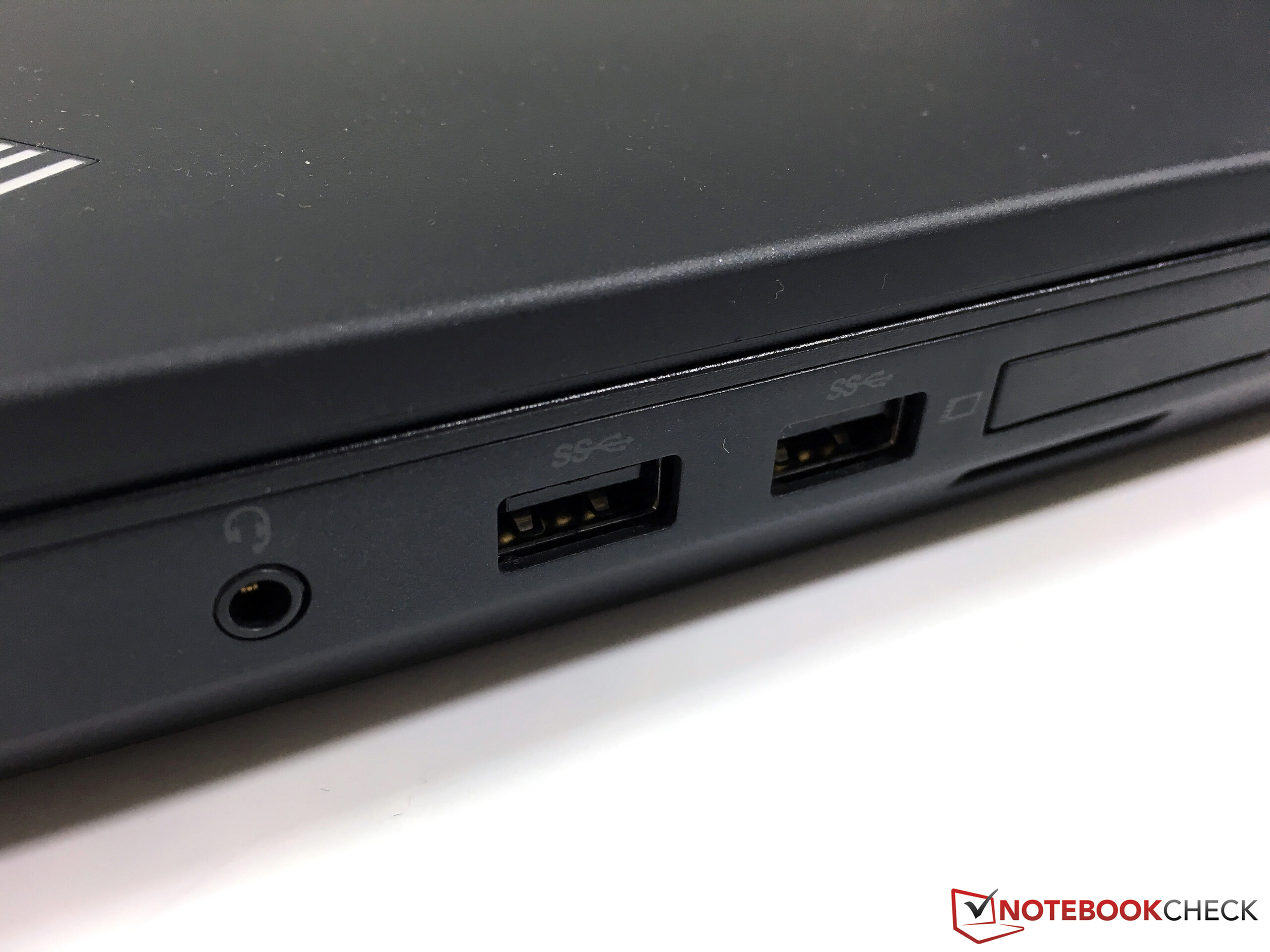

Right: combo audio, 2x USB 3.0, ExpressCard (34 mm), card reader, USB 3.0, Mini-DisplayPort 1.2
Right: combo audio, 2x USB 3.0, ExpressCard (34 mm), card reader, USB 3.0, Mini-DisplayPort 1.2

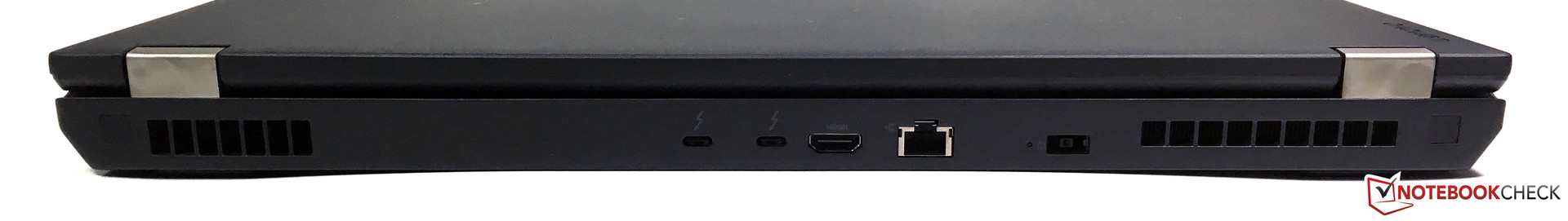

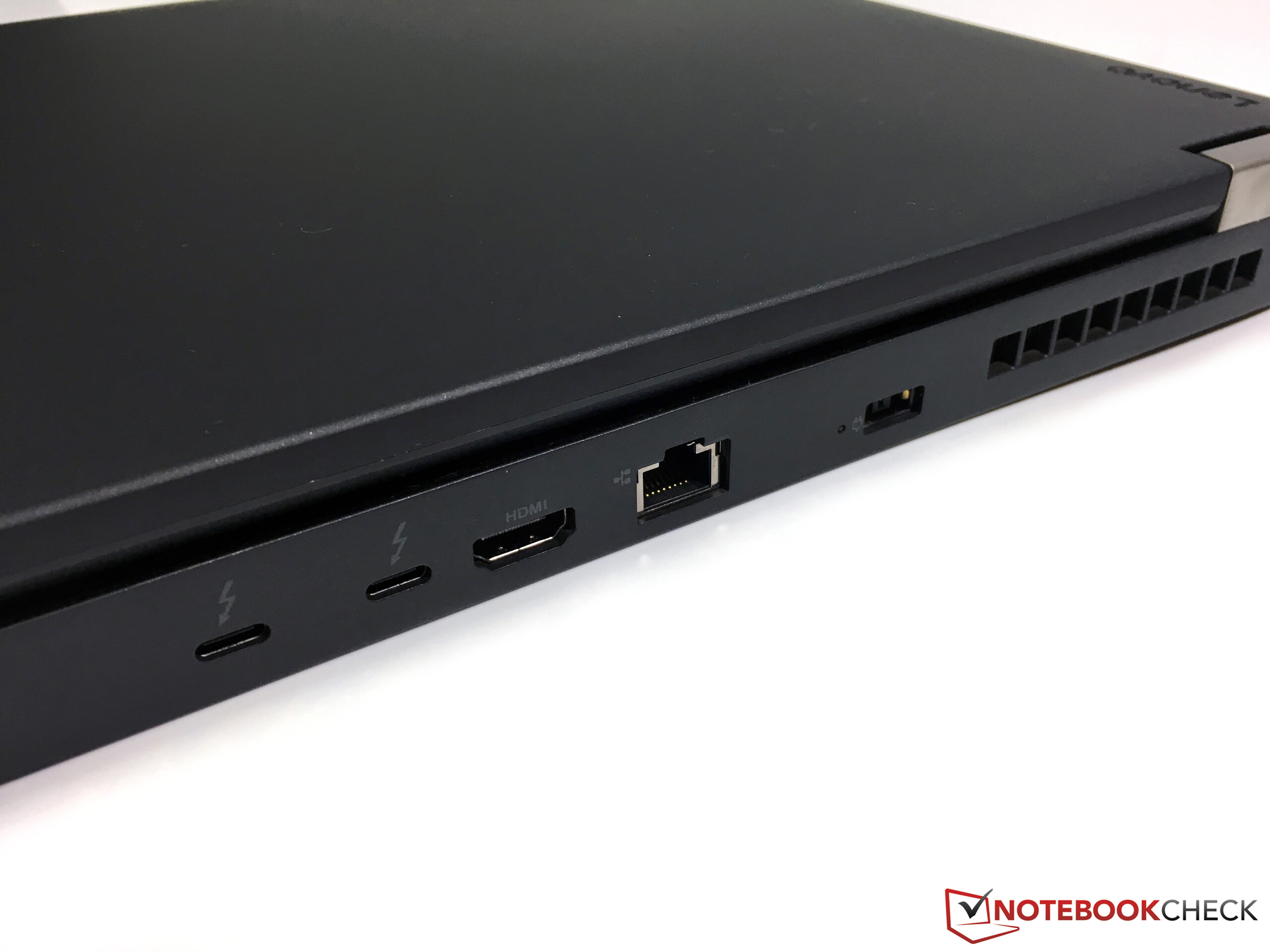

Rear: 2x USB 3.1 Type-C (Gen 2)/Thunderbolt 3, HDMI 1.4, Gigabit-Ethernet, AC
Rear: 2x USB 3.1 Type-C (Gen 2)/Thunderbolt 3, HDMI 1.4, Gigabit-Ethernet, AC

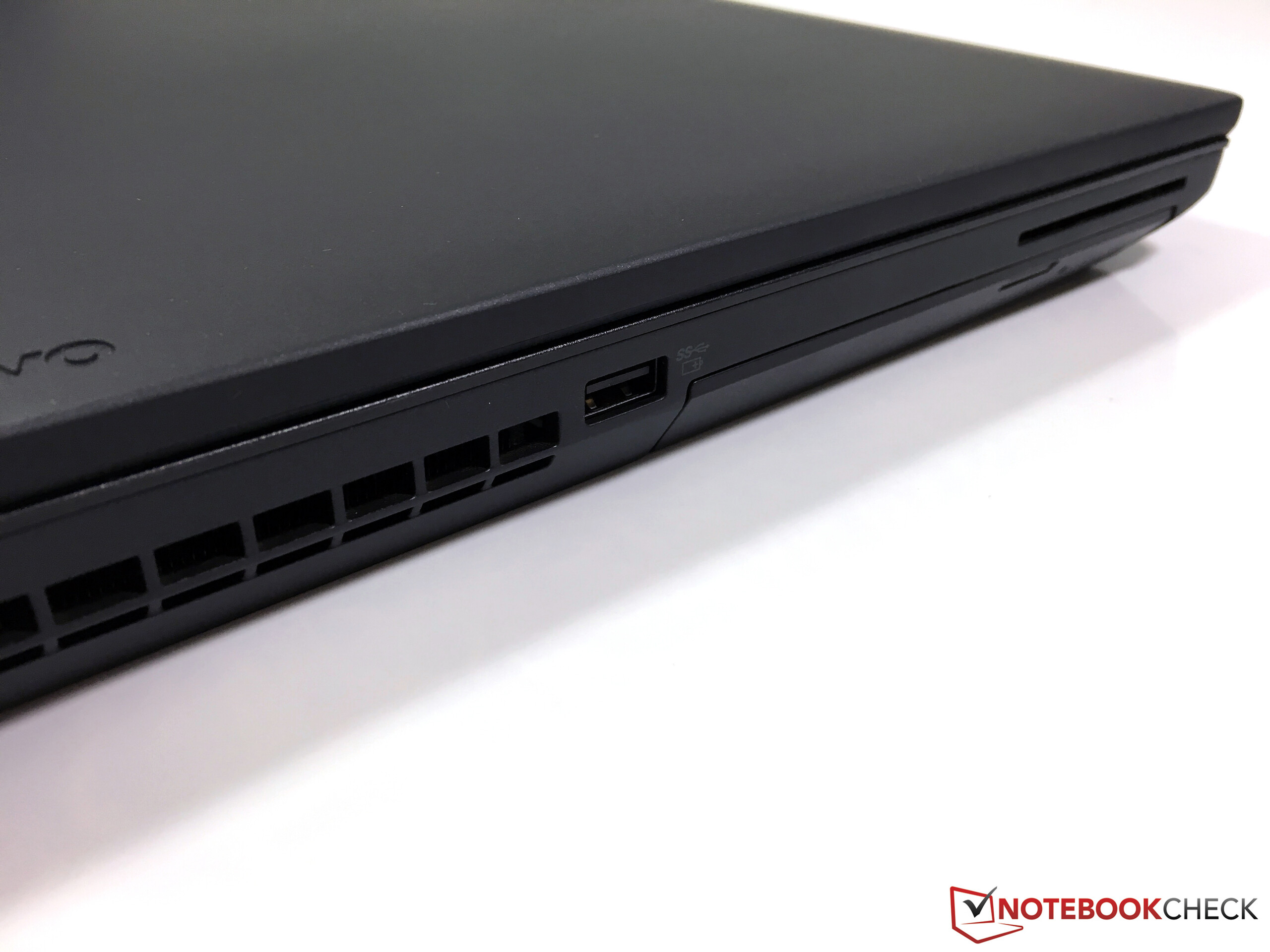

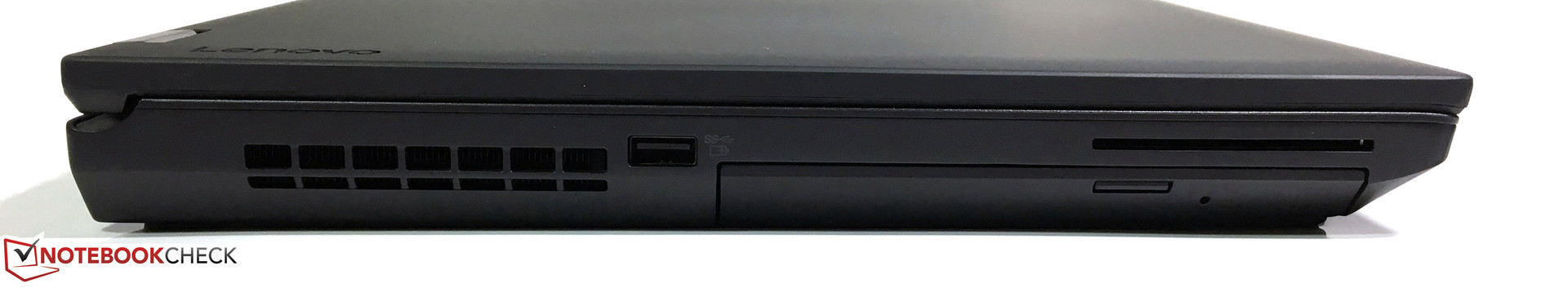

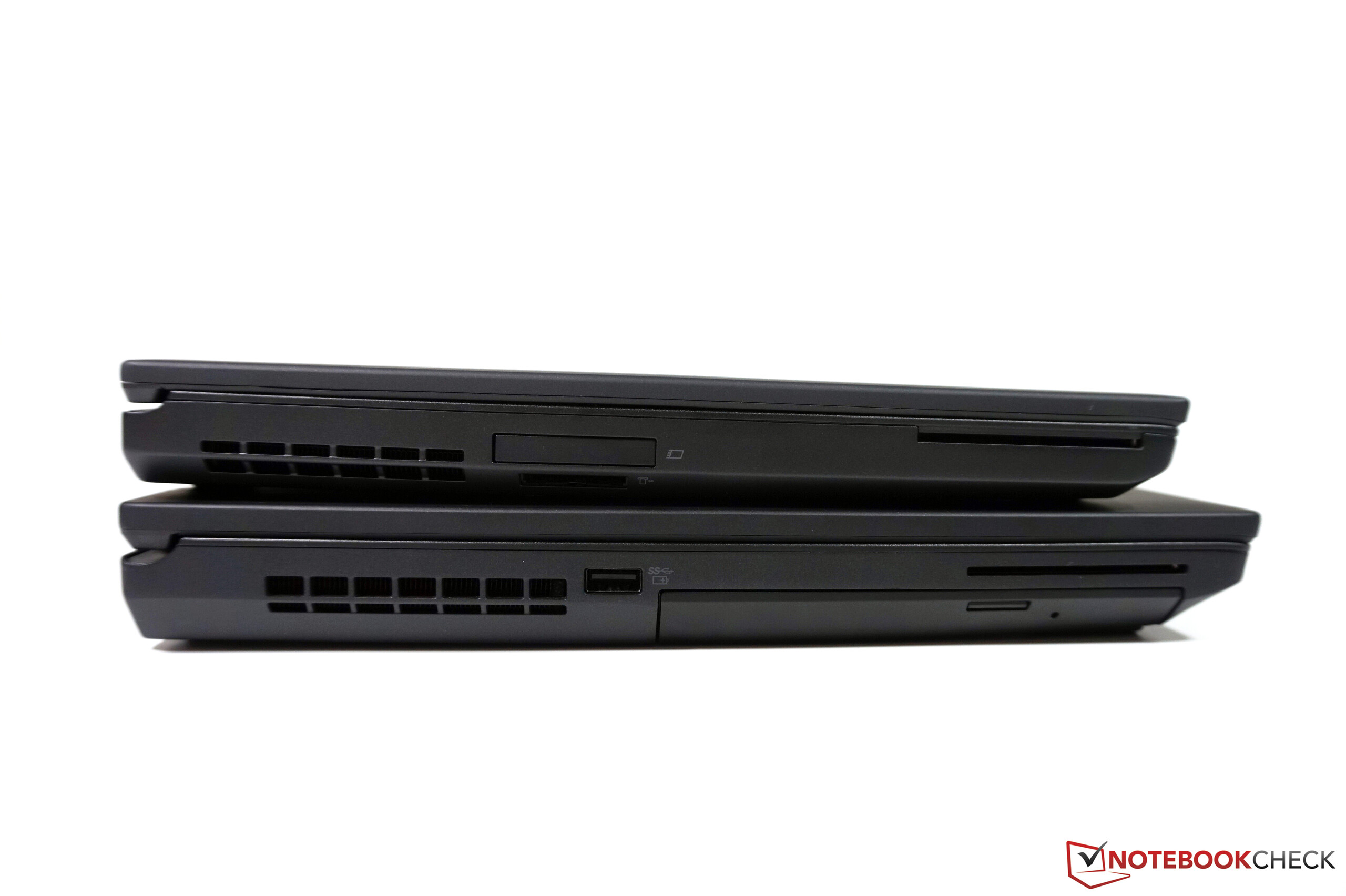

Left: USB 3.0 (Always on), DVD burner, smart-card reader
Left: USB 3.0 (Always on), DVD burner, smart-card reader
321
cd/m²
379
cd/m²
338
cd/m²
321
cd/m²
365
cd/m²
326
cd/m²
324
cd/m²
360
cd/m²
335
cd/m²
Distribution av ljusstyrkan
LEN4123
X-Rite i1Pro 2
Max: 379 cd/m² Medel: 341 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 361 cd/m²
Kontrast: 913:1 (Svärta: 0.4 cd/m²)
ΔE Color 3.8 | 0.6-29.43 Ø5.9
ΔE Greyscale 6.09 | 0.64-98 Ø6.1
99.97% sRGB (Argyll 3D) 76.01% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.3
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
HP ZBook 17 E9X11AA-ABA
Quadro K610M, 4900MQ, Micron RealSSD C400 MTFDDAK128MAM
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
Response Times
-19%
Response Time Grey 50% / Grey 80% *
44 (17.2, 26.8)
50 (17, 33)
-14%
Response Time Black / White *
27.6 (4.8, 22.8)
36 (11, 25)
-30%
PWM Frequency
228 (95)
198 (25)
-13%
Screen
4%
13%
-9%
-1%
Brightness middle
365
332
-9%
320
-12%
303
-17%
355
-3%
Brightness
341
307
-10%
311
-9%
276
-19%
335
-2%
Brightness Distribution
85
83
-2%
88
4%
83
-2%
89
5%
Black Level *
0.4
0.33
17%
0.359
10%
0.34
15%
0.44
-10%
Contrast
913
1006
10%
891
-2%
891
-2%
807
-12%
Colorchecker DeltaE2000 *
3.8
3
21%
2.04
46%
5.57
-47%
3.73
2%
Greyscale DeltaE2000 *
6.09
4
34%
2.45
60%
4.08
33%
2.84
53%
Gamma
2.3 96%
2 110%
2.28 96%
2.19 100%
2.12 104%
CCT
6332 103%
7089 92%
6518 100%
7362 88%
6457 101%
Color Space (Percent of AdobeRGB 1998)
76.01
62
-18%
93
22%
55.34
-27%
55.45
-27%
Color Space (Percent of sRGB)
99.97
97
-3%
100
0%
84.21
-16%
84.39
-16%
Total Average (Program / Settings)
-8% / -1%
13% / 13%
-9% / -9%
-1% / -1%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

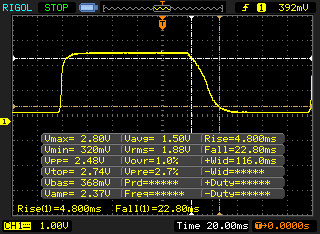

       Response Time Black to White
27.6 ms ... rise ↗ and fall ↘ combined↗ 4.8 ms rise
↘ 22.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.9 ms).

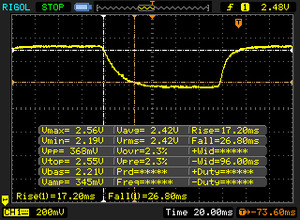

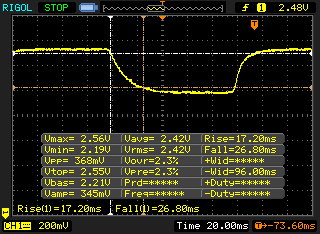

       Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 26.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 63 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.5 ms).

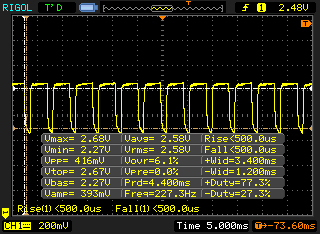

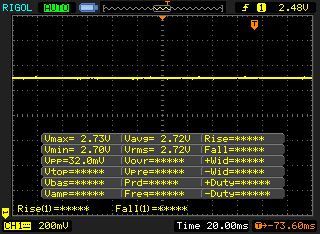

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 228 Hz ≤ 95 % brightness setting

The display backlight flickers at 228 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 95 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 228 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17159 (minimum: 5 - maximum: 2500000) Hz was measured.

Cinebench R10 Shading 64Bit
5278 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
27072 Points
Cinebench R10 Rendering Single CPUs 64Bit
6965 Points
Cinebench R10 Shading 32Bit
4455
Cinebench R10 Rendering Multiple CPUs 32Bit
20682
Cinebench R10 Rendering Single 32Bit
5429
Cinebench R11.5 OpenGL 64Bit
42.4 fps
Cinebench R11.5 CPU Multi 64Bit
7.63 Points
Cinebench R11.5 CPU Single 64Bit
1.7 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
68 fps
Cinebench R15 CPU Multi 64Bit
699 Points
Cinebench R15 CPU Single 64Bit
153 Points
Hjälp
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
153 Points ∼70%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
162 Points ∼74% +6%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
135 Points ∼62% -12%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
154 Points ∼71% +1%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
174 Points ∼80% +14%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
142 Points ∼65% -7%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
141 Points ∼65% -8%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
699 Points ∼16%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
746 Points ∼17% +7%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
657 Points ∼15% -6%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
715 Points ∼16% +2%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
843 Points ∼19% +21%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
732 Points ∼17% +5%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
665 Points ∼15% -5%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
1.7 Points ∼69%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
1.84 Points ∼75% +8%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
1.54 Points ∼63% -9%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
1.74 Points ∼71% +2%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
1.95 Points ∼79% +15%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
1.6 Points ∼65% -6%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
1.62 Points ∼66% -5%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
7.63 Points ∼17%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
8.24 Points ∼19% +8%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
7.11 Points ∼16% -7%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
7.43 Points ∼17% -3%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
9.14 Points ∼21% +20%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
7.93 Points ∼18% +4%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
7.36 Points ∼17% -4%
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
6965 Points ∼65%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
7608 Points ∼71% +9%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
6635 Points ∼62% -5%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
8597 Points ∼80% +23%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
6890 Points ∼64% -1%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
7083 Points ∼66% +2%
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
27072 Points ∼36%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
29375 Points ∼39% +9%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
24894 Points ∼33% -8%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
31767 Points ∼42% +17%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
28057 Points ∼37% +4%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
26299 Points ∼35% -3%
PCMark 7 Score
5003 poäng
PCMark 8 Home Score Accelerated v2
3345 poäng
PCMark 8 Work Score Accelerated v2
4411 poäng
Hjälp
PCMark 7 - Score (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
5003 Points ∼55%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5072 Points ∼55% +1%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
3356 Points ∼37% -33%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
6447 Points ∼70% +29%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
5317 Points ∼58% +6%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
5839 Points ∼64% +17%
PCMark 8
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
4411 Points ∼67%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5417 Points ∼82% +23%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
4595 Points ∼70% +4%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
4997 Points ∼76% +13%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
5372 Points ∼81% +22%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
5100 Points ∼77% +16%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
4797 Points ∼73% +9%
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
3345 Points ∼55%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4770 Points ∼78% +43%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
4464 Points ∼73% +33%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
4241 Points ∼70% +27%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
4355 Points ∼71% +30%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
3941 Points ∼65% +18%
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
3703 Points ∼61% +11%

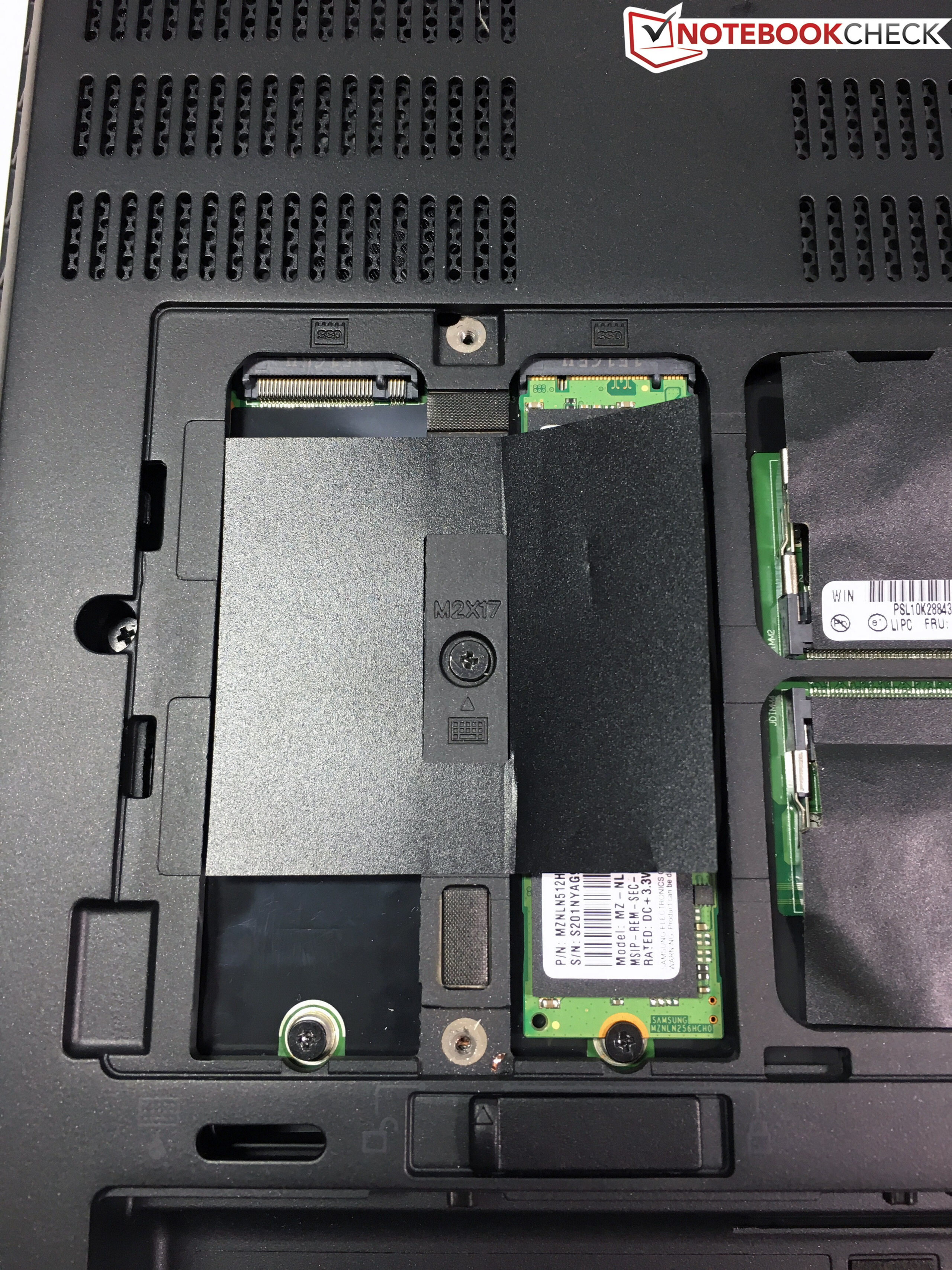

Samsung SSD PM871 MZNLN512HCJH
Sequential Read: 508.9 MB/s
Sequential Write: 457.8 MB/s
512K Read: 420.3 MB/s
512K Write: 420.5 MB/s
4K Read: 29.88 MB/s
4K Write: 104.1 MB/s
4K QD32 Read: 391.8 MB/s
4K QD32 Write: 350.4 MB/s
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Lenovo ThinkPad P70
67.36 fps ∼48%
Dell Precision 7710
49 fps ∼35% -27%
HP ZBook 17 G2 J8Z55ET
47.84 fps ∼34% -29%
MSI WT72-2OL32SR311BW
45 fps ∼32% -33%
Bullman E-Klasse 5
39 fps ∼28% -42%
Dell Precision 5510
41 fps ∼29% -39%
Schenker W706
51 fps ∼36% -24%
1920x1080 Tcvis (sort by value)
Lenovo ThinkPad P70
41.16 fps ∼69%
Dell Precision 7710
36 fps ∼60% -13%
HP ZBook 17 G2 J8Z55ET
28.37 fps ∼48% -31%
MSI WT72-2OL32SR311BW
50 fps ∼84% +21%
Bullman E-Klasse 5
42 fps ∼70% +2%
Dell Precision 5510
40 fps ∼67% -3%
Schenker W706
54 fps ∼90% +31%
1920x1080 SolidWorks (sort by value)
Lenovo ThinkPad P70
35.28 fps ∼43%
Dell Precision 7710
74 fps ∼90% +110%
HP ZBook 17 G2 J8Z55ET
68.72 fps ∼83% +95%
MSI WT72-2OL32SR311BW
54 fps ∼65% +53%
Bullman E-Klasse 5
52 fps ∼63% +47%
Dell Precision 5510
51 fps ∼62% +45%
Schenker W706
50 fps ∼60% +42%
1920x1080 Pro/ENGINEER (sort by value)
Lenovo ThinkPad P70
16.08 fps ∼67%
Dell Precision 7710
11.7 fps ∼49% -27%
HP ZBook 17 G2 J8Z55ET
10.66 fps ∼44% -34%
MSI WT72-2OL32SR311BW
24 fps ∼100% +49%
Bullman E-Klasse 5
21 fps ∼88% +31%
Dell Precision 5510
21 fps ∼88% +31%
Schenker W706
20 fps ∼83% +24%
1920x1080 Maya (sort by value)
Lenovo ThinkPad P70
85.96 fps ∼65%
Dell Precision 7710
106 fps ∼80% +23%
HP ZBook 17 G2 J8Z55ET
99.72 fps ∼75% +16%
MSI WT72-2OL32SR311BW
58 fps ∼44% -33%
Bullman E-Klasse 5
55 fps ∼42% -36%
Dell Precision 5510
56 fps ∼42% -35%
Schenker W706
58 fps ∼44% -33%
1920x1080 Lightwave (sort by value)
Lenovo ThinkPad P70
35.34 fps ∼38%
Dell Precision 7710
84 fps ∼90% +138%
HP ZBook 17 G2 J8Z55ET
77.78 fps ∼83% +120%
MSI WT72-2OL32SR311BW
53 fps ∼57% +50%
Bullman E-Klasse 5
56 fps ∼60% +58%
Dell Precision 5510
54 fps ∼58% +53%
Schenker W706
53 fps ∼57% +50%
1920x1080 Ensight (sort by value)
Lenovo ThinkPad P70
59.49 fps ∼28%
Dell Precision 7710
70 fps ∼33% +18%
HP ZBook 17 G2 J8Z55ET
55.74 fps ∼27% -6%
MSI WT72-2OL32SR311BW
52 fps ∼25% -13%
Bullman E-Klasse 5
39 fps ∼19% -34%
Dell Precision 5510
39 fps ∼19% -34%
Schenker W706
59 fps ∼28% -1%
1920x1080 Catia (sort by value)
Lenovo ThinkPad P70
43.12 fps ∼52%
Dell Precision 7710
61 fps ∼74% +41%
HP ZBook 17 G2 J8Z55ET
49.28 fps ∼60% +14%
MSI WT72-2OL32SR311BW
57 fps ∼69% +32%
Bullman E-Klasse 5
47 fps ∼57% +9%
Dell Precision 5510
54 fps ∼66% +25%
Schenker W706
52 fps ∼63% +21%
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Lenovo ThinkPad P70
52.35 fps ∼23%
Dell Precision 7710
73 fps ∼32% +39%
HP ZBook 17 G2 J8Z55ET
66.53 fps ∼29% +27%
MSI WT72-2OL32SR311BW
83 fps ∼36% +59%
Bullman E-Klasse 5
62 fps ∼27% +18%
Dell Precision 5510
62 fps ∼27% +18%
Schenker W706
105 fps ∼46% +101%
1900x1060 Siemens NX (snx-02) (sort by value)
Lenovo ThinkPad P70
39.84 fps ∼15%
Dell Precision 7710
63 fps ∼24% +58%
HP ZBook 17 G2 J8Z55ET
50.73 fps ∼20% +27%
MSI WT72-2OL32SR311BW
45 fps ∼17% +13%
Bullman E-Klasse 5
32 fps ∼12% -20%
Dell Precision 5510
31 fps ∼12% -22%
Schenker W706
88 fps ∼34% +121%
1900x1060 Showcase (showcase-01) (sort by value)
Lenovo ThinkPad P70
39.81 fps ∼20%
Dell Precision 7710
37 fps ∼19% -7%
HP ZBook 17 G2 J8Z55ET
26.31 fps ∼13% -34%
MSI WT72-2OL32SR311BW
23 fps ∼12% -42%
Bullman E-Klasse 5
19 fps ∼10% -52%
Dell Precision 5510
20 fps ∼10% -50%
Schenker W706
44 fps ∼23% +11%
1900x1060 Medical (medical-01) (sort by value)
Lenovo ThinkPad P70
17.46 fps ∼16%
Dell Precision 7710
27 fps ∼25% +55%
HP ZBook 17 G2 J8Z55ET
16.27 fps ∼15% -7%
MSI WT72-2OL32SR311BW
14 fps ∼13% -20%
Bullman E-Klasse 5
10 fps ∼9% -43%
Dell Precision 5510
12 fps ∼11% -31%
Schenker W706
33 fps ∼30% +89%
1900x1060 Maya (maya-04) (sort by value)
Lenovo ThinkPad P70
23.08 fps ∼12%
Dell Precision 7710
46 fps ∼24% +99%
HP ZBook 17 G2 J8Z55ET
39.17 fps ∼20% +70%
MSI WT72-2OL32SR311BW
39 fps ∼20% +69%
Bullman E-Klasse 5
28 fps ∼14% +21%
Dell Precision 5510
30 fps ∼15% +30%
Schenker W706
73 fps ∼38% +216%
1900x1060 Energy (energy-01) (sort by value)
Lenovo ThinkPad P70
4.68 fps ∼16%
Dell Precision 7710
3.17 fps ∼11% -32%
HP ZBook 17 G2 J8Z55ET
0.59 fps ∼2% -87%
MSI WT72-2OL32SR311BW
2.12 fps ∼7% -55%
Bullman E-Klasse 5
2.1 fps ∼7% -55%
Dell Precision 5510
0.69 fps ∼2% -85%
Schenker W706
7.4 fps ∼26% +58%
1900x1060 Creo (creo-01) (sort by value)
Lenovo ThinkPad P70
42.17 fps ∼25%
Dell Precision 7710
50 fps ∼29% +19%
HP ZBook 17 G2 J8Z55ET
42.61 fps ∼25% +1%
MSI WT72-2OL32SR311BW
38 fps ∼22% -10%
Bullman E-Klasse 5
29 fps ∼17% -31%
Dell Precision 5510
34 fps ∼20% -19%
Schenker W706
82 fps ∼48% +94%
1900x1060 Catia (catia-04) (sort by value)
Lenovo ThinkPad P70
45.24 fps ∼20%
Dell Precision 7710
58 fps ∼26% +28%
HP ZBook 17 G2 J8Z55ET
44.02 fps ∼20% -3%
MSI WT72-2OL32SR311BW
48 fps ∼21% +6%
Bullman E-Klasse 5
33 fps ∼15% -27%
Dell Precision 5510
37 fps ∼17% -18%
Schenker W706
99 fps ∼44% +119%

Legend


Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Lenovo ThinkPad P70
1258 Samples/s ∼24%
Dell Precision 7710
782 Samples/s ∼15% -38%
HP ZBook 17 G2 J8Z55ET
598 Samples/s ∼11% -52%
MSI WT72-2OL32SR311BW
325 Samples/s ∼6% -74%
Bullman E-Klasse 5
215 Samples/s ∼4% -83%
Dell Precision 5510
534 Samples/s ∼10% -58%
Schenker W706
1324 Samples/s ∼25% +5%
Sala GPUs-only (sort by value)
Lenovo ThinkPad P70
2234 Samples/s ∼21%
Dell Precision 7710
1412 Samples/s ∼13% -37%
HP ZBook 17 G2 J8Z55ET
1084 Samples/s ∼10% -51%
MSI WT72-2OL32SR311BW
648 Samples/s ∼6% -71%
Bullman E-Klasse 5
423 Samples/s ∼4% -81%
Dell Precision 5510
889 Samples/s ∼8% -60%
Schenker W706
2167 Samples/s ∼20% -3%
SiSoft Sandra 2016
Image Processing (sort by value)
Lenovo ThinkPad P70
367.1 MPix/s ∼13%
Dell Precision 7710
527.4 MPix/s ∼19% +44%
Dell Precision 5510
127.5 MPix/s ∼5% -65%
Schenker W706
277 MPix/s ∼10% -25%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Lenovo ThinkPad P70
11.12 GB/s ∼5%
Dell Precision 7710
12.47 GB/s ∼6% +12%
Dell Precision 5510
7.38 GB/s ∼3% -34%
Schenker W706
17 GB/s ∼8% +53%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Lenovo ThinkPad P70
32.97 KOPT/s ∼3%
Dell Precision 7710
66.36 KOPT/s ∼6% +101%
Dell Precision 5510
17 KOPT/s ∼2% -48%
Schenker W706
47.63 KOPT/s ∼4% +44%

Legend


Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3DMark 06 Standard
26746 poäng
3DMark Vantage P Result
27405 poäng
3DMark 11 Performance
8493 poäng
3DMark Ice Storm Standard Score
42156 poäng
3DMark Cloud Gate Standard Score
19732 poäng
3DMark Fire Strike Score
5835 poäng
Hjälp
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Lenovo ThinkPad P70
43.4 fps ∼19%
Dell Precision 7710
59.3 fps ∼26% +37%
HP ZBook 17 G2 J8Z55ET
48.8 fps ∼22% +12%
Bullman E-Klasse 5
35.8 fps ∼16% -18%
Schenker W706
104 fps ∼46% +140%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Lenovo ThinkPad P70
79.3 fps ∼26%
Dell Precision 7710
76.9 fps ∼25% -3%
HP ZBook 17 G2 J8Z55ET
56.2 fps ∼19% -29%
Bullman E-Klasse 5
37 fps ∼12% -53%
Schenker W706
116 fps ∼38% +46%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Lenovo ThinkPad P70
37.8 fps ∼23%
Dell Precision 7710
30.7 fps ∼18% -19%
Schenker W706
48.4 fps ∼29% +28%
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Lenovo ThinkPad P70
22 fps ∼15%
Dell Precision 7710
26.6 fps ∼18% +21%
Schenker W706
39.2 fps ∼26% +78%

Legend


Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

Bullman E-Klasse 5 Intel Core i7-4790K, NVIDIA Quadro K3100M, Samsung SSD SM951 256GB MZHPV256HDGL

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
82.1 fps ∼26%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
51 fps ∼16% -38%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
45 fps ∼14% -45%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
74.4 fps ∼23% -9%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
67 (min: 54, max: 80) fps ∼21% -18%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
57.9 fps ∼18% -29%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
185 fps ∼30%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
167 fps ∼27% -10%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
81 fps ∼13% -56%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
240 fps ∼38% +30%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
140 (min: 113, max: 168) fps ∼22% -24%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
132.4 fps ∼21% -28%
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
69.7 fps ∼26%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
66 fps ∼25% -5%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
34 fps ∼13% -51%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
92 fps ∼35% +32%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
55 (min: 9, max: 95) fps ∼21% -21%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
52.7 fps ∼20% -24%
1366x768 High Preset (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
163.8 fps ∼40%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
158 fps ∼39% -4%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
94 fps ∼23% -43%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
212 fps ∼52% +29%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
127 fps ∼31% -22%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
130.7 fps ∼32% -20%
Just Cause 3
3840x2160 High / On AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
17.8 fps ∼22%
1920x1080 Very High / On AA:SM AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
43.7 fps ∼33%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
39 (min: 30, max: 45) fps ∼30% -11%
1920x1080 High / On AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
50.4 fps ∼38%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
46.6 (min: 41, max: 53) fps ∼35% -8%
Rainbow Six Siege
3840x2160 High Preset AA:T AF:4x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
23.8 fps ∼13%
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
54.5 fps ∼17%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
40.8 (min: 10, max: 109) fps ∼12% -25%
1920x1080 High Preset AA:T AF:4x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
76.8 fps ∼22%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
69 (min: 10, max: 144) fps ∼20% -10%
Star Wars Battlefront
3840x2160 High Preset AA:FX (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
17.8 fps ∼13%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
15.6 (min: 13, max: 20) fps ∼12% -12%
1920x1080 Ultra Preset AA:FX (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
50.9 fps ∼26%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
45.8 (min: 39, max: 55) fps ∼23% -10%
1920x1080 High Preset AA:FX (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
59.4 fps ∼30%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
53 (min: 44, max: 65) fps ∼27% -11%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
14.1 fps ∼14%
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
22.1 fps ∼16%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
23 fps ∼17% +4%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
38 fps ∼28% +72%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
20.2 (min: 16, max: 25) fps ∼15% -9%
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
25.7 fps ∼19% +16%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
40.9 fps ∼16%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
31 fps ∼12% -24%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
67 fps ∼27% +64%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
36.8 (min: 29, max: 43) fps ∼15% -10%
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
45.8 fps ∼18% +12%
Dirt Rally
3840x2160 High Preset (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
39.2 fps ∼24%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
12.5 fps ∼8% -68%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
17 fps ∼10% -57%
1920x1080 Ultra Preset AA:4x MS (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
53.6 fps ∼32%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
63 fps ∼38% +18%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
33 fps ∼20% -38%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
23 fps ∼14% -57%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
73 fps ∼43% +36%
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
59.7 fps ∼36% +11%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
89.6 fps ∼45%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
89 fps ∼45% -1%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
67 fps ∼34% -25%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
45 fps ∼23% -50%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
126 fps ∼63% +41%
Schenker XMG P506
GeForce GTX 970M, 6700HQ, Samsung SM951 MZHPV256HDGL m.2 PCI-e
114.4 fps ∼57% +28%
GTA V
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
35.3 fps ∼24%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
29.7 fps ∼22%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
69.1 fps ∼41%
Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
43.1 fps ∼30%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
40 fps ∼28% -7%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
26.6 fps ∼19% -38%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
26 fps ∼18% -40%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
19 fps ∼13% -56%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
61 fps ∼43% +42%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
37.5 (min: 28, max: 52) fps ∼26% -13%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
34.9 fps ∼25% -19%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
77.4 fps ∼53%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
57 fps ∼39% -26%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
54 fps ∼37% -30%
MSI WT72-2OL32SR311BW
Quadro K4100M, 4980HQ, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
45 fps ∼31% -42%
Bullman E-Klasse 5
Quadro K3100M, 4790K, Samsung SSD SM951 256GB MZHPV256HDGL
32 fps ∼22% -59%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
104 fps ∼71% +34%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
62.5 fps ∼43% -19%
MSI GE62-2QEUi716H21BW
GeForce GTX 965M, 4720HQ, Kingston RBU-SNS8100S3256GD1
61.3 fps ∼42% -21%
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
44.6 fps ∼26%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
44 fps ∼26% -1%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
27 fps ∼16% -39%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
66 fps ∼38% +48%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
42 (min: 7, max: 95) fps ∼24% -6%
1366x768 High (DX11) AF:16x (sort by value)
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
82.9 fps ∼43%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
94 fps ∼49% +13%
HP ZBook 17 G2 J8Z55ET
FirePro M6100, 4710MQ, HGST Travelstar 7K1000 HTS721075A9E630
49 fps ∼25% -41%
Schenker W706
Quadro M5000M, 6700, Samsung SM951 MZVPV512HDGL m.2 PCI-e
122 fps ∼63% +47%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
76 fps ∼39% -8%
låg med. hög ultra4K
Tomb Raider (2013) 255.1 185 82.1 fps
BioShock Infinite (2013) 176 163.8 69.7 fps
Metro: Last Light (2013) 124.5 82.9 44.6 fps
Thief (2014) 88.6 77.4 43.1 fps
GTA V (2015) 136.1 69.1 29.7 35.3 fps
Dirt Rally (2015) 108.6 89.6 53.6 39.2 fps
The Witcher 3 (2015) 73.1 40.9 22.1 14.1 fps
Star Wars Battlefront (2015) 124.5 59.4 50.9 17.8 fps
Rainbow Six Siege (2015) 146.8 76.8 54.5 23.8 fps
Just Cause 3 (2015) 85.6 50.4 43.7 17.8 fps

Ljudnivå

Låg belastning
30 / 30 / 30 dB(A)
Hög belastning
36.5 / 40.8 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm avstånd)   environment noise: 30 dB(A)
Hög belastning
 39 °C36.1 °C35.6 °C
 31.2 °C31.6 °C29.3 °C
 24.4 °C28.1 °C24.2 °C
Max: 39 °C
Medel: 31.1 °C
34.7 °C35.4 °C34.4 °C
30.8 °C33 °C30.1 °C
23.9 °C29 °C24.4 °C
Max: 35.4 °C
Medel: 30.6 °C
Strömförsörjning (max.)  40.8 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 31.3 °C / 88 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 37.2 °C / 99 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 35.4 °C / 96 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.1 °C / 82.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-0.3 °C / -0.6 F).
Strömförbrukning
Av/Standbydarklight 0.29 / 0.35 Watt
Låg belastningdarkmidlight 12.1 / 19.7 / 20.5 Watt
Hög belastning midlight 94.3 / 139.6 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
7tim 44min
NBC WiFi Websurfing Battery Test 1.3
6tim 01min
Big Buck Bunny H.264 1080p
7tim 32min
Hög belastning (maximal ljusstyrka)
1tim 04min

För

+ Mycket bra 4K-skärm
+ Utmärkt prestanda
+ Väldigt välbyggd och stabil
+ Utmärkta inmatningsenheter
+ Moderna portar
+ Många säkerhetsfunktioner
+ Kan konfigureras
+ Bra batteritid
+ Uppgraderbar
+ 36 månaders garanti

Emot

- Integrerad kalibrator levererar inte ideala resultat
- Vissa skalningsproblem i Windows 7
- Dåliga högtalare
- Medioker USB 3.0-prestanda
- Irriterande skärmblödning
- PWM under 95% ljusstyrka
- Vår testenhet stöder inte RAID
- Reducerad GPU-prestanda under batteridrift
- Priset
In review: Lenovo ThinkPad P70. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad P70. Test model courtesy of Notebooksandmore.

Lenovo ThinkPad P70 är ett utmärkt återinträde i segmentet 17-tums bärbara arbetsstationer. Vi uppskattar särskilt att Lenovo förmodligen har lyssnat på feedback från sina kunder och återkallat några kontroversiella designbeslut från tidigare generationer, närmare bestämt pekplattan och datorns ”Trackpoint” i synnerhet, som återigen är utrustad med dedikerade knappar.

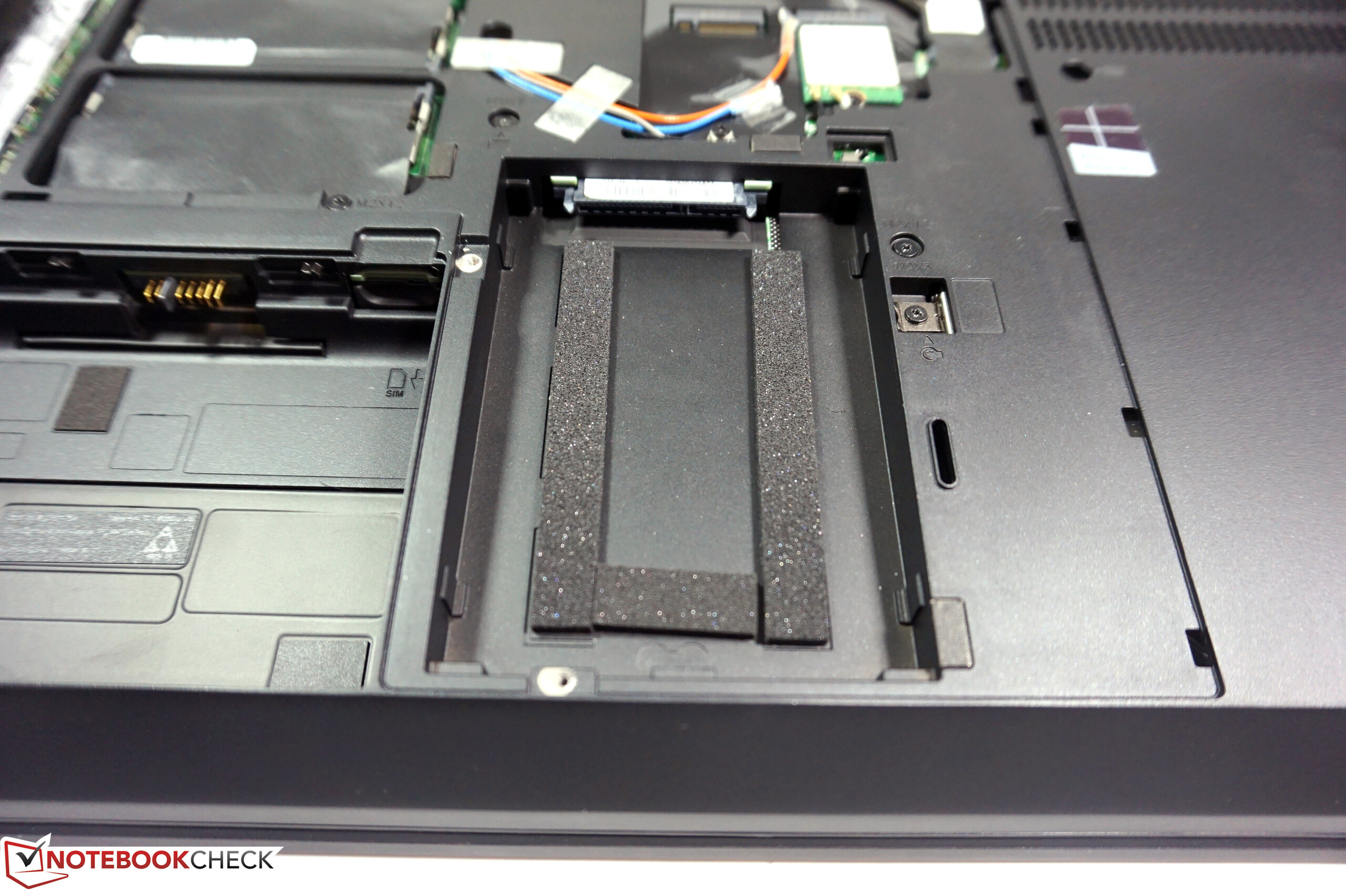

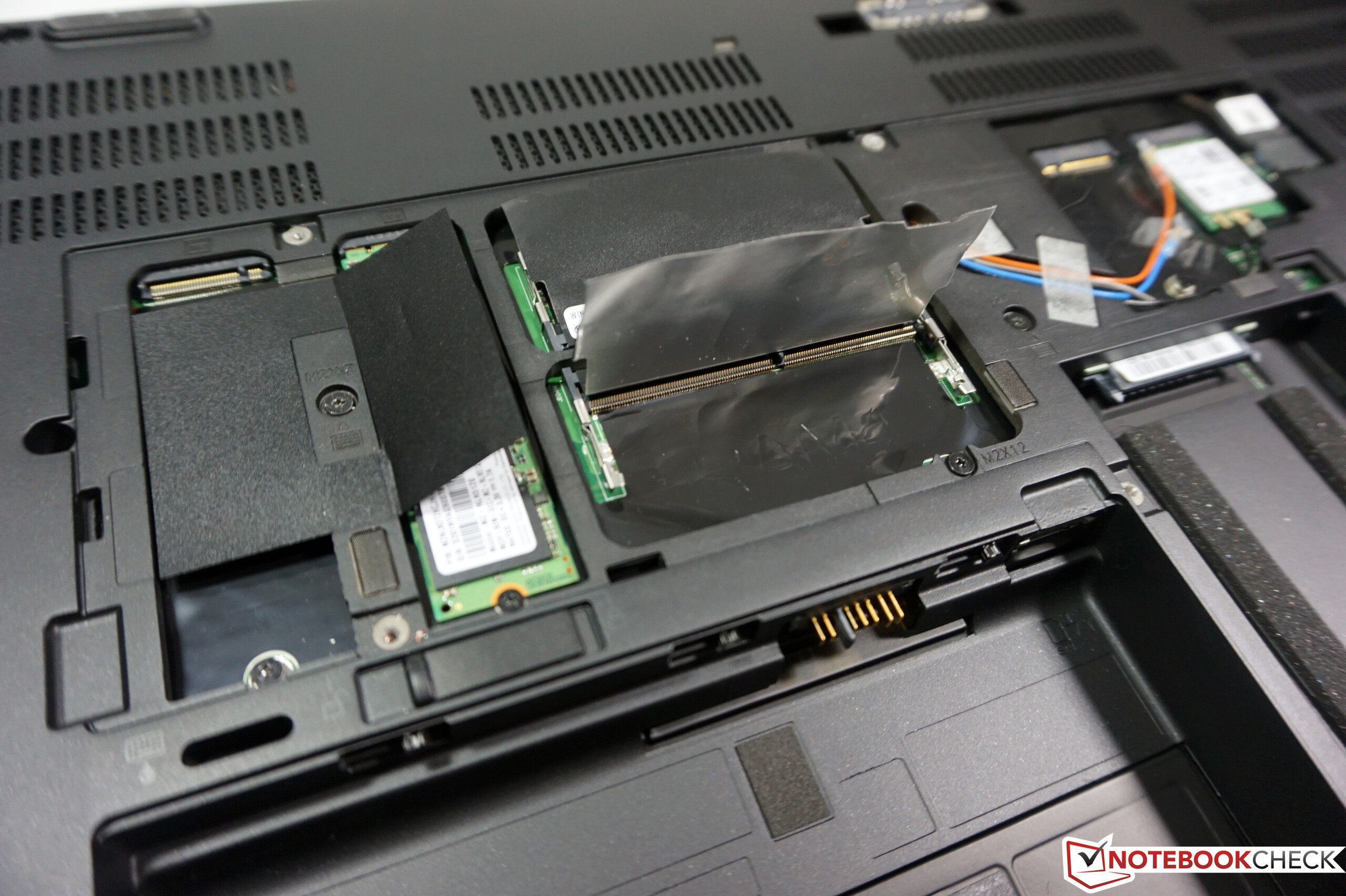

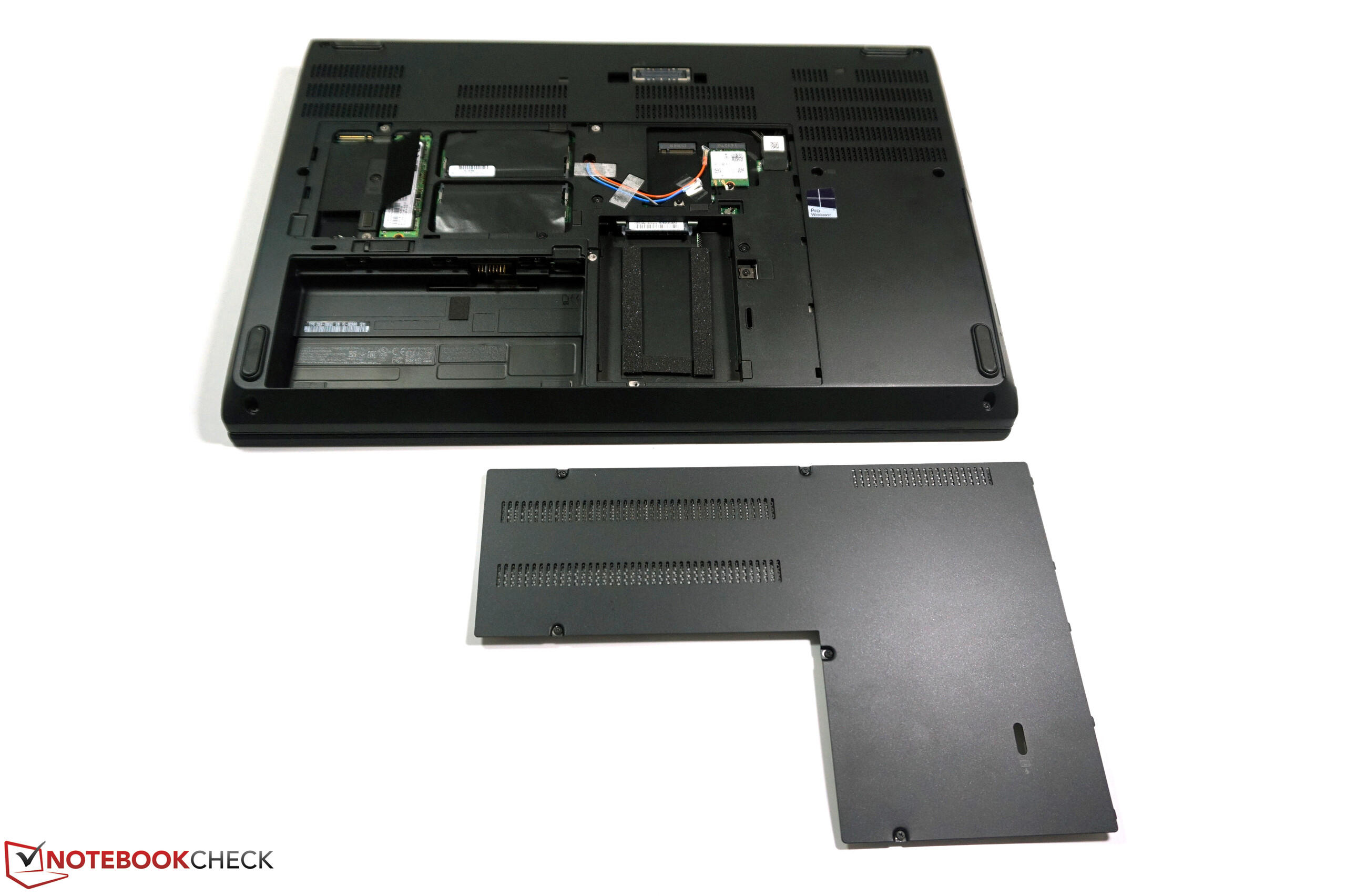

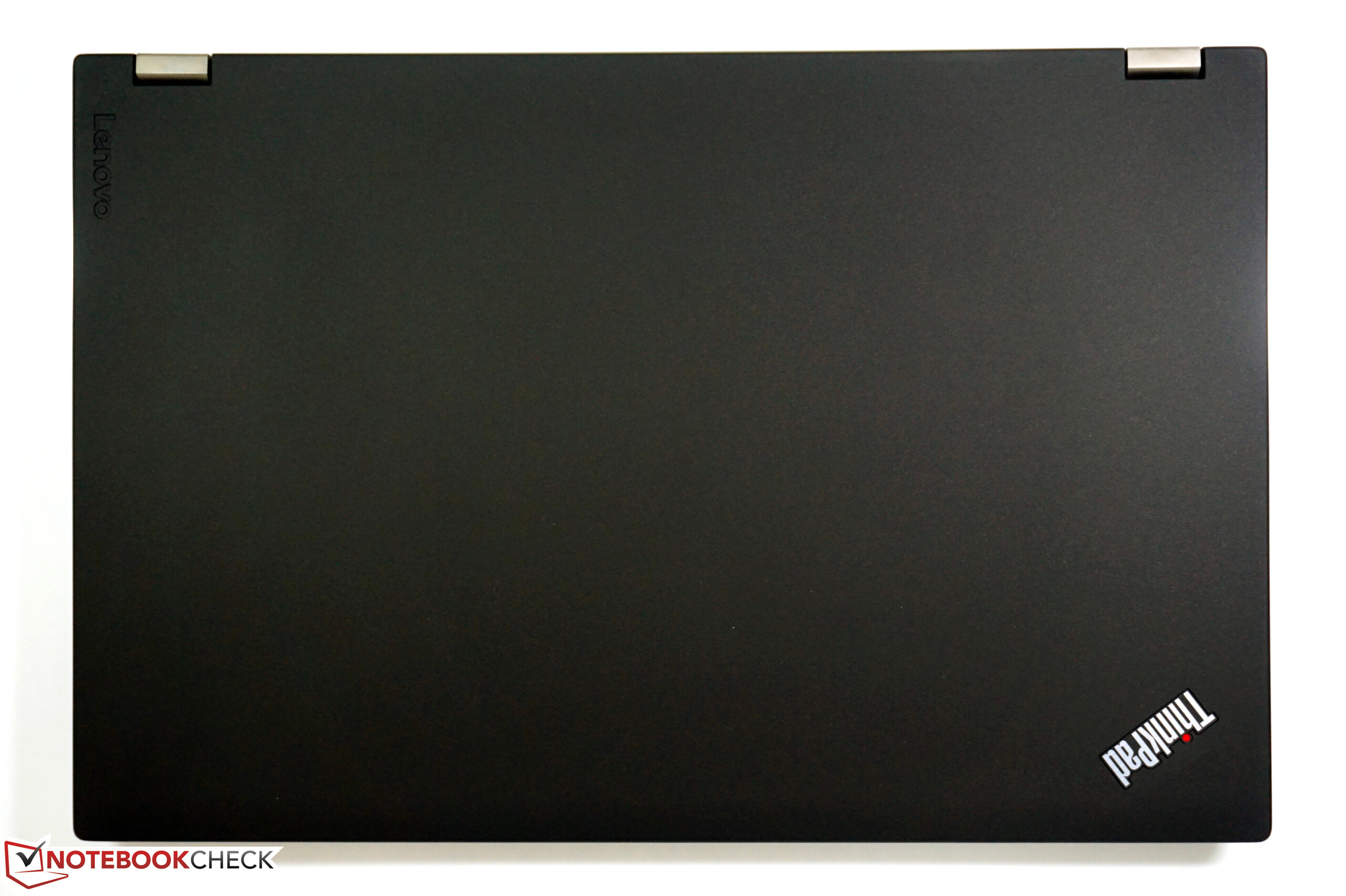

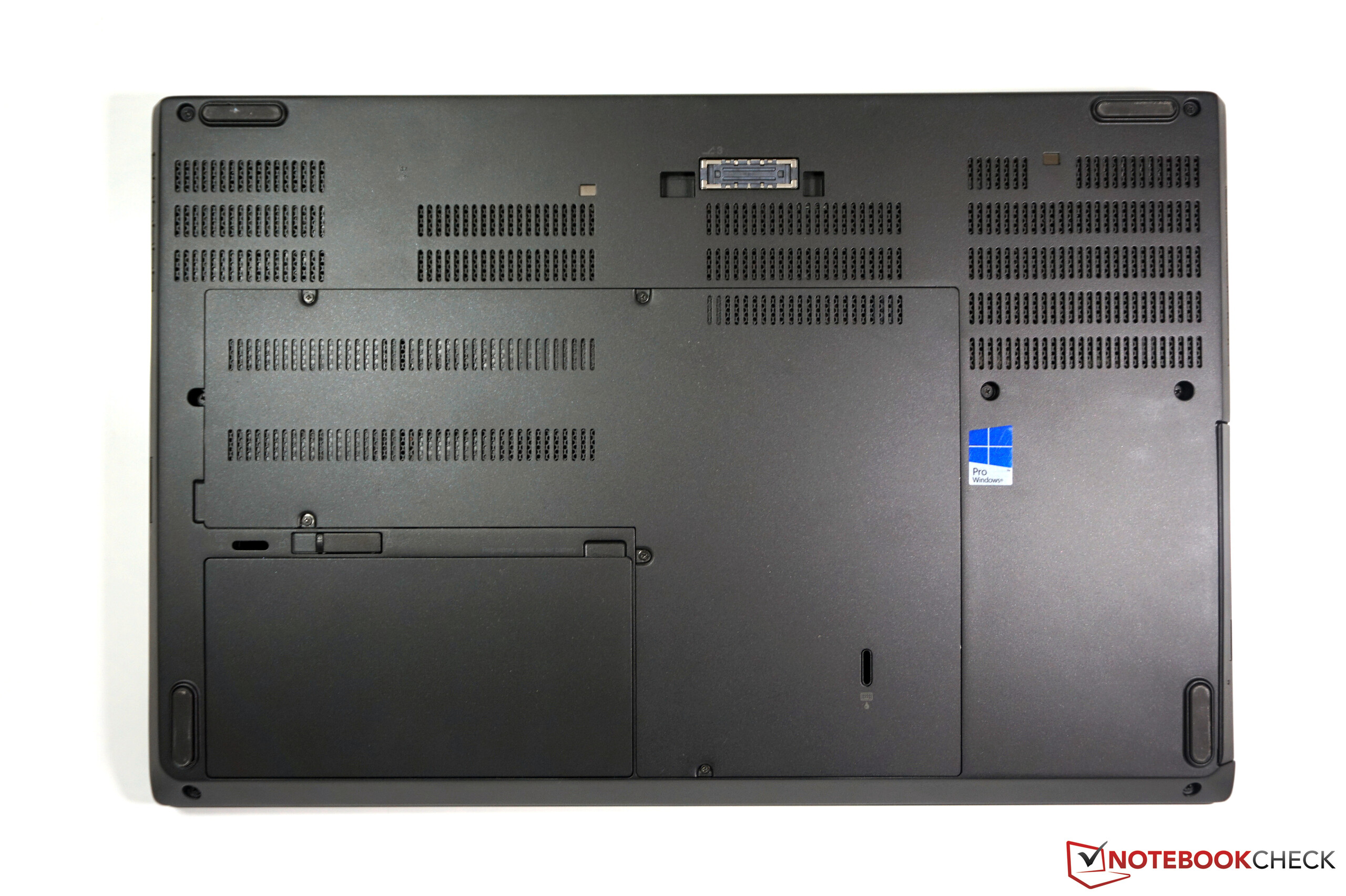

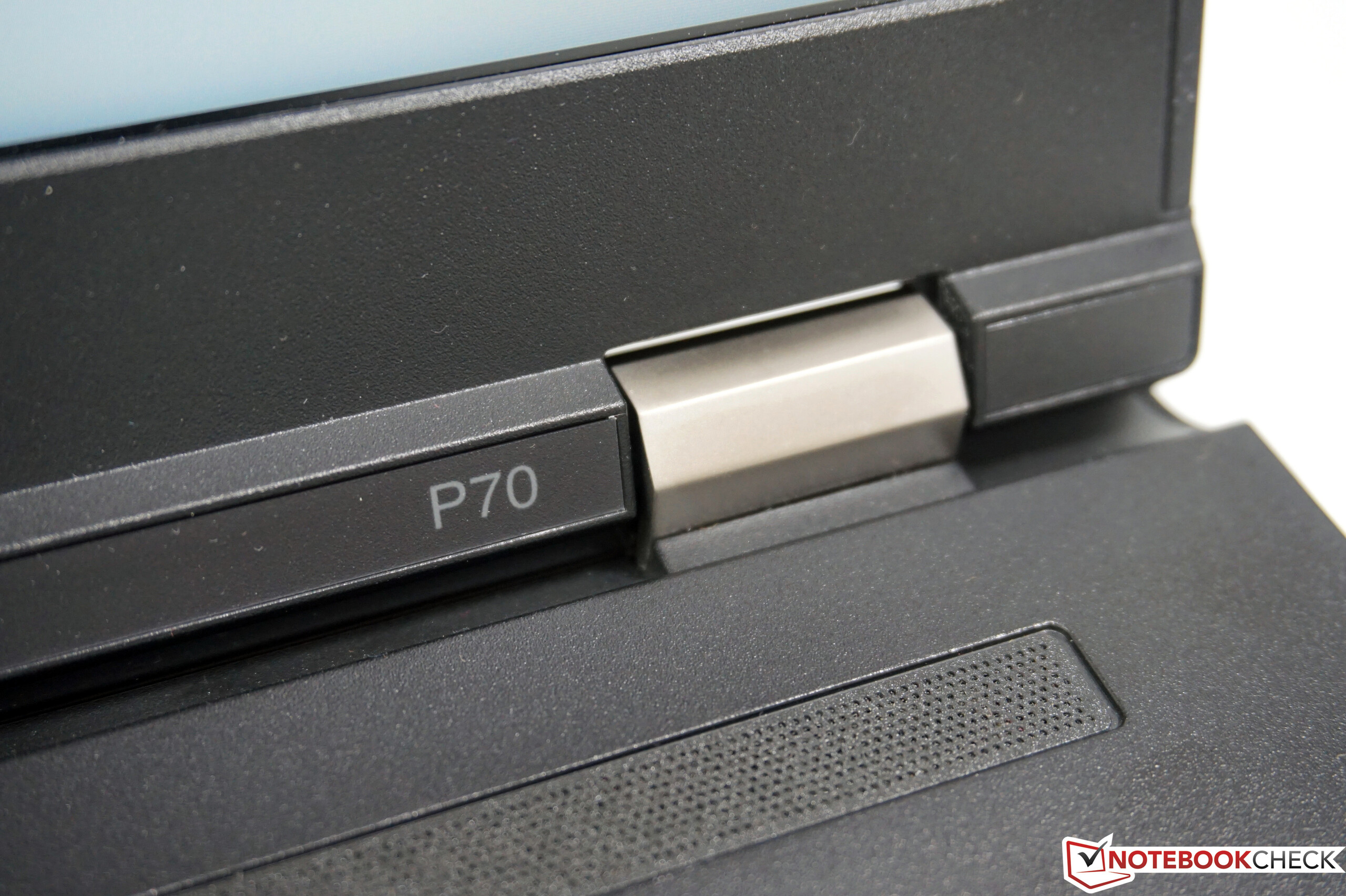

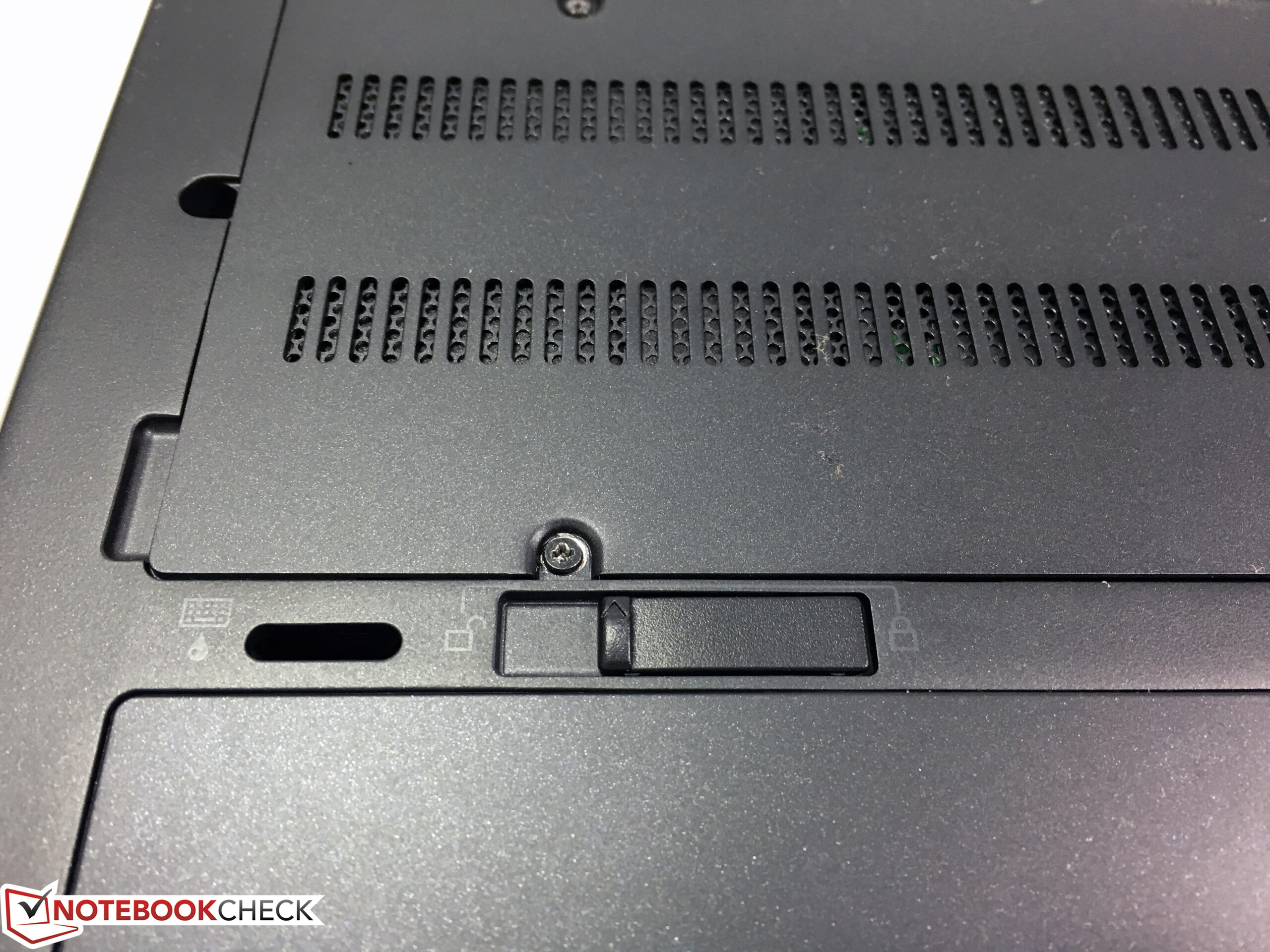

Chassit, som nu är svart igen, är perfekt byggt. Basenhet och tangentbord är extremt robusta. Det tunna locket kan däremot inte riktigt hålla jämna steg och gångjärnen har problem med den tunga skärmen (vid extrema vinklar). En annan fördel med chassit är den stora servicepanelen och underhållsmöjligheterna.

En mycket viktig aspekt med en dator av det här slaget är naturligtvis prestandan, och ThinkPad P70 övertygar med mycket bra resultat. Tack vare den bra (och även tysta) kylningslösningen kan komponenterna leverera maxprestanda under hög belastning. Situationen kunde ha varit ännu bättre om Lenovo inte varit så konservativa med temperaturerna. Det är bara grafikkortets prestanda som reduceras något när datorn körs på batteridrift.

Det mest irriterande problemet är att skärmen blöder ljus, något som inte bör förekomma i prisklassen. Lenovo har också snålat lite på webbkameran och högtalarna. Du bör satsa på Windows 10 om du beställer en konfiguration med en 4K-skärm, eftersom vi märkt av vissa skalningsproblem i Windows 7. Om du föredrar det äldre operativsystemet kan Full HD-modellen vara ett alternativ.

Lenovo ThinkPad P70 - 03/17/2016 v5(old)
Andreas Osthoff

Design
85 / 98 → 87%
Tangentbord
94%
Mus
86%
Anslutningar
75 / 81 → 93%
Vikt
53 / 10-66 → 77%
Batteri
89%
Skärm
89%
Spelprestanda
95%
Programprestanda
94%
Temperatur
93 / 95 → 97%
Ljudnivå
91 / 90 → 100%
Audio
64%
Camera
42 / 85 → 49%
Medel
80%
86%
Workstation - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad P70 Workstation (sammanfattning)
Andreas Osthoff, 2016-02- 6 (Update: 2016-02- 6)
