Test: Lenovo ThinkPad P50 Workstation (Xeon, 4K) (sammanfattning)

Andreas Osthoff, 08/13/2016

Bättre med 4K? Nu testar vi återigen en workstation-modell från Lenovo. Den här gången är det en ThinkPad P50 utrustad med Xeon-processor och 4K-skärm, varav den senare inte är rätt val för alla användare.

Lenovo ThinkPad P50 (ThinkPad P Serie)

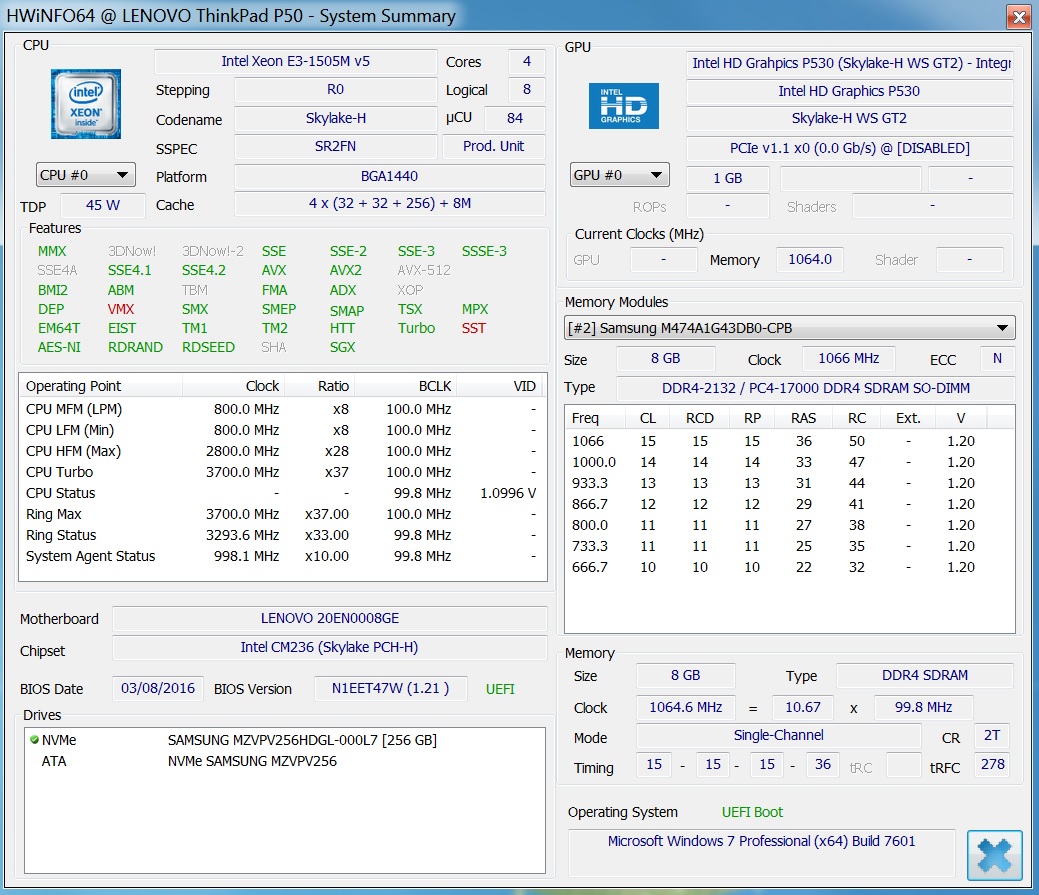

Processor

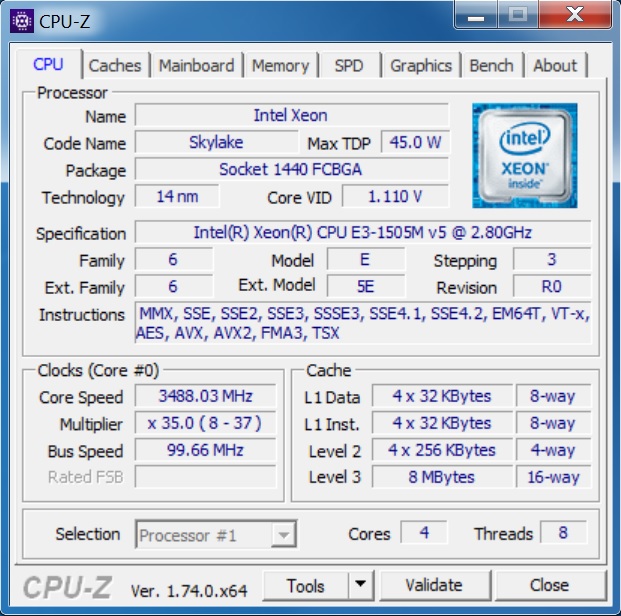

Intel Xeon E3-1505M v5 2.8 GHz
Grafikkort

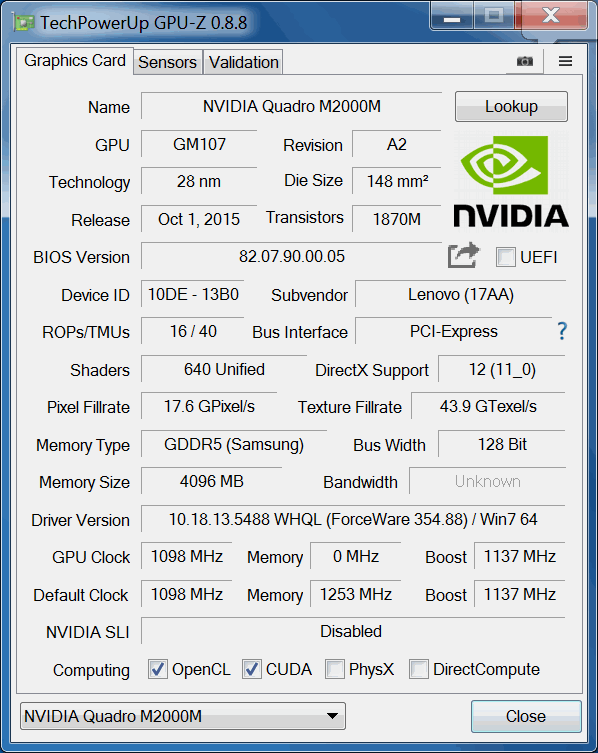

NVIDIA Quadro M2000M - 4096 MB, Kärna: 1137 MHz, Minne: 1252 MHz, GDDR5, ForceWare 354.88, Optimus
Minne
8192 MB
, ECC-DDR4-2133, Single-Channel, 1/4 platser används, max. 64 GB
Skärm
15.6 tum 16:9, 3840x2160 pixlar 282 PPI, LQ156D1JW05, IPS, glansig: nej

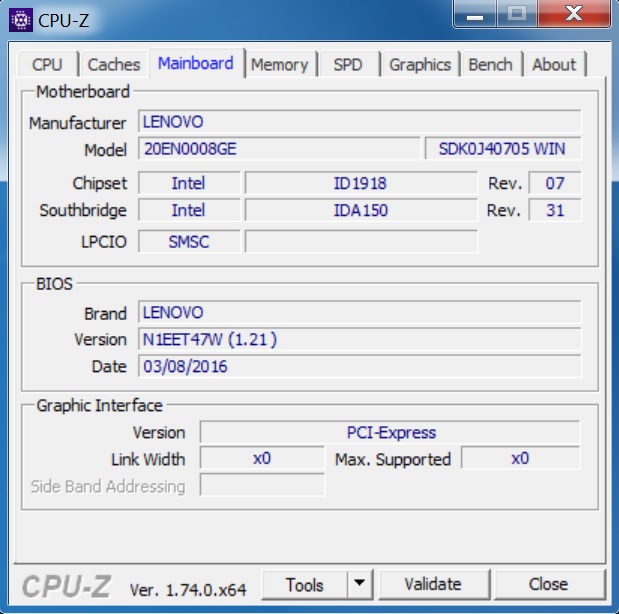

Moderkort
Intel CM236 (Skylake PCH-H)
Hårddisk
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB
Ljudkort
Intel Skylake PCH-H High Definition Audio Controller
Anslutningar
1 Express Card 34mm, 4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm Combo, Kortläsare: 4-i-1 (MMC, SD, SDHC, SDXC), 1 SmartCard, 1 Fingeravtrycksläsare
Nätverk
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2
Storlek
höjd x bredd x djup (i mm) 29.4 x 377.4 x 252.3

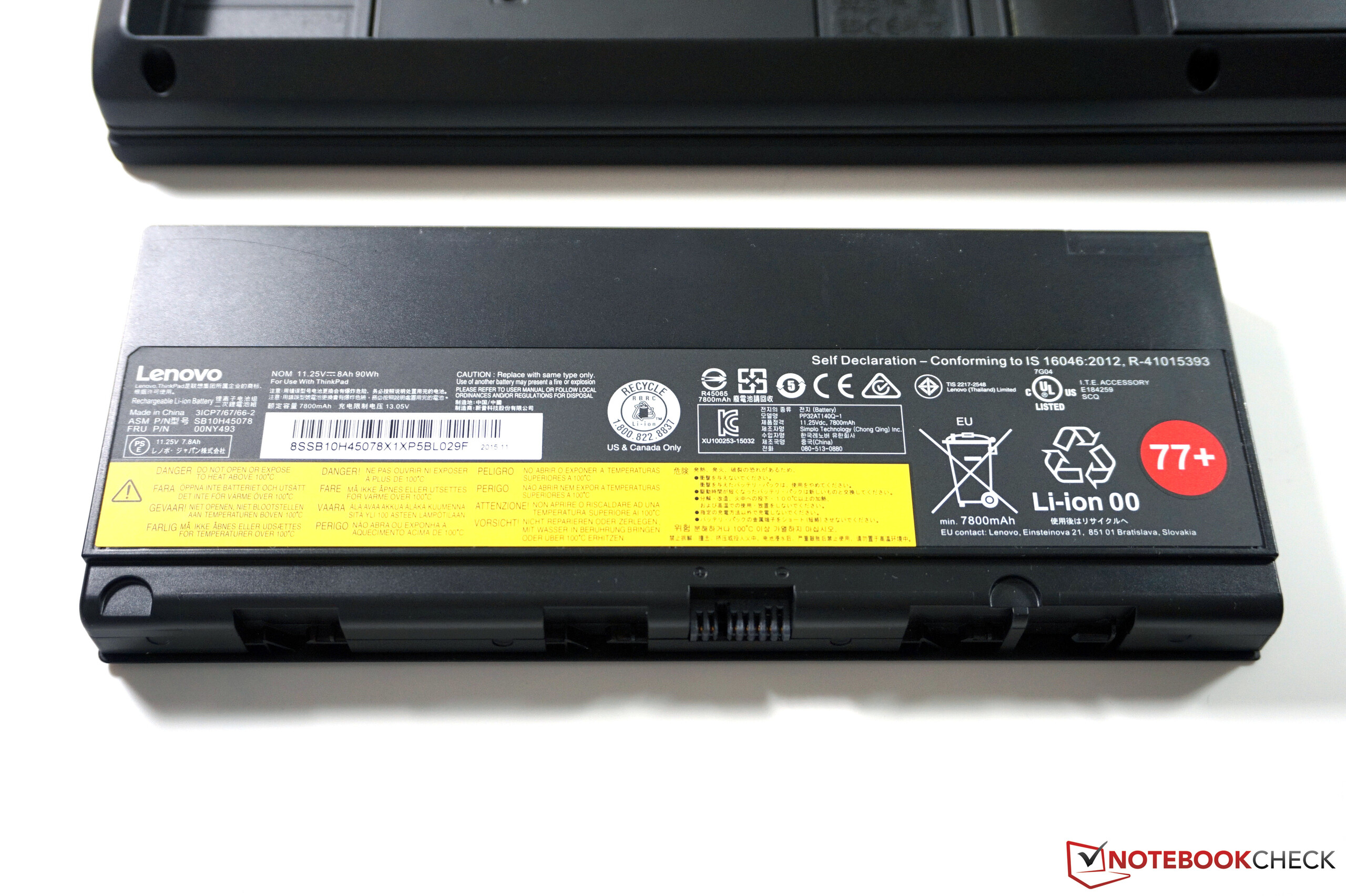

Batteri
90 Wh Litiumpolymer, 6 celler
Operativsystem
Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)
Camera
Webbkamera: HD-webbkamera
Övrigt

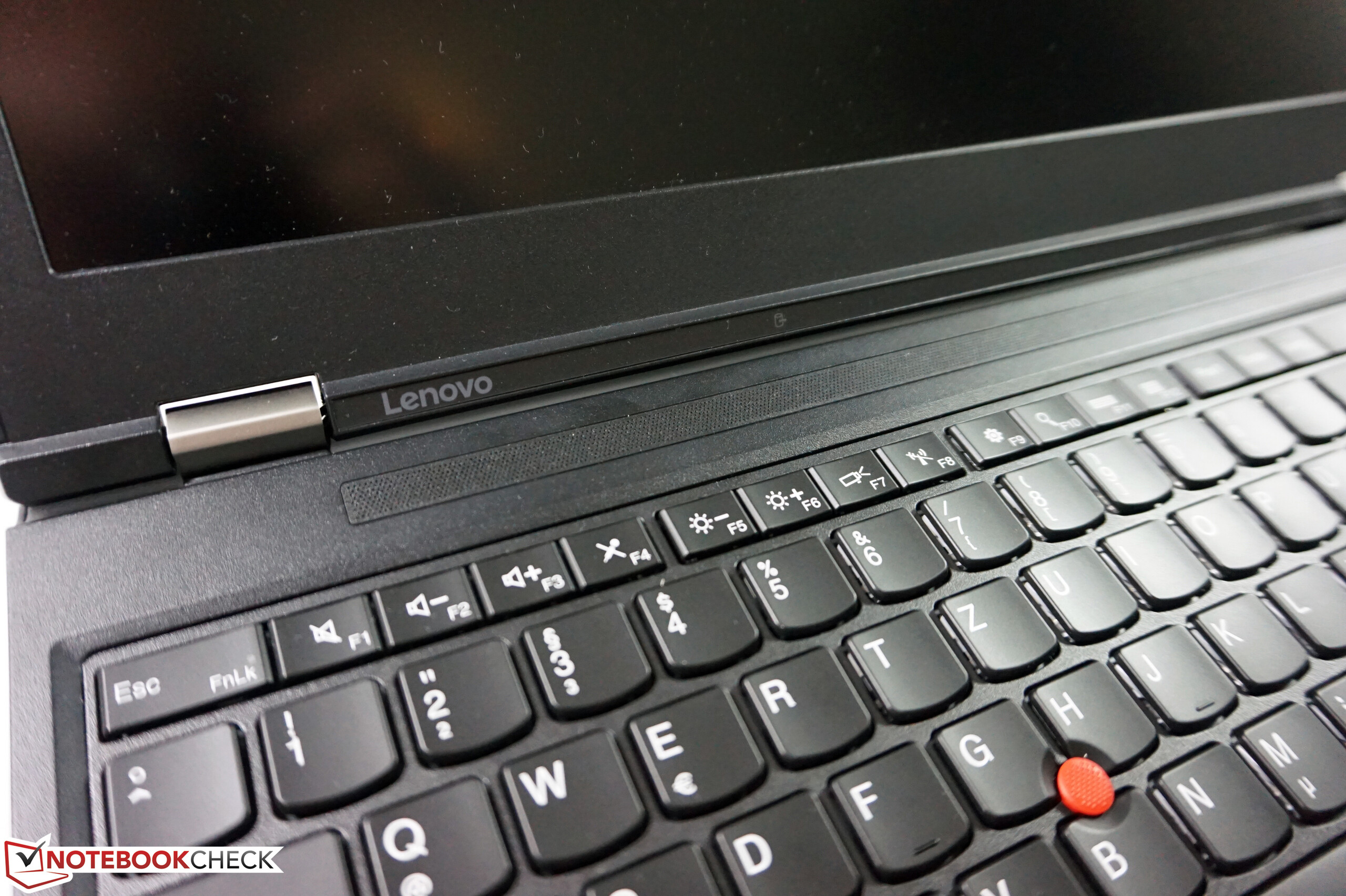

Högtalare: 2x 1.5 Watt, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 170-Watts adapter, Lenovo Tools, Adobe Reader, Microsoft Office 365 (test), McAfee Live Safe (test), 36 Månader Garanti
Vikt
2.59 kg, Strömförsörjning: 670 g
Pris
3200 Kr



Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

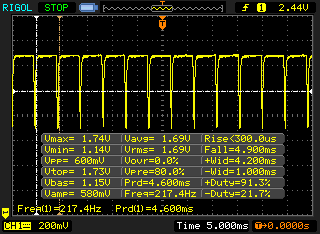

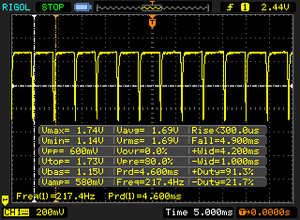

Screen flickering / PWM detected 217 Hz

The display backlight flickers at 217 Hz (Likely utilizing PWM) .

The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 655 (minimum: 43 - maximum: 28740) Hz was measured.

247
cd/m²
248
cd/m²
237
cd/m²
253
cd/m²
250
cd/m²
240
cd/m²
276
cd/m²
239
cd/m²
257
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 276 cd/m² Medel: 249.7 cd/m² Minimum: 8.3 cd/m²
Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 243 cd/m²
Kontrast: 806:1 (Svärta: 0.31 cd/m²)
ΔE Color 4.5 | - Ø
ΔE Greyscale 7.2 | - Ø
94.5% sRGB (Calman) 98.6% sRGB (Argyll) 85% AdobeRGB 1998 (Argyll)
Gamma: 2.31
Lenovo ThinkPad P50
3840x2160, IPS, LQ156D1JW05
Lenovo ThinkPad P50
1920x1080, IPS, LP156WF6-SPK1
HP ZBook 15 G3
1920x1080, UWVA-IPS, Samsung SDC5344
Dell Precision 5510
3840x2160, IGZO LED, SHP143E, 7PHPT_LQ156D1
Schenker Technologies W505
3840x2160, IPS, Sharp LQ156D1JW04 (SHP1436)
Lenovo ThinkPad W541 20EF000SGE
2880x1620, IPS LED, VVX16T028J00, LEN40B5
Response Times
-18%
-36%
-50%
Response Time Grey 50% / Grey 80% *
39.2
46
-17%
54
-38%
56.4
-44%
Response Time Black / White *
22
26
-18%
35.6
-62%
34
-55%
PWM Frequency
217
198
-9%
Screen
-3%
-4%
11%
11%
-3%
Brightness
250
236
-6%
289
16%
361
44%
293
17%
330
32%
Brightness Distribution
86
78
-9%
85
-1%
87
1%
93
8%
87
1%
Black Level *
0.31
0.34
-10%
0.34
-10%
0.4
-29%
0.27
13%
0.57
-84%
Contrast
806
774
-4%
900
12%
978
21%
1067
32%
632
-22%
Colorchecker DeltaE2000 *
4.5
2.35
48%
5.1
-13%
4.85
-8%
3.76
16%
2.85
37%
Greyscale DeltaE2000 *
7.2
3.33
54%
7.4
-3%
4.01
44%
4.83
33%
4.29
40%
Gamma
2.31 104%
2.38 101%
2.37 101%
2.18 110%
2.39 100%
2.32 103%
CCT
6399 102%
6917 94%
7263 89%
7340 89%
7602 86%
6310 103%
Color Space (Percent of AdobeRGB 1998)
85
37
-56%
63
-26%
96
13%
61
-28%
62
-27%
Color Space (Percent of sRGB)
98.6
58
-41%
95
-4%
100
1%
96
-3%
Total Average (Program / Settings)
-11% / -6%
-20% / -13%
-20% / -1%
11% / 11%
-3% / -3%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

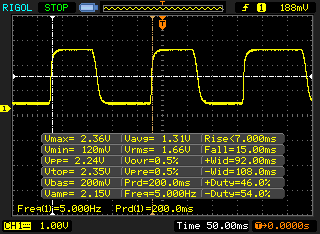

       Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 15 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 14 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (27.4 ms).

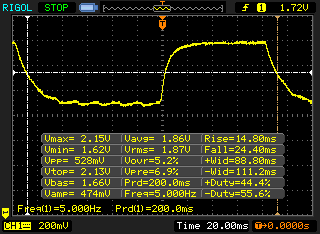

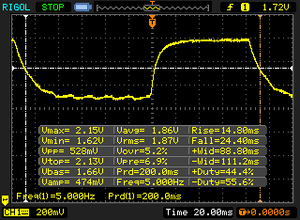

       Response Time 50% Grey to 80% Grey
39.2 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 24.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (44.4 ms).

Cinebench R15
CPU Single 64Bit
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
158 Points ∼100% +1%
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
157 Points ∼99%
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
154 Points ∼97% -2%
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
152 Points ∼96% -3%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
142 Points ∼90% -10%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
117 Points ∼74% -25%
CPU Multi 64Bit
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
739 Points ∼100% +1%
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
732 Points ∼99% 0%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
732 Points ∼99% 0%
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
732 Points ∼99% 0%
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
729 Points ∼99%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
592 Points ∼80% -19%
Cinebench R11.5
CPU Single 64Bit
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
1.78 Points ∼100% 0%
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
1.78 Points ∼100%
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
1.72 Points ∼97% -3%
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
1.7 Points ∼96% -4%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
1.6 Points ∼90% -10%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
1.32 Points ∼74% -26%
CPU Multi 64Bit
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
7.99 Points ∼100% 0%
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
7.99 Points ∼100%
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
7.93 Points ∼99% -1%
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
7.91 Points ∼99% -1%
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
7.91 Points ∼99% -1%
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
6.48 Points ∼81% -19%
Cinebench R10 Shading 32Bit
4519
Cinebench R10 Rendering Multiple CPUs 32Bit
21372
Cinebench R10 Rendering Single 32Bit
5494
Cinebench R10 Shading 64Bit
4989 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
28262 Points
Cinebench R10 Rendering Single CPUs 64Bit
7316 Points
Cinebench R11.5 CPU Multi 64Bit
7.99 Points
Cinebench R11.5 OpenGL 64Bit
44.17 fps
Cinebench R11.5 CPU Single 64Bit
1.78 Points
Cinebench R15 CPU Multi 64Bit
729 Points
Cinebench R15 CPU Single 64Bit
157 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
45.03 fps
Hjälp
PCMark 7 - Score
Schenker Technologies W505
E3-1231 v3, 16384, Samsung SSD 850 EVO M.2 500GB
6052 Points ∼100% +22%
HP ZBook 15 G3
E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e
5521 Points ∼91% +11%
Dell Precision 5510
E3-1505M v5, 16384, SK hynix SC920 512 GB
5317 Points ∼88% +7%
Lenovo ThinkPad W541 20EF000SGE
4910MQ, 8192, Samsung SSD PM851 512 GB MZ7TE512HMHP
5011 Points ∼83% +1%
Lenovo ThinkPad P50
E3-1505M v5, 8192, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4979 Points ∼82%
Lenovo ThinkPad P50
6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP
4892 Points ∼81% -2%
PCMark 8
Work Score Accelerated v2
HP ZBook 15 G3
E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e
5221 Points ∼100% +19%
Dell Precision 5510
E3-1505M v5, 16384, SK hynix SC920 512 GB
5100 Points ∼98% +17%
Lenovo ThinkPad P50
6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP
4677 Points ∼90% +7%
Lenovo ThinkPad P50
E3-1505M v5, 8192, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4372 Points ∼84%
Lenovo ThinkPad W541 20EF000SGE
4910MQ, 8192, Samsung SSD PM851 512 GB MZ7TE512HMHP
3905 Points ∼75% -11%
Creative Score Accelerated v2
Dell Precision 5510
E3-1505M v5, 16384, SK hynix SC920 512 GB
4429 Points ∼100% +3%
HP ZBook 15 G3
E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e
4392 Points ∼99% +2%
Lenovo ThinkPad P50
E3-1505M v5, 8192, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4291 Points ∼97%
Home Score Accelerated v2
Lenovo ThinkPad P50
6820HQ, 8192, Samsung SSD PM871 MZNLN256HCHP
4213 Points ∼100% +5%
Lenovo ThinkPad P50
E3-1505M v5, 8192, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4023 Points ∼95%
HP ZBook 15 G3
E3-1505M v5, 32768, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3959 Points ∼94% -2%
Dell Precision 5510
E3-1505M v5, 16384, SK hynix SC920 512 GB
3941 Points ∼94% -2%
Lenovo ThinkPad W541 20EF000SGE
4910MQ, 8192, Samsung SSD PM851 512 GB MZ7TE512HMHP
2834 Points ∼67% -30%
PCMark 7 Score
4979 poäng
PCMark 8 Home Score Accelerated v2
4023 poäng
PCMark 8 Creative Score Accelerated v2
4291 poäng
PCMark 8 Work Score Accelerated v2
4372 poäng
Hjälp
Lenovo ThinkPad P50
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P50
Samsung SSD PM871 MZNLN256HCHP
HP ZBook 15 G3
Samsung SM951 MZVPV512HDGL m.2 PCI-e
Schenker Technologies W505
Samsung SSD 850 EVO M.2 500GB
Lenovo ThinkPad W541 20EF000SGE
Samsung SSD PM851 512 GB MZ7TE512HMHP
CrystalDiskMark 3.0
-59%
-5%
-51%
-57%
Write 4k QD32
389.6
291.9
-25%
393.8
1%
350.3
-10%
334.1
-14%
Read 4k QD32
953.4
345.3
-64%
797.8
-16%
370.9
-61%
390.5
-59%
Write 4k
256.7
124
-52%
207.3
-19%
121.2
-53%
85.85
-67%
Read 4k
60.23
35.58
-41%
59.11
-2%
48.93
-19%
33.03
-45%
Write 512
1291
301.3
-77%
1432
11%
378.9
-71%
406.3
-69%
Read 512
1364
465.3
-66%
1164
-15%
468.2
-66%
436.7
-68%
Write Seq
1304
302.4
-77%
1538
18%
512.1
-61%
440.7
-66%
Read Seq
1771
525.6
-70%
1502
-15%
527.7
-70%
523.9
-70%
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read: 1771 MB/s
Sequential Write: 1304 MB/s
512K Read: 1364 MB/s
512K Write: 1291 MB/s
4K Read: 60.23 MB/s
4K Write: 256.7 MB/s
4K QD32 Read: 953.4 MB/s
4K QD32 Write: 389.6 MB/s
LuxMark v2.0 64Bit
Room GPUs-only
HP ZBook 15 G3
NVIDIA Quadro M2000M
930 Samples/s ∼100% +25%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
791 Samples/s ∼85% +7%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
742 Samples/s ∼80%
Dell Precision 5510
NVIDIA Quadro M1000M
534 Samples/s ∼57% -28%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
68 Samples/s ∼7% -91%
Sala GPUs-only
HP ZBook 15 G3
NVIDIA Quadro M2000M
1556 Samples/s ∼100% +16%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
1426 Samples/s ∼92% +6%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
1344 Samples/s ∼86%
Dell Precision 5510
NVIDIA Quadro M1000M
889 Samples/s ∼57% -34%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
146 Samples/s ∼9% -89%
SiSoft Sandra 2016
Image Processing
HP ZBook 15 G3
NVIDIA Quadro M2000M
228.6 MPix/s ∼100% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
222.6 MPix/s ∼97%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
155.73 MPix/s ∼68% -30%
Dell Precision 5510
NVIDIA Quadro M1000M
127.5 MPix/s ∼56% -43%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
12.28 GB/s ∼100% +28%
HP ZBook 15 G3
NVIDIA Quadro M2000M
9.82 GB/s ∼80% +2%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
9.6 GB/s ∼78%
Dell Precision 5510
NVIDIA Quadro M1000M
7.38 GB/s ∼60% -23%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 15 G3
NVIDIA Quadro M2000M
21.8 KOPT/s ∼100% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
21.75 KOPT/s ∼100% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
21.49 KOPT/s ∼99%
Dell Precision 5510
NVIDIA Quadro M1000M
17 KOPT/s ∼78% -21%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
43.31 fps ∼100% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
43.29 fps ∼100%
HP ZBook 15 G3
NVIDIA Quadro M2000M
43.17 fps ∼100% 0%
Dell Precision 5510
NVIDIA Quadro M1000M
41 fps ∼95% -5%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
30.87 fps ∼71% -29%
1920x1080 Tcvis
HP ZBook 15 G3
NVIDIA Quadro M2000M
44.89 fps ∼100% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
43.93 fps ∼98% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
43.79 fps ∼98%
Dell Precision 5510
NVIDIA Quadro M1000M
40 fps ∼89% -9%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
34.34 fps ∼76% -22%
1920x1080 SolidWorks
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
53.03 fps ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
51 fps ∼96% -4%
HP ZBook 15 G3
NVIDIA Quadro M2000M
48.13 fps ∼91% -9%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
46.69 fps ∼88% -12%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
41.64 fps ∼79% -21%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3
NVIDIA Quadro M2000M
21.57 fps ∼100% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
21.27 fps ∼99%
Dell Precision 5510
NVIDIA Quadro M1000M
21 fps ∼97% -1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
17.54 fps ∼81% -18%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
15.96 fps ∼74% -25%
1920x1080 Maya
HP ZBook 15 G3
NVIDIA Quadro M2000M
57.67 fps ∼100% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
57.35 fps ∼99%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
56.89 fps ∼99% -1%
Dell Precision 5510
NVIDIA Quadro M1000M
56 fps ∼97% -2%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
52.03 fps ∼90% -9%
1920x1080 Lightwave
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
56.4 fps ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
54 fps ∼96% -4%
HP ZBook 15 G3
NVIDIA Quadro M2000M
51.97 fps ∼92% -8%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
48.27 fps ∼86% -14%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
47.6 fps ∼84% -16%
1920x1080 Ensight
HP ZBook 15 G3
NVIDIA Quadro M2000M
46.68 fps ∼100% +2%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
46.43 fps ∼99% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
45.8 fps ∼98%
Dell Precision 5510
NVIDIA Quadro M1000M
39 fps ∼84% -15%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
24.64 fps ∼53% -46%
1920x1080 Catia
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
54.07 fps ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
54 fps ∼100% 0%
HP ZBook 15 G3
NVIDIA Quadro M2000M
53.54 fps ∼99% -1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
53.48 fps ∼99% -1%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
39.12 fps ∼72% -28%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Schenker Technologies W505
NVIDIA Quadro K5100M
86.99 fps ∼100% +16%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
74.69 fps ∼86%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
71.68 fps ∼82% -4%
HP ZBook 15 G3
NVIDIA Quadro M2000M
66.02 fps ∼76% -12%
Dell Precision 5510
NVIDIA Quadro M1000M
62 fps ∼71% -17%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
22.41 fps ∼26% -70%
1900x1060 Siemens NX (snx-02)
Schenker Technologies W505
NVIDIA Quadro K5100M
56.94 fps ∼100% +73%
HP ZBook 15 G3
NVIDIA Quadro M2000M
35.87 fps ∼63% +9%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
33.95 fps ∼60% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
32.86 fps ∼58%
Dell Precision 5510
NVIDIA Quadro M1000M
31 fps ∼54% -6%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
21.35 fps ∼37% -35%
1900x1060 Showcase (showcase-01)
Schenker Technologies W505
NVIDIA Quadro K5100M
27.73 fps ∼100% +35%
HP ZBook 15 G3
NVIDIA Quadro M2000M
23.86 fps ∼86% +16%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
21.35 fps ∼77% +4%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
20.58 fps ∼74%
Dell Precision 5510
NVIDIA Quadro M1000M
20 fps ∼72% -3%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
11.23 fps ∼40% -45%
1900x1060 Medical (medical-01)
Schenker Technologies W505
NVIDIA Quadro K5100M
22.66 fps ∼100% +57%
HP ZBook 15 G3
NVIDIA Quadro M2000M
15.03 fps ∼66% +4%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
14.68 fps ∼65% +2%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
14.43 fps ∼64%
Dell Precision 5510
NVIDIA Quadro M1000M
12 fps ∼53% -17%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
2.16 fps ∼10% -85%
1900x1060 Maya (maya-04)
Schenker Technologies W505
NVIDIA Quadro K5100M
47.94 fps ∼100% +29%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
38.46 fps ∼80% +4%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
37.15 fps ∼77%
HP ZBook 15 G3
NVIDIA Quadro M2000M
35.94 fps ∼75% -3%
Dell Precision 5510
NVIDIA Quadro M1000M
30 fps ∼63% -19%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
15.82 fps ∼33% -57%
1900x1060 Energy (energy-01)
HP ZBook 15 G3
NVIDIA Quadro M2000M
3.29 fps ∼100% +5%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
3.2 fps ∼97% +2%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
3.13 fps ∼95%
Schenker Technologies W505
NVIDIA Quadro K5100M
2.58 fps ∼78% -18%
Dell Precision 5510
NVIDIA Quadro M1000M
0.69 fps ∼21% -78%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
0.17 fps ∼5% -95%
1900x1060 Creo (creo-01)
Schenker Technologies W505
NVIDIA Quadro K5100M
48.29 fps ∼100% +23%
HP ZBook 15 G3
NVIDIA Quadro M2000M
40.61 fps ∼84% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
39.39 fps ∼82%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
38.95 fps ∼81% -1%
Dell Precision 5510
NVIDIA Quadro M1000M
34 fps ∼70% -14%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
19.14 fps ∼40% -51%
1900x1060 Catia (catia-04)
Schenker Technologies W505
NVIDIA Quadro K5100M
62.35 fps ∼100% +39%
HP ZBook 15 G3
NVIDIA Quadro M2000M
47.08 fps ∼76% +5%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
46.26 fps ∼74% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
44.98 fps ∼72%
Dell Precision 5510
NVIDIA Quadro M1000M
37 fps ∼59% -18%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
19.6 fps ∼31% -56%
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook 15 G3
NVIDIA Quadro M2000M
51.6 fps ∼100% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
50.2 fps ∼97%
Dell Precision 5510
NVIDIA Quadro M1000M
43.4 fps ∼84% -14%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
32.4 fps ∼63% -35%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
52.9 fps ∼100%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
52.5 fps ∼99% -1%
HP ZBook 15 G3
NVIDIA Quadro M2000M
51.8 fps ∼98% -2%
Dell Precision 5510
NVIDIA Quadro M1000M
44.9 fps ∼85% -15%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
20.6 fps ∼100%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
20.4 fps ∼99% -1%
HP ZBook 15 G3
NVIDIA Quadro M2000M
20.4 fps ∼99% -1%
Dell Precision 5510
NVIDIA Quadro M1000M
18.7 fps ∼91% -9%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G3
NVIDIA Quadro M2000M
18.3 fps ∼100% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
18.2 fps ∼99%
Dell Precision 5510
NVIDIA Quadro M1000M
16.2 fps ∼89% -11%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
13.2 fps ∼72% -27%
3DMark
3840x2160 Fire Strike Ultra Combined
Schenker Technologies W505
NVIDIA Quadro K5100M
527 Points ∼100%
3840x2160 Fire Strike Ultra Physics
Schenker Technologies W505
NVIDIA Quadro K5100M
10215 Points ∼100%
3840x2160 Fire Strike Ultra Graphics
Schenker Technologies W505
NVIDIA Quadro K5100M
1086 Points ∼100%
3840x2160 Fire Strike Ultra Score
Schenker Technologies W505
NVIDIA Quadro K5100M
1117 Points ∼100%
1920x1080 Fire Strike Combined
Schenker Technologies W505
NVIDIA Quadro K5100M
1780 Points ∼100% +15%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
1590 Points ∼89% +2%
HP ZBook 15 G3
NVIDIA Quadro M2000M
1558 Points ∼88% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
1554 Points ∼87%
Dell Precision 5510
NVIDIA Quadro M1000M
1401 Points ∼79% -10%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
618 Points ∼35% -60%
1920x1080 Fire Strike Physics
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
10568 Points ∼100%
HP ZBook 15 G3
NVIDIA Quadro M2000M
10518 Points ∼100% 0%
Dell Precision 5510
NVIDIA Quadro M1000M
10414 Points ∼99% -1%
Schenker Technologies W505
NVIDIA Quadro K5100M
10230 Points ∼97% -3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
8526 Points ∼81% -19%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
4496 Points ∼43% -57%
1920x1080 Fire Strike Graphics
Schenker Technologies W505
NVIDIA Quadro K5100M
4902 Points ∼100% +20%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
4126 Points ∼84% +1%
HP ZBook 15 G3
NVIDIA Quadro M2000M
4091 Points ∼83% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
4071 Points ∼83%
Dell Precision 5510
NVIDIA Quadro M1000M
3517 Points ∼72% -14%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
1594 Points ∼33% -61%
1920x1080 Fire Strike Score
Schenker Technologies W505
NVIDIA Quadro K5100M
4467 Points ∼100% +17%
HP ZBook 15 G3
NVIDIA Quadro M2000M
3820 Points ∼86% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
3813 Points ∼85% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
3805 Points ∼85%
Dell Precision 5510
NVIDIA Quadro M1000M
3344 Points ∼75% -12%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
1542 Points ∼35% -59%
1280x720 Sky Diver Physics
Schenker Technologies W505
NVIDIA Quadro K5100M
9983 Points ∼100%
1280x720 Sky Diver Graphics
Schenker Technologies W505
NVIDIA Quadro K5100M
15910 Points ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
11179 Points ∼70%
1280x720 Sky Diver Score
Schenker Technologies W505
NVIDIA Quadro K5100M
14686 Points ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
10951 Points ∼75%
1280x720 Cloud Gate Standard Physics
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
7687 Points ∼100%
Dell Precision 5510
NVIDIA Quadro M1000M
7641 Points ∼99% -1%
HP ZBook 15 G3
NVIDIA Quadro M2000M
7629 Points ∼99% -1%
Schenker Technologies W505
NVIDIA Quadro K5100M
7343 Points ∼96% -4%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
6966 Points ∼91% -9%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
6224 Points ∼81% -19%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
30495 Points ∼100% +14%
HP ZBook 15 G3
NVIDIA Quadro M2000M
30236 Points ∼99% +13%
Schenker Technologies W505
NVIDIA Quadro K5100M
28522 Points ∼94% +7%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
26669 Points ∼87%
Dell Precision 5510
NVIDIA Quadro M1000M
23777 Points ∼78% -11%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
11770 Points ∼39% -56%
1280x720 Cloud Gate Standard Score
HP ZBook 15 G3
NVIDIA Quadro M2000M
18230 Points ∼100% +6%
Schenker Technologies W505
NVIDIA Quadro K5100M
17381 Points ∼95% +1%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
17219 Points ∼94%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
16337 Points ∼90% -5%
Dell Precision 5510
NVIDIA Quadro M1000M
16180 Points ∼89% -6%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
10205 Points ∼56% -41%
1280x720 Ice Storm Standard Physics
Schenker Technologies W505
NVIDIA Quadro K5100M
49653 Points ∼100% 0%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
49518 Points ∼100%
HP ZBook 15 G3
NVIDIA Quadro M2000M
44965 Points ∼91% -9%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
44602 Points ∼90% -10%
Dell Precision 5510
NVIDIA Quadro M1000M
41557 Points ∼84% -16%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
39650 Points ∼80% -20%
1280x720 Ice Storm Standard Graphics
Schenker Technologies W505
NVIDIA Quadro K5100M
154518 Points ∼100% +28%
HP ZBook 15 G3
NVIDIA Quadro M2000M
124103 Points ∼80% +3%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
120601 Points ∼78%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
76826 Points ∼50% -36%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
46451 Points ∼30% -61%
Dell Precision 5510
NVIDIA Quadro M1000M
41161 Points ∼27% -66%
1280x720 Ice Storm Standard Score
Schenker Technologies W505
NVIDIA Quadro K5100M
105162 Points ∼100% +15%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
91433 Points ∼87%
HP ZBook 15 G3
NVIDIA Quadro M2000M
89211 Points ∼85% -2%
Lenovo ThinkPad P50
NVIDIA Quadro M2000M
63578 Points ∼60% -30%
Lenovo ThinkPad W541 20EF000SGE
NVIDIA Quadro K2100M
46026 Points ∼44% -50%
Dell Precision 5510
NVIDIA Quadro M1000M
41248 Points ∼39% -55%
3DMark 06 Standard
26643 poäng
3DMark 11 Performance
5444 poäng
3DMark Ice Storm Standard Score
91433 poäng
3DMark Cloud Gate Standard Score
17219 poäng
3DMark Fire Strike Score
3805 poäng
Hjälp
låg med. hög ultra4K
BioShock Infinite (2013) 219132.3114.743.3fps
The Witcher 3 (2015) 76.247.326.313.69.4fps
Rise of the Tomb Raider (2016) 724525.521.69.2fps

Ljudnivå

Låg belastning
30 / 30 / 30 dB(A)
Hög belastning
42.1 / 42.1 dB(A)



30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 30 dB(A)
Hög belastning
 43.7 °C44 °C41.6 °C
 39.2 °C41.1 °C38.2 °C
 33.6 °C34.2 °C33.5 °C
Max: 44 °C
Medel: 38.8 °C
45.2 °C52.6 °C40.9 °C
41.5 °C50.8 °C42.2 °C
32.9 °C34.1 °C32 °C
Max: 52.6 °C
Medel: 41.4 °C
Strömförsörjning (max.)  50.1 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket
Strömförbrukning
Av/Standbydarklight 0.2 / 0.6 Watt
Låg belastningdarkmidlight 10.2 / 17.8 / 18.3 Watt
Hög belastning midlight 76.9 / 123.5 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
Power Consumption
29%
17%
4%
-140%
-6%
Idle Minimum *
10.2
5.6
45%
5.7
44%
8.6
16%
36
-253%
11.3
-11%
Idle Average *
17.8
8.6
52%
12.2
31%
16.2
9%
41.2
-131%
18.5
-4%
Idle Maximum *
18.3
9.3
49%
12.6
31%
16.7
9%
47.4
-159%
19.7
-8%
Load Average *
76.9
89.5
-16%
83.1
-8%
82.6
-7%
126.6
-65%
84
-9%
Load Maximum *
123.5
105
15%
138.2
-12%
131.8
-7%
235.8
-91%
121.9
1%

* ... smaller is better

Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
8tim 59min
Surfa med WLAN v1.3 (IE 11)
4tim 48min
Big Buck Bunny H.264 1080p
5tim 31min
Hög belastning (maximal ljusstyrka)
1tim 38min
Lenovo ThinkPad P50
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P50
Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Dell Precision 5510
Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB
Schenker Technologies W505
Quadro K5100M, E3-1231 v3, Samsung SSD 850 EVO M.2 500GB
Lenovo ThinkPad W541 20EF000SGE
Quadro K2100M, 4910MQ, Samsung SSD PM851 512 GB MZ7TE512HMHP
Battery Runtime
52%
34%
-13%
-48%
10%
Reader / Idle
539
860
60%
822
53%
428
-21%
147
-73%
649
20%
Load
98
113
15%
110
12%
109
11%
75
-23%
89
-9%
WiFi
298
WiFi v1.3
288
498
73%
386
34%
286
-1%
342
19%
H.264
331
533
61%
449
36%
197
-40%

För

+ utmärkt byggkvalitet och stabilitet
+ förträffliga inmatningsenheter
+ mycket hög prestanda, även under belastning
+ moderna portar
+ många säkerhetsfunktioner
+ mycket snabb PCIe-SSD
+ tyst kylning
+ kan konfigureras
+ 36 mån garanti
+ matt 4K-panel med bra färgreproduktion
+ bra uppgraderingsmöjligheter i teorin (4x RAM, 3x HDD) ...

Emot

- ... men det är onödigt komplicerat att uppgradera
- skärmen lever inte upp till specifikationerna
- PWM
- kortare batteritid och högre temperaturer jämfört med FHD-versionen
- inget RAID-stöd
In review: Lenovo ThinkPad P50. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad P50. Test model courtesy of Notebooksandmore.

Läs en längre version av testet på engelska här.

Det nya testet av ThinkPad P50 är intressant, men förenklar knappast valet för potentiella köpare. Vi börjar med två positiva aspekter: Turbo Boost-problemen som påverkade testresultaten för Full HD-modellen verkar vara ett minne blott, vilket innebär att användaren nu kan utnyttja den maximala prestandan hela tiden. De sprakande högtalarna är uppenbarligen fixade också, eftersom vi inte lade märke till sådana problem i det här testet.

Skärmen är ett mer komplicerat kapitel. Full HD-skärmen var inte särskilt imponerande vad gäller ljusstyrka och färgomfång, men 4K-panelen har sina egna problem. Till att börja med lever den inte upp till den utannonserade ljusstyrkan på 300 nits, och PWM används för att kontrollera ljusstyrkan. Kontrasten är inte mycket bättre heller. 4K-skärmen har klart bättre färgomfång och är därför i princip den enda lösningen för seriös bildredigering. Du bör dock kalibrera skärmen. Den integrerade kolorimetern levererar inga bra resultat för vår testenhet.

Andra nackdelar är den mycket högre energiförbrukningen och följaktligen mycket kortare batteritiden. Fläktarna börjar snurra lite tidigare under belastning och enheten blir varmare i allmänhet. Som köpare får du kompromissa med antingen batteritid eller skärm Tyvärr är inte 4K-panelen det bästa valet för alla – trots att den är ljusstarkare än FHD-skärmen. 4K-modellen får också ett något lägre totalbetyg.

Lenovo ThinkPad P50 - 07/05/2016 v5.1
Andreas Osthoff

Design
86 / 98 → 88%
Tangentbord
95%
Mus
86%
Anslutningar
73 / 81 → 90%
Vikt
59 / 66 → 88%
Batteri
82%
Skärm
85%
Spelprestanda
80%
Programprestanda
91%
Temperatur
85 / 95 → 90%
Ljudnivå
91 / 90 → 100%
Audio
68%
Camera
42 / 85 → 49%
Medel
78%
84%
Workstation - Vägt medel

Pricecompare

> Bärbara datorer/Laptops: Tester och nyheter > Tester > Test: Lenovo ThinkPad P50 Workstation (Xeon, 4K) (sammanfattning)
Andreas Osthoff, 2016-08-13 (Update: 2016-08-13)
