Test: Lenovo IdeaPad 530s-14IKB (i7-8550U, MX150, WQHD, IPS) Laptop (Sammanfattning)

Nice concept! IdeaPad 530s är mer än en enkel prestandauppgradering och den har en aningen omgjord bas. Vi har provat topp-modellen ordentligt - få reda på hur väl den klarade sig i vår utförliga recension.
Lenovo IdeaPad 530s-14IKB (IdeaPad 530s Serie)
Processor
Intel Core i7-8550U 4 x 1.8 - 4 GHz, Kaby Lake Refresh
Grafikkort
NVIDIA GeForce MX150 - 2048 MB VRAM, Kärna: 1532 MHz, Minne: 6000 MHz, GDDR5 (Hynix), Nvidia 398.36, Nvidia Optimus
Minne
8 GB
, DDR4-2666, 1 av 1 använd, single-channel, max. 16GB
Skärm
14.00 tum 16:9, 2560 x 1440 pixlar 210 PPI, AUO B140QAN02.3, IPS, glansig: ja
Moderkort
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Hårddisk
SK Hynix PC401 512GB M.2 (HFS512GD9TNG), 512 GB
, M.2-2280, 445 GB ledigt
Ljudkort
Realtek Audio
Anslutningar
3 USB 3.0, 1 HDMI, Ljudanslutningar: 3.5 mm kombinerat ljud, Kortläsare: 4-i-1 kortläsare, 1 Fingeravtrycksläsare
Nätverk
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Storlek
höjd x bredd x djup (i mm) 16.4 x 323.4 x 226
Batteri
45 Wh, 5928 mAh Litiumjon
Operativsystem
Microsoft Windows 10 Home 64 Bit
Camera
Primary Camera: 0.9 MPix
Övrigt
Tangentbord: 6 raders chiclet, Tangentbordsbelysning: ja, Lenovo Utility, Microsoft Office (Testversion), 12 Månader Garanti
Vikt
1.479 kg, Strömförsörjning: 212 g
Pris
1199 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
327.4 mm 236.5 mm 19.3 mm 1.6 kg329 mm 228 mm 15 mm 930 g324 mm 225 mm 16 mm 1.3 kg323.4 mm 226 mm 16.4 mm 1.5 kg304 mm 217 mm 14.6 mm 1.3 kg308.2 mm 224.2 mm 10.4 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g

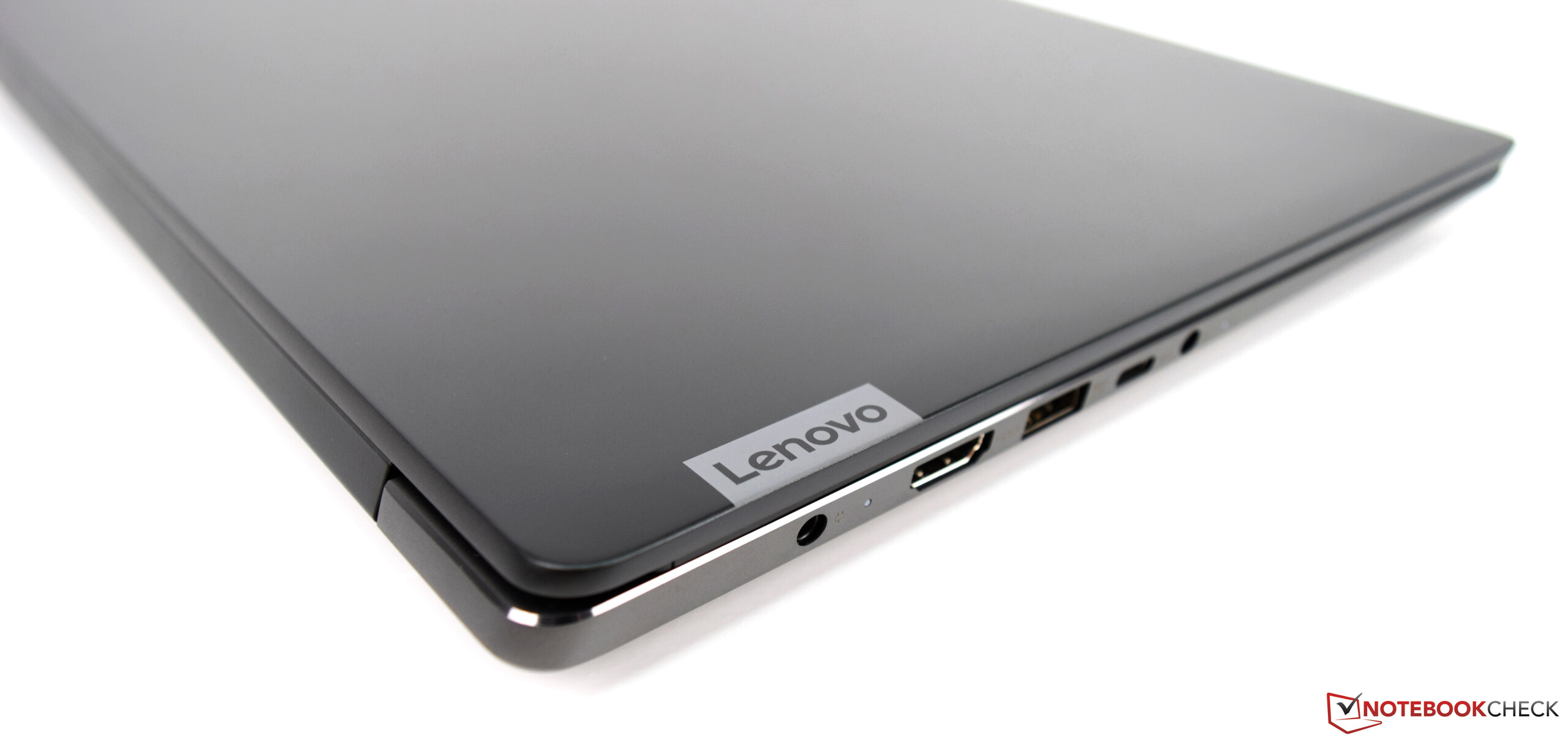

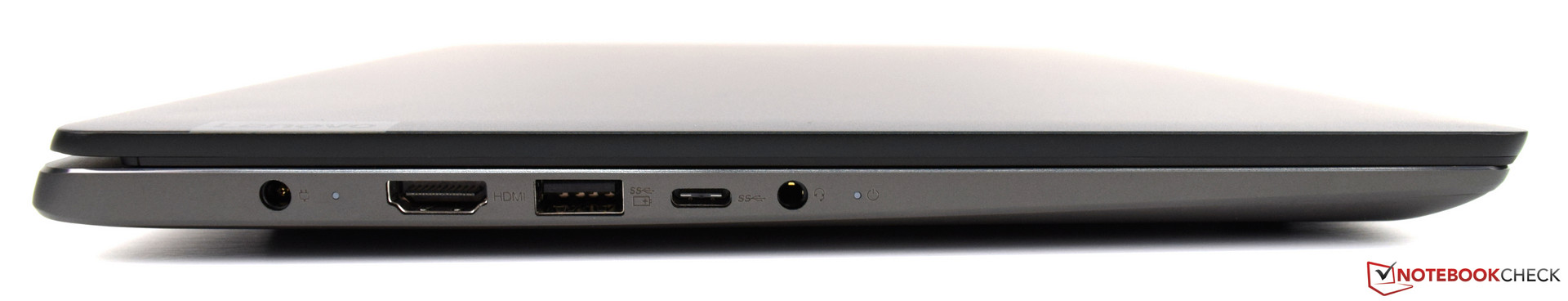

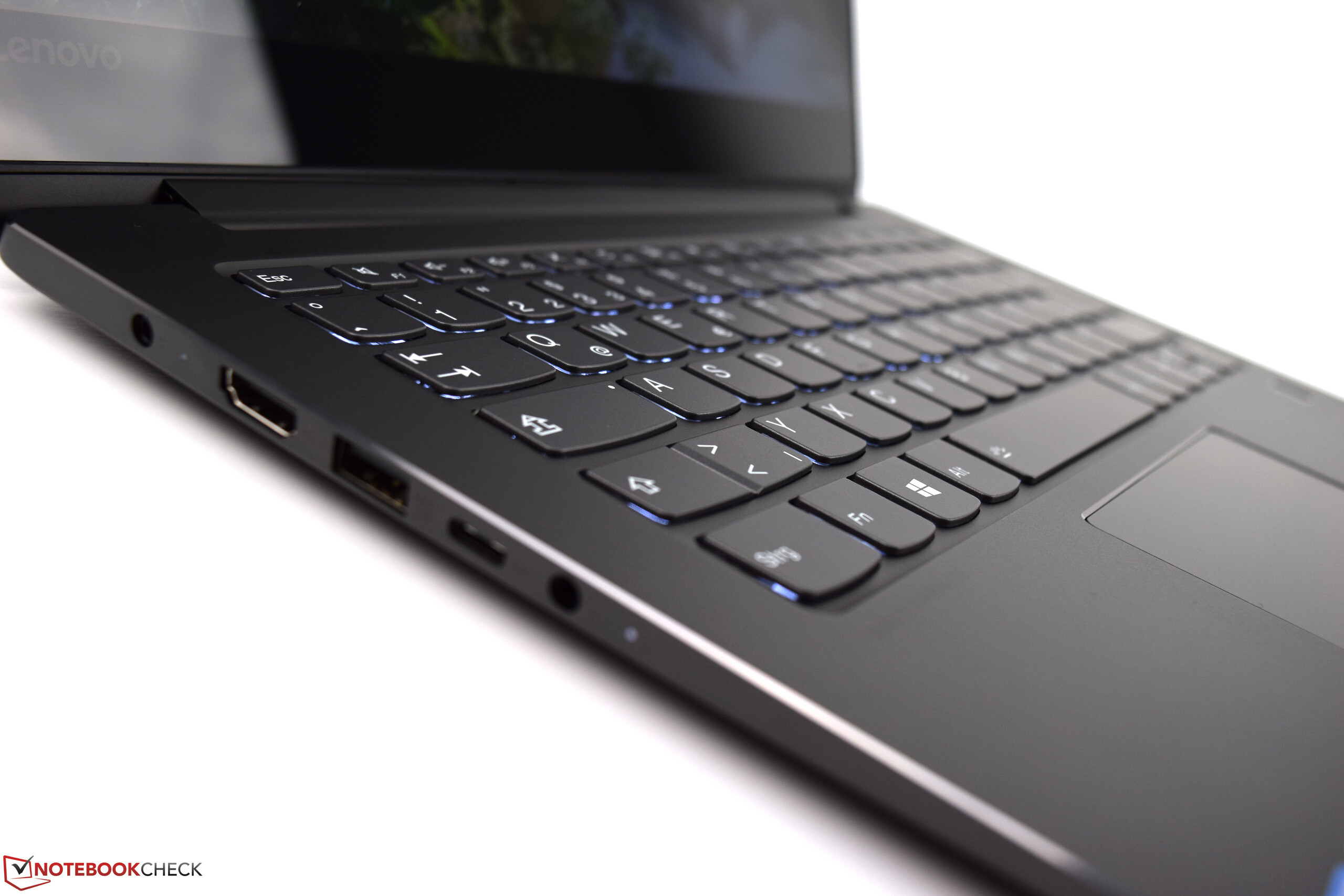

Vänster: kraft, HDMI, USB Typ A 3.0, USB Typ C 3.1 Gen1, kombinerad ljudanslutning
Vänster: kraft, HDMI, USB Typ A 3.0, USB Typ C 3.1 Gen1, kombinerad ljudanslutning

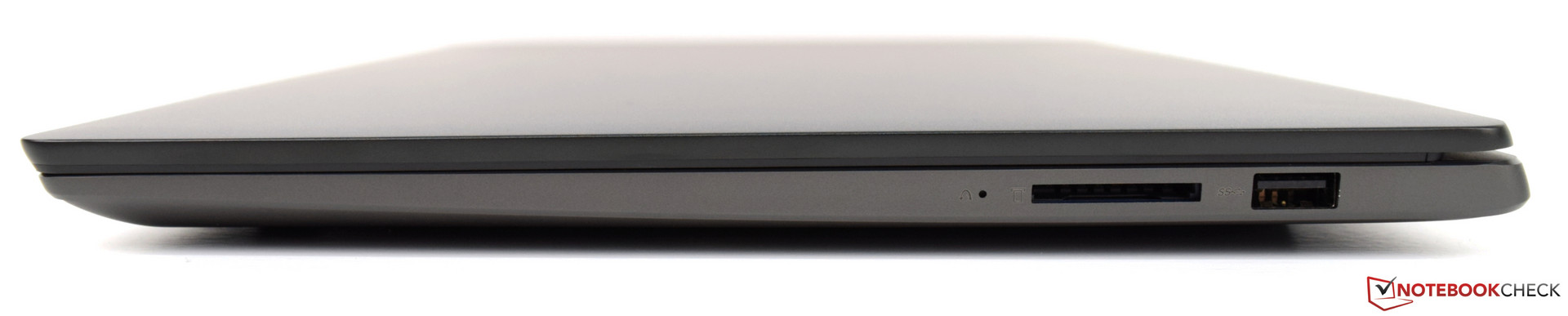

Höger: SD-kortläsare, USB Typ A 3.0
Höger: SD-kortläsare, USB Typ A 3.0

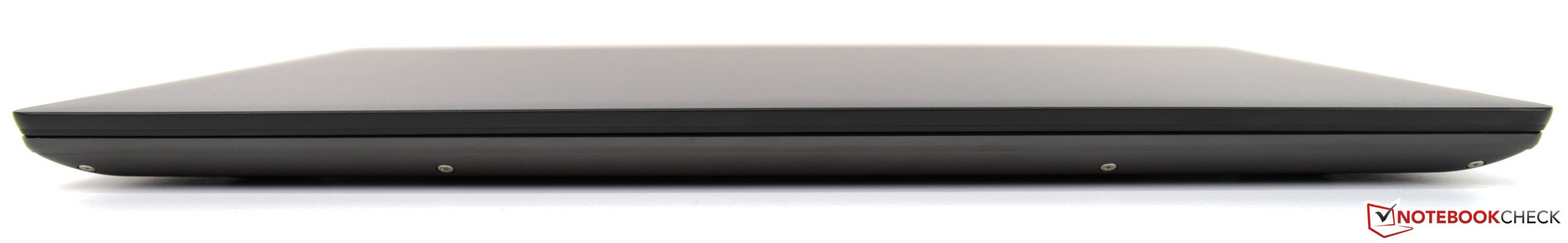

Framsidan: inga anslutningar
Framsidan: inga anslutningar

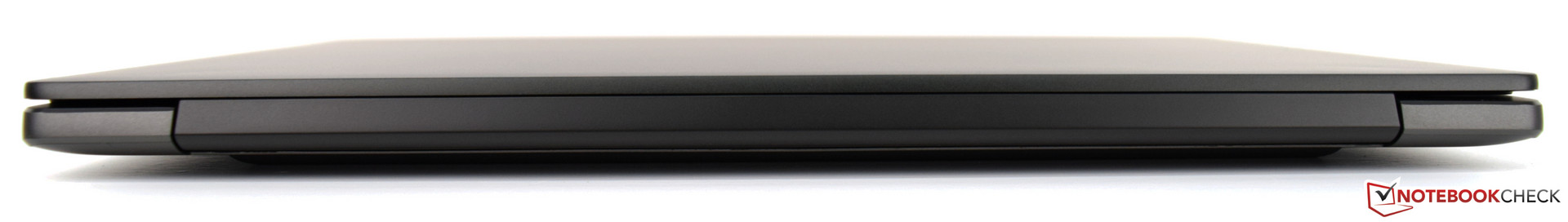

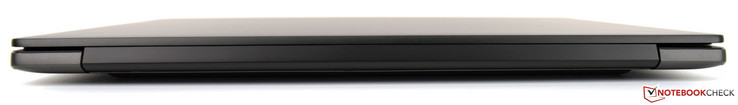

Baksidan: inga anslutningar
Baksidan: inga anslutningar

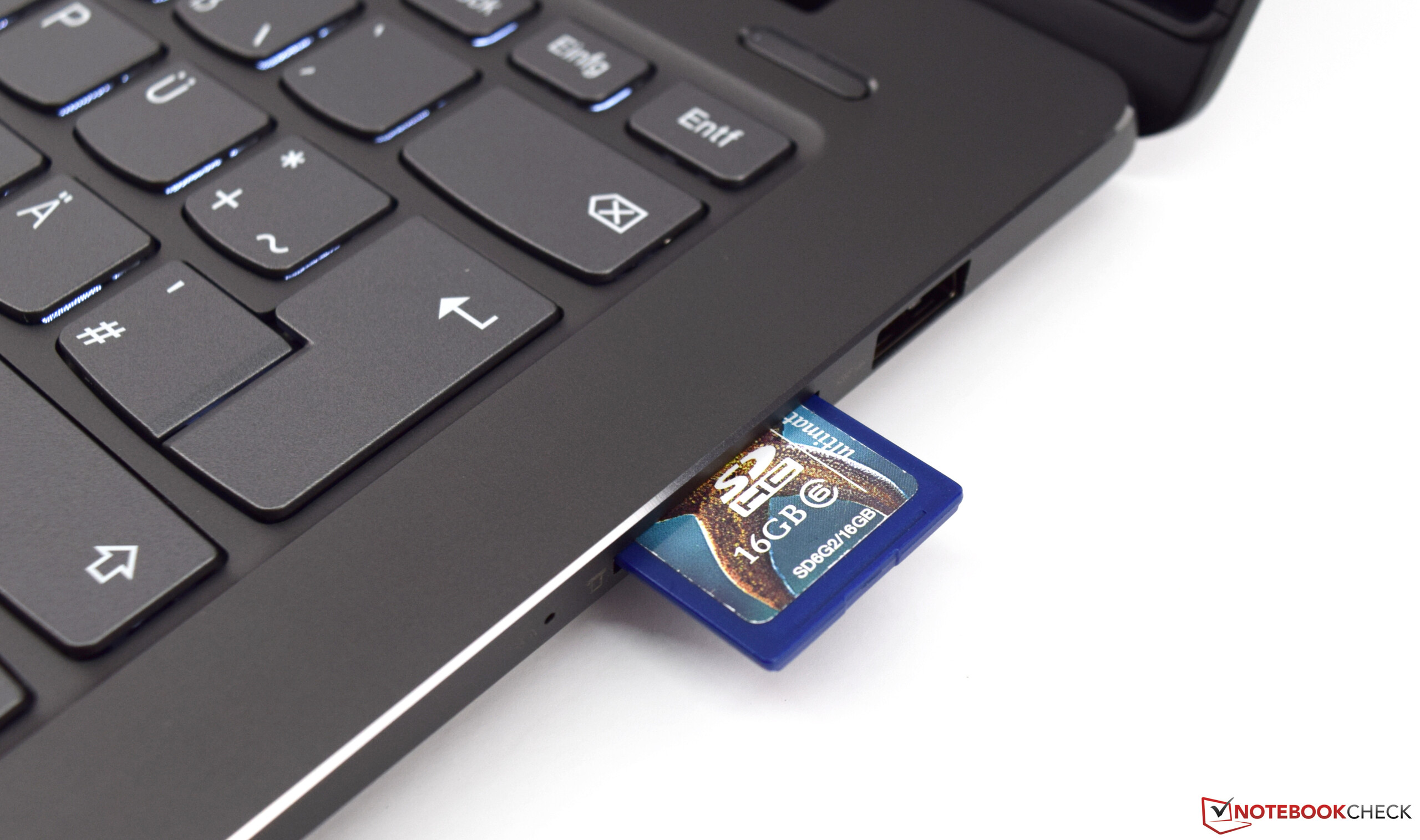

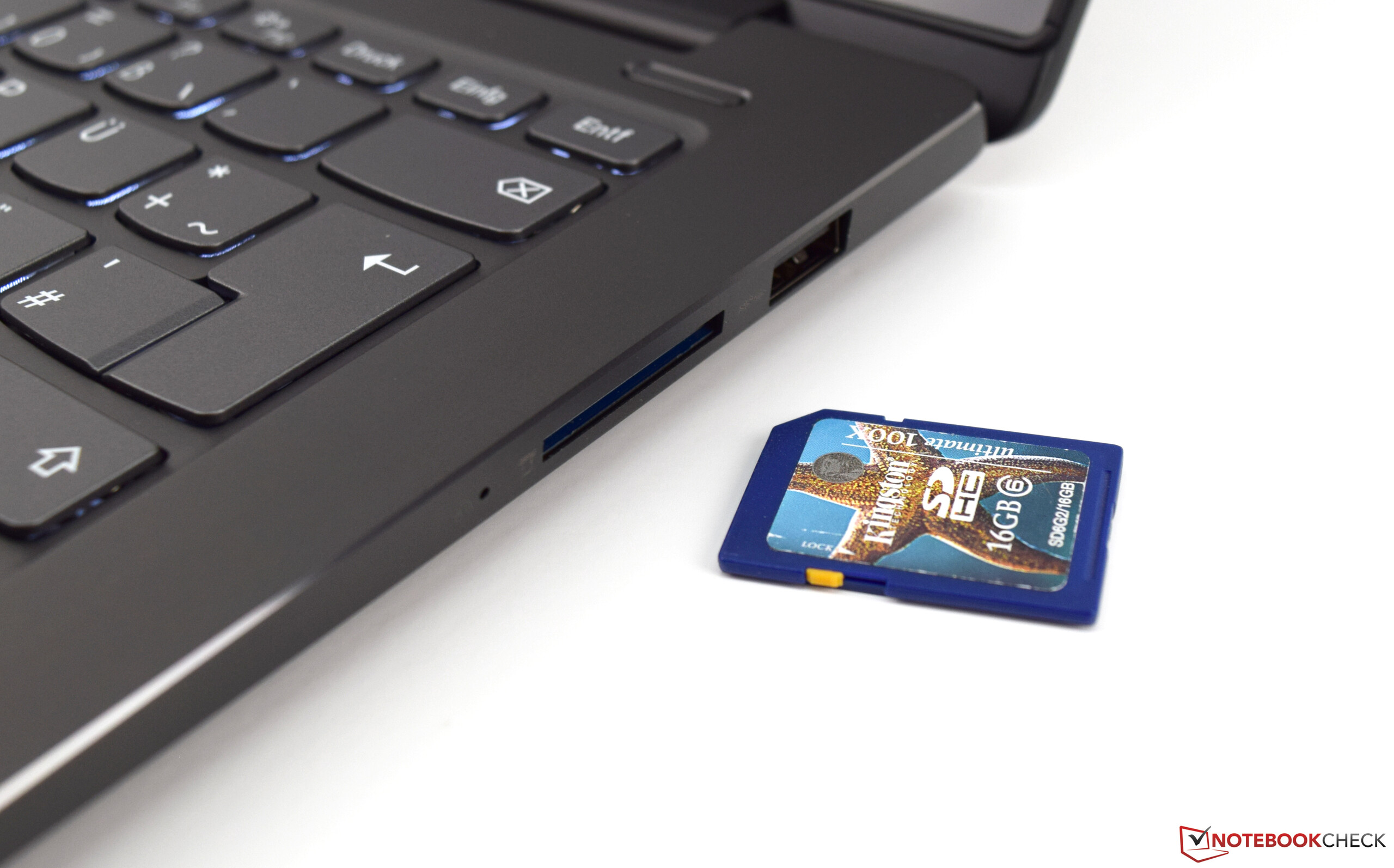

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad 520s-14IKB 80X200C1GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
79.6 MB/s +197%
Average of class Subnotebook
  (18.9 - 193.9, n=18, last 2 years)
67.1 MB/s +150%
Asus Zenbook UX3430UN-GV174T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.9 MB/s +45%
Lenovo IdeaPad 530s-14IKB
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.8 MB/s
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad 520s-14IKB 80X200C1GE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.6 MB/s +222%
Average of class Subnotebook
  (23.6 - 239, n=18, last 2 years)
81.4 MB/s +199%
Asus Zenbook UX3430UN-GV174T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.3 MB/s +41%
Lenovo IdeaPad 530s-14IKB
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.2 MB/s
Networking
iperf3 transmit AX12
Average of class Subnotebook
  (606 - 1339, n=2, last 2 years)
973 MBit/s +237%
Asus Zenbook UX3430UN-GV174T
Intel Dual Band Wireless-AC 8265
664 MBit/s +130%
HP Spectre 13-af033ng
Intel Dual Band Wireless-AC 8265
659 MBit/s +128%
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
513 MBit/s +78%
Acer Swift 5 SF514-52T-59HY
Intel Dual Band Wireless-AC 7265
511 MBit/s +77%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Dual Band Wireless-AC 3165
300 MBit/s +4%
Lenovo IdeaPad 530s-14IKB
Intel Dual Band Wireless-AC 3165
289 MBit/s
iperf3 receive AX12
Average of class Subnotebook
  (623 - 1690, n=2, last 2 years)
1157 MBit/s +283%
Huawei Matebook X Pro i5
Intel Dual Band Wireless-AC 8265
660 MBit/s +119%
Asus Zenbook UX3430UN-GV174T
Intel Dual Band Wireless-AC 8265
530 MBit/s +75%
HP Spectre 13-af033ng
Intel Dual Band Wireless-AC 8265
522 MBit/s +73%
Acer Swift 5 SF514-52T-59HY
Intel Dual Band Wireless-AC 7265
493 MBit/s +63%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Dual Band Wireless-AC 3165
343 MBit/s +14%
Lenovo IdeaPad 530s-14IKB
Intel Dual Band Wireless-AC 3165
302 MBit/s
274
cd/m²
293
cd/m²
269
cd/m²
286
cd/m²
311
cd/m²
281
cd/m²
312
cd/m²
316
cd/m²
291
cd/m²
Distribution av ljusstyrkan
AUO B140QAN02.3 tested with X-Rite i1Pro 2
Max: 316 cd/m² (Nits) Medel: 292.6 cd/m² Minimum: 5.7 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 310 cd/m²
Kontrast: 1555:1 (Svärta: 0.2 cd/m²)
ΔE Color 6 | 0.5-29.43 Ø5, calibrated: 1.6
ΔE Greyscale 8.7 | 0.57-98 Ø5.3
96% sRGB (Argyll 1.6.3 3D)
60.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
66.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.2% sRGB (Argyll 2.2.0 3D)
65.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
Lenovo IdeaPad 530s-14IKB
AUO B140QAN02.3, 2560x1440, 14.00
HP Spectre 13-af033ng
AU Optronics AUO422D, 1920x1080, 13.30
Huawei Matebook X Pro i5
Tianma XM, 3000x2000, 13.90
Acer Swift 5 SF514-52T-59HY
AU Optronics AUO203D, 1920x1080, 14.00
Asus Zenbook UX3430UN-GV174T
Chi Mei CMN14D2 / N140HCE-EN1, 1920x1080, 14.00
Lenovo IdeaPad 520s-14IKB 80X200C1GE
N140HCA-EAC, 1920x1080, 14.00
Display
-3%
1%
5%
1%
-36%
Display P3 Coverage
65.5
64
-2%
65.9
1%
69.7
6%
65.6
0%
41.58
-37%
sRGB Coverage
96.2
90.7
-6%
95.2
-1%
97.1
1%
97.4
1%
61.8
-36%
AdobeRGB 1998 Coverage
66.1
65.1
-2%
67.6
2%
71
7%
67.8
3%
43.05
-35%
Response Times
39%
25%
32%
35%
25%
Response Time Grey 50% / Grey 80% *
58.4 ?(29.2, 29.2)
27 ?(12, 15)
54%
40.4 ?(19.2, 21.2)
31%
37 ?(17, 20)
37%
30 ?(14, 16)
49%
38 ?(20, 18)
35%
Response Time Black / White *
31.2 ?(14.8, 16.4)
24 ?(14, 10)
23%
25.6 ?(11.6, 14)
18%
23 ?(13, 10)
26%
25 ?(14, 11)
20%
26.4 ?(14.8, 11.6)
15%
PWM Frequency
24510 ?(60)
Screen
12%
13%
-9%
-10%
-10%
Brightness middle
311
304
-2%
442.7
42%
254
-18%
377
21%
274
-12%
Brightness
293
287
-2%
428
46%
231
-21%
339
16%
256
-13%
Brightness Distribution
85
80
-6%
84
-1%
86
1%
76
-11%
83
-2%
Black Level *
0.2
0.21
-5%
0.31
-55%
0.25
-25%
0.4
-100%
0.18
10%
Contrast
1555
1448
-7%
1428
-8%
1016
-35%
943
-39%
1522
-2%
Colorchecker dE 2000 *
6
3.66
39%
2.24
63%
3.85
36%
3.33
44%
6.7
-12%
Colorchecker dE 2000 max. *
11.6
5.66
51%
7.19
38%
7.05
39%
8.02
31%
14.8
-28%
Colorchecker dE 2000 calibrated *
1.6
1.11
31%
3.66
-129%
3.5
-119%
Greyscale dE 2000 *
8.7
3.51
60%
9.7
-11%
4.1
53%
4.89
44%
6.3
28%
Gamma
2.19 100%
2.55 86%
1.42 155%
2.43 91%
2.37 93%
2.04 108%
CCT
8426 77%
6955 93%
6227 104%
7369 88%
7620 85%
6363 102%
Color Space (Percent of AdobeRGB 1998)
60.9
59
-3%
61.6
1%
63
3%
62
2%
39.6
-35%
Color Space (Percent of sRGB)
96
91
-5%
95
-1%
97
1%
98
2%
61.5
-36%
Total Average (Program / Settings)
16% / 12%
13% / 12%
9% / -1%
9% / -2%
-7% / -11%

* ... smaller is better

CalMAN: gråskala (okalibrerad)
CalMAN: gråskala (okalibrerad)

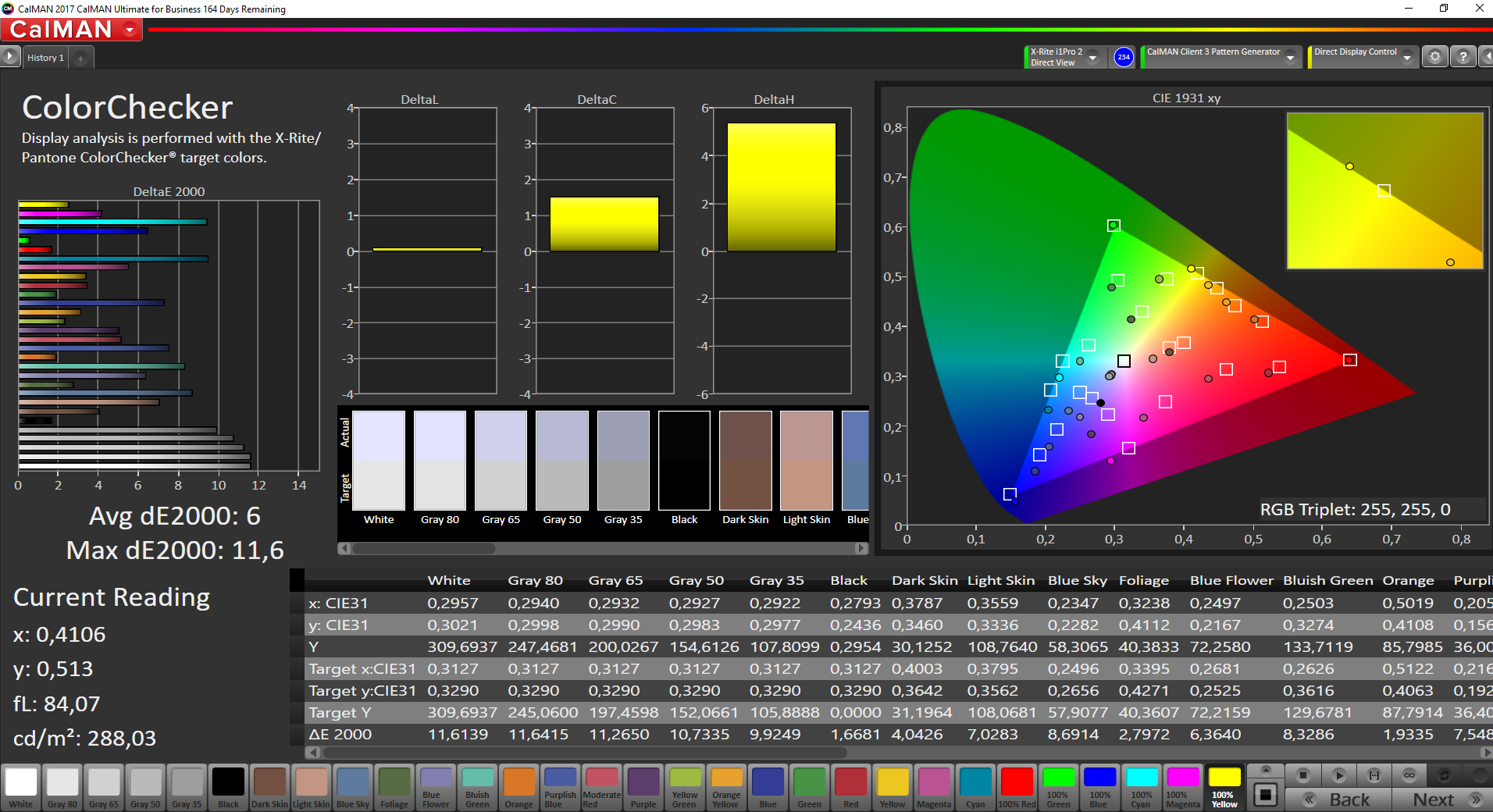

CalMAN: ColorChecker (okalibrerad)
CalMAN: ColorChecker (okalibrerad)

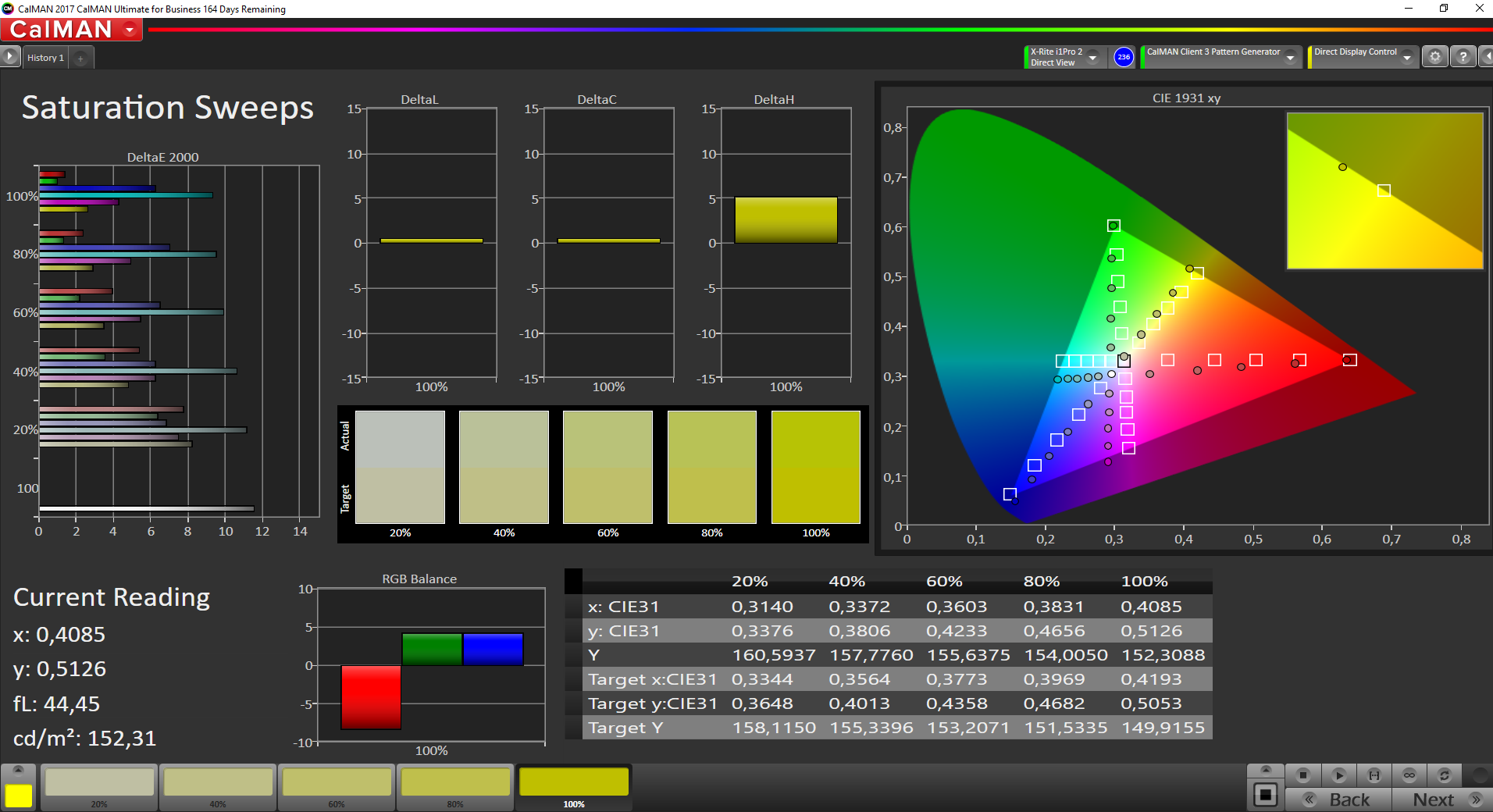

CalMAN: mättnad (okalibrerad)
CalMAN: mättnad (okalibrerad)

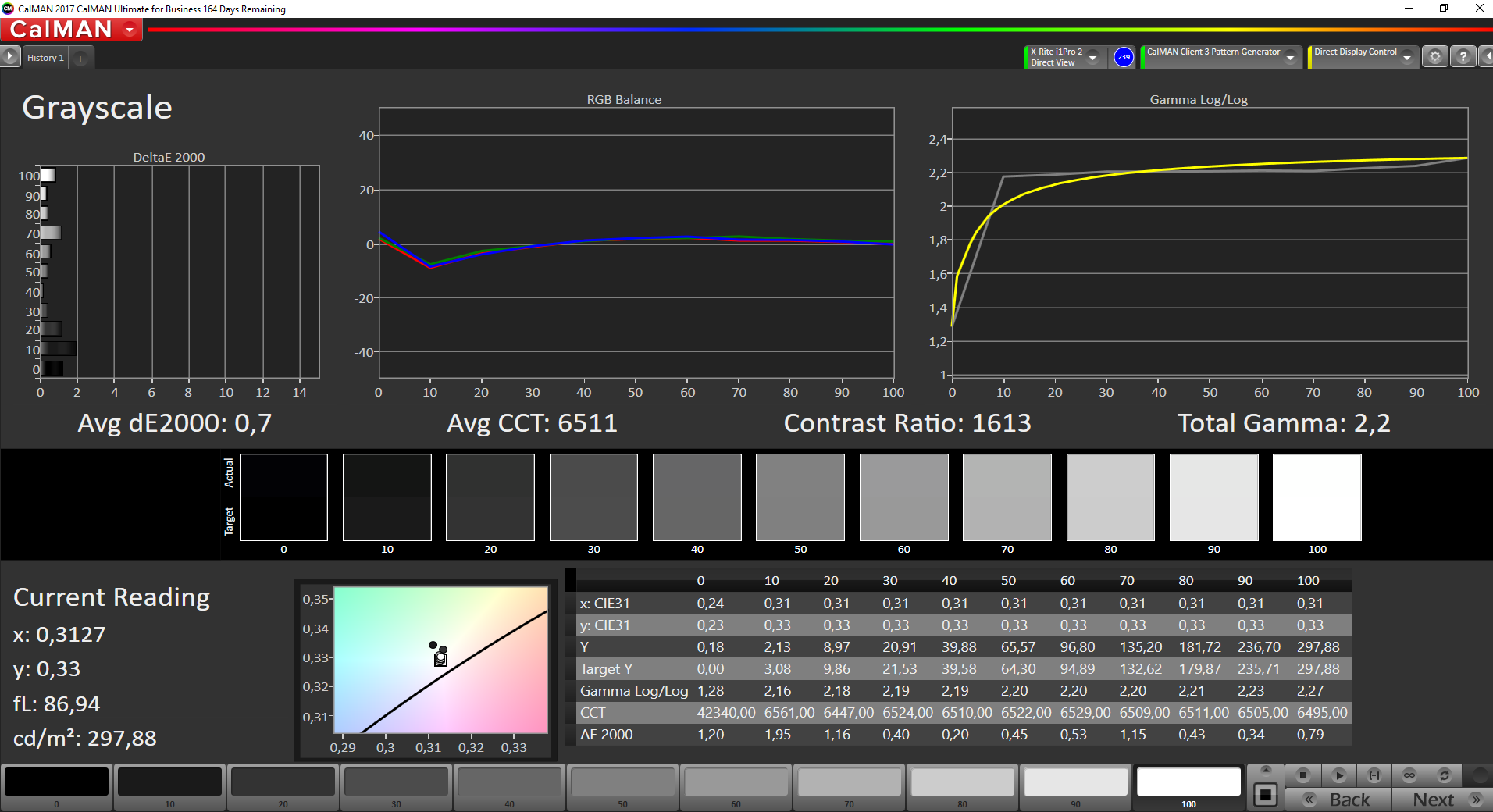

CalMAN: gråskala (kalibrerad)
CalMAN: gråskala (kalibrerad)

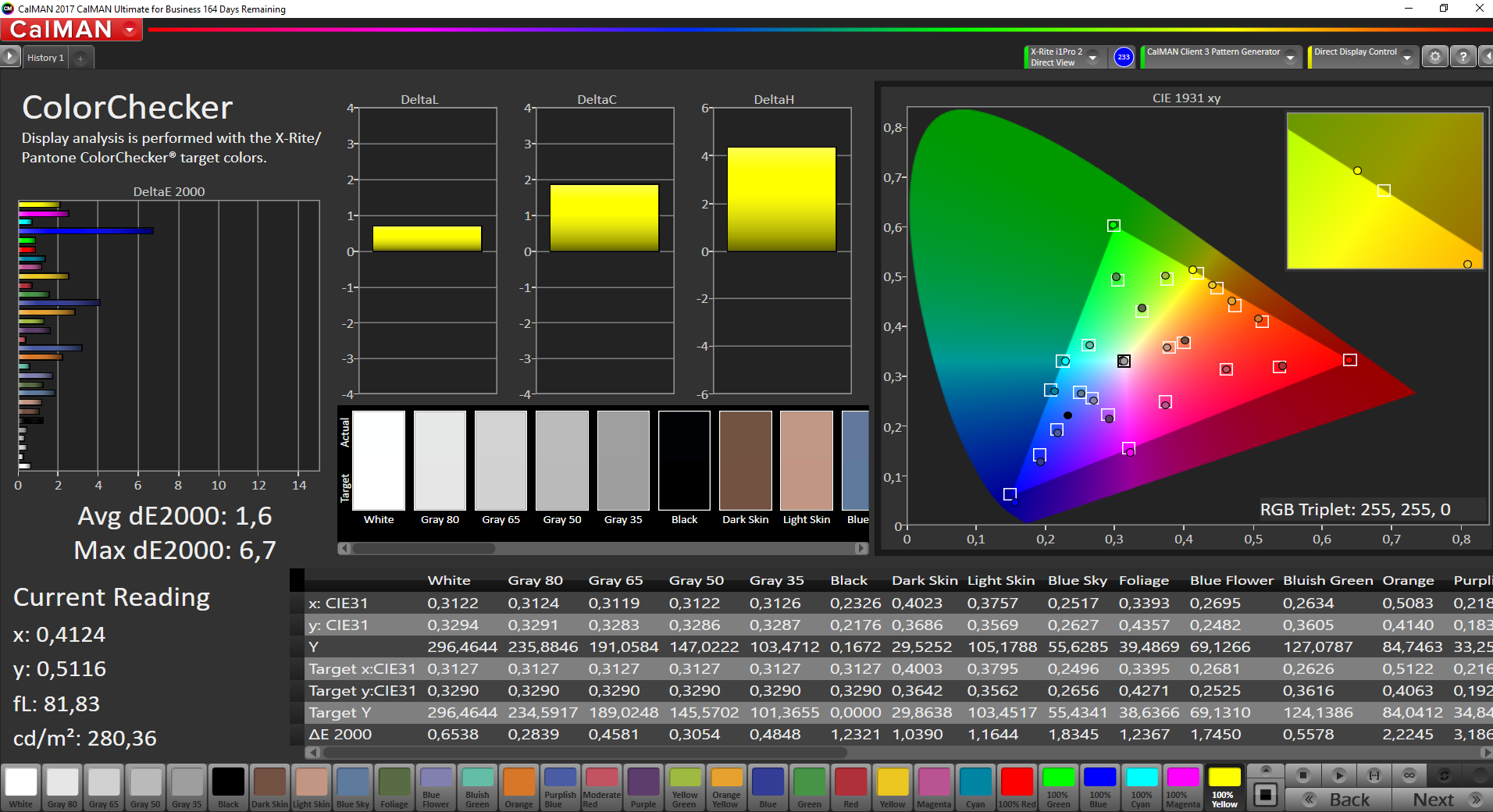

CalMAN: ColorChecker (kalibrerad)
CalMAN: ColorChecker (kalibrerad)

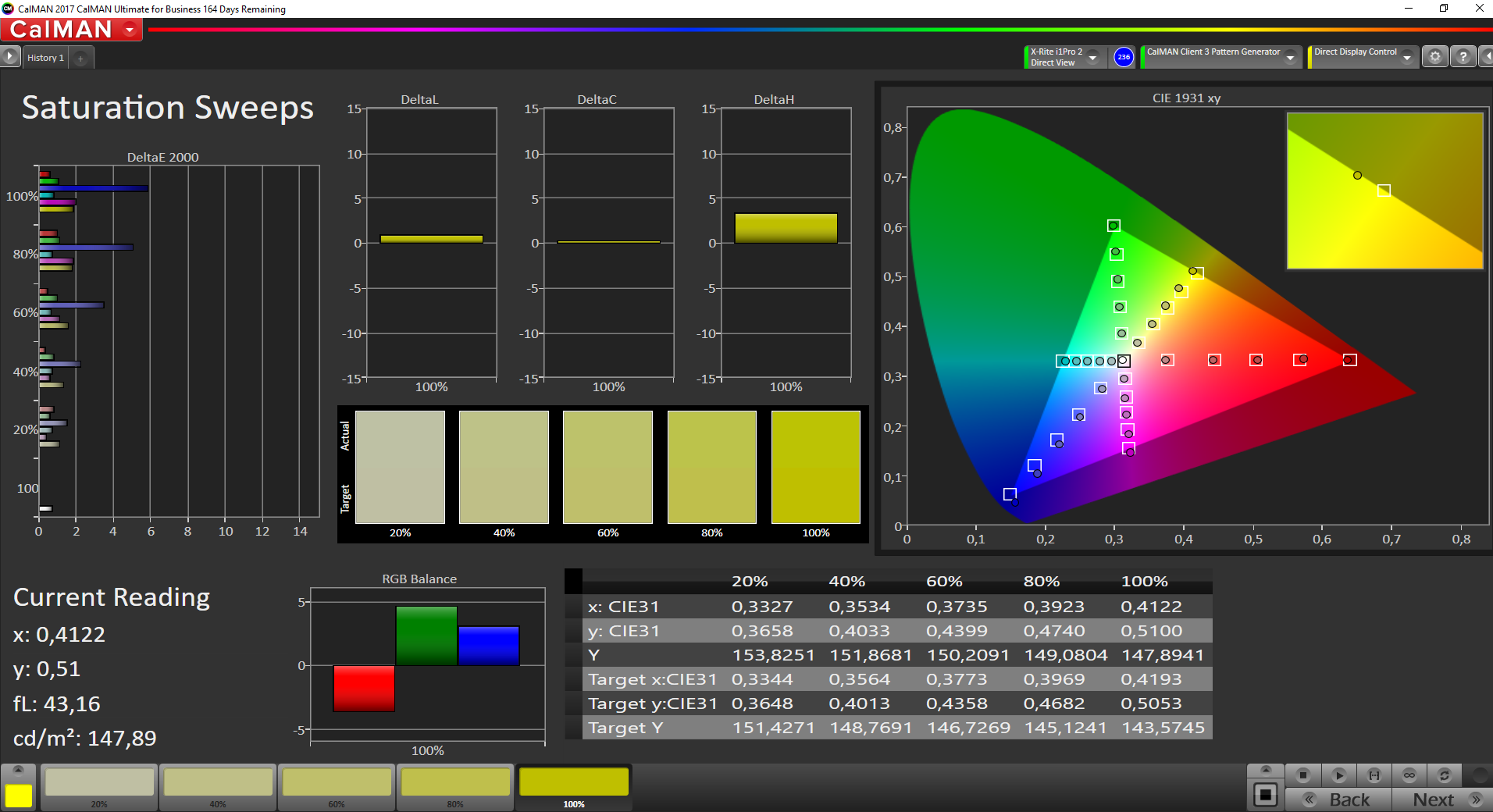

CalMAN: mättnad (kalibrerad)
CalMAN: mättnad (kalibrerad)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

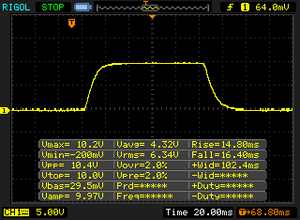

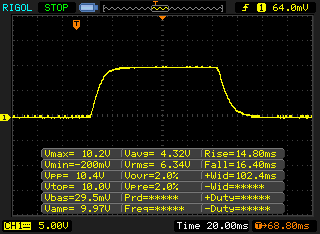

       Response Time Black to White
31.2 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 16.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

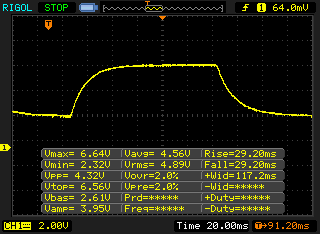

       Response Time 50% Grey to 80% Grey
58.4 ms ... rise ↗ and fall ↘ combined↗ 29.2 ms rise
↘ 29.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 94 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.8 ms).

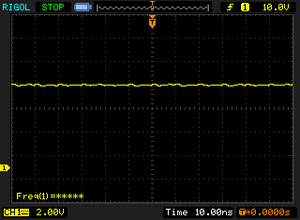

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18034 (minimum: 5 - maximum: 3846000) Hz was measured.

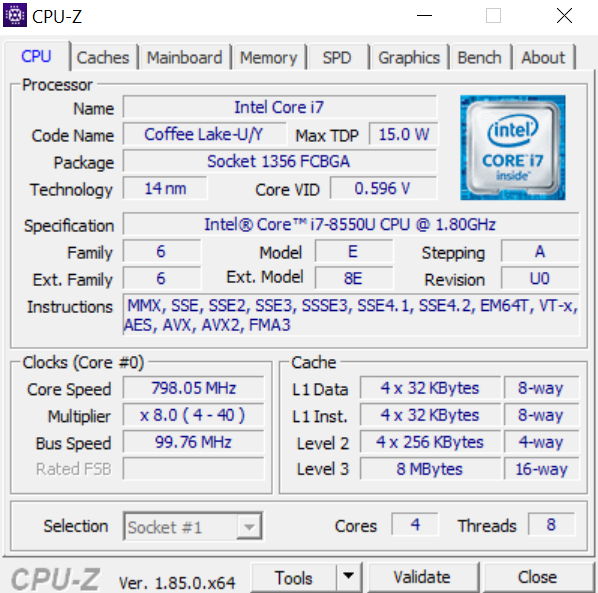

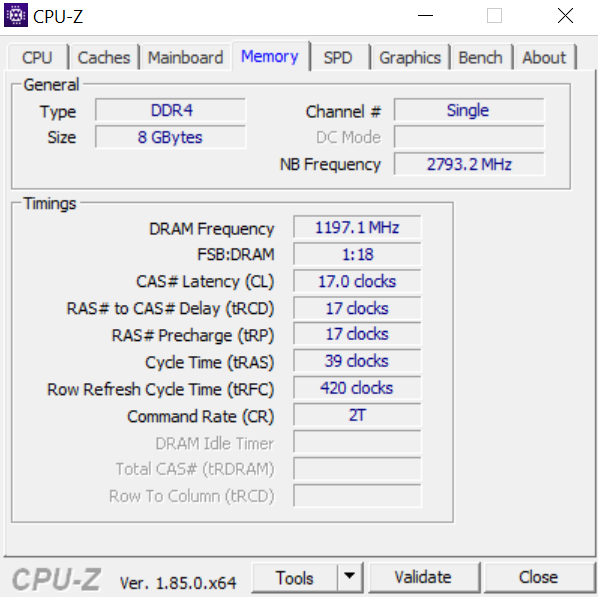

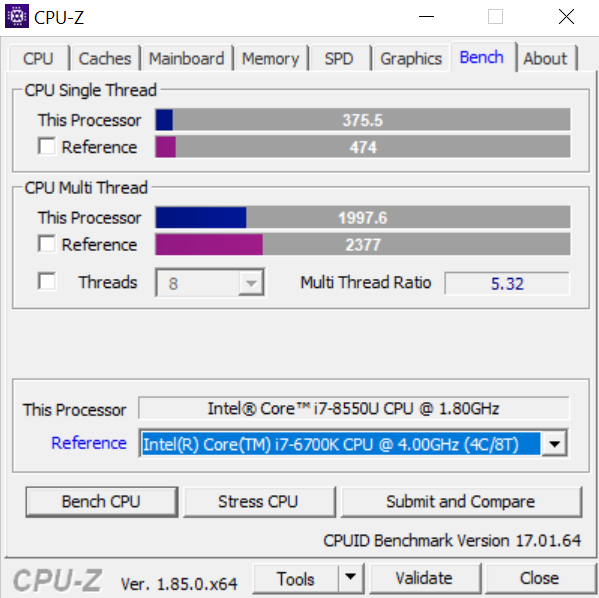

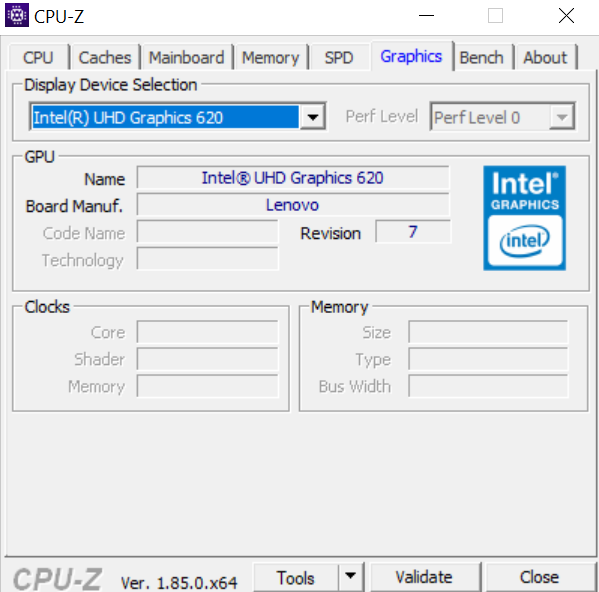

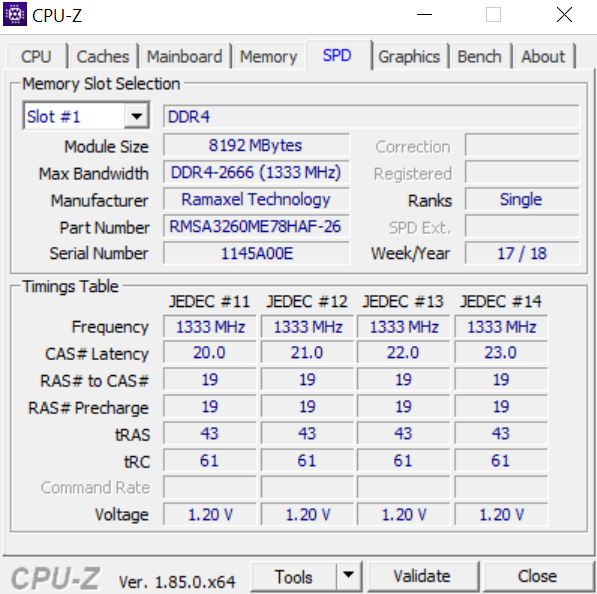

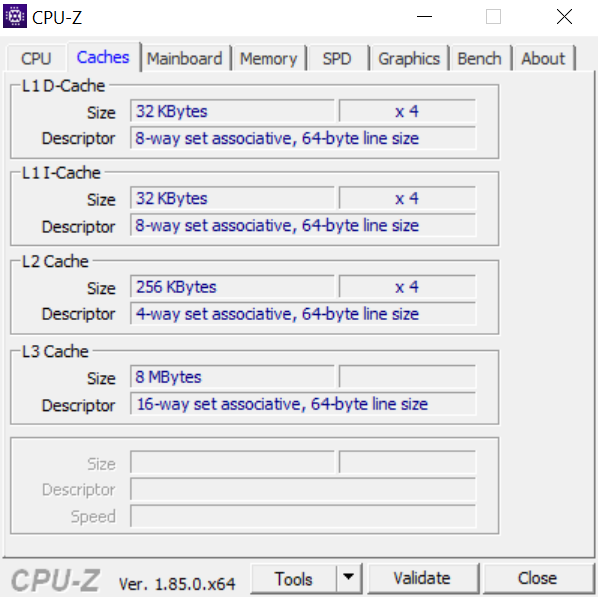

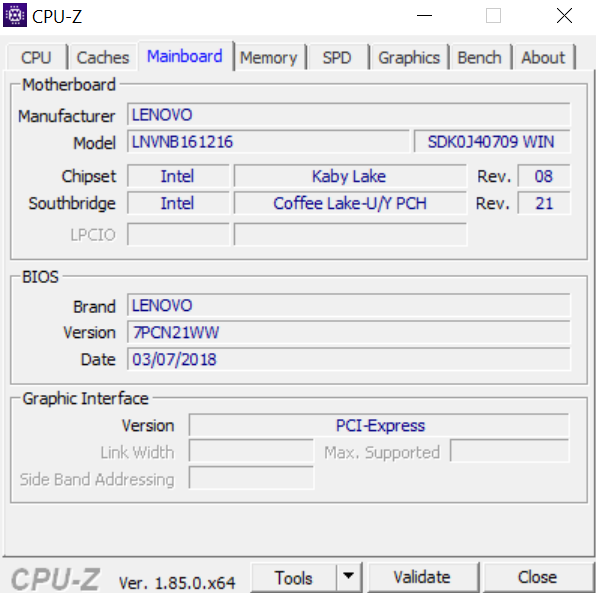

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

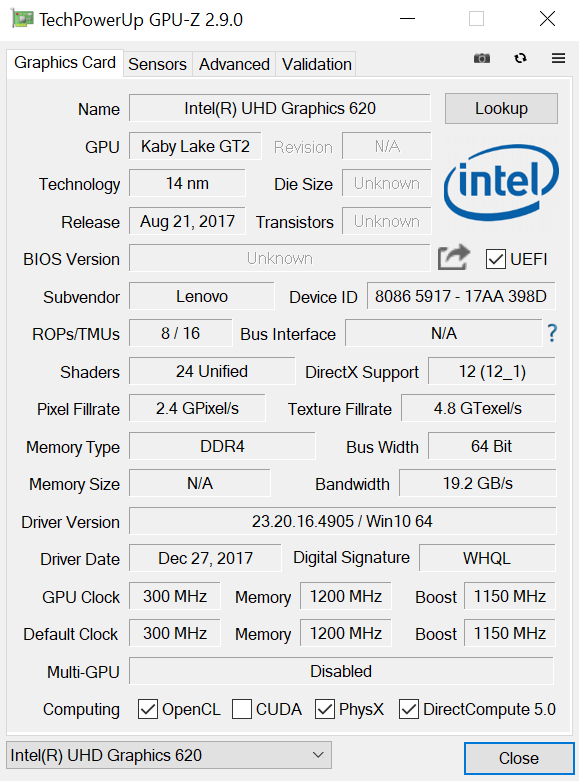

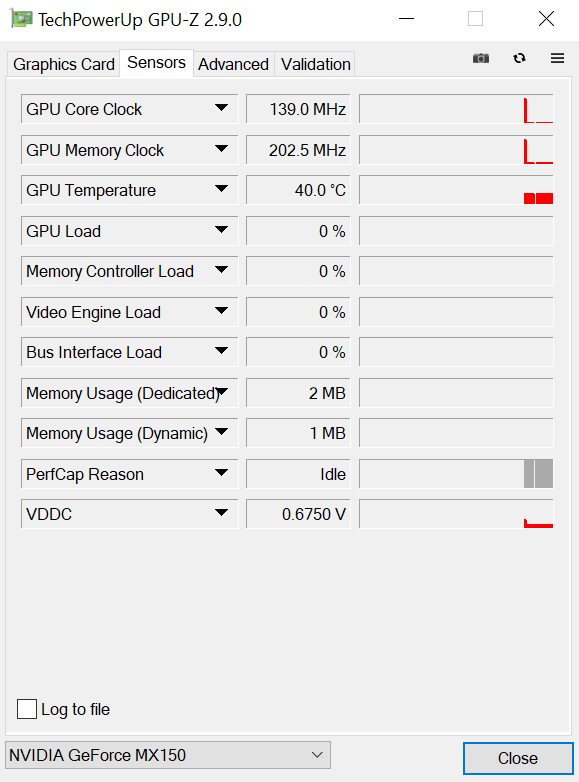

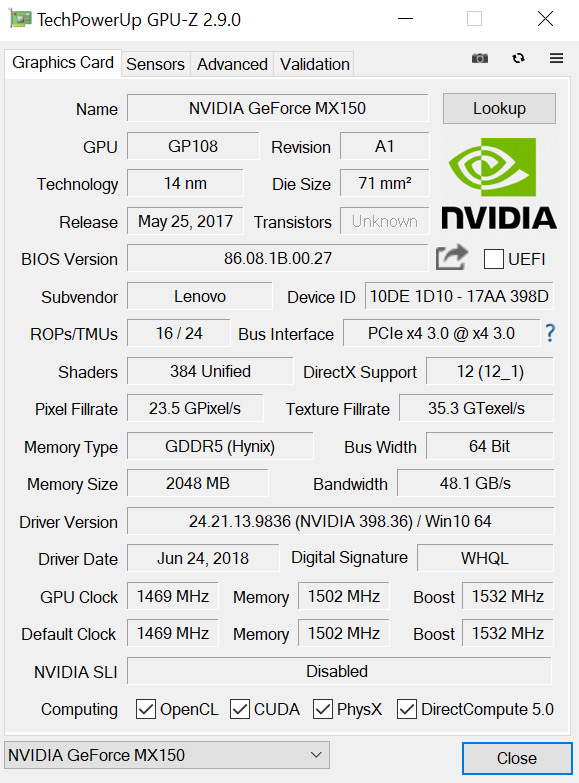

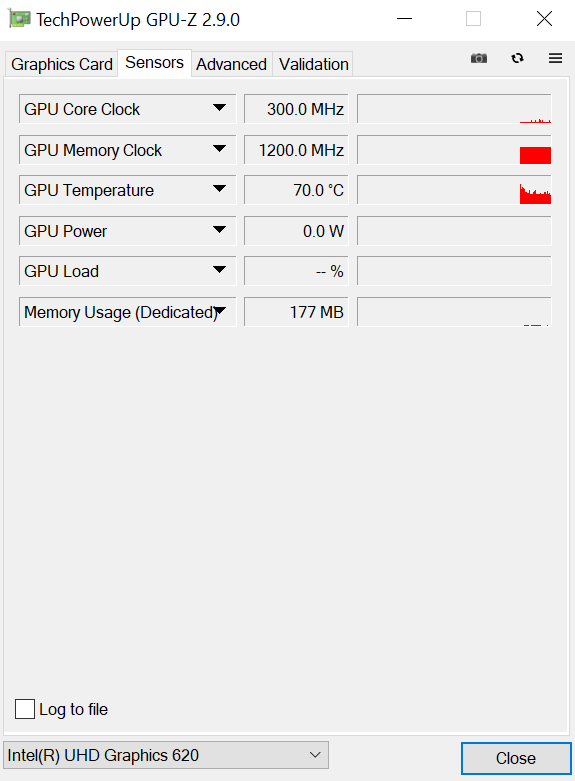

GPU-Z
GPU-Z
GPU-Z
GPU-Z

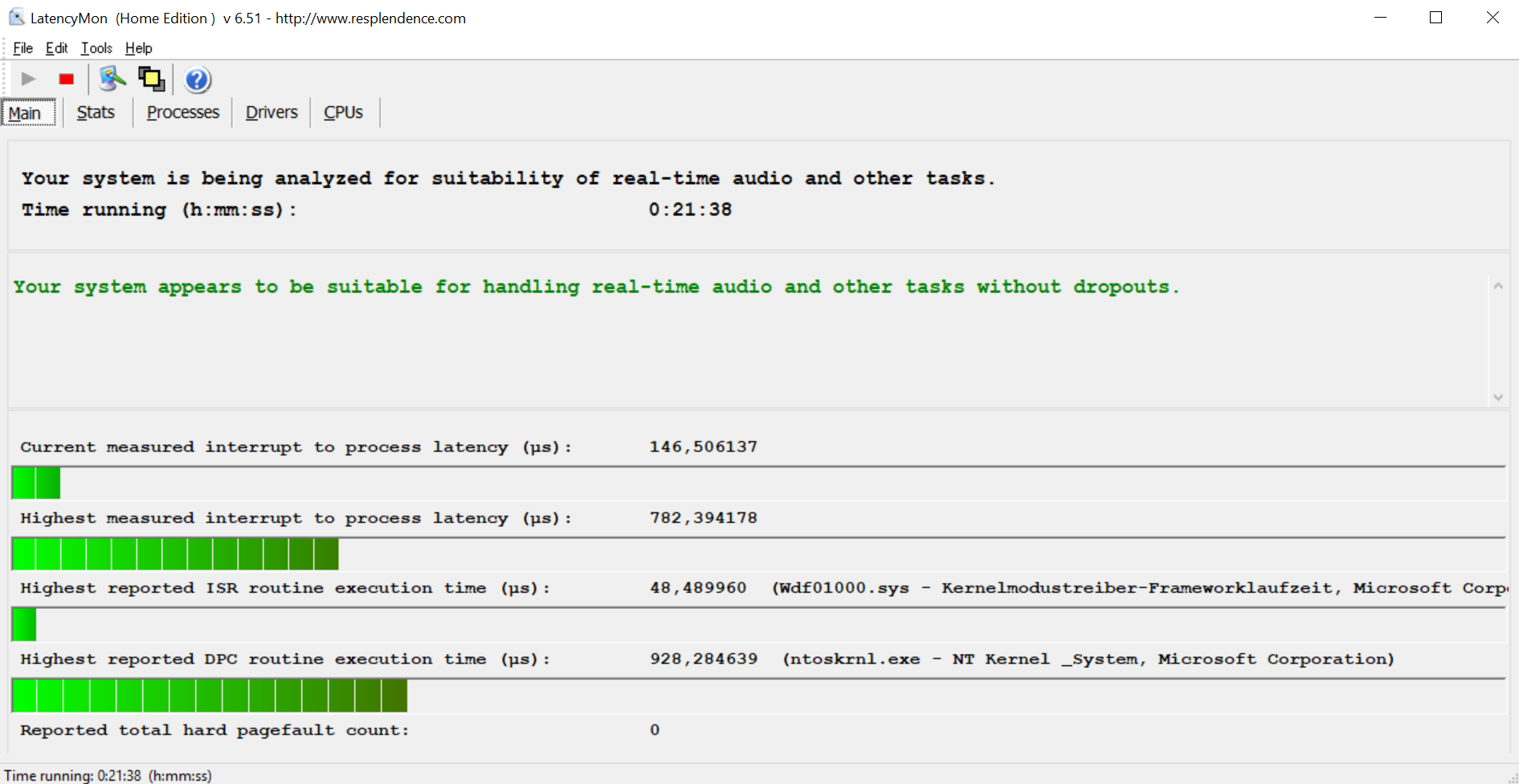

DPC Latens

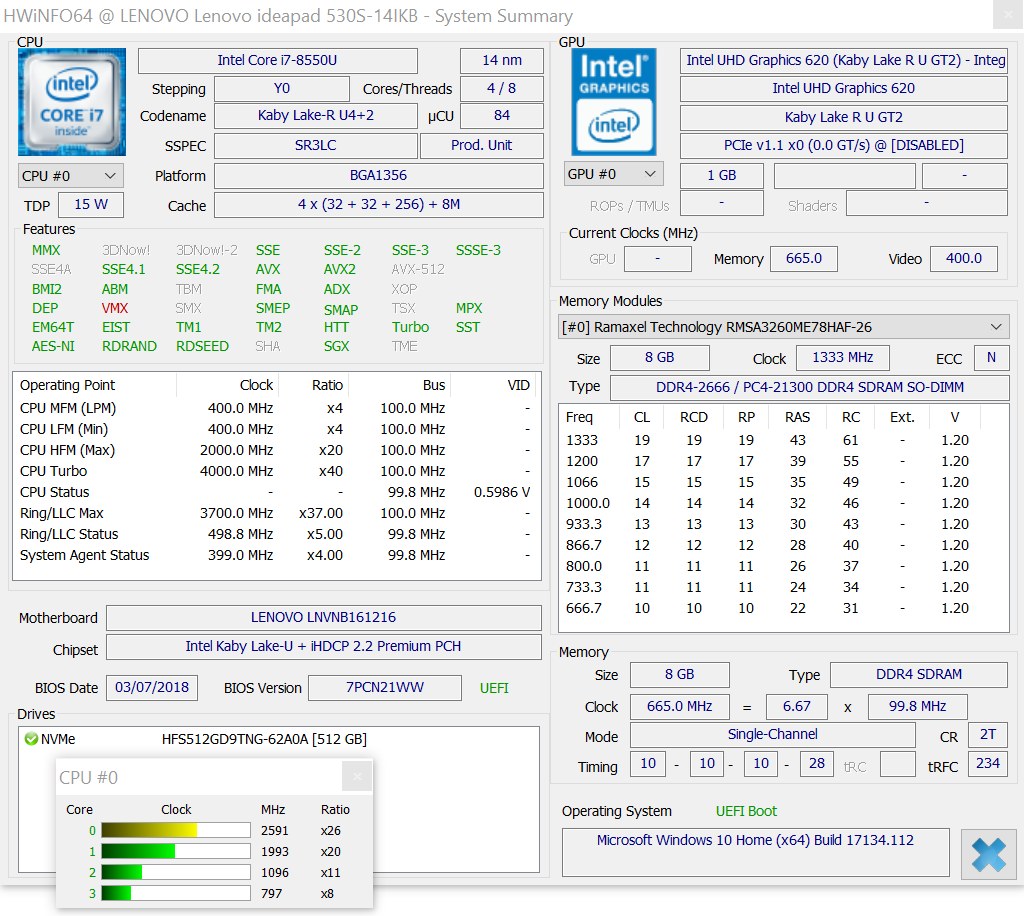

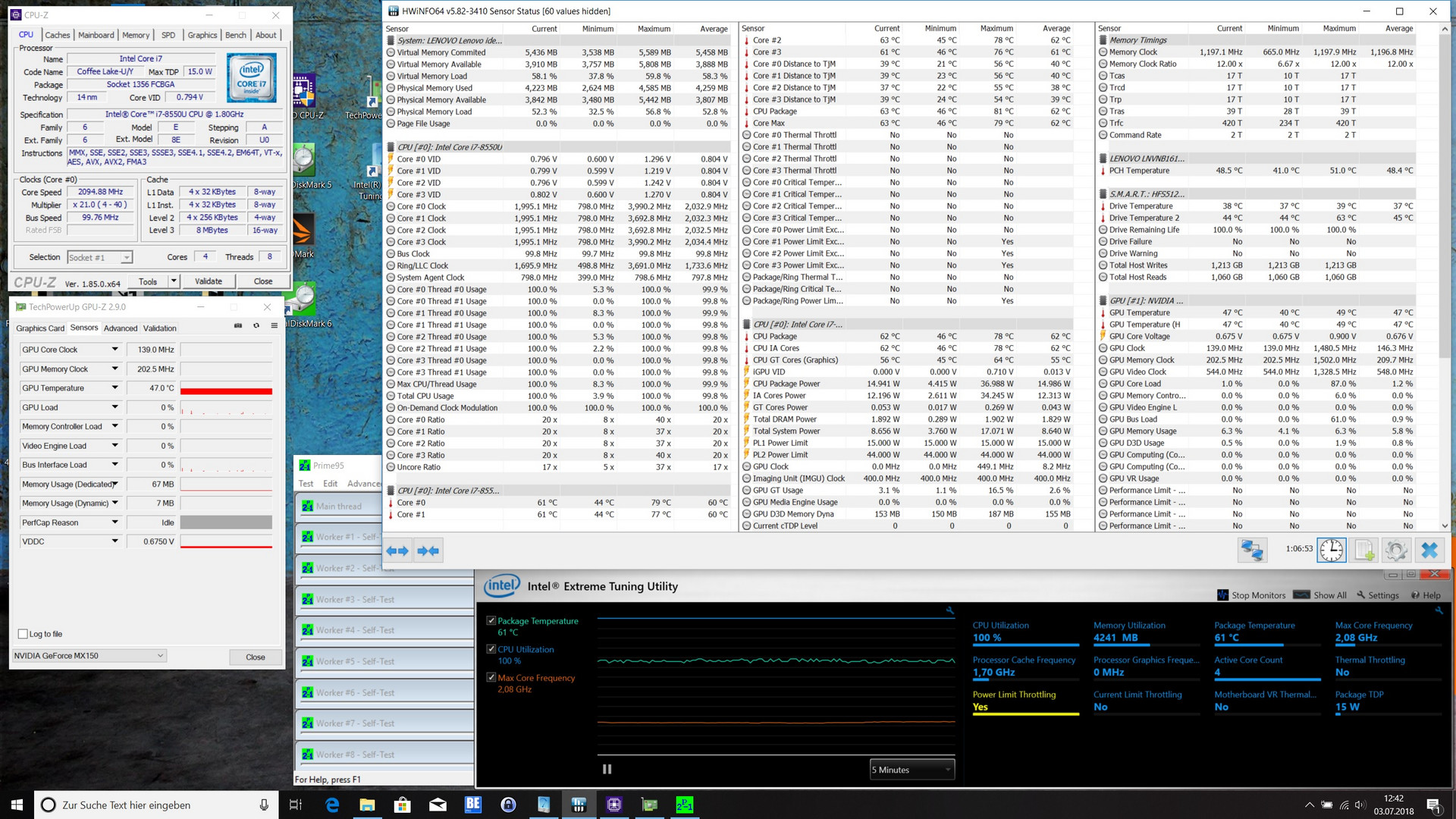

HWiNFO

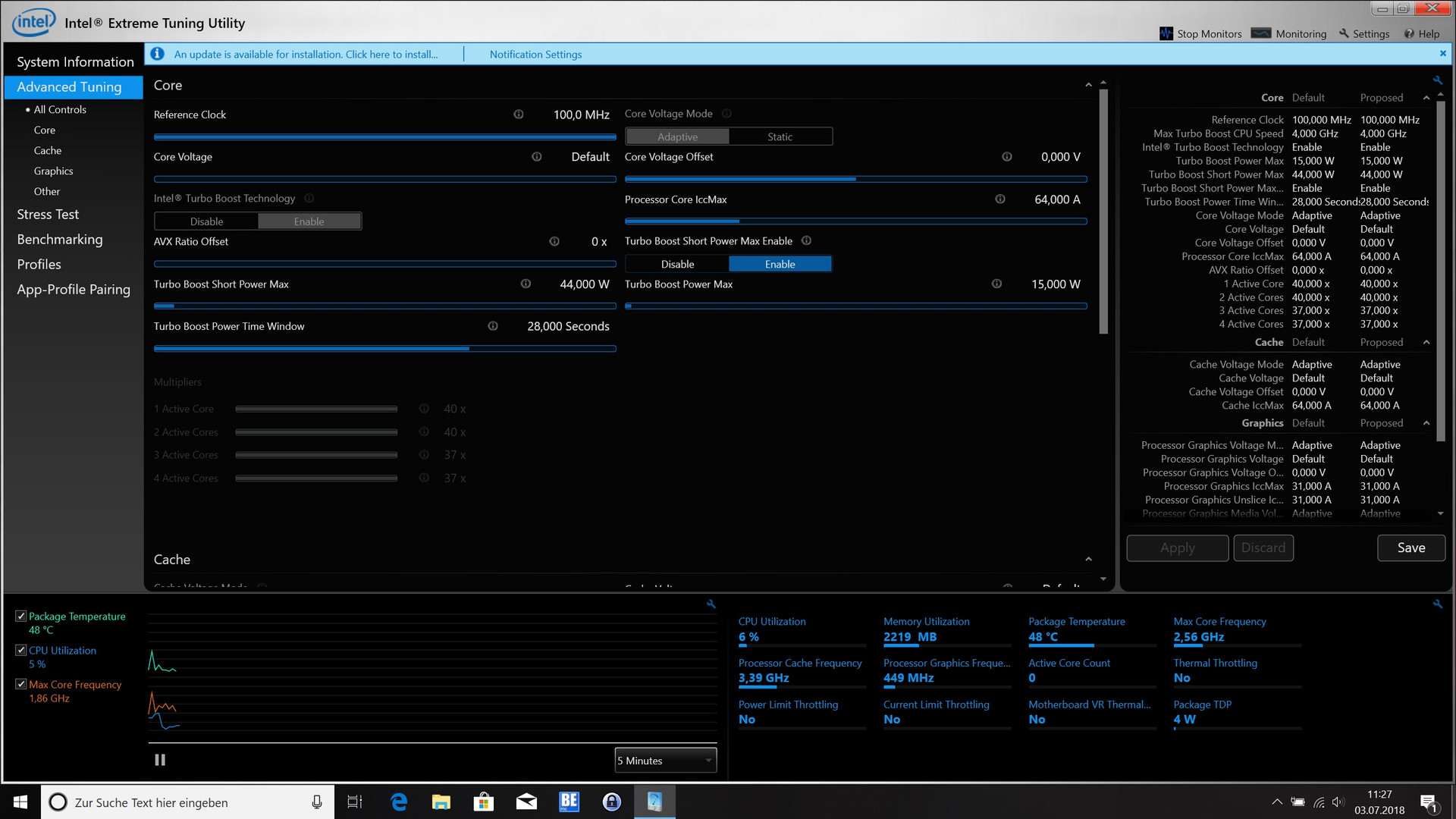

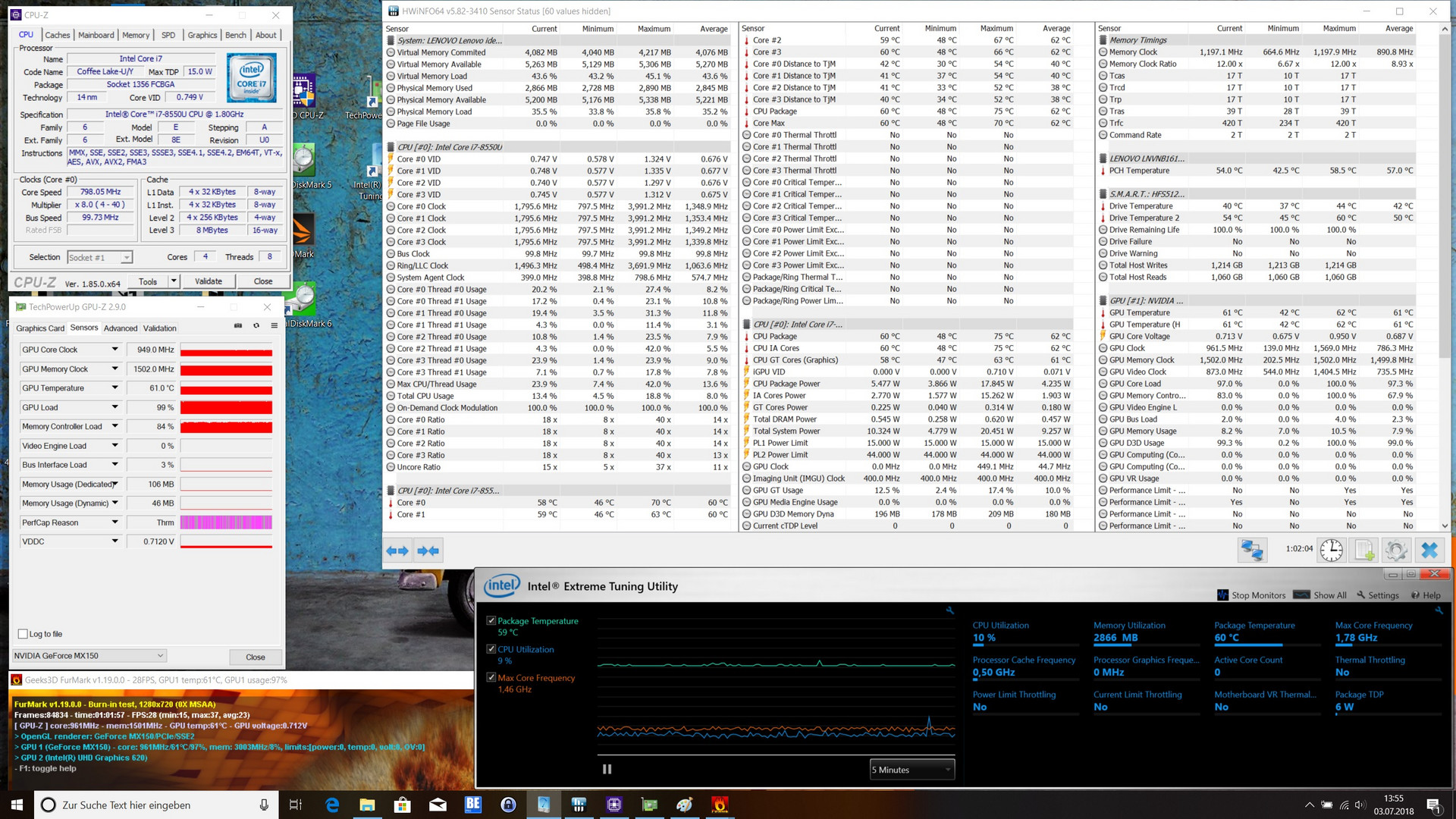

Intel Extreme Utility

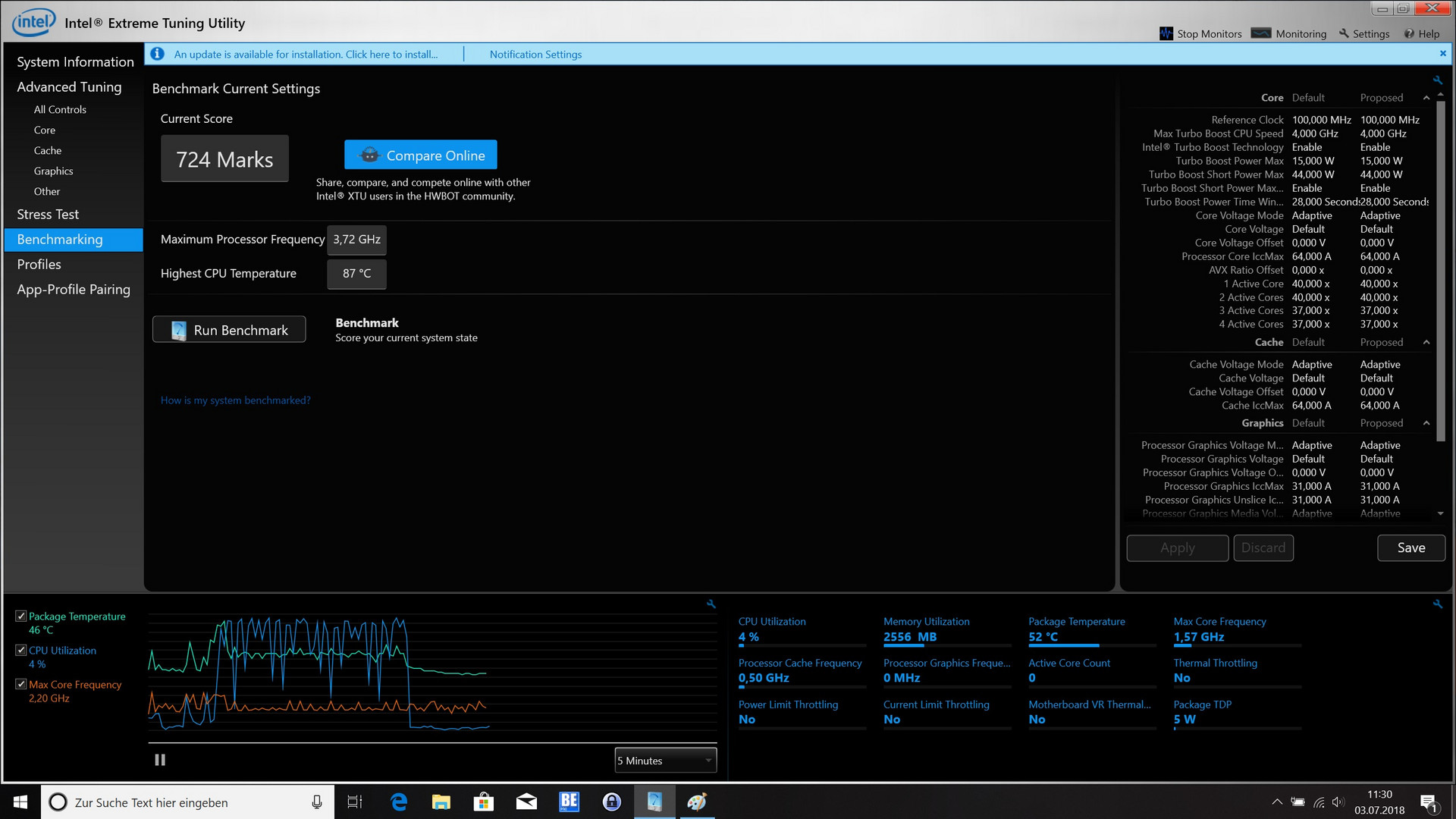

Intel Extreme Utility (Benchmark)

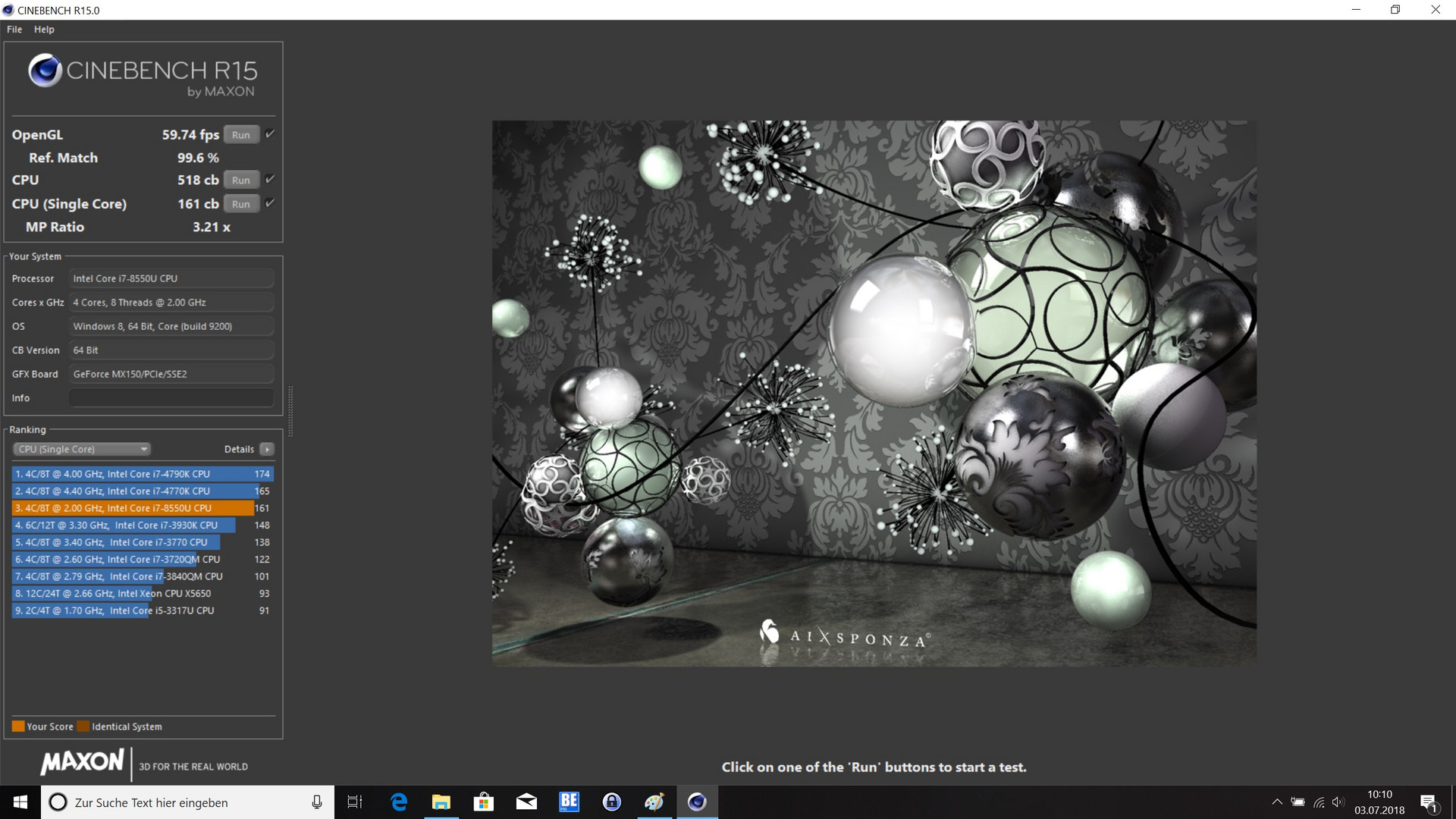

Cinebench R15
CPU Single 64Bit
Average of class Subnotebook
  (91.8 - 280, n=64, last 2 years)
236 Points +47%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
161 Points
Average Intel Core i7-8550U
  (108 - 172, n=76)
159.6 Points -1%
Huawei Matebook X Pro i5
Intel Core i5-8250U
146 Points -9%
HP Spectre 13-af033ng
Intel Core i7-8550U
145 Points -10%
Asus Zenbook UX3430UN-GV174T
Intel Core i5-8250U
143 Points -11%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
132 Points -18%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
132 Points -18%
CPU Multi 64Bit
Average of class Subnotebook
  (514 - 2581, n=72, last 2 years)
1740 Points +236%
Asus Zenbook UX3430UN-GV174T
Intel Core i5-8250U
596 Points +15%
Average Intel Core i7-8550U
  (301 - 761, n=78)
576 Points +11%
Huawei Matebook X Pro i5
Intel Core i5-8250U
538 Points +4%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
518 Points
HP Spectre 13-af033ng
Intel Core i7-8550U
515 Points -1%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
494 Points -5%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
334 Points -36%

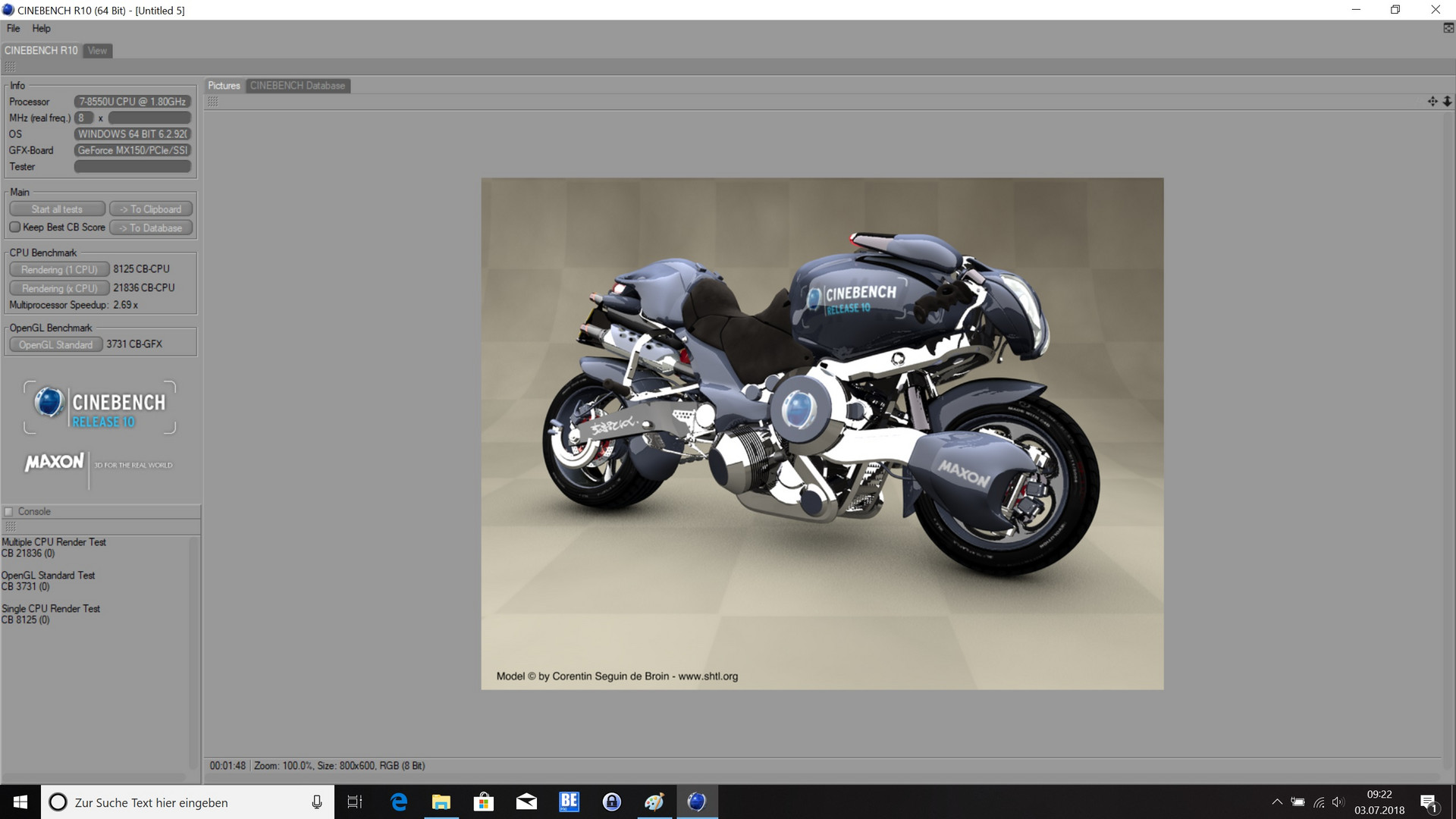

Cinebench R10
Rendering Single CPUs 64Bit
Average of class Subnotebook
  (11845 - 82102, n=6, last 2 years)
24548 Points +202%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
8125 Points
Average Intel Core i7-8550U
  (6737 - 8436, n=12)
8065 Points -1%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
5163 Points -36%
Rendering Multiple CPUs 64Bit
Average of class Subnotebook
  (13726 - 70566, n=6, last 2 years)
51405 Points +135%
Average Intel Core i7-8550U
  (12279 - 31667, n=12)
23153 Points +6%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
21836 Points
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
11245 Points -49%

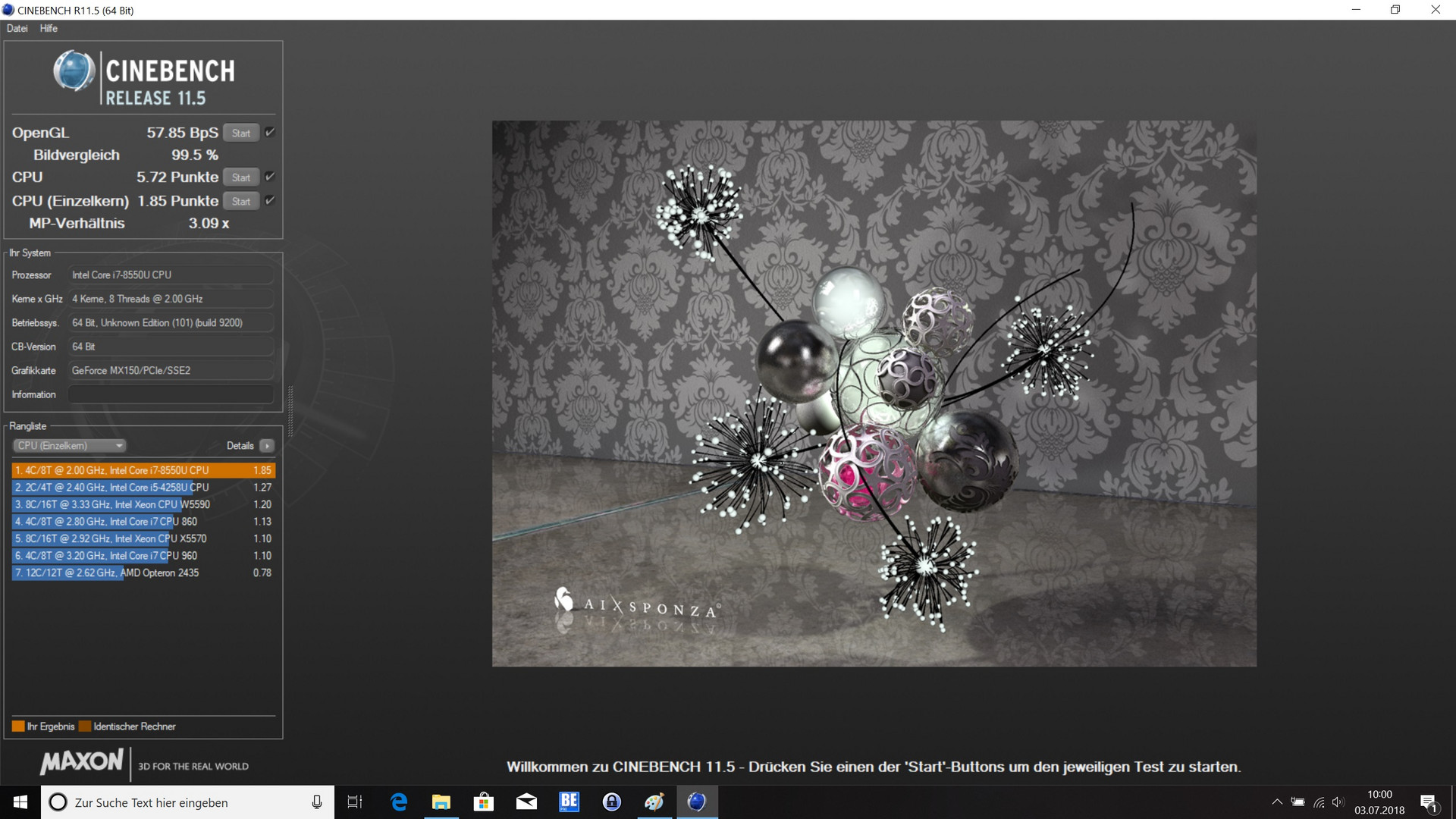

Cinebench R11.5
CPU Single 64Bit
Average of class Subnotebook
  (1.38 - 3.33, n=13, last 2 years)
2.88 Points +56%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
1.85 Points
Average Intel Core i7-8550U
  (1.43 - 1.95, n=32)
1.834 Points -1%
Huawei Matebook X Pro i5
Intel Core i5-8250U
1.66 Points -10%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
0.91 Points -51%
CPU Multi 64Bit
Average of class Subnotebook
  (9.23 - 30, n=13, last 2 years)
22.2 Points +288%
Average Intel Core i7-8550U
  (4.38 - 8.56, n=32)
6.28 Points +10%
Huawei Matebook X Pro i5
Intel Core i5-8250U
5.8 Points +1%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
5.72 Points
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
3.15 Points -45%

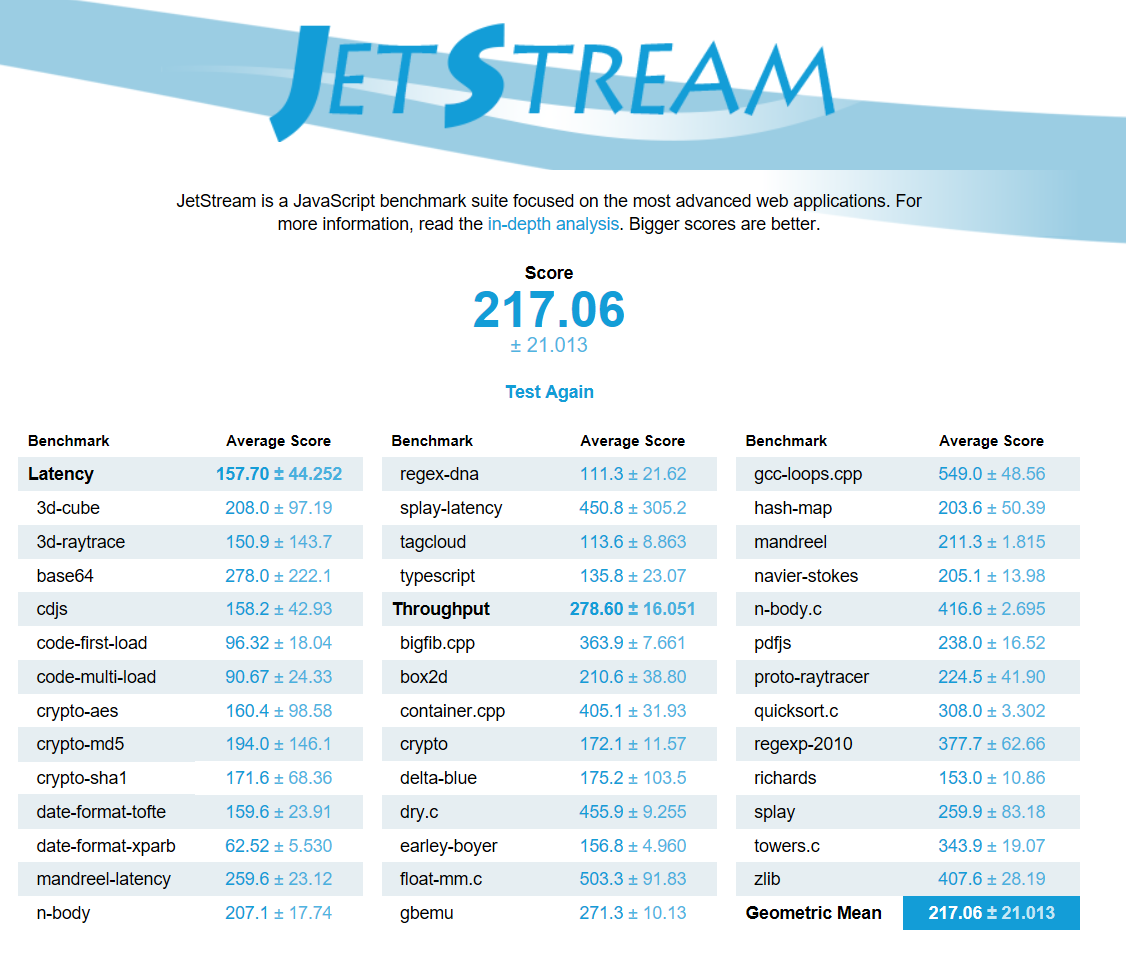

JetStream 1.1 - Total Score
Average of class Subnotebook
  (last 2 years)
348 Points +60%
HP Spectre 13-af033ng
Intel Core i7-8550U
263.8 Points +22%
Average Intel Core i7-8550U
  (141.9 - 288, n=61)
234 Points +8%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
217.1 Points
Huawei Matebook X Pro i5
Intel Core i5-8250U
212.9 Points -2%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
198.4 Points -9%

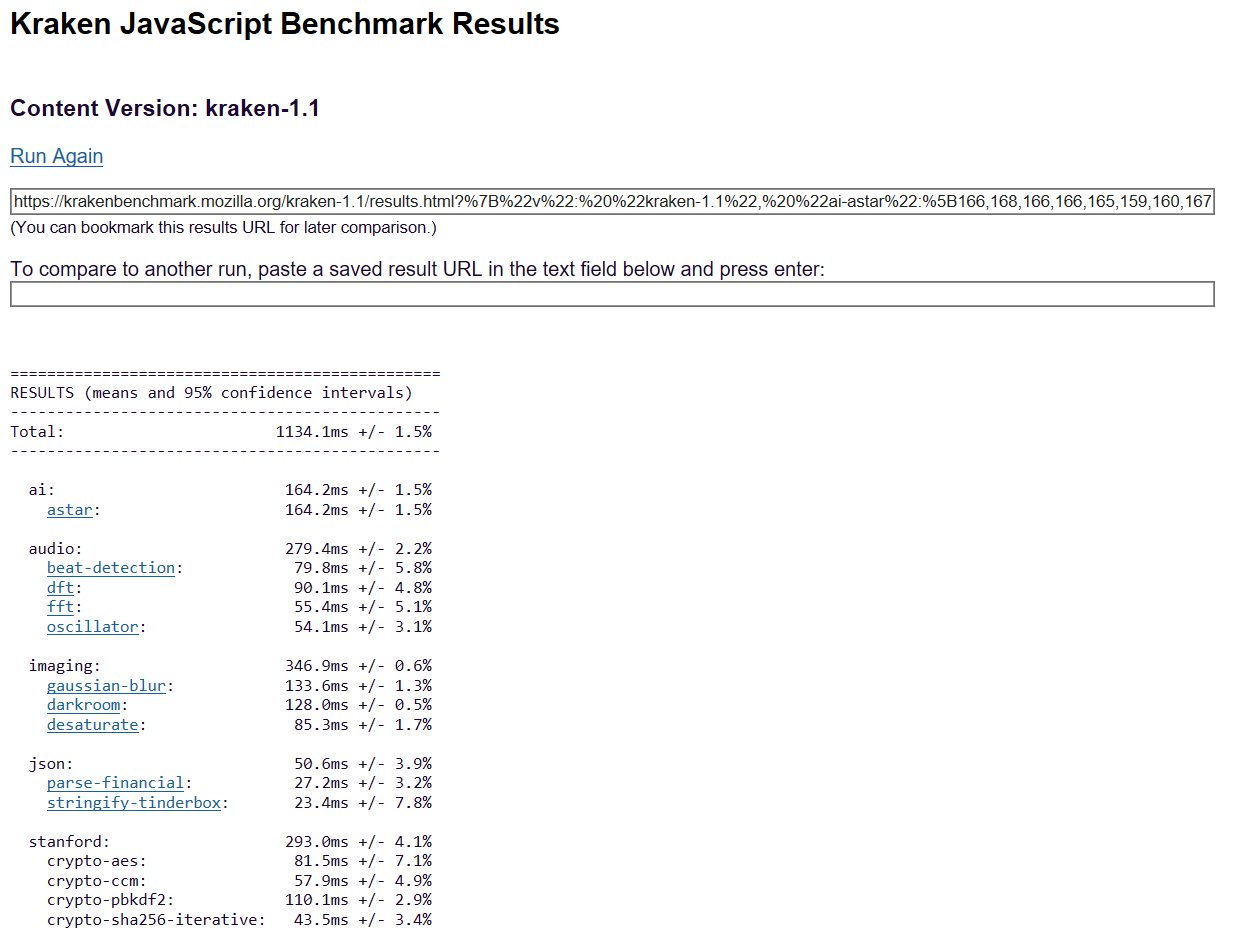

Mozilla Kraken 1.1 - Total
Huawei Matebook X Pro i5
Intel Core i5-8250U
1356 ms * -20%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
1177 ms * -4%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
1134 ms *
Average Intel Core i7-8550U
  (877 - 2114, n=45)
1087 ms * +4%
HP Spectre 13-af033ng
Intel Core i7-8550U
937 ms * +17%
Average of class Subnotebook
  (363 - 1913, n=69, last 2 years)
593 ms * +48%

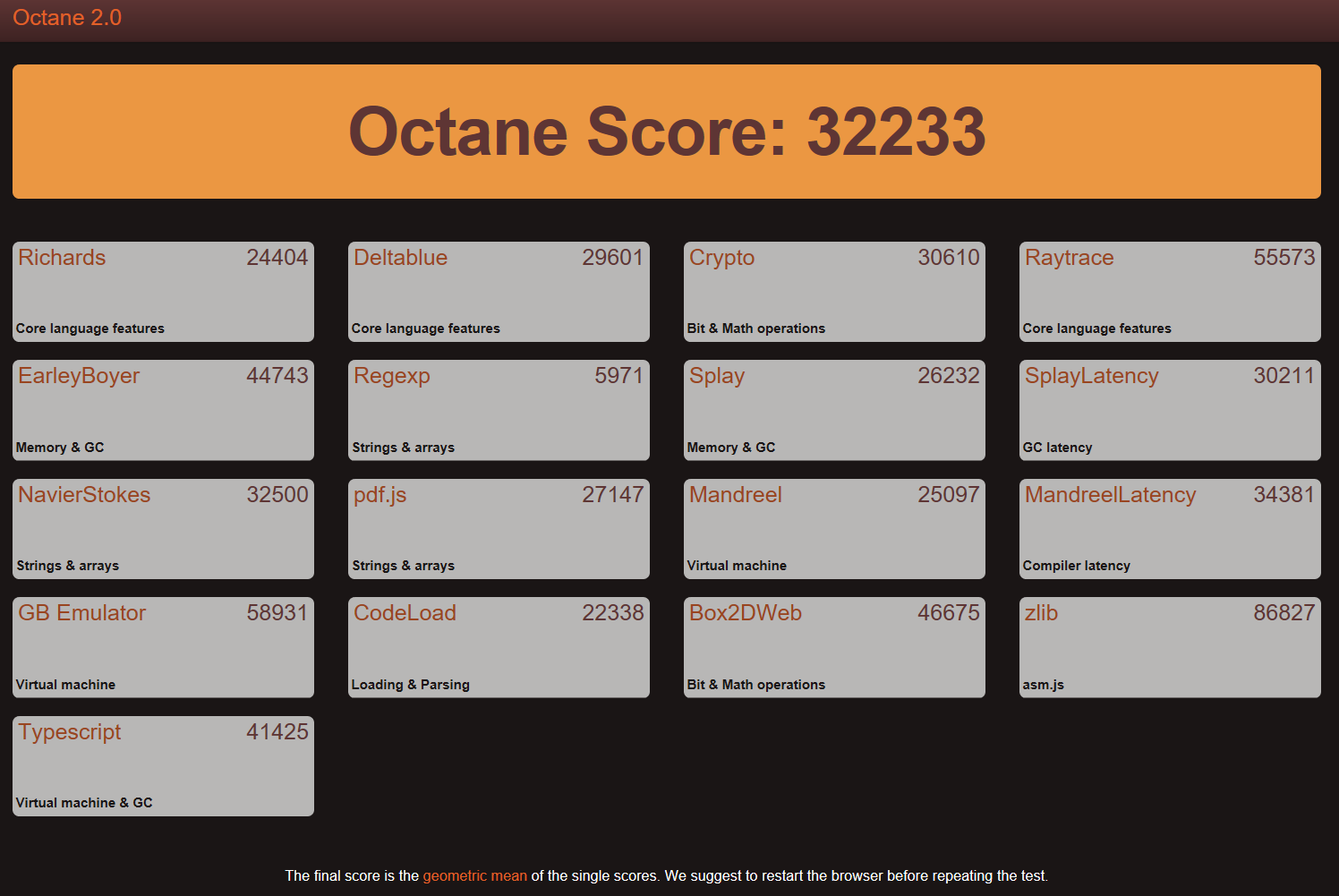

Octane V2 - Total Score
Average of class Subnotebook
  (49893 - 98093, n=34, last 2 years)
80978 Points +151%
Average Intel Core i7-8550U
  (17296 - 42043, n=39)
33448 Points +4%
Lenovo IdeaPad 530s-14IKB
Intel Core i7-8550U
32233 Points
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
31666 Points -2%
Huawei Matebook X Pro i5
Intel Core i5-8250U
27037 Points -16%

* ... smaller is better

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
0306090120150180210240270300330360390420450480510Tooltip
Lenovo IdeaPad 530s-14IKB Intel Core i7-8550U: Ø481 (476.32-517.64)
HP Spectre 13-af033ng Intel Core i7-8550U: Ø456 (417.3-515.04)
Huawei Matebook X Pro i5 Intel Core i5-8250U: Ø465 (452.33-537.54)
Acer Swift 5 SF514-52T-59HY Intel Core i5-8250U: Ø408 (359.46-494.25)
Lenovo IdeaPad 520s-14IKB 80X200C1GE Intel Core i5-7200U: Ø273 (256.79-300.86)
Cinebench R10 Shading 32Bit
3491
Cinebench R10 Rendering Single CPUs 64Bit
8125 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
21836 Points
Cinebench R10 Shading 64Bit
3731 Points
Cinebench R10 Rendering Single 32Bit
6219
Cinebench R10 Rendering Multiple CPUs 32Bit
16794
Cinebench R11.5 CPU Multi 32Bit
5.37 Points
Cinebench R11.5 OpenGL 32Bit
57.6 fps
Cinebench R11.5 CPU Single 64Bit
1.85 Points
Cinebench R11.5 CPU Multi 64Bit
5.72 Points
Cinebench R11.5 OpenGL 64Bit
57.8 fps
Cinebench R11.5 CPU Single 32Bit
1.63 Points
Cinebench R15 CPU Single 64Bit
161 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
59.7 fps
Cinebench R15 CPU Multi 64Bit
518 Points
Hjälp
PCMark 8 Home
PCMark 8 Home
PCMark 8 Creative
PCMark 8 Creative
PCMark 8 Work
PCMark 8 Work

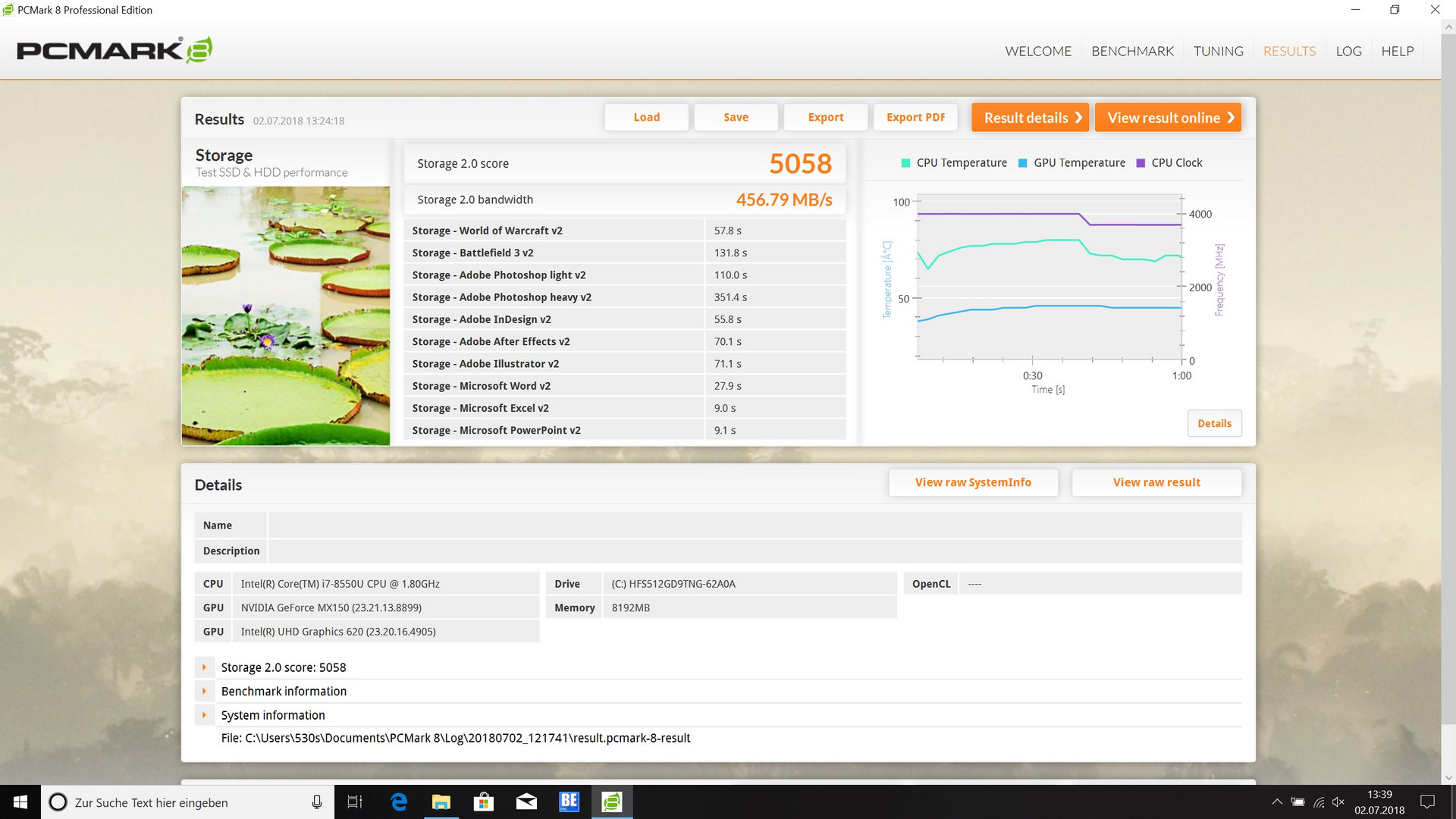

PCMark 8 Storage
PCMark 8 Storage
PCMark 10
PCMark 10
PCMark 8
Home Score Accelerated v2
Average of class Subnotebook
  (4730 - 5285, n=3, last 2 years)
5030 Points +45%
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
3705 Points +7%
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
3672 Points +6%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (3145 - 4130, n=21)
3656 Points +6%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
3554 Points +3%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3478 Points 0%
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
3463 Points
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
3264 Points -6%
Work Score Accelerated v2
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (4063 - 5228, n=20)
4771 Points +3%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
4700 Points +1%
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4648 Points
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
4628 Points 0%
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
4613 Points -1%
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
4562 Points -2%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
4339 Points -7%
Average of class Subnotebook
  (2972 - 5271, n=3, last 2 years)
3805 Points -18%

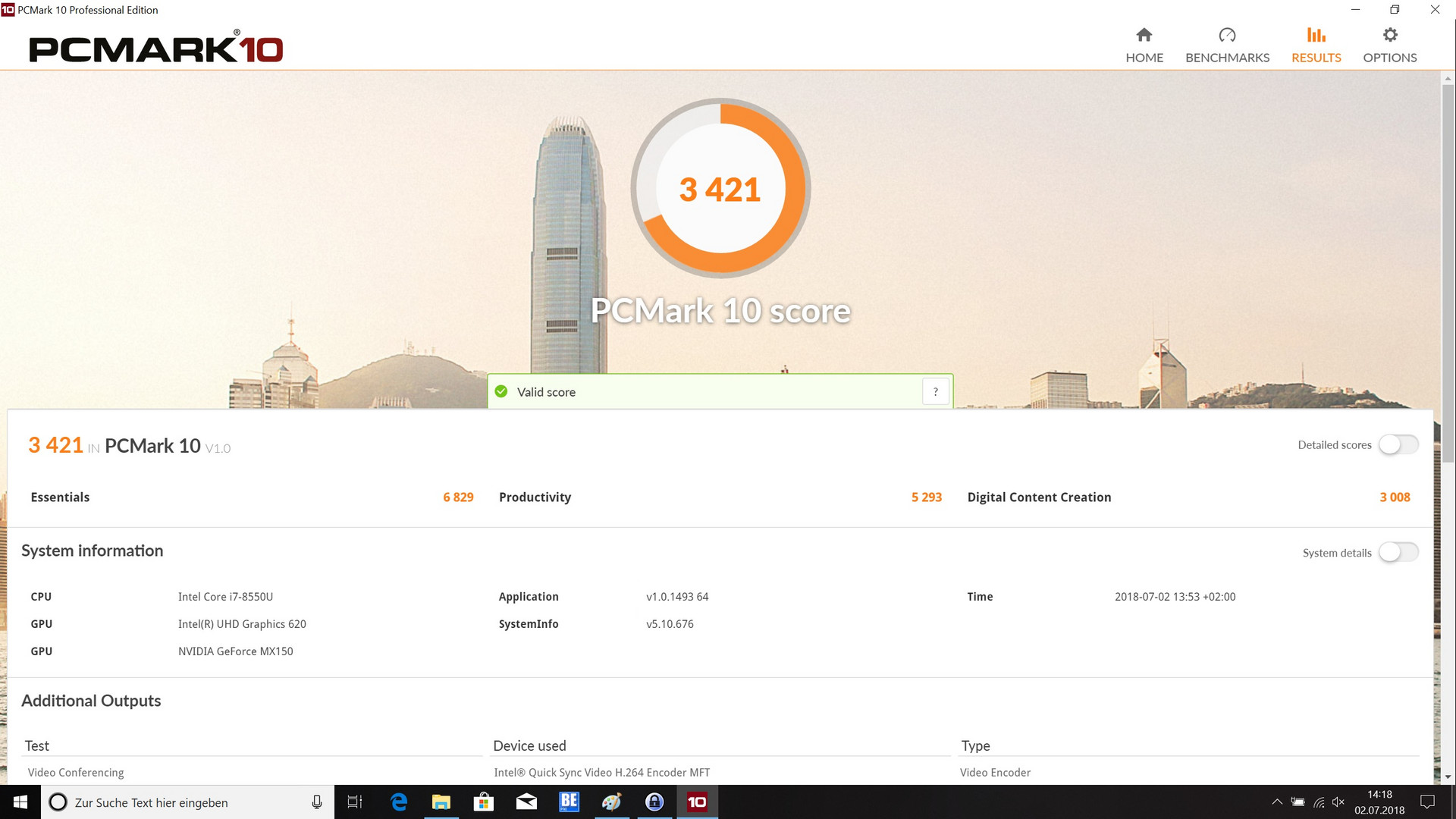

PCMark 10
Score
Average of class Subnotebook
  (4384 - 7428, n=57, last 2 years)
5861 Points +71%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (3056 - 4106, n=19)
3631 Points +6%
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
3569 Points +4%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
3445 Points +1%
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
3421 Points
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
2844 Points -17%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
2619 Points -23%
Essentials
Average of class Subnotebook
  (8890 - 11168, n=57, last 2 years)
10210 Points +50%
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
7589 Points +11%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (5448 - 8412, n=19)
7198 Points +5%
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
7083 Points +4%
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
6829 Points
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
6405 Points -6%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
6312 Points -8%

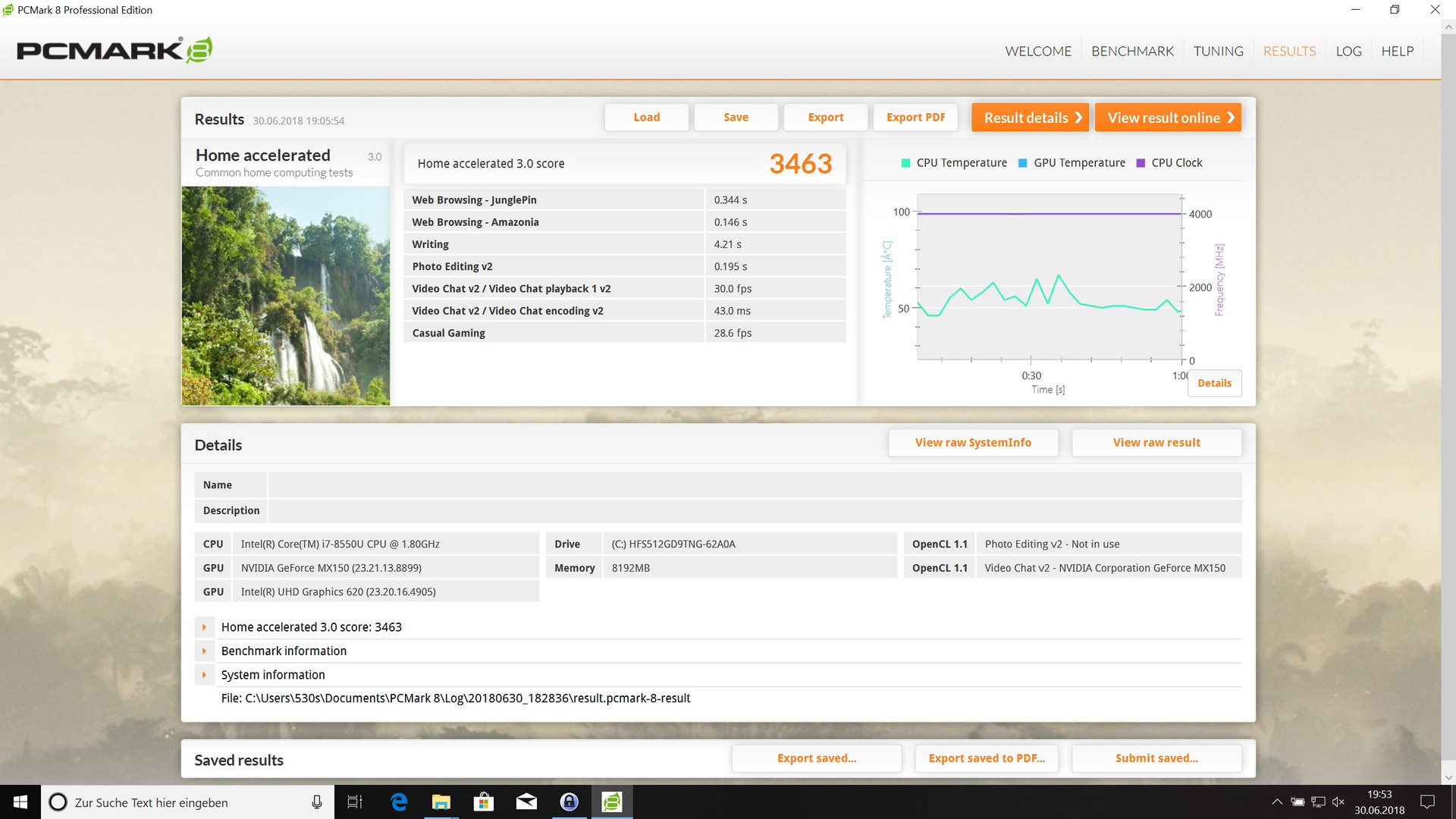

PCMark 8 Home Score Accelerated v2
3463 poäng

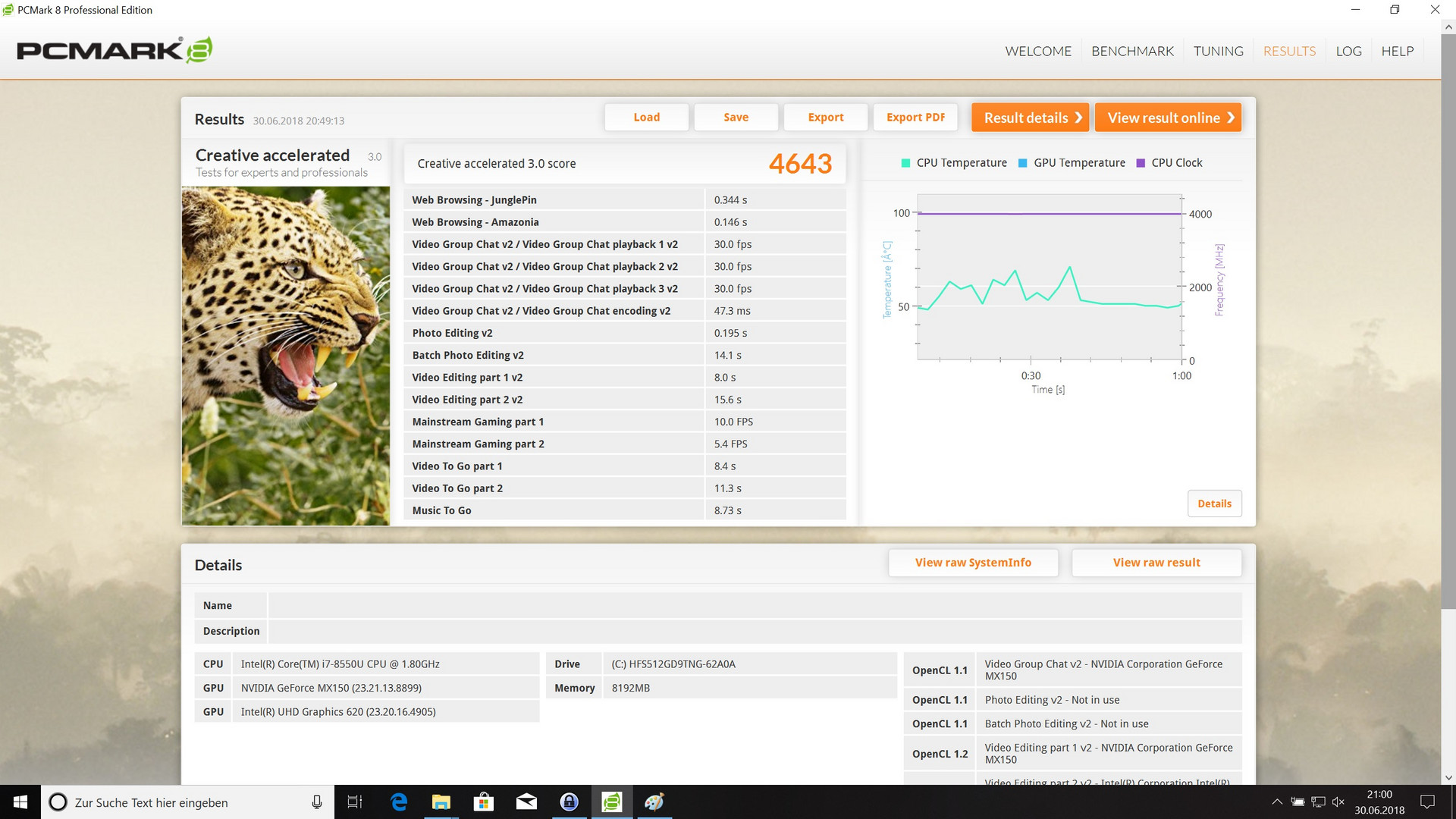

PCMark 8 Creative Score Accelerated v2
4643 poäng

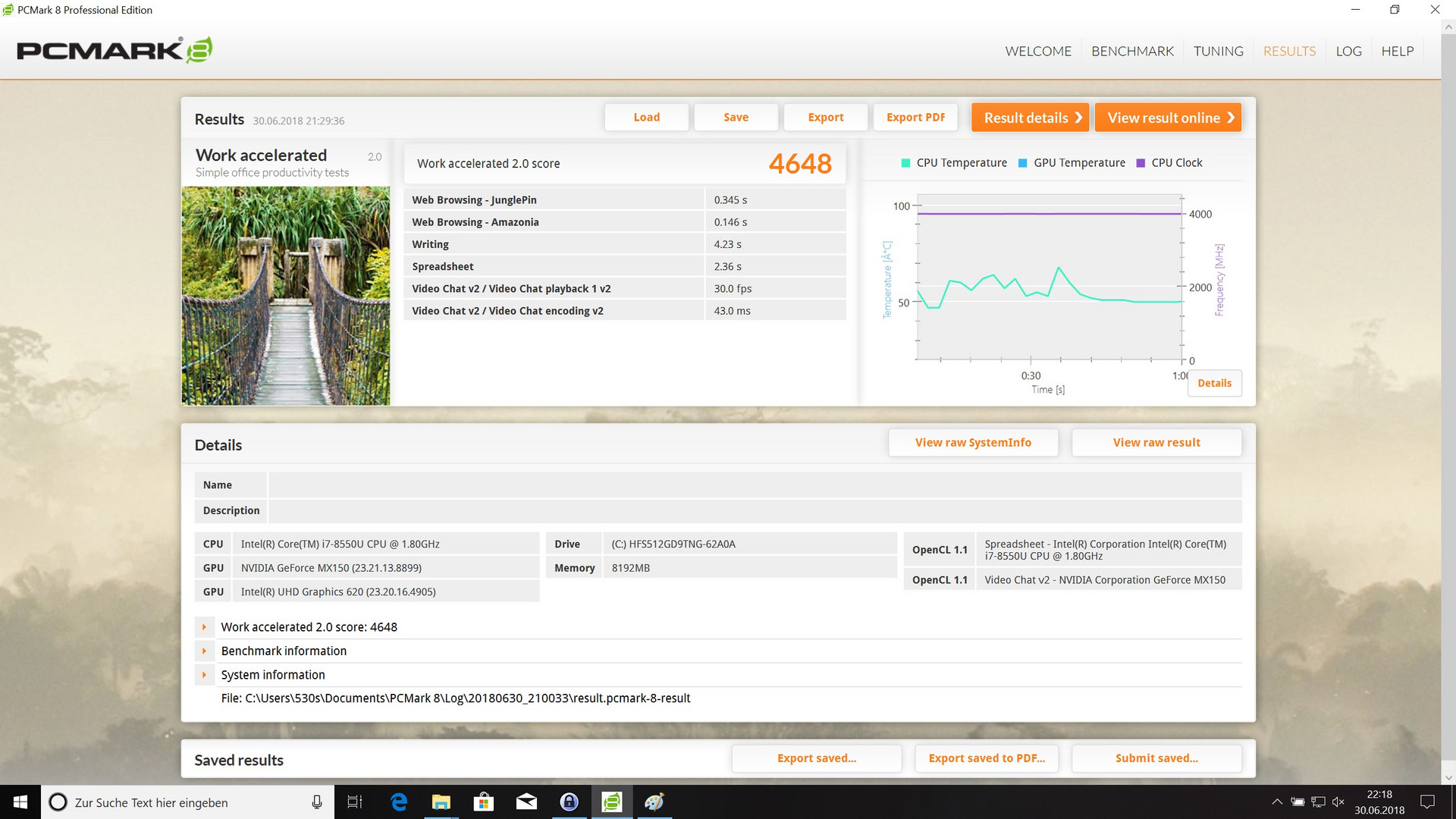

PCMark 8 Work Score Accelerated v2
4648 poäng
PCMark 10 Score
3421 poäng
Hjälp

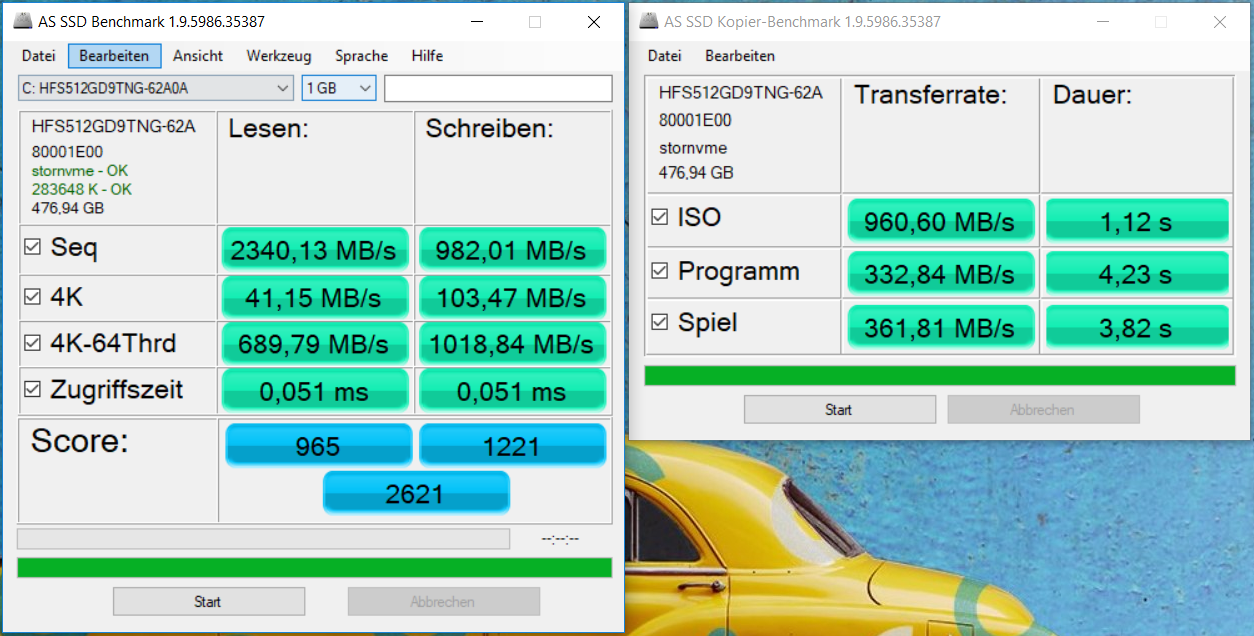

AS SSD
AS SSD
CrystalDiskMark 3
CrystalDiskMark 3

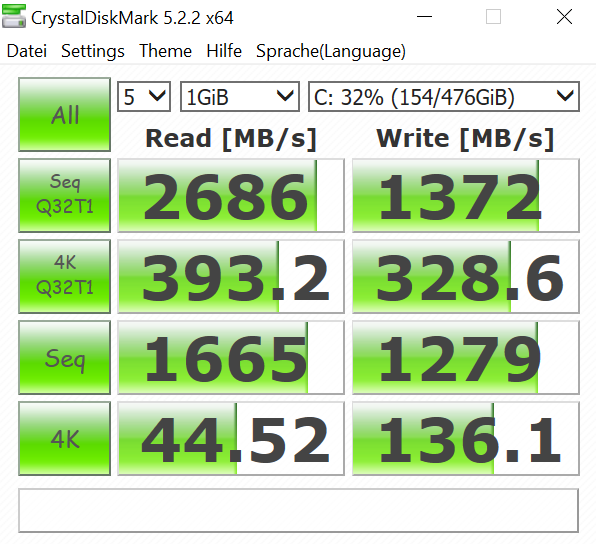

CrystalDiskMark 5
CrystalDiskMark 5

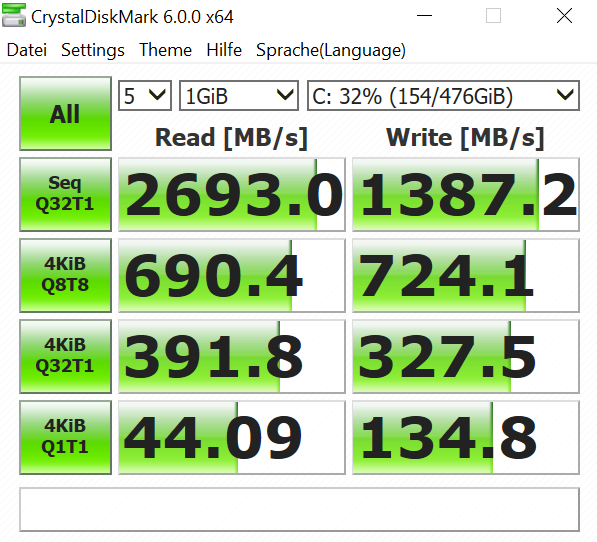

CrystalDiskMark 6
CrystalDiskMark 6

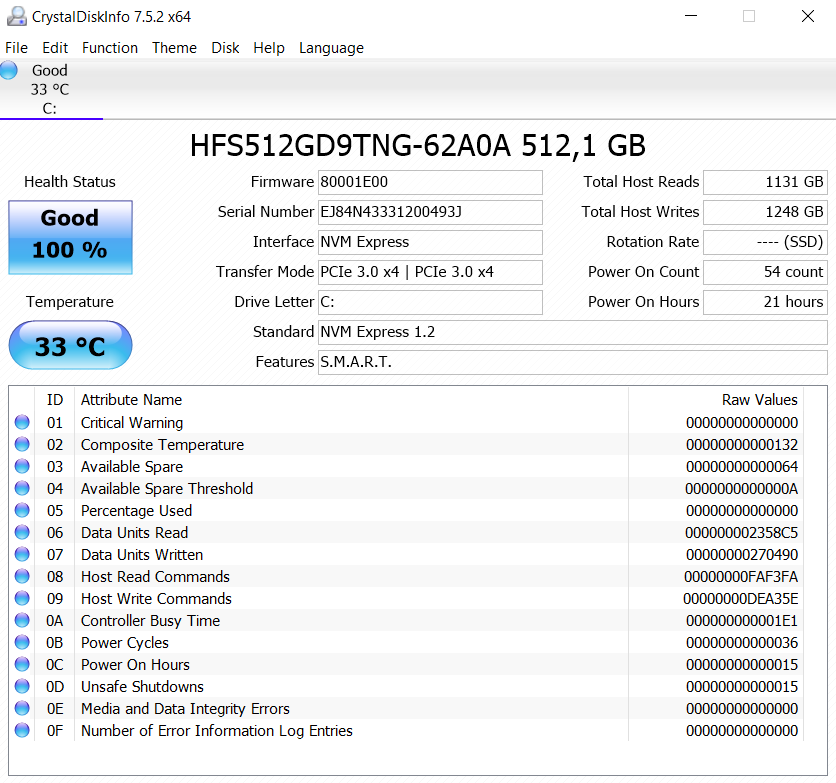

CrystalDiskInfo
CrystalDiskInfo
Lenovo IdeaPad 530s-14IKB
SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
HP Spectre 13-af033ng
Samsung PM961 NVMe MZVLW512HMJP
Acer Swift 5 SF514-52T-59HY
Intel SSD 600p SSDPEKKW256G7
Asus Zenbook UX3430UN-GV174T
SK Hynix HFS256G39TND-N210A
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Ramaxel RTNTE256PCA8EADL

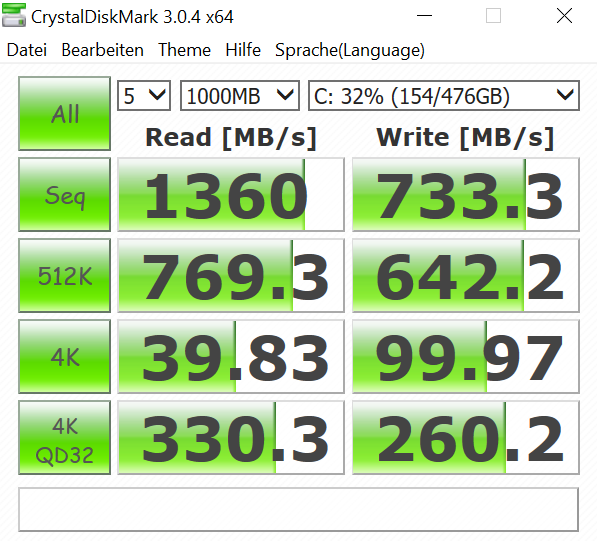

CrystalDiskMark 3.0
23%
-19%
-40%
-41%
Read Seq
1360
907
-33%
1113
-18%
480.3
-65%
472.3
-65%
Write Seq
733
878
20%
597
-19%
263.9
-64%
254.1
-65%
Read 512
769
515
-33%
642
-17%
266.9
-65%
347.8
-55%
Write 512
642
546
-15%
472.8
-26%
263.2
-59%
252.8
-61%
Read 4k
39.83
60
51%
29.58
-26%
29.58
-26%
24.74
-38%
Write 4k
100
144
44%
89.2
-11%
68.4
-32%
77.7
-22%
Read 4k QD32
330.3
543
64%
289.5
-12%
322.2
-2%
279.6
-15%
Write 4k QD32
260.2
476
83%
203.3
-22%
243.3
-6%
244.8
-6%
SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
Sequential Read: 1360 MB/s
Sequential Write: 733 MB/s
512K Read: 769 MB/s
512K Write: 642 MB/s
4K Read: 39.83 MB/s
4K Write: 100 MB/s
4K QD32 Read: 330.3 MB/s
4K QD32 Write: 260.2 MB/s
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Subnotebook
  (13768 - 65911, n=41, last 2 years)
29385 Points +55%
Average NVIDIA GeForce MX150
  (16227 - 22183, n=43)
19512 Points +3%
Lenovo IdeaPad 530s-14IKB
NVIDIA GeForce MX150, Intel Core i7-8550U
18946 Points
Asus Zenbook UX3430UN-GV174T
NVIDIA GeForce MX150, Intel Core i5-8250U
18513 Points -2%
Huawei Matebook X Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
16553 Points -13%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
13775 Points -27%
HP Spectre 13-af033ng
Intel UHD Graphics 620, Intel Core i7-8550U
8787 Points -54%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
7980 Points -58%
1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (2837 - 12349, n=61, last 2 years)
5977 Points +157%
Asus Zenbook UX3430UN-GV174T
NVIDIA GeForce MX150, Intel Core i5-8250U
3389 Points +46%
Average NVIDIA GeForce MX150
  (2323 - 3739, n=44)
3310 Points +42%
Huawei Matebook X Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
2740 Points +18%
Lenovo IdeaPad 530s-14IKB
NVIDIA GeForce MX150, Intel Core i7-8550U
2323 Points
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
2132 Points -8%
HP Spectre 13-af033ng
Intel UHD Graphics 620, Intel Core i7-8550U
1052 Points -55%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
995 Points -57%
3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook
  (2979 - 16904, n=56, last 2 years)
8225 Points +115%
Asus Zenbook UX3430UN-GV174T
NVIDIA GeForce MX150, Intel Core i5-8250U
4191 Points +9%
Average NVIDIA GeForce MX150
  (2796 - 4905, n=47)
4191 Points +9%
Lenovo IdeaPad 530s-14IKB
NVIDIA GeForce MX150, Intel Core i7-8550U
3833 Points
Huawei Matebook X Pro i5
NVIDIA GeForce MX150, Intel Core i5-8250U
3483 Points -9%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
2535 Points -34%
HP Spectre 13-af033ng
Intel UHD Graphics 620, Intel Core i7-8550U
1587 Points -59%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
1420 Points -63%

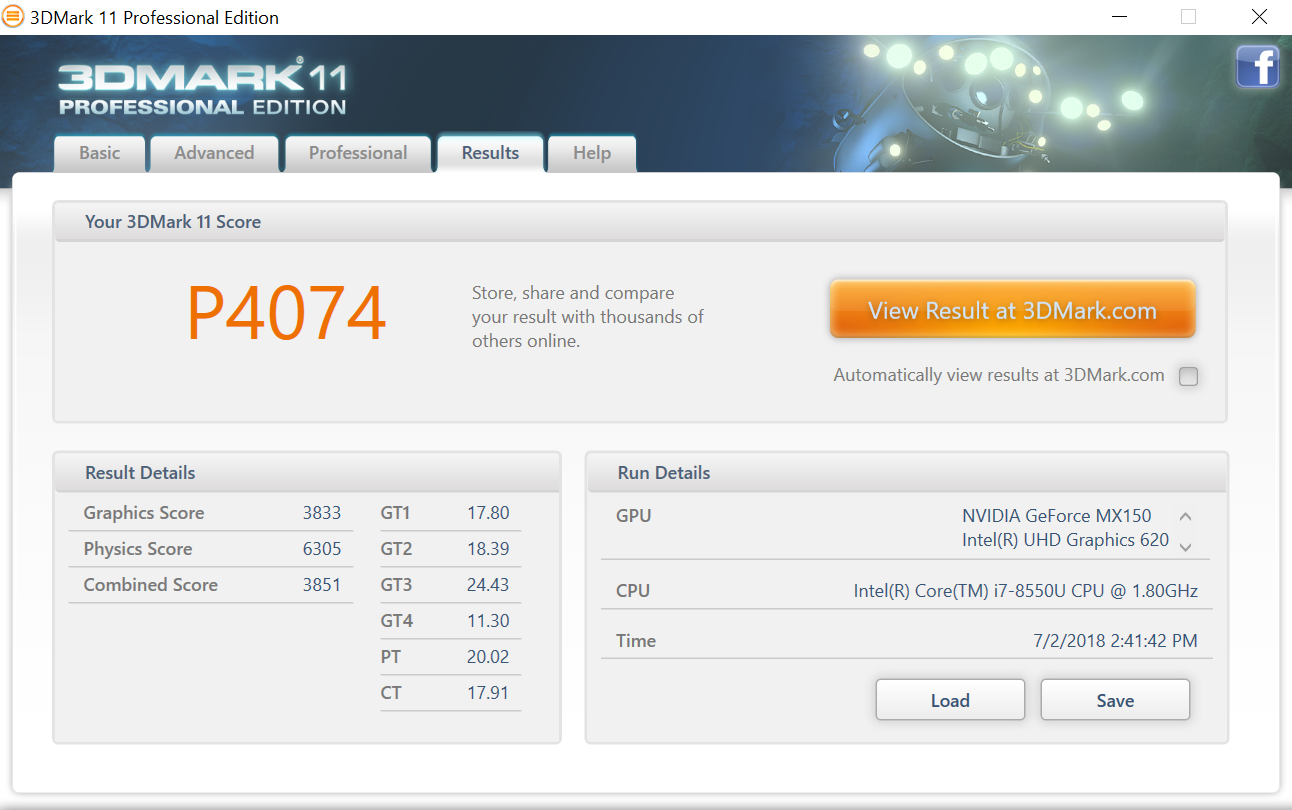

3DMark 11 Performance
4074 poäng

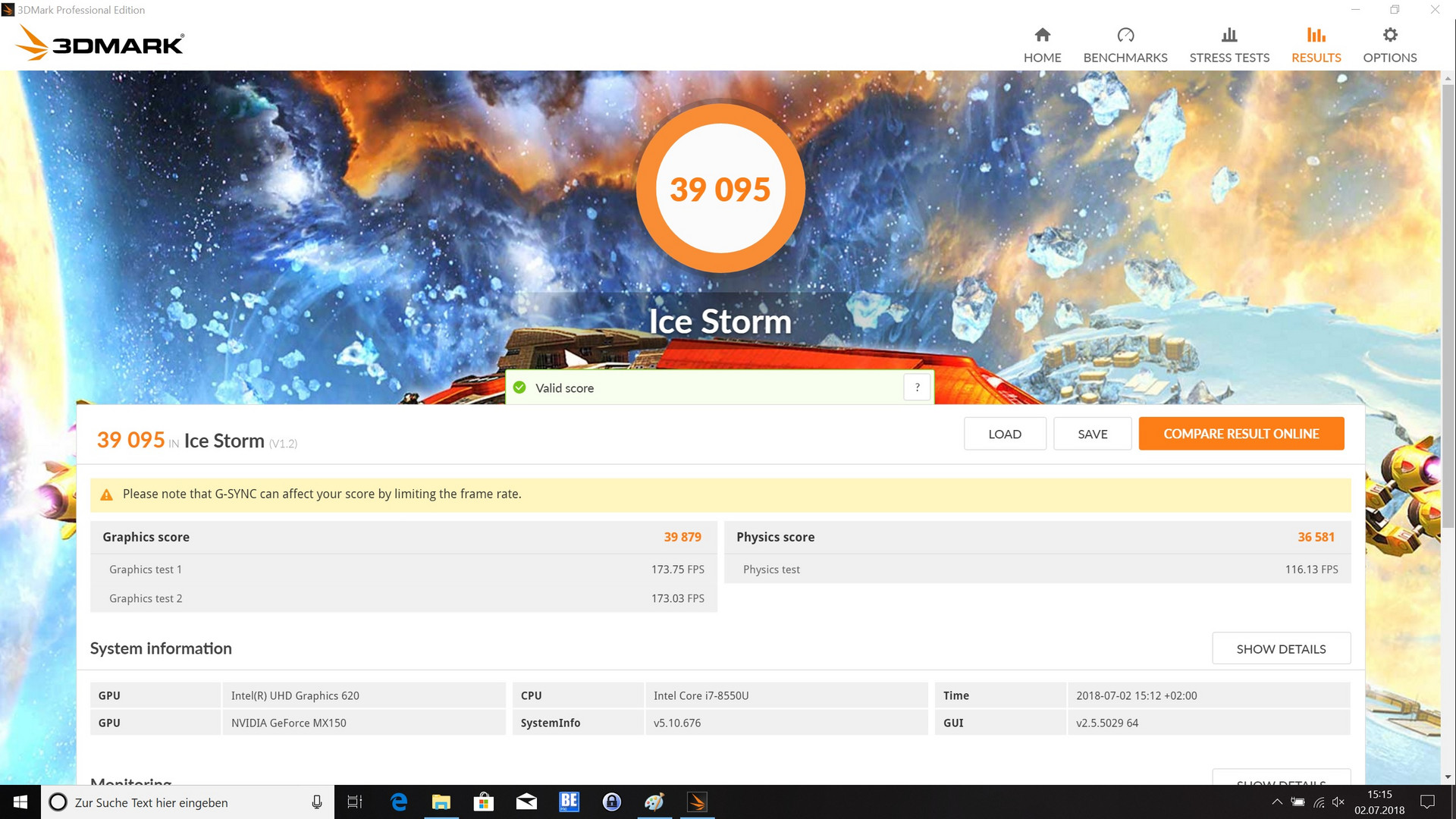

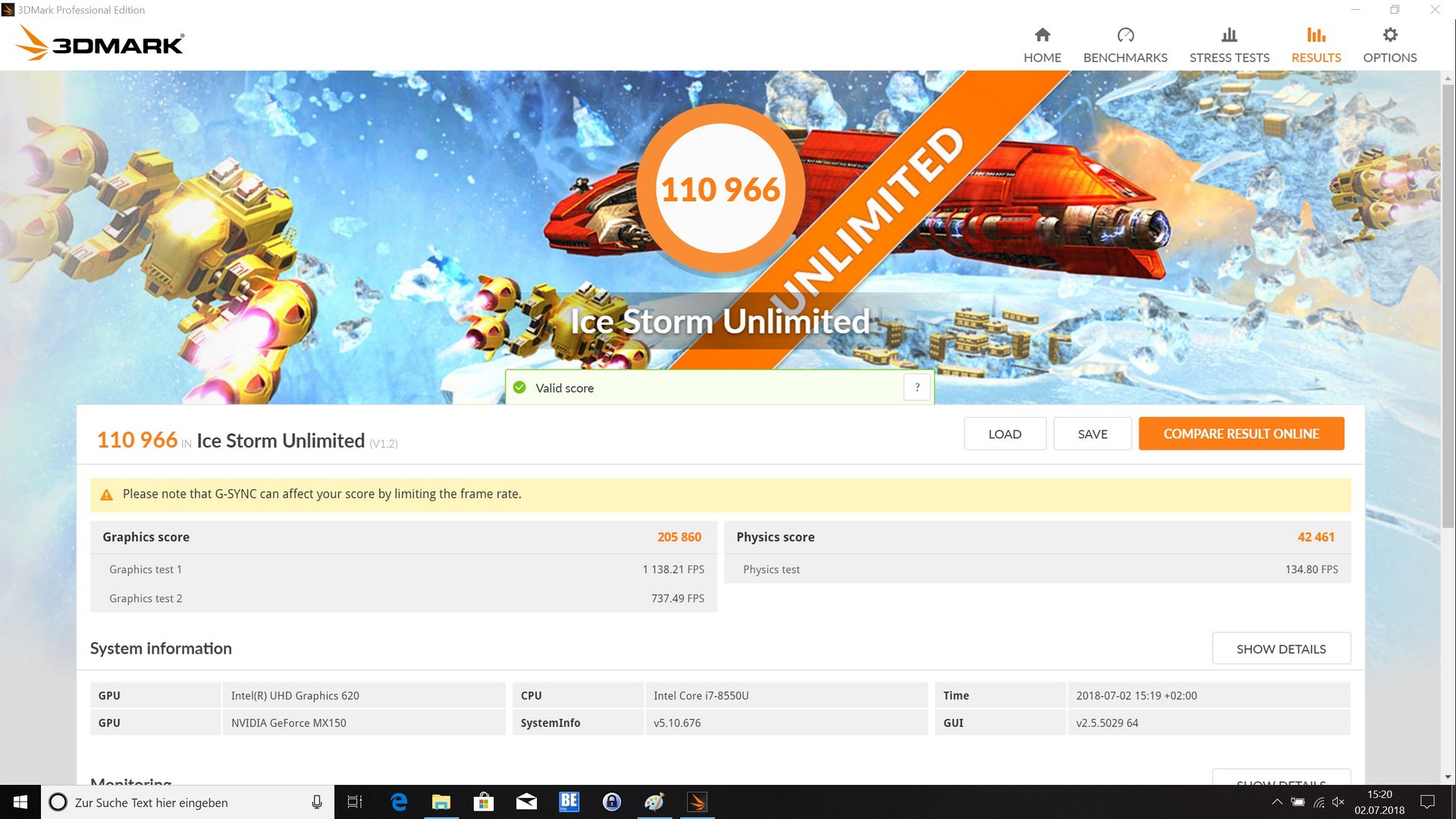

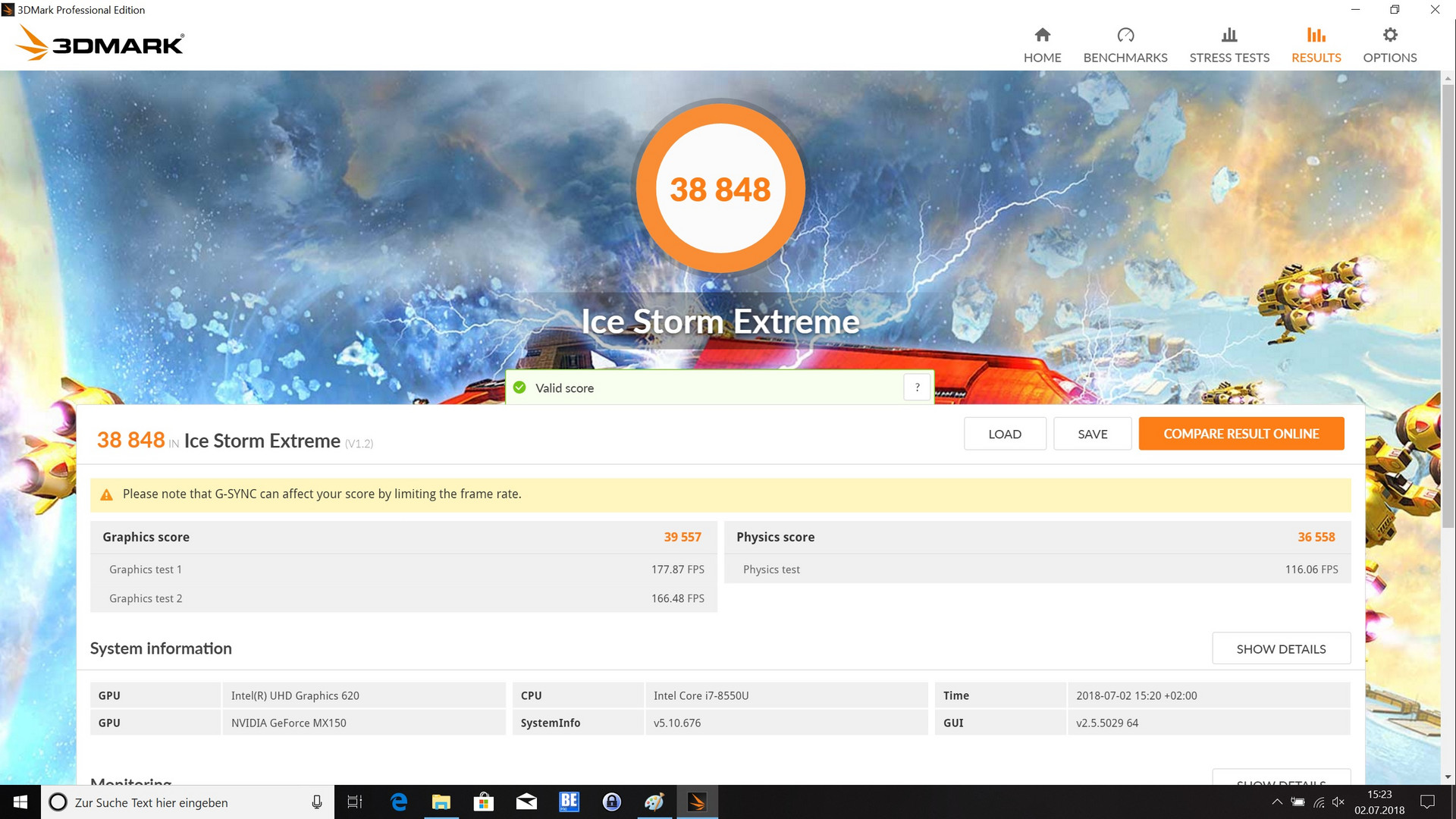

3DMark Ice Storm Standard Score
39095 poäng

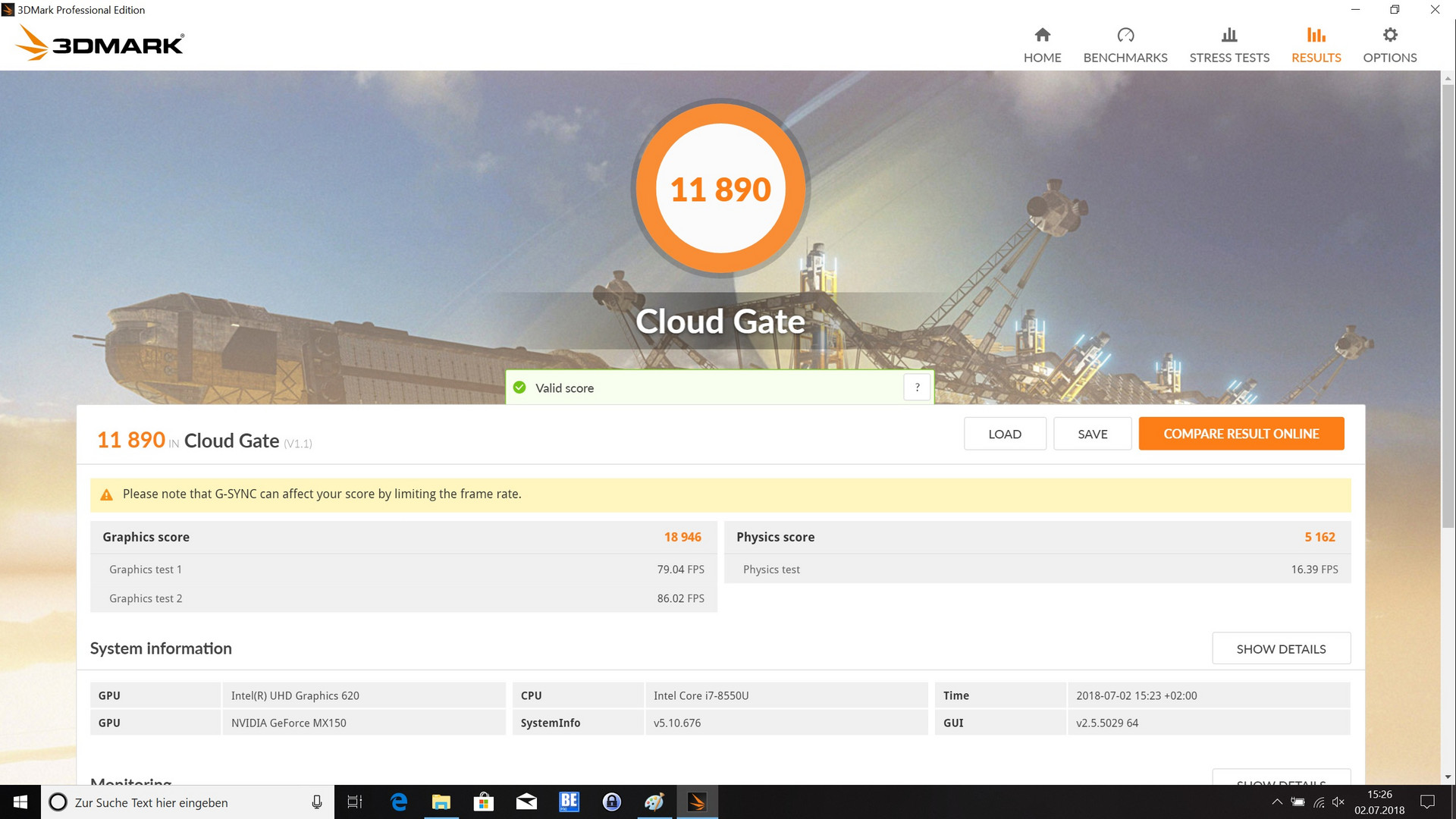

3DMark Cloud Gate Standard Score
11890 poäng

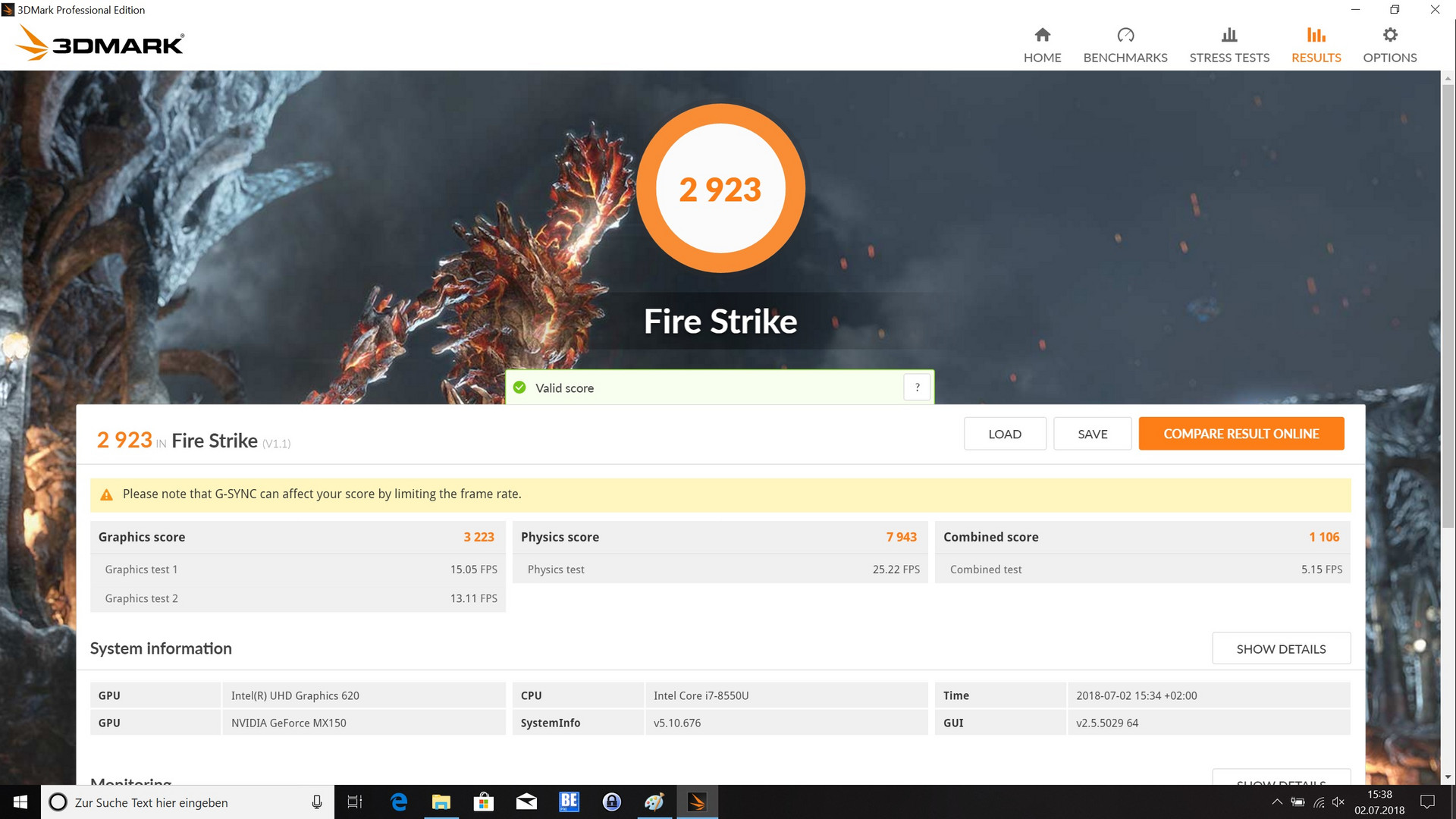

3DMark Fire Strike Score
2925 poäng

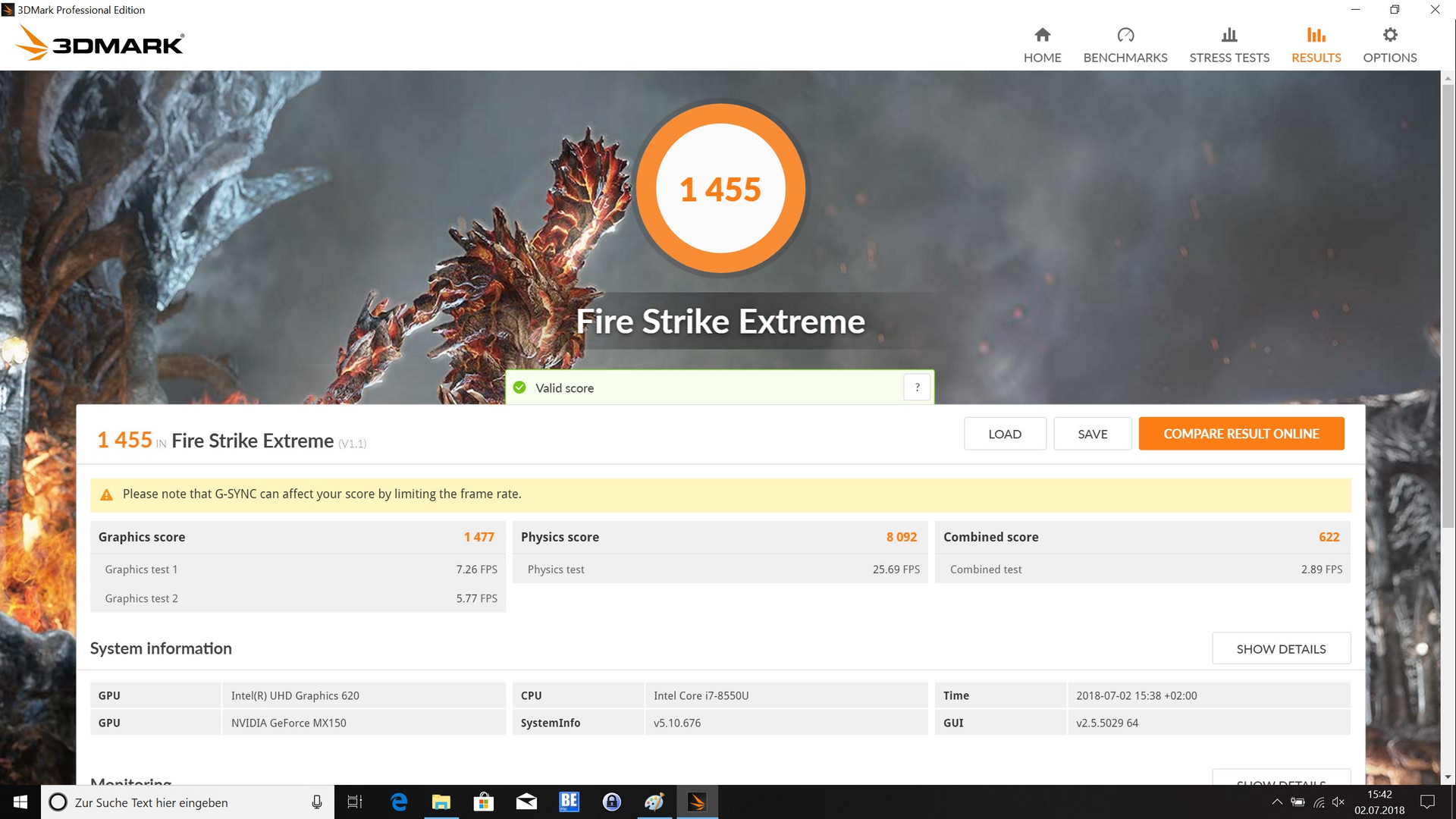

3DMark Fire Strike Extreme Score
1455 poäng

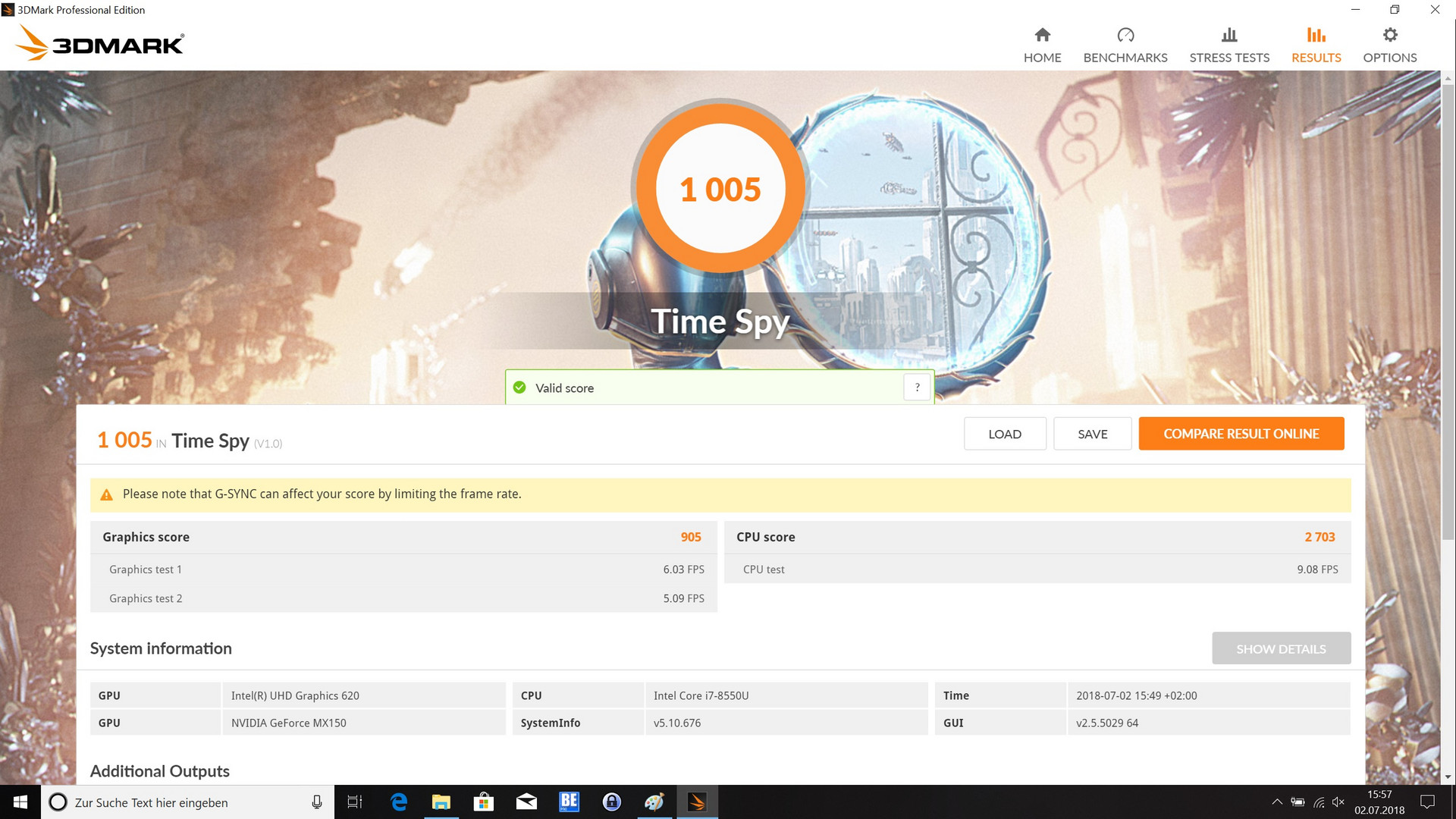

3DMark Time Spy Score
1005 poäng
Hjälp
låg med. hög ultra
BioShock Infinite (2013) 165.2 98.1 82.5 31.4
Rise of the Tomb Raider (2016) 41.6 35.4 19.3 16.4
Far Cry 5 (2018) 34 17 15 13

Ljudnivå

Låg belastning
29.7 / 31.1 / 33.1 dB(A)
Hög belastning
40 / 40 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 29.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.228.933.533.12526.729.131.931.53133.233.931.633.14031.631.829.3335031.329.630.831.8632627.526.227.88026.824.625.828.810025.125.627.326.812523.32423.625.416024.423.723.325.220022.722.421.82525021.722.721.323.631520.821.620.325.540020.222.919.428.350019.722.118.929.163018.721.218.429.980019.321.217.527.8100019.220.217.426125020.522.217.126.316001922.216.828.3200018.420.916.627.8250018.121.116.727.8315018.820.316.928.5400018.823.217.428.2500018.219.317.632.263001818.517.826.580001818.317.823.31000017.81817.921.81250017.917.917.819.91600017.817.917.718.8SPL3133.129.740N1.51.91.33.5median 19median 21.2median 17.8median 26.5Delta1.81.71.62.3hearing rangehide median Fan NoiseLenovo IdeaPad 530s-14IKB
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
Noise
8%
3%
6%
2%
6%
off / environment *
29.7
30.13
-1%
27.9
6%
30.3
-2%
30
-1%
29.9
-1%
Idle Minimum *
29.7
30.13
-1%
27.9
6%
30.3
-2%
30
-1%
29.9
-1%
Idle Average *
31.1
30.13
3%
27.9
10%
30.3
3%
30
4%
29.9
4%
Idle Maximum *
33.1
30.13
9%
27.9
16%
31.2
6%
33.1
-0%
30.7
7%
Load Average *
40
31.5
21%
36.2
9%
33.1
17%
37.6
6%
35.1
12%
Witcher 3 ultra *
40
45
-13%
35.1
12%
Load Maximum *
40
33.5
16%
45.2
-13%
34.4
14%
37.6
6%
36.2
9%

* ... smaller is better

Stress-test: Prime95 solo
Stress-test: Prime95 solo
Stress-test: FurMark solo
Stress-test: FurMark solo

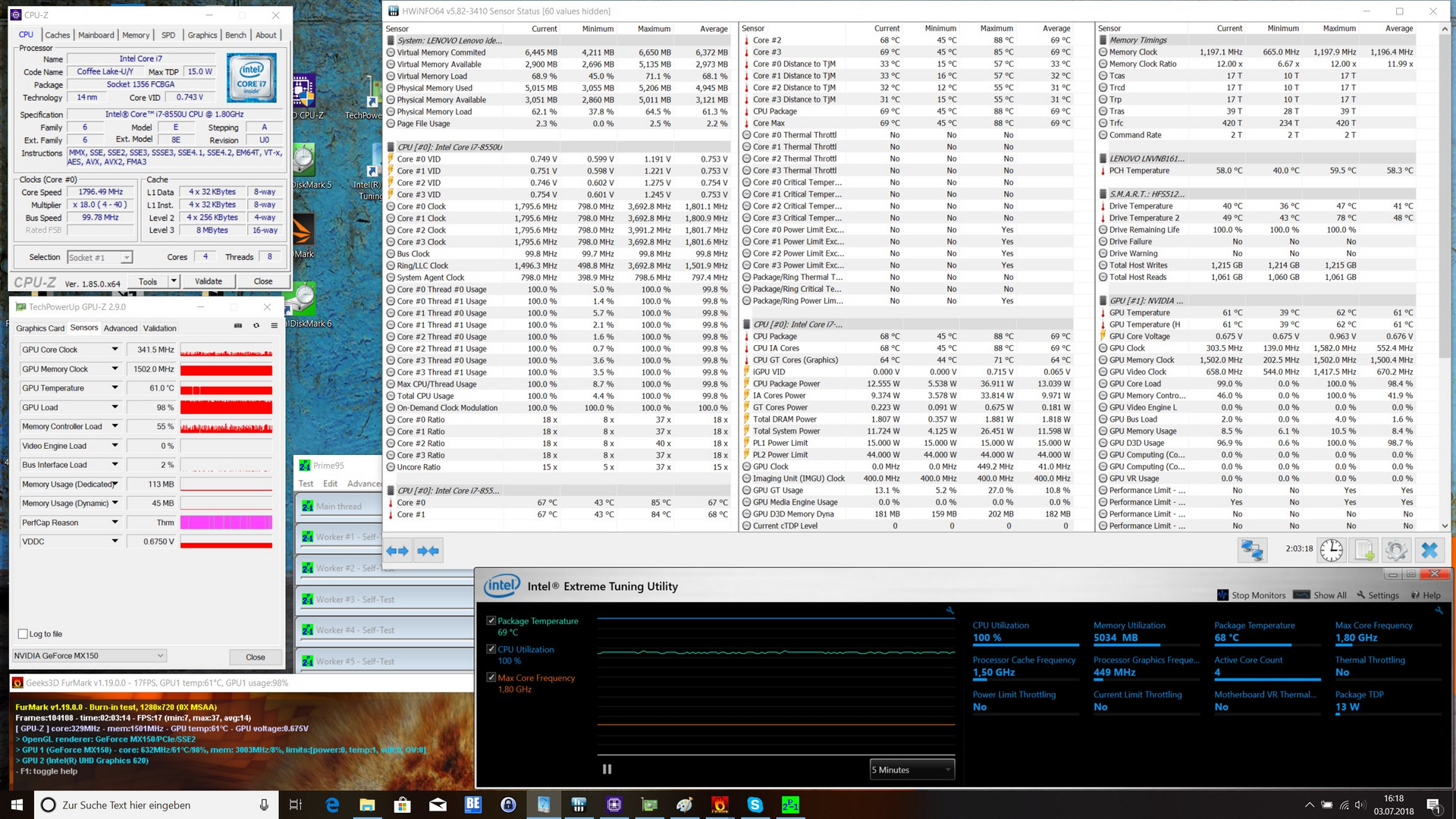

Stress-test: FurMark+Prime95
Stress-test: FurMark+Prime95
Hög belastning
 38.6 °C40.5 °C38 °C
 37.3 °C39.1 °C36.1 °C
 28 °C26.9 °C27.6 °C
Max: 40.5 °C
Medel: 34.7 °C
36.4 °C46.5 °C35.8 °C
32.2 °C37.9 °C34.2 °C
28.3 °C29.9 °C29.2 °C
Max: 46.5 °C
Medel: 34.5 °C
Strömförsörjning (max.)  45.4 °C | Rumstemperatur 22.3 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.7 °C / 94 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 46.5 °C / 116 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.6 °C / 76 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.3 °C / 0.5 F).
Lenovo IdeaPad 530s-14IKB
GeForce MX150, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
HP Spectre 13-af033ng
UHD Graphics 620, i5-8550U, Samsung PM961 NVMe MZVLW512HMJP
Huawei Matebook X Pro i5
GeForce MX150, i5-8250U, Samsung PM961 MZVLW256HEHP
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
Asus Zenbook UX3430UN-GV174T
GeForce MX150, i5-8250U, SK Hynix HFS256G39TND-N210A
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, i5-7200U, Ramaxel RTNTE256PCA8EADL
Heat
-14%
-15%
-8%
-14%
-12%
Maximum Upper Side *
40.5
41.2
-2%
48.6
-20%
42.9
-6%
44.6
-10%
49.3
-22%
Maximum Bottom *
46.5
44.2
5%
47
-1%
44.9
3%
46.8
-1%
53.9
-16%
Idle Upper Side *
24.9
32.1
-29%
28.6
-15%
28.4
-14%
30.4
-22%
26.7
-7%
Idle Bottom *
25
32.8
-31%
30.8
-23%
28.5
-14%
30.4
-22%
25.9
-4%

* ... smaller is better

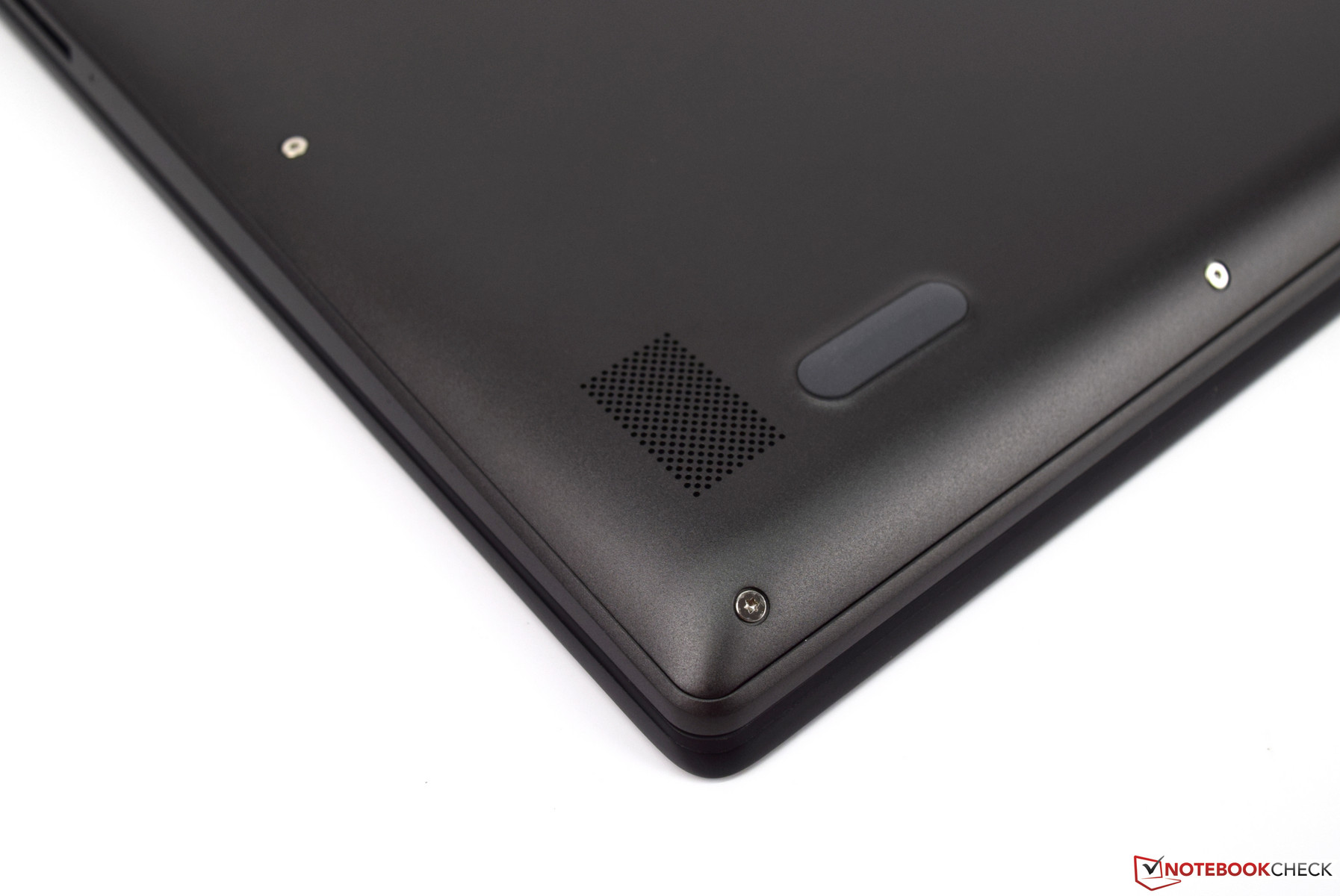

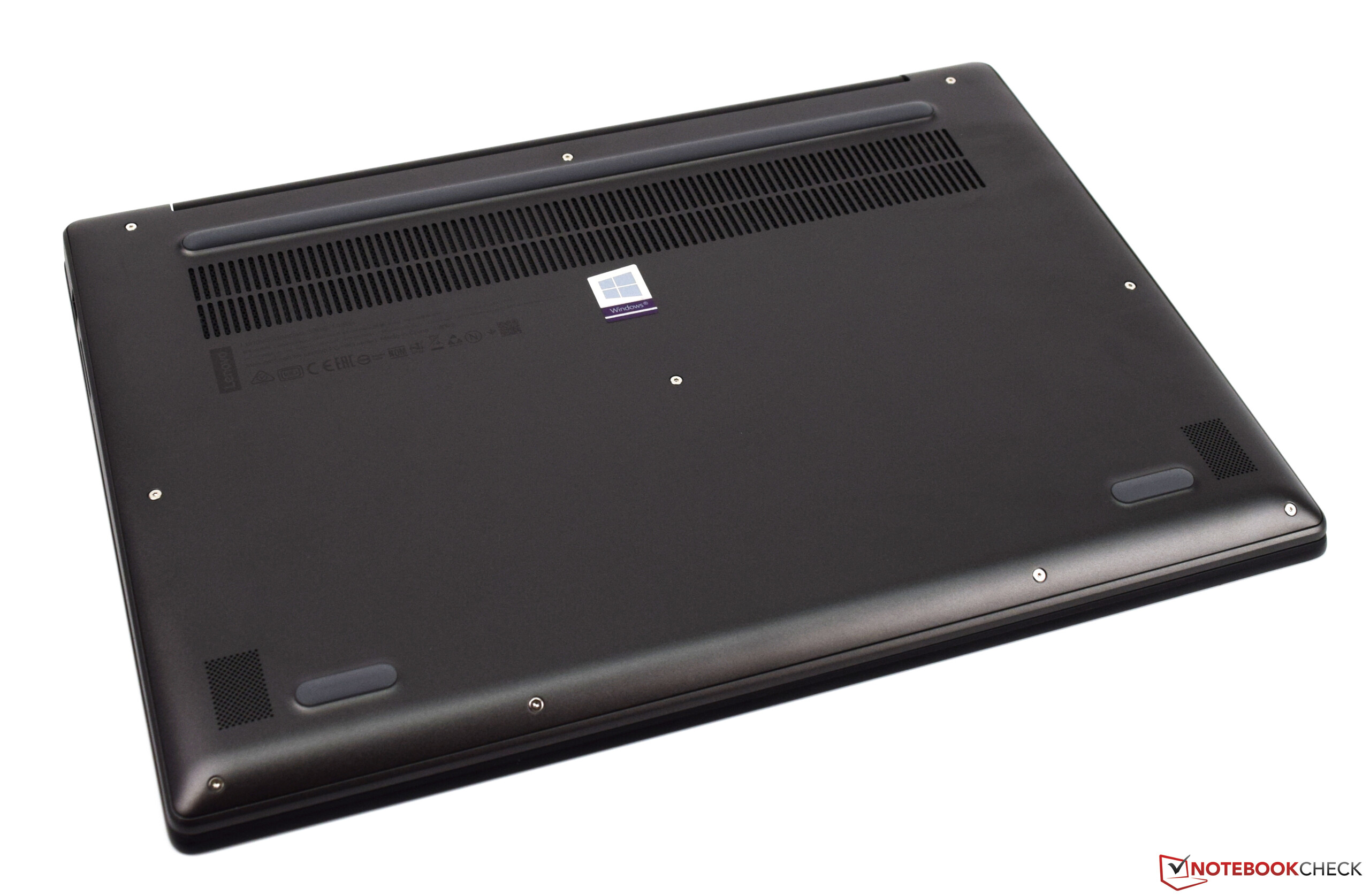

Nedåtriktade högtalare
Nedåtriktade högtalare

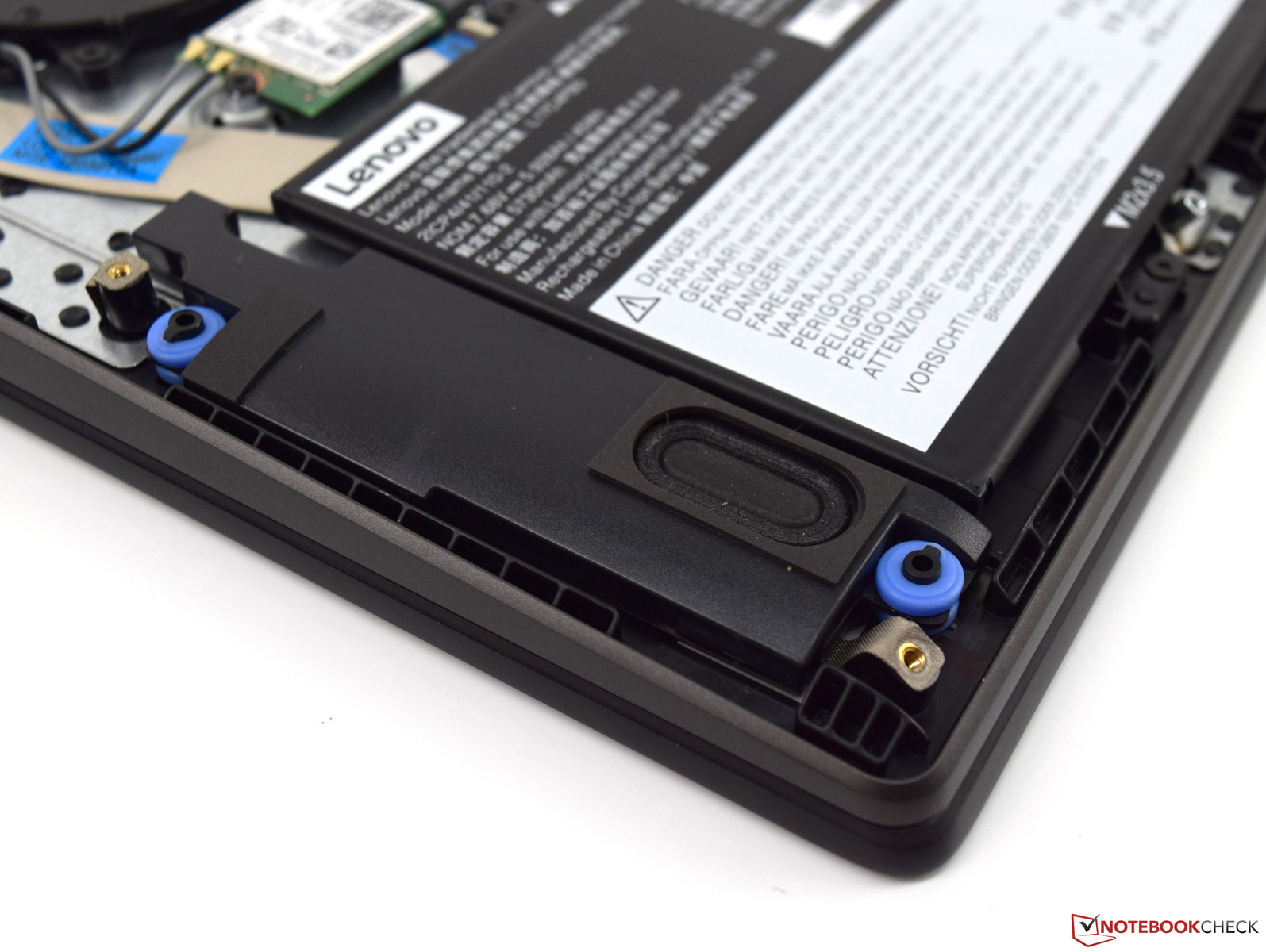

Högtalare med undersidan borttagen
Högtalare med undersidan borttagen

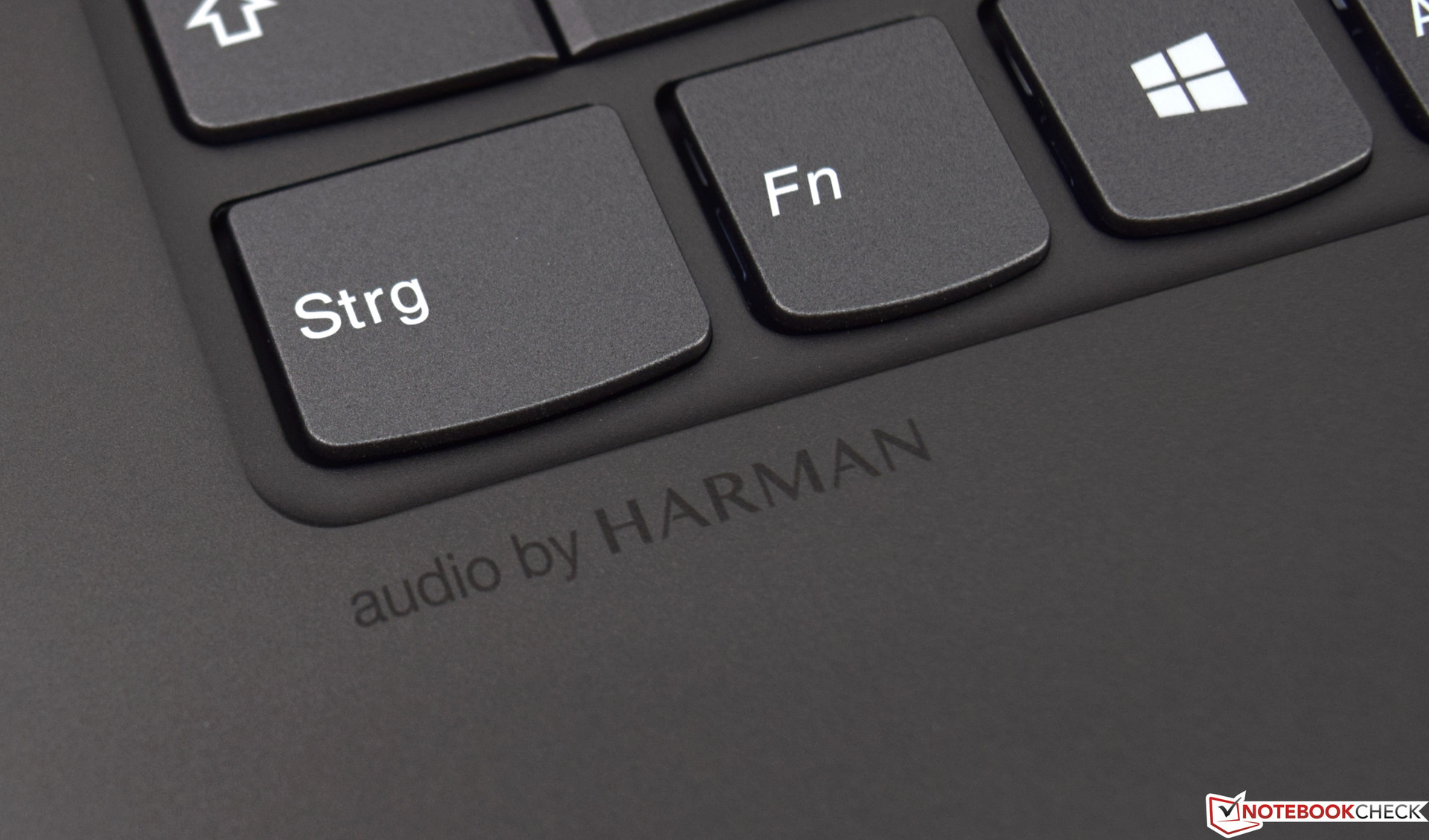

Ljud från HARMAN
Ljud från HARMAN
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.533.42531.930.23131.636.14029.331.95030.831.86326.229.88025.830.110027.327.812523.630.316023.341.920021.854.625021.36431520.365.740019.465.350018.961.163018.459.480017.567.4100017.465.9125017.161.9160016.863.2200016.665.8250016.765315016.967.4400017.461500017.670.3630017.866.8800017.869.31000017.967.51250017.860.61600017.754.2SPL29.778.1N1.344.8median 17.8median 64Delta1.65.846.344.246.344.140.244.134.931.634.937.131.537.138.130.238.140.330.540.338.727.238.738.928.438.94025.44042.42742.445.423.445.445.924.145.956.622.556.657.622.157.658.62158.659.919.959.959.519.259.564.418.964.462.21862.264.817.164.863.31763.363.616.763.66216.46261.316.261.361.516.261.55816.35856.216.356.25416.45456.316.756.357.417.157.473.830.173.832.61.432.6median 58median 18median 5862.76hearing rangehide median Pink NoiseLenovo IdeaPad 530s-14IKBHP Spectre 13-af033ng
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo IdeaPad 530s-14IKB audio analysis

(±) | speaker loudness is average but good (78.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.2% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(±) | linearity of highs is average (8.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.8% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 8% similar, 55% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 69% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP Spectre 13-af033ng audio analysis

(-) | not very loud speakers (64.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.4% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.2% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 10% similar, 52% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 26% of all tested devices were better, 8% similar, 66% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning
Av/Standbydarklight 0.33 / 0.42 Watt
Låg belastningdarkmidlight 3.9 / 5.76 / 7.14 Watt
Hög belastning midlight 50.8 / 65.8 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo IdeaPad 530s-14IKB
i5-8550U, GeForce MX150, SK Hynix PC401 512GB M.2 (HFS512GD9TNG), IPS, 2560x1440, 14.00
HP Spectre 13-af033ng
i5-8550U, UHD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 13.30
Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.90
Acer Swift 5 SF514-52T-59HY
i5-8250U, UHD Graphics 620, Intel SSD 600p SSDPEKKW256G7, IPS, 1920x1080, 14.00
Asus Zenbook UX3430UN-GV174T
i5-8250U, GeForce MX150, SK Hynix HFS256G39TND-N210A, IPS, 1920x1080, 14.00
Lenovo IdeaPad 520s-14IKB 80X200C1GE
i5-7200U, GeForce 940MX, Ramaxel RTNTE256PCA8EADL, IPS LED, 1920x1080, 14.00
Average NVIDIA GeForce MX150

Average of class Subnotebook

Power Consumption
14%
-21%
36%
-11%
9%
-19%
-22%
Idle Minimum *
3.9
2.8
28%
3.5
10%
2.8
28%
4.5
-15%
3.37
14%
4.48 ?(2.2 - 11.6, n=45)
-15%
4.94 ?(1.77 - 11.8, n=63, last 2 years)
-27%
Idle Average *
5.76
6.2
-8%
8.9
-55%
4.8
17%
7.8
-35%
5.2
10%
7.88 ?(5 - 13.8, n=45)
-37%
8.42 ?(4.6 - 17.4, n=63, last 2 years)
-46%
Idle Maximum *
7.14
9.4
-32%
12.3
-72%
6.3
12%
8.1
-13%
7.1
1%
9.76 ?(6.2 - 14.7, n=45)
-37%
10.5 ?(5.1 - 22.4, n=63, last 2 years)
-47%
Load Average *
50.8
32.2
37%
54.2
-7%
21
59%
52
-2%
46.2
9%
54.7 ?(33 - 75, n=44)
-8%
46.1 ?(19.1 - 83.3, n=62, last 2 years)
9%
Load Maximum *
65.8
36.6
44%
52.1
21%
23
65%
59
10%
57
13%
63.5 ?(40.4 - 89.2, n=45)
3%
66.6 ?(24.2 - 121.2, n=63, last 2 years)
-1%
Witcher 3 ultra *
42.4
38.5

* ... smaller is better

Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
14tim 41min
WiFi Websurfing (Edge 42.17134.1.0)
8tim 40min
Big Buck Bunny H.264 1080p
7tim 08min
Hög belastning (maximal ljusstyrka)
1tim 25min
maximal batteritid
maximal batteritid

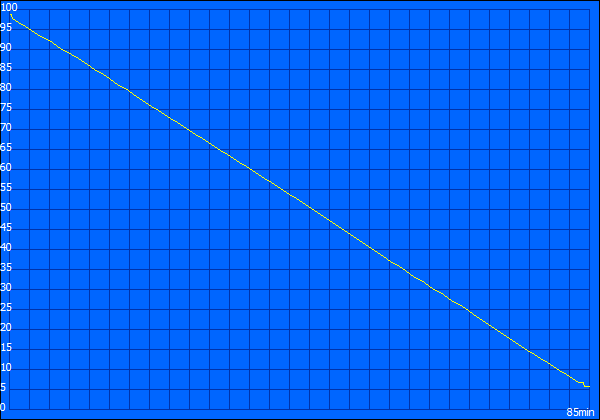

minimal batteritid
minimal batteritid
Wi-Fi batteritid
Wi-Fi batteritid
H.264 batteritid
H.264 batteritid

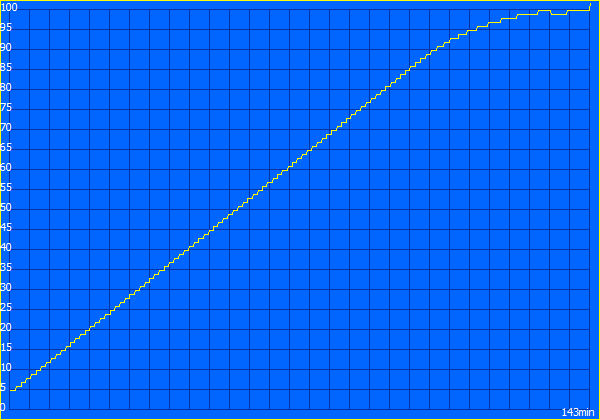

laddning
laddning
Lenovo IdeaPad 530s-14IKB
i5-8550U, GeForce MX150, 45 Wh
HP Spectre 13-af033ng
i5-8550U, UHD Graphics 620, 43 Wh
Huawei Matebook X Pro i5
i5-8250U, GeForce MX150, 57.4 Wh
Acer Swift 5 SF514-52T-59HY
i5-8250U, UHD Graphics 620, 36 Wh
Asus Zenbook UX3430UN-GV174T
i5-8250U, GeForce MX150, 48 Wh
Lenovo IdeaPad 520s-14IKB 80X200C1GE
i5-7200U, GeForce 940MX, 52.5 Wh
Average of class Subnotebook

Battery Runtime
14%
35%
14%
23%
24%
44%
Reader / Idle
881
1243
41%
962
9%
1367
55%
864
-2%
1194 ?(581 - 2550, n=10, last 2 years)
36%
H.264
428
649
52%
466
9%
505
18%
557
30%
786 ?(426 - 1153, n=31, last 2 years)
84%
WiFi v1.3
520
352
-32%
557
7%
313
-40%
485
-7%
568
9%
624 ?(303 - 1144, n=65, last 2 years)
20%
Load
85
104
22%
133
56%
150
76%
108
27%
136
60%
114.8 ?(61 - 197, n=48, last 2 years)
35%

För

+ elegant design
+ robust hölje
+ bra portfördelning
+ GeForce MX150 med 2 GB GDDR5
+ acceptabel batteritid
+ ljusstark WQHD-skärm
+ breda betraktningsvinklar, ingen PWM eller clouding
+ generös NVMe SSD på 512 GB
+ bekvämt bakgrundsbelyst tangentbord
+ rymlig clickpad

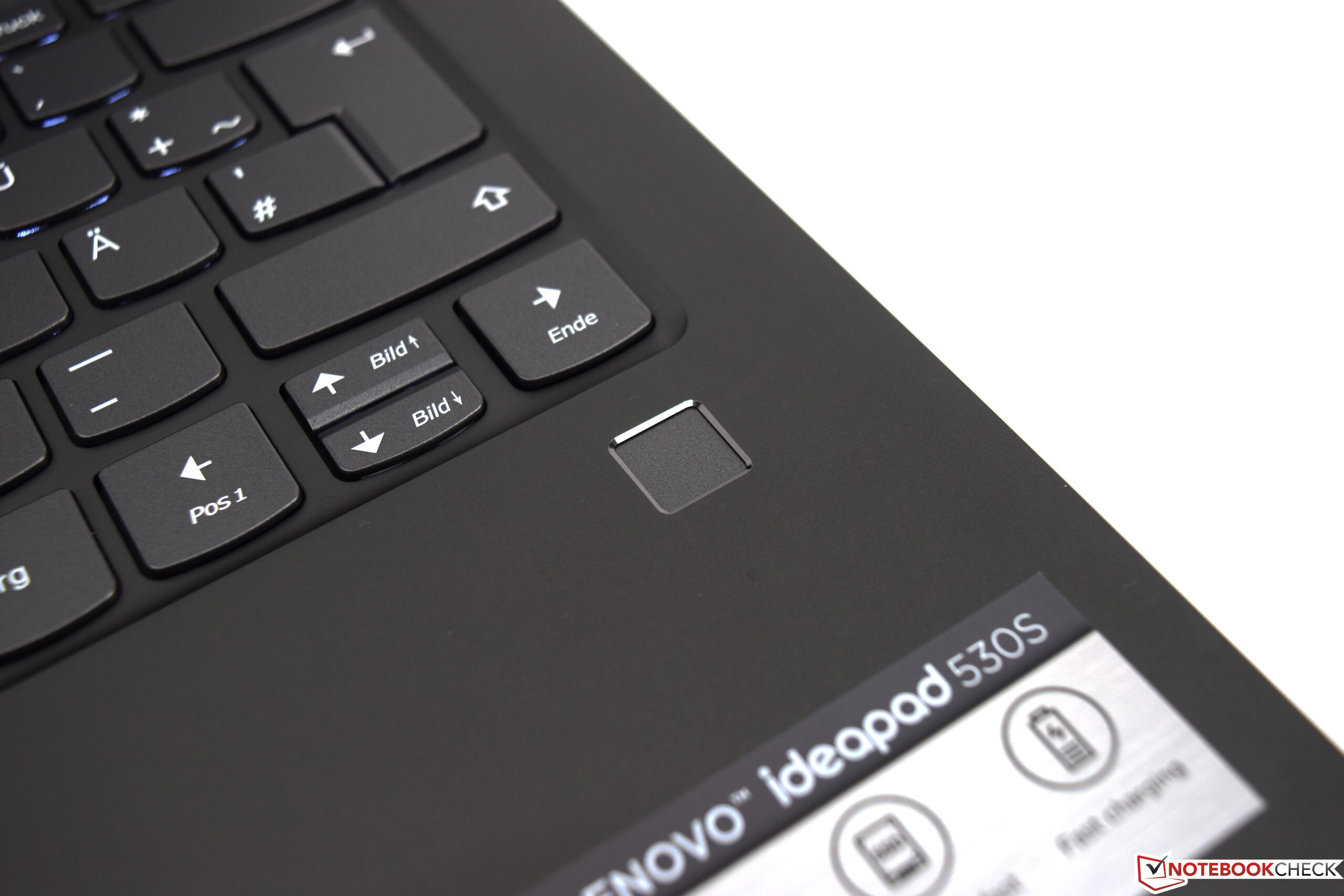

+ fingeravtrycksläsare

Emot

- medelmåttig WiFi-prestanda
- långsam SD-kortläsare
- CPU:n har dålig turbo-prestanda
- reflekterande skärm
- inget stöd för dual channel-läge
- ljudlig vid belastning

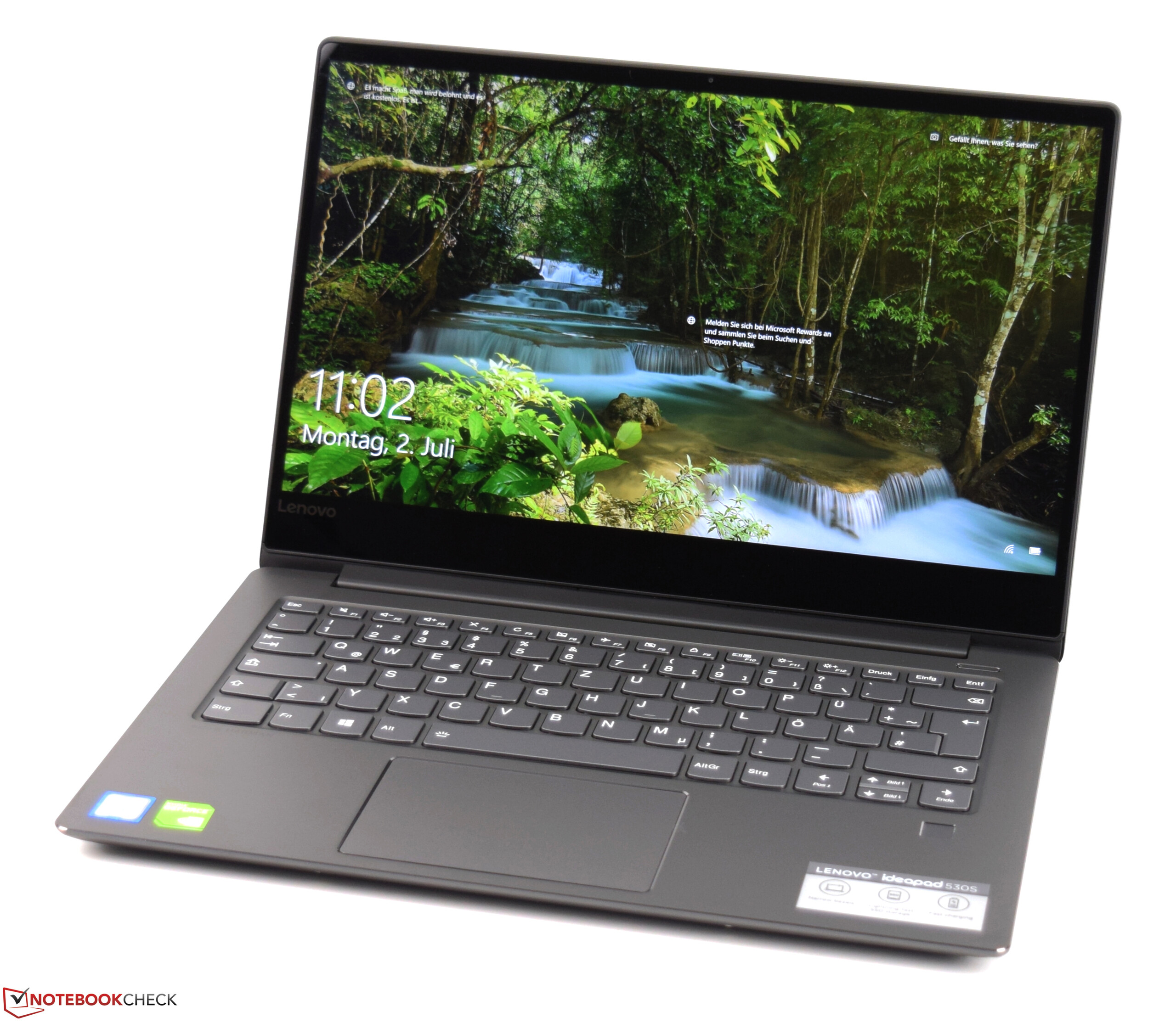

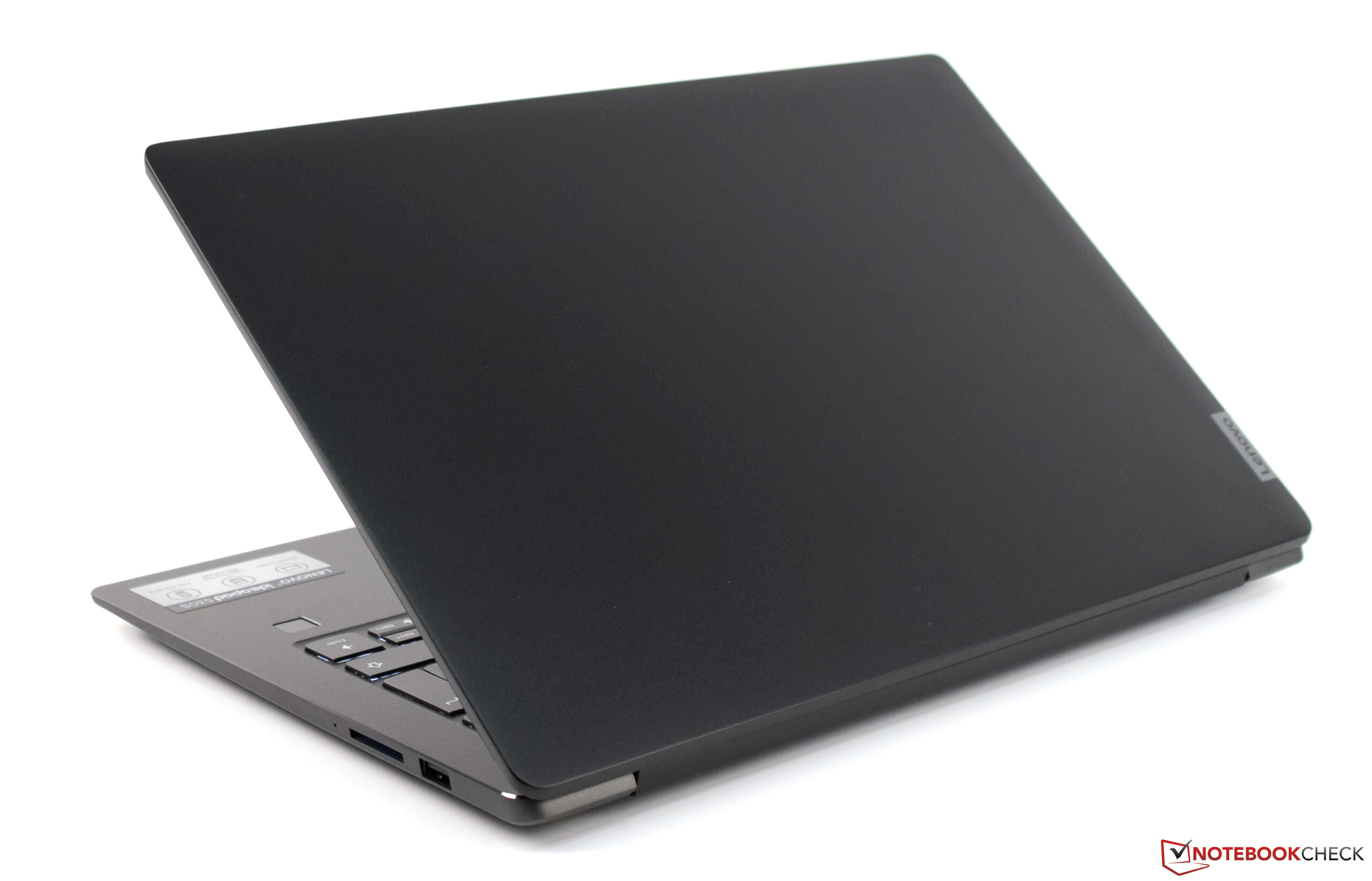

Lenovo IdeaPad 530s-14IKB. Recensionsex från campuspoint
Lenovo IdeaPad 530s-14IKB. Recensionsex från campuspoint

Läs den fullständiga versionen av den här recensionen på engelska här.

Lenovos IdeaPad 530s-14IKB är en snygg subnotebook med massor av CPU- och GPU-prestanda tack vare sitt dedikerade GeForce MX150-grafikkort. Vår specifika SKU av denna laptop på 14 tum har en WQHD-skärm samt en SSD-enhet på 512 GB och säljs för 11.990 kronor i europa, vid skrivande stund. Den har en riktigt robust bas och skapliga inmatningsenheter såväl som en fingeravtrycksläsare för enkel identifiering och verifiering. Portutbudet är skapligt och genomarbetat, men tyvärr saknar datorn ändå en Thunderbolt 3-port, vilket hade gett användaren fler alternativ.

Lenovos IdeaPad 530s-14IKB har mer än tillräckligt med prestanda, inte bara som en multimediaenhet sett. Dess långa batteritid innebär riktigt hyfsad uthållighet.

Tyvärr är inte allt guld som glimmar. SD-kortläsaren var smärtsamt långsam och WiFi-prestandan var medioker som bäst. Skärmen lämnade oss med blandade känslor på grund av sin kraftigt reflekterande natur och påföljande konsekvenser för användning utomhus. Intels Core i7-8550U kunde inte leverera maximal prestanda i flertrådade applikationer och vi misstänker att den billigare Core i5-8250U inte kommer att vara långsammare.

Totalt sett var IdeaPad 530s-14IKB en riktigt bra enhet. Den som letar efter en kompakt laptop kan inte hamna fel med den här enheten och den förtjänar därför vårt fulla stöd.

Lenovo IdeaPad 530s-14IKB - 07/11/2018 v6(old)
Sebastian Bade

Design
85 /  98 → 87%
Tangentbord
83%
Mus
88%
Anslutningar
46 / 80 → 58%
Vikt
69 / 35-78 → 80%
Batteri
90%
Skärm
83%
Spelprestanda
75 / 68 → 100%
Programprestanda
87 / 87 → 100%
Temperatur
92 / 91 → 100%
Ljudnivå
89%
Audio
63 / 91 → 69%
Camera
42 / 85 → 49%
Medel
76%
85%
Subnotebook - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo IdeaPad 530s-14IKB (i7-8550U, MX150, WQHD, IPS) Laptop (Sammanfattning)
Sebastian Bade, 2018-07-24 (Update: 2018-07-24)
