Test: Asus ROG Zephyrus S GX531GS (i7-8750H, GTX 1070 Max-Q, FHD) Laptop (Sammanfattning)

Florian Glaser, 👁 Florian Glaser (översatt av Daniel Eriksson), 11/12/2018

Ett steg framåt, två steg bakåt. Efter GX501 som avsade sig en del av sin mobilitet till förmån för G-Sync så får splitter nya GX531 poäng för Nvidias grafikbytessystem Optimus. I den här utförliga recensionen får du reda på varför dess totala poäng fortfarande är lägre än vad föregångaren fick.

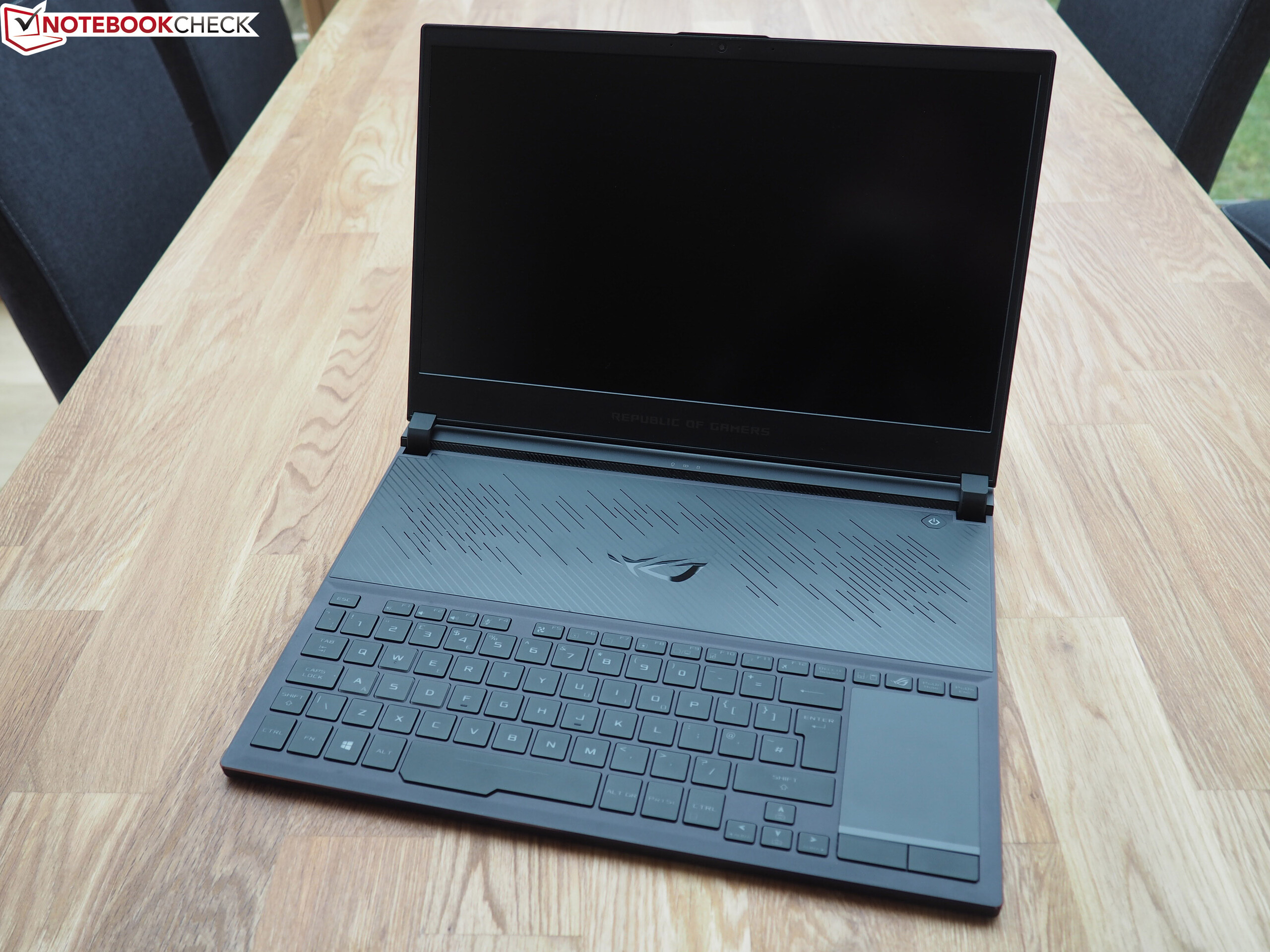

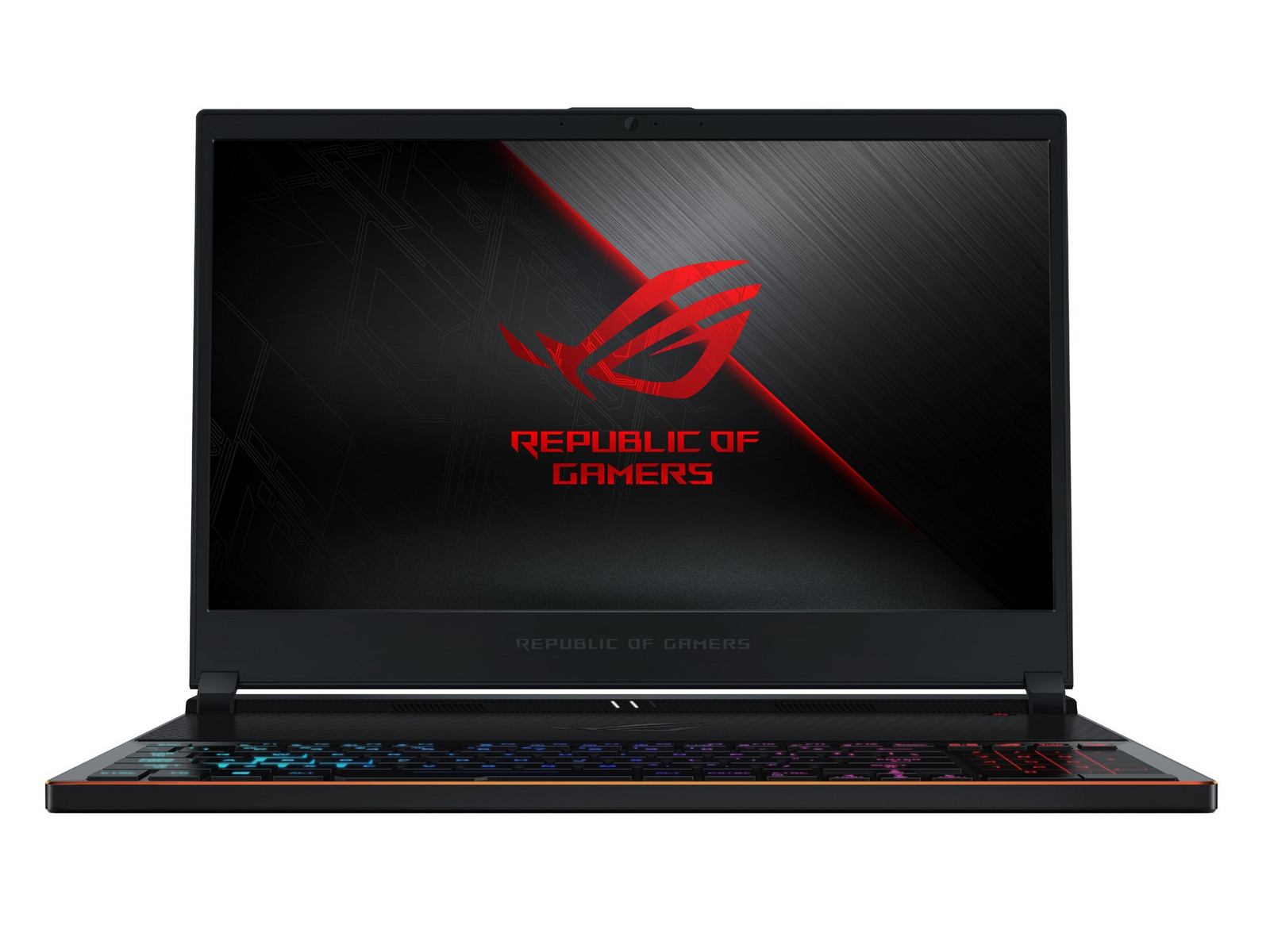

Asus Zephyrus S GX531GS
Grafikkort
NVIDIA GeForce GTX 1070 Max-Q - 8192 MB, Kärna: 1101 MHz, Minne: 8000 MHz, GDDR5, ForceWare 399.24, Optimus
Minne
16384 MB
, 8 GB på moderkortet + 8 GB SO-DIMM DDR4-2666, alla platser upptagna, 24 GB max.
Skärm
15.6 tum 16:9, 1920 x 1080 pixlar 141 PPI, AU Optronics B156HAN08.2 (AUO82ED), IPS, Full-HD, 144 Hz, glansig: nej
Moderkort
Intel HM370
Hårddisk
WDC PC SN520 SDAPNUW-512G, 512 GB
, PCIe-SSD; platser: 1x M.2 Typ 2280
Ljudkort
Realtek ALC294 @ Intel Cannon Lake PCH
Anslutningar
2 USB 2.0, 1 USB 3.0, 2 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm kombinerad ljudanslutning
Nätverk
Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Storlek
höjd x bredd x djup (i mm) 15.8 x 360 x 268
Batteri
50 Wh Litiumjon, 4 celler
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: HD (720p)
Övrigt

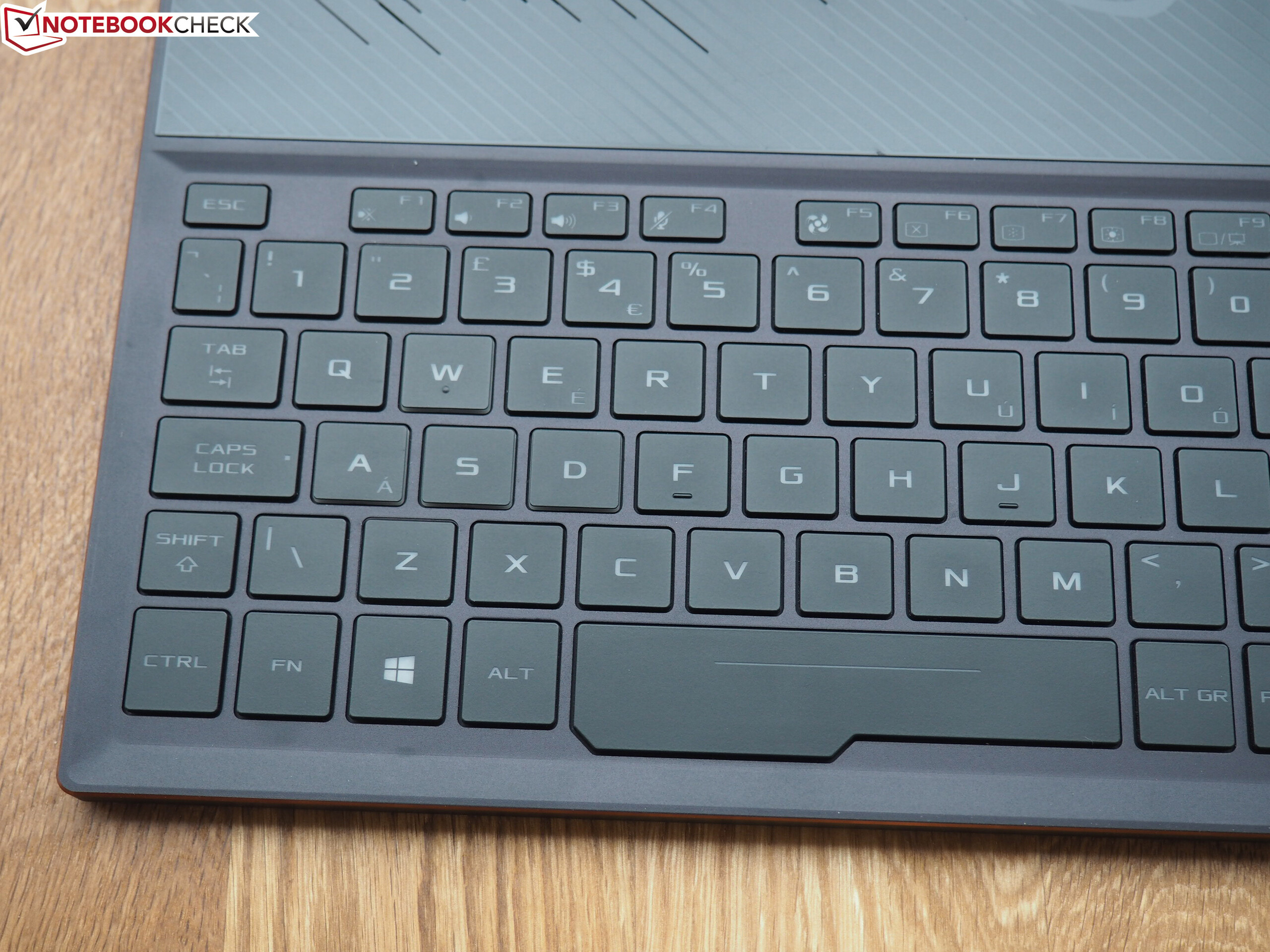

Högtalare: 2.0, Tangentbord: chiclet, RGB, 4 zoner, Tangentbordsbelysning: ja, nätadapter på 230 watt, nyckelring, klistermärken, olika verktyg från tillverkaren, McAfee LiveSafe (Testversion), XSplit Gamecaster (Testversion), 24 Månader Garanti
Vikt

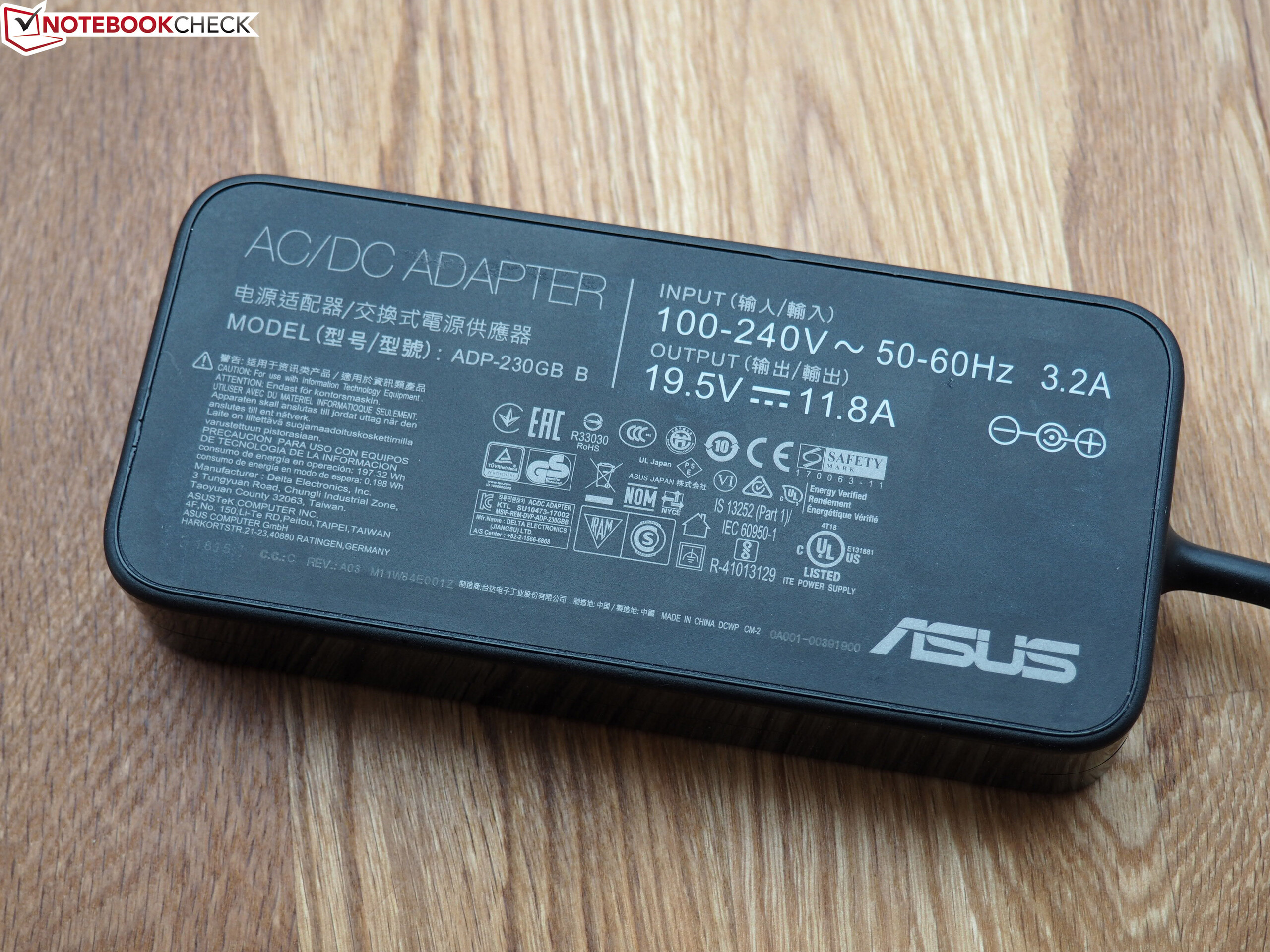

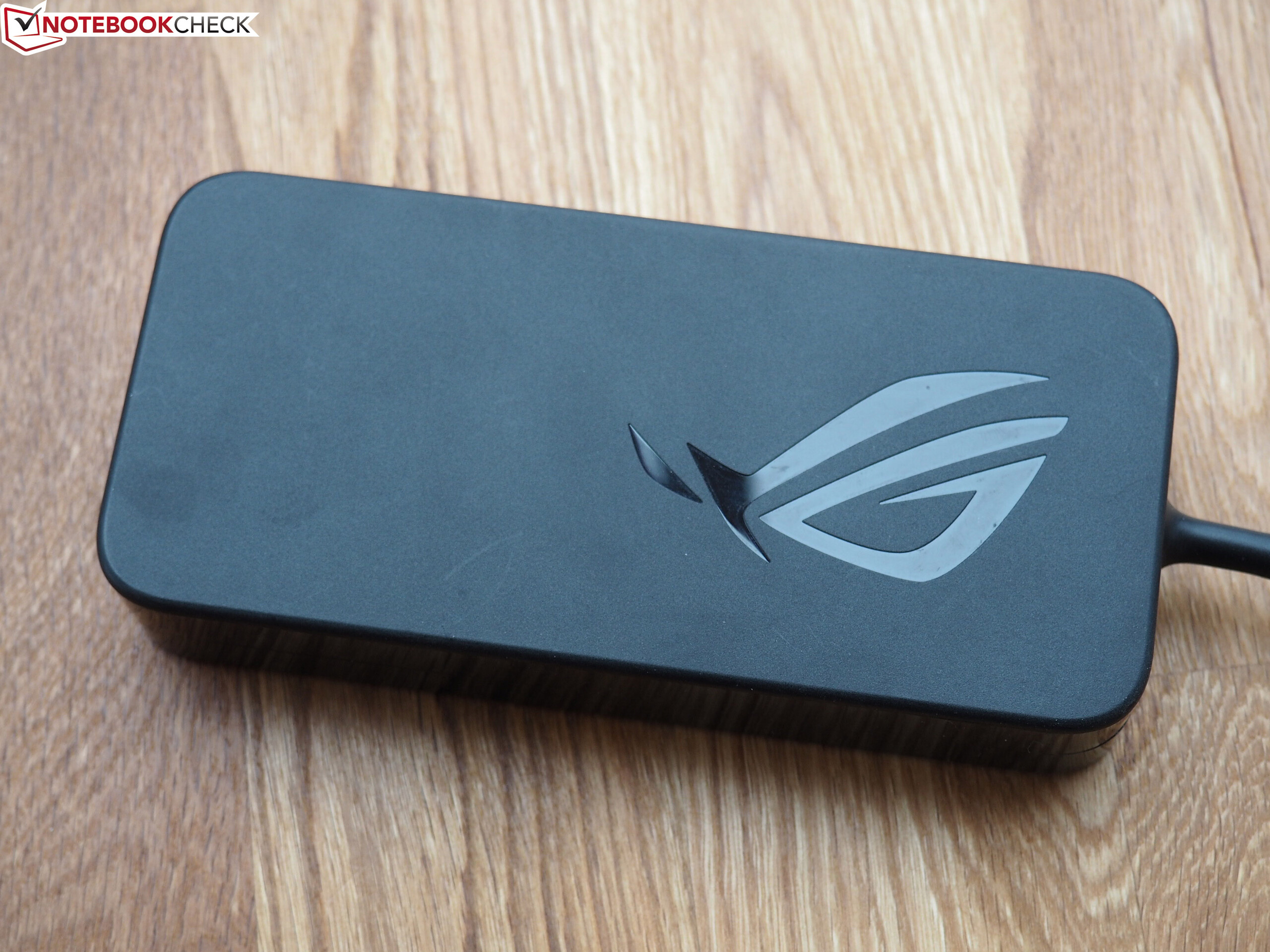

2.095 kg, Strömförsörjning: 612 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Storleksjämförelse

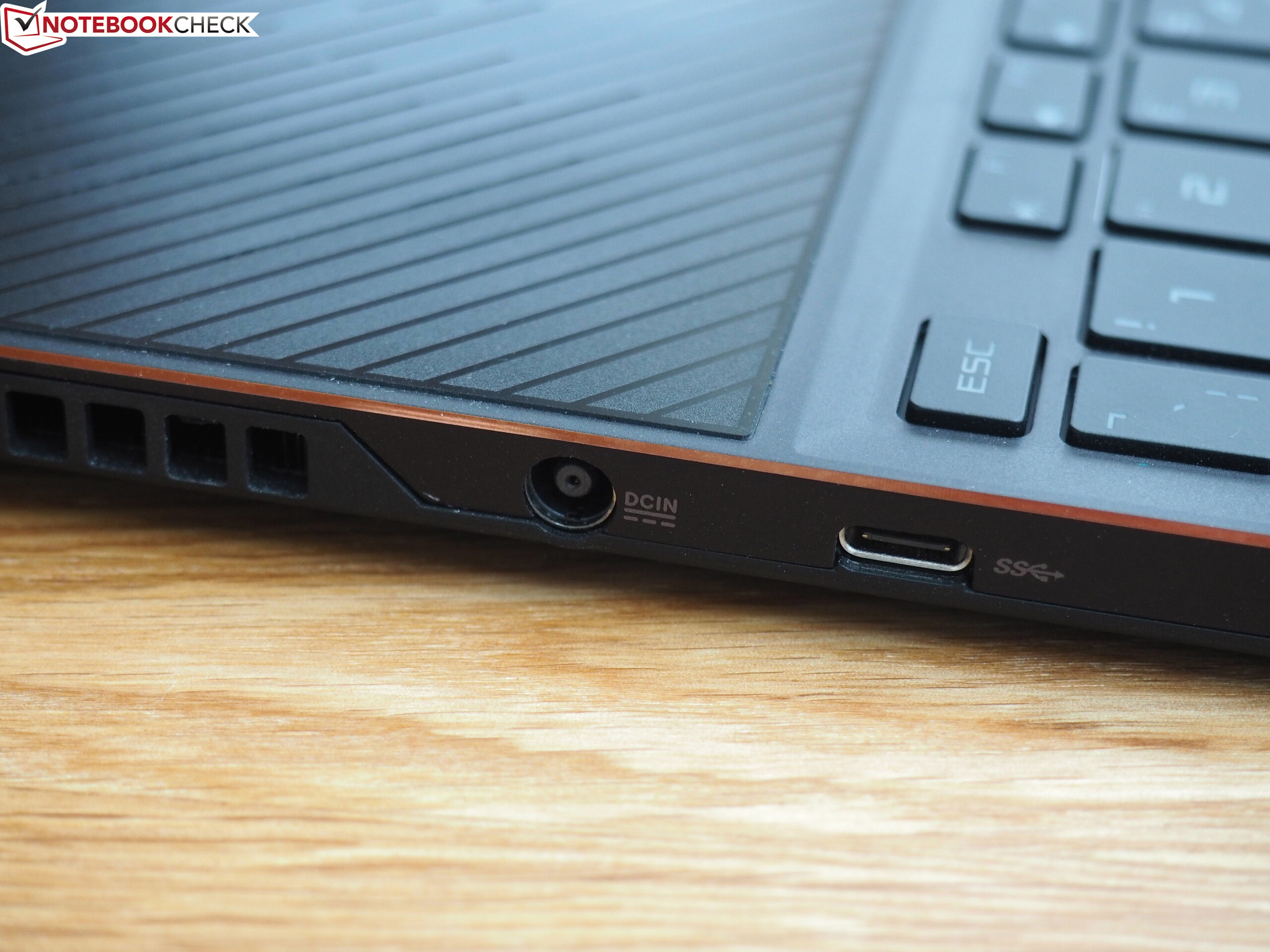

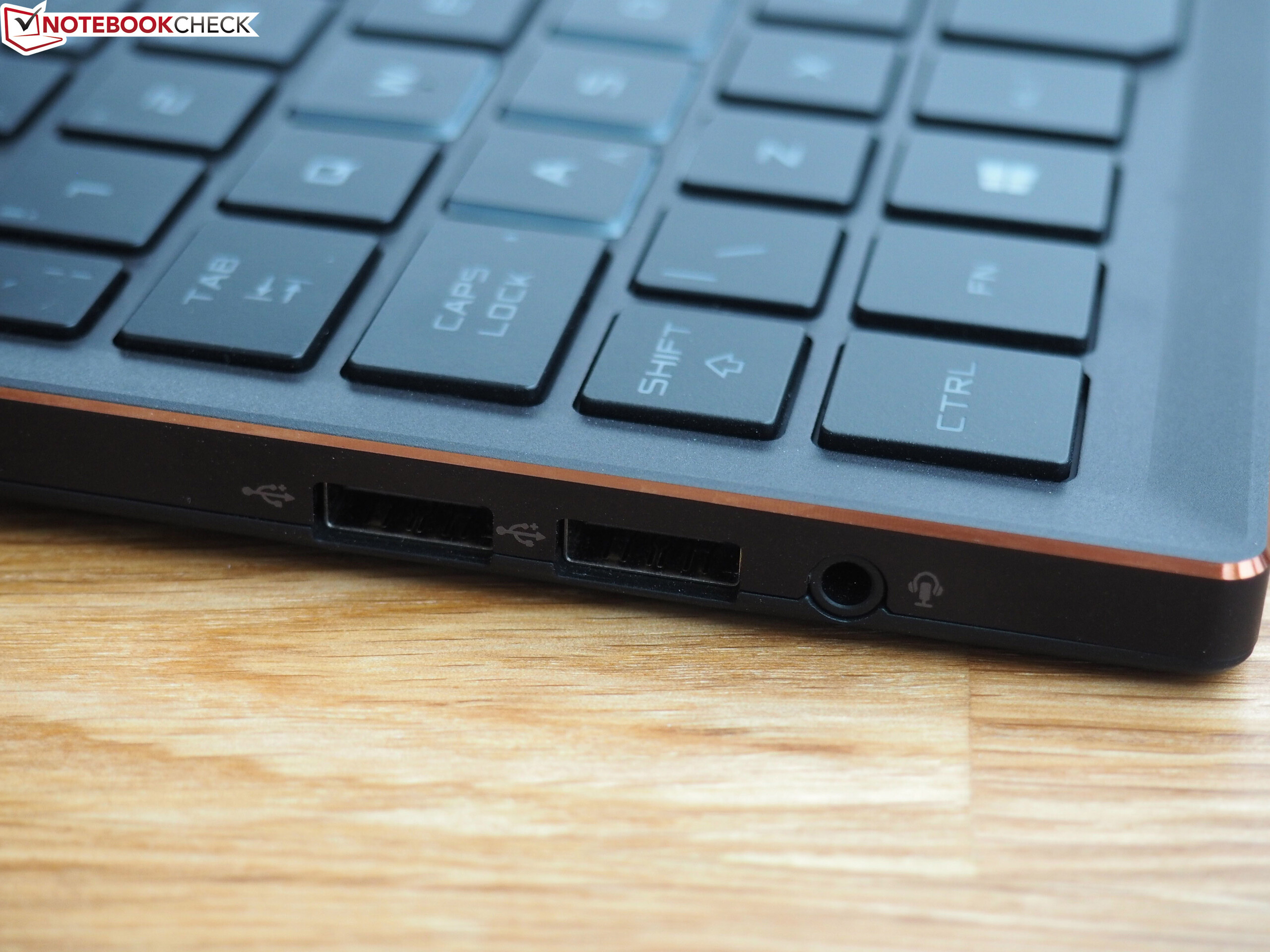

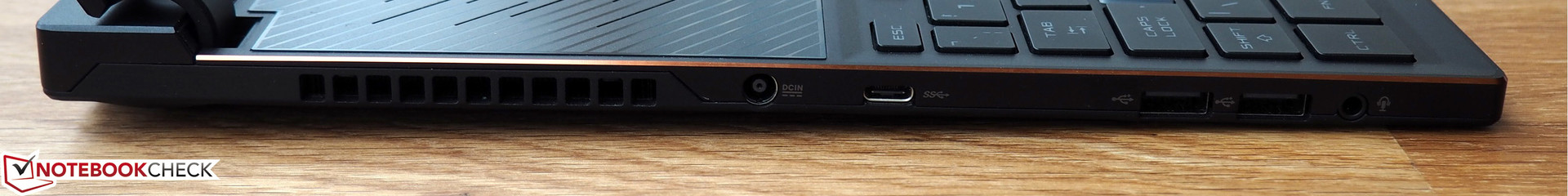

Vänster sida: nät, USB-C 3.0, 2x USB-A 2.0, 3.5 mm kombinerat ljud
Vänster sida: nät, USB-C 3.0, 2x USB-A 2.0, 3.5 mm kombinerat ljud

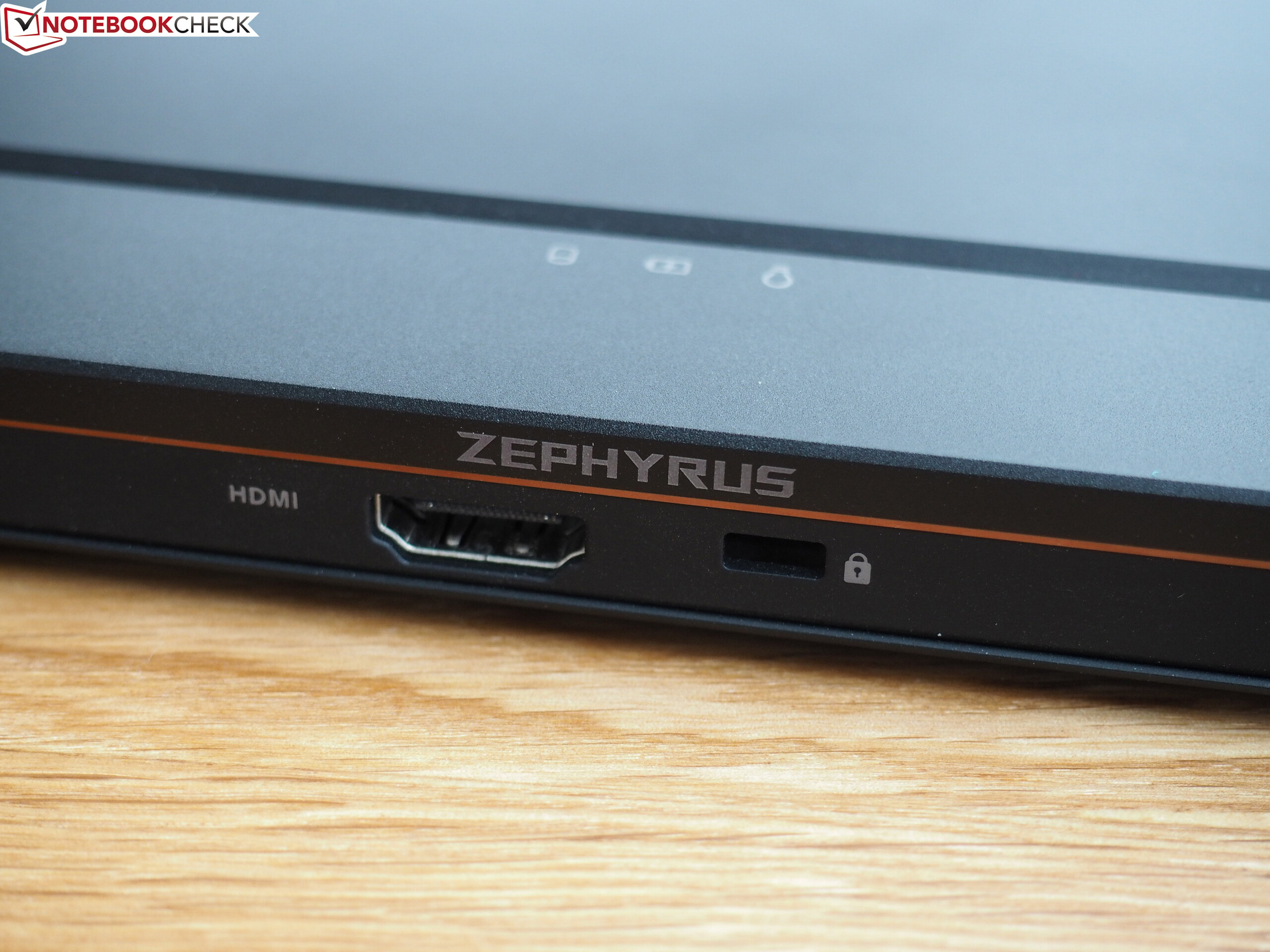

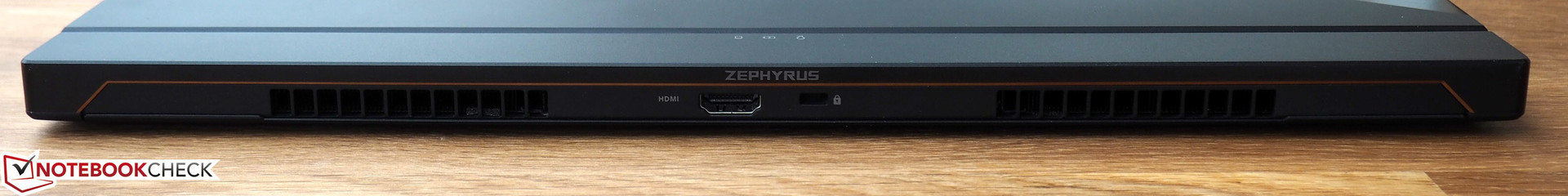

Baksidan: HDMI, Kensington-lås
Baksidan: HDMI, Kensington-lås

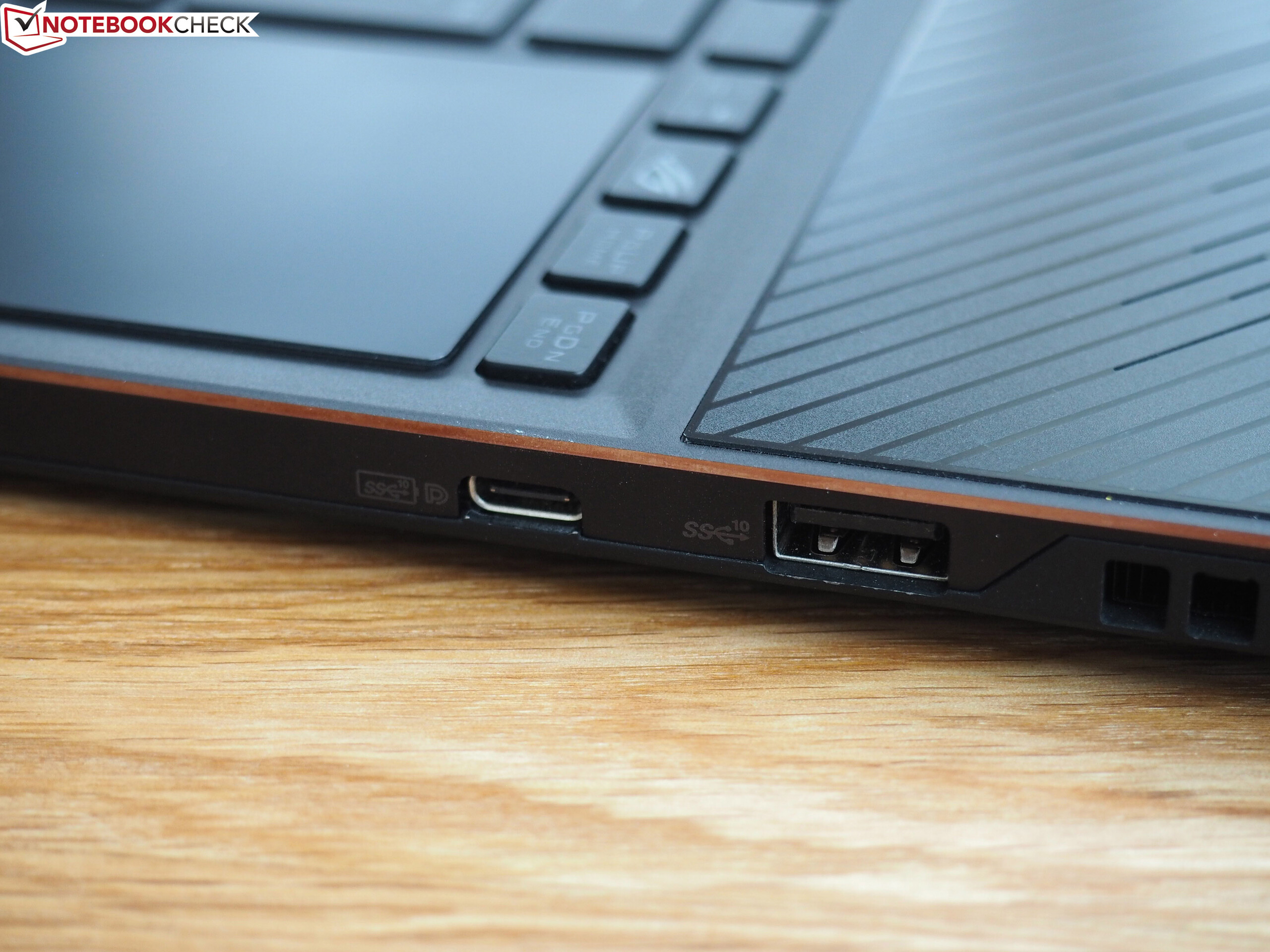

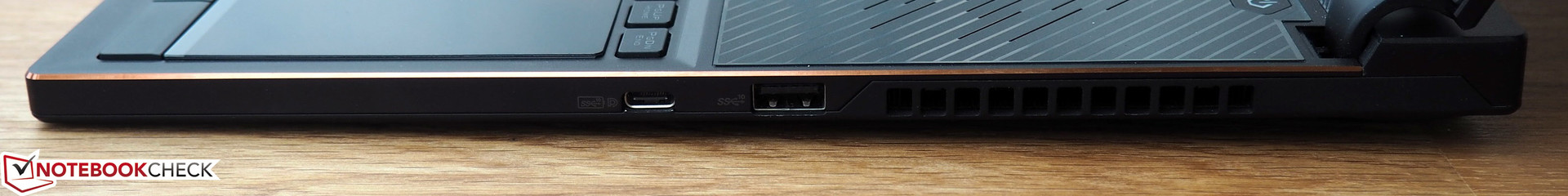

Höger sida: USB-C 3.1 Gen2 med DisplayPort, USB-A 3.1 Gen2
Höger sida: USB-C 3.1 Gen2 med DisplayPort, USB-A 3.1 Gen2
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus Zephyrus S GX531GS
Intel Wireless-AC 9560
683 MBit/s ∼100%
Gigabyte Aero 15X v8
Intel Dual Band Wireless-AC 8265
682 MBit/s ∼100% 0%
Razer Blade 15 2018
Intel Wireless-AC 9260
681 MBit/s ∼100% 0%
MSI GS65 8RF-019DE Stealth Thin
Killer Wireless-AC 1550 Wireless Network Adapter
660 MBit/s ∼97% -3%
Asus Zephyrus GX501VS
Intel Dual Band Wireless-AC 8265
652 MBit/s ∼95% -5%
Average of class Gaming
  (141 - 702, n=180)
594 MBit/s ∼87% -13%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus Zephyrus S GX531GS
Intel Wireless-AC 9560
693 MBit/s ∼100%
MSI GS65 8RF-019DE Stealth Thin
Killer Wireless-AC 1550 Wireless Network Adapter
662 MBit/s ∼96% -4%
Razer Blade 15 2018
Intel Wireless-AC 9260
643 MBit/s ∼93% -7%
Average of class Gaming
  (144 - 697, n=180)
534 MBit/s ∼77% -23%
Asus Zephyrus GX501VS
Intel Dual Band Wireless-AC 8265
456 MBit/s ∼66% -34%
Gigabyte Aero 15X v8
Intel Dual Band Wireless-AC 8265
379 MBit/s ∼55% -45%
267
cd/m²
270
cd/m²
278
cd/m²
284
cd/m²
294
cd/m²
299
cd/m²
251
cd/m²
270
cd/m²
262
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 299 cd/m² Medel: 275 cd/m² Minimum: 16 cd/m²
Distribution av ljusstyrkan: 84 %
Mitt på batteriet: 294 cd/m²
Kontrast: 1225:1 (Svärta: 0.24 cd/m²)
ΔE Color 2.57 | 0.4-29.43 Ø6.2, calibrated: 2.14
ΔE Greyscale 2.41 | 0.64-98 Ø6.5
91% sRGB (Argyll 3D) 59% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.5
Asus Zephyrus S GX531GS
AU Optronics B156HAN08.2 (AUO82ED), IPS, 1920x1080
Asus Zephyrus GX501VS
ID: AUO42ED, Name: AU Optronics B156HAN04.2, IPS, 1920x1080
Gigabyte Aero 15X v8
LGD05C0, IPS, 1920x1080
Razer Blade 15 2018
LGD05C0, IPS, 1920x1080
MSI GS65 8RF-019DE Stealth Thin
AU Optronics B156HAN08.0 (AUO80ED), IPS, 1920x1080
Response Times
-265%
-70%
-76%
-83%
Response Time Grey 50% / Grey 80% *
7.4 (3.8, 3.6)
33.2 (18.4, 14.8)
-349%
16.8 (8.4, 8.4)
-127%
17.2 (8.8, 8.4)
-132%
17.6 (9.2, 8.4)
-138%
Response Time Black / White *
10 (4.4, 5.6)
28 (15.6, 12.4)
-180%
11.2 (6, 5.2)
-12%
12 (6.8, 5.2)
-20%
12.8 (7.6, 5.2)
-28%
PWM Frequency
Screen
-13%
13%
-4%
5%
Brightness middle
294
307.1
4%
313
6%
290
-1%
254
-14%
Brightness
275
309
12%
300
9%
281
2%
262
-5%
Brightness Distribution
84
86
2%
78
-7%
82
-2%
89
6%
Black Level *
0.24
0.35
-46%
0.33
-38%
0.3
-25%
0.22
8%
Contrast
1225
877
-28%
948
-23%
967
-21%
1155
-6%
Colorchecker DeltaE2000 *
2.57
3.4
-32%
1.29
50%
2.85
-11%
2.37
8%
Colorchecker DeltaE2000 max. *
4.88
8.2
-68%
2.04
58%
6.27
-28%
4.71
3%
Colorchecker DeltaE2000 calibrated *
2.14
1.39
35%
1.84
14%
Greyscale DeltaE2000 *
2.41
1.4
42%
0.69
71%
2.4
-0%
1.58
34%
Gamma
2.5 88%
2.19 100%
2.43 91%
2.34 94%
2.48 89%
CCT
6370 102%
6558 99%
6550 99%
6718 97%
6785 96%
Color Space (Percent of AdobeRGB 1998)
59
55.6
-6%
60
2%
60
2%
60
2%
Color Space (Percent of sRGB)
91
85
-7%
94
3%
94
3%
92
1%
Total Average (Program / Settings)
-139% / -55%
-29% / -1%
-40% / -15%
-39% / -9%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

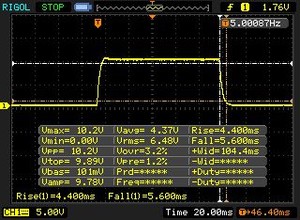

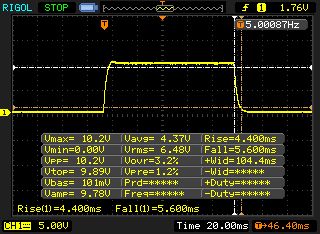

       Response Time Black to White
10 ms ... rise ↗ and fall ↘ combined↗ 4.4 ms rise
↘ 5.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 6 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (25.6 ms).

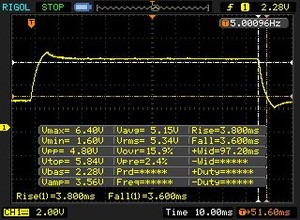

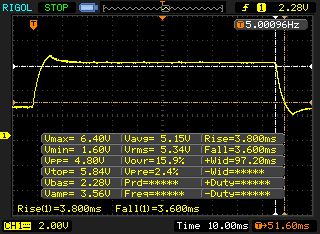

       Response Time 50% Grey to 80% Grey
7.4 ms ... rise ↗ and fall ↘ combined↗ 3.8 ms rise
↘ 3.6 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 3 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (41 ms).

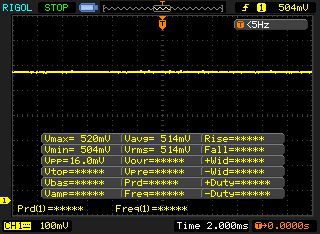

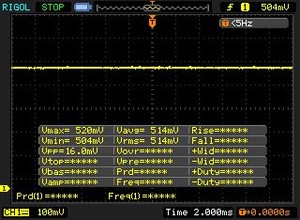

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8929 (minimum: 43 - maximum: 142900) Hz was measured.

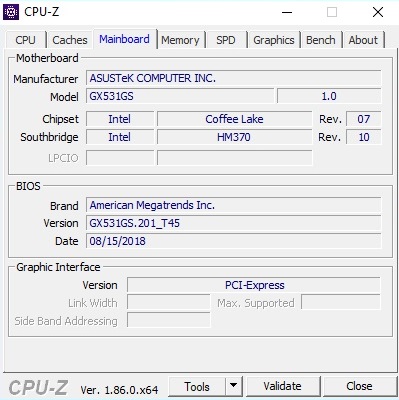

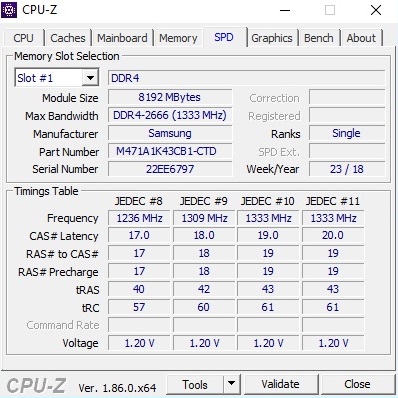

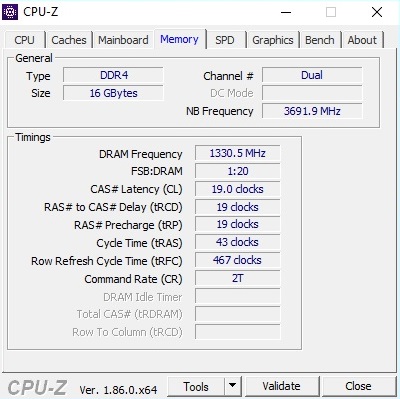

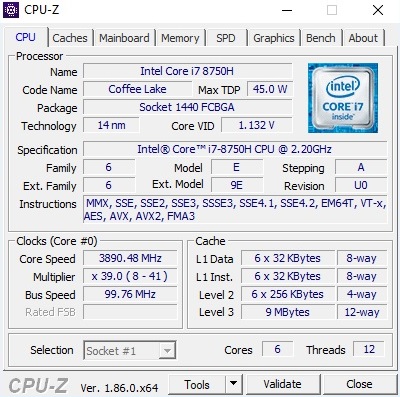

CPU-Z

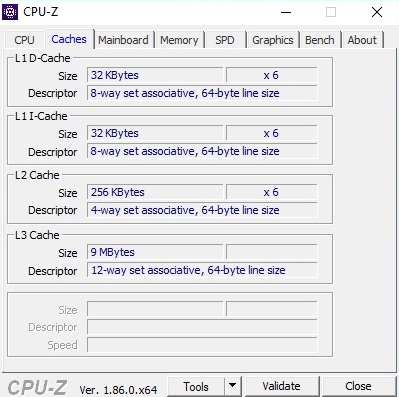

CPU-Z
CPU-Z
CPU-Z
CPU-Z

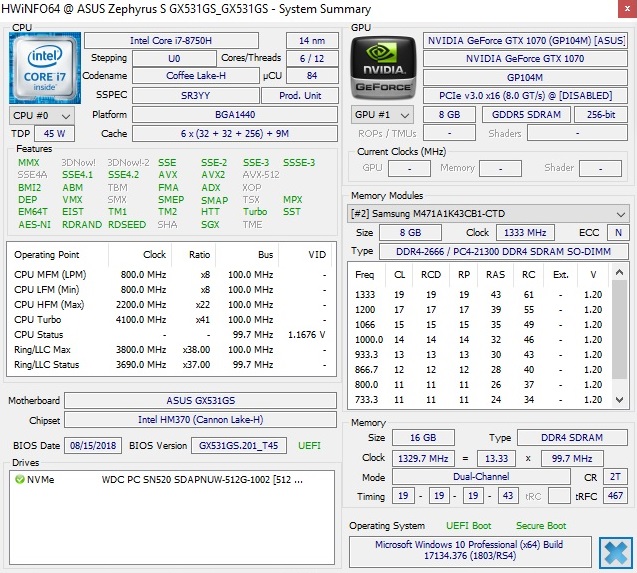

HWiNFO

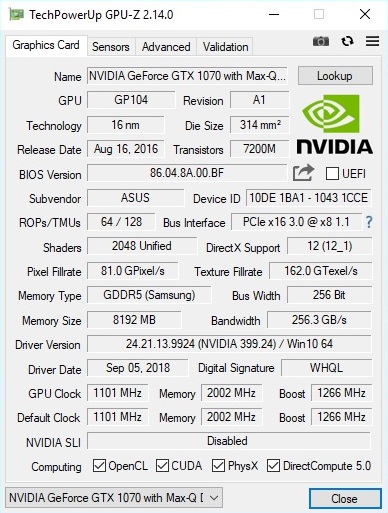

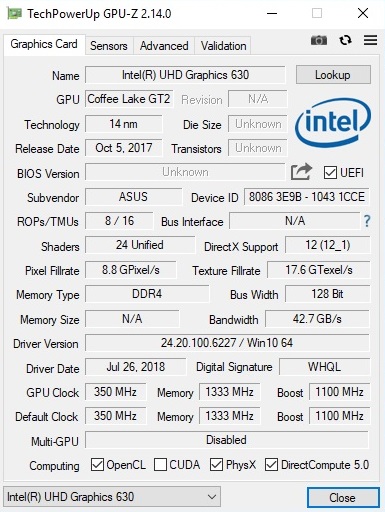

GPU-Z
GPU-Z

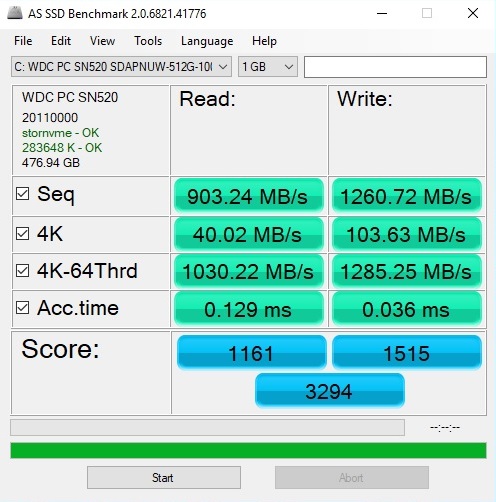

AS SSD Benchmark
CrystalDiskMark

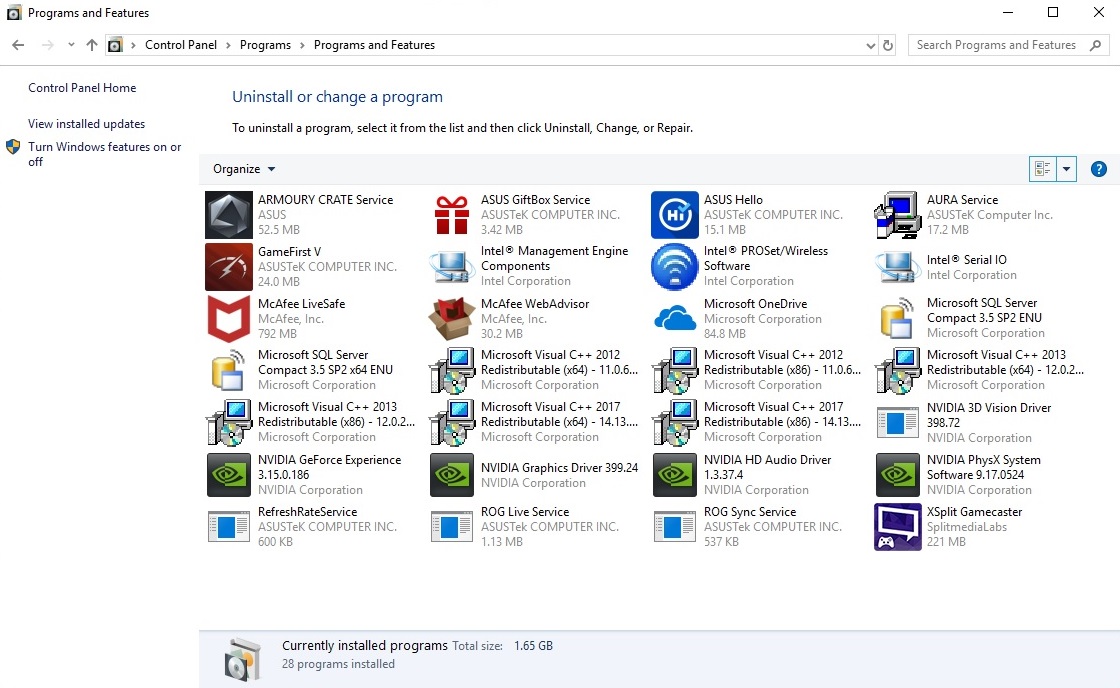

Mjukvara

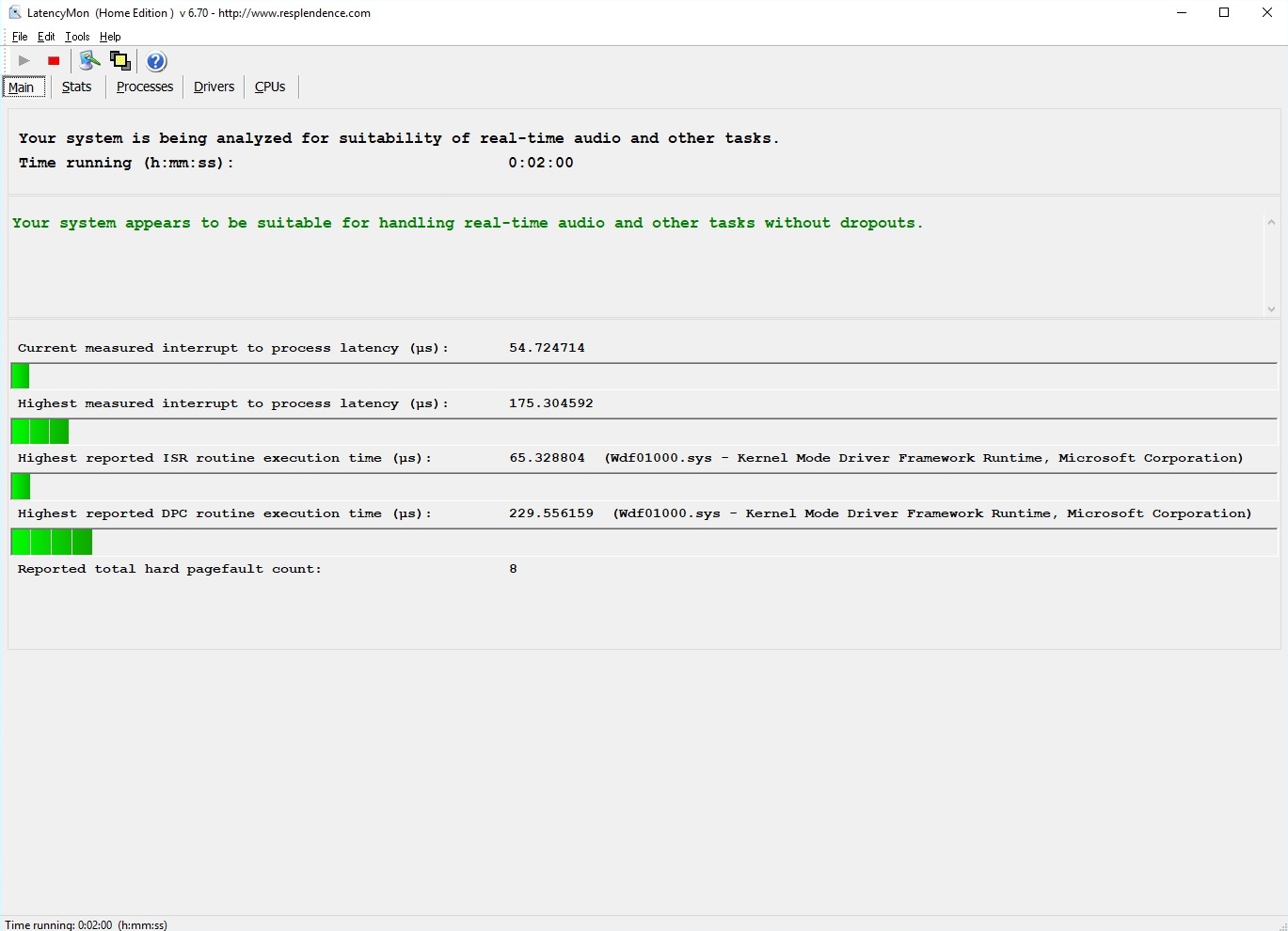

LatencyMon
Cinebench R15
CPU Single 64Bit
Gigabyte Aero 15X v8
Intel Core i7-8750H
175 Points ∼100% +5%
MSI GS65 8RF-019DE Stealth Thin
Intel Core i7-8750H
175 Points ∼100% +5%
Razer Blade 15 2018
Intel Core i7-8750H
172 Points ∼98% +4%
Asus Zephyrus S GX531GS
Intel Core i7-8750H
166 Points ∼95%
Average of class Gaming
  (79 - 209, n=420)
152 Points ∼87% -8%
Asus Zephyrus GX501VS
Intel Core i7-7700HQ
150 Points ∼86% -10%
CPU Multi 64Bit
Gigabyte Aero 15X v8
Intel Core i7-8750H
1133 Points ∼100% +1%
Asus Zephyrus S GX531GS
Intel Core i7-8750H
1120 Points ∼99%
MSI GS65 8RF-019DE Stealth Thin
Intel Core i7-8750H
1053 Points ∼93% -6%
Razer Blade 15 2018
Intel Core i7-8750H
983 Points ∼87% -12%
Average of class Gaming
  (196 - 1865, n=421)
749 Points ∼66% -33%
Asus Zephyrus GX501VS
Intel Core i7-7700HQ
734 Points ∼65% -34%
Cinebench R11.5
CPU Single 64Bit
MSI GS65 8RF-019DE Stealth Thin
Intel Core i7-8750H
2 Points ∼100% +6%
Gigabyte Aero 15X v8
Intel Core i7-8750H
1.98 Points ∼99% +5%
Razer Blade 15 2018
Intel Core i7-8750H
1.95 Points ∼98% +3%
Asus Zephyrus S GX531GS
Intel Core i7-8750H
1.89 Points ∼95%
Asus Zephyrus GX501VS
Intel Core i7-7700HQ
1.81 Points ∼91% -4%
Average of class Gaming
  (0.71 - 2.38, n=408)
1.68 Points ∼84% -11%
CPU Multi 64Bit
Gigabyte Aero 15X v8
Intel Core i7-8750H
12.93 Points ∼100% +4%
Asus Zephyrus S GX531GS
Intel Core i7-8750H
12.44 Points ∼96%
MSI GS65 8RF-019DE Stealth Thin
Intel Core i7-8750H
11.82 Points ∼91% -5%
Razer Blade 15 2018
Intel Core i7-8750H
10.51 Points ∼81% -16%
Asus Zephyrus GX501VS
Intel Core i7-7700HQ
8.06 Points ∼62% -35%
Average of class Gaming
  (1.13 - 21.2, n=509)
7.28 Points ∼56% -41%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140Tooltip
Asus Zephyrus S GX531GS Intel Core i7-8750H: Ø1004 (937.73-1119.73)
Gigabyte Aero 15X v8 Intel Core i7-8750H: Ø1110 (1041.91-1133.72)
Razer Blade 15 2018 Intel Core i7-8750H: Ø898 (891.76-964.04)
MSI GS65 8RF-019DE Stealth Thin Intel Core i7-8750H: Ø981 (927.26-1023.23)
Cinebench R11.5 CPU Single 64Bit
1.89 Points
Cinebench R11.5 CPU Multi 64Bit
12.44 Points
Cinebench R15 CPU Single 64Bit
166 Points
Cinebench R15 CPU Multi 64Bit
1120 Points
Hjälp
PCMark 10 - Score
Asus Zephyrus S GX531GS
GeForce GTX 1070 Max-Q, 8750H, WDC PC SN520 SDAPNUW-512G
5170 Points ∼100%
MSI GS65 8RF-019DE Stealth Thin
GeForce GTX 1070 Max-Q, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5095 Points ∼99% -1%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
5059 Points ∼98% -2%
Razer Blade 15 2018
GeForce GTX 1070 Max-Q, 8750H, Samsung PM961 NVMe MZVLW512HMJP
5046 Points ∼98% -2%
Average of class Gaming
  (2603 - 6959, n=120)
4946 Points ∼96% -4%
Asus Zephyrus GX501VS
GeForce GTX 1070 Max-Q, 7700HQ, Samsung SM961 MZVPW256HEGL
4333 Points ∼84% -16%
PCMark 8
Work Score Accelerated v2
Asus Zephyrus S GX531GS
GeForce GTX 1070 Max-Q, 8750H, WDC PC SN520 SDAPNUW-512G
5706 Points ∼100%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
5676 Points ∼99% -1%
Razer Blade 15 2018
GeForce GTX 1070 Max-Q, 8750H, Samsung PM961 NVMe MZVLW512HMJP
5637 Points ∼99% -1%
MSI GS65 8RF-019DE Stealth Thin
GeForce GTX 1070 Max-Q, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5621 Points ∼99% -1%
Asus Zephyrus GX501VS
GeForce GTX 1070 Max-Q, 7700HQ, Samsung SM961 MZVPW256HEGL
5358 Points ∼94% -6%
Average of class Gaming
  (2484 - 6515, n=315)
4928 Points ∼86% -14%
Home Score Accelerated v2
Asus Zephyrus GX501VS
GeForce GTX 1070 Max-Q, 7700HQ, Samsung SM961 MZVPW256HEGL
5009 Points ∼100% +8%
MSI GS65 8RF-019DE Stealth Thin
GeForce GTX 1070 Max-Q, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4665 Points ∼93% +1%
Razer Blade 15 2018
GeForce GTX 1070 Max-Q, 8750H, Samsung PM961 NVMe MZVLW512HMJP
4658 Points ∼93% +1%
Asus Zephyrus S GX531GS
GeForce GTX 1070 Max-Q, 8750H, WDC PC SN520 SDAPNUW-512G
4620 Points ∼92%
Gigabyte Aero 15X v8
GeForce GTX 1070 Max-Q, 8750H, Toshiba NVMe THNSN5512GPU7
4504 Points ∼90% -3%
Average of class Gaming
  (2554 - 6093, n=333)
4222 Points ∼84% -9%
PCMark 8 Home Score Accelerated v2
4620 poäng
PCMark 8 Work Score Accelerated v2
5706 poäng
Hjälp
Asus Zephyrus S GX531GS
WDC PC SN520 SDAPNUW-512G
Asus Zephyrus GX501VS
Samsung SM961 MZVPW256HEGL
Gigabyte Aero 15X v8
Toshiba NVMe THNSN5512GPU7
Razer Blade 15 2018
Samsung PM961 NVMe MZVLW512HMJP
MSI GS65 8RF-019DE Stealth Thin
Samsung SSD PM981 MZVLB512HAJQ

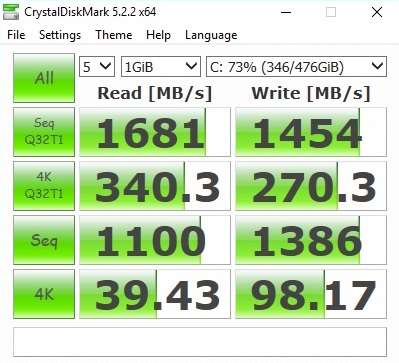

CrystalDiskMark 5.2 / 6
39%
8%
17%
19%
Write 4K
98.17
152.7
56%
94.43
-4%
94.15
-4%
95.3
-3%
Read 4K
39.43
48.81
24%
37.65
-5%
39.23
-1%
40.13
2%
Write Seq
1386
1013
-27%
1335
-4%
1483
7%
1883
36%
Read Seq
1100
1120
2%
1404
28%
1371
25%
1322
20%
Write 4K Q32T1
270.3
498.1
84%
268.6
-1%
296.2
10%
309.9
15%
Read 4K Q32T1
340.3
573.8
69%
332.8
-2%
342.5
1%
353.7
4%
Write Seq Q32T1
1454
1507
4%
1375
-5%
1527
5%
1919
32%
Read Seq Q32T1
1681
3327
98%
2627
56%
3280
95%
2466
47%
WDC PC SN520 SDAPNUW-512G
CDM 5/6 Read Seq Q32T1: 1681 MB/s
CDM 5/6 Write Seq Q32T1: 1454 MB/s
CDM 5/6 Read 4K Q32T1: 340.3 MB/s
CDM 5/6 Write 4K Q32T1: 270.3 MB/s
CDM 5 Read Seq: 1100 MB/s
CDM 5 Write Seq: 1386 MB/s
CDM 5/6 Read 4K: 39.43 MB/s
CDM 5/6 Write 4K: 98.17 MB/s
3DMark 11 Performance
15856 poäng
Hjälp
3DMark 11 - 1280x720 Performance GPU
Asus Zephyrus GX501VS
NVIDIA GeForce GTX 1070 Max-Q
20240 Points ∼100% +11%
Razer Blade 15 2018
NVIDIA GeForce GTX 1070 Max-Q
19969 Points ∼99% +9%
Gigabyte Aero 15X v8
NVIDIA GeForce GTX 1070 Max-Q
19162 Points ∼95% +5%
MSI GS65 8RF-019DE Stealth Thin
NVIDIA GeForce GTX 1070 Max-Q
18687 Points ∼92% +2%
Asus Zephyrus S GX531GS
NVIDIA GeForce GTX 1070 Max-Q
18296 Points ∼90%
Average of class Gaming
  (513 - 50983, n=521)
11899 Points ∼59% -35%
0102030405060
