Test: Nvidia GeForce RTX 3090 FE - Toppskiktsgrafik till lyxpris (Sammanfattning)

Nästan omöjlig att få tag på! Nvidia bytte för några månader sedan ut 2000-generationen mot RTX 3000-korten, vilket innebar en hyfsad prestandaökning. Kampen om att få tag på de nya modellerna är fortfarande i full gång, men vi lyckades lägga vantarna på en av Nvidias eftertraktade Founders Edition-modeller. I den här recensionen, som innehåller ett flertal prestandatester, kan du få reda på hur bra den här modellen stod sig mot sina konkurrenter.
Sebastian Bade, 👁 Klaus Hinum (översatt av Daniel Eriksson), 🇺🇸 🇩🇪 ...

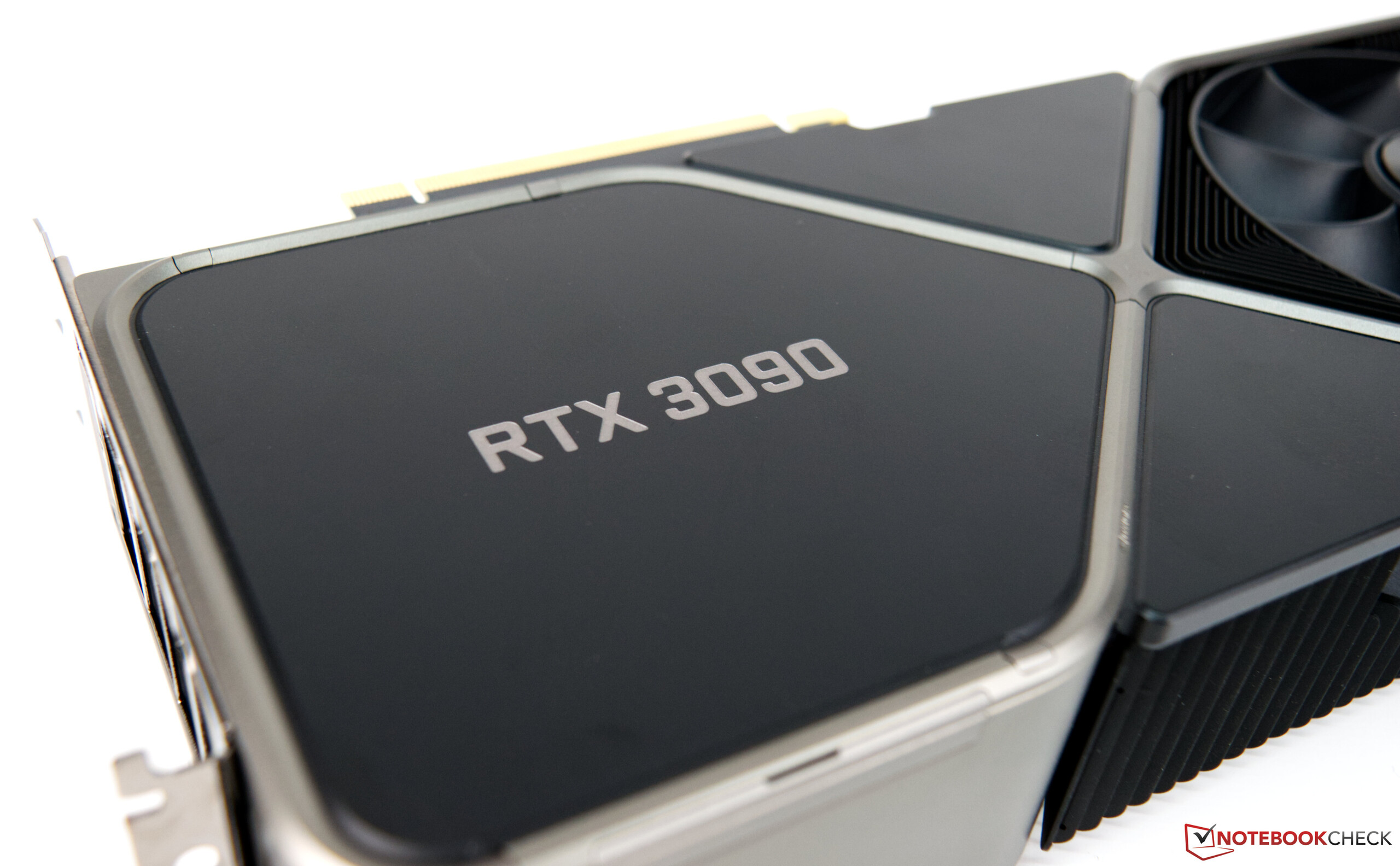

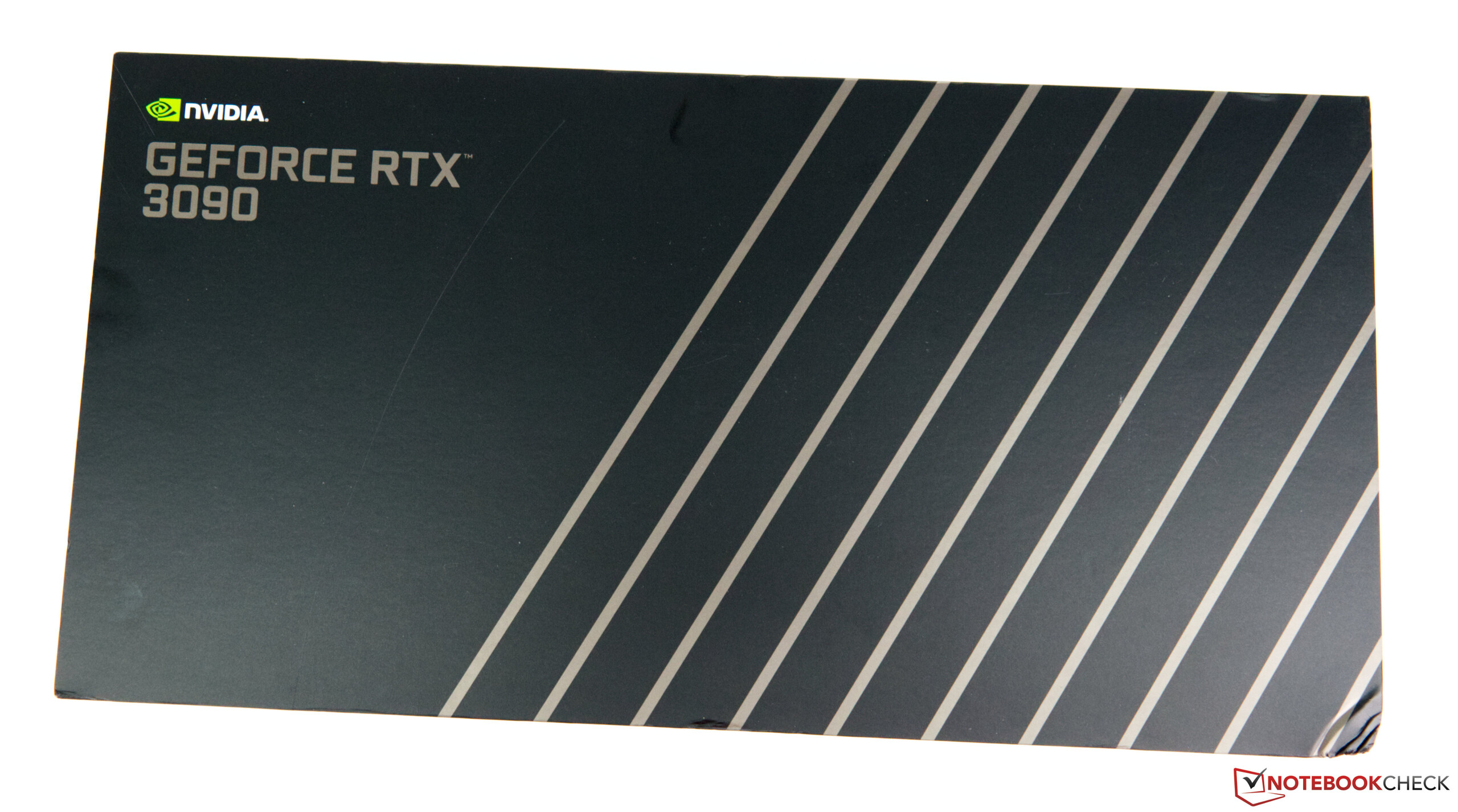

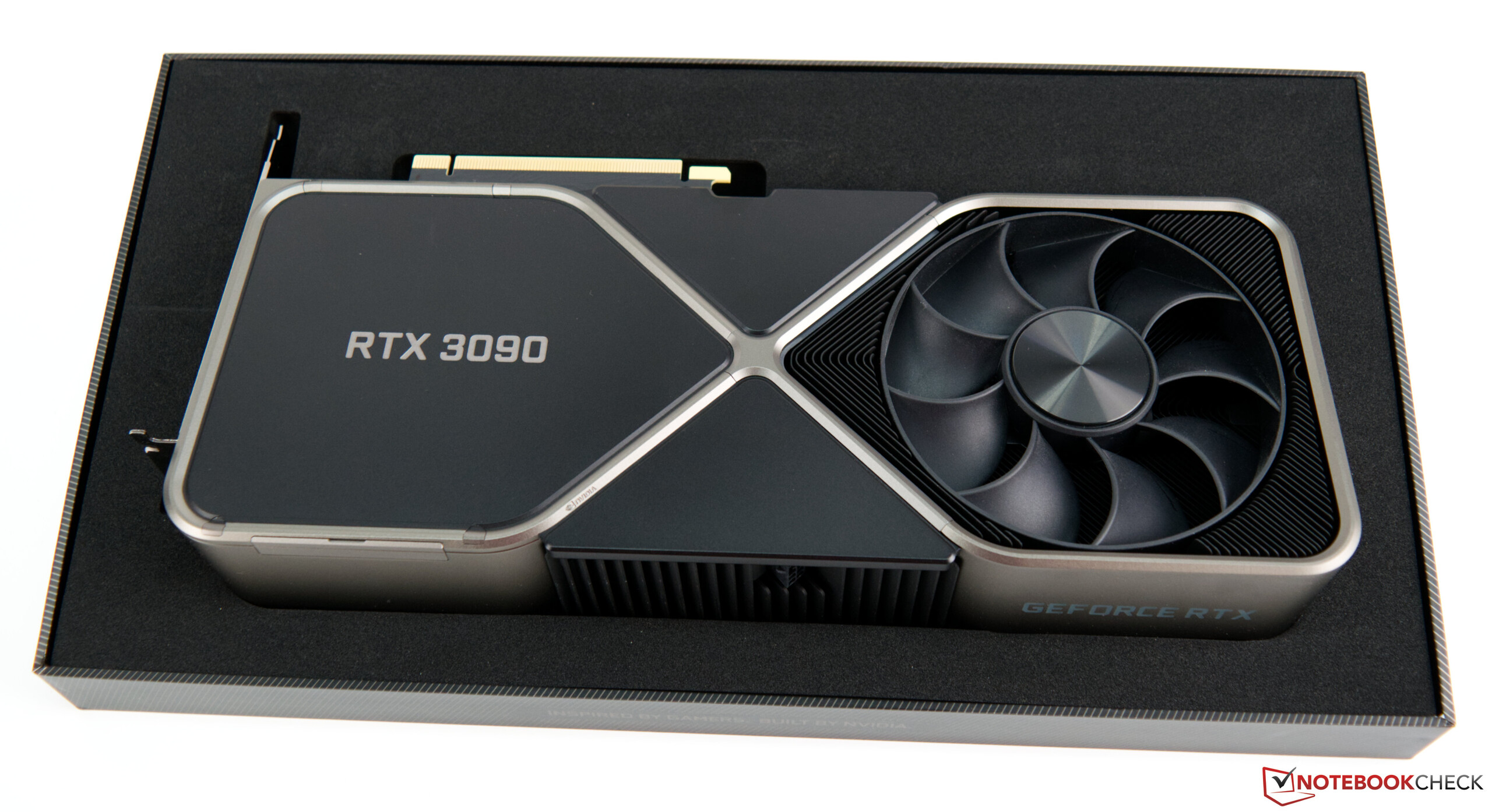

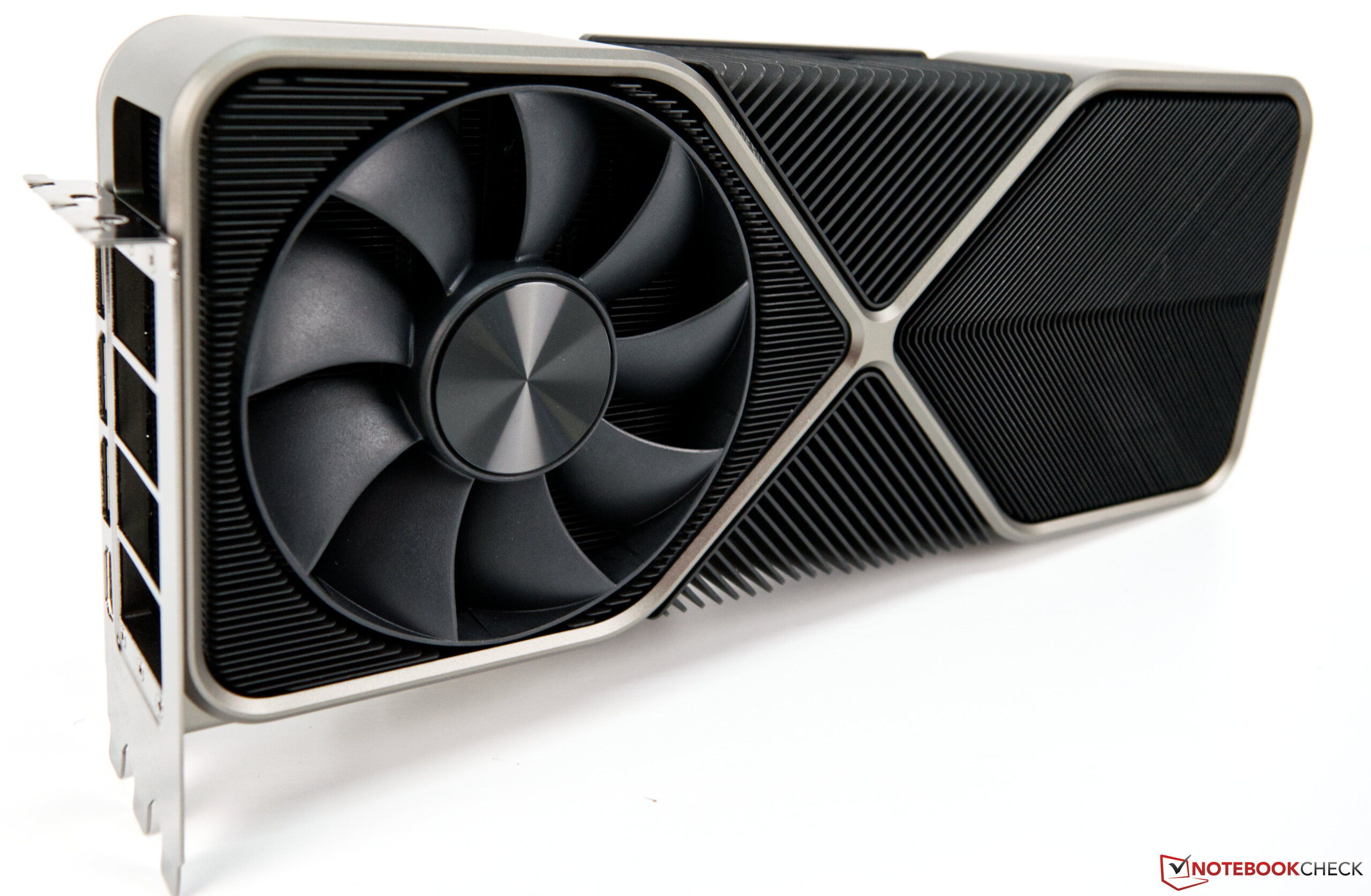

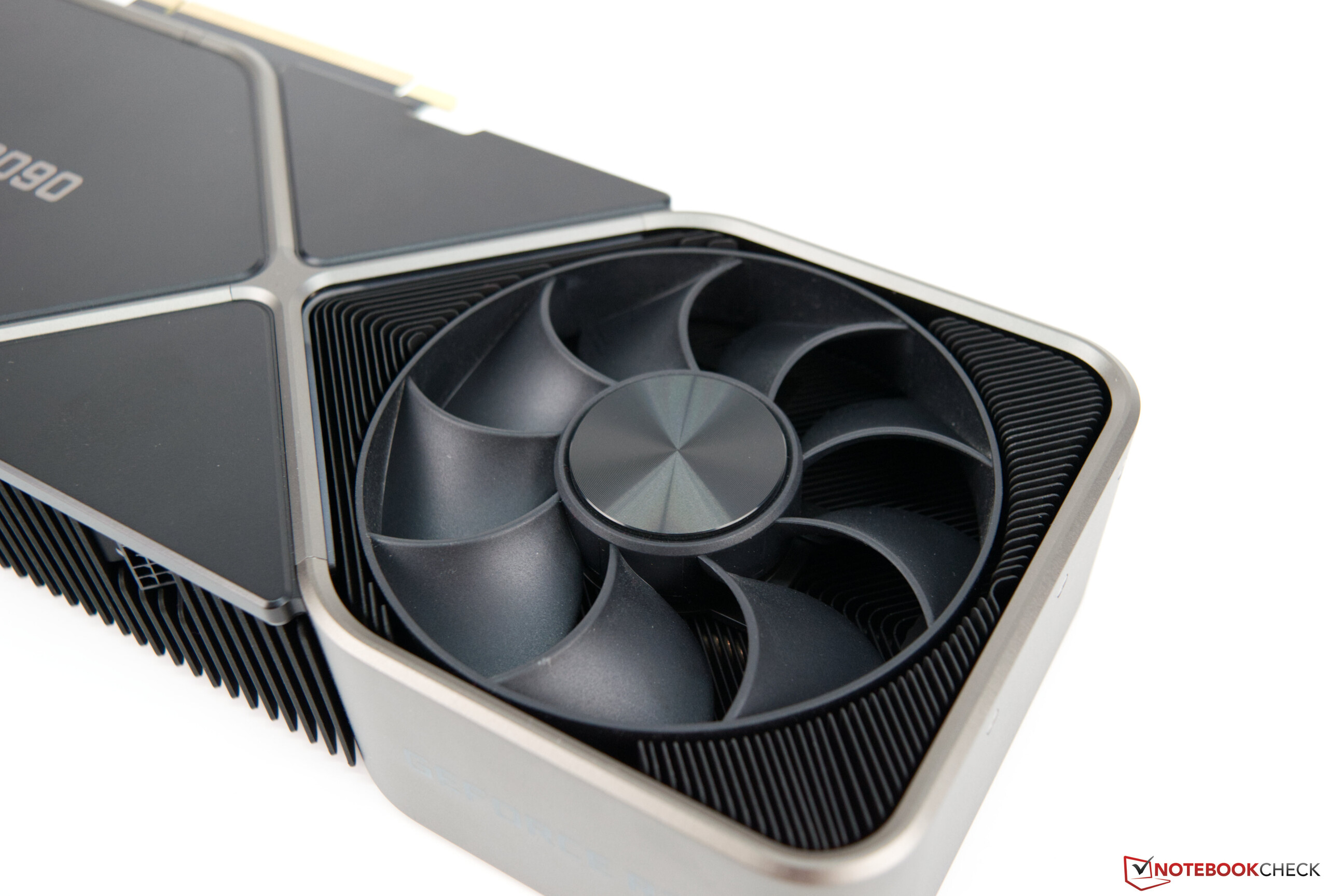

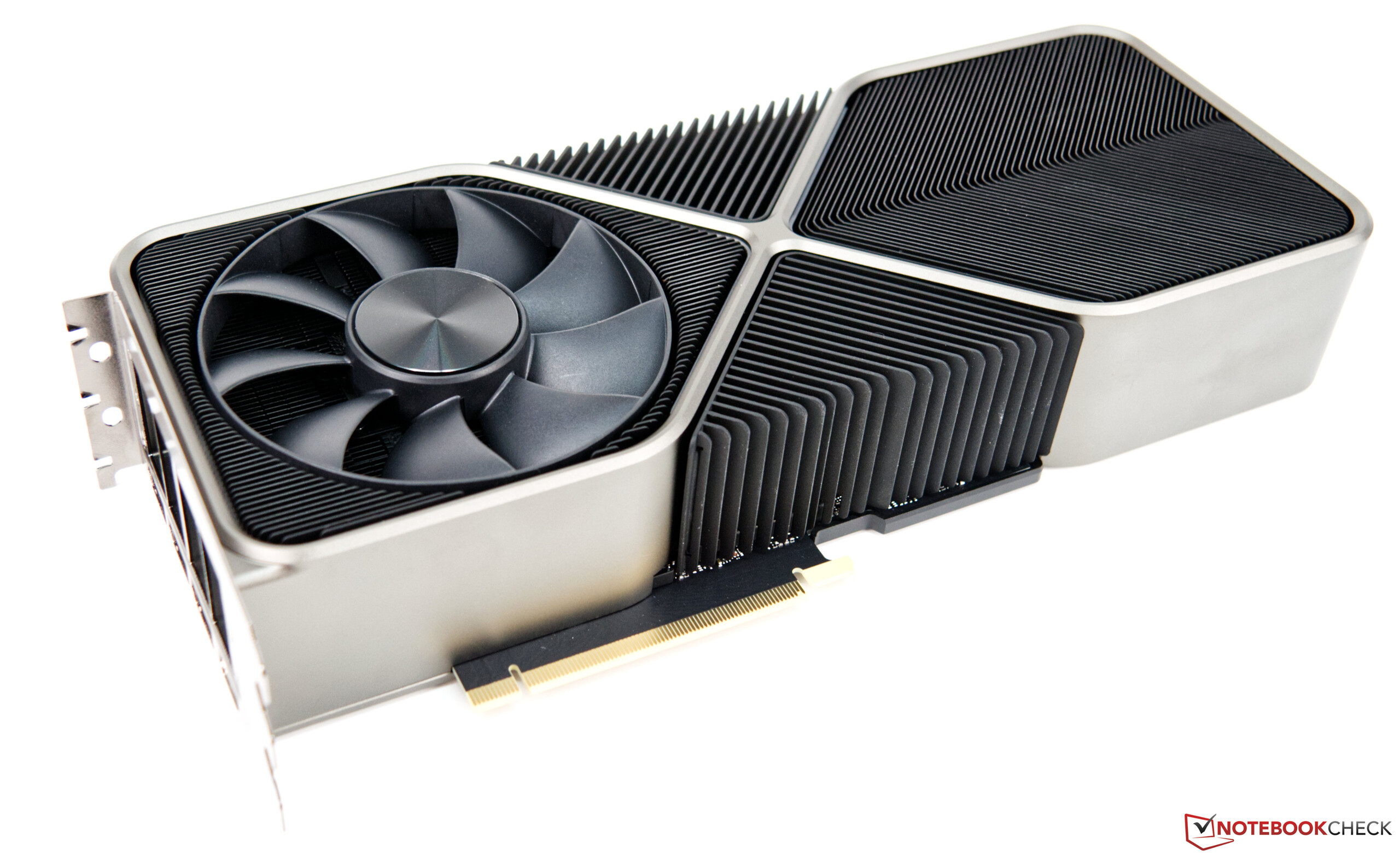

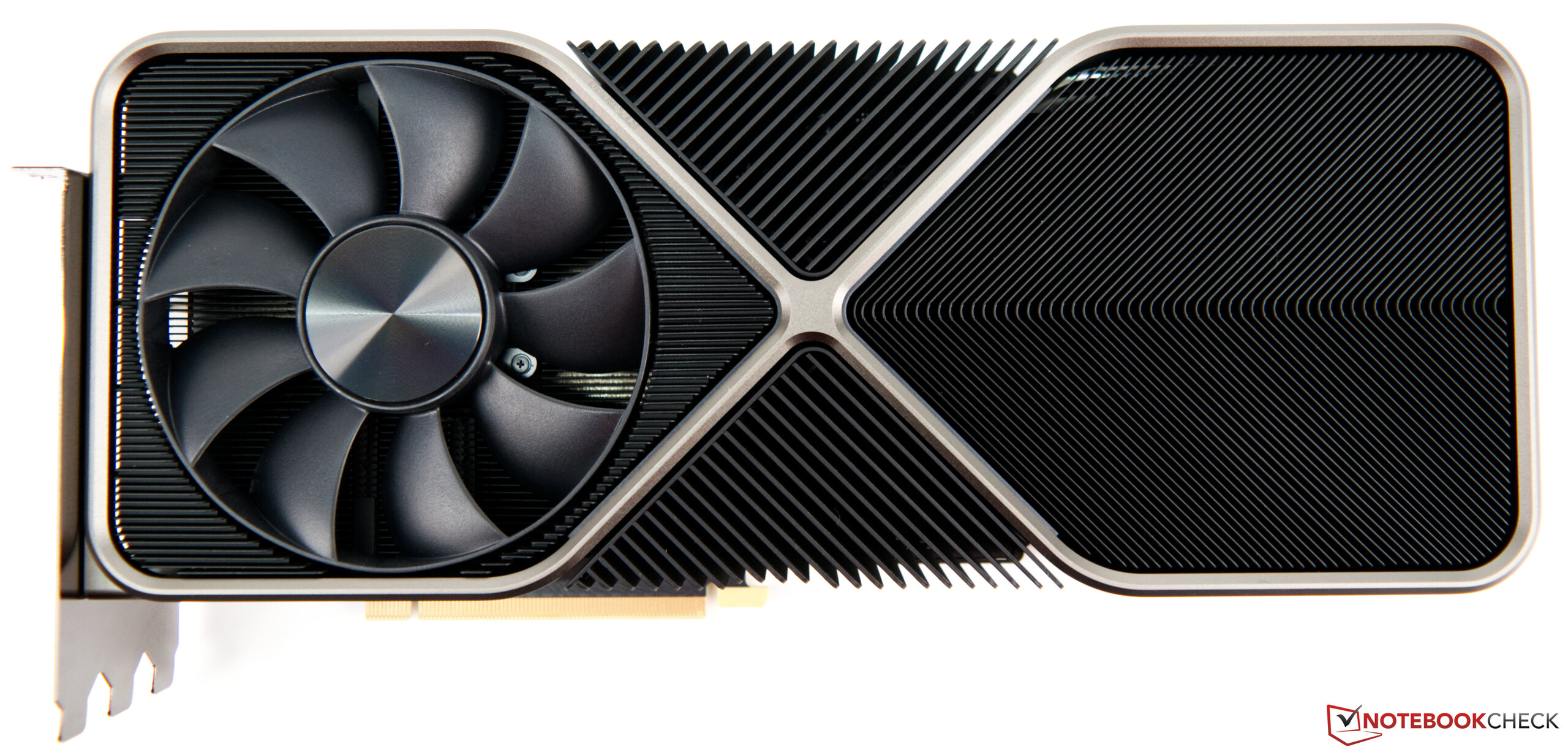

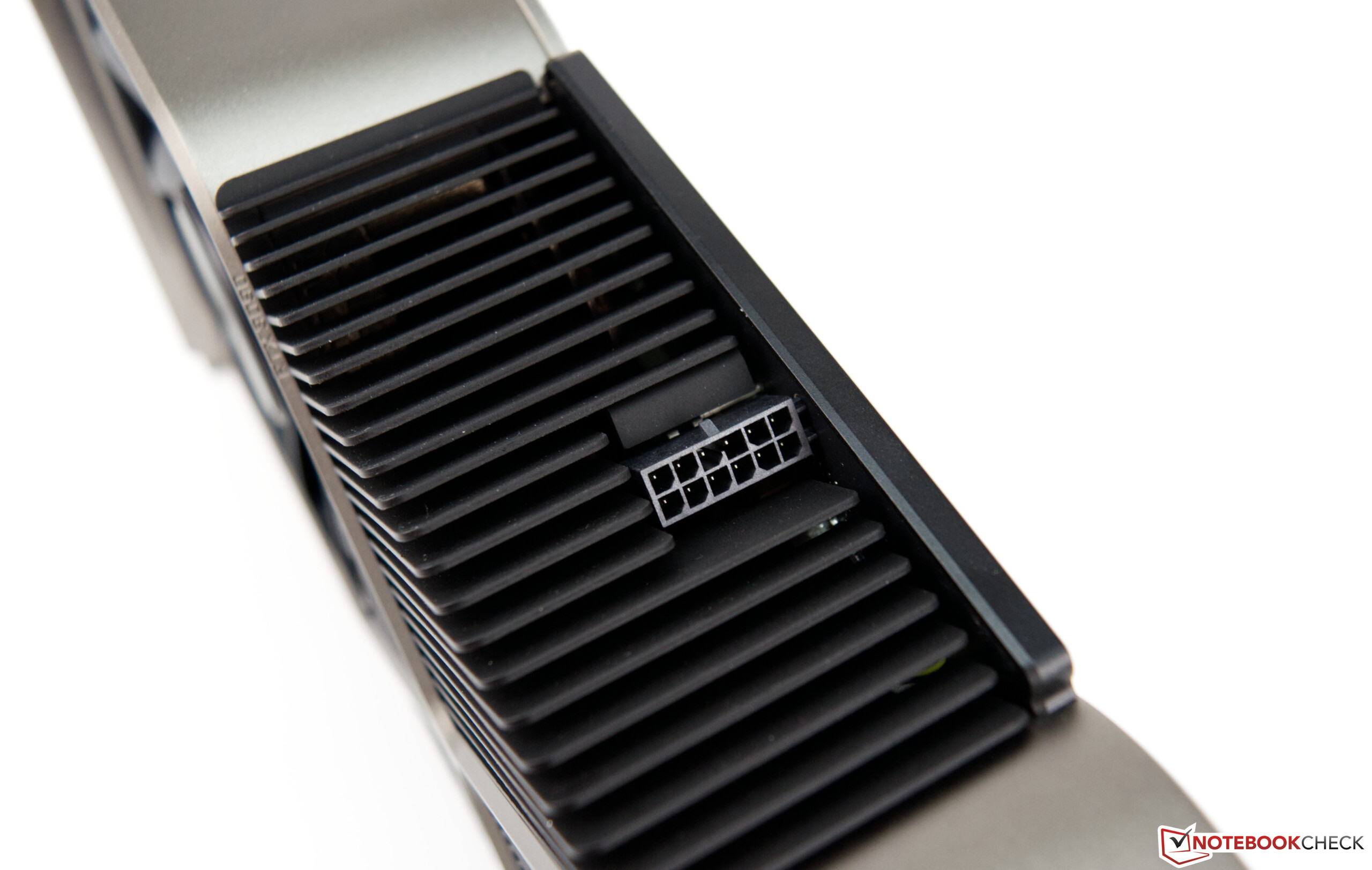

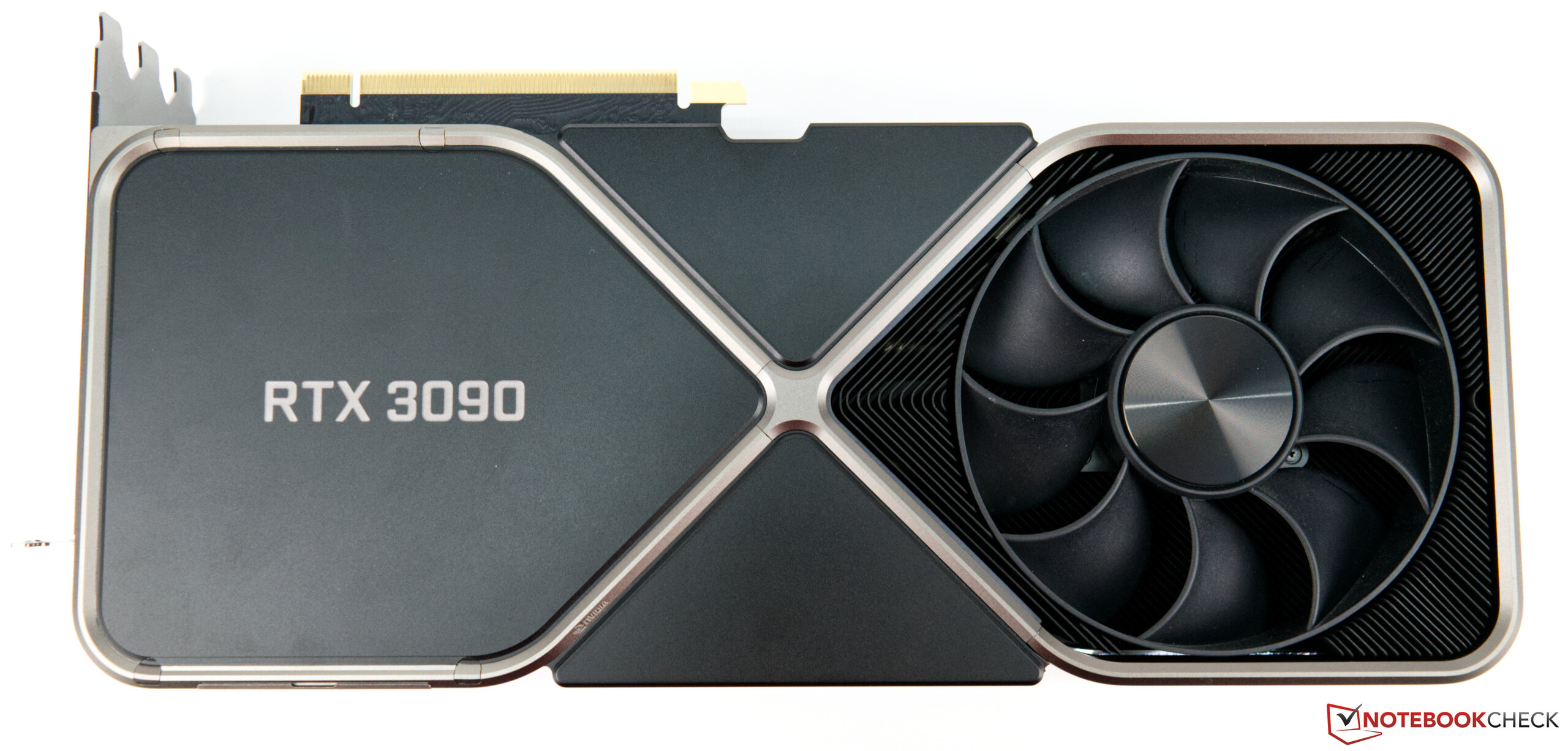

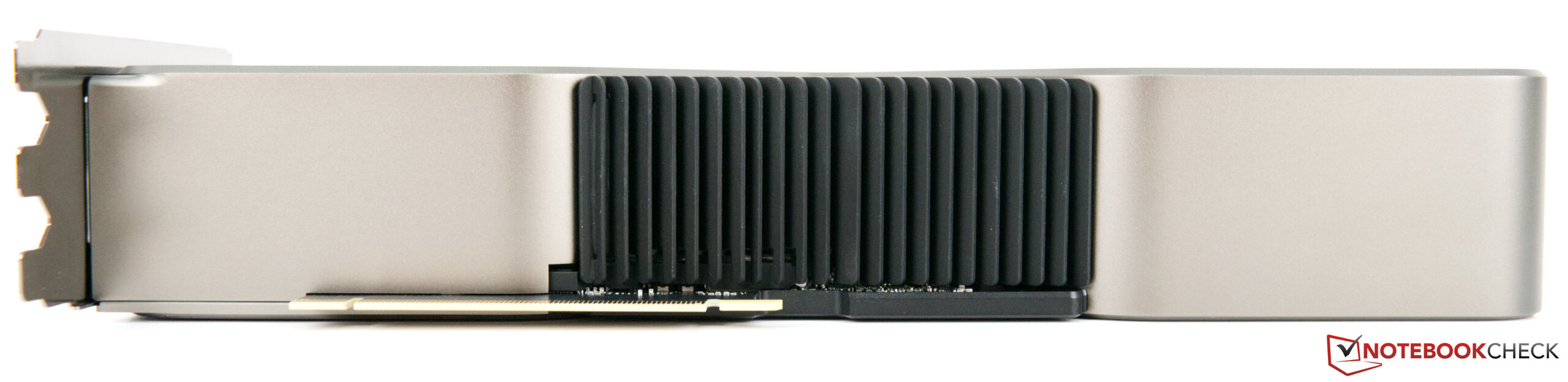

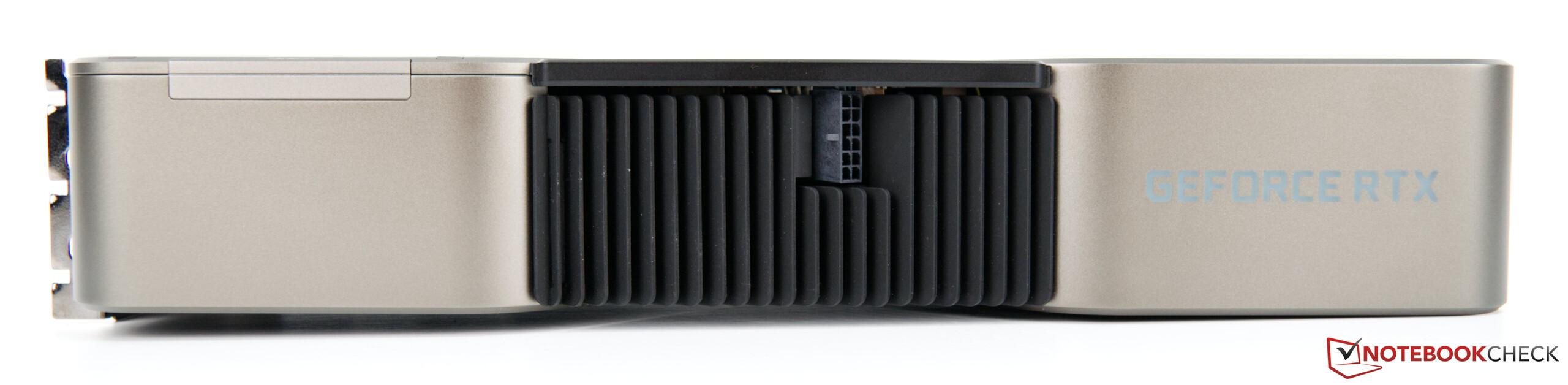

Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
Nvidia GeForce RTX 3090 FE
3DMark
2560x1440 Time Spy Graphics
MSI GeForce RTX 3090 Suprim X
19571 Points ∼100% +5%
Nvidia GeForce RTX 3090 Founders Edition
18685 Points ∼95%
MSI GeForce RTX 3080 Gaming X Trio
17604 Points ∼90% -6%
AMD Radeon RX 6800 XT
17603 Points ∼90% -6%
Nvidia Titan RTX
15283 Points ∼78% -18%
MSI GeForce RTX 3070 Ventus 3X
13111 Points ∼67% -30%
3840x2160 Fire Strike Ultra Graphics
AMD Radeon RX 6800 XT
12626 Points ∼100% +9%
MSI GeForce RTX 3090 Suprim X
12371 Points ∼98% +7%
Nvidia GeForce RTX 3090 Founders Edition
11613 Points ∼92%
MSI GeForce RTX 3080 Gaming X Trio
10645 Points ∼84% -8%
Nvidia Titan RTX
8649 Points ∼69% -26%
MSI GeForce RTX 3070 Ventus 3X
8227 Points ∼65% -29%
Fire Strike Extreme Graphics
AMD Radeon RX 6800 XT
25015 Points ∼100% +13%
MSI GeForce RTX 3090 Suprim X
23114 Points ∼92% +5%
Nvidia GeForce RTX 3090 Founders Edition
22075 Points ∼88%
MSI GeForce RTX 3080 Gaming X Trio
20007 Points ∼80% -9%
Nvidia Titan RTX
17176 Points ∼69% -22%
MSI GeForce RTX 3070 Ventus 3X
15722 Points ∼63% -29%
1920x1080 Fire Strike Graphics
AMD Radeon RX 6800 XT
49735 Points ∼100% +20%
MSI GeForce RTX 3090 Suprim X
42688 Points ∼86% +3%
Nvidia GeForce RTX 3090 Founders Edition
41298 Points ∼83%
MSI GeForce RTX 3080 Gaming X Trio
37604 Points ∼76% -9%
Nvidia Titan RTX
34722 Points ∼70% -16%
MSI GeForce RTX 3070 Ventus 3X
31020 Points ∼62% -25%
Unigine Superposition
7680x4320 8k Optimized
MSI GeForce RTX 3090 Suprim X
7521 Points ∼100% +7%
Nvidia GeForce RTX 3090 Founders Edition
7002 Points ∼93%
MSI GeForce RTX 3080 Gaming X Trio
6346 Points ∼84% -9%
Nvidia Titan RTX
5402 Points ∼72% -23%
AMD Radeon RX 6800 XT
5256 Points ∼70% -25%
MSI GeForce RTX 3070 Ventus 3X
4639 Points ∼62% -34%
3840x2160 4k Optimized
MSI GeForce RTX 3090 Suprim X
16868 Points ∼100% +7%
Nvidia GeForce RTX 3090 Founders Edition
15794 Points ∼94%
MSI GeForce RTX 3080 Gaming X Trio
14243 Points ∼84% -10%
AMD Radeon RX 6800 XT
13471 Points ∼80% -15%
Nvidia Titan RTX
12186 Points ∼72% -23%
MSI GeForce RTX 3070 Ventus 3X
10673 Points ∼63% -32%
1920x1080 1080p Extreme
MSI GeForce RTX 3090 Suprim X
12694 Points ∼100% +8%
Nvidia GeForce RTX 3090 Founders Edition
11806 Points ∼93%
MSI GeForce RTX 3080 Gaming X Trio
10822 Points ∼85% -8%
AMD Radeon RX 6800 XT
10046 Points ∼79% -15%
Nvidia Titan RTX
9056 Points ∼71% -23%
MSI GeForce RTX 3070 Ventus 3X
8365 Points ∼66% -29%
1920x1080 1080p High
MSI GeForce RTX 3090 Suprim X
25953 Points ∼100% +9%
Nvidia GeForce RTX 3090 Founders Edition
23853 Points ∼92%
AMD Radeon RX 6800 XT
22265 Points ∼86% -7%
MSI GeForce RTX 3080 Gaming X Trio
21912 Points ∼84% -8%
Nvidia Titan RTX
20315 Points ∼78% -15%
MSI GeForce RTX 3070 Ventus 3X
17244 Points ∼66% -28%
1280x720 720p Low
Nvidia Titan RTX
40994 Points ∼100% +18%
AMD Radeon RX 6800 XT
36452 Points ∼89% +5%
Nvidia GeForce RTX 3090 Founders Edition
34649 Points ∼85%
MSI GeForce RTX 3070 Ventus 3X
34602 Points ∼84% 0%
MSI GeForce RTX 3090 Suprim X
33329 Points ∼81% -4%
MSI GeForce RTX 3080 Gaming X Trio
32183 Points ∼79% -7%
Unigine Heaven 4.0
Extreme Preset OpenGL
MSI GeForce RTX 3090 Suprim X
273.7 fps ∼100% +45%
MSI GeForce RTX 3080 Gaming X Trio
243.2 fps ∼89% +29%
Nvidia Titan RTX
215.1 fps ∼79% +14%
AMD Radeon RX 6800 XT
204 fps ∼75% +8%
MSI GeForce RTX 3070 Ventus 3X
192.9 fps ∼70% +2%
Nvidia GeForce RTX 3090 Founders Edition
188.2 fps ∼69%
Extreme Preset DX11
MSI GeForce RTX 3090 Suprim X
283.5 fps ∼100% +3%
Nvidia GeForce RTX 3090 Founders Edition
274 fps ∼97%
MSI GeForce RTX 3080 Gaming X Trio
252.5 fps ∼89% -8%
AMD Radeon RX 6800 XT
247.9 fps ∼87% -10%
Nvidia Titan RTX
237.1 fps ∼84% -13%
MSI GeForce RTX 3070 Ventus 3X
203.2 fps ∼72% -26%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
MSI GeForce RTX 3090 Suprim X
196 fps ∼100% +2%
Nvidia GeForce RTX 3090 Founders Edition
192.4 fps ∼98%
AMD Radeon RX 6800 XT
190.6 fps ∼97% -1%
MSI GeForce RTX 3080 Gaming X Trio
181.8 fps ∼93% -6%
Nvidia Titan RTX
180.1 fps ∼92% -6%
MSI GeForce RTX 3070 Ventus 3X
157 fps ∼80% -18%
1920x1080 Extreme HD Preset OpenGL AA:x8
MSI GeForce RTX 3090 Suprim X
187.8 fps ∼100% +18%
MSI GeForce RTX 3080 Gaming X Trio
172 fps ∼92% +8%
Nvidia GeForce RTX 3090 Founders Edition
158.8 fps ∼85%
Nvidia Titan RTX
158.5 fps ∼84% 0%
AMD Radeon RX 6800 XT
158.2 fps ∼84% 0%
MSI GeForce RTX 3070 Ventus 3X
142.9 fps ∼76% -10%
SiSoft Sandra 2016
Image Processing
AMD Radeon RX 6800 XT
6195.77 MPix/s ∼100% +42%
MSI GeForce RTX 3090 Suprim X
4437.15 MPix/s ∼72% +1%
Nvidia GeForce RTX 3090 Founders Edition
4372.06 MPix/s ∼71%
MSI GeForce RTX 3080 Gaming X Trio
3813.17 MPix/s ∼62% -13%
MSI GeForce RTX 3070 Ventus 3X
2567.24 MPix/s ∼41% -41%
GP Cryptography (Higher Security AES256+SHA2-512)
MSI GeForce RTX 3090 Suprim X
200.37 GB/s ∼100% +4%
Nvidia GeForce RTX 3090 Founders Edition
192.04 GB/s ∼96%
MSI GeForce RTX 3080 Gaming X Trio
173.97 GB/s ∼87% -9%
AMD Radeon RX 6800 XT
160.76 GB/s ∼80% -16%
MSI GeForce RTX 3070 Ventus 3X
117.78 GB/s ∼59% -39%
GP Financial Analysis (FP High/Double Precision)
AMD Radeon RX 6800 XT
381.78 KOPT/s ∼100% +51%
MSI GeForce RTX 3090 Suprim X
254.45 KOPT/s ∼67% +1%
Nvidia GeForce RTX 3090 Founders Edition
252.39 KOPT/s ∼66%
MSI GeForce RTX 3080 Gaming X Trio
220.9 KOPT/s ∼58% -12%
MSI GeForce RTX 3070 Ventus 3X
146.46 KOPT/s ∼38% -42%
LuxMark v2.0 64Bit
Room GPUs-only
Nvidia GeForce RTX 3090 Founders Edition
5808 Samples/s ∼100%
MSI GeForce RTX 3090 Suprim X
5727 Samples/s ∼99% -1%
MSI GeForce RTX 3080 Gaming X Trio
5198 Samples/s ∼89% -11%
AMD Radeon RX 6800 XT
5057 Samples/s ∼87% -13%
MSI GeForce RTX 3070 Ventus 3X
4284 Samples/s ∼74% -26%
Sala GPUs-only
AMD Radeon RX 6800 XT
28023 Samples/s ∼100% +91%
Nvidia GeForce RTX 3090 Founders Edition
14670 Samples/s ∼52%
MSI GeForce RTX 3090 Suprim X
14590 Samples/s ∼52% -1%
MSI GeForce RTX 3080 Gaming X Trio
12980 Samples/s ∼46% -12%
MSI GeForce RTX 3070 Ventus 3X
10096 Samples/s ∼36% -31%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
MSI GeForce RTX 3090 Suprim X
17058 Points ∼100% +3%
Nvidia GeForce RTX 3090 Founders Edition
16543 Points ∼97%
MSI GeForce RTX 3080 Gaming X Trio
15508 Points ∼91% -6%
MSI GeForce RTX 3070 Ventus 3X
11510 Points ∼67% -30%
AMD Radeon RX 6800 XT
11304 Points ∼66% -32%
1024x600 Normal, Mandel Scalar
MSI GeForce RTX 3090 Suprim X
11197 Points ∼100% +5%
Nvidia GeForce RTX 3090 Founders Edition
10650 Points ∼95%
AMD Radeon RX 6800 XT
10018 Points ∼89% -6%
MSI GeForce RTX 3080 Gaming X Trio
9938 Points ∼89% -7%
MSI GeForce RTX 3070 Ventus 3X
7042 Points ∼63% -34%
1024x600 Normal, Mandel Vector
Nvidia GeForce RTX 3090 Founders Edition
9236 Points ∼100%
AMD Radeon RX 6800 XT
8399 Points ∼91% -9%
MSI GeForce RTX 3090 Suprim X
8341 Points ∼90% -10%
MSI GeForce RTX 3080 Gaming X Trio
7540 Points ∼82% -18%
MSI GeForce RTX 3070 Ventus 3X
5364 Points ∼58% -42%
1024x600 Normal, Fluid 2DTexArr
MSI GeForce RTX 3090 Suprim X
4560 Points ∼100% +5%
Nvidia GeForce RTX 3090 Founders Edition
4344 Points ∼95%
MSI GeForce RTX 3080 Gaming X Trio
4159 Points ∼91% -4%
AMD Radeon RX 6800 XT
3947 Points ∼87% -9%
MSI GeForce RTX 3070 Ventus 3X
2666 Points ∼58% -39%
1024x600 Normal, Fluid 3DTex
MSI GeForce RTX 3090 Suprim X
5391 Points ∼100% +3%
Nvidia GeForce RTX 3090 Founders Edition
5246 Points ∼97%
AMD Radeon RX 6800 XT
5154 Points ∼96% -2%
MSI GeForce RTX 3080 Gaming X Trio
4450 Points ∼83% -15%
MSI GeForce RTX 3070 Ventus 3X
2749 Points ∼51% -48%
1024x600 Normal, Score
MSI GeForce RTX 3090 Suprim X
46547 Points ∼100% +1%
Nvidia GeForce RTX 3090 Founders Edition
46018 Points ∼99%
MSI GeForce RTX 3080 Gaming X Trio
41594 Points ∼89% -10%
AMD Radeon RX 6800 XT
38823 Points ∼83% -16%
MSI GeForce RTX 3070 Ventus 3X
29330 Points ∼63% -36%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
148 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
114 (106min - 122max) fps ∼77% -23%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
110 (97min - 117max) fps ∼74% -26%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
104 (97min - 112max) fps ∼70% -30%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
102 (95min - 110max) fps ∼69% -31%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
90.9 (84min - 101max) fps ∼61% -39%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
171.5 fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
160 (138min - 179max) fps ∼93% -7%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
145 (123min - 154max) fps ∼85% -15%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
141 (127min - 154max) fps ∼82% -18%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
138 (125min - 151max) fps ∼80% -20%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
121 (112min - 134max) fps ∼71% -29%
Far Cry 5
3840x2160 Ultra Preset AA:T
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
105 (94min - 121max) fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
95 (72min - 124max) fps ∼90% -10%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
93 (78min - 109max) fps ∼89% -11%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
81 (73min - 95max) fps ∼77% -23%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
78 (66min - 93max) fps ∼74% -26%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
70 (63min - 84max) fps ∼67% -33%
1920x1080 Ultra Preset AA:T
NVIDIA Titan RTX, AMD Ryzen 9 5900X
161 (112min - 210max) fps ∼100% +13%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
143 (108min - 192max) fps ∼89% +1%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
142 (102min - 199max) fps ∼88%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
135 (97min - 188max) fps ∼84% -5%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
130 (97min - 185max) fps ∼81% -8%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
120 (94min - 159max) fps ∼75% -15%
Far Cry New Dawn
3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
97 (75min - 124max) fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
94 (75min - 129max) fps ∼97% -3%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
88 (71min - 110max) fps ∼91% -9%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
84 (71min - 100max) fps ∼87% -13%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
81 (68min - 98max) fps ∼84% -16%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
72 (61min - 86max) fps ∼74% -26%
1920x1080 Ultra Preset
NVIDIA Titan RTX, AMD Ryzen 9 5900X
131 (89min - 206max) fps ∼100% +17%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
116 (77min - 187max) fps ∼89% +4%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
113 (78min - 186max) fps ∼86% +1%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
112 (75min - 189max) fps ∼85%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
108 (71min - 183max) fps ∼82% -4%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
92 (64min - 140max) fps ∼70% -18%
Anno 1800
3840x2160 Ultra Graphics Quality (DX11)
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
51.3 fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
45.5 (42min - 49max) fps ∼89% -11%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
43.2 (32min - 52max) fps ∼84% -16%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
35 (23min - 40max) fps ∼68% -32%
1920x1080 Ultra Graphics Quality (DX11)
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
54.5 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
54 (38min - 82max) fps ∼99% -1%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
52 (42min - 66max) fps ∼95% -5%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
51.2 (45min - 66max) fps ∼94% -6%
Crysis Remastered
3840x2160 Very High Preset AA:SM
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
60.5 fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
54.4 (34.7min, 38.5P0.1, 45.5P1 - 74.7max) fps ∼90% -10%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
49.2 (36min, 36.9P0.1, 39P1 - 61.3max) fps ∼81% -19%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
48.9 (13.3min, 35.6P0.1, 42.3P1 - 64max) fps ∼81% -19%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
38.9 (21.9min, 28P0.1, 31.1P1 - 58.6max) fps ∼64% -36%
1920x1080 Very High Preset AA:SM
NVIDIA Titan RTX, AMD Ryzen 9 5900X
115 (54.4min, 61.6P0.1, 73.5P1 - 194max) fps ∼100% +18%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
97.1 fps ∼84%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
94.7 (36.3min, 43P0.1, 59.2P1 - 225max) fps ∼82% -2%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
75.8 (46.1min, 48.5P0.1, 54.2P1 - 148max) fps ∼66% -22%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
62.1 (41.5min, 41.8P0.1, 44.5P1 - 113max) fps ∼54% -36%
Dirt 5
3840x2160 Ultra High Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
91.4 (14min - 106max) fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
83.1 (63.6min, 66.3P0.1, 74.7P1 - 97.1max) fps ∼91% -9%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
65.7 (38.5min, 48.7P0.1, 55P1 - 86.9max) fps ∼72% -28%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
57 fps ∼62% -38%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
54.7 (40.4min, 46.3P0.1, 48.8P1 - 64.6max) fps ∼60% -40%
1920x1080 Ultra High Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
159.5 (110min - 186max) fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
159 (132.7min, 138.5P0.1, 143.7P1 - 191.8max) fps ∼100% 0%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
97 (47.5min, 70.2P0.1, 73.6P1 - 173.7max) fps ∼61% -39%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
95.9 fps ∼60% -40%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
89.3 (64.9min, 71.6P0.1, 77P1 - 109.6max) fps ∼56% -44%
Call of Duty Black Ops Cold War
3840x2160 Highest Settings
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
74.6 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
65.6 (13.8min, 17.5P0.1, 51.4P1 - 229max) fps ∼88% -12%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
64 (10.8min, 11.6P0.1, 50.8P1 - 159max) fps ∼86% -14%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
52.9 fps ∼71% -29%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
50.2 (16.1min, 25.6P0.1, 36.1P1 - 146max) fps ∼67% -33%
1920x1080 Highest Settings
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
161.1 fps ∼100%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
144 fps ∼89% -11%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
144 (58.7min, 90.7P0.1, 105P1 - 365max) fps ∼89% -11%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
127 (21.9min, 24.4P0.1, 83.5P1 - 285max) fps ∼79% -21%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
95.7 (21.6min, 37.6P0.1, 58P1 - 166max) fps ∼59% -41%
Cyberpunk 2077
3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
41.5 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
38.9 (20.9min, 31.3P0.1, 34.3P1 - 86.6max) fps ∼94% -6%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
30.9 fps ∼74% -26%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
27.9 (6.44min, 21.5P0.1, 24.6P1 - 186max) fps ∼67% -33%
1920x1080 Ultra Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
109.7 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
103 (23.3min, 60.3P0.1, 75.7P1 - 176max) fps ∼94% -6%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
82.3 fps ∼75% -25%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
81 (8.01min, 51.5P0.1, 63P1 - 143max) fps ∼74% -26%
F1 2020
3840x2160 Ultra High Preset AA:T AF:16x
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
135 (116min - 157max) fps ∼100%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
128 (106min - 152max) fps ∼95% -5%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
114 (100min - 136max) fps ∼84% -16%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
97.4 (84min - 114max) fps ∼72% -28%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
88.7 (76min - 101max) fps ∼66% -34%
1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
279 (211min - 345max) fps ∼100% +12%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
250 (214min - 304max) fps ∼90%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
194 (164min - 230max) fps ∼70% -22%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
181 (145min - 211max) fps ∼65% -28%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
179 (153min - 213max) fps ∼64% -28%
Death Stranding
3840x2160 Very High Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
131 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
98.7 (76.9min, 81.1P0.1, 88.7P1 - 127max) fps ∼75% -25%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
84.2 (42.2P1) fps ∼64% -36%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
74.1 (62.4min, 64.2P0.1, 66.4P1 - 84.5max) fps ∼57% -43%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
73.7 (61.7P1) fps ∼56% -44%
1920x1080 Very High Preset
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
206 (90.1P1) fps ∼100% +10%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
202 (133min, 151P0.1, 165P1 - 290max) fps ∼98% +7%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
188.1 fps ∼91%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
170 (106min, 117P0.1, 136P1 - 255max) fps ∼83% -10%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
167 (142.9P1) fps ∼81% -11%
Mafia Definitive Edition
3840x2160 High Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
84.5 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
78.1 (44.8min, 50.5P0.1, 54.7P1 - 175max) fps ∼92% -8%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
63.4 fps ∼75% -25%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
62.6 (28min, 37.6P0.1, 49.2P1 - 87.3max) fps ∼74% -26%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
55.2 (19.3min, 34.2P0.1, 45.2P1 - 133max) fps ∼65% -35%
1920x1080 High Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
158.8 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
144 (59.7min, 73.4P0.1, 93.2P1 - 295max) fps ∼91% -9%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
132 (57.5min, 71.1P0.1, 88.3P1 - 259max) fps ∼83% -17%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
123.7 fps ∼78% -22%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
121 (23.7min, 68P0.1, 83.3P1 - 223max) fps ∼76% -24%
Watch Dogs Legion
3840x2160 Ultra Preset (DX12)
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
57.6 (24.58min, 45.93P1 - 114.36max) fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
53.5 (33.98min, 42.85P1 - 79.6max) fps ∼93% -7%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
49.3 (32.85min, 41.54P1 - 76.12max) fps ∼86% -14%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
43.4 (22.94min, 35.76P1 - 80.93max) fps ∼75% -25%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
39.2 (17.54min, 27.54P1 - 81.17max) fps ∼68% -32%
1920x1080 Ultra Preset (DX12)
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
112 (75.12min, 87.97P1 - 181.69max) fps ∼100% +5%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
107 (24.35min, 77.46P1 - 174.03max) fps ∼96%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
99.3 (13.98min, 73.29P1 - 167.32max) fps ∼89% -7%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
86 (37.65min, 66.32P1 - 130.48max) fps ∼77% -20%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
85.5 (32.06min, 62.5P1 - 122.78max) fps ∼76% -20%
Horizon Zero Dawn
3840x2160 Ultimate Quality
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
113 (56min - 189max) fps ∼100% +27%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
89 fps ∼79%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
82 (52min - 158max) fps ∼73% -8%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
61 (41min - 103max) fps ∼54% -31%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
54 (31min - 128max) fps ∼48% -39%
1920x1080 Ultimate Quality
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
189 (64min - 349max) fps ∼100% +19%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
159 fps ∼84%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
144 (44min - 263max) fps ∼76% -9%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
124 (68min - 221max) fps ∼66% -22%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
109 (38min - 223max) fps ∼58% -31%
Shadow of the Tomb Raider
3840x2160 Highest Preset AA:T
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
94 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
87.9 fps ∼94% -6%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
79.6 fps ∼85% -15%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
66.3 fps ∼71% -29%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
66 fps ∼70% -30%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
63.5 fps ∼68% -32%
1920x1080 Highest Preset AA:T
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
194 fps ∼100% +4%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
187 fps ∼96%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
177 fps ∼91% -5%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
166 fps ∼86% -11%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
160 fps ∼82% -14%
NVIDIA Titan RTX, AMD Ryzen 9 3900X
120 fps ∼62% -36%
Yakuza Like a Dragon
3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
78.2 fps ∼100%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
72.4 (37min, 40.3P0.1, 47.4P1 - 129max) fps ∼93% -7%
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
60.3 (38.2min, 44.3P0.1, 50.9P1 - 86.2max) fps ∼77% -23%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
55.2 fps ∼71% -29%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
51.7 (26.1min, 30.1P0.1, 37.7P1 - 98.6max) fps ∼66% -34%
1920x1080 Ultra Preset
AMD Radeon RX 6800 XT, AMD Ryzen 9 5950X
122 (47.7min, 70P0.1, 83.9P1 - 153max) fps ∼100% +6%
NVIDIA GeForce RTX 3090, AMD Ryzen 9 5900X
115 fps ∼94%
NVIDIA Titan RTX, AMD Ryzen 9 5900X
111 fps ∼91% -3%
NVIDIA GeForce RTX 3070, AMD Ryzen 9 5900X
111 (54.6min, 63.5P0.1, 78.1P1 - 140max) fps ∼91% -3%
NVIDIA GeForce RTX 3080, AMD Ryzen 9 5900X
110 (70.4min, 70.8P0.1, 79.9P1 - 139max) fps ∼90% -4%
låg med. hög ultraQHD4K
GTA V (2015) 180 174 168 105 100 151 fps
The Witcher 3 (2015) 437.6 418.7 338.6 171.5 148 fps
Dota 2 Reborn (2015) 149.1 139.2 138.4 134.3 138.6 fps
Rise of the Tomb Raider (2016) 391.3 283.6 269.7 253.7 128.1 fps
Final Fantasy XV Benchmark (2018) 211 190 153 128 81.5 fps
X-Plane 11.11 (2018) 157 137 111 92.8 fps
Far Cry 5 (2018) 186 162 155 142 139 105 fps
Strange Brigade (2018) 402 342 330 315 244 150 fps
Shadow of the Tomb Raider (2018) 206 194 199 187 159 94 fps
Battlefield V (2018) 179.4 172.3 157.6 145.8 129.5 95.8 fps
Apex Legends (2019) 144 144 144 144 144 142.3 fps
Far Cry New Dawn (2019) 148 128 123 112 110 97 fps
Metro Exodus (2019) 201 168 146 124 106 70.6 fps
The Division 2 (2019) 249 210 177 152 121 72 fps
Anno 1800 (2019) 179 155 103.5 54.5 53.5 51.3 fps
Control (2019) 239.2 217 172.2 115.8 61.3 fps
Borderlands 3 (2019) 172 142 126 119 105 68 fps
Star Wars Jedi Fallen Order (2019) 129.9 129.6 129.2 127.4 124.4 fps
Red Dead Redemption 2 (2019) 167.9 171.7 153.2 109.9 92.3 63.5 fps
Hunt Showdown (2020) 239 206.5 192 184.4 112.8 fps
Doom Eternal (2020) 449.3 398.6 365.8 359.9 304.5 192.6 fps
F1 2020 (2020) 379 320 316 250 207 135 fps
Death Stranding (2020) 206.1 193.2 188.6 188.1 140.9 131 fps
Horizon Zero Dawn (2020) 206 191 175 159 141 89 fps
Crysis Remastered (2020) 233.3 222.4 220.6 97.1 82.6 60.5 fps
Serious Sam 4 (2020) 175.1 130.4 121.4 115.2 113.5 97.4 fps
Mafia Definitive Edition (2020) 188.4 163.6 158.8 142.3 84.5 fps
Star Wars Squadrons (2020) 448 412.3 397.8 384.2 297.2 188.3 fps
FIFA 21 (2020) 212 206.5 202.4 199.9 199.9 203.3 fps
Watch Dogs Legion (2020) 132 131 120 107 88.3 57.6 fps
Dirt 5 (2020) 250.2 197 178.5 159.5 131.1 91.4 fps
Assassin´s Creed Valhalla (2020) 138 114 105 91 79 57 fps
Call of Duty Black Ops Cold War (2020) 264 231.2 195.4 161.1 124.7 74.6 fps
Yakuza Like a Dragon (2020) 121.2 120 118.3 115 113.2 78.2 fps
Immortals Fenyx Rising (2020) 164 144 138 130 114 83 fps
Cyberpunk 2077 (2020) 143.1 138.6 124.1 109.7 78.1 41.5 fps
Hitman 3 (2021) 267 224 223 223 190 115 fps

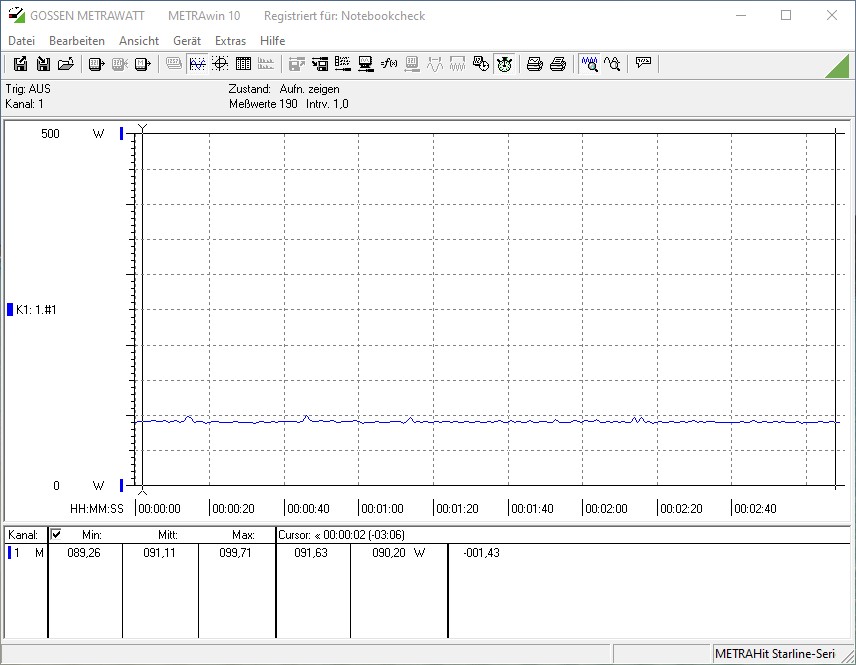

Testsystemets energiförbrukning (tomgång)
Testsystemets energiförbrukning (tomgång)

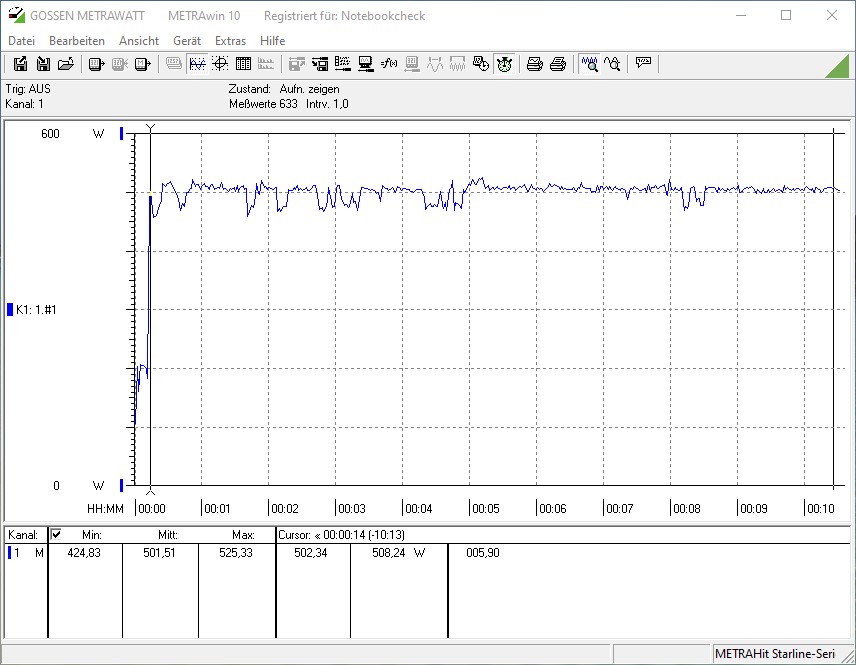

Testsystemets energiförbrukning (FurMark PT 100%)
Testsystemets energiförbrukning (FurMark PT 100%)

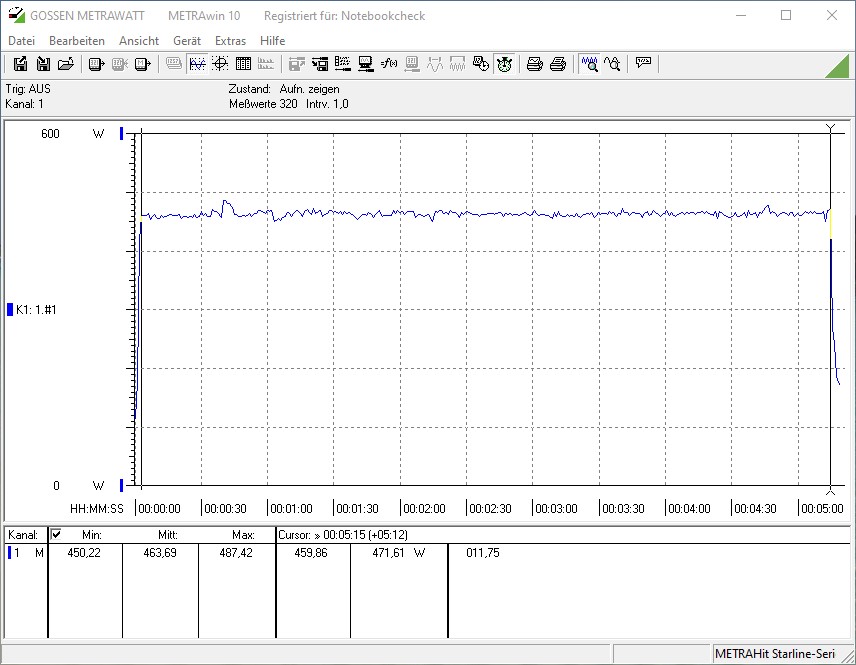

Testsystemets energiförbrukning (vid spel - The Witcher 3 Ultra)
Testsystemets energiförbrukning (vid spel - The Witcher 3 Ultra)

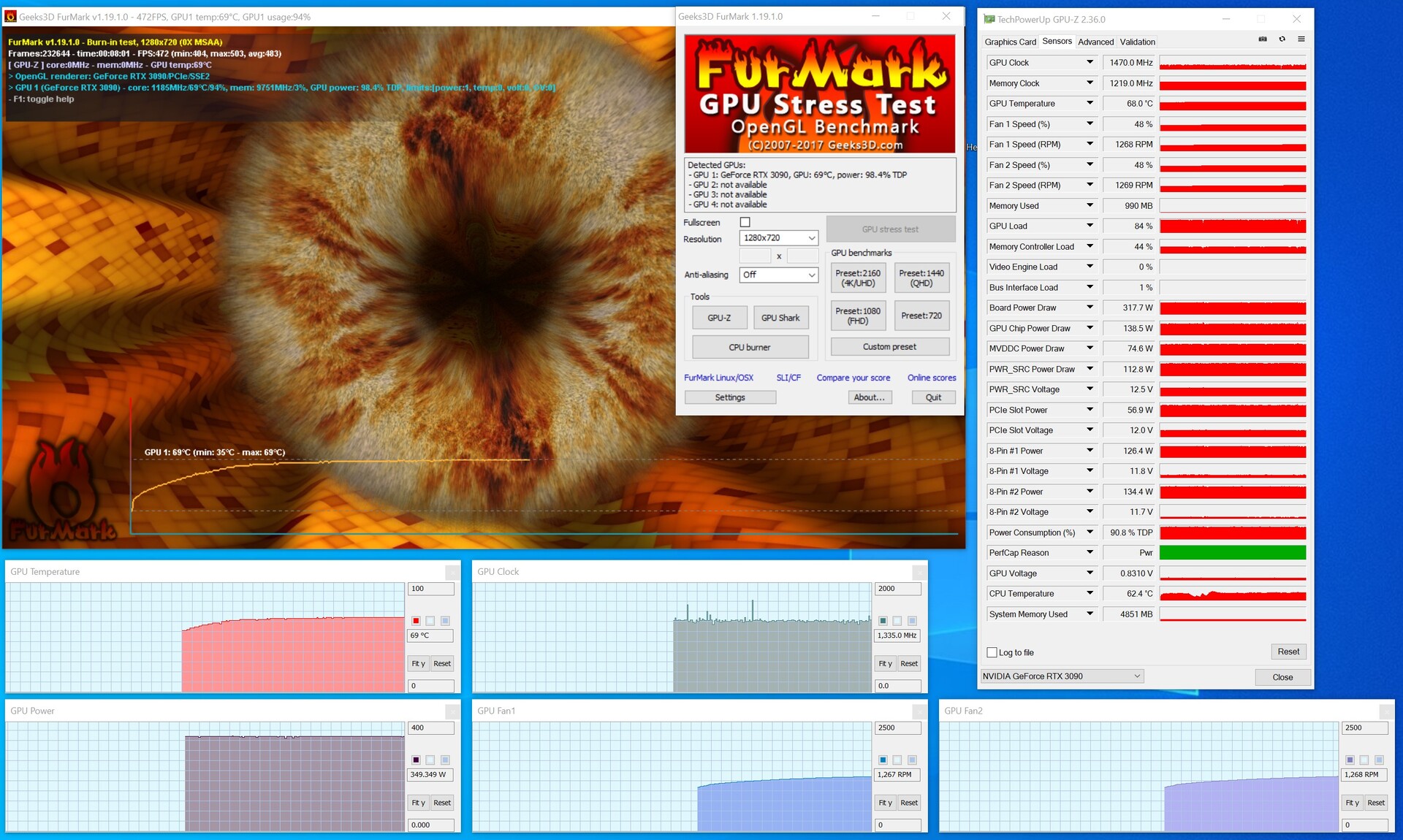

Stress-test FurMark (PT 100%)
Stress-test FurMark (PT 100%)
Ljudnivå vid tomgång - Fläktfritt läge
Ljudnivå vid tomgång - Fläktfritt läge

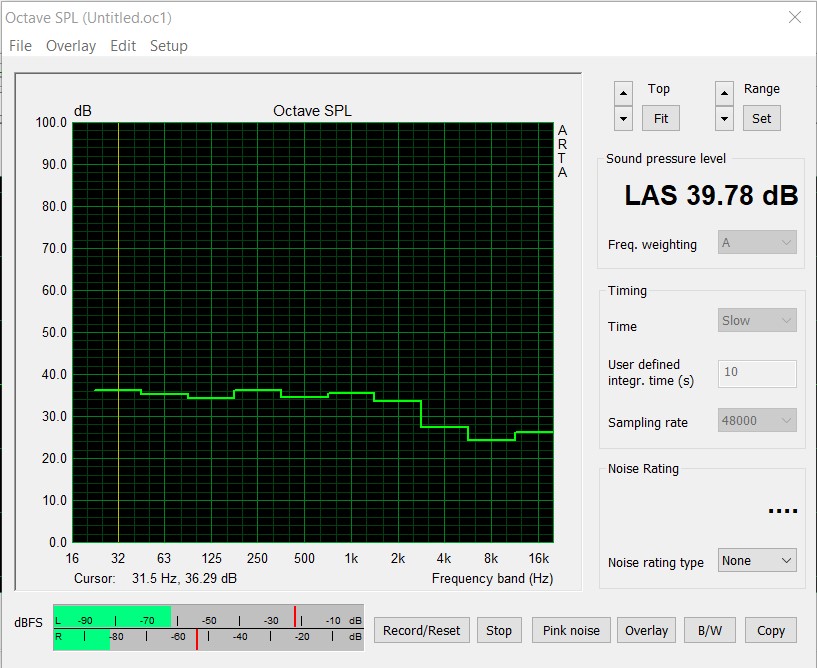

Ljudnivå under stresstestet
Ljudnivå under stresstestet

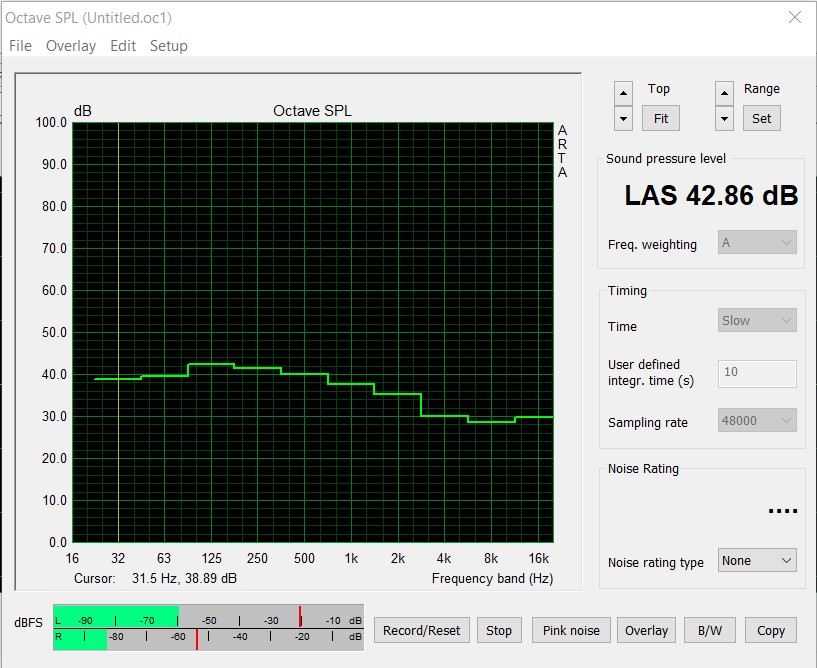

Ljudnivå vid spel (The Witcher 3 Ultra)
Ljudnivå vid spel (The Witcher 3 Ultra)

Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P (Idle: 105.9 W)
550.91 (521min - 582max) Watt * ∼100% -10%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P (Idle: 88.3 W)
504.5 (493min - 541max) Watt * ∼92% -1%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600 (Idle: 91.1 W)
501.5 (425min - 525max) Watt * ∼91%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P (Idle: 99.5 W)
447.92 (413min - 484max) Watt * ∼81% +11%
AMD Radeon VII
Radeon VII, R7 2700X (Idle: 81.39 W)
417.78 (399min - 446max) Watt * ∼76% +17%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
402.24 (320min - 423max) Watt * ∼73% +20%
KFA2 GeForce RTX 2080 Ti EX
GeForce RTX 2080 Ti (Desktop), R9 3900X, Corsair MP600 (Idle: 100.5 W)
400.8 (354min - 432max) Watt * ∼73% +20%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P (Idle: 95.1 W)
376.9 (369min - 433max) Watt * ∼68% +25%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super (Desktop), R7 2700X (Idle: 78.87 W)
376.76 (331min - 409max) Watt * ∼68% +25%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X (Idle: 73.3 W)
343 (336min - 382max) Watt * ∼62% +32%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)
326.56 (313min - 351max) Watt * ∼59% +35%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super (Desktop), R7 2700X (283 fps, Idle: 80.5 W)
326 (315min - 348max) Watt * ∼59% +35%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
295.2 (148min - 331max) Watt * ∼54% +41%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X (237 fps, Idle: 77.12 W)
281.4 (275min - 321max) Watt * ∼51% +44%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (207 fps, Idle: 64.5 W)
280.49 (271min - 312max) Watt * ∼51% +44%
1920x1080 The Witcher 3 ultra (external Monitor)
MSI GeForce RTX 3090 Suprim X
NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P (Idle: 105.9 W)
597.23 (577min - 618max) Watt * ∼100% -29%
AMD Radeon RX 6800 XT
Radeon RX 6800 XT, R9 5950X, Intel Optane 905P (Idle: 99.5 W)
505.16 (389min - 543max) Watt * ∼85% -9%
ASUS GeForce RTX 3080 ROG STRIX OC GAMING
NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P (Idle: 88.3 W)
505 (389min - 543max) Watt * ∼85% -9%
Nvidia GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600 (Idle: 91.1 W)
463.69 (450min - 487max) Watt * ∼78%
KFA2 GeForce RTX 2080 Ti EX
GeForce RTX 2080 Ti (Desktop), R9 3900X, Corsair MP600 (Idle: 100.5 W)
438.8 (431min - 463max) Watt * ∼73% +5%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X (Idle: 74.3 W)
408 Watt * ∼68% +12%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X (Idle: 87.78 W)
404.67 (389min - 421max) Watt * ∼68% +13%
MSI GeForce RTX 3070 Gaming X Trio
NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P (Idle: 95.1 W)
394.5 (381min - 430max) Watt * ∼66% +15%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super (Desktop), R7 2700X (Idle: 78.87 W)
382.79 (360min - 410max) Watt * ∼64% +17%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)
348.71 (341min - 359max) Watt * ∼58% +25%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super (Desktop), R7 2700X (96.8 fps, Idle: 80.5 W)
344.7 (335min - 370max) Watt * ∼58% +26%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X (Idle: 73.3 W)
342.9 (329min - 355max) Watt * ∼57% +26%
AMD Radeon VII
Radeon VII, R7 2700X (Idle: 81.39 W)
339 (306min - 359max) Watt * ∼57% +27%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super (Desktop), R7 2700X (82.7 fps, Idle: 77.12 W)
298.2 (293min - 322max) Watt * ∼50% +36%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (84.2 fps, Idle: 64.5 W)
295.9 (284min - 304max) Watt * ∼50% +36%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
288.8 (284min - 299max) Watt * ∼48% +38%

* ... smaller is better

För

+ Tillräckligt snabb för UHD
+ Modern arkitektur (8 nm)
+ DLSS + ray tracing
+ 24 GB VRAM
+ Fläktfritt läge

Emot

- Väldigt höga energikrav
- Nästan omöjlig att få tag på
- Opraktisk placering av strömanslutningen

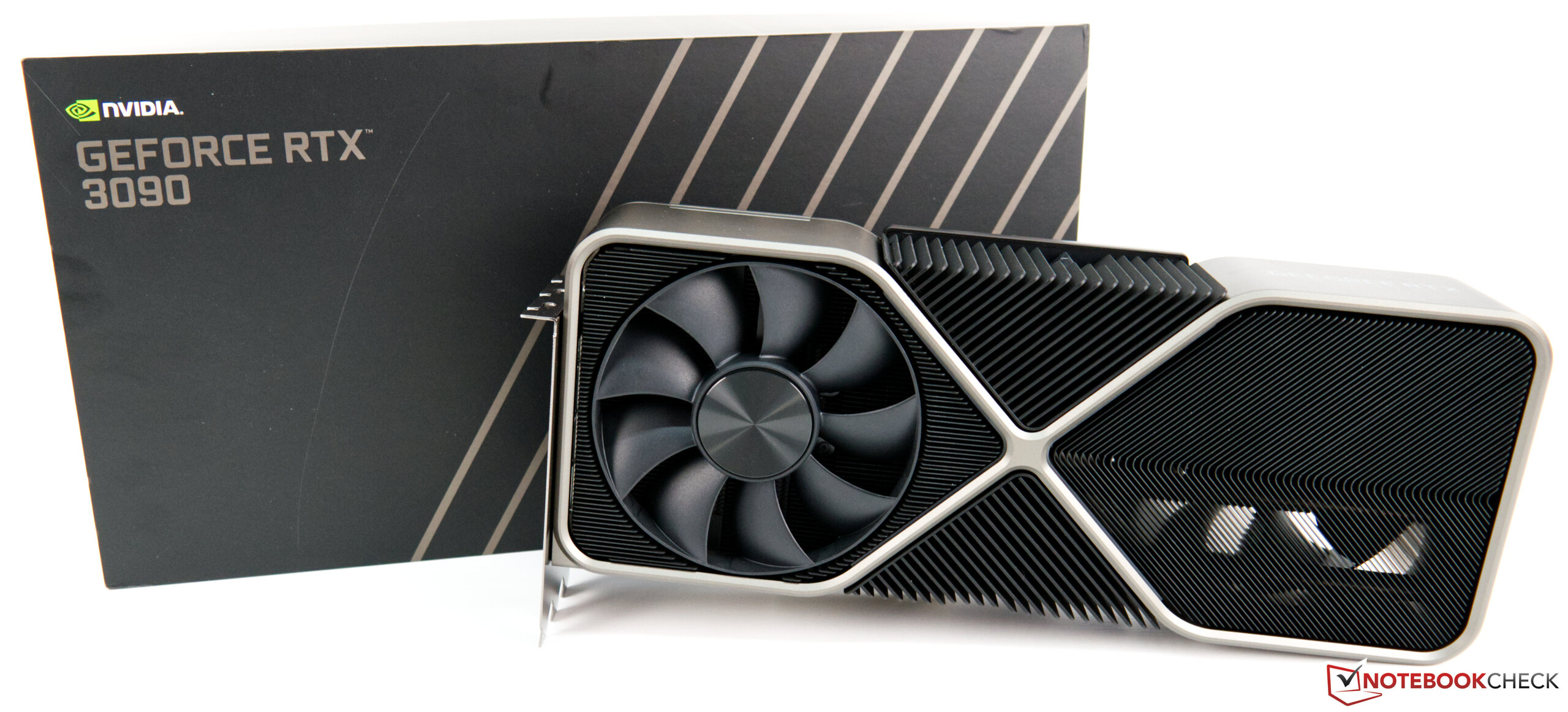

Recension av Nvidia GeForce RTX 3090 Founders Edition
Recension av Nvidia GeForce RTX 3090 Founders Edition
Recension av Nvidia GeForce RTX 3090 Founders Edition

Läs den fullständiga versionen av den här recensionen på engelska här.

Nvidias flaggskepp, GeForce RTX 3090, är onekligen ett av de snabbaste grafikkorten som finns på marknaden. Men Founders Edition får anse sig besegrad av en del egenanpassade designer från andra tillverkare på grund av en TDP-gräns på 350 Watt. Kortpartners som till exempel EVGA har GeForce RTX 3090-modeller på upp till 500 Watt. Trots detta passar kortet vi testat väl för att spela spel i riktigt höga upplösningar utan begränsningar. Det har hög konstruktionskvalitet även om den nya 12 pins-strömanslutningen har placerats på ett väldigt opraktiskt ställe. Grafikkortet känns också högkvalitativt och den höga vikten är till fördel för kylelementet, som äntligen har ett fläktfritt läge. Men inte ens vid belastning drar kortet till sig särskilt mycket uppmärksamhet. De stora fläktarna drar mycket luft genom kylfenorna och avger ett lågfrekvent ljud, som dock upplevs som tystare än vad våra mätenheter antyder.

Nvidias GeForce RTX 3090 erbjuder toppskiktsgrafik för kompromissfri gaming i 4K.

Den största fördelen med GeForce RTX 3090 är mängden VRAM som är på hela 24 GB. Det är mer än dubbelt så mycket som på GeForce RTX 3080. AMD befinner sig i mittenskiktet med sina senaste grafikkort och utrustar dessa med 16 GB. Oavsett kan GeForce RTX 3090 övervinna konkurrensen, i synnerhet när det kommer till spel i 4K. Det är onekligen RTX 3090 som får poäng på den punkten.

Vid det här laget kan vi bara säga det vi brukar säga när det kommer till tillgängligheten. Den aktuella situationen är oförändrad och det rekommenderade priset på 15.500 kronor är fortfarande bara en dröm för den som vill köpa Nvidia GeForce RTX 3090 Founders Edition. Men med lite tur kan man få tag på det direkt från Nvidia. Det dyker upp ett exemplar där lite då och då.

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Nvidia GeForce RTX 3090 FE - Toppskiktsgrafik till lyxpris (Sammanfattning)
Sebastian Bade, 2021-02-11 (Update: 2021-02-11)
