Test: Motorola Moto X Force smartphone (sammanfattning)

Hårding. Enligt Motorola är Moto X den första mobilen i världen med en oförstörbar skärm. Men vårt test visar att 5,4-tummaren inte bara är robust, utan även övertygar med andra bra funktioner.
, , , , , ,
sökrelation
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

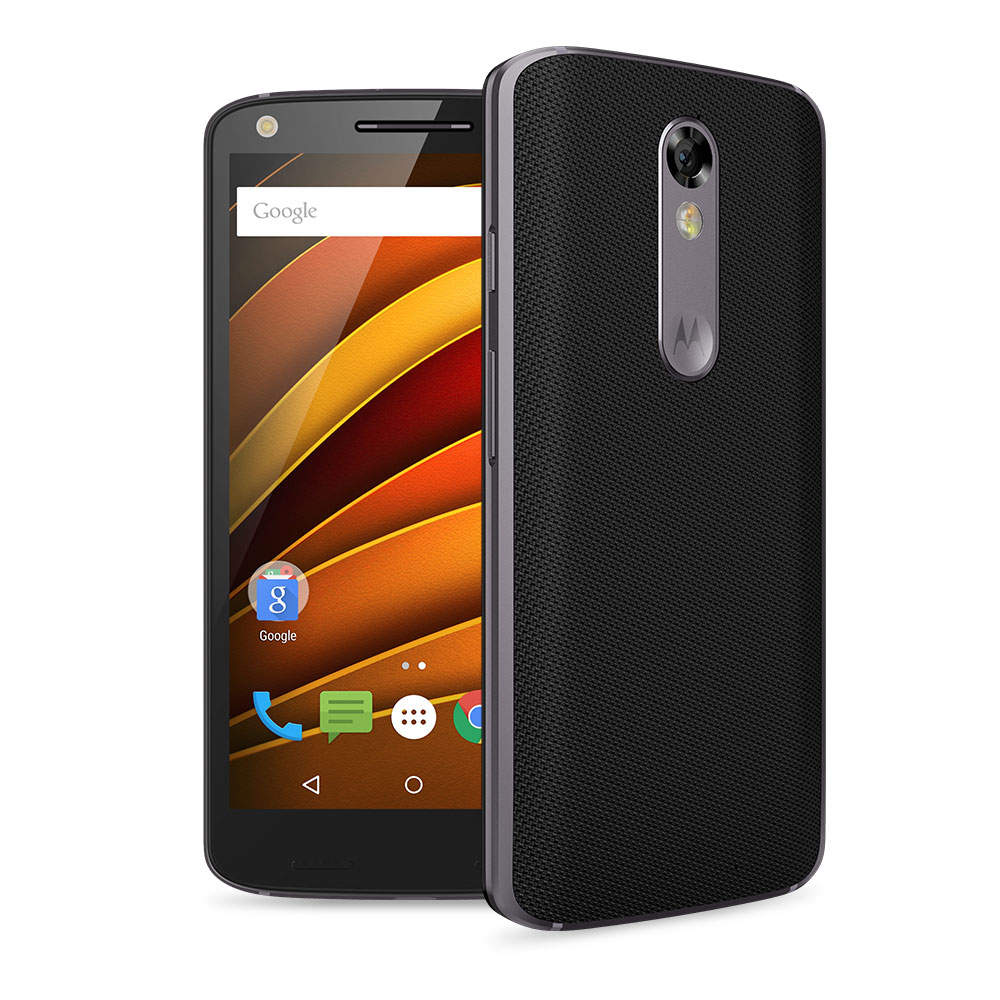

Motorola Moto X Force (Moto Serie)
Processor
Qualcomm Snapdragon 810 MSM8994 8 x 2 GHz, Cortex-A57/-A53
Grafikkort
Qualcomm Adreno 430
Minne
3072 MB
, LPDDR4
Skärm
5.40 tum 16:9, 2560 x 1440 pixlar, kapacitiv pekskärm, 540 ppi, AMOLED, 1440p quad-HD, ShatterShield, glansig: ja
Hårddisk
32 GB eMMC Flash, 32 GB
, 23.2 GB ledigt
Anslutningar

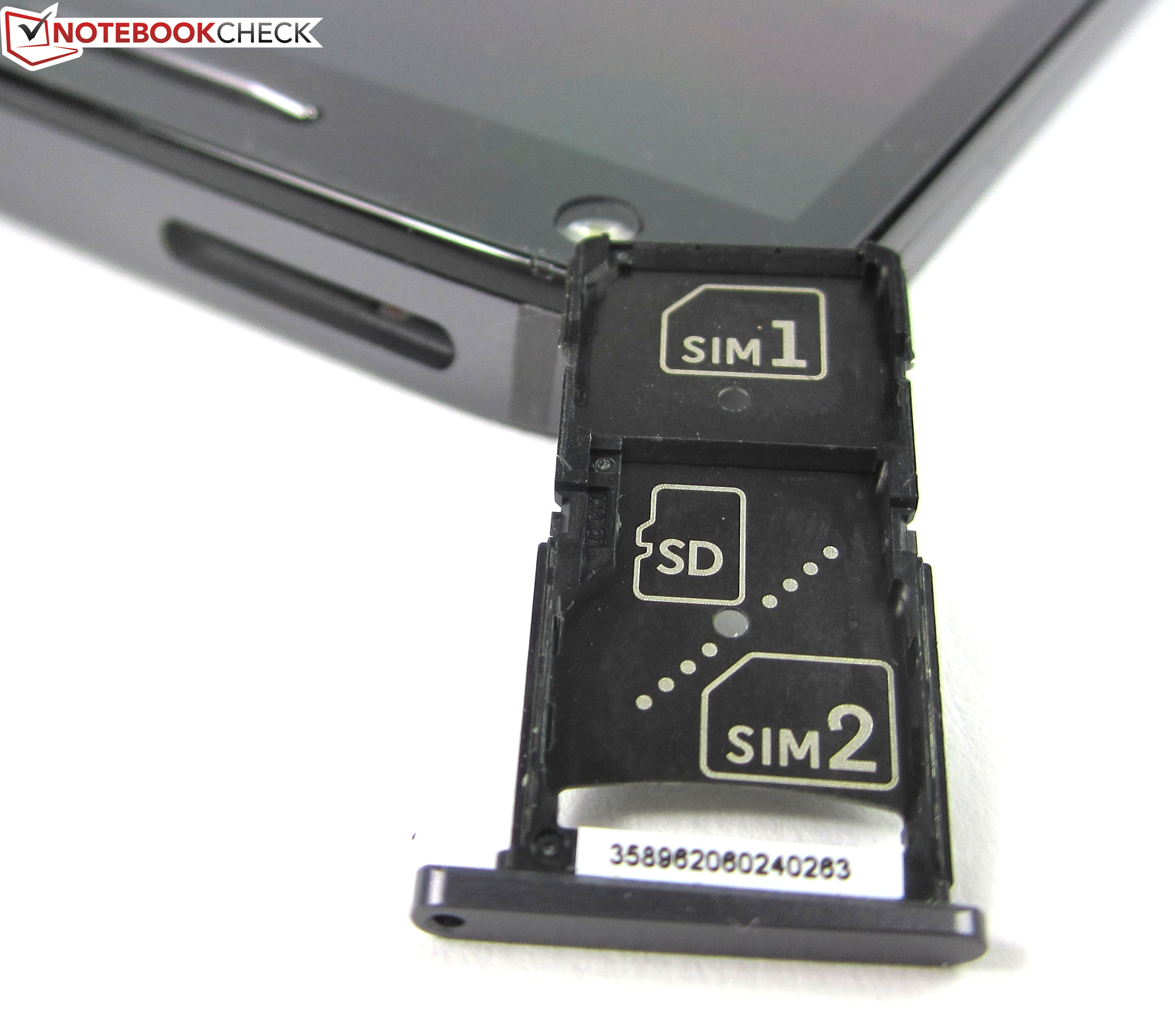

1 USB 2.0, Ljudanslutningar: 3,5 mm headset, Kortläsare: micro-SD max. 2 TB, NFC, Brightness Sensor, Sensorer: accelerometer, gyroskop, Hallsensor, magnetometer, närhetssensor, supports wireless Qi charging and charging pad, infrared, OTG, Miracast, Wi-Fi Direct, DLNA
Nätverk
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1 LE, GSM (850, 900, 1800, 1900 MHz), UMTS (850, 900, 1700, 1900, 2100 MHz), LTE (band B1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 25, 28, 40), nano-SIM, head SAR 0.549 W/kg, body-worn SAR 0.781 W/kg, Dual SIM, LTE, GPS
Storlek
höjd x bredd x djup (i mm) 9.2 x 149.8 x 78
Batteri
3760 mAh Litiumjon, Batteritid (enligt tillverkaren): 48 tim
Operativsystem
Android 6.0 Marshmallow
Camera
Primary Camera: 21 MPix maxupplösning: 5344x4008 pixlar, dubbel LED-blixt, 1080p HD-video (30 FPS), 4K-video (30 FPS), HDR-video (1080p och 4K)
Secondary Camera: 5 MPix Maxupplösning 2592x1944, vidvinkel, blixt
Övrigt
Högtalare: stereo, Tangentbord: virtuellt, Tangentbordsbelysning: ja, Netzteil, Kurzanleitung, 24 Månader Garanti, ruggedized
Vikt
169 g, Strömförsörjning: 30 g
Pris
700 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



149.8 mm 78 mm 9.2 mm 169 g148.9 mm 76.1 mm 9.8 mm 155 g146 mm 72 mm 7.3 mm 154 g145 mm 73.2 mm 8.2 mm 150 g142.4 mm 69.6 mm 7.9 mm 152 g138.3 mm 67.1 mm 7.1 mm 143 g

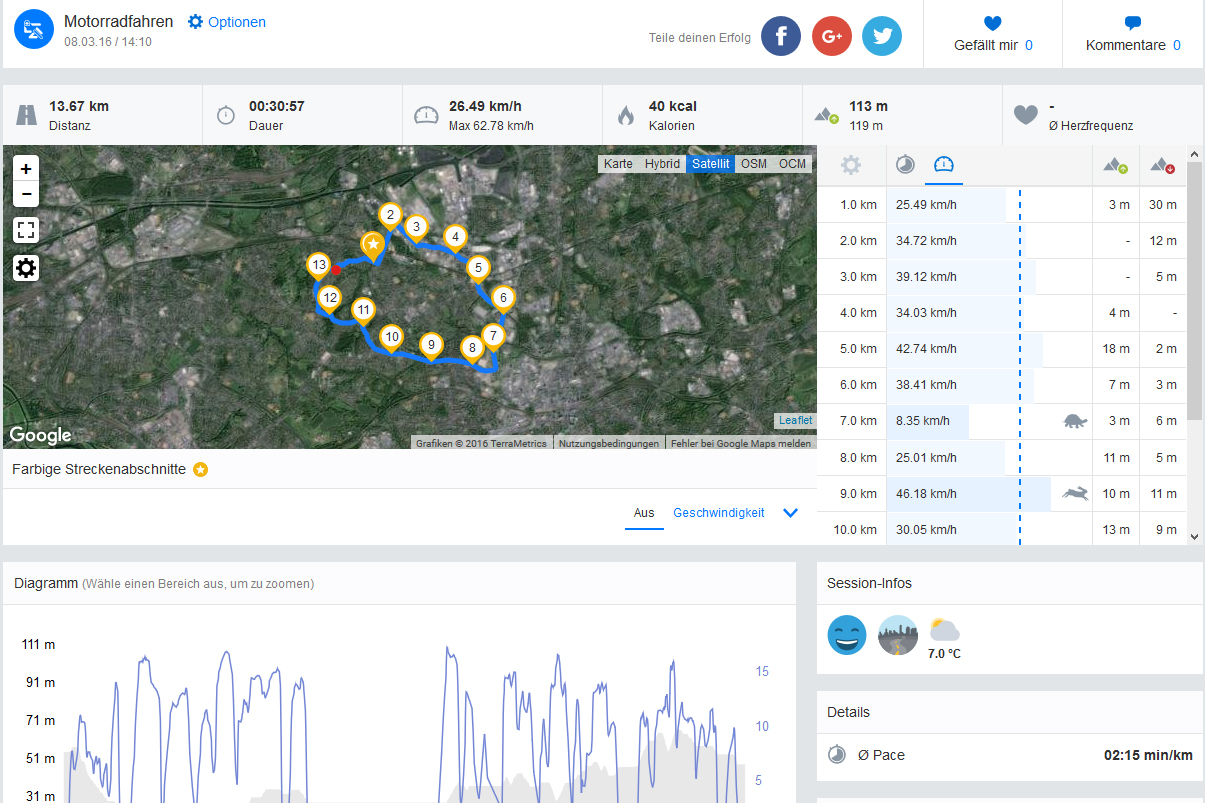

GPS Garmin Edge: total
GPS Garmin Edge: total

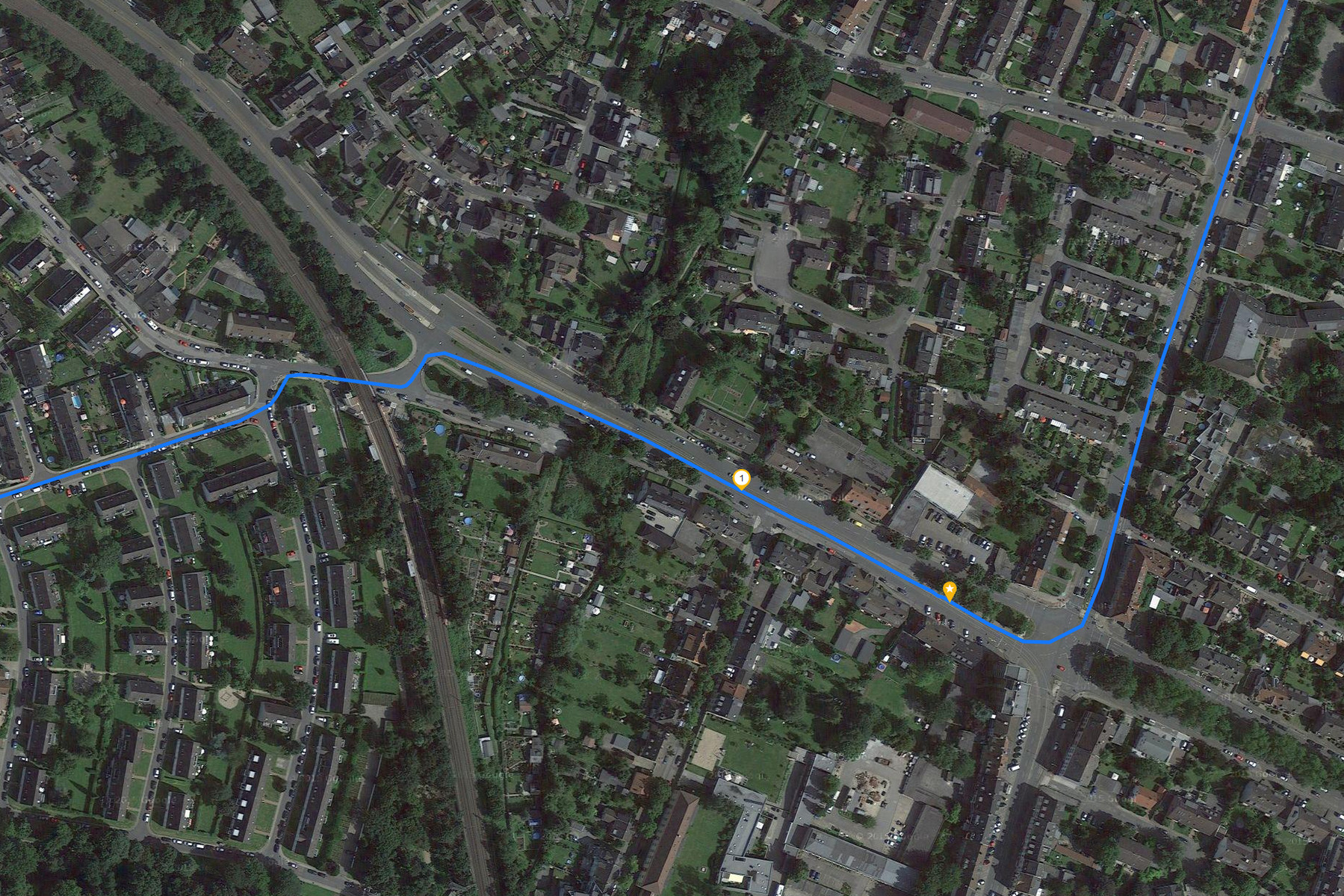

GPS Garmin Edge: crossing
GPS Garmin Edge: crossing

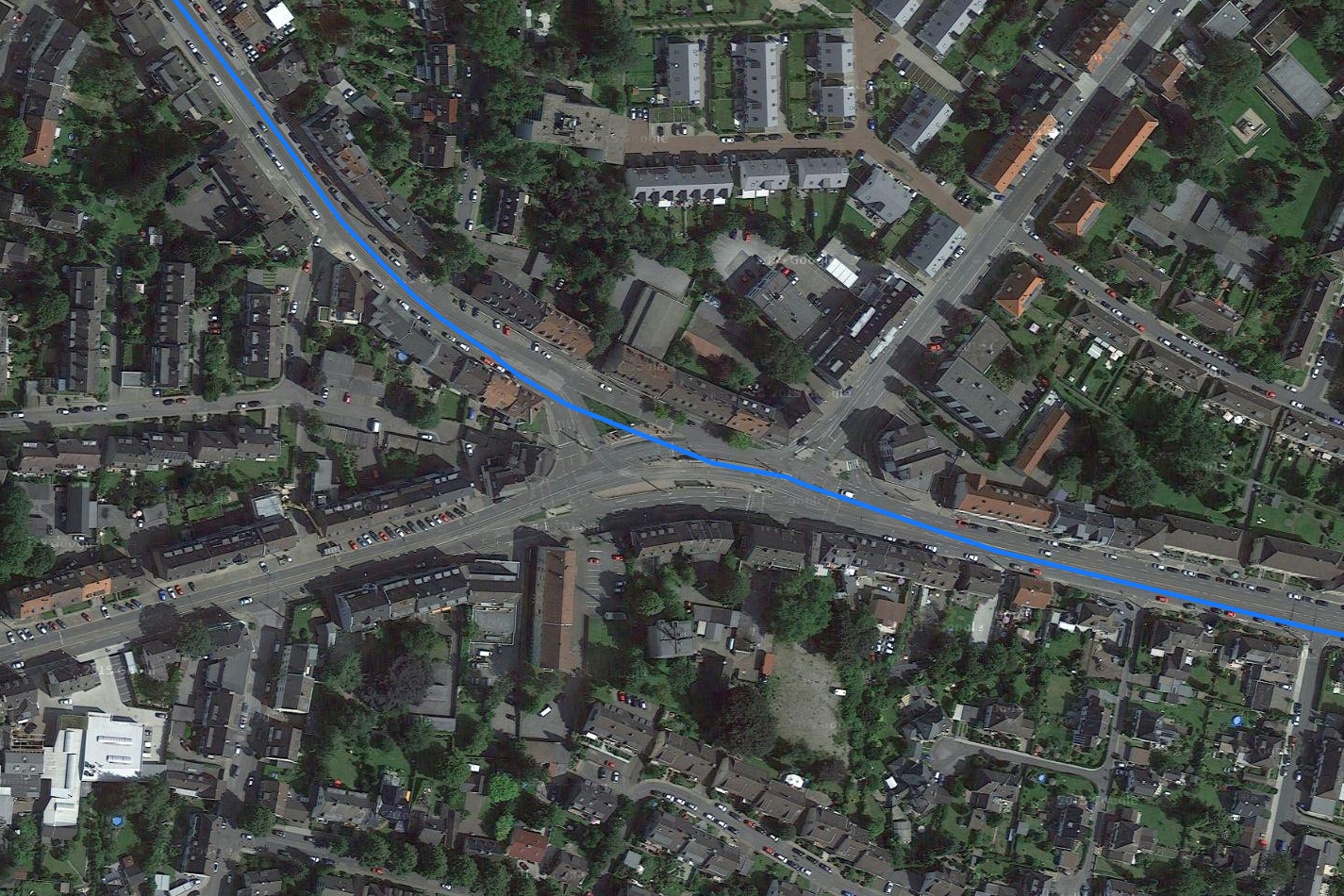

GPS Garmin Edge: route
GPS Garmin Edge: route

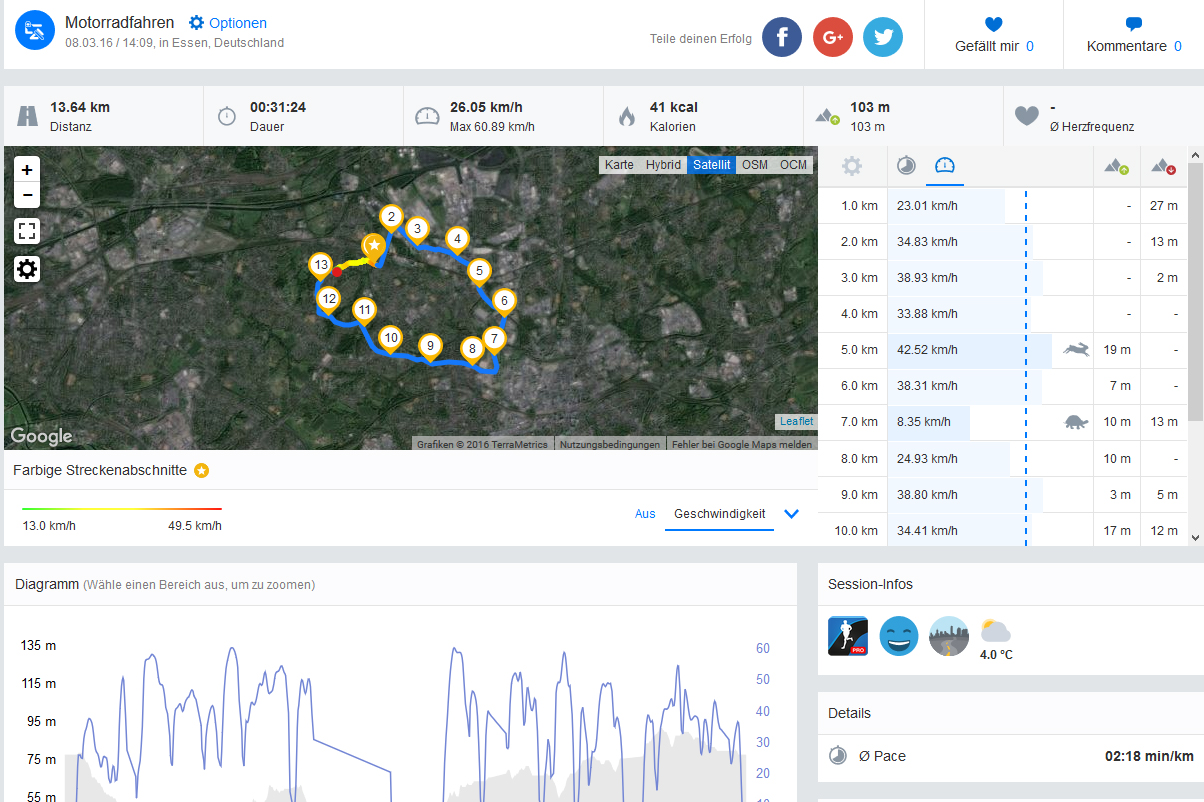

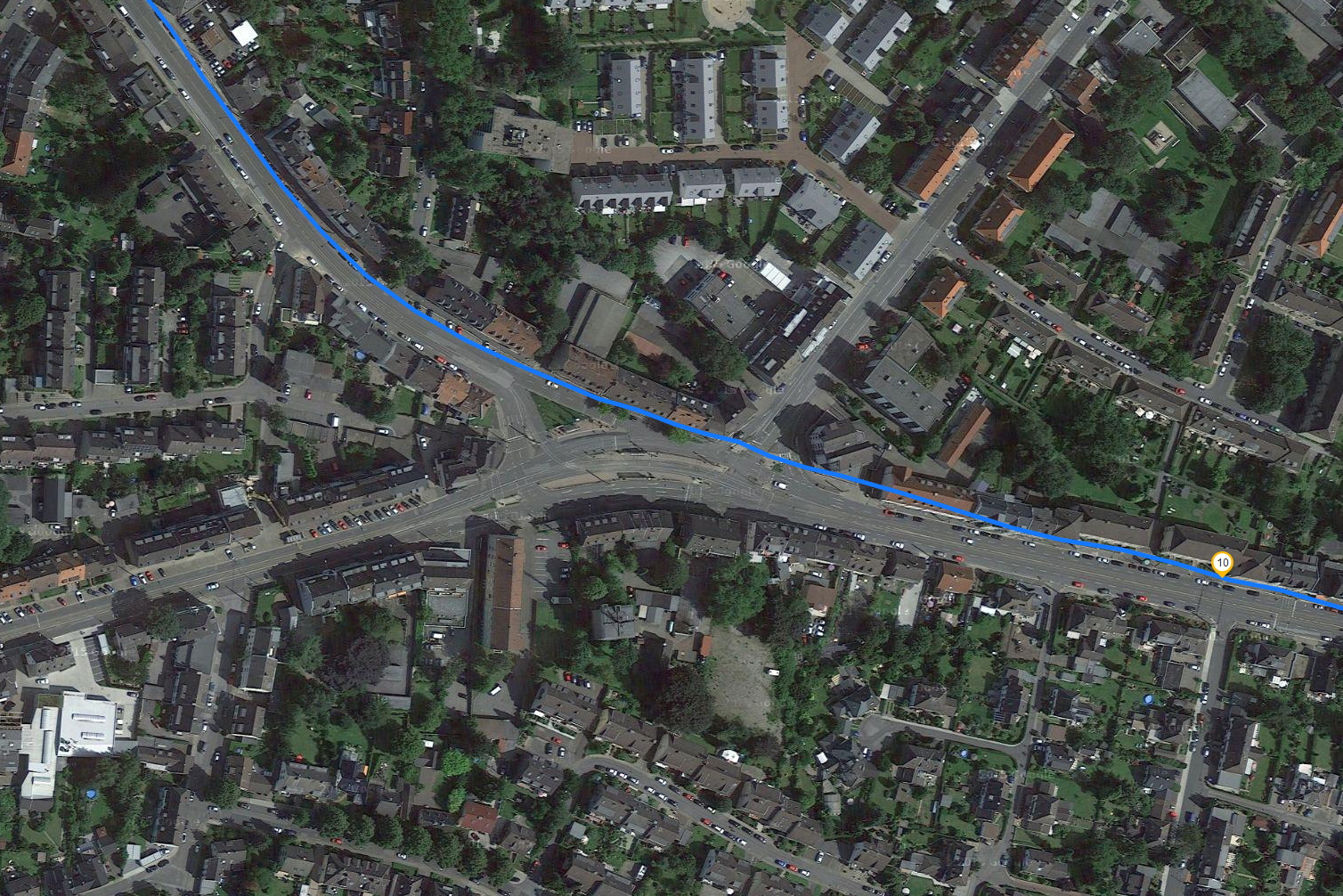

Motorola Moto X Force: total
Motorola Moto X Force: total

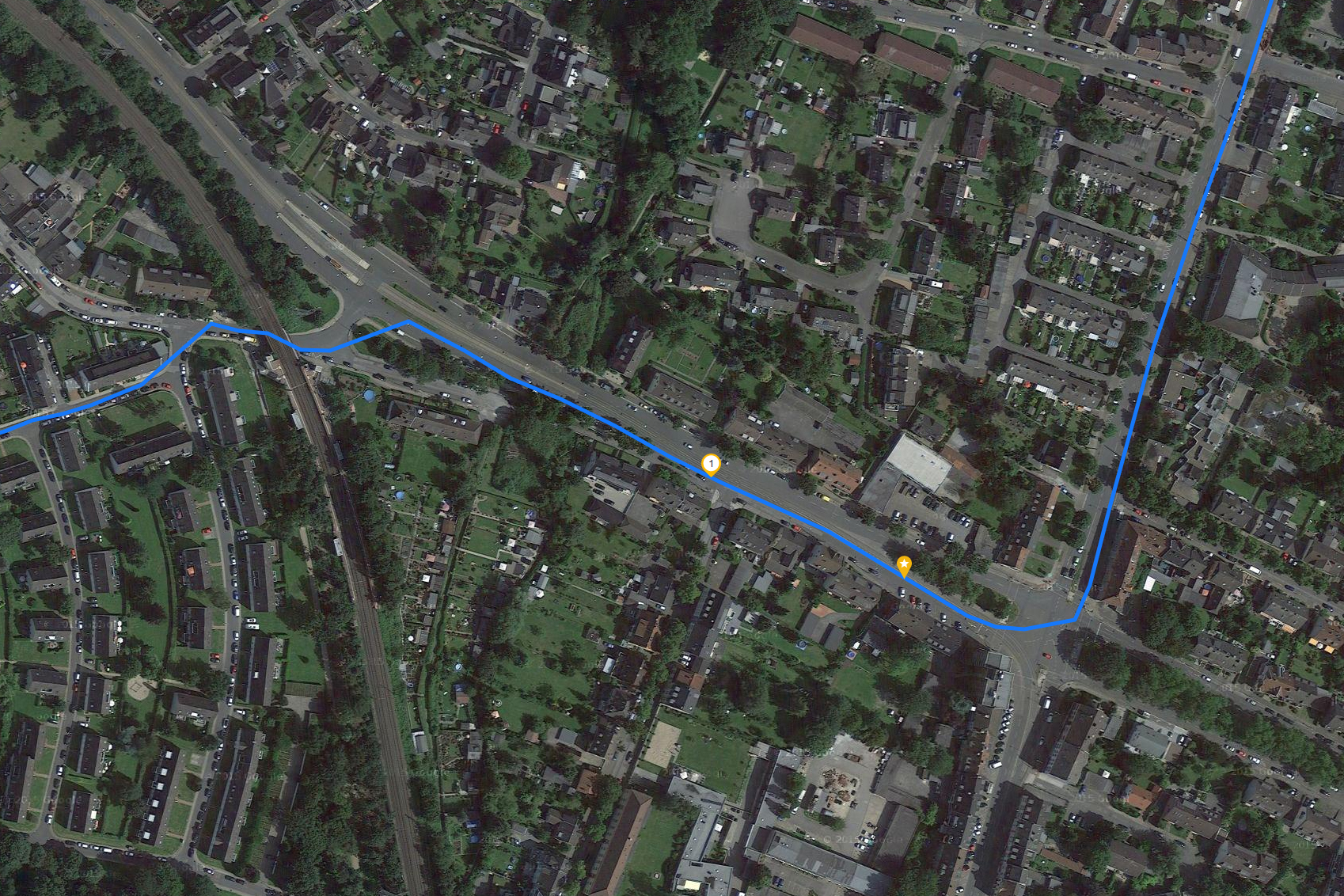

Motorola Moto X Force: crossing
Motorola Moto X Force: crossing
Motorola Moto X Force: route
Motorola Moto X Force: route

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
323
cd/m²
333
cd/m²
350
cd/m²
320
cd/m²
337
cd/m²
349
cd/m²
320
cd/m²
336
cd/m²
352
cd/m²
Distribution av ljusstyrkan
540 ppi
X-Rite i1Pro 2
Max: 352 cd/m² Medel: 335.6 cd/m² Minimum: 5.42 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 337 cd/m²
Kontrast: ∞:1 (Svärta: 0 cd/m²)
ΔE Color 3.99 | 0.59-29.43 Ø5.5
ΔE Greyscale 1.66 | 0.64-98 Ø5.7
Gamma: 2.32
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Screen
-3%
-41%
-1%
20%
-96%
Brightness middle
337
552
64%
566
68%
292
-13%
350
4%
669
99%
Brightness
336
549
63%
536
60%
298
-11%
351
4%
624
86%
Brightness Distribution
91
87
-4%
90
-1%
92
1%
98
8%
85
-7%
Black Level *
0.39
0.47
0.68
Colorchecker DeltaE2000 *
3.99
3.4
15%
6.17
-55%
2.48
38%
2.04
49%
7.96
-99%
Colorchecker DeltaE2000 max. *
7.07
3.25
54%
Greyscale DeltaE2000 *
1.66
4.16
-151%
6.26
-277%
1.97
-19%
1.63
2%
10.95
-560%
Gamma
2.32 95%
2.21 100%
2.48 89%
2.06 107%
2.07 106%
2.61 84%
CCT
6584 99%
7288 89%
8171 80%
6640 98%
6391 102%
7402 88%
Contrast
1415
1204
984
Color Space (Percent of AdobeRGB 1998)
62.18
65.48
86.86
Color Space (Percent of sRGB)
95.93
98.63
99.35

* ... smaller is better

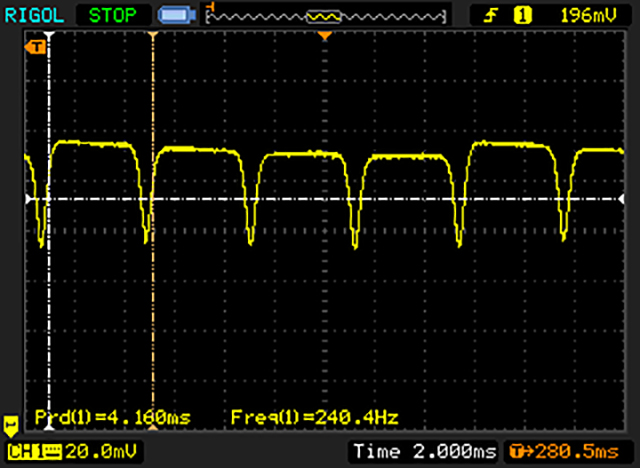

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 240.4 Hz

The display backlight flickers at 240.4 Hz (Likely utilizing PWM) .

The frequency of 240.4 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 15315 (minimum: 5 - maximum: 2500000) Hz was measured.

3DMark - 1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Motorola Moto X Force
25751 Points ∼9%
Apple iPhone 6S
28419 Points ∼10% +10%
LG G4
18821 Points ∼7% -27%
Sony Xperia Z5
24980 Points ∼9% -3%
Samsung Galaxy S7
29015 Points ∼10% +13%
Geekbench 3
32 Bit Single-Core Score (sort by value)
LG G4
1022 Points ∼21%
32 Bit Multi-Core Score (sort by value)
LG G4
2952 Points ∼4%
GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Onscreen C24Z16 (sort by value)
Motorola Moto X Force
42 fps ∼1%
Apple iPhone 6S
59.1 fps ∼2% +41%
LG G4
24.9 fps ∼1% -41%
Microsoft Lumia 950
13.73 fps ∼0% -67%
Sony Xperia Z5
49 fps ∼1% +17%
Samsung Galaxy S7
53 fps ∼2% +26%
1920x1080 T-Rex HD Offscreen C24Z16 (sort by value)
Motorola Moto X Force
58 fps ∼0%
Apple iPhone 6S
79.6 fps ∼1% +37%
LG G4
33.7 fps ∼0% -42%
Microsoft Lumia 950
21.82 fps ∼0% -62%
Sony Xperia Z5
49 fps ∼0% -16%
Samsung Galaxy S7
84 fps ∼1% +45%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sort by value)
Motorola Moto X Force
27 fps ∼3%
Apple iPhone 6S
39.5 fps ∼4% +46%
LG G4
15 fps ∼2% -44%
Microsoft Lumia 950
12.3 fps ∼1% -54%
Sony Xperia Z5
24 fps ∼3% -11%
Samsung Galaxy S7
40 fps ∼4% +48%
on screen Manhattan Onscreen OGL (sort by value)
Motorola Moto X Force
17 fps ∼5%
Apple iPhone 6S
56 fps ∼15% +229%
LG G4
9.5 fps ∼3% -44%
Microsoft Lumia 950
6.76 fps ∼2% -60%
Sony Xperia Z5
26 fps ∼7% +53%
Samsung Galaxy S7
27 fps ∼7% +59%
AnTuTu v6 - Total Score (sort by value)
Motorola Moto X Force
89911 Points ∼31%
Samsung Galaxy S7
127902 Points ∼44% +42%
BaseMark OS II
Overall (sort by value)
Motorola Moto X Force
1774 Points ∼21%
Apple iPhone 6S
2194 Points ∼26% +24%
LG G4
1596 Points ∼19% -10%
Microsoft Lumia 950
1140 Points ∼13% -36%
Sony Xperia Z5
1437 Points ∼17% -19%
Samsung Galaxy S7
1987 Points ∼24% +12%
System (sort by value)
Motorola Moto X Force
2878 Points ∼17%
Apple iPhone 6S
3466 Points ∼21% +20%
LG G4
2368 Points ∼14% -18%
Microsoft Lumia 950
1096 Points ∼7% -62%
Sony Xperia Z5
2360 Points ∼14% -18%
Samsung Galaxy S7
4217 Points ∼26% +47%
Memory (sort by value)
Motorola Moto X Force
1085 Points ∼12%
Apple iPhone 6S
1281 Points ∼14% +18%
LG G4
1558 Points ∼17% +44%
Microsoft Lumia 950
1640 Points ∼18% +51%
Sony Xperia Z5
865 Points ∼10% -20%
Samsung Galaxy S7
2244 Points ∼25% +107%
Graphics (sort by value)
Motorola Moto X Force
3376 Points ∼12%
Apple iPhone 6S
4323 Points ∼15% +28%
LG G4
1995 Points ∼7% -41%
Microsoft Lumia 950
1437 Points ∼5% -57%
Sony Xperia Z5
3095 Points ∼11% -8%
Samsung Galaxy S7
1723 Points ∼6% -49%
Web (sort by value)
Motorola Moto X Force
939 Points ∼43%
Apple iPhone 6S
1207 Points ∼56% +29%
LG G4
881 Points ∼41% -6%
Microsoft Lumia 950
655 Points ∼30% -30%
Sony Xperia Z5
675 Points ∼31% -28%
Samsung Galaxy S7
957 Points ∼44% +2%
PCMark for Android - Work performance score (sort by value)
Motorola Moto X Force
5365 Points ∼27%
LG G4
4579 Points ∼23% -15%
Sony Xperia Z5
5184 Points ∼26% -3%
Samsung Galaxy S7
4826 Points ∼24% -10%

Legend


Motorola Moto X Force Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Apple iPhone 6S Apple A9, Apple A9 / PowerVR GT7600, Apple AP0064K (iPhone NVMe)

LG G4 Qualcomm Snapdragon 808 MSM8992, Qualcomm Adreno 418, 32 GB eMMC Flash

Microsoft Lumia 950 Qualcomm Snapdragon 808 MSM8992, Qualcomm Adreno 418, 32 GB eMMC Flash

Sony Xperia Z5 Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Samsung Galaxy S7 Samsung Exynos 8890 Octa, ARM Mali-T880 MP12, 32 GB UFS 2.0 Flash
Octane V2 - Total Score (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8699 Points ∼13%
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
16200 Points ∼23% +86%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
7832 (6791min) Points ∼11% -10%
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
6990 Points ∼10% -20%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8627 Points ∼12% -1%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
13161 Points ∼19% +51%
Mozilla Kraken 1.1 - Total Score (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4080.1 ms * ∼7%
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
1715 ms * ∼3% +58%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
4770.8 ms * ∼8% -17%
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
6913.5 ms * ∼12% -69%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
5693.1 ms * ∼10% -40%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
2561.5 ms * ∼4% +37%
WebXPRT 2015 - Overall Score (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
103 Points ∼13%
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
187 Points ∼23% +82%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
82 Points ∼10% -20%
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
64 Points ∼8% -38%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
73 Points ∼9% -29%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
166 Points ∼21% +61%
JetStream 1.1 - Total Score (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
49.373 Points ∼12%
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
118.6 Points ∼29% +140%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
43.118 Points ∼11% -13%
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
24.525 Points ∼6% -50%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37 Points ∼9% -25%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
74 Points ∼18% +50%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
252.03 MB/s ∼12%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
251 MB/s ∼12% 0%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
219.84 MB/s ∼11% -13%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
483.82 MB/s ∼24% +92%
Sequential Write 256KB (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
47.99 MB/s ∼4%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
153 MB/s ∼12% +219%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
115.48 MB/s ∼9% +141%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
145.72 MB/s ∼11% +204%
Random Read 4KB (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
22.55 MB/s ∼6%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
31.5 MB/s ∼9% +40%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
3.59 MB/s ∼1% -84%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
85.9 MB/s ∼23% +281%
Random Write 4KB (sort by value)
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
19.78 MB/s ∼6%
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
15 MB/s ∼5% -24%
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
11.46 MB/s ∼3% -42%
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
16.01 MB/s ∼5% -19%
Hög belastning
 38.1 °C37.8 °C38.1 °C
 38.5 °C39.3 °C38.6 °C
 39.8 °C39.4 °C38.8 °C
Max: 39.8 °C
Medel: 38.7 °C
38.3 °C38.1 °C37.8 °C
38.6 °C39.9 °C36.4 °C
38.4 °C40.4 °C38.3 °C
Max: 40.4 °C
Medel: 38.5 °C
Strömförsörjning (max.)  29.2 °C | Rumstemperatur 21.9 °C | Voltcraft IR-260
(-) The average temperature for the upper side under maximal load is 38.7 °C / 102 F, compared to the average of 32.9 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 35.2 °C / 95 F, ranging from 22.4 to 52.9 °C for the class Smartphone.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 33.8 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 30.8 °C / 87 F, compared to the device average of 32.9 °C / 91 F.
Strömförbrukning
Av/Standbydarklight 0.11 / 0.37 Watt
Låg belastningdarkmidlight 0.96 / 1.35 / 1.4 Watt
Hög belastning midlight 6.11 / 9.43 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Gossen Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
26tim 50min
NBC WiFi Websurfing Battery Test 1.3
7tim 06min
Big Buck Bunny H.264 1080p
11tim 50min
Hög belastning (maximal ljusstyrka)
5tim 30min
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Apple iPhone 6S
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
LG G4
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
Microsoft Lumia 950
Adreno 418, 808 MSM8992, 32 GB eMMC Flash
Samsung Galaxy S7
Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash
Sony Xperia Z5
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Battery Runtime
-13%
-29%
-28%
5%
-11%
Reader / Idle
1610
1510
-6%
1654
3%
1500
-7%
1810
12%
1669
4%
H.264
710
699
-2%
501
-29%
570
-20%
892
26%
600
-15%
WiFi v1.3
426
492
15%
326
-23%
250
-41%
456
7%
438
3%
Load
330
137
-58%
114
-65%
187
-43%
242
-27%
213
-35%

För

+ Android 6.0
+ mycket snabb SoC
+ dual-SIM
+ oförstörbart glas
+ extremt robust
+ välbyggd
+ 4 års garanti på skärmen
+ mycket bra 21 MP-kamera
+ lång batteritid
+ kort laddtid

Emot

- bara monohögtalare
- hybridplats med kompromisser
- inte vattentät
- systemkretsen stryps vid höga temperaturer
- headset ingår ej
In review Motorola Moto X Force. Review sample courtesy of Lenovo Germany.
In review Motorola Moto X Force. Review sample courtesy of Lenovo Germany.

En längre version av testet på engelska kan läsas här.

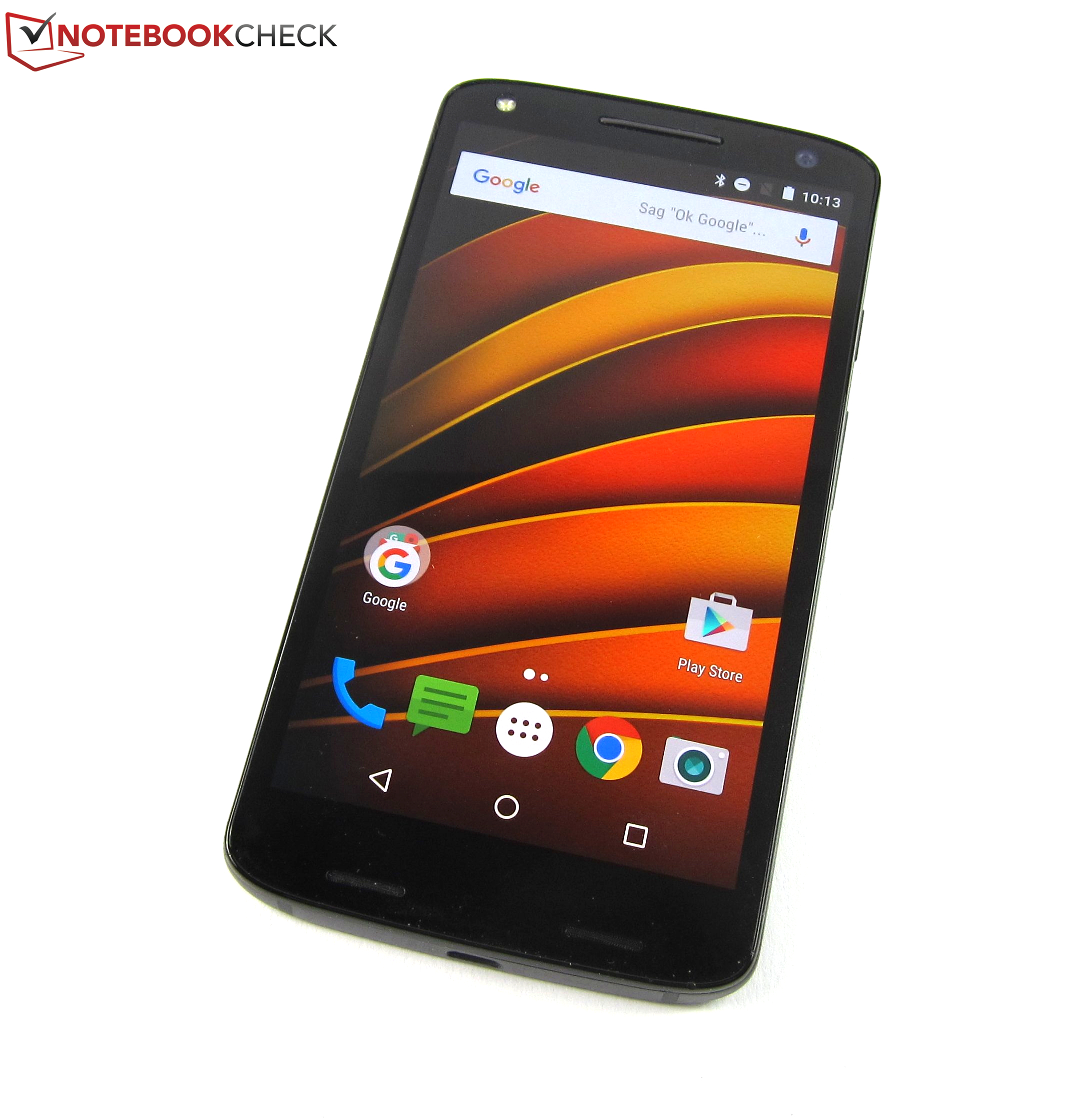

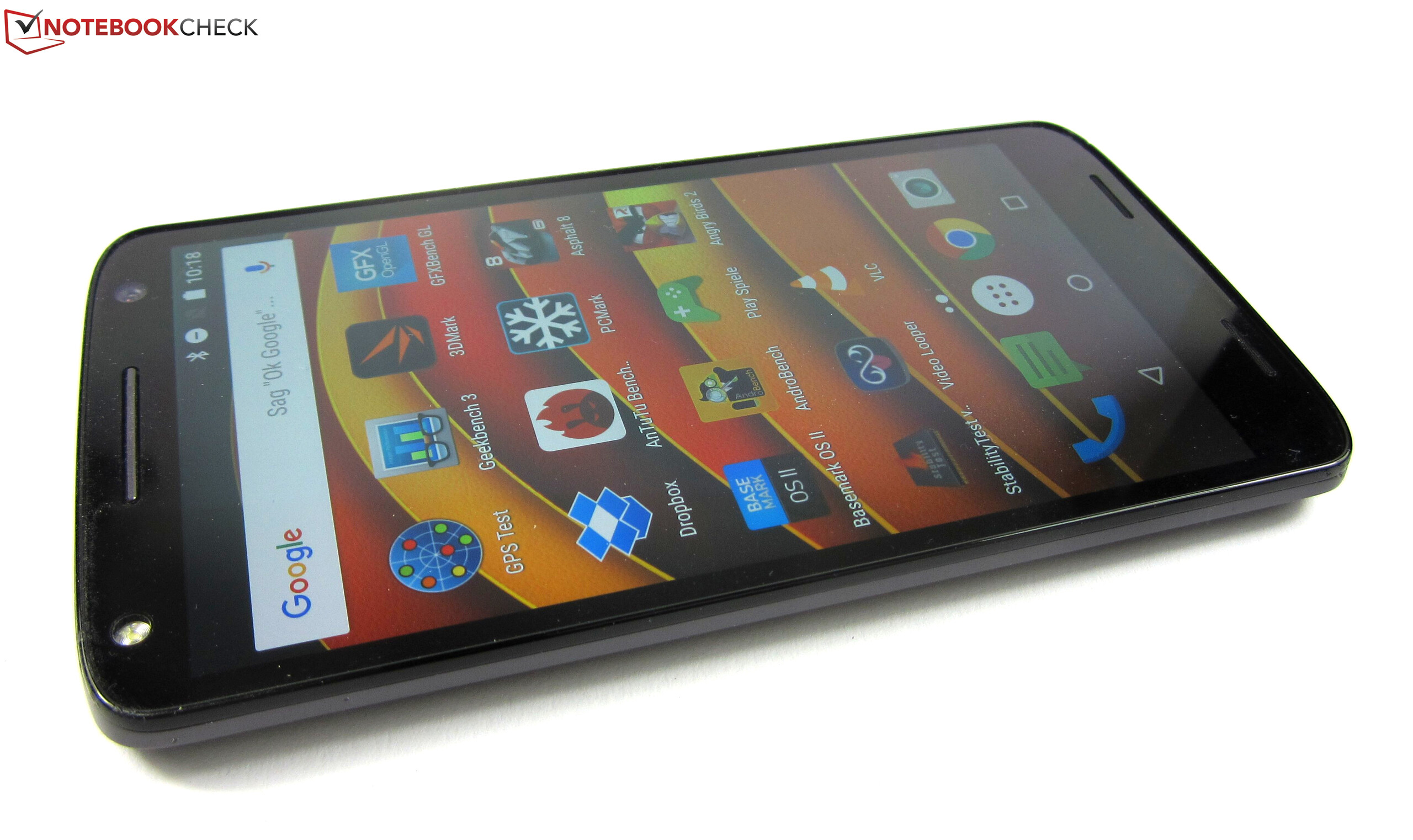

Motorolas Moto X Force är en riktig fullträff. Det är en 5,4-tums Androidmobil med en okrossbar skärm, men den har mer än så att erbjuda: En ljusstark och knivskarp AMOLED-skärm med en upplösning på 2560x1440 (540 PPI) är ett exempel.

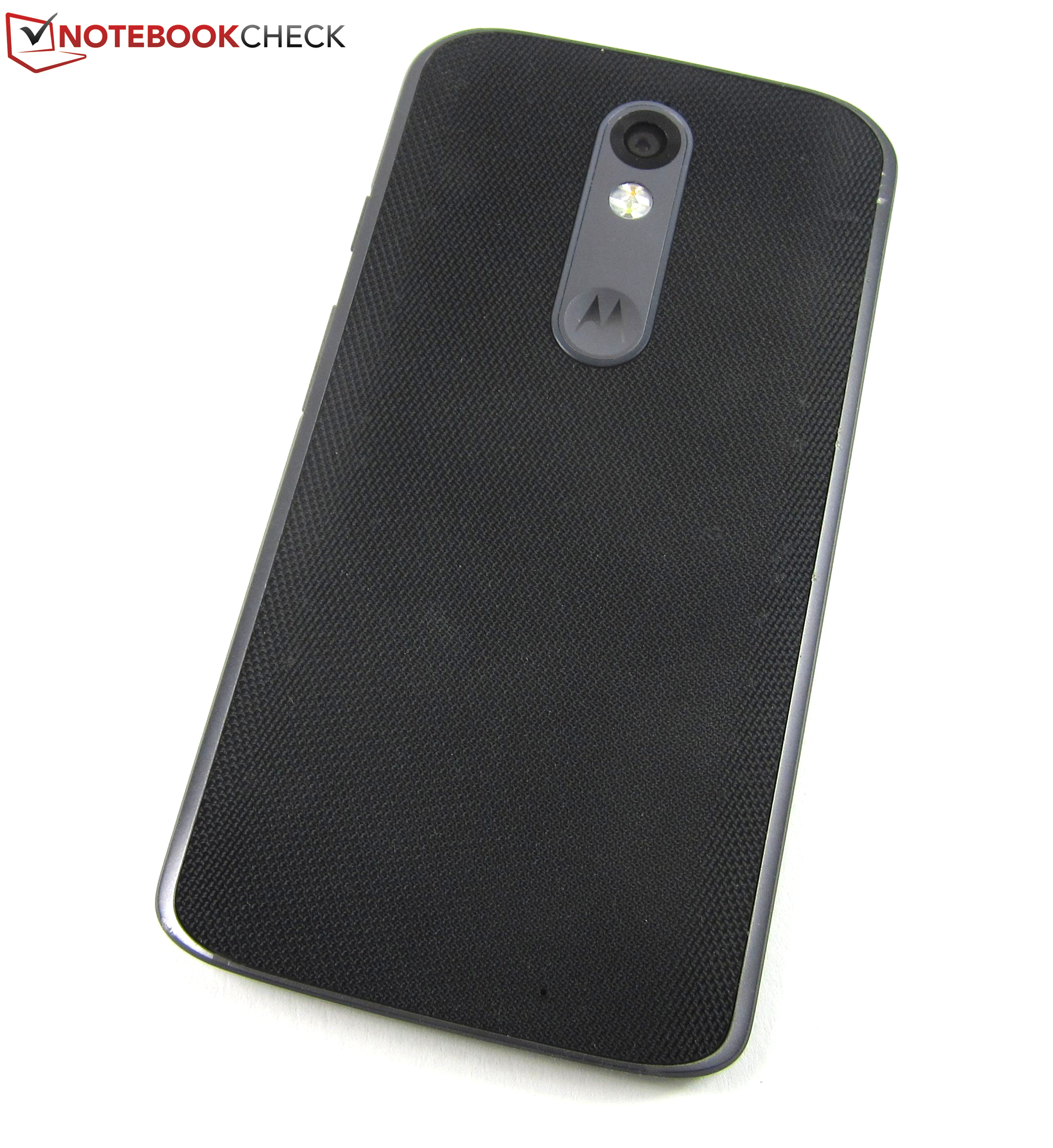

Några andra är den kraftfulla systemkretsen Snapdragon 810 MSM8994, kommunikationsmoduler som inte lämnar något övrigt att önska och två SIM-kortplatser. Moto X Force har dessutom metallchassi, den senaste versionen av Android (6.0), en utmärkt 21-megapixelkamera, lång batteritid och snabbladdningsfunktion.

Men trots ett väl tilltaget pris skickar inte Motorola med något headset. Ljudet kan också varit bättre eftersom det bara sitter en monohögtalare i Moto X Force. Slutligen kan valet av systemkrets kritiseras. Processorn stryps så snart den når en viss temperatur. Trots det är prestandan tillräcklig för alla nuvarande Android-appar och -spel även i strypt tillstånd.

Motorola Moto X Force - 04/21/2016 v5.1(old)
Manuel Masiero

Design
92%
Tangentbord
68 / 75 → 91%
Mus
94%
Anslutningar
47 / 60 → 78%
Vikt
91%
Batteri
91%
Skärm
86%
Spelprestanda
57 / 63 → 90%
Programprestanda
49 / 70 → 71%
Temperatur
88%
Ljudnivå
100%
Audio
64 / 91 → 70%
Camera
83%
Medel
78%
88%
Smartphone - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Motorola Moto X Force smartphone (sammanfattning)
Manuel Masiero, 2016-04-11 (Update: 2016-04-12)
