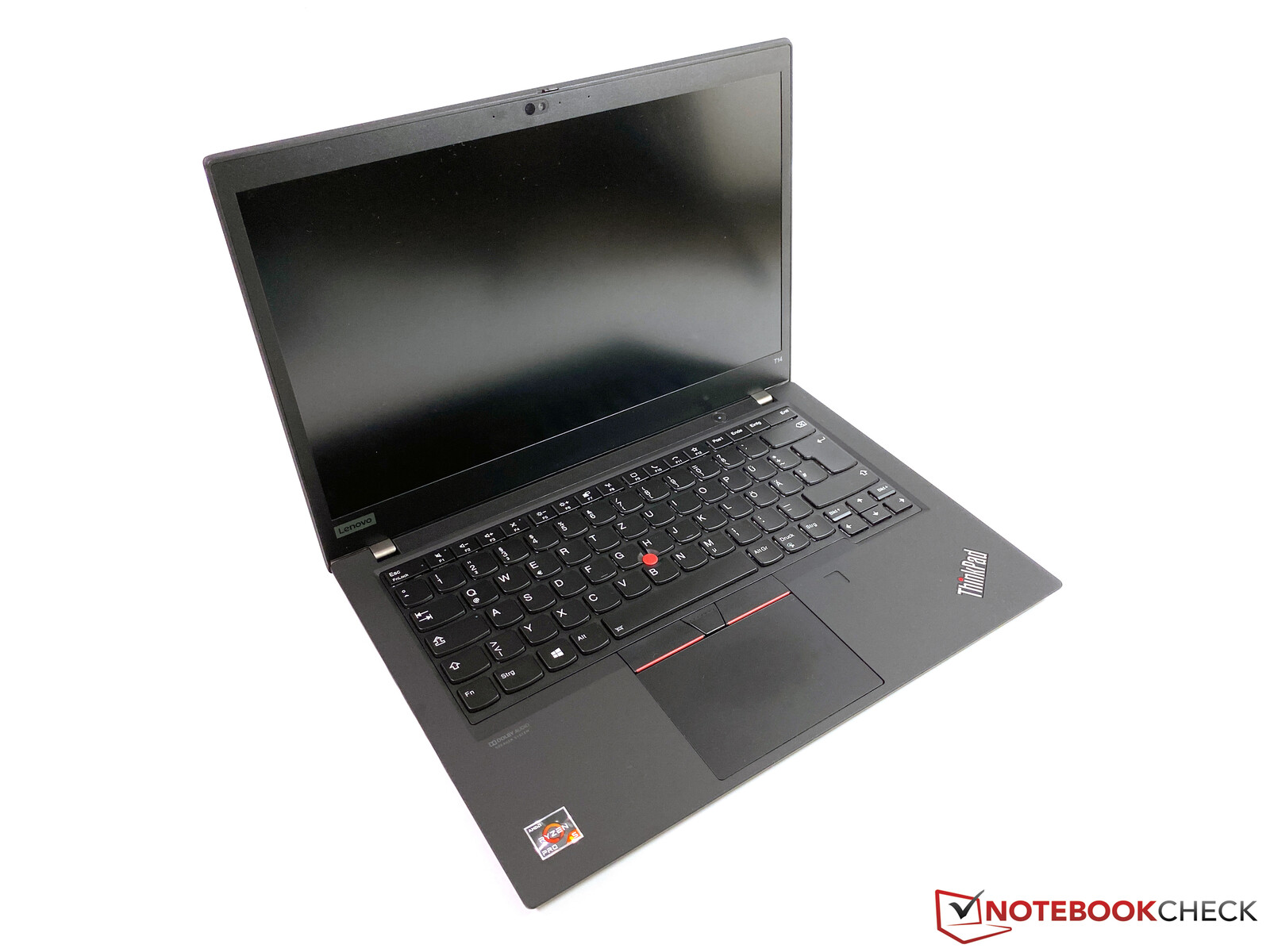

Test: Lenovo ThinkPad T14 AMD - Den bästa bärbara kontorsdatorn du kan köpa? (Sammanfattning)

Kraftfull allt-i-allo för företaget. ThinkPad T14 är instegs-modellen i Lenovos dyrare ThinkPad T-serie och det går att välja mellan varianter med Intel och AMD. Den Ryzen-baserade APU:n har en fördel när det kommer till prestanda, men hur är det med effektivitet och funktionalitet?
Andreas Osthoff, 👁 Andreas Osthoff (översatt av Daniel Eriksson), 🇺🇸 🇩🇪 ...
Lenovo ThinkPad T14-20UES00H00 (ThinkPad T14 Serie)

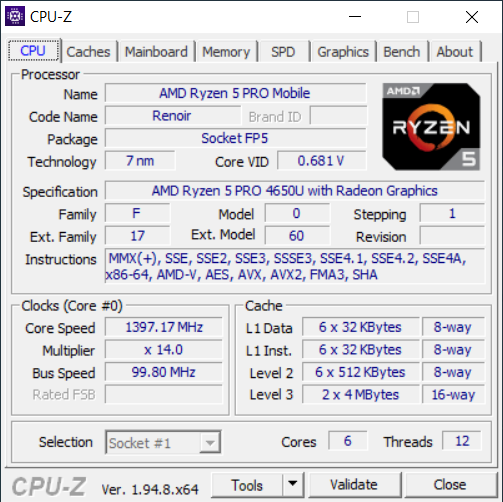

Processor
AMD Ryzen 5 PRO 4650U 6 x 2.1 - 4 GHz, 25 W PL2 / Short Burst, 23 W PL2 / Sustained, Renoir PRO (Zen 2)
Grafikkort
AMD Radeon RX Vega 6 (Ryzen 4000/5000), Kärna: 1500 MHz, Minne: 1333 MHz

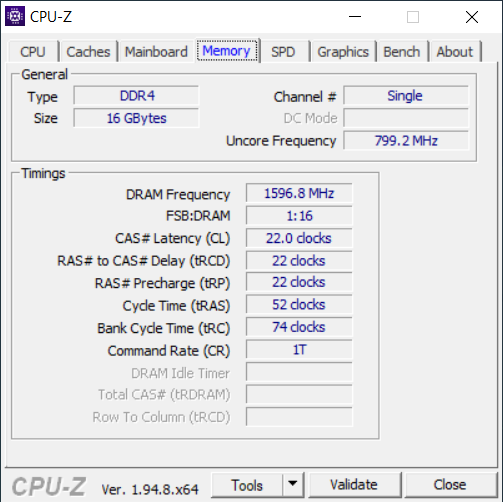

Minne
16384 MB
, Enkel kanal, 1 plats, 1 modul fastlödd, max. 48 GB
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, B140HAN05.7, IPS, glansig: nej, 60 Hz
Moderkort
AMD Promontory/Bixby FCH
Hårddisk
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, 445 GB ledigt
Ljudkort
AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller
Anslutningar
2 USB 3.0, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm stereo, Kortläsare: microSD, 1 SmartCard, 1 Fingeravtrycksläsare
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Storlek
höjd x bredd x djup (i mm) 17.9 x 329 x 227
Batteri
50 Wh Litiumpolymer

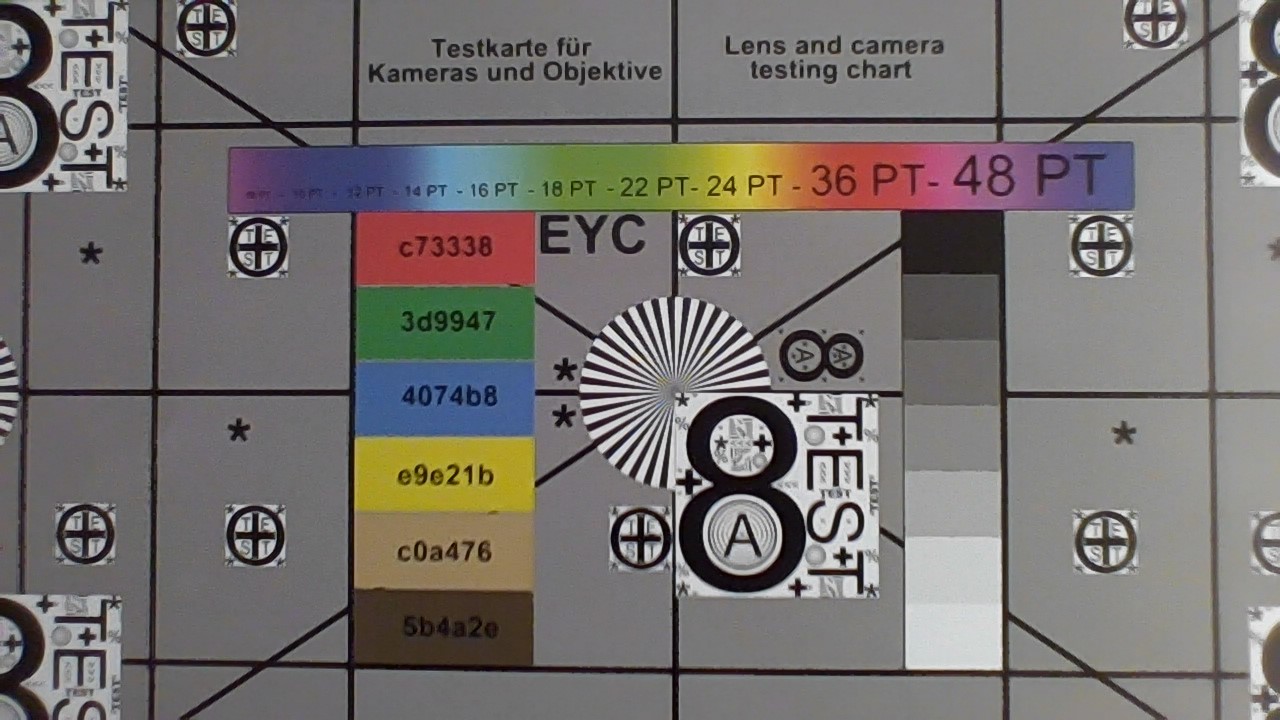

Camera
Webbkamera: 720p
Övrigt
Högtalare: Stereo (2x2W), Tangentbord: Chiclet, Tangentbordsbelysning: ja, 65W PSU, 36 Månader Garanti

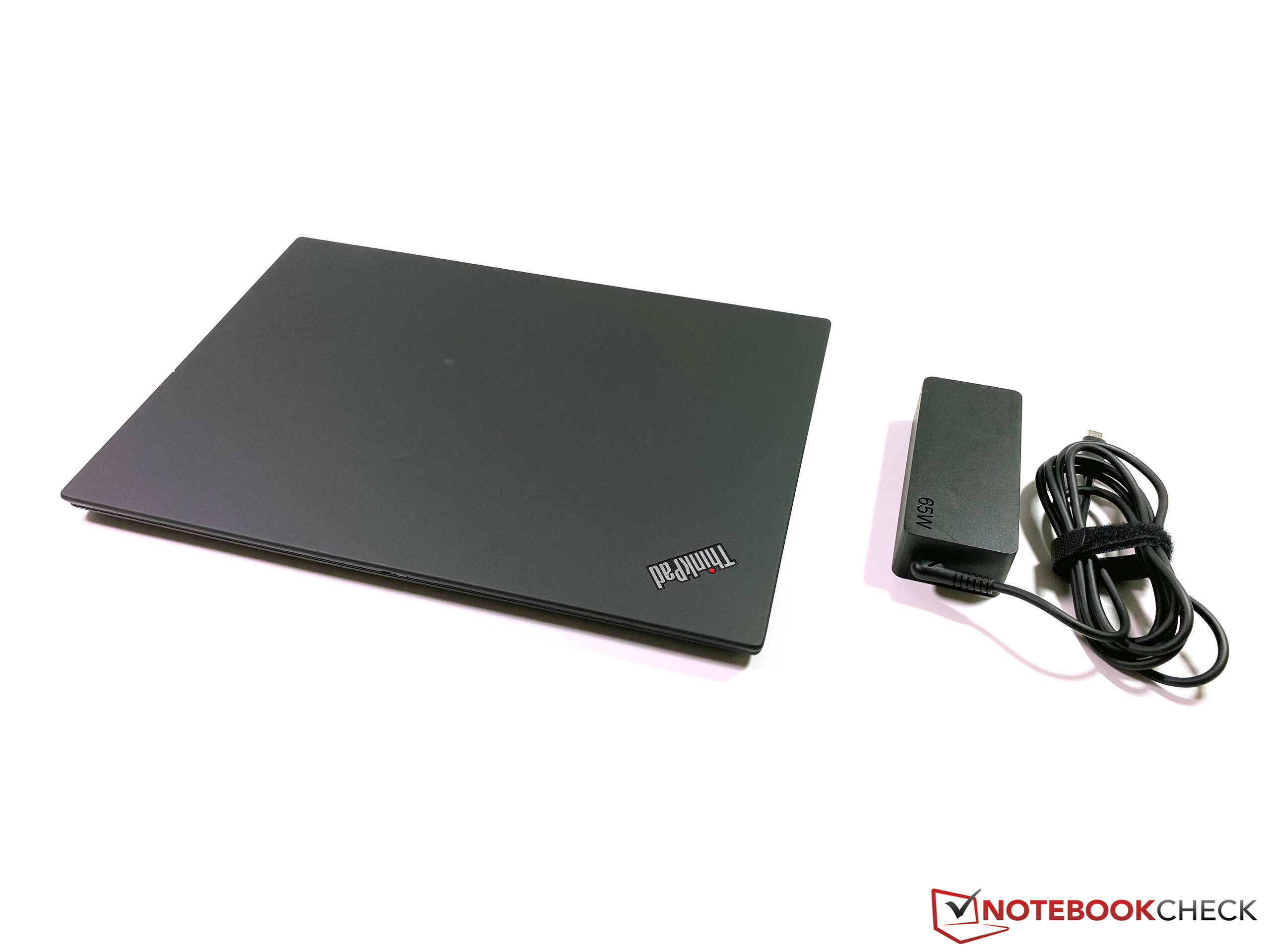

Vikt
1.473 kg, Strömförsörjning: 340 g
Pris
1129 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
89 %
11/2020
Lenovo ThinkPad T14-20UES00H00
R5 PRO 4650U, Vega 6
1.5 kg17.9 mm14.00"1920x1080
88 %
07/2020
Lenovo ThinkPad T14-20S1S06B00
i5-10210U, UHD Graphics 620
1.5 kg17.9 mm14.00"1920x1080
88 %
11/2020
HP EliteBook 845 G7-23Y60EA
R5 PRO 4650U, Vega 6
1.5 kg17.9 mm14.00"1920x1080
85 %
Dell Latitude 14 5410-RJ80D
i5-10310U, UHD Graphics 620
1.6 kg20.7 mm14.00"1920x1080
91 %
08/2020
Lenovo ThinkPad T14s-20UJS00K00
R7 PRO 4750U, Vega 7
1.3 kg16.1 mm14.00"1920x1080
89 %
09/2019
Lenovo ThinkPad T495-20NKS01Y00
R5 PRO 3500U, Vega 8
1.5 kg18.9 mm14.00"1920x1080

Storleksjämförelse

329 mm 227 mm 17.9 mm 1.5 kg329 mm 225.8 mm 16.1 mm 1.3 kg323 mm 216 mm 20.7 mm 1.6 kg324 mm 215 mm 17.9 mm 1.5 kg
Vänster: USB-C (3.1 Gen.2), SideDock CS18 (USB-C (3.1 Gen.2) & Gigabit-Ethernet via adapter), USB-A (3.1 Gen.1), HDMI 2.0, 3.5 mm stereo-anslutning, microSD-kortläsare
Vänster: USB-C (3.1 Gen.2), SideDock CS18 (USB-C (3.1 Gen.2) & Gigabit-Ethernet via adapter), USB-A (3.1 Gen.1), HDMI 2.0, 3.5 mm stereo-anslutning, microSD-kortläsare
Höger: SmartCard-läsare, USB-A (3.1 Gen.1 Always-On), Gigabit-Ethernet, Plats för ett Kensington-lås
Höger: SmartCard-läsare, USB-A (3.1 Gen.1 Always-On), Gigabit-Ethernet, Plats för ett Kensington-lås
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 14 5410-RJ80D
  (Toshiba Exceria Pro M501 microSDXC 64GB)
157 MB/s ∼100% +100%
Lenovo ThinkPad T14-20UES00H00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
78.5 MB/s ∼50%
Lenovo ThinkPad T14s-20UJS00K00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
78.4 MB/s ∼50% 0%
Average of class Office
  (10.2 - 194, n=332)
63.6 MB/s ∼41% -19%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 14 5410-RJ80D
  (Toshiba Exceria Pro M501 microSDXC 64GB)
185 MB/s ∼100% +117%
Lenovo ThinkPad T14s-20UJS00K00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.5 MB/s ∼46% 0%
Lenovo ThinkPad T14-20UES00H00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.2 MB/s ∼46%
Average of class Office
  (9.5 - 255, n=304)
79.1 MB/s ∼43% -7%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T14-20S1S06B00
Intel Wi-Fi 6 AX201
1584 (1490min - 1642max) MBit/s ∼100% +63%
Lenovo ThinkPad T14s-20UJS00K00
Intel Wi-Fi 6 AX200
1370 (1218min - 1490max) MBit/s ∼86% +41%
Dell Latitude 14 5410-RJ80D
Intel Wi-Fi 6 AX201
1369 (790min - 1450max) MBit/s ∼86% +41%
HP EliteBook 845 G7-23Y60EA
Intel Wi-Fi 6 AX200
1242 (862min - 1324max) MBit/s ∼78% +28%
Average Intel Wi-Fi 6 AX200
  (523 - 1640, n=73)
1136 MBit/s ∼72% +17%
Lenovo ThinkPad T14-20UES00H00
Intel Wi-Fi 6 AX200
970 (498min - 1057max) MBit/s ∼61%
Average of class Office
  (5 - 1722, n=293)
594 MBit/s ∼38% -39%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Latitude 14 5410-RJ80D
Intel Wi-Fi 6 AX201
1676 (1432min - 1793max) MBit/s ∼100% +141%
Lenovo ThinkPad T14s-20UJS00K00
Intel Wi-Fi 6 AX200
1270 (656min - 1344max) MBit/s ∼76% +83%
HP EliteBook 845 G7-23Y60EA
Intel Wi-Fi 6 AX200
1221 (700min - 1482max) MBit/s ∼73% +76%
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=72)
1028 MBit/s ∼61% +48%
Lenovo ThinkPad T14-20S1S06B00
Intel Wi-Fi 6 AX201
752 (340min - 868max) MBit/s ∼45% +8%
Lenovo ThinkPad T14-20UES00H00
Intel Wi-Fi 6 AX200
695 (447min - 926max) MBit/s ∼41%
Average of class Office
  (34 - 1775, n=292)
549 MBit/s ∼33% -21%
010020030040050060070080090010001100Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø954 (498-1057)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø680 (447-926)
ColorChecker
7.3 ∆E
10.5 ∆E
9.3 ∆E
3.7 ∆E
7.3 ∆E
6.7 ∆E
8.4 ∆E
10.1 ∆E
8.8 ∆E
2 ∆E
5 ∆E
3.5 ∆E
5.9 ∆E
5.1 ∆E
7.1 ∆E
1.7 ∆E
4.9 ∆E
5.7 ∆E
2.3 ∆E
4.6 ∆E
3.3 ∆E
2.7 ∆E
4.2 ∆E
12.1 ∆E
ColorChecker Lenovo ThinkPad T14-20UES00H00: 5.93 ∆E min: 1.72 - max: 12.13 ∆E
433
cd/m²
428
cd/m²
420
cd/m²
396
cd/m²
406
cd/m²
388
cd/m²
386
cd/m²
388
cd/m²
381
cd/m²
Distribution av ljusstyrkan
B140HAN05.7
X-Rite i1Pro 2
Max: 433 cd/m² Medel: 402.9 cd/m² Minimum: 9.1 cd/m²
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 409 cd/m²
Kontrast: 2030:1 (Svärta: 0.2 cd/m²)
ΔE Color 3.3 | 0.6-29.43 Ø5.7, calibrated: 1.5
ΔE Greyscale 3.6 | 0.64-98 Ø5.9
95.5% sRGB (Argyll 3D) 61.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.43
Lenovo ThinkPad T14-20UES00H00
B140HAN05.7, IPS, 1920x1080, 14.00
HP EliteBook 845 G7-23Y60EA
LG Philips LGD064E, IPS, 1920x1080, 14.00
Dell Latitude 14 5410-RJ80D
BOE NV14N4F, a-Si IPS LED, 1920x1080, 14.00
Lenovo ThinkPad T14s-20UJS00K00
N140HCG-GQ2, IPS , 1920x1080, 14.00
Lenovo ThinkPad T14-20S1S06B00
B140HAN05.7, LTPS IPS LED, 1920x1080, 14.00
Response Times
32%
10%
49%
10%
Response Time Grey 50% / Grey 80% *
64 (30.8, 33.2)
37 (20, 17)
42%
46 (24, 22)
28%
32.4 (16.4, 16)
49%
58.4 (28.4, 30)
9%
Response Time Black / White *
29.6 (13.2, 16.4)
23 (13, 10)
22%
32 (18, 14)
-8%
15.2 (6.8, 8.4)
49%
26.4 (12.4, 14)
11%
PWM Frequency
1000 (90)
26040 (50)
Screen
-37%
-61%
7%
-2%
Brightness middle
406
227
-44%
235
-42%
404
0%
397
-2%
Brightness
403
220
-45%
219
-46%
371
-8%
394
-2%
Brightness Distribution
88
82
-7%
81
-8%
88
0%
90
2%
Black Level *
0.2
0.18
10%
0.21
-5%
0.34
-70%
0.2
-0%
Contrast
2030
1261
-38%
1119
-45%
1188
-41%
1985
-2%
Colorchecker DeltaE2000 *
3.3
4.1
-24%
6.11
-85%
1.4
58%
3.6
-9%
Colorchecker DeltaE2000 max. *
4.8
7.06
-47%
16.6
-246%
3.2
33%
5.9
-23%
Colorchecker DeltaE2000 calibrated *
1.5
4.04
-169%
0.8
47%
1.2
20%
Greyscale DeltaE2000 *
3.6
1.99
45%
5.52
-53%
1.6
56%
3.9
-8%
Gamma
2.43 91%
2.48 89%
2.33 94%
2.13 103%
2.48 89%
CCT
6893 94%
6607 98%
6680 97%
6480 100%
7090 92%
Color Space (Percent of AdobeRGB 1998)
61.5
35
-43%
37
-40%
63
2%
61.4
0%
Color Space (Percent of sRGB)
95.5
55
-42%
58
-39%
97.9
3%
96.6
1%
Total Average (Program / Settings)
-3% / -26%
-26% / -49%
28% / 14%
4% / -0%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

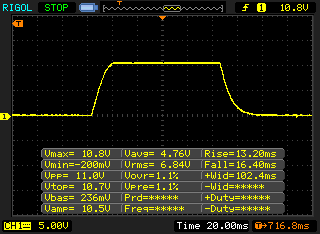

       Response Time Black to White
29.6 ms ... rise ↗ and fall ↘ combined↗ 13.2 ms rise
↘ 16.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 71 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.4 ms).

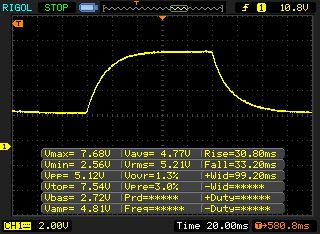

       Response Time 50% Grey to 80% Grey
64 ms ... rise ↗ and fall ↘ combined↗ 30.8 ms rise
↘ 33.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.7 ms).

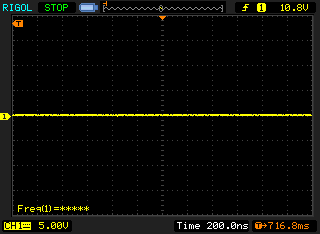

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9725 (minimum: 5 - maximum: 142900) Hz was measured.

050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400Tooltip
Lenovo ThinkPad T14-20UES00H00 AMD Ryzen 5 PRO 4650U, AMD Ryzen 5 PRO 4650U: Ø1089 (1078.34-1123.14)
HP EliteBook 845 G7-23Y60EA AMD Ryzen 5 PRO 4650U, AMD Ryzen 5 PRO 4650U: Ø1126 (1115.32-1161.78)
Dell Latitude 14 5410-RJ80D Intel Core i5-10310U, Intel Core i5-10310U: Ø582 (561.87-767.37)
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U, AMD Ryzen 7 PRO 4750U: Ø1311 (1300.6-1345.67)
Lenovo ThinkPad T14-20S1S06B00 Intel Core i5-10210U, Intel Core i5-10210U: Ø618 (591.33-706.24)
Lenovo ThinkPad T495-20NKS01Y00 AMD Ryzen 5 PRO 3500U, AMD Ryzen 5 PRO 3500U: Ø576 (569.82-610.73)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
468 Points ∼100% +3%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
454 Points ∼97% 0%
Average AMD Ryzen 5 PRO 4650U
  (453 - 454, n=4)
454 Points ∼97% 0%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
453 Points ∼97%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
438 Points ∼94% -3%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
416 Points ∼89% -8%
Average of class Office
  (79 - 588, n=102)
398 Points ∼85% -12%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
369 Points ∼79% -19%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
3050 Points ∼100% +19%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
2633 Points ∼86% +3%
Average AMD Ryzen 5 PRO 4650U
  (2561 - 2692, n=4)
2613 Points ∼86% +2%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
2565 Points ∼84%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
1511 Points ∼50% -41%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
1441 Points ∼47% -44%
Average of class Office
  (143 - 3302, n=103)
1431 Points ∼47% -44%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
1349 Points ∼44% -47%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
181 Points ∼100% +2%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
177 Points ∼98%
Average AMD Ryzen 5 PRO 4650U
  (175 - 177, n=4)
176 Points ∼97% -1%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
175 Points ∼97% -1%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
170.04 Points ∼94% -4%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
166 Points ∼92% -6%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
144 Points ∼80% -19%
Average of class Office
  (20 - 227, n=613)
119 Points ∼66% -33%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1346 (1300.6min - 1345.67max) Points ∼100% +20%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
1162 (1115.32min - 1161.78max) Points ∼86% +3%
Average AMD Ryzen 5 PRO 4650U
  (1123 - 1168, n=4)
1153 Points ∼86% +3%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
1123 (1078.34min - 1123.14max) Points ∼83%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
767.37 (561.87min - 767.37max) Points ∼57% -32%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
706 (591.33min - 706.24max) Points ∼52% -37%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
611 Points ∼45% -46%
Average of class Office
  (36 - 1410, n=621)
386 Points ∼29% -66%
Blender 2.79 / BMW27 CPU
Average of class Office
  (344 - 9415, n=96)
1006 Seconds * ∼100% -125%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
862.9 Seconds * ∼86% -93%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
823 Seconds * ∼82% -84%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
786 Seconds * ∼78% -75%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
448 Seconds * ∼45%
Average AMD Ryzen 5 PRO 4650U
  (415 - 448, n=4)
430 Seconds * ∼43% +4%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
428 Seconds * ∼43% +4%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
367 Seconds * ∼36% +18%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
4467 MIPS ∼100% +2%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
4359 MIPS ∼98%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
4269 MIPS ∼96% -2%
Average AMD Ryzen 5 PRO 4650U
  (4202 - 4359, n=4)
4252 MIPS ∼95% -2%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
4242 MIPS ∼95% -3%
Average of class Office
  (1286 - 5923, n=97)
4115 MIPS ∼92% -6%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
3615 MIPS ∼81% -17%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
3516 MIPS ∼79% -19%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
39649 MIPS ∼100% +28%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
31898 MIPS ∼80% +3%
Average AMD Ryzen 5 PRO 4650U
  (30895 - 32454, n=4)
31827 MIPS ∼80% +3%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
30895 MIPS ∼78%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
18310 MIPS ∼46% -41%
Average of class Office
  (2794 - 39649, n=97)
17826 MIPS ∼45% -42%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
17699 MIPS ∼45% -43%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
16531 MIPS ∼42% -46%
Geekbench 5.3 / 64 Bit Single-Core Score
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
1149 Points ∼100% +4%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
1122 Points ∼98% +2%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
1102 Points ∼96%
Average of class Office
  (431 - 1590, n=65)
1082 Points ∼94% -2%
Average AMD Ryzen 5 PRO 4650U
  (1065 - 1102, n=4)
1077 Points ∼94% -2%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
1068 Points ∼93% -3%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
1017 Points ∼89% -8%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
6444 Points ∼100% +41%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
4681 Points ∼73% +2%
Average AMD Ryzen 5 PRO 4650U
  (4581 - 4705, n=4)
4646 Points ∼72% +1%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
4581 Points ∼71%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
3854 Points ∼60% -16%
Average of class Office
  (873 - 6444, n=65)
3571 Points ∼55% -22%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
3156 Points ∼49% -31%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
9.55 fps ∼100% +22%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
7.94 fps ∼83% +2%
Average AMD Ryzen 5 PRO 4650U
  (7.82 - 8.14, n=4)
7.94 fps ∼83% +2%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
7.82 fps ∼82%
Average of class Office
  (0.4 - 9.55, n=94)
4.62 fps ∼48% -41%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
4.32 fps ∼45% -45%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
3.88 fps ∼41% -50%
Lenovo ThinkPad T495-20NKS01Y00
AMD Ryzen 5 PRO 3500U
3.6 fps ∼38% -54%
LibreOffice / 20 Documents To PDF
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
88.8 s * ∼100% -44%
Average AMD Ryzen 5 PRO 4650U
  (61.5 - 88.8, n=4)
80.9 s * ∼91% -32%
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
69.06 s * ∼78% -12%
Average of class Office
  (28.1 - 244, n=54)
68.1 s * ∼77% -11%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
61.5 s * ∼69%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
60 s * ∼68% +2%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
59.3 s * ∼67% +4%
R Benchmark 2.5 / Overall mean
Dell Latitude 14 5410-RJ80D
Intel Core i5-10310U
0.806 sec * ∼100% -25%
Average of class Office
  (0.555 - 3.11, n=60)
0.76 sec * ∼94% -18%
Lenovo ThinkPad T14-20S1S06B00
Intel Core i5-10210U
0.719 sec * ∼89% -12%
Average AMD Ryzen 5 PRO 4650U
  (0.643 - 0.663, n=4)
0.654 sec * ∼81% -2%
HP EliteBook 845 G7-23Y60EA
AMD Ryzen 5 PRO 4650U
0.652 sec * ∼81% -1%
Lenovo ThinkPad T14-20UES00H00
AMD Ryzen 5 PRO 4650U
0.643 sec * ∼80%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
0.616 sec * ∼76% +4%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1123 Points
Cinebench R15 OpenGL 64Bit
49.8 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
177 Points
Hjälp
PCMark 10
Digital Content Creation
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
5109 Points ∼100% +19%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
4280 Points ∼84%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (4116 - 4280, n=4)
4225 Points ∼83% -1%
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
4116 Points ∼81% -4%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
3392 Points ∼66% -21%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
3225 Points ∼63% -25%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
2998 Points ∼59% -30%
Average of class Office
  (320 - 5547, n=227)
2911 Points ∼57% -32%
Productivity
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
6877 Points ∼100% +7%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (6453 - 6792, n=4)
6624 Points ∼96% +3%
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
6598 Points ∼96% +2%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
6479 Points ∼94% 0%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
6453 Points ∼94%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
6399 Points ∼93% -1%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
5896 Points ∼86% -9%
Average of class Office
  (1266 - 8567, n=227)
5834 Points ∼85% -10%
Essentials
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
9034 Points ∼100% +3%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
8794 Points ∼97%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
8400 Points ∼93% -4%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
8289 Points ∼92% -6%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (8012 - 8794, n=4)
8233 Points ∼91% -6%
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
8059 Points ∼89% -8%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
7556 Points ∼84% -14%
Average of class Office
  (2683 - 10457, n=227)
7448 Points ∼82% -15%
Score
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
4890 Points ∼100% +9%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
4473 Points ∼91%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (4320 - 4473, n=4)
4394 Points ∼90% -2%
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
4320 Points ∼88% -3%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
3980 Points ∼81% -11%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
3932 Points ∼80% -12%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
3818 Points ∼78% -15%
Average of class Office
  (803 - 5409, n=228)
3541 Points ∼72% -21%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
5570 Points ∼100% +3%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
5383 Points ∼97%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (4993 - 5383, n=2)
5188 Points ∼93% -4%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
5098 Points ∼92% -5%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
5042 Points ∼91% -6%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
4880 Points ∼88% -9%
Average of class Office
  (1226 - 5570, n=403)
4125 Points ∼74% -23%
Creative Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
5813 Points ∼100% +11%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
5214 Points ∼90%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)

5214 Points ∼90% 0%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
4947 Points ∼85% -5%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
3643 Points ∼63% -30%
Average of class Office
  (869 - 5918, n=274)
3448 Points ∼59% -34%
Home Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
4640 Points ∼100% +13%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
4111 Points ∼89%
Lenovo ThinkPad T495-20NKS01Y00
Vega 8, R5 PRO 3500U, Samsung SSD PM981 MZVLB512HAJQ
4072 Points ∼88% -1%
Average AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (3802 - 4111, n=2)
3957 Points ∼85% -4%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
3544 Points ∼76% -14%
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
3499 Points ∼75% -15%
Average of class Office
  (1169 - 4770, n=465)
3129 Points ∼67% -24%
PCMark 8 Home Score Accelerated v2
4111 poäng
PCMark 8 Creative Score Accelerated v2
5214 poäng
PCMark 8 Work Score Accelerated v2
5383 poäng
PCMark 10 Score
4473 poäng
Hjälp
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
2050.4 μs * ∼100% -64%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
1367.5 μs * ∼67% -10%
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
1248 μs * ∼61%
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
1080.1 μs * ∼53% +13%
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
797 μs * ∼39% +36%

* ... smaller is better

Lenovo ThinkPad T14-20UES00H00
Samsung SSD PM981a MZVLB512HBJQ
HP EliteBook 845 G7-23Y60EA
Samsung PM991 MZVLQ256HAJD
Dell Latitude 14 5410-RJ80D
Toshiba KBG40ZNS256G NVMe
Lenovo ThinkPad T14s-20UJS00K00
WDC PC SN730 SDBPNTY-1T00
Lenovo ThinkPad T14-20S1S06B00
Lite-On CA5-8D512
Lenovo ThinkPad T495-20NKS01Y00
Samsung SSD PM981 MZVLB512HAJQ
Average Samsung SSD PM981a MZVLB512HBJQ

CrystalDiskMark 5.2 / 6
-34%
-20%
5%
1%
10%
12%
Write 4K
88.11
80.6
-9%
95.52
8%
108.01
23%
114.1
29%
137.73
56%
138 (82.2 - 185, n=24)
57%
Read 4K
38.28
31.2
-18%
47.14
23%
39.82
4%
53.56
40%
44.11
15%
47.9 (35.8 - 65.2, n=24)
25%
Write Seq
2001.75
883
-56%
1251
-38%
2028.3
1%
1743
-13%
2713.99
36%
2024 (931 - 2896, n=23)
1%
Read Seq
2152.94
1352
-37%
1624
-25%
1825.54
-15%
2092
-3%
2664.91
24%
2040 (1136 - 2754, n=23)
-5%
Write 4K Q32T1
423.73
361
-15%
333.5
-21%
570.14
35%
394.8
-7%
251.24
-41%
447 (326 - 556, n=24)
5%
Read 4K Q32T1
393.24
272
-31%
335.2
-15%
401.52
2%
372.6
-5%
336.57
-14%
464 (332 - 585, n=24)
18%
Write Seq Q32T1
2889.1
979
-66%
1234
-57%
3091.3
7%
2176
-25%
2993.9
4%
2880 (934 - 2994, n=24)
0%
Read Seq Q32T1
3566.1
2286
-36%
2247
-37%
2872.4
-19%
3204
-10%
3546.9
-1%
3503 (3269 - 3568, n=24)
-2%
AS SSD
-65%
-99%
9%
19%
13%
7%
Copy Game MB/s
915.51
126.6
-86%
942.97
3%
3007
228%
1154 (388 - 1725, n=16)
26%
Copy Program MB/s
417.72
60.6
-85%
428.6
3%
1353
224%
510 (72.2 - 920, n=16)
22%
Copy ISO MB/s
1385.88
236
-83%
2546.05
84%
1265
-9%
1928 (1386 - 2452, n=16)
39%
Score Total
3758
1910
-49%
2273
-40%
4185
11%
3007
-20%
4514
20%
4196 (2927 - 5133, n=24)
12%
Score Write
2098
953
-55%
608
-71%
2529
21%
1353
-36%
1822
-13%
2028 (1598 - 2367, n=24)
-3%
Score Read
1119
658
-41%
1133
1%
1121
0%
1121
0%
1790
60%
1438 (843 - 1864, n=24)
29%
Access Time Write *
0.029
0.035
-21%
0.175
-503%
0.028
3%
0.032
-10%
0.041
-41%
0.0537 (0.02 - 0.112, n=24)
-85%
Access Time Read *
0.04
0.154
-285%
0.16
-300%
0.05
-25%
0.058
-45%
0.046
-15%
0.0528 (0.035 - 0.076, n=24)
-32%
4K-64 Write
1851.92
780
-58%
447.78
-76%
2262.38
22%
1125.32
-39%
1494.12
-19%
1703 (1311 - 2007, n=24)
-8%
4K-64 Read
850.09
450
-47%
904.9
6%
849.59
0%
858.92
1%
1475.37
74%
1160 (585 - 1601, n=24)
36%
4K Write
123.47
110.5
-11%
90.12
-27%
132.19
7%
119.03
-4%
94.71
-23%
131 (96.5 - 189, n=24)
6%
4K Read
54.98
42.8
-22%
44.5
-19%
42.56
-23%
49.34
-10%
48.28
-12%
53.6 (47.6 - 60.3, n=24)
-3%
Seq Write
1226
615
-50%
700.43
-43%
1343
10%
1086.6
-11%
2330
90%
1932 (1200 - 2724, n=24)
58%
Seq Read
2138
1649
-23%
1836.8
-14%
2291
7%
2124.92
-1%
2661
24%
2245 (1658 - 2844, n=24)
5%
Total Average (Program / Settings)
-50% / -54%
-60% / -66%
7% / 7%
10% / 12%
12% / 12%
10% / 9%

* ... smaller is better

Samsung SSD PM981a MZVLB512HBJQ
CDM 5/6 Read Seq Q32T1: 3566.1 MB/s
CDM 5/6 Write Seq Q32T1: 2889.1 MB/s
CDM 5/6 Read 4K Q32T1: 393.24 MB/s
CDM 5/6 Write 4K Q32T1: 423.73 MB/s
CDM 5 Read Seq: 2152.94 MB/s
CDM 5 Write Seq: 2001.75 MB/s
CDM 5/6 Read 4K: 38.28 MB/s
CDM 5/6 Write 4K: 88.11 MB/s

DiskSpd Read Loop, Queue Depth 8

020040060080010001200140016001800200022002400260028003000320034003600Tooltip
: Ø3455 (2611.56-3504.64)
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T14s-20UJS00K00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
5399 Points ∼100% +50%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (3401 - 4713, n=17)
4107 Points ∼76% +14%
Lenovo ThinkPad T14-20UES00H00
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
3608 Points ∼67%
Lenovo ThinkPad T495-20NKS01Y00
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 PRO 3500U
3535 Points ∼65% -2%
HP EliteBook 845 G7-23Y60EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
3517 Points ∼65% -3%
Dell Latitude 14 5410-RJ80D
Intel UHD Graphics 620, Intel Core i5-10310U
1878 Points ∼35% -48%
Lenovo ThinkPad T14-20S1S06B00
Intel UHD Graphics 620, Intel Core i5-10210U
1757 Points ∼33% -51%
Average of class Office
  (185 - 7090, n=733)
1476 Points ∼27% -59%
3DMark
2560x1440 Time Spy Graphics
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (650 - 932, n=16)
790 Points ∼100% +20%
Lenovo ThinkPad T495-20NKS01Y00
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 PRO 3500U
693 Points ∼88% +5%
Lenovo ThinkPad T14-20UES00H00
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
661 Points ∼84%
HP EliteBook 845 G7-23Y60EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
650 Points ∼82% -2%
Average of class Office
  (76 - 1670, n=107)
564 Points ∼71% -15%
Dell Latitude 14 5410-RJ80D
Intel UHD Graphics 620, Intel Core i5-10310U
374 Points ∼47% -43%
Lenovo ThinkPad T14-20S1S06B00
Intel UHD Graphics 620, Intel Core i5-10210U
358 Points ∼45% -46%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T14s-20UJS00K00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3593 Points ∼100% +61%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)
  (2122 - 3239, n=17)
2617 Points ∼73% +17%
Lenovo ThinkPad T495-20NKS01Y00
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 PRO 3500U
2344 Points ∼65% +5%
Lenovo ThinkPad T14-20UES00H00
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
2228 Points ∼62%
HP EliteBook 845 G7-23Y60EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
2131 Points ∼59% -4%
Dell Latitude 14 5410-RJ80D
Intel UHD Graphics 620, Intel Core i5-10310U
1148 Points ∼32% -48%
Average of class Office
  (138 - 5848, n=548)
1137 Points ∼32% -49%
Lenovo ThinkPad T14-20S1S06B00
Intel UHD Graphics 620, Intel Core i5-10210U
1033 Points ∼29% -54%
3DMark 11 Performance
3754 poäng
3DMark Fire Strike Score
2018 poäng
3DMark Time Spy Score
758 poäng
Hjälp
låg med. hög ultra
The Witcher 3 (2015) 39 12.5 fps
Dota 2 Reborn (2015) 88.5 67.1 33.7 31.3 fps
X-Plane 11.11 (2018) 36.1 26.8 24.5 fps
Far Cry 5 (2018) 27 13 12 fps
F1 2020 (2020) 50 25 fps

Ljudnivå

Låg belastning
29.3 / 29.3 / 30.3 dB(A)
Hög belastning
31.3 / 33 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM-1, Arta (15 cm avstånd)   environment noise: 29.3 dB(A)
Lenovo ThinkPad T14-20UES00H00
Vega 6, R5 PRO 4650U, Samsung SSD PM981a MZVLB512HBJQ
HP EliteBook 845 G7-23Y60EA
Vega 6, R5 PRO 4650U, Samsung PM991 MZVLQ256HAJD
Dell Latitude 14 5410-RJ80D
UHD Graphics 620, i5-10310U, Toshiba KBG40ZNS256G NVMe
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
Lenovo ThinkPad T14-20S1S06B00
UHD Graphics 620, i5-10210U, Lite-On CA5-8D512
Noise
12%
3%
1%
-2%
off / environment *
29.3
25.4
13%
24.9
15%
29.2
-0%
29.6
-1%
Idle Minimum *
29.3
25.4
13%
24.9
15%
29.2
-0%
29.6
-1%
Idle Average *
29.3
25.4
13%
24.9
15%
29.2
-0%
29.6
-1%
Idle Maximum *
30.3
25.4
16%
24.9
18%
29.6
2%
29.6
2%
Load Average *
31.3
29.6
5%
38.7
-24%
30.2
4%
33.5
-7%
Witcher 3 ultra *
33
32.3
2%
Load Maximum *
33
29.5
11%
39.2
-19%
32.3
2%
33.5
-2%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.728.531.630.931.62529.328.62526.728.13133.728.528.326.327.24030.828.226.726.727.65027.125.925.827.8296327.223.424.324.1268025.223.323.723.724.510023.823.824.223.423.612523.123.223.522.722.816022.822.423.423.323.120022.121.921.621.922.325022.922.822.222.322.531521.621.82121.220.840021.120.820.520.520.850021.220.62019.619.863021.420.319.91919.580021.620.519.818.418.6100022.62119.41818125022.820.419.317.517.5160022.920.618.916.716.7200021.419.21816.716.4250022.219.618.11616.4315021.418.917.215.915.8400020.217.616.515.815.7500017.816.316.115.615.9630016.315.915.715.815.9800015.915.915.715.615.71000015.715.615.715.615.71250015.415.415.515.415.41600015.215.215.315.215.2SPL3331.330.329.329.3N1.81.51.41.21.3median 21.4median 20.4median 19.3median 17.5median 17.5Delta2.61.92.52.42.3hearing rangehide median Fan NoiseLenovo ThinkPad T14-20UES00H00
Hög belastning
 37.5 °C40.9 °C47.9 °C
 36.1 °C40.7 °C49.2 °C
 29.8 °C32.4 °C33.5 °C
Max: 49.2 °C
Medel: 38.7 °C
55.3 °C59.2 °C41.7 °C
48.1 °C47.8 °C38.8 °C
28.1 °C28.7 °C26.5 °C
Max: 59.2 °C
Medel: 41.6 °C
Strömförsörjning (max.)  33.5 °C | Rumstemperatur 20.4 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 38.7 °C / 102 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 49.2 °C / 121 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 59.2 °C / 139 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.5 °C / 92.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-5.5 °C / -9.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.933.82526.727.13126.326.74026.725.75027.826.16324.123.28023.723.910023.426.812522.728.516023.338.220021.944.725022.349.531521.249.640020.556.150019.661.5630196380018.462.310001859.2125017.558.4160016.759.7200016.758.925001659.9315015.958.3400015.853.6500015.652.7630015.853.4800015.648.11000015.6491250015.450.11600015.236.8SPL29.370.2N1.226.3median 17.5median 53.4Delta2.47.429.233.529.233403331.436.131.427.730.627.728.328.528.322.925.922.923.324.223.327.720.627.737.518.937.540.516.140.54016.64045.313.645.355.413.155.460.812.160.859.511.459.560.811.660.859.611.759.661.111.461.159.41259.463.31263.364.812.664.866.213.166.267.813.267.863.81463.862.914.162.961.114.161.163.21563.260.315.260.361.71561.759.715.459.775.625.475.635.80.735.8median 60.8median 13.6median 60.85.91.45.923.124.223.129.831.429.831.232.631.229.426.229.424.329.224.324.724.524.735.119.235.146.915.246.95114.55145.613.645.646.913.546.950.211.150.253.510.853.558.610.858.662.910.462.966.210.966.273.610.473.673.21173.267.611.467.670.611.570.674.311.874.374.712.474.771.813.171.873.513.573.568.713.868.774.414.174.477.514.477.576.21576.274.615.774.665.214.865.285.124.985.162.60.662.6median 68.7median 13.1median 68.79.31.69.3hearing rangehide median Pink NoiseLenovo ThinkPad T14-20UES00H00HP EliteBook 845 G7-23Y60EADell Latitude 14 5410-RJ80D
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad T14-20UES00H00 audio analysis

(-) | not very loud speakers (70.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.5% higher than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.5% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 12% similar, 34% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 54% of all tested devices were better, 8% similar, 38% worse
» The best had a delta of 3%, average was 21%, worst was 65%

HP EliteBook 845 G7-23Y60EA audio analysis

(-) | not very loud speakers (67.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.8% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 6% similar, 75% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Dell Latitude 14 5410-RJ80D audio analysis

(±) | speaker loudness is average but good (77.46 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.7% lower than median
(±) | linearity of bass is average (8.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.7% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 4% similar, 80% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Strömförbrukning
Av/Standbydarklight 0.4 / 0.95 Watt
Låg belastningdarkmidlight 5.8 / 8.3 / 11 Watt
Hög belastning midlight 39.5 / 40.8 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad T14-20UES00H00
R5 PRO 4650U, Vega 6, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 14.00
HP EliteBook 845 G7-23Y60EA
R5 PRO 4650U, Vega 6, Samsung PM991 MZVLQ256HAJD, IPS, 1920x1080, 14.00
Dell Latitude 14 5410-RJ80D
i5-10310U, UHD Graphics 620, Toshiba KBG40ZNS256G NVMe, a-Si IPS LED, 1920x1080, 14.00
Lenovo ThinkPad T14s-20UJS00K00
R7 PRO 4750U, Vega 7, WDC PC SN730 SDBPNTY-1T00, IPS , 1920x1080, 14.00
Lenovo ThinkPad T14-20S1S06B00
i5-10210U, UHD Graphics 620, Lite-On CA5-8D512, LTPS IPS LED, 1920x1080, 14.00
Lenovo ThinkPad T495-20NKS01Y00
R5 PRO 3500U, Vega 8, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14.00
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)

Average of class Office

Power Consumption
29%
19%
-0%
-1%
5%
14%
-18%
Idle Minimum *
5.8
3.1
47%
2.9
50%
5.7
2%
3.2
45%
5.1
12%
3.74 (3.9 - 5.8, n=17)
36%
7.3 (1.3 - 32, n=1045)
-26%
Idle Average *
8.3
5.6
33%
4.5
46%
8.9
-7%
6.1
27%
7.7
7%
6.46 (7.4 - 8.4, n=17)
22%
11.1 (3.7 - 42, n=1045)
-34%
Idle Maximum *
11
8.6
22%
7.4
33%
11
-0%
10.4
5%
10.7
3%
8.92 (6 - 11, n=17)
19%
13.4 (4.8 - 67, n=1045)
-22%
Load Average *
39.5
28.4
28%
34.6
12%
38.2
3%
45.6
-15%
35.8
9%
35.2 (27.6 - 48, n=17)
11%
37.2 (7.43 - 99.3, n=1030)
6%
Load Maximum *
40.8
35.4
13%
60
-47%
40.2
1%
68.6
-68%
43.2
-6%
49.1 (35.4 - 67.1, n=17)
-20%
46.4 (12.2 - 129, n=1032)
-14%

* ... smaller is better

Batteritid
NBC WiFi Websurfing Battery Test 1.3 (Edge 86.0.622.63)
8tim 22min
NBC WiFi Websurfing Battery Test 1.3 max Brightness (Edge 86.0.622.63)
7tim 22min
Big Buck Bunny H.264 1080p
11tim 37min
Hög belastning (maximal ljusstyrka)
1tim 11min
Lenovo ThinkPad T14-20UES00H00
R5 PRO 4650U, Vega 6, 50 Wh
HP EliteBook 845 G7-23Y60EA
R5 PRO 4650U, Vega 6, 56 Wh
Dell Latitude 14 5410-RJ80D
i5-10310U, UHD Graphics 620, 68 Wh
Lenovo ThinkPad T14s-20UJS00K00
R7 PRO 4750U, Vega 7, 57 Wh
Lenovo ThinkPad T14-20S1S06B00
i5-10210U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad T495-20NKS01Y00
R5 PRO 3500U, Vega 8, 50 Wh
Average of class Office

Battery Runtime
40%
57%
38%
10%
17%
-1%
Reader / Idle
972
595 (101 - 3537, n=825)
H.264
697
571
-18%
910
31%
792
14%
624
-10%
708
2%
458 (139 - 910, n=215)
-34%
WiFi v1.3
502
734
46%
823
64%
612
22%
661
32%
544
8%
435 (105 - 1124, n=429)
-13%
Load
71
137
93%
125
76%
127
79%
76
7%
100
41%
102 (37 - 259, n=802)
44%

För

+ Robust chassi
+ Bra anslutbarhet med HDMI 2.0
+ AMD T14 är mer kraftfull (CPU & iGPU)
+ Väldigt bekväma inmatningsenheter
+ Ljusstark och kontrastrik LowPower-skärm med 1080p-upplösning
+ Håller sig tyst
+ WiFi 6
+ Tre års garanti

Emot

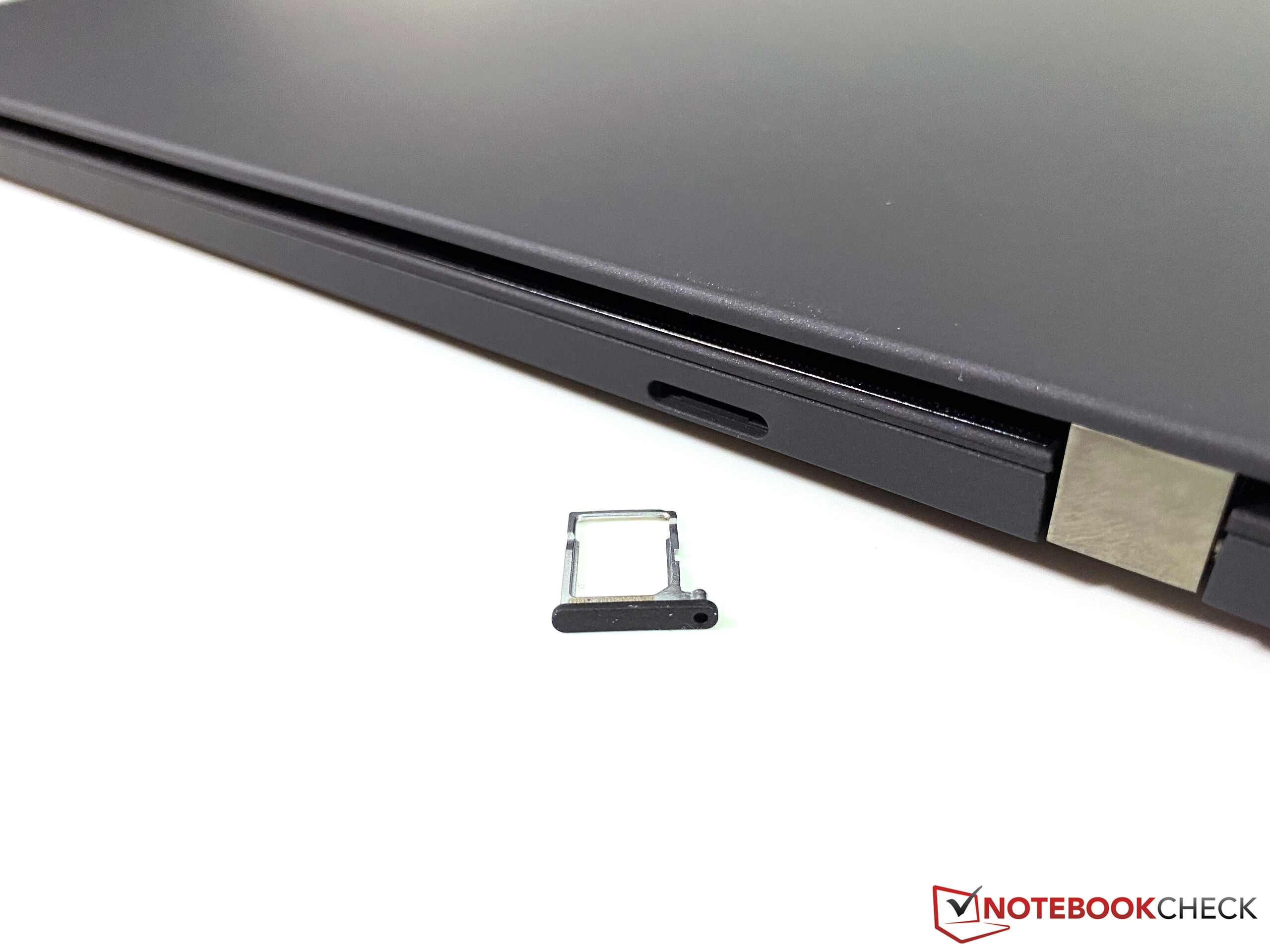

- Har inte längre någon SD-kortläsare i full storlek
- Enheten vi recenserade hade bara enkelkanals-RAM
- Saknar Thunderbolt 3

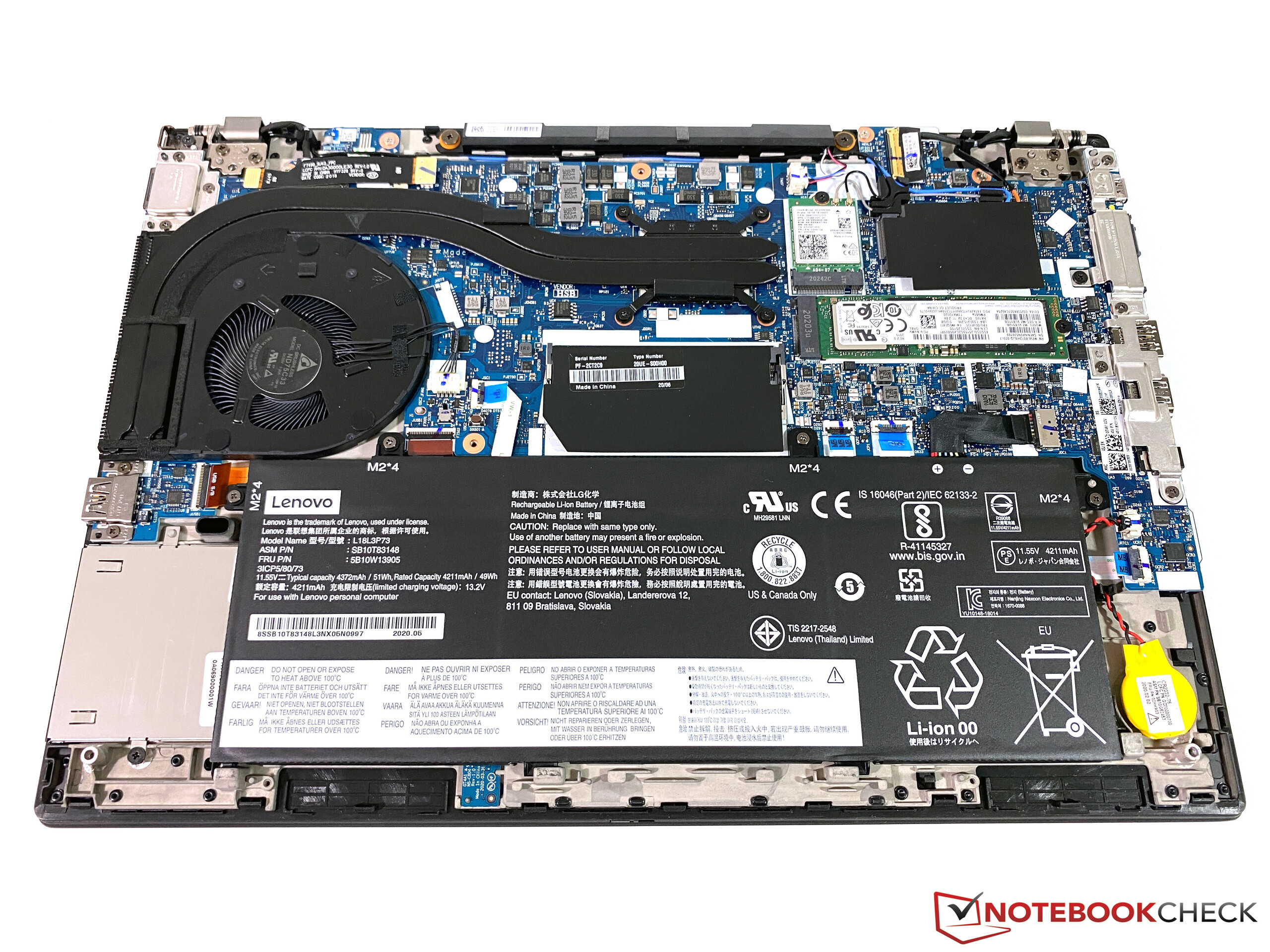

- Höljet är svårt att öppna
- Höga yttemperaturer vid belastning
- 4K-skärmen finns inte till AMD-varianten av T14

Omdöme - T14 är också bättre med en AMD APU

Recension av Lenovo ThinkPad T14 AMD. Recensionsex från Campuspoint.
Recension av Lenovo ThinkPad T14 AMD. Recensionsex från Campuspoint.

Läs den fullständiga versionen av den här recensionen på engelska här.

I likhet med många andra ThinkPad-modeller lämnade T14 ett bättre intryck i vår recension när den var utrustad med en AMD-processor istället för Intels motsvarighet. Batteritiden var en aning sämre och Thunderbolt 3 saknas också, men du får däremot HDMI 2.0 och AMD:s APU är helt enkelt mycket mer kraftfull. Prestandaskillnaden hade varit ännu större om vår enhet hade kommit med minne med dubbla kanaler eller en snabbare Ryzen 7 Pro-processor. I vårt tycke gör det däremot inte särskilt mycket att AMD-varianten av ThinkPad T14 saknar den blanka 4K-skärmen.

ThinkPad T14 med en AMD-processor lämnade ett gott intryck i vår recension och hade mycket högre CPU- och GPU-prestanda trots ett lägre pris. Totalt sett är det en bättre allt-i-allo för kontoret.

AMD-modellen har två fördelar. Lenovo använder Pro-versionerna av AMD:s processorer, så du får utökade säkerhetsfunktioner. Dessa finns också på Intels chips men då får du betala extra för processorer med vPro-stöd. Sen har vi priset, för en jämförbar Intel-version av T14 kostar runt 3.000 kronor mer.

T14 med AMD får definitivt vår rekommendation, även om T14s med AMD är ett ännu bättre paket och förblir den bästa kontorsdatorn du kan köpa från Lenovo just nu.

Download your licensed rating image as SVG / PNG

Lenovo ThinkPad T14-20UES00H00 - 11/16/2020 v7
Andreas Osthoff

Design
85 / 98 → 86%
Tangentbord
93%
Mus
91%
Anslutningar
73 / 80 → 92%
Vikt
69 / 20-75 → 90%
Batteri
85%
Skärm
90%
Spelprestanda
56 / 78 → 71%
Programprestanda
90 / 95 → 95%
Temperatur
85%
Ljudnivå
97%
Audio
61%
Camera
32 / 85 → 38%
Medel
77%
89%
Office - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad T14 AMD - Den bästa bärbara kontorsdatorn du kan köpa? (Sammanfattning)
Andreas Osthoff, 2020-11-23 (Update: 2020-11-30)
Andreas Osthoff
Editor of the original article: Andreas Osthoff - Managing Editor Business Notebooks
