Förhandsvisning: Acer Swift 5 - Tiger Lake iGPU anfaller instegs-GeForce (Sammanfattning)

Sopar Iris Graphics Xe mattan med MX350 och Vega 7? Trots begränsad kylförmåga och ett hölje som bara är 15 mm tunt känns Acers Swift 5, som kommer med Intels senaste Tiger Lake CPU, som ett stort steg framåt jämfört med Intels 10:e generations processorer. Framför allt är GPU-prestandan på en helt annan nivå. Bärbara datorer med dedikerade instegs-grafikkort bör ta notis om detta.
Sebastian Jentsch, 👁 Sebastian Jentsch (översatt av Daniel Eriksson),
Acer SF514-55T (Swift 5 Serie)
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, Tiger Lake UP3
Grafikkort
Intel Iris Xe Graphics G7 96EUs, Kärna: 400 MHz, Minne: 1600 MHz, DDR4, 27.20.100.8439
Minne
16384 MB
, Dubbla kanaler
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, AUO B140HAN06.D, IPS, glansig: ja, 60 Hz
Moderkort
Intel Tiger Lake-UP3 PCH-LP
Hårddisk
SK Hynix BC511 HFM512GDJTNI, 512 GB
, 385 GB ledigt
Ljudkort
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Anslutningar
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 Kensingtonlås, Ljudanslutningar: Kombinerad ljudanslutning, 1 Fingeravtrycksläsare
Nätverk
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Storlek
höjd x bredd x djup (i mm) 14.95 x 319 x 208
Batteri
56 Wh Litiumjon
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 720p
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 24 Månader Garanti
Vikt
1.029 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

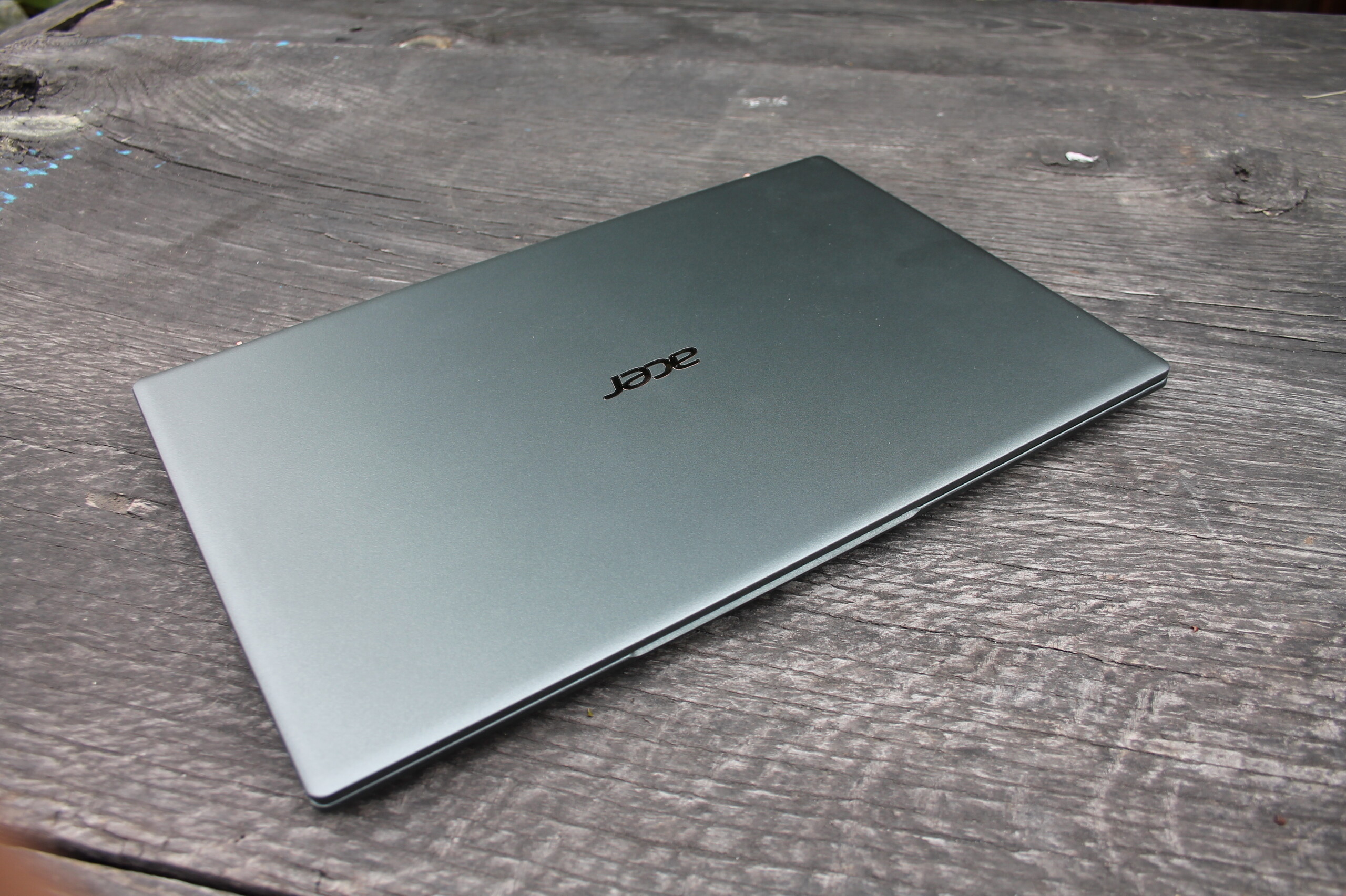

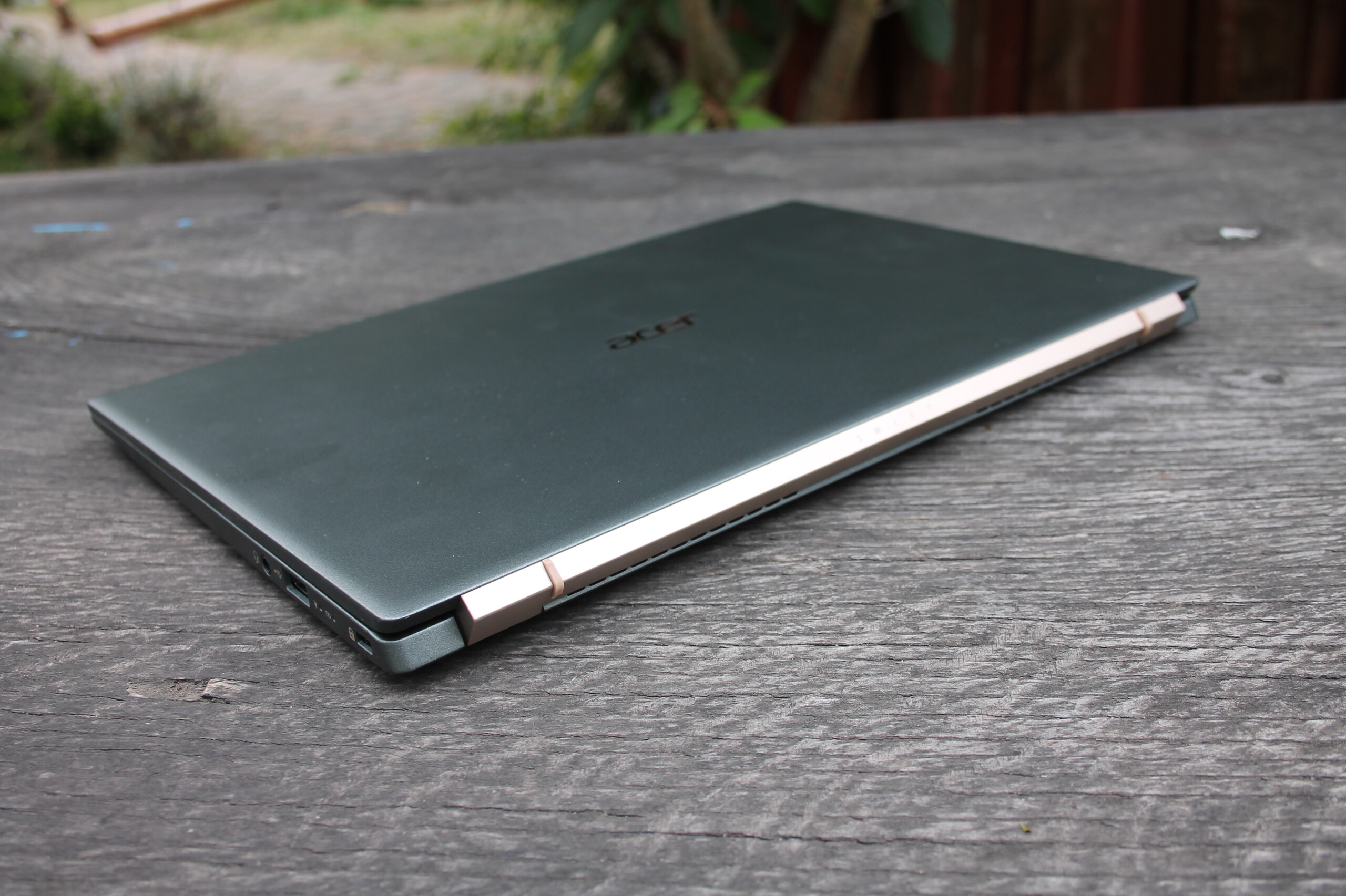

Acer Swift 5
Acer Swift 5
Acer Swift 5
Acer Swift 5
Acer Swift 5

Storleksjämförelse

323 mm 211 mm 18 mm 994 g323.4 mm 218.9 mm 16.55 mm 1.2 kg323.5 mm 217.1 mm 14.9 mm 1.1 kg320 mm 203 mm 14.9 mm 995 g319 mm 199 mm 15.9 mm 1.2 kg319 mm 208 mm 14.95 mm 1 kg318.7 mm 210.5 mm 14.95 mm 943 g

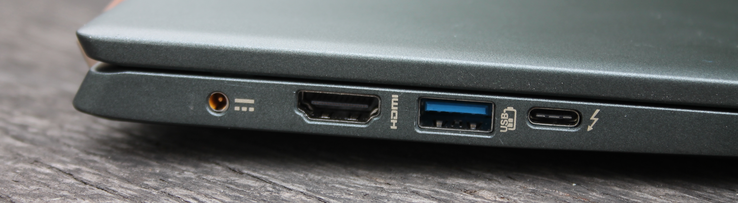

Vänster: Ström, HDMI, USB-A 3.1, USB-C (Thunderbolt)
Vänster: Ström, HDMI, USB-A 3.1, USB-C (Thunderbolt)

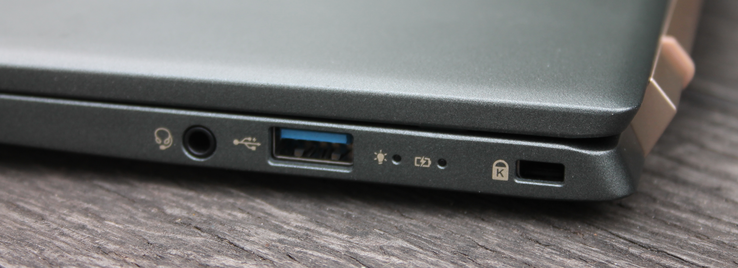

Höger: 3.5 mm ljud, USB-A 2.0, Kensington-lås
Höger: 3.5 mm ljud, USB-A 2.0, Kensington-lås

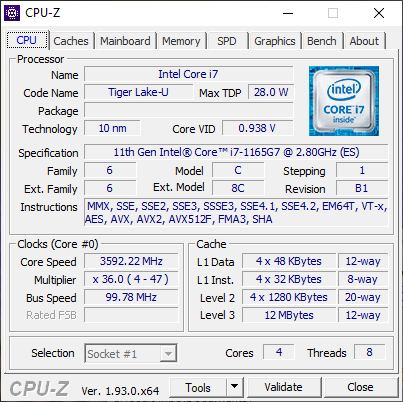

cpu-z: cpu

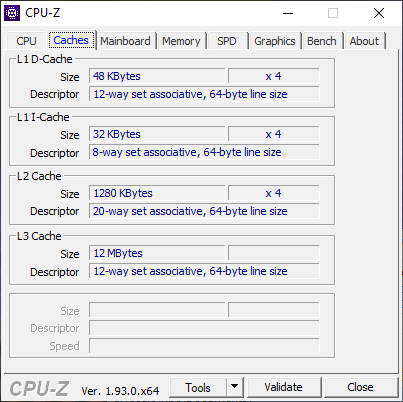

cpu-z: Cache

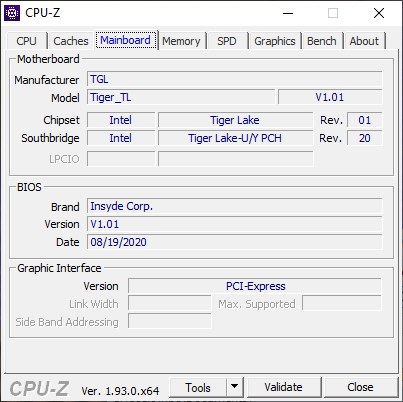

cpu-z: Moderkort

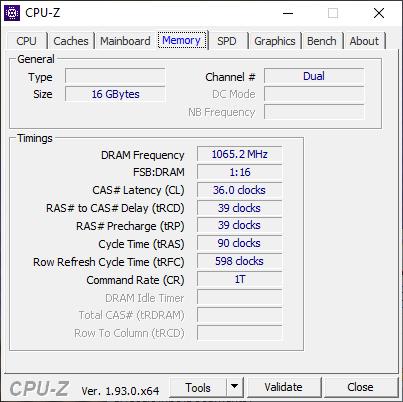

cpu-z: Minne

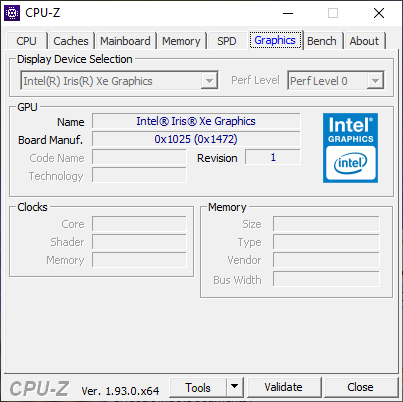

cpu-z: Grafik

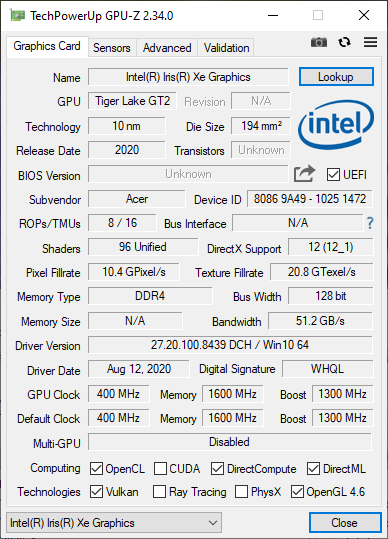

gpu-z

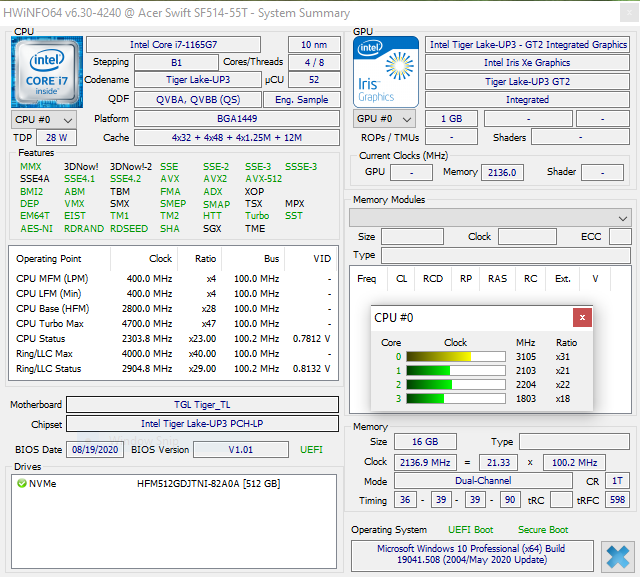

Hwinfo Sammanfattning

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040Tooltip
Acer SF514-55T Intel Core i7-1165G7, Intel Core i7-1165G7: Ø679 (635.98-959.46)
Intel Reference Design Laptop 28W Intel Core i7-1185G7, Intel Core i7-1185G7: Ø853 (754.55-866.1)
Acer Swift 5 SF514-54T-501U Intel Core i5-1035G1, Intel Core i5-1035G1: Ø494 (437.21-504.69)
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 Intel Core i7-10510U, Intel Core i7-10510U: Ø594 (493.81-731.25)
LG Gram 14Z90N Intel Core i7-1065G7, Intel Core i7-1065G7: Ø453 (446.17-494.8)
Asus Zenbook 14 UX433FN-A6023T Intel Core i7-8565U, Intel Core i7-8565U: Ø456 (442.93-580.91)
Asus ExpertBook B9450FA, i7-10510U Intel Core i7-10510U, Intel Core i7-10510U: Ø444 (412-561)
Acer Swift 3 SF314-42-R4XJ AMD Ryzen 7 4700U, AMD Ryzen 7 4700U: Ø932 (907.83-1035.01)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 - 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Acer SF514-55T
Intel Core i7-1165G7
583 Points ∼100%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
580 Points ∼99% -1%
Average Intel Core i7-1165G7
  (480 - 583, n=6)
550 Points ∼94% -6%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
466 Points ∼80% -20%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points ∼76% -24%
Average of class Subnotebook
  (73 - 583, n=78)
376 Points ∼64% -36%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
365 Points ∼63% -37%
LG Gram 14Z90N
Intel Core i7-1065G7
358 Points ∼61% -39%
Cinebench R20 / CPU (Multi Core)
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
2401 Points ∼100% +14%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
2214 Points ∼92% +5%
Acer SF514-55T
Intel Core i7-1165G7
2108 Points ∼88%
Average Intel Core i7-1165G7
  (1285 - 2530, n=6)
1932 Points ∼80% -8%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1428 Points ∼59% -32%
Average of class Subnotebook
  (110 - 3839, n=79)
1343 Points ∼56% -36%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
1176 Points ∼49% -44%
LG Gram 14Z90N
Intel Core i7-1065G7
1081 Points ∼45% -49%
Cinebench R15 / CPU Single 64Bit
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
224 Points ∼100% +7%
Average Intel Core i7-1165G7
  (210 - 220, n=6)
216 Points ∼96% +3%
Acer SF514-55T
Intel Core i7-1165G7
210 Points ∼94%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
183 Points ∼82% -13%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
180 Points ∼80% -14%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
170 Points ∼76% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
166 Points ∼74% -21%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
153 Points ∼68% -27%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
141 Points ∼63% -33%
Average of class Subnotebook
  (20 - 219, n=337)
123 Points ∼55% -41%
Cinebench R15 / CPU Multi 64Bit
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1035 Points ∼100% +49%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
966 Points ∼93% +39%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
866 (754.55min - 866.1max) Points ∼84% +24%
Average Intel Core i7-1165G7
  (606 - 1020, n=8)
791 Points ∼76% +14%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
731 Points ∼71% +5%
Acer SF514-55T
Intel Core i7-1165G7
696 (672.4min - 695.53max) Points ∼67%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
581 Points ∼56% -17%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
561 Points ∼54% -19%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
518 Points ∼50% -26%
LG Gram 14Z90N
Intel Core i7-1065G7
495 (446.17min - 494.8max) Points ∼48% -29%
Average of class Subnotebook
  (32 - 1626, n=352)
400 Points ∼39% -43%
Blender 2.79 / BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=70)
1147 Seconds * ∼100% -74%
LG Gram 14Z90N
Intel Core i7-1065G7
1023 Seconds * ∼89% -55%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
912.4 Seconds * ∼80% -38%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
769 Seconds * ∼67% -17%
Average Intel Core i7-1165G7
  (575 - 958, n=5)
704 Seconds * ∼61% -7%
Acer SF514-55T
Intel Core i7-1165G7
660 Seconds * ∼58%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
545 Seconds * ∼48% +17%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
523.9 Seconds * ∼46% +21%
7-Zip 18.03 / 7z b 4 -mmt1
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
15198 MIPS ∼100% +185%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
5368 MIPS ∼35% +1%
Acer SF514-55T
Intel Core i7-1165G7
5326 MIPS ∼35%
Average Intel Core i7-1165G7
  (4651 - 5326, n=5)
5115 MIPS ∼34% -4%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4521 MIPS ∼30% -15%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4292 MIPS ∼28% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
4166 MIPS ∼27% -22%
Average of class Subnotebook
  (1653 - 15198, n=65)
4149 MIPS ∼27% -22%
7-Zip 18.03 / 7z b 4
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
26652 MIPS ∼100% +15%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
25086 MIPS ∼94% +9%
Acer SF514-55T
Intel Core i7-1165G7
23087 MIPS ∼87%
Average Intel Core i7-1165G7
  (15556 - 23460, n=5)
20796 MIPS ∼78% -10%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
18187 MIPS ∼68% -21%
Average of class Subnotebook
  (2692 - 44827, n=65)
17222 MIPS ∼65% -25%
LG Gram 14Z90N
Intel Core i7-1065G7
13432 MIPS ∼50% -42%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
3913 MIPS ∼15% -83%
Geekbench 5.1 - 5.3 / 64 Bit Single-Core Score
Acer SF514-55T
Intel Core i7-1165G7
1575 Points ∼100%
Average Intel Core i7-1165G7
  (1523 - 1575, n=6)
1555 Points ∼99% -1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1211 Points ∼77% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1101 Points ∼70% -30%
Average of class Subnotebook
  (310 - 1740, n=65)
1061 Points ∼67% -33%
LG Gram 14Z90N
Intel Core i7-1065G7
948 Points ∼60% -40%
Geekbench 5.1 - 5.3 / 64 Bit Multi-Core Score
Acer SF514-55T
Intel Core i7-1165G7
5926 Points ∼100%
Average Intel Core i7-1165G7
  (5441 - 5926, n=6)
5656 Points ∼95% -5%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4792 Points ∼81% -19%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4122 Points ∼70% -30%
Average of class Subnotebook
  (591 - 7590, n=65)
3630 Points ∼61% -39%
LG Gram 14Z90N
Intel Core i7-1065G7
2464 Points ∼42% -58%
HWBOT x265 Benchmark v2.2 / 4k Preset
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
7.81 fps ∼100% +40%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
6.46 fps ∼83% +16%
Acer SF514-55T
Intel Core i7-1165G7
5.58 fps ∼71%
Average Intel Core i7-1165G7
  (3.84 - 6.95, n=5)
5.51 fps ∼71% -1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4.85 fps ∼62% -13%
Average of class Subnotebook
  (0.63 - 11, n=65)
4.44 fps ∼57% -20%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
4.15 fps ∼53% -26%
LG Gram 14Z90N
Intel Core i7-1065G7
3.67 fps ∼47% -34%
LibreOffice / 20 Documents To PDF
Average of class Subnotebook
  (32.3 - 281, n=50)
81.1 s ∼100% +64%
LG Gram 14Z90N
Intel Core i7-1065G7
61.5 s ∼76% +24%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
59.83 s ∼74% +21%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
51.7 s ∼64% +5%
Average Intel Core i7-1165G7
  (46.2 - 56.7, n=5)
49.8 s ∼61% +1%
Acer SF514-55T
Intel Core i7-1165G7
49.4 s ∼61%
R Benchmark 2.5 / Overall mean
Average of class Subnotebook
  (0.554 - 2.43, n=54)
0.849 sec * ∼100% -53%
LG Gram 14Z90N
Intel Core i7-1065G7
0.761 sec * ∼90% -37%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
0.679 sec * ∼80% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
0.629 sec * ∼74% -14%
Average Intel Core i7-1165G7
  (0.554 - 0.649, n=5)
0.59 sec * ∼69% -6%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
0.571 sec * ∼67% -3%
Acer SF514-55T
Intel Core i7-1165G7
0.554 sec * ∼65%

* ... smaller is better

Cinebench R10 Rendering Multiple CPUs 64Bit
40744 Points
Cinebench R10 Rendering Single 32Bit
8894
Cinebench R10 Rendering Multiple CPUs 32Bit
28753
Cinebench R10 Shading 32Bit
15497
Cinebench R10 Rendering Single CPUs 64Bit
11411 Points
Cinebench R10 Shading 64Bit
13142 Points
Cinebench R11.5 OpenGL 32Bit
68 fps
Cinebench R11.5 CPU Single 64Bit
2.49 Points
Cinebench R11.5 CPU Multi 64Bit
9.84 Points
Cinebench R11.5 CPU Single 32Bit
2.27 Points
Cinebench R11.5 OpenGL 64Bit
68.5 fps
Cinebench R11.5 CPU Multi 32Bit
8.82 Points
Cinebench R15 CPU Multi 64Bit
696 Points
Cinebench R15 OpenGL 64Bit
107 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
210 Points
Hjälp
PCMark 10
Digital Content Creation
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5075 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4891 Points ∼96%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4709 Points ∼93% -4%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 4891, n=4)
4567 Points ∼90% -7%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
3446 Points ∼68% -30%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
3285 Points ∼65% -33%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3194 Points ∼63% -35%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3076 Points ∼61% -37%
Average of class Subnotebook
  (405 - 5795, n=150)
2776 Points ∼55% -43%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
2537 Points ∼50% -48%
Productivity
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
8770 Points ∼100% +30%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
7676 Points ∼88% +14%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
7273 Points ∼83% +8%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
7057 Points ∼80% +5%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
6745 Points ∼77%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (6560 - 6838, n=4)
6691 Points ∼76% -1%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
6554 Points ∼75% -3%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
6072 Points ∼69% -10%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
5740 Points ∼65% -15%
Average of class Subnotebook
  (1014 - 8682, n=150)
5502 Points ∼63% -18%
Essentials
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
10484 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
10113 Points ∼96%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (9585 - 10113, n=4)
9830 Points ∼94% -3%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
9524 Points ∼91% -6%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
9244 Points ∼88% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
8866 Points ∼85% -12%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
8839 Points ∼84% -13%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
8482 Points ∼81% -16%
Average of class Subnotebook
  (2062 - 10113, n=150)
7245 Points ∼69% -28%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
7117 Points ∼68% -30%
Score
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5561 Points ∼100% +12%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4972 Points ∼89%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4886 Points ∼88% -2%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4601 - 4972, n=4)
4798 Points ∼86% -3%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4527 Points ∼81% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
4231 Points ∼76% -15%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3807 Points ∼68% -23%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
3783 Points ∼68% -24%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3704 Points ∼67% -26%
Average of class Subnotebook
  (743 - 5549, n=153)
3404 Points ∼61% -32%
3DMark 11 - 1280x720 Performance GPU
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
7001 Points ∼100%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
6232 Points ∼89% -11%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
6135 Points ∼88% -12%
Average Intel Iris Xe Graphics G7 96EUs
  (4558 - 7001, n=6)
6091 Points ∼87% -13%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
4990 Points ∼71% -29%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
4829 Points ∼69% -31%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
3560 Points ∼51% -49%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3150 Points ∼45% -55%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2516 Points ∼36% -64%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1978 Points ∼28% -72%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1836 Points ∼26% -74%
Average of class Subnotebook
  (230 - 12199, n=422)
1599 Points ∼23% -77%
3DMark
2560x1440 Time Spy Graphics
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1618 Points ∼100% 0%
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1614 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (856 - 1618, n=10)
1338 Points ∼83% -17%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
1326 Points ∼82% -18%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
973 Points ∼60% -40%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
862 Points ∼53% -47%
Average of class Subnotebook
  (85 - 3276, n=83)
683 Points ∼42% -58%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
533 Points ∼33% -67%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
453 Points ∼28% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
432 Points ∼27% -73%
1920x1080 Fire Strike Graphics
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5774 Points ∼100%
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5652 Points ∼98% -2%
Average Intel Iris Xe Graphics G7 96EUs
  (2460 - 5774, n=9)
4791 Points ∼83% -17%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
4340 Points ∼75% -25%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
4332 Points ∼75% -25%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
3838 Points ∼66% -34%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3134 Points ∼54% -46%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
2874 Points ∼50% -50%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1739 Points ∼30% -70%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
1487 Points ∼26% -74%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1366 Points ∼24% -76%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1319 Points ∼23% -77%
Average of class Subnotebook
  (222 - 8743, n=302)
1289 Points ∼22% -78%
1280x720 Cloud Gate Standard Graphics
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
31380 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (17768 - 38040, n=5)
27506 Points ∼88% -12%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
24723 Points ∼79% -21%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
23580 Points ∼75% -25%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
22895 Points ∼73% -27%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
18633 Points ∼59% -41%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11934 Points ∼38% -62%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
10785 Points ∼34% -66%
Average of class Subnotebook
  (1484 - 53539, n=316)
8811 Points ∼28% -72%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
7045 Points ∼22% -78%
3DMark 06 Score
24558 poäng
3DMark Vantage P Result
23981 poäng
3DMark 11 Performance
7490 poäng
3DMark Ice Storm Standard Score
101475 poäng
3DMark Cloud Gate Standard Score
18164 poäng
3DMark Fire Strike Score
5283 poäng
3DMark Time Spy Score
1775 poäng
Hjälp
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
16 (13min - 19max) fps ∼100% +7%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
15.8 (14min, 14P1 - 17max) fps ∼99% +5%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15 (6min - 18max) fps ∼94%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
14 (7min - 18max) fps ∼88% -7%
Average Intel Iris Xe Graphics G7 96EUs
  (7 - 16, n=5)
12.8 fps ∼80% -15%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
11.2 (3min - 14max) fps ∼70% -25%
Average of class Subnotebook
  (3.1 - 30.1, n=32)
11 fps ∼69% -27%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
10.7 fps ∼67% -29%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
35.9 (31min - 41max) fps ∼100% +20%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30 (25min - 34max) fps ∼84%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
27.5 (23min - 32max) fps ∼77% -8%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
27.4 fps ∼76% -9%
Average Intel Iris Xe Graphics G7 96EUs
  (10.6 - 35.9, n=6)
24.6 fps ∼69% -18%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
19.2 (4min - 25max) fps ∼53% -36%
Average of class Subnotebook
  (3.8 - 52.8, n=48)
16.9 fps ∼47% -44%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
16.5 fps ∼46% -45%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
7 fps ∼19% -77%
1366x768 Medium Graphics & Postprocessing
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
65.2 (58min - 72max) fps ∼100% +21%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
54 (43min - 60max) fps ∼83%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
47.2 (41min - 53max) fps ∼72% -13%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
46.5 fps ∼71% -14%
Average Intel Iris Xe Graphics G7 96EUs
  (21.4 - 65.2, n=6)
44.9 fps ∼69% -17%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
37 (33min - 42max) fps ∼57% -31%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
33.5 fps ∼51% -38%
Average of class Subnotebook
  (5.6 - 92, n=58)
26.3 fps ∼40% -51%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
17.9 fps ∼27% -67%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
12.1 fps ∼19% -78%
X-Plane 11.11
3840x2160 high (fps_test=3)
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.4 fps ∼100%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
29.4 fps ∼77% -23%
Average Intel Iris Xe Graphics G7 96EUs
  (12.1 - 38.4, n=2)
25.3 fps ∼66% -34%
Average of class Subnotebook
  (6.59 - 49.2, n=6)
24.6 fps ∼64% -36%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
6.59 fps ∼17% -83%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
59.1 fps ∼100% +58%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
48.1 fps ∼81% +29%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
44.1 fps ∼75% +18%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
41.7 fps ∼71% +12%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.3 fps ∼63%
Average Intel Iris Xe Graphics G7 96EUs
  (21.8 - 41.7, n=7)
32.9 fps ∼56% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
24.9 fps ∼42% -33%
Average of class Subnotebook
  (3.09 - 72.3, n=59)
21.2 fps ∼36% -43%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.9 fps ∼20% -68%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.9 fps ∼18% -71%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
65.1 fps ∼100% +56%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
56.2 fps ∼86% +35%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
50 fps ∼77% +20%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
45.6 fps ∼70% +10%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
41.6 fps ∼64%
Average Intel Iris Xe Graphics G7 96EUs
  (24.5 - 45.6, n=7)
36.5 fps ∼56% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
28.1 fps ∼43% -32%
Average of class Subnotebook
  (3.42 - 87.5, n=62)
23.2 fps ∼36% -44%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.7 fps ∼18% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.3 fps ∼16% -75%
låg med. hög ultra4K
Counter-Strike: GO (2012) 268.2 167.2 155.6 95.9 fps
GTA V (2015) 87.9 74.4 25.2 11.1 fps
The Witcher 3 (2015) 79 54 30 15 fps
Dota 2 Reborn (2015) 86.2 69.2 50 47.7 19.7 fps
Overwatch (2016) 158.9 111.9 57.6 32 fps
Fortnite (2018) 56.9 30.1 21.2 14.7 fps
Final Fantasy XV Benchmark (2018) 44.1 24.7 15.1 fps
X-Plane 11.11 (2018) 55.6 41.6 37.3 38.4 fps
World of Tanks enCore (2018) 317.7 73.8 33.8 fps
Far Cry 5 (2018) 56 28 26 24 fps
Shadow of the Tomb Raider (2018) 56 26 24 21 fps
Assassin´s Creed Odyssey (2018) 32 25 22 14 fps
Battlefield V (2018) 64.8 39.2 34.1 31 fps
Farming Simulator 19 (2018) 144.7 80.3 46 29.1 fps
Apex Legends (2019) 111.2 47.1 34.5 34.7 fps
Far Cry New Dawn (2019) 49 28 27 24 fps
Metro Exodus (2019) 38.7 20 14.5 fps
Dirt Rally 2.0 (2019) 119.2 49.5 38 21.9 fps
The Division 2 (2019) 51 28 21 15 fps
Anno 1800 (2019) 79.2 29.3 15.1 9.1 fps
Rage 2 (2019) 63.9 29.4 23.7 23.1 fps
Total War: Three Kingdoms (2019) 93.7 31.7 19.4 13 fps
Control (2019) 59.7 19.6 13.5 fps
Borderlands 3 (2019) 50.4 24.9 15.6 11.6 fps
FIFA 20 (2019) 184.2 99.8 78.7 63.6 fps
GRID 2019 (2019) 85.3 42.9 34.7 29.7 fps
Call of Duty Modern Warfare 2019 (2019) 40.1 27.3 fps
Need for Speed Heat (2019) 37.1 28.3 25.8 23.2 fps
Star Wars Jedi Fallen Order (2019) 21.8 19 17.2 fps
Red Dead Redemption 2 (2019) 51.9 26.7 15.2 fps
Escape from Tarkov (2020) 77.3 38.2 30.8 29.1 fps
Hunt Showdown (2020) 60 28.3 fps
Doom Eternal (2020) 56.7 30.9 27.5 26.9 fps
Gears Tactics (2020) 142.1 50.1 32.1 19 fps
F1 2020 (2020) 89 47 37 24 fps
Death Stranding (2020) 49.3 30.7 29.3 28.5 fps
Flight Simulator 2020 (2020) 36.9 17.9 12.4 fps
Serious Sam 4 (2020) 63 20.8 17.8 12.3 fps
Mafia Definitive Edition (2020) 37.7 17.9 16.5 fps
Star Wars Squadrons (2020) 105.9 52.3 42.8 38.8 fps
Batteritid
NBC WiFi Websurfing Battery Test 1.3
10tim 51min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
9tim 21min
Acer SF514-55T
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 56 Wh
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620, 51 Wh
LG Gram 14Z90N
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 72 Wh
Asus Zenbook 14 UX433FN-A6023T
i7-8565U, GeForce MX150, 50 Wh
Acer Swift 3 SF314-42-R4XJ
R7 4700U, Vega 7, 48.85 Wh
Average of class Subnotebook

Battery Runtime
-28%
-7%
29%
-23%
10%
-23%
Reader / Idle
885
2735
1392
651 (87 - 2735, n=572)
WiFi v1.3
651
468
-28%
604
-7%
838
29%
499
-23%
715
10%
500 (206 - 991, n=281)
-23%
Load
134
95
211
114
123 (40 - 369, n=594)
H.264
485
770
968
519 (182 - 1312, n=141)

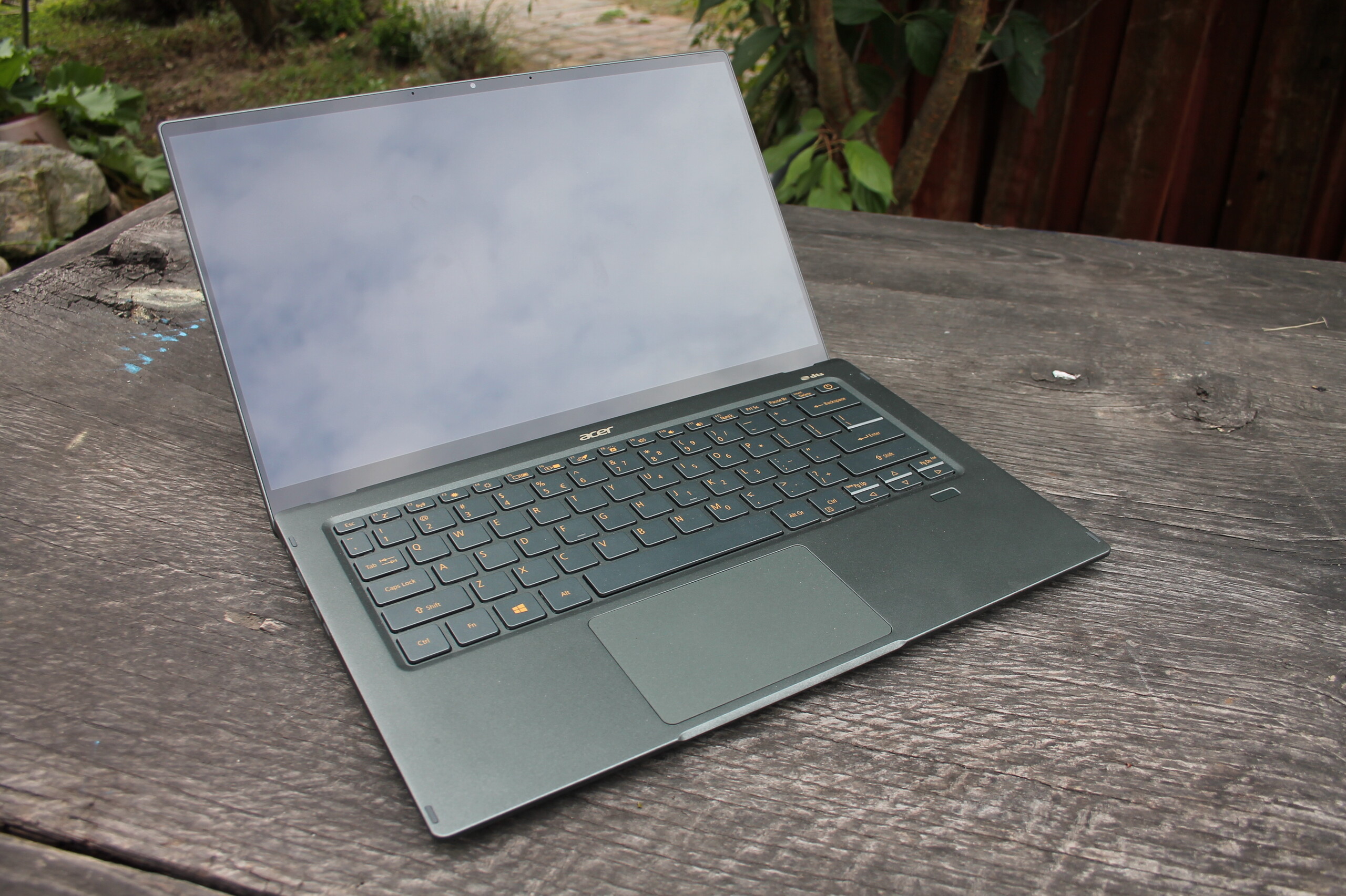

Acers Swift 5 med Intel Tiger Lake: Recensionsex från Acer Germany

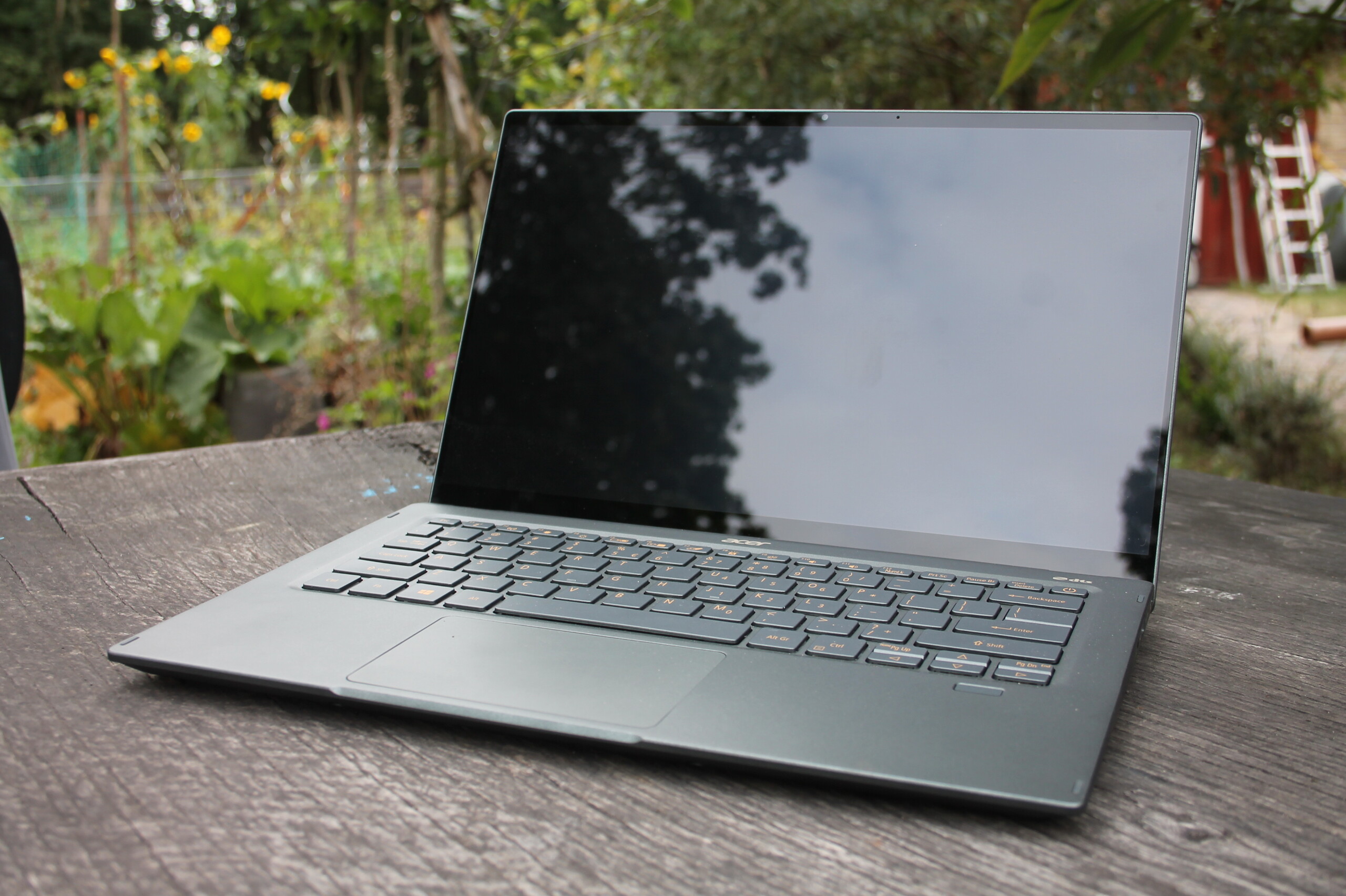

Acers Swift 5 med Intel Tiger Lake: Recensionsex från Acer Germany

Läs den fullständiga versionen av den här förhandsvisningen på engelska här.

Precis som dess föregångare fortsätter nya Acer Swift 5 SF514-54T-501U traditionen av att vara så tunn som möjligt, så lätt som det går och så kraftfull som det känns rimligt.

I det här specifika fallet innebär rimligt en CPU som presterar nästan lika bra vid korta spurt-scenarier som en Ryzen 7 4700U, vid skrivande stund en av de snabbaste ultralågvolts-chippen som finns att tillgå för tunna och lätta subnotebooks.

Men vid ihållande belastning framträder en annan bild. Processorn lyckas inte upprätthålla sin höga Turbo Boost under längre tid och tappar runt 30% av sin maximala prestanda. Även då är den snabbare än en 10:e generationens Core i7 och således kan Tiger Lake i7-1165G7 ses som en välgjord högpresterande CPU för ultralätta bärbara datorer. Men den är däremot inte en lämplig SoC för en arbetsstation.

Den integrerade GPU:n höjer ribban ordentligt. Intel Iris Xe G7 är redo att ta sig an samma spel och prestandatester som Radeon Vega 7 eller GeForce MX330/MX350. För första gången någonsin kan det förvisso gamla men ändå väldigt krävande spelet The Witcher 3 köras smidigt med höga inställningar och FHD-upplösning på en integrerad GPU. Vem hade kunnat tro att det skulle vara möjligt på en Intel GPU för två år sedan?

Intel Iris Xe G7 kan stå sig mot grafiklösningarna Radeon Vega 7 och MX330/MX350 i både spel och prestandatester.

Kom ihåg att våra prestandatester och undersökningar genomfördes på en tidig testversion av Acer Swift 5 som tillverkaren har godkänt för prestandatester. Vi förväntar oss inte några betydande skillnader jämfört med slutprodukten, varken åt det bättre eller sämre hållet. Hög prestanda i kombination med 11 timmar batteritid, en ljusstark och tryckkänslig skärm, en splitter ny Thunderbolt 4-port och skapliga inmatningsenheter gör detta till en riktigt kraftfull subnotebook som kommer hålla i många år framöver. Om priset hamnar på samma nivå som tidigare generationer förväntar vi oss runt 10.000 kronor för en enhet med liknande konfiguration som vår – ett kap. Så fort vi har fått den slutliga produktionsmodellen av Swift 5 ska vi prova den ordentligt och ge dig en fullständig och utförlig recension.

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Förhandsvisning: Acer Swift 5 - Tiger Lake iGPU anfaller instegs-GeForce (Sammanfattning)
Sebastian Jentsch, 2020-10- 3 (Update: 2020-10- 4)
