Test: Zotac ZBOX Magnus EN51050 Mini PC (Sammanfattning)

Allen Ngo (översatt av Daniel Eriksson), 10/11/2017

Spelandets svarta låda. Genomsnittsmodellen EN51050 uppnår en bra balans mellan sin i5-7500T CPU och sin GTX 1050 GPU. Men för ~5600 SEK ($700 USD) som är utgångspriset för denna barebone-modell är det inte långt från en komplett bärbar spel-dator utrustad med snabbare hårdvara.

No, or more than one (0) Rating for the given SpecsID 283342 found

Zotac ZBOX Magnus EN51050
Processor
Grafikkort
NVIDIA GeForce GTX 1050 (Notebook) - 2048 MB, Kärna: 1354 MHz, Minne: 7008 MHz, GDDR5, 382.16

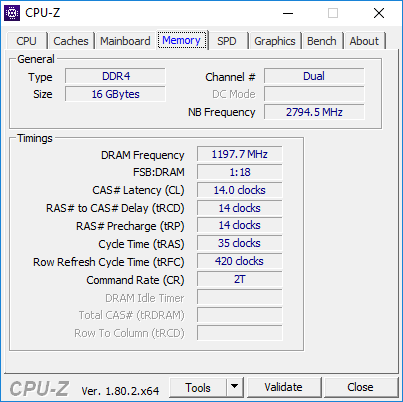

Minne
16384 MB
, DDR4 PC4-19200, 1600 MHz, 14-14-14-35, Dual-Kanal
Moderkort
Intel B150 (Skylake PCH-H)
Hårddisk
Samsung SSD 960 Pro 512 GB m.2, 512 GB
, Sekundär: Tom 2.5-tums SATA III plats
Ljudkort
Intel Skylake PCH-H High Definition Audio Controller
Anslutningar
2 USB 2.0, 3 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Infraröd, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm mikrofon, 3.5 mm hörlurar, Kortläsare: SD kortläsare
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.2
Storlek
höjd x bredd x djup (i mm) 62.2 x 210 x 203
Övrigt
Snabbstartsguide, Användarmanual, Antenn, Garantikort, DVD med drivrutiner, USB-minne med drivrutiner
Vikt
1.724 kg, Strömförsörjning: 794 g
Pris
700 USD



Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
News Editor - Details here

Review Editor -
Details here

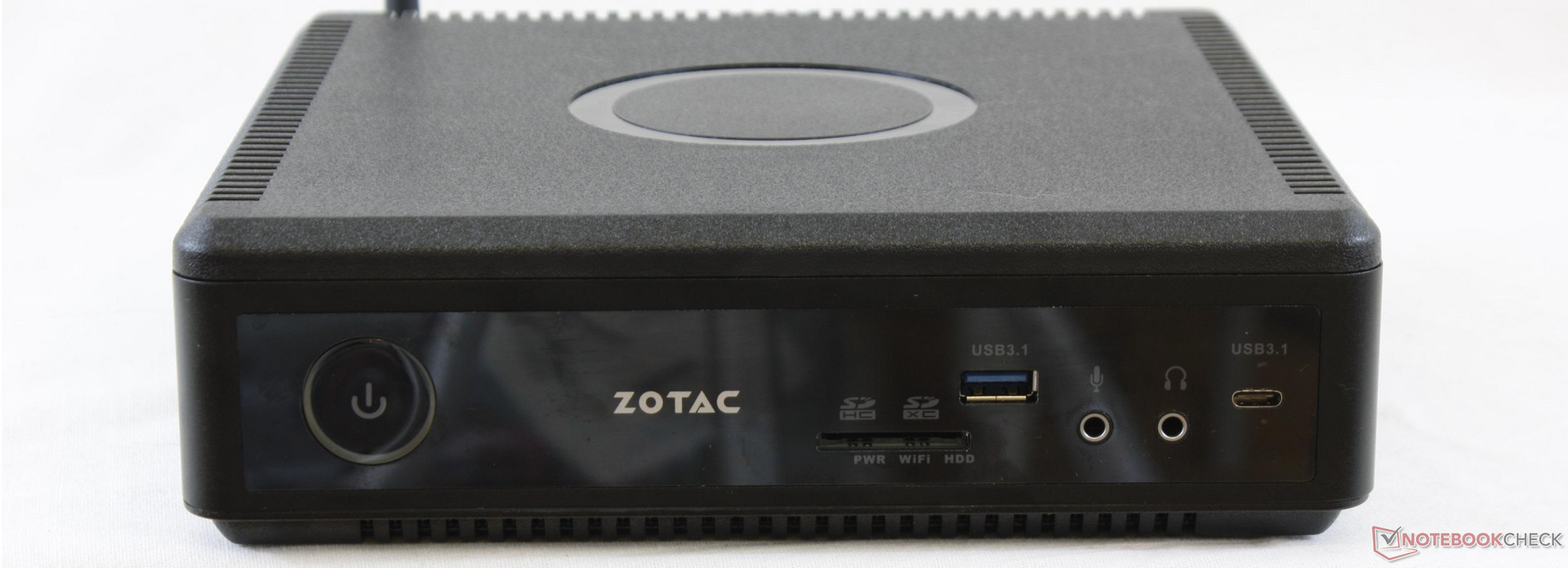

Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2
Front: Power button, SD reader, USB 3.1, 3.5 mm microphone, 3.5 mm earphones, USB 3.1 Type-C Gen. 2

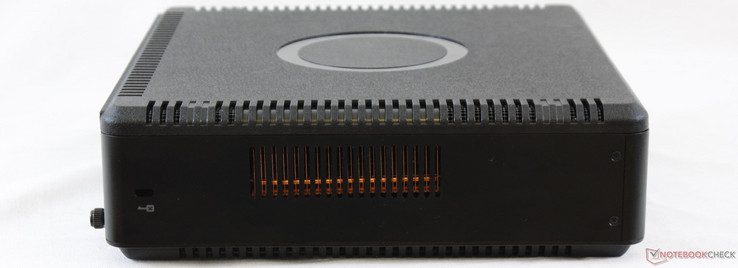

Left: Kensington Lock
Left: Kensington Lock

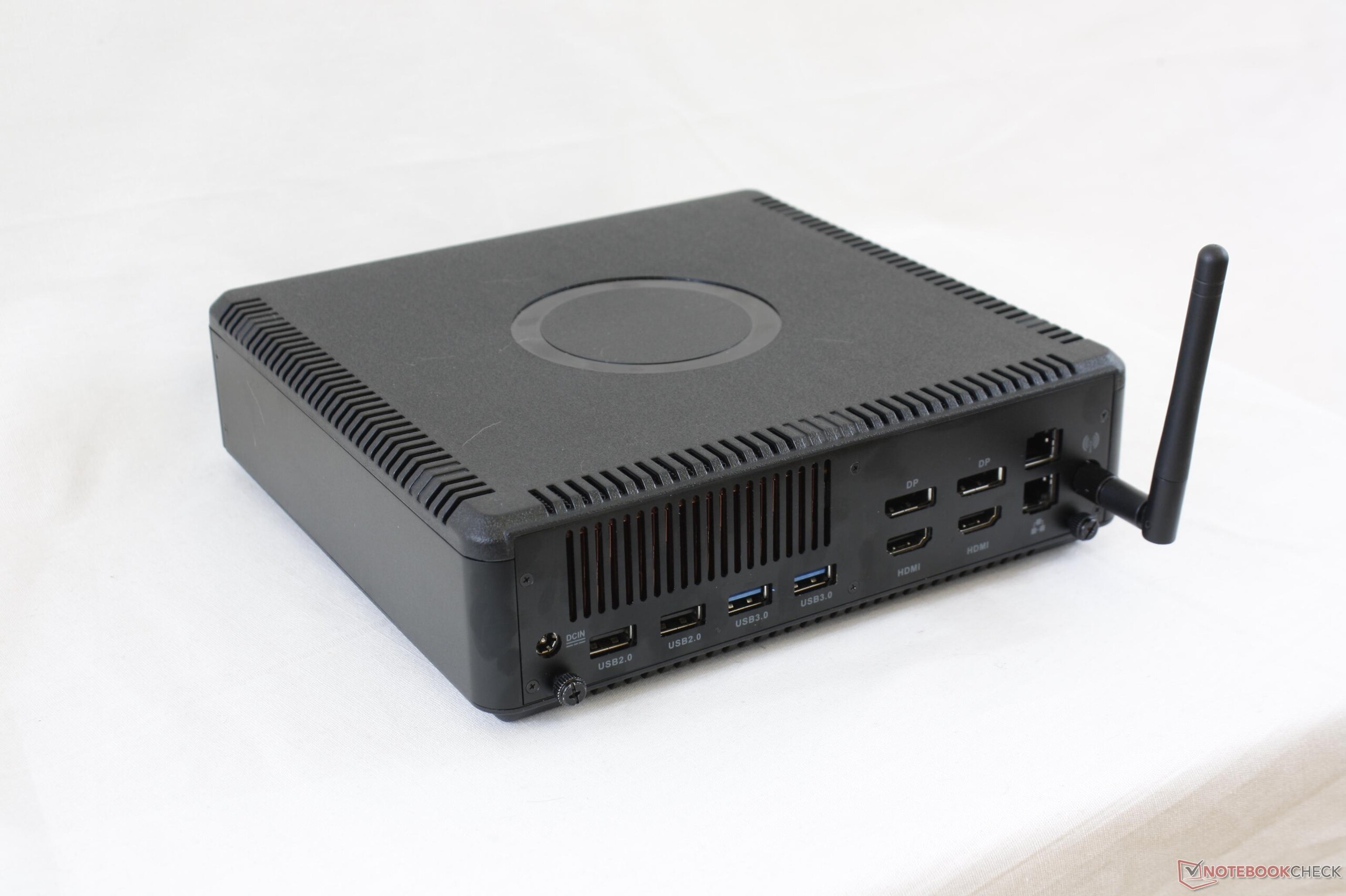

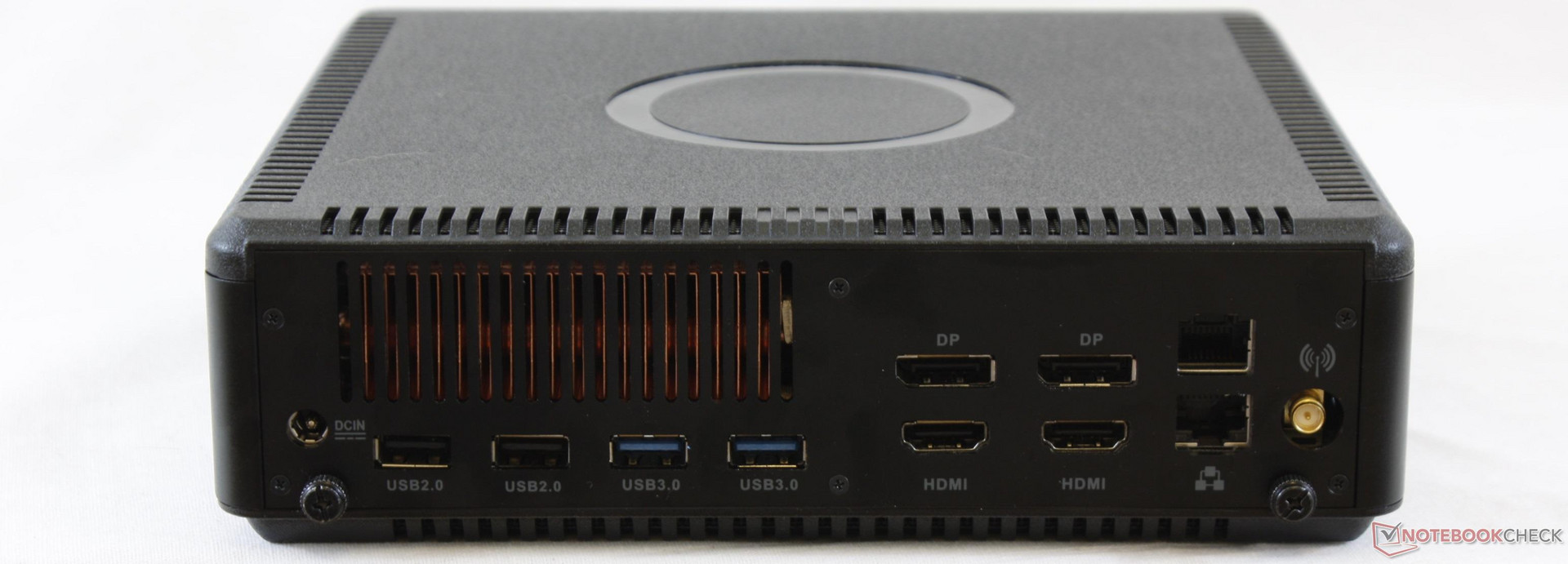

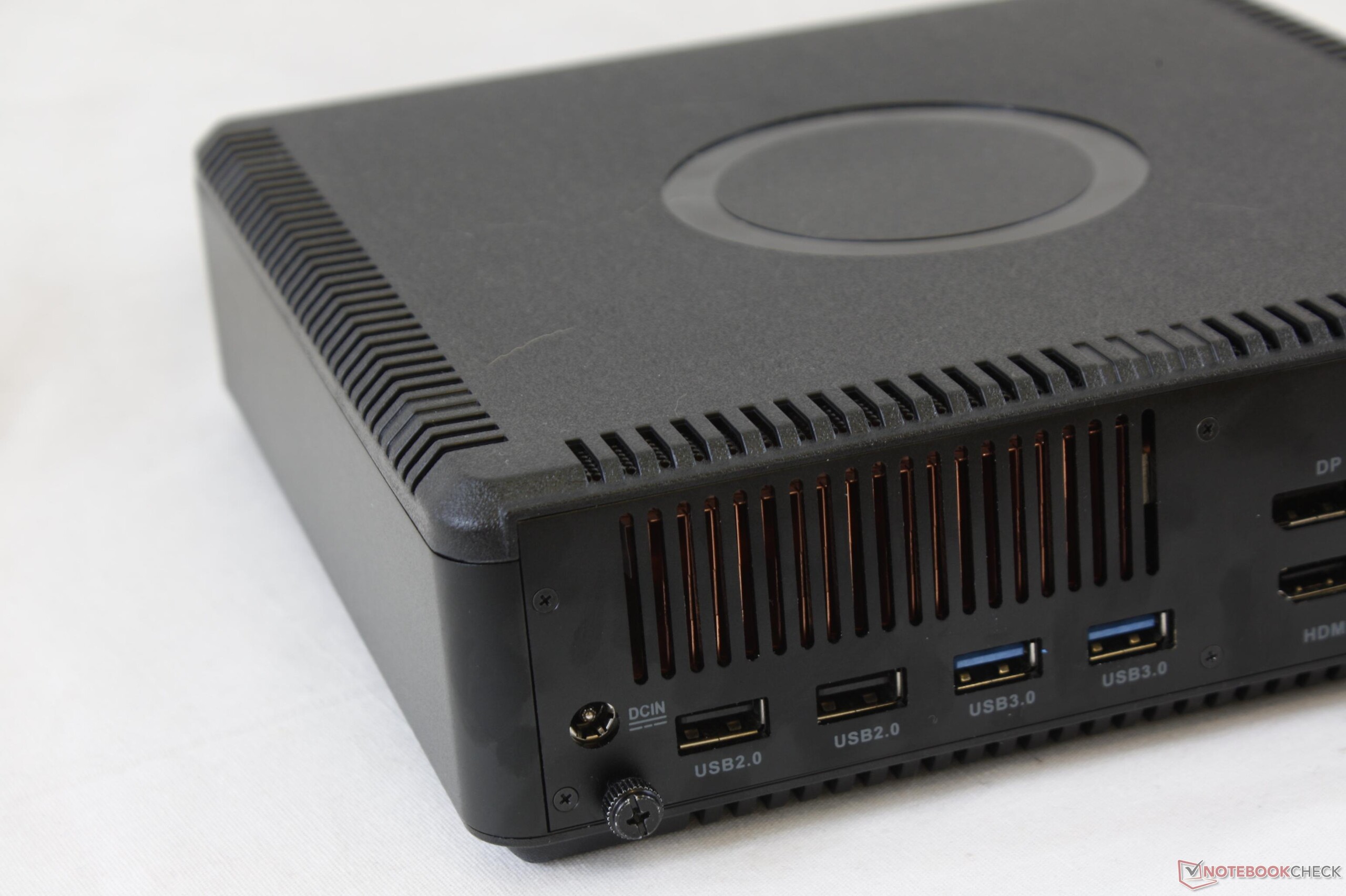

Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna
Rear: AC adapater, 2x USB 2.0, 2x USB 3.0, 2x HDMI 2.0, 2x DisplayPort 1.3, 2x Gigabit Ethernet, Antenna

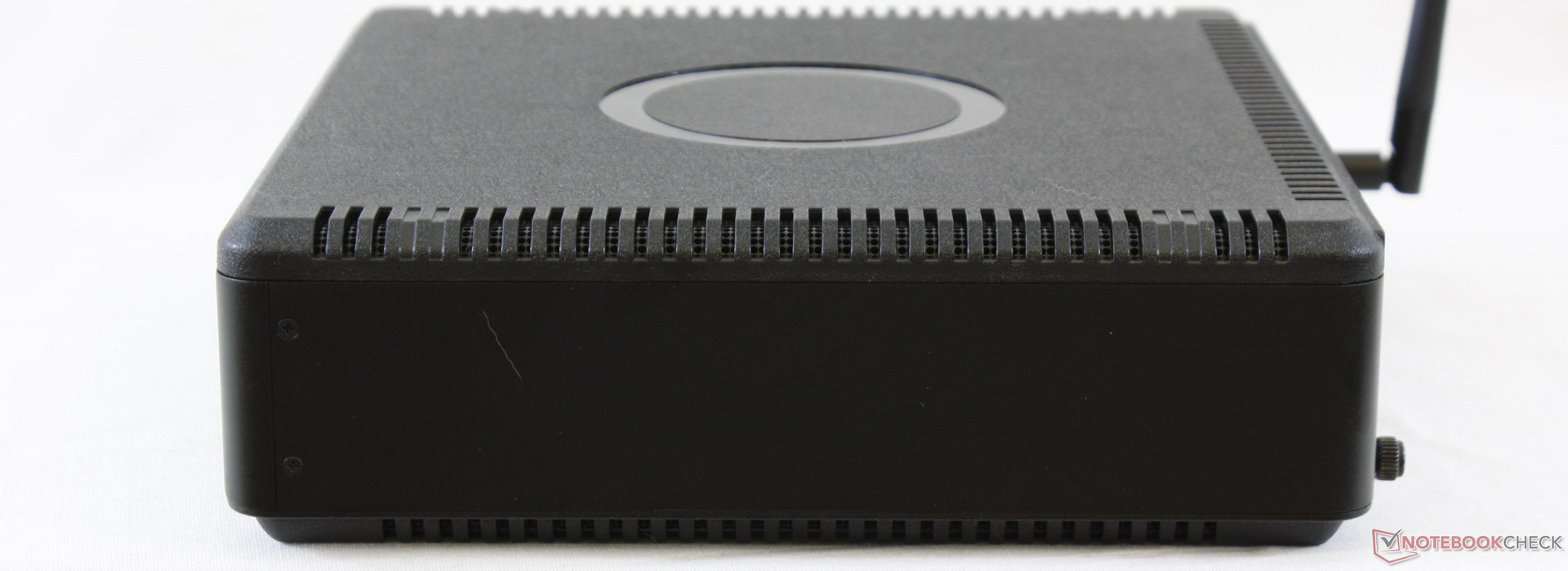

Right: No connectivity
Right: No connectivity
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Gigabyte Sabre 15G
78.76 MB/s ∼100% +82%
Zotac ZBOX Magnus EN51050
43.3 MB/s ∼55%
MSI GS43VR 7RE-069US
19.54 MB/s ∼25% -55%
maximum AS SSD Seq Read Test (1GB)
Gigabyte Sabre 15G
86.53 MB/s ∼100% +108%
Zotac ZBOX Magnus EN51050
41.68 MB/s ∼48%
MSI GS43VR 7RE-069US
19.83 MB/s ∼23% -52%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Eurocom Tornado F5 Killer Edition
Intel Dual Band Wireless-AC 8265
594 MBit/s ∼100% +82%
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
327 MBit/s ∼55%
Gigabyte Sabre 15G
Intel Dual Band Wireless-AC 3168
240 MBit/s ∼40% -27%
iperf3 Client (transmit) TCP 1 m 4M x10
Eurocom Tornado F5 Killer Edition
Intel Dual Band Wireless-AC 8265
505 MBit/s ∼100% +131%
Gigabyte Sabre 15G
Intel Dual Band Wireless-AC 3168
319 MBit/s ∼63% +46%
Zotac ZBOX Magnus EN51050
Intel Dual Band Wireless-AC 3165
219 MBit/s ∼43%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
168 Points ∼84% +30%
Dell Latitude 7480
Intel Core i7-7600U
162 Points ∼81% +26%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
161 Points ∼81% +25%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
145 Points ∼73% +12%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points ∼70% +8%
Zotac ZBOX Magnus EN980-U
134 Points ∼67% +4%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
133 Points ∼67% +3%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points ∼65% +1%
Zotac ZBOX Magnus EN51050
129 Points ∼65%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
123 Points ∼62% -5%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
113 Points ∼57% -12%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
69 Points ∼35% -47%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
736 Points ∼34% +44%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points ∼33% +39%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
660 Points ∼31% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
543 Points ∼25% +6%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
538 (min: 467.61) Points ∼25% +5%
Zotac ZBOX Magnus EN51050
512 Points ∼24%
Zotac ZBOX Magnus EN980-U
510 Points ∼24% 0%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
503 Points ∼23% -2%
Dell Latitude 7480
Intel Core i7-7600U
343 Points ∼16% -33%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
328 Points ∼15% -36%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points ∼15% -36%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
284 Points ∼13% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
229 Points ∼11% -55%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
1.98 Points ∼32% +34%
Dell Latitude 7480
Intel Core i7-7600U
1.85 Points ∼30% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
1.84 Points ∼30% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
1.66 Points ∼27% +12%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
1.6 Points ∼26% +8%
Zotac ZBOX Magnus EN980-U
1.51 Points ∼24% +2%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
1.51 Points ∼24% +2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
1.48 Points ∼24% 0%
Zotac ZBOX Magnus EN51050
1.48 Points ∼24%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
1.45 Points ∼23% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
1.28 Points ∼21% -14%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
0.94 Points ∼15% -36%
CPU Multi 64Bit
Gigabyte Sabre 15G
Intel Core i7-7700HQ
8.17 Points ∼34% +39%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
7.76 Points ∼32% +32%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
7.67 Points ∼32% +31%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
6.11 Points ∼26% +4%
Zotac ZBOX Magnus EN980-U
5.92 Points ∼25% +1%
Zotac ZBOX Magnus EN51050
5.86 Points ∼25%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
5.81 Points ∼24% -1%
Dell Latitude 7480
Intel Core i7-7600U
3.78 Points ∼16% -35%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
3.67 Points ∼15% -37%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
3.16 Points ∼13% -46%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
3.15 Points ∼13% -46%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2.7 Points ∼11% -54%
Cinebench R10
Rendering Single 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
6730 Points ∼76% +35%
Dell Latitude 7480
Intel Core i7-7600U
6243 Points ∼70% +25%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
6107 Points ∼69% +22%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
5545 Points ∼63% +11%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
5536 Points ∼62% +11%
Zotac ZBOX Magnus EN980-U
5088 Points ∼57% +2%
Zotac ZBOX Magnus EN51050
5002 Points ∼56%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
4975 Points ∼56% -1%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
4920 Points ∼55% -2%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
4904 Points ∼55% -2%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
4368 Points ∼49% -13%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2640 Points ∼30% -47%
Rendering Multiple CPUs 32Bit
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
23585 Points ∼47% +73%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
22273 Points ∼45% +64%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
21075 Points ∼42% +55%
Zotac ZBOX Magnus EN980-U
18297 Points ∼37% +34%
Acer Aspire V17 Nitro BE VN7-793G-52XN
Intel Core i5-7300HQ
17618 Points ∼35% +29%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
14148 Points ∼28% +4%
Zotac ZBOX Magnus EN51050
13614 Points ∼27%
Dell Latitude 7480
Intel Core i7-7600U
12153 Points ∼24% -11%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
11373 Points ∼23% -16%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
10897 Points ∼22% -20%
HP Pavilion 15-bk001ng x360
Intel Core i5-6200U
9723 Points ∼20% -29%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
7200 Points ∼14% -47%
wPrime 2.0x - 1024m
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
489.402 s * ∼6% -47%
Dell Latitude 7480
Intel Core i7-7600U
484.33 s * ∼6% -45%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
415.484 s * ∼5% -25%
Zotac ZBOX Magnus EN51050
333.206 s * ∼4%
Zotac ZBOX Magnus EN980-U
327.064 s * ∼4% +2%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
314.7 s * ∼4% +6%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
253.57 s * ∼3% +24%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
225.673 s * ∼3% +32%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
217.072 s * ∼3% +35%
Super Pi Mod 1.5 XS 32M - ---
HP Pavilion 17z 1EX13AV
AMD A12-9720P
863.551 Seconds * ∼4% -37%
Zotac ZBOX Magnus EN980-U
660.102 Seconds * ∼3% -5%
Zotac ZBOX Magnus EN51050
628.572 Seconds * ∼3%
Samsung Notebook 9 NP900X3N-K01US
Intel Core i5-7200U
627.687 Seconds * ∼3% -0%
Acer Spin 5 SP513-52N-566U
Intel Core i5-8250U
611 Seconds * ∼3% +3%
Gigabyte Sabre 15G
Intel Core i7-7700HQ
549.204 Seconds * ∼2% +13%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
538.979 Seconds * ∼2% +14%
Dell Latitude 7480
Intel Core i7-7600U
510.27 Seconds * ∼2% +19%
Eurocom Tornado F5 Killer Edition
Intel Core i5-7600K
467.526 Seconds * ∼2% +26%

* ... smaller is better

Cinebench R10 Shading 32Bit
10608
Cinebench R10 Rendering Multiple CPUs 32Bit
13614
Cinebench R10 Rendering Single 32Bit
5002
Cinebench R11.5 OpenGL 64Bit
64.27 fps
Cinebench R11.5 CPU Multi 64Bit
5.86 Points
Cinebench R11.5 CPU Single 64Bit
1.48 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
122.86 fps
Cinebench R15 CPU Multi 64Bit
512 Points
Cinebench R15 CPU Single 64Bit
129 Points
Hjälp
PCMark 10
Digital Content Creation
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4432 Points ∼47% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4243 Points ∼45%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3014 Points ∼32% -29%
Productivity
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
6781 Points ∼71%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
6749 Points ∼71% 0%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
6665 Points ∼70% -2%
Essentials
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
8076 Points ∼84% +4%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
7791 Points ∼81%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
7542 Points ∼79% -3%
Score
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4364 Points ∼66% 0%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4355 Points ∼66%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3909 Points ∼59% -10%
PCMark 8
Work Score Accelerated v2
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
5063 Points ∼78% +1%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
5027 Points ∼77%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4431 Points ∼68% -12%
Creative Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
6341 Points ∼68%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
5540 Points ∼60% -13%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
4274 Points ∼46% -33%
Home Score Accelerated v2
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
4755 Points ∼80%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4095 Points ∼69% -14%
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
3431 Points ∼57% -28%
PCMark 8 Home Score Accelerated v2
4755 poäng
PCMark 8 Creative Score Accelerated v2
6341 poäng
PCMark 8 Work Score Accelerated v2
5027 poäng
Hjälp
Zotac ZBOX Magnus EN51050
Samsung SSD 960 Pro 512 GB m.2
Eurocom Q5
Samsung SSD 960 Pro 512 GB m.2
Gigabyte Sabre 15G
Liteonit CV3-8D128
Samsung Notebook 9 NP900X3N-K01US
Samsung CM871a MZNTY256HDHP
MSI WS63VR 7RL-023US
Toshiba NVMe THNSN5512GPU7
Asus ZenBook Pro UX550VD
Samsung PM961 NVMe MZVLW512HMJP
CrystalDiskMark 5.2
15%
-60%
-63%
-19%
-1%
Write 4K
164.8
202.6
23%
66.28
-60%
105.4
-36%
157.1
-5%
187.02
13%
Read 4K
54.79
57.19
4%
36.68
-33%
34.45
-37%
43.82
-20%
48.96
-11%
Write Seq
1956
2073
6%
469.2
-76%
458.4
-77%
1110
-43%
1378.45
-30%
Read Seq
1964
2763
41%
535.9
-73%
489.4
-75%
1162
-41%
1877.57
-4%
Write 4K Q32T1
424.8
498.7
17%
182
-57%
99.16
-77%
361.3
-15%
515.99
21%
Read 4K Q32T1
483.8
574.9
19%
357.9
-26%
273.5
-43%
562.8
16%
583.14
21%
Write Seq Q32T1
2042
2075
2%
506.6
-75%
512.1
-75%
1558
-24%
1586.6
-22%
Read Seq Q32T1
3157
3381
7%
562.3
-82%
551.1
-83%
2635
-17%
3266.5
3%
3DMark
3840x2160 Fire Strike Ultra Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
3093 Points ∼31% +325%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
2571 Points ∼25% +253%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
1810 Points ∼18% +149%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
843 Points ∼8% +16%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
742 Points ∼7% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
728 Points ∼7%
1920x1080 Fire Strike Physics
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
12557 Points ∼55% +85%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10851 Points ∼48% +60%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
10811 Points ∼48% +60%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
10564 Points ∼47% +56%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
10538 Points ∼47% +56%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
10210 Points ∼45% +51%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
9655 Points ∼43% +43%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9551 Points ∼42% +41%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
9499 Points ∼42% +40%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
6903 Points ∼31% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6773 Points ∼30%
1920x1080 Fire Strike Graphics
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
13510 Points ∼33% +123%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
11453 Points ∼28% +89%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
10349 Points ∼25% +71%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7866 Points ∼19% +30%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7321 Points ∼18% +21%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
6797 Points ∼17% +12%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6166 Points ∼15% +2%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6066 Points ∼15%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
4705 Points ∼12% -22%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3174 Points ∼8% -48%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points ∼5% -69%
3DMark 11
1280x720 Performance Combined
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
8876 Points ∼56% +28%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
8762 Points ∼55% +26%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
7998 Points ∼50% +15%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
7952 Points ∼50% +15%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
7163 Points ∼45% +3%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
6938 Points ∼43%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
6707 Points ∼42% -3%
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
6666 Points ∼42% -4%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5861 Points ∼37% -16%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
3682 Points ∼23% -47%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points ∼17% -60%
1280x720 Performance GPU
Zotac ZBOX Magnus EN980-U
NVIDIA GeForce GTX 980,
17811 Points ∼35% +127%
EVGA SC15
NVIDIA GeForce GTX 1060 (Laptop), 7700HQ
15453 Points ∼30% +97%
HP Omen 15-ce002ng
NVIDIA GeForce GTX 1060 Max-Q, 7700HQ
13279 Points ∼26% +70%
Asus Strix GL502VT-DS74
NVIDIA GeForce GTX 970M, 6700HQ
9824 Points ∼19% +25%
MSI GP62 7REX-1045US
NVIDIA GeForce GTX 1050 Ti (Notebook), 7700HQ
9394 Points ∼18% +20%
Zotac GeForce GTX 1050 2GB
NVIDIA GeForce GTX 1050 (Desktop), 4790K
8571 Points ∼17% +9%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 (Notebook),
7831 Points ∼15%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), 7700HQ
7731 Points ∼15% -1%
MSI GL72 6QF
NVIDIA GeForce GTX 960M, 6700HQ
5825 Points ∼11% -26%
Asus N752VX-GC131T
NVIDIA GeForce GTX 950M, 6700HQ
4457 Points ∼9% -43%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points ∼6% -59%
3DMark 11 Performance
7550 poäng
3DMark Ice Storm Standard Score
98913 poäng
3DMark Cloud Gate Standard Score
14862 poäng
3DMark Fire Strike Score
5259 poäng
3DMark Fire Strike Extreme Score
2535 poäng
Hjälp
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
66.8 fps ∼100% +101%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
42.8 fps ∼64% +29%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
38 fps ∼57% +14%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
36.9 (min: 34) fps ∼55% +11%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
33.3 fps ∼50%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
32.9 fps ∼49% -1%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
30.4 (min: 26) fps ∼46% -9%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
24.2 fps ∼36% -27%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
19.2 fps ∼29% -42%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
EVGA SC15
GeForce GTX 1060 (Laptop), 7700HQ, Toshiba NVMe THNSN5256GPU7
110 fps ∼100% +66%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
74 fps ∼67% +12%
Zotac GeForce GTX 1050 2GB
GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
71.6 (min: 46) fps ∼65% +8%
Asus Strix GL502VT-DS74
GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128
69.5 fps ∼63% +5%
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
66.2 fps ∼60%
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
63.1 fps ∼57% -5%
MSI GE72 965M Ti
GeForce GTX 965M, 6700HQ
55 (min: 9) fps ∼50% -17%
HP Pavilion 17 FHD V3A33AV
GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G
45 fps ∼41% -32%
Sager NP5852
GeForce MX150, 7700HQ, Western Digital WD Blue PC SSD WDS250G1B0B
34.9 fps ∼32% -47%
låg med. hög ultra
Guild Wars 2 (2012) 111.165.441.2fps
StarCraft II: Heart of the Swarm (2013) 106fps
BioShock Infinite (2013) 168.366.2fps
Metro: Last Light (2013) 106.983.845.3fps
Thief (2014) 115.492.380.343.1fps
The Witcher 3 (2015) 128.341.821.6fps
Batman: Arkham Knight (2015) 93823231fps
Metal Gear Solid V (2015) 60606055.2fps
Fallout 4 (2015) 42.335.4fps
Rise of the Tomb Raider (2016) 137.377.340.833.3fps
Ashes of the Singularity (2016) 54.53529.7fps
Overwatch (2016) 290.2122.996.256.6fps
Mafia 3 (2016) 64.937.427.1fps
Dirt 4 (2017) 24297.851.728.5fps
F1 2017 (2017) 124655936fps
0123456789101112131415161718192021222324252627282930313233343536373839404142434445Tooltip
The Witcher 3 high

Ljudnivå

Låg belastning
37.6 / 37.6 / 37.7 dB(A)
Hög belastning
39.3 / 44 dB(A)



30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   BK Precision 732A (15 cm avstånd)   environment noise: 30.7 dB(A)
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), , Samsung SSD 960 Pro 512 GB m.2
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, , HGST Travelstar 7K1000 HTS721010A9E630
Gigabyte Sabre 15G
GeForce GTX 1050 (Notebook), 7700HQ, Liteonit CV3-8D128
MSI GS43VR 7RE-069US
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS128G39MNC-3510A
Asus Zenbook UX510UW-CN044T
GeForce GTX 960M, 6500U, SanDisk SD8SNAT256G1002
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Noise
4%
-2%
-9%
5%
7%
off / environment *
30.7
29.5
4%
28.2
8%
28
9%
31.6
-3%
29.5
4%
Idle Minimum *
37.6
36.2
4%
33
12%
33
12%
31.6
16%
31.6
16%
Idle Average *
37.6
36.2
4%
33.3
11%
34.5
8%
31.6
16%
32.2
14%
Idle Maximum *
37.7
36.5
3%
34.7
8%
35
7%
33.4
11%
32.3
14%
Load Average *
39.3
36.5
7%
44.5
-13%
54.2
-38%
41.7
-6%
43
-9%
Witcher 3 ultra *
40.6
49.2
-21%
56.7
-40%
Load Maximum *
44
42.9
2%
52.8
-20%
54.2
-23%
44.8
-2%
43.2
2%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 1.38 / 1.82 Watt
Låg belastningdarkmidlight 21.1 / 22.1 / 26.6 Watt
Hög belastning midlight 77.5 / 121.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Zotac ZBOX Magnus EN51050
GeForce GTX 1050 (Notebook), Samsung SSD 960 Pro 512 GB m.2, , ,
Zotac ZBOX Magnus EN980-U
GeForce GTX 980, HGST Travelstar 7K1000 HTS721010A9E630, , , 0
Gigabyte Sabre 15G
7700HQ, GeForce GTX 1050 (Notebook), Liteonit CV3-8D128, IPS, 1920x1080, 15.6
Asus Zenbook UX510UW-CN044T
6500U, GeForce GTX 960M, SanDisk SD8SNAT256G1002, IPS, 1920x1080, 15.6
Intel Skull Canyon NUC6i7KYK
6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , , 0
Power Consumption
-88%
31%
49%
36%
Idle Minimum *
21.1
34.9
-65%
8
62%
5
76%
14.8
30%
Idle Average *
22.1
35.9
-62%
10.9
51%
8.9
60%
15.7
29%
Idle Maximum *
26.6
40.4
-52%
11
59%
11.8
56%
15.8
41%
Load Average *
77.5
190.4
-146%
76.7
1%
55
29%
62.7
19%
Load Maximum *
121.7
260.8
-114%
106.4
13%
93
24%
48.5
60%
Witcher 3 ultra *
92.4
94.9
-3%

* ... smaller is better

För

+ tillgängliga SODIMM-springor, lagringsplatser och WLAN-modul; ingen skruvmejsel behövs
+ tystare fläkt vid spelande än GTX 1050-utrustade bärbara
+ stöd för NVMe, IR-mottagare, USB Typ-C Gen. 2
+ respektabel temperatur i kärnan vid spelande
+ 4st video-utgångar via HDMI 2.0 och DP 1.3
+ två års begränsad garanti som standard
+ stadig Turbo Boost-prestanda på CPU:n
+ LGA1151 och MXM 3 socklar
+ brett utbud av portar

Emot

- medelmåttig CPU-prestanda, långsam enkel-kärnig prestanda
- direkt tillträde till CPU eller GPU upphäver garantin
- långsammare prestanda än skrivbordsversionen av GTX 1050
- högre fläktljud vid låg processorbelastning
- det går inte att ställa in fläkten för att få mindre lägsta ljudnivå
- ingen Thunderbolt 3 eller 2x2 WLAN-alternativ
- inget vertikalt ställ eller VESA-montering
- oinspirerad design på chassit
- SD-kortläsaren kunde varit snabbare
In review: Zotac ZBox Magnus EN51050. Test model provided by Zotac US
In review: Zotac ZBox Magnus EN51050. Test model provided by Zotac US

Från en bärbart perspektiv är EN51050 tystare och svalare vid spel samtidigt som den levererar identisk grafikprestanda med instegsmodeller såsom Sabre 15, Odyssey 15, XPS 15, Inspiron 7567, or Pavilion 15 Power. Dess IR-mottagare och breda utbud av portar gör den mer tillgänglig för HTPC-syften eller multiskärms-konfigurationer. Samtidigt kommer entusiaster vara nöjda över att både CPU:n och GPU:n är utbytbara även om det upphäver garantin att göra så. För en mini-PC så här liten är LGA1151 och MXM 3 socklar en trevlig överraskning.



Ett par nackdelar håller tillbaka genomsnittsmodellen EN51050 från att rekommenderas omedelbart. För det första så är utgångspriset på ~5600 SEK ($700 USD) för en barebone-modell bara runt ~1600 SEK ($200) mindre än en fullfjädrad spelbärbar med samma GTX 1050-grafik och snabbare Core i7-7700HQ CPU. Så det är inte säkert man sparar pengar på att välja mini-PC vägen jämfört med en genomsnittlig bärbar speldator komplett med Windows 10, RAM, lagringsutrymme, tangentbord och skärm. För det andra är dess i5-7500T CPU ett steg över den U-klass CPU som sitter i den äldre Magnus EN970/EN760-serierna, men fortfarande en bra bit under de fyrkärniga Core i7 HQ-klass processorerna som går att hitta på samma bärbara mittenskikts-spelmodeller. Den nya 8:e generationens Kaby Lake-R processorer som följer med de senaste Ultrabook-modellerna har visat sig vara snabbare med mindre än hälften av samma TDP och till och med processorn i en Skull Canyon NUC är snabbare på bara en bråkdel av samma storlek. Processorprestandan är istället jämförbar med en dual-kärnig i5-6400 eller en i5-7300HQ. Till sist, man får förvänta sig att GPU-prestandan är närmare den bärbara modellen av GTX 1050 snarare än skrivbordsversionen.



Vi hoppas att framtida revideringar inkluderar mer avancerade kontroller för fläkten för att minimera fläktljud och kommer med en snabbare inbyggd SD-kortläsare och WLAN-alternativ. En Thunderbolt 3-port kunde också hjälpa mycket med att öka dessa värde jämfört med bärbara speldatorer i samma prisklass.



Speldatorn EN51050 är en mycket mer balancerad mini-PC jämfört med EN51060 eller EN51070 eftersom dess Intel T-klass CPU passar bättre ihop med instegschippet GTX 1050. Systemet är överraskningsvis mycket lättare att reparera än större spel-fokuserade mini-PC:s såsom Trident 3 eller ROG GR8. Om fyrkärnig processorprestanda inte behövs så är denna Zotac tillräcklig för en genomsnittlig spelares behov.

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Zotac ZBOX Magnus EN51050 Mini PC (Sammanfattning)
Allen Ngo, 2017-10-11 (Update: 2017-10-11)
