Test: Lenovo Z51-70 (Radeon R9 M375) (sammanfattning)

Blandade känslor. Lenovos nykomling vill kvala in i allround-divisionen med en mellanklass-GPU, men det är sämre ställt med bild och ljud. Tangentbordet är inte heller i toppklass, även om många andra aspekter är riktigt bra.
Sven Kloevekorn, Stefanie Voigt, 🇺🇸 🇩🇪 ...
, , , , , ,
sökrelation
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

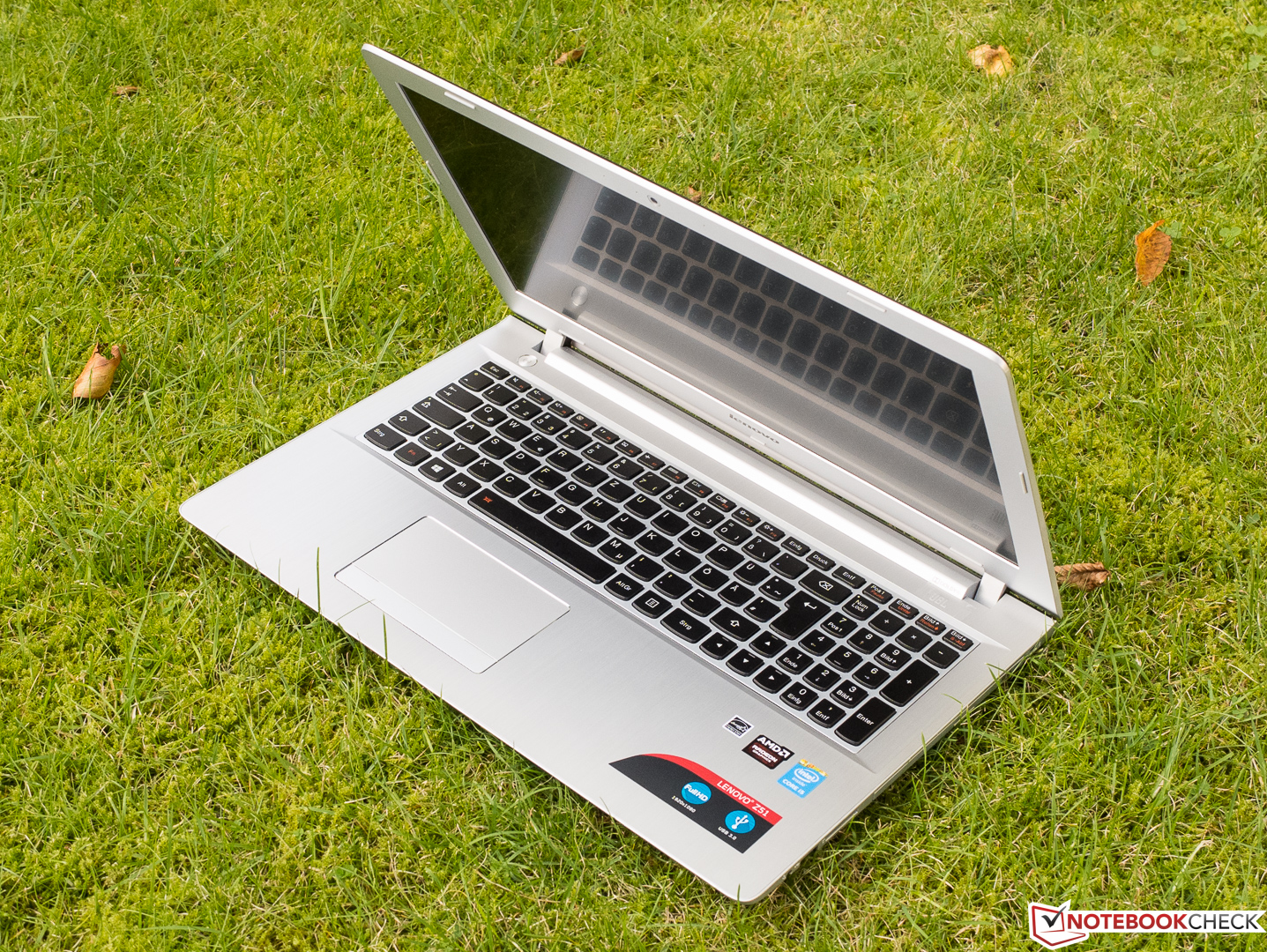

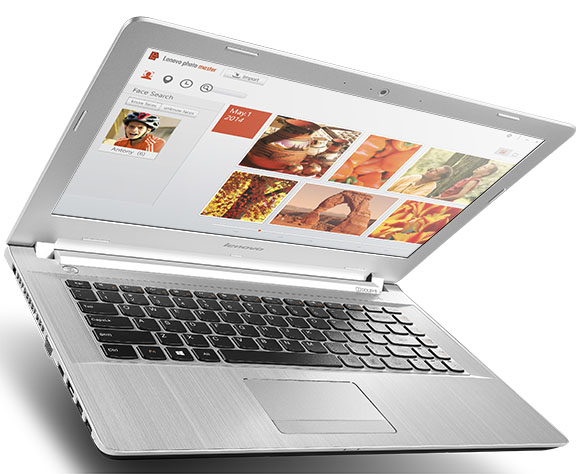

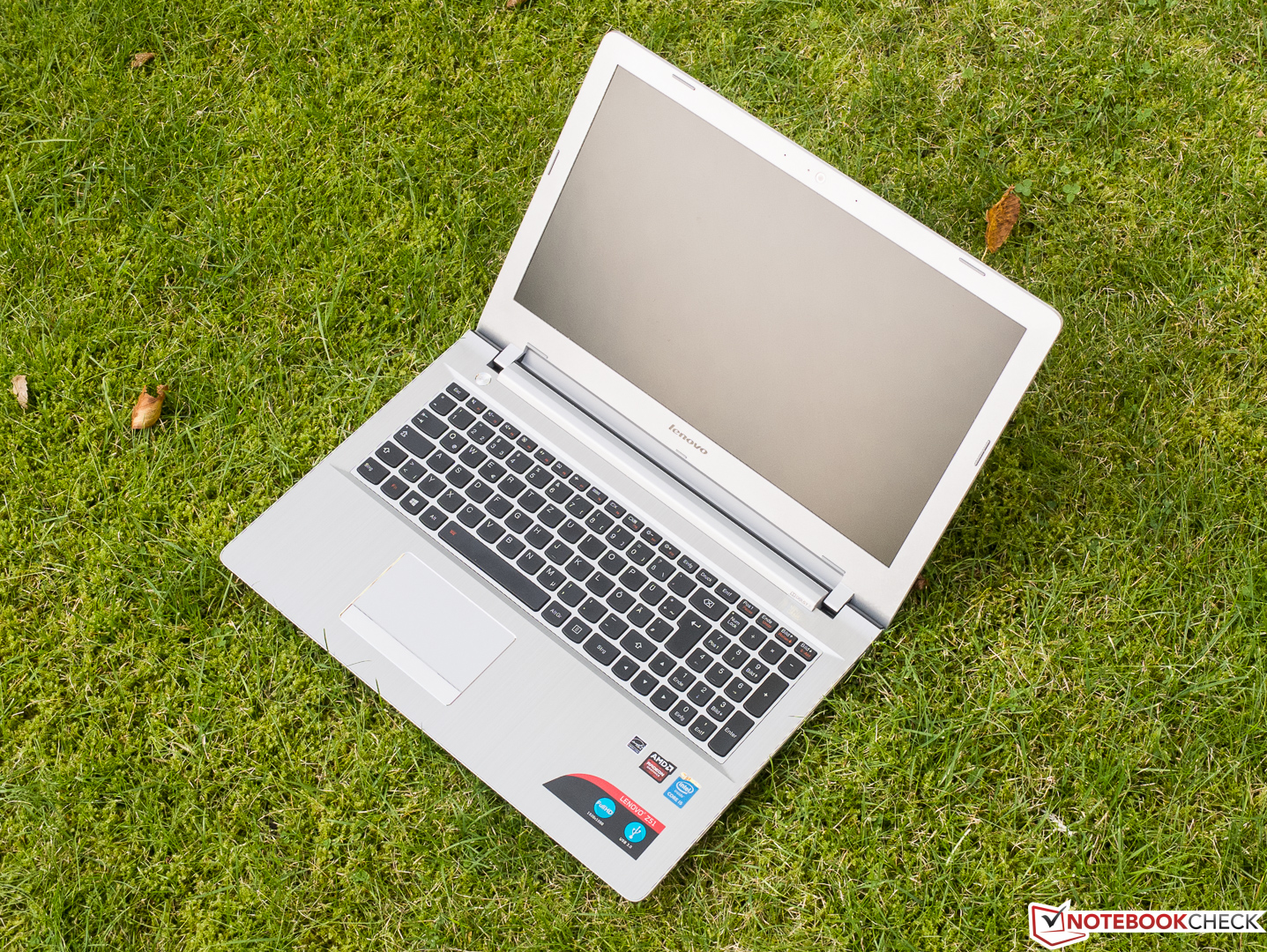

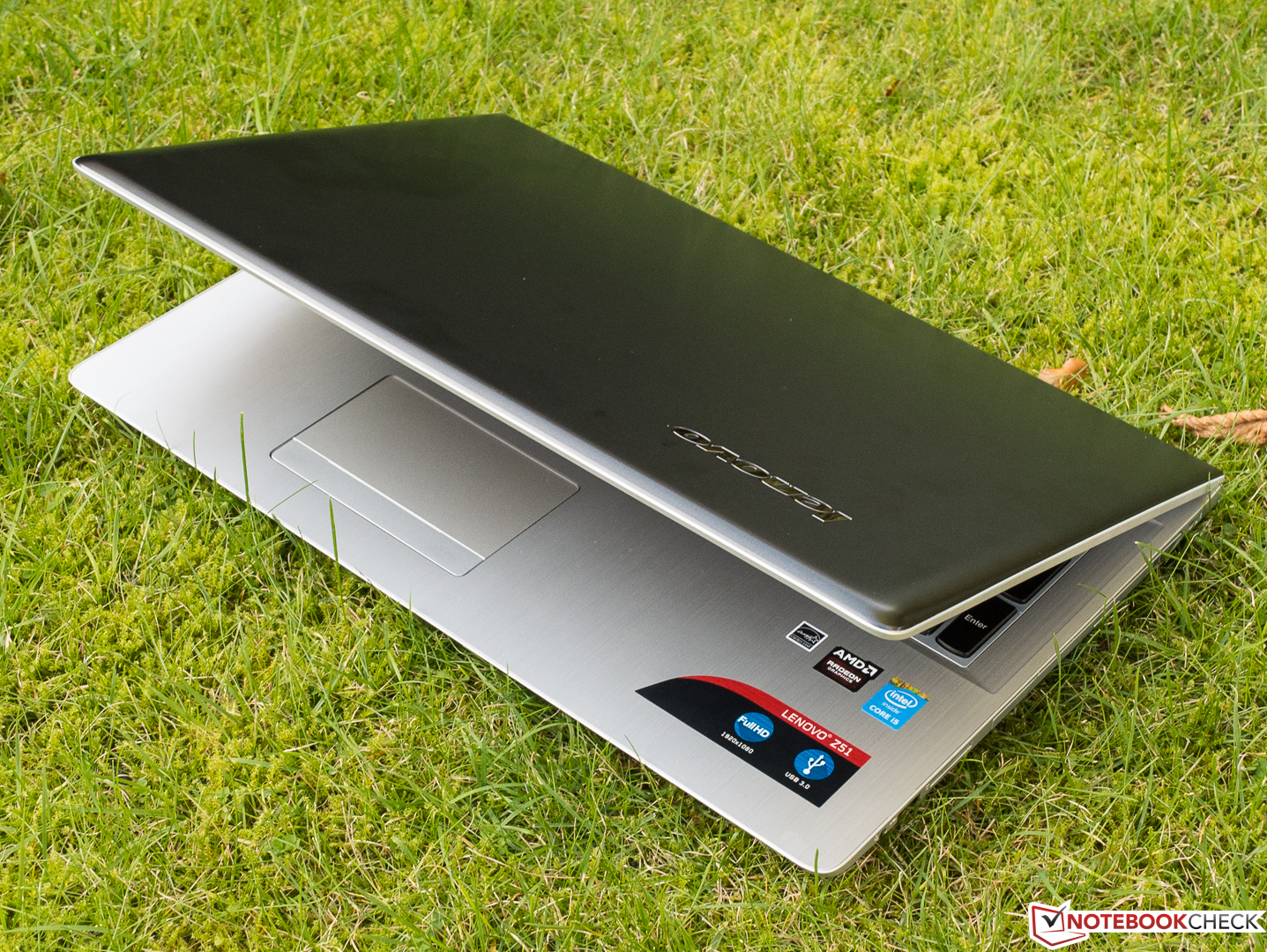

Lenovo Z51-70 (Z51 Serie)
Processor

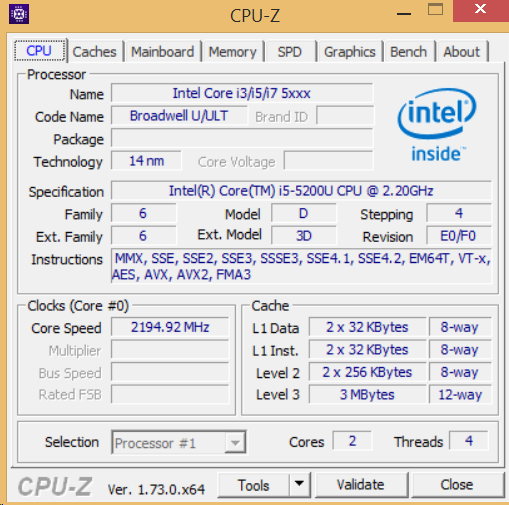

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Grafikkort

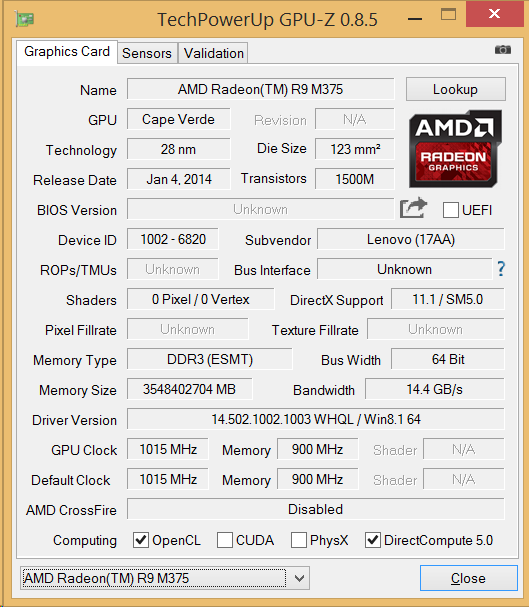

AMD Radeon R9 M375 - 2048 MB, Kärna: 1015 MHz, Minne: 2200 MHz, DDR3, 14.502.1002.1003, AMD Enduro

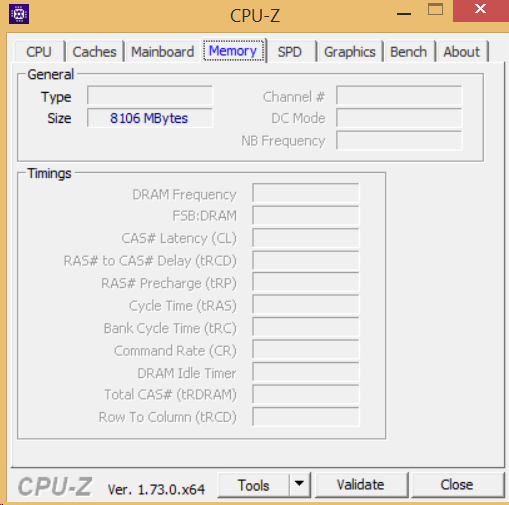

Minne
8192 MB
, DDR3, 1600 MHz, single-channel, 2 minnesplatser, 1 används
Skärm
15.60 tum 16:9, 1920 x 1080 pixlar, Chi Mei CMN15C4, TN LED, glansig: nej
Moderkort
Intel Broadwell-U PCH-LP (Premium)
Hårddisk
Samsung PM871 MZYLN256HCHP, 256 GB
Ljudkort
Intel Broadwell PCH-LP - High Definition Audio Controller
Anslutningar
1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: Headset, Kortläsare: SD/SDHC/SDXC
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0

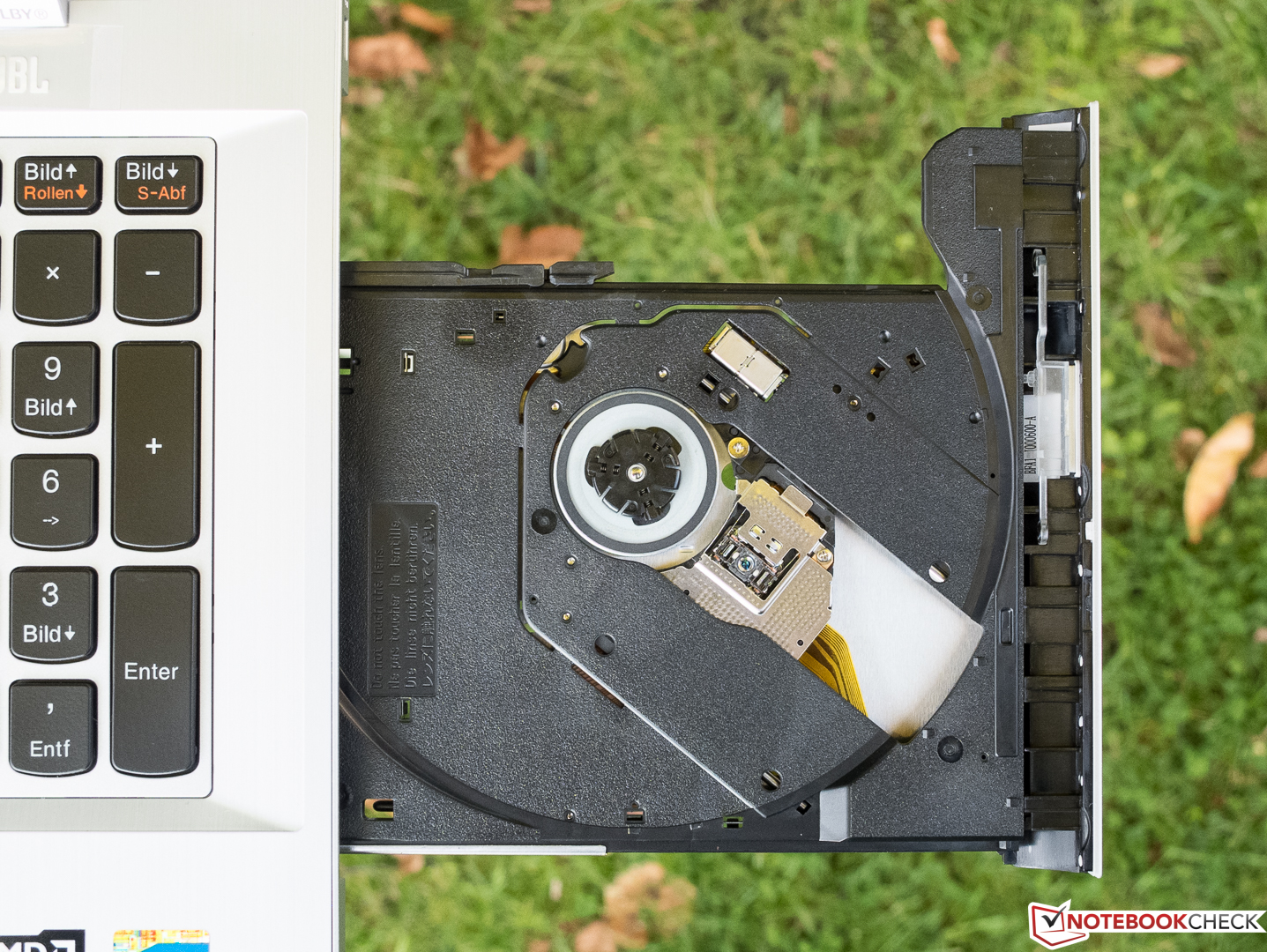

Optisk enhet
Matshita DVD-RAM UJ8HC
Storlek
höjd x bredd x djup (i mm) 26 x 380 x 265
Batteri
32 Wh Litiumjon
Operativsystem
Microsoft Windows 8.1 64 Bit
Camera

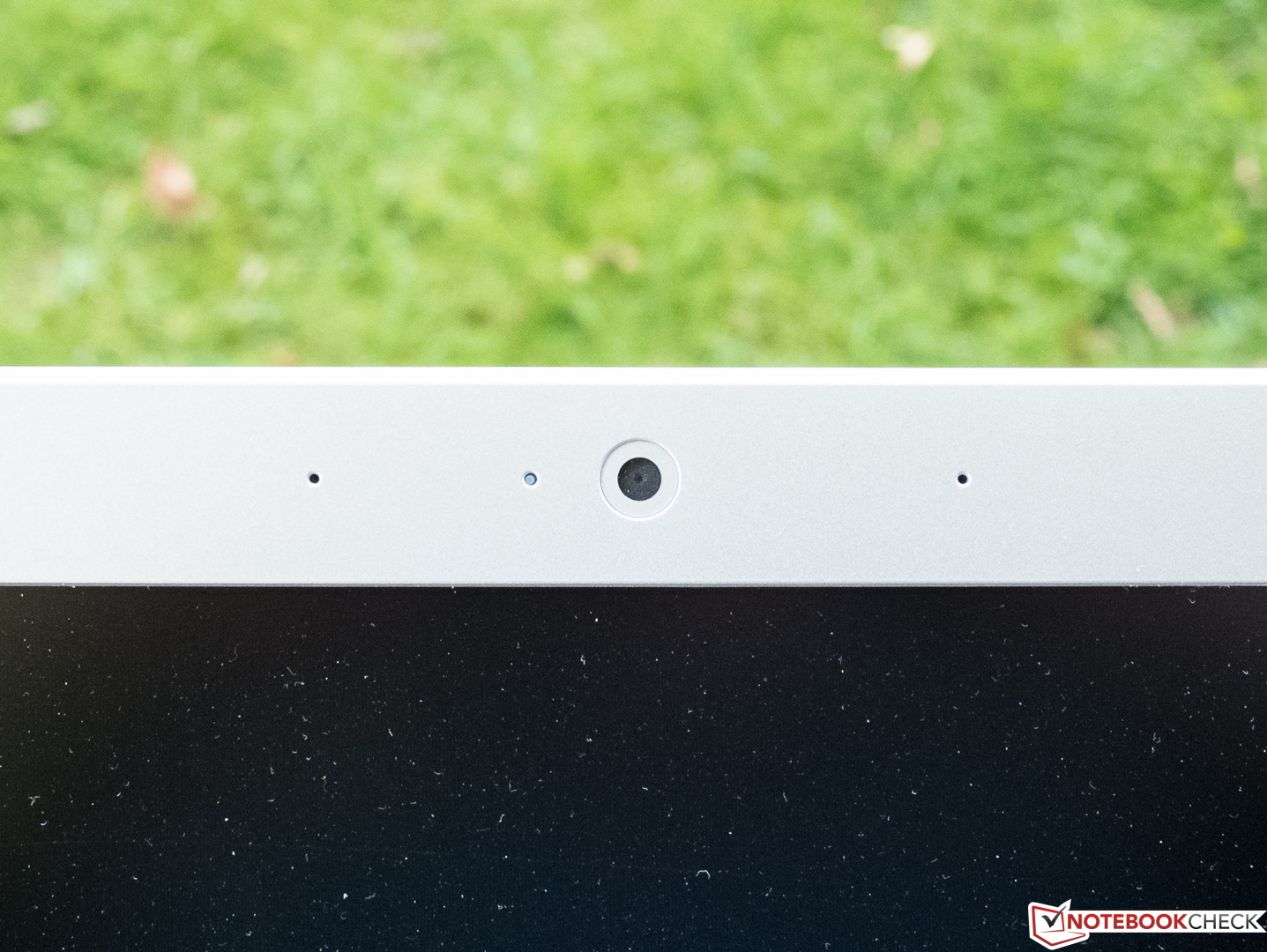

Webbkamera: HD
Övrigt

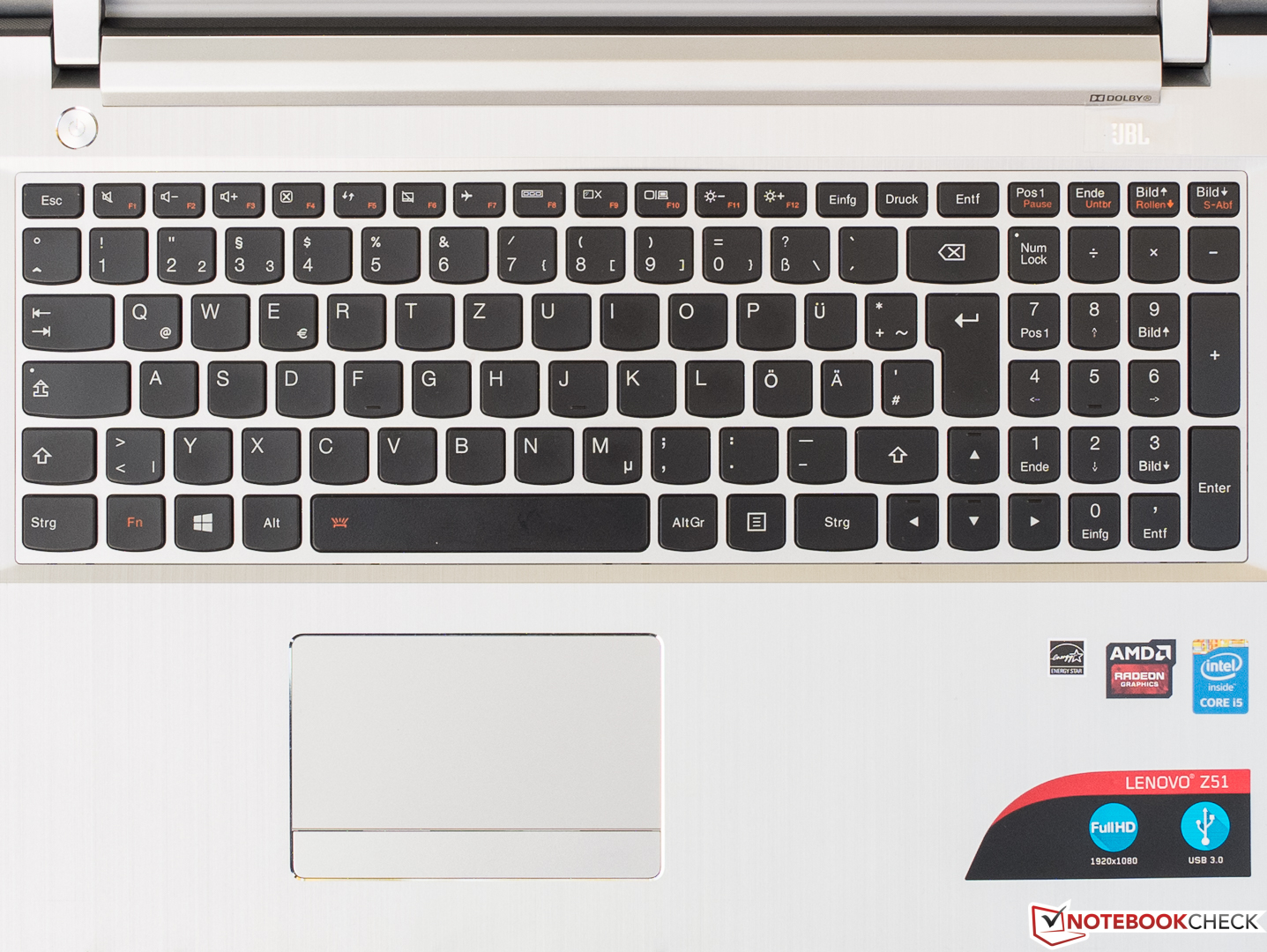

Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: ja, 24 Månader Garanti
Vikt
2.3 kg, Strömförsörjning: 339 g
Pris
7800 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70
Lenovo Z51-70

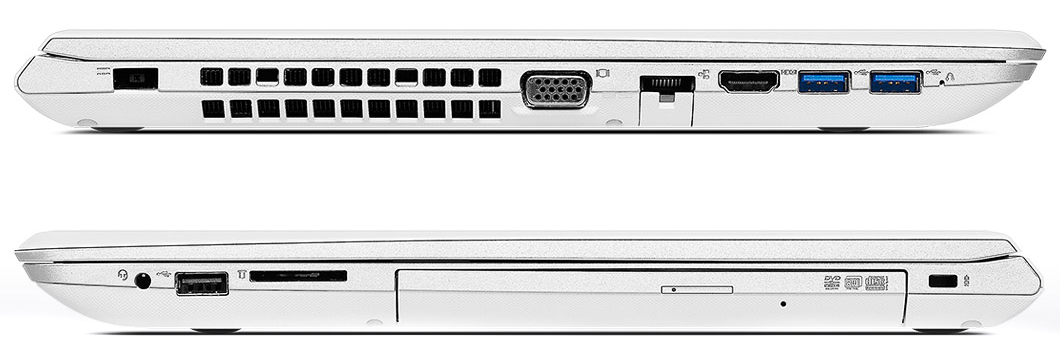

Right: power, vent, VGA, Ethernet, HDMI, 2x USB 3.0 / Left: audio in/out, USB 2.0, SD-card reader, DVD burner, Kensington
Right: power, vent, VGA, Ethernet, HDMI, 2x USB 3.0 / Left: audio in/out, USB 2.0, SD-card reader, DVD burner, Kensington
225
cd/m²
228
cd/m²
201
cd/m²
203
cd/m²
229
cd/m²
195
cd/m²
223
cd/m²
221
cd/m²
204
cd/m²
Distribution av ljusstyrkan
Chi Mei CMN15C4
X-Rite i1Pro 2
Max: 229 cd/m² (Nits) Medel: 214.3 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 188 cd/m²
Kontrast: 509:1 (Svärta: 0.45 cd/m²)
ΔE Color 10.51 | 0.59-29.43 Ø5.5
ΔE Greyscale 11.32 | 0.64-98 Ø5.7
59% sRGB (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.65% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.91% sRGB (Argyll 2.2.0 3D)
39.33% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.47
Lenovo Z51-70Acer Aspire V3-574G-59MADell Inspiron 15-5558
Display
1%
5%
Display P3 Coverage
39.33
39.83
1%
41.22
5%
sRGB Coverage
58.91
59.45
1%
61.76
5%
AdobeRGB 1998 Coverage
40.65
41.21
1%
42.58
5%
Screen
11%
21%
Brightness middle
229
257
12%
177
-23%
Brightness
214
247
15%
176
-18%
Brightness Distribution
85
84
-1%
78
-8%
Black Level *
0.45
0.45
-0%
0.15
67%
Contrast
509
571
12%
1180
132%
Colorchecker dE 2000 *
10.51
7.36
30%
8.52
19%
Greyscale dE 2000 *
11.32
7.82
31%
9.72
14%
Gamma
2.47 89%
2.4 92%
1.85 119%
CCT
12795 51%
6939 94%
5036 129%
Color Space (Percent of AdobeRGB 1998)
38
38
0%
39
3%
Color Space (Percent of sRGB)
59
59.2
0%
61
3%
Total Average (Program / Settings)
6% / 9%
13% / 17%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
2.84 Points ∼5%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
2.78 Points ∼5% -2%
Dell Inspiron 15-5558
Intel Core i5-5200U
2.8 Points ∼5% -1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
1.13 Points ∼32%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
1.26 Points ∼36% +12%
Dell Inspiron 15-5558
Intel Core i5-5200U
1.26 Points ∼36% +12%
Cinebench R15
CPU Multi 64Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
259 Points ∼3%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
258 Points ∼3% 0%
Dell Inspiron 15-5558
Intel Core i5-5200U
261 Points ∼3% +1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
96 Points ∼34%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
108 Points ∼38% +13%
Dell Inspiron 15-5558
Intel Core i5-5200U
108 Points ∼38% +13%
Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
8509 Points ∼12%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
8699 Points ∼12% +2%
Dell Inspiron 15-5558
Intel Core i5-5200U
8642 Points ∼12% +2%
Rendering Single 32Bit (sort by value)
Lenovo Z51-70
Intel Core i5-5200U
4176 Points ∼37%
Acer Aspire V3-574G-59MA
Intel Core i5-5200U
4131 Points ∼37% -1%
Dell Inspiron 15-5558
Intel Core i5-5200U
4137 Points ∼37% -1%
Cinebench R10 Shading 32Bit
6544
Cinebench R10 Rendering Multiple CPUs 32Bit
8509
Cinebench R10 Rendering Single 32Bit
4176
Cinebench R11.5 OpenGL 64Bit
38.7 fps
Cinebench R11.5 CPU Multi 64Bit
2.84 Points
Cinebench R11.5 CPU Single 64Bit
1.13 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
45.5 fps
Cinebench R15 CPU Multi 64Bit
259 Points
Cinebench R15 CPU Single 64Bit
96 Points
Hjälp
PCMark 7
Score (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
5071 Points ∼55%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
4857 Points ∼53% -4%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2736 Points ∼30% -46%
Lightweight (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
5037 Points ∼69%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
4852 Points ∼66% -4%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2083 Points ∼28% -59%
Productivity (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
4021 Points ∼37%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
3840 Points ∼35% -5%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
1454 Points ∼13% -64%
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
3612 Points ∼58%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
3187 Points ∼51% -12%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2830 Points ∼45% -22%
Work Score Accelerated v2 (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
4274 Points ∼60%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
4070 Points ∼57% -5%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
3609 Points ∼51% -16%
PCMark 7 Score
5071 poäng
PCMark 8 Home Score Accelerated v2
3612 poäng
PCMark 8 Work Score Accelerated v2
4274 poäng
Hjälp
Samsung PM871 MZYLN256HCHP
Sequential Read: 514.5 MB/s
Sequential Write: 300.4 MB/s
512K Read: 447.8 MB/s
512K Write: 300.4 MB/s
4K Read: 37.61 MB/s
4K Write: 113.6 MB/s
4K QD32 Read: 398.4 MB/s
4K QD32 Write: 299.3 MB/s
3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375
3314 Points ∼5%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M
2432 Points ∼4% -27%
Dell Inspiron 15-5558
NVIDIA GeForce 920M
1704 Points ∼3% -49%
Lenovo Z51-70-80K6
AMD Radeon R7 M360
2108 Points ∼3% -36%
3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375
8466 Points ∼4%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M
8946 Points ∼4% +6%
Dell Inspiron 15-5558
NVIDIA GeForce 920M
7214 Points ∼4% -15%
Lenovo Z51-70-80K6
AMD Radeon R7 M360
5117 Points ∼3% -40%
1920x1080 Fire Strike Graphics (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375
1667 Points ∼3%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M
1639 Points ∼3% -2%
Dell Inspiron 15-5558
NVIDIA GeForce 920M
1157 Points ∼2% -31%
Lenovo Z51-70-80K6
AMD Radeon R7 M360
1122 Points ∼2% -33%
3DMark 06 Standard Score
11543 poäng
3DMark Vantage P Result
8275 poäng
3DMark 11 Performance
3269 poäng
3DMark Cloud Gate Standard Score
5932 poäng
3DMark Fire Strike Score
1514 poäng
Hjälp
låg med. hög ultra
Crysis 3 (2013) 37.9 23.2 fps
Tomb Raider (2013) 50 36.2 17.8 fps
BioShock Infinite (2013) 89.2 52.9 44 16.3 fps
Metro: Last Light (2013) 42 34.8 22.3 fps
Battlefield 4 (2013) 43.8 30.6 11.9 fps
Thief (2014) 27 22.7 19.4 fps
GRID: Autosport (2014) 91 severe graphical problems 47 severe graphical problems 30 severe graphical problems 20 severe graphical problems fps
Fifa 15 (2014) 66.3 32.7 fps
Middle-earth: Shadow of Mordor (2014) 36 25.5 15.5 fps
Alien: Isolation (2014) 53.4 38.7 21.6 fps
Civilization: Beyond Earth (2014) 48 32 21.6 fps
Call of Duty: Advanced Warfare (2014) 55 34.4 17.4 fps
Assassin's Creed Unity (2014) 28.5 fps
Far Cry 4 (2014) 40.8 31.6 15.8 fps
Dragon Age: Inquisition (2014) 36 severe graphical problems 34 severe graphical problems 21 severe graphical problems fps
Evolve (2015) 41.1 31.1 16.7 fps
Battlefield Hardline (2015) 59.3 43.5 17.7 fps
Dirt Rally (2015) 40 severe graphical problems 24.8 fps
The Witcher 3 (2015) 9.8 fps
Batman: Arkham Knight (2015) 27 22 fps
Mad Max (2015) 36.3 18.6 fps
Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
27 fps ∼13%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
21 fps ∼10% -22%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
16 fps ∼7% -41%
MSI GP72-2QEi781
NVIDIA GeForce GTX 950M,
56 fps ∼26% +107%
1366x768 Normal / Off AF:4x (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
22 fps ∼11%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
18 fps ∼9% -18%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
13 fps ∼6% -41%
MSI GP72-2QEi781
NVIDIA GeForce GTX 950M,
46 fps ∼23% +109%
Dirt Rally
1366x768 Medium Preset (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
40.8 fps ∼19%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
46.4 fps ∼21% +14%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
33.1 fps ∼15% -19%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
42.2 fps ∼19% +3%
Lenovo Z51-70-80K6
AMD Radeon R7 M360,
31.7 fps ∼15% -22%
1920x1080 High Preset (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
24.8 fps ∼12%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
23.5 fps ∼12% -5%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
16.8 fps ∼8% -32%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
21.4 fps ∼11% -14%
Lenovo Z51-70-80K6
AMD Radeon R7 M360,
16.3 fps ∼8% -34%
Thief
1024x768 Very Low Preset (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
27 fps ∼18%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
38.2 fps ∼25% +41%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
35.2 fps ∼23% +30%
Lenovo Y40-59423035
AMD Radeon R9 M275,
26.8 fps ∼18% -1%
1366x768 Normal Preset AA:FX (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
22.7 fps ∼15%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
24.4 fps ∼17% +7%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
22.6 fps ∼15% 0%
Lenovo Y40-59423035
AMD Radeon R9 M275,
22.6 fps ∼15% 0%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
19.4 fps ∼13%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
19.8 fps ∼14% +2%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
18.3 fps ∼13% -6%
Lenovo Y40-59423035
AMD Radeon R9 M275,
19.3 fps ∼13% -1%
Tomb Raider
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
50 fps ∼7%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
64.8 fps ∼10% +30%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
43.3 fps ∼6% -13%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
58.7 fps ∼9% +17%
Lenovo Y40-59423035
AMD Radeon R9 M275,
62.9 fps ∼9% +26%
Lenovo Z51-70-80K6
AMD Radeon R7 M360,
36.7 fps ∼5% -27%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo Z51-70
AMD Radeon R9 M375,
36.2 fps ∼6%
Acer Aspire V3-574G-59MA
NVIDIA GeForce 940M,
35 fps ∼6% -3%
Dell Inspiron 15-5558
NVIDIA GeForce 920M,
25.7 fps ∼4% -29%
HP Envy 15-w000ng x360
NVIDIA GeForce 930M,
31.9 fps ∼5% -12%
Lenovo Y40-59423035
AMD Radeon R9 M275,
44.1 fps ∼7% +22%
Lenovo Z51-70-80K6
AMD Radeon R7 M360,
29 fps ∼5% -20%

Ljudnivå

Låg belastning
32.1 / 32.1 / 32.8 dB(A)
DVD
36.8 / dB(A)
Hög belastning
39.4 / 40.7 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm avstånd)
Hög belastning
 43.6 °C39.7 °C25.6 °C
 41.8 °C39.2 °C25.7 °C
 33.4 °C34.8 °C27 °C
Max: 43.6 °C
Medel: 34.5 °C
25.7 °C34.2 °C37.2 °C
25.5 °C32.3 °C45.6 °C
25 °C29.1 °C29.8 °C
Max: 45.6 °C
Medel: 31.6 °C
Strömförsörjning (max.)  56.3 °C | Rumstemperatur 24 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 31 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 36.7 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 39 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 31 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.8 °C / 94.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-5.9 °C / -10.6 F).
Strömförbrukning
Av/Standbydarklight 0.1 / 0.2 Watt
Låg belastningdarkmidlight 3.3 / 5.9 / 6 Watt
Hög belastning midlight 55.1 / 55.2 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
WiFi v1.3 (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
289 min ∼86%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
281 min ∼83%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
337 min ∼100%
Load (sort by value)
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
75 min ∼73%
Acer Aspire V3-574G-59MA
GeForce 940M, 5200U, Kingston RBU-SC150S37256GD
91 min ∼88%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
103 min ∼100%
Batteritid
WiFi Websurfing
4tim 49min
DVD
3tim 06min
Hög belastning (maximal ljusstyrka)
1tim 15min

För

+ Många olika konfigurationer
+ Väldesignad, acceptabelt chassi
+ ac-Wi-Fi
+ Bakbelyst tangentbord

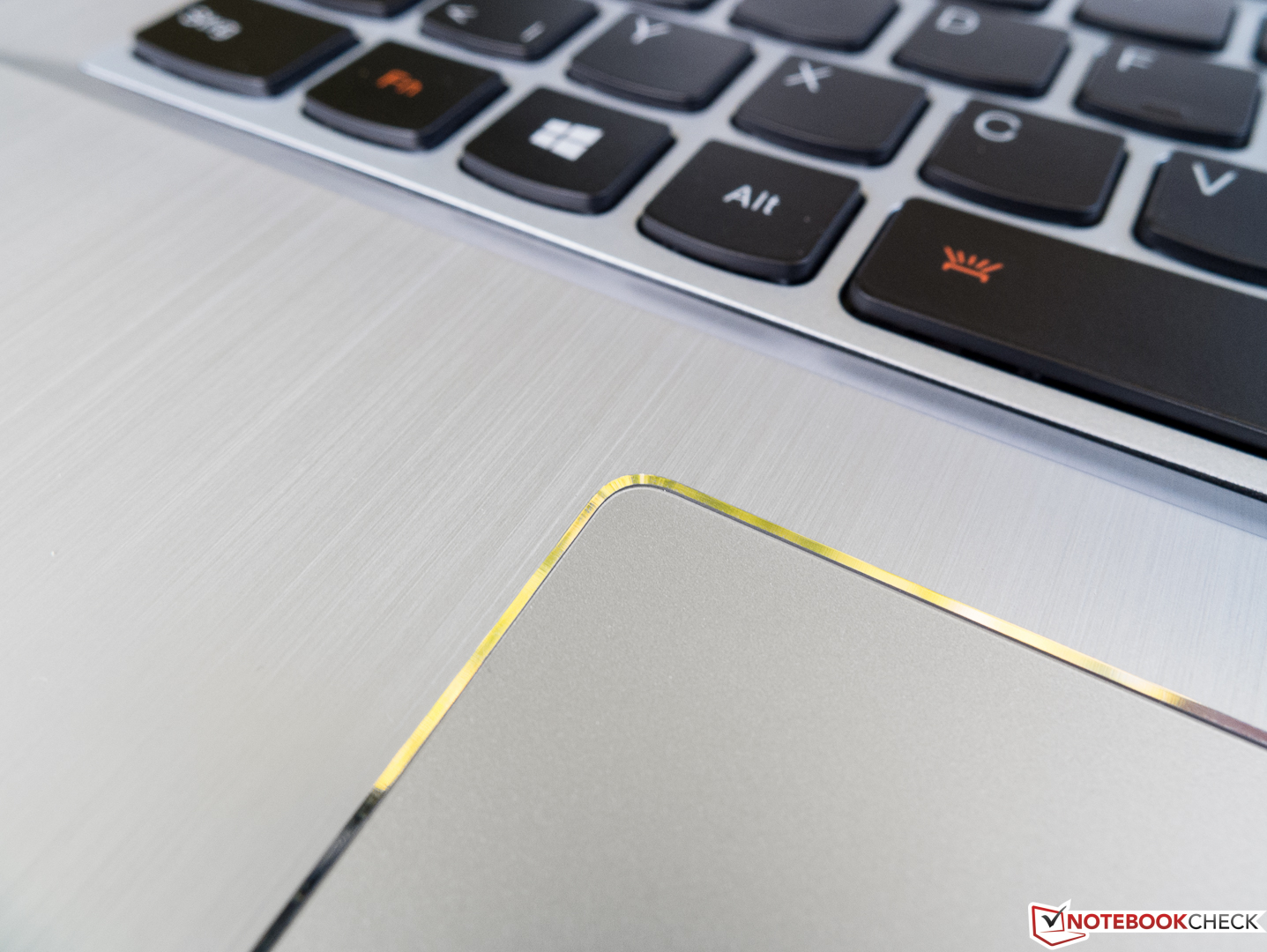

+ Trevlig pekplatta
+ Ingen strypning
+ Snabb SSD
+ Bra batteritid

Emot

- Måste plockas isär för att byta batteri
- Alla portar framtill

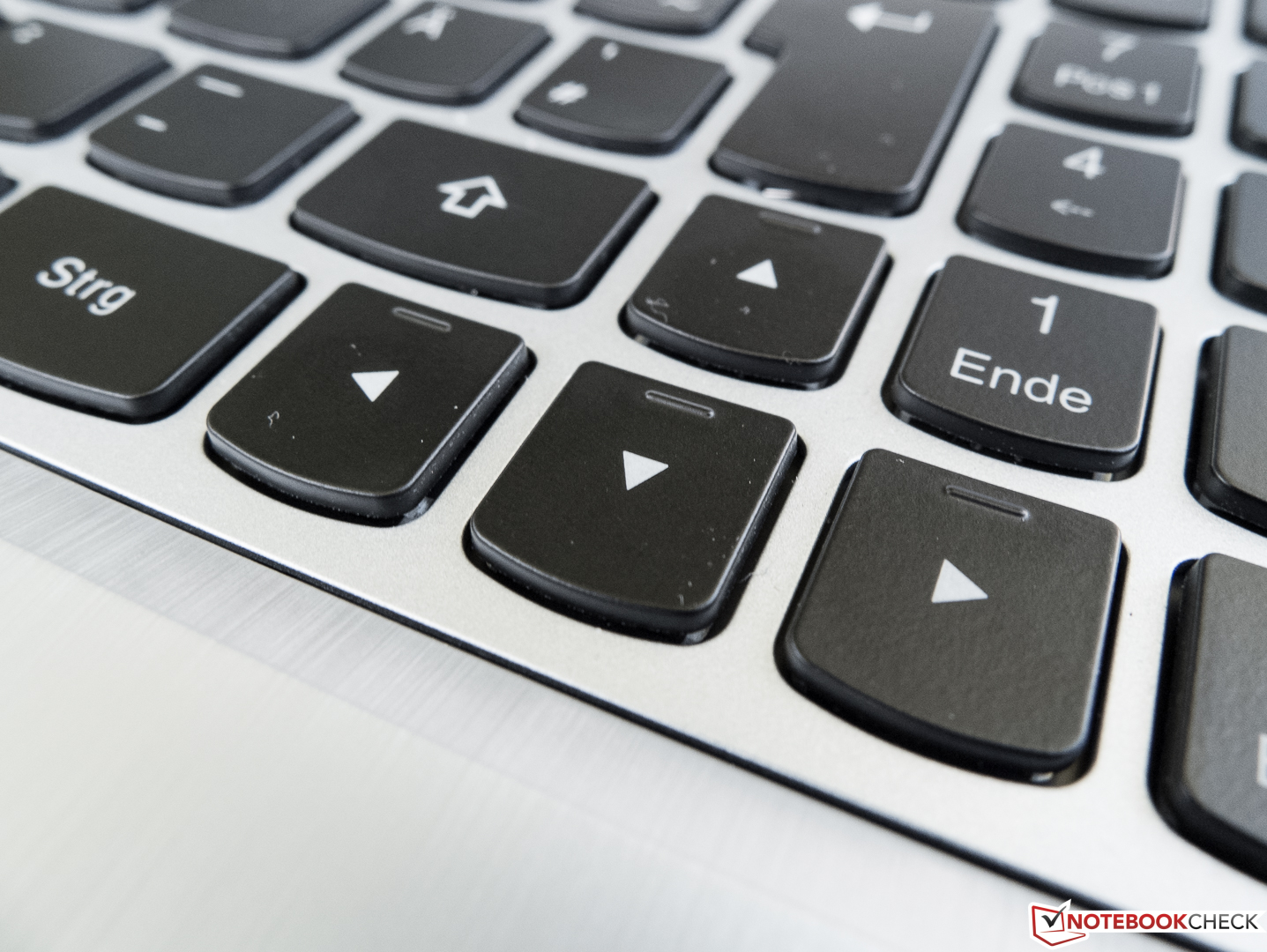

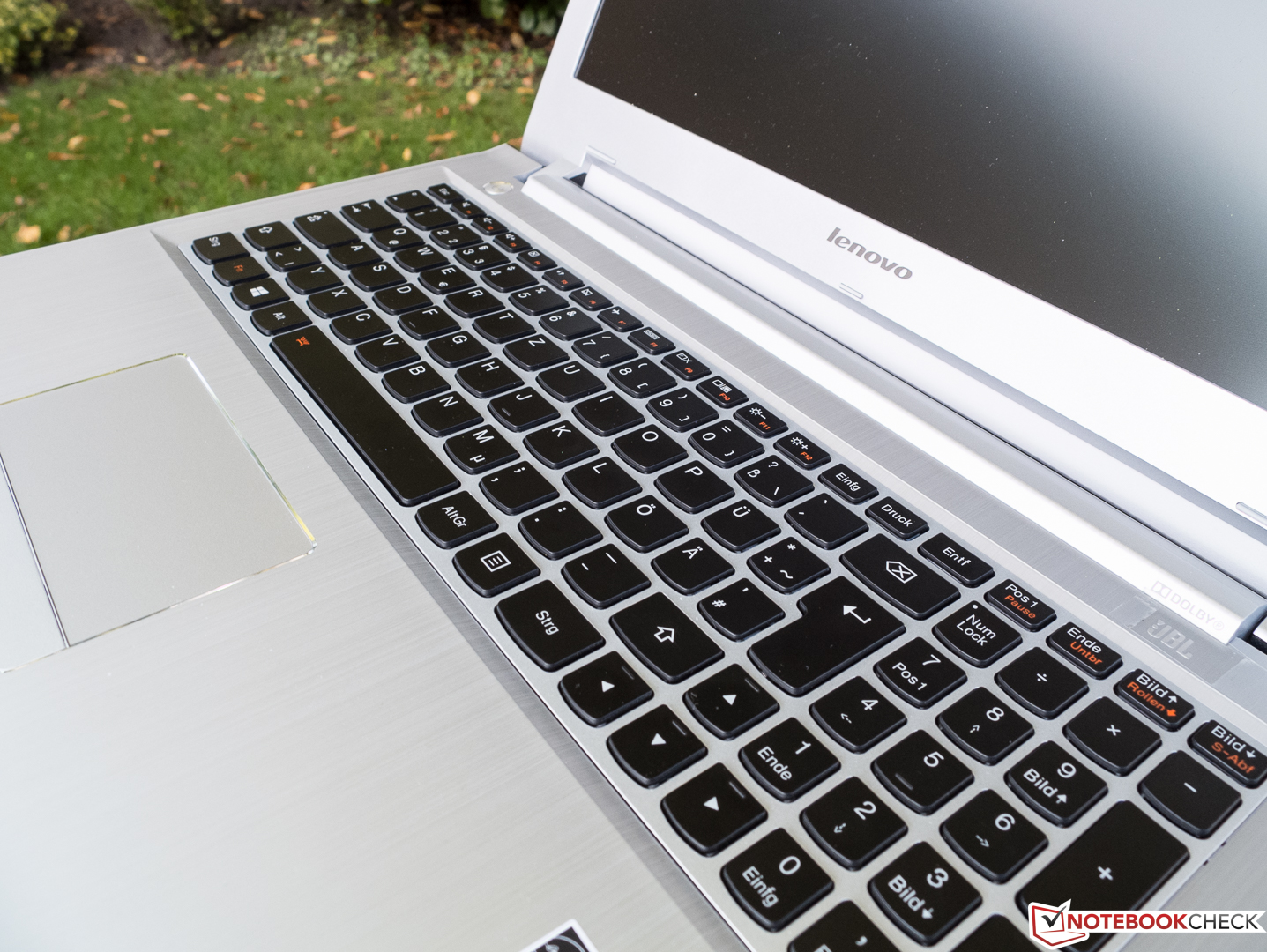

- Medelmåttigt tangentbord
- Blek TN-skärm med dåliga betraktningsvinklar

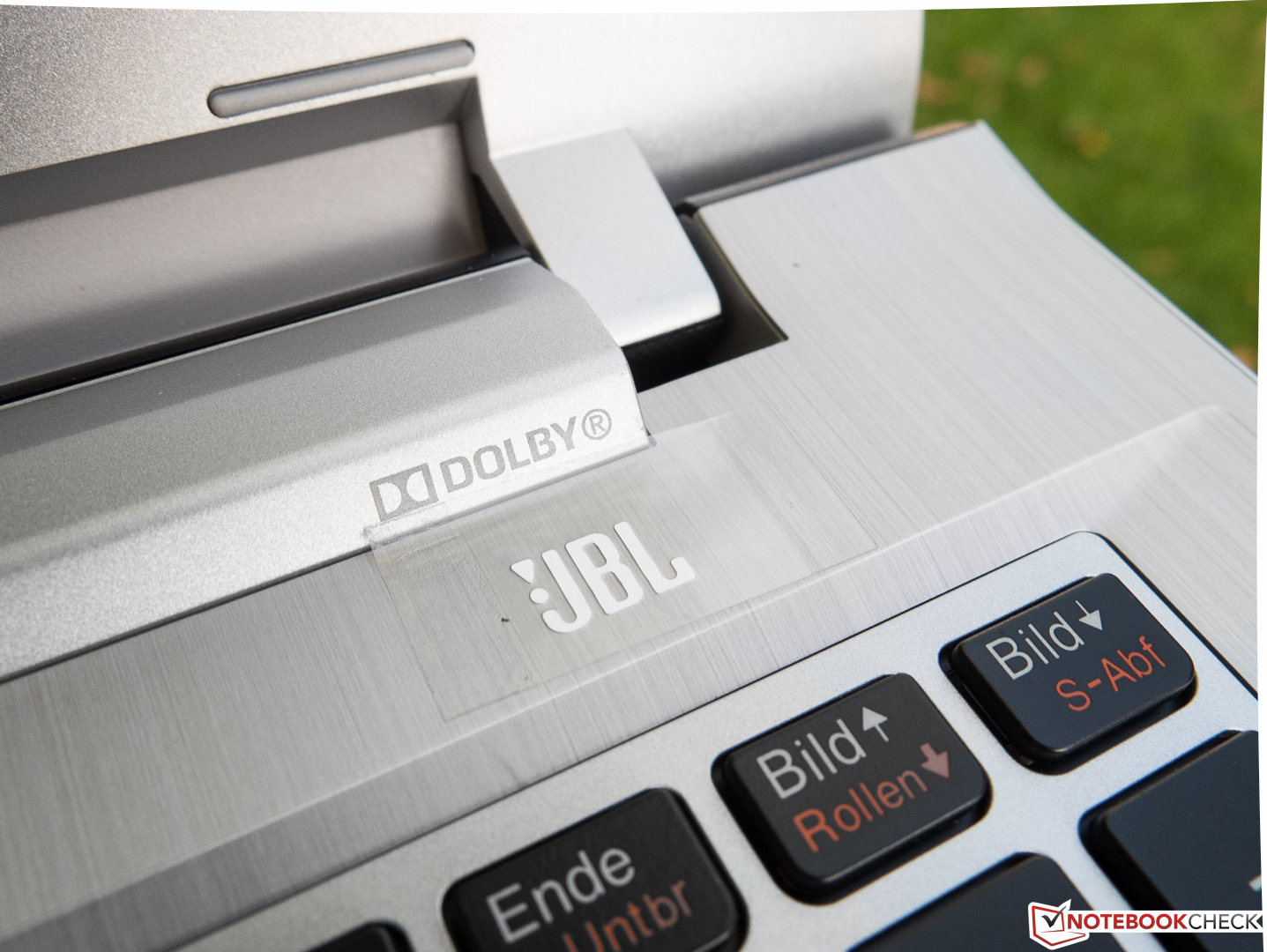

- Ljudsystem defekt

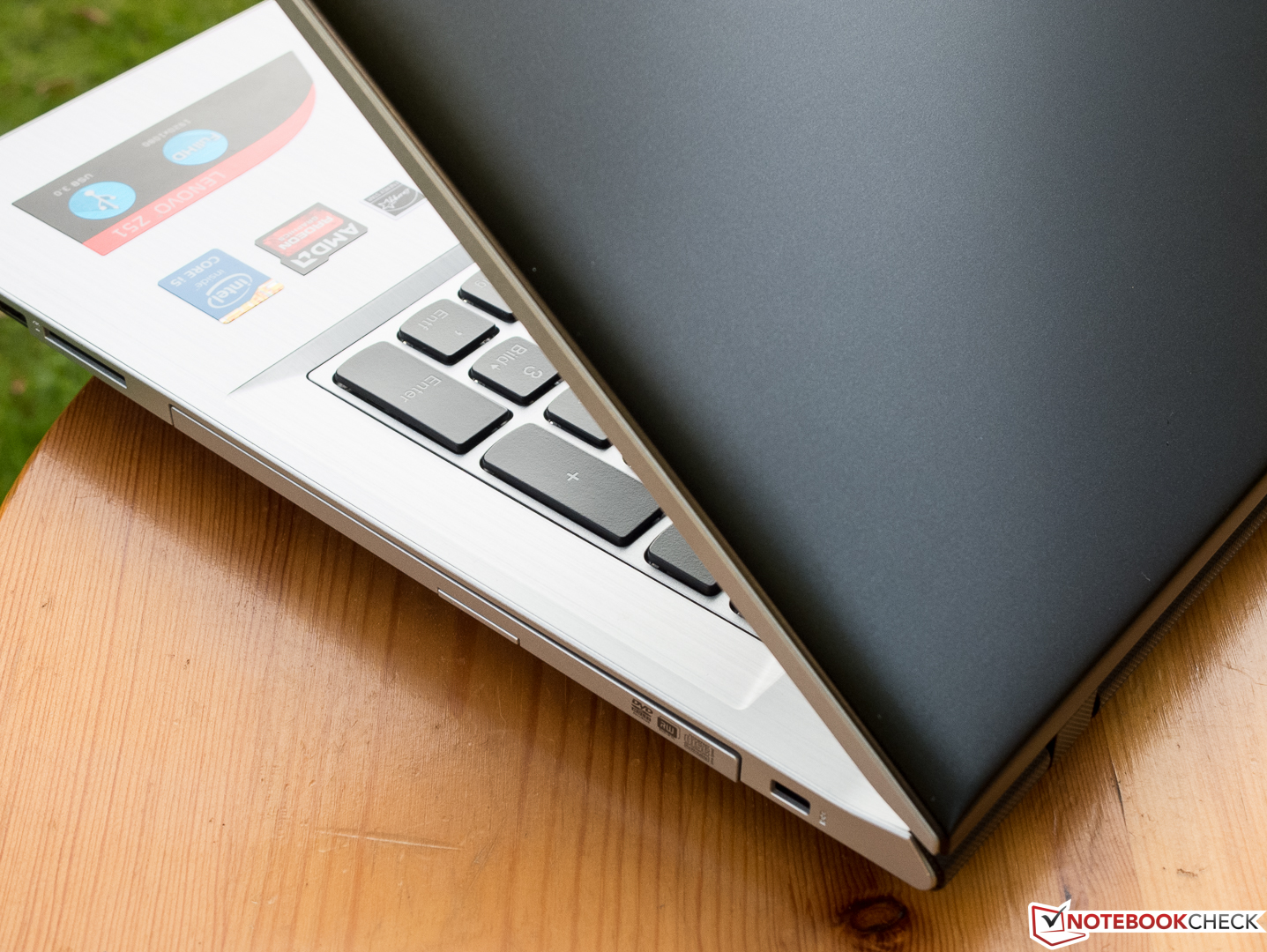

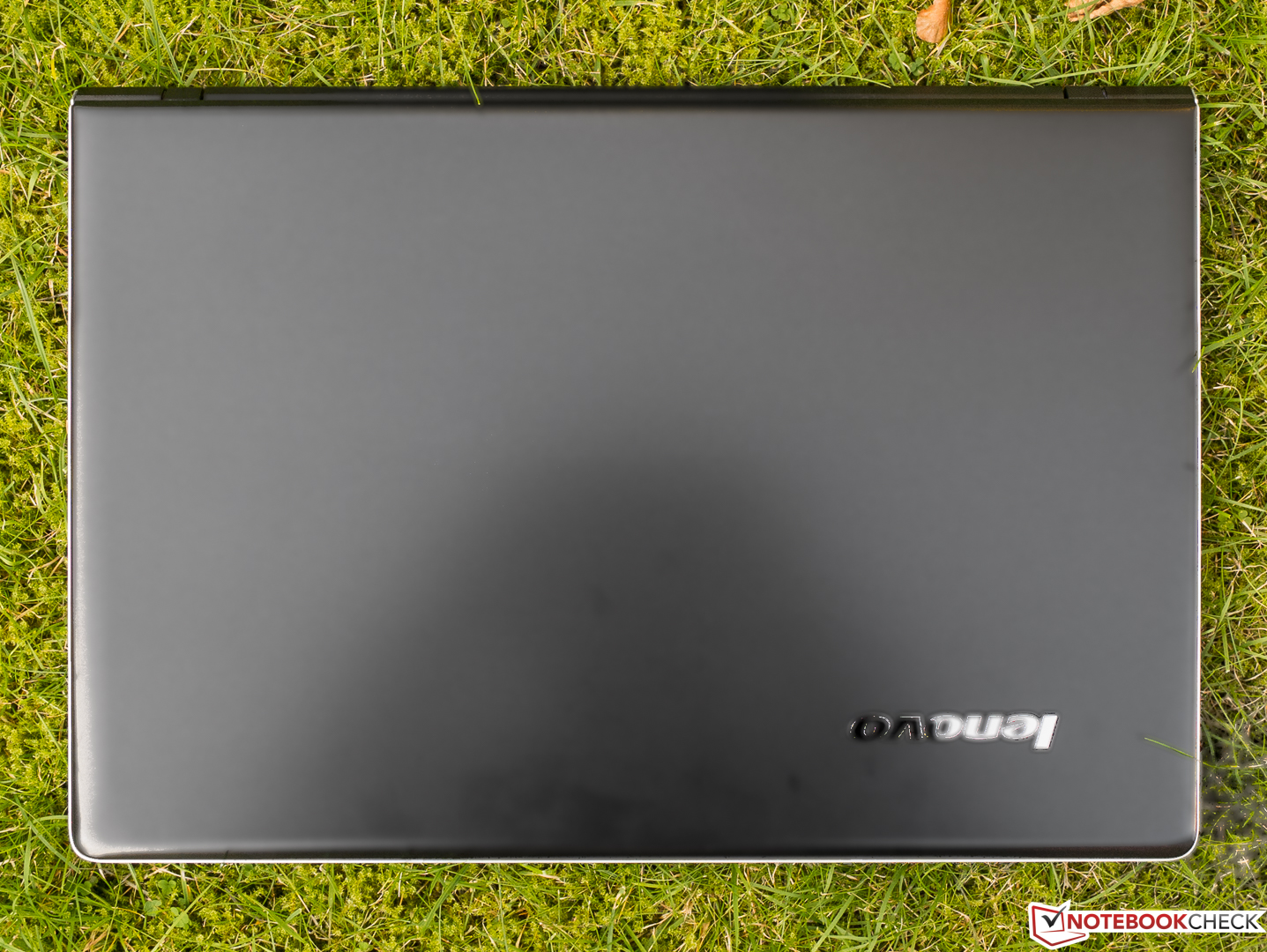

In review: Lenovo Z51-70. Test model courtesy of Cyberport.
In review: Lenovo Z51-70. Test model courtesy of Cyberport.

Var är alla IPS-skärmar som Lenovo utlovat? En sådan hade i alla fall sett bra ut på vår testmaskin. Istället får vi leva med en medioker TN-panel med mycket begränsade betraktningsvinklar och en färgåtergivning som lämnar övrigt att önska.

Det ganska dåliga tangentbordet och de otillräckliga underhållsalternativen kan också nämnas medan vi är igång och klagar. De mindre bristerna i det i övrigt väldesignade chassit kan vi bortse ifrån i en konsumentlaptop. Däremot kan inte det defekta ljudsystemet ignoreras.

All hårdvara fungerar å andra sidan utmärkt, främst tack vare en potent processor och en snabb SSD. Pekplattan är också bra. Det nya grafikkortet AMD Radeon R9 M375 kan utan problem konkurrera med jämförbara kort, som Nvidias GeForce 940M.

Vi avråder från att köpa en version med ett klenare grafikkort, eftersom datorn då hamnar i kontorskategorin, och tangentbordet är helt enkelt inte bra nog för det.

Lenovo Z51-70 - 10/03/2015 v4(old)
Sven Kloevekorn

Design
70 / 98 → 71%
Tangentbord
71%
Mus
82%
Anslutningar
67 / 81 → 83%
Vikt
61 / 20-67 → 87%
Batteri
78%
Skärm
77%
Spelprestanda
79 / 85 → 93%
Programprestanda
81 / 92 → 88%
Temperatur
88%
Ljudnivå
86 / 95 → 91%
Audio
25%
Camera
42 / 85 → 49%
Medel
70%
77%
Multimedia - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo Z51-70 (Radeon R9 M375) (sammanfattning)
Sven Kloevekorn, 2015-10-21 (Update: 2015-10-21)
