Test: Lenovo Yoga Tab 3 10 (sammanfattning)

Manuel Masiero, 03/18/2016

Entertainer. Lenovo marknadsför sin 10-tums Yoga Tab 3 10 som en högklassig videoplatta och använder en intressant konfiguration. Bland annat har den inbyggt stativ och Dolby Atmos-ljud.

Lenovo Yoga Tab 3 YT3-X50F (Yoga Tab Serie)
Processor
Qualcomm Snapdragon 212 APQ8009
Grafikkort
Qualcomm Adreno 304
Minne
1024 MB
, DDR3 1600 MHz
Skärm
10.1 tum 16:10, 1280x800 pixlar, Kapacitiv, 10 beröringspunkter, LCD, IPS, glansig: ja
Hårddisk
16 GB eMMC Flash, 16 GB
, 10.9 GB ledigt
Anslutningar
1 USB 2.0, Ljudanslutningar: 3,5 mm, Kortläsare: micro-SDHC max. 32 GB, Brightness Sensor, Sensorer: accelerometer
Nätverk
802.11 b/g/n (b/g/n), Bluetooth 4.0, GPS
Storlek
höjd x bredd x djup (i mm) 9.5 x 253 x 185
Batteri
10200 mAh Litiumjon, Batteritid (enligt tillverkaren): 18 tim
Operativsystem
Android 5.1 Lollipop
Camera

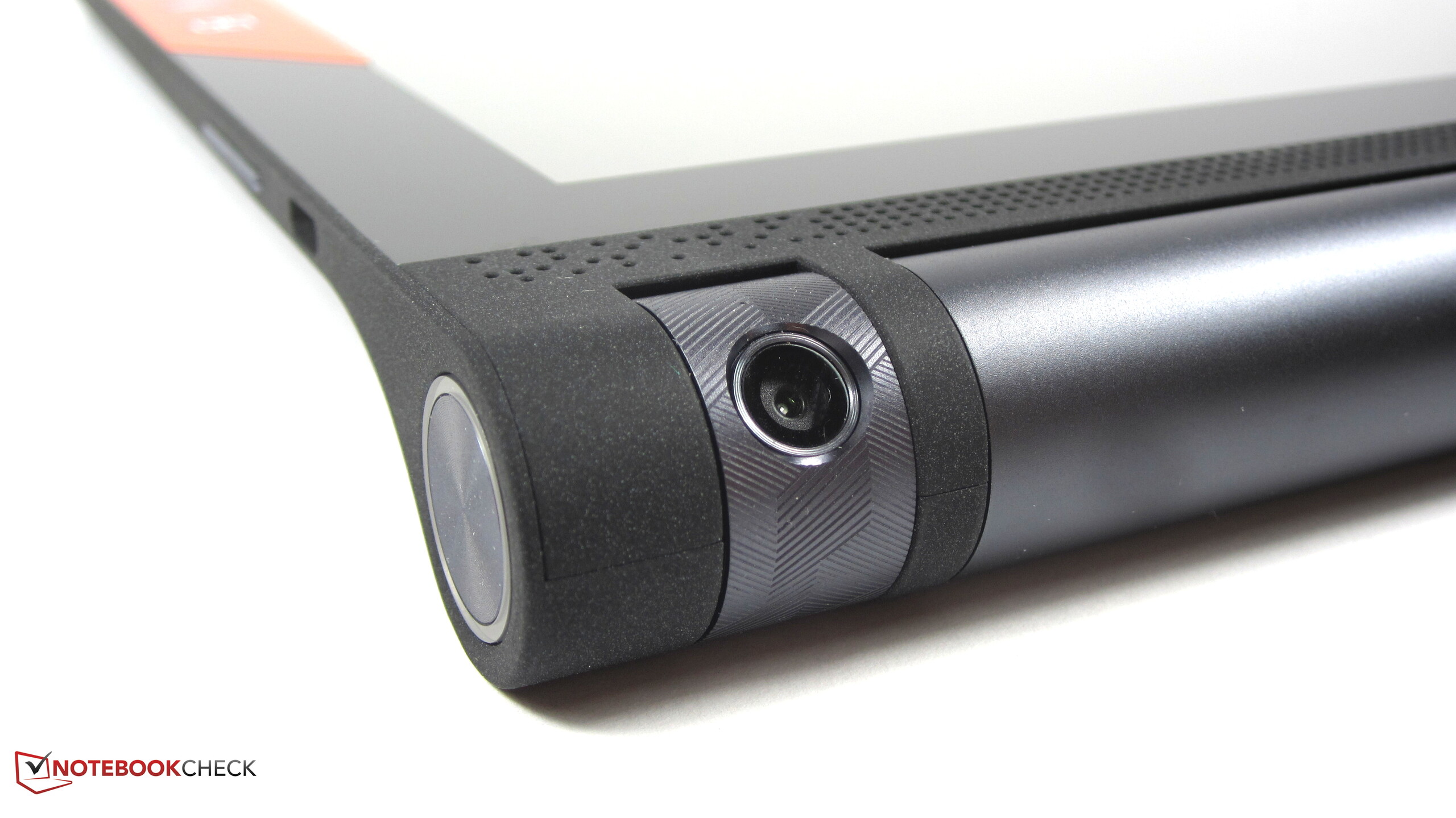

Primary Camera: 8 MPix roterbar
Övrigt
Högtalare: stereo, Tangentbordsbelysning: nej, USB-Kabel, modulares Netzteil, Kurzanleitung, McAfee Security, Dolby Atmos-app, 12 Månader Garanti, fanless
Vikt
665 g, Strömförsörjning: 25 g
Pris
249 Euro



Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
English-Swedish-Translator -
Details here
News Editor - Details here

Review Editor -
Details here















Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
359
cd/m²
351
cd/m²
326
cd/m²
347
cd/m²
363
cd/m²
314
cd/m²
354
cd/m²
363
cd/m²
322
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 363 cd/m² Medel: 344.3 cd/m² Minimum: 9.48 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 363 cd/m²
Kontrast: 1068:1 (Svärta: 0.34 cd/m²)
ΔE Color 3.25 | - Ø
ΔE Greyscale 2.78 | - Ø
Gamma: 2.23
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
Screen
-49%
-16%
4%
-23%
Brightness
344
328
-5%
434
26%
335
-3%
367
7%
Brightness Distribution
87
88
1%
86
-1%
88
1%
89
2%
Black Level *
0.34
0.38
-12%
0.43
-26%
0.191
44%
0.53
-56%
Contrast
1068
903
-15%
1065
0%
1848
73%
670
-37%
Colorchecker DeltaE2000 *
3.25
6.86
-111%
4.18
-29%
4.31
-33%
3.2
2%
Greyscale DeltaE2000 *
2.78
6.95
-150%
4.54
-63%
4.36
-57%
4.36
-57%
Gamma
2.23 108%
2.32 103%
2.15 112%
2.33 103%
2.2 109%
CCT
6722 97%
7249 90%
7083 92%
7045 92%
7240 90%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

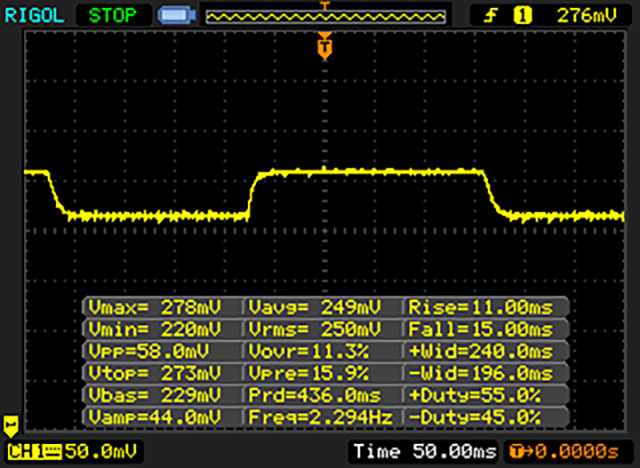

       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 15 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.7 ms).

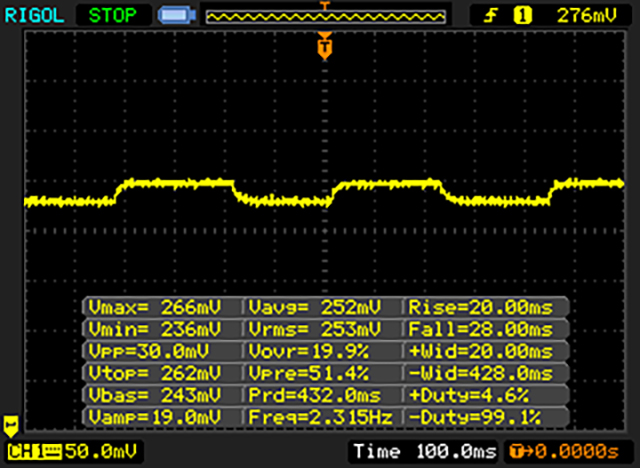

       Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 28 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 76 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.8 ms).

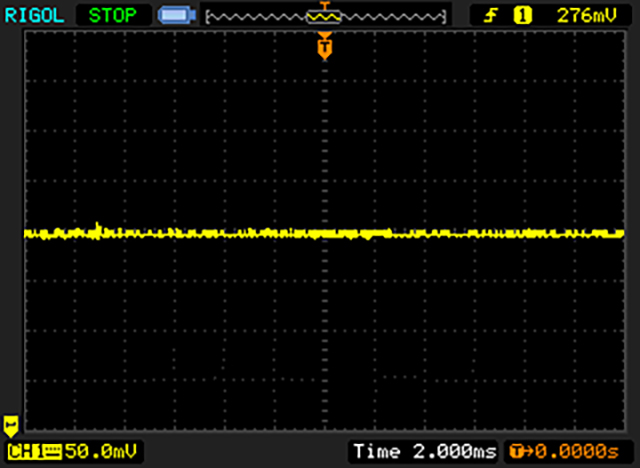

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6668 (minimum: 43 - maximum: 142900) Hz was measured.

3DMark - 1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
4488 Points ∼2%
Acer Iconia Tab 10 A3-A30
14292 Points ∼7% +218%
Amazon Fire HD 10 inch 2015
10236 Points ∼5% +128%
LG G Pad II 10.1
15658 Points ∼8% +249%
Geekbench 3
32 Bit Multi-Core Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
1075 Points ∼3%
Acer Iconia Tab 10 A3-A30
2118 Points ∼7% +97%
Amazon Fire HD 10 inch 2015
1499 Points ∼5% +39%
Lenovo TAB2 A10-70
2031 Points ∼7% +89%
LG G Pad II 10.1
1600 Points ∼5% +49%
32 Bit Single-Core Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
331 Points ∼7%
Acer Iconia Tab 10 A3-A30
781 Points ∼17% +136%
Amazon Fire HD 10 inch 2015
766 Points ∼16% +131%
Lenovo TAB2 A10-70
686 Points ∼15% +107%
LG G Pad II 10.1
551 Points ∼12% +66%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
5.4 fps ∼0%
Acer Iconia Tab 10 A3-A30
18 fps ∼1% +233%
Amazon Fire HD 10 inch 2015
15 fps ∼1% +178%
LG G Pad II 10.1
21 fps ∼2% +289%
T-Rex HD Onscreen C24Z16 (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
9.3 fps ∼2%
Acer Iconia Tab 10 A3-A30
18 fps ∼4% +94%
Amazon Fire HD 10 inch 2015
22 fps ∼5% +137%
LG G Pad II 10.1
22 fps ∼5% +137%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
1.8 fps ∼0%
Acer Iconia Tab 10 A3-A30
8.7 fps ∼2% +383%
Amazon Fire HD 10 inch 2015
7.2 fps ∼1% +300%
Lenovo TAB2 A10-70
5.1 fps ∼1% +183%
LG G Pad II 10.1
8.8 fps ∼2% +389%
on screen Manhattan Onscreen OGL (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
3.8 fps ∼1%
Acer Iconia Tab 10 A3-A30
8.4 fps ∼2% +121%
Amazon Fire HD 10 inch 2015
12 fps ∼3% +216%
Lenovo TAB2 A10-70
4.9 fps ∼1% +29%
LG G Pad II 10.1
8.7 fps ∼2% +129%
AnTuTu Benchmark v6 - Total Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
22422 Points ∼10%
Amazon Fire HD 10 inch 2015
30993 Points ∼14% +38%
BaseMark OS II
Web (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
527 Points ∼34%
Acer Iconia Tab 10 A3-A30
769 Points ∼50% +46%
Amazon Fire HD 10 inch 2015
856 Points ∼56% +62%
Lenovo TAB2 A10-70
755 Points ∼49% +43%
LG G Pad II 10.1
725 Points ∼47% +38%
Graphics (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
274 Points ∼3%
Acer Iconia Tab 10 A3-A30
822 Points ∼10% +200%
Amazon Fire HD 10 inch 2015
573 Points ∼7% +109%
Lenovo TAB2 A10-70
495 Points ∼6% +81%
LG G Pad II 10.1
1997 Points ∼23% +629%
Memory (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
229 Points ∼5%
Acer Iconia Tab 10 A3-A30
924 Points ∼21% +303%
Amazon Fire HD 10 inch 2015
275 Points ∼6% +20%
Lenovo TAB2 A10-70
1173 Points ∼27% +412%
LG G Pad II 10.1
462 Points ∼10% +102%
System (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
793 Points ∼12%
Acer Iconia Tab 10 A3-A30
1520 Points ∼23% +92%
Amazon Fire HD 10 inch 2015
1433 Points ∼22% +81%
Lenovo TAB2 A10-70
1700 Points ∼26% +114%
LG G Pad II 10.1
1955 Points ∼30% +147%
Overall (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
402 Points ∼11%
Acer Iconia Tab 10 A3-A30
971 Points ∼26% +142%
Amazon Fire HD 10 inch 2015
663 Points ∼17% +65%
Lenovo TAB2 A10-70
929 Points ∼25% +131%
LG G Pad II 10.1
1069 Points ∼28% +166%
PCMark for Android - Work performance score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
2720 Points ∼33%
Acer Iconia Tab 10 A3-A30
5281 Points ∼64% +94%
Amazon Fire HD 10 inch 2015
4061 Points ∼49% +49%
Lenovo TAB2 A10-70
4226 Points ∼51% +55%
LG G Pad II 10.1
3525 Points ∼42% +30%

Legend


Lenovo Yoga Tab 3 YT3-X50F Qualcomm Snapdragon 212 APQ8009, Qualcomm Adreno 304, 16 GB eMMC Flash

Acer Iconia Tab 10 A3-A30 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Amazon Fire HD 10 inch 2015 Mediatek MT8135, PowerVR G6200, 16 GB eMMC Flash

Lenovo TAB2 A10-70 Mediatek MT8165, ARM Mali-T760 MP2, 16 GB eMMC Flash

LG G Pad II 10.1 Qualcomm Snapdragon 800 MSM8974, Qualcomm Adreno 330, 16 GB eMMC Flash
Octane V2 - Total Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
2152 Points ∼4%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
6438 Points ∼13% +199%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
5835 Points ∼12% +171%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
4116 Points ∼8% +91%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
4692 Points ∼9% +118%
Mozilla Kraken 1.1 - Total Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
15228.5 ms * ∼26%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
5410 ms * ∼9% +64%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
5658.4 ms * ∼10% +63%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
17410 ms * ∼29% -14%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
8253.1 ms * ∼14% +46%
WebXPRT 2015 - Overall Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
44 Points ∼6%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
109 Points ∼14% +148%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
84 Points ∼11% +91%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
59 Points ∼8% +34%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
73 Points ∼10% +66%
JetStream 1.1 - 1.1 Total Score (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
14.187 Points ∼4%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
26 Points ∼8% +83%

* ... smaller is better

AndroBench 3-5
Random Write 4KB (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
3.12 MB/s ∼2%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
6.3 MB/s ∼4% +102%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
5.59 MB/s ∼4% +79%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
3.9 MB/s ∼3% +25%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
9.52 MB/s ∼6% +205%
Random Read 4KB (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
10.9 MB/s ∼6%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
24 MB/s ∼14% +120%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
13.84 MB/s ∼8% +27%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
17 MB/s ∼10% +56%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
21.61 MB/s ∼12% +98%
Sequential Write 256KB (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
50.15 MB/s ∼24%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
56 MB/s ∼27% +12%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
12.06 MB/s ∼6% -76%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
12.15 MB/s ∼6% -76%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
59.11 MB/s ∼29% +18%
Sequential Read 256KB (sort by value)
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
127.82 MB/s ∼16%
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
142 MB/s ∼18% +11%
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
126.04 MB/s ∼16% -1%
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
144.2 MB/s ∼18% +13%
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
155.77 MB/s ∼20% +22%
Hög belastning
 29 °C28.3 °C27.9 °C
 30.8 °C28.3 °C27.9 °C
 29.6 °C26.6 °C26.7 °C
Max: 30.8 °C
Medel: 28.3 °C
27.1 °C27.6 °C26.9 °C
30 °C31.6 °C28.5 °C
26.4 °C26.8 °C30.1 °C
Max: 31.6 °C
Medel: 28.3 °C
Strömförsörjning (max.)  34.9 °C | Rumstemperatur 22.9 °C | Voltcraft IR-260
Strömförbrukning
Av/Standbydarklight 0.07 / 0.14 Watt
Låg belastningdarkmidlight 2.54 / 5.1 / 5.24 Watt
Hög belastning midlight 7.07 / 8.24 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Gossen Metrahit Energy
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
47tim 10min
Surfa med WLAN v1.3
12tim 56min
Big Buck Bunny H.264 1080p
12tim 20min
Hög belastning (maximal ljusstyrka)
6tim 55min
Lenovo Yoga Tab 3 YT3-X50F
Adreno 304, 212 APQ8009, 16 GB eMMC Flash
Acer Iconia Tab 10 A3-A30
HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash
Amazon Fire HD 10 inch 2015
PowerVR G6200, MT8135, 16 GB eMMC Flash
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
LG G Pad II 10.1
Adreno 330, 800 MSM8974, 16 GB eMMC Flash
Battery Runtime
-39%
-43%
-29%
-6%
Reader / Idle
2830
1564
-45%
1142
-60%
1155
-59%
1676
-41%
H.264
740
532
-28%
624
-16%
1020
38%
WiFi v1.3
776
485
-37%
450
-42%
515
-34%
782
1%
Load
415
221
-47%
188
-55%
436
5%
325
-22%

För

+ Högkvalitativt aluminiumchassi
+ Praktiskt stativ
+ Ljusstark IPS-panel
+ Bra ljud
+ Roterbar kamera
+ Mycket lång batteritid
+ Låga temperaturer

Emot

- Instabilt hölje
- Bara 1 GB RAM
- Bara 10,9 GB tillgänglig lagring
- Lagringen kan bara utökas med 32 GB
- Låg prestanda
- Ej modem
- Medelmåttig kamera
- Fast batteri
In review: Lenovo Yoga Tab 3 10. Review sample courtesy of Notebooksbilliger.de
In review: Lenovo Yoga Tab 3 10. Review sample courtesy of Notebooksbilliger.de

Välbyggda Lenovo Yoga Tab 3 10 marknadsförs som multimedia-surfplatta och det är också exakt vad den är bra på. 10-tummaren kan ställas flexibelt tack vare sitt praktiska ställ, vilket gör det enkelt att till exempel titta på film på plattan. Det stora 10200 mAh-batteriet räcker länge och IPS-panelen håller hög kvalitet. Detsamma gäller ljudet, med den egenutvecklade Dolby Atmos-surroundtekniken.

Systemkretsen Qualcomm Snapdragon 212 erbjuder tillräcklig prestanda för film och musik, surf och appar. Grafiskt krävande spel är däremot inte surfplattans starka sida, eftersom den integrerade Adreno 304-kretsen helt enkelt är för klen.

Även om Lenovo har designat Yoga Tab 3 10 för mediauppspelning har de inte varit helt konsekventa. Den har bara HD-upplösning på 1280x800 pixlar och den billigaste konfigurationen har bara 16 GB lagringsutrymme.

Medan 1 GB RAM fortfarande kan godtas är 16 GB inte direkt lämpligt för lagring av t.ex. video. Dessutom kan lagringskapaciteten bara utökas med max 32 GB eftersom Lenovos surfplatta inte har stöd för micro-SDXC-kort.

Lenovo Yoga Tab 3 YT3-X50F - 02/17/2016 v5
Manuel Masiero

Design
85%
Tangentbord
81 / 80 → 100%
Mus
89%
Anslutningar
19 / 65 → 29%
Vikt
80 / 88 → 83%
Batteri
95%
Skärm
84%
Spelprestanda
20 / 68 → 29%
Programprestanda
40 / 76 → 53%
Temperatur
95%
Ljudnivå
100%
Audio
91 / 91 → 100%
Camera
75 / 85 → 88%
Medel
73%
84%
Tablet - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo Yoga Tab 3 10 (sammanfattning)
Manuel Masiero, 2016-03-18 (Update: 2016-03-18)
