Test: Lenovo U31-70 80M5003EGE (sammanfattning)

Name: Lenovo U31-70 80M5003EGE
Brand: Lenovo

Brister i uthålligheten. Lenovos 13,3-tummare har bra uppkopplingsmöjligheter, men batteritiden lämnar övrigt att önska.

Sascha Mölck, ✓ Tanja Hinum, Published 03/06/2016 🇺🇸 🇩🇪 ...

Broadwell Geforce Laptop / Notebook Windows

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Lenovo U31-70 80M5003EGE (U31 Serie)

Processor

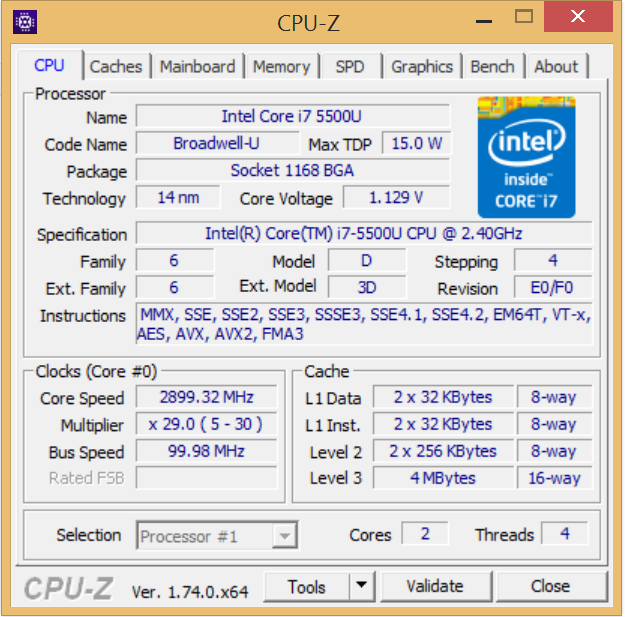

Intel Core i7-5500U 2 x 2.4 - 3 GHz, Broadwell

Grafikkort

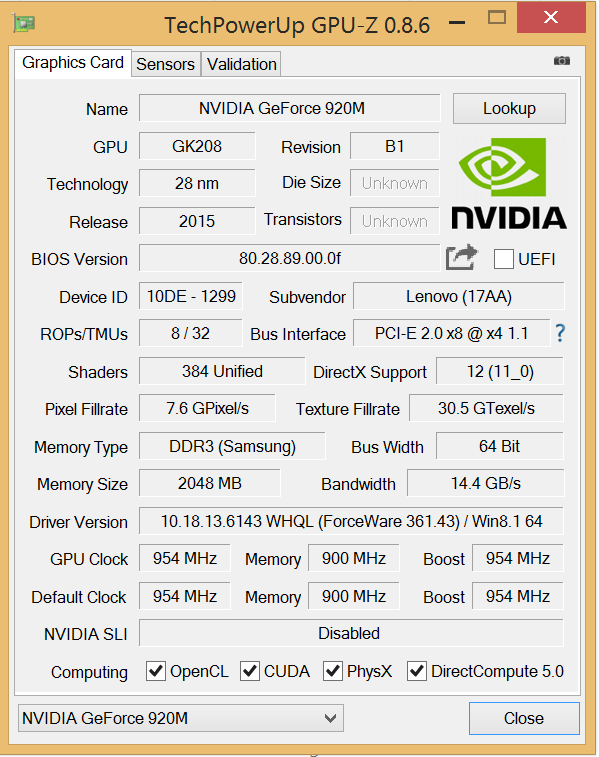

NVIDIA GeForce 920M - 2048 MB VRAM, Kärna: 954 MHz, Minne: 900 MHz, DDR3, 64-bitars gränssnitt, ForceWare 361.43 (10.18.13.6143)

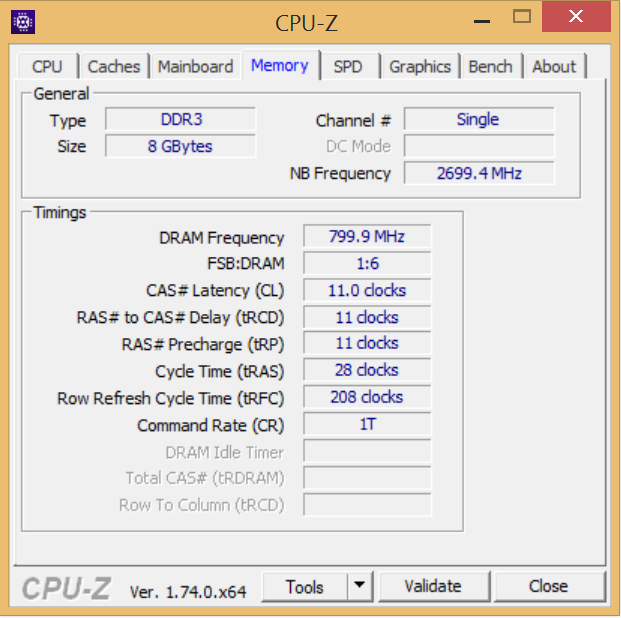

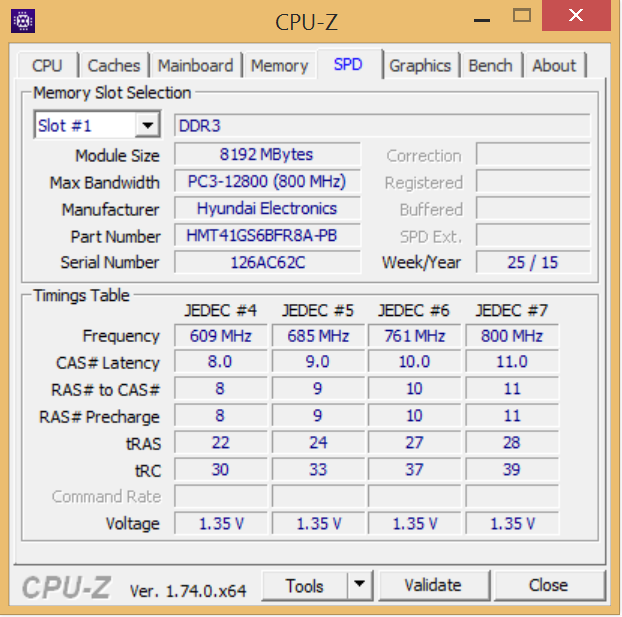

Minne

8 GB

, DDR3, single-channel, en minnesplats (används)

Skärm

13.30 tum 16:9, 1920 x 1080 pixlar, LG Philips LÜ133WF2-SPL1, IPS, glansig: nej

Moderkort

Intel Broadwell-U PCH-LP (Premium)

Hårddisk

Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache, 1000 GB

, 5400 rpm, 860 GB ledigt

Ljudkort

Realtek High Definition Audio

Anslutningar

1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: kombo audio in/ut, 3,5 mm, Kortläsare: SD

Nätverk

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1

Storlek

höjd x bredd x djup (i mm) 20 x 323 x 230

Batteri

35 Wh, 4610 mAh Litiumjon, 7.6 V

Operativsystem

Microsoft Windows 8.1 64 Bit

Camera

Webbkamera: HD-webbkamera

Övrigt

Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: ja, Lenovo Photo Master, Cyberlink PowerDirector 10, McAfee LiveSafe-Internet Security (test), MS Office (test), 24 Månader Garanti

Vikt

1.5 kg, Strömförsörjning: 350 g

Pris

9500 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

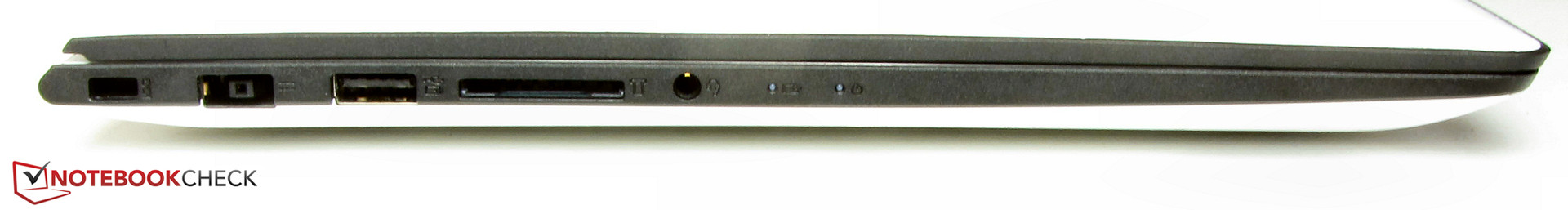

Left: Kensington lock slot, power-in, USB 2.0, memory-card reader

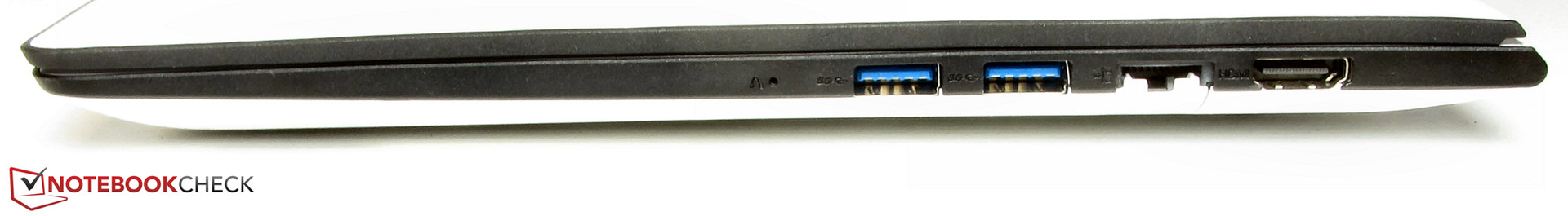

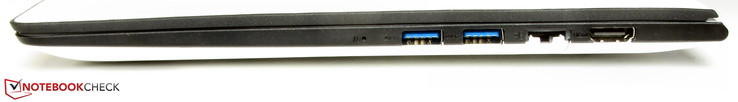

Right: 2x USB 3.0, Gigabit-Ethernet, HDMI


279 cd/m²	287 cd/m²	293 cd/m²
288 cd/m²	293 cd/m²	285 cd/m²
284 cd/m²	299 cd/m²	295 cd/m²

Distribution av ljusstyrkan

LG Philips LÜ133WF2-SPL1 tested with X-Rite i1Pro 2

Max: 299 cd/m² (Nits) Medel: 289.2 cd/m²
Distribution av ljusstyrkan: 93 %
Mitt på batteriet: 233 cd/m²
Kontrast: 814:1 (Svärta: 0.36 cd/m²)

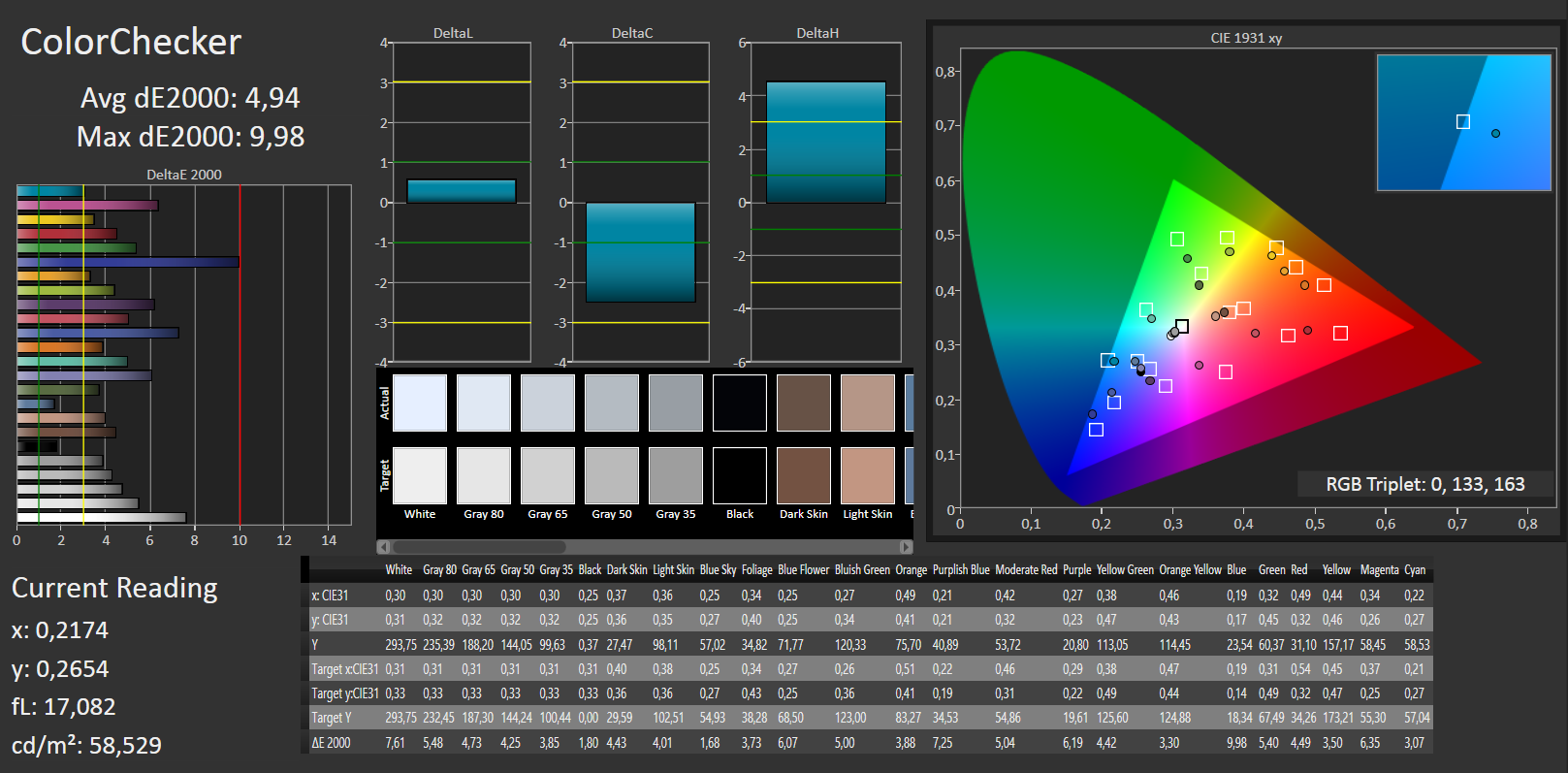

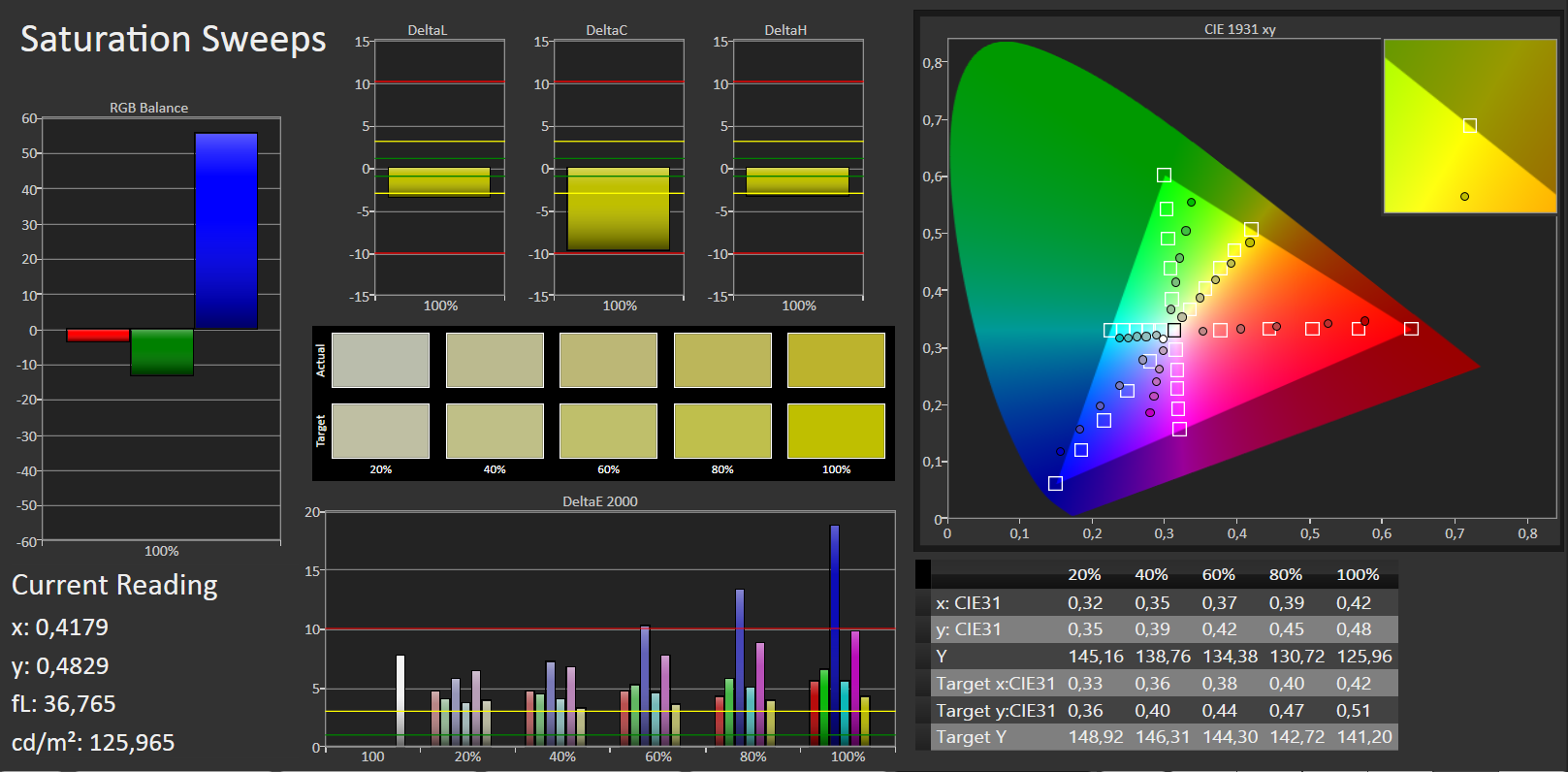

ΔE Color 4.94 | 0.5-29.43 Ø5

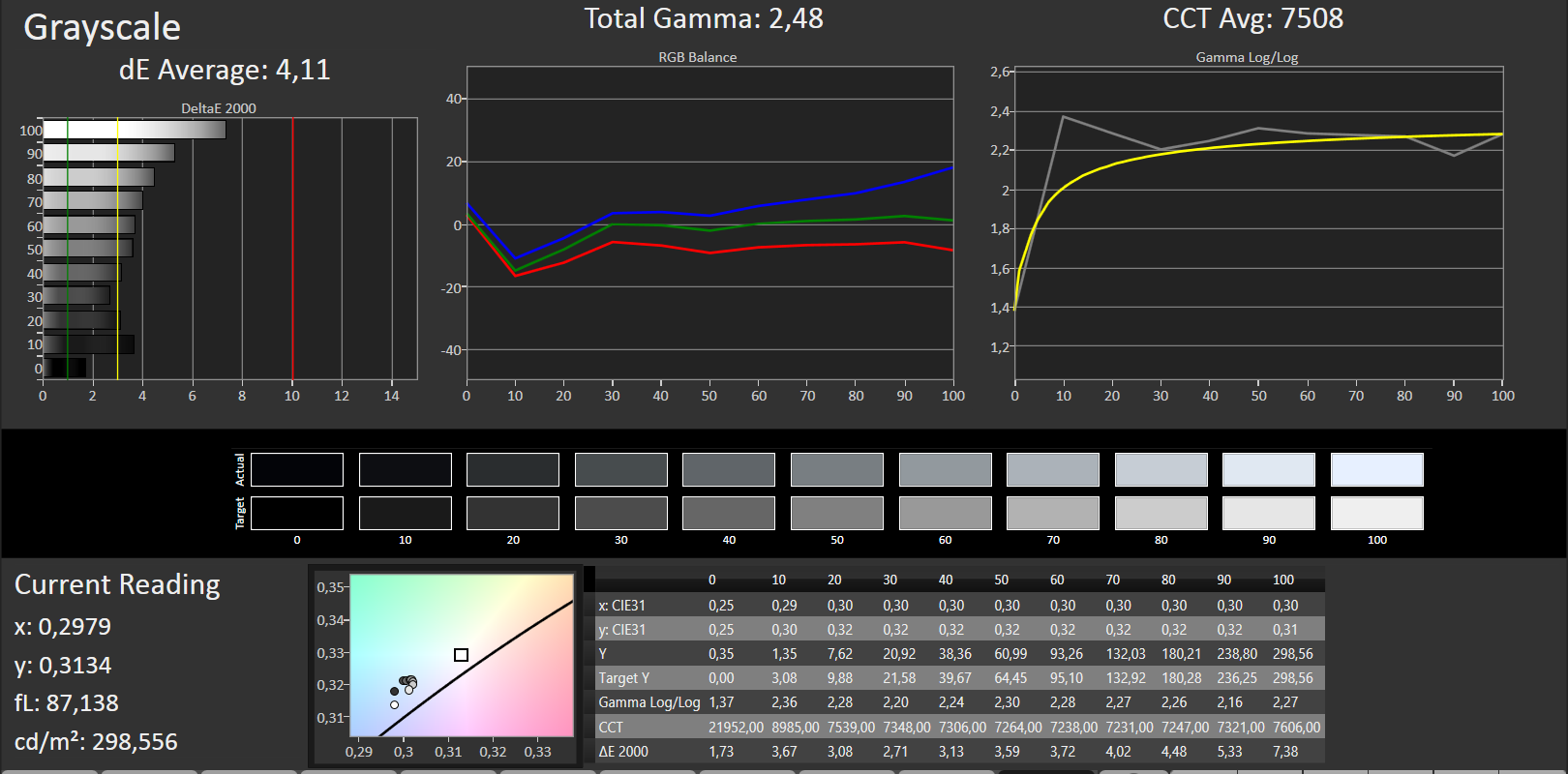

ΔE Greyscale 4.11 | 0.57-98 Ø5.3
58% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.17% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.3% sRGB (Argyll 2.2.0 3D)
38.85% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.48

Download ICC-fil (X-Rite i1Pro 2)

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

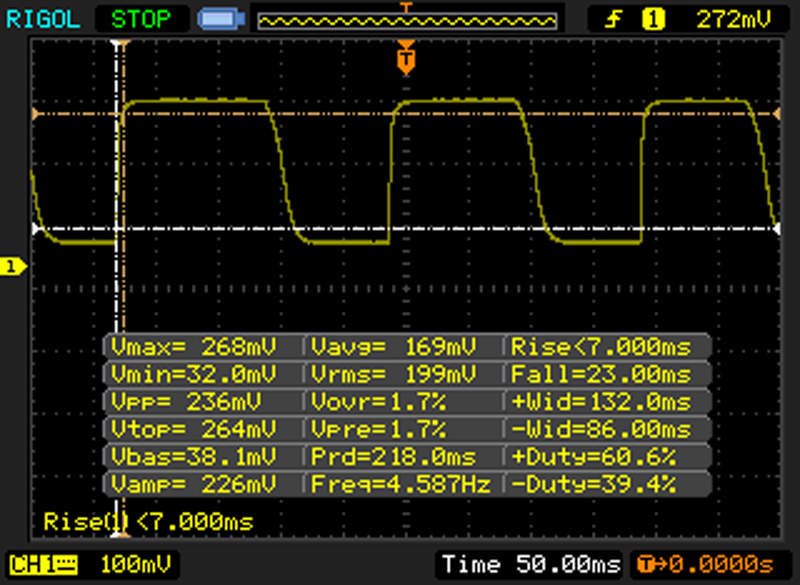

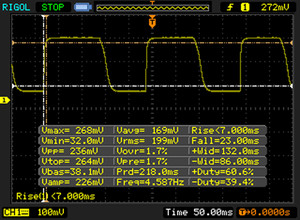

↔ Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined	↗ 7 ms rise
30 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

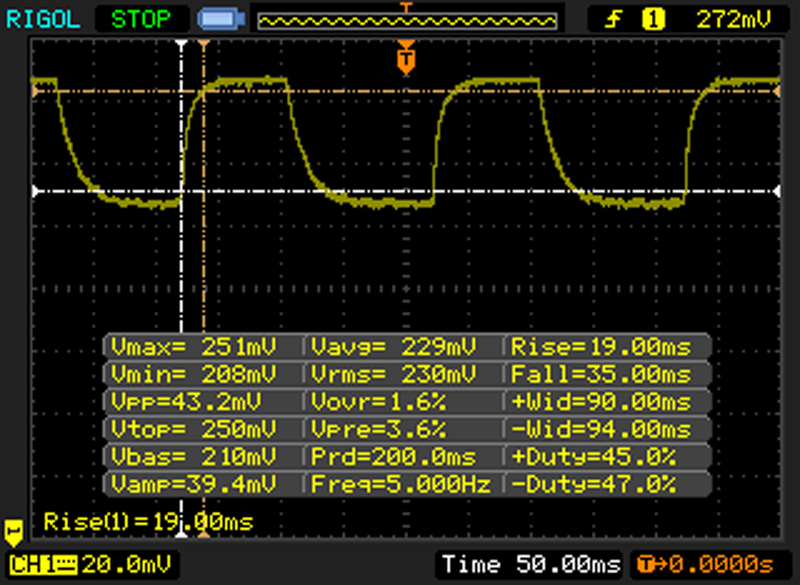

↔ Response Time 50% Grey to 80% Grey
54 ms ... rise ↗ and fall ↘ combined	↗ 19 ms rise
54 ms ... rise ↗ and fall ↘ combined	↘ 35 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 89 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

	Lenovo U31-70 80M5003EGE IPS, 1920x1080	Acer Aspire V3-372-50LK IPS, 1920x1080	Asus Zenbook UX303UB-R4100T IPS, 1920x1080	Asus Zenbook UX305LA-FC012H IPS, 1920x1080	Apple MacBook Air 13 inch 2015-03 TN LED, 1440x900	Acer Aspire E5-473G-59QT TN, 1920x1080	Lenovo U41-70 TN LED, 1920x1080
Display		1%	66%	61%	3%	-3%	3%
Display P3 Coverage	38.85	39.05 1%	66.9 72%	63.9 64%	40.1 3%	37.82 -3%	40.07 3%
sRGB Coverage	58.3	58.7 1%	92.3 58%	91.6 57%	59.8 3%	56.9 -2%	59.8 3%
AdobeRGB 1998 Coverage	40.17	40.35 0%	67.6 68%	65 62%	41.51 3%	39.07 -3%	41.45 3%
Response Times		18%	-22%
Response Time Grey 50% / Grey 80% *	54 ?(19, 35)	46 ?(19, 27) 15%	68 ?(25, 43) -26%
Response Time Black / White *	30 ?(7, 23)	24 ?(5, 19) 20%	35 ?(15, 20) -17%
PWM Frequency			178 ?(90)
Screen		-6%	24%	23%	6%	-49%	-38%
Brightness middle	293	250 -15%	385 31%	349 19%	329 12%	238 -19%	245 -16%
Brightness	289	247 -15%	394 36%	338 17%	310 7%	228 -21%	222 -23%
Brightness Distribution	93	87 -6%	89 -4%	87 -6%	82 -12%	90 -3%	84 -10%
Black Level *	0.36	0.43 -19%	0.41 -14%	0.25 31%	0.405 -13%	0.54 -50%	0.42 -17%
Contrast	814	581 -29%	939 15%	1396 71%	812 0%	441 -46%	583 -28%
Colorchecker dE 2000 *	4.94	4.51 9%	3.84 22%	5.49 -11%	3.96 20%	10.64 -115%	9.55 -93%
Colorchecker dE 2000 max. *	9.98				7.51 25%
Greyscale dE 2000 *	4.11	3.18 23%	3.79 8%	5.43 -32%	3.51 15%	11.74 -186%	10.73 -161%
Gamma	2.48 ^89%	2.43 ^91%	2.23 ^99%	2.17 ^101%	3.83 ^57%	2.42 ^91%	2.34 ^94%
CCT	7508 ^87%	6743 ^96%	6499 ^100%	7055 ^92%	6711 ^97%	13043 ^50%	12167 ^53%
Color Space (Percent of AdobeRGB 1998)	37	37 0%	60 62%	60 62%	38.4 4%	36 -3%	38 3%
Color Space (Percent of sRGB)	58	58 0%	92 59%	92 59%	59.8 3%	57 -2%	60 3%
Total Average (Program / Settings)		4% / -1%	23% / 26%	42% / 33%	5% / 5%	-26% / -38%	-18% / -28%

* ... smaller is better

Cinebench R10 Shading 32Bit

5867

Cinebench R10 Rendering Multiple CPUs 32Bit

9543

Cinebench R10 Rendering Single 32Bit

4695

Cinebench R11.5 OpenGL 64Bit

33.4 fps

Cinebench R11.5 CPU Multi 64Bit

3.07 Points

Cinebench R11.5 CPU Single 64Bit

1.43 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

44.28 fps

Cinebench R15 CPU Multi 64Bit

276 Points

Cinebench R15 CPU Single 64Bit

123 Points

Hjälp

... jämför

Cinebench R15
CPU Multi 64Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	276 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	291 Points +5%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	278 Points +1%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	200 Points -28%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	258 Points -7%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	296 Points +7%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	296 Points +7%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	280 Points +1%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	247 Points -11%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	223 Points -19%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	234 Points -15%
CPU Single 64Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	123 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	97 Points -21%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	129 Points +5%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	72 Points -41%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	108 Points -12%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	121 Points -2%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	112 Points -9%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	105 Points -15%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	108 Points -12%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	112 Points -9%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	109 Points -11%

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	3.07 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	3.2 Points +4%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	3.14 Points +2%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	1.79 Points -42%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	2.84 Points -7%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	3.26 Points +6%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	3.14 Points +2%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	3.13 Points +2%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	2.75 Points -10%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	2.4 Points -22%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	2.55 Points -17%
CPU Single 64Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	1.43 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	1.13 Points -21%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	1.47 Points +3%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	0.81 Points -43%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	1.24 Points -13%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	1.41 Points -1%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	1.47 Points +3%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1.26 Points -12%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	1.24 Points -13%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	1.27 Points -11%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	1.24 Points -13%

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	9543 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	9942 Points +4%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	9869 Points +3%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	9767 Points +2%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	10008 Points +5%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	9625 Points +1%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	8384 Points -12%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	7448 Points -22%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	8813 Points -8%
Rendering Single 32Bit (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	4695 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	4397 Points -6%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	4874 Points +4%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	4600 Points -2%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	4980 Points +6%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points -9%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	4061 Points -14%
Toshiba Portege Z30t-A-10X HD Graphics 4400, 4500U, Toshiba HG6 THNSNJ256GMCU	4230 Points -10%
Acer TravelMate P645-MG-74508G75tkk Radeon HD 8750M, 4500U, Toshiba THNSNJ256GMCT	4190 Points -11%

Geekbench 3
32 Bit Single-Core Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	2747 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	3036 Points +11%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	2846 Points +4%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	3053 Points +11%
32 Bit Multi-Core Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	5769 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	6582 Points +14%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	6039 Points +5%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	6406 Points +11%

Sunspider - 1.0 Total Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	96.2 ms *
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	89 ms * +7%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	80.2 ms * +17%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	124.5 ms * -29%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	151 ms * -57%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	95.3 ms * +1%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	127.6 ms * -33%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	122.1 ms * -27%

JetStream 1.1 - Total Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	116.6 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	214.5 Points +84%

Mozilla Kraken 1.1 - Total (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	2251 ms *
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	1251 ms * +44%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	1118 ms * +50%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	2292 ms * -2%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1332 ms * +41%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	9202 ms * -309%

Octane V2 - Total Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	14491 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	28525 Points +97%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	32020 Points +121%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	14493 Points 0%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	25269 Points +74%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	3311 Points -77%

Peacekeeper - --- (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	2714 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	2951 Points +9%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	2659 Points -2%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	2635 Points -3%

* ... smaller is better

PCMark 7 Score		3819 poäng
PCMark 8 Home Score Accelerated v2		2841 poäng
PCMark 8 Creative Score Accelerated v2		3313 poäng
PCMark 8 Work Score Accelerated v2		3811 poäng
Hjälp

... jämför

PCMark 8 | PCMark 7

PCMark 8 - Home Score Accelerated v2 (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	2841 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	3209 Points +13%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	3320 Points +17%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	2833 Points 0%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	3167 Points +11%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	3579 Points +26%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	2883 Points +1%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	3167 Points +11%

PCMark 7 - Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	3819 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	5197 Points +36%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	5162 Points +35%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	4635 Points +21%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	4909 Points +29%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	5180 Points +36%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	5205 Points +36%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	4889 Points +28%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	2780 Points -27%

HD Tune

CrystalDiskMark 3.0

Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Överföringshastighet min.: 35.7 MB/s

Överföringshastighet max.: 112.8 MB/s

Överföringshastighet med.: 76.9 MB/s

Accesstid: 19.1 ms

Burst rate: 56.2 MB/s

CPU-användning: 1.7 %

3DMark 06 Standard Score		9199 poäng
3DMark 11 Performance		1849 poäng
3DMark Ice Storm Standard Score		45983 poäng
3DMark Cloud Gate Standard Score		5778 poäng
3DMark Fire Strike Score		1073 poäng
Hjälp

... jämför

3DMark 11 | 3DMark | 3DMark 06

3DMark 11 - 1280x720 Performance (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	1849 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	1487 Points -20%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	2488 Points +35%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	1151 Points -38%
Asus Zenbook UX303LB-R4079H GeForce 940M, 5200U, Micron M600 MTFDDAV256MBF M.2	2485 Points +34%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	1198 Points -35%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	1459 Points -21%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1447 Points -22%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	2560 Points +38%
Acer Aspire R14 R3-471TG-552E GeForce 820M, 4210U, WDC Slim WD10SPCX-21KHST0	1396 Points -24%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	1349 Points -27%

3DMark
1280x720 Ice Storm Standard Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	45983 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	56687 Points +23%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	48845 Points +6%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	37002 Points -20%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	51649 Points +12%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	56022 Points +22%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	54790 Points +19%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	42423 Points -8%
Acer Aspire R14 R3-471TG-552E GeForce 820M, 4210U, WDC Slim WD10SPCX-21KHST0	49810 Points +8%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	42918 Points -7%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	5778 Points
Acer Aspire V3-372-50LK HD Graphics 520, 6200U, Toshiba HG6 THNSNJ256G8NU	5833 Points +1%
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	6223 Points +8%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	3778 Points -35%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	5461 Points -5%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	6061 Points +5%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	5710 Points -1%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	6231 Points +8%
Acer Aspire R14 R3-471TG-552E GeForce 820M, 4210U, WDC Slim WD10SPCX-21KHST0	4537 Points -21%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	3954 Points -32%
1280x720 Sky Diver Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	4053 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	5291 Points +31%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	2788 Points -31%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	2872 Points -29%
1920x1080 Fire Strike Score (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	1073 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	1428 Points +33%
Asus Zenbook UX305CA-EHM1 HD Graphics 515, 6Y30, Micron M600 MTFDDAV256MBF M.2	596 Points -44%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	757 Points -29%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	903 Points -16%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	793 Points -26%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	1465 Points +37%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	829 Points -23%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	9199 Points
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	11576 Points +26%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	7769 Points -16%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	9408 Points +2%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	12138 Points +32%

	låg	med.	hög	ultra
Tomb Raider (2013)	83.6	43.9	25.9	11.8
GRID: Autosport (2014)	124.8	52.5	22.7	12.5
Dirt Rally (2015)	135.2	34.3	17.3	12.5
FIFA 16 (2015)	81.5		46	28.2
Anno 2205 (2015)	30.4	17.5	8.5	5.3
Call of Duty: Black Ops 3 (2015)	28.6	17.6
Fallout 4 (2015)	23.2	15.4	9.3	6.2
Star Wars Battlefront (2015)	34.7	21	9.6	8.6
Rainbow Six Siege (2015)	48.3	30.1	15.2	12.4
Just Cause 3 (2015)	26.9	21.2	10.3	9.1
Rise of the Tomb Raider (2016)	18.3	11.3	6.4	3.7

Tomb Raider | Star Wars Battlefront | FIFA 16

Tomb Raider - 1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	43.9 fps
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	59.2 fps +35%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	31.1 fps -29%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	34.5 fps -21%
HP Envy 13-d000ng HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	39.9 fps -9%
Acer Aspire E5-473G-59QT GeForce 940M, 5200U, Seagate ST500LM000 Solid State Hybrid Drive	67.5 fps +54%
Acer Aspire R14 R3-471TG-552E GeForce 820M, 4210U, WDC Slim WD10SPCX-21KHST0	38.9 fps -11%
Asus X555LD-XX283H GeForce 820M, 4010U, Hitachi Travelstar Z5K500 HTS545050A7E680	39.6 fps -10%

Star Wars Battlefront - 1024x768 Low Preset (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	34.7 fps
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	48.9 fps +41%

FIFA 16 - 1366x768 High Preset AA:2x MS (sort by value)
Lenovo U31-70 80M5003EGE GeForce 920M, 5500U, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	46 fps
Asus Zenbook UX303UB-R4100T GeForce 940M, 6500U, Micron M600 MTFDDAK512MBF	59.3 fps +29%
Asus Zenbook UX305LA-FC012H HD Graphics 5500, 5500U, Micron M600 MTFDDAV256MBF M.2	33.8 fps -27%

Ljudnivå

Låg belastning		31.9 / 32.3 / 32.3 dB(A)
Hårddisk		32.5 dB(A)
Hög belastning		40.8 / 46.6 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1 Arta (15 cm avstånd)

	Lenovo U31-70 80M5003EGE 5500U, GeForce 920M	Acer Aspire V3-372-50LK 6200U, HD Graphics 520	Asus Zenbook UX303UB-R4100T 6500U, GeForce 940M	Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500	Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000	Acer Aspire E5-473G-59QT 5200U, GeForce 940M	Lenovo U41-70 5500U, GeForce 940M
Noise		11%	7%	10%	6%	3%	6%
Idle Minimum *	31.9	31.5 1%	31.5 1%	29.6 7%	29.2 8%	32.2 -1%	29.6 7%
Idle Average *	32.3	31.5 2%	31.5 2%	29.6 8%	29.2 10%	32.4 -0%	29.6 8%
Idle Maximum *	32.3	31.5 2%	31.5 2%	29.6 8%	29.2 10%	33.4 -3%	32.4 -0%
Load Average *	40.8	32.4 21%	35.9 12%	39.3 4%	40.2 1%	37.7 8%	38 7%
Load Maximum *	46.6	32.3 31%	38.2 18%	36 23%	46.3 1%	41 12%	42.2 9%

* ... smaller is better

Hög belastning

Låg belastning


35.1 °C	40.7 °C	38 °C
27.6 °C	40.8 °C	37.1 °C
25.2 °C	26.1 °C	30.9 °C

Max: 40.8 °C
Medel: 33.5 °C


40.6 °C	43.2 °C	33.2 °C
35 °C	43.8 °C	26.7 °C
31.6 °C	27.9 °C	25.2 °C

Max: 43.8 °C
Medel: 34.1 °C

Strömförsörjning (max.) 39.2 °C | Rumstemperatur 21.8 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 33.5 °C / 92 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.8 °C / 111 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.9 °C / 87.6 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.6 °C / -4.7 F).

	Lenovo U31-70 80M5003EGE 5500U, GeForce 920M	Acer Aspire V3-372-50LK 6200U, HD Graphics 520	Asus Zenbook UX303UB-R4100T 6500U, GeForce 940M	Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500	Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000	Acer Aspire E5-473G-59QT 5200U, GeForce 940M	Lenovo U41-70 5500U, GeForce 940M
Heat		-10%	-5%	5%	2%	-11%	9%
Maximum Upper Side *	40.8	49.3 -21%	56.6 -39%	45.9 -13%	43.8 -7%	44.4 -9%	44 -8%
Maximum Bottom *	43.8	53.3 -22%	54.3 -24%	45 -3%	42.1 4%	46.7 -7%	40 9%
Idle Upper Side *	29.8	28.2 5%	24 19%	25.6 14%	28.5 4%	36 -21%	24.8 17%
Idle Bottom *	31.5	32.6 -3%	24.2 23%	25 21%	28.9 8%	33.4 -6%	26.2 17%

* ... smaller is better

Strömförbrukning

Av/Standby	0.25 / 0.4 Watt
Låg belastning	3.9 / 6.8 / 7 Watt
Hög belastning	40 / 51 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo U31-70 80M5003EGE 5500U, GeForce 920M	Acer Aspire V3-372-50LK 6200U, HD Graphics 520	Asus Zenbook UX303UB-R4100T 6500U, GeForce 940M	Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500	Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000	Acer Aspire E5-473G-59QT 5200U, GeForce 940M	Lenovo U41-70 5500U, GeForce 940M
Power Consumption		12%	-7%	24%	22%	-13%	13%
Idle Minimum *	3.9	3.8 3%	3.2 18%	2.6 33%	2.7 31%	4.6 -18%	3.2 18%
Idle Average *	6.8	5.8 15%	7.6 -12%	6.2 9%	5.7 16%	6.3 7%	5.6 18%
Idle Maximum *	7	8.1 -16%	8 -14%	6.5 7%	6 14%	8.8 -26%	5.7 19%
Load Average *	40	30.2 24%	47 -18%	30.8 23%	32.1 20%	43.3 -8%	35.8 10%
Load Maximum *	51	32.4 36%	55 -8%	27 47%	36.2 29%	61.5 -21%	50.3 1%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		8tim 45min
WiFi Websurfing (IE 11)		4tim 13min
Big Buck Bunny H.264 1080p		4tim 33min
Hög belastning (maximal ljusstyrka)		1tim 10min

	Lenovo U31-70 80M5003EGE 35 Wh	Acer Aspire V3-372-50LK 51 Wh	Asus Zenbook UX303UB-R4100T 50 Wh	Asus Zenbook UX305LA-FC012H 56 Wh	Apple MacBook Air 13 inch 2015-03 54 Wh	Acer Aspire E5-473G-59QT 37 Wh	Lenovo U41-70 30 Wh
Battery Runtime		68%	68%	118%	128%	8%	13%
Reader / Idle	525	906 73%	997 90%	1469 180%	1572 199%	565 8%	544 4%
H.264	273		413 51%	582 113%		308 13%
WiFi v1.3	253	349 38%	410 62%	569 125%	620 145%	280 11%	233 -8%
Load	70	135 93%	118 69%	108 54%	97 39%	70 0%	100 43%

För

+ Ljusstark skärm med hög kontrast

+ Full HD-upplösning

+ Gott om lagringsutrymme

+ Dedikerat grafikkort

Emot

- Medelmåttig batteritid

In review: Lenovo U31-70. Test model courtesy of Cyberport.de

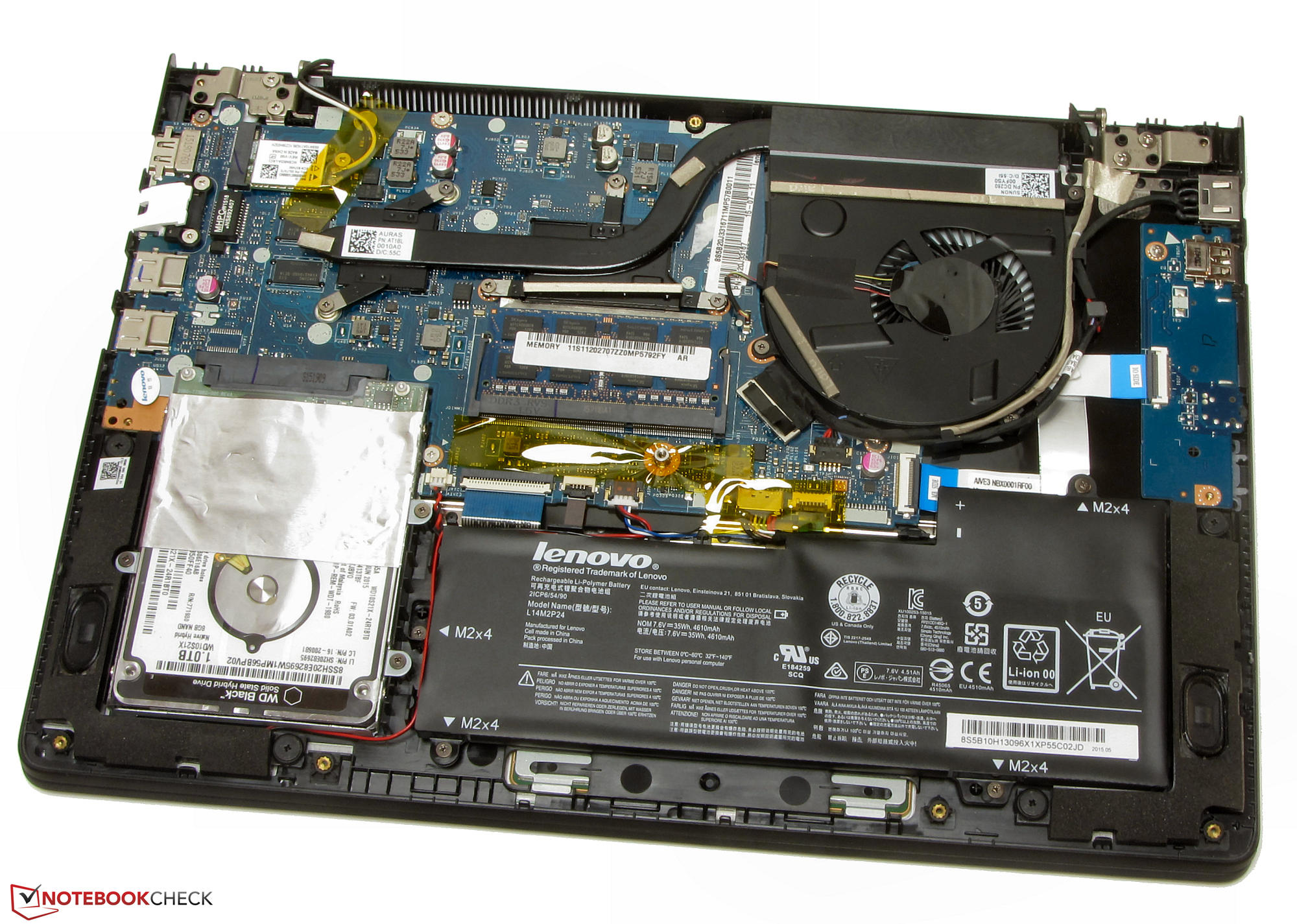

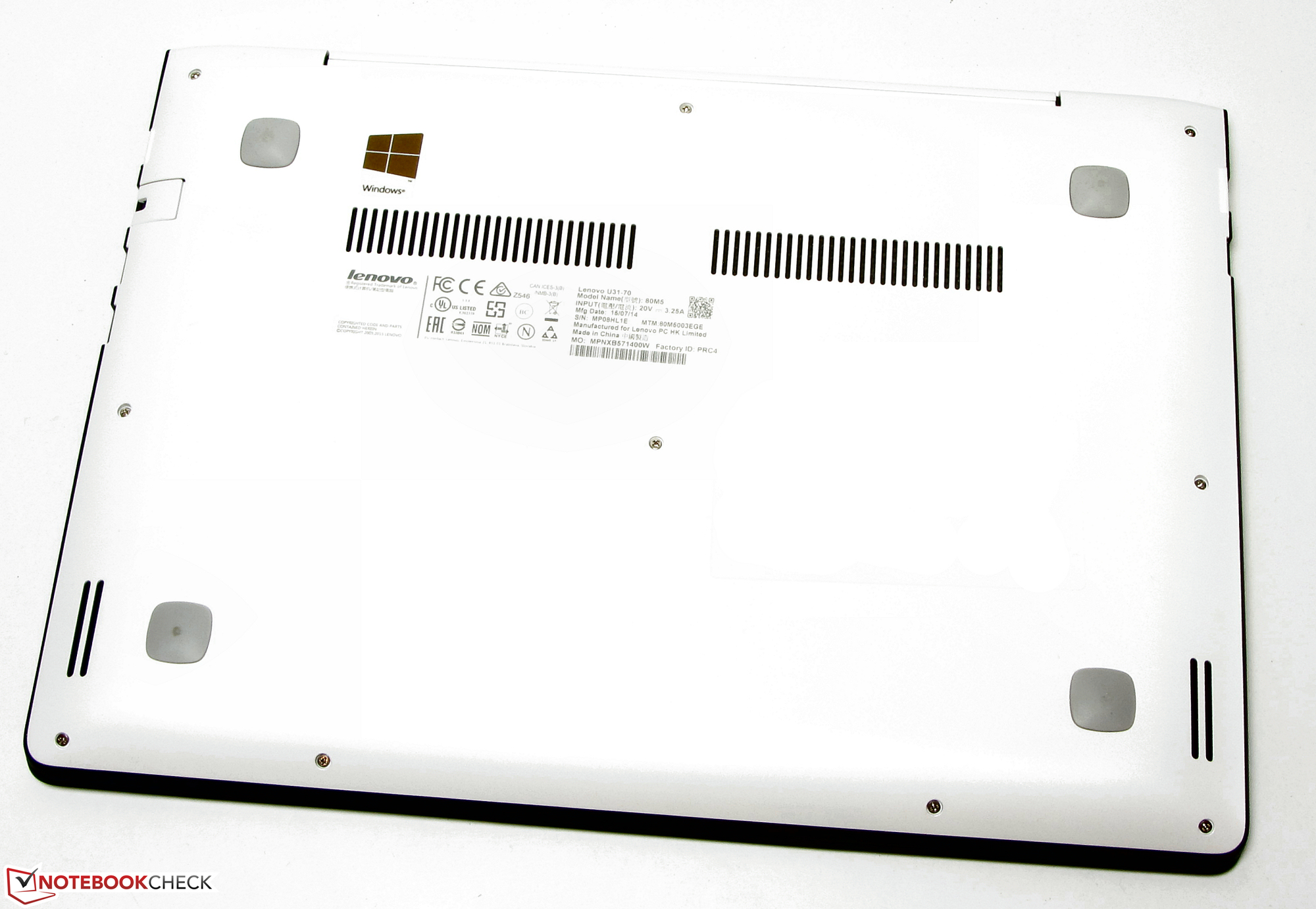

Lenovos U31-70 hör hemma i 13,3-tums ”subnotebook”-kategorin. Den erbjuder bra med datorkraft och har vissa spelmöjligheter tack vare grafikkortet. Datorn är som regel tyst vid normal användning och blir inte särskilt varm. Den har också gott om lagringsutrymme i form av en 1TB-hårddisk. Att byta ut hårddisken mot en SSD är möjligt; bottenpanelen är lätt att ta bort. IPS-skärmen övertygar med hög ljusstyrka/kontrast och detsamma gäller inmatningsenheterna.

Däremot är batteritiden för kort. En mindre, 13,3-tums bärbar dator måste vara särskilt bra i det avseendet eftersom den är gjord för mobilt bruk.

Priset känns också lite högt. Testmaskinen – som är toppmodellen i U31-70-serien – kostar nästan 970 euro. Asus Zenbook UX303UB-R4044T är t.ex. billigare och erbjuder både längre batteritid och en mer kraftfull grafikkrets. De billigare varianterna av U31-70 är betydligt mer intressanta. Exempelvis får du en modell med Core i3-5010U, 128 GB SSD och Full HD IPS-skärm för 500 euro, även om den saknar dedikerad grafik och Windows.

Lenovo U31-70 80M5003EGE - 2016-02-03 02/03/2016 v4.1^(old)
Sascha Mölck

Design

82 / 98 → 84%

Tangentbord

80%

Mus

81%

Anslutningar

60 / 80 → 75%

Vikt

70 / 35-78 → 81%

Batteri

82%

Skärm

84%

Spelprestanda

78 / 68 → 100%

Programprestanda

80 / 87 → 92%

Temperatur

89 / 91 → 98%

Ljudnivå

81%

Audio

50 / 91 → 55%

Camera

48 / 85 → 56%

Medel

74%

81%

Subnotebook - Vägt medel

Pricecompare

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo U31-70 80M5003EGE (sammanfattning)

Sascha Mölck, 2016-03- 6 (Update: 2016-03- 6)
