Test: Lenovo ThinkPad E14 Gen 2 - Billig och snabb tack vare AMD Renoir (Sammanfattning)

Name: Lenovo ThinkPad E14 Gen2-20T7S00W00
Brand: Lenovo

Pris/prestanda-mästare. Lenovo utrustar sin nya ThinkPad E14 Gen 2 med en AMD Ryzen 4000-processor, RAM med dubbla kanaler och ett mindre chassi. Den nya modellen är inte utan fel, men den levererar också på många viktiga sätt. Dessutom är det låga priset ett trumfkort.

Benjamin Herzig (översatt av Daniel Eriksson), Published 09/04/2020 🇺🇸 🇩🇪 ...

ThinkPad Windows Laptop / Notebook Ryzen (Zen) Renoir AMD Business

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad E14 Gen2-20T7S00W00 (ThinkPad E14 Gen2 Serie)

Processor

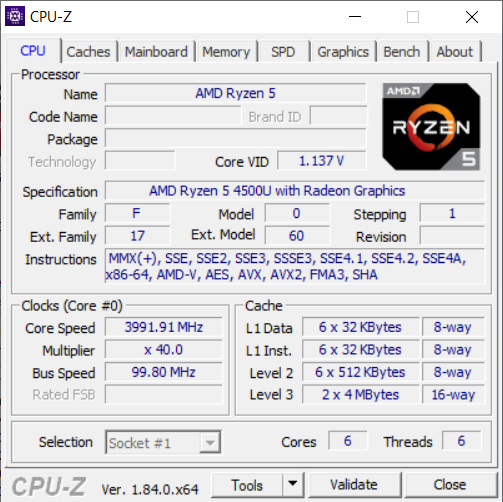

AMD Ryzen 5 4500U 6 x 2.3 - 4 GHz, Renoir-U (Zen 2)

Grafikkort

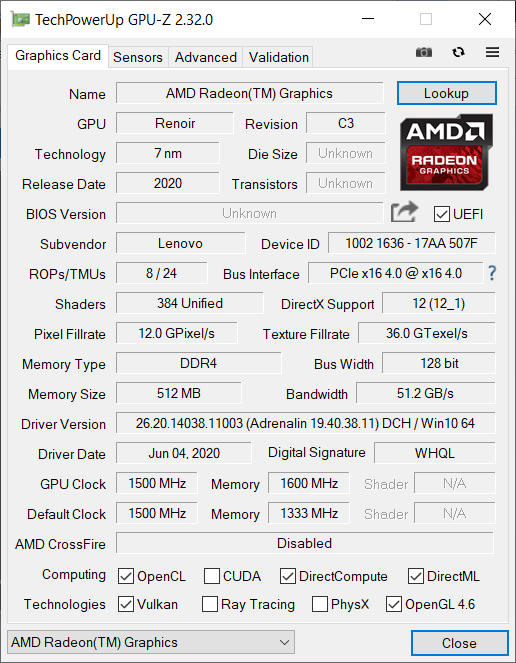

AMD Radeon RX Vega 6 (Ryzen 4000/5000)

Minne

16 GB

, DDR4-3200, 8 GB fastlött, 1x SO-DIMM, Dubbla kanaler

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, B140HAN05.7, a-Si IPS LED, glansig: nej, 60 Hz

Moderkort

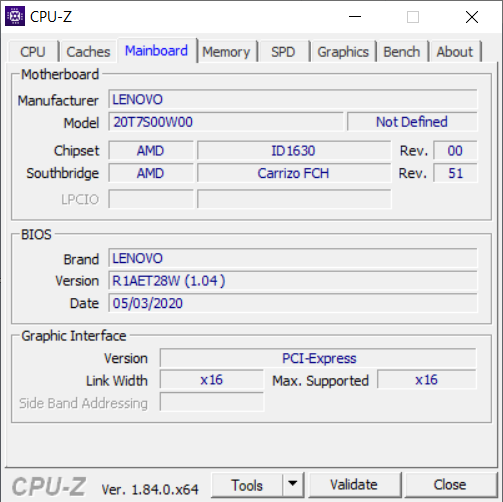

AMD Promontory/Bixby FCH

Hårddisk

Toshiba BG4 KBG40ZNT512G, 512 GB

, M.2 2280, PCIe NVMe, 445 GB ledigt

Ljudkort

Realtek ALC3287

Anslutningar

1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: Kombinerad ljudanslutning, 1 Fingeravtrycksläsare

Nätverk

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.0

Storlek

höjd x bredd x djup (i mm) 17.9 x 324 x 220

Batteri

45 Wh Litiumpolymer

Camera

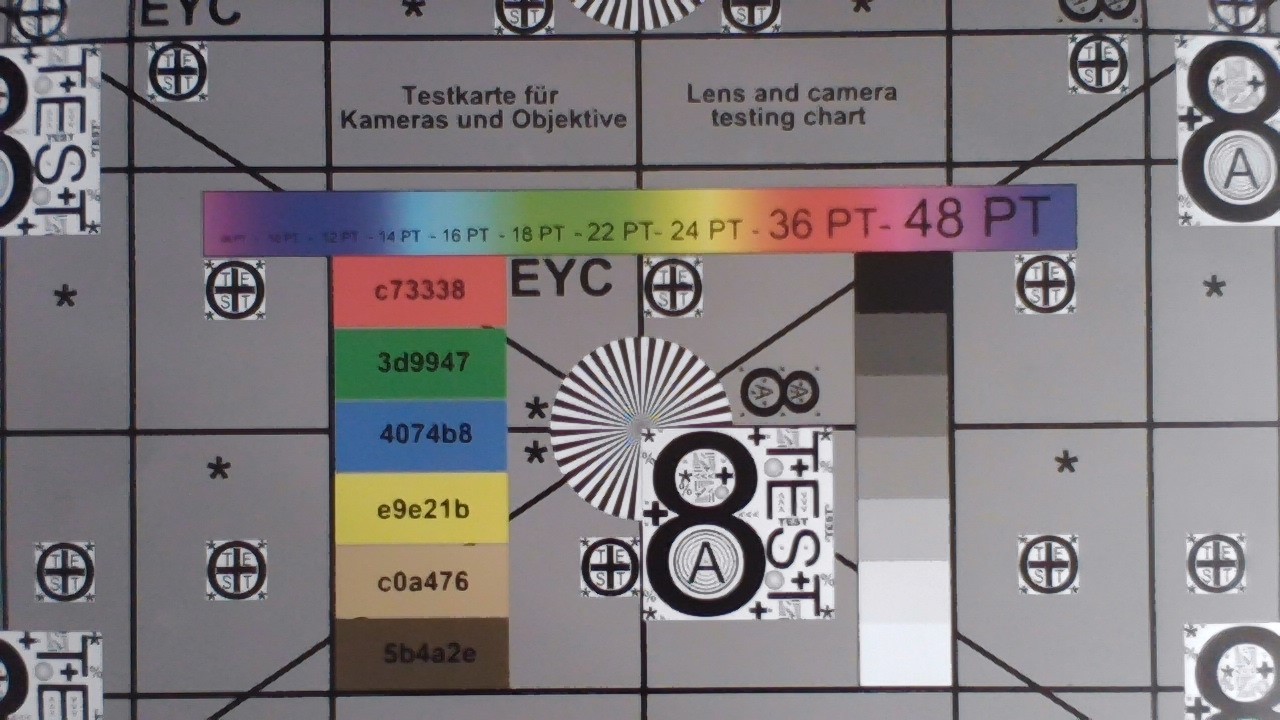

Webbkamera: 720p med ThinkShutter & infraröd

Övrigt

Högtalare: 2 W Stereo, Tangentbord: Chiclet med 6 rader, Tangentbordsbelysning: ja, 24 Månader Garanti

Vikt

1.596 kg, Strömförsörjning: 350 g

Pris

630 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Rating	Date	Model	Weight	Height	Size	Resolution
85.6 %	09/2020	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6	1.6 kg	17.9 mm	14.00"	1920x1080
84.2 %	11/2020	Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8	1.8 kg	19.9 mm	14.00"	1920x1080
84.5 %	03/2020	Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620	1.6 kg	17.9 mm	14.00"	1920x1080
83.2 %	11/2020	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6	1.6 kg	18 mm	14.00"	1920x1080
90.5 %	08/2020	Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7	1.3 kg	16.1 mm	14.00"	1920x1080

Jämförelse av storlek och vikt

Lenovo ThinkPad E495-20NE000JGE Lenovo ThinkPad T14s-20UJS00K00 Lenovo ThinkPad E14 20RA001MGE HP ProBook 445 G7 175W4EA Lenovo ThinkPad E14 Gen2-20T7S00W00 Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 DIN A4 ❌

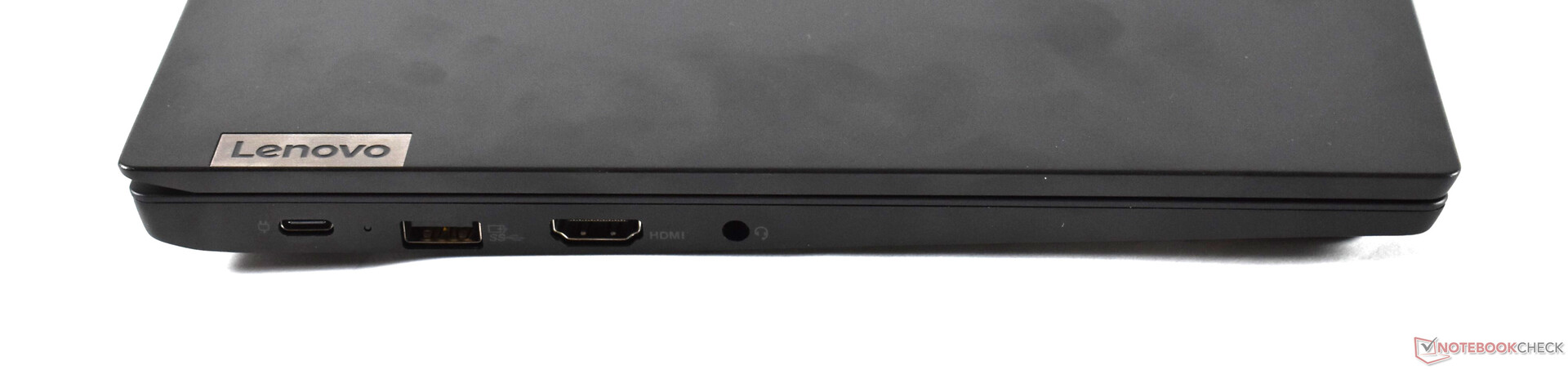

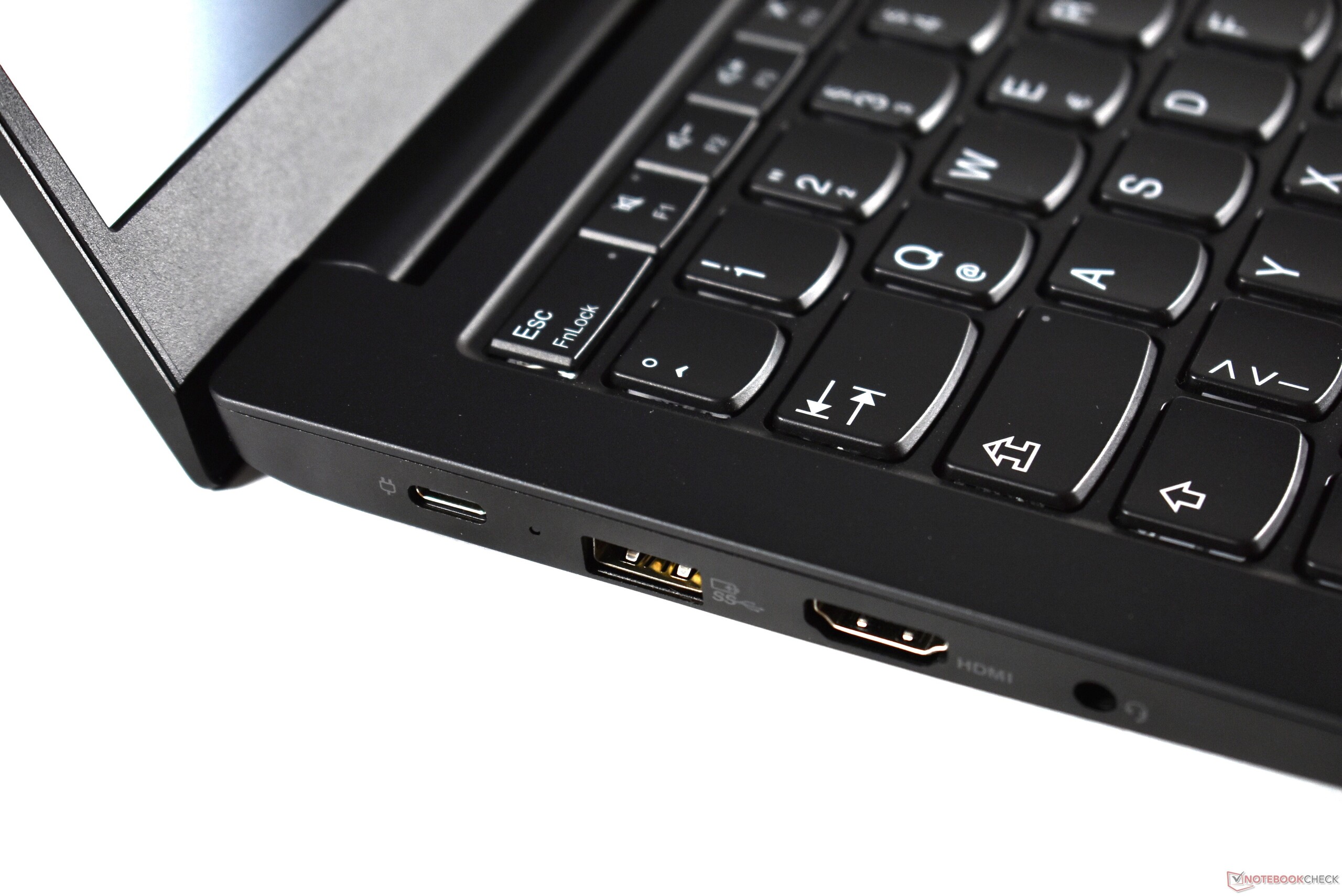

Vänster: USB 3.2 Gen 1 Typ C, USB 3.0 Typ A, HDMI 1.4b, Kombinerad ljudanslutning

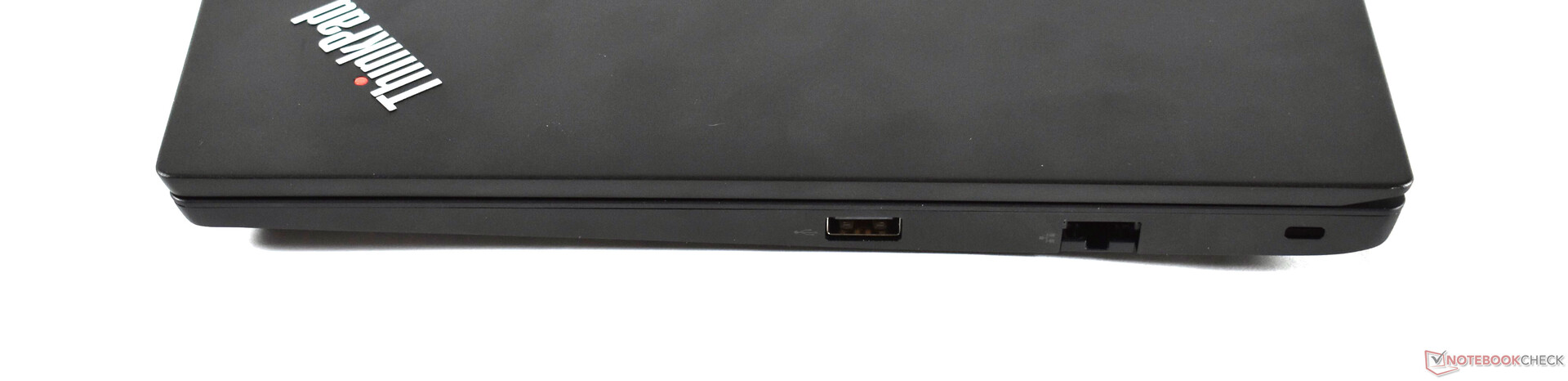

Höger: USB 2.0 Typ A, RJ45-Ethernet, Kensington-lås

Networking
iperf3 transmit AX12
Lenovo ThinkPad T14s-20UJS00K00 Intel Wi-Fi 6 AX200	1270 (656^min - 1344^max) MBit/s 0%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200	1264 (638^min - 1336^max) MBit/s
Average Intel Wi-Fi 6 AX200 (447 - 1645, n=127)	1104 MBit/s -13%
Average of class Office (819 - 842, n=2, last 2 years)	831 MBit/s -34%
Lenovo ThinkPad E14 20RA001MGE Intel Wi-Fi 6 AX201	640 (581^min - 690^max) MBit/s -49%
Lenovo ThinkPad E495-20NE000JGE Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter	621 MBit/s -51%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	557 (527^min - 581^max) MBit/s -56%
iperf3 receive AX12
Lenovo ThinkPad T14s-20UJS00K00 Intel Wi-Fi 6 AX200	1370 (1218^min - 1490^max) MBit/s +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200	1339 (617^min - 1491^max) MBit/s
Average Intel Wi-Fi 6 AX200 (523 - 1684, n=128)	1191 MBit/s -11%
Lenovo ThinkPad E14 20RA001MGE Intel Wi-Fi 6 AX201	935 (472^min - 956^max) MBit/s -30%
Average of class Office (883 - 972, n=2, last 2 years)	928 MBit/s -31%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	817 (738^min - 851^max) MBit/s -39%
Lenovo ThinkPad E495-20NE000JGE Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter	648 MBit/s -52%

Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1318 (617-1491)

Lenovo ThinkPad E14 20RA001MGE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø918 (472-956)

Lenovo ThinkPad T14s-20UJS00K00 Intel Wi-Fi 6 AX200; iperf3 receive AX12; iperf 3.1.3: Ø1370 (1218-1490)

Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1243 (638-1336)

Lenovo ThinkPad E14 20RA001MGE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø640 (581-690)

Lenovo ThinkPad T14s-20UJS00K00 Intel Wi-Fi 6 AX200; iperf3 transmit AX12; iperf 3.1.3: Ø1248 (656-1344)

ColorChecker Lenovo ThinkPad E14 Gen2-20T7S00W00: 9.8 ∆E min: 2.33 - max: 19.02 ∆E


260 cd/m²	291 cd/m²	258 cd/m²
254 cd/m²	281 cd/m²	258 cd/m²
254 cd/m²	263 cd/m²	256 cd/m²

Distribution av ljusstyrkan

B140HAN05.7 tested with X-Rite i1Pro 2

Max: 291 cd/m² (Nits) Medel: 263.9 cd/m² Minimum: 3.1 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 281 cd/m²
Kontrast: 1124:1 (Svärta: 0.25 cd/m²)
ΔE Color 5.8 | 0.5-29.43 Ø5, calibrated: 4.9
ΔE Greyscale 3.2 | 0.57-98 Ø5.3
56.9% sRGB (Argyll 1.6.3 3D)
36.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.42% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.2% sRGB (Argyll 2.2.0 3D)
38.16% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.15

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad E14 Gen2-20T7S00W00 B140HAN05.7, a-Si IPS LED, 1920x1080, 14.00	Lenovo ThinkPad E495-20NE000JGE N140HCA-EAC, IPS, 1920x1080, 14.00	Lenovo ThinkPad E14 20RA001MGE NV140FHM-N48, IPS LED, 1920x1080, 14.00	HP ProBook 445 G7 175W4EA BOE0868, IPS, 1920x1080, 14.00	Lenovo ThinkPad T14s-20UJS00K00 N140HCG-GQ2, IPS , 1920x1080, 14.00
Display		11%	6%	5%	74%
Display P3 Coverage	38.16	42.37 11%	40.31 6%	39.92 5%	66.8 75%
sRGB Coverage	57.2	63.5 11%	60 5%	59.6 4%	97.9 71%
AdobeRGB 1998 Coverage	39.42	43.8 11%	41.65 6%	41.25 5%	69 75%
Response Times		-1%	-28%	2%	37%
Response Time Grey 50% / Grey 80% *	46.4 ?(23.2, 23.2)	40.8 ?(22, 18.8) 12%	52 ?(26, 26) -12%	40 ?(22, 18) 14%	32.4 ?(16.4, 16) 30%
Response Time Black / White *	27.2 ?(16.8, 12.4)	30.8 ?(17.6, 13.2) -13%	39.2 ?(22, 17.2) -44%	30 ?(17, 13) -10%	15.2 ?(6.8, 8.4) 44%
PWM Frequency		25000 ?(40)	1250 ?(99)	192 ?(90)	26040 ?(50)
Screen		9%	10%	-4%	45%
Brightness middle	281	241 -14%	305 9%	277 -1%	404 44%
Brightness	264	230 -13%	292 11%	270 2%	371 41%
Brightness Distribution	87	75 -14%	89 2%	88 1%	88 1%
Black Level *	0.25	0.17 32%	0.17 32%	0.285 -14%	0.34 -36%
Contrast	1124	1418 26%	1794 60%	972 -14%	1188 6%
Colorchecker dE 2000 *	5.8	4.7 19%	5.9 -2%	5.53 5%	1.4 76%
Colorchecker dE 2000 max. *	22.3	19.7 12%	18.4 17%	10.68 52%	3.2 86%
Colorchecker dE 2000 calibrated *	4.9	4.2 14%	4.6 6%	4.43 10%	0.8 84%
Greyscale dE 2000 *	3.2	2.6 19%	4.4 -38%	6.2 -94%	1.6 50%
Gamma	2.15 ^102%	2.12 ^104%	2.05 ^107%	2.34 ^94%	2.13 ^103%
CCT	6452 ^101%	6507 ^100%	6921 ^94%	7342 ^89%	6480 ^100%
Color Space (Percent of AdobeRGB 1998)	36.2	40.3 11%	38.2 6%	38 5%	63 74%
Color Space (Percent of sRGB)	56.9	63.3 11%	59.6 5%	59 4%	97.9 72%
Total Average (Program / Settings)		6% / 8%	-4% / 4%	1% / -2%	52% / 50%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

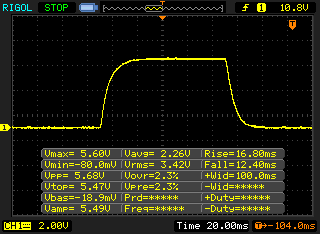

↔ Response Time Black to White
27.2 ms ... rise ↗ and fall ↘ combined	↗ 16.8 ms rise
27.2 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 65 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

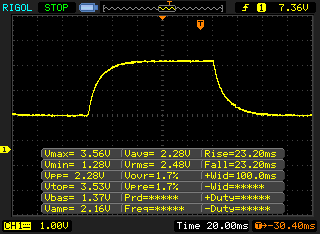

↔ Response Time 50% Grey to 80% Grey
46.4 ms ... rise ↗ and fall ↘ combined	↗ 23.2 ms rise
46.4 ms ... rise ↗ and fall ↘ combined	↘ 23.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 77 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

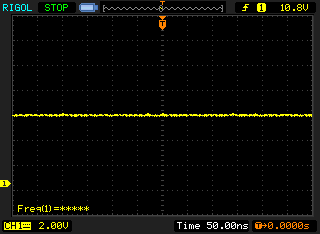

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø845 (836.07-873.42)

Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø658 (656.79-659.13)

Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U, Intel Core i5-10210U: Ø526 (486.23-547.65)

HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø761 (743.73-893.95)

Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U, AMD Ryzen 7 PRO 4750U: Ø1311 (1300.6-1345.67)

Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R15 / CPU Multi 64Bit
Average of class Office (160.8 - 2642, n=120, last 2 years)	1405 Points +61%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	1346 (1300.6^min - 1345.67^max) Points +54%
Average AMD Ryzen 5 4500U (715 - 1007, n=18)	896 Points +3%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	894 (743.73^min - 893.95^max) Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	873 (836.07^min - 873.42^max) Points
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	658 (656.79^min - 659.13^max) Points -25%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	548 (486.23^min - 547.65^max) Points -37%

Cinebench R15 / CPU Single 64Bit
Average of class Office (82.6 - 284, n=118, last 2 years)	218 Points +23%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	181 Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	177 Points
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	175 Points -1%
Average AMD Ryzen 5 4500U (156 - 177, n=13)	172.8 Points -2%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	166 Points -6%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	140 Points -21%

Cinebench R20 / CPU (Multi Core)
Average of class Office (356 - 5904, n=120, last 2 years)	3121 Points +44%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	3050 Points +40%
Average AMD Ryzen 5 4500U (1843 - 2530, n=13)	2236 Points +3%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	2208 Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	2173 Points
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	1477 Points -32%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	1254 Points -42%

Cinebench R20 / CPU (Single Core)
Average of class Office (181.3 - 764, n=120, last 2 years)	562 Points +24%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	468 Points +3%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	453 Points 0%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	453 Points
Average AMD Ryzen 5 4500U (424 - 453, n=12)	446 Points -2%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	421 Points -7%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	349 Points -23%

Blender / v2.79 BMW27 CPU
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	832 Seconds * -42%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	696 Seconds * -19%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	645 Seconds * -10%
Average AMD Ryzen 5 4500U (533 - 748, n=11)	603 Seconds * -3%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	584 Seconds *
Average of class Office (214 - 2844, n=121, last 2 years)	534 Seconds * +9%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	367 Seconds * +37%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Office (2233 - 6687, n=121, last 2 years)	5026 MIPS +17%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	4467 MIPS +4%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4315 MIPS +1%
Average AMD Ryzen 5 4500U (4235 - 4338, n=11)	4290 MIPS 0%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	4282 MIPS
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	4099 MIPS -4%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	3530 MIPS -18%

7-Zip 18.03 / 7z b 4
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	39649 MIPS +65%
Average of class Office (4226 - 62349, n=121, last 2 years)	34839 MIPS +45%
Average AMD Ryzen 5 4500U (22466 - 25891, n=11)	24384 MIPS +1%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	24058 MIPS
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	23877 MIPS -1%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	16902 MIPS -30%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	16590 MIPS -31%

Geekbench 5.5 / Single-Core
Average of class Office (510 - 1974, n=122, last 2 years)	1480 Points +34%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	1149 Points +4%
Average AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points 0%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	1108 Points
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	1088 Points -2%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	1063 Points -4%

Geekbench 5.5 / Multi-Core
Average of class Office (1018 - 11980, n=122, last 2 years)	6683 Points +45%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	6444 Points +40%
Average AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points +3%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	4618 Points
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4440 Points -4%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	3275 Points -29%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	9.55 fps +37%
Average of class Office (1.55 - 17.4, n=120, last 2 years)	9.27 fps +33%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	6.98 fps
Average AMD Ryzen 5 4500U (5.86 - 7.33, n=10)	6.8 fps -3%
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	4.37 fps -37%
Lenovo ThinkPad E495-20NE000JGE AMD Ryzen 5 3500U	3.9 fps -44%

LibreOffice / 20 Documents To PDF
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	78 s * -21%
Average AMD Ryzen 5 4500U (58.2 - 78, n=11)	66.4 s * -3%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	64.3 s *
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	60 s * +7%
Average of class Office (31.3 - 117.5, n=120, last 2 years)	56.4 s * +12%

R Benchmark 2.5 / Overall mean
Lenovo ThinkPad E14 20RA001MGE Intel Core i5-10210U	0.735 sec * -15%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	0.638 sec *
Average AMD Ryzen 5 4500U (0.614 - 0.654, n=10)	0.636 sec * -0%
Lenovo ThinkPad T14s-20UJS00K00 AMD Ryzen 7 PRO 4750U	0.616 sec * +3%
Average of class Office (0.4244 - 1.397, n=119, last 2 years)	0.586 sec * +8%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

873 Points

Cinebench R15 OpenGL 64Bit

67.4 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

177 Points

Hjälp

... jämför

PCMark 10 | PCMark 8

PCMark 10
Score
Average of class Office (2325 - 7157, n=105, last 2 years)	5348 Points +21%
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	4890 Points +10%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4393 - 5024, n=12)	4683 Points +6%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	4433 Points
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4393 Points -1%
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	3901 Points -12%
Lenovo ThinkPad E495-20NE000JGE Vega 8, R5 3500U, SK hynix BC501 HFM256GDHTNG	3485 Points -21%
Essentials
Average of class Office (5095 - 20841, n=105, last 2 years)	9832 Points +11%
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	9034 Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	8823 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (8204 - 9124, n=11)	8669 Points -2%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	8327 Points -6%
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	8149 Points -8%
Lenovo ThinkPad E495-20NE000JGE Vega 8, R5 3500U, SK hynix BC501 HFM256GDHTNG	7008 Points -21%
Productivity
Average of class Office (3041 - 10198, n=105, last 2 years)	7449 Points +16%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (6400 - 7752, n=11)	6987 Points +9%
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	6877 Points +7%
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	6563 Points +3%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	6530 Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	6400 Points
Lenovo ThinkPad E495-20NE000JGE Vega 8, R5 3500U, SK hynix BC501 HFM256GDHTNG	5485 Points -14%
Digital Content Creation
Average of class Office (1912 - 9056, n=105, last 2 years)	5810 Points +39%
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	5109 Points +22%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4189 - 4808, n=11)	4517 Points +8%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4233 Points +1%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	4189 Points
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	3015 Points -28%
Lenovo ThinkPad E495-20NE000JGE Vega 8, R5 3500U, SK hynix BC501 HFM256GDHTNG	2989 Points -29%

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	4640 Points +10%
Average of class Office (2304 - 4830, n=12, last 2 years)	4261 Points +1%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (3889 - 4658, n=9)	4227 Points 0%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	4223 Points
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4064 Points -4%
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	3402 Points -19%
Work Score Accelerated v2
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00	5570 Points +3%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	5414 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (5084 - 5543, n=9)	5266 Points -3%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	5147 Points -5%
Lenovo ThinkPad E14 20RA001MGE UHD Graphics 620, i5-10210U, SK hynix BC501 HFM512GDHTNG-8310A	5001 Points -8%
Average of class Office (1854 - 5610, n=12, last 2 years)	3746 Points -31%

PCMark 8 Home Score Accelerated v2		4223 poäng
PCMark 8 Work Score Accelerated v2		5414 poäng
PCMark 10 Score		4433 poäng
Hjälp

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	590 μs *

* ... smaller is better

	Lenovo ThinkPad E14 Gen2-20T7S00W00 Toshiba BG4 KBG40ZNT512G	Lenovo ThinkPad E495-20NE000JGE SK hynix BC501 HFM256GDHTNG	Lenovo ThinkPad E14 20RA001MGE SK hynix BC501 HFM512GDHTNG-8310A	HP ProBook 445 G7 175W4EA Samsung PM991 MZVLQ512HALU	Lenovo ThinkPad T14s-20UJS00K00 WDC PC SN730 SDBPNTY-1T00	Average Toshiba BG4 KBG40ZNT512G
CrystalDiskMark 5.2 / 6		-19%	-3%	2%	33%	2%
Write 4K	102.3	121.3 19%	121.9 19%	144.6 41%	108 6%	133.9 ?(72.8 - 227, n=3) 31%
Read 4K	32.12	41.24 28%	42.66 33%	38.08 19%	39.82 24%	40.4 ?(26.4 - 62.8, n=3) 26%
Write Seq	1518	814 -46%	628 -59%	1320 -13%	2028 34%	1212 ?(823 - 1518, n=3) -20%
Read Seq	1501	1098 -27%	1193 -21%	1397 -7%	1826 22%	1372 ?(1169 - 1501, n=3) -9%
Write 4K Q32T1	356.4	267 -25%	590 66%	324.2 -9%	570 60%	338 ?(112.6 - 545, n=3) -5%
Read 4K Q32T1	459.6	334.6 -27%	414.5 -10%	434.8 -5%	401.5 -13%	491 ?(327 - 687, n=3) 7%
Write Seq Q32T1	1507	819 -46%	866 -43%	1382 -8%	3091 105%	1343 ?(1039 - 1507, n=3) -11%
Read Seq Q32T1	2327	1646 -29%	2078 -11%	2354 1%	2872 23%	2279 ?(2176 - 2334, n=3) -2%

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Toshiba BG4 KBG40ZNT512G

CDM 5/6 Read Seq Q32T1: 2327 MB/s

CDM 5/6 Write Seq Q32T1: 1507 MB/s

CDM 5/6 Read 4K Q32T1: 459.6 MB/s

CDM 5/6 Write 4K Q32T1: 356.4 MB/s

CDM 5 Read Seq: 1501 MB/s

CDM 5 Write Seq: 1518 MB/s

CDM 5/6 Read 4K: 32.12 MB/s

CDM 5/6 Write 4K: 102.3 MB/s

Kontinuerlig inläsning: DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1474 - 13132, n=113, last 2 years)	6062 Points +38%
Lenovo ThinkPad T14s-20UJS00K00 AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U	5399 Points +23%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	4392 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (3401 - 4713, n=23)	4146 Points -6%
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	3683 Points -16%
Lenovo ThinkPad E495-20NE000JGE AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	2940 Points -33%
Lenovo ThinkPad E14 20RA001MGE Intel UHD Graphics 620, Intel Core i5-10210U	1768 Points -60%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office (5681 - 58068, n=93, last 2 years)	24010 Points +11%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	21604 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (15227 - 24163, n=16)	20712 Points -4%
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	16755 Points -22%
Lenovo ThinkPad E14 20RA001MGE Intel UHD Graphics 620, Intel Core i5-10210U	9050 Points -58%
1920x1080 Fire Strike Graphics
Average of class Office (712 - 9228, n=114, last 2 years)	4191 Points +50%
Lenovo ThinkPad T14s-20UJS00K00 AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U	3593 Points +28%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	2802 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (2122 - 3239, n=23)	2673 Points -5%
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	2313 Points -17%
Lenovo ThinkPad E495-20NE000JGE AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	1834 Points -35%
Lenovo ThinkPad E14 20RA001MGE Intel UHD Graphics 620, Intel Core i5-10210U	1168 Points -58%
2560x1440 Time Spy Graphics
Average of class Office (242 - 3242, n=110, last 2 years)	1372 Points +67%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	821 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (650 - 996, n=22)	821 Points 0%

3DMark 11 Performance		4640 poäng
3DMark Cloud Gate Standard Score		14756 poäng
3DMark Fire Strike Score		2537 poäng
3DMark Time Spy Score		931 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
The Witcher 3 (2015)	52.7		16.1
Dota 2 Reborn (2015)	98.2	79	44.4	41.8
X-Plane 11.11 (2018)	40.8	30.4	27.5
Shadow of the Tomb Raider (2018)	43.8	15.8
Total War: Three Kingdoms (2019)	48.7	14.6

Ljudnivå

Låg belastning		29.1 / 29.1 / 29.1 dB(A)
Hög belastning		31.7 / 32.7 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1, Arta (15 cm avstånd) environment noise: 29.1 dB(A)

Hög belastning

Låg belastning


44.1 °C	45 °C	47.1 °C
43 °C	43.3 °C	40.5 °C
38.5 °C	36.2 °C	35.8 °C

Max: 47.1 °C
Medel: 41.5 °C


48.1 °C	45.2 °C	43.6 °C
38.7 °C	42.5 °C	42.1 °C
34.1 °C	36.7 °C	36.9 °C

Max: 48.1 °C
Medel: 40.9 °C

Strömförsörjning (max.) 37.9 °C | Rumstemperatur 21.7 °C | Voltcraft IR-900

(-) The average temperature for the upper side under maximal load is 41.5 °C / 107 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 47.1 °C / 117 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.1 °C / 119 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.5 °C / 101.3 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-10.8 °C / -19.4 F).

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad E14 Gen2-20T7S00W00 audio analysis

(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 11% similar, 51% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 8% similar, 44% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP ProBook 445 G7 175W4EA audio analysis

(±) | speaker loudness is average but good (76.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 9% similar, 57% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 45% of all tested devices were better, 7% similar, 48% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad E495-20NE000JGE audio analysis

(-) | not very loud speakers (70.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.9% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 11% similar, 51% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 8% similar, 44% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.44 / 0.71 Watt
Låg belastning	4.6 / 7.6 / 9.7 Watt
Hög belastning	39.1 / 50.3 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, Toshiba BG4 KBG40ZNT512G, a-Si IPS LED, 1920x1080, 14.00	Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8, SK hynix BC501 HFM256GDHTNG, IPS, 1920x1080, 14.00	Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620, SK hynix BC501 HFM512GDHTNG-8310A, IPS LED, 1920x1080, 14.00	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 14.00	Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7, WDC PC SN730 SDBPNTY-1T00, IPS , 1920x1080, 14.00	Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)	Average of class Office
Power Consumption		18%	18%	17%	-6%	9%	-1%
Idle Minimum *	4.6	4.1 11%	3.01 35%	3.5 24%	5.7 -24%	3.98 ?(3.7 - 5.8, n=23) 13%	4.3 ?(2.2 - 9.6, n=107, last 2 years) 7%
Idle Average *	7.6	5.86 23%	6.32 17%	6.2 18%	8.9 -17%	6.53 ?(5 - 8.4, n=23) 14%	7.35 ?(3.8 - 20.6, n=107, last 2 years) 3%
Idle Maximum *	9.7	6.36 34%	8.78 9%	8.8 9%	11 -13%	8.65 ?(5.3 - 11, n=23) 11%	9.15 ?(5.1 - 23.9, n=107, last 2 years) 6%
Load Average *	39.1	30.4 22%	32.5 17%	30 23%	38.2 2%	35 ?(27.6 - 48, n=23) 10%	41.1 ?(8.7 - 77.9, n=106, last 2 years) -5%
Load Maximum *	50.3	50 1%	45.5 10%	45 11%	40.2 20%	51.5 ?(35.4 - 97.2, n=23) -2%	58.1 ?(11.1 - 101.4, n=107, last 2 years) -16%

* ... smaller is better

Batteritid

WiFi Websurfing (Edge Chromium)		8tim 18min
WiFi Websurfing max. Brightness (Edge Chromium)		7tim 04min
Big Buck Bunny H.264 1080p		9tim 05min
Hög belastning (maximal ljusstyrka)		0tim 55min

	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, 45 Wh	Lenovo ThinkPad E495-20NE000JGE R5 3500U, Vega 8, 45 Wh	Lenovo ThinkPad E14 20RA001MGE i5-10210U, UHD Graphics 620, 45 Wh	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, 45 Wh	Lenovo ThinkPad T14s-20UJS00K00 R7 PRO 4750U, Vega 7, 57 Wh	Average of class Office
Battery Runtime		19%	32%	38%	66%	54%
H.264	545	472 -13%	617 13%		792 45%	705 ?(348 - 1112, n=40, last 2 years) 29%
WiFi v1.3	498	497 0%	507 2%	523 5%	612 23%	594 ?(300 - 1137, n=107, last 2 years) 19%
Load	55	93 69%	100 82%	94 71%	127 131%	117.7 ?(56 - 218, n=67, last 2 years) 114%

För

+ ThinkPad-inmatningsenheter

+ Riktigt snabba Ryzen 4000-processorer

+ Goda expansionsmöjligheter

+ Tyst kylsystem

+ Kompaktare än sin föregångare

+ Jämförelsevis bra högtalare

+ Billig

Emot

- Billig LCD-panel som är sämre än genomsnittet

- Kostnadsbesparande portutbud

- Ingen (micro)SD-plats

- Få företagsfunktioner

- Tung

- Medelmåttig batteritid

- Handledsstödet blir varmt vid belastning

Recension av Lenovo ThinkPad E14 Gen 2. Recensionsex från

Läs den fullständiga versionen av den här recensionen på engelska här.

Lenovo gjorde ett misstag med ThinkPad E14 Gen 1: Att nedgradera minnet till att använda enkel kanal för att få ett tunnare chassi. Lenovo ThinkPad E14 Gen 2 åtgärdar detta misstag samtidigt som den tack vare AMD Ryzen 4000 erbjuder bättre prestanda än någon annan E ThinkPad.

Med det sagt är ThinkPad E-serien förstås fortfarande en budgetorienterad laptopserie. Detta förklarar den relativt mörka och färgsvaga skärmen, att datorn saknar microSD-plats samt att portutbudet känns billigt. ThinkPad-modeller från L- och T-serierna är bättre på detta, vilket de också är när det kommer till företagsfunktioner. Dessutom blir ThinkPad E14 Gen 2 varm kring handledsstödet vid belastning, materialen man valt gör chassit tungt och den kunde haft bättre batteritid.

ThinkPad-inmatningsenheter, AMD Ryzen 4000 och ett lågt pris: Letar man efter en sådan kombination är ThinkPad E14 Gen 2 ett bra val till hemmakontoret - men Lenovos kostnadsbesparingar kan vara avgörande för vissa användare.

Om du minskar dina förväntningar på skärm och portutbud kan Lenovo ThinkPad E14 Gen 2 ändå vara lockande. Riktigt bra inmatningsenheter, ett kompakt chassi och en tyst fläkt är alla önskvärda attribut. Det går dessutom ganska bra att uppgradera AMD-versionen av E14 och AMD Renoir har riktigt bra prestanda i förhållande till priset. Vi kan rekommendera ThinkPad E14 Gen 2 åt mer priskänsliga kunder.

Lenovo ThinkPad E14 Gen2-20T7S00W00 - 2020-08-25 08/25/2020 v7
Benjamin Herzig

Design

87 / 98 → 89%

Tangentbord

92%

Mus

88%

Anslutningar

60 / 80 → 75%

Vikt

68 / 20-75 → 87%

Batteri

80%

Skärm

82%

Spelprestanda

61 / 78 → 78%

Programprestanda

88 / 95 → 93%

Temperatur

87%

Ljudnivå

95%

Audio

71%

Camera

23 / 85 → 27%

Medel

76%

86%

Office - Vägt medel

Pricecompare

Editor of the original article: Benjamin Herzig - Managing Editor - 1148 articles published on Notebookcheck since 2016

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad E14 Gen 2 - Billig och snabb tack vare AMD Renoir (Sammanfattning)

Benjamin Herzig, 2020-09- 4 (Update: 2020-09- 4)

Test: Lenovo ThinkPad E14 Gen 2 - Billig och snabb tack vare AMD Renoir (Sammanfattning)

Jämförelse av storlek och vikt

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Kontinuerlig inläsning: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad E14 Gen2-20T7S00W00 audio analysis

HP ProBook 445 G7 175W4EA audio analysis

Lenovo ThinkPad E495-20NE000JGE audio analysis

För

Emot

More articles related to this device

Pricecompare
