Test: Honor MagicBook 15 - Billig och kraftfull (Sammanfattning)

Name: Honor MagicBook 15 4500U
Brand: Honor

Växer ifrån konkurrenterna. Med en AMD Ryzen 5 4500U CPU kan Honors MagicBook 15 ge riktigt hög prestanda samtidigt som den har ett extremt lågt pris. Men trots att datorn på många sätt är riktigt lyckad har den några små egenheter. I vår recension ska vi tala om vad detta rör sig om.

Mike Wobker, 👁 Andreas Osthoff (översatt av Daniel Eriksson), Published 01/18/2021 🇺🇸 🇩🇪 ...

AMD Windows Ryzen (Zen) Laptop / Notebook

Test device courtesy of Honor Deutschland

Download your licensed rating image as PNG / SVG

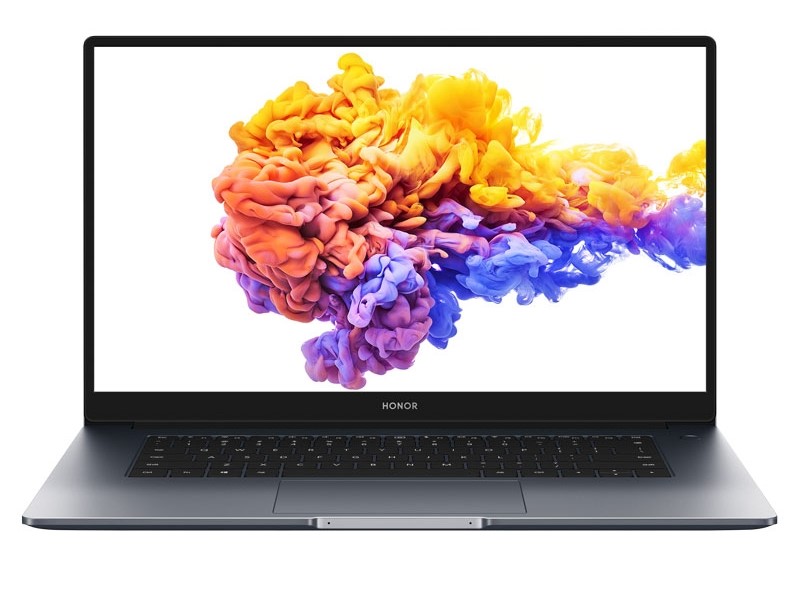

Honor MagicBook 15 4500U (Magicbook Serie)

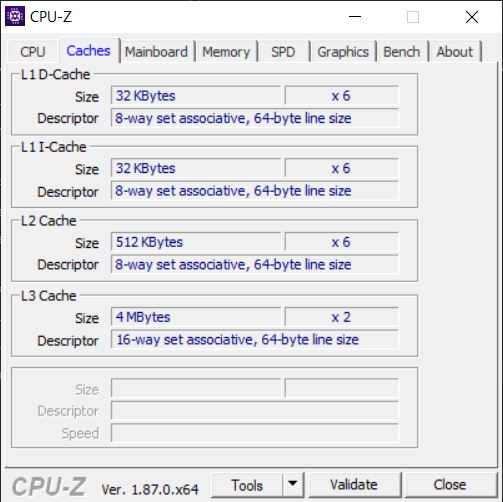

Processor

AMD Ryzen 5 4500U 6 x 2.3 - 4 GHz, 30 W PL2 / Short Burst, 25 W PL1 / Sustained, Renoir-U (Zen 2)

Grafikkort

AMD Radeon RX Vega 6 (Ryzen 4000/5000)

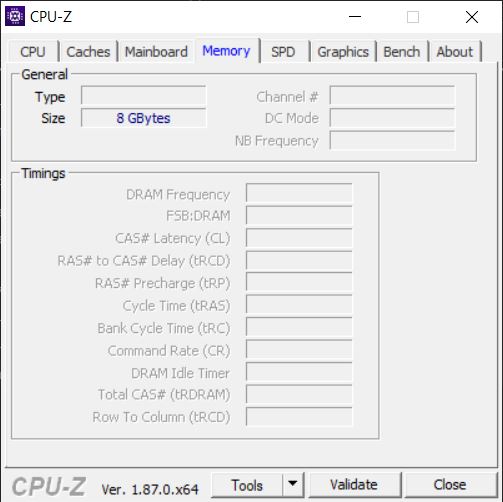

Minne

8 GB

, Dubbla kanaler

Skärm

15.60 tum 16:9, 1920 x 1080 pixlar 141 PPI, BOE0872, IPS, glansig: nej, 60 Hz

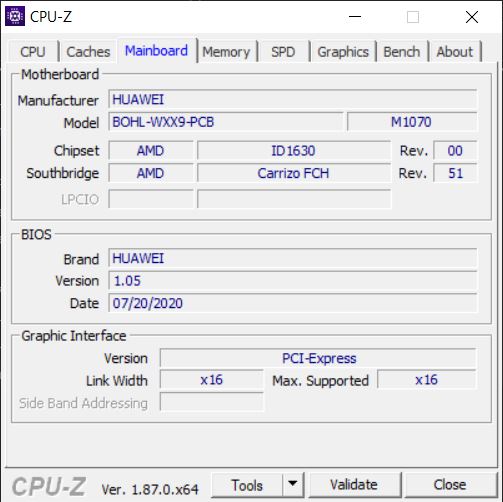

Moderkort

AMD Promontory/Bixby FCH

Hårddisk

WDC PC SN530 SDBPNPZ-512G, 512 GB

, 420 GB ledigt

Ljudkort

AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller

Anslutningar

1 USB 2.0, 2 USB 3.0, USB-C Power Delivery (PD), 1 HDMI, Ljudanslutningar: Kombinerad ljudanslutning, 1 Fingeravtrycksläsare, NFC

Nätverk

Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Storlek

höjd x bredd x djup (i mm) 17 x 358 x 230

Batteri

42 Wh, 3665 mAh Litiumpolymer

Charging

fast charging / Quickcharge

Operativsystem

Microsoft Windows 10 Home 64 Bit

Camera

Webbkamera: 0.9 MP, 16:9 (1280x720)

Övrigt

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: nej, 24 Månader Garanti

Vikt

1.507 kg, Strömförsörjning: 200 g

Pris

650 Kr

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Testgrupp

Rating	Date	Model	Weight	Height	Size	Resolution
84.7 %	01/2021	Honor MagicBook 15 4500U R5 4500U, Vega 6	1.5 kg	17 mm	15.60"	1920x1080
82.8 %	07/2020	Honor MagicBook 15 R5 3500U, Vega 8	1.5 kg	16.9 mm	15.60"	1920x1080
83.2 %	11/2020	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6	1.6 kg	18 mm	14.00"	1920x1080
86 %	07/2020	Lenovo IdeaPad 5 14ARE05 R5 4500U, Vega 6	1.4 kg	16.9 mm	14.00"	1920x1080
81 %		Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620	1.9 kg	18 mm	15.60"	1920x1080

Storleksjämförelse

Dell Latitude 15 3510 NK2MC Honor MagicBook 15 4500U Honor MagicBook 15 HP ProBook 445 G7 175W4EA Lenovo IdeaPad 5 14ARE05 DIN A4 ❌

Vänster: 1x USB 3.2 Gen 1 Typ C med Power Delivery, 1x USB 3.2 Gen 1 Type-A, HDMI

Höger: Kombinerad ljudanslutning, 1x USB 2.0 Typ A

Networking
iperf3 transmit AX12
Dell Latitude 15 3510 NK2MC Intel Wi-Fi 6 AX201	676 MBit/s +3%
Honor MagicBook 15 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	658 (347^min - 742^max) MBit/s
Lenovo IdeaPad 5 14ARE05 Intel Wi-Fi 6 AX200	619 (590^min - 645^max) MBit/s -6%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (87 - 690, n=29)	618 MBit/s -6%
Honor MagicBook 15 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	616 (559^min - 687^max) MBit/s -6%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	557 (527^min - 581^max) MBit/s -15%
iperf3 receive AX12
Dell Latitude 15 3510 NK2MC Intel Wi-Fi 6 AX201	920 MBit/s +40%
Lenovo IdeaPad 5 14ARE05 Intel Wi-Fi 6 AX200	873 (819^min - 899^max) MBit/s +33%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	817 (738^min - 851^max) MBit/s +25%
Honor MagicBook 15 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	655 (577^min - 680^max) MBit/s
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (486 - 685, n=29)	622 MBit/s -5%
Honor MagicBook 15 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	613 (577^min - 630^max) MBit/s -6%

Honor MagicBook 15 4500U; iperf3 receive AX12; iperf 3.1.3: Ø655 (577-680)

Honor MagicBook 15 4500U; iperf3 transmit AX12; iperf 3.1.3: Ø646 (347-742)

ColorChecker Honor MagicBook 15 4500U: 16.38 ∆E min: 3.54 - max: 29.93 ∆E


265 cd/m²	261 cd/m²	237 cd/m²
259 cd/m²	272 cd/m²	246 cd/m²
257 cd/m²	279 cd/m²	255 cd/m²

Distribution av ljusstyrkan

BOE0872 tested with X-Rite i1Pro 2

Max: 279 cd/m² (Nits) Medel: 259 cd/m² Minimum: 5 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 272 cd/m²
Kontrast: 1600:1 (Svärta: 0.17 cd/m²)
ΔE Color 5.3 | 0.5-29.43 Ø5, calibrated: 3.8
ΔE Greyscale 4 | 0.57-98 Ø5.3
64.1% sRGB (Argyll 1.6.3 3D)
41.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.95% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.5% sRGB (Argyll 2.2.0 3D)
43.51% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.03

Download ICC-fil (X-Rite i1Pro 2)

	Honor MagicBook 15 4500U BOE0872, IPS, 1920x1080, 15.60	Honor MagicBook 15 AU Optronics B156HAN02.8, IPS, 1920x1080, 15.60	HP ProBook 445 G7 175W4EA BOE0868, IPS, 1920x1080, 14.00	Lenovo IdeaPad 5 14ARE05 AU Optronics B140HAN04.E, IPS, 1920x1080, 14.00	Dell Latitude 15 3510 NK2MC Dell 156CL05, IPS, 1920x1080, 15.60
Display		-8%	-8%	-14%	-6%
Display P3 Coverage	43.51	39.96 -8%	39.92 -8%	37.23 -14%	40.78 -6%
sRGB Coverage	64.5	59.7 -7%	59.6 -8%	55.9 -13%	61.3 -5%
AdobeRGB 1998 Coverage	44.95	41.29 -8%	41.25 -8%	38.46 -14%	42.15 -6%
Response Times		31%	-40%	22%	-37%
Response Time Grey 50% / Grey 80% *		36 ?(18, 18)	40 ?(22, 18)	41 ?(20, 21)	38 ?(19, 19)
Response Time Black / White *	36 ?(18, 18)	25 ?(14, 11) 31%	30 ?(17, 13) 17%	28 ?(16, 12) 22%	28 ?(17, 11) 22%
PWM Frequency	5152		192 ?(90) -96%		250 -95%
Screen		3%	-13%	-10%	-12%
Brightness middle	272	251 -8%	277 2%	360 32%	262 -4%
Brightness	259	247 -5%	270 4%	317 22%	236 -9%
Brightness Distribution	85	85 0%	88 4%	82 -4%	86 1%
Black Level *	0.17	0.205 -21%	0.285 -68%	0.41 -141%	0.31 -82%
Contrast	1600	1224 -23%	972 -39%	878 -45%	845 -47%
Colorchecker dE 2000 *	5.3	3.94 26%	5.53 -4%	4.75 10%	4.92 7%
Colorchecker dE 2000 max. *	18	7.87 56%	10.68 41%	7.4 59%	15.83 12%
Colorchecker dE 2000 calibrated *	3.8	3.42 10%	4.43 -17%	4.86 -28%	4.34 -14%
Greyscale dE 2000 *	4	3.42 14%	6.2 -55%	3.75 6%	3.47 13%
Gamma	2.03 ^108%	2.44 ^90%	2.34 ^94%	2.32 ^95%	2.4 ^92%
CCT	7338 ^89%	6319 ^103%	7342 ^89%	6543 ^99%	6680 ^97%
Color Space (Percent of AdobeRGB 1998)	41.2	38 -8%	38 -8%	36 -13%	39 -5%
Color Space (Percent of sRGB)	64.1	59 -8%	59 -8%	56 -13%	61 -5%
Total Average (Program / Settings)		9% / 3%	-20% / -16%	-1% / -9%	-18% / -14%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

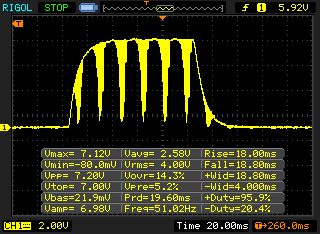

↔ Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

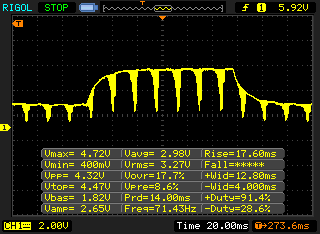

↔ Response Time 50% Grey to 80% Grey
ms ... rise ↗ and fall ↘ combined	↗ 17.6 ms rise
ms ... rise ↗ and fall ↘ combined	↘ ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 0 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

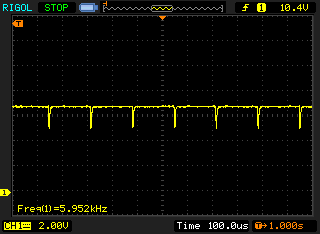

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

5152 Hz

The display backlight flickers at 5152 Hz (worst case, e.g., utilizing PWM) .

The frequency of 5152 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17915 (minimum: 5 - maximum: 3846000) Hz was measured.

Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø892 (873.29-934.25)

Honor MagicBook 15 AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø660 (639.6-665.26)

HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø761 (743.73-893.95)

Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø930 (892.46-973.11)

Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, Intel Core i3-10110U: Ø305 (302.1-307.61)

Asus ExpertBook B9450FA, i7-10510U Intel Core i7-10510U, Intel Core i7-10510U: Ø444 (412-561)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Average of class Subnotebook (216 - 738, n=64, last 2 years)	610 Points +39%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	453 Points +3%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	447 Points +2%
Average AMD Ryzen 5 4500U (424 - 453, n=12)	446 Points +2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	439 Points
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	405 Points -8%
Honor MagicBook 15 AMD Ryzen 5 3500U	371 Points -15%

Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook (810 - 6314, n=64, last 2 years)	3963 Points +69%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	2401 Points +2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	2347 Points
Average AMD Ryzen 5 4500U (1843 - 2530, n=13)	2236 Points -5%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	2208 Points -6%
Honor MagicBook 15 AMD Ryzen 5 3500U	1495 Points -36%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	928 Points -60%

Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook (91.8 - 280, n=62, last 2 years)	237 Points +38%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	175 Points +2%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	174 Points +1%
Average AMD Ryzen 5 4500U (156 - 177, n=13)	172.8 Points 0%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	172 Points
Honor MagicBook 15 AMD Ryzen 5 3500U	144.8 Points -16%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	129 Points -25%

Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook (514 - 2581, n=70, last 2 years)	1757 Points +88%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	973 Points +4%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	934 (873.29^min - 934.25^max) Points
Average AMD Ryzen 5 4500U (715 - 1007, n=18)	896 Points -4%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	894 (743.73^min - 893.95^max) Points -4%
Honor MagicBook 15 AMD Ryzen 5 3500U	664 Points -29%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	314 Points -66%

Blender / v2.79 BMW27 CPU
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	1174 Seconds * -107%
Honor MagicBook 15 AMD Ryzen 5 3500U	688 Seconds * -22%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	645 Seconds * -14%
Average AMD Ryzen 5 4500U (533 - 748, n=11)	603 Seconds * -7%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	593 Seconds * -5%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	566 Seconds *
Average of class Subnotebook (201 - 1600, n=66, last 2 years)	386 Seconds * +32%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Subnotebook (2197 - 6403, n=58, last 2 years)	5328 MIPS +24%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4315 MIPS 0%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	4302 MIPS
Average AMD Ryzen 5 4500U (4235 - 4338, n=11)	4290 MIPS 0%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	4288 MIPS 0%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	4038 MIPS -6%
Honor MagicBook 15 AMD Ryzen 5 3500U	3536 MIPS -18%

7-Zip 18.03 / 7z b 4
Average of class Subnotebook (16223 - 67444, n=57, last 2 years)	44459 MIPS +72%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	25815 MIPS
Average AMD Ryzen 5 4500U (22466 - 25891, n=11)	24384 MIPS -6%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	23877 MIPS -8%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	23610 MIPS -9%
Honor MagicBook 15 AMD Ryzen 5 3500U	16890 MIPS -35%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	10725 MIPS -58%

Geekbench 5.5 / Single-Core
Average of class Subnotebook (672 - 2350, n=65, last 2 years)	1701 Points +39%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	1220 Points
Average AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points -9%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	1098 Points -10%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	1088 Points -11%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	957 Points -22%
Honor MagicBook 15 AMD Ryzen 5 3500U	905 Points -26%

Geekbench 5.5 / Multi-Core
Average of class Subnotebook (4274 - 12580, n=65, last 2 years)	9084 Points +46%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	6234 Points
Average AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points -23%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	4646 Points -25%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4440 Points -29%
Honor MagicBook 15 AMD Ryzen 5 3500U	3165 Points -49%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	2034 Points -67%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook (1.5 - 19.4, n=56, last 2 years)	11.9 fps +62%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	7.33 fps
Average AMD Ryzen 5 4500U (5.86 - 7.33, n=10)	6.8 fps -7%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	6.72 fps -8%
Honor MagicBook 15 AMD Ryzen 5 3500U	4.13 fps -44%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	3.12 fps -57%

LibreOffice / 20 Documents To PDF
Honor MagicBook 15 AMD Ryzen 5 3500U	81.9 s * -26%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	78 s * -20%
Average AMD Ryzen 5 4500U (58.2 - 78, n=11)	66.4 s * -2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	65.2 s *
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	58.2 s * +11%
Average of class Subnotebook (40.1 - 120.5, n=57, last 2 years)	52.6 s * +19%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	28.13 s * +57%

R Benchmark 2.5 / Overall mean
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U	0.76 sec * -22%
Honor MagicBook 15 AMD Ryzen 5 3500U	0.74 sec * -19%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	0.639 sec * -3%
Average AMD Ryzen 5 4500U (0.614 - 0.654, n=10)	0.636 sec * -2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U	0.623 sec *
Average of class Subnotebook (0.4397 - 1.236, n=57, last 2 years)	0.52 sec * +17%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

934 Points

Cinebench R15 OpenGL 64Bit

54.5 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 CPU Single 64Bit

172 Points

Hjälp

... jämför

PCMark 10
Score
Average of class Subnotebook (4384 - 7428, n=55, last 2 years)	5879 Points +21%
Honor MagicBook 15 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	4851 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4393 - 5024, n=12)	4683 Points -3%
Lenovo IdeaPad 5 14ARE05 Vega 6, R5 4500U, Samsung PM991 MZALQ512HALU	4682 Points -3%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4393 Points -9%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	3883 Points -20%
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	3360 Points -31%
Essentials
Average of class Subnotebook (8890 - 11168, n=55, last 2 years)	10247 Points +17%
Lenovo IdeaPad 5 14ARE05 Vega 6, R5 4500U, Samsung PM991 MZALQ512HALU	8876 Points +1%
Honor MagicBook 15 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	8751 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (8204 - 9124, n=11)	8669 Points -1%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	8327 Points -5%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	7775 Points -11%
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	7202 Points -18%
Productivity
Average of class Subnotebook (6213 - 10279, n=55, last 2 years)	7857 Points +5%
Honor MagicBook 15 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	7481 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (6400 - 7752, n=11)	6987 Points -7%
Lenovo IdeaPad 5 14ARE05 Vega 6, R5 4500U, Samsung PM991 MZALQ512HALU	6636 Points -11%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	6530 Points -13%
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	5984 Points -20%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	5799 Points -22%
Digital Content Creation
Average of class Subnotebook (4093 - 9749, n=55, last 2 years)	6923 Points +46%
Honor MagicBook 15 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	4734 Points
Lenovo IdeaPad 5 14ARE05 Vega 6, R5 4500U, Samsung PM991 MZALQ512HALU	4728 Points 0%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4189 - 4808, n=11)	4517 Points -5%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4233 Points -11%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	3526 Points -26%
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	2390 Points -50%

PCMark 10 Score		4851 poäng
Hjälp

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe	5347 μs * -713%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	1343 μs * -104%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	935 μs * -42%
Honor MagicBook 15 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	658 μs *
Lenovo IdeaPad 5 14ARE05 Vega 6, R5 4500U, Samsung PM991 MZALQ512HALU	266.2 μs * +60%

* ... smaller is better

	Honor MagicBook 15 4500U WDC PC SN530 SDBPNPZ-512G	Honor MagicBook 15 Samsung SSD PM981a MZVLB256HBHQ	HP ProBook 445 G7 175W4EA Samsung PM991 MZVLQ512HALU	Lenovo IdeaPad 5 14ARE05 Samsung PM991 MZALQ512HALU	Dell Latitude 15 3510 NK2MC Toshiba KBG40ZNS256G NVMe	Average WDC PC SN530 SDBPNPZ-512G
CrystalDiskMark 5.2 / 6		2%	-19%	-16%	-13%	-2%
Write 4K	161.1	136.1 -16%	144.6 -10%	102.8 -36%	150 -7%	170.1 ?(118 - 269, n=12) 6%
Read 4K	49.92	42.88 -14%	38.08 -24%	45.48 -9%	61.8 24%	49.4 ?(43.2 - 57.3, n=12) -1%
Write Seq	1799	2335 30%	1320 -27%	1255 -30%	458 -75%	1731 ?(1355 - 1829, n=12) -4%
Read Seq	1978	2183 10%	1397 -29%	1434 -28%	1881 -5%	1643 ?(1095 - 1983, n=12) -17%
Write 4K Q32T1	392.5	261.2 -33%	324.2 -17%	441 12%	338.4 -14%	453 ?(208 - 580, n=12) 15%
Read 4K Q32T1	506	328.1 -35%	434.8 -14%	474.1 -6%	447.3 -12%	488 ?(320 - 708, n=12) -4%
Write Seq Q32T1	1806	2348 30%	1382 -23%	1456 -19%	1563 -13%	1791 ?(1467 - 1841, n=12) -1%
Read Seq Q32T1	2460	3564 45%	2354 -4%	2085 -15%	2422 -2%	2272 ?(1334 - 2485, n=12) -8%
AS SSD		15%	-6%	4%	-54%	-7%
Seq Read	2091	2830 35%	1936 -7%	1970 -6%	1971 -6%	1862 ?(1007 - 2228, n=12) -11%
Seq Write	1658	2187 32%	1213 -27%	1268 -24%	1130 -32%	1392 ?(956 - 1755, n=12) -16%
4K Read	43.46	45.36 4%	44.09 1%	47.13 8%	51.3 18%	42.1 ?(27.8 - 48.8, n=12) -3%
4K Write	141.9	88.6 -38%	118.5 -16%	121.6 -14%	119.7 -16%	163.8 ?(102.9 - 239, n=12) 15%
4K-64 Read	589	732 24%	867 47%	855 45%	585 -1%	813 ?(406 - 1067, n=12) 38%
4K-64 Write	1028	1199 17%	838 -18%	859 -16%	495.5 -52%	876 ?(396 - 1385, n=12) -15%
Access Time Read *	0.064	0.055 14%	0.122 -91%	0.065 -2%	0.107 -67%	0.07875 ?(0.045 - 0.132, n=12) -23%
Access Time Write *	0.047	0.037 21%	0.034 28%	0.032 32%	0.22 -368%	0.08225 ?(0.04 - 0.167, n=12) -75%
Score Read	842	1060 26%	1105 31%	1100 31%	833 -1%	1041 ?(581 - 1322, n=12) 24%
Score Write	1335	1506 13%	1078 -19%	1108 -17%	728 -45%	1179 ?(684 - 1654, n=12) -12%
Score Total	2598	3087 19%	2721 5%	2745 6%	1962 -24%	2738 ?(1795 - 3507, n=12) 5%
Total Average (Program / Settings)		9% / 10%	-13% / -11%	-6% / -5%	-34% / -37%	-5% / -5%

* ... smaller is better

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN530 SDBPNPZ-512G

CDM 5/6 Read Seq Q32T1: 2460 MB/s

CDM 5/6 Write Seq Q32T1: 1806 MB/s

CDM 5/6 Read 4K Q32T1: 506 MB/s

CDM 5/6 Write 4K Q32T1: 392.5 MB/s

CDM 5 Read Seq: 1978 MB/s

CDM 5 Write Seq: 1799 MB/s

CDM 5/6 Read 4K: 49.92 MB/s

CDM 5/6 Write 4K: 161.1 MB/s

DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook (2979 - 16904, n=55, last 2 years)	8227 Points +97%
Lenovo IdeaPad 5 14ARE05 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	4400 Points +5%
Honor MagicBook 15 4500U AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	4173 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (3401 - 4713, n=23)	4146 Points -1%
Honor MagicBook 15 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	3965 Points -5%
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	3683 Points -12%
Dell Latitude 15 3510 NK2MC Intel UHD Graphics 620, Intel Core i3-10110U	1549 Points -63%

3DMark 11 Performance		4417 poäng
Hjälp

... jämför

The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | Far Cry 5

The Witcher 3
1024x768 Low Graphics & Postprocessing
Average of class Subnotebook (37 - 249, n=53, last 2 years)	102.1 fps +114%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	49.7 fps +4%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	47.82 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (32.8 - 60, n=21)	46.9 fps -2%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	36.1 (30^min - 41^max) fps -25%
1920x1080 Medium Graphics & Postprocessing
Average of class Subnotebook (last 2 years)	43.1 fps +126%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (19.1 - 19.2, n=2)	19.2 fps +1%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.1 fps

Dota 2 Reborn - 1920x1080 high (2/3)
Average of class Subnotebook (37.4 - 114.4, n=58, last 2 years)	65.9 fps +57%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.6 (41^min) fps +9%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (32 - 70.9, n=21)	42.7 fps +2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	42 (38.5^min) fps
Honor MagicBook 15 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	39.3 (35.3^min) fps -6%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	35.3 (32.7^min) fps -16%
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, Intel UHD Graphics 620	15.6 (14.4^min) fps -63%

X-Plane 11.11
1920x1080 med (fps_test=2)
Average of class Subnotebook (20.9 - 116.2, n=55, last 2 years)	39.2 fps +36%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.8 fps +7%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.9 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (25.2 - 33.8, n=20)	28.8 fps 0%
Honor MagicBook 15 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	20.2 fps -30%
1920x1080 high (fps_test=3)
Average of class Subnotebook (21.2 - 97.1, n=55, last 2 years)	34.1 fps +30%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps +5%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	26.2 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (22.6 - 29.9, n=20)	25.8 fps -2%
Honor MagicBook 15 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	17.2 fps -34%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Average of class Subnotebook (18.9 - 130.6, n=54, last 2 years)	51.3 fps +102%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (15.6 - 32.2, n=9)	25.9 fps +2%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.38 fps
1920x1080 Standard Quality
Average of class Subnotebook (10.8 - 71, n=54, last 2 years)	27.8 fps +127%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (10.6 - 16.1, n=8)	13.4 fps +10%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.23 fps

Far Cry 5
1280x720 Low Preset AA:T
Average of class Subnotebook (22 - 132, n=38, last 2 years)	60.4 fps +108%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	35 fps +21%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (24 - 46, n=12)	33.2 fps +14%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	29 fps
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24 fps -17%
1920x1080 Low Preset AA:T
Average of class Subnotebook (24 - 37, n=3, last 2 years)	32 fps +100%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 fps +19%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (14 - 20, n=4)	17.3 fps +8%
Honor MagicBook 15 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16 fps

	låg	med.	hög	ultra
The Witcher 3 (2015)	47.82
Dota 2 Reborn (2015)	90.4	69.5	42	39.5
Final Fantasy XV Benchmark (2018)	25.38	12.23
X-Plane 11.11 (2018)	38.3	28.9	26.2
Far Cry 5 (2018)	29	14

Ljudnivå

Låg belastning		29.9 / 29.9 / 30.6 dB(A)
Hög belastning		31.5 / 34.8 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM-1, Arta (15 cm avstånd) environment noise: 29.9 dB(A)

Hög belastning

Låg belastning


38.5 °C	37.9 °C	35.4 °C
37.5 °C	35.8 °C	29.3 °C
31.2 °C	28.5 °C	26.5 °C

Max: 38.5 °C
Medel: 33.4 °C


35.5 °C	41.7 °C	42.7 °C
27.6 °C	38.2 °C	39.7 °C
27.2 °C	31.8 °C	32.1 °C

Max: 42.7 °C
Medel: 35.2 °C

Strömförsörjning (max.) 45.1 °C | Rumstemperatur 21.7 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 33.4 °C / 92 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.7 °C / 109 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.2 °C / 88.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.9 °C / -5.3 F).

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Honor MagicBook 15 4500U audio analysis

(±) | speaker loudness is average but good (72.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.2% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 7% similar, 24% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 57% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP ProBook 445 G7 175W4EA audio analysis

(±) | speaker loudness is average but good (76.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 9% similar, 57% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 45% of all tested devices were better, 7% similar, 48% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.36 / 0.57 Watt
Låg belastning	3.9 / 7.4 / 8.2 Watt
Hög belastning	34.6 / 43.6 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Honor MagicBook 15 4500U R5 4500U, Vega 6, WDC PC SN530 SDBPNPZ-512G, IPS, 1920x1080, 15.60	Honor MagicBook 15 R5 3500U, Vega 8, Samsung SSD PM981a MZVLB256HBHQ, IPS, 1920x1080, 15.60	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 14.00	Lenovo IdeaPad 5 14ARE05 R5 4500U, Vega 6, Samsung PM991 MZALQ512HALU, IPS, 1920x1080, 14.00	Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620, Toshiba KBG40ZNS256G NVMe, IPS, 1920x1080, 15.60	Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)	Average of class Subnotebook
Power Consumption		-11%	6%	-21%	-2%	-3%	-30%
Idle Minimum *	3.9	4.6 -18%	3.5 10%	4.4 -13%	3.6 8%	3.98 ?(3.7 - 5.8, n=23) -2%	4.9 ?(1.77 - 11.8, n=61, last 2 years) -26%
Idle Average *	7.4	8.5 -15%	6.2 16%	7.6 -3%	6.6 11%	6.53 ?(5 - 8.4, n=23) 12%	8.36 ?(4.6 - 17.4, n=61, last 2 years) -13%
Idle Maximum *	8.2	9.1 -11%	8.8 -7%	9.9 -21%	9.7 -18%	8.65 ?(5.3 - 11, n=23) -5%	10.4 ?(5.1 - 22.4, n=61, last 2 years) -27%
Load Average *	34.6	38 -10%	30 13%	46 -33%	38 -10%	35 ?(27.6 - 48, n=23) -1%	45.9 ?(19.1 - 83.3, n=60, last 2 years) -33%
Witcher 3 ultra *	35.2
Load Maximum *	43.6	44 -1%	45 -3%	59 -35%	45 -3%	51.5 ?(35.4 - 97.2, n=23) -18%	66 ?(24.2 - 121.2, n=61, last 2 years) -51%

* ... smaller is better

Batteritid

WiFi Websurfing		9tim 30min
WiFi Websurfing max. Brightness		7tim 24min
Hög belastning (maximal ljusstyrka)		1tim 28min

	Honor MagicBook 15 4500U R5 4500U, Vega 6, 42 Wh	Honor MagicBook 15 R5 3500U, Vega 8, 42 Wh	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, 45 Wh	Lenovo IdeaPad 5 14ARE05 R5 4500U, Vega 6, 56.5 Wh	Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620, 40 Wh	Average of class Subnotebook
Battery Runtime		-37%	-1%	4%	-18%	21%
WiFi v1.3	570	361 -37%	523 -8%	591 4%	465 -18%	629 ?(303 - 1144, n=63, last 2 years) 10%
Load	88		94 7%			115.4 ?(61 - 197, n=47, last 2 years) 31%

För

+ Matt IPS-skärm

+ Aluminiumhölje

+ Snabb SSD

+ USB-C Power Delivery

+ Riktigt bra batteritid

Emot

- Tangentbordet saknar bakgrundsbelysning

- Ingen minneskortsläsare

- Knappt några servicemöjligheter

Omdöme - En bättre laptop med den nya CPU:n

Recension av Honor MagicBook 15. Recensionsex från Honor Germany

Läs den fullständiga versionen av den här recensionen på engelska här.

Tack vare uppdateringen till en ny processorgeneration kommer Honor MagicBook 15 med betydligt högre prestanda. Eftersom höljet är oförändrat finns högkvalitativt hantverk, gedigna material och bra inmatningsenheter fortfarande kvar. Några mindre förbättringar har också skett, exempelvis lite högre skärmvärden och mycket längre batteritid.

Honor MagicBook levererar ännu bättre prestanda med AMD Ryzen 5 4500U, men behåller både gamla styrkor och svagheter.

Bristerna vi noterade på föregångaren finns också kvar. Således har den WLAN som är kvar på WiFi 5-standarden och vi är fortfarande utan kortläsare. Dessutom tittar webbkameran fortfarande på en ur ett grodperspektiv från tangentbordet. Om du inte stör dig på något av detta är Honor MagicBook 15 ett bra val, inte minst på grund av det låga priset.

Honor MagicBook 15 4500U - 2021-01-10 01/10/2021 v7
Mike Wobker

Design

84 / 98 → 86%

Tangentbord

82%

Mus

91%

Anslutningar

43 / 75 → 57%

Vikt

69 / 20-75 → 89%

Batteri

88%

Skärm

83%

Spelprestanda

57 / 78 → 73%

Programprestanda

88 / 85 → 100%

Temperatur

92%

Ljudnivå

94%

Audio

60 / 91 → 66%

Camera

30 / 85 → 35%

Medel

74%

85%

Subnotebook - Vägt medel

Pricecompare

Editor of the original article: Stephanie Chamberlain - Translator - 571 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Honor MagicBook 15 - Billig och kraftfull (Sammanfattning)

Mike Wobker, 2021-01-18 (Update: 2021-01-18)

Test: Honor MagicBook 15 - Billig och kraftfull (Sammanfattning)

Testgrupp

Storleksjämförelse

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

DiskSpd Read Loop, Queue Depth 8

Honor MagicBook 15 4500U audio analysis

HP ProBook 445 G7 175W4EA audio analysis

För

Emot

Omdöme - En bättre laptop med den nya CPU:n

More articles related to this device

Pricecompare
