Recension av Acer TravelMate Spin B3: Robust bärbar 2-i-1-dator med penninmatning

Mångsidig. Acers 2-i-1-enhet har tyst drift, god batteritid och en NVMe SSD. Pekskärmen kan användas antingen med fingrarna eller med den medföljande inmatningspennan. Windows 10 Pro fungerar som operativsystem och kan uppdateras till Windows 11. Priset ligger på cirka 330 euro (~375 dollar).
Sascha Mölck, 👁 Sebastian Jentsch (översatt av DeepL / Ninh Duy), 🇺🇸 🇩🇪 ...

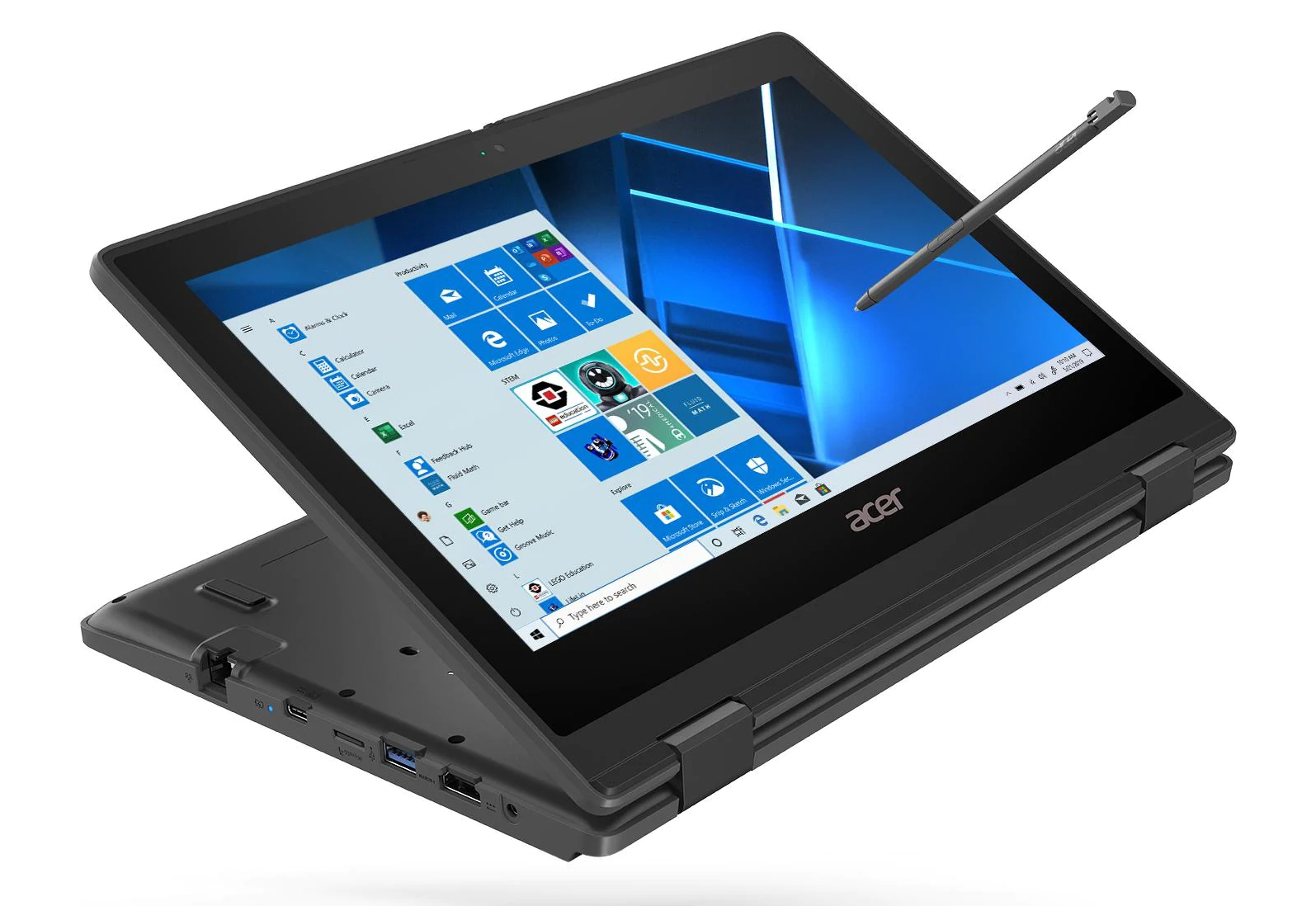

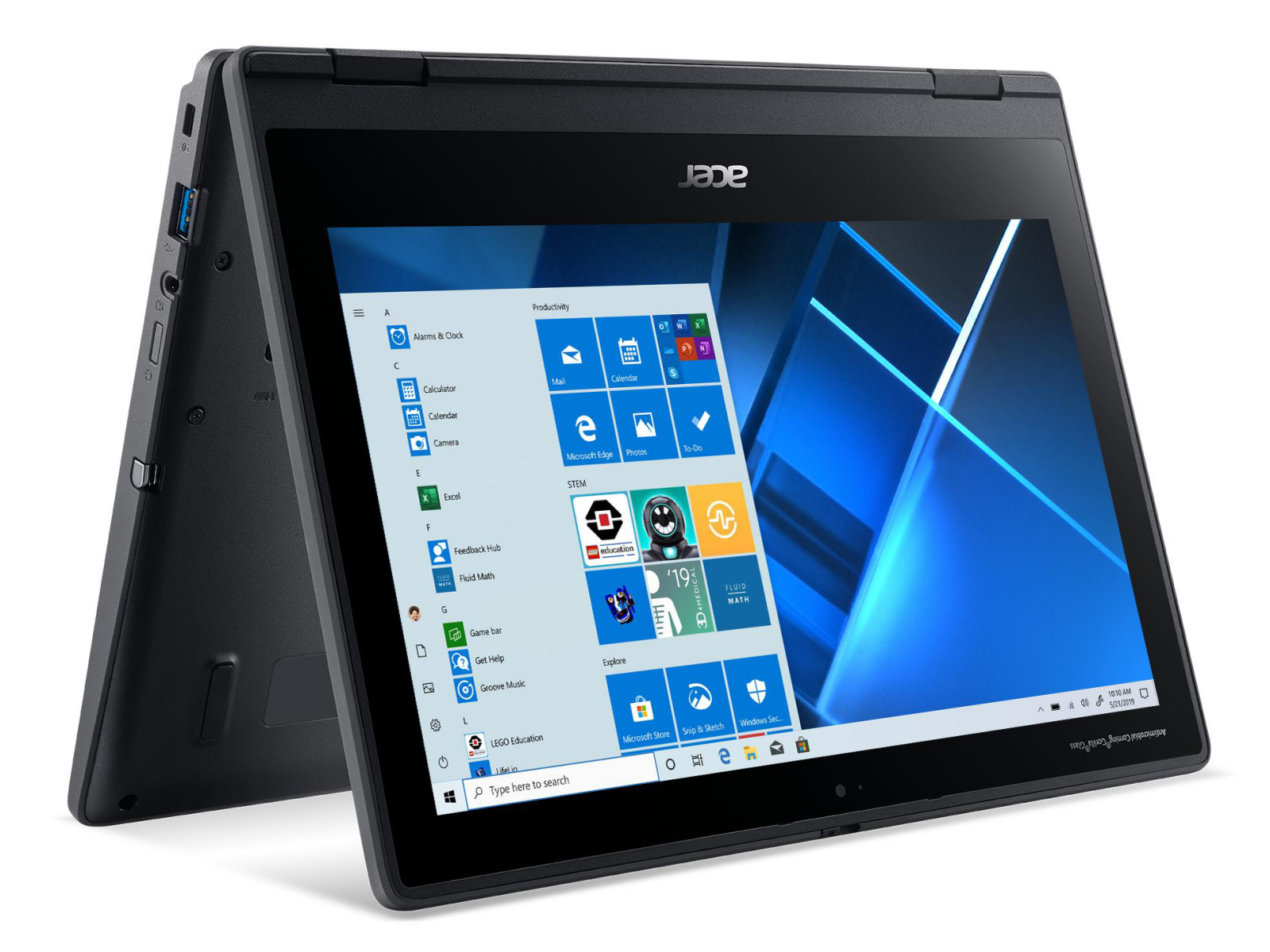

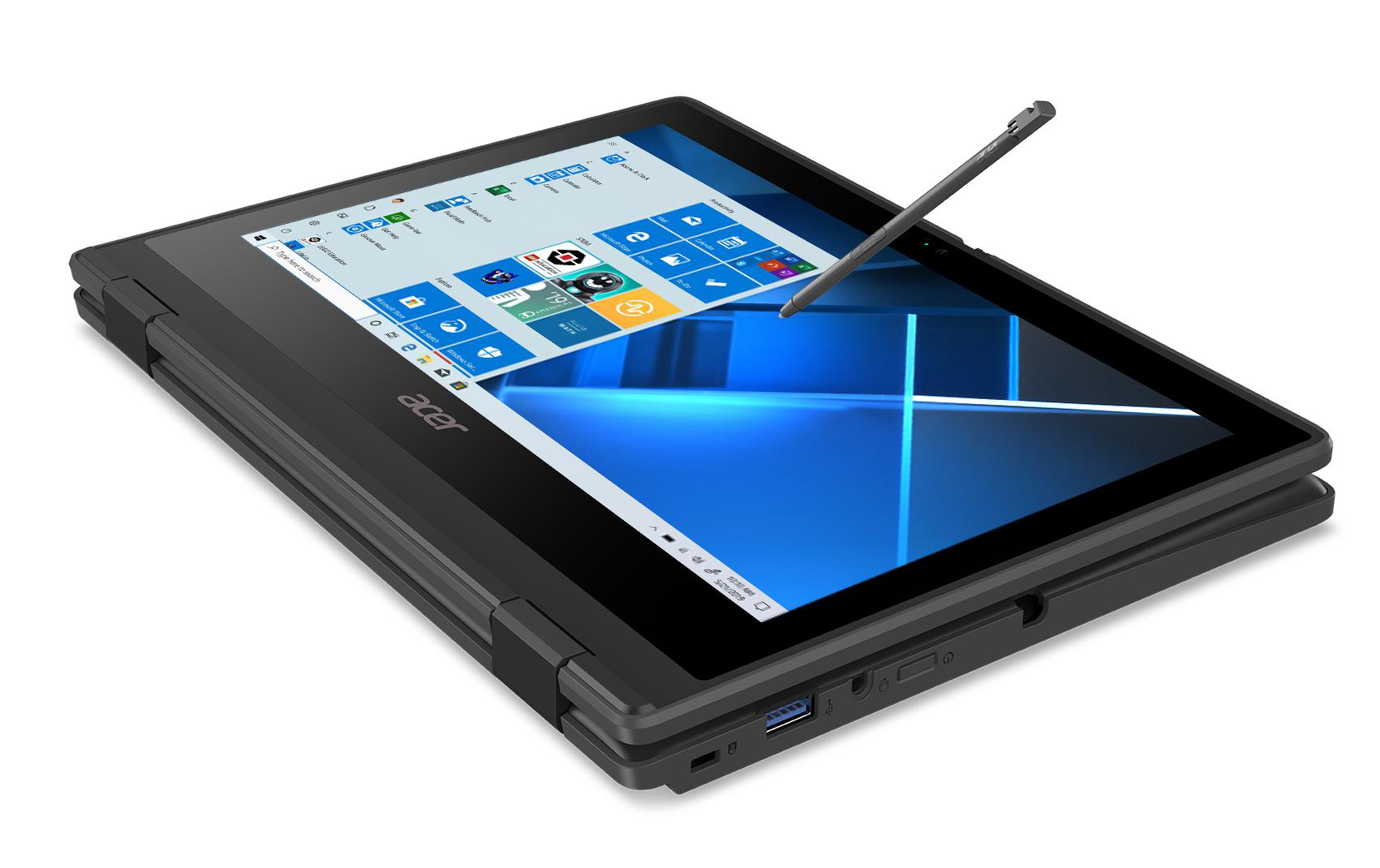

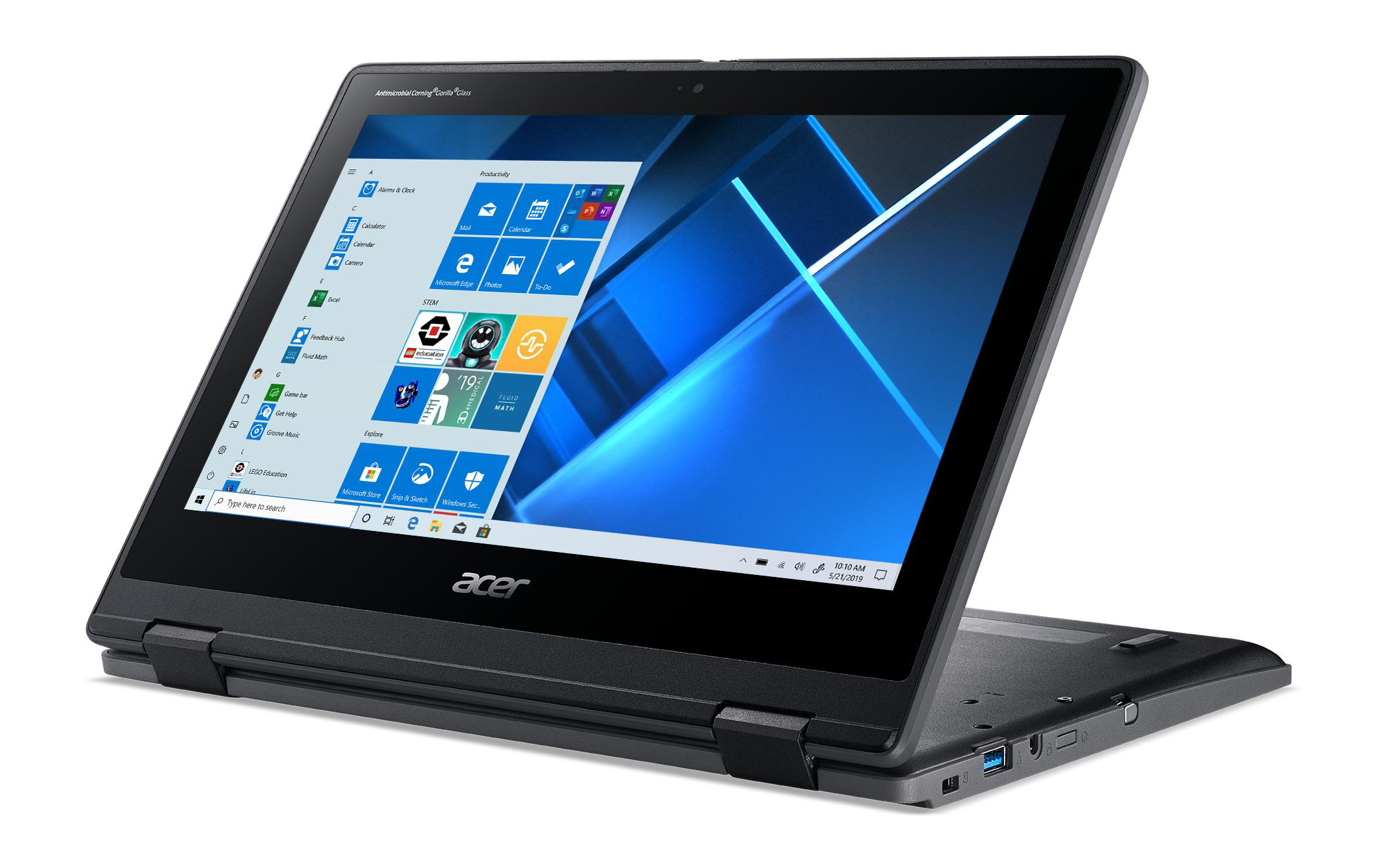

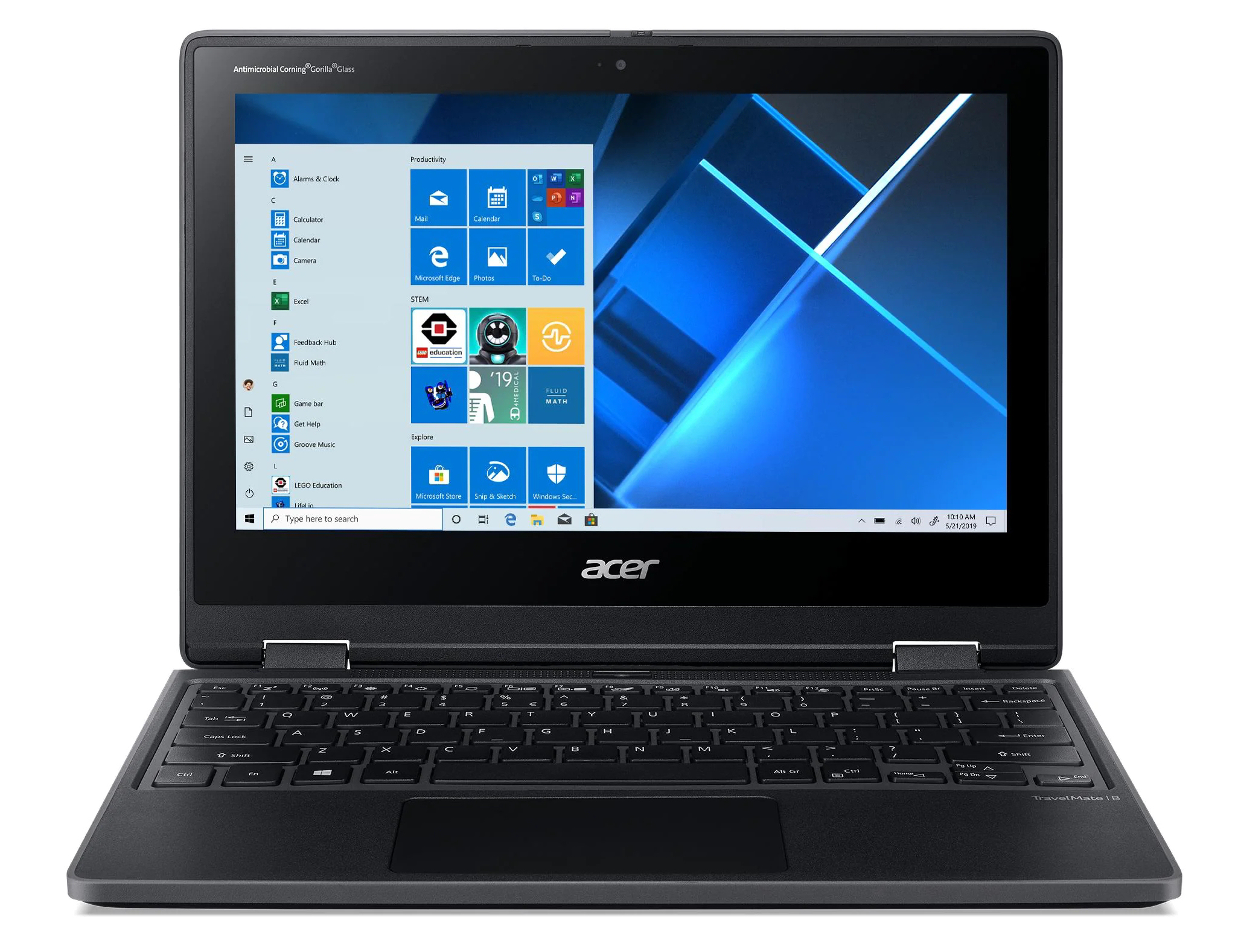

Med TravelMate Spin B3 erbjuder Acer en robust bärbar 2-i-1-dator som främst är avsedd för användning i skolor. Den 11,6-tums enheten drivs av en Pentium Silver N5030processor. Bland konkurrenterna finns enheter som t.ex Lenovo Flex 3 Chrome, denAcer Chromebook Spin 511 R752Toch Asus BR1100FKA.

, , , , , ,
sökrelation
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Acer TravelMate Spin B3 TMB311RN-31-P5KK
Processor
Intel Pentium Silver N5030 4 x 2 - 3.1 GHz, 15 W PL2 / Short Burst, 7.5 W PL1 / Sustained, Gemini Lake Refresh
Grafikkort
Intel UHD Graphics 605, Kärna: 750 MHz, single-channel, 30.0.101.1069
Minne
4096 MB
, DDR4-2400, single-channel mode, onboard, no memory slot
Skärm
11.60 tum 16:9, 1920 x 1080 pixlar 190 PPI, capacitve, 10 touchpoints, native pen support, AU Optronics B116HAN05.2, IPS, glansig: ja, 60 Hz

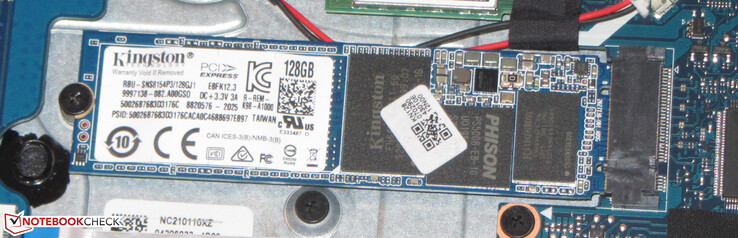

Hårddisk
Kingston RBUSNS8154P3128GJ, 128 GB
, M.2-2280, NVMe, 93.2 GB ledigt
Ljudkort
Realtek ALC256 @ Intel Gemini Lake SoC - High Definition Audio Controller
Anslutningar
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: combined audio port, Kortläsare: microSD, Sensorer: accelerometer, TPM 2.0
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Storlek
höjd x bredd x djup (i mm) 20.95 x 295 x 212
Batteri
50.3 Wh, 4471 mAh Litiumjon
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: HD
Primary Camera: 0.9 MPix
Secondary Camera: 5 MPix HDR
Övrigt
Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: nej, MS Office Professional 2019 (trial), 36 Månader Garanti, fanless
Vikt
1.49 kg, Strömförsörjning: 210 g
Pris
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
81 %
01/2022
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Pentium N5030, UHD Graphics 605
1.5 kg20.95 mm11.60"1920x1080
12/2021
Lenovo Flex 3 Chrome 11M836
MT8183, Mali-G72 MP3
1.2 kg17.5 mm11.60"1366x768
80.3 %
11/2021
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600
1.2 kg20 mm11.60"1366x768
74.9 %
06/2021
Asus BR1100FKA-BP0109RA
Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
1.4 kg19.9 mm11.60"1366x768

Väska och utrustning - TravelMate B3 stöder Power Delivery

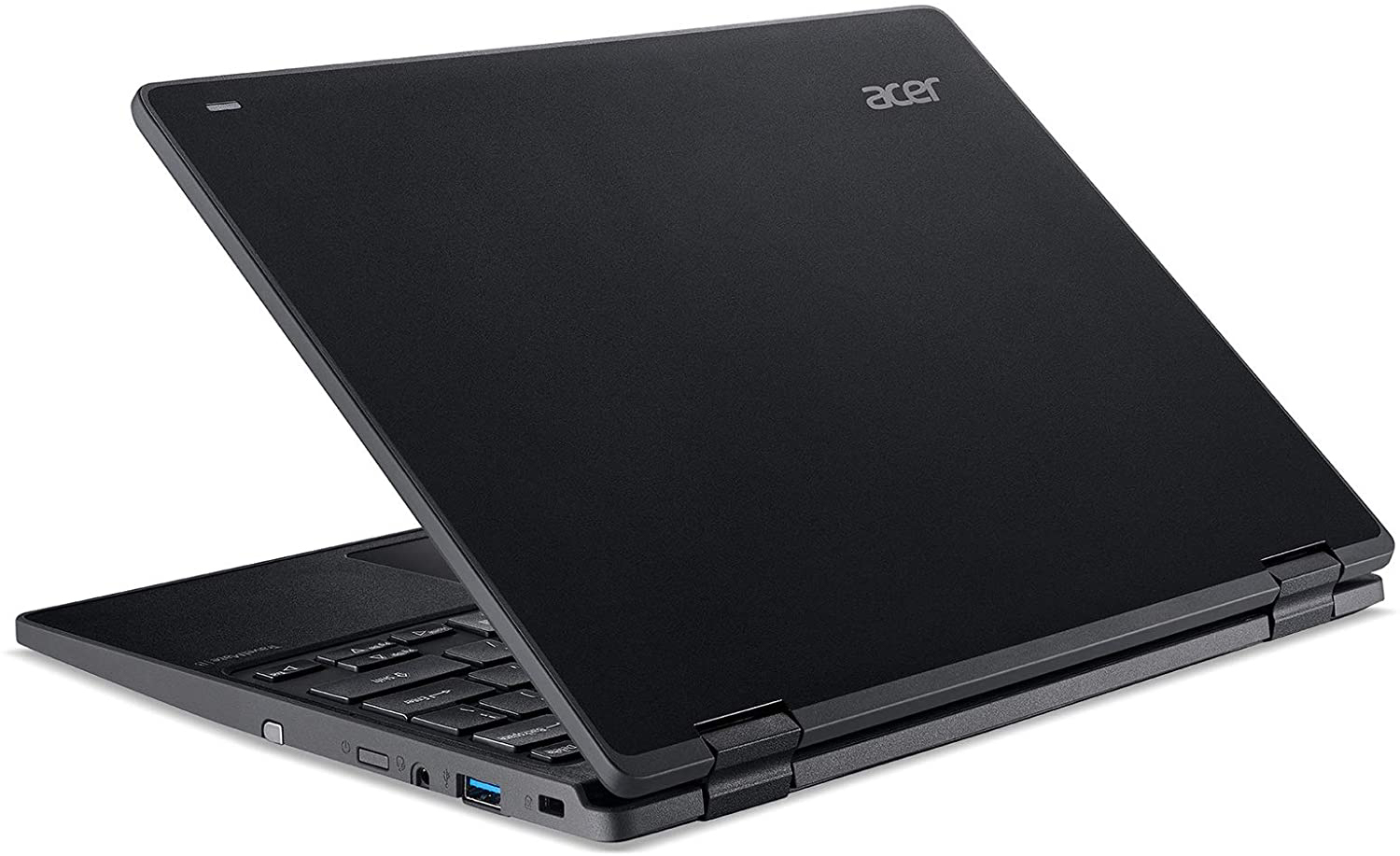

Det robusta, svarta plastfodralet har en grov yta som ger ett bra grepp för fingrarna och är inte benägen att ta fingeravtryck. B3:s korta kanter skyddas mot stötar av gummilameller. Datorn uppvisar inga brister i tillverkningen. Även om basenheten och locket kan vara något skevt håller sig detta inom ramarna. Batteriet är inbyggt. Efter att botten har avlägsnats är insidorna lätt åtkomliga.

Det finns tre USB-anslutningar (2x Typ-A, 1x Typ-C) som stöder standarden USB 3.2 Gen1. USB-C-porten stöder Power Delivery och DisplayPort via USB-C. Så tillsammans med HDMI-anslutningen har Spin B3 två videoutgångsportar. Något som sällan återfinns i enheter som TravelMate är Gigabit Ethernet-porten. MicroSD-lagringskortläsaren är en långsammare representant i sitt slag (uppmätt med vårt referenslagringskort AV PRO SD 128 GB V60).

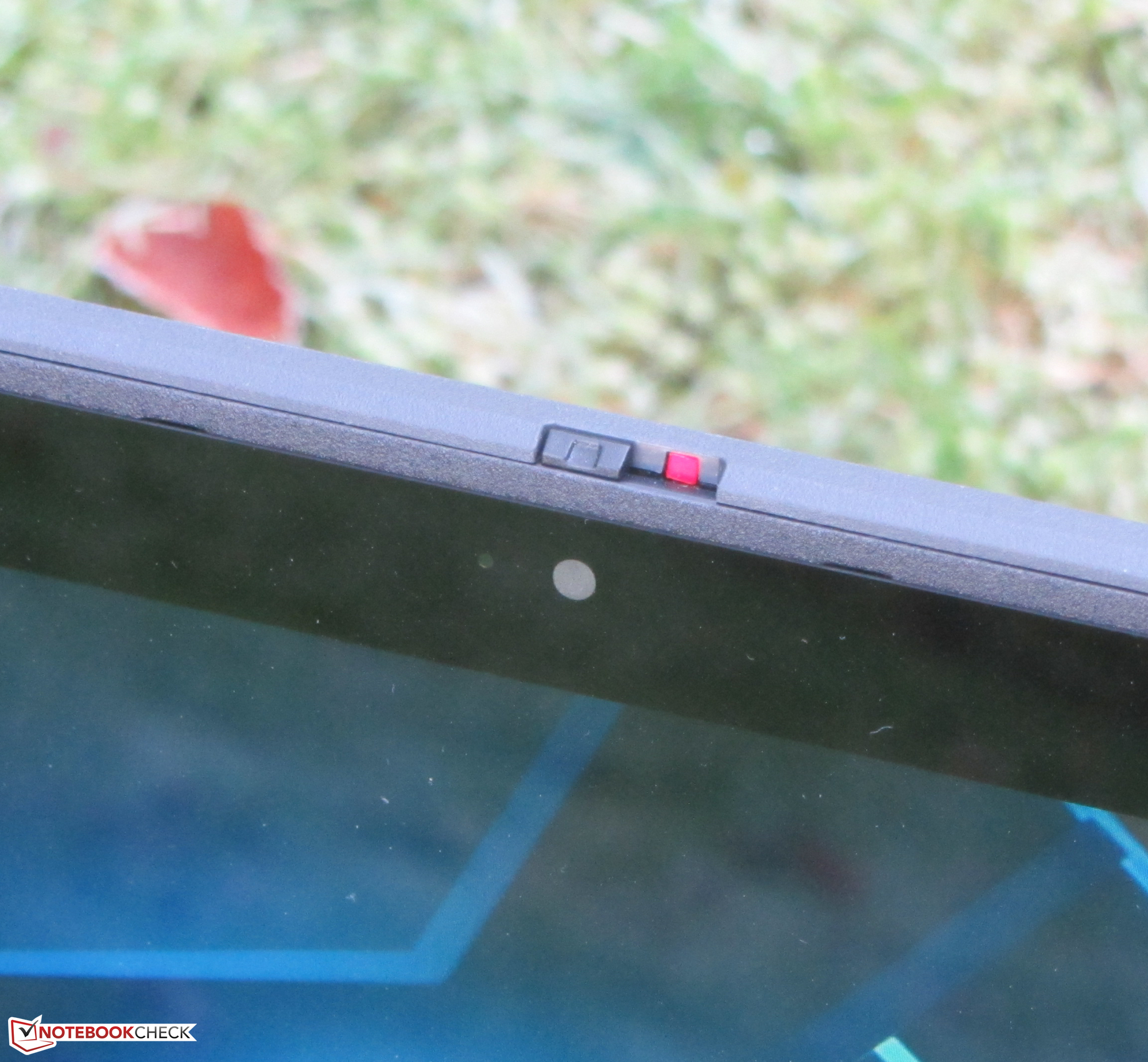

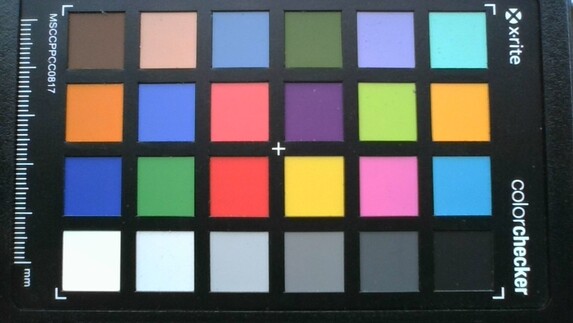

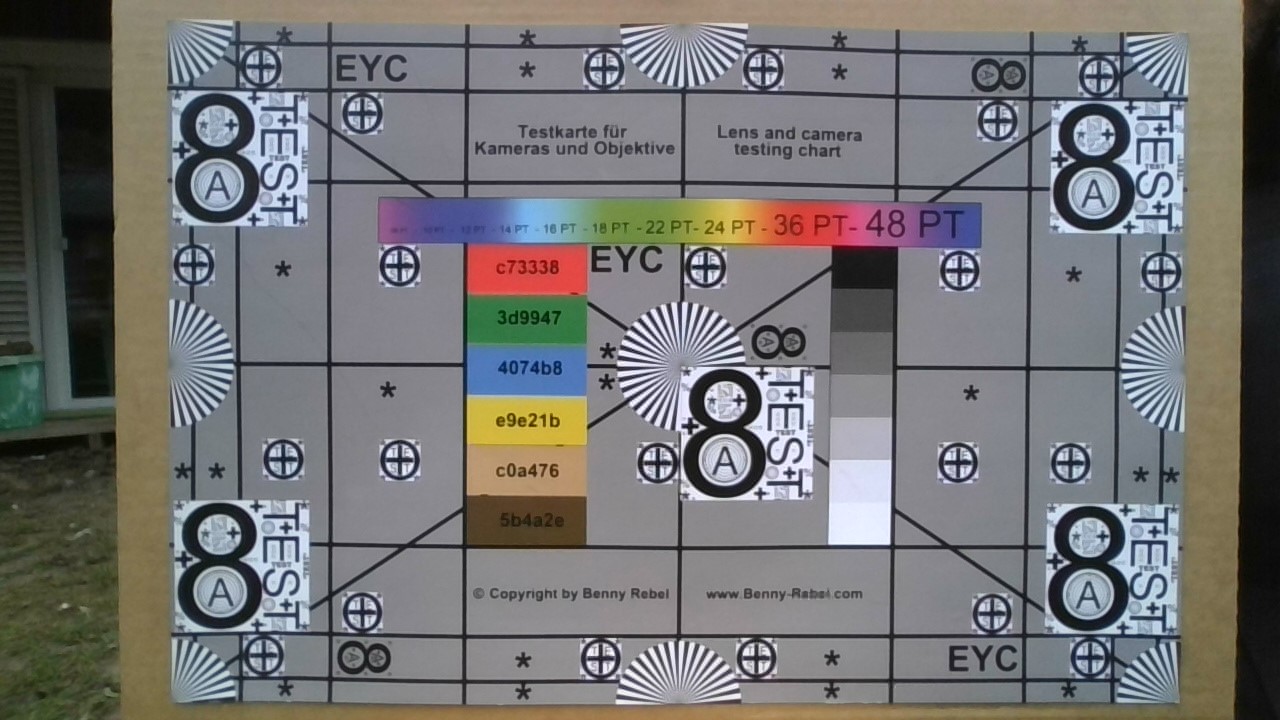

2-i-1-enheten har två kameror: en webbkamera (0,9 MP) för videokonferenser och en kamera (5 MP, HDR, max. 2560 x 1920 pixlar) för foton. Den sistnämnda är placerad ovanför tangentbordet och kan användas i surfplatteläge. Medan webbkameran bara erbjuder standardpris, ger 5 MP-kameran ganska hyggliga resultat.

WLAN-överföringshastigheterna som vi mätte under optimala förhållanden (utan andra WLAN-enheter i närheten och med ett kort avstånd mellan den bärbara datorn och serverdatorn) är i princip okej, men de ligger fortfarande bakom kapaciteten hos det WLAN-chip som används här (Intel Wireless-AC 9560).

Size Comparison

296 mm 205 mm 20 mm 1.2 kg295 mm 212 mm 20.95 mm 1.5 kg295 mm 205 mm 19.9 mm 1.4 kg285 mm 202.7 mm 17.5 mm 1.2 kg

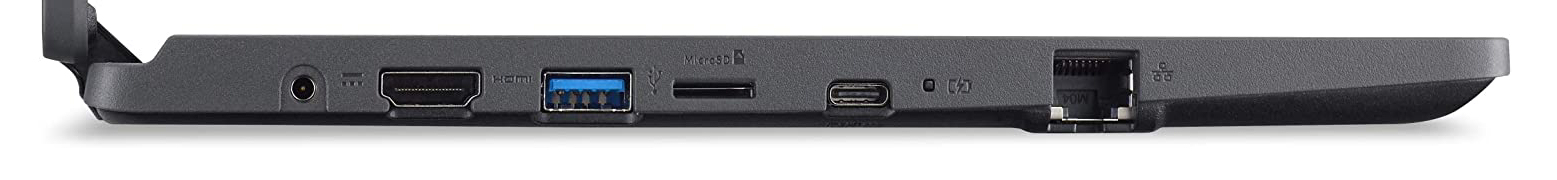

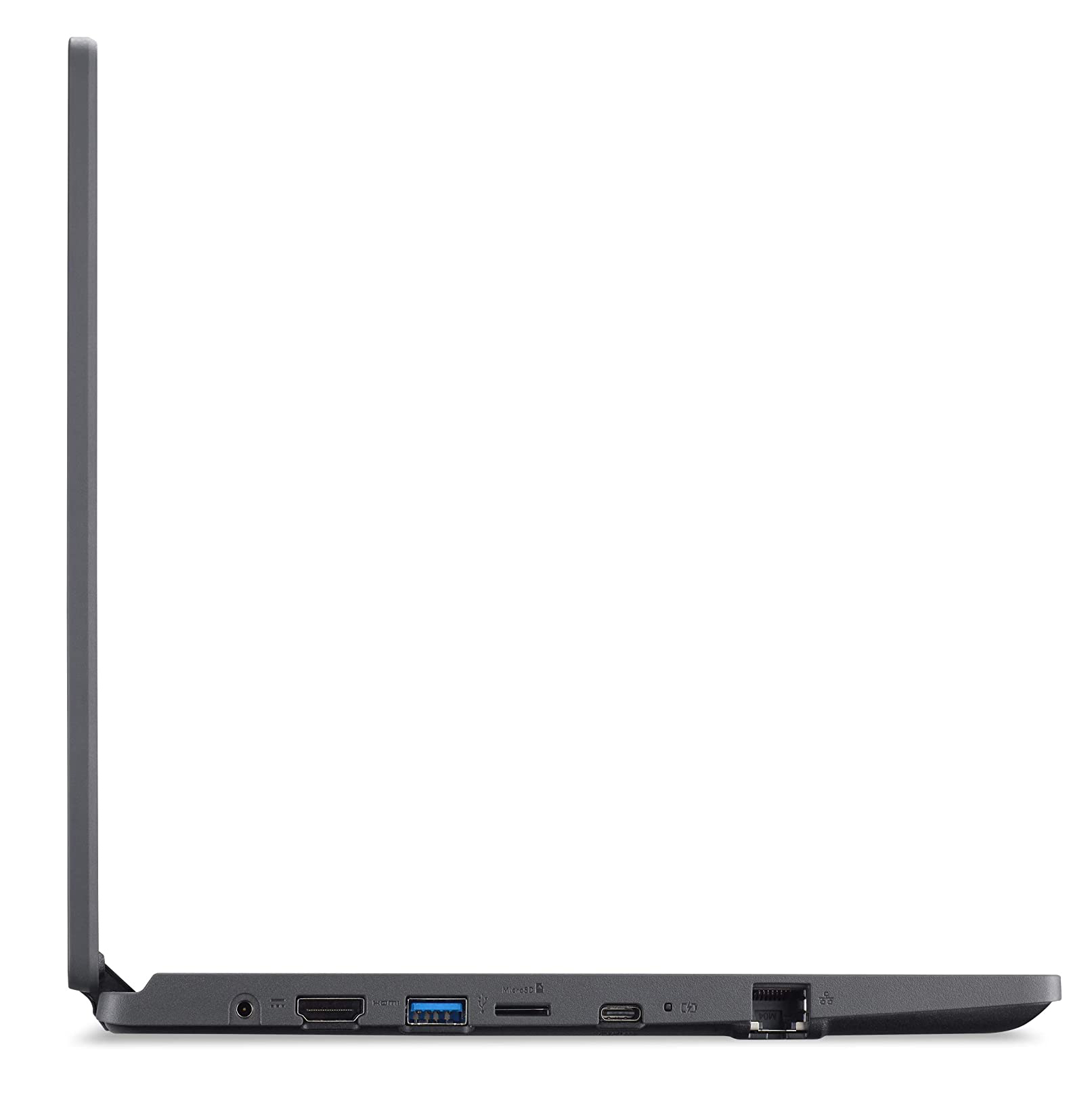

Vänster sida: strömanslutning, HDMI, USB 3.2 Gen 1 (typ A), kortläsare (microSD), USB 3.2 Gen 1 (typ C; DisplayPort, Power Delivery), Gigabit Ethernet
Vänster sida: strömanslutning, HDMI, USB 3.2 Gen 1 (typ A), kortläsare (microSD), USB 3.2 Gen 1 (typ C; DisplayPort, Power Delivery), Gigabit Ethernet

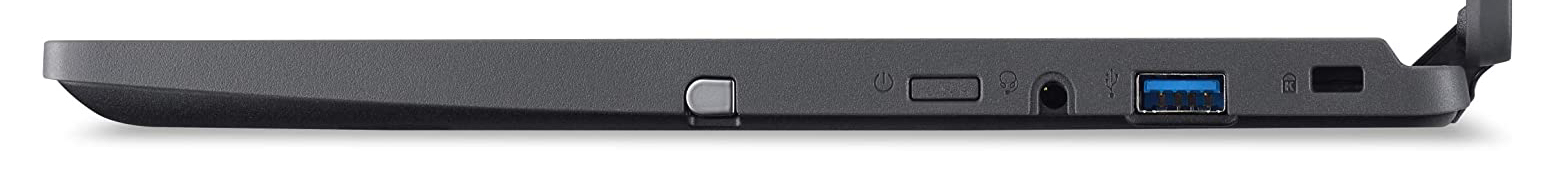

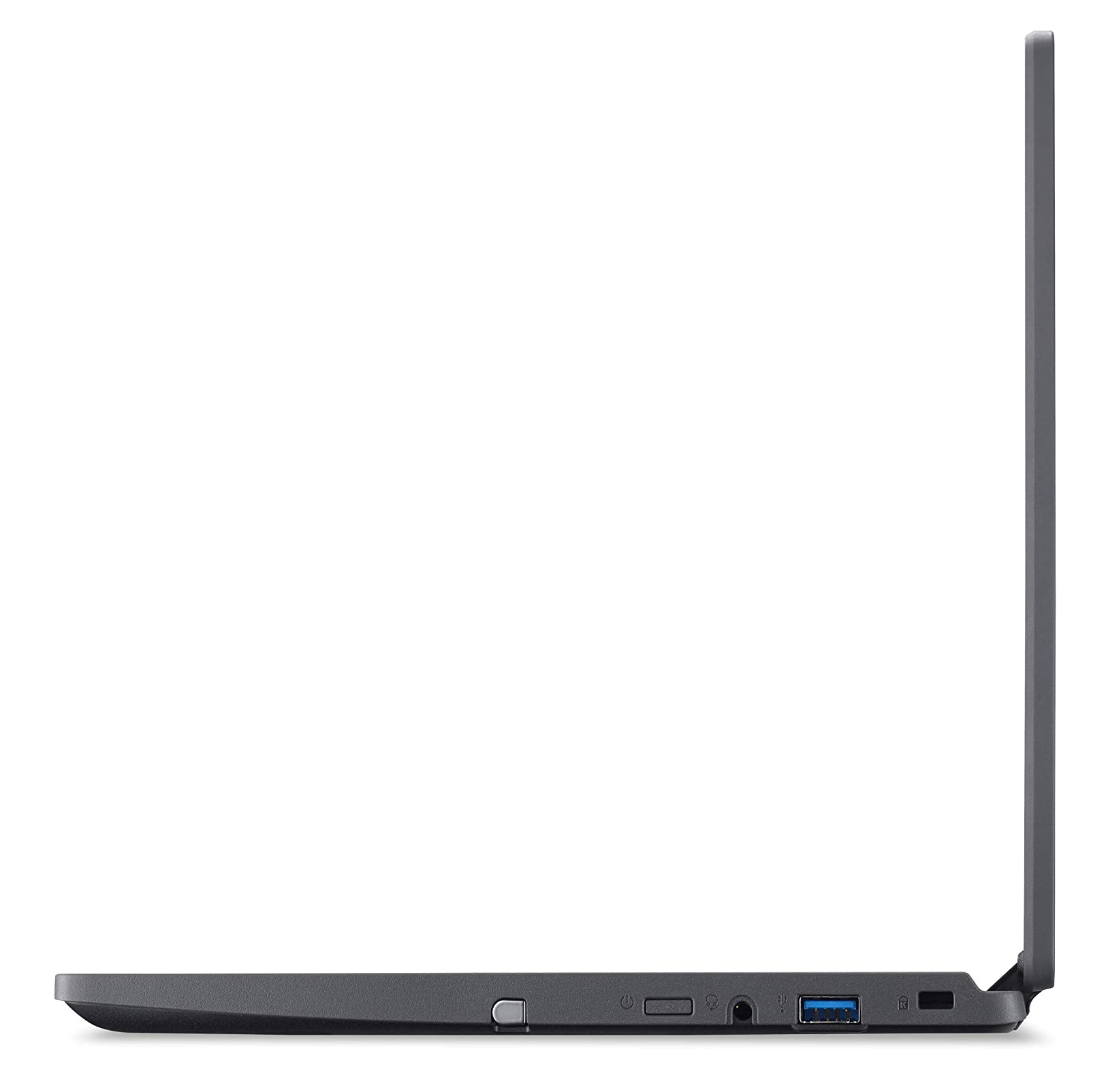

Höger sida: inmatningspenna, strömknapp, ljudkombinationsport, USB 3.2 Gen 1 (typ A), kabelspärrplats
Höger sida: inmatningspenna, strömknapp, ljudkombinationsport, USB 3.2 Gen 1 (typ A), kabelspärrplats
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (10 - 201, n=62, last 2 years)
76.4 MB/s ∼100% +200%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120 (AV Pro SD microSD 128 GB V60)
33 MB/s ∼43% +29%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
25.5 MB/s ∼33%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183 (AV Pro SD microSD 128 GB V60)
18.5 MB/s ∼24% -27%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (25 - 224, n=56, last 2 years)
91.2 MB/s ∼100% +230%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
27.6 MB/s ∼30%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Average of class Convertible
  (216 - 1690, n=89, last 2 years)
952 MBit/s ∼100% +42%
Average Intel Wireless-AC 9560
  (309 - 1350, n=179)
685 MBit/s ∼72% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
670 (627min - 705max) MBit/s ∼70%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
216 (72min - 309max) MBit/s ∼23% -68%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
138 MBit/s ∼14% -79%
iperf3 Client (receive) TCP 1 m 4M x10
Average of class Convertible
  (136 - 1585, n=89, last 2 years)
1013 MBit/s ∼100% +59%
Average Intel Wireless-AC 9560
  (29.6 - 1390, n=183)
686 MBit/s ∼68% +8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
636 (611min - 645max) MBit/s ∼63%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
263 MBit/s ∼26% -59%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
136 (19min - 275max) MBit/s ∼13% -79%
050100150200250300350400450500550600650700Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø636 (611-645)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø136 (19-275)
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø670 (627-705)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø216 (72-309)
ColorChecker
7.4 ∆E
10.4 ∆E
15 ∆E
9 ∆E
16.4 ∆E
15.4 ∆E
6.8 ∆E
18.3 ∆E
14.6 ∆E
8.9 ∆E
9.7 ∆E
7.2 ∆E
10.6 ∆E
7.8 ∆E
19.7 ∆E
5 ∆E
16.7 ∆E
17.9 ∆E
3.3 ∆E
13.5 ∆E
13.3 ∆E
10.2 ∆E
8.2 ∆E
5.9 ∆E
ColorChecker Acer TravelMate Spin B3 TMB311RN-31-P5KK: 11.29 ∆E min: 3.31 - max: 19.68 ∆E

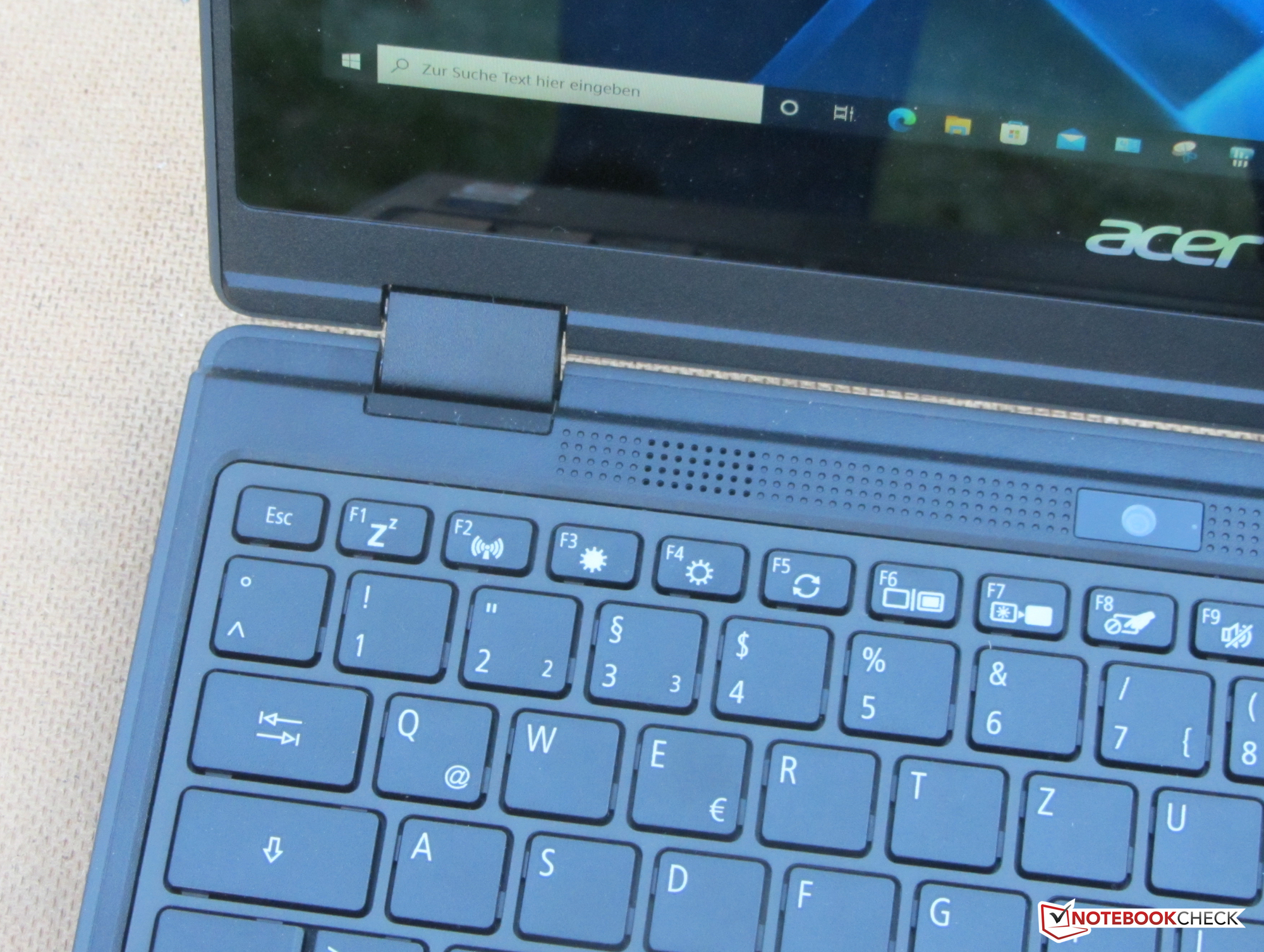

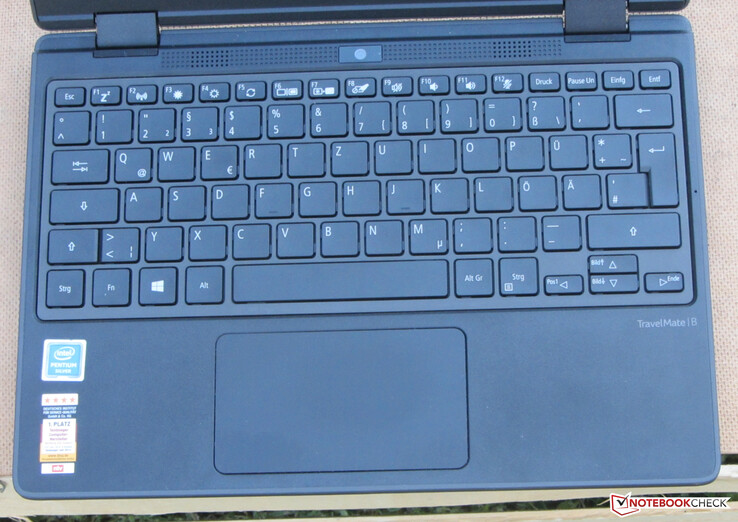

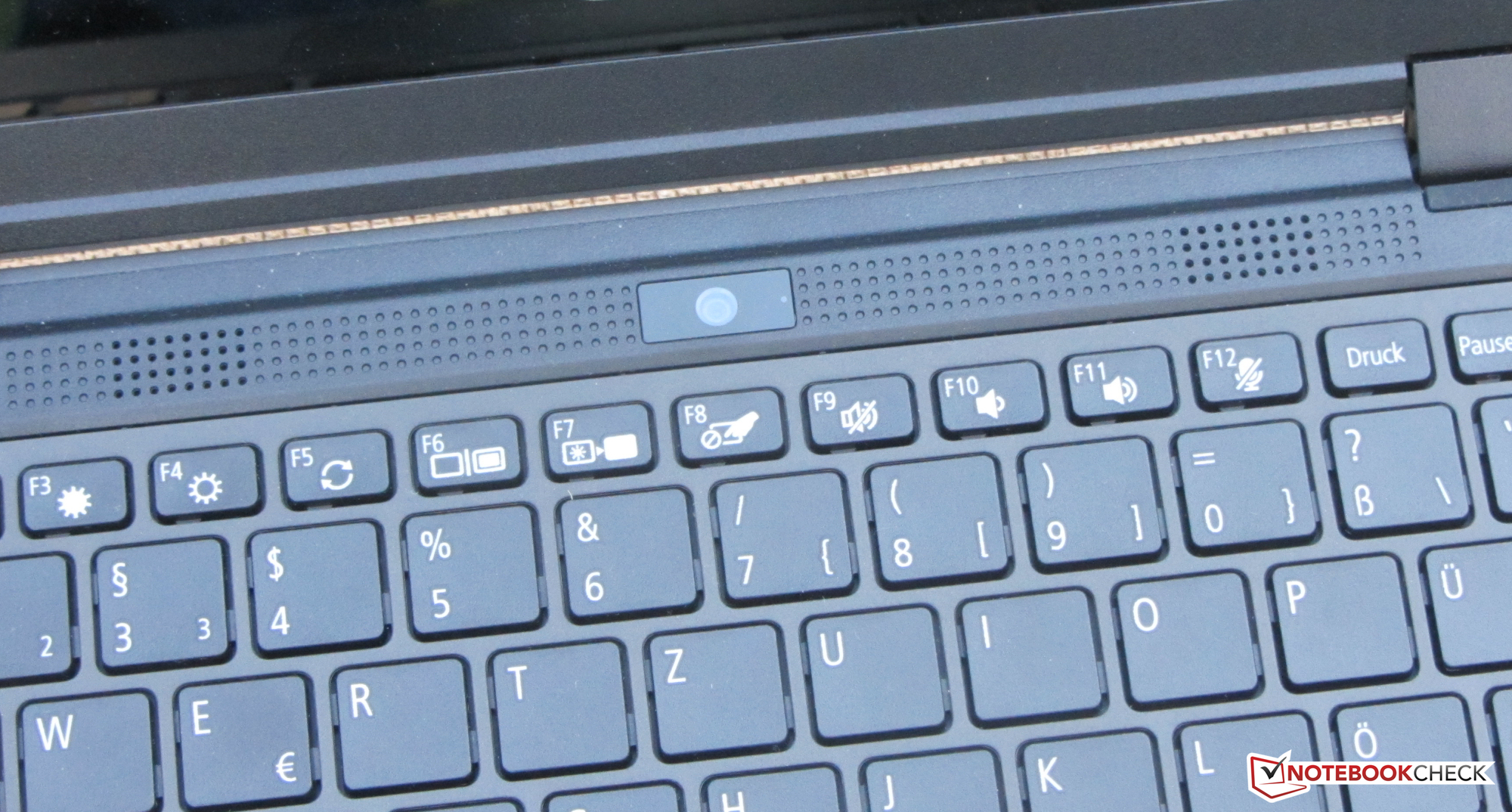

Inmatningsenheter - Acer Spin har ingen tangentbordsbelysning

De lätt konkava och grova tangenterna på det obelysta chicklet-tangentbordet ger en kort slaglängd och en tydlig tryckpunkt. Tangentmotståndet är okej. När du skriver har tangentbordet en minimal eftergift, men det visade sig inte vara något hinder. På det hela taget levererar Acer här ett tangentbord som är lämpligt för vardagliga uppgifter.

Den släta ytan på den multitouch-kapabla ClickPad (~10,5 x 6 cm; ~4,1 x 2,4 tum) gör det lätt att glida med fingrarna. Den reagerar också på inmatningar i hörnen. Padden har en kort slaglängd och en tydlig tryckpunkt.

Spin B3-inmatningsenheter
Spin B3-inmatningsenheter

Skärm - IPS inbyggd

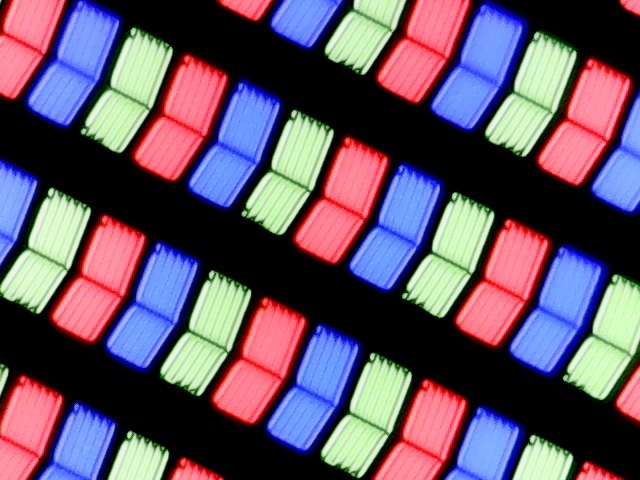

Pixelgaller
Pixelgaller

Ljusstyrkan (266,8 cd/m²) och kontrasten (907:1) på den reflekterande 11,6-tums pekskärmen (1920 x 1080 pixlar) är för låg. Vid batteridrift sjunker den maximala ljusstyrkan till 238 cd/m². Vi betraktar värden större än 300 cd/m² och 1 000:1 som bra. Vi märkte inget PWM-flimmer.

277
cd/m²
261
cd/m²
278
cd/m²
274
cd/m²
272
cd/m²
268
cd/m²
261
cd/m²
268
cd/m²
242
cd/m²
Distribution av ljusstyrkan
AU Optronics B116HAN05.2
X-Rite i1Pro 2
Max: 278 cd/m² (Nits) Medel: 266.8 cd/m² Minimum: 17 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 238 cd/m²
Kontrast: 907:1 (Svärta: 0.3 cd/m²)
ΔE Color 4.1 | 0.59-29.43 Ø5.5
ΔE Greyscale 4.03 | 0.64-98 Ø5.7
51.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
72.9% sRGB (Argyll 2.2.0 3D)
49.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Acer TravelMate Spin B3 TMB311RN-31-P5KK
AU Optronics B116HAN05.2, IPS, 1920x1080, 11.60
Lenovo Flex 3 Chrome 11M836
IPS, 1366x768, 11.60
Acer Chromebook Spin 511 R752T-C26N
IPS-Grade, 1366x768, 11.60
Asus BR1100FKA-BP0109RA
IPS, 1366x768, 11.60
Display
-7%
Display P3 Coverage
49.6
46
-7%
sRGB Coverage
72.9
68
-7%
AdobeRGB 1998 Coverage
51.3
47
-8%
Response Times
24%
-13%
-10%
Response Time Grey 50% / Grey 80% *
34 ?(16, 18)
26 ?(12.4, 13.6)
24%
33 ?(15, 18)
3%
34 ?(15, 19)
-0%
Response Time Black / White *
21 ?(11, 10)
16 ?(15.2, 10.8)
24%
27 ?(14, 13)
-29%
25 ?(14, 11)
-19%
PWM Frequency
1000 ?(90)
2500
Screen
-12%
-0%
0%
Brightness middle
272
302.1
11%
291
7%
242
-11%
Brightness
267
290
9%
271
1%
230
-14%
Brightness Distribution
87
86
-1%
85
-2%
87
0%
Black Level *
0.3
0.26
13%
0.11
63%
0.195
35%
Contrast
907
1162
28%
2645
192%
1241
37%
Colorchecker dE 2000 *
4.1
6.66
-62%
8.14
-99%
5.35
-30%
Colorchecker dE 2000 max. *
9.08
17.01
-87%
19.9
-119%
8.74
4%
Greyscale dE 2000 *
4.03
4.2
-4%
5.84
-45%
4.79
-19%
Gamma
2.23 99%
1.92 115%
2.5 88%
2.22 99%
CCT
6557 99%
6122 106%
6761 96%
6148 106%
Color Space (Percent of AdobeRGB 1998)
43
Color Space (Percent of sRGB)
68
Total Average (Program / Settings)
6% / -5%
-7% / -3%
-6% / -3%

* ... smaller is better

Vid leverans erbjuder skärmen en hyfsad färgåtergivning, men färgerna avviker något från målet. Detta är dock inte riktigt märkbart. Skärmen kan inte återge färgrymderna AdobeRGB (51 %), sRGB (73 %) och DCI-P3 (50 %).

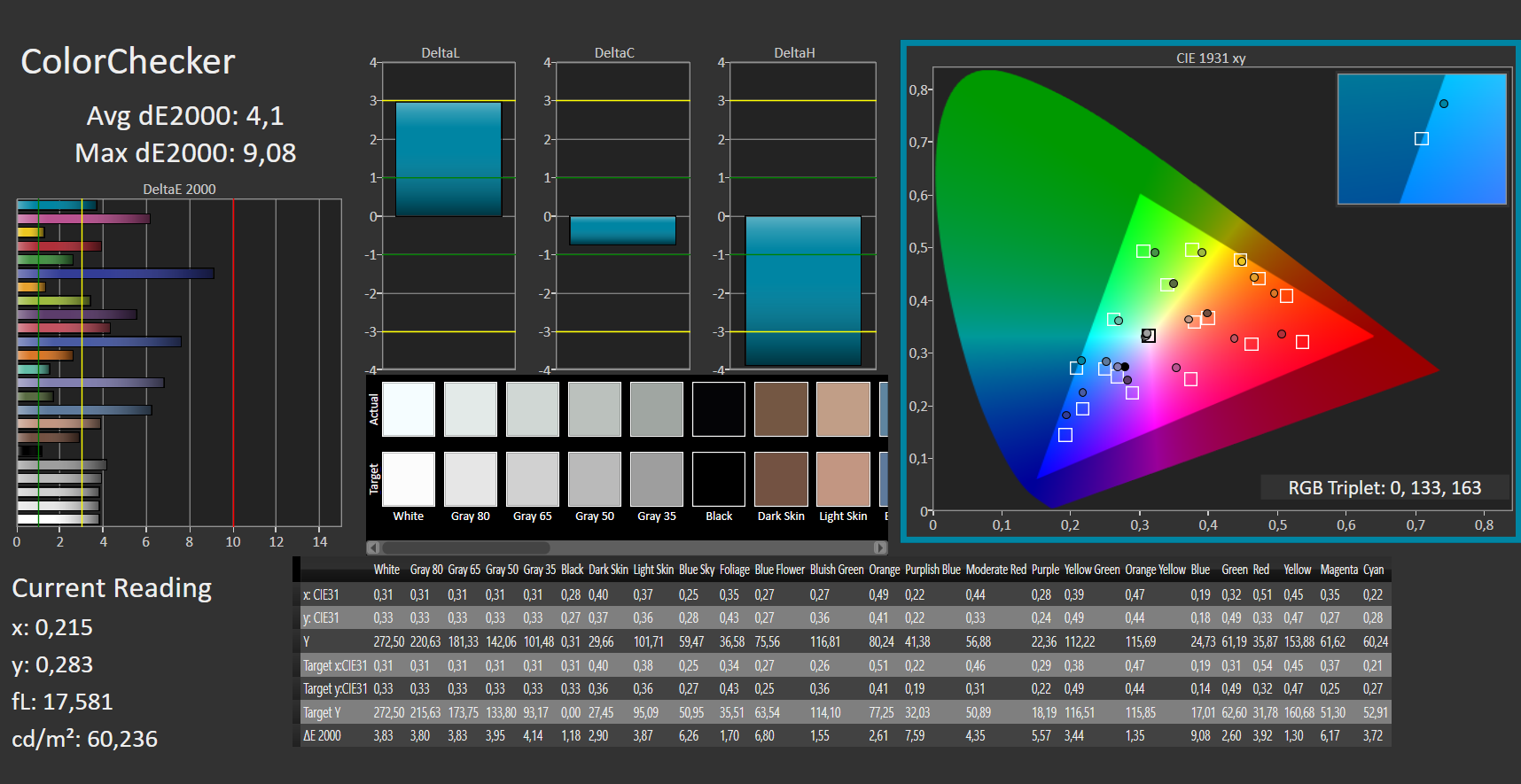

CalMAN - Färgkontrollant
CalMAN - Färgkontrollant

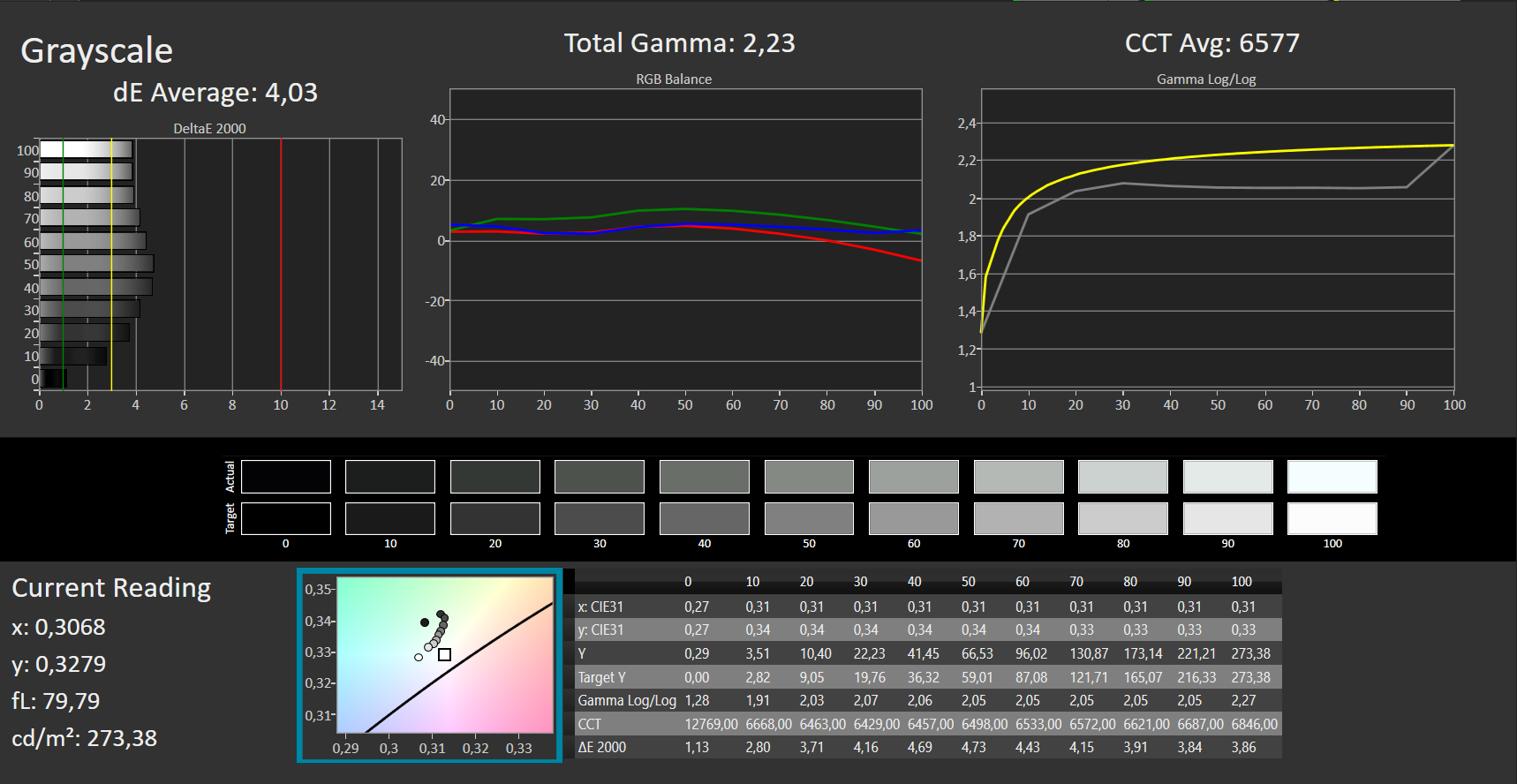

CalMAN - Gråskala
CalMAN - Gråskala

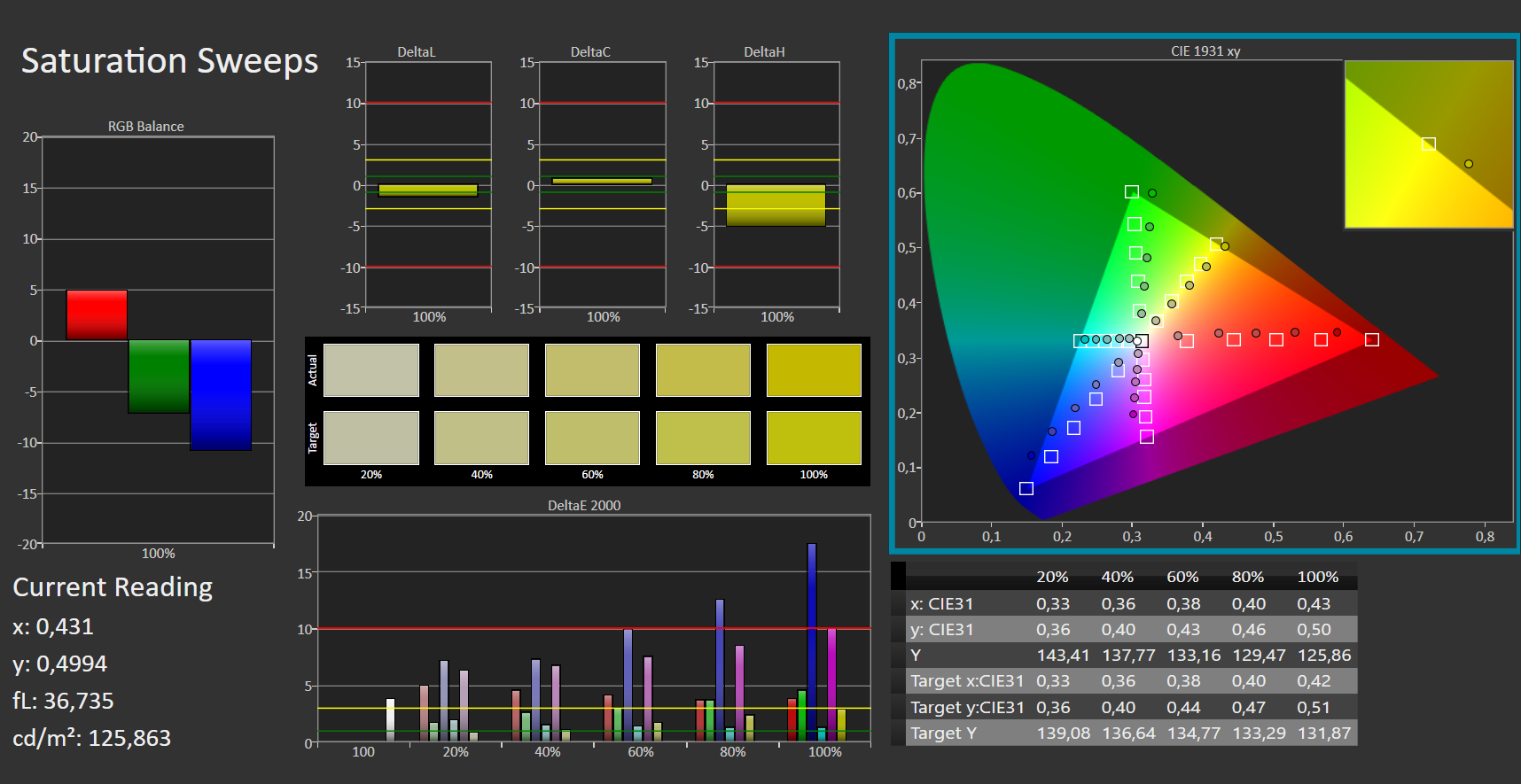

CalMAN - Mättnad
CalMAN - Mättnad

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

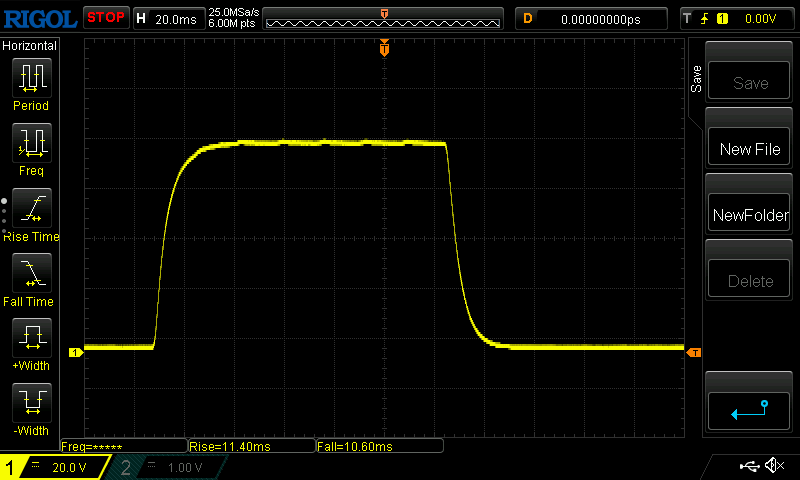

       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (23.8 ms).

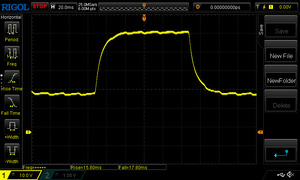

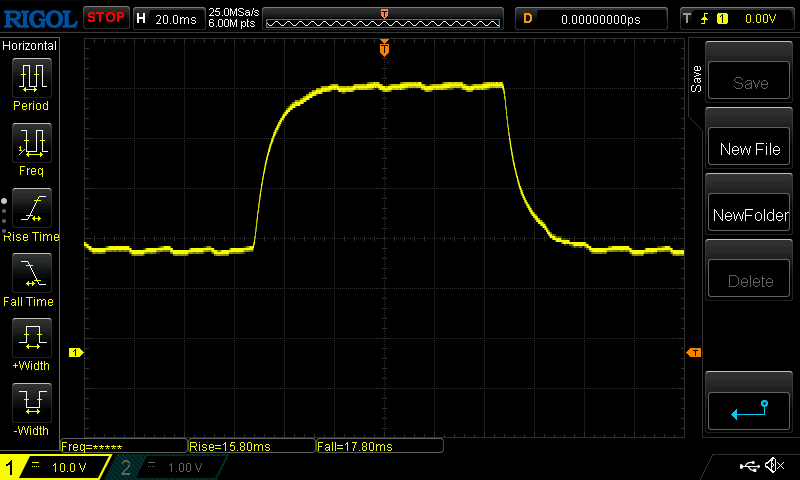

       Response Time 50% Grey to 80% Grey
34 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.5 ms).

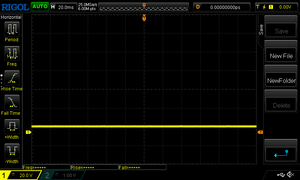

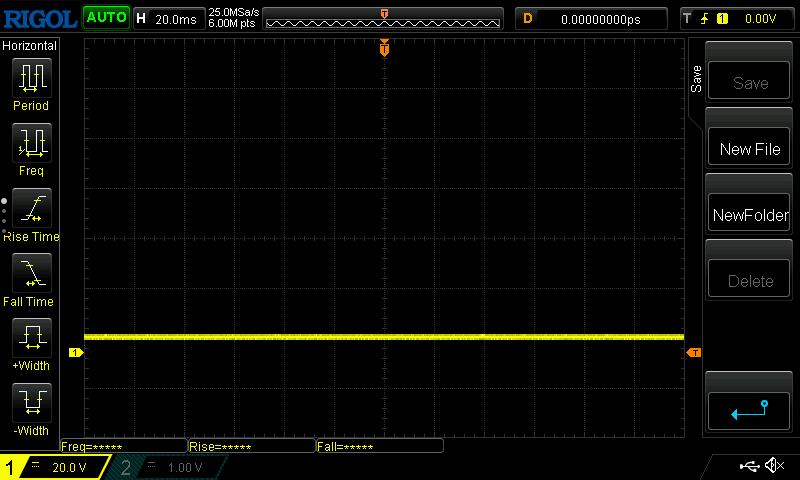

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 20889 (minimum: 5 - maximum: 3846000) Hz was measured.

IPS-panelen ger stabila betraktningsvinklar och kan läsas från vilken position som helst. Du kan dock knappt - och ibland inte alls - läsa av skärmen utomhus, eftersom den låga skärmens ljusstyrka och de reflekterande skärmytorna gör det mycket svårt.

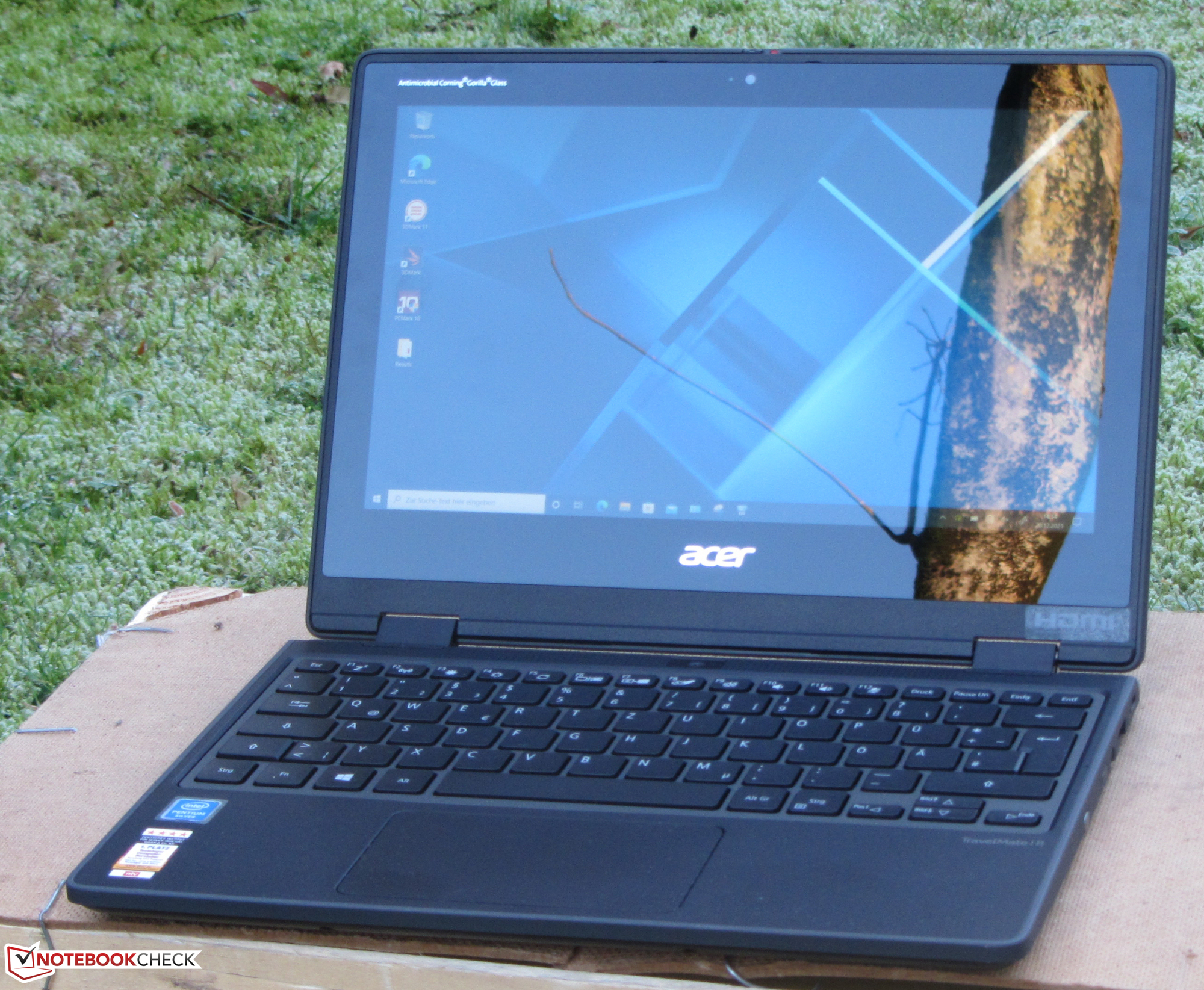

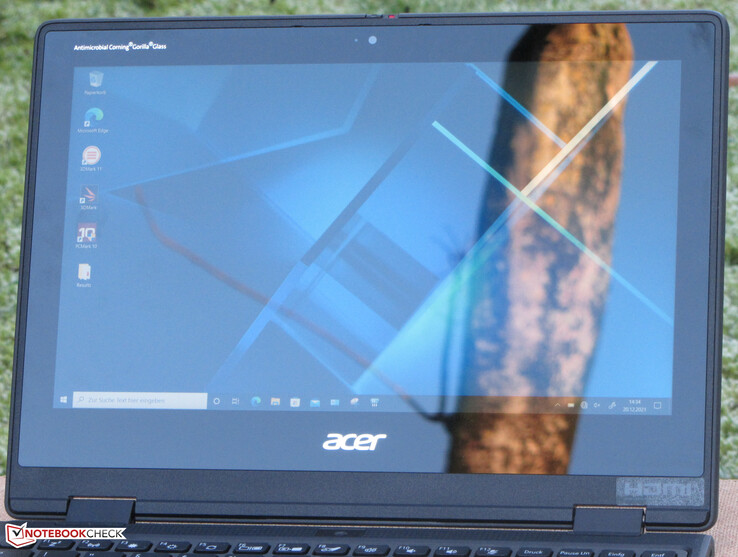

TravelMate utomhus
TravelMate utomhus

Prestanda - Acer använder Gemini Lake i den bärbara 2-i-1-datorn

Med TravelMate Spin 3 erbjuder Acer en 2-i-1-enhet som kan hantera enkla applikationer från Internet och kontoret.

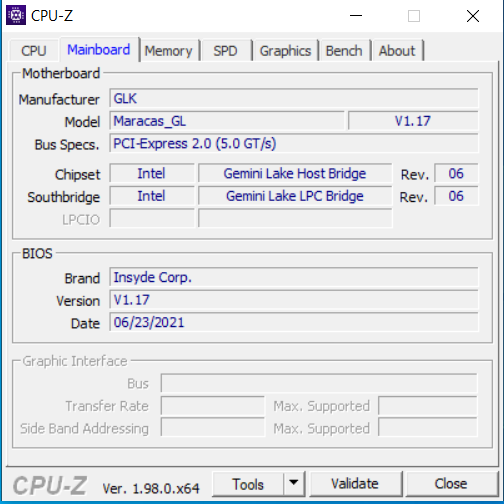

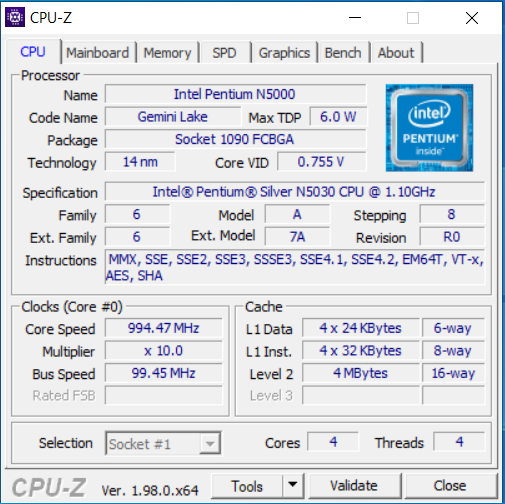

CPU-Z
CPU-Z
CPU-Z

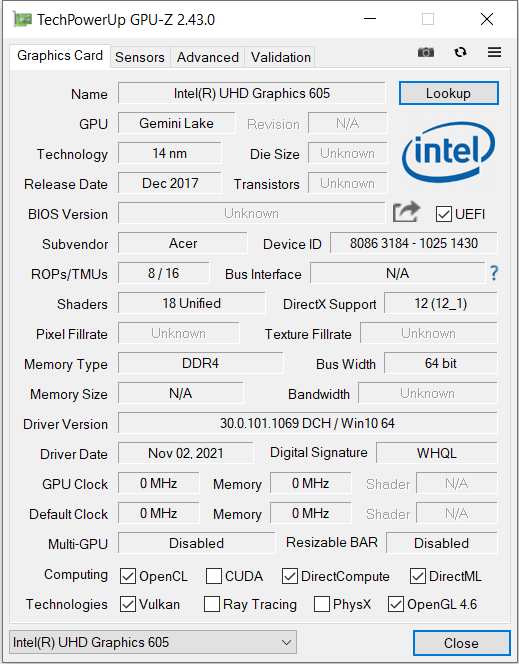

GPU-Z

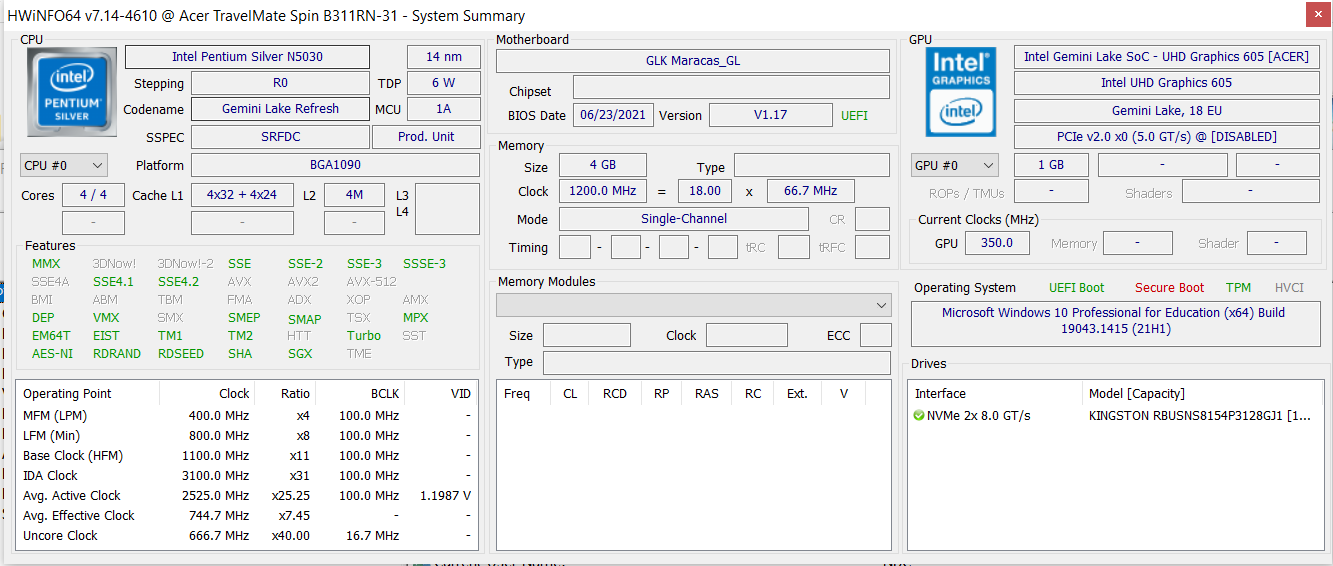

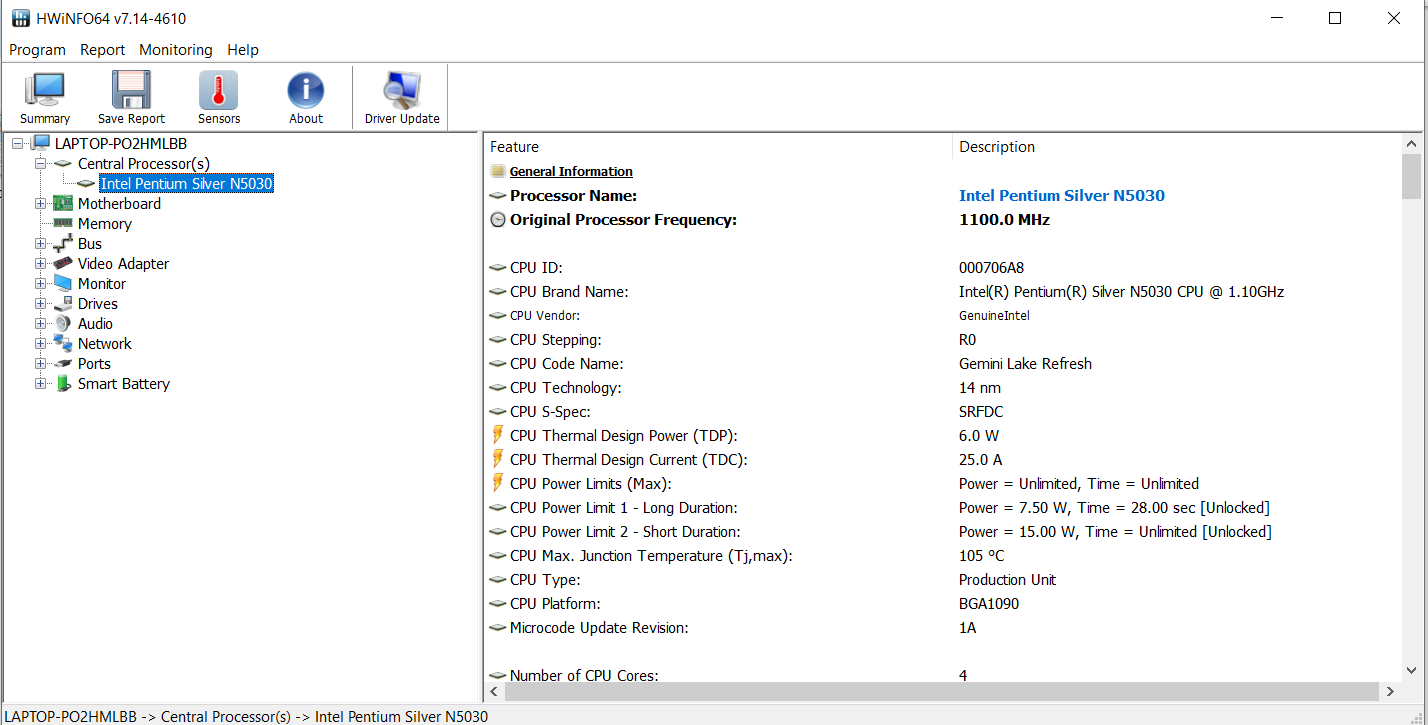

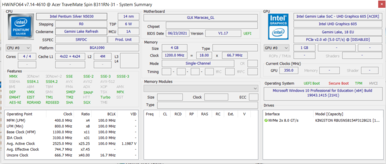

HWInfo
HWInfo



Testvillkor

TravelMate erbjuder inga tillverkarspecifika strömprofiler. Vi använder Windows-profilen "Highest Performance" för benchmarks och "Balanced" för Akkutests batteritest.

Processor

En TDP på 6 watt möjliggör passiv kylning av Pentium Silver N5030cPU (Gemini Lake) som används här och som körs med en grundläggande klockfrekvens på 1,1 GHz. Via Turbo kan hastigheten ökas upp till 2,6 GHz (4 kärnor) och 3,2 GHz (en enda kärna).

Medan den kortvarigt körs genom multitrådstestet i riktmärket Cinebench R15 vid 2,6-2,7 GHz, sjunker klockfrekvensen sedan till 1,8-1,9 GHz. Testet med en enda tråd körs på 2,8 GHz. Hastigheten är densamma i nät- och batteridrift.

Vi utvärderar om CPU Turbo också används konstant genom att köra multitrådstestet i Cinebench R15 i en konstant slinga i minst 30 minuter. Turbohastigheten kan bara hållas på en hög nivå i några sekunder. Därefter sjunker den till värden under 2 GHz.

På det hela taget är benchmarkresultaten en liten besvikelse. N5030:s prestanda ligger fortfarande under dess kapacitet, eftersom jämförelsen med Lenovo IdeaPad 1-14IGL05, som också kyls passivt, visar det.

Cinebench R15 Multi Constant Load Test

0153045607590105120135150165180195210225240Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Pentium Silver N5030: Ø166 (117.01-202.8)
Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125 (117.75-170.9)
Lenovo IdeaPad 1-14IGL05 Intel Pentium Silver N5030: Ø195 (155.55-248.94)

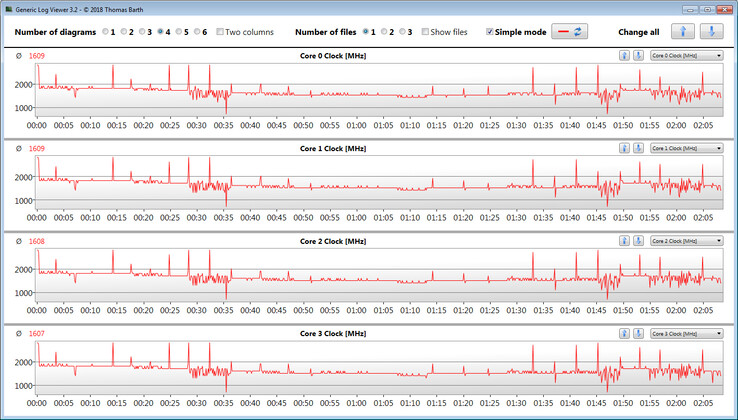

CPU:s klockfrekvenser när CB15-slingan körs
CPU:s klockfrekvenser när CB15-slingan körs
Cinebench R15 CPU Single 64Bit
86 Points
Cinebench R15 CPU Multi 64Bit
203 Points
Cinebench R15 OpenGL 64Bit
14.3 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Hjälp
CPU Performance Rating - Percent
Average of class Convertible

89.5 pt ∼90%
Acer Chromebook Spin 511 R752T-C26N -13!
Intel Celeron N4120
43 pt ∼43%
Lenovo IdeaPad 1-14IGL05 -7!
Intel Pentium Silver N5030
37.1 pt ∼37%
Average Intel Pentium Silver N5030

35.6 pt ∼36%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
34.4 pt ∼34%
Asus BR1100FKA-BP0109RA -5!
Intel Celeron N4500
24 pt ∼24%
Lenovo Flex 3 Chrome 11M836 -13!
Mediatek MT8183
21 pt ∼21%
Cinebench R23
CPU (Multi Core)
Average of class Convertible
  (709 - 12629, n=52, last 2 years)
4750 Points ∼100% +421%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
911 Points ∼19%
Average Intel Pentium Silver N5030

911 Points ∼19% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
709 Points ∼15% -22%
CPU (Single Core)
Average of class Convertible
  (382 - 1529, n=51, last 2 years)
1226 Points ∼100% +185%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
452 Points ∼37% +5%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
430 Points ∼35%
Average Intel Pentium Silver N5030

430 Points ∼35% 0%
Cinebench R20
CPU (Multi Core)
Average of class Convertible
  (316 - 4953, n=85, last 2 years)
1671 Points ∼100% +364%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
491 Points ∼29% +36%
Average Intel Pentium Silver N5030
  (360 - 491, n=2)
426 Points ∼25% +18%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
360 Points ∼22%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
332 Points ∼20% -8%
CPU (Single Core)
Average of class Convertible
  (152 - 604, n=85, last 2 years)
449 Points ∼100% +163%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
194 Points ∼43% +13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
188 Points ∼42% +10%
Average Intel Pentium Silver N5030
  (171 - 194, n=2)
183 Points ∼41% +7%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
171 Points ∼38%
Cinebench R15
CPU Multi 64Bit
Average of class Convertible
  (144 - 2083, n=94, last 2 years)
729 Points ∼100% +259%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
248.94 (155.55min - 248.94max) Points ∼34% +23%
Average Intel Pentium Silver N5030
  (203 - 249, n=2)
226 Points ∼31% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
203 Points ∼28%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
171 (60.18min - 170.9max) Points ∼23% -16%
CPU Single 64Bit
Average of class Convertible
  (66.3 - 243, n=90, last 2 years)
175 Points ∼100% +103%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
86 Points ∼49%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
82 Points ∼47% -5%
Average Intel Pentium Silver N5030
  (75.8 - 86, n=2)
80.9 Points ∼46% -6%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
75.76 Points ∼43% -12%
Blender 2.79 - BMW27 CPU
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
4249 Seconds * ∼100% -19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3580 Seconds * ∼84%
Average Intel Pentium Silver N5030
  (3319 - 3580, n=2)
3450 Seconds * ∼81% +4%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
3319 Seconds * ∼78% +7%
Average of class Convertible
  (246 - 4249, n=80, last 2 years)
972 Seconds * ∼23% +73%
7-Zip 18.03
7z b 4
Average of class Convertible
  (4498 - 57319, n=82, last 2 years)
20595 MIPS ∼100% +212%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
7878 MIPS ∼38% +19%
Average Intel Pentium Silver N5030
  (6598 - 7878, n=2)
7238 MIPS ∼35% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
6598 MIPS ∼32%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
5394 MIPS ∼26% -18%
7z b 4 -mmt1
Average of class Convertible
  (2125 - 5623, n=81, last 2 years)
4378 MIPS ∼100% +60%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2853 MIPS ∼65% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
2735 MIPS ∼62%
Average Intel Pentium Silver N5030
  (2555 - 2735, n=2)
2645 MIPS ∼60% -3%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2555 MIPS ∼58% -7%
Geekbench 5.3
64 Bit Multi-Core Score
Average of class Convertible
  (707 - 8620, n=83, last 2 years)
4205 Points ∼100% +244%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
1561 Points ∼37% +28%
Average Intel Pentium Silver N5030
  (1039 - 1529, n=3)
1263 Points ∼30% +3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1221 Points ∼29%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1039 Points ∼25% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
909 Points ∼22% -26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
707 Points ∼17% -42%
64 Bit Single-Core Score
Average of class Convertible
  (263 - 1566, n=83, last 2 years)
1188 Points ∼100% +132%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
512 Points ∼43%
Average Intel Pentium Silver N5030
  (431 - 532, n=3)
492 Points ∼41% -4%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
449 Points ∼38% -12%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
431 Points ∼36% -16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
401 Points ∼34% -22%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
260 Points ∼22% -49%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Convertible
  (0.71 - 15.2, n=79, last 2 years)
5.3 fps ∼100% +646%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
0.74 fps ∼14% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
0.71 fps ∼13%
Average Intel Pentium Silver N5030

0.71 fps ∼13% 0%
LibreOffice - 20 Documents To PDF
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
175 s * ∼100% -28%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
137 s * ∼78%
Average Intel Pentium Silver N5030
  (130 - 137, n=2)
134 s * ∼77% +2%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
130 s * ∼74% +5%
Average of class Convertible
  (40.7 - 175, n=77, last 2 years)
67.4 s * ∼39% +51%
R Benchmark 2.5 - Overall mean
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2.12 sec * ∼100% -51%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1.473 sec * ∼69% -5%
Average Intel Pentium Silver N5030
  (1.402 - 1.473, n=2)
1.438 sec * ∼68% -3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1.402 sec * ∼66%
Average of class Convertible
  (0.504 - 2.12, n=78, last 2 years)
0.744 sec * ∼35% +47%
Sunspider - 1.0 Total Score
Average Intel Pentium Silver N5030

356 ms * ∼100% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
355.8 ms * ∼100%
Average of class Convertible
  (136 - 716, n=7, last 2 years)
346 ms * ∼97% +3%
Mozilla Kraken 1.1 - Total Score
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
3986 ms * ∼100% -27%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
3160 ms * ∼79% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3145 ms * ∼79%
Average Intel Pentium Silver N5030
  (1914 - 3145, n=3)
2410 ms * ∼60% +23%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2170 ms * ∼54% +31%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2125.2 ms * ∼53% +32%
Average of class Convertible
  (591 - 3957, n=92, last 2 years)
1041 ms * ∼26% +67%
Octane V2 - Total Score
Average of class Convertible
  (9656 - 66881, n=42, last 2 years)
43160 Points ∼100% +97%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
21904 Points ∼51%
Average Intel Pentium Silver N5030
  (21894 - 21904, n=2)
21899 Points ∼51% 0%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
18537 Points ∼43% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
9822 Points ∼23% -55%
Speedometer 2.0 - Result
Average of class Convertible
  (27.7 - 193, n=22, last 2 years)
110 runs/min ∼100% +87%
Average Intel Pentium Silver N5030
  (58.7 - 59.9, n=2)
59.3 runs/min ∼54% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
58.7 runs/min ∼53%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
49.1 runs/min ∼45% -16%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
24.8 runs/min ∼23% -58%
WebXPRT 3 - ---
Average of class Convertible
  (48.2 - 314, n=85, last 2 years)
200 Points ∼100% +110%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
106 Points ∼53% +11%
Average Intel Pentium Silver N5030
  (91.3 - 116, n=3)
101 Points ∼51% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
95.4 Points ∼48%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
91.3 Points ∼46% -4%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
60 Points ∼30% -37%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
48.2 Points ∼24% -49%
JetStream 1.1 - Total Score
Average of class Convertible
  (53 - 315, n=32, last 2 years)
222 Points ∼100% +89%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
117.58 Points ∼53%
Average Intel Pentium Silver N5030
  (110 - 118, n=2)
114 Points ∼51% -3%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
84.721 Points ∼38% -28%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
51.895 Points ∼23% -56%
Jetstream 2 - Total Score
Average of class Convertible
  (32.2 - 185, n=38, last 2 years)
135 Points ∼100% +87%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
72.026 Points ∼53%
Average Intel Pentium Silver N5030
  (58.2 - 72, n=2)
65.1 Points ∼48% -10%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
58.844 Points ∼44% -18%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
58.211 Points ∼43% -19%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
34.531 Points ∼26% -52%

* ... smaller is better

Performance Rating
Average of class Convertible

100 pt ∼100%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
27.6 pt ∼28%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
27.2 pt ∼27%
Average Intel Pentium Silver N5030

23.2 pt ∼23%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
18.7 pt ∼19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
3.2 pt ∼3%
AIDA64 / FP32 Ray-Trace
Average of class Convertible
  (152 - 12152, n=63, last 2 years)
5569 KRay/s ∼100% +814%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
1053 KRay/s ∼19% +73%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1025 KRay/s ∼18% +68%
Average Intel Pentium Silver N5030
  (609 - 1025, n=2)
817 KRay/s ∼15% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
609 KRay/s ∼11%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
152 KRay/s ∼3% -75%
AIDA64 / FPU Julia
Average of class Convertible
  (569 - 65780, n=63, last 2 years)
27102 Points ∼100% +592%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6476 Points ∼24% +65%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6069 Points ∼22% +55%
Average Intel Pentium Silver N5030
  (3917 - 6476, n=2)
5197 Points ∼19% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
3917 Points ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
569 Points ∼2% -85%
AIDA64 / CPU SHA3
Average of class Convertible
  (66 - 2531, n=62, last 2 years)
1463 MB/s ∼100% +497%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
418 MB/s ∼29% +71%
Average Intel Pentium Silver N5030
  (245 - 418, n=2)
332 MB/s ∼23% +36%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
326 MB/s ∼22% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
245 MB/s ∼17%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
66 MB/s ∼5% -73%
AIDA64 / CPU Queen
Average of class Convertible
  (2104 - 99178, n=63, last 2 years)
47810 Points ∼100% +129%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
21644 Points ∼45% +4%
Average Intel Pentium Silver N5030
  (20893 - 21644, n=2)
21269 Points ∼44% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
20893 Points ∼44%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
16935 Points ∼35% -19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
2104 Points ∼4% -90%
AIDA64 / FPU SinJulia
Average of class Convertible
  (121 - 13847, n=63, last 2 years)
4695 Points ∼100% +533%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
2318 Points ∼49% +212%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1251 Points ∼27% +69%
Average Intel Pentium Silver N5030
  (742 - 1251, n=2)
997 Points ∼21% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
742 Points ∼16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
121 Points ∼3% -84%
AIDA64 / FPU Mandel
Average of class Convertible
  (291 - 35831, n=63, last 2 years)
15304 Points ∼100% +609%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
3517 Points ∼23% +63%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
3047 Points ∼20% +41%
Average Intel Pentium Silver N5030
  (2158 - 3517, n=2)
2838 Points ∼19% +32%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
2158 Points ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
291 Points ∼2% -87%
AIDA64 / CPU AES
Average of class Convertible
  (104 - 88017, n=63, last 2 years)
43476 MB/s ∼100% +600%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
10902 MB/s ∼25% +75%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10585 MB/s ∼24% +70%
Average Intel Pentium Silver N5030
  (6215 - 10585, n=2)
8400 MB/s ∼19% +35%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
6215 MB/s ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
104 MB/s ∼0% -98%
AIDA64 / CPU ZLib
Average of class Convertible
  (81.4 - 776, n=65, last 2 years)
316 MB/s ∼100% +288%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
135 MB/s ∼43% +66%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
111 MB/s ∼35% +36%
Average Intel Pentium Silver N5030
  (81.4 - 135, n=2)
108 MB/s ∼34% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
81.4 MB/s ∼26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
25.5 MB/s ∼8% -69%
AIDA64 / FP64 Ray-Trace
Average of class Convertible
  (84 - 6533, n=63, last 2 years)
3019 KRay/s ∼100% +823%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
575 KRay/s ∼19% +76%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
567 KRay/s ∼19% +73%
Average Intel Pentium Silver N5030
  (327 - 567, n=2)
447 KRay/s ∼15% +37%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
327 KRay/s ∼11%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
84 KRay/s ∼3% -74%
AIDA64 / CPU PhotoWorxx
Average of class Convertible
  (680 - 52923, n=63, last 2 years)
25614 MPixel/s ∼100% +392%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6268 MPixel/s ∼24% +20%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6183 MPixel/s ∼24% +19%
Average Intel Pentium Silver N5030
  (5209 - 6268, n=2)
5739 MPixel/s ∼22% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
5209 MPixel/s ∼20%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
680 MPixel/s ∼3% -87%

Systemets prestanda

Kombinationen av en Pentium Silver och 4 GB arbetsminne klarar av att hantera enkla program från kontoret och Internet. Även om systemet vanligtvis fungerar smidigt bör du bara räkna med att köra några få program och webbläsarfönster samtidigt, eftersom det annars blir trögare. En del av beräkningsprestandan förblir oanvänd, eftersom arbetsminnet (DDR4-2400, inbyggt) endast körs i enkanaligt läge. Det är inte möjligt att aktivera dubbelkanalläge vid ett senare tillfälle. PCMark-resultaten varierar på den förväntade nivån.

PCMark 10 Score
1838 poäng
Hjälp
PCMark 10 / Score
Average of class Convertible
  (1429 - 5971, n=83, last 2 years)
4303 Points ∼100% +134%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1838 - 1900, n=2)
1869 Points ∼43% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1838 Points ∼43%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
1429 Points ∼33% -22%
PCMark 10 / Essentials
Average of class Convertible
  (3602 - 11505, n=83, last 2 years)
8826 Points ∼100% +91%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
4614 Points ∼52%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (4469 - 4614, n=2)
4542 Points ∼51% -2%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3602 Points ∼41% -22%
PCMark 10 / Productivity
Average of class Convertible
  (2411 - 8653, n=83, last 2 years)
6371 Points ∼100% +110%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
3036 Points ∼48%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (2994 - 3036, n=2)
3015 Points ∼47% -1%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
2411 Points ∼38% -21%
PCMark 10 / Digital Content Creation
Average of class Convertible
  (886 - 6844, n=83, last 2 years)
3920 Points ∼100% +226%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1204 - 1391, n=2)
1298 Points ∼33% +8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1204 Points ∼31%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
913 Points ∼23% -24%
AIDA64 / Memory Copy
Average of class Convertible
  (4939 - 98967, n=63, last 2 years)
41076 MB/s ∼100% +264%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
15107 MB/s ∼37% +34%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
12743 MB/s ∼31% +13%
Average Intel Pentium Silver N5030
  (11294 - 12743, n=2)
12019 MB/s ∼29% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
11294 MB/s ∼27%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4939 MB/s ∼12% -56%
AIDA64 / Memory Read
Average of class Convertible
  (4031 - 67976, n=63, last 2 years)
43035 MB/s ∼100% +330%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
18030 MB/s ∼42% +80%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10011 MB/s ∼23%
Average Intel Pentium Silver N5030

10011 MB/s ∼23% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4031 MB/s ∼9% -60%
AIDA64 / Memory Write
Average of class Convertible
  (5782 - 117946, n=63, last 2 years)
44451 MB/s ∼100% +331%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
17322 MB/s ∼39% +68%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10482 MB/s ∼24% +2%
Average Intel Pentium Silver N5030
  (10325 - 10482, n=2)
10404 MB/s ∼23% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10325 MB/s ∼23%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
5782 MB/s ∼13% -44%
AIDA64 / Memory Latency
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
169 ns * ∼100% -133%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
110 ns * ∼65% -52%
Average of class Convertible
  (71.4 - 169, n=65, last 2 years)
88.7 ns * ∼52% -22%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
72.5 ns * ∼43%
Average Intel Pentium Silver N5030
  (71.3 - 72.5, n=2)
71.9 ns * ∼43% +1%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
71.3 ns * ∼42% +2%

* ... smaller is better

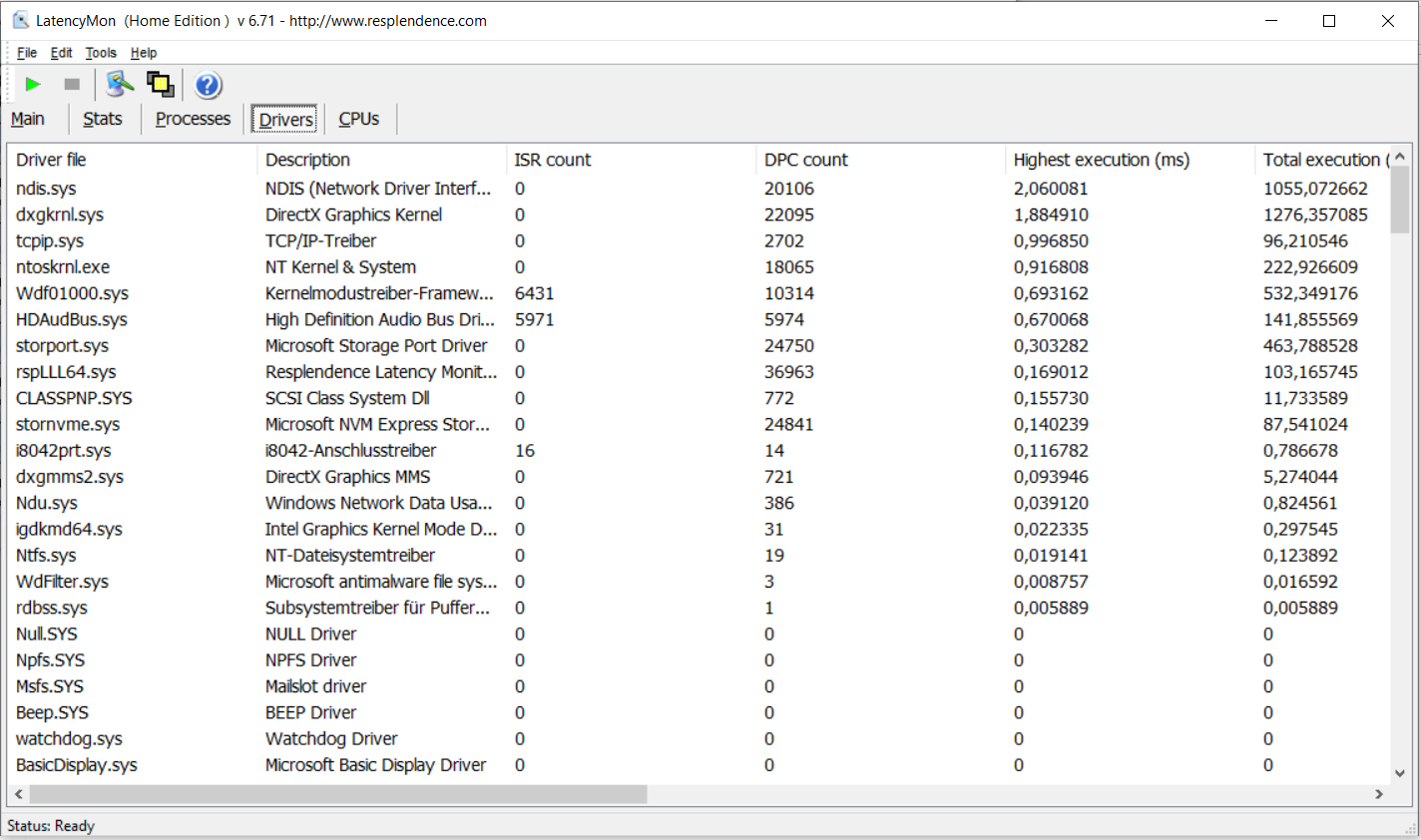

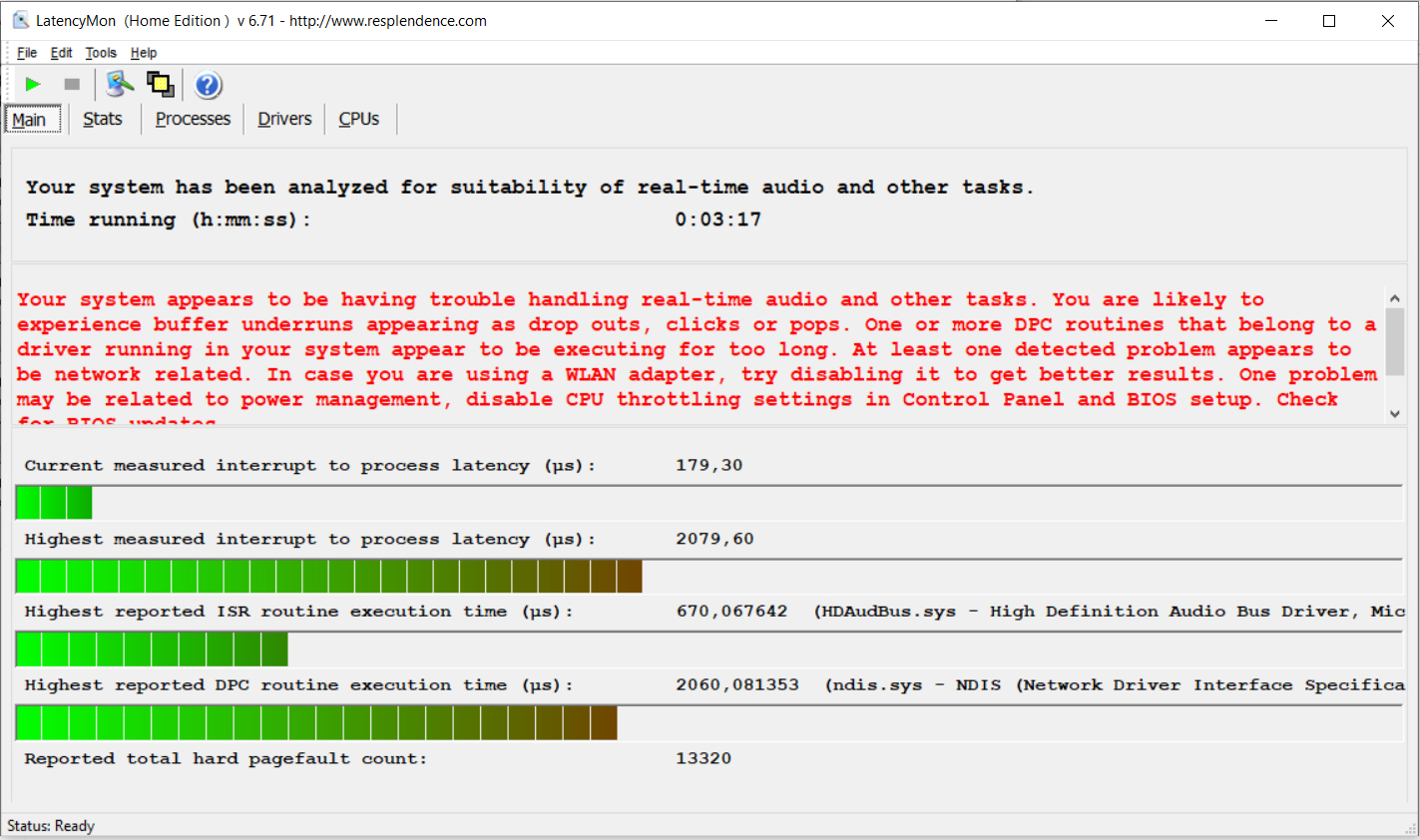

DPC-latenstider

Övervakning av latenstid
Övervakning av latenstid
Övervakning av latenstid
Övervakning av latenstid
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad 1 11ADA05
Vega 3, Athlon 3050e, 64 GB eMMC Flash
6182.9 μs * ∼100% -197%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3040.8 μs * ∼49% -46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
2079.6 μs * ∼34%
Lenovo IdeaPad 1-14IGL05
UHD Graphics 605, Pentium N5030, SanDisk DA4064
1872.5 μs * ∼30% +10%

* ... smaller is better

Lösning för lagring

En NVMe SSD (M.2-2280) från Kingston fungerar som systemenhet. Den erbjuder 128 GB lagringsutrymme och ger bra överföringshastigheter.

B3 har en NVMe SSD.
B3 har en NVMe SSD.
Kingston RBUSNS8154P3128GJ
CDM 5/6 Read Seq Q32T1: 822.9 MB/s
CDM 5/6 Write Seq Q32T1: 404 MB/s
CDM 5/6 Read 4K Q32T1: 190.1 MB/s
CDM 5/6 Write 4K Q32T1: 111.6 MB/s
CDM 5 Read Seq: 488 MB/s
CDM 5 Write Seq: 432.1 MB/s
CDM 5/6 Read 4K: 27.82 MB/s
CDM 5/6 Write 4K: 70.79 MB/s
Drive Performance Rating - Percent
Average of class Convertible

96.2 pt ∼96%
Average Kingston RBUSNS8154P3128GJ

43.7 pt ∼44%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
38.7 pt ∼39%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
5.1 pt ∼5%
DiskSpd
seq read
Average of class Convertible
  (507 - 4457, n=80, last 2 years)
1473 MB/s ∼100% +191%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
507 (503.57min - 506.5max) MB/s ∼34%
Average Kingston RBUSNS8154P3128GJ

507 MB/s ∼34% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq write
Average of class Convertible
  (373 - 4237, n=80, last 2 years)
1286 MB/s ∼100% +245%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
373 (260.16min - 373.18max) MB/s ∼29%
Average Kingston RBUSNS8154P3128GJ

373 MB/s ∼29% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 read
Average of class Convertible
  (546 - 6688, n=79, last 2 years)
2393 MB/s ∼100% +190%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
825 (723.33min - 825.23max) MB/s ∼34%
Average Kingston RBUSNS8154P3128GJ

825 MB/s ∼34% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 write
Average of class Convertible
  (377 - 4928, n=80, last 2 years)
1577 MB/s ∼100% +224%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
486 (349.94min - 485.99max) MB/s ∼31%
Average Kingston RBUSNS8154P3128GJ

486 MB/s ∼31% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 read
Average of class Convertible
  (22.2 - 135, n=80, last 2 years)
46.8 MB/s ∼100% +67%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
28 (20.74min - 27.95max) MB/s ∼60%
Average Kingston RBUSNS8154P3128GJ

28 MB/s ∼60% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 write
Average of class Convertible
  (44.4 - 330, n=80, last 2 years)
129 MB/s ∼100% +118%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
59.2 (50.68min - 59.16max) MB/s ∼46%
Average Kingston RBUSNS8154P3128GJ

59.2 MB/s ∼46% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 read
Average of class Convertible
  (224 - 2833, n=80, last 2 years)
754 MB/s ∼100% +99%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
378 (316.72min - 377.74max) MB/s ∼50%
Average Kingston RBUSNS8154P3128GJ

378 MB/s ∼50% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 write
Average of class Convertible
  (217 - 2378, n=80, last 2 years)
600 MB/s ∼100% +94%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
310 (178.62min - 309.52max) MB/s ∼52%
Average Kingston RBUSNS8154P3128GJ

310 MB/s ∼52% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
AS SSD
Score Total
Average of class Convertible
  (117 - 8020, n=84, last 2 years)
2543 Points ∼100% +229%
Average Kingston RBUSNS8154P3128GJ
  (634 - 1386, n=7)
1014 Points ∼40% +31%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
774 Points ∼30%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
145 Points ∼6% -81%
Score Read
Average of class Convertible
  (51 - 3400, n=84, last 2 years)
1015 Points ∼100% +235%
Average Kingston RBUSNS8154P3128GJ
  (303 - 586, n=7)
443 Points ∼44% +46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
303 Points ∼30%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
55 Points ∼5% -82%
Score Write
Average of class Convertible
  (35 - 2938, n=84, last 2 years)
1039 Points ∼100% +225%
Average Kingston RBUSNS8154P3128GJ
  (196 - 524, n=7)
365 Points ∼35% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
320 Points ∼31%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
60 Points ∼6% -81%
Seq Read
Average of class Convertible
  (258 - 4878, n=84, last 2 years)
1924 MB/s ∼100% +174%
Average Kingston RBUSNS8154P3128GJ
  (702 - 1201, n=7)
973 MB/s ∼51% +39%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
702.42 MB/s ∼37%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
274.72 MB/s ∼14% -61%
Seq Write
Average of class Convertible
  (121 - 3660, n=84, last 2 years)
1109 MB/s ∼100% +149%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
446.09 MB/s ∼40%
Average Kingston RBUSNS8154P3128GJ
  (213 - 460, n=7)
404 MB/s ∼36% -9%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
176.24 MB/s ∼16% -60%
4K Read
Average of class Convertible
  (5.47 - 85.1, n=84, last 2 years)
45.9 MB/s ∼100% +82%
Average Kingston RBUSNS8154P3128GJ
  (18.9 - 45.2, n=7)
28.2 MB/s ∼61% +12%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
25.23 MB/s ∼55%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
14.15 MB/s ∼31% -44%
4K Write
Average of class Convertible
  (12.4 - 239, n=84, last 2 years)
127 MB/s ∼100% +173%
Average Kingston RBUSNS8154P3128GJ
  (46.5 - 90, n=7)
65.5 MB/s ∼52% +41%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
46.51 MB/s ∼37%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
19.1 MB/s ∼15% -59%
4K-64 Read
Average of class Convertible
  (13.2 - 2827, n=84, last 2 years)
777 MB/s ∼100% +274%
Average Kingston RBUSNS8154P3128GJ
  (193 - 425, n=7)
317 MB/s ∼41% +53%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
207.65 MB/s ∼27%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
13.17 MB/s ∼2% -94%
4K-64 Write
Average of class Convertible
  (10.2 - 2349, n=84, last 2 years)
801 MB/s ∼100% +251%
Average Kingston RBUSNS8154P3128GJ
  (116 - 391, n=7)
259 MB/s ∼32% +13%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
228.46 MB/s ∼29%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
23.63 MB/s ∼3% -90%
Access Time Read
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.287 ms * ∼100% -8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.266 ms * ∼93%
Average Kingston RBUSNS8154P3128GJ
  (0.152 - 0.278, n=7)
0.2317 ms * ∼81% +13%
Average of class Convertible
  (0.023 - 0.794, n=84, last 2 years)
0.1085 ms * ∼38% +59%
Access Time Write
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.39 ms * ∼100% -343%
Average of class Convertible
  (0.017 - 1.105, n=84, last 2 years)
0.1369 ms * ∼35% -56%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.088 ms * ∼23%
Average Kingston RBUSNS8154P3128GJ
  (0.048 - 0.09, n=7)
0.0683 ms * ∼18% +22%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

04590135180225270315360405450495540585630675720765810Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Kingston RBUSNS8154P3128GJ: Ø718 (355.8-825.26)
Acer Aspire 1 A114-61-S58J 64 GB eMMC Flash: Ø229 (141.07-248.51)
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)

Grafikkort

Intels UHD Graphics 605gPU representerar den nedre delen av prestandaskalan. 3DMark-resultaten för grafikkärnan visar sig vara under genomsnittet och är några av de sämsta resultat som vi hittills har mätt med denna GPU. Spel är inte en av kvaliteterna hos den använda hårdvaran, men enkla, vardagliga spel och webbläsarspel bör ändå kunna köras. Den integrerade avkodaren avlastar processorn en del vid återgivning av videor, så användning av streamingtjänster bör inte innebära några problem.

3DMark 11 Performance
655 poäng
3DMark Ice Storm Standard Score
21430 poäng
3DMark Cloud Gate Standard Score
2861 poäng
3DMark Fire Strike Score
376 poäng
3DMark Time Spy Score
129 poäng
Hjälp
3DMark Performance Rating - Percent
Average of class Convertible

100 pt ∼100%
Average Intel UHD Graphics 605

14.6 pt ∼15%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
14.4 pt ∼14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
13.1 pt ∼13%
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (461 - 17421, n=87, last 2 years)
4475 Points ∼100% +661%
Average Intel UHD Graphics 605
  (588 - 902, n=13)
701 Points ∼16% +19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
588 Points ∼13%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
554 Points ∼12% -6%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2714 - 38419, n=72, last 2 years)
19780 Points ∼100% +526%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
4210 Points ∼21% +33%
Average Intel UHD Graphics 605
  (2874 - 4485, n=10)
3518 Points ∼18% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
3158 Points ∼16%
1920x1080 Fire Strike Graphics
Average of class Convertible
  (348 - 13158, n=84, last 2 years)
3333 Points ∼100% +711%
Average Intel UHD Graphics 605
  (411 - 576, n=10)
473 Points ∼14% +15%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
411 Points ∼12%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
392 Points ∼12% -5%
2560x1440 Time Spy Graphics
Average of class Convertible
  (91 - 5126, n=70, last 2 years)
1046 Points ∼100% +826%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
129 Points ∼12% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
113 Points ∼11%
Average Intel UHD Graphics 605

113 Points ∼11% 0%
Dota 2 Reborn - 1280x720 min (0/3) fastest
Average of class Convertible
  (18.3 - 133, n=79, last 2 years)
76.4 fps ∼100% +118%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
35 (30.6min) fps ∼46%
Average Intel UHD Graphics 605
  (32.5 - 36.5, n=5)
34.7 fps ∼45% -1%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
18.9 (13.1min) fps ∼25% -46%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Convertible
  (2.2 - 91.2, n=37, last 2 years)
32.3 fps ∼100% +678%
Average Intel UHD Graphics 605
  (3.4 - 5.15, n=4)
4.28 fps ∼13% +3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
4.15 fps ∼13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
2.2 fps ∼7% -47%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Convertible
  (3.94 - 88.1, n=72, last 2 years)
31.5 fps ∼100% +529%
Average Intel UHD Graphics 605
  (5.01 - 9.1, n=4)
6.92 fps ∼22% +38%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
5.01 fps ∼16%
GTA V - 1024x768 Lowest Settings possible
Average of class Convertible
  (11.6 - 154, n=31, last 2 years)
77.7 fps ∼100% +570%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
11.6 (0.2759min, 2.71P1) fps ∼15%
Average Intel UHD Graphics 605
  (9.5 - 11.7, n=3)
10.9 fps ∼14% -6%
Strange Brigade - 1280x720 lowest AF:1
Average of class Convertible
  (8 - 97.8, n=33, last 2 years)
68.2 fps ∼100% +702%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
8.5 (5min, 5P1) fps ∼12%
Average Intel UHD Graphics 605

8.5 fps ∼12% 0%
låg med. hög ultra
GTA V (2015) 11.6 fps
The Witcher 3 (2015) 1.2 fps
Dota 2 Reborn (2015) 35 11.5 5.9 5.9 fps
Final Fantasy XV Benchmark (2018) 4.15 fps
X-Plane 11.11 (2018) 5.01 3.46 3.09 fps
Strange Brigade (2018) 8.5 fps

Utsläpp och energihantering - Acer cabriolet är tyst och kallt

Bullerutsläpp

Eftersom TravelMate varken har en fläkt eller en mekanisk enhet är den tyst.

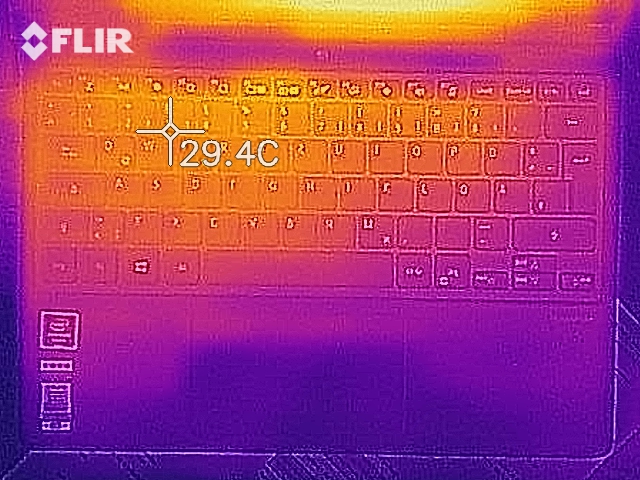

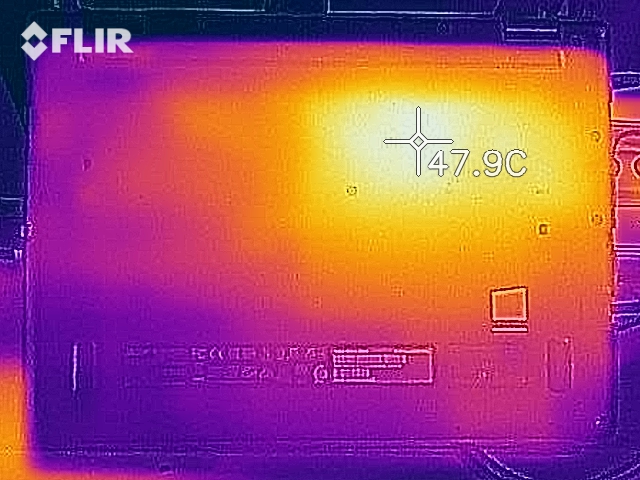

Temperaturer

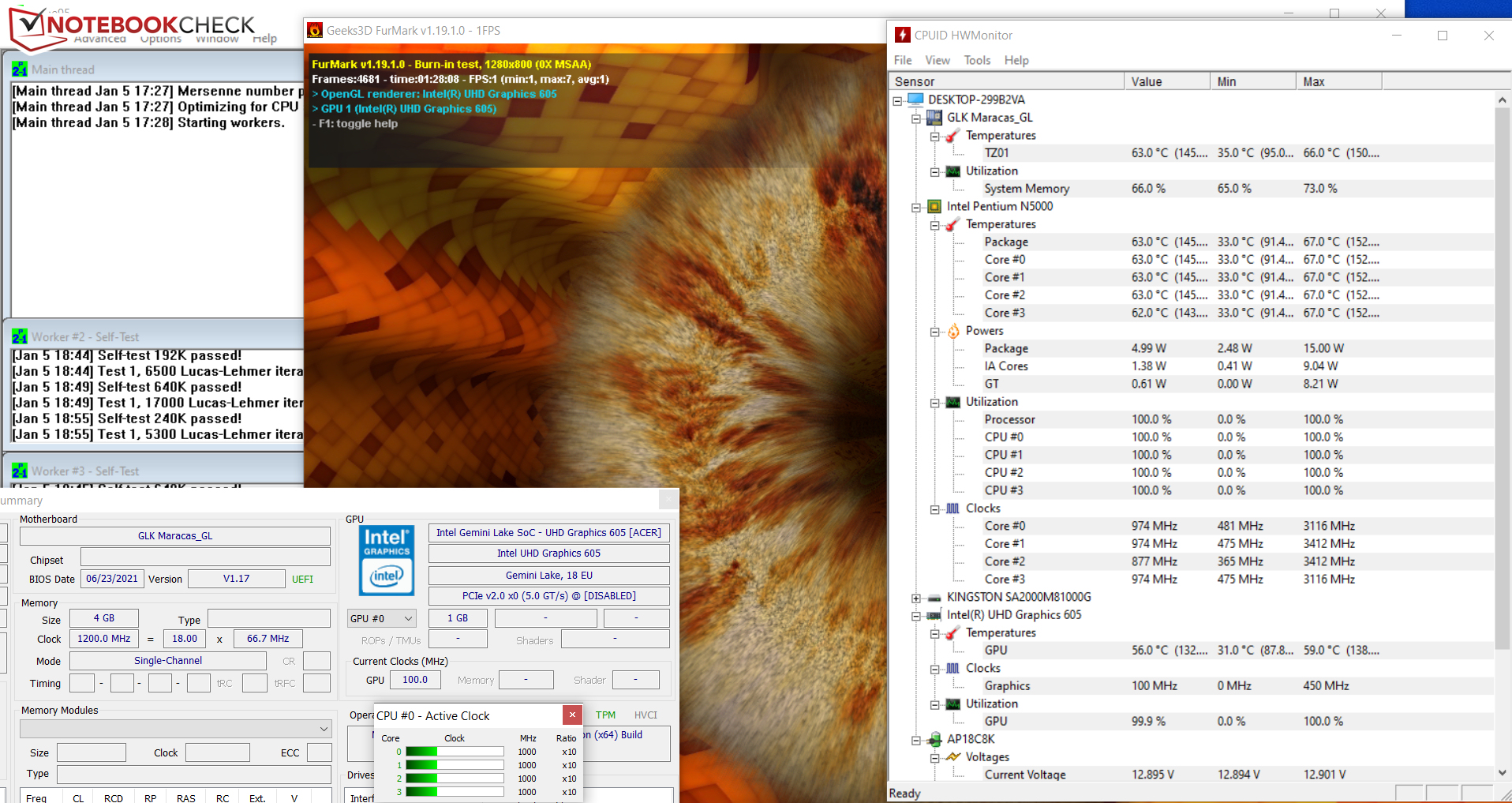

TravelMate under stresstestet
TravelMate under stresstestet

B3 värms bara upp i begränsad omfattning. Under hårdvarubelastning under stresstestet mäter vi högre temperaturer på vissa ställen, men totalt sett blir enheten bara handvarm. CPU-temperaturerna ger ingen anledning till oro.

I början av stresstestet (med Prime95 och Furmark igång i minst en timme) kör CPU:n med högre hastigheter. Under fortsättningen av testet sjunker hastigheten till 1 GHz. Stresstestet representerar ett extremt scenario. Vi använder detta test för att utvärdera om systemet förblir stabilt under full belastning.

Hög belastning
 36.8 °C36 °C28.7 °C
 33.8 °C32.7 °C25.9 °C
 26.2 °C24.4 °C23.6 °C
Max: 36.8 °C
Medel: 29.8 °C
26.2 °C39.2 °C46 °C
24.8 °C34.6 °C34 °C
22.5 °C24.7 °C25 °C
Max: 46 °C
Medel: 30.8 °C
Strömförsörjning (max.)  31.7 °C | Rumstemperatur 22.3 °C | FIRT 550-Pocket
