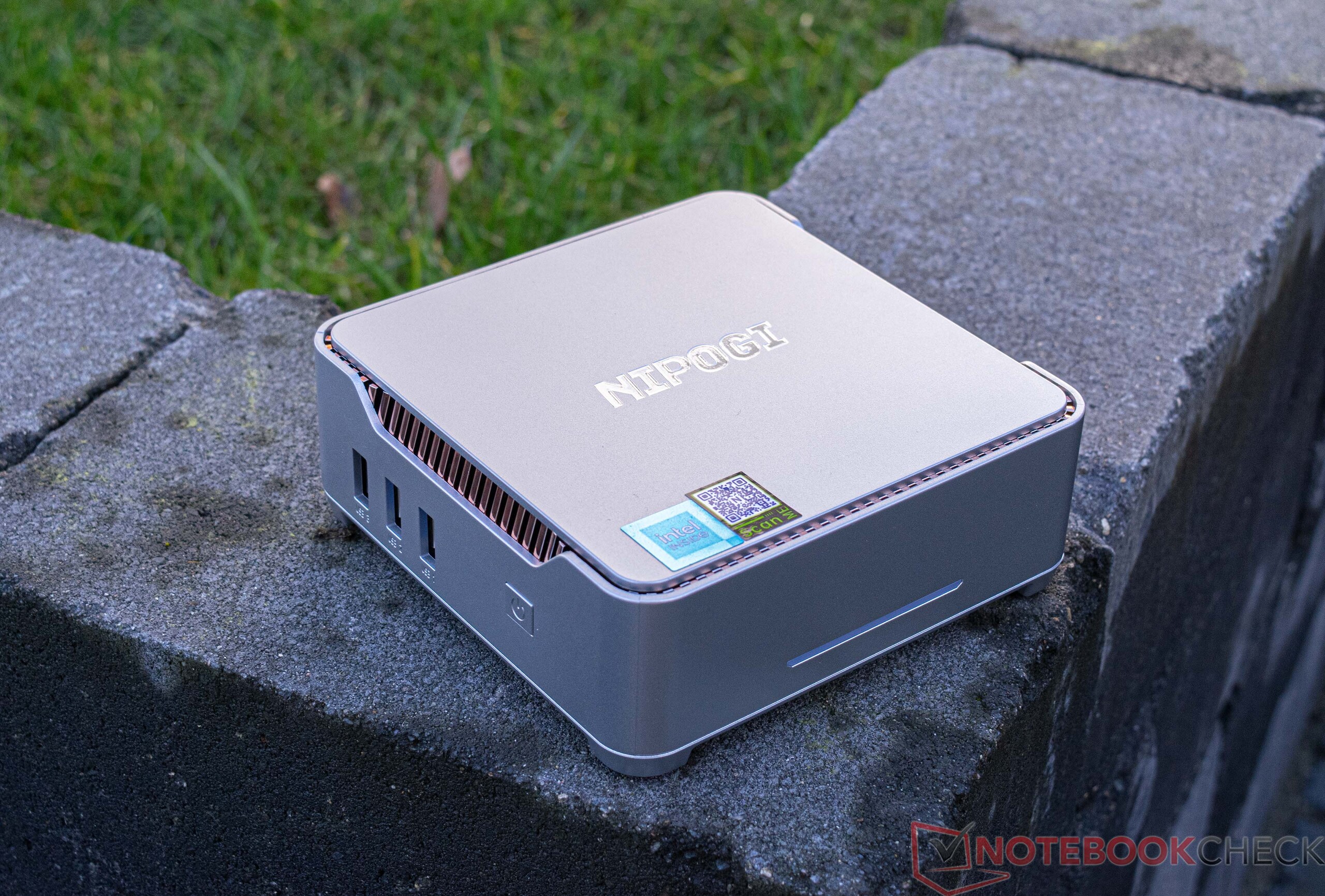

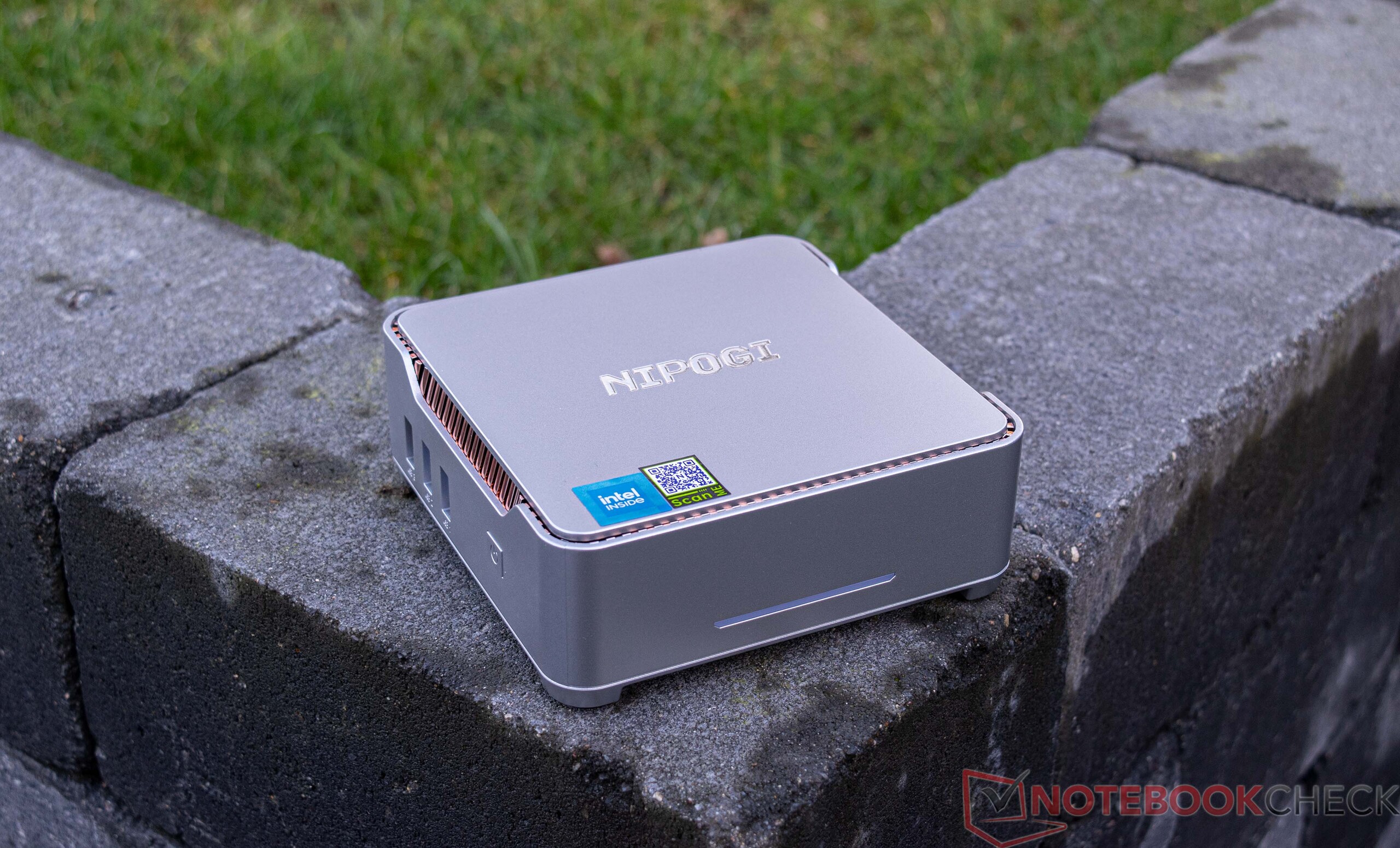

NiPoGi GK3 Plus N95 recenserad: En kompakt minidator med Intel N95 för kontorsbruk

En modern SoC för vardaglig kontorsanvändning! Den kinesiska systemtillverkaren marknadsför en ny minidator för kontor med namnet NiPoGi GK3 Plus N95. NiPoGi GK3 Plus N95 har en Intel Pentium N95 och är baserad på Intels nuvarande Alder Lake N SoC som först demonstrerades på CES i början av 2023. I vår omfattande recension får du reda på hur väl den helt nya SoC:n presterar och hur NiPoGi GK3 Plus N95 förhandlar vår testbana.
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95

Med NiPoGi GK3 Plus N95 säljer Minipc Union en minidator baserad på den helt nya Alder Lake N SoC. Genom att kombinera denna SoC med 16 GB RAM och en 512 GB SSD erbjuder systemtillverkaren en solid grund för de flesta kontorstillämpningar. För närvarande kostar NiPoGi N95 299 dollar och kan köpas direkt via Amazon. Den professionella versionen av Windows 11 ingår i priset.

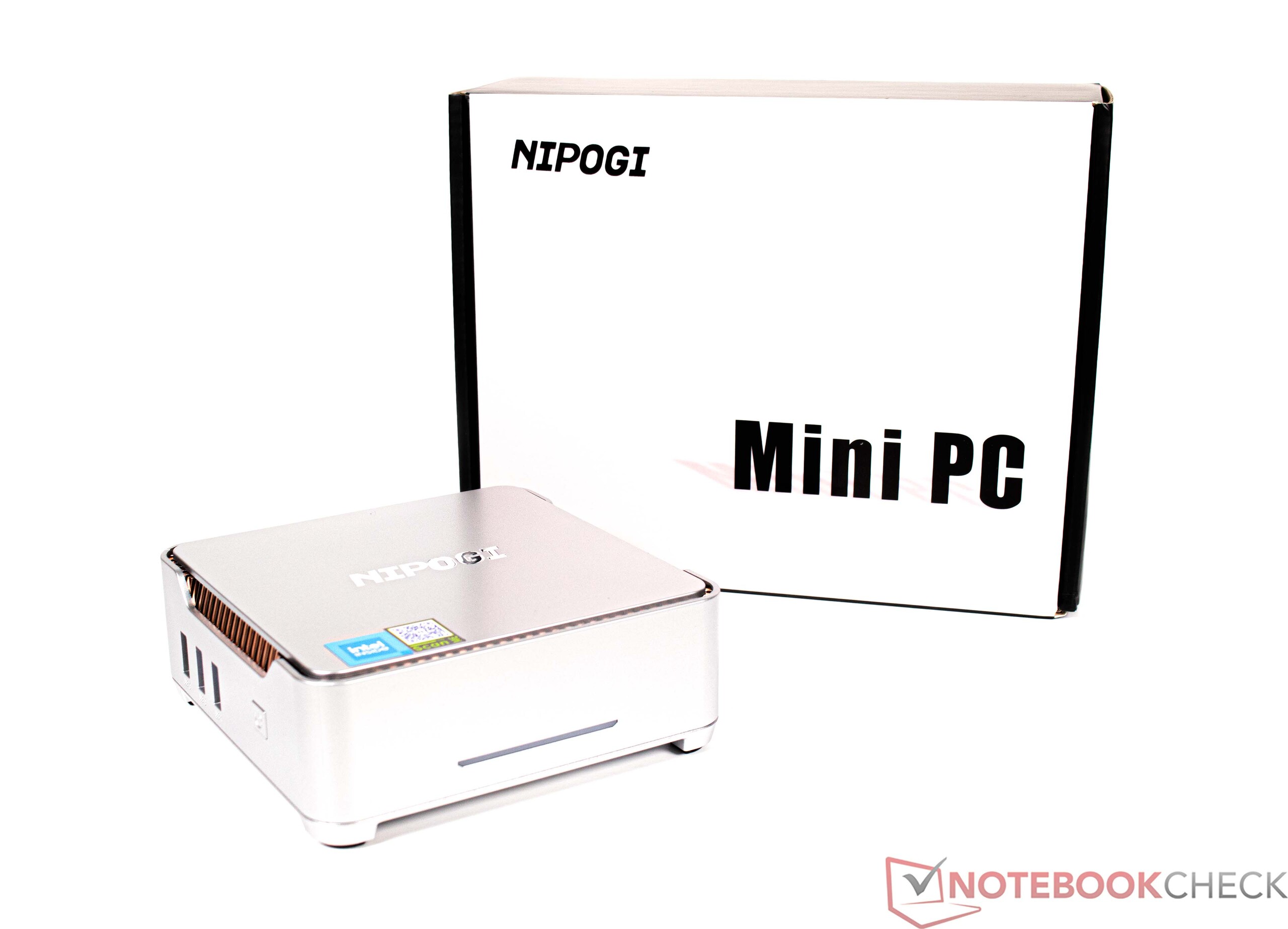

Minidatorn levereras i en kompakt förpackning, inklusive ett 30-watts nätaggregat och ett VESA-fäste för att fästa enheten på en kompatibel bildskärm.

Minipc Union NiPoGi GK3PLUS - N95
Processor
Intel Processor N95 4 x - 3.4 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Alder Lake-N
Grafikkort
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kärna: 1200 MHz, 31.0.101.3417 DCH
Minne
16 GB
, DDR4 2666, 1 from 1 used, max. 16 GB
Moderkort
Intel Alder Lake-N PCH
Hårddisk

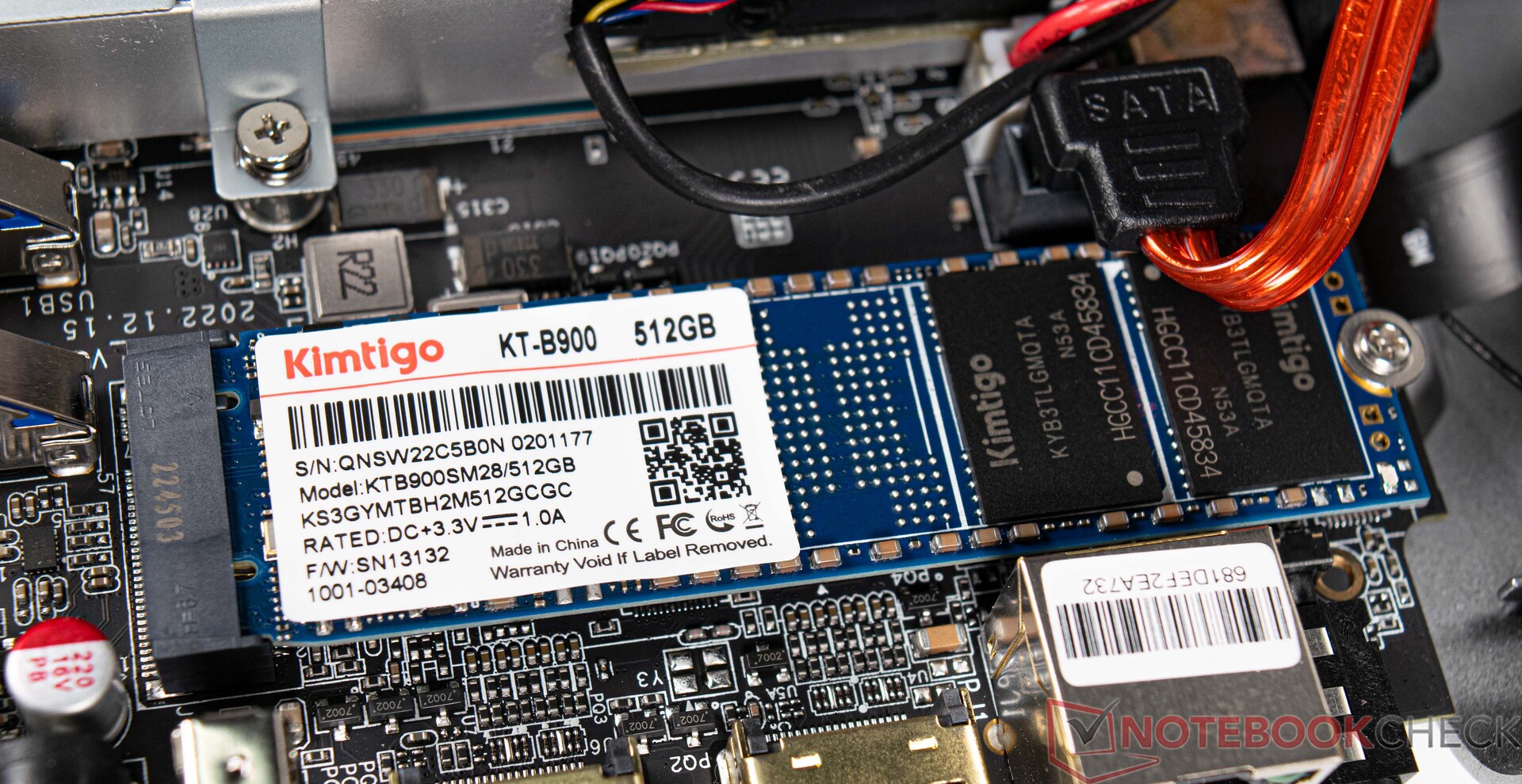

Kimtigo KTB900SM28/512GB, 512 GB
, M.2 2280 (SATA), 450 GB ledigt
Anslutningar
2 USB 2.0, 2 USB 3.0, 1 VGA, 2 HDMI, 1 Kensingtonlås, Ljudanslutningar: 3,5mm
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Storlek
höjd x bredd x djup (i mm) 47 x 132 x 132
Operativsystem
Microsoft Windows 11 Pro
Övrigt
12 Månader Garanti
Vikt
381 g, Strömförsörjning: 125 g
Pris
399 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors compared

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
68.2 %
03/2023
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
381 g47 mmx
65.9 %
01/2023
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
209 g43.5 mmx
02/2022
Newsmay AC8 N6005
Pentium N6005, UHD Graphics (Jasper Lake 32 EU)
534 g48 mmx
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
496 g34.2 mmx
08/2022
Newsmay Neosmay S2-B560TPM
i5-11400T, UHD Graphics 730
1.3 kg40 mmx
06/2022
Nofflink M500-5405U
Pentium 5405U, UHD Graphics 610
657 g39 mmx

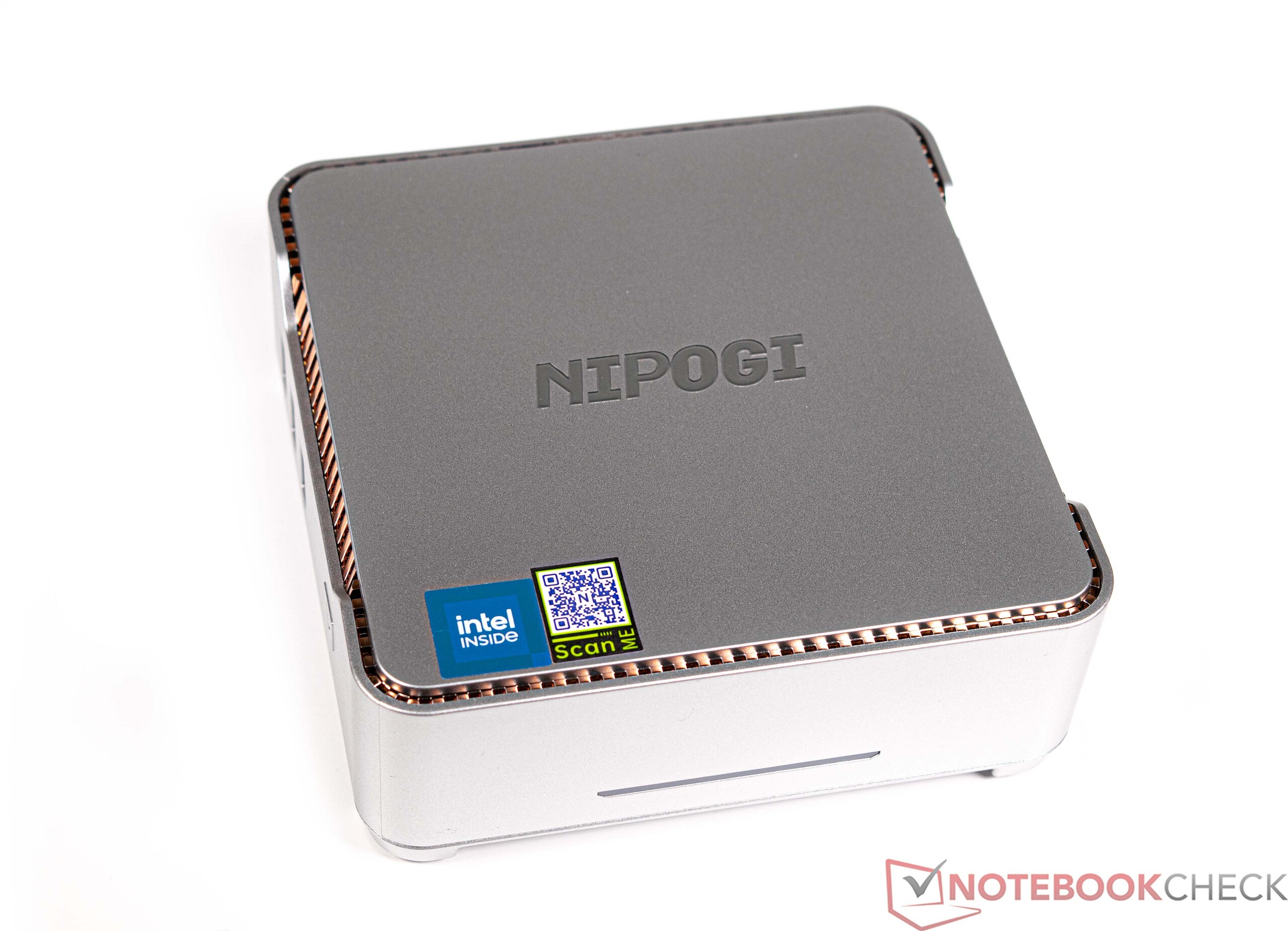

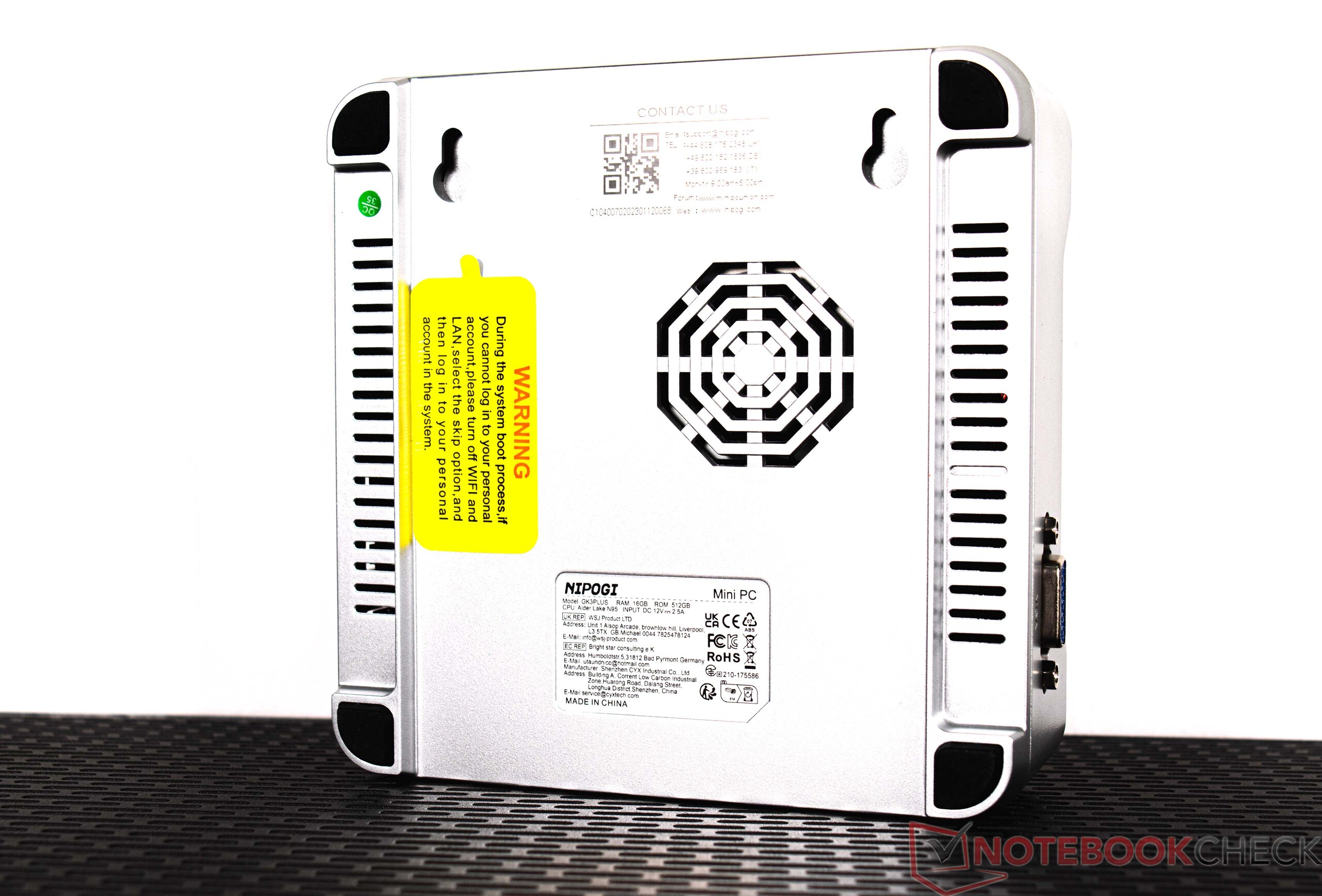

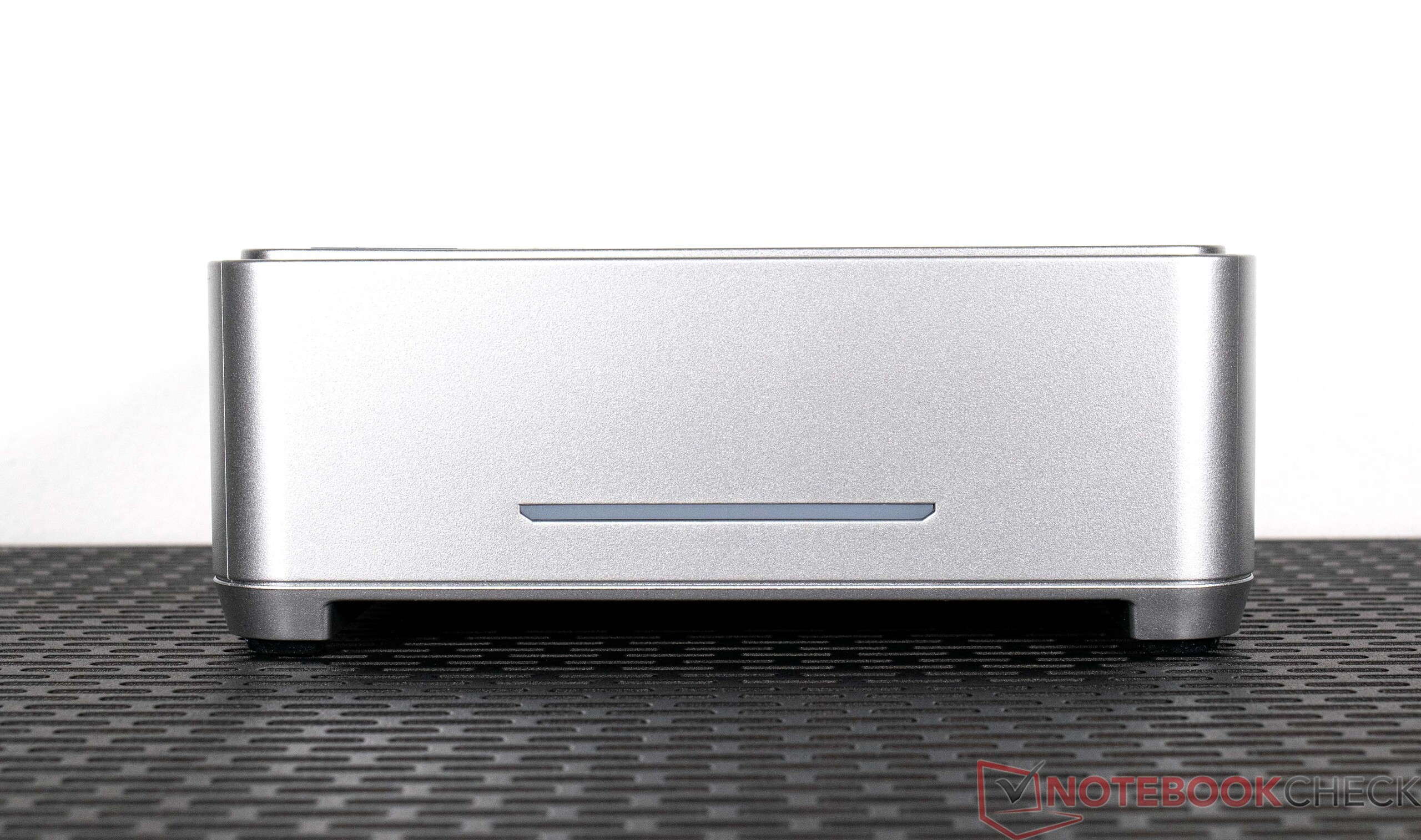

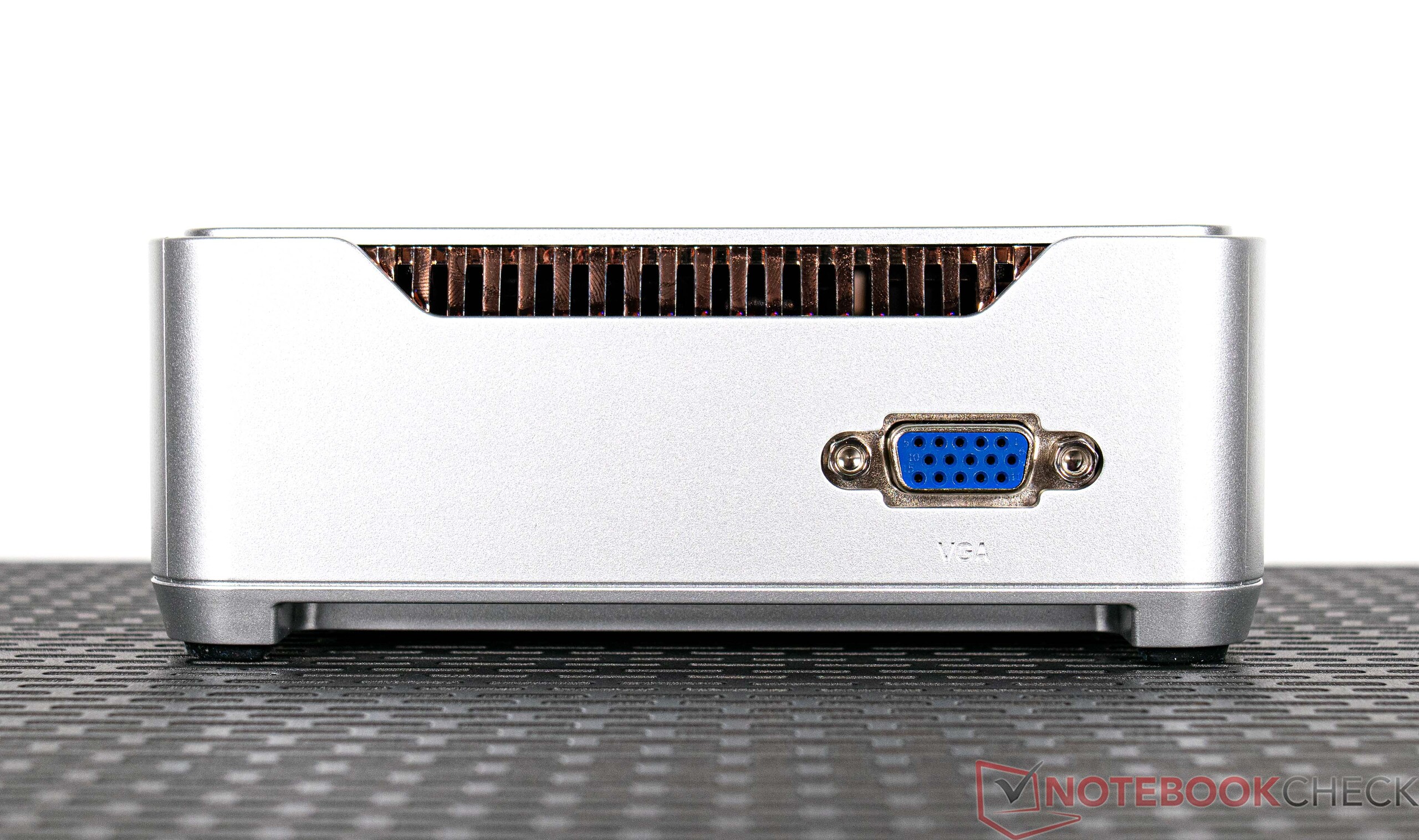

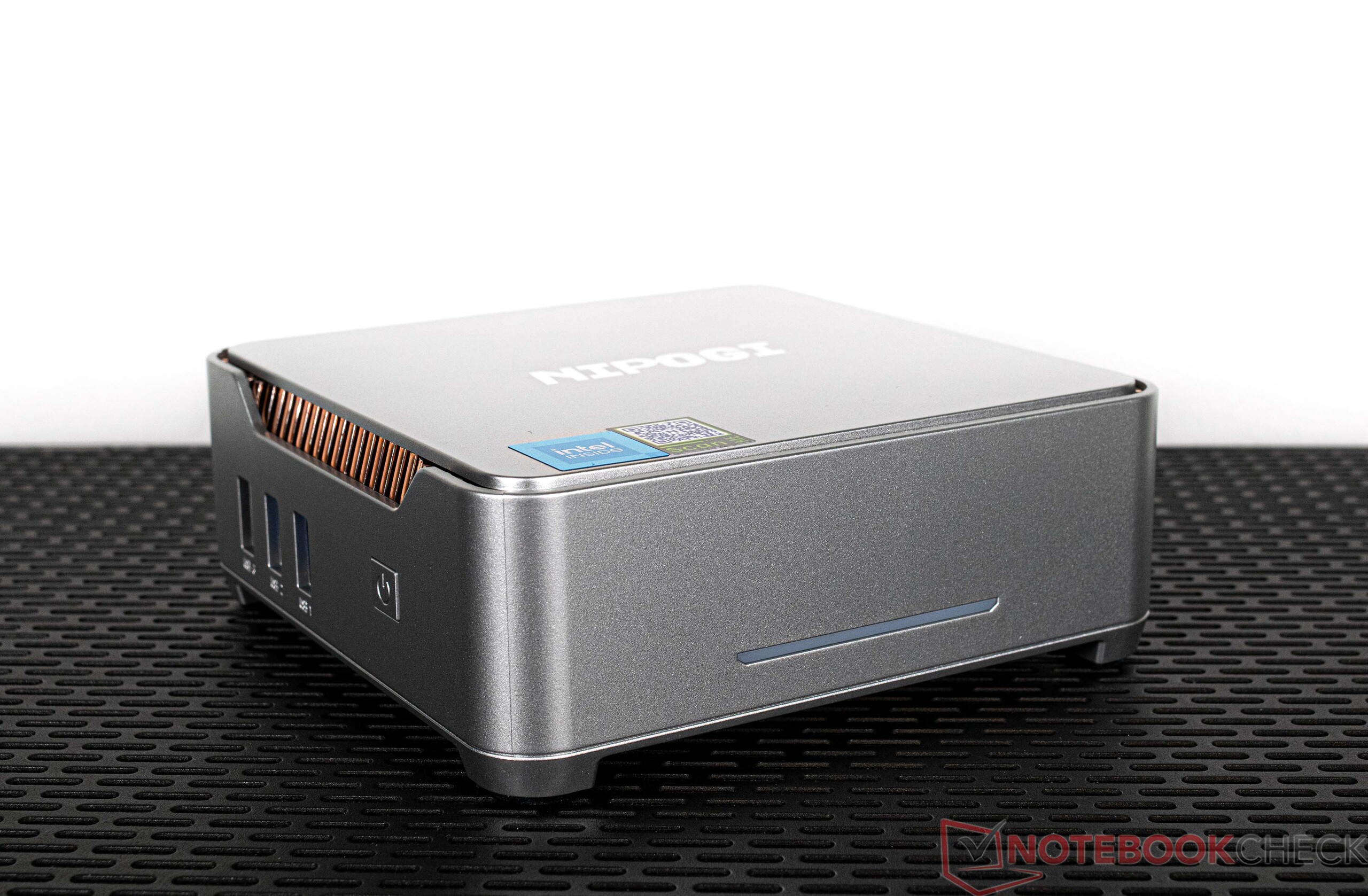

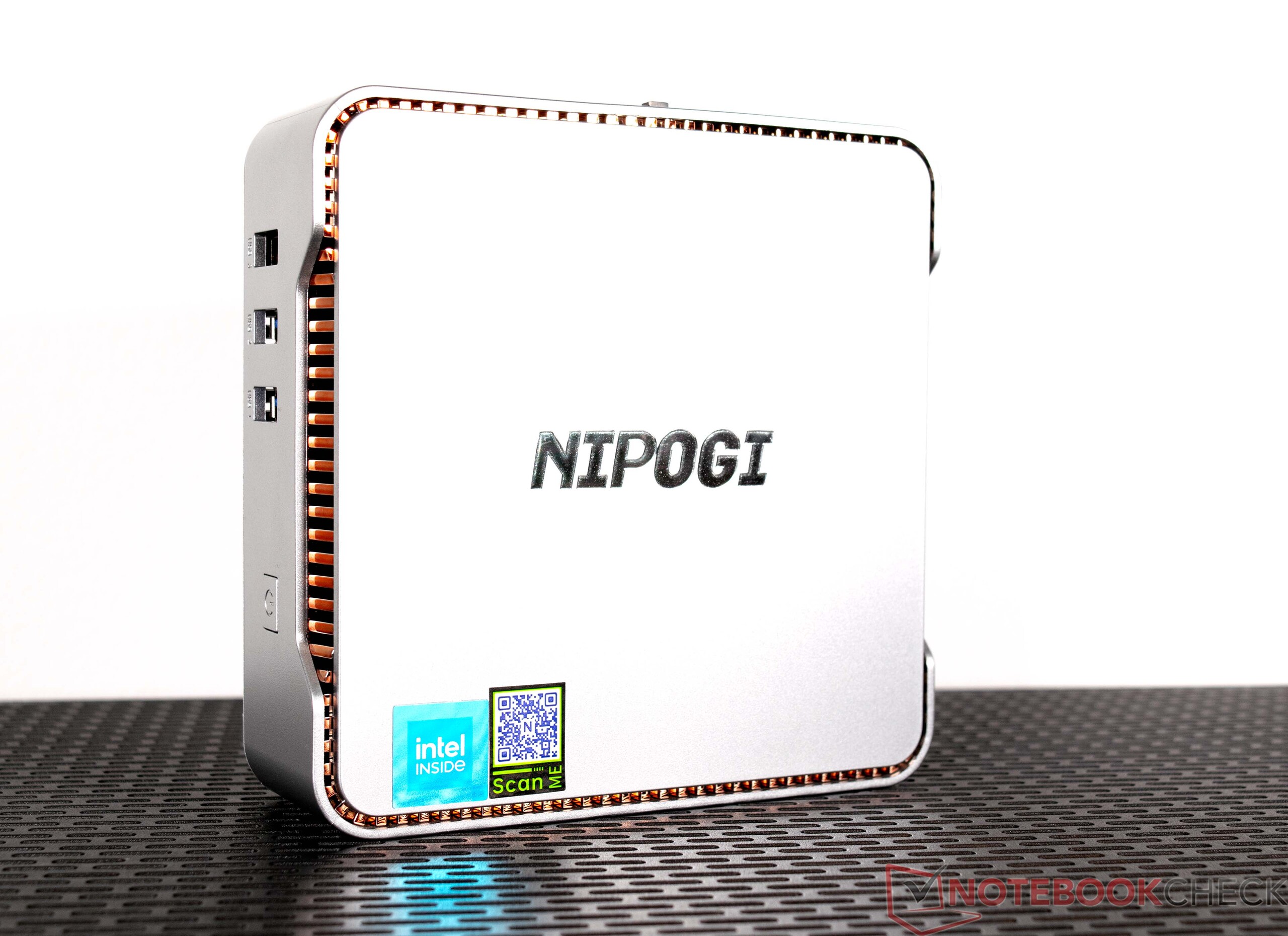

NiPoGi GK3 Plus N95 i detalj

NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95
NiPoGi GK3 Plus N95

Funktioner

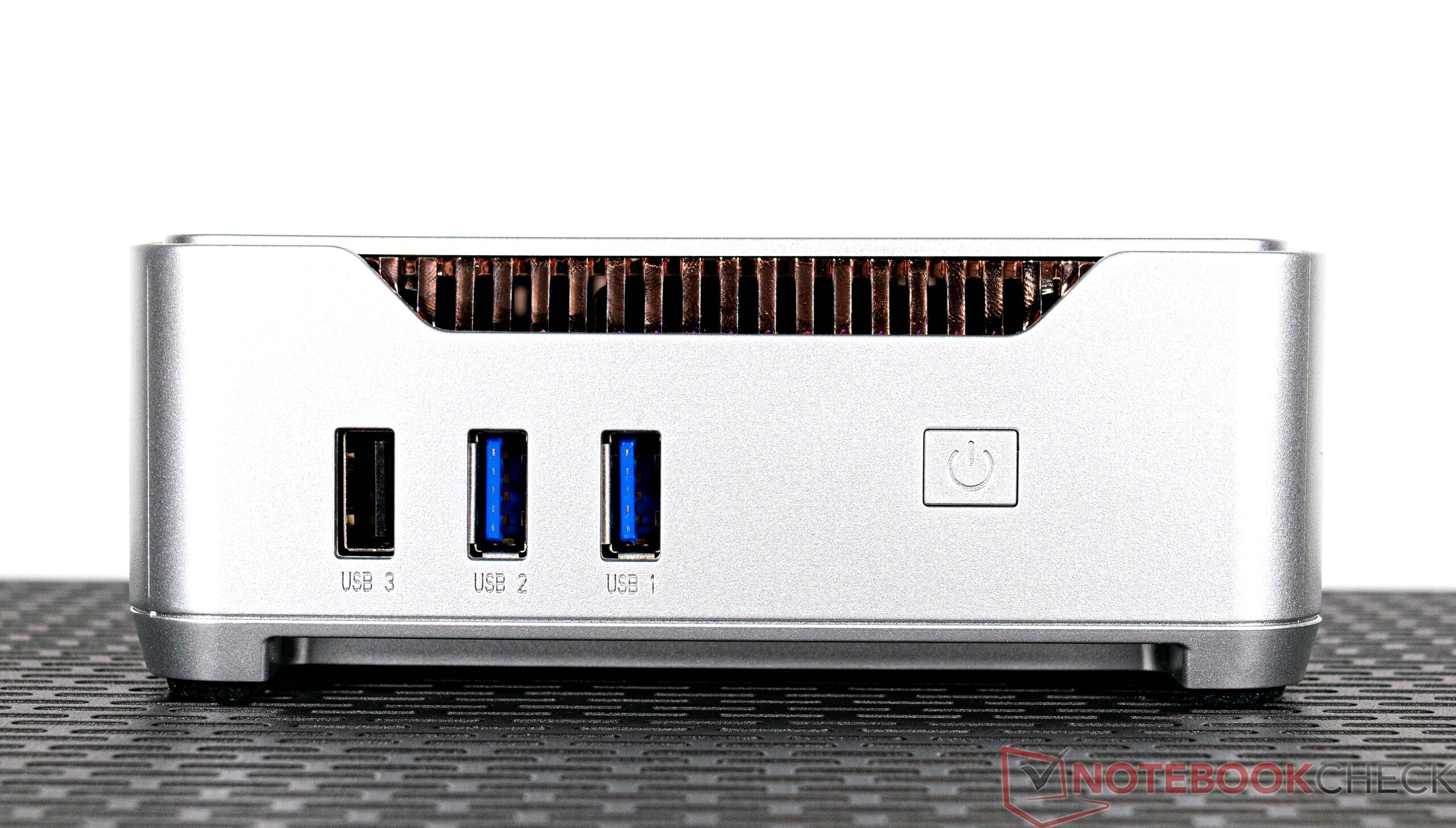

NiPoGi GK3 Plus N95 har i princip alla viktiga gränssnitt. Totalt har vi 4x USB Type-A och två HDMI-portar med stöd för 4K60. Alternativt erbjuder minidatorn en analog VGA-anslutning som gör det möjligt att använda äldre bildskärmar. Dessutom finns det ett nätverksuttag men ingen SD-kortläsare eller USB-C-kontakt. Portplaceringen är bra och tack vare deras valda placering bör ett virrvarr av kablar kunna undvikas.

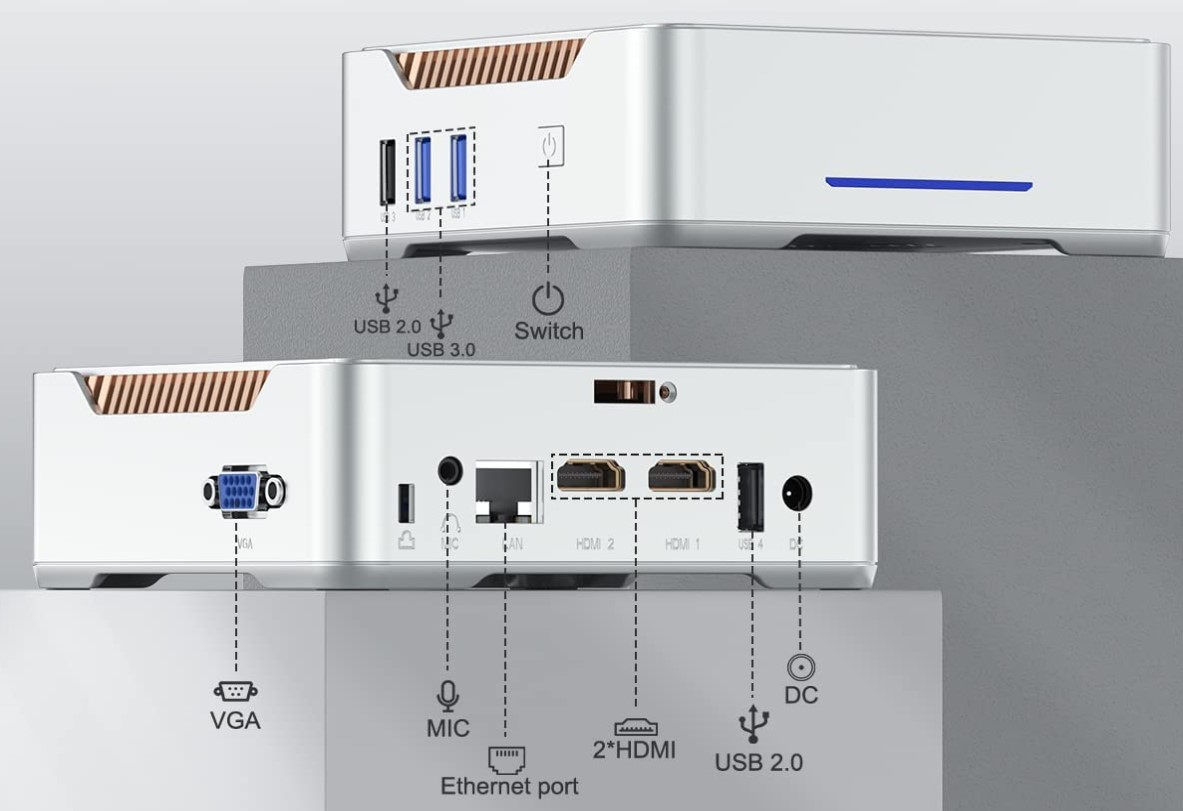

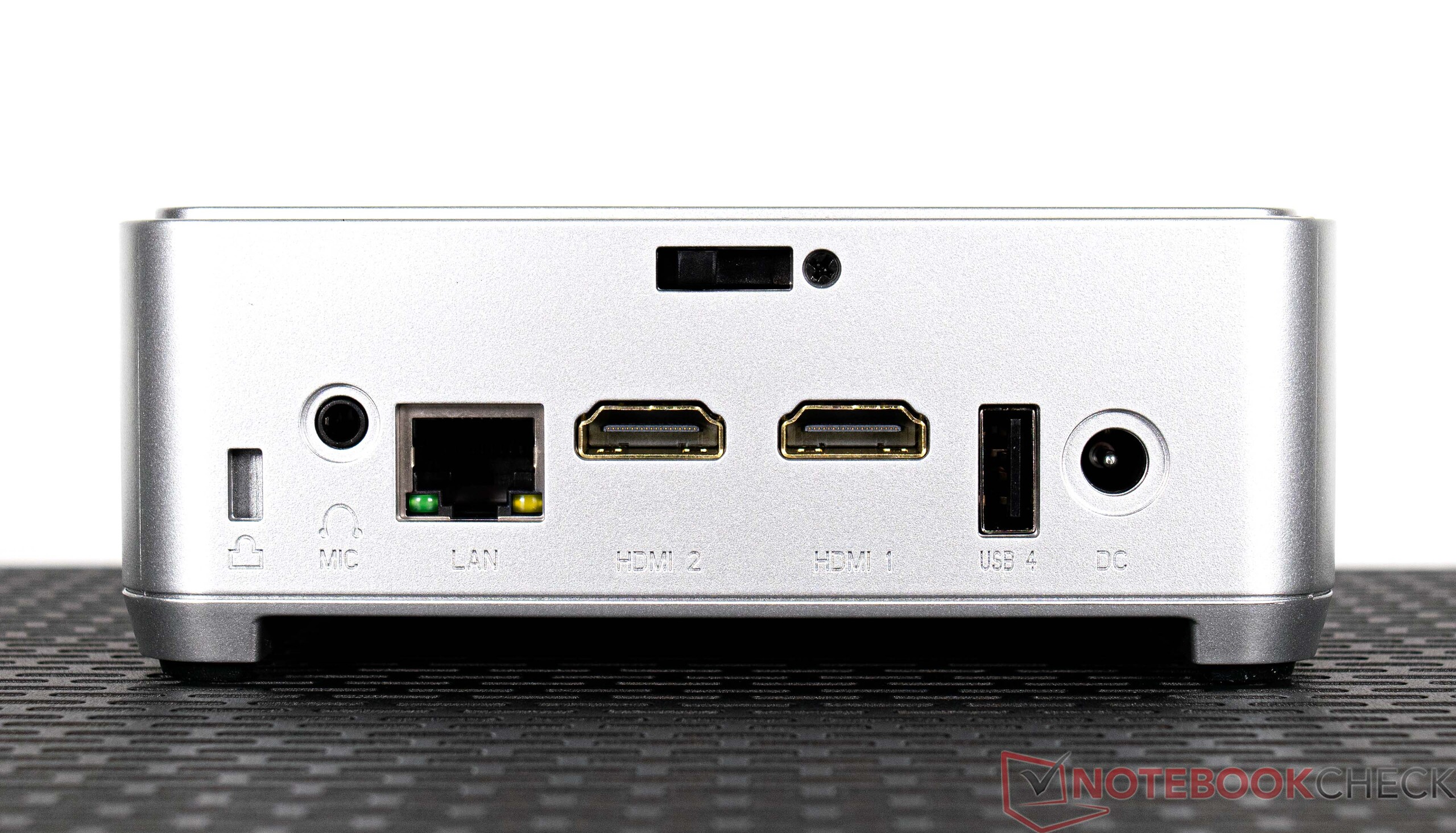

NiPoGi GK3 Plus N95 externa gränssnitt (källa: NiPoGi)
NiPoGi GK3 Plus N95 externa gränssnitt (källa: NiPoGi)

Size comparison

185 mm 179 mm 40 mm 1.3 kg132 mm 132 mm 47 mm 381 g127 mm 127 mm 48 mm 534 g127 mm 127 mm 39 mm 657 g117 mm 112 mm 34.2 mm 496 g87 mm 87 mm 43.5 mm 209 g210 mm 148 mm 1 mm 2.9 g

Kommunikation

I NiPoGi GK3 Plus N95 finns en WiFi-modul från Realtek med stöd för Bluetooth 4.2. Vi använde Asus ROG Rapture GT-AXE11000 för våra prestandatester. Den dokumenterade överförings- och mottagningsprestandan ligger långt under klassens genomsnitt. Jämfört med jämförelseenheterna kunde vårt granskningsexemplar endast överträffa Ace Magician T8Pro. RJ45-gränssnittet erbjuder ett snabbare alternativ än trådlös nätverkskommunikation. Mer än 1 GBit/s är dock inte möjligt här.

Networking
iperf3 receive AXE11000
Nofflink M500-5405U
MediaTek RZ608
975 (958min - 997max) MBit/s ∼100% +172%
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
964 (933min - 986max) MBit/s ∼99% +169%
Average of class Mini PC
  (192.9 - 1688, n=22, last 2 years)
838 MBit/s ∼86% +134%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s ∼37% +1%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
358 (180min - 362max) MBit/s ∼37%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (354 - 363, n=3)
358 MBit/s ∼37% 0%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
290 (279min - 299max) MBit/s ∼30% -19%
iperf3 transmit AXE11000
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
858 (810min - 882max) MBit/s ∼100% +219%
Nofflink M500-5405U
MediaTek RZ608
832 (730min - 860max) MBit/s ∼97% +209%
Average of class Mini PC
  (184.1 - 1491, n=22, last 2 years)
774 MBit/s ∼90% +188%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
269 (136min - 276max) MBit/s ∼31%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
225 (210min - 237max) MBit/s ∼26% -16%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (184.1 - 269, n=3)
220 MBit/s ∼26% -18%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s ∼21% -32%
050100150200250300350Tooltip
Minipc Union NiPoGi GK3PLUS - N95; iperf3 receive AXE11000; iperf 3.1.3: Ø352 (180-362)
Minipc Union NiPoGi GK3PLUS - N95; iperf3 transmit AXE11000; iperf 3.1.3: Ø265 (136-276)

Tillbehör

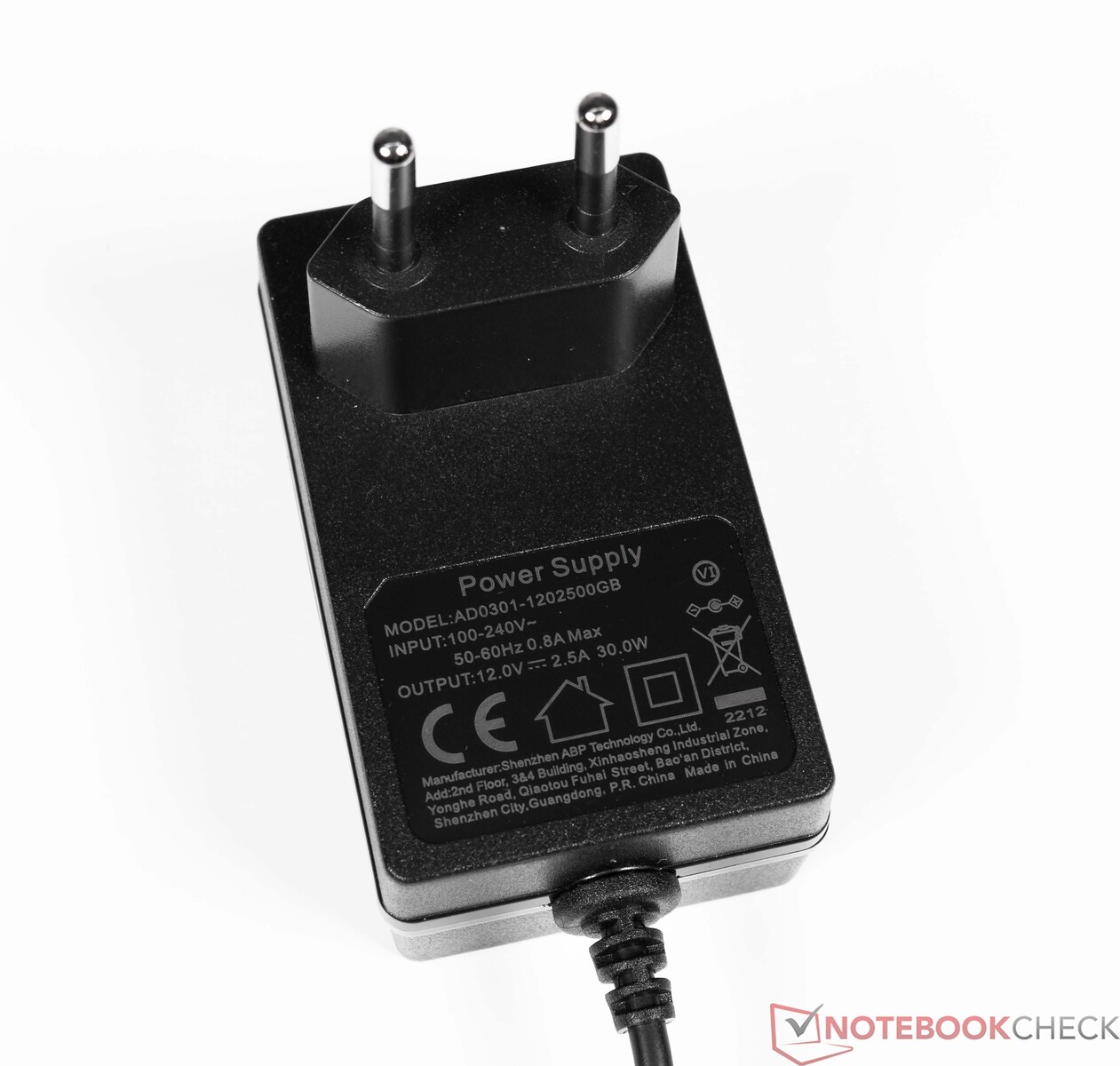

Förutom själva enheten levereras minidatorn endast med ett litet nätaggregat på 30 watt samt en HDMI-kabel och en monteringsplatta för montering på en bildskärm (VESA-fäste).

Underhåll

Med NiPoGi GK3 Plus N95 är möjliga underhållsuppgifter eller uppgraderingsalternativ begränsade till ett minimum. Enheten har endast en SO-Dimm-plats. Omvänt innebär det att mer RAM-minne inte kan installeras. Endast en andra masslagringsenhet kan monteras relativt snabbt och enkelt. För att åstadkomma detta måste locket tas bort, men som tur är innebär detta endast en enda skruv på basen. Den 2,5-tums masslagringsenheten får dock inte vara högre än högst 7 millimeter. Alla kablar finns redan i NiPoGi GK3 Plus N95. Den som antingen vill rengöra fläkten eller byta M.2 SSD måste ta isär enheten ytterligare, men detta är åtminstone ganska hanterbart.

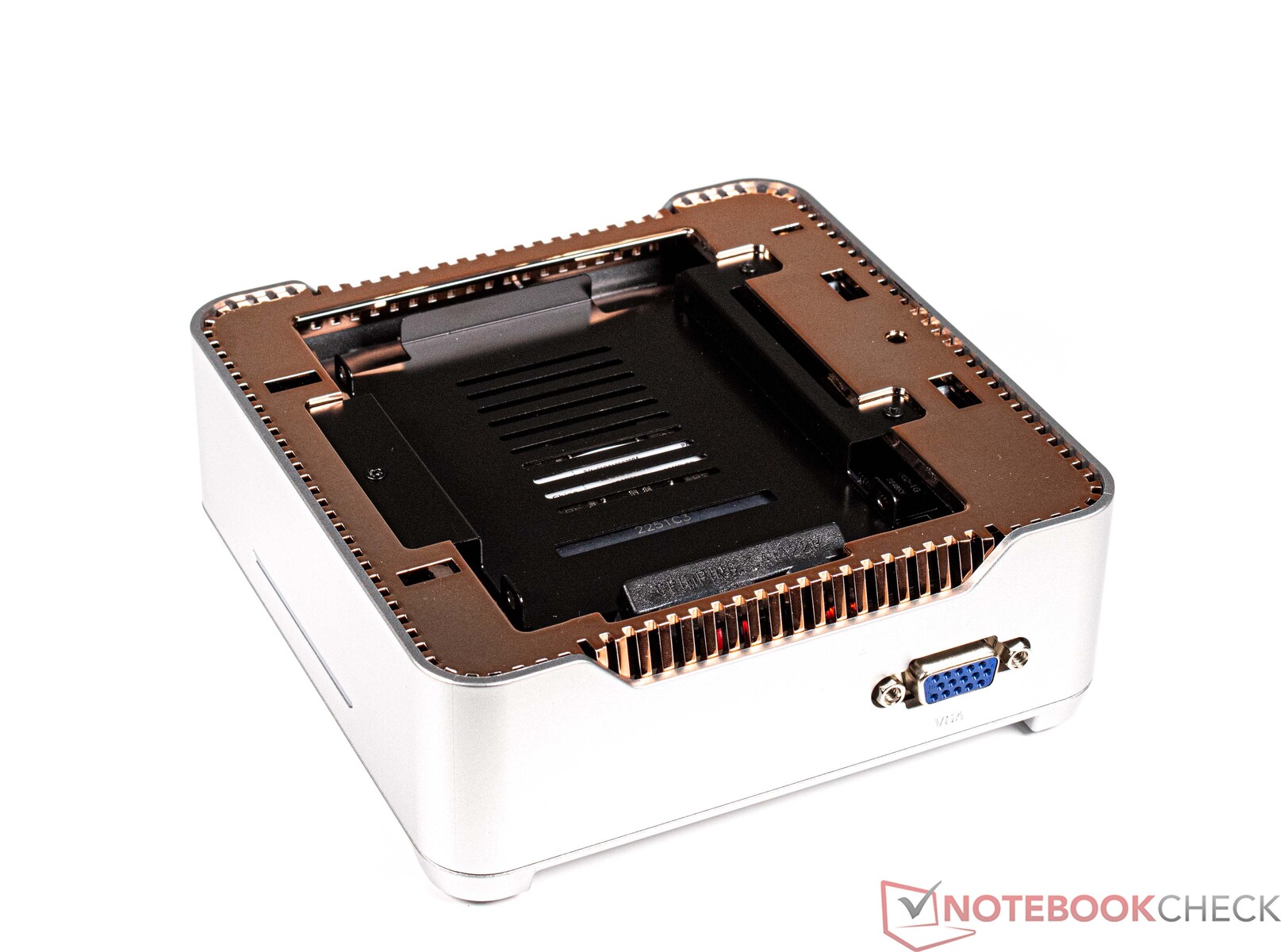

NiPoGi GK3 Plus N95 utan skydd
NiPoGi GK3 Plus N95 utan skydd

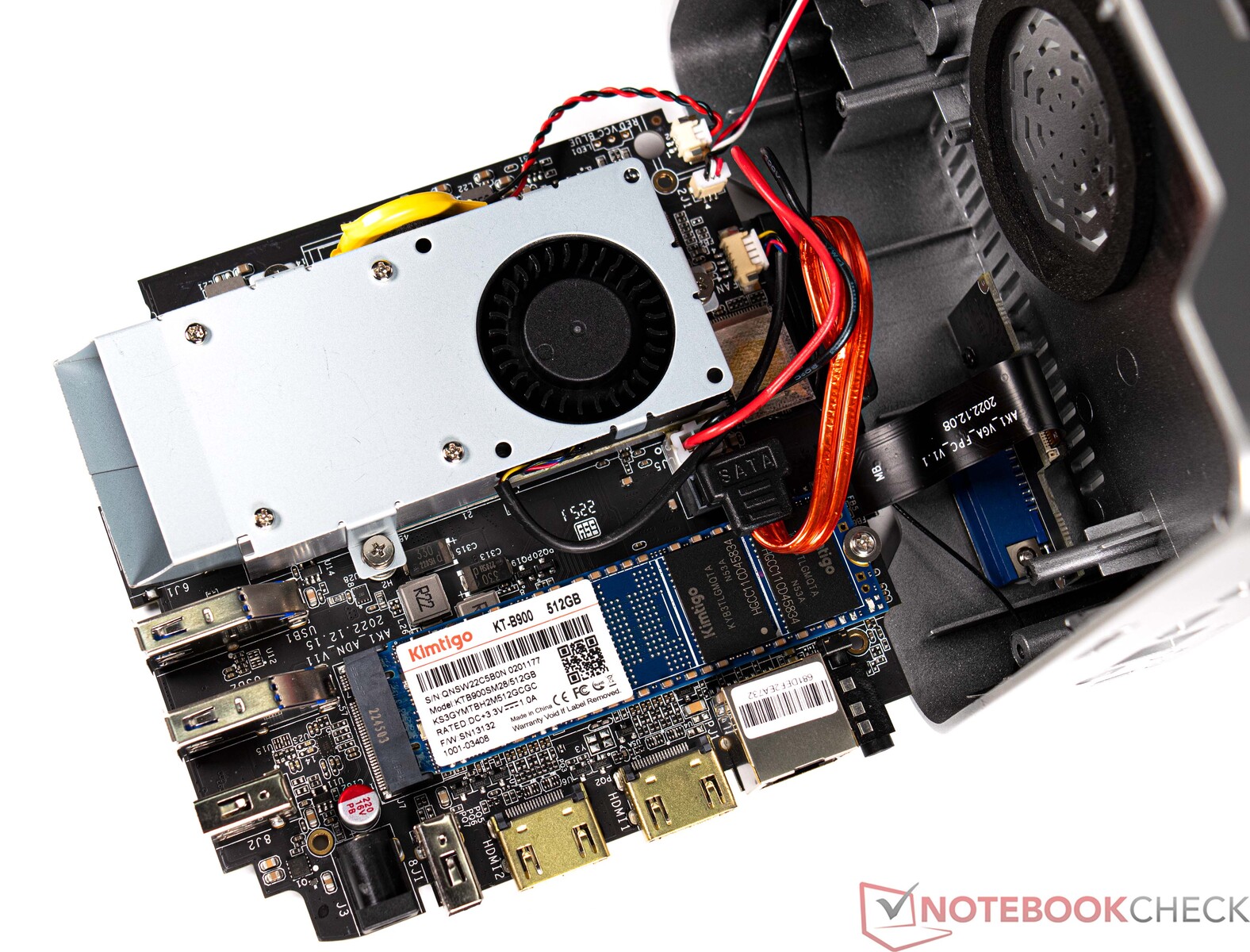

NiPoGi GK3 Plus N95 - öppnades helt och hållet
NiPoGi GK3 Plus N95 - öppnades helt och hållet
NiPoGi GK3 Plus N95 - helt öppnad
NiPoGi GK3 Plus N95 - helt öppnad

Prestanda - Den ekonomiska Intel N95 har 4 kärnor

The Intel Pentium N95är en inbyggd fyrkärnig SoC, vilket ger en solid grund för den avsedda användningen. Med 16 GB RAM är NiPoGi GK3 Plus N95 utrustad med generösa 16 GB RAM.

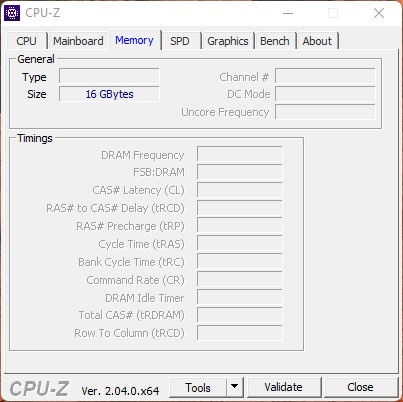

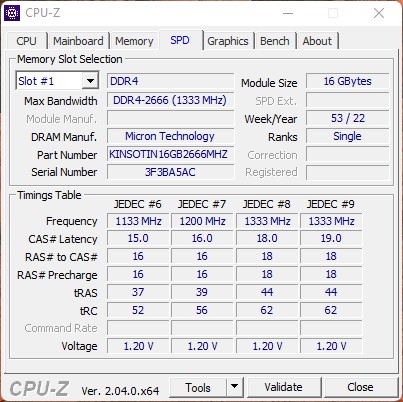

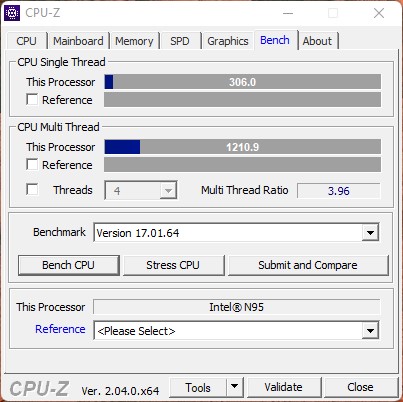

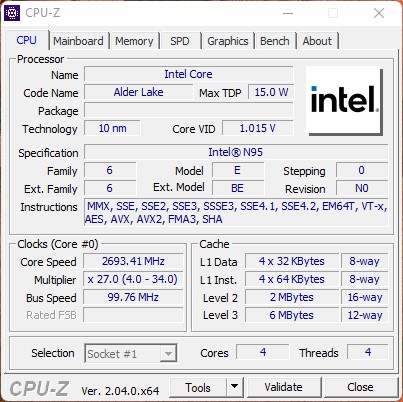

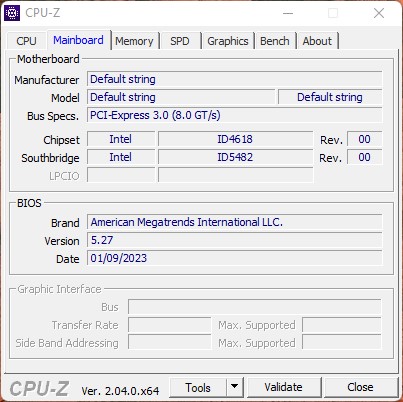

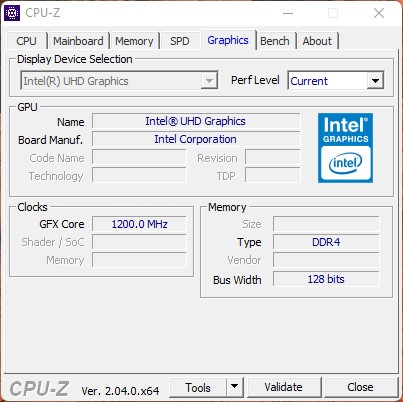

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

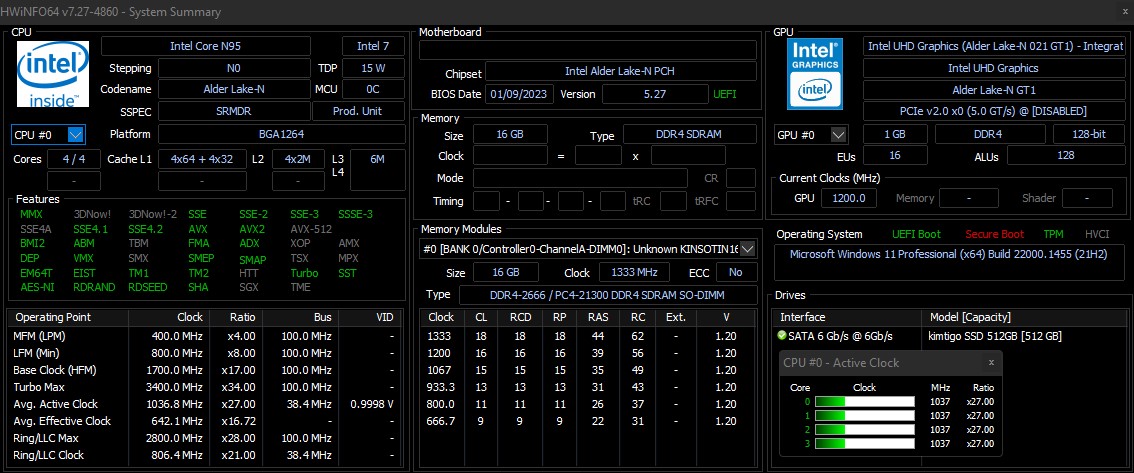

HWiNFO


Provningsvillkor

Alla prestandatester utfördes med energiprofilen High-Performance för att uppnå bästa möjliga prestanda. Olika energibesparingsåtgärder kom endast till användning i analysen av både strömförbrukning och ljudnivå. Mer information om våra testkriterier finns här här.

Processor

Intel Alder Lake N95 (källa: NiPoGi)
Intel Alder Lake N95 (källa: NiPoGi)

TheIntel N95 har fyra kärnor med en maximal klockfrekvens på upp till 3,4 GHz. I testerna visade N95 i NiPoGi GK3 Plus N95 bra prestanda och kan till och med hålla jämna steg medIntel Core i5-11400Tsom finns i Newsmay Neosmay S2. Detta är dock inte fallet när det gäller benchmarks med flera kärnor, där den fyrkärniga maskinen inte kan hålla jämna steg med de ursprungliga sex kärnorna som finns i Neosmay S2. Jämfört med Intel Pentium Silver N6005 har Intel N95 ändå näsan i vädret med cirka 20 procent. Tillverkaren har definierat NiPoGi GK3 Plus N95:s effektgränser till 15 (PL2) respektive 10 watt (PL1).

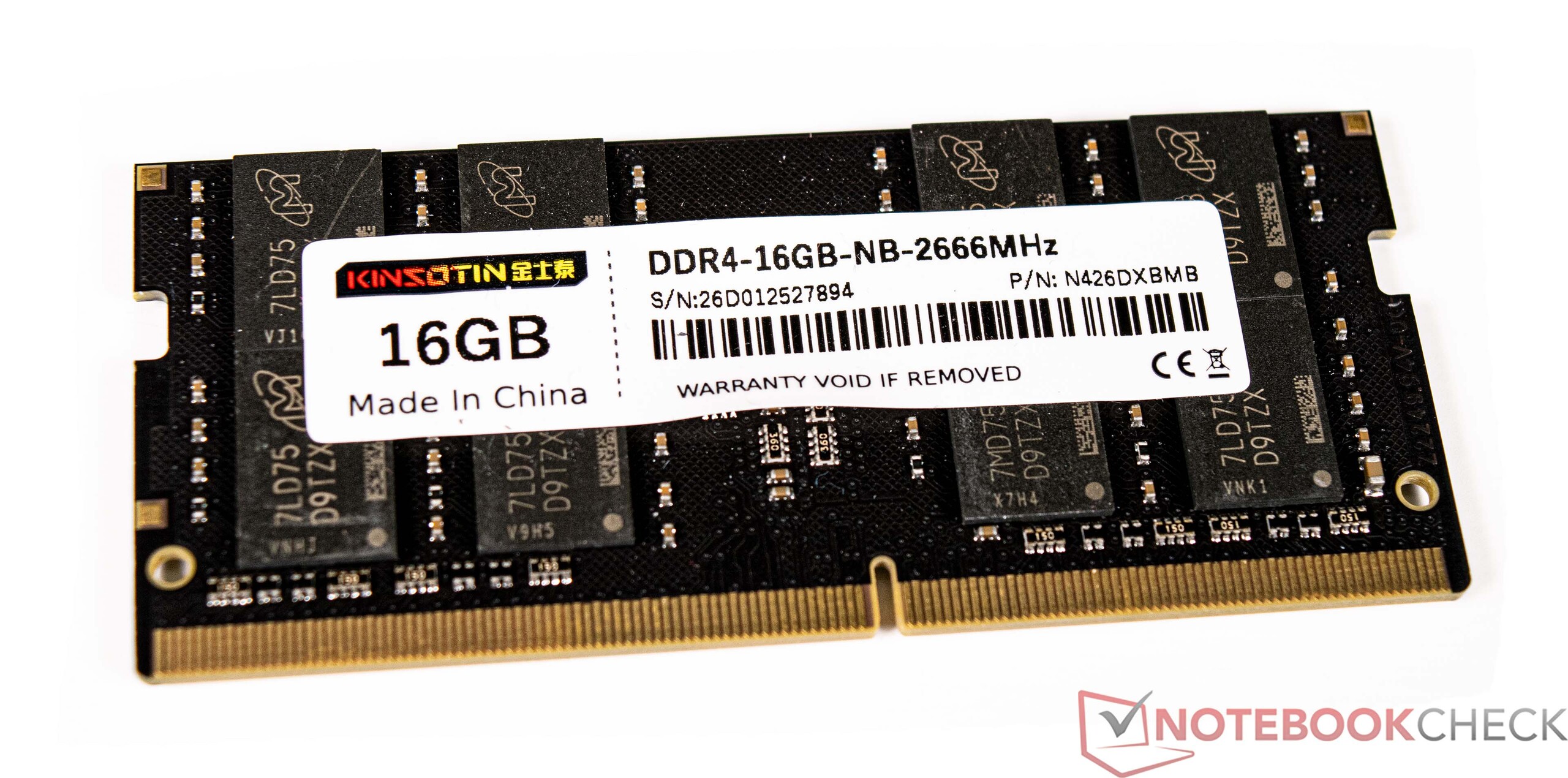

Tyvärr är den något tveksamma RAM-konfigurationen SoC:ens olycka eftersom NiPoGi endast har utrustat enheten med en enda SO-Dimm-modul med 16 GB DDR4 2666 MT/s. SoC:n stöder dock upp till 4800 MT/s i form av DDR5. Ändå hade 3200 MT/s som DDR4-alternativ varit ett bättre val för att uppnå mer prestanda. Dubbelkanalsdrift är ändå inte möjlig med NiPoGi GK3 Plus N95 eftersom det bara finns en enda SO-Dimm-plats.

Ytterligare processorjämförelser kan hittas här.

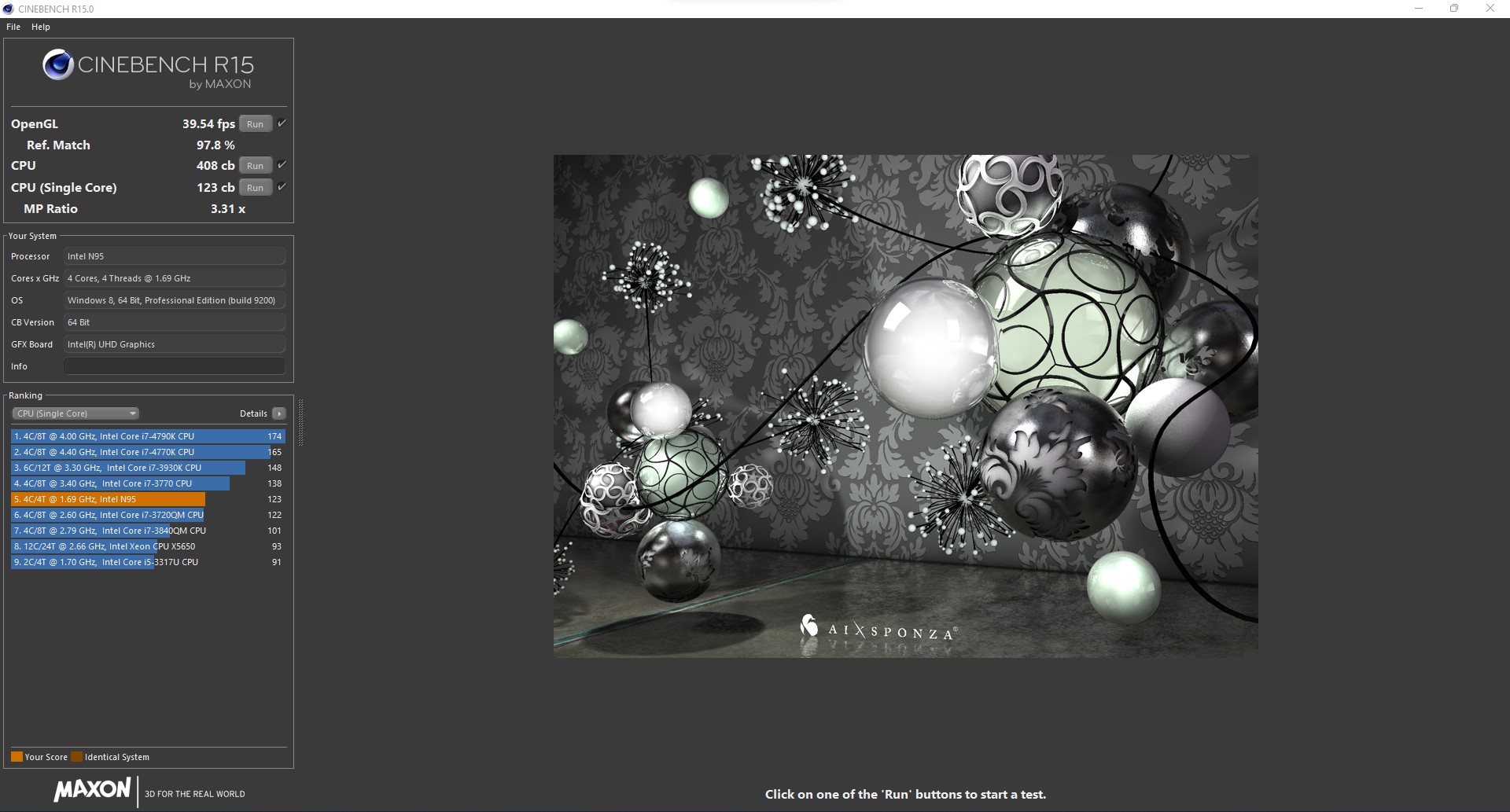

Cinebench R15
Cinebench R15

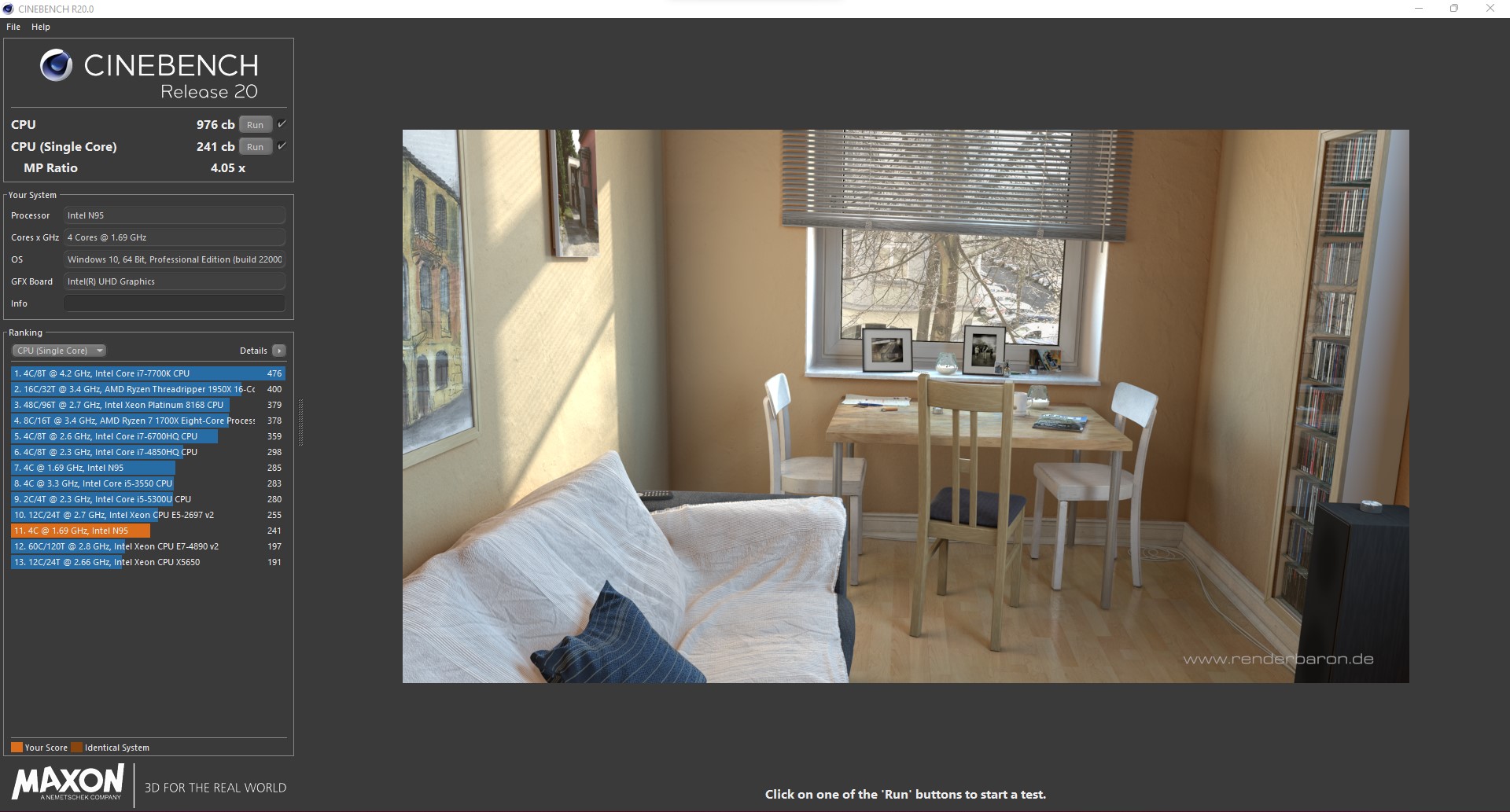

Cinebench R20
Cinebench R20

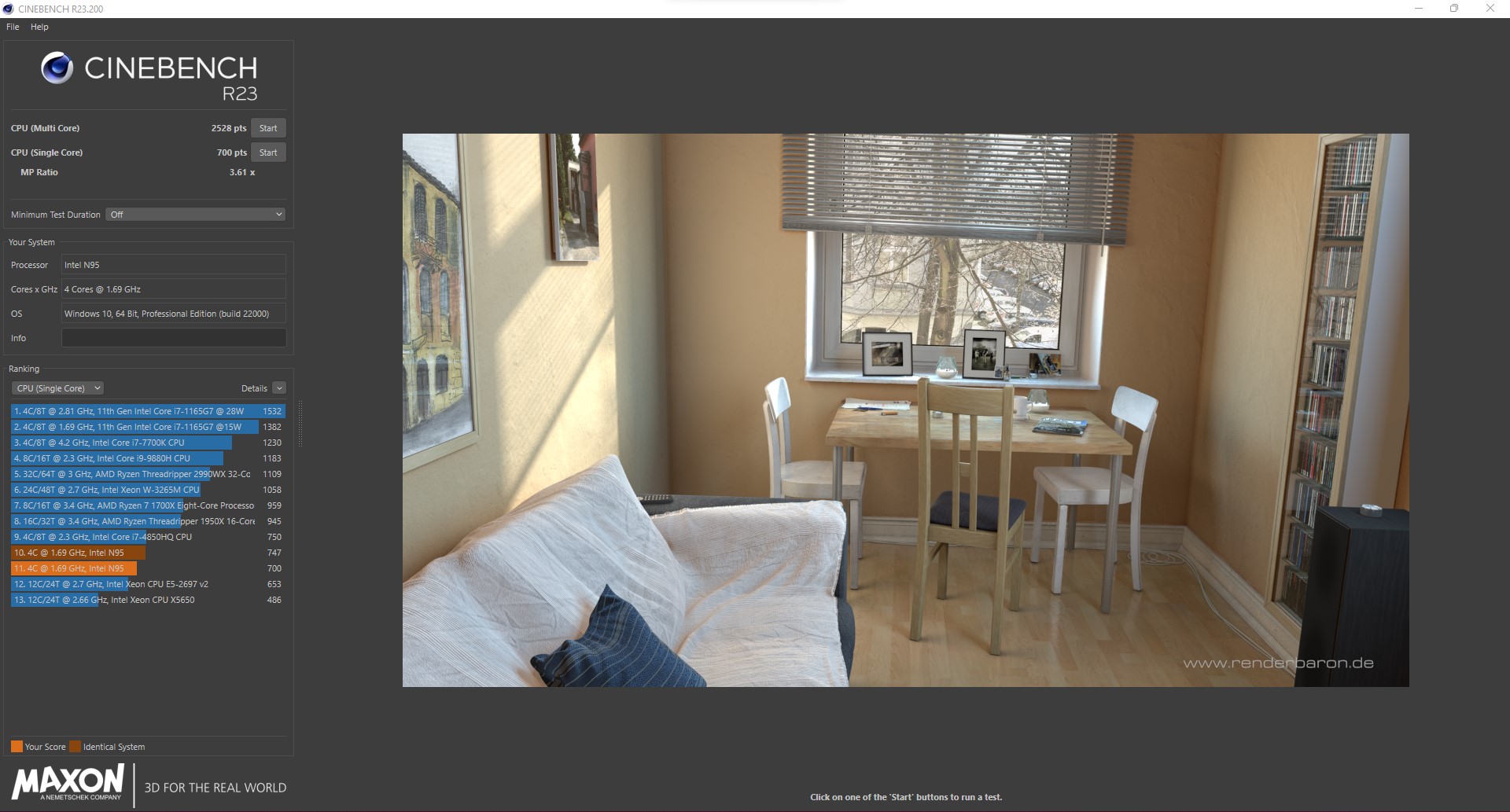

Cinebench R23
Cinebench R23
Performance Rating - Percent
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
35.2 pt ∼35%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
29.6 pt ∼30%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
27.3 pt ∼27%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
27.3 pt ∼27%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
27.1 pt ∼27%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
25.2 pt ∼25%
Cinebench R15
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
153 Points ∼47% +24%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
123 Points ∼38% 0%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
123 Points ∼38%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
106 Points ∼32% -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points ∼31% -17%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
94 Points ∼29% -24%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
642 Points ∼7% +57%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
408 Points ∼4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
369 Points ∼4% -10%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points ∼4% -12%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
319 Points ∼3% -22%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
239 Points ∼2% -41%
Cinebench R20
CPU (Single Core)
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
378 Points ∼43% +57%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
266 Points ∼31% +10%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
241 Points ∼28%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
234 Points ∼27% -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points ∼27% -3%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
208 Points ∼24% -14%
CPU (Multi Core)
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
1500 Points ∼6% +54%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
976 Points ∼4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
828 Points ∼4% -15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points ∼3% -16%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
720 Points ∼3% -26%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
535 Points ∼2% -45%
Cinebench R11.5
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
1.79 Points ∼6% +20%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.49 Points ∼5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.47 Points ∼5% -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.29 Points ∼4% -13%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points ∼4% -16%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1.09 Points ∼3% -27%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
7.3 Points ∼10% +41%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5.18 Points ∼7%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4.76 Points ∼7% -8%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points ∼7% -10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4.14 Points ∼6% -20%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
2.7 Points ∼4% -48%
Cinebench R10
Rendering Single CPUs 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
8290 Points ∼45% +26%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
6562 Points ∼36%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
6163 Points ∼34% -6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5451 Points ∼30% -17%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points ∼28% -20%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
4704 Points ∼26% -28%
Rendering Multiple CPUs 64Bit
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
25835 Points ∼19% +26%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
20429 Points ∼15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points ∼12% -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
16442 Points ∼12% -20%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
15504 Points ∼11% -24%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
10418 Points ∼7% -49%
Blender - v2.79 BMW27 CPU
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
2168 Seconds * ∼15% -88%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1805 Seconds * ∼13% -57%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1550 Seconds * ∼11% -35%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1547 Seconds * ∼11% -34%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1152 Seconds * ∼8%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
704 Seconds * ∼5% +39%
wPrime 2.10
32m
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
22.797 s * ∼5% -39%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
19.779 s * ∼4% -20%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s * ∼4% -17%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
17.09 s * ∼3% -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
16.449 s * ∼3%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
7.804 s * ∼2% +53%
1024m
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
714.014 s * ∼8% -33%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
617.326 s * ∼7% -15%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
615 s * ∼7% -15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s * ∼7% -13%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
535.88 s * ∼6%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
261.299 s * ∼3% +51%
X264 HD Benchmark 4.0
Pass 1
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
154.5 (154.4min - 155.1max) fps ∼36% +6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
145.25 (144.9min - 145.6max) fps ∼34%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
120.25 (119.9min - 120.3max) fps ∼28% -17%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps ∼26% -22%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
102 (100min - 118max) fps ∼24% -30%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
83.4 (83.2min - 85.2max) fps ∼20% -43%
Pass 2
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
40 (40min - 40.1max) fps ∼15% +35%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
29.65 (29.5min - 29.7max) fps ∼11%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
25.25 (25.2min - 25.4max) fps ∼9% -15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps ∼9% -17%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps ∼8% -27%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
15.7 (15.6min - 15.9max) fps ∼6% -47%
WinRAR - Result
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
4409 KB/s ∼26% +102%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2181 KB/s ∼13%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
2048 KB/s ∼12% -6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1781 KB/s ∼10% -18%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s ∼9% -25%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1525 KB/s ∼9% -30%
TrueCrypt
AES Mean 100MB
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
4.2 GB/s ∼0% +75%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2.6 GB/s ∼0% +8%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.5 GB/s ∼0% +4%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s ∼0% +4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2.4 GB/s ∼0%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1.4 GB/s ∼0% -42%
Twofish Mean 100MB
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
0.648 GB/s ∼0% +30%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.497 GB/s ∼0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.403 GB/s ∼0% -19%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.37 GB/s ∼0% -26%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s ∼0% -26%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
0.246 GB/s ∼0% -51%
Serpent Mean 100MB
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
0.414 GB/s ∼0% +70%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.243 GB/s ∼0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.23 GB/s ∼0% -5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.198 GB/s ∼0% -19%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s ∼0% -19%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
0.145 GB/s ∼0% -40%
Geekbench 5.4
Multi-Core
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
3510 Points ∼12% +47%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2391 Points ∼8%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points ∼7% -14%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2020 Points ∼7% -16%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1673 Points ∼6% -30%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1393 Points ∼5% -42%
Single-Core
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
1146 Points ∼50% +43%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points ∼35%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
657 Points ∼28% -18%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points ∼28% -21%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
606 Points ∼26% -25%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
600 Points ∼26% -25%
Geekbench 5.0
5.0 Multi-Core
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
3495 Points ∼11% +47%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2382 Points ∼8%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points ∼6% -14%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1985 Points ∼6% -17%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1381 Points ∼4% -42%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1313 Points ∼4% -45%
5.0 Single-Core
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
1130 Points ∼5% +41%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points ∼3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
655 Points ∼3% -19%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points ∼3% -21%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
603 Points ∼3% -25%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
603 Points ∼3% -25%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
4855 Points ∼50% +35%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3591 Points ∼37%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
2970 Points ∼31% -17%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2929 Points ∼30% -18%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points ∼30% -20%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2555 Points ∼26% -29%
64 Bit Multi-Core Score
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
17082 Points ∼19% +77%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
9662 Points ∼11%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points ∼9% -18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
7842 Points ∼9% -19%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
5806 Points ∼6% -40%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
5399 Points ∼6% -44%
3DMark 11 - 1280x720 Performance Physics
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
7319 Points ∼20% +44%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5084 Points ∼14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points ∼12% -16%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4272 Points ∼12% -16%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3659 Points ∼10% -28%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
3279 Points ∼9% -36%
7-Zip 18.03
7z b 4
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
19699 MIPS ∼12% +69%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
11654 MIPS ∼7%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
10994 MIPS ∼7% -6%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS ∼7% -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
9964 MIPS ∼6% -15%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
6557 MIPS ∼4% -44%
7z b 4 -mmt1
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
4157 MIPS ∼50% +33%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3515 MIPS ∼42% +13%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3121 MIPS ∼37%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
3098 MIPS ∼37% -1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS ∼35% -6%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
2563 MIPS ∼31% -18%
HWBOT x265 Benchmark v2.2 - 4k Preset
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
5.24 fps ∼11% +73%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3.03 fps ∼7%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.02 fps ∼4% -33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps ∼4% -34%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.65 fps ∼4% -46%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1.24 fps ∼3% -59%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec * ∼26% -16%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1.183 sec * ∼26% -15%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.166 sec * ∼25% -13%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.137 sec * ∼25% -10%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.032 sec * ∼22%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
0.792 sec * ∼17% +23%
LibreOffice - 20 Documents To PDF
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
108.9 s * ∼28% -35%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s * ∼26% -29%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
103.2 s * ∼26% -28%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
92.9 s * ∼23% -16%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
80.4 s * ∼20%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
62.4 s * ∼16% +22%
WebXPRT 3 - ---
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
208 Points ∼51% +34%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
155.3 Points ∼38%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
146 Points ∼36% -6%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points ∼31% -18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
122.2 Points ∼30% -21%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
104.2 Points ∼26% -33%
Mozilla Kraken 1.1 - Total Score
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
1971 ms * ∼2% -59%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1619 ms * ∼2% -31%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1581 ms * ∼2% -28%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1396 ms * ∼2% -13%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1238 ms * ∼1%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
887 ms * ∼1% +28%
3DMark - 1920x1080 Fire Strike Physics
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, 1300 MHz
10064 Points ∼19% +70%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5903 Points ∼11%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points ∼10% -6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5474 Points ∼10% -7%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4295 Points ∼8% -27%
Nofflink M500-5405U
Intel Pentium Gold 5405U, 2300 MHz
3836 Points ∼7% -35%

* ... smaller is better

Performance Rating
Average of class Mini PC

100 pt ∼100%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
68.4 pt ∼68%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
25.6 pt ∼26%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
24.6 pt ∼25%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
18.5 pt ∼19%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
11.7 pt ∼12%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
8.2 pt ∼8%
AIDA64 / FP32 Ray-Trace
Average of class Mini PC
  (561 - 15814, n=30, last 2 years)
7853 KRay/s ∼100% +956%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
5279 KRay/s ∼67% +610%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s ∼16% +67%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1241 KRay/s ∼16% +67%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
897 KRay/s ∼11% +21%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
744 KRay/s ∼9%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s ∼5% -44%
AIDA64 / FPU Julia
Average of class Mini PC
  (3604 - 99936, n=30, last 2 years)
43647 Points ∼100% +999%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
23312 Points ∼53% +487%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points ∼17% +88%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7446 Points ∼17% +88%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
4029 Points ∼9% +1%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
3970 Points ∼9%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points ∼6% -40%
AIDA64 / CPU SHA3
Average of class Mini PC
  (225 - 3570, n=30, last 2 years)
1917 MB/s ∼100% +610%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
1522 MB/s ∼79% +464%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s ∼27% +90%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
513 MB/s ∼27% +90%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
280 MB/s ∼15% +4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
270 MB/s ∼14%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s ∼9% -38%
AIDA64 / CPU Queen
Average of class Mini PC
  (8178 - 104437, n=30, last 2 years)
61655 Points ∼100% +654%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
55222 Points ∼90% +575%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points ∼36% +173%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 Points ∼36% +171%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
15686 Points ∼25% +92%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
8178 Points ∼13%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points ∼13% -4%
AIDA64 / FPU SinJulia
Average of class Mini PC
  (408 - 13164, n=30, last 2 years)
6198 Points ∼100% +1419%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
4059 Points ∼65% +895%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
1382 Points ∼22% +239%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points ∼16% +146%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1000 Points ∼16% +145%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
408 Points ∼7%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points ∼6% -3%
AIDA64 / FPU Mandel
Average of class Mini PC
  (1958 - 55002, n=30, last 2 years)
23217 Points ∼100% +1068%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
13839 Points ∼60% +596%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points ∼17% +99%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3954 Points ∼17% +99%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
2053 Points ∼9% +3%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
1987 Points ∼9%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points ∼5% -36%
AIDA64 / CPU AES
Average of class Mini PC
  (3778 - 136723, n=30, last 2 years)
63647 MB/s ∼100% +700%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
55995 MB/s ∼88% +604%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19354 MB/s ∼30% +143%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s ∼30% +143%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
7954 MB/s ∼12%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s ∼10% -20%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
5229 MB/s ∼8% -34%
AIDA64 / CPU ZLib
Average of class Mini PC
  (74.8 - 982, n=30, last 2 years)
498 MB/s ∼100% +565%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
294 MB/s ∼59% +293%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s ∼38% +151%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188 MB/s ∼38% +151%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
103.1 MB/s ∼21% +38%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
74.9 MB/s ∼15%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s ∼12% -19%
AIDA64 / FP64 Ray-Trace
Average of class Mini PC
  (308 - 8447, n=30, last 2 years)
4193 KRay/s ∼100% +918%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
2866 KRay/s ∼68% +596%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s ∼16% +64%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s ∼16% +64%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
505 KRay/s ∼12% +23%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
412 KRay/s ∼10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s ∼5% -48%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 44347, n=30, last 2 years)
23375 MPixel/s ∼100% +430%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
12524 MPixel/s ∼54% +184%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
12141 MPixel/s ∼52% +175%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s ∼42% +125%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7654 MPixel/s ∼33% +74%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
4408 MPixel/s ∼19%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s ∼11% -43%

Cinebench R15 Loop

TheIntel N95är mycket hanterbar under belastning, vilket kan ses i Cinebench R15-analysen av den kontinuerliga slingan. Resultaten var konsekventa i alla körningar. Endast den passivt kylda Newsmay AC8uppvisar små svagheter här. Som jämförelse kunde NiPoGi GK3 Plus N95 säkra andraplatsen med ett genomsnitt på 404 poäng.

03570105140175210245280315350385420455490525560595630665Tooltip
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)
Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)

Systemprestanda

Våra riktmärken för systemprestanda visade också på bra CPU-prestanda och vårt granskningssystem säkrade med säkerhet andraplatsen. MenNewsmay Neosmay S2med sina sex kärnor fick högre poäng i benchmark-testerna. Vi såg dock en helt annan bild när det gäller RAM-testerna. Den suboptimala RAM-konfigurationen tar ut sin rätt och som ett resultat av detta släpar NiPoGi GK3 Plus N95 långt efter jämförelseenheterna.

Performance Rating - Percent
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
100 pt ∼100%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
77.2 pt ∼77%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
65 pt ∼65%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
64.6 pt ∼65%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
64.4 pt ∼64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
62.4 pt ∼62%
PCMark 10
Score
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
3975 Points ∼100% +33%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
2983 Points ∼75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2548 Points ∼64% -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points ∼61% -19%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
2365 Points ∼59% -21%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2351 Points ∼59% -21%
Essentials
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
8679 Points ∼100% +31%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
6650 Points ∼77%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points ∼68% -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5679 Points ∼65% -15%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
5446 Points ∼63% -18%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
5425 Points ∼63% -18%
Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
5656 Points ∼100% +25%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
4524 Points ∼80%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
4056 Points ∼72% -10%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
3854 Points ∼68% -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points ∼65% -19%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3547 Points ∼63% -22%
CrossMark / Overall
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
1125 Points ∼100% +69%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
666 Points ∼59%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points ∼44% -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
481 Points ∼43% -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
473 Points ∼42% -29%
CrossMark / Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
1160 Points ∼100% +61%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
721 Points ∼62%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points ∼48% -23%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
535 Points ∼46% -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
518 Points ∼45% -28%
CrossMark / Creativity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
1094 Points ∼100% +78%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
616 Points ∼56%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
449 Points ∼41% -27%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
440 Points ∼40% -29%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points ∼40% -29%
CrossMark / Responsiveness
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
1113 Points ∼100% +68%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
661 Points ∼59%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points ∼45% -25%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
477 Points ∼43% -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
403 Points ∼36% -39%
AIDA64 / Memory Copy
Average of class Mini PC
  (6481 - 70620, n=30, last 2 years)
40062 MB/s ∼100% +518%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
28606 MB/s ∼71% +341%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 MB/s ∼55% +242%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
19209 MB/s ∼48% +196%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16422 MB/s ∼41% +153%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
6481 MB/s ∼16%
Average Intel Processor N95

6481 MB/s ∼16% 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s ∼16% -3%
AIDA64 / Memory Read
Average of class Mini PC
  (6914 - 65856, n=30, last 2 years)
40845 MB/s ∼100% +491%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
27412 MB/s ∼67% +296%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
20405 MB/s ∼50% +195%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16615 MB/s ∼41% +140%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
15464 MB/s ∼38% +124%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
6914 MB/s ∼17%
Average Intel Processor N95

6914 MB/s ∼17% 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s ∼16% -5%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 66047, n=30, last 2 years)
42379 MB/s ∼100% +518%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
31261 MB/s ∼74% +356%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30843 MB/s ∼73% +349%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
18659 MB/s ∼44% +172%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
18612 MB/s ∼44% +171%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s ∼16% 0%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
6862 MB/s ∼16%
Average Intel Processor N95

6862 MB/s ∼16% 0%
AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)
146 ns * ∼100%
Average Intel Processor N95

146 ns * ∼100% -0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * ∼99% +1%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
87.9 ns * ∼60% +40%
Average of class Mini PC
  (55.3 - 146, n=30, last 2 years)
85.3 ns * ∼58% +42%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
74.1 ns * ∼51% +49%
Newsmay Neosmay S2-B560TPM
Intel Core i5-11400T, UHD Graphics 730
69.7 ns * ∼48% +52%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
59.3 ns * ∼41% +59%

* ... smaller is better

PCMark 10 Score
2983 poäng
Hjälp

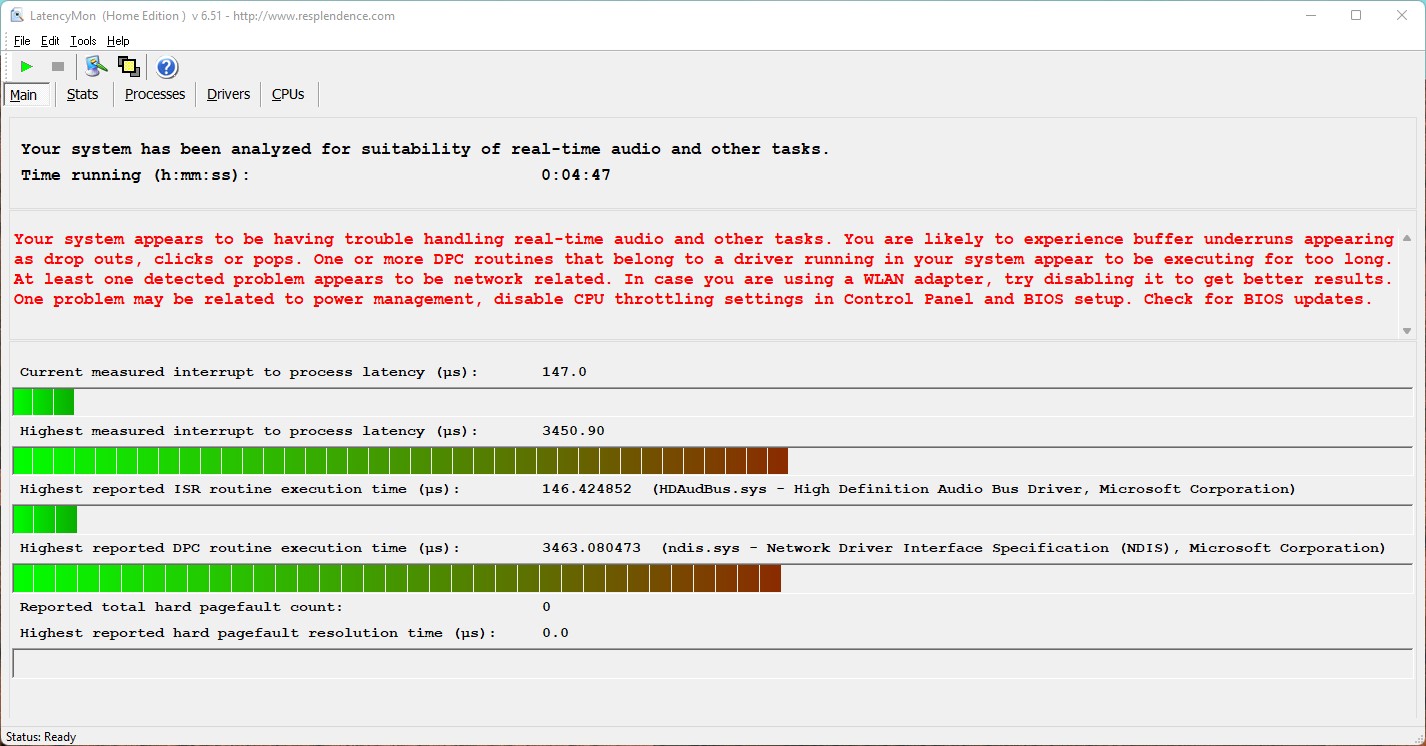

DPC-fördröjningar

NiPoGi GK3 Plus N95 uppvisade redan problem med latenstid när man öppnade flera flikar i webbläsaren Edge. Vår granskningsenhet hade ökande problem med att spela upp vår 4K-testvideo när SoC:n pressades till sina gränser. Detta gjorde att överhoppade ramar blev vardagsmat. SoC:s belastning var endast uthålligt mindre belastad efter att upplösningen minskades till 1080p och resulterade inte i några ytterligare hoppade ramar.

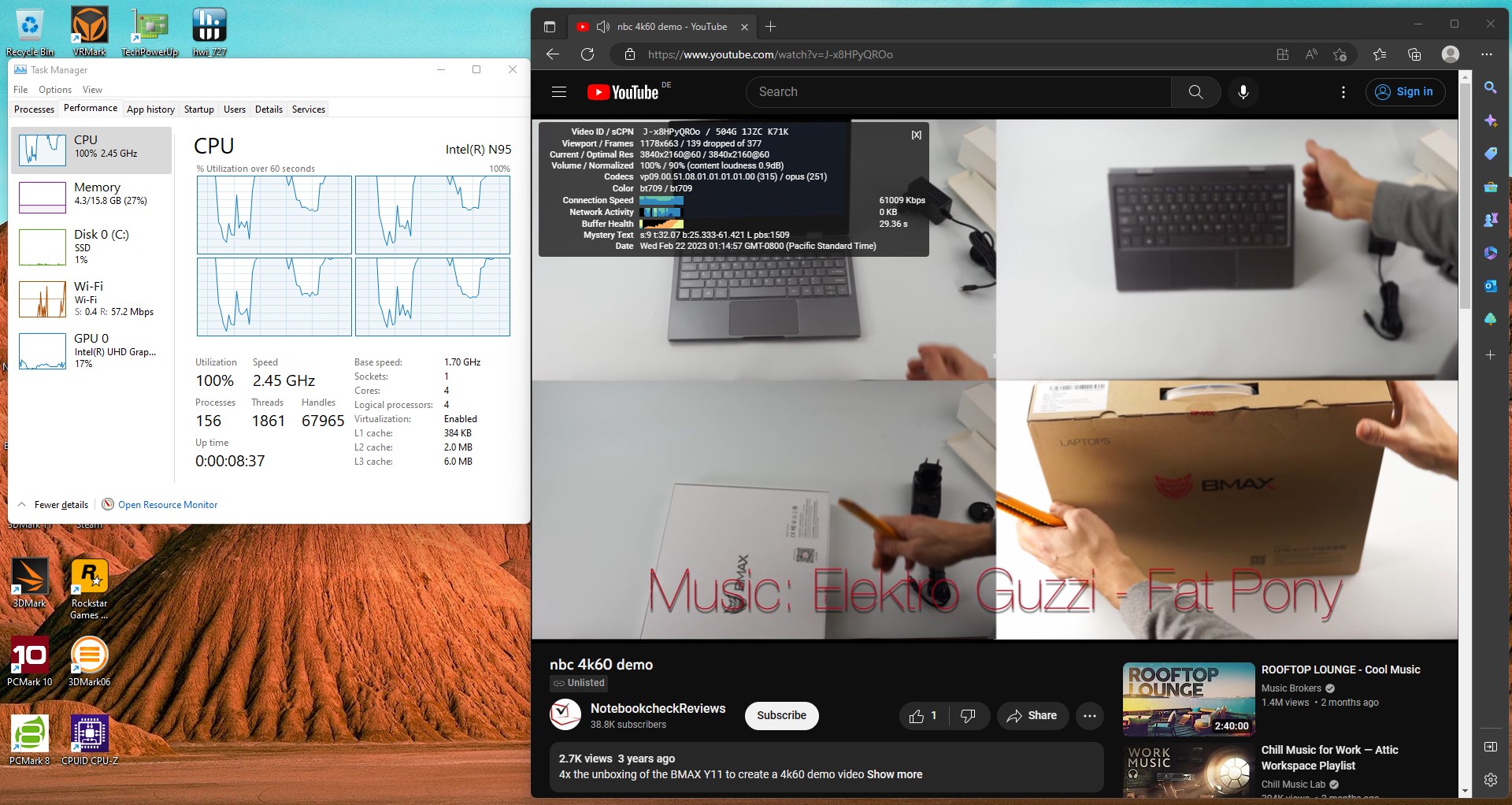

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latenstid efter tio sekunders Prime95
Maximal latenstid efter tio sekunders Prime95

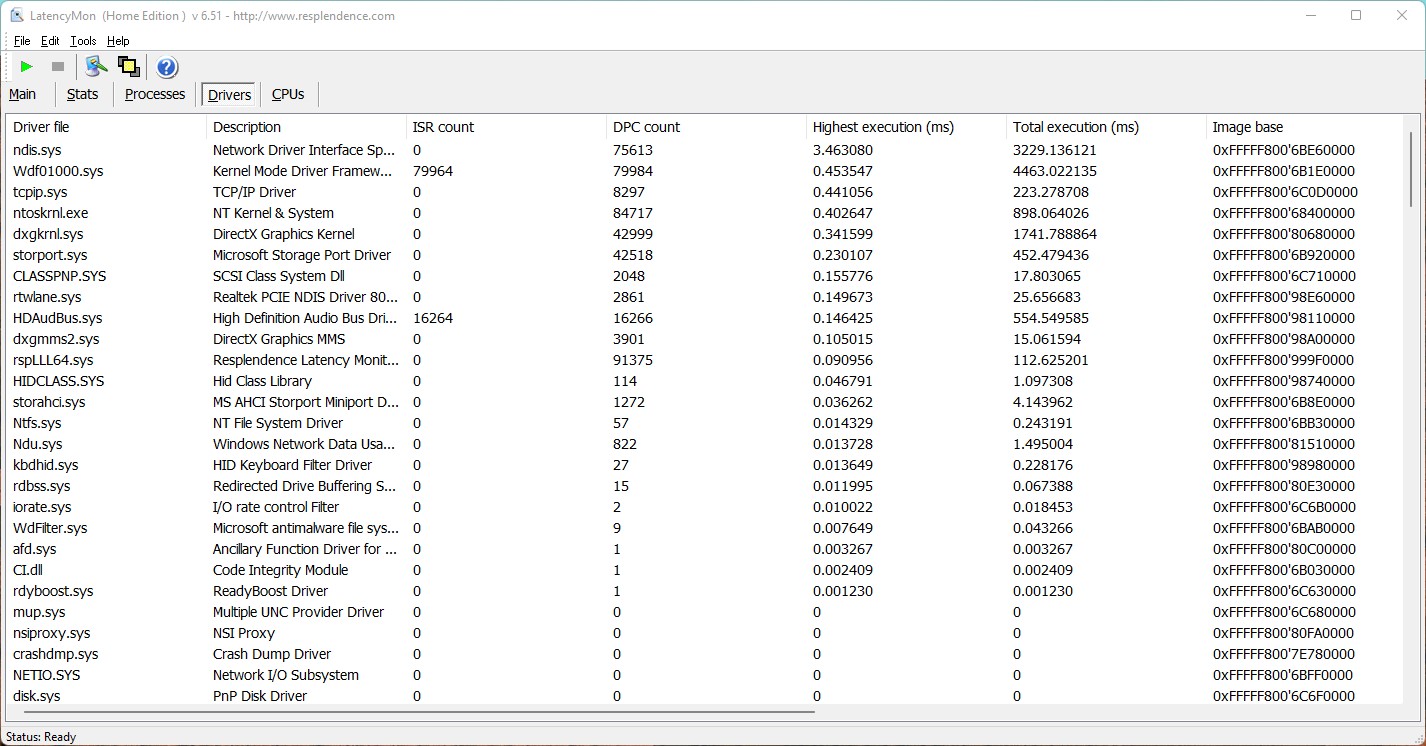

Förare rangordnade efter längsta körtid
Förare rangordnade efter längsta körtid
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs * ∼100% -18%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB
3463 μs * ∼85%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2635 μs * ∼65% +24%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T
Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB
1232.3 μs * ∼30% +64%
Nofflink M500-5405U, Intel Pentium Gold 5405U
Intel UHD Graphics 610, Qunion P20A NGFF 512GB
751.7 μs * ∼18% +78%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
687.3 μs * ∼17% +80%

* ... smaller is better

Masslagring

512 GB SSD
512 GB SSD

ANiPoGi GK3 Plus N95 innehåller en 512 GB SSD. Den installerade modellen använder dock endast SATA-hastighet och är därmed mycket sämre än snabbare NVMe-SSD:er. Tillverkaren är Kimtigo - ett företag som inte är så välkänt på dessa breddgrader. Som jämförelse levererar den modell som används här en tillräckligt solid prestanda för att säkra andraplatsen. Ytterligare ett 2,5-tumsfack är fortfarande ledigt, vilket innebär att NiPoGi GK3 Plus N95 kan rymma upp till två masslagringsenheter.

För ytterligare jämförelser och benchmarks, ta en titt på vår jämförelsetabell.

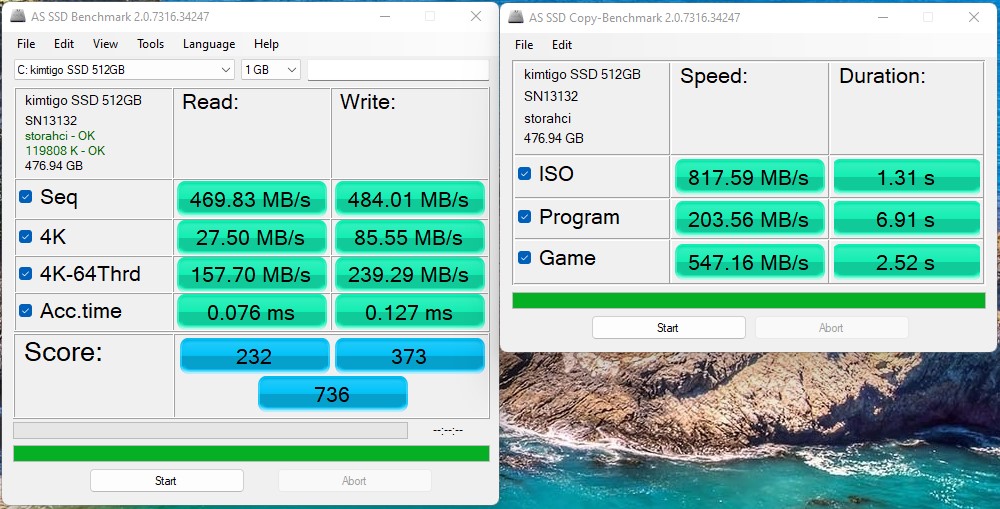

AS SSD
AS SSD

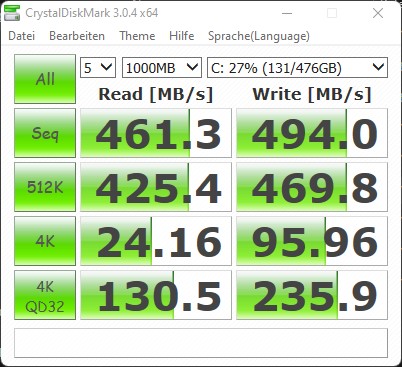

CDM 3
CDM 3

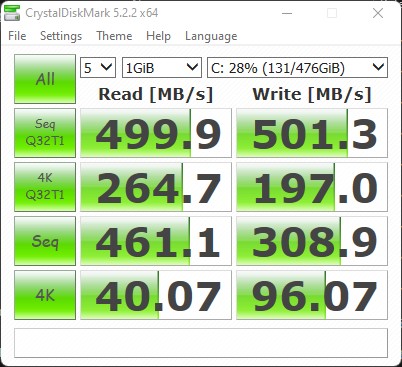

CDM 5
CDM 5

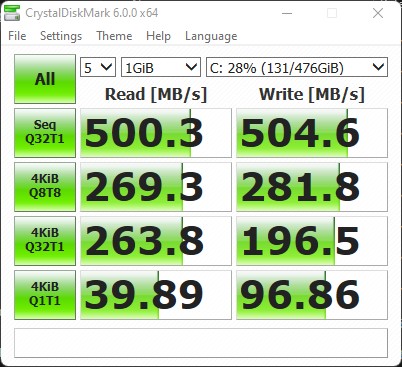

CDM 6
CDM 6

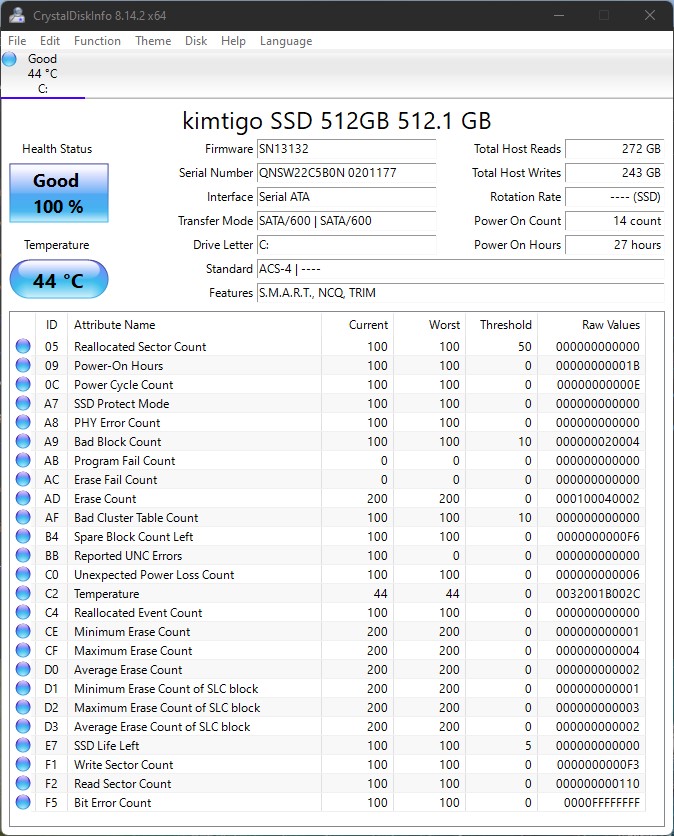

CDI
CDI
Kimtigo KTB900SM28/512GB
Sequential Read: 461.3 MB/s
Sequential Write: 494 MB/s
512K Read: 425.4 MB/s
512K Write: 469.8 MB/s
4K Read: 24.16 MB/s
4K Write: 95.96 MB/s
4K QD32 Read: 130.5 MB/s
4K QD32 Write: 235.9 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

90.8 pt ∼91%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
83.9 pt ∼84%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
31 pt ∼31%
Average Kimtigo KTB900SM28/512GB

31 pt ∼31%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
28.3 pt ∼28%
Newsmay AC8 N6005
Lexar 128GB SSD
27.6 pt ∼28%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
23.4 pt ∼23%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
17.1 pt ∼17%
DiskSpd
seq read
Average of class Mini PC
  (233 - 4168, n=29, last 2 years)
1879 MB/s ∼100% +309%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
802 (778.67min - 802.37max) MB/s ∼43% +75%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
517 (507.3min - 516.74max) MB/s ∼28% +13%
Newsmay AC8 N6005
Lexar 128GB SSD
511 (502.22min - 510.84max) MB/s ∼27% +11%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s ∼25% +3%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
459 (458.57min - 459.41max) MB/s ∼24%
Average Kimtigo KTB900SM28/512GB

459 MB/s ∼24% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
434 (226.49min - 434.29max) MB/s ∼23% -5%
seq write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
2380 (607.54min - 2380.06max) MB/s ∼100% +382%
Average of class Mini PC
  (222 - 3938, n=29, last 2 years)
1857 MB/s ∼78% +276%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
494 (488.92min - 494.36max) MB/s ∼21%
Average Kimtigo KTB900SM28/512GB

494 MB/s ∼21% 0%
Newsmay AC8 N6005
Lexar 128GB SSD
491 (445.91min - 491.36max) MB/s ∼21% -1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s ∼19% -6%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
428 (406.85min - 428.26max) MB/s ∼18% -13%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
409 (44.25min - 408.73max) MB/s ∼17% -17%
seq q8 t1 read
Average of class Mini PC
  (236 - 7061, n=29, last 2 years)
2779 MB/s ∼100% +451%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
2453 (2244.5min - 2453.25max) MB/s ∼88% +387%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s ∼20% +9%
Newsmay AC8 N6005
Lexar 128GB SSD
548 (494.87min - 547.82max) MB/s ∼20% +9%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
538 (487.24min - 538.13max) MB/s ∼19% +7%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
504 (458.23min - 504.4max) MB/s ∼18%
Average Kimtigo KTB900SM28/512GB

504 MB/s ∼18% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
447 (396.95min - 446.64max) MB/s ∼16% -11%
seq q8 t1 write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
2378 (615.51min - 2377.75max) MB/s ∼100% +358%
Average of class Mini PC
  (228 - 3938, n=29, last 2 years)
1993 MB/s ∼84% +284%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
519 (472.8min - 519.47max) MB/s ∼22%
Average Kimtigo KTB900SM28/512GB

519 MB/s ∼22% 0%
Newsmay AC8 N6005
Lexar 128GB SSD
515 (500.64min - 515.04max) MB/s ∼22% -1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s ∼20% -10%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
445 (424.04min - 444.81max) MB/s ∼19% -14%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
346 (118.46min - 345.82max) MB/s ∼15% -33%
4k q1 t1 read
Average of class Mini PC
  (5.67 - 86.6, n=29, last 2 years)
49.5 MB/s ∼100% +91%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
42.1 (41.43min - 42.13max) MB/s ∼85% +63%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s ∼68% +31%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
28.2 (26.65min - 28.17max) MB/s ∼57% +9%
Newsmay AC8 N6005
Lexar 128GB SSD
26.4 (25.68min - 26.38max) MB/s ∼53% +2%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
25.9 (25.82min - 25.85max) MB/s ∼52%
Average Kimtigo KTB900SM28/512GB

25.9 MB/s ∼52% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
12.9 (5.79min - 12.85max) MB/s ∼26% -50%
4k q1 t1 write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
195.3 (151.02min - 195.34max) MB/s ∼100% +103%
Average of class Mini PC
  (22 - 425, n=29, last 2 years)
184.5 MB/s ∼94% +92%
Newsmay AC8 N6005
Lexar 128GB SSD
99.8 (98.72min - 99.78max) MB/s ∼51% +4%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
96 (93.72min - 96.04max) MB/s ∼49%
Average Kimtigo KTB900SM28/512GB

96 MB/s ∼49% 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s ∼38% -23%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
45.2 (19.09min - 45.17max) MB/s ∼23% -53%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
22 (19.72min - 21.99max) MB/s ∼11% -77%
4k q32 t16 read
Average of class Mini PC
  (31 - 1948, n=29, last 2 years)
971 MB/s ∼100% +273%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
509 (301.38min - 508.59max) MB/s ∼52% +96%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s ∼27% +2%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
260 (259.46min - 259.7max) MB/s ∼27%
Average Kimtigo KTB900SM28/512GB

260 MB/s ∼27% 0%
Newsmay AC8 N6005
Lexar 128GB SSD
185 (183.89min - 185.03max) MB/s ∼19% -29%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
170.2 (157.55min - 170.17max) MB/s ∼18% -35%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
169.9 (165.74min - 169.94max) MB/s ∼17% -35%
4k q32 t16 write
Average of class Mini PC
  (30.2 - 3830, n=29, last 2 years)
1204 MB/s ∼100% +365%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
590 (520.84min - 590.29max) MB/s ∼49% +128%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s ∼26% +23%
Newsmay AC8 N6005
Lexar 128GB SSD
288 (244.64min - 287.66max) MB/s ∼24% +11%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
272 (255.67min - 271.76max) MB/s ∼23% +5%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
259 (224.2min - 258.97max) MB/s ∼22%
Average Kimtigo KTB900SM28/512GB

259 MB/s ∼22% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
168.3 (88.04min - 168.3max) MB/s ∼14% -35%
AS SSD
Score Total
Average of class Mini PC
  (151.3 - 8314, n=30, last 2 years)
3398 Points ∼100% +362%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
3347 Points ∼98% +355%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
736 Points ∼22%
Average Kimtigo KTB900SM28/512GB

736 Points ∼22% 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points ∼21% -5%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
688 Points ∼20% -7%
Newsmay AC8 N6005
Lexar 128GB SSD
604 Points ∼18% -18%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
151.3 (331.02min) Points ∼4% -79%
Score Read
Average of class Mini PC
  (61 - 2781, n=30, last 2 years)
1234 Points ∼100% +432%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
1068 Points ∼87% +360%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points ∼26% +38%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
232 Points ∼19%
Average Kimtigo KTB900SM28/512GB

232 Points ∼19% 0%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
230 Points ∼19% -1%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
217 Points ∼18% -6%
Newsmay AC8 N6005
Lexar 128GB SSD
134 Points ∼11% -42%
Score Write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
1717 Points ∼100% +360%
Average of class Mini PC
  (97 - 4185, n=30, last 2 years)
1594 Points ∼93% +327%
Newsmay AC8 N6005
Lexar 128GB SSD
396 Points ∼23% +6%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
373 Points ∼22%
Average Kimtigo KTB900SM28/512GB

373 Points ∼22% 0%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
334 Points ∼19% -10%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
312 Points ∼18% -16%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points ∼12% -44%
Seq Read
Average of class Mini PC
  (305 - 5799, n=30, last 2 years)
2521 MB/s ∼100% +436%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
2203.6 MB/s ∼87% +369%
Newsmay AC8 N6005
Lexar 128GB SSD
512 MB/s ∼20% +9%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
494.9 MB/s ∼20% +5%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s ∼19% +4%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
470 MB/s ∼19%
Average Kimtigo KTB900SM28/512GB

470 MB/s ∼19% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
433 MB/s ∼17% -8%
Seq Write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
2189.3 MB/s ∼100% +352%
Average of class Mini PC
  (240 - 3737, n=30, last 2 years)
1776 MB/s ∼81% +267%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
484 MB/s ∼22%
Average Kimtigo KTB900SM28/512GB

484 MB/s ∼22% 0%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
431.8 MB/s ∼20% -11%
Newsmay AC8 N6005
Lexar 128GB SSD
411.6 MB/s ∼19% -15%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
385 MB/s ∼18% -20%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s ∼16% -29%
4K Read
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
56.28 MB/s ∼100% +105%
Average of class Mini PC
  (6.08 - 103.7, n=30, last 2 years)
52.1 MB/s ∼93% +89%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s ∼63% +29%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
27.5 MB/s ∼49%
Average Kimtigo KTB900SM28/512GB

27.5 MB/s ∼49% 0%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
25.8 MB/s ∼46% -6%
Newsmay AC8 N6005
Lexar 128GB SSD
23.29 MB/s ∼41% -15%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
16.2 MB/s ∼29% -41%
4K Write
Average of class Mini PC
  (33.7 - 366, n=30, last 2 years)
163.5 MB/s ∼100% +91%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
119.31 MB/s ∼73% +39%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
85.6 MB/s ∼52%
Average Kimtigo KTB900SM28/512GB

85.6 MB/s ∼52% 0%
Newsmay AC8 N6005
Lexar 128GB SSD
83 MB/s ∼51% -3%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
59.78 MB/s ∼37% -30%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s ∼23% -56%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
36.63 MB/s ∼22% -57%
4K-64 Read
Average of class Mini PC
  (24.7 - 2148, n=30, last 2 years)
930 MB/s ∼100% +490%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
791.75 MB/s ∼85% +402%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s ∼25% +49%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
157.7 MB/s ∼17%
Average Kimtigo KTB900SM28/512GB

157.7 MB/s ∼17% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
157.18 MB/s ∼17% 0%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
154.49 MB/s ∼17% -2%
Newsmay AC8 N6005
Lexar 128GB SSD
59.4 MB/s ∼6% -62%
4K-64 Write
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
1378.5 MB/s ∼100% +477%
Average of class Mini PC
  (39.4 - 3598, n=30, last 2 years)
1253 MB/s ∼91% +424%
Newsmay AC8 N6005
Lexar 128GB SSD
272.3 MB/s ∼20% +14%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
239 MB/s ∼17%
Average Kimtigo KTB900SM28/512GB

239 MB/s ∼17% 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
237.24 MB/s ∼17% -1%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
231.08 MB/s ∼17% -3%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s ∼10% -43%
Access Time Read
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.205 ms * ∼100% -170%
Nofflink M500-5405U
Qunion P20A NGFF 512GB
0.15 ms * ∼73% -97%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms * ∼72% -95%
Newsmay AC8 N6005
Lexar 128GB SSD
0.139 ms * ∼68% -83%
Average of class Mini PC
  (0.022 - 0.237, n=30, last 2 years)
0.09923 ms * ∼48% -31%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.076 ms * ∼37%
Average Kimtigo KTB900SM28/512GB

0.076 ms * ∼37% -0%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
0.035 ms * ∼17% +54%
Access Time Write
Nofflink M500-5405U
Qunion P20A NGFF 512GB
0.267 ms * ∼100% -110%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.203 ms * ∼76% -60%
Newsmay AC8 N6005
Lexar 128GB SSD
0.145 ms * ∼54% -14%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms * ∼49% -4%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.127 ms * ∼48%
Average Kimtigo KTB900SM28/512GB

0.127 ms * ∼48% -0%
Average of class Mini PC
  (0.017 - 0.582, n=30, last 2 years)
0.1096 ms * ∼41% +14%
Newsmay Neosmay S2-B560TPM
Lexar NM610 500GB
0.1 ms * ∼37% +21%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540
