Asus ExpertBook B5 Flip OLED i en recension: bärbar 2-i-1-dator med Active Stylus och bra körtider

Matt pekskärm. Flaggskeppet i B5 Flip är en stor, matt 16-tums OLED-pekskärm i ett arbetsvänligt 16:10-format (3 840 x 2 400 pixlar). Med Intels Arc-A350M GPU finns en relativt ny, hittills sällan påträffad grafikkärna på instegsnivå ombord.

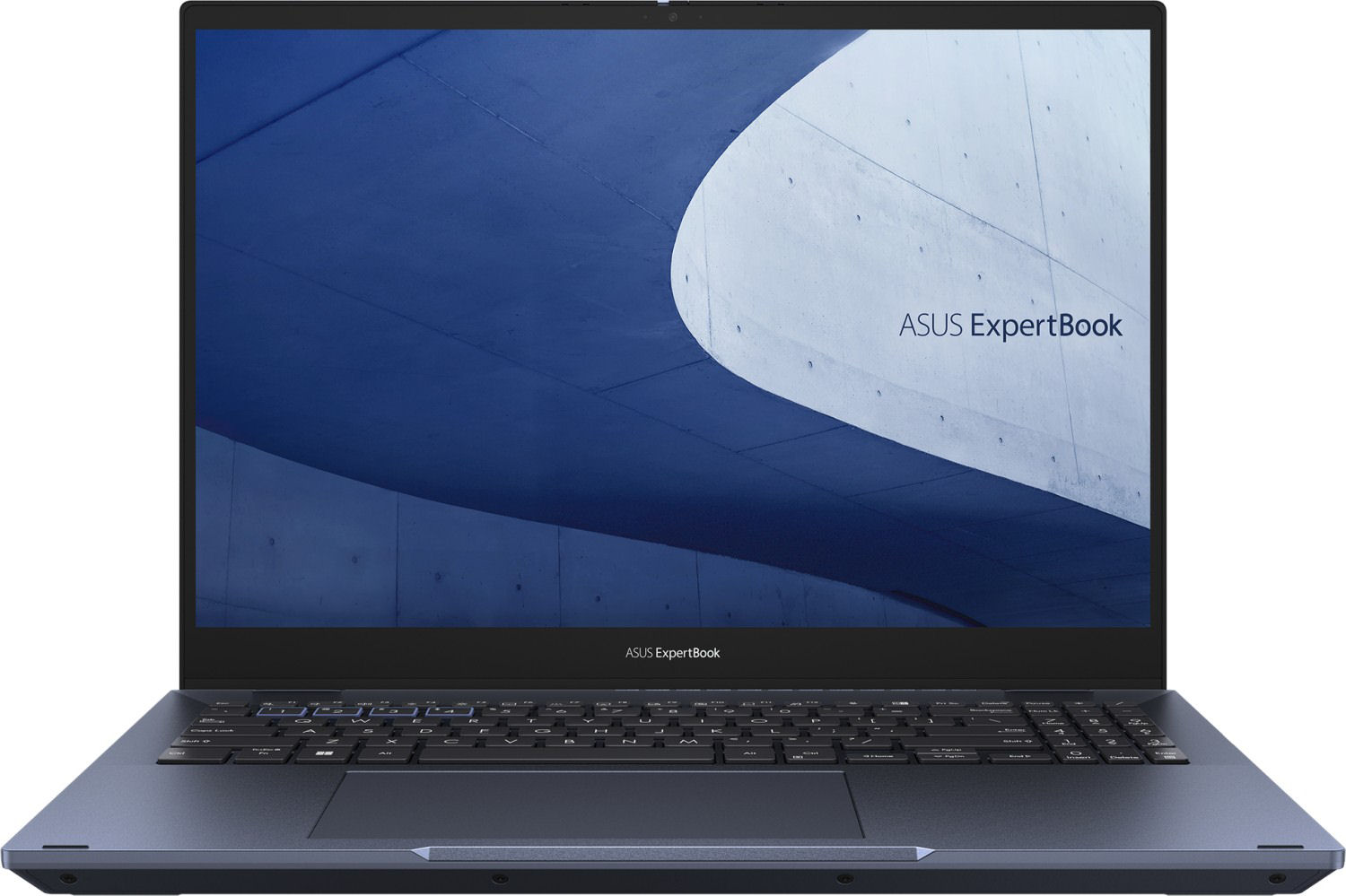

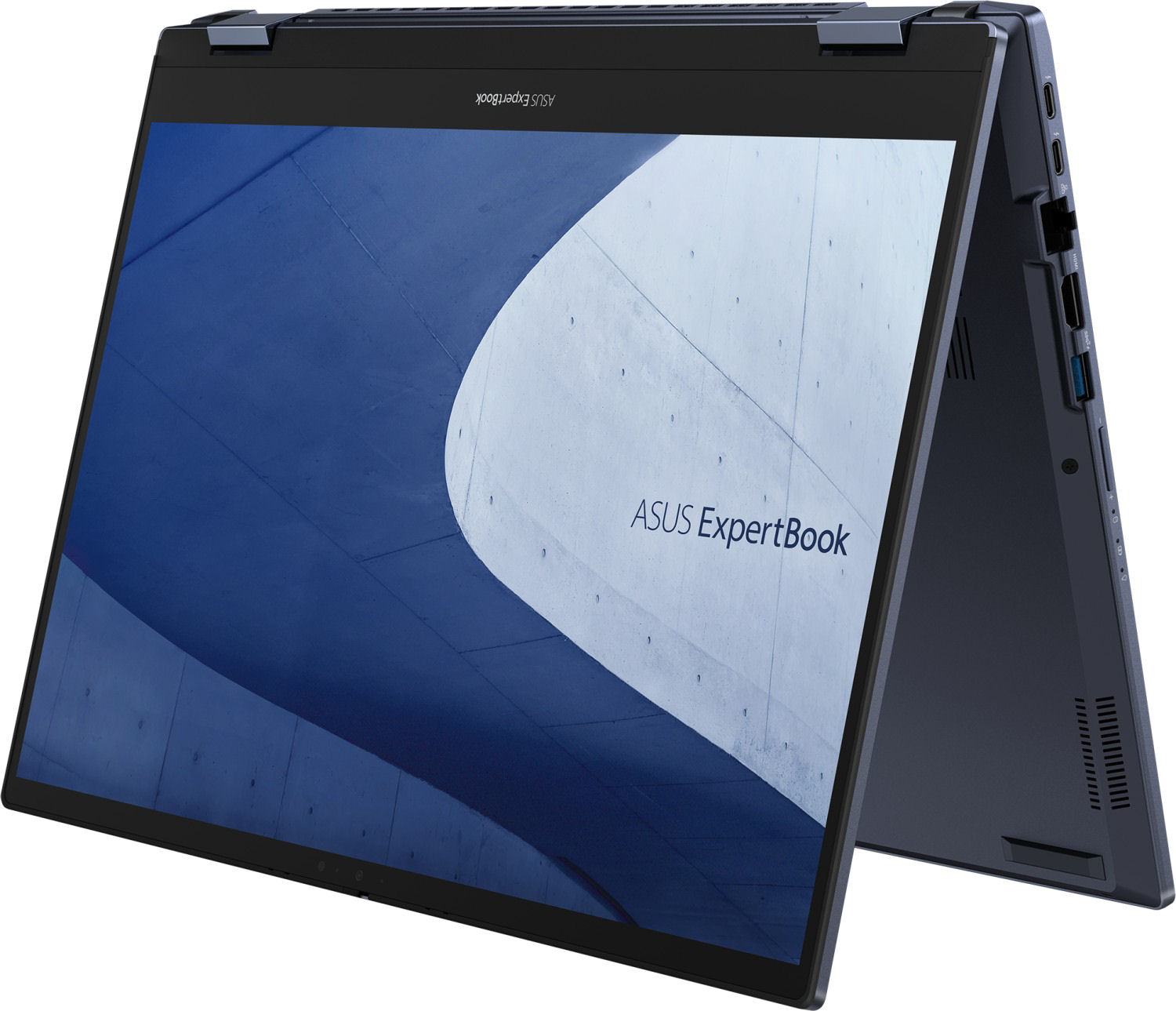

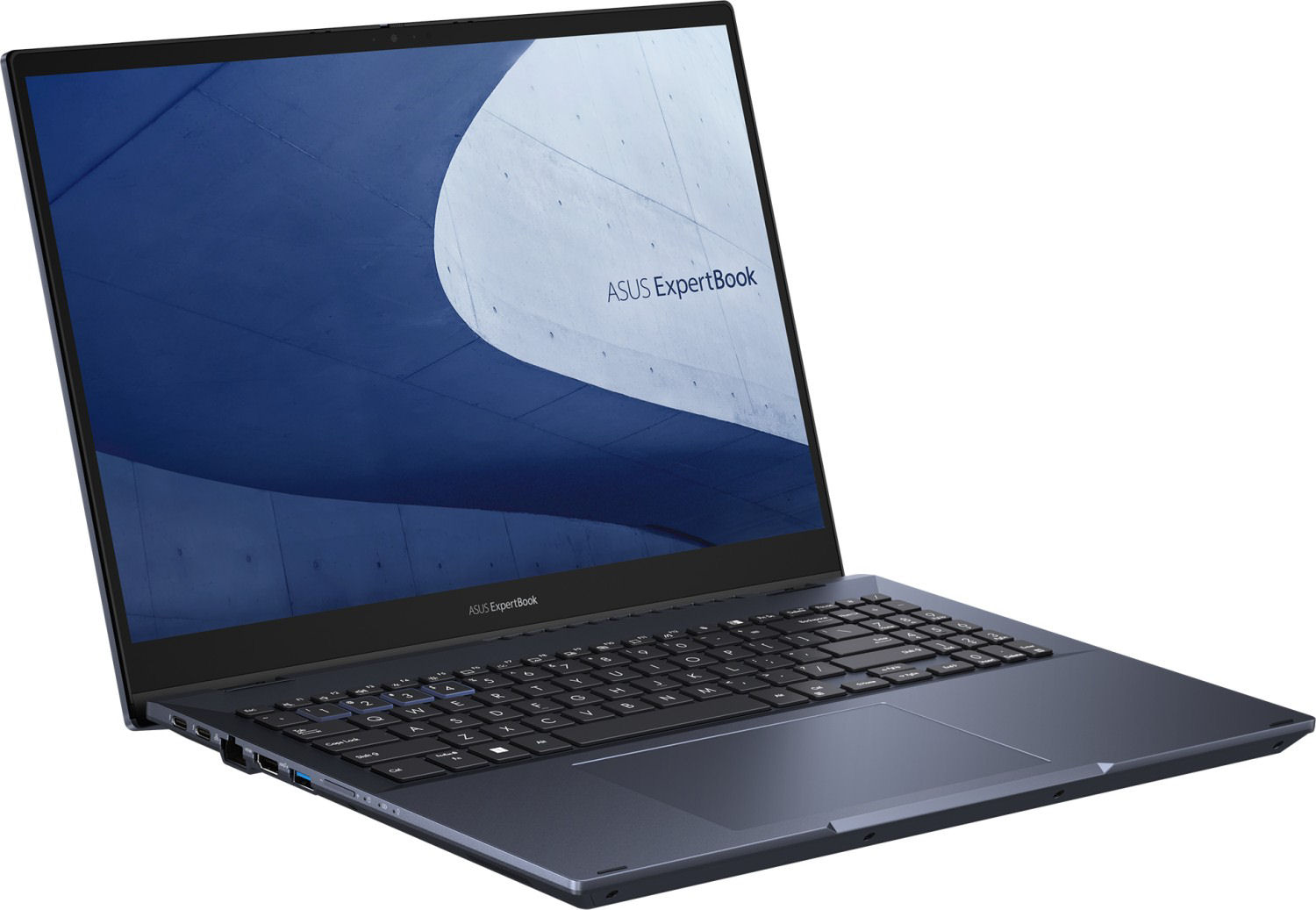

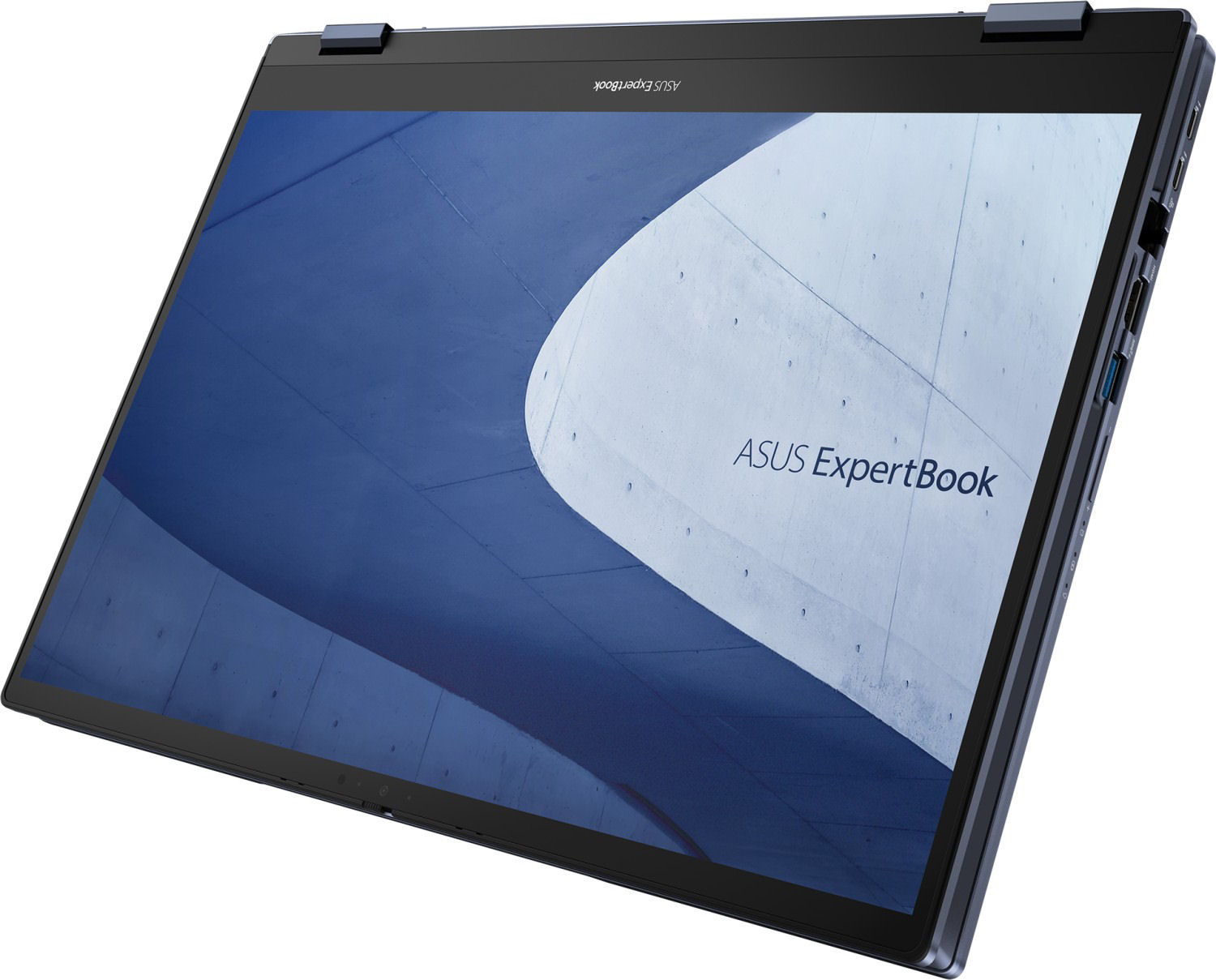

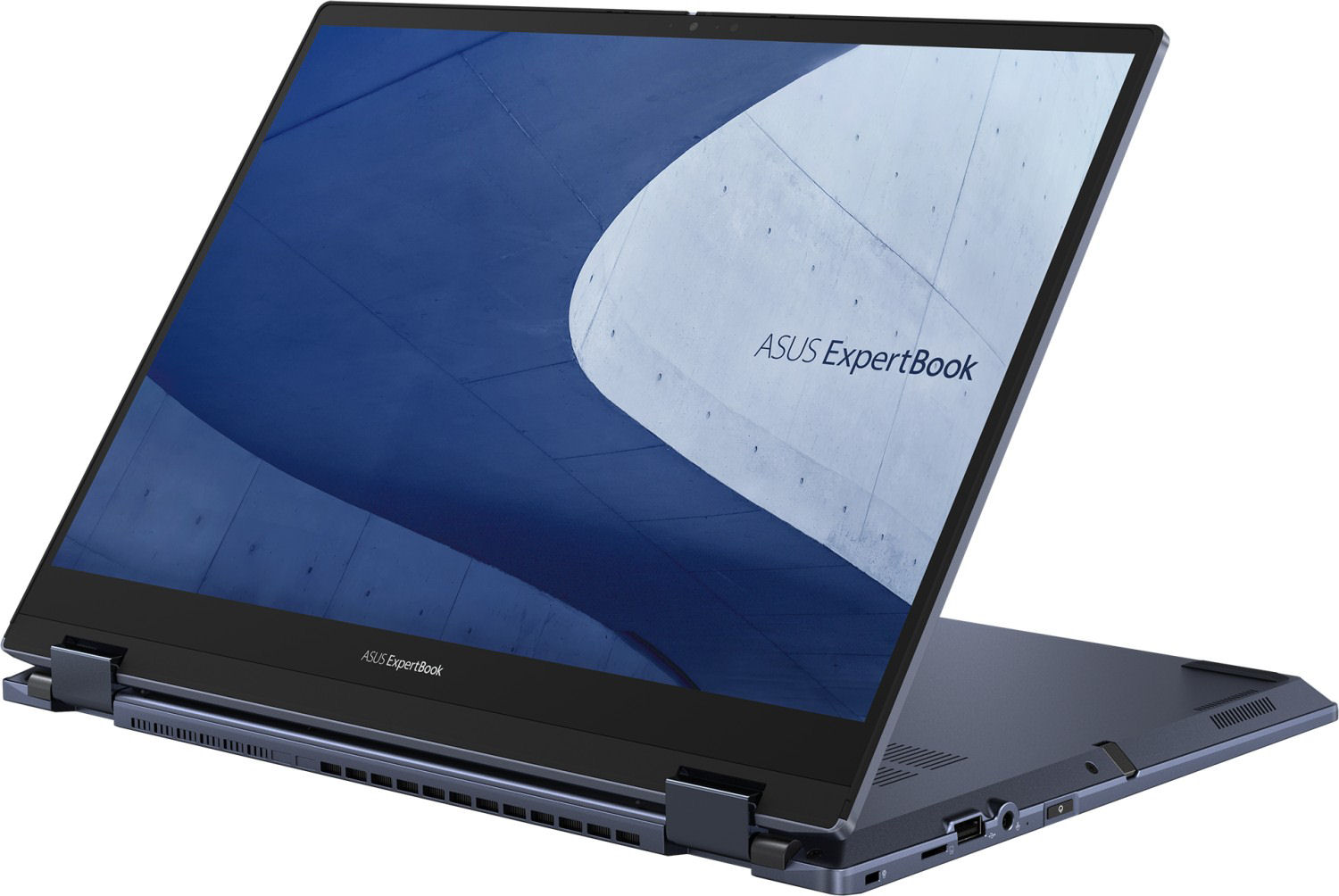

Asus ExpertBook B5 Flip OLED - en bärbar 2-i-1-bok från affärssegmentet - drivs av en Core i5-1260PcPU och en Arc-A350MgPU - båda komponenterna kommer från Intel. Positivt: Den konvertibla 16-tumsdatorn levereras med en Active Stylus som förvaras och laddas i basenheten. I konkurrensen ingår enheter som t.ex HP Spectre x360 16, den Lenovo Yoga 7 16IAP7och MSI Summit E16 Flip.

Asus ExpertBook B5 Flip B5602FBN (ExpertBook B5 Flip Serie)
Processor
Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 64 W PL2 / Short Burst, 35 W PL1 / Sustained, Alder Lake-P
Grafikkort
Intel Arc A350M - 4 GB VRAM, Kärna: 2200 MHz, Minne: 1750 MHz, GDDR6, 31.0.101.4091, yes
Minne
16 GB

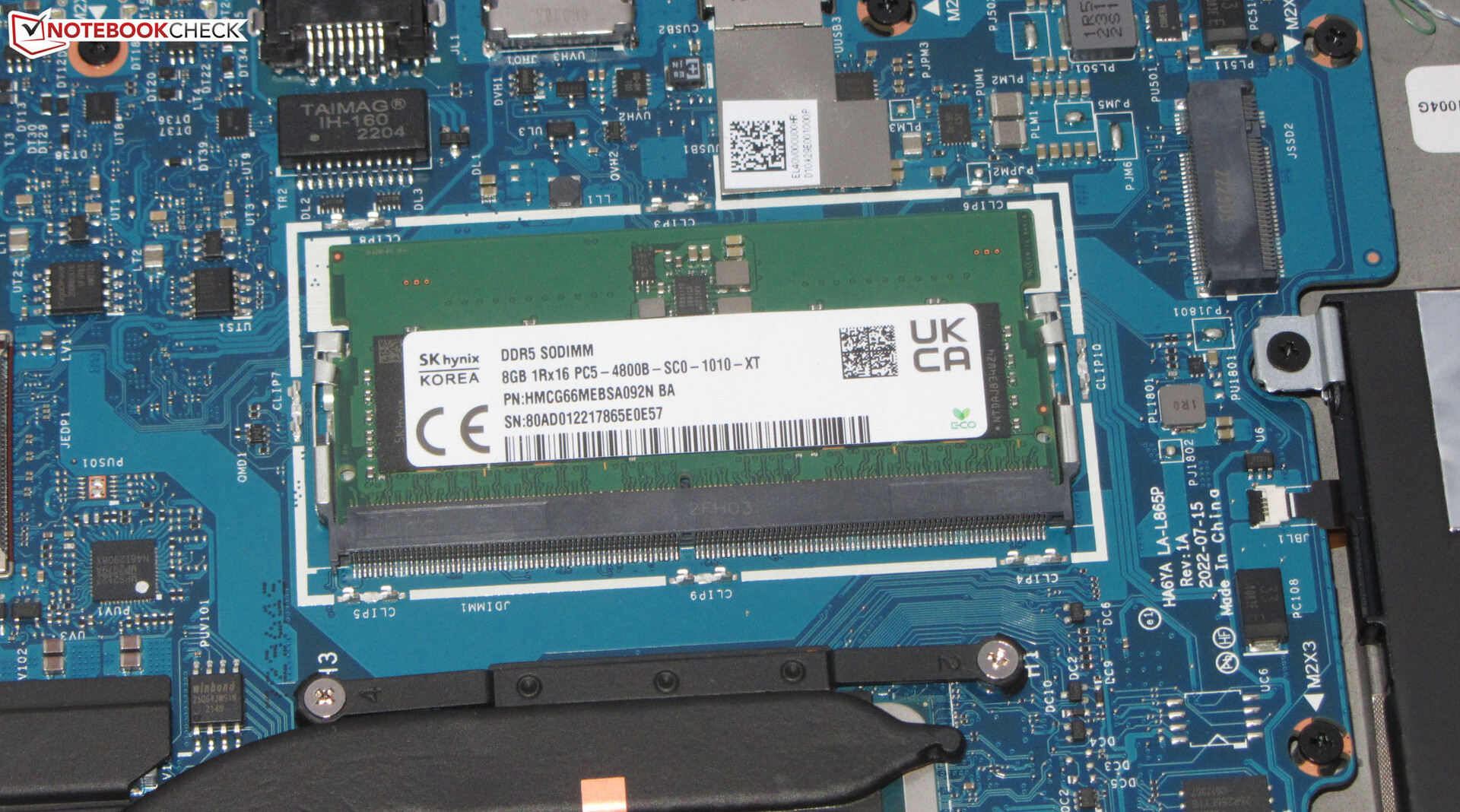

, DDR5-4800, Dual-Channel-Mode, one memory slot (in use), 8 GB onboard
Skärm
16.00 tum 16:10, 3840 x 2400 pixlar 283 PPI, capacitive, 10 Touchpoints, native pen support, Samsung ATNA60YV02-0, OLED, glansig: nej, 60 Hz
Moderkort
Intel Alder Lake-P PCH
Hårddisk
WD PC SN735 SDBPNHH-1T00, 1024 GB
, 898 GB ledigt
Anslutningar
1 USB 2.0, 3 USB 3.1 Gen2, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: Headset combined port, Kortläsare: MicroSD, 1 Fingeravtrycksläsare, Sensorer: Beschleunigungssensor, eCompass, Gyroskop, TPM 2.0
Nätverk
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.1
Storlek
höjd x bredd x djup (i mm) 19.9 x 358.2 x 261.2

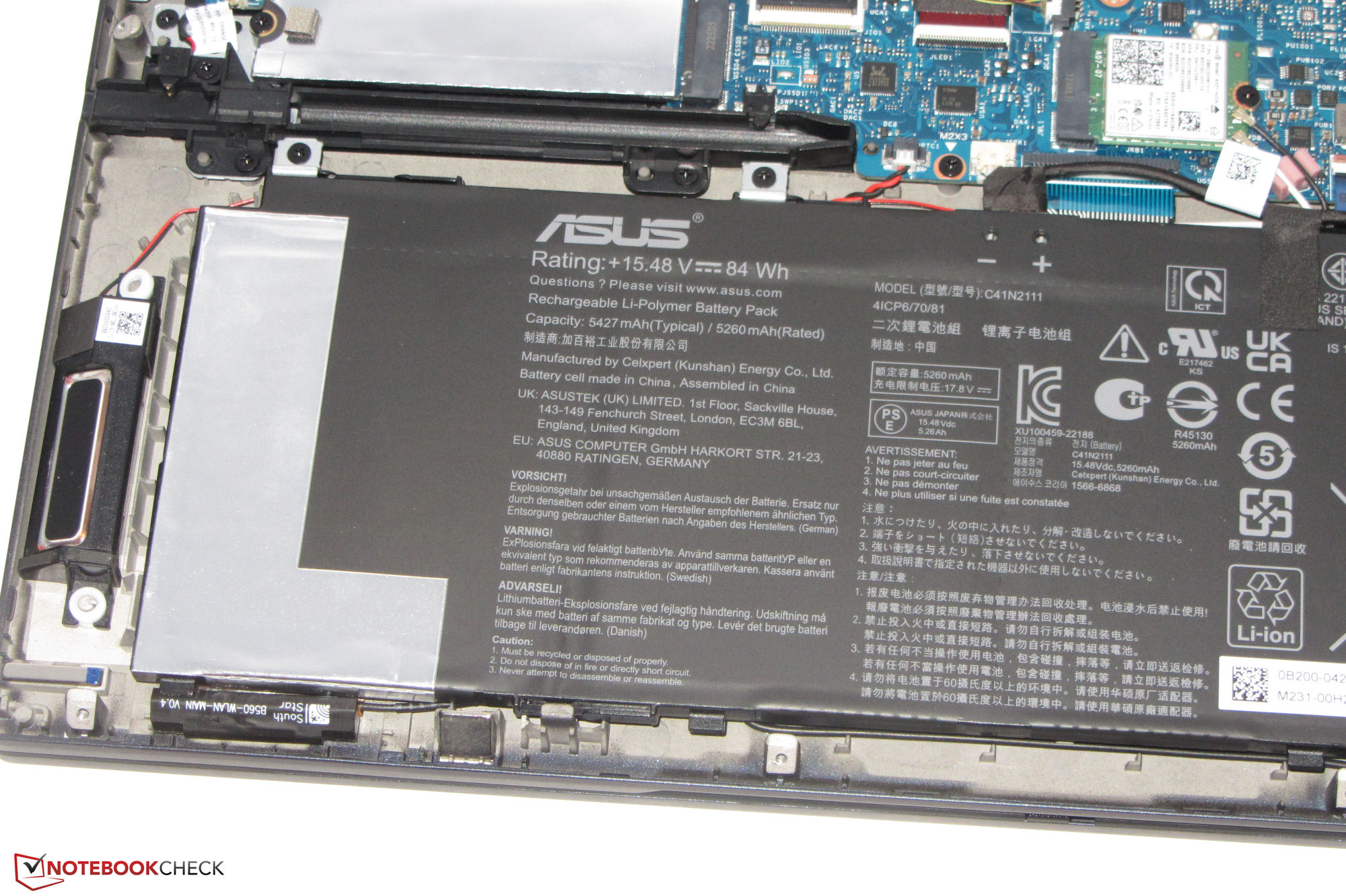

Batteri
84 Wh, 5427 mAh Litiumpolymer
Operativsystem
Microsoft Windows 11 Pro
Camera
Webbkamera: FHD
Primary Camera: 2.1 MPix
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, Stylus, Microsoft 365 (Trial), Microsoft OneNote (Trial), 24 Månader Garanti
Vikt
1.8 kg, Strömförsörjning: 374 g
Pris
2199 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potentiella konkurrenter i jämförelse

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86.5 %
03/2023
Asus ExpertBook B5 Flip B5602FBN
i7-1260P, A350M
1.8 kg19.9 mm16.00"3840x2400
88.7 %
08/2022
Lenovo Yoga 7 16IAP7
i7-1260P, Iris Xe G7 96EUs
2 kg19.2 mm16.00"2560x1600
87.3 %
01/2023
HP Spectre x360 2-in-1 16-f1075ng
i7-12700H, Iris Xe G7 96EUs
2 kg19.9 mm16.00"3072x1920
84.2 %
10/2022
MSI Summit E16 Flip A12UDT-031
i7-1280P, GeForce RTX 3050 Ti Laptop GPU
1.9 kg16.85 mm16.00"2560x1600

Väska och utrustning - konvertibel för företag erbjuder Thunderbolt 4

Den ganska lätta bärbara datorn (ca 1,8 kg) uppvisar inga tillverkningsfel. Locket och basenheten kan vridas lite - det hela är helt inom ramarna. Inre delarna är åtkomliga efter att man tagit bort basenheten. Asus förlitar sig på ett mattsvart metallchassi med matta ytor.

B5 erbjuder två USB-A-portar (1x USB 3.2 Gen 2, 1x USB 2.0) och två USB-C-portar (2x Thunderbolt 4; Power Delivery, Displayport). Upp till 3 externa bildskärmar (1x HDMI, 2x DP) kan anslutas. MicroSD-minneskortläsaren (referenskort: AV PRO microSD 128 GB V60) är en av de långsamma modellerna. Bra: Webbkameran (2,1 MP, max. 1 920 x 1 080 pixlar) har ett mekaniskt skydd.

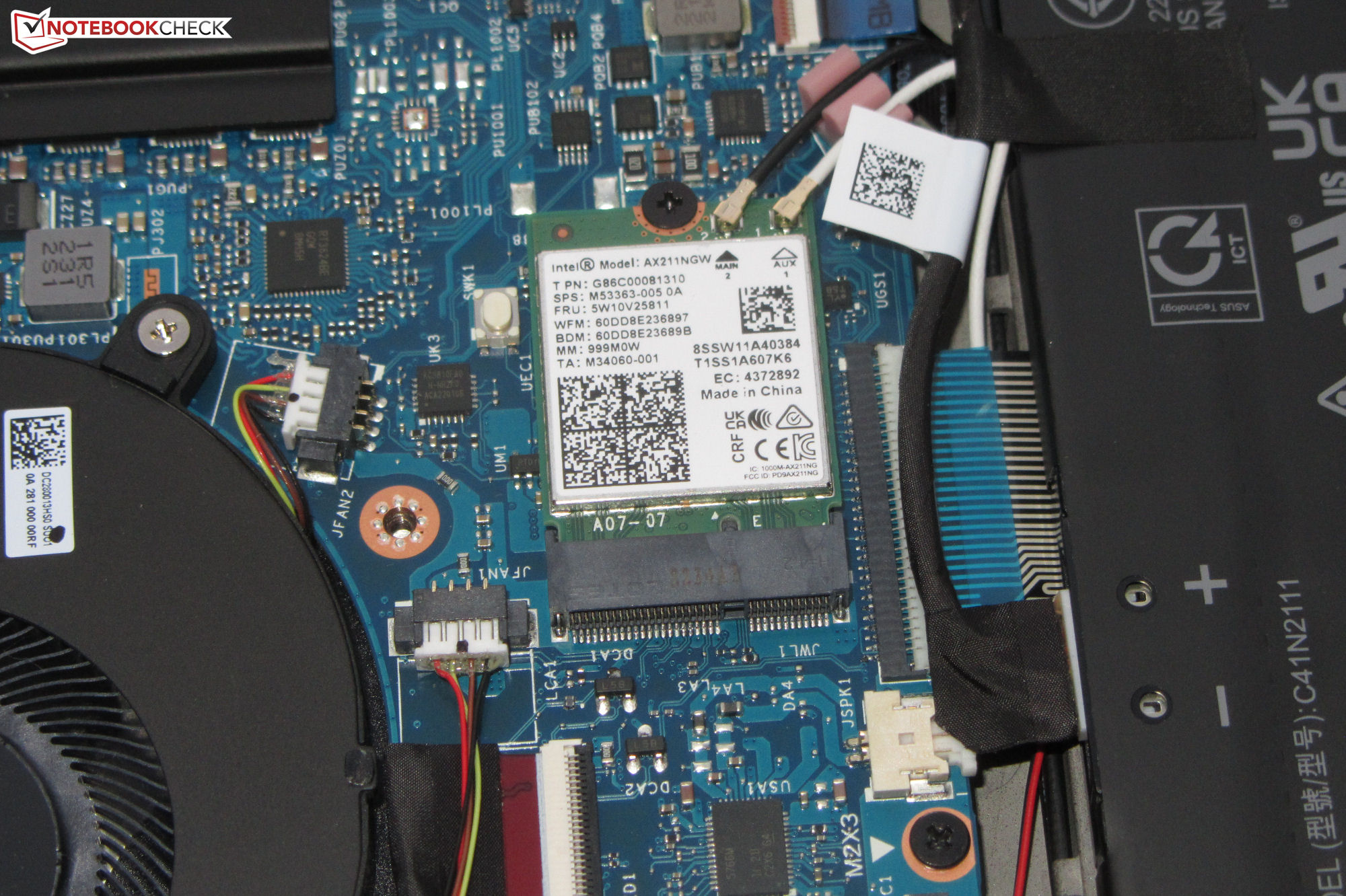

WLAN-överföringshastigheterna som bestämts under optimala förhållanden (inga andra WLAN-enheter i närheten, kort avstånd mellan bärbar dator och serverdator) visar sig vara utmärkta.

Storleksjämförelse

361.51 mm 249.65 mm 19.2 mm 2 kg358.2 mm 261.2 mm 19.9 mm 1.8 kg358 mm 245.3 mm 19.9 mm 2 kg358 mm 258.6 mm 16.85 mm 1.9 kg297 mm 210 mm 1 mm 5.7 g

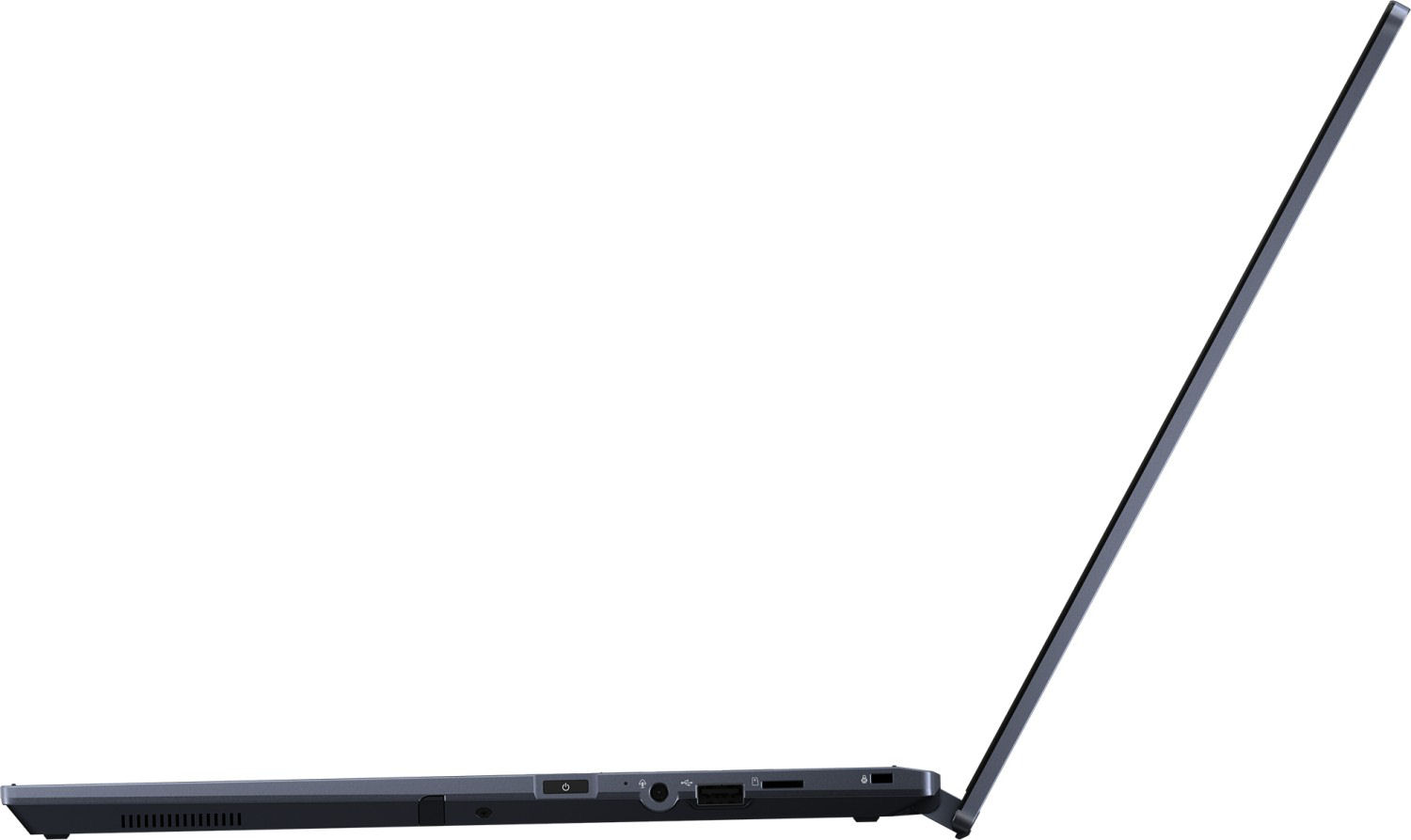

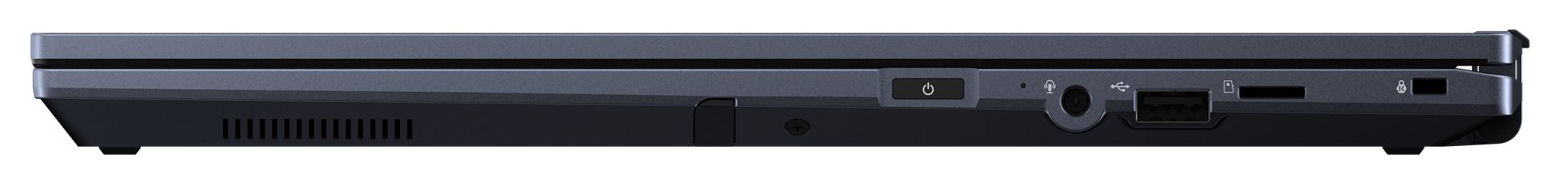

Höger sida: Aktiv stil, strömbrytare, ljudkombination, USB 2.0 (USB-A), minneskortläsare (MicroSD), plats för ett kabellås
Höger sida: Aktiv stil, strömbrytare, ljudkombination, USB 2.0 (USB-A), minneskortläsare (MicroSD), plats för ett kabellås

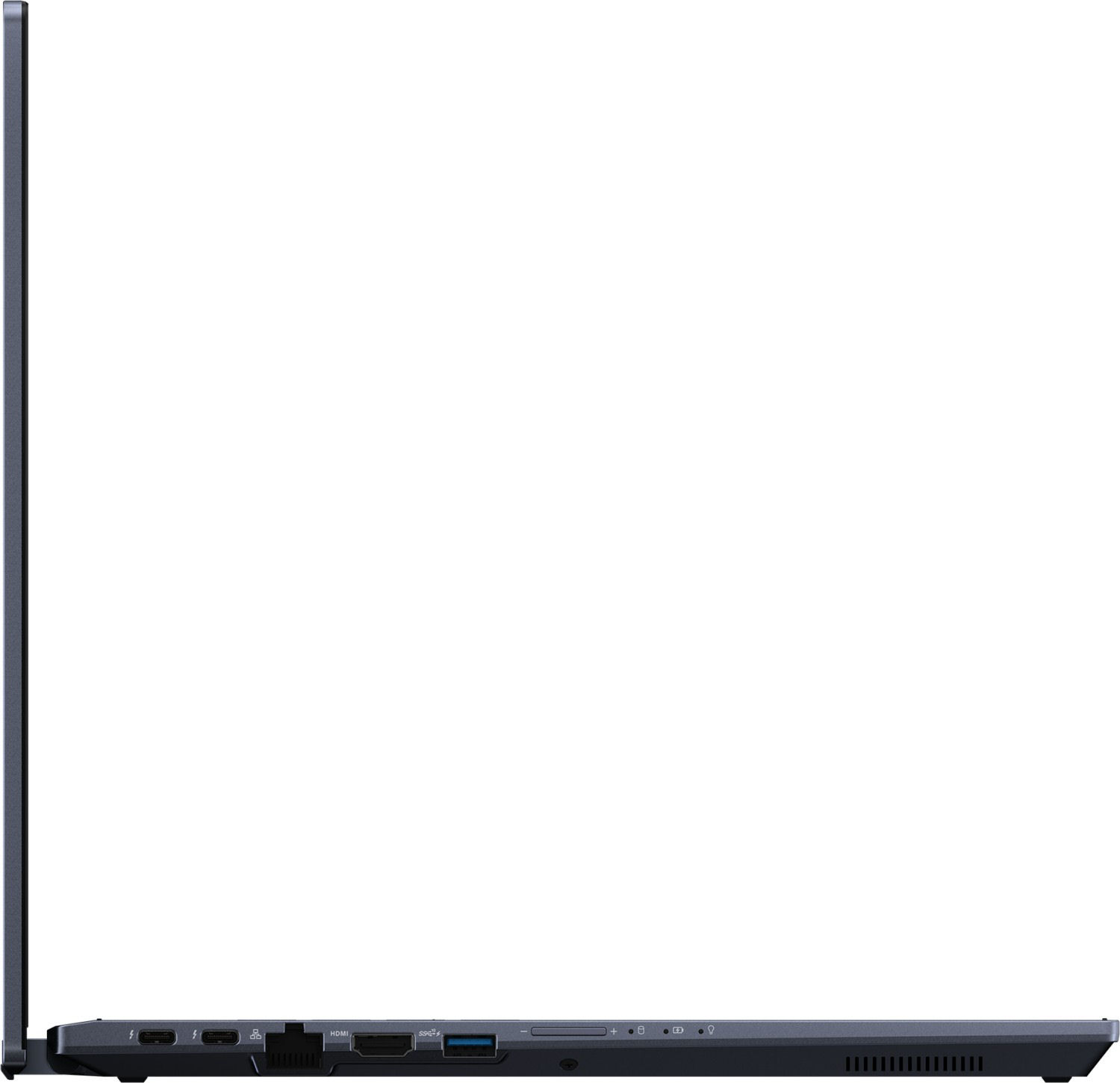

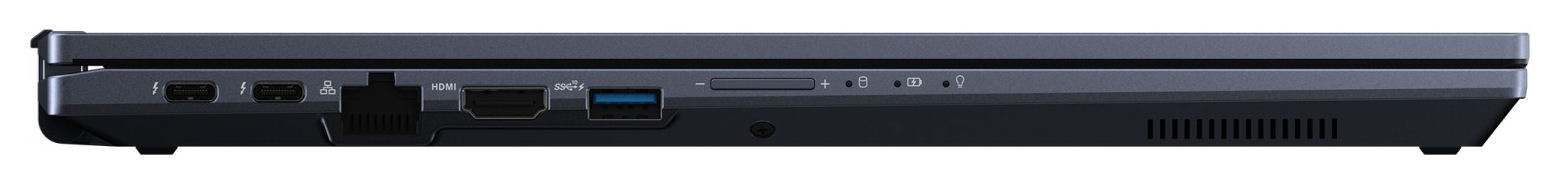

Vänster sida: 2x Thunderbolt 4 (USB-C; Power Delivery, Displayport), Gigabit Ethernet, HDMI, USB 3.2 Gen 2 (USB-A), volymknapp
Vänster sida: 2x Thunderbolt 4 (USB-C; Power Delivery, Displayport), Gigabit Ethernet, HDMI, USB 3.2 Gen 2 (USB-A), volymknapp
SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P (AV Pro SD microSD 128 GB V60)
177.7 MB/s +904%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
136 MB/s +668%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P (Toshiba Exceria Pro SDXC 64 GB UHS-II)
84.7 MB/s +379%
Average of class Convertible
  (17.7 - 177.7, n=37, last 2 years)
73.9 MB/s +318%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)
17.7 MB/s
maximum AS SSD Seq Read Test (1GB)
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P (AV Pro SD microSD 128 GB V60)
173.2 MB/s +546%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
161 MB/s +501%
Average of class Convertible
  (22.6 - 263, n=35, last 2 years)
94.9 MB/s +254%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P (Toshiba Exceria Pro SDXC 64 GB UHS-II)
89.7 MB/s +235%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P (AV Pro SD microSD 128 GB V60)
26.8 MB/s
Networking
iperf3 transmit AXE11000
MSI Summit E16 Flip A12UDT-031
Killer Wi-Fi 6E AX1675i 160MHz Wireless Network Adapter
1347 (1110min - 1403max) MBit/s
Average Intel Wi-Fi 6E AX211
  (464 - 1861, n=175)
1253 MBit/s
Average of class Convertible
  (426 - 1711, n=41, last 2 years)
1147 MBit/s
HP Spectre x360 2-in-1 16-f1075ng
Intel Wi-Fi 6E AX211
964 (863min - 1044max) MBit/s
iperf3 receive AXE11000
HP Spectre x360 2-in-1 16-f1075ng
Intel Wi-Fi 6E AX211
1532 (1427min - 1569max) MBit/s
MSI Summit E16 Flip A12UDT-031
Killer Wi-Fi 6E AX1675i 160MHz Wireless Network Adapter
1526 (846min - 1719max) MBit/s
Average Intel Wi-Fi 6E AX211
  (582 - 1890, n=175)
1397 MBit/s
Average of class Convertible
  (680 - 1730, n=41, last 2 years)
1289 MBit/s
iperf3 transmit AXE11000 6GHz
HP Spectre x360 2-in-1 16-f1075ng
Intel Wi-Fi 6E AX211
1623 (1482min - 1674max) MBit/s +5%
Asus ExpertBook B5 Flip B5602FBN
Intel Wi-Fi 6E AX211
1548 (1461min - 1613max) MBit/s
Average Intel Wi-Fi 6E AX211
  (632 - 1851, n=167)
1379 MBit/s -11%
Average of class Convertible
  (723 - 1775, n=41, last 2 years)
1347 MBit/s -13%
Lenovo Yoga 7 16IAP7
Intel Wi-Fi 6E AX211
1195 (1118min - 1252max) MBit/s -23%
iperf3 receive AXE11000 6GHz
Asus ExpertBook B5 Flip B5602FBN
Intel Wi-Fi 6E AX211
1629 (1558min - 1653max) MBit/s
HP Spectre x360 2-in-1 16-f1075ng
Intel Wi-Fi 6E AX211
1536 (1436min - 1555max) MBit/s -6%
Average Intel Wi-Fi 6E AX211
  (883 - 1857, n=166)
1492 MBit/s -8%
Average of class Convertible
  (860 - 1771, n=41, last 2 years)
1432 MBit/s -12%
Lenovo Yoga 7 16IAP7
Intel Wi-Fi 6E AX211
1420 (1373min - 1468max) MBit/s -13%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Asus ExpertBook B5 Flip B5602FBN Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1548 (1461-1613)
Lenovo Yoga 7 16IAP7 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1195 (1118-1252)
HP Spectre x360 2-in-1 16-f1075ng Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1623 (1482-1674)
Asus ExpertBook B5 Flip B5602FBN Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1629 (1558-1653)
Lenovo Yoga 7 16IAP7 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1420 (1373-1468)
HP Spectre x360 2-in-1 16-f1075ng Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1536 (1436-1555)

Inmatningsenheter - Asus ger B5 Flip en aktiv stylus

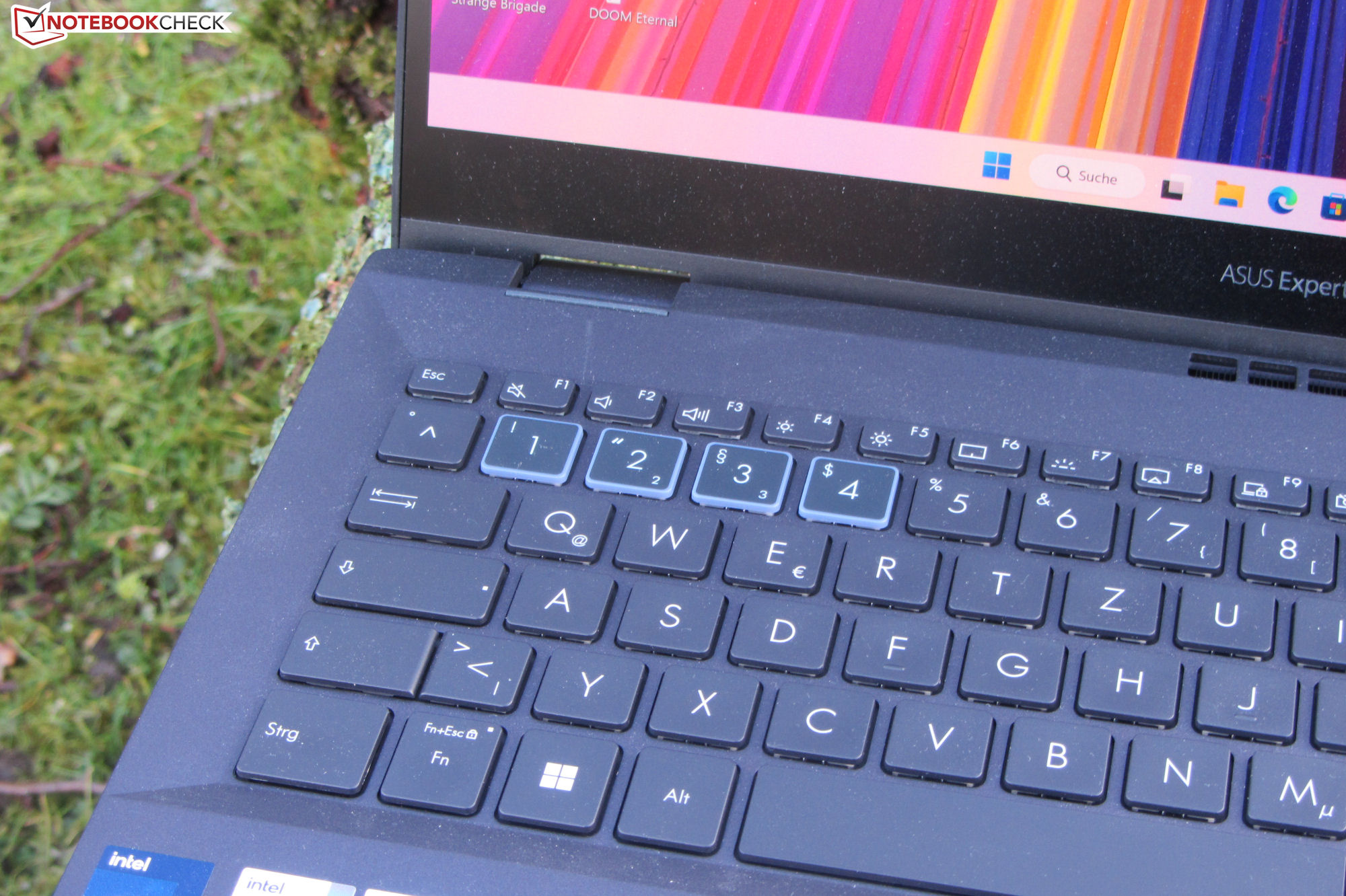

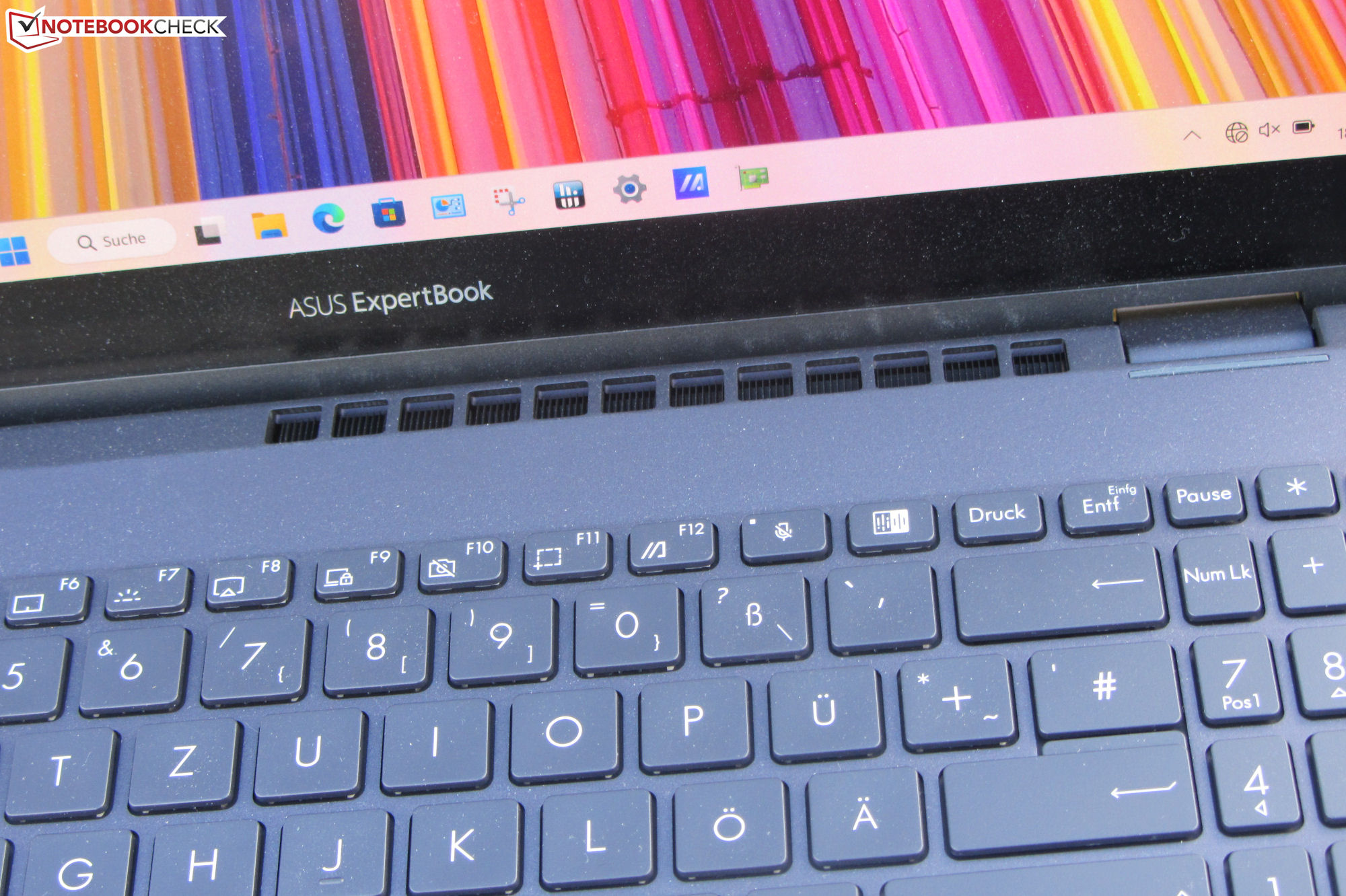

Tangenterna på det stänkskyddade, upplysta chiclet-tangentbordet har ett medelhögt slaglängd och en tydlig tryckpunkt. Tangentmotståndet är okej. Tangentbordets minimala eftergivlighet i bästa fall visade sig inte vara irriterande. På det hela taget är det ett tangentbord som lämpar sig för daglig användning.

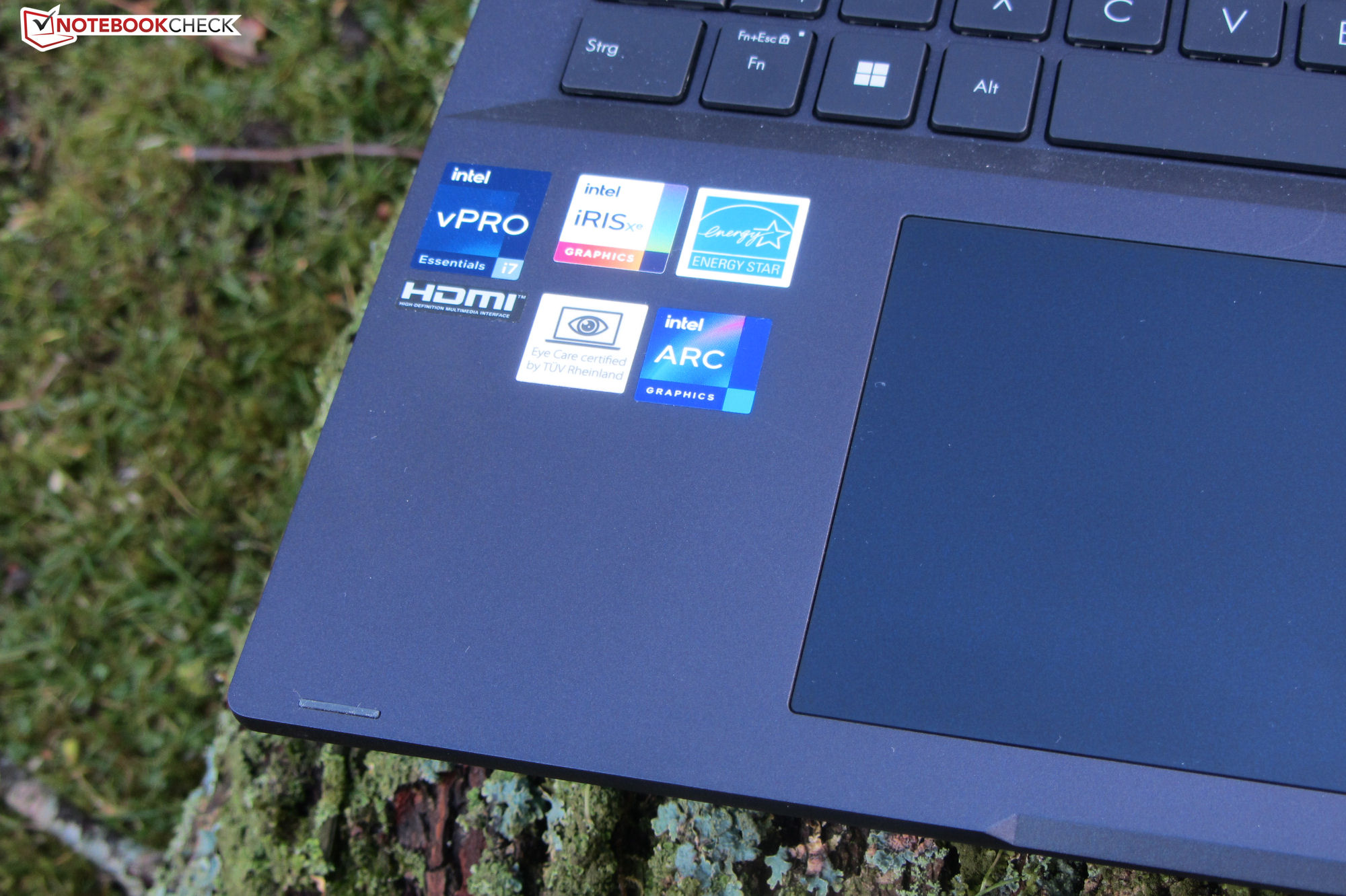

Den släta ytan på den multitouchbara klickplattan (ca 15 x 9,1 cm/~5,9 x 3,6 tum) gör det lätt för fingrarna att glida. Padden reagerar på inmatningar i hörnen, har en kort slaglängd och erbjuder en tydlig tryckpunkt.

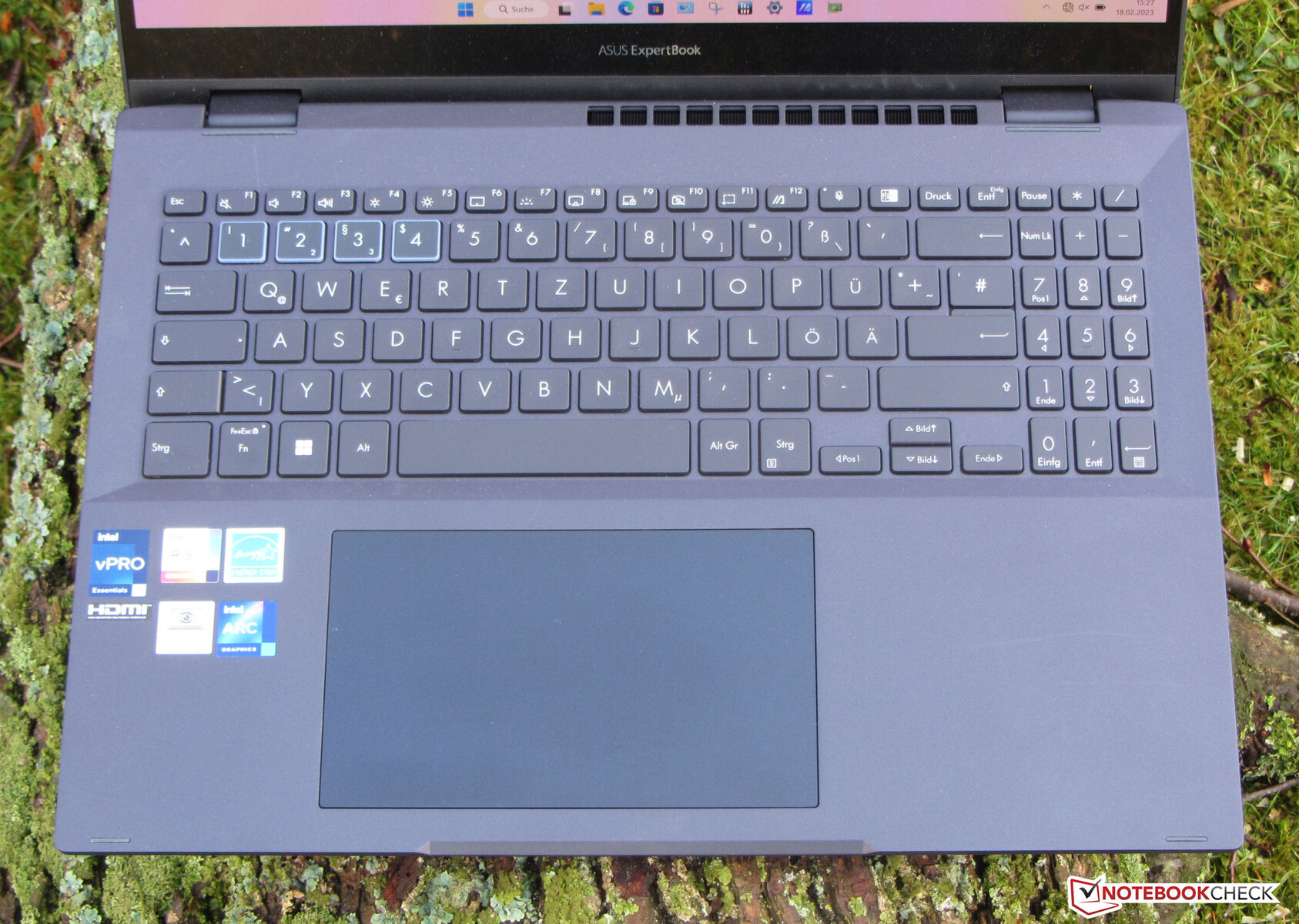

Tangentbord ExpertBook B5 Flip
Tangentbord ExpertBook B5 Flip

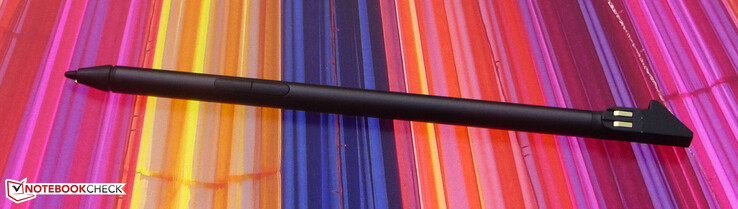

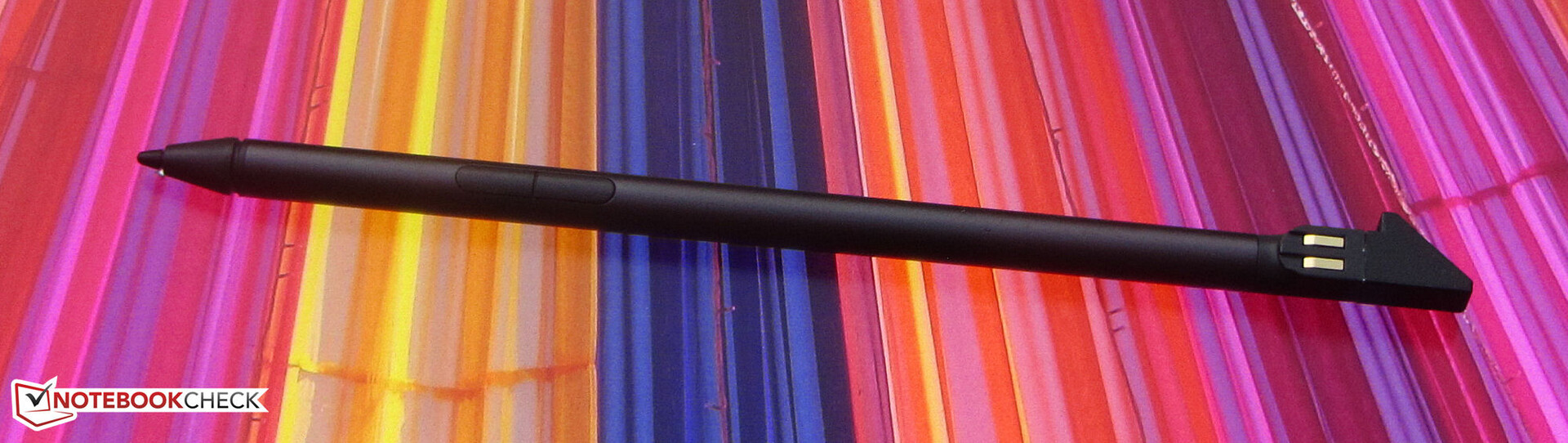

Den medföljande pennan (MPP 2.0) ligger bra i handen och pennspetsen glider smidigt över den snabbt reagerande pekskärmen (10 pekpunkter). Pennan sätts in i basenheten och laddas också där.

En inmatningspenna ingår i leveransen.
En inmatningspenna ingår i leveransen.

Skärm - Bra svartvärde tack vare OLED

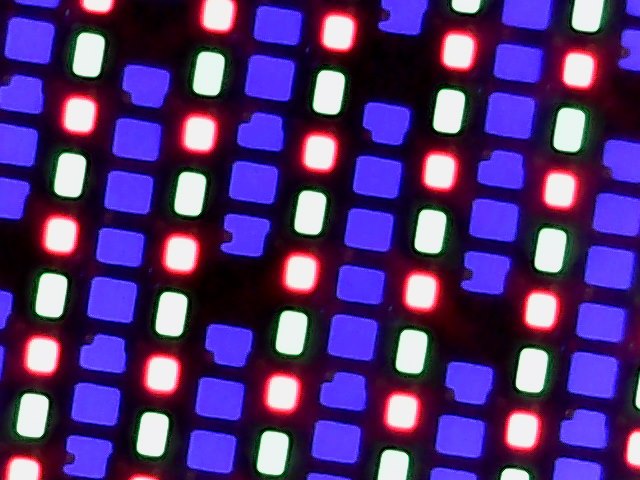

Pixelgaller
Pixelgaller

Den matta reflekterande ytan (AntiGlare-beläggning) på den 16-tums OLED-pekskärm (3 840 x 2 400 pixlar) i det arbetsvänliga 16:10-formatet minskar reflexer avsevärt, men förhindrar dem inte helt.

Som typiskt för OLED-skärmar lyser panelen med en utmärkt kontrast och ett utmärkt svartvärde. Men den gör också poäng med korta svarstider och relativt hög maximal ljusstyrka.

Ljusstyrkan regleras genom att mörka enskilda ränder inom det visade skärminnehållet. I B5-panelens fall sker detta med en ganska låg frekvens på 240 Hz vid ljusstyrkor ≤ 50 procent. Denna effekt liknar det välkända PWM-flimmerandet, men är inte direkt jämförbar.

385
cd/m²
382
cd/m²
379
cd/m²
384
cd/m²
379
cd/m²
381
cd/m²
382
cd/m²
381
cd/m²
385
cd/m²
Distribution av ljusstyrkan
Samsung ATNA60YV02-0 tested with X-Rite i1Pro 2
Max: 385 cd/m² (Nits) Medel: 382 cd/m² Minimum: 0.8 cd/m²
Distribution av ljusstyrkan: 98 %
Mitt på batteriet: 380 cd/m²
Kontrast: 37900:1 (Svärta: 0.01 cd/m²)
ΔE Color 2.79 | 0.5-29.43 Ø5, calibrated: 2.5
ΔE Greyscale 1.92 | 0.57-98 Ø5.3
97.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
71.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38
Asus ExpertBook B5 Flip B5602FBN
Samsung ATNA60YV02-0, OLED, 3840x2400, 16.00
Lenovo Yoga 7 16IAP7
Lenovo LEN160WQXGA, IPS, 2560x1600, 16.00
HP Spectre x360 2-in-1 16-f1075ng
AU Optronics AUO50A3, IPS, 3072x1920, 16.00
MSI Summit E16 Flip A12UDT-031
AU Optronics B16QAN02.N, IPS, 2560x1600, 16.00
Display
-13%
-5%
9%
Display P3 Coverage
71.7
67
-7%
75.6
5%
98.9
38%
sRGB Coverage
100
95.7
-4%
100.2
0%
100
0%
AdobeRGB 1998 Coverage
97.1
69.3
-29%
77.2
-20%
86.5
-11%
Response Times
-1420%
-1900%
-450%
Response Time Grey 50% / Grey 80% *
2 ?(1, 1)
36 ?(18, 18)
-1700%
52 ?(23, 29)
-2500%
13 ?(6, 7)
-550%
Response Time Black / White *
2 ?(1, 1)
24.8 ?(12.4, 12.4)
-1140%
28 ?(14, 14)
-1300%
9 ?(5, 4)
-350%
PWM Frequency
240 ?(50)
Screen
-413%
-330%
-323%
Brightness middle
379
393.7
4%
425
12%
314
-17%
Brightness
382
367
-4%
406
6%
294
-23%
Brightness Distribution
98
84
-14%
78
-20%
89
-9%
Black Level *
0.01
0.38
-3700%
0.24
-2300%
0.28
-2700%
Contrast
37900
1036
-97%
1771
-95%
1121
-97%
Colorchecker dE 2000 *
2.79
1.97
29%
5.8
-108%
3.08
-10%
Colorchecker dE 2000 max. *
5.29
5.46
-3%
11.03
-109%
5.49
-4%
Colorchecker dE 2000 calibrated *
2.5
0.62
75%
4.16
-66%
0.88
65%
Greyscale dE 2000 *
1.92
2.1
-9%
7.57
-294%
3.99
-108%
Gamma
2.38 92%
2.1 105%
6600 0%
2.3 96%
CCT
6270 104%
6461 101%
6219 105%
Total Average (Program / Settings)
-615% / -471%
-745% / -485%
-255% / -270%

* ... smaller is better

Panelens X-Rite Pantone-certifiering garanterar en naturlig färgåtergivning: Med en avvikelse på 2,8 uppfylls målet (DeltaE < 3) redan vid leverans. En kalibrering ger mindre förbättringar. Skärmen kan återge sRGB- och Adobe-färgrymden helt eller nästan helt, och DCI-P3-färgrymden återges med 72 %.

CalMAN - Färgkontrollant
CalMAN - Färgkontrollant

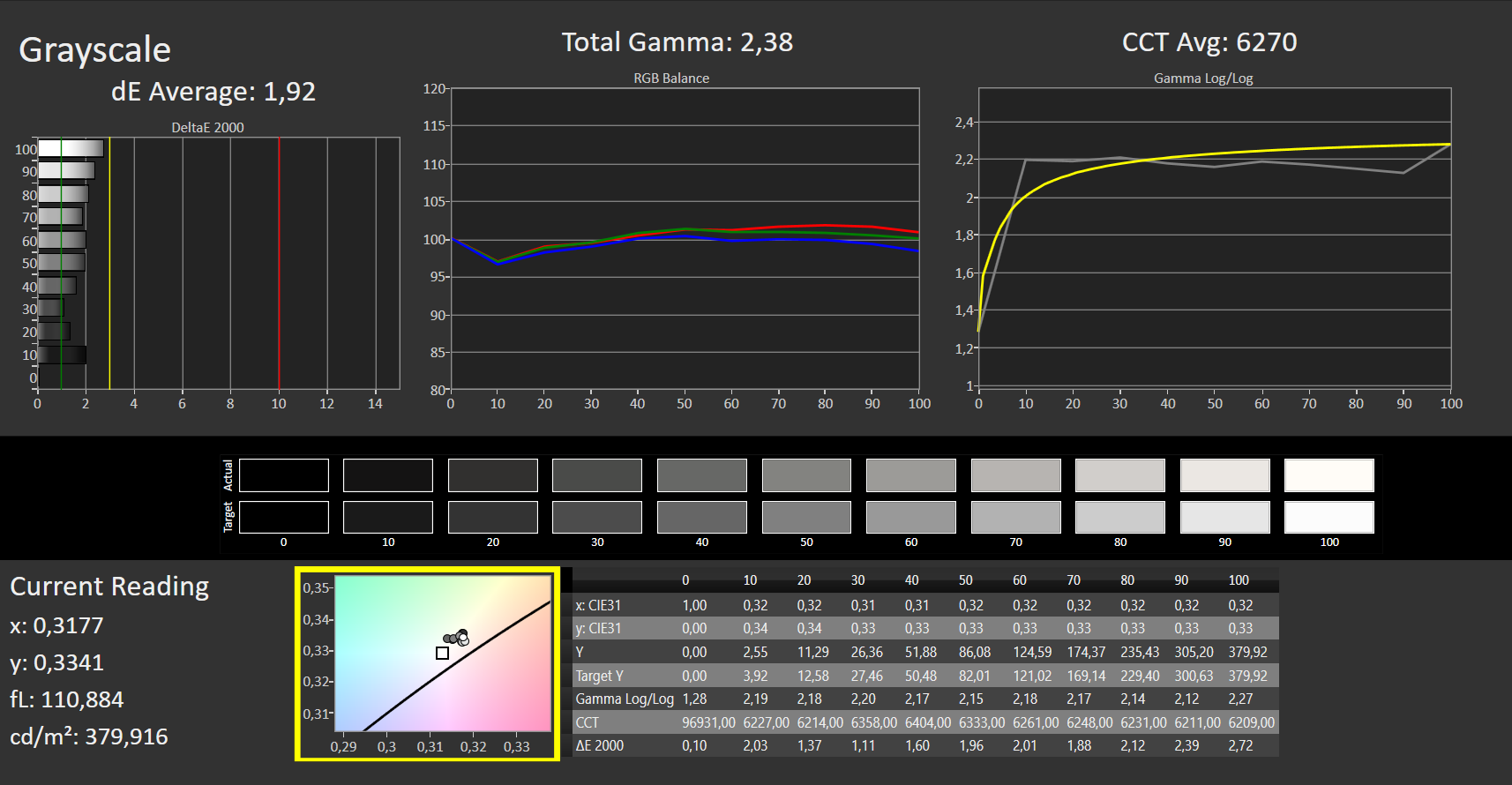

CalMAN - Gråskala
CalMAN - Gråskala

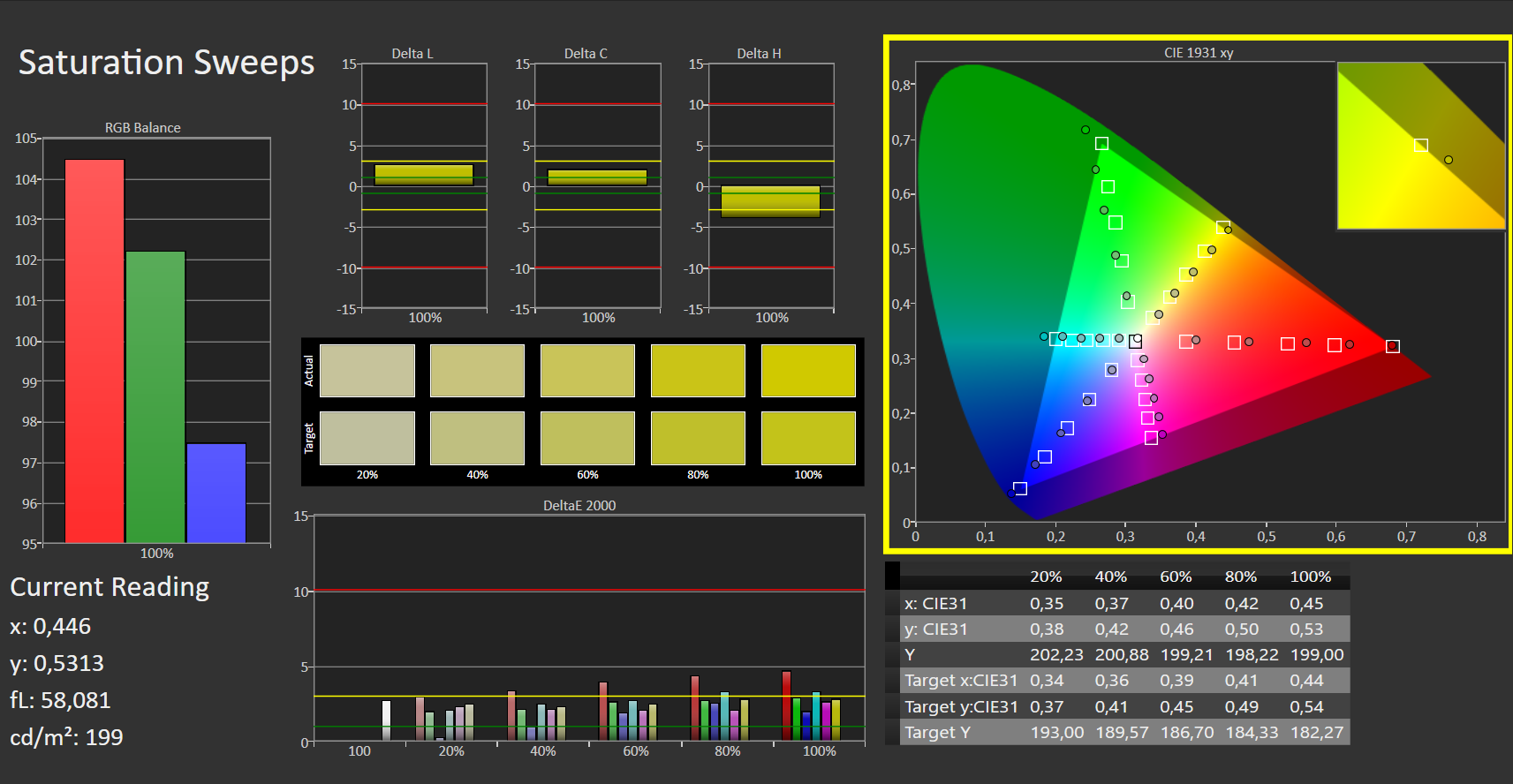

CalMAN - Färgmättnad
CalMAN - Färgmättnad

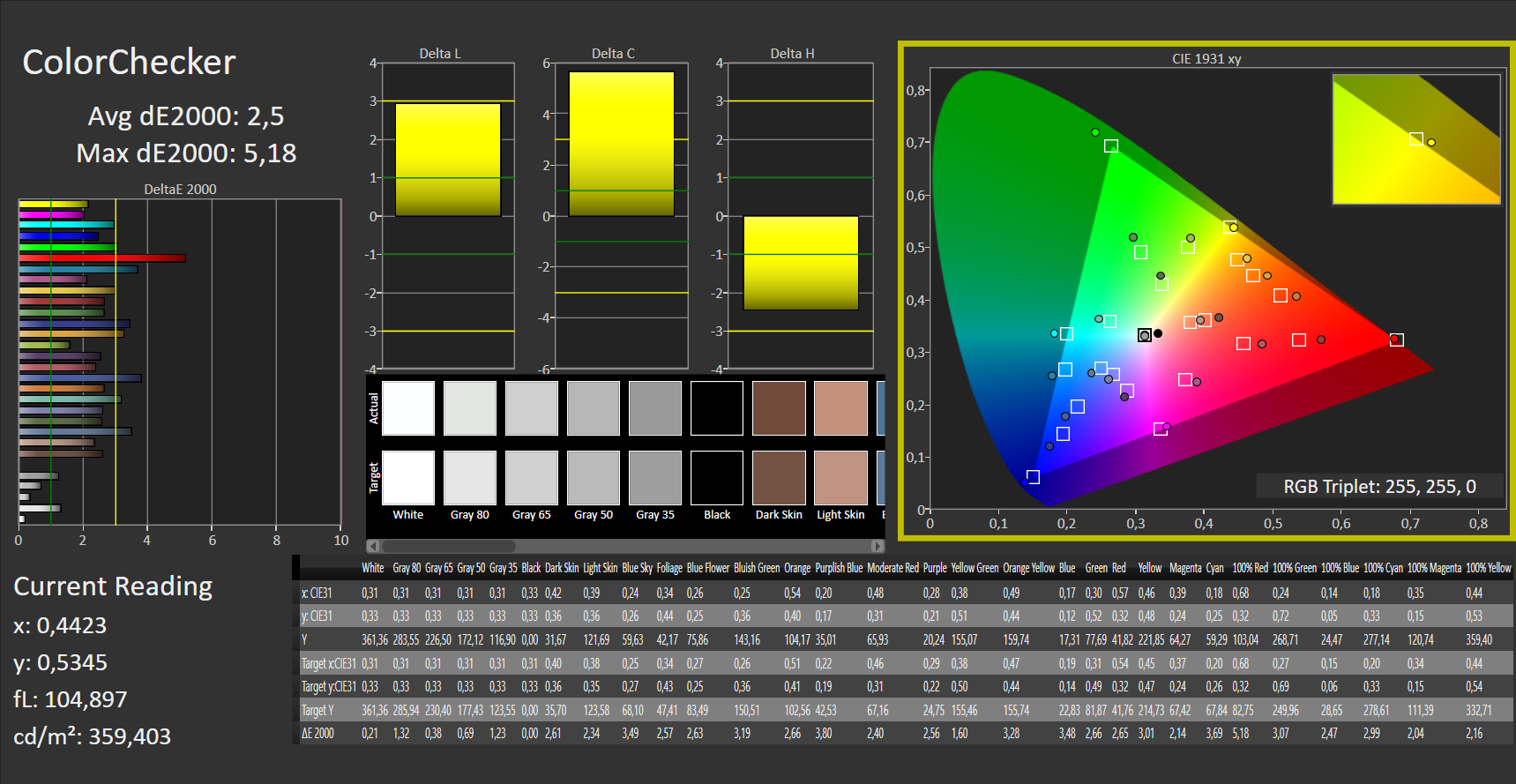

CalMAN - Färgkontrollant (kalibrerad)
CalMAN - Färgkontrollant (kalibrerad)

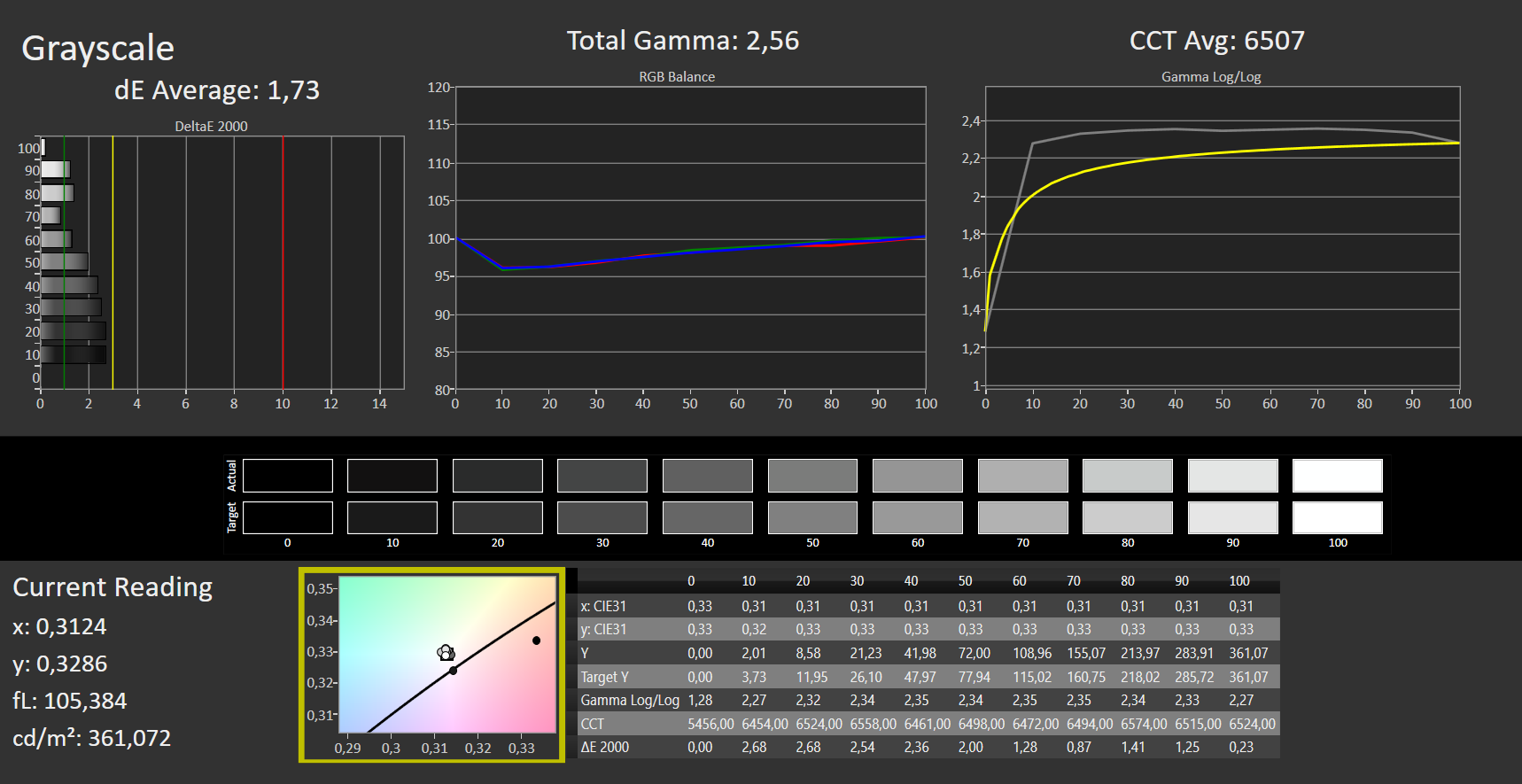

CalMAN - Gråskala (kalibrerad)
CalMAN - Gråskala (kalibrerad)

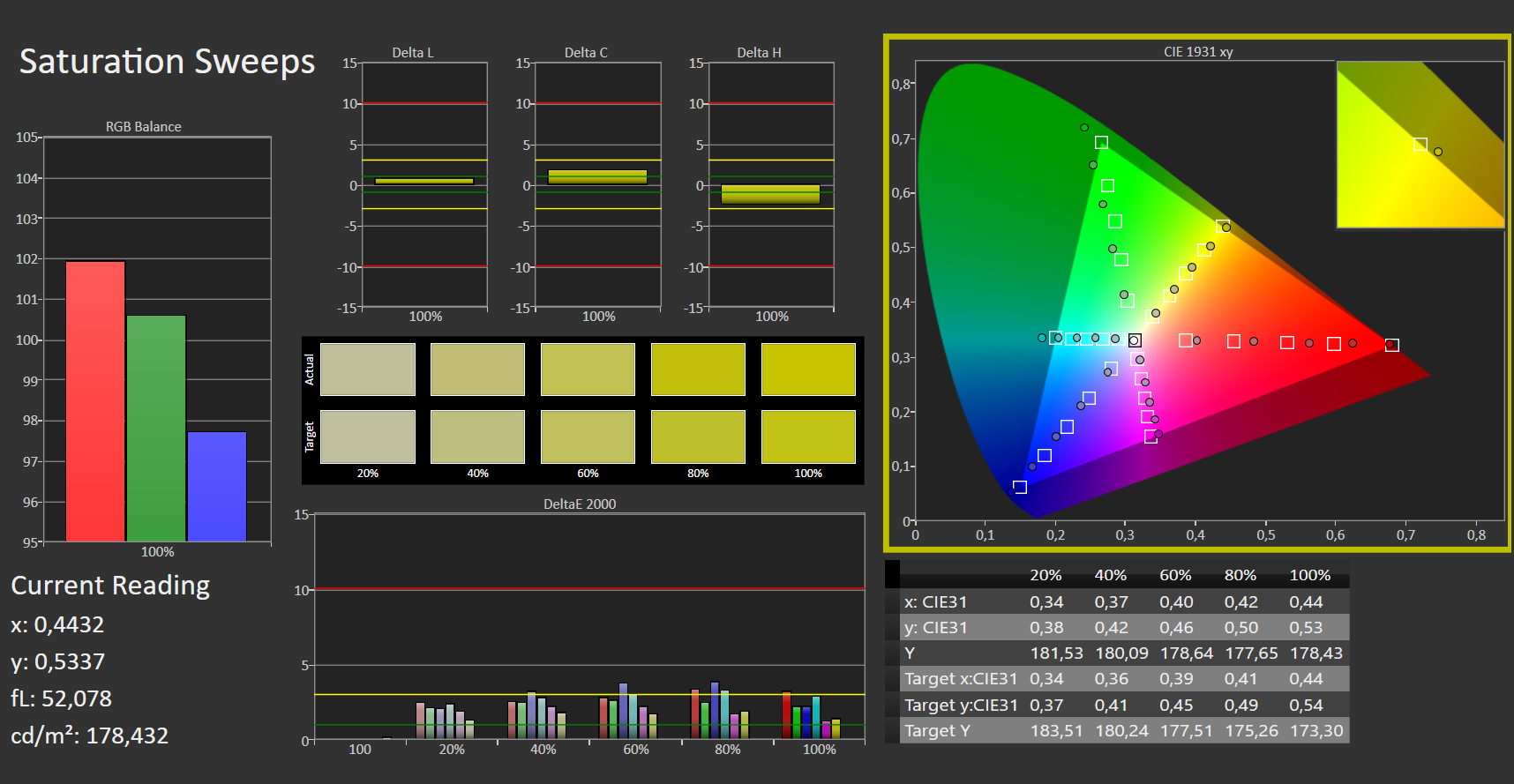

CalMAN - Färgmättnad (kalibrerad)
CalMAN - Färgmättnad (kalibrerad)

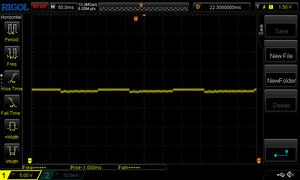

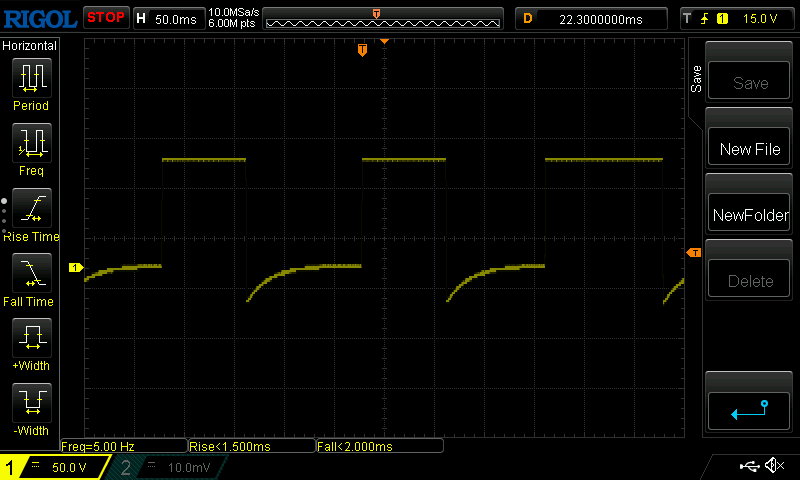

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 5 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined↗ 1 ms rise
↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 5 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.9 ms).

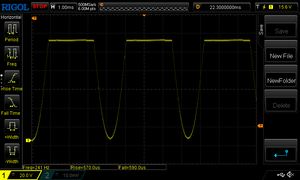

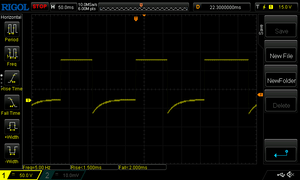

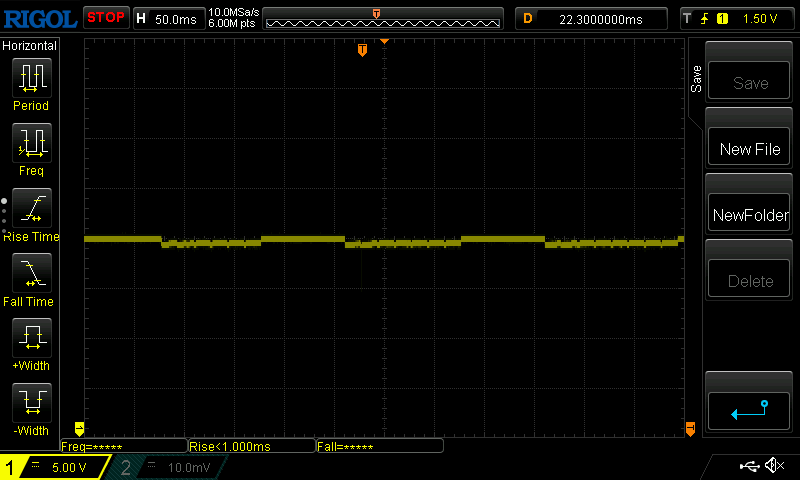

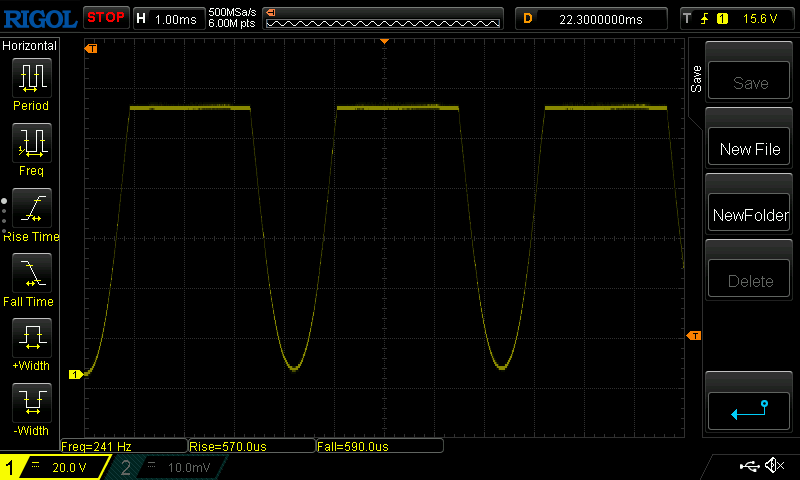

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 240 Hz ≤ 50 % brightness setting

The display backlight flickers at 240 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 240 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

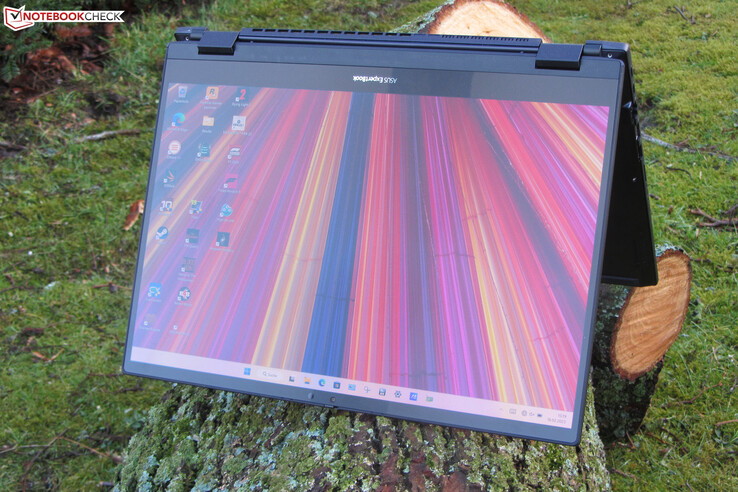

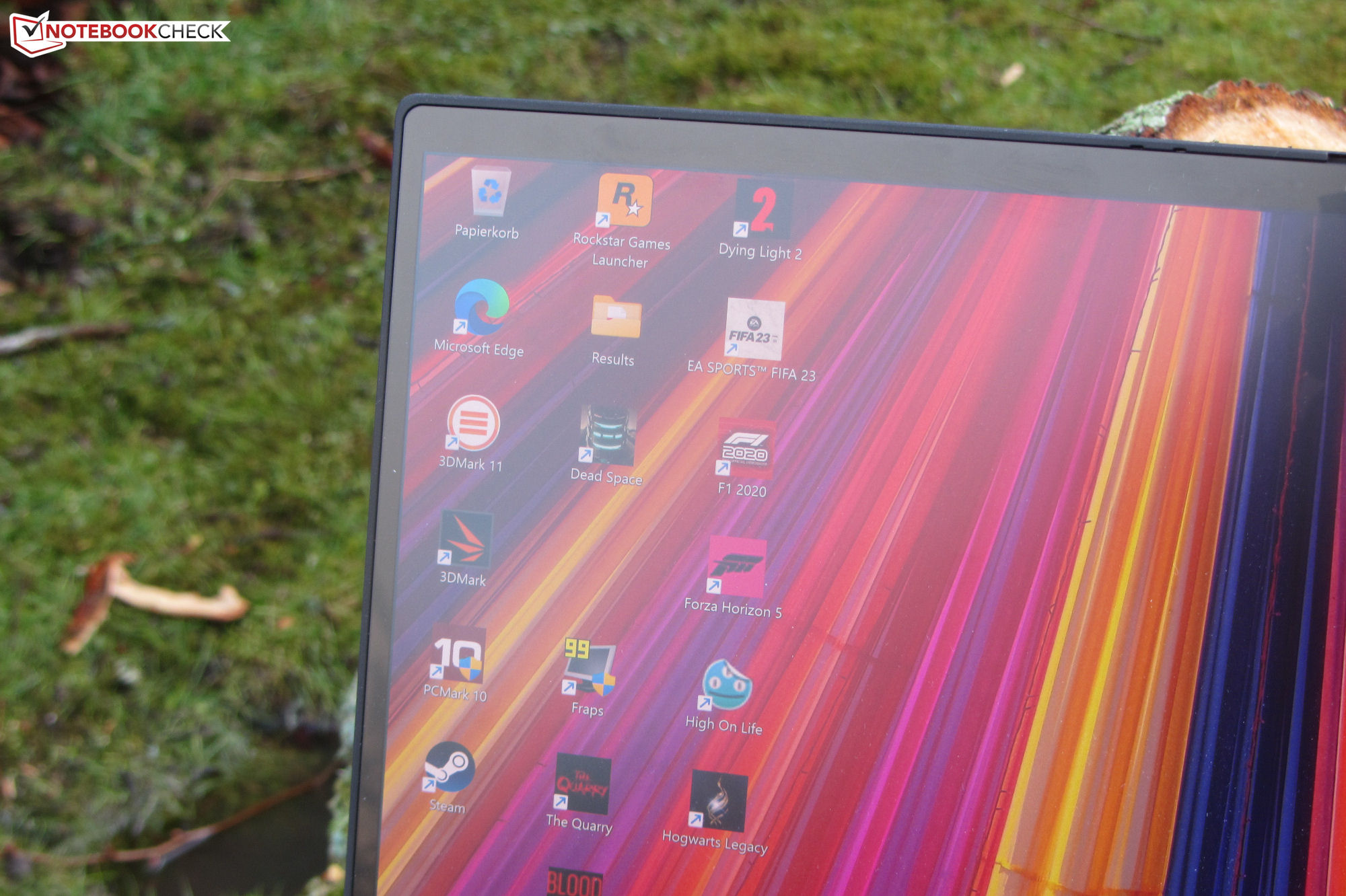

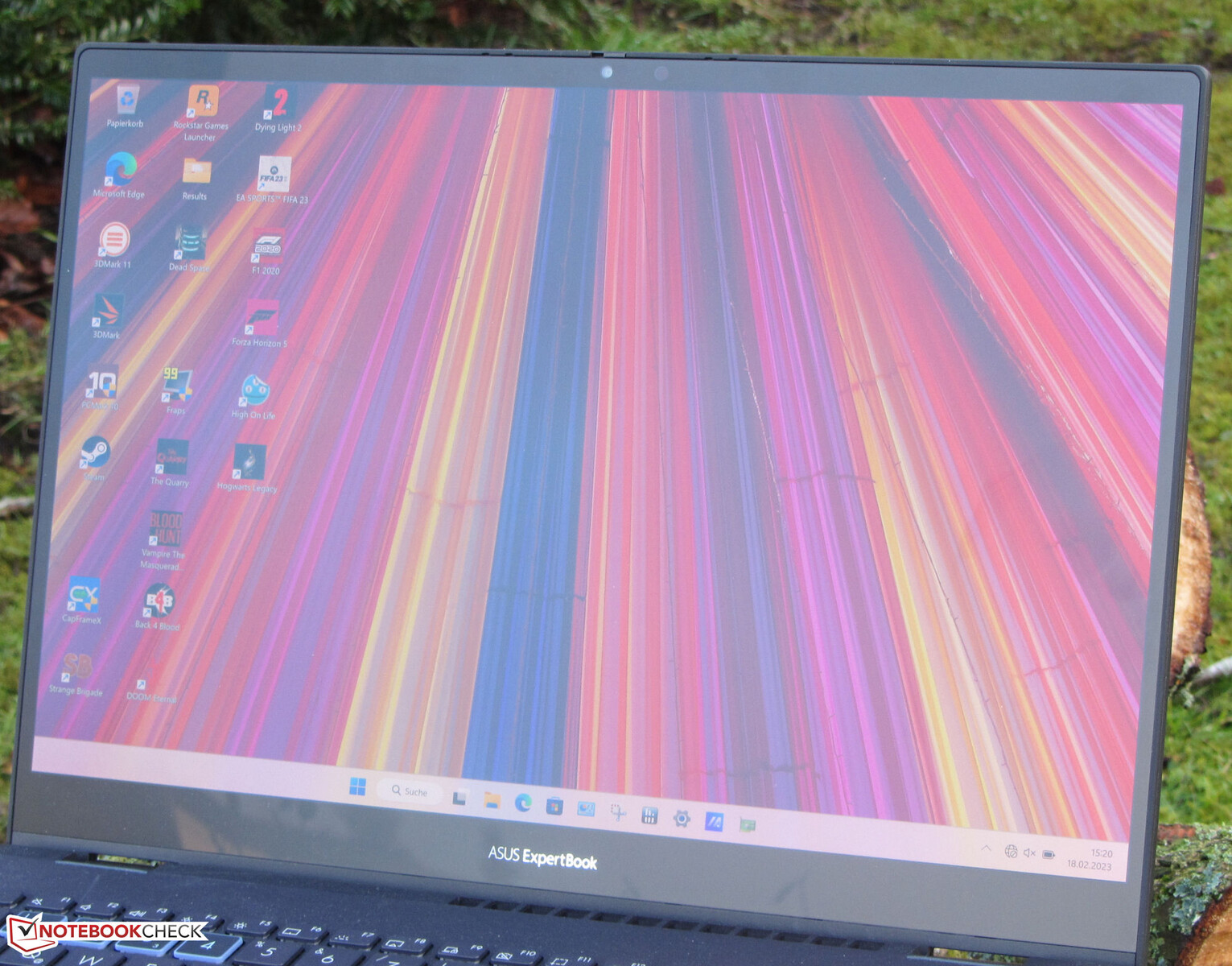

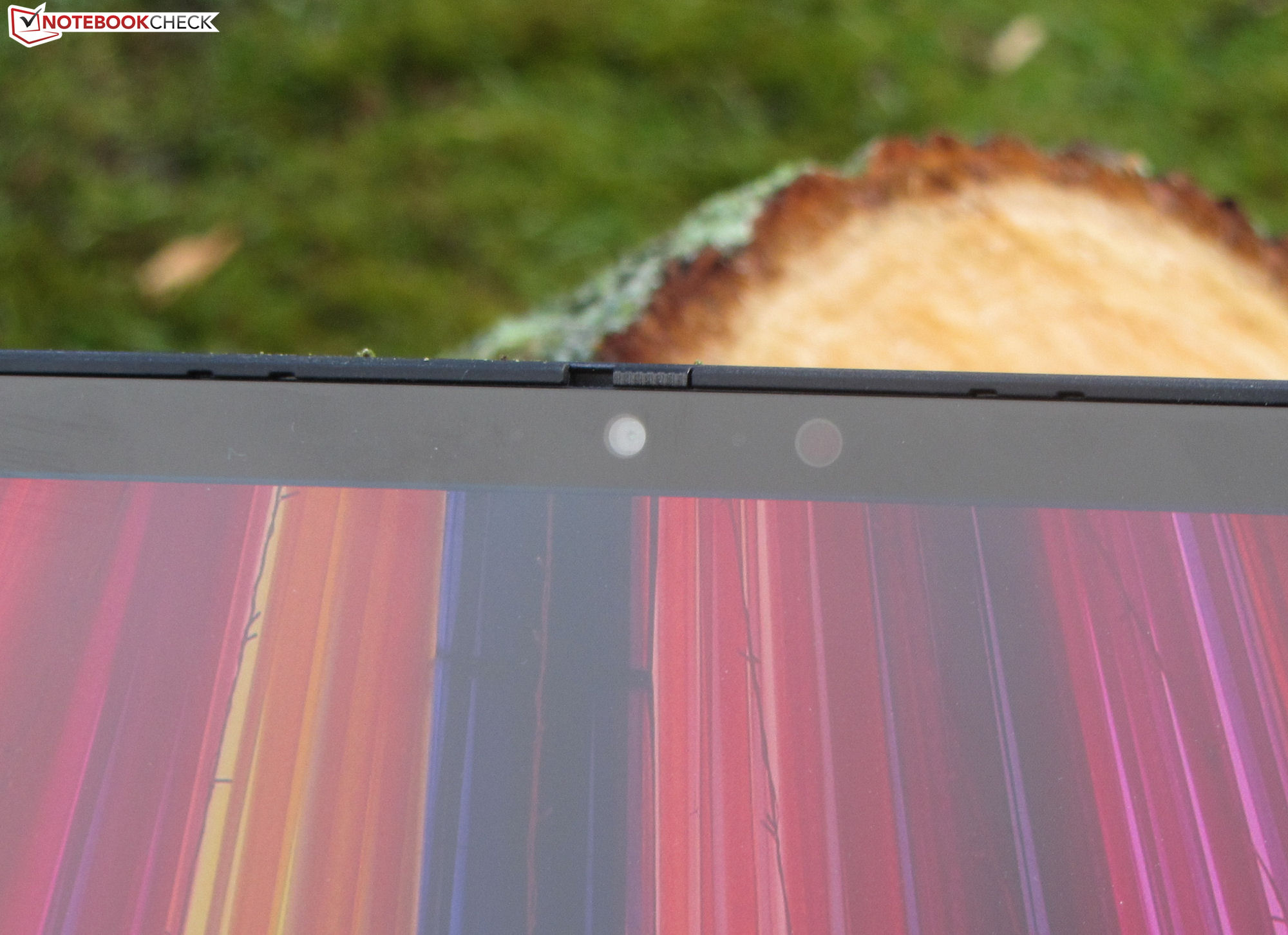

Den stabila OLED-panelen kan läsas från vilken position som helst. Utomhus är det möjligt att läsa av skärmen när solen inte skiner för starkt.

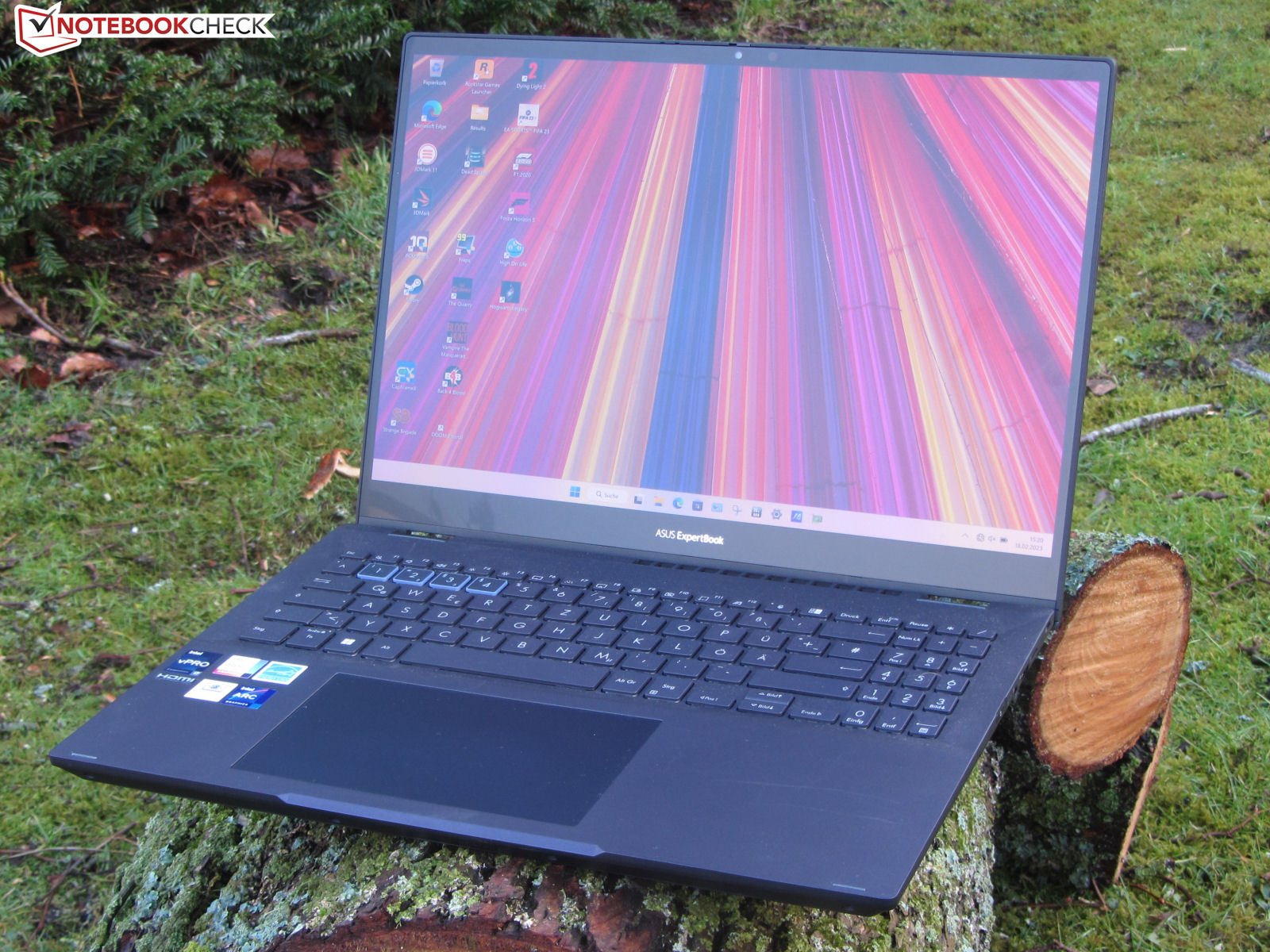

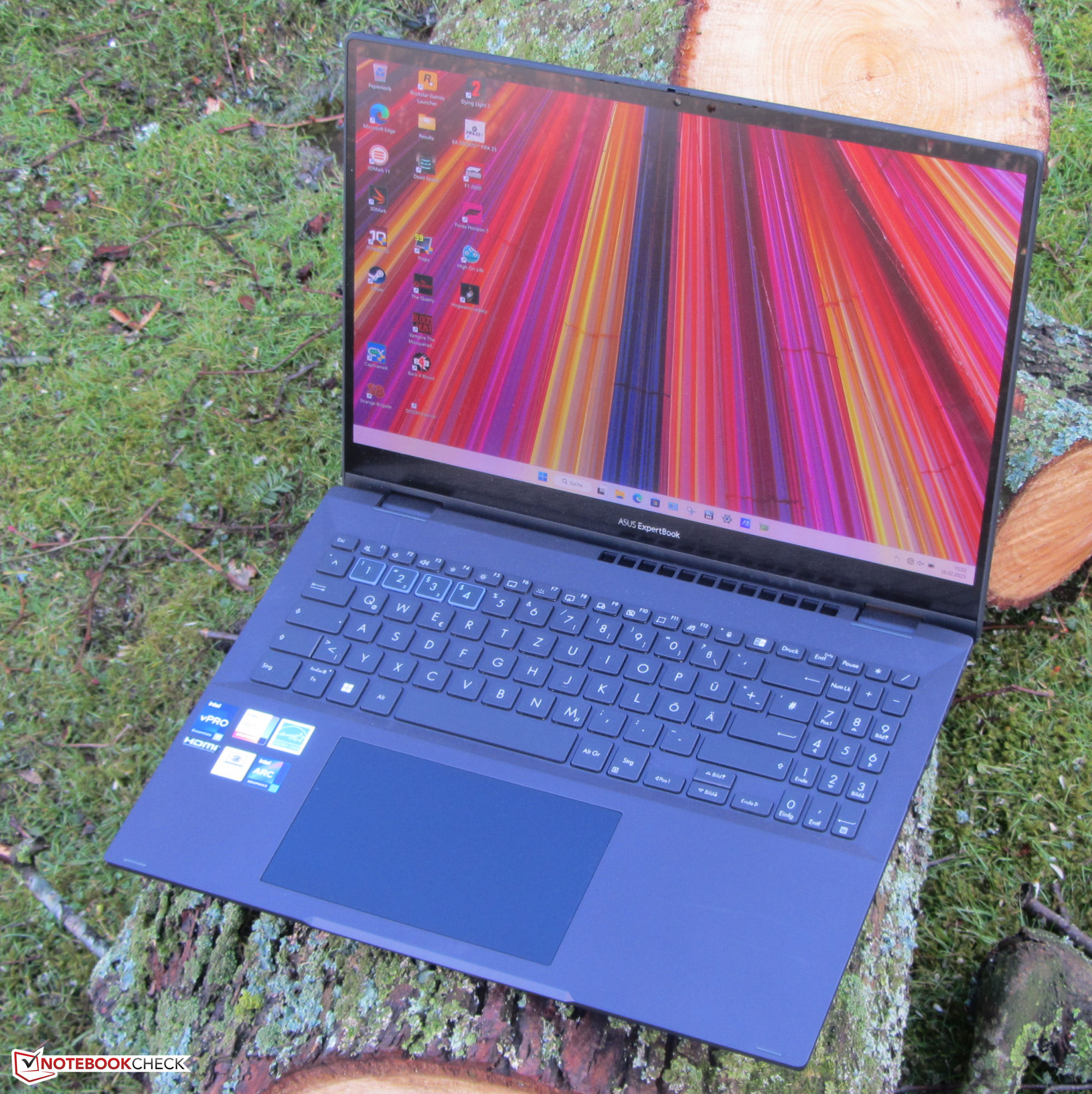

ExpertBook utomhus.
ExpertBook utomhus.

Prestanda - Asus-datorn körs på Intel-hårdvara

ExpertBook B5 Flip-serien står för bärbara 2-i-1-datorer från affärssegmentet. Alder Lake-processorer används i serien. Som tillval kan modeller med dedikerade IntelArc-A350MgPU - vårt recensionsexemplar är en av dem.

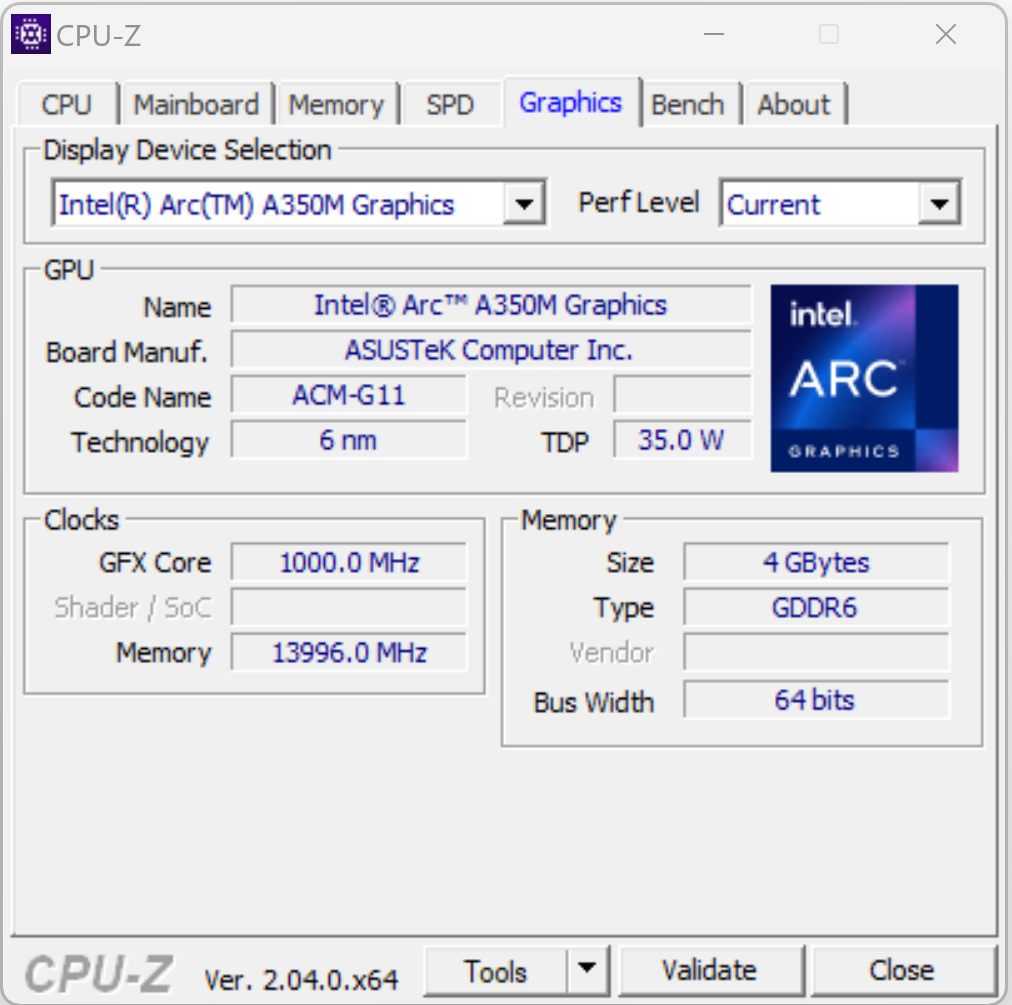

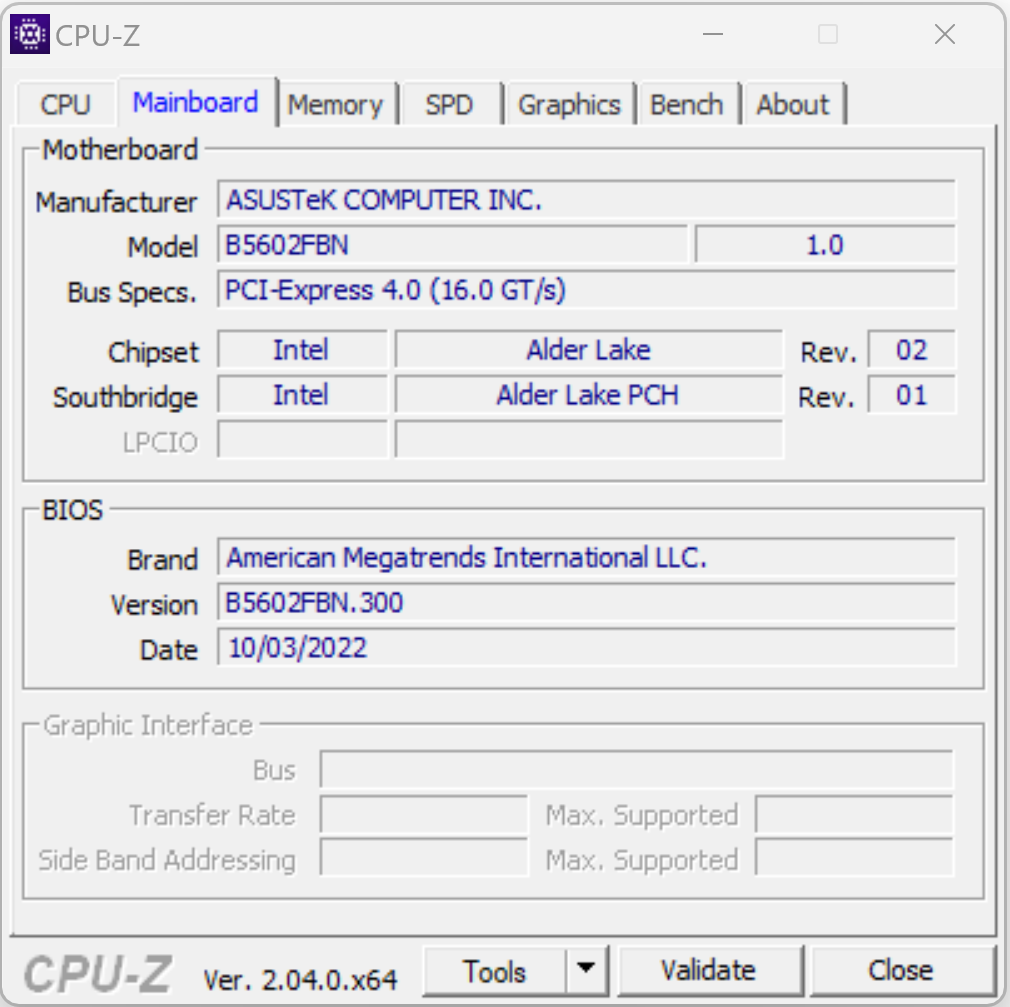

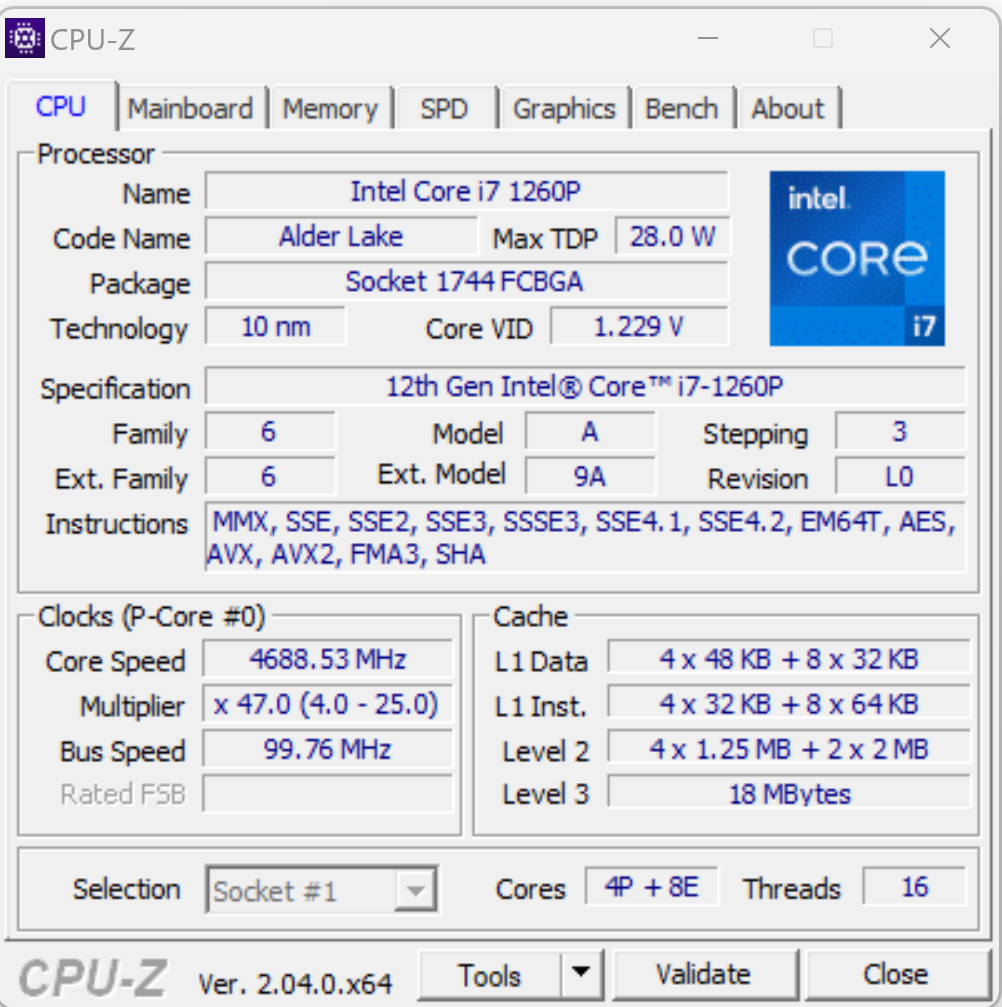

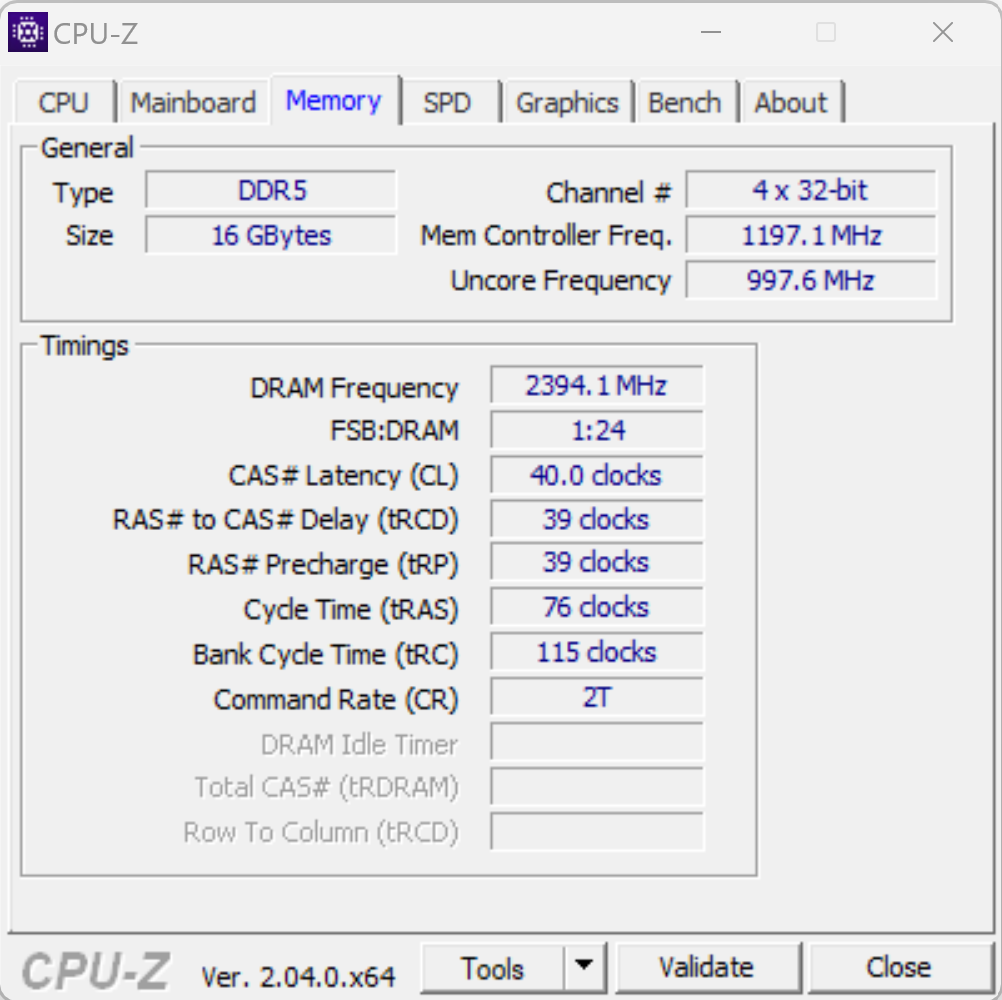

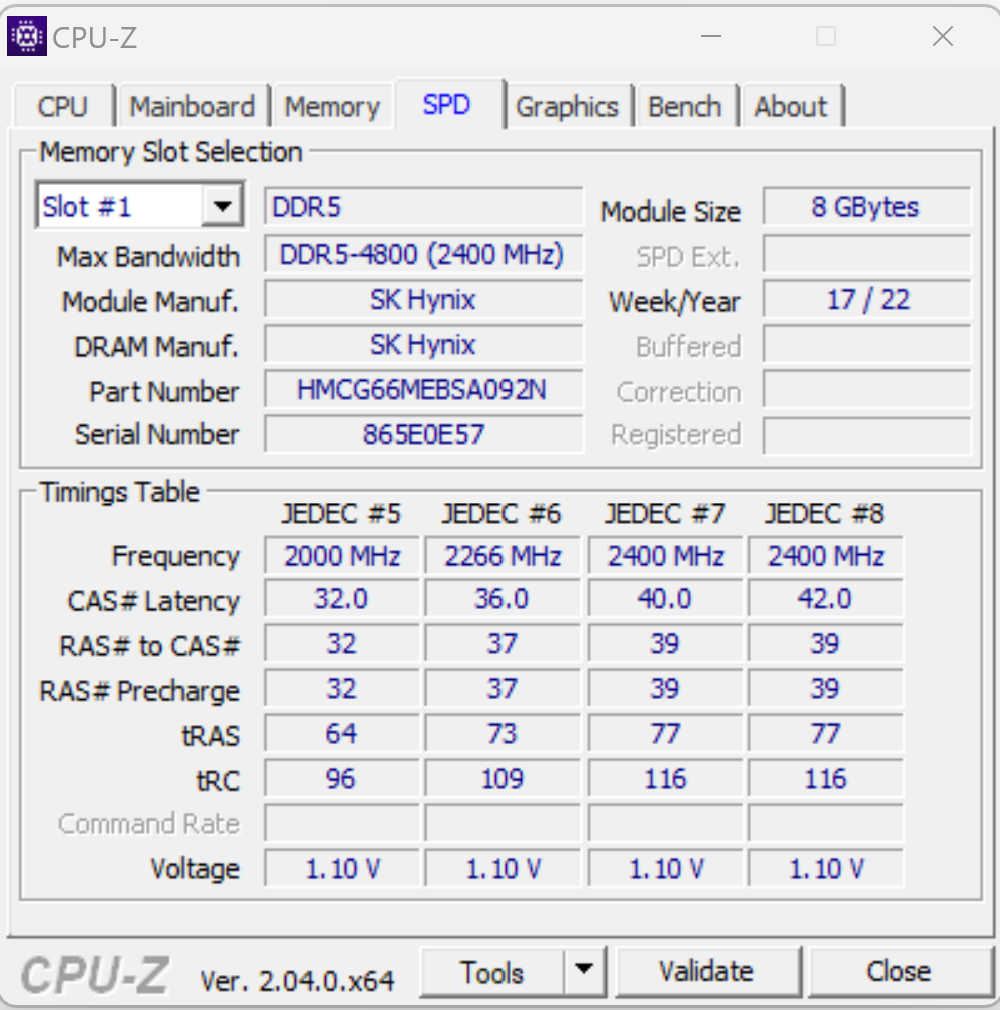

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

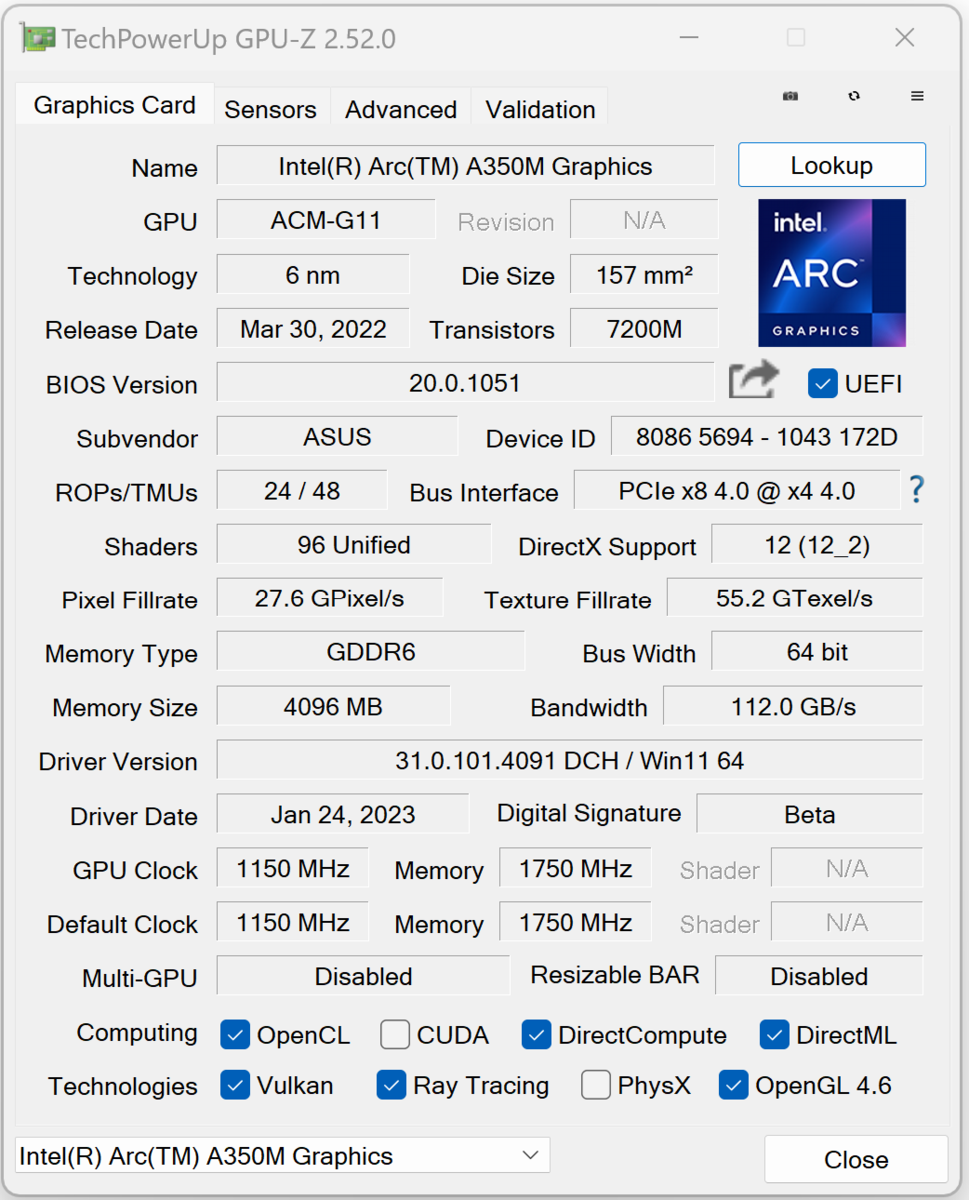

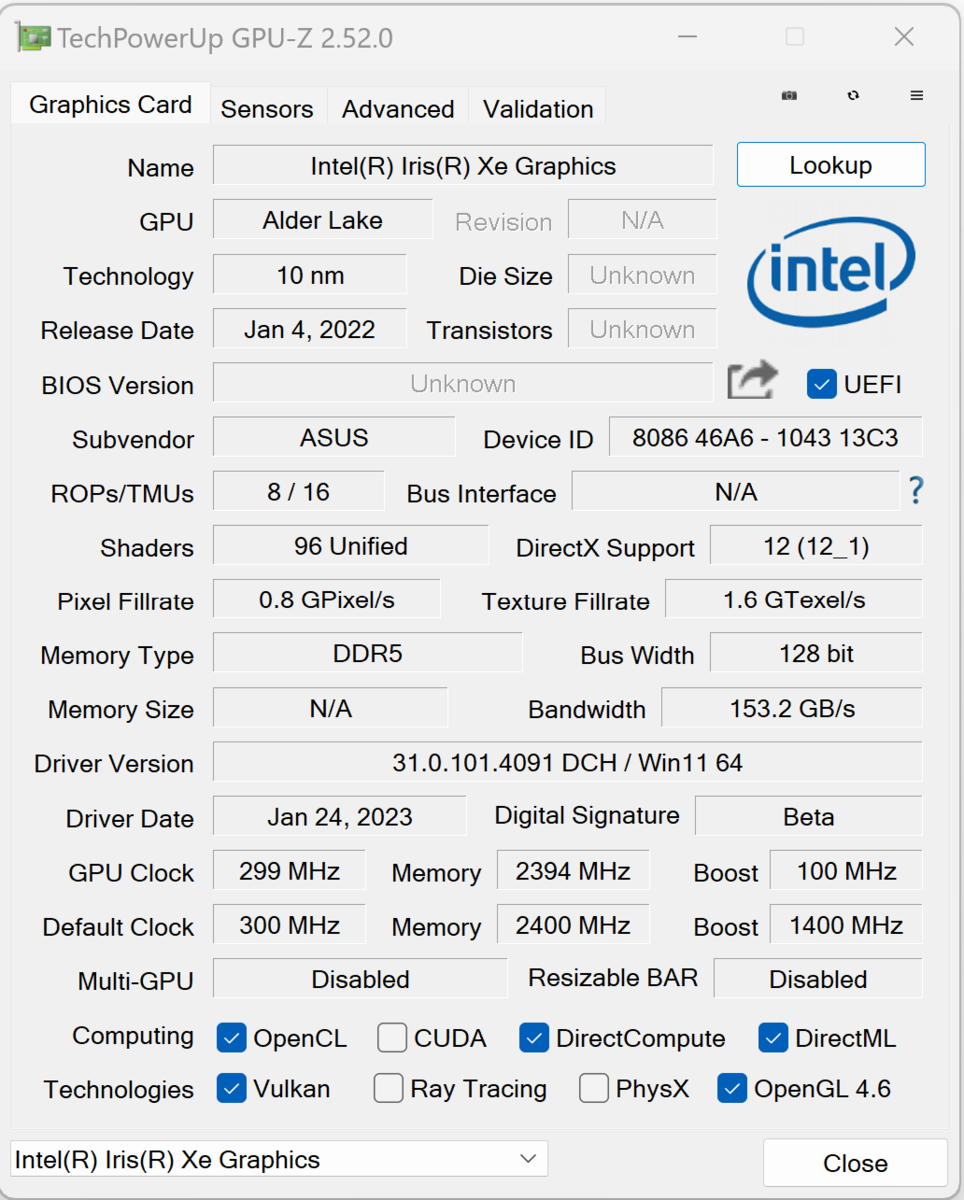

GPU-Z
GPU-Z

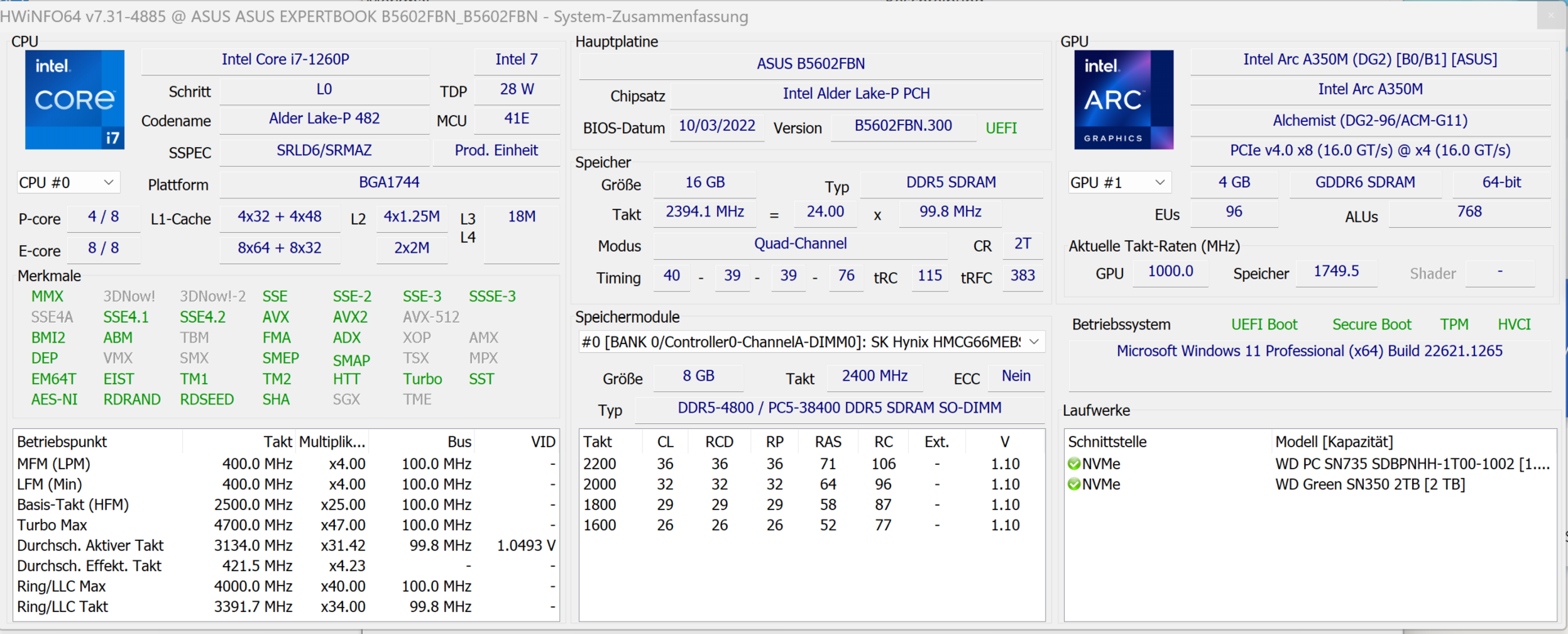

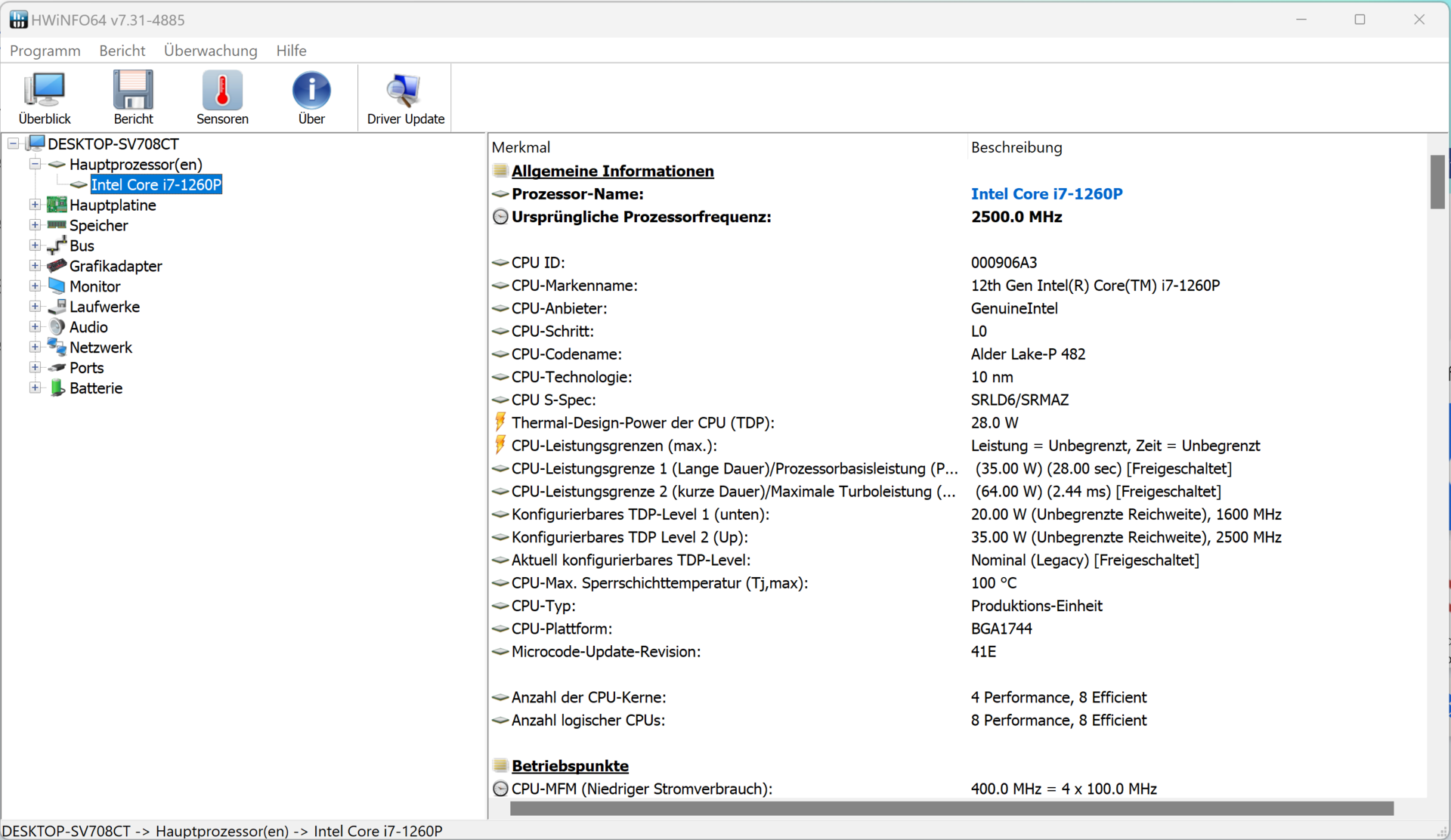

HWInfo
HWInfo


Provningsvillkor

Det är möjligt att växla mellan de tre tillverkarspecifika fläktlägena (se tabell) med hjälp av tangentkombinationen "Fn" + "F". Vi använde oss av "prestandaläget" (benchmarks) och "whisper-läget" (batteritest). Det förstnämnda är endast tillgängligt vid nätdrift. Lägena påverkar CPU- och GPU-prestanda.

Power-läge Standardläge Whisper-läge
Effektbegränsning 1 35 Watt 35 Watt 18 Watt
Effektgräns 2 64 Watt 64 Watt 64 Watt

Processor

The Core i7-1260P-Processor (Alder Lake) består av fyra prestandakärnor (hyperthreading, 2,1 till 4,7 GHz) och åtta effektivitetskärnor (ingen hyperthreading, 1,5 till 3,4 GHz). Totalt ger detta 16 logiska CPU-kärnor. CPU:n ger över genomsnittet liggande resultat i benchmarks.

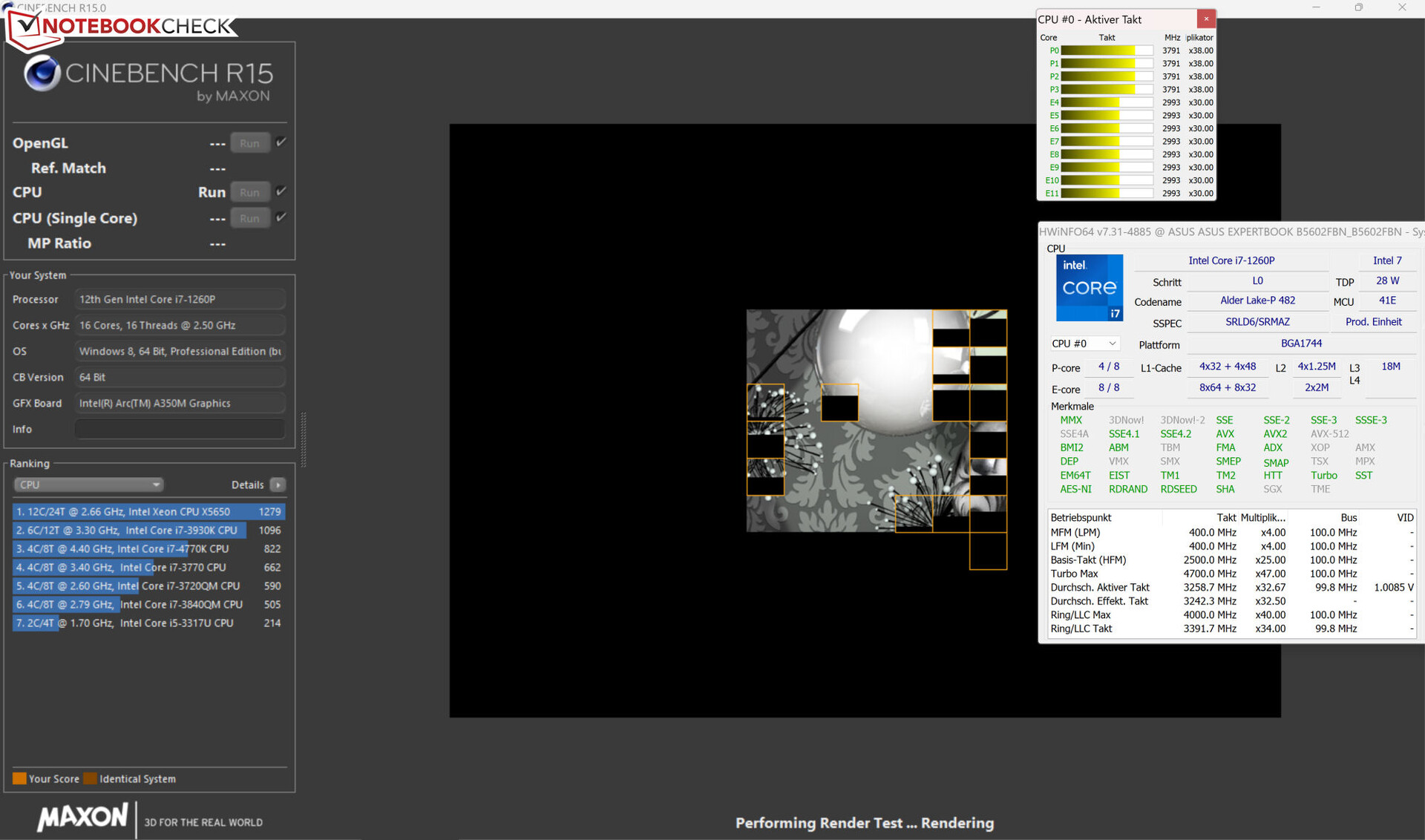

Flertrådstestet i riktmärket Cinebench R15 bearbetas med 3,8 GHz (P-kärnor) respektive 3 GHz (E-kärnor). Entrådstestet körs med 2,2 till 4,7 GHz (P-kärnor) och 1,5 till 3,4 GHz (E-kärnor). Klockfrekvenserna är lägre i batteriläge. CB15-slingtestet visar: Multitrådsbelastning klaras endast med en hög Turbo-klocka under en kort tid. Efter några sekunder sjunker hastigheterna i bästa fall till en medelhög nivå.

Flertrådig (nätverksdrift)
Flertrådig (nätverksdrift)

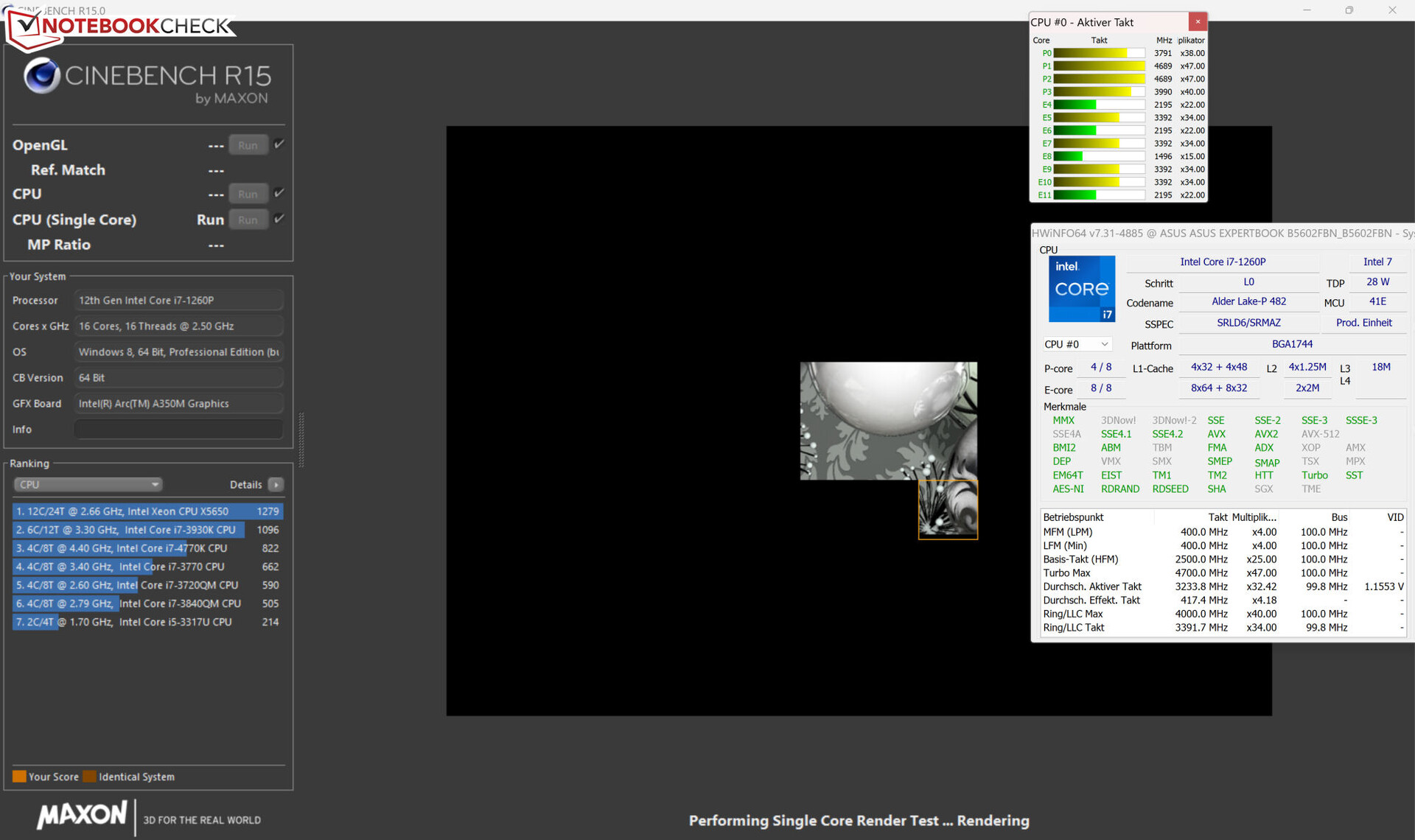

En enda tråd (nätverksdrift)
En enda tråd (nätverksdrift)

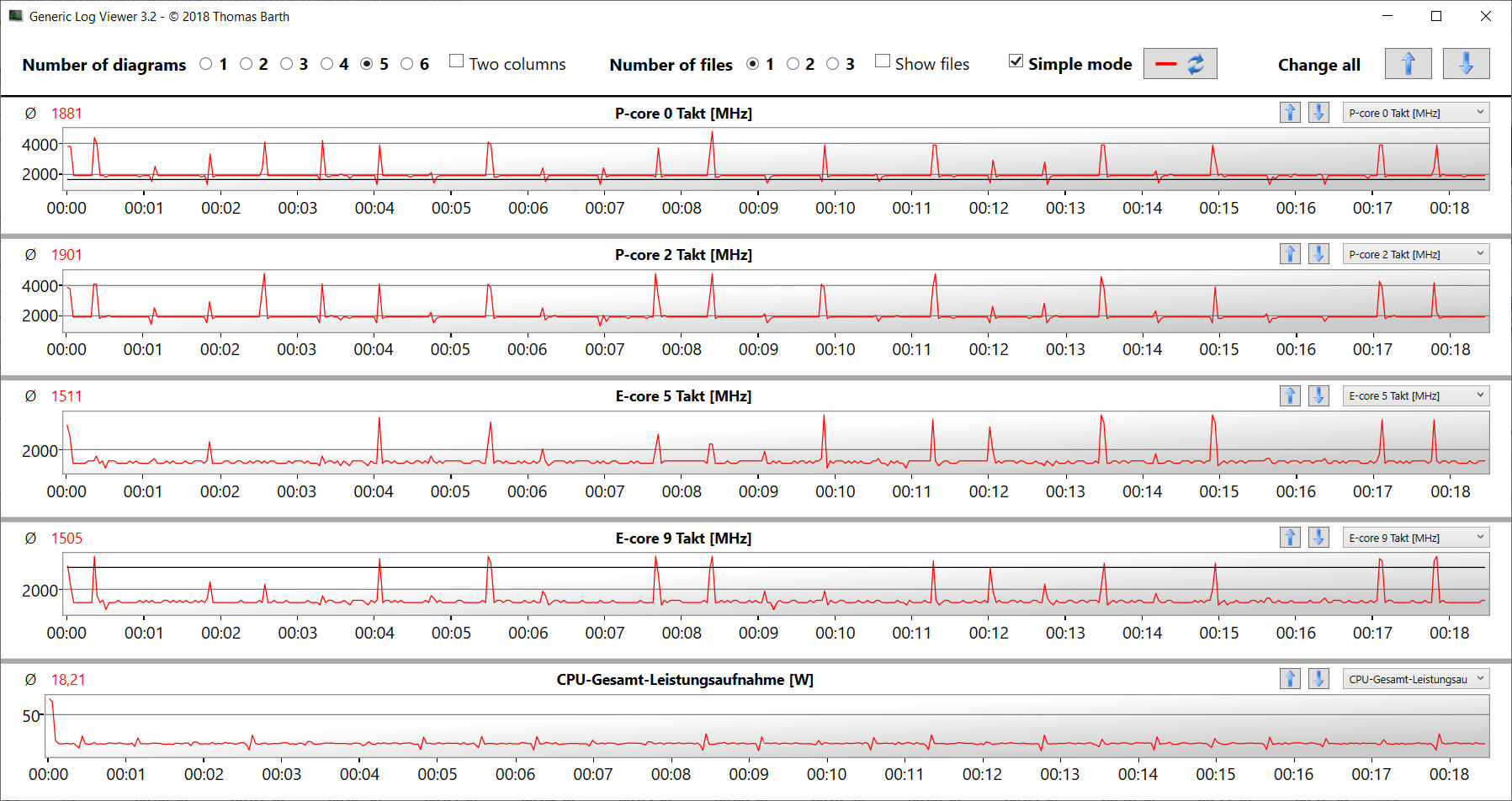

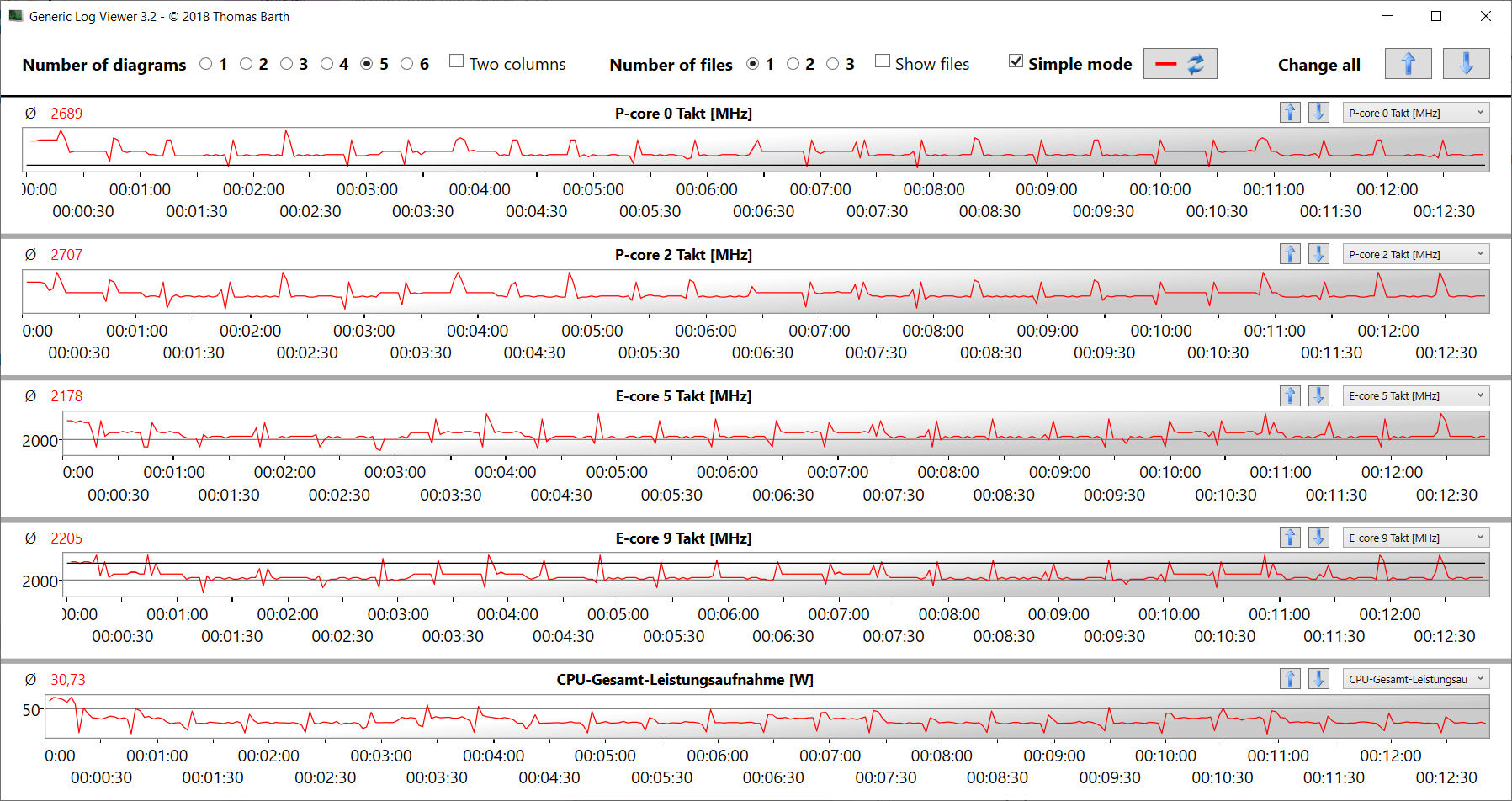

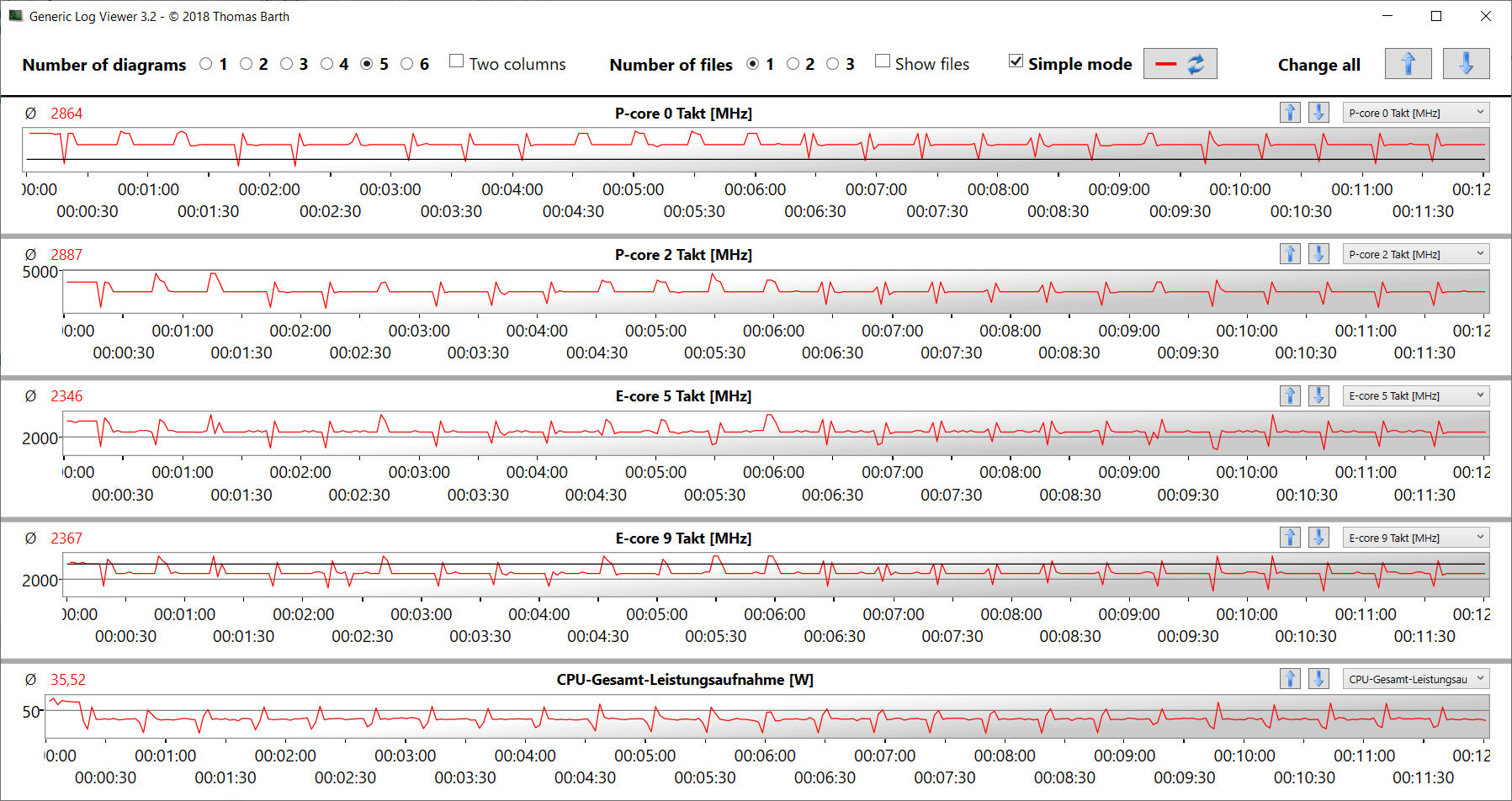

Cinebench R15 Multi Endurance test

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Asus ExpertBook B5 Flip B5602FBN Intel Core i7-1260P: Ø1613 (1568.63-2022.76)
Lenovo Yoga 7 16IAP7 Intel Core i7-1260P: Ø1260 (1158.65-1837.9)
HP Spectre x360 2-in-1 16-f1075ng Intel Core i7-12700H: Ø1638 (1589.13-2080.04)
MSI Summit E16 Flip A12UDT-031 Intel Core i7-1280P: Ø2059 (1955.03-2339.73)
CPU:s klockfrekvens under utförandet av CB15-slingan (strömläge)
CPU:s klockfrekvens under utförandet av CB15-slingan (strömläge)
CPU:s klockfrekvens under utförandet av CB15-slingan (standardläge)
CPU:s klockfrekvens under utförandet av CB15-slingan (standardläge)
CPU:s klockfrekvens under utförandet av CB15-slingan (whisper-läge)
CPU:s klockfrekvens under utförandet av CB15-slingan (whisper-läge)
CPU Performance Rating - Percent
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
80.1 pt
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
76.7 pt
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
74.9 pt
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
74.5 pt
Average Intel Core i7-1260P

67.4 pt
Average of class Convertible

62.1 pt
Cinebench R23
Multi Core
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
14803 Points +32%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
12071 Points +7%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
11245 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
10648 (7494.09min - 10648max) Points -5%
Average Intel Core i7-1260P
  (3173 - 12150, n=27)
9314 Points -17%
Average of class Convertible
  (616 - 18070, n=66, last 2 years)
9253 Points -18%
Single Core
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
1808 Points +2%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
1774 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
1736 Points -2%
Average Intel Core i7-1260P
  (1155 - 1812, n=25)
1674 Points -6%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
1647 Points -7%
Average of class Convertible
  (307 - 1970, n=66, last 2 years)
1568 Points -12%
Cinebench R20
CPU (Multi Core)
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
5415 Points +34%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
4693 Points +17%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
4056 Points +1%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
4027 Points
Average Intel Core i7-1260P
  (1234 - 4748, n=25)
3595 Points -11%
Average of class Convertible
  (242 - 6954, n=66, last 2 years)
3483 Points -14%
CPU (Single Core)
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
697 Points +3%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
674 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
645 Points -4%
Average Intel Core i7-1260P
  (448 - 698, n=25)
645 Points -4%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
634 Points -6%
Average of class Convertible
  (116.8 - 755, n=65, last 2 years)
603 Points -11%
Cinebench R15
CPU Multi 64Bit
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
2332 Points +15%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
2080 Points +2%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
2034 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
1838 (1158.65min - 1837.9max) Points -10%
Average of class Convertible
  (110.1 - 2889, n=67, last 2 years)
1556 Points -24%
Average Intel Core i7-1260P
  (549 - 2034, n=29)
1553 Points -24%
CPU Single 64Bit
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
262 Points +9%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
244 Points +1%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
241 Points
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
238 Points -1%
Average Intel Core i7-1260P
  (165.4 - 260, n=27)
232 Points -4%
Average of class Convertible
  (68.6 - 287, n=65, last 2 years)
229 Points -5%
Blender - v2.79 BMW27 CPU
Average of class Convertible
  (193 - 3620, n=61, last 2 years)
462 Seconds * -59%
Average Intel Core i7-1260P
  (264 - 906, n=26)
366 Seconds * -26%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
343 Seconds * -18%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
309 Seconds * -6%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
291 Seconds *
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
273 Seconds * +6%
7-Zip 18.03
7z b 4
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
46548 MIPS +1%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
46214 MIPS
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
45292 MIPS -2%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
44499 MIPS -4%
Average of class Convertible
  (7703 - 72400, n=63, last 2 years)
39319 MIPS -15%
Average Intel Core i7-1260P
  (16146 - 47064, n=25)
38707 MIPS -16%
7z b 4 -mmt1
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
5897 MIPS +5%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
5611 MIPS
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
5516 MIPS -2%
Average Intel Core i7-1260P
  (4064 - 5791, n=25)
5284 MIPS -6%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
5190 MIPS -8%
Average of class Convertible
  (2046 - 6417, n=63, last 2 years)
5155 MIPS -8%
Geekbench 5.5
Multi-Core
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
10452 Points +9%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
9623 Points +1%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
9571 Points
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
8946 Points -7%
Average Intel Core i7-1260P
  (3866 - 10570, n=25)
8763 Points -8%
Average of class Convertible
  (663 - 14016, n=68, last 2 years)
7974 Points -17%
Single-Core
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
1754 Points +15%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
1744 Points +14%
Average Intel Core i7-1260P
  (1436 - 1786, n=25)
1693 Points +11%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
1631 Points +7%
Average of class Convertible
  (319 - 1981, n=68, last 2 years)
1577 Points +3%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
1528 Points
HWBOT x265 Benchmark v2.2 - 4k Preset
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
13.4 fps +6%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
12.7 fps
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
12.5 fps -2%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
11.8 fps -7%
Average Intel Core i7-1260P
  (3.45 - 13.6, n=26)
10.8 fps -15%
Average of class Convertible
  (0.61 - 20.1, n=65, last 2 years)
10.3 fps -19%
LibreOffice - 20 Documents To PDF
Average of class Convertible
  (42 - 223, n=63, last 2 years)
54.6 s * -10%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
52.5 s * -5%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
49.8 s *
Average Intel Core i7-1260P
  (40.2 - 65.7, n=25)
48.4 s * +3%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
47.9 s * +4%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
42 s * +16%
R Benchmark 2.5 - Overall mean
Average of class Convertible
  (0.4102 - 1.967, n=63, last 2 years)
0.545 sec * -13%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P
0.512 sec * -6%
Average Intel Core i7-1260P
  (0.4559 - 0.727, n=25)
0.5 sec * -3%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P
0.4839 sec *
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H
0.4632 sec * +4%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P
0.4612 sec * +5%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
2034 Points
Cinebench R15 OpenGL 64Bit
138.13 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
241 Points
Hjälp
Performance Rating
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
96.1 pt
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
83.8 pt
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
75.2 pt
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
68.5 pt
Average of class Convertible

65.8 pt
Average Intel Core i7-1260P

58.3 pt
AIDA64 / FP32 Ray-Trace
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
13068 KRay/s +31%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
11101 KRay/s +11%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
10010 KRay/s
Average of class Convertible
  (109 - 25226, n=66, last 2 years)
8153 KRay/s -19%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
7948 KRay/s -21%
Average Intel Core i7-1260P
  (2176 - 10898, n=26)
6522 KRay/s -35%
AIDA64 / FPU Julia
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
66081 Points +31%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
56729 Points +12%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
50608 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
43394 Points -14%
Average of class Convertible
  (2644 - 106512, n=65, last 2 years)
43288 Points -14%
Average Intel Core i7-1260P
  (11015 - 56906, n=26)
31427 Points -38%
AIDA64 / CPU SHA3
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
2992 MB/s +23%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
2646 MB/s +9%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
2426 MB/s
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
2155 MB/s -11%
Average of class Convertible
  (121 - 4764, n=65, last 2 years)
2045 MB/s -16%
Average Intel Core i7-1260P
  (669 - 2709, n=26)
1827 MB/s -25%
AIDA64 / CPU Queen
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
100358 Points +24%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
90576 Points +12%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
80849 Points
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
79538 Points -2%
Average Intel Core i7-1260P
  (42571 - 82493, n=26)
72878 Points -10%
Average of class Convertible
  (3256 - 120368, n=65, last 2 years)
69355 Points -14%
AIDA64 / FPU SinJulia
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
8571 Points +27%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
7714 Points +14%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
6758 Points
Average of class Convertible
  (549 - 14835, n=65, last 2 years)
6312 Points -7%
Average Intel Core i7-1260P
  (2901 - 6975, n=26)
5770 Points -15%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
5748 Points -15%
AIDA64 / FPU Mandel
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
32766 Points +30%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
27800 Points +10%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
25256 Points
Average of class Convertible
  (1420 - 56839, n=65, last 2 years)
22387 Points -11%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
21407 Points -15%
Average Intel Core i7-1260P
  (5950 - 26376, n=26)
16631 Points -34%
AIDA64 / CPU AES
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
101332 MB/s +104%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
63453 MB/s +28%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
49610 MB/s
Average of class Convertible
  (191 - 169089, n=65, last 2 years)
47612 MB/s -4%
Average Intel Core i7-1260P
  (16041 - 92356, n=26)
45075 MB/s -9%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
44573 MB/s -10%
AIDA64 / CPU ZLib
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
879 MB/s +23%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
752 MB/s +5%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
714 MB/s
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
621 MB/s -13%
Average Intel Core i7-1260P
  (259 - 771, n=26)
607 MB/s -15%
Average of class Convertible
  (61.4 - 1088, n=65, last 2 years)
602 MB/s -16%
AIDA64 / FP64 Ray-Trace
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
7184 KRay/s +32%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
5896 KRay/s +9%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
5430 KRay/s
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
4339 KRay/s -20%
Average of class Convertible
  (59 - 13175, n=65, last 2 years)
4334 KRay/s -20%
Average Intel Core i7-1260P
  (1237 - 5858, n=26)
3577 KRay/s -34%
AIDA64 / CPU PhotoWorxx
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
43652 MPixel/s +33%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
42750 MPixel/s +30%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
32871 MPixel/s
Average of class Convertible
  (2185 - 52599, n=65, last 2 years)
32635 MPixel/s -1%
Average Intel Core i7-1260P
  (13261 - 43652, n=26)
30959 MPixel/s -6%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
20213 MPixel/s -39%

Systemprestanda

Det smidigt fungerande systemet ger tillräcklig prestanda för kontors- och internetprogram samt spel. GPU-tunga applikationer drar nytta av den dedikerade grafikkärnan. Arbetsminnet levererar överföringshastigheter på en normal nivå för DDR5-4800-minne. Dessutom finns det mycket goda PCMark-resultat.

Arbetsminnet består av 8 GB inbyggt minne och en 8 GB-modul.
Arbetsminnet består av 8 GB inbyggt minne och en 8 GB-modul.
PCMark 10 / Score
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
5984 Points +7%
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
5904 Points +5%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
5830 Points +4%
Average of class Convertible
  (1486 - 7963, n=60, last 2 years)
5628 Points 0%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
5609 Points
Average Intel Core i7-1260P, Intel Arc A350M
  (5486 - 5609, n=2)
5548 Points -1%
PCMark 10 / Essentials
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
11251 Points +20%
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
10825 Points +15%
Average of class Convertible
  (3975 - 12059, n=60, last 2 years)
10505 Points +12%
Average Intel Core i7-1260P, Intel Arc A350M
  (9411 - 9997, n=2)
9704 Points +3%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
9687 Points +3%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
9411 Points
PCMark 10 / Productivity
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
7521 Points +12%
Average of class Convertible
  (2764 - 10800, n=60, last 2 years)
7392 Points +10%
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
7239 Points +8%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
6932 Points +3%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
6728 Points
Average Intel Core i7-1260P, Intel Arc A350M
  (6714 - 6728, n=2)
6721 Points 0%
PCMark 10 / Digital Content Creation
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
7980 Points +6%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
7562 Points
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
7127 Points -6%
Average Intel Core i7-1260P, Intel Arc A350M
  (6677 - 7562, n=2)
7120 Points -6%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
6897 Points -9%
Average of class Convertible
  (811 - 12360, n=60, last 2 years)
6366 Points -16%
CrossMark / Overall
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
1701 Points +1%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
1687 Points
Average Intel Core i7-1260P, Intel Arc A350M

1687 Points 0%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
1684 Points 0%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
1652 Points -2%
Average of class Convertible
  (285 - 1912, n=59, last 2 years)
1466 Points -13%
CrossMark / Productivity
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
1717 Points +3%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
1663 Points
Average Intel Core i7-1260P, Intel Arc A350M

1663 Points 0%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
1600 Points -4%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
1583 Points -5%
Average of class Convertible
  (310 - 1790, n=59, last 2 years)
1442 Points -13%
CrossMark / Creativity
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
1872 Points +8%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
1761 Points +2%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
1733 Points
Average Intel Core i7-1260P, Intel Arc A350M

1733 Points 0%
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
1655 Points -5%
Average of class Convertible
  (252 - 2183, n=59, last 2 years)
1567 Points -10%
CrossMark / Responsiveness
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
1799 Points +11%
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
1625 Points
Average Intel Core i7-1260P, Intel Arc A350M

1625 Points 0%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
1550 Points -5%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
1427 Points -12%
Average of class Convertible
  (204 - 1868, n=59, last 2 years)
1276 Points -21%
PCMark 10 Score
5609 poäng
Hjälp
AIDA64 / Memory Copy
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
66400 MB/s +36%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
64695 MB/s +32%
Average of class Convertible
  (14439 - 95631, n=64, last 2 years)
57068 MB/s +17%
Average Intel Core i7-1260P
  (25125 - 71544, n=25)
54361 MB/s +11%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
48842 MB/s
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
40944 MB/s -16%
AIDA64 / Memory Read
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
66708 MB/s +28%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
65256 MB/s +25%
Average Intel Core i7-1260P
  (24983 - 72065, n=25)
56385 MB/s +8%
Average of class Convertible
  (12706 - 86873, n=64, last 2 years)
54230 MB/s +4%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
52296 MB/s
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
43659 MB/s -17%
AIDA64 / Memory Write
Average of class Convertible
  (10177 - 93451, n=64, last 2 years)
60050 MB/s +18%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
59311 MB/s +17%
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
58868 MB/s +16%
Average Intel Core i7-1260P
  (23512 - 66799, n=25)
53353 MB/s +5%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
50710 MB/s
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
42999 MB/s -15%
AIDA64 / Memory Latency
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, GeForce RTX 3050 Ti Laptop GPU
153.3 ns * -60%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Iris Xe G7 96EUs
104.5 ns * -9%
Average of class Convertible
  (10.2 - 260, n=61, last 2 years)
97.1 ns * -1%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, A350M
95.7 ns *
Average Intel Core i7-1260P
  (77.9 - 118.4, n=21)
78.7 ns * +18%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Iris Xe G7 96EUs
77.8 ns * +19%

* ... smaller is better

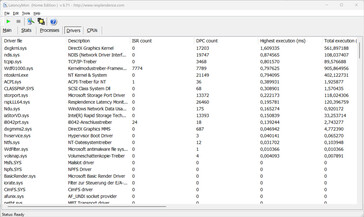

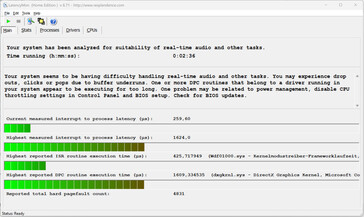

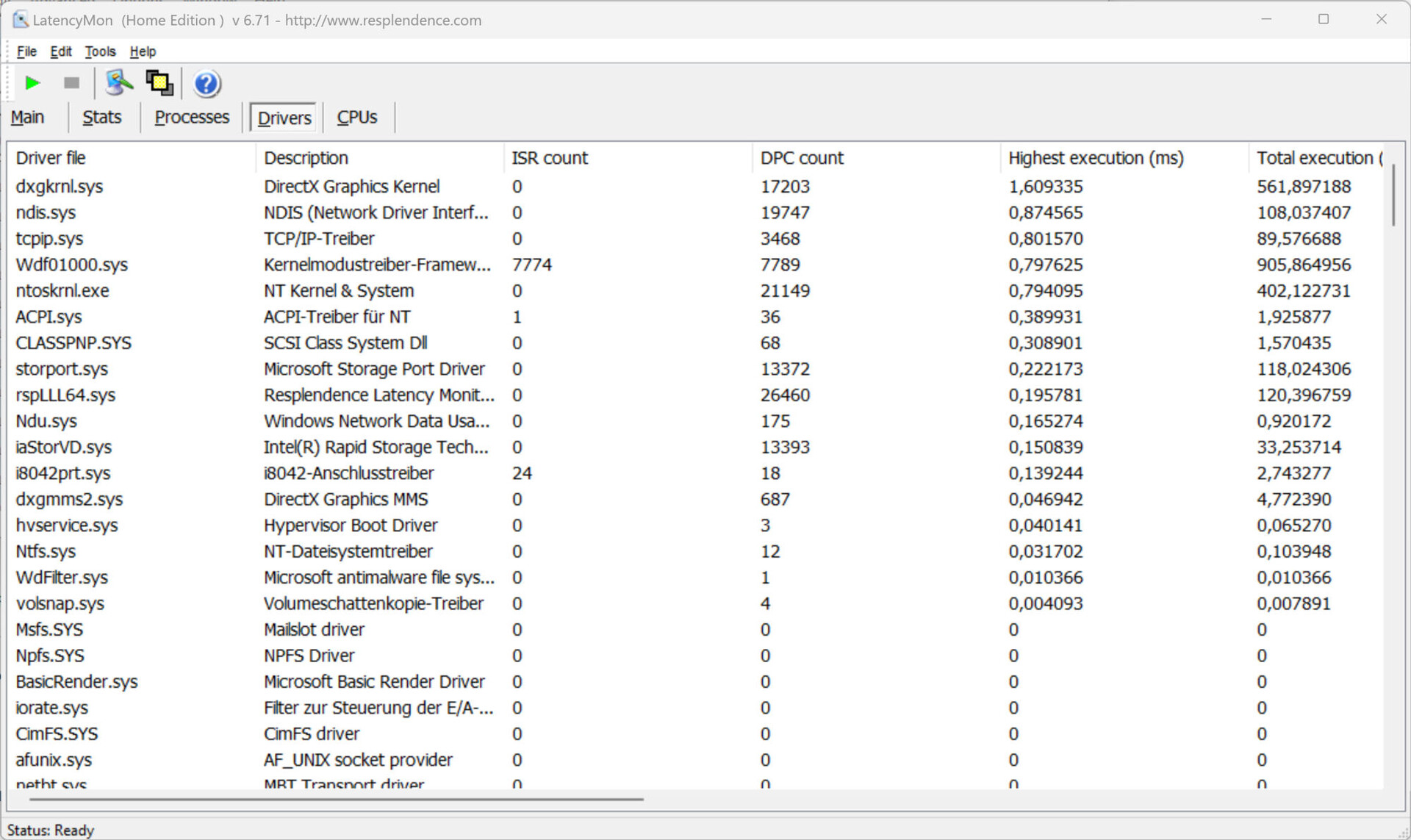

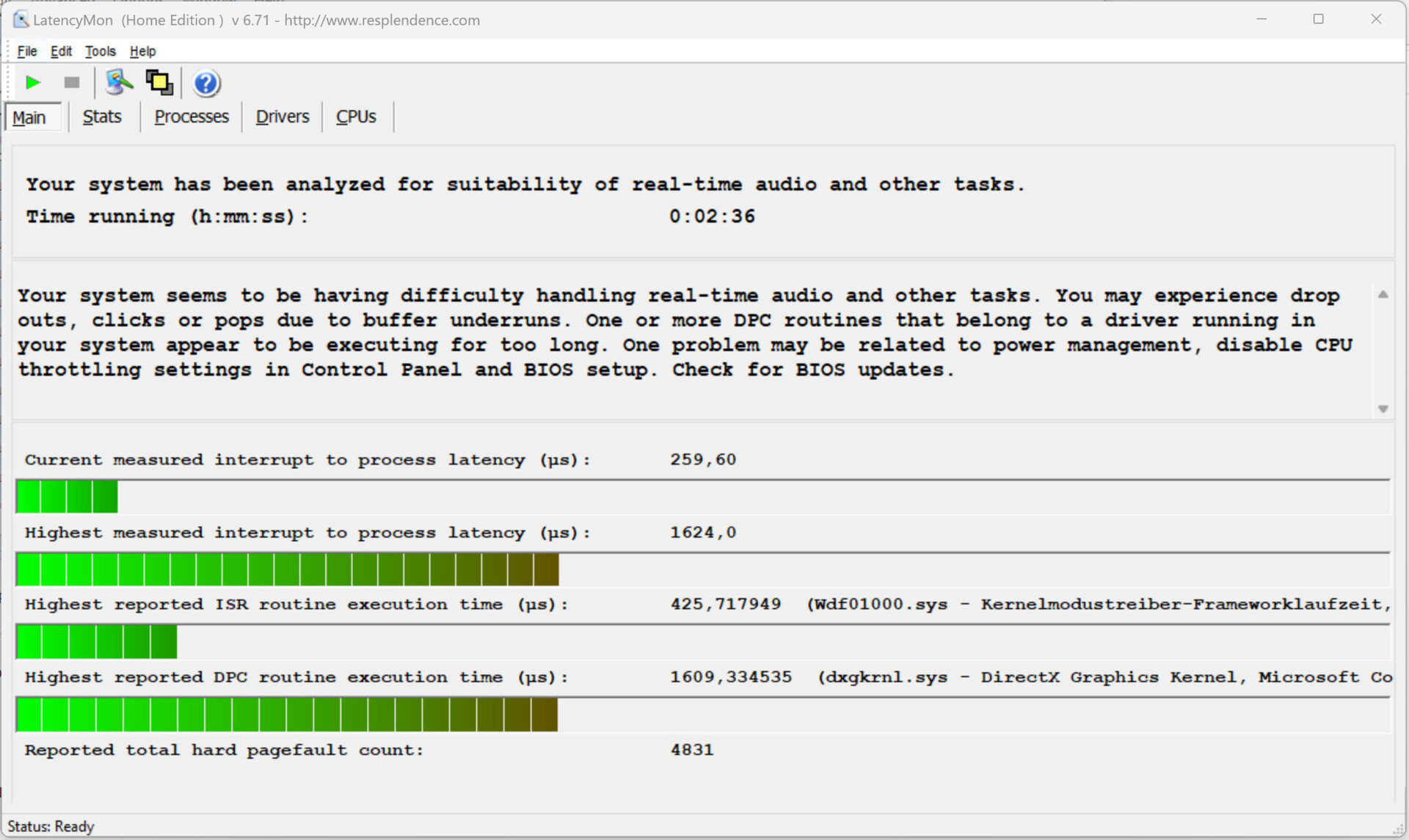

DPC-fördröjningar

Övervakning av latenstid
Övervakning av latenstid
Övervakning av latenstid
Övervakning av latenstid
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
1624 μs *
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
1124.3 μs * +31%
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
941.8 μs * +42%
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
803.5 μs * +51%

* ... smaller is better

Masslagring

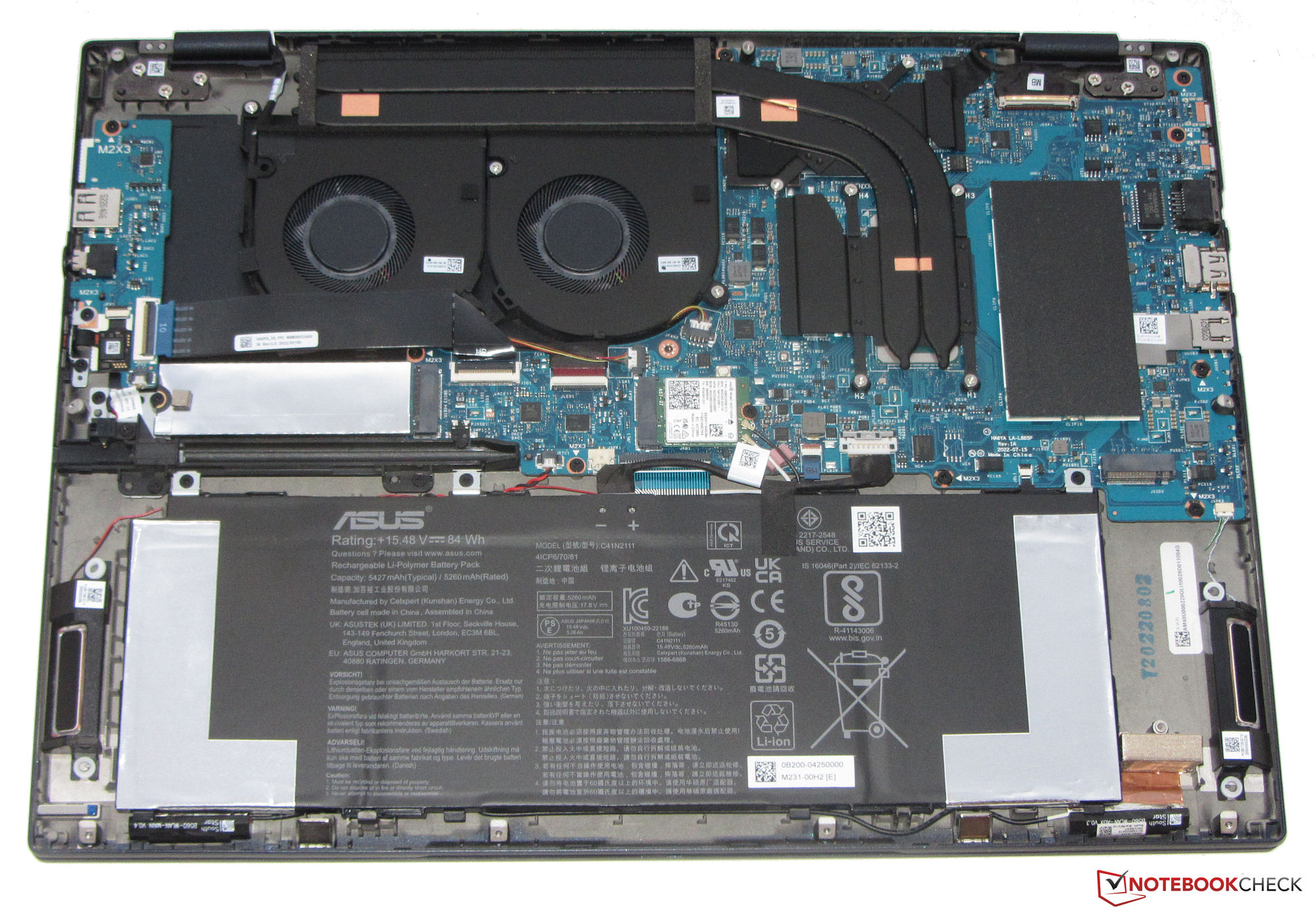

B5 har plats för två PCIe-4 SSD-diskar i M.2-2280-format. RAID 0/1 stöds. Den installerade PCIe-4-SSD:n (1 TB) ger bra överföringshastigheter, men är inte en av de bästa SSD-modellerna. Prestandaförluster på grund av termisk strypning förekommer inte.

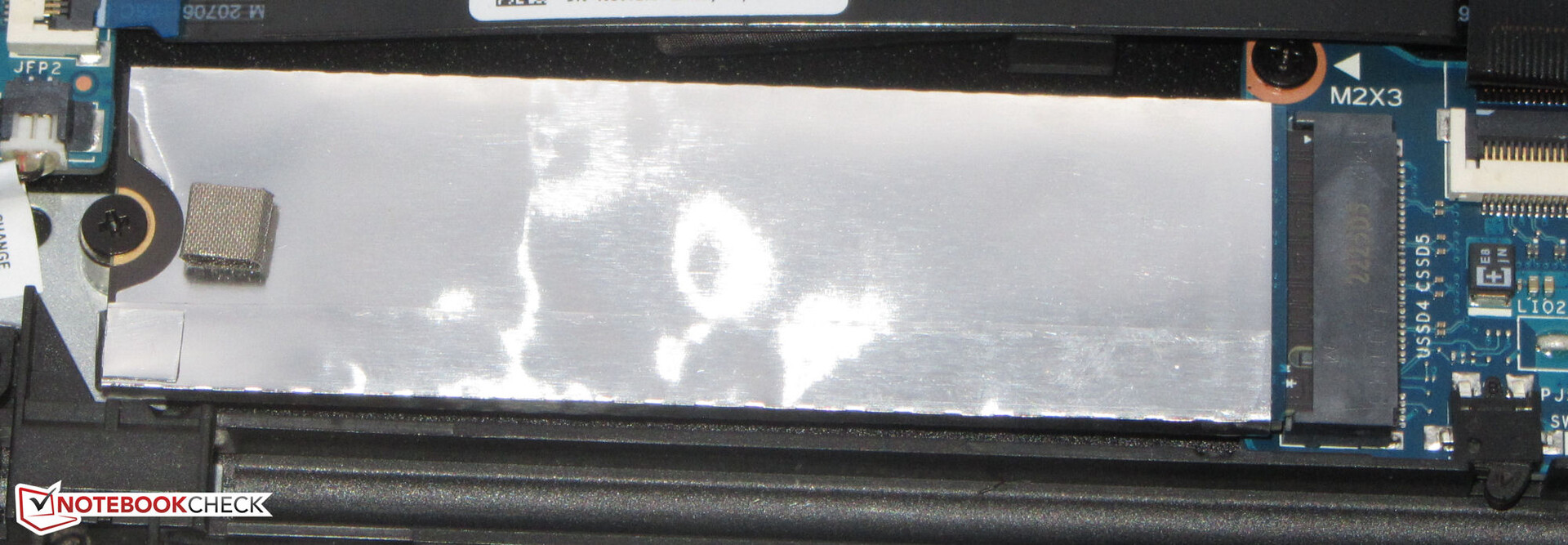

En PCIe-4 SSD fungerar som systemenhet.
En PCIe-4 SSD fungerar som systemenhet.

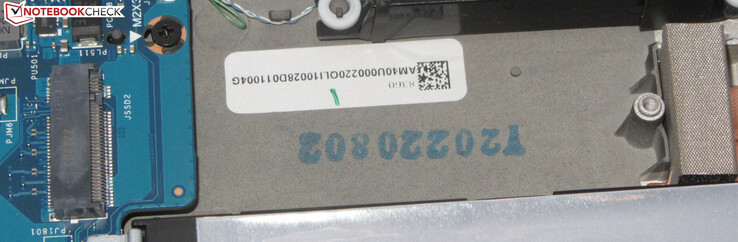

Det finns plats för en andra SSD.
Det finns plats för en andra SSD.
WD PC SN735 SDBPNHH-1T00
CDM 5/6 Read Seq Q32T1: 3588 MB/s
CDM 5/6 Write Seq Q32T1: 2824 MB/s
CDM 5/6 Read 4K Q32T1: 642.5 MB/s
CDM 5/6 Write 4K Q32T1: 446.3 MB/s
CDM 5 Read Seq: 1840 MB/s
CDM 5 Write Seq: 2828 MB/s
CDM 5/6 Read 4K: 52.08 MB/s
CDM 5/6 Write 4K: 307.1 MB/s
Drive Performance Rating - Percent
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
94.7 pt
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
69.4 pt
Average WD PC SN735 SDBPNHH-1T00

69.3 pt
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
66.2 pt
Average of class Convertible

52.6 pt
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
49 pt
DiskSpd
seq read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
3977 (3942.98min - 3977.02max) MB/s +113%
Average of class Convertible
  (251 - 4494, n=62, last 2 years)
2540 MB/s +36%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
2086 (2067.43min - 2086.04max) MB/s +12%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
2024 (1944.48min - 2024.11max) MB/s +9%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
1864 (1747.35min - 1863.53max) MB/s
Average WD PC SN735 SDBPNHH-1T00

1864 MB/s 0%
seq write
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
3790 (3739.64min - 3789.58max) MB/s +38%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2744 (2684.9min - 2744.3max) MB/s
Average WD PC SN735 SDBPNHH-1T00

2744 MB/s 0%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
2439 (2306.66min - 2438.93max) MB/s -11%
Average of class Convertible
  (195.5 - 4440, n=62, last 2 years)
2249 MB/s -18%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
1548 (1453.93min - 1548.49max) MB/s -44%
seq q8 t1 read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
6677 (6052.53min - 6677.33max) MB/s +87%
Average of class Convertible
  (272 - 7152, n=62, last 2 years)
4085 MB/s +14%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
3571 (2783.76min - 3571.04max) MB/s
Average WD PC SN735 SDBPNHH-1T00

3571 MB/s 0%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
3544 (2906.02min - 3543.98max) MB/s -1%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
2996 (2553.28min - 2996.08max) MB/s -16%
seq q8 t1 write
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
4937 (4850.71min - 4936.71max) MB/s +75%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
3250 (3167.12min - 3250.17max) MB/s +15%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
3110 (3096.65min - 3109.94max) MB/s +10%
Average of class Convertible
  (215 - 5667, n=62, last 2 years)
2890 MB/s +2%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2829 (2776.84min - 2828.85max) MB/s
Average WD PC SN735 SDBPNHH-1T00

2829 MB/s 0%
4k q1 t1 read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
86 (85.32min - 86.04max) MB/s +75%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
60.8 (53.24min - 60.81max) MB/s +24%
Average of class Convertible
  (9.13 - 90.3, n=62, last 2 years)
59 MB/s +20%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
57.1 (55.75min - 57.09max) MB/s +16%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
49.1 (41.93min - 49.1max) MB/s
Average WD PC SN735 SDBPNHH-1T00

49.1 MB/s 0%
4k q1 t1 write
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
326 (294.1min - 325.52max) MB/s
Average WD PC SN735 SDBPNHH-1T00

326 MB/s 0%
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
231 (225.55min - 230.61max) MB/s -29%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
169.5 (166.2min - 169.54max) MB/s -48%
Average of class Convertible
  (18.7 - 398, n=62, last 2 years)
151.3 MB/s -54%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
133.3 (120.98min - 133.34max) MB/s -59%
4k q32 t16 read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
3523 (3505.63min - 3522.62max) MB/s +64%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2150 (2141.61min - 2149.81max) MB/s
Average WD PC SN735 SDBPNHH-1T00

2150 MB/s 0%
Average of class Convertible
  (48.8 - 3881, n=62, last 2 years)
1086 MB/s -49%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
727 (678.66min - 726.52max) MB/s -66%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
715 (657.06min - 714.84max) MB/s -67%
4k q32 t16 write
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
2551 (2458.41min - 2551.26max) MB/s +9%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2350 (2283.36min - 2349.91max) MB/s
Average WD PC SN735 SDBPNHH-1T00

2350 MB/s 0%
Average of class Convertible
  (17.4 - 3537, n=62, last 2 years)
795 MB/s -66%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
389 (250.92min - 389.12max) MB/s -83%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
366 (310.36min - 366.25max) MB/s -84%
AS SSD
Score Total
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
7382 Points +27%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
6585 Points +13%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
5832 Points
Average WD PC SN735 SDBPNHH-1T00

5832 Points 0%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
3822 Points -34%
Average of class Convertible
  (125 - 8167, n=61, last 2 years)
3697 Points -37%
Score Read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
2807 Points +16%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2411 Points
Average WD PC SN735 SDBPNHH-1T00

2411 Points 0%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
2260 Points -6%
Average of class Convertible
  (54 - 3045, n=61, last 2 years)
1314 Points -45%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
1090 Points -55%
Score Write
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
3195 Points +45%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
3170 Points +44%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
2209 Points 0%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2208 Points
Average WD PC SN735 SDBPNHH-1T00

2208 Points 0%
Average of class Convertible
  (45 - 3626, n=61, last 2 years)
1767 Points -20%
Seq Read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
5009.86 MB/s +63%
Average of class Convertible
  (226 - 5478, n=61, last 2 years)
3283 MB/s +7%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
3074.15 MB/s
Average WD PC SN735 SDBPNHH-1T00

3074 MB/s 0%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
2730.33 MB/s -11%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
2728.52 MB/s -11%
Seq Write
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
3780.52 MB/s +48%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
2630.48 MB/s +3%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2552.02 MB/s
Average WD PC SN735 SDBPNHH-1T00

2552 MB/s 0%
Average of class Convertible
  (162.8 - 4335, n=61, last 2 years)
1931 MB/s -24%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
1708.72 MB/s -33%
4K Read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
77.43 MB/s +15%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
67.43 MB/s
Average WD PC SN735 SDBPNHH-1T00

67.4 MB/s 0%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
61.52 MB/s -9%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
58.52 MB/s -13%
Average of class Convertible
  (7.89 - 82.4, n=61, last 2 years)
55.7 MB/s -17%
4K Write
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
278.34 MB/s
Average WD PC SN735 SDBPNHH-1T00

278 MB/s 0%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
239.47 MB/s -14%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
215.46 MB/s -23%
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
196.21 MB/s -30%
Average of class Convertible
  (14 - 347, n=61, last 2 years)
160.6 MB/s -42%
4K-64 Read
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
2228.2 MB/s +9%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
2036.29 MB/s
Average WD PC SN735 SDBPNHH-1T00

2036 MB/s 0%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
1925.49 MB/s -5%
Average of class Convertible
  (19.6 - 2446, n=61, last 2 years)
930 MB/s -54%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
758.75 MB/s -63%
4K-64 Write
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
2667.24 MB/s +59%
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
2620.46 MB/s +56%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
1822.41 MB/s +9%
Average WD PC SN735 SDBPNHH-1T00

1675 MB/s 0%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
1674.57 MB/s
Average of class Convertible
  (15 - 3050, n=61, last 2 years)
1412 MB/s -16%
Access Time Read
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
0.103 ms *
Average WD PC SN735 SDBPNHH-1T00

0.103 ms * -0%
Average of class Convertible
  (0.021 - 0.27, n=60, last 2 years)
0.08725 ms * +15%
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
0.063 ms * +39%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
0.041 ms * +60%
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
0.036 ms * +65%
Access Time Write
Lenovo Yoga 7 16IAP7
Micron 2450 512GB MTFDKCD512TFK
0.396 ms * -274%
Average of class Convertible
  (0.017 - 0.865, n=61, last 2 years)
0.1153 ms * -9%
Asus ExpertBook B5 Flip B5602FBN
WD PC SN735 SDBPNHH-1T00
0.106 ms *
Average WD PC SN735 SDBPNHH-1T00

0.106 ms * -0%
MSI Summit E16 Flip A12UDT-031
Samsung PM9A1 MZVL22T0HBLB
0.021 ms * +80%
HP Spectre x360 2-in-1 16-f1075ng
SK Hynix PC711 1TB HFS001TDE9X073N
0.018 ms * +83%

* ... smaller is better

Continuous Reading: DiskSpd Read Loop, Queue Depth 8

033567010051340167520102345268030153350368540204355469050255360569560306365Tooltip
Asus ExpertBook B5 Flip B5602FBN WD PC SN735 SDBPNHH-1T00: Ø3513 (2941.88-3535.44)
Lenovo Yoga 7 16IAP7 Micron 2450 512GB MTFDKCD512TFK: Ø3021 (2661.71-3034.17)
HP Spectre x360 2-in-1 16-f1075ng SK Hynix PC711 1TB HFS001TDE9X073N: Ø3537 (3123.29-3556.33)
MSI Summit E16 Flip A12UDT-031 Samsung PM9A1 MZVL22T0HBLB: Ø6626 (6157.24-6654.79)

Grafikkort

Med hjälp av Arc-A350M GPU har den svagaste representanten från Intels nuvarande DGPU-portfölj hittat sin väg in i B5 Flip. Instegsmodellen har en TGP på 35 watt, kan förlita sig på snabbt GDDR6-minne (4,096 GB) och når en maximal klockfrekvens på 2,2 GHz - den senare kan upprätthållas permanent enligt Witcher 3 test.

A350M får ofta bättre resultat än sina direkta rivaler i de syntetiska riktmärkena (GeForce MX550, Radeon 680M), men är ofta i underläge i spelpraxis - med högre energikrav. Trots detta är GPU:n lämplig för spel vid medelhöga till delvis höga inställningar.

Den blandade spelprestandan uppvägs av andra fördelar med A350M, som borde vara mer efterfrågade i en bärbar dator som B5 Flip: ray tracing-kärnor, hög OpenCL-prestanda och stöd för AV1-koden (av- och inkodning).

Mer information om prestandan hos Arc A350M och dess direkta rivaler finns i en teknikartikel: Battle of the entry-level GPUs - Nvidia GeForce MX550 & Intel Arc A350M i test.

Fire Strike (nätdrift, strömläge)
Fire Strike (nätdrift, strömläge)
Fire Strike (nätdrift, standardläge)
Fire Strike (nätdrift, standardläge)
Fire Strike (Batteridrift, standardläge)
Fire Strike (Batteridrift, standardläge)
Fire Strike (nätdrift, viskningsläge)
Fire Strike (nätdrift, viskningsläge)
3DMark Performance Rating - Percent
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
100 pt
Average Intel Arc A350M

55.3 pt
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
53.9 pt
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
53.2 pt
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
52.3 pt
Average of class Convertible

41.7 pt
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
35.9 pt
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
33.2 pt
3DMark 11 - 1280x720 Performance GPU
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
18102 Points +68%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
10845 Points +1%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
10773 Points
Average Intel Arc A350M
  (10687 - 10773, n=2)
10730 Points 0%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
10331 Points -4%
Average of class Convertible
  (471 - 40768, n=65, last 2 years)
7603 Points -29%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6813 Points -37%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
6582 Points -39%
3DMark
1280x720 Cloud Gate Standard Graphics
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
74205 Points +159%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
43275 Points +51%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
40364 Points +41%
Average Intel Arc A350M
  (28623 - 44006, n=2)
36315 Points +27%
Average of class Convertible
  (2965 - 154219, n=50, last 2 years)
31444 Points +10%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
28623 Points
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
27125 Points -5%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
24123 Points -16%
1920x1080 Fire Strike Graphics
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
13081 Points +83%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
7147 Points
Average Intel Arc A350M
  (6800 - 7318, n=3)
7088 Points -1%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
6679 Points -7%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
6257 Points -12%
Average of class Convertible
  (365 - 29684, n=65, last 2 years)
5731 Points -20%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
4961 Points -31%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
4629 Points -35%
2560x1440 Time Spy Graphics
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
5081 Points +67%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
3050 Points
Average Intel Arc A350M
  (2731 - 3197, n=3)
2993 Points -2%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
2526 Points -17%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
2351 Points -23%
Average of class Convertible
  (94 - 11749, n=64, last 2 years)
1959 Points -36%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1601 Points -48%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
1444 Points -53%
3DMark 11 Performance
11409 poäng
3DMark Cloud Gate Standard Score
23965 poäng
3DMark Fire Strike Score
6832 poäng
3DMark Time Spy Score
3397 poäng
Hjälp
Blender - v3.3 Classroom CPU
Average of class Convertible
  (326 - 1253, n=49, last 2 years)
685 Seconds * -30%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
673 Seconds * -28%
Average Intel Arc A350M
  (526 - 636, n=2)
581 Seconds * -10%
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P (3.3.0)
557 Seconds * -6%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (3.3.3)
526 Seconds *
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H (3.3.2)
487 Seconds * +7%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
394 Seconds * +25%
GPUScore: Sacred Path
2560x1440 Official VRS
Average of class Convertible
  (12.5 - 122.8, n=54, last 2 years)
62.9 fps +85%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (0.9.0 Vulkan 1.3)
34 (29.3min, 30.1P1 - 45.9max) fps
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (0.9.0 DirectX 12)
17.3 (14.1min, 14.4P1 - 26.9max) fps -49%
Average Intel Arc A350M
  (17.3 - 34, n=2)
25.7 fps -24%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H (0.9.0 Vulkan 1.3)
16.1 (13.7min, 13.8P1 - 23.2max) fps -53%
2560x1440 Official
Average of class Convertible
  (11.8 - 139.5, n=76, last 2 years)
50.9 fps +49%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (0.9.0 Vulkan 1.3)
34.1 (28.8min, 30P1 - 45.9max) fps
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (0.9.0 DirectX 12)
16.4 (13.6min, 13.8P1 - 24.6max) fps -52%
Average Intel Arc A350M
  (16.4 - 34.1, n=2)
25.3 fps -26%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H (0.9.0 DirectX 12)
14.7 (11.5min, 12.6P1 - 21.4max) fps -57%
Geekbench 5.5
OpenCL Score
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
97998 Points
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
60794 Points -38%
Average Intel Arc A350M
  (20177 - 97998, n=2)
59088 Points -40%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
39355 Points -60%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
33262 Points -66%
Average of class Convertible
  (1016 - 114072, n=66, last 2 years)
23422 Points -76%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
20293 Points -79%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
16825 Points -83%
Vulkan Score
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
55994 Points
Average Intel Arc A350M
  (20768 - 55994, n=2)
38381 Points -31%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
28168 Points -50%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
19235 Points -66%
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P
18382 Points -67%
Average of class Convertible
  (885 - 55994, n=66, last 2 years)
18126 Points -68%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
15564 Points -72%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P
13468 Points -76%
Geekbench 6.0
GPU Vulkan
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
26608 Points
Average Intel Arc A350M

26608 Points 0%
Average of class Convertible
  (11652 - 26608, n=5, last 2 years)
16748 Points -37%
GPU OpenCL
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P
27671 Points
Average Intel Arc A350M

27671 Points 0%
Average of class Convertible
  (12136 - 27671, n=4, last 2 years)
17226 Points -38%
V-Ray 5 Benchmark
GPU CUDA
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P (5.0.1)
520 mpaths +154%
Average of class Convertible
  (70 - 993, n=7, last 2 years)
447 mpaths +118%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX (5.0.1)
234 mpaths +14%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (5.0.1)
205 mpaths
Average Intel Arc A350M

205 mpaths 0%
CPU
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX (5.0.1)
9834 mpaths +32%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (5.0.1)
7426 mpaths
Average Intel Arc A350M

7426 mpaths 0%
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P (5.0.1)
7250 mpaths -2%
Lenovo Yoga 7 16IAP7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P (5.0.1)
7158 mpaths -4%
Average of class Convertible
  (270 - 11415, n=35, last 2 years)
5834 mpaths -21%
V-Ray Benchmark Next 4.10
GPU
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P (v4.10.07 )
198 mpaths +209%
Average of class Convertible
  (3 - 596, n=35, last 2 years)
83.1 mpaths +30%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX (v4.10.07 )
78 mpaths +22%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P (v4.10.07 )
71 mpaths +11%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H (v4.10.07 )
67 mpaths +5%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (v4.10.07 )
64 mpaths
Average Intel Arc A350M
  (56 - 64, n=2)
60 mpaths -6%
CPU
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX (v4.10.07 )
14527 ksamples +28%
HP Spectre x360 2-in-1 16-f1075ng
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H (v4.10.07 )
12680 ksamples +12%
Lenovo IdeaCentre AIO 3 24IAP7
NVIDIA GeForce MX550, Intel Core i7-1260P (v4.10.07 )
12312 ksamples +8%
Asus ExpertBook B5 Flip B5602FBN
Intel Arc A350M, Intel Core i7-1260P (v4.10.07 )
11372 ksamples
MSI Summit E16 Flip A12UDT-031
NVIDIA GeForce RTX 3050 Ti Laptop GPU, Intel Core i7-1280P (v4.10.07 )
11338 ksamples 0%
Average Intel Arc A350M
  (10932 - 11372, n=2)
11152 ksamples -2%
Average of class Convertible
  (617 - 18048, n=35, last 2 years)
9348 ksamples -18%

* ... smaller is better

Performance Rating - Percent
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
100 pt
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
73.6 pt
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
55.7 pt
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
50.9 pt
Average of class Convertible

42.4 pt
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
35.6 pt
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
34.1 pt
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
63.7 (11min, 13.9P0.1, 33P1) fps +42%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
51 fps +13%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
45 (39min) fps
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.3 fps -8%
Average of class Convertible
  (13.5 - 155.3, n=57, last 2 years)
33.8 fps -25%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
29.1 (26min) fps -35%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
25.6 (12.6min, 13.1P0.1, 15.9P1) fps -43%
GTA V - 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
114.3 (32.5min, 76.9P1) fps +201%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
77.6 (15.6min, 52.6P1) fps +104%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
49.3 (7.78min, 34.5P1) fps +30%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
38 (5.76min, 26.3P1) fps
Average of class Convertible
  (11.7 - 172.7, n=55, last 2 years)
33.2 fps -13%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
19.6 (8.58min, 13.9P1) fps -48%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
16.6 (8.08min, 13P1) fps -56%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
88.2 (43.8min, 56.8P1) fps +80%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
49.1 (37.2min, 39.5P1) fps
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
40.4 (18.9min, 25.3P1) fps -18%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
38.1 (29.5min, 30.3P1) fps -22%
Average of class Convertible
  (17.3 - 196.9, n=53, last 2 years)
35.4 fps -28%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
28.7 (8.1min, 10.9P1) fps -42%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
23.7 (7.7min, 9.06P1) fps -52%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
104.9 fps +62%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
80.3 fps +24%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
66.7 fps +3%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
64.8 fps
Average of class Convertible
  (3.56 - 182.7, n=59, last 2 years)
46.4 fps -28%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
40.4 fps -38%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
38.5 fps -41%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
114.1 (98min) fps +103%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
106.7 (96.4min) fps +90%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
73.6 (65.2min) fps +31%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
56.1 (33.4min) fps
Average of class Convertible
  (5.4 - 158.3, n=65, last 2 years)
55.3 fps -1%
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
52.4 (45.2min) fps -7%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
48.8 (44.1min) fps -13%
X-Plane 11.11 - 1280x720 low (fps_test=1)
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
125.7 fps +186%
Lenovo IdeaCentre AIO 3 24IAP7
Intel Core i7-1260P, NVIDIA GeForce MX550
101.1 fps +130%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, AMD Radeon 680M
66.1 fps +51%
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
54.9 fps +25%
Average of class Convertible
  (20.7 - 143.4, n=65, last 2 years)
49.9 fps +14%
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
43.9 fps
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
42.6 fps -3%

Witcher 3 FPS-Diagram

05101520253035404550Tooltip
Asus ExpertBook B5 Flip B5602FBN i7-1260P, A350M: Ø20.7 (19-22)
HP Spectre x360 2-in-1 16-f1075ng i7-12700H, Iris Xe G7 96EUs: Ø13.7 (11-15)
MSI Summit E16 Flip A12UDT-031 i7-1280P, GeForce RTX 3050 Ti Laptop GPU: Ø51.2 (46-55)
GPU-avläsningar under Witcher 3 -testet
GPU-avläsningar under Witcher 3 -testet
låg med. hög ultraQHD4K
GTA V (2015) 170.7 156.3 38 15.2 10.1 11.1
The Witcher 3 (2015) 140.1 83.6 45 20.5 15.1
Dota 2 Reborn (2015) 102.1 85.8 60.6 56.1
Final Fantasy XV Benchmark (2018) 64.8 33.2 18.2 13.6 7.33
X-Plane 11.11 (2018) 43.9 32.2 27.9 19.6
Far Cry 5 (2018) 89 44 41 38 25 12
Strange Brigade (2018) 163.4 71.6 58.7 49.1 36.6 19.6
The Division 2 (2019) 92 46 37 27 17 7
Doom Eternal (2020) 113.4 55.6
Flight Simulator 2020 (2020) 43.1
Assassin´s Creed Valhalla (2020) 65 35 20 16 14
Back 4 Blood (2021) 139.3 60.2 48.1 46 31 14.9
Riders Republic (2021) 60 32 25 21 12 7
Forza Horizon 5 (2021) 108 50 47 11 9 6
Rainbow Six Extraction (2022) 68 52 45 30 17 2.6
Dying Light 2 (2022) 26.7 21.9 17.8
Vampire Bloodhunt (2022) 80.6 64.7 54.9 49.9 30.6 10.8
F1 22 (2022) 52.1 51.4 35.5
A Plague Tale Requiem (2022) 29.9 24.3 20 13.1 6.4
Call of Duty Modern Warfare 2 2022 (2022) 41 37 23 12 7 6
Spider-Man Miles Morales (2022) 41.5 33.2 25.4 20.4 14.7 7.22
The Callisto Protocol (2022) 42.1 28.3 12.3 13.9 8.3 3.1
High On Life (2023) 71.9 42.6 38.2 27.8 18.8 4.36
The Witcher 3 v4.00 (2023) 56.3 42.6 36.1 29.7 20.4
Hogwarts Legacy (2023) 37.5 25 19.8 15.3 10.1 2.96

Utsläpp och energi - bärbar 2-i-1-bok med god uthållighet

Bullerutsläpp

B5602FBN har en acceptabel ljudnivå överlag. Vid tomgång och vardaglig användning (kontor, Internet) är det ofta tyst. Vid full belastning (stresstest, Witcher 3 test) kan ljudtrycksnivån stiga upp till 53,6 dB (A) - ett för högt värde. Genom att använda fläktprofilen "Whisper mode" sänks ljudutvecklingen totalt sett - på bekostnad av datorprestanda.

Ljudnivå

Låg belastning
27.5 / 27.5 / 28.3 dB(A)
Hög belastning
40.7 / 53.6 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm avstånd)   environment noise: 27.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2023.520.230.926.623.52530.623.828.126.630.63130.724.832.833.230.74027.722.734.426.927.75027.32525.826.227.36324.921.824.122.524.98019.124.52119.219.110021.921.127.123.321.912529.124.121.620.829.116018.821.722.519.218.820017.419.425.917.417.425016.318.824.616.416.331517.120.429.718.817.140015.421.829.918.815.45001521.329.2151563014.82330.914.314.880015.725.433.914.115.7100015.926.235.813.915.9125016.528.339.213.716.5160016.328.238.413.916.3200017.631.24214.117.625001730.441.31417315016.130.141.214.316.1400015.628.739.41515.6500015.130.840.916.315.1630015.230.143.416.715.2800016.828.848.819.316.81000016.425.545.518.316.41250014.717.233.314.914.71600017.214.520.814.217.2SPL28.340.853.627.728.3N1.13.48.311.1median 16.3median 25.4median 33.9median 15median 16.3Delta1.44.67.221.4hearing rangehide median Fan NoiseAsus ExpertBook B5 Flip B5602FBN
Asus ExpertBook B5 Flip B5602FBN
A350M, i7-1260P, WD PC SN735 SDBPNHH-1T00
Lenovo Yoga 7 16IAP7
Iris Xe G7 96EUs, i7-1260P, Micron 2450 512GB MTFDKCD512TFK
HP Spectre x360 2-in-1 16-f1075ng
Iris Xe G7 96EUs, i7-12700H, SK Hynix PC711 1TB HFS001TDE9X073N
MSI Summit E16 Flip A12UDT-031
GeForce RTX 3050 Ti Laptop GPU, i7-1280P, Samsung PM9A1 MZVL22T0HBLB
Noise
15%
8%
2%
off / environment *
27.5
23.6
14%
26
5%
25
9%
Idle Minimum *
27.5
23.6
14%
26
5%
25
9%
Idle Average *
27.5
23.6
14%
26
5%
25
9%
Idle Maximum *
28.3
23.6
17%
26
8%
28.9
-2%
Load Average *
40.7
37.7
7%
42.9
-5%
49.3
-21%
Load Maximum *
53.6
40.2
25%
39.1
27%
48.2
10%
Witcher 3 ultra *
40
42.9

* ... smaller is better

Temperatur

B5 Flip i stresstestet.
B5 Flip i stresstestet.

Fläktarna säkerställer låga till måttliga temperaturer över hela belastningsområdet. Högsta värden (40-44 °C/104-111,2 F°) uppnås under Witcher 3 testet - vid tre mätpunkter.

Stresstestet (Prime95 och FurMark i kontinuerlig drift) är ett extremt scenario för att testa systemets stabilitet under full belastning. CPU-klockan ligger kvar på en medelhög nivå (P: 2,5 till 2,6 GHz; E: 2 till 2,2 GHz), GPU:n arbetar med nästan full effekt (2 till 2,2 GHz). Däremellan saktar processorn och GPU:n ner kortvarigt då och då.

 37.9 °C36.1 °C29.5 °C
 37.2 °C35.3 °C24.7 °C
 26.6 °C25.8 °C24 °C
Max: 37.9 °C
Medel: 30.8 °C
30.7 °C39.4 °C36.1 °C
24.6 °C27.4 °C30.2 °C
24.2 °C29.2 °C27.9 °C
Max: 39.4 °C
Medel: 30 °C
Strömförsörjning (max.)  65.1 °C | Rumstemperatur 22 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 37.9 °C / 100 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.4 °C / 103 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 31.9 °C / 89 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.9 °C / -3.4 F).
Värmeutveckling på ovansidan (belastning)
Värmeutveckling på ovansidan (belastning)
Värmeutveckling på ovansidan (tomgång)
Värmeutveckling på ovansidan (tomgång)
Värmeutveckling på undersidan (belastning)
Värmeutveckling på undersidan (belastning)
Värmeutveckling på undersidan (tomgång)
Värmeutveckling på undersidan (tomgång)
Asus ExpertBook B5 Flip B5602FBN
Intel Core i7-1260P, Intel Arc A350M
Lenovo Yoga 7 16IAP7
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
HP Spectre x360 2-in-1 16-f1075ng
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
MSI Summit E16 Flip A12UDT-031
Intel Core i7-1280P, NVIDIA GeForce RTX 3050 Ti Laptop GPU
Heat
16%
5%
-16%
Maximum Upper Side *
37.9
39
-3%
37.4
1%
49.2
-30%
Maximum Bottom *
39.4
34.2
13%
39.1
1%
50.2
-27%
Idle Upper Side *
28.8
21.2
26%
27.1
6%
29.4
-2%
Idle Bottom *
29.1
21.6
26%
26.3
10%
30
-3%

* ... smaller is better

Högtalare

Stereohögtalarna ger ett hyfsat ljud, men det finns knappt någon bas.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2024.926.624.92532.626.632.63133.833.233.84027.126.927.15026.726.226.76324.722.524.78020.519.220.510029.623.329.612541.220.841.216046.619.246.620043.417.443.425046.416.446.431554.518.854.540061.818.861.850059.91559.96306514.36580073.914.173.910007713.977125076.613.776.6160072.813.972.8200074.114.174.1250074.31474.3315068.814.368.8400071.31571.3500070.716.370.7630076.616.776.6800080.419.380.41000078.718.378.71250067.514.967.51600058.914.258.9SPL86.627.786.6N67.4167.4median 68.8median 15median 68.8Delta9.329.323.130.223.129.529.429.531.230.731.22325.42326.223.126.223.624.323.621.81821.831.415.731.425.318.725.335.114.735.137.314.337.345.31345.353.912.253.957.411.657.455.311.555.356.811.356.861.711.461.766.911.666.971.211.571.267.111.767.170.212.270.26912.5697012.87066.813.166.868.713.468.76913.56965.613.665.661.613.561.657.813.357.850.412.750.479.824.779.844.20.644.2median 61.6median 12.8median 61.611.71.311.7hearing rangehide median Pink NoiseAsus ExpertBook B5 Flip B5602FBNMSI Summit E16 Flip A12UDT-031
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ExpertBook B5 Flip B5602FBN audio analysis

(+) | speakers can play relatively loud (86.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.3% higher than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.2% difference to median)
Compared to same class
» 47% of all tested devices in this class were better, 7% similar, 47% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 47% of all tested devices were better, 9% similar, 45% worse
» The best had a delta of 4%, average was 25%, worst was 134%

MSI Summit E16 Flip A12UDT-031 audio analysis

(±) | speaker loudness is average but good (79.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.6% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.6% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 5% similar, 30% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 61% of all tested devices were better, 6% similar, 32% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Energiförbrukning

Strömförbrukningen ligger på den förväntade nivån för den maskinvara som installerats här. Stresstestet och Witcher 3 -testet körs med konstant energiförbrukning. Det medföljande nätaggregatet (90 watt) är tillräckligt stort.

Strömförbrukning
Av/Standbydarklight 0.35 / 6.3 Watt
Låg belastningdarkmidlight 6.5 / 7.6 / 9.8 Watt
Hög belastning midlight 85 / 91 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Energy conosumption Witcher 3 / Stress test

051015202530354045505560657075808590Tooltip
Asus ExpertBook B5 Flip B5602FBN; Witcher 3 ultra: Ø85.6 (84.4-87.5)
Asus ExpertBook B5 Flip B5602FBN; 1280x720 Prime95 28.10 and Furmark 1.25: Ø91.2 (90.8-91.3)
Asus ExpertBook B5 Flip B5602FBN; Idle 150cd/m2: Ø8.3 (5.92-13.3)

Energy consumption with external Monitor

051015202530354045505560657075808590Tooltip
Asus ExpertBook B5 Flip B5602FBN; Prime95 V2810 Stress (external Monitor): Ø65.7 (64.9-68.1)
Asus ExpertBook B5 Flip B5602FBN; Cinebench R15 Multi (external Monitor): Ø91.1 (90.9-91.1)
Asus ExpertBook B5 Flip B5602FBN; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø78.3 (74.3-81.7)
Asus ExpertBook B5 Flip B5602FBN; 1920x1080 The Witcher 3 ultra (external Monitor): Ø77 (73.9-81.9)
Asus ExpertBook B5 Flip B5602FBN; Idle 1min (external Monitor): Ø9.7 (7.97-13)

Batteriets livslängd

16-tummaren uppnår en körtid på 8:08 timmar i det praktiska WLAN-testet (kartläggning av belastningen när du ringer upp webbplatser via ett skript) - en bra nivå för en bärbar dator med 4k-upplösning. Inom jämförelsefältet är det bara Spectre erbjuder en högre uthållighet.

Batteritid
WiFi Websurfing (Edge 110)
8tim 08min
Battery Runtime - WiFi Websurfing
HP Spectre x360 2-in-1 16-f1075ng
i7-12700H, Iris Xe G7 96EUs, 83 Wh
630 min +29%
Average of class Convertible
  (329 - 876, n=64, last 2 years)
557 min +14%
Asus ExpertBook B5 Flip B5602FBN
i7-1260P, A350M, 84 Wh
488 min
Lenovo Yoga 7 16IAP7
i7-1260P, Iris Xe G7 96EUs, 71 Wh
475 min -3%
MSI Summit E16 Flip A12UDT-031
i7-1280P, GeForce RTX 3050 Ti Laptop GPU, 82 Wh
428 min -12%

För

+ matt, kontrastrik OLED-pekskärm med hög kontrast
+ bra färgomfångstäckning
+ utrymme för två PCIe-4 SSD-diskar
+ RAID-0/1
+ bra inmatningsenheter
+ tangentbelysning
+ penninmatning (penna ingår)
+ arbetsminne utbytbart/utökbart
+ måttlig uppvärmning
+ Thunderbolt 4
+ Strömförsörjning
+ bra batteritider

Emot

- långsam minneskortläsare
- högljudd vid hög belastning
- inget WWAN (inte heller valfritt)

Bedömning - En övertygande affärspartner

Asus ExpertBook B5 Flip OLED (B5602FBN-MI0012X), tillhandahållen av Asus Tyskland.
Asus ExpertBook B5 Flip OLED (B5602FBN-MI0012X), tillhandahållen av Asus Tyskland.

Den bärbara 2-i-1-datorns flaggskepp är en ljus och kontrastrik OLED-pekskärm (16 tum, 4k, 100 % sRGB) i ett arbetsvänligt 16:10-format. Dess matta yta samt den medföljande Active Stylus (i höljet) bör lyftas fram positivt.

Asus levererar med ExpertBook B5 Flip OLED en väl avrundad konvertibel för företag med ett litet fokus på kreativa områden.

En dedikerad IntelArc-A350Mgrafikkärna matar skärmen med innehåll. GPU:n tillåter spel vid medelhöga till höga inställningar, men gör främst poäng med andra fördelar: Ray tracing-kärnor, hög OpenCL-prestanda och stöd för AV1-codec (av- och inkodning).

Core i7-1260P-processorn kan dämpa korta belastningstoppar med mycket beräkningskraft, men måste sakta ner vid långvarig belastning - detta gäller inte GPU:n. Datorn värms endast måttligt upp under belastning, men kan generera en relativt stor mängd buller under belastningstoppar.

Det finns ingen brist på uthållighet: En batteriladdning räcker för en WLAN-driftstid på cirka 8 timmar - en bra takt. Datorn drivs av en USB-C-strömadapter som kan anslutas till båda Thunderbolt 4-portarna (Power Deliver, Displayport).

Alternativ till B5 skulle vara följande HP Spectre x360 16 och MSI Summit E16 Flip som också är utrustade med 16-tums pekskärmar i 16:10-format. HP:s cabriolet erbjuder bättre batteritider, men har ingen dedikerad GPU. MSI-maskinen erbjuder betydligt mer GPU-prestanda tack vare denRTX-3050gPU, men har en nackdel när det gäller batteritider.

Pris och tillgänglighet

Asus ExpertBook B5 Flip OLED finns i den testade konfigurationen till ett pris av cirka 2 060 euro (~2 060 dollar) på Easynotebooks.de.

Asus ExpertBook B5 Flip B5602FBN - 02/27/2023 v7
Sascha Mölck

Design
79 / 98 → 81%
Tangentbord
80%
Mus
87%
Anslutningar
76 / 75 → 100%
Vikt
65 / 20-75 → 83%
Batteri
80%
Skärm
94%
Spelprestanda
78 / 78 → 100%
Programprestanda
90 / 85 → 100%
Temperatur
92%
Ljudnivå
80%
Audio
71 / 91 → 78%
Camera
45 / 85 → 53%
Medel
78%
87%
Convertible - Vägt medel

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Asus ExpertBook B5 Flip OLED i en recension: bärbar 2-i-1-dator med Active Stylus och bra körtider
Sascha Mölck, 2023-03- 6 (Update: 2023-03- 6)
