Test: Lenovo ThinkPad X260 (Core i7, FHD) (sammanfattning)

Mobilt kontor. Lenovos lilla ThinkPad utmärker sig med ett bra tangentbord och lång batteritid. Ett LTE-modem ger dig också tillgång till nätet överallt. På det stora hela är X260 ett attraktivt paket.
Lenovo ThinkPad X260-20F6007RGE (ThinkPad X260 Serie)
Processor
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Grafikkort
Intel HD Graphics 520, Kärna: 1000 MHz, Single-Channel, 20.19.15.4331
Minne
8 GB
, DDR4-2132, Single-Channel, en minnesplats (används)
Skärm
12.50 tum 16:9, 1920 x 1080 pixlar 176 PPI, Lenovo N125HCE-GN1, IPS, glansig: nej
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
Liteonit LCH-512V2S, 512 GB
, 430 GB ledigt
Ljudkort
Realtek ALC293 @ Intel Skylake High Definition Audio Controller
Anslutningar
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: Headset, Kortläsare: SD, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor, TPM 1.2
Nätverk
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, Huawei ME906s LTE, LTE, GPS
Storlek
höjd x bredd x djup (i mm) 20.3 x 305.5 x 208.5
Batteri
46 Wh Litiumjon
Operativsystem
Microsoft Windows 7 Professional (64 Bit) + Windows 10 Pro (64 Bit)
Camera
Webbkamera: HD-webbkamera
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: nej, MS Office 365, 36 Månader Garanti
Vikt
1.44 kg, Strömförsörjning: 290 g
Pris
20000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

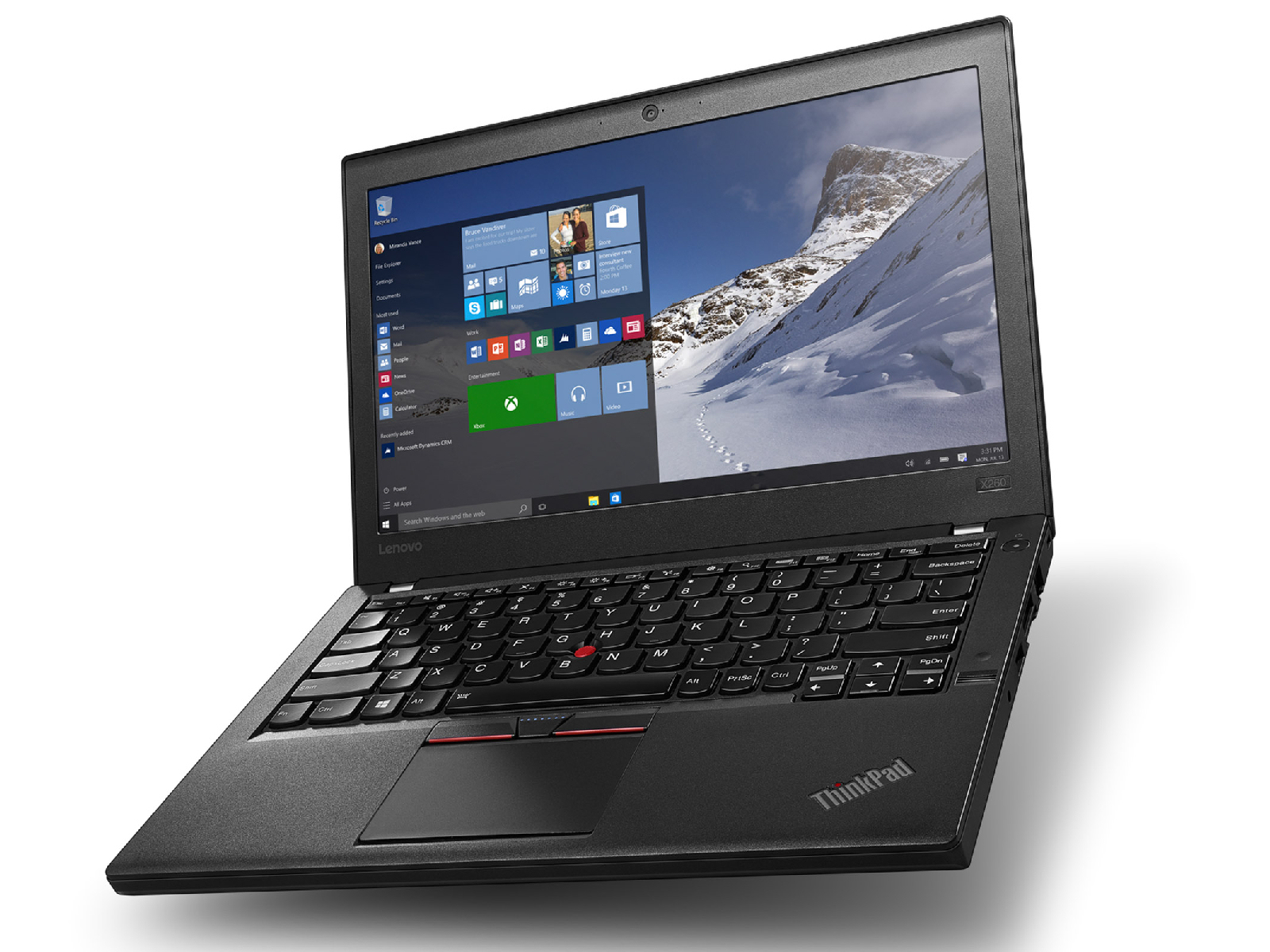

The ThinkPad X260 - a classic Lenovo design
The ThinkPad X260 - a classic Lenovo design
The docking port on the bottom
Ageless chassis design
As usual: two sets of mouse controls
The small 12.5-inch notebook is supposed to be ...
... the perfect mobile companion.
The touchpad could use another revision.
The thin hinges open very wide.
With careful attention ...
... the chassis can be opened up.
The internal battery ...
... as well as the WLAN module and the RAM are replacable.
The fan is also accessible for cleanings.
316
cd/m²
315
cd/m²
306
cd/m²
328
cd/m²
337
cd/m²
317
cd/m²
333
cd/m²
331
cd/m²
317
cd/m²
Distribution av ljusstyrkan
Lenovo N125HCE-GN1 tested with X-Rite i1Pro 2
Max: 337 cd/m² (Nits) Medel: 322.2 cd/m² Minimum: 3 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 333 cd/m²
Kontrast: 1053:1 (Svärta: 0.32 cd/m²)
ΔE Color 5.71 | 0.5-29.43 Ø5
ΔE Greyscale 5.15 | 0.57-98 Ø5.3
65.62% sRGB (Argyll 1.6.3 3D)
42.38% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.23% AdobeRGB 1998 (Argyll 2.2.0 3D)
66.1% sRGB (Argyll 2.2.0 3D)
44.71% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

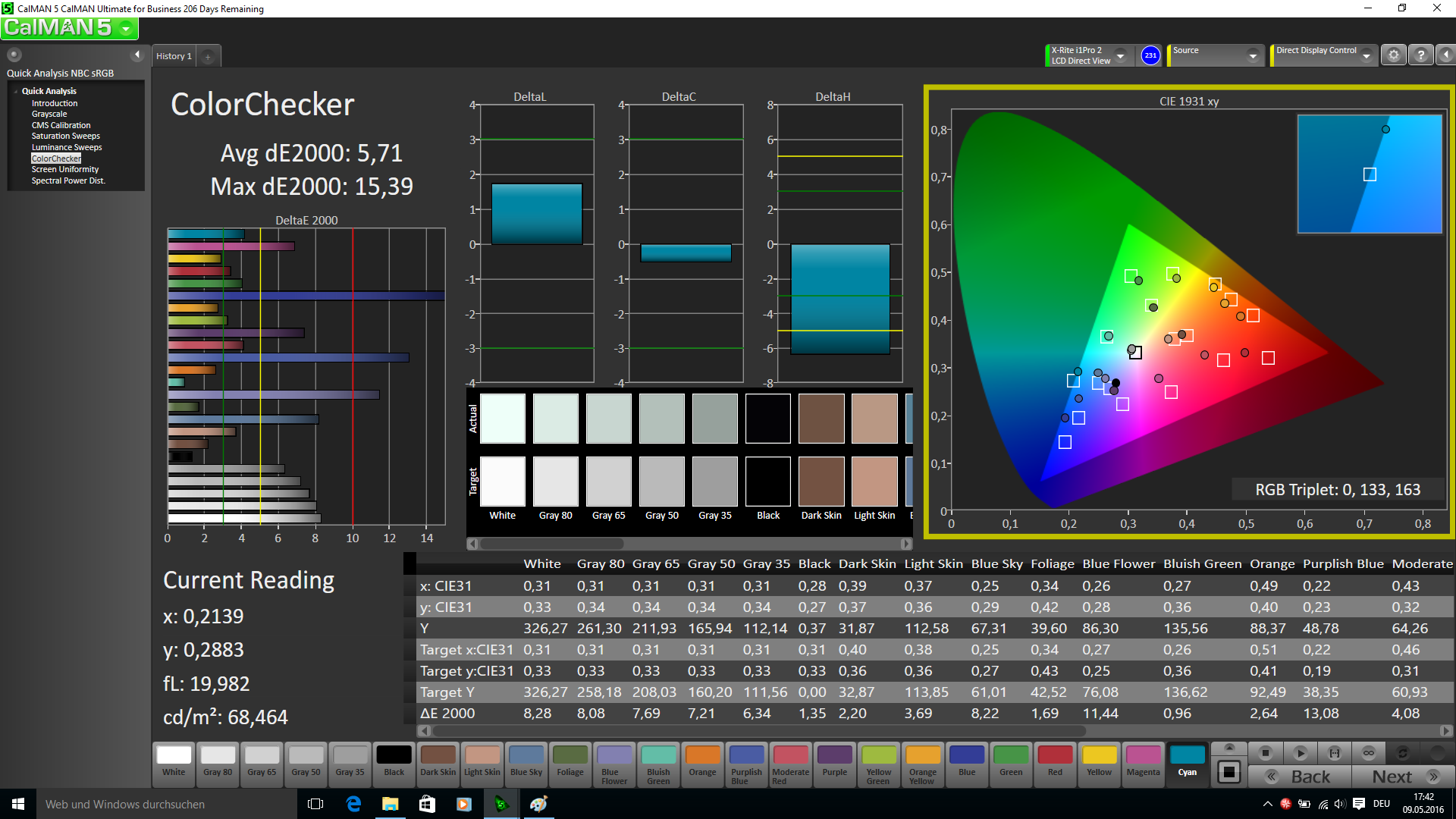

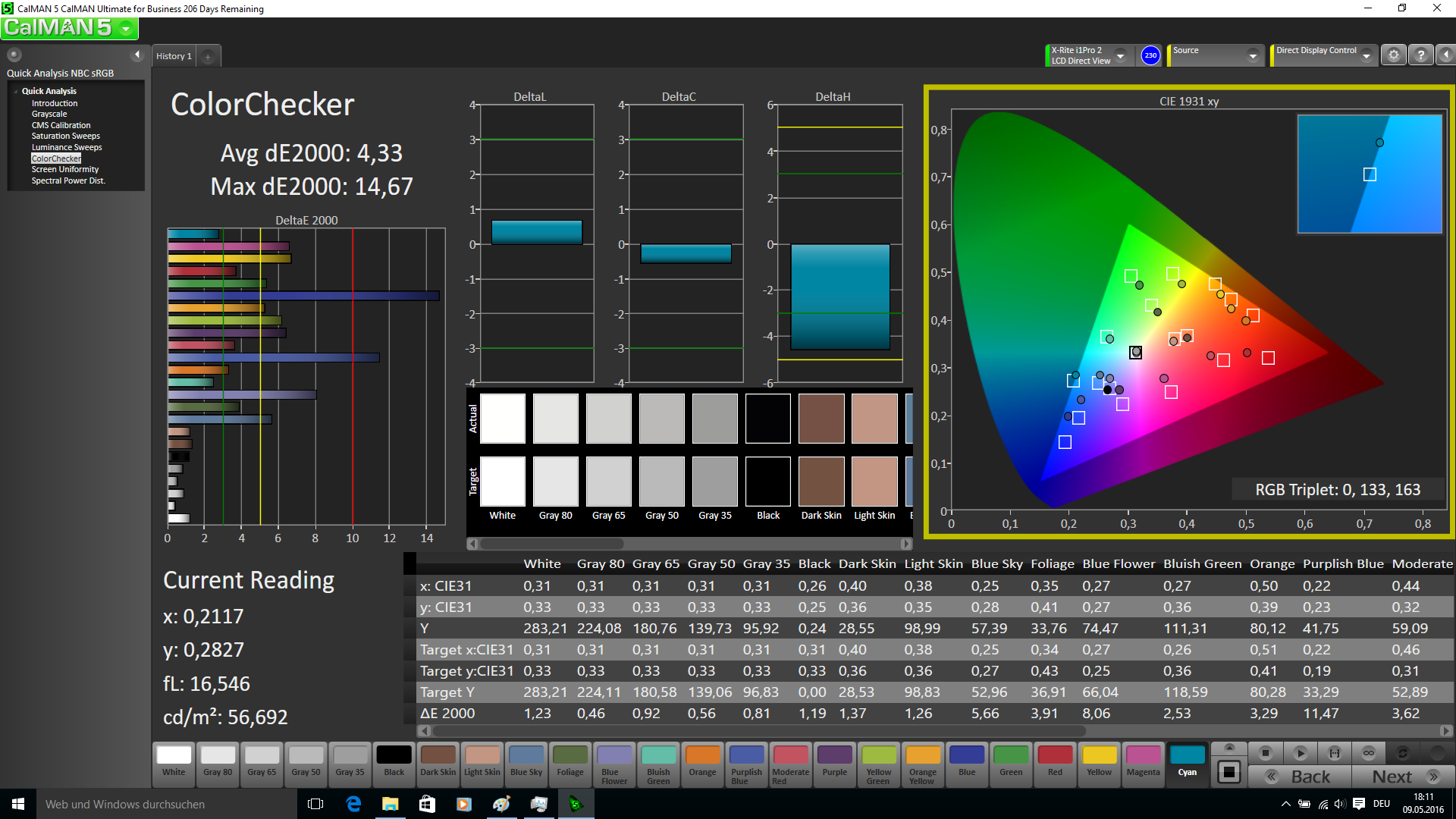

CalMAN - Color Checker
CalMAN - Color Checker

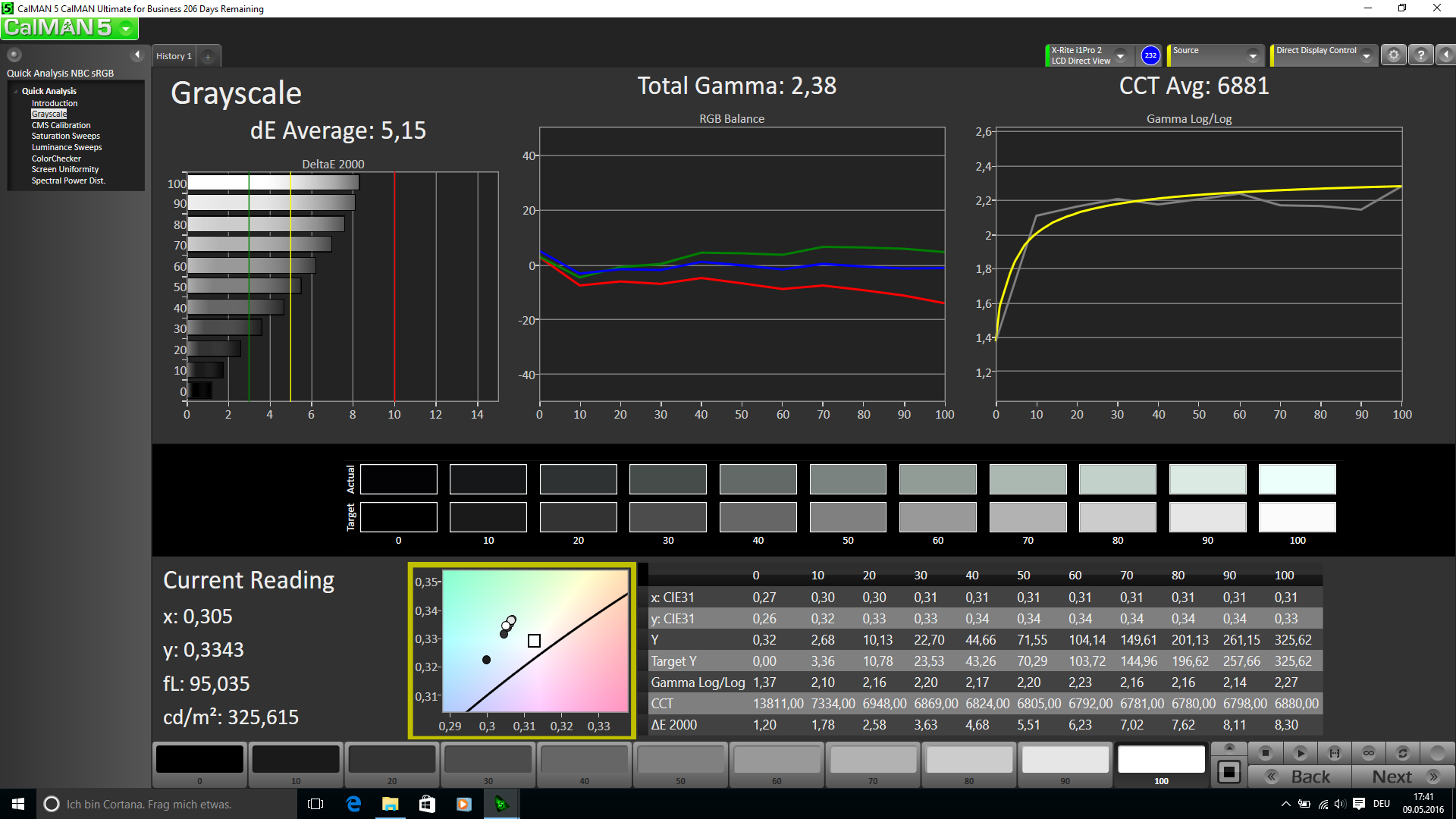

CalMAN - Graylevels
CalMAN - Graylevels

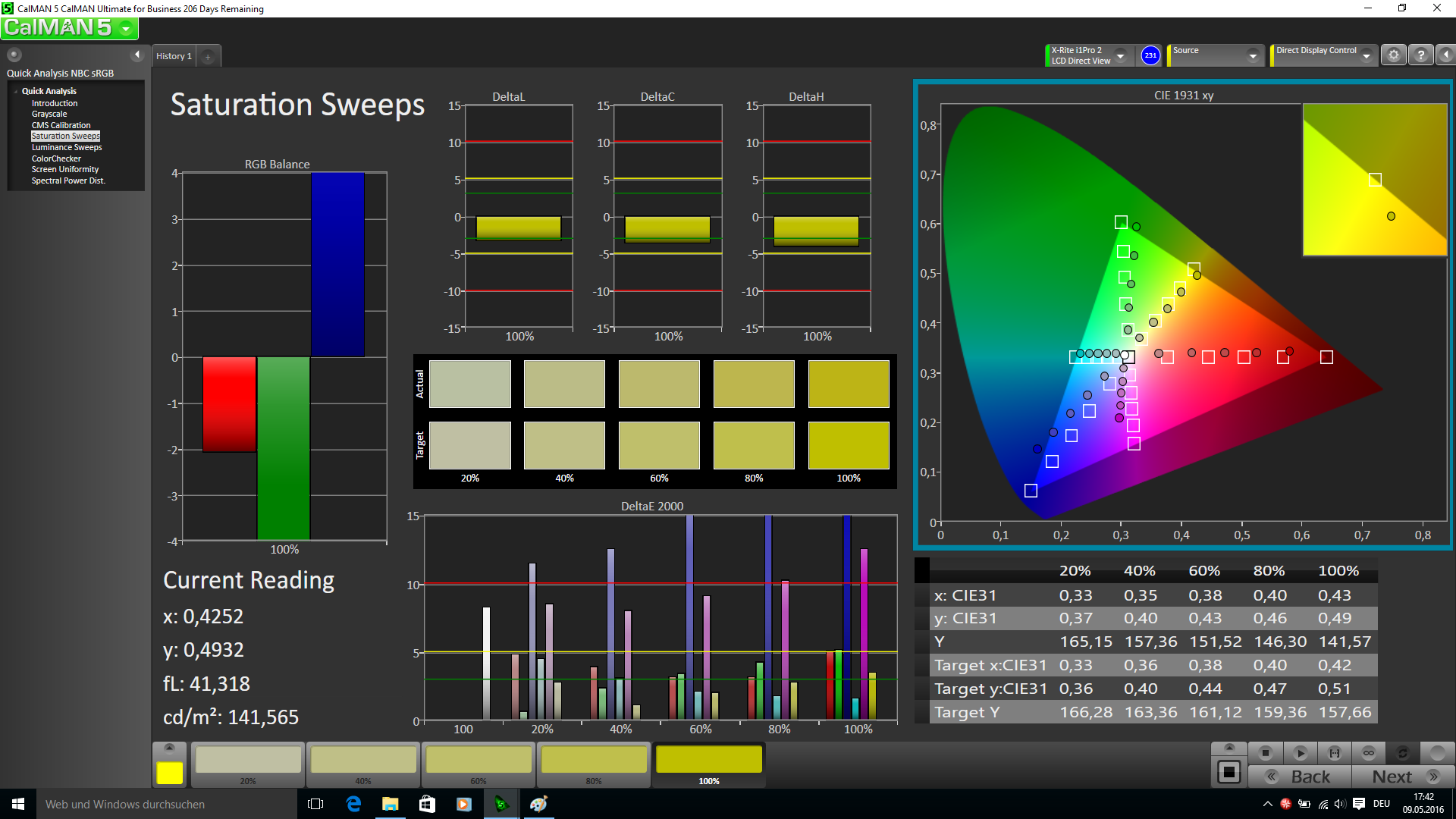

CalMAN - Saturation
CalMAN - Saturation
CalMAN - Color Checker (calibrated)
CalMAN - Color Checker (calibrated)

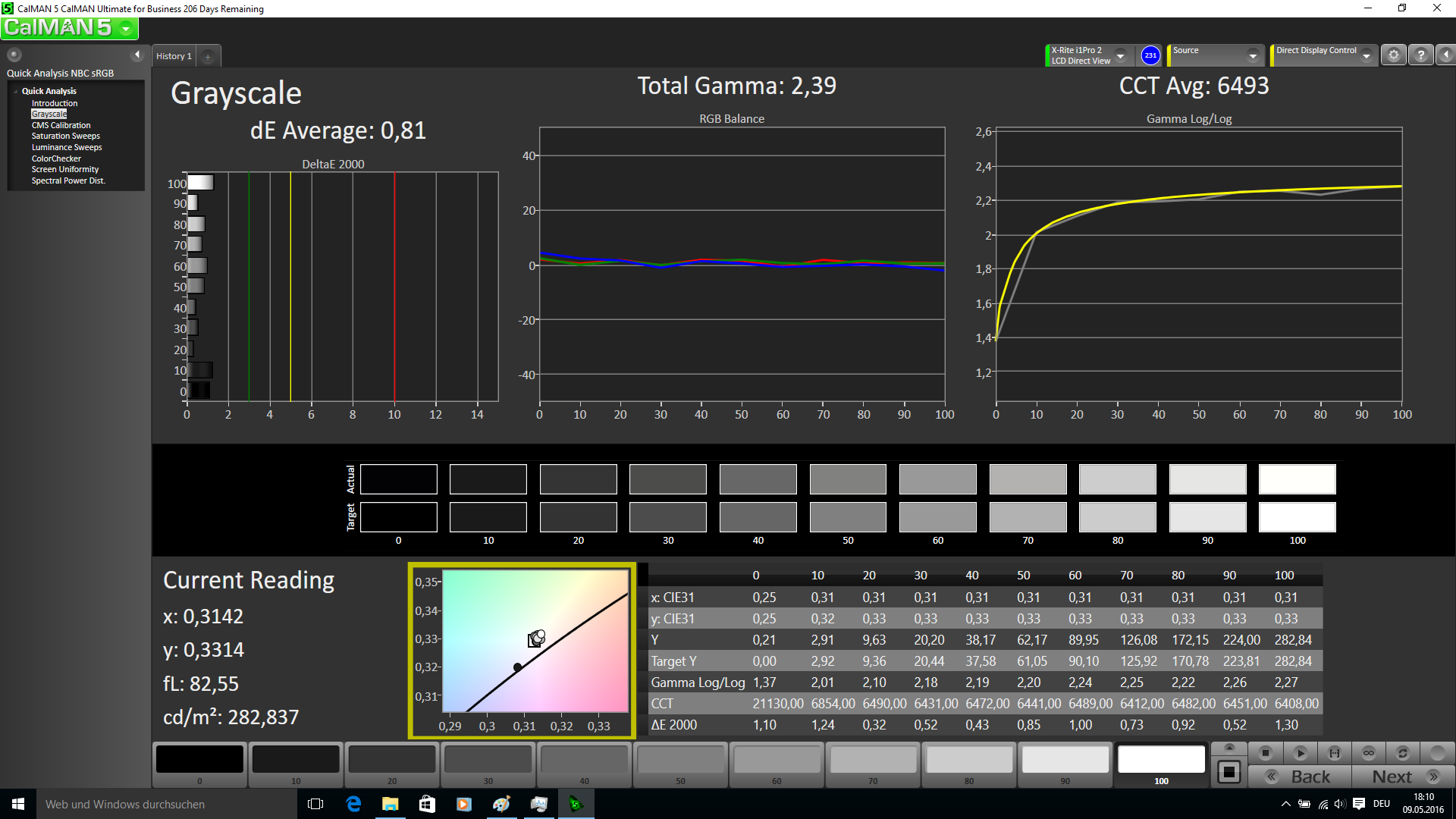

CalMAN - Graylevels (calibrated)
CalMAN - Graylevels (calibrated)

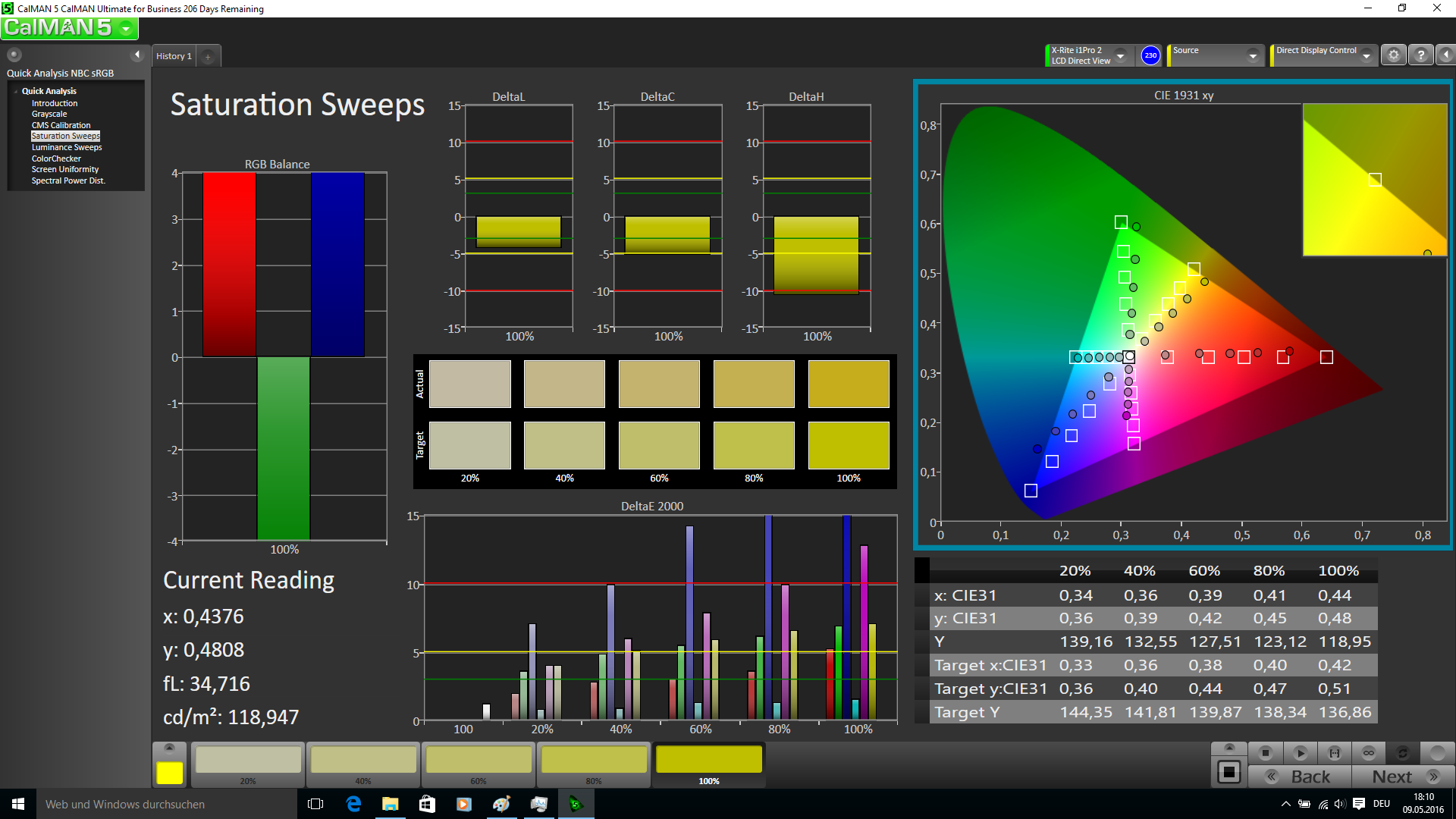

CalMAN - Saturation (calibrated)
CalMAN - Saturation (calibrated)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

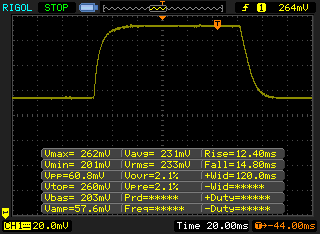

       Response Time Black to White
27.2 ms ... rise ↗ and fall ↘ combined↗ 12.4 ms rise
↘ 14.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

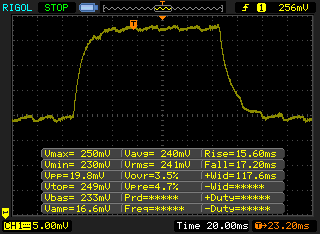

       Response Time 50% Grey to 80% Grey
32.8 ms ... rise ↗ and fall ↘ combined↗ 15.6 ms rise
↘ 17.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).
Lenovo ThinkPad X260-20F6007RGE
IPS, 1920x1080
Lenovo ThinkPad X260-20F60041GE
IPS, 1366x768
HP EliteBook 820 G3
TN LED, 1366x768
Dell Latitude 12 E7250
TN-LED, 1920x1080
Microsoft Surface Pro 4, Core i5, 128GB
IPS, 2736x1824
Display
9%
-12%
-1%
45%
Display P3 Coverage
44.71
48.19
8%
38.9
-13%
44.48
-1%
65
45%
sRGB Coverage
66.1
72.6
10%
58.5
-11%
66.2
0%
96.5
46%
AdobeRGB 1998 Coverage
46.23
49.79
8%
40.2
-13%
45.96
-1%
67
45%
Response Times
-15%
-42%
-28%
Response Time Grey 50% / Grey 80% *
32.8 ?(15.6, 17.2)
42.8 ?(18.8, 24)
-30%
58 ?(24.8, 33.2)
-77%
46 ?(17.2, 28.8, plateau, spikes in between)
-40%
Response Time Black / White *
27.2 ?(12.4, 14.8)
27.2 ?(12.4, 14.8)
-0%
29.2 ?(12, 17.2)
-7%
31.2 ?(6, 25.2, Spikes in between)
-15%
PWM Frequency
220 ?(90)
50 ?(50)
Screen
12%
-38%
-10%
22%
Brightness middle
337
262
-22%
244
-28%
360
7%
413
23%
Brightness
322
251
-22%
240
-25%
330
2%
396
23%
Brightness Distribution
91
88
-3%
84
-8%
81
-11%
87
-4%
Black Level *
0.32
0.26
19%
0.6
-88%
0.53
-66%
0.36
-13%
Contrast
1053
1008
-4%
407
-61%
679
-36%
1147
9%
Colorchecker dE 2000 *
5.71
3.55
38%
9
-58%
5.58
2%
3.09
46%
Colorchecker dE 2000 max. *
15.39
5.85
62%
15.73
-2%
Greyscale dE 2000 *
5.15
3.36
35%
9.48
-84%
3.98
23%
3.92
24%
Gamma
2.38 92%
2.39 92%
2.44 90%
2.21 100%
2.3 96%
CCT
6881 94%
5985 109%
11116 58%
6192 105%
7333 89%
Color Space (Percent of AdobeRGB 1998)
42.38
45.9
8%
37.18
-12%
42.2
0%
61
44%
Color Space (Percent of sRGB)
65.62
58.63
-11%
97
48%
Total Average (Program / Settings)
2% / 8%
-31% / -33%
-6% / -7%
13% / 20%

* ... smaller is better

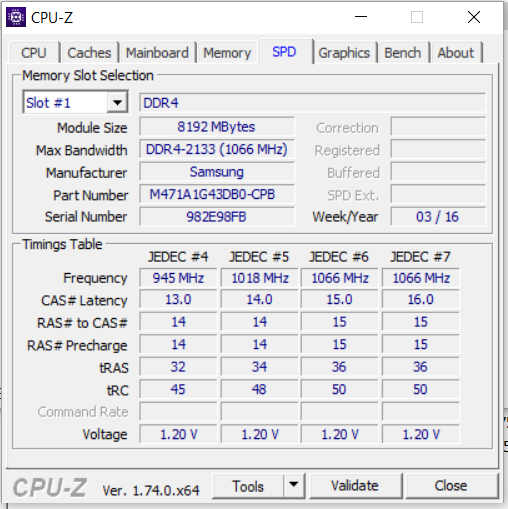

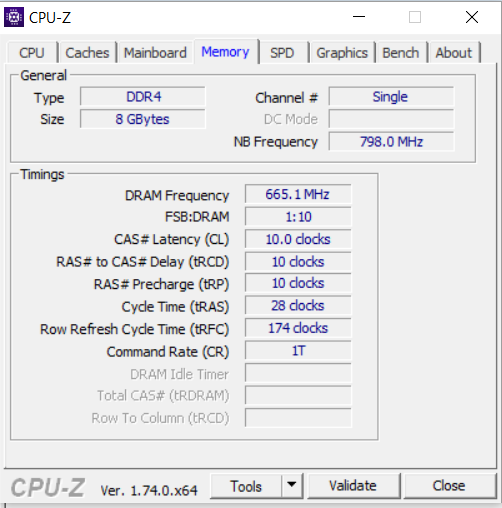

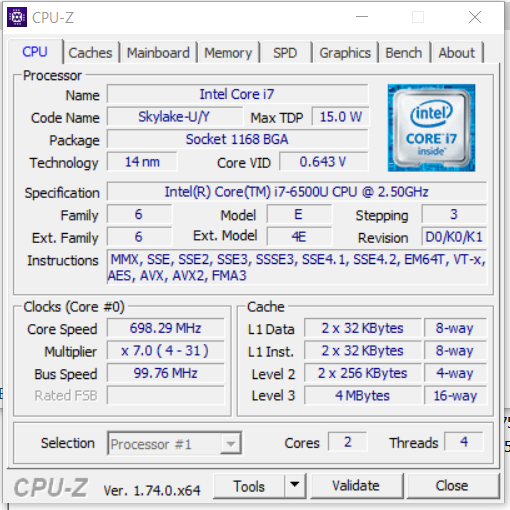

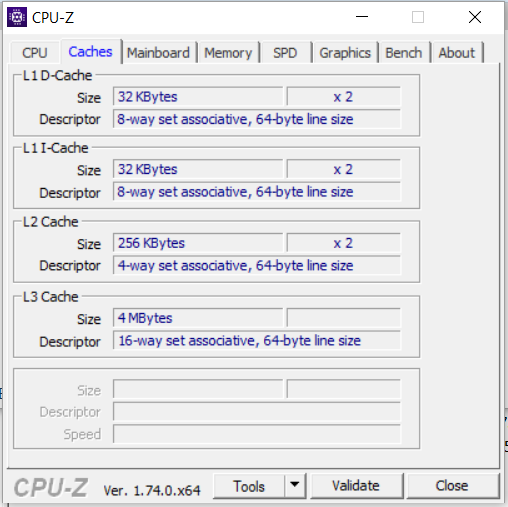

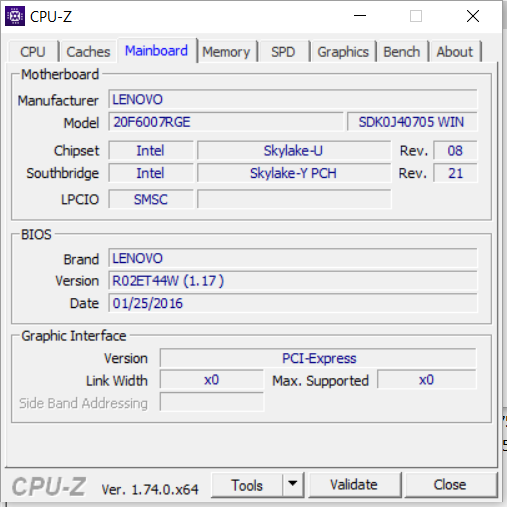

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

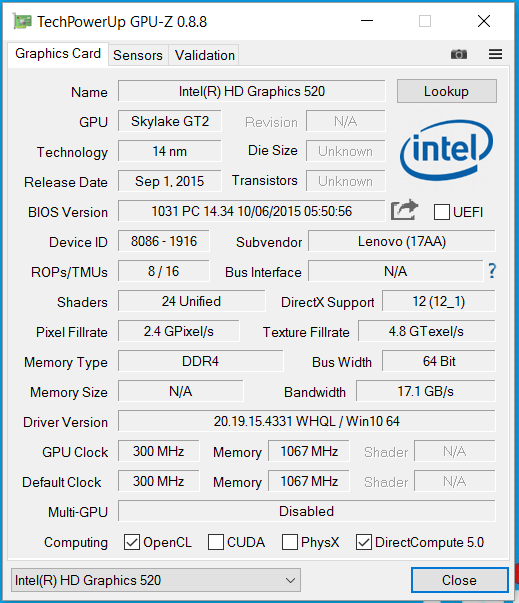

GPU-Z

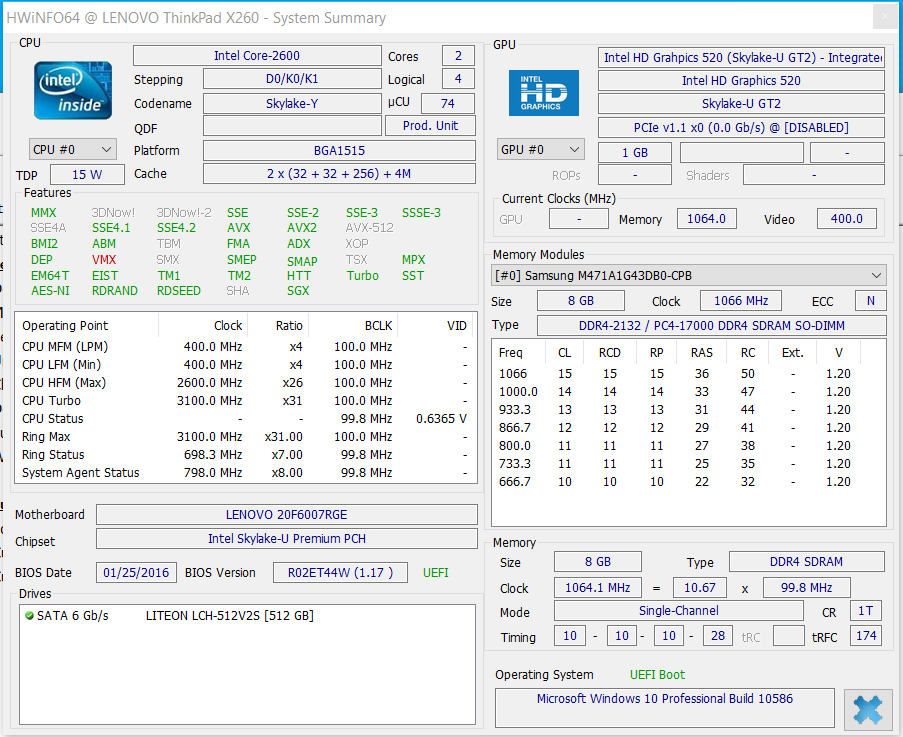

HWInfo

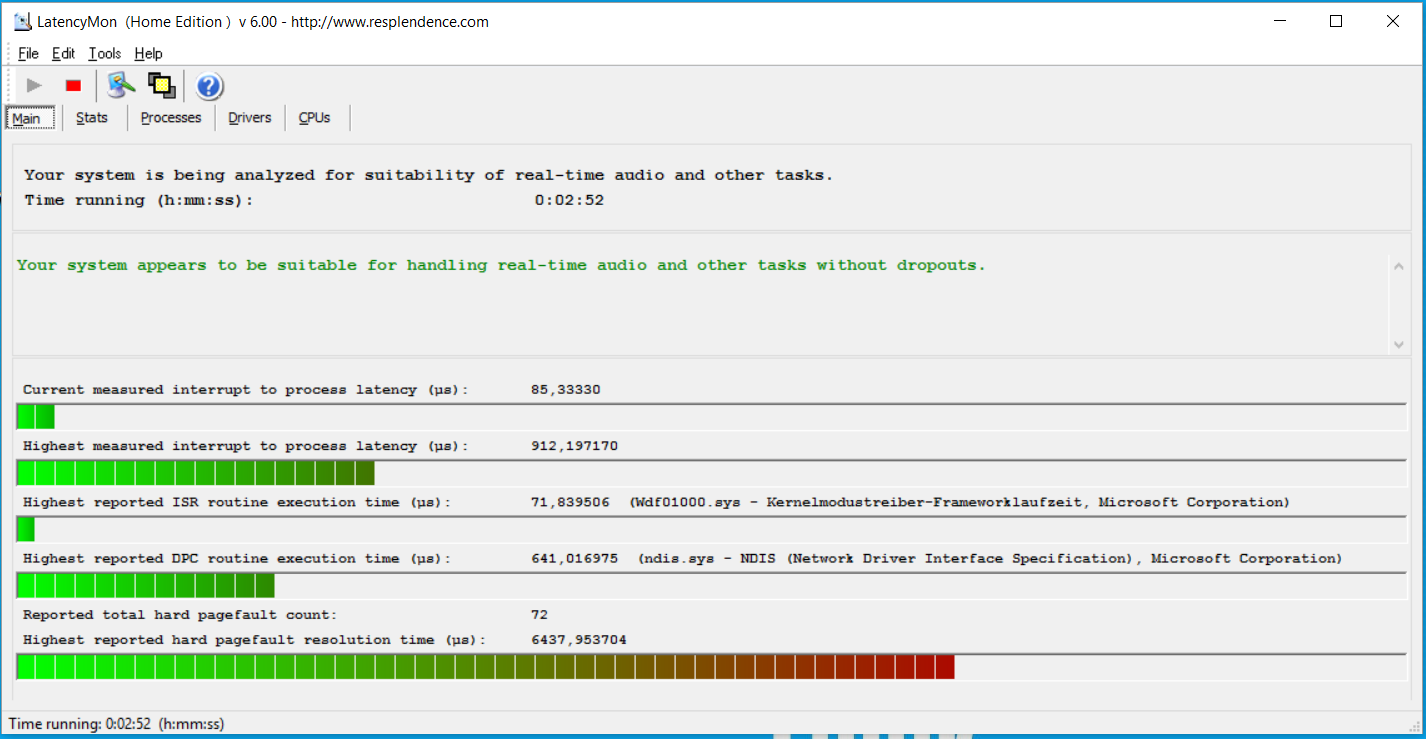

LatencyMon
Cinebench R10 Shading 32Bit
8094
Cinebench R10 Rendering Multiple CPUs 32Bit
11019
Cinebench R10 Rendering Single 32Bit
4859
Cinebench R11.5 OpenGL 64Bit
35.51 fps
Cinebench R11.5 CPU Multi 64Bit
3.57 Points
Cinebench R11.5 CPU Single 64Bit
1.47 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
38.53 fps
Cinebench R15 CPU Multi 64Bit
324 Points
Cinebench R15 CPU Single 64Bit
128 Points
Hjälp
Cinebench R15
CPU Multi 64Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
324 Points
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
311 Points -4%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
306 Points -6%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
289 Points -11%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
264 Points -19%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
172 Points -47%
CPU Single 64Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
128 Points
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
123 Points -4%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
122 Points -5%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
114 Points -11%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
112 Points -12%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
96 Points -25%
Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
3.57 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3.4 Points -5%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
3.19 Points -11%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
2.94 Points -18%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
1.94 Points -46%
CPU Single 64Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
1.47 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1.4 Points -5%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
1.33 Points -10%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
1.32 Points -10%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
1 Points -32%
Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
11019 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
10558 Points -4%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
9728 Points -12%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
9103 Points -17%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
6136 Points -44%
Rendering Single 32Bit
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
4859 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
4656 Points -4%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
4408 Points -9%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
4341 Points -11%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
3817 Points -21%
Geekbench 3
32 Bit Single-Core Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3085 Points +4%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
2956 Points
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
2492 Points -16%
32 Bit Multi-Core Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
6419 Points 0%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
6395 Points
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
4078 Points -36%
Sunspider - 1.0 Total Score
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
138.7 ms * -57%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
109.1 ms * -24%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
104.5 ms * -18%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
91.8 ms * -4%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
88.3 ms *
JetStream 1.1 - Total Score
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
217.3 Points
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
188 Points -13%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
127.9 Points -41%
Mozilla Kraken 1.1 - Total
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
2585 ms * -134%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
1685 ms * -52%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
1283 ms * -16%
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
1203 ms * -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1178 ms * -6%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
1107 ms *
Octane V2 - Total Score
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
32256 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
29991 Points -7%
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
29020 Points -10%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
26857 Points -17%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
19923 Points -38%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
12123 Points -62%
Peacekeeper - ---
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
3001 Points
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2998 Points 0%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
1974 Points -34%

* ... smaller is better

PCMark 7 Score
5194 poäng
PCMark 8 Home Score Accelerated v2
3284 poäng
PCMark 8 Creative Score Accelerated v2
3945 poäng
PCMark 8 Work Score Accelerated v2
4341 poäng
Hjälp
PCMark 8 - Work Score Accelerated v2
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4581 Points +6%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
4341 Points
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
4335 Points 0%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points -15%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
3235 Points -25%
PCMark 7 - Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5229 Points +1%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
5194 Points
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
4662 Points -10%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
4379 Points -16%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
3777 Points -27%
Liteonit LCH-512V2S
Sequential Read: 499.6 MB/s
Sequential Write: 403 MB/s
512K Read: 322.9 MB/s
512K Write: 372.4 MB/s
4K Read: 27.22 MB/s
4K Write: 83.6 MB/s
4K QD32 Read: 316.5 MB/s
4K QD32 Write: 273.1 MB/s
3DMark 06 Standard Score
8553 poäng
3DMark 11 Performance
1406 poäng
3DMark Ice Storm Standard Score
47266 poäng
3DMark Cloud Gate Standard Score
5321 poäng
3DMark Fire Strike Score
747 poäng
Hjälp
3DMark 11 - 1280x720 Performance
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1565 Points +11%
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
1408 Points 0%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
1406 Points
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
1332 Points -5%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
959 Points -32%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
927 Points -34%
3DMark
1280x720 Ice Storm Standard Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
51010 Points +8%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
47266 Points
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
45479 Points -4%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
42996 Points -9%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
28957 Points -39%
1280x720 Cloud Gate Standard Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5853 Points +10%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
5321 Points
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5164 Points -3%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
4938 Points -7%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
4633 Points -13%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
3608 Points -32%
1280x720 Sky Diver Score
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
3293 Points
1920x1080 Fire Strike Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
844 Points +13%
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
747 Points
HP EliteBook 820 G3
HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e
711 Points -5%
Lenovo ThinkPad X260-20F60041GE
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
688 Points -8%
Dell Latitude 12 E7250
HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP
599 Points -20%
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
569 Points -24%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Lenovo ThinkPad X260-20F6007RGE
HD Graphics 520, 6500U, Liteonit LCH-512V2S
8553 Points
Dell Latitude 12 E7275
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN256HCHP
6160 Points -28%
låg med. hög ultra
Tomb Raider (2013) 56.8 28.1 18.6 8.9
BioShock Infinite (2013) 37.7 22 18.3 5.4
Battlefield 4 (2013) 36.7 26.4 15.8 4.4

Ljudnivå

Låg belastning
29 / 29 / 29 dB(A)
Hög belastning
35.1 / 37.8 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm avstånd)   environment noise: 29 dB(A)
Lenovo ThinkPad X260-20F6007RGE
6500U, HD Graphics 520
Lenovo ThinkPad X260-20F60041GE
6200U, HD Graphics 520
HP EliteBook 820 G3
6300U, HD Graphics 520
Dell Latitude 12 E7250
5300U, HD Graphics 5500
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520
Noise
2%
-1%
-5%
-10%
off / environment *
29
29
-0%
29.2
-1%
Idle Minimum *
29
29.4
-1%
29.2
-1%
29.3
-1%
31.5
-9%
Idle Average *
29
29.4
-1%
29.2
-1%
29.3
-1%
31.5
-9%
Idle Maximum *
29
29.4
-1%
29.2
-1%
29.3
-1%
31.5
-9%
Load Average *
35.1
33.2
5%
35.6
-1%
37.9
-8%
40.5
-15%
Load Maximum *
37.8
33.2
12%
37
2%
42.8
-13%
40.7
-8%

* ... smaller is better

Hög belastning
 47.5 °C32 °C28.8 °C
 41.1 °C39.5 °C29.3 °C
 32.3 °C30.6 °C29.4 °C
Max: 47.5 °C
Medel: 34.5 °C
30.6 °C32.1 °C33 °C
32 °C43.6 °C42 °C
30.8 °C32.6 °C37 °C
Max: 43.6 °C
Medel: 34.9 °C
Strömförsörjning (max.)  41.8 °C | Rumstemperatur 22.6 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 47.5 °C / 118 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.3 °C / 90.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4 °C / -7.2 F).
Lenovo ThinkPad X260-20F6007RGE
6500U, HD Graphics 520
Lenovo ThinkPad X260-20F60041GE
6200U, HD Graphics 520
HP EliteBook 820 G3
6300U, HD Graphics 520
Dell Latitude 12 E7250
5300U, HD Graphics 5500
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520
Heat
5%
14%
-1%
-13%
Maximum Upper Side *
47.5
45.3
5%
39.6
17%
46.7
2%
52.3
-10%
Maximum Bottom *
43.6
48.8
-12%
40.1
8%
56
-28%
51.4
-18%
Idle Upper Side *
34.9
29.3
16%
29.4
16%
30.1
14%
43.2
-24%
Idle Bottom *
35.9
32.4
10%
30.6
15%
33.2
8%
36
-0%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0.2 / 0.55 Watt
Låg belastningdarkmidlight 3.5 / 5.5 / 6.7 Watt
Hög belastning midlight 28.9 / 42.1 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad X260-20F6007RGE
6500U, HD Graphics 520
Lenovo ThinkPad X260-20F60041GE
6200U, HD Graphics 520
HP EliteBook 820 G3
6300U, HD Graphics 520
Dell Latitude 12 E7250
5300U, HD Graphics 5500
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520
Power Consumption
1%
4%
-23%
-13%
Idle Minimum *
3.5
3.6
-3%
3.5
-0%
4.1
-17%
4.4
-26%
Idle Average *
5.5
5.9
-7%
5.4
2%
8.3
-51%
9
-64%
Idle Maximum *
6.7
6.6
1%
6.2
7%
9.4
-40%
10.7
-60%
Load Average *
28.9
28.5
1%
27.3
6%
31.6
-9%
19.6
32%
Load Maximum *
42.1
36.8
13%
39.5
6%
40.4
4%
19.9
53%

* ... smaller is better

Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
15tim 53min
WiFi Websurfing (Edge 25.10586.0.0)
8tim 21min
Big Buck Bunny H.264 1080p
7tim 46min
Hög belastning (maximal ljusstyrka)
1tim 32min
Lenovo ThinkPad X260-20F6007RGE
46 Wh
Lenovo ThinkPad X260-20F60041GE
46 Wh
HP EliteBook 820 G3
44 Wh
Dell Latitude 12 E7250
52 Wh
Microsoft Surface Pro 4, Core i5, 128GB
38 Wh
Battery Runtime
5%
6%
-4%
0%
Reader / Idle
953
795
-17%
826
-13%
845
-11%
899
-6%
H.264
466
386
-17%
495
6%
402
-14%
WiFi v1.3
501
396
-21%
373
-26%
427
-15%
Load
92
160
74%
144
57%
103
12%
111
21%
WiFi
446

För

+ matt IPS-skärm
+ Full HD-upplösning
+ utmärkt tangentbord
+ lång batteritid
+ snabb SSD
+ LTE-modem
+ 3 års garanti

Emot

- bara en RAM-plats
- ingen underhållspanel
In review: Lenovo ThinkPad X260. Test model courtesy of campuspoint.de
In review: Lenovo ThinkPad X260. Test model courtesy of campuspoint.de

Lenovos Thinkpad X260 är en grundligt genomarbetad 12,5-tums företagsdator och den vi testar här är top-of-the-line-modellen i serien. Byggkvaliteten är hög och datorn är robust överlag.

Processorkraften är också mer än tillräcklig. Core i7-modellen är lite snabbare än varianten med Core i5 som vi testat tidigare, men under dagligt bruk är skillnaden knappast märkbar. Användare som inte behöver extra processorkraft bör välja i5-versionen och spara lite pengar.

Trots prestandan och det kompakta chassit blir datorn varken bullrig eller varm. Den snabba SSD:n garanterar ett snabbt system och kapaciteten på 512 GB är väl tilltagen. Som förväntat är X260 utrustad med ett utmärkt tangentbord. Batteriets livslängd är också mycket bra och kan förbättras ytterligare med ett 72 Wh-batteri som tillval. Det bör nästan fördubbla batteritiden.

Full-HD-skärmen är imponerande; panelen är ljusstark och erbjuder mycket kontrast och bra betraktningsvinklar. Det är ingen tvekan om att den är bättre än den vanliga HD-skärm som används till vissa modeller. Dessutom har Full-HD-skärmen inget PWM-flimmer.

Lenovo ThinkPad X260-20F6007RGE - 05/26/2016 v5.1(old)
Sascha Mölck

Design
80 /  98 → 82%
Tangentbord
92%
Mus
85%
Anslutningar
70 / 80 → 88%
Vikt
70 / 35-78 → 81%
Batteri
90%
Skärm
88%
Spelprestanda
54 / 68 → 79%
Programprestanda
85 / 87 → 97%
Temperatur
88 / 91 → 97%
Ljudnivå
95%
Audio
60 / 91 → 66%
Medel
80%
87%
Subnotebook - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad X260 (Core i7, FHD) (sammanfattning)
Sascha Mölck, 2016-07-11 (Update: 2016-07-11)
