Test: Lenovo ThinkPad T460s (Core i7, WQHD) (sammanfattning)

Till Schönborn, 03/31/2016

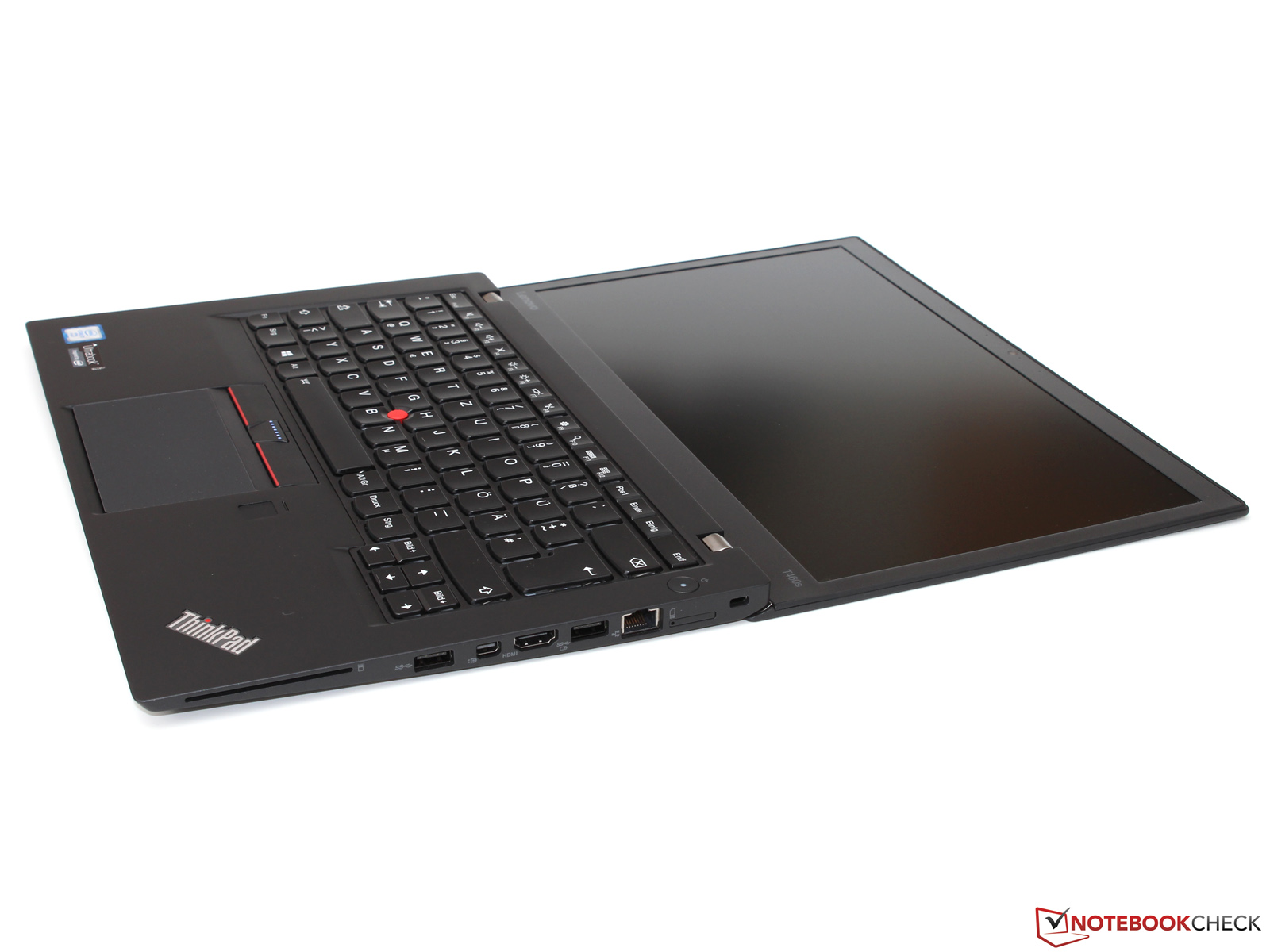

På väg mot perfektion? Lenovos T460s bevisar att även en utmärkt bärbar dator som T450s kan förbättras. Ingen enhet från T4x0s-serien har varit så lätt och samtidigt så kraftfull - men istället får man kompromissa med underhålls- och uppgraderingsmöjligheterna.

Lenovo ThinkPad T460s-20FA003GGE (ThinkPad T460s Serie)

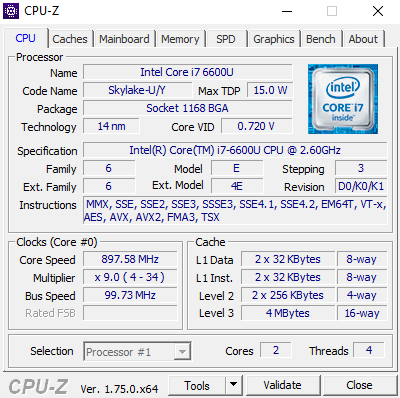

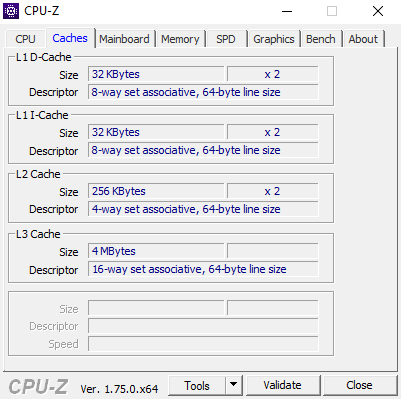

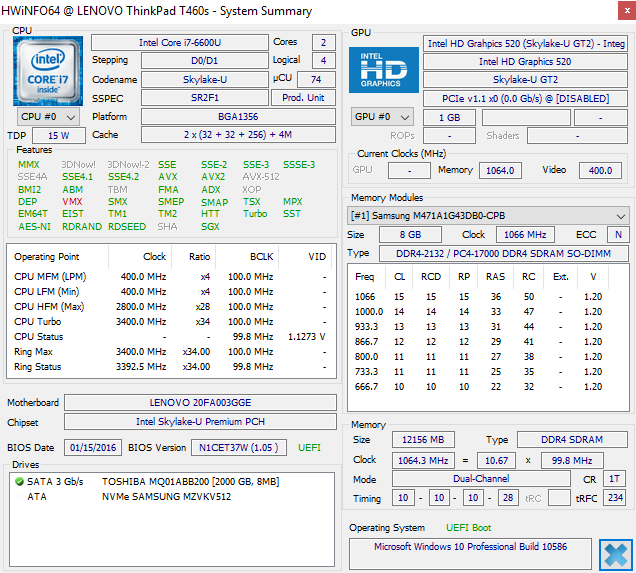

Processor
Intel Core i7-6600U 2.6 GHz
Grafikkort

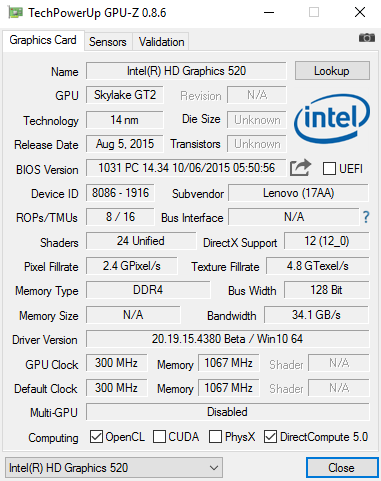

Intel HD Graphics 520, Kärna: 300 - 1050 MHz, Minne: 1066 MHz, 20.19.15.4380

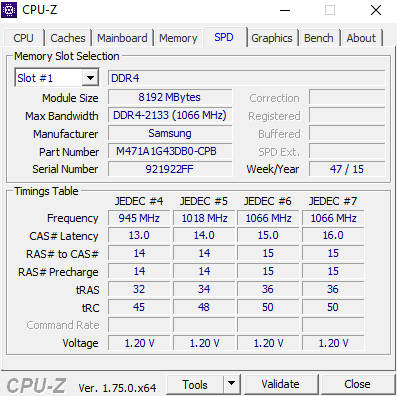

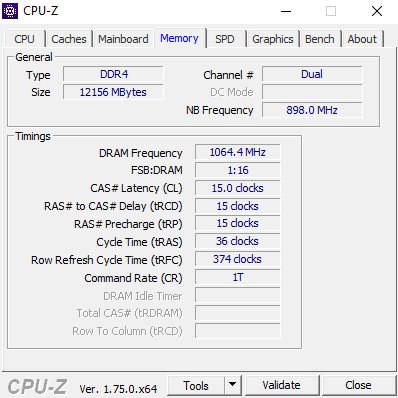

Minne
12288 MB
, DDR4-2133, 4 GB integrerat + 1x 8 GB modul, 1 av 1 platser används

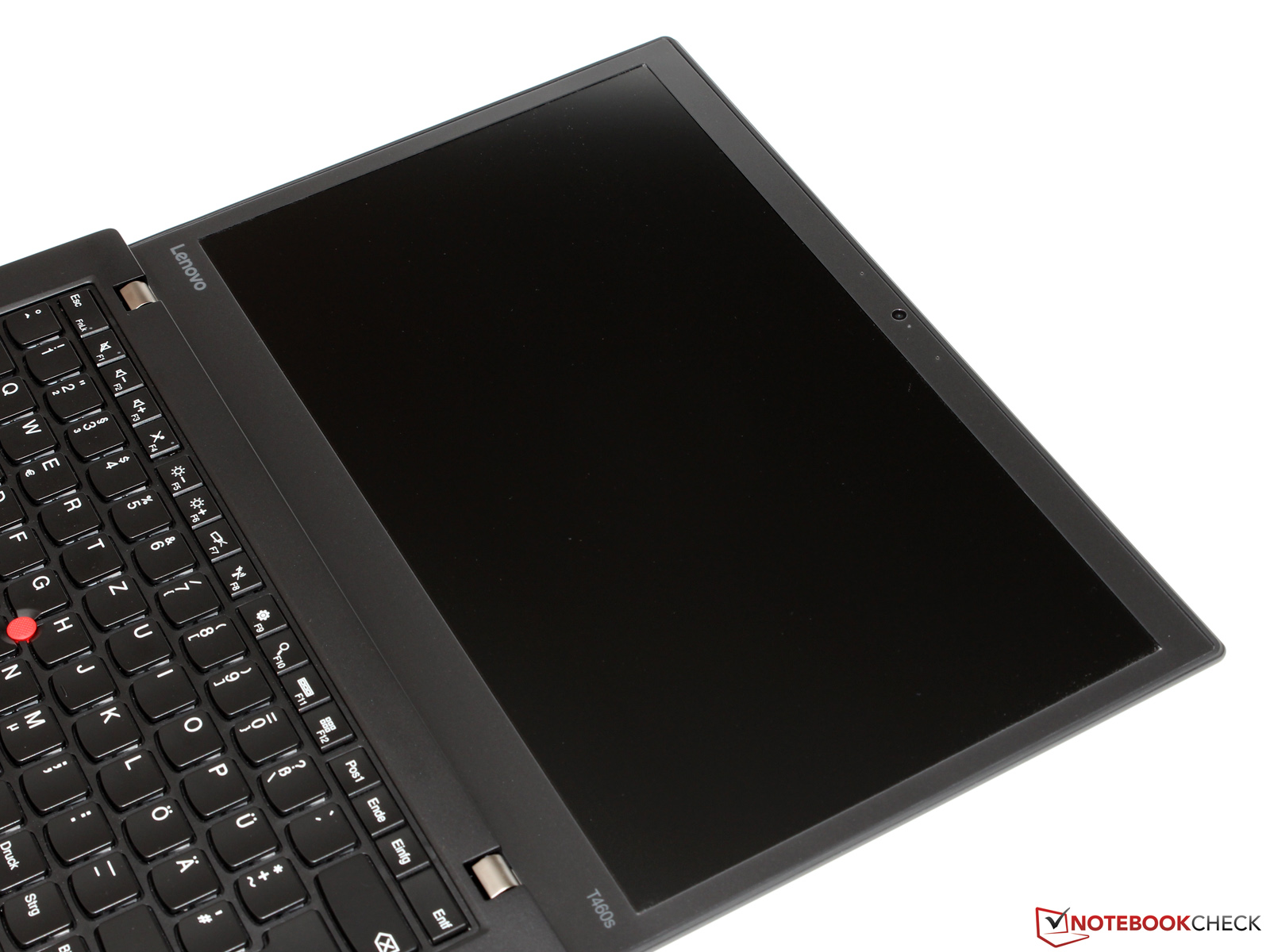

Skärm
14 tum 16:9, 2560x1440 pixlar, VVX14T058J02, IPS-Panel, LED-Backlight, glansig: nej

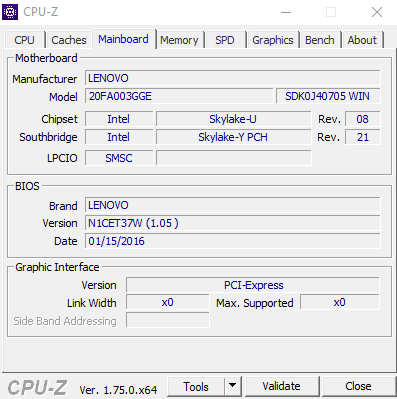

Moderkort
Intel Skylake-U Premium PCH

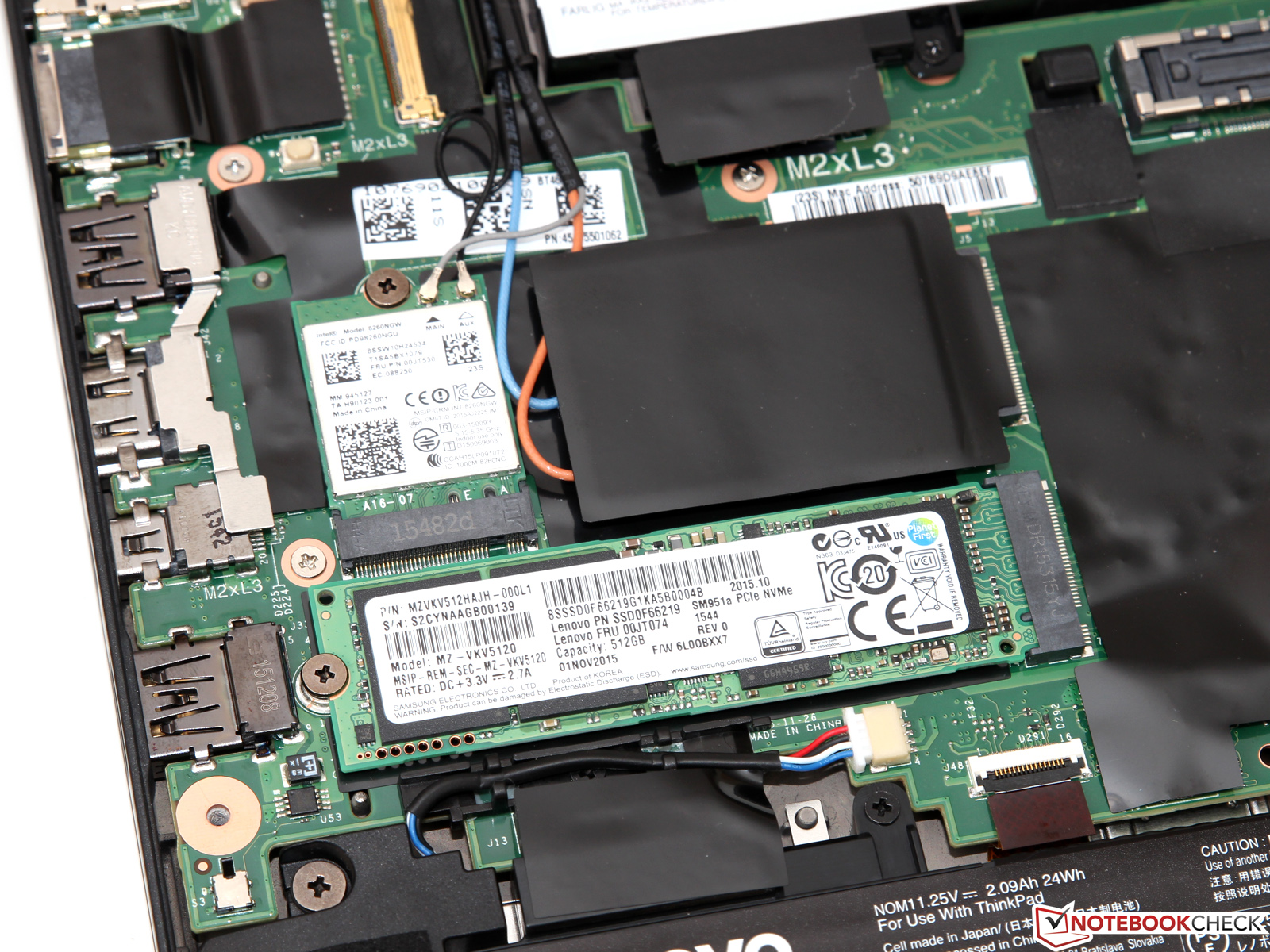

Hårddisk

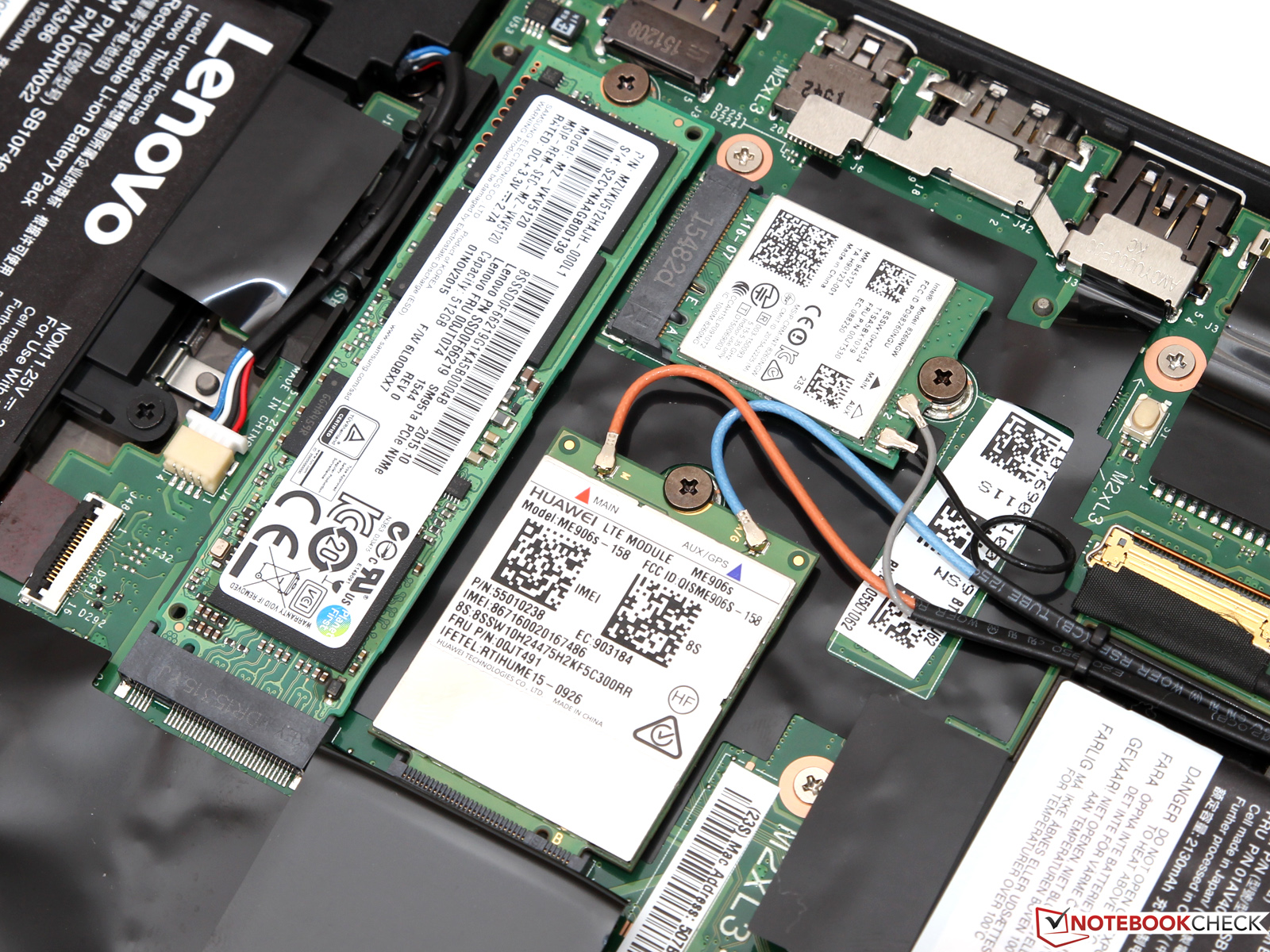

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Ljudkort
Intel Skylake-U/Y PCH - High Definition Audio
Anslutningar
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: Headset, Kortläsare: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor
Nätverk
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2, Huawei Mobile Broadband ME906s (UMTS/HSPA/LTE + GNSS), LTE, GPS
Storlek
höjd x bredd x djup (i mm) 18.8 x 331 x 227

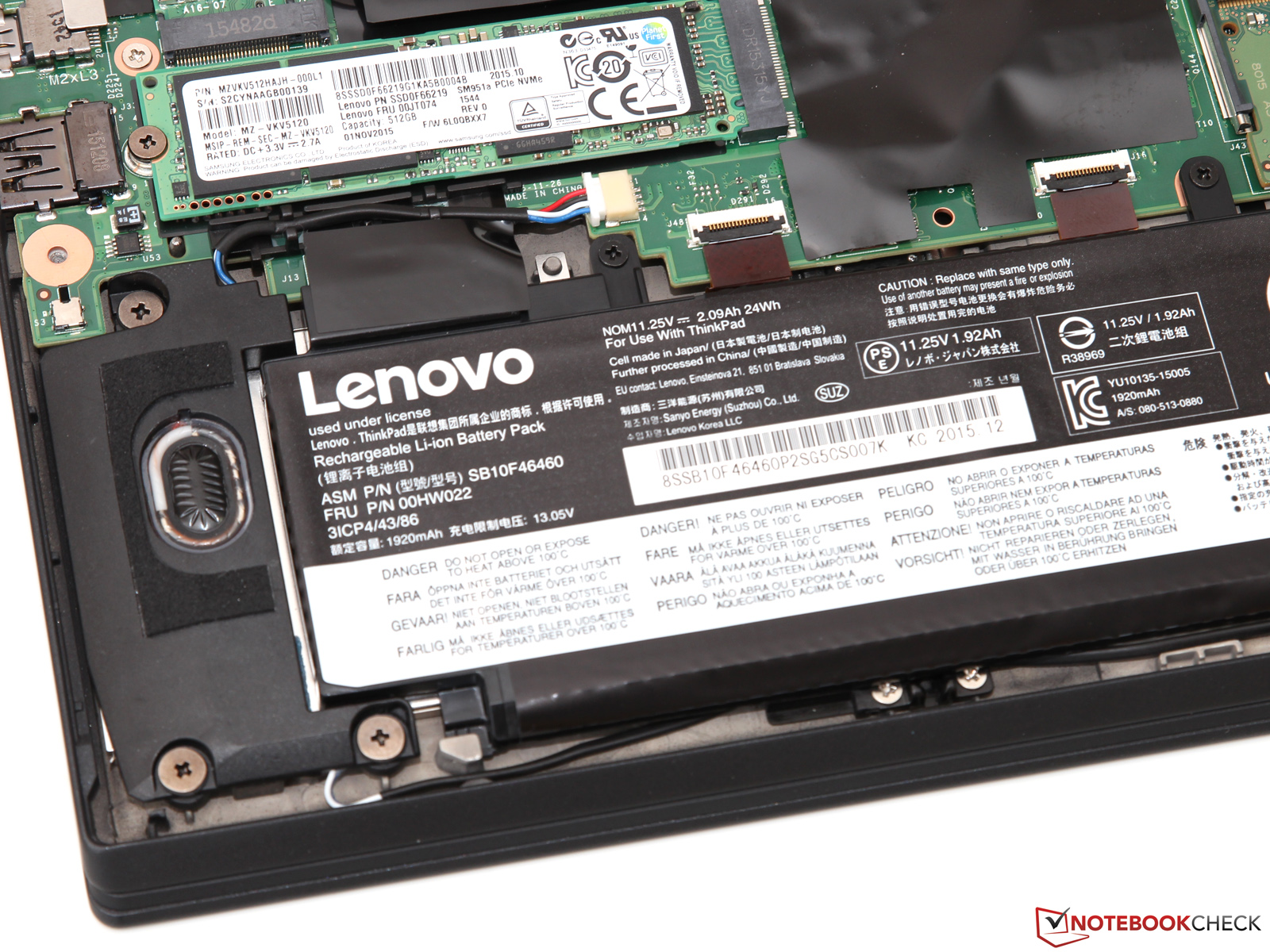

Batteri

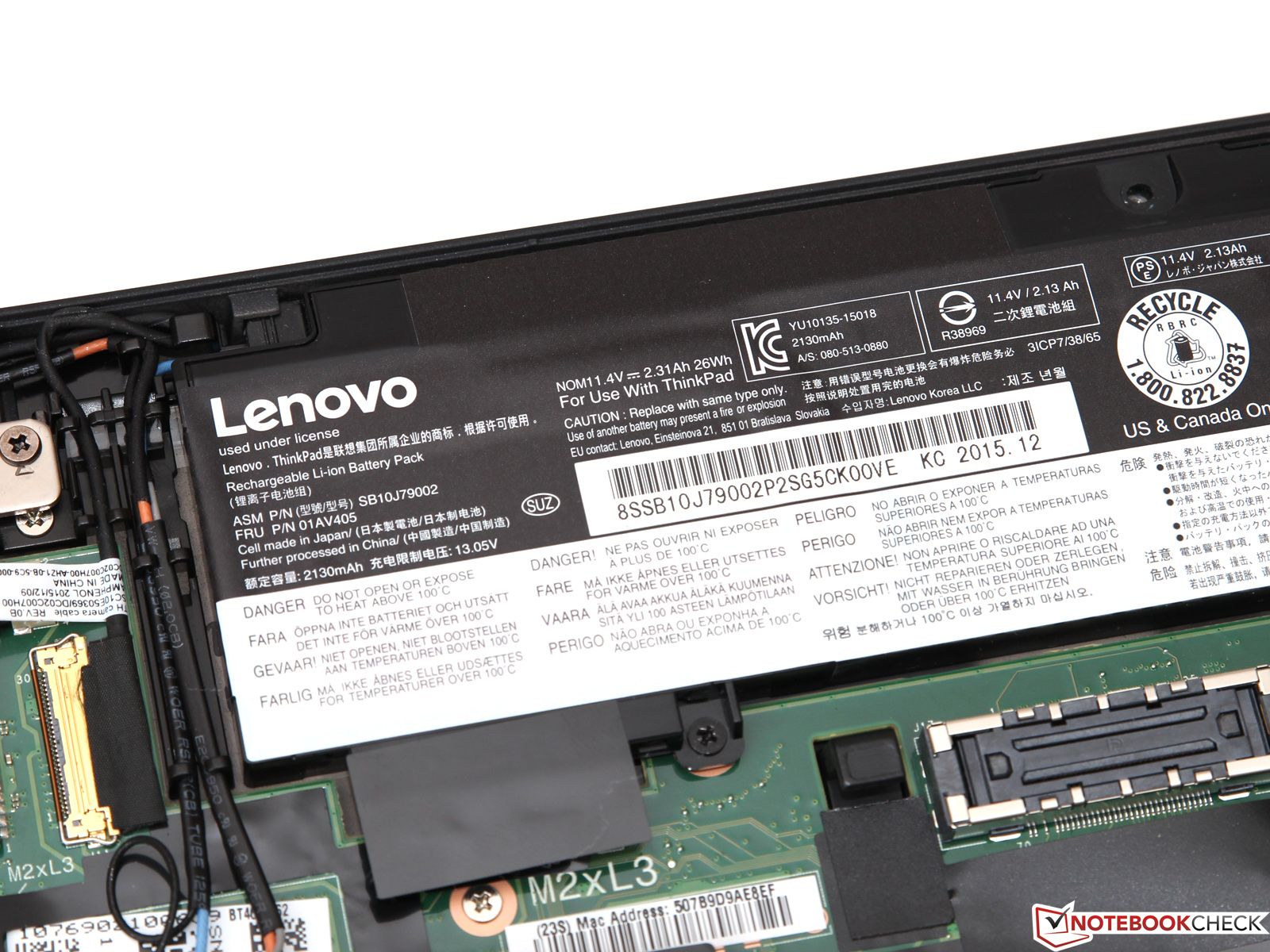

49 Wh Litiumjon, 23 Wh + 26 Wh (båda interna)
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 720p, fixed focus
Övrigt

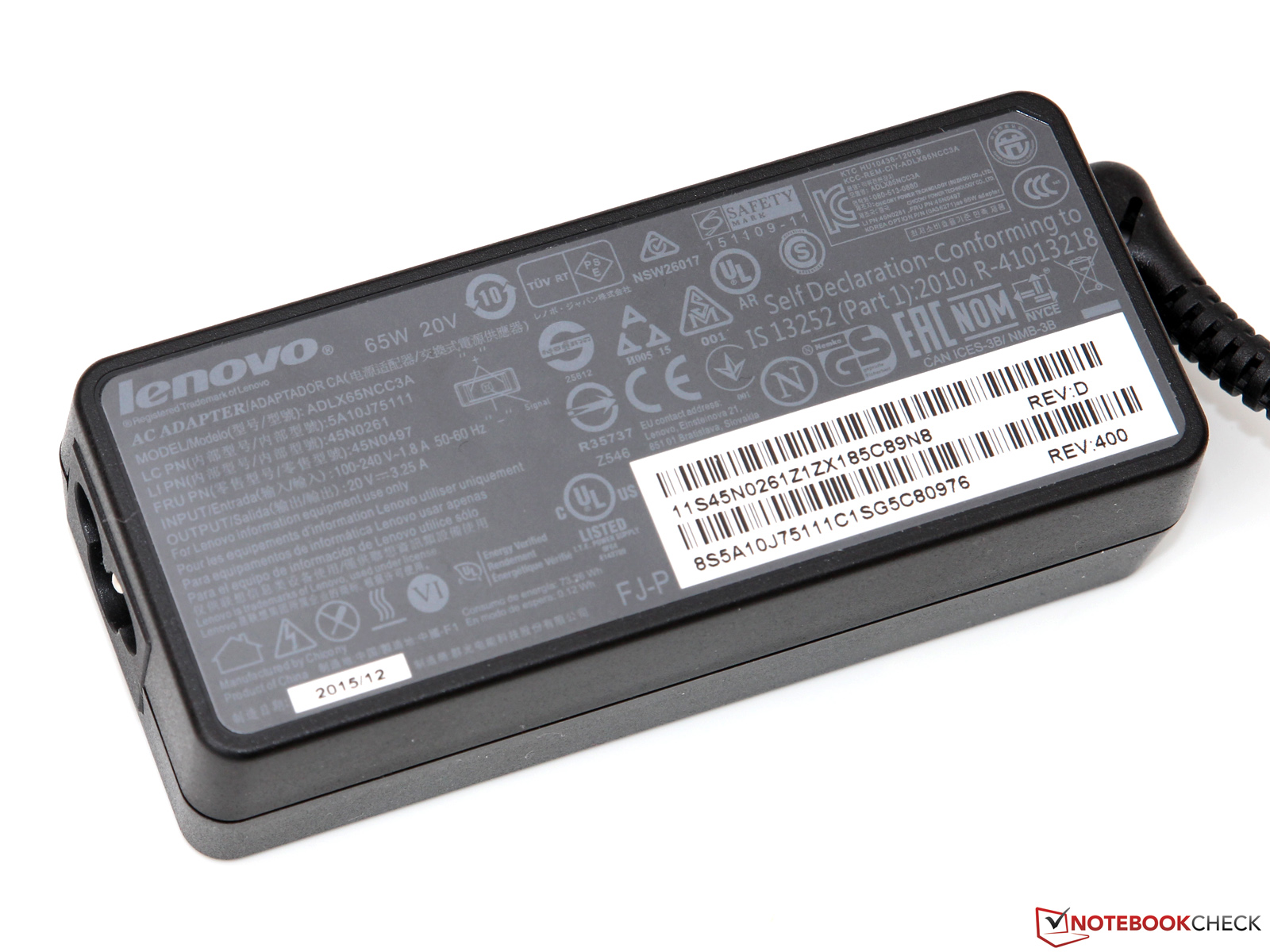

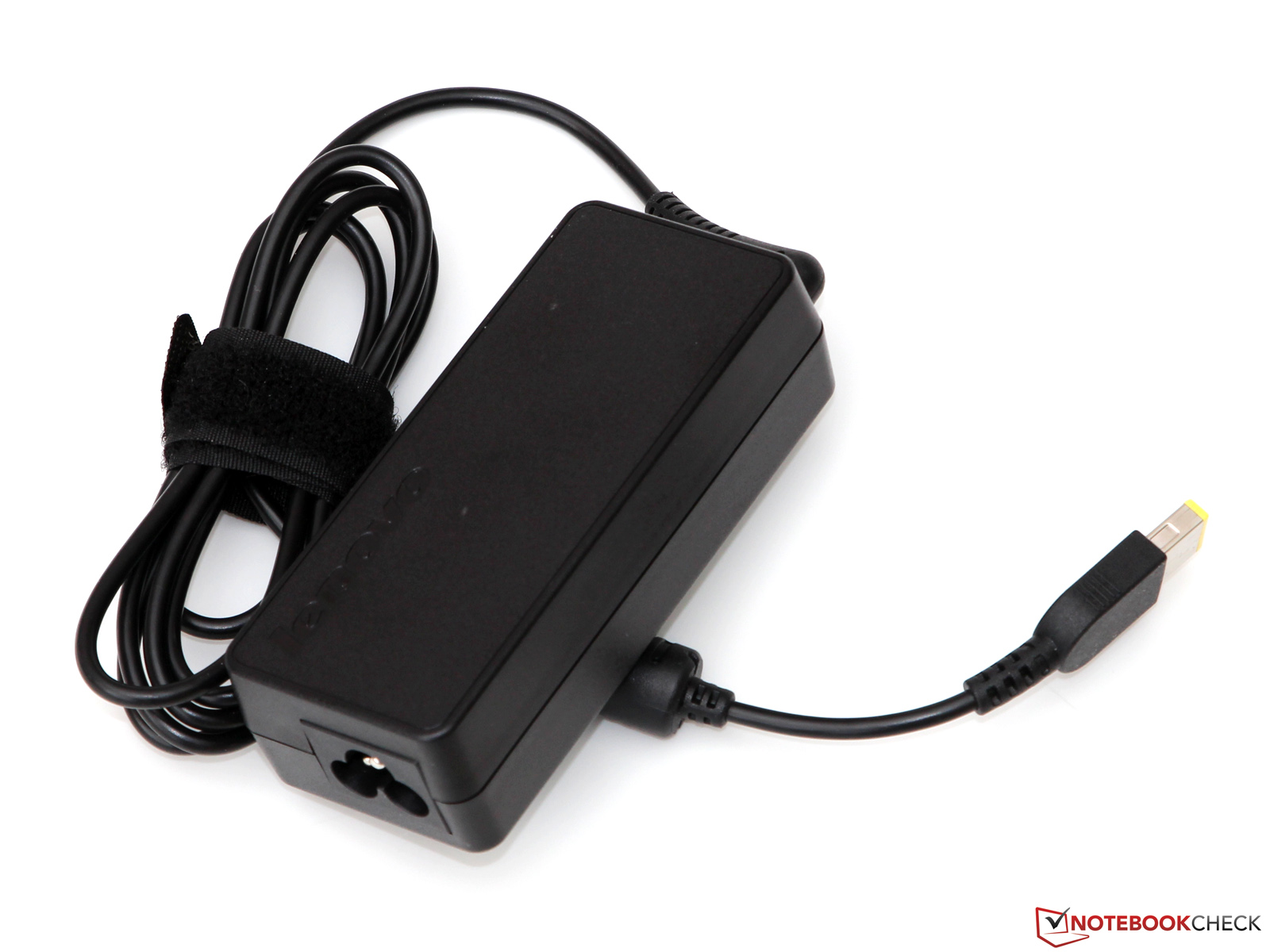

Högtalare: Stereo (2x 1 W), Tangentbord: Chiclet, Adapter: 65 Watt, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo Companion, 36 Månader Garanti
Vikt
1.345 kg, Strömförsörjning: 346 g
Pris
2350 Euro

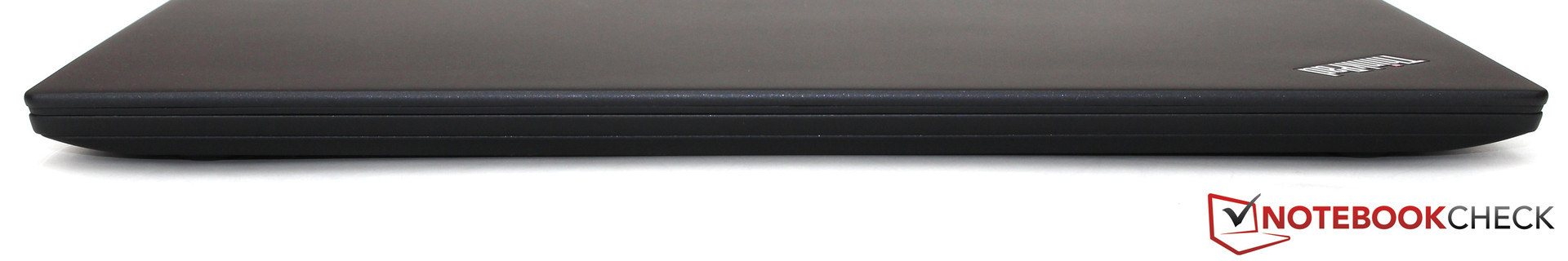

Front: no ports
Front: no ports

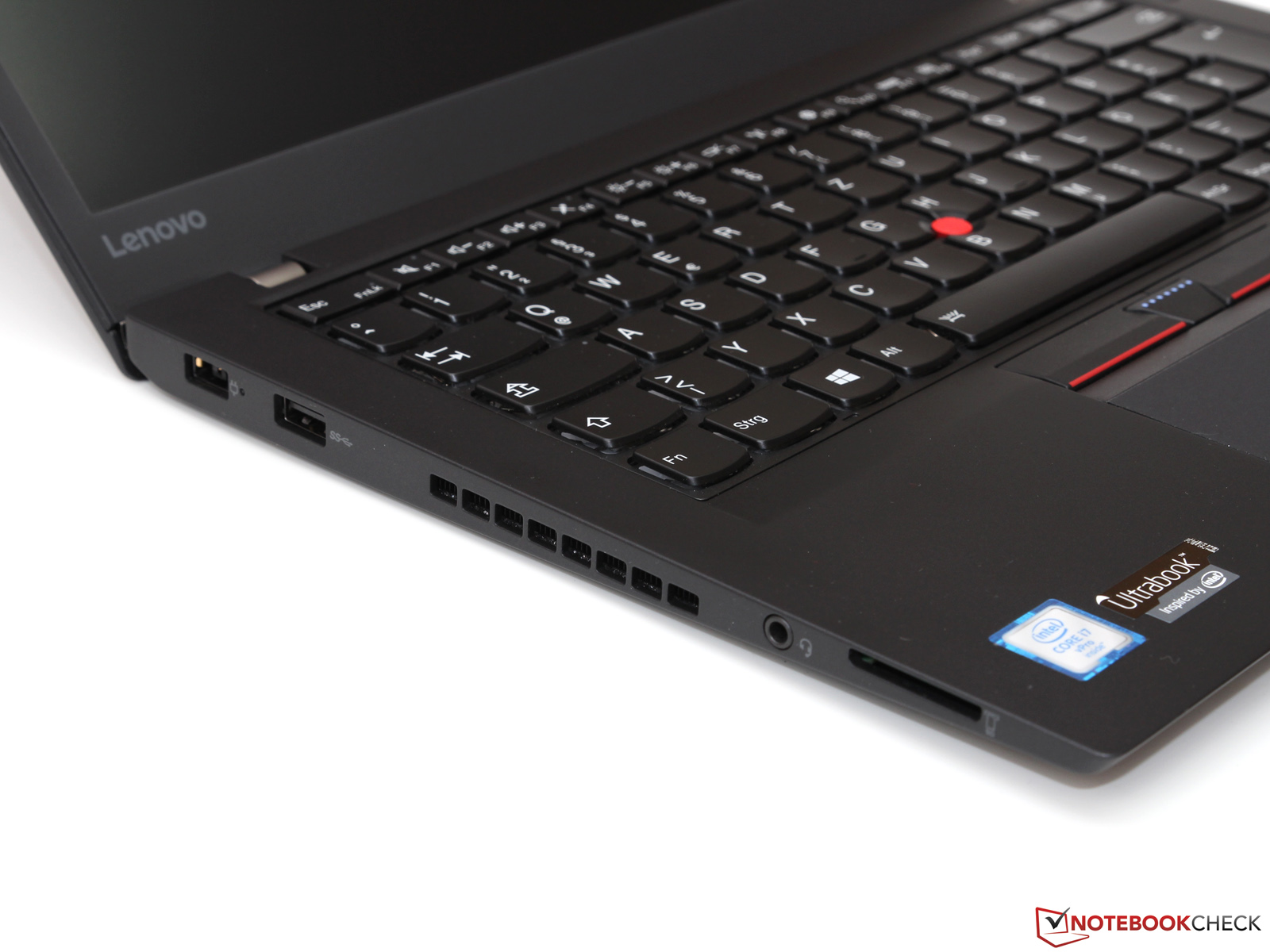

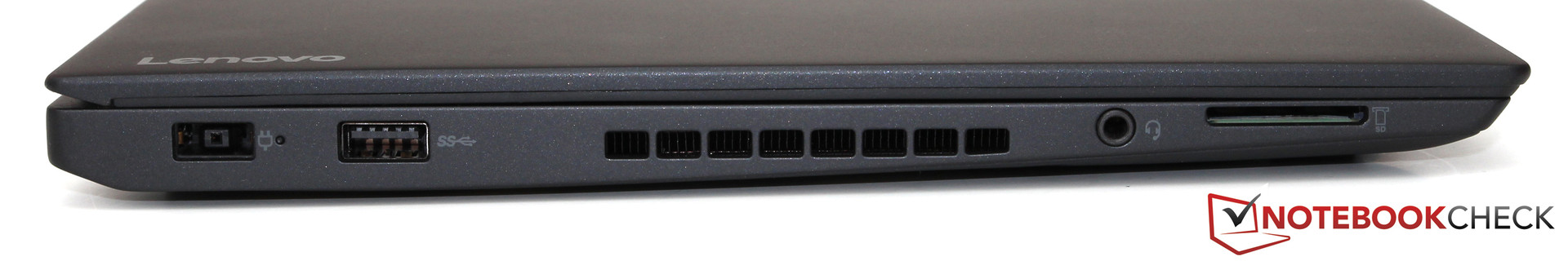

Left: power, USB 3.0, fan exhaust, headset port, card reader
Left: power, USB 3.0, fan exhaust, headset port, card reader

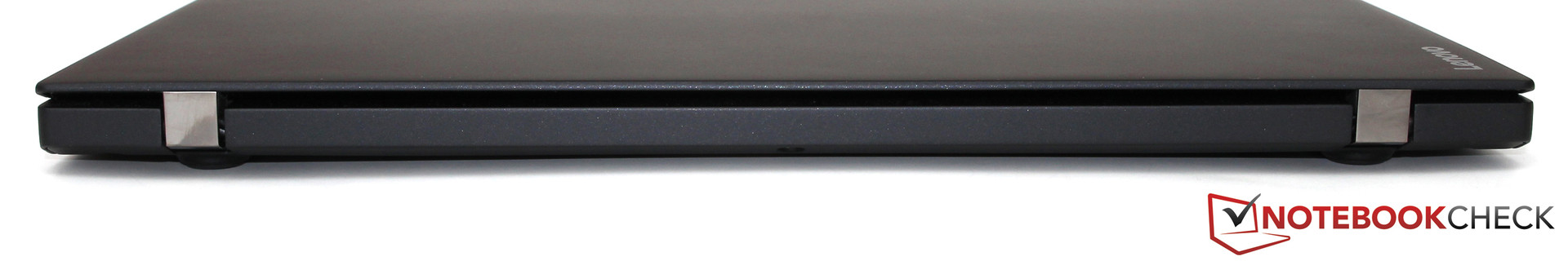

Rear: no ports
Rear: no ports

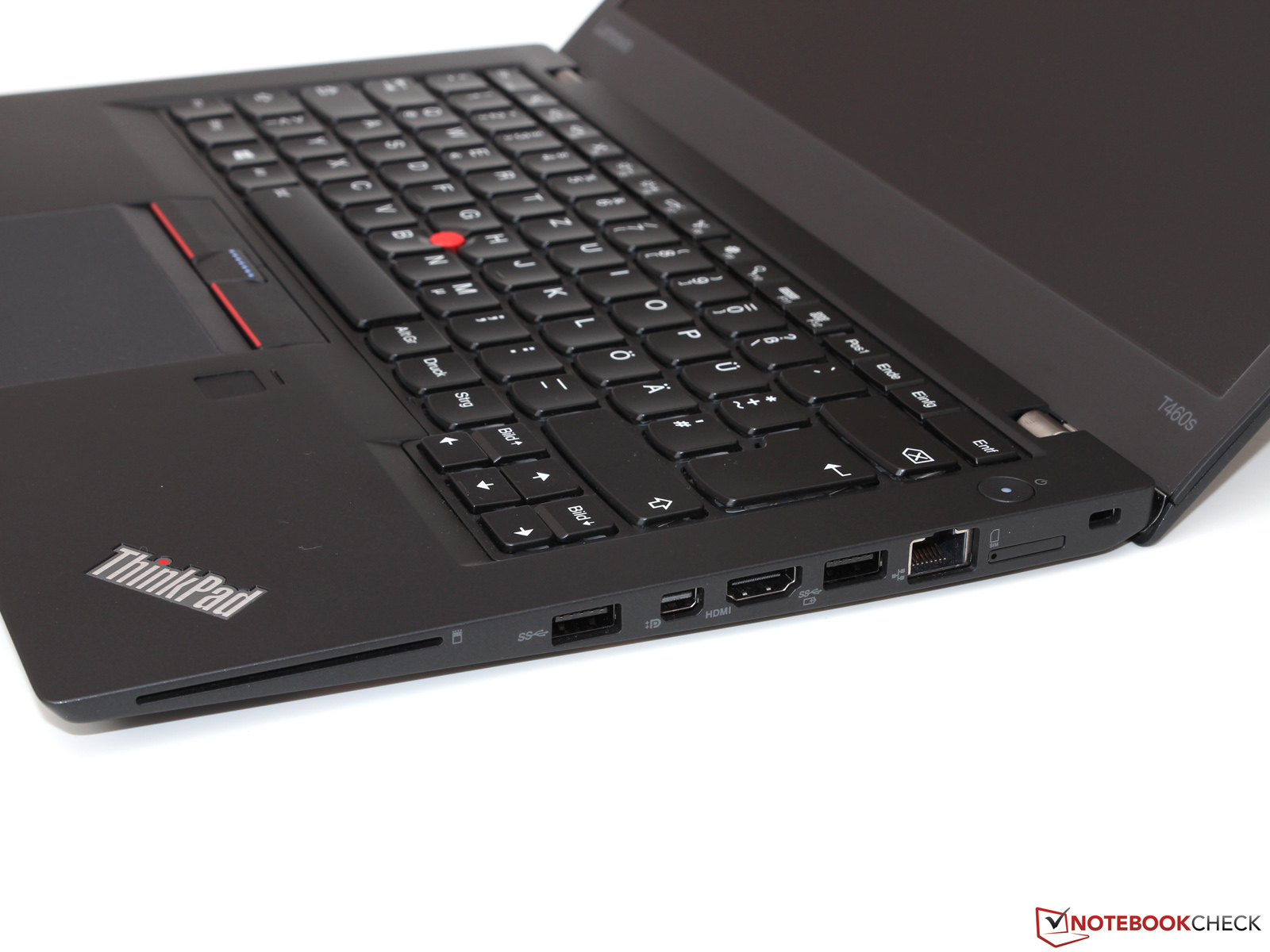

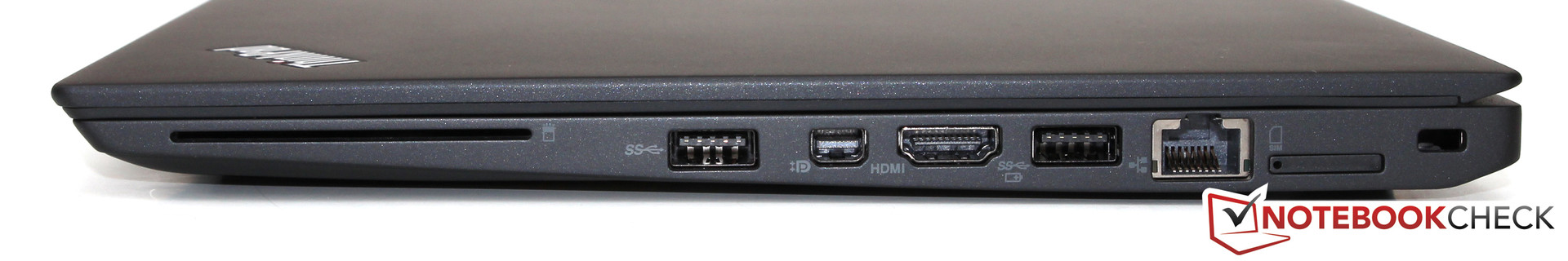

Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock
Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock

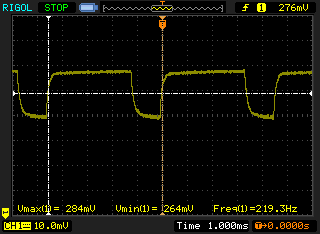

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz90 % brightness setting

The display backlight flickers at 220 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 58 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 5069 (minimum: 43 - maximum: 142900) Hz was measured.

252
cd/m²
250
cd/m²
246
cd/m²
243
cd/m²
257
cd/m²
255
cd/m²
241
cd/m²
242
cd/m²
248
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 257 cd/m² Medel: 248.2 cd/m² Minimum: 3 cd/m²
Distribution av ljusstyrkan: 94 %
Mitt på batteriet: 255 cd/m²
Kontrast: 988:1 (Svärta: 0.26 cd/m²)
ΔE Color 4.59 | - Ø
ΔE Greyscale 6.38 | - Ø
98% sRGB (Argyll) 65% AdobeRGB 1998 (Argyll)
Gamma: 2.51
Lenovo ThinkPad T460s-20FA003GGE
2.560 x 1.440 IPS-Panel
Lenovo ThinkPad T460s-20F9003SGE
1.920 x 1.080 IPS-Panel
Lenovo ThinkPad T450s-20BWS1UT00
1.920 x 1.080 IPS-Panel
HP EliteBook 840 G3 T9X59ET#ABD
1.920 x 1.080 TN-Panel
Dell Latitude 14 7000 Series E7470
1.920 x 1.080 IPS-Panel
Response Times
-9%
-5%
-14%
Response Time Grey 50% / Grey 80% *
35.6 (17.2, 18.4)
42 (19.6, 22.4)
-18%
43 (20, 23)
-21%
48 (15, 33)
-35%
Response Time Black / White *
29.2 (14.4, 14.8)
29.2 (16, 13.2)
-0%
25 (9, 16)
14%
27 (7, 20)
8%
PWM Frequency
220 (90)
204 (90)
-7%
Screen
-14%
5%
-53%
17%
Brightness
248
211
-15%
281
13%
336
35%
354
43%
Brightness Distribution
94
89
-5%
94
0%
87
-7%
81
-14%
Black Level *
0.26
0.22
15%
0.286
-10%
0.65
-150%
0.26
-0%
Contrast
988
1027
4%
1007
2%
563
-43%
1462
48%
Colorchecker DeltaE2000 *
4.59
6.44
-40%
4.35
5%
10.26
-124%
3.11
32%
Greyscale DeltaE2000 *
6.38
5.87
8%
3.7
42%
11.51
-80%
4.35
32%
Gamma
2.51 96%
2.37 101%
2.68 90%
2.4 100%
2.37 101%
CCT
6238 104%
6856 95%
6076 107%
12725 51%
6771 96%
Color Space (Percent of AdobeRGB 1998)
65
39.58
-39%
54.7
-16%
47
-28%
62
-5%
Color Space (Percent of sRGB)
98
61.15
-38%
74
-24%
96
-2%
Total Average (Program / Settings)
-12% / -13%
5% / 5%
-29% / -40%
2% / 11%

* ... smaller is better

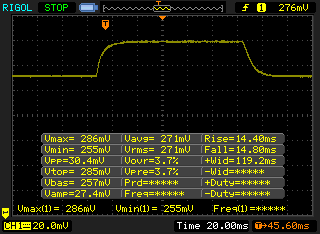

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined↗ 14.4 ms rise
↘ 14.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 69 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.9 ms).

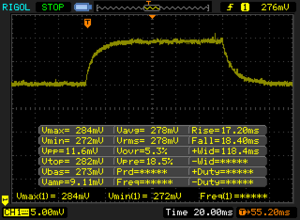

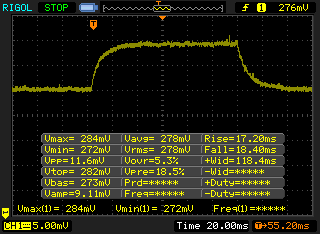

       Response Time 50% Grey to 80% Grey
35.6 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 24 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (43.4 ms).
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
145 Points ∼100% +3%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
142 Points ∼98% +1%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
141 Points ∼97%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
130 Points ∼90% -8%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
124 Points ∼86% -12%
Dell Latitude 14 E5470
Intel Core i5-6300U
124 Points ∼86% -12%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
119 Points ∼82% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
116 Points ∼80% -18%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
113 Points ∼78% -20%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
111 Points ∼77% -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
513 Points ∼100% +48%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
347 Points ∼68%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
334 Points ∼65% -4%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
322 Points ∼63% -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
319 Points ∼62% -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
311 Points ∼61% -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
302 Points ∼59% -13%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
290 Points ∼57% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
288 Points ∼56% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
255 Points ∼50% -27%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
1.66 Points ∼100% +6%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
1.61 Points ∼97% +3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
1.57 Points ∼95%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
1.51 Points ∼91% -4%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
1.45 Points ∼87% -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
1.42 Points ∼86% -10%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
1.31 Points ∼79% -17%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
1.29 Points ∼78% -18%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
1.28 Points ∼77% -18%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
5.91 Points ∼100% +54%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
3.83 Points ∼65%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
3.58 Points ∼61% -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
3.55 Points ∼60% -7%
Dell Latitude 14 E5470
Intel Core i5-6300U
3.44 Points ∼58% -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
3.31 Points ∼56% -14%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
3.23 Points ∼55% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
3.18 Points ∼54% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
2.77 Points ∼47% -28%
X264 HD Benchmark 4.0
Pass 2
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
22.62 fps ∼100%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
20.95 fps ∼93% -7%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
19.04 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
18.72 fps ∼83% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
16.19 fps ∼72% -28%
Pass 1
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
120.37 fps ∼100%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
107.55 fps ∼89% -11%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
102.36 fps ∼85% -15%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
97.96 fps ∼81% -19%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
86.62 fps ∼72% -28%
Cinebench R10 Shading 32Bit
9052
Cinebench R10 Rendering Multiple CPUs 32Bit
11798
Cinebench R10 Rendering Single 32Bit
5264
Cinebench R11.5 OpenGL 64Bit
41.71 fps
Cinebench R11.5 CPU Multi 64Bit
3.83 Points
Cinebench R11.5 CPU Single 64Bit
1.57 Points
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 OpenGL 64Bit
43.93 fps
Cinebench R15 CPU Multi 64Bit
347 Points
Cinebench R15 CPU Single 64Bit
141 Points
Hjälp
Lenovo ThinkPad T460s-20FA003GGE
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad T460s-20F9003SGE
Samsung CM871 MZ7LF192HCGS
Lenovo ThinkPad T450s-20BWS1UT00
Samsung SSD PM871 MZ7LN256HCHP
Lenovo ThinkPad T450s-20BWS03F00
Intel SSD Pro 2500 Series SSDSC2BF360A5L
Dell Latitude 14 7000 Series E7470
Samsung SSD PM851 M.2 2280 256GB
AS SSD
-82%
-50%
-75%
-57%
Score Total
2439
296
-88%
1086
-55%
546
-78%
913
-63%
4K-64 Write
366.01
33.4
-91%
272.25
-26%
83.47
-77%
170
-54%
4K-64 Read
968.26
85.38
-91%
379.99
-61%
210.12
-78%
336.08
-65%
4K Write
114.4
34.38
-70%
84.62
-26%
14.61
-87%
85.05
-26%
4K Read
45.41
14.18
-69%
33.27
-27%
22.19
-51%
30.91
-32%
Seq Write
1407.23
163.29
-88%
285.16
-80%
264.51
-81%
283.73
-80%
Seq Read
2039.37
470.97
-77%
502.69
-75%
489.64
-76%
495.53
-76%
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Överföringshastighet min.: 1063.7 MB/s
Överföringshastighet max.: 1167.5 MB/s
Överföringshastighet med.: 1161.7 MB/s
Accesstid: 0 ms
Burst rate: 254 MB/s
CPU-användning: 3.9 %
PCMark 8
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points ∼100% +2%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points ∼98%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4394 Points ∼97% -1%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points ∼94% -4%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
4121 Points ∼91% -7%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4097 Points ∼90% -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
4072 Points ∼90% -8%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4338 Points ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3945 Points ∼91% -9%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3644 Points ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3613 Points ∼83% -17%
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points ∼100%
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points ∼94% -6%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3270 Points ∼92% -8%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points ∼91% -9%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3128 Points ∼88% -12%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3088 Points ∼87% -13%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3024 Points ∼85% -15%
PCMark 7 - Score
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5194 Points ∼100% 0%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
5190 Points ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4995 Points ∼96% -4%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4797 Points ∼92% -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3002 Points ∼58% -42%
PCMark 7 Score
5190 poäng
PCMark 8 Home Score Accelerated v2
3542 poäng
PCMark 8 Creative Score Accelerated v2
4338 poäng
PCMark 8 Work Score Accelerated v2
4442 poäng
Hjälp
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
2450 Points ∼100% +73%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2313 Points ∼94% +63%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
2138 Points ∼87% +51%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1416 Points ∼58%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
1210 Points ∼49% -15%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
1162 Points ∼47% -18%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
1156 Points ∼47% -18%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1117 Points ∼46% -21%
3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1627 Points ∼100% +74%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
1497 Points ∼92% +60%
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
1477 Points ∼91% +58%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
935 Points ∼57%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
797 Points ∼49% -15%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
727 Points ∼45% -22%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
672 Points ∼41% -28%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
597 Points ∼37% -36%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
22.64 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
15.6 fps ∼69% -31%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
14.65 fps ∼65% -35%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
2.95 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
2.47 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1.81 fps ∼61% -39%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.05 fps ∼100% 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
6.05 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
4.79 fps ∼79% -21%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
5.72 fps ∼100% +236%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1.7 fps ∼30%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1.02 fps ∼18% -40%
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.89 fps ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2.09 fps ∼19% -81%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
0.08 fps ∼100% +33%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
0.06 fps ∼75% 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
0.06 fps ∼75%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.15 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
8.99 fps ∼89% -11%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.68 fps ∼66% -34%
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
11.62 fps ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
9.71 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
9.69 fps ∼83% -17%
3DMark 06 Standard
9685 poäng
3DMark Vantage P Result
5859 poäng
3DMark 11 Performance
1600 poäng
3DMark Ice Storm Standard Score
58178 poäng
3DMark Cloud Gate Standard Score
6097 poäng
3DMark Fire Strike Score
863 poäng
Hjälp
Tomb Raider
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps ∼100% +42%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
33.2 fps ∼91% +29%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
27.8 fps ∼76% +8%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
25.7 fps ∼71%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
19.6 fps ∼54% -24%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
19.3 fps ∼53% -25%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
16.8 fps ∼46% -35%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
13.3 fps ∼37% -48%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.1 fps ∼100% +61%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
58.4 fps ∼88% +42%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
41.1 fps ∼62%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
38.5 fps ∼58% -6%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
30.4 fps ∼46% -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
27.5 fps ∼42% -33%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
25.5 fps ∼39% -38%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
21.1 fps ∼32% -49%
1024x768 Low Preset
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
130.8 fps ∼100% +57%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
121.4 fps ∼93% +46%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
86.5 fps ∼66% +4%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
83.1 fps ∼64%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
61.8 fps ∼47% -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
54.7 fps ∼42% -34%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
48.3 fps ∼37% -42%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
39.3 fps ∼30% -53%
låg med. hög ultra
Counter-Strike: GO (2012) 156.310160.931.2fps
Tomb Raider (2013) 83.141.125.710.9fps
BioShock Infinite (2013) 55.729.824.57.3fps
Battlefield 4 (2013) 40.429.618.85.9fps
Sims 4 (2014) 182.646.721.815.6fps
Rise of the Tomb Raider (2016) 14.19.65.3fps
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U, Intel HD Graphics 520
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U, Intel HD Graphics 520
Noise
2%
3%
2%
-7%
-1%
off / environment *
29.2
29.1
-0%
31.2
-7%
31.2
-7%
Idle Minimum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
31.2
-7%
31.2
-7%
Idle Average *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
32.1
-10%
31.2
-7%
Idle Maximum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
33.1
-13%
31.2
-7%
Load Average *
33.7
32.3
4%
33.1
2%
34.3
-2%
36.2
-7%
31.9
5%
Load Maximum *
38.5
36.6
5%
34.3
11%
34.8
10%
37.8
2%
31.9
17%

* ... smaller is better

Ljudnivå

Låg belastning
29.2 / 29.2 / 29.2 dB(A)
Hög belastning
33.7 / 38.5 dB(A)



30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm avstånd)   environment noise: 29.2 dB(A)
Låg belastning
 27.4 °C27.6 °C27.3 °C
 27.4 °C26.8 °C26.7 °C
 25.5 °C26.2 °C25.8 °C
Max: 27.6 °C
Medel: 26.7 °C
26.7 °C27.5 °C27.3 °C
27.4 °C28.7 °C27.2 °C
26.2 °C26.8 °C26.6 °C
Max: 28.7 °C
Medel: 27.2 °C
Strömförsörjning (max.)  28.3 °C | Rumstemperatur 20.6 °C | Fluke 62 Max
Strömförbrukning
Av/Standbydarklight 0.28 / 0.6 Watt
Låg belastningdarkmidlight 3.8 / 7.1 / 7.8 Watt
Hög belastning midlight 36.3 / 46 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad T460s-20FA003GGE
49 Wh
Lenovo ThinkPad T460s-20F9003SGE
49 Wh
Lenovo ThinkPad T450s-20BWS1UT00
96 Wh
Lenovo ThinkPad T450s-20BWS03F00
48 Wh
Battery Runtime
37%
156%
-1%
Reader / Idle
833
915
10%
1857
123%
774
-7%
H.264
397
534
35%
757
91%
322
-19%
WiFi v1.3
340
395
16%
648
91%
276
-19%
Load
62
116
87%
259
318%
88
42%
WiFi
336
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
13tim 53min
Surfa med WLAN v1.3
5tim 40min
Big Buck Bunny H.264 1080p
6tim 37min
Hög belastning (maximal ljusstyrka)
1tim 02min

För

+ Stabilt och extremt lättviktigt chassi

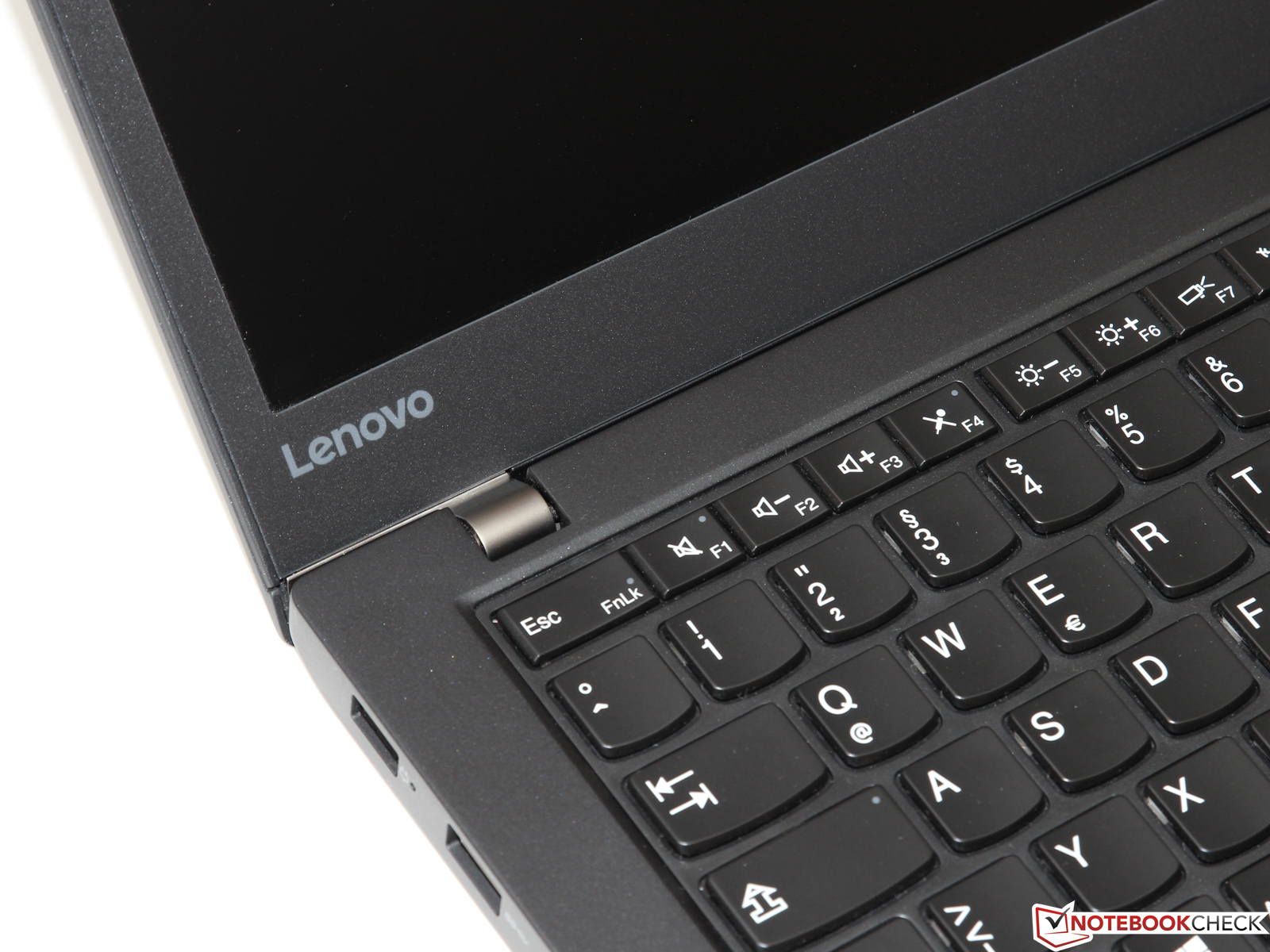

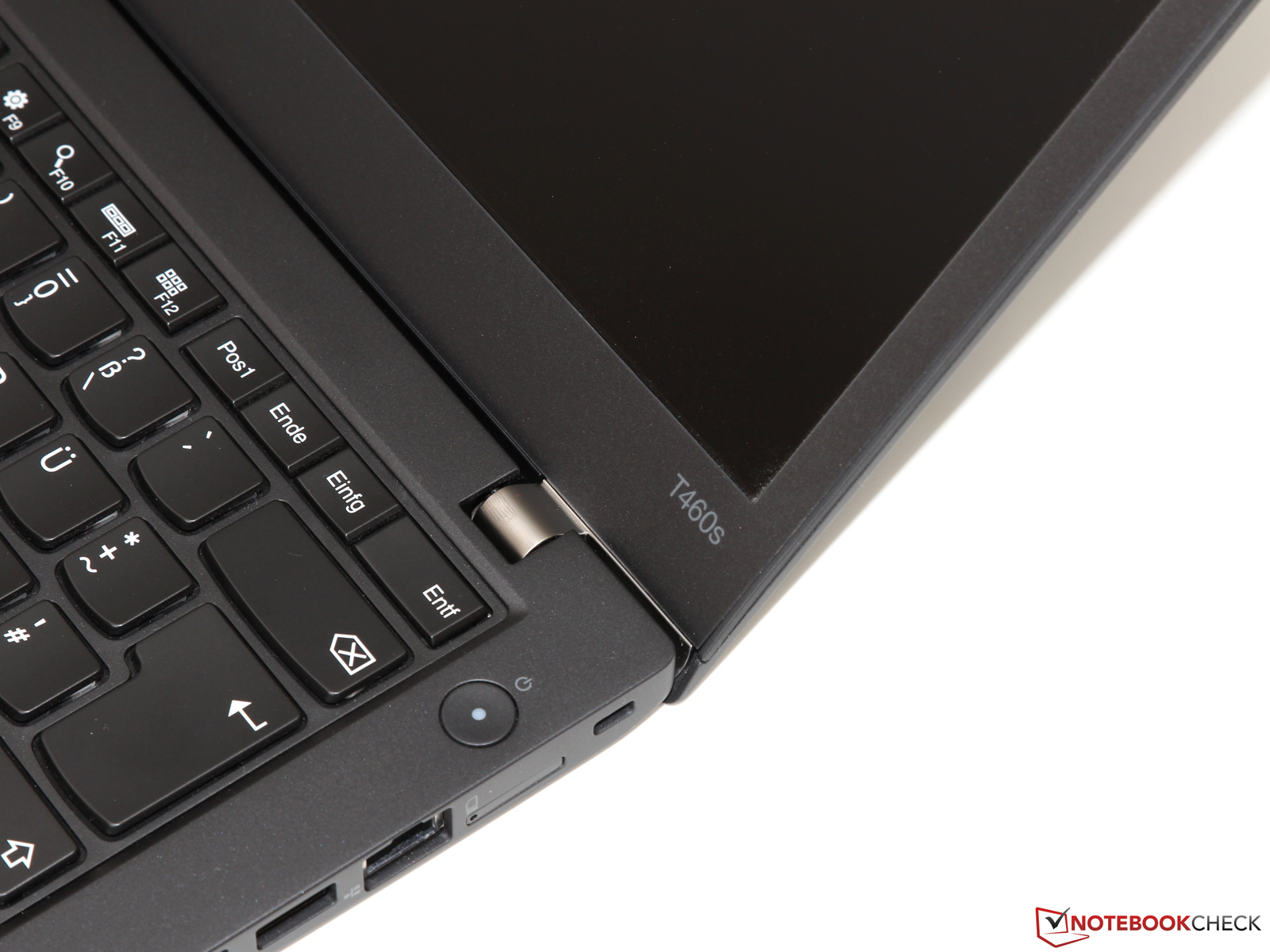

+ Exakta gångjärn
+ Integrerat LTE-modem
+ Bra skärm
+ Hög systemprestanda
+ Låg ljud- och värmeutveckling
+ Skaplig batteritid
+ 3 års garanti

Emot

- Begränsade uppgraderingsmöjligheter
- Ej USB-C
- Medelmåttig ljusstyrka
- Högt pris

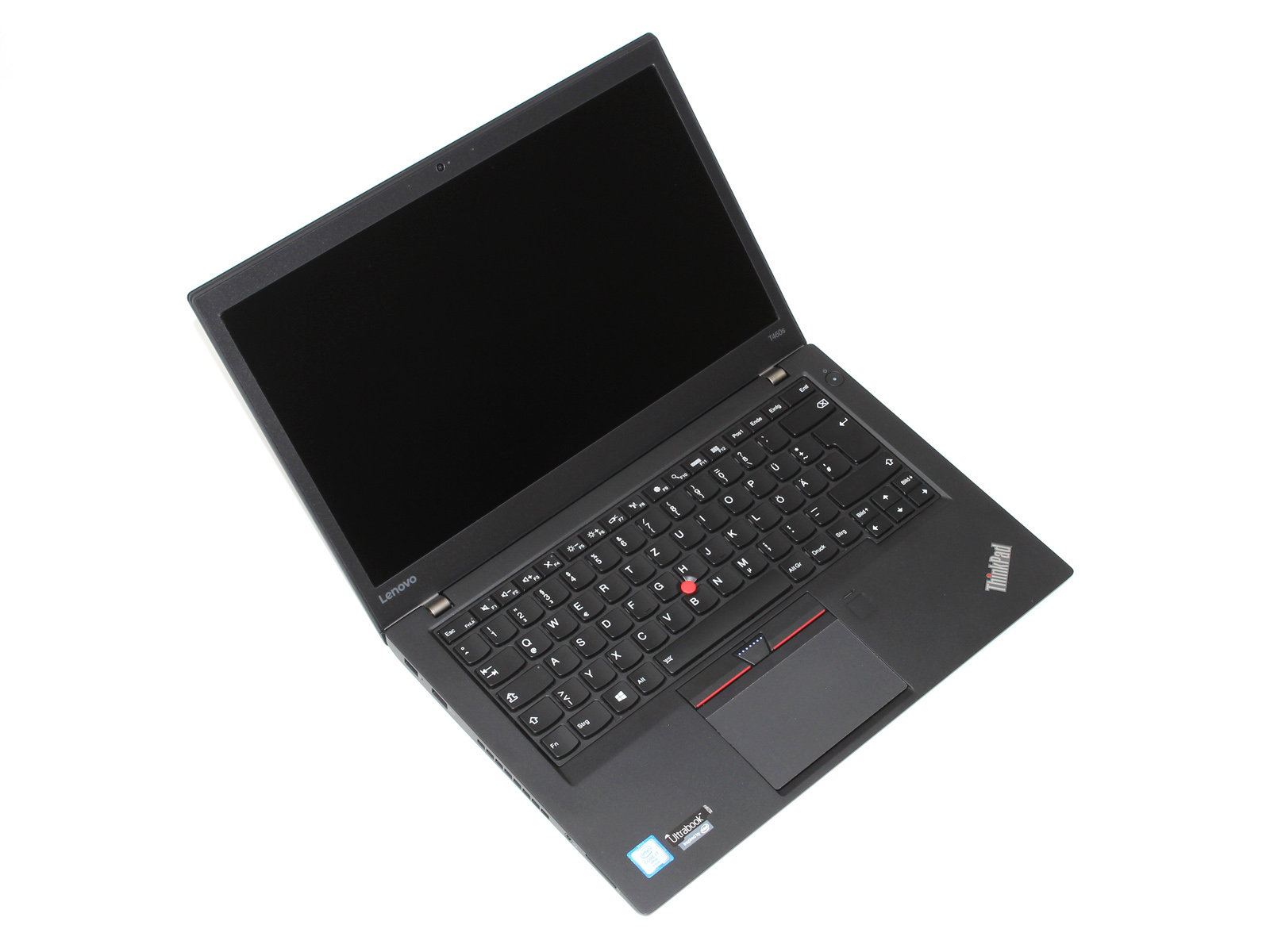

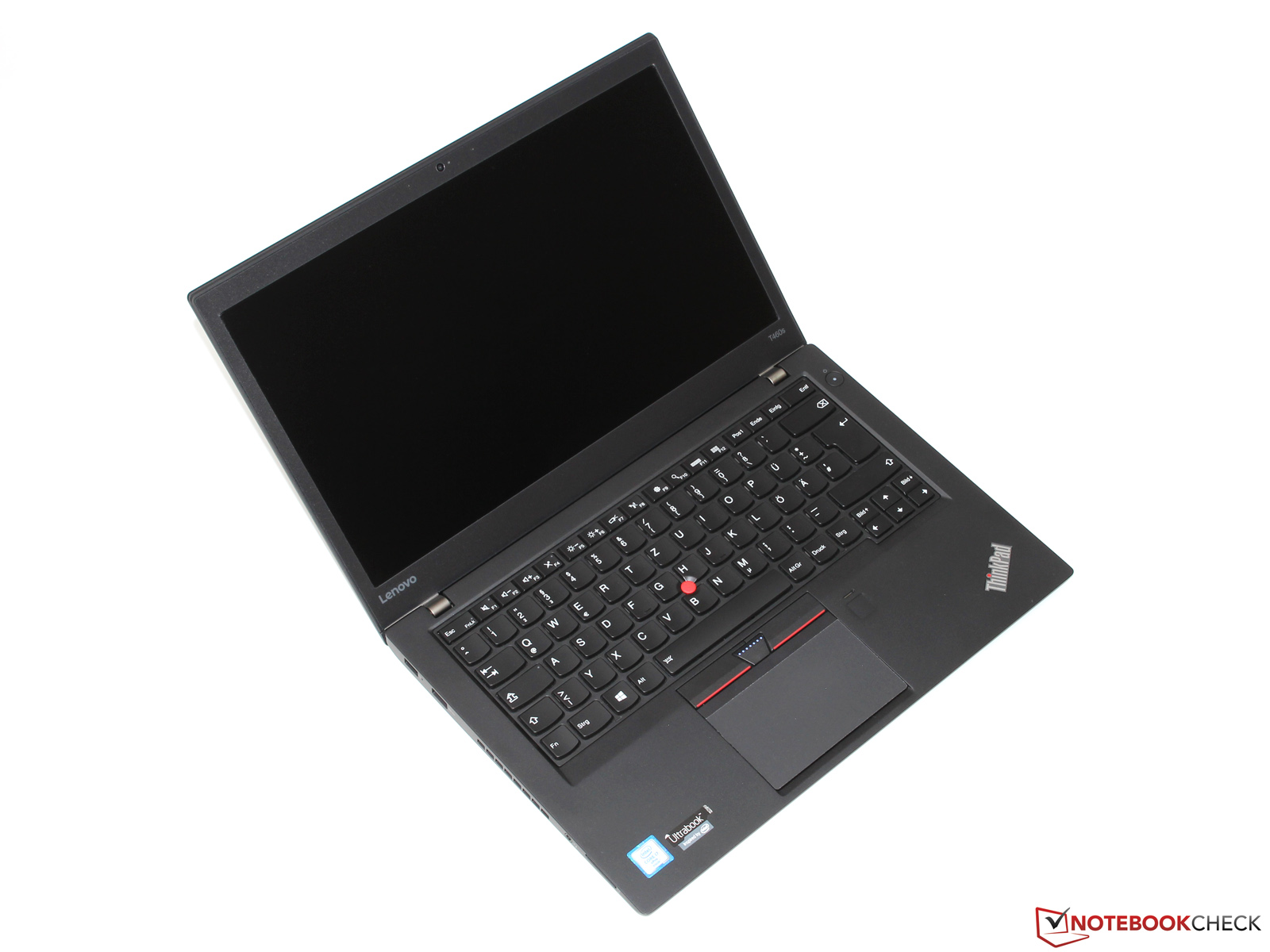

In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.

Läs originaltestet på engelska här.

Efter ungefär en veckas omfattande testande kan vi konstatera att ThinkPad T460s är mer än en tråkig Skylake-uppdatering av föregångaren T450s – och redan en av de bästa bärbara företagsdatorerna 2016 enligt vår mening.

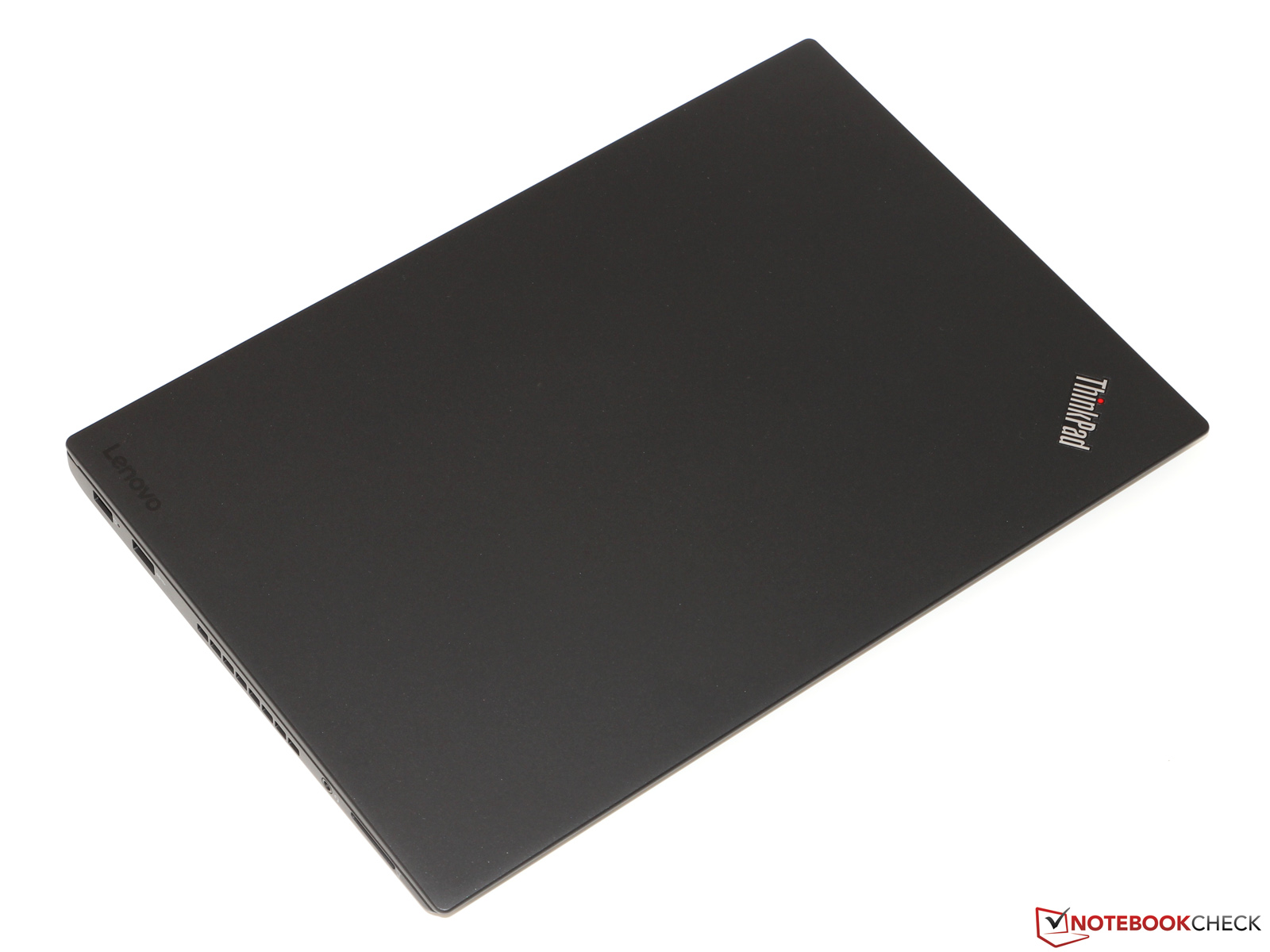

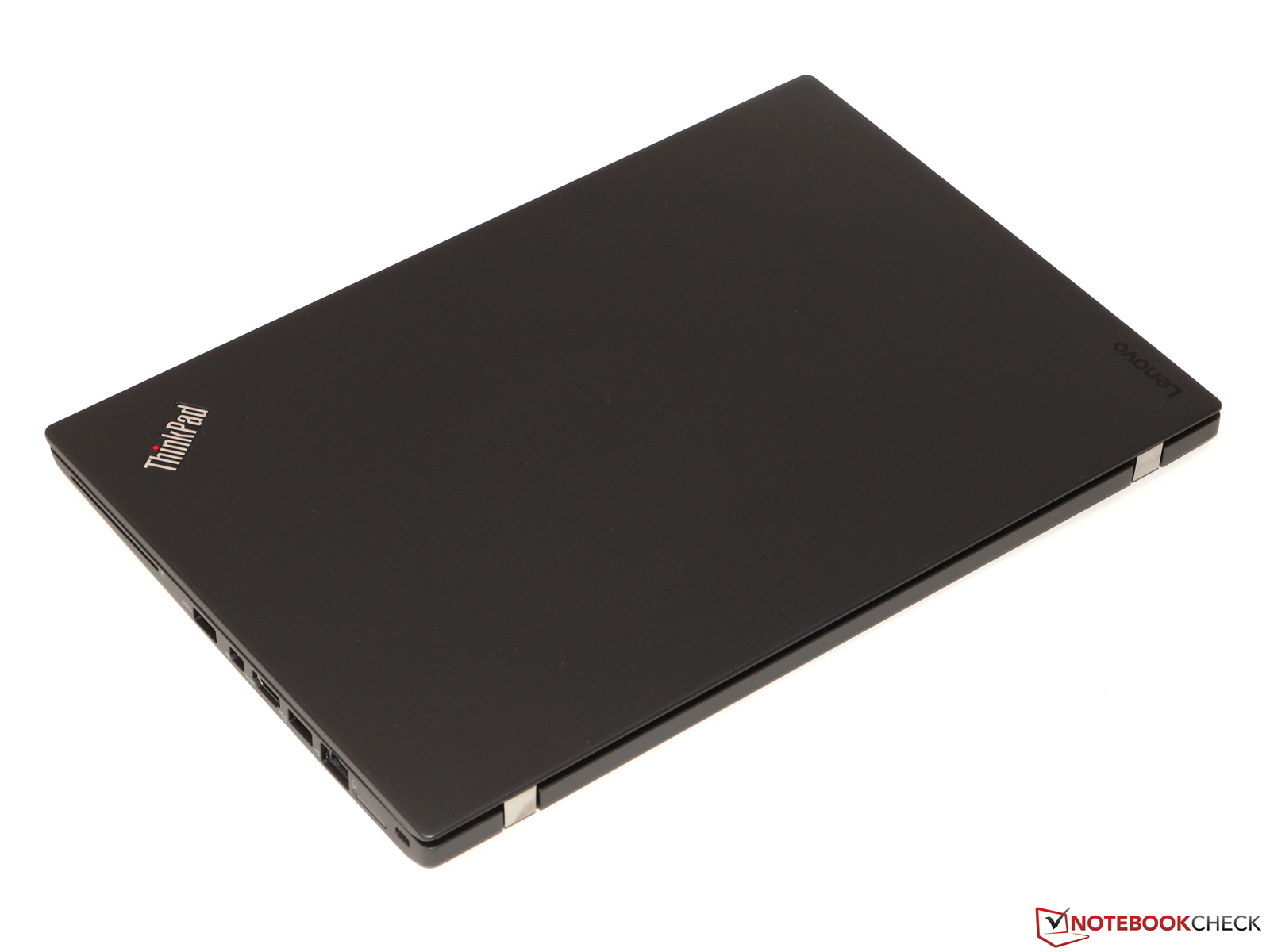

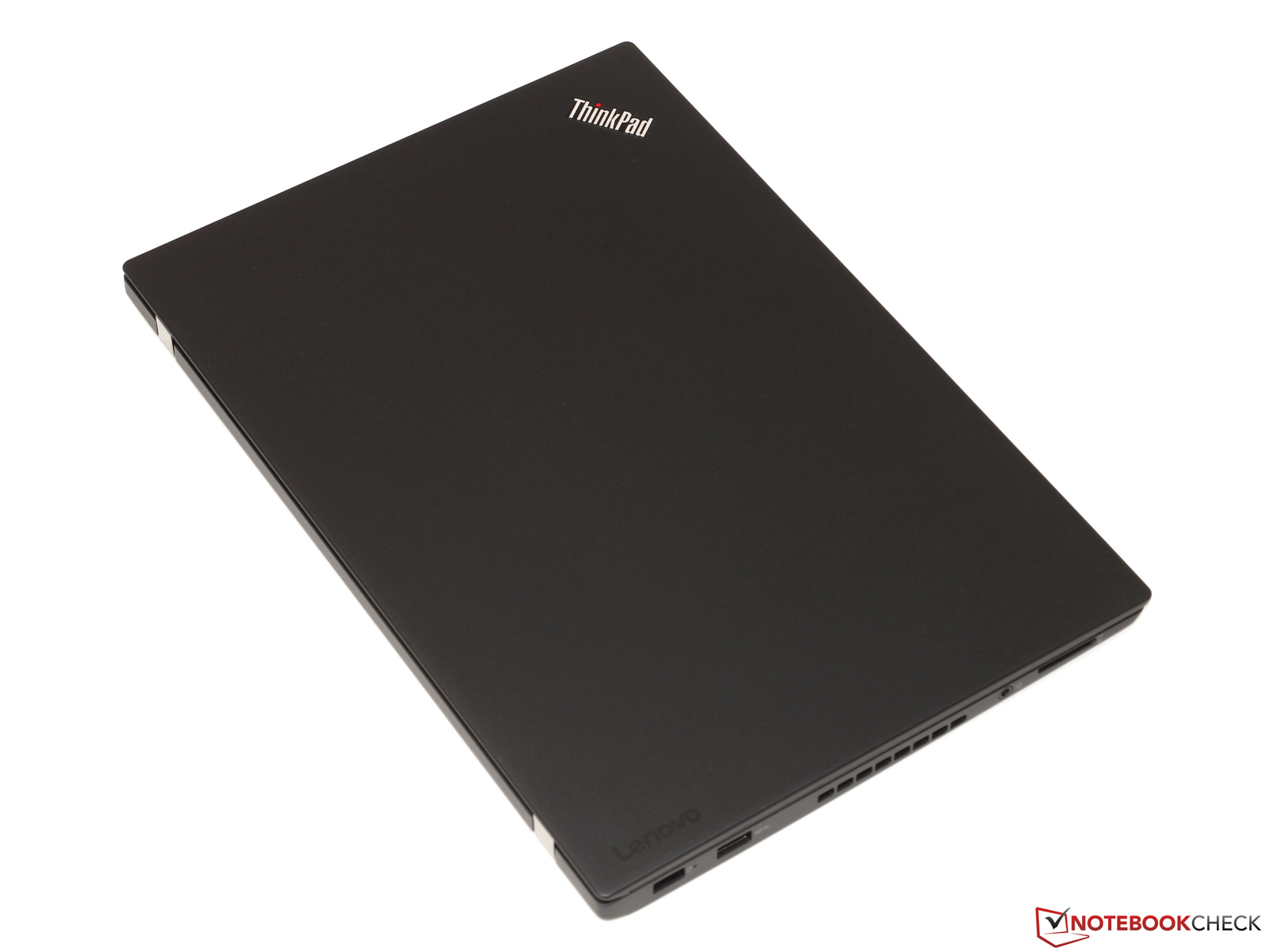

Även om designen knappt förändrats är T460s faktiskt en helt ny konstruktion med ett ännu tunnare och lättare chassi. Dess byggkvalitet och stabilitet kan lätt leva upp till de höga förväntningar vi har på en bärbar dator för över 10 000 kr.

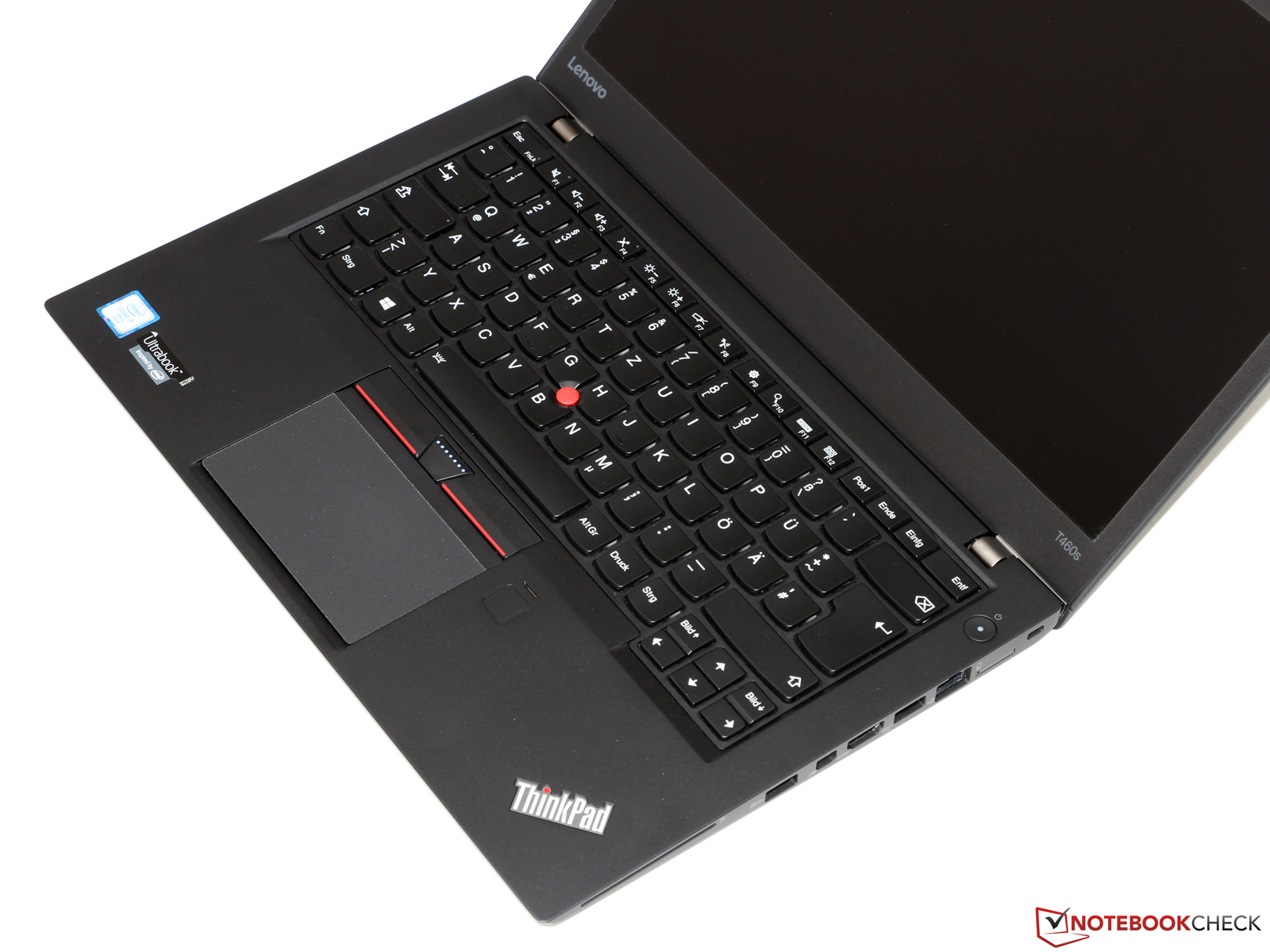

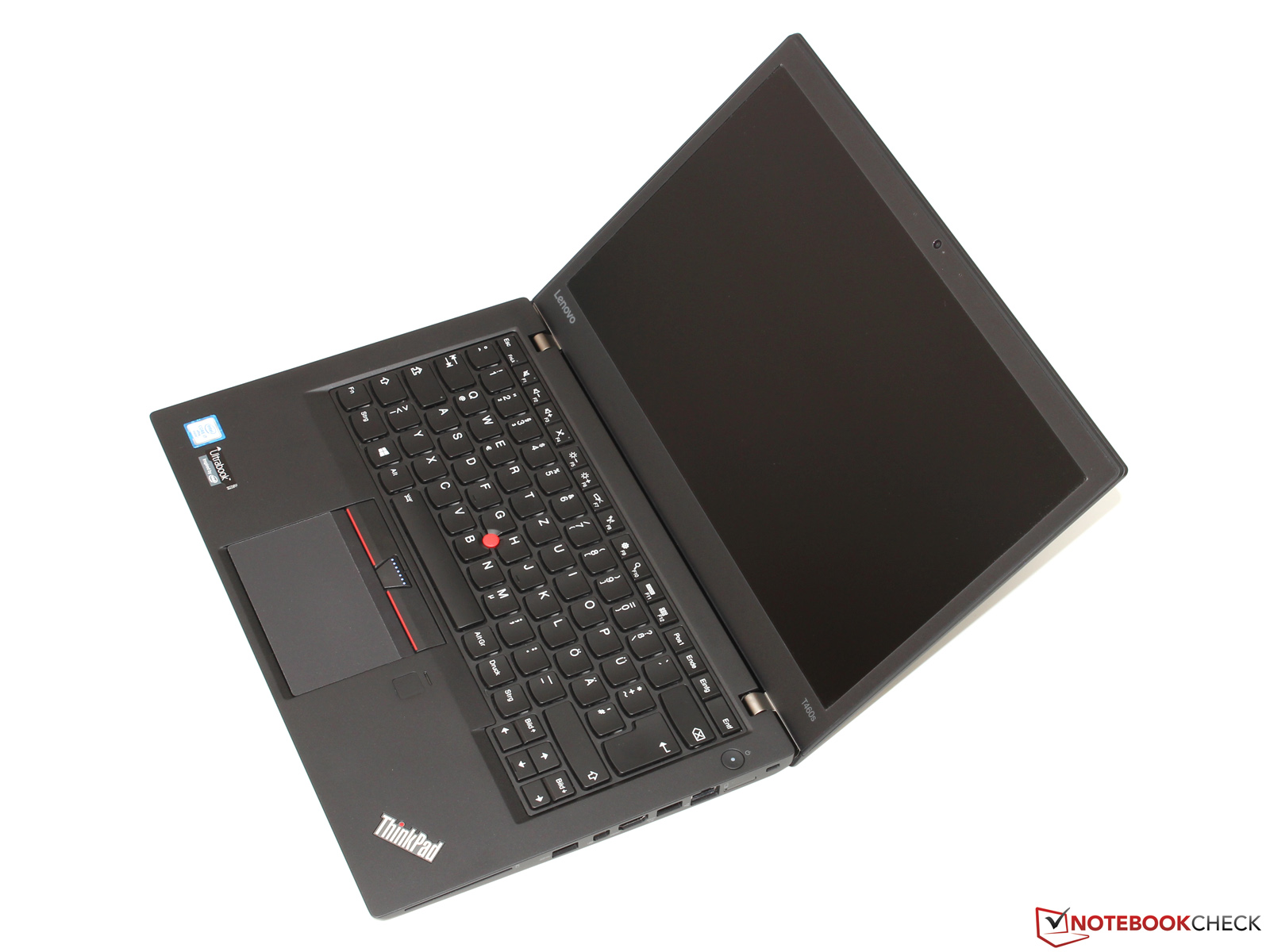

Detsamma gäller inmatningsenheterna: Om du letar efter ett tangentbord med en tydlig tryckpunkt är det svårt att hitta ett bättre alternativ just nu. Pekplattan håller kanske inte riktigt samma nivå, men är ändå bra i kombination med TrackPoint.

Vår dyra konfiguration presterar mycket bra, utan några TDP-begränsningar. Processorn Core i7-6600U levererar överraskande bra resultat utan att påverka fläktljud och temperaturutveckling alltför mycket. I kombination med en SSD med överföringshastigheter på upp till 2 GB/s, samt 12 GB snabbt DDR4-minne, kan datorn hantera det mesta. Den integrerade grafiken är en begränsande faktor, men fungerar med äldre spel och mindre CAD-modeller.

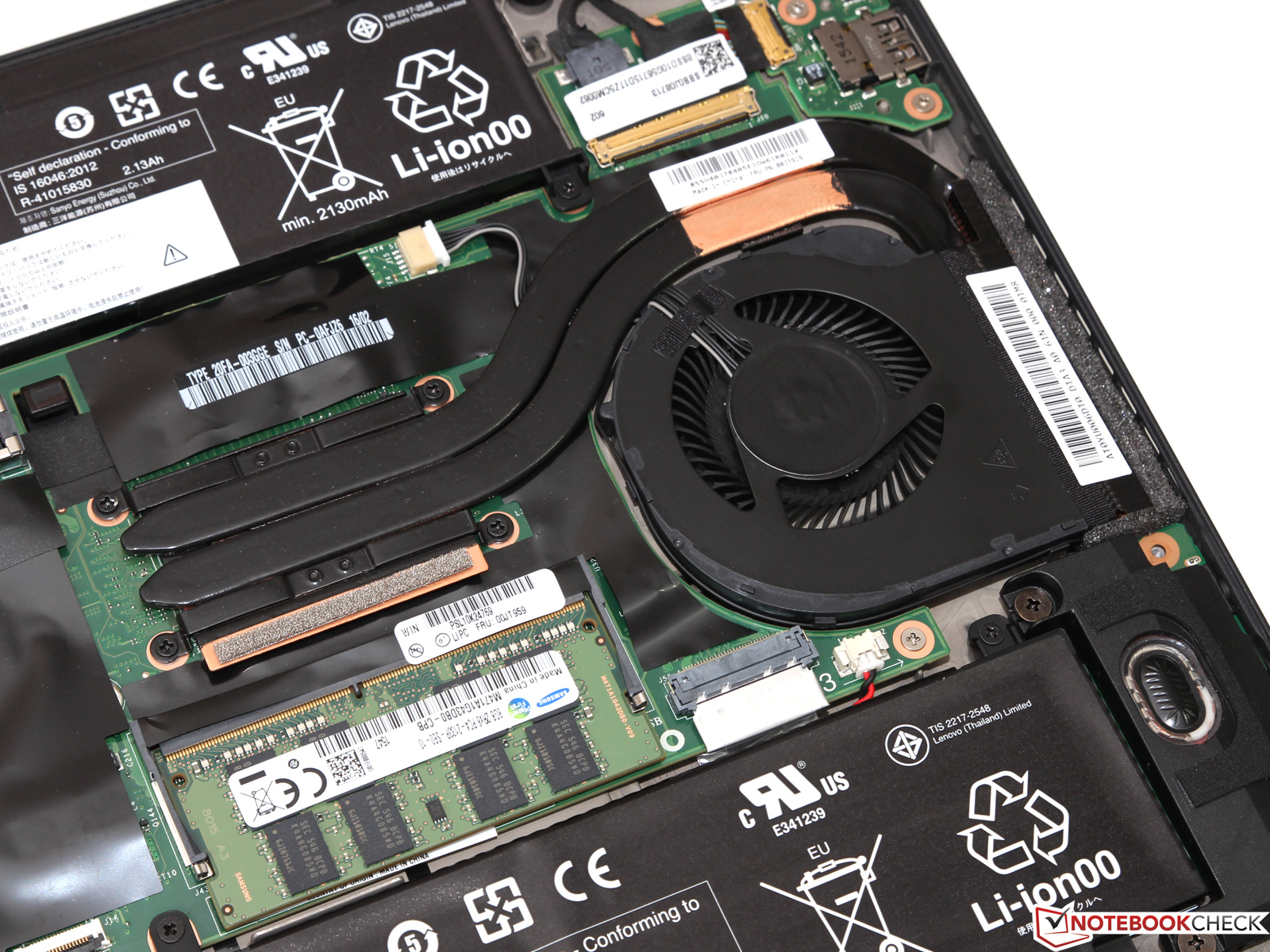

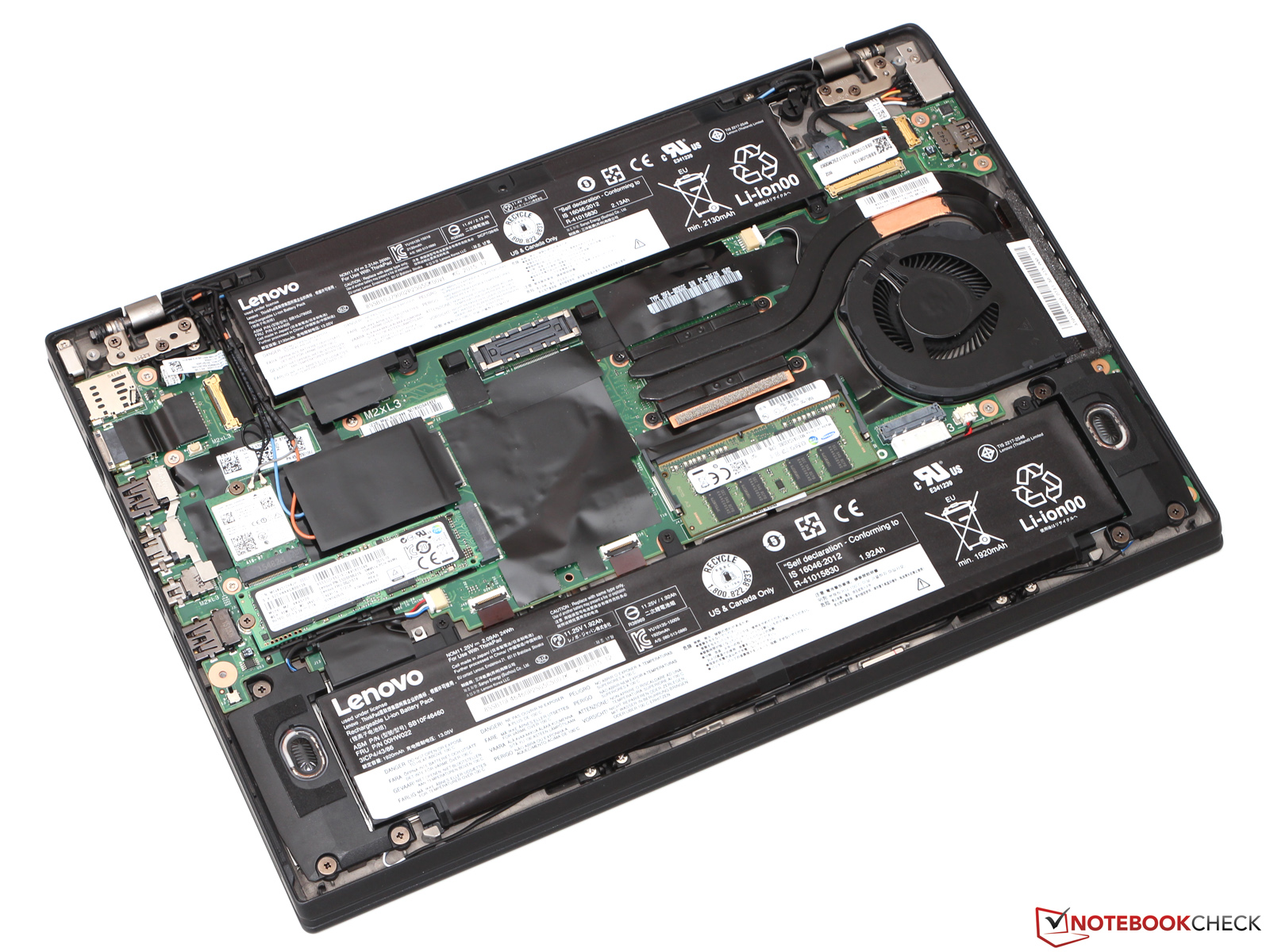

Vår kritik handlar främst om den nya chassikonstruktionen, som varken har plats för en 2,5-tumsenhet eller ett större batteri. Lenovo kunde också ha implementerat en modern USB-C-port och en något mer ljusstark skärm – vissa billiga konsumentmodeller presterar bättre i det avseendet.

Det påverkar egentligen inte det utmärkta helhetsintrycket. Enheten är klart köpvärd om du kan och vill betala det höga priset och dessutom jämfört med konkurrensen från HP och Dell.

Lenovo ThinkPad T460s-20FA003GGE - 03/09/2016 v5
Till Schönborn

Design
93 / 98 → 95%
Tangentbord
94%
Mus
87%
Anslutningar
74 / 80 → 92%
Vikt
71 / 67 → 100%
Batteri
87%
Skärm
87%
Spelprestanda
57 / 68 → 84%
Programprestanda
89 / 92 → 97%
Temperatur
92%
Ljudnivå
95%
Audio
69%
Camera
53 / 85 → 62%
Medel
81%
91%
Office - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad T460s (Core i7, WQHD) (sammanfattning)
Till Schönborn, 2016-03-31 (Update: 2016-04- 1)
