Test: Lenovo ThinkPad L560 (Core i5, HDD) (sammanfattning)

Bekant design, ny teknik? Nu har Lenovo äntligen uppdaterat instegsmodellen av ThinkPad med aktuella Skylake-processorer. Trots en lägre prislapp är den tänkt att leva upp till ThinkPad-seriens status i företagssegmentet. Vi tar reda på om Lenovo lyckats med den bedriften.
Lenovo ThinkPad L560-20F10026GE
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Grafikkort
Intel HD Graphics 520, Kärna: 300 - 1000 MHz, Minne: 800 MHz, 20.19.15.4312
Minne
8192 MB
, 1 av 2 RAM-platser används, DDR3L SDRAM HYUNDAI, 16 GB max
Skärm
15.60 tum 16:9, 1920 x 1080 pixlar 141 PPI, LG LP156WF6-SPK1, AH-IPS, 262K, 6bit, CIE 1931 45%, glansig: nej
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
WDC Slim WD10SPCX-21KHST0, 1000 GB
, 5400 rpm, SATA, 873 GB ledigt
Ljudkort
Realtek High Definition Audio
Anslutningar
1 Express Card 34mm, 4 USB 3.0, 1 VGA, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: headset, Kortläsare: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor
Nätverk
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Optisk enhet
PLDS DVD-RW DA8A5SH
Storlek
höjd x bredd x djup (i mm) 30.85 x 377 x 256
Batteri
48 Wh, 4100 mAh Litiumjon, removeable
Operativsystem
Microsoft Windows 7 Professional 64 Bit
Camera
Webbkamera: 720p-HD
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: nej, adapter, McAfee LifeSafe, Lenovo Solutions Center, 12 Månader Garanti
Vikt
2.4 kg, Strömförsörjning: 304 g
Pris
899 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

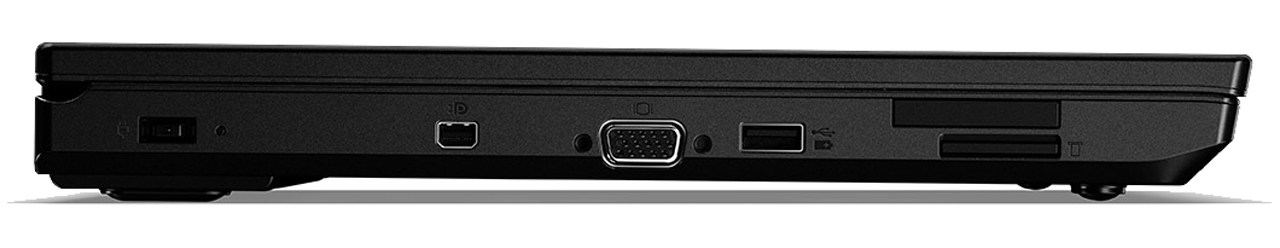

left: power-in, Mini-DisplayPort, VGA-out, USB 3.0, ExpressCard-Slot, card reader
left: power-in, Mini-DisplayPort, VGA-out, USB 3.0, ExpressCard-Slot, card reader

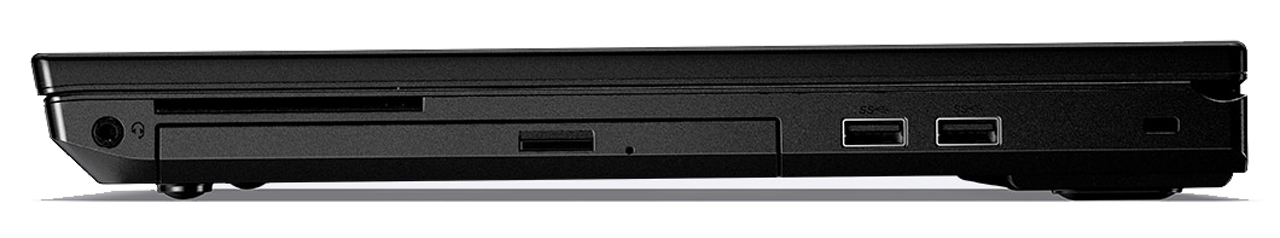

right: audio, SmartCard reader, DVD-RW, 2x USB 3.0, Kensington lock slot
right: audio, SmartCard reader, DVD-RW, 2x USB 3.0, Kensington lock slot

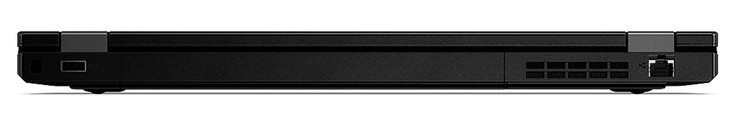

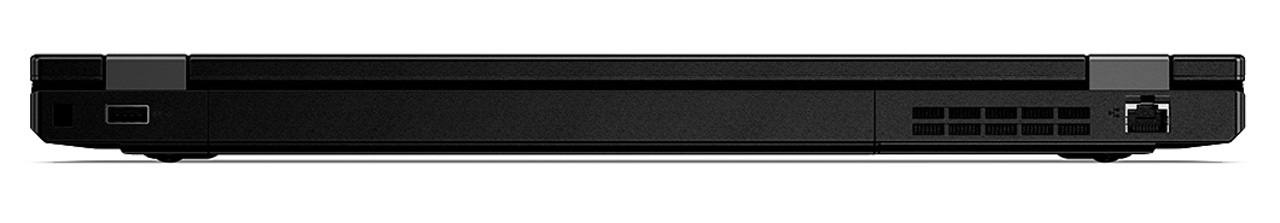

rear: USB 3.0, battery, fan grilles, Gigabit-Ethernet
rear: USB 3.0, battery, fan grilles, Gigabit-Ethernet

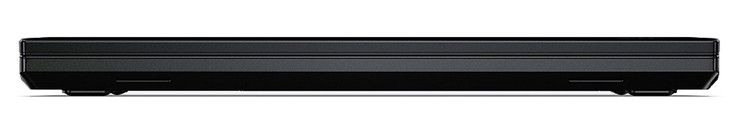

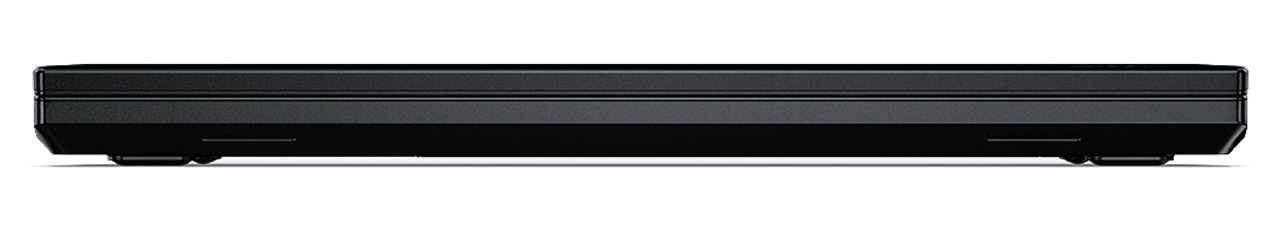

front: speaker grilles
front: speaker grilles
254
cd/m²
241
cd/m²
255
cd/m²
250
cd/m²
262
cd/m²
256
cd/m²
241
cd/m²
245
cd/m²
248
cd/m²
Distribution av ljusstyrkan
LG LP156WF6-SPK1
X-Rite i1Pro 2
Max: 262 cd/m² Medel: 250.2 cd/m² Minimum: 7 cd/m²
Distribution av ljusstyrkan: 92 %
Mitt på batteriet: 261 cd/m²
Kontrast: 903:1 (Svärta: 0.29 cd/m²)
ΔE Color 8.49 | 0.6-29.43 Ø5.7
ΔE Greyscale 8.11 | 0.64-98 Ø5.9
57.94% sRGB (Argyll 3D) 37.07% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.37
Lenovo ThinkPad L560-20F10026GE
1920x1080, AH-IPS
Lenovo ThinkPad L540 20AV002YGE
1920x1080, TN LED
Lenovo ThinkPad L460-20FVS01400
1920x1080, IPS
Lenovo ThinkPad E550-20DF00CNGE
1920x1080, TN-Panel
HP ProBook 450 G3
1920x1080, TN LED
Dell Inspiron 15-5558
1920x1080, IPS
Response Times
-10%
-3%
Response Time Grey 50% / Grey 80% *
39.2 (18.8, 20.4)
44.4 (20.4, 24)
-13%
41.2 (22.4, 18.8)
-5%
Response Time Black / White *
28 (12.4, 15.6)
29.6 (17.2, 12.4)
-6%
28 (10, 18)
-0%
PWM Frequency
Screen
-29%
6%
-22%
-18%
-1%
Brightness middle
262
303
16%
245
-6%
195
-26%
211
-19%
177
-32%
Brightness
250
290
16%
225
-10%
188
-25%
214
-14%
176
-30%
Brightness Distribution
92
85
-8%
83
-10%
90
-2%
91
-1%
78
-15%
Black Level *
0.29
0.7
-141%
0.24
17%
0.46
-59%
0.43
-48%
0.15
48%
Contrast
903
433
-52%
1021
13%
424
-53%
491
-46%
1180
31%
Colorchecker DeltaE2000 *
8.49
11.58
-36%
6.89
19%
9.92
-17%
9.25
-9%
8.52
-0%
Colorchecker DeltaE2000 max. *
17.99
17.62
2%
Greyscale DeltaE2000 *
8.11
13.65
-68%
6.45
20%
10.06
-24%
9.83
-21%
9.72
-20%
Gamma
2.37 93%
2.59 85%
2.46 89%
2.37 93%
2.82 78%
1.85 119%
CCT
6300 103%
13248 49%
6857 95%
11552 56%
10890 60%
5036 129%
Color Space (Percent of AdobeRGB 1998)
37.07
51.12
38%
40.1
8%
38
3%
36.4
-2%
39
5%
Color Space (Percent of sRGB)
57.94
61.8
7%
59.3
2%
57.3
-1%
61
5%
Total Average (Program / Settings)
-29% / -29%
-2% / 3%
-22% / -22%
-11% / -15%
-1% / -1%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

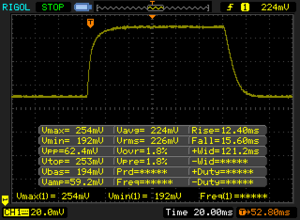

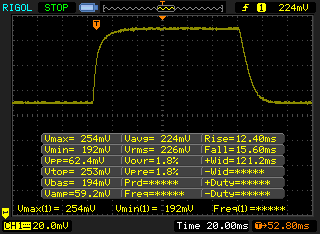

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 12.4 ms rise
↘ 15.6 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.3 ms).

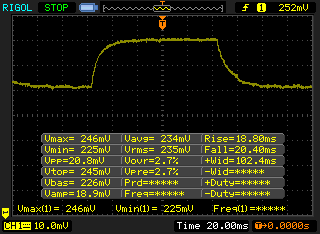

       Response Time 50% Grey to 80% Grey
39.2 ms ... rise ↗ and fall ↘ combined↗ 18.8 ms rise
↘ 20.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 45 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (38.6 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9604 (minimum: 5 - maximum: 142900) Hz was measured.

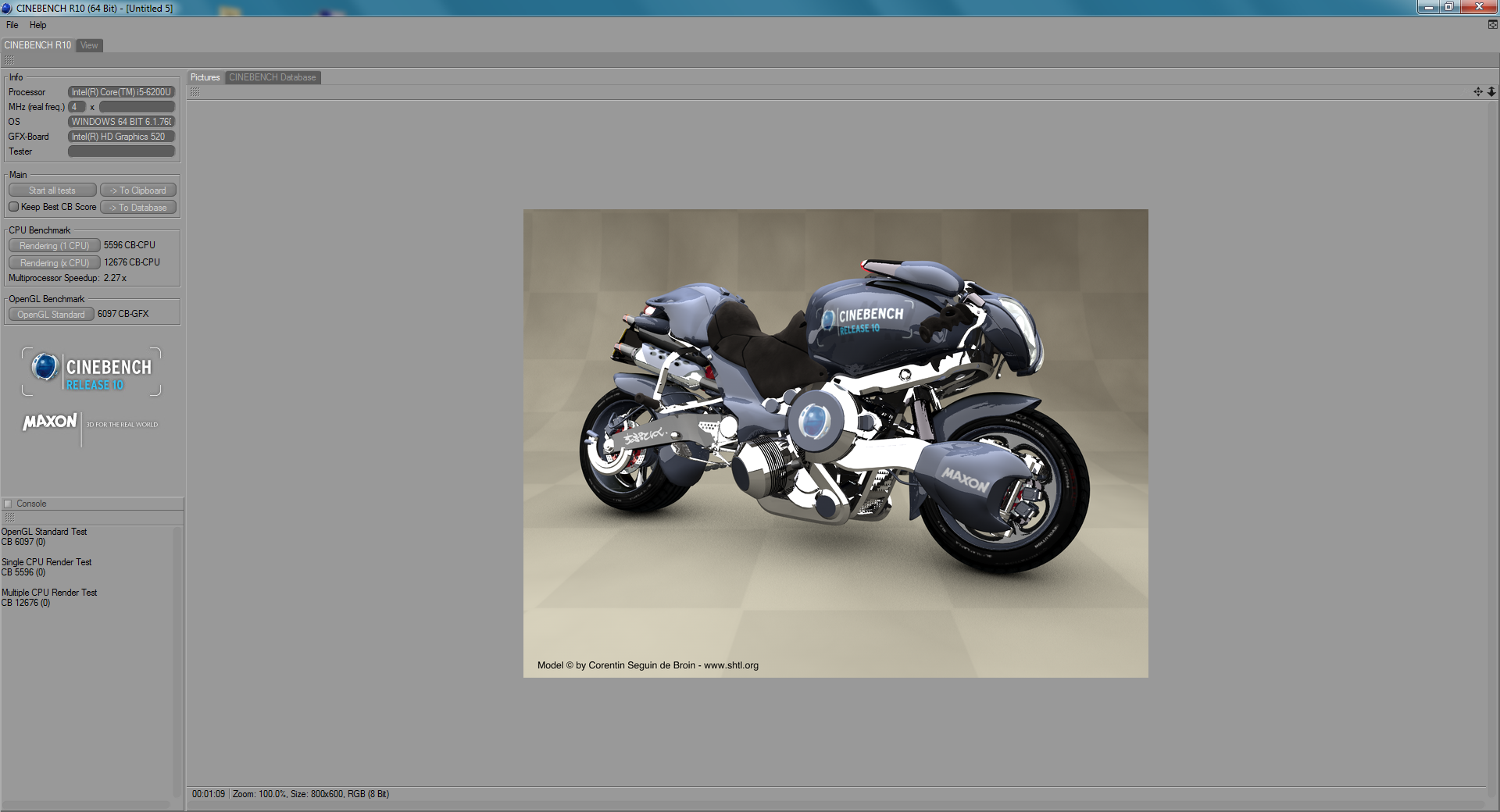

CINEBENCH R10
CINEBENCH R10
CINEBENCH R11.5
CINEBENCH R11.5

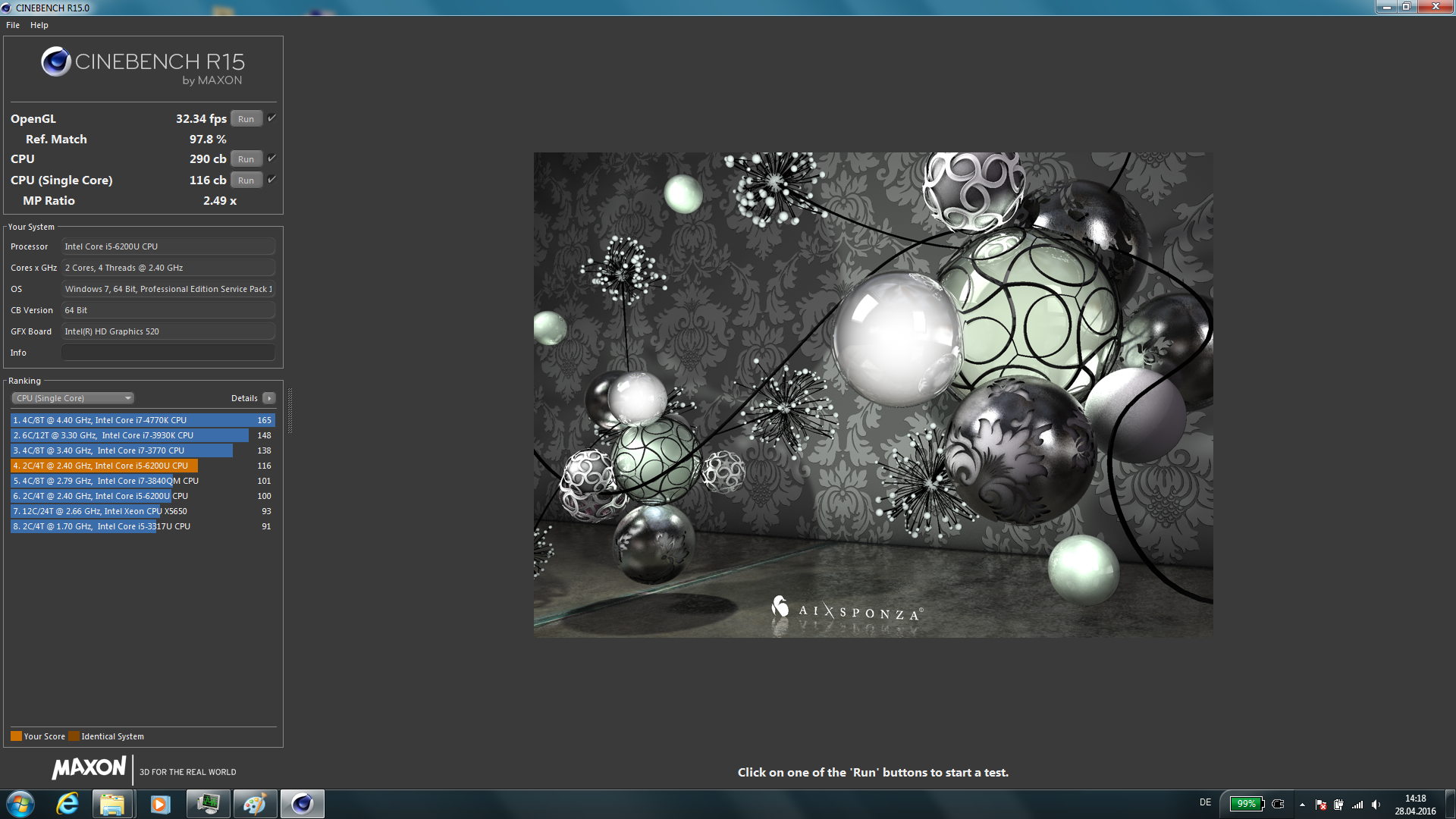

CINEBENCH R15
CINEBENCH R15
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
116 Points ∼91%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M
115 Points ∼91% -1%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
127 Points ∼100% +9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
123 Points ∼97% +6%
HP ProBook 450 G3
Intel Core i5-6200U
116 Points ∼91% 0%
Dell Inspiron 15-5558
Intel Core i5-5200U
108 Points ∼85% -7%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
290 Points ∼96%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M
294 Points ∼97% +1%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
303 Points ∼100% +4%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
282 Points ∼93% -3%
HP ProBook 450 G3
Intel Core i5-6200U
288 Points ∼95% -1%
Dell Inspiron 15-5558
Intel Core i5-5200U
261 Points ∼86% -10%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
1.32 Points ∼93%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M
1.36 Points ∼96% +3%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
1.41 Points ∼99% +7%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
1.42 Points ∼100% +8%
HP ProBook 450 G3
Intel Core i5-6200U
1.32 Points ∼93% 0%
Dell Inspiron 15-5558
Intel Core i5-5200U
1.26 Points ∼89% -5%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
3.19 Points ∼94%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M
3.25 Points ∼96% +2%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
3.4 Points ∼100% +7%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
3.13 Points ∼92% -2%
HP ProBook 450 G3
Intel Core i5-6200U
3.21 Points ∼94% +1%
Dell Inspiron 15-5558
Intel Core i5-5200U
2.8 Points ∼82% -12%
Cinebench R10
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
12676 Points ∼100%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
12255 Points ∼97% -3%
Rendering Single CPUs 64Bit (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
5596 Points ∼92%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
6077 Points ∼100% +9%
JetStream 1.1 - Total Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
110.11 Points ∼52%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
210.8 Points ∼100% +91%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
114.68 Points ∼54% +4%
HP ProBook 450 G3
Intel Core i5-6200U
190.45 Points ∼90% +73%
Octane V2 - Total Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
14411 Points ∼46%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
31034 Points ∼100% +115%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
14711 Points ∼47% +2%
HP ProBook 450 G3
Intel Core i5-6200U
27580 Points ∼89% +91%
Dell Inspiron 15-5558
Intel Core i5-5200U
12753 Points ∼41% -12%
Mozilla Kraken 1.1 - Total Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U
2420.1 ms * ∼95%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
1110.5 ms * ∼43% +54%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
2263.2 ms * ∼89% +6%
HP ProBook 450 G3
Intel Core i5-6200U
1280.6 ms * ∼50% +47%
Dell Inspiron 15-5558
Intel Core i5-5200U
2554 ms * ∼100% -6%

* ... smaller is better

Cinebench R10 Shading 32Bit
7170
Cinebench R10 Rendering Multiple CPUs 32Bit
9987
Cinebench R10 Rendering Single 32Bit
4313
Cinebench R10 Shading 64Bit
6097 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12676 Points
Cinebench R10 Rendering Single CPUs 64Bit
5596 Points

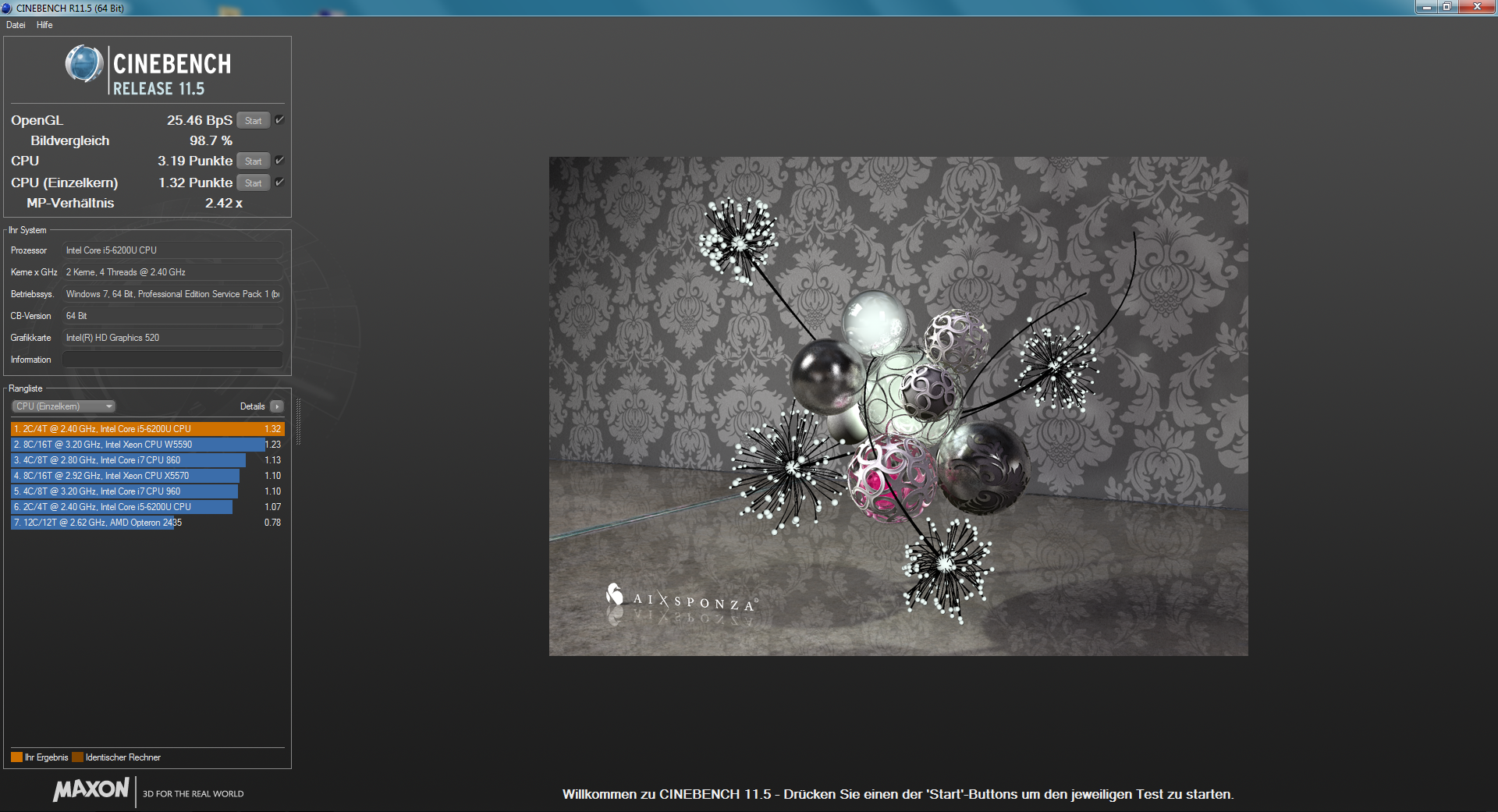

Cinebench R11.5 CPU Multi 64Bit
3.19 Points
Cinebench R11.5 OpenGL 64Bit
25.46 fps
Cinebench R11.5 CPU Single 64Bit
1.32 Points
Cinebench R15 CPU Multi 64Bit
290 Points
Cinebench R15 CPU Single 64Bit
116 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
32.34 fps
Hjälp

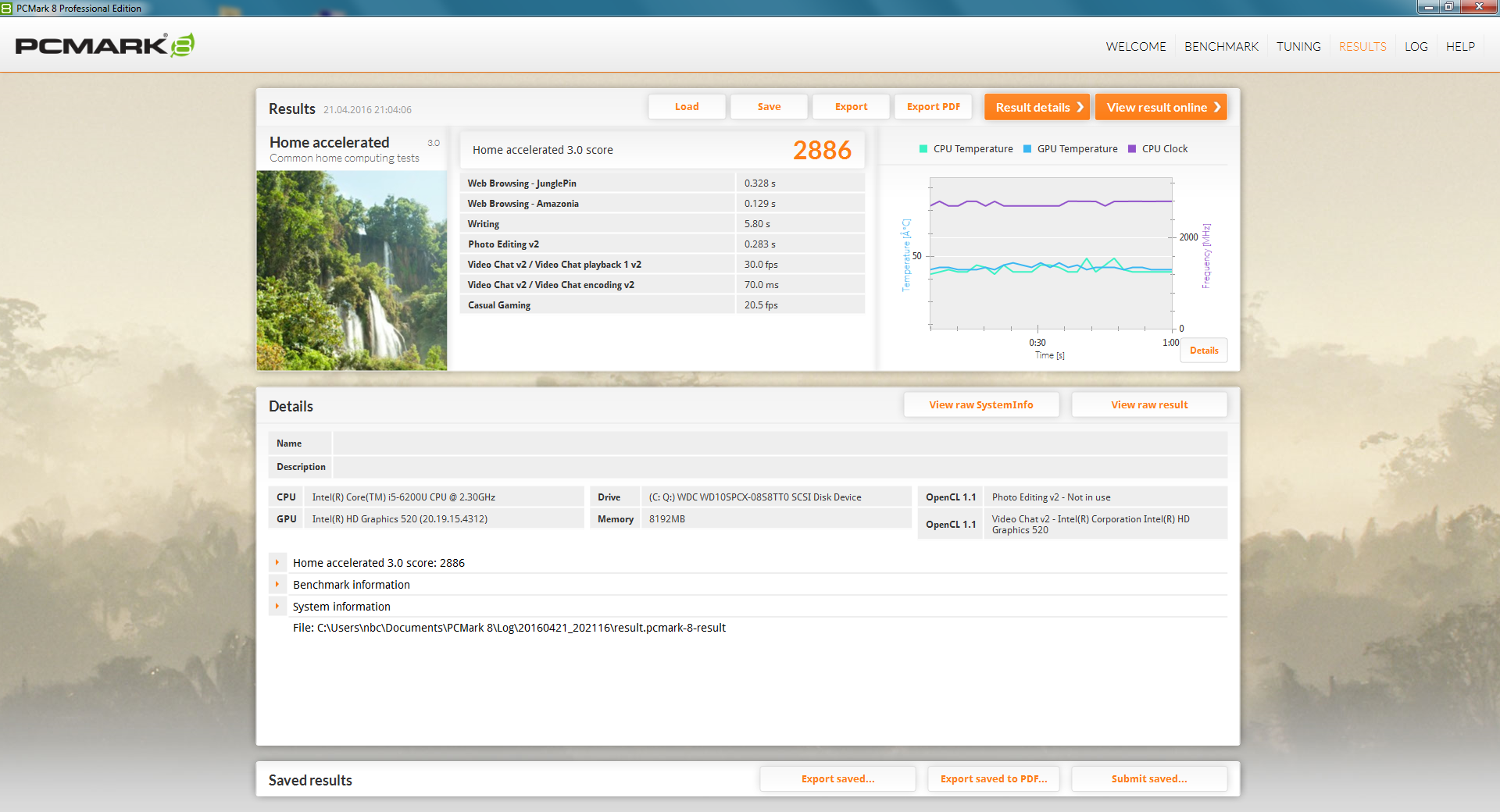

PCMark 8 Home
PCMark 8 Home

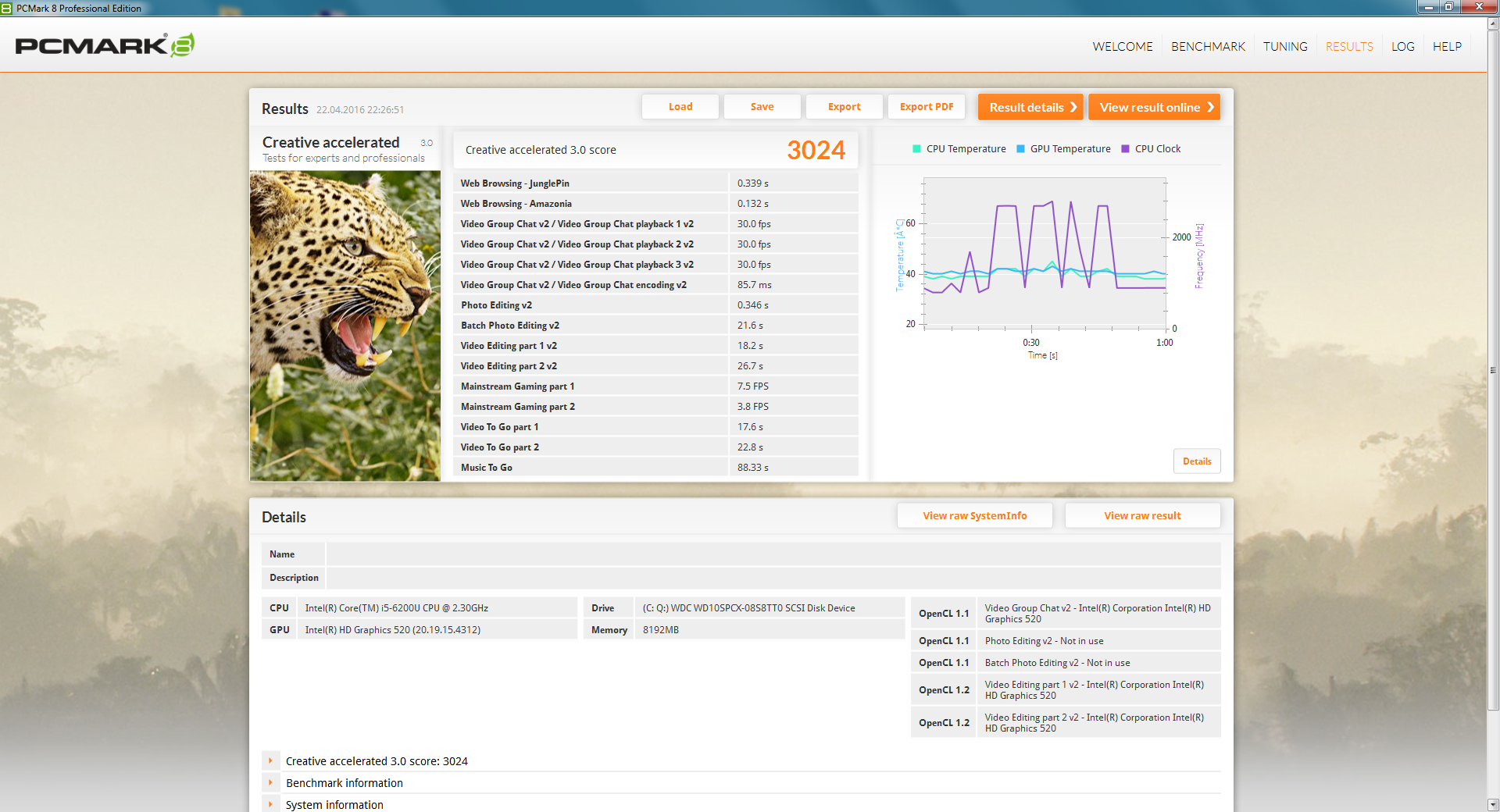

PCMark 8 Creative
PCMark 8 Creative

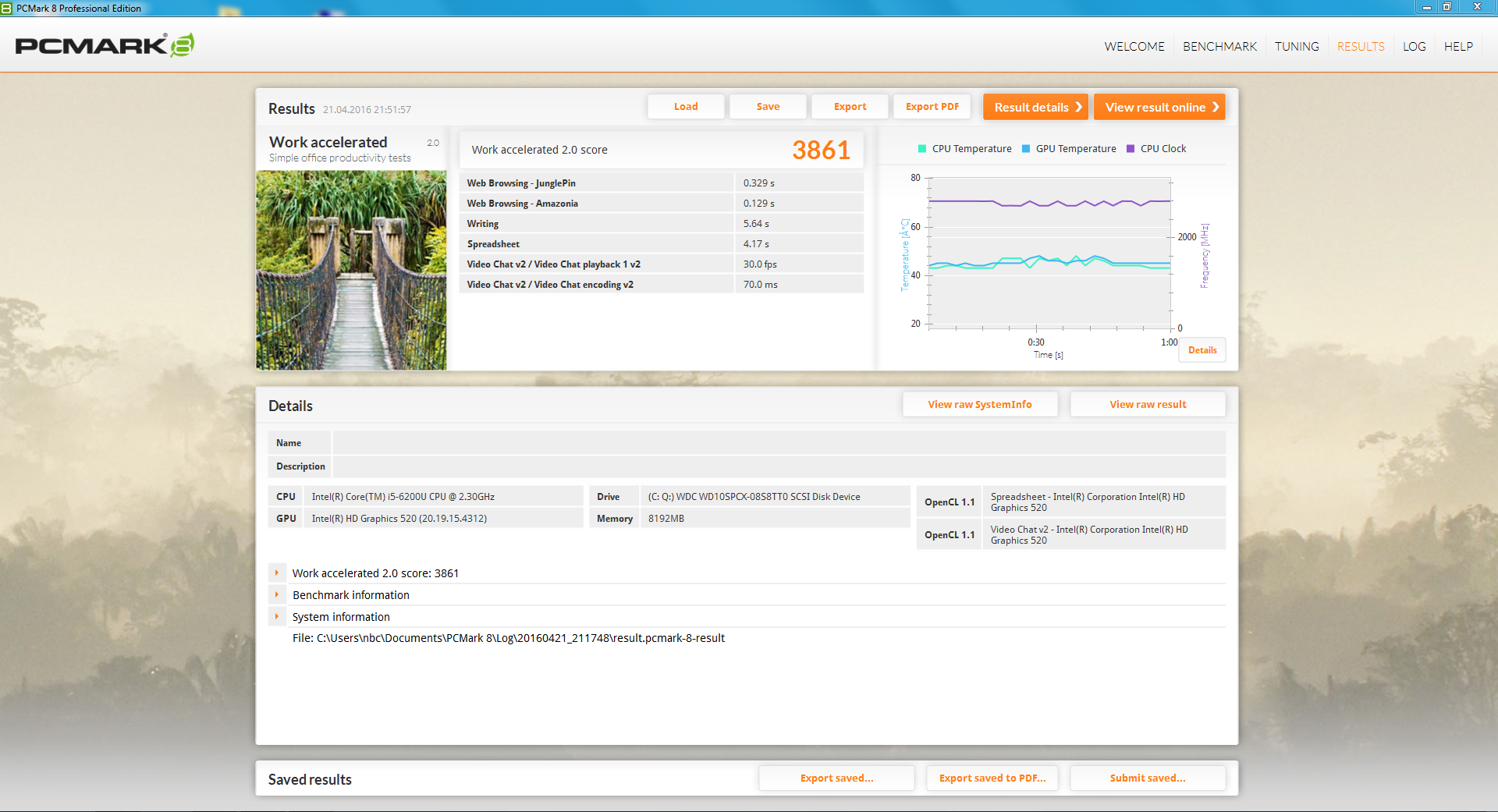

PCMark 8 Work
PCMark 8 Work

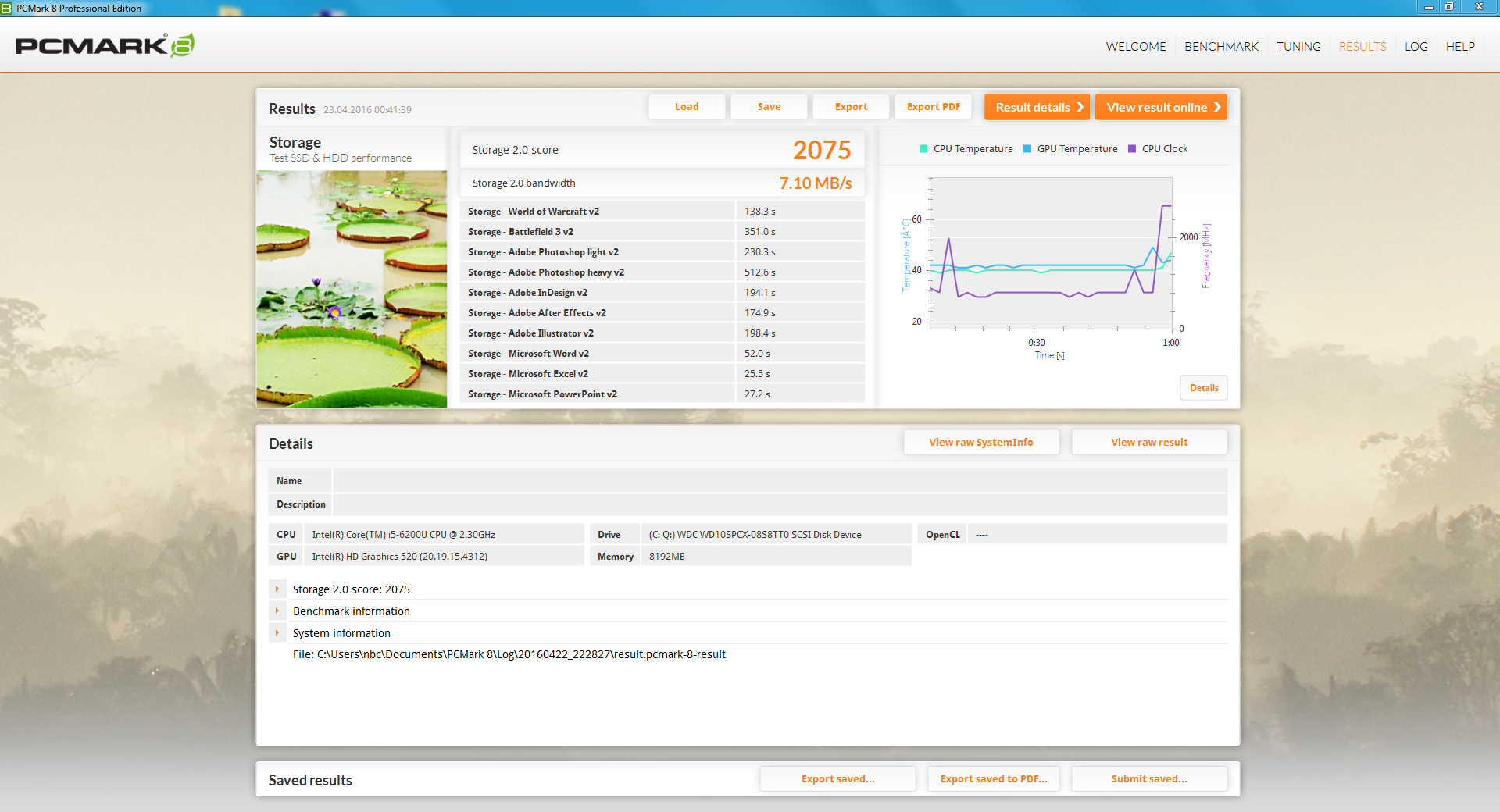

PCMark 8 Storage
PCMark 8 Storage

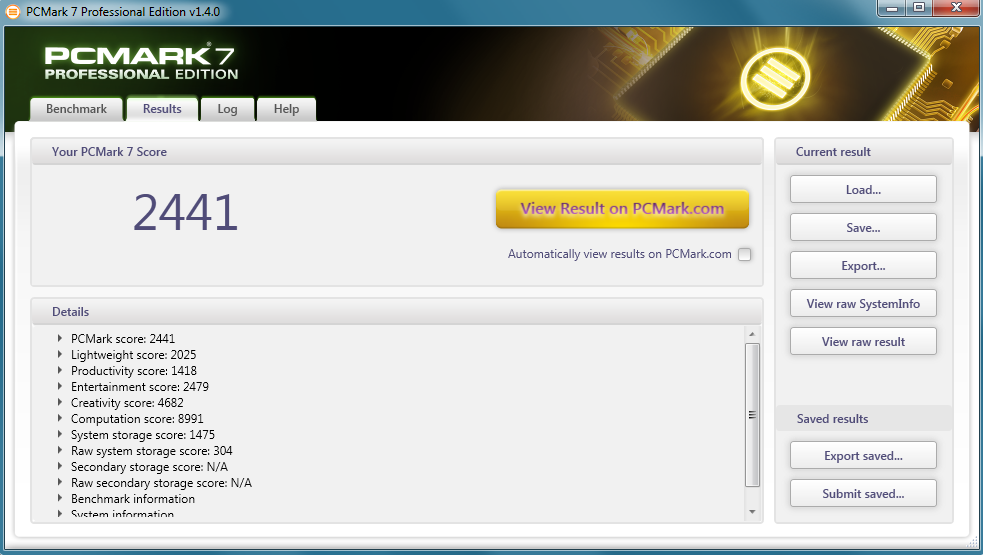

PCMark 7
PCMark 7
PCMark 8
Storage Score v2 (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
2075 Points ∼100%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
3861 Points ∼84%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
4077 Points ∼89% +6%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
4591 Points ∼100% +19%
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
4020 Points ∼88% +4%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3901 Points ∼85% +1%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
3609 Points ∼79% -7%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
3024 Points ∼81%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
2795 Points ∼75% -8%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
3738 Points ∼100% +24%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3460 Points ∼93% +14%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
3225 Points ∼86% +7%
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
2886 Points ∼73%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
3008 Points ∼76% +4%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
3092 Points ∼78% +7%
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
3960 Points ∼100% +37%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
2910 Points ∼73% +1%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2830 Points ∼71% -2%
PCMark 7
System Storage (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
1475 Points ∼27%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
1803 Points ∼33% +22%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
5402 Points ∼100% +266%
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
1579 Points ∼29% +7%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
1906 Points ∼35% +29%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
1523 Points ∼28% +3%
Productivity (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
1418 Points ∼33%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
1719 Points ∼40% +21%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
4271 Points ∼100% +201%
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
1523 Points ∼36% +7%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
1855 Points ∼43% +31%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
1454 Points ∼34% +3%
Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
2441 Points ∼50%
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
2805 Points ∼57% +15%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
4911 Points ∼100% +101%
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
2819 Points ∼57% +15%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3075 Points ∼63% +26%
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
2736 Points ∼56% +12%
PCMark 7 Score
2441 poäng
PCMark 8 Home Score Accelerated v2
2886 poäng
PCMark 8 Creative Score Accelerated v2
3024 poäng
PCMark 8 Work Score Accelerated v2
3861 poäng
Hjälp

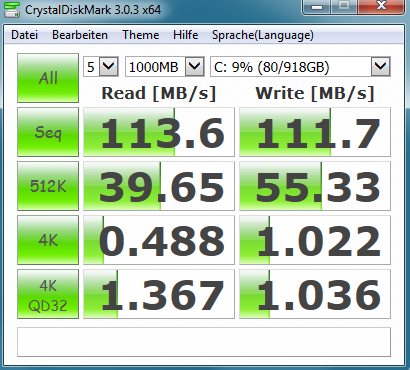

CrystalDiskMark
CrystalDiskMark

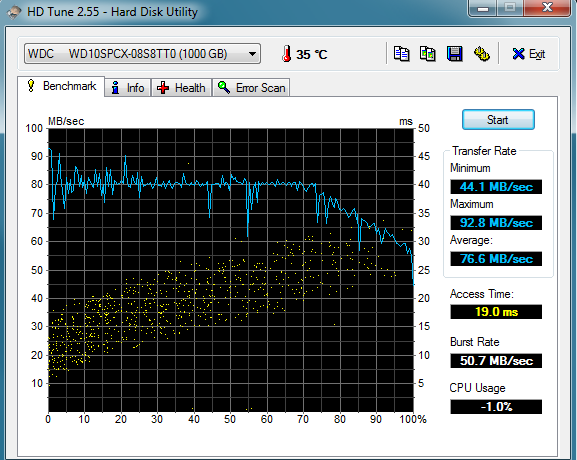

HD Tune
HD Tune
WDC Slim WD10SPCX-21KHST0
Överföringshastighet min.: 44.1 MB/s
Överföringshastighet max.: 92.8 MB/s
Överföringshastighet med.: 76.6 MB/s
Accesstid: 19 ms
Burst rate: 50.7 MB/s

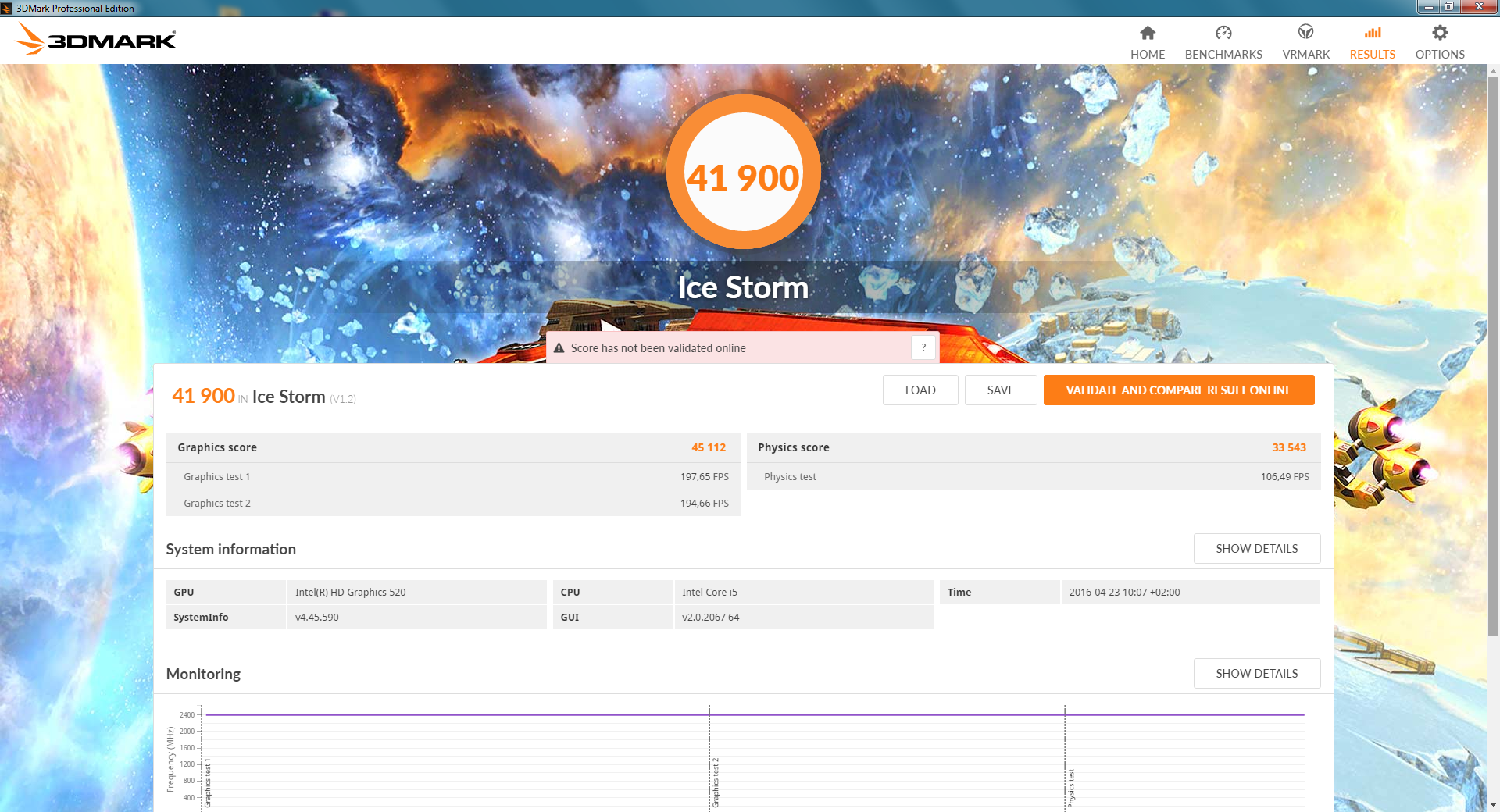

3DMark Ice Storm
3DMark Ice Storm

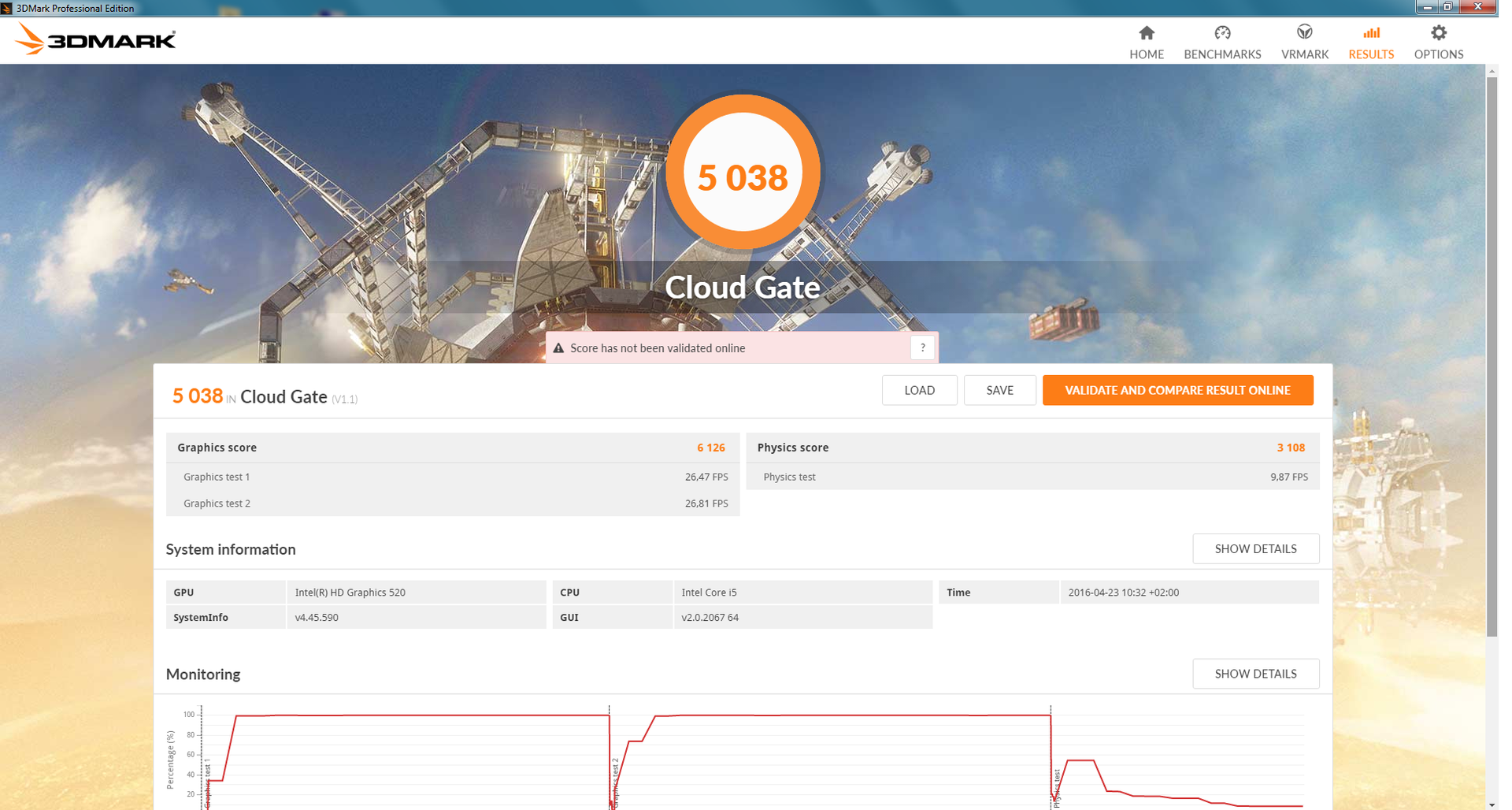

3DMark Cloud Gate
3DMark Cloud Gate

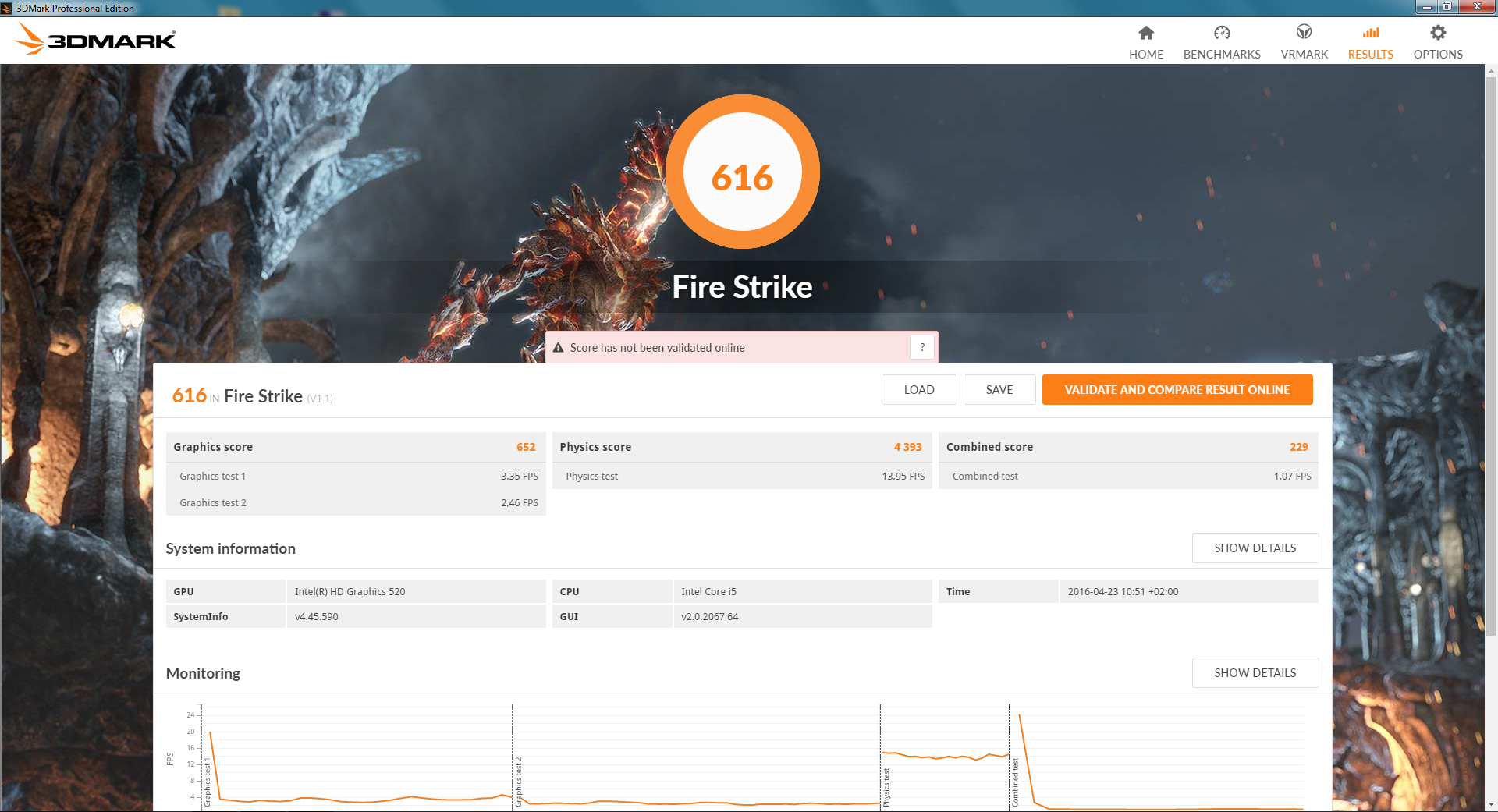

3DMark Fire Strike
3DMark Fire Strike
3DMark 11
3DMark 11

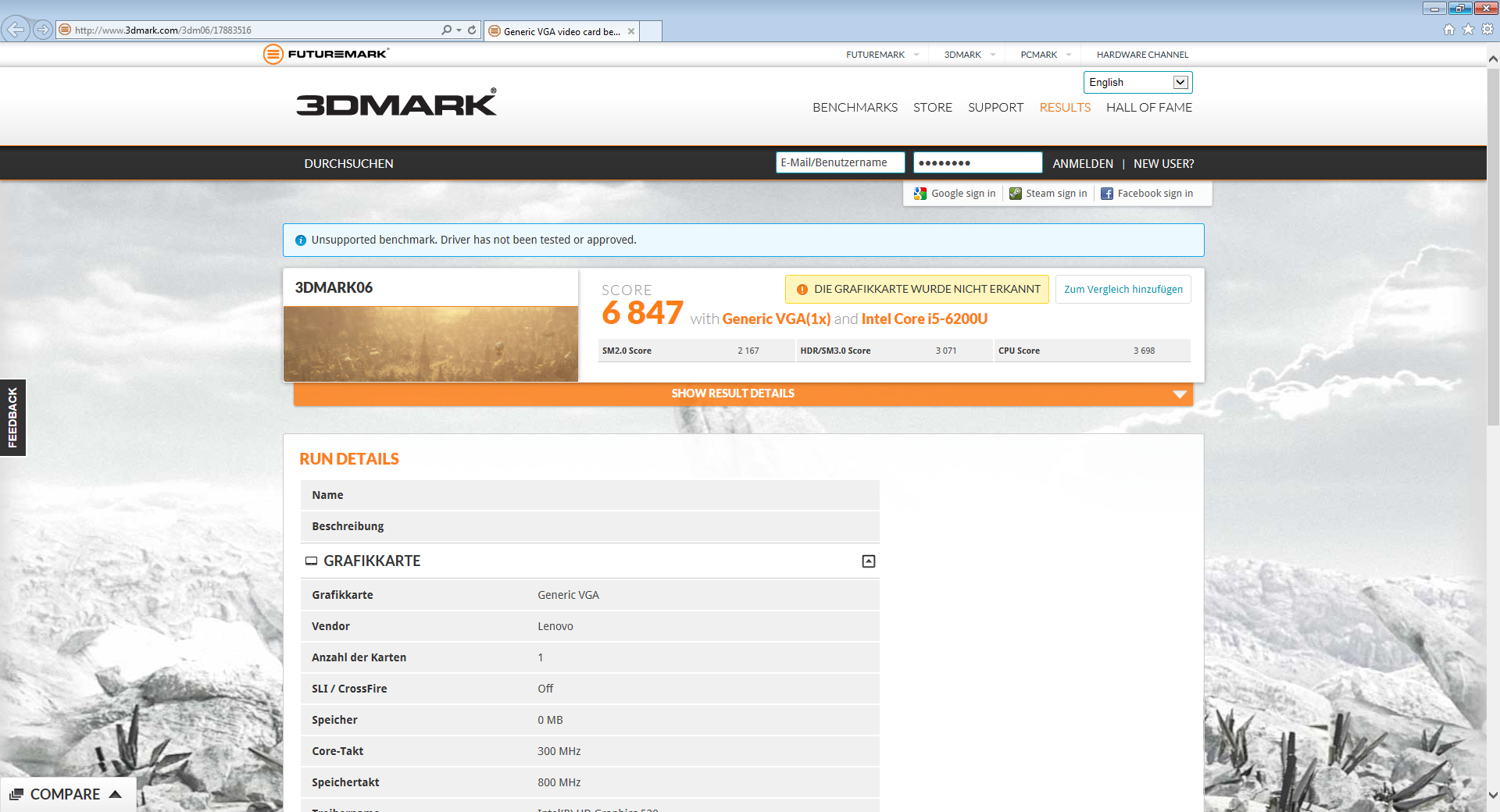

3DMark 06
3DMark 06
3DMark
1920x1080 Fire Strike Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U, Intel HD Graphics 520
616 Points ∼42%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M, Intel HD Graphics 4600
524 Points ∼36% -15%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U, AMD Radeon R5 M330
898 Points ∼61% +46%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
1302 Points ∼89% +111%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
574 Points ∼39% -7%
Dell Inspiron 15-5558
Intel Core i5-5200U, NVIDIA GeForce 920M
1050 Points ∼72% +70%
Acer TravelMate P278-MG-76L2
Intel Core i7-6500U, NVIDIA GeForce 940M
1466 Points ∼100% +138%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U, Intel HD Graphics 520
5038 Points ∼76%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M, Intel HD Graphics 4600
4421 Points ∼67% -12%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U, AMD Radeon R5 M330
4630 Points ∼70% -8%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
6547 Points ∼99% +30%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
4847 Points ∼73% -4%
Dell Inspiron 15-5558
Intel Core i5-5200U, NVIDIA GeForce 920M
5193 Points ∼78% +3%
Acer TravelMate P278-MG-76L2
Intel Core i7-6500U, NVIDIA GeForce 940M
6636 Points ∼100% +32%
1280x720 Ice Storm Standard Score (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U, Intel HD Graphics 520
41900 Points ∼93%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M, Intel HD Graphics 4600
36385 Points ∼81% -13%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U, AMD Radeon R5 M330
29533 Points ∼66% -30%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
35932 Points ∼80% -14%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
40691 Points ∼91% -3%
Dell Inspiron 15-5558
Intel Core i5-5200U, NVIDIA GeForce 920M
44189 Points ∼99% +5%
Acer TravelMate P278-MG-76L2
Intel Core i7-6500U, NVIDIA GeForce 940M
44853 Points ∼100% +7%
3DMark 11
1280x720 Performance GPU (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U, Intel HD Graphics 520
1225 Points ∼52%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M, Intel HD Graphics 4600
751 Points ∼32% -39%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U, AMD Radeon R5 M330
1736 Points ∼73% +42%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
2073 Points ∼87% +69%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
1165 Points ∼49% -5%
Dell Inspiron 15-5558
Intel Core i5-5200U, NVIDIA GeForce 920M
1704 Points ∼72% +39%
Acer TravelMate P278-MG-76L2
Intel Core i7-6500U, NVIDIA GeForce 940M
2376 Points ∼100% +94%
1280x720 Performance (sort by value)
Lenovo ThinkPad L560-20F10026GE
Intel Core i5-6200U, Intel HD Graphics 520
1339 Points ∼54%
Lenovo ThinkPad L540 20AV002YGE
Intel Core i5-4200M, Intel HD Graphics 4600
849 Points ∼34% -37%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U, AMD Radeon R5 M330
1869 Points ∼75% +40%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
2241 Points ∼90% +67%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
1260 Points ∼51% -6%
Dell Inspiron 15-5558
Intel Core i5-5200U, NVIDIA GeForce 920M
1793 Points ∼72% +34%
Acer TravelMate P278-MG-76L2
Intel Core i7-6500U, NVIDIA GeForce 940M
2490 Points ∼100% +86%
3DMark 06 Standard
6847 poäng

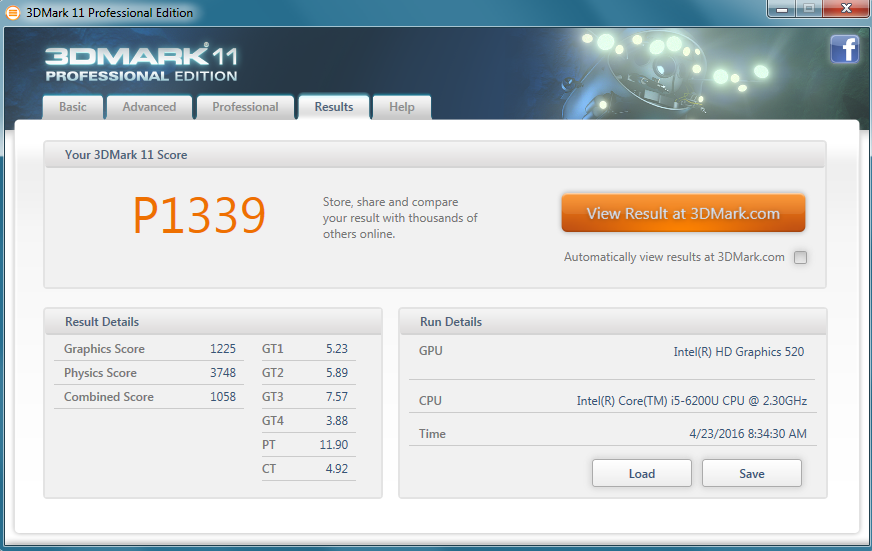

3DMark 11 Performance
1339 poäng
3DMark Ice Storm Standard Score
41900 poäng
3DMark Cloud Gate Standard Score
5038 poäng
3DMark Fire Strike Score
616 poäng
3DMark Fire Strike Extreme Score
286 poäng
Hjälp
låg med. hög ultra
BioShock Infinite (2013) 35.9 20.6 16.8 5.1 fps
Battlefield 4 (2013) 32.3 24.8 14.7 4.1 fps
Rise of the Tomb Raider (2016) 11.2 8.7 4.2 fps
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
Noise
-6%
1%
-1%
1%
-20%
off / environment *
29.4
29.2
1%
Idle Minimum *
30.1
31.9
-6%
29.2
3%
29.8
1%
29.7
1%
33.5
-11%
Idle Average *
30.1
32.4
-8%
29.2
3%
29.8
1%
29.7
1%
33.5
-11%
Idle Maximum *
30.1
32.4
-8%
29.2
3%
31.1
-3%
29.7
1%
33.5
-11%
Load Average *
33.4
34.8
-4%
32.5
3%
33.1
1%
33.1
1%
45.9
-37%
Load Maximum *
34.7
36.1
-4%
37.2
-7%
35.6
-3%
34.2
1%
45.3
-31%

* ... smaller is better

Ljudnivå

Låg belastning
30.1 / 30.1 / 30.1 dB(A)
Hög belastning
33.4 / 34.7 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm avstånd)   environment noise: 29.4 dB(A)
Hög belastning
 35.8 °C31.4 °C26.5 °C
 37.2 °C33 °C26.1 °C
 29 °C28 °C25.1 °C
Max: 37.2 °C
Medel: 30.2 °C
25.8 °C27.4 °C36 °C
25.4 °C29.8 °C34.6 °C
25.2 °C32.3 °C31 °C
Max: 36 °C
Medel: 29.7 °C
Strömförsörjning (max.)  43.3 °C | Rumstemperatur 22.2 °C | Fluke 62 Max
(+) The average temperature for the upper side under maximal load is 30.2 °C / 86 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 37.2 °C / 99 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 36 °C / 97 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-1.2 °C / -2.2 F).
Lenovo ThinkPad L560-20F10026GE
HD Graphics 520, 6200U, WDC Slim WD10SPCX-21KHST0
Lenovo ThinkPad L540 20AV002YGE
HD Graphics 4600, 4200M, Hitachi Travelstar Z7K500 HTS725050A7E630
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
Dell Inspiron 15-5558
GeForce 920M, 5200U, Toshiba MQ01ABD100
Acer TravelMate P278-MG-76L2
GeForce 940M, 6500U, Lite-On CV1-8B256
Power Consumption
-60%
-2%
-11%
-5%
3%
-62%
Idle Minimum *
5
9.5
-90%
3.1
38%
4.1
18%
4.9
2%
4.3
14%
5.8
-16%
Idle Average *
7.9
13.1
-66%
6.3
20%
6.7
15%
8.2
-4%
6.5
18%
11.6
-47%
Idle Maximum *
8.6
13.4
-56%
7.9
8%
7.7
10%
9
-5%
7.4
14%
13.6
-58%
Load Average *
27.5
38.6
-40%
29.5
-7%
37.6
-37%
30.1
-9%
33.3
-21%
51
-85%
Load Maximum *
33.7
49.5
-47%
57.3
-70%
54.7
-62%
36.1
-7%
36.3
-8%
69
-105%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0.36 / 0.55 Watt
Låg belastningdarkmidlight 5 / 7.9 / 8.6 Watt
Hög belastning midlight 27.5 / 33.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy

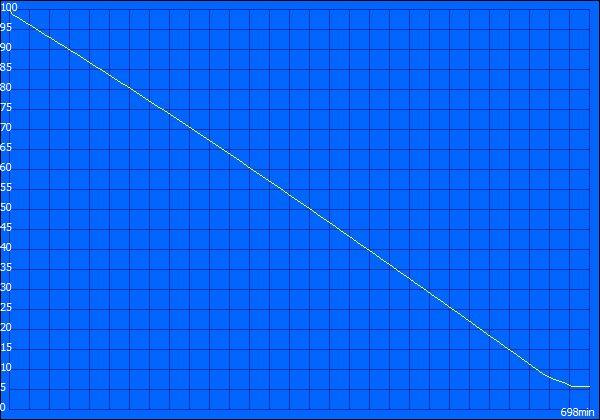

maximum battery life
maximum battery life
minimum battery life
minimum battery life

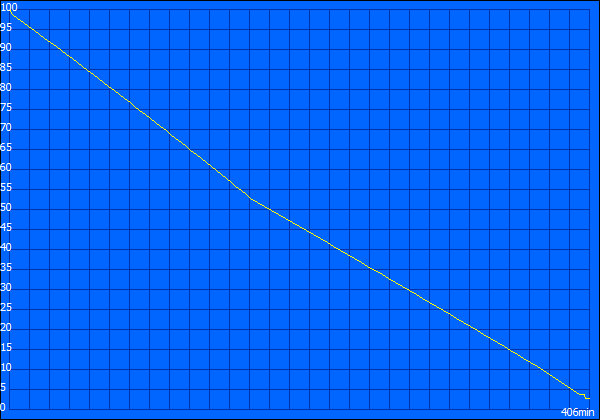

WiFi battery life
WiFi battery life

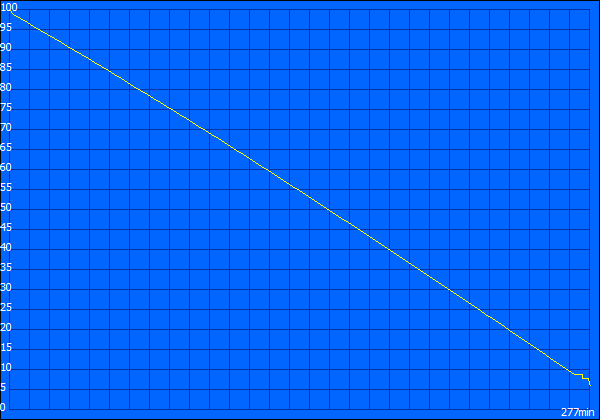

H.264 battery life
H.264 battery life

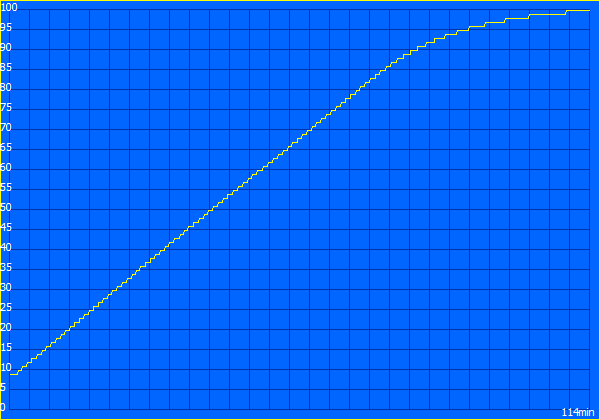

Charge time
Charge time
Lenovo ThinkPad L560-20F10026GE
48 Wh
Lenovo ThinkPad L540 20AV002YGE
56 Wh
Lenovo ThinkPad L460-20FVS01400
48 Wh
Lenovo ThinkPad E550-20DF00CNGE
48 Wh
HP ProBook 450 G3
44 Wh
Dell Inspiron 15-5558
40 Wh
Acer TravelMate P278-MG-76L2
37 Wh
Battery Runtime
-30%
29%
-12%
-9%
-4%
-11%
Reader / Idle
698
391
-44%
1153
65%
663
-5%
575
-18%
666
-5%
601
-14%
H.264
277
431
56%
311
12%
337
22%
315
14%
288
4%
WiFi v1.3
406
425
5%
293
-28%
309
-24%
337
-17%
297
-27%
Load
109
93
-15%
97
-11%
82
-25%
90
-17%
103
-6%
104
-5%
WiFi
298
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
11tim 38min
NBC WiFi Websurfing Battery Test 1.3 (IE 11.0.9600.18097)
6tim 46min
Big Buck Bunny H.264 1080p
4tim 37min
Hög belastning (maximal ljusstyrka)
1tim 49min

För

+ låg strömförbrukning
+ bra batteritid
+ ledig M.2-plats
+ underhållspanel
+ dockningsport
+ många säkerhetsfunktioner
+ bra betraktningsvinklar
+ batteriet kan enkelt bytas ut
+ tyst

Emot

- skärmens ljusstyrka medelmåttig
- dålig färgrymd
- chassit kunde vara mer stabilt
- ingen SSD
- tangentbordet ej bakbelyst
In review: Lenovo ThinkPad L560. Test model provided by Campuspoint.de
In review: Lenovo ThinkPad L560. Test model provided by Campuspoint.de

Läs en längre version av testet på engelska här.

Lenovo ThinkPad L560 är en värdig efterträdare till ThinkPad L540. Genom att använda mer strömsnåla ULV-processorer har Lenovo gjort allt rätt med den här enheten. Den lägre strömförbrukningen avspeglas i batteritiden.

ThinkPad-modellernas underhållsmöjligheter och säkerhetsfunktioner har inte eftersatts. Anslutningsmöjligheterna går heller inte att anmärka på och de kan utökas ytterligare med en dockningsstation.

Bland de mindre bra egenskaperna ingår den relativt dåliga skärmen. Även om betraktningsvinklarna är bra är färgrymden desto sämre. Dessutom är skärmens ljusstyrka bara genomsnittlig och försvårar arbete i mycket ljusa miljöer.

En SSD skulle öka systemets prestanda väsentligt och tangentbordet saknar bakgrundsbelysning.

Kritiken till trots är Lenovo ThinkPad L560 en bra kontorsmaskin. Den effektiva Skylakeprocessorn är mer än tillräcklig för ändamålet. För de som inte klarar sig utan dockningsstation eller TrackPoint finns knappt några alternativ till ThinkPad-modellerna.

Lenovo ThinkPad L560-20F10026GE - 05/03/2016 v5.1(old)
Sebastian Bade

Design
81 / 98 → 83%
Tangentbord
89%
Mus
85%
Anslutningar
66 / 80 → 82%
Vikt
60 / 20-67 → 85%
Batteri
83%
Skärm
82%
Spelprestanda
53 / 68 → 78%
Programprestanda
68 / 92 → 74%
Temperatur
93%
Ljudnivå
94%
Audio
62%
Camera
48 / 85 → 56%
Medel
74%
85%
Office - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad L560 (Core i5, HDD) (sammanfattning)
Sebastian Bade, 2016-06-12 (Update: 2016-06-12)
