Test: Acer Aspire Switch 12 Alpha (SA5-271-56HM) (sammanfattning)

Helt tyst. Vattenkylning i en bärbar 2-i-1? Jo det fungerar faktiskt! För första gången någonsin har Acer installerat en tyst kylningslösning i en högpresterande 2-i-1-dator med Core i5/i7-processorer. Men det är inte den enda anledningen till att konkurrenterna får det hett om öronen.

Acer Aspire Switch Alpha 12 SA5-271-56HM (Aspire Switch Serie)
Processor
Intel Core i5-6200U 2.3 GHz , två kärnor TPM 15 W
Grafikkort
Intel HD Graphics 520, Kärna: 400 MHz, Minne: 930 MHz, 20.19.15.4454

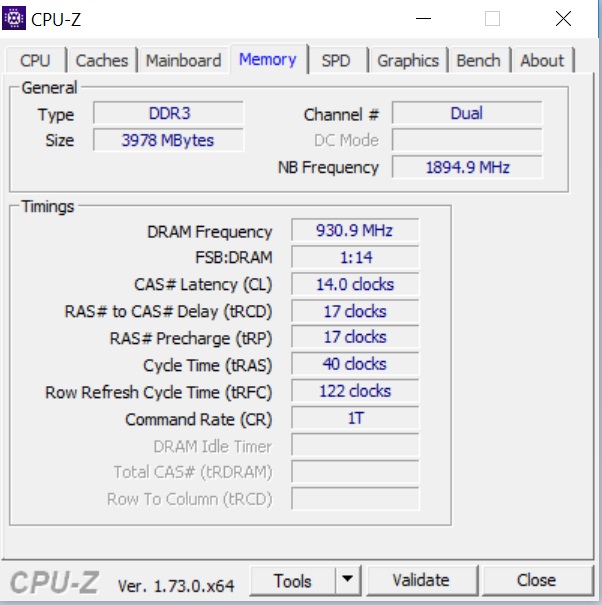

Minne
4096 MB
, DDR3L
Skärm
12 tum 16:9, 2160x1440 pixlar 216 PPI, kapacitiv pekskärm, native pen support, Panasonic VVX12T041N00, IPS, glansig: ja, detachable screen
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
Kingston RBU-SNS8152S3256GG2, 256 GB
, 128 GB SATA 3.1
Ljudkort
Intel Skylake-U/Y PCH - High Definition Audio
Anslutningar
2 USB 3.0, 1 Dockningsstation, Ljudanslutningar: Headset, Kortläsare: micro-SD, Brightness Sensor
Nätverk
Atheros/Qualcomm QCA6174 (a/b/g/n/ac), Bluetooth 4.1
Storlek
höjd x bredd x djup (i mm) 11 x 291 x 201
Batteri
37 Wh Litiumpolymer, 2 celler
Operativsystem
Microsoft Windows 10 Home 64 Bit
Camera
Webbkamera: 720pSecondary Camera: 1.44 MPix
Övrigt
Högtalare: stereohögtalare, Tangentbord: chiclet, Tangentbordsbelysning: nej, tangentbord, 12 Månader Garanti, fanless
Vikt
1.29 kg, Strömförsörjning: 330 g
Pris
800 Kr



With its keyboard unit, Acer's new convertible resembles ...
... Microsoft's Surface models.

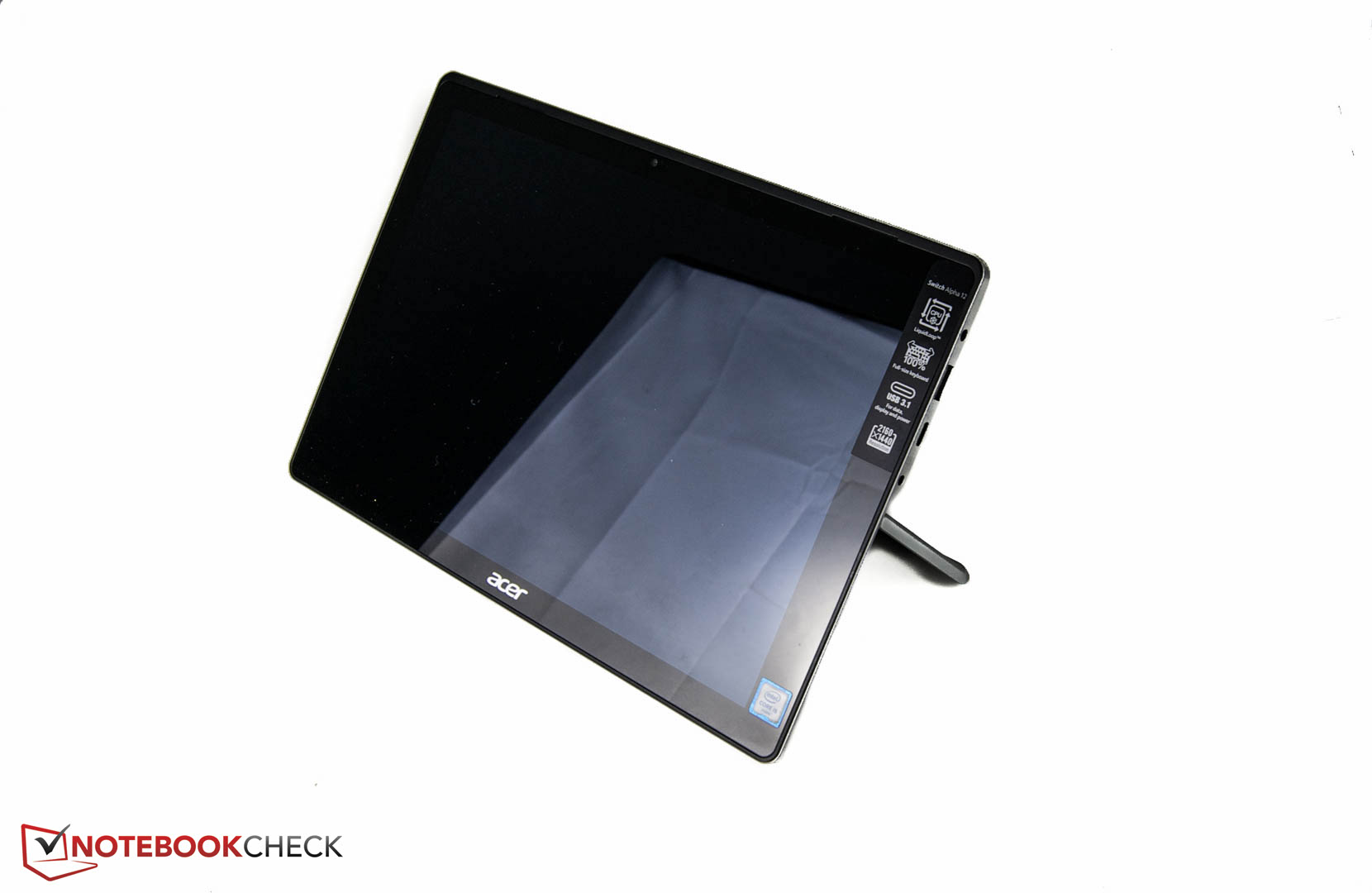

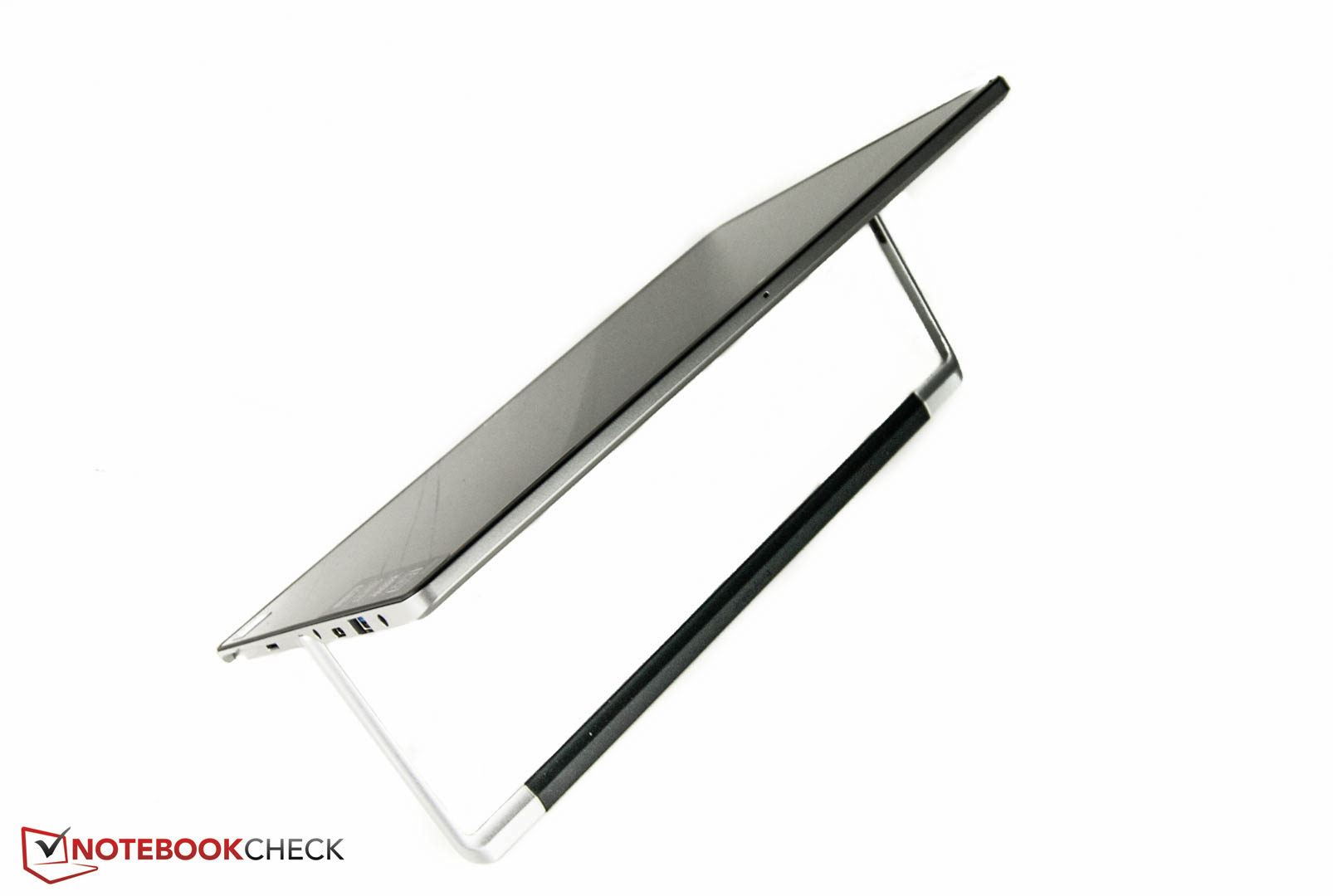

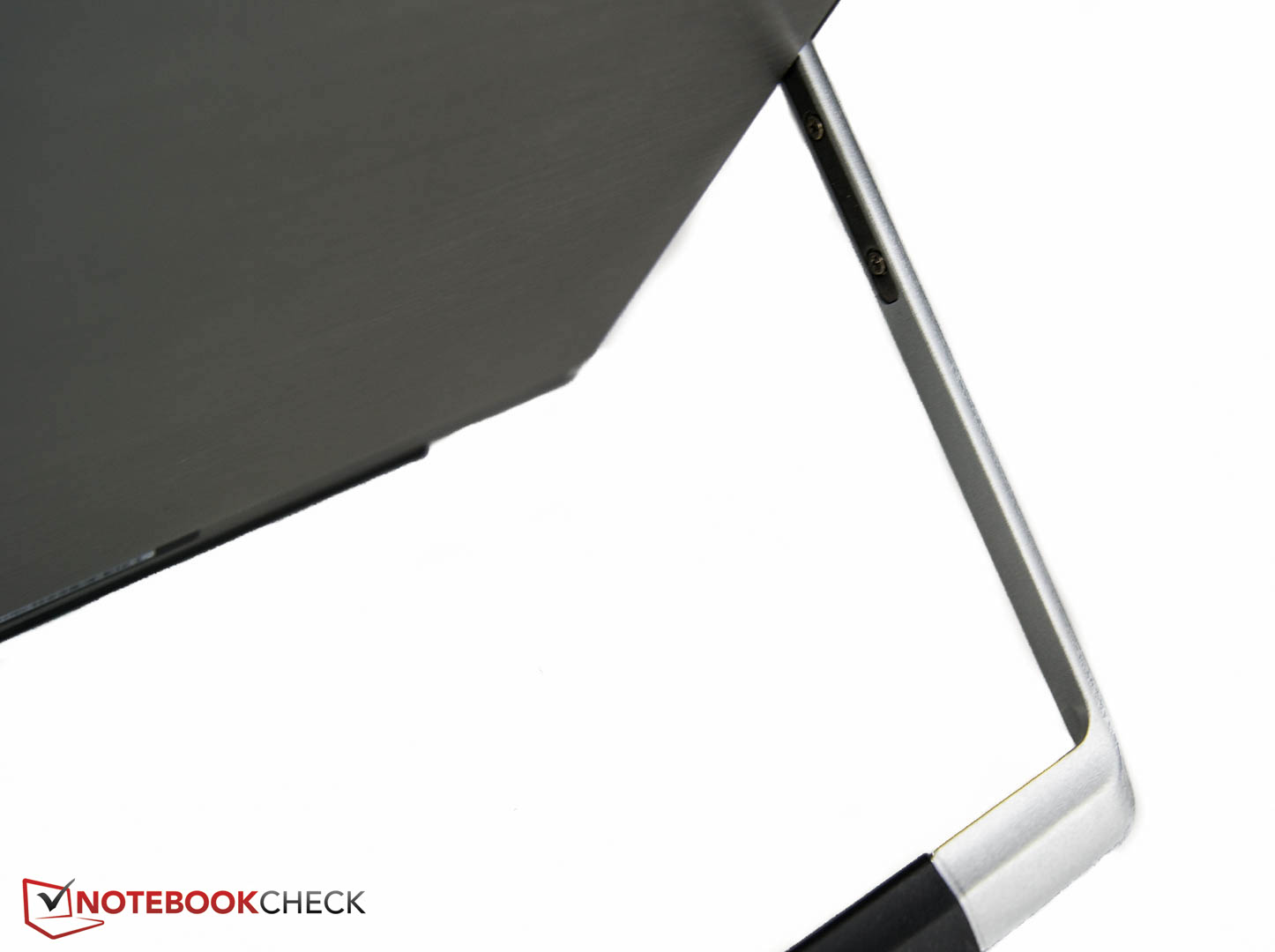

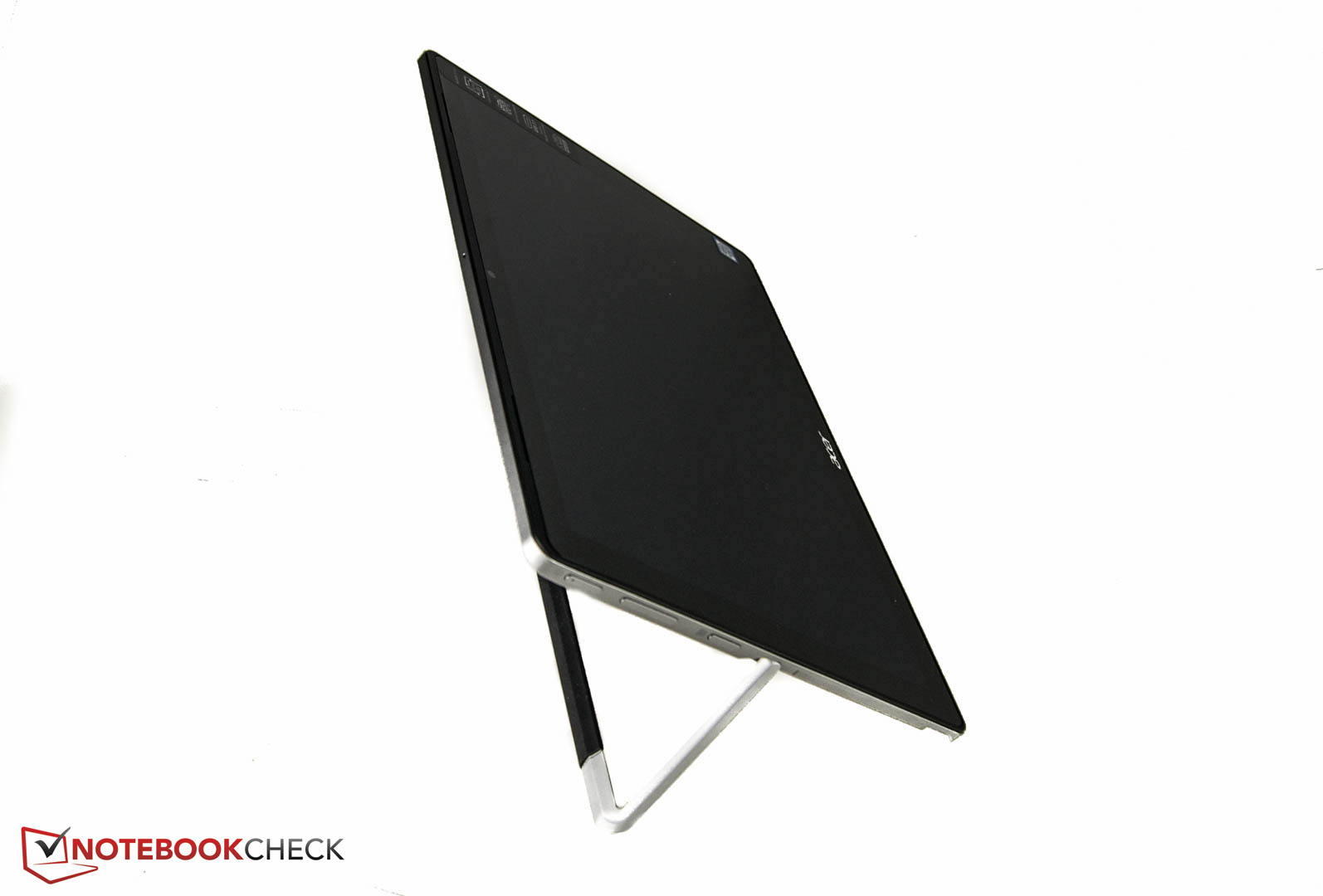

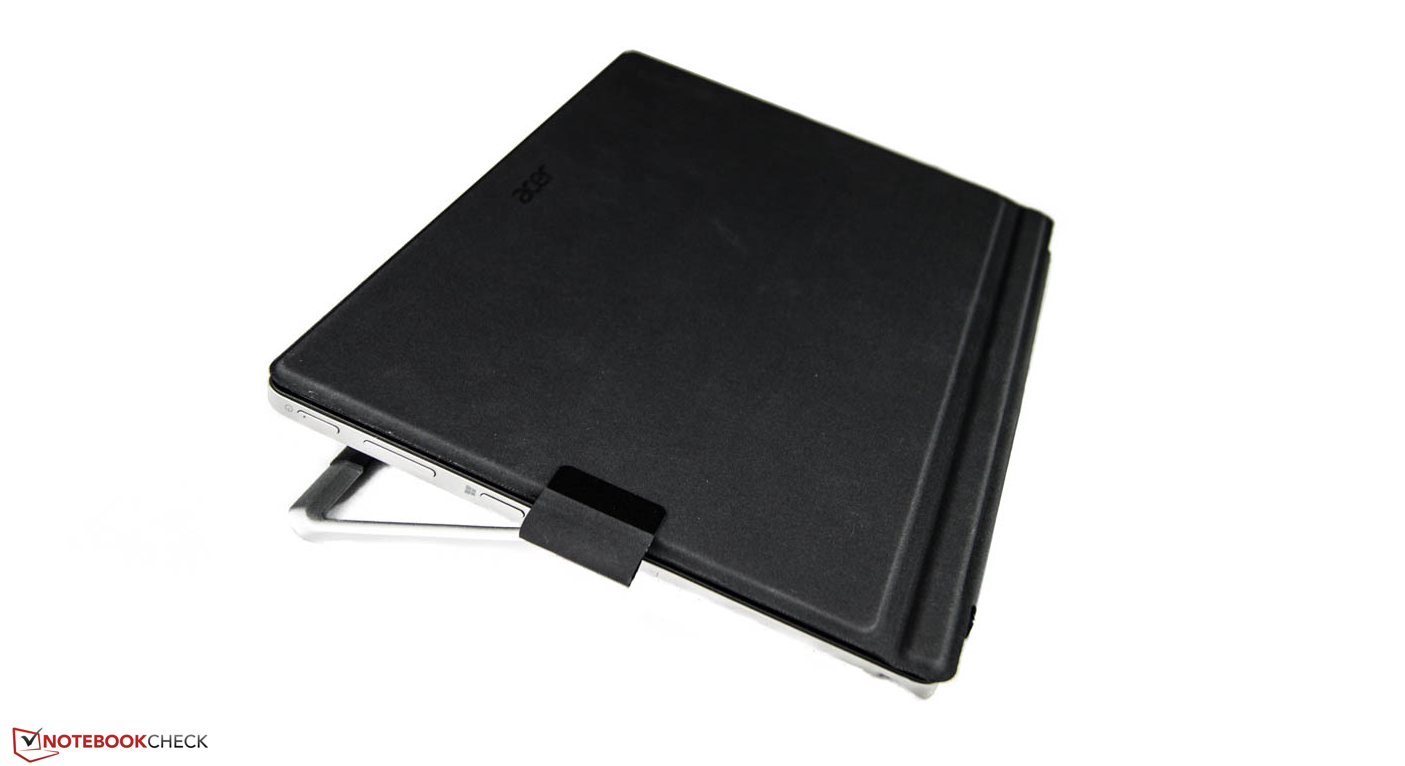

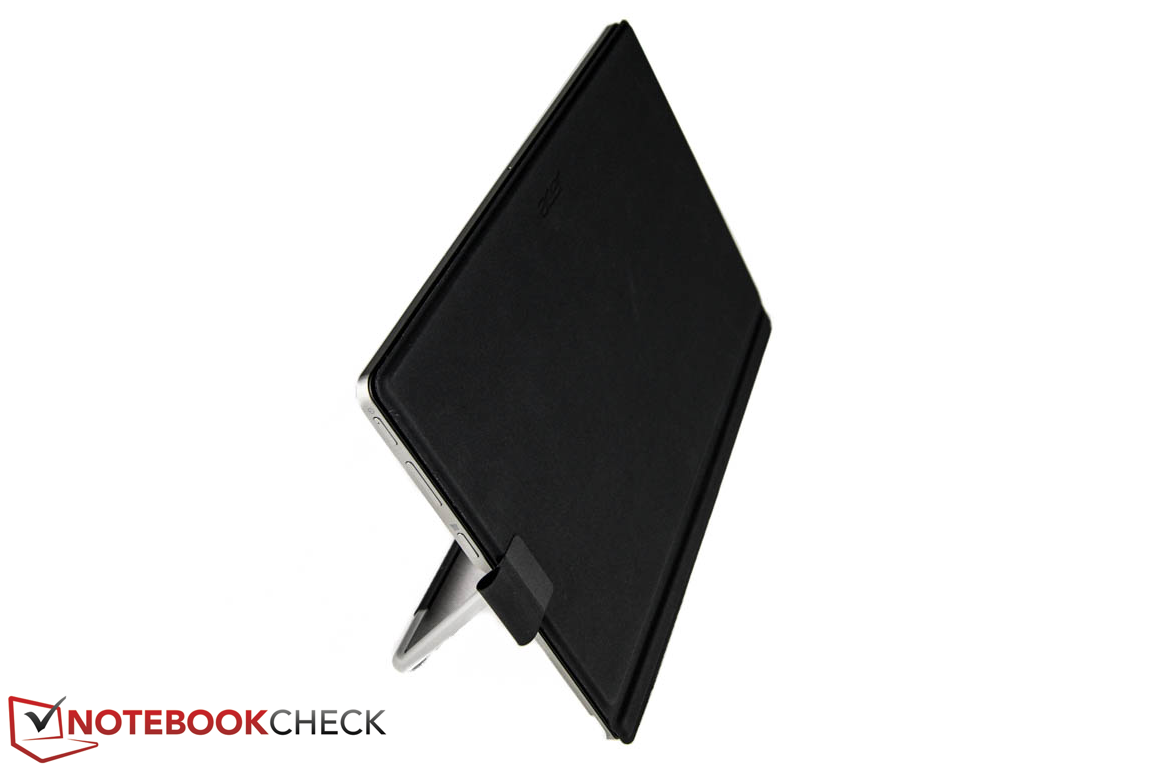

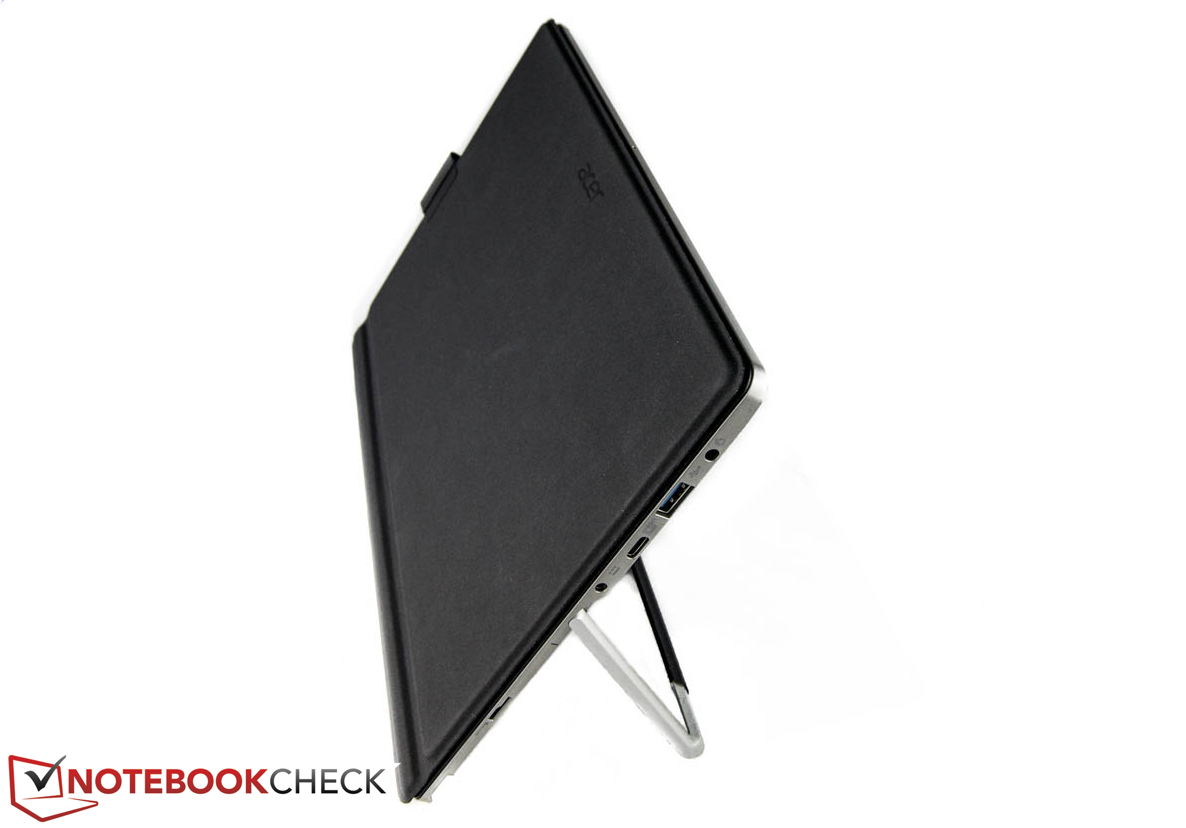

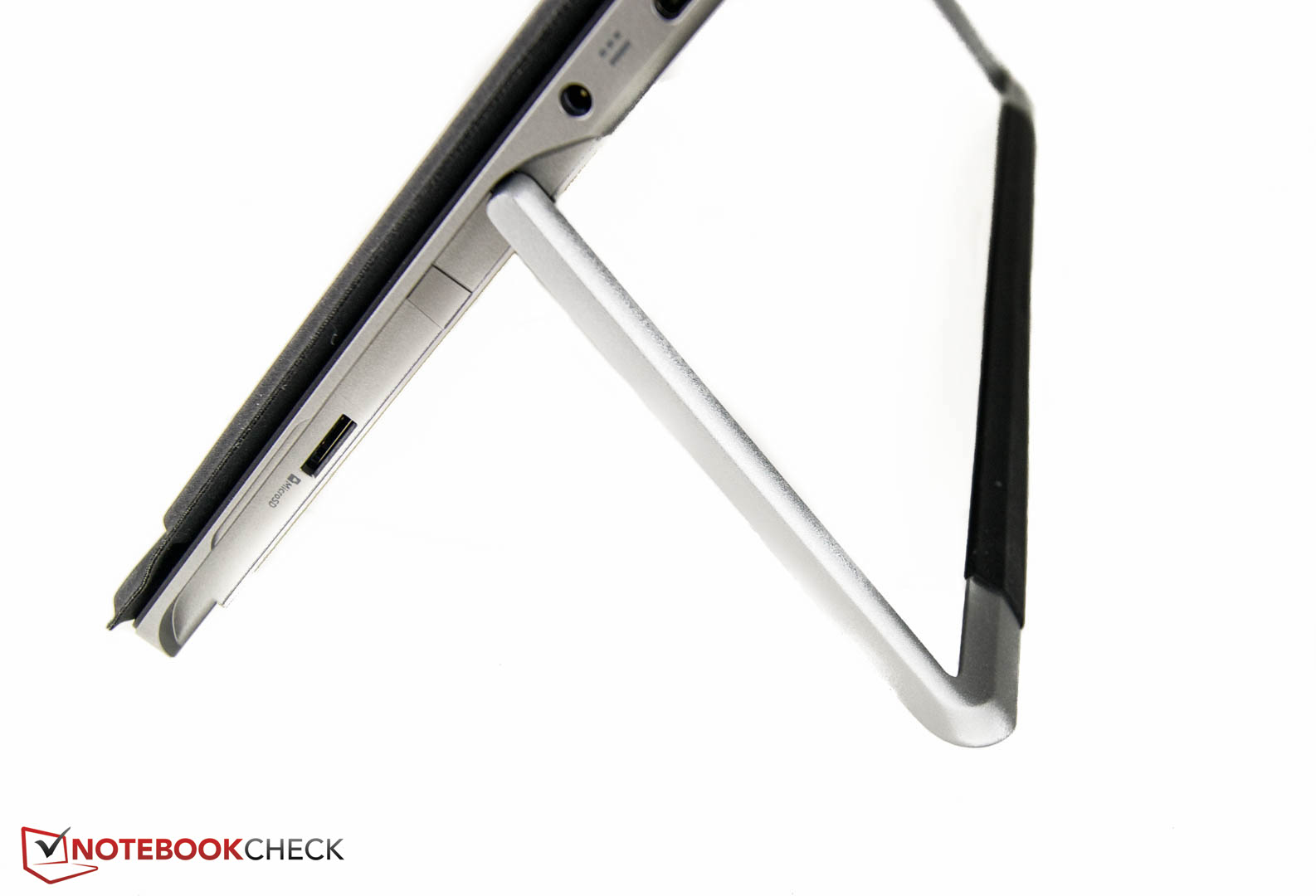

The kickstand is stable enough.

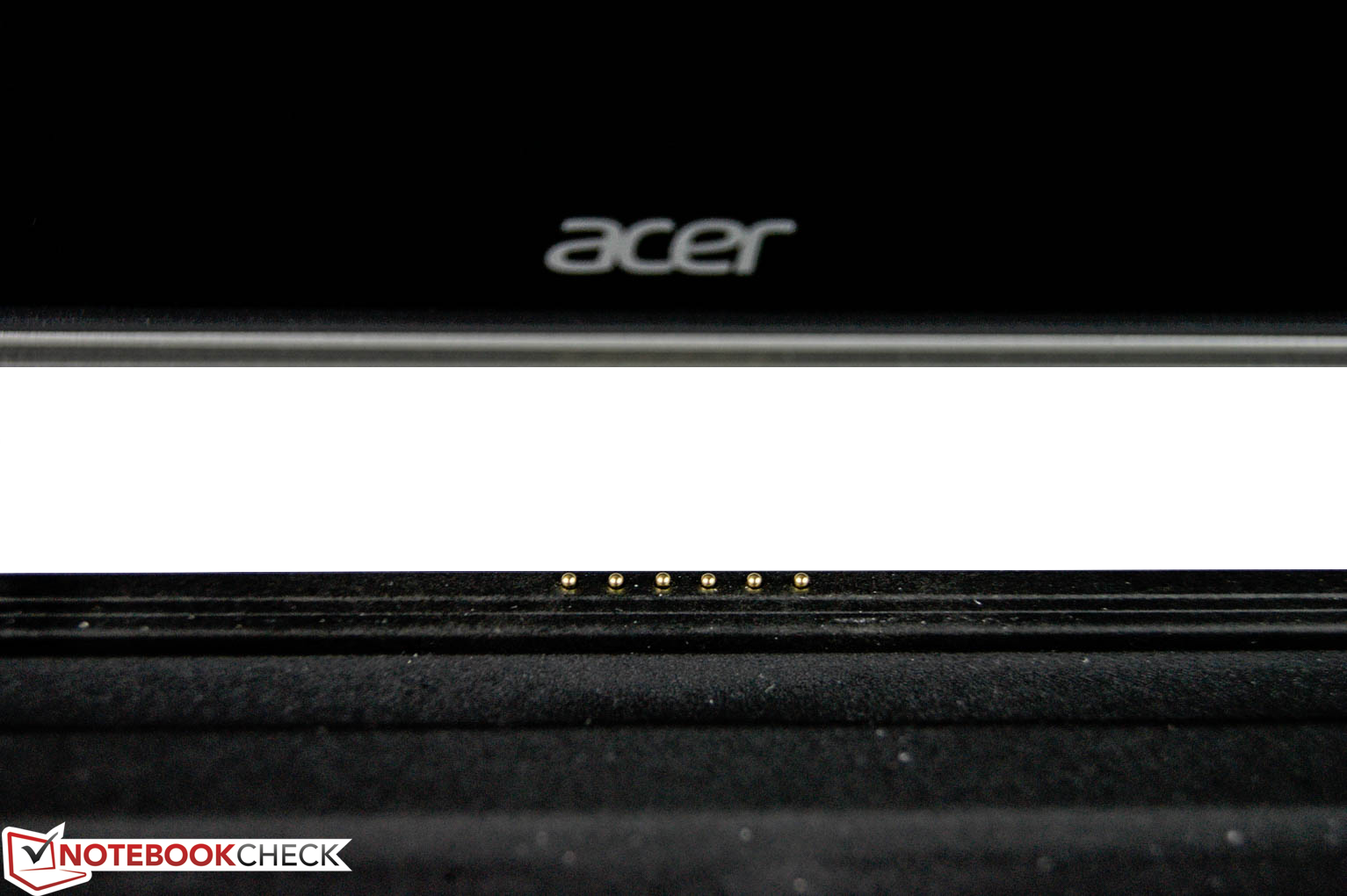

A magnetic lock ...
... holds the keyboard.

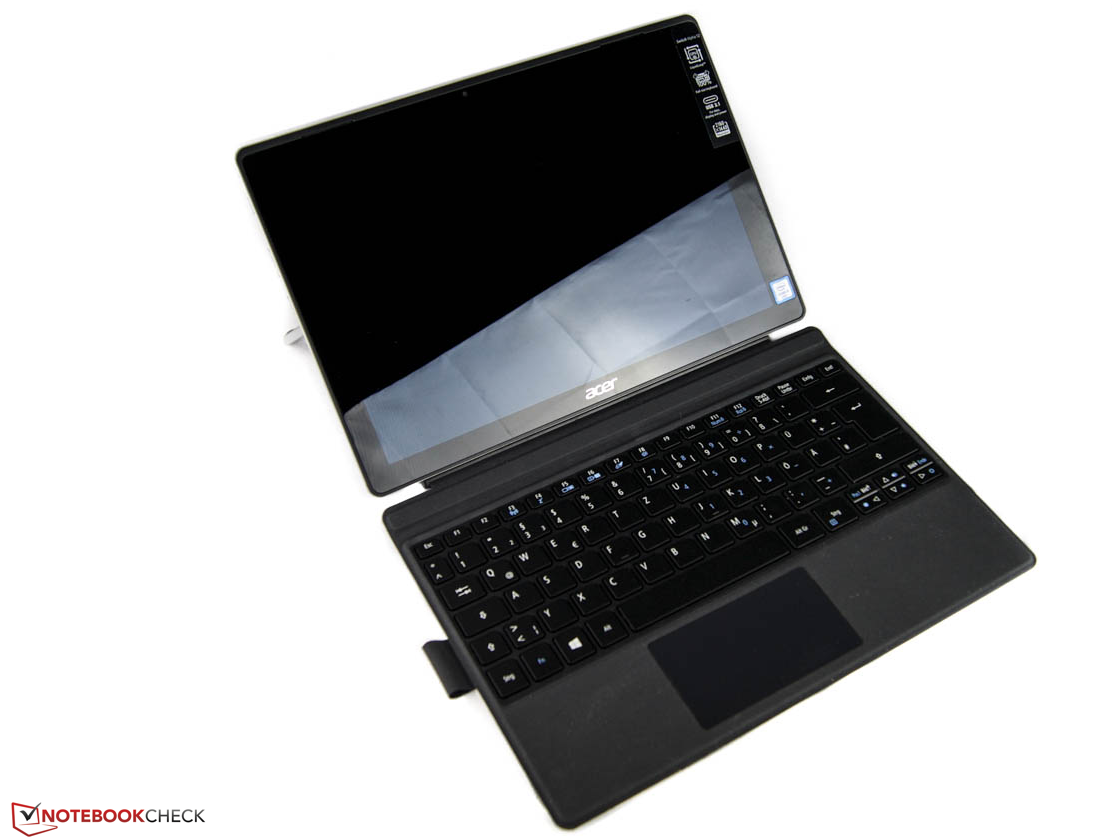

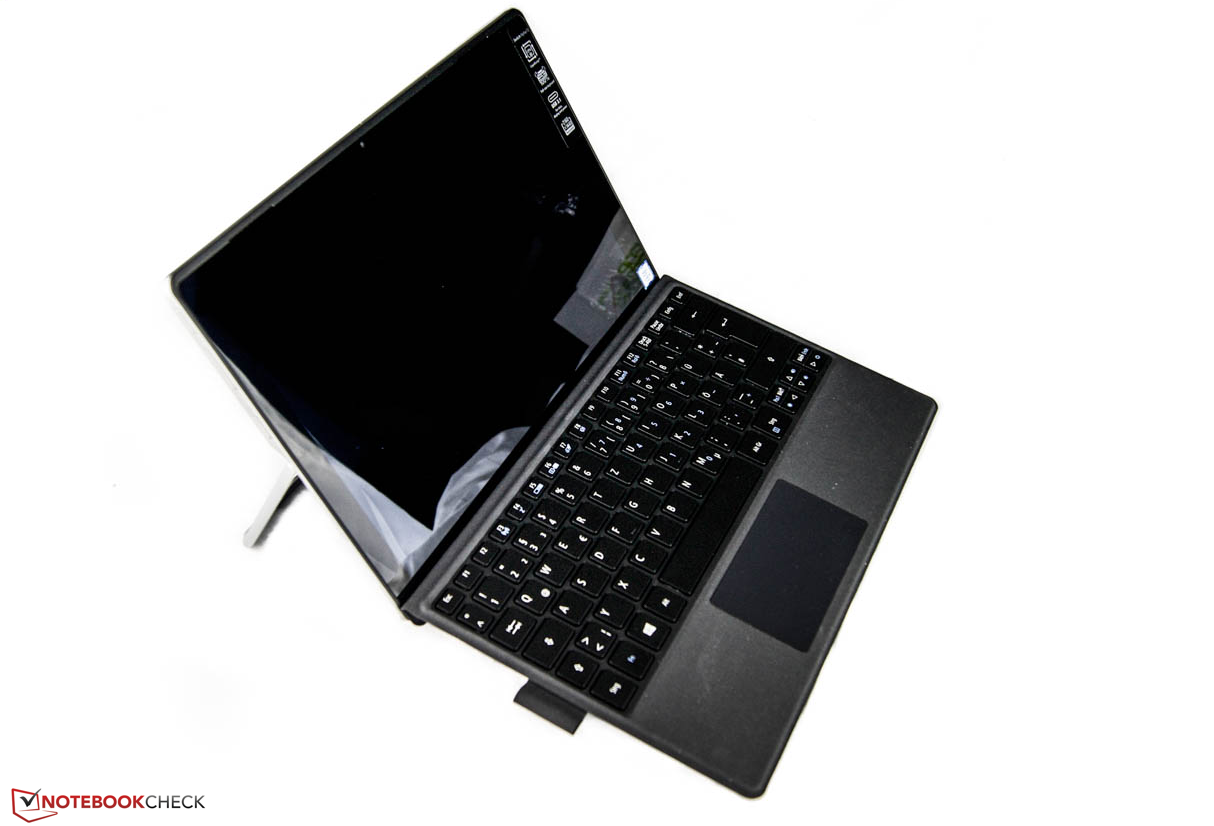

Laptop Mode

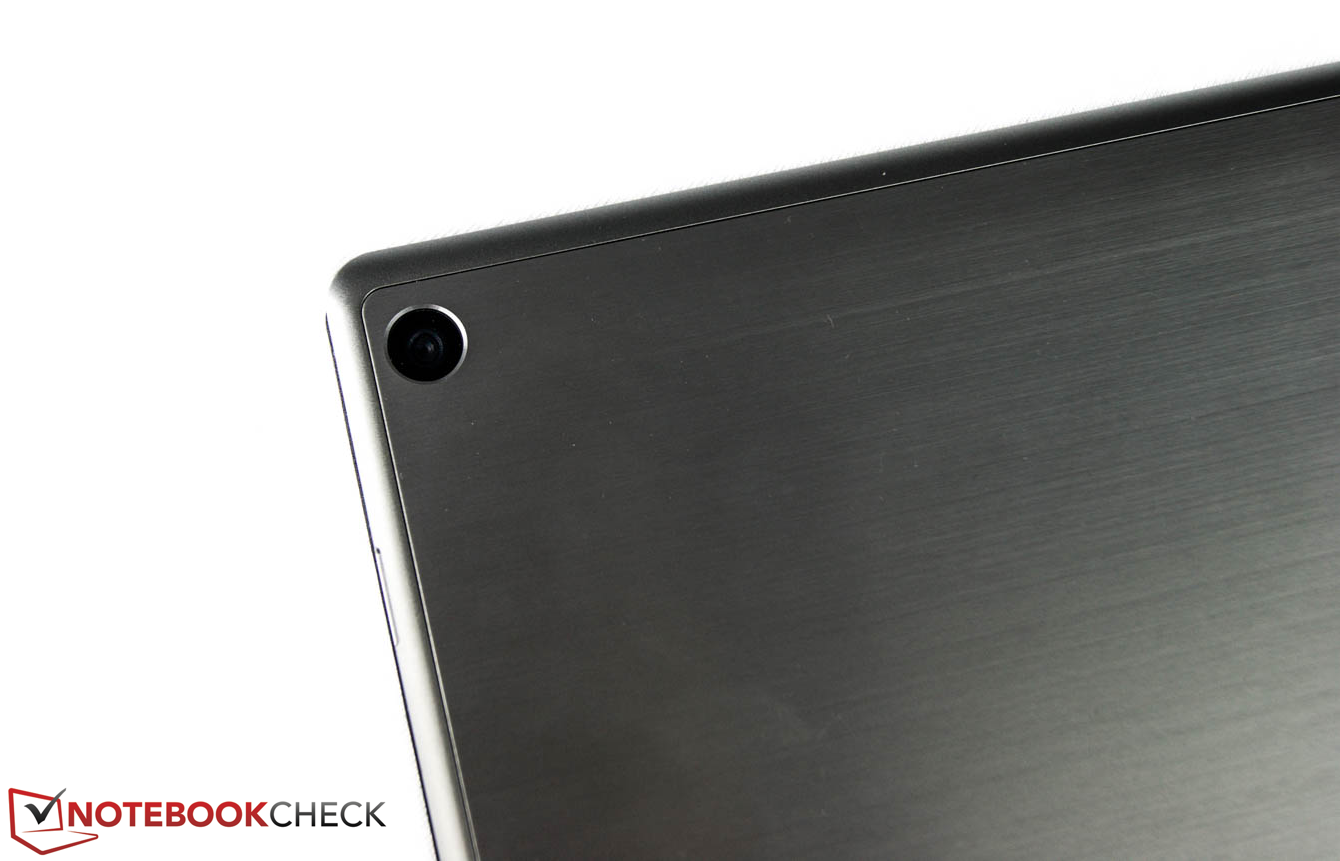

Rear-facing 5 MP camera
Switch Alpha in Tablet Mode

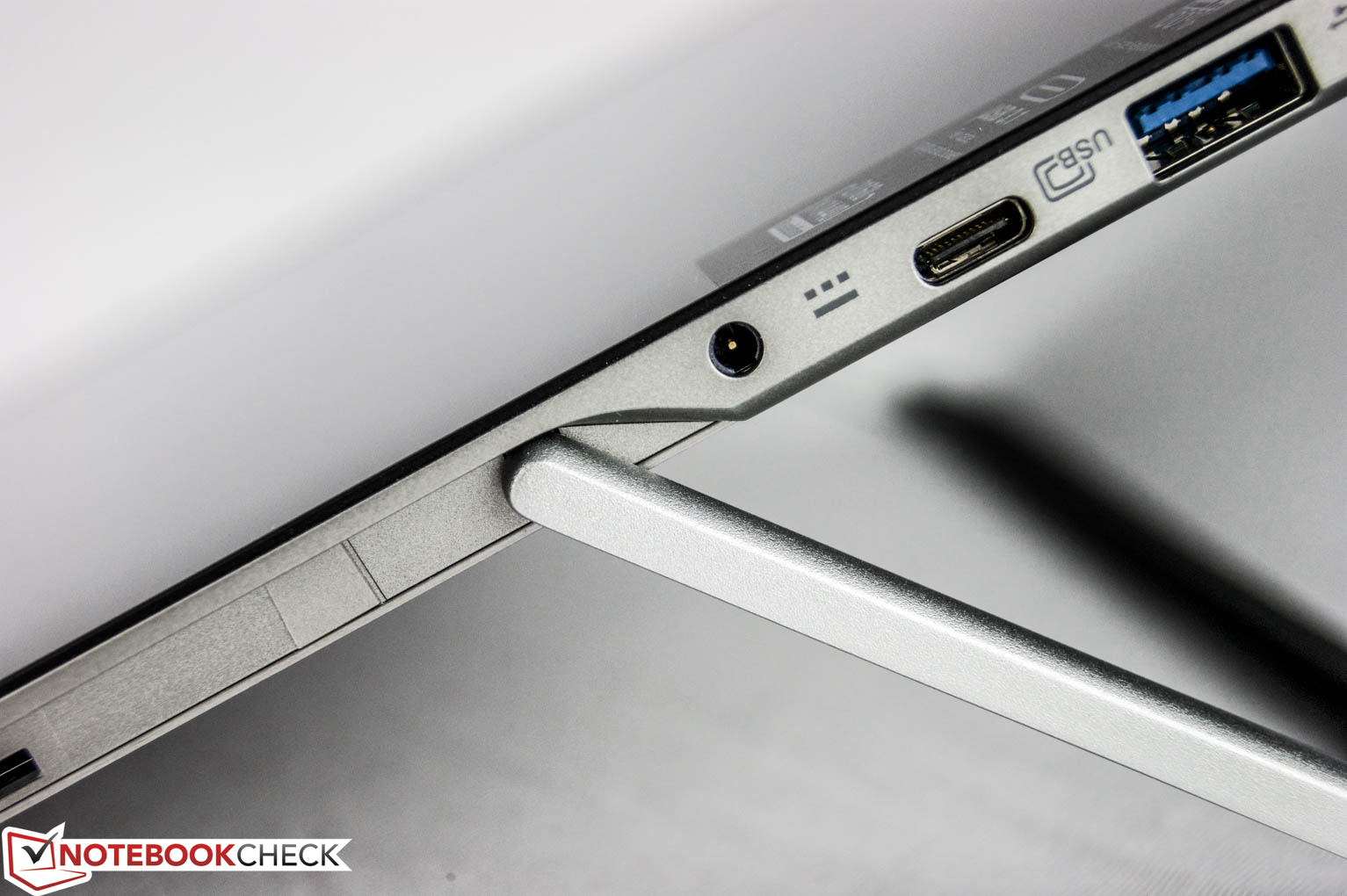

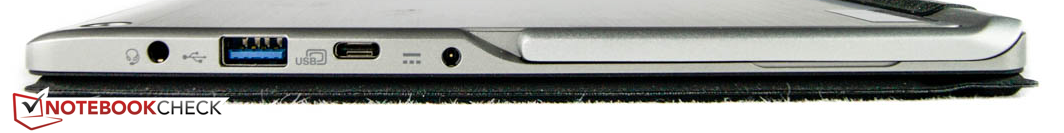

Right: Combo audio, USB 3.0, USB 3.1 Type-C, power-in
Right: Combo audio, USB 3.0, USB 3.1 Type-C, power-in

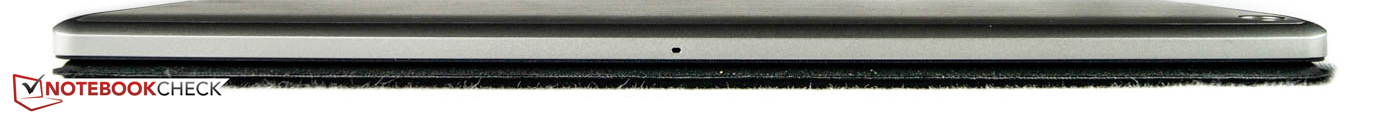

Front
Front

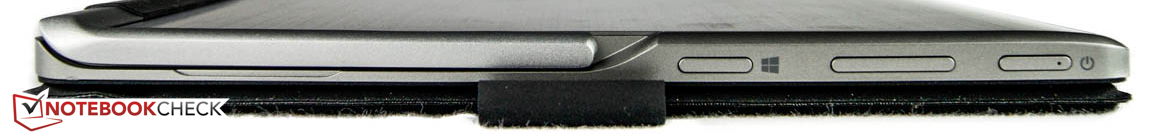

Left
Left

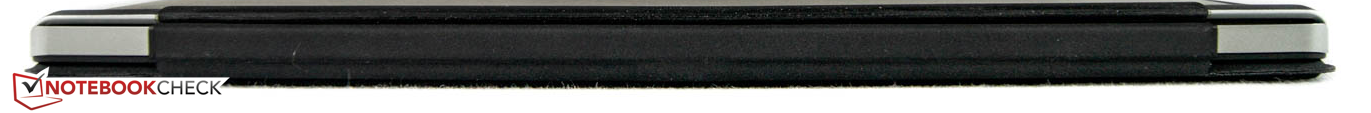

Rear
Rear
314
cd/m²
329
cd/m²
326
cd/m²
323
cd/m²
345
cd/m²
326
cd/m²
323
cd/m²
341
cd/m²
325
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 345 cd/m² Medel: 328 cd/m² Minimum: 18 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 345 cd/m²
Kontrast: 908:1 (Svärta: 0.38 cd/m²)
ΔE Color 8.4 | - Ø
ΔE Greyscale 4.3 | - Ø
96% sRGB (Calman) 62% AdobeRGB 1998 (Argyll)
Gamma: 2.63
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
Response Times
-24%
-17%
-72%
-26%
Response Time Grey 50% / Grey 80% *
20
28.4
-42%
33.2
-66%
46
-130%
30
-50%
Response Time Black / White *
34
17.6
48%
22.8
33%
31.2
8%
16
53%
PWM Frequency
1000
222.2
-78%
50
-95%
200
-80%
Screen
-22%
-9%
17%
3%
-8%
Brightness
328
315
-4%
319
-3%
396
21%
338
3%
318
-3%
Brightness Distribution
91
85
-7%
97
7%
87
-4%
91
0%
87
-4%
Black Level *
0.38
0.744
-96%
0.42
-11%
0.36
5%
0.33
13%
0.36
5%
Contrast
908
460
-49%
767
-16%
1147
26%
1077
19%
947
4%
Colorchecker DeltaE2000 *
8.4
5.33
37%
6.02
28%
3.09
63%
4.72
44%
6
29%
Greyscale DeltaE2000 *
4.3
5.36
-25%
6.29
-46%
3.92
9%
6.53
-52%
8.12
-89%
Gamma
2.63 91%
2.12 113%
2.4 100%
2.3 104%
2.17 111%
2.23 108%
CCT
7368 88%
7671 85%
7712 84%
7333 89%
6707 97%
7011 93%
Color Space (Percent of AdobeRGB 1998)
62
57
-8%
47.8
-23%
61
-2%
59.37
-4%
63.4
2%
Color Space (Percent of sRGB)
93
73.2
97
97.4
Total Average (Program / Settings)
-23% / -22%
-13% / -11%
-28% / -10%
3% / 3%
-17% / -13%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

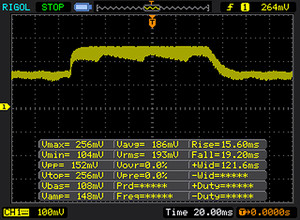

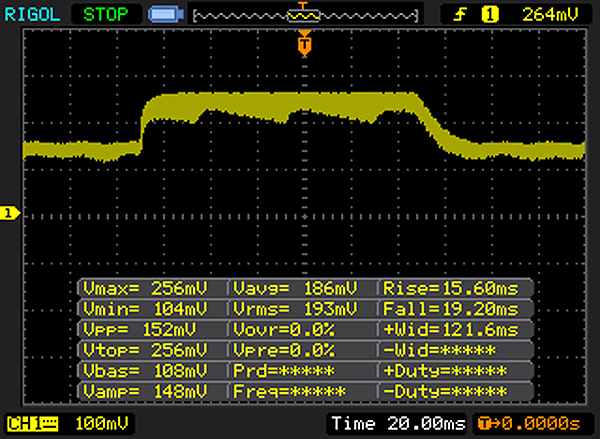

       Response Time Black to White
34 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (27.2 ms).

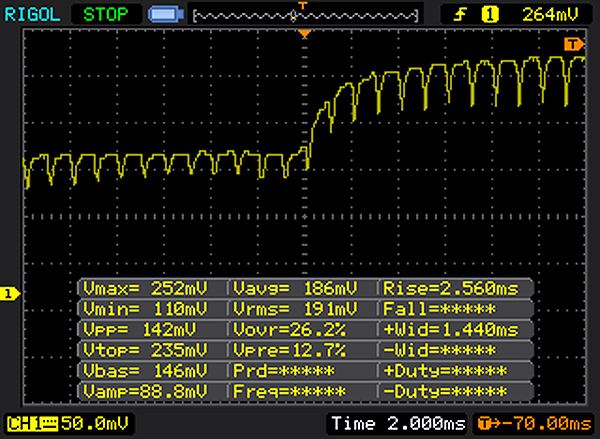

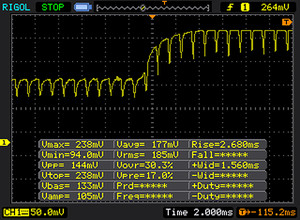

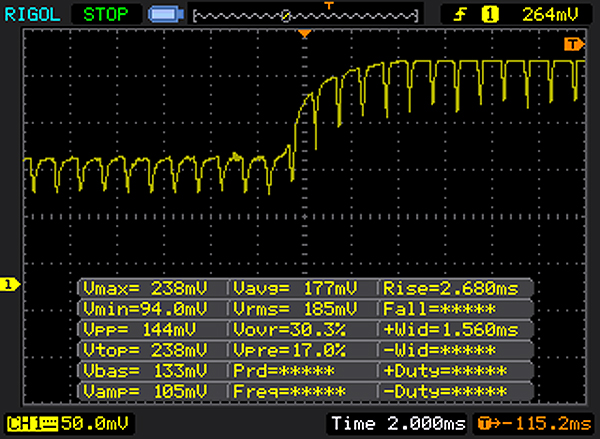

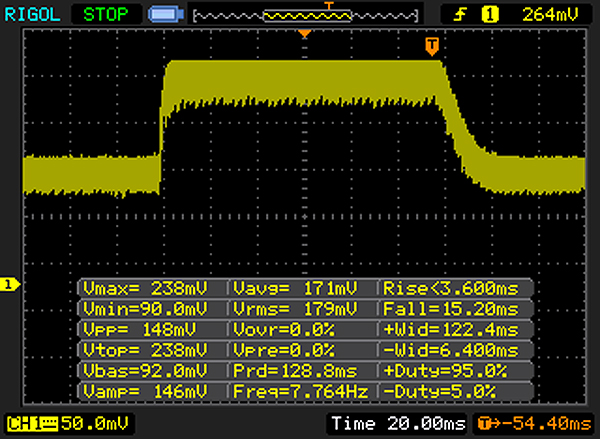

       Response Time 50% Grey to 80% Grey
20 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 15 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 4 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (44.2 ms).

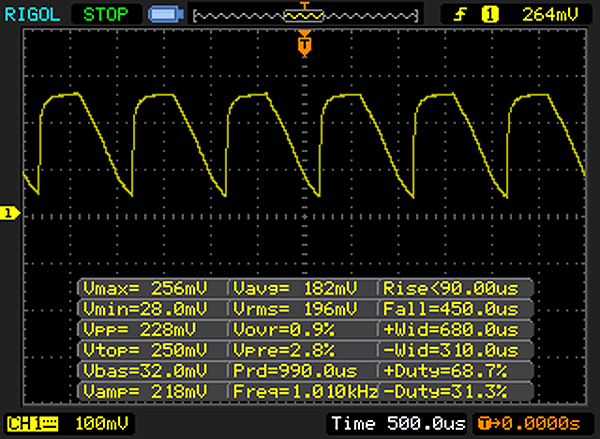

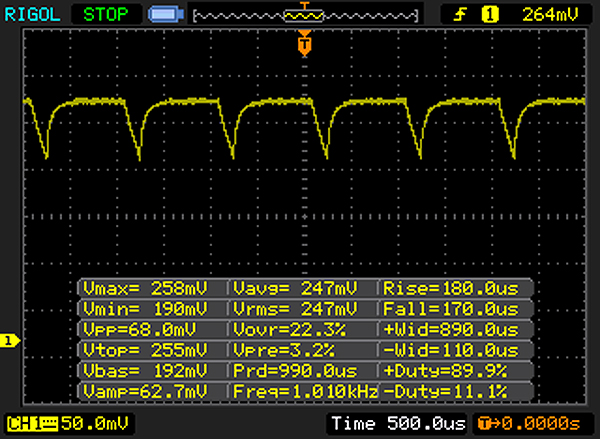

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz100 % brightness setting

The display backlight flickers at 1000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 1345 (minimum: 43 - maximum: 30860) Hz was measured.

Cinebench R15 - CPU Multi 64Bit
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
342 Points ∼100% +18%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
306 Points ∼89% +6%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
289 Points ∼85%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
255 Points ∼75% -12%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
234 Points ∼68% -19%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
206 Points ∼60% -29%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
200 Points ∼58% -31%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
177 Points ∼52% -39%
Cinebench R15 CPU Single 64Bit
114 Points
Cinebench R15 CPU Multi 64Bit
289 Points
Cinebench R15 OpenGL 64Bit
41.06 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Hjälp
PCMark 8
Work Score Accelerated v2
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
4078 Points ∼100% +2%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
4058 Points ∼100% +2%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4052 Points ∼99% +1%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3996 Points ∼98%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3932 Points ∼96% -2%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3837 Points ∼94% -4%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points ∼91% -7%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points ∼78% -20%
Home Score Accelerated v2
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3394 Points ∼100% +3%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points ∼97%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points ∼88% -9%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
2976 Points ∼88% -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points ∼82% -16%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points ∼81% -17%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
2675 Points ∼79% -18%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼71% -26%
PCMark 8 Home Score Accelerated v2
3281 poäng
PCMark 8 Work Score Accelerated v2
3996 poäng
Hjälp
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
AS SSD
25%
15%
6%
-17%
-0%
Score Total
918
1190
30%
997
9%
864
-6%
722
-21%
913
-1%
Score Write
228
239
5%
316
39%
338
48%
223
-2%
227
0%
Score Read
460
645
40%
450
-2%
351
-24%
333
-28%
459
0%
CrystalDiskMark 3.0
9%
10%
15%
0%
5%
Write 4k
76.83
101.5
32%
73.58
-4%
90.27
17%
53.52
-30%
95.48
24%
Read 4k
29.3
28.51
-3%
32.36
10%
28.31
-3%
27.4
-6%
36.2
24%
Write Seq
199.9
154.2
-23%
305.6
53%
297.2
49%
316
58%
153.5
-23%
Read Seq
518.1
666
29%
420.3
-19%
500.5
-3%
410.1
-21%
497.9
-4%
Total Average (Program / Settings)
17% / 16%
13% / 12%
11% / 11%
-9% / -7%
3% / 3%
Kingston RBU-SNS8152S3256GG2
Sequential Read: 518.1 MB/s
Sequential Write: 199.9 MB/s
512K Read: 374.9 MB/s
512K Write: 201 MB/s
4K Read: 29.3 MB/s
4K Write: 76.83 MB/s
4K QD32 Read: 272 MB/s
4K QD32 Write: 197.1 MB/s
3DMark 11 - 1280x720 Performance
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
1585 Points ∼100%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1565 Points ∼99% -1%
HP Spectre x360 15-ap012dx
HD Graphics 520, 6200U, Sandisk X300 SD7SN6S-256G-1006
1565 Points ∼99% -1%
Lenovo ThinkPad 13-20GKS01100
HD Graphics 520, 6200U, Samsung SSD PM871 MZNLN256HCHP
1372 Points ∼87% -13%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
1334 Points ∼84% -16%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
1283 Points ∼81% -19%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
1109 Points ∼70% -30%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
1098 Points ∼69% -31%
3DMark 11 Performance
1585 poäng
3DMark Cloud Gate Standard Score
5608 poäng
Hjälp
BioShock Infinite - 1366x768 Medium Preset
Microsoft Surface Pro 4 Core i7
49.1 fps ∼100% +72%
Microsoft Surface Pro 4, Core i5, 128GB
30 fps ∼61% +5%
Acer Aspire Switch Alpha 12 SA5-271-56HM
28.6 fps ∼58%
Lenovo ThinkPad X1 Tablet
25 fps ∼51% -13%
HP Elite x2 1012 G1
24.6 fps ∼50% -14%
Lenovo IdeaPad Miix 700
18.5 fps ∼38% -35%

Legend


Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U, Intel HD Graphics 520, Kingston RBU-SNS8152S3256GG2

Microsoft Surface Pro 4, Core i5, 128GB Intel Core i5-6300U, Intel HD Graphics 520, Samsung MZFLV128 NVMe

Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540, Samsung MZFLV256 NVMe

Lenovo ThinkPad X1 Tablet Intel Core m7-6Y75, Intel HD Graphics 515, Samsung PM871 MZYLN256HCHP

HP Elite x2 1012 G1 Intel Core m5-6Y54, Intel HD Graphics 515, Liteon L8H-256V2G

HP Spectre x2 12-a003ng K3D42EA Intel Core m7-6Y75, Intel HD Graphics 515, Sandisk X300 SD7SN6S-256G-1006

Lenovo IdeaPad Miix 700 Intel Core m5-6Y54, Intel HD Graphics 515, Samsung MZNLN128HCGR-000L2
låg med. hög ultra
BioShock Infinite (2013) 54.428.624.26.9fps
Battlefield 4 (2013) 45.831.419.76fps
Rise of the Tomb Raider (2016) 1710.86.1fps
Hög belastning
 33.4 °C43 °C46.7 °C
 34.4 °C44 °C46.2 °C
 37.7 °C43 °C44.4 °C
Max: 46.7 °C
Medel: 41.4 °C
47.6 °C43.5 °C37.3 °C
51 °C43.9 °C37.4 °C
48.3 °C43.4 °C37.2 °C
Max: 51 °C
Medel: 43.3 °C
Strömförsörjning (max.)  44.4 °C | Rumstemperatur 22.2 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.32531.73133.44030.45029.56328.98026.210027.212534.516031.220037.925039.531536.640046.750049.363058.680065.4100065.2125059.8160063.2200061.7250064.4315064.8400062.7500063.7630067.2800074.61000068.81250055.41600046.9SPL7868.7N3921.8median 59.8AS Switch Alpha 12Delta10.837.536.637.239.838.639.136.936.639.536.941.746.752.756.261.666.366.164.862.46763.861.562.653.944.646.245.350.355.954.3median 54.3 Lenovo Miix 7008.6hearing rangehide median Pink Noise
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Power Consumption
20%
27%
20%
14%
26%
Idle Minimum *
7.3
4.4
40%
5.87
20%
3.7
49%
4
45%
4.5
38%
Idle Average *
10
9
10%
6.05
39%
6.8
32%
8.6
14%
7.7
23%
Idle Maximum *
10.15
10.7
-5%
6.13
40%
7.6
25%
9.3
8%
8.3
18%
Load Average *
25.2
19.6
22%
21.27
16%
22.5
11%
18.6
26%
19.8
21%
Load Maximum *
29.3
19.9
32%
23.03
21%
34.5
-18%
36.3
-24%
20.6
30%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0.3 / 0.4 Watt
Låg belastningdarkmidlight 7.3 / 10 / 10.15 Watt
Hög belastning midlight 25.2 / 29.3 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
Battery Runtime
WiFi Websurfing 1.3
321 (Firefox 47.0)
427
33%
300
-7%
443 (Edge 25.10586.0.0)
38%
361
12%
440 (Edge 25.10586.0.0)
37%
Battery Runtime
20%
2%
7%
49%
24%
Reader / Idle
640
899
40%
628
-2%
732
14%
954
49%
861
35%
Load
112
111
-1%
118
5%
130
16%
166
48%
157
40%
H.264
468
432
-8%
450
-4%
Total Average (Program / Settings)
27% / 24%
-3% / -1%
23% / 15%
31% / 36%
31% / 27%
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
10tim 40min
Surfa med WLAN v1.3 (Firefox 47.0)
5tim 21min
Big Buck Bunny H.264 1080p
7tim 48min
Hög belastning (maximal ljusstyrka)
1tim 52min

För

+ prestanda
+ fläktlös kylning
+ bra inmatningsenheter
+ välbyggd

Emot

- värdelösa högtalare
- batteritiden
In review: Acer Switch Alpha 12. Test model courtesy of Acer Germany
In review: Acer Switch Alpha 12. Test model courtesy of Acer Germany

Läs originaltestet i sin helhet på engelska här

Acers Switch Alpha 12 utmanar inte bara med ett lågt pris inklusive tangentbordsdocka, utan också med en genomtänkt helhet och innovativ kylteknik. 12-tummaren har ett välbyggt hölje som kan hävda sig mot konkurrenter som är dubbelt så dyra.

Surfplattan är något för tung för dagligt bruk, men inmatningsenheterna är nästan i nivå med de dyrare modellerna från Microsoft. Skärmen är också imponerande, men mest intressant är den fläktlösa prestandan, med en kraftfull Intel Core i5-processor. Den här lösningen kan möjligen vara framtiden för tunna bärbara datorer och surfplattor. Om Acer även lyckas öka batteritiden och ljudkvaliteten får konkurrenterna det svårt framöver.

Användare som inte kan leva med den korta batteritiden kan titta närmare på alternativ som Lenovos IdeaPad Miix 700 eller HP:s Spectre x2.

Acer Aspire Switch Alpha 12 SA5-271-56HM - 08/22/2016 v5.1
Nino Ricchizzi

Design
84 / 98 → 86%
Tangentbord
85%
Mus
91%
Anslutningar
39 / 80 → 49%
Vikt
80 / 78 → 100%
Batteri
87%
Skärm
83%
Spelprestanda
56 / 68 → 83%
Programprestanda
82 / 87 → 94%
Temperatur
84%
Ljudnivå
100%
Audio
30 / 91 → 33%
Camera
47 / 85 → 56%
Medel
73%
86%
Convertible - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Acer Aspire Switch 12 Alpha (SA5-271-56HM) (sammanfattning)
Nino Ricchizzi, 2016-08- 1 (Update: 2016-08- 1)
