Test: Acer Nitro 5 (7700HQ, GTX 1050 Ti) (sammanfattning)

Sascha Mölck (översatt av Zebastian Lindell), 10/09/2017

Slimmad instegs-gamer Acers slimmade spelmaskin erbjuder en IPS-panel, snabb NVMe SSD och bra batteritid.

Detta är en förkortad version av originalrecensionen. Tryck här att läsa hela texten på engelska.https://www.notebookcheck.net/Acer-Nitro-5-7700HQ-GTX-1050-Ti-Laptop-Review.251846.0.html

De Nitro-datorerna vi testat fram till nu har alla kännetecknats av sin portabilitet som mobila speldatorer. Bra processorkraft i ett slimmat skal har varit deras signum. Acer har dock tagit ett steg ifrån detta med de nya Nitro 5 AN515-51-modellerna. De nya maskinerna är lite tjockare och klumpigare än Aspire V15 Nitro-serien på grund av den nya, kantiga designen. Trots detta är Nitro 5-datorerna förhållandevis slimmade.

Datorn saknar inte tillräcklig processorkraft för spel tack vare den fyrkärniga processorn och GeForce GTX 1050 Ti-kortet. Än dock är denna sammansättning av hårdvara inte menad till att driva spel på de högsta grafikinställningarna. I den här recensionen kommer vi ta reda på ifall den nya Nitro kan övertyga oss prestandamässigt. De som konkurrerar med Nitron är HP Omen 15-ax213ng, Acer Aspire VX5-591G-75C4, Dell Inspiron 15 7567, Lenovo Legion Y520 15IKBNAsus FX502VM, och Medion Erazer X6603.

Acer Nitro 5 AN515-51-788E (Nitro 5 Serie)
Processor
Intel Core i7-7700HQ
Grafikkort
NVIDIA GeForce GTX 1050 Ti (Notebook) - 4096 MB, Kärna: 1493-1734 MHz, Minne: 1752 MHz, GDDR5, 128-bit bus, ForceWare 385.41, Optimus
Minne
8192 MB

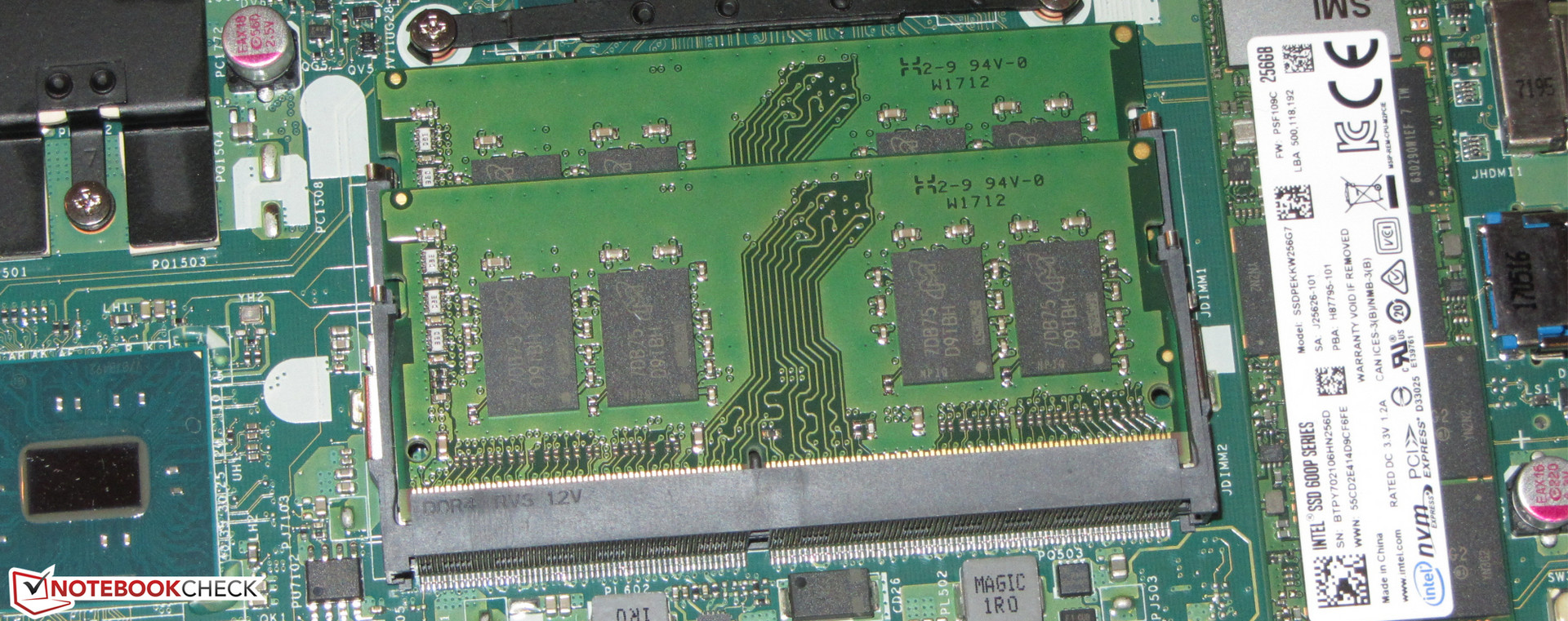

, DDR4-2400, Dual-Channel, two RAM slots (both occupied)
Skärm
15.6 tum 16:9, 1920x1080 pixlar 141 PPI, LG Philips LP156WF6-SPK6, IPS, glansig: nej
Moderkort
Intel HM175
Hårddisk
Intel SSD 600p SSDPEKKW256G7, 256 GB
, + WDC WD10SPZX (1 TB, 5400 rpm), 1140 GB ledigt
Ljudkort
Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller
Anslutningar
2 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: combined audio jack, Kortläsare: SD, TPM 2.0
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Qualcomm QCA6174 (a/g/n/ac), Bluetooth 4.1
Storlek
höjd x bredd x djup (i mm) 26.75 x 390 x 266
Batteri
48 Wh, 3220 mAh Litiumjon, 15.2 V
Operativsystem
Microsoft Windows 10 Home 64 Bit
Camera
Webbkamera: HD
Övrigt
Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: ja, MS Office 365 (trial version), 24 Månader Garanti
Vikt
2.7 kg, Strömförsörjning: 563 g
Pris
1299 Euro



Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
News Editor - Details here

Review Editor -
Details here

















Case

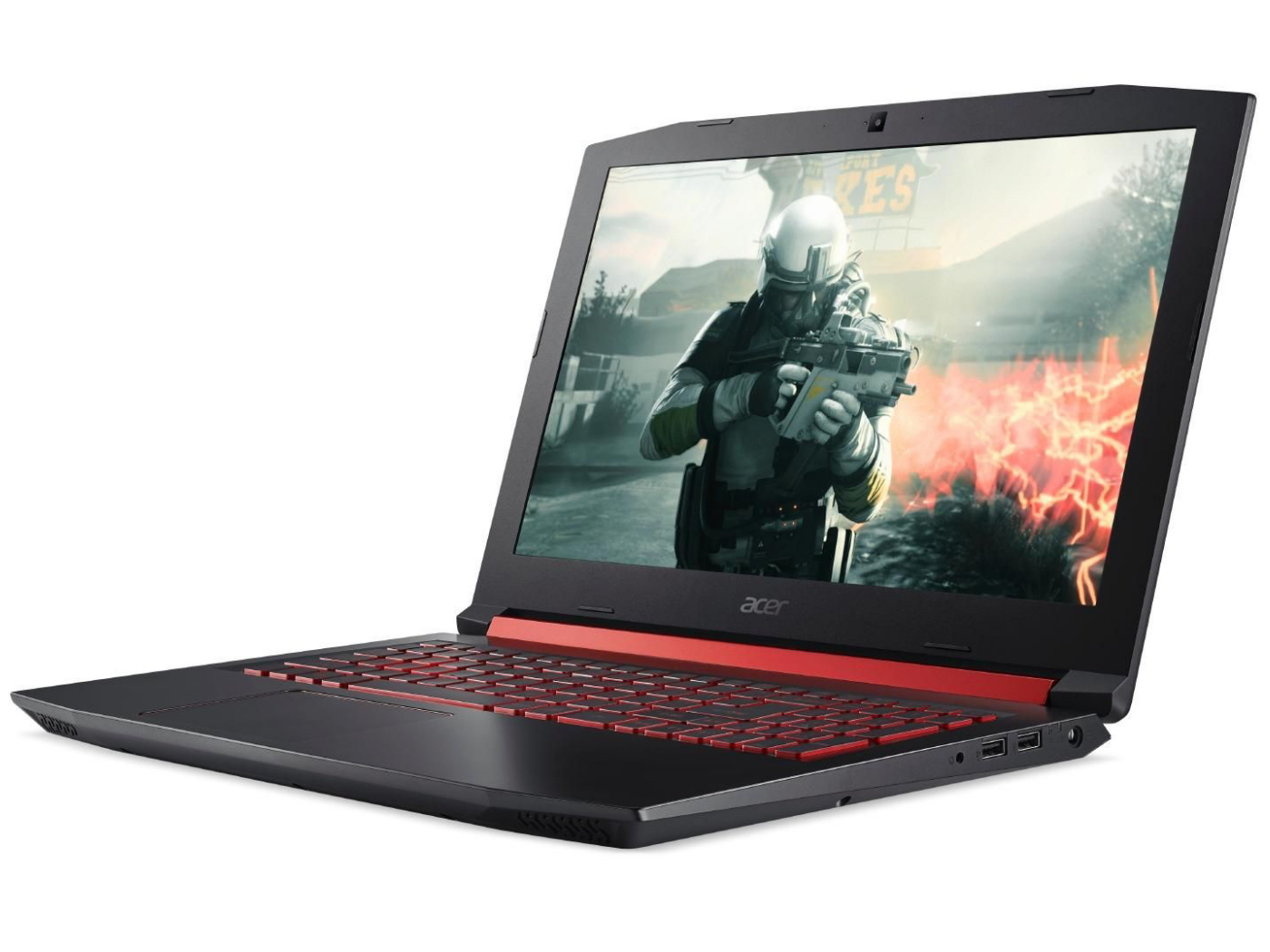

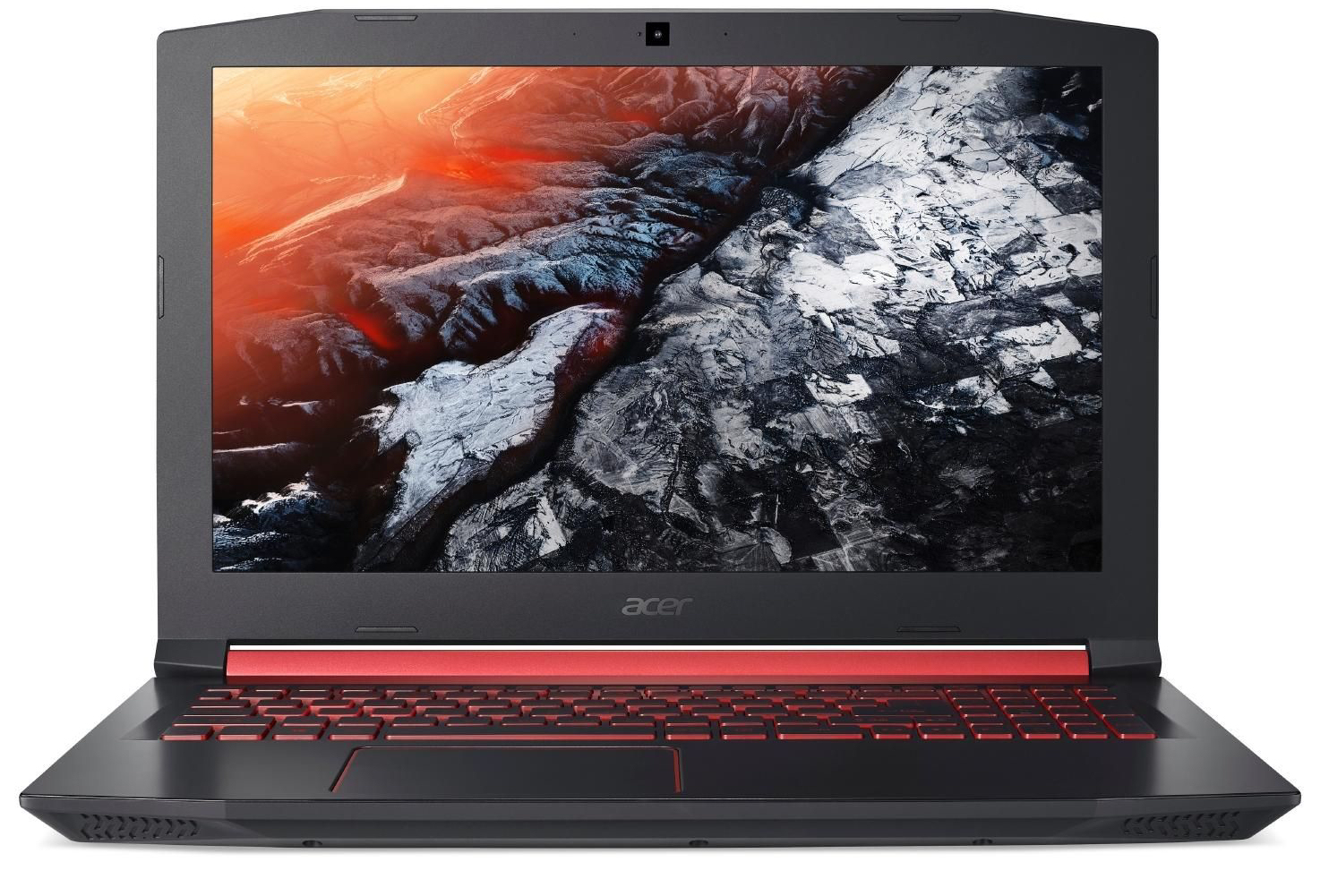

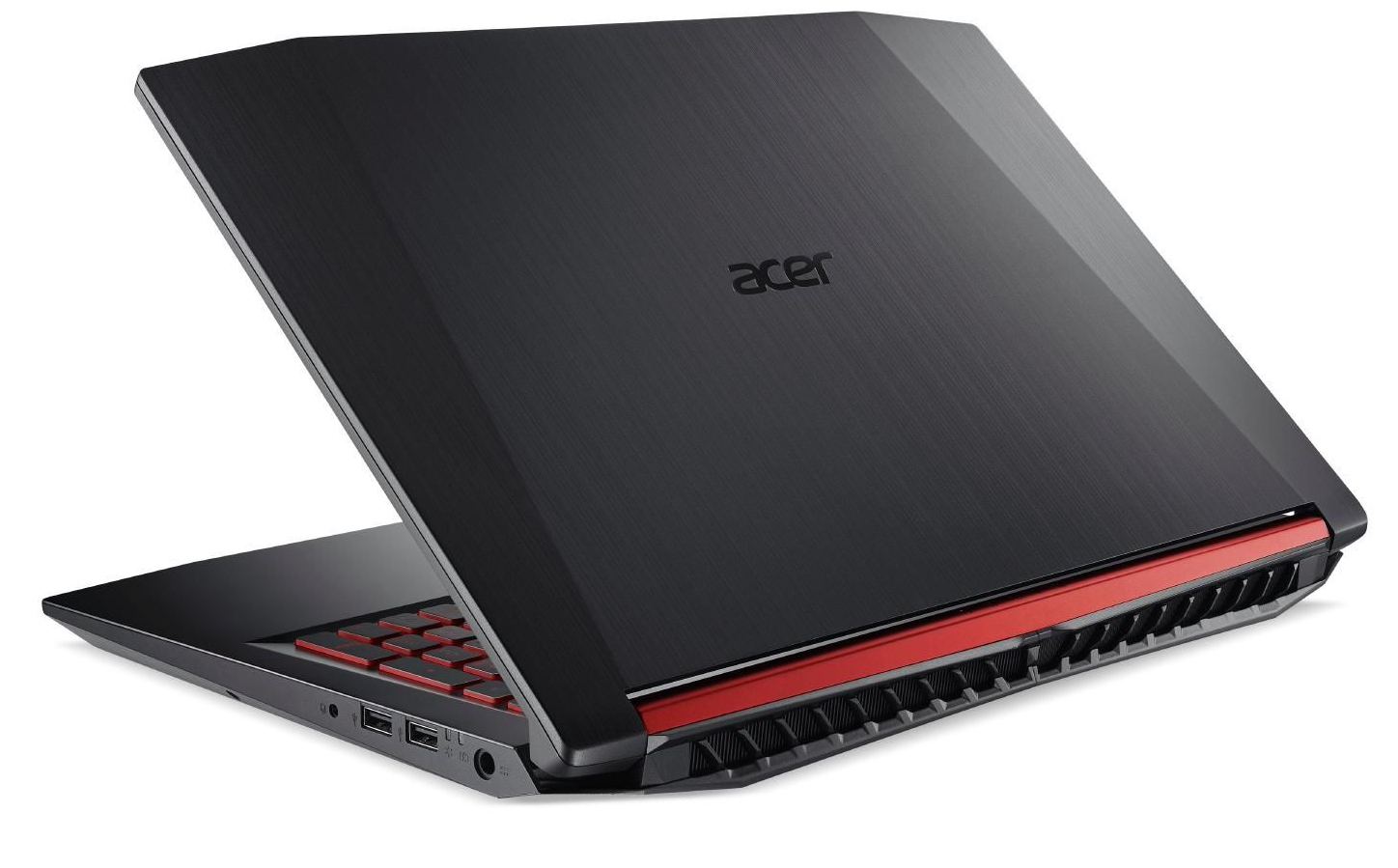

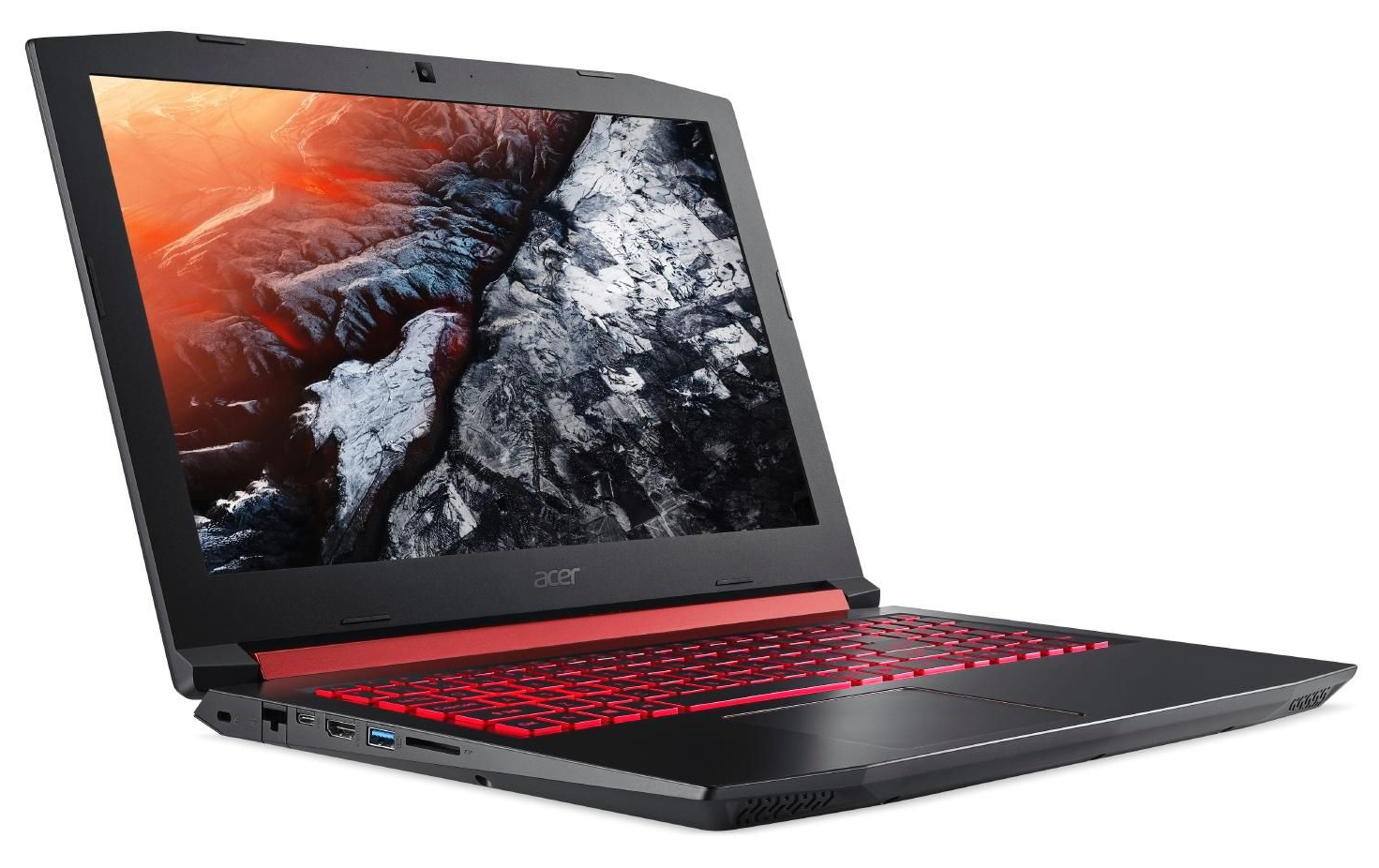

Acer has chosen a black case for the Nitro 5, which is highlighted by red hinges and a red border around the touchpad. The red looks brighter on the images than it is in real life - it looks more like burgundy really. The display cover has a brushed-metal effect. There are two small maintenance hatches on the bottom of the base unit; the battery is not removable.

The Nitro 5 appears to be well made. There are no overhanging edges and the gap dimensions are consistent. Stability is also quite good, although the base unit and display cover could be a little stiffer for our tastes. Fortunately, however, the latter does not show any image distortion under pressure or when being warped. The hinges keep the display in place and the device can be opened with a single hand.

The dimensions and weight of the Nitro 5 are similar to those of the comparison devices, but the Nitro 5 is a little thicker and heavier than the devices of the Aspire V15 Nitro series.

Size Comparison

Acer offers no more than the standard equipment in the area of connectivity. The notebook has three Type-A USB ports (2x USB 2.0, 1x USB 3.1 gen 1) and the single Type-C port also only offers the USB 3.1 gen 1 standard. Acer could have upgraded this to the faster USB 3.1 gen 2 port - or even better to a Thunderbolt 3 connector. A DisplayPort would also have been a nice addition to the device. However, we do like the way the ports are positioned, which is towards the back of either side of the device. This way, the areas beside the wrist rest remain free from cables.

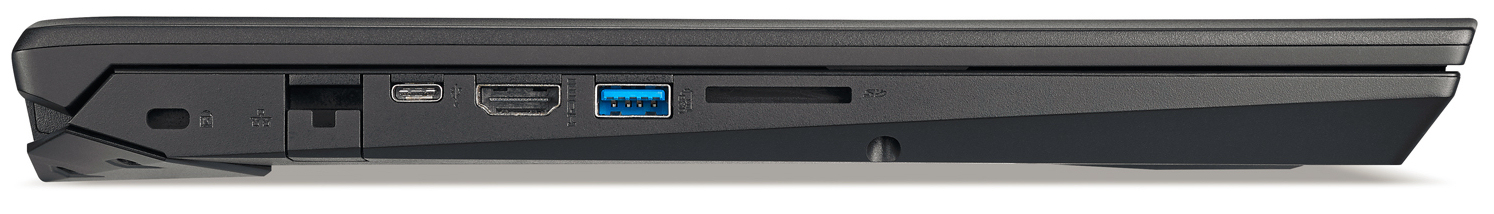

Left: security lock, Gigbabit Ethernet, USB 3.1 gen 1 (Type-C), HDMI, USB 3.1 Gen 1 (Type-A), memory-card reader (SD)
Left: security lock, Gigbabit Ethernet, USB 3.1 gen 1 (Type-C), HDMI, USB 3.1 Gen 1 (Type-A), memory-card reader (SD)

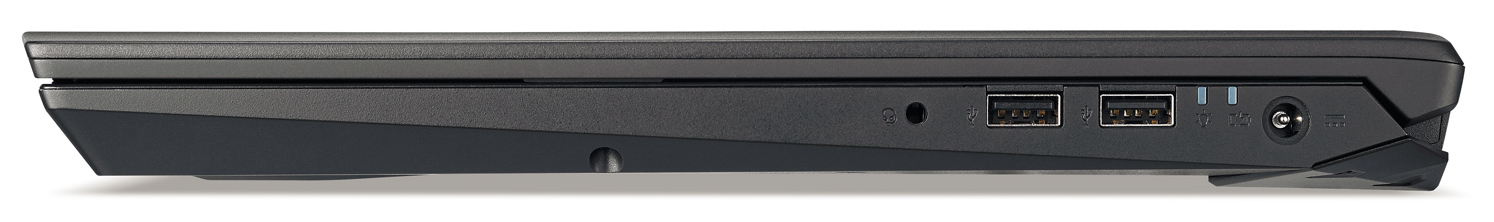

Right: combined audio jack, 2x USB 2.0 (Type-A), power supply
Right: combined audio jack, 2x USB 2.0 (Type-A), power supply

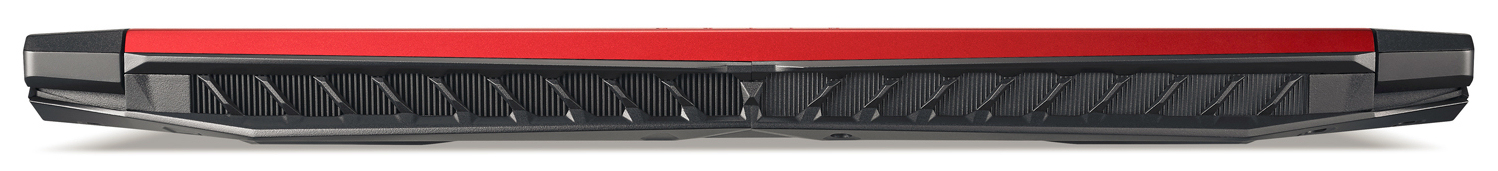

Back
Back

Communication

The Wi-Fi module has a chip (QCA6174) made by Qualcomm. It supports the Wi-Fi standards 802.11 a/g/n as well as the faster ac standard. We tested the module under optimum conditions (no other Wi-Fi devices in the vicinity, short distance to server PC) and measured very good transfer rates. The device also has a Gigabit Ethernet chip from Realtek's RTL8168/8111 family. Most of the notebooks we test have chips from this model range. They always do their job without causing any difficulties.

Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Omen 15-ax213ng
Intel Dual Band Wireless-AC 7265
686 MBit/s ∼100% +14%
Acer Nitro 5 AN515-51-788E
Qualcomm QCA6174
603 MBit/s ∼88%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
541 MBit/s ∼79% -10%
Acer Aspire VX5-591G-75C4 VX15
Intel Dual Band Wireless-AC 7265
533 MBit/s ∼78% -12%
Medion Erazer X6603
Intel Dual Band Wireless-AC 8265
517 MBit/s ∼75% -14%
Lenovo Legion Y520-15IKBN-80WK001KUS
Realtek 8821AE Wireless LAN 802.11ac PCI-E NIC
307 MBit/s ∼45% -49%
Dell Inspiron 15 7000 7567
Intel Dual Band Wireless-AC 3165 (jseb)
246 MBit/s ∼36% -59%
iperf3 Client (transmit) TCP 1 m 4M x10
Medion Erazer X6603
Intel Dual Band Wireless-AC 8265
664 MBit/s ∼100% +11%
Acer Aspire VX5-591G-75C4 VX15
Intel Dual Band Wireless-AC 7265
653 MBit/s ∼98% +9%
Acer Nitro 5 AN515-51-788E
Qualcomm QCA6174
600 MBit/s ∼90%
HP Omen 15-ax213ng
Intel Dual Band Wireless-AC 7265
533 MBit/s ∼80% -11%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
513 MBit/s ∼77% -14%
Dell Inspiron 15 7000 7567
Intel Dual Band Wireless-AC 3165 (jseb)
306 MBit/s ∼46% -49%
Lenovo Legion Y520-15IKBN-80WK001KUS
Realtek 8821AE Wireless LAN 802.11ac PCI-E NIC
282 MBit/s ∼42% -53%

Webcam

The device's webcam produces images with a maximum resolution of 1280x720 pixels. The washed-out and grainy results are not very exciting.

Accessories

Apart from the usual leaflets (quick-start guide, warranty information) the device does not come with any accessories.

Maintenance

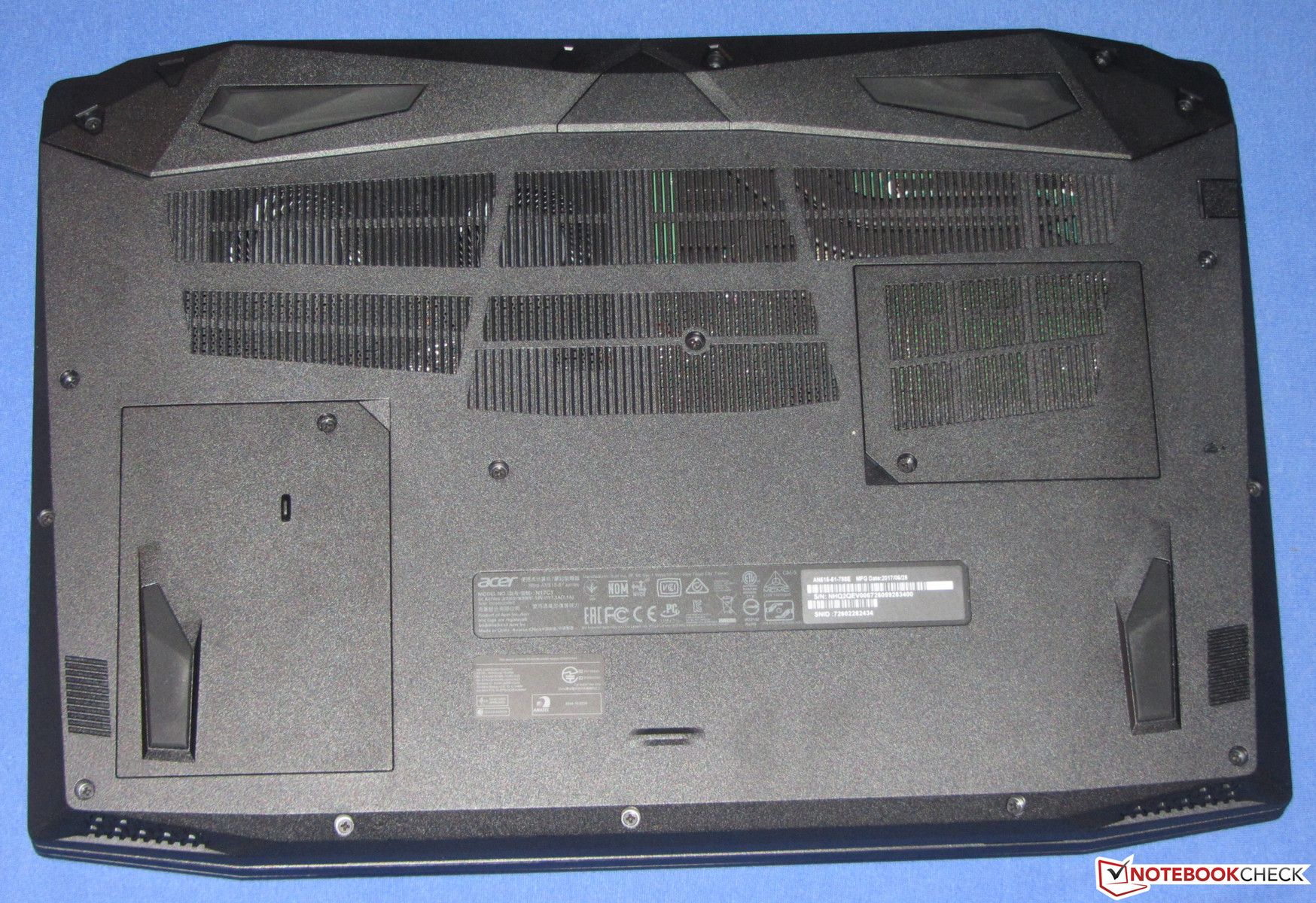

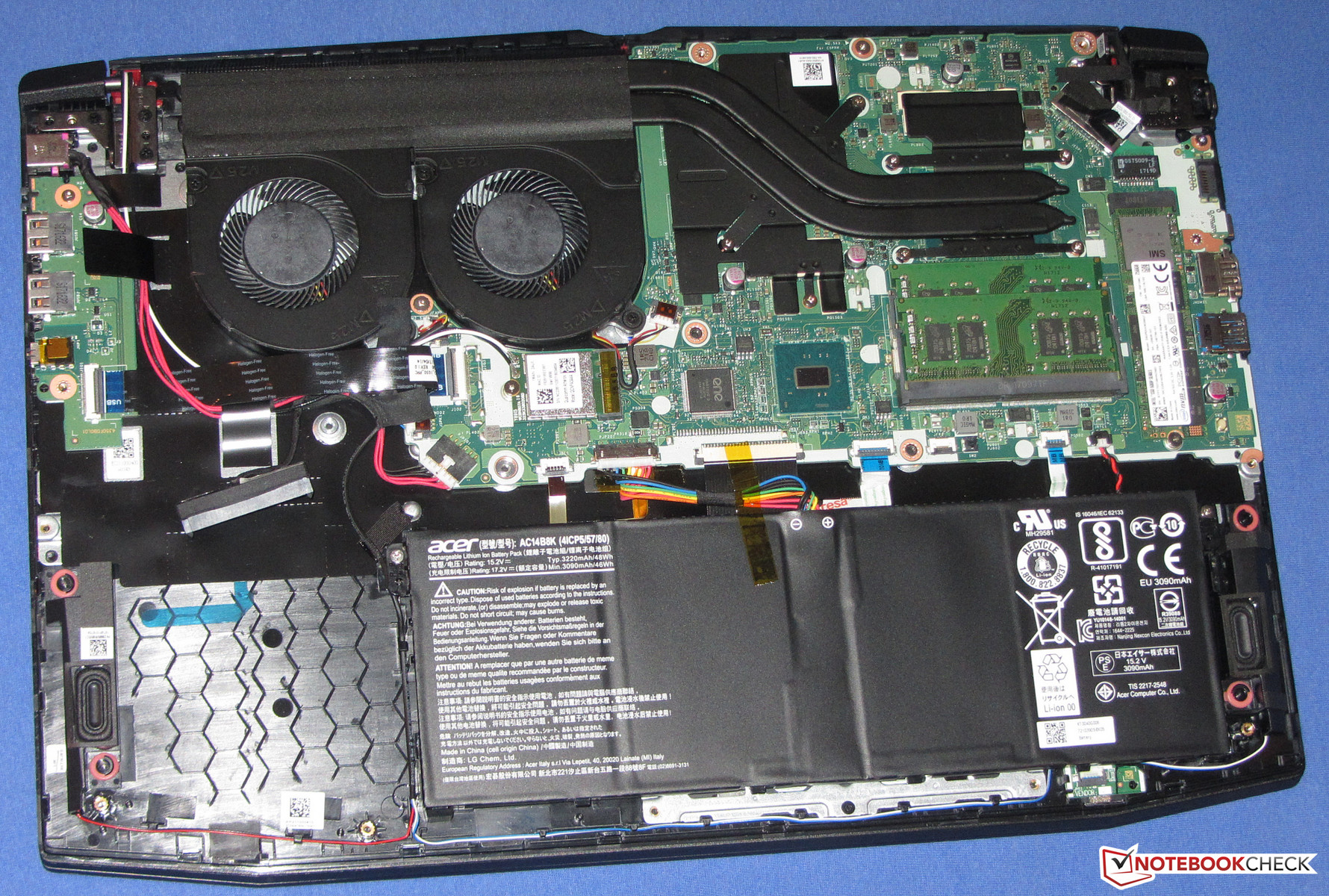

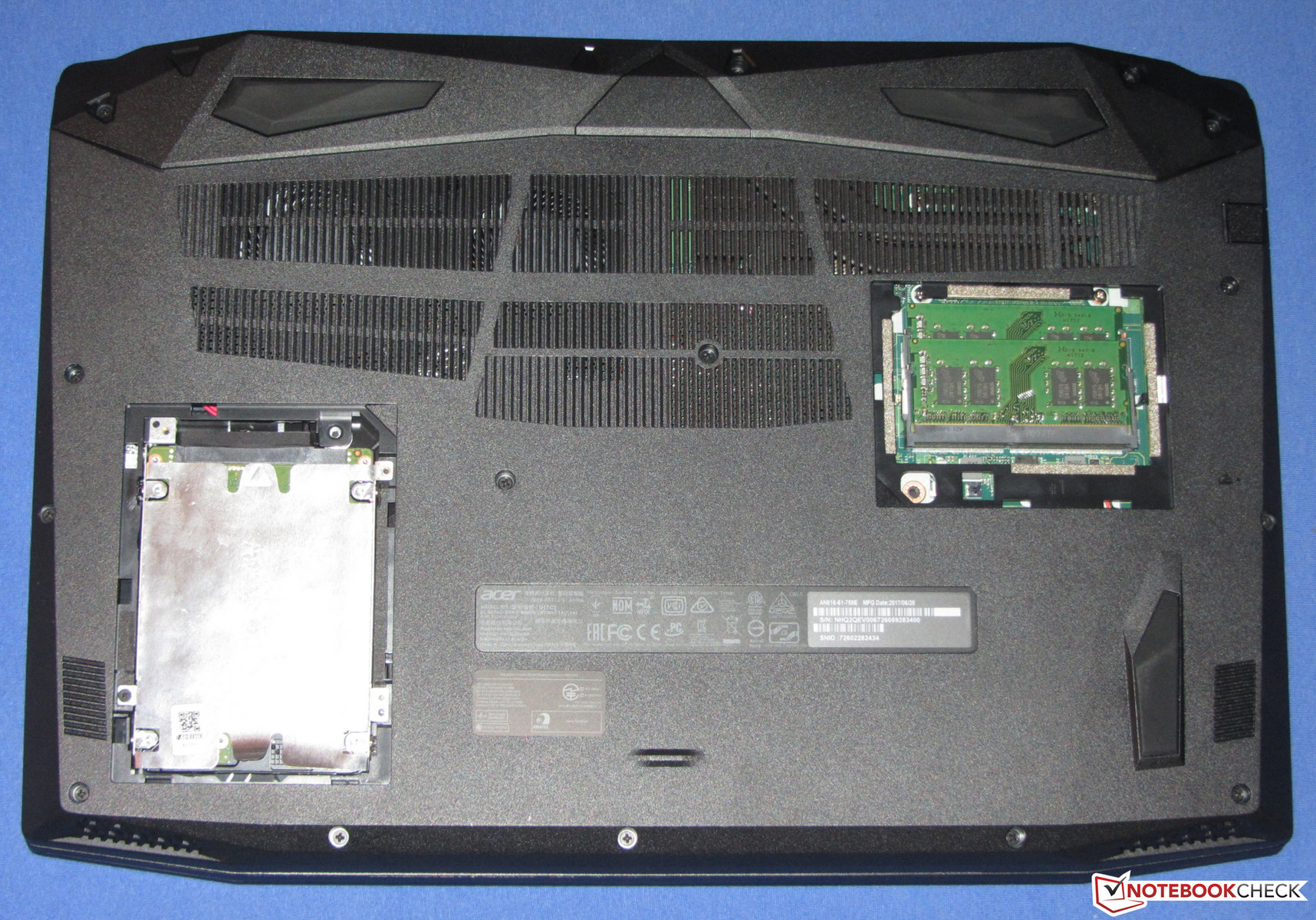

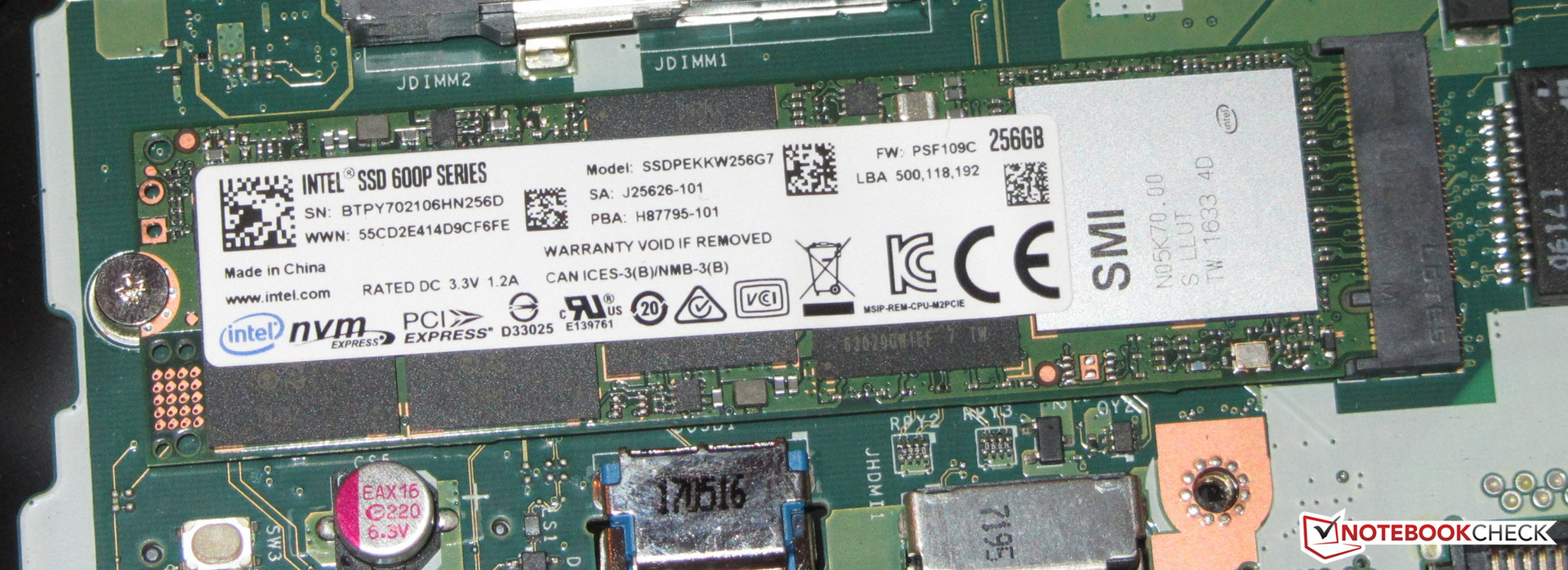

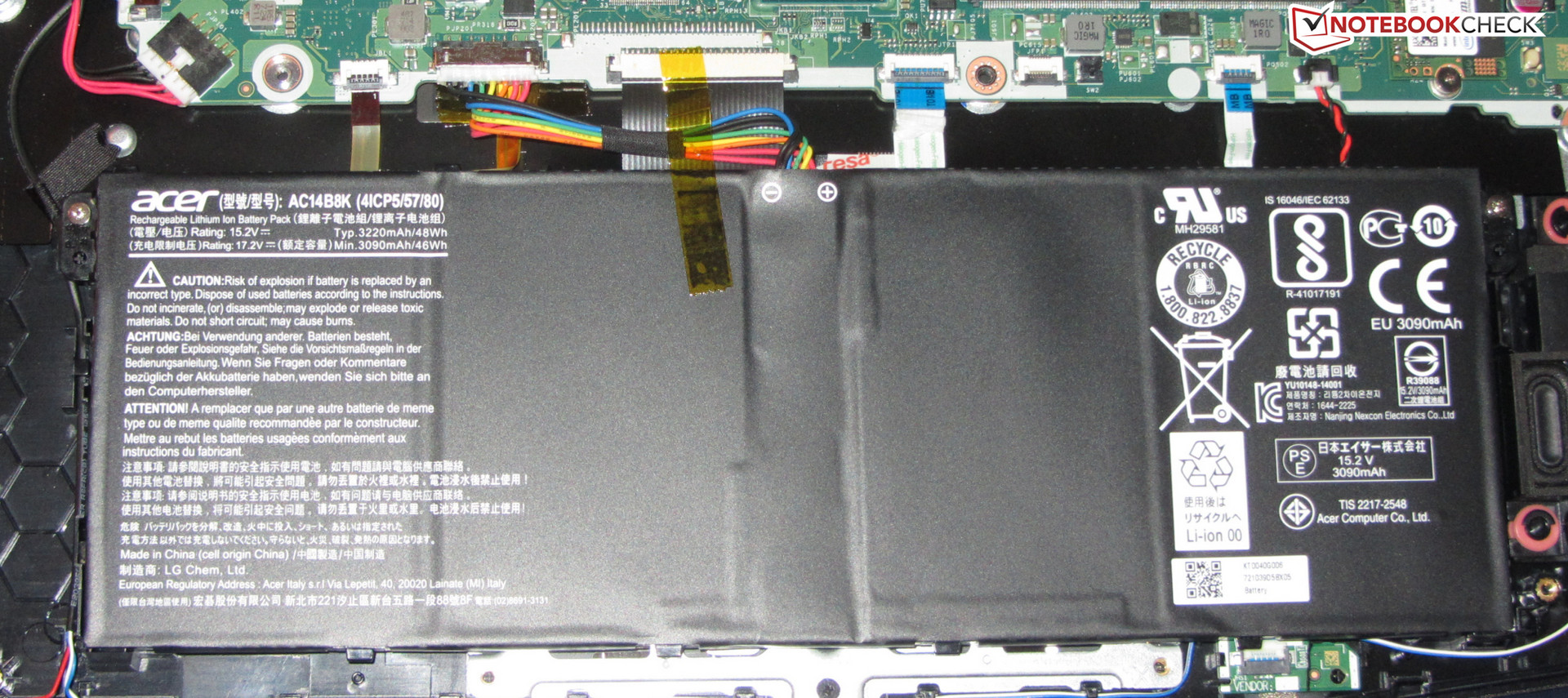

There are two maintenance hatches at the bottom of the base unit. The RAM slots are positioned beneath the smaller hatch while the larger one gives you access to the 2.5-inch hard drive. If you wanted to change the SSD, you would have to open up the base unit, which is doable. Here is how to do it: First, remove the two maintenance flaps and take out the 2.5-inch hard drive. Then remove all screws on the bottom of the base unit and lift the cover off with the help of a thin spatula or pallet knife. After that, you can access the entire hardware.

Warranty

Acer gives a two-year warranty for the Nitro 5. The period and scope of the warranty can be extended, for example by a four-year warranty with onsite service.

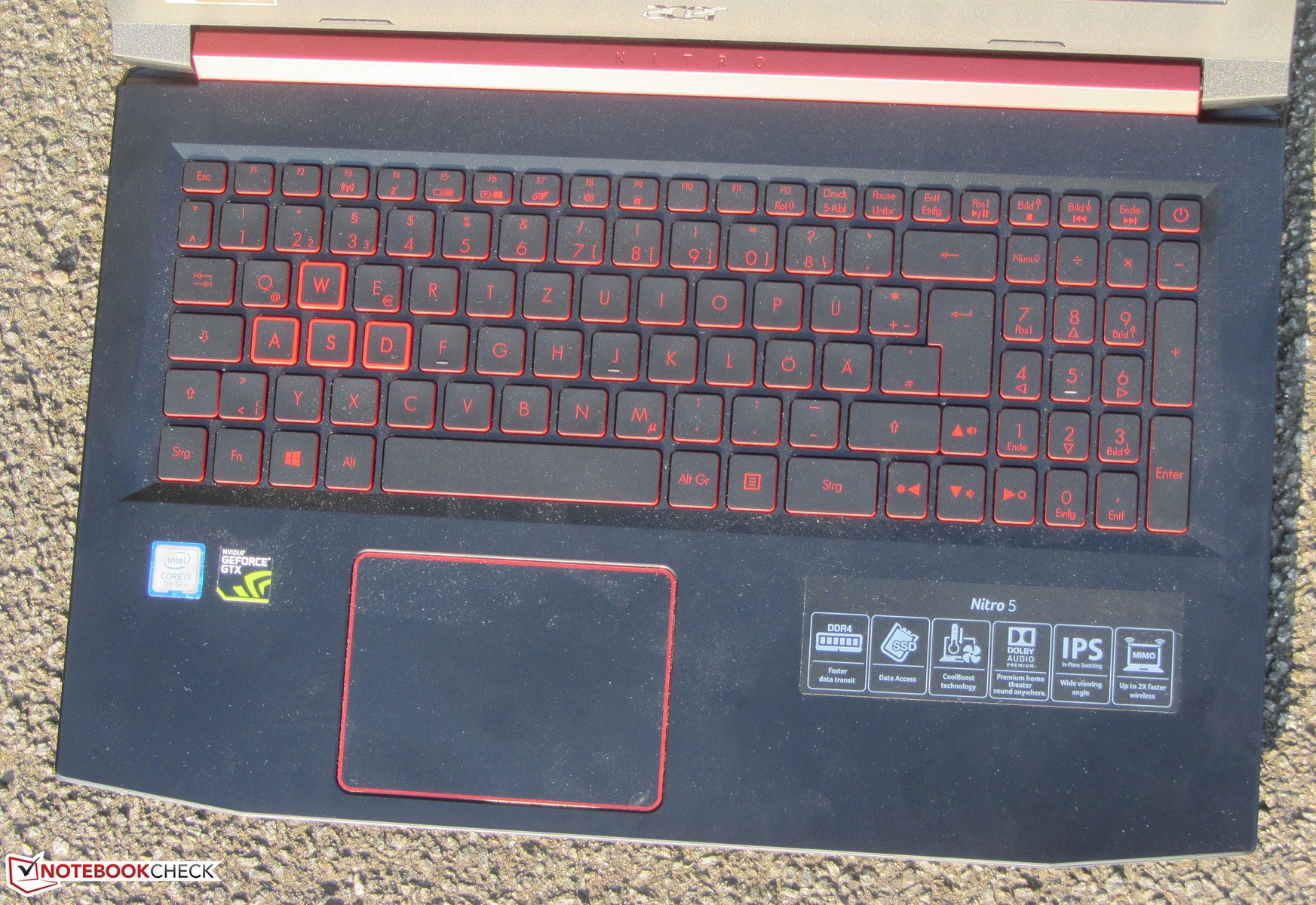

Input Devices

Keyboard

Acer has equipped the Nitro 5 with a backlit chiclet keyboard. The back-lighting (color: red) can be turned on and off with a function key. The main keys (letters and number row) have a slightly concave surface while the other keys are flat. All keys have medium travel and a clear pressure point. The resistance is fine. The keyboard gives way slightly while typing, but this did not bother us too much. Overall, we can say that Acer has equipped the Nitro 5 with a keyboard that can cater for more than just the basic needs.

Touchpad

The ClickPad supports multi-touch gestures and is about 10.6 x 7.7 cm (~ 4.17 x 3 in) large. This means there is plenty of space for using gesture control. The smooth surface of the pad makes it easy for fingers to glide upon, and it reacts well to inputs even in the corners. The ClickPad has short travel and a clear pressure point.

Input devices
Input devices

Display

The matte 15.6-inch display of the Nitro 5 has a native resolution of 1920x1080 pixels. The screen's brightness is too low at 264.6 cd/m2. The contrast (1104:1), however, is good. Fortunately, the screen does not use PWM-flickering at all.

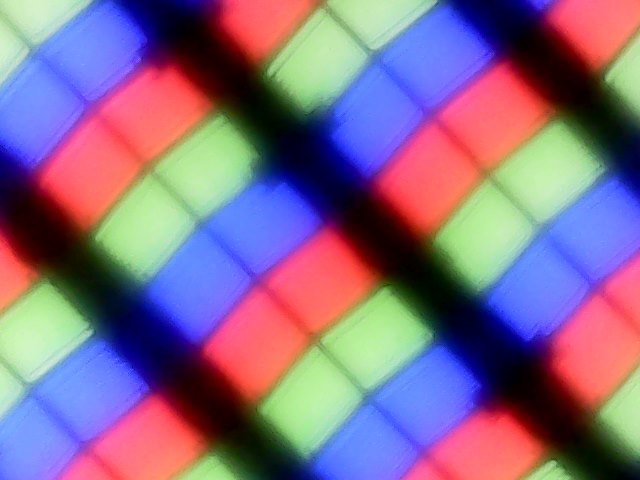

Pixel array
Pixel array

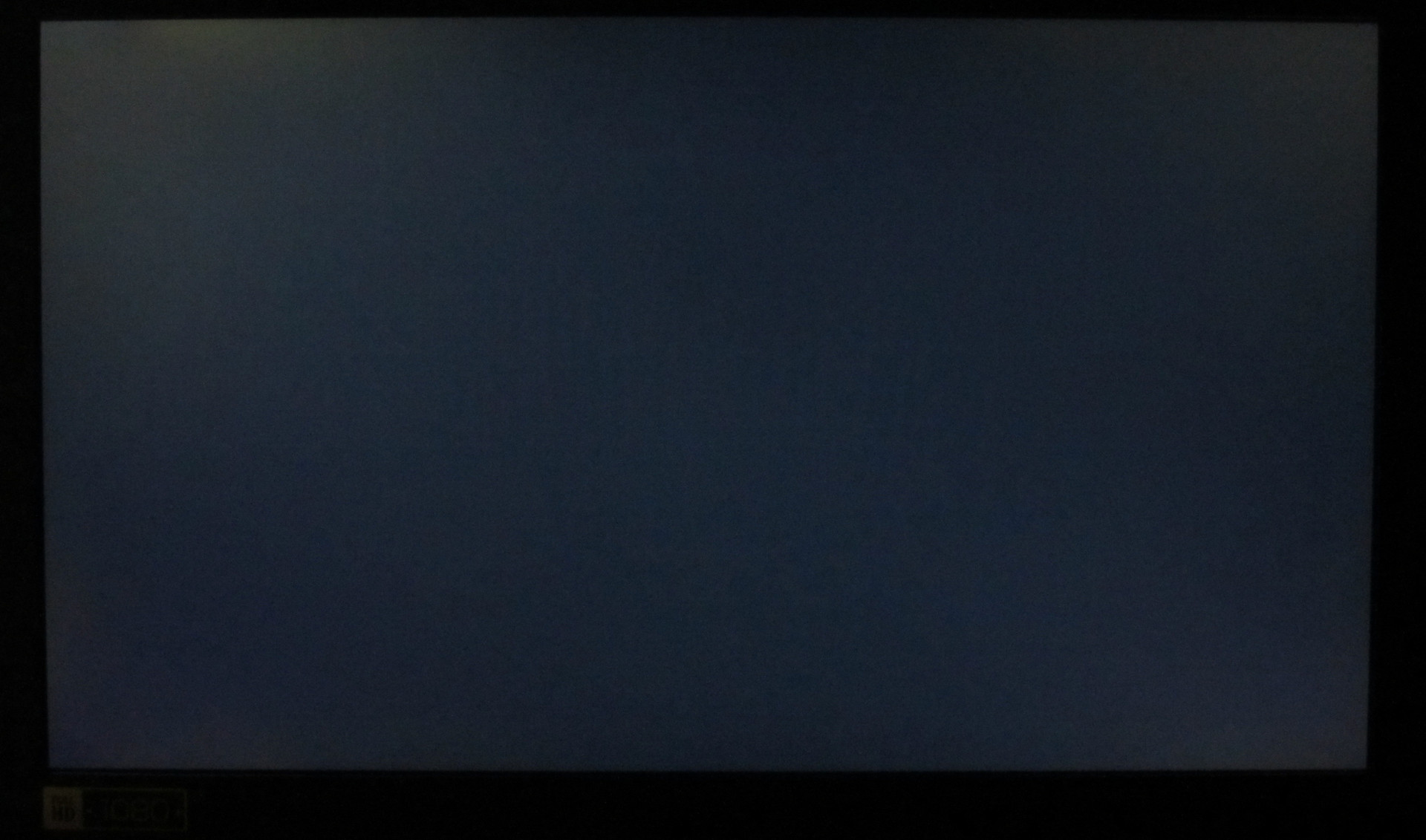

Backlight-bleeding
Backlight-bleeding
256
cd/m²
254
cd/m²
252
cd/m²
272
cd/m²
276
cd/m²
270
cd/m²
270
cd/m²
262
cd/m²
269
cd/m²
Distribution av ljusstyrkan
X-Rite i1Pro 2
Max: 276 cd/m² Medel: 264.6 cd/m² Minimum: 25 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 281 cd/m²
Kontrast: 1104:1 (Svärta: 0.25 cd/m²)
ΔE Color 5.06 | - Ø
ΔE Greyscale 6.25 | - Ø
62% sRGB (Argyll) 40% AdobeRGB 1998 (Argyll)
Gamma: 1.76
Acer Nitro 5 AN515-51-788E
IPS, 1920x1080, 15.6
HP Omen 15-ax213ng
IPS, 1920x1080, 15.6
Acer Aspire VX5-591G-75C4 VX15
IPS, 1920x1080, 15.6
Dell Inspiron 15 7000 7567
TN, 1920x1080, 15.6
Lenovo Legion Y520-15IKBN-80WK001KUS
IPS, 1920x1080, 15.6
Asus FX502VM-AS73
TN LED, 1920x1080, 15.6
Medion Erazer X6603
AH-IPS, LED, 1920x1080, 15.6
Response Times
-24%
16%
-34%
-66%
9%
-32%
Response Time Grey 50% / Grey 80% *
35 (16, 19)
42 (20.4, 21.6)
-20%
22 (10, 12)
37%
36 (17, 19)
-3%
58.8 (33.6, 25.2)
-68%
28.4 (11.2, 17.2)
19%
46 (36, 10)
-31%
Response Time Black / White *
22 (12, 10)
28 (16.4, 11.6)
-27%
23 (13, 10)
-5%
36 (19, 17)
-64%
36 (23.6, 12.4)
-64%
22.4 (6, 16.4)
-2%
29 (17, 12)
-32%
PWM Frequency
21550 (99)
2174 (90)
Screen
7%
-6%
-60%
-17%
-26%
-11%
Brightness
265
228
-14%
257
-3%
235
-11%
244
-8%
205
-23%
246
-7%
Brightness Distribution
91
88
-3%
85
-7%
75
-18%
88
-3%
92
1%
94
3%
Black Level *
0.25
0.21
16%
0.32
-28%
0.55
-120%
0.35
-40%
0.69
-176%
0.23
8%
Contrast
1104
1095
-1%
878
-20%
447
-60%
683
-38%
304
-72%
1096
-1%
Colorchecker DeltaE2000 *
5.06
4.01
21%
5.16
-2%
10.97
-117%
7.3
-44%
4.7
7%
7.83
-55%
Greyscale DeltaE2000 *
6.25
3.18
49%
4.57
27%
14.25
-128%
4.9
22%
1.8
71%
7.11
-14%
Gamma
1.76 136%
2.52 95%
2.59 93%
1.83 131%
2.19 110%
2.23 108%
2.19 110%
CCT
6873 95%
6814 95%
6931 94%
11200 58%
7332 89%
6975 93%
7930 82%
Color Space (Percent of AdobeRGB 1998)
40
37
-7%
37
-7%
35
-12%
35
-12%
36.2
-9%
35
-12%
Color Space (Percent of sRGB)
62
58
-6%
58
-6%
55
-11%
55
-11%
56.6
-9%
55
-11%
Total Average (Program / Settings)
-9% / 1%
5% / -1%
-47% / -54%
-42% / -27%
-9% / -19%
-22% / -15%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 56 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 7499 (minimum: 43 - maximum: 142900) Hz was measured.

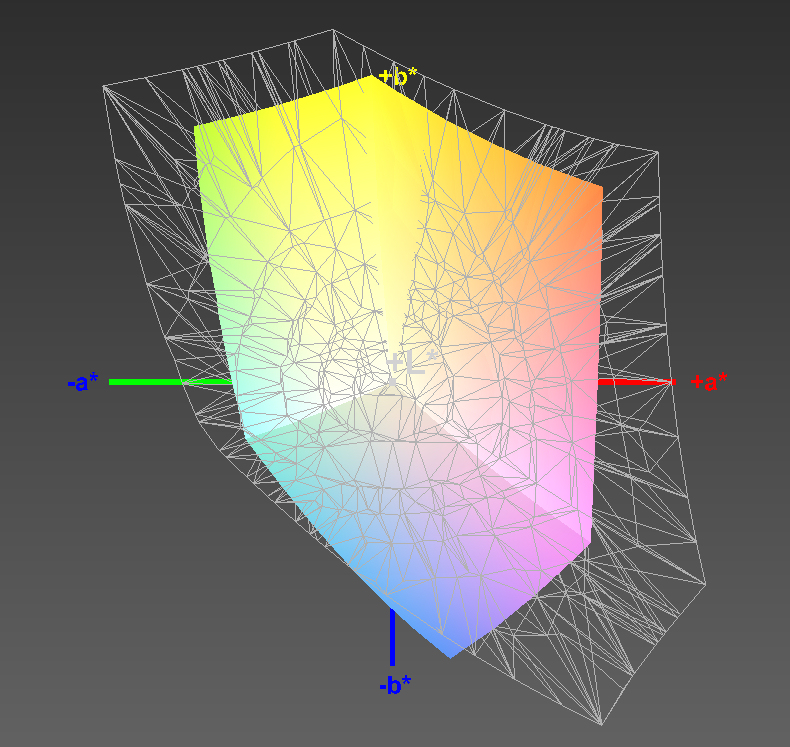

Nitro 5 vs. sRGB
Nitro 5 vs. sRGB

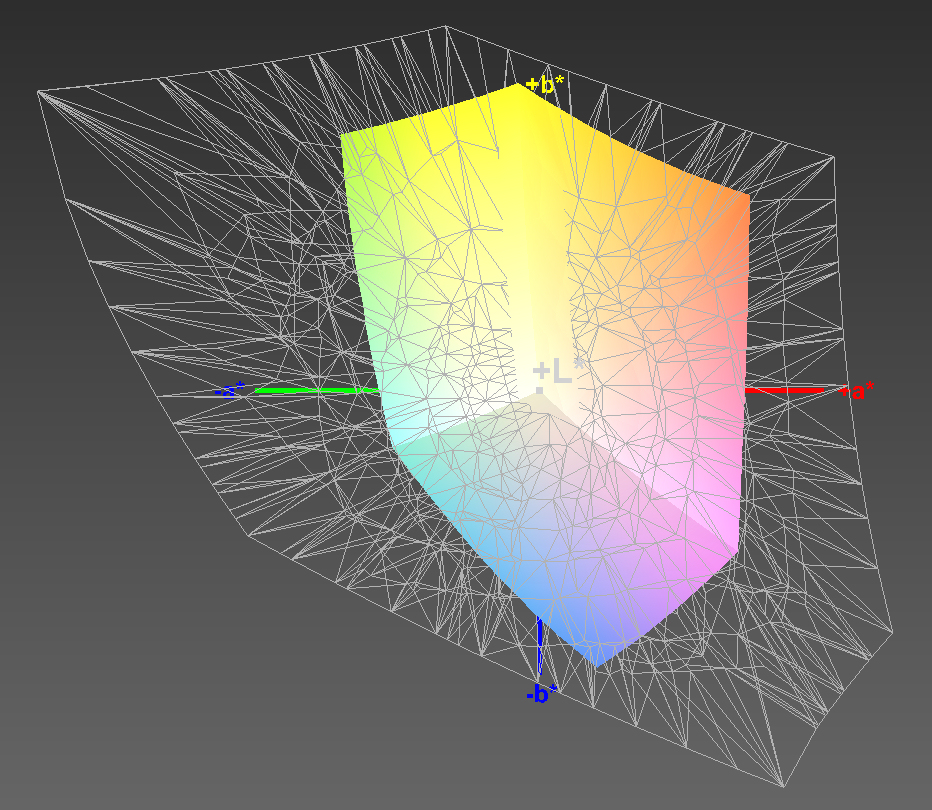

Nitro 5 vs. AdobeRGB
Nitro 5 vs. AdobeRGB

The DeltaE 2000 color-space deviation is 5.06, which is quite decent, but below 3 would be ideal. The display does not have a blue cast, but it cannot display the AdobeRGB and sRGB color spaces. We measured 62% coverage of the sRGB and 40% coverage of the AdobeRGB color space.

The color profile we have made available for download above can improve the screen's color display slightly. But please make sure your device has the same display model (manufacturer + model number) as our test unit. Otherwise, the color display could become worse with our color profile. It often happens that one notebook series has screens from different manufacturers.

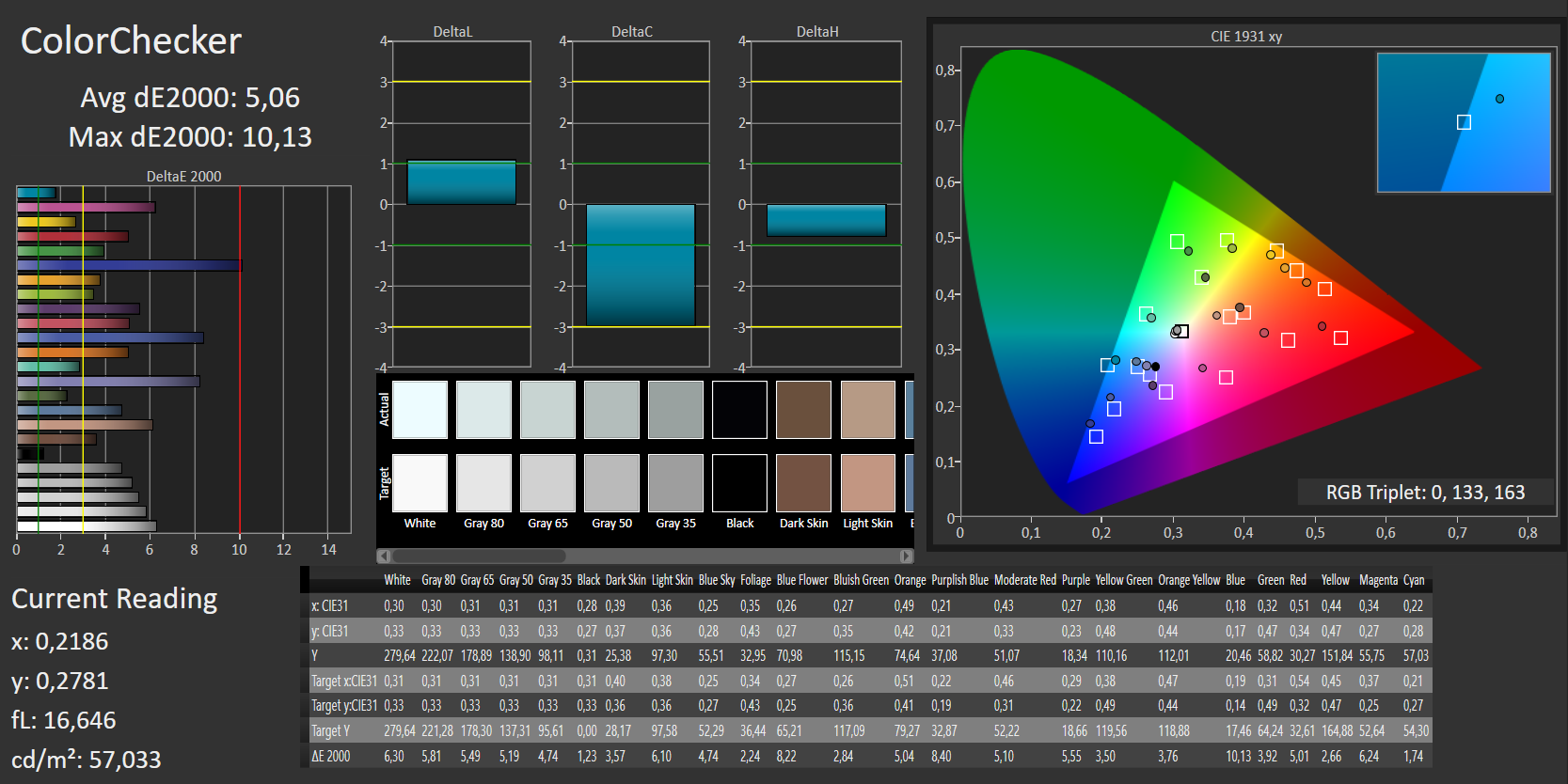

CalMAN - ColorChecker
CalMAN - ColorChecker

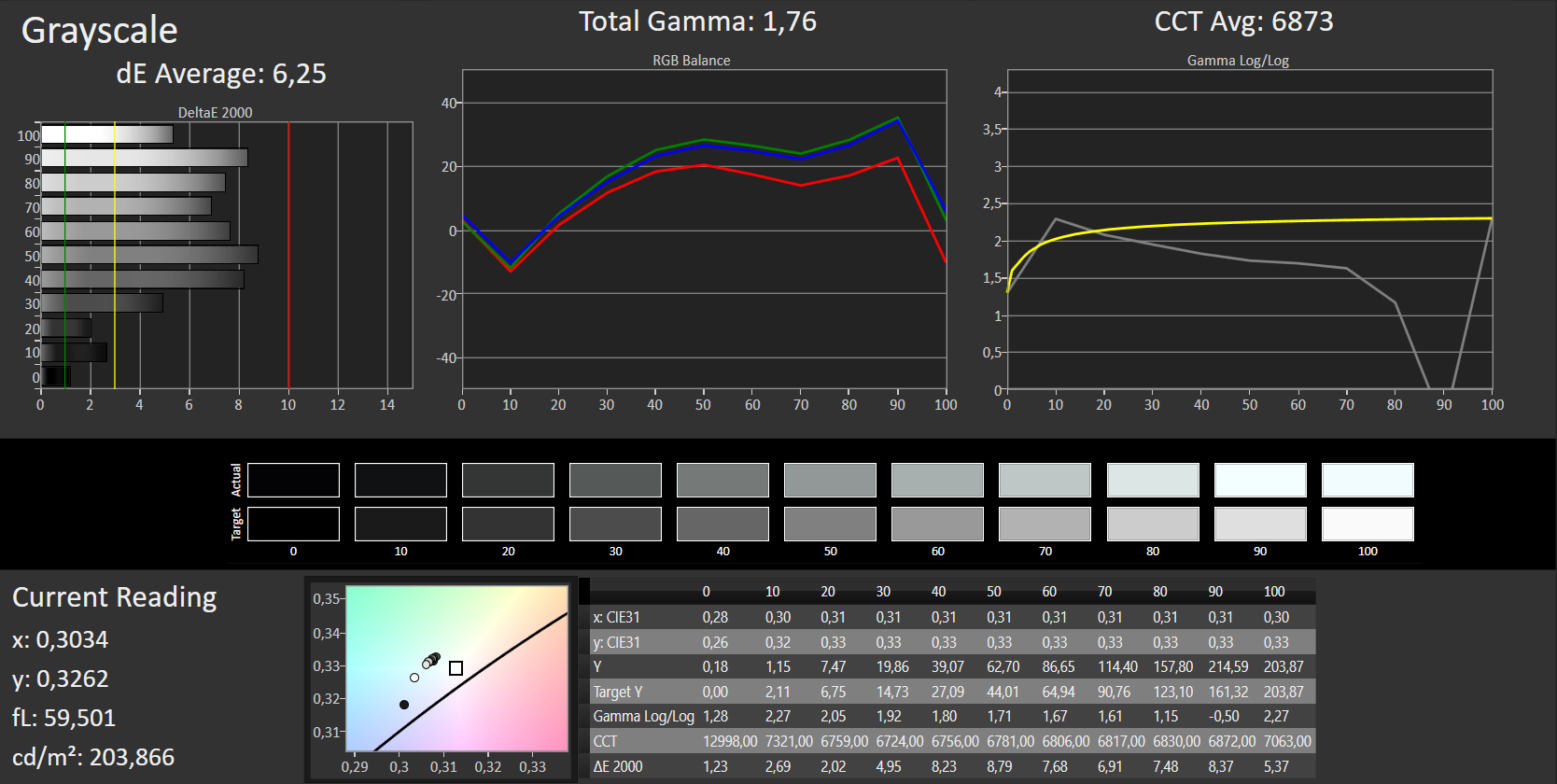

CalMAN - grayscales
CalMAN - grayscales

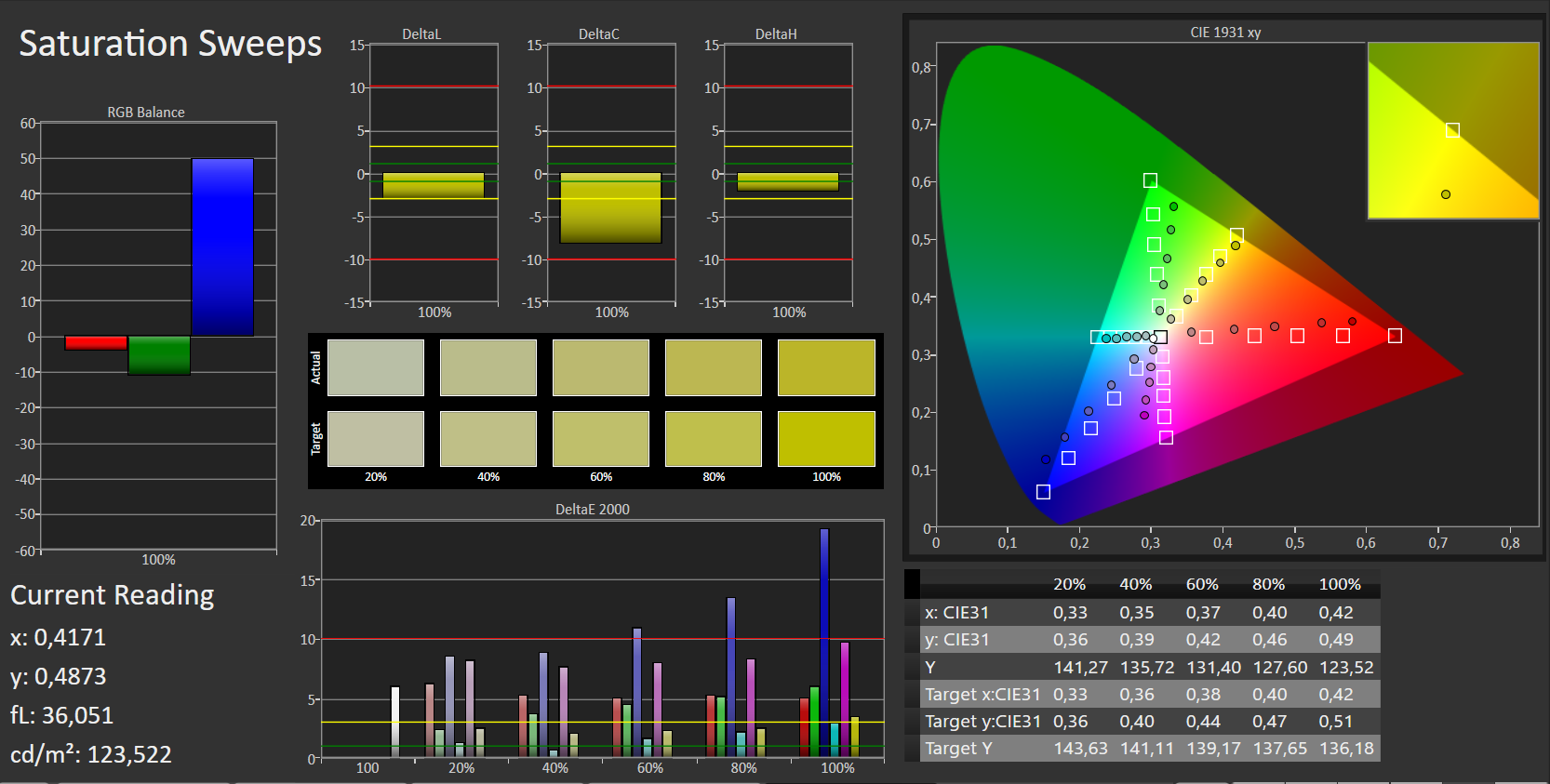

CalMAN - color saturation
CalMAN - color saturation

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

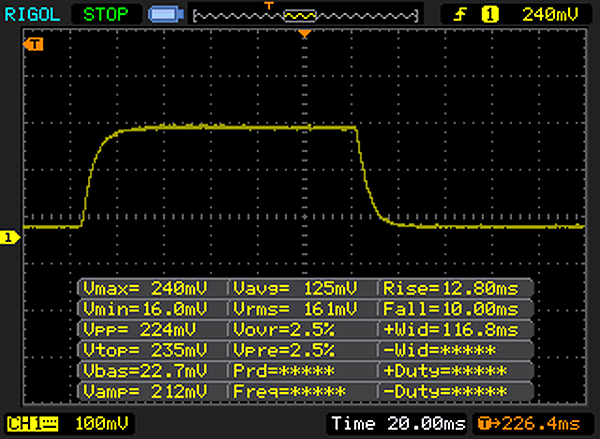

       Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 17 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (26.6 ms).

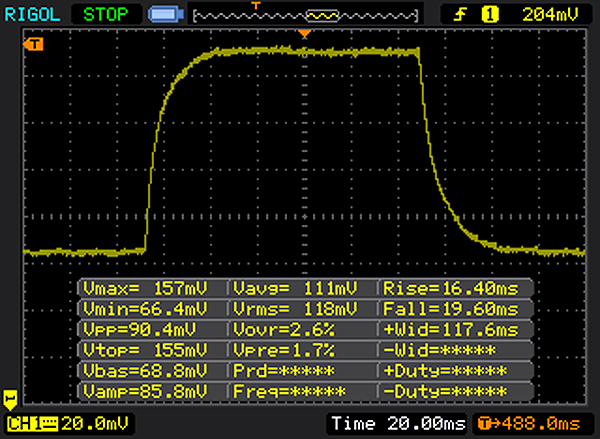

       Response Time 50% Grey to 80% Grey
35 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 24 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.7 ms).

Acer has equipped the Nitro 5 with an IPS panel with stable viewing angles. This means that the screen can be read from any position. The notebook can only be used outdoors if the sun is not shining very bright.

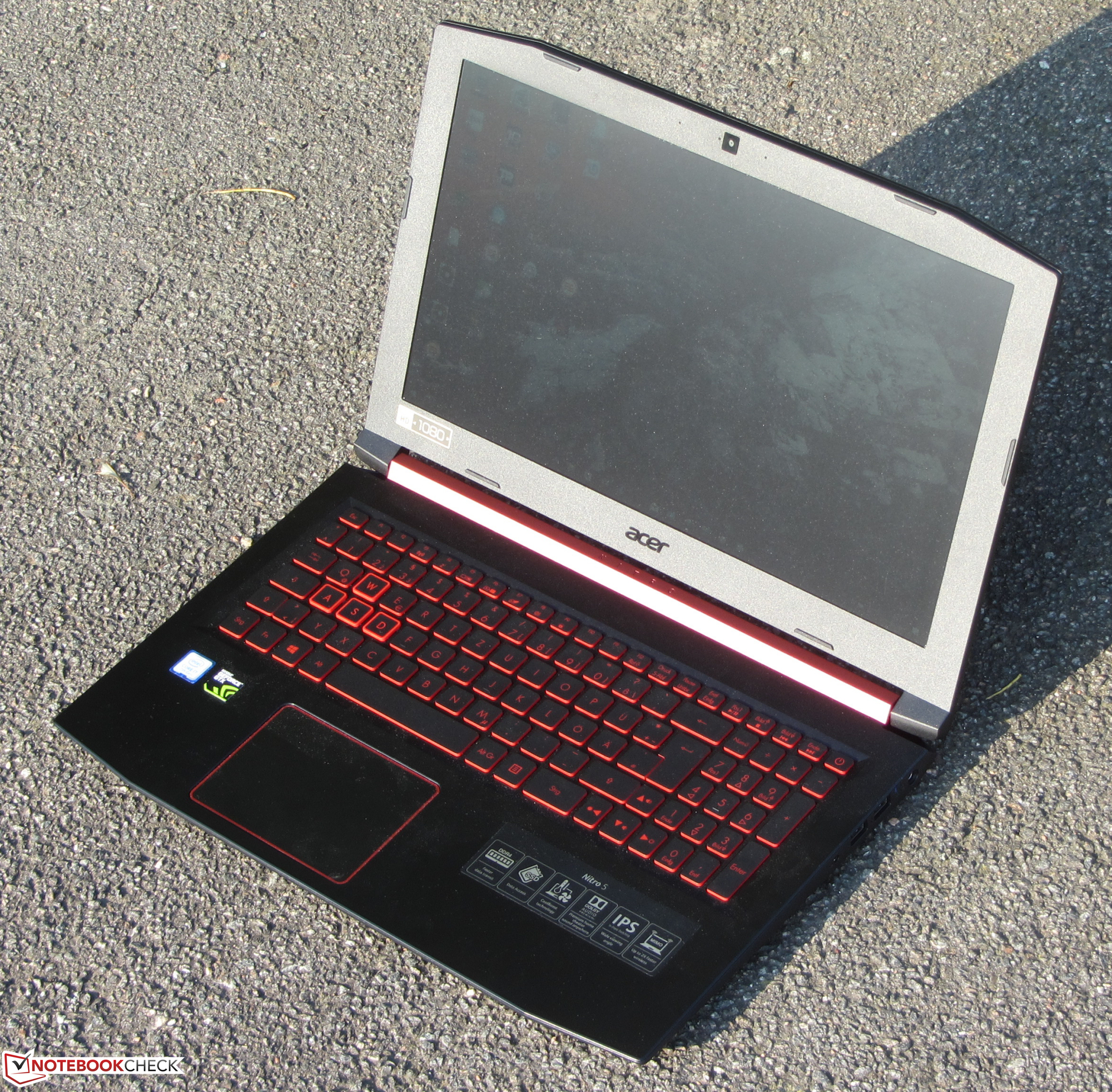

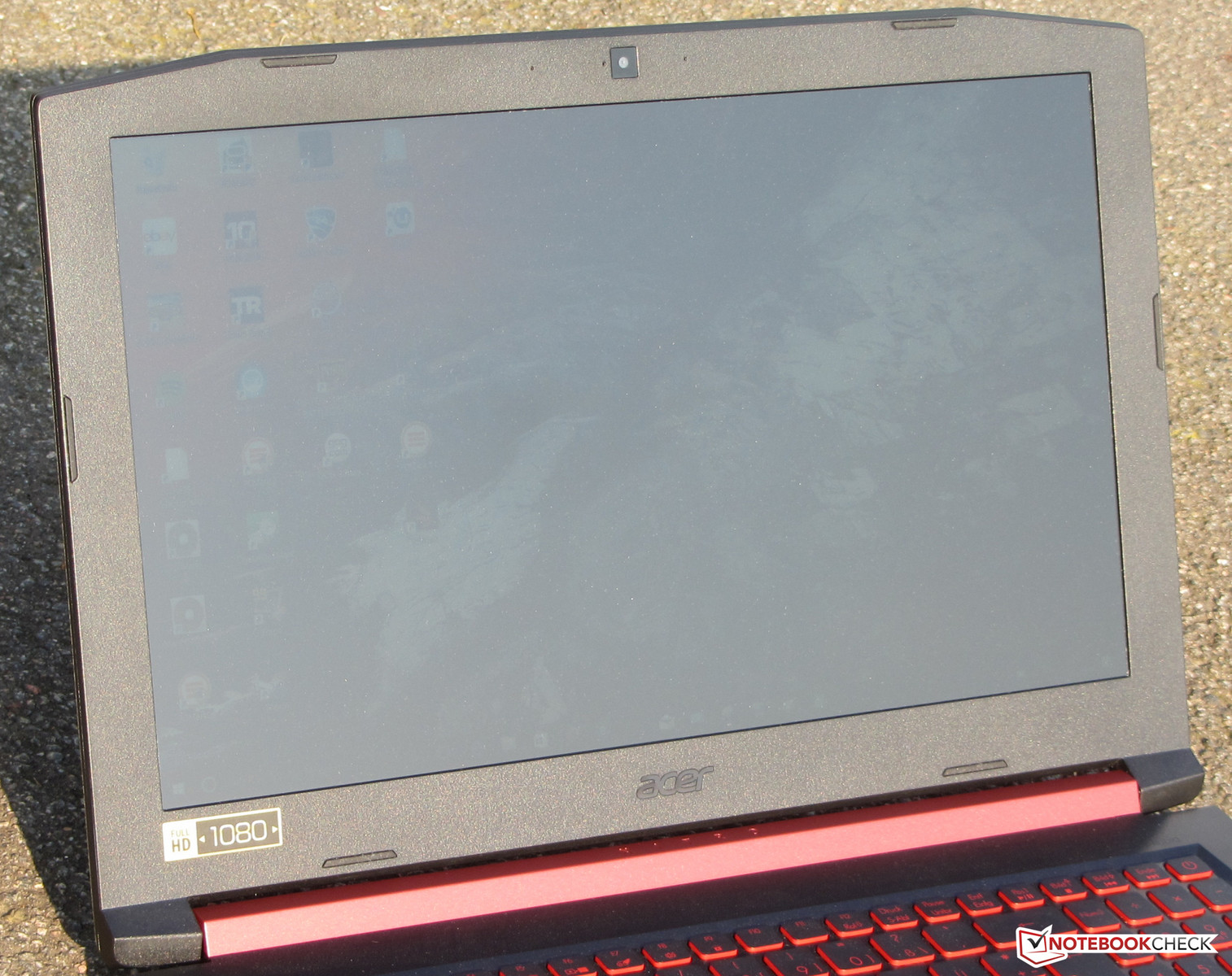

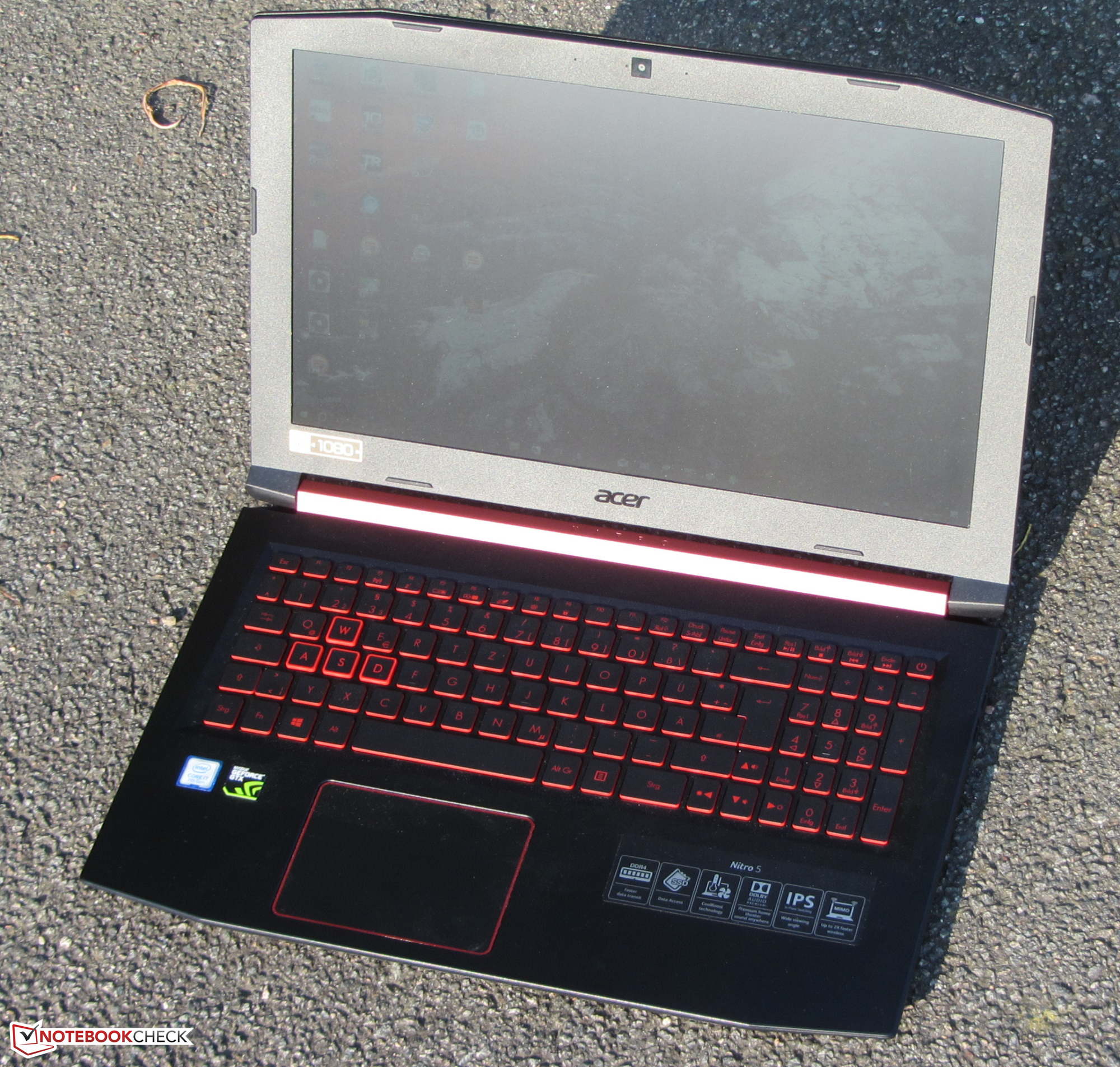

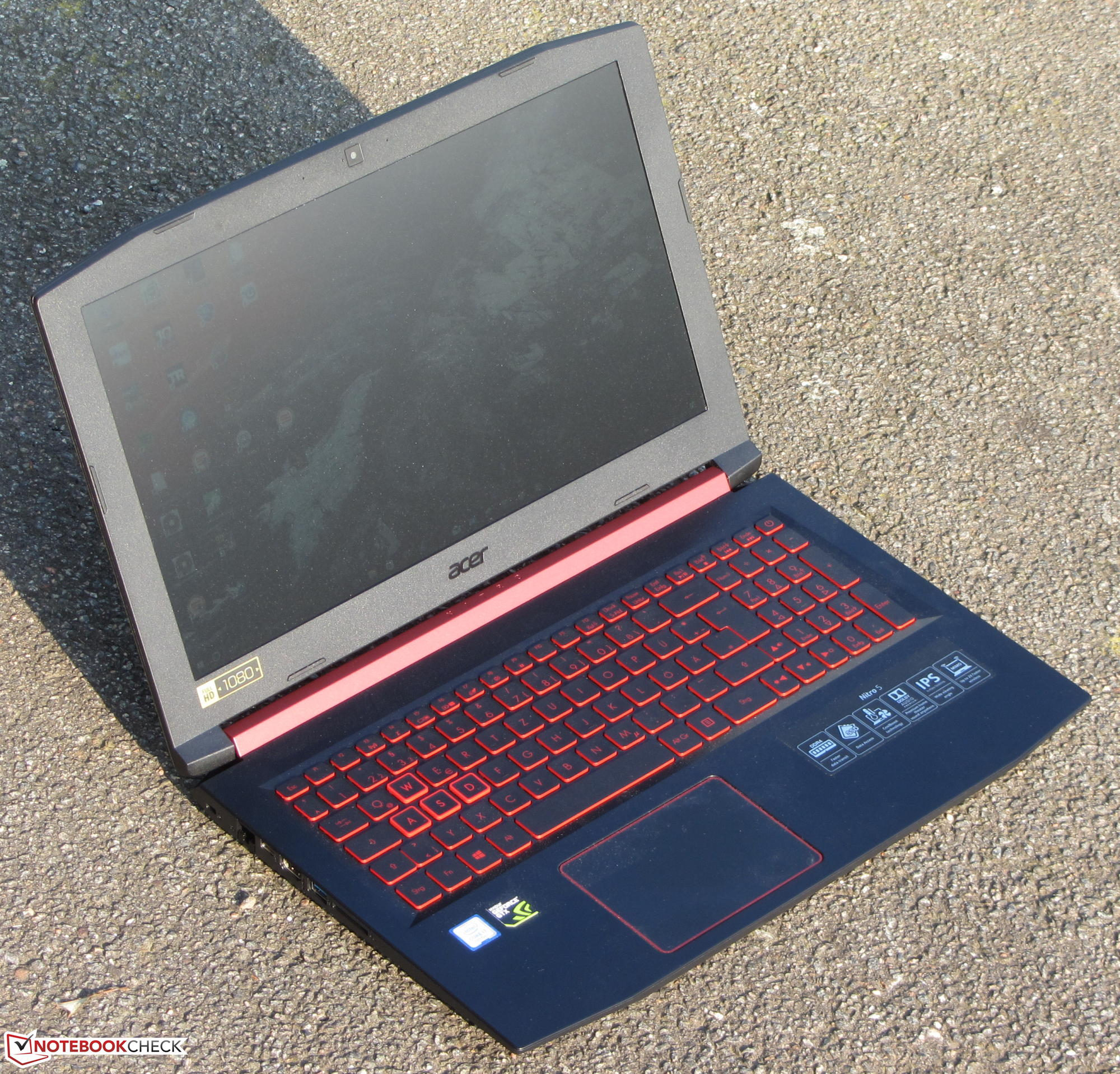

Outdoor use (direct sunlight)
Outdoor use (direct sunlight)

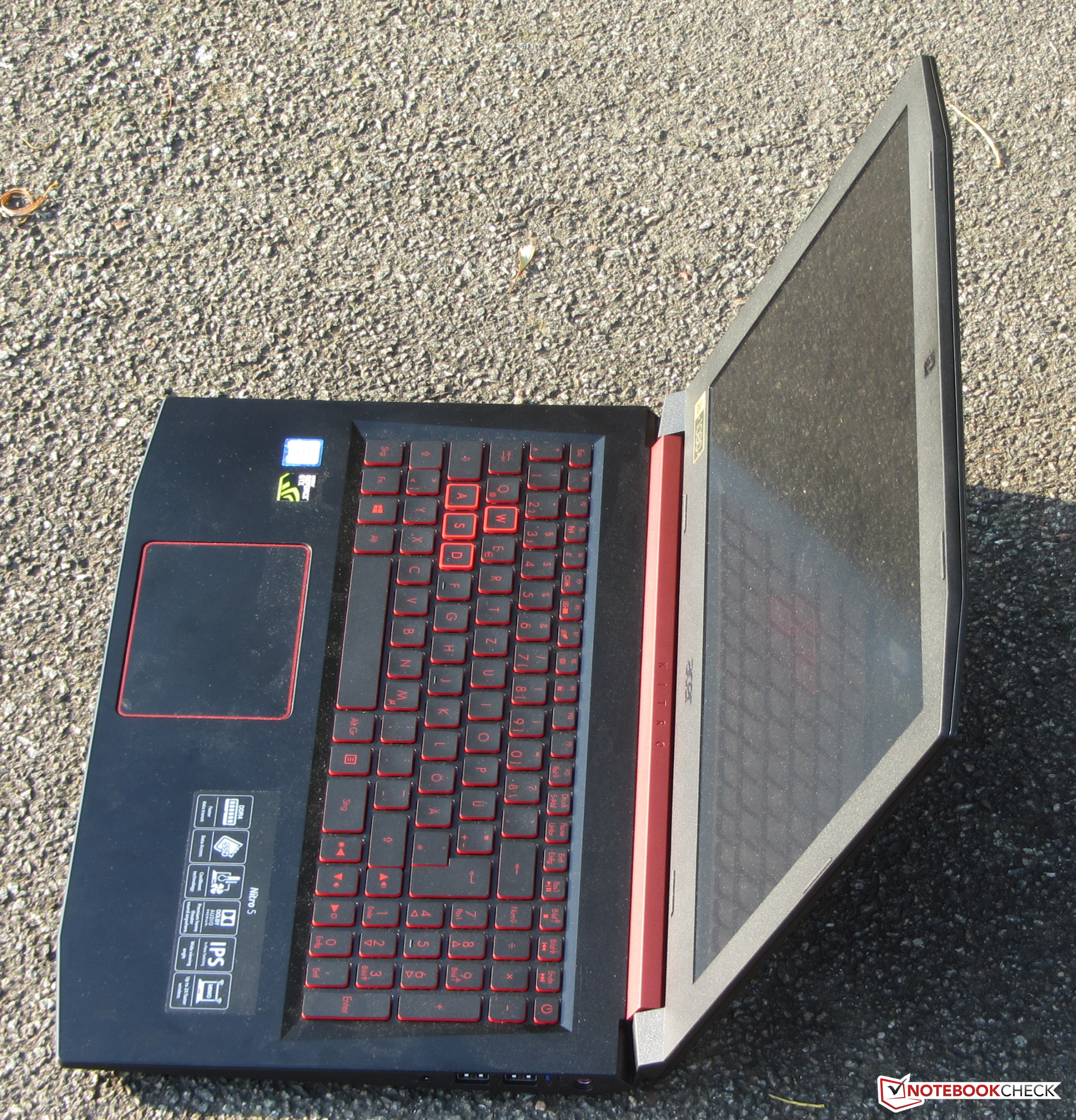

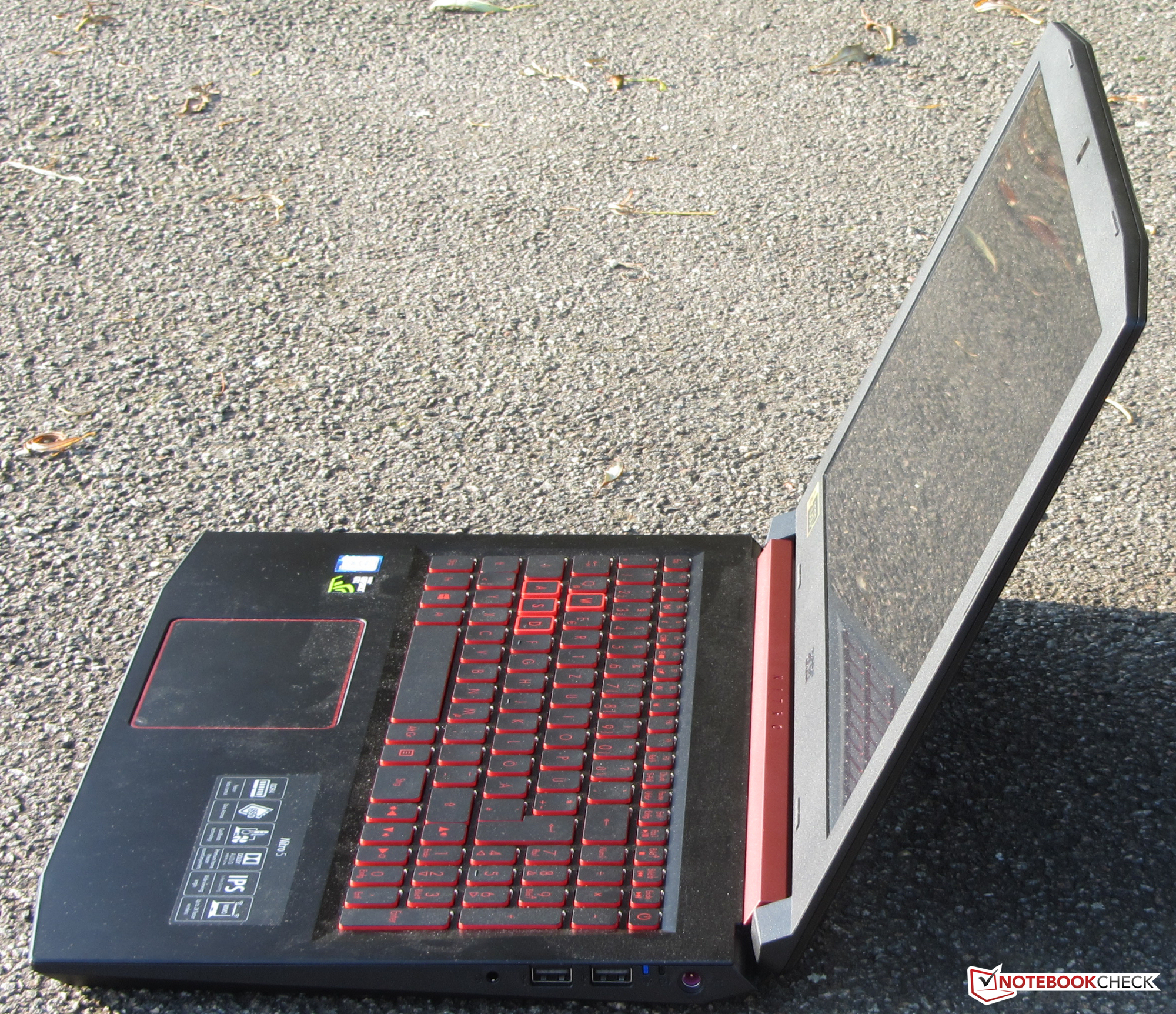

Outdoor use (sun behind the device)
Outdoor use (sun behind the device)

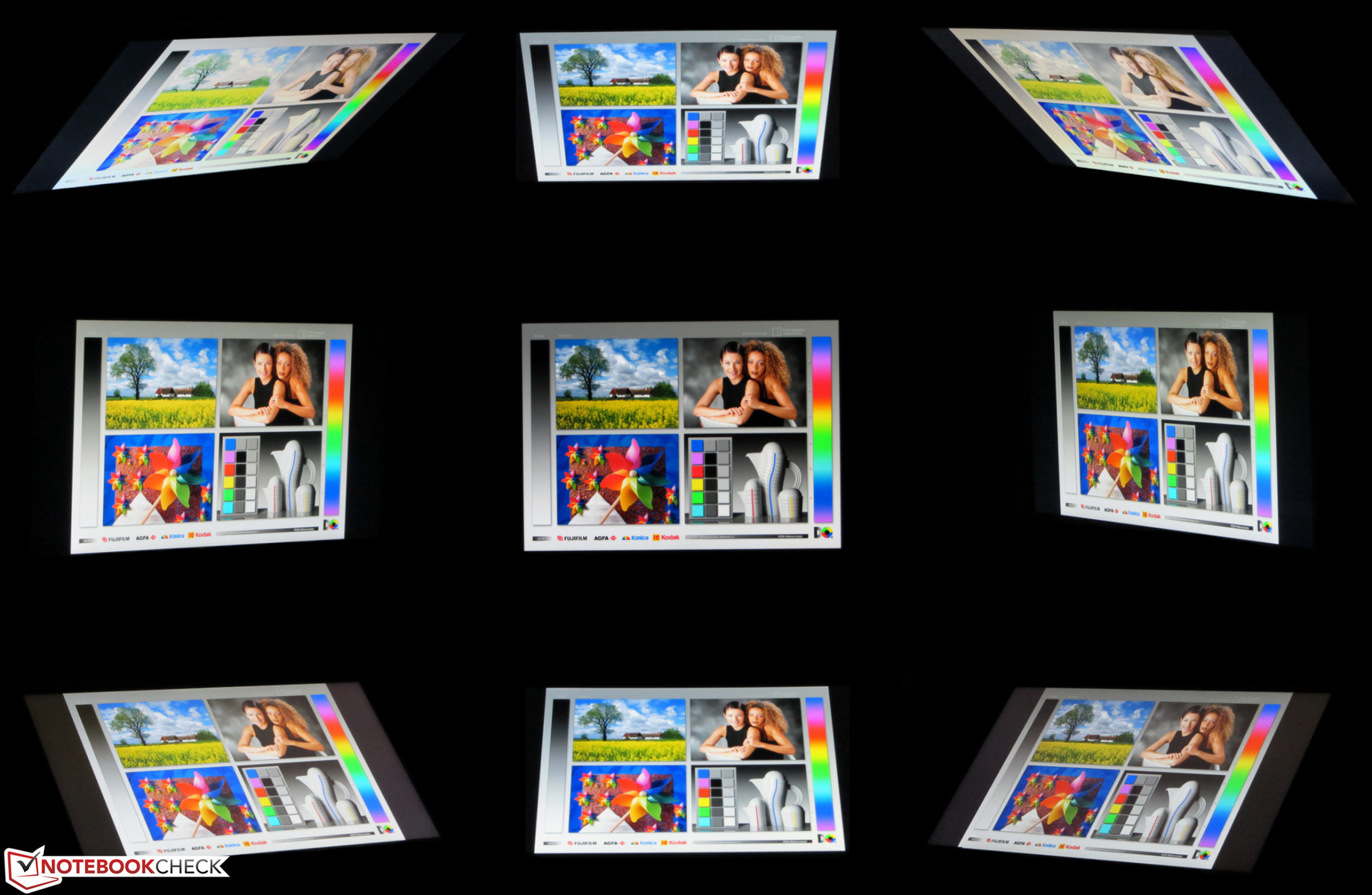

Viewing angles
Viewing angles

Performance

The Nitro 5 is an entry-level device for the world of gaming notebooks. It can display all current computer games and still does a good job as an all-round computer. Our test unit is available for about $1080 with other configurations available from $800.

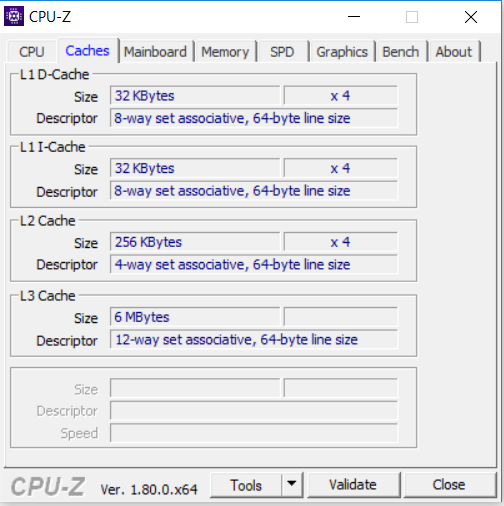

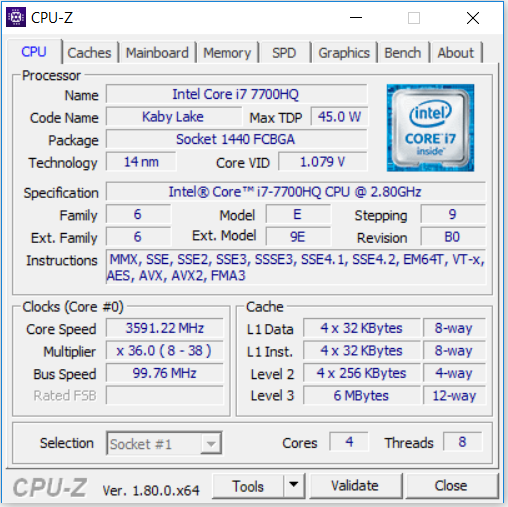

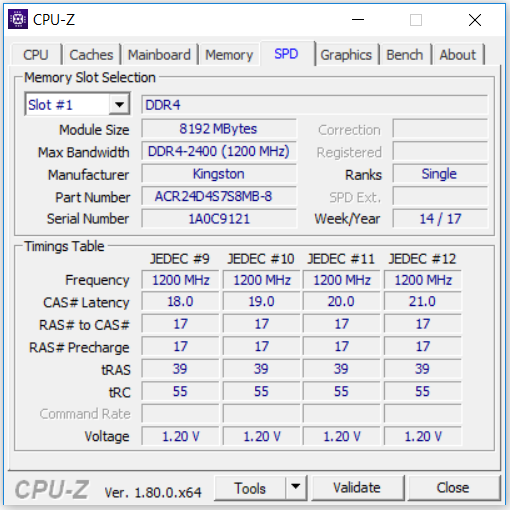

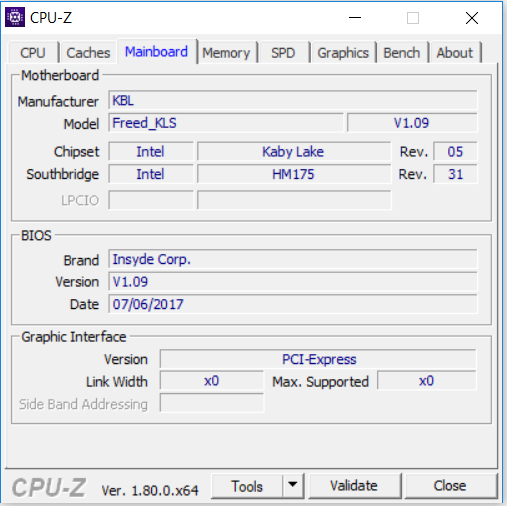

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

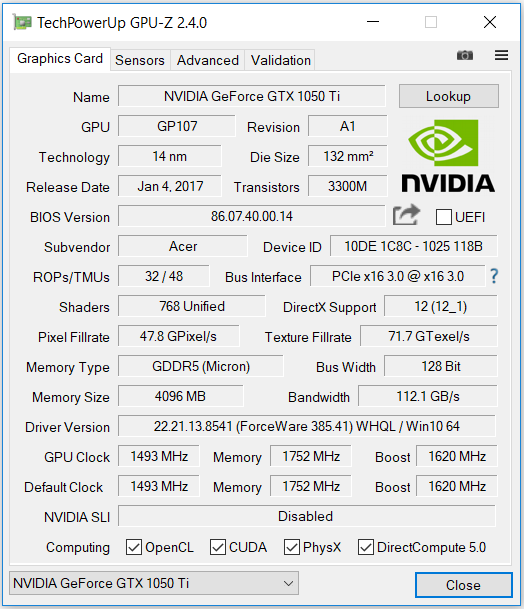

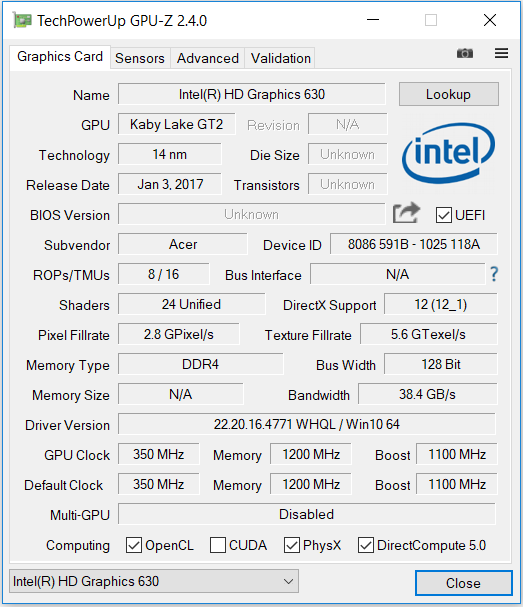

GPU-Z
GPU-Z

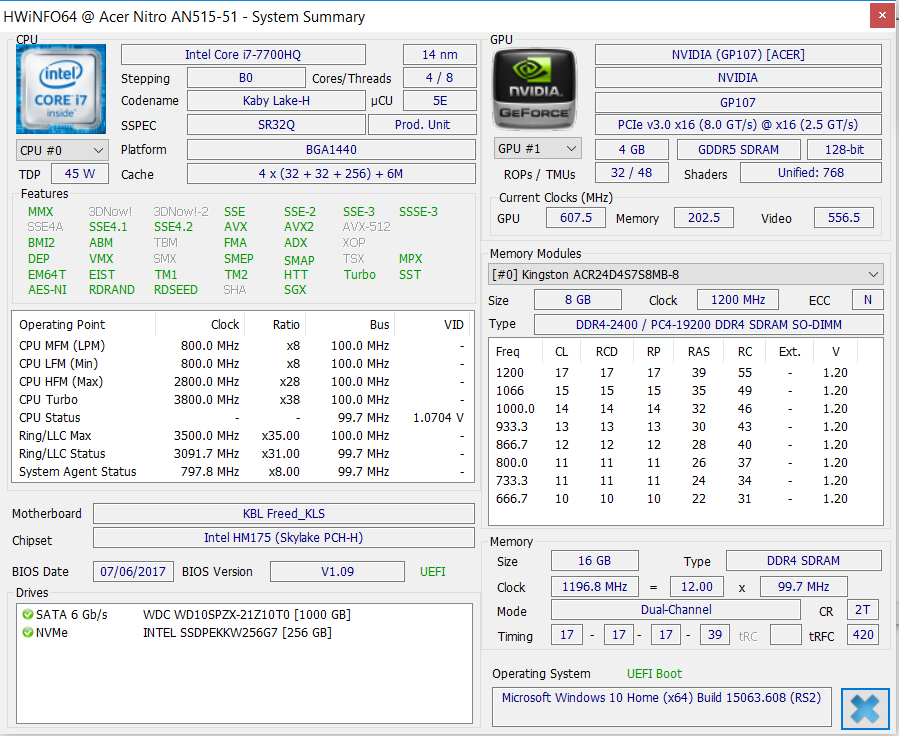

HWInfo

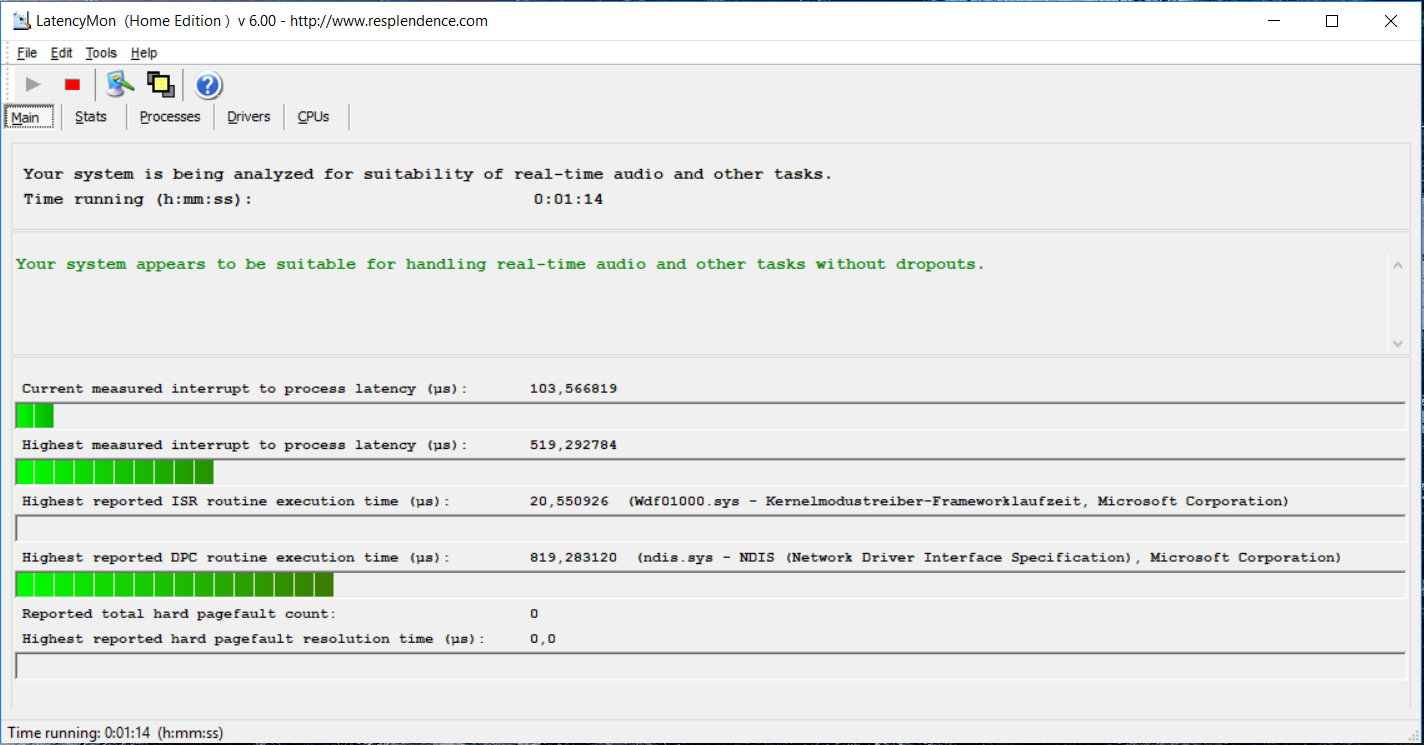

LatencyMon


CoolBoost

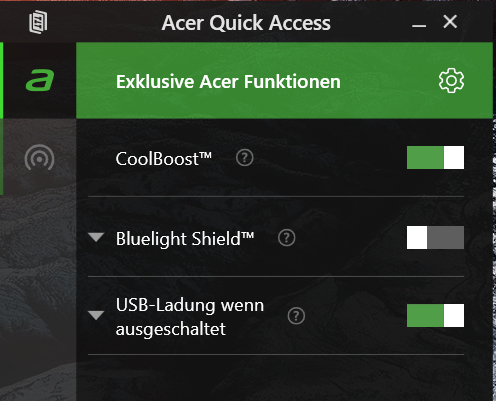

Acer QuickAccess
Acer QuickAccess

The preinstalled program "Acer Quick Access" offers the possibility to turn on the so-called "CoolBoost" function. This makes the cooling fans work at higher speeds in order to better cool the hardware. In theory, this would mean higher performance. We tested the Nitro 5 with deactivated CoolBoost function, but we did try it out sometimes. We will explicitly state if a certain result was achieved with the CoolBoost function.

Processor

The fact that the Nitro 5 is equipped with a quad-core i7-7700HQ of the Kaby Lake generation is not surprising. This is currently the best choice for a mobile-gaming notebook as the CPU is a good compromise between processing power and power consumption. Cheaper models of the Nitro 5 are equipped with the Core i5-7300HQ. This is also a quad-core processor, but it does not support Hyper-Threading (which means that two threads can be processed per core).

The 7700HQ CPU that is built into our test unit works at a base clock rate of 2.8 GHz. The clock rate can be increased to 3.4 GHz (four cores), 3.6 GHz (two cores) or 3.8 GHz (one core) via the turbo. This is only possible when the device is connected to power. The CPU ran at 2.8 - 3.4 GHz (multithread) and 3.4 - 3.8 GHz (single thread) during our tests. The speeds were at 2.8 GHz (single thread) and 2.1 - 2.8 GHz (multithread) on battery.

The results of the multithread CPU tests we did are not quite as good as those of comparable notebooks, because of the fluctuating turbo speeds. The single-thread results are similar to those of the device's competitors. The 7700HQ offers up to 10% better results than its predecessor (Core i7-6700HQ) when the turbo runs at full speed. This is due to the working memory, which is 200 to 300 MHz larger in today's test unit. We did not see any performance increase due to the different architecture as there is hardly any technical difference between Kaby Lake and Skylake.

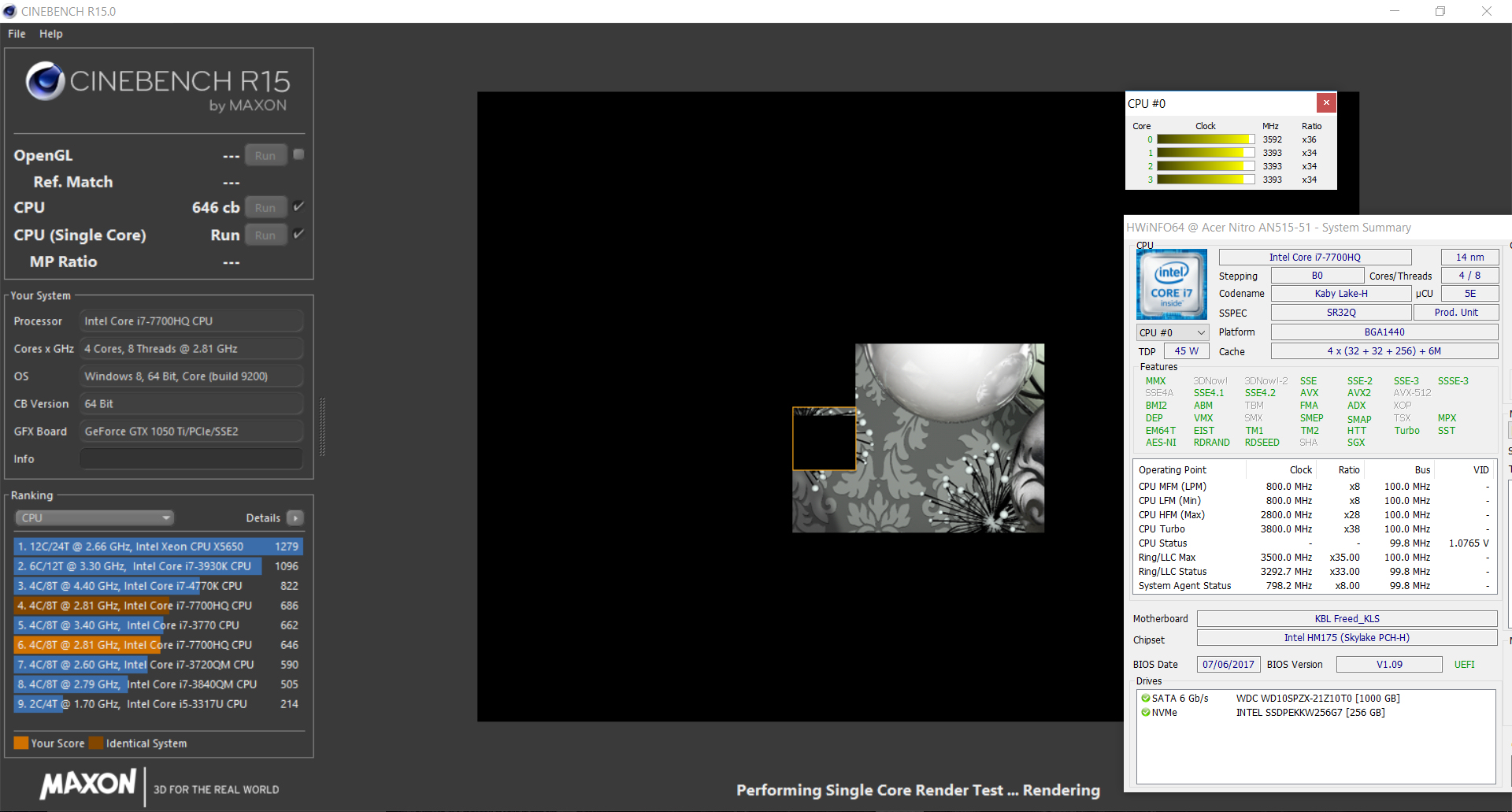

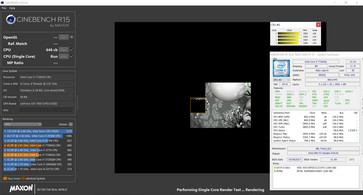

Single thread (on power supply)
Single thread (on power supply)

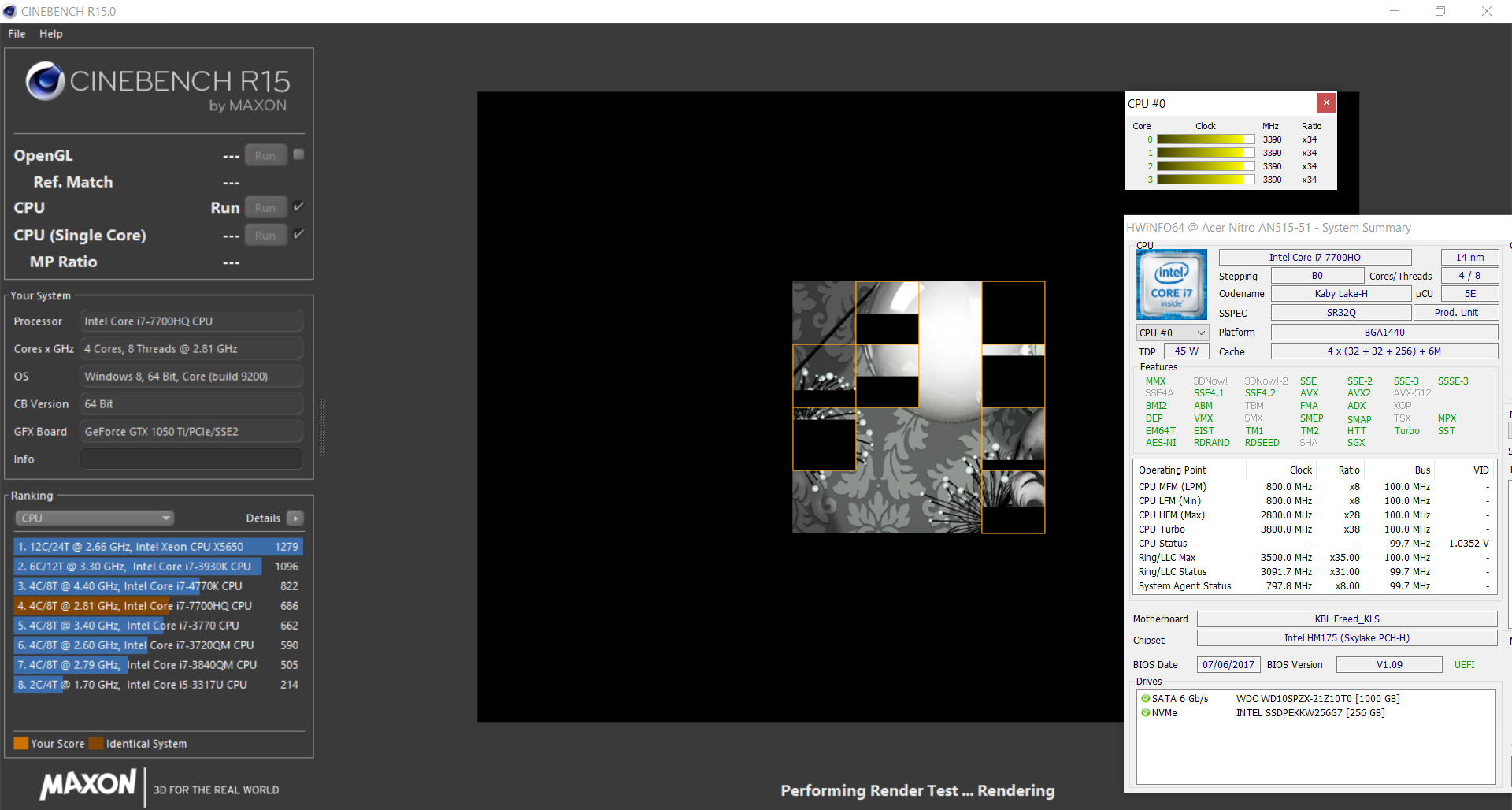

Multithread (on power supply)
Multithread (on power supply)

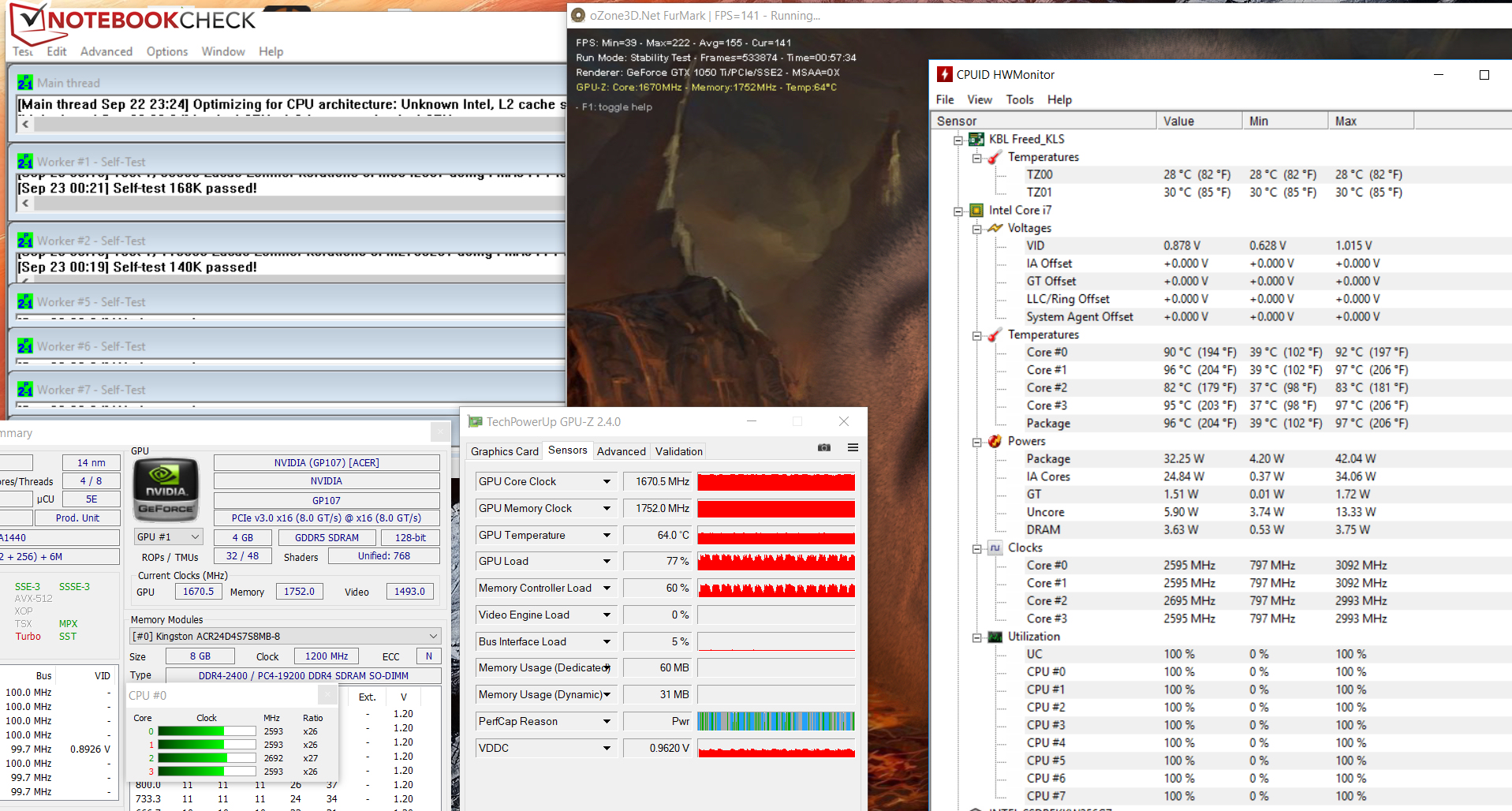

We ran the multithread test of the Cinebench R15 benchmark in a loop for about 30 minutes in order to find out whether the turbo can be in constant use when the device is connected to power. The results fluctuate a little as the CPU does not have a constant clock rate, but we did not measure a significant drop in performance.

Activating the CoolBoost function enables the CPU to consistently work at 3.4 GHz. The results of the rerun of the Cinebench R15 multithread loop are better and can compare with the results of other 7700HQ notebooks.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740Tooltip
Cinebench R15 CPU Multi 64 Bit - CoolBoost switched off (lower curve), CoolBoost switched on (upper curve)
Cinebench R10 Rendering Single 32Bit
5908
Cinebench R10 Shading 32Bit
6614
Cinebench R10 Rendering Multiple CPUs 32Bit
22209
Cinebench R11.5 CPU Single 64Bit
1.71 Points
Cinebench R11.5 CPU Multi 64Bit
7.26 Points
Cinebench R11.5 OpenGL 64Bit
67.3 fps
Cinebench R15 OpenGL 64Bit
100.59 fps
Cinebench R15 CPU Multi 64Bit
699 Points
Cinebench R15 CPU Single 64Bit
162 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Hjälp
Cinebench R15
CPU Single 64Bit
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
162 Points ∼100%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ (CoolBoost on)
162 Points ∼100% 0%
HP Omen 15-ax213ng
Intel Core i7-7700HQ
161 Points ∼99% -1%
Dell Inspiron 15 7000 7567
Intel Core i7-7700HQ
159 Points ∼98% -2%
Lenovo Legion Y520-15IKBN-80WK001KUS
Intel Core i7-7700HQ
159 Points ∼98% -2%
Acer Aspire VX5-591G-75C4 VX15
Intel Core i7-7700HQ
151 Points ∼93% -7%
Medion Erazer X6603
Intel Core i7-7700HQ
151 Points ∼93% -7%
Asus FX502VM-AS73
Intel Core i7-7700HQ
140 Points ∼86% -14%
CPU Multi 64Bit
HP Omen 15-ax213ng
Intel Core i7-7700HQ
736 Points ∼100% +1%
Medion Erazer X6603
Intel Core i7-7700HQ
732 Points ∼99% +1%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ (CoolBoost on)
727 Points ∼99%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
699 Points ∼95% -4%
Asus FX502VM-AS73
Intel Core i7-7700HQ
725 Points ∼99% 0%
Dell Inspiron 15 7000 7567
Intel Core i7-7700HQ
724 Points ∼98% 0%
Acer Aspire VX5-591G-75C4 VX15
Intel Core i7-7700HQ
719 Points ∼98% -1%
Lenovo Legion Y520-15IKBN-80WK001KUS
Intel Core i7-7700HQ
652 Points ∼89% -10%
Cinebench R11.5
CPU Single 64Bit
HP Omen 15-ax213ng
Intel Core i7-7700HQ
1.82 Points ∼100% +6%
Lenovo Legion Y520-15IKBN-80WK001KUS
Intel Core i7-7700HQ
1.72 Points ∼95% +1%
Medion Erazer X6603
Intel Core i7-7700HQ
1.72 Points ∼95% +1%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
1.71 Points ∼94%
Asus FX502VM-AS73
Intel Core i7-7700HQ
1.67 Points ∼92% -2%
CPU Multi 64Bit
HP Omen 15-ax213ng
Intel Core i7-7700HQ
8.16 Points ∼100% +12%
Medion Erazer X6603
Intel Core i7-7700HQ
8.13 Points ∼100% +12%
Asus FX502VM-AS73
Intel Core i7-7700HQ
7.99 Points ∼98% +10%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
7.26 Points ∼89%
Lenovo Legion Y520-15IKBN-80WK001KUS
Intel Core i7-7700HQ
7.12 Points ∼87% -2%
Cinebench R10
Rendering Single 32Bit
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
5908 Points ∼100%
Medion Erazer X6603
Intel Core i7-7700HQ
5823 Points ∼99% -1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
5660 Points ∼96% -4%
Rendering Multiple CPUs 32Bit
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
22209 Points ∼100%
Medion Erazer X6603
Intel Core i7-7700HQ
21939 Points ∼99% -1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
21376 Points ∼96% -4%
Geekbench 3
32 Bit Multi-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
13991 Points ∼100%
32 Bit Single-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
3585 Points ∼100%
Geekbench 4.0
64 Bit Multi-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
14084 Points ∼100%
64 Bit Single-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
4482 Points ∼100%
Geekbench 4.1
64 Bit Multi-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
14975 Points ∼100%
64 Bit Single-Core Score
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ
4540 Points ∼100%
JetStream 1.1 - 1.1 Total Score
Medion Erazer X6603
Intel Core i7-7700HQ (Edge 38.14393.1066.0)
269.86 Points ∼100% +3%
HP Omen 15-ax213ng
Intel Core i7-7700HQ (Edge 40.15063.0.0)
266.93 Points ∼99% +2%
Lenovo Legion Y520-15IKBN-80WK001KUS
Intel Core i7-7700HQ
266.34 Points ∼99% +2%
Dell Inspiron 15 7000 7567
Intel Core i7-7700HQ (EDGE 38.1439.3.00)
261.28 Points ∼97% 0%
Acer Nitro 5 AN515-51-788E
Intel Core i7-7700HQ (Edge 40)
261.18 Points ∼97%
Asus FX502VM-AS73
Intel Core i7-7700HQ (Edge 38.14393.0.0)
218.49 Points ∼81% -16%

System Performance

A fast SSD and a strong quad-core processor ensure a fast-running system. The PCMark results are very good and certify that our test unit has sufficient performance for demanding applications such as gaming and video and image-processing. The system performance cannot be further enhanced - Acer has already pushed the components to their limits. The PCMark results are the same with the CoolBoost function activated.

The device has two RAM slots.
The device has two RAM slots.
PCMark 7 Score
6346 poäng
PCMark 8 Home Score Accelerated v2
4177 poäng
PCMark 8 Creative Score Accelerated v2
5291 poäng
PCMark 8 Work Score Accelerated v2
5096 poäng
Hjälp
PCMark 8
Work Score Accelerated v2
Medion Erazer X6603
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
5129 Points ∼100% +1%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
5096 Points ∼99%
Dell Inspiron 15 7000 7567
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSDSCKKF256H6
5068 Points ∼99% -1%
Acer Aspire VX5-591G-75C4 VX15
GeForce GTX 1050 Ti (Notebook), 7700HQ, Toshiba MQ01ABD100
4442 Points ∼87% -13%
HP Omen 15-ax213ng
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
3141 Points ∼61% -38%
Asus FX502VM-AS73
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS256G39TND-N210A
2722 Points ∼53% -47%
Home Score Accelerated v2
Asus FX502VM-AS73
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS256G39TND-N210A
4765 Points ∼100% +14%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
4177 Points ∼88%
HP Omen 15-ax213ng
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
4165 Points ∼87% 0%
Medion Erazer X6603
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
4119 Points ∼86% -1%
Dell Inspiron 15 7000 7567
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSDSCKKF256H6
3850 Points ∼81% -8%
Acer Aspire VX5-591G-75C4 VX15
GeForce GTX 1050 Ti (Notebook), 7700HQ, Toshiba MQ01ABD100
3565 Points ∼75% -15%

Storage Devices

Acer has gone for the most common solution for gaming notebooks: a fast SSD that acts as system drive and a common 2.5-inch hard drive that offers sufficient storage for games. The SSD comes from Intel and is an NVMe model. This kind of SSD runs via a PCIe x4 interface, which supports significantly higher transfer rates than the SATA-III interface does. The SSD has great transfer rates, although they are not quite as good as those of the competitors from Samsung. The 2.5-inch hard drive comes from Western Digital. It runs at 5400 rpm and has a capacity of 1 TB.

The SSD acts as system drive.
The SSD acts as system drive.
Intel SSD 600p SSDPEKKW256G7
Sequential Read: 945.1 MB/s
Sequential Write: 558.8 MB/s
512K Read: 638.6 MB/s
512K Write: 560.8 MB/s
4K Read: 24.24 MB/s
4K Write: 122.7 MB/s
4K QD32 Read: 288.5 MB/s
4K QD32 Write: 503.5 MB/s
Acer Nitro 5 AN515-51-788E
Intel SSD 600p SSDPEKKW256G7
HP Omen 15-ax213ng
Samsung PM961 MZVLW256HEHP
Acer Aspire VX5-591G-75C4 VX15
Toshiba MQ01ABD100
Dell Inspiron 15 7000 7567
Intel SSDSCKKF256H6
Lenovo Legion Y520-15IKBN-80WK001KUS
Samsung PM961 MZVLW256HEHP
Asus FX502VM-AS73
SK Hynix HFS256G39TND-N210A
Medion Erazer X6603
Samsung PM961 MZVLW256HEHP
CrystalDiskMark 3.0
75%
-95%
-30%
64%
-40%
63%
Write 4k QD32
503.5
557.2
11%
0.893
-100%
255.1
-49%
392.9
-22%
99.74
-80%
398.7
-21%
Read 4k QD32
288.5
650.4
125%
0.718
-100%
279.6
-3%
457.7
59%
369.9
28%
464
61%
Write 4k
122.7
176.9
44%
0.846
-99%
85.44
-30%
146.4
19%
70.91
-42%
147.2
20%
Read 4k
24.24
62.63
158%
0.327
-99%
27.11
12%
58.93
143%
29.36
21%
59.04
144%
Write 512
560.8
807.1
44%
28.31
-95%
304
-46%
822
47%
137.8
-75%
831.3
48%
Read 512
638.6
805.9
26%
28.33
-96%
338.9
-47%
785.8
23%
343.5
-46%
788.2
23%
Write Seq
558.8
1208
116%
100.6
-82%
422.8
-24%
1202
115%
138.2
-75%
1100
97%
Read Seq
945.1
1657
75%
101.5
-89%
485.8
-49%
2170
130%
502.5
-47%
2170
130%

Graphics

Acer has equipped the Nitro 5 with a GeForce GTX 1050 Ti graphics core from Nvidia. This GPU is an upper mid-range model based on Nvidia's Pascal architecture. The core supports DirectX 12 and reaches a speed of up to 1734 MHz. It has 4096 MB of GDDR5 graphics memory available. The results of the 3DMark benchmark are average for this GPU. Cheaper versions of the Nitro 5 are equipped with the GeForce GTX 1050 graphics core. This core's performance is about 20-25% lower than that of the Ti model.

Ex-works, the Nitro 5 comes with the graphics-switching function (Optimus) activated. This means that Intel's integrated HD Graphics 630 is used for everyday applications and on battery mode. When more-demanding applications, such as computer games, are started, the device switches to Nvidia's GeForce GTX 1050 Ti. This happens automatically without the user having to do anything.

3DMark 06 Standard
27190 poäng
3DMark 11 Performance
9084 poäng
3DMark Ice Storm Standard Score
124922 poäng
3DMark Cloud Gate Standard Score
20260 poäng
3DMark Fire Strike Score
6648 poäng
3DMark Fire Strike Extreme Score
3554 poäng
3DMark Time Spy Score
2446 poäng
Hjälp
3DMark 11 - 1280x720 Performance GPU
Asus GL702ZC-GC104T
AMD Radeon RX 580 (Laptop), AMD Ryzen 7 1700
15264 Points ∼100% +62%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 (Laptop), Intel Core i7-7700HQ
14732 Points ∼97% +56%
HP Omen 15-ax213ng
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
9909 Points ∼65% +5%
Acer Aspire VX5-591G-75C4 VX15
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
9768 Points ∼64% +3%
Dell Inspiron 15 7000 7567
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
9725 Points ∼64% +3%
Medion Erazer X6603
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
9518 Points ∼62% +1%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ (CoolBoost on)
9450 Points ∼62%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
9357 Points ∼61% -1%
Asus FX550IU-WSFX
AMD Radeon RX 460 (Laptop), AMD FX-9830P
7794 Points ∼51% -18%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
7731 Points ∼51% -18%
Asus ZenBook Pro UX550VD
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
7461 (min: 7273) Points ∼49% -21%
HP Pavilion Power 15t-cb2000
AMD Radeon RX 550 (Laptop), Intel Core i7-7700HQ
5557 Points ∼36% -41%
Acer Aspire V15 Nitro BE VN7-592G-79DV
NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ
5304 Points ∼35% -44%
3DMark
1920x1080 Fire Strike Graphics
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 (Laptop), Intel Core i7-7700HQ
11633 Points ∼100% +51%
Asus GL702ZC-GC104T
AMD Radeon RX 580 (Laptop), AMD Ryzen 7 1700
11010 Points ∼95% +43%
HP Omen 15-ax213ng
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7821 Points ∼67% +2%
Acer Aspire VX5-591G-75C4 VX15
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7791 Points ∼67% +1%
Medion Erazer X6603
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7694 Points ∼66% 0%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ (CoolBoost on)
7683 Points ∼66%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7666 Points ∼66% 0%
Lenovo Legion Y520-15IKBN-80WK001KUS
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7682 Points ∼66% 0%
Dell Inspiron 15 7000 7567
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
7646 Points ∼66% 0%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
6166 Points ∼53% -20%
Asus ZenBook Pro UX550VD
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
6032 (min: 6004) Points ∼52% -21%
Lenovo Yoga 720-15IKB-80X7
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
5885 Points ∼51% -23%
Asus FX550IU-WSFX
AMD Radeon RX 460 (Laptop), AMD FX-9830P
5062 Points ∼44% -34%
Acer Aspire V15 Nitro BE VN7-592G-79DV
NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ
4314 Points ∼37% -44%
HP Pavilion Power 15t-cb2000
AMD Radeon RX 550 (Laptop), Intel Core i7-7700HQ
4041 Points ∼35% -47%
1280x720 Cloud Gate Standard Graphics
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 (Laptop), Intel Core i7-7700HQ
80496 Points ∼100% +59%
Asus GL702ZC-GC104T
AMD Radeon RX 580 (Laptop), AMD Ryzen 7 1700
68629 Points ∼85% +35%
Lenovo Legion Y520-15IKBN-80WK001KUS
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
50981 Points ∼63% +1%
Medion Erazer X6603
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
50793 Points ∼63% 0%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
50713 Points ∼63%
Acer Nitro 5 AN515-51-788E
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ (CoolBoost on)
50196 Points ∼62% -1%
Dell Inspiron 15 7000 7567
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
49539 Points ∼62% -2%
HP Omen 15-ax213ng
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
47250 Points ∼59% -7%
Acer Aspire VX5-591G-75C4 VX15
NVIDIA GeForce GTX 1050 Ti (Notebook), Intel Core i7-7700HQ
46362 Points ∼58% -9%
Gigabyte Sabre 15G
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
39507 Points ∼49% -22%
Lenovo Yoga 720-15IKB-80X7
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
37388 Points ∼46% -26%
Asus ZenBook Pro UX550VD
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
37128 (min: 36802) Points ∼46% -27%
Asus FX550IU-WSFX
AMD Radeon RX 460 (Laptop), AMD FX-9830P
31294 Points ∼39% -38%
HP Pavilion Power 15t-cb2000
AMD Radeon RX 550 (Laptop), Intel Core i7-7700HQ
27941 Points ∼35% -45%
Acer Aspire V15 Nitro BE VN7-592G-79DV
NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ
27075 Points ∼34% -47%

Turning on CoolBoost has no influence on the graphics performance. However, the results of the 3DMark benchmarks show that physical performance increases. This is not surprising as the CPU is responsible for it.

3DMark
1920x1080 Fire Strike Physics
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7 (CoolBoost on)
10832 Points ∼100%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
9704 Points ∼90% -10%
1280x720 Cloud Gate Standard Physics
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7 (CoolBoost on)
7511 Points ∼100%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
6532 Points ∼87% -13%
3DMark 06 - CPU - ---
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7 (CoolBoost on)
7569 Points ∼100%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
7184 Points ∼95% -5%
3DMark 11 - 1280x720 Performance Physics
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7 (CoolBoost on)
8723 Points ∼100%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
8295 Points ∼95% -5%

Gaming Performance

The Nitro's combination of CPU and GPU can display all current games smoothly. Games can usually be played in Full HD resolution and medium to high, sometimes maximum, quality settings. Some games do need reduced resolution and/or quality settings to run smoothly, Mafia 3 for example. If you do not want to have to accept these limitations, you will have to choose a different device. We would suggest a notebook with a GTX 1060 GPU. If you want resolutions higher than Full HD, it had even better be a notebook with a GTX 1070.

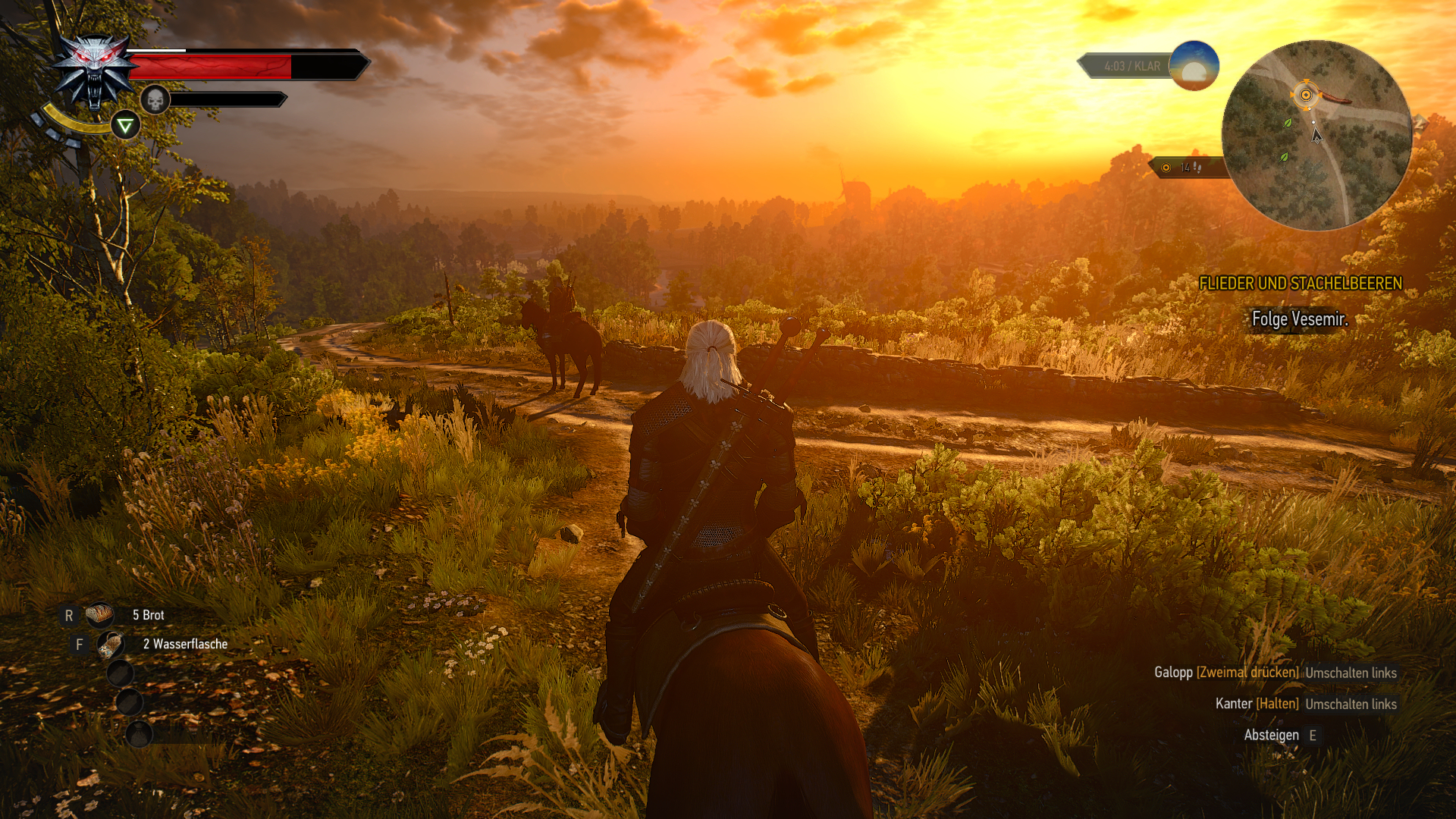

There are no problems playing The Witcher 3...
There are no problems playing The Witcher 3...

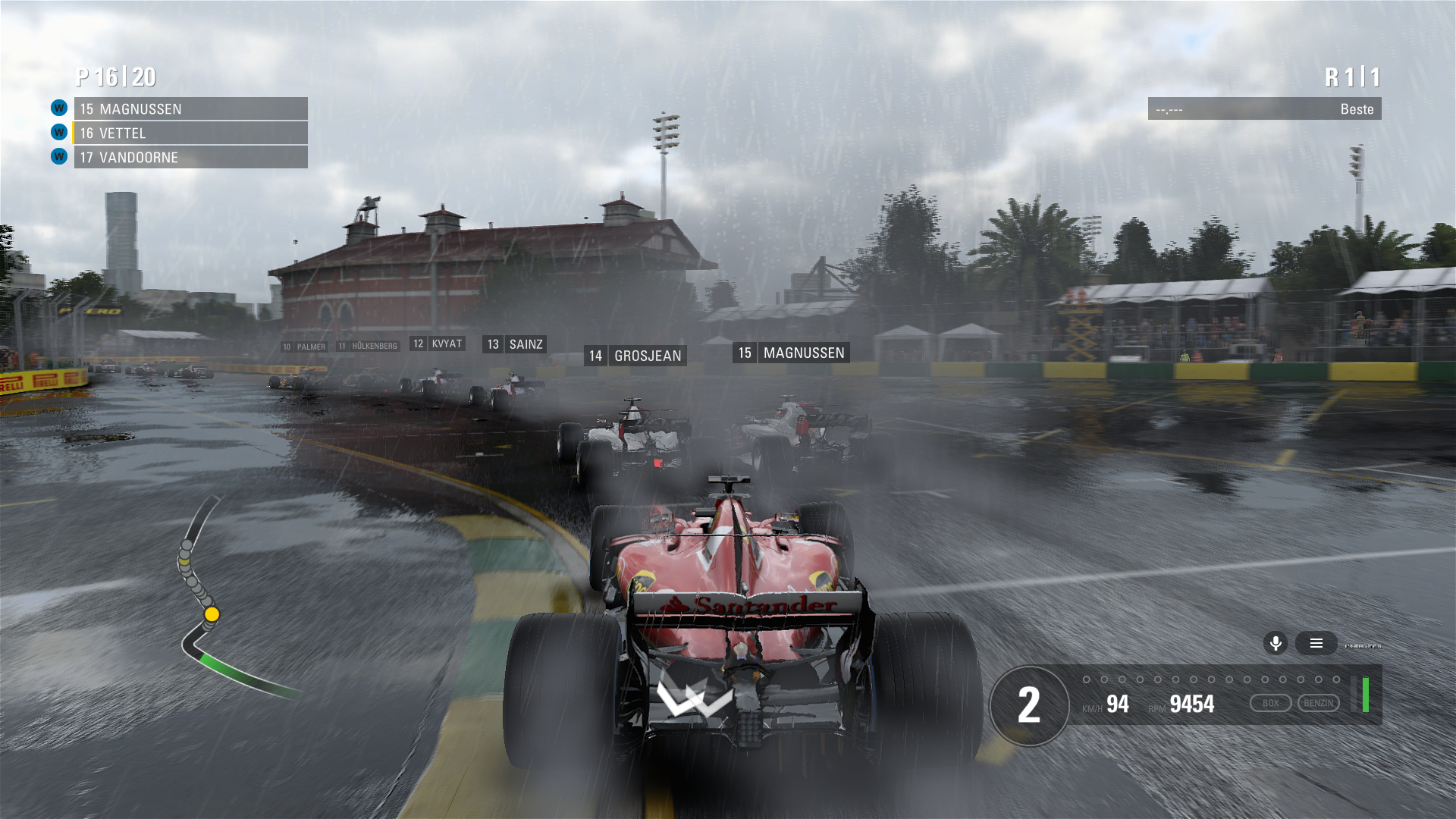

...and F1 2017.
...and F1 2017.

We used the game The Witcher 3 to test whether the device could keep up the frame rates over a long period of time. This meant running the game for about 60 minutes in Full HD resolution and maximum quality settings. The player's character is not moved throughout the entire period. We did not measure a drop in the frame rate.

01234567891011121314151617181920212223242526Tooltip
The Witcher 3 ultra
låg med. hög ultra
Tomb Raider (2013) 423.3304.5196.389fps
BioShock Infinite (2013) 260.7206.7185.874.1fps
The Witcher 3 (2015) 141.186.347.424.2fps
Prey (2017) 142.5102.682.866.8fps
Rocket League (2017) 247.6178.5111.3fps
Dirt 4 (2017) 249.9114.559.636.1fps
Playerunknown's Battlegrounds (PUBG) (2017) 12658.851.535.9fps
F1 2017 (2017) 178917144fps
Ark Survival Evolved (2017) 94.931.322.714.6fps
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Asus FX502VM-AS73
GeForce GTX 1060 (Laptop), 7700HQ, SK Hynix HFS256G39TND-N210A
103.1 fps ∼100% +39%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
74.1 fps ∼72%
Lenovo Legion Y520-15IKBN-80WK001KUS
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
74 fps ∼72% 0%
Medion Erazer X6603
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
73.9 fps ∼72% 0%
Dell Inspiron 15 7000 7567
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSDSCKKF256H6
72.8 fps ∼71% -2%
HP Omen 15-ax213ng
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
70.7 fps ∼69% -5%
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
HP Omen 15-ax213ng
GeForce GTX 1050 Ti (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
48.3 fps ∼100% +2%
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
47.4 fps ∼98%
Acer Aspire VX5-591G-75C4 VX15
GeForce GTX 1050 Ti (Notebook), 7700HQ, Toshiba MQ01ABD100
45.8 (min: 30) fps ∼95% -3%
Prey - 1920x1080 Very High Preset AA:2TX SM AF:16x
Acer Nitro 5 AN515-51-788E
GeForce GTX 1050 Ti (Notebook), 7700HQ, Intel SSD 600p SSDPEKKW256G7
66.8 fps ∼100%

Emissions

System Noise

The cooling fan of the Nitro 5 sometimes stands still while idling and then you can hear no sound at all. But usually, it does run at very low speed and is hardly audible. Were you to access the internal hard drive in this scenario, it would make more noise than the cooling fan. The fan did speed up noticeably both during our stress tests and while playing computer games. This means you basically have to use headphones, especially when playing computer games. The notebook does not produce any other noises.

The CoolBoost function lets the cooling fan run at higher speeds. Having CoolBoost turned on did not influence the maximum volume - or at least we could not tell a difference.

Ljudnivå

Låg belastning
30.6 / 30.7 / 30.7 dB(A)
Hög belastning
43 / 45.8 dB(A)



30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm avstånd)   environment noise: 30.6 dB(A)
Acer Nitro 5 AN515-51-788E
7700HQ, GeForce GTX 1050 Ti (Notebook)
HP Omen 15-ax213ng
7700HQ, GeForce GTX 1050 Ti (Notebook)
Acer Aspire VX5-591G-75C4 VX15
7700HQ, GeForce GTX 1050 Ti (Notebook)
Dell Inspiron 15 7000 7567
7700HQ, GeForce GTX 1050 Ti (Notebook)
Lenovo Legion Y520-15IKBN-80WK001KUS
7700HQ, GeForce GTX 1050 Ti (Notebook)
Asus FX502VM-AS73
7700HQ, GeForce GTX 1060 (Laptop)
Medion Erazer X6603
7700HQ, GeForce GTX 1050 Ti (Notebook)
Noise
-11%
3%
-2%
3%
-3%
3%
off / environment *
30.6
30
2%
30.4
1%
30.3
1%
27.7
9%
28.7
6%
30.9
-1%
Idle Minimum *
30.6
32
-5%
31.4
-3%
30.9
-1%
30.5
-0%
30.6
-0%
30.9
-1%
Idle Average *
30.7
34
-11%
31.4
-2%
30.9
-1%
30.5
1%
30.6
-0%
30.9
-1%
Idle Maximum *
30.7
36
-17%
31.4
-2%
31
-1%
30.6
-0%
31
-1%
31.6
-3%
Load Average *
43
48
-12%
36.8
14%
46.5
-8%
40
7%
46.2
-7%
38.5
10%
Witcher 3 ultra *
39.7
49
-23%
40
-1%
Load Maximum *
45.8
51
-11%
41.3
10%
46.8
-2%
42.6
7%
52.3
-14%
40.8
11%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.735.535.735.537.72536.334.234.938.636.33145.637.746.948.245.64037.731.938.435.637.75035.834.1383435.86329.930.831.532.229.98030.429.526.728.230.410026.427.526.92726.412526.12825.224.326.116030.125.623.523.230.120027.726.523.622.827.725028.127.322.222.328.131531.729.820.921.531.740030.428.519.820.230.450028.626.919.619.228.663030.22819.118.930.280030.52918.518.430.5100033.832.618.117.933.8125033.831.217.71833.8160037.134.817.717.637.1200036.734.21817.536.7250035.732.61817.935.7315035.532.418.21835.5400033.829.718.218.233.8500033.429.118.518.533.4630029.225.118.718.629.2800027.924.118.718.827.91000024.421.918.818.724.41250021.720.718.918.921.71600020.622.519.219.120.6SPL45.843.130.730.745.8N5.24.21.51.55.2median 30.2Acer Nitro 5 AN515-51-788Emedian 28median 18.8median 18.8median 30.2Delta3.62.41.81.83.6hearing rangehide median Fan Noise

Temperature

The Nitro 5 during the stress test.
The Nitro 5 during the stress test.

Our stress test (Prime95 and FurMark running for at least one hour) brought different results depending on whether the Nitro 5 was connected to power or running on battery. On power supply, the processor runs at between 2.6 and 2.8 GHz. The speed of the graphics core is between 1600 and 1700 MHz. On battery, the processor speed drops to 800 MHz; the GPU clock rate is between 600 and 1600 MHz.

The device does not heat up particularly at any load. Only one spot heated up to just over 40 °C (~104 °F) during the stress test. The device heated up a little more during the The Witcher 3 test (the game runs for one hour in FHD resolution and maximum quality settings). But temperatures are still OK.

 39.4 °C41.1 °C33.1 °C
 35.1 °C37 °C27.1 °C
 23.5 °C25.5 °C23.9 °C
Max: 41.1 °C
Medel: 31.7 °C
34.8 °C38.8 °C29.2 °C
23.5 °C31.9 °C28 °C
23.6 °C23.4 °C24 °C
Max: 38.8 °C
Medel: 28.6 °C
Strömförsörjning (max.)  45.2 °C | Rumstemperatur 21.7 °C | FIRT 550-Pocket
Acer Nitro 5 AN515-51-788E
7700HQ, GeForce GTX 1050 Ti (Notebook)
HP Omen 15-ax213ng
7700HQ, GeForce GTX 1050 Ti (Notebook)
Acer Aspire VX5-591G-75C4 VX15
7700HQ, GeForce GTX 1050 Ti (Notebook)
Dell Inspiron 15 7000 7567
7700HQ, GeForce GTX 1050 Ti (Notebook)
Lenovo Legion Y520-15IKBN-80WK001KUS
7700HQ, GeForce GTX 1050 Ti (Notebook)
Asus FX502VM-AS73
7700HQ, GeForce GTX 1060 (Laptop)
Medion Erazer X6603
7700HQ, GeForce GTX 1050 Ti (Notebook)
Heat
-20%
-9%
6%
-15%
-23%
3%
Maximum Upper Side *
41.1
52.4
-27%
47
-14%
43.4
-6%
46.8
-14%
53.2
-29%
44.3
-8%
Maximum Bottom *
38.8
54.2
-40%
47
-21%
37.7
3%
55.8
-44%
56.8
-46%
39.5
-2%
Idle Upper Side *
28.7
30.5
-6%
28.4
1%
24.3
15%
27.6
4%
28.8
-0%
24.8
14%
Idle Bottom *
26.9
28.2
-5%
27.1
-1%
23.6
12%
28.4
-6%
31.4
-17%
24.6
9%

* ... smaller is better

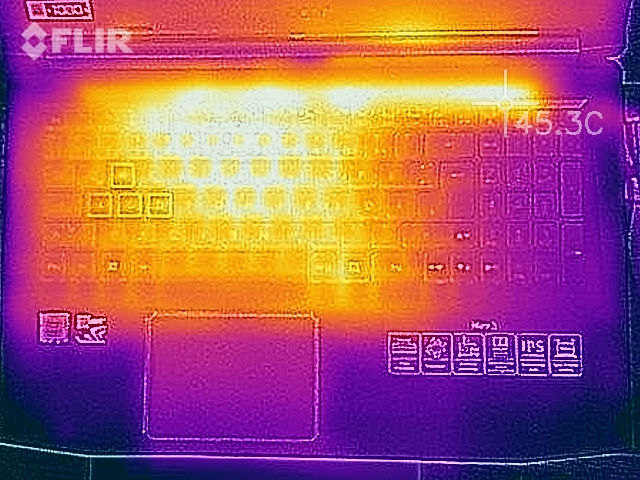

Heat-map top (load)
Heat-map top (load)

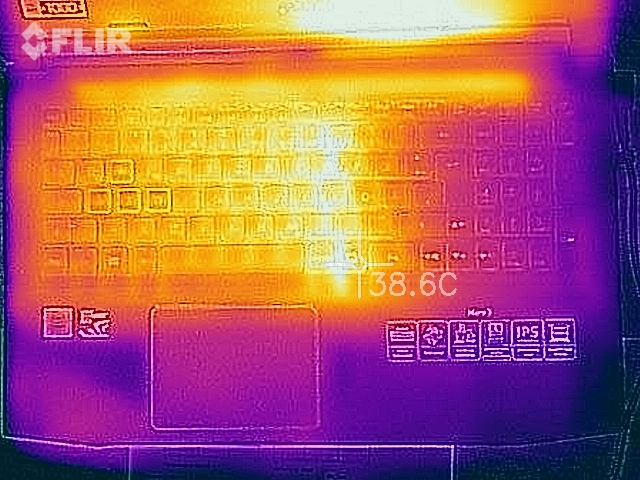

Heat-map top (idle)
Heat-map top (idle)

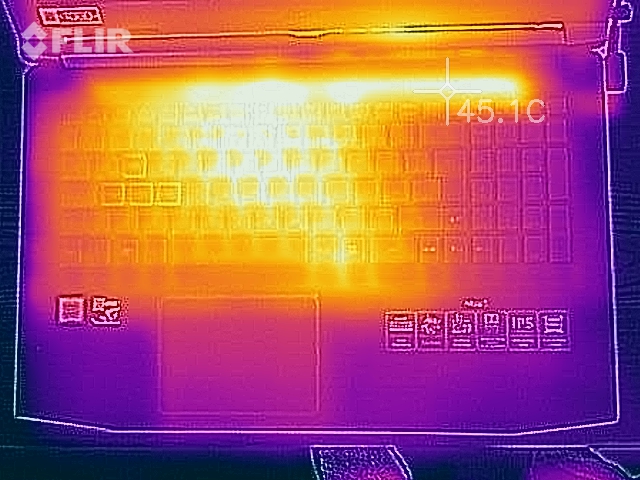

Heat-map top (The Witcher 3)
Heat-map top (The Witcher 3)

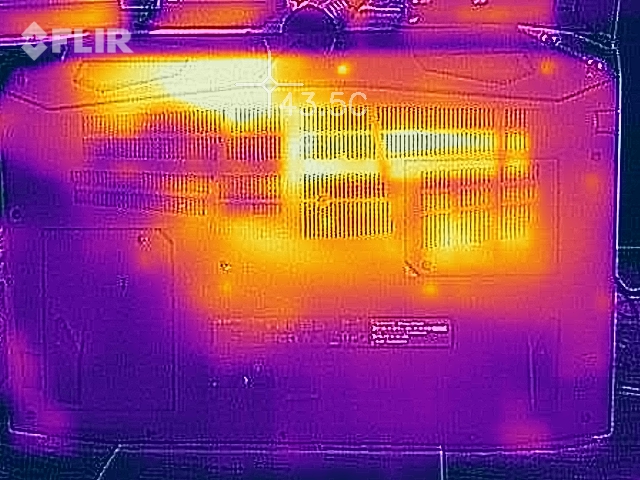

Heat-map bottom (load)
Heat-map bottom (load)

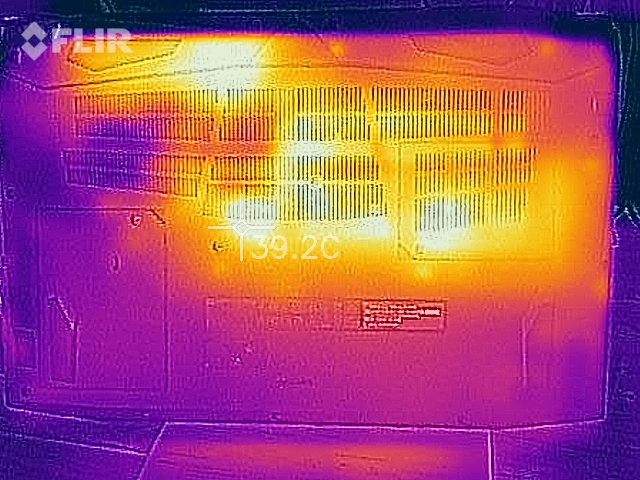

Heat-map bottom (idle)
Heat-map bottom (idle)

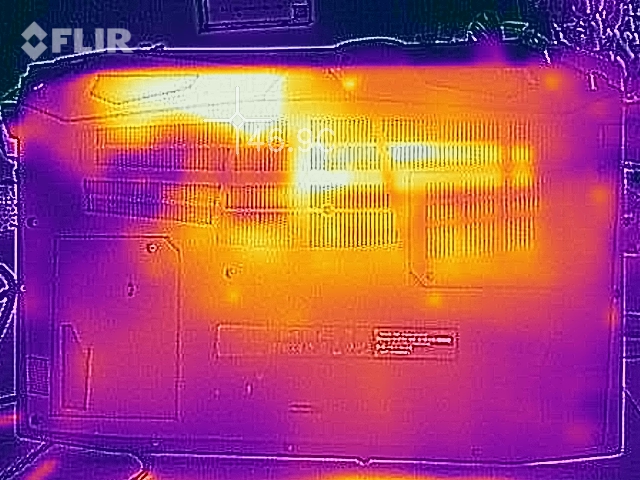

Heat-map bottom (The Witcher 3)
Heat-map bottom (The Witcher 3)

Speakers

Both speakers of the Nitro 5 are positioned at the bottom of the device. They produce a nice sound that you can enjoy listening to for a while. However, they are rather quiet. We would suggest connecting headphones or external speakers for a better sound experience.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs204235.5422545.838.645.8314248.2424037.135.637.15041.43441.46336.532.236.58030.528.230.510029.52729.512536.424.336.41604623.24620050.122.850.125050.922.350.931558.721.558.740063.820.263.850060.319.260.363057.318.957.380067.818.467.8100064.317.964.3125059.81859.8160060.617.660.6200063.817.563.8250062.117.962.1315059.91859.9400061.518.261.550005618.556630055.418.655.4800059.218.859.21000058.318.758.31250054.418.954.4160004919.149SPL73.630.773.6N33.31.533.3median 58.7Acer Nitro 5 AN515-51-788Emedian 18.8median 58.7Delta5.11.85.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Acer Nitro 5 AN515-51-788E audio analysis

(-) | not very loud speakers (67.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (10.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.2% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 7% similar, 57% worse
» The best had a delta of 6%, average was 18%, worst was 37%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Frequency diagram in comparison (checkboxes can be turned on/off!)

Energy Management

Power Consumption

The Nitro 5 contents itself with comparatively little power while idling. We measured a maximum power consumption of 9.5 watts. During the stress test, this value increased to up to 126 watts. Had the CPU run at full speed during the stress test, the value would have been even higher. We would expect consumption between 50 and 120 watts while gaming. The power supply has a capacity of 135 watts.

Strömförbrukning
Av/Standbydarklight 0.25 / 0.4 Watt
Låg belastningdarkmidlight 4.1 / 6.9 / 9.5 Watt
Hög belastning midlight 83 / 126 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Acer Nitro 5 AN515-51-788E
7700HQ, GeForce GTX 1050 Ti (Notebook)
HP Omen 15-ax213ng
7700HQ, GeForce GTX 1050 Ti (Notebook)
Acer Aspire VX5-591G-75C4 VX15
7700HQ, GeForce GTX 1050 Ti (Notebook)
Dell Inspiron 15 7000 7567
7700HQ, GeForce GTX 1050 Ti (Notebook)
Lenovo Legion Y520-15IKBN-80WK001KUS
7700HQ, GeForce GTX 1050 Ti (Notebook)
Asus FX502VM-AS73
7700HQ, GeForce GTX 1060 (Laptop)
Medion Erazer X6603
7700HQ, GeForce GTX 1050 Ti (Notebook)
Power Consumption
-32%
-32%
2%
-21%
-97%
-2%
Idle Minimum *
4.1
6
-46%
7
-71%
4.4
-7%
8.5
-107%
14.9
-263%
4.7
-15%
Idle Average *
6.9
11
-59%
10.2
-48%
6.8
1%
9.1
-32%
15.1
-119%
7.6
-10%
Idle Maximum *
9.5
18
-89%
14
-47%
8.3
13%
9.7
-2%
15.2
-60%
9.2
3%
Load Average *
83
81
2%
78
6%
81
2%
79.9
4%
105.8
-27%
81
2%
Load Maximum *
126
146
-16%
127
-1%
127
-1%
121.5
4%
148.8
-18%
112
11%
Witcher 3 ultra *
108
90
17%
97.7
10%

* ... smaller is better

Battery Runtime

The Nitro 5 can manage a runtime of 6:40 h during our practical Wi-Fi test. For this, we simulate the load of accessing websites via a script with the energy profile set to "balanced", energy-saving deactivated and the display brightness set to about 150 cd/m². The video test came to an end after 5:09 h. Here, we play the short film Big Buck Bunny (H.264 codec, 1920x1080 pixels) in a loop with both the Wi-Fi module and energy-saving deactivated and brightness set to 150 cd/m².

The battery has a capacity of 48 Wh.
The battery has a capacity of 48 Wh.
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
14tim 53min
Surfa med WLAN v1.3 (Edge 40)
6tim 40min
Big Buck Bunny H.264 1080p
5tim 9min
Hög belastning (maximal ljusstyrka)
1tim 03min
Acer Nitro 5 AN515-51-788E
7700HQ, GeForce GTX 1050 Ti (Notebook), 48 Wh
HP Omen 15-ax213ng
7700HQ, GeForce GTX 1050 Ti (Notebook), 63.3 Wh
Acer Aspire VX5-591G-75C4 VX15
7700HQ, GeForce GTX 1050 Ti (Notebook), 52.5 Wh
Dell Inspiron 15 7000 7567
7700HQ, GeForce GTX 1050 Ti (Notebook), 74 Wh
Lenovo Legion Y520-15IKBN-80WK001KUS
7700HQ, GeForce GTX 1050 Ti (Notebook), 45 Wh
Asus FX502VM-AS73
7700HQ, GeForce GTX 1060 (Laptop), 64 Wh
Medion Erazer X6603
7700HQ, GeForce GTX 1050 Ti (Notebook), 45 Wh
Battery Runtime
3%
-20%
41%
-37%
-29%
-38%
Reader / Idle
893
765
-14%
322
-64%
1174
31%
509
-43%
363
-59%
340
-62%
H.264
309
196
-37%
455
47%
227
-27%
WiFi v1.3
400
428
7%
302
-24%
622
56%
240
-40%
277
-31%
257
-36%
Load
63
97
54%
81
29%
81
29%
46
-27%
64
2%
46
-27%

Verdict

För

+ skärm med hög kontrast
+ Full HD-upplösning
+ Snabb NVMe SSD
+ Bra batteritid
+ AC Wi-Fi
+ Type-C USB
+ Underhållningsluckor

Emot

- mörk skärm
The Acer Nitro 5 AN515-51-788E, test unit provided by Acer Germany.
The Acer Nitro 5 AN515-51-788E, test unit provided by Acer Germany.

"Kraftfull laptop för vardaglig gaming" - så beskriver Acer sin Nitro 5 - en väldigt passande beskrivning. Den tillagda Core i7-processorn erbjuder tillräcklig processorkraft för de viktigaste användningsområdena. Kombinerad med GeForce GTX1050 Ti-grafikkortet kan datorn driva alla tillgängliga spel utan problem på den matta Full HD-skärmen. Men tyvärr får man nöja sig med lägre grafikinställningar - grafikkortet är helt enkelt inte tillräckligt för högre.

Nitro 5 är en mångsidig maskin med siktet inställt på datorspel

Men datorn fungerar även bra för i mer generella arbetsområden (surf, textbehandling). Den arbetar i tystnad under låg belastning och vid idle, och håller sig även sval vid större belastning. Utöver det har datorn ett bakgrundsbelyst tangentbord som passar för vanligt skrivande och bra batteritider. Den snabba SSD:n säkerställer ett snabbt system som klarar sig bra ihop med lagringsutrymmet som tillhandahålls av en 2,5-tumsdisk.

Den matta IPS-panelen har både bra betraktningsvinkel och kontraster. Dock skulle ljusstyrkan kunnat vara bättre. Utöver det tror vi även att tillverkaren skulle kunnat gjort ett bättre jobb gällande datorns anslutningar. För prislappen som landar på cirka 10.000 kr borde en Thunderbolt 3-port och en DisplayPort vara inkluderad. Den höga ljudnivån från kylfläkten vid full belastning skulle även kunna förbättras.

Acer Nitro 5 AN515-51-788E - 09/27/2017 v6
Sascha Mölck

Design
82 / 98 → 84%
Tangentbord
84%
Mus
84%
Anslutningar
51 / 81 → 63%
Vikt
59 / 66 → 87%
Batteri
85%
Skärm
85%
Spelprestanda
91%
Programprestanda
94%
Temperatur
92 / 95 → 97%
Ljudnivå
83 / 90 → 92%
Audio
60%
Camera
35 / 85 → 42%
Medel
76%
83%
Gaming - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Acer Nitro 5 (7700HQ, GTX 1050 Ti) (sammanfattning)
Sascha Mölck, 2017-10- 9 (Update: 2017-10- 9)
