Test: Lenovo ThinkPad Yoga 260 20FD001XGE (sammanfattning)

Når en brytpunkt. Följer Yoga 260 i samma spår som ThinkPad X250? Är den ett bättre alternativ tack vare fler arbetslägen? Vi hittar anledningar att kritisera enheten, vilket är förvånande med tanke på den i övrigt 100% genomtänkta ThinkPad.
Lenovo ThinkPad Yoga 260 20FD001XGE (ThinkPad Yoga Serie)
Processor
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Grafikkort
Intel HD Graphics 520, Kärna: 1000 MHz, Minne: 1067 MHz, DDR4
Minne
8 GB
, DDR4 single-channel, 1 plats
Skärm
12.50 tum 16:9, 1920 x 1080 pixlar, 10 fingrar, native pen support, LEN40E6 N125HCE-GN1, IPS, 360-graders gångjärn, glansig: nej
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
Samsung SSD PM871 MZNLN256HCHP, 256 GB
Ljudkort
Intel Skylake-U/Y PCH - High Definition Audio
Anslutningar
2 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: line + mic, Kortläsare: micro-SD, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor, dockningsport
Nätverk
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Storlek
höjd x bredd x djup (i mm) 17.8 x 309.9 x 220
Batteri
44 Wh Litiumjon, SMP
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: HD 1280x720
Övrigt
Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: ja, aktiv stylus, 24 Månader Garanti
Vikt
1.342 kg, Strömförsörjning: 308 g
Pris
1500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

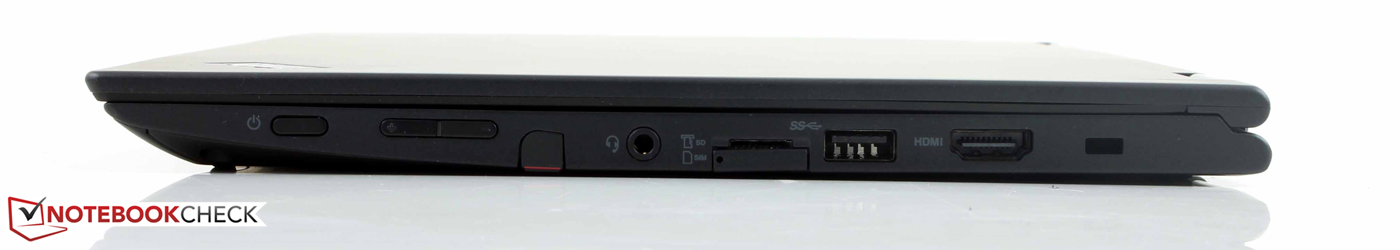

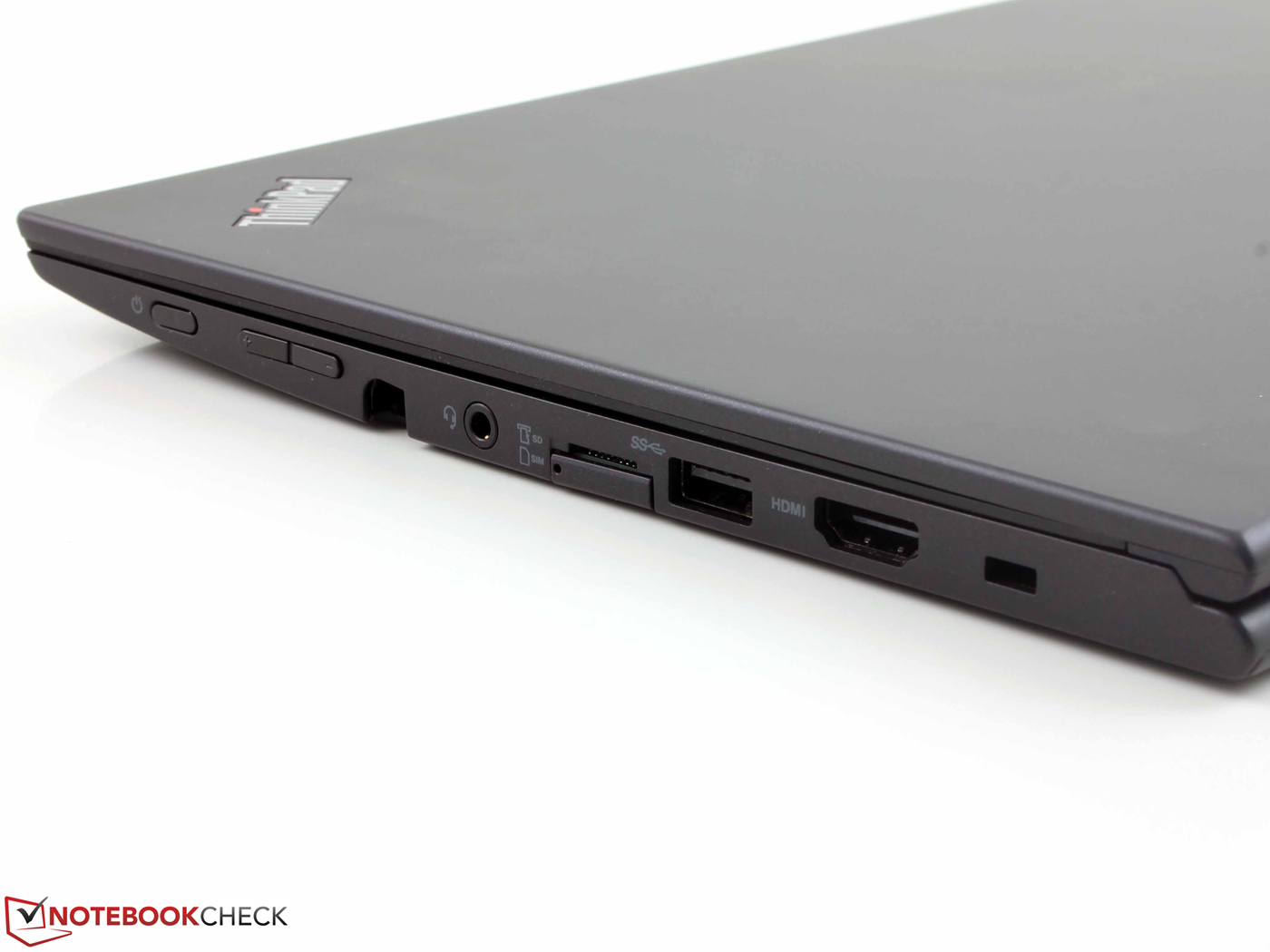

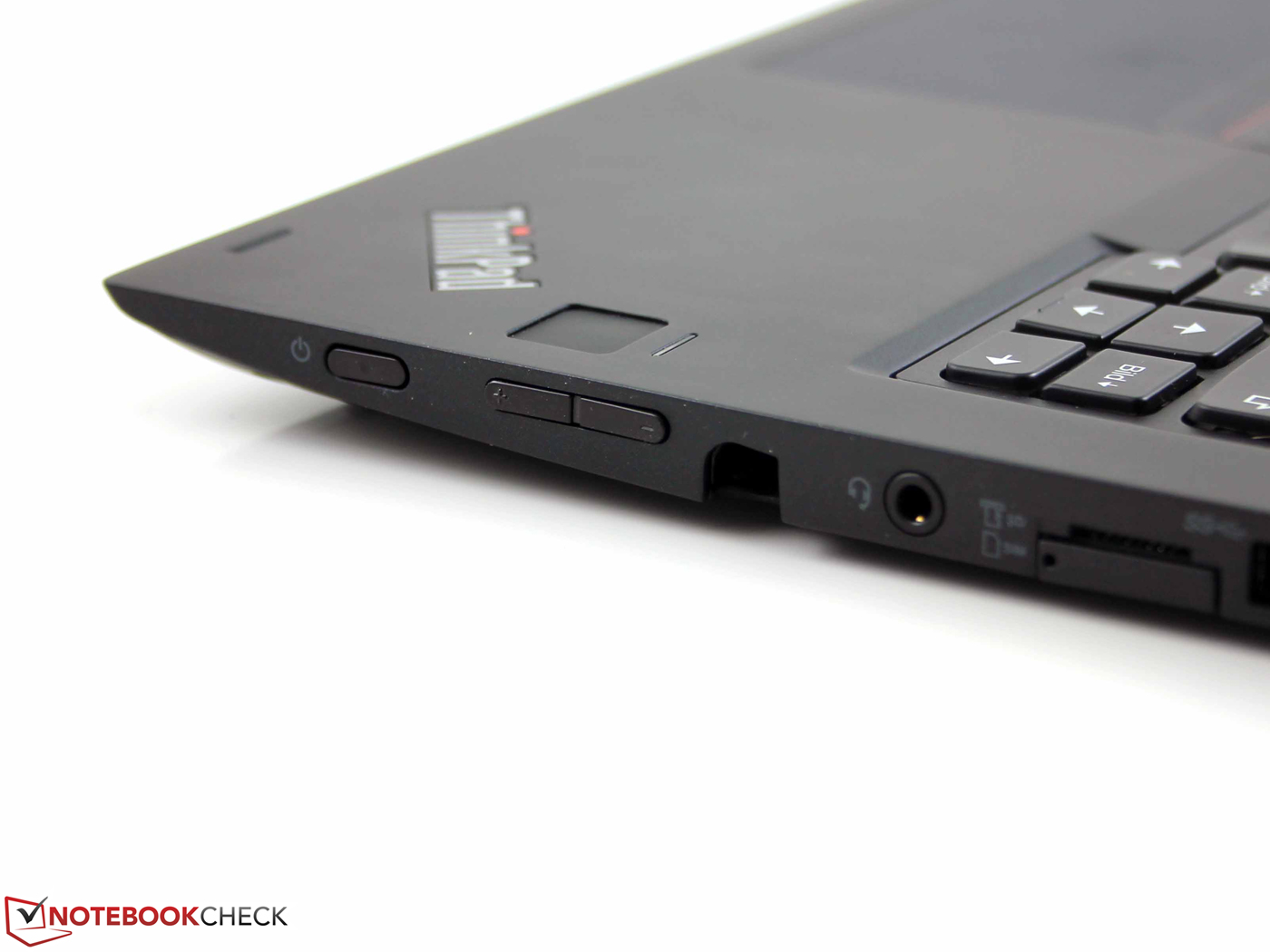

Power, volume, stylus holder, line/mic combo, micro-SD, Sim card slot, UBS 3.0, HDMI, Kensington
Power, volume, stylus holder, line/mic combo, micro-SD, Sim card slot, UBS 3.0, HDMI, Kensington

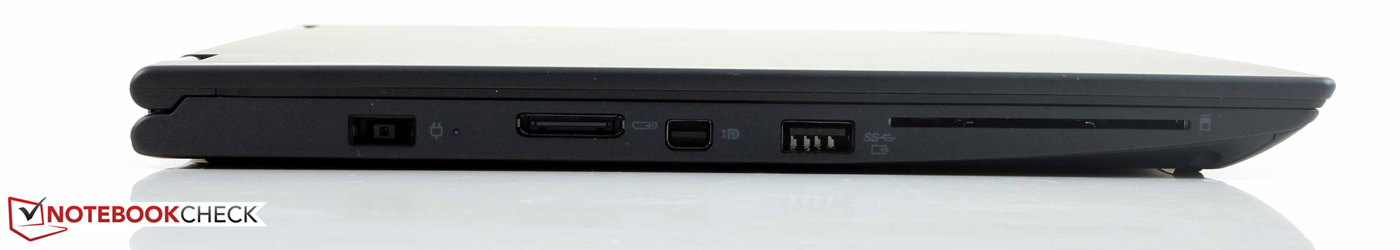

Power supply, docking port, DisplayPort, USB 3.0 sleep & charge, SmartCard reader
Power supply, docking port, DisplayPort, USB 3.0 sleep & charge, SmartCard reader
328
cd/m²
356
cd/m²
329
cd/m²
328
cd/m²
371
cd/m²
329
cd/m²
321
cd/m²
343
cd/m²
313
cd/m²
Distribution av ljusstyrkan
LEN40E6 N125HCE-GN1 tested with X-Rite i1Pro 2
Max: 371 cd/m² (Nits) Medel: 335.3 cd/m²
Distribution av ljusstyrkan: 84 %
Mitt på batteriet: 371 cd/m²
Kontrast: 1279:1 (Svärta: 0.29 cd/m²)
ΔE Color 8.51 | 0.5-29.43 Ø5
ΔE Greyscale 9.23 | 0.57-98 Ø5.3
62% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.55% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.8% sRGB (Argyll 2.2.0 3D)
42.98% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad Yoga 260 20FD001XGE
IPS FHD matt
HP Elitebook Revolve 810 G3
IPS HD glare
Lenovo Yoga 3 Pro
IPS UHD glare
Toshiba Satellite Radius 12 P20W-C-106
IPS FHD glare
Toshiba Portege Z20t-B-10C
IPS FHD matt
Display
9%
48%
-0%
Display P3 Coverage
42.98
46.85
9%
63.6
48%
42.63
-1%
sRGB Coverage
62.8
69.1
10%
94.7
51%
63.6
1%
AdobeRGB 1998 Coverage
44.55
48.42
9%
65
46%
44.1
-1%
Response Times
-27%
Response Time Grey 50% / Grey 80% *
64 ?(30, 34)
68 ?(27, 41)
-6%
Response Time Black / White *
30 ?(5, 25, Nano Seconds ns)
44 ?(13, 31)
-47%
PWM Frequency
Screen
7%
-22%
28%
-14%
Brightness middle
371
322
-13%
287
-23%
388
5%
342
-8%
Brightness
335
312
-7%
280
-16%
351
5%
301
-10%
Brightness Distribution
84
87
4%
88
5%
85
1%
76
-10%
Black Level *
0.29
0.32
-10%
0.792
-173%
0.32
-10%
0.393
-36%
Contrast
1279
1006
-21%
362
-72%
1213
-5%
870
-32%
Colorchecker dE 2000 *
8.51
5.19
39%
3.08
64%
1.83
78%
9.69
-14%
Colorchecker dE 2000 max. *
20.43
Greyscale dE 2000 *
9.23
4.36
53%
3.36
64%
2.17
76%
9.27
-0%
Gamma
2.24 98%
2.26 97%
2.5 88%
2.43 91%
2.95 75%
CCT
6759 96%
5985 109%
6087 107%
6703 97%
6010 108%
Color Space (Percent of AdobeRGB 1998)
41
44.3
8%
60
46%
40.4
-1%
Color Space (Percent of sRGB)
62
95
53%
Total Average (Program / Settings)
8% / 7%
-22% / -22%
16% / 24%
-7% / -10%

* ... smaller is better

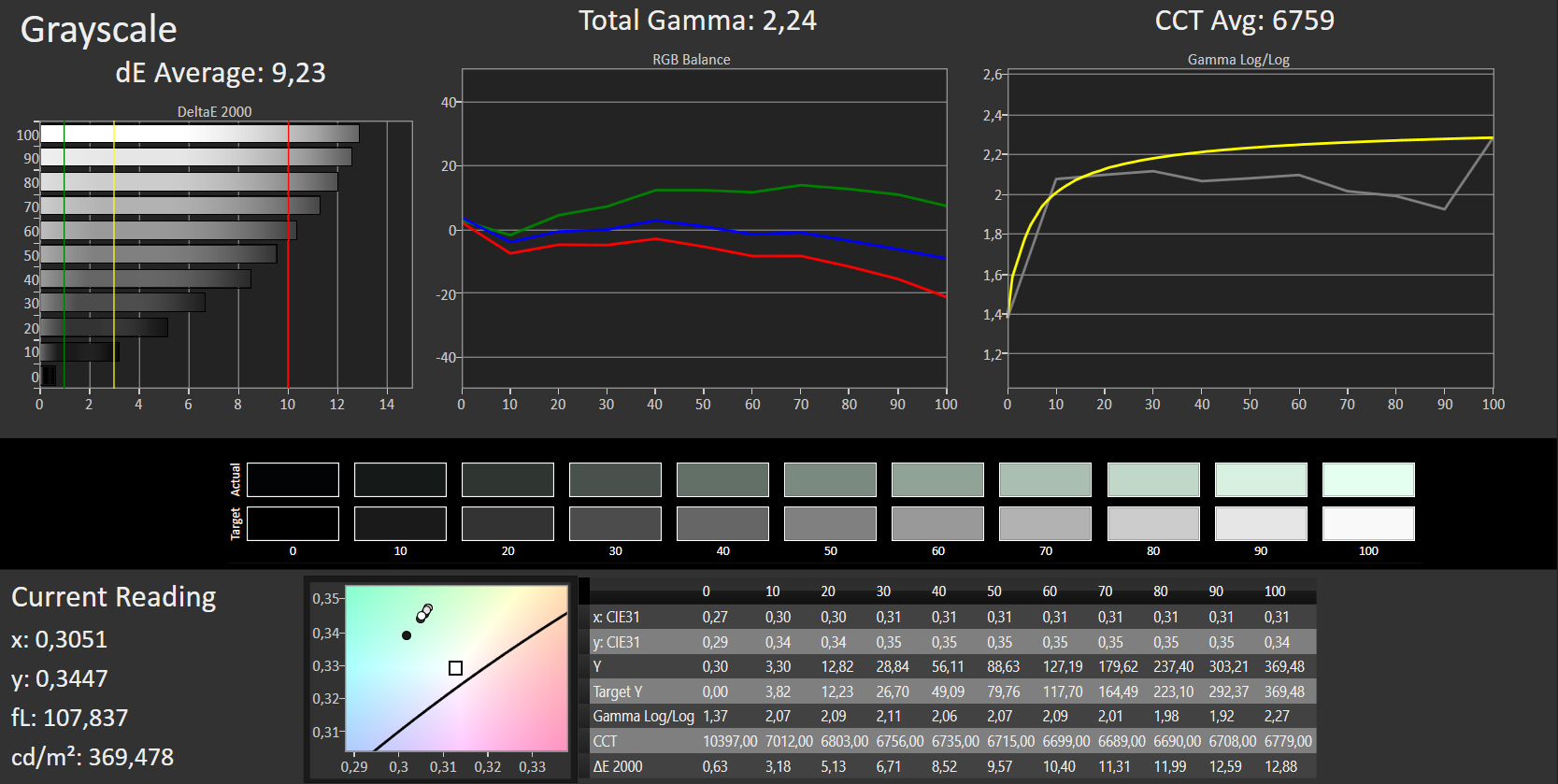

CalMAN Grayscale
CalMAN Grayscale

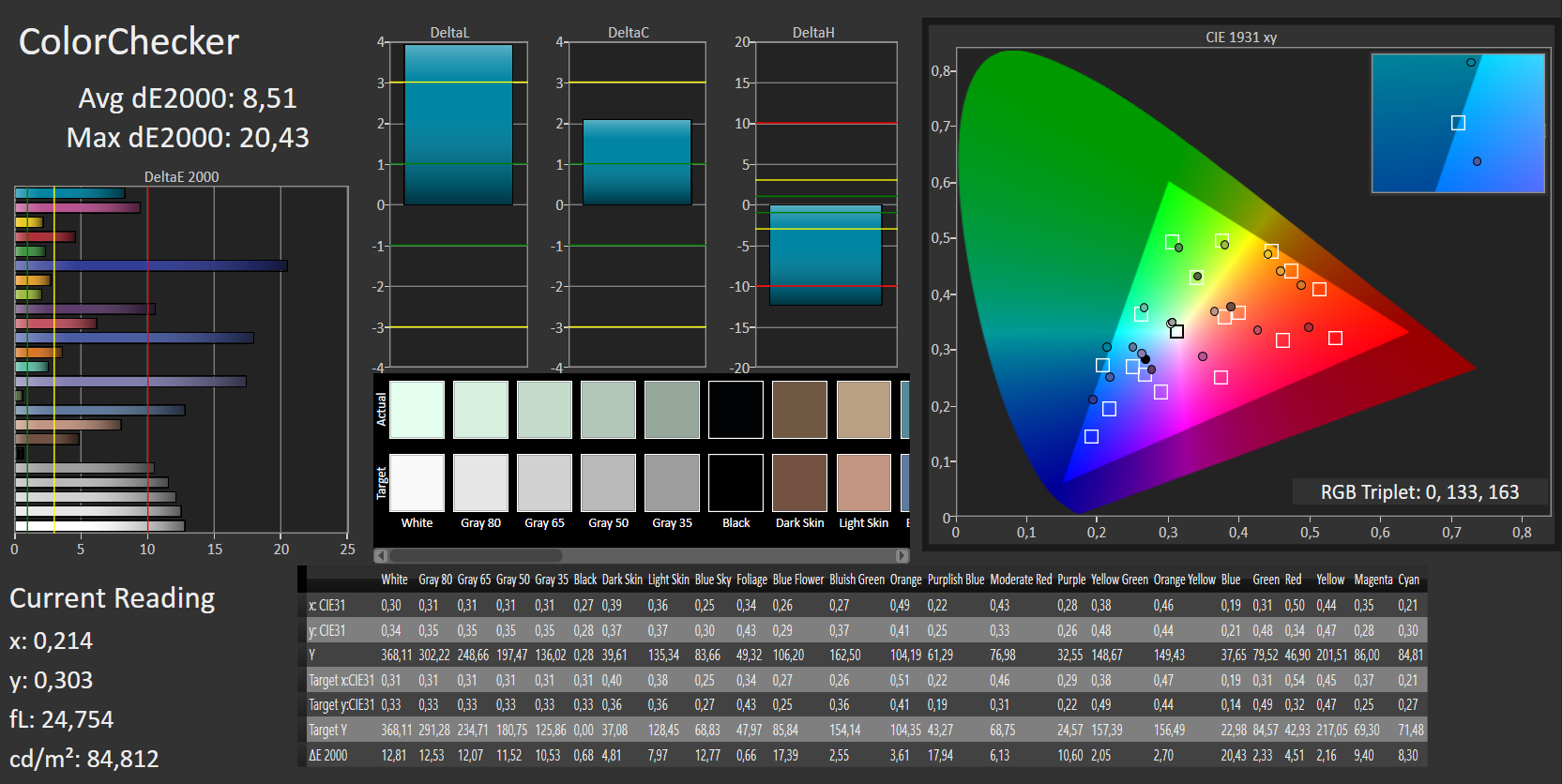

CalMAN ColorChecker
CalMAN ColorChecker

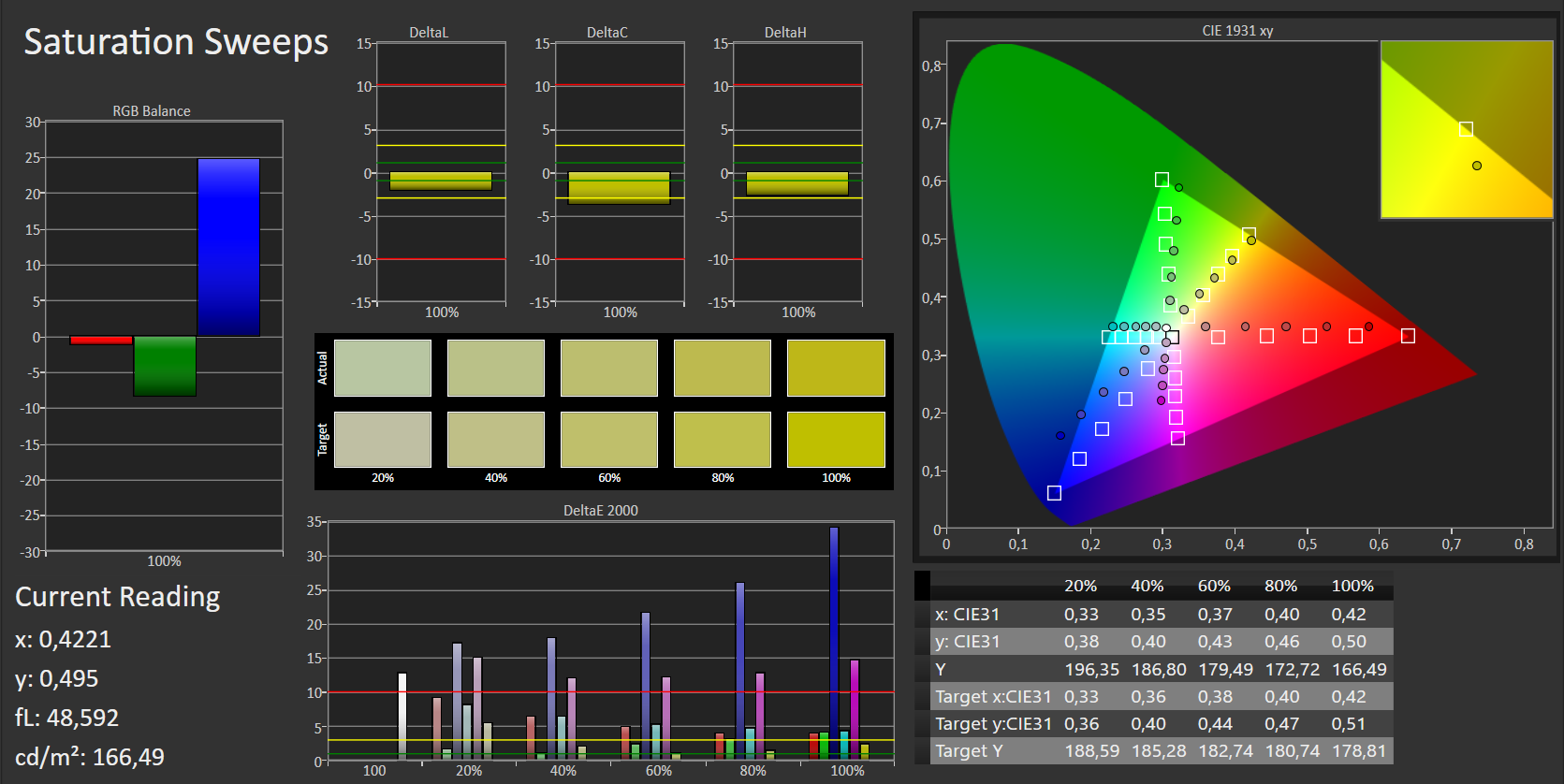

CalMAN Saturation Sweeps
CalMAN Saturation Sweeps

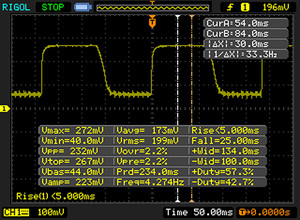

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

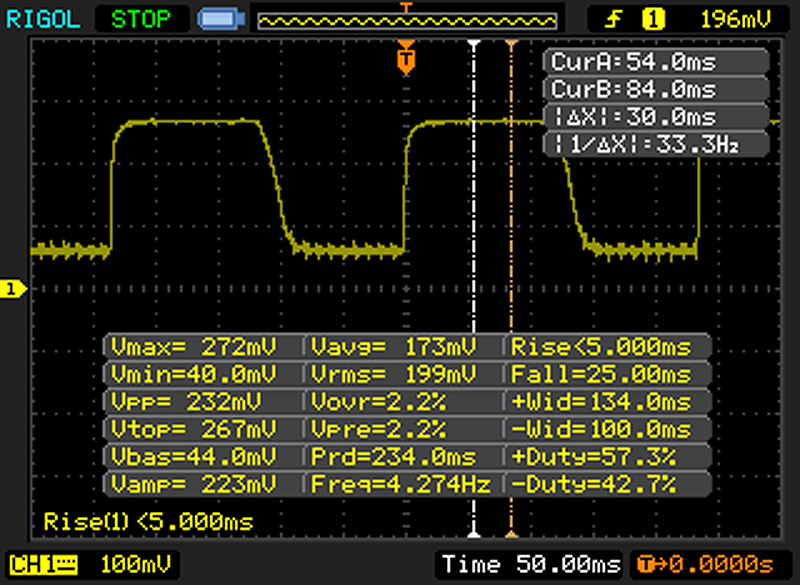

       Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

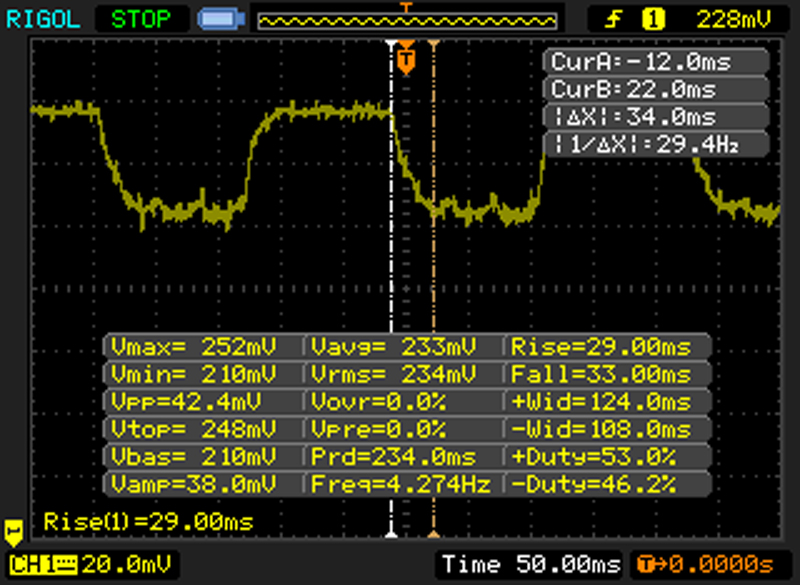

       Response Time 50% Grey to 80% Grey
64 ms ... rise ↗ and fall ↘ combined↗ 30 ms rise
↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured.

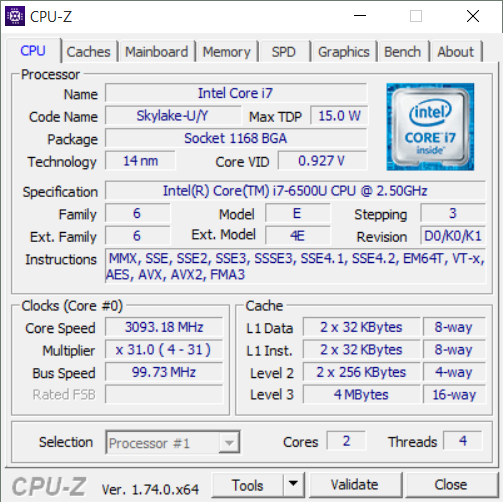

System info CPU-Z CPU

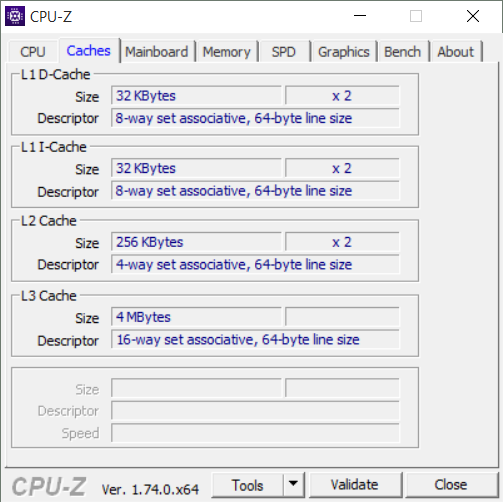

System info CPU-Z Cache

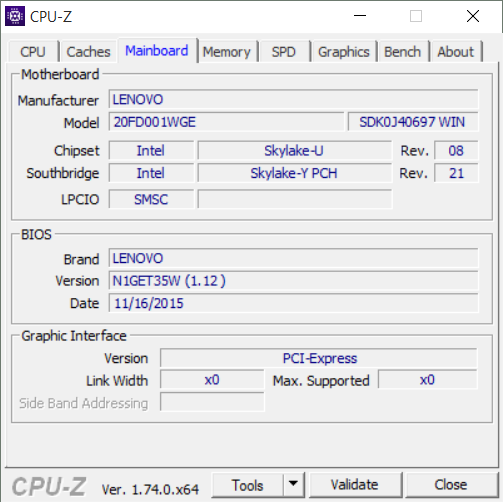

System info CPU-Z Mainboard
System info CPU-Z Memory

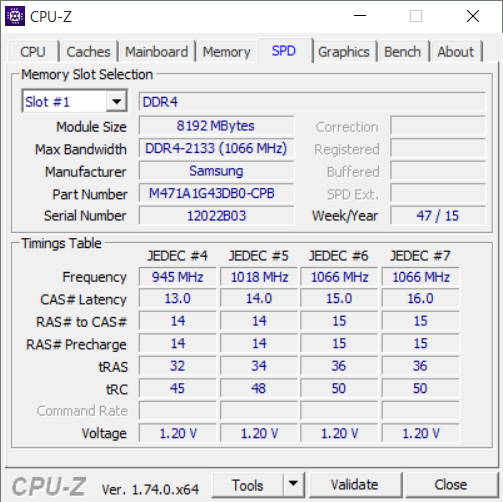

System info CPU-Z SPD

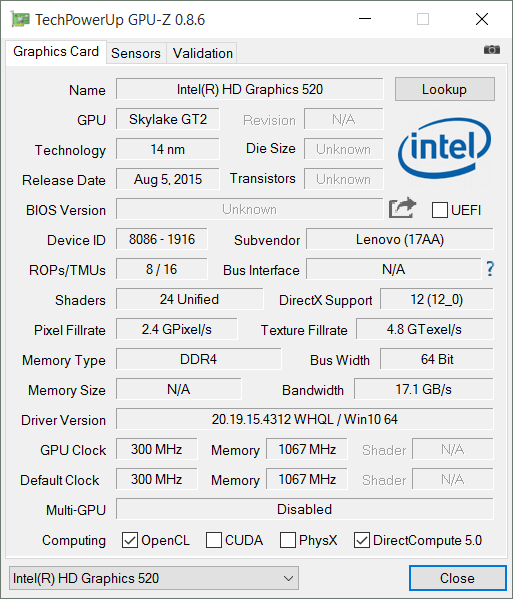

System info GPU-Z HD Graphics 520

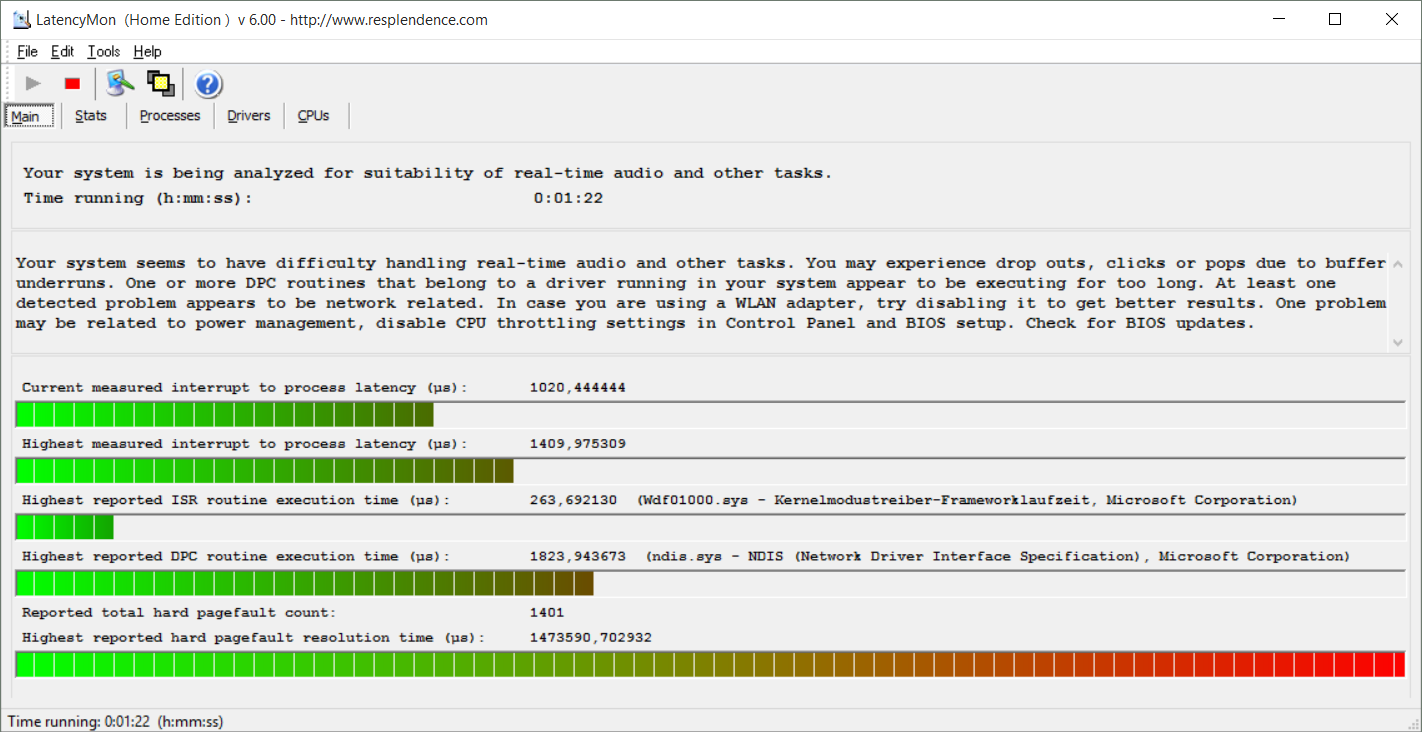

Latency discovered
Latency discovered
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
128 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
130 Points +2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
91 Points -29%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
125 Points -2%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
97 Points -24%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
264 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
289 Points +9%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
180 Points -32%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
317 Points +20%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
190 Points -28%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1.46 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1.51 Points +3%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
1.13 Points -23%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1.34 Points -8%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
1.15 Points -21%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2.94 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3.16 Points +7%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2.09 Points -29%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3.54 Points +20%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2.14 Points -27%
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
5195 Points
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
5068 Points
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
8939 Points
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
8486 Points
Cinebench R10 Rendering Single 32Bit
6361
Cinebench R11.5 CPU Single 64Bit
1.46 Points
Cinebench R11.5 CPU Multi 64Bit
2.94 Points
Cinebench R11.5 OpenGL 64Bit
27.31 fps
Cinebench R15 CPU Single 64Bit
128 Points
Cinebench R15 CPU Multi 64Bit
264 Points
Cinebench R15 OpenGL 64Bit
32.23 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Hjälp
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3263 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3358 Points +3%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2633 Points -19%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2816 Points -14%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3952 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3876 Points -2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3108 Points -21%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3263 Points -17%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4368 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
4473 Points +2%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3721 Points -15%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3936 Points -10%
Storage Score v2 (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4958 Points
PCMark 7
Score (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5043 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5322 Points +6%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
4650 Points -8%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5204 Points +3%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
4421 Points -12%
Productivity (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2581 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
2806 Points +9%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
2273 Points -12%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
2590 Points 0%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2356 Points -9%
Computation (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
14727 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
17470 Points +19%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
17263 Points +17%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
15557 Points +6%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
12787 Points -13%
PCMark 7 Score
5043 poäng
PCMark 8 Home Score Accelerated v2
3263 poäng
PCMark 8 Creative Score Accelerated v2
3952 poäng
PCMark 8 Work Score Accelerated v2
4368 poäng
Hjälp
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
PCMark 7
System Storage
5302
5222
-2%
5263
-1%
5430
2%
5379
1%
CrystalDiskMark 3.0
7%
10%
10%
15%
Read Seq
468.9
526
12%
529
13%
492.6
5%
530
13%
Write Seq
297.3
239.9
-19%
242.1
-19%
306.5
3%
473.3
59%
Read 512
397.9
420.5
6%
430.9
8%
408.9
3%
424.7
7%
Write 512
297.1
239.5
-19%
242.4
-18%
307.1
3%
446.9
50%
Read 4k
33.11
28.09
-15%
35.95
9%
33.48
1%
22.91
-31%
Write 4k
85.1
102.3
20%
104.5
23%
89.7
5%
88.2
4%
Read 4k QD32
398.3
389.8
-2%
339.8
-15%
323.9
-19%
295.6
-26%
Write 4k QD32
136.6
238.4
75%
240.6
76%
249
82%
197.3
44%
AS SSD
-3%
-10%
3%
Seq Read
482.3
511
6%
482.4
0%
513
6%
Seq Write
282.9
249.1
-12%
229.1
-19%
457.2
62%
4K Read
29.07
26.91
-7%
27.14
-7%
21.4
-26%
4K Write
70
90.3
29%
61.3
-12%
76.8
10%
Score Read
448
416
-7%
433
-3%
428
-4%
Score Write
361
299
-17%
283
-22%
305
-16%
Score Total
1037
924
-11%
934
-10%
954
-8%
Total Average (Program / Settings)
1% / 2%
-0% / 0%
6% / 9%
6% / 9%
Samsung SSD PM871 MZNLN256HCHP
Sequential Read: 468.9 MB/s
Sequential Write: 297.3 MB/s
512K Read: 397.9 MB/s
512K Write: 297.1 MB/s
4K Read: 33.11 MB/s
4K Write: 85.1 MB/s
4K QD32 Read: 398.3 MB/s
4K QD32 Write: 136.6 MB/s
3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5299 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5369 Points +1%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
3673 Points -31%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5589 Points +5%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3585 Points -32%
3DMark 11 - 1280x720 Performance (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1333 Points
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1149 Points -14%
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
756 Points -43%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1573 Points +18%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
775 Points -42%
3DMark 11 Performance
1333 poäng
3DMark Ice Storm Standard Score
46556 poäng
3DMark Cloud Gate Standard Score
5299 poäng
3DMark Fire Strike Score
721 poäng
Hjälp
Crysis 3 - 1024x768 Low Preset (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
20.4 fps
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
12.5 fps -39%
Fifa 15 - 1366x768 High Preset AA:2x MS (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
35.6 fps
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
13.8 fps -61%
Battlefield Hardline - 1024x768 Low Graphics Quality (DX11) (sort by value)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
36.2 fps
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
50.1 fps +38%
låg med. hög ultra
Crysis 3 (2013) 20.4 13.5
Fifa 15 (2014) 35.6 21.3
Battlefield Hardline (2015) 36.2 27.9 10.1
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Noise
5%
9%
-7%
Idle Minimum *
31.5
29.1
8%
28.9
8%
32.5
-3%
Idle Average *
31.5
29.1
8%
30.1
4%
32.6
-3%
Idle Maximum *
32
29.1
9%
30.1
6%
32.6
-2%
Load Average *
36.4
35.6
2%
31.5
13%
41
-13%
Load Maximum *
36.6
37.2
-2%
31.9
13%
41
-12%
off / environment *
31.3

* ... smaller is better

Ljudnivå

Låg belastning
31.5 / 31.5 / 32 dB(A)
Hög belastning
36.4 / 36.6 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm avstånd)
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
Heat
-4%
-12%
-9%
-10%
Maximum Upper Side *
42.6
39.9
6%
42.1
1%
46.5
-9%
48.3
-13%
Maximum Bottom *
42.6
39.5
7%
37
13%
43
-1%
43.2
-1%
Idle Upper Side *
25.1
28.4
-13%
34.4
-37%
28.9
-15%
28.9
-15%
Idle Bottom *
25.3
28.8
-14%
31.7
-25%
28.4
-12%
27.7
-9%

* ... smaller is better

Låg belastning
 24.2 °C25.1 °C24.7 °C
 24.1 °C24.6 °C24.5 °C
 23.4 °C23.5 °C23.9 °C
Max: 25.1 °C
Medel: 24.2 °C
24.7 °C25.3 °C25 °C
24.2 °C24.9 °C24.7 °C
23.5 °C23.7 °C23.6 °C
Max: 25.3 °C
Medel: 24.4 °C
Strömförsörjning (max.)  28.1 °C | Rumstemperatur 22 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.6 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.6 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.4 °C / -2.5 F).
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
Power Consumption
5%
-10%
-88%
19%
Idle Minimum *
3.6
2.1
42%
3.7
-3%
8.8
-144%
2.4
33%
Idle Average *
6.3
4
37%
8.9
-41%
12.8
-103%
4.6
27%
Idle Maximum *
7.6
5.4
29%
10.7
-41%
13.7
-80%
5.6
26%
Load Average *
27.2
27.1
-0%
22
19%
38
-40%
15.6
43%
Load Maximum *
22.8
41.5
-82%
19.5
14%
39
-71%
30.7
-35%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0.35 / 0.64 Watt
Låg belastningdarkmidlight 3.6 / 6.3 / 7.6 Watt
Hög belastning midlight 27.2 / 22.8 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad Yoga 260 20FD001XGE
44 Wh 6500U
HP Elitebook Revolve 810 G3
44 Wh 5600U
Lenovo Yoga 3 Pro
44 Wh M-5Y70
Toshiba Satellite Radius 12 P20W-C-106
42 Wh 6500U
Toshiba Portege Z20t-B-10C
72 Wh M-5Y71
Dell Latitude 13 7350
50 Wh M-5Y10
Battery Runtime
28%
18%
-30%
156%
102%
Reader / Idle
943
1103
17%
635
-33%
1616
71%
953
1%
WiFi v1.3
346
499
44%
241
-30%
760
120%
Load
92
113
23%
155
68%
348
278%
278
202%
H.264
428
379
787
472
WiFi
379
522
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
15tim 43min
WiFi Websurfing
5tim 46min
Hög belastning (maximal ljusstyrka)
1tim 32min

För

+ Utmärkta inmatningsenheter + stylus
+ Ljusstark, matt pekskärm
+ Portar, inklusive dockningport
+ Låg ljudnivå
+ Kan konfigureras
+ Säkerhetsfunktioner

Emot

- Kraftig CPU-strypning
- Färgreproduktionen
- "Brytpunkt" på chassit
- Distortion från mikrofonen
- Dålig webbkamera
In review: Lenovo ThinkPad Yoga 260 20FD001XGE. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad Yoga 260 20FD001XGE. Test model courtesy of Notebooksandmore.

Den enklaste versionen av Yoga 260 börjar på ca 11 000 kr och levereras med IPS-panel (pekskärm, matt), Core i3-processor och en 128 GB SSD. Enheten kan konfigureras ända upp till 16 GB RAM/512 GB SSD, med motsvarande högt pris. För att motivera prisbilden krävs betydligt mer än bara ThinkPad-namnet.

Yoga 260 antar utmaningen och följer i ThinkPad X250:s fotspår. Inmatningsenheterna är likvärdiga, vilket är mycket positivt. Resten är däremot helt annorlunda, med ett 360-graders gångjärn – men det som gör Yoga 260 unik är kombinationen av matt pekskärm och stylus med tryckkänslighet.

Den mediokra batteritiden är en begränsning, men batteriet går i alla fall snabbt att ladda. Vi gillade den ljusstarka, matta pekskärmen och dockningsporten, samt det faktum att det finns så många konfigurationer. Även LTE-modul finns som tillval.

Så varför är betyget "bara" 86%? Yoga 260 kan inte utklassa sin kvasi-föregångare ThinkPad X250 (87%) trots sina extra arbetspositioner. Vi ogillade mest ”brytpunkten” i skärmramen. Trevligt som det är att kunna lagra och ladda pennan här, borde man ha funderat på risken för att något ska gå sönder. Skärmens färgåtergivning är ganska klen, men det kan avhjälpas med kalibrering, eller med hjälp av de installerade färgprofilerna. Och sedan kvarstår frågan om att CPU-prestandan stryps under helt normal belastning. Varför ska någon köpa en dyrare 15-watts i7-modell om det inte kan leverera vad den lovar?

Enligt vår uppfattning är HP:s Elite Revolve 810 G3 ett starkt alternativ, med bättre batteritid och även mycket bra inmatningsenheter. Den har också dockningsport och LTE-modem, även om skärmen bara har föråldrad HD-upplösning på 1366x768 pixlar. Priset är tyvärr högt även här. Lenovos billigare Yoga 3 Pro kvarstår som vår favorit bland konkurrenterna. Den har en upplösning på 3200x1800 pixlar, men är blank. Datorn saknar också en del företagsfunktioner, som uppgraderingsmöjligheter, dockning och säkerhetsfunktioner.

Lenovo ThinkPad Yoga 260 20FD001XGE - 04/18/2016 v5.1(old)
Sebastian Jentsch

Design
88 / 98 → 90%
Tangentbord
92%
Mus
94%
Anslutningar
61 / 80 → 77%
Vikt
71 / 35-78 → 84%
Batteri
86%
Skärm
83%
Spelprestanda
57 / 68 → 84%
Programprestanda
84 / 87 → 97%
Temperatur
92%
Ljudnivå
90%
Audio
44 / 91 → 48%
Camera
50 / 85 → 59%
Medel
76%
86%
Convertible - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad Yoga 260 20FD001XGE (sammanfattning)
Sebastian Jentsch, 2016-02-21 (Update: 2016-02-21)
