Test: Lenovo ThinkPad X1 Carbon 20FB-005XUS (sammanfattning)

Name: Lenovo ThinkPad X1 Carbon 20FB-005XUS
Brand: Lenovo

Carbon footprint. Vi jämför här en andra, billigare Core i5-modell med den dyrare varianten med Core i7 och WQHD-skärm. Är det värt att spara en slant i utbyte mot pixlar och prestanda?

Allen Ngo, Published 05/31/2016 🇺🇸 🇨🇳 ...

Ultrabook Windows Skylake Laptop / Notebook Business

Test device courtesy of Lenovo US

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad X1 Carbon 20FB-005XUS (ThinkPad X1 Serie)

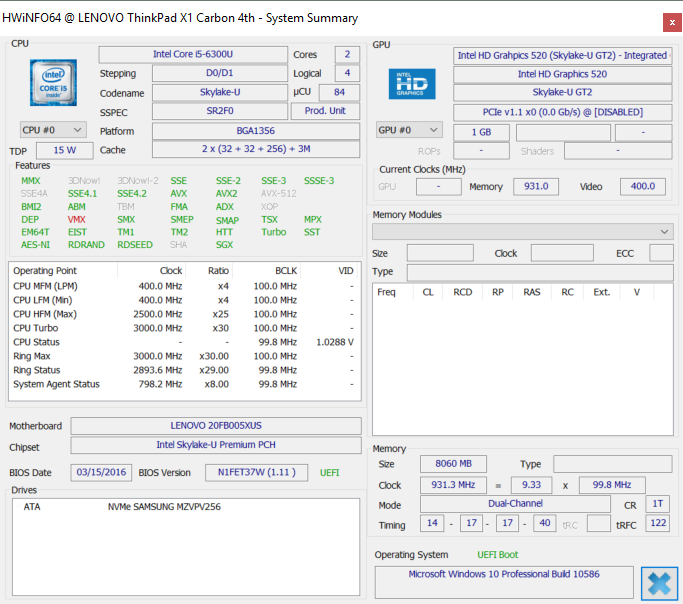

Processor

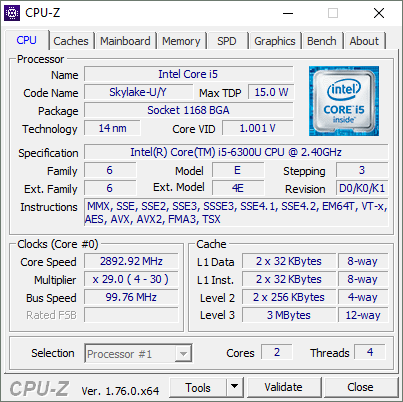

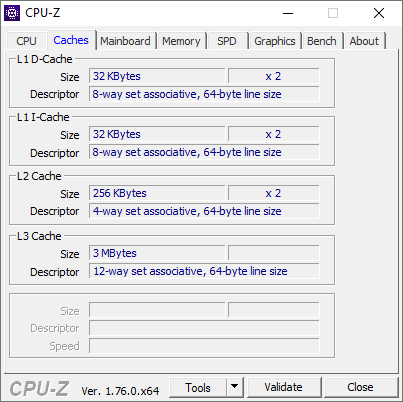

Intel Core i5-6300U 2 x 2.4 - 3 GHz, Skylake

Grafikkort

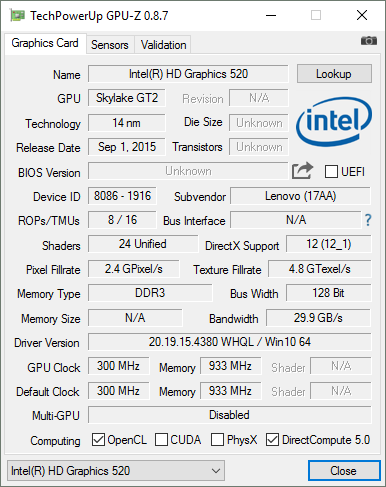

Intel HD Graphics 520, Kärna: 300 MHz, Minne: 933 MHz, 20.19.15.4380

Minne

8 GB

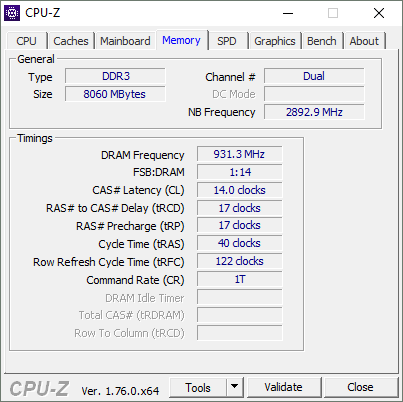

, LPDDR3, dual-channel, 10-10-10-28, 1066.7 MHz max

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, IPS, Name: Lenovo B140HAN01.7, ID: LEN40A9, glansig: nej

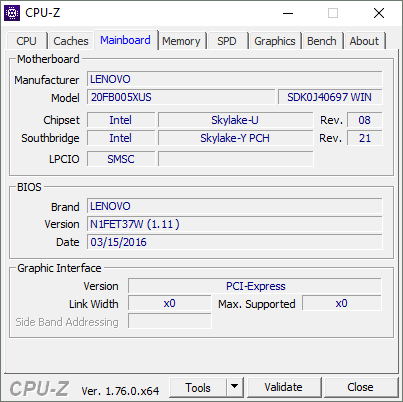

Moderkort

Intel Skylake-U Premium PCH

Hårddisk

Samsung SM951 MZVPV256 m.2, 256 GB

Ljudkort

Intel Skylake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3,5 mm Headset, Kortläsare: MicroSD, 1 Fingeravtrycksläsare, Brightness Sensor

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 16.5 x 333 x 229

Batteri

52 Wh Litiumpolymer, integrerat

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

Webbkamera: 720p

Övrigt

Högtalare: Stereo (2x 1W), Tangentbord: Chiclet, Tangentbordsbelysning: ja, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo PC Experience, Lenovo Companion, 12 Månader Garanti

Vikt

1.189 kg, Strömförsörjning: 346 g

Länkar

Lenovo hemsida
ThinkPad X1 (Serie)

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Toshiba Satellite Radius 14 L40W-C-10Z HP EliteBook 840 G3 T8X41EA Dell Latitude 14 7000 Series E7470 Lenovo Thinkpad X1 Yoga 20FQ-000QUS Lenovo ThinkPad T460s-20FA003GGE Lenovo ThinkPad X1 Carbon 20FB-005XUS DIN A4 ❌

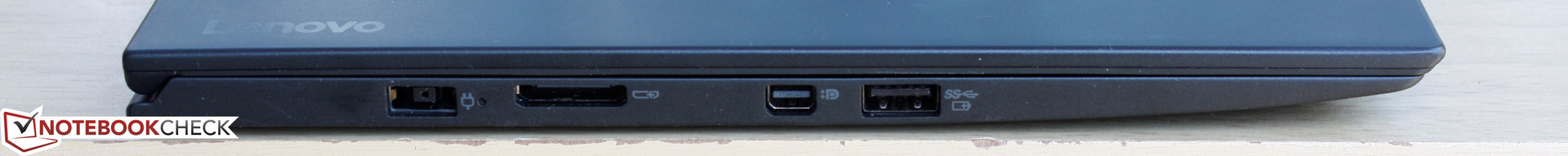

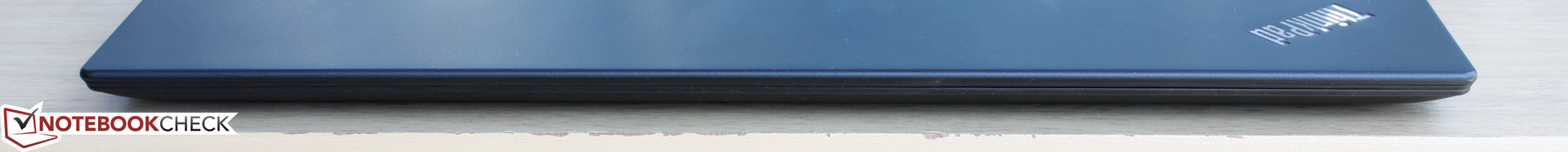

Left: power adapter, OneLink+, Mini DisplayPort 1.2, USB 3.0

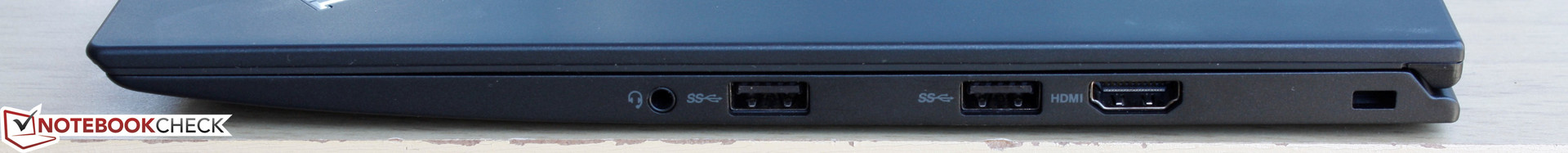

Right: 3.5 mm audio, 2x USB 3.0, HDMI 1.4, Kensington Lock


288.7 cd/m²	306.5 cd/m²	297.7 cd/m²
295.4 cd/m²	321.7 cd/m²	287.9 cd/m²
297.4 cd/m²	310.4 cd/m²	299.7 cd/m²

Distribution av ljusstyrkan

tested with X-Rite i1Pro Basic 2

Max: 321.7 cd/m² (Nits) Medel: 300.6 cd/m² Minimum: 2.379 cd/m²
Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 321.7 cd/m²
Kontrast: 1094:1 (Svärta: 0.294 cd/m²)
ΔE Color 3.96 | 0.5-29.43 Ø5
ΔE Greyscale 3.15 | 0.57-98 Ø5.3
82.7% sRGB (Argyll 1.6.3 3D)
53.8% AdobeRGB 1998 (Argyll 1.6.3 3D)
60.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
83.1% sRGB (Argyll 2.2.0 3D)
58.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34

Download ICC-fil (X-Rite i1Pro Basic 2)

	Lenovo ThinkPad X1 Carbon 20FB-005XUS 14.00, 1920x1080	Lenovo ThinkPad X1 Carbon 20FB003RGE 14.00, 2560x1440	Lenovo ThinkPad T460s-20FA003GGE 14.00, 2560x1440	Lenovo Thinkpad X1 Yoga 20FQ-000QUS 14.00, 2560x1440	HP ProBook 440 G3 14.00, 1920x1080
Display		13%	17%	16%	-31%
Display P3 Coverage	58.9	66.7 13%	68.7 17%	68.1 16%	39.6 -33%
sRGB Coverage	83.1	94.7 14%	98.1 18%	97.2 17%	59.1 -29%
AdobeRGB 1998 Coverage	60.3	68.4 13%	70.4 17%	70.2 16%	40.94 -32%
Response Times		10%	10%	5%	2%
Response Time Grey 50% / Grey 80% *	47.2 ?(18.8, 28.4)	44 ?(17, 27) 7%	35.6 ?(17.2, 18.4) 25%	38 ?(15.2, 22.8) 19%	46 ?(24, 22) 3%
Response Time Black / White *	27.6 ?(4.4, 23.2)	24 ?(5.2, 18.8) 13%	29.2 ?(14.4, 14.8) -6%	30.4 ?(6, 24.4) -10%	27.6 ?(11.2, 16.4) -0%
PWM Frequency		220 ?(90)	220 ?(90)	219 ?(99)
Screen		2%	-15%	-27%	-62%
Brightness middle	321.7	272 -15%	257 -20%	284.7 -12%	246 -24%
Brightness	301	268 -11%	248 -18%	272 -10%	215 -29%
Brightness Distribution	89	95 7%	94 6%	89 0%	84 -6%
Black Level *	0.294	0.32 -9%	0.26 12%	0.383 -30%	0.5 -70%
Contrast	1094	850 -22%	988 -10%	743 -32%	492 -55%
Colorchecker dE 2000 *	3.96	2.61 34%	4.59 -16%	5.24 -32%	8.6 -117%
Colorchecker dE 2000 max. *	6.69	6.43 4%	9.72 -45%	11.22 -68%
Greyscale dE 2000 *	3.15	3.31 -5%	6.38 -103%	7.32 -132%	9.36 -197%
Gamma	2.34 ^94%	2.35 ^94%	2.51 ^88%	2.22 ^99%	2.39 ^92%
CCT	7082 ^92%	6360 ^102%	6238 ^104%	6277 ^104%	11226 ^58%
Color Space (Percent of AdobeRGB 1998)	53.8	63 17%	65 21%	70.17 30%	37.8 -30%
Color Space (Percent of sRGB)	82.7	95 15%	98 19%	94.68 14%	59.1 -29%
Total Average (Program / Settings)		8% / 5%	4% / -6%	-2% / -14%	-30% / -46%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

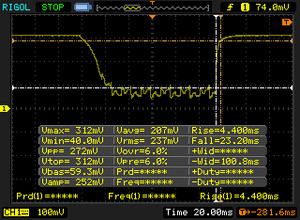

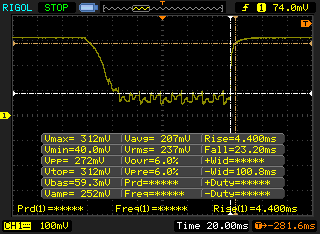

↔ Response Time Black to White
27.6 ms ... rise ↗ and fall ↘ combined	↗ 4.4 ms rise
27.6 ms ... rise ↗ and fall ↘ combined	↘ 23.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 66 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

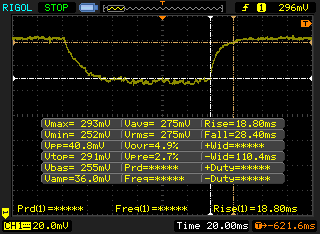

↔ Response Time 50% Grey to 80% Grey
47.2 ms ... rise ↗ and fall ↘ combined	↗ 18.8 ms rise
47.2 ms ... rise ↗ and fall ↘ combined	↘ 28.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 79 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

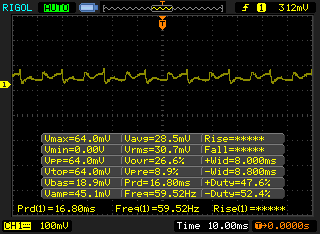

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17924 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	91 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	128 Points +41%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	150 Points +65%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	118 Points +30%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	99 Points +9%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	91 Points 0%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	301 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	310 Points +3%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	684 Points +127%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	292 Points -3%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	223 Points -26%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	257 Points -15%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	1.1 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	1.47 Points +34%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	1.7 Points +55%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	1.32 Points +20%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	1.14 Points +4%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1.03 Points -6%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	3.38 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	3.46 Points +2%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	7.52 Points +122%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	3.23 Points -4%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	2.49 Points -26%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	2.83 Points -16%

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	7812 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	10958 Points +40%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	20383 Points +161%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	10020 Points +28%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	7580 Points -3%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	6550 Points -16%
Rendering Single 32Bit (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	4573 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	4882 Points +7%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	5529 Points +21%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	4399 Points -4%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	3725 Points -19%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	4168 Points -9%

wPrime 2.10 - 1024m (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	505 s *
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	330.3 s * +35%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	566 s * -12%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	790 s * -56%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	568 s * -12%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	754 s *
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	643 s * +15%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	545 s * +28%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	712 s * +6%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	849 s * -13%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	818 s * -8%

3DMark 11 - 1280x720 Performance Physics (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	4173 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	4243 Points +2%
Asus GL552VW-DK725T GeForce GTX 960M, 6700HQ, Crucial MX200 M.2 CT250MX200SSD4	8861 Points +112%
HP ProBook 430 G3 P4N86EA HD Graphics 520, 6200U, Samsung SSD 850 EVO 250GB	3055 Points -27%
Lenovo IdeaPad Z40-59422614 GeForce 820M, 4200U, Seagate ST500LM000 Solid State Hybrid Drive	3204 Points -23%
Toshiba Tecra A50-C1510W10 HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630	3300 Points -21%

* ... smaller is better

Cinebench R10 Shading 32Bit

7976

Cinebench R10 Rendering Multiple CPUs 32Bit

7812

Cinebench R10 Rendering Single 32Bit

4573

Cinebench R11.5 OpenGL 64Bit

33.1 fps

Cinebench R11.5 CPU Multi 64Bit

3.38 Points

Cinebench R11.5 CPU Single 64Bit

1.1 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

39.03 fps

Cinebench R15 CPU Multi 64Bit

301 Points

Cinebench R15 CPU Single 64Bit

91 Points

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	3237 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	3385 Points +5%
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	3231 Points 0%
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points +3%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	3542 Points +9%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	3944 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	4342 Points +10%
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points +8%
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points +15%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4442 Points +13%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	3989 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	4150 Points +4%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4338 Points +9%

PCMark 8 Home Score Accelerated v2		3237 poäng
PCMark 8 Creative Score Accelerated v2		3989 poäng
PCMark 8 Work Score Accelerated v2		3944 poäng
Hjälp

	Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	HP EliteBook 840 G3 T8X41EA HD Graphics 520, 6600U, Samsung SSD 850 EVO 500GB	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
AS SSD		-31%	20%	-45%	-57%
Copy Game MB/s	598		791 32%	236.4 -60%
Copy Program MB/s	354.9		421.9 19%	196.5 -45%
Copy ISO MB/s	709		1135 60%	258.4 -64%
Score Total	1976	1125 -43%	2439 23%	1068 -46%	913 -54%
Score Write	552	436 -21%	621 13%	382 -31%	283 -49%
Score Read	960	447 -53%	1218 27%	449 -53%	417 -57%
Access Time Write *	0.036	0.034 6%	0.033 8%	0.046 -28%	0.04 -11%
Access Time Read *	0.043	0.053 -23%	0.041 5%	0.058 -35%	0.113 -163%
4K-64 Write	338.3	290.8 -14%	366 8%	261.9 -23%	170 -50%
4K-64 Read	731	355.9 -51%	968 32%	369.1 -50%	336.1 -54%
4K Write	103.7	98.6 -5%	114.4 10%	75.7 -27%	85.1 -18%
4K Read	43.72	41.29 -6%	45.41 4%	30.35 -31%	30.91 -29%
Seq Write	1099	464 -58%	1407 28%	447.5 -59%	283.7 -74%
Seq Read	1851	498.6 -73%	2039 10%	490.1 -74%	495.5 -73%

* ... smaller is better

CrystalDiskMark 3.0

AS SSD

Samsung SM951 MZVPV256 m.2

Sequential Read: 1720 MB/s

Sequential Write: 1263 MB/s

512K Read: 1223 MB/s

512K Write: 1249 MB/s

4K Read: 49.65 MB/s

4K Write: 123 MB/s

4K QD32 Read: 464.6 MB/s

4K QD32 Write: 354.7 MB/s

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	1396 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	1553 Points +11%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	1823 Points +31%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	1277 Points -9%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	945 Points -32%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	829 Points -41%
1280x720 Performance GPU (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	1227 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	1386 Points +13%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	1748 Points +42%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	1186 Points -3%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	831 Points -32%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	764 Points -38%

3DMark
1920x1080 Fire Strike Score (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	772 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	892 Points +16%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	1045 Points +35%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	682 Points -12%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	641 Points -17%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	510 Points -34%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	5659 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	5978 Points +6%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	4926 Points -13%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	4446 Points -21%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	4787 Points -15%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	2071 Points -63%
1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	826 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	959 Points +16%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	1162 Points +41%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	735 Points -11%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	716 Points -13%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	539 Points -35%
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	7031 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	7516 Points +7%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	7095 Points +1%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	6078 Points -14%
Toshiba Tecra Z50 A-12K HD Graphics 4400, 4600U, Toshiba THNSNJ256GMCT	5861 Points -17%
Acer Aspire ES1-521-87DN Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX	3317 Points -53%
1920x1080 Ice Storm Extreme Graphics (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	43466 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	38151 Points -12%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	35690 Points -18%
1920x1080 Ice Storm Extreme Score (sort by value)
Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	41809 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	38666 Points -8%
Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1	32719 Points -22%

3DMark 11 Performance		1396 poäng
3DMark Ice Storm Standard Score		57713 poäng
3DMark Cloud Gate Standard Score		5659 poäng
3DMark Fire Strike Score		772 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
BioShock Infinite (2013)	47.6	27.1	24.8	6.6

	Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Noise		-2%	-9%	-1%	0%	-2%
off / environment *	28.8	29.1 -1%	31.2 -8%	29.2 -1%	28.8 -0%	31.2 -8%
Idle Minimum *	28.8	29.1 -1%	31.2 -8%	29.2 -1%	28.8 -0%	31.2 -8%
Idle Average *	28.9	29.1 -1%	32.1 -11%	29.2 -1%	28.8 -0%	31.2 -8%
Idle Maximum *	28.9	29.1 -1%	33.1 -15%	29.2 -1%	28.8 -0%	31.2 -8%
Load Average *	35	35.6 -2%	36.2 -3%	33.7 4%	35.2 -1%	31.9 9%
Load Maximum *	35.8	38.1 -6%	37.8 -6%	38.5 -8%	35.2 2%	31.9 11%

* ... smaller is better

Ljudnivå

Låg belastning		28.8 / 28.9 / 28.9 dB(A)
Hög belastning		35 / 35.8 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: BK Precision 732A (15 cm avstånd) environment noise: 28.8 dB(A)

Hög belastning

Låg belastning


33.4 °C	40 °C	29.2 °C
26.2 °C	32.6 °C	26.8 °C
23.8 °C	23.6 °C	24.6 °C

Max: 40 °C
Medel: 28.9 °C


30.2 °C	42.8 °C	34 °C
26.2 °C	29.4 °C	27.4 °C
24.4 °C	26 °C	25.8 °C

Max: 42.8 °C
Medel: 29.6 °C

Strömförsörjning (max.) 36 °C | Rumstemperatur 20 °C | Fluke 62 Mini IR Thermometer

(+) The average temperature for the upper side under maximal load is 28.9 °C / 84 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.8 °C / 109 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.6 °C / 76.3 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+3.1 °C / 5.6 F).

	Lenovo ThinkPad X1 Carbon 20FB-005XUS HD Graphics 520, 6300U, Samsung SM951 MZVPV256 m.2	Lenovo ThinkPad X1 Carbon 20FB003RGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Power Consumption		4%	15%	-2%	-19%	-2%
Idle Minimum *	7.6	3.8 50%	3.8 50%	3.8 50%	6.82 10%	5.1 33%
Idle Average *	9	7.1 21%	6.3 30%	7.1 21%	8.21 9%	8.5 6%
Idle Maximum *	9.6	7.7 20%	6.8 29%	7.8 19%	17.55 -83%	10.1 -5%
Load Average *	24.5	30.2 -23%	34.4 -40%	36.3 -48%	28.81 -18%	35.2 -44%
Load Maximum *	30.3	44.7 -48%	28.3 7%	46 -52%	34.07 -12%	31 -2%

* ... smaller is better

Strömförbrukning

Av/Standby	0.2 / 0.22 Watt
Låg belastning	7.6 / 9 / 9.6 Watt
Hög belastning	24.5 / 30.3 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad X1 Carbon 20FB-005XUS 52 Wh	Lenovo ThinkPad X1 Carbon 20FB003RGE 52 Wh	HP EliteBook 840 G3 T9X59ET#ABD 46 Wh	Lenovo ThinkPad T460s-20FA003GGE 49 Wh	Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh
Battery Runtime		6%	20%	-20%	1%
Reader / Idle	776	942 21%	1020 31%	833 7%	922 19%
WiFi v1.3	411	429 4%	453 10%	340 -17%	356 -13%
Load	123	115 -7%	146 19%	62 -50%	120 -2%

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		12tim 56min
WiFi Websurfing		6tim 51min
Hög belastning (maximal ljusstyrka)		2tim 03min

För

+ ingen CPU/GPU-strypning under batteridrift

+ utmärkta inmatningsenheter

+ tunt och starkt chassi

+ enkelt underhåll

+ ljusstark skärm

+ stöd för modem

+ tysta fläktar

+ ej PWM

Emot

- kan inte upprätthålla specificerade Turbo-hastigheter

- sämre färgreproduktion än WQHD-modellen

- gångjärnen kunde varit styvare

- fingeravtrycksmagnet

- långsam laddning

- saknar USB Typ C

- fastlött RAM

- dyr

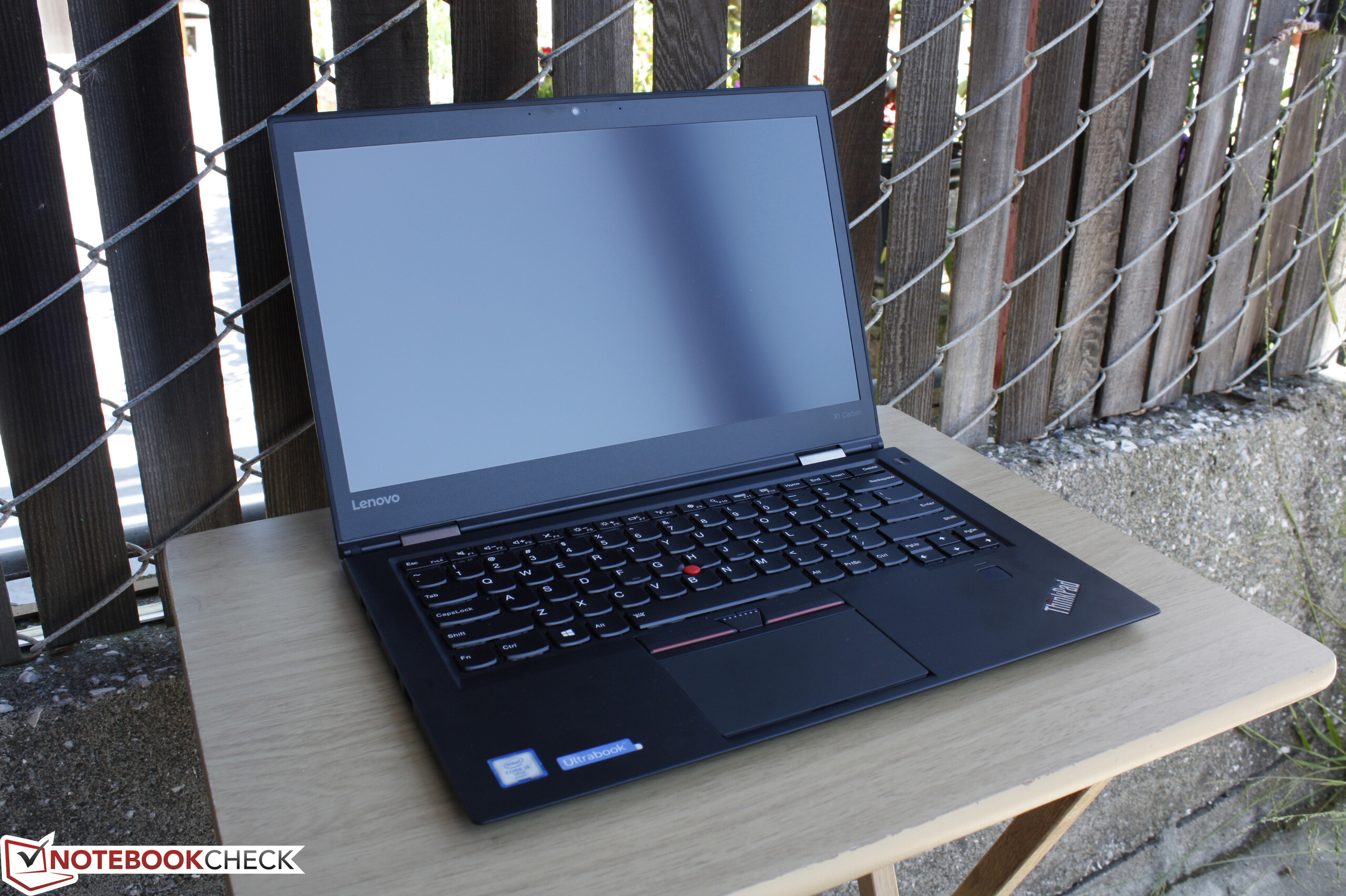

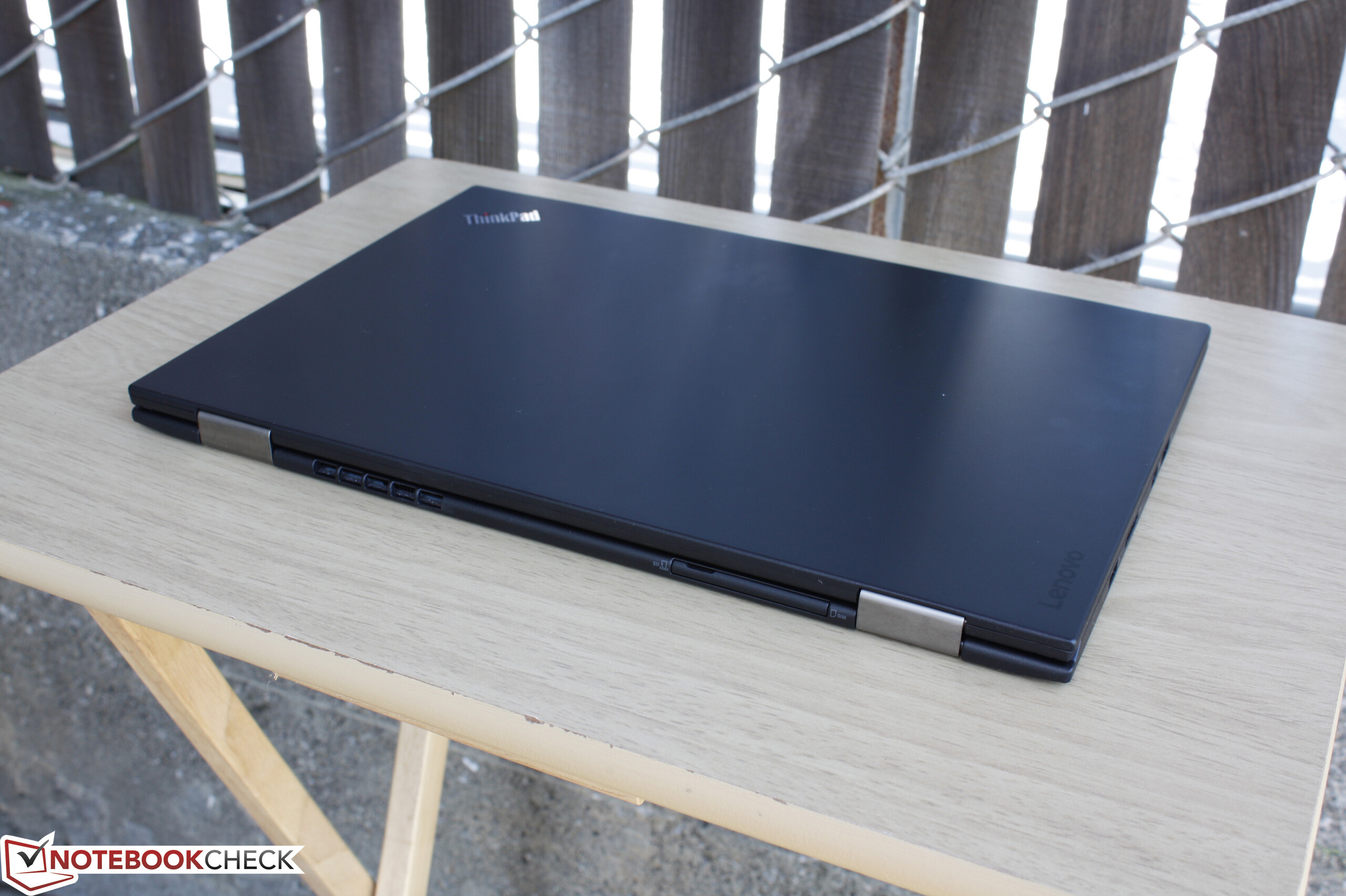

In review: Lenovo ThinkPad X1 Carbon 20FB-005XUS. Test model courtesy of Lenovo US.

Läs en längre version av testet på engelska här.

Med starka konkurrenter som MacBook Air eller XPS 13 har trycket varit hårt på Lenovo att hålla sin ThinkPad X1 Carbon-serie i form. Den senaste modellen är bättre än någonsin, vilket vi konstaterade i vårt tidigare test av enheten. Möjligheten att utrusta datorn med modem kommer förmodligen också att tilltala en del köpare.

Kan Core i5 FHD-konfigurationen erbjuda märkbart längre batteritid och lägre temperaturer än sin dyrare motsvarighet? Skillnaderna i batteritid är små och även om yttemperaturerna är lite lägre är skillnaden bara ett par grader i bästa fall. Det innebär att en potentiell köpare kan välja den dyrare modellen för att få bättre prestanda, mer exakta färger och mer högupplöst skärm utan att offra för mycket av batteritiden.

Prestandan med Core i5 är lägre än förväntat, i synnerhet i enkelkärniga processer. Den kanske mest anmärkningsvärda skillnaden är att denna FHD-konfiguration inte använder PWM för ljusstyrkan i motsats till WQHD-konfigurationen. Är man känslig för flimmer kanske man därför föredrar Full HD-modellen i stället för en snabbare processor.

Lenovo ThinkPad X1 Carbon 20FB-005XUS - 2016-05-13 05/13/2016 v5.1^(old)
Allen Ngo

Design

86 / 98 → 87%

Tangentbord

92%

Mus

91%

Anslutningar

67 / 80 → 84%

Vikt

73 / 20-67 → 100%

Batteri

89%

Skärm

90%

Spelprestanda

56 / 68 → 82%

Programprestanda

79 / 92 → 86%

Temperatur

93%

Ljudnivå

94%

Audio

63%

Camera

53 / 85 → 62%

Medel

79%

90%

Office - Vägt medel

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5190 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad X1 Carbon 20FB-005XUS (sammanfattning)

Allen Ngo, 2016-05-31 (Update: 2020-06- 8)
