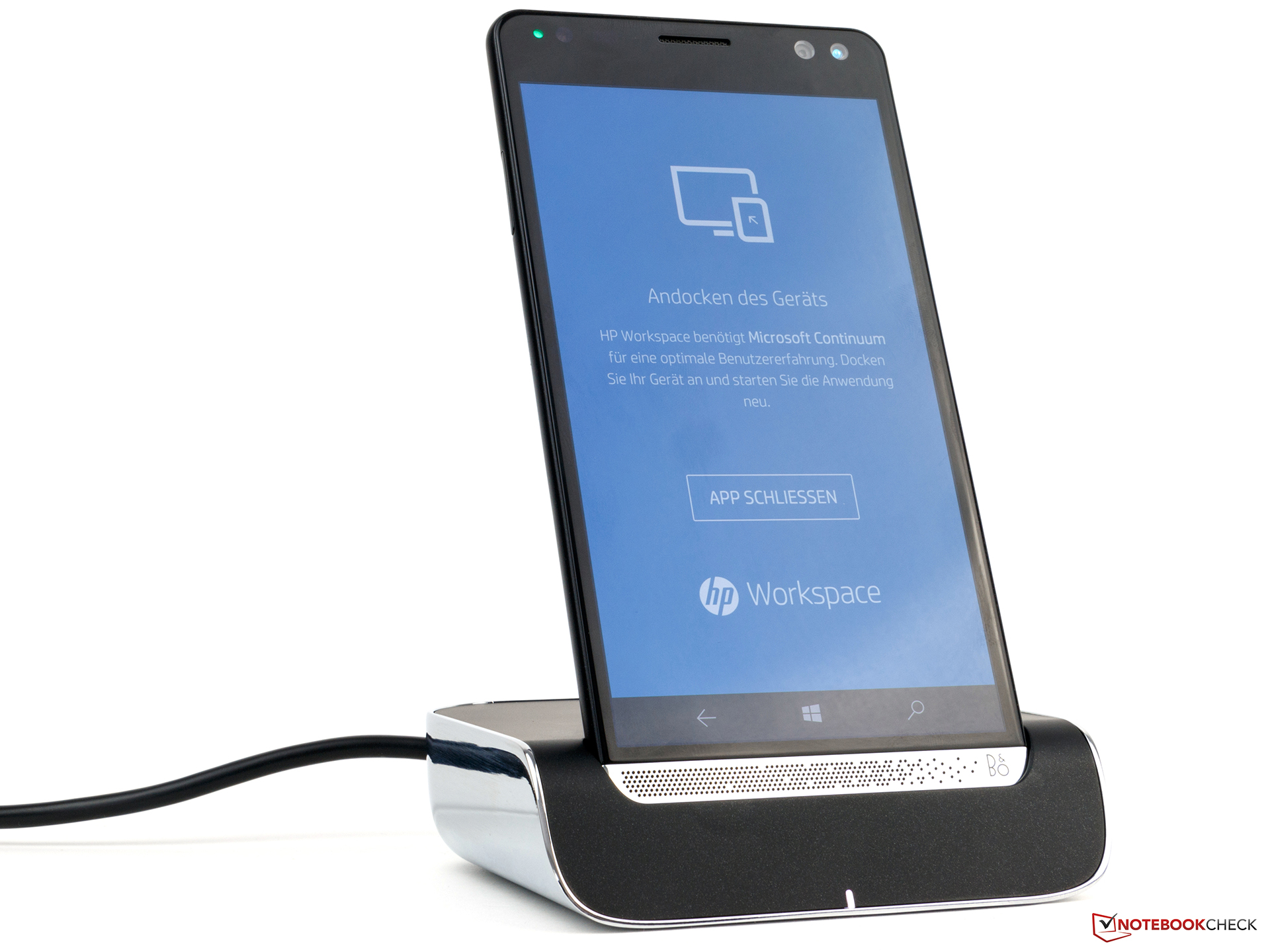

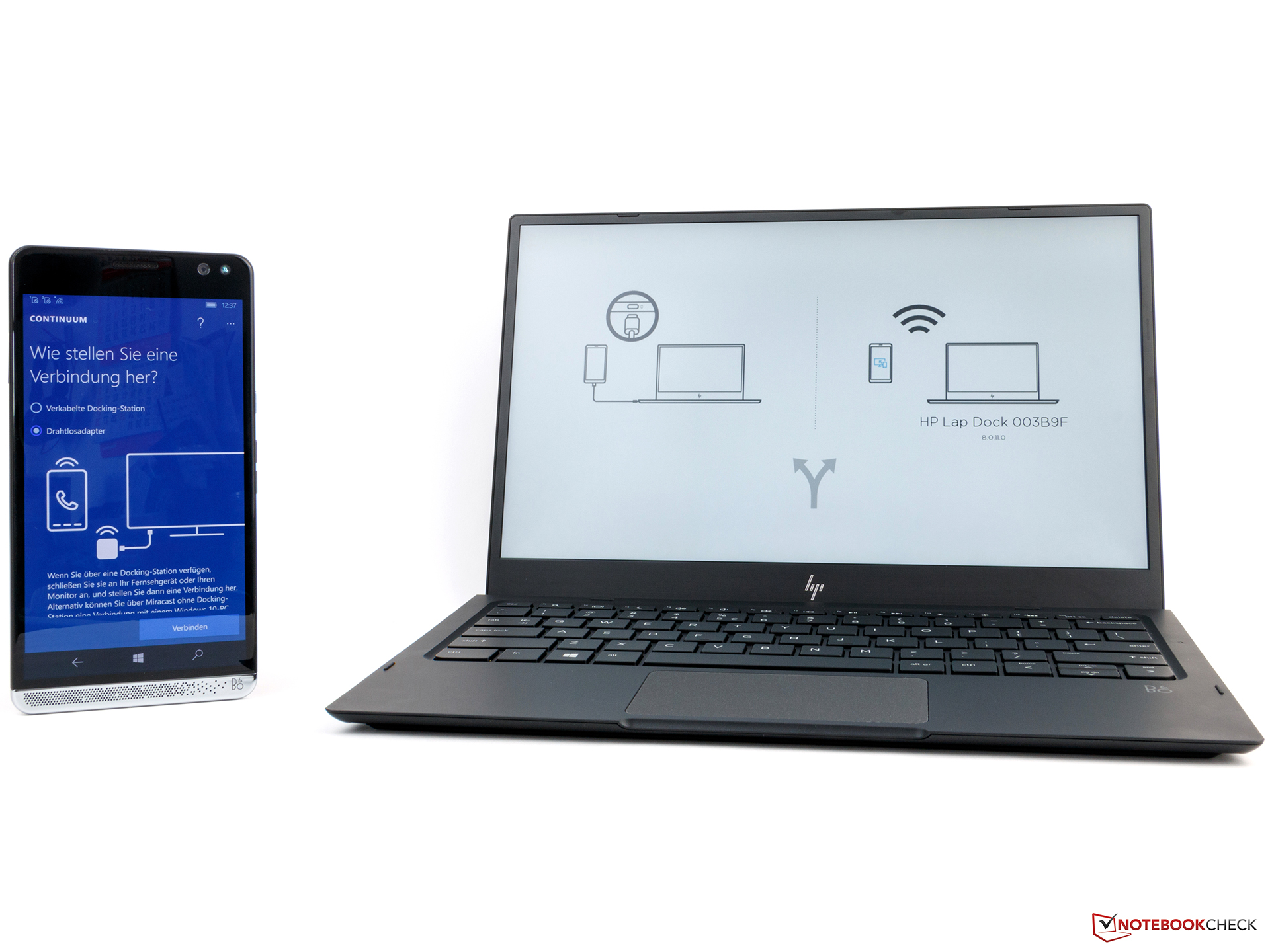

Test: HP Elite x3 (inkl. Lap Dock) (sammanfattning)

Företagsracer. HP är den enda större tillverkaren som erbjuder en enhet i premiumklassen med mobilversionen av Windows 10. Den är inriktad på företagssegmentet och är i övrigt utrustad med en stor skärm, ett uthålligt batteri och ett robust hölje. Dessutom kan den köra vanliga x86-program med hjälp av HP Workspace.

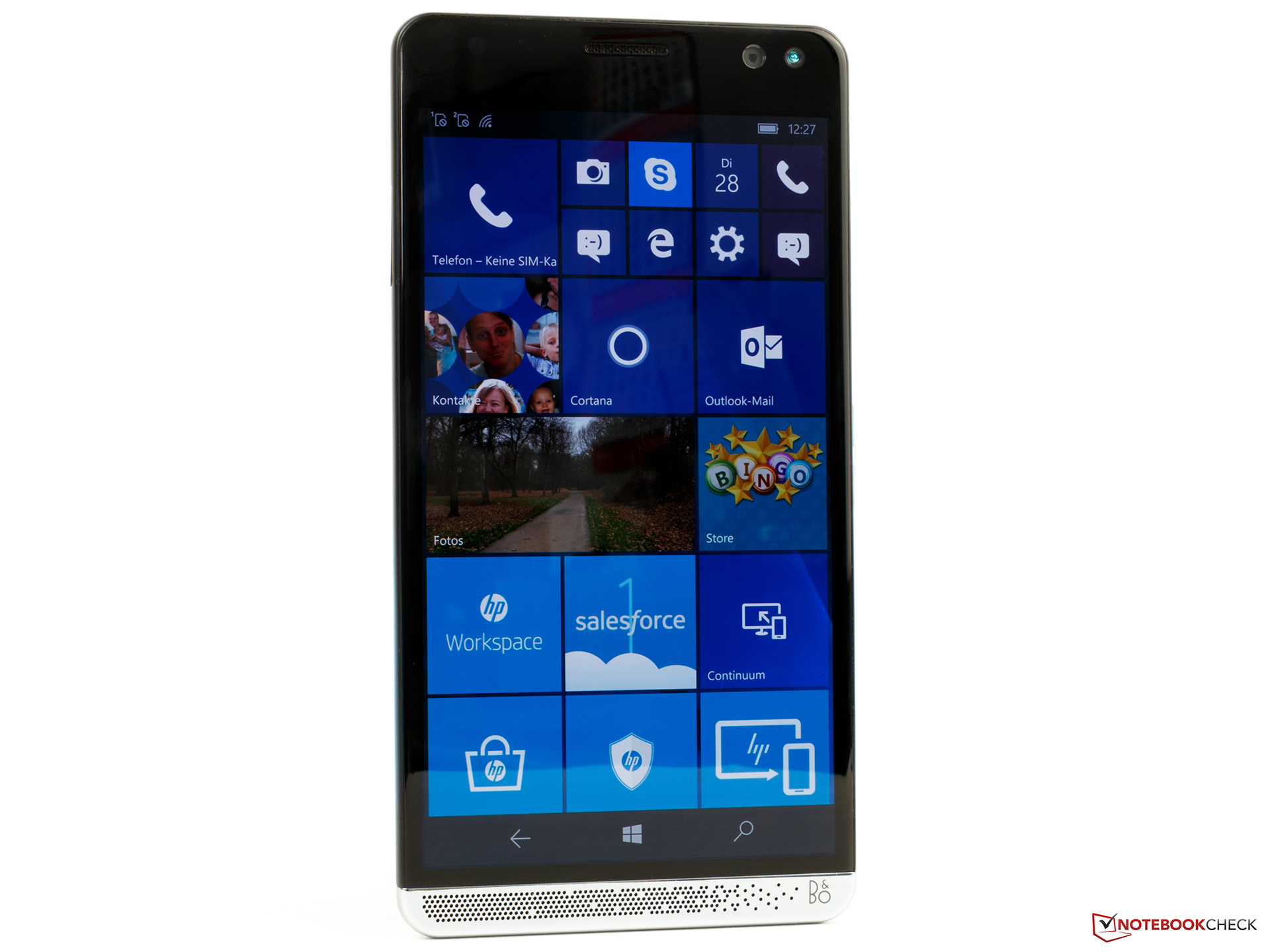

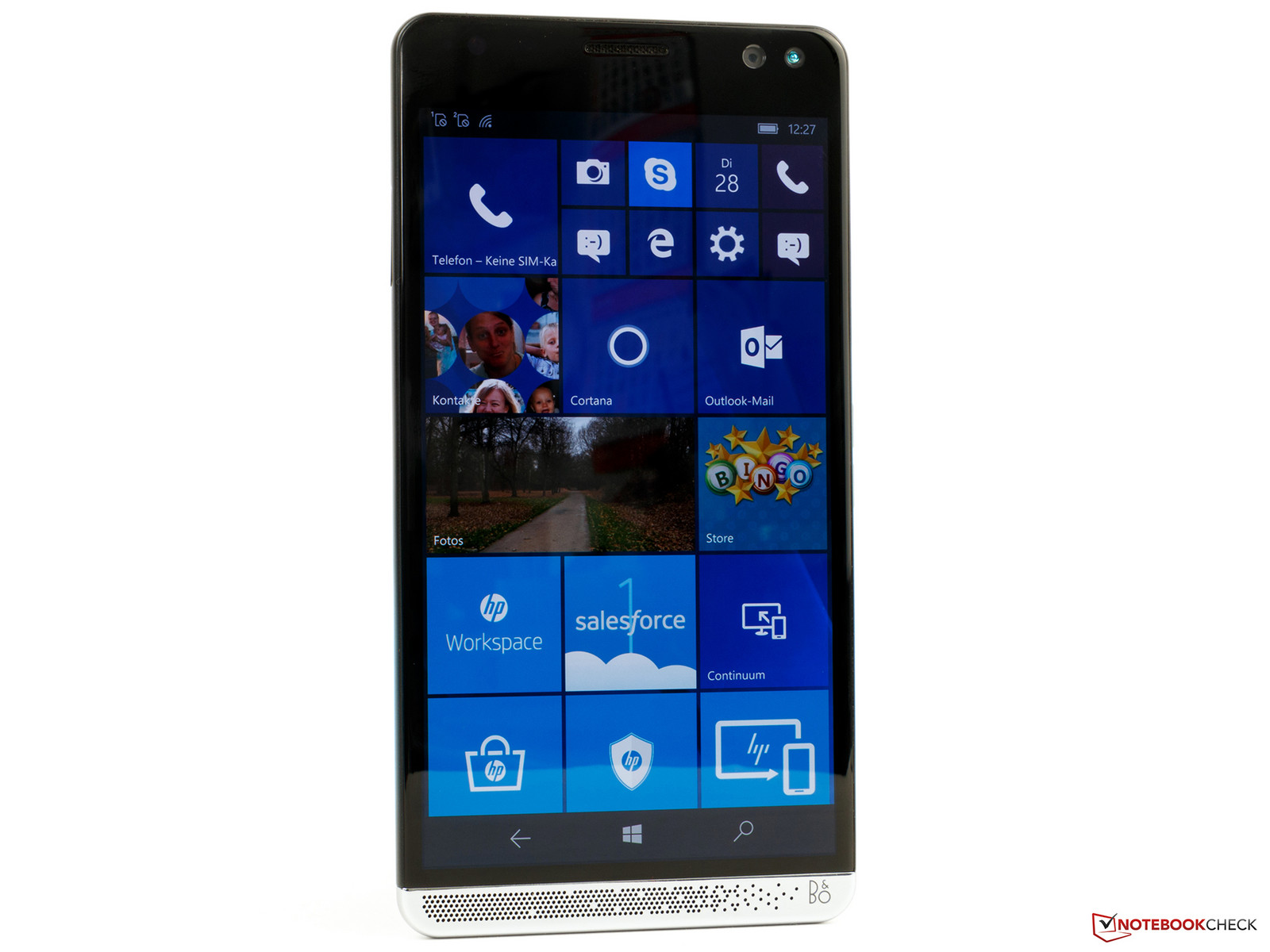

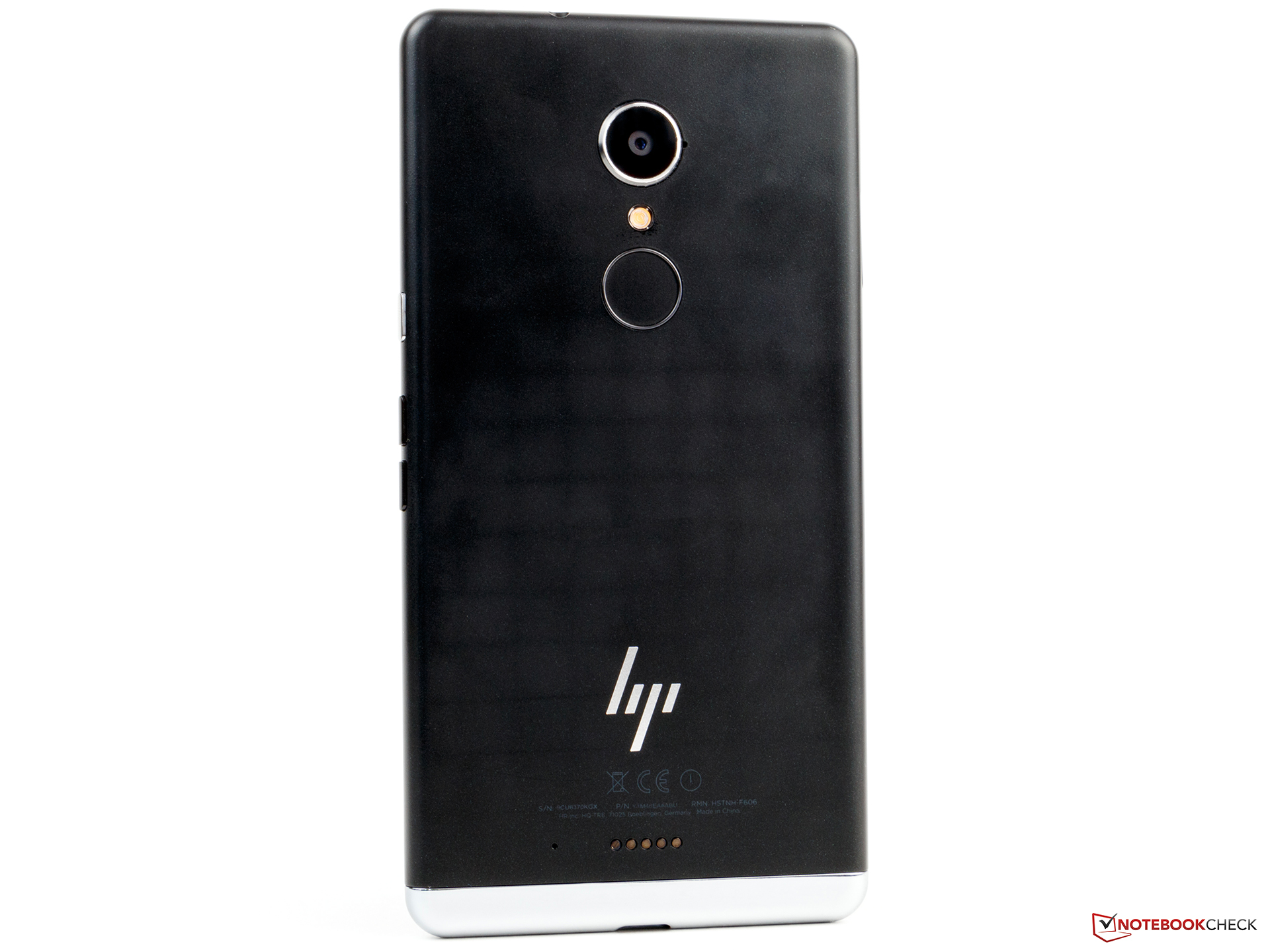

HP Elite x3 (ElitePad Serie)
Processor
Qualcomm Snapdragon 820 MSM8996 4 x 2.2 GHz, Kryo
Grafikkort
Qualcomm Adreno 530, Kärna: 624 MHz
Minne
4 GB
, LPDDR4
Skärm
5.96 tum 16:9, 2560 x 1440 pixlar 493 PPI, kapacitiv pekskärm, AMOLED, Gorilla Glass 4, Anti-reflex-beläggning, glansig: ja
Hårddisk
64 GB eMMC Flash, 64 GB
Anslutningar
1 USB 3.0, 1 DisplayPort, 1 Dockningsstation, Ljudanslutningar: headset 3,5 mm, Kortläsare: microSD upp till 2 TB (SDHC, SDXC), 1 Fingeravtrycksläsare, NFC, Brightness Sensor, Sensorer: avstånd, tryck, hall, position, acceleration, G-senor, digital kompass, BeiDou, Miracast, Wi-Fi Direct
Nätverk
Intel Dual Band Wireless-AC 7260AN (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, GSM/GPRS/Edge (850, 900, 1800 och 1900 MHz), UMTS/HSPA+ (band 8, 2, 1, 4), LTE Cat. 6 (band 1, 3, 5, 7, 8, 19, 20, 26, 28, 38, 39, 40, 41), Dual SIM, LTE, GPS
Storlek
höjd x bredd x djup (i mm) 7.8 x 161.8 x 83.5
Batteri
15.98 Wh, 4150 mAh Litiumpolymer, 3.85 V, max. 64 g, en cell, trådlös laddning (Qi), Samtalstid 3G (enligt tillverkaren): 33 tim, Standby 3G (enligt tillverkaren): 500 tim
Operativsystem
Microsoft Windows 10 Mobile
Camera
Primary Camera: 16 MPix (plus 2,4 MP Iris-kamera)
Secondary Camera: 8 MPix
Övrigt
Högtalare: 2x 0.6 W Bang & Olufsen-högtalare, laddare, USB-kabel, dokumentation, HP Work Space, HP All-in-One Remote, HP Device Hub, Continuum, 24 Månader Garanti, USB-C, irisscanner, IP67, MIL-STD 810G, fanless
Vikt
195 g, Strömförsörjning: 101 g
Pris
899 Kr
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

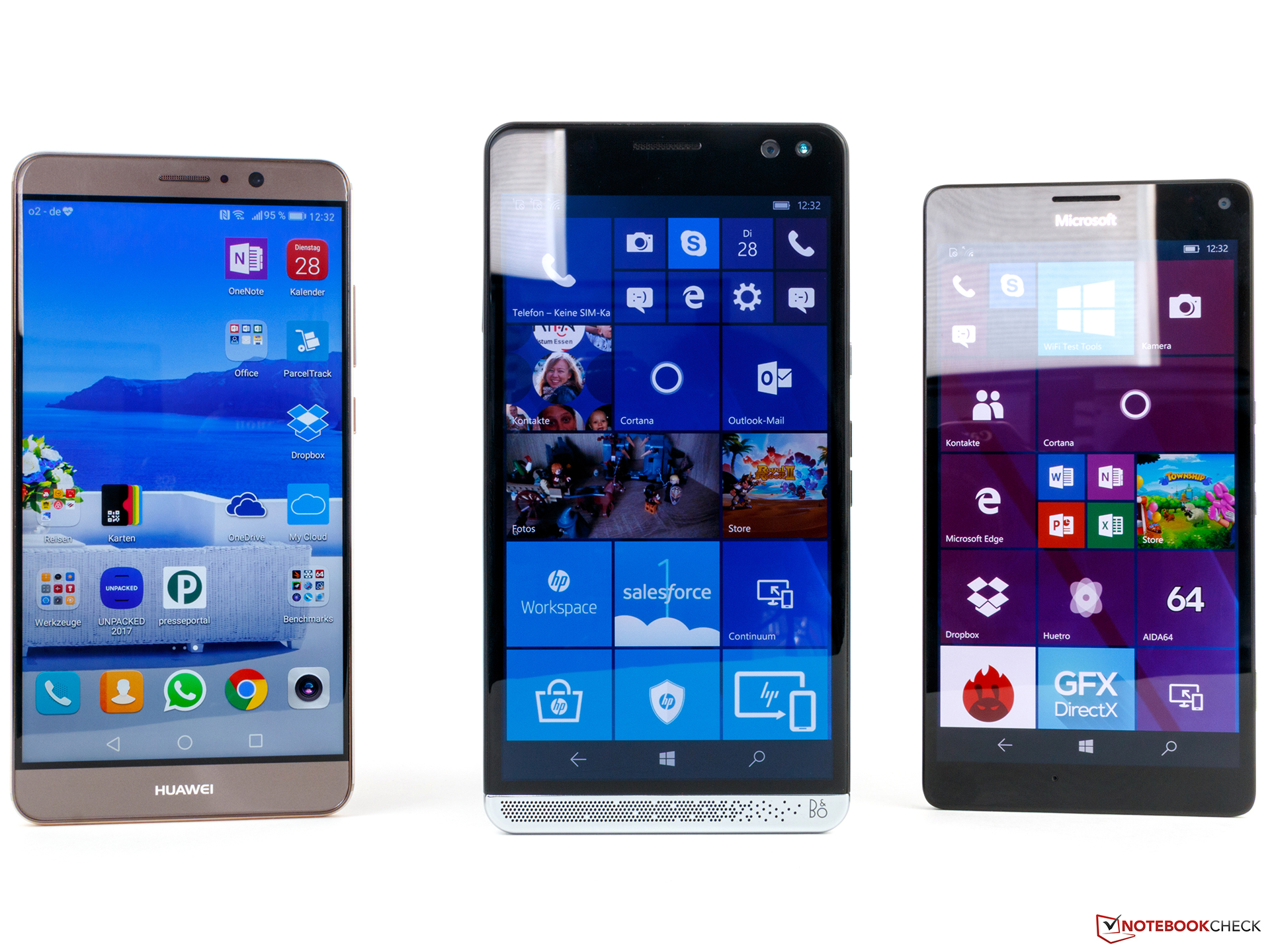

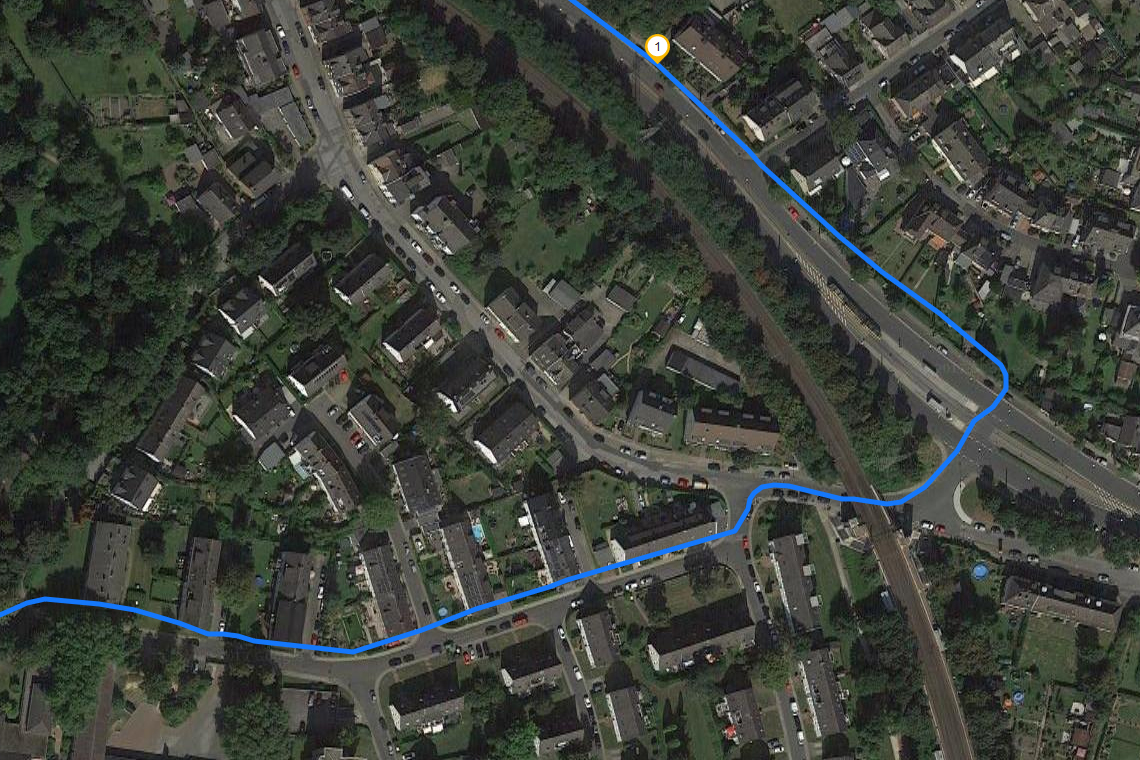

Size Comparison

161.8 mm 83.5 mm 7.8 mm 195 g159.5 mm 73.4 mm 8.1 mm 172 g158.2 mm 77.9 mm 7.3 mm 188 g156.9 mm 78.9 mm 7.9 mm 192 g155.3 mm 75.3 mm 5.19 mm 136 g151.9 mm 78.4 mm 8.3 mm 165 g148.9 mm 71.9 mm 7.9 mm 163 g148 mm 105 mm 1 mm 1.5 g

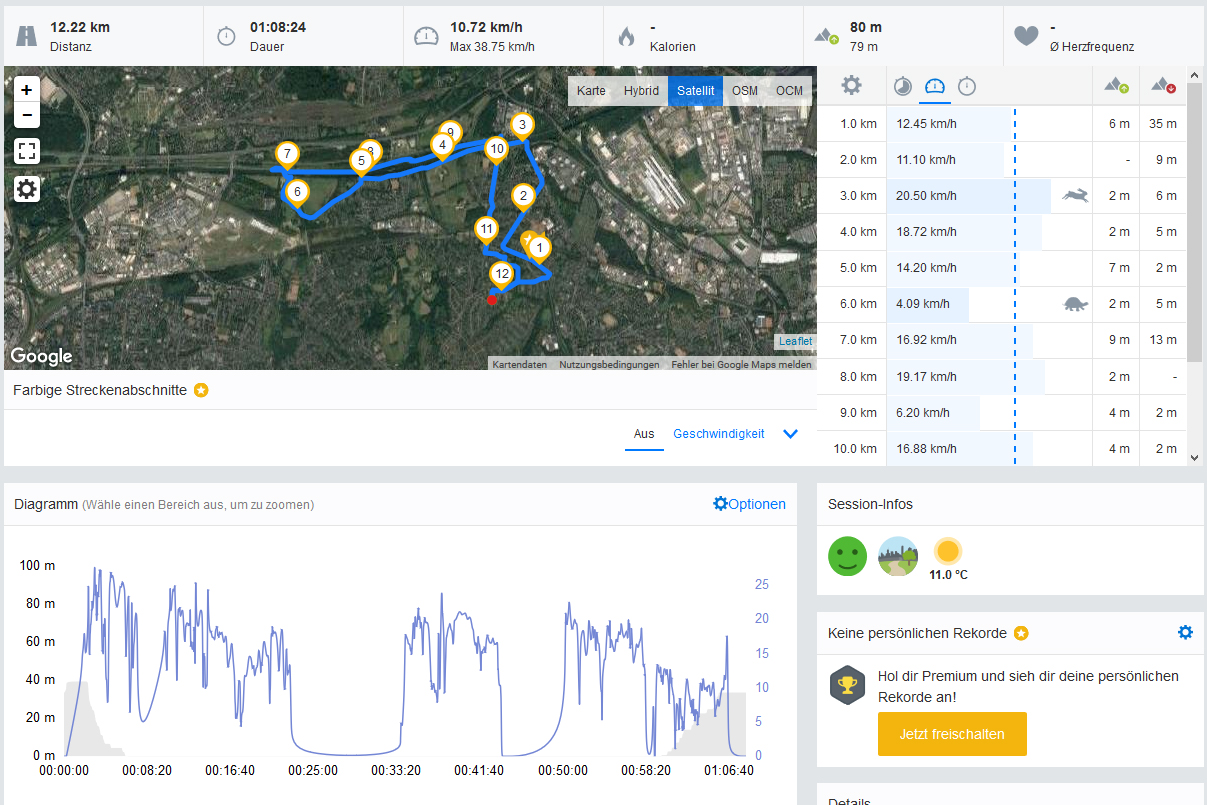

Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500

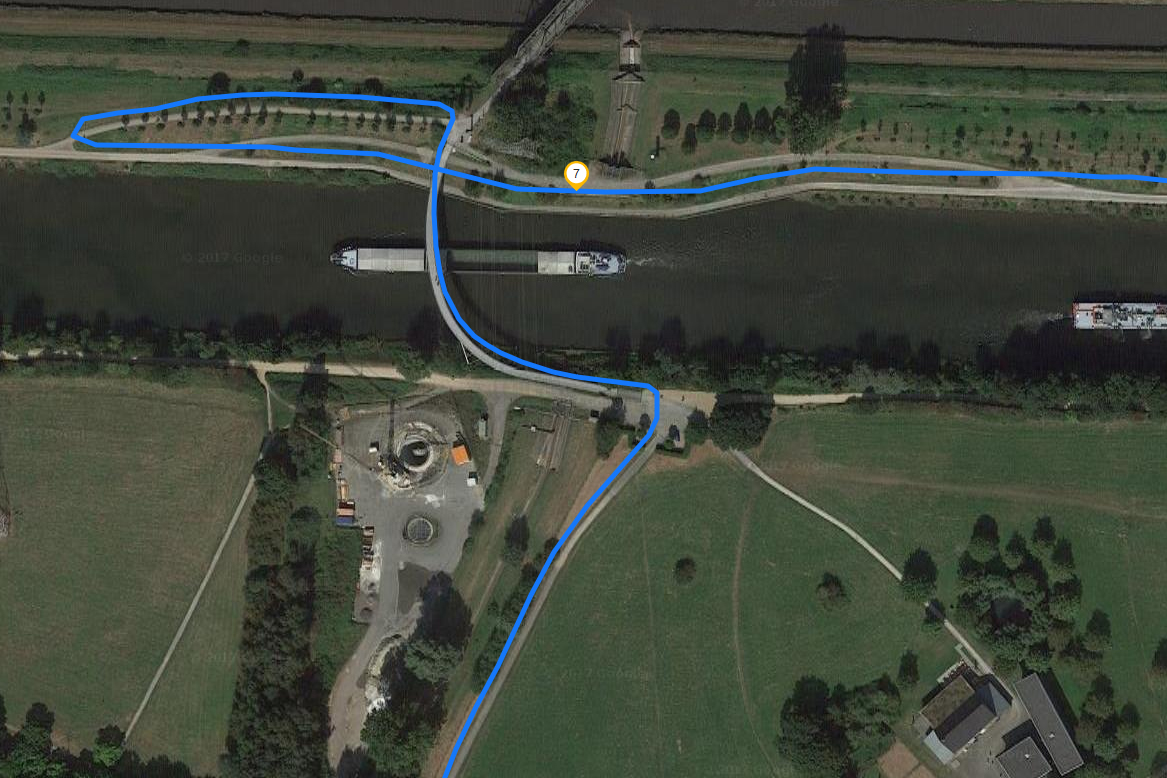

HP Elite x3
HP Elite x3
HP Elite x3
HP Elite x3
HP Elite x3
HP Elite x3

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
click to load images
1) HP Lap Dock 2) HP Elite x3
255
cd/m²
265
cd/m²
255
cd/m²
255
cd/m²
268
cd/m²
257
cd/m²
253
cd/m²
256
cd/m²
247
cd/m²
Distribution av ljusstyrkan
tested with HP Lap Dock
Max: 268 cd/m² (Nits) Medel: 256.8 cd/m² Minimum: 7.68 cd/m²
Distribution av ljusstyrkan: 92 %
Mitt på batteriet: 268 cd/m²
Kontrast: 1072:1 (Svärta: 0.25 cd/m²)
ΔE Color 7.9 | 0.5-29.43 Ø5
ΔE Greyscale 6.9 | 0.57-98 Ø5.3
Gamma: 2.12
357
cd/m²
338
cd/m²
320
cd/m²
351
cd/m²
333
cd/m²
321
cd/m²
354
cd/m²
333
cd/m²
321
cd/m²
Distribution av ljusstyrkan
tested with HP Elite x3
Max: 357 cd/m² (Nits) Medel: 336.4 cd/m² Minimum: 11.47 cd/m²
Distribution av ljusstyrkan: 90 %
Mitt på batteriet: 333 cd/m²
Kontrast: ∞:1 (Svärta: 0 cd/m²)
ΔE Color 7.9 | 0.5-29.43 Ø5
ΔE Greyscale 6.9 | 0.57-98 Ø5.3
Gamma: 2.12

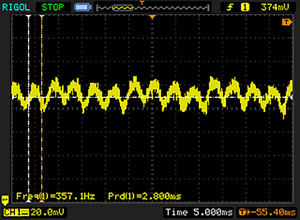

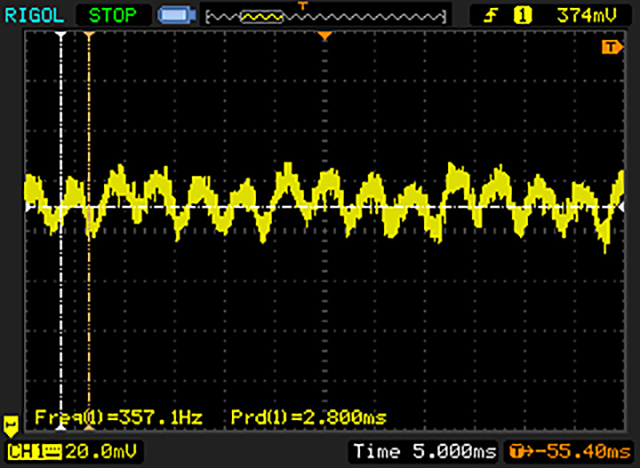

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 357.1 Hz

The display backlight flickers at 357.1 Hz (worst case, e.g., utilizing PWM) .

The frequency of 357.1 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18090 (minimum: 5 - maximum: 3846000) Hz was measured.

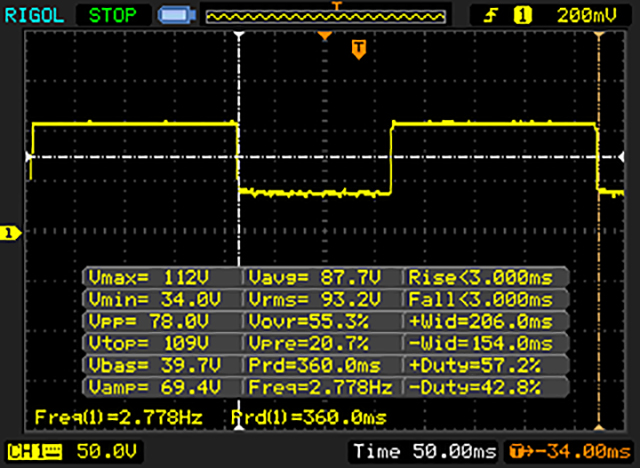

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

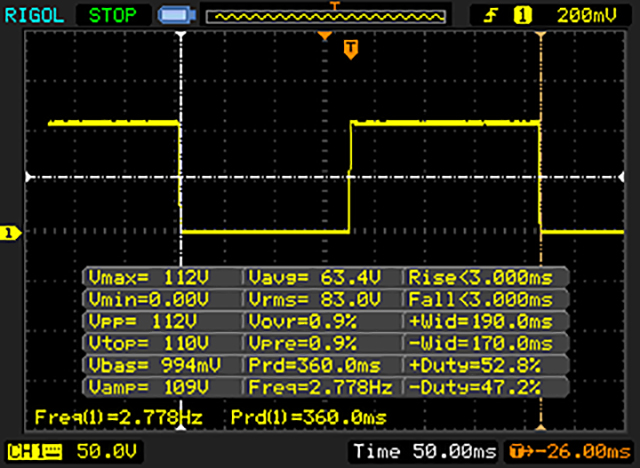

       Response Time Black to White
6 ms ... rise ↗ and fall ↘ combined↗ 3 ms rise
↘ 3 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 13 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
6 ms ... rise ↗ and fall ↘ combined↗ 3 ms rise
↘ 3 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 13 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.9 ms).
AnTuTu v6 - Total Score (sort by value)
HP Elite x3
115867 Points
Huawei Mate 9
124087 Points +7%
Microsoft Lumia 950 XL
94122 Points -19%
Lenovo Moto Z
129197 Points +12%
LG G6
151751 Points +31%
Apple iPhone 7 Plus
165399 Points +43%
Samsung Galaxy S8 Plus
165382 Points +43%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
HP Elite x3
26.42 fps
Huawei Mate 9
60 fps +127%
Microsoft Lumia 950 XL
18.75 fps -29%
Lenovo Moto Z
53 fps +101%
LG G6
46 fps +74%
Apple iPhone 7 Plus
57.7 fps +118%
Samsung Galaxy S8 Plus
58 fps +120%
1920x1080 T-Rex Offscreen (sort by value)
HP Elite x3
47.19 fps
Huawei Mate 9
80 fps +70%
Microsoft Lumia 950 XL
27.11 fps -43%
Lenovo Moto Z
77 fps +63%
LG G6
75 fps +59%
Apple iPhone 7 Plus
92 fps +95%
Samsung Galaxy S8 Plus
104 fps +120%
GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Huawei Mate 9
37 fps
Microsoft Lumia 950 XL
11.81 fps
Lenovo Moto Z
26 fps
LG G6
27 fps
Apple iPhone 7 Plus
55.2 fps
Samsung Galaxy S8 Plus
38 fps
1920x1080 1080p Manhattan Offscreen (sort by value)
Huawei Mate 9
34 fps
Microsoft Lumia 950 XL
17.54 fps
Lenovo Moto Z
41 fps
LG G6
38 fps
Apple iPhone 7 Plus
58.7 fps
Samsung Galaxy S8 Plus
50 fps
GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen (sort by value)
HP Elite x3
16.09 fps
Huawei Mate 9
28 fps +74%
Lenovo Moto Z
15 fps -7%
LG G6
16 fps -1%
Apple iPhone 7 Plus
41.5 fps +158%
Samsung Galaxy S8 Plus
23 fps +43%
1920x1080 Manhattan ES 3.1 Offscreen (sort by value)
HP Elite x3
34.02 fps
Huawei Mate 9
24 fps -29%
Lenovo Moto Z
27 fps -21%
LG G6
29 fps -15%
Apple iPhone 7 Plus
41.3 fps +21%
Samsung Galaxy S8 Plus
42 fps +23%
BaseMark OS II
Overall (sort by value)
HP Elite x3
1499 Points
Huawei Mate 9
2772 Points +85%
Microsoft Lumia 950 XL
1465 Points -2%
Lenovo Moto Z
2356 Points +57%
LG G6
2496 Points +67%
Apple iPhone 7 Plus
3097 Points +107%
Samsung Galaxy S8 Plus
3301 Points +120%
System (sort by value)
HP Elite x3
1384 Points
Huawei Mate 9
3616 Points +161%
Microsoft Lumia 950 XL
1386 Points 0%
Lenovo Moto Z
3398 Points +146%
LG G6
3646 Points +163%
Apple iPhone 7 Plus
6582 Points +376%
Samsung Galaxy S8 Plus
5319 Points +284%
Memory (sort by value)
HP Elite x3
2003 Points
Huawei Mate 9
3850 Points +92%
Microsoft Lumia 950 XL
1945 Points -3%
Lenovo Moto Z
2190 Points +9%
LG G6
1930 Points -4%
Apple iPhone 7 Plus
1319 Points -34%
Samsung Galaxy S8 Plus
3135 Points +57%
Graphics (sort by value)
HP Elite x3
3974 Points
Huawei Mate 9
3939 Points -1%
Microsoft Lumia 950 XL
2040 Points -49%
Lenovo Moto Z
4321 Points +9%
LG G6
5138 Points +29%
Apple iPhone 7 Plus
6875 Points +73%
Samsung Galaxy S8 Plus
6126 Points +54%
Web (sort by value)
HP Elite x3
458 Points
Huawei Mate 9
1076 Points +135%
Microsoft Lumia 950 XL
837 Points +83%
Lenovo Moto Z
959 Points +109%
LG G6
1073 Points +134%
Apple iPhone 7 Plus
1542 Points +237%
Samsung Galaxy S8 Plus
1163 Points +154%
Octane V2 - Total Score (sort by value)
HP Elite x3
8664 Points
Huawei Mate 9
11897 Points +37%
Microsoft Lumia 950 XL
8059 Points -7%
Lenovo Moto Z
7771 Points -10%
LG G6
9113 Points +5%
Apple iPhone 7 Plus
26053 Points +201%
Samsung Galaxy S8 Plus
14050 Points +62%
WebXPRT 2015 - Overall (sort by value)
HP Elite x3
130 Points
Huawei Mate 9
152 Points +17%
Microsoft Lumia 950 XL
113 Points -13%
Lenovo Moto Z
112 Points -14%
LG G6
122 Points -6%
Apple iPhone 7 Plus
204 Points +57%
Samsung Galaxy S8 Plus
154 Points +18%
Mozilla Kraken 1.1 - Total (sort by value)
HP Elite x3
4398 ms *
Huawei Mate 9
2734 ms * +38%
Microsoft Lumia 950 XL
5553 ms * -26%
Lenovo Moto Z
3155 ms * +28%
LG G6
2464 ms * +44%
Apple iPhone 7 Plus
1103 ms * +75%
Samsung Galaxy S8 Plus
2237 ms * +49%

Legend


HP Elite x3 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 64 GB eMMC Flash

Huawei Mate 9 HiSilicon Kirin 960, ARM Mali-G71 MP8, 64 GB UFS 2.1 Flash

Microsoft Lumia 950 XL Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Lenovo Moto Z Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 32 GB eMMC Flash

LG G6 Qualcomm Snapdragon 821 MSM8996 Pro, Qualcomm Adreno 530, 32 GB UFS 2.0 Flash

Apple iPhone 7 Plus Apple A10 Fusion, Apple A10 Fusion GPU / PowerVR, 128 GB NVMe

Samsung Galaxy S8 Plus Samsung Exynos 8895 Octa, ARM Mali-G71 MP20, 64 GB UFS 2.1 Flash

* ... smaller is better

Hög belastning
 44 °C37.8 °C35.1 °C
 37.6 °C37.9 °C34.8 °C
 37 °C36.9 °C34.2 °C
Max: 44 °C
Medel: 37.3 °C
34.2 °C35.5 °C37.1 °C
33.9 °C35.5 °C37.3 °C
33.2 °C35.3 °C36.1 °C
Max: 37.3 °C
Medel: 35.3 °C
Strömförsörjning (max.)  42.9 °C | Rumstemperatur 21.3 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 32.7 °C / 91 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 44 °C / 111 F, compared to the average of 35 °C / 95 F, ranging from 21.9 to 56 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 37.3 °C / 99 F, compared to the average of 33.8 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 33.1 °C / 92 F, compared to the device average of 32.7 °C / 91 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.635.42525.436.93125.327.74032.928.95033.632.16331.631.38028.428.51002724.712520.830.51602237.520021.343.525020.847.331521.252.740019.458.350019.563.663017.768.580017.971.1100017.872125017.374.7160017.474.8200016.773.8250017.272.9315018.266.3400017.962500017.657.5630017.761.2800017.861.71000017.9601250018.156.91600018.256.8SPL3082.5N1.347.8median 17.9median 61.2Delta1.411.331.635.725.424.825.324.932.925.633.635.131.630.128.423.32724.820.828.72235.521.343.320.849.321.253.719.455.119.56017.763.317.961.917.863.517.367.117.461.116.77017.272.618.274.117.976.217.675.717.773.917.871.517.972.518.166.718.254.13083.91.353.7median 17.9median 63.31.410.726.428.426.42826.72825.828.725.829.133.229.126.12626.123.925.523.927.724.727.733.426.933.441.53741.540.320.240.343.720.243.745.521.845.547224752.822.252.860.121.860.166.517.266.569.217.869.271.619.871.669.919.169.96815.46869.515.669.56614.96671.514.771.571.214.271.272.21472.271.213.971.26713.86758.913.958.952.413.952.454.713.754.781.529.581.549.91.349.9median 66median 17.2median 6610.13.810.1hearing rangehide median Pink NoiseHP Elite x3Huawei Mate 9Apple iPhone 7 Plus
HP Elite x3 audio analysis

(+) | speakers can play relatively loud (82.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.8% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.1% higher than median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25% difference to median)
Compared to same class
» 55% of all tested devices in this class were better, 7% similar, 38% worse
» The best had a delta of 12%, average was 38%, worst was 134%
Compared to all devices tested
» 72% of all tested devices were better, 6% similar, 22% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Huawei Mate 9 audio analysis

(+) | speakers can play relatively loud (83.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.1% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.4% higher than median
(+) | highs are linear (3.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.2% difference to median)
Compared to same class
» 56% of all tested devices in this class were better, 8% similar, 37% worse
» The best had a delta of 12%, average was 38%, worst was 134%
Compared to all devices tested
» 73% of all tested devices were better, 6% similar, 21% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple iPhone 7 Plus audio analysis

(±) | speaker loudness is average but good (81.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.1% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 7% similar, 54% worse
» The best had a delta of 12%, average was 38%, worst was 134%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 35% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning
Av/Standbydarklight 0.06 / 0.27 Watt
Låg belastningdarkmidlight 0.86 / 1.46 / 1.59 Watt
Hög belastning midlight 8.1 / 9.35 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
HP Elite x3
4150 mAh
Microsoft Lumia 950 XL
3340 mAh
Huawei Mate 9
4000 mAh
Samsung Galaxy S8 Plus
3500 mAh
LG G6
3300 mAh
Apple iPhone 7 Plus
2915 mAh
Lenovo Moto Z
2600 mAh
Power Consumption
-90%
-4%
31%
11%
-4%
29%
Idle Minimum *
0.86
2.85
-231%
0.78
9%
0.68
21%
0.62
28%
0.77
10%
0.66
23%
Idle Average *
1.46
2.95
-102%
2.13
-46%
1.13
23%
1.43
2%
2.04
-40%
1.01
31%
Idle Maximum *
1.59
3.26
-105%
2.17
-36%
1.16
27%
1.48
7%
2.24
-41%
1.09
31%
Load Average *
8.1
8.92
-10%
6.32
22%
4.69
42%
5.52
32%
4.69
42%
3.97
51%
Load Maximum *
9.35
9.39
-0%
6.49
31%
5.24
44%
10.47
-12%
8.66
7%
8.34
11%

* ... smaller is better

Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
36tim 45min
WiFi Websurfing
7tim 02min
Big Buck Bunny H.264 1080p
12tim 40min
Hög belastning (maximal ljusstyrka)
3tim 05min
HP Elite x3
4150 mAh
Microsoft Lumia 950 XL
3340 mAh
Huawei Mate 9
4000 mAh
Samsung Galaxy S8 Plus
3500 mAh
Apple iPhone 7 Plus
2915 mAh
LG G6
3300 mAh
Lenovo Moto Z
2600 mAh
Battery Runtime
-22%
23%
23%
13%
21%
7%
Reader / Idle
2205
1078
-51%
1538
-30%
1565
-29%
1835
-17%
1789
-19%
1371
-38%
H.264
760
611
-20%
947
25%
742
-2%
813
7%
779
3%
724
-5%
WiFi v1.3
422
369
-13%
758
80%
736
74%
587
39%
692
64%
407
-4%
Load
185
179
-3%
219
18%
275
49%
225
22%
252
36%
320
73%

För

+ snabb SoC
+ robust design
+ stor AMOLED-skärm
+ minneskortplats
+ USB 3.1 med DisplayPort/HDMI
+ iris- och fingeravtrycksläsare
+ stort batteri

Emot

- hög strömförbrukning under belastning
- PWM-flimmer
In the test: HP Elite x3. Test unit provided by HP Germany.
In the test: HP Elite x3. Test unit provided by HP Germany.

Läs originaltestet i sin helhet på engelska här.

HP Elite x3 är en stor ”phablet” som HP marknadsför som en surfplatta – och inte utan anledning. Den kombinerar en funktionell, robust design och funktionalitet i ett framgångsrikt företagsformat. Målgrupperna är hälso- och sjukvårdssektorn, logistik, PoS, industrin och andra som behöver enkel åtkomst till sin information och vill använda så få enheter som möjligt.

Den sistnämnda uppgiften i synnerhet är något som HP Elite x3 klarar mycket bra, eftersom den inte bara kan användas som en smartphone utan också som en tunn klient. Med Lap Dock kan den även användas som en bärbar dator med vissa begränsningar. Det sistnämnda var dock en inte helt övertygande upplevelse under testet. Skärmen är ganska mörk och färgåtergivningen kunde varit bättre. Vi gillar däremot de extra portarna som gör Elite X3 till ett mångsidigt presentationsverktyg. Det stora batteriet i Lap Dock är också ett plus.

Elite x3 har ingen större svagheter, eftersom den kombinerar omfattande säkerhetsfunktioner med en relativt säker mobilplattform: Windows 10 Mobile. Även om operativsystemet har befintlig betydelse på konsumentmarknaden är det enkelt för medelstora företag att integrera och administrera i sin befintliga IT-infrastruktur. Man får också regelbundna säkerhetsuppdateringar. Men också för småföretag och egenföretagare kan HP erbjuda relativt överkomlig tillgång till cloud computing med Workspace, vilket gör inköp och underhåll av ytterligare hårdvara onödig. Paketet avrundas med olika service- och garantiprodukter.

HP Elite x3 - 06/02/2017 v6(old)
Daniel Schmidt

Design
90%
Tangentbord
75 / 75 → 99%
Mus
96%
Anslutningar
64 / 60 → 100%
Vikt
88%
Batteri
91%
Skärm
80%
Spelprestanda
52 / 63 → 83%
Programprestanda
53 / 70 → 75%
Temperatur
88%
Ljudnivå
100%
Audio
76 / 91 → 84%
Camera
72%
Medel
79%
86%
Smartphone - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: HP Elite x3 (inkl. Lap Dock) (sammanfattning)
Daniel Schmidt, 2017-06-26 (Update: 2017-06-26)
