MagyarTest: Dell Precision 7710 (sammanfattning)
Dell Precision 7710 (Precision 7000 Serie)
Processor
Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake
Grafikkort

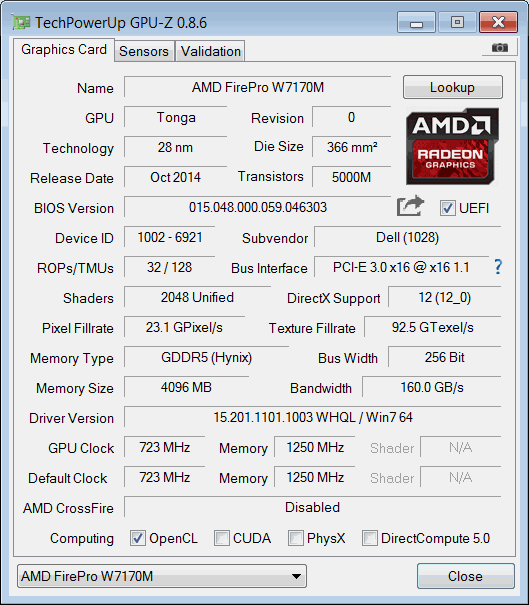

AMD FirePro W7170M - 4 GB VRAM, Kärna: 720 MHz, Minne: 1250 MHz, 15.201.1101.1003 WHQL Win7/ 64, AMD Switchable Graphics mit Intel P530
Minne
16 GB

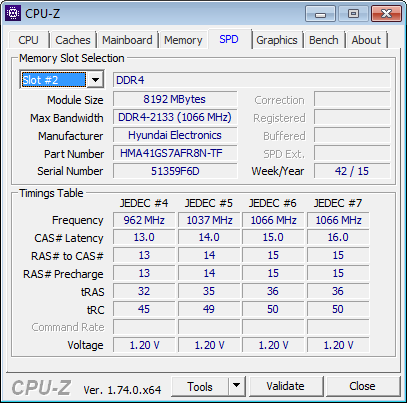

, 2x 8192 MB DDR4-2133 Hynix, 2 lediga platser, ej ECC
Skärm
17.30 tum 16:9, 1920 x 1080 pixlar, SDC8151, VHN17_173HL, IPS LED, 97 % sRGB, glansig: nej
Moderkort
Intel Skylake-H
Hårddisk
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

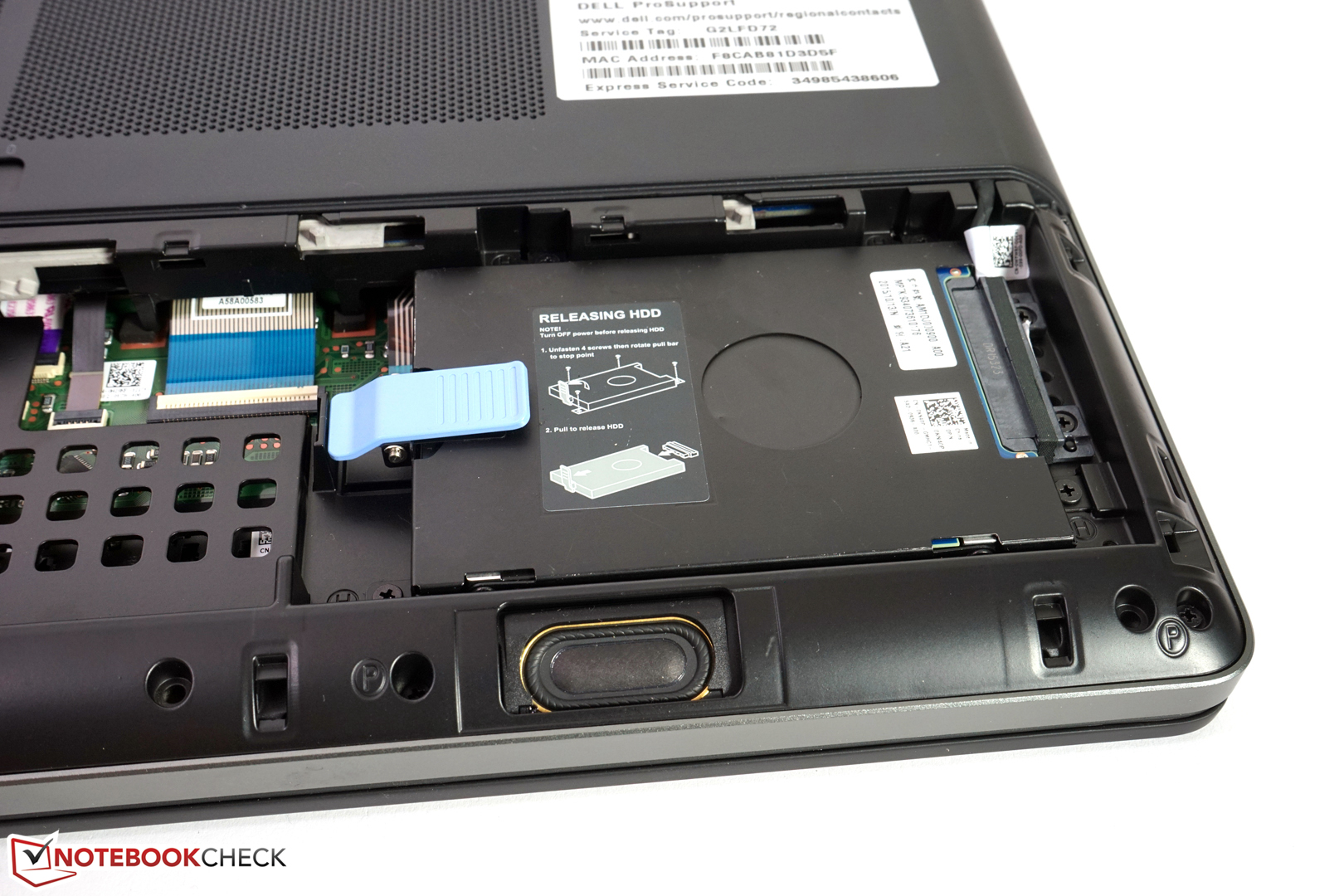

, även en HGST Travelstar 7K1000 HTS721010A9E630, 1 TB, 7200 RPM
Vikt
3.58 kg, Strömförsörjning: 990 g
Pris
3730 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
SDC8151, VHN17_173HL tested with X-Rite i1Pro 2
Max: 332 cd/m² (Nits) Medel: 307.1 cd/m²Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 335 cd/m²
Kontrast: 1006:1 (Svärta: 0.33 cd/m²)
ΔE Color 3 | 0.5-29.43 Ø5
ΔE Greyscale 4 | 0.57-98 Ø5.3
97% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.9% sRGB (Argyll 2.2.0 3D)
66.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2
| Display | |
| Display P3 Coverage (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| SCHENKER W706 | |
| MSI WT72-6QM | |
| sRGB Coverage (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| SCHENKER W706 | |
| MSI WT72-6QM | |
| AdobeRGB 1998 Coverage (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| SCHENKER W706 | |
| MSI WT72-6QM | |
| Response Times | |
| Response Time Grey 50% / Grey 80% (sort by value) | |
| Dell Precision 7710 (17, 33) | |
| Lenovo ThinkPad P70 (17.2, 26.8) | |
| SCHENKER W706 (17.2, 26.8) | |
| MSI WT72-6QM (13, 29) | |
| Response Time Black / White (sort by value) | |
| Dell Precision 7710 (11, 25) | |
| Lenovo ThinkPad P70 (4.8, 22.8) | |
| SCHENKER W706 (8.4, 20.8) | |
| MSI WT72-6QM (7, 19) | |
| PWM Frequency (sort by value) | |
| Dell Precision 7710 (25) | |
| Lenovo ThinkPad P70 (95) | |
| SCHENKER W706 | |
| MSI WT72-6QM (10, 15) | |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

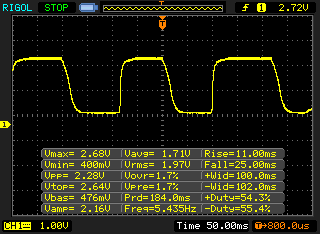

| 36 ms ... rise ↗ and fall ↘ combined | ↗ 11 ms rise |  |
| ↘ 25 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms). | ||

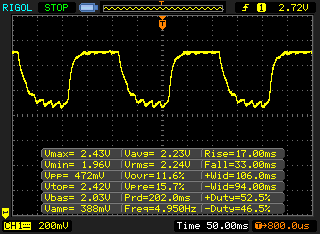

| ↔ Response Time 50% Grey to 80% Grey | ||
| 50 ms ... rise ↗ and fall ↘ combined | ↗ 17 ms rise |  |
| ↘ 33 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.8 ms). | ||

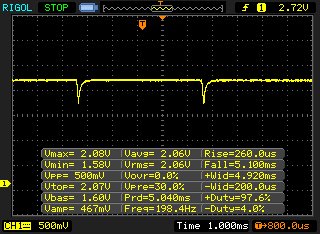

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 198 Hz | ≤ 25 % brightness setting |  |
The display backlight flickers at 198 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 25 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17933 (minimum: 5 - maximum: 3846000) Hz was measured. | |||
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Acer Aspire V5-591G-50NC | |
| CPU Multi 64Bit (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Acer Aspire V5-591G-50NC | |
| Super Pi Mod 1.5 XS 32M - 32M (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Acer Aspire V5-591G-50NC | |
| wPrime 2.10 - 1024m (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Acer Aspire V5-591G-50NC | |
* ... smaller is better
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| SCHENKER W706 | |
| MSI WT72-6QM | |
| Creative Score Accelerated v2 (sort by value) | |
| Dell Precision 7710 | |
| SCHENKER W706 | |
| Work Score Accelerated v2 (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| SCHENKER W706 | |
| MSI WT72-6QM | |
| PCMark 7 Score | 5072 poäng | |
| PCMark 8 Home Score Accelerated v2 | 4770 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 5668 poäng | |
| PCMark 8 Work Score Accelerated v2 | 5417 poäng | |
Hjälp | ||

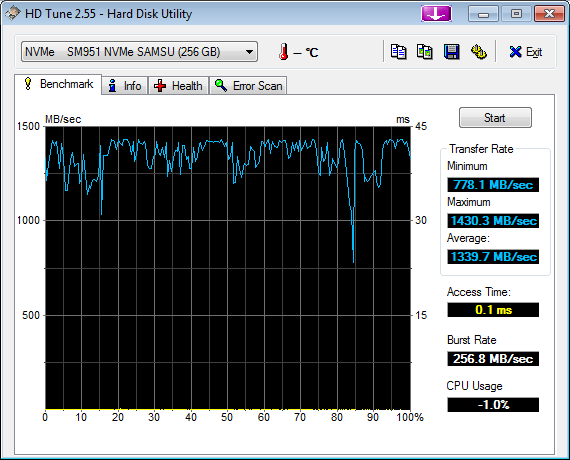

Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read:
1886MB/s
Sequential Write:
626MB/s
4K Read:
51MB/s
4K Write:
179MB/s
4K-64 Read:
1064MB/s
4K-64 Write:
275MB/s
Access Time Read:
0.069ms
Access Time Write:
0.022ms
Copy ISO:
823MB/s
Copy Program:
196MB/s
Copy Game:
974MB/s
Score Read:
1304Points
Score Write:
517Points
Score Total:
2435Points
| LuxMark v2.0 64Bit | |
| Room GPUs-only (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| Sala GPUs-only (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| SiSoft Sandra 2016 | |
| Image Processing (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| GP Cryptography (Higher Security AES256+SHA2-512) (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| GP Financial Analysis (FP High/Double Precision) (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| Unigine Heaven 3.0 | |
| 1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| 1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value) | |
| Dell Precision 7710 | |
| Lenovo ThinkPad P70 | |
| Dell Precision 5510 | |
| 3DMark 06 Standard Score | 28430 poäng | |
| 3DMark Vantage P Result | 26345 poäng | |
| 3DMark 11 Performance | 9580 poäng | |
| 3DMark Ice Storm Standard Score | 95675 poäng | |
| 3DMark Cloud Gate Standard Score | 21612 poäng | |
| 3DMark Fire Strike Score | 6180 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
| Tomb Raider (2013) | 375 | 224 | 167 | 51 |
| BioShock Infinite (2013) | 220 | 178 | 158 | 66 |
| Metro: Last Light (2013) | 120 | 112 | 94 | 44 |
| Company of Heroes 2 (2013) | 57 | 56 | 55 | 28 |
| Total War: Rome II (2013) | 185 | 162 | 153 | 36 |
| Thief (2014) | 62 | 57 | 57 | 40 |
| GRID: Autosport (2014) | 232 | 116 | 99 | 67 |
| Middle-earth: Shadow of Mordor (2014) | 177 | 126 | 70 | 52 |
| Ryse: Son of Rome (2014) | 101 | 93 | 43 | 15 |
| F1 2014 (2014) | 132 | 111 | 95 | 74 |
| Dirt Rally (2015) | 278 | 187 | 89 | 63 |
| The Witcher 3 (2015) | 97 | 72 | 31 | 23 |
| Anno 2205 (2015) | 146 | 93 | 43 | 20 |
Ljudnivå
| Låg belastning |
| 30 / 30 / 30 dB(A) |
| Hårddisk |
| 33.2 dB(A) |
| Hög belastning |
| 43.2 / 47.13 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm avstånd) environment noise: 30 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+0.8 °C / 1.4 F).
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+0.8 °C / 1.4 F).
Strömförbrukning
| Av/Standby | 0.2 / 0.8 Watt |
| Låg belastning | 6.04 / 15.2 / 42.3 Watt |
| Hög belastning |
112.8 / 182.2 Watt |

| |
För
+ Mycket bra chassi
+ Riktigt bra skärm
+ Hög prestanda
+ Utmärkta uppgraderingsmöjligheter
+ Många konfigurationsalternativ
+ Lågt fläktljud under låg belastning
+ Bra batteritid

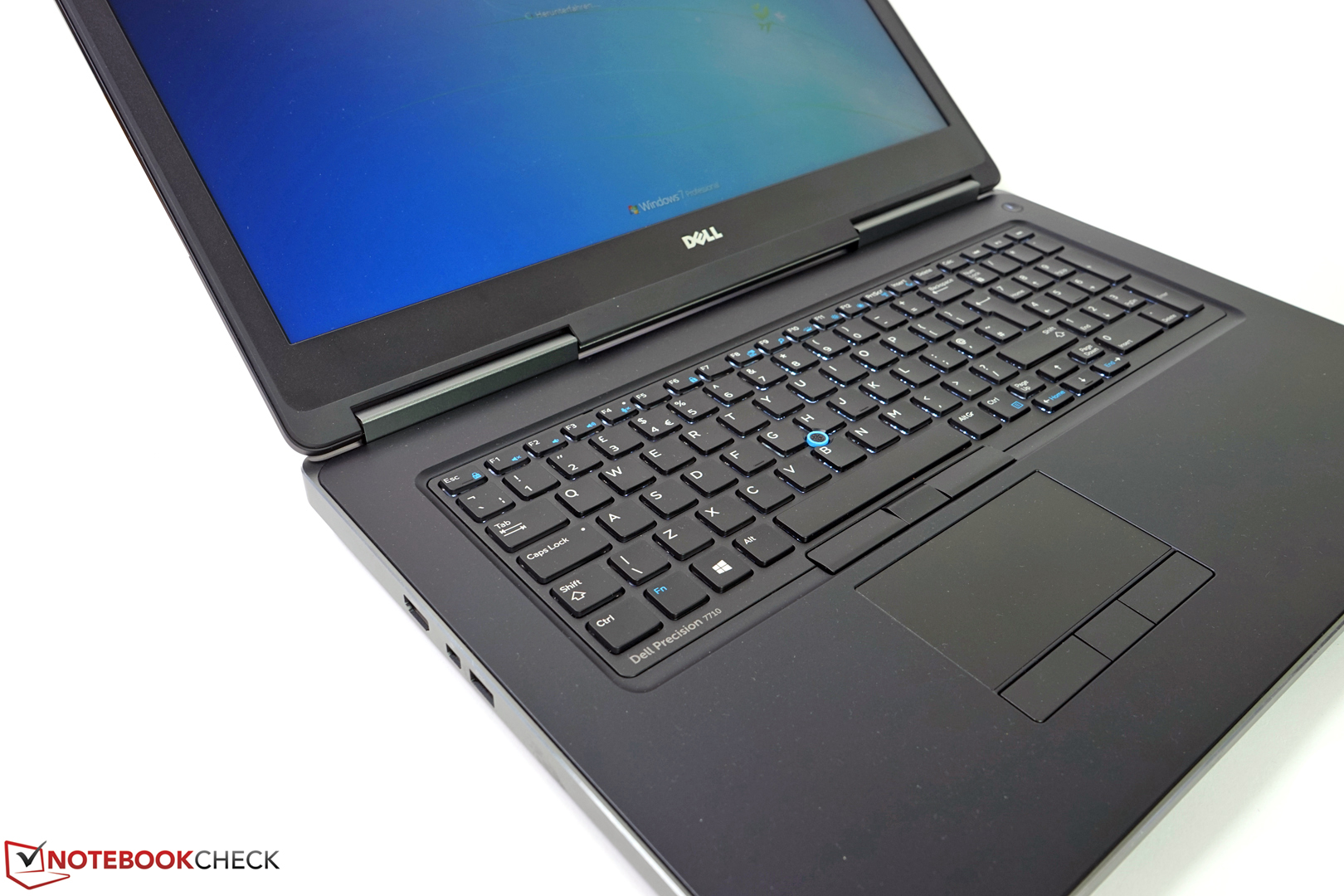

+ Bra inmatningsenheter
Emot
- Märkbar ljusblödning och ojämn ljusstyrka
- Flimrar vid låg ljusstyrka
- Reducerad grafikprestanda när CPU:n maxbelastas
- "Bara" plats för tre lagringsenheter

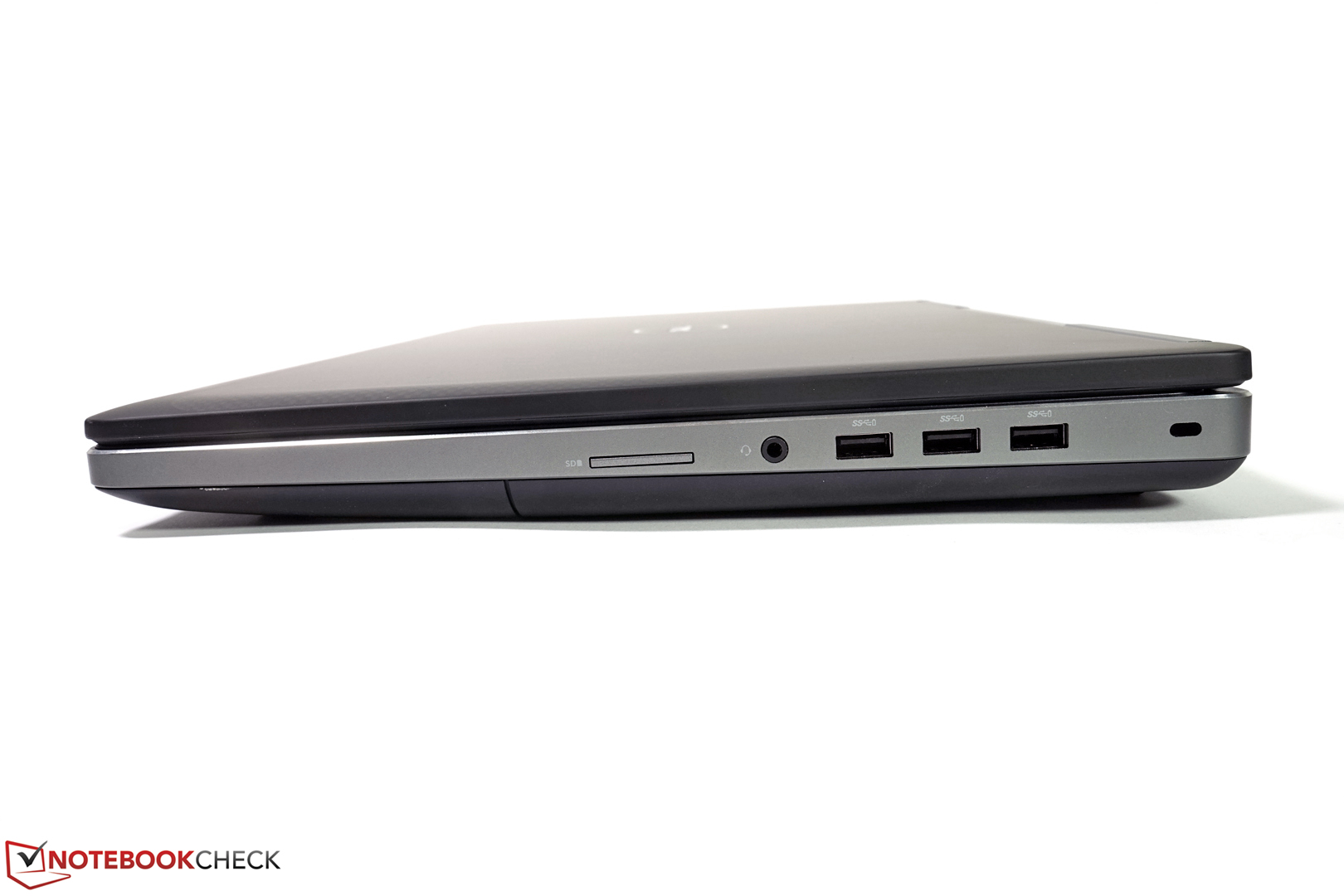

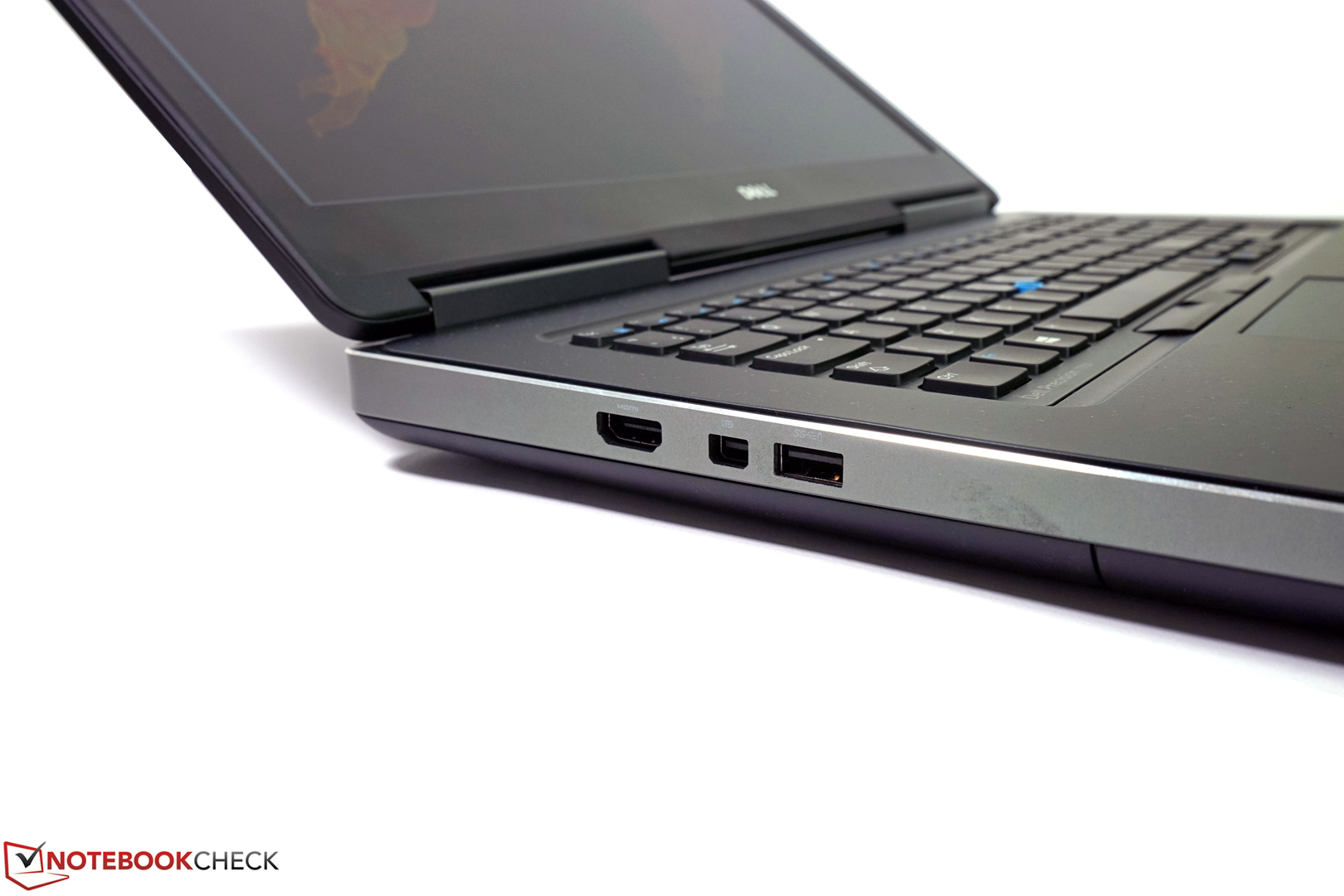

- Måttligt med anslutningsmöjligheter
Dell Precision 7710 har reviderats i grunden och har uppdaterats på många viktiga punkter. Köparen får en mobil arbetsstation med mycket bra prestanda, enkelt underhåll, bra inmatningsenheter och en bra Full HD-skärm som lämpar sig för professionell användning. Som vanligt erbjuder Dell många konfigurationsalternativ, samt extragarantier och service-tillägg som tillval.
Men vi är inte helt nöjda med anslutningsmöjligheterna, som borde ha varit bättre i en helt ny 17-tums arbetsstation. Äldre gränssnitt har tagits bort, men moderna portar som USB 3.1 Gen.2, Thunderbolt 3.0 (endast tillval) och HDMI 2.0 saknas fortfarande. Du får också klara dig utan optisk enhet och en extra 2,5-tumsplats.
Det är heller inte OK att testmodellens grafikprestanda stryps kraftigt under stresstestet och under batteridrift. Eftersom mobila arbetsstationer köps särskilt för prestandaintensiva uppgifter är problemet desto mer graverande.

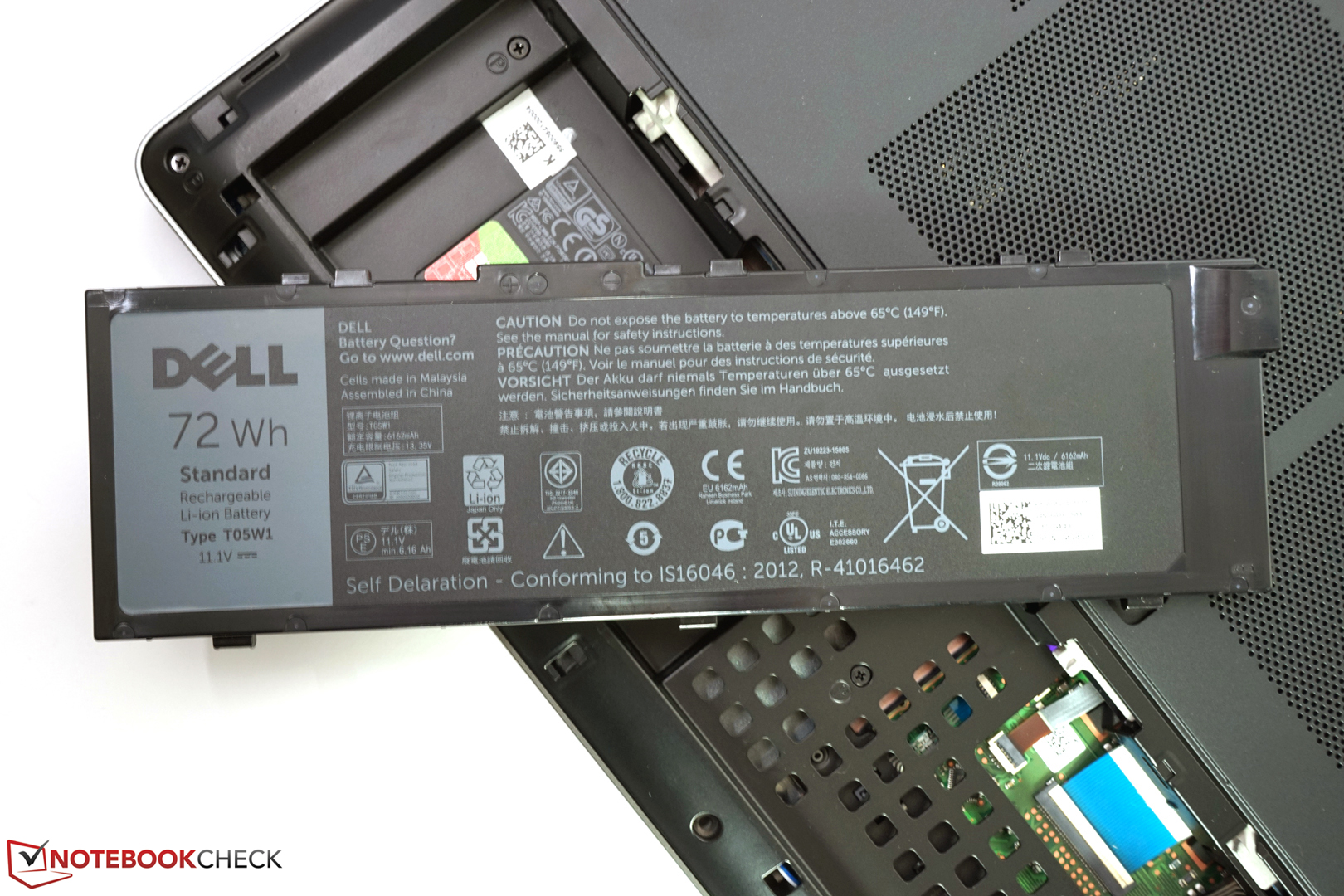

Dell kompenserar för detta med lågt fläktljud under låg belastning och övergripande låg värmeutveckling. Batteritiden är enastående trots ett mindre 72 Wh-batteri, så datorn klarar sig ett bra tag utan vägguttag.
Allt som allt får du en robust mobil arbetsstation för en bra bit över 30 000 kr, inklusive 36 månaders ProSupport med på platsen-service (gäller vår testmodell).
