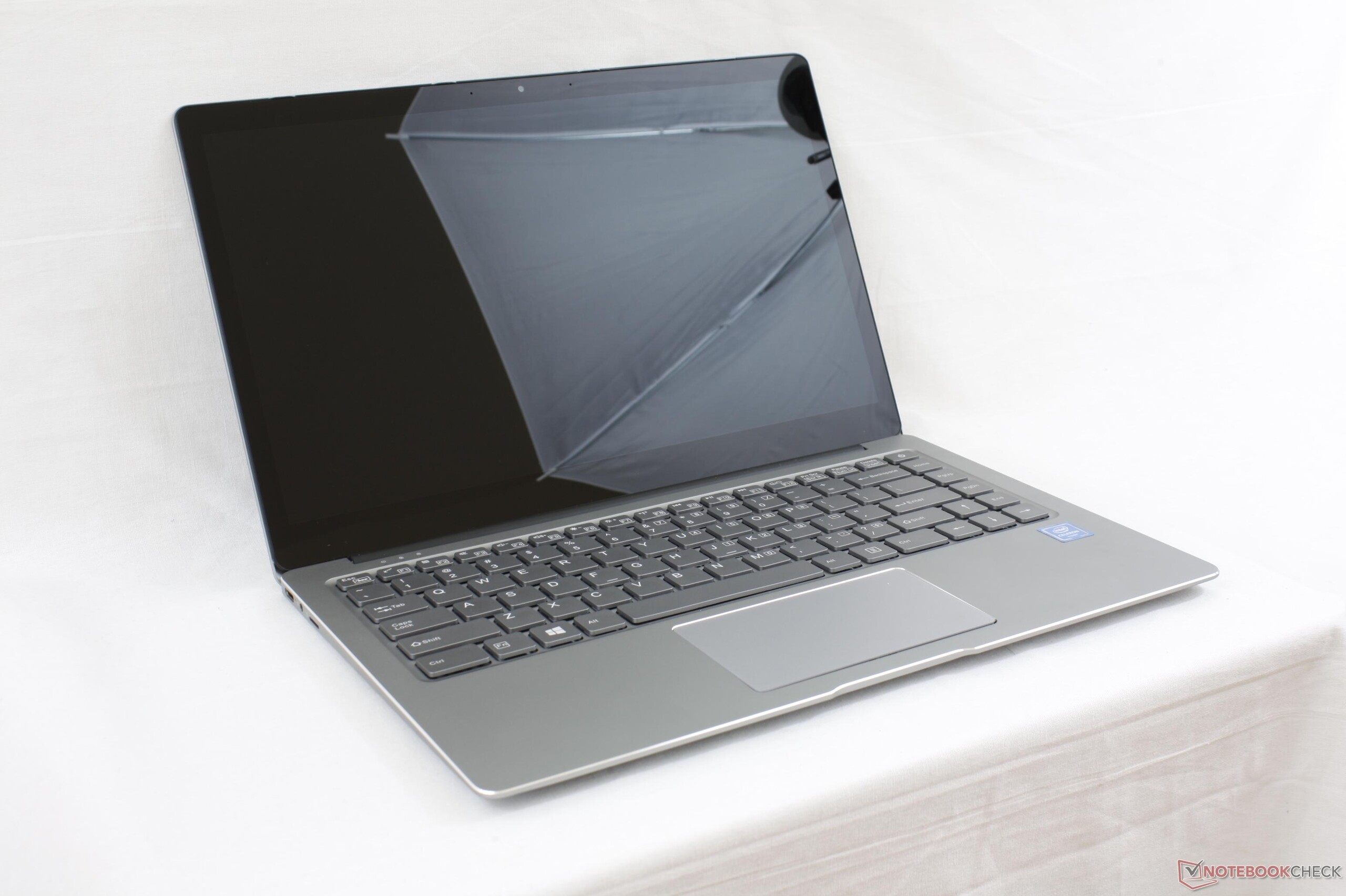

Test: Chuwi LapBook Air 14.1 (N3450, FHD) Laptop (Sammanfattning)

Name: Chuwi LapBook 14 inch 2017
Brand: Chuwi

Attraktiv och långsam. Chuwis MacBook Air-klon ser definitivt bra ut och kan lätt misstas för en dubbelt så dyr Ultrabook. Gå ner på djupet och du kommer dock hitta små brister som snabbt blir till sprickor.

Allen Ngo (översatt av Daniel Eriksson), Published 11/08/2017 🇺🇸 🇮🇹 ...

Laptop / Notebook Ultrabook Windows

Test device courtesy of Chuwi

Download your licensed rating image as PNG / SVG

Chuwi LapBook 14 inch 2017 (LapBook Serie)

Processor

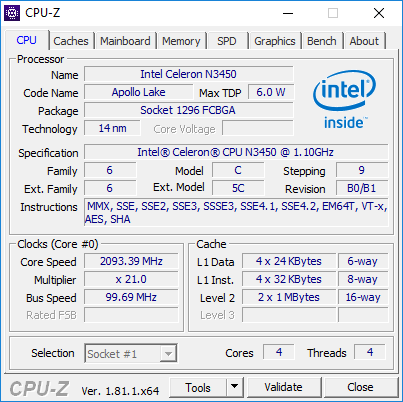

Intel Celeron N3450 4 x 1.1 - 2.2 GHz, Apollo Lake

Grafikkort

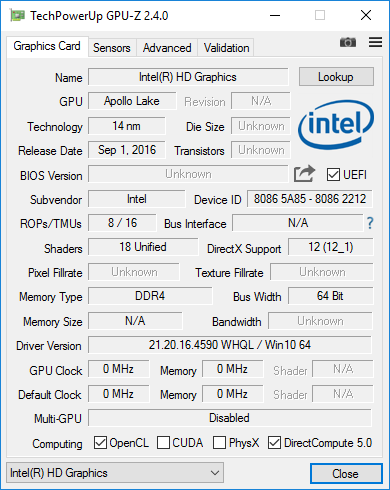

Intel HD Graphics 500, Kärna: 450 MHz, 21.20.16.4590

Minne

8 GB

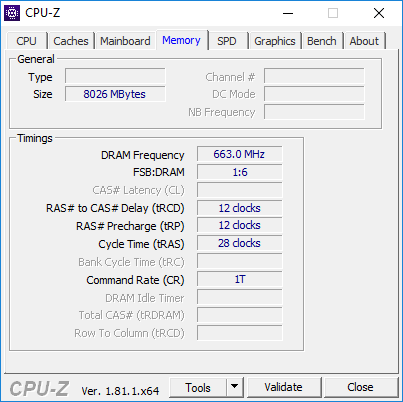

, DDR3L, 666.7 MHz, 7-12-12-28

Skärm

14.10 tum 16:9, 1920 x 1080 pixlar 156 PPI, Name: BOE06A8, IPS, glansig: ja

Hårddisk

SanDisk DF4128, 128 GB

Ljudkort

RealTek ALC269 @ Intel Apollo Lake SoC - High Definition Audio Controller

Anslutningar

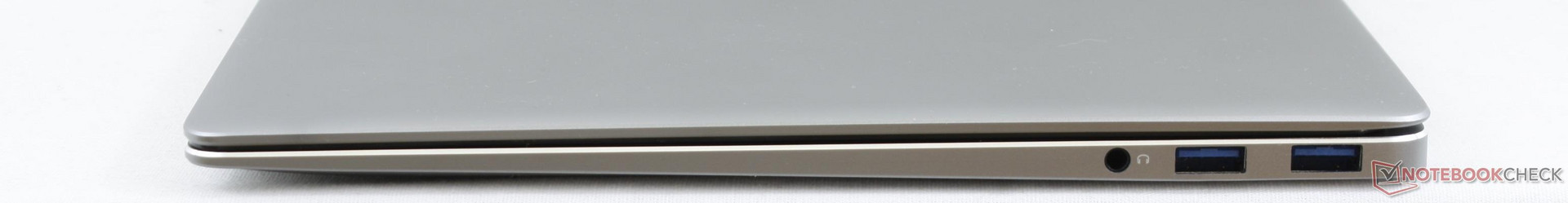

2 USB 3.0, 1 HDMI, Ljudanslutningar: 3.5 mm, Kortläsare: TF-kort upp till 128GB

Nätverk

Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 20.5 x 329.2 x 220.5

Batteri

38 Wh, 5000 mAh Litiumjon, 7.4V, Batteritid (enligt tillverkaren): 4 tim

Operativsystem

Microsoft Windows 10 Home 64 Bit

Camera

Webbkamera: FHD
Primary Camera: 2 MPix

Övrigt

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, Garantikort, Snabbstartsguide, 12 Månader Garanti, fanless

Vikt

1.4 kg, Strömförsörjning: 223 g

Pris

410 USD

Länkar

Chuwi hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo ThinkPad E470 HP Pavilion 14-al103ng Jumper EZbook 3 Chuwi LapBook 14 inch 2017 Lenovo IdeaPad 320s-14IKB Apple MacBook Air 13.3" 1.8 GHz (2017) DIN A4 ❌

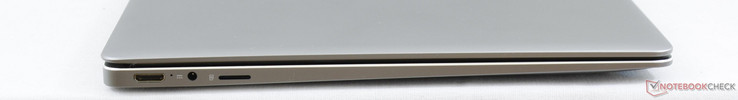

Left: Mini HDMI, AC adapter, MicroSD reader

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 i7-8550U	159 MB/s +320%
Samsung Notebook 9 NP900X3N-K01US	67.4 MB/s +78%
Chuwi LapBook 14 inch 2017	37.86 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 i7-8550U	190.6 MB/s +329%
Samsung Notebook 9 NP900X3N-K01US	88.1 MB/s +98%
Chuwi LapBook 14 inch 2017	44.46 MB/s

Networking
iperf3 transmit AX12
Dell XPS 13 i7-8550U Killer Wireless-n/a/ac 1535 Wireless Network Adapter	538 MBit/s +73%
Samsung Notebook 9 NP900X3N-K01US Intel Dual Band Wireless-AC 8260	517 MBit/s +66%
Chuwi LapBook 14 inch 2017 Intel Dual Band Wireless-AC 3165	311 MBit/s
iperf3 receive AX12
Samsung Notebook 9 NP900X3N-K01US Intel Dual Band Wireless-AC 8260	668 MBit/s +91%
Dell XPS 13 i7-8550U Killer Wireless-n/a/ac 1535 Wireless Network Adapter	618 MBit/s +77%
Chuwi LapBook 14 inch 2017 Intel Dual Band Wireless-AC 3165	349 MBit/s


239.1 cd/m²	245.2 cd/m²	243.7 cd/m²
233.6 cd/m²	247.7 cd/m²	244.4 cd/m²
236.4 cd/m²	241.7 cd/m²	253.1 cd/m²

Distribution av ljusstyrkan

Name: BOE06A8 tested with X-Rite i1Basic Pro 2

Max: 253.1 cd/m² (Nits) Medel: 242.8 cd/m² Minimum: 5.46 cd/m²
Distribution av ljusstyrkan: 92 %
Mitt på batteriet: 247.7 cd/m²
Kontrast: 774:1 (Svärta: 0.32 cd/m²)
ΔE Color 6.4 | 0.5-29.43 Ø5
ΔE Greyscale 4.5 | 0.57-98 Ø5.3
62.9% sRGB (Argyll 1.6.3 3D)
39.8% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.93% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.6% sRGB (Argyll 2.2.0 3D)
42.53% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.33

Download ICC-fil (X-Rite i1Pro Basic 2)

	Chuwi LapBook 14 inch 2017 Name: BOE06A8, IPS, 14.10, 1920x1080	Lenovo Ideapad 110S-11IBR Chi Mei CMN1132, TN LED, 11.60, 1366x768	Jumper EZbook 3 MS_9003, TN LED, 14.10, 1920x1080	HP Pavilion 14-al103ng AU Optronics, IPS, 14.00, 1920x1080	Apple MacBook Air 13 inch 2015-03 Apple APP9CF0, TN LED, 13.30, 1440x900
Display		1%	21%	-14%	-6%
Display P3 Coverage	42.53	42.77 1%	51.6 21%	36.58 -14%	40.1 -6%
sRGB Coverage	63.6	64.2 1%	77.3 22%	54.9 -14%	59.8 -6%
AdobeRGB 1998 Coverage	43.93	44.2 1%	53 21%	37.79 -14%	41.51 -6%
Response Times		4247%	7%	-27%
Response Time Grey 50% / Grey 80% *	32.8 ?(12.8, 20)	46 ?(26, 20) -40%	46 ?(25, 21) -40%	53 ?(18, 35) -62%
Response Time Black / White *	29.2 ?(16, 13.2)	30 ?(21, 9) -3%	11.6 ?(7.7, 3.8) 60%	27 ?(8, 19) 8%
PWM Frequency	200 ?(20)	25770 ?(50) 12785%	200 ?(99) 0%
Screen		-29%	-54%	16%	15%
Brightness middle	247.7	243 -2%	384 55%	200 -19%	329 33%
Brightness	243	230 -5%	341 40%	191 -21%	310 28%
Brightness Distribution	92	91 -1%	76 -17%	90 -2%	82 -11%
Black Level *	0.32	0.4 -25%	1.28 -300%	0.14 56%	0.405 -27%
Contrast	774	608 -21%	300 -61%	1429 85%	812 5%
Colorchecker dE 2000 *	6.4	11.24 -76%	8.7 -36%	5.06 21%	3.96 38%
Colorchecker dE 2000 max. *	24.3	19.82 18%	16.7 31%	10.91 55%	7.51 69%
Greyscale dE 2000 *	4.5	12.78 -184%	11.1 -147%	3.94 12%	3.51 22%
Gamma	2.33 ^94%	2.33 ^94%	2.2 ^100%	2.41 ^91%	3.83 ^57%
CCT	7318 ^89%	15436 ^42%	12445 ^52%	6159 ^106%	6711 ^97%
Color Space (Percent of AdobeRGB 1998)	39.8	41 3%		35 -12%	38.4 -4%
Color Space (Percent of sRGB)	62.9	64 2%		55 -13%	59.8 -5%
Total Average (Program / Settings)		1406% / 778%	-9% / -25%	-8% / 4%	5% / 10%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

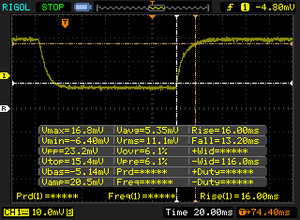

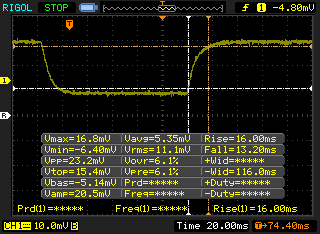

↔ Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined	↗ 16 ms rise
29.2 ms ... rise ↗ and fall ↘ combined	↘ 13.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 75 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

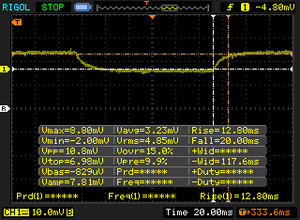

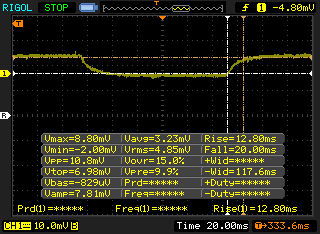

↔ Response Time 50% Grey to 80% Grey
32.8 ms ... rise ↗ and fall ↘ combined	↗ 12.8 ms rise
32.8 ms ... rise ↗ and fall ↘ combined	↘ 20 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms).

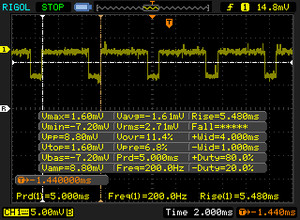

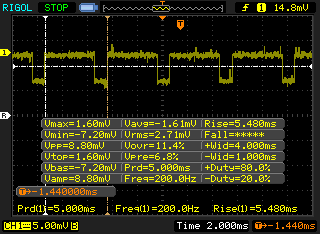

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

200 Hz

≤ 20 % brightness setting

The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R15 CPU Multi 64 Bit

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	99 Points +175%
Acer TravelMate P249-M-3895 Intel Core i3-6100U	98 Points +172%
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	86 Points +139%
HP 15-bw077ax AMD A9-9420	75 Points +108%
HP Pavilion 15z-bw000 AMD A10-9620P	72 Points +100%
Acer Spin 1 SP111-31-C79E Intel Celeron N3450	48 Points +33%
HP 15z-ba000 AMD A6-7310	44 Points +22%
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	39 Points +8%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel Atom x5-Z8550	36 Points 0%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	36 Points
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	256 Points +100%
Acer TravelMate P249-M-3895 Intel Core i3-6100U	250 Points +95%
HP Pavilion 15z-bw000 AMD A10-9620P	230 Points +80%
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	223 Points +74%
Acer Spin 1 SP111-31-C79E Intel Celeron N3450	135 Points +5%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel Atom x5-Z8550	134 Points +5%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	128 Points
HP 15-bw077ax AMD A9-9420	124 Points -3%
HP 15z-ba000 AMD A6-7310	119 Points -7%
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	74 Points -42%

Cinebench R11.5
CPU Single 64Bit
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	1.14 Points +143%
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	1.03 Points +119%
HP 15-bw077ax AMD A9-9420	0.96 Points +104%
HP Pavilion 15z-bw000 AMD A10-9620P	0.81 Points +72%
HP 15z-ba000 AMD A6-7310	0.58 Points +23%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	0.47 Points
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	0.46 Points -2%
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	2.85 Points +75%
HP Pavilion 15z-bw000 AMD A10-9620P	2.66 Points +63%
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	2.49 Points +53%
HP 15z-ba000 AMD A6-7310	2.08 Points +28%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	1.63 Points
HP 15-bw077ax AMD A9-9420	1.56 Points -4%
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	0.8 Points -51%

Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	8718 Points +120%
Acer TravelMate P249-M-3895 Intel Core i3-6100U	8426 Points +113%
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	7580 Points +92%
HP Pavilion 15z-bw000 AMD A10-9620P	7420 Points +88%
HP 15-bw077ax AMD A9-9420	4627 Points +17%
HP 15z-ba000 AMD A6-7310	4373 Points +11%
Acer Spin 1 SP111-31-C79E Intel Celeron N3450	3959 Points 0%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	3956 Points
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	2397 Points -39%
Rendering Single 32Bit
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	3871 Points +218%
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	3725 Points +206%
Acer TravelMate P249-M-3895 Intel Core i3-6100U	3714 Points +205%
HP 15-bw077ax AMD A9-9420	2761 Points +126%
HP Pavilion 15z-bw000 AMD A10-9620P	2277 Points +87%
HP 15z-ba000 AMD A6-7310	1761 Points +44%
Acer Spin 1 SP111-31-C79E Intel Celeron N3450	1451 Points +19%
Lenovo Ideapad 110S-11IBR Intel Celeron N3060	1267 Points +4%
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	1219 Points

wPrime 2.10 - 1024m
Chuwi LapBook 14 inch 2017 Intel Celeron N3450	867 s *
Lenovo IdeaPad Z40-59422614 Intel Core i5-4200U	790 s * +9%
HP 15-bw077ax AMD A9-9420	747 s * +14%
Lenovo Thinkpad 13-20J1001BUS Intel Core i3-7100U	645 s * +26%
HP Pavilion 15z-bw000 AMD A10-9620P	470.9 s * +46%

* ... smaller is better

Cinebench R10 Shading 32Bit

2887

Cinebench R10 Rendering Multiple CPUs 32Bit

3956

Cinebench R10 Rendering Single 32Bit

1219

Cinebench R11.5 CPU Multi 64Bit

1.63 Points

Cinebench R11.5 OpenGL 64Bit

7.05 fps

Cinebench R11.5 CPU Single 64Bit

0.47 Points

Cinebench R15 CPU Single 64Bit

36 Points

Cinebench R15 Ref. Match 64Bit

97.7 %

Cinebench R15 OpenGL 64Bit

11.21 fps

Cinebench R15 CPU Multi 64Bit

128 Points

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2
Acer Swift 3 SF315-51G-57E5 GeForce MX150, i5-8250U, Hynix HFS128G39TND	3935 Points +134%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	3579 Points +113%
Chuwi LapBook 14 inch 2017 HD Graphics 500, Celeron N3450, SanDisk DF4128	1682 Points
Lenovo Yoga Book 2016 Windows 64GB LTE HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash	1296 Points -23%
Work Score Accelerated v2
Acer Swift 3 SF315-51G-57E5 GeForce MX150, i5-8250U, Hynix HFS128G39TND	4992 Points +96%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	4367 Points +71%
Chuwi LapBook 14 inch 2017 HD Graphics 500, Celeron N3450, SanDisk DF4128	2552 Points
Lenovo Yoga Book 2016 Windows 64GB LTE HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash	1247 Points -51%
Creative Score Accelerated v2
Acer Swift 3 SF315-51G-57E5 GeForce MX150, i5-8250U, Hynix HFS128G39TND	5065 Points +159%
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	4432 Points +127%
Chuwi LapBook 14 inch 2017 HD Graphics 500, Celeron N3450, SanDisk DF4128	1952 Points

PCMark 8 Home Score Accelerated v2		1682 poäng
PCMark 8 Creative Score Accelerated v2		1952 poäng
PCMark 8 Work Score Accelerated v2		2552 poäng
PCMark 10 Score		1243 poäng
Hjälp

	Chuwi LapBook 14 inch 2017 SanDisk DF4128	Dell XPS 13 i7-8550U Toshiba XG5 KXG50ZNV256G	Samsung Notebook 9 NP900X3N-K01US Samsung CM871a MZNTY256HDHP	Lenovo Ideapad 110S-11IBR SanDisk DF4032	Lenovo IdeaPad 320s-14IKB Samsung PM961 NVMe MZVLW128HEGR
CrystalDiskMark 5.2 / 6		743%	402%	-8%	696%
Write 4K	11.87	121.5 924%	105.4 788%	13.87 17%	127.9 978%
Read 4K	11.45	24.92 118%	34.45 201%	12.23 7%	42.82 274%
Write Seq	106.1	345 225%	458.4 332%	101.7 -4%	795 649%
Read Seq	293.6	1313 347%	489.4 67%	165.1 -44%	1056 260%
Write 4K Q32T1	15.22	346.1 2174%	99.2 552%	13.63 -10%	176.8 1062%
Read 4K Q32T1	33.91	389.4 1048%	273.5 707%	36.23 7%	322.4 851%
Write Seq Q32T1	110.3	334.7 203%	512 364%	94.8 -14%	793 619%
Read Seq Q32T1	183	1840 905%	551 201%	147.5 -19%	1782 874%

CrystalDiskMark 5.2 / 6

SanDisk DF4128

CDM 5/6 Read Seq Q32T1: 183 MB/s

CDM 5/6 Write Seq Q32T1: 110.3 MB/s

CDM 5/6 Read 4K Q32T1: 33.91 MB/s

CDM 5/6 Write 4K Q32T1: 15.22 MB/s

CDM 5 Read Seq: 293.6 MB/s

CDM 5 Write Seq: 106.1 MB/s

CDM 5/6 Read 4K: 11.45 MB/s

CDM 5/6 Write 4K: 11.87 MB/s

3DMark | 3DMark 11

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC5i3RYK Intel HD Graphics 5500, 5010U	6706 Points +160%
Acer Spin 5 SP513-51 Intel HD Graphics 520, 6100U	6249 Points +142%
Lenovo Thinkpad 13-20J1001BUS Intel HD Graphics 620, i3-7100U	5854 Points +127%
Fujitsu Lifebook U574 Intel HD Graphics 4400, 4200U	4921 Points +91%
Lenovo Ideapad 320-17AST-80XW0013GE AMD Radeon R2 (Stoney Ridge), E2-9000	3634 Points +41%
HP 15-bw075ax AMD Radeon R7 (Bristol Ridge), A12-9720P	3477 Points +35%
Jumper EZbook 3 Intel HD Graphics 500, Celeron N3350	3052 Points +18%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	2651 (2630^min - 2661^max) Points +3%
Chuwi LapBook 14 inch 2017 Intel HD Graphics 500, Celeron N3450	2578 Points
Lenovo Yoga Book 2016 Windows 64GB LTE Intel HD Graphics 400 (Braswell), Z8550	2455 Points -5%
Lenovo Miix 3 10 Intel HD Graphics (Bay Trail), Z3735F	1190 Points -54%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Lenovo Thinkpad 13-20J1001BUS Intel HD Graphics 620, i3-7100U	57706 Points +199%
Lenovo Ideapad 320-17AST-80XW0013GE AMD Radeon R2 (Stoney Ridge), E2-9000	38670 Points +100%
HP 15-bw075ax AMD Radeon R7 (Bristol Ridge), A12-9720P	34845 Points +81%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	22807 Points +18%
Jumper EZbook 3 Intel HD Graphics 500, Celeron N3350	20352 Points +5%
Chuwi LapBook 14 inch 2017 Intel HD Graphics 500, Celeron N3450	19294 Points

3DMark 11
1280x720 Performance GPU
Asus VivoBook X751BP-TY048T AMD Radeon R5 (Stoney Ridge), A9-9420	1356 Points +248%
Acer Spin 5 SP513-51 Intel HD Graphics 520, 6100U	1213 Points +211%
Intel NUC5i3RYK Intel HD Graphics 5500, 5010U	1175 Points +201%
Fujitsu Lifebook U574 Intel HD Graphics 4400, 4200U	750 Points +92%
Lenovo Ideapad 320-17AST-80XW0013GE AMD Radeon R2 (Stoney Ridge), E2-9000	747 Points +92%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	584 Points +50%
Jumper EZbook 3 Intel HD Graphics 500, Celeron N3350	458 Points +17%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel HD Graphics 400 (Braswell), Z8550	418 Points +7%
Chuwi LapBook 14 inch 2017 Intel HD Graphics 500, Celeron N3450	390 Points
Lenovo Miix 3 10 Intel HD Graphics (Bay Trail), Z3735F	182 Points -53%
1280x720 Performance Combined
Asus VivoBook X751BP-TY048T AMD Radeon R5 (Stoney Ridge), A9-9420	1323 Points +216%
Intel NUC5i3RYK Intel HD Graphics 5500, 5010U	1206 Points +188%
Acer Spin 5 SP513-51 Intel HD Graphics 520, 6100U	1100 Points +163%
Lenovo Ideapad 320-17AST-80XW0013GE AMD Radeon R2 (Stoney Ridge), E2-9000	718 Points +71%
Fujitsu Lifebook U574 Intel HD Graphics 4400, 4200U	663 Points +58%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	570 Points +36%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel HD Graphics 400 (Braswell), Z8550	480 Points +15%
Jumper EZbook 3 Intel HD Graphics 500, Celeron N3350	456 Points +9%
Chuwi LapBook 14 inch 2017 Intel HD Graphics 500, Celeron N3450	419 Points
Lenovo Miix 3 10 Intel HD Graphics (Bay Trail), Z3735F	219 Points -48%

3DMark | 3DMark 11

3DMark 11 Performance		445 poäng
3DMark Ice Storm Standard Score		20937 poäng
3DMark Cloud Gate Standard Score		2152 poäng
3DMark Fire Strike Score		271 poäng
Hjälp

... jämför

Ljudnivå

Låg belastning		/ / dB(A)
Hög belastning		/ dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1, Arta (15 cm avstånd)

	Samsung Notebook 9 NP900X3N-K01US HD Graphics 620, i5-7200U, Samsung CM871a MZNTY256HDHP	Lenovo IdeaPad 320s-14IKB HD Graphics 610, Pentium 4415U, Samsung PM961 NVMe MZVLW128HEGR	Acer Swift 3 SF315-51G-57E5 GeForce MX150, i5-8250U, Hynix HFS128G39TND
Noise
off / environment *	28.4		30.5
Idle Minimum *	28.4	31.1	30.5
Idle Average *	28.4	31.1	30.5
Idle Maximum *	28.4	31.1	30.9
Load Average *	33.2	34.8	35.7
Load Maximum *	35.2	33.7	35.6

* ... smaller is better

Hög belastning

Låg belastning


38.8 °C	30 °C	28.2 °C
42.4 °C	29.4 °C	27.6 °C
35.2 °C	29.4 °C	28.2 °C

Max: 42.4 °C
Medel: 32.1 °C


30.2 °C	33.4 °C	41 °C
30 °C	32.8 °C	45 °C
30 °C	32.4 °C	38.2 °C

Max: 45 °C
Medel: 34.8 °C

Strömförsörjning (max.) 38 °C | Rumstemperatur 22.6 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 32.1 °C / 90 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.2 °C / 95.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-6.9 °C / -12.5 F).

Chuwi LapBook 14 inch 2017 audio analysis

(-) | not very loud speakers (59.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.8% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (13.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(±) | linearity of highs is average (12.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (37.5% difference to median)
Compared to same class
» 97% of all tested devices in this class were better, 1% similar, 1% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 93% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.21 / 0.23 Watt
Låg belastning	3.6 / 6.2 / 6.5 Watt
Hög belastning	13.5 / 14.3 Watt


Förklaring: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Chuwi LapBook 14 inch 2017 Celeron N3450, HD Graphics 500, SanDisk DF4128, IPS, 1920x1080, 14.10	Lenovo Ideapad 110S-11IBR N3060, HD Graphics 400 (Braswell), SanDisk DF4032, TN LED, 1366x768, 11.60	Lenovo IdeaPad 320s-14IKB Pentium 4415U, HD Graphics 610, Samsung PM961 NVMe MZVLW128HEGR, IPS, 1920x1080, 14.00	Apple MacBook Air 13.3" 1.8 GHz (2017) 5350U, HD Graphics 6000, Apple SSD SM0128G, TN LED, 1440x900, 13.30	HP Pavilion 14-al103ng i5-7200U, HD Graphics 620, Western Digital Scorpio Blue WD5000LPCX-24C6HT0, IPS, 1920x1080, 14.00	Asus VivoBook E200HA-FD0041TS Z8350, HD Graphics 400 (Braswell), Hynix HBG4a2 32 GB eMMC, TN LED, 1366x768, 11.60
Power Consumption		-27%	-24%	-68%	-69%	5%
Idle Minimum *	3.6	7 -94%	3.4 6%	3.4 6%	5.5 -53%	4.3 -19%
Idle Average *	6.2	8.2 -32%	6.3 -2%	6.3 -2%	8.2 -32%	6 3%
Idle Maximum *	6.5	8.5 -31%	6.7 -3%	7 -8%	8.9 -37%	6.3 3%
Load Average *	13.5	12.5 7%	24.5 -81%	34.5 -156%	29.1 -116%	11.4 16%
Load Maximum *	14.3	12.3 14%	20.2 -41%	40 -180%	29.4 -106%	10.8 24%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		11tim 36min
WiFi Websurfing		6tim 12min
Hög belastning (maximal ljusstyrka)		3tim 19min

	Chuwi LapBook 14 inch 2017 Celeron N3450, HD Graphics 500, 38 Wh	Samsung Notebook 9 NP900X3N-K01US i5-7200U, HD Graphics 620, 30 Wh	Lenovo Ideapad 110S-11IBR N3060, HD Graphics 400 (Braswell), 39.1 Wh	Lenovo IdeaPad 320s-14IKB Pentium 4415U, HD Graphics 610, 30 Wh	Apple MacBook Air 13.3" 1.8 GHz (2017) 5350U, HD Graphics 6000, 54 Wh	Lenovo Yoga Book 2016 Windows 64GB LTE Z8550, HD Graphics 400 (Braswell), 32 Wh
Battery Runtime		-32%	3%	24%	72%	50%
Reader / Idle	696	695 0%				1153 66%
WiFi v1.3	372	279 -25%	384 3%	460 24%	638 72%	498 34%
Load	199	60 -70%

För

+ tjusig och attraktiv design; respektabel stabilitet

+ sekundär M.2 2242 SSD-plats

+ smidig 4K60 videouppspelning

+ MikroSD-läsare; Mini HDMI

+ skarp 1080p IPS-skärm

+ tillgängligt innanmäte

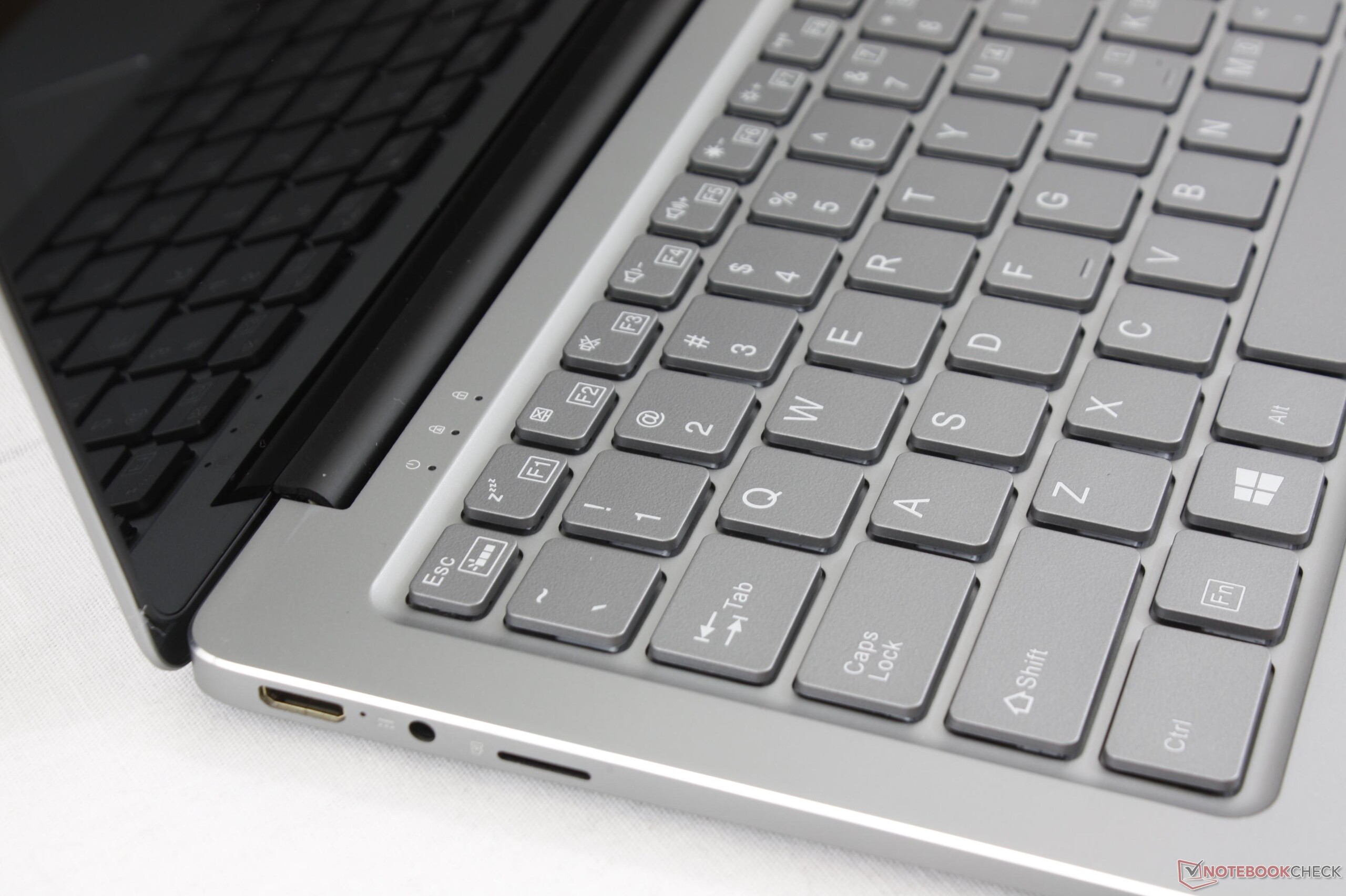

+ bakgrundsbelyst tangentbord

+ inga fläktar

+ billig

Emot

- måttlig-kraftig bleeding på skärmens bakgrundsbelysning

- medelmåttig färgrymd, oprecisa färger

- väldigt långsam CPU- och GPU-prestanda

- svampigt tangentbord, svampig styrplatta

- PWM på lägre ljusstyrkenivåer

- blank skärm; mycket glans

- ojämn tangentbordsbelysning

- dåliga högtalare, svag bas

- problem med kvalitetskontrollen

- långsam SSD-prestanda

- väldigt långsam laddning

- locket tenderar att knarra

- ett visst spoltjut

- ingen USB Typ-C

In review: Chuwi LapBook Air 14.1. Test model provided by Chuwi

LapBook Air ser ut och känns fantastisk med tanke på dess låga utgångspris på ~3 400 SEK (400$). IPS-skärmen på 1080p är skarp, en sekundär intern enhetsplats är sällsynt och tangentbordet är till och med bakgrundsbelyst. Tyvärr behövde tillverkaren göra nedskärningar på nästan allt annat för att nå det otroligt låga rekommenderade priset.

Till att börja med så är kvalitetskontrollen inte på samma nivå som på många välkända alternativ. Vår testenhet led av måttlig bleeding på skärmens bakgrundsbelysning, ojämn bakgrundsbelysning för tangentbordet, en trasig Ctrl-tangent, en bristfällig USB-port, flera krascher och en böjd kant. Vi rekommenderar nya ägare att testa varje port och knapp för att försäkra sig om att inget är skadat. För det andra så är den passivt kylda Celeron-processorn, den primära SSD-disken och laddaren är alla väldigt långsamma. Användare som vill ha något lite kraftigare skulle klara sig bättre med en äldre ULV Haswell-laptop som troligen kommer ha fastare tangentbordsknappar och mer exakta styrplatta. Om den i huvudsak används för strömning och videouppspelning på resande fot så är LapBook Air ändå inte dålig.

LapBook kan visa sig användbar för dom som bara planerar att surfa, ordbehandla och strömma film.

Chuwi LapBook 14 inch 2017 - 2017-10-31 10/31/2017 v6^(old)
Allen Ngo

Design

72 / 98 → 74%

Tangentbord

69%

Mus

67%

Anslutningar

40 / 80 → 50%

Vikt

70 / 35-78 → 82%

Batteri

88%

Skärm

77%

Spelprestanda

41 / 68 → 61%

Programprestanda

48 / 87 → 55%

Temperatur

90 / 91 → 99%

Ljudnivå

98%

Audio

30 / 91 → 33%

Camera

29 / 85 → 34%

Medel

63%

74%

Subnotebook - Vägt medel

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Chuwi LapBook Air 14.1 (N3450, FHD) Laptop (Sammanfattning)

Allen Ngo, 2017-11- 8 (Update: 2017-11- 8)
