Test: Asus PU551JH Workstation (sammanfattning)

Tyst. Helt utan pompa och ståt har Asus lagt till en 15-tums mobil arbetsstation i produktutbudet. PU551JH finns att köpa för under 10 000 kr och kan bli en riktig prispressare tack vare en matt Full HD-skärm och ett Nvidia Quadro K1100M.
Asus PU551JH (ASUSPRO Serie)
Processor
Intel Core i5-4210M 2 x 2.6 - 3.2 GHz, Haswell
Grafikkort

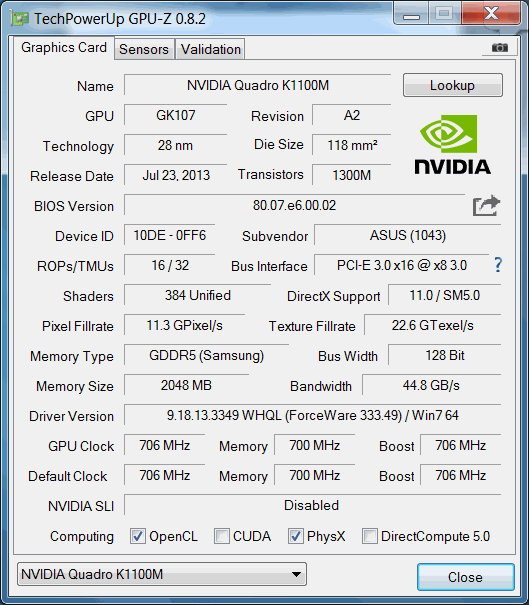

NVIDIA Quadro K1100M - 2048 MB VRAM, Kärna: 705 MHz, Minne: 700 MHz, GDDR5, 9.18.13.3349, Nvidia Optimus with Intel HD Graphics 4600
Minne
7.9 GB
, 8 GB PC3-12800, 1 ledig plats, Single-Channel
Skärm
15.60 tum 16:9, 1920 x 1080 pixlar, Samsung 156HL01_102, IPS LED, glansig: nej
Hårddisk
Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB
, 7200 rpm
Ljudkort
CX20751/2 @ Intel Lynx Point PCH - High Definition Audio Controller
Anslutningar
4 USB 3.0, 1 VGA, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: In/Utgång (3,5 mm), Kortläsare: Sd, SDHC, SDXC, UHS-I , 1 Fingeravtrycksläsare
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optisk enhet
MATSHITADVD-RAM
Storlek
höjd x bredd x djup (i mm) 36 x 380 x 256

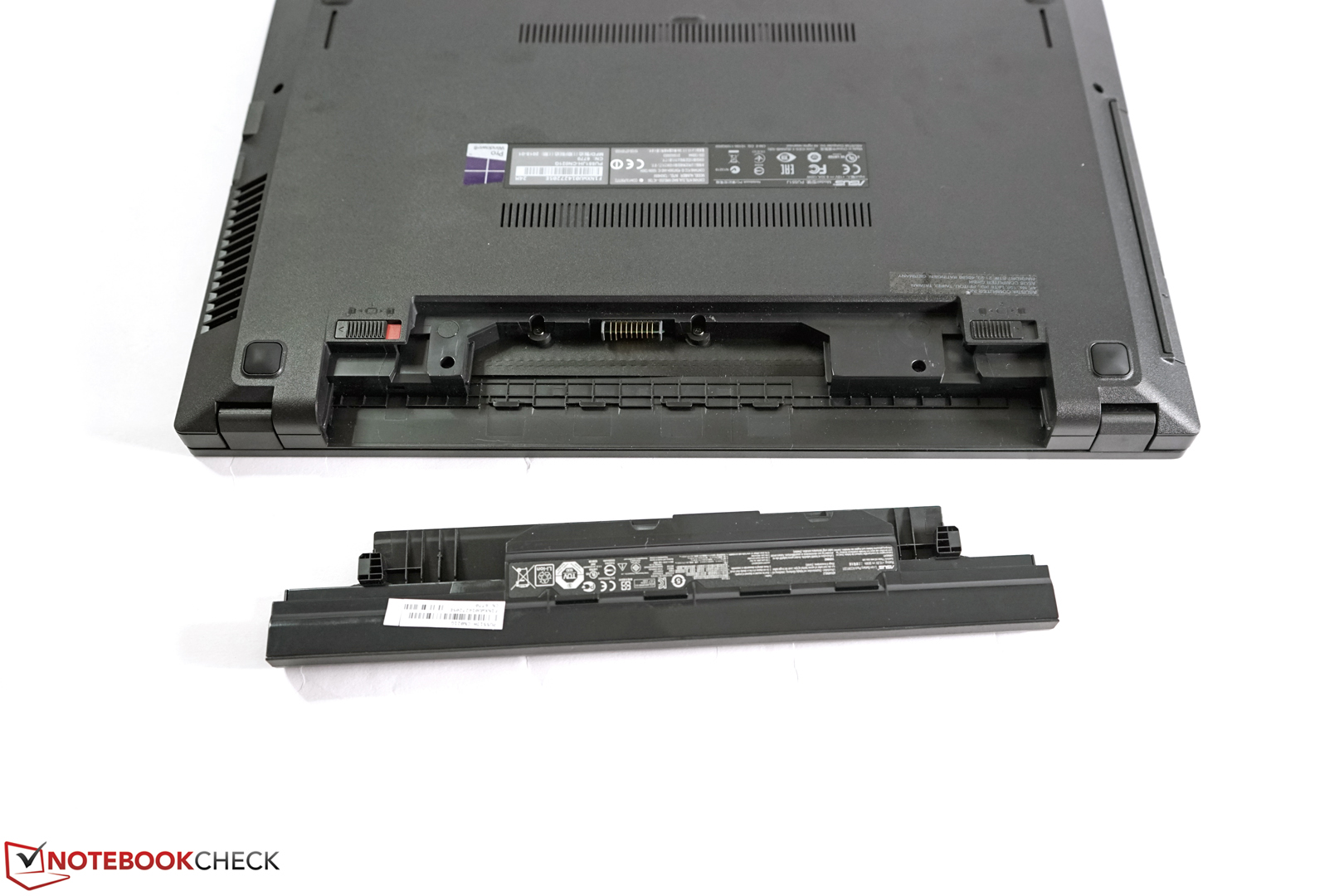

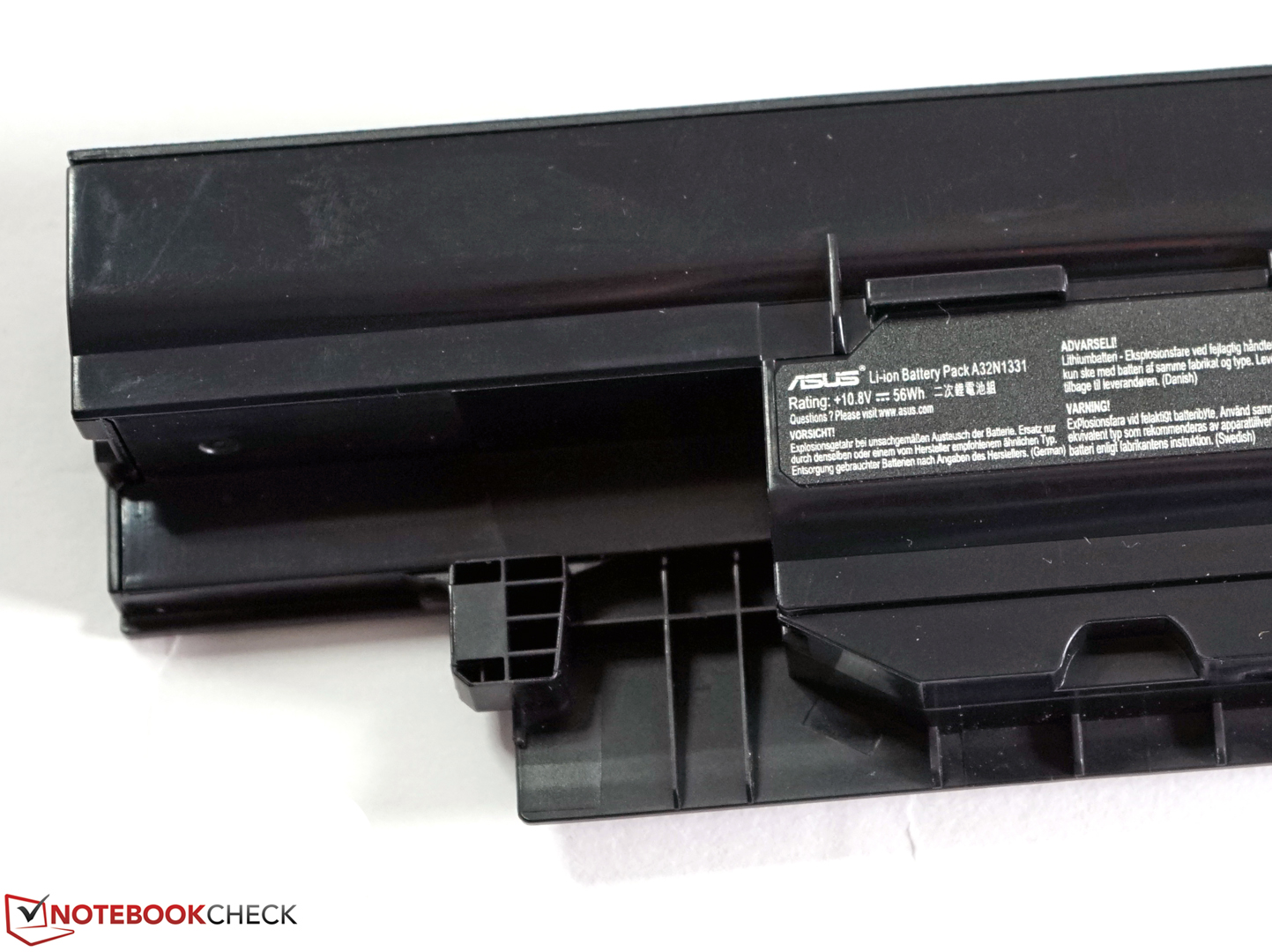

Batteri
56 Wh Litiumjon, 10.8V
Operativsystem
Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)

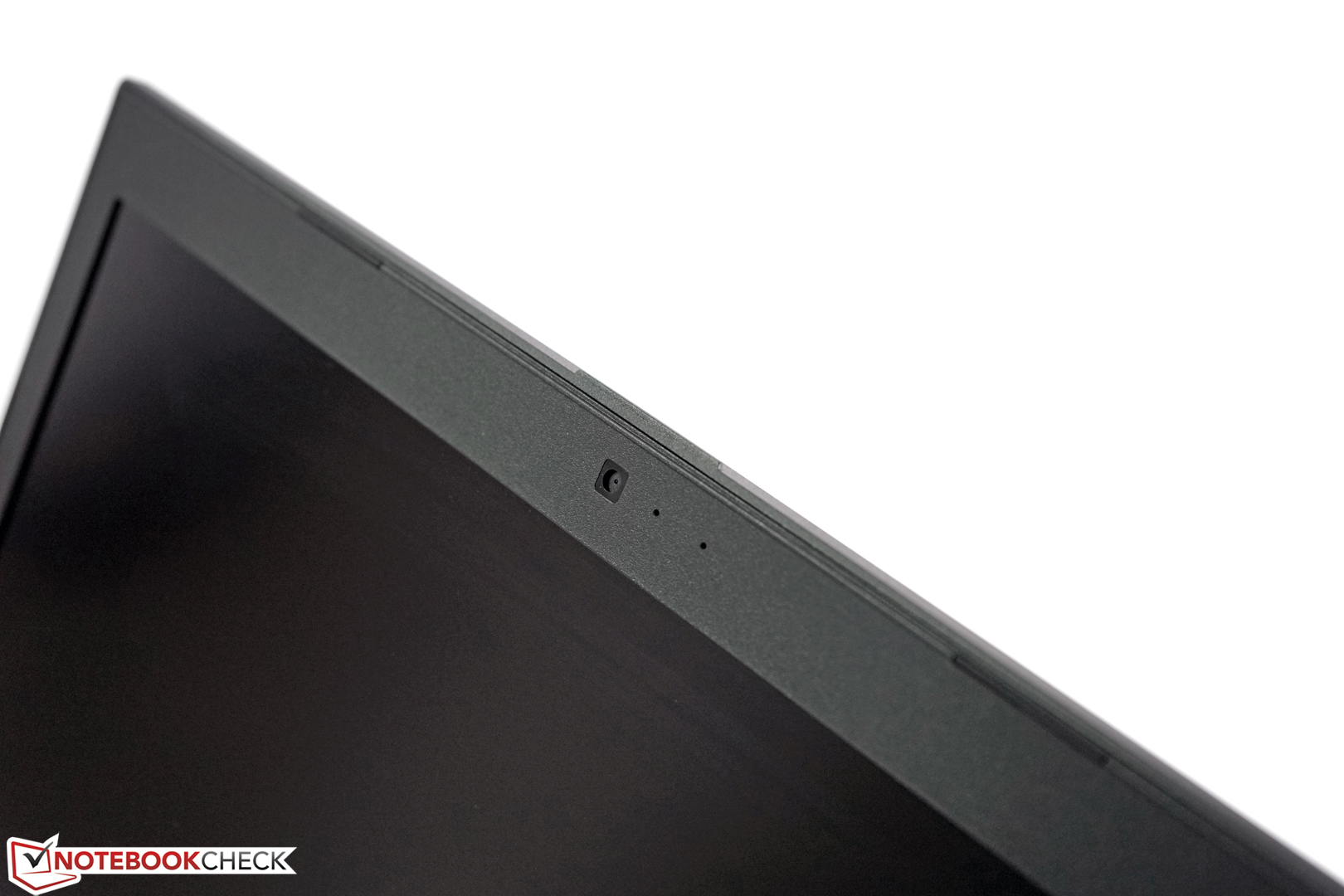

Camera
Webbkamera: 1 MP
Övrigt
Tangentbord: Chiclet, Tangentbordsbelysning: nej, 24 Månader Garanti
Vikt
2.51 kg, Strömförsörjning: 570 g
Pris
9300 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

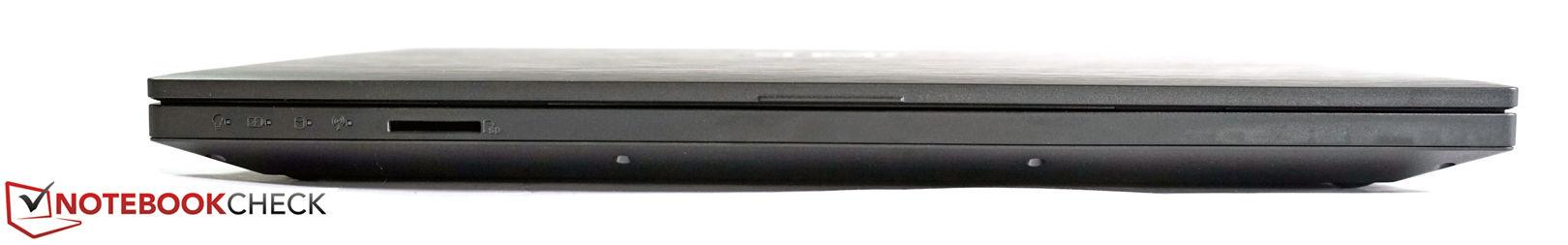

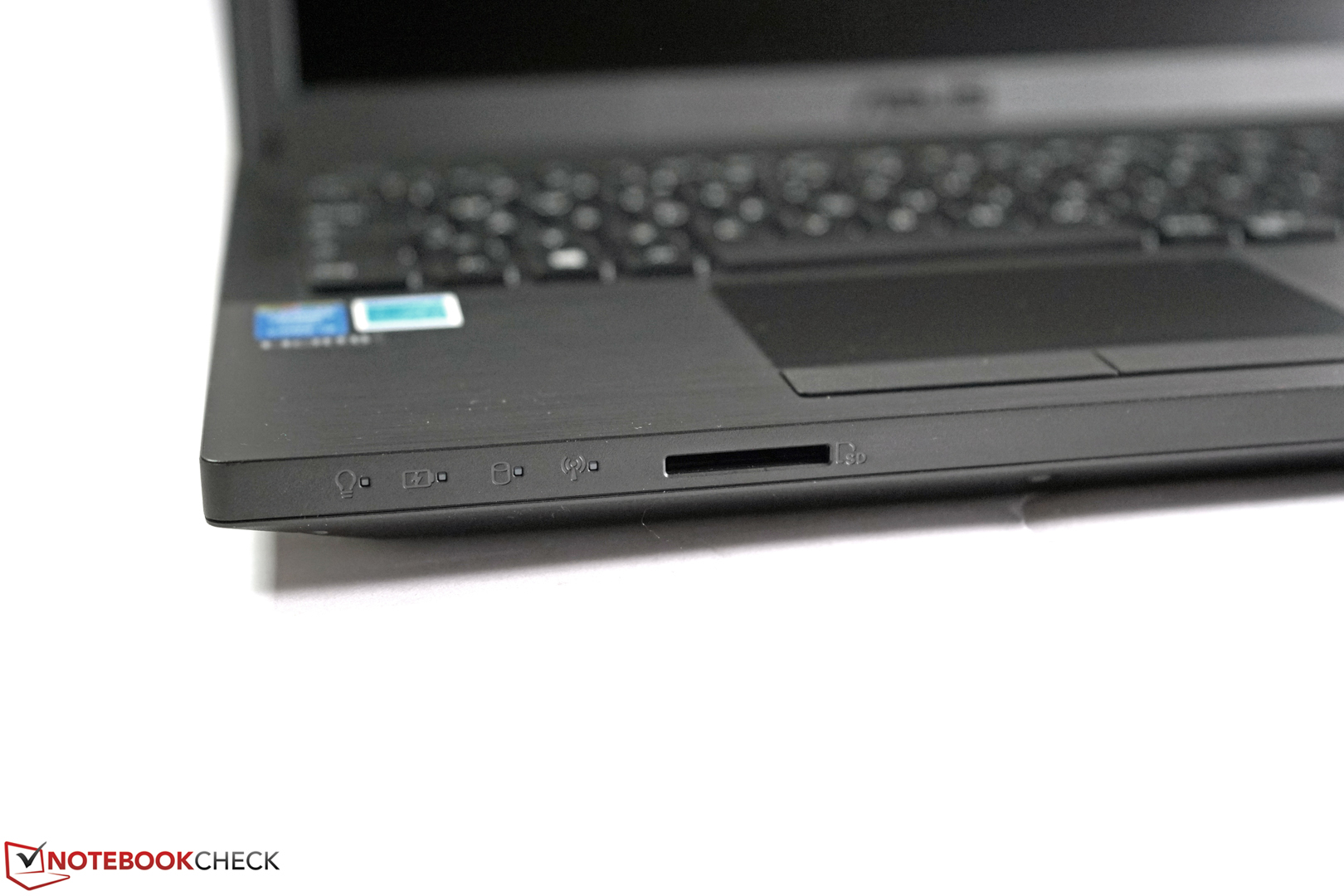

Front: UHS-I card-reader
Front: UHS-I card-reader

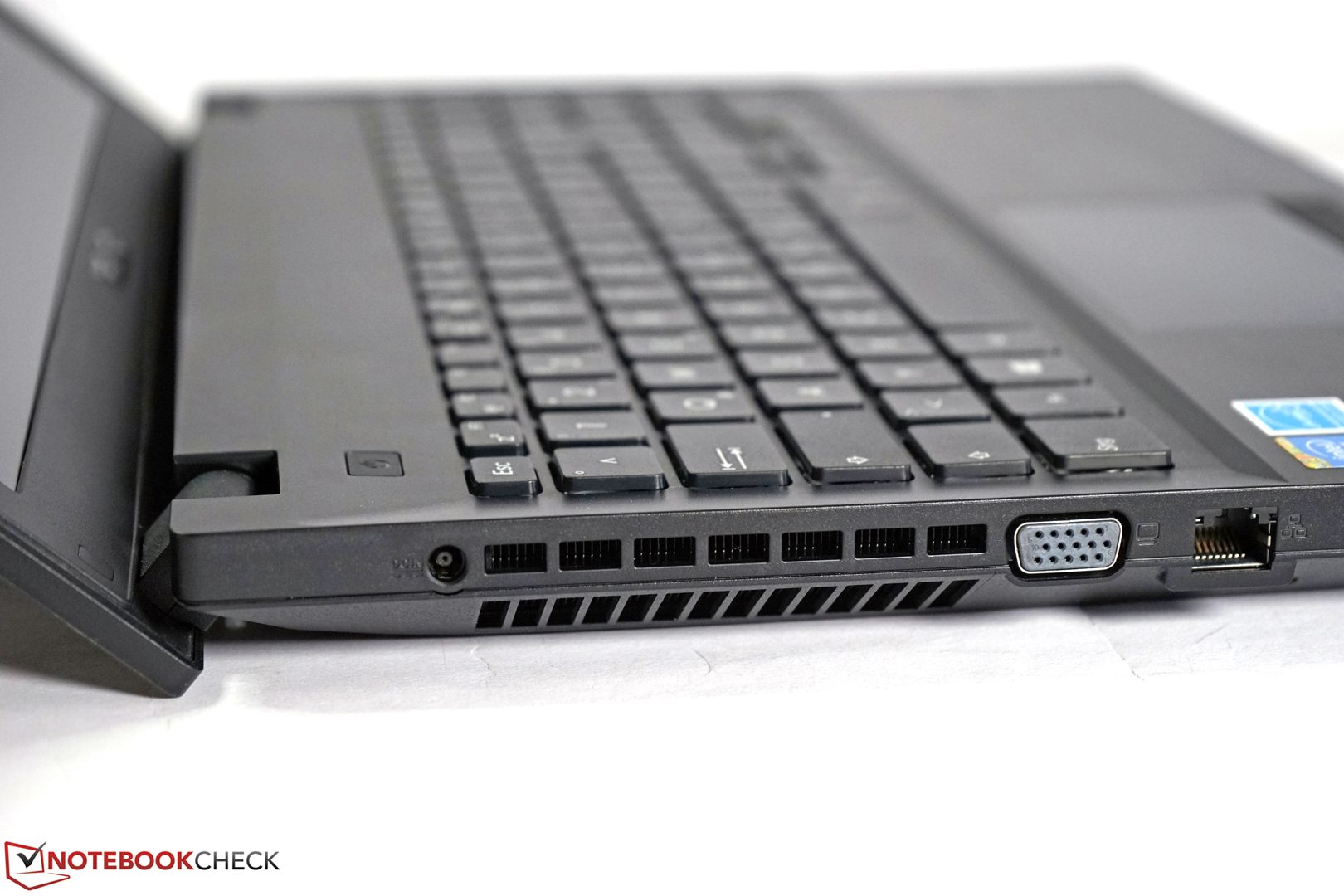

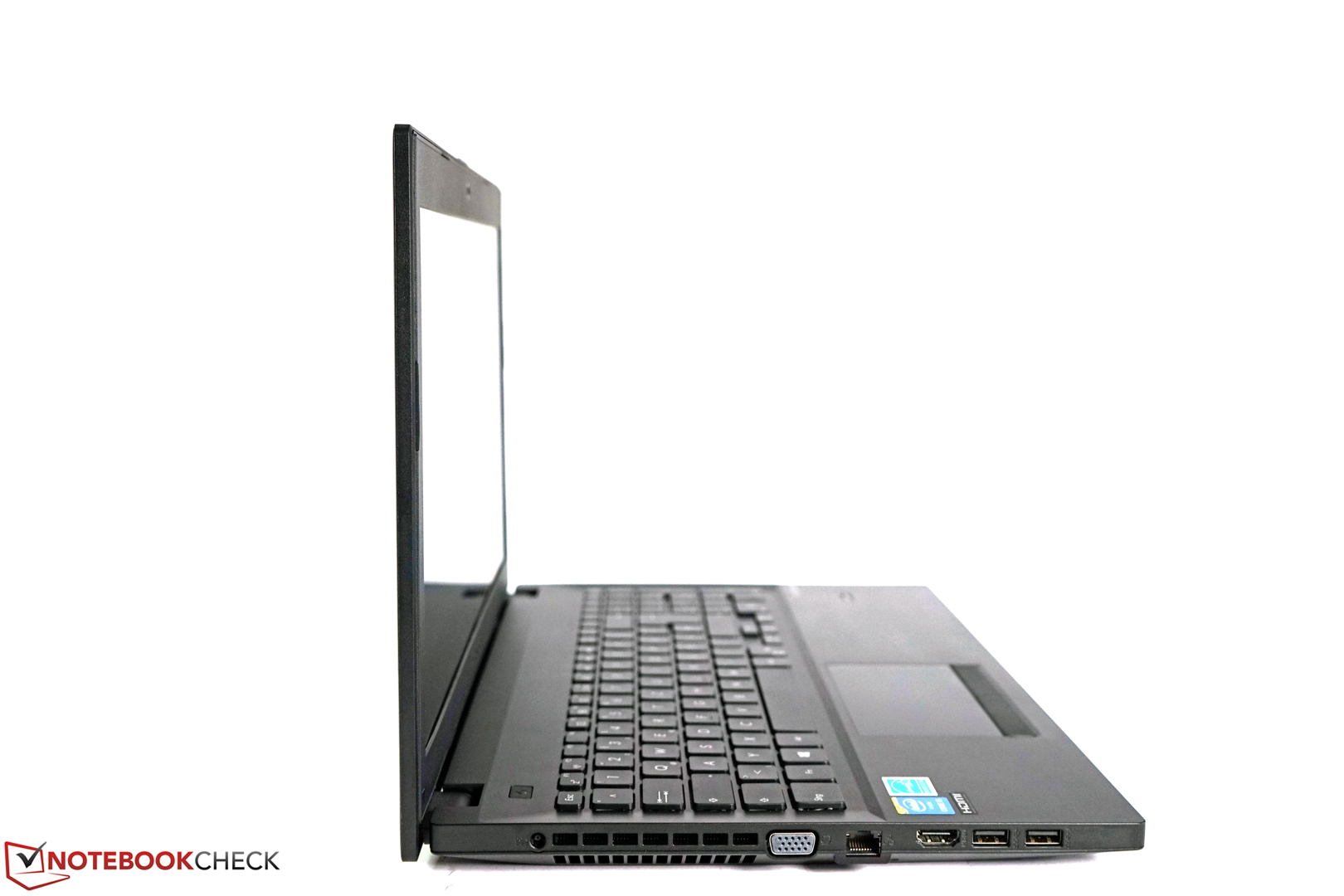

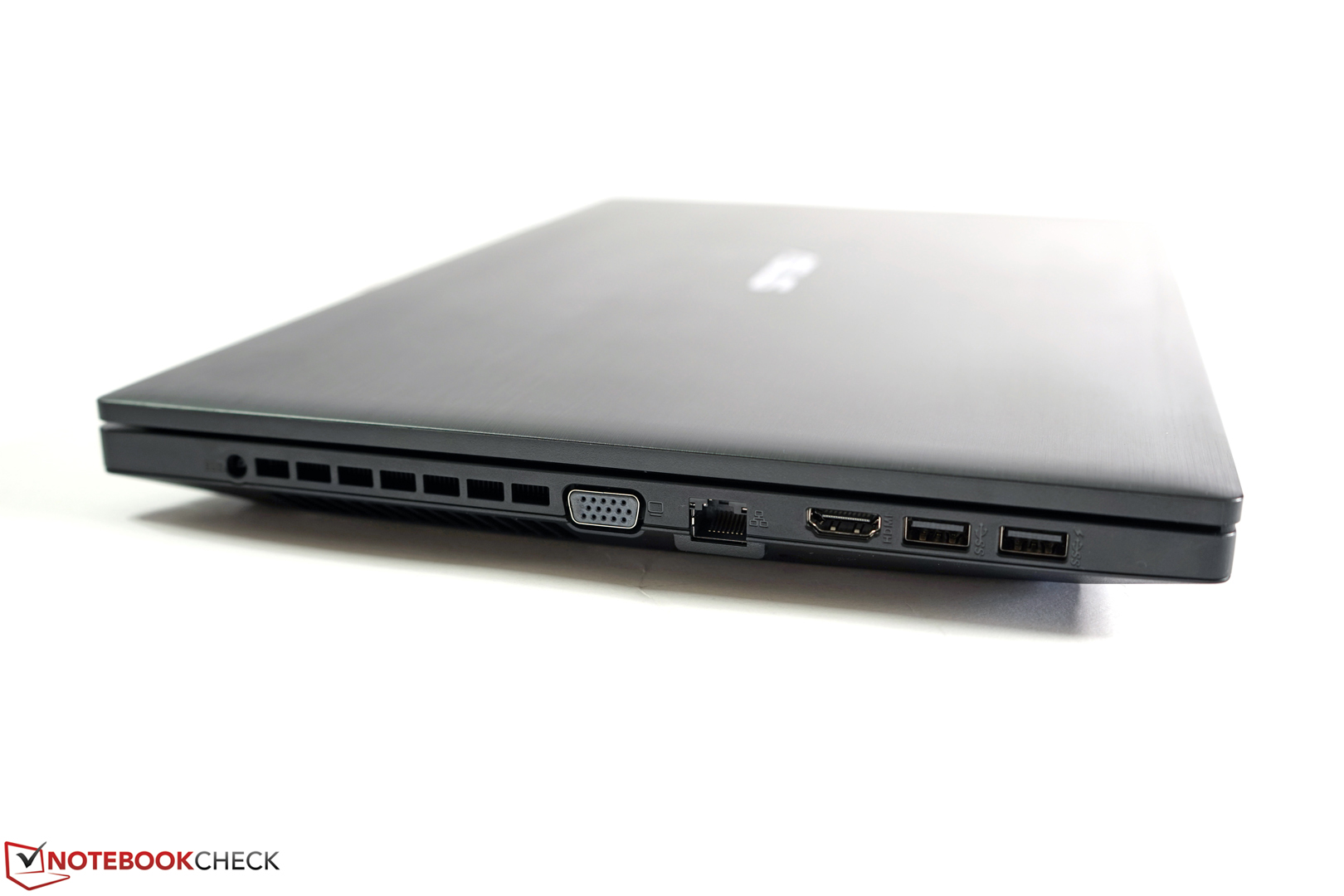

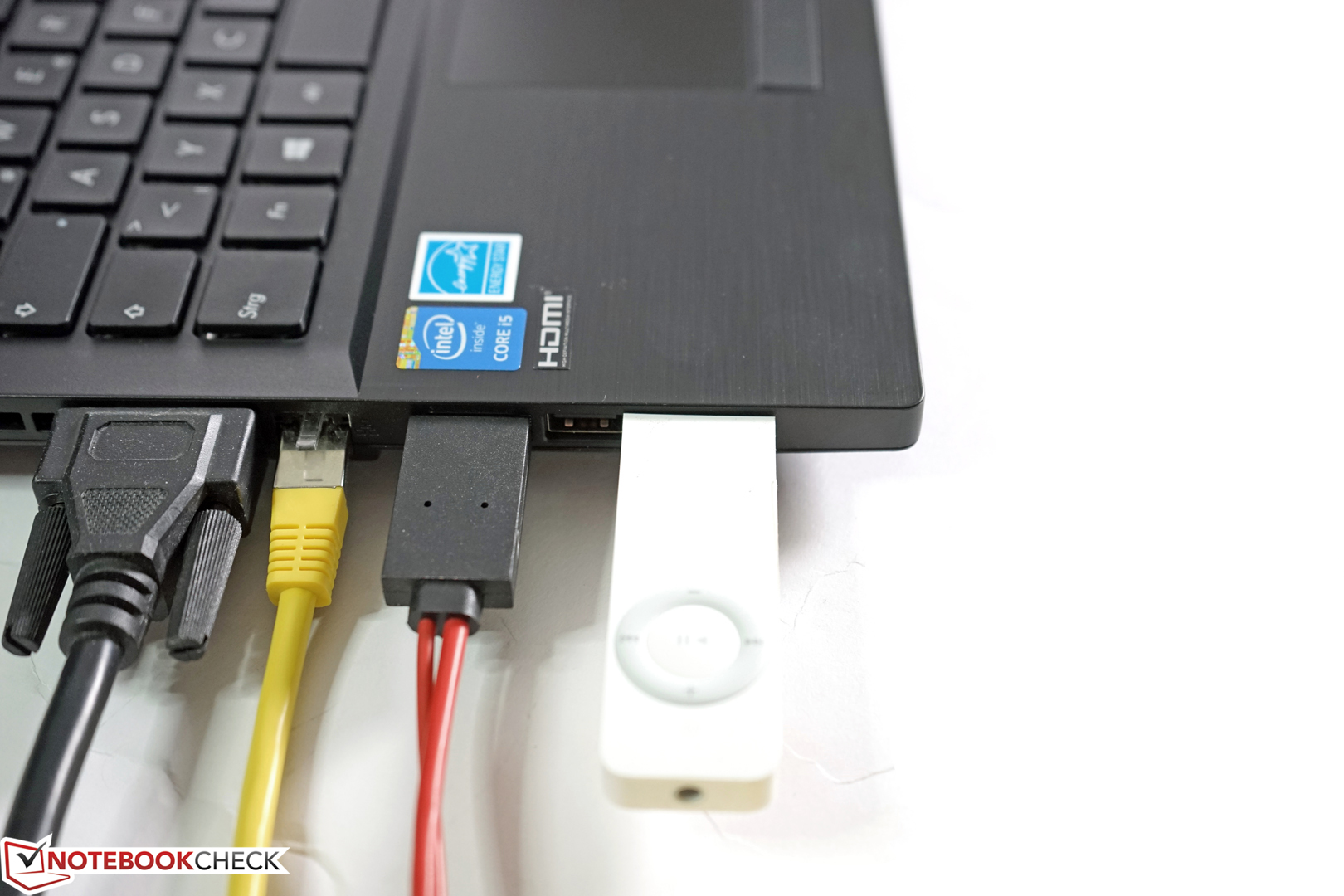

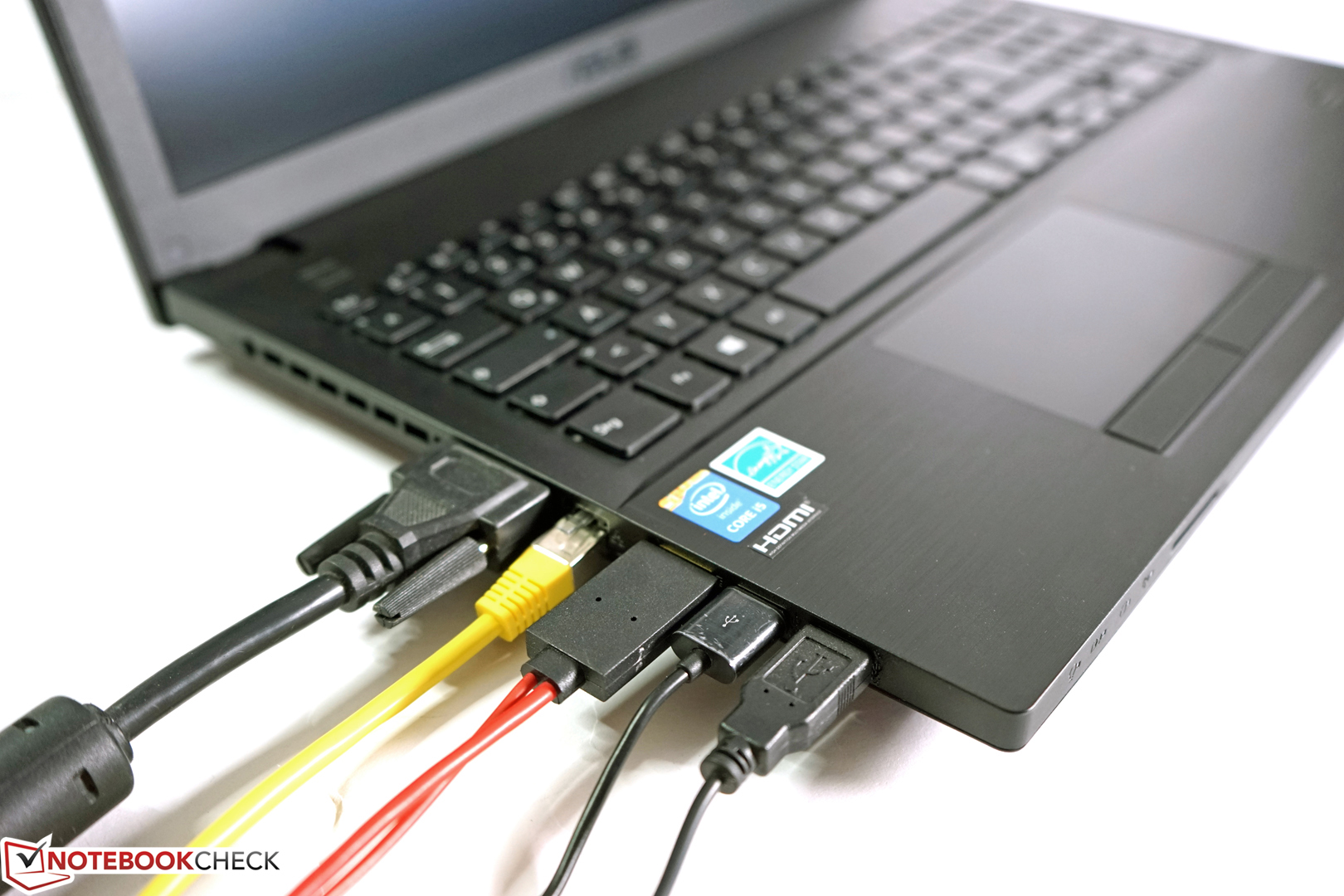

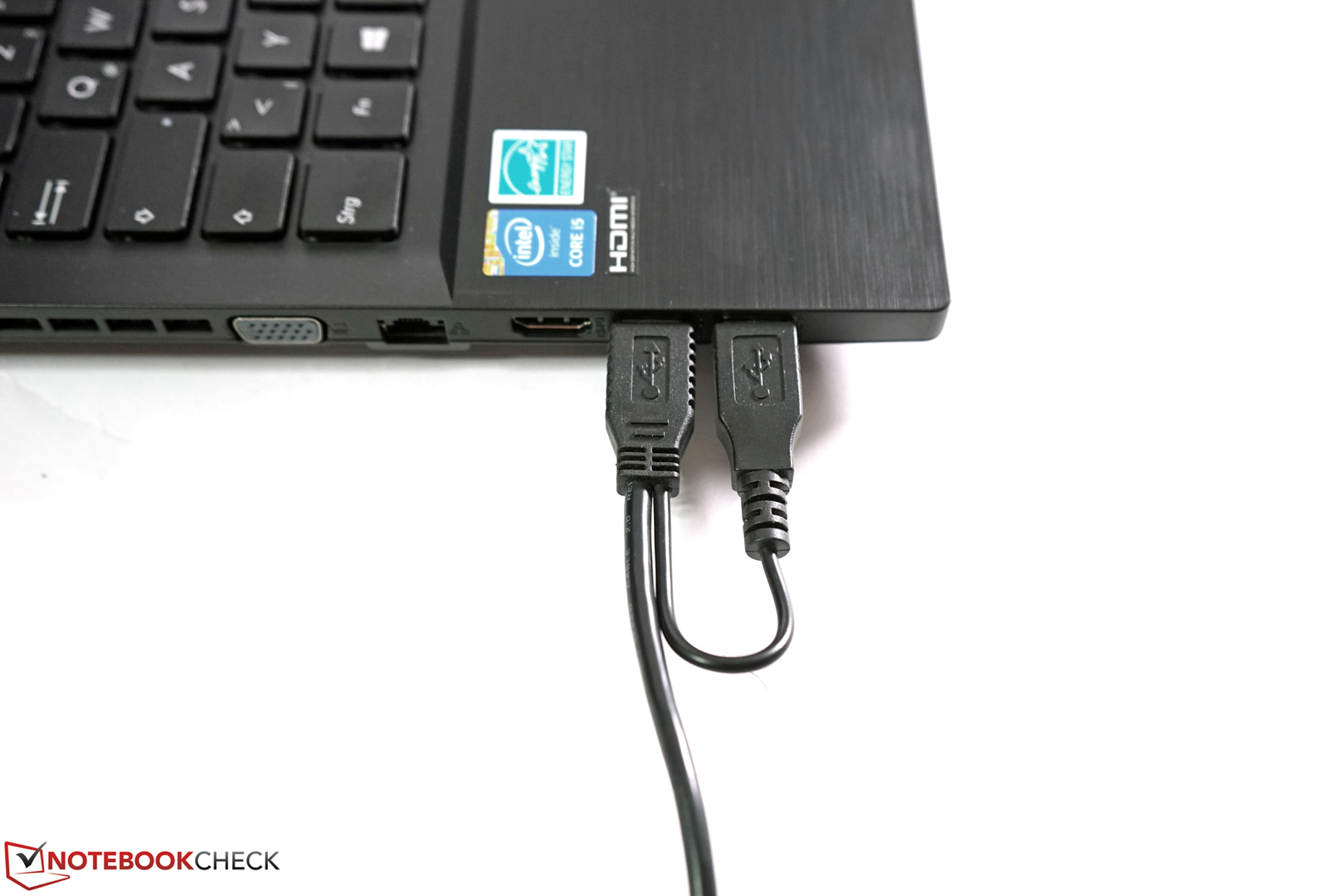

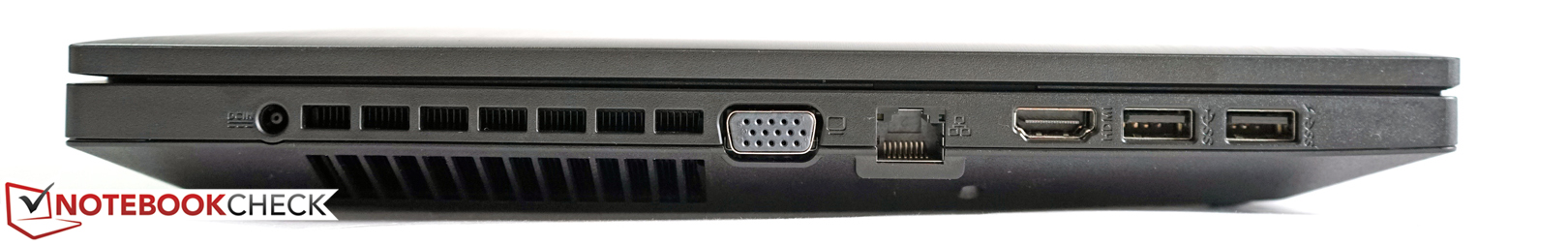

Left: power connection, VGA, LAN, HDMI, 2 x USB 3.0
Left: power connection, VGA, LAN, HDMI, 2 x USB 3.0

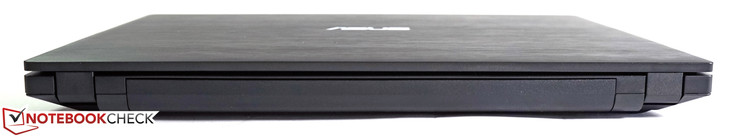

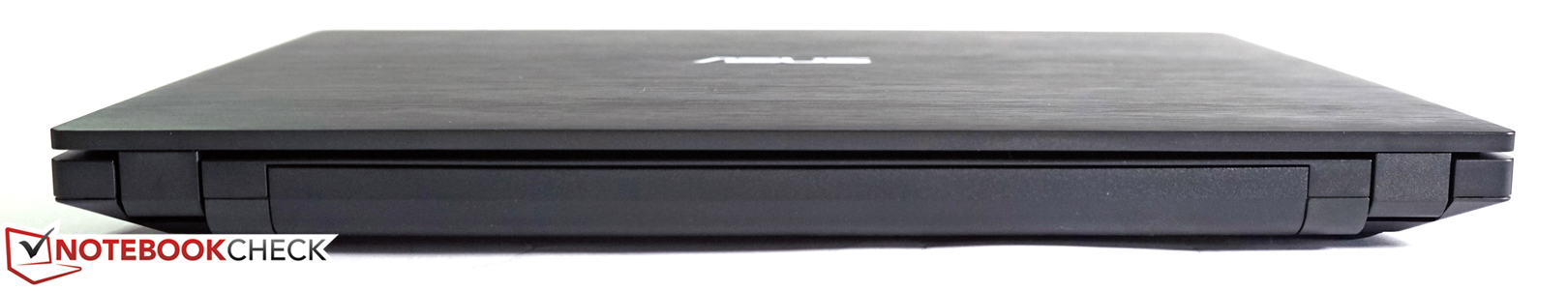

Back: no connections
Back: no connections

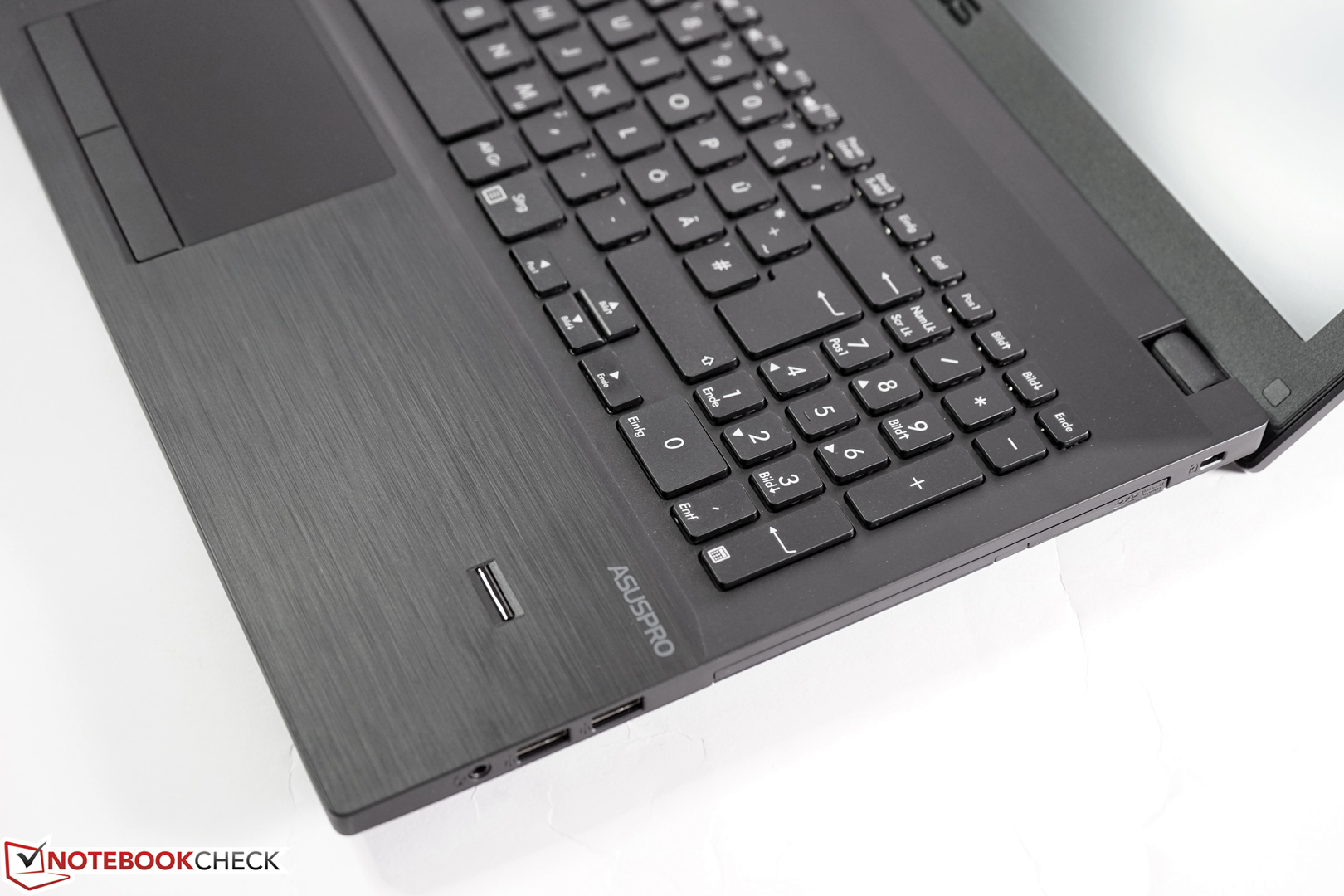

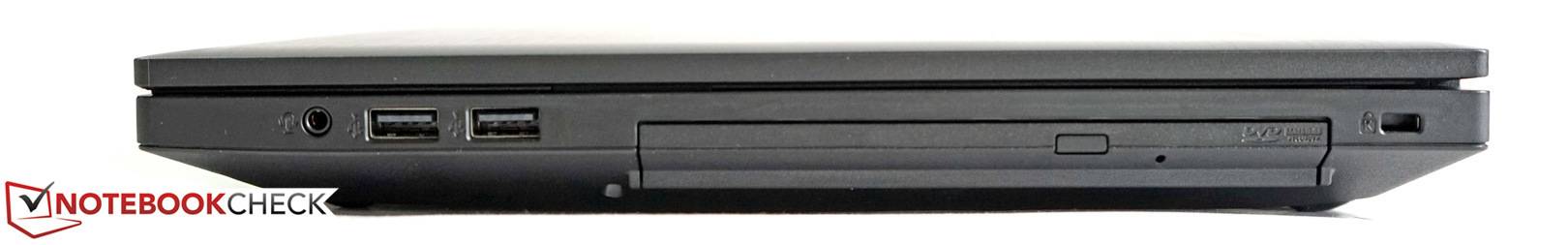

Right: combined audio in/out, 2 x USB 3.0, DVD drive, Kensington lock
Right: combined audio in/out, 2 x USB 3.0, DVD drive, Kensington lock
319
cd/m²
333
cd/m²
322
cd/m²
318
cd/m²
337
cd/m²
316
cd/m²
313
cd/m²
297
cd/m²
308
cd/m²
Distribution av ljusstyrkan
Samsung 156HL01_102 tested with X-Rite i1Pro 2
Max: 337 cd/m² (Nits) Medel: 318.1 cd/m²
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 342 cd/m²
Kontrast: 864:1 (Svärta: 0.39 cd/m²)
ΔE Color 4.5 | 0.5-29.43 Ø5
ΔE Greyscale 5.94 | 0.57-98 Ø5.3
96% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.5% sRGB (Argyll 2.2.0 3D)
67.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.32
Cinebench R10
Rendering Multiple CPUs 64Bit (sort by value)
Asus PU551JH
12149 Points
Lenovo ThinkPad W550s 20E2-000PGE
11616 Points -4%
HP ZBook 15 G2
24653 Points +103%
Lenovo ThinkPad T450s-20BWS1UT00
11244 Points -7%
Rendering Single CPUs 64Bit (sort by value)
Asus PU551JH
5582 Points
Lenovo ThinkPad W550s 20E2-000PGE
6100 Points +9%
HP ZBook 15 G2
6511 Points +17%
Lenovo ThinkPad T450s-20BWS1UT00
5424 Points -3%

Legend


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Lenovo ThinkPad W550s 20E2-000PGE Intel Core i7-5500U, NVIDIA Quadro K620M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4710MQ, AMD FirePro M5100, HGST Travelstar 5K1000 HTS541075A9E680

Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M, Samsung SSD PM871 MZ7LN256HCHP
Cinebench R10 Shading 32Bit
5727
Cinebench R10 Rendering Multiple CPUs 32Bit
10082
Cinebench R10 Rendering Single 32Bit
4276
Cinebench R10 Shading 64Bit
5424 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12149 Points
Cinebench R10 Rendering Single CPUs 64Bit
5582 Points
Cinebench R11.5 CPU Multi 64Bit
3.34 Points
Cinebench R11.5 OpenGL 64Bit
43.75 fps
Cinebench R11.5 CPU Single 64Bit
1.39 Points
Cinebench R15 CPU Multi 64Bit
302 Points
Cinebench R15 CPU Single 64Bit
119 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
50.3 fps
Hjälp
PCMark 7 Score
2905 poäng
PCMark 8 Home Score Accelerated v2
2343 poäng
PCMark 8 Creative Score Accelerated v2
2399 poäng
PCMark 8 Work Score Accelerated v2
3311 poäng
Hjälp

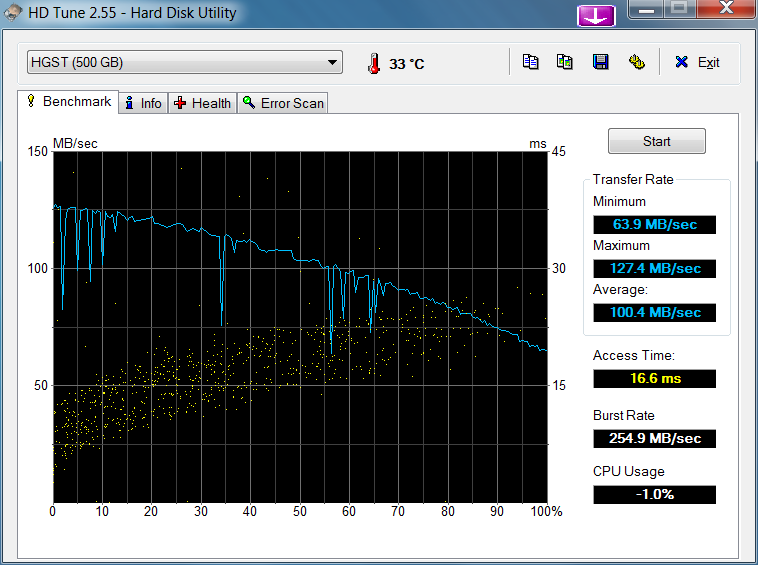

Hitachi Travelstar Z7K500 HTS725050A7E630
Överföringshastighet min.: 63.9 MB/s
Överföringshastighet max.: 127.4 MB/s
Överföringshastighet med.: 100.4 MB/s
Accesstid: 16.6 ms
Burst rate: 254.9 MB/s
CPU-användning: 1 %
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Asus PU551JH
23.39 fps
Dell Precision M2800
25.04 fps +7%
HP ZBook 17 E9X11AA-ABA
21.28 fps -9%
MSI WS60 2OJ8H11W7P
30.48 fps +30%
1920x1080 Tcvis (sort by value)
Asus PU551JH
27.27 fps
Dell Precision M2800
9.81 fps -64%
HP ZBook 17 E9X11AA-ABA
25.26 fps -7%
MSI WS60 2OJ8H11W7P
35.1 fps +29%
1920x1080 SolidWorks (sort by value)
Asus PU551JH
36.55 fps
Dell Precision M2800
47.75 fps +31%
HP ZBook 17 E9X11AA-ABA
36.1 fps -1%
MSI WS60 2OJ8H11W7P
42.18 fps +15%
1920x1080 Pro/ENGINEER (sort by value)
Asus PU551JH
12.9 fps
Dell Precision M2800
11 fps -15%
HP ZBook 17 E9X11AA-ABA
15.9 fps +23%
MSI WS60 2OJ8H11W7P
15.53 fps +20%
1920x1080 Maya (sort by value)
Asus PU551JH
45.88 fps
Dell Precision M2800
68.4 fps +49%
HP ZBook 17 E9X11AA-ABA
35.14 fps -23%
MSI WS60 2OJ8H11W7P
51.6 fps +12%
1920x1080 Lightwave (sort by value)
Asus PU551JH
45.89 fps
Dell Precision M2800
71.6 fps +56%
HP ZBook 17 E9X11AA-ABA
49.84 fps +9%
MSI WS60 2OJ8H11W7P
47.96 fps +5%
1920x1080 Ensight (sort by value)
Asus PU551JH
17.21 fps
Dell Precision M2800
19.94 fps +16%
HP ZBook 17 E9X11AA-ABA
17.02 fps -1%
MSI WS60 2OJ8H11W7P
23.89 fps +39%
1920x1080 Catia (sort by value)
Asus PU551JH
32.22 fps
Dell Precision M2800
26.24 fps -19%
HP ZBook 17 E9X11AA-ABA
28.32 fps -12%
MSI WS60 2OJ8H11W7P
41.31 fps +28%
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Asus PU551JH
24.72 fps
Dell Precision M2800
37.52 fps +52%
MSI WS60 2OJ8H11W7P
31.6 fps +28%
1900x1060 Siemens NX (snx-02) (sort by value)
Asus PU551JH
15.31 fps
Dell Precision M2800
23.52 fps +54%
MSI WS60 2OJ8H11W7P
21.95 fps +43%
1900x1060 Showcase (showcase-01) (sort by value)
Asus PU551JH
8.66 fps
Dell Precision M2800
12.75 fps +47%
MSI WS60 2OJ8H11W7P
10.61 fps +23%
1900x1060 Medical (medical-01) (sort by value)
Asus PU551JH
4.15 fps
Dell Precision M2800
5.84 fps +41%
MSI WS60 2OJ8H11W7P
5.69 fps +37%
1900x1060 Maya (maya-04) (sort by value)
Asus PU551JH
14 fps
Dell Precision M2800
22.75 fps +63%
MSI WS60 2OJ8H11W7P
17.77 fps +27%
1900x1060 Energy (energy-01) (sort by value)
Asus PU551JH
0.31 fps
Dell Precision M2800
0.35 fps +13%
MSI WS60 2OJ8H11W7P
0.32 fps +3%
1900x1060 Creo (creo-01) (sort by value)
Asus PU551JH
15.59 fps
Dell Precision M2800
18.8 fps +21%
MSI WS60 2OJ8H11W7P
19.88 fps +28%
1900x1060 Catia (catia-04) (sort by value)
Asus PU551JH
15.48 fps
Dell Precision M2800
19.33 fps +25%
MSI WS60 2OJ8H11W7P
21.2 fps +37%

Legend


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 17 E9X11AA-ABA Intel Core i7-4900MQ, NVIDIA Quadro K610M, Micron RealSSD C400 MTFDDAK128MAM

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Asus PU551JH
53 Samples/s
Dell Precision M2800
256 Samples/s +383%
MSI WS60 2OJ8H11W7P
73 Samples/s +38%
Wortmann Terra Mobile 1529H
166 Samples/s +213%
Sala GPUs-only (sort by value)
Asus PU551JH
113 Samples/s
Dell Precision M2800
462 Samples/s +309%
MSI WS60 2OJ8H11W7P
154 Samples/s +36%
Wortmann Terra Mobile 1529H
262 Samples/s +132%

Legend


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Wortmann Terra Mobile 1529H Intel Core i5-4200M, Intel HD Graphics 4600, Samsung SSD 840 EVO 250GB
3DMark 11 - 1280x720 Performance GPU (sort by value)
Asus PU551JH
1798 Points
Asus UX501JW-DS71T
5095 Points +183%
Dell Precision M2800
2315 Points +29%
3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus PU551JH
9615 Points
Asus UX501JW-DS71T
22468 Points +134%
Dell Precision M2800
12506 Points +30%
1920x1080 Fire Strike Graphics (sort by value)
Asus PU551JH
1347 Points
Asus UX501JW-DS71T
4063 Points +202%
Dell Precision M2800
1766 Points +31%

Legend


Asus PU551JH Intel Core i5-4210M, NVIDIA Quadro K1100M, Hitachi Travelstar Z7K500 HTS725050A7E630

Asus UX501JW-DS71T Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung SSD SM951 512 GB MZHPV512HDGL

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920
3DMark 06 Standard Score
11447 poäng
3DMark 11 Performance
1925 poäng
3DMark Ice Storm Standard Score
50820 poäng
3DMark Cloud Gate Standard Score
6559 poäng
3DMark Fire Strike Score
1285 poäng
Hjälp
låg med. hög ultra
Tomb Raider (2013) 103 58 40 16
Metro: Last Light (2013) 38 31 18 10
GRID: Autosport (2014) 205 75 36 17

Ljudnivå

Låg belastning
29.1 / 31.9 / 31.9 dB(A)
Hårddisk
31.9 dB(A)
Hög belastning
36.4 / 41.6 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   PCE-322A (15 cm avstånd)
Hög belastning
 28.5 °C30.4 °C24.1 °C
 31.4 °C36.1 °C26.9 °C
 25.7 °C30.4 °C25.1 °C
Max: 36.1 °C
Medel: 28.7 °C
24 °C26.3 °C28.5 °C
24.2 °C28.4 °C31.1 °C
25.3 °C25.8 °C25.1 °C
Max: 31.1 °C
Medel: 26.5 °C
Strömförsörjning (max.)  57.3 °C | Rumstemperatur 20 °C | Fennel Firt 550 Pocket
(+) The average temperature for the upper side under maximal load is 28.7 °C / 84 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 36.1 °C / 97 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(+) The bottom heats up to a maximum of 31.1 °C / 88 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.4 °C / 86.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-2.6 °C / -4.7 F).
Strömförbrukning
Av/Standbydarklight 0.1 / 0.3 Watt
Låg belastningdarkmidlight 7.4 / 11.7 / 12.6 Watt
Hög belastning midlight 54.7 / 78.4 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Voltcraft VC 870 Iso kalibriert
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
7tim 25min
WiFi Websurfing
4tim 27min
Big Buck Bunny H.264 1080p
4tim 31min
Hög belastning (maximal ljusstyrka)
1tim 29min

För

+ Chassi
+ Tangentbord
+ Skärm
+ Batteritid
+ Prestanda under belastning
+ CAD-prestanda
+ Full prestanda under batteridrift
+ Ljud/värme-nivåer

Emot

- Ej bakbelyst tangentbord
- "Företagsportar" saknas
- Hårddiskens prestanda
- Portlayout
- 4k-skärmar endast i 30 Hz
ASUSPRO PU551JH. Test model courtesy of Cyberport.de
ASUSPRO PU551JH. Test model courtesy of Cyberport.de

Trots vissa brister är ASUSPRO PU551JH en tilltalande mobil arbetsstation i instegsklassen. Huvudkomponenterna bildar en solid grund för yrkesmässiga arbetsuppgifter.

Skärmen, tangentbordet, systemets prestanda och i synnerhet CAD-prestandan är tillfredsställande för både proffs och amatörer. Om du letar efter en billig instegslösning med CAD-funktionalitet är ASUSPRO PU551JH ett bra val.

Vissa nackdelar får man ändå leva med tack vare det låga priset. Asus har inte inkluderat vare sig en snabb SSD eller ett bakgrundsbelyst tangentbord. Dessutom är portarnas placering opraktisk och vissa företagsfunktioner saknas. Om bristerna är acceptabla får köparen en övergripande bra arbetsstation till ett mycket rimligt pris.

Asus PU551JH - 03/17/2016 v5(old)
Tobias Winkler

Design
87 / 98 → 88%
Tangentbord
89%
Mus
82%
Anslutningar
53 / 81 → 65%
Vikt
60 / 10-66 → 89%
Batteri
77%
Skärm
87%
Spelprestanda
80%
Programprestanda
71%
Temperatur
94 / 95 → 99%
Ljudnivå
89 / 90 → 99%
Audio
48%
Camera
22 / 85 → 26%
Subjektivt intryck
+2%
Medel
66%
76%
Workstation - Vägt medel

Pricecompare

Please share our article, every link counts!
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Asus PU551JH Workstation (sammanfattning)
Tobias Winkler, 2015-06- 7 (Update: 2015-06- 7)
