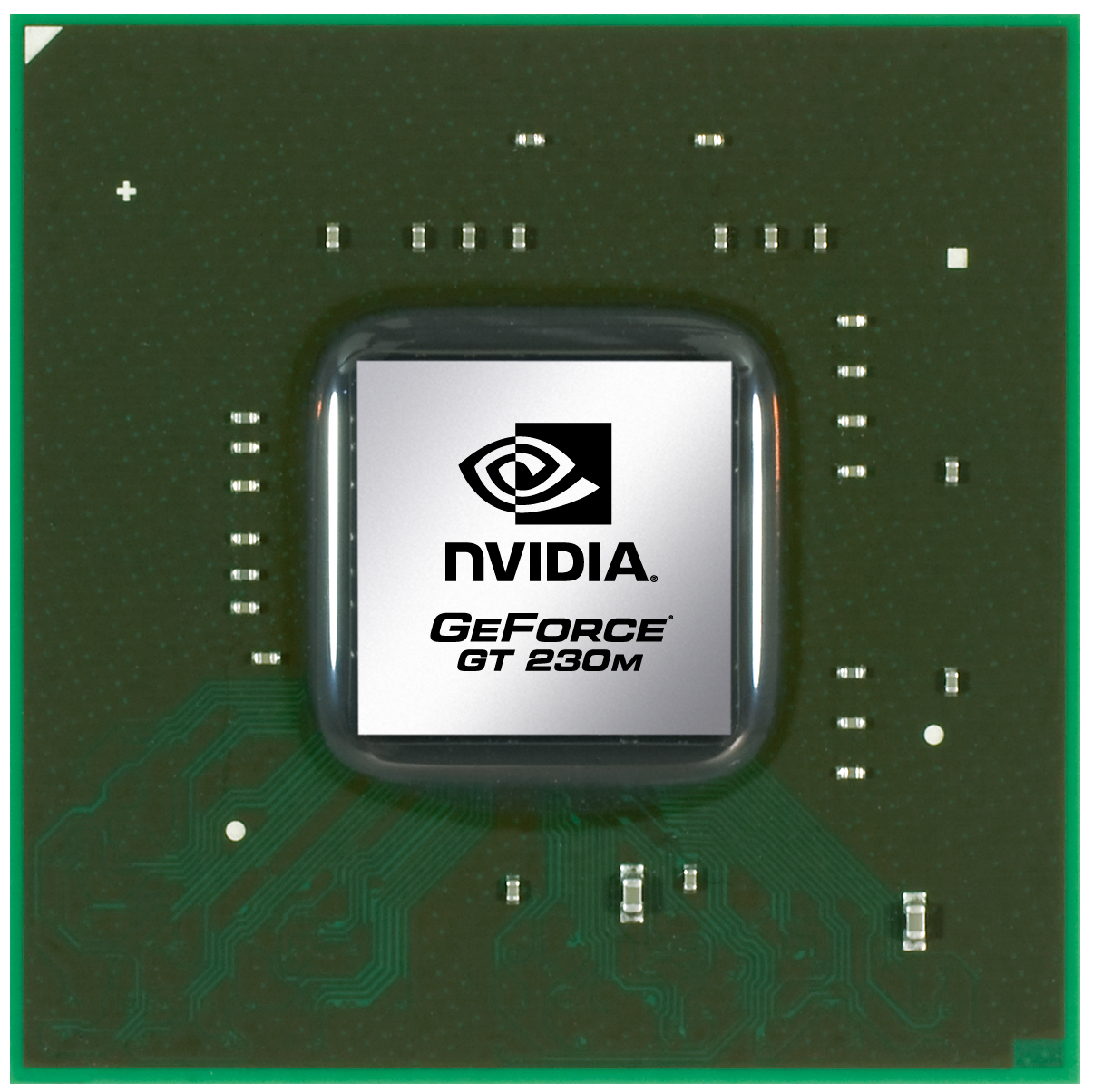

NVIDIA GeForce GT 230M
Nvidia GeForce GT 230M är ett DirectX 10.1-kompatibelt grafikkort för bärbara datorer som bygger på GT216-kärnan. Eftersom det har 48 grafikkärnor bör det prestera märkbart bättre än föregångaren GT 130M, men med ungefär samma strömförbrukning tack vare den nyare tillverkningsprocessen (40nm).
Kärnan i GT 230M heter GT216 och enligt Nvidia är den baserad på GTX 200-serien. Dessutom har Nvidia förbättrat mikro-arkitekturen för ytterligare energibesparing och bättre prestanda. Prestandan per grafikkärna är alltså bättre än i den tidigare generationen.
Precis som GeForce 9700M GTS har GT 230M 48 streamprocessorer (eller CUDA-kärnor) och inte några dedikerade pixel-och vertex-shaders som de föregående generationerna. Arkitekturen i Nvidias grafikkretsar är 1-dimensionell (AMD har 5-dimensionella shaders vilket ger ett högre antal).
GeForce GT230M stöder CUDA, DirectCompute, OpenCL och PhysX, som kan användas för andra uppgifter än bara spelgrafik (som kodning av video, beräkning av fysik i spel, matematiska uppgifter m.m). För sådana beräkningar kan en GPU vara märkbart snabbare än vanliga processorer.
Prestandan med GT 230M bör vara någonstans mellan GeForce GT 130M och 9700M GTS och något lägre än GT 240M på grund av den lägre klockhastigheten. Krävande DirectX 10-spel från 2009 som Crysis bör kunna spelas med medelhöga inställningar, medan äldre och/eller mindre krävande spel kan spelas i hög upplösning. Se nedan för mer specifika speltester.
Beroende på vilken sorts grafikminne som används av grafikkortet (GDDR2, GDDR3 eller DDR2/DDR3) kan prestandan variera en hel del.
GeForce GT 200M Serie Kodnamn N10P-GE Arkitektur GT2xx Pipelines 48 - unified Kärnhastighet 500 MHz Shaderhastighet 1100 MHz Minneshastighet 800 MHz Minnesbuss 128 Bit Minnestyp GDDR2, GDDR3 Max. minne 1024 MB Delat minne nej API DirectX 10.1, Shader 4.1 Strömförbrukning 23 Watt Teknologi 40 nm Funktioner DirectX Compute Support (Windows 7), CUDA, OpenCL, HybridPower, PhysX Laptopstorlek medelstor Lanseringsdatum 15.06.2009 Information 158 Gigaflops Länk till tillverkarens hemsida www.nvidia.de
Prestandatester 2363 Points (1%)
...
AMD Radeon HD 8610G
NVIDIA NVS 4200M
Intel HD Graphics 505
AMD Radeon HD 8350G
...
max:
NVIDIA T600
3DM Vant. Perf. GPU no PhysX + 3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
2012 Points (1%)
...
Intel UHD Graphics 600
AMD Radeon HD 8450G
Intel HD Graphics (Haswell)
NVIDIA NVS 4200M
AMD Radeon R2 (Stoney Ridge)
Intel HD Graphics 4200
Intel HD Graphics 505
Intel HD Graphics (Broadwell)
...
max:
3DMark 2001SE - 3DMark 2001 - Standard
min: 21391 avg: 21596 median: 21595.5 (22%) max: 21800 Points
...
Intel HD Graphics 515
ATI Mobility Radeon HD 5470
NVIDIA GeForce 410M
Intel HD Graphics 2500
NVIDIA GeForce Go 7600 GT
NVIDIA GeForce 9500M GS
ATI Mobility Radeon HD 2700
NVIDIA GeForce 8600M GT
NVIDIA GeForce Go 7700
NVIDIA GeForce GT 120M
ATI Mobility Radeon HD 3650
NVIDIA NVS 3100M
...
max:
NVIDIA GeForce GTX 1050 (Desktop)
3DMark 03 - 3DMark 03 - Standard
min: 15333 avg: 15989 median: 15514 (8%) max: 17121 Points
VIA S3 Graphics ProSavage8
...
NVIDIA GeForce GT 130M
Intel HD Graphics 615
...
NVIDIA GeForce GTX 1080 Mobile
3DMark 05 - 3DMark 05 - Standard
min: 10397 avg: 10689 median: 10403 (11%) max: 11266 Points
Intel Graphics Media Accelerator (GMA) 500
...
NVIDIA GeForce Go 7800 GTX SLI
NVIDIA GeForce GT 130M
AMD Radeon R5 M335
...
max:
3DMark 06 3DMark 06 - Standard 1280x1024 +
5647 Points (7%)
Modell CPU GPU RAM Värde 3DMark 06 - Standard 1280x1024 Sony Vaio VPC-CW1S1E (3DMark 06 - Standard 1280x1024) P7450 GeForce GT 230M 0.5 GB 4 GB 5647
...
AMD Radeon HD 8550G + HD 8670M Dual Graphics
NVIDIA GeForce Go 7800 GTX SLI
AMD Radeon R6 M340DX
AMD Radeon R5 M240
AMD Radeon HD 8650G + HD 8670M Dual Graphics
AMD Radeon R5 M335
...
max:
3DMark 06 - Standard 1280x768 +
min: 5676 avg: 6000 median: 6000 (8%) max: 6324 Points
Modell CPU GPU RAM Värde 3DMark 06 - Standard 1280x768 Sony Vaio CW (3DMark 06 - Standard 1280x768) P7450 GeForce GT 230M 450 / 680 MHz 0.5 GB 4 GB 5676 Toshiba Satellite A500-1DN (3DMark 06 - Standard 1280x768) T6600 GeForce GT 230M 500 / 790 MHz 1 GB 4 GB 6324
Intel Graphics Media Accelerator (GMA) 3150
...
NVIDIA GeForce GT 120M
NVIDIA GeForce GT 130M
AMD Radeon R5 M330
Intel HD Graphics 615
...
Cinebench R10 Cinebench R10 Shading (32bit) + Cinebench R10 - Cinebench R10 Shading (32bit)
min: 2529 avg: 2819 median: 2819 (2%) max: 3109 poäng
Intel Graphics Media Accelerator (GMA) 500
...
NVIDIA GeForce 9300M GS
NVIDIA GeForce 9300M G
ATI Mobility Radeon HD 2400 XT
ATI Mobility Radeon HD 2600
Intel HD Graphics 405 (Braswell)
Intel HD Graphics 505
Intel HD Graphics 500
NVIDIA GeForce 410M
NVIDIA GeForce 310M
AMD Radeon R4 (Stoney Ridge)
AMD Radeon HD 8400
...
- Bredd på benchmark-värden för det här grafikkortet
- Genomsnittliga benchmark-värden för det här grafikkortet
* Smaller numbers mean a higher performance
Speltester Följande tester/benchmarks kommer från våra laptoprecensioner. Prestandan beror på typen av grafikminne, klockfrekvens, processor, systeminställningar och operativsystem. Resultaten är därför inte nödvändigtvis representativa för alla bärbara datorer med denna GPU. För detaljerad information om resultaten, klicka på fps-värdet.
...
ATI Mobility Radeon HD 5470
ATI Mobility Radeon HD 4570
...
...
NVIDIA GeForce 310M
NVIDIA GeForce G210M
ATI Mobility Radeon HD 4570
ATI Mobility Radeon HD 5430
ATI Mobility Radeon HD 5470
...
...
ATI Mobility Radeon HD 5430
NVIDIA GeForce 310M
NVIDIA GeForce G210M
ATI Mobility Radeon HD 5470
...
» Spelbart med alla testade laptops med inställningen låg
Intel Graphics Media Accelerator (GMA) 4500MHD
...
...
...
ATI Mobility Radeon HD 4550
Intel HD Graphics 4200
ATI Mobility Radeon HD 545v
NVIDIA NVS 4200M
...
» Spelbart med alla testade laptops med inställningen låg
...
...
...
ATI Mobility Radeon HD 5470
NVIDIA GeForce 410M
NVIDIA NVS 4200M
...
ATI Mobility Radeon HD 4570
...
ATI Mobility Radeon HD 5470
NVIDIA GeForce GT 415M
NVIDIA GeForce 410M
NVIDIA NVS 4200M
...
» Spelbart med alla testade laptops med inställningen låg
Intel Graphics Media Accelerator (GMA) 4500MHD
...
NVIDIA GeForce 9400M (G) / ION (LE)
Intel Graphics Media Accelerator (GMA) HD Graphics
NVIDIA GeForce G 105M
Intel HD Graphics 2000
AMD Radeon HD 6310
NVIDIA GeForce G 102M
NVIDIA GeForce G210M
NVIDIA NVS 3100M
ATI Mobility Radeon HD 4330
ATI Mobility Radeon HD 5470
NVIDIA GeForce 310M
...
...
NVIDIA NVS 4200M
NVIDIA GeForce 410M
NVIDIA GeForce GT 130M
...
max:
NVIDIA GeForce GTX 590
» Spelbart med alla testade laptops med inställningen låg
...
Intel HD Graphics 2000
ATI Mobility Radeon HD 4530
ATI Mobility Radeon X1900
ATI Mobility Radeon HD 4570
NVIDIA GeForce GT 130M
ATI Mobility Radeon HD 5470
...
Intel Graphics Media Accelerator (GMA) 4500MHD
...
NVIDIA GeForce G210M
ATI Mobility Radeon HD 4570
ATI Mobility Radeon HD 5470
ATI Mobility Radeon X1900
NVIDIA GeForce GT 130M
...
...
ATI Mobility Radeon HD 4570
NVIDIA GeForce G210M
ATI Mobility Radeon HD 5470
NVIDIA GeForce GT 130M
ATI Mobility Radeon X1900
...
» Spelbart med alla testade laptops med inställningen med.
Intel HD Graphics (Sandy Bridge)
...
NVIDIA GeForce G 105M
NVIDIA GeForce G 102M
AMD Radeon HD 6520G
ATI Mobility Radeon X1900
ATI Mobility Radeon HD 4570
NVIDIA GeForce GT 130M
ATI Mobility Radeon HD 5470
...
...
NVIDIA GeForce G 105M
AMD Radeon HD 8240
AMD Radeon HD 6520G
ATI Mobility Radeon HD 4530
ATI Mobility Radeon X1900
ATI Mobility Radeon HD 4570
ATI Mobility Radeon HD 5470
NVIDIA GeForce GT 130M
...
...
NVIDIA GeForce 9400M (G) / ION (LE)
ATI Mobility Radeon X1900
ATI Mobility Radeon HD 5470
ATI Mobility Radeon HD 4570
NVIDIA GeForce GT 130M
...
» Spelbart med alla testade laptops med inställningen låg
Intel Graphics Media Accelerator (GMA) 4500MHD
...
NVIDIA GeForce 8600M GS
ATI Mobility Radeon HD 3650
NVIDIA GeForce 8600M GT
ATI Mobility Radeon HD 4530
NVIDIA GeForce G210M
NVIDIA GeForce 9500M GS
Intel HD Graphics 2500
NVIDIA GeForce 8600M GT SLI
NVIDIA NVS 3100M
AMD Radeon HD 6520G
ATI Mobility Radeon HD 5470
NVIDIA GeForce GT 130M
...
...
ATI Mobility Radeon HD 545v
NVIDIA GeForce GT 130M
AMD Radeon HD 6520G
...
Intel Graphics Media Accelerator (GMA) 4500M
...
AMD Radeon HD 6520G
NVIDIA GeForce GT 130M
...
max:
AMD Radeon HD 6870
» Spelbart med alla testade laptops med inställningen låg
Additional Benchmarks
High 800x600
22.4 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Low 0xAF 0xAA 800x600
46.2 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Med 0xAF 0xAA 800x600
31.6 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Low 1366x768
36 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Medium 1366x768
21.4 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
High 1366x768
13.4 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Very High 1024x768
9.8 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Intel Graphics Media Accelerator (GMA) 4500MHD
...
ATI Mobility Radeon HD 4530
NVIDIA GeForce G210M
NVIDIA NVS 3100M
ATI Mobility Radeon HD 545v
AMD Radeon HD 6520G
ATI Mobility Radeon HD 5470
NVIDIA GeForce 8600M GT SLI
NVIDIA GeForce GT 130M
...
25 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
34 [X] Toshiba Satellite A500-1DN Intel Core 2 Duo T6600 2.2GHz
GeForce GT 230M
~ 30 fps
+ Jämför
- Dölj jämförelse
...
AMD Radeon HD 6520G
NVIDIA GeForce GT 130M
ATI Mobility Radeon HD 545v
...
...
AMD Radeon HD 6520G
ATI Mobility Radeon HD 545v
NVIDIA GeForce GT 130M
...
» Spelbart med alla testade laptops med inställningen låg
Additional Benchmarks
Med 0xAF 0xAA 800x600
29.8 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Low 0xAF 0xAA 800x600
51 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
High 0xAF 0xAA 800x600
19.9 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Low 1366x768
38.3 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Medium 1366x768
21 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
High 1366x768
12.7 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Very High 1024x768
9 [X] Sony Vaio CW Intel Core 2 Duo P7450 2.1GHz
GeForce GT 230M
Intel Graphics Media Accelerator (GMA) 500
...
ATI Mobility Radeon X2500
ATI Mobility Radeon HD 3670
NVIDIA GeForce GT 130M
NVIDIA GeForce G 105M
...
Intel Graphics Media Accelerator (GMA) 500
...
NVIDIA GeForce GT 130M
NVIDIA GeForce G210M
Intel Graphics Media Accelerator (GMA) 500
...
NVIDIA GeForce GT 130M
NVIDIA GeForce 8600M GS
...
» Spelbart med alla testade laptops med inställningen hög
...
ATI Mobility Radeon HD 3650
NVIDIA GeForce GT 130M
NVIDIA GeForce Go 7700
NVIDIA GeForce 9500M GS
ATI Mobility Radeon HD 3670
...
» Spelbart med alla testade laptops med inställningen hög
För att se fler spel som kan vara spelbara och se en lista med alla spel och grafikkort, besök vår spellista
v1.26
log 13. 02:02:37
#0 no ids found in url (should be separated by "_") +0s ... 0s
#1 not redirecting to Ajax server +0s ... 0s
#2 did not recreate cache, as it is less than 5 days old! Created at Wed, 10 Apr 2024 05:36:42 +0200 +0.001s ... 0.001s
#3 no comparison url found in template nbc.compare_page_1 needed +0.049s ... 0.05s
#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.051s
#5 composed specs +0s ... 0.051s
#6 did output specs +0s ... 0.051s
#7 start showIntegratedCPUs +0s ... 0.051s
#8 getting avg benchmarks for device 1295 +0.018s ... 0.069s
#9 got single benchmarks 1295 +0.031s ... 0.1s
#10 got avg benchmarks for devices +0s ... 0.1s
#11 min, max, avg, median took s +0.278s ... 0.378s
#12 before gaming benchmark output +0s ... 0.378s
#13 Got 32 rows for game benchmarks. +0.006s ... 0.384s
#14 composed SQL query for gamebenchmarks +0s ... 0.384s
#15 got data and put it in $dataArray +0.006s ... 0.39s
#16 benchmarks composed for output. +0.32s ... 0.71s
#17 no comparison url found in template nbc.compare_page_1 needed +0.002s ... 0.712s
#18 return log +0s ... 0.712s
Inga recensioner med det här grafikkortet hittades.
Please share our article, every link counts!
» Jämförelse av grafikkort Detaljerad lista av alla grafikkort för bärbara datorer med en kort beskrivning. Sorterade och klassificerade efter prestanda.
» Benchmarklista Interaktiv lista av alla GPU:er med tillhörande prestandatester (t.ex. 3DMark).
» Kompatibla spel Vilka spel kan jag spela med grafikkortet i min bärbara dator?
Klass 1 Quadro RTX 6000 (Laptop)
GeForce RTX 2080 Super Mobile
Klass 2 GeForce RTX 2080 Mobile
Quadro RTX 5000 (Laptop)
M1 Max 32-Core GPU *
GeForce RTX 2070 Super Mobile
M1 Max 24-Core GPU *
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
Radeon RX 5700M *
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
Quadro P5200
Quadro RTX 3000 (Laptop) *
Quadro RTX 3000 Max-Q *
Quadro P4200
Quadro P5000 Max-Q *
GeForce GTX 1660 Ti Max-Q
Quadro M5500
Quadro P4000
Quadro T2000 (Laptop) *
GeForce GTX 1060 Mobile
Radeon RX 5500M
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
Klass 3 Vega M GH
Radeon Pro Vega 20
GeForce GTX 1050 Ti Mobile
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
T500 Laptop GPU *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
FirePro W7170M
GeForce GTX 1050 Max-Q *
Radeon 660M
Radeon Pro WX 4150 *
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Radeon RX 460 (Laptop)
Quadro P1000
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
Quadro P600
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon Pro WX 3100 *
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro P500 *
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 750
GeForce MX230
Vega 7
Radeon R7 M465
GeForce 940MX
Vega 8
Iris Plus Graphics G4 (Ice Lake 48 EU)
Quadro M600M
FirePro W4190M
Radeon R9 M375
Radeon R7 M445
Iris Plus Graphics 650
Radeon 625
Vega 6 *
Iris Plus Graphics 645
Iris Plus Graphics 640
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M360
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 610
Radeon 610M *
Vega 6 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics Xe 16EUs (Tiger Lake-H) *
Radeon R5 (Bristol Ridge)
Adreno 690 *
Adreno 685 *
Adreno 680 *
Radeon R5 M330
GeForce 910M
Klass 4 UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
UHD Graphics 617
UHD Graphics 615
HD Graphics 615
HD Graphics 515
UHD Graphics 610
UHD Graphics 605
HD Graphics 505
Radeon R4 (Stoney Ridge)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600
HD Graphics 500
HD Graphics 405 (Braswell)
Klass 5 * Ungefärlig placering för grafikkretsen
Jesper Berg (Update: 2012-08- 1)
